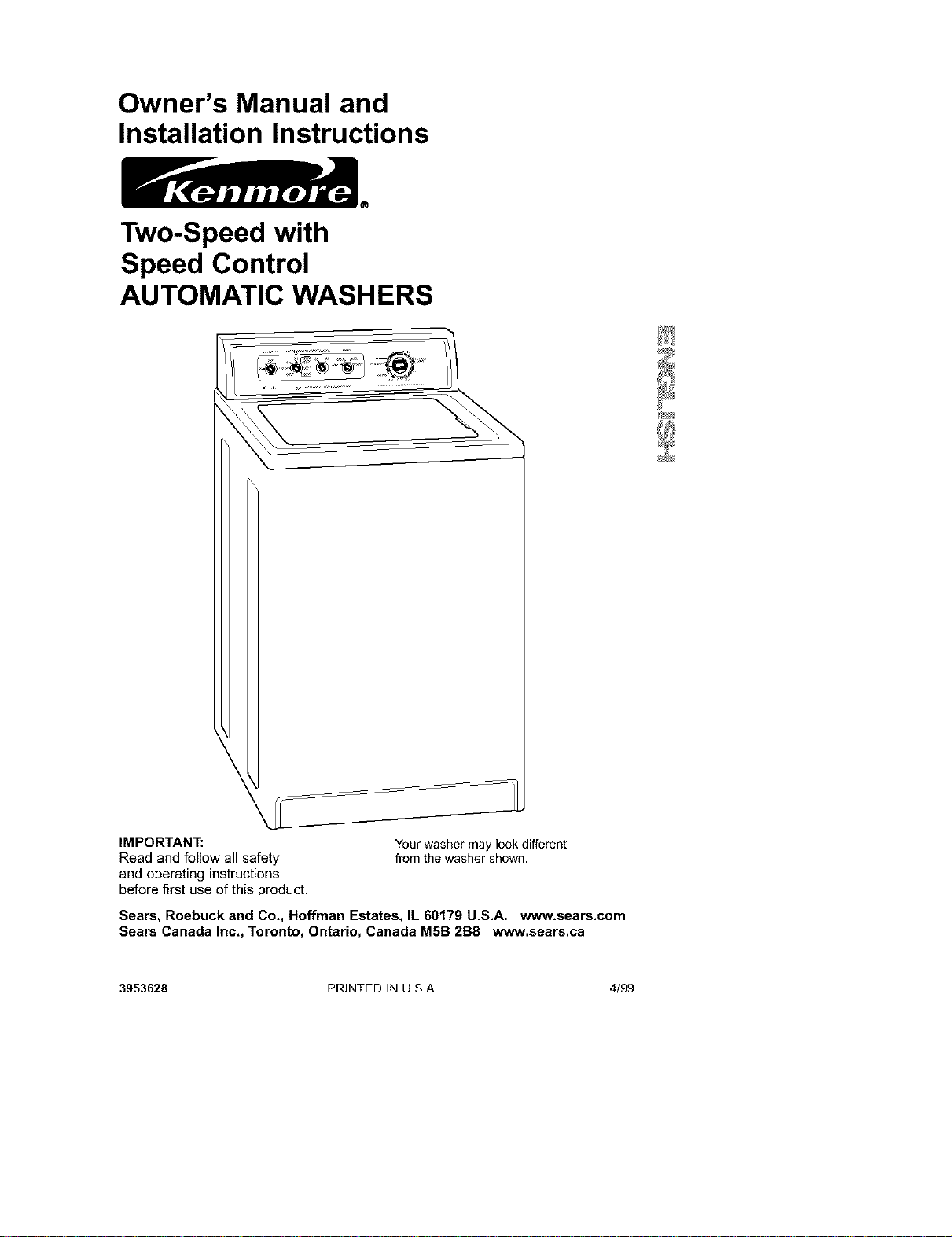

Owner's Manual and
Installation Instructions
Two-Speed with
Speed Control
®
AUTOMATIC WASHERS
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Your washer may look different
from the washer shown.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca
3953628 PRINTED IN U.S.A. 4/99

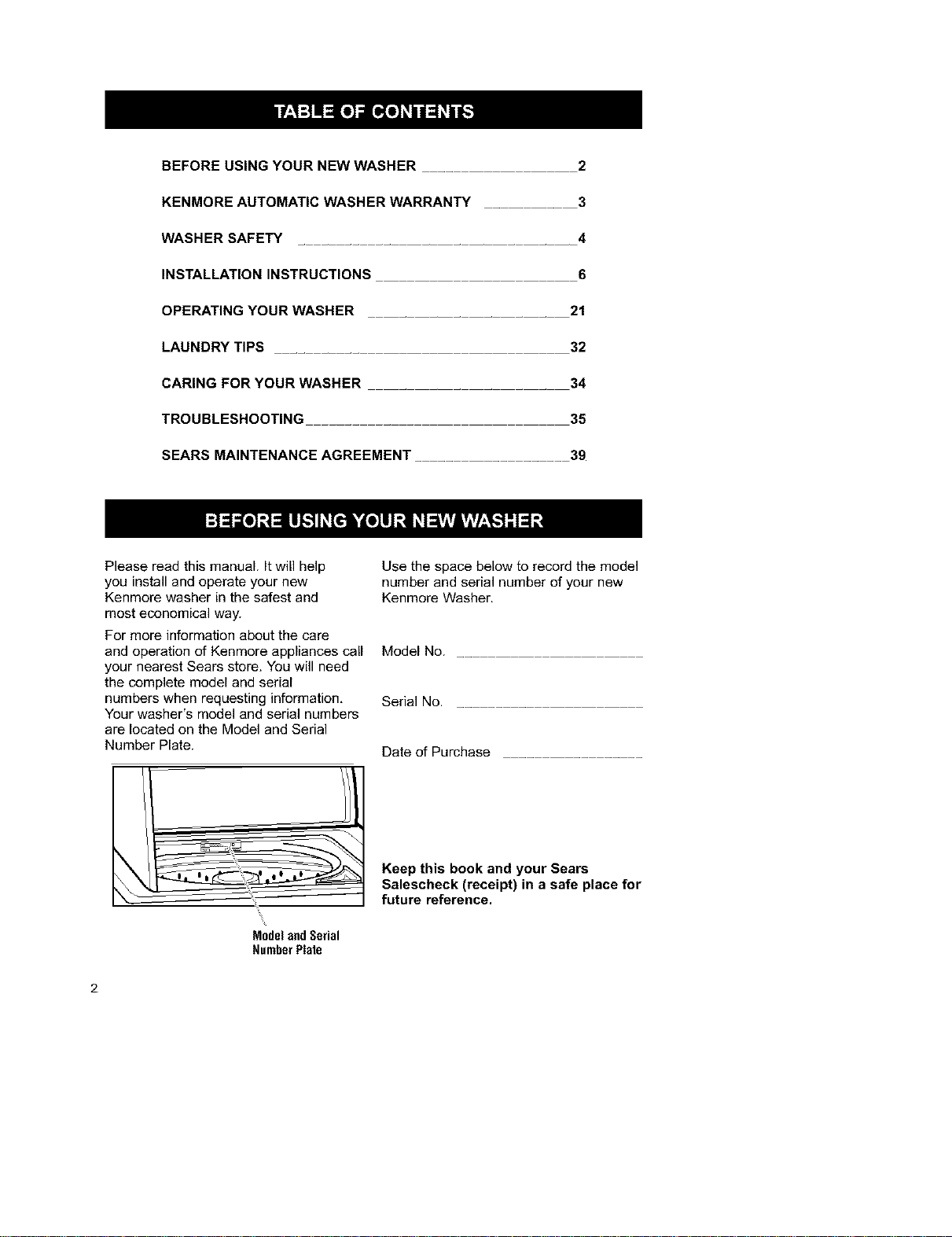

BEFORE USING YOUR NEW WASHER __ _ 2
KENMORE AUTOMATIC WASHER WARRANTY 3
WASHER SAFETY ............ 4
INSTALLATION INSTRUCTIONS 6
OPERATING YOUR WASHER 21

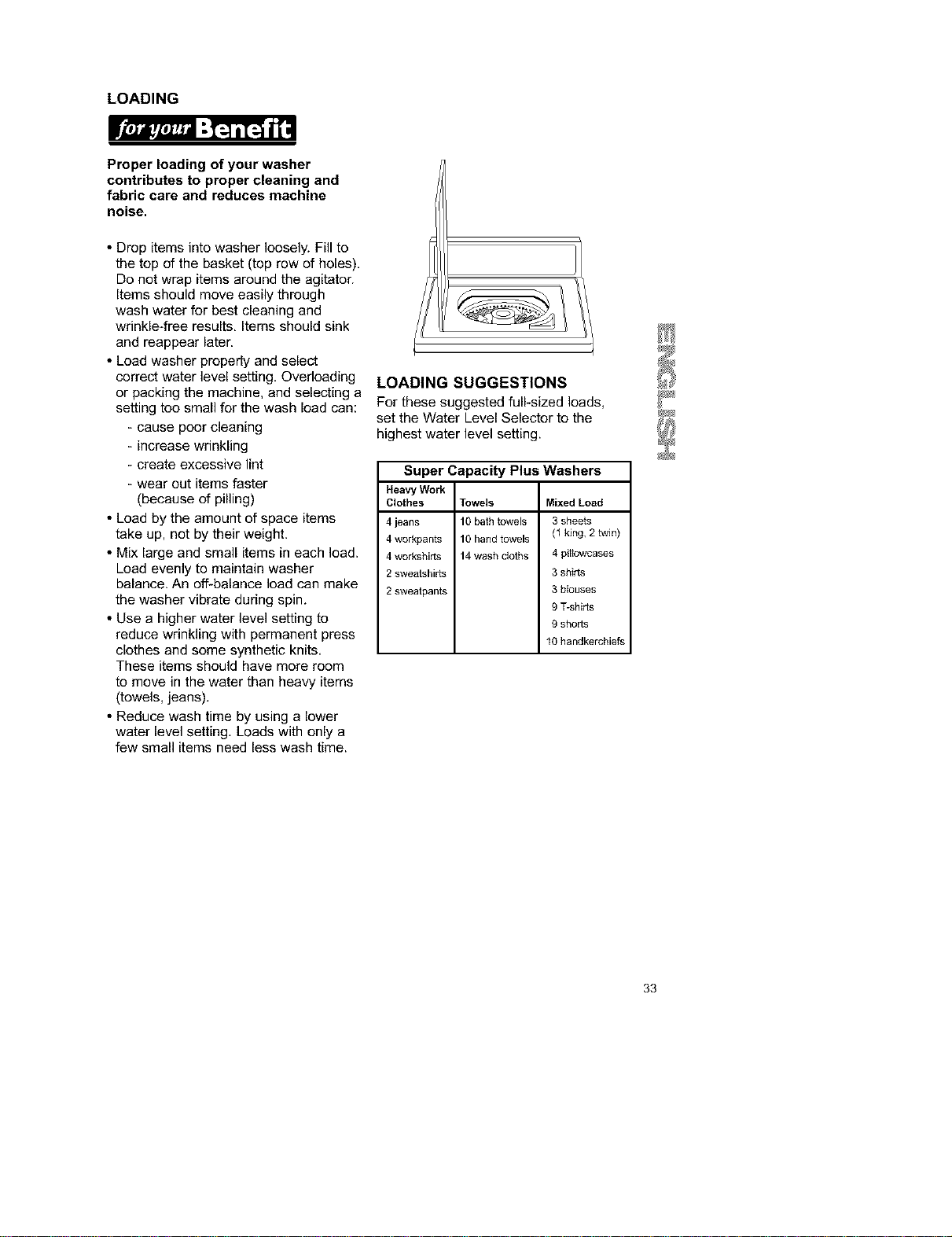

LAUNDRY TIPS ..... 32

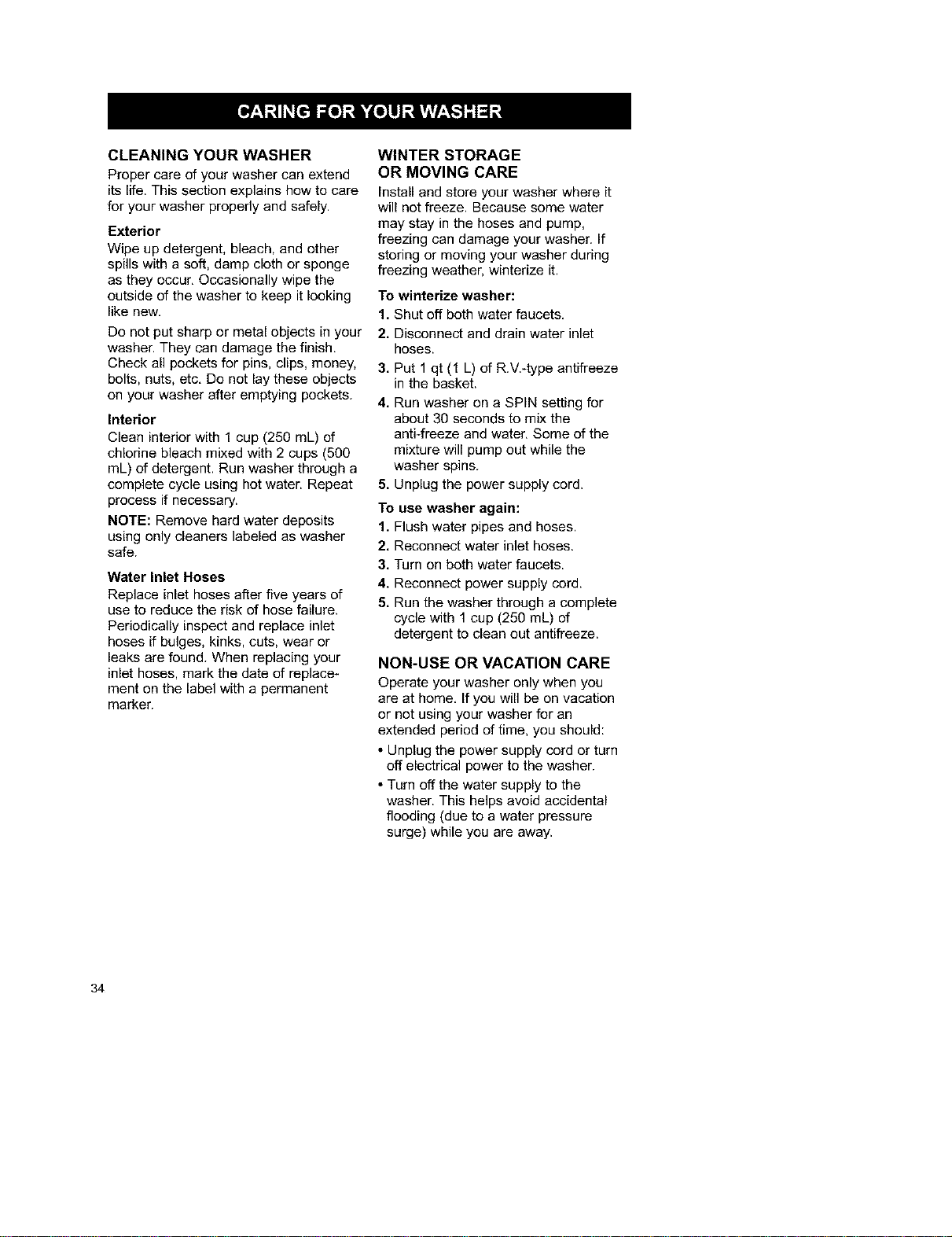

CARING FOR YOUR WASHER 34

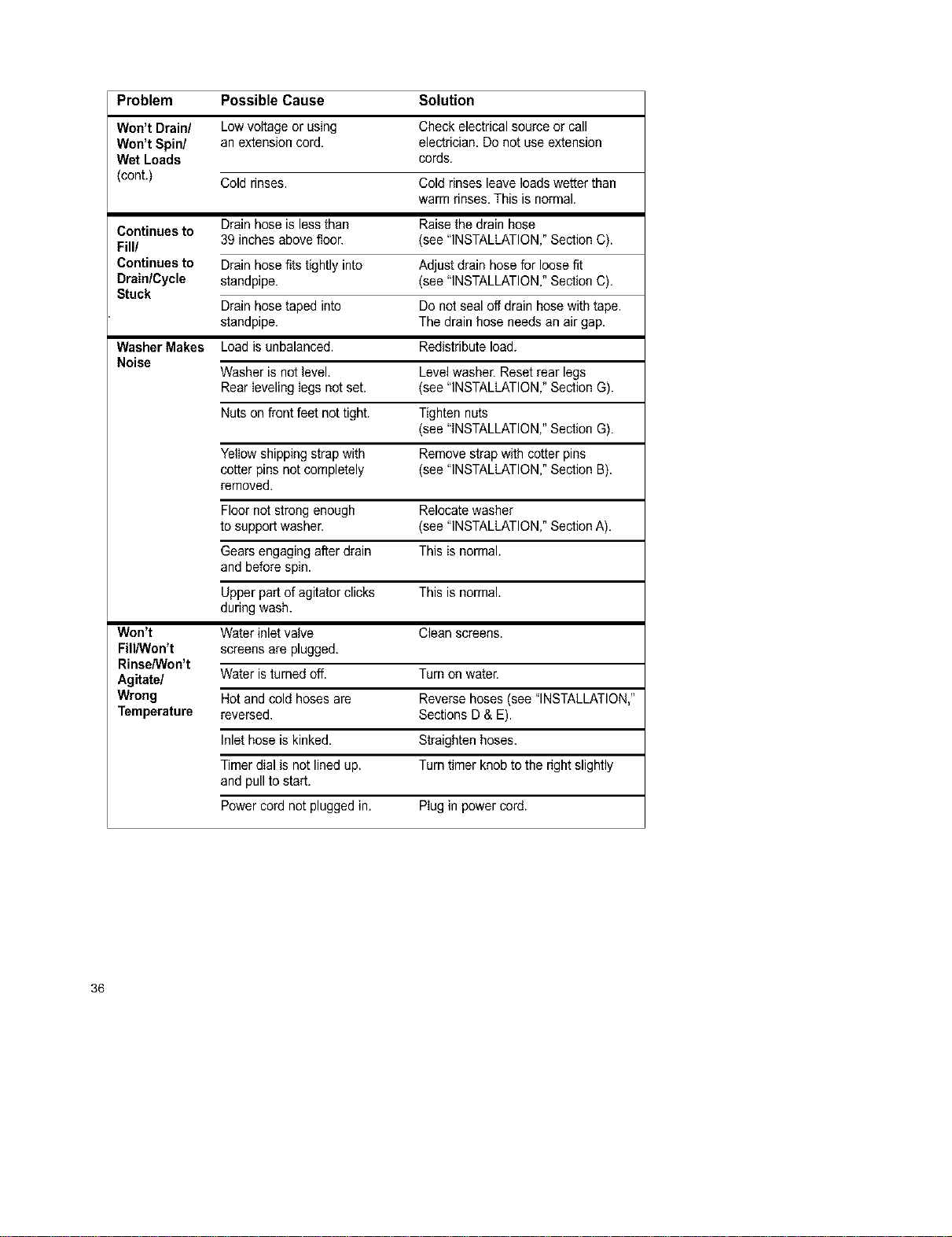

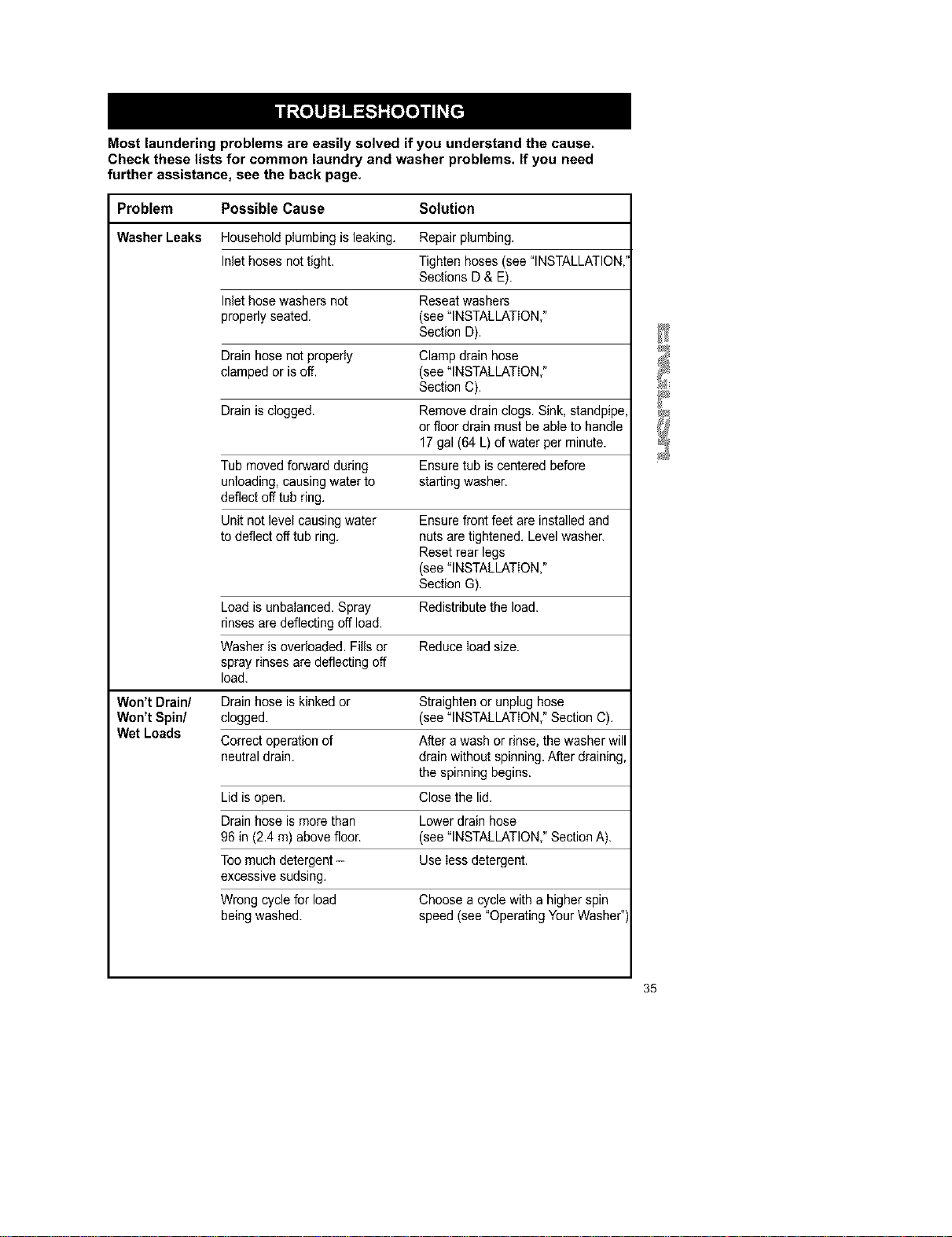

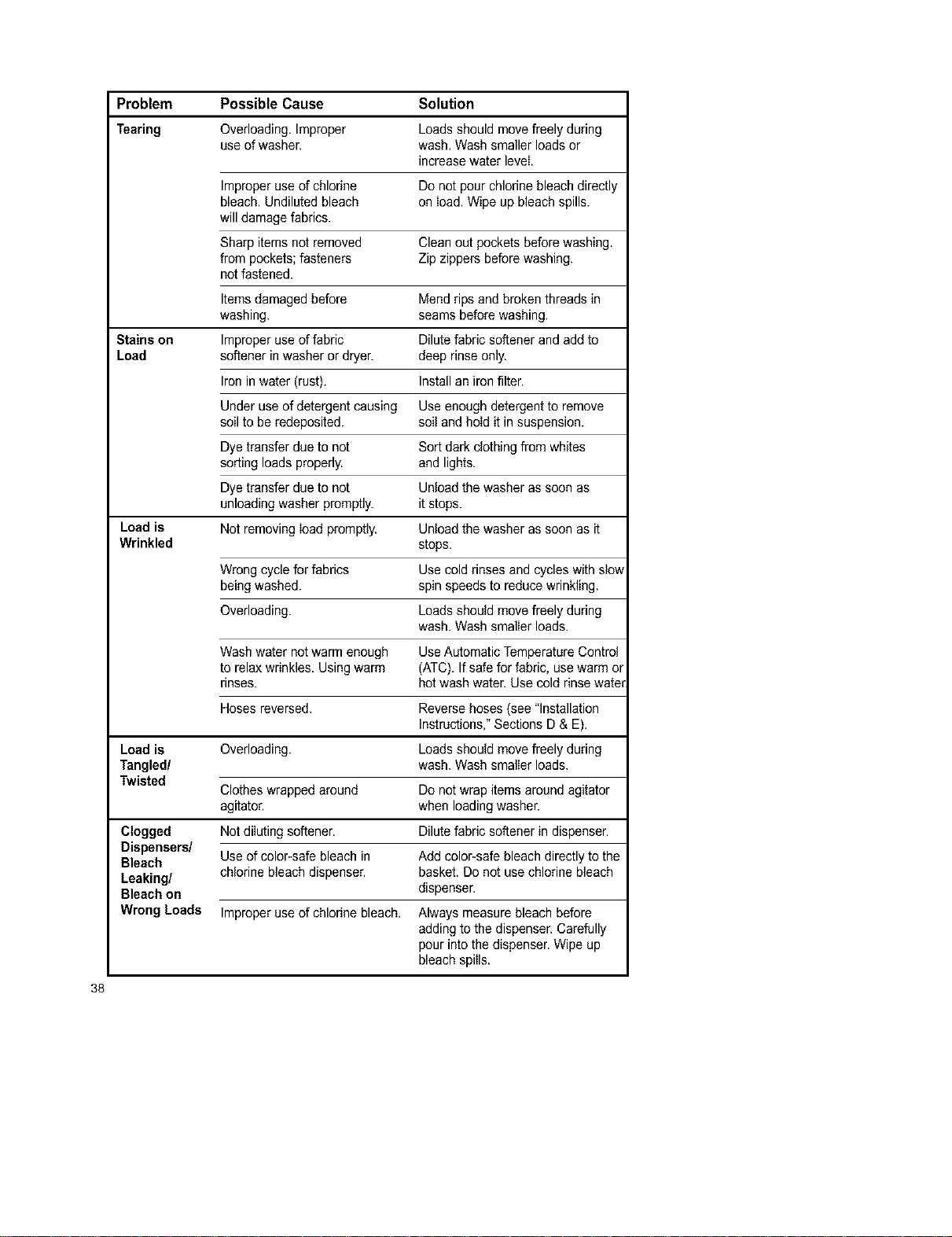

TROUBLESHOOTING ....... 35

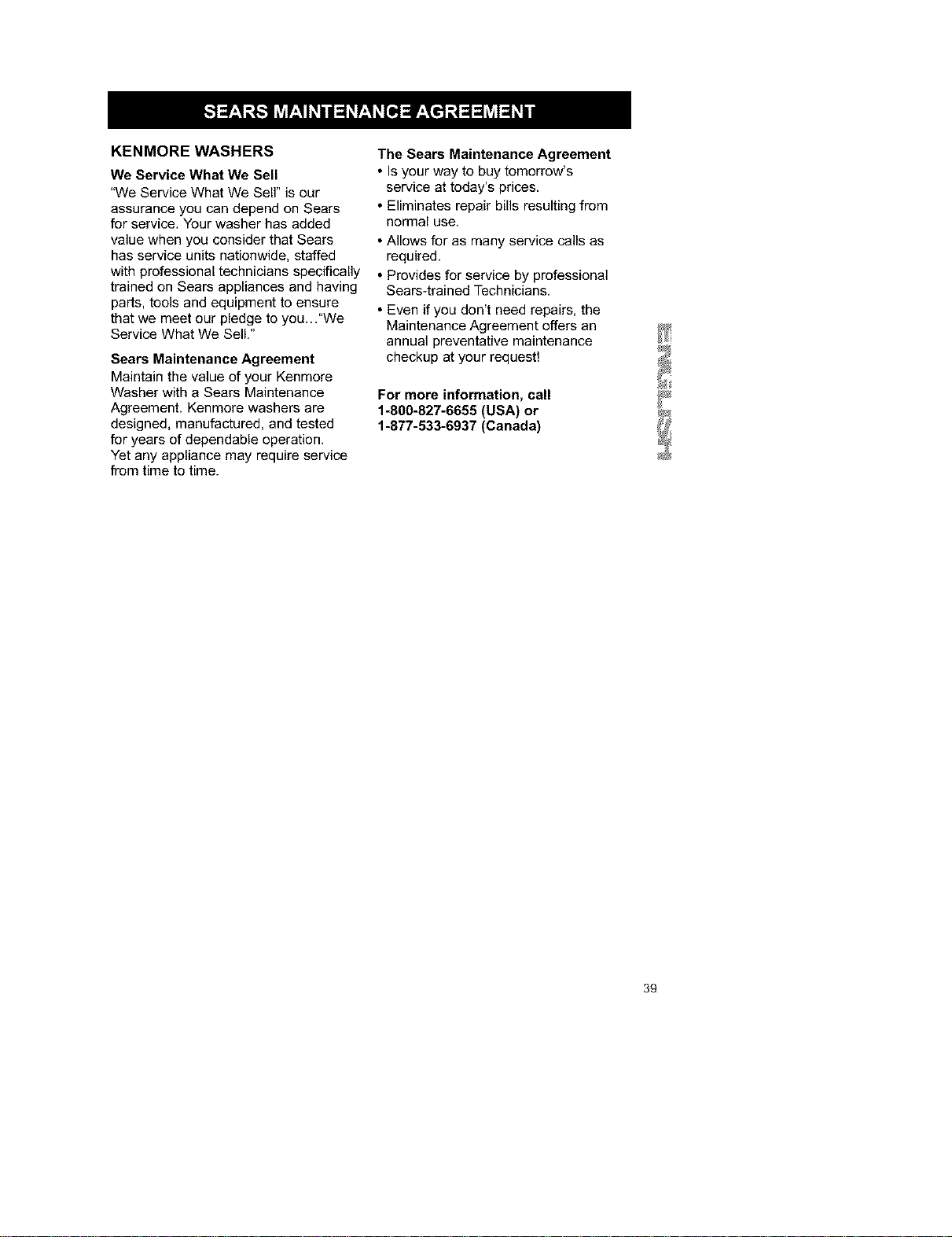

SEARS MAINTENANCE AGREEMENT 39
Please read this manual. Itwill help
you install and operate your new
Kenmore washer in the safest and
most economical way.
For more information about the care
and operation of Kenmore appliances call
your nearest Sears store. You will need
the complete model and serial
numbers when requesting information,
Your washer's model and serial numbers
are located on the Model and Serial
Number Plate.
ModelandSerial
NumberPlate
Use the space below to record the model
number and serial number of your new
Kenmore Washer.
Model No. __
Serial No.
Date of Purchase
Keep this book and your Sears
Salescheck (receipt) in a safe place for
future reference.

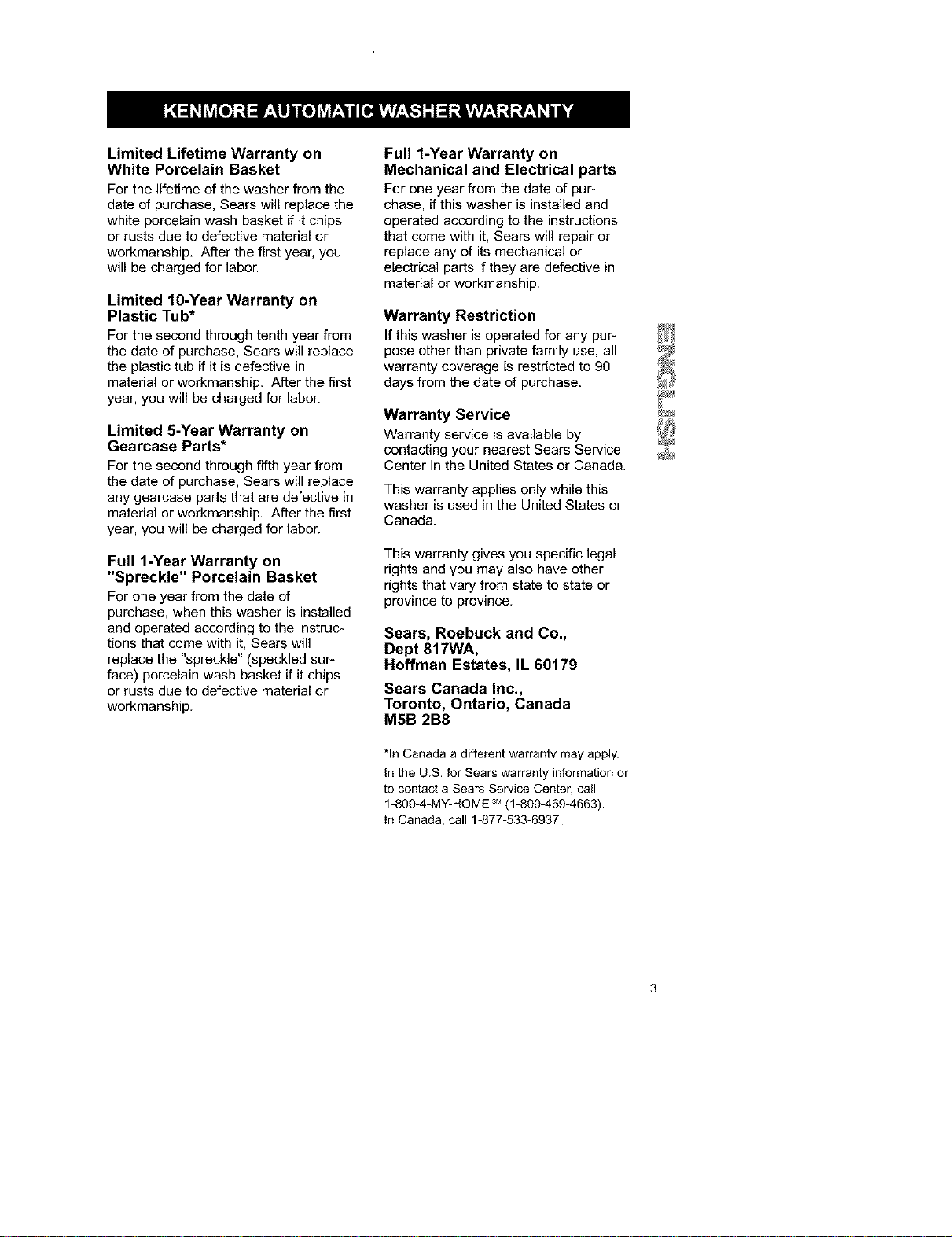

Limited Lifetime Warranty on
White Porcelain Basket
For the lifetime of the washer from the
date of purchase, Sears will replace the
white porcelain wash basket if it chips
or rusts due to defective material or
workmanship. After the first year, you
will be charged for labon
Limited 10-Year Warranty on
Plastic Tub*
For the second through tenth year from
the date of purchase, Sears will replace
the plastic tub if it is defective in
material or workmanship. After the first
year, you will be charged for labon
Limited 5-Year Warranty on
Gearcase Parts*
For the second through fifth year from
the date of purchase, Sears will replace
any gearcase parts that are defective in
material or workmanship. After the first
year, you will be charged for labon
Full 1-Year Warranty on
"Spreckle" Porcelain Basket
For one year from the date of
purchase, when this washer is installed
and operated according to the instruc-
tions that come with it, Sears will
replace the "spreckle" (speckled sur-
face) porcelain wash basket if it chips
or rusts due to defective material or
workmanship.
Full 1-Year Warranty on
Mechanical and Electrical parts
For one year from the date of pur-
chase, if this washer is installed and
operated according to the instructions
that come with it, Sears will repair or
replace any of its mechanical or
electrical parts if they are defective in
material or workmanship.
Warranty Restriction
If this washer is operated for any pur-
pose other than private family use, all
warranty coverage is restricted to 90
days from the date of purchase.
Warranty Service
Warranty service is available by
contacting your nearest Sears Service
Center in the United States or Canada.
This warranty applies only while this
washer is used in the United States or
Canada.
This warranty gives you specific legal
rights and you may also have other
rights that vary from state to state or
province to province.
Sears, Roebuck and Co.,
Dept 817WA,
Hoffman Estates, IL 60179
Sears Canada Inc.,
Toronto, Ontario, Canada
M5B 2B8
*In Canada a different warranty may apply.
In the U.S. for Sears warranty information or
to contact a Sears Service Center, call
1-800-4-MY-HOME sM(1-800-469-4663).
In Canada, call 1-877-533-6937.

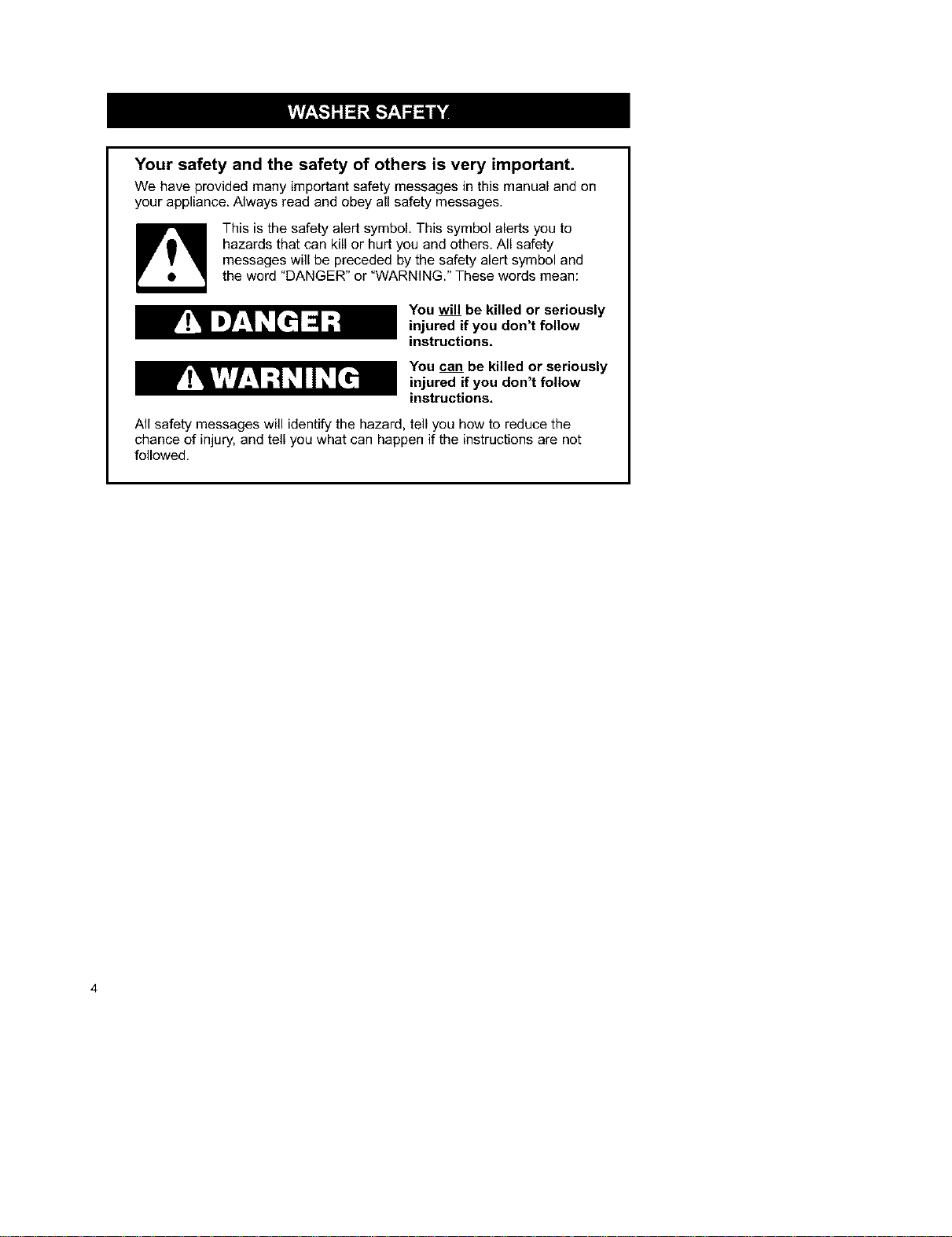

Your safety and the safety of others is very important.
We have provided many importantsafetymessages in thismanualand on
your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to
hazards that can kill or hurt you and others. All safety
messages will be preceded by the safety alert symbol and
the word "DANGER" or "WARNING." These words mean:
You will be killed or seriously
injured if you don't follow
instructions.
You can be killed or seriously
injured if you don't follow
instructions,
All safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not
followed.

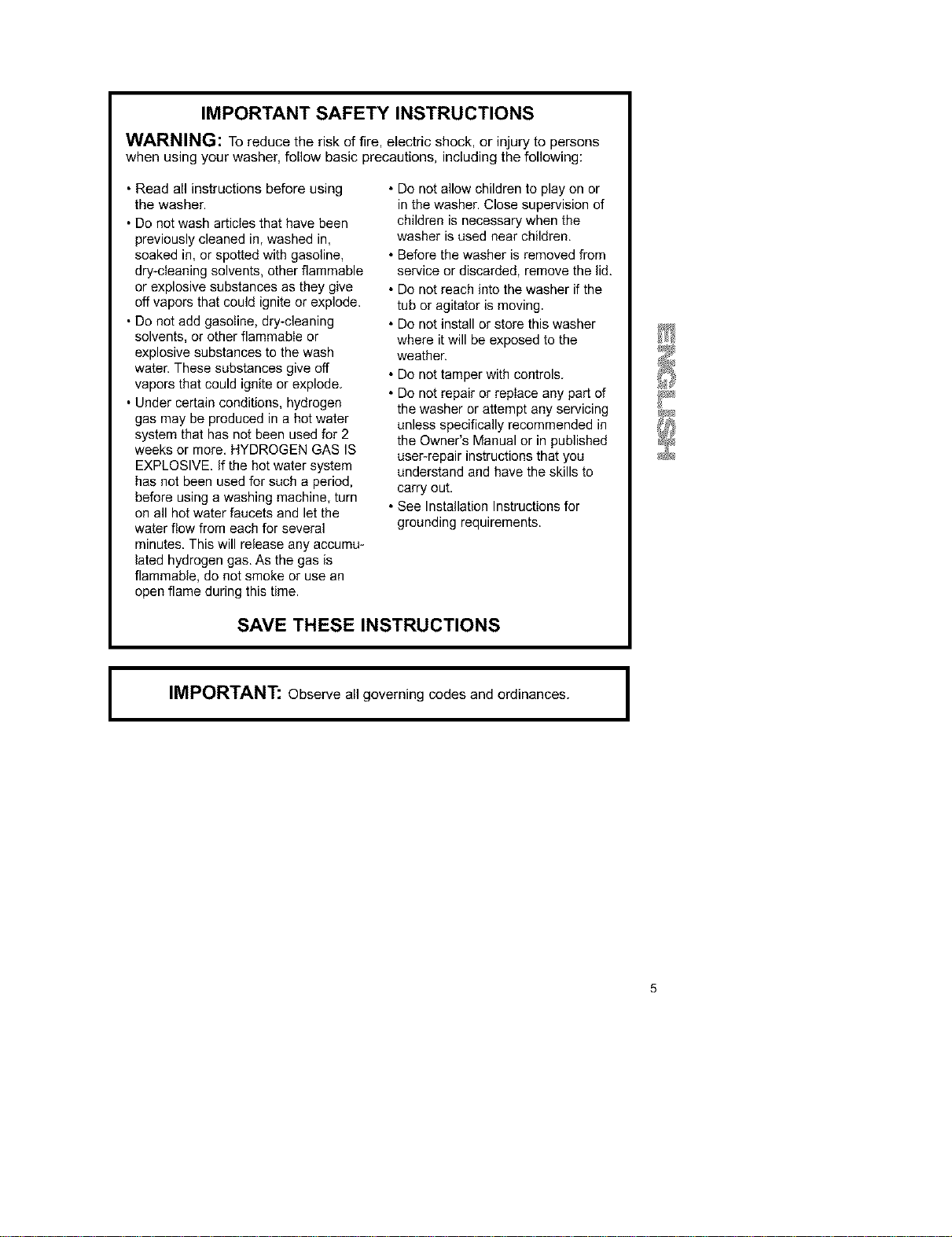

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons
when using your washer, follow basic precautions, including the following:
• Read all instructions before using
the washer.
• Do not wash articles that have been
previously cleaned in, washed in,
soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable
or explosive substances as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry-cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors that could ignite or explode.
• Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for 2
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system
has not been used for such a period,
before using a washing machine, turn
on all hot water faucets and let the
water flow from each for several
minutes. This will release any accumu-
latedhydrogen gas. As the gas is
flammable, do not smoke or use an
open flame during this time.
• Do not allow children to play on or
in the washer. Close supervision of
children is necessary when the
washer is used near children.
• Before the washer is removed from
service or discarded, remove the lid.
• Do not reach into the washer if the
tub or agitator is moving.
• Do not install or store this washer
where it will be exposed to the
weather.
• Do not tamper with controls.
• Do not repair or replace any part of
the washer or attempt any servicing
unless specifically recommended in
the Owner's Manual or in published
user-repair instructions that you
understand and have the skills to
carry out.
• See Installation Instructions for
grounding requirements.
SAVE THESEINSTRUCTIONS
I
IMPORTANT: Observe all governing codes and ordinances.

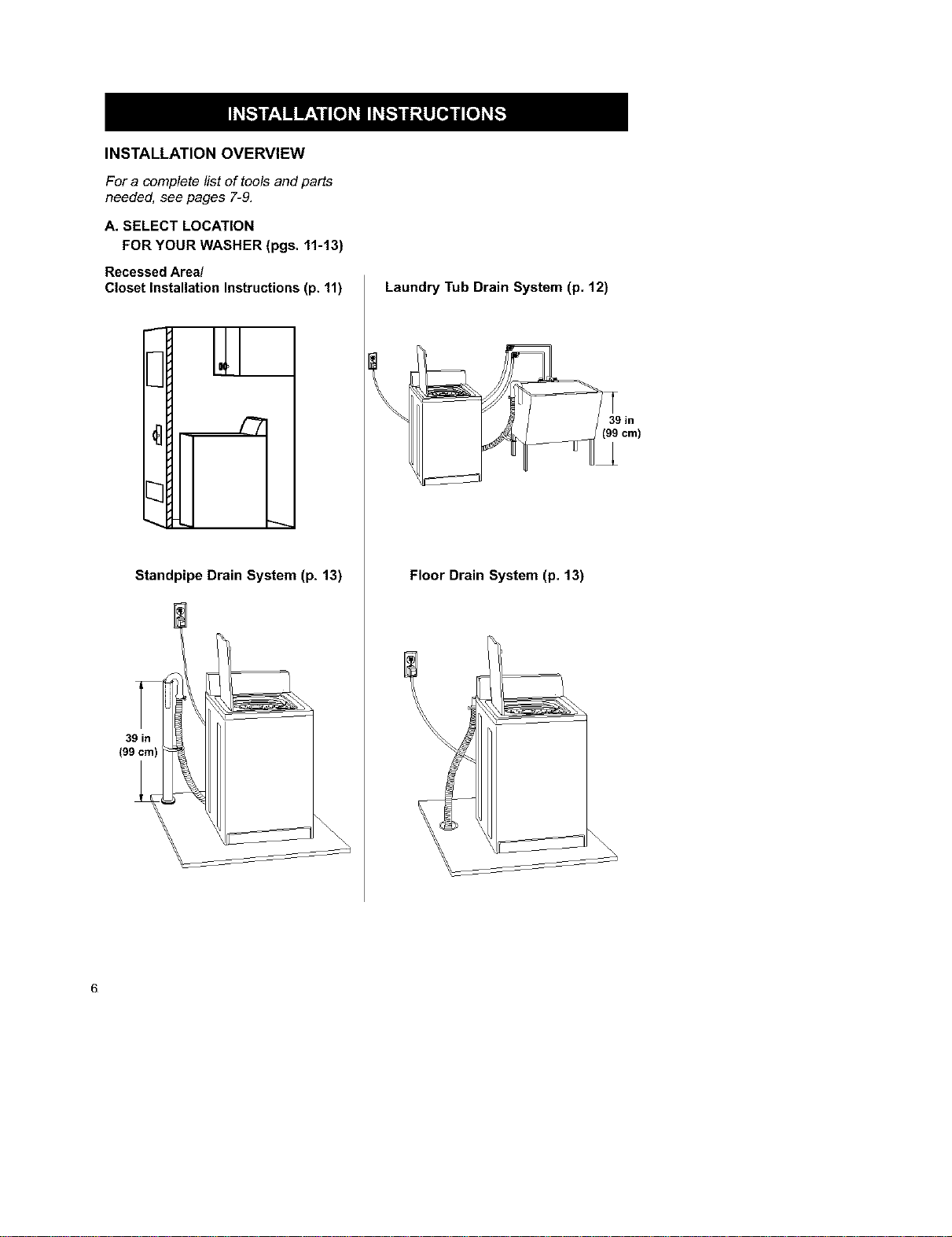

INSTALLATION OVERVIEW
For a complete fist of too/s and parts
needed, see pages 7-9.
A. SELECT LOCATION
FOR YOUR WASHER (pgs. 11-13)
Recessed Areal
Closet Installation Instructions (p. 11)

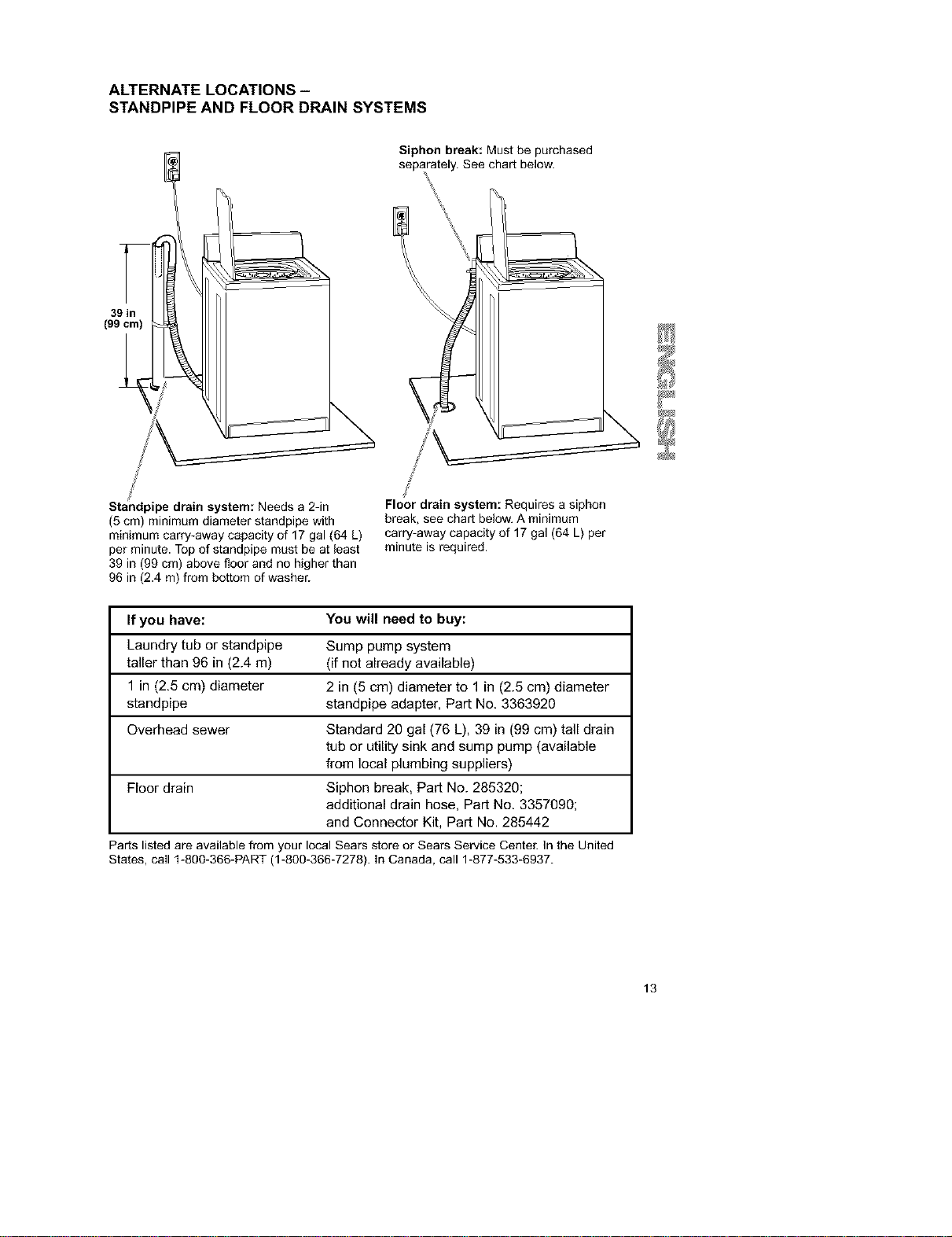

Standpipe Drain System (p, 13)
39 in
(99 crn)
Laundry Tub Drain System (p. 12)
(99 cm)
Floor Drain System (p. 13)

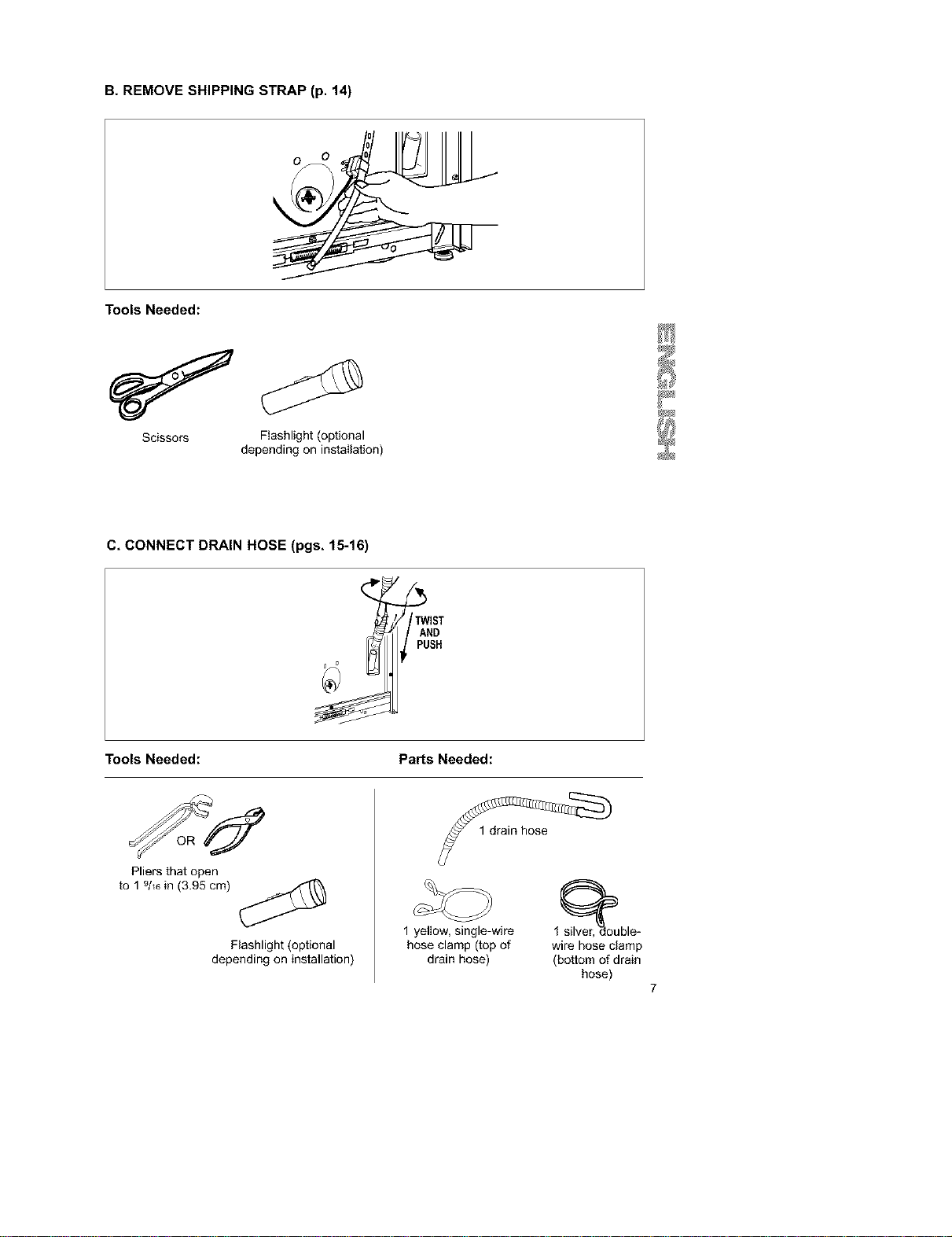

B.REMOVESHIPPINGSTRAP (p. 14)
Tools Needed:
Scissors Flashlight (optional
depending on installation)
C, CONNECT DRAIN HOSE (pgs, 15-16)
0 y u{
Z
Tools Needed: Parts Needed:
Pliers that open
to 1 9/_ in (3.95 cm)
Flashlight (optional
depending on installation)
1 yellow, single-wire
hose clamp (top of
drain hose)
l_ble-
wire hose clamp
(botlom of drain
hose)

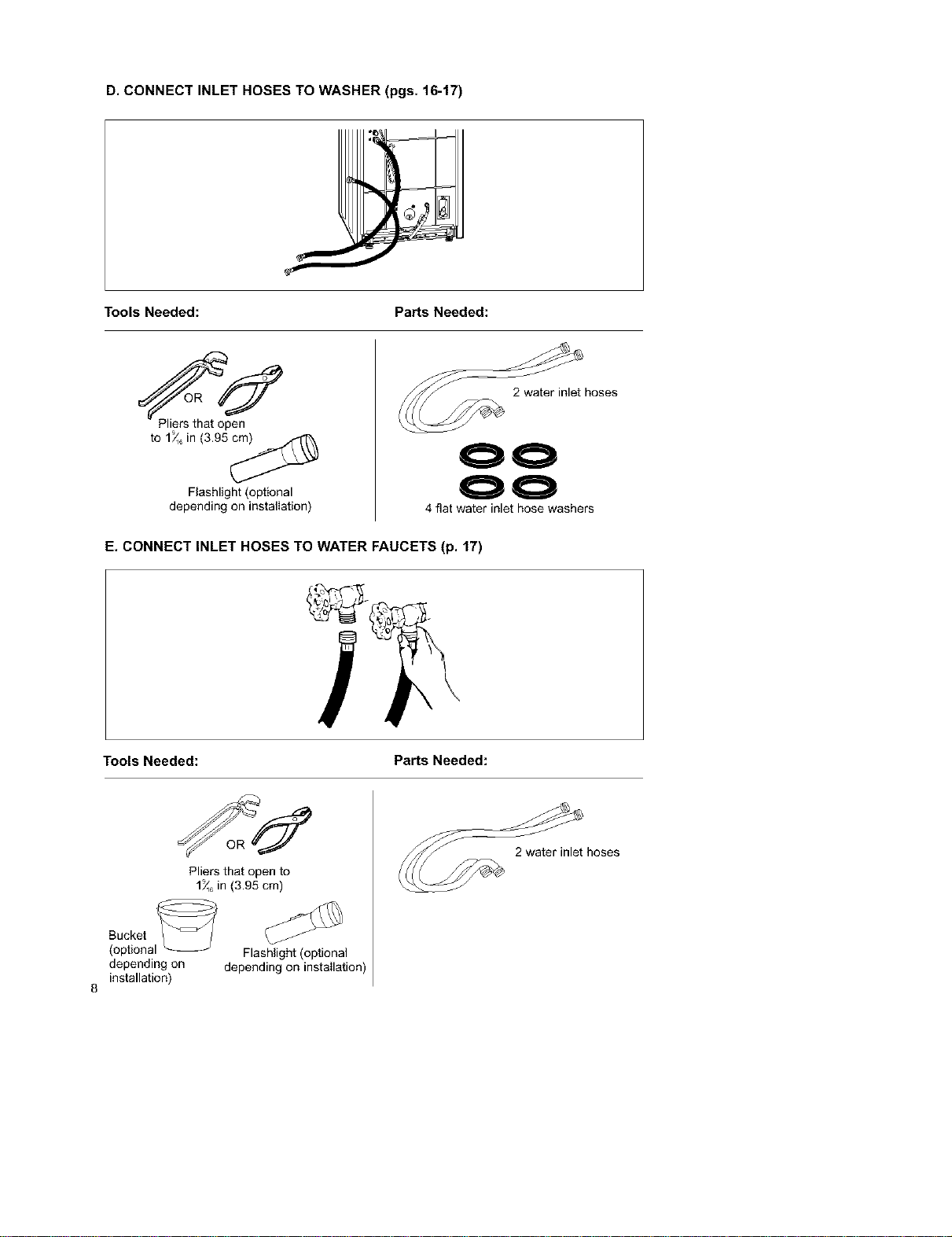

D. CONNECT INLET HOSES TO WASHER (pgs. 16-17)
Tools Needed: Parts Needed:
to 1_ in (3.95_
Flashlight (optional
depending on installation)
2 water inlet hoses
4 fiat water inlet hose washers
E. CONNECT INLET HOSES TO WATER FAUCETS (p. 17)
i
Tools Needed: Parts Needed:
Pliers that open to
1_. in (3.95 cm)
Bucket _
(optional Flashlight (optional
depending on depending on installation)
installation)
__ 2 water inlet hoses

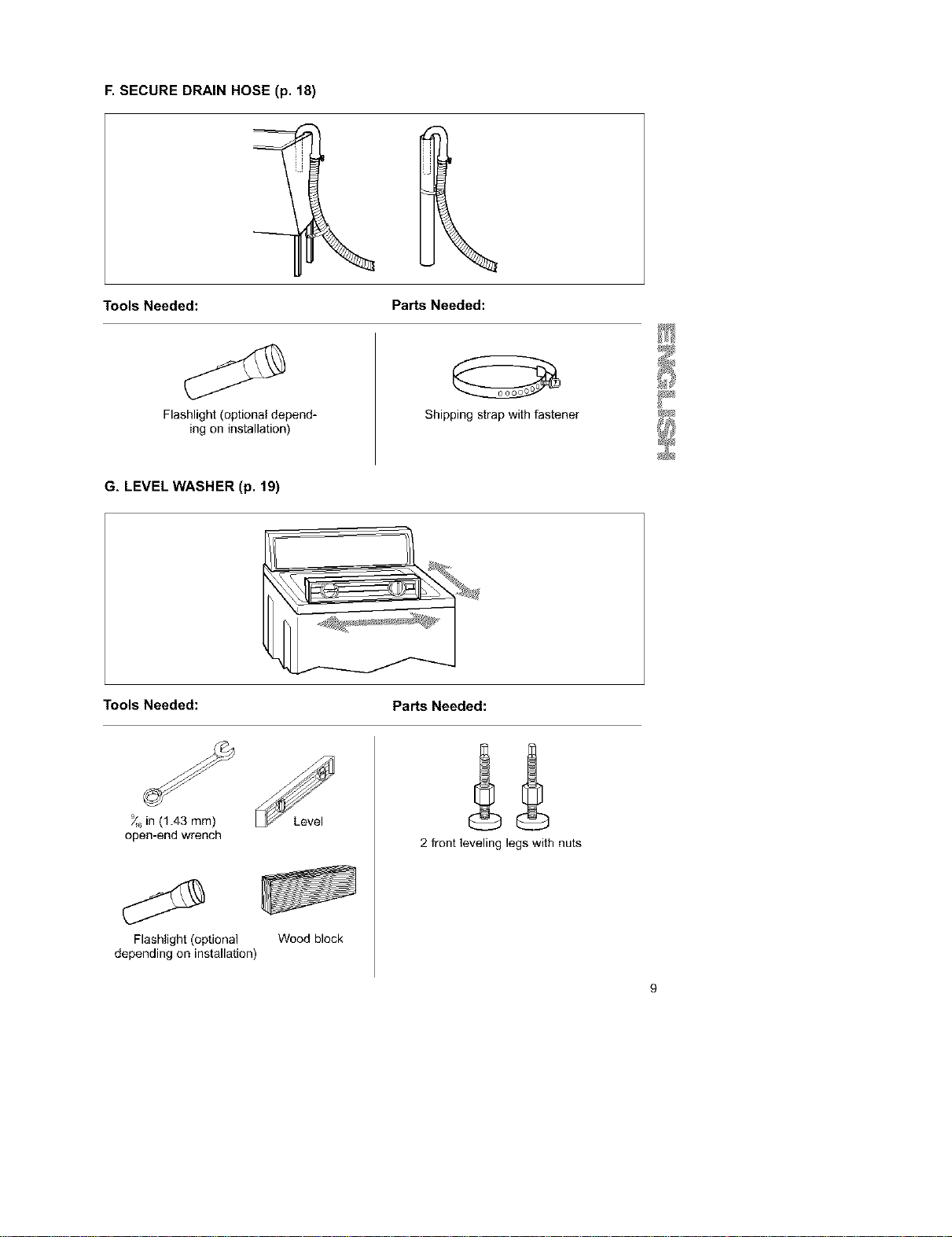

F. SECURE DRAIN HOSE (p. 18)
Tools Needed: Parts Needed:
Flashlight (optional depend-
ing on installation)
Shipping strap with fastener
G, LEVEL WASHER (p. 19)
Tools Needed: Parts Needed:
%ein (1.43 mm)
open-end wrench
Flashlight (optional
depending on installation)
Wood block
2 front leveling legs with nuts

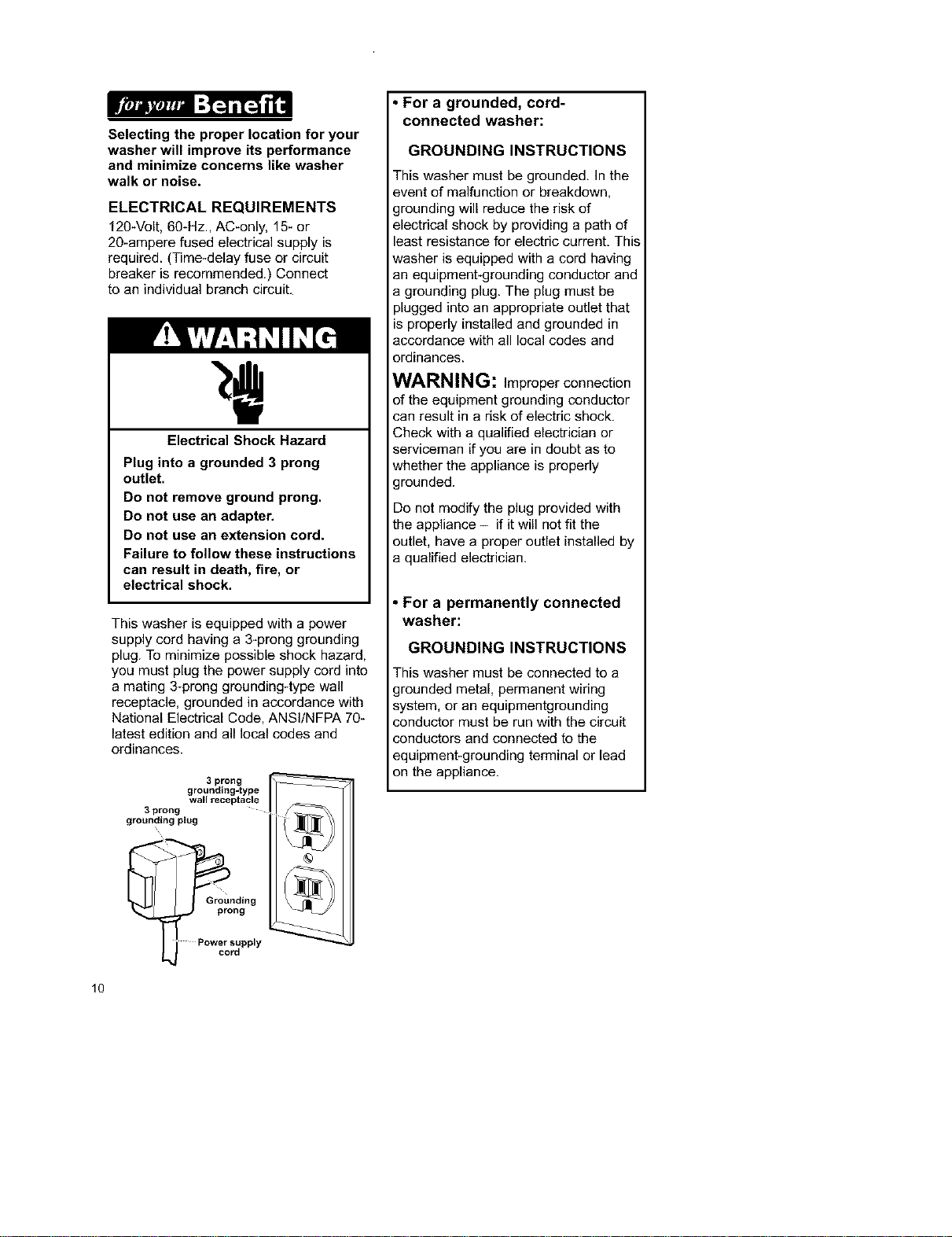

Selecting the proper location for your
washer will improve its performance
and minimize concerns like washer
walk or noise.
ELECTRICAL REQUIREMENTS
120-Volt, 60-Hz., AC-only, 15- or
20-ampere fused electrical supply is
required. (Time-delay fuse or circuit
breaker is recommended.) Connect
to an individual branch circuit.
Electrical Shock Hazard
Plug into a grounded 3 prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
This washer is equipped with a power
supply cord having a 3-prong grounding
plug. To minimize possible shock hazard,
you must plug the power supply cord into
a mating 3-prong grounding-type wall
receptacle, grounded in accordance with
National Electrical Code, ANSI/NFPA 70-
latest edition and all local codes and
ordinances.
3 prong
grounding=type
wall receptacle
3 prong
grounding plug
Grounding \ III )/
ng
Power supply
cord
• For a grounded, cord-
connected washer:
GROUNDING INSTRUCTIONS
This washer must be grounded, In the
event of malfunction or breakdown,
grounding will reduce the risk of
electrical shock by providing a path of
least resistance for electric current, This
washer is equipped with a cord having
an equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING: Improper connection
of the equipment grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
serviceman if you are in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided with
the appliance - if it will not fit the
outlet, have a proper outlet installed by
a qualified electrician.
• For a permanently connected
washer:
GROUNDING INSTRUCTIONS
This washer must be connected to a
grounded metal, permanent wiring
system, or an equipmentgrounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the appliance.
10

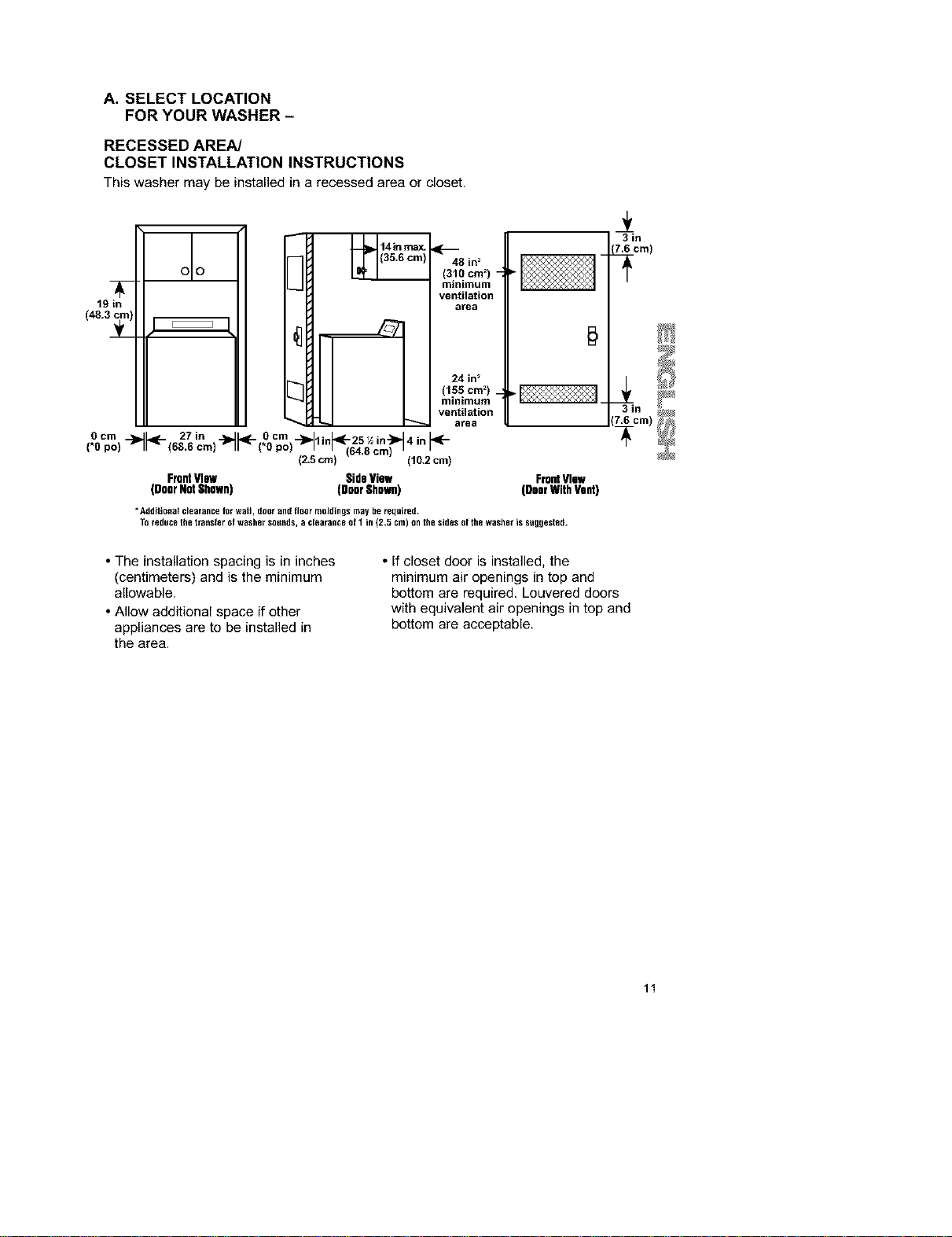

A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessedarea or closet.
oo
14in ma_
• 48 in =
(310 cm _)
_- minimum
ventilation
19 in area
(48.3 _m]
[_ (155 cm _)
minimum '
ventilation
area
Ocm 27in Ocm 1in 25½in 4in
(2.5cm) " " '"_ (10.2cm)
FrontView SideView
(DoorNotShown) (DoorShown)
3in
cm)
FrontView
(DoorWithVent)
* Addniona[ clearance for wall, door and floor moldlnds may be required.
To reduce the transler of washer sounds, a clearance el I In (2.5 cm) on the sides of the washer is suddes[ed.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required. Leuvered doors
with equivalent air openings in top and
bottom are acceptable.
11

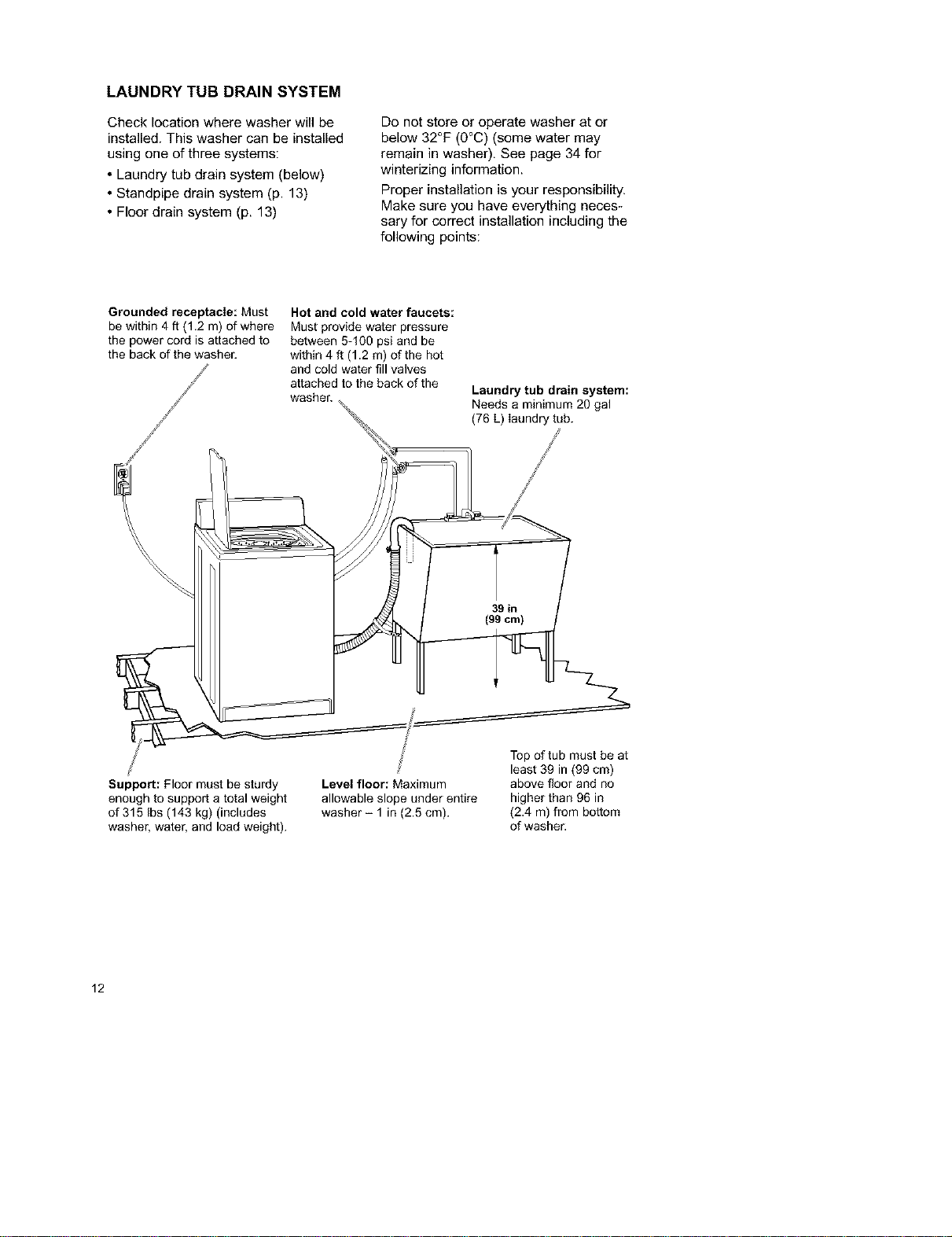

LAUNDRY TUB DRAIN SYSTEM
Check location where washer will be
installed. This washer can be installed
using one of three systems:
• Laundry tub drain system (below)
• Standpipe drain system (p. 13)
• Floor drain system (p. 13)
Do not store or operate washer at or
below 32°F (0°C) (some water may
remain in washer), See page 34 for
winterizing information.
Proper installation is your responsibility.
Make sure you have everything neces-
sary for correct installation including the
following points:
Grounded receptacle: Must Hot and cold water faucets:
be within 4 ft (1.2 m) of where Must provide water pressure
the power cord is attached to between 5-I00 psi and be
the back of the washer', within 4 ft (1.2 m) of the hot
f and cold water fill valves
/_ attached to the back of the . ., . ,.., . .
Launury tUu uraln system:
,// washer. _% Needs a minimum 20 gal
/ _, (76 L) laundry tub.
J' Top of tub must be at
least 39 in (99 cm)
Support: Floor must be sturdy Level floor: Maximum above floor and no
enough to support a total weight allowable slope under entire higher than 96 in
of 315 Ibs (143 kg) (includes washer - 1 in (2.5 cm). (2.4 m) from bottom
washer, water, and load weight), of washer.
12
ALTERNATE LOCATIONS -
STANDPIPE AND FLOOR DRAIN SYSTEMS
Siphon break: Must be purchased
39 in
(99 cm)
Standpipe drain system: Needs a 2-in
(5 cm) minimum diameter standpipe with
minimum carry-away capacity of 17 gal (64 L)
per minute. Top of standpipe must be at least
39 in (99 cm) above floor and no higher than
96 in (2.4 m) from bottom of washer.
Floor drain system: Requires a siphon
break, see chart below. A minimum
carry-away capacity of 17 gal (64 L) per
minute is required.
If you have: You will need to buy:
Laundry tub or standpipe
taller than 96 in (2.4 m)
1 in (2,5 cm) diameter
standpipe
Overhead sewer
Sump pump system
(if not already available)
2 in (5 cm) diameter to 1 in (2.5 cm) diameter
standpipe adapter, Part No. 3363920
Standard 20 gal (76 L), 39 in (99 cm) tall drain
tub or utility sink and sump pump (available
from local plumbing suppliers)
Floor drain Siphon break, Part No. 285320;
additional drain hose, Part No. 3357090;
and Connector Kit, Part No. 285442
Parts listedare available from your local Sears storeor Sears Service Cente[ Inthe United
States, calI1-800-366-PART(1-809-366-7278).in Canada, call 1-877-533-6937.
13
B. REMOVE SHIPPING STRAP
Removing the shipping strap is
necessary for smooth operation.
If the shipping strap is not removed,
the washer will make excessive noise,
STEP 2. Pull firmly to remove the end
of the shipping strap that remains
pinned to the back of the washer. This
will release the rear self-leveling legs.
Pin
To prevent floor damage, set washer
onto cardboard before moving across
floor. Move washer close to its final
location.
STEP 1. Do not cut yellow strap. Pull
yellow strap firmly, until completely
removed from washer. Depending on
your model, there should be either two
or three cotter pins on the end of the
shipping strap when it is pulled out of
the washer. The electrical plug is
attached to this shipping strap.
Electricalplug
Shippingstrap
STEP 3. Cut the shipping strap about
16 in (40 cm) from plug end. Look for
the words "CUT HERE." Discard end
with the cotter pins. Slide remainder
of shipping strap from the electrical
plug. You will use this to secure the
drain hose.
PULL
J
Pin
14
C. CONNECTDRAINHOSE
Proper connection of the drain hose
will protect your floors from damage
due to water leakage,
STEP 1, To prevent the drain hose from
coming off or leaking, it must be installed
per the following instructions:
IMPORTANT: To ensure proper installa-
tion, this procedure must be followed
exactly.
a, Wet the inside of the straight end of the
drain hose with tap water. DO NOT
USE ANY OTHER LUBRICANT.
b. Squeeze ears of silver, double-wire
clamp with pliers to open. Place clamp
over the straight end of the drain hose
V4in (6 ram) from the end.
c, Open clamp. Twist hose back and forth
while pushing down onto drain
connector at the bottom of the washer,
Continue until hose contacts the ribbed
stop on the cabinet.
tTWIST
AND
PUSH
d. Place clamp over area marked
"CLAMP." Release clamp.
_,_ Clamp_
¼in
(6 rnrnl
If you have:
Drain hose that is too short
Drain hose that is too long
A prob em w th nt c egg ng your dra n
Partslisted are availablefrom your localSears store or Sears Service Center.In the United
States, call 1-800-366-PART(1-800-366-7278).In Canada, call 1-877-533-6937.
You will need to buy:
Drain hose, Part No. 388423 and
hose kit, Part No. 285442
Hose kit, Part No. 285442
Drain protector, Part No. 367031
15

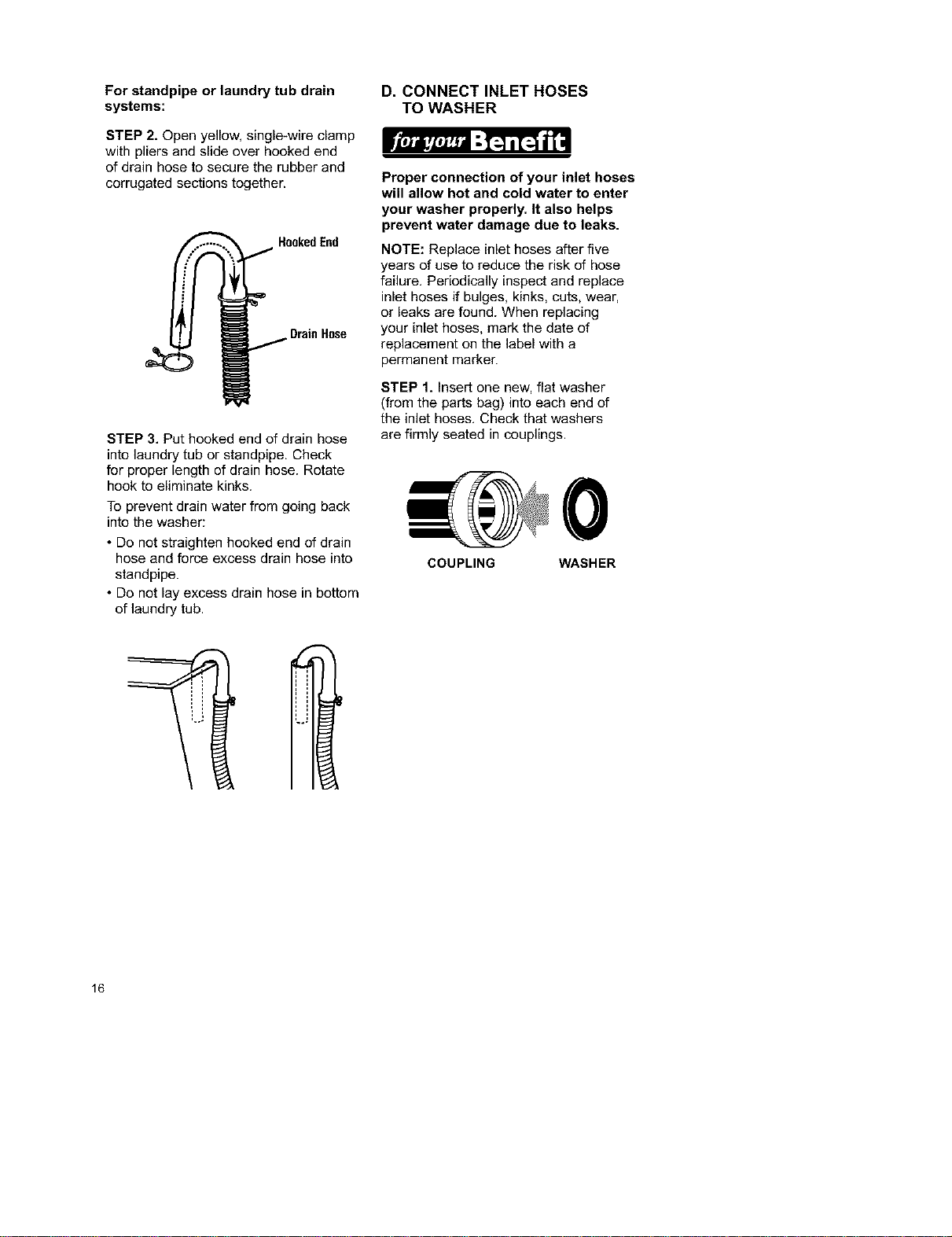

For standpipe or laundry tub drain
systems:
STEP 2. Open yellow, single-wire clamp
with pliers and slide over hooked end
of drain hose to secure the rubber and
corrugated sections together.
!_Hooked End
Drain Hose
STEP 3. Put hooked end of drain hose
into laundry tub or standpipe, Check
for proper length of drain hose. Rotate
hook to eliminate kinks.
To prevent drain water from going back
into the washer:
• Do not straighten hooked end of drain
hose and force excess drain hose into
standpipe.
• Do not lay excess drain hose in bottom
of laundry tub.
D. CONNECT INLET HOSES
TO WASHER
Proper connection of your inlet hoses
will allow hot and cold water to enter
your washer properly. It also helps
prevent water damage due to leaks.
NOTE: Replace inlet hoses after five
years of use to reduce the risk of hose
failure. Periodically inspect and replace
inlet hoses if bulges, kinks, cuts, wear,
or leaks are found. When replacing
your inlet hoses, mark the date of
replacement on the label with a
permanent marker.
STEP 1. Insert one new, flat washer
(from the parts bag) into each end of
the inlet hoses. Check that washers
are firmly seated in couplings.
0
COUPLING WASHER
16
pliers. Screw on coupling by hand. Make
an additional two-thirds turn with pliers to
tighten coupling. DO NOT OVER-
TIGHTEN; this could damage the valves.
STEP 2. Attach the hose with the red E. CONNECT INLET HOSES
coupling to the hot water (bottom) inlet TO WATER FAUCETS
valve. Attaching the red coupling first
makes it easier to tighten connection with STEP 1, Make sure washer basket is
empty. Run water through both faucets
into a bucket or laundry tub to get rid of
particles in the water lines that might
clog hoses, Determine which faucet is
hot and which is cold. Mark the hot
water faucet.Cold Water
Inlet Valve
Water
Inlet
Valve
STEP 3, Attach the hose with the blue
coupling to the cold water (top) inlet
valve, Screw on coupling by hand, Make
an additional two-thirds turn with pliers to
tighten coupling. DO NOT OVER-
TIGHTEN; this could damage valves.
STEP 2, Attach the hose with the red
coupling to the hot water faucet. Screw
on coupling by hand. Make an additional
two-thirds turn with pliers to tighten
coupling, DO NOT OVERTIGHTEN;
this could damage the coupling.
STEP 3, Attach the hose with the blue
coupling to the cold water faucet.
Screw on coupling by hand, Make an
additional two-thirds turn with pliers to
tighten coupling. DO NOT OVER-
TIGHTEN; this could damage the
coupling.
STEP 4, Turn on water faucets and
check for leaks. A small amount of water
may enter the washer. You will drain this
later.
If you have: You will need to buy:
Water faucets beyond the
reach of water fill hoses
2 longer water fill hoses:
6 ft (1.8 m), Part No. 76314
10 ft (3.0 m), Part No. 350008
Parts listed are available from your local Sears store or Sears Service Center. In the United
States, call 1-800-366-PART (1-800-366-7278). In Canada, calI 1-877-533-6937.
I
17
F. SECURE DRAIN HOSE
Securing the drain hose properly will
protect your floors from damage due
to water leakage.
STEP 1. Move washer to its final
location.
If the water faucets and drain standpipe
are recessed, put hooked end of drain
hose in standpipe. Tightly wrap the
shipping strap around the drain hose
and water inlet hoses (not the handles
or stems), Push fastener into the
nearest hole in the shipping strap.
I
STEP 2. Locate the remaining piece
of shipping strap (not the end with the
cotter pins) from STEP 3 of
"REMOVE SHIPPING STRAR" Use
it to wrap the drain hose together with
the laundry tub or standpipe. Push
fastener into the nearest hole in the
shipping strap.
Fastener
18
G. LEVEL WASHER
Leveling your washer properly pre-
vents excessive noise and vibration.
To install front legs:
STEP 1. Prop front of washer up about
4 in (10,2 cm). Use a wood block or
another object that will support the
weight of the washer. If washer was
placed against a wall, move the washer
out slightly before tipping it up.
STEP 2+With one of the legs in hand,
screw lock nut onto leg 3/8in (9.5 mm)
from top of leg base. This is the
recommended initial setting.
¾ in
(9.5 ram)
STEP 3. Screw leg intowasher base by
hand until nut reaches washer base.
Repeat for other leg.
STEP 5. Move washer to its final
location.
STEP 6. Tilt washer forward until rear
of washer is at least 3 in (7.6 cm) off
floor. You may hear the self-adjusting
rear legs click into place. Lower washer
to floor. Check levelness of the washer
by placing a level on top of the washer,
first side4o-side; then front4o+back.
STEP 7. If washer is not level, prop
up the front of the washer and adjust
the legs up or down as necessary.
Lower washer and reset self-adjusting
rear legs (as in Step 6). Repeat Step 7
until the washer is level.
STEP 8. When washer is in its final
location and level, use a 9/_++in
(1.43 ram) open-end wrench to turn
nuts on front legs tightly against washer
cabinet. If nuts are not tight against
washer cabinet, the washer may vibrate.
STEP 4. Tilt washer backward until
front of washer is off the wood block.
Remove wood block. Gently lower
washer to floor.
19

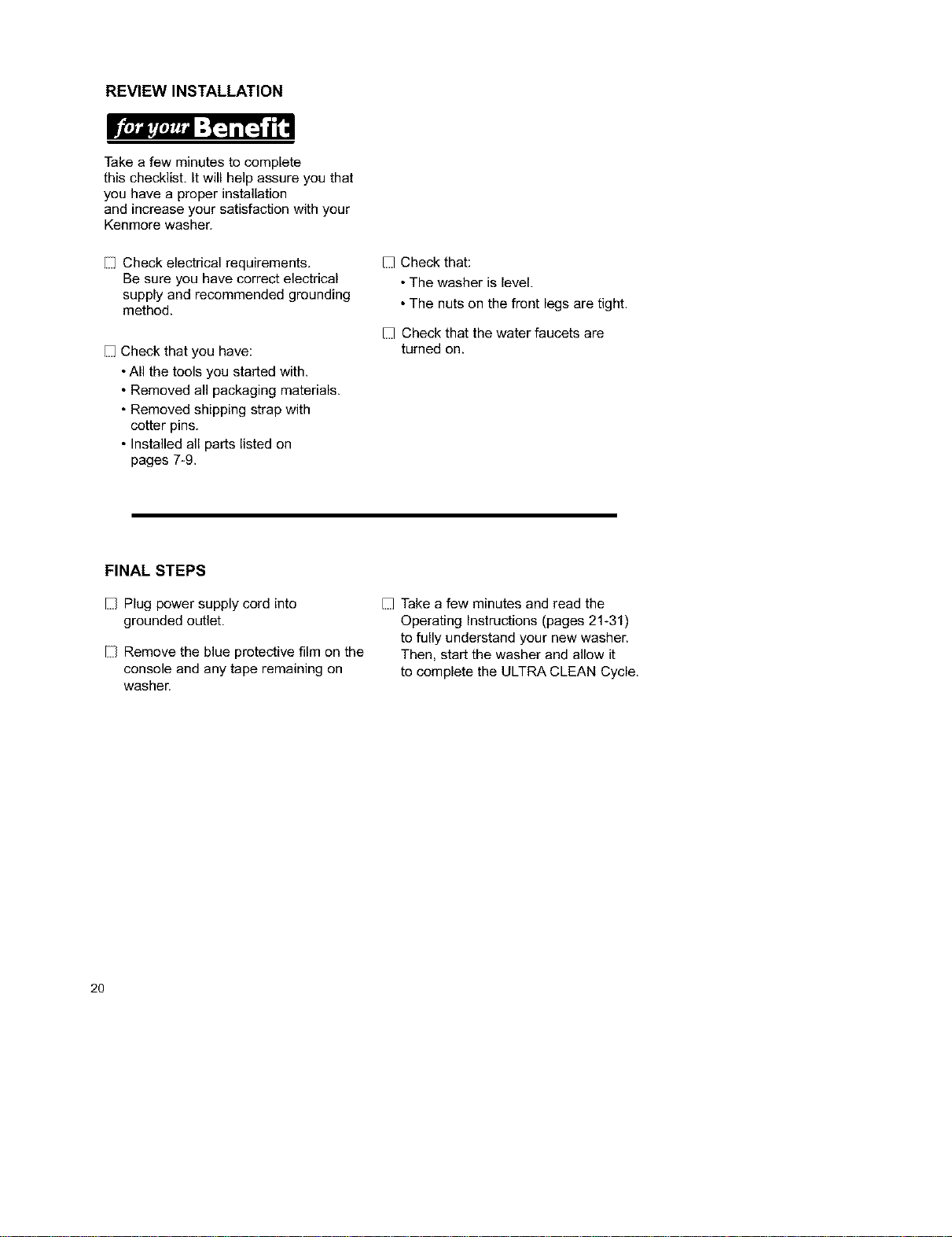

REVIEW INSTALLATION
Take a few minutes to complete
this checklist, it will help assure you that
you have a proper installation
and increase your satisfaction with your
Kenmore washer.
[ Check electrical requirements,
Be sure you have correct electrical
supply and recommended grounding
method.
[ Check that you have:
• All the tools you started with.
• Removed all packaging materials.
• Removed shipping strap with
cotter pins.
• Installed all parts listed on
pages 7-9.
[ Check that:
• The washer is level.
• The nuts on the front legs are tight.
[ Check that the water faucets are
turned on.
FINAL STEPS
I Plug power supply cord into
grounded outlet.
Remove the blue protective film on the
console and any tape remaining on
washen
[ Take a few minutes and read the
Operating Instructions (pages 21-31)
to fully understand your new washer.
Then, start the washer and allow it
to complete the ULTRA CLEAN Cycle.
2O
To get the maximum cleaning and
fabric care from your washer, please
read and follow these instructions.
NOTE: The drawings in this section show
the basic features of all models covered
by this manual, Refer to the supplied
"Feature Sheet" for your washer's
particular features.
Explosion Hazard
Never place items in the washer
that are dampened with gasoline
or other flammable fluids.
No washer can completely
remove oil.
Do not dry anything that has ever
had any type of oil on it (including
cooking oils).
Failure to follow these
instructions can result in death,
explosion, or fire.
LID INSTRUCTIONS
These instructions are found under the
lid of your washer.
m]*.,i:ltl:|llir[L"i,."]lll'II']t,l.*'rjl[m]lr.I,
DISPENSERS Add measured liquid chlorine bleach to the
dispenser, 5 min. after the wash cycle starts for the
best wash performance.
DO NOT USE POWDERED BLEACH IN THE DIS-
PENSER.
Add measured fabric softener to the agitator
mounted dispenser.
Add measured detergent to the washer basket.
1. SELECT & ADJUST Make the selections for these washer controls.
(Some washers may not have all of these controls)
• WATER LEVEL Adjust to load size.
• WASH / RINSE TEMP----- Adjust to type of fabric and soil. Use AUTO TEMP
selections for best wash performance.
•RINSE OPTIONS .............. Select to add a second rinse automatcally.
•SPEEDS Adjust to fabric type being washed.
k'J'lj_f_j LtH ,I p_H
HEAVYDUTY
REGULAR
I_ PERM PRESS
I_ DELICATE
HAND WASH
OENIMS,TOWELS; e=e HOTWASH
EXTRADIRTY
• • WARM WASH
COTTONS = COLDWASH
SYNTHETICS /_ ANY _LEACH
KNITS ,_ NON-CHLORINE
BLEACH
DONOT BLEACH
LiNGERiE
21

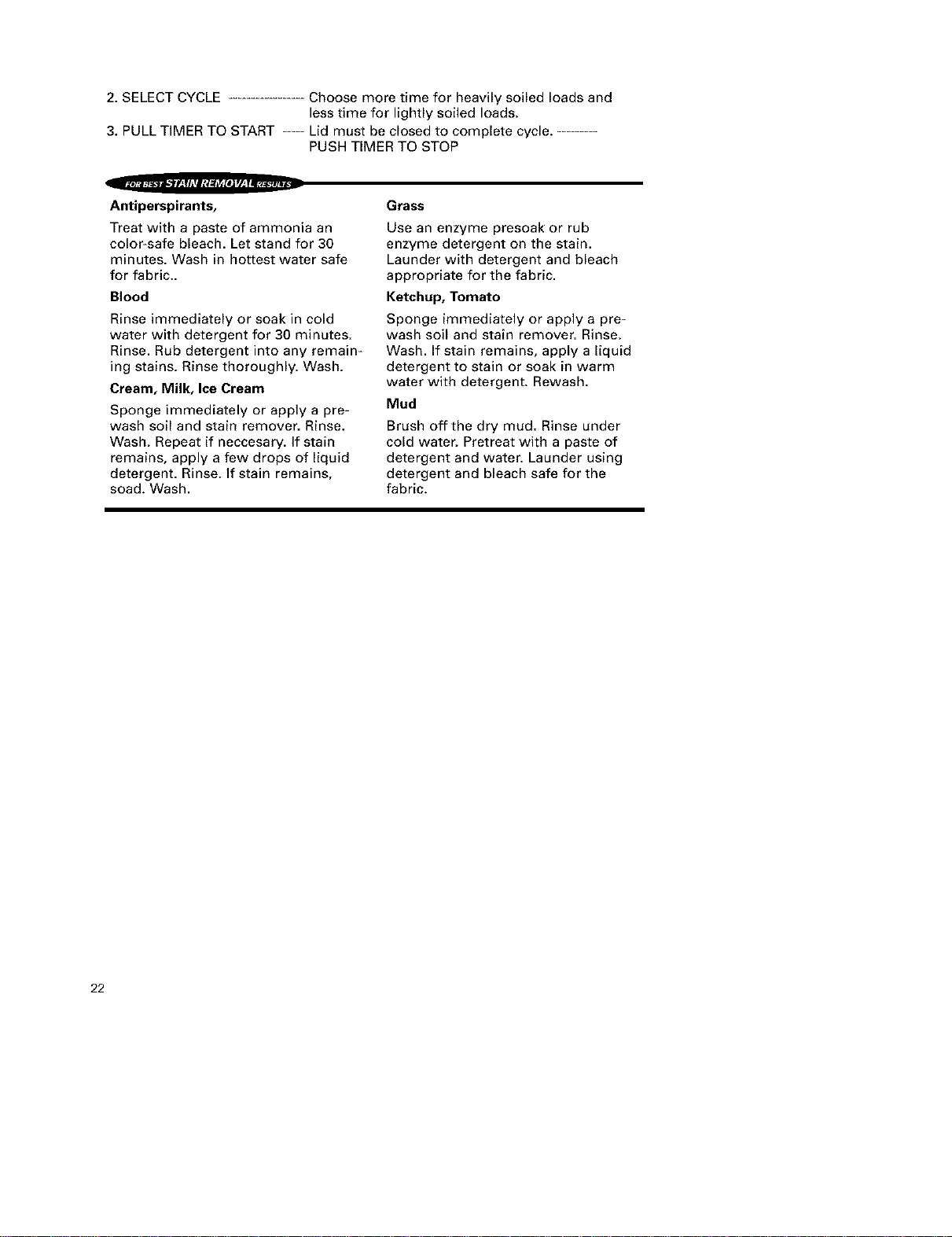

2. SELECT CYCLE Choose more time for heavily soiled loads and
less time for lightly soiled loads.
3. PULL TIMER TO START ..... Lid must be closed to complete cycle. -........
PUSH TIMER TO STOP
Antiperspirants, Grass
Treat with a paste of ammonia an
color-safe bleach. Let stand for 30
minutes. Wash in hottest water safe
for fabric..
Blood
Rinse immediately or soak in cold
water with detergent for 30 minutes.
Rinse. Rub detergent into any remain-
ing stains. Rinse thoroughly. Wash.
Cream, Milk, Ice Cream
Sponge immediately or apply a pre-
wash soil and stain remover. Rinse.
Wash. Repeat if neccesary. If stain
remains, apply a few drops of liquid
detergent. Rinse. If stain remains,
soad. Wash.
Use an enzyme presoak or rub
enzyme detergent on the stain.
Launder with detergent and bleach
appropriate for the fabric.
Ketchup, Tomato
Sponge immediately or apply a pre-
wash soil and stain remover. Rinse.
Wash. If stain remains, apply a liquid
detergent to stain or soak in warm
water with detergent. Rewash.
Mud
Brush offthe dry mud. Rinse under
cold water. Pretreat with a paste of
detergent and water. Launder using
detergent and bleach safe for the
fabric.
22

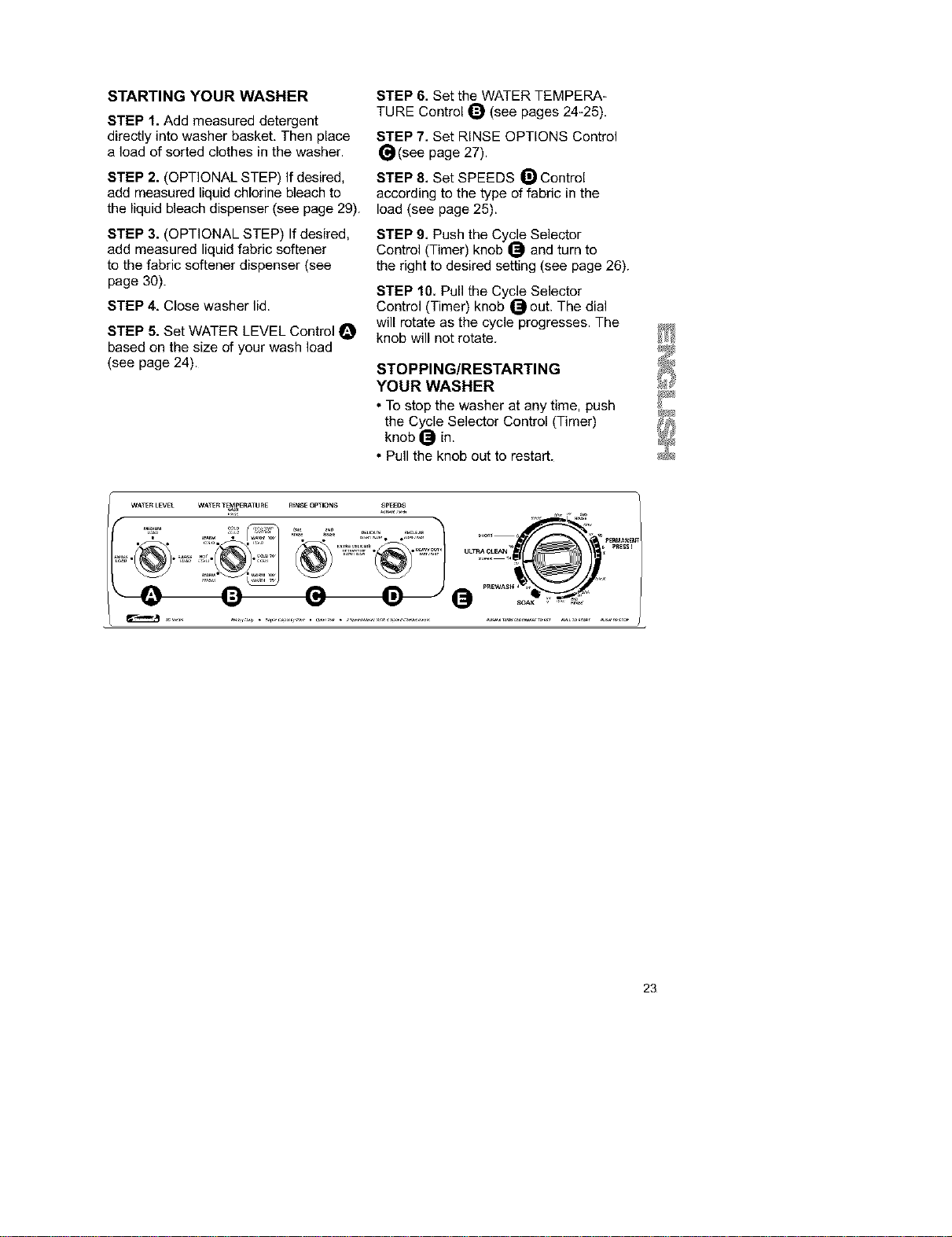

STARTING YOUR WASHER
STEP 1. Add measured detergent
directly into washer basket, Then place
a load of sorted clothes in the washer.
STEP 2. (OPTIONAL STEP) If desired,
add measured liquid chlorine bleach to
the liquid bleach dispenser (see page 29).
STEP 3. (OPTIONAL STEP) If desired,
add measured liquid fabric softener
to the fabric softener dispenser (see
page 30).
STEP 4, Close washer lid.
STEP 5. Set WATER LEVEL Control O
based on the size of your wash load
(see page 24),
STEP 6. Set the WATER TEMPERA-
TURE Control _) (see pages 24-25),
STEP 7. Set RINSE OPTIONS Control
_(see page 27),
STEP 8. Set SPEEDS _ Control
according to the type of fabric in the
load (see page 25),
STEP 9, Push the Cycle Selector
Control (Timer) knob _ and turn to
the right to desired setting (see page 26).
STEP 10. Pull the Cycle Selector
Control (Timer) knob _ out, The dial
will rotate as the cycle progresses. The
knob will not rotate.
STOPPING/RESTARTING
YOUR WASHER
• To stop the washer at any time, push
the Cycle Selector Control (Timer)
knob _ in,
• Pull the knob out to restart.
WP.Tt-RLEV_ WP.Tt-RTEMPE_ATU RE R_SE OPTIONS _PEEDS
j
23

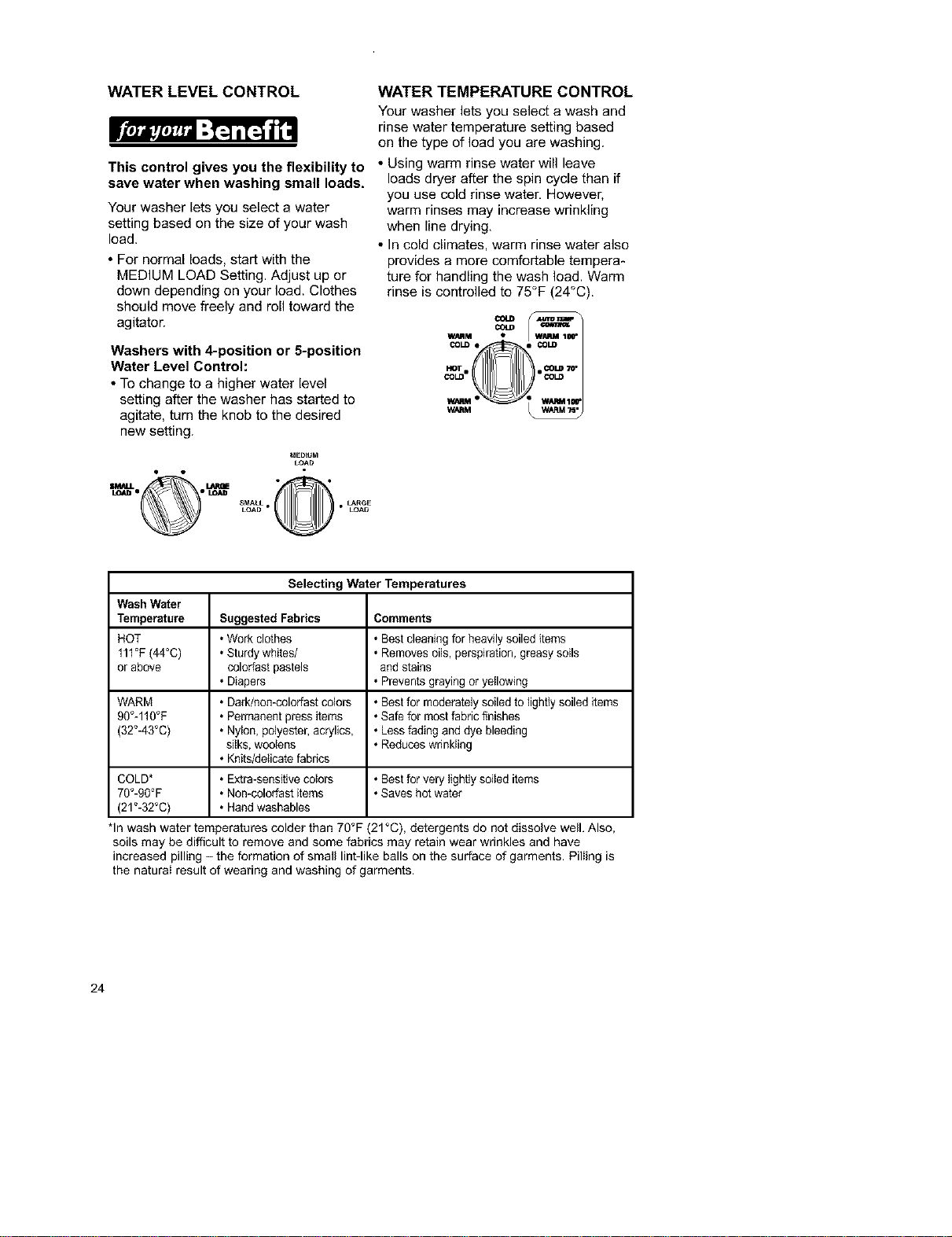

WATER LEVEL CONTROL WATER TEMPERATURE CONTROL
Your washer lets you select a wash and
_lOJ_teJf_d "-I_ I[_ _l d rinse water temperature setting based
on the type of load you are washing.
This control gives you the flexibility to • Using warm rinse water will leave
save water when washing small loads, loads dryer after the spin cycle than if
Your washer lets you select a water
setting based on the size of your wash
load.
• For normal loads, start with the
MEDIUM LOAD Setting. Adjust up or
down depending on your load. Clothes
should move freely and roll toward the
agitaton
Washers with 4-position or 5-position
Water Level Control:
• To change to a higher water level
setting after the washer has started to
agitate, turn the knob to the desired
new setting.
you use cold rinse water, However,
warm rinses may increase wrinkling
when line drying,
• In cold climates, warm rinse water also
provides a more comfortable tempera-
ture for handling the wash load. Warm
rinse is controlled to 75°F (24°C).
WAqM •
COLD • • COLD
HOT• i _LI_ _
COW COI_
_M _
MEDIUM
LOAD
Selecting Water Temperatures
Wash Water
Temperature Suggested Fabrics Comments
HOT • Work clothes • Best cleaning for heavily soiled items
111°F(44°C) • Sturdy whites/ • Removes oils, perspiration, greasy soils
or above colorfast pastels and stains
• Diapers • Prevents graying or yellowing
WARM • Dark/nomcolorfast colors • Best for moderately soiled to lightly soiled items
90°-110°F • Permanent press items • Safe for most fabric finishes
(32°-43°C) • Nylon, polyester, acrylics, • Less fading and dye bleeding
silks,woolens • Reduces wrinkling
• Knits/delicate fabrics
COLD* ° Extra-sensitive colors • Best for very lightly soiled items
70°-90°F ° Non-colorfast items • Saves hot water
(21°-32°C) • Hand washables
*In wash water ter¢ _eratures colder than 70°F (21°C), detergents do not dissolve well. Also,
soils may be difficult to remove and some fabrics may retain wear wrinkles and have
increased pilling -the formation of small lint-like balls on the surface of garments. Pilling is
the naturai result of wearing and washing of garments.
24

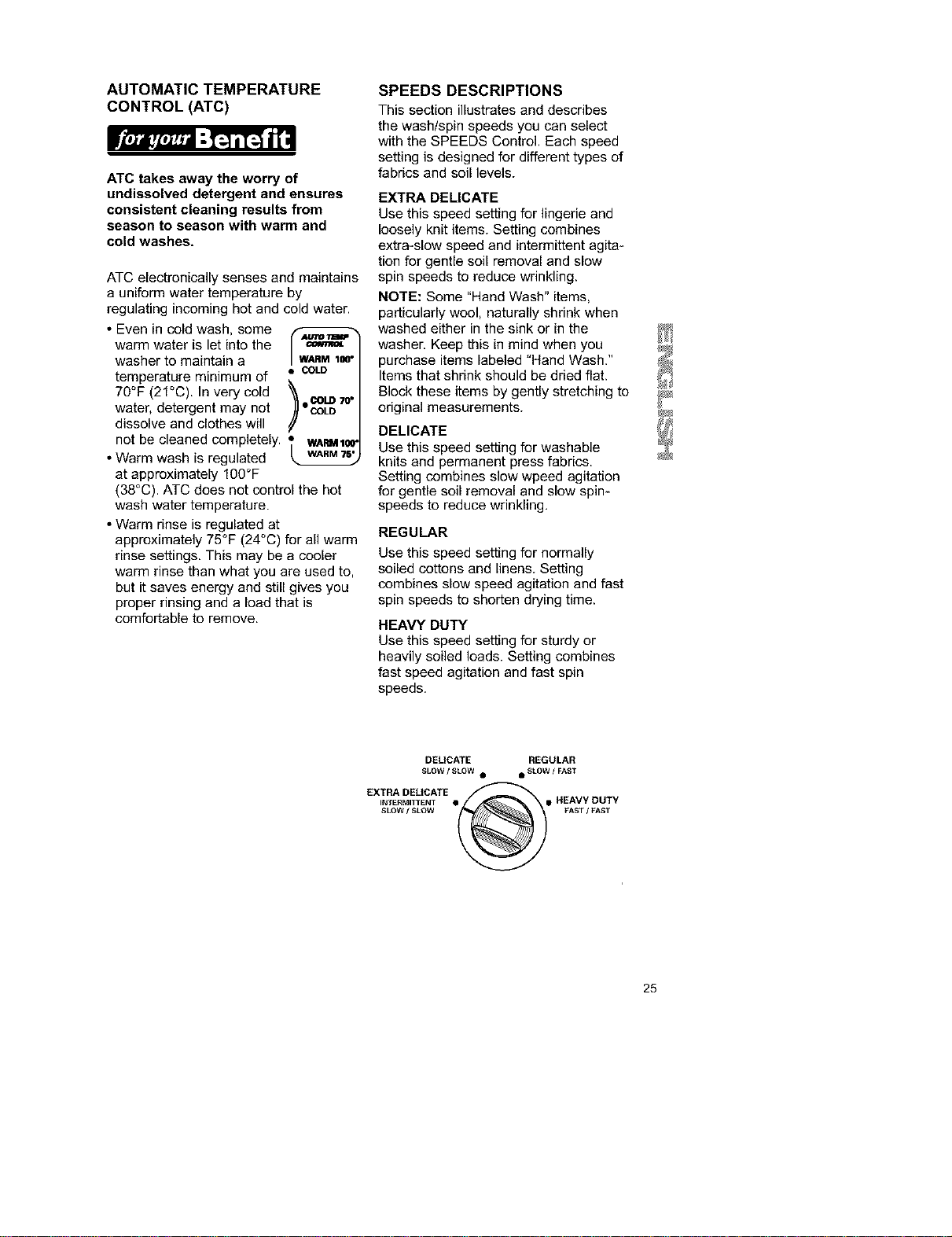

AUTOMATIC TEMPERATURE
CONTROL (ATC)
ll'+r+J,+.-+[+,+++,.,"[_ a[_ It"
ATC takes away the worry of
undissolved detergent and ensures
consistent cleaning results from
season to season with warm and
cold washes,
ATC electronically senses and maintains
a uniform water temperature by
regulating incoming hot and cold water.
• Even in cold wash, some
warm water is let into the
washer to maintain a
temperature minimum of _.eCOLD
70°F (21°C). In very cold "_ cow 7v
water, detergent may not _"COLD
dissolve and clothes will
not be cleaned completely. • WAMIO0"
• Warm wash is regulated
at approximately 100OF
(38°C). ATC does net control the hot
wash water temperature.
• Warm rinse is regulated at
approximately 750F (24°C) for all warm
rinse settings. This may be a cooler
warm rinse than what you are used to,
but it saves energy and still gives you
proper rinsing and a load that is
comfortable to remove.
SPEEDS DESCRIPTIONS
This section illustrates and describes
the wash/spin speeds you can select
with the SPEEDS Control. Each speed
setting is designed for different types of
fabrics and soil levels.
EXTRA DELICATE
Use this speed setting for lingerie and
loosely knit items. Setting combines
extra+slow speed and intermittent agita-
tion for gentle soil removal and slow
spin speeds to reduce wrinkling.
NOTE: Some "Hand Wash" items,
particularly wool, naturally shrink when
washed either in the sink or in the
washer. Keep this in mind when you
purchase items labeled "Hand Wash."
Items that shrink should be dried flat.
Block these items by gently stretching to
original measurements.
DELICATE
Use this speed setting for washable
knits and permanent press fabrics.
Setting combines slow wpeed agitation
for gentle soil removal and slow spin-
speeds to reduce wrinkling.
REGULAR
Use this speed setting for normally
soiled cottons and linens. Setting
combines slow speed agitation and fast
spin speeds to shorten drying time.
HEAVY DUTY
Use this speed setting for sturdy or
heavily soiled loads. Setting combines
fast speed agitation and fast spin
speeds.
DEUCATE REGULAR
SLOW! SLOW • • SLOW / FAST
EXTRA DELICATE _
imTERmITTENT • • HEAVY DUTY
SLOW/SLOW gASTIgAST
25

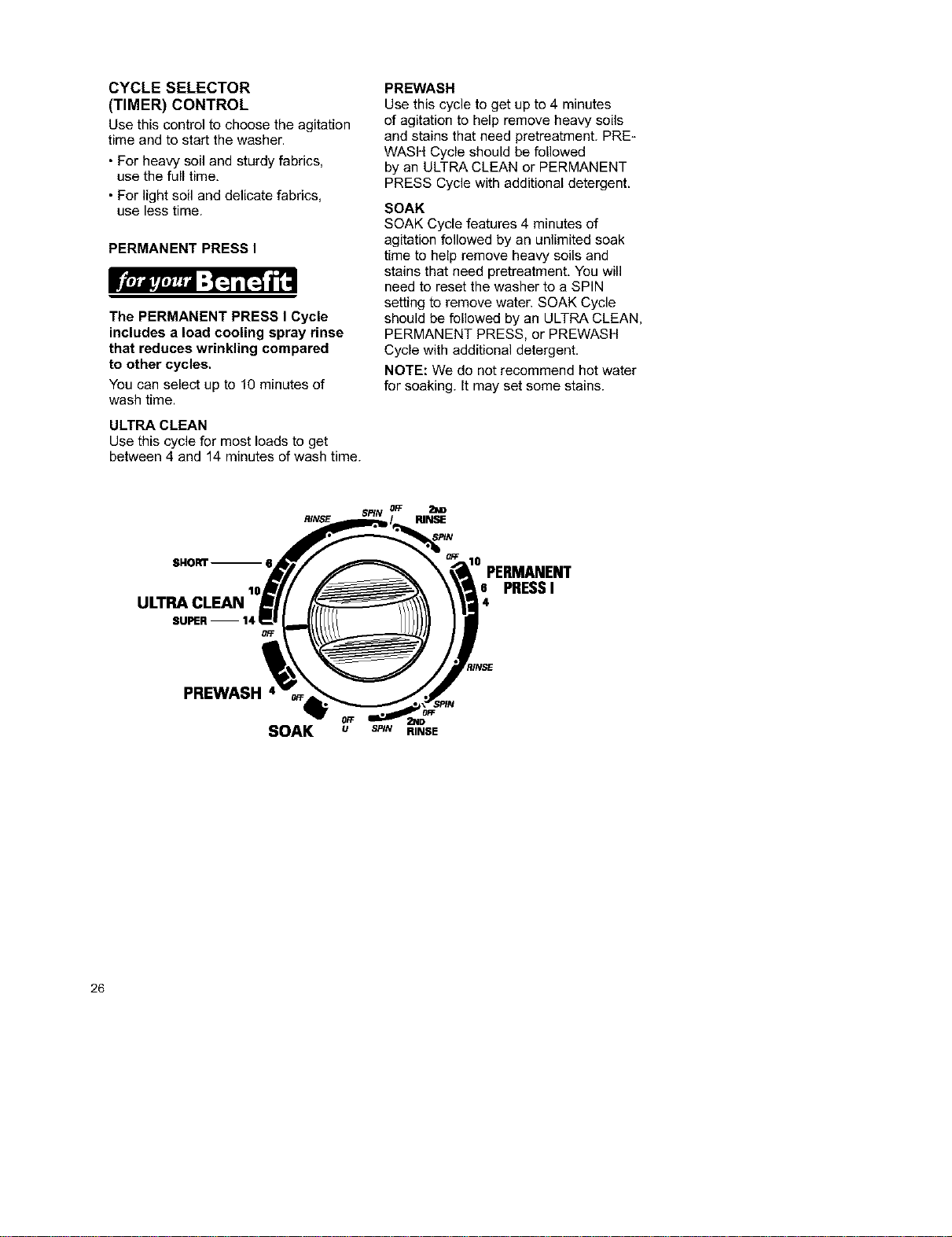

CYCLE SELECTOR
(TIMER) CONTROL
Use thiscontrolto choose theagitation
time and to start the washer.
• For heavy soil and sturdy fabrics,
use the full time,
• For light soil and delicate fabrics,
use less time.
PERMANENT PRESSI
llr+,Jdirt,J+++ ;I_] i[,;4 l'+t""
The PERMANENT PRESS I Cycle
includes a load cooling spray rinse
that reduces wrinkling compared
to other cycles.
You can select up to 10 minutes of
wash time.
ULTRA CLEAN
Use this cycle for most loads to get
between 4 and 14 minutes of wash time.
PREWASH
Use this cycle to get up to 4 minutes
of agitation to help remove heavy soils
and stains that need pretreatment. PRE-
WASH Cycle should be followed
by an ULTRA CLEAN or PERMANENT
PRESS Cycle with additional detergent.
SOAK
SOAK Cycle features 4 minutes of
agitation followed by an unlimited soak
time to help remove heavy soils and
stains that need pretreatment, You will
need to reset the washer to a SPIN
setting to remove water. SOAK Cycle
should be followed by an ULTRA CLEAN,
PERMANENT PRESS, or PREWASH
Cycle with additional detergent,
NOTE: We do not recommend hot water
for soaking. It may set some stains.
RINSE RINSE
SHORT --
ULTRA CLEAN
SURR--14
PERMANENT
PRESSI
PREWASH
SOAK
SP/N
u SRN RINSE
26

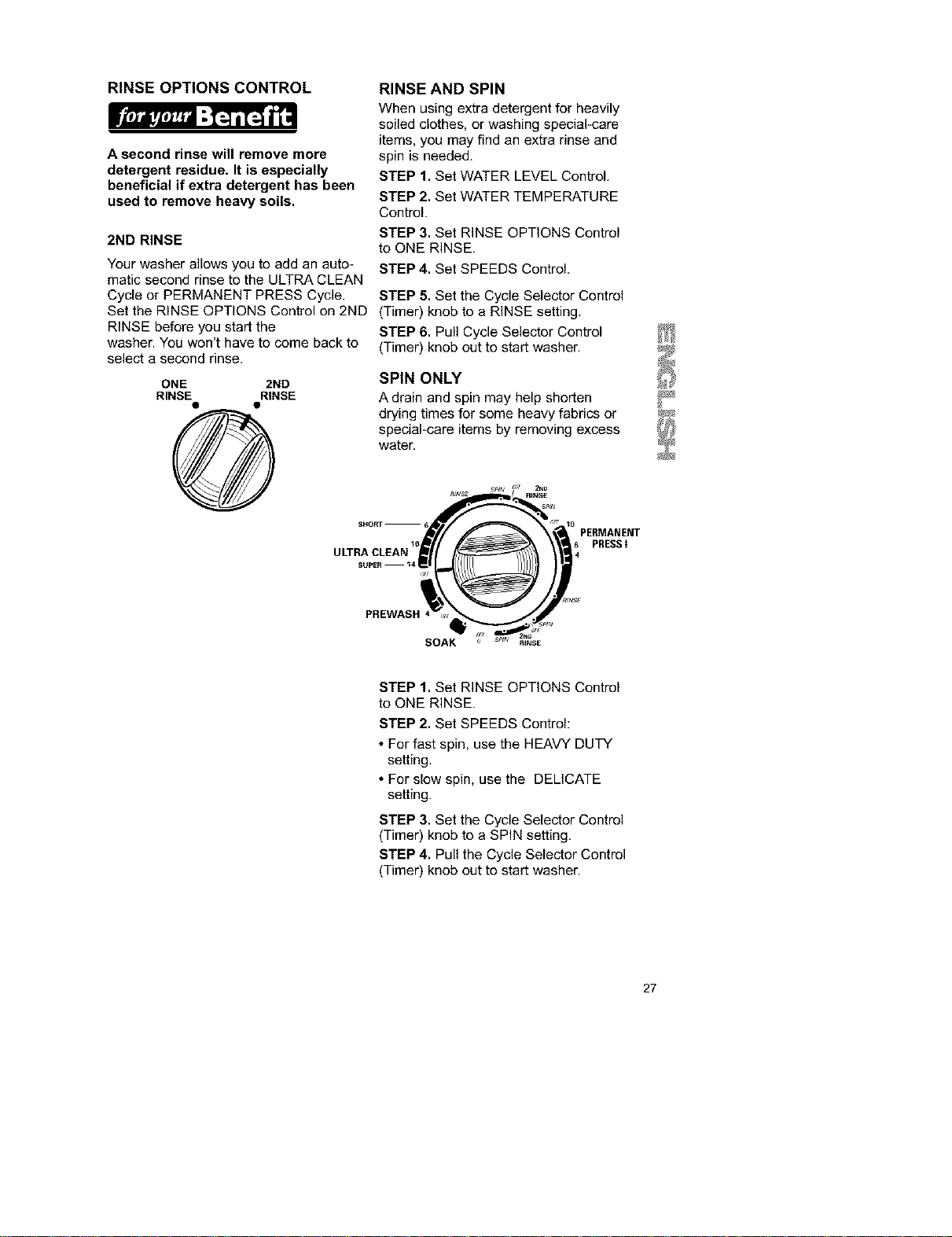

RINSE OPTIONS CONTROL
llhr,J.'rm+++ "-I_]i[,;4 l'+t""
A second rinse will remove more
detergent residue. It is especially
beneficial if extra detergent has been
used to remove heavy soils.
2ND RINSE
Your washer allows you to add an auto-
matic second rinse to the ULTRA CLEAN
Cycle or PERMANENT PRESS Cycle.
Set the RINSE OPTIONS Control on 2ND
RINSE before you start the
washer. You won't have to come back to
select a second rinse.
ONE 2ND
RINSE RINSE
RINSE AND SPIN
When using extra detergent for heavily
soiled clothes, or washing special+care
items, you may find an extra rinse and
spin is needed.
STEP 1. Set WATER LEVEL Control.
STEP 2. Set WATER TEMPERATURE
Control.
STEP 3. Set RINSE OPTIONS Control
to ONE RINSE.
STEP 4. Set SPEEDS Control.
STEP 5. Set the Cycle Selector Control
(Timer) knob to a RINSE setting,
STEP 6. Pull Cycle Selector Control
(Timer) knob out to start washer.
SPIN ONLY
A drain and spin may help shorten
drying times for some heavy fabrics or
special-care items by removing excess
water.
PERMANENT
PRESSI
SOAK
STEP 1. Set RINSE OPTIONS Control
to ONE RINSE.
STEP 2. Set SPEEDS Control:
• For fast spin, use the HEAVY DUTY
setting,
• For slow spin, use the DELICATE
setting.
STEP 3. Set the Cycle Selector Control
(Timer) knob to a SPIN setting,
STEP 4. Pull the Cycle Selector Control
(Timer) knob out to start washer.
27

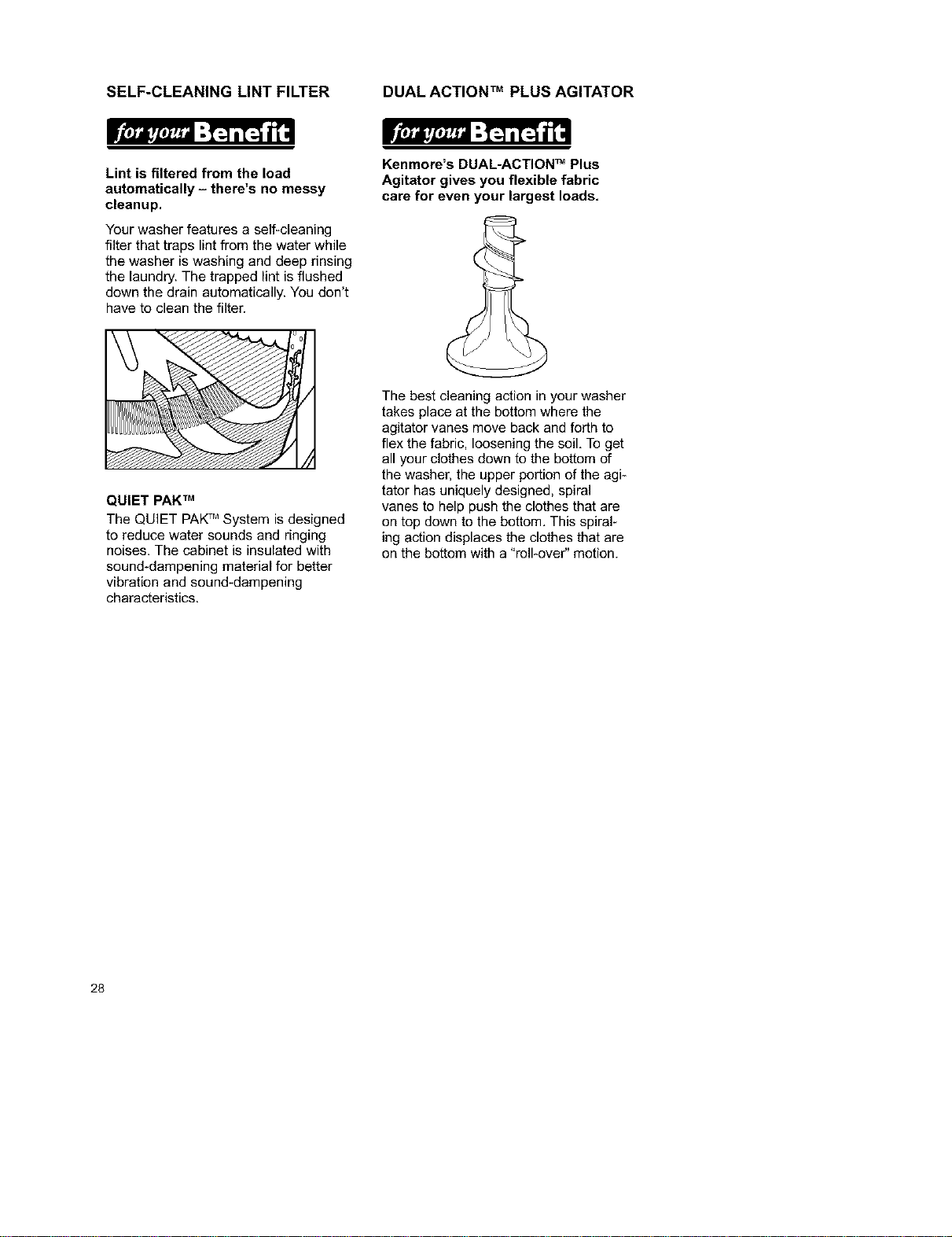

SELF-CLEANING LINT FILTER DUAL ACTION TM PLUS AGITATOR
Lint is tittered from the toad
automatically - there's no messy
cleanup.
Your washer features a self-cleaning
filter that traps }int from the water while
the washer is washing and deep rinsing
the taundry.The trapped lint is flushed
down the drain automatically. You don't
have to clean the filter.
QUIET PAKTM
The QUIET PAKTM System is designed
to reduce water sounds and ringing
noises. The cabinet is insulated with
sound-dampening material for better
vibration and sound-dampening
characteristics.
Kenmore's DUAL-ACTION TM Plus
Agitator gives you flexible fabric
care for even your largest loads,
The best cleaning action in your washer
takes place at the bottom where the
agitator vanes move back and forth to
flex the fabric, loosening the soil, To get
all your clothes down to the bottom of
the washer, the upper portion of the agi*
tator has uniquely designed, spiral
vanes to help push the clothes that are
on top down to the bottom, This spiral-
ing action displaces the clothes that are
on the bottom with a "roIFover" motion.
28

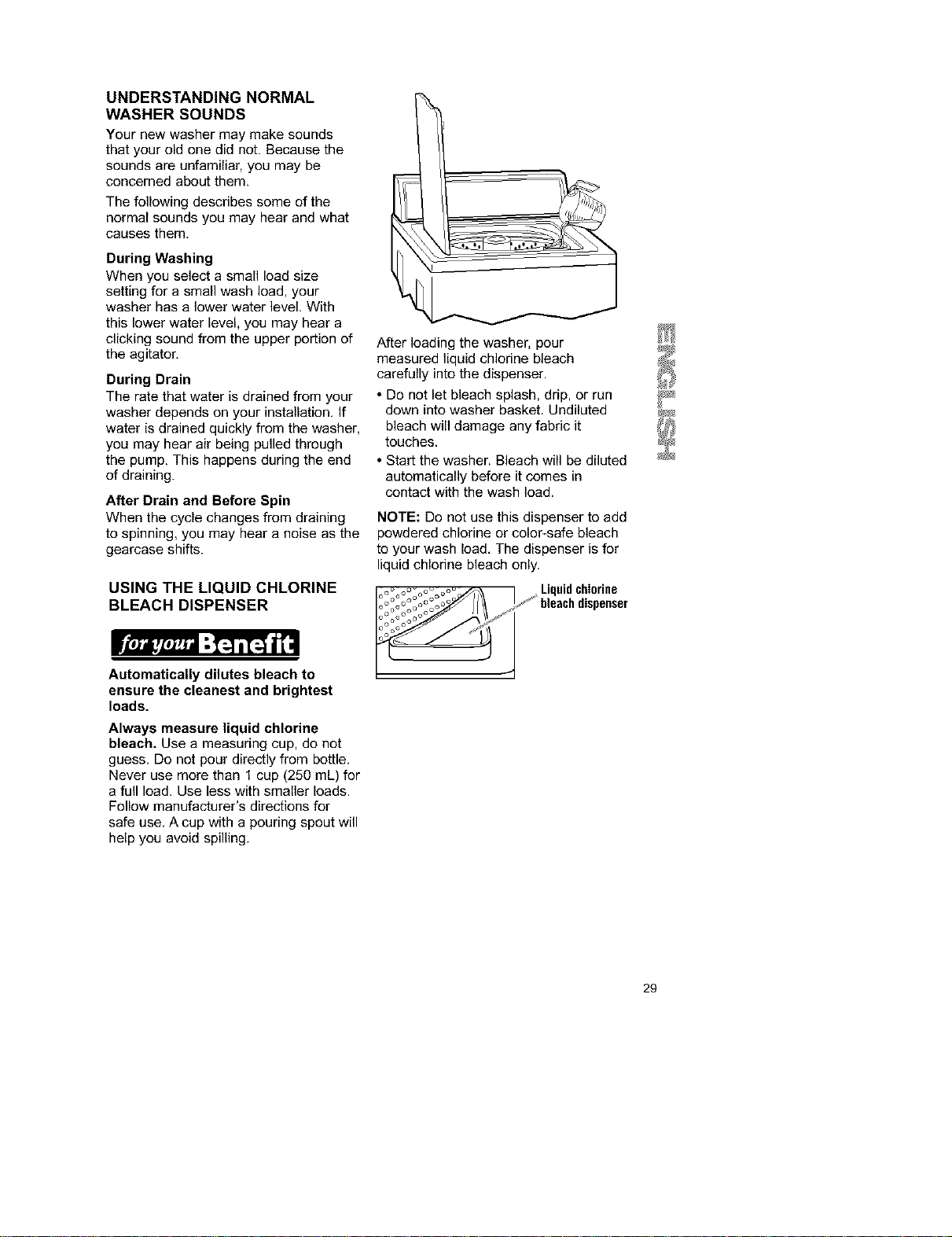

UNDERSTANDING NORMAL
WASHER SOUNDS
Your new washer may make sounds
that your old one did not. Because the
sounds are unfamiliar, you may be
concerned about them.
The following describes some of the
normal sounds you may hear and what
causes them.
During Washing
When you select a small load size
setting for a small wash load, your
washer has a lower water level. With
this lower water level, you may hear a
clicking sound from the upper portion of
the agitator,
During Drain
The rate that water is drained from your
washer depends on your installation, If
water is drained quickly from the washer,
you may hear air being pulled through
the pump, This happens during the end
of draining.
After Drain and Before Spin
When the cycle changes from draining
to spinning, you may hear a noise as the
gearcase shifts.
USING THE LIQUID CHLORINE
BLEACH DISPENSER
Automatically dilutes bleach to
ensure the cleanest and brightest
loads.
Always measure liquid chlorine
bleach, Use a measuring cup, do not
guess, Do not pour directly from bottle,
Never use more than 1 cup (250 mL) for
a full load. Use less with smaller loads.
Follow manufacturer's directions for
safe use, A cup with a pouring spout will
help you avoid spilling.
After loading the washer, pour
measured liquid chlorine bleach
carefully into the dispenser.
• Do not let bleach splash, drip, or run
down into washer basket. Undiluted
bleach will damage any fabric it
touches.
• Start the washer. Bleach will be diluted
automatically before it comes in
contact with the wash load.
NOTE: Do not use this dispenser to add
powdered chlorine or color-safe bleach
to your wash load, The dispenser is for
liquid chlorine bleach only.
oOoO oUoO_r,_ i Liquidchlorine
I_°°_°°°°°_°_'_ Ill\ _/iJ' bleachdispenser
oO o o oo /_
IoooOo ...-k) /I
29

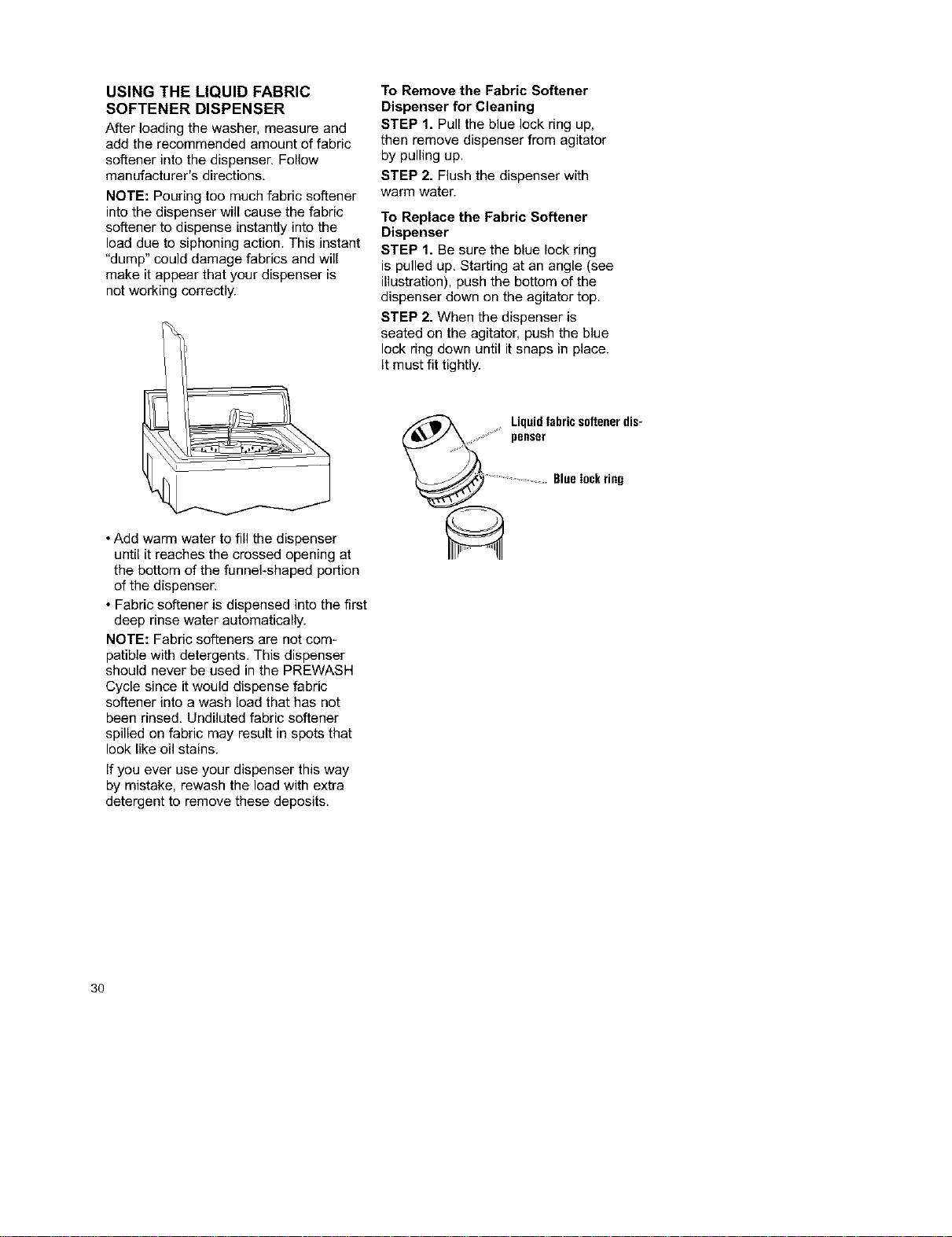

USING THE LIQUID FABRIC
SOFTENER DISPENSER
After loading the washer, measure and
add the recommended amount of fabric
softener into the dispenser. Follow
manufacturer's directions.
NOTE: Pouring too much fabric softener
into the dispenser will cause the fabric
softener to dispense instantly into the
load due to siphoning action. This instant
"dump" could damage fabrics and will
make it appear that your dispenser is
not working correctly.
To Remove the Fabric Softener
Dispenser for Cleaning
STEP 1. Pull the blue lock ring up,
then remove dispenser from agitator
by pulling up.
STEP 2. Flush the dispenser with
warm water.
To Replace the Fabric Softener
Dispenser
STEP 1. Be sure the blue lock ring
is pulled up. Starting at an angle (see
illustration), push the bottom of the
dispenser down on the agitator top.
STEP 2. When the dispenser is
seated on the agitator, push the blue
lock ring down until it snaps in place.
It must fit tightly.
• Add warm water to fill the dispenser
until it reaches the crossed opening at
the bottom of the funnel-shaped portion
of the dispenser.
• Fabric softener is dispensed into the first
deep rinse water automatically.
NOTE: Fabric softeners are not com-
patible with detergents. This dispenser
should never be used in the PREWASH
Cycle since it would dispense fabric
softener into a wash load that has not
been rinsed, Undiluted fabric softener
spilled on fabric may result in spots that
look like oil stains.
If you ever use your dispenser this way
by mistake, rewash the load with extra
detergent to remove these deposits.
..............,u"'cen'e"e'°''"
.................................................Bluelockring
3O

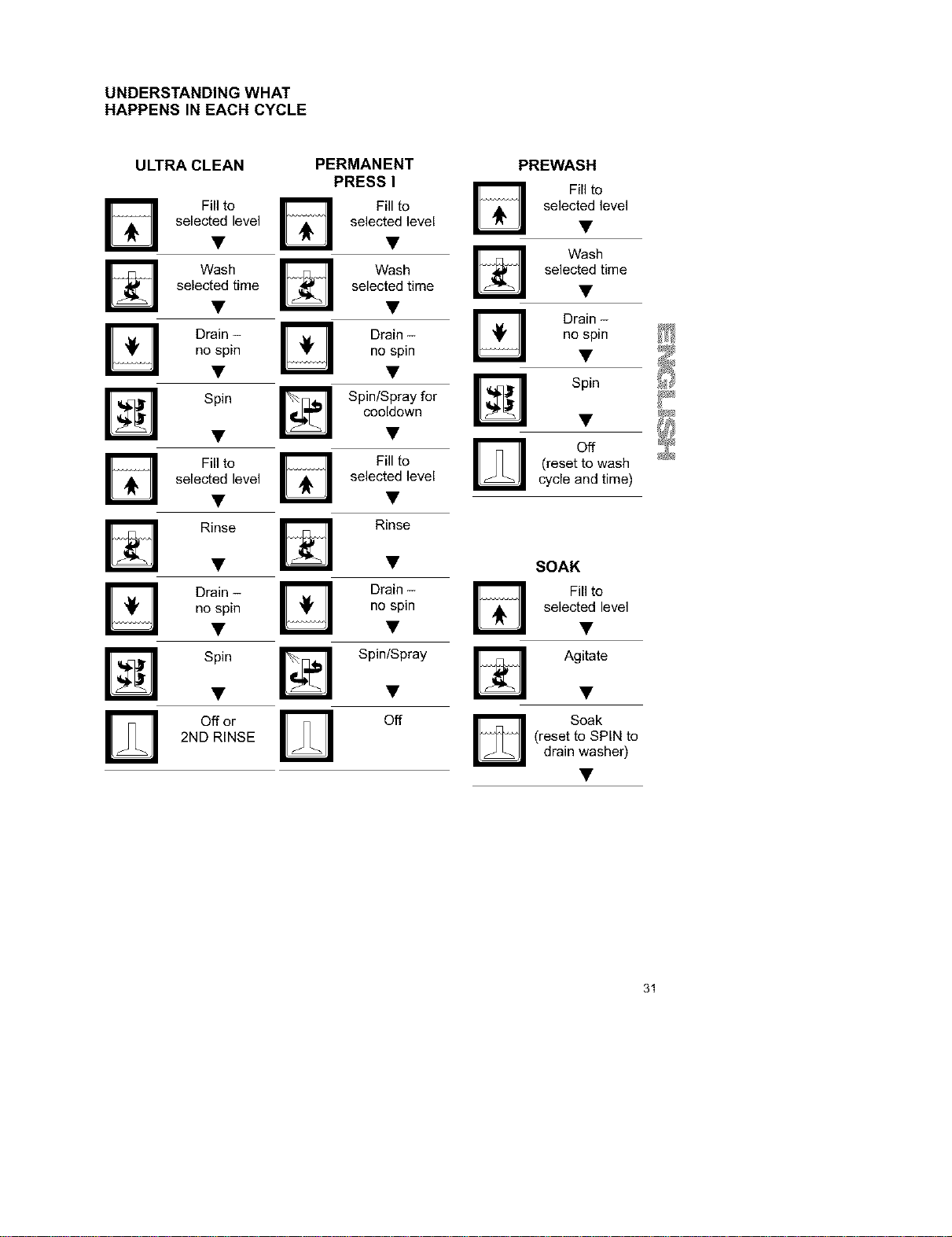

UNDERSTANDING WHAT
HAPPENS IN EACH CYCLE
ULTRA CLEAN PERMANENT
PRESSI
PREWASH
Fill to
Fill to _ Fillto selected level
selected level W selected level •
Wash
Wash Wash selected time
selected time selected time •
• • _ Drain -
Drain - r_ Drain - no spin
W
no spin _ no spin •
Spin
Spin/Spray for
cooldown
Spin
Fill to _ Fillto
selected level selected level
Rinse
Rinse
Drain - _ Drain -
no spin no spin
Spin/Spray
Off
Spin
Off or
2ND RINSE
Off
(reset to wash
cycle and time)
SOAK
Fill to
selected level
Agitate
Soak
(reset to SPIN to
drain washer)
31

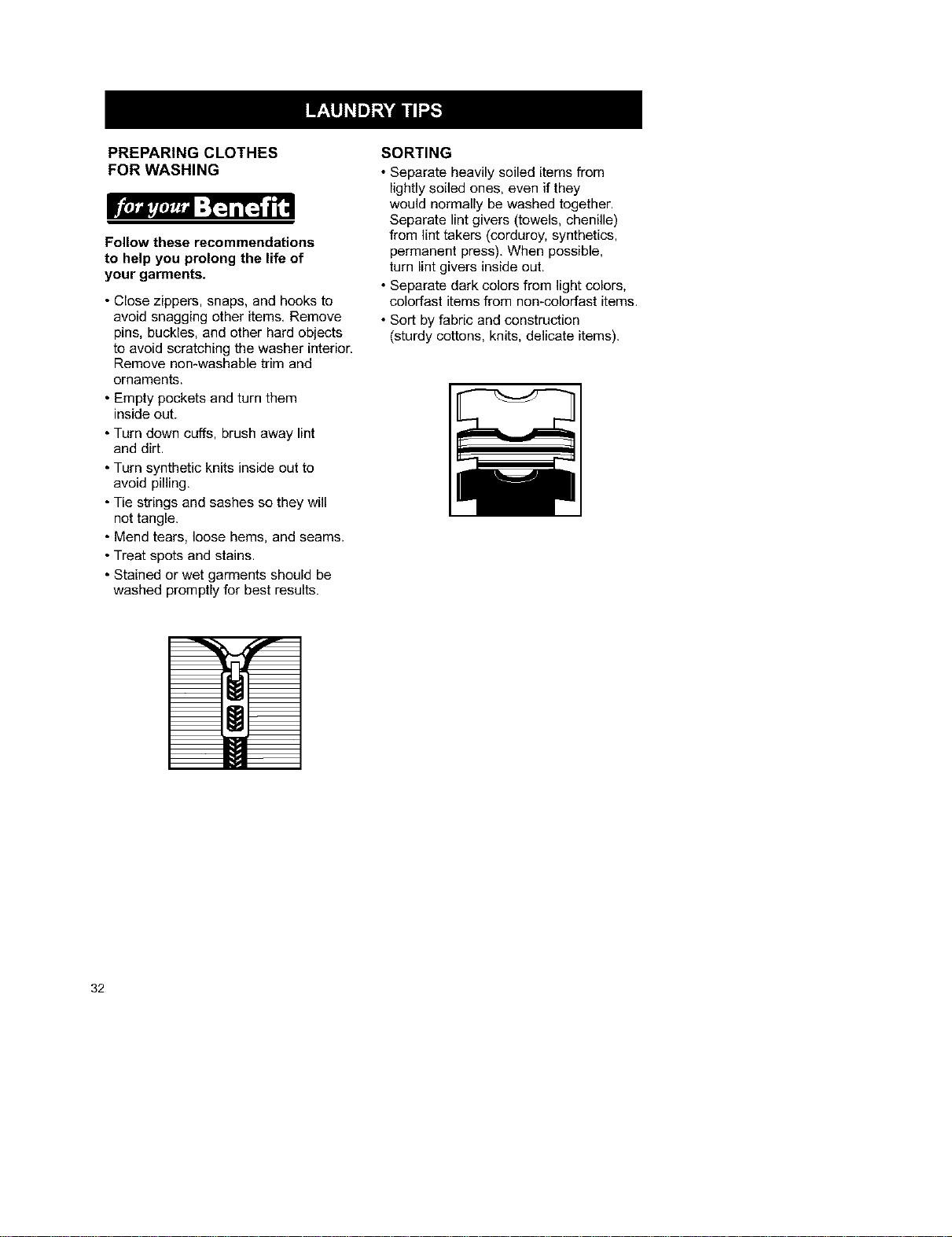

PREPARING CLOTHES
FOR WASHING
Follow these recommendations
to help you prolong the life of
your garments.
• Close zippers, snaps, and hooks to
avoid snagging other items, Remove
pins, buckles, and other hard objects
to avoid scratching the washer interior.
Remove non-washable trim and
ornaments.
• Empty pockets and turn them
inside out.
• Turn down cuffs, brush away lint
and dirt.
• Turn synthetic knits inside out to
avoid pilling.
• Tie strings and sashes so they will
not tangle.
• Mend tears, loose hems, and seams.
• Treat spots and stains.
• Stained or wet garments should be
washed promptly for best results.
SORTING
• Separate heavily soiled items from
lightly soiled ones, even if they
would normally be washed together.
Separate lint givers (towels, chenille)
from lint takers (corduroy, synthetics,
permanent press). When possible,
turn lint givers inside out.
• Separate dark colors from light colors,
colorfast items from non-colorfast items.
• Sort by fabric and construction
(sturdy cottons, knits, delicate items).
32
LOADING
Proper loading of your washer
contributes to proper cleaning and
fabric care and reduces machine
noise.
• Drop items into washer loosely. Fillto
the top of the basket (top row of holes).
Do not wrap items around the agitator.
Items should move easily through
wash water for best cleaning and
wrinkle-free results. Items should sink
and reappear later.
• Load washer properly and select
correct water level setting. Overloading
or packing the machine, and selecting a
setting too small for the wash load can:
- cause poor cleaning
increase wrinkling
create excessive lint
- wear out items faster
(because of pilling)
• Load by the amount of space items
take up, not by their weight.
• Mix large and small items in each load.
Load evenly to maintain washer
balance. An off-balance load can make
the washer vibrate during spin.
• Use a higher water level setting to
reduce wrinkling with permanent press
clothes and some synthetic knits.
These items should have more room
to move in the water than heavy items
(towels, jeans).
• Reduce wash time by using a lower
water level setting. Loads with only a
few small items need less wash time.
LOADING SUGGESTIONS
For these suggested fulPsized loads,
set the Water Level Selector to the
highest water level setting.
Super Capacity Plus Washers
Heavy Work
Clothes
4 jeans
4 workpants
4 workshkts
2 sweatshirts
2 sweatpants
Towels Mixed Load
10 hath towels 3 sheets
10 hand towels (1 king, 2 twin)
14 wash cloths 4 pitlowcases
3 shkts
3 blouses
9 T-shids
9 shor[s
10 handkerchiefs
33
CLEANING YOUR WASHER
Proper care of your washer can extend
its life. This section explains how to care
for your washer properly and safely.
Exterior
Wipe up detergent, bleach, and other
spills with a soft, damp cloth or sponge
as they occur. Occasionally wipe the
outside of the washer to keep it looking
like new.
Do not put sharp or metal objects in your
washer. They can damage the finish.
Check all pockets for pins, clips, money,
bolts, nuts, etc. Do not lay these objects
on your washer after emptying pockets.
Interior
Clean interior with 1 cup (250 mL) of
chlorine bleach mixed with 2 cups (500
mL) of detergent. Run washer through a
complete cycle using hot water. Repeat
process if necessary.
NOTE: Remove hard water deposits
using only cleaners labeled as washer
safe.
Water Inlet Hoses
Replace inlet hoses after five years of
use to reduce the risk of hose failure.
Periodically inspect and replace inlet
hoses if bulges, kinks, cuts, wear or
leaks are found. When replacing your
inlet hoses, mark the date of replace-
ment on the label with a permanent
marker.
WINTER STORAGE
OR MOVING CARE
Install and store your washer where it
will not freeze. Because some water
may stay in the hoses and pump,
freezing can damage your washer. If
storing or moving your washer during
freezing weather, winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet
hoses.
3. Put 1 qt (1 L) of R.V.-type antifreeze
in the basket.
4. Run washer on a SPIN setting for
about 30 seconds to mix the
anti-freeze and water. Some of the
mixture will pump out while the
washer spins.
5, Unplug the power supply cord.
To use washer again:
1. Flush water pipes and hoses.
2, Reconnect water inlet hoses.
3, Turn on both water faucets.
4, Reconnect power supply cord.
5, Run the washer through a complete
cycle with 1 cup (250 mL) of
detergent to clean out antifreeze.
NON-USE OR VACATION CARE
Operate your washer only when you
are at home, If you will be on vacation
or not using your washer for an
extended period of time, you should:
• Unplug the power supply cord or turn
off electrical power to the washer.
• Turn off the water supply to the
washer. This helps avoid accidental
flooding (due to a water pressure
surge) while you are away.
34
Most laundering problems are easily solved if you understand the cause.
Check these lists for common laundry and washer problems. If you need
further assistance, see the back page.
Problem Possible Cause Solution
Washer Leaks Household plumbing is leaking. Repair plumbing.
Inlet hoses not tight. Tighten hoses (see "INSTALLATION
Sections D & E).
Inlet hose washers not Reseat washers
properly seated. (see "INSTALLATION,"
Section D).
Drain hosenot properly Clamp drain hose
clamped or is off. (see "INSTALLATION,"
Section C).
Drain is clogged. Remove drain clogs. Sink, standpipe,
or floor drain must be able to handle
17gal (64 L) of water per minute.
Tub moved fo)_vardduring Ensure tub is centered before
unloading, causingwater to starting washer.
deflect off tub ring,
Unit not level causing water Ensure front feet are installed and
to deflect off tub ring. nuts aretightened. Level washer.
Reset rear legs
(see "INSTALLATION,"
Section G).
Load is unbalanced.Spray Redistribute the load.
rinses are deflecting off load.
Washer is overloaded. Fills or Reduce load size.
spray rinses are deflecting off
load.
Won't Drain/ Drain hose is kinked or Straighten or unplug hose
Won't Spin/ clogged. (see "INSTALLATION,"Section C).
Wet Loads
Correct operation of After a wash or rinse, the washer will
neutral drain, drain without spinning. After draining,
the spinning begins.
Lid is open, Close the lid.
Drain hose is more than Lower drain hose
96 in (2.4 m) above floor. (see "INSTALLATION,"SectionA).
Toomuch detergent - Use less detergent.
excessive sudsing.
Wrong cycle for load Choose a cycle with a higher spin
being washed, speed (see "Operating Your Washer"
35
Problem Possible Cause Solution
Won't Drain/ Low voltage or using Check electrical source or call
Won't Spin/ an extension cord. electrician. Do not use extension
Wet Loads cords.
(cont.) Cold rinses. Cold rinses leave loadswetter than
warm rinses.This is normal.
Continues to Drain hose is less than Raise the drain hose
39 inches above floor. (see "INSTALLATION,"Section C),
Fill/
Continues to Drain hose fits tightly into Adjust drain hose for loosefit
Drain/Cycle standpipe. (see "INSTALLATION,"Section C).
Stuck
Drain hosetaped into Do not seal off drain hose with tape.
standpipe. The drain hose needs an air gap.
Washer Makes Load is unbalanced. Redistribute load.
Noise
Washer is not level. Level washer. Reset rear legs
Rear leveling legs not set. (see "INSTALLATION,"Section G).
Nuts on front feet not tight. Tighten nuts
(see "INSTALLATION,"Section G).
Yellowshipping strap with Remove strap with cotter pins
cotter pins not completely (see "INSTALLATION,"Section B),
removed.
Floor not strong enough Relocate washer
to support washer. (see "INSTALLATION,"SectionA).
Gears engaging after drain This is normal.
and before spin.
Upper part of agitator clicks This is normal.
during wash.
Won't Waterinlet valve Clean screens.
Fill/Won't screens are plugged.
Rinse/Won't
Agitate/ Water isturned off. Turn on water.
Wrong Hot and cold hoses are Reverse hoses (see "INSTALLATION,"
Temperature reversed. Sections D & E).
Inlet hoseis kinked. Straighten hoses.
Timerdial is net lined up. Turntimer knob to the right slightly
and pullto start.
Power cord not pluggedin. Plug in power cord.
36
Problem Possible Cause Solution
Machine Power cord not plugged in. Plug in power cord.
Stops No power at plug. Check electrical source or calI
eIectrician.
Fuse blown or circuit Replace fuse or reset circuit breaker.
breaker open. Ifproblem continues, calI eIectrician.
Using an extension cord. Do not use extensioncords.
Timer is not lined up. Turntimer to the rightslightly
and pulI to start.
Timer knob not pulled out. Set and pullout knob.
Machine is overloaded. Wash smaller loads.
Agitator Not The top of the agitator moves This is normal.
Working only in one direction.
The top of the agitator is loose. This is normal.
Water Level The top of the agitator is much This is normal.
Too Low/Not higher than the highest water
Completely level. This creates a perception
Filling of the washer not beingfull
Tub is Tub pulled forward when Ensure tub is centered before
Crooked unloading, startingwasher.
Tub moves. This is normal.
Unit not level. Ensure front feet are installed and
nuts aretightened. Level washer.
Reset rear legs (see"INSTALLATION"
Section G).
Lint on Load Impropersorting. Sort lint giversfrom lint takers
and by color.
Overloading. Lint can be trapped in load if
overloaded. Wash smaller loads.
Paper or tissue in pockets. Clean out pockets before washing.
Not enough detergent. Use enough detergent to
hold lint inwater.
Detergent not dissolving. UseAutomatic TemperatureControl
Watertemperatures lower (ATC).ATC ensures wash water
than 70°F (21°C). temperaturewill be warmer than
70°F (21°C).
37
38
Problem Possible Cause Solution
Tearing Overloading. Improper Loads should move freely during
use of washer, wash. Wash smaller loads or
increase water level
Improper use of chlorine Do not pour chlorine bleach directly
bleach. Undiluted bleach on Ioad. Wipe up bleach spills.
will damage fabrics.
Sharp items not removed Clean out pockets beforewashing.
from pockets; fasteners Zip zippers beforewashing.
not fastened.
Items damaged before Mend rips and broken threads in
washing, seams before washing.
Stains on Improper use of fabric Dilute fabric softener and add to
Load softener inwasher or dryer, deep rinse only.
Iron in water (rust). Install an iron filter.
Under use of detergent causing Useenough detergent to remove
soil to be redeposited, soil and hoIdit in suspension.
Dye transfer due to not Sort dark clothingfrom whites
sorting loads properly, and lights.
Dye transfer due to not Unloadthe washer as soon as
unloading washer promptly, it stops.
Load is Not removing Ioad promptly. Unloadthe washer as soon as it
Wrinkled stops.
Wrongcycle for fabrics Use cold rinses and cycles with slow
being washed, spin speeds to reduce wrinkling.
Overloading. Loads should move freely during
wash. Wash smalIer loads.
Washwater not warm enough Use Automatic TemperatureControl
to relax wrinkles. Using warm (ATC).If safe for fabric, usewarm or
rinses, hot wash water. Use cold rinsewater
Hoses reversed. Reverse hoses (see "Installation
Instructions," Sections D & E).
Load is Overloading. Loads should move freely during
Tangled/ wash. Wash smalIer loads.
Twisted
Clothes wrapped around Do not wrap items around agitator
agitator, when loadingwasher.
Clogged Not diIuting softener. Dilutefabric softener in dispenser.
Dispensers/
Bleach Use of color-safe bleach in Add color-safe bleach directly to the
Leaking/ chlorine bleach dispenser, basket. Do not use chlorine bleach
Bleach on dispenser.
Wrong Loads Improper use of chlorine bleach. Always measure bleach before
adding to the dispenser. Carefully
pour into the dispenser. Wipe up
bleachspiIIs.
KENMORE WASHERS
We Service What We Sell
"We Service What We Selr' is our
assurance you can depend on Sears
for service, Your washer has added
value when you consider that Sears
has service units nationwide, staffed
with professional technicians specifically
trained on Sears appliances and having
parts, tools and equipment to ensure
that we meet our pledge to you,.. "We
Service What We Sell."
Sears Maintenance Agreement
Maintain the value of your Kenmore
Washer with a Sears Maintenance
Agreement. Kenmore washers are
designed, manufactured, and tested
for years of dependable operation.
Yet any appliance may require service
from time to time.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's
service at today's prices.
• Eliminates repair bills resulting from
normal use,
• Allows for as many service calls as
required,
• Provides for service by professional
Sears-trained Technicians,
• Even if you don't need repairs, the
Maintenance Agreement offers an
annual preventative maintenance
checkup at your request!
For more information, call
1-800-827-6655 (USA) or
1-877-533-6937 (Canada)
39
40
In U.S.A. or Canada
for in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOME" (%800-469-4663)
Para pedir servicio de reparaci6n a domicilio - 1-800-676-5811
Au Canada pour tout le service - 1-877-LE-FOYER" (1-877-533-6937)
For the repair or replacement parts you need:
Call 6 a.m. - 11 p.m. CST, 7 days a week
PartsDirect"
1-800-366-PART (1-800-366-7278)
www.seam.oomlpar_dlmct
Para ordsnar piszas con entmga a domicilio - 1-800-659-7084
For the location of a Sears Service Center in your area:
Call 24 hours a day, 7 days a week
1-800-488-1222
To purchase or inquire about a Sears Maintenance Agreement:
Call 7 a.m. - 5 p.m. CST, Monday - Saturday
t-800-827-6655
I SEARSH r" 1
