Husqvarna LO21H48H tractor User Manual

Husqvarna

Y'[ H2148

Owner's Manual

For Parts and Service, call 1-800-448-7543

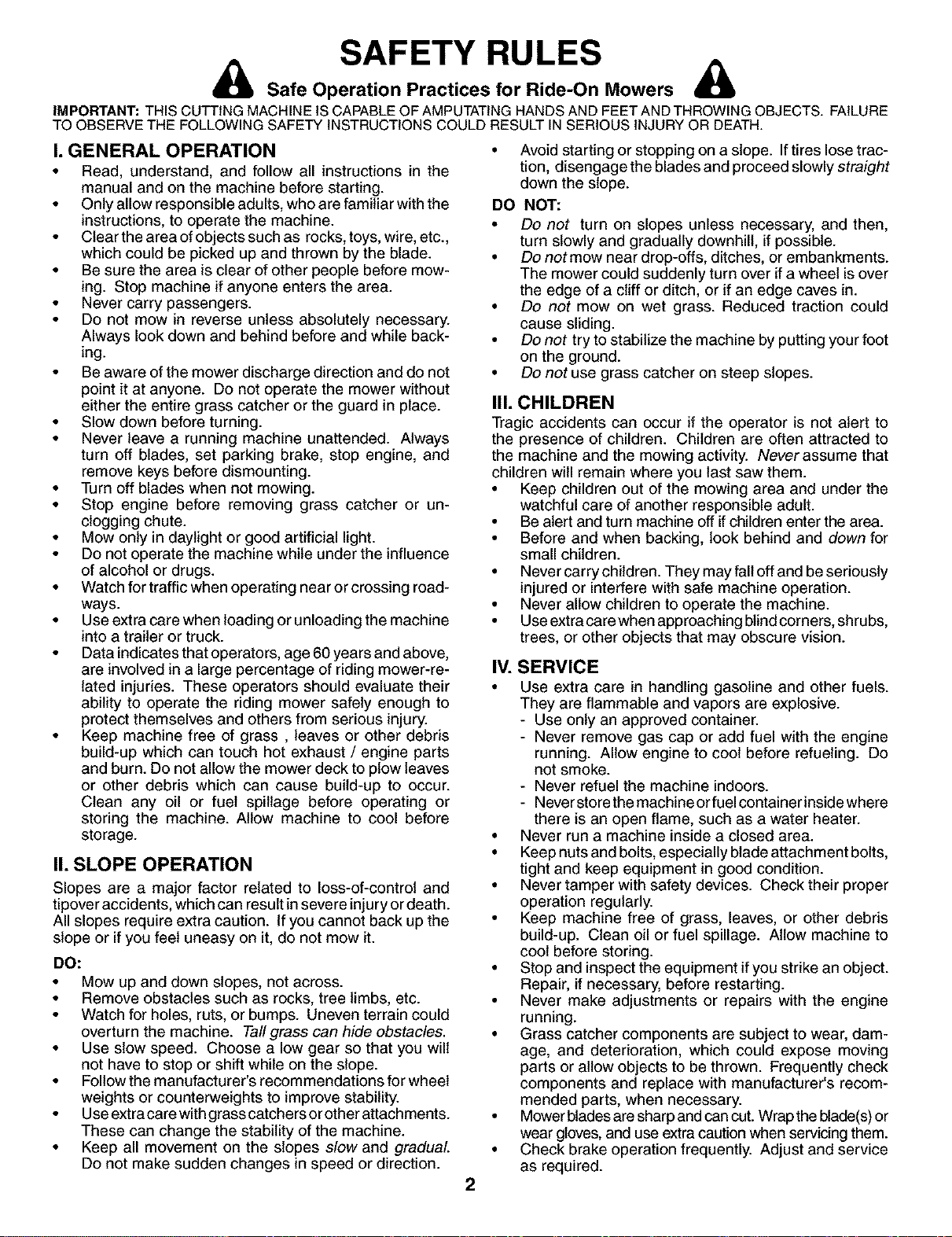

SAFETY RULES

_Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINEIS CAPABLEOF AMPUTATINGHANDS AND FEET AND THROWINGOBJECTS. FAILURE

TO OBSERVETHE FOLLOWING SAFETY INSTRUCTIONSCOULD RESULTIN SERIOUS INJURYOR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the

manual and on the machine before starting.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mow-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

• Be aware of the mower discharge direction and do not

point it at anyone. Do not operate the mower without

either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or un-

clogging chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing road-

ways.

• Use extra care when loading or unloading the machine

into a trailer or truck.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

• Keep machine free of grass, leaves or other debris

build-up which can touch hot exhaust / engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage.

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will

not have to stop or shift while on the slope.

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual

Do not make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. Iftires lose trac-

tion, disengage the blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless necessary, and then,

turn slowly and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments.

The mower could suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could

cause sliding.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the machine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for

small children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels.

They are flammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts,

tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage. Allow machine to

cool before storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine

running.

• Grass catcher components are subject to wear, dam-

age, and deterioration, which could expose moving

parts or allow objects to be thrown. Frequently check

components and replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service

as required.

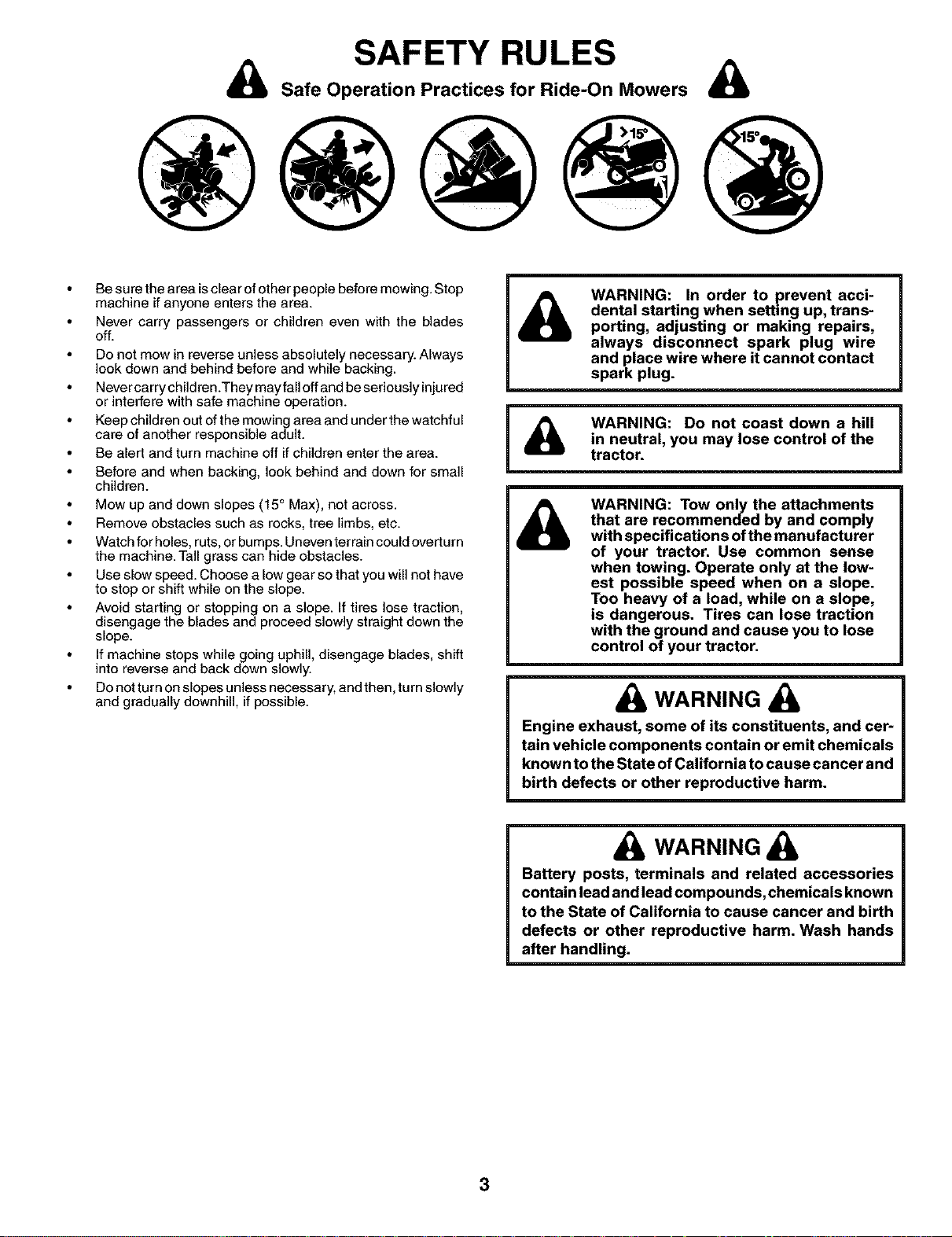

SAFETY RULES

_Safe Operation Practices for Ride-On Mowers

Be sure the area isclear of other people before mowing. Stop

machine if anyone enters the area.

Never carry passengers or children even with the blades

off.

Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

Nevercarry children.They may fall off and be seriously injured

or interfere with safe machine operation.

Keep children out of the mowing area and under the watchful

care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for small

children.

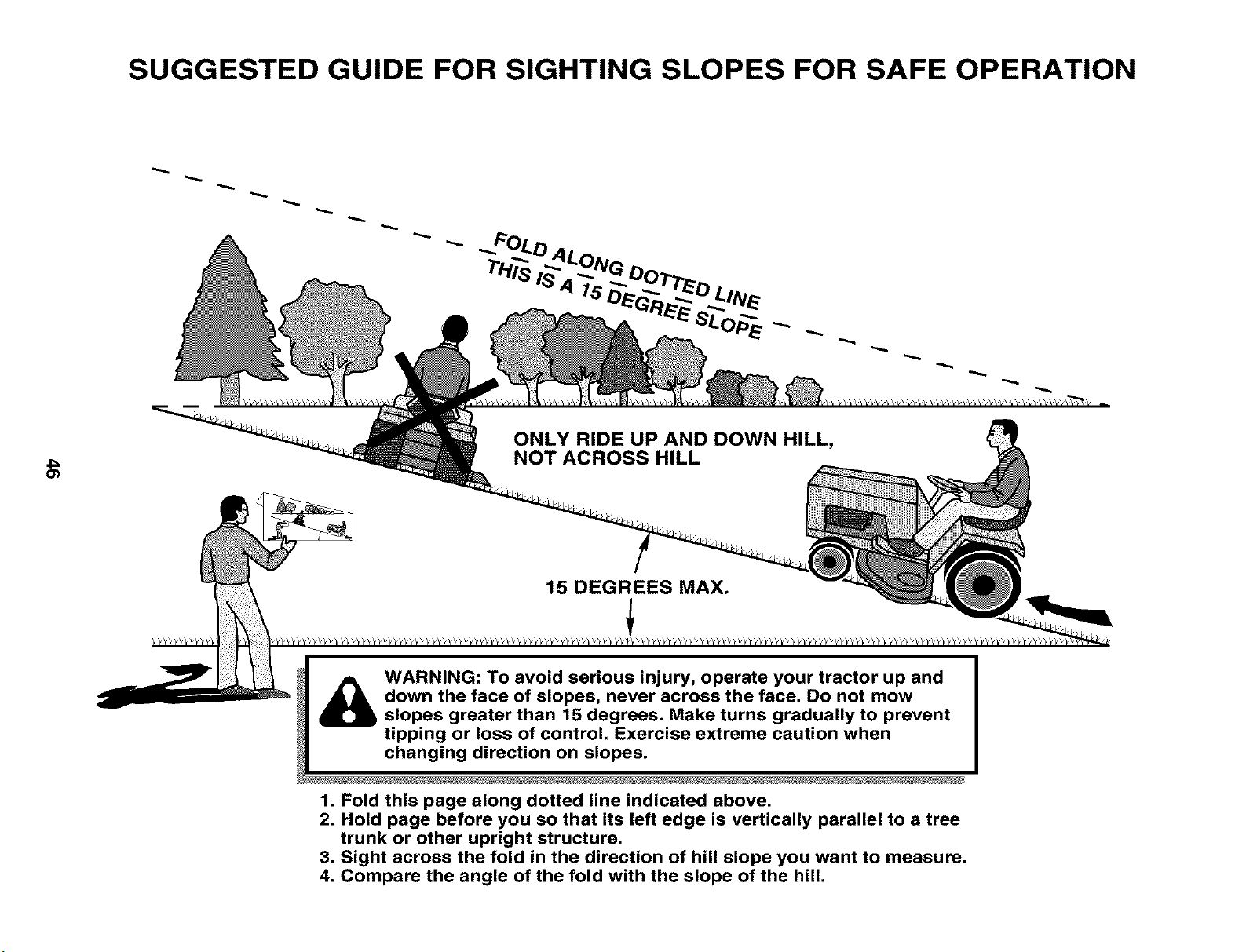

Mow up and down slopes (15° Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could overturn

the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

If machine stops while going uphill, disengage blades, shift

into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

WARNING: In order to prevent acci-

dental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire

and place wire where it cannot contact

spark plug.

I WARNING: Do not coast down a hill I

&I in neutral, you may lose control of the I

tractor.

WARNING: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer

of your tractor. Use common sense

when towing. Operate only at the low-

est possible speed when on a slope.

Too heavy of a load, while on a slope,

is dangerous. Tires can lose traction

with the ground and cause you to lose

control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to cause ca ncer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

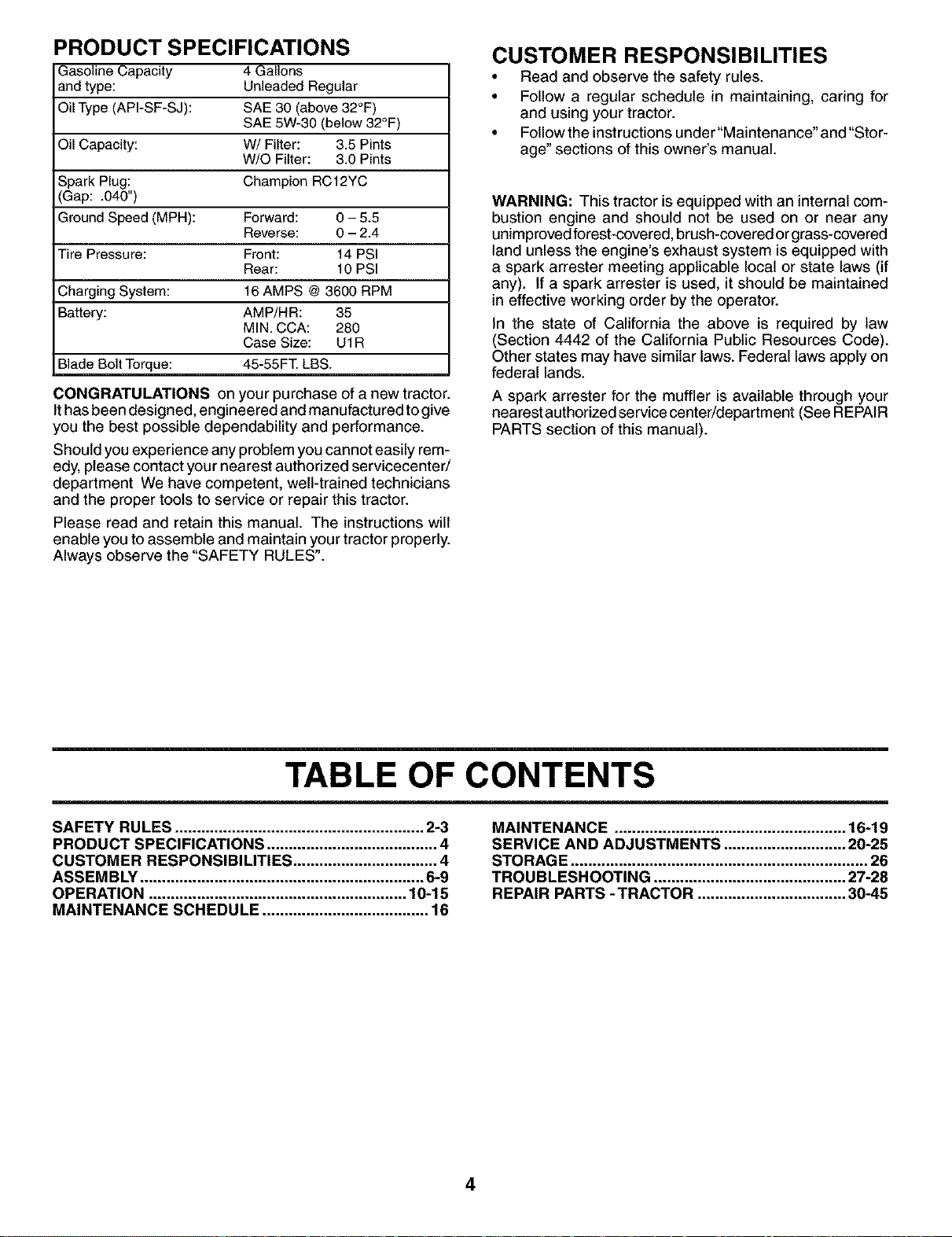

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and type: Unleaded Regular

Oil Type (API-SF-SJ): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .040")

Ground Speed (MPH): Forward: 0 - 5.5

Reverse: 0 - 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35

MIN. CCA: 280

Case Size: U1R

Blade Bolt Torque: 45-55FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

It has been designed, engineered and manufactured togive

you the best possible dependability and performance.

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

department We have competent, well-trained technicians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under"Maintenance" and "Stor-

age" sections of this owner's manual.

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered orgrass-cove red

land unless the engine's exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See REPAIR

PARTS section of this manual).

TABLE OF CONTENTS

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

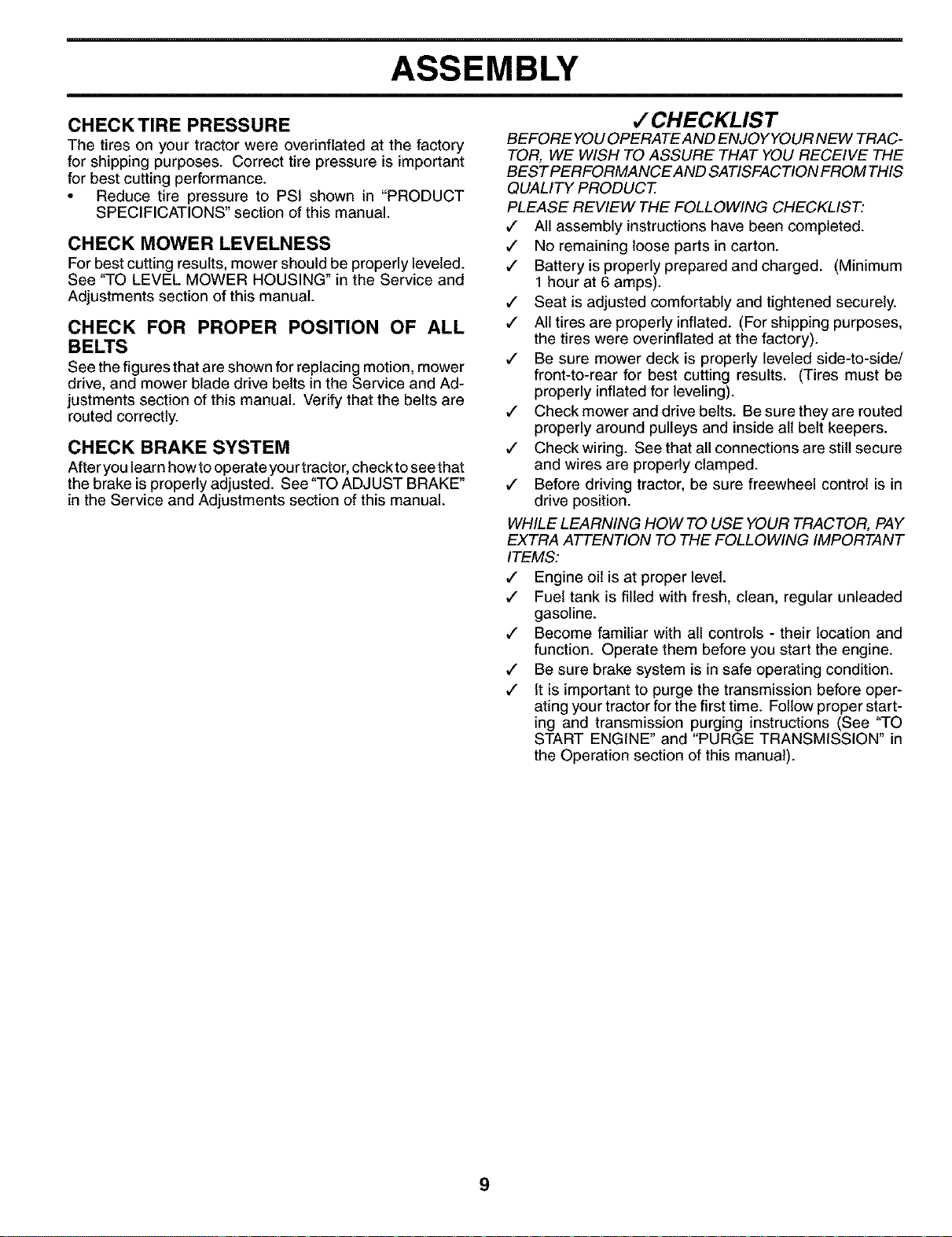

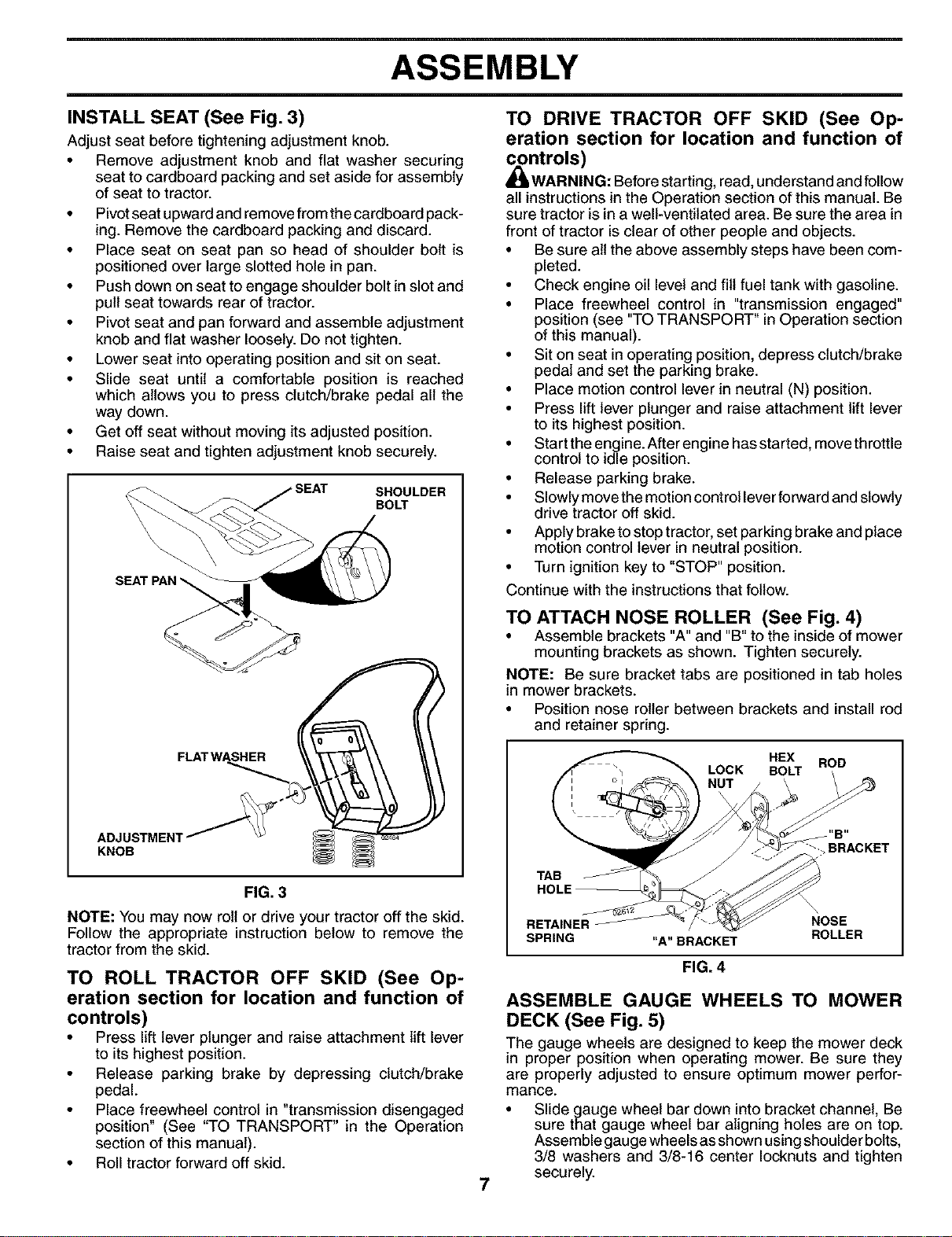

ASSEMBLY ................................................................. 6-9

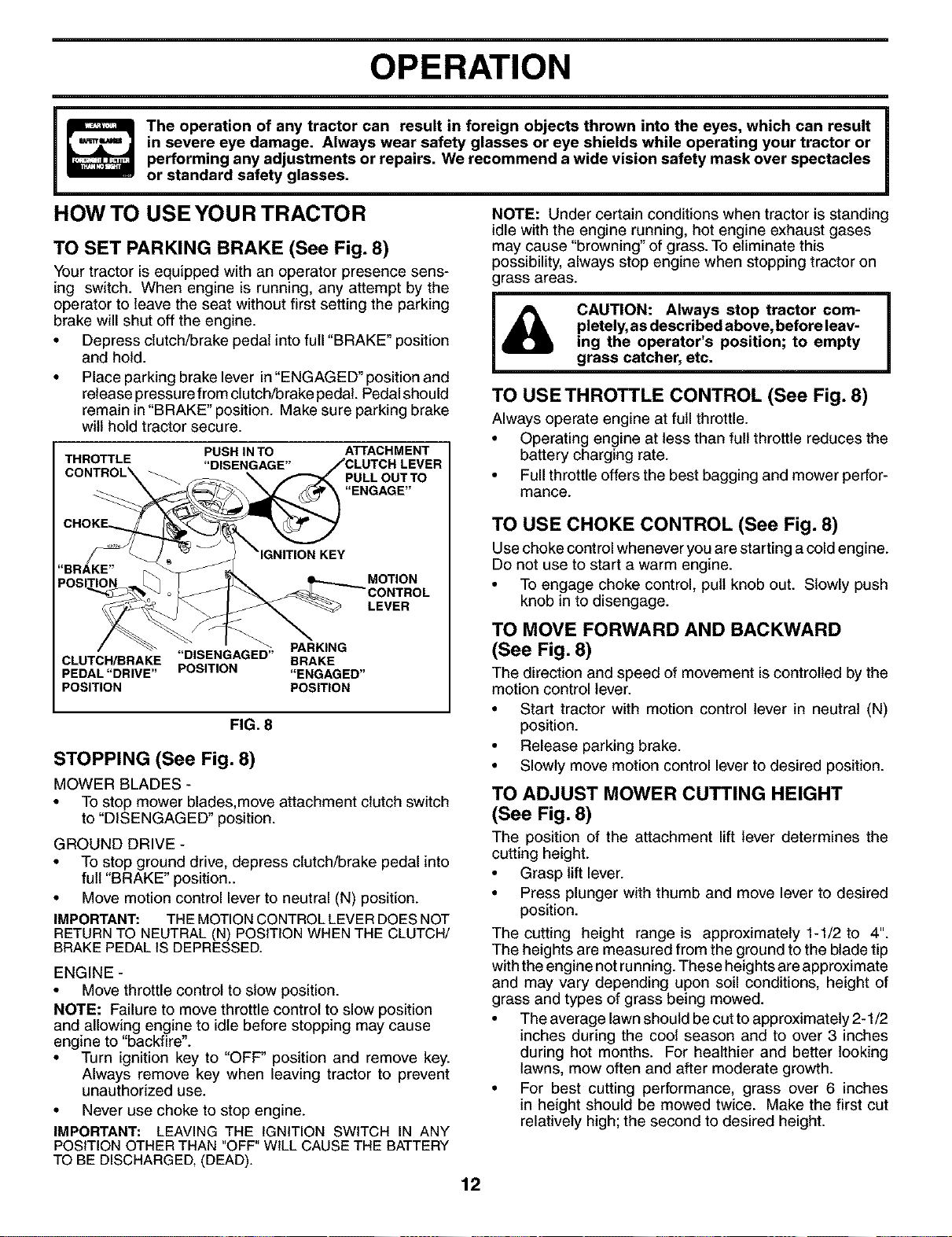

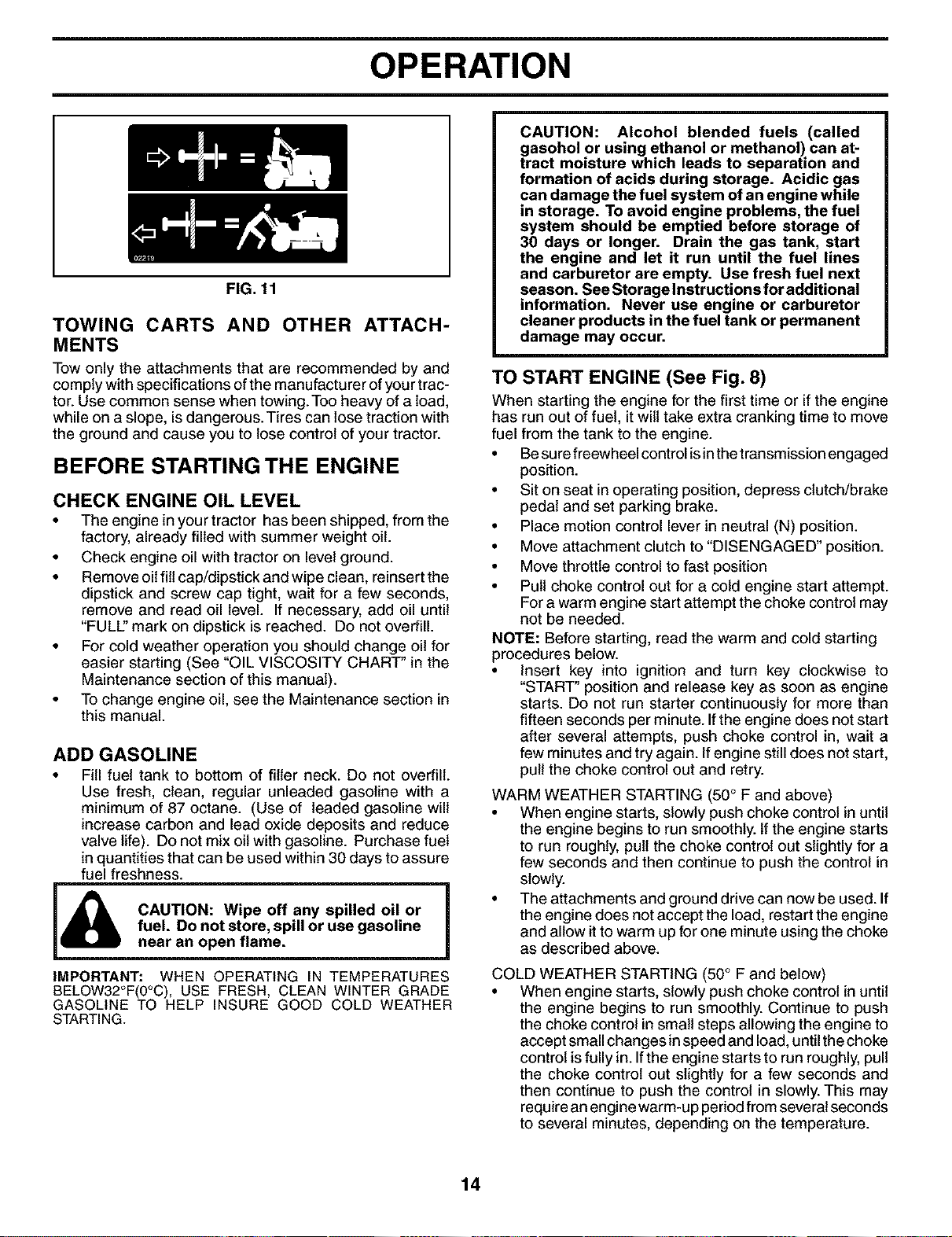

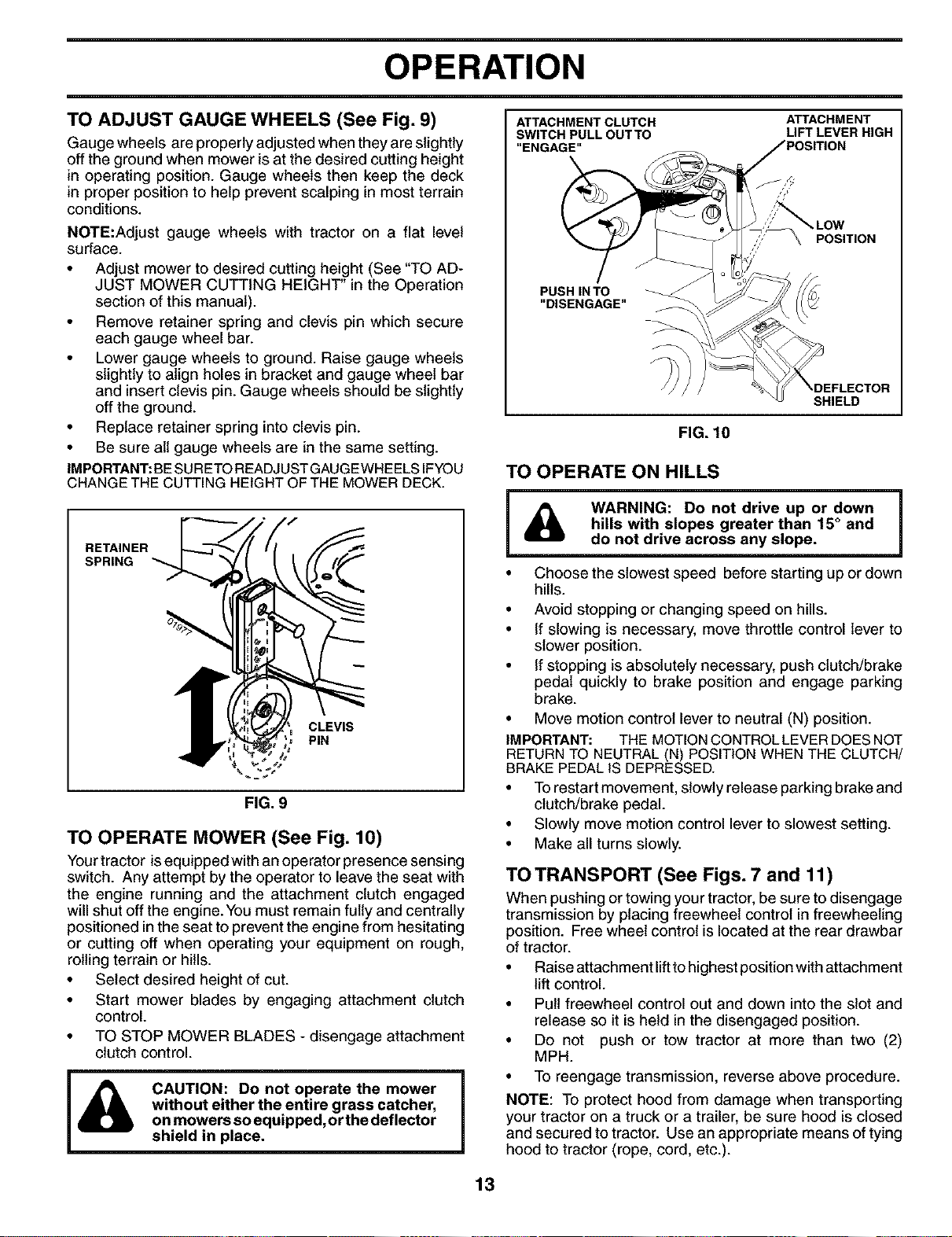

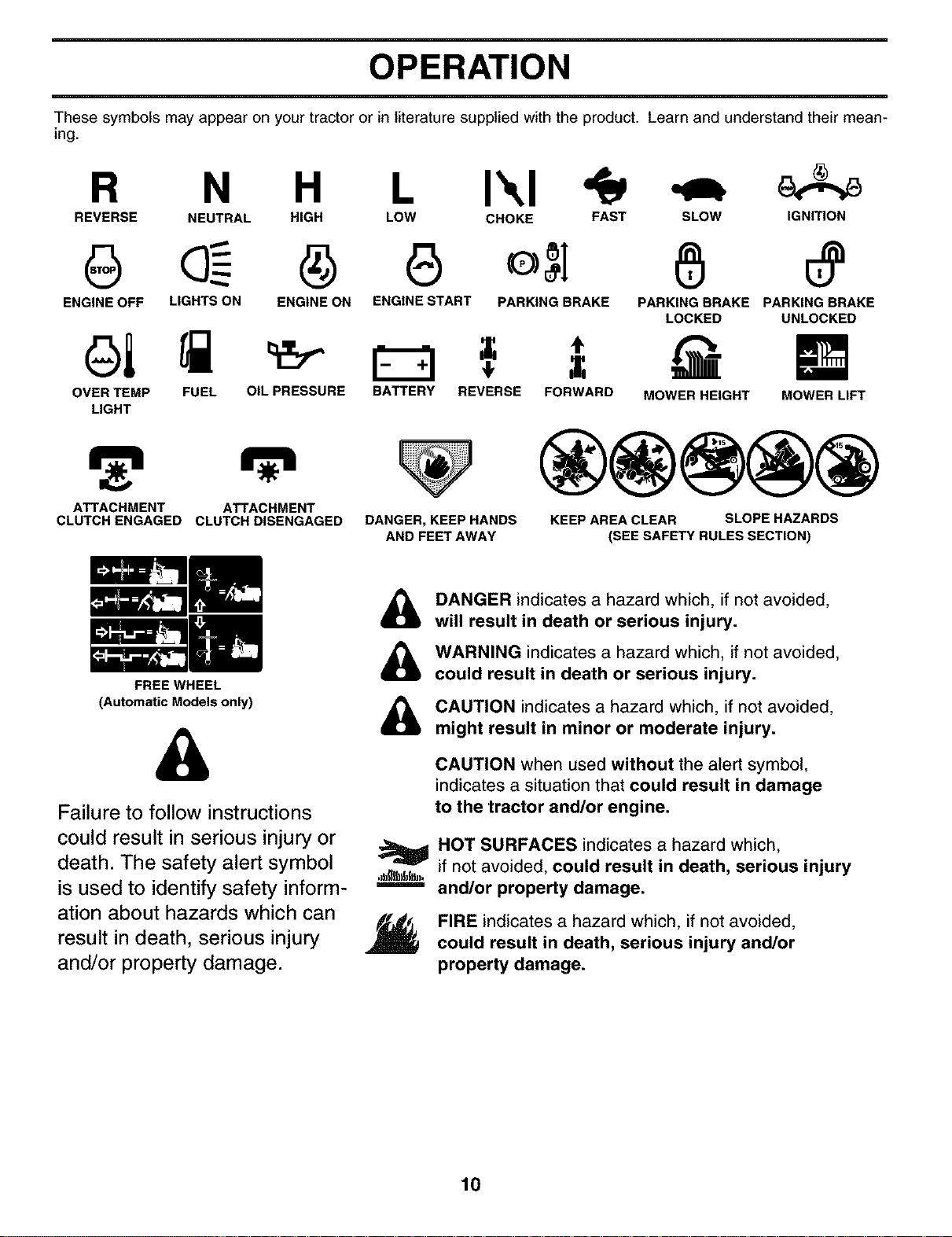

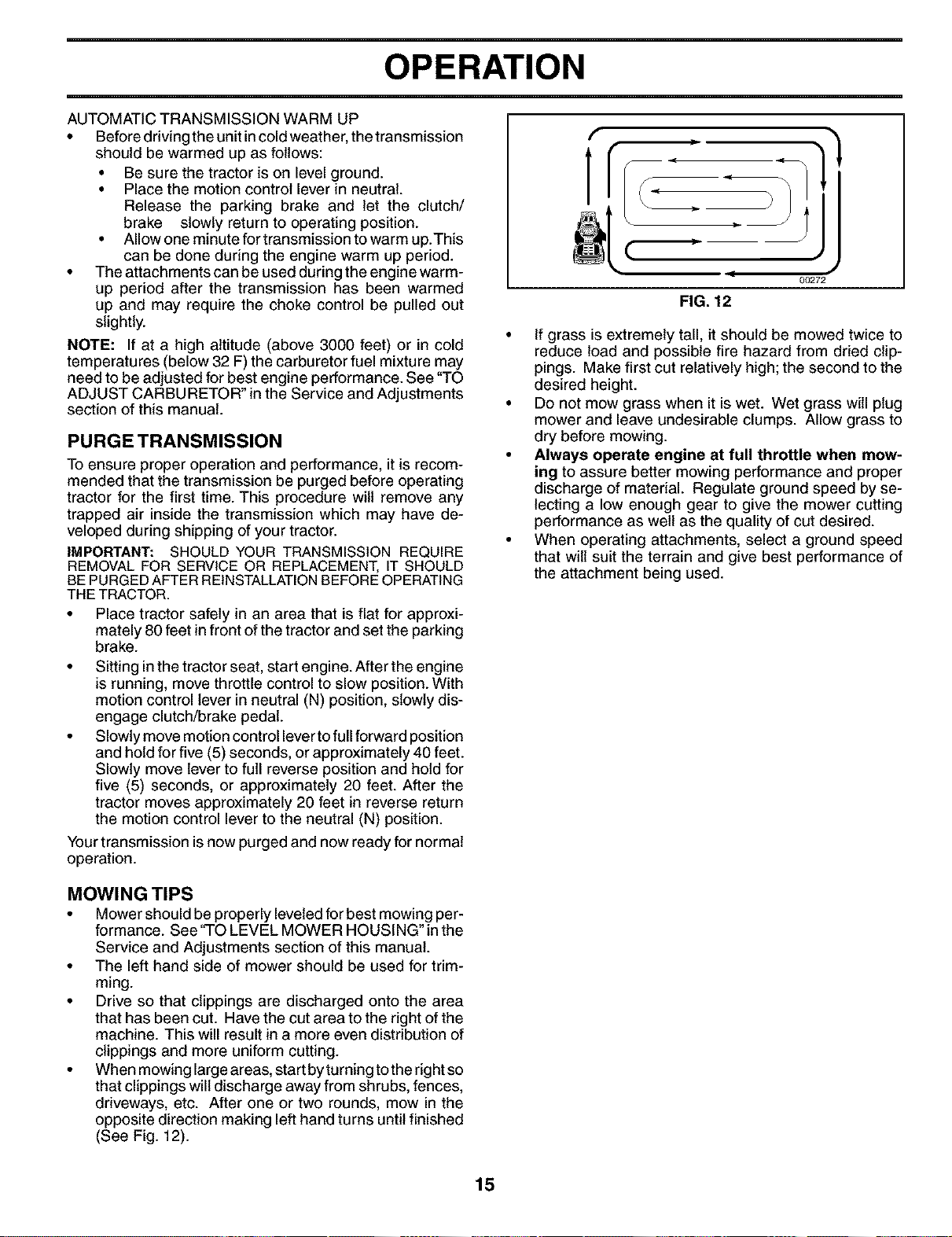

OPERATION ........................................................... 10-15

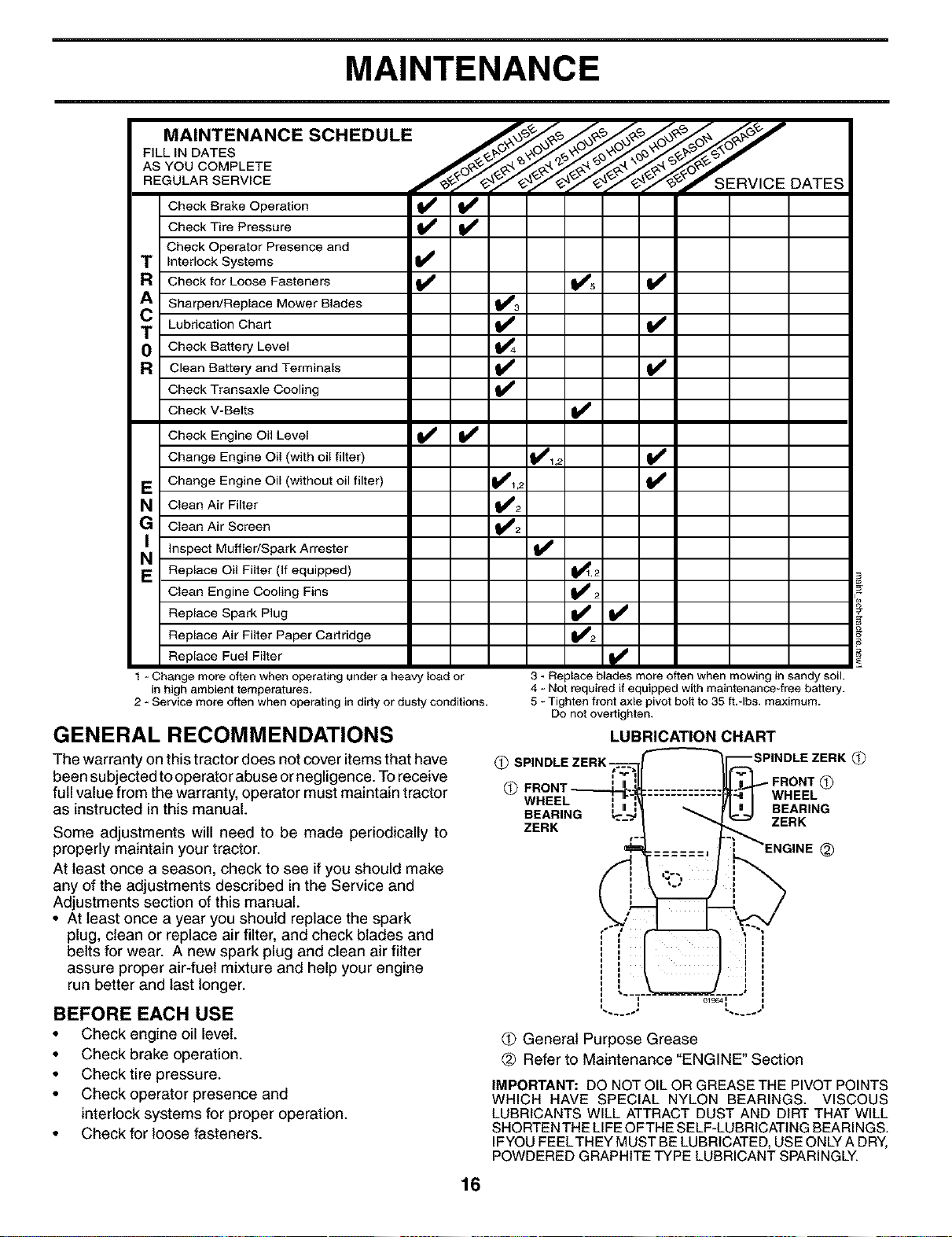

MAINTENANCE SCHEDULE ...................................... 16

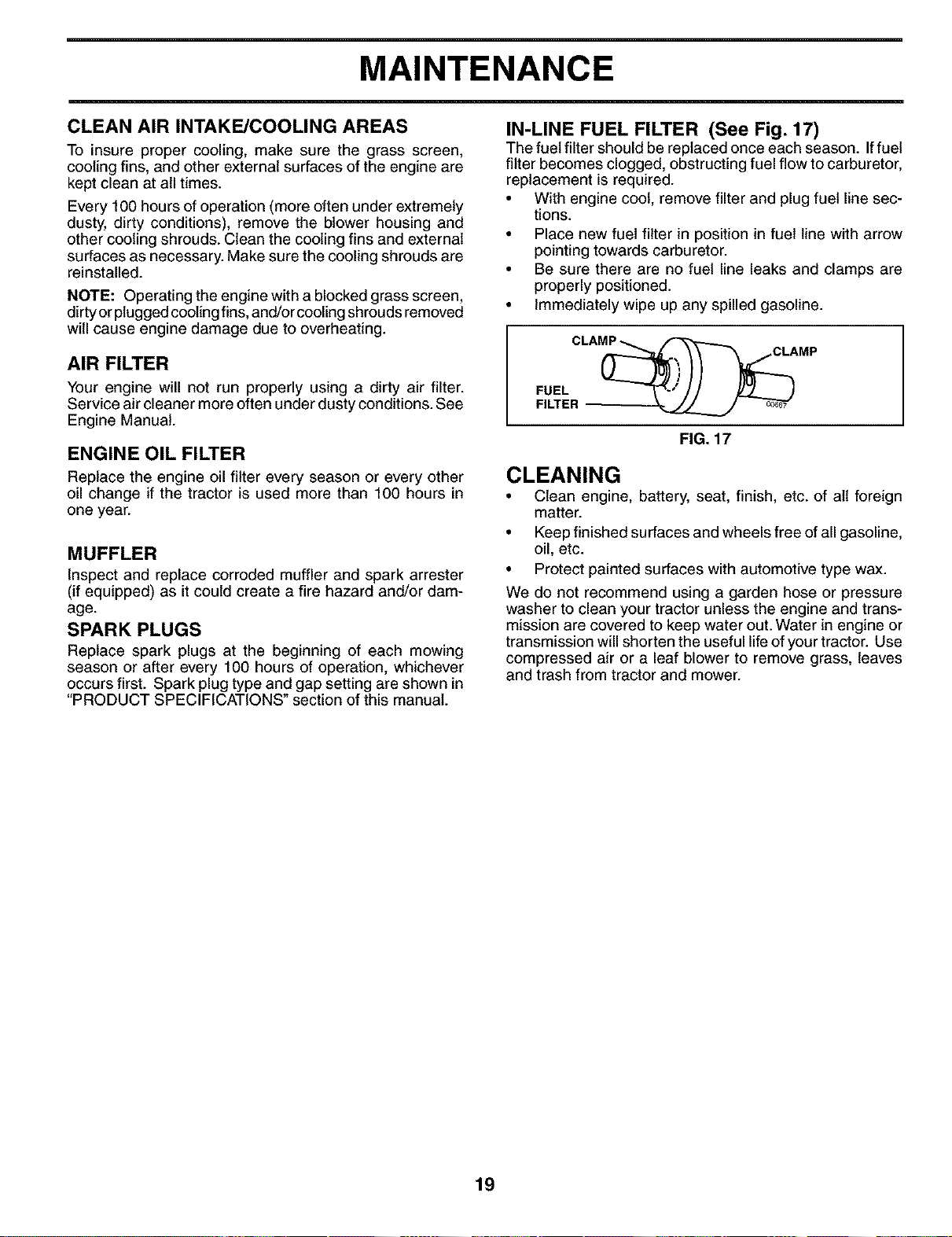

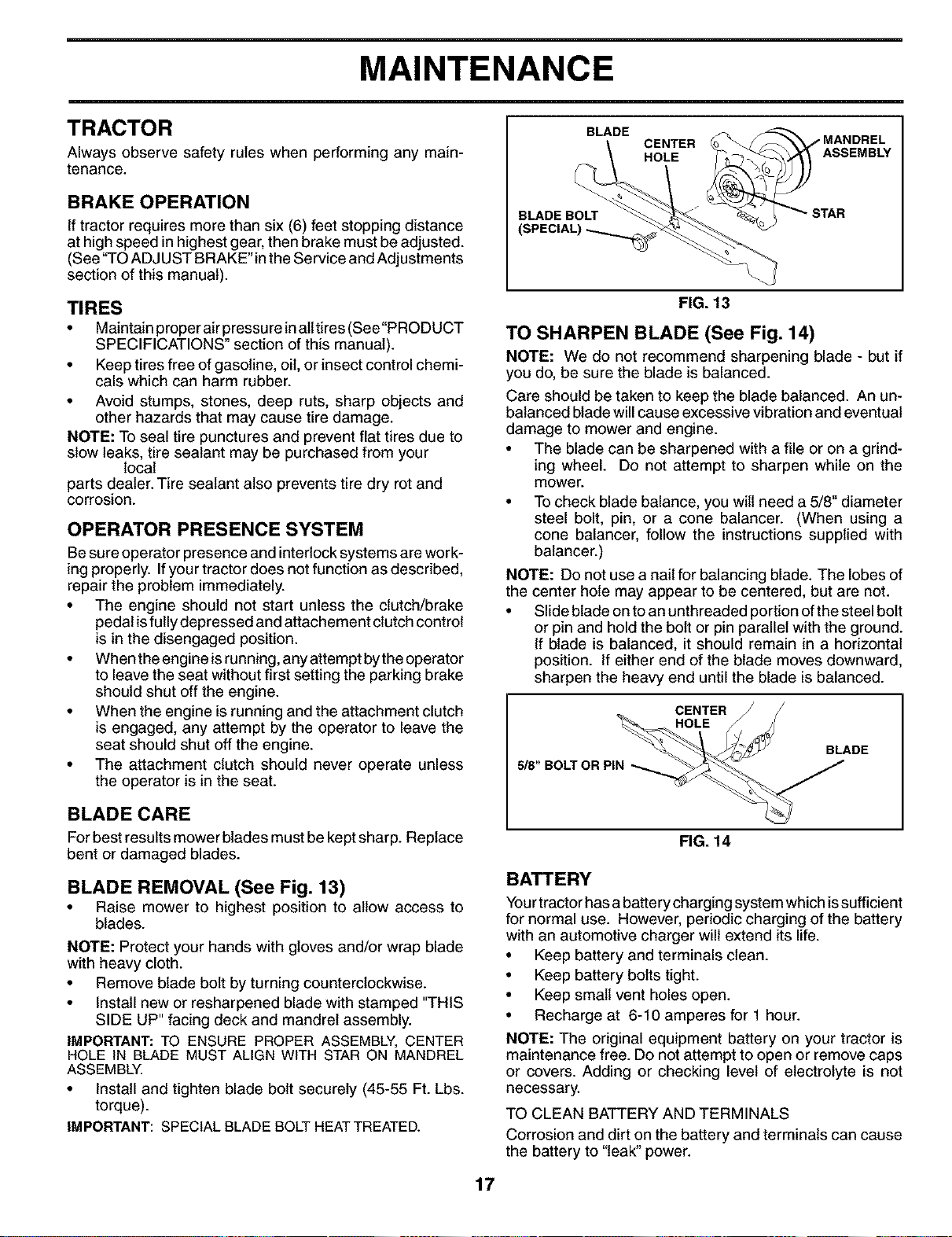

MAINTENANCE ..................................................... 16-19

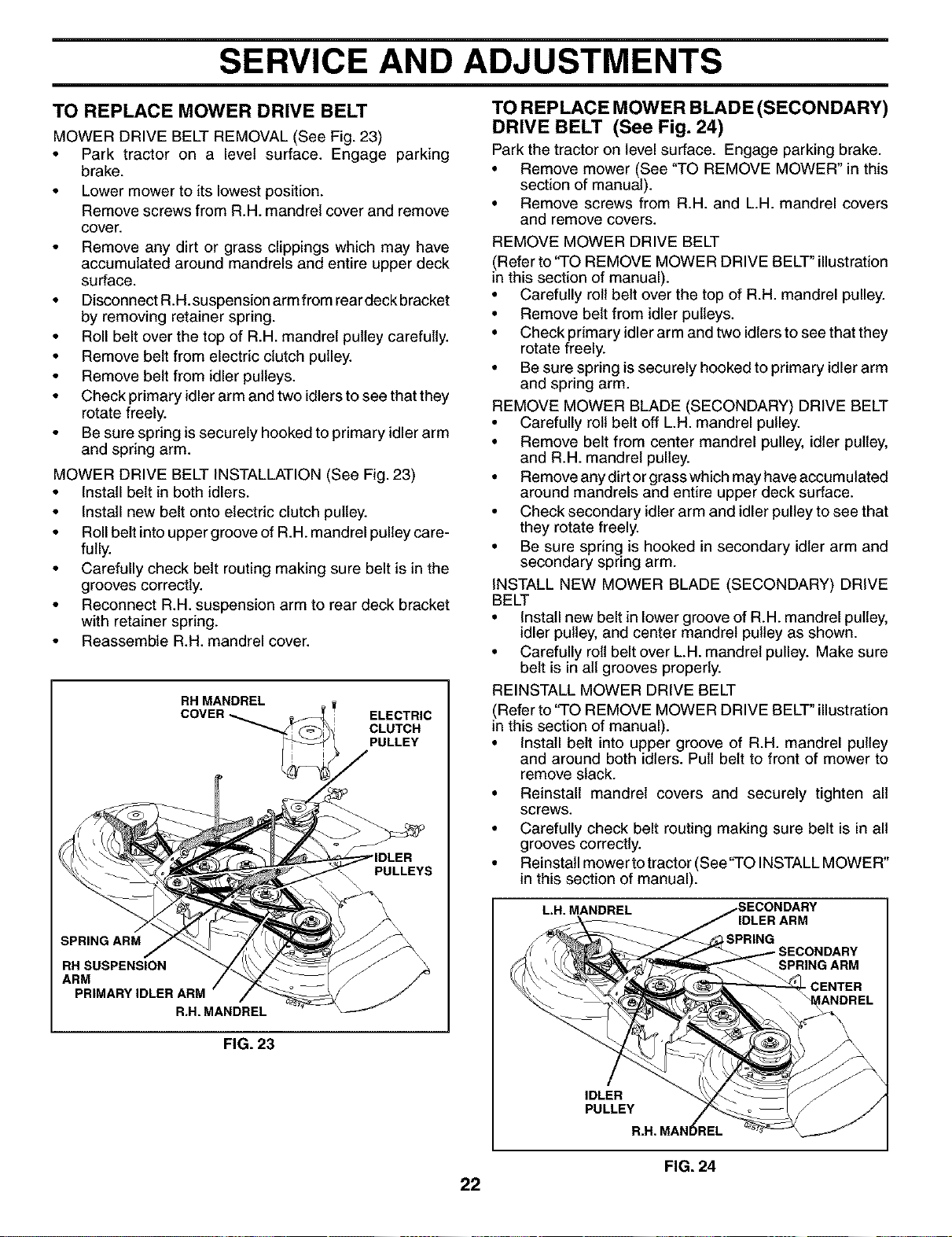

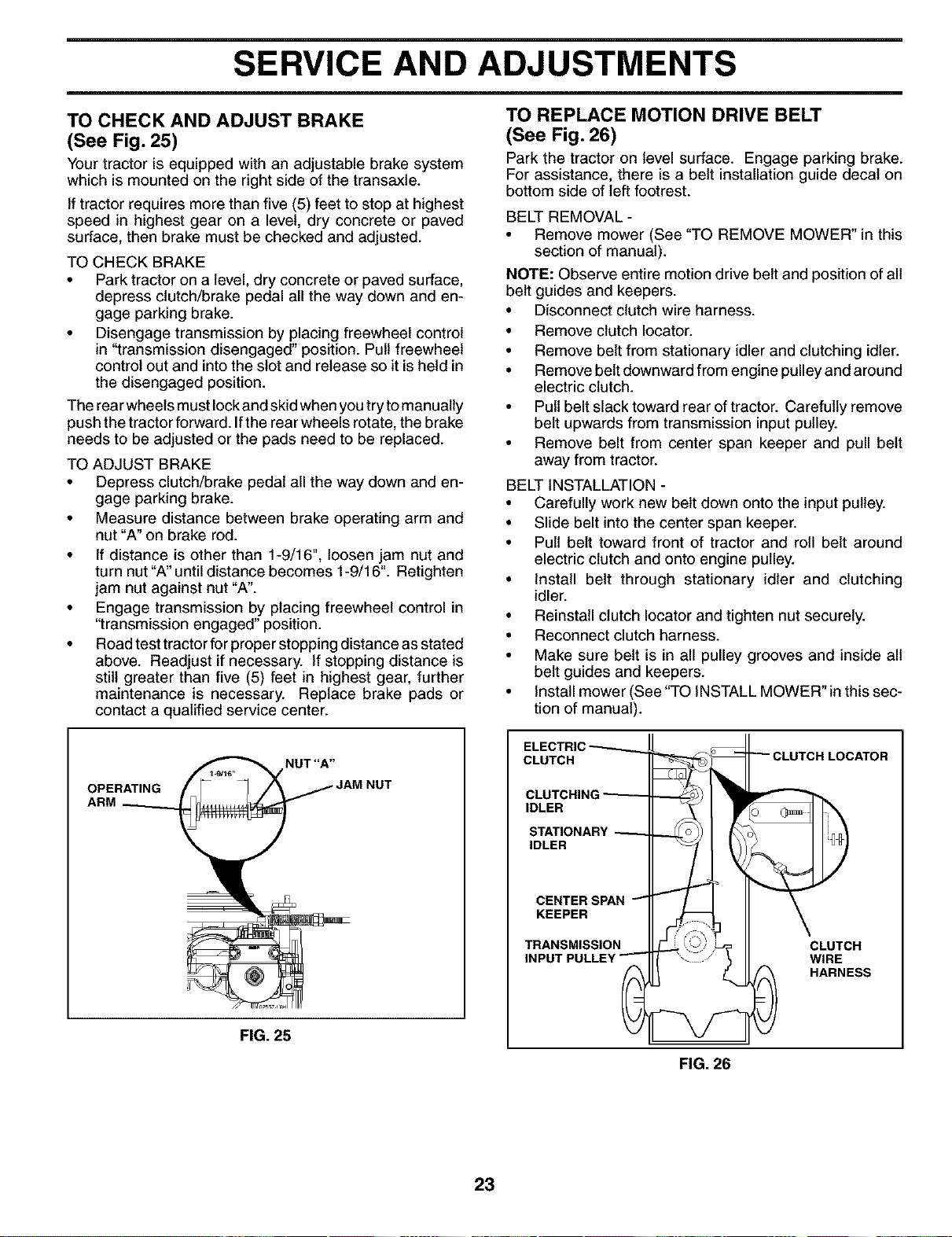

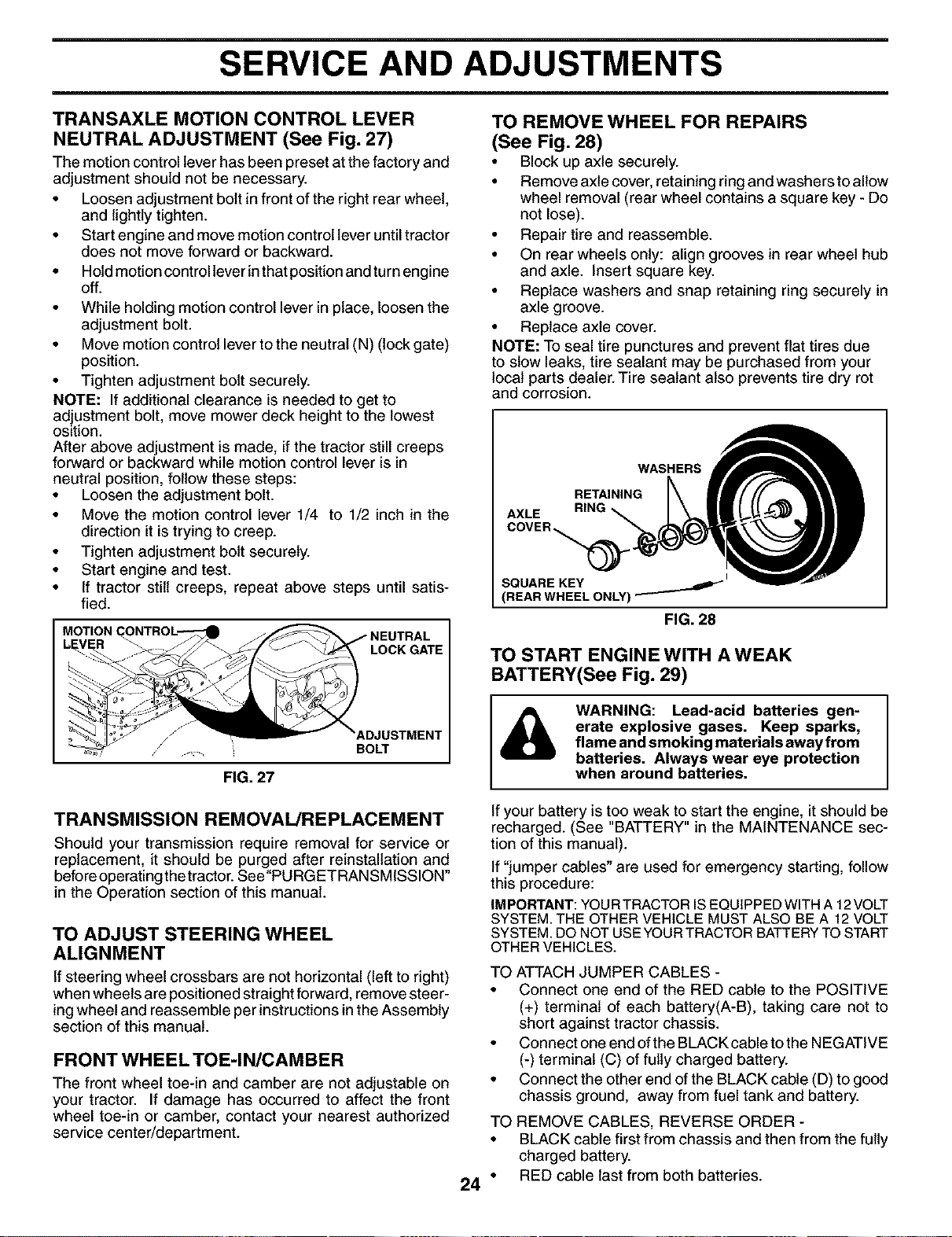

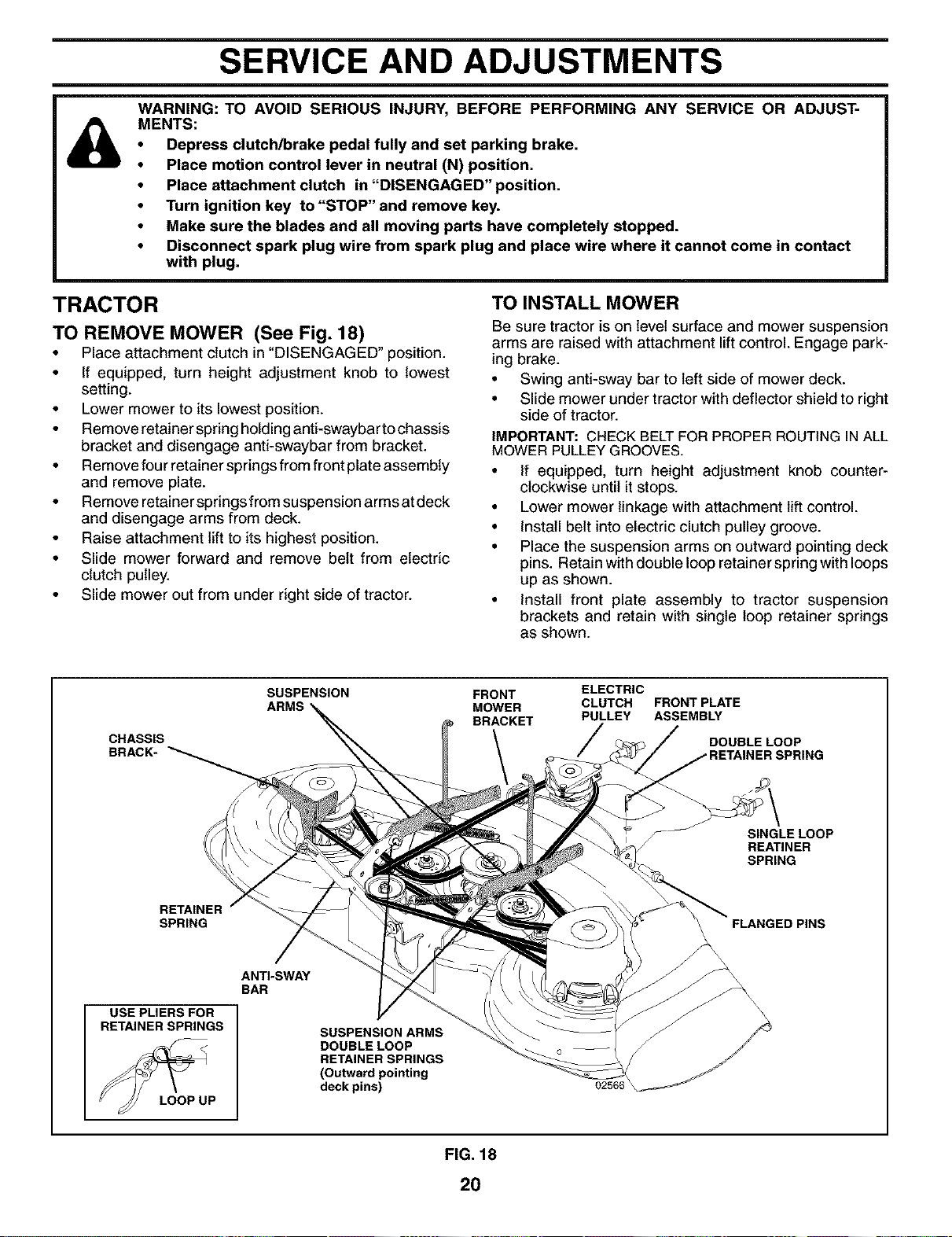

SERVICE AND ADJUSTMENTS ............................ 20-25

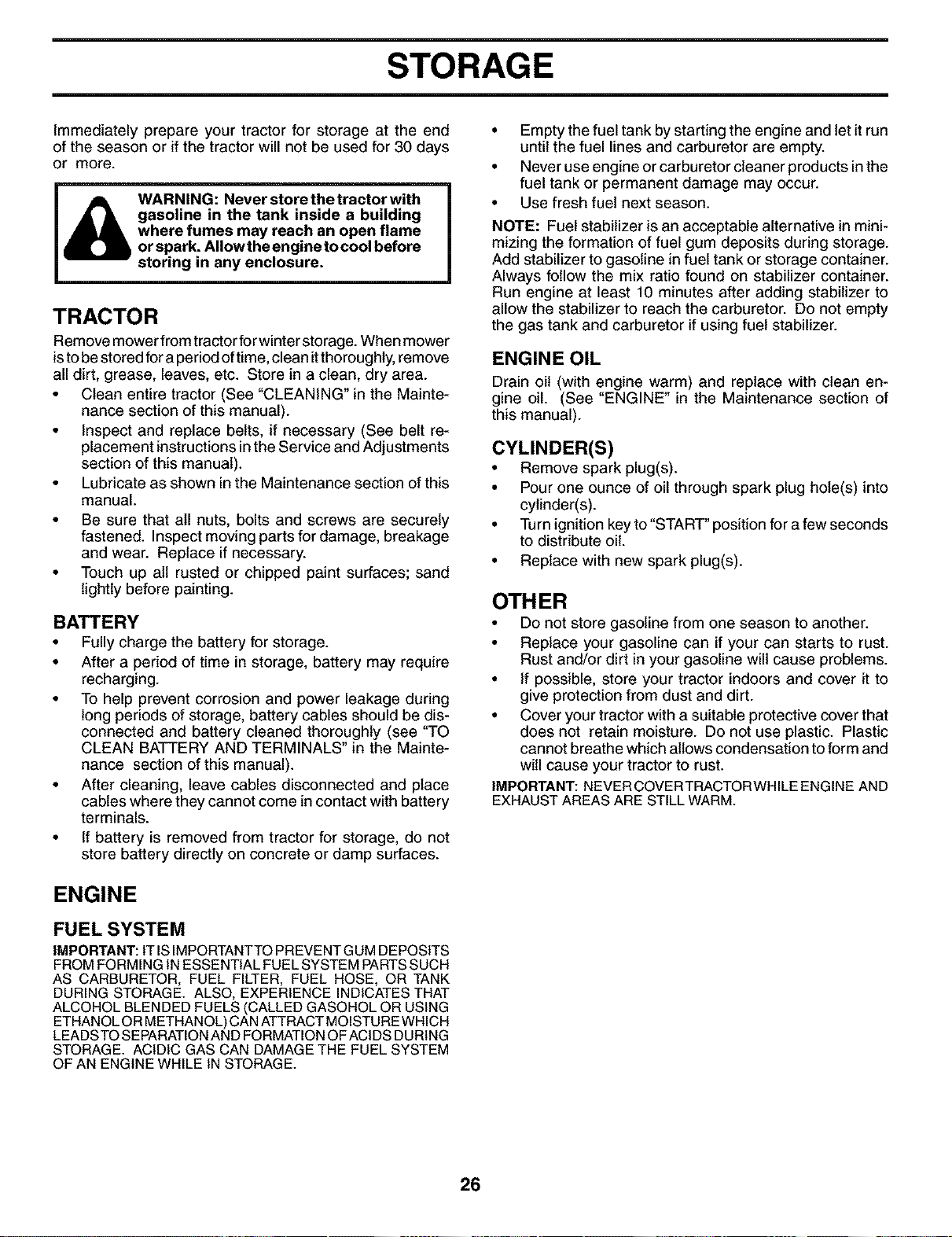

STORAGE .................................................................... 26

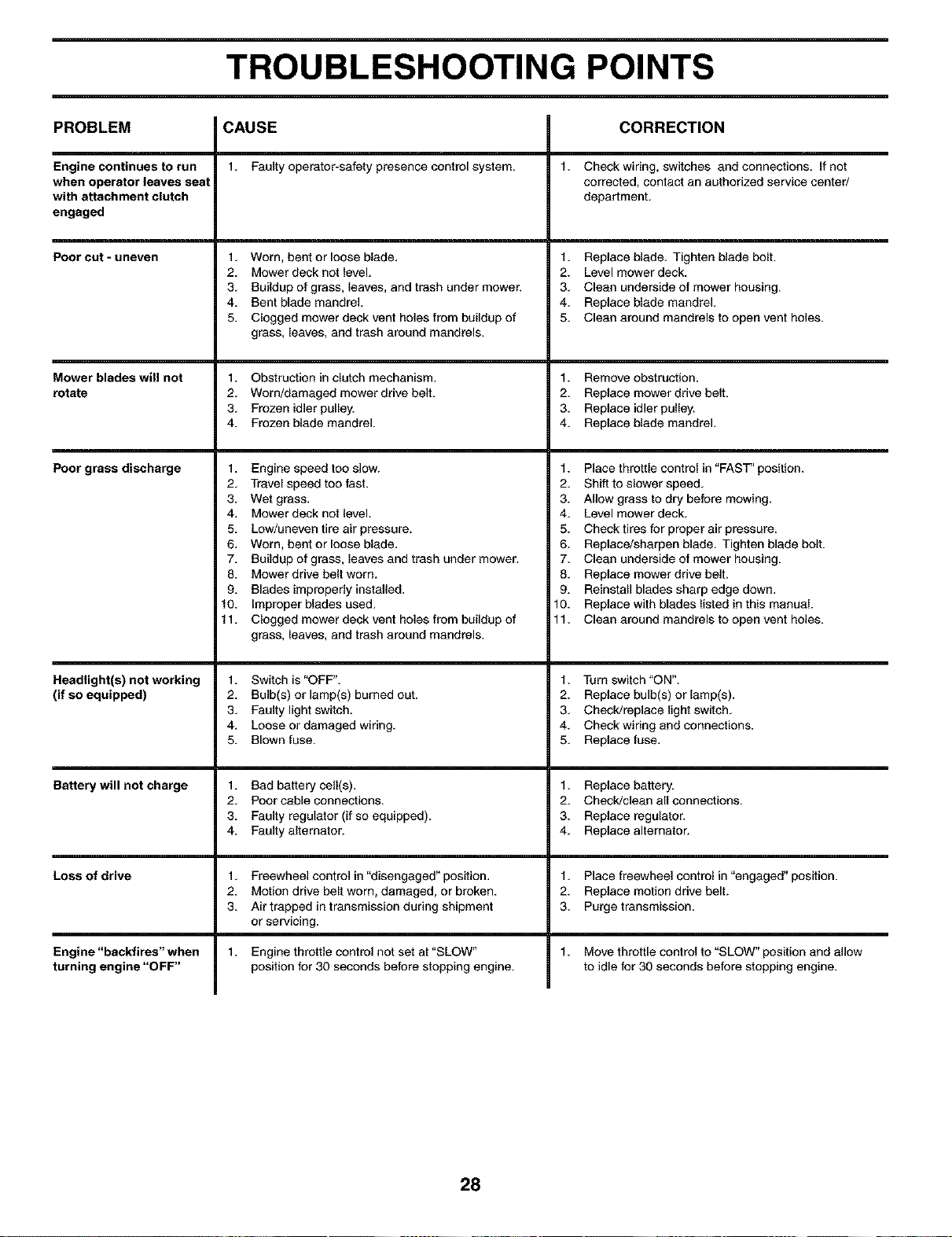

TROUBLESHOOTING ............................................ 27-28

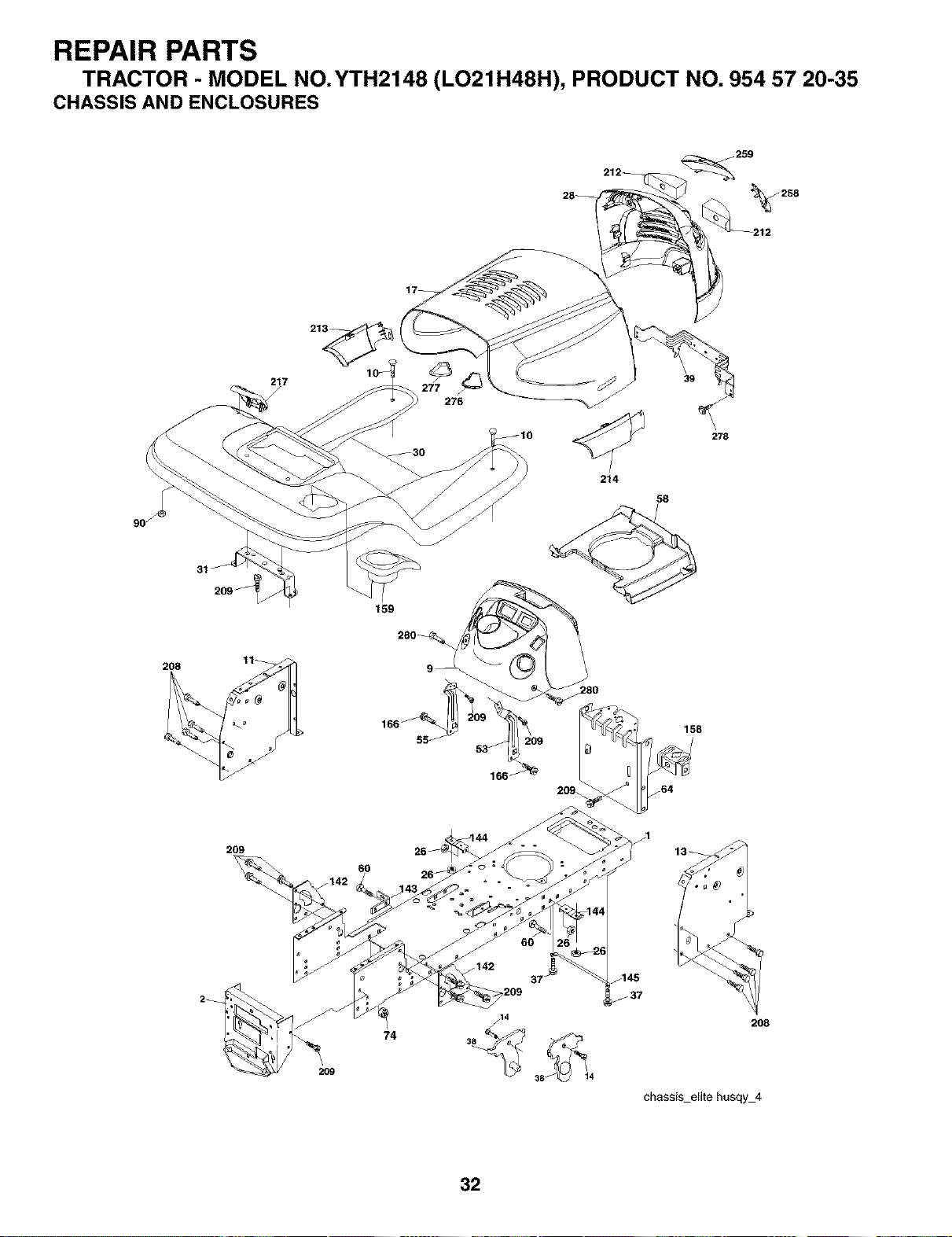

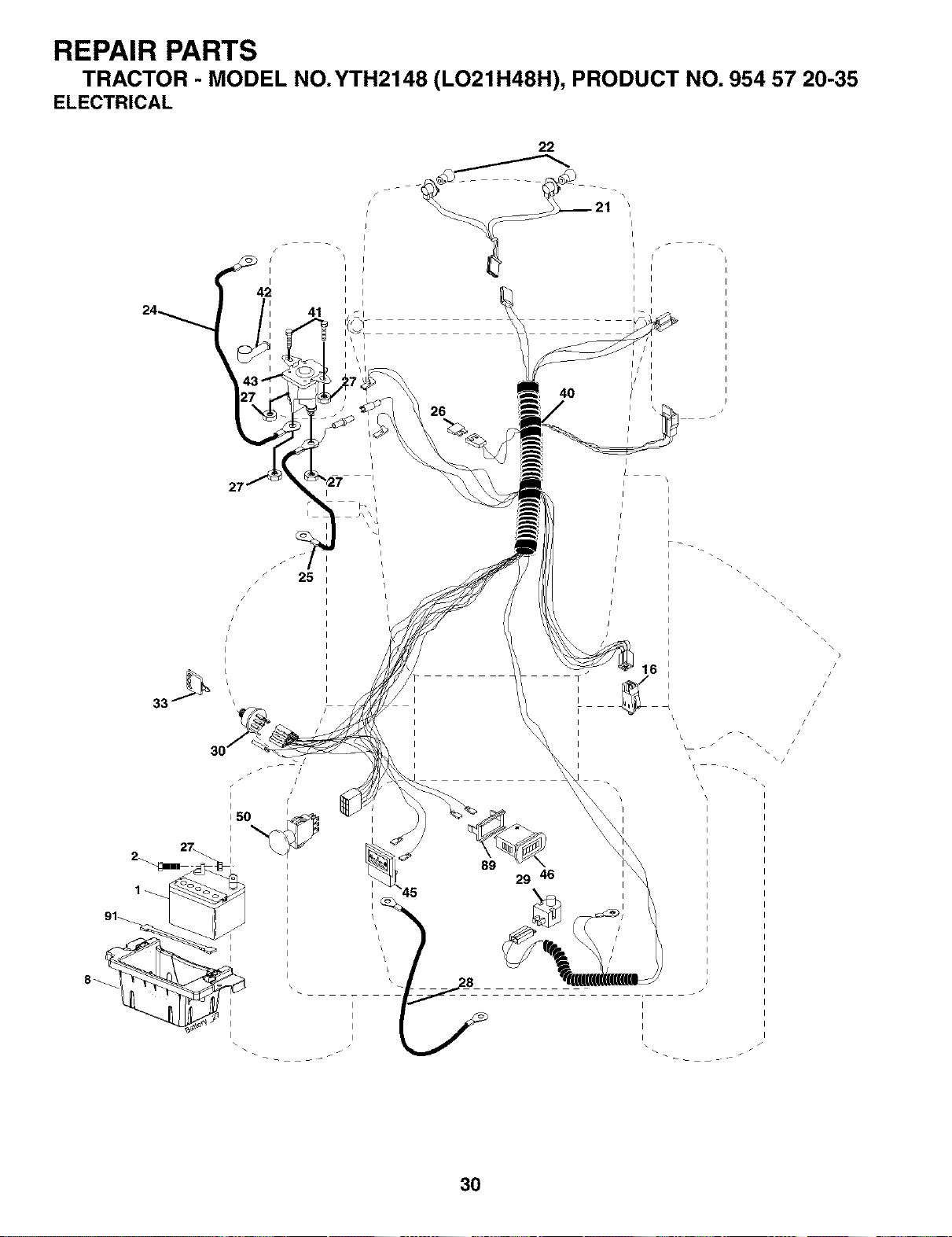

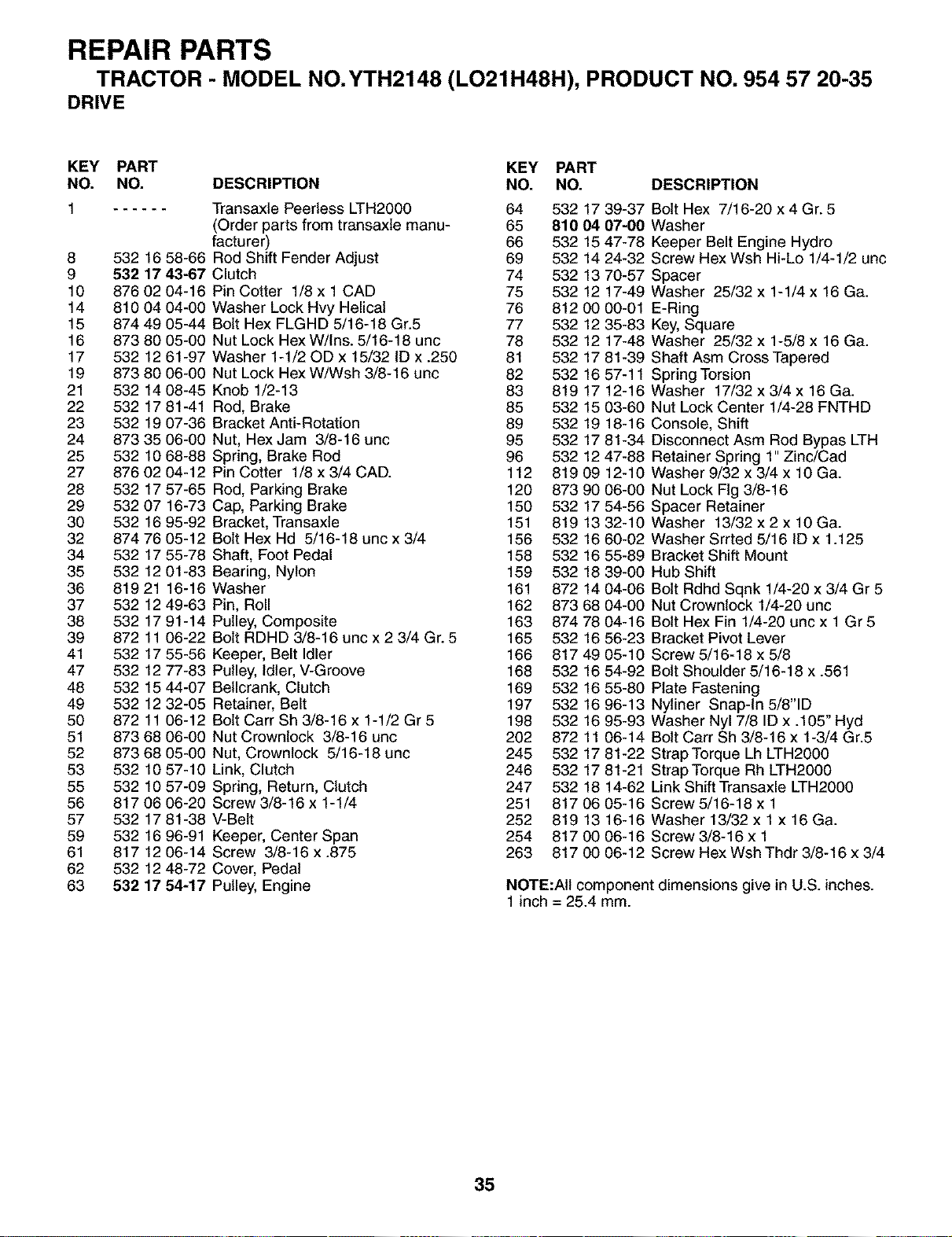

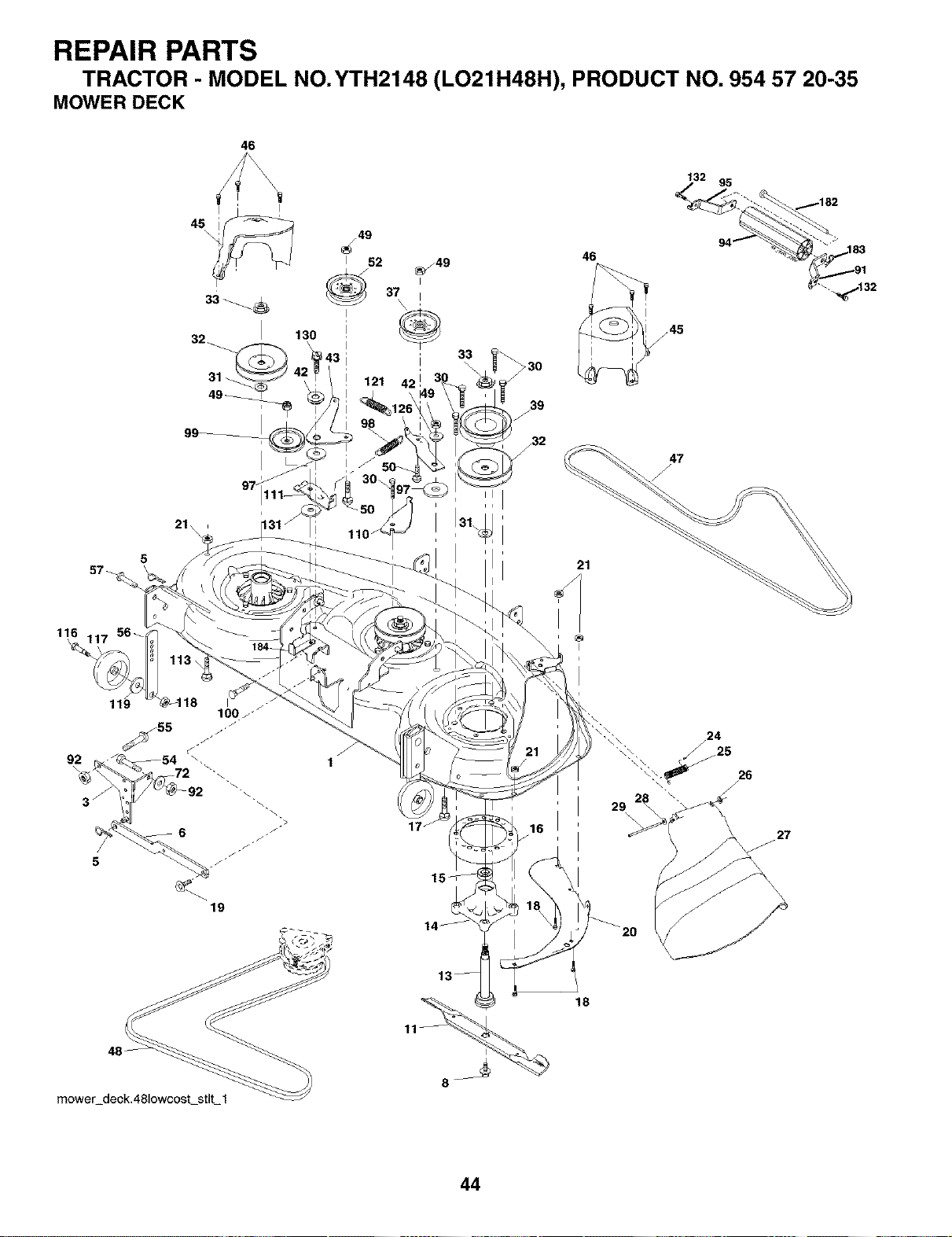

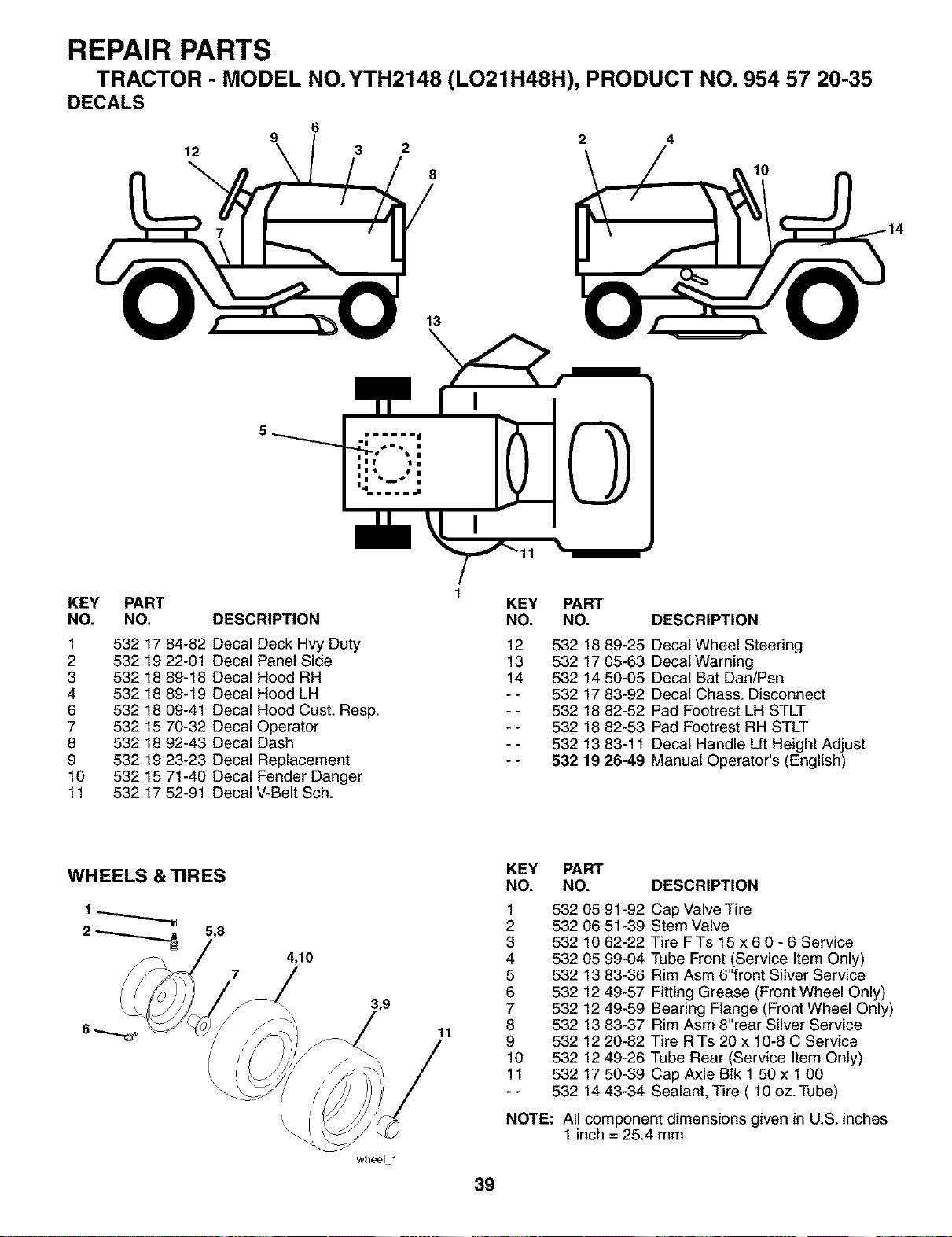

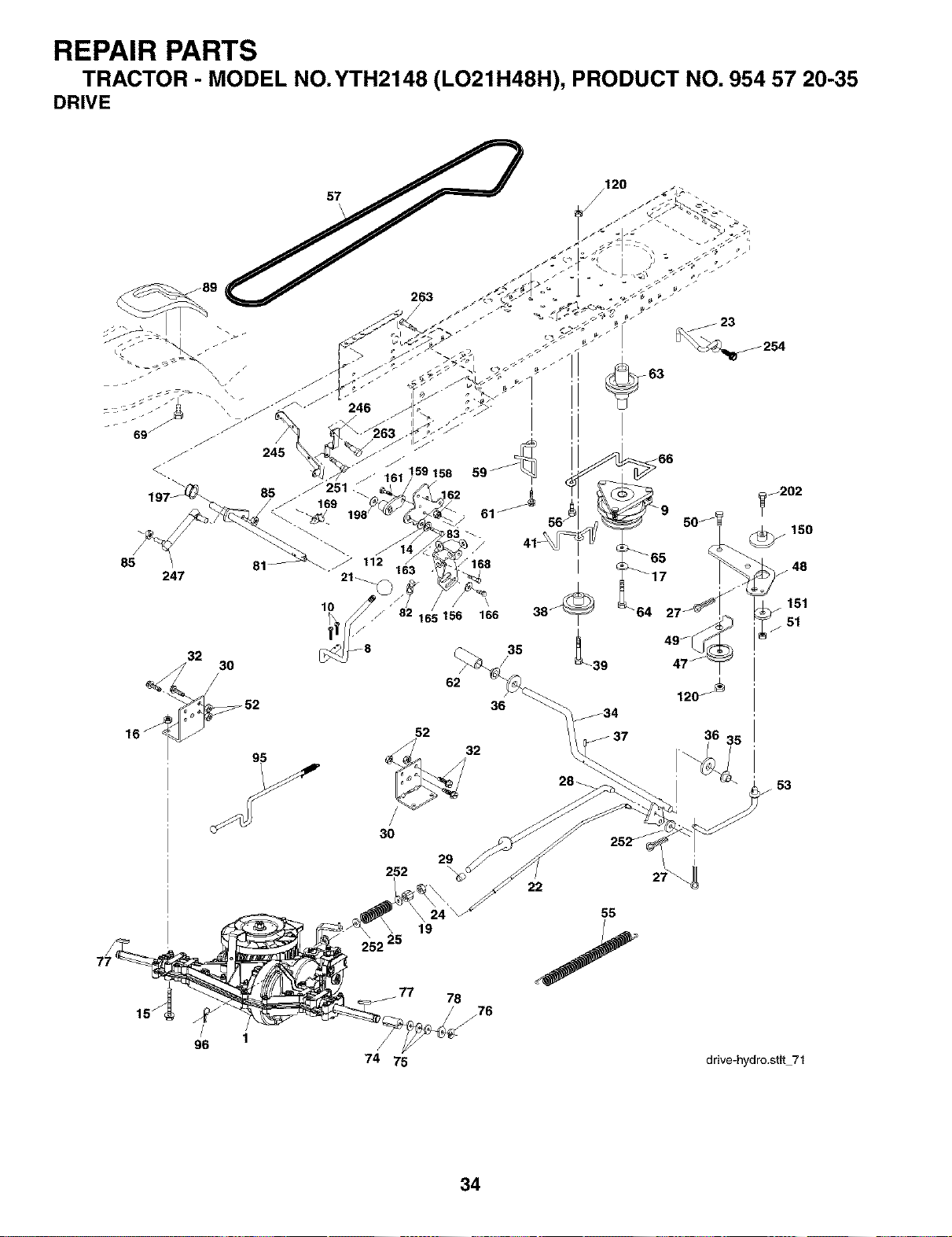

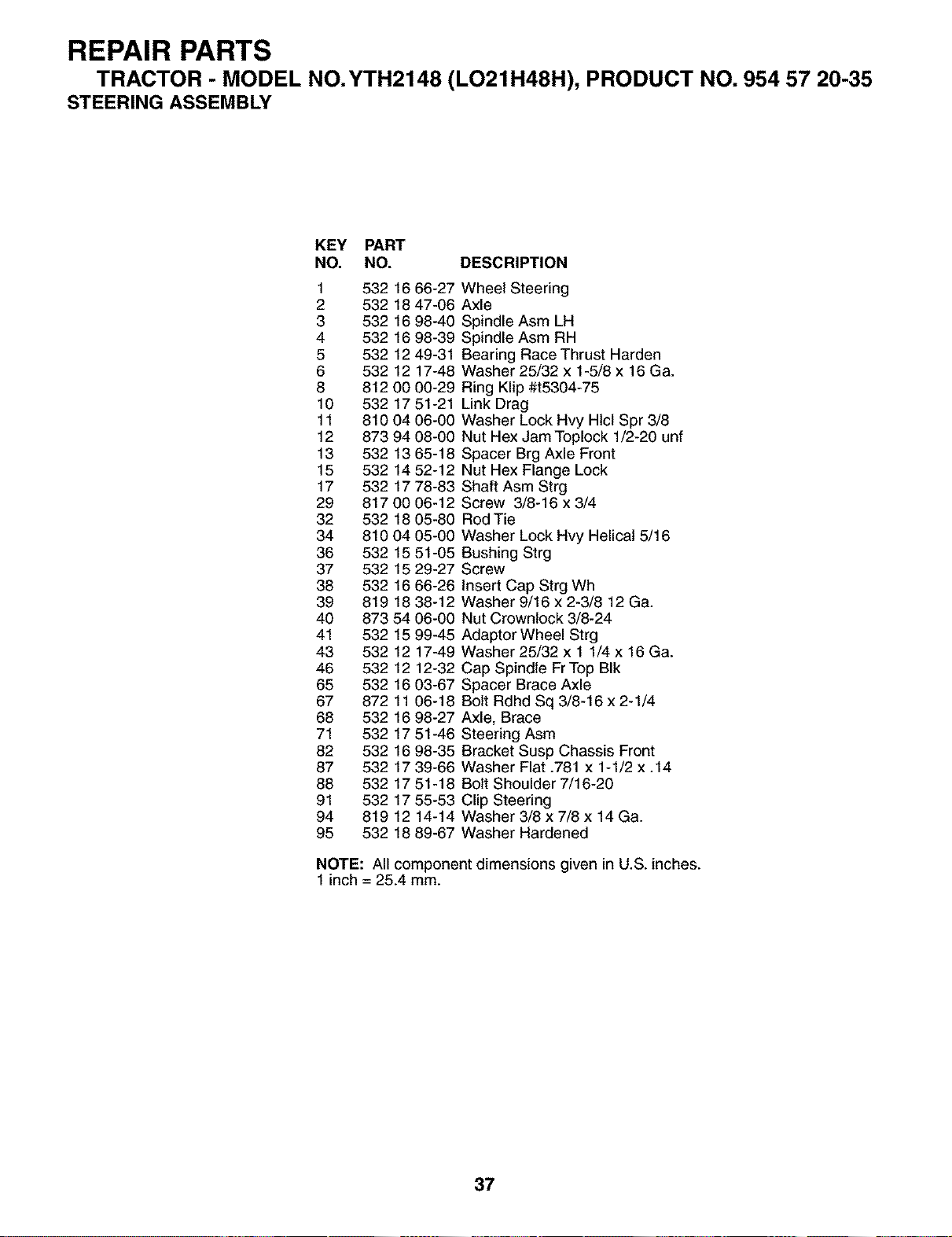

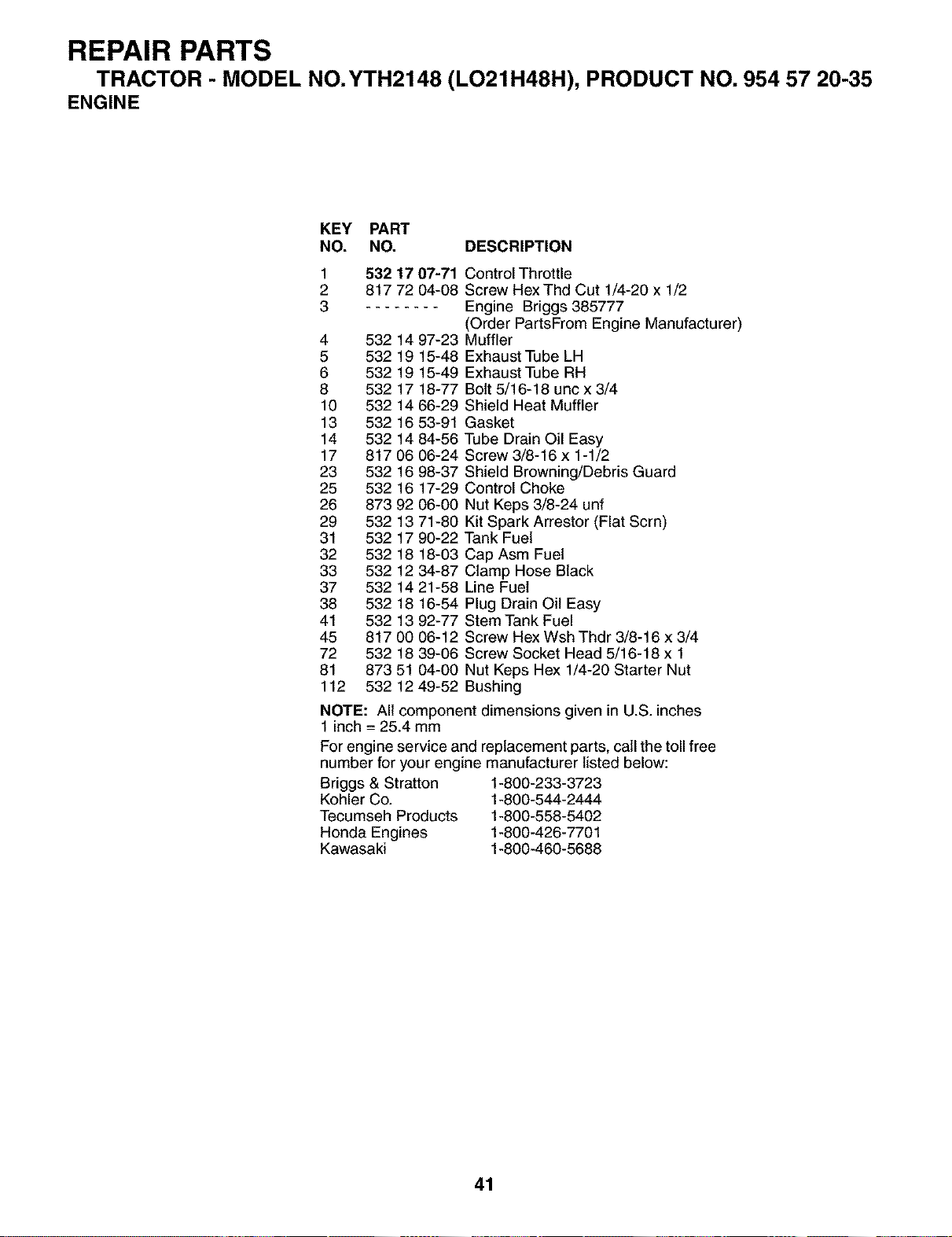

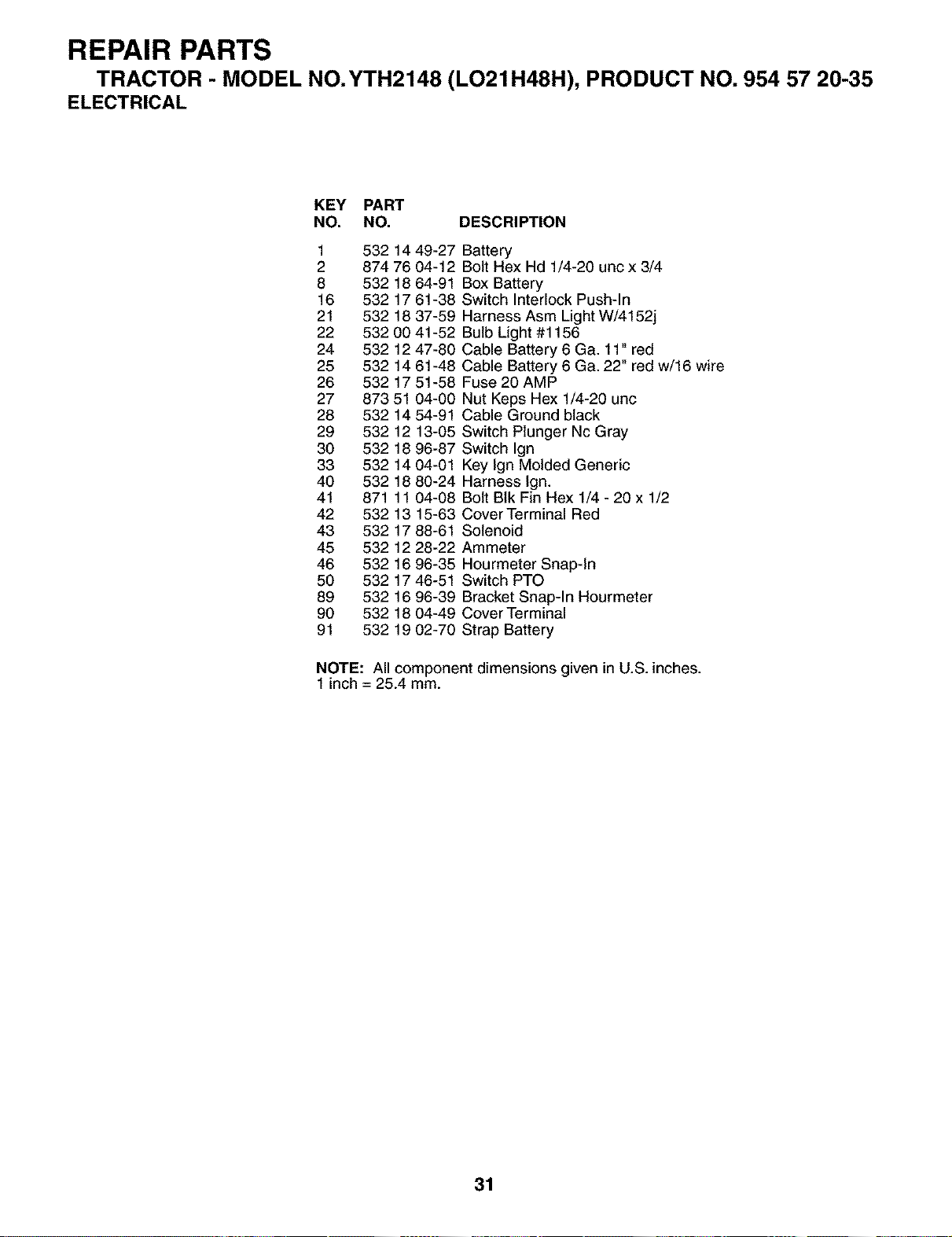

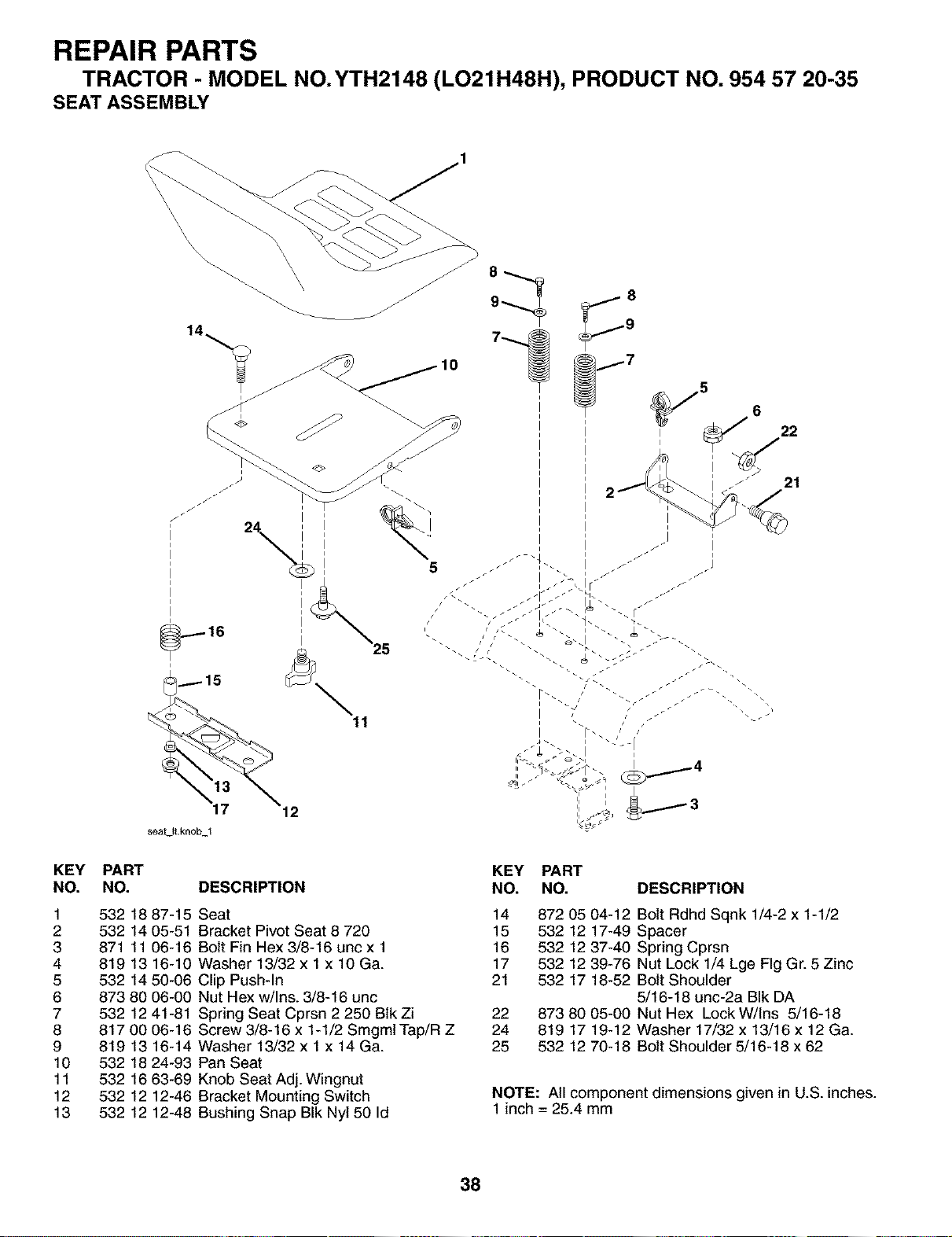

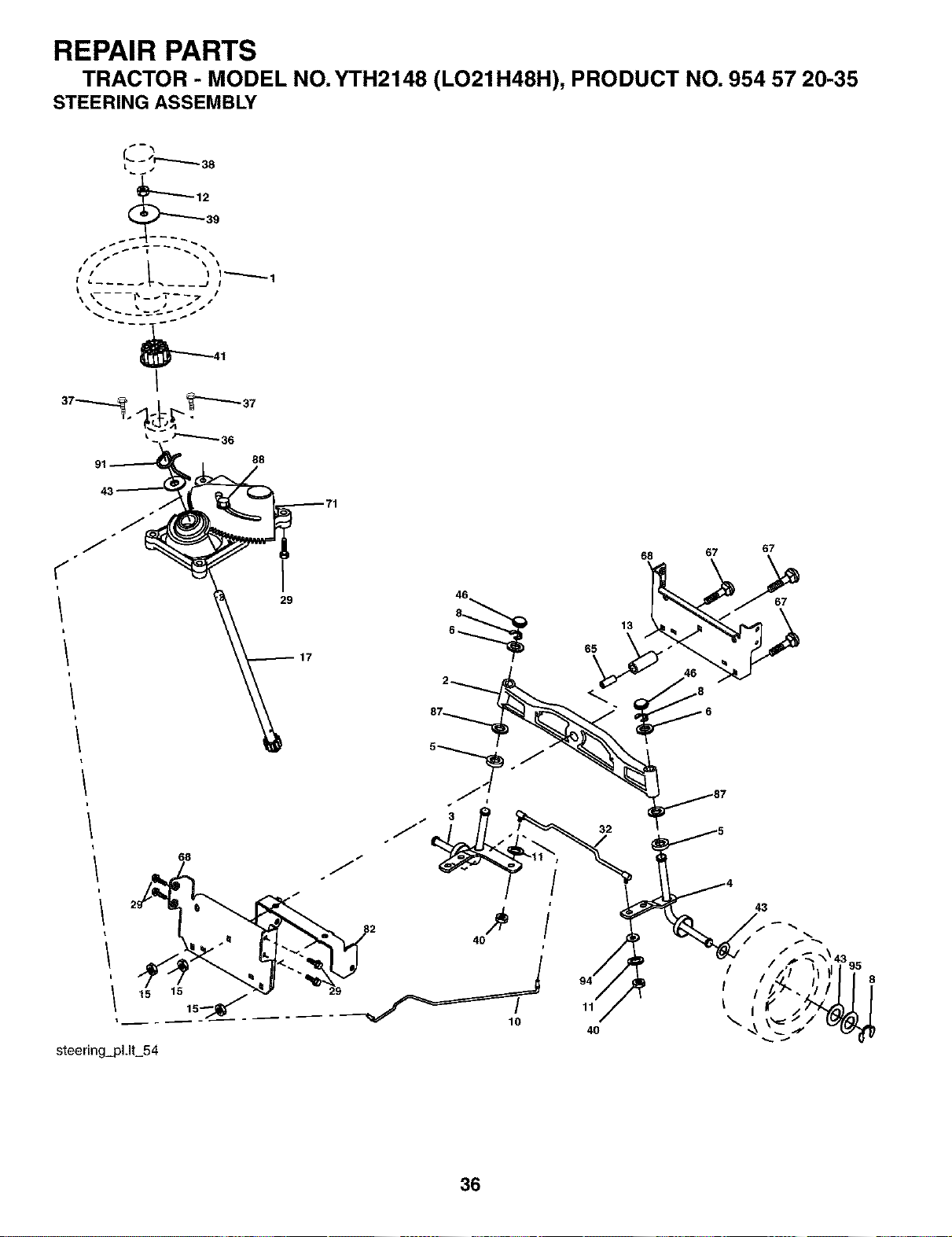

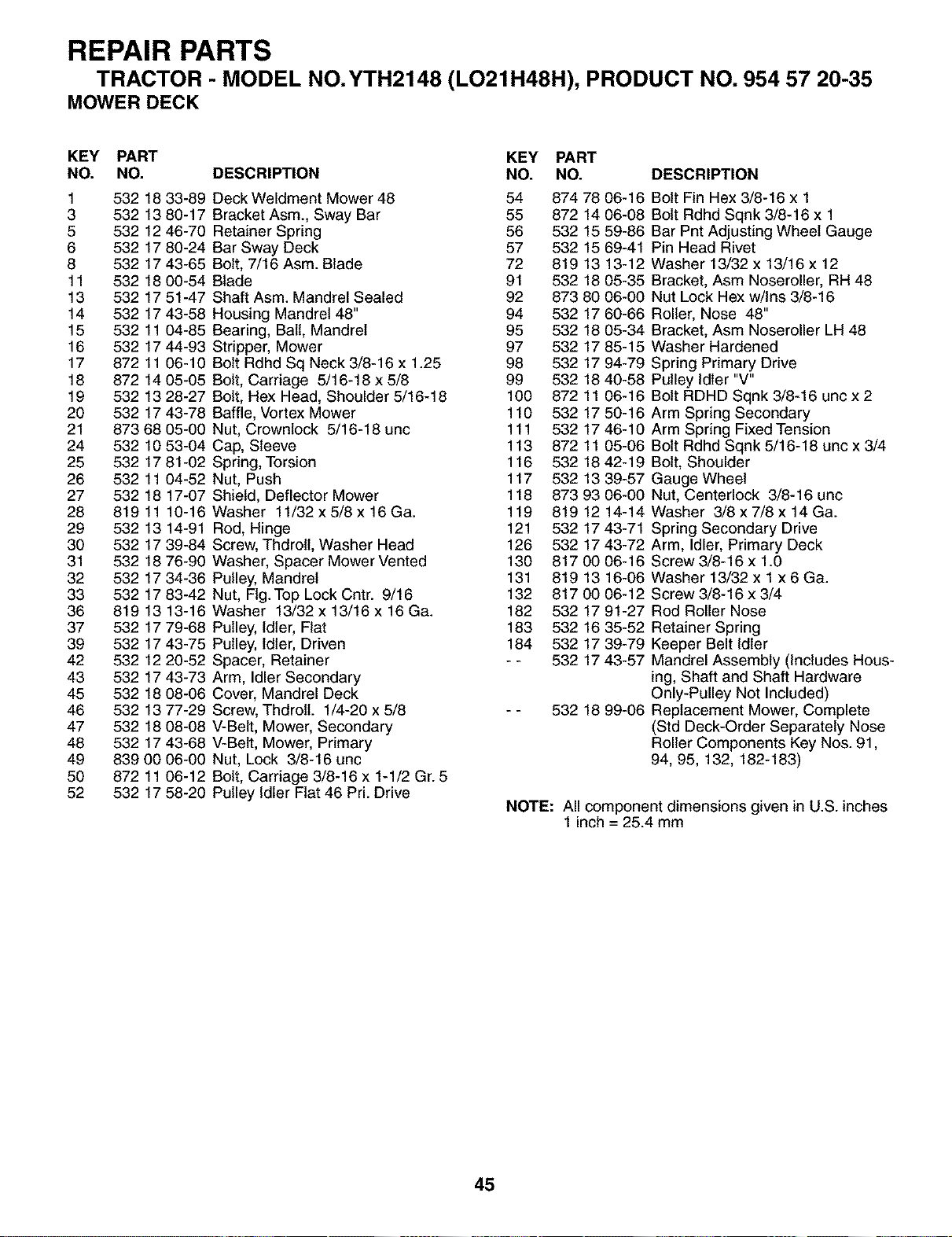

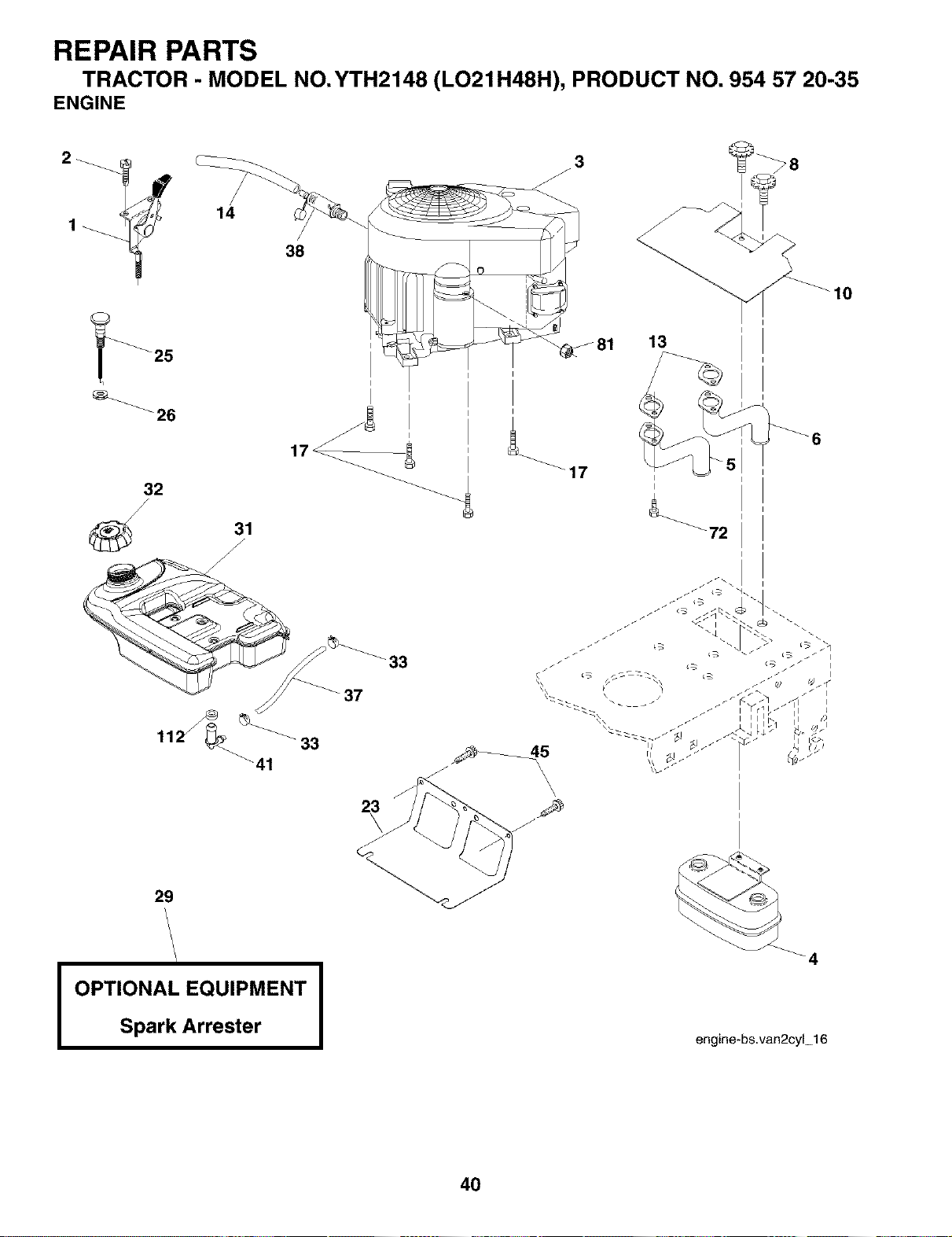

REPAIR PARTS - TRACTOR .................................. 30-45

UNASSEMBLED PARTS

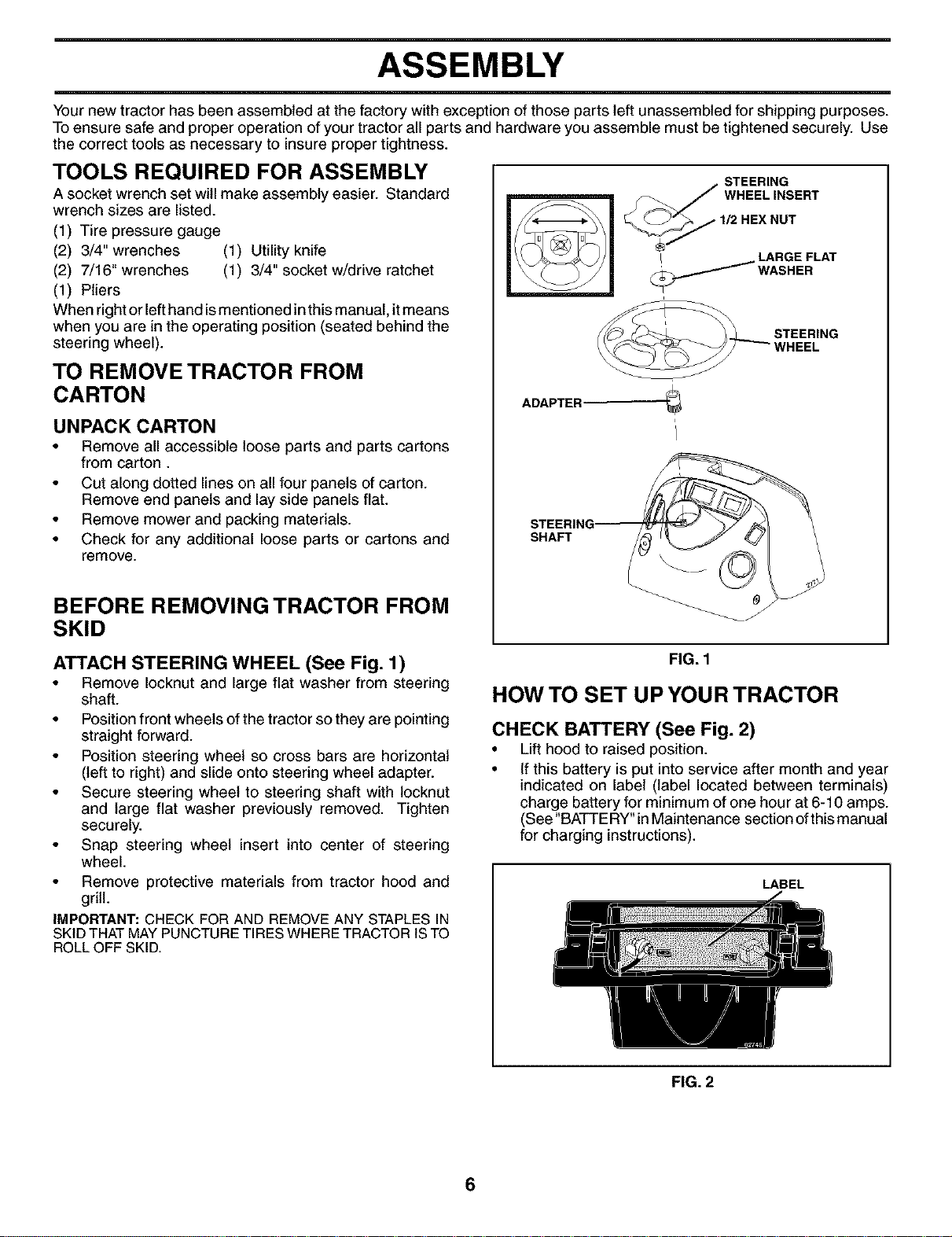

Steering Wheel

Steering

_ Wheel

Adapter

Steering

Wheel Insert

Mower

(2)F!anged

(1)Front Plate _'_ '_ _-_

Assembly

(2) Retainer Springs (5) Retainer Springs

_ loop) __oop)

(4) Adjusting Bars

Gauge Wheels

(4) Locknuts 3/8-16

(4) Wheels

4) Retainer Springs

le loop)

(4) Shoulder Bo_lts_

i __(4) Washers

3/8 x 3/4 x 14 Ga.

(4) Clevis Pins

(2) Locknuts

5/16 x 18

I I

Nose Roller

Retainer Spring

Nose Roller

(2) Hex Bolts

5/16x 18x 1

iiiC.i

Brackets

Seat

(1) Washer 17/3_1_3/16 x 12 Gauge

(1) Knob

Keys

Slope Sheet

(1) Oil Drain Tube

For Future Use

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembted for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Tire pressure gauge

(2) 3/4" wrenches (1) Utility knife

(2) 7/16" wrenches (1) 3/4" socket w/drive ratchet

(1) Pliers

When right or left hand ismentioned in this manual, itmeans

when you are in the operating position (seated behind the

steering wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton.

• Cut along dotted lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

WHEEL INSERT

SHAFT

ATTACH STEERING WHEEL (See Fig. 1)

• Remove Iocknut and large flat washer from steering

shaft.

• Position front wheels of the tractor so they are pointing

straight forward.

• Position steering wheel so cross bars are horizontal

(left to right) and slide onto steering wheel adapter.

• Secure steering wheel to steering shaft with locknut

and large flat washer previously removed. Tighten

securely.

• Snap steering wheel insert into center of steering

wheel.

• Remove protective materials from tractor hood and

grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN

SKID THATMAYPUNCTURE TIRESWHERETRACTOR ISTO

ROLLOFF SKID.

FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

• Lift hood to raised position.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section of this manual

for charging instructions).

LABEL

FIG. 2

ASSEMBLY

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer securing

seat to cardboard packing and set aside for assembly

of seat to tractor.

• Pivot seat upward and remove from the cardboard pack-

ing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and

pull seat towards rear of tractor.

• Pivot seat and pan forward and assemble adjustment

knob and flat washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached

which allows you to press clutch/brake pedal all the

way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SHOULDER

BOLT

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

• Press lift lever plunger and raise attachment lift lever

to itshighest position.

• Release parking brake by depressing clutch/brake

pedal.

• Place freewheel control in "transmission disengaged

position" (See "TO TRANSPORT" in the Operation

section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

WARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor isclear of other people and objects.

• Be sure all the above assembly steps have been com-

pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "transmission engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

• Place motion control lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever

to its highest position.

• Start the engine. After engine has started, move throttle

control to idle position.

• Release parking brake.

• Slowly move the motion control lever forward and slowly

drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place

motion control lever in neutral position.

• Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER (See Fig. 4)

• Assemble brackets "A" and "B" to the inside of mower

mounting brackets as shown. Tighten securely.

NOTE: Be sure bracket tabs are positioned in tab holes

in mower brackets.

• Position nose roller between brackets and install rod

and retainer spring.

HEX ROD

LOCK BOLT /

TAB

HOLE

RETAINER NOSE

SPRING "A" BRACKET ROLLER

FIG. 4

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5)

The gauge wheels are designed to keep the mower deck

in proper position when operating mower. Be sure they

are properly adjusted to ensure optimum mower perfor-

mance.

• Slide gauge wheel bar down into bracket channel, Be

sure that gauge wheel bar aligning holes are on top.

Assemble gauge wheels as shown using shoulder bolts,

3/8 washers and 3/8-16 center Iocknuts and tighten

securely.

ASSEMBLY

• For ease of mower to tractor assembly, raise gauge

wheels to highest position and retain with clevis pins

and spring retainers.

• Adjust gauge wheels before operating mower. See "TO

ADJUST GAUGE WHEELS" in the Operation section

of this manual.

RETAINER ',

ADJUSTING

SHOULDER BAR

BOLT

GAUGE

WHEEL

3/8WASHER

3/8-16 CENTER

LOCKNUT

FIG. 5

INSTALL MOWER AND DRIVE BELT

(See Figs. 6 and 7)

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

• Cut and remove ties securing anti-sway bar and belts.

Swing anti-sway bar to left side of mower deck.

• Slide mower under tractor with deflector shield to right

side of tractor.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

• If equipped, turn height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment lift control.

• Install belt into electric clutch pulley groove.

• Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

• Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate and mower brack-

ets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mower side-to-side to give space between plate and mower

brackets.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

• Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

• If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

• Raise deck to highest position.

• Adjust gauge wheels before operating mower as shown

in the Operation section of this manual.

CHASSIS

BRACKET

ELECTRIC FRONT SUSPENSION BRACKETS

CLUTCH PULLEY

FRONT

MOWER

BRACKET PLATE

ASSEMBLY

GAUGE

WHEEL

FLANGED PIN

SINGLE

LOOP

RETAINER

SPRINGS

DOUBLE LOOP

RETAINER SPRING

ANTI-SWAY

BAR

USE PLIERS FOR

RETAINER SPRINGS

SUSPENSION

ARMS

DOUBLE LOOP RETAINER

SPRING (OUTWARD POINTING

DECK PINS)

DEFLECTOR

SHIELD

FIG. 6

ASSEMBLY

CHECKTIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be properly leveled.

See "TO LEVEL MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion, mower

drive, and mower blade drive belts in the Service and Ad-

justments section of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to seethat

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,/CHECKLIST

BEFOREYOU OPERATEAND ENJOYYOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BESTPERFORMANCEAND SATISFACTION FROM THIS

QUALITY PRODUCT

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ It is important to purge the transmission before oper-

ating your tractor for the first time. Follow proper start-

ing and transmission purging instructions (See "TO

START ENGINE" and "PURGE TRANSMISSION" in

the Operation section of this manual).

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean-

ing.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

MOWER HEIGHT MOWER LIFT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.

Save this manual for future reference.

HOURMETER

AMMETER_

THROTTLE

CHOKE

CONTROL

CLUTCH/BRAKE

PEDAL

ATTACHMENT

CLUTCH SWITCH

SWITCH

POSITION

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

FREEWHEEL

CONTROL

PARKING BRAKE

MOTION

CONTROL

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH POSITION - Turns the headlights on.

THROTTLE CONTROL - Used to control engine speed.

CHOKE CONTROL - Used when starting a cold engine.

FREE WHEEL CONTROL - Disengages transmission for

pushing or slowly towing the tractor with the engine off.

CLUTCH/BRAKE PEDAL - Used for declutching and

braking the tractor and starting the engine.

HOURMETER- Indicates hours of operation.

AMMETER - Indicates charging (+) or discharging (-) of

battery.

PARKING BRAKE - Locks clutch/brake pedal into the

brake position.

MOTION CONTROL LEVER - Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER - Used to raise, lower and

adjust the mower deck or other attachments mounted to

your tractor.

LIFT LEVER PLUNGER - Used to release attachment lift

lever when changing its position.

IGNITION SWITCH - Used for starting and stopping the

engine.

OPERATION

I The operation of any tractor can result in foreign objects thrown into the eyes, which can result

in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or

performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles

or standard safety glasses.

HOW TO USE YOUR TRACTOR NOTE: Under certain conditions when tractor is standing

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

• Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

PUSH IN TO ATTACHMENT

THROTTLE "DISENGAGE"

PULL OUT TO

"ENGAGE"

MOTION

PARKING

CLUTCH/BRAKE "DISENGAGED;' BRAKE

PEDAL "DRIVE" POSITION "ENGAGED"

POSITION POSITION

LEVER

FIG. 8

STOPPING (See Fig. 8)

MOWER BLADES -

• To stop mower blades,move attachment clutch switch

to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into

full "BRAKE" position..

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTIONCONTROLLEVER DOESNOT

RETURNTO NEUTRAL (N) POSITION WHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position

and allowing engine to idle before stopping may cause

engine to "backfire".

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF"WILL CAUSETHE BATTERY

TO BE DISCHARGED,(DEAD).

idle with the engine running, hot engine exhaust gases

may cause "browning" of grass. To eliminate this

possibility, always stop engine when stopping tractor on

grass areas.

I& CAUTION: Always stop tractor com- I

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

motion control lever.

• Start tractor with motion control lever in neutral (N)

position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The position of the attachment lift lever determines the

cutting height.

• Grasp lift lever.

• Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2 to 4".

The heights are measured from the ground to the blade tip

with the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches

in height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are properly adjusted when they are slightly

off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

conditions.

NOTE:Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• Remove retainer spring and clevis pin which secure

each gauge wheel bar.

• Lower gauge wheels to ground. Raise gauge wheels

slightly to align holes in bracket and gauge wheel bar

and insert clevis pin. Gauge wheels should be slightly

off the ground.

• Replace retainer spring into clevis pin.

• Be sure all gauge wheels are in the same setting.

IMPORTANT:BESURETOREADJUSTGAUGEWHEELSIFYOU

CHANGE THE CUTTING HEIGHT OF THE MOWERDECK.

RETAINER

SPRING

CLEVIS

u PIN

FIG. 9

TO OPERATE MOWER (See Fig. 10)

Yourtractor isequipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged

will shut off the engine.You must remain fully and centrally

positioned in the seat to prevent the engine from hesitating

or cutting off when operating your equipment on rough,

rolling terrain or hills.

• Select desired height of cut.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control.

n CAUTION: Do not operate the mower n

J without either the entire grass catcher, J

J on mowers soequipped,or the deflector J

shield in place.

ATTACHMENT CLUTCH

SWITCH PULL OUTTO

"ENGAGE"

ATTACHMENT

LIFT LEVER HIGH

POSITION

/ /

PUSH IN TO

"DISENGAGE"

=DEFLECTOR

SHIELD

FIG. 10

TO OPERATE ON HILLS

J _ WARNING: DO not drive up or down J

J _ hills withslopes greater than 15° and J

M do not drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTIONCONTROL LEVERDOESNOT

RETURNTO NEUTRAL (N) POSITION WHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TOTRANSPORT (See Figs. 7 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with attachment

lift control.

• Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)

MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

OPERATION

FIG. 11

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing.Too heavy of a load,

while on a slope, is dangerous.Tires can lose traction with

the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULl" mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Maintenance section of this manual).

• To change engine oil, see the Maintenance section in

this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill.

Use fresh, clean, regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quantities that can be used within 30 days to assure

fuel freshness.

I CAOT,ONW,peoffanysp.,edo.orI

J_ fuel. Do not store, spill or use gasoline J

JM near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can at-

tract moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine while

in storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it wilt take extra cranking time to move

fuel from the tank to the engine.

• Be surefreewheel control isin the transmission engaged

position.

• Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait a

few minutes and try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. Ifthe engine starts to run roughly, pull

the choke control out slightly for a few seconds and

then continue to push the control in slowly. This may

require an engine warm-up period from several seconds

to several minutes, depending on the temperature.

OPERATION

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit incold weather, the transmission

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral.

Release the parking brake and let the clutch/

brake slowly return to operating position.

• Allow one minute for transmission to warm up.This

can be done during the engine warm up period.

• The attachments can be used during the engine warm-

up period after the transmission has been warmed

up and may require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

PURGE TRANSMISSION

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de-

veloped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGEDAFTER REINSTALLATIONBEFORE OPERATING

THE TRACTOR.

• Place tractor safely in an area that is flat for approxi-

mately 80 feet in front of the tractor and set the parking

brake.

• Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to slow position. With

motion control lever in neutral (N) position, slowly dis-

engage clutch/brake pedal.

• Slowly move motion control lever to full forward position

and hold for five (5) seconds, or approximately 40 feet.

Slowly move lever to full reverse position and hold for

five (5) seconds, or approximately 20 feet. After the

tractor moves approximately 20 feet in reverse return

the motion control lever to the neutral (N) position.

Your transmission is now purged and now ready for normal

operation.

MOWING TIPS

• Mower should be properly leveled for best mowing per-

formance. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

• When mowing large areas, start by turning tothe right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

(See Fig. 12).

[

00272

FIG. 12

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

discharge of material. Regulate ground speed by se-

lecting a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

MAINTENANCE

,_/'_"__ SERVlC E DATES

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners

Sharpen/Replace Mower Blades

T Lubrication Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

E Change Engine Oil (without oil filter)

N Clean Air Filter

G Clean Air Screen

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures,

2 - Service more often when operating in didy or dusty conditions.

GENERAL RECOMMENDATIONS

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance4ree battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum.

Do not overtighten,

LUBRICATION CHART

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should make

any of the adjustments described in the Service and

Adjustments section of this manual.

• At least once a year you should replace the spark

plug, clean or replace air filter, and check blades and

belts for wear. A new spark plug and clean air filter

assure proper air-fuel mixture and help your engine

run better and last longer.

(_ SPINDLE ZERK-

PINDLE ZERK

WHEEL WHEEL

BEARING BEARING

ZERK ZERK

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

i I 019641

(_ General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORTENTHE LIFE OFTHE SELF-LUBRICATING BEARINGS.

IFYOU FEELTHEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

MAINTENANCE

TRACTOR

Always observe safety rules when performing any main-

tenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE"in the Service and Adjustments

section of this manual).

TIRES

• Maintain proper air pressu re inalltires (See"PRODUCT

SPECIFICATIONS" section of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your

local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-

ing properly. If your tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the clutch/brake

pedal is fully depressed and attachement clutch control

is in the disengaged position.

• When the engine isrunning, any attempt bythe operator

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the attachment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace

bent or damaged blades.

BLADE REMOVAL (See Fig. 13)

• Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

• Remove blade bolt by turning counterclockwise.

• Install new or resharpened blade with stamped "THIS

SIDE UP" facing deck and mandrel assembly.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

• Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: SPECIAL BLADE BOLT HEATTREATED.

BLADE

CENTER

HOLE

ASSEMBLY

BLADE BOLT

FIG. 13

TO SHARPEN BLADE (See Fig. 14)

NOTE: We do not recommend sharpening blade - but if

you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An un-

balanced blade will cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file or on a grind-

ing wheel. Do not attempt to sharpen while on the

mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a

cone balancer, follow the instructions supplied with

batancer.)

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

CENTER

BLADE

5/8" BOLT OR PIN

FIG. 14

BATTERY

Yourtractor has a battery charging system which issufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps

or covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

MAINTENANCE

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING BATTERY" in

the SERVICE AND ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot.To prevent pos-

sible damage to seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intactand

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean cool-

ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

=20 0 30 32 40 60 80 t00

-30 -20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oil viscchar t 1_

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°E Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 15 and 16)

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil wilt drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from bottom fitting of drain valve

and install the drain tube onto the fitting.

CLOSED AND

LOCKED

POSITION-_._.

YELLOW

CAP _

OIL DRAIN VALVE

FIG. 16

• Unlock drain valve by pushing inward and turning

counterclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man-

ual.

• Use gauge on oil fill cap/dipstick for checking level.

Insert dipstick into the tube and rest the oil fill cap on

the tube. Do not thread the cap onto the tube when

taking reading. Keep oil at "FULl" line on dipstick.

Tighten cap onto the tube securely when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

MAINTENANCE

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at atl times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirtyor ptugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions. See

Engine Manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other

oil change if the tractor is used more than 100 hours in

one year.

MUFFLER

Inspect and replace corroded muffler and spark arrester

(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

CLAM_AMP

FUEL _"" // _ )

FILTER _

FIG. 17

CLEANING

• Clean engine, battery, seat, finish, etc. of att foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-

MENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key to "STOP" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 18)

• Place attachment clutch in "DISENGAGED" position.

• If equipped, turn height adjustment knob to lowest

setting.

• Lower mower to its lowest position.

• Remove retainer spring holding anti-swaybar tochassis

bracket and disengage anti-swaybar from bracket.

• Remove four retainer springs from front plate assembly

and remove plate.

• Remove retainer springs from suspension arms atdeck

and disengage arms from deck.

• Raise attachment lift to its highest position.

• Slide mower forward and remove belt from electric

clutch pulley.

• Slide mower out from under right side of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

• Swing anti-sway bar to left side of mower deck.

• Slide mower under tractor with deflector shield to right

side of tractor.

IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL

MOWER PULLEY GROOVES.

• If equipped, turn height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment lift control.

• Install belt into electric clutch pulley groove.

• Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

• Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

CHASSIS

BRACK-

SUSPENSION

ARMS

FRONT ELECTRIC

MOWER CLUTCH FRONT PLATE

BRACKET PULLEY ASSEMBLY

DOUBLE LOOP

;PRING

SINGLE LOOP

REATINER

SPRING

RETAINER

SPRING

\ FLANGED PINS

USE PLIERS FOR

RETAINER SPRINGS

LOOPUP

ANTI-SWAY

BAR

SUSPENSION ARMS

DOUBLE LOOP

RETAINER SPRINGS

(Outward pointing

deck pins)

FIG. 18

SERVICE AND ADJUSTMENTS

Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate and mower brack-

ets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mower side-to-side to give space between plate and mower

brackets.

IMPORTANT: CHECK BELTFOR PROPER ROUTING IN ALL

MOWER PULLEYGROOVES.

• Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

• If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

• Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground

or driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" section of this manual). If

tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

• Raise mower to its highest position.

• Measure height from bottom edge of mower to ground

level at front corners of mower. Distance "A" on both

sides of mower should be the same.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut wilt change mower

height about 3/16".

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWERTO _ OF MOWERTO

GROUND__/GROUND

FIG. 19

SUSPENSION

ARM

LIFT LINK

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IFTHE

FOLLOWING FRONT-TO-BACKADJUSTMENT ISNECESSARY,

BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO

MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower blades should

be adjusted so the front tip is approximately 1/8" to 1/2"

lower than the rear tip when the mower is in its highest

position.

_I CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

Check adjustment on right side of tractor. Position any blade

so the tip is pointing straight forward. Measure distance "B"

at front and rear tip of the blade.

• Before making any necessary adjustments, check that

both front plate links are equal in length.

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of blade, loosen nut "C" on both front

links an equal number of turns.

NOTE: Each full turn of nut "C" will change distance. "B"

by approximately 3/16".

• When distance"B"is 1/8" to 1/2" lower at front than rear,

tighten nut "D" against trunnion on both front links.

• To raise front of blade, loosen nut "D" from trunnion on

both front links. Tighten nut "C" on both front links an

equal number of turns.The two front links must remain

equal in length.

• When distance"B"is 1/8" to 1/2" lower at front than rear,

tighten nut "D" against trunnion on both front links.

• Recheck side-to-side adjustment.

FIG. 21

BOTH FRONT PLATE LINKS MUST BE

EQUALIN LENGTH

NUT "D"_

FIG. 22

NUT "C"

=_ TRUNNION

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL (See Fig. 23)

• Park tractor on a level surface. Engage parking

brake.

• Lower mower to its lowest position.

Remove screws from R.H. mandrel cover and remove

cover.

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

• Disconnect R.H. suspension arm from rear deck bracket

by removing retainer spring.

• Roll belt over the top of R.H. mandrel pulley carefully.

• Remove belt from electric clutch pulley.

• Remove belt from idler pulleys.

• Check primary idler arm and two idlers to see that they

rotate freely.

• Be sure spring is securely hooked to primary idler arm

and spring arm.

MOWER DRIVE BELT INSTALLATION (See Fig. 23)

• Install belt in both idlers.

• Install new belt onto electric clutch pulley.

• Roll belt into upper groove of R.H. mandrel pulley care-

fully.

• Carefully check belt routing making sure belt is in the

grooves correctly.

• Reconnect R.H. suspension arm to rear deck bracket

with retainer spring.

• Reassemble R.H. mandrel cover.

RH MANDREL

ELECTRIC

CLUTCH

PULLEY

PULLEYS

SPRING ARM

RH SUSPENSION

ARM

R,H. MANDREL

FIG. 23

TO REPLACE MOWER BLADE (SECONDARY)

DRIVE BELT (See Fig. 24)

Park the tractor on level surface. Engage parking brake.

• Remove mower (See "TO REMOVE MOWER" in this

section of manual).

• Remove screws from R.H. and L.H. mandrel covers

and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to 'frO REMOVE MOWER DRIVE BELT' illustration

in this section of manual).

• Carefully roll belt over the top of R.H. mandrel pulley.

• Remove belt from idler pulleys.

• Check primary idler arm and two idlers to see that they

rotate freely.

• Be sure spring is securely hooked to primary idler arm

and spring arm.

REMOVE MOWER BLADE (SECONDARY) DRIVE BELT

• Carefully roll belt off L.H. mandrel pulley.

• Remove belt from center mandrel pulley, idler pulley,

and R.H. mandrel pulley.

• Remove any dirt or grass which may have accumulated

around mandrels and entire upper deck surface.

• Check secondary idler arm and idler pulley to see that

they rotate freely.

• Be sure spring is hooked in secondary idler arm and

secondary spring arm.

INSTALL NEW MOWER BLADE (SECONDARY) DRIVE

BELT

• Install new belt in lower groove of R.H. mandrel pulley,

idler pulley, and center mandrel pulley as shown.

• Carefully roll belt over L.H. mandrel pulley. Make sure

belt is in all grooves properly.

REINSTALL MOWER DRIVE BELT

(Refer to 'frO REMOVE MOWER DRIVE BELT' illustration

in this section of manual).

• Install belt into upper groove of R.H. mandrel pulley

and around both idlers. Pull belt to front of mower to

remove slack.

• Reinstall mandrel covers and securely tighten all

screws.

• Carefully check belt routing making sure belt is in all

grooves correctly.

• Reinstall mower to tractor (See'frO INSTALL MOWER"

in this section of manual).

LH. MANDREL

IDLER

PULLEY

FIG. 24

SERVICE AND ADJUSTMENTS

TO CHECK AND ADJUST BRAKE

(See Fig. 25)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be checked and adjusted.

TO CHECK BRAKE

• Park tractor on a level, dry concrete or paved surface,

depress clutch/brake pedal all the way down and en-

gage parking brake.

• Disengage transmission by placing freewheel control

in "transmission disengaged" position. Pult freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manuatly

push the tractor forward. Ifthe rear wheels rotate, the brake

needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

• Depress clutch/brake pedal all the way down and en-

gage parking brake.

• Measure distance between brake operating arm and

nut "A" on brake rod.

• If distance is other than 1-9/16", loosen jam nut and

turn nut "A" until distance becomes 1-9/16". Retighten

jam nut against nut "A".

• Engage transmission by placing freewheel control in

"transmission engaged" position.

• Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than five (5) feet in highest gear, further

maintenance is necessary. Replace brake pads or

contact a qualified service center.

_NUT "A"

O E AT,NG/_F A j JAMNUT

FIG. 25

TO REPLACE MOTION DRIVE BELT

(See Fig. 26)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See "TO REMOVE MOWER" in this

section of manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

• Disconnect clutch wire harness.

• Remove clutch Iocator.

• Remove belt from stationary idler and clutching idler.

• Remove belt downward from engine pulley and around

electric clutch.

• Pult belt slack toward rear of tractor. Carefully remove

belt upwards from transmission input pulley.

• Remove belt from center span keeper and pull belt

away from tractor.

BELT INSTALLATION -

• Carefully work new belt down onto the input pulley.

• Slide belt into the center span keeper.

• Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley.

• Install belt through stationary idler and clutching

idler.

• Reinstall clutch Iocator and tighten nut securely.

• Reconnect clutch harness.

• Make sure belt is in all pulley grooves and inside all

belt guides and keepers.

• Install mower (See "TO INSTALL MOWER" in this sec-

tion of manual).

ELECTRIC

CLUTCH

CLUTCHING

IDLER

STATIONARY

IDLER

CENTER SPAN _"

KEEPER

TRANSMISSION

INPUT PULLEY -----

C, ATOR

CLUTCH

WIRE

HARNESS

FIG. 26

SERVICE AND ADJUSTMENTS

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 27)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel,

and lightly tighten.

• Start engine and move motion control lever until tractor

does not move forward or backward.

• Hold motion controllever in that position and turn engine

off.

• While holding motion control lever in place, loosen the

adjustment bolt.

• Move motion control lever to the neutral (N) (lock gate)

position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to

adjustment bolt, move mower deck height to the lowest

osition.

After above adjustment is made, if the tractor still creeps

forward or backward while motion control lever is in

neutral position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the

direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satis-

fied.

MOTION

LOCK GATE

FIG. 27

JUSTMENT

BOLT

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 28)

• Blockup axle securely.

• Remove axle cover, retaining ring and washers toallow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant atso prevents tire dry rot

and corrosion.

WASHERS

RETAINING

AXLE RINq

COVER_

SQUARE KEY .._

(REAR WHEEL ONLY)_"

FIG. 28

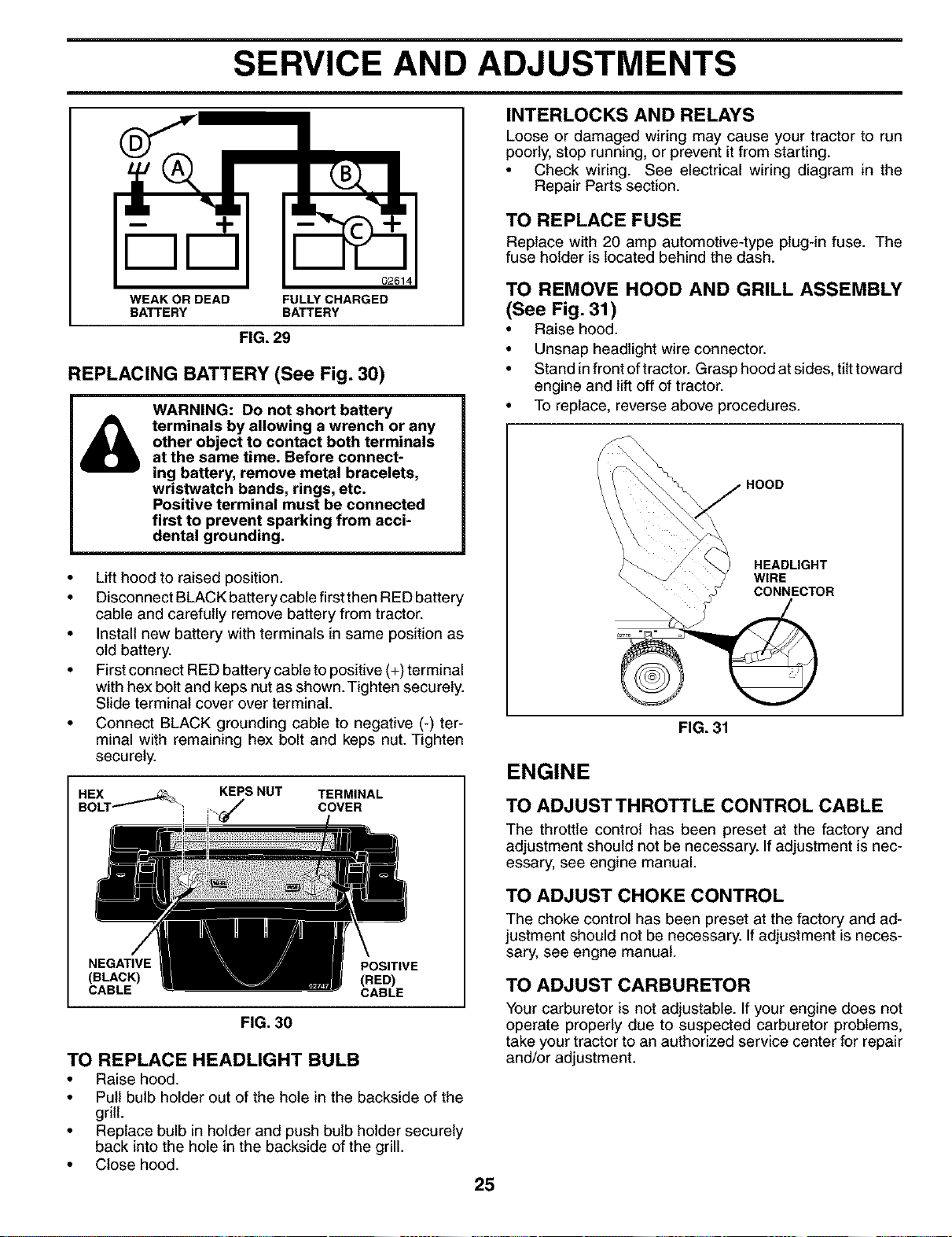

TO START ENGINE WITH A WEAK

BATTERY(See Fig. 29)

WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See"PU RGETRANSMISSION"

in the Operation section of this manual.

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOURTRACTOR IS EQUIPPED WITH A 12VOLT

SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT

SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START

OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

• Connect one end of the BLACK cable to the NEGATIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

SERVICE AND ADJUSTMENTS

WEAK OR DEAD FULLY CHARGED

BATTERY BATTERY

FIG. 29

REPLACING BATTERY (See Fig. 30)

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31 )

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

• Lift hood to raised position.

• Disconnect BLACK battery cabte first then RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as

old battery.

• First connect RED battery cable to positive (+)terminal

with hex bolt and keps nut as shown.Tighten securely.

Slide terminal cover over terminal.

• Connect BLACK grounding cable to negative (-) ter-

minal with remaining hex bolt and keps nut. Tighten

securely.

HEX _ KEPS NUT TERMINAL

BOLT " i COVER

NEGATIVE POSITIVE

(BLACK) (RED)

CABLE CABLE

FIG. 30

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

HEADLIGHT

WIRE

\_ CONNECTOR

FIG. 31

ENGINE

TO ADJUSTTHROTTLE CONTROL CABLE

The throttle control has been preset at the factory and

adjustment should not be necessary. If adjustment is nec-

essary, see engine manual.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the factory and ad-

justment should not be necessary. If adjustment is neces-

sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

STORAGE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

WARNING: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When mower

is tobe stored for ape riod of time, clean ittho roughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING" in the Mainte-

nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructionsin the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-

nance section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come incontact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT ISIMPORTANTTO PREVENTGUM DEPOSITS

FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADSTO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Empty thefuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil. (See "ENGINE" in the Maintenance section of

this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILE ENGINEAND

EXHAUSTAREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring,

9. Carburetor out of adjustment.

10, Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weakor dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring,

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Brake pedal not depressed,

2. Attachment clutch is engaged.

3. Weakor dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring,

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1, Weakor dead battery.

2, Corroded battery terminals.

3, Loose or damaged wiring,

4, Faulty solenoid or starter.

1, Cutting too much grass/too fast.

2, Throttle in "CHOKE" position.

3, Build-up of grass, leaves and trash under mower.

4, Dirty air filter.

5, Low oil level/dirty oil.

6. Faulty spark plug.

7, Dirty fuel filter.

8, Stale or dirty fuel.

9, Water in fuel.

10, Spark plug wire loose.

11, Dirty engine air screen/fins.

12, Dirty/clogged muffler,

13, Loose or damaged wiring,

14. Carburetor out of adjustment,

15, Engine valves out of adjustment.

1, Worn, bent or loose blade.

2, Bent blade mandrel.

3, Loose/damaged part(s).

1, Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6, Replace fuel filter.

7. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring,

9. See "To Adjust Carburetor" in Service Adjustments

section.

t 0. Contact an authorized service center/department.

1, Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank with fresh, clean gasoline.

6, Check allwiring,

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress brake pedal,

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6, Check all wiring,

7. Check/replace ignition switch,

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Raise cutting height/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6, Clean and regap or change spark plug,

7. Replace fuel filter.

8. Empty fuel tank and refill tank with fresh, clean gasoline.

9. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

t 1. Clean engine air screen/fins.

12. Clean/replace muffler,

13. Check allwiring,

14. See "To Adjust Carburetor" in Service Adjustments

section.

t 5. Contact an authorized service center/department.

1, Replace blade, Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s), Replace damaged parts.

TROUBLESHOOTING POINTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poorcut-uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires" when

turning engine "OFF"

CAUSE

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF'.

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

1. Engine throttle control not set at"SLOW"

position for 30 seconds before stopping engine.

CORRECTION

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

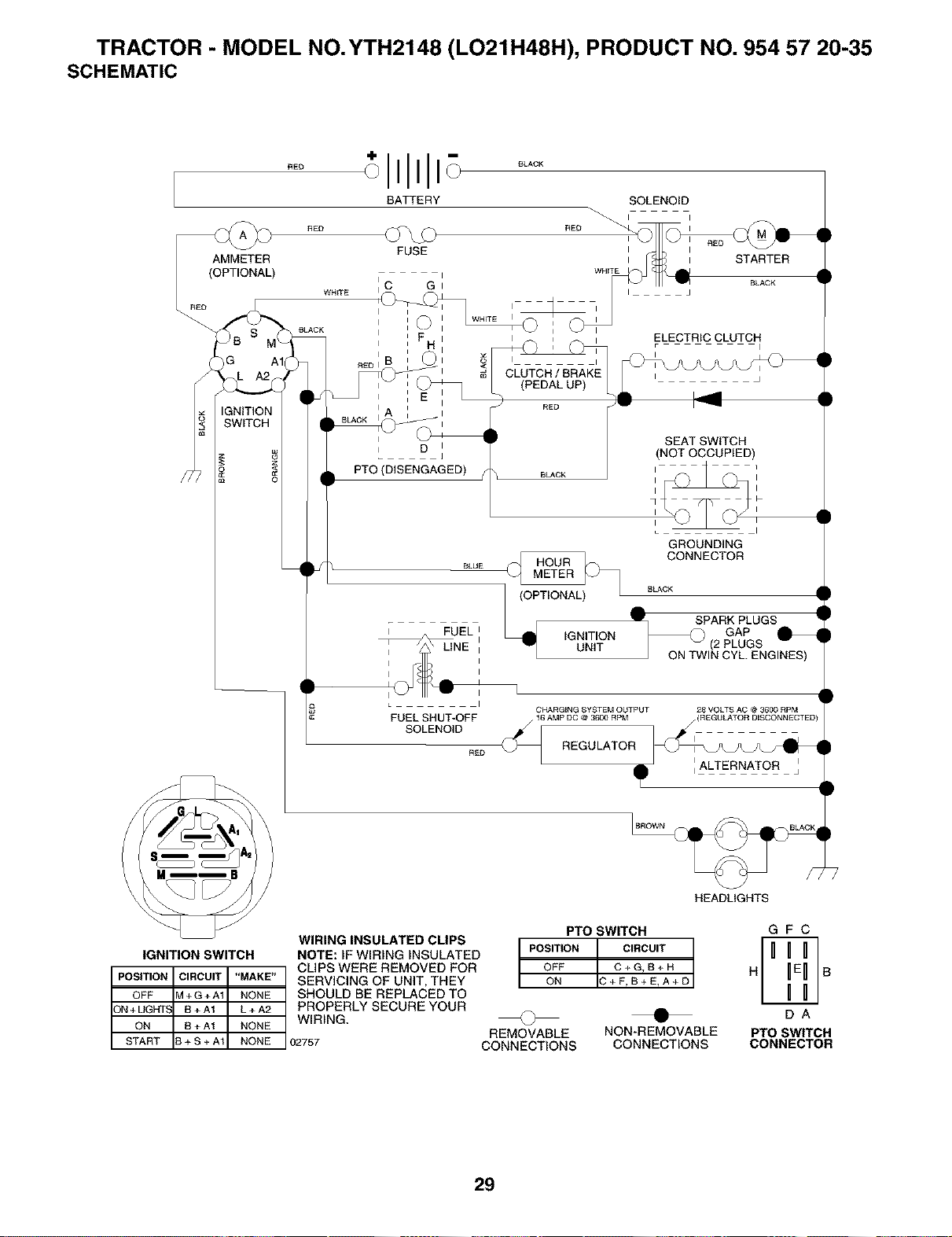

SCHEMATIC

RED

BATTERY

BLACK

SOLENOID

STARTER

BLACK

ELECTRIC CLUTCH

I j

SEAT SWITCH

(NOT OCCUPIED)

FUEL SHUT-OFF

SOLENOID

RED

GROUNDING

CONNECTOR

BLACK

W SPARK PLUGS

GAP

_(2 PLUGS

ON TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

16 AMP DC @ 3600 RPM j (REGULATOR DISCONNECTED

REGU 'TOR

ALTERNATOR I

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF Vl+ G+ A1 NONE

ON+ UGHTS B+A1 L+A2

ON B + A1 NONE

START 3 + S + A1 NONE

HEADLIGHTS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02757

PTO SWITCH

POSITION CIRCUIT J

OFF C+G,B+H t

ON C _+ D

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

GFC

PTO SWITCH

CONNECTOR

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

ELECTRICAL

i i

42 i

40 i

2 27 i

91_ iiI

29 46

REPAIR PARTS

TRACTOR - MODEL NO.YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27

2 874 76 04-12

8 532 18 64-91

16 532 17 61-38

21 532 18 37-59

22 532 00 41-52

24 532 12 47-80

25 532 14 61-48

26 532 17 51-58

27 873 51 04-00

28 532 14 54-91

29 532 12 13-05

30 532 18 96-87

33 532 14 04-01

40 532 18 80-24

41 871 11 04-08

42 532 13 15-63

43 532 17 88-61

45 532 12 28-22

46 532 16 96-35

50 532 17 46-51

89 532 16 96-39

90 532 18 04-49

91 532 19 02-70

Battery

Bolt Hex Hd 1/4-20 unc x 3/4

Box Battery

Switch Interlock Push-In

Harness Asm Light W/4152j

Bulb Light #1156

Cable Battery 6 Ga. 11" red

Cable Battery 6 Ga. 22" red w/16 wire

Fuse 20 AMP

Nut Keps Hex 1/4-20 unc

Cable Ground black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Generic

Harness Ign.

Bolt Blk Fin Hex 1/4 - 20 x 1/2

Cover Terminal Red

Solenoid

Ammeter

Hourmeter Snap-In

Switch PTO

Bracket Snap-In Hourmeter

Cover Terminal

Strap Battery

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

CHASSIS AND ENCLOSURES

_259

28-- j258

217

159

214

278

208

158

166-

209

j37

208

chassis elite husqy 4

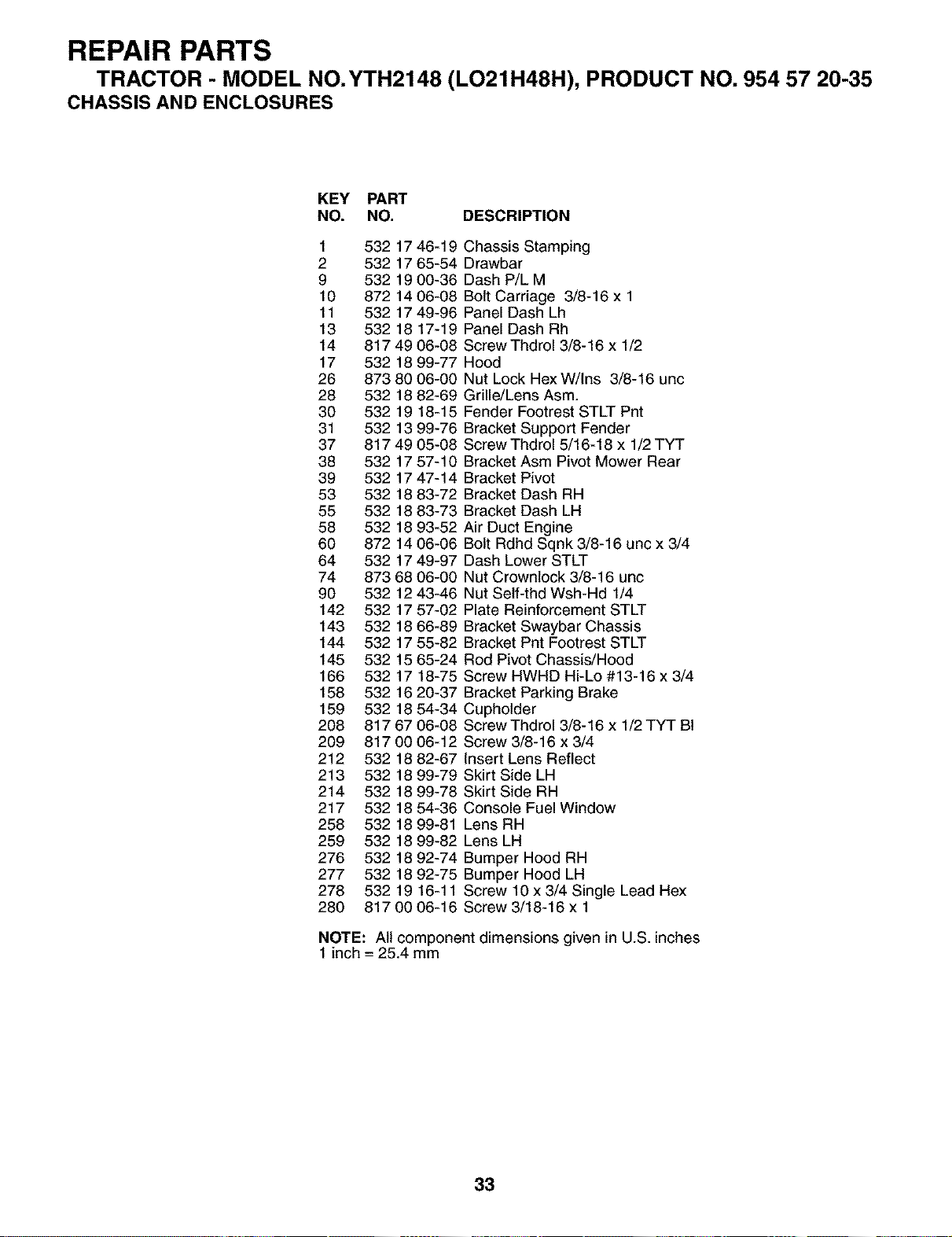

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 532 17 46-19 Chassis Stamping

2 532 17 65-54 Drawbar

9 532 19 00-36 Dash P/L M

10 872 14 06-08 Bolt Carriage 3/8-16 x 1

11 532 17 49-96 Panel Dash Lh

13 532 18 17-19 Panel Dash Rh

14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2

17 532 18 99-77 Hood

26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc

28 532 18 82-69 Grille/Lens Asm.

30 532 19 18-15 Fender Footrest STLT Pnt

31 532 13 99-76 Bracket Support Fender

37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT

38 532 17 57-10 Bracket Asm Pivot Mower Rear

39 532 17 47-14 Bracket Pivot

53 532 18 83-72 Bracket Dash RH

55 532 18 83-73 Bracket Dash LH

58 532 18 93-52 Air Duct Engine

60 872 14 06-06 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 532 17 49-97 Dash Lower STLT

74 873 68 06-00 Nut Crownlock 3/8-16 unc

90 532 12 43-46 Nut Self-thd Wsh-Hd 1/4

142 532 17 57-02 Plate Reinforcement STLT

143 532 18 66-89 Bracket Swaybar Chassis

144 532 17 55-82 Bracket Pnt Footrest STLT

145 532 15 65-24 Rod Pivot Chassis/Hood

166 532 17 18-75 Screw HWHD Hi-Lo #13-16 x 3/4

158 532 16 20-37 Bracket Parking Brake

159 532 18 54-34 Cupholder

208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 TYT Bt

209 817 00 06-12 Screw 3/8-16 x 3/4

212 532 18 82-67 Insert Lens Reflect

213 532 18 99-79 Skirt Side LH

214 532 18 99-78 Skirt Side RH

217 532 18 54-36 Console Fuel Window

258 532 1899-81 Lens RH

259 532 18 99-82 Lens LH

276 532 18 92-74 Bumper Hood RH

277 532 18 92-75 Bumper Hood LH

278 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

280 817 00 06-16 Screw 3/18-16 x 1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR pARTS NO.VTH214S(LO21H4SH),pRODUU

TRACTOR "MODEL

DRIVE

| |_i%/- "" "

263

166

I 74 75

150

_ 48

151

K53

drive.hydro, sllt_l

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

DRIVE

KEY PART

NO. NO. DESCRIPTION

532 17 91-14

872 11 06-22

532 17 55-56

532 12 77-83

532 15 44-07

532 12 32-05

872 11 06-12

873 68 06-00

873 68 05-00

532 10 57-10

532 10 57-09

1 Transaxle Peerless LTH2000

(Order parts from transaxle manu-

facturer)

8 532 16 58-66 Rod Shift Fender Adjust

9 532 17 43-67 Clutch

10 8760204-16 Pin Cotter 1/8xl CAD

14 810 04 04-00 Washer Lock Hvy Helical

15 874 49 05-44 Bolt Hex FLGHD 5/16-18 Gr.5

16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc

17 532 12 61-97 Washer 1-1/20D x 15/32 ID x .250

19 873 80 06-00 Nut Lock Hex W/Wsh 3/8-16 unc

21 532 14 08-45 Knob 1/2-13

22 532 17 81-41 Rod, Brake

23 532 19 07-36 Bracket Anti-Rotation

24 873 35 06-00 Nut, Hex Jam 3/8-16 unc

25 532 10 68-88 Spring, Brake Rod

27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.

28 532 17 57-65 Rod, Parking Brake

29 532 07 16-73 Cap, Parking Brake

30 532 16 95-92 Bracket, Transaxle

32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

34 532 17 55-78 Shaft, Foot Pedal

35 532 12 01-83 Bearing, Nylon

36 81921 16-16 Washer

37 532 12 49-63 Pin, Roll

38 Pulley, Composite

39 Bolt RDHD 3/8-16 unc x 2 3/4 Gr. 5

41 Keeper, Belt Idler

47 Pulley, Idler, V-Groove

48 Bellcrank, Clutch

49 Retainer, Belt

50 Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5

51 Nut Crownlock 3/8-16 unc

52 Nut, Crowntock 5/16-18 unc

53 Link, Clutch

55 Spring, Return, Clutch

56 817 06 06-20 Screw 3/8-16 x 1-1/4

57 532 17 81-38 V-Belt

59 532 16 96-91 Keeper, Center Span

61 8171206-14 Screw 3/8-16x.875

62 532 12 48-72 Cover, Pedal

63 532 17 54-17 Pulley, Engine

KEY PART

NO. NO. DESCRIPTION

64 532 1739-37 Bolt Hex 7/16-20x4Gr. 5

65 810 04 07-00 Washer

66 532 15 47-78 Keeper Belt Engine Hydro

69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

74 532 13 70-57 Spacer

75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

76 812 00 00-01 E-Ring

77 532 12 35-83 Key, Square

78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

81 532 17 81-39 Shaft Asm Cross Tapered

82 532 16 57-11 Spring Torsion

83 819 17 12-16 Washer 17/32 x 3/4 x 16Ga.

85 532 15 03-60 Nut Lock Center 1/4-28 FNTHD

89 532 19 18-16 Console, Shift

95 532 17 81-34 Disconnect Asm Rod Bypas LTH

96 532 12 47-88 Retainer Spring 1" Zinc/Cad

112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

120 873 90 06-00 Nut Lock Fig 3/8-16

150 532 17 54-56 Spacer Retainer

151 8191332-10Washer 13/32x2x10Ga.

156 532 16 60-02 Washer Srrted 5/16 ID x 1.125

158 532 16 55-89 Bracket Shift Mount

159 532 18 39-00 Hub Shift

161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

162 873 68 04-00 Nut Crowntock 1/4-20 unc

163 8747804-16 BoltHexFin 1/4-20uncxl Gr5

165 532 16 56-23 Bracket Pivot Lever

166 8174905-10 Screw 5/16-18 x 5/8

168 532 16 54-92 Bolt Shoulder 5/16-18 x .561

169 532 16 55-80 Plate Fastening

197 532 16 96-13 Nyliner Snap-In 5/8"1D

198 532 16 95-93 Washer Nyl 7/8 ID x .105" Hyd

202 872 11 06-14 Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5

245 532 17 81-22 StrapTorque Lh LTH2000

246 532 17 81-21 StrapTorque Rh LTH2000

247 532 18 14-62 Link ShiftTransaxle LTH2000

251 817 06 05-16 Screw 5/16-18 x 1

252 819 13 16-16 Washer 13/32 x 1 x 16 Ga.

254 817 00 06-16 Screw 3/8-16 x 1

263 8170006-12 ScrewHexWshThdr3/8-16x3/4

NOTE:All component dimensions give in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

STEERING ASSEMBLY

/ t "'---'"1

,,,.. ," ;, .'.,'

steedng_pLIt 54

68 67

6 13

2 _.. 8

687

• _ 32

/ 11

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

532 16 66-27 Wheel Steering

532 18 47-06 Axle

532 16 98-40 Spindle Asm LH

532 16 98-39 Spindle Asm RH

532 12 49-31 Bearing RaceThrust Harden

532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

812 00 00-29 Ring Klip #t5304-75

532 17 51-21 Link Drag

810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8

873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf

532 13 65-18 Spacer Brg Axle Front

532 14 52-12 Nut Hex Flange Lock

532 17 78-83 Shaft Asm Strg

817 0O 06-12 Screw 3/8-16 x 3/4

532 18 05-80 Rod Tie

810 04 05-00 Washer Lock Hvy Helical 5/16

532 15 51-05 Bushing Strg

532 15 29-27 Screw

532 16 66-26 Insert Cap Strg Wh

819 18 38-12 Washer 9/16 x 2-3/8 12 Ga.

873 54 06-00 Nut Crowntock 3/8-24

532 15 99-45 Adaptor Wheel Strg

532 12 17-49 Washer 25/32 x 1 1/4x 16Ga.

532 12 12-32 Cap Spindle FrTop BIk

532 16 03-67 Spacer Brace Axle

872 11 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4

532 16 98-27 Axle, Brace

532 17 51-46 Steering Asm

532 16 98-35 Bracket Susp Chassis Front

532 17 39-66 Washer Flat .781 x 1-1/2 x .14

532 17 51-18 Bolt Shoulder 7/16-20

532 17 55-53 Clip Steering

819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.

532 18 89-67 Washer Hardened

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

SEAT ASSEMBLY

seaLIt.knob I

KEY PART

NO. NO. DESCRIPTION

1 532 18 87-15 Seat

2 532 14 05-51 Bracket Pivot Seat 8 720

3 871 11 06-16 Bolt Fin Hex 3/8-16 unc x 1

4 819 13 16-10 Washer 13/32 x 1 x 10 Ga.

5 532 14 50-06 Clip Push-In

6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc

7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi

8 817 00 06-16 Screw 3/8-16 x 1-1/2 Smgml Tap/R Z

9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

10 532 18 24-93 Pan Seat

11 532 16 63-69 Knob Seat Adj. Wingnut

12 532 12 12-46 Bracket Mounting Switch

13 532 12 12-48 Bushing Snap BIk Nyl 50 Id

KEY PART

NO. NO. DESCRIPTION

14 872 05 04-12

15 532 12 17-49

16 532 12 37-40

17 532 12 39-76

21 532 17 18-52

22 873 80 05-00

24 819 17 19-12

25 532 12 70-18

Bolt Rdhd Sqnk 1/4-2 x 1-1/2

Spacer

Spring Cprsn

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Bolt Shoulder

5/16-18 unc-2a BIk DA

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 x 13/16 x 12 Ga.

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

DECALS

KEY PART

NO. NO. DESCRIPTION

1 532 17 84-82 Decal Deck Hvy Duty

2 532 19 22-01 Decal Panel Side

3 532 18 89-18 Decal Hood RH

4 532 18 89-19 Decal Hood LH

6 532 18 09-41 Decal Hood Cust. Resp.

7 532 15 70-32 Decal Operator

8 532 18 92-43 Decal Dash

9 532 19 23-23 Decal Replacement

10 532 15 71-40 Decal Fender Danger

11 532 17 52-91 Decal V-Belt Sch.

KEY PART

NO. NO. DESCRIPTION

12 532 18 89-25 Decal Wheel Steering

13 532 17 05-63 Decal Warning

14 532 14 50-05 Decal Bat Dan/Psn

- - 532 17 83-92 Decal Chass. Disconnect

- - 532 18 82-52 Pad Footrest LH STLT

- - 532 18 82-53 Pad Footrest RH STLT

- - 532 13 83-11 Decal Handle Lft Height Adjust

- - 532 19 26-49 Manual Operator's (English)

4,10

wheel+ 1

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 13 83-36 Rim Asm 6"front Silver Service

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 13 83-37 Rim Asm 8"rear Silver Service

9 532 12 20-82 Tire R Ts 20 x 10-8 C Service

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 17 50-39 Cap Axle Blk 1 50 x 1 0O

- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO.YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

ENGINE

17_

_17

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs.van2cyL16

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

ENGINE

KEY PART

NO. NO. DESCRIPTION

532 17 07-71

817 72 04-08

4 532 14 97-23

5 532 19 15-48

6 532 19 15-49

8 532 17 18-77

10 532 14 66-29

13 532 16 53-91

14 532 14 84-56

17 817 06 06-24

23 532 16 98-37

25 532 16 17-29

26 873 92 06-00

29 532 13 71-80

31 532 17 90-22

32 532 18 18-03

33 532 12 34-87

37 532 14 21-58

38 532 18 16-54

41 532 13 92-77

45 817 O0 06-12

72 532 18 39-06

81 873 51 04-00

Control Throttle

Screw Hex Thd Cut 1/4-20 x 1/2

Engine Briggs 385777

(Order PartsFrom Engine Manufacturer)

Muffler

Exhaust Tube LH

Exhaust Tube RH

Bolt 5/16-18 uric x 3/4

Shield Heat Muffler

Gasket

Tube Drain Oil Easy

Screw 3/8-16 x 1-1/2

Shield Browning/Debris Guard

Control Choke

Nut Keps 3/8-24 unf

Kit Spark Arrestor (Flat Scrn)

Tank Fuel

Cap Asm Fuel

Clamp Hose Black

Line Fuel

Plug Drain Oil Easy

Stem Tank Fuel

Screw Hex Wsh Thdr 3/8-16 x 3/4

Screw Socket Head 5/16-18 x 1

Nut Keps Hex 1/4-20 Starter Nut

112 532 12 49-52 Bushing

NOTE: All component dimensions given in U.S. inches

1 inch= 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Kohler Co. 1-800-544-2444

Tecumseh Products 1-800-558-5402

Honda Engines 1-800-426-7701

Kawasaki 1-800-460-5688

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

MOWER LIFT

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

MOWER LIFT

KEY PART

NO. NO.

1 532 15 94-60

2 532 15 94-71

3 532 10 57-67

4 812 00 00-02

5 81921 16-21

6 532 12 01-83

7 532 12 56-31

8 532 12 45-26

11 532 17 53-70

12 532 17 53-71

13 532 12 46-70

15 532 17 55-62

16 873 35 08-00

17 532 17 56-89

18 873 80 08-00

20 532 16 35-52

31 532 17 62-05

32 532 17 59-94

49 532 14 52-12

51 819 17 14-16

52 532 17 53-78

53 532 17 58-02

54 532 17 55-60

DESCRIPTION

Wire Asm Inner W/plunger 17 32

Shaft Asm Lift LH Inf Hgt P/L

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer 21/32 x 1 x 21 Ga.

Bearing Nylon Btk 629 Id

Grip Handle

Button Plunger

Link Lift LH

Link Lift RH

Retainer Spring

Plate Asm Suspension Front

Nut Jam Hex 1/2-13 unc

Trunnion Blk Zinc

Nut Lock W/wsh 1/2-13 unc

Retainer Spring

Trunnion Suspension Arm

Nut Lift Link 7/16-20

Nut Hex Flange Lock

Washer 17/32 x 7/8 x 16 Ga.

Arm Suspension Rear LH

Arm Suspension Rear RH

Pin Flange

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

MOWER DECK

21\ ,

121

132 95

z45

119

_118

y 25

mower deck.481owcost stir 1

REPAIR PARTS

TRACTOR - MODEL NO. YTH2148 (LO21H48H), PRODUCT NO. 954 57 20-35

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 532 18 33-89

3 532 13 80-17

5 532 12 46-70

6 532 17 80-24

8 532 17 43-65

11 532 18 00-54

13 532 17 51-47

14 532 17 43-58

15 532 11 04-85

16 532 17 44-93

17 872 11 06-10

18 872 14 05-05

19 532 13 28-27

20 532 17 43-78

21 873 68 05-00

24 532

25 532

26 532

27 532

28 819

29 532

30 532

31 532

32 532

33 532

36 819

37 532

39 532

42 532

43 532

45 532

46 532

47 532

Deck Weldment Mower 48

Bracket Asm., Sway Bar

Retainer Spring

Bar Sway Deck

Bolt, 7/16 Asm. Blade

Blade

Shaft Asm. Mandrel Sealed

Housing Mandrel 48"

Bearing, Ball, Mandrel

Stripper, Mower

Bolt Rdhd Sq Neck 3/8-16 x 1.25

Bolt, Carriage 5/16-18 x 5/8

Bolt, Hex Head, Shoulder 5/16-18

Baffle, Vortex Mower

Nut, Crownlock 5/16-18 unc

10 53-04 Cap, Sleeve

17 81-02 Spring, Torsion

11 04-52 Nut, Push

18 17-07 Shield, Deflector Mower

11 10-16 Washer 11/32x5/8x 16Ga.

13 14-91 Rod, Hinge

17 39-84 Screw, Thdrolt, Washer Head

18 76-90 Washer, Spacer Mower Vented

17 34-36 Pulley, Mandrel

17 83-42 Nut, Fig.Top Lock Cntr. 9/16

13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 79-68 Pulley, Idler, Flat

17 43-75 Pulley, Idler, Driven

12 20-52 Spacer, Retainer

17 43-73 Arm, Idler Secondary

18 08-06 Cover, Mandrel Deck

13 77-29 Screw, ThdrolL 1/4-20 x 5/8

18 08-08 V-Belt, Mower, Secondary

532 17 43-68 V-Belt, Mower, Primary

839 00 06-00 Nut, Lock 3/8-16 unc

872 11 06-12 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

532 17 58-20 Pulley Idler Flat 46 Pri. Drive

54 874 78 06-16 Bolt Fin Hex 3/8-16 x 1

55 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 x 1

56 532 15 59-86 Bar Pnt Adjusting Wheel Gauge

57 532 15 69-41 Pin Head Rivet

72 819 13 13-12 Washer 13/32 x 13/16 x 12

91 532 18 05-35 Bracket, Asm Noseroller, RH 48

92 873 80 06-00 Nut Lock Hex w/Ins 3/8-16

94 532 17 60-66 Roller, Nose 48"

95 532 18 05-34 Bracket, Asm Noseroller LH 48

97 532 17 85-15 Washer Hardened

98 532 17 94-79 Spring Primary Drive

99 532 18 40-58 Pulley Idler "V"

100 872 11 06-16 BoltRDHDSqnk3/8-16uncx2

110 532 17 50-16 Arm Spring Secondary

111 532 17 46-10 Arm Spring Fixed Tension

113 872 11 05-06 BoltRdhdSqnk5/16-18uncx3/4

116 532 18 42-19 Bolt, Shoulder

117 532 13 39-57 Gauge Wheel

118 873 93 06-00 Nut, Centerlock 3/8-16 unc

119 8191214-14Washer 3/8x7/8x14Ga.

121 532 17 43-71 Spring Secondary Drive

126 532 17 43-72 Arm, Idler, Primary Deck

130 817 00 06-16 Screw 3/8-16 x 1.0

131 819 13 16-06 Washer 13/32x 1 x6Ga.

132 817 00 06-12 Screw 3/8-16 x 3/4

182 532 17 91-27 Rod Roller Nose

183 532 16 35-52 Retainer Spring

184 532 17 39-79 Keeper Belt Idler

- - 532 17 43-57 Mandrel Assembly (Includes Hous-

ing, Shaft and Shaft Hardware

Only-Pulley Not Included)

- - 532 18 99-06 Replacement Mower, Complete

(Std Deck-Order Separately Nose

Roller Components Key Nos. 91,

94, 95, 132, 182-183)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Husqvarna

SECTION 1: MMITED WARRANTY

WARRANTY STATEMENT

SECTION 4: EXCEPTIONS AND LIMITATIONS

Husqvama Forest & Garden Company ("Husqvarna') warrants Husqvama product to the ad ginal purchaser

to be free from defects in material and workmanship from the date of purchase for the '_/arranty Period" of the

)roduct as set forth below:

)ro_.'i_i e Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held

IYear Warranty: Spindles (on Zero Turn Riders and Commercial Walk*Behinds)

2Year COMMERCIAL-Warranty: Husgvama Commercial Turf Equipment--zero turn riders, wide area walks,

and ground engaging commercial equipment.

This warranty shall be inapplicable to defects resulting from the following:

(1)Acciderd, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or _u_yadverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner's/Oparafor's manual or instruc-

tion sheet furnished by Husqvarna:

(3)Alterations or modificatiol_ that change the intended use of the product or affects the product's per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

2Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk

behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, haudheld blowers,

backpack blowers, hedge trimmers, electrical products and power-assist collection systems for noncom-

mercial, nonprofessional, noninstitutional or ponincome producing use. except as heraln stated.

Emission control system components necessary to comply with CARB_TIERdl and EPA regulations, except

for those components which are part of engine systems manufactured by third party engine manufacturers for

which the purchaser has received a separate warranty with product information supplied at time of purchase.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for pon*commercial, non*oro*

fessional non-institutional or rich-income DroducinQ use. All trimmers, brushcutters, clearing saws, hovering

trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems

used for commercial, institutional. Drofosalonal or income DroducinQ DurDoses or use.

Batteries have a one*year prorated limited warranty with 100% replacement during the first 6 months.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY ISTHE EXCLUSIVE REMEDY OF

THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPUED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE UMITED WARRANTY STATEMEN]_ HUSQVARNA RE-

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD_

UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners,

snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvama

product used for commercial, institutional. Drofesalonal. or income DroduciI_ DUrDOSeSor use except as oth*

erwise provided herein.

Husqvarna Safety Apparel carries a 90_day warranty from the date of the customer's original purchase for

defects in material and workm _u_ship. Normal wear, tear or abuse is not covered under warranty. Product must

be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed

as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not covered under

warranty.

30 Day Warranty: Replacement parts, accessories il_cluding bars and chak_, tools and display items.

SECTION 2: HUSQVARNA'S OBLIGATIONS UNDER THE WARRANTY

Husqvama will repair or replace defective components withoct charge for parts or labor if a component fails

because of a defect in material or workmanship during the warranty period.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

in the maintenance section of the OwneYs/Operato¢s manual. Should an operational problem or failure occur,

the product should not be used, but delivered as is to an authorized Husqvama dealer for evaluation. Proof

of purchase_ as explained in section 6, rests solely with the cusfome_

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It isthe Owner's and DealeYs responsibility to make certain that the Warranty Registration Card is properly

filled out al_d mailed to Husqvama Forest & Garden Company. This card should be mailed within ten (10) days

from the date of purchase in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvama dealer in order to obtain warranty ser_

vice.This proof must include date purchased, model number, serial numbe£ and complete name and address

of the selling dealer.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer malntel_ance items which become worn through normal regular use, including, but

not limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husgvama; these items are covered by the respective

manufactureYs warranty as provided in writing with the product information supplied at the time of pur-

chase; all claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty_ all claims for war-

ranty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB_TIERql and EPA regulations

which are manufactured by third party engine manufacturer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner's expense. Pick*ap and delivery charges are

not covered by this warranty. An authorized Husqvarna dealer can be normally located through the "Yellow

Pages _of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesvil|e Road

Charlotte, NO 28269

531 83 81-23 2002

O Husqvarna

532 19 26-49 4.20.04 MH Printed in U.S.A.

Husqvarna LO21H48H tractor

Product's Documents

User Manual

Specifications

Husqvarna LO21H48H Questions and Answers

Related Products

Husqvarna SRD17530 Tractor

Husqvarna LOGTH2448T Tractor

Husqvarna 917223830 tractor

Husqvarna 502110 tractor

Husqvarna YT1942T tractor

Husqvarna 917279260 tractor
