2006
D-RW2SU / D-RW2SC
REC MODE
REC
CH
ON/STA NDBY
I/
D-RW2SU / D-RW2SC
®
Recording Playback EditingIntroduction Connections Basic Setup Function Setup Others
2
Introduction
EN
Precautions
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Laser Safety
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device,
due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.
FCC WARNING
- This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with
your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning
chemical wastes.
Make your contribution to the environment!!!
• Used up batteries do not belong in the dust bin.
• You can dispose of them at a collection point for used up batteries or special waste.
Contact your council for details.
For Customer Use:
Read carefully the information located at the back of this unit and enter below the Model No. and Serial No. Retain
this information for future reference.
Model No.
Serial No.
The important note is located on the rear of the cabinet.
3
EN
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions- The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
EXCEPTION: A product that is meant for uninterrupted service
and, that for some specific reason, such as the possibility of the
loss of an authorization code for a CATV converter, is not intended
to be unplugged by the user for cleaning or any other purpose,
may exclude the reference to unplugging the appliance in the
cleaning description otherwise required in item 5.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture- Do not use this product near water, for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, or near a swimming pool, and the like.
8. Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious
injury to a child or adult, and serious damage to the appliance.
Use only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting of the
appliance should follow the manufacturer’s
instructions and should use a mounting
accessory recommended by the
manufacturer. An appliance and cart
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
9. Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
10. Power Sources - This product should be operated only from the
type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your
appliance dealer or local power company. For products intended
to operate from battery power, or other sources, refer to the
operating instructions.
11. Grounding or Polarization - This product is equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized plug.
12. Power Cord Protection - Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
appliance.
13. Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the product, be sure the antenna or cable
system is grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA No. 70, provides information
with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode. (Fig. A)
14. Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to
lightning and power-line surges.
15. Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact
with them might be fatal.
16. Overloading - Do not overload wall outlets and extension cords as
this can result in a risk of fire or electric shock.
17. Object and Liquid Entry - Never push objects of any kind into this
product through any openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
18. Servicing - Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
19. Damage Requiring Service - Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance this
indicates a need for service.
20. Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
21. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
22. Heat - This product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.

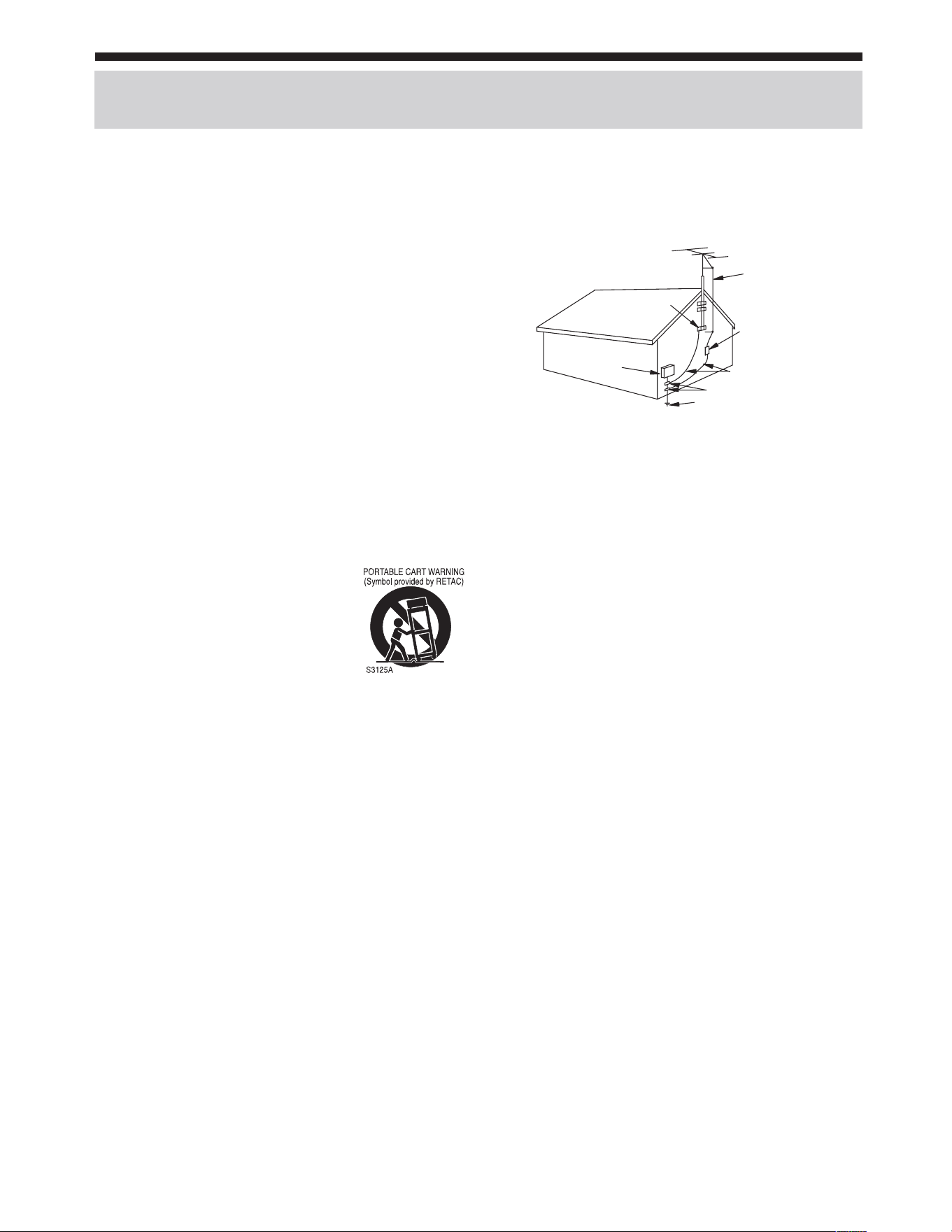

IMPORTANT SAFEGUARDS
FIGURE A
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
ANTENNA
LEAD
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND
CLAMP
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC – NATIONAL ELECTRICAL CODE
S2898A
4
Introduction
EN
Precautions (cont’d)
Installation Location
For safety and optimum performance of this unit:
● Install the unit in a horizontal and stable position.
Do not place anything directly on top of the unit. Do
not place the unit directly on top of the TV.
● Shield it from direct sunlight and keep it away from
sources of intense heat. Avoid dusty or humid
places. Avoid places with insufficient ventilation for
proper heat dissipation. Do not block the ventilation
holes on the sides of the unit. Avoid locations
subject to strong vibration or strong magnetic fields.
Avoid the Hazards of Electrical
Shock and Fire
● Do not handle the power cord with wet hands.
● Do not pull on the power cord when disconnecting
it from AC wall outlet. Grasp it by the plug.
● If, by accident, water is spilled on this unit, unplug
the power cord immediately and take the unit to
authorized service centers for servicing.
(For questions regarding authorized service
centers, call TACP’s Consumer Solution Center
mentioned on page 157 or, for Canada, call TCL
customer support line mentioned on page 158.)
Moisture Condensation Warning
Moisture condensation may occur inside the unit
when it is moved from a cold place to a warm place
or after heating a cold room or under conditions of
high humidity. Do not use this unit at least for 2
hours until its inside gets dry.
About Copyright
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs
and other materials, is prohibited under the
Copyright Laws of the United States and other
countries, and may subject you to civil and/or
criminal liability.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be authorized
by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Notice for Progressive Scan
Outputs
Consumers should note that not all high definition
television sets are fully compatible with this product
and may cause artifacts to be displayed in the
picture. In case of picture problems with 525
progressive scan output, it is recommended that
the user switch the connection to the ‘standard
definition’ output. If there are questions regarding
your TV set compatibility with this 525p DVD
recorder, please contact TACP’s Consumer
Solution Center or ,for Canada, TCL customer
support line.

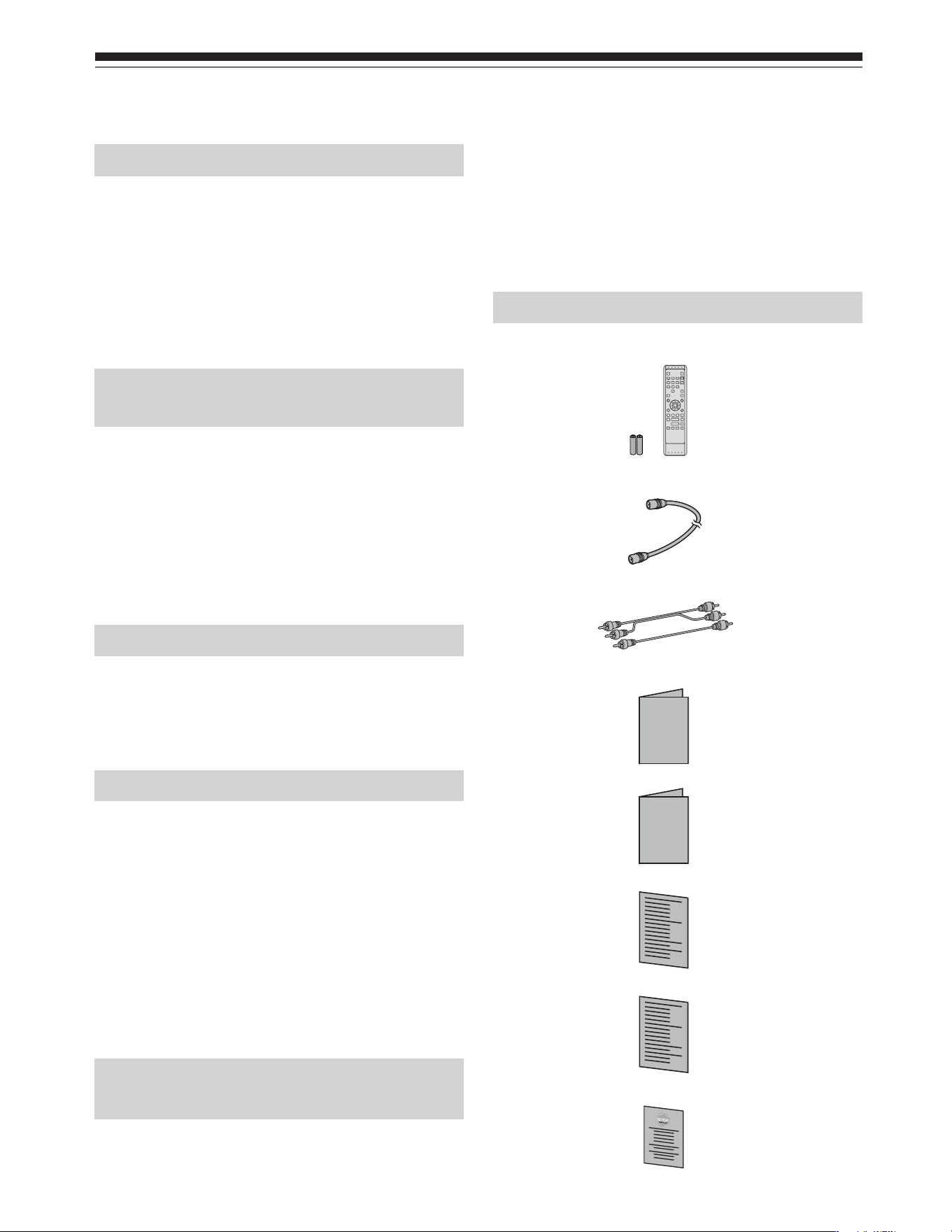

Supplied Accessory
● Remote control with two AA batteries
● RF cable
● Audio/Video cables
● Owner’s Manual
● Owner’s Manual - Français
● Quick Guide
● Quick Guide - Français
● Return Stop Sheet
Owner's Manual
Mode D’ emploi
5
EN
■ SERVICING
● Please refer to relevant topics on “Troubleshooting”
on pages 148-152 before returning the product.
● If this unit becomes inoperative, do not try to
correct the problem by yourself. There are no user-
serviceable parts inside. Turn off, unplug the power
plug and please call TACP’s Consumer Solution
Center mentioned on page 157. (For Canada, call
TCL customer support line mentioned on page
158.)
■ CLEANING THE CABINET
● Use a soft cloth slightly moistened with mild
detergent solution. Do not use any solution
containing alcohol, spirits, ammonia or abrasive.
■ CLEANING DISCS
● When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center to out. Do not
wipe in a circular motion.
● Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent,
abrasive cleaning agents or antistatic spray
intended for analogue records.
■ CLEANING THE DISC LENS
● If this unit still does not perform properly although
you refer to the relevant sections and to
“Troubleshooting” in this Owner’s Manual, the laser
optical pickup unit may be dirty. Consult an
Authorized Service Center, TACP’s Consumer
Solution Center or, for Canada, TCL customer
support line for inspection and cleaning of the laser
optical pickup unit.
■ DISC HANDLING
● Handle the discs so that fingerprints and dust do
not adhere to the surfaces of the discs.
● Always store the disc in its protective case when it
is not used.
“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft
®
in the United States of
America.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
Dolby Digital Recording
“Dolby
®
Digital Recording enables consumers to record high-quality video with stereo sound on recordable
DVD discs. The technology, when utilized instead of PCM recording, also saves recordable disc space,
allowing for higher video resolution or extended recording time on each DVD. DVDs created using Dolby
Digital Recording will play back on all DVD-Video players.”
Note:
This is true when the players are compatible with actual recordable DVD discs.
Maintenance
6
Introduction
EN
Table of contents
Introduction
■ Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ Table of contents . . . . . . . . . . . . . . . . . . . . . . . . 6
■ Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Choosing a disc . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Index to parts and controls . . . . . . . . . . . . . . . 14
■ Preparation of the remote control . . . . . . . . . 19
■ On Screen menu. . . . . . . . . . . . . . . . . . . . . . . . 20
Connections
■ Connection to a TV. . . . . . . . . . . . . . . . . . . . . . 24
■ RF modulator Connection . . . . . . . . . . . . . . . . 26
■ Connection to a cable box or satellite box . . 27
■ Connection to an Audio System. . . . . . . . . . . 28
Basic Setup
■ Initial setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
■ Channel setting. . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting channels automatically . . . . . . . . . . . . . . . . . . . . . . .
32
Adding/deleting channels . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
■ Selecting TV stereo or SAP. . . . . . . . . . . . . . . 36
■ Setting the clock. . . . . . . . . . . . . . . . . . . . . . . . 38
Auto Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
Manual Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Setting the Daylight Saving Time . . . . . . . . . . . . . . . . . . . . .
44
■ Selecting the TV aspect ratio . . . . . . . . . . . . . 46
Recording
■ Information on DVD recording . . . . . . . . . . . . 50
Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50
Restrictions on recording. . . . . . . . . . . . . . . . . . . . . . . . . . . .
50
Information on copy control. . . . . . . . . . . . . . . . . . . . . . . . . .
51
Making discs playable in other DVD players (Finalize). . . . .
51
■ Selecting the Recording format . . . . . . . . . . . 52
Choosing the recording format of a brand-new disc . . . . . . .
52
Reformatting a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
Recording Audio Select (XP) . . . . . . . . . . . . . . . . . . . . . . . .
55
■ Basic recording . . . . . . . . . . . . . . . . . . . . . . . . 56
■ One-touch Timer Recording . . . . . . . . . . . . . . 59
■ Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . 61
Checking, cancelling, or correcting the timer programming
information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
66
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .
67
■ Settings for an external source . . . . . . . . . . . 68
Connection to an external source . . . . . . . . . . . . . . . . . . . . .
68
Recording from an external source . . . . . . . . . . . . . . . . . . . .
70
■ Setting disc protection . . . . . . . . . . . . . . . . . . 72
■ Finalizing the discs . . . . . . . . . . . . . . . . . . . . . 74
Auto finalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
76
7
EN
Playback
■ Basic playback . . . . . . . . . . . . . . . . . . . . . . . . . 80
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
80
Playing back a DVD-VIDEO / Video CD / CD. . . . . . . . . . . .
83
Playing MP3, WMA, JPEG disc . . . . . . . . . . . . . . . . . . . . . .
84
Playing discs using the Disc menu . . . . . . . . . . . . . . . . . . . .
86
Playing discs using the Title menu . . . . . . . . . . . . . . . . . . . .
86
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
86
Step by step playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
86
PBC function for Video CDs . . . . . . . . . . . . . . . . . . . . . . . . .
87
Playing back a Video CD using the title menu . . . . . . . . . . .
87
Cancelling and Recalling the PBC function . . . . . . . . . . . . .
87
■ Further playback. . . . . . . . . . . . . . . . . . . . . . . . 88
Resume Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
88
Rapid Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
88
Skipping TV commercials during play . . . . . . . . . . . . . . . . . .
88
Fast forward / Fast reverse . . . . . . . . . . . . . . . . . . . . . . . . . .
89
Slow forward / Slow reverse . . . . . . . . . . . . . . . . . . . . . . . . .
89
■ Special playback. . . . . . . . . . . . . . . . . . . . . . . . 90
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
Marker Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
Searching by Title, Chapter or Track . . . . . . . . . . . . . . . . . .
91
Searching by Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
Repeat Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
92
Random Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
92
Program Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
93
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
93
■ Selecting the format of audio and video . . . . 94
Switching subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
94
Switching audio soundtrack. . . . . . . . . . . . . . . . . . . . . . . . . .
94
Switching virtual surround system. . . . . . . . . . . . . . . . . . . . .
95
Switching camera angles . . . . . . . . . . . . . . . . . . . . . . . . . . .
96
Reducing block noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
96
Adjusting Black Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
97
Editing
■ Information on disc editing . . . . . . . . . . . . . . 100
Guide to a title list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100
Edit the recorded disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100
Editing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
101
Notes for deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . .
101
■ Editing discs . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Deleting titles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
102
Editing title names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
105
Guide to edit title name . . . . . . . . . . . . . . . . . . . . . . . . . . . .
107
Adding or deleting chapter marks . . . . . . . . . . . . . . . . . . . .
108
Setting pictures for thumbnails . . . . . . . . . . . . . . . . . . . . . .
110
Deleting parts of titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
112
Dividing a title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116
Combining titles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
118
Adding titles to a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . .
120
Erasing all Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
122
Setting or releasing the title protection . . . . . . . . . . . . . . . .
124
Setting or clearing all the chapter marks in one title. . . . . .
126
Function Setup
■ Tour of the Setup menu . . . . . . . . . . . . . . . . . 130
■ Language setting . . . . . . . . . . . . . . . . . . . . . . 132
■ Display setting . . . . . . . . . . . . . . . . . . . . . . . . 135
■ Audio setting. . . . . . . . . . . . . . . . . . . . . . . . . . 137
■ Settings for Parental lock level . . . . . . . . . . . 140
■ Settings for Progressive Scan Mode . . . . . . 143
■ Settings for Still Mode . . . . . . . . . . . . . . . . . . 146
Others
■ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 148
■ Language code . . . . . . . . . . . . . . . . . . . . . . . . 153
■ Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
■ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 156
■ Limited United States Warranty . . . . . . . . . . 157
■ CANADIAN WARRANTY INFORMATION . . . 158
8
Introduction
EN
Features
This DVD unit not only plays DVDs and CDs but also offers features for you to record to DVD discs and edit them
after that.
The following features are offered with this unit.
Recording
This unit is compatible with both DVD-RW which is
rewritable repeatedly, and DVD-R which is available for
recording once. You can choose either one for your
convenience.
■ Up to 8 program recording:
You can program the unit to record up to 8 programs,
within a month in advance. Daily or weekly program
recordings are also available.
■ One-touch Timer Recording:
You can easily set a recording time as you prefer.
Every time [REC I] is pressed during recording, the
recording time will be increased by 30 minutes up to 8
hours. The unit will automatically turn off when the
recording time you set is reached.
■ Automatic Chapter marks setting:
Chapter marks will be put on recordings as you set in
the Setup menu before attempting to record.
■ Automatic Title menu making:
The unit makes title menus automatically when
finalizing the disc which are recorded in Video mode.
■ Automatic Playlist making (VR mode):
A Playlist will be prepared from Original titles, so that
you can edit titles in a Playlist as you prefer.
An Original title is kept as it is.
■ Automatic finalizing (Video mode):
You can finalize discs after finishing all Timer
Recordings or at the end of the disc space
automatically as you set in the Setup menu.
■ Left channel stereo recording:
This unit can record the sound of the Left channel
monaural input as Left and Right channels
automatically (the input from the LINE 2 only).
Play
■ Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder
which is compatible with Dolby Digital or DTS, you
are allowed to experience the theater surround sound
from discs with surround sound system.
■ Quick search for what you want to watch:
You can easily find the part you want to watch using
the search function. Search for a desired point on a
disc by title, chapter, track, or time.
■ Start to play from Original and Playlist:
Title playing is available from either Original titles or
Playlist.
■ Virtual Surround System:
You can enjoy stereophonic space through your
exciting 2 channel stereo system.
■ Playing back MP3 and WMA disc:
You can enjoy MP3 and WMA files which are
recorded on CD-R/RW.
■ JPEG Picture Viewer:
JPEG files formatted on CD-R/RW can be played.
Editing
■ Deleting titles:
You can delete titles which you do not need any
more.
■ Making your own Playlist:
With the original remains as it is, you can edit titles on
various Playlist as you prefer.
Editing title names
Setting pictures for thumbnails
Adding or deleting chapter marks
Dividing a title/ combining titles
Deleting parts of titles etc.
■ Protecting titles:
To avoid editing or erasing titles, the protect function
is useful when it is ON in the Original titles.
Compatibility
■ Available for playing discs recorded in Video
mode on a regular DVD player (Video mode):
Discs recorded in Video mode can be played on
regular DVD players, including computer DVD drives
compatible with DVD-Video playback*. You will need
to finalize the discs recorded in Video mode to play in
other DVD players.
* DVD-Video Format (Video mode) is a new format for
recording on DVD-R/RW discs that was approved by
the DVD Forum in 2000. Adoption of this format is
optional for manufactures of DVD playback devices
and there are DVD-Video players, DVD-ROM drives
or other DVD playback devices that do not play DVD-
R/RW discs recorded in the DVD-Video Format.
Others
■ Progressive Scan system
Unlike conventional interlace scanning, the
progressive scan system provides less flickering and
images in higher resolution than that of traditional
television signals.
9
Introduction
EN
Choosing a disc
When you want to play DVD or CD software, load an appropriate disc into the recorder. There are many types
and formats of discs. Please use the following information to select an appropriate disc.
Notes
• Handle the disc according to the disc instruction manual.
• Toshiba cannot guarantee that all discs bearing the DVD or CD logos will operate as expected. Additionally, Toshiba cannot
guarantee that discs recorded in this device will operate properly in other DVD players, recorders and/or personal computer
drives.
For recording /playback
Disc Mark Specification Remarks
DVD-R • 4.7GB for General Ver.2.0
(8cm (3
1
/
4
in.))
(12cm (4
3
/
4
in.))
Read carefully the section “On DVD-R discs”
(page 11).
Depending on the disc status or the recording
equipment, playback of the disc may not be
possible on this recorder.
DVD-RW • Ver. 1.1 and 1.2
(8cm (3
1
/
4
in.))
(12cm (4
3
/
4
in.))
Read carefully the section “On DVD-RW
discs” (page 11).
Depending on the disc status or the recording
equipment, playback of the disc may not be
possible on this recorder.
★★★ : Most suitable ★★ : Can be used ★ : Some functions are limited — : Cannot be used
You want to DVD-RW
VR
DVD-RW
Video
DVD-R
Record TV programs
★★★ ★★★ ★★★
Reuse by deleting unwanted contents
★★★ ★★
—
Edit recorded contents
★★★ ★ ★
Edit/Record from connected equipment
★★★ ★★★ ★★★
Copy discs for distribution
★★
*1
★★★ ★★★
Play on other DVD equipment
★★
*1
★★★ ★★★
Features DVD-RW
VR
DVD-RW
Video
DVD-R
Recording
Rewritable? Yes Yes No
Can create chapters at fixed intervals (auto.) Yes Yes Yes
Can create chapters wherever you like (manual) Yes No No
Can record 16:9 size pictures Yes Yes Yes
Can record Copy-Once programs Yes
*2
No No
Editing
Can perform basic edit functions Yes Yes Yes
Can perform advanced edit functions (Playlist edit) Yes No No
*1 DVD-RW (VR mode) can only be played on DVD
equipment that is VR compatible.
*2 The disc must be labeled as CPRM compatible.
DVD disc types
Note:
For details of the above functions and implied restrictions,
see the explanations in this manual.
Using different disc types for different purposes
DVD-R/RW discs when creating your own original discs for distribution
DVD-R discs are designed to comply with the global standard DVD-Video format, and can be recorded only once.
DVD-R discs are convenient when you edit your original content (recorded personal events such as a wedding party)
with this recorder, transfer them to the recorder and make copies to send to your friends or relatives. The discs can
be played on other compatible DVD players. DVD-RW discs, which are rewritable, can be used as well.
We cannot guarantee that DVD-R/RW discs recorded on this recorder will be playable on all DVD recorders/players.
Similarly, there is no guarantee that all DVD-R/RW discs recorded on other recorders will be playable on this recorder.
10

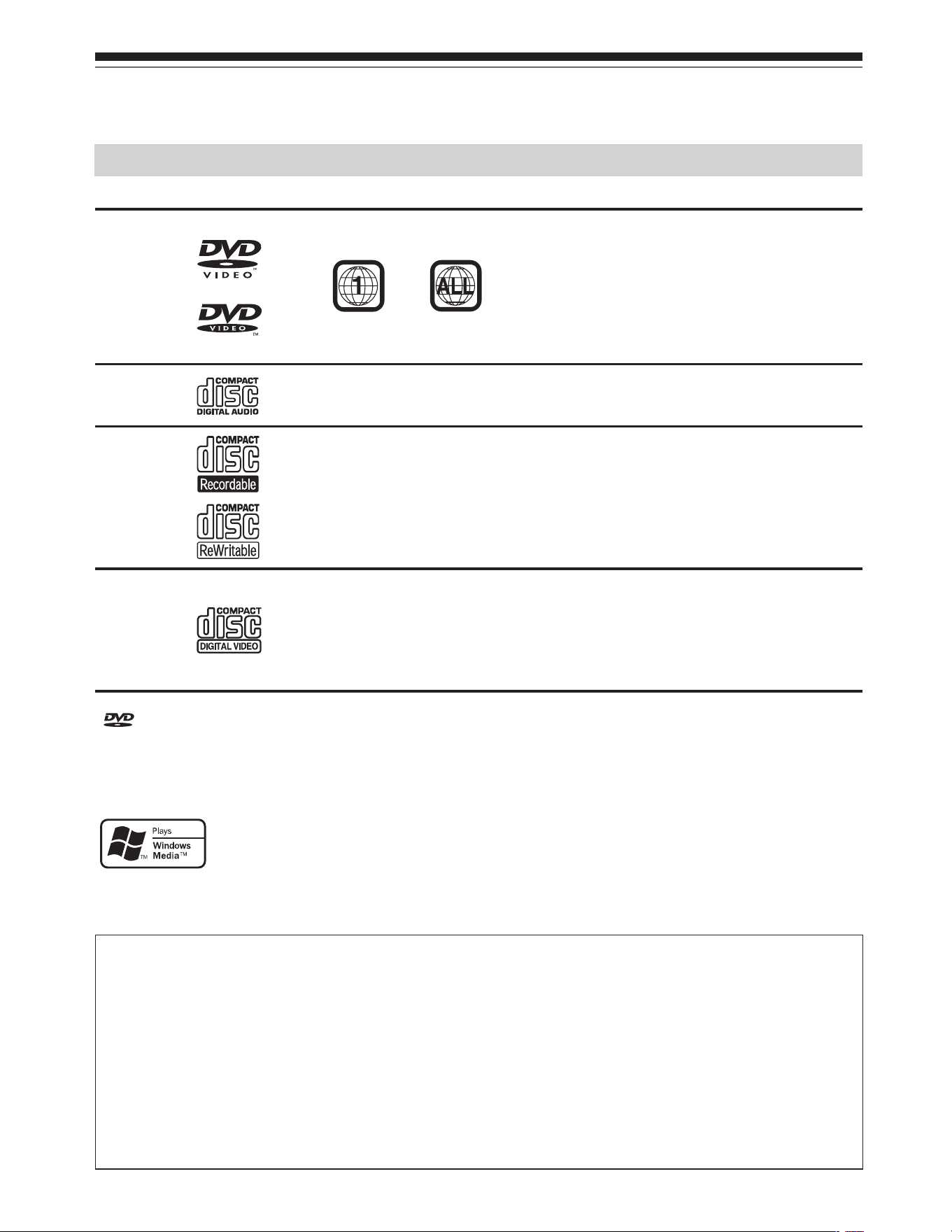

Introduction
EN
Choosing a disc (cont’d)
*This DVD/CD player cannot playback the disc contents
protected by Windows Media Digital Rights Management
(DRM).
Microsoft, Windows Media, and the
Windows logo are either registered
trademarks or trademarks of
Microsoft Corporation in the United
States and/or other countries.
• You cannot play discs other than those listed above.
• You cannot play non-standardized discs even if they
may be labeled as above.
• You cannot play discs with specialized encoding (such
as SACD discs) or the DVD audio portions of DVD
Audio discs.
• This recorder uses the NTSC color system, and cannot
play DVD video discs recorded in any other color
system (PAL, SECAM, etc.), even if they have region
marks Region 1 or ALL regions.
• Toshiba cannot guarantee that all discs bearing the
DVD or CD logos will operate as expected. Please see
the discussion of compatibility on page 11.
For playback only
• Toshiba is not liable for any damage or loss caused directly or indirectly by the malfunction of this recorder,
including, without limitation, any one of the following:
• Failure to record contents intended to be recorded by the consumer.
• Failure to edit contents as intended by the consumer.
• When a DVD-R/RW disc created on this recorder is used (e.g., insertion, playback, recording or editing) in
another DVD player, recorder or personal computer drive.
• When a DVD-R/RW disc that is used in the manner described in the immediately preceding bullet point is used
again in this recorder.
• When a DVD-R/RW disc that was recorded in another DVD recorder, or in a personal computer drive is used
in this recorder.
• Some functions may not work with personal computer discs.
• Discs recorded in this recorder may not operate as expected on other DVD players, recorders or personal
computer drives.
is a trademark of DVD Format/Logo Licensing Corporation.
Disc Mark Specification Remarks
DVD video
disc
• 12cm (4
3
/
4
in.) / 8cm (3
1
/
4
in.)
• Region number
• Color system: NTSC
The region number of this DVD recorder is 1.
If region numbers, corresponding to a specific
playable area, are printed on your DVD video
disc and you do not find Region 1 or ALL
regions, or the disc is encoded to permit
playback only in regions other than Region 1,
disc playback will not be allowed by the
recorder.
Audio CD
(CD-DA)
• 12cm (4
3
/
4
in.) / 8cm (3
1
/
4
in.)
CD-R
CD-RW
• 12cm (4
3
/
4
in.)
• CD-DA FORMAT, MP3, WMA*,
JPEG files
Depending on the disc status, playback may
not be possible.
VCD
(VIDEO CD)
• 12cm (4
3
/
4
in.) / 8cm (3
1
/
4
in.)
• Color system: NTSC
• Version 1.1 and 2.0
Depending on the disc status, playback may
not be possible.
or
11
EN
On DVD-R discs
■ Standards
● DVD-R for General Ver.2.0 discs can be used for
recording and playback.
● Discs compatible with the following recording speed
can also be used:
Ver. 2.0/2
X
Ver. 2.0/4
X
Ver. 2.0/8
X
● Select discs labeled “for video”, “for recording”,
“120 min.” etc.
■ Recording conditions
● Images for which copying is prohibited or restricted
(copy once or copy prohibited) cannot be recorded.
● We strongly recommend using any DVD-R 2
X
, and
MAXELL DVD-R 16
X
to assure good recording
quality.
■ Discs that have been tested and are proven to
be compatible with this recorder:
VERBATIM DVD-R 8
X
MAXELL DVD-R 16
X
On DVD-RW discs
■ Standards
● Discs labeled DVD-RW Ver.1.1 or 1.2 can be used.
● Discs compatible with the following recording speed
can also be used:
Ver. 1.1/2
X
Ver. 1.2/4
X
● Select discs labeled “for video”, “for recording”,
“120 min.” etc.
■ Recording conditions
● Images for which copying is prohibited (copy
prohibited) cannot be recorded. If the disc is
labeled as CPRM compatible, images for which
copying is restricted (copy once) can be recorded
in VR mode.
● We strongly recommend using any DVD-RW 4x
disc to assure good recording quality.
■ Discs that have been tested and are proven to
be compatible with this recorder:
VERBATIM DVD-RW 2
X
JVC DVD-RW 4
X
Marks on DVD video discs
The following are examples of marks and the meanings.
Mark Meanings
Number of audio streams
recorded in the disc.
(2 streams such as English and
Japanese in this example.)
Number of subtitle languages
recorded in the disc.
(2 subtitle languages are recorded
in this example.)
Number of camera angles
recorded in the disc.
(3 camera angles are recorded in
this example.)
Pictures are recorded in the
standard picture shape (4:3
aspect ratio).
Pictures are recorded in the letter
box picture shape (4:3 aspect
ratio with horizontal black bars in
the top and bottom of pictures).
Pictures are recorded in the 16:9
wide picture shape.
TVs with 4:3 aspect ratio will
display them in the letter box
style.
Pictures are recorded in the 16:9
wide picture shape.
TVs with 4:3 aspect ratio will
display them in the pan scan style
(one or both sides of pictures are
cut).
Actual picture shape may vary
depending on the aspect ratio or
mode selection of the TV.
3
2
L
B
4
:
3
2
16: 9 LB
16: 9 PS
Because of problems and errors that can occur during the creation of DVD and CD software and/or the
manufacture of DVD and CD discs, Toshiba cannot guarantee that product will play every feature of every DVD
bearing the DVD logo and/or every CD bearing the CD logo. As one of the creators of DVD technology, Toshiba
DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are
rare. If you happen to experience any difficulty playing a DVD or a CD on product, please feel free to contact us via
the method listed in the “How to Obtain Warranty Services” section on page 157.
DVD players with are capable of playing DVD-RW recorded in VR mode.
12
Introduction
EN
Choosing a disc (cont’d)

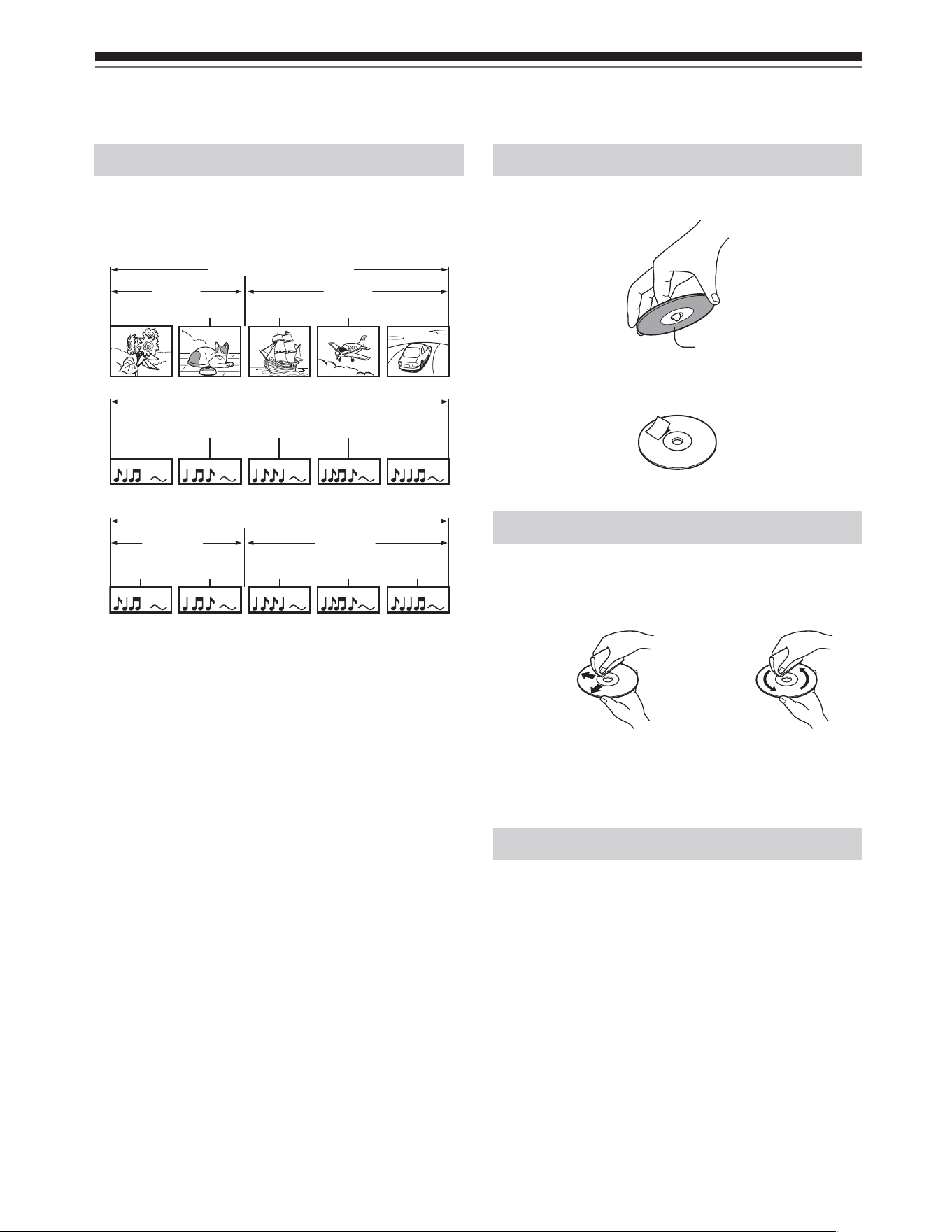

Structure of disc contents
Normally, DVD video discs are divided into titles, and
the titles are subdivided into chapters.
Video CDs/Audio CDs are divided into tracks.
Title: Divided contents of a DVD video disc.
Roughly corresponds to a story title in short
stories.
Chapter: Divided contents of a title. This corresponds
to a chapter in a story.
Track: Divided contents of a Video CD or an Audio
CD.
Group: Divided contents of a MP3, WMA or JPEG
data disc. Consists of number of tracks.
Each title, chapter, or track is assigned a number, which
is called “title number”, “chapter number”, or “track
number” respectively.
Some discs may not have these numbers.
DVD video disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3
Video CDs/Audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
On handling discs
● Do not touch the playback side of the disc.
● Do not stick paper or tape to discs.
On cleaning discs
● Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.
● Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or
antistatic spray for vinyl LPs. It may damage the
disc.
On storing discs
● Do not store discs in a place subject to direct
sunlight or near heat sources.
● Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
● Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
No
Yes
Playback side
No
Yes
MP3, WMA, JPEG
Group 1 Group 2
Track 1 Track 2 Track 3 Track 4 Track5
13
EN
Discs and purposes
The table shows main functions which are available on this recorder per disc category.
This will help you choose discs.
DVD-RW disc Video mode DVD-RW disc VR mode DVD-R disc Video mode
Characteristics on this
recorder
Suitable for saving data in
Video mode format to play on
compatible devices.
You can erase recorded
contents to use the disc
repeatedly.
Suitable for saving data in
VR mode format to play on
compatible devices.
You can erase recorded
contents to use the disc
repeatedly.
Suitable for saving data in
DVD-Video format to play on
compatible devices.
Once you execute Video
mode finalizing process on a
recorded disc so that it can
be played on other players.
You cannot make additions,
corrections and deletions of
contents on the disc.
For the first use Initialize the disc. Initialize the disc. No preparatory steps
required.
Recording a TV program Yes Yes Yes
Erasing recorded contents Yes
If the disc has been executed
Video mode finalizing
process, first cancel the
process then delete contents.
Yes
You can erase recorded
contents without canceling
the finalizing process.
Yes
Deleting contents cannot
restore the disc space.
After you execute Video
mode finalizing process on a
recorded disc, you cannot
delete contents of the disc.
Recording additional content
on a recorded disc
Yes
If the disc has been executed
Video mode finalizing
process, first cancel the
process then delete contents.
Yes
You can add contents without
canceling the finalizing
process.
Yes
After you execute Video
mode finalizing process on a
recorded disc, you cannot
add contents to the disc.
Indexing recorded contents
Naming a title
Creating a thumbnail
Yes
Yes
Yes
After you execute Video
mode finalizing process on a
recorded disc, you cannot
name a title or create a
thumbnail.
Yes
Yes
Yes
After you execute VR mode
finalizing process on a
recorded disc, you can name
a title or create a thumbnail.
Yes
Yes
Yes
After you execute Video
mode finalizing process on a
recorded disc, you cannot
name a title or create a
thumbnail.
Collecting favorite scenes
(Playlist Editing)
Making a new title from a
Playlist containing favorite
scenes
(Copy within the same disc)
No
No
Yes
Yes
No
No
Playing contents recorded on
this recorder, on other
devices
Execute Video mode
finalizing process on this
recorder. This process makes
the disc playable on other
compatible devices.
(Some models excepted.)
Execute VR mode finalizing
process on this recorder. This
process makes the disc
playable on other compatible
devices.
(Some models excepted.)
Execute Video mode
finalizing process on this
recorder. This process makes
the disc playable on other
compatible devices.
(Some models excepted.)
When a message appears
and the loaded disc cannot
be used:
Initialize the disc. Initialize the disc. —
14
Introduction
EN
Index to parts and controls
REC MODE
REC
CH
I/
ON / STANDBY
8* 9
1211 10131415
1
2 3* 4 5 6 7
S-VIDEO VIDEO LL2 R
1. Disc tray
Place a disc when open.
2. Display
Refer to “Front Panel Display Guide” on page 18.
3. A (OPEN/CLOSE) button*
Press to open or close the disc tray.
4. CH / button
Press to change the channel up and down.
5. H (REV) button
During playback, press once midway through a
chapter or track to go back to the beginning of the
current chapter or track. When pressed twice in
quick succession, playback will start from the
preceding chapter or track.
During playback, press and hold for 1.5 seconds to
fast reverse.
When playback is paused, press to play reverse
step by step.
When playback is paused, press and hold for 1.5
seconds to slow reverse.
6. G (FWD) button
During playback, press to skip to the next chapter or
track.
During playback, press and hold for 1.5 seconds to
fast forward.
When playback is paused, press to play advance
step by step.
When playback is paused, press and hold for 1.5
seconds to slow forward.
7. C (STOP) button
Press to stop play or recording.
8. B (PLAY) button*
Press to start or resume play.
9. I/ (ON/STANDBY) button
Press to turn the unit on and off.
If timer programmings have been set, press to set
the unit in timer-standby mode.
10. AUDIO input jacks (LINE2)
Use to connect external equipment with a standard
audio cable.
11. VIDEO input jack (LINE2)
Use to connect external equipment with a standard
video cable.
12. S-VIDEO input jack (LINE2)
Use to connect the S-Video output of external
equipment with an S-Video cable.
13. I REC button
Press once to start a recording. Press repeatedly to
start a One-touch Timer Recording.
14. REC MODE button
Press to switch the recording mode.
15. Remote control sensor
Receive signals from your remote control so that
you can control the unit from a distance.
* The unit can also be turned on by pressing these
buttons.
Front Panel
15
EN
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
1
2 3 4
5678910
11

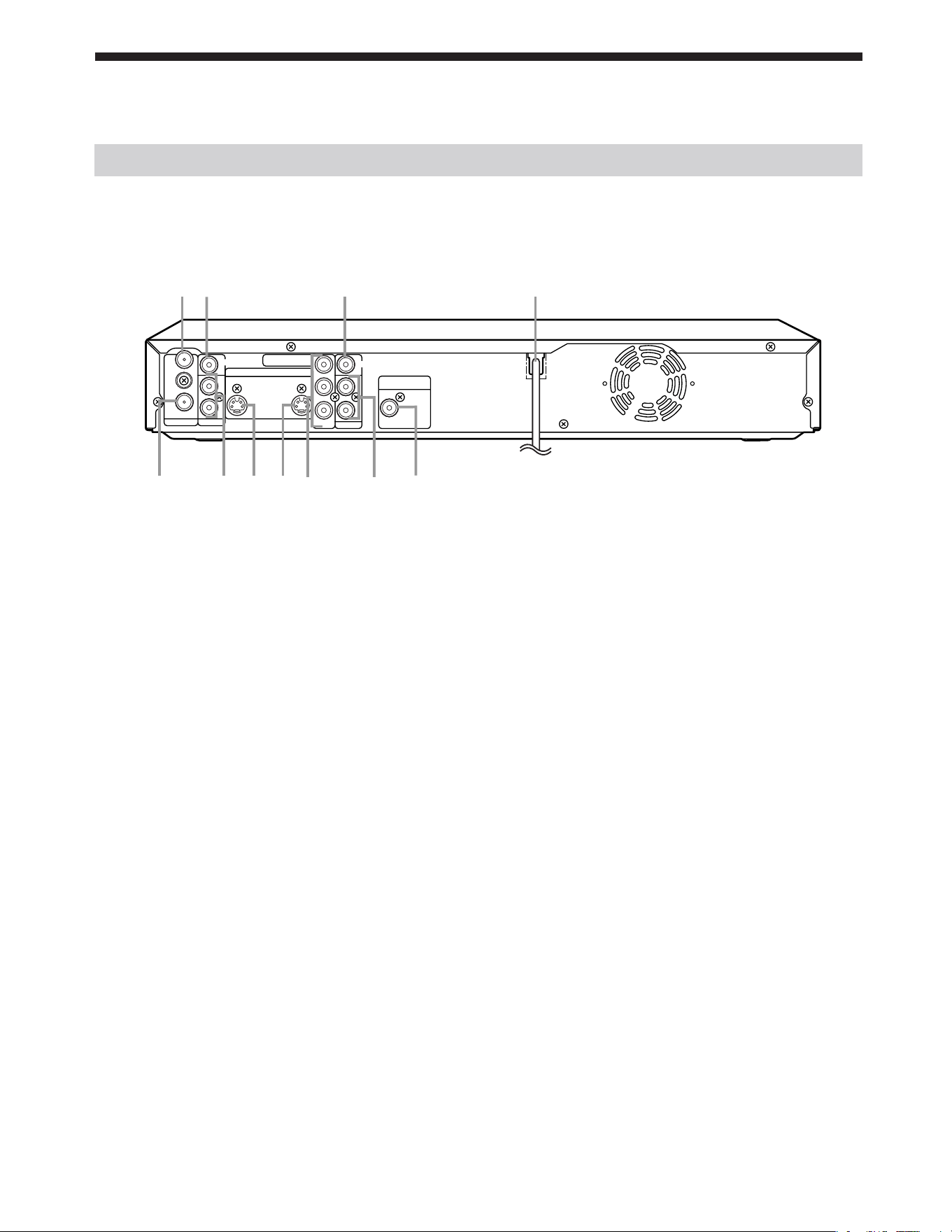

1. ANTENNA IN jack
Use to connect an antenna.
2. VIDEO IN jack (LINE1)
Use to connect external equipment with a standard
video cable.
3. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
equipment with a standard video cable.
4. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
5. COAXIAL DIGITAL AUDIO OUTPUT jack
Use to connect an AV receiver, Dolby Digital
decoder, DTS decoder or other equipment with a
coaxial digital input jack with a digital coaxial cable.
6. AUDIO OUT jacks
Use to connect a TV monitor, AV receiver or other
equipment with a standard audio cable.
7. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
8. S-VIDEO OUT jack
Use to connect the S-Video input of a TV monitor,
AV receiver or other equipment with an S-Video
cable.
9. S-VIDEO IN jack (LINE1)
Use to connect the S-Video output of external
equipment with an S-Video cable.
10. AUDIO IN jacks (LINE1)
Use to connect external equipment with a standard
audio cable.
11. ANTENNA OUT jack
Use to connect an antenna cable to pass the signal
from the TV ANTENNA IN to your TV monitor.
Rear Panel
Notes
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the
unit.
• This unit does not have the RF modulator.
16
Introduction
EN

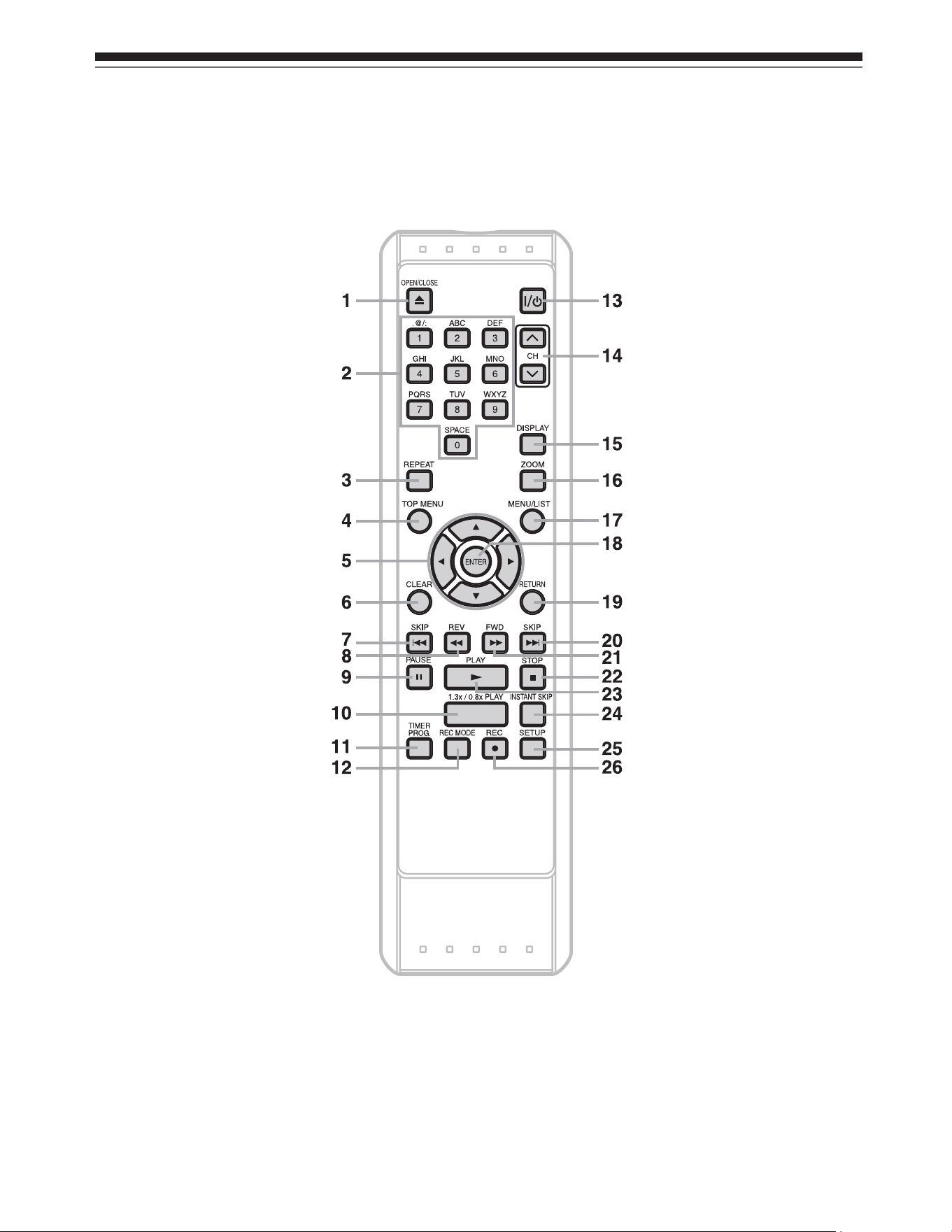

Index to parts and controls (cont’d)
*
*
17
EN
1. OPEN/CLOSE A button*
Press to open or close the disc tray.
2. Number buttons
Press to select channel numbers. Press to select a
title/chapter/track on display. Or press to enter
values for the settings in the Setup menu.
3. REPEAT button
Press to display the Repeat menu.
4. TOP MENU button
Press to display the Title menu/list.
5. Direction buttons ( K / L / { / B)
Press to select items or settings.
6. CLEAR button
Press to clear the password once entered or to
cancel the programming for CD or to clear the
selecting marker number in the marker setup mode
or to clear the program once entered in the Timer
Recording setting mode, etc.
7. SKIP H button
During playback, press once midway through a
chapter or track to go back to the beginning of the
current chapter or track. When pressed twice in
quick succession, playback will start from the
preceding chapter or track. Or when playback is
paused, press to play reverse step by step.
8. REV E button
During playback, press to fast reverse. Or when
playback is paused, press to play slow reverse.
9. PAUSE F button
Press to pause play or recording.
10. 1.3x / 0.8x PLAY button
During playback, press to playback in a slightly
faster/slower speed with keeping the audio quality.
11. TIMER PROG. button
Press to display the Timer Programming list.
12. REC MODE button
Press to switch the recording mode.
13. I/ ON/STANDBY button
Press to turn the unit on and off. If timer
programmings have been set, press to set the unit
in timer-standby mode.
14. CH / buttons
Press to change the channel up and down.
15. DISPLAY button
Press to display the On Screen menu on or off.
16. ZOOM button
During playback, press to enlarge the picture on the
screen.
17. MENU/LIST button
Press to display the Disc menu. To change Original
and Playlist on the TV screen.
(VR mode only)
18. ENTER button
Press to confirm or select menu items.
19. RETURN button
Press to return to the previously displayed menu
screen.
20. SKIP G button
During playback, press to skip to the next chapter or
track.
Or when playback is paused, press to play forward
step by step.
21. FWD D button
During playback, press to play fast forward. Or when
playback is paused, press to play slow forward.

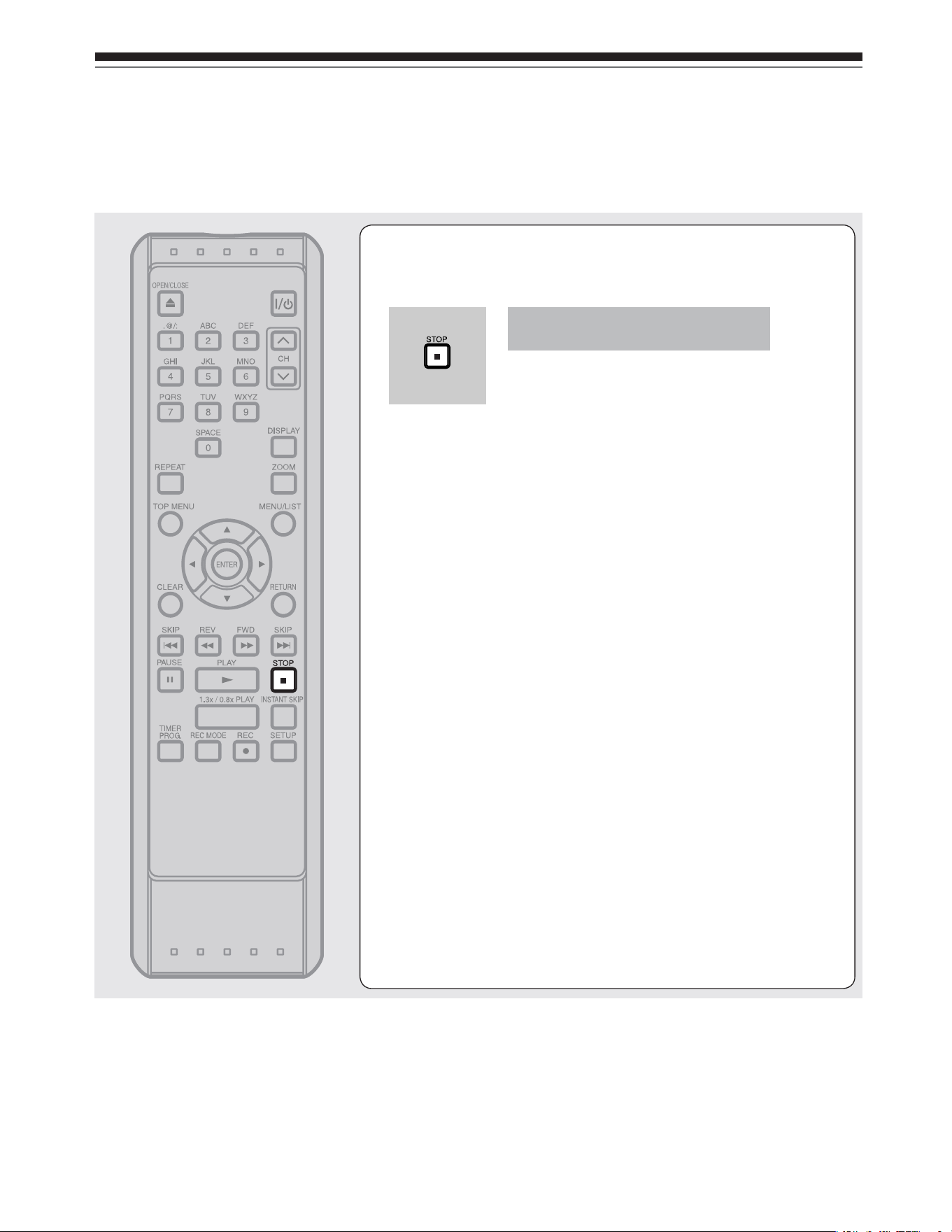

22. STOP C button
Press to stop play or recording.
23. PLAY B button*
Press to start or resume play.
24. INSTANT SKIP button
During playback, press to skip 30 seconds.
25. SETUP button

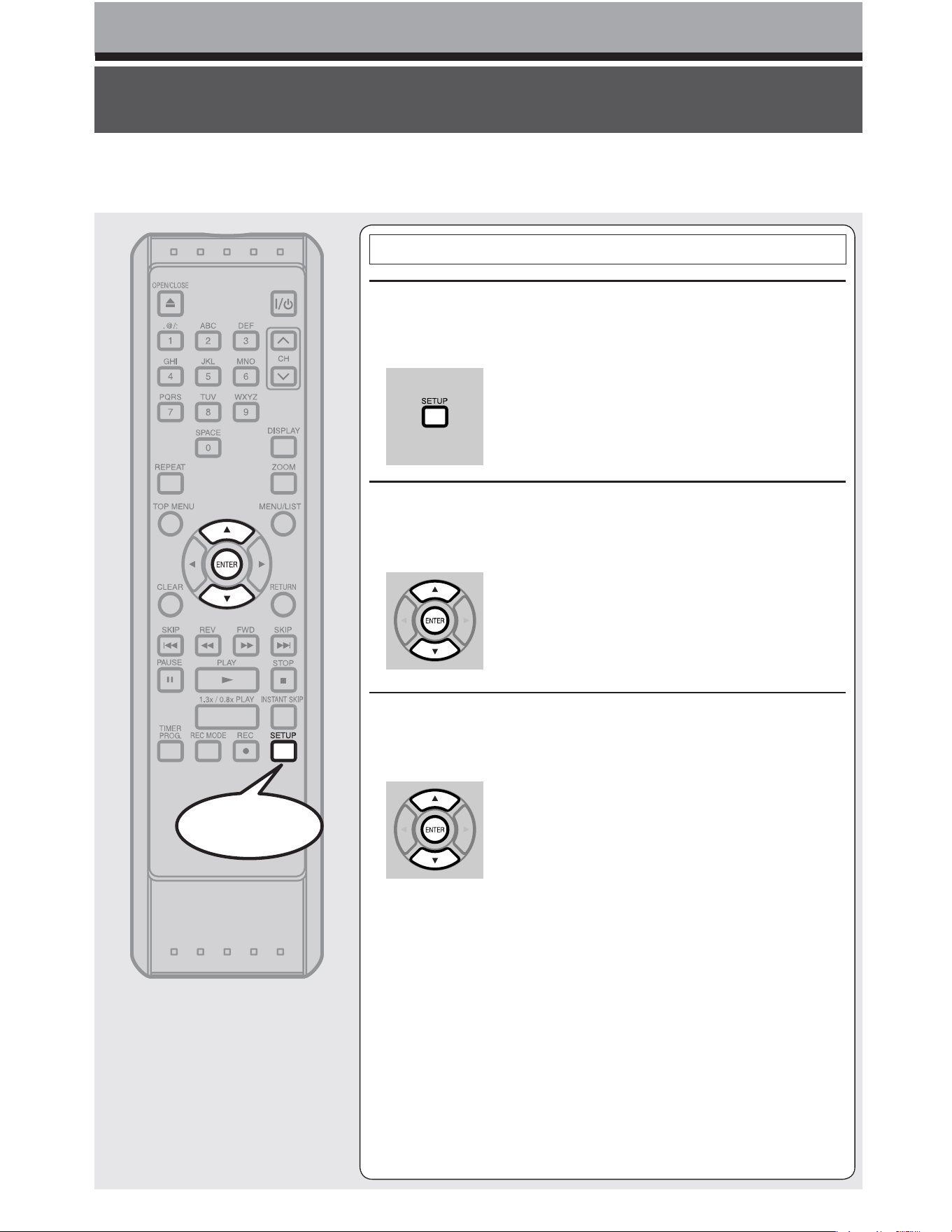

Press to display the Setup menu. During DVD
playback, press and hold for more than 3 seconds to
switch the progressive scanning mode to the
interlace mode.
26. REC I button
Press once to start a recording. Press repeatedly to
start a One-touch Timer Recording.
* The unit can also be turned on by pressing these
buttons.
18
Introduction
EN

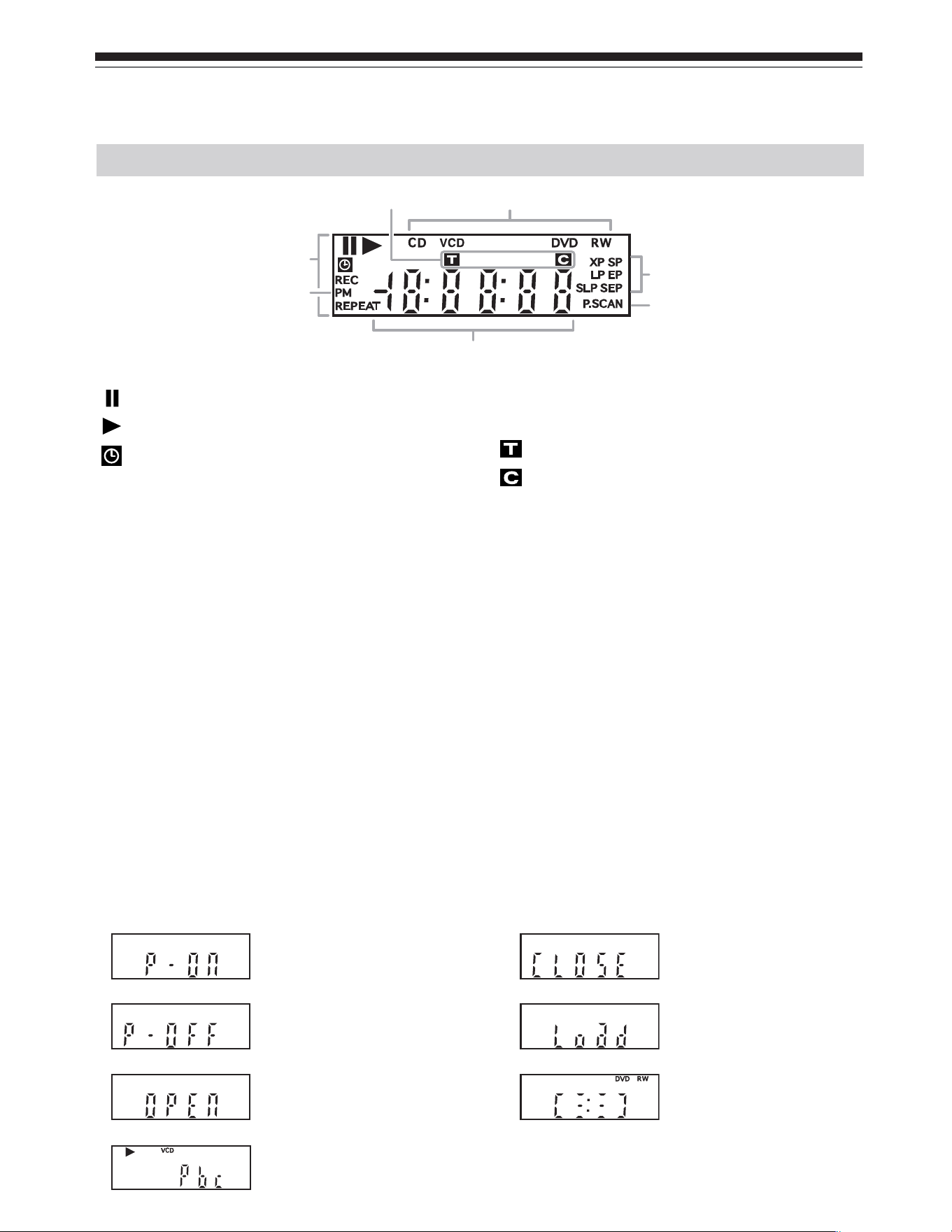

Index to parts and controls (cont’d)
1
6
3
7
5
2
4
1. Current Status of the unit
:Appears when disc playback is paused.
:Appears when playing a disc.
:Appears when the timer programming has been
set or in progress. Flashes when all Timer
Recordings have been finished, or when a
program cannot be performed for some reason.
REC :Appears during recording process.
REPEAT
:Appears during repeat play.
2. Disc type
CD :Appears when an Audio CD or a disc with MP3,
WMA or JPEG files is inserted in the disc tray.
VCD :Appears when a Video CD is inserted into the
unit.
DVD :Appears when a DVD disc is inserted in the disc
tray.
DVD R
:Appears when a DVD-R disc is inserted in the
disc tray.
DVD RW
:Appears when a DVD-RW disc is inserted in the
disc tray.
3. Recording mode
:Indicates the recording mode of the disc.
4. Title / Track and Chapter mark
:Appears when indicating a title/track number.
:Appears when indicating a chapter number.
5. Displays the following
• Playing time
• Current title / chapter / track number
• Recording time/ remaining time
• Clock
• Channel number
• OTR (One-touch Timer Recording) remaining time
6. PM
:Appears in the afternoon with the clock
displaying.
7. P.SCAN
:Appears when the progressive scan system is
activated.
Front Panel Display Guide
■ Display message
Appears when the disc tray
is opening.
Appears when the unit is
turned on.
Appears when the unit is
turned off.
Appears when the disc tray
is closing.
Appears when date is
being recorded on a disc.
Appears when a disc is
loaded on the disc tray.
The PBC function of the
Video CD is activated.
19
Introduction
EN

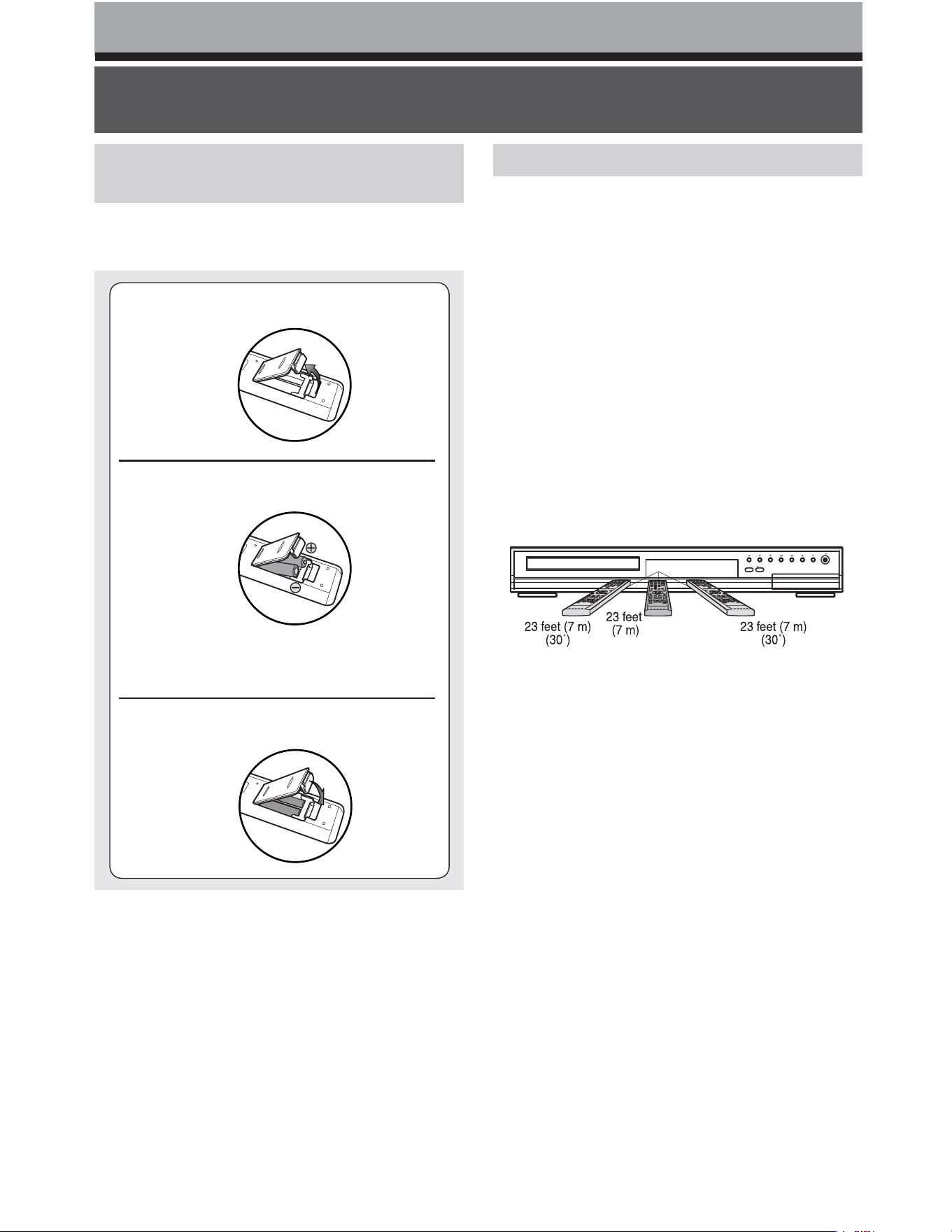

Installing batteries in the remote
control
Using a remote control
Preparation of the remote control
■ Install two “AA” size batteries (supplied)
matching the polarity indicated inside battery
compartment of the remote control.
1
Open the cover.
2
Insert batteries.
Make sure to match the + and - on the
batteries to the marks inside the battery
compartment.
3
Close the cover.
■ Keep in mind the following when using the
remote control:
• Make sure that there is no obstacle between the
remote control and the remote sensor on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the remote
sensor of the unit.
• Remote control for different devices can interfere
with each other. Avoid using remote control for
other equipment located close to the unit.
• Replace the batteries when you notice a fall off in
the operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 23 feet (7m) within 30°
REC MODE
REC
CH
ON/STANDBY
I/
Caution:
Never throw batteries into a fire.
Notes:
• Be sure to use AA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
• If the remote control does not operate correctly, or if the
operating range becomes reduced, replace batteries with
new ones.
• When necessary to replace batteries in the remote control,
always replace both batteries with new ones. Never mix
battery types or use new and used batteries in
combination.
• Always remove batteries from remote control if they are
dead or if the remote control is not to be used for an
extended period of time. This will prevent battery acid from
leaking into the battery compartment.
20
Introduction
EN

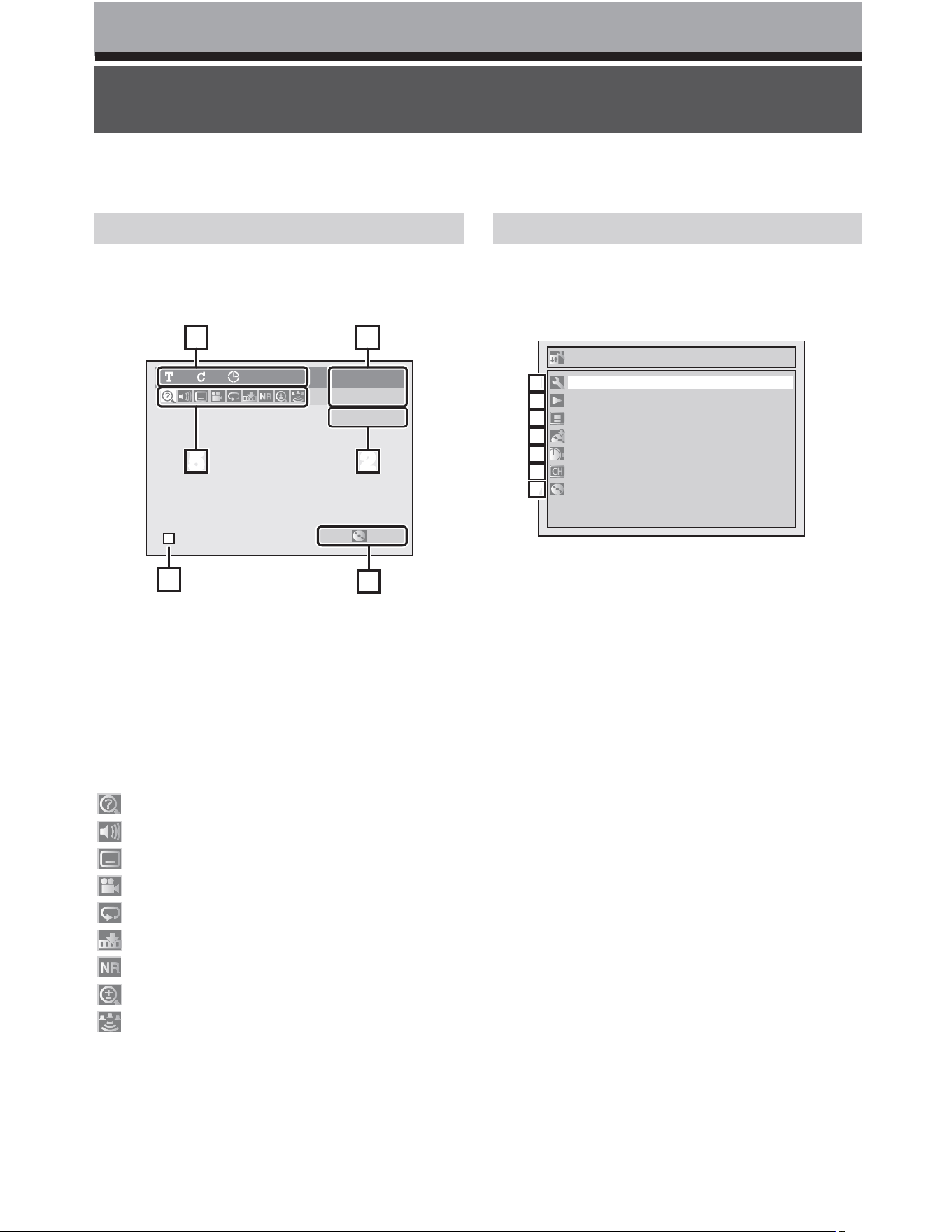

Display menu
On Screen menu
Setup menu

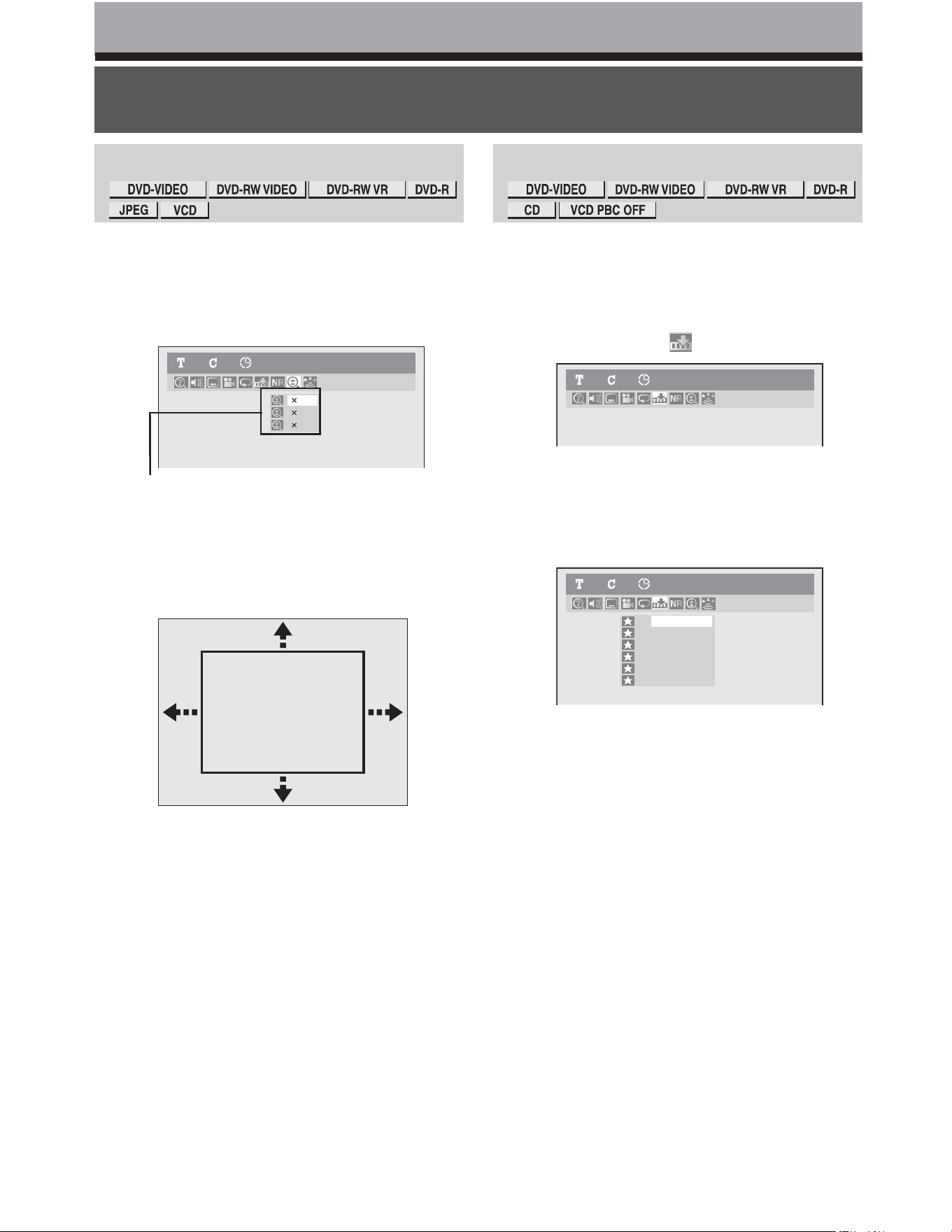

Press [DISPLAY] to call up the Display menu. This menu
will give you the information on the playing disc. Some
operations are available while disc is playing.
1. Indicates a disc type and a format mode.
NOTE:
In some descriptions on this manual, only one disc type
is indicated as an example.
2. Indicates a channel number.
3. Indicates a recording mode and possible recording
time left.
4. Indicates a title number, chapter number and the
elapsed time of disc played.
5. Each icon means:
6. Indicates current disc status.
Press [SETUP] to display the Setup menu, then use [K / L]
and press [ENTER] to display each menu.
These menus provide entries to all main functions of the
unit.
1. Required Setting:
To set up the required setting.
2. Playback:
To set up the unit to play discs as you prefer.
3. Display:
To set up the TV screen and the front panel display
of the unit as you prefer.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit.
6. Channel:
To adjust the channel setting of the unit as you
prefer.
7. Disc / CD Playback Mode:
When a DVD-Video disc (commercially available),
a new DVD-R disc is inserted into the unit, you
cannot select “Disc”.
“CD Playback Mode” is available only when an
Audio CD, Video CD, a CD-R/RW disc with MP3,
WMA or JPEG files is inserted into the unit.
DVD-R
1 1 0:00:00
XP 1:01
CH 8
Video mode
14
5 2
6
3
This unit uses following On Screen menu for most operations: Setup menu, Title list, Playlist, Original and Display
menu. They allow you to change the playing status of disc during playback.
The Display menu also gives you information on the status of the disc.
: Search
: Audio
: Subtitle
: Angle (except VR mode)
: Repeat
: Marker
: Noise Reduction
: Zoom
: Surround
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
1
2
3
4
5
6
7
21
EN
<DVD-R,DVD-RW (Video mode)>
<DVD-RW (VR mode)>
<Audio CD, MP3, WMA, JPEG, Video CD>
Disc
Finalize
Disc Protect OFF ON
Format
1
2
3
CD Playback Mode
Program Play
Random Play
Slide Show 5 sec.
PBC (Video CD only) ON
4
6
7
5
Disc
Finalize
Format
1
2
1. Format (DVD-RW only):
Allows you to erase all of the recorded content on
the disc.
The disc will be completely blank.
• Erased content cannot be called back.
• A DVD-RW disc formatted with this unit cannot be
used in other DVD recorders without any recording
using this unit.
• If you want to use a disc only formatted with this
unit on another DVD recorder, you have to re-
format the disc on that recorder.
2. Finalize:
Allows you to finalize a disc containing recorded
titles.
3. Disc Protect (VR mode only):
Allows you to protect a disc from accidental editing
or recording.
4. Random Play:
To activate the random playback feature.
5. Program Play (Audio CD and Video CD only):
To activate the programmed playback feature.
6. PBC (Video CD only):
Set the PBC function “ON” or “OFF”.
7. Slide Show
(JPEG files only):
Select the display time.
Connections
Connect your recorder to your TV or stereo system.
● Connection to a TV
● RF modulator Connection
● Connection to a cable box or satellite
box
● Connection to an Audio System
24
Connections
EN

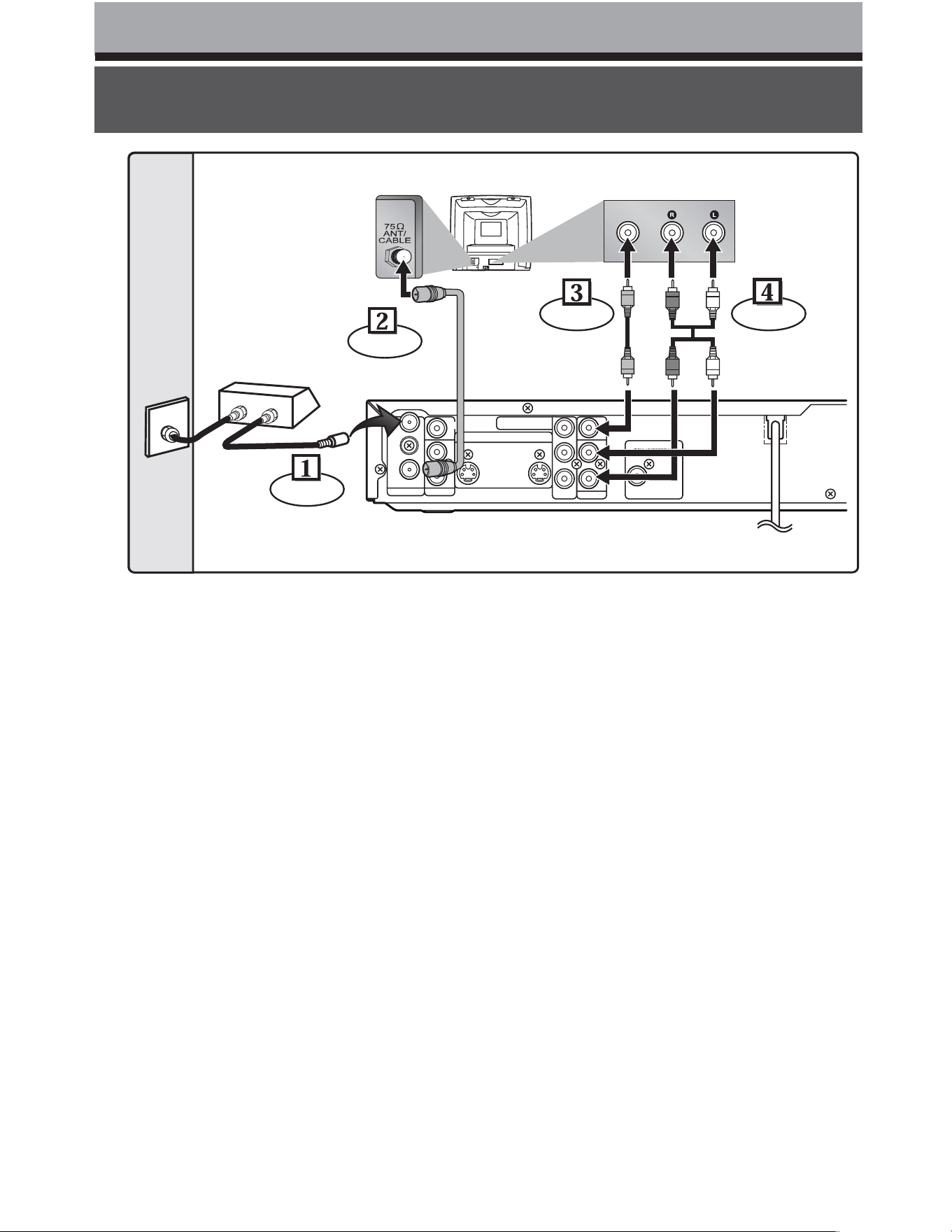

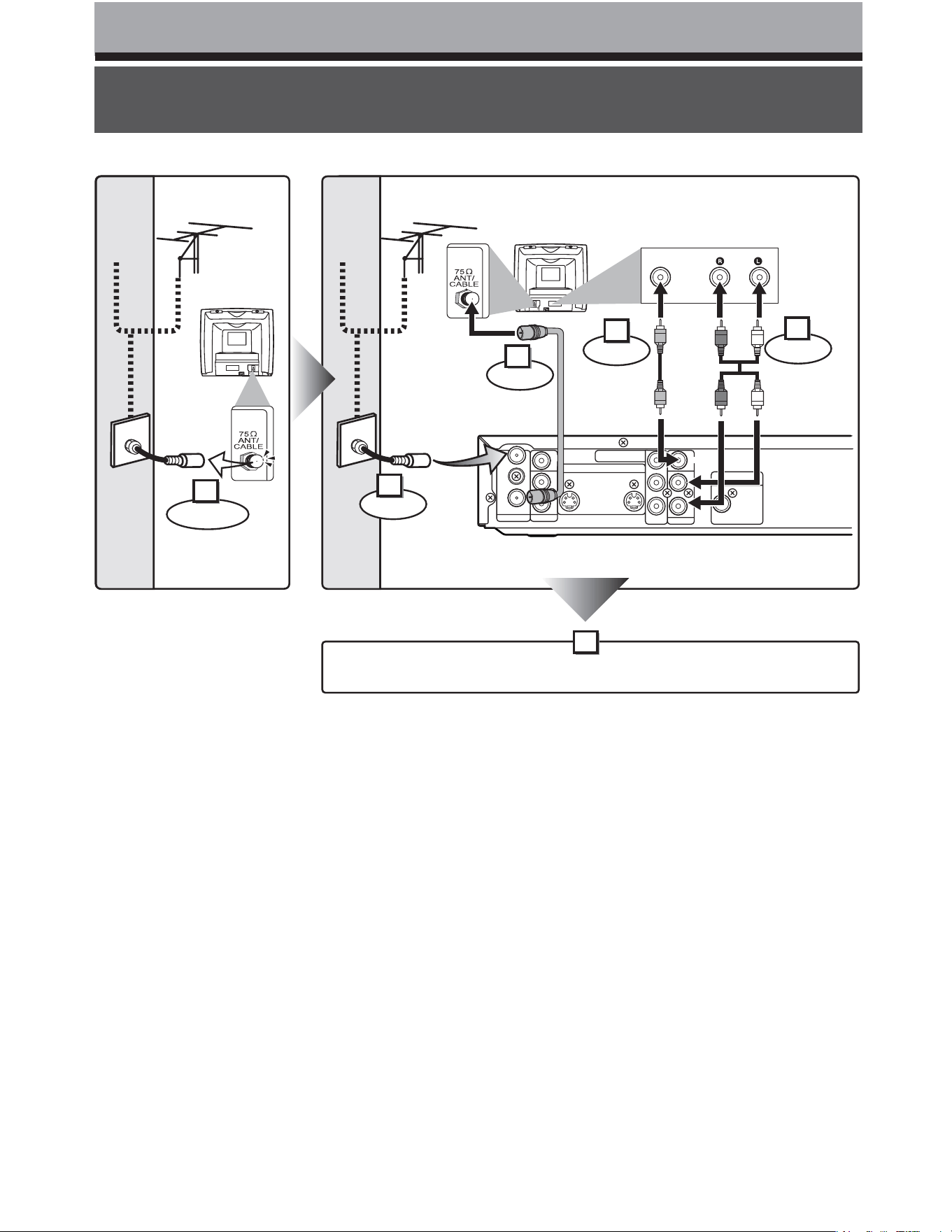

Connection to a TV
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
AUDIO INVIDEO
3
2
1
4
5
6
Cable
TV signal
or
Antenna
(Back of TV)
Disconnect
Cable
TV signal
or
Antenna
(Back of TV)
Connect
Connect
RF cable
(supplied)
Connect
Video
cable
(supplied)
Connect
Audio
cable
(supplied)
(Back of this unit)
Plug in the AC power cord of this unit.
Connect your TV and the antenna to this recorder for recording and to view broadcast signals on the TV.
Note
• RF output is for tuner pass through only. DVD Playback through the RF is not possible. Please see the next page for
connection options.
25
EN

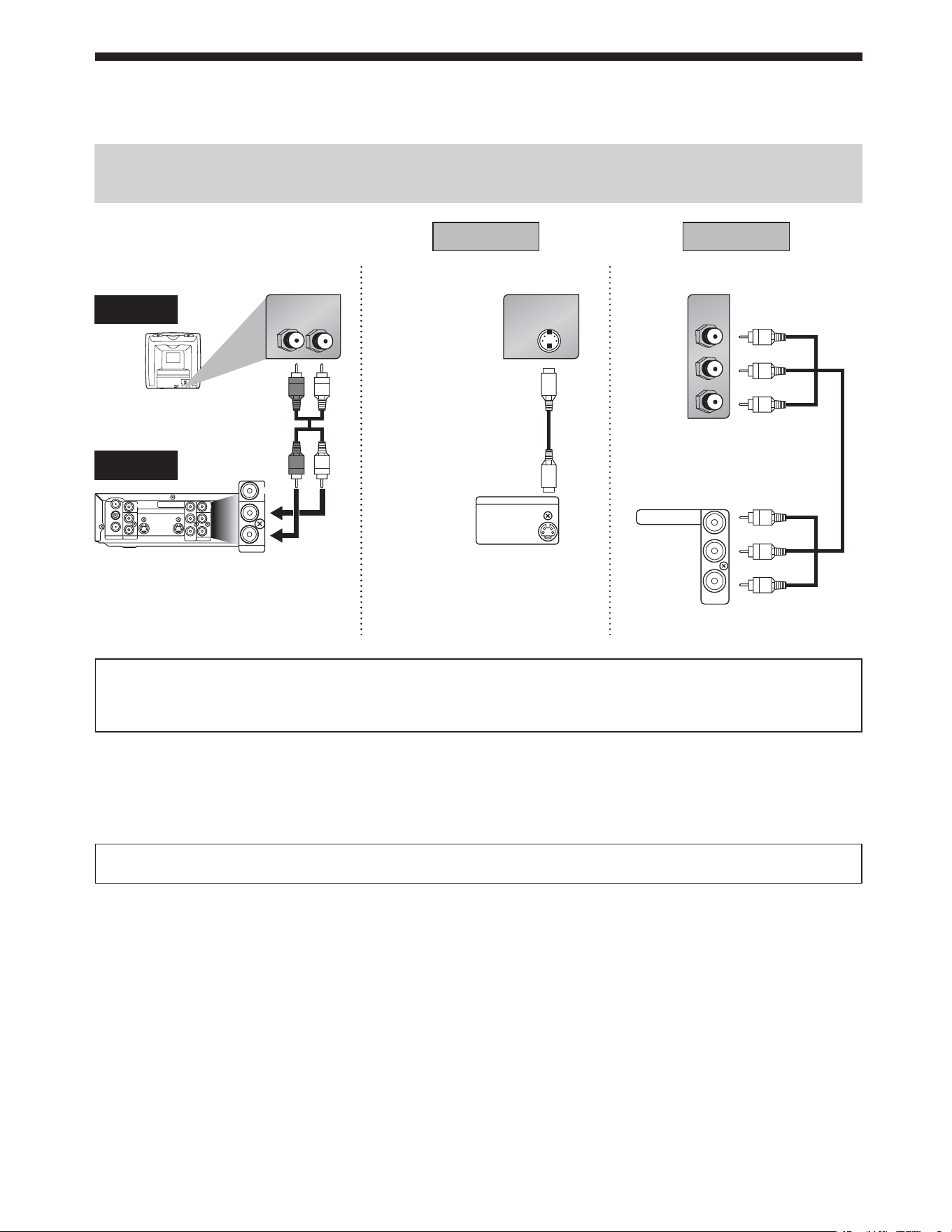

Make one of the following connections, depending on the capabilities of
your existing equipment.
S-VIDEO IN
OUT
S-VIDEO
P
B
/C
B
Y
P
R
/C
R
COMPONENT
VIDEO IN
COMPONENT
VIDEO OUTPUT
Y
P
B
/C
B
P
R
/C
R
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
COAXIAL
R L
AUDIO OUT
VIDEO OUT
L
R
AUDIO OUT
TV
Basic Audio
Method 1 Method 2
Better picture Best picture
S-VIDEO OUT COMPONENT VIDEO OUT
Audio cable
(supplied)
S-Video cable
(commercially available)
Component Video cable
(commercially available)
This unit
After you have completed the connections
• Switch the input selector on your TV to an appropriate external input channel (usually near channel 0). Press a button on
the TV’s original remote control that selects an external input channel until the DVD recorder’s picture appears. Check
your TV owner’s manual for details.
Notes
• Connect this unit directly to the TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy
protection system.
• When Progressive Scan mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT
jack.
• This unit is compatible with the Progressive Scan System. The feature provides you with the higher definition images
than the traditional output system does. To utilize this feature, you must set Progressive Scan mode to “ON”.
To set progressive scan mode, refer to page 143.
26
Connections
EN

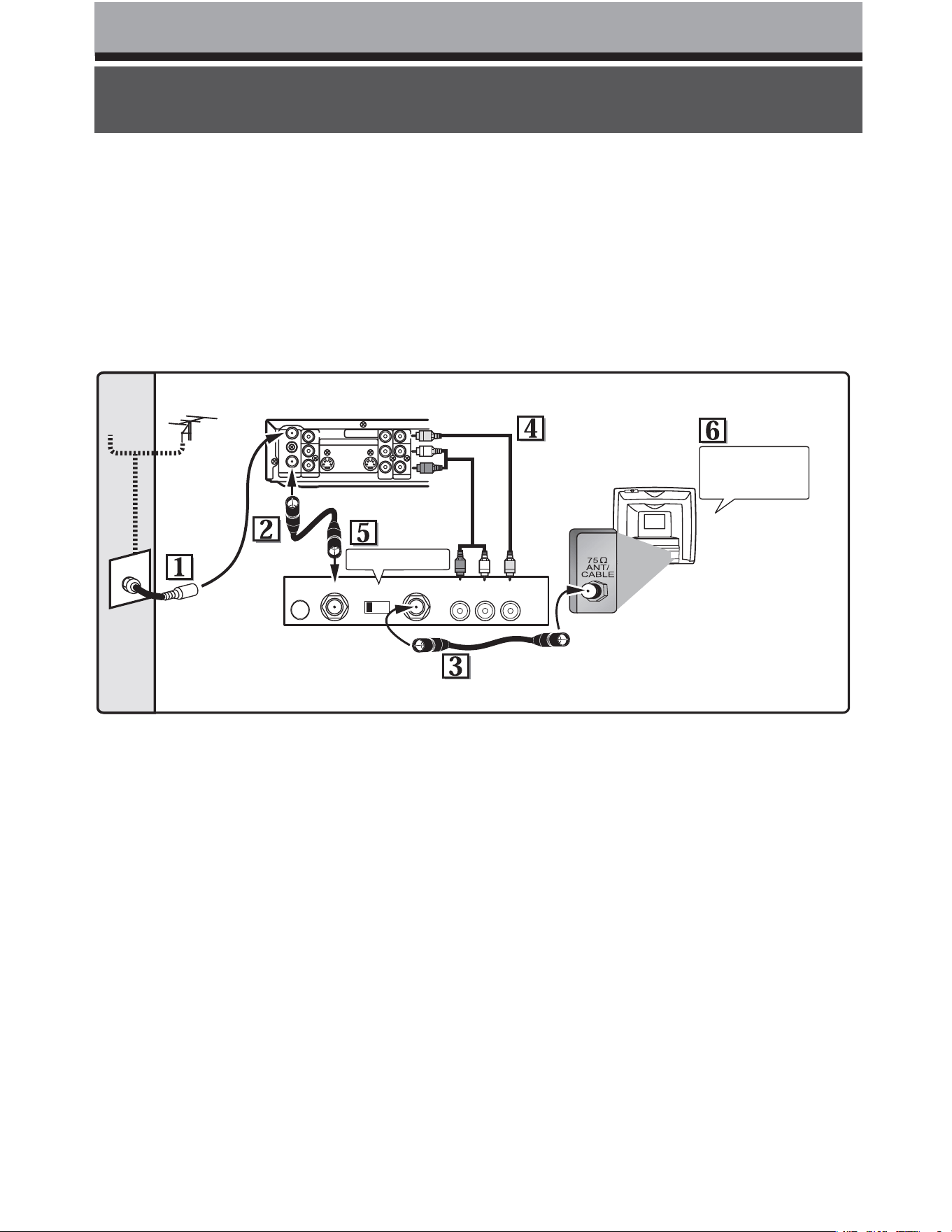

RF modulator Connection
TO TVCHANNEL VIDEO INAUDIO IN
R L3 4
ANT IN
AC 120V
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
Antenna
Cable TV
signal
(Back of this unit)
RF cable
(supplied)
Set channel 3 or 4.
STEREO AUDIO/VIDEO
RF Modulator
(commercially available)
Audio/Video cables
(supplied)
Antenna in jack
RF cable (commercially available)
Turn on your TV
and select channel
3 or 4.
(Back of TV)
If your TV has Antenna in jack only, it is still possible to connect this unit to your TV by using a Stereo Audio/Video RF
modulator. In this case, follow the instructions below.
1) The antenna input jack of your TV may have been already occupied. If so, disconnect the RF cable from your TV,
and then connect the RF cable to the ANTENNA IN jack of this unit.
2) Connect the ANTENNA OUT jack of this unit to your RF modulator (usually marked “ANT IN”) by the RF cable.
3) Connect your RF modulator to your TV by another RF cable.
4) Connect the AUDIO/VIDEO output jacks of this unit to the AUDIO/VIDEO input jacks of your RF modulator by
Audio/Video cables.
5) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If
your RF modulator has a Modulator/Antenna switch, set it according to your RF modulator’s manual.
6) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.
For more details, follow the instructions supplied with the RF modulator.
Note
• The quality of picture may become poor if this unit is connected to an RF modulator.
27
Connections
EN
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
AUDIO INVIDEO
I
N
OU
T
CableTV
signal
(Cable box or
Satellite box)
RF cable
Connect
Connect
RF cable
(supplied)
(Back of TV)
Connect
Video
cable
(supplied)
(Back of this unit)
Connect
Audio cable
(supplied)
Connection to a cable box or satellite box
■ With this setup:
• You can record any unscrambled channel by selecting the channel on the cable box or satellite box. Be sure that
the cable box or satellite box is turned on.
• You cannot record one channel while watching another channel.
Note to the Cable TV System Installer :
This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code,
which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as possible.
28
Connections
EN

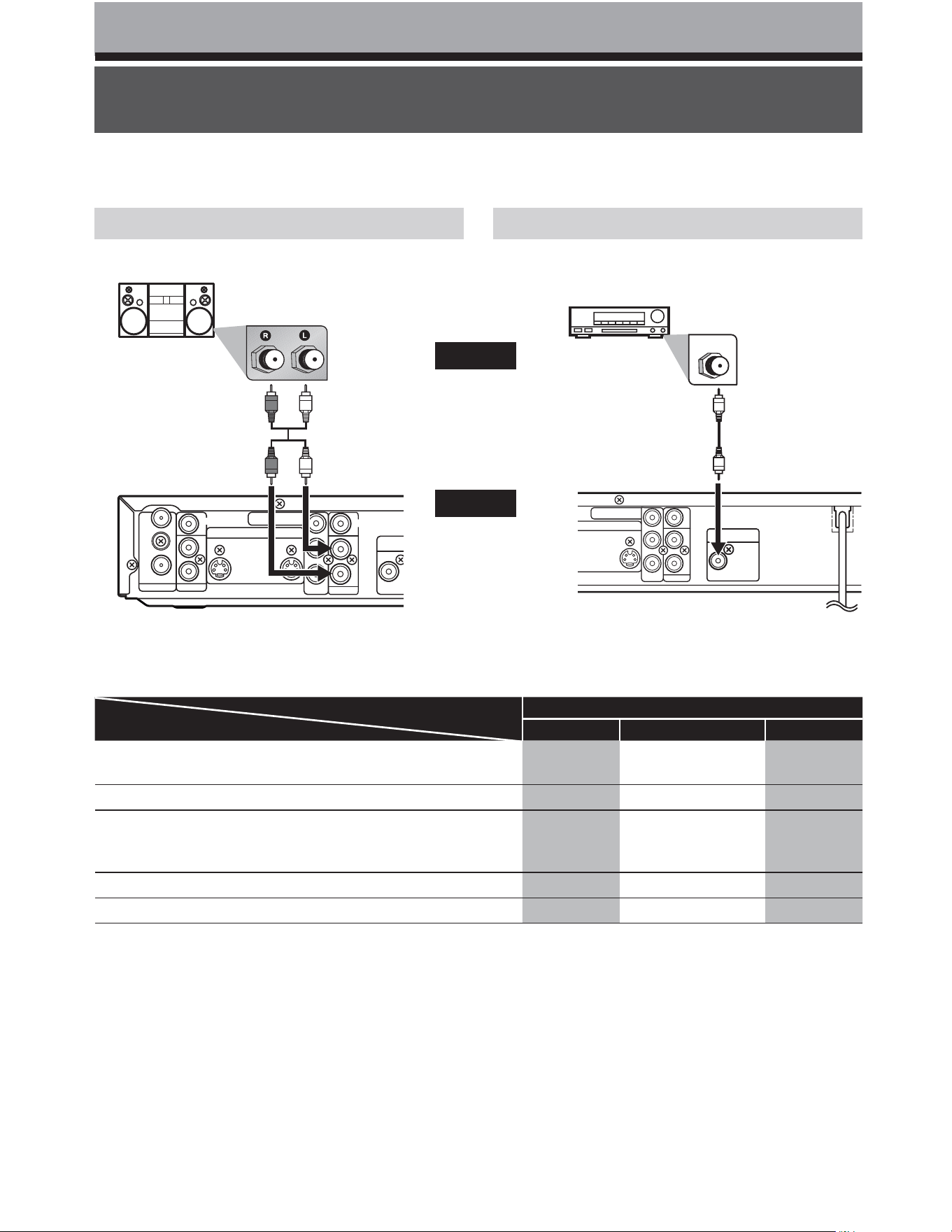

Connection to an Audio System
• When you change the connections, all devices should be turned off.
• Refer to the operation manual accompanying external devices for more information.
ANTENNA
AUDIO IN
VIDEO IN
L
R
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
Y
P
B
/C
B
P
R
/C
R
DIGI TAL A
U
PCM / BI
T
COAXI
A
AUDIO OUT
VIDEO OUT
L
R
Stereo system
AUDIO
Analog audio
input jacks
Audio cable
(supplied)
AUDIO OUT
Method 1
Note
• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Method 2
Dolby Digital decoder, DTS decoder,
MD deck or DAT deck
ANTENNA
AUDIO IN
VIDEO IN
L
R
AUDIO OUT
VIDEO OUT
(L1)
IN
IN
OUT
OUT
S-VIDEO
COMPONENT
VIDEO OUTPUT
L
Y
P
B
/C
B
P
R
/C
R
R
DIG ITAL AUDIO OUTPUT
PCM / BITSTREAM
COAXIAL
COAXIAL
Digital audio
input jack
Audio Coaxial
Digital cable
(commercially
available)
DIGITAL AUDIO OUT
Setting Setup >Playback >Audio >Digital Out >
Connection
PCM Dolby Digital DTS
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
— STREAM OFF
If output is DTS encoded audio, connect to a DTS decoder. — PCM ON
If output is encoded audio for both Dolby Digital and DTS,
connect to the decoder which encodes multiple audio
sources.
— STREAM ON
Connecting to an MD deck or DAT deck. — PCM OFF
If not connected to any external devices. — PCM OFF
* To complete these settings, refer to pages 137-139.
Notes
• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound by an MD
or DAT deck.
• By connecting this unit to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital Multi-channel
surround sound as heard in the movie theaters.
• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
• By connecting this unit to the DTS decoder, you can enjoy Multi-channel Surround System which reproduces the original
sound as truthfully as possible. Multi-channel Surround System is developed by the Digital Theater Systems Inc.
This unit
Basic Setup
Read this chapter for necessary settings to get
started.
● Initial setting
● Channel setting
● Selecting TV stereo or SAP
● Setting the clock
● Selecting TV aspect ratio
30
Basic Setup
EN

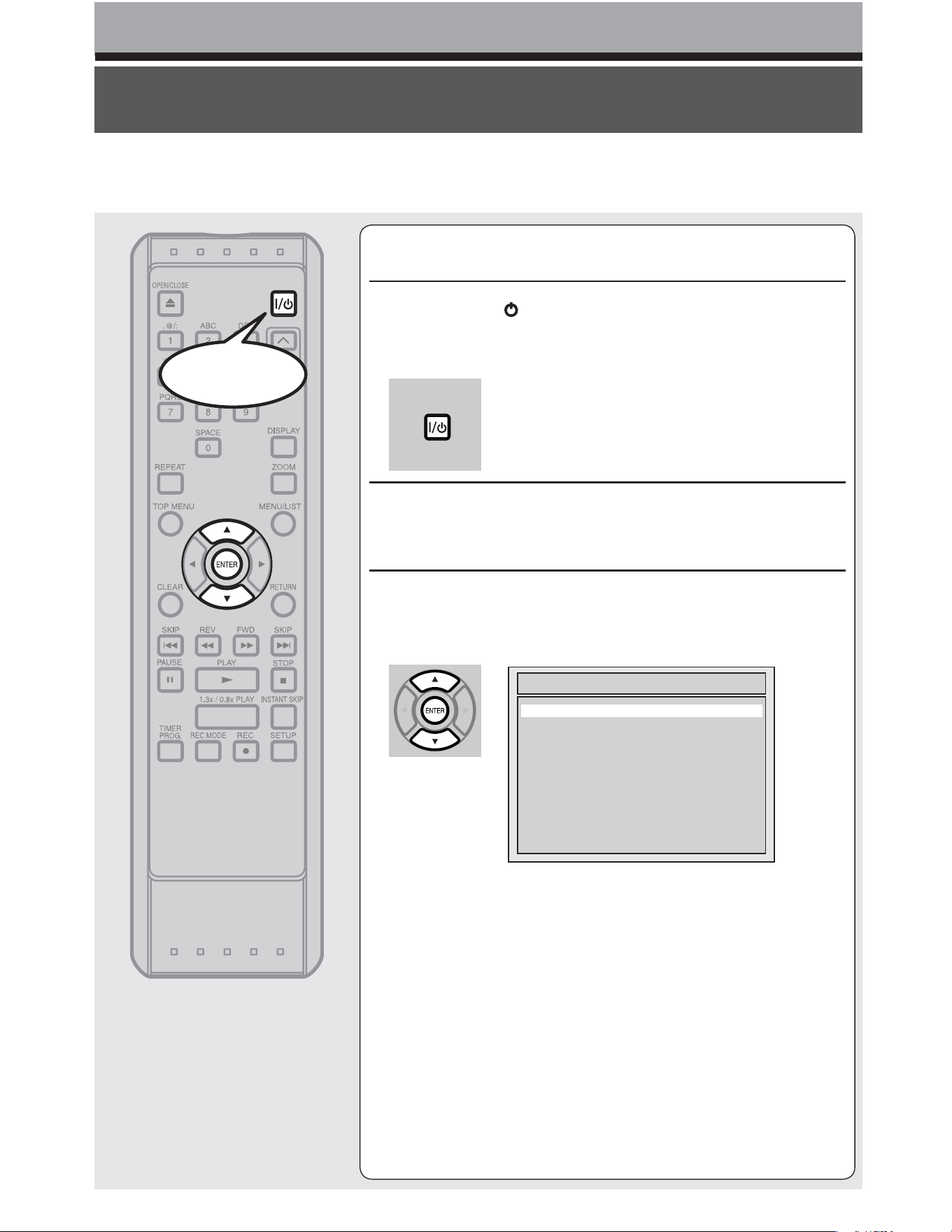

Initial setting
Start
Turn on this unit for the fi rst time, you need to follow
these steps.
1
Press [I/ ON/STANDBY].
2
Turn the TV on. Select the input to which the
unit is connected.
“Initial Setting” will automatically appear.
3
Using [K / L], select your desired language
for the on screen menu. Then press [ENTER]
to go to next step.
Initial Setting
Français
Español
English
31
EN
4
Press [ENTER] to start Channel Preset.
The unit will start getting channels available in your area.
5
After channel setting is finished, “Clock
Setting” will appear. Then press [ENTER].
6
Follow the steps 3 to 7 on pages 41-43 for
“Manual Clock Setting”.
Initial Setting
Channel Preset
Initial Setting
Clock Setting
32
Basic Setup
EN

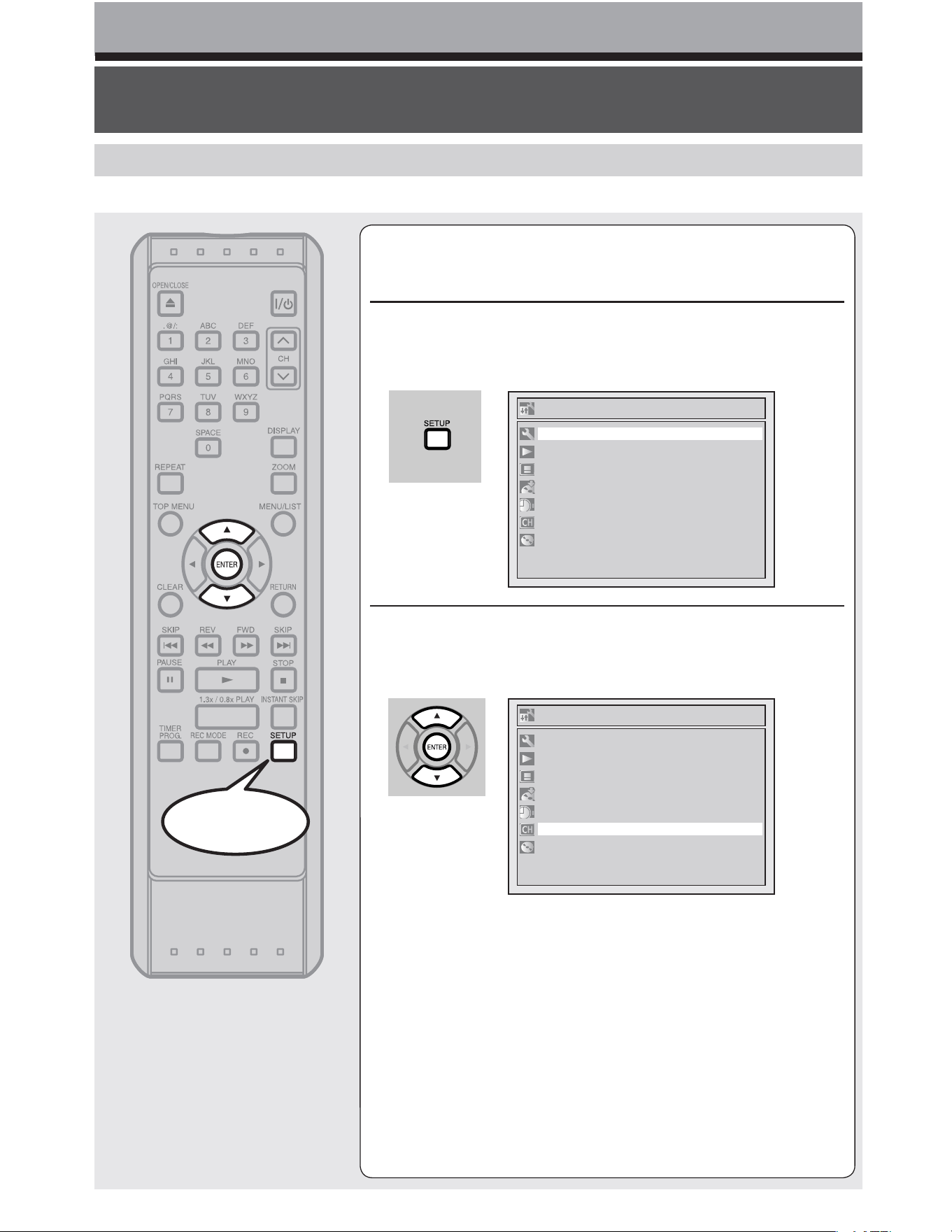

Channel setting

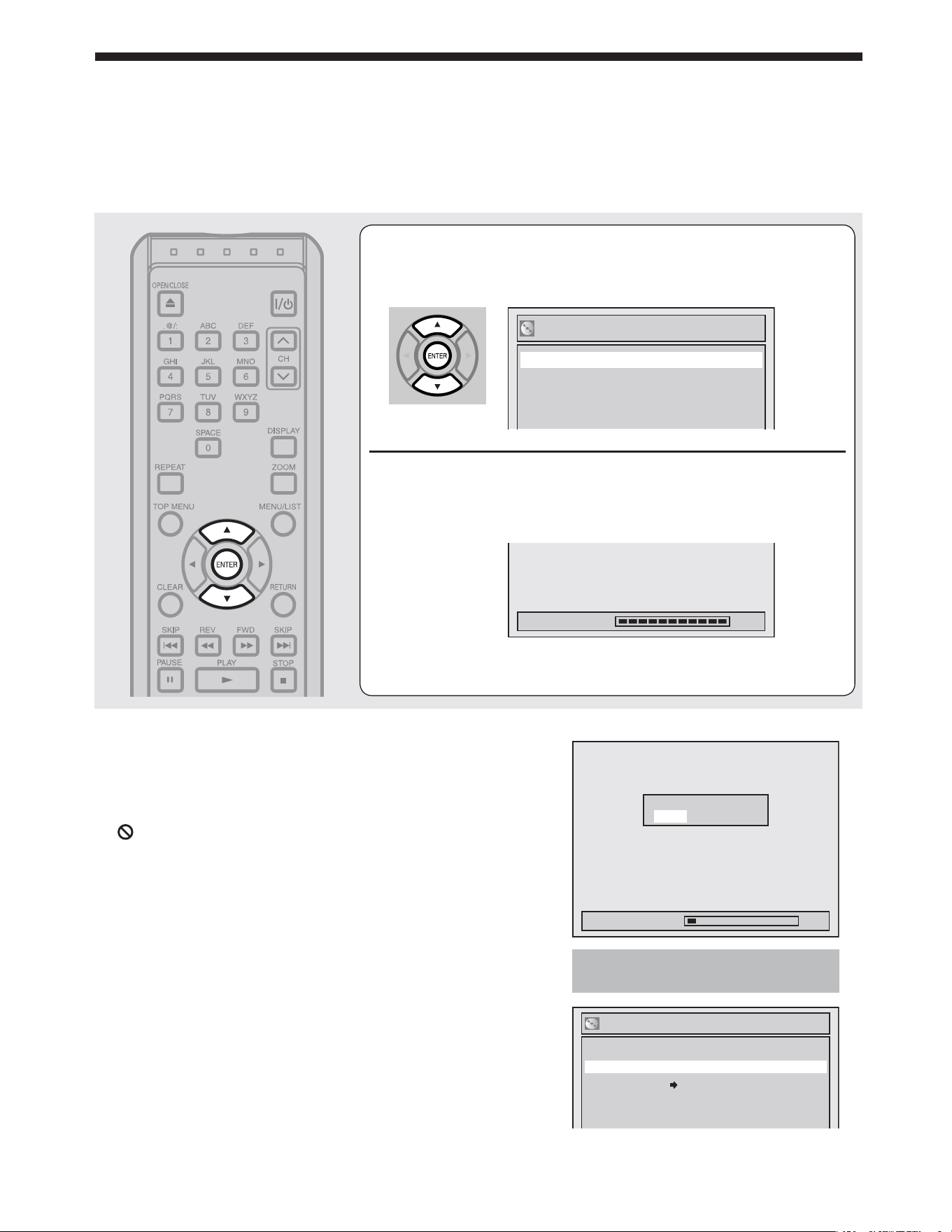

Setting channels automatically
Start
If you have changed antenna connection, we recommend
you to program channels which are available in your area
with the following procedures.
1

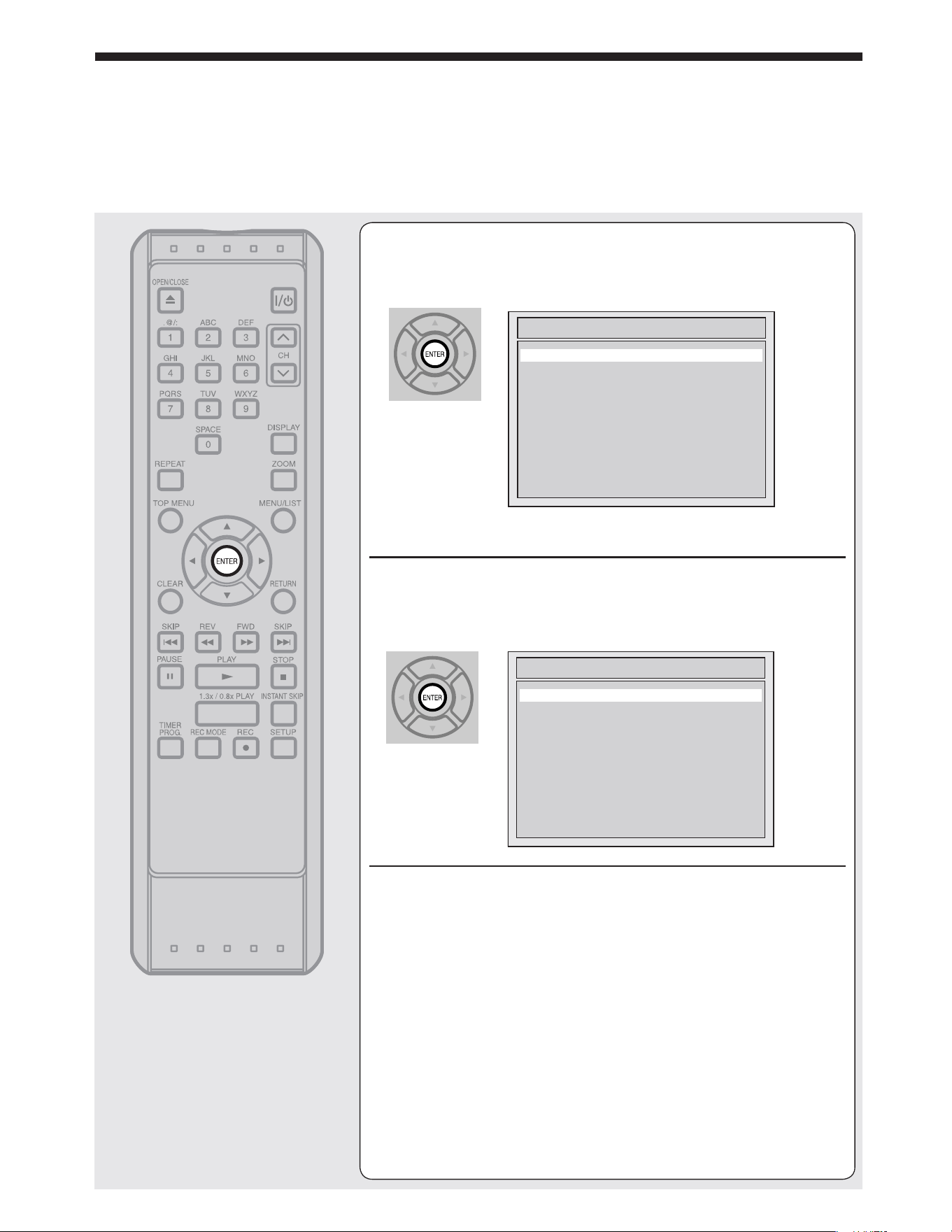

Press [SETUP].
2
Using [K / L], select “Channel”.
Press [ENTER].
Channel menu will appear.
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
33
EN
Initial Setting
Clock Setting
■ To select a channel
You can select a channel by directly entering channel with the Number buttons on the remote control.
Notes for using the Number buttons:
• When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number.(For example:
117, press [1], [1], [7])
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).
• You can select the line input mode (“L1” or “L2”). To select “L1” by pressing [0], [0], [1]. To select “L2” by pressing [0],
[0], [2]. Details are on pages 68-69.
Notes
• If the auto presetting is cancelled during presetting, some channels not yet preset may not be received.
• The selection will depend on the number of stations that it has found.
Press [RETURN] or [SETUP] to cancel the auto presetting during scanning.

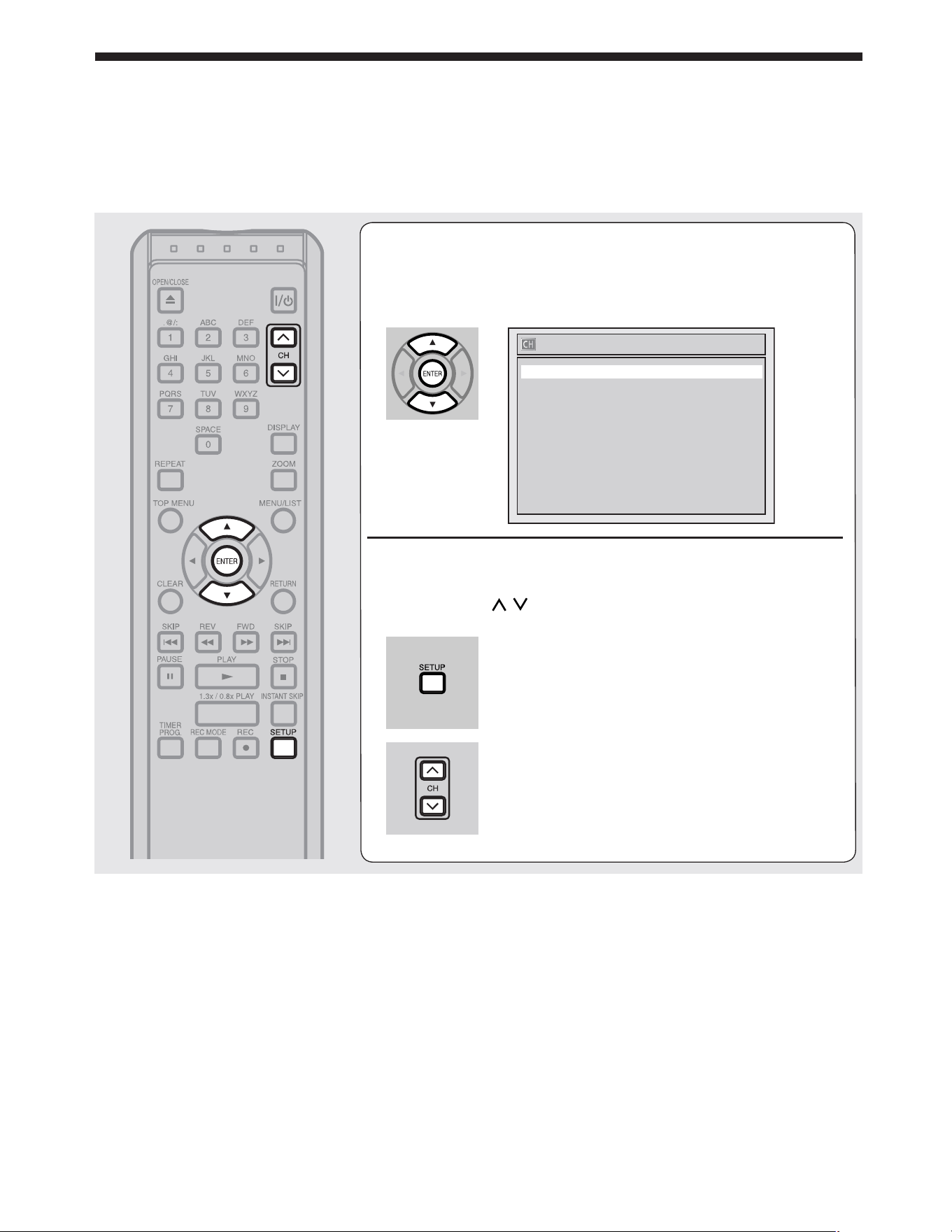

3
Using [K / L], select “Auto Preset”.
Press [ENTER].
The unit will start presetting channels available in your area
automatically.
4
Press [SETUP] after scanning.
You can select only the channels memorized in this unit by
using [CH / ].
Channel
Manual Preset
Auto Preset
34

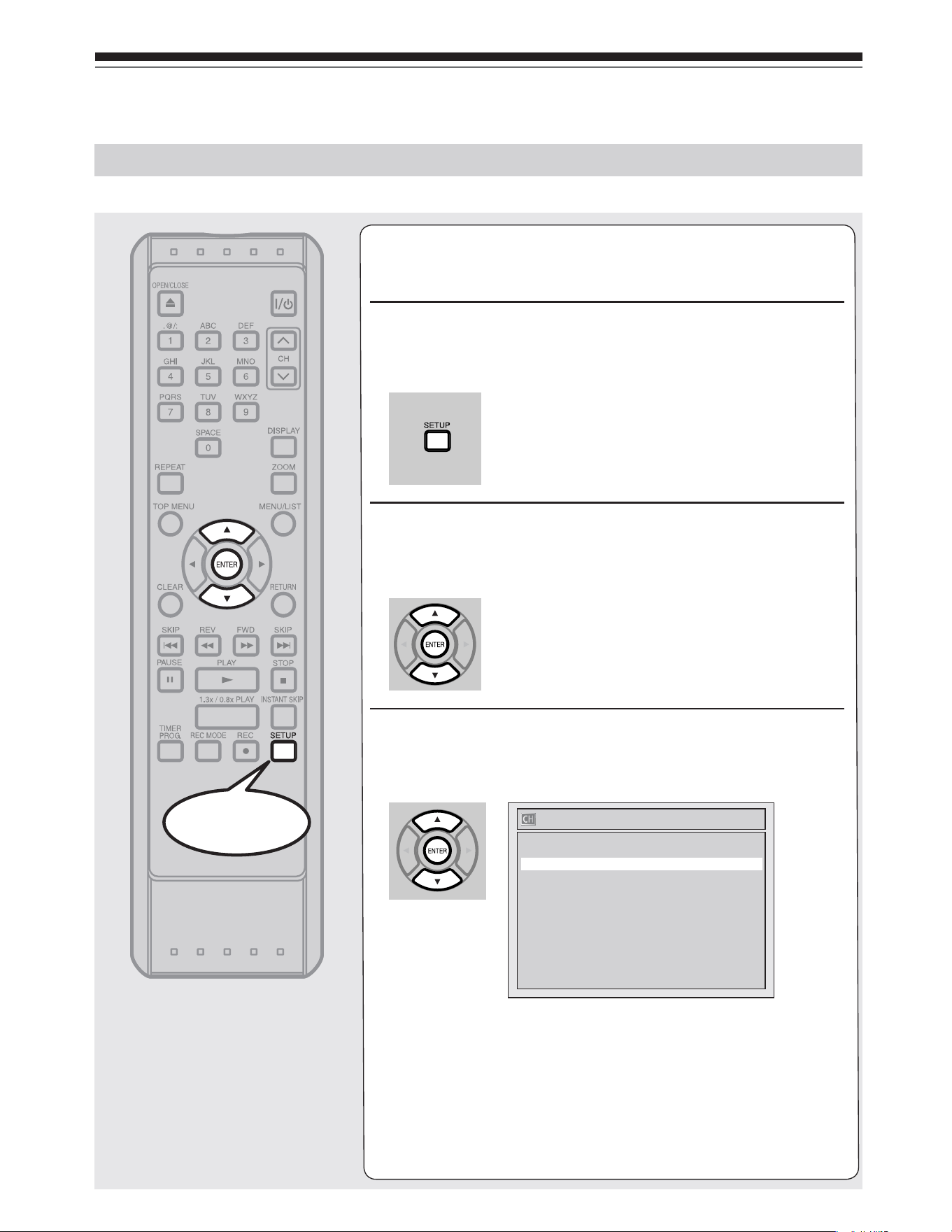

Basic Setup
EN
The channels you no longer receive or seldom watch can
be deleted from the memory. You also may add channels
into the memory.
1
Press [SETUP].
2
Using [K / L], select “Channel”.
Press [ENTER].
Channel menu will appear.
3
Using [K / L], select “Manual Preset”.
Press [ENTER].
Manual Preset menu will appear.
Channel setting (cont’d)
Start
Channel
Manual Preset
Auto Preset
Adding/deleting channels
35
EN

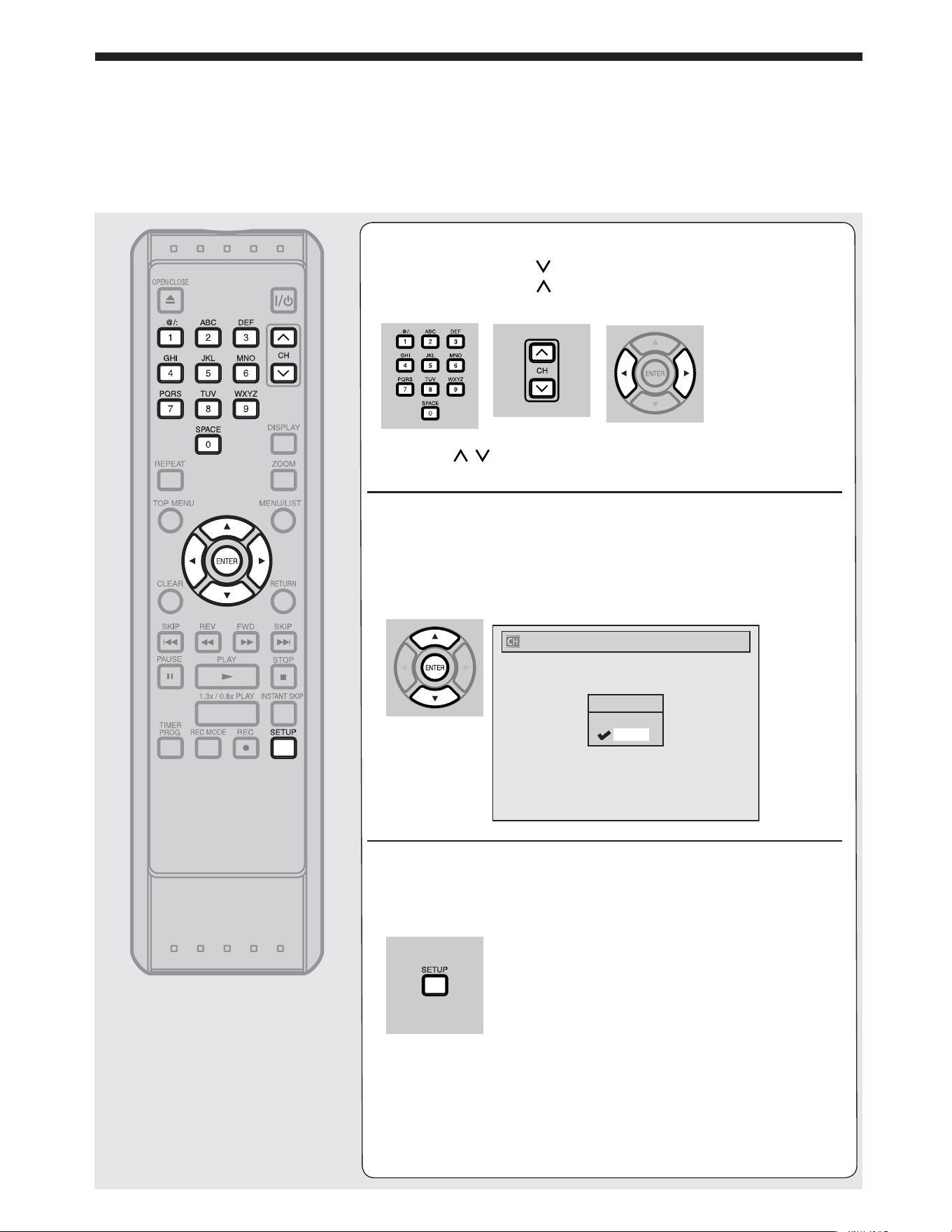

4
Select the channel number to add or delete.
Press [{] or [CH ] to move to a lower channel number.
Press [B] or [CH ] to move to a higher channel number.
Press the Number buttons to select a channel number directly.
[CH / ] works on the memorized channel in this unit.
[{ / B] works on all channel numbers.
5
Using [K / L], select “Add” or “Delete”.
Press [ENTER].
The channel number will be added or deleted from the channel
memory. Then the next channel number will appear so that you
can continue adding or deleting channels.
6
Press [SETUP] to exit.
Manual Preset
CH 7
Add
Delete
36
Basic Setup
EN

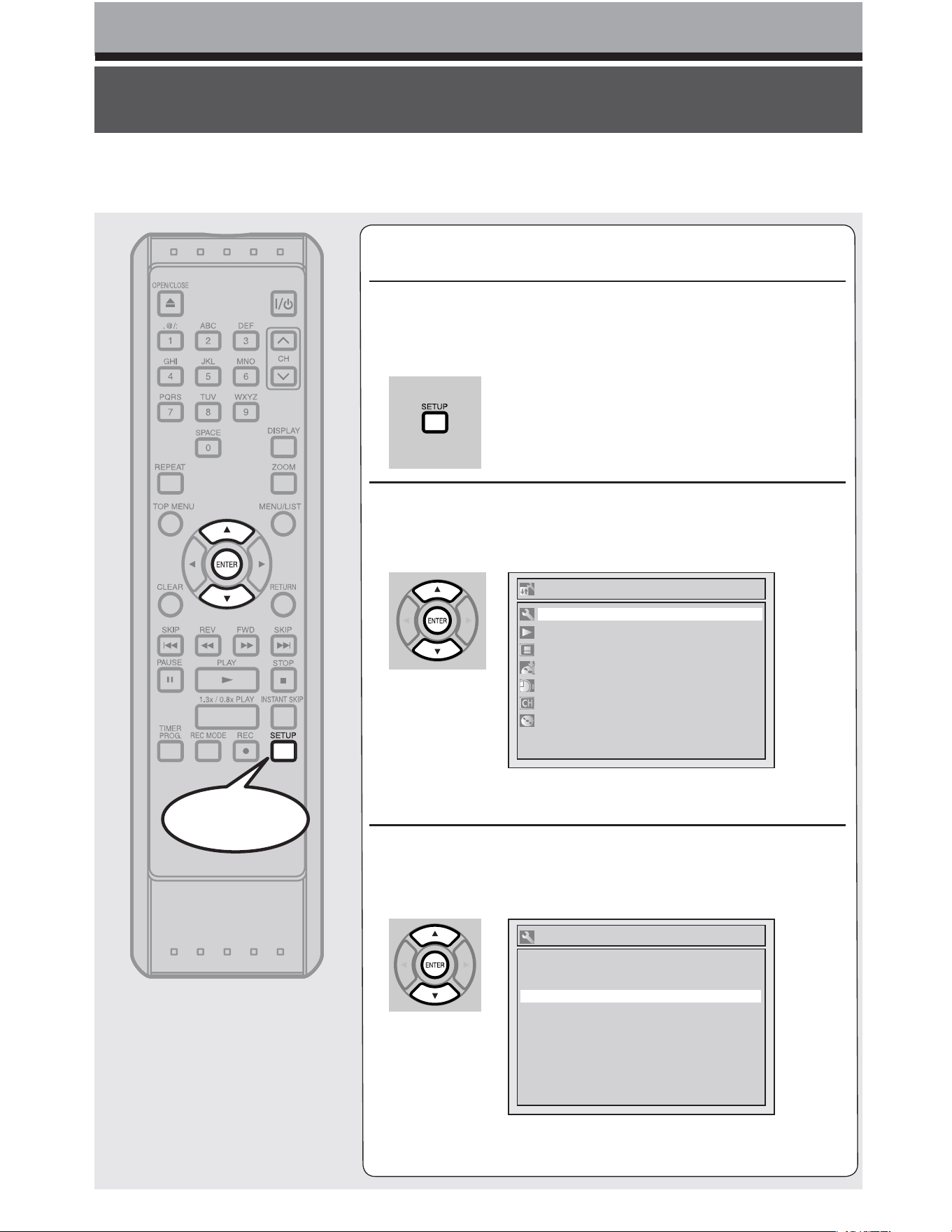

Selecting TV stereo or SAP
You can select a sound channel to output from TV.
“Stereo” has been selected as the default.
1
Press [SETUP].
2
Using [K / L], select “Required Setting”.
Press [ENTER].
Required Setting menu will appear.
3
Using [K / L], select “TV Audio Select”.
Press [ENTER].
Option window will appear.
Start
Select Video
TV Aspect
TV Audio Select
Required Setting
4:3 Letter Box
Stereo
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
37

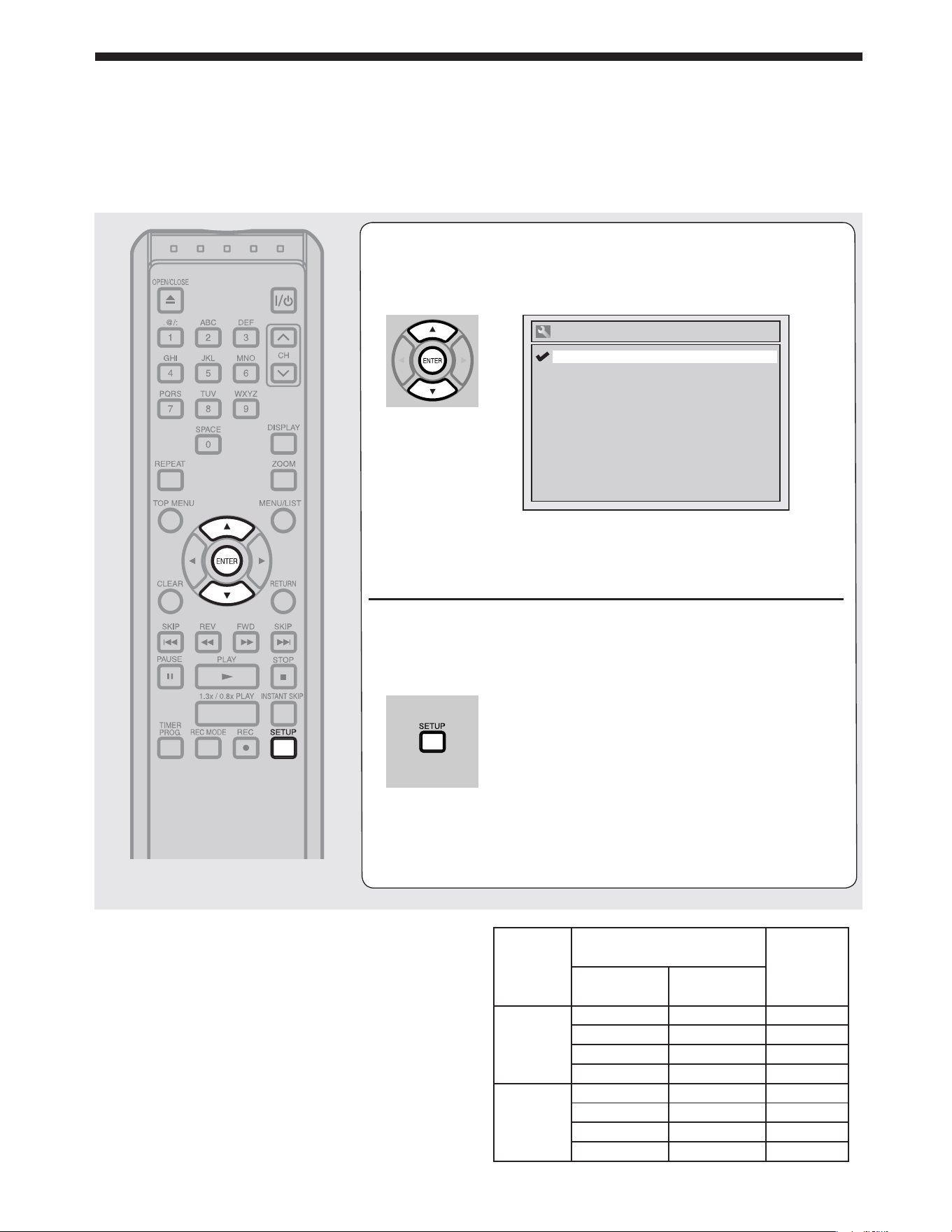

EN
4
Using [K / L], select “Stereo” or “SAP”.
Press [ENTER].
Stereo:
Outputs main audio.
SAP (Secondary Audio Program):
Outputs sub audio.

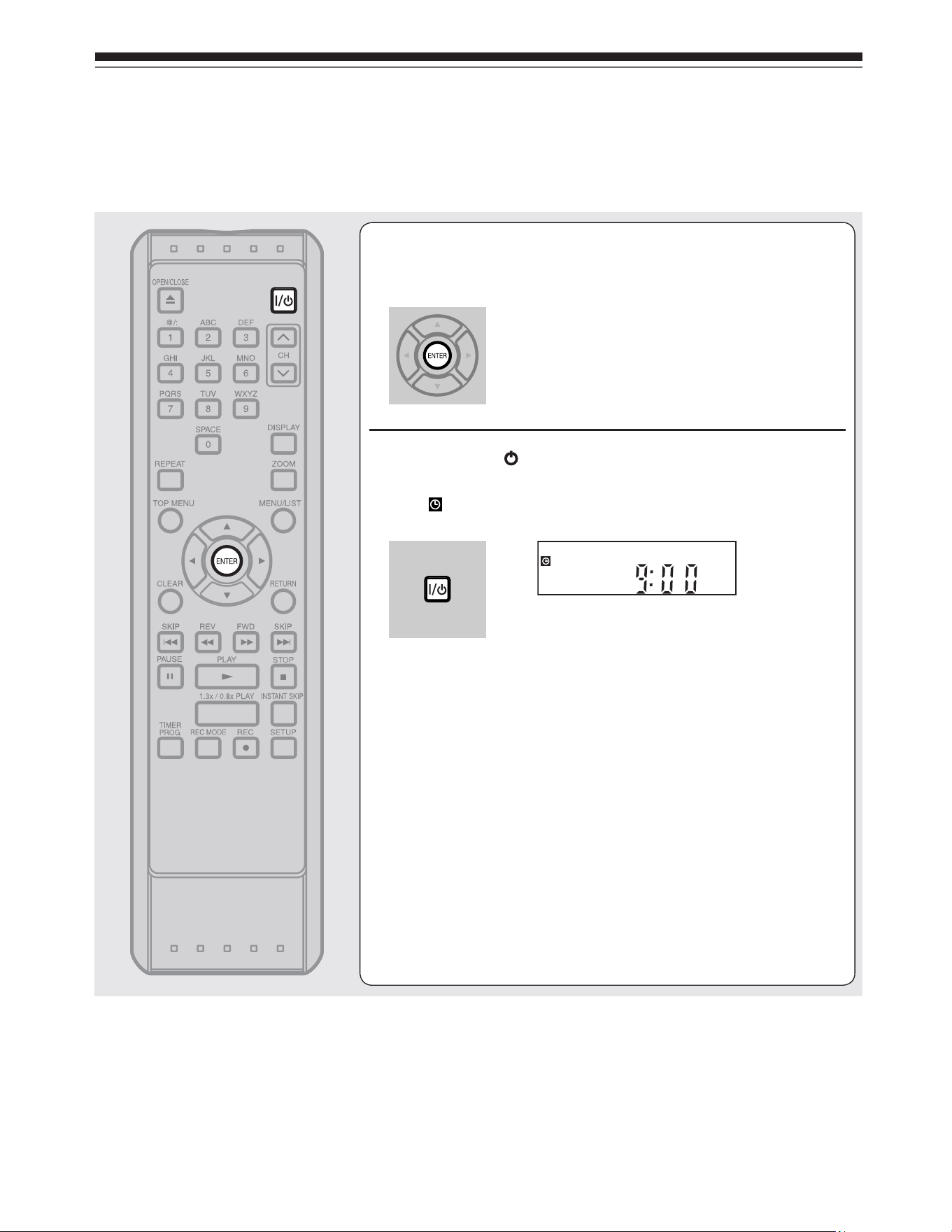

5
Press [SETUP] to exit.
TV Audio Select
SAP
Stereo
Notes on TV channel audio
• This unit CANNOT record in both Stereo (main) and SAP
(sub) at the same time.
• If you want to record a TV program available in second
audio or stereo on a DVD-RW/R, you have to select either
Stereo or SAP in the “ TV Audio Select ” beforehand.
Refer to the following table to check an appropriate
setting.
• You can only play the disc in second audio if a TV
program is available in second audio and you set “ TV
Audio Select ” to “ SAP ”.
Selected
audio
Broadcast audio
Disc
Recording
Main-audio
channel
Sub-audio
channel
Stereo STEREO SAP STEREO
STEREO NONE STEREO
MONO SAP MONO
MONO NONE MONO
SAP STEREO SAP SAP
STEREO NONE STEREO
MONO SAP SAP
MONO NONE MONO
38
Basic Setup
EN

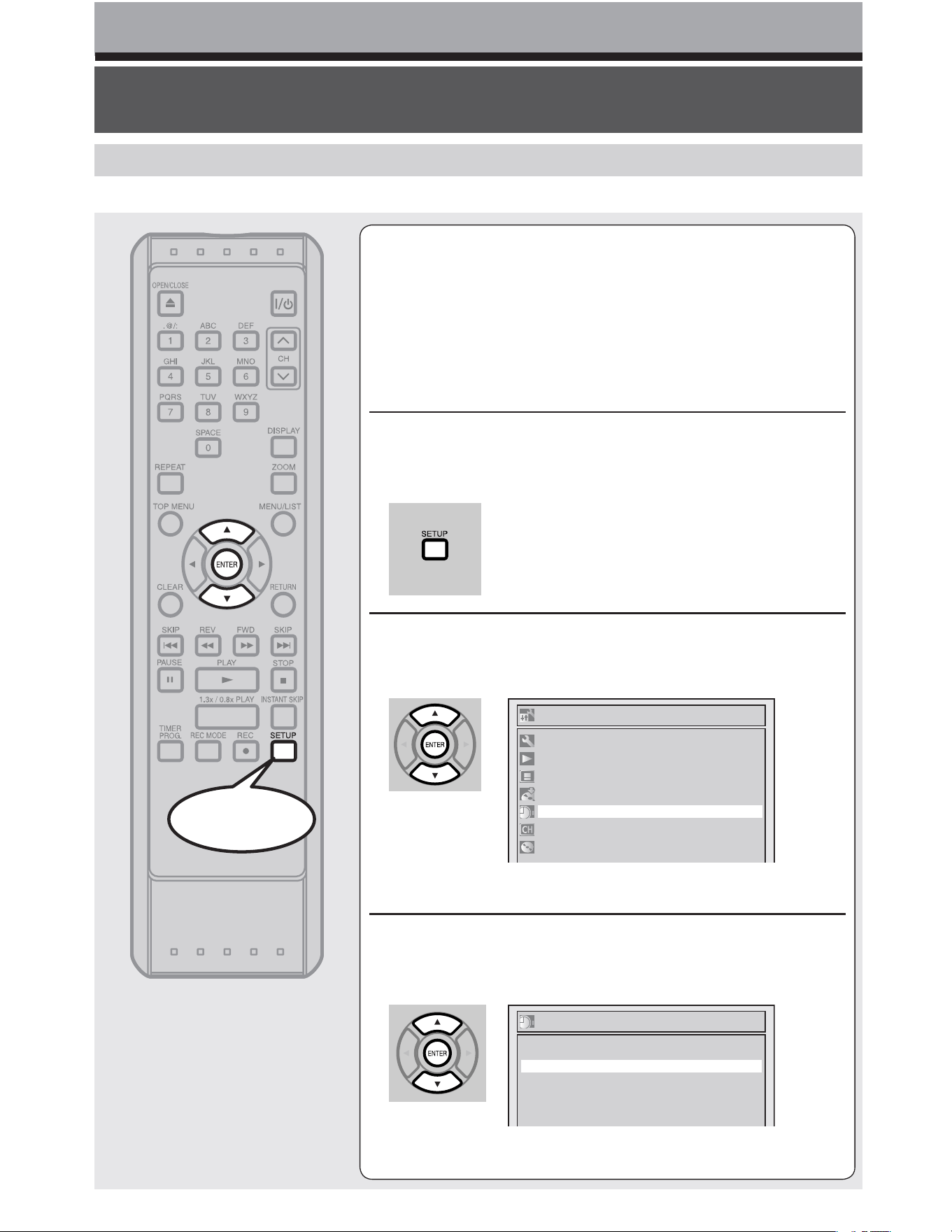

Setting the clock
Set the clock before you try the Timer Recording. If a
Public Broadcasting Station (PBS) is available in your
area, follow “Auto Clock Setting” below. If not, follow
“Manual Clock Setting” on page 41.
Make sure
• The antenna/Cable TV connections are correct.
• If this unit is connected to a Cable Box or Satellite Box, select the local
PBS station on them to set the clock automatically.

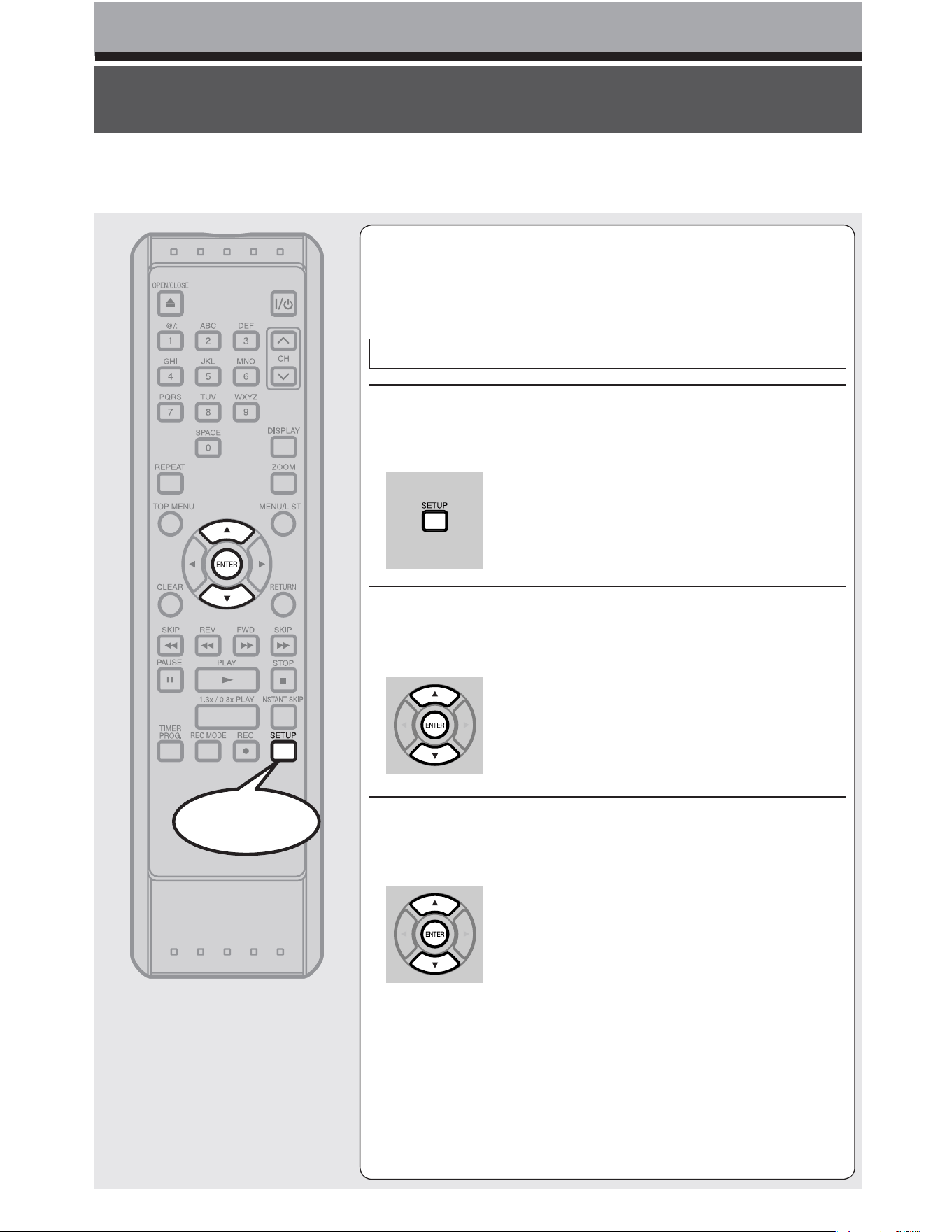

1
Press [SETUP].
2
Using [K / L], select “Clock”. Press [ENTER].
Clock menu will appear.
3
Using [K / L], select “Auto Clock Setting”.
Press [ENTER].
Option window will appear.
Clock
Clock Setting
Auto Clock Setting
Daylight Saving Time
Auto
ON
Auto Clock Setting
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
Start
39
EN

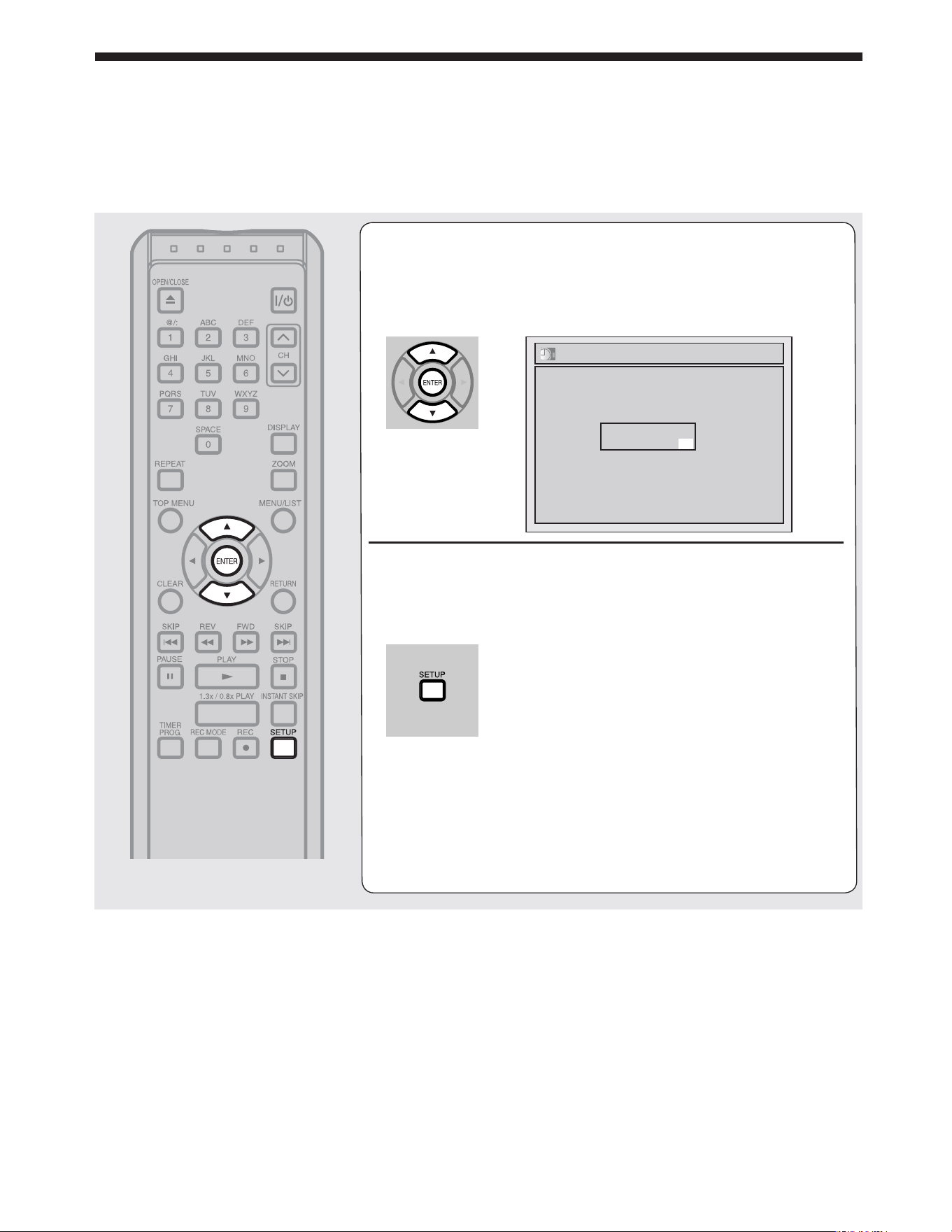

4

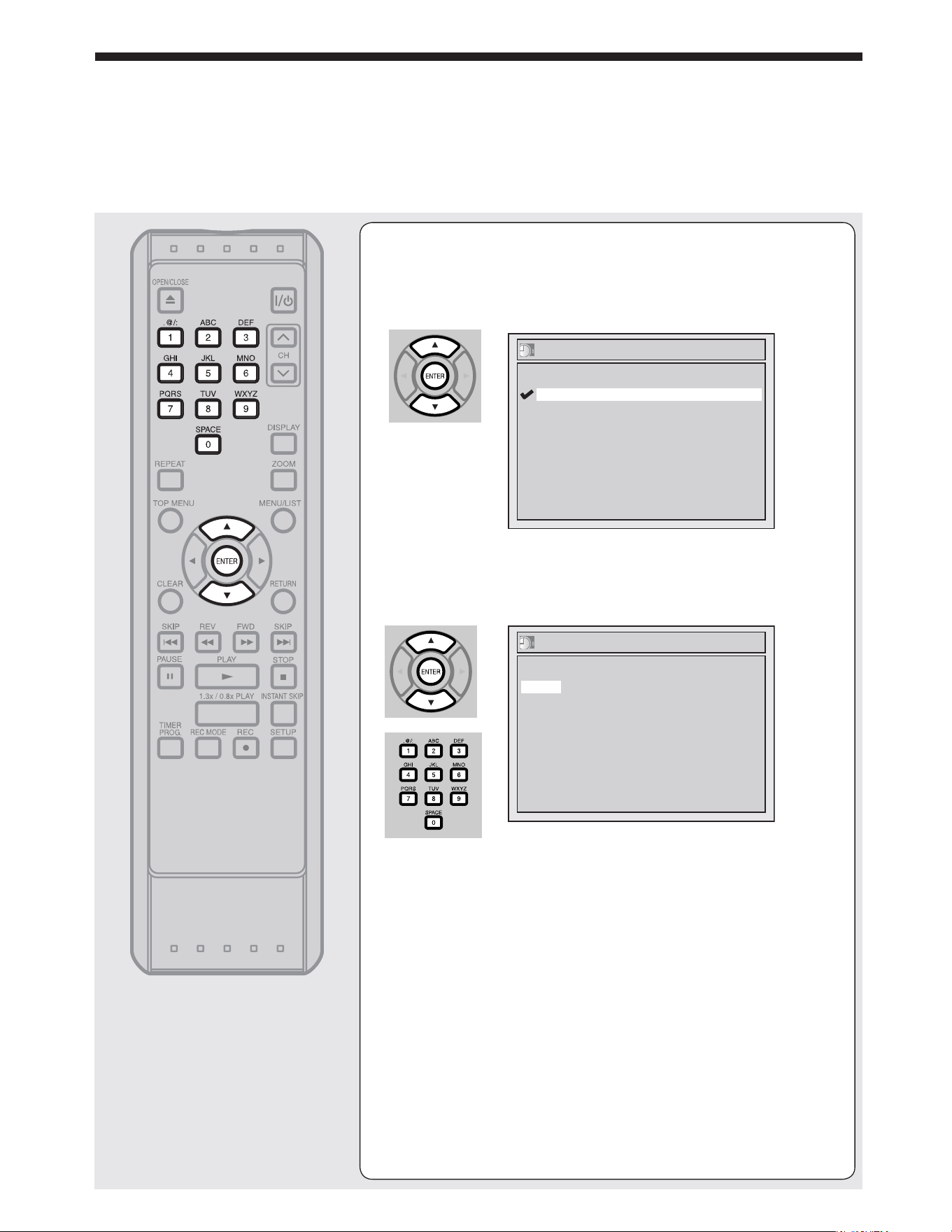

If you do not know your PBS channel
number: Using [K / L], select “Auto”. Press
[ENTER].
The setting will be activated.
If you know your PBS channel number:
Using [K / L], select “Manual”. Press
[ENTER].
Using the Number buttons or [K / L], enter
your PBS channel number. Press [ENTER].
The setting will be activated.
If you want to set the clock manually and
cancel the Auto Clock Setting function:
Using [K / L], select “OFF” at the step 4.
Press [ENTER].
The Auto Clock Setting function will be canceled.
(Continued)
Auto Clock Setting - Manual
Set Channel No.
CH 1
Auto Clock Setting
OFF
Auto
Manual
40
Basic Setup
EN

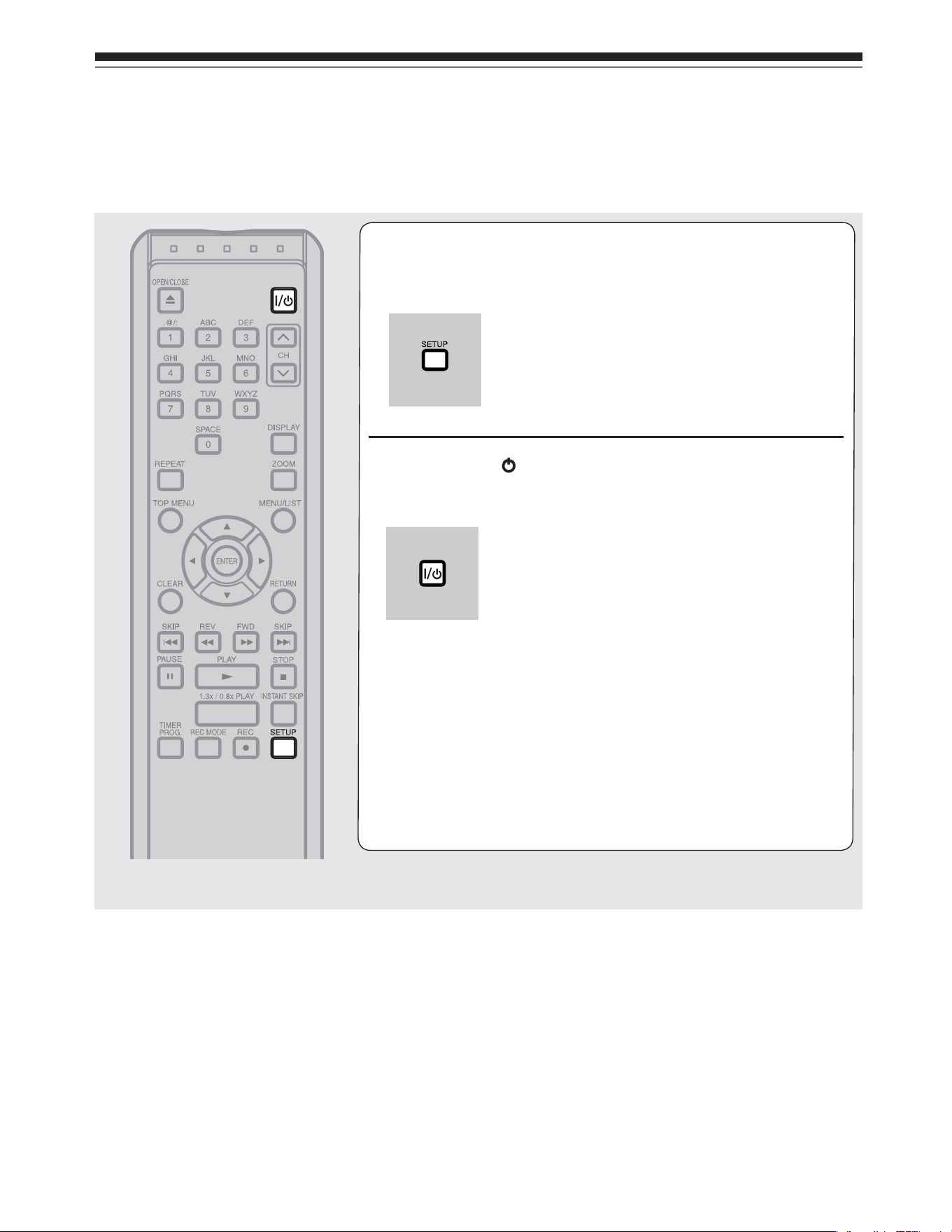

Setting the clock (cont’d)
Notes
• The clock may set itself automatically after you connect the antenna/cable signal to this unit and plug in the
power cord. In this case, the current time will appear on the front panel display.
• If the current time is not displayed or the displayed clock is not correct, set the clock manually.
5
Press [SETUP] to exit.
6
Press [I/ ON/STANDBY] to turn off the unit.
This unit will search for the time only when the power is off.
Leave it off for several minutes to give this unit time to set the
clock on the front panel display.

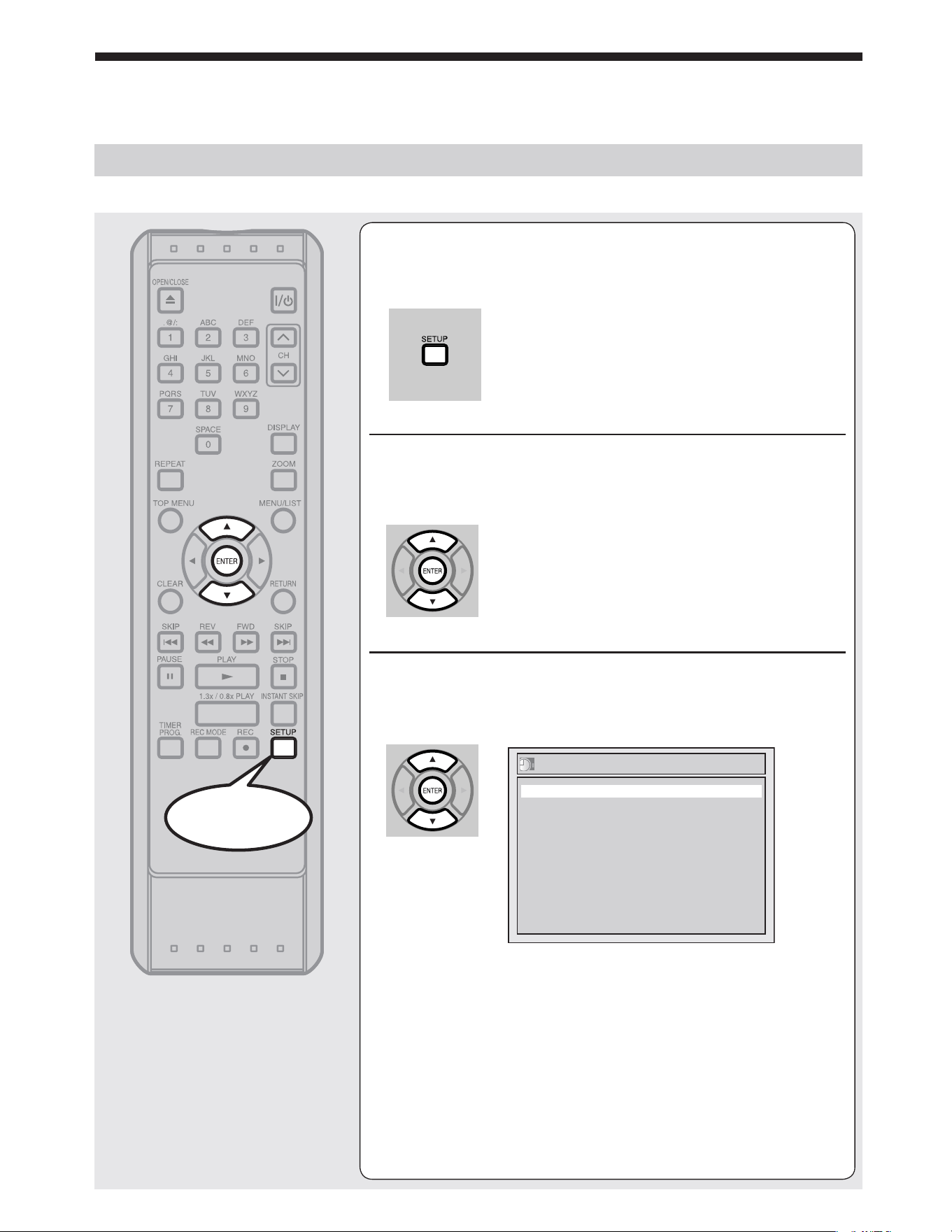

41
EN
1
Press [SETUP].
2
Using [K / L], select “Clock”. Press [ENTER].
3
Using [K / L], select “Clock Setting”.
Press [ENTER].
Clock Setting menu will appear.
Press [ENTER] again.
Default date will appear.
(Continued)
Start
Manual Clock Setting
Clock
Clock Setting
Auto Clock Setting
Daylight Saving Time
Auto
ON
42
Basic Setup
EN
Setting the clock (cont’d)
4
Using [K / L], enter the date (month / day /
year).
Press [{ / B] to move the cursor.
5
Using [K / L], enter the time (hour / minute).
Press [{ / B].
The cursor will move on to AM.
JAN/ 01 / 2006(SUN)
12: 00 AM
Clock Setting
JAN/ 01 / 2006(SUN)
12: 00 AM
Clock Setting
43
EN
Note
• Your clock setting will be lost if there is a power failure or this unit has been unplugged for more than 30 seconds, set the
clock manually.
6
Press [K / L] to select “AM” or “PM”.
Press [ENTER].
The settings will be activated.
Although seconds are not displayed, they begin counting from
zero.
7
Press [SETUP] to exit, if Clock menu appears.
JAN/ 01 / 2006(SUN)
12: 00 AM
Clock Setting
44
Basic Setup
EN
Setting the clock (cont’d)

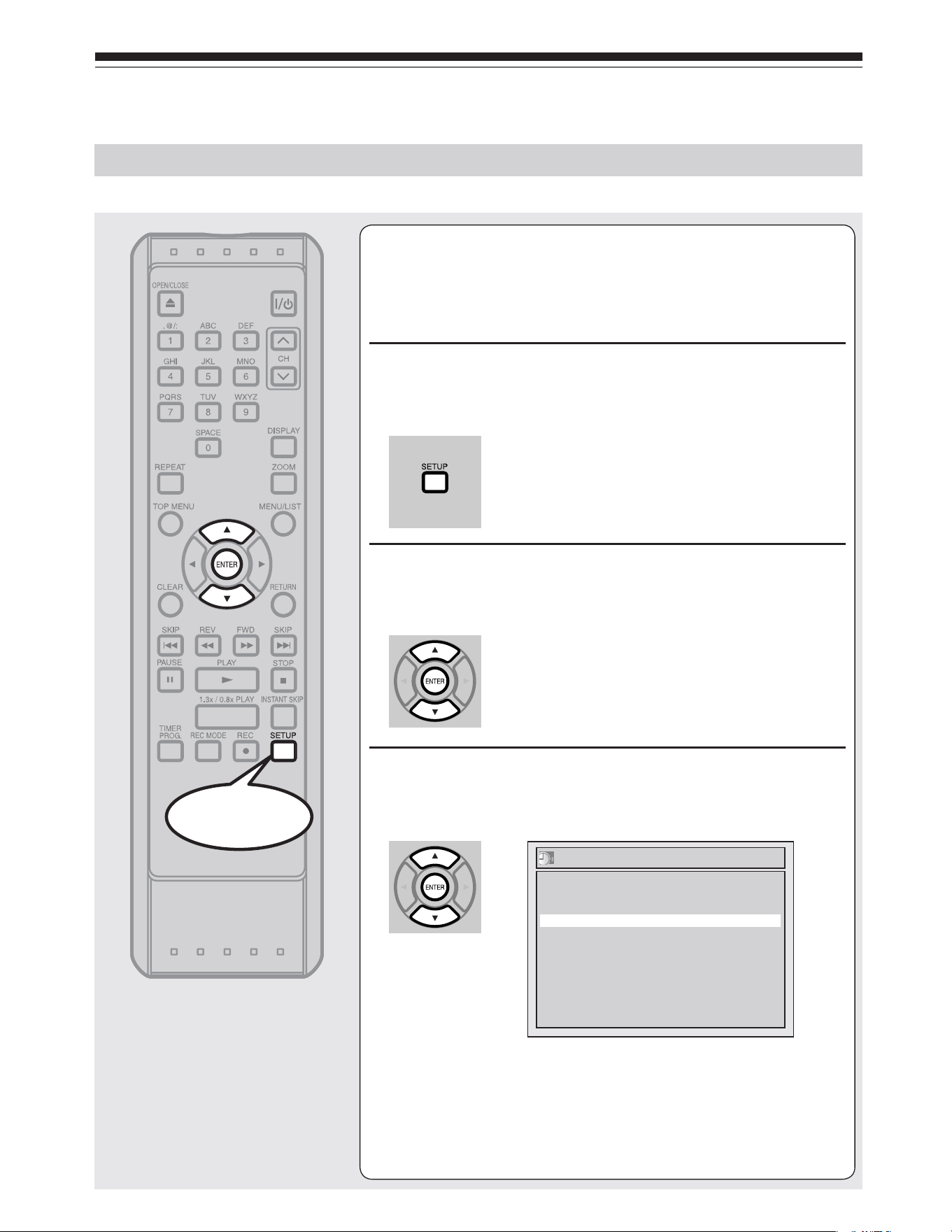

When “Daylight Saving Time” is “ON”, the unit clock will
automatically move forward one hour at 2:00a.m. on the
fi rst Sunday in April and move back one hour at 2:00a.m.
on the last Sunday in October.
“ON” has been selected as the default.
1
Press [SETUP].
2
Using [K / L], select “Clock”. Press [ENTER].
Clock menu will appear.
3
Using [K / L], select “Daylight Saving Time”.
Press [ENTER].
Option window will appear.
Start
Setting the Daylight Saving Time
Clock
Clock Setting
Auto Clock Setting
Daylight Saving Time
Auto
ON

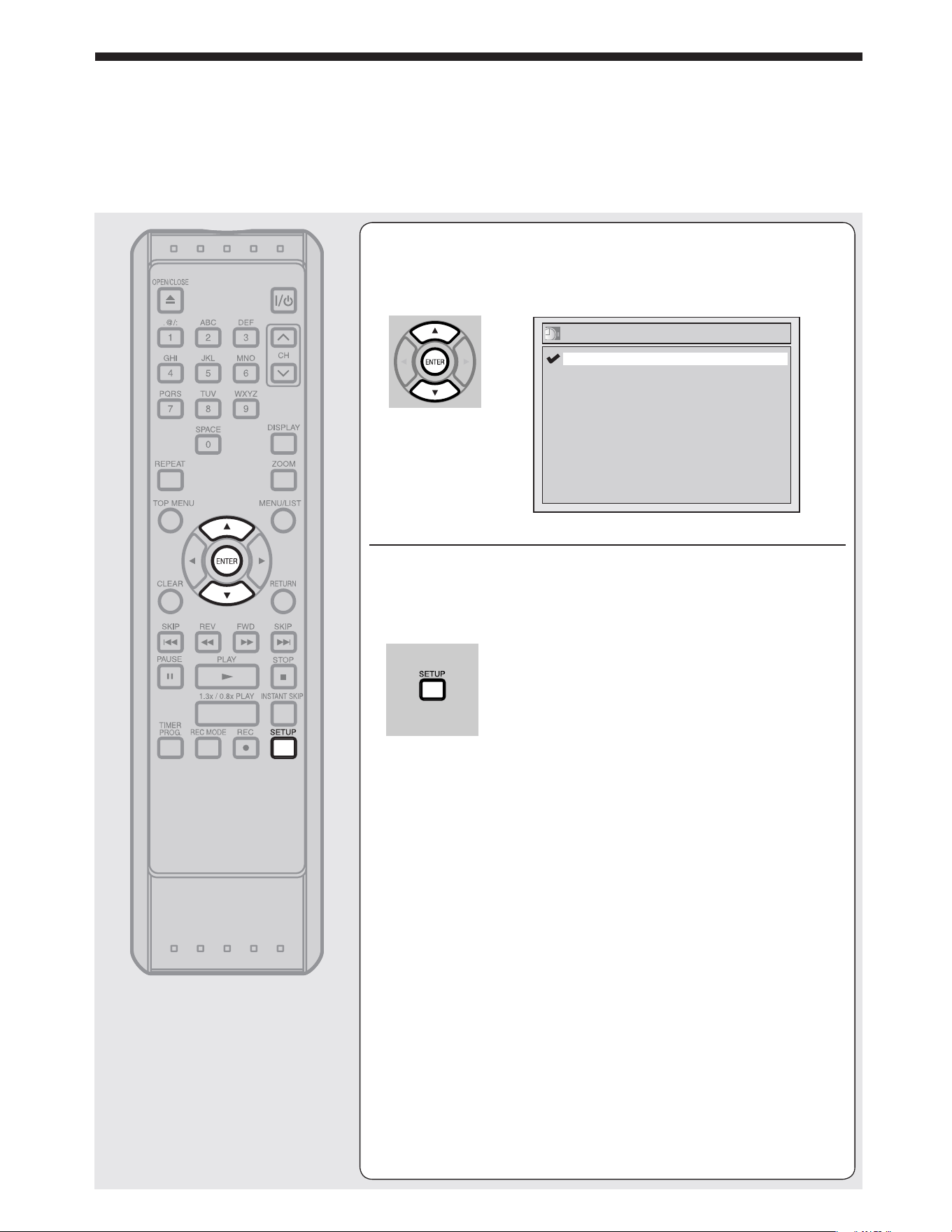

45
EN

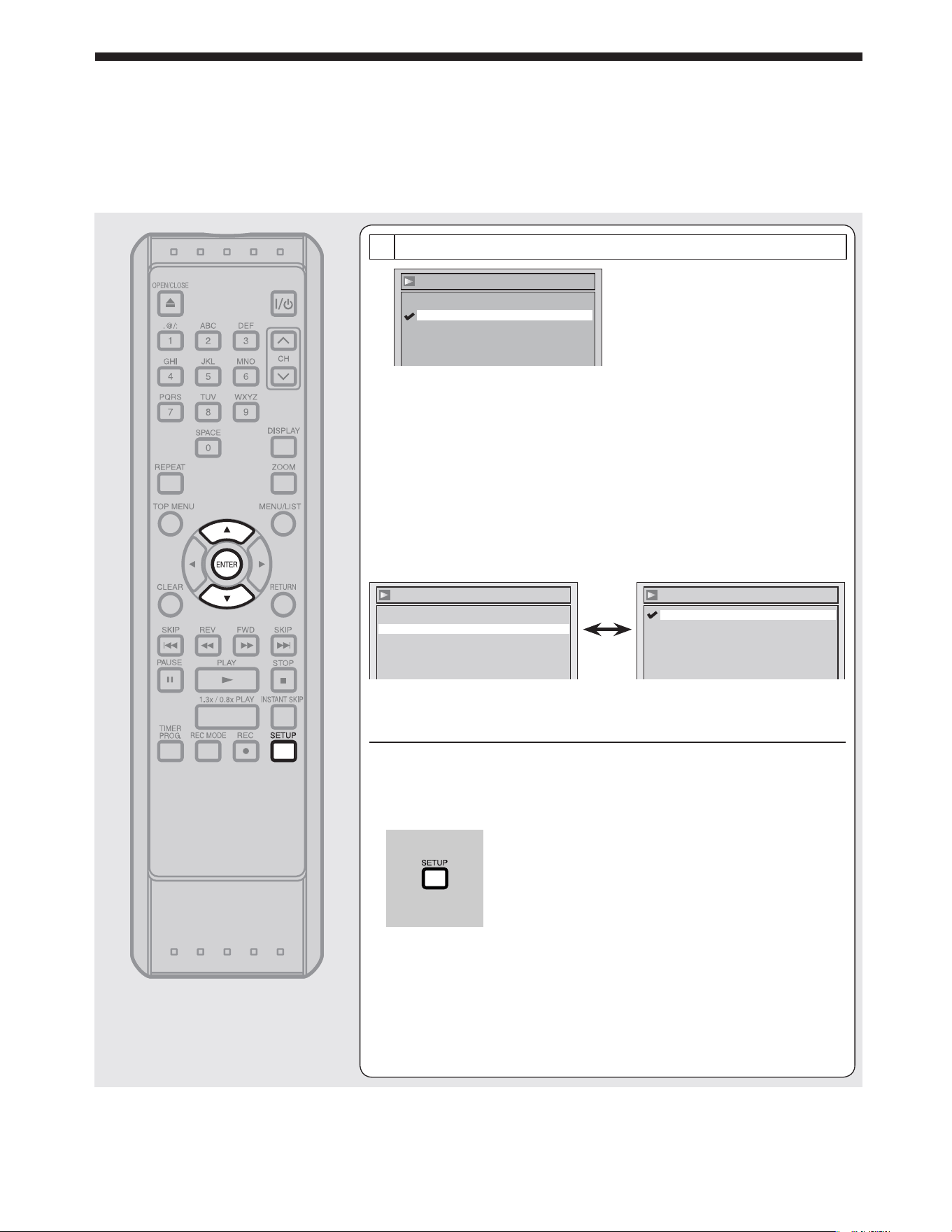

4
Using [K / L], select “ON” or “OFF”.
Press [ENTER].
Choose “ON” when currently observing the daylight saving time.
5
Press [SETUP] to exit.
Daylight Saving Time
OFF
ON
46
Basic Setup
EN

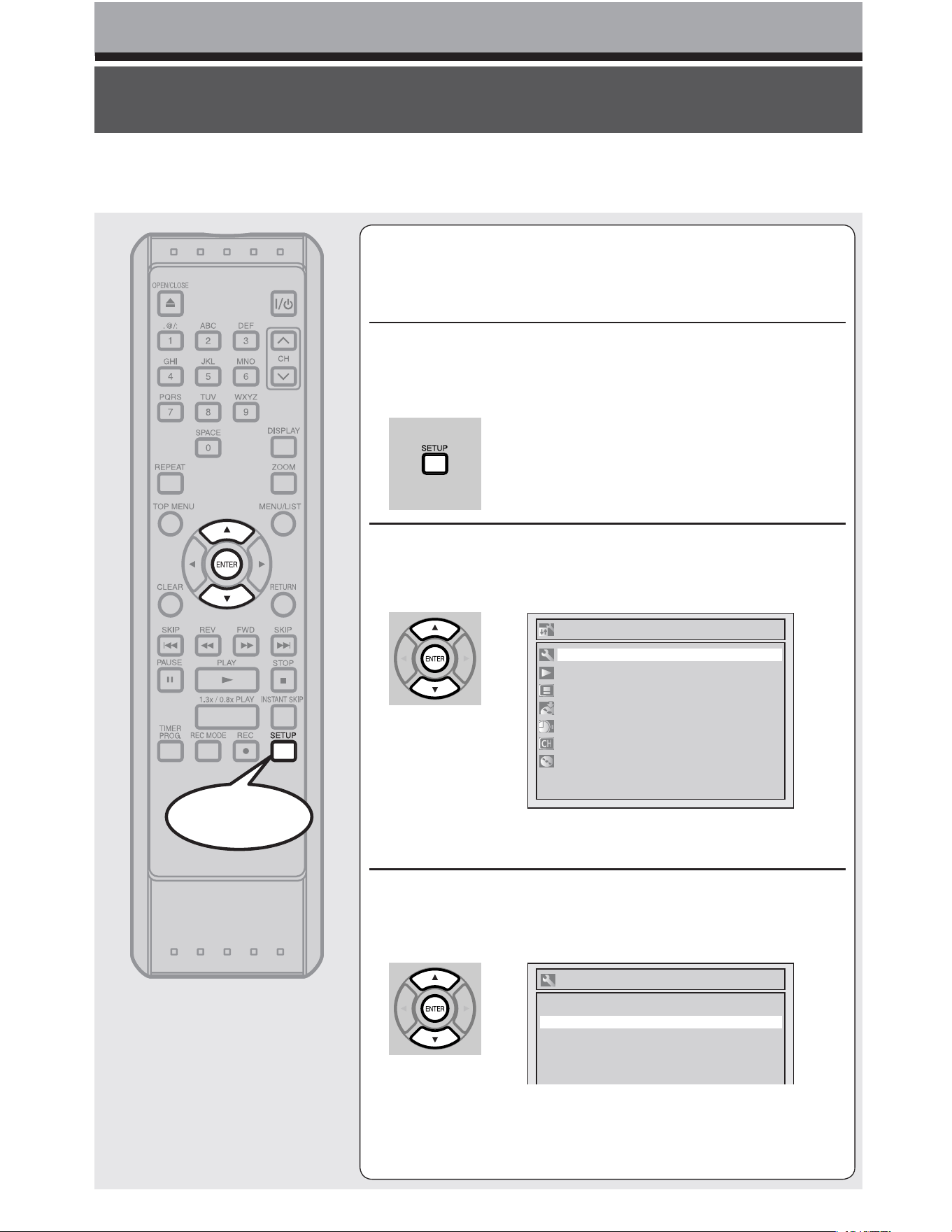

Selecting the TV aspect ratio
You can select the TV aspect ratio to match the formats
of what you are playing with the unit and your TV screen
(4:3 standard or 16:9 widescreen TV).
“4:3 Letter Box” has been selected as the default.
1
Press [SETUP].
2
Using [K / L], select “Required Setting”.
Press [ENTER].
Required Setting menu will appear.
3
Using [K / L], select “TV Aspect”.
Press [ENTER].
Option window will appear.
Start
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
Required Setting
TV Aspect
TV Audio Select
Select Video
4:3 Letter Box
Stereo
47
EN
Note
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the top and bottom of the screen. Select “4:3 Pan & Scan” for a full
height picture with both sides trimmed.
If you have a widescreen TV:
Select “16:9 Wide”.
4
Using [K / L], select a desired format.
Press [ENTER].
5
Press [SETUP] to exit.
TV Aspect
4:3 Pan & Scan
16:9 Wide
4:3 Letter Box
Recording
Recording variations for many types of programs or
situations.
● Information on DVD recording
● Selecting the Recording format
● Basic recording
● One-touch Timer Recording
● Timer Recording
● Settings for an external source
● Setting disc protection
● Finalizing the discs
Symbols in this Section
The following icons show the recordable discs for each
function described in this section.
: Video mode DVD-RW disc
: VR mode DVD-RW disc
: DVD-R disc
Most instructions are based on the remote control
operation, unless otherwise noted. You can use the
buttons on the remote control and those on the front
panel of the unit as well when they have the same
function.
50
Recording
EN
You cannot record copy-protected video using this unit. Copy-protected video includes DVD-Video discs, some
satellite broadcast, some pay-per-view stations and some “premium” stations.
If copy-protected material is encountered during a recording, recording will pause or stop automatically and
an error message will be displayed on the screen. Video that is “copy-once only” can only be recorded using
a DVD-RW disc in VR mode with CPRM (see below).
When recording a TV broadcast or through an external input, you can display copy control information on the screen.
What is “CPRM”?
CPRM is a copy protection system with scramble system regarding the recording of “copy-once” broadcast programs.
CPRM stands for Content Protection for Recordable Media.
This unit is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot make
another copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and
CPRM recordings can only be played on DVD players that are specifically compatible with CPRM.
Restrictions on recording

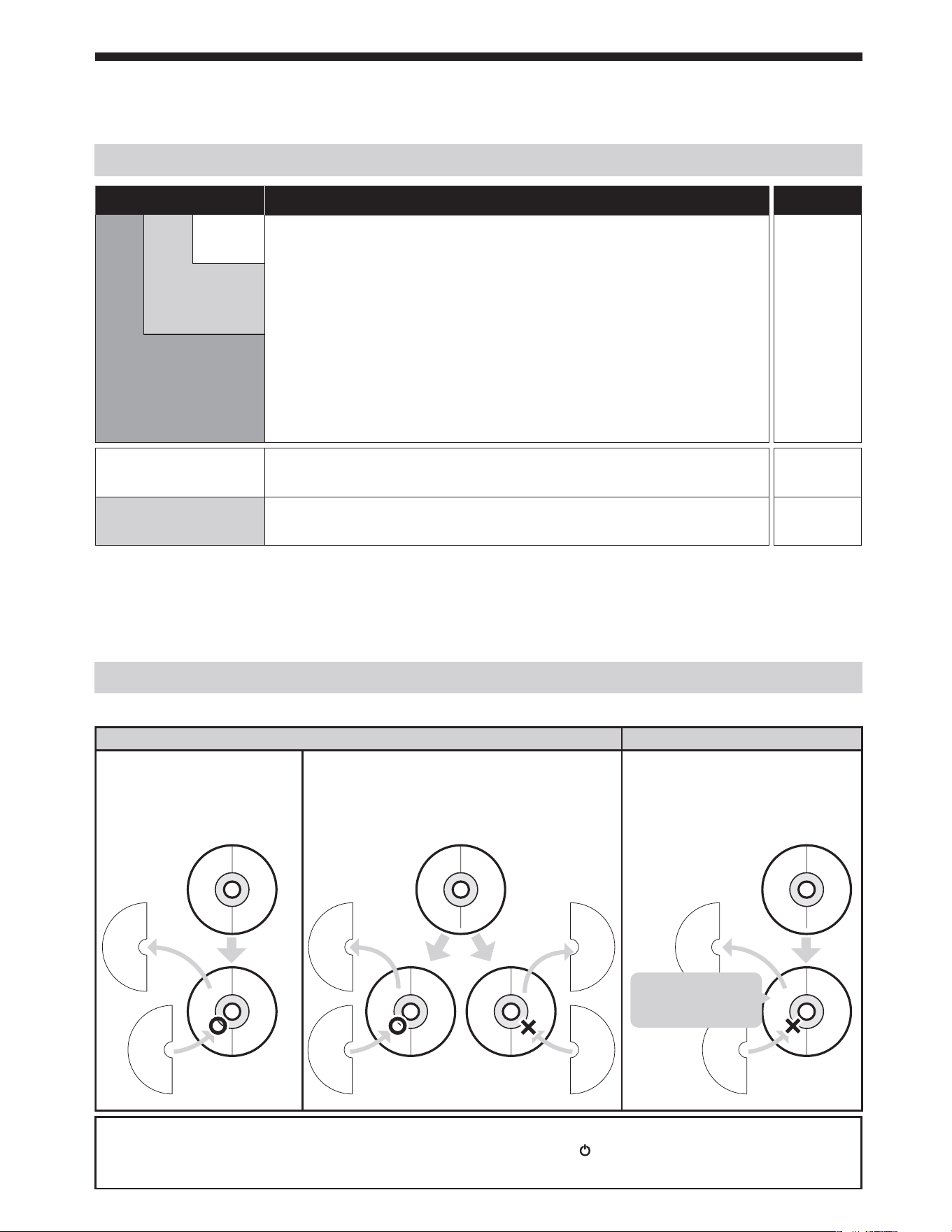

Information on DVD recording
This unit can record to DVD-R and DVD-RW discs.
DVD-R discs can only be recorded once, and cannot be erased. DVD-RW discs can be recorded and erased many
times.
DVD-R discs can only be recorded in Video mode, while DVD-RW discs can select a recording format between Video
mode and VR mode.
Logo Attributes
DVD-RW
8cm/12cm, single-sided, single layer disc
Approx. max. recording time (SEP mode):
600 minutes (4.7GB) (for 12cm)
180 minutes (1.4GB) (for 8cm)
DVD-R
Notes
• This recorder cannot record CD-RW or CD-R discs.
• DVD-RW/R and CD-RW/R discs recorded on a personal computer or a DVD or CD recorder may not play if the disc is
damaged or dirty or if there is dirt or condensation on the player’s lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may
not play because of the settings of the application software used to create the disc. (Check with the software publisher for
more detailed information.)
• Discs recorded in Video mode on this unit cannot record additionally using other DVD recorders.
• A DVD-RW disc formatted with this unit cannot be used in other DVD recorders without any recording using this unit.
• Since the recording is made by the variable bit rate (VBR) method, depending on the picture you are recording, the actual
remaining time for recording may be a little shorter than the remaining time displayed on the OSD.
Information
51
EN
Information on copy control
For recording copy protected contents, refer to the following.
Disc type/Format
Copy-
free
Copy-
once
Copy-
prohibited
DVD-RW
VR mode
ver.1.1,1.2
★
— —
ver.1.1,1.2 CPRM compatible
★ ★
—
Video mode
ver.1.1,1.2
★
— —
ver.1.1,1.2 CPRM compatible
★
— —
DVD-R
Video mode ver.2.0 ★ — —
★ Recordable — Not Recordable
Making discs playable in other DVD players (Finalize)
After recording, you must finalize the disc in order to play on other units. (Refer to page 74.)
After finalizing:
• Once DVD-RW/R (Video mode) is finalized, you can no longer record additional content or edit.
• Even if DVD-RW (VR mode) is finalized, you can record additionally or edit the disc.
• When DVD-RW/R (Video mode) is finalized, the Title menu will be created automatically.
To play in other DVD players, finalize discs recorded on this unit.
REC MODE
REC
CH
ON/STANDBY
I/
Finalizing*
This unit
DVD player
Playable
Not Playable
* You cannot finalize discs recorded in other DVD recorders.
52
Recording
EN

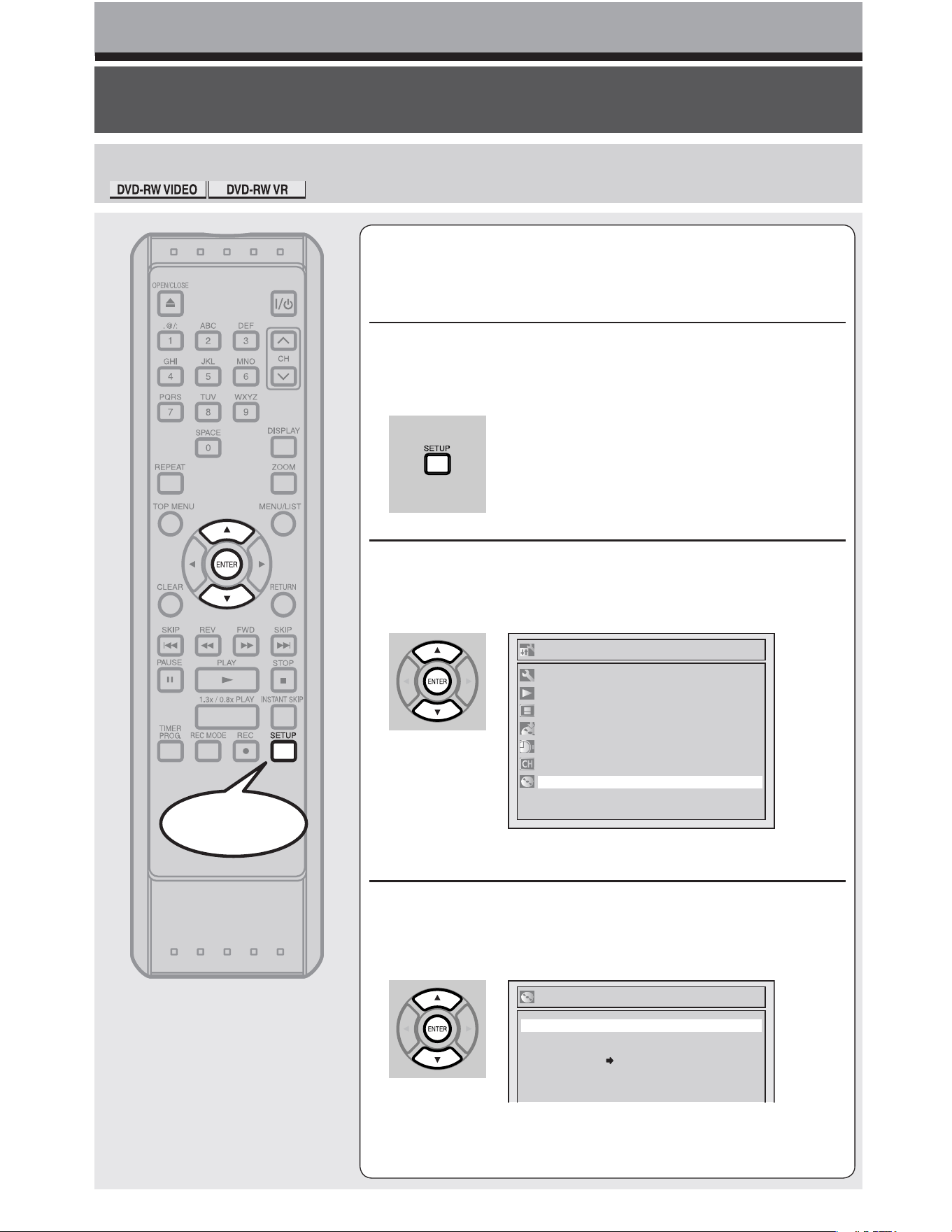

Selecting the Recording format
Choosing the recording format of a brand-new disc
When inserting a brand-new disc, the unit automatically
starts to format. You have to select your desired format
before inserting the brand-new disc. “Video mode” has
been selected as the default.
1
Press [SETUP].
2
Using [K / L], select “Disc”. Press [ENTER].
Disc menu will appear.
3
Using [K / L], select “Format”.
Press [ENTER].
Format menu will appear.
Disc
Format
Finalize
Disc Protect OFF ON
Start
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
53
EN

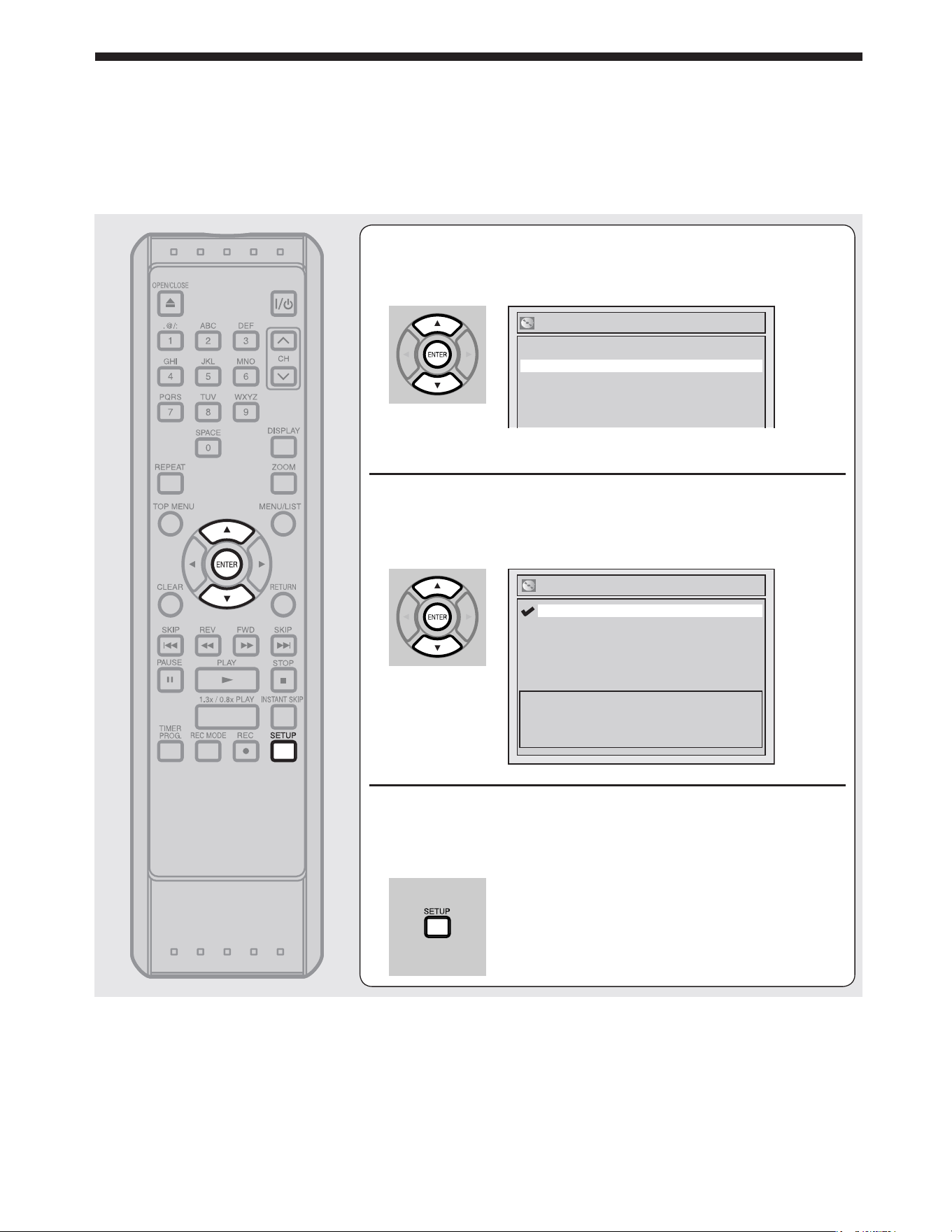

4
Using [K / L], select “Format Mode”.
Press [ENTER].
5
Using [K / L], select “Video mode” or
“VR mode”. Press [ENTER].
The recording format will be set.
6
Press [SETUP] to exit.
Format - Format Mode
VR mode
Video mode
Video mode
DVD Player Compatibility mode.
VR mode
Editing possibility mode.
Notes
• The recording format setting is effective only for DVD-RW discs. You cannot change the recording format on DVD-R discs.
DVD-R discs will always be in Video mode.
• You cannot mix two formats on one DVD-RW disc. When you load a disc once recorded before, the recording
format cannot be changed even if you change it in the Setup menu.
• When inserting a brand-new DVD+R or DVD+RW disc, the error message (“Disc Error”) will appear. This unit is not
compatible with a DVD+RW/R disc.
• Playlist will be created automatically when recording on DVD-RW in VR mode.
• A blank chapter may be created depending on the remaining time of the disc.
• When you format, the entire contents on that disc will be erased.
Format
Format Mode Video mode
Start
54
Recording
EN
Reformatting a disc
Selecting the Recording format (cont’d)
Setting for Auto Chapter
If you are using a DVD-RW disc, you can reformat the
disc.
1) Press [SETUP].
2) Using [K / L], select “Disc”. Press [ENTER].
Disc menu will appear.
3) Using [K / L], select “Format”. Press [ENTER].
Format menu will appear.
4) Using [K / L], select “Start”. Press [ENTER].
Confirmation window will appear.
5) Using [K / L], select “Yes”. Press [ENTER].
Formatting will start.
6) Formatting is complete.
“100%” will be indicated.
Notes
• When you reformat the disc, the contents of the disc will
be erased.
• If you want to cancel format at step 5, select “No” with
[K / L].
Format
Format Mode Video mode
Start
Format
Format mode Video mode
Start
Are you sure?
Yes
No
You can set a specified time for chapter marks.
“10 minutes” has been selected as the default.
1) Press [SETUP].
2) Using [K / L], select “Recording”. Press
[ENTER].
3) Using [K / L], select “Auto Chapter”. Press
[ENTER].
Option window will appear.
4) Using [K / L], select a desired time. Press
[ENTER].
5) Press [SETUP] to exit.
Notes
• The interval for chapter marks may slightly deviate from
the one you specified on the Auto chapter screen.
• A blank chapter may be created depending on the
remaining time of the disc.
Recording
Recording Audio Select (XP)
Auto Finalize
Auto Chapter
Dolby Digital
10 minutes
Auto Chapter
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
OFF
This operation may take a while
to be completed.
55
EN
Recording Audio Select (XP)
You can enjoy high quality sound recording. This
function works only when the recording mode is set at
XP. “Dolby Digital” has been selected as the default.
1) Press [SETUP].
2) Using [K / L], select “Recording”. Press
[ENTER].
Recording menu will appear.
3) Using [K / L], select “Recording Audio Select
(XP)”. Press [ENTER].
Option window will appear.
4) Using [K / L], select “PCM”or “Dolby
Digital”. Press [ENTER].
Your setting will be activated.
PCM:
Records PCM audio for the best quality sound.
Dolby Digital:
Records Dolby Digital audio for good quality sound.
5) Press [SETUP] to exit.
Setup
Playback
Display
Recording
Clock
Channel
Disc
Required Setting
Recording Audio Select (XP)
Auto Finalize
Auto Chapter
Dolby Digital
10 minutes
Recording
PCM
Dolby Digital
Recording Audio Select (XP)
Notes
• “PCM” stands for Pulse Code Modulation. It changes
analog sound to digital sound without compressing audio
data.
• When the recording mode is set to other than XP, the unit
records “Dolby Digital” audio automatically even if you
selected “PCM”.
56
Recording
EN

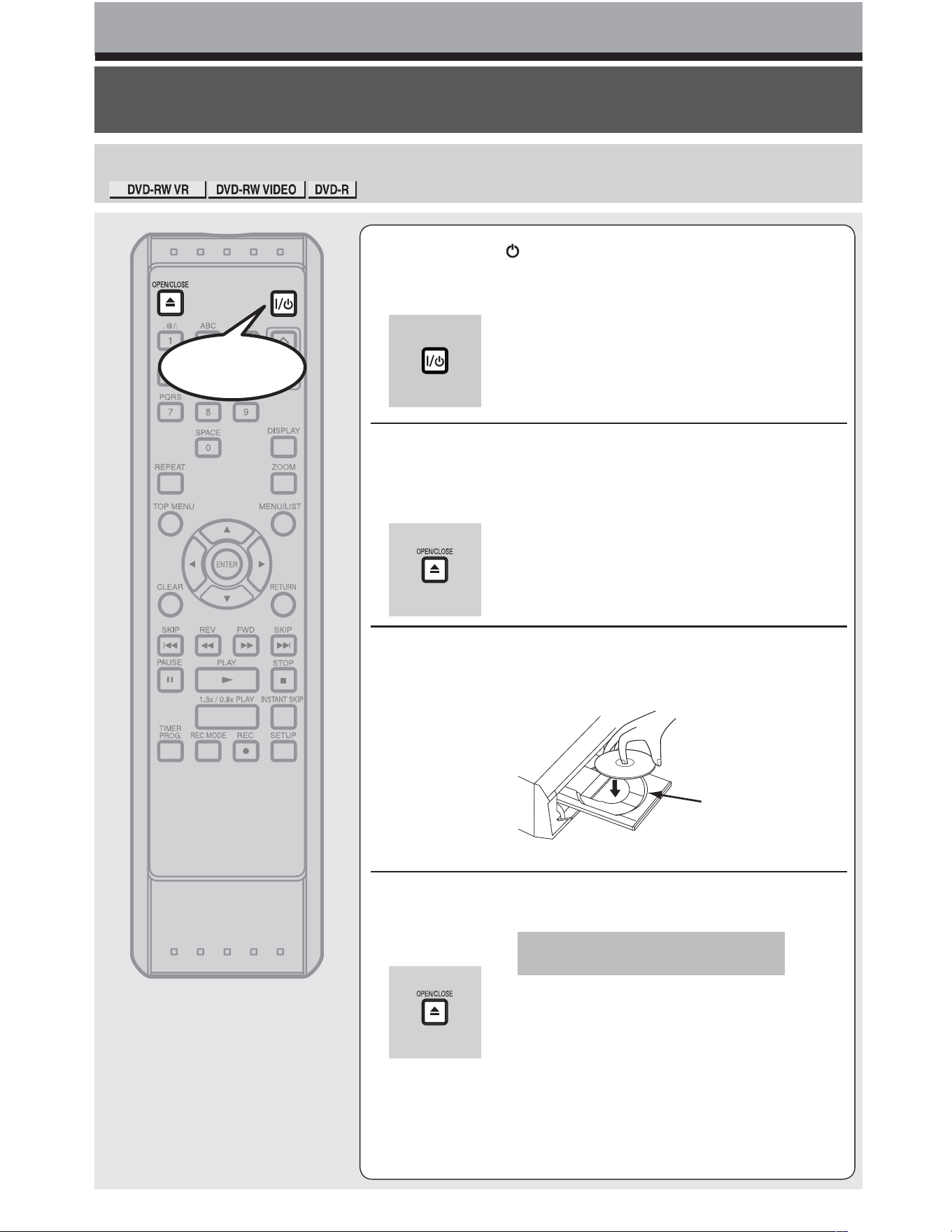

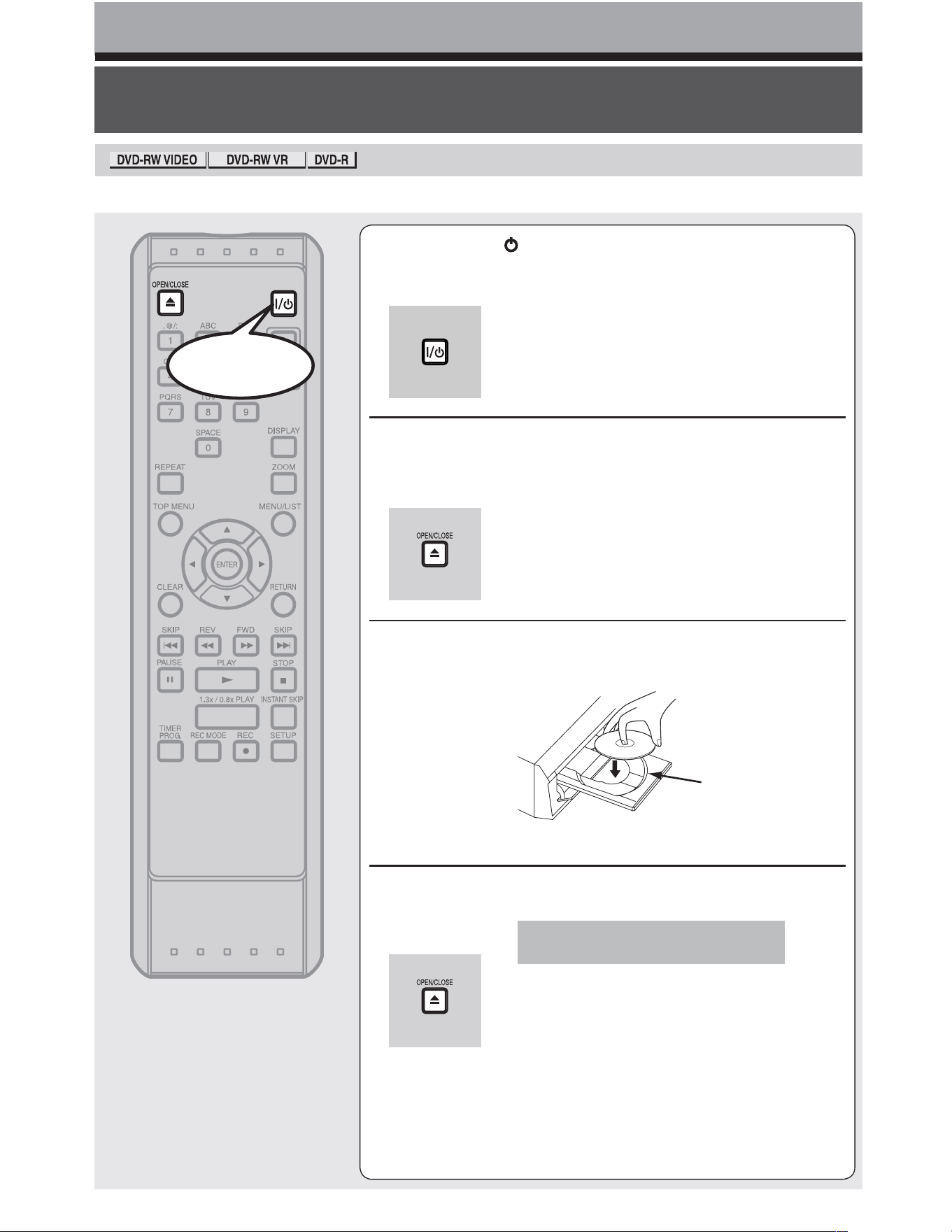

Basic recording
1
Press [I/ ON/STANDBY].
Turn the TV on and be sure to select the input to which the unit
is connected.
2
Press [OPEN/CLOSE A] .
The disc tray will open.
3
Insert your disc with its label facing up. Align
the disc to the disc tray guide.
4
Press [OPEN/CLOSE A] to close the disc tray.
This operation may take a while to
be recognized.
disc tray
guide
Start
57
EN

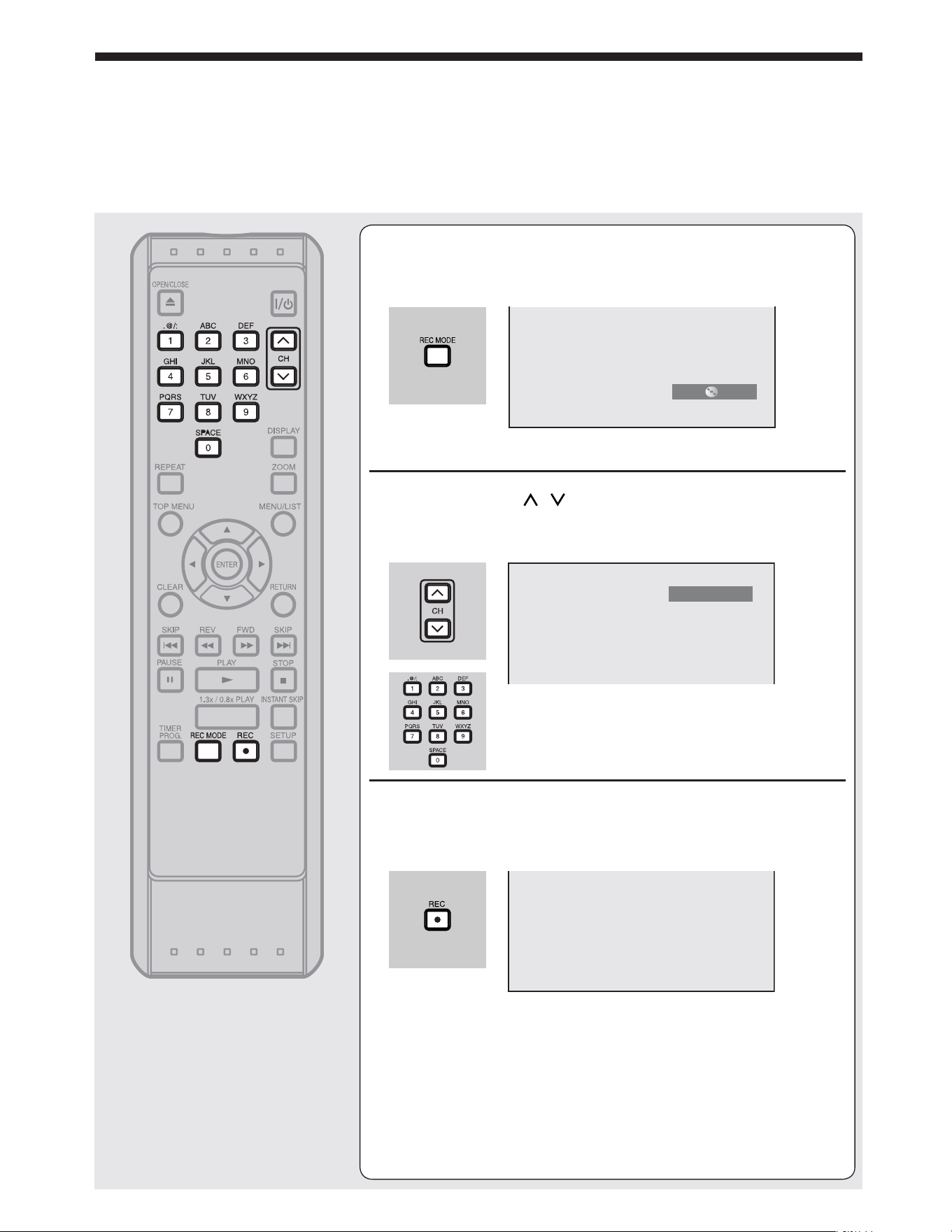

5
Using [REC MODE], select a recording mode.
Refer to “Recording Mode” on page 65.
6
Using [CH / ] or the Number buttons,
select a desired channel to record.
7
Press [REC I] to start recording.
“I” mark will be displayed for 5 seconds.
Press [PAUSE F] to stop recording temporarily.
Press [PAUSE F] or [REC I] again to start recording again.
(Continued)
XP 0:58
CH 12
I
58
Recording
EN
Basic recording (cont’d)
8
Press [STOP C] to stop recording.
This operation may take a while
to be completed.
Notes
• Recording starts immediately and continues until the disc is full or you stop recording.
• When the clock setting has not been made, the space for a date and time of title names in the Original list or Playlist will be
blank.
• When you record a TV program which has Stereo and SAP audio on a DVD-RW/R, you have to select the TV channel
audio (Stereo or SAP) beforehand. Only the selected channel audio will be recorded. Refer to “Selecting TV stereo or SAP”
on page 36 for more details.
• You cannot mix two formats on one DVD-RW disc. When you load a disc once recorded before, the recording
format cannot be changed even if you change it in the Setup menu.
• You cannot change the recording mode during the REC pause mode.
• You can change a channel during the REC pause mode.
59
Recording
EN

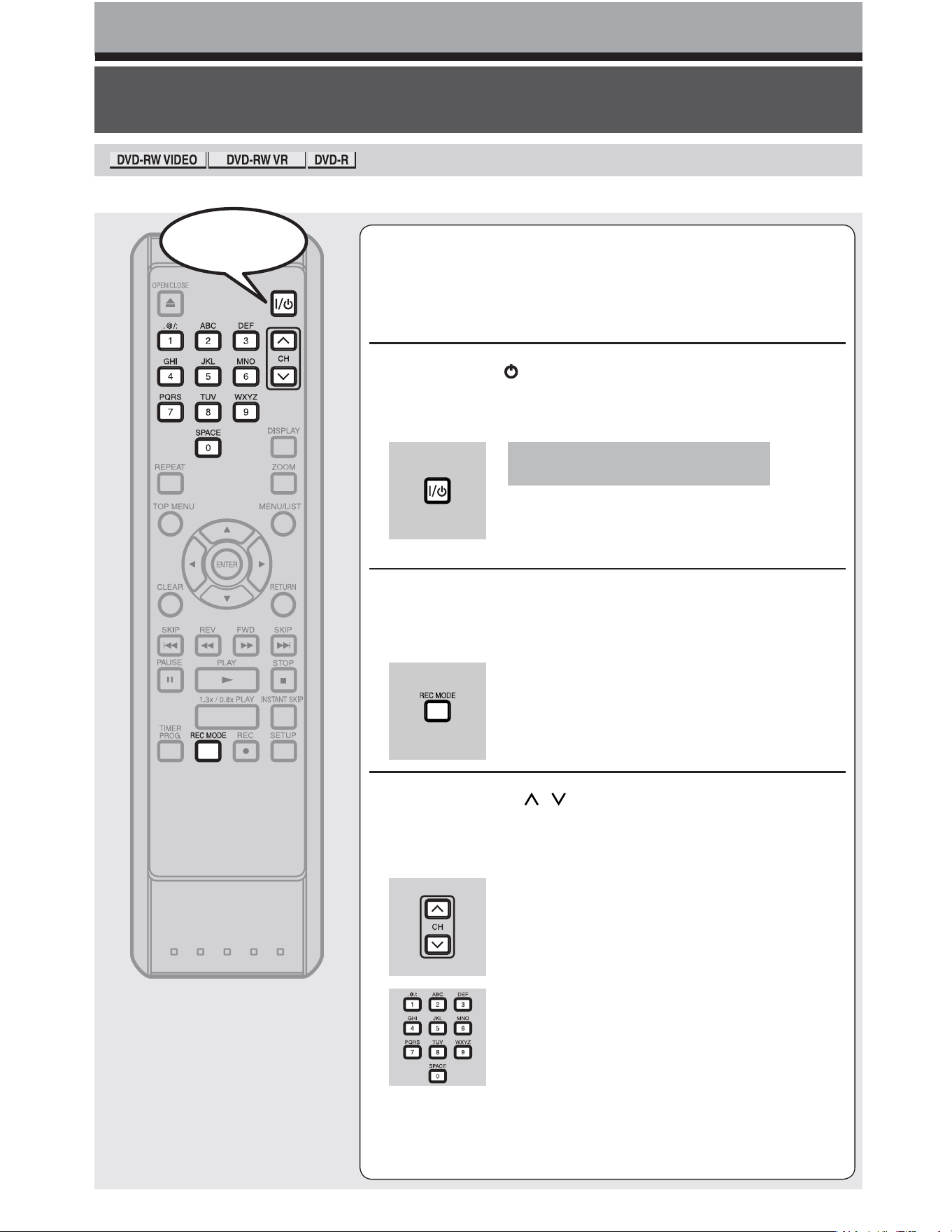

One-touch Timer Recording
This is a simple way to set the recording time in blocks
of 30 minutes. Check that the disc you are recording onto
has enough space for the time you set.
When the recording fi nishes the recorder automatically
goes into standby.
1
Press [I/ ON/STANDBY] to turn on the unit
and load a recordable disc.
Make sure that the TV input is set on the unit.
2
Using [REC MODE], select a recording mode.
Refer to “Recording Mode” on page 65.
3
Using [CH / ] or the Number buttons,
select a desired channel to record.
(Continued)
This operation may take a while
to be recognized.
Start
60
Recording
EN

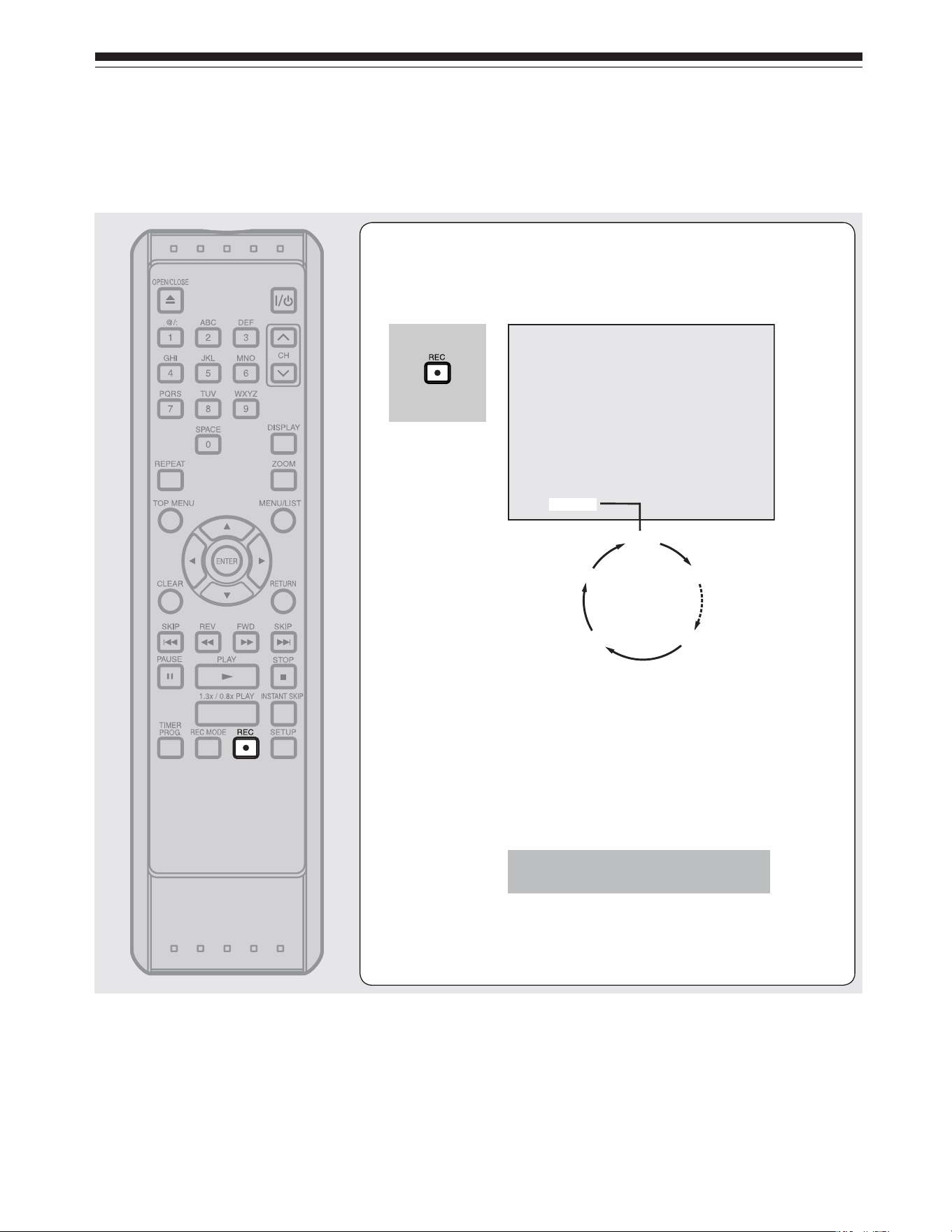

One-touch Timer Recording (cont’d)
4
Press [REC I] repeatedly to select desired
recording time.
Recording times appear on the TV screen (30 minutes to 8
hours). Recording will start.
When the unit reaches the specified time, it will be turned off
automatically.
To change the recording length during the One-touch Timer
Recording, press [REC I] repeatedly until the desired length
appear.
To cancel the One-touch Timer Recording within the specified
time, press [STOP C ] .
0:30
(Normal Recording)
8:00 7:30
1:00
I
0:30
This operation may take a while
to be completed.
Notes
• The remaining recording time will appear on the front panel display during a One-touch Timer Recording. Press
[DISPLAY] to see it on the TV screen.
• You cannot pause a One-touch Timer Recording.
• Unlike a Timer Recording, you can perform the following operations during a One-touch Timer Recording.
-Turning the power off
-Using [REC I] and [STOP C]
• The unit will be turned off automatically under the following conditions.
1)No space remained on the disc
2)When a power failure occurs
61
Recording
EN

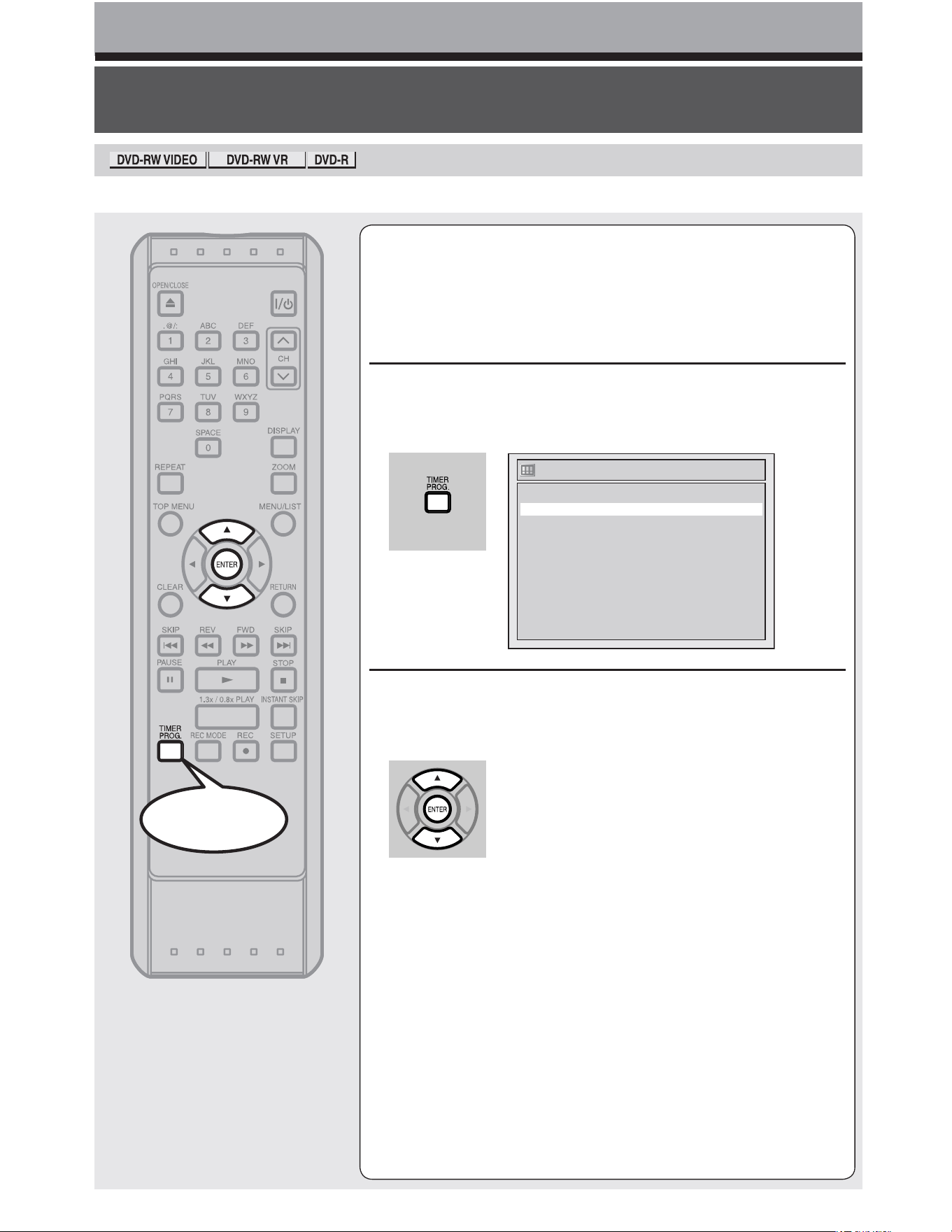

Timer Recording
You can program the unit to record up to 8 programs
within a month in advance. Daily or weekly program
recordings are also available.
• Be sure to set the clock before setting a timer
programming.
• Insert a recordable disc.
1
Press [TIMER PROG.].
Timer Programming list will appear.
2
Using [K / L], select a program number.
Press [ENTER].
(Continued)
Start
Timer Programming
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
1. ---
Date Start End CH Mode
62
Recording
EN

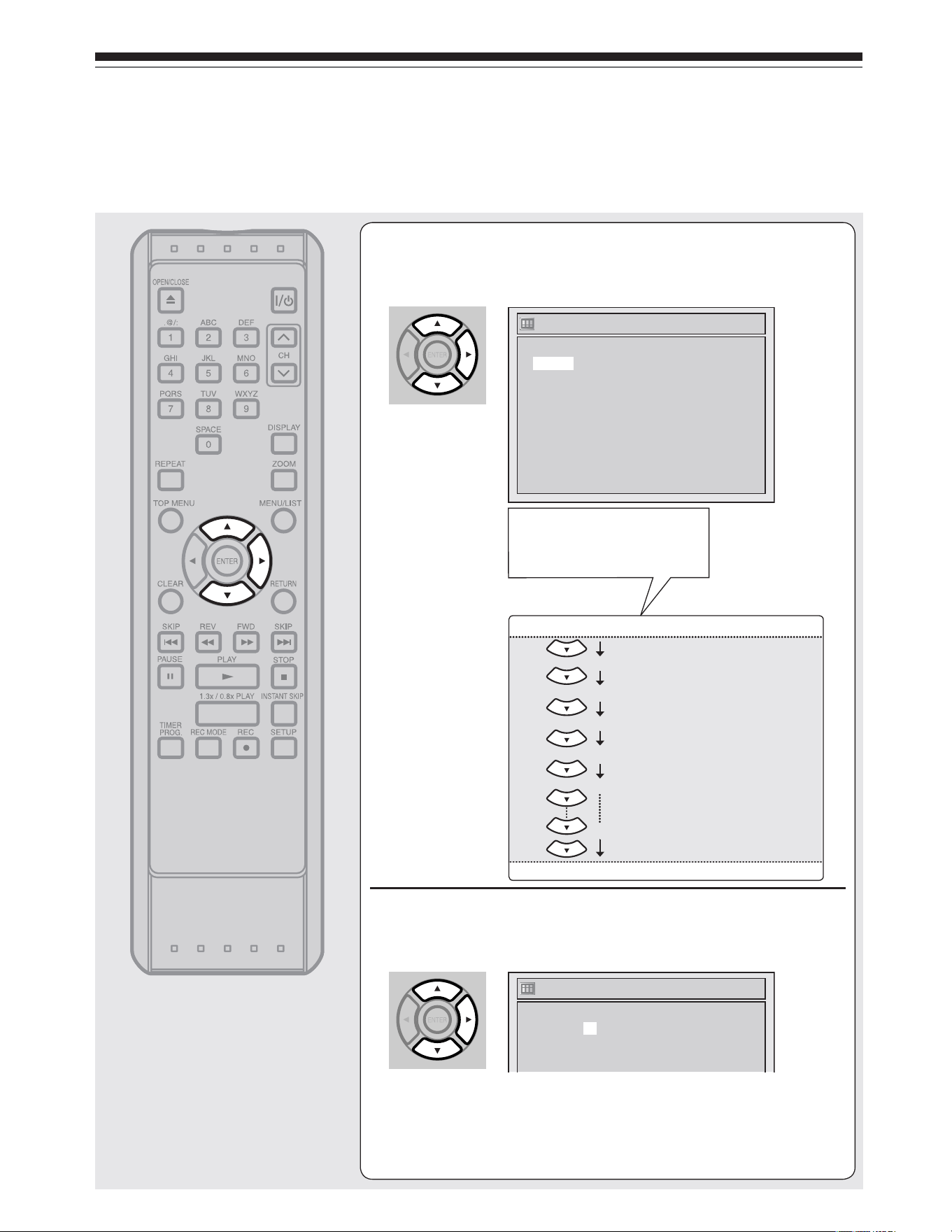

Timer Recording (cont’d)
3
Using [K / L], enter the Date.
Press [B].
<e.g. January 1st>
4
Using [K / L], enter the Start and End.
Press [B].
• 0:00 will be displayed as 12:00 AM.
Timer Programming
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
1. JAN/01 --:-- --:-- L1
Date Start End CH Mode
Daily (Everyday)
MON-SAT (Monday to Saturday)
JAN/01
JAN/31 (one month later minus one day)
MON-FRI (Monday to Friday)
SAT (Saturday)
FRI (Friday)
SUN (Sunday)
When pressing [L] at the
current date, The Date will
change as follows.
Timer Programming
2. ---
3. ---
1. JAN/01 12:57AM --:-- L1
Date Start End CH Mode
63

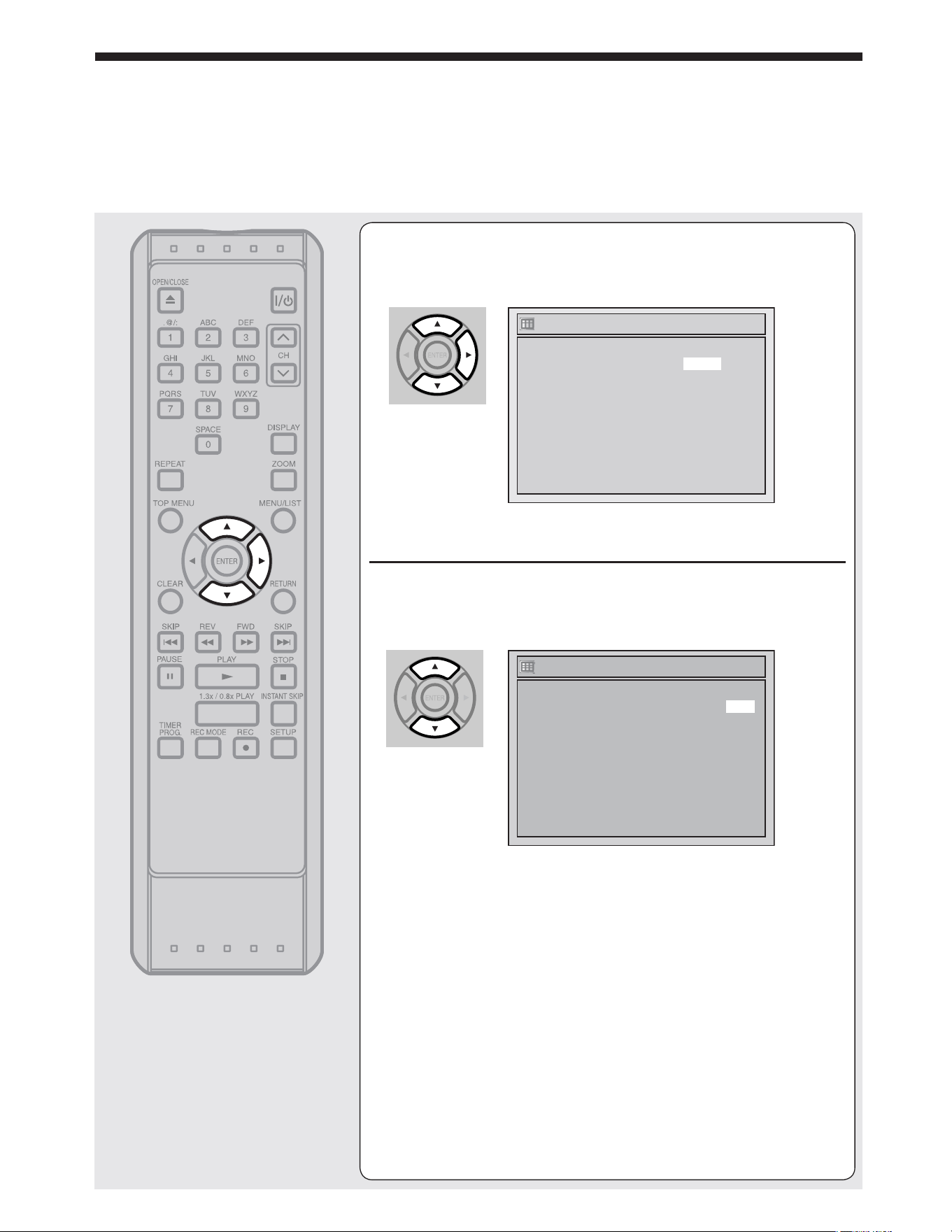

EN
5
Using [K / L], select the channel number to
record. Press [B].
To record from external input, select L1 or L2, which is
found at the before channel 1.
6
Using [K / L], select a recording mode.
Refer to “Recording Mode” on page 65.
If you choose “Auto”, the unit automatically selects the best
recording mode to make the best quality picture according to
the remaining disc space.
• This function works only on the 1 program.
• The recording may be cut short, when the available recording
space of the disc is too limited.
(Continued)
Timer Programming
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
1. JAN/01 12:57AM 1:57AM CH 8
Date Start End CH Mode
Timer Programming
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
1. JAN/01 12:57AM 1:57AM CH 8 Auto
Date Start End CH Mode
64
Recording
EN
Timer Recording (cont’d)
Notes
• If you have not set the clock yet:
A manual clock setting menu will appear instead of the Timer Programming list at step 1. Continue with step 4 in “Manual
Clock Setting” on page 41 before setting a timer programming.
• Press [s / B] to move the cursor to the left and the right in the Timer Programming list.
• After step 8, the recording will start immediately before the recording time you set.
7
Press [ENTER] when information is entered.
Your program setting will be stored.
• To set another program, repeat steps 2 to 7.
• To exit, press [TIMER PROG.] or [SETUP].
• When two or more programs are overlapped,
“Overlap” and the overlapped program number
will appear on the TV screen.
8
Press [I/ ON/STANDBY] to go into the timer
standby mode.
indicator will appear on the front panel display, while this
unit waits to make the recording.
• Timer Recording will not work when the power is on.
• When power is on, programs registered for recording in Timer
Recording will be automatically cleared after the end time and
date have passed.
To stop the Timer Recording in process:
Press [STOP C] on the front panel of the unit.
[STOP C] on the remote control is not
effective.
65
EN
■ Recording Mode
You can select a recording mode among 6 options, and the recording time will depend on the recording mode you
select as follows.
* Discs recorded in SLP or SEP on this recorder may not be played back on other DVD recorders or DVD
players.
Disc Size
Recording
mode
Recording
time
Video/Sound
Quality
8cm Disc
XP 18 min
★★★★★★
SP 36 min
★★★★★
LP 72 min
★★★★
EP 108 min
★★★
SLP 144 min
★★
SEP 180 min
★
12cm Disc
XP 60 min
★★★★★★
SP 120 min
★★★★★
LP 240 min
★★★★
EP 360 min
★★★
SLP 480 min
★★
SEP 600 min
★
• The recording times listed above are estimates and are for reference purposes only. Actual recording times may
vary.
• The audio and video quality of content being recorded may degrade depending on the Recording mode/Recording
time chosen.
• Each time [REC MODE] is pressed, recording mode and its allowed recording time will be displayed.
66
Recording
EN
Timer Recording (cont’d)
Checking, canceling, or correcting
the timer programming
information
1) Press [I/ ON/STANDBY].
indicator disappears from the front panel display.
2) Press [TIMER PROG.].
Timer Programming list will appear.
3) Check the information on the list to be edited.
4) To clear the timer programming:
Using [K / L], select your desired program.
Press [CLEAR].
To correct the timer programming:
Using [K / L], select your desired program. Press
[ENTER].
Then, correct the timer programming by using
[K / L / { / B].
Press [ENTER] again.
5) Press [TIMER PROG.] to exit.
6) Press [I/y ON/STANDBY] to return to the timer
standby mode.
To stop the Timer Recording in process:
Press [STOP C] on the front panel of the unit.
[STOP C] on the remote control is not effective.
If the timer program did not complete correctly,
the error number appears in the Timer
Programming list.
Press [CLEAR] to erase the selected
program.
Each error number means:
E1-22
E37-39
Recording error
other than below
E35 PCA full
E36 Already finalized
Video format disc
E23-24 Unrecordable disc
E25-28 Copy prohibited
program
E40 Some portion has
not been recorded
because of
program
overlapping.
Recording did not
start at the start
time.
E29 Disc protected
E30 Disc full
E31-32 Already 99 titles
recorded
E33 Already 999
chapters recorded
E41 Power failed
E34 No space for
Control information
E42 No disc when
recording
• A program with the error number is grayed and
asterisked in the Timer Programming list.
• Once the Timer Programming list with error line(s)
is displayed, or after canceling and setting the timer
standby mode again, the program line(s) with error
will be cleared.
• When the timer programming list with error line(s)
is displayed by pressing [TIMER PROG.], pressing
[TIMER PROG.] again will clear the timer
programming.
Note
• Press [TIMER PROG.] to check the timer programming in
progress.
When the Timer Recording is proceeding, that program
will be highlighted in red.
Timer Programming
2. ---
3. ---
4. ---
1. JAN/01 12:57AM 1:57AM CH8 XP
Date Start End CH Mode
Timer Programming
2.
*
---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
JAN/01 12:57AM 1:57AM CH8 E22
Date Start End CH Mode
67
EN
Hints for Timer Recording
• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer
programming will be lost.
• If a disc is not on the tray, the indicator flashes and Timer Recording cannot be performed. In some cases, the
indicator appears momentarily around the start point as the unit attempts to record. Please insert a recordable disc.
• When all the Timer Recording is completed, the indicator flashes. To play or eject the recorded disc, press
[I/ ON/STANDBY] first, and then press [PLAY B] or [OPEN/CLOSE A].
• During the Timer Recording or timer standby ( indicator will appear on the front panel display), any operations on the
unit will not be available. To make these operations available, cancel the Timer Recording or timer standby first (
indicator disappears).
• To cancel the timer standby mode, press [I/ ON/STANDBY].
• When the Start and the End time are the same, the length of the recording will be set for 24 hours. When the disc
reaches the end during the recording, the unit turns itself off.
• When the programmed Start and End time are earlier than the current time, the setting will not be accepted and be
cleared for redoing.
• If the Start time is earlier and the End time is later than the current time, the recording will start right after you turn the
power off.
■ The priority of overlapped settings
This unit records the programs according to priority if the timer programmings are overlapped. The timer
programming set previously has priority.
A Timer Recording of lower priority will be canceled, start from the middle or stop on the way.
Check the overlapped timer programmings and change the priority if necessary.
■ A programming set previously has priority
•
When the starting time is same:
A program set previously (PROG. A) has priority.
PROG. A
PROG. B
Actual
recording
PROG. A
PROG. B
The first 30 seconds (approx.) will be cut off.
•
When some programming have been made at
the end time of the programming currently
being recorded:
A program set previously (PROG. B) has priority.
PROG. A
PROG. B
PROG. C
Actual
recording
PROG. A PROG. B
The first 30 seconds (approx.) will be cut off.
•
When the recording time is partially overlapped:
PROG. A will start after PROG. B is complete to be
recorded.
PROG. A
PROG. B
Actual
recording
PROG.B
PROG.A
The first 30 seconds (approx.) will be cut off.
•
When the recording time is entirely overlapped:
PROG.A will be recorded.
PROG. A
PROG. B
Actual
recording
PROG. B
•
When the End time of the programming
currently being recorded and the Start time of
the subsequent program are same:
the beginning of the PROG. B may be cut off.
PROG. A
PROG. B
Actual
recording
PROG. A PROG. B
The first 30 seconds (approx.) will be cut off.
■ Notes for DVD recording
• When the recording time of two programs are
overlapped, or the End time of a program and the Start
time of another is the same, the first 30 seconds
(approx.) of the subsequent program will be cut off.
• If the cut-off portion comes up to one minute or more,
this program will be displayed with error number E40 in
the timer programming list.
68
Recording
EN

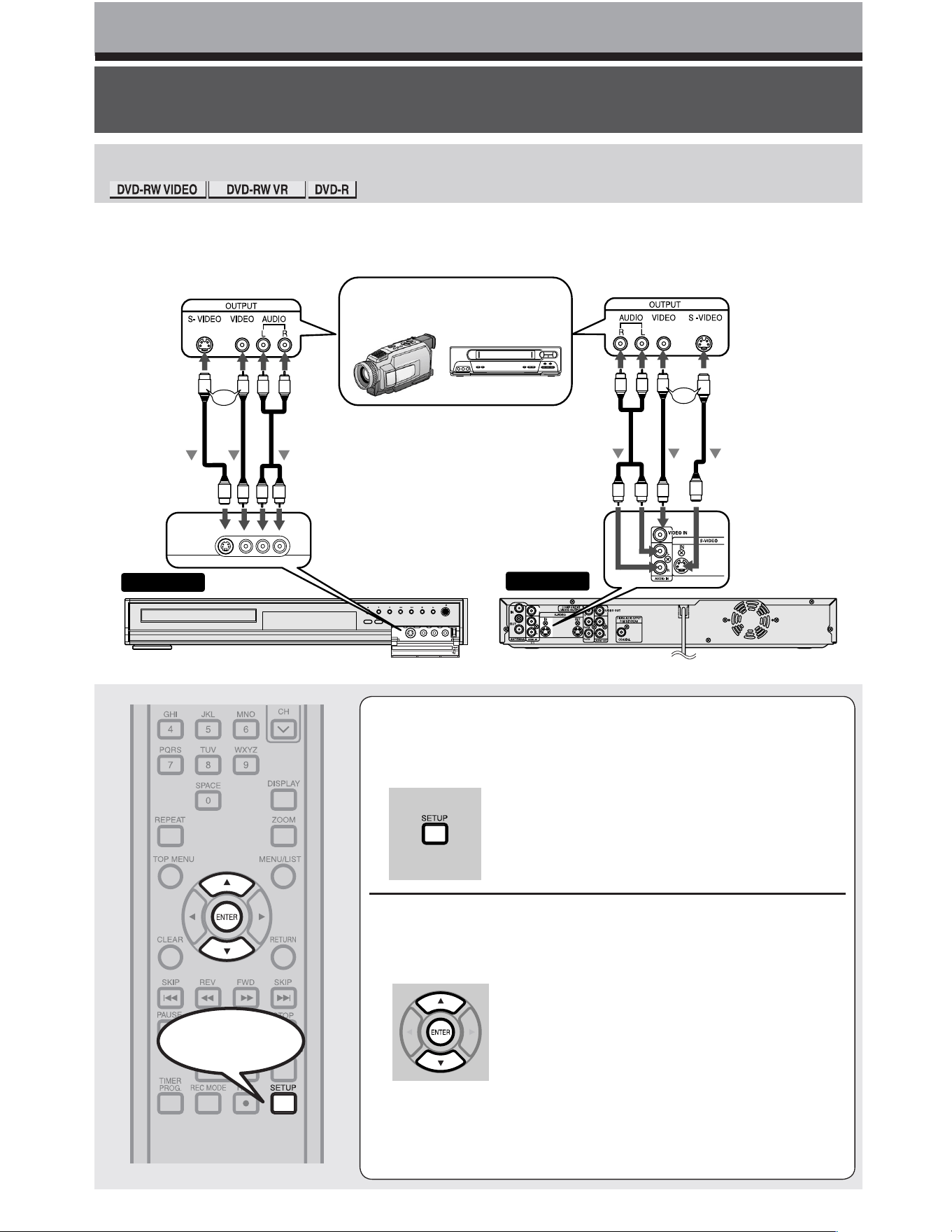

Settings for an external source
Connection to an external source
1
Press [SETUP].
2
Using [K / L], select “Required Setting”.
Press [ENTER].
Start
Connect the external source properly to the unit by using input jacks either LINE2 (Front) or LINE1 (Rear).
When connecting an external equipment with monaural output to this unit, use AUDIO L jack of LINE2 (Front).
Use S-Video or Video cable and an Audio cable (commercially available) for this connection.
I/
REC MODE
REC
CH
ON/STANDBY
S-VIDEO VIDEO LL2 R
*S-Video
cable
Another source
(VCR camcorder etc.)
*Video
cable
*Audio
cable
To LINE 2 IN
Front of this unit
or
*S-Video
cable
*Video
cable
*Audio
cable
To LINE 1 IN
Back of this unit
or
or
*Commercially
available
69
EN

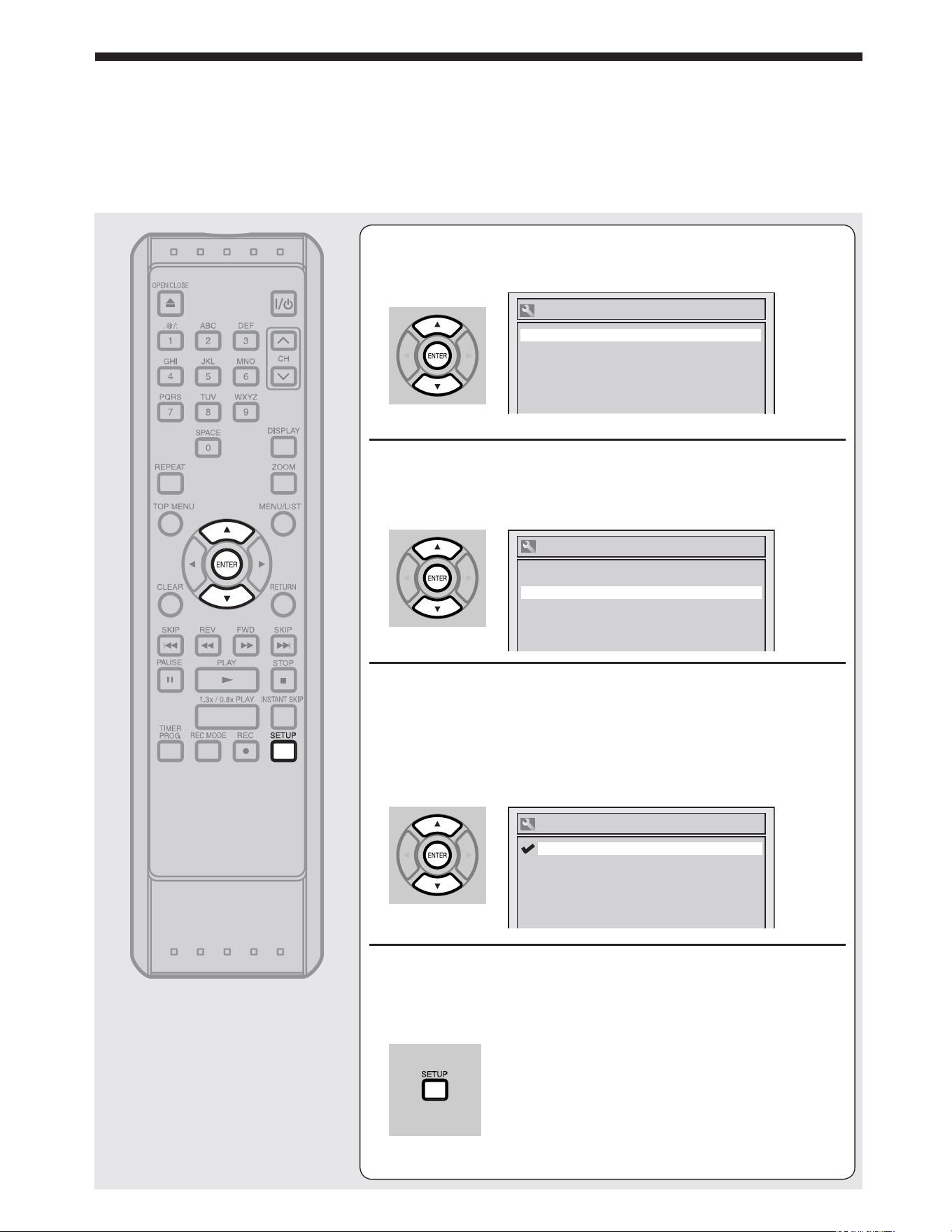

3
Using [K / L], select “Select Video”.
Press [ENTER].
4
Using [K / L], select “L2 (Front)” or
“L1 (Rear)”. Press [ENTER].
5
Using [K / L], select the input jack type to
connect. Press [ENTER].
If you want to use S-VIDEO input jack, select “S-Video In”.
If you want to use VIDEO input (Composite) jack, select
“Video In”.
<e.g. L2 (Front)>
6
Press [SETUP] to exit.
Select Video
L2 (Front) Video In
L1 (Rear) Video In
Select Video - L2 (Front)
S-Video In
Video In
Select Video
TV Aspect
TV Audio Select
Required Setting
4:3 Letter Box
Stereo
70
Recording
EN

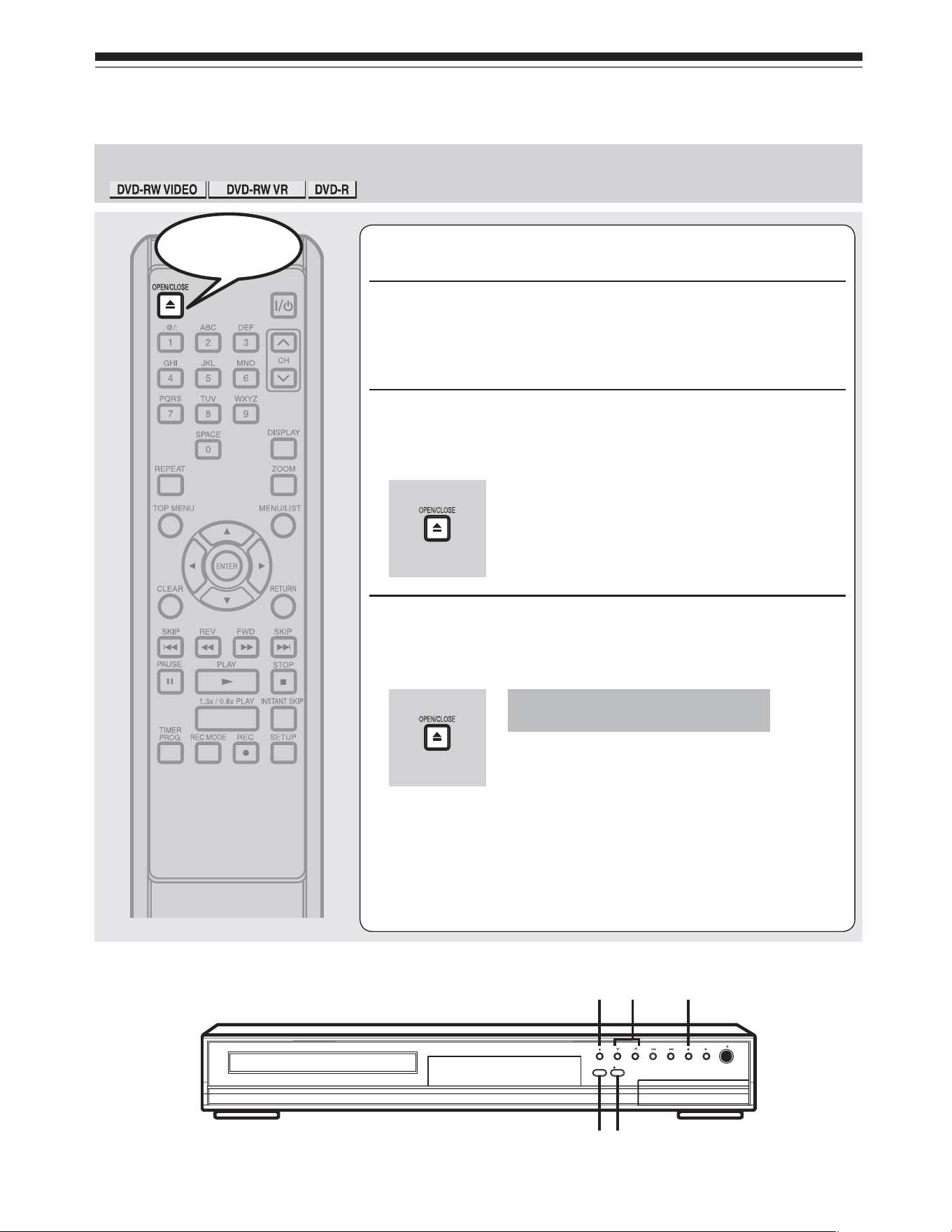

Recording from an external source
Settings for an external source (cont’d)
REC MODE
REC
CH
ON/STANDBY
I/
65
2 3
4
8
Before recording from an external source, see the
instructions for the connection on page 68.
1
Turn the TV and this unit on, and be sure to
select the input of the TV to which the unit is
connected.
2
Press [OPEN/CLOSE A] to open the disc tray.
Place the disc to record properly.
3
Press [OPEN/CLOSE A] to close the disc tray.
Start
This operation may take a while
to be recognized.
71

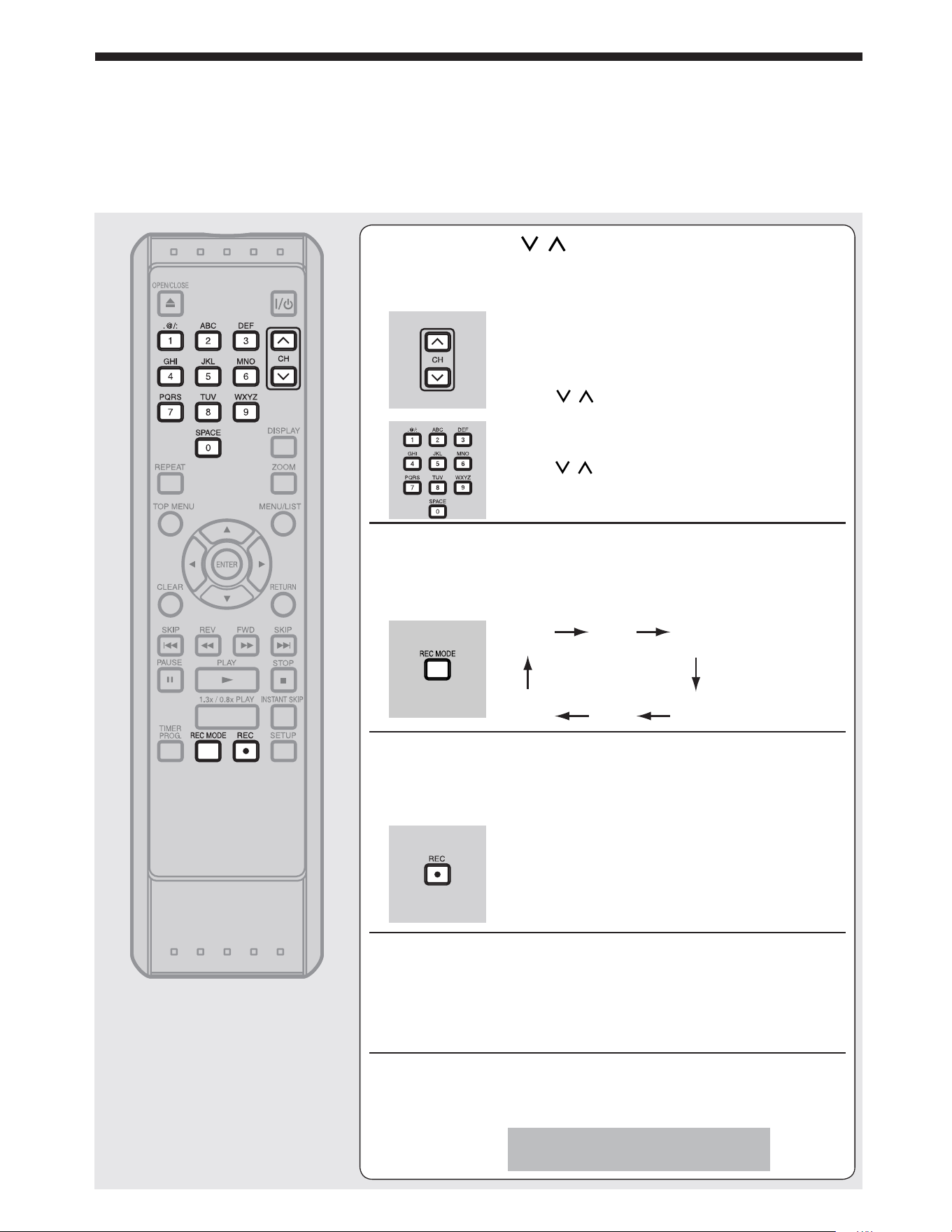

EN
4
Using [CH / ] or the Number buttons,
select the input of the unit which the external
equipment is connected. (L2 or L1)
• To use the input jacks on the back of this unit,
select “L1” position by pressing [0], [0], [1] with
the Number buttons on the remote control or the
[CH / ].
• To use the input jacks on the front of this unit,
select “L2” position by pressing [0], [0], [2] with
the Number buttons on the remote control or the
[CH / ].
5
Select a recording mode pressing
[REC MODE].
Refer to “Recording Mode” on page 65.
6
Press [REC I] on the unit to start recording.
7
Press “Play” on the external source to record
from.
8
Press [STOP C] on the front panel of the unit
to stop recording.
XP SP LP
EPSLPSEP
This operation may take a while
to be completed.
72
Recording
EN

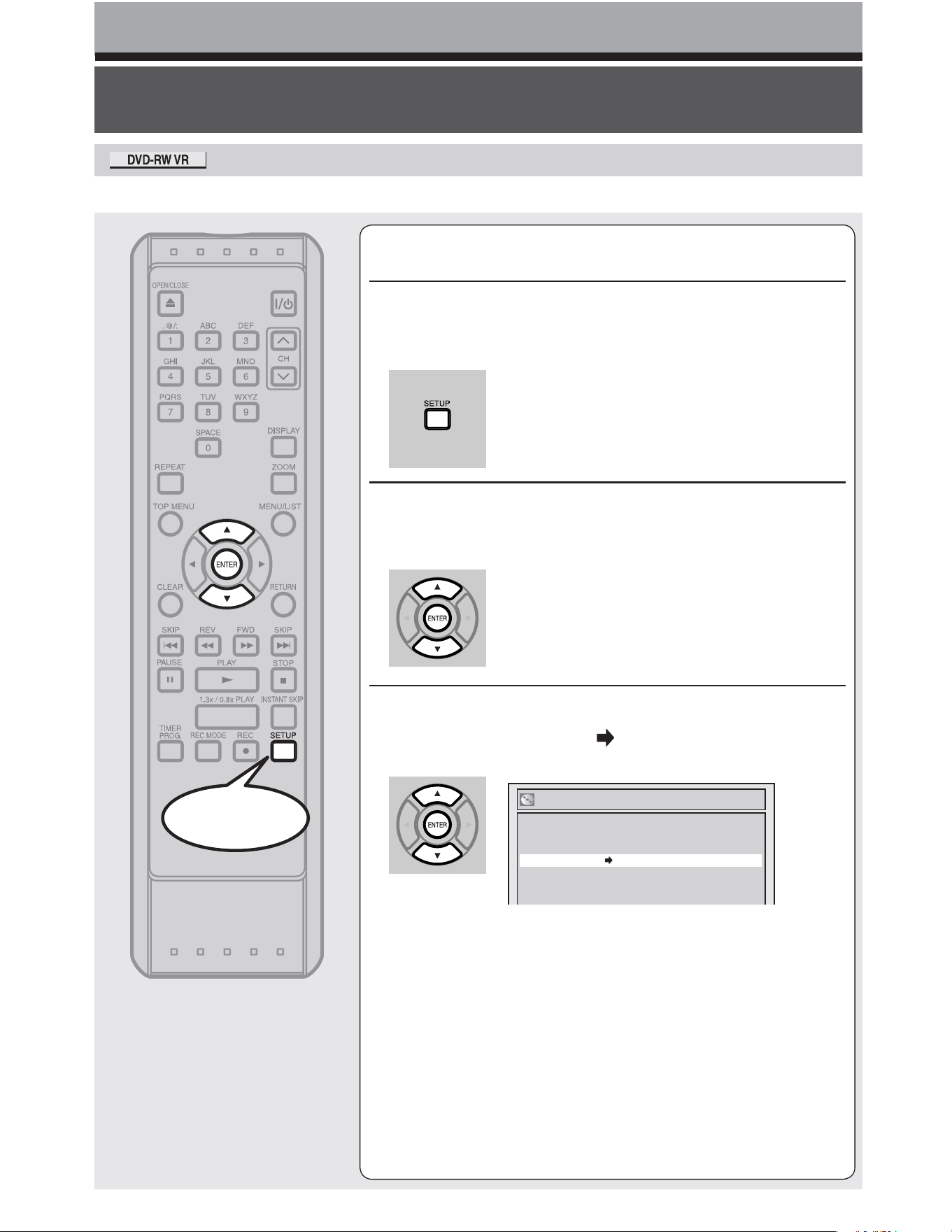

Setting disc protection
To prevent accidental recording, editing or erasing the
titles, you can protect them from the setup menu.
1
Press [SETUP].
2
Using [K / L], select “Disc”. Press [ENTER].
Disc menu will appear.
3
Using [K / L], select
“Disc Protect OFF ON”. Press [ENTER].
Confirmation window will appear.
Start
Disc
Finalize
Disc Protect OFF ON
Format
73
EN
4
Using [K / L], select “Yes”. Press [ENTER].
A disc will be protected.
Notes
• The Disc Protect setting is available only when a disc with VR mode is
inserted.
To cancel the disc protect:
• When you insert a disc protected with this unit, “Disc Protect ON OFF”
will appear instead of “OFF ON”.
• To release the protection of the disc, select “Disc Protect ON OFF” at
step 3, then select “Yes”.
No
Yes
Disc Protect ON OFF
No
Yes
Disc Protect OFF ON
74
Recording
EN

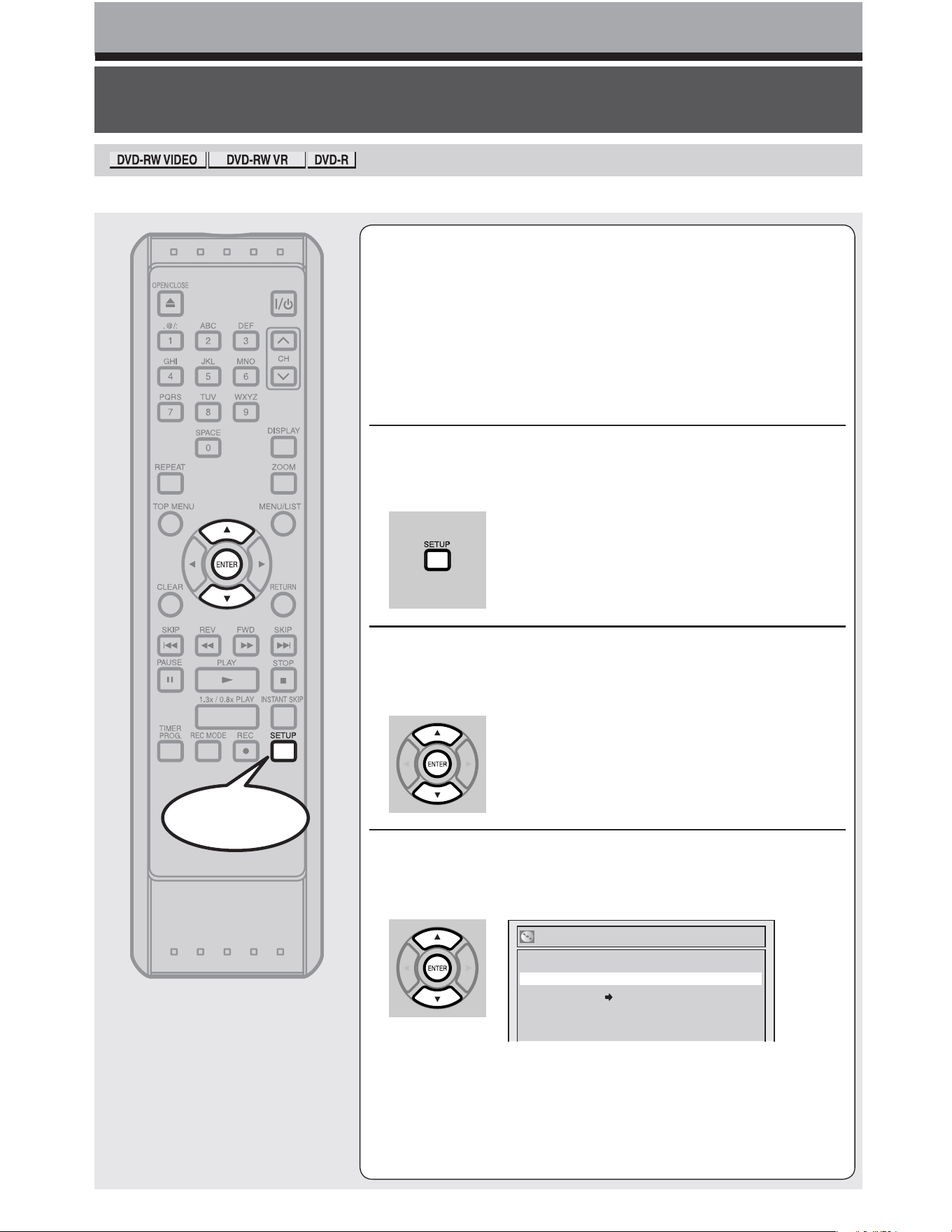

Finalizing the discs
You will need to fi nalize discs recorded in this unit to
play in other DVD players. (Refer to page 51.)
Finalizing may take several minutes up to an hour. (A
disc recorded in Video mode can take up to 15 minutes.
A disc recorded in VR mode can take up to 60 minutes.)
Since the process of the fi nalization fi lls empty space of
the disc, a shorter recording period on the disc will
require a longer time period for fi nalization. Do not
unplug the power cord during fi nalization.
1
Press [SETUP].
2
Using [K / L], select “Disc”. Press [ENTER].
Disc menu will appear.
3
Using [K / L], select “Finalize”. Press
[ENTER].
Confirmation window will appear.
Start
Disc
Finalize
Disc Protect OFF ON
Format
75
EN
4
Using [K / L], select “Yes”. Press [ENTER].
5
Finalizing is completed.
Finalize
No
Yes
Finalizing 5%
Do you want to cancel ?
Yes No
This operation may take a while to
be completed.
To cancel finalizing...
(DVD-RW only)
• To cancel finalizing at step 4, press [STOP C], select “Yes” with [s / B],
then press [ENTER]. Finalizing is cancelled and the unit will be in stop
mode.
• If appears when pressing [STOP C], you cannot cancel finalizing
because the finalizing has been in certain progress.
• When selecting “No” and press [ENTER] or [RETURN] , finalizing will be
continued.
• You cannot cancel finalizing the DVD-R disc once it has started.
Notes
• Finalizing discs in Video mode automatically creates title menus.
• Once you have finalized a disc recorded in Video mode, you cannot edit
or record anything else on that disc.
Discs recorded in VR mode can still be recorded and edited on this
recorder even after finalized.
• When you insert a DVD-RW disc finalized with this unit, “Undo
Finalization” will appear instead of “Finalize”.
To unfinalize the disc, select “Undo Finalization” at step 3.
• DO NOT power off during finalizing, this will result in malfunction.
Finalizing 100%
Disc
Format
Undo Finalization
Disc Protect OFF ON
76
Recording
EN

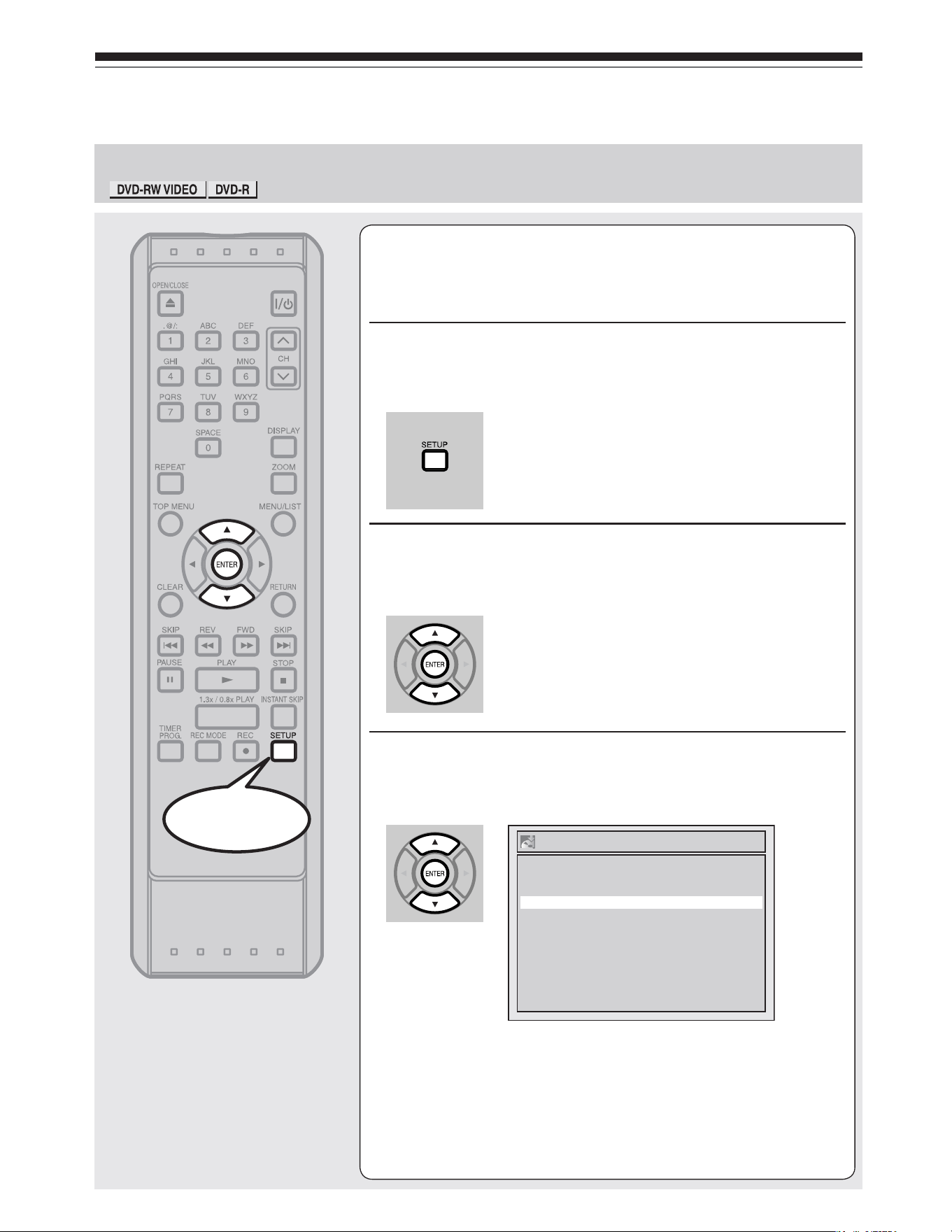

Auto finalize
Finalizing the discs (cont’d)
You can fi nalize discs automatically by using Auto
Finalize function. You can use this function to fi nalize
discs after fi nishing all Timer Recordings and at the end
of the disc space.
1
Press [SETUP].
2
Using [K / L], select “Recording”. Press
[ENTER].
Recording menu will appear.
3
Using [K / L], select “Auto Finalize”. Press
[ENTER].
Auto Finalize menu will appear.
Start
Recording
Recording Audio Select (XP)
Auto Finalize
Auto Chapter
Dolby Digital
10 minutes
77

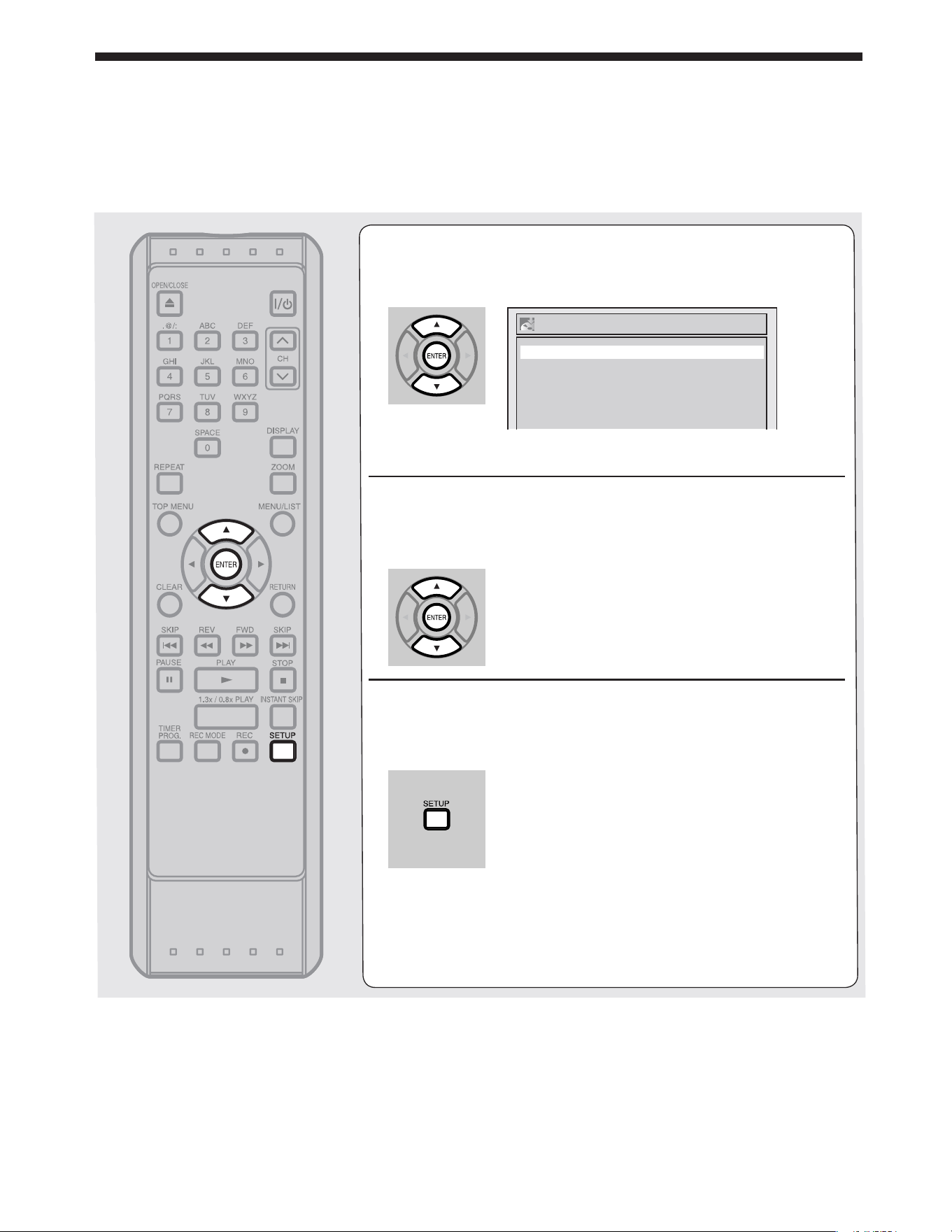

EN
4
Using [K / L], select “Disc Full” or “End of
Timer Rec”. Press [ENTER].
Option window will appear.
5
Using [K / L], select “ON”. Press [ENTER].
Your setting will be activated.
6
Press [SETUP] to exit.
Auto Finalize
End of Timer Rec
Disc Full OFF
OFF
Note
• Auto Finalize is not applicable to VR format discs.
Symbols in this Section
The following icons show the playable discs for each
function described on this section.
: Video mode DVD-RW disc
: VR mode DVD-RW disc
: DVD-Video disc
: DVD-R disc
: Audio CD
: CD-R/RW disc with MP3 files
: CD-R/RW disc with WMA files
: CD-R/RW disc with JPEG files
: Video CD
: Video CD without PBC
Most instructions are based on remote control

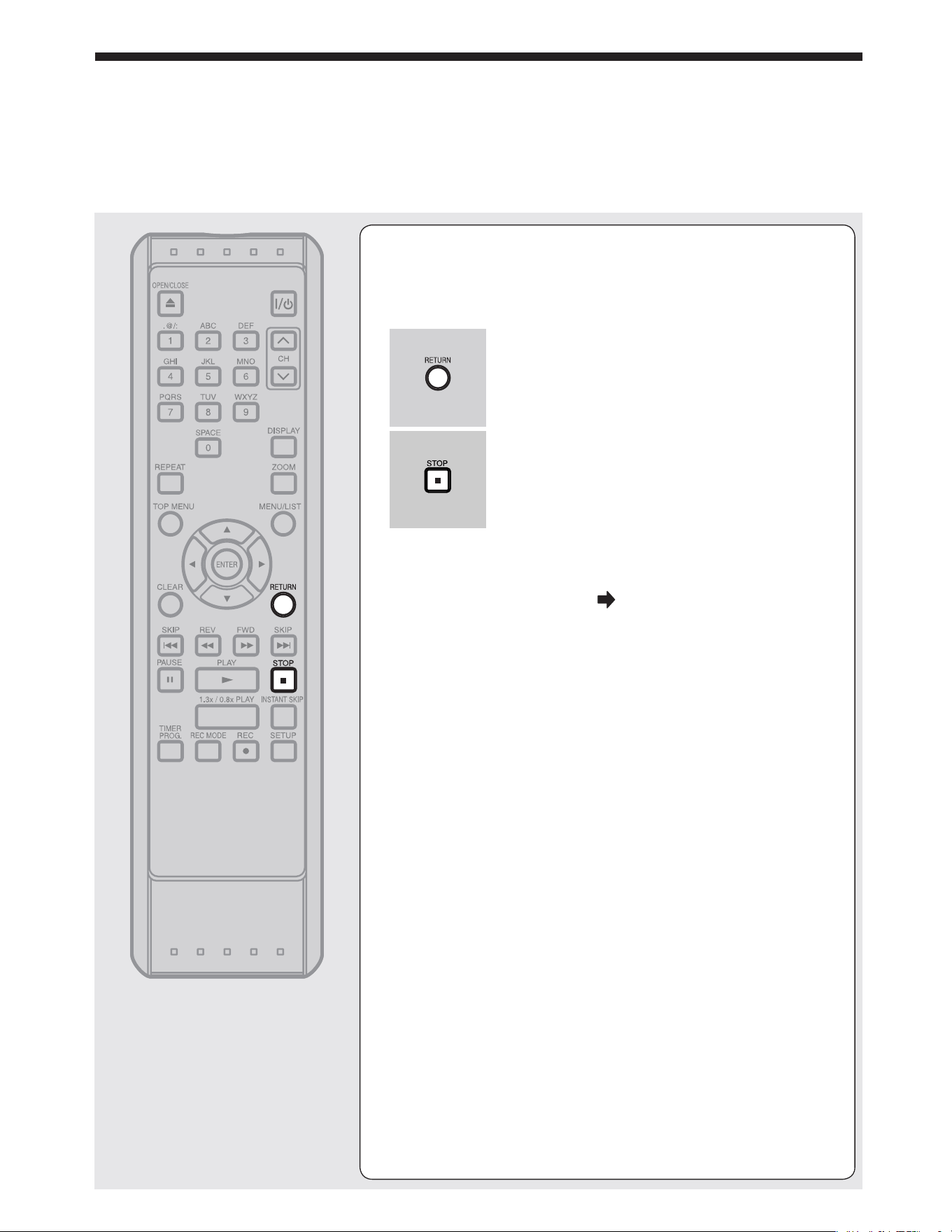

operation, unless otherwise noted. You can use the
buttons on the remote control as well as those on the
main unit when they have the same function.
Playback
Play your favorite contents.
● Basic playback
● Further playback
● Special playback
● Selecting the format of audio and video
80
Playback
EN
Basic playback
Playback
This operation may take a while to
be recognized.
1
Press [I/ ON/STANDBY].
Turn the TV on and be sure to select the input to which the unit
is connected.
2
Press [OPEN/CLOSE A].
The disc tray will open.
3
Insert your disc with its label facing up. Align
the disc to the disc tray guide.
4
Press [OPEN/CLOSE A] to close the disc tray.
disc tray
guide
Start
81
EN
5

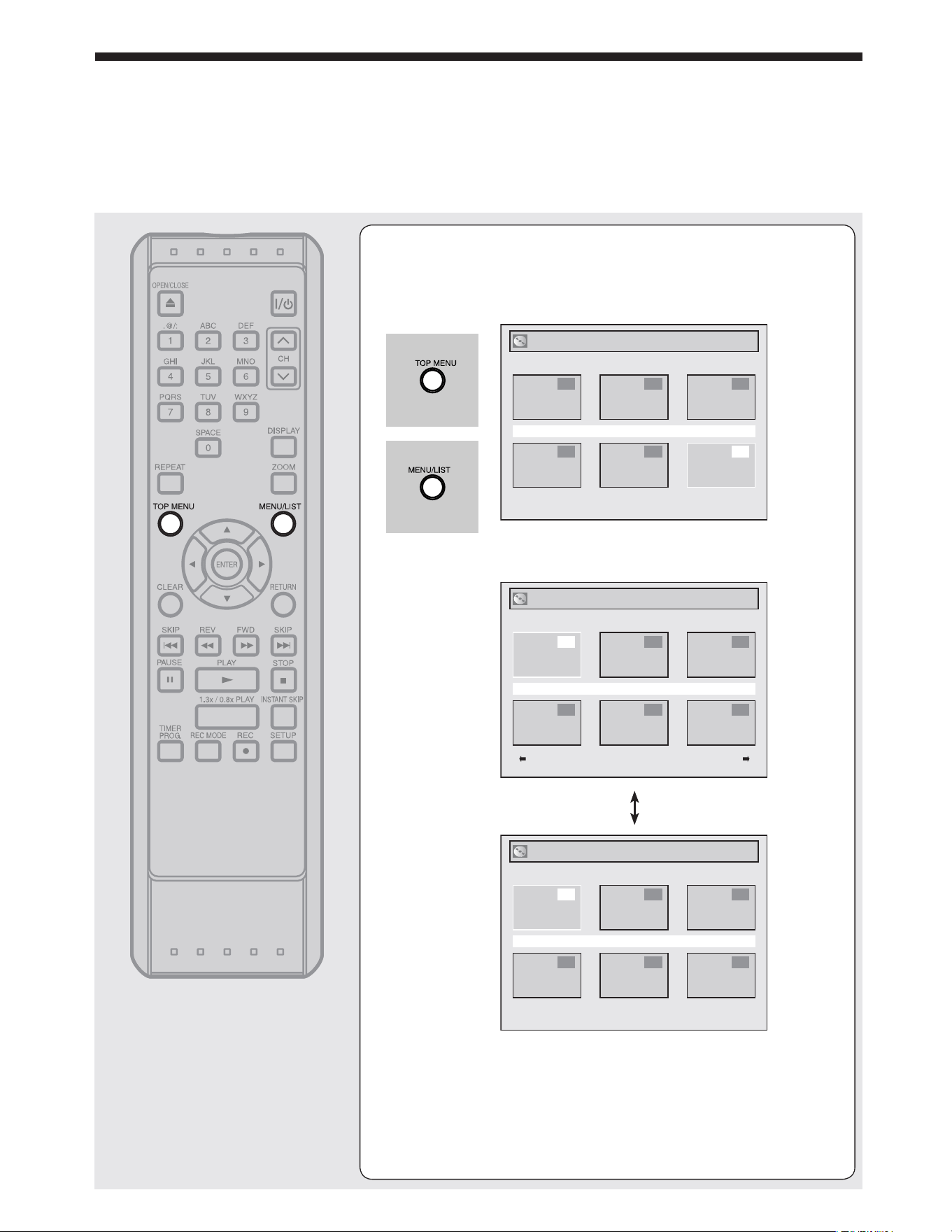

Press [TOP MENU] to display the title list.
You can change “Original” or “Playlist” of VR mode using
[MENU / LIST].
<Video mode>
<VR mode>
Press [TOP MENU] to resume play.
To exit the title list, press [STOP C] or [RETURN].
(Continued)
Title List
JAN/ 1/06 1:00AM CH12 XP
4 5 6
1 2 3
Playlist
JAN/ 1/06 1:00AM CH12 XP
4 5 6
1 2 3
Original
JAN/ 1/06 1:00AM CH12 XP
4 5 6
1 2 3
[MENU / LIST]
82
Playback
EN

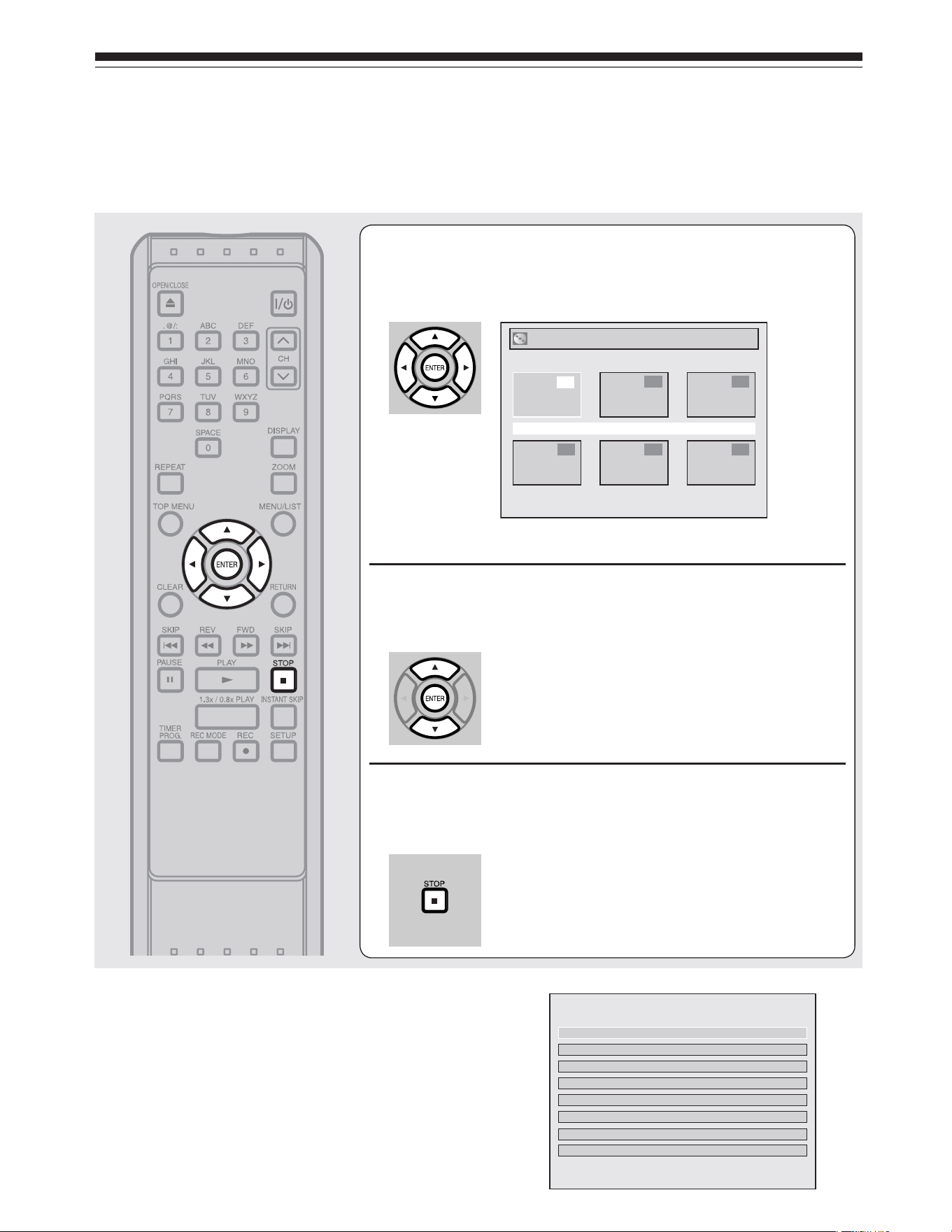

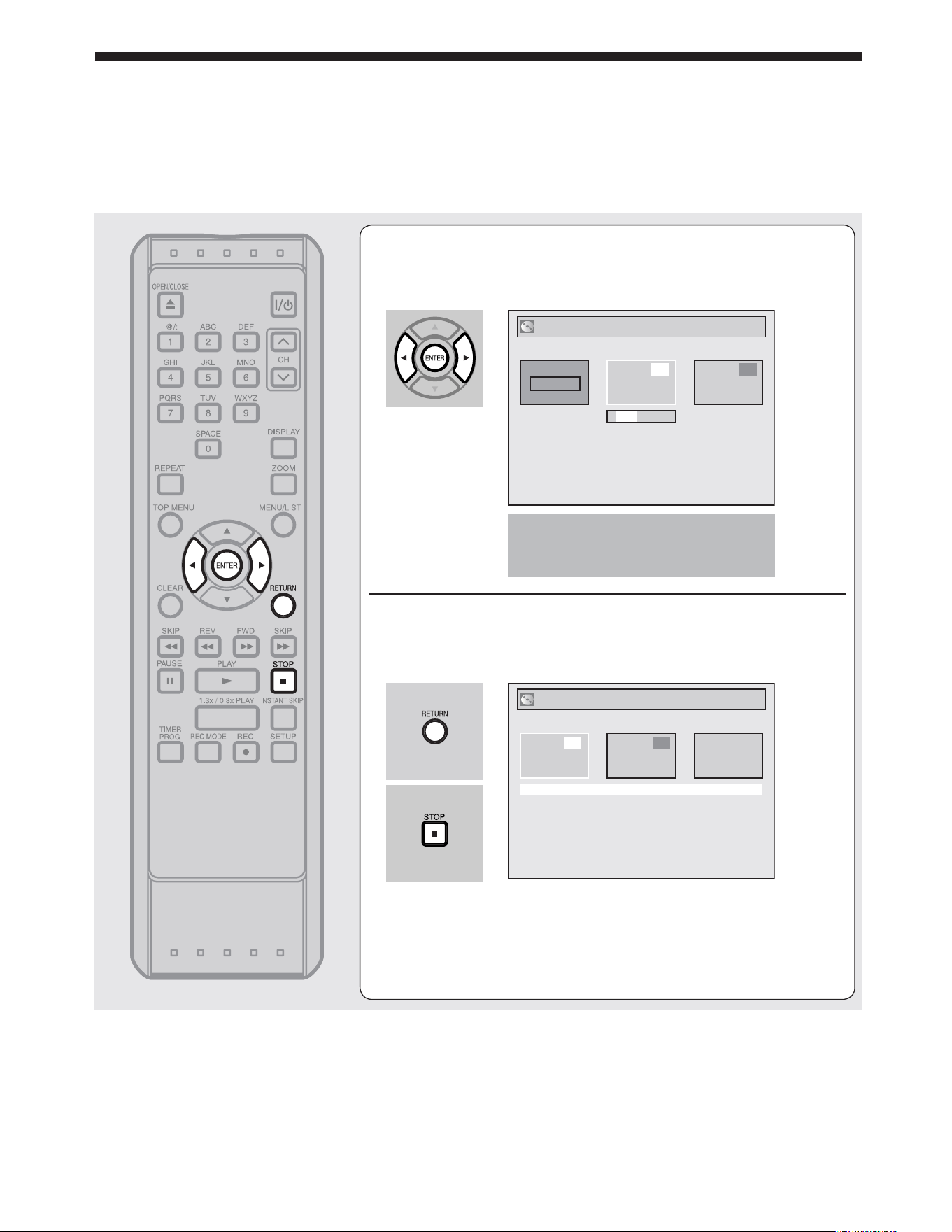

Basic playback (cont’d)
6
Using [K / L/{ / B], select a desired title.
Press [ENTER].
<Video mode>
Pop-up window will appear.
7
Using [K / L], select “Play”. Press [ENTER].
Playback will start.
8
Press [STOP C] to stop playback.
To eject the disc, press
[OPEN/CLOSE A]
to open the disc tray,
then remove the disc before turning the unit off.
Title List
JAN/ 1/06 1:00AM CH12 XP
4 5 6
2 3
1
Notes
• For DVD-R (Video mode) and DVD-RW (Video mode) discs
which are already finalized, a title menu will be displayed
instead of thumbnails.
• You can resume play from where you stopped playing the
disc. (Resume play) Refer to page 88 for details about
resume play.
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B] instead
of [ENTER] at step 6.
Title Menu
1 JAN/22/06 12:55AM CH10
2 JAN/30/06 11:00PM CH8
3 FEB/10/06 9:00PM CH10
4 FEB/28/06 11:00AM CH6
5 FEB/28/06 10:00PM CH8
XP
XP
LP
LP
EP
83
EN

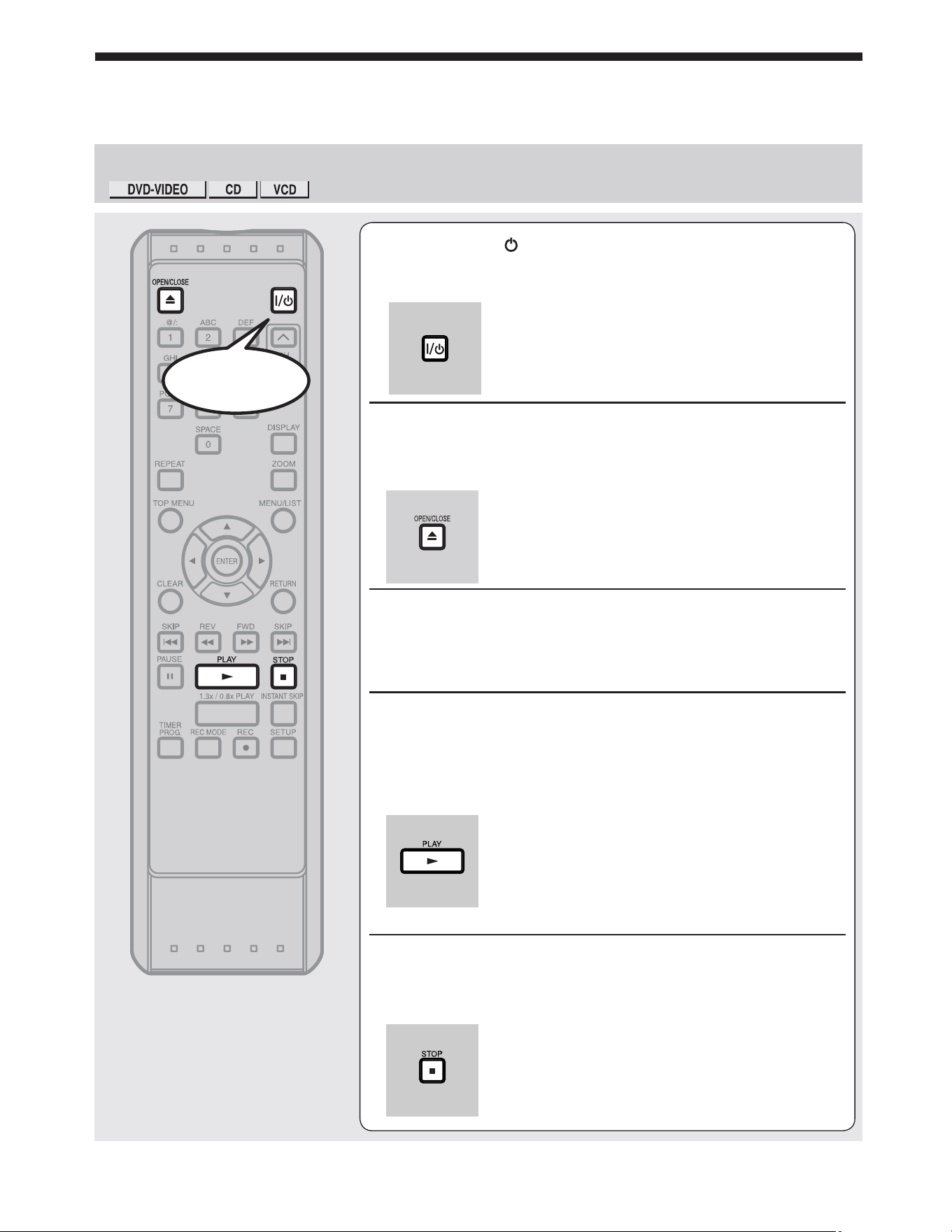

Playing back a DVD-VIDEO / Video CD / CD
1
Press [I/ ON/STANDBY].
Turn the TV on and be sure to select the input to which the unit
is connected.
2
Press [OPEN/CLOSE A] to open the disc tray.
The disc tray will open.
3
Insert your disc with its label facing up. Align
the disc to the disc tray guide.
4
Press [PLAY B] to start playback.
Playback will start.
If you are playing a DVD-Video disc or a Video CD, menu may
appear.
Refer to page 86 for details about the Disc menu.
5
Press [STOP C] to stop playback.
Start
Note
• Some discs may start playback automatically.
84
Playback
EN

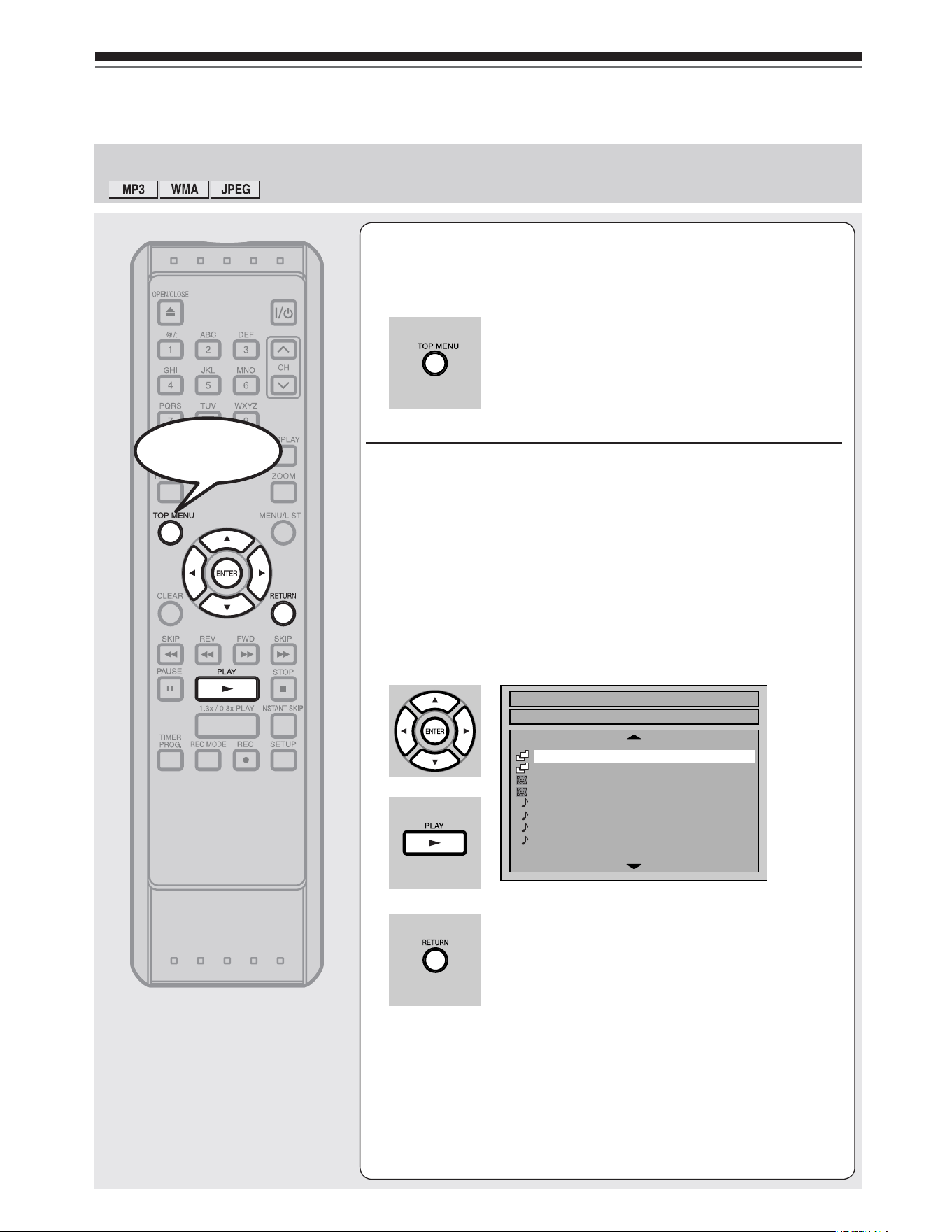

Playing MP3, WMA, JPEG disc
Basic playback (cont’d)
1
In stop mode, press [TOP MENU] to call up
the menu.
•To exit the menu, press [TOP MENU] again.
2
Using [K / L], to select a desired folder
(group) or track. Press [ENTER].
When selecting track:
Playback will start.
When selecting the folder:
The files in the folder will appear.
Press [K / L] to select the track or the folder you want, then
press [ENTER].
• Press [PLAY B], [ENTER] or [B] to move to the lower
hierarchies.
• Press [s] or [RETURN] to the previous hierarchy.
File List
DISC NAME
A
B
1 JPEG file1
2 JPEG file2
3 MP3 file1
4 MP3 file2
5 WMA file1
6 WMA file2
1/2
W
W
3
3
Start
85
EN
Hints for MP3, WMA and JPEG files:
• Folders are known as Groups, files are known as Tracks.
• Folders are accompanied by icon.
• MP3 files are accompanied by icon.
• WMA files are accompanied by icon.
• JPEG files are accompanied by icon.
Reproduction will start from the selected track and go to the
next one in turn.
• The system can recognize up to 255 groups (or folders) and
up to 999 tracks.
• The name of group and track can be displayed up to 29
characters. Unrecognizable characters will be replaced with
asterisks.
• If there are no files in the folder, “No Files” will be displayed.
• Call Display Menu by pressing [DISPLAY] to check track
number and time.
• When the Display Menu is on, you can check the artist name
tag and title tag by pressing [DISPLAY] during the WMA file
playback or resume stop.
This unit recommends the files recorded under the
following circumstances:
<Applicable MP3 / WMA files>
• Sampling frequency: 44.1kHz or 48kHz.
• Constant bit rate: 112kbps - 320kbps (MP3), 48kbps - 192kbps
(WMA).
<Applicable JPEG files>
• Upper limit: 6,300 x 5,100 dots.
• Lower limit: 32 x 32 dots.
• File size of image maximum: 12MB.
3
W
Notes
• The audio source of MP3 files cannot be recorded as digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)” “.wma(WMA)” or “.jpg / .jpeg(JPEG)” will not be listed in the menu.
• Some unplayable folders or tracks may be listed in the menu due to the recording status.
• High-resolution JPEG files take longer to be displayed.
This product requires discs/recordings to meet certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different
types of recordable disc formats (including CD-R containing MP3/WMA files). Because this area of
technology is still evolving, Toshiba cannot guarantee that all recordable discs will produce optimal
playback quality. The technical criteria set forth in this owner’s manual are meant only as a guide.
You must obtain any required permission from copyright owners to download or use copyrighted content.
Toshiba cannot and does not grant such permission.
86
Playback
EN
Basic playback (cont’d)
Playing discs using the Disc menu
A DVD disc contains a Disc menu that describes the
contents or allows you to customize the playback. For
example, the menu may offer choices for subtitle
languages, special features, or chapter selection.
Sometimes these are displayed automatically when you
start playback, otherwise only appear when you press
[MENU / LIST].
1) Press [MENU / LIST].
The Disc menu will appear.
If the feature is not available, may appear on the
TV screen.
2) Using [K / L / { // B], select an item. Press
[ENTER] to confirm.
Continue this step to set up all the features you want
or to start playing the disc from the menu.
MENU / LIST button:
Displays a DVD Disc menu which varies with the disc
and may be the same as the ‘Title menu’.
Direction [K / L / { / B] buttons:
Moves the cursor around screen.
ENTER button:
Selects the currently highlighted menu option.
Number buttons:
Selects a numbered menu option (some discs only).
(Press [ENTER] after inputting the desired number.)
3) Press [MENU / LIST] to exit the Disc menu.
Note
• Menus vary among discs. Refer to the information
accompanying the disc for details.
Playing discs using the Title menu
Some DVDs have a Title menu, which lists the titles
available on them. It helps you to start play at a specific
title.
1) Press [TOP / MENU].
The Title menu will appear.
If the feature is not available, may appear on the
TV screen.
2) Using [K / L / { / B], select a title to play.
Press [ENTER].
Play will begin at the title you selected.
TOP MENU button:
Displays the ‘Title menu’ of a DVD disc which varies
with the disc.
Direction [K / L / { / B] buttons:
Moves the cursor around screen.
ENTER button:
Selects the currently highlighted menu option.
Number buttons:
Selects a numbered menu option (some discs only).
(Press [ENTER] after inputting the desired number.)
3) Press [TOP MENU] to exit the Title menu.
Notes
• [TOP MENU] will not always be active with all DVDs.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
Pause
1) During playback, press [PAUSE F].
Play will pause and sound will be muted.
2) Press [PLAY B] to resume play.
F
Step by step playback
1) During playback, press [PAUSE F].
Play will pause and sound will be muted.
2) Press [SKIP G] repeatedly.
The play will advance one frame (or step) at a time
when you press [SKIP G] with the sound muted.
To play step by step backward:
Press [SKIP H ] repeatedly.
Every time you press the button, the play will go
backward by one frame.
• Press and hold [SKIP H / G] to reverse/ forward
slow.
3) Press [PLAY B] to resume play.
Note
• Only step by step forward is available for playing back
Video CDs.
F
87
EN
PBC function for Video CDs
This unit conforms to ver.1.1 and ver.2.0 of the Video
CD standard playback control (PBC) function. This
enables you to play back interactive software using
menu screens. Refer to the information accompanying
the Video CD.
Ver.1.1 (without PBC function): You can still enjoy
playback of pictures and music from the CD.
Ver.2.0 (with PBC function): “PBC ON” will appear on
the screen and display when playing back a Video CD
with the PBC function.
Notes
• When playing back Video CDs with the PBC function,
“Pbc” is displayed instead of the playing back time and
current track indications on the front panel display.
• Some operations cannot be performed unless the function
is cancelled either automatically or intentionally by you.
• Operations that are not available when the PBC function is
set to “ON” are indicated by the following symbol in this
manual:
Playing back a Video CD using
the title menu
1) When playing back a Video CD with the PBC
function, the title menu will appear
automatically.
2) Press the Number buttons to select the desired
title.
Playback will start at the selected title.
3) Press [RETURN] to go back to the title menu.
Note
• While the On-Screen Display appears, you cannot perform
steps 2 and 3.
Cancelling and Recalling the PBC
function
Insert a Video CD.

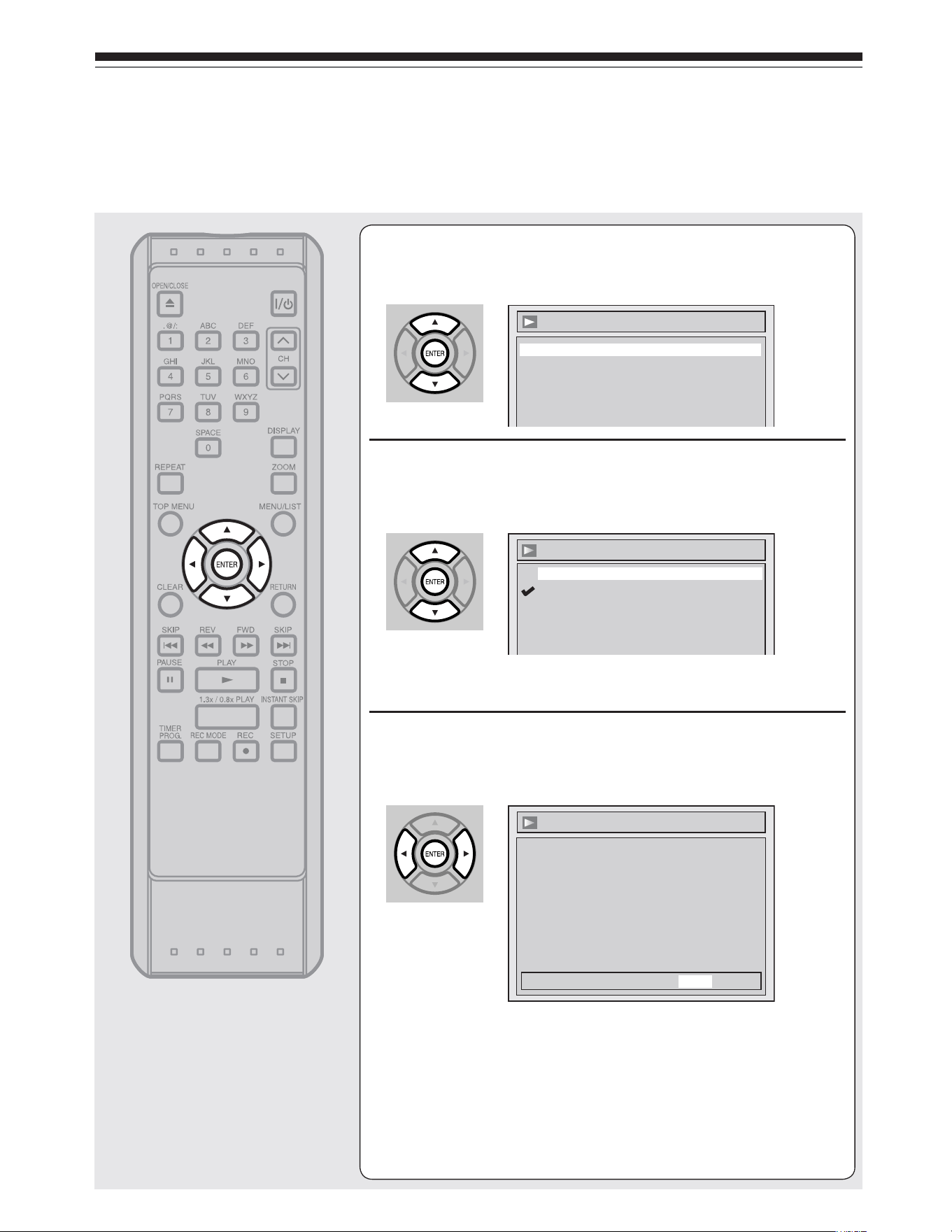

1) In stop mode, press [SETUP].
2) Select “CD Playback Mode” using [K / L], then
press [ENTER].
3) Select “PBC (Video CD only)” using [K / L],
then press [ENTER].
4) Select “OFF” using [K / L], then press
[ENTER].
5) Press [SETUP] to exit.
To recall the PBC function, select “ON” in step 4
above.
Note
• The default setting of “PBC (Video CD only)” is “ON”.
CD Playback Mode
Random Play
Program Play
PBC(Video CD only) ON
Slide Show 5 sec
88
Playback
EN
Further playback
You can resume play from where you stopped playing
the disc last.
1) During playback, press [STOP C].
The resume message will appear.
2) Press [PLAY B].
In a few seconds, play will resume from the point at
which it stopped last. You can resume play at the
same point even if you turn off the unit.
To cancel the resume play and start playing the disc
from the beginning, press [STOP C] the second time
while the play is stopped.
Note
• For MP3, WMA and JPEG files, playback will resume from
the beginning of the track at which playback was stopped.
• For Video CDs, if you turn PBC on using the setting menu,
the resume function is cancelled.
Resume ON
Rapid Play function is available only during playback.
Available only on discs recorded in the Dolby Digital
format, Rapid Play plays back in a slightly faster/slower
speed while keeping the sound quality just as normal
playback.
1) During playback, press [1.3x/0.8x PLAY]
B :
B :
B :
2) Press [PLAY B] to continue the normal
playback.
Notes
• Audio (language) setting cannot be changed while using
this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during Rapid play mode.
Press [1.3x/0.8x PLAY] once during playback.
Plays back approximately at 0.8 times of
normal playback.
Press [1.3x/0.8x PLAY] twice during playback.
Plays back approximately at 1.3 times of
normal playback.
Press [1.3x/0.8x PLAY] three times to play
back in normal speed.
No effects.
You can skip TV commercials by pressing
[INSTANT SKIP], so you can enjoy the recorded
programs without interrupting.
1) During playback, press [INSTANT SKIP].
Normal play will start at 30 seconds ahead from the
point you press [INSTANT SKIP].
Every time you press [INSTANT SKIP], the searching
point will be extended by 30 seconds ahead.
You can press up to 6 times (180 seconds).
e.g. Press [INSTANT SKIP] once.
(forwarding 30 seconds)
Playback will restart automatically.
B
Resume Play Skipping TV commercials during
play
Rapid Play
89
EN

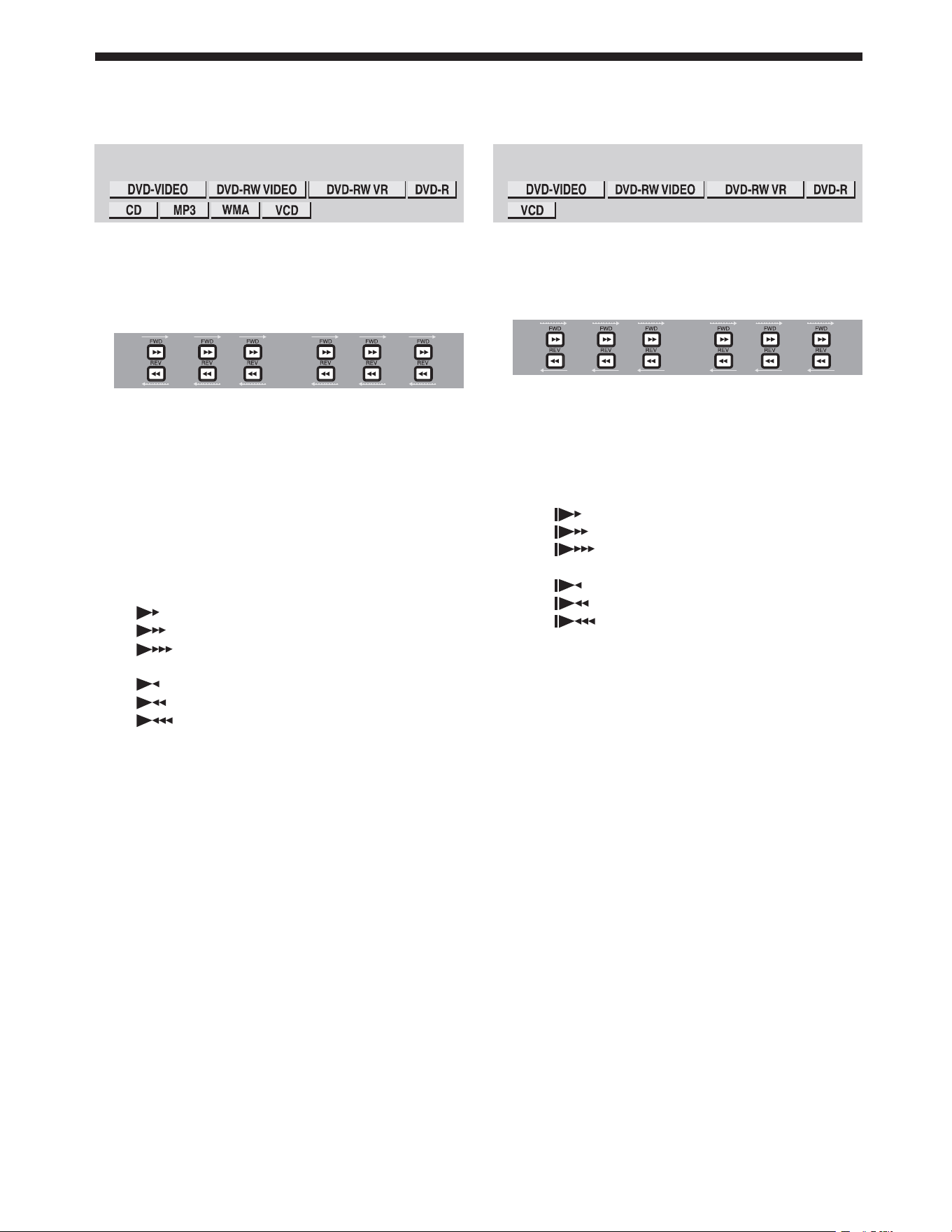

1) During playback, press [FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
DVD discs) or tracks (for WMA and MP3) is not
possible.
• For Audio CDs, approximate speed is fixed at x8
with sound.
• For MP3 and WMA files, approximate speed is fixed
at x8 with sound.
• For Video CDs, approximate forward / reverse
speeds are x2, x8 and x16.
To return to the normal play, press [PLAY B].
Note
• Forward/reverse speed will be indicated with icons as
follows.
Forward (Approx. Speed)
x2:
x20:
x40:
Reverse (Approx. Speed)
x5:
x20:
x40:
x20
Normal
speed
playback
x2 x20x5 x40x40
1) During playback, press [PAUSE F]. Then press
[FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows. (The
sound will remain muted.)
To return to the normal play, press [PLAY B].
Note
• Slow forward/slow reverse speed will be indicated with
icons as follows.
Forward (Approx. Speed)
x1/16:
x1/8:
x1/3:
Reverse (Approx. Speed)
x1/16:
x1/8:
x1/4:
• Only slow forward is available for playing back Video CDs.
x1/8
Pause
x1/16 x1/8x1/16 x1/3x1/4
Fast forward / Fast reverse Slow forward / Slow reverse
90
Playback
EN
Special playback
1) During playback, press [ZOOM].
Zoom menu will appear.
2) Using [K / L], select a desired zoom factor to
zoom. Press [ENTER].
<eg. DVD-Video>
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed
excluding the current zoom rate.
The zoom area will be displayed.
3) Using [K / L / { / B], select a desired zoom
position. Press [ENTER].
The zoom play will start.
Notes
• When selecting a smaller factor than the current one, the
zoom area will not be displayed.
• To exit the zoom menu, press [ZOOM] again at step 1.
• To cancel the zoom function, select “x1.0” using [K / L],
then press [ENTER].
1.2
1.5
2.0
DVD-Video1 1 0:04:01
Marker Setup
This feature allows you to assign a specific point on a
disc to be called back later.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Marker Setup menu will appear.
3) Using [K / L], select a desired marker number.
When it reaches the desired point, press
[ENTER].
<eg. DVD-Video>
The title (track) number and the time will be displayed.
4) To return to the marker later:
Using [K / L], select the desired marker
number. Press [ENTER].
Notes
• To clear a marker, select the marker number to be
cleared, then press [CLEAR].
• All markers will be erased when you operate these
operations listed below.
– Opening the disc tray
– Turning off the power
– Recording to a recordable disc
– Changing the mode between Original and Playlist (VR
mode)
• You can mark up to 6 points.
DVD-Video1 1 0:04:01
---
---
---
---
---
---
1
2
3
4
5
6
DVD-Video1 1 0:04:01
Zoom
91
EN

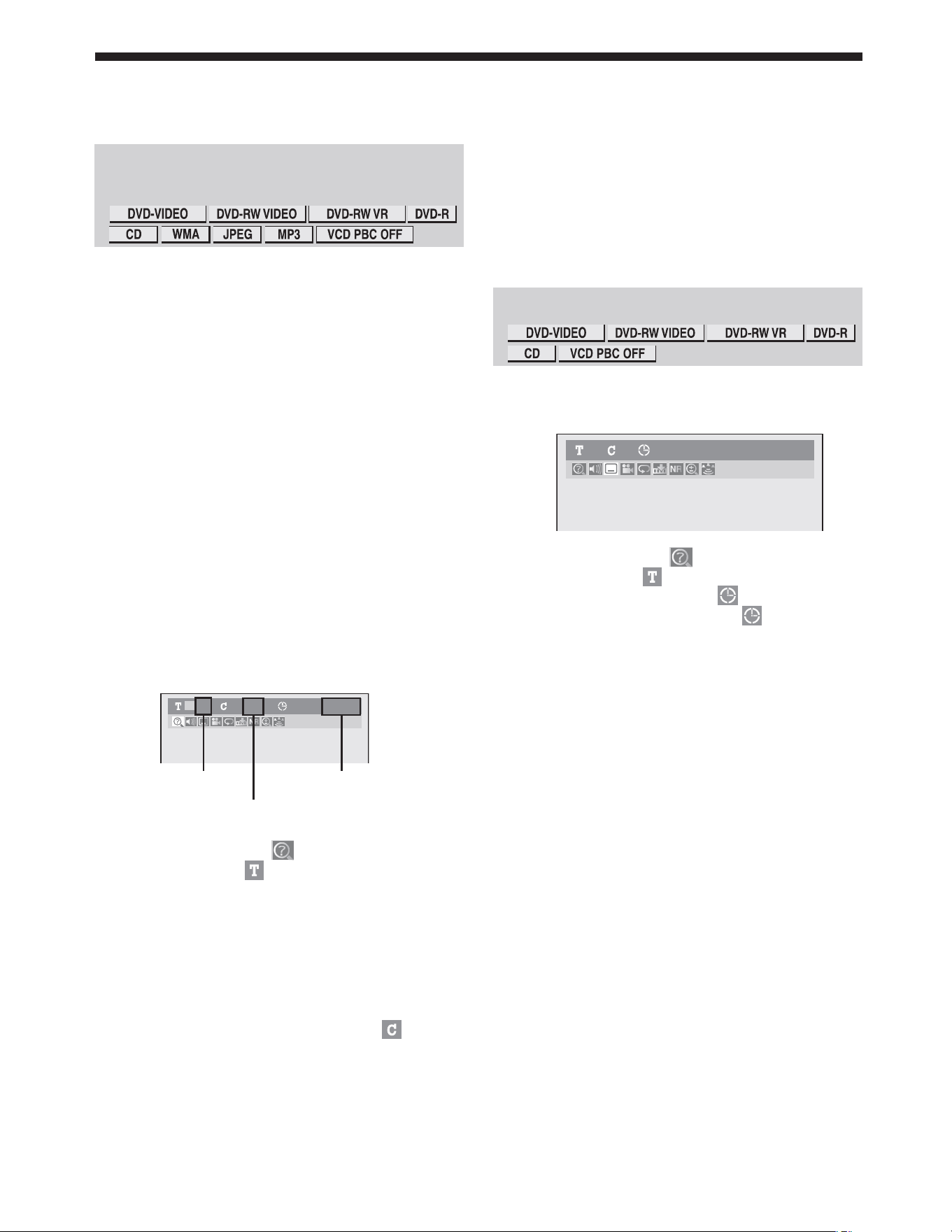

Searching by Title, Chapter or
Track
Using [SKIP H / G]
1) During playback, press [SKIP G] to skip the
current title, chapter or track and move to the
next.
The title, chapter or track will move forward by one at
a time.
To go back to the beginning of the current title,
chapter or track, press [SKIP H] midway.
Press it repeatedly to go to the previous title, chapter
or track. It will move backward one at a time.
Notes
• If there is no chapter in one title, the current title will be
skipped.
• For Audio CDs, MP3, WMA or JPEG files, track search is
not available for programmed or random playback.
Using [DISPLAY]
1) During playback, press [DISPLAY].
The Display menu will appear.
<eg. DVD-Video>
2) Using [{ / B], select . Press [ENTER].
The number next to will be highlighted.
Title/Track:
Using [K / L] or the Number buttons, enter a
desired title/track number to search. Press
[ENTER].
Title/track search will start.
Chapter:
Press [B] to move to the number next to for
chapter.
Using [K / L] or the Number buttons, enter a
desired chapter number to search. Press
[ENTER].
Chapter search will start.
001/028 00:00:00/02:18:3301 /01
Total number
of titles
Total number
of chapters
Total time
Searching by Time
1) During playback, press [DISPLAY].
The Display menu will appear.
<eg. DVD-Video>
2) Using [{ / B], select .Press [ENTER].
The number next to will be highlighted.
To move to the number next to , press [B].
When time search is not available, and time
count are not displayed.
3) Using [K / L] or the Number buttons, enter a
desired time to search. Press [ENTER].
Time search will start.
Note
• Time search function is available only in the same track or
title.
DVD-Video1 1 0:04:01
Note
• In search mode display, total numbers of each search
contents (title/chapter/time) are shown as a denominator.
• For Audio CDs, MP3, WMA or JPEG files, track search is
not available for programmed or random playback.
• For Video CDs, you can perform the track search function
in stop mode without turning PBC off manually.
92
Playback
EN
Special playback (cont’d)
1 During playback, press [REPEAT].
Repeat menu will appear.
<DVD-Video>
<Audio CD, Video CD>
<MP3, WMA, JPEG files>
• Option menu will change depending on the disc
being played.
2) Using [K / L], select a desired option to repeat.
Press [ENTER].
The selected repeat play will start.
Title:
The current title will be played repeatedly. (DVD only)
Chapter:
The current chapter will be played repeatedly.
(DVD only)
All:
The current disc will be played repeatedly. (Video CD,
Audio CD, MP3, WMA, JPEG and DVD-RW (VR
mode) only)
A-B:
The A-B point will be played repeatedly.
(DVD, Video CD, Audio CD)
When pressing [ENTER] while A-B is highlighted, A-B
repeat is set.
Press [ENTER] again to decide the starting point (A).
Press [ENTER] after setting point A to select the
ending point (B).
Track:
The current track will be played repeatedly. (Video
CD, Audio CD, MP3, WMA and JPEG only)
Group:
The current group will be played repeatedly. (MP3,
WMA and JPEG only)
Repeat Play
Track
All
Group
OFF
Track
All
A-B
OFF
Title
Chapter
A - B
OFF
Notes
• The A-B Repeat playback can only be set within the
current title (for DVDs), or current track (for Video CDs
and Audio CDs).
• To cancel the repeat playback, select “OFF” at step 2. The
repeat setting will also be cancelled when you stop
playback.
• You cannot select “Group” during the random playback of
MP3, WMA or JPEG files.
Random Play
With this function, you can play a disc randomly instead
of playing in the original order.
1) Press [SETUP] in stop mode.
2) Using [K / L], select “CD Playback Mode”.
Press [ENTER].
CD Playback Mode menu will appear.
3) Using [K / L], select “Random Play”. Press
[ENTER].
Random play will start.
Note
• To cancel random play, press [STOP C] twice during
random play. “Playmode OFF” appears on the screen.
• For Video CDs with PBC function, the PBC setting will be
switched to off automatically when you start random
playback.
93
EN

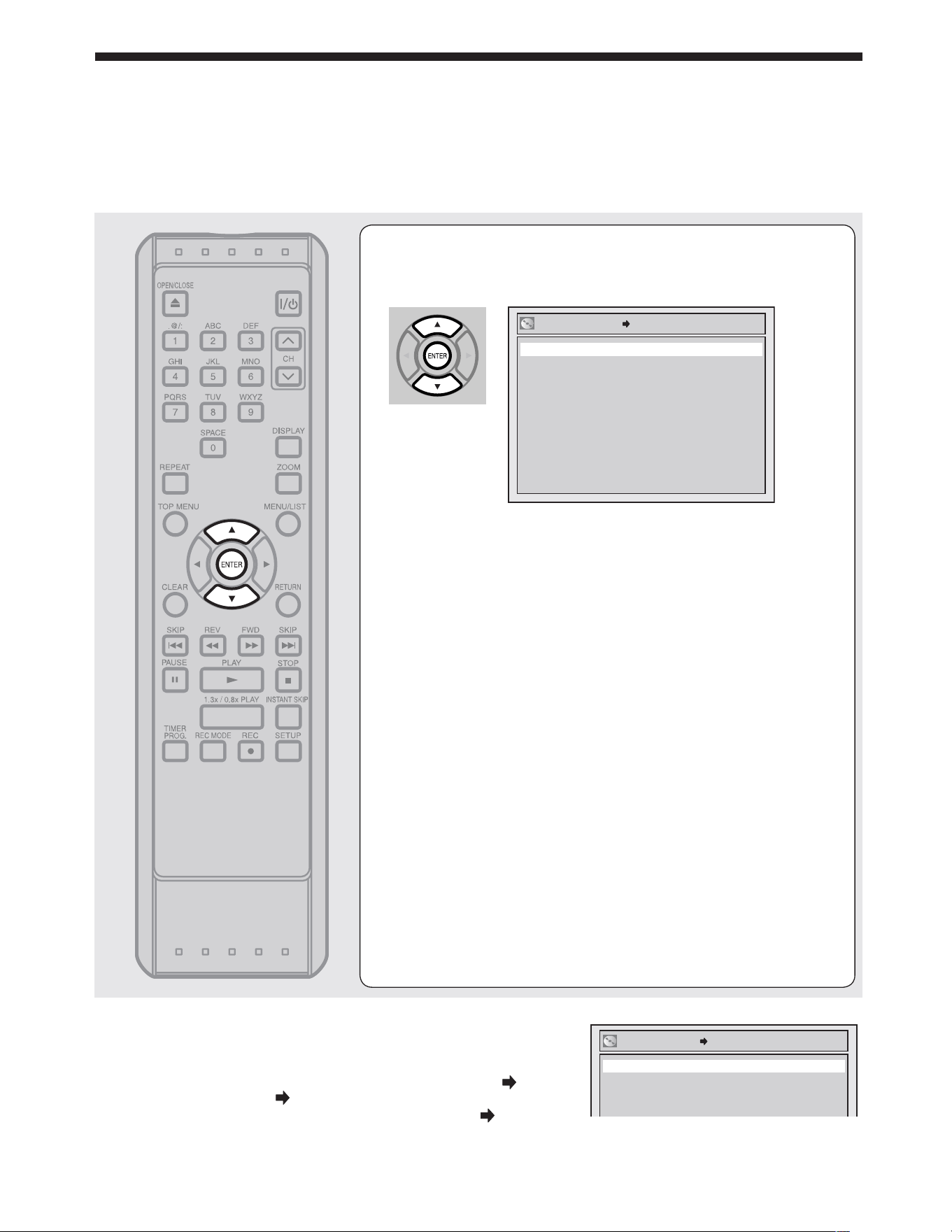

Program Play
You can program the disc to play in your desired order.
1) Press [SETUP] in stop mode.
2) Using [K / L], select “CD Playback Mode”.
Press [ENTER].
CD Playback Mode menu will appear.
3) Using [K / L], select “Program Play”. Press
[ENTER].
Program Play list will appear.
4) Using [K / L], select a desired track. Press
[ENTER] or [B].
A cursor will move to next.
5) Press [PLAY B] to start program playback.
Program playback will start.
Notes
• To erase tracks you selected, press [CLEAR].
• You can make program settings up to 50.
• To cancel program play, press [STOP C] twice during
program play. “Playmode OFF” appears on the screen.
• You may also select a desired track using the Number
buttons at step 4.
• For Video CDs with PBC function, the PBC setting will be
switched to off automatically when you start program
playback.
Program Play
0:00:00Total
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Slide Show
You can select the display time between 5 seconds and
10 seconds.
1) Follow steps 1 and 2 in “Random Play”.
2) Select “Slide Show” using [K / L], then press
[ENTER].
3) Select the display time using [K / L], then
press [ENTER].
Note
• Large-size JPEG files take a few moments to be
displayed.
94
Playback
EN

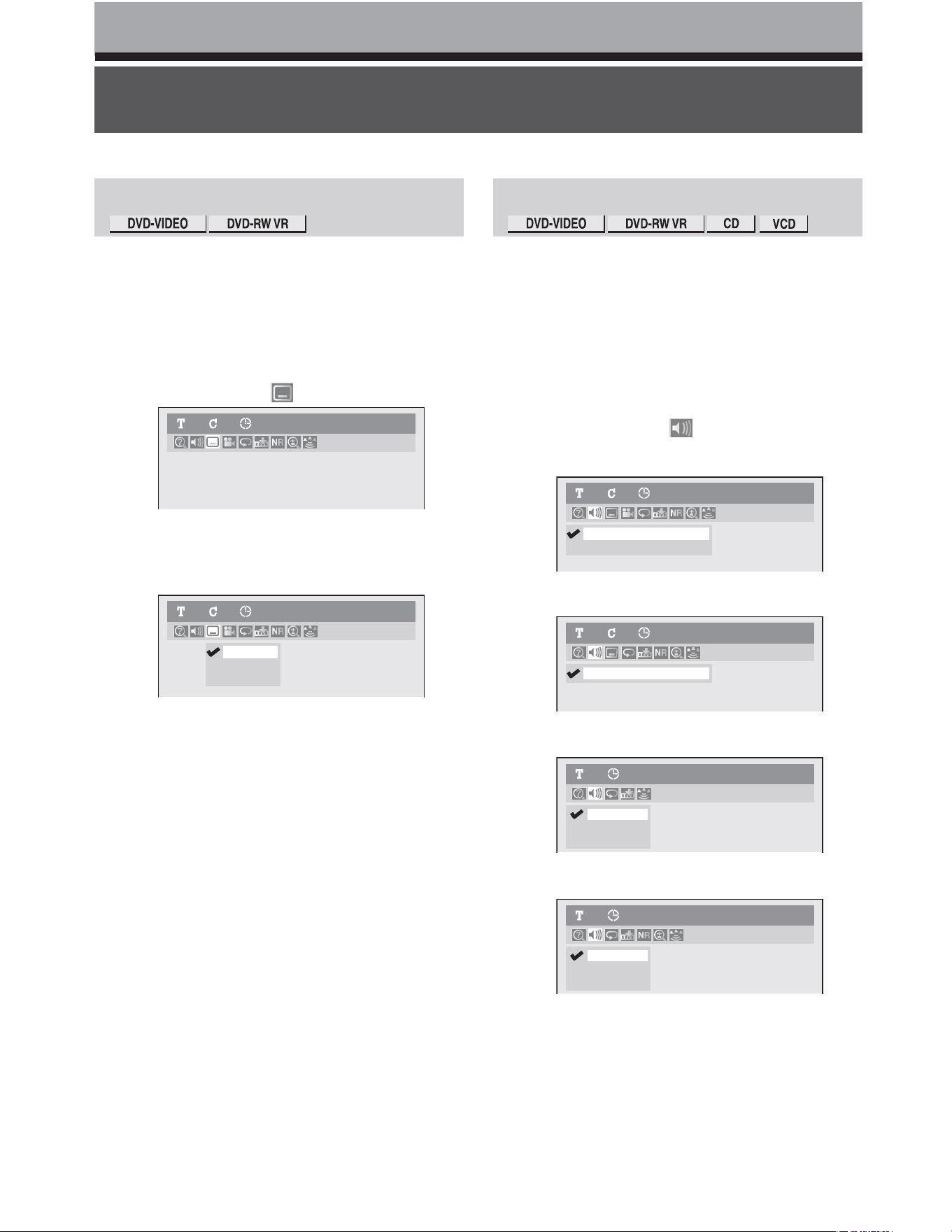

Selecting the format of audio and video
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing.
Switching subtitles
Many DVD-Video discs have subtitles in one or more
languages – the case usually tells you which subtitle
languages are available. You can switch subtitle
languages anytime during playback.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Subtitle menu will appear.
3) Using [K / L], select a desired subtitle
language. Press [ENTER].
Subtitle will be displayed in the selected language.
When selecting “OFF”, subtitle will disappear.
Notes
• Some discs will only allow you to change the subtitle from
the Disc menu. Press [TOP MENU] or [MENU / LIST] to
display the Disc menu.
• If a 4-digit language code appears in the subtitle menu at
step 3, refer to the “Language code” on page 153.
DVD-Video1 1 0:04:01
OFF
1.English
2.Japanese
DVD-Video1 1 0:04:01
Switching audio soundtrack
When playing a title recorded with two or more
soundtracks (these are often in different languages), you
can switch them during playback.
When playing, Video CDs or Audio CDs, you can switch
between stereo, just the left channel or just the right
channel.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Audio menu will appear.
<DVD-Video>
<DVD-RW VR mode>
<Audio CD>
<Video CD>
2.Dolby Digital 2ch Japanese
1.Dolby Digital 5.1ch English
DVD-Video 1 1 0:04:01
1.Dolby Digital 2ch
DVD-RW1 1 0:04:01
VR Playlist
2. L
3. R
1. L/R
Audio CD1 0:04:01
2. L
3. R
1. L/R
Video CD
PBC ON
1 0:04:01

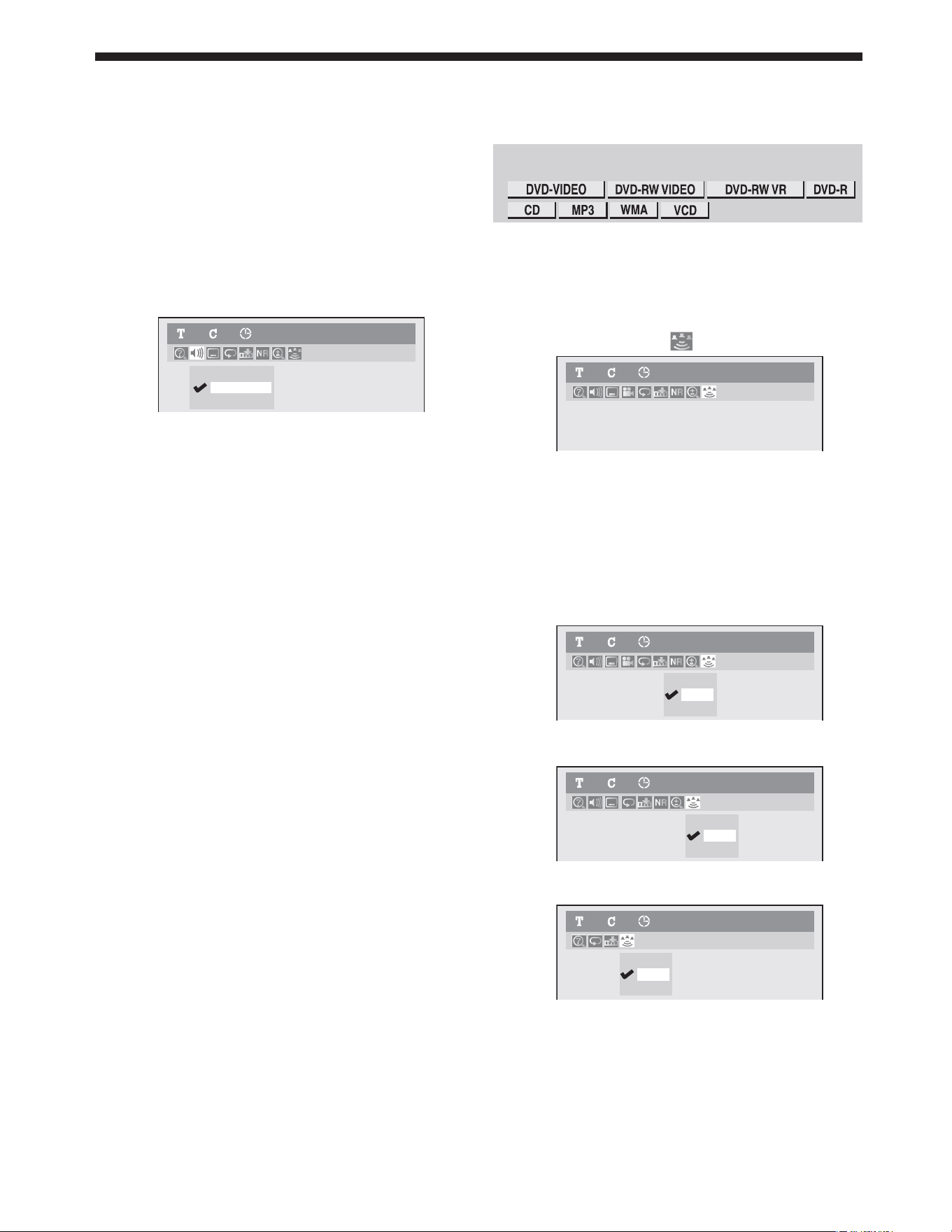

95
EN
3) Using [K / L], select a desired audio
soundtrack or audio channel. Press [ENTER].
<DVD-Video>
Audio soundtrack will switch.
<DVD-RW VR mode with main and sub
channel>
Audio channel menu will appear.
Using [K / L], select a desired audio channel.
Press [ENTER].
<Video CDs, Audio CD>
Audio channel will switch.
Notes
• Some discs will only allow you to change the soundtrack
from the Disc menu. Press [TOP MENU] or [MENU / LIST]
to display the Disc menu.
• Although this unit cannot record both Stereo (main) and
SAP (sub) at the same time, some VR mode DVD-RW
discs may contain both audio. With such discs, you can
select either Main (L), Sub (R) or both (L+R) as your
playback audio. Refer to “Notes on TV channel audio” on
page 37 for more details.
DVD-RW
VR Playlist
1 1 0:04:01
3. R
1. L/R
2. L
Switching virtual surround system
You can enjoy stereophonic virtual space through your
exciting 2 channel stereo system.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Virtual Surround menu will appear.
3) Using [K / L], select “OFF”, “Type 1” or
“Type 2”. Press [ENTER].
• OFF: no effect
• Type 1: natural effect
• Type 2: emphasised effect
<DVD-Video>
<DVD-RW VR mode>
<Audio CD, MP3, WMA, Video CD>
Notes
• Select Virtual Surround to “OFF” in a case sound is
distorted.
• The setting will be kept even when the unit is turned off.
DVD-Video1 1
0:04:01
OFF
Type 1
Type 2
DVD-Video1 1 0:04:01
OFF
Type 1
Type 2
DVD-RW
VR Playlist
1 1 0:04:01
OFF
Type 1
Type 2
Audio-CD1 1 0:04:01
96
Playback
EN
Selecting the format of audio and video (cont’d)

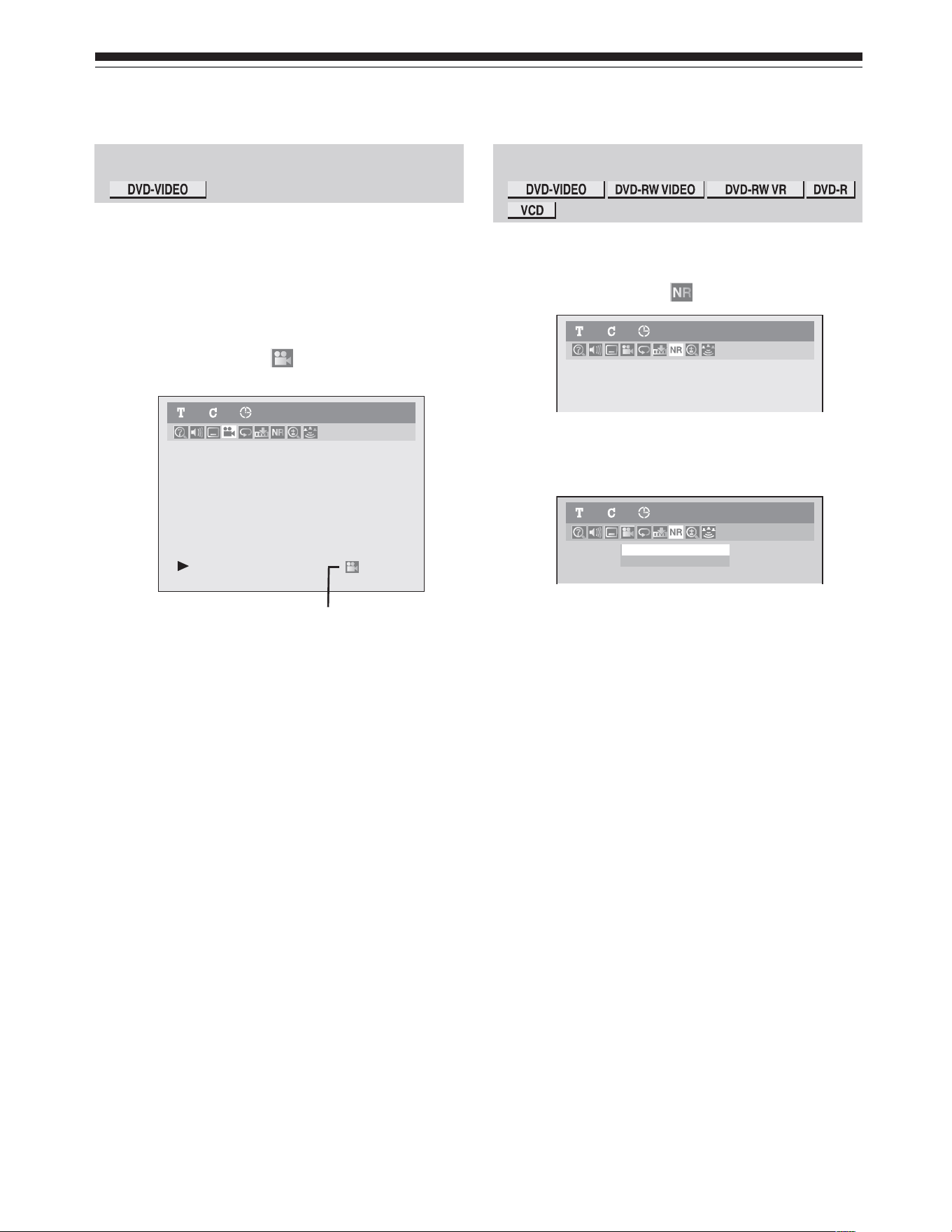

Switching camera angles
Some DVD-Video discs contain scenes which have
been shot simultaneously from a number of different
angles. For these discs, the same scenes can be viewed
from different angles.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Angle will switch each time you press [ENTER].
Angle icon appears when a switching camera
angle is available.
Note
• Angle icon does not appear on the screen in a case you
have selected Angle as “OFF” in the Display setting. Refer
to pages 135-136.
DVD-Video1 1 0:04:01
Reducing block noise
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Noise Reduction menu will appear.
3) Using [K / L], select “Noise Reduction”. Press
[ENTER].
Option menu will appear.
4) Using [K / L], select a desired option. Press
[ENTER].
Your setting will be activated.
This function reduces noise in the playback picture.
When playing back discs recorded in long time mode
such as SLP or SEP mode, select “Type 1” or “Type
2”. (“Type 2” is more effective.)
When playing back discs with a few noises such as
DVD-Video discs, select “OFF”.
DVD-Video1 1 0:04:01
DVD-Video1 1 0:04:01
Bla c k Le v e l OFF
No is e Re d u c tio n OFF
Bla ck Le v el
ON
Nois e Re du ctio n
OFF
97

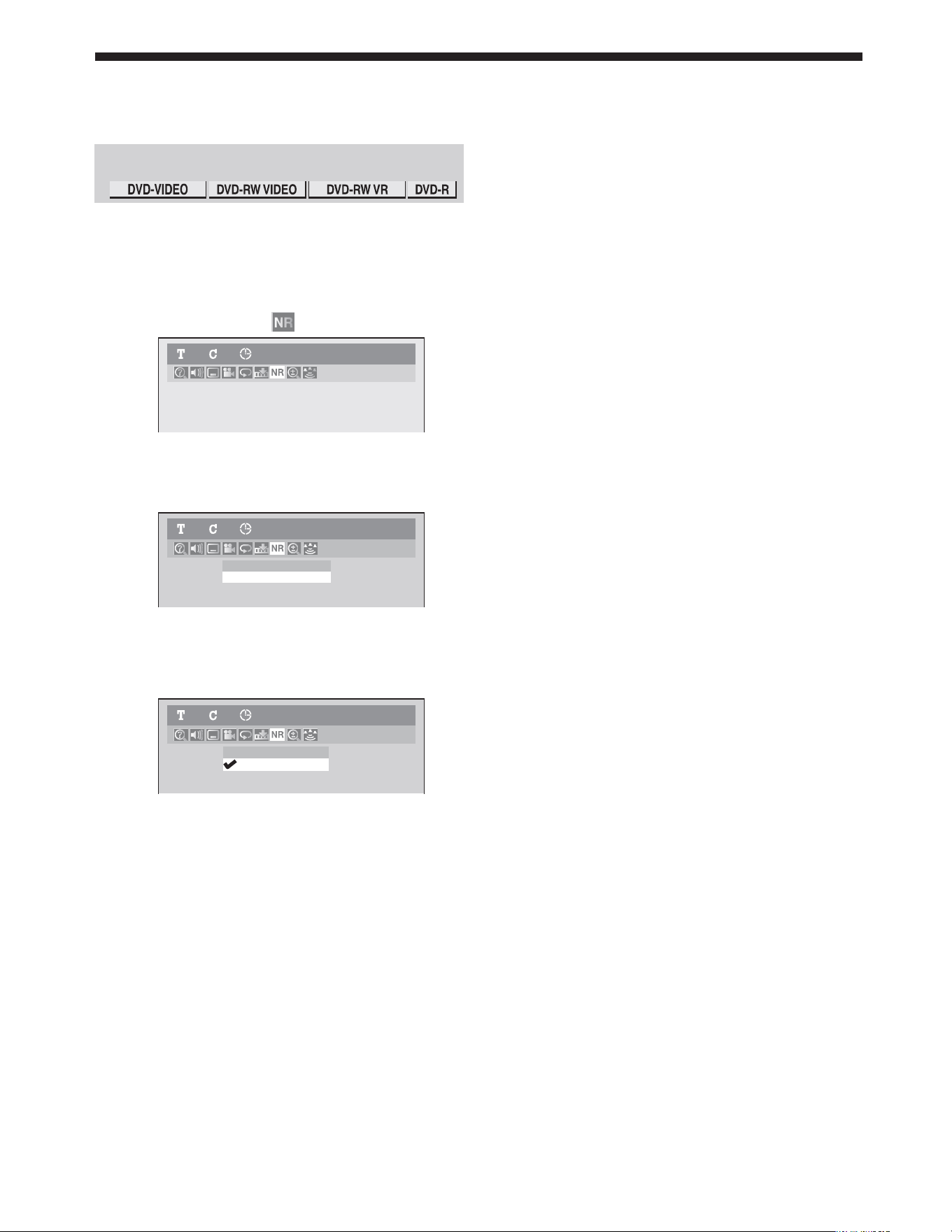

EN
Adjusting Black Level
You can adjust the Black Level Setting to make the dark
areas of the TV picture brighter.
1) During playback, press [DISPLAY].
The Display menu will appear.
2) Using [{ / B], select . Press [ENTER].
Noise Reduction menu will appear.
3) Using [K / L], select “Black Level”. Press
[ENTER].
Option menu will appear.
4) Using [K / L], select “ON”. Press [ENTER].
Your setting will be activated.
Notes
•
You can adjust Black Level Setting only during
playback.
• The setting will be kept even when the unit is turned off.
DVD-Video1 1 0:04:01
DVD-Video1 1 0:04:01
Bla c k Le v e l
ON
Nois e Re d u ctio n
OFF
DVD-Video1 1 0:04:01
ON
OFF
Symbols in this Section
The following icons show the playable discs for each
function described on this section.
:
DVD-RW disc recorded in VR mode Original
:
DVD-RW disc recorded in VR mode Playlist
:
DVD-RW disc recorded in Video mode
:
DVD-R disc
Most instructions are based on the remote control
operation, unless otherwise noted. You can use the
buttons on the remote control as well as those on the
main unit when they have the same function.
Editing
You can create your own movie from your
assembled scenes. Save your favorite videos in
DVD discs.
● Information on disc editing
● Editing discs

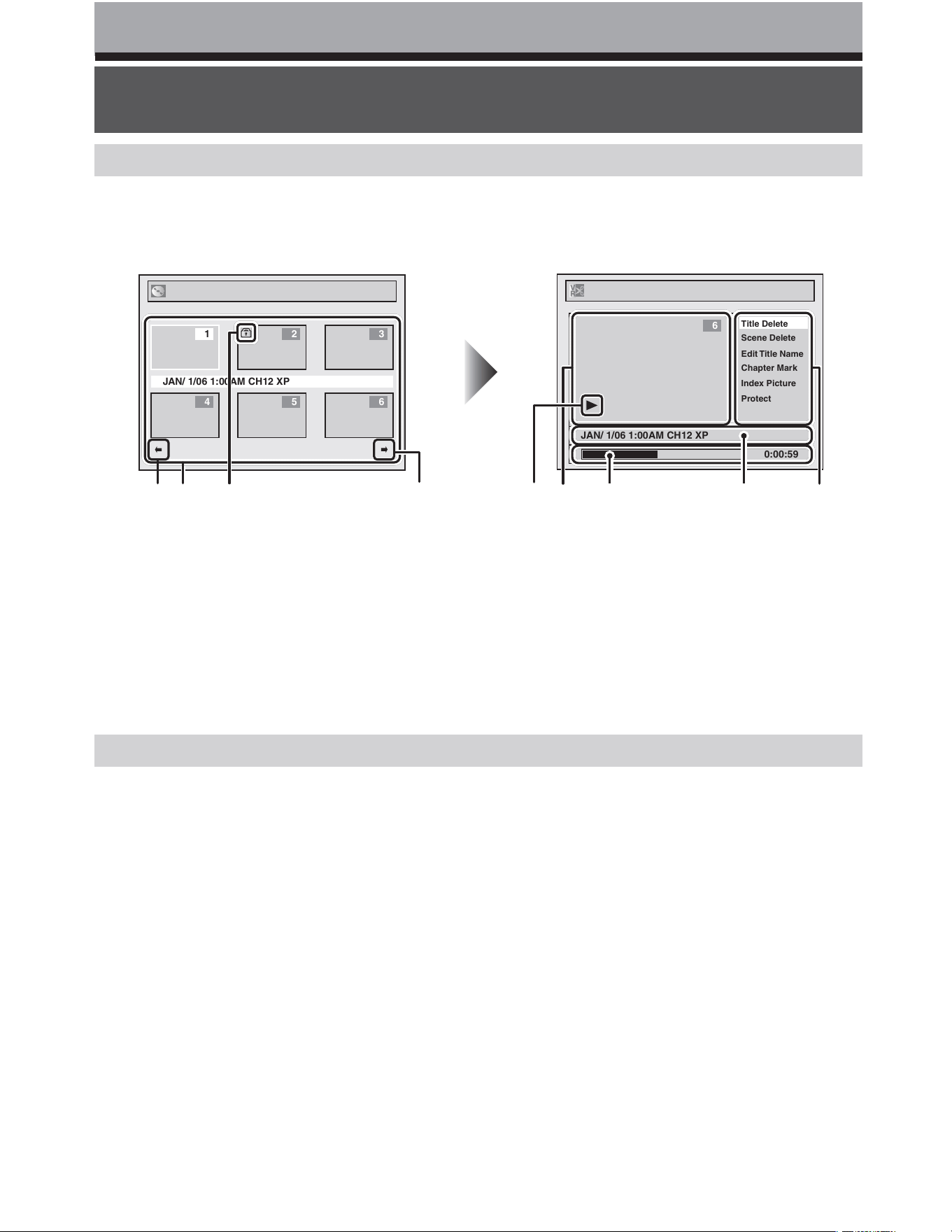

100
Editing
EN
Information on disc editing
Title list allows you to check the titles recorded on the disc easily. You can choose a title to play from this screen and
easily edit the titles as you prefer.
1. Titles recorded on the disc can be selected to edit or play by pressing [ENTER] with the cursor on the title.
2. The protect icon, which appears when the title has been protected. (Original titles only)
3. The arrow icon, which means the Title list includes a next or a previous page. Press [{ / B] by following direction
of the icon.
4. The menus in here are for editing titles as you prefer. The available menus depend on the disc type and the
format type. An item which is not available is grayed.
5. The details of the title, which can be changed in “Edit Title Name”.
6. Time status bar of the title.
Time status will be held even after exiting the edit mode, and you can resume playback from that point.
7. The selected title thumbnail from the title list.
8. Playback status of the current disc.
Guide to a title list
Original
JAN/ 1/06 1:00AM CH12 XP
4 5 6
1 2 3
Original
Edit Title Name
Chapter Mark
Index Picture
Protect
Scene Delete
Title Delete
JAN/ 1/06 1:00AM CH12 XP
0:00:59
6
13
7 46 5
8
2 3
Press [TOP MENU].
Edit the recorded disc
You will find editing discs is easy. This unit offers convenient edit functions which are possible only with DVD-R/RW
discs.
You can edit the following from a title list.
• Assigning a name to a title
• Setting pictures for thumbnails
• Adding or deleting chapter marks
• Deleting titles or parts of titles
(Possible editing functions depend on the recording format and editing method.)
Original and Playlist (VR mode)
You can edit the recordings in Playlist without changing the original recordings. Playlist does not take up much disc
space.
What “Original” or “Playlist” is for?
Throughout this manual, you will find Original and Playlist which refer to the actual content and the edited version.
• Original content refers to what’s actually recorded on the disc.
• Playlist content refers to the edited version of the disc; how the Original content is to be played.
Finalizing a Disc
• This will allow a disc that is recorded on this unit to be played back on a different DVD player — without finalization
it will not be playable on another player.
• After finalizing a disc in Video mode, you cannot edit any information that is on that disc.
• If you have recorded in VR mode on DVD-RW disc, then editing is still permitted after finalizing.
Using these editing functions to modify copyrighted content for any purpose other than your private viewing
may be prohibited under the Copyright Laws of the United States and other countries, and may subject you to
civil and criminal liability.
<Main Title List> <Specific title options>
101
EN
Once all editings are made, press [RETURN] in several times to exit the editing mode. “Writing to Disc” appears
momentarily. It also appears when opening the disc tray or pressing [I/y ON/STANDBY] before exiting the
editing mode after editing.
TITLE 1 TITLE 1
TITLE 1
TITLE 1
TITLE 1
TITLE 2
TITLE 1
TITLE 2
TITLE 1
TITLE 2
TITLE 2
TITLE 2
TITLE 2
TITLE 2
TITLE 3
TITLE 3
TITLE 3
TITLE 3
Delete! Delete!
You can record
a new title.
You cannot
record
a new title.
You cannot
record
a new title.
You can record
a new title.
Delete!
The Full-Recorded discThe Full-Recorded disc
Delete!
The Full-Recorded disc
After the disc is fully recorded:
DVD-RW DVD-R
• When a title is deleted
from DVD-RW disc in VR
mode, the recordable disc
space will be increased.
• When the last title is deleted from
DVD-RW disc in Video mode , the
recordable space will be increased.
• When a title is deleted from
DVD-R disc, the recordable
space will NOT be increased.
The deleted title
cannot be crea-
ted the space.
Editing discs
Type of title Item Page
Video
Mode
Deleting titles
Editing title names
102
105
DVD-RW
VR Mode
Original
Adding or deleting chapter marks
Setting pictures for thumbnails
Deleting parts of titles
108
110
112
DVD-RW
VR Mode
Playlist
Dividing a title
Combining titles
Adding titles to a Playlist
Erasing all Playlist
116
118
120
122
DVD-RW VR mode
Original only
Setting or releasing the title protection 124
DVD-RW
Video mode only
Setting or clearing all the chapter marks in one title 126
Note
• Original titles once edited will not remain as recorded originally. When you want to leave the original as it is, edit the Playlist
as you prefer.
Notes for deleting titles

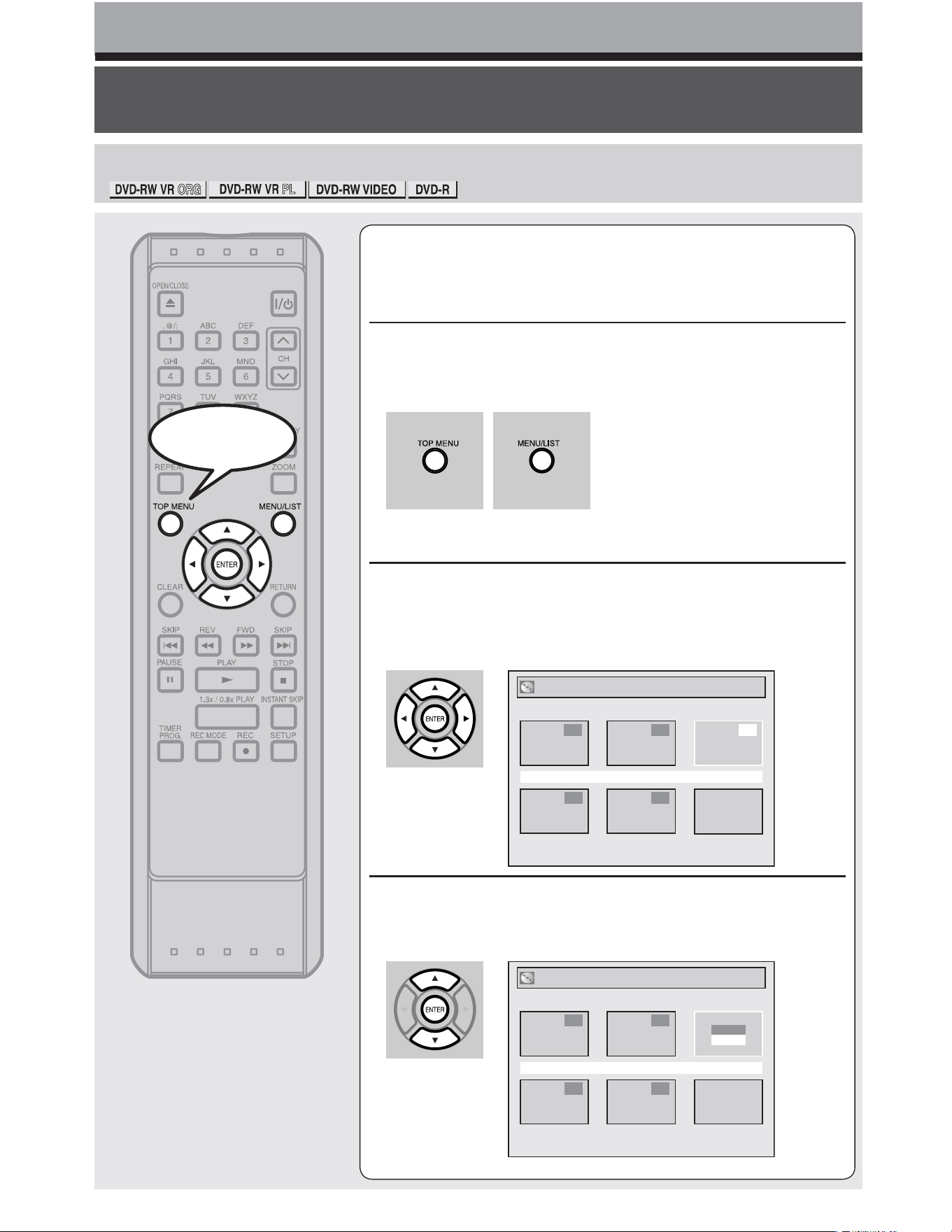

102
Editing
EN
Deleting titles
Editing discs
You can delete titles which you do not need any more.
Be advised that the titles once deleted cannot be brought
back to the disc. Be sure to read “Notes for deleting
titles” on page 101 before you delete the title.
1
Press [TOP MENU].
Title list, Original or Playlist will appear.
• Press [MENU/LIST] to switch between “Original” and “Playlist”
if the disc is recorded in VR mode.
2
Using [K / L / { / B], select the desired title.
Press [ENTER].
Pop-up window will appear.
<e.g. DVD-RW VR mode Playlist>
3
Using [K / L], select “Edit”. Press [ENTER].
Edit menu will appear.
Playlist
JAN/ 1/06 1:00AM CH12 XP
4 5
21
Play
Edit
Add New
Delete
Playlist
Title
Start
Playlist
JAN/ 1/06 1:00AM CH12 XP
4 5
21 3
Add New
Delete
Playlist
Title
103
EN

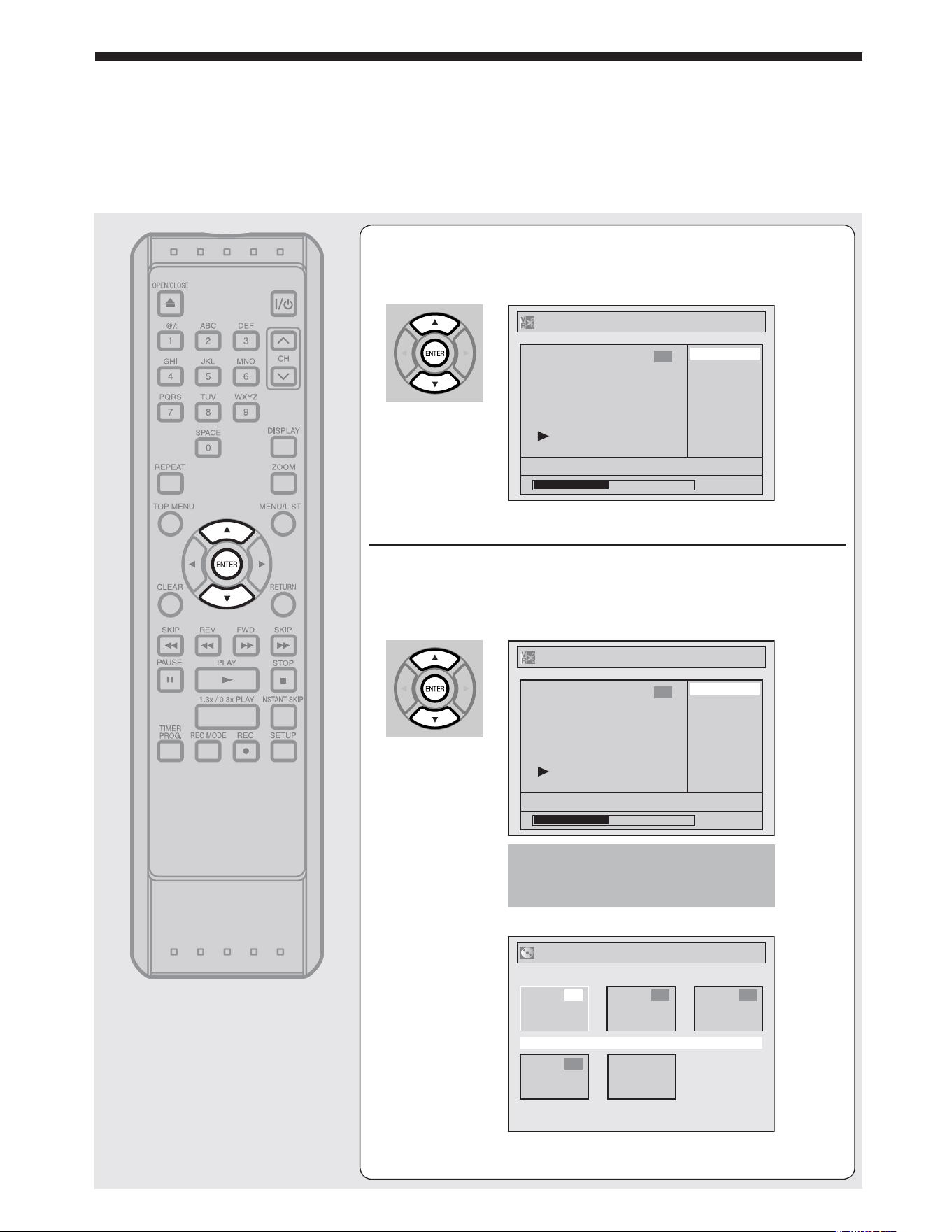

4
Using [K / L], select “Title Delete”.
Press [ENTER].
Confirmation window will appear.

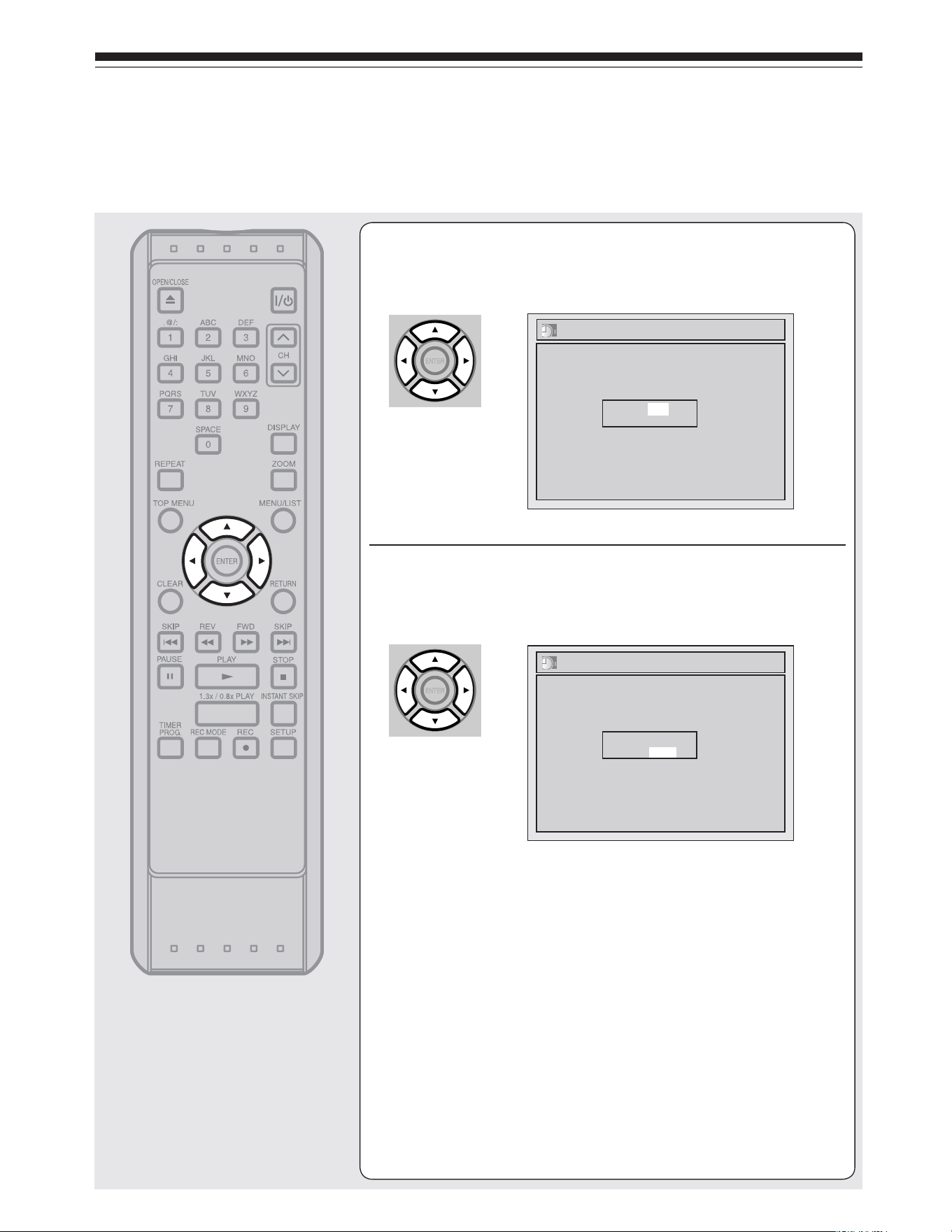

5
Using [K / L], select “Yes”. Press [ENTER].
After that, “Are you sure?” will appear, so select “Yes” with
[K / L] and then press [ENTER].
Title will be deleted.
(Continued)
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
Playlist - Title Delete
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Playlist
APR/ 1/06 2:00AM CH10 SP
4
2 31
Add New
Delete
Playlist
Title

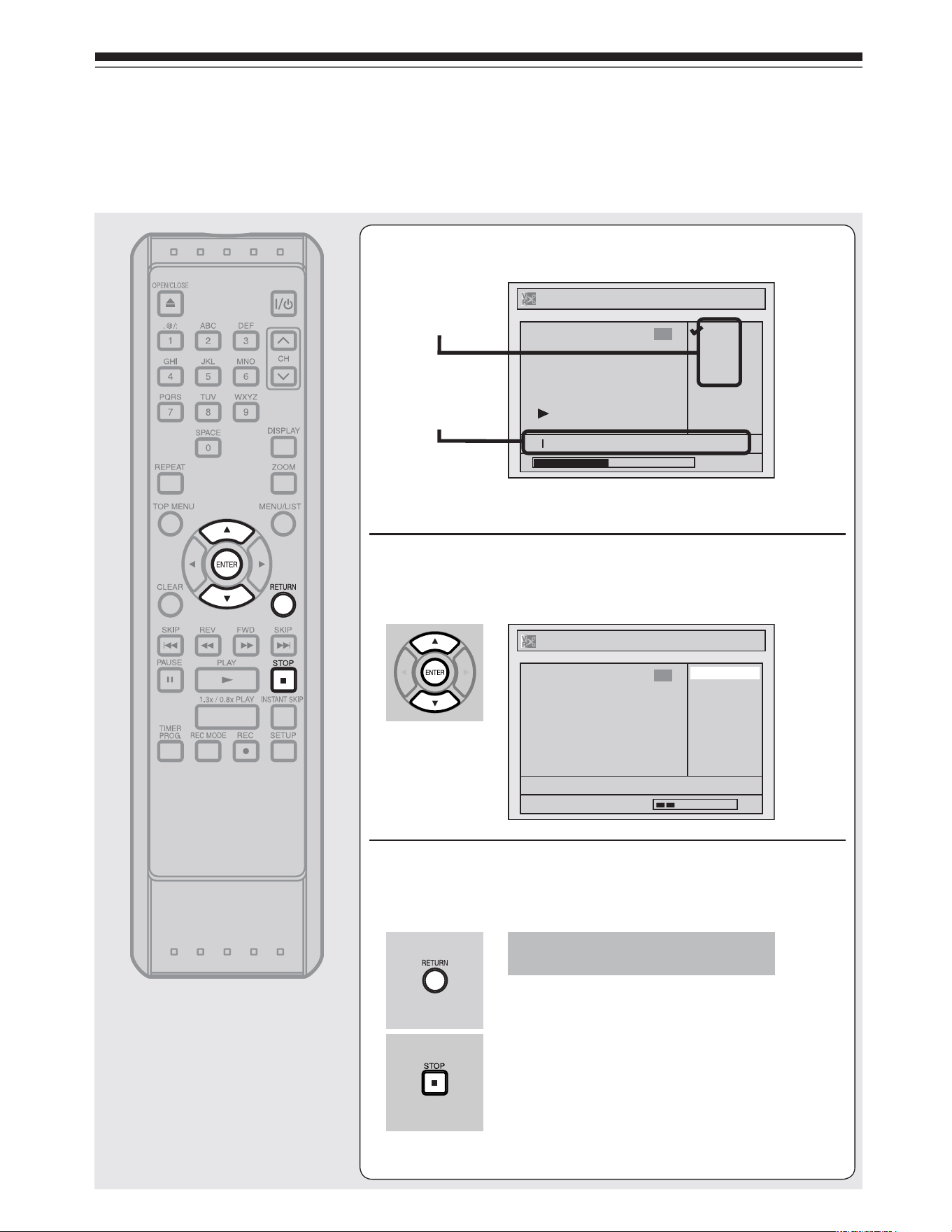

104
Editing
EN
Editing discs (cont’d)
6

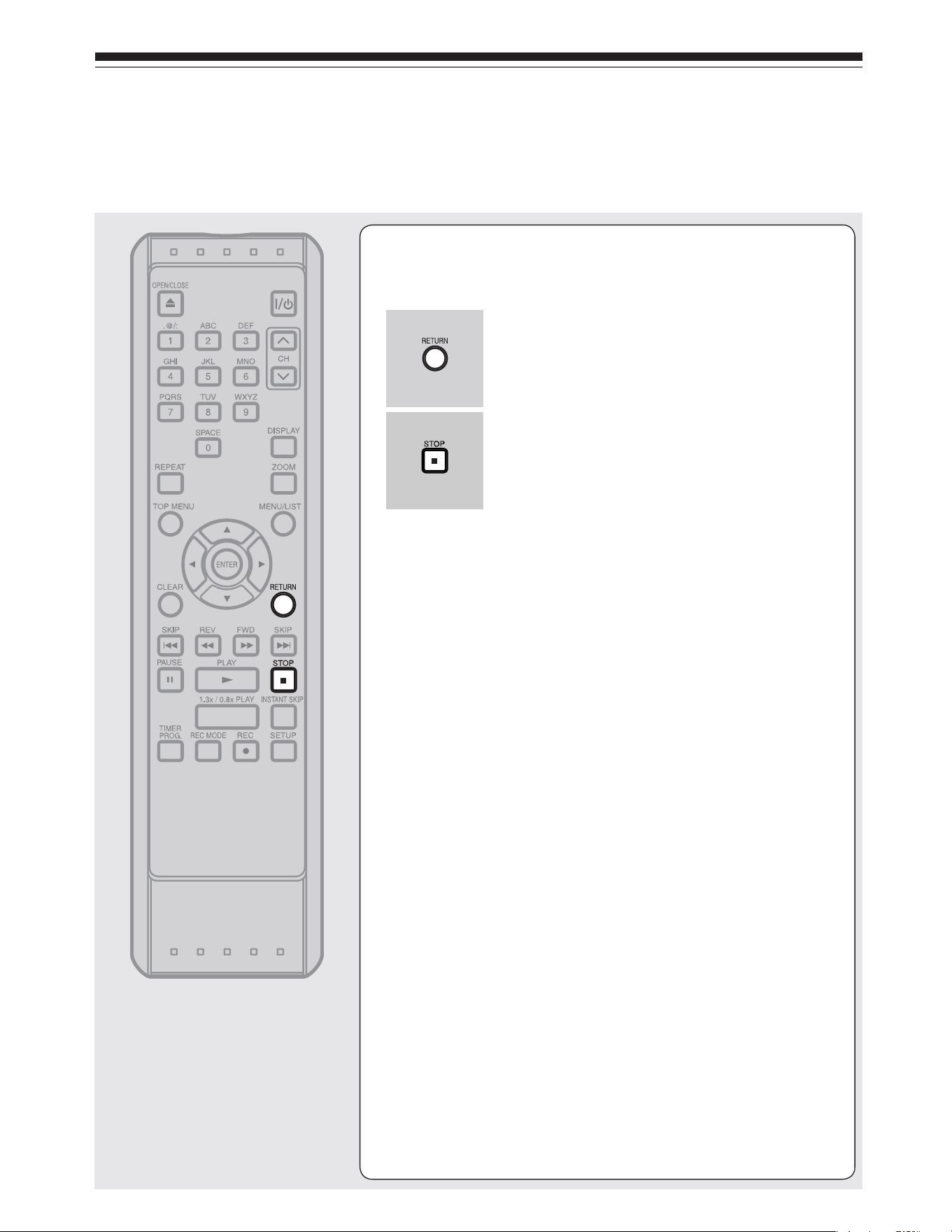

After this operation is completed, press
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.

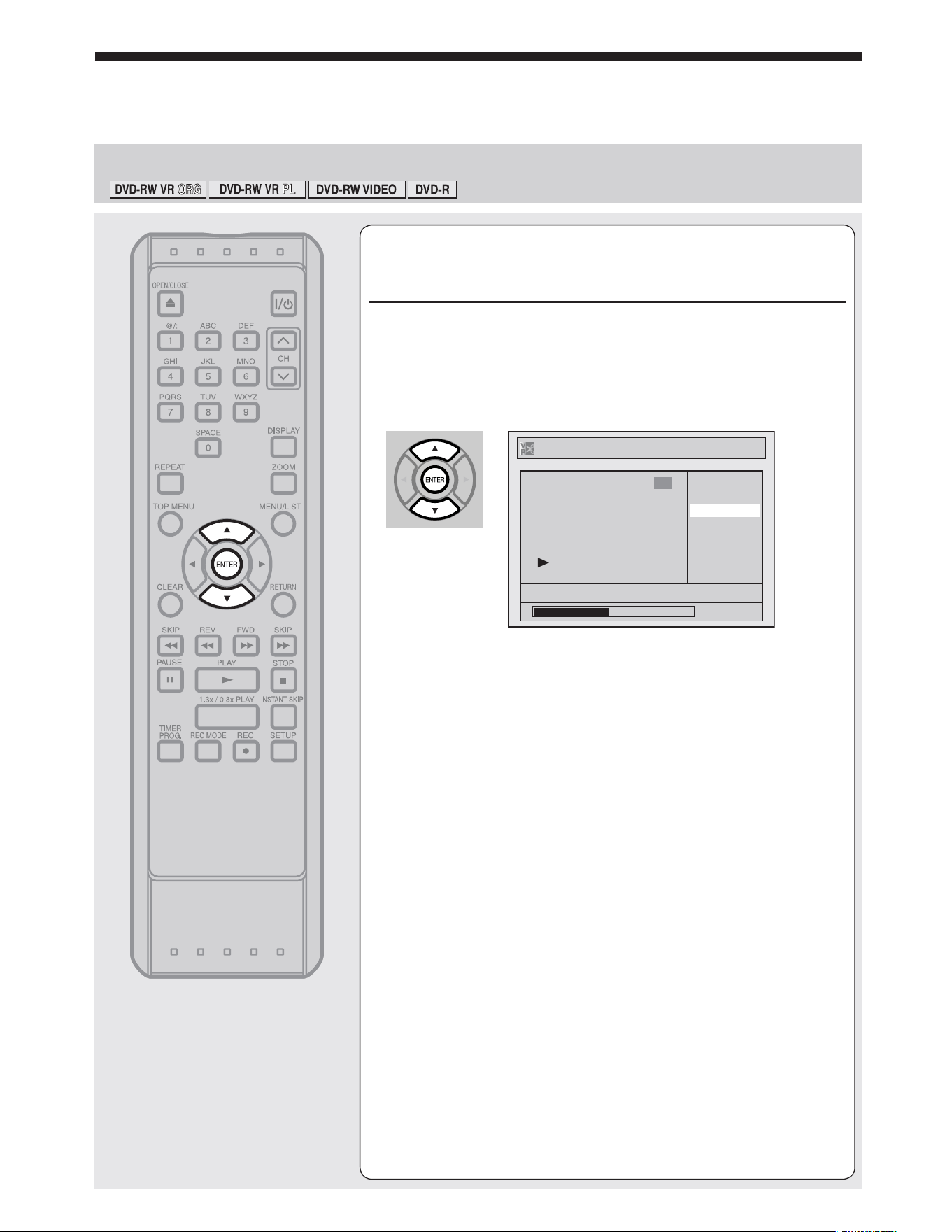

105
EN
Editing title names
You can change the title names from this menu.
The names you input for the titles will be displayed on
Title List / Original / Playlist.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Edit Title Name”.
Press [ENTER].
<e.g. DVD-RW VR mode Playlist>
(Continued)
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
106
Editing
EN
Editing discs (cont’d)
2
To enter a title name, follow the steps for
“Guide to edit title name” on next page.
character
set
area for
entering
title names
When you finish entering a title name, press [ENTER].
Confirmation window will appear.
3
Using [K / L], select “Yes”. Press [ENTER].
The name you entered will replace the current title.
4
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
Playlist - Edit Title Name
a b c
A B C
1 2 3
@ ! ?
0:00:59
3
M
Playlist - Edit Title Name
No
Yes
Wait for a moment.
3
MY FAVORITE
This operation may take a while to
be completed.

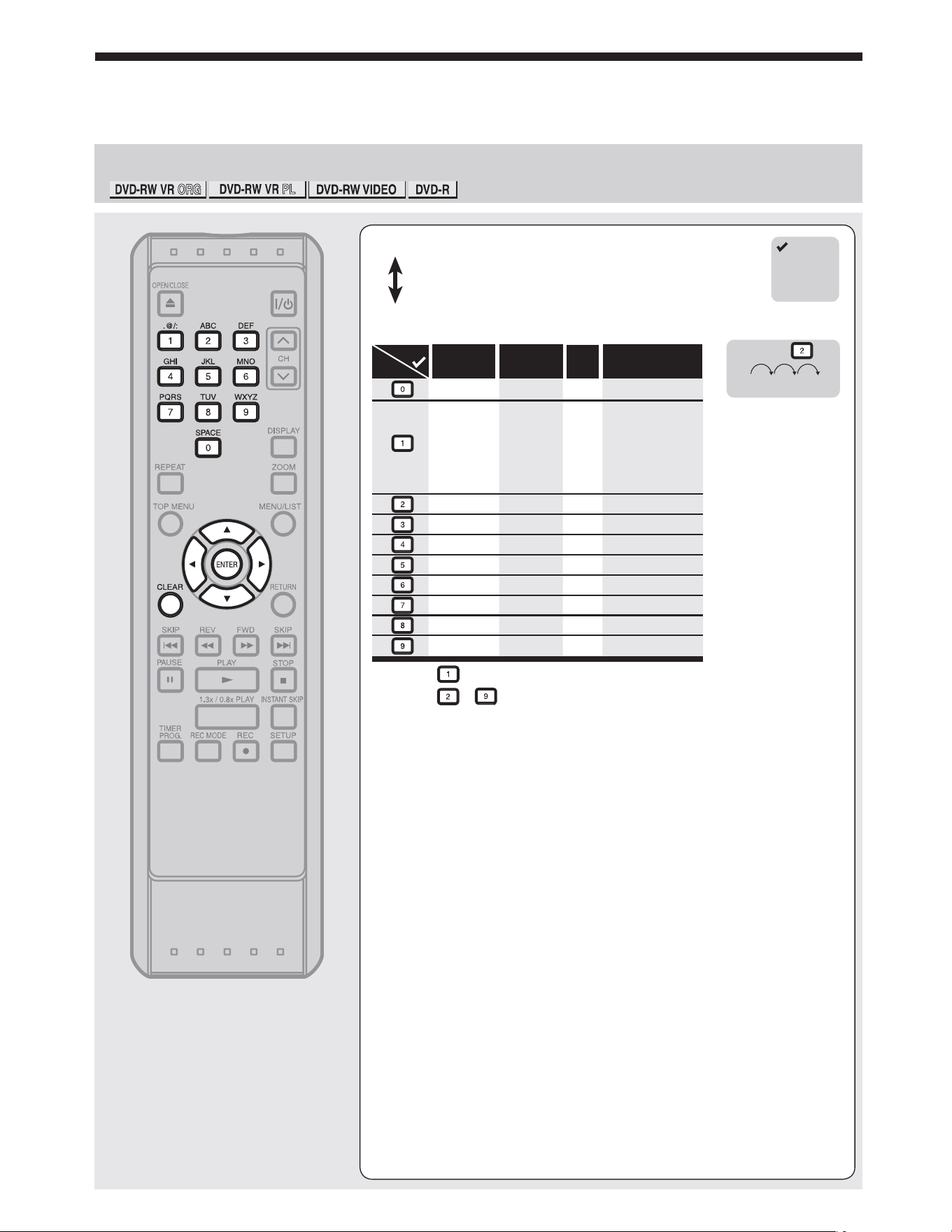

107
EN
Guide to edit title name
Press
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
<space>
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
<space> <space>
! ” # $ % & ’ ( )
*
+ , - . / : ; < = >
? @ [ ] ^ _ { | }
2
3
4
5
6
7
8
9
0
1
ABC abc
Select
@ ! ?
123
[
Step1
]
:
[
Step2
]
:
A B C
a b c
1 2 3
@ ! ?
(*1) (*1)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
e.g. character set : A B C
A B C A
...
press
Note:
Undefined letters in
a title name are
shown by “*”. If you
delete them,
adjoining letters may
change to “*” or
other.
Select a desired character set using [K/L], then
press [ENTER].
Follow the list below, press the Number buttons repeatedly until the
desired letter appears.
*1
Press , character set will be changed to the
“ @
!?
” mode automatically.
*2
Press
to
, character set will be changed to the
previous input
mode
automatically.
• To delete letters, press [CLEAR] repeatedly. Holding [CLEAR] to delete
all letters.
• Press [s / B] to move the cursor to the left or right.
• You can enter up to 30 letters.
108
Editing
EN

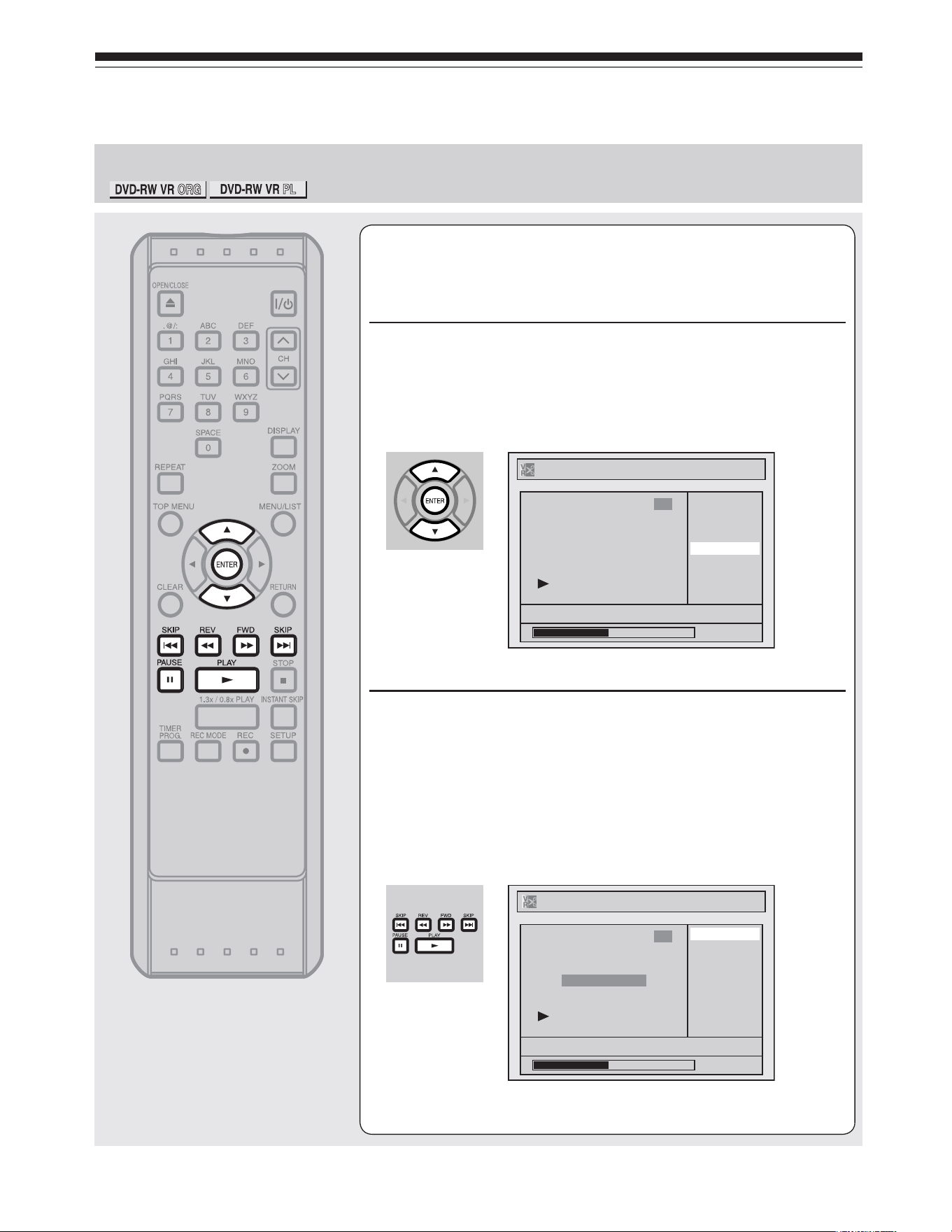

Adding or deleting chapter marks
Editing discs (cont’d)
You can add or delete chapter marks on each title.
Once a chapter is marked, you can use it for the chapter
search feature.
You can add chapter marks anywhere you want.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Chapter Mark”.
Press [ENTER].
<eg. DVD-RW VR mode Playlist>
Option window will appear.
2
Use [SKIP H / G], [REV E], [FWD D],
[PLAY B] and [PAUSE F] to decide the point at
which you want to create a new chapter mark.
Or, use [SKIP H / G] to decide a chapter
mark that you want to delete. Select “Add” or
“Delete” accordingly using [K / L] . Press
[ENTER].
<e.g :Add>
Confirmation window will appear.
• You cannot delete the first chapter of each title.
Note
• When the number of chapter marks in the Playlist comes to 999 in total, you cannot add any more chapter mark.
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Playlist - Chapter Mark
Delete
Add
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Chapter 2/ 2

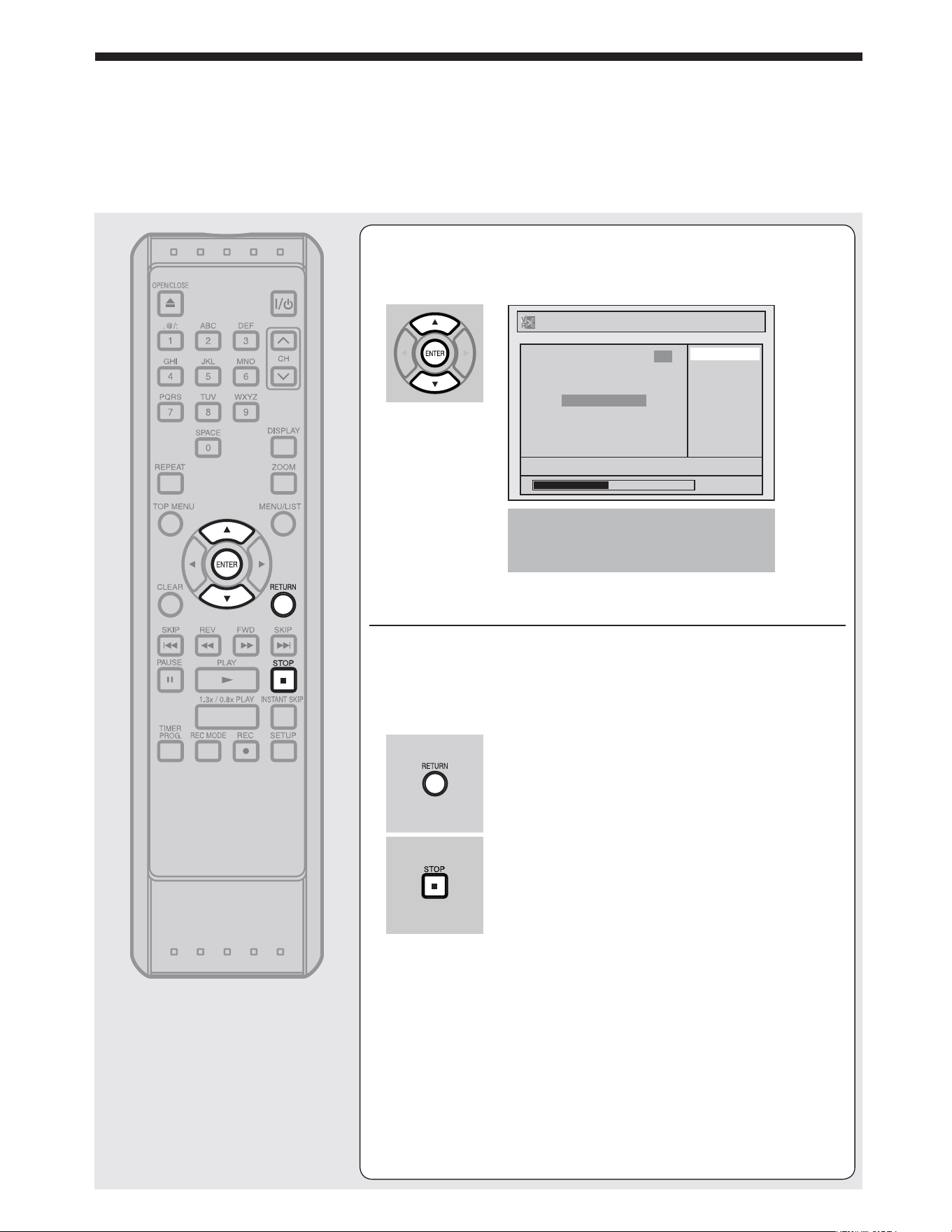

109
EN
3
Using [K / L], select “Yes”. Press [ENTER].
The chapter mark will be added or deleted depending on what
you selected.
4
After this operation is completed, press
[RETURN] twice and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
Playlist - Chapter Mark - Add
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Chapter 2/ 2
F
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
110
Editing
EN

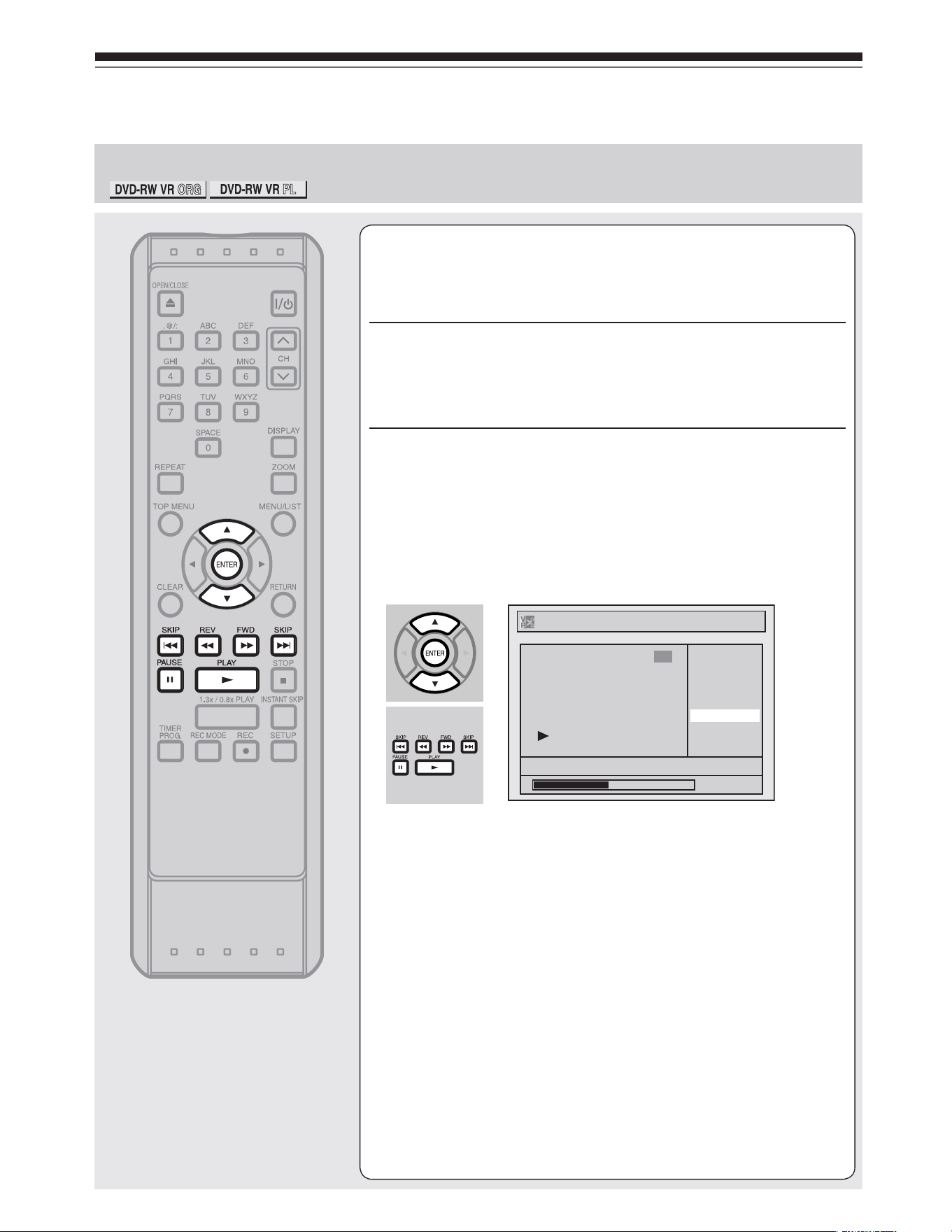

Setting pictures for thumbnails
Editing discs (cont’d)
You can set a picture to each title for a thumbnail. It
helps you to remember the contents of the title you are
playing. The beginning picture has been selected as the
default.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Edit menu will appear.
2
Use [SKIP H / G], [REV E], [FWD D],
[PLAY B] and [PAUSE F] to decide the
picture you want to select as a thumbnail.
Using [K / L], select “Index Picture”.
Press [ENTER].
<eg. DVD-RW VR mode Playlist>
Confirmation window will appear.
• To select the image you want to use, play the content (you
can use the track and FWD/REV functions to find the image
quickly.) Once you find the image, press [Pause F]. Then
proceed to selecting “Index Picture” to the menu list to the
right.
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3

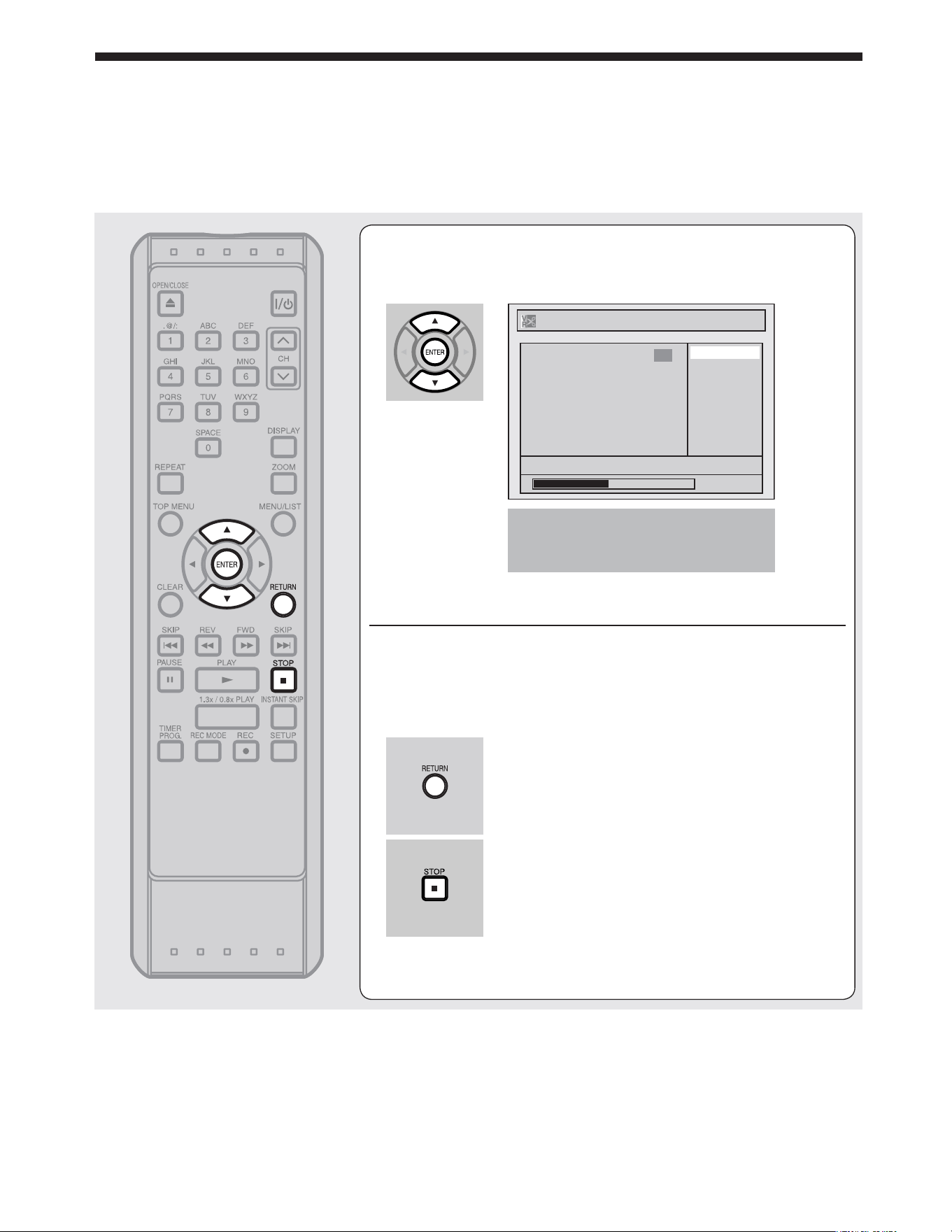

111
EN
Note
• If a selected picture for a thumbnail is deleted by deleting parts of a title, a default picture will be selected.
3
Using [K / L], select “Yes”. Press [ENTER].
A picture for thumbnail will be set.
4
After this operation is completed, press
[RETURN] and then [RETURN] or [STOP C] to
exit.
Data will be written onto the disc momentarily.
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
Playlist - Index Picture
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
F
112
Editing
EN

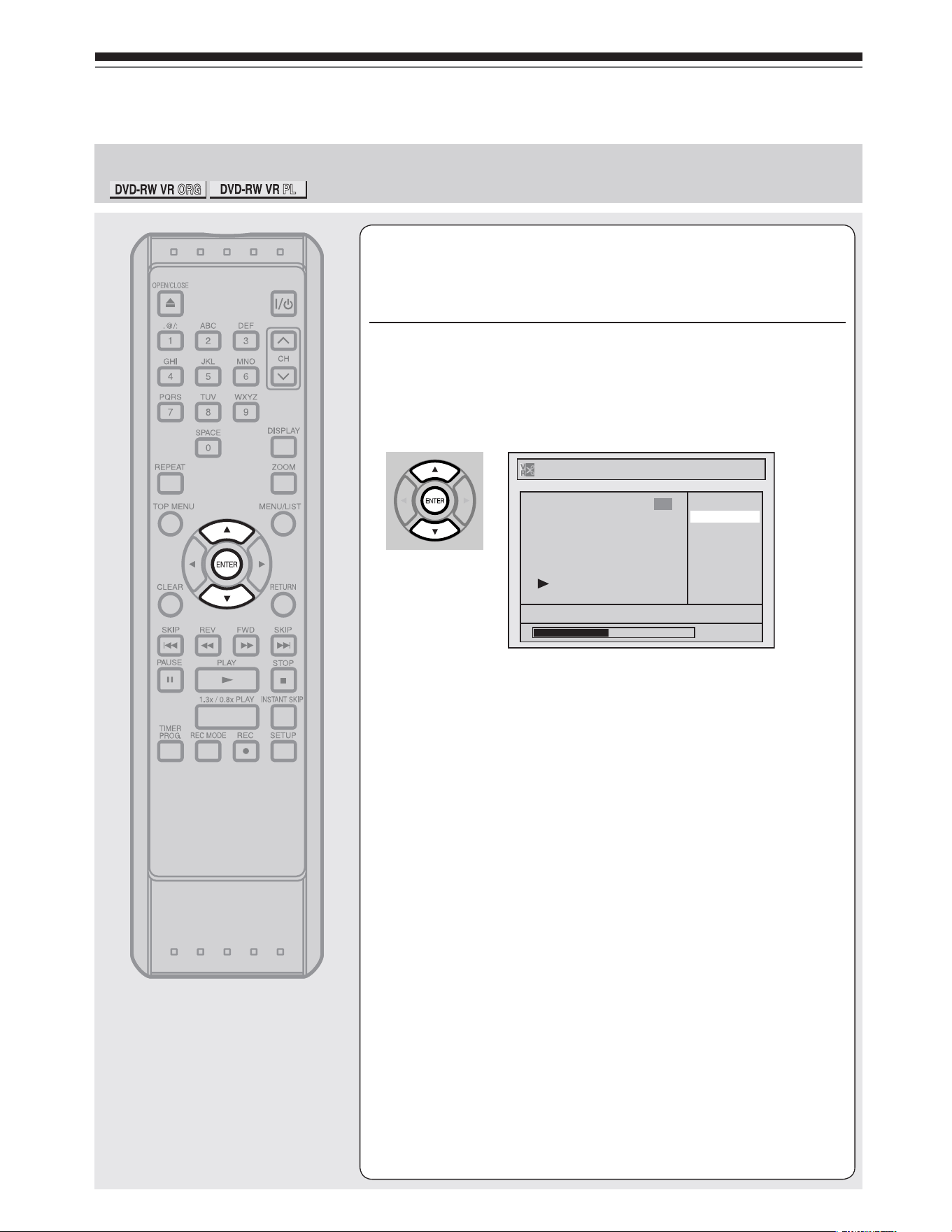

Deleting parts of titles
Editing discs (cont’d)
You can delete a specifi c part of a title.
Even when parts of title are deleted from the Playlist, the
original title will remain as it is.
The disc space to record will not be increased.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Scene Delete”. Press
[ENTER].
<eg. DVD-RW VR mode Playlist>
Option window will appear.
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3

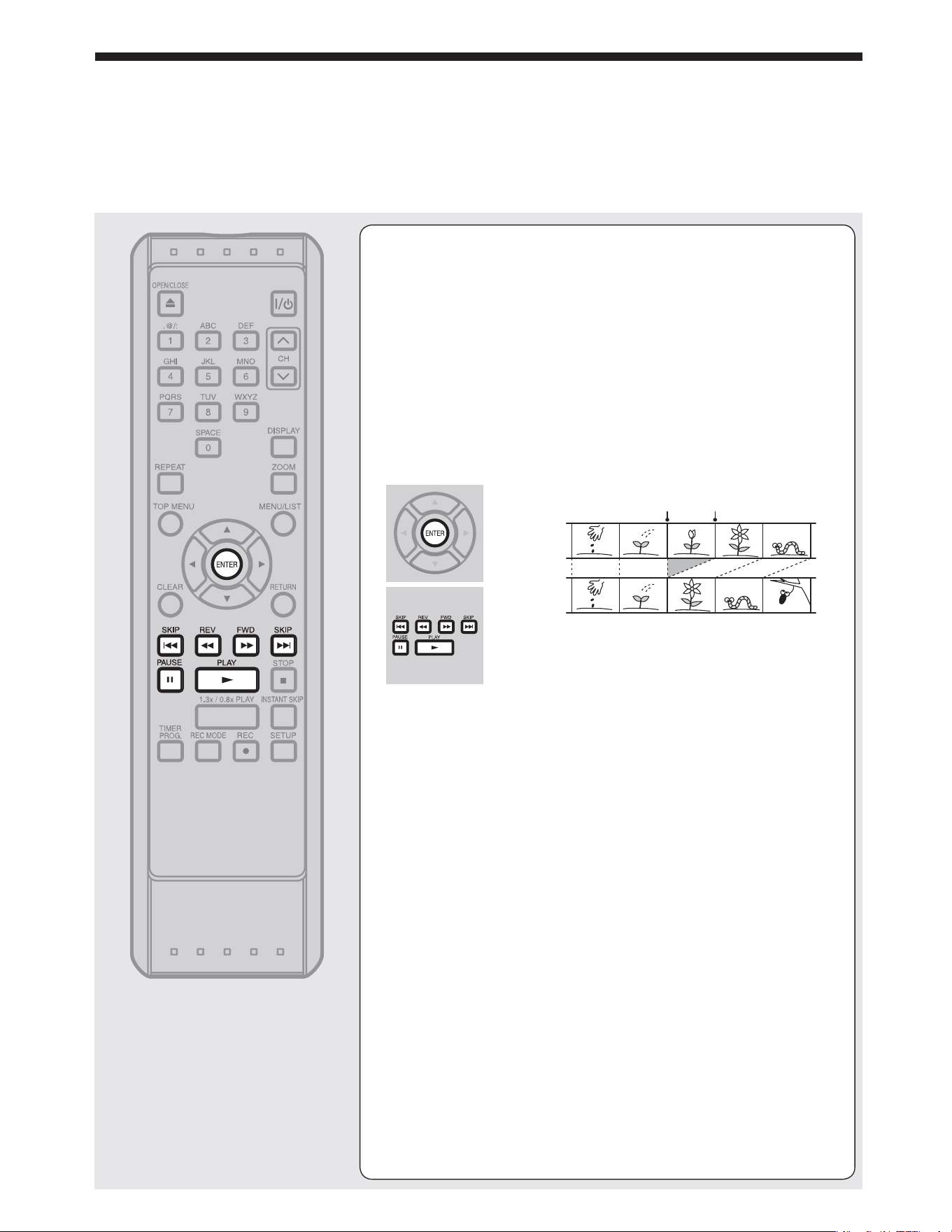

113
EN
2
Use [SKIP H / G], [REV E], [FWD D],
[PLAY B] and [PAUSE F] to decide the start
point, then press [ENTER].
Then use [SKIP H / G], [REV E],
[FWD D], [PLAY B] and [PAUSE F] again to
move to the end point, and press [ENTER].
A cursor will move to “Preview”.
The bar at the bottom of the screen indicates the total and the
elapsed time of the title, and the area selected for deletion will
be indicated in red.
Press [ENTER] again to start the preview.
You can check the result of deletion by “Preview”.
(Continued)
Start point End point
Before
editing
Edited

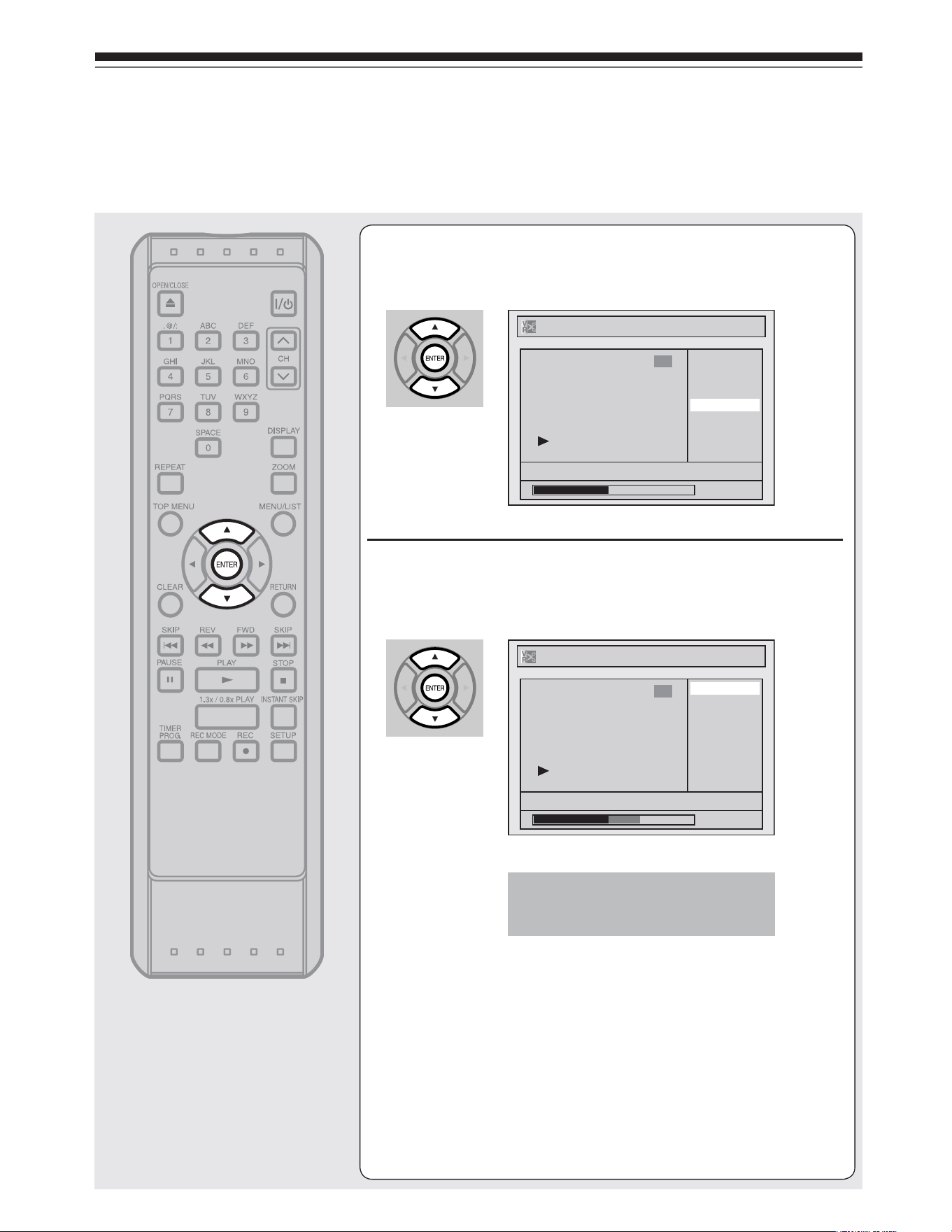

114
Editing
EN
Editing discs (cont’d)
3
Using [K / L], select “Delete”. Press [ENTER].
Confirmation window will appear.
4
Using [K / L], select “Yes”. Press [ENTER].
After that, “Are you sure?” will appear, so select “Yes” with
[K / L] and then press [ENTER].
Part of a title will be deleted.
Playlist - Scene Delete
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
Playlist - Scene Delete
End
Start
Preview
Delete
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3

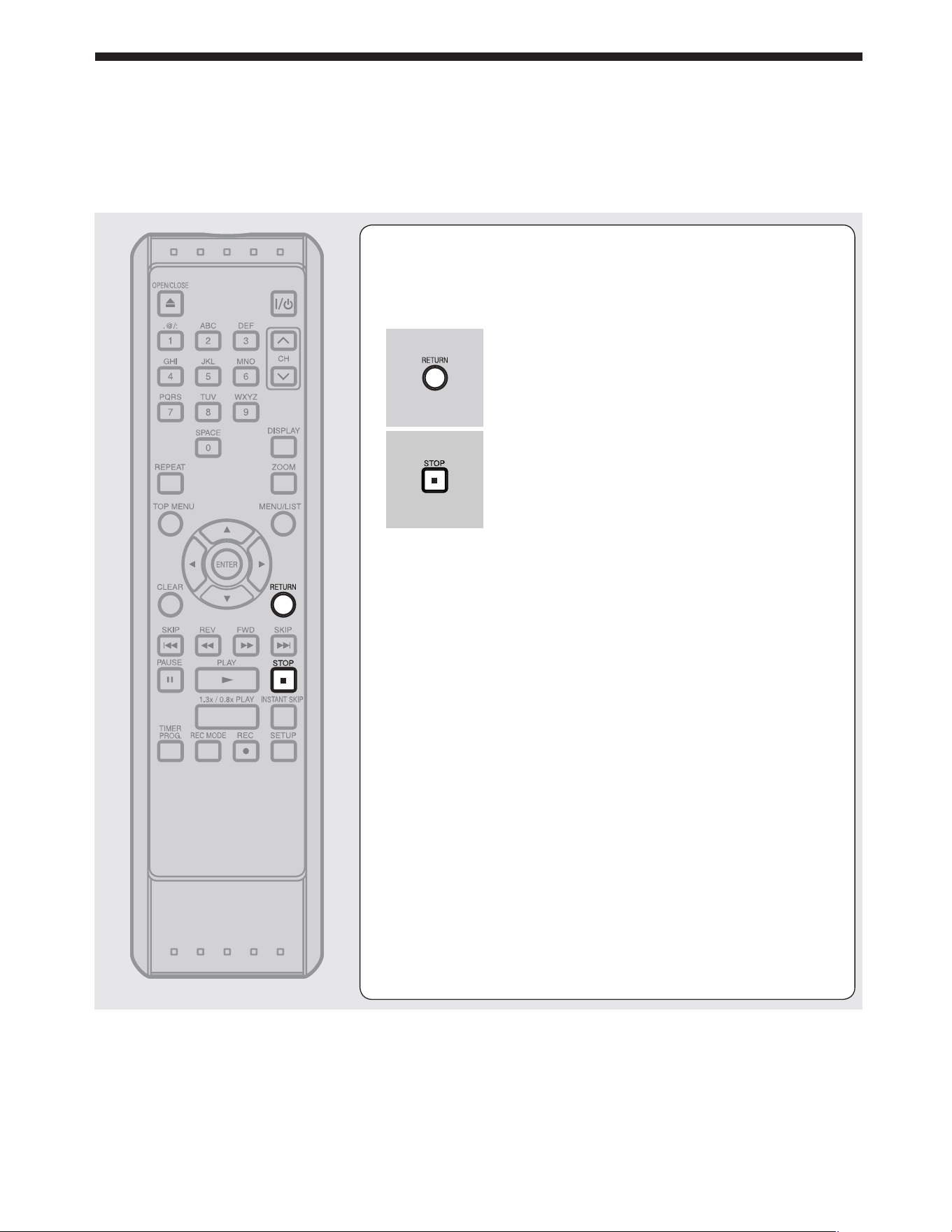

115
EN
Notes
• Original titles once edited will not remain as recorded originally. When you want to leave the original as it is, edit the Playlist
as you prefer.
• You cannot select “Scene Delete” when the number of chapter marks is more than 900.
5
After this operation is completed, press
[RETURN] and then [RETURN] or [STOP C] to
exit.
Data will be written onto the disc momentarily.

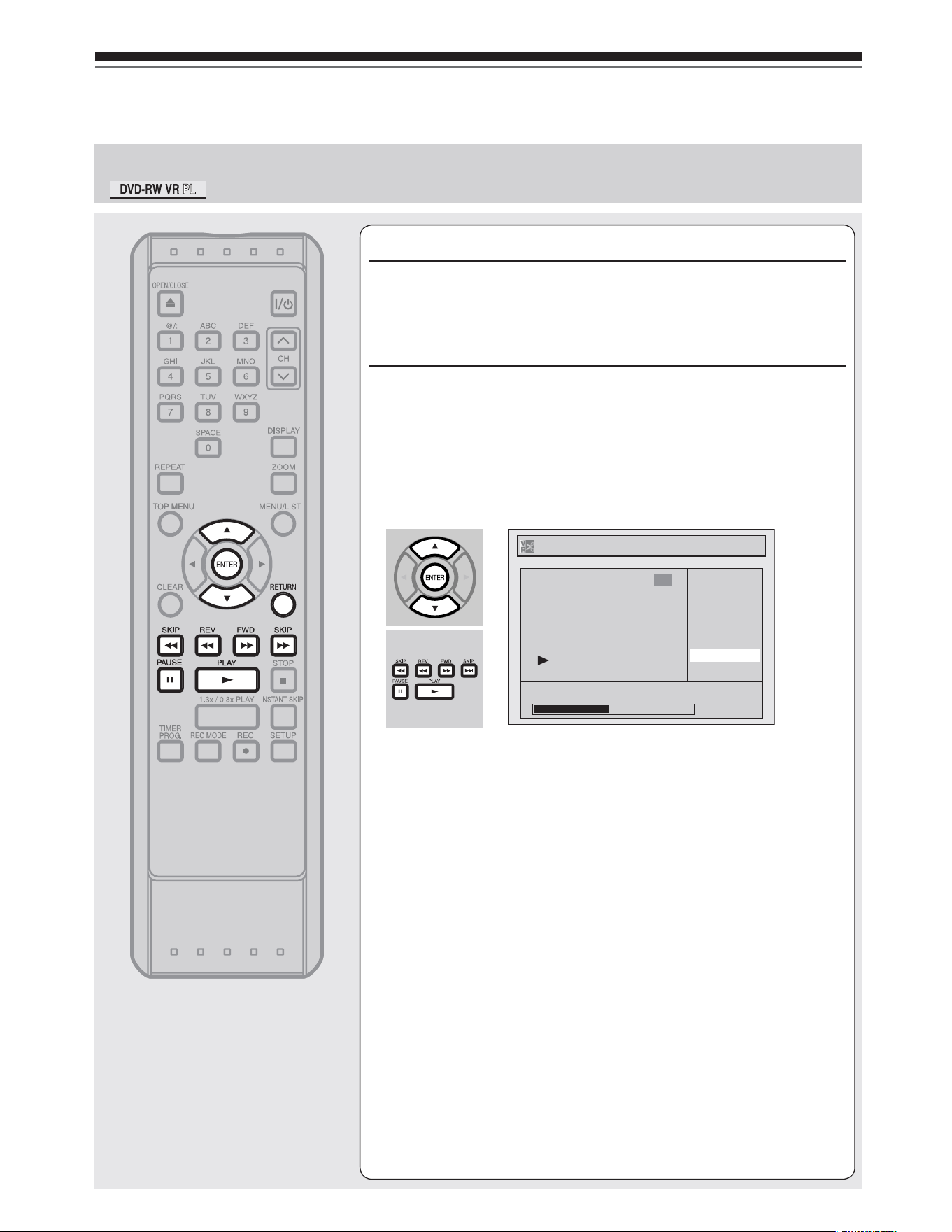

116
Editing
EN
Dividing a title
Editing discs (cont’d)
You can divide a title into two new titles.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Edit menu will appear.
2
Use [SKIP H / G], [REV E], [FWD D],
[PLAY B] and [PAUSE F] to decide the point
at which you will divide the title.
Using [K / L], select “Title Dividing”.
Press [ENTER].
<eg. DVD-RW VR mode Playlist>
Confirmation window will appear.
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
117
EN
Note
• You cannot divide a title of the disc on which the number of recording title comes up to the maximum (99), and the number
of recording chapter comes up to the maximum (999).

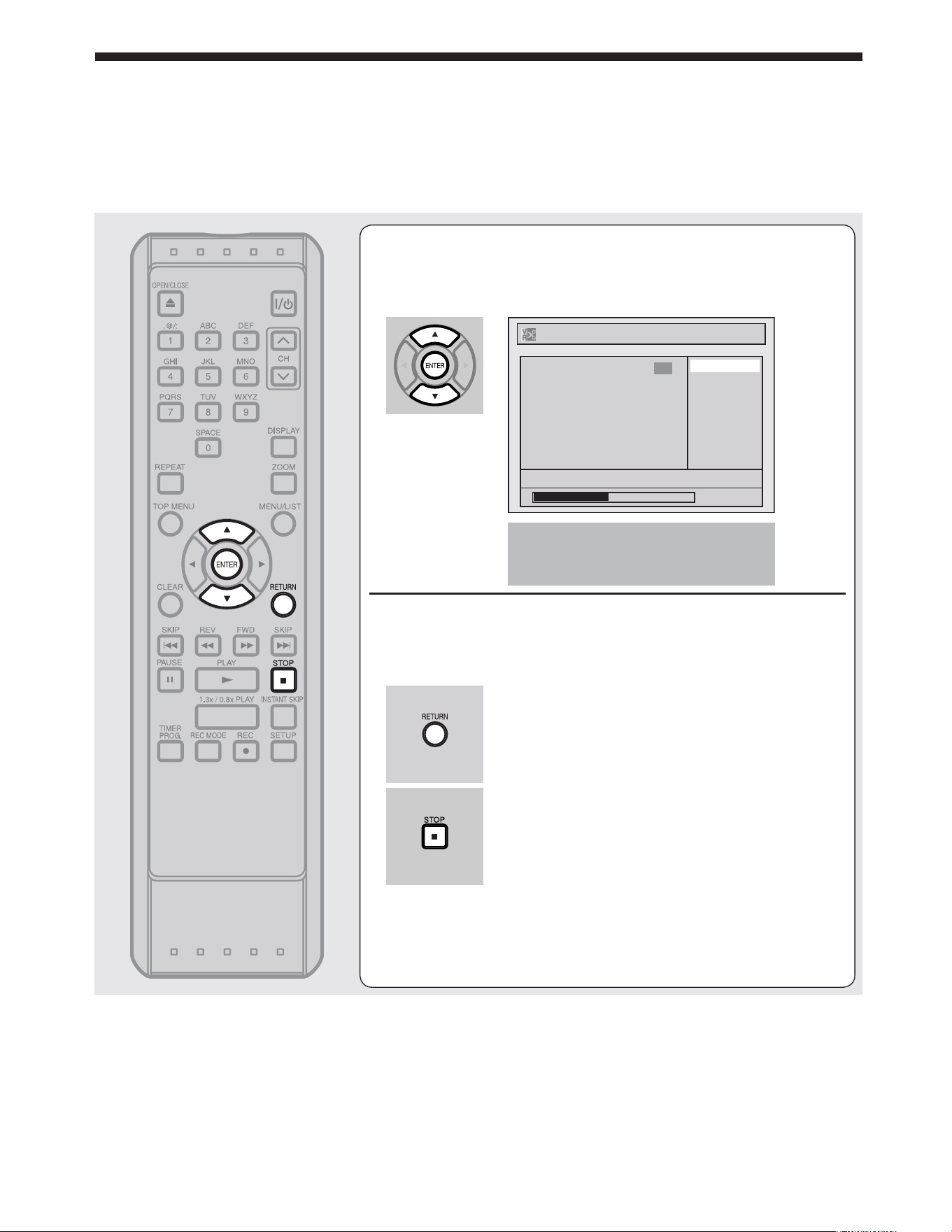

3
Using [K / L], select “Yes”. Press [ENTER].
The title will be divided into two new titles.
Both title names are identical, and index pictures are reset to
the first scene at this point.
4
After this operation is completed, press
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
Playlist - Title Dividing
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
F
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
118
Editing
EN

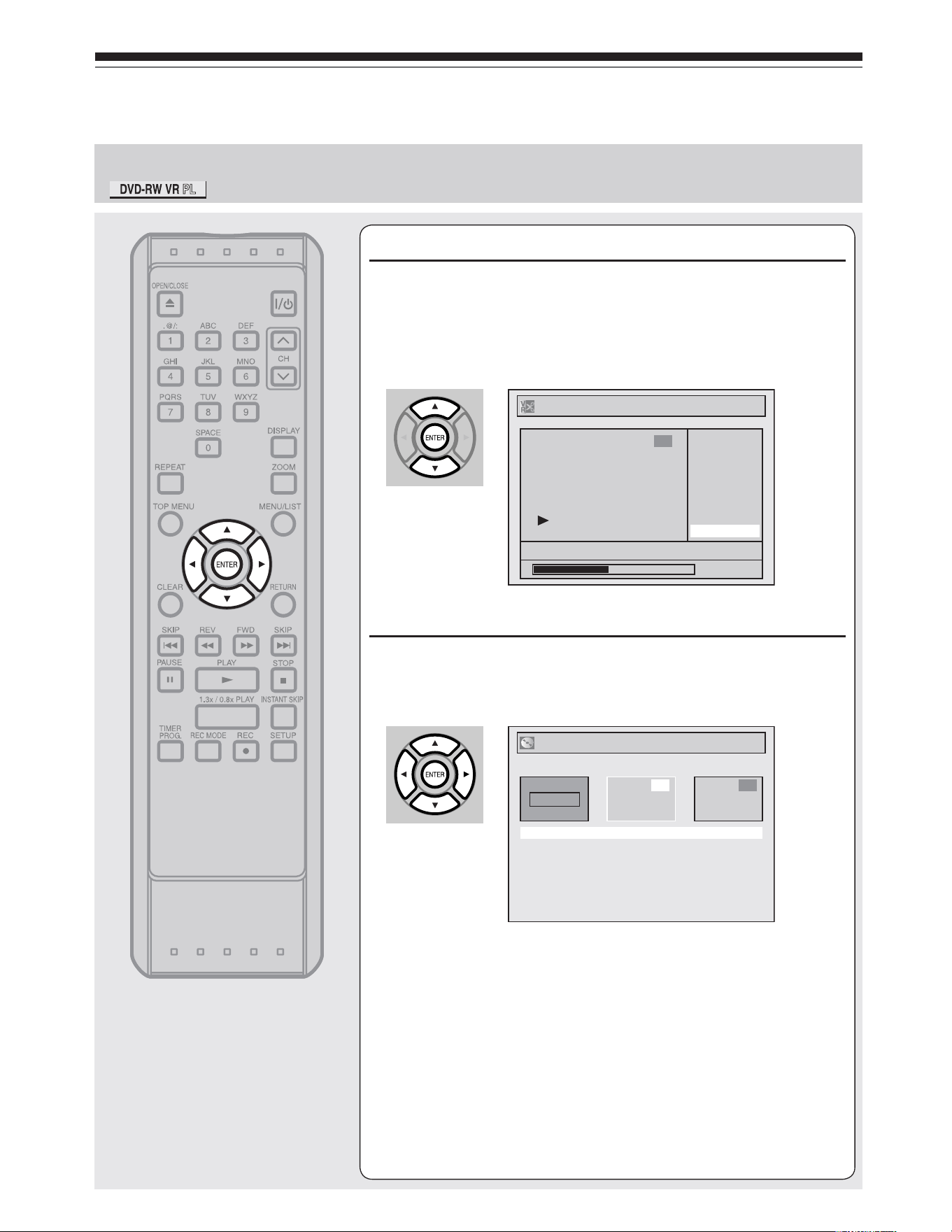

Combining titles
Editing discs (cont’d)
You can combine two titles into a single title.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Title Combining”. Press
[ENTER].
<eg. DVD-RW VR mode Playlist>
Title Combining setting window will appear.
2
Using [K / L / s / B], select another title to
combine. Press [ENTER].
Confirmation window will appear.
Playlist - Title Combining
JAN/ 1/06 3:00AM CH10 XP
1 2 3
1 +
Playlist
Scene Delete
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Title Combining
JAN/ 1/06 1:00AM CH12 XP
0:00:59
1
119
EN
Notes
• You cannot combine the same titles into a single title.
• If one of two titles in the original is deleted, the combined new title will be deleted automatically.
• Selection order for the combining is affected in the combined new title.
3
Using [s / B], select “Yes”. Press [ENTER].
Two titles will combine into a single title.
4
After this operation is completed, press
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
Yes No
Playlist - Title Combining
1 2 3
1 + 2
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
Playlist
JAN/ 1/06 1:00AM CH12 XP
1 2
Add New
Delete
Playlist
Title
120
Editing
EN

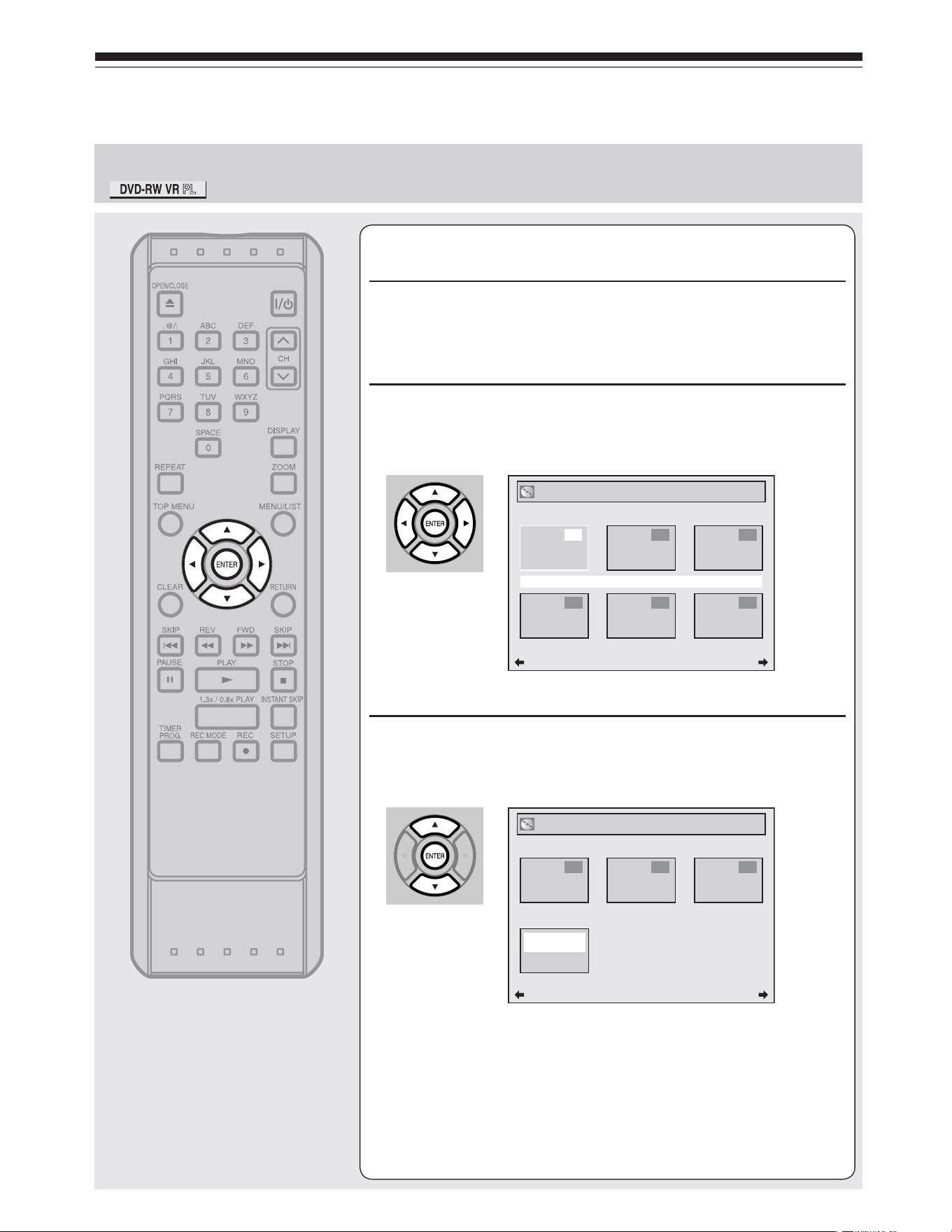

Adding titles to a Playlist
Editing discs (cont’d)
You can add a title in the Playlist as you prefer.
You can add up to 99 titles to a Playlist.
1
Follow step 1 on page 102 to display the
Playlist.
2
Using [K / L / s / B] to go to the next of the
final title, “Add New Title” “Delete Playlist”
menu is shown.
3
Using [K / L], select “Add New Title”.
Press [ENTER].
Playlist
7 8 9
Add New
Delete
Playlist
Title
Playlist
JAN/ 1/06 1:00AM CH12 XP
4 5
2 3
6
1
121
EN

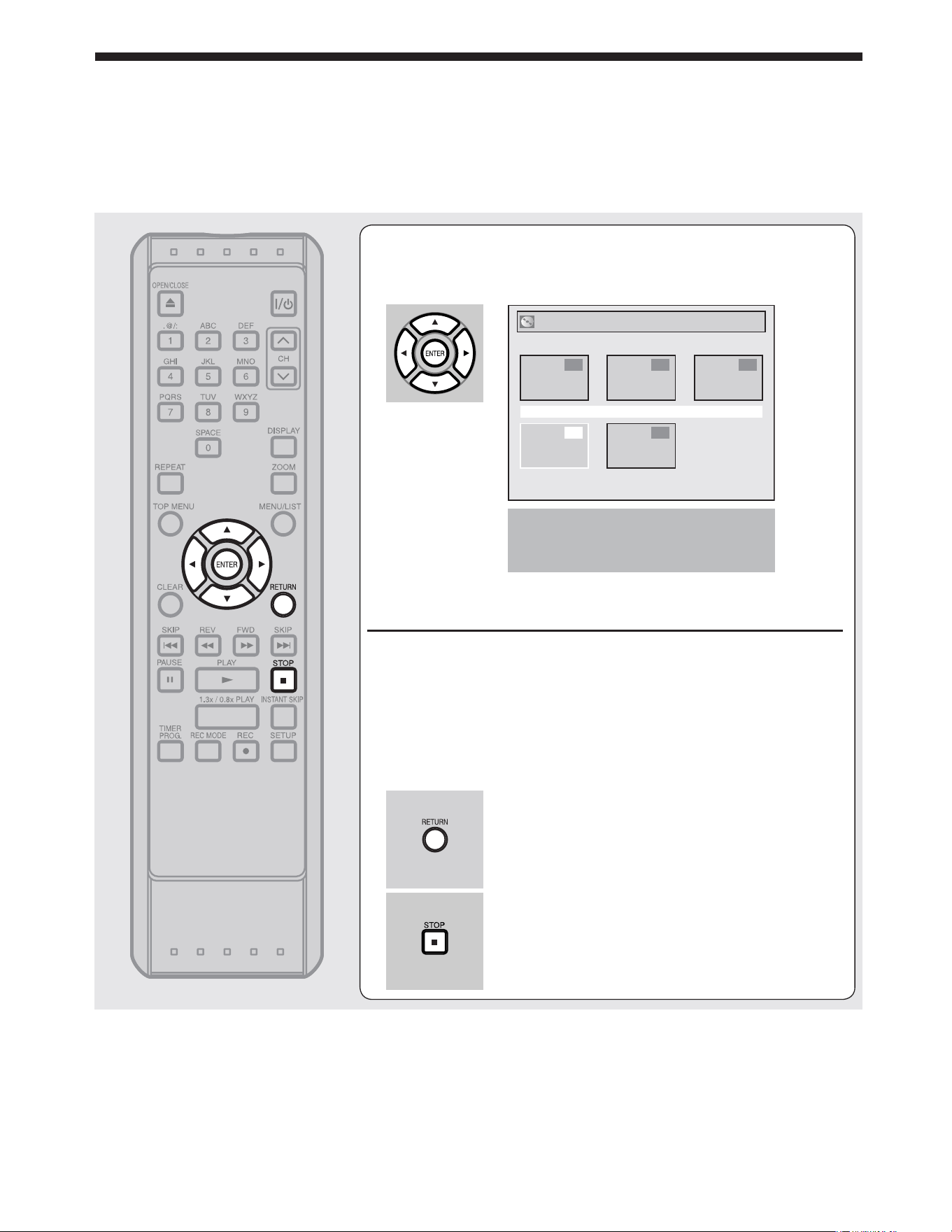

4
Using [K / L / s / B], select a desired title.
Press [ENTER].
The added title will appear as the final title.
5
After this operation is completed, press
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
To delete a title from Playlist, refer to “Deleting titles” on page
102.
To erase all titles in the Playlist, refer to “Erasing all Playlist” on
next page.
Note
• When a Playlist contains 99 titles or more, or 999 chapters or more, “Add New Title” cannot be selected.
Playlist - Add New Title
JAN/ 1/06 1:00AM CH12 XP
1
4
2
5
3
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
122
Editing
EN

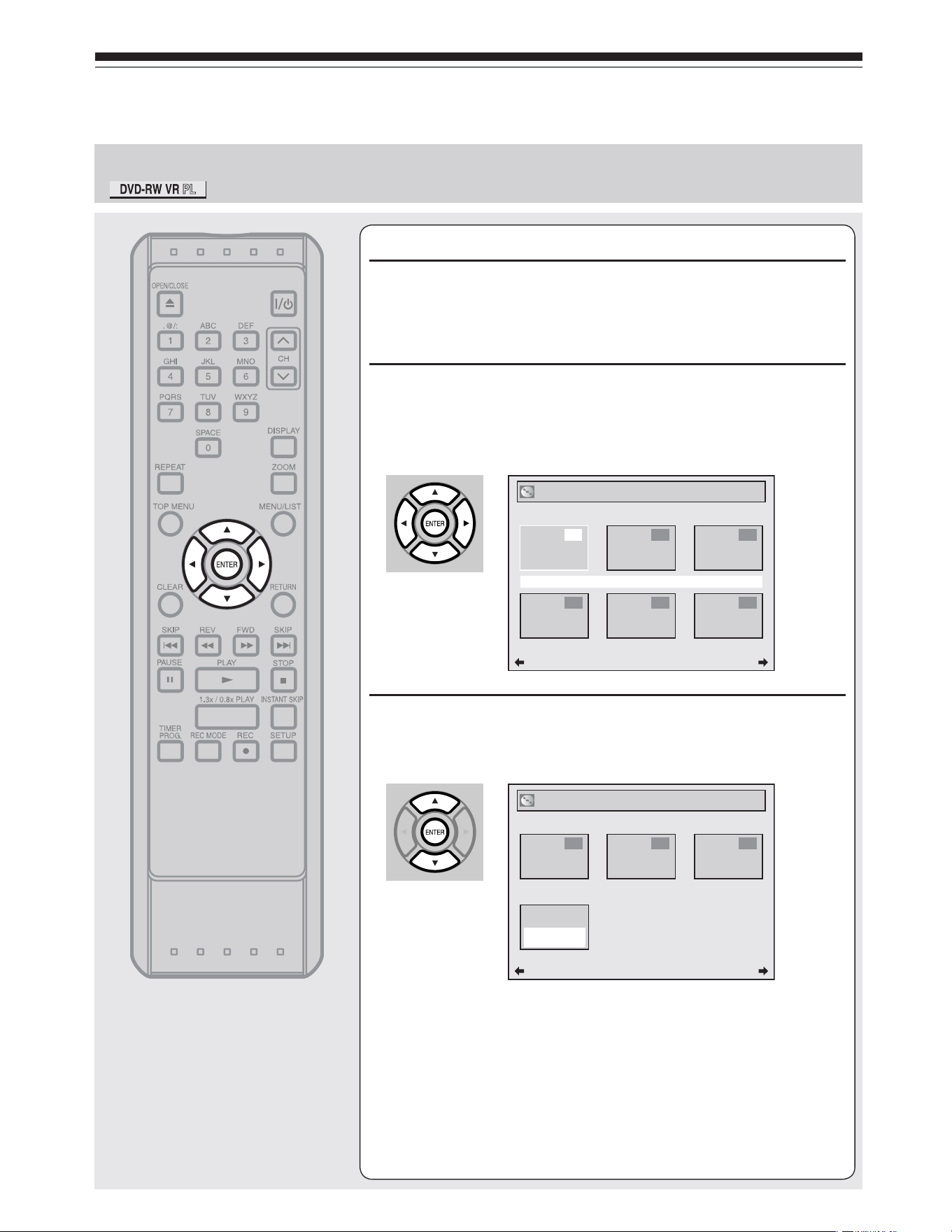

Erasing all Playlist
Editing discs (cont’d)
You can erase all titles in the Playlist.
1
Follow step 1 on page 102 to display the
Playlist.
2
Using [K / L / s / B] to go to the next of the
final title, “Add New Title” “Delete Playlist”
menu is shown.
3
Using [K / L], select “Delete Playlist”.
Press [ENTER].
Playlist
7 8 9
Add New
Delete
Playlist
Title
Playlist
JAN/ 1/06 1:00AM CH12 XP
4 5
2 3
6
1

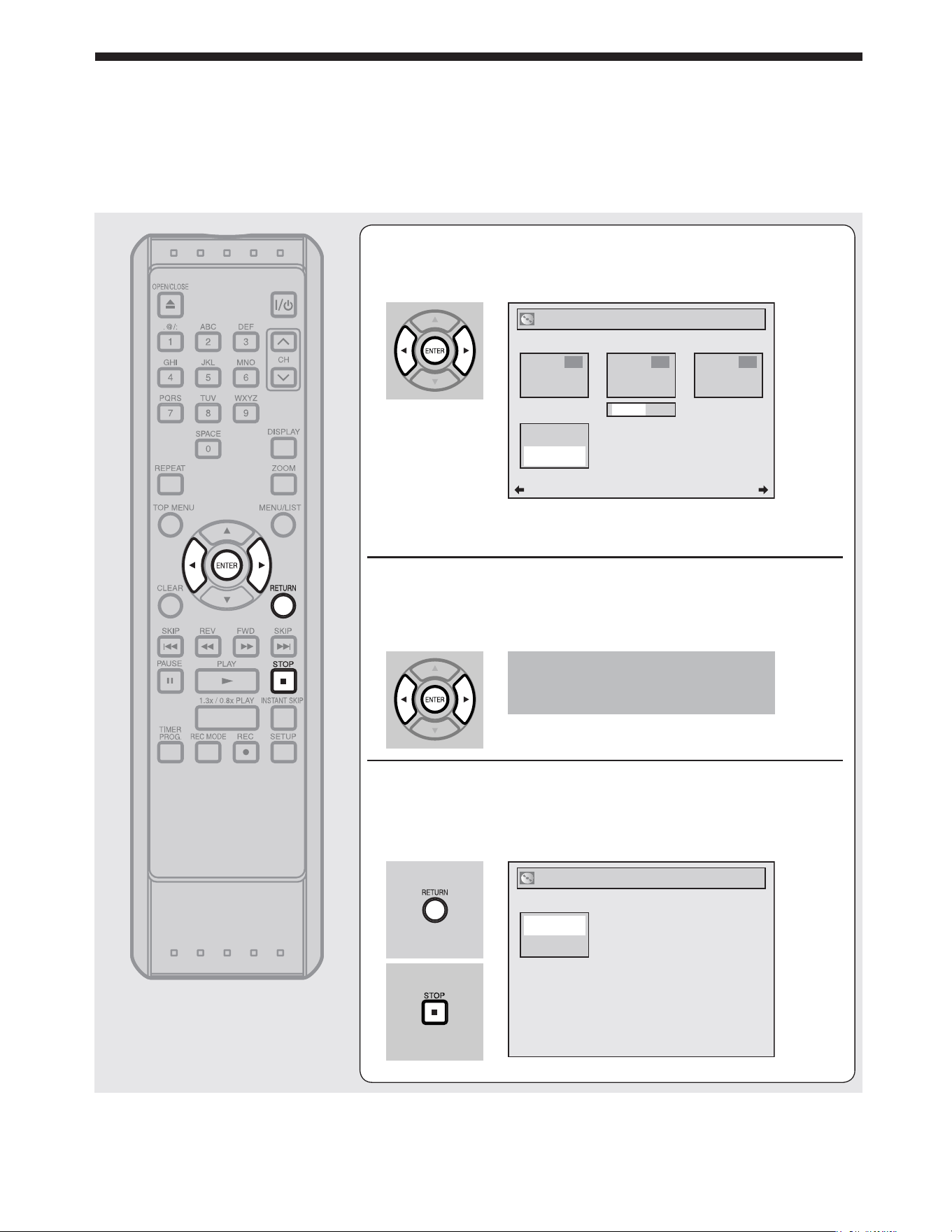

123
EN
4
Using [s / B], select “Yes”. Press [ENTER].
Final confirmation window will appear.
5
Using [s / B], select “Yes”. Press [ENTER].
All titles in the Playlist will be erased.
6
After this operation is completed, press
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
Note
• Deleting a Playlist will not increase the available recording space on disc.
Playlist - Delete Playlist
7 8 9
Add New
Delete
Playlist
Title
Yes No
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
Playlist
Add New
Delete
Playlist
Title
124
Editing
EN

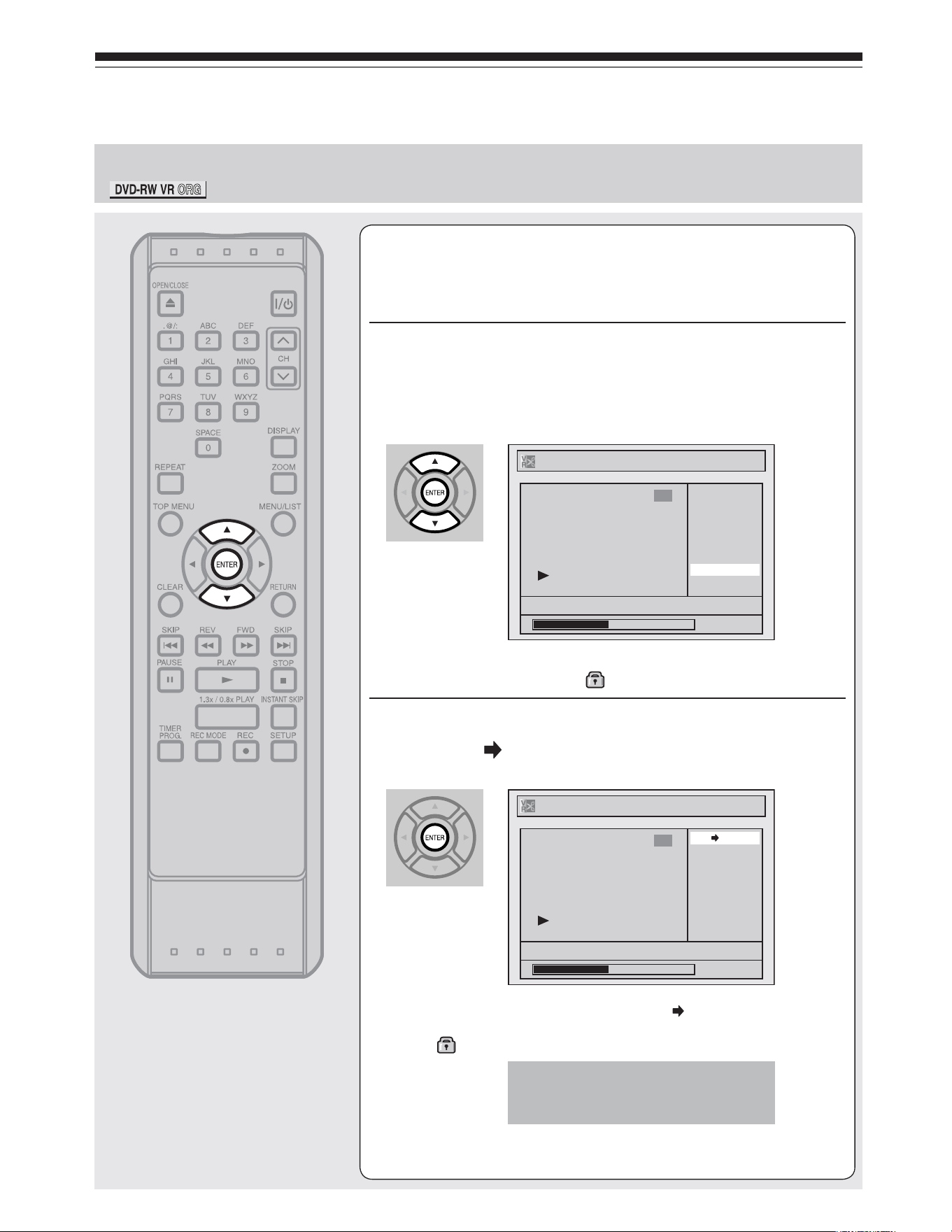

Setting or releasing the title protection
Editing discs (cont’d)
To prevent accidental editing, or erasing the titles, you
can protect them from the Edit menu.
You can cancel the title protection feature after it is
applied.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Protect”. Press
[ENTER].
Option window will appear.
• If the title is protected, icon will appear on the Original title.
2
Confirm the indication.
“OFF ON”. Press [ENTER].
• If the title is already protected, “ON OFF” will appear. If you
press [ENTER], the title will be released from protection.
• icon will appear on the title in the Original title.
Original - Protect
OFF ON
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Original
Protect
Title Delete
JAN/ 1/06 1:00AM CH12 XP
0:00:59
3
Scene Delete
Edit Title Name
Chapter Mark
Index Picture
“Wait for a moment.” will appear,
and the operation may take a
while to be completed.
125
EN
3
After this operation is completed, press
[RETURN] and then [RETURN] or [STOP C] to
exit.
Data will be written onto the disc momentarily.
To protect the whole disc
(DVD-RW VR mode Only):
Select “Disc Protect OFF ON” from the Disc menu, then
select “Yes”.
Refer to “Setting disc protection” on page 72.
• For important titles you really want to keep, set the disc
protection beside the title protection.
See page 72 for setting the disc protection.

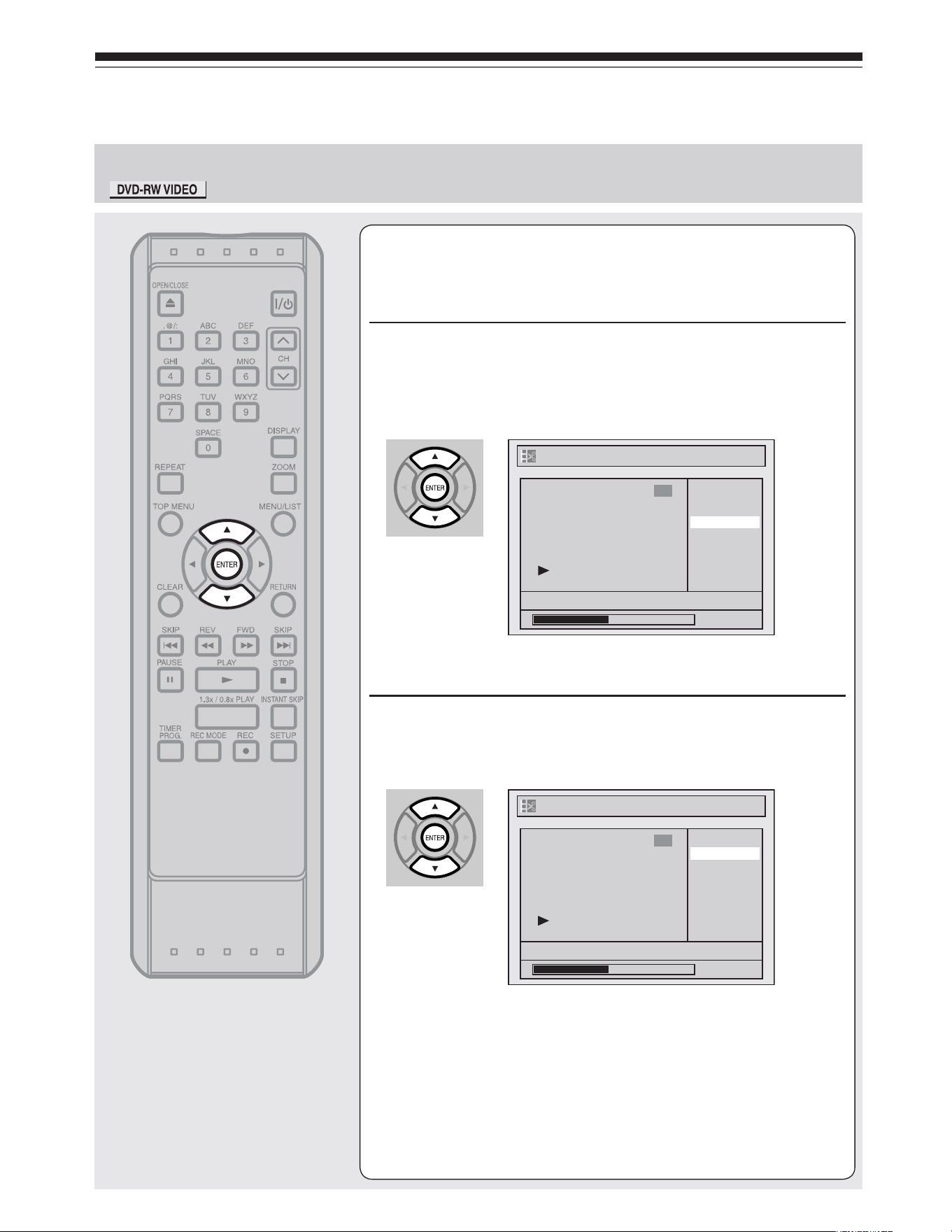

126
Editing
EN
Editing discs (cont’d)
Setting or clearing all the chapter marks in one title
You can insert chapter marks at a specifi ed time you
selected for titles with more than 5 minutes. Once a
chapter is marked, you can use it for the chapter search
feature.
1
Follow steps 1 to 3 on page 102 to display the
Edit menu.
Using [K / L], select “Chapter Mark”.
Press [ENTER].
Option window will appear.
2
Using [K / L], select desired time period.
Press [ENTER].
Confirmation window will appear.
• To clear all the chapter marks, select “OFF”.
Title List - Chapter Mark
JAN/ 1/06 1:00AM CH12 XP
0:00:59
6
5 minutes
10 minutes
OFF
15 minutes
30 minutes
60 minutes
Title List
Title Delete
Edit Title Name
Chapter Mark
JAN/ 1/06 1:00AM CH12 XP
0:00:59
6

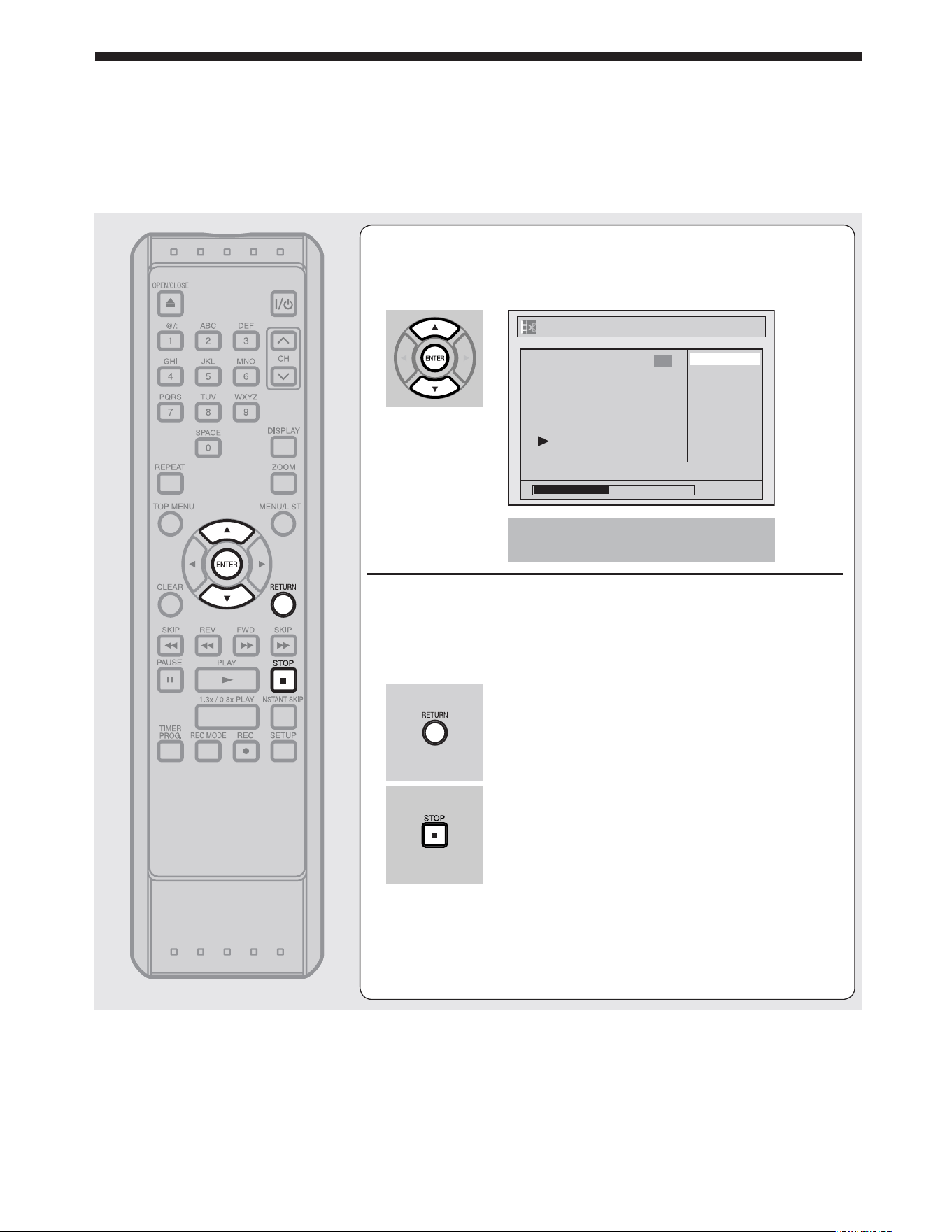

127
EN
3
Using [K / L], select “Yes”. Press [ENTER].
Marks will be added or deleted.
4
After this operation is completed, press
[RETURN] and then [RETURN] or [STOP C] to
exit.
Data will be written onto the disc momentarily.
Notes
• The interval of chapter marks may be slightly longer or shorter than the one specified at step 2.
• You cannot select a chapter mark interval that exceeds the length of a title.
Title List - Chapter Mark
No
Yes
JAN/ 1/06 1:00AM CH12 XP
0:00:59
6
This operation may take a while to
be completed.
Function Setup
You can change the default settings to customize
performance to your preference.
● Tour of the Setup menu
● Language setting
● Display setting
● Audio setting
● Settings for Parental lock level
● Settings for Progressive Scan Mode
● Settings for Still Mode
130
Function Setup
EN
Tour of the Setup menu
The following table is the contents which you can set and the default settings.
Refer to the following table for useful operation.
Setup Items (highlight is the default) Contents
1.Language setting
Pages 132-134
Disc Menu Language
English
French
Spanish
Set the language for the Disc
menu.
Audio Language
Original
English
French
Set the language for audio.
Subtitle Language
OFF
English
French
Set the language for subtitle.
2.Display setting
Pages 135-136
OSD Language
English
Français
Español
Set the language for OSD
(On Screen Display).
Angle Icon
ON
OFF
To turn the Angle icon ON or OFF
during playback of DVD disc that
contains multi-angle scenes.
Screen Saver OFF
5 minutes
10 minutes
Set the time to activate the screen
saver on the screen.
FL Dimmer Auto
Bright
Dark
Set the brightness of the front
panel display.
131
EN
Setup Items (highlight is the default) Contents
3.Audio setting
Pages 137-139
Digital Out PCM Set whether the sound recorded in
96kHz will be down sampled to
48kHz.
48kHz
96kHz
Dolby Digital Set the type of sound signal output
from the digital audio output jack.
PCM
Stream
DTS Set whether DTS signal will be
output.
ON
OFF
Dynamic Range
Control
ON
OFF
Compressing the range of sound
volume.
4.Parental setting
Pages 140-142
Parental Lock
(Change password)
All
level 8 to 1
Set the parental level of your DVD
discs.
Enter the current
four-digit password
Set and change the password.
5.Video setting
Pages 143-146
Progressive ON
OFF
Set to the progressive scan mode
(set to “ON”) or to the interlace
scan mode (set to “OFF”).
Still Mode
Auto
Field
Frame
Set the type of still image in
pausing playback.
Notes
• If you change the setting in the Setup menu, the information of the contents stays on even when the power is switched off.
• An item which is not currently available is grayed in Setting menus.
132
Function Setup
EN

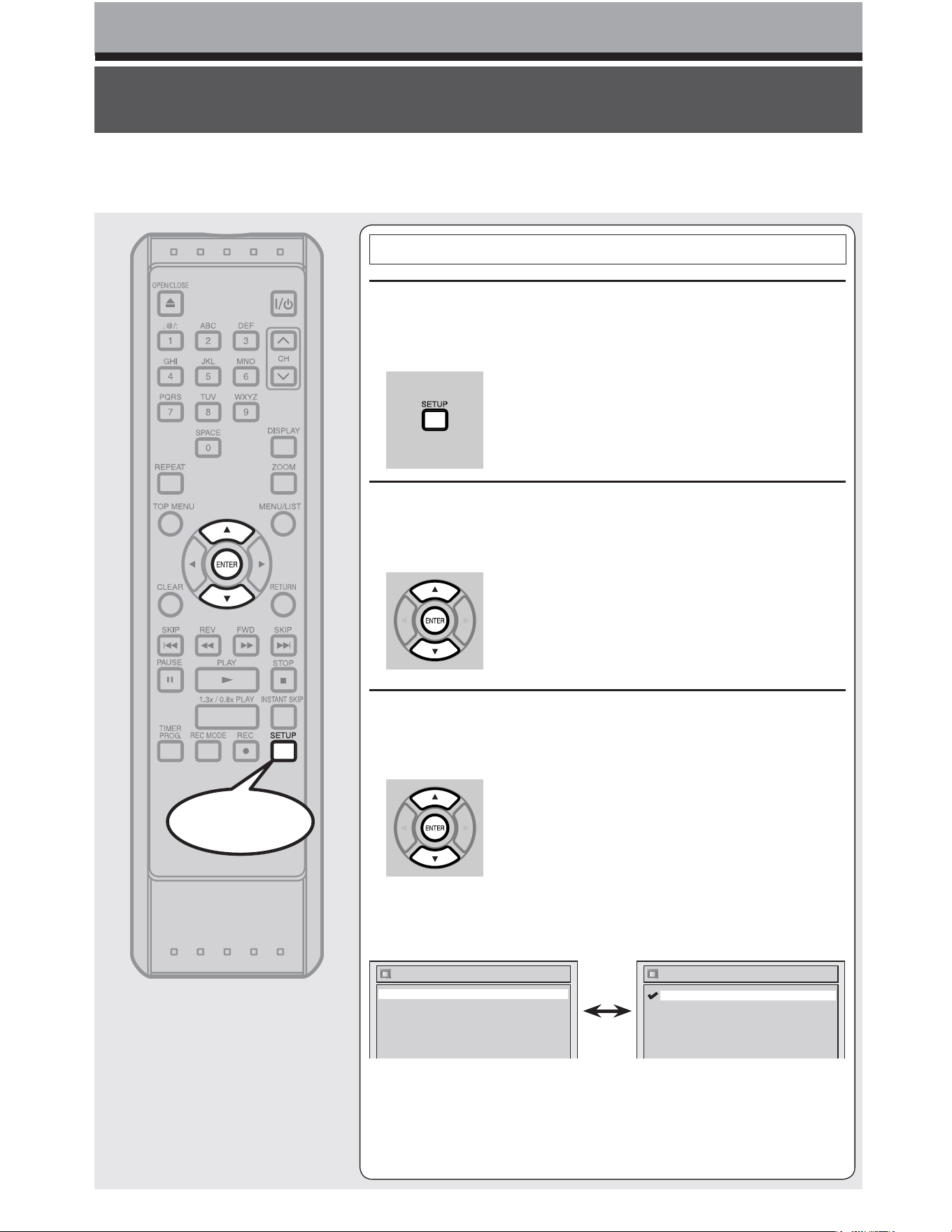

Language setting
Press [STOP C] if you are playing a disc.
1
Press [SETUP].
2
Using [K / L], select “Playback”.
Press [ENTER].
Playback menu will appear.
.
3
Using [K / L], select “Language”.
Press [ENTER].
Language menu will appear.
Start
133
EN

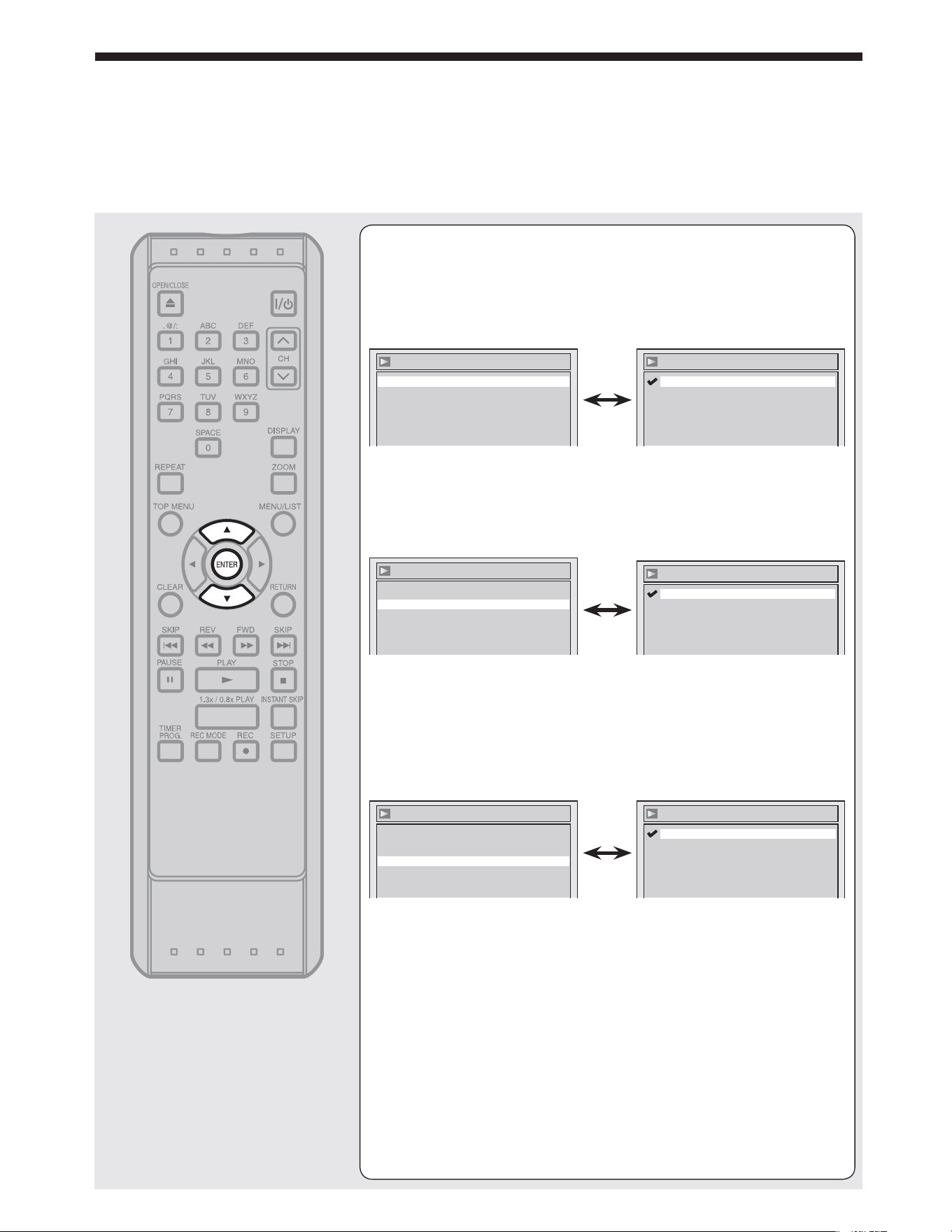

4
Using [K / L], select a desired item.
Press [ENTER].
Disc Menu Language (Default : English)
Set the language for the Disc Menu.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
Audio Language (Default : Original)
Set the Audio language.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
• When Original is selected, the audio language will be in the disc’s
default language.
Subtitle Language (Default : OFF)
Set the Subtitle language.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
(Continued)
Language
Audio Original
Disc Menu English
Subtitle OFF
Language - Disc Menu
French
Spanish
Other
English
Language
Audio Original
Disc Menu English
Subtitle OFF
Language - Audio
English
French
Spanish
Other
Original
Language
Audio Original
Disc Menu English
Subtitle OFF
Language - Subtitle
OFF
French
Spanish
Other
English
134
Function Setup
EN
Language setting (cont’d)
If “Other” is selected, press 4-digit code using the
Number buttons. Refer to “Language code” on page 153.
• When you finish entering the code, press [ENTER].
5
Press [SETUP] to exit.
Language - Subtitle
Code Input
-- - -
Notes
• Only the languages supported by the disc can be selected.
• Audio Language setting may not be available on some discs.
• Some DVD-Video discs allow you to change subtitle selections only via the disc menu. If this is the case, press
[MENU/LIST] and choose the appropriate subtitle language from the selection on the disc menu.
• Press [CLEAR] or [s] to erase numbers entered incorrectly at step 4.
135
Function Setup
EN
Display setting
Press [STOP C] if you are playing a disc.
1
Press [SETUP].
2
Using [K / L], select “Display”.
Press [ENTER].
Display menu will appear.
3
Using [K / L], select a desired item.
Press [ENTER].
OSD Language (Default : English)
Set the language for OSD.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
(Continued)
Display
Angle Icon ON
Screen Saver
FL Dimmer
10 minutes
Bright
OSD Language English
OSD Language
Français
Español
English
Start
136
Function Setup
EN

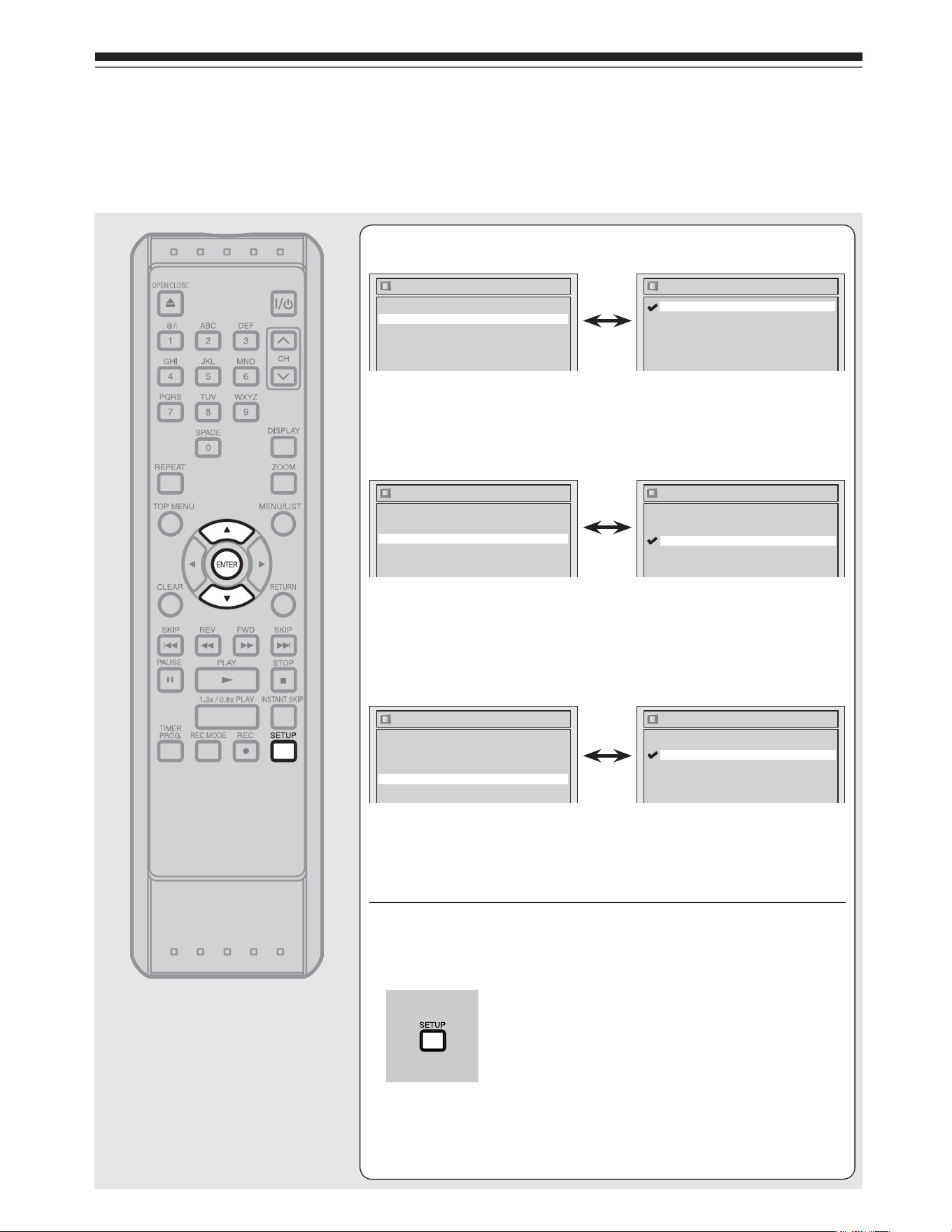

Display setting (cont’d)
Angle Icon (Default : ON)
Set to “ON” or “OFF”.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the screen.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
FL Dimmer (Default : Bright)
Set the brightness of the front panel display.
You can choose among “Auto”, “Bright” and “Dark”.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
• If “Auto” is selected, the display is shown brighter when the power is
on, darker when the power is off.
4
Press [SETUP] to exit.
Display
Angle Icon ON
Screen Saver
FL Dimmer
10 minutes
Bright
OSD Language English
Screen Saver
5 minutes
10 minutes
OFF
15 minutes
30 minutes
Display
Angle Icon ON
Screen Saver
FL Dimmer
10 minutes
Bright
OSD Language English
Angle Icon
OFF
ON
Display
Angle Icon ON
Screen Saver
FL Dimmer
10 minutes
Bright
OSD Language English
FL Dimmer
Bright
Dark
Auto
137
Function Setup
EN

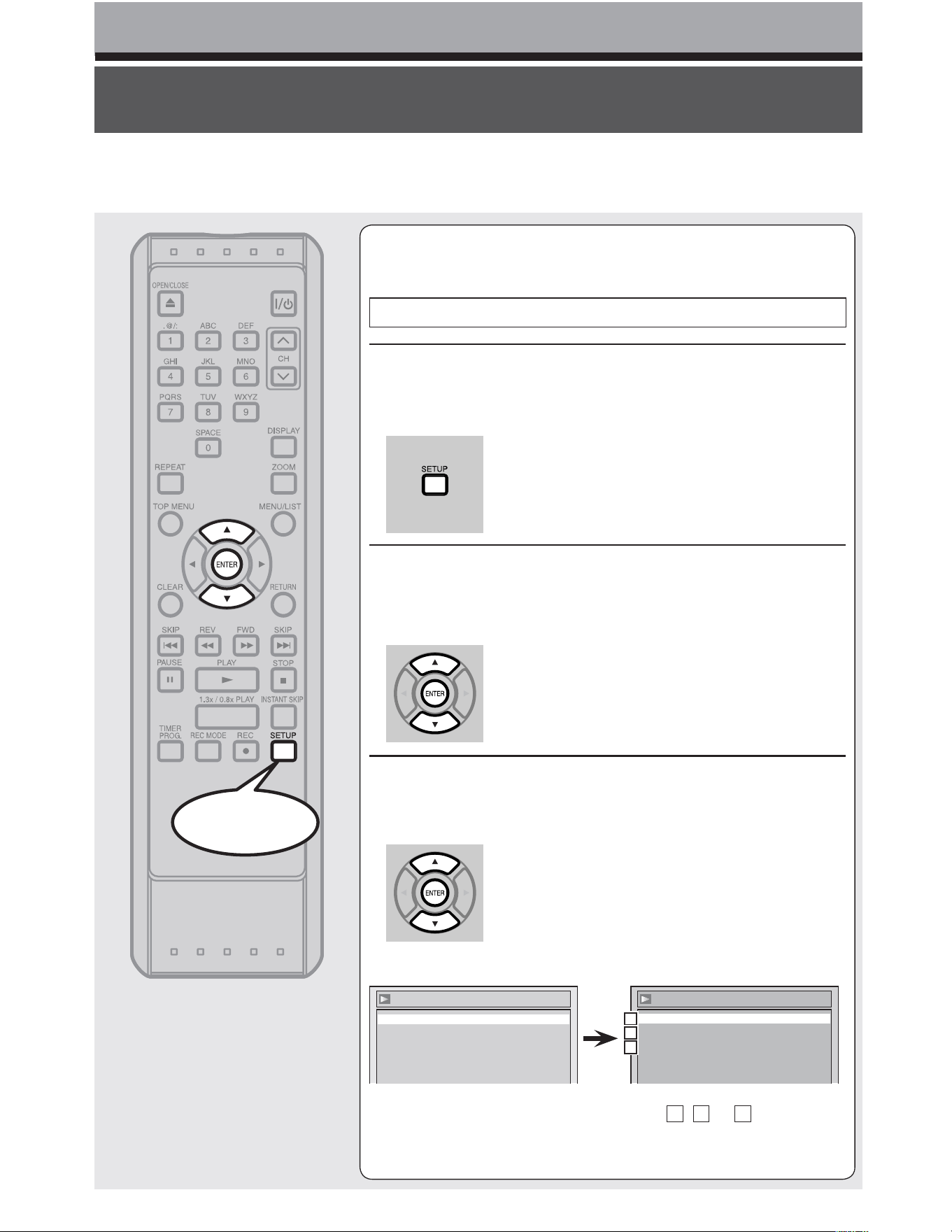

Audio setting
Choose the appropriate Audio settings for your
equipment.
It will only affect DVD discs during playback.
Press [STOP C] if you are playing a disc.
1
Press [SETUP].
2
Using [K / L], select “Playback”. Press
[ENTER].
Playback menu will appear.
.
3
Using [K / L], select “Audio”. Press [ENTER].
Digital Out
Set the digital audio output.
• Using [K / L], select a setting. Press [ENTER].
Option window will appear. Proceed to step A , B or C on next
page.
(Continued)
Audio
Dynamic Range Control ON
Digital Out
Digital Out
Dolby Digital Stream
PCM 48kHz
DTS OFF
A
B
C
Start
138
Function Setup
EN

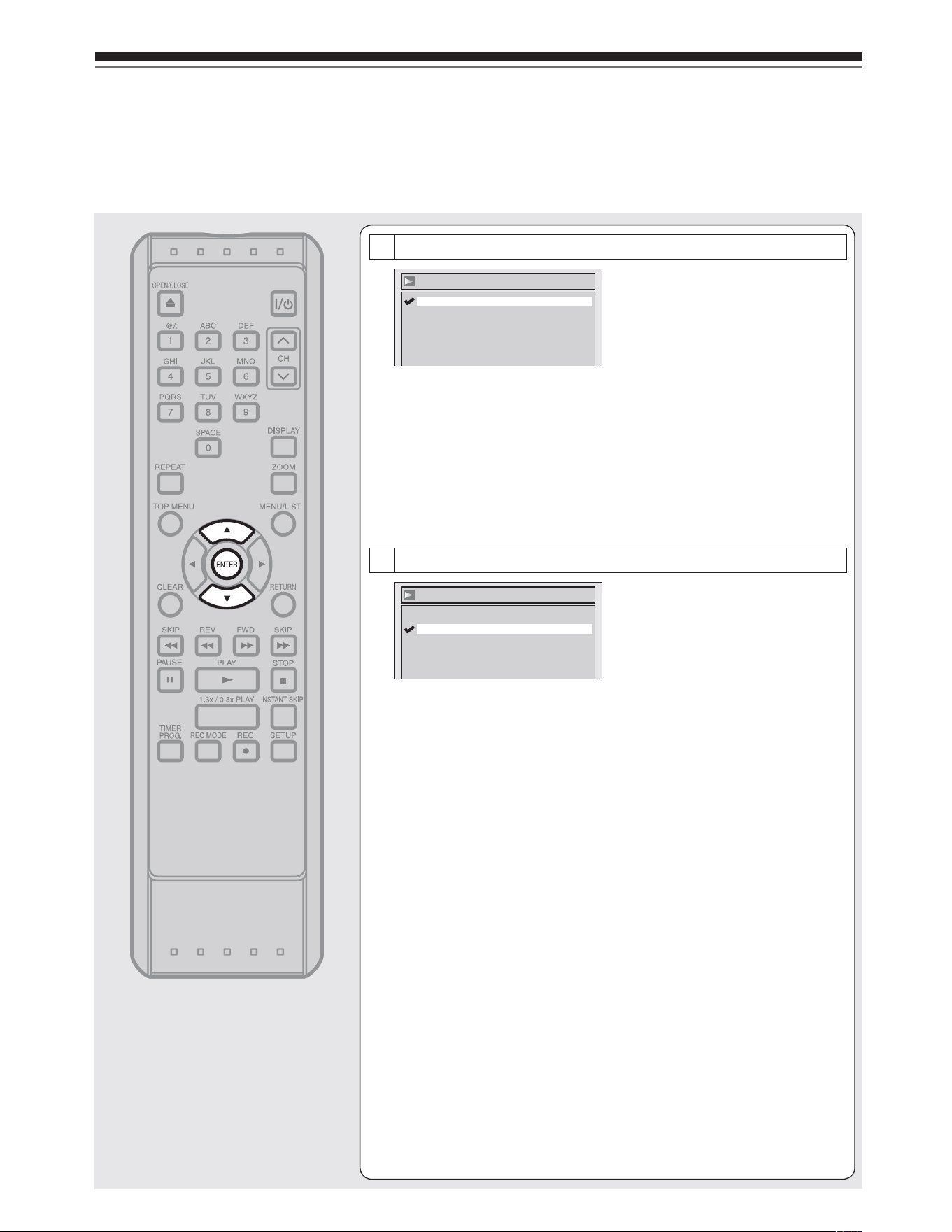

Audio setting (cont’d)
A
Settings for PCM (Default : 48kHz)
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible with 96kHz PCM,
select “48kHz”. 96kHz sound will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with 96kHz PCM, select
“96kHz”. 96kHz sound will be output.
Note
When playing disc with copyright protection
• Even if you select “96kHz”, the sound will be down sampled at 48kHz.
B
Settings for Dolby Digital (Default : Stream)
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
PCM : Convert the Dolby Digital into PCM(2 channel).
When your amplifier/decoder is NOT compatible with Dolby
Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals.
When your amplifier/decoder is compatible with Dolby Digital,
set to “Stream”.
Note
When playing a DVD-RW disc recorded in VR mode
• If the audio source on a disc is Dolby Digital format, set “Dolby Digital” to
“PCM” so that you can switch to main (L), sub audio (R), or a mix of both (L/
R) with your amplifier/decoder.
Digital Out - PCM
96kHz
48kHz
Digital Out - Dolby Digital
Stream
PCM
139
EN
C
Settings for DTS (Default : OFF)
• Select a setting using [K / L], then press [ENTER].
Your setting will be activated.
ON : Outputs DTS signals.
When your amplifier/decoder is compatible with DTS, set to
“ON”.
OFF : No DTS signal is output.
When your amplifier/decoder is NOT compatible with DTS, set
to “OFF”.
Dynamic Range Control (Default : ON)
Set to “ON” to compress the range between soft and loud sounds.
• Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
4
Press [SETUP] to exit.
Digital Out - DTS
OFF
ON
Audio
Digital Out
Dynamic Range Control ON
Audio - Dynamic Range Control
OFF
ON
Note
• Dynamic Range Control function is available only on the discs which are recorded in the Dolby Digital format.
140
Function Setup
EN
Settings for Parental lock level
Some DVD-Video discs feature a Parental Lock level.
Playback will stop if the ratings exceed the levels you
set, it will require you to enter a password before the disc
will playback. This feature prevents your children from
viewing inappropriate material.
Press [STOP C] if you are playing a disc.
1
Press [SETUP].
2
Using [K / L], select “Playback”.
Press [ENTER].
Playback menu will appear.
.
3
Using [K / L], select “Parental Lock”.
Press [ENTER].
Start

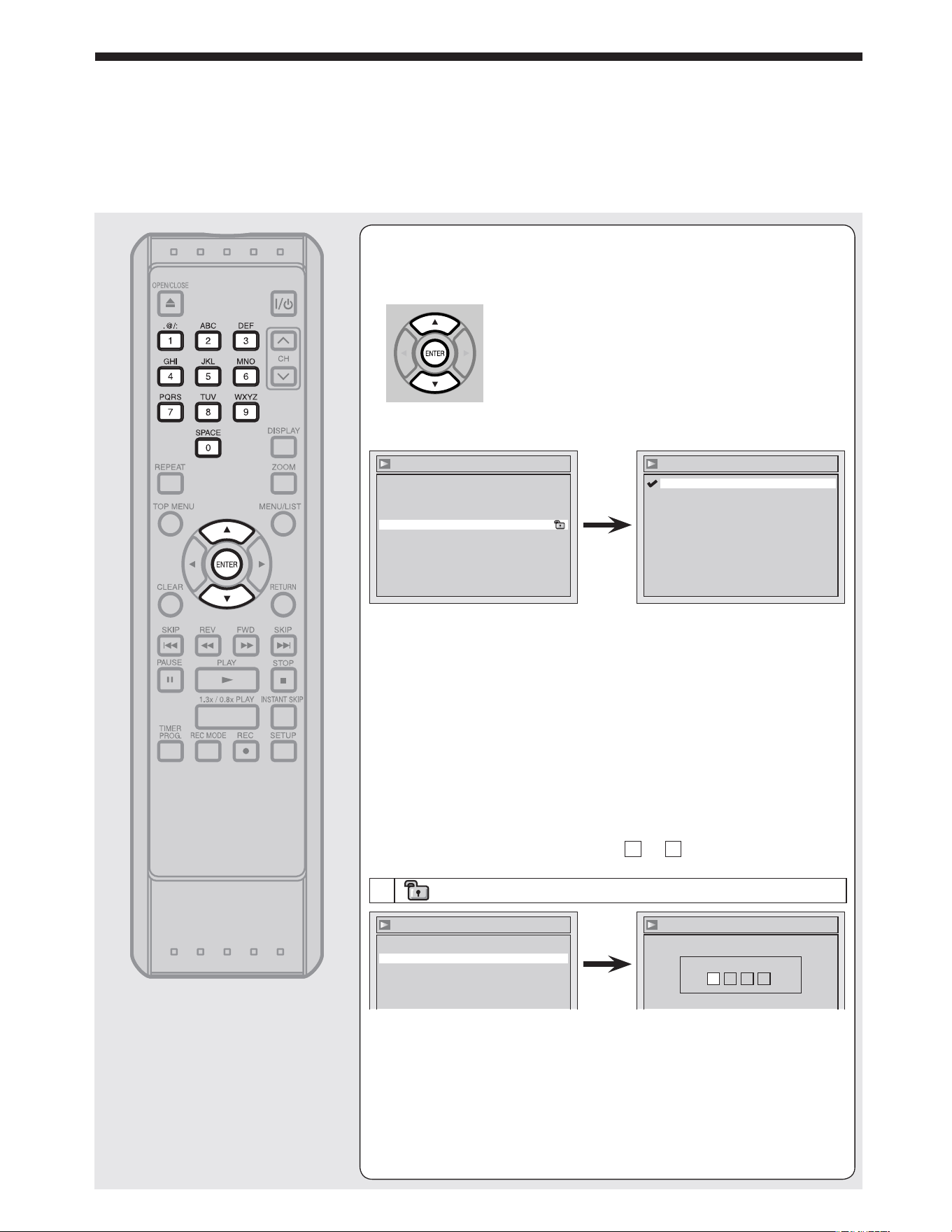

141
EN
4
Using [K / L], select the desired level.
Press [ENTER].
Parental Lock (Default : All)
Set the Parental Lock level.
• Using [K / L], change the parental level. Press [ENTER].
All :
If you select “All”, Parental Lock is not active. The disc will play in full.
Ratings 1 to 8 :
Some discs contain scenes not suitable for children. If you set a rating
for the DVD, all disc scenes with the same ratings or lower will be
played. Higher rated scenes will not be played unless an alternative
scene is available on the disc. The alternative must have the same rating
or a lower one. If no suitable alternative is found, playback will stop. You
must enter the 4-digit password or change the rating level in order to
play the disc.
Option window will appear. Proceed to A or B .
A
A password has not been set yet.
• Using [K / L], select “Yes”. Using the Number buttons, enter a
new password. Press [ENTER].
Your setting will be activated.
• If you select “No”, proceed to step 5.
(Continued)
Playback
Video
Audio
Parental Lock All
Language
Parental Lock
8
7
6
5
4
3
2
1
All
Parental Lock
Yes
No
Change Password?
Parental Lock
Password Input
-- - -
YES

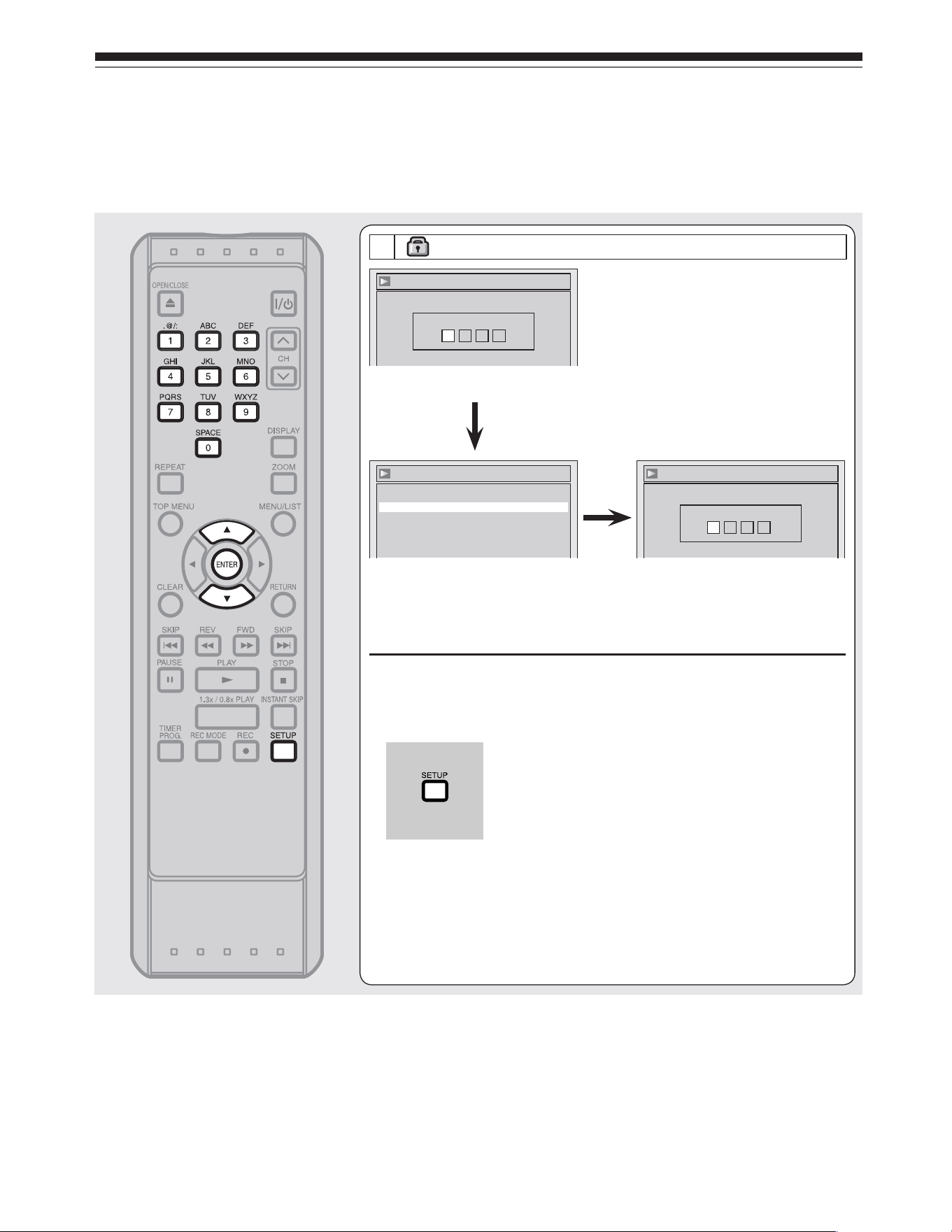

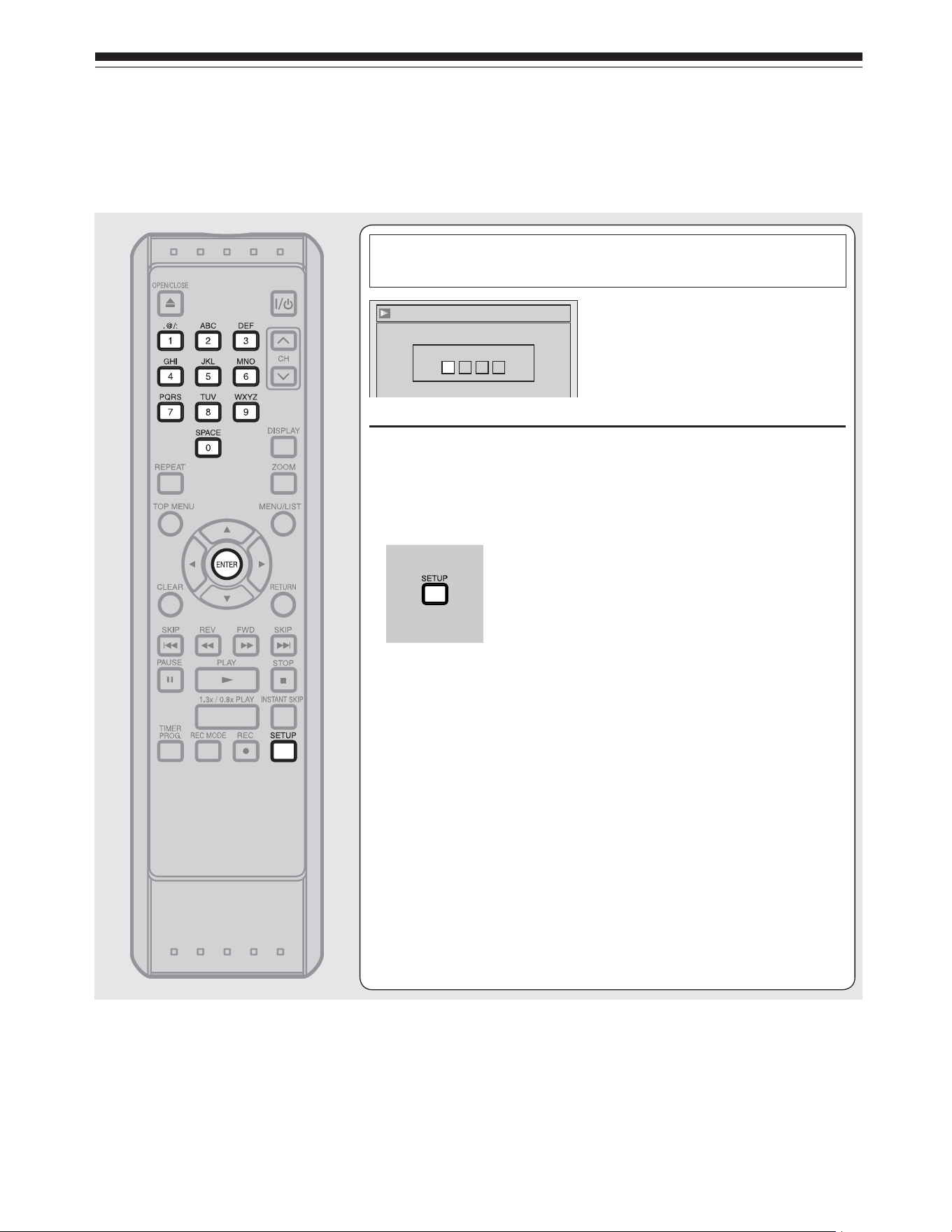

142
Function Setup
EN
Settings for Parental lock level (cont’d)
B
A password has already been set.
• Using the Number buttons, enter the current password.
• Using [K / L], select “Yes”. Using the Number buttons, enter a
new password. Press [ENTER].
Your setting will be activated.
• If you select “No”, proceed to step 5.
5
Press [SETUP] to exit.
• If the rating set is lower than the disc rating, a message will appear.
Select “Yes” if you want to continue playback and input the password
followed by [ENTER].
• If there is a DVD disc inside of this unit when you set up the
parental lock, press [OPEN/CLOSE
A
] to activate the parental lock
level.
Parental Lock
Password Input
* * * *
Parental Lock
Password Input
-- - -
Parental Lock
Yes
No
Change Password?
YES
<Change the password>
Notes
• Parental lock function may not be available on some discs.
• With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock
function operates in the way that you have set.
• Record the password in case you forget it.
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear all settings in Parental lock, enter 4,7,3,7 using the Number buttons in
Password Input window. Password will be cleared and parental levels will be set to “All”.
143
Function Setup
EN
Settings for Progressive Scan Mode
This unit is compatible with the Progressive Scan
System. The feature provides you with the higher
defi nition images than the traditional output system
does. To utilize this feature, you must set Progressive
Scan mode to “ON” in the Setup menu by following the
steps below.
1
Press [SETUP].
2
Using [K / L], select “Playback”.
Press [ENTER].
Playback menu will appear.
.
3
Using [K / L], select “Video”. Press [ENTER].
(Continued)
Start
144
Function Setup
EN
Settings for Progressive Scan Mode (cont’d)
4
Using [K / L], select “Progressive”.
Press [ENTER].
5
Using [K / L], select “ON”. Press [ENTER].
Confirmation window will appear.
6
Using [{ / B], select “Yes”. Press [ENTER].
Final confirmation window will appear.
• If your TV does not support progressive scan, distorted picture or
blank screen will appear when “Yes” option is selected. In this
case, just wait for 15 seconds for auto recovery.
ON
Video - Progressive
OFF
Video - Progressive
Activating progressive scan:
Check your TV has progressive scan
and connect with component video cable.
NOTE: If there is no picture or picture is
distorted after selecting “Yes”,
Wait about 15 seconds for auto recovery.
Activate? No
Yes
Video
OFF
Auto
Progressive
Still Mode
145
EN

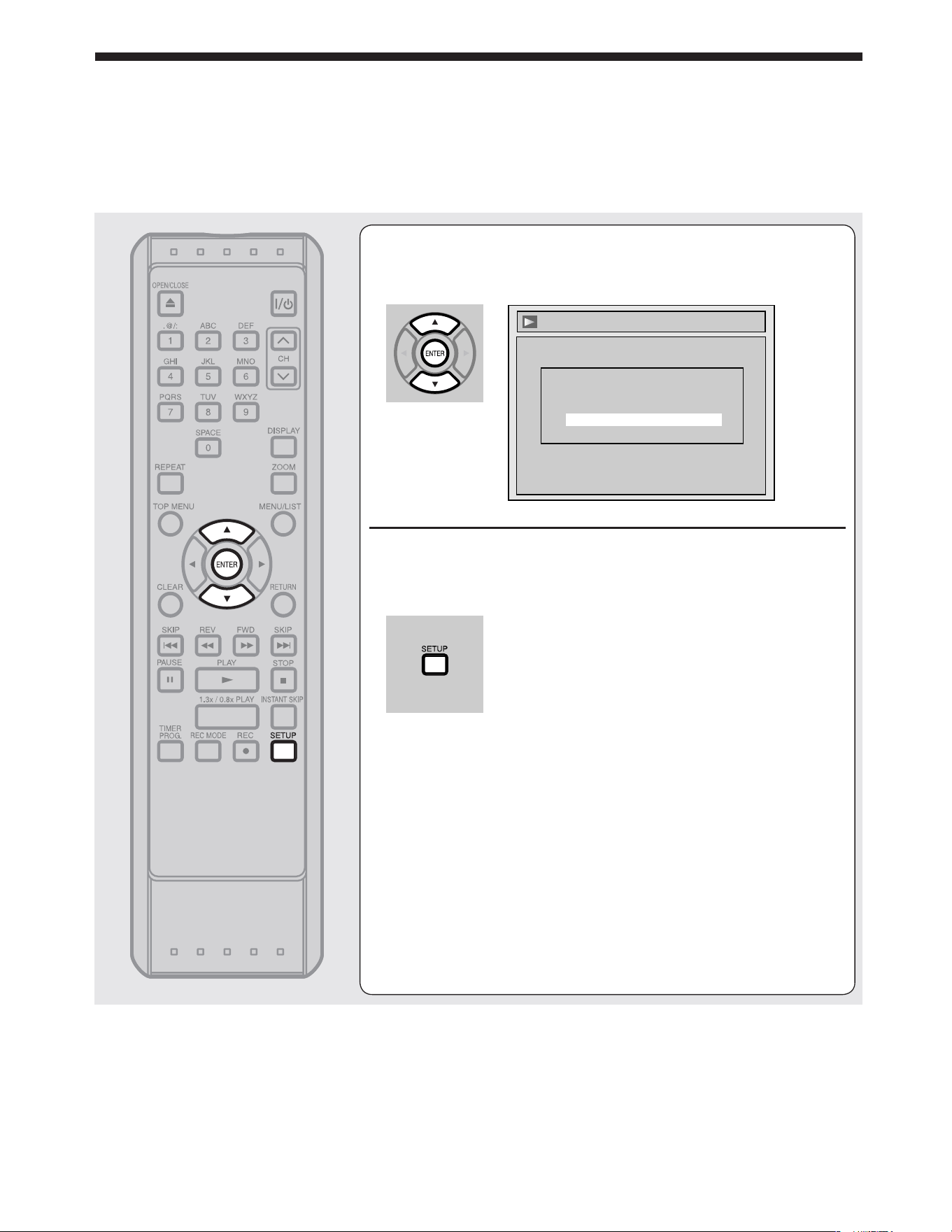

7
Using [K / L], select “Yes”. Press [ENTER]
within 15 seconds.
Your setting will be activated.
8
Press [SETUP] to exit.
Video - Progressive
Confirm again to use progressive scan.
If Picture is good, Select “Yes”.
No
Yes
Notes
• If your TV is compatible with Progressive Scan (525p / 480p), you must use the Component Video cable (commercially
available) to connect this unit to the TV. (See Method 2 on page 25.) Make sure the “P.SCAN” appears on the front panel
display.
If not, use the video cable and set the Progressive Scan mode to “OFF”, or press and hold [SETUP] for more than 3
seconds during DVD playback, so that the “P.SCAN” on the front panel display disappears.
• If there is no picture or picture is distorted after selecting “Yes” in step 6, wait about 15 seconds. It will go back to Video-
Progressive menu automatically.
146
Function Setup
EN

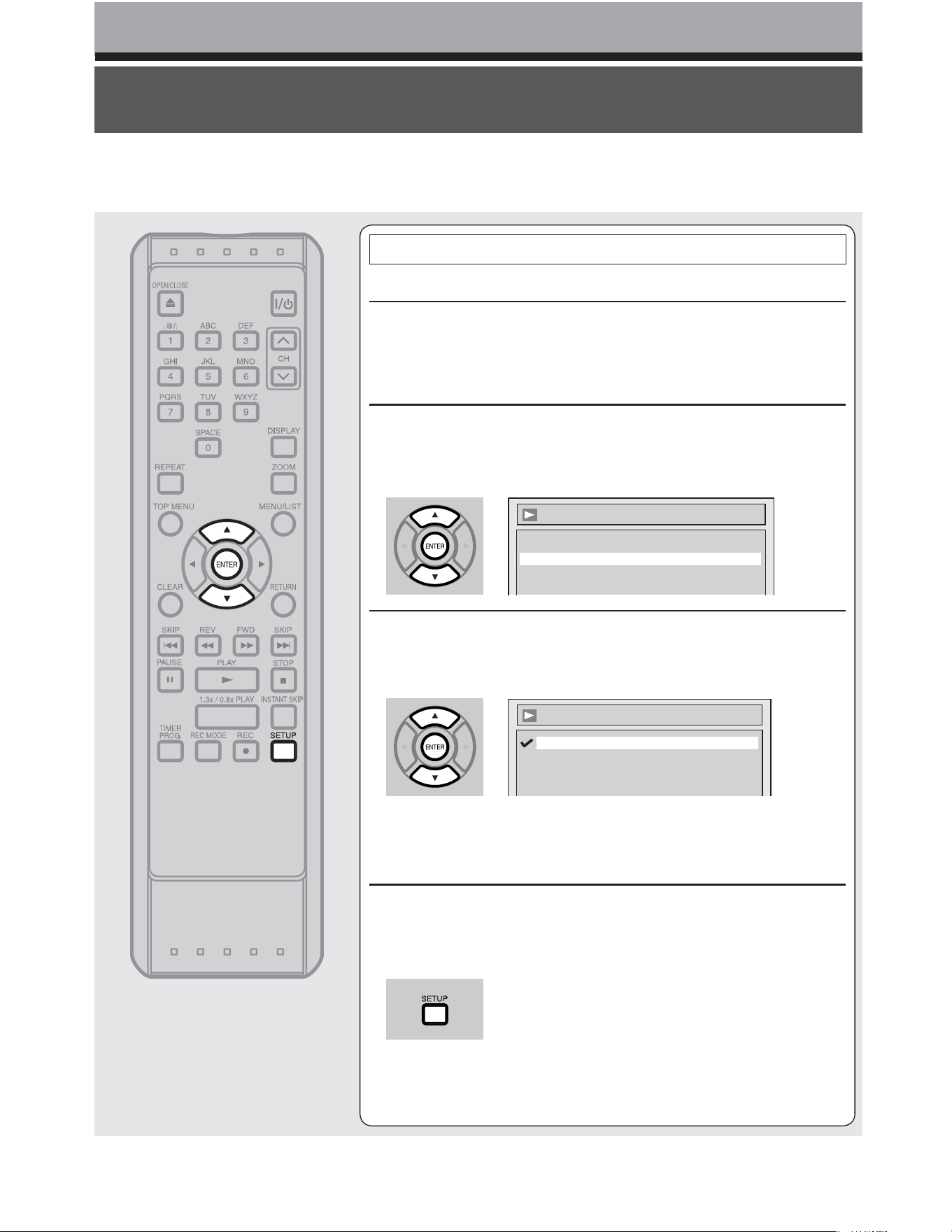

Settings for Still Mode
Press [STOP C] if you are playing a disc.
Set the type of still image in pausing mode.
1
Follow steps 1 to 3 on page 143 to display the
Video setting menu.
2
Using [K / L], select “Still Mode”. Press
[ENTER].
3
Using [K / L], select a setting. Press [ENTER].
Your setting will be activated.
Auto : Optimum setting is selected.
Field : Flicker-free images are played back in pause playback mode.
Frame : Higher- resolution images are played back in pause playback
mode.
4
Press [SETUP] to exit.
Video
OFF
Progressive
Still Mode
Auto
Video-Still Mode
Auto
Field
Frame
Note
• Frame is one complete video image and made up of 2 fields (There are 30 frame per second of NTSC video).
Others
● Troubleshooting
● Language code
● Glossary
● Specifications
148
Others
EN
Troubleshooting
Before requesting service for this unit, check below for a possible cause of the problem you are experiencing. Some
simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Power
■ The power does not turn on.
• Check that the AC power cord is connected
securely.
• (In case of power failure) Check the breaker.
■ There is no picture.
• Re-connect the connecting cords securely.
• Check if the connecting cords are damaged.
• If Setup menu appears on the TV screen, press
[RETURN] to exit the menu.
• Check the connection to your TV (page 24).
• Check if the Interlace/Progressive mode is set
correctly according to your TV (pages 143-145).
• Switch the input selector on your TV (such as to
“LINE1”) so that the signal from the unit appears on
the TV screen.
■ Picture noise appears.
• The disc is dirty or flawed.
• If the video signal is sent to your TV through a VCR
or if your TV is equipped with a VCR, the copy-
protection signal applied to some DVD programs
could affect picture quality. If you still experience this
problem even when you connect the unit directly to
your TV, try connecting the unit to your TV’s S-
VIDEO input.
■ TV program reception does not fill the screen.
• Try to set the channels with “Auto Preset” in the
Setup menu (pages 32-33).
• Select a channel of any TV program using
[CH / ].
■ TV program pictures are distorted.
• Adjust TV antenna.
• Adjust the picture (see the TV’s instruction manual).
• Place the unit and TV farther apart.
• Place the TV and any bunched antenna cables
farther apart.
■ TV channels cannot be changed.
• Switch the input to TV.
• Connect the antenna cable correctly (page 24).
■ Playback picture is distorted
• Keep the equipment which may cause electrical
disturbances, such as a mobile phone, away.
Sound
■ There is no sound.
• The disc is dirty or flawed.
• Re-connect all connections securely.
• Check if the connecting cord is damaged.
• Check the connections to the amplifier input.
• The input source setting on the amplifier is incorrect.
• The recorder is in pause mode or in Slow forward /
Slow reverse play.
• The recorder is in fast forward or fast reverse mode.
• If the audio signal does not come through the
DIGITAL OUT (COAXIAL) jack, check the Audio
settings (pages 137-139).
■ No DTS sound on digital output.
• Change the setting menu for DTS to ON.
■ No DTS sound from analog output.
• This unit has no analog sound output when playing
the selected DTS sound mode.
■ Sound is noisy.
• The disc is dirty or flawed.
Remote control
■ The remote control does not work.
• Check the antenna or cable connection to the main
unit.
• Check the battery life of the remote control.
• Check if there is an obstacle between the sensor
and the remote control.
149
EN
Playback
■ The disc does not play.
• No disc is inserted.
• A blank disc is inserted.
• The disc is upside down. Insert the disc with the
labeled side facing up.
• The disc is not correctly inserted.
• The unit cannot play certain discs (such as a CD-
ROM) (pages 9-10).
• The region code on the DVD-Video does not match
the unit (page 10).
• Moisture has condensed inside the unit. Remove the
disc and leave the unit turned on for about two
hours until the moisture evaporates (page 4).
• If the disc was recorded on another recorder, the
unit cannot play the disc if it was not finalized (page
51).
■ Playback image freezes for a second.
• During the playback of two layered disc, picture may
freeze for a moment when the 1st layer switches to
the 2nd layer. This is not a malfunction.
■ The disc does not start playback from the
beginning.
• Resume play was activated (page 88). Press
[STOP C] twice.
• You have inserted a disc whose Title menu or DVD
menu automatically appears on the TV screen when
it is first insert.
■ The unit starts playing from the disc
automatically.
• The DVD-Video features an auto playback function.
■ Some functions such as Stop, Search, Fast /
Slow reverse or Fast / Slow forward cannot be
performed.
• Depending on the disc, you may not be able to do
some of the operations above. See the instruction
manual supplied with the disc.
■ The language for the sound track cannot be
changed.
• Multilingual tracks are not recorded on the DVD-
Video, DVD-R or DVD-RW being played.
• The DVD-Video prohibits the changing of the
language for the sound track.
• Try changing the language using the DVD-Video’s
menu.
■ The subtitle language cannot be changed or
turned off.
• Multilingual subtitle are not recorded on the DVD-
Video.
• The DVD-Video prohibits changing of the subtitles.
• Try changing the subtitle using the DVD-Video’s
menu.
■ The angles cannot be changed.
• Multi-angles are not recorded on the DVD-Video
being played.
• The angle-change operation is whenever possible
as long as the disc contains a multi-angle portion.
Actual change will be performed when the portion
has come up.
• The DVD-Video prohibits changing angles.
• Try changing the angle using the DVD-Video’s
menu.
Recording/Timer Recording/Editing
■ The channel cannot be changed from the
channel you are recording.
• Set the TV’s input to “TV”.
■ Recording does not start immediately after you
press [REC I].
• A new DVD-R or DVD-RW has been inserted. It
takes a while for the unit to automatically format a
DVD-RW.
■ Nothing was recorded even though you set the
timer setting correctly.
• There was a power failure during recording.
• The unit’s internal clock stopped due to a power
failure that lasted for more than 30 seconds. Reset
the clock (pages 38-43).
• Disconnect the AC power cord from the AC outlet,
and connect it again.
• The program contains copy protection signals that
restricts copying.
• The timer setting overlapped with another setting
that has priority.
■ Recording does not stop immediately after you
press [STOP C].
• It will take a few seconds for the unit to input disc
data before recording can stop.
■ Timer Recording is not complete or did not
start from the beginning.
• The timer setting overlapped with another setting
that has priority (page 67).
• Disc space was not enough.
150
Others
EN
Troubleshooting (cont’d)
Others
Error message
Error message Cause Solution
Disc Error
--- Please eject the disc. ---
Playback feature may not be
available on this Disc.
• Unplayable disc is inserted in the
unit.
• The disc is upside down.
• Insert the standardized disc
which bear the marks on pages
9-10.
• Insert the disc with the labeled
side facing up.
Region Error
--- Please eject the disc. ---
Playback is not authorized in your
region.
• Playback is not authorized in the
region of the DVD-Video disc
which you inserted in the unit.
• Insert the DVD-Video disc with
region codes 1 or ALL.
Parental Lock On
The current selected parental level
prohibits playback.
• The current selected parental
level in the Setup menu prohibits
playback.
• Check the “Parental Lock” setting
(pages 140-142).
Recording Error
This program is not allowed to be
recorded.
• The recording function
encountered the copy prohibited
program.
• You cannot record copy
prohibited programs.
■ The unit does not operate properly.
● When static electricity, etc., causes the unit to
operate abnormally, unplug the unit and then plug it
in again.
■ The disc tray does not open when you press
[OPEN/CLOSE
A
].
● It may take a few seconds for the disc tray to open
after you have recorded or edited a disc.
■ “Repairing” appears on the TV screen.
● If there is a power failure or unplugging during
recording, finalizing, formatting or editing (even
after “Wait for a moment.” message is
disappeared), a Repairing process will begin
automatically just after turning the unit on again.
It may take several minutes up to about four hours.
■ In a case you intend to cancel the Repairing
process.
● If you intend to cancel the Repairing process, press
[A OPEN/CLOSE ]
on the front panel, then select
“Yes” with [{ / B] and press [ENTER]. After that,
the disc tray will automatically open. In case the
Repairing process is canceled, the disc MAY
NOT work.
Repairing
Repairing
Do you want to cancel a repairing process ?
When selecting “Yes”, the disc may not be
usable.
Yes No
151
EN
Error message Cause Solution
Recording Error
This program is not recordable in
Video mode.
• You are trying to record the copy-
once program onto the DVD-RW
disc in Video mode.
• Set “Format mode” to “VR mode”
(pages 52-54).
Recording Error
Cannot record on this disc.
• You are trying to record onto the
disc which is unrecordable, or
whose status is unable to record.
• The disc is dirty.
• The disc is damaged.
• Insert the recordable disc, and
ensure the disc status satisfies
the recording requirements
(page 9).
• Clean the disc with a cleaning
cloth.
• Replace the disc.
Recording Error
This program is not allowed to be
recorded on this disc.
• You are trying to record the copy-
once program onto the DVD-RW
disc which is not compatible with
CPRM.
• Insert the DVD-RW disc in VR
mode (ver.1.1 or 1.2 compatible
with CPRM).
Recording Error
This disc is protected and not
recordable.
• You are trying to record on to the
protected disc which is set in the
Disc menu.
• Release the disc protect setting
in the Disc menu (pages 72-73).
Recording Error
Disc is full.
(No area for new recording)
• You are trying to record onto the
disc which has no space for
recording.
• Insert the recordable disc with
enough recording space.
Recording Error
You cannot record more than 99
titles on one disc.
(The maximum is 99)
• You are trying to record onto the
disc on which the number of
recording titles exceed the
maximum (99).
• Delete unnecessary titles
(pages 102-104).
Recording Error
You cannot record more than 999
chapters on one disc.
(The maximum is 999)
• You are trying to record onto the
VR mode DVD-RW disc on which
the number of recording chapters
exceed the maximum (999).
• Delete unnecessary chapter
marks (pages 108-109).
Recording Error
You cannot record on this disc as
Control Information is full.
• This disc has no space to write
the Control Information when
recording or deleting contents.
When editing has been
repeatedly performed, the control
Information area may come up to
be full even the recording area
has enough space.
• Delete unnecessary titles
(pages 102-104).
152
Others
EN
Troubleshooting (cont’d)
Error message Cause Solution
Recording Error
You cannot record on this disc as
Power Calibration Area is full.
• When recordings are performed
repeatedly onto an unstable disc,
this area may come up to be full.
Every time you insert a disc for
recording, the disc’s working area
will be taken up. And if you
repeat this frequently, it will be
used up sooner and you may not
be able to record full 99 titles.
• Insert a new disc.
Recording Error
This disc is already finalized.
• You are trying to record onto the
disc already finalized.
• Release the finalizing for this disc
(page 75).
* If you are still having trouble with the unit after checking “Troubleshooting”, write down the error code and the error
description before calling the TACP’s Consumer Solution Center or, for Canada, TCL customer support line mentioned on
pages 157 and 158.
Frequently Asked Questions
■ Can I record to CD-R/RW?
No, this unit records only DVDs.
■ Can I play DVD-Video that is bought in another
country?
Possible when the region code of the disc is 1 and
All.
■ Can I connect the unit to my PC?
No, you cannot control the unit by PCs.
153
Others
EN
Language code
Language Code
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Language Code
Hungarian 5467
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
Laothian 5861
Latin 5847
Latvian; Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto; Pushto 6265
Persian 5247
Polish 6258
Portuguese 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Language Code
Russian 6467
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
154
Others
EN
Glossary
■ Analog audio
An electrical signal that directly represents sound.
Compare this to digital audio which can be an
electrical signal, but is an indirect representation of
sound. See Digital audio.
■ Aspect ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the
screen is almost square); widescreen models are
16:9 (the screen is almost twice as wide as it is
high).
■ Chapter
Just as a book is split up into several chapters, a
title on a DVD disc is usually divided into chapters.
See Title.
■ Component video output
Each signal of luminance(Y) and component(Pb/
Cb, Pr/Cr) is independent to output so that you can
experience picture color as it is.
Also, due to compatibility with progressive video
(525p/480p), you can experience higher-density
picture than that in interlace (525i/480i).
■ CPRM
(Content Protection for Recordable Media)
CPRM is a copy protection system with scramble
system regarding the recording of “copy-once”
broadcast programs (e.g. some satellite
broadcasts).
■ Digital audio
An indirect representation of sound by numbers.
During recording, the sound is measured at
discrete intervals (44,100 times a second for CD
audio) by an analog-to-digital converter, generating
a stream of numbers. On playback, a digital-to-
analog converter generates an analog signal
based on these numbers. See Sampling frequency
and Analog audio.
■ Dolby Digital
The system to compress digital sound developed
by Dolby Laboratories. It offers you sound of
stereo (2ch) or Multi-channel audio.
■ DTS (Digital Theater System)
DTS is a 5.1 channel surround sound system, but
it is different from Dolby Digital. The formats were
developed by Digital Theater System, Inc.
■ Finalize
To make DVD discs, which have been recorded
on, possible to play in DVD players. With this unit,
it is possible to finalize DVD-R/DVD-RW discs.
■ MP3 (MPEG Audio Layer 3)
MP3 is a method of compressing files. You can
copy MP3 files on CD-RW/R discs from the
computer and play the files on this unit.
■ PBC (Video CD only)
(Playback Control)
This function enables you to play back interactive
software using a menu screen. See also Title.
■ PCM (Pulse Code Modulation)
The most common system of encoding digital
audio, found on CDs and DAT. Excellent quality,
but requires a lot of data compared to formats
such as Dolby Digital and MPEG audio. For
compatibility with digital audio recorders (CD, MD
and DAT) and AV amplifiers with digital inputs, this
unit can convert Dolby Digital and MPEG audio to
PCM. See Digital audio.
155
EN
■ Playlist
From this list you can play contents of a disc as
your desired order or in sequence. Also it is
allowed to search a specific scene directly.
■ Progressive Scan (525p/480p)
A type of display that does not split each frame
into fields, and instead scans directly through all
the scanlines of each frame in order. Progressive
Scan provides less flickering and higher image
resolution than traditional (525i/480i) TV signals.
Refer to pages 143-145 for instructions on
selective Progressive Scan mode.
■ Regions code
Regions associate discs and players with particular
areas of the world. This unit will only play discs
that have compatible region codes. You can find
the region code of your unit by looking on the rear
panel. Some discs are compatible with more than
one region (or all regions).
■ Sampling frequency
The rate which sound is measured by a specified
interval to turn into digital audio data. The numbers
of sampling in one second defines as sampling
frequency. The higher the rate, the better the
sound quality.
■ SAP (Secondary Audio Program)
Sub audio channel which is delivered separately
from main-audio channel. This audio channel is
used as an alternative in bilingual broadcasting.
■ S-Video output
It delivers independently each signal of color(C)
and luminance(Y) to TV as video signals, so that
higher-quality picture will be gained.
■ Title
(DVD)
A collection of chapters on DVD disc. See chapter.
(Video CD)
The contents of a Video CD. When playing back a
Video CD with the PBC function, the title menu will
appear automatically.
■ Track
Audio CDs use tracks to divide up the content of a
disc. The DVD equivalent is called a chapter. See
Chapter.
■ WMA
WMA is the audio file compressing technology
developed by Microsoft. You can copy WMA files
on CD-RW/R discs from a computer and play them
back on this unit.
156
Others
EN
Specifi cations
General
■ System
DVD-Video, DVD-RW/R, CD-DA, CD-RW/R
■ Power requirements
AC120 V, 60 Hz
■ Power consumption
20 W (standby: 2.8 W)
■ Weight
5.1 lbs (2.3 kg)
■ Dimensions (width x height x depth)
17 3/16” x 2 5/8” x 9 5/8” (435 x 66 x 244 mm)
■ Operating temperature
41Fº to 104Fº (5ºC to 40ºC)
■ Operating humidity
Less than 80% (no condensation)
■ TV format
NTSC
Recording
■ Recording format
Video Recording format (DVD-RW only),
Video format (DVD-RW, DVD-R)
■ Recordable discs
DVD-Rewritable, DVD-Recordable
■ Video recording format
Sampling frequency : 13.5MHz
Compression format : MPEG
■ Audio recording format
Sampling frequency : 48kHz
Compression format : Dolby Digital
Tuner
■ Receivable channels
VHF : 2-13ch
UHF : 14-69ch
CATV : C1-C125ch
Input/Output
■ VHF/UHF antenna input/output terminal
VHF/UHF (75 )
■ Video input [Input 1 (rear), 2 (front)]
Input level : 1 Vp-p (75 )
Jacks : RCA jacks
■ Video output [Output 1 (rear)]
Output level : 1 Vp-p (75 )
Jack : RCA jack
■ S-Video input [Input 1 (rear), 2 (front)]
Y (Iuminance) - Input level : 1 Vp-p (75 )
C (color) - Input level : 286 mVp-p (75 )
Jacks : 4 pin mini DIN
■ S-Video output [Output 1 (rear)]
Y (Iuminance) - Output level : 1 Vp-p (75 )
C (color) - Output level : 286 mVp-p (75 )
Jack : 4 pin mini DIN
■ Component video output [Output 1 (rear)]
Output level : Y: 1.0 Vp-p (75 ),
P
B
/C
B
, P
R
/C
R
: 0.7 Vp-p (75 )
Jacks : RCA jacks
■ Audio input [Input 1 (rear), 2 (front) L/R]
During audio input : 2V rms (Input impedance:
more than 22 k )
Jacks : RCA jacks
■ Audio output [Output 1 L/R (rear)]
During audio output : 2V rms (Output impedance:
less than 1 k )
Jacks : RCA jacks
■ Digital audio output [Output 1 (rear) COAXIAL]
Output level : 500 mVp-p (75 )
Jacks : RCA jack
• This model complies with the below specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
157
EN
Limited United
S
tates Warranty
Digital Audio Video (“DAV”) Product - Exchange Warranty
Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original consumers in the United States.
THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS DAV PRODUCT
AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
DAV PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA
AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.
DAV PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO, AND USED
IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.
Limited Warranty
TACP warrants this DAV Product and its parts against defects in
mate
rials
or workmanship for a period of ninety (90) days after the date
of original
retail purchase.
DURING THIS PERIOD, TACP WILL EXCHANGE A DEFECTIVE DAV
PRODUCT WITH A NEW OR REFURBISHED DAV PRODUCT WITHOUT
CHARGE TO YOU. DURING THE PERIOD THAT COMMENCES ON THE
DATE THAT IS NINETY ONE (91) DAYS AFTER THE DATE OF ORIGINAL
RETAIL PURCHASE AND ENDS ON THE DATE THAT IS THREE HUNDRED
SIXTY FIVE (365) DAYS AFTER THE DATE OF ORIGINAL RETAIL
PURCHASE, TACP WILL EXCHANGE A DEFECTIVE DAV PRODUCT
WITH A NEW OR REFURBISHED DAV PRODUCT FOR A FEE.
Rental Units
The warranty for DAV Product rental units begins on the date of the first
rental or thirty (30) days after the date of shipment to the rental firm,
whichever comes first.
Commercial Units
DAV Products sold and used for commercial purposes have a limited
warranty for all parts and labor, which warranty begins on the date of
original retail purchase and ends on the date that is ninety (90) days
thereafter.
Owner’s Manual and Product Registration Card
Read this owner’s manual thoroughly before operating this DAV Product.
Complete and mail the enclosed product registration card or register your
DAV Product on-line at
www .tacp
.toshiba.com/ser vice as soon as possible.
By registering your DAV Product you will enable TACP to bring you new
products specifically designed to meet your needs and help us to contact
you in the unlikely event a safety notification is required under the U.S.
Consumer Product Safety Act. Failure to complete and return the product
registration card does not diminish your warranty rights.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING
CONDITIONS:
(1) You must retain your bill of sale or provide other proof of purchase.
(2) All warranty servicing of this DAV Product must be made pursuant
to the TACP DAV Product Warranty Exchange Program.
(3) The warranties from TACP are effective only if the DAV Product is
purchased and operated in the Continental U.S.A. or Puerto Rico.
(4) Labor service charges for set installation, setup, adjustment of customer
controls, and installation or repair of antenna systems are
not covered
by this warranty. Reception problems caused by inadequate
antenna
systems are your responsibility.
(5) Warranties extend only to defects in materials or workmanship as
limited above, and do not extend to any DAV Product or parts that
have been lost or discarded by you or to damage to the DAV Product
or parts caused by fires, misuse, accident, Acts of God (such as
lightning or fluctuations in electric power), improper installation,
improper mainten
ance, or
use in violation of instructions furnished
by
TACP; use or malfunction through simultaneous use of this DAV Product
and connected equipment; or to units that have been modified or had
the serial number removed, altered, defaced, or rendered ille
g
ible.
How to Obtain Warranty Services
If, after following all of the operating instructions in this manual and checking
the section “Troubleshooting,” you find that service is needed:
(1) For instructions on how to obtain warranty service for your DAV Product
under the TACP DAV Product Warranty Exchange Program, contact
TACP’s Consumer Solutions Center toll free at 1-800-631-3811.
(2) You must include the original bill of sale (or a copy of the original bill
of sale) or other proof of purchase along with the entire DAV Product
when sending the DAV Product to the TACP Warranty Exchange Center
specified by TACP’s Consumer Solutions Center. You are responsible
for all inbound transportation and insurance charges for the DAV Product
to the TACP Warranty Exchange Center.
For additional information, visit TACP’s website: www.tacp.toshiba.com
ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.
S.A., INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET
FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES
IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A. AS HEREBY
LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS, AND
SIMILAR OBLIGATIONS OF TACP WITH RESPECT TO THE REPAIR
OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TACP BE
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, LOST PROFITS, BUSINESS INTERRUPTION,
OR MODIFICATION OR ERASURE OF RECORDED DATA CAUSED BY
USE, MISUSE OR INABILITY TO USE THIS DAV PRODUCT).
No person, agent, distributor, dealer, or company is authorized to change,
modify, or extend the terms of these warranties in any manner whatsoever.
The time within which an action must be commenced to enforce any
obligation of TACP arising under the warranty or under any statute or law
of the United States or any state thereof is hereby limited to ninety (90)
days from the date you discover, or should have discovered, the defect.
This limitation does not apply to implied warranties arising under state law.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO
STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, WHEN
AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
PROVISIONS MAY NOT APPLY TO YOU UNDER SUCH CIRCUMSTANCES.
158
Others
EN
159
EN
1VMN22607 /
E7A71CD
D-RW2SU / D-RW2SC
