Congratulations on your purchase!
Thank you for choosing a Sirius product.
www.siriusbrand.com
SLTC919
UNDERMOUNT RANGEHOOD INSTALLATION INSTRUCTIONS
SLTC919 520 EAN # 9351116002244
SLTC919 580 EAN # 9351116002251
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
BEFORE YOU INSTALL – please read
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius
branded accessory such as flexible ducting, Sirius will only warrant the hood
and motor. If installation is found to be the cause of failure or issue then charges
will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has
been found to increase noise levels, increase vibration and reduce airflow.
Sirius Semi-rigid or solid ducting can be used in lieu. There is a range available
to suit any application.
Ducting available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
CAUTION

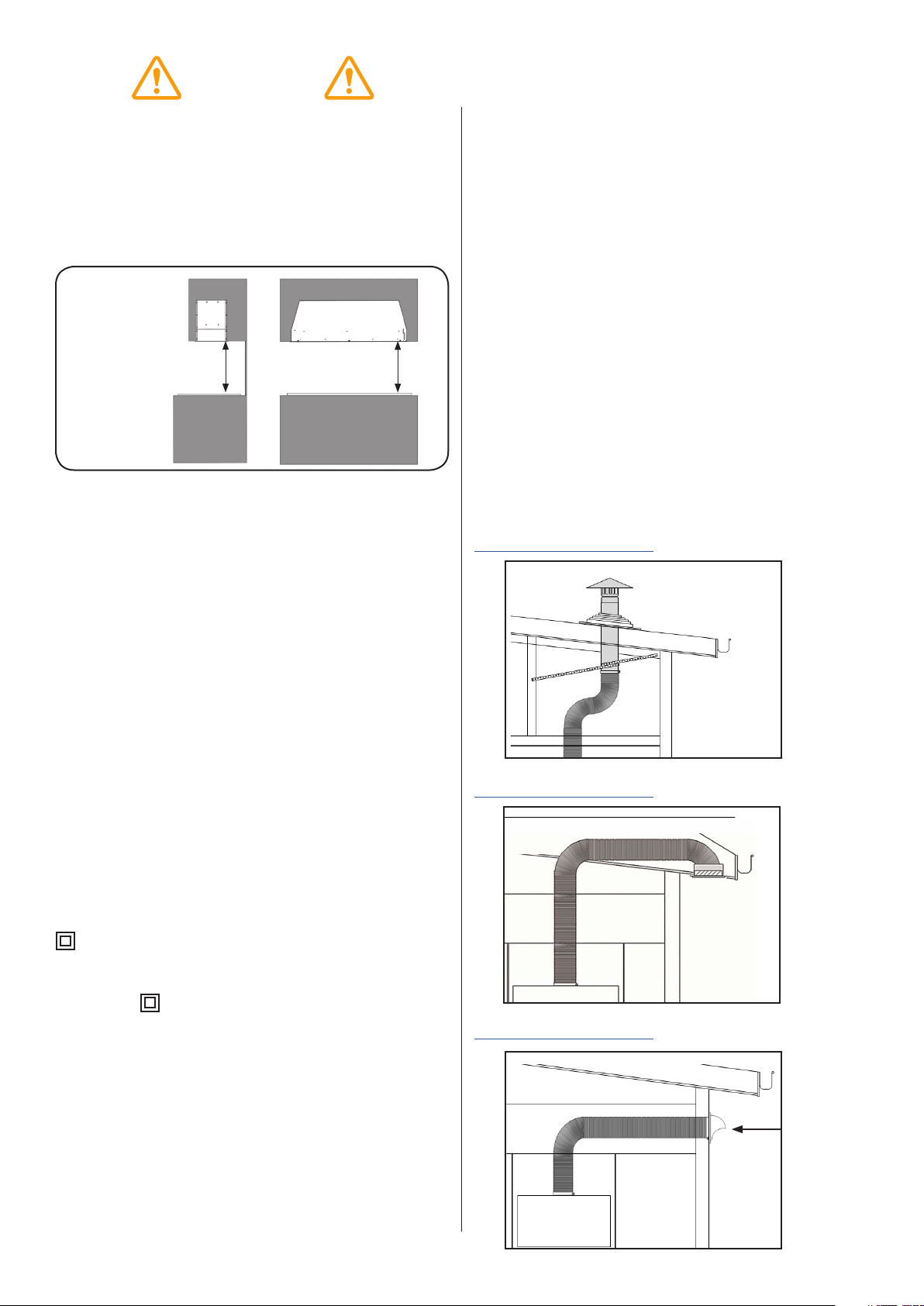

Min. 600mm - Max. 650mm for induction cooktops.
Min. 600mm - Max. 750mm gas cooktops.
If the rangehood is positioned above the max height
recommended, warranty may be compromised
as performance of the rangehood will be affected.
Measurement is taken from the top of the trivets to
the underside of the hood. (Fig.1)
• The air being drawn can’t be conveyed through
or into a duct used to let out fumes from
appliances fed by energy other than electric
power (eg. centralized heating, radiators, water
heaters, etc.).
• Attention: remove any possible PVC film from the
stainless steel, including the filters.
• To externally vent, please comply with the
pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation
when a rangehood and appliances fed by energy
other than electric power (gas, oil, or coal stoves,
etc.) are used simultaneously. The rangehood,
when evacuating the air, could generate a
negative pressure in the room which can’t exceed
the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat source.
Therefore the room should be provided with air
intakes to allow a constant flow of fresh air.
If the rating label in the rangehood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.
If the rating label in the rangehood does not show
the symbol , the appliance is built in class I° and it
needs the earth connection.
When performing the electrical connections on the
appliance, please make sure that the current-tap
is provided with earth connection and that voltage
values correspond to those indicated on the label
placed inside the appliance itself.
Before carrying out any cleaning or maintaining
operations, the appliance needs to be switched off.
If the appliance is not provided with a non-separable
When ducting rangehood, options are as follows:
Roof vent - EASYROOF 150T/M
*Kit includes roof flashing
Download installation guide
Eave vent - EASYEAVE 150
Download installation guide
Wall vent - EASYWALL 150
Download installation guide
flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid,
with an opening distance between the contacts of at
least 3mm, then such disconnecting devices must be
supplied within the fixed installation.
If the fixed appliance is endowed with a supply cord
and a plug, the appliance has to be put in a place
where the plug can be reached easily.
The use of materials which can burst into flames
should be avoided in close proximity of the appliance.
When frying, please pay particular attention to fire
risk due to oil grease. Being highly flammable, hot
oil is especially dangerous. Do not use uncovered
electric grills. In order to avoid possible fire risk, all
instructions for grease-filter cleaning and for removing
eventual grease deposits should be strictly followed.
WARNING
600 - 650mm (induction)
600 - 750mm (gas)
600 - 650mm (induction)
600 - 750mm (gas)
(Fig. 1)
(Fig. 2a)
(Fig. 2b)
(Fig. 2c)
Dome
featured on
200mm kit
only
SIDE VIEW FRONT VIEW

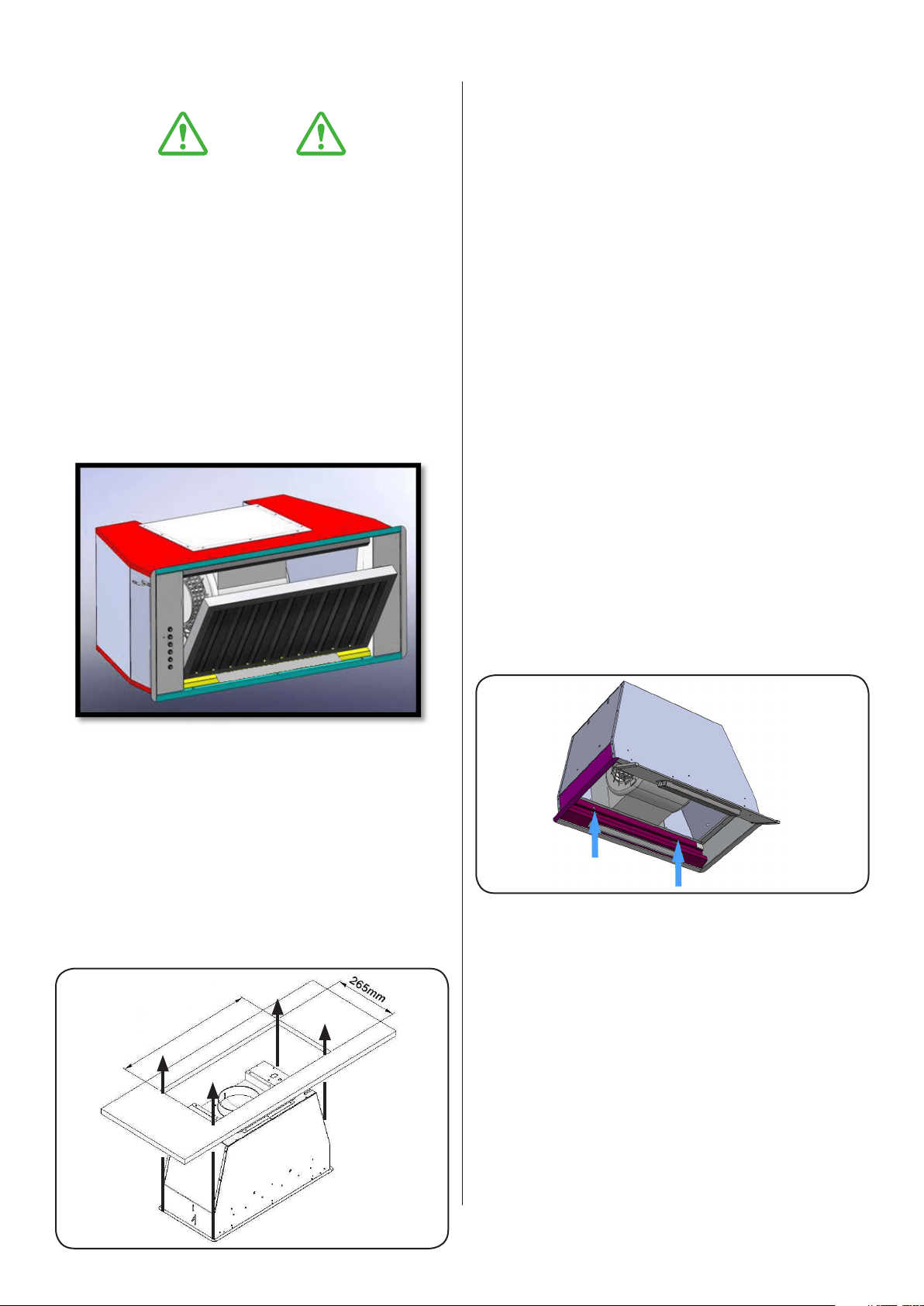

Remove the grease filters before installing the
product, in order to avoid to damage the appliance.
Open the glass by rotating it as shown in fig. 3; then
remove the grease filters by acting on their specific
handle and rotate them to remove them from their
seating.
Make an opening on the kitchen cabinet bottom of
the following sizes:
SLTC919 520: 265mm x 498mm
SLTC919 850: 265mm x 835mm
To install the appliance please respect the follow
instructions:
• The appliance must be installed by qualified
technicians, or where possible use a Sirius
recommended installer. See siriusbrand.com. In
order to avoid damage to the electronic parts
of the appliance, please do not use additional
screws.
• Essential precautions to respect before installing
the appliance are the following:
To have made a cutout on the bottom of the
cabinet which is suitable to hold the appliance in
position (fig. 4):
• Prepare the power supply - 240 volt.
• Prepare a hole for the ducting - 160 mm
diameter.
• Maximum length of ducting should not exceed 7
metres to atmosphere.
• Do not use screws to fix the outlet pipe to the
rangehoods as they will prevent the movement of
non-return valves.
• Limit the number of elbows in the ducting, since
each elbow reduces the duct efficiency by 1
metre. (i.e. if you use two 90° elbows, the length
of ducting must not exceed 5 metres.)
• Avoid abrupt direction changes.
• Use 150mm constant diameter ducting for the
whole length for the single motor.
• The use of Sirius ducting will increase the
warranty of the unit to 4 years.
(Fig.4)
(Fig.5)
SLTC919 series INSTALLATION
Before installing the appliance, make sure that
none of the parts are damaged in any way. In
case of damaged parts, contact your retailer
and do not proceed with installation. Read all
of the following instructions with care before
installing the appliance.
• 10AMP GPO required at head unit.
• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter
(recommended constant diameter: Ø 150 mm or
equal surface area).
NOTE
(Fig.3)

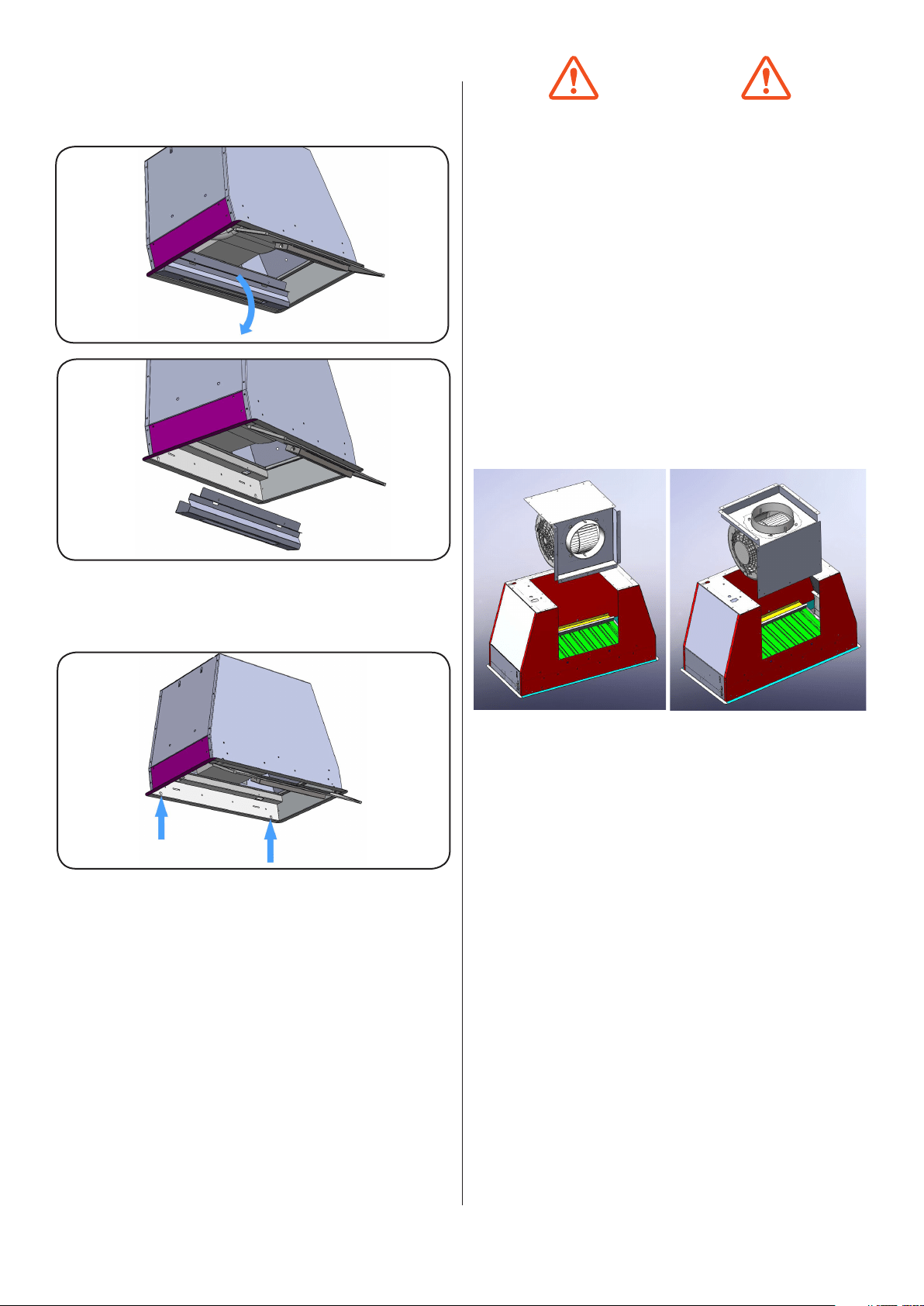

• Rotate the steel bar, including the LED bar, to
remove it from its seating (Fig. 6 - 7). You can
electronically disconnect the bar by disconnecting
the specific connector.
• Refit the stainless steel bar previously removed,
connect the LED bar electrically by means of the
specifc connector, and then refit the grease filter.
• Place the appliance inside the cabinet and fix it
by inserting the screws supplied into the holes, as
shown in Fig.8.
(Fig.6)
(Fig.7)
(Fig.8)
(Fig.7a) (Fig.7b)
CAUTION
Before connecting any ducting to the motor,
make sure the non-return valves - which are on
the air outlet of the motor - can swing open.
External venting
• Connect the flange to the exhaust hole with the
appropriate ducting. Connect the rangehood with
the electrical mains through the supply cord.
Rear vented version
• All the models with one motor can be rear
vented; if the customer wants to use this option,
it is necessary to remove the 18 screws from
the motor group support. Then take the metal
support with motor included out (fig.7a). Turn
the motor to have the air outlet on the rear side
(fig.7b) and fix the scews previously removed.
• Accurate maintenance guarantees good
functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It
can be removed by pushing its handle toward the
back side of the rangehood and pulling the filter
downwards so to unfasten it from its slot (Fig.3).
To insert the filter just perform the opposite
operation.
• After 30 hours of operation, the push button
control panel will flash, signaling the filters are due
for cleaning. Press the timer button to reset.
The grease filter needs cleaning by regular
handwashing or in dishwashers every two
months at least, depending on its use.
• To clean the appliance itself, water and detergent
are recommended, while abrasive products
should be avoided. For steel appliances
specialized detergents are recommended (please
follow the instructions indicated on the product
itself to obtain the desired results).
MAINTENANCE
LED Bar replacement
To remove the LED, it is recommended to remove the
steel bar as shown in Fig.6 and 7, then disengage the
LED bar by acting on the specific fastening springs.
Replace the LED bar with one of the same
characteristics.
Refit the Steel bar.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid a hazard.
SLTC919 series
A: Light switch on/off
B: Motor OFF / Reduce speed
C: Fan-speed indictor
D: Motor ON / Increase speed
E: 10 minute shut-off timer
If the electrical power supply to the product SLTC is
cut, 15 seconds are needed for self-diagnostics after
the functions are restored.
Internal motor models, with maximum air capacity
higher than 650m
3
/h, are equipped with a timer
device that automatically switches the suction speed
from 4th to 3rd speed, after 5 minutes of operation.
The energy consumption of the appliance in standby
mode is lower than 0.5W.
OPERATION
A B
C
D
E
