Chapter 1
Getting Started
Contents
Chapter 1. Getting Started
3 Tips
4 Before You Start

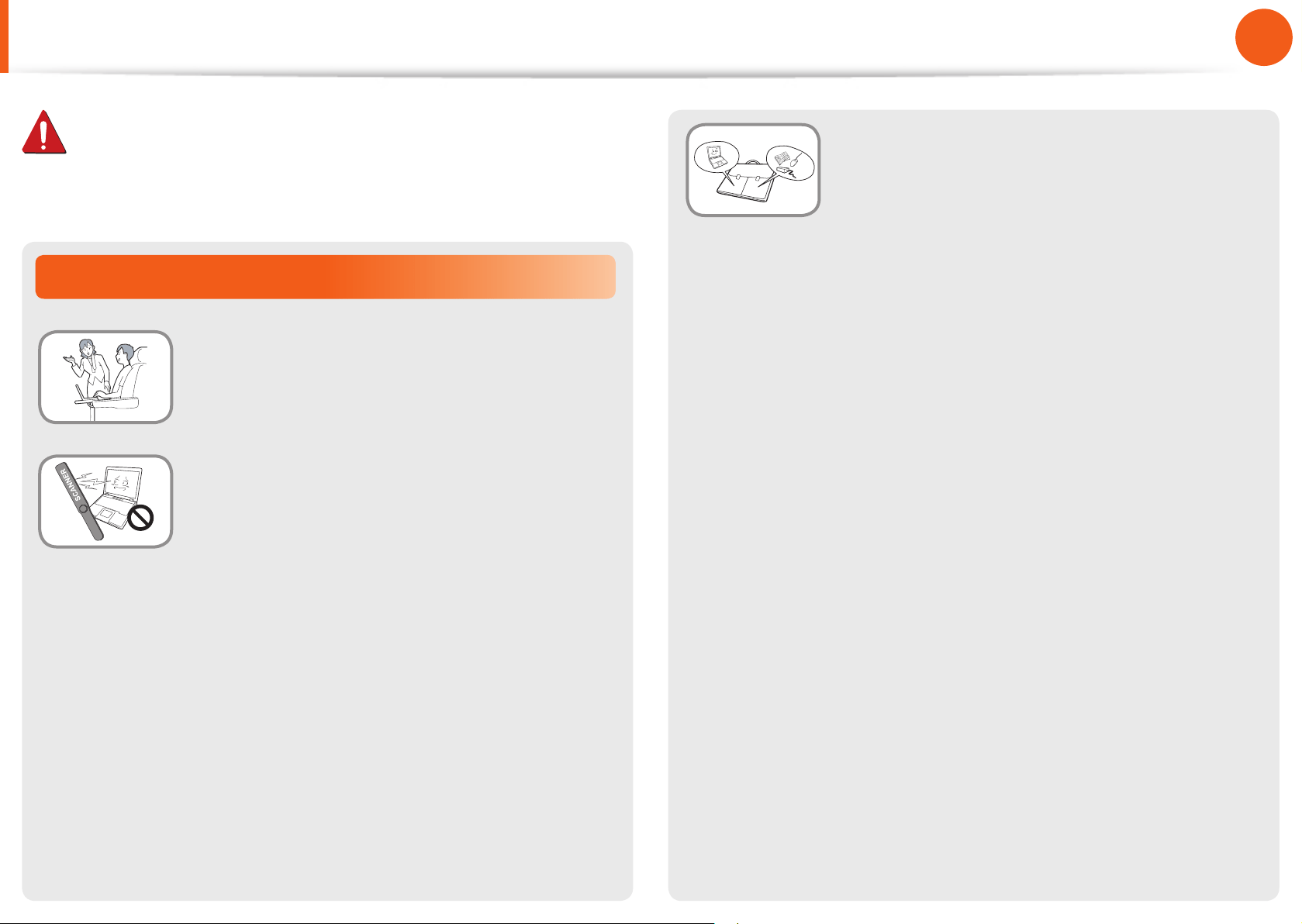

7 Safety Precautions

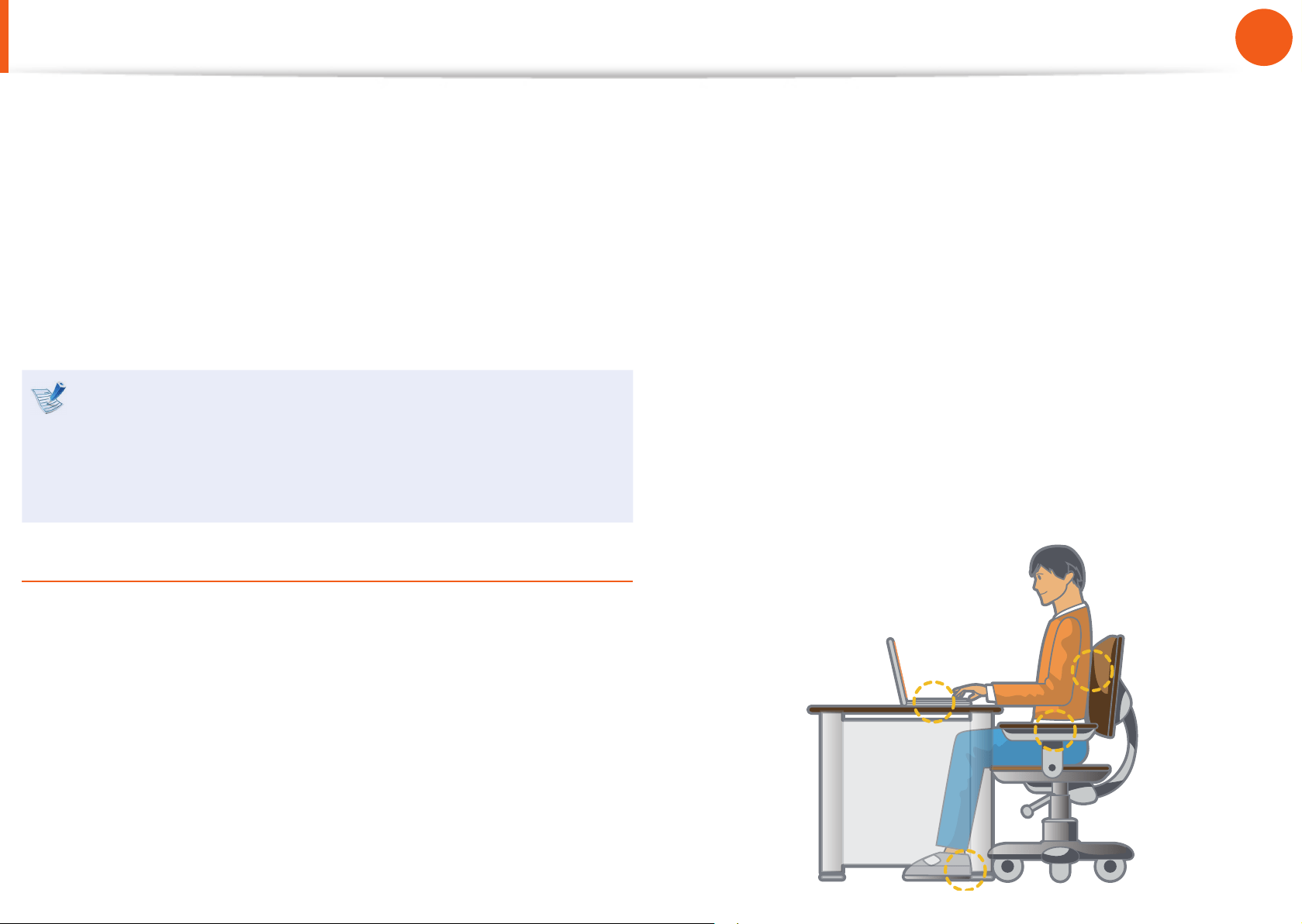

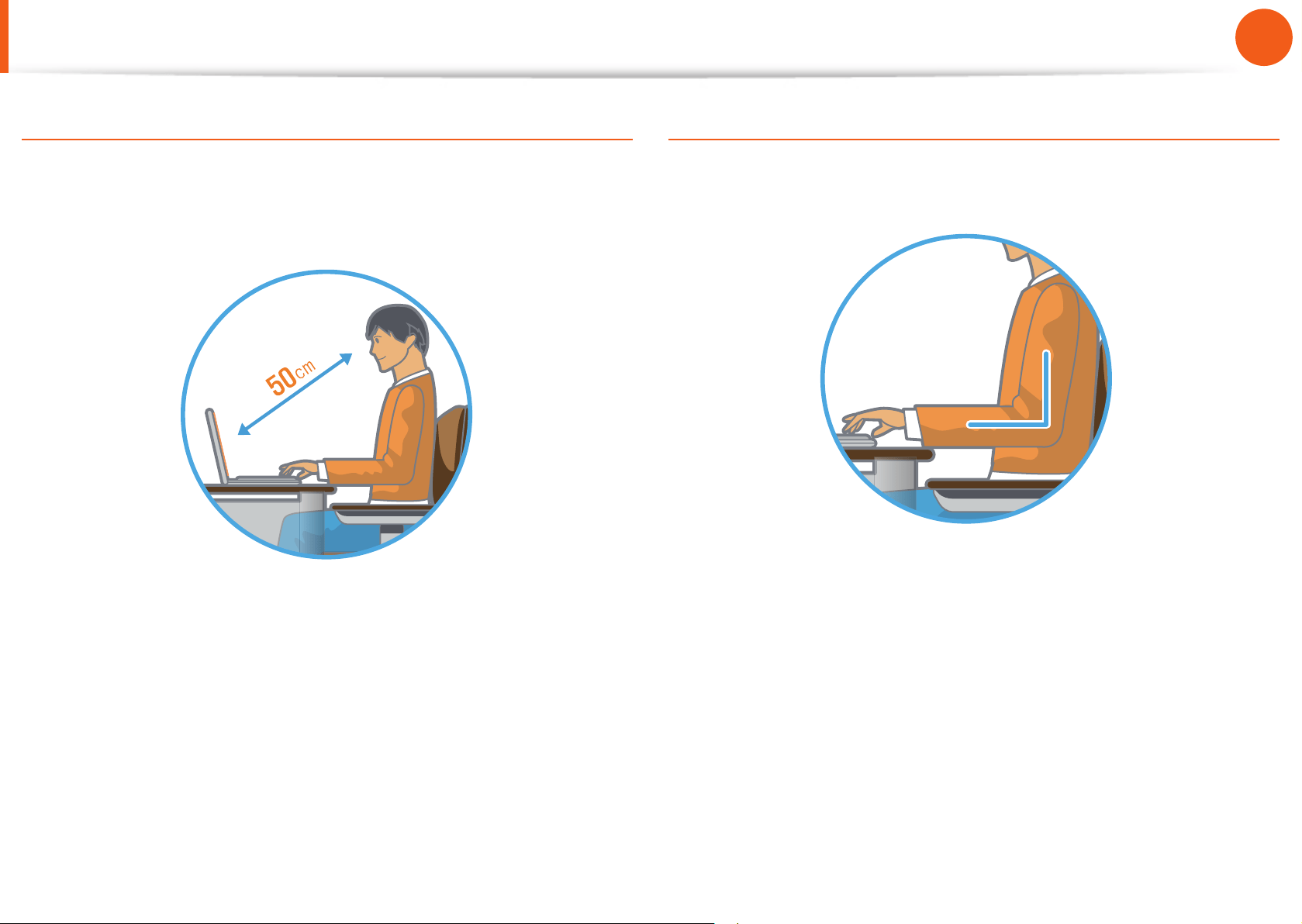

22 Proper Posture During Computer Use
25 Overview

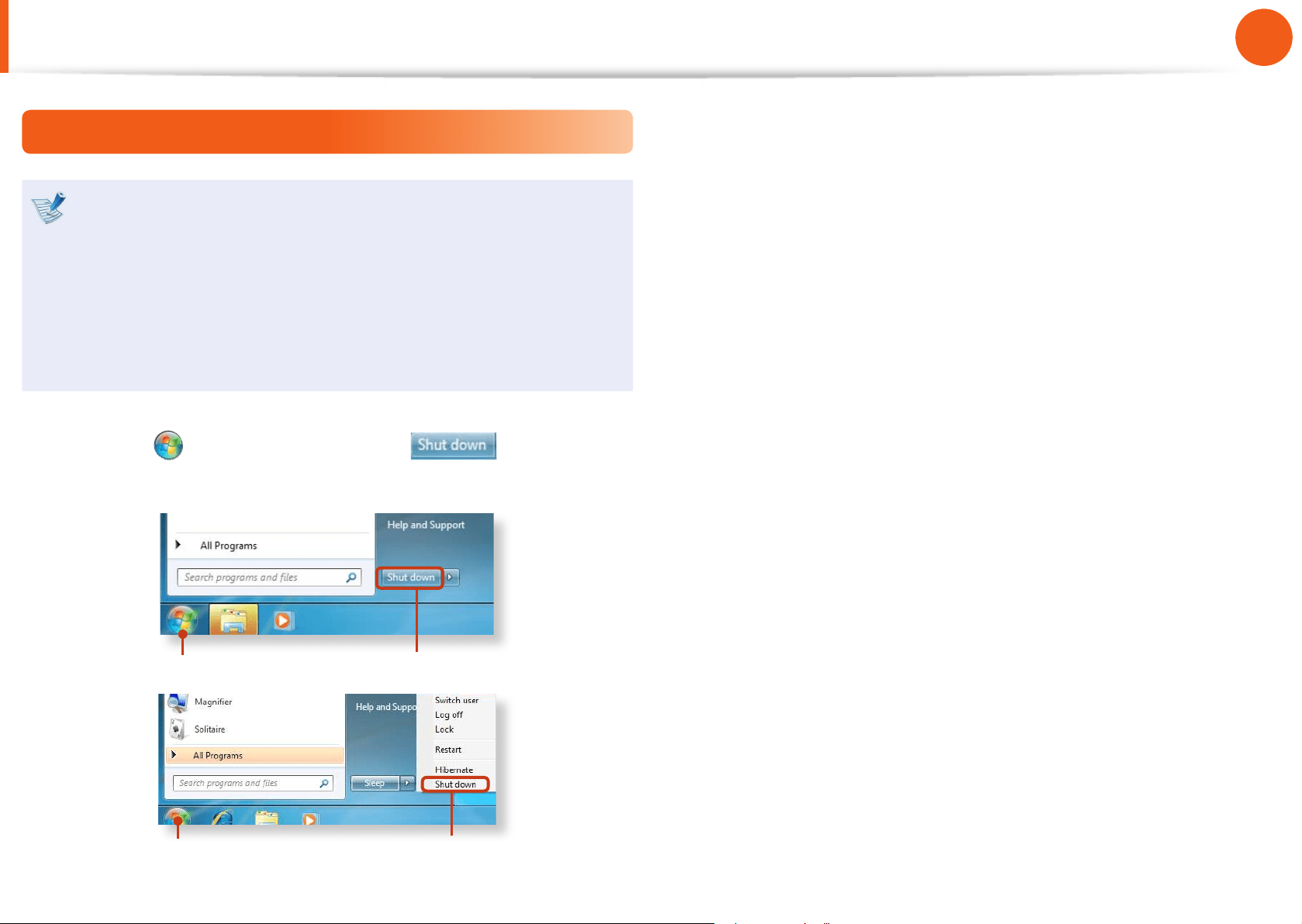

32 Turning the Computer On and O
Chapter 2. Using the Computer

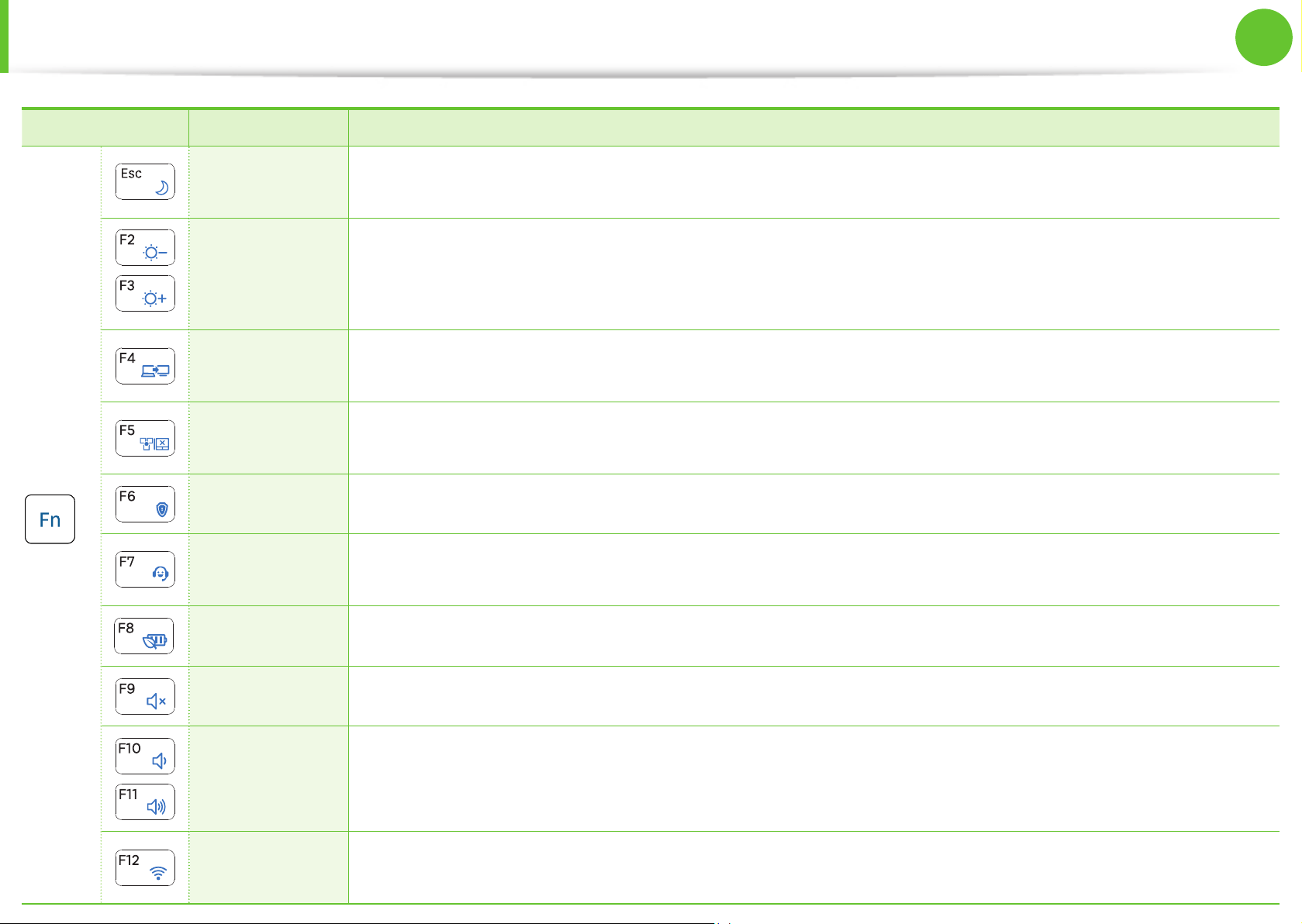

35 Keyboard

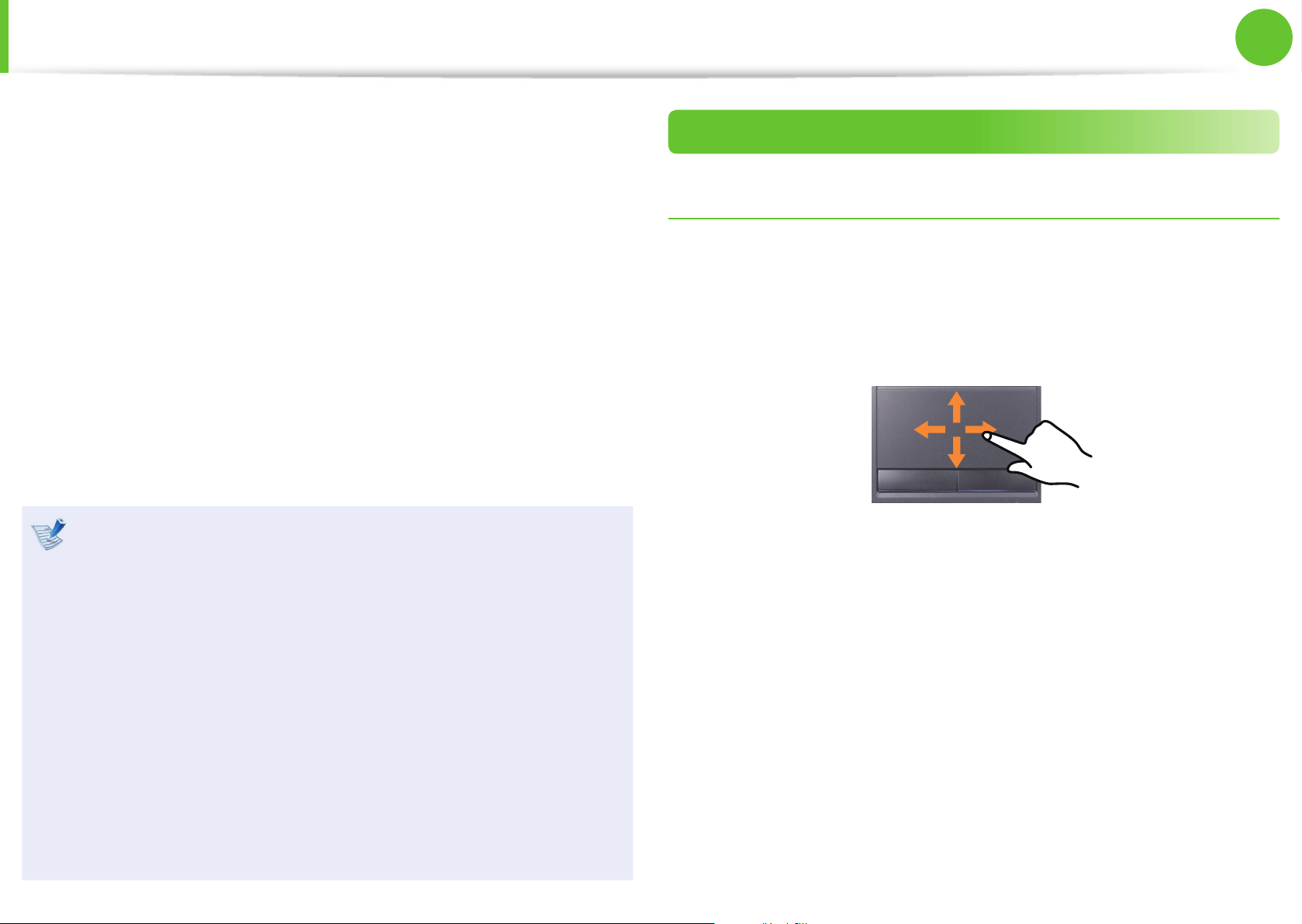

38 Touchpad

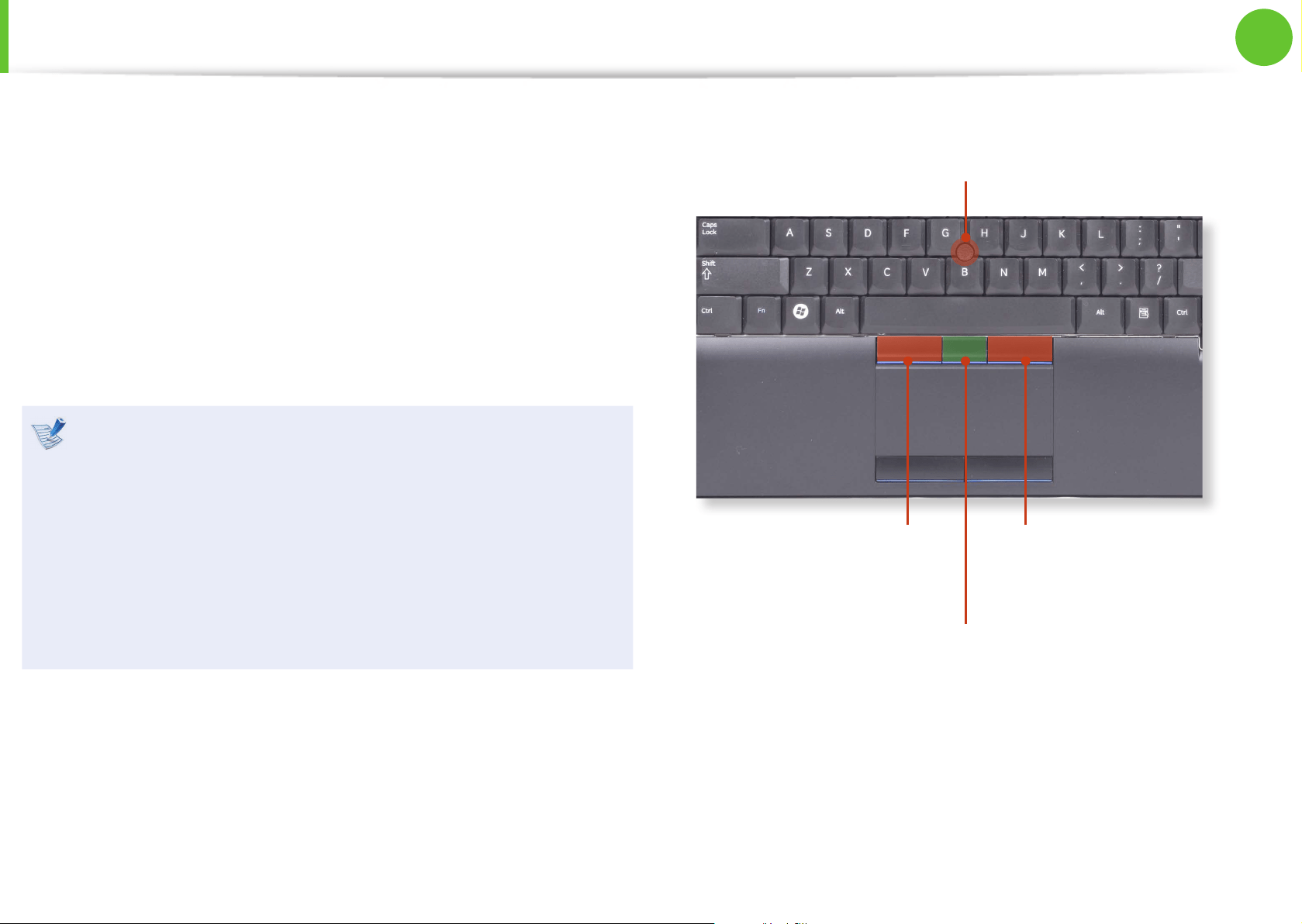

44 Pointing Stick (Optional)
49 CD Drive (ODD, Optional)
51 ExpressCard Slot (Optional)
52 Multi Card Slot (Optional)

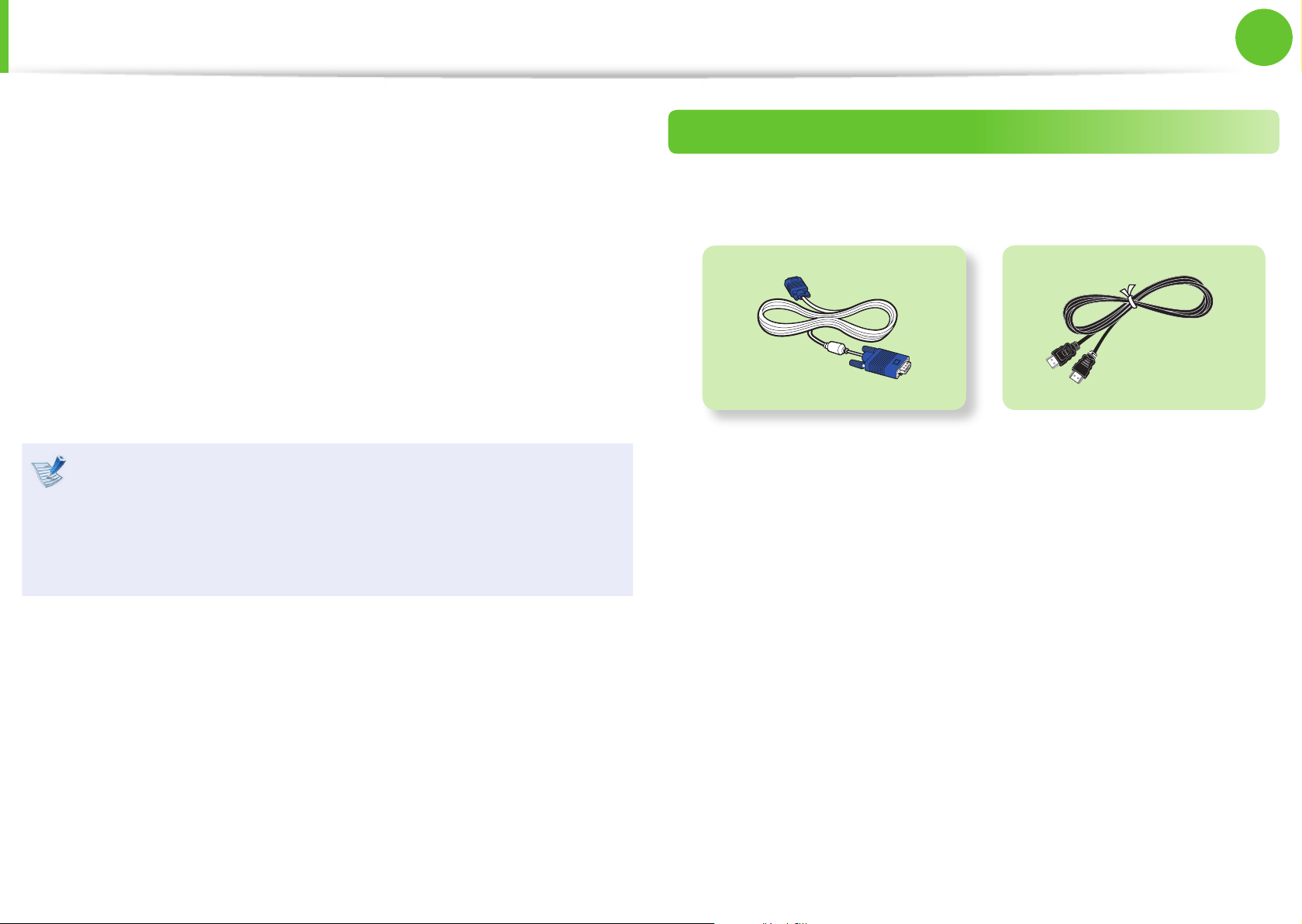

55 Connecting an External Display Device
62 Connecting an External Digital Device
63 Adjusting the Volume

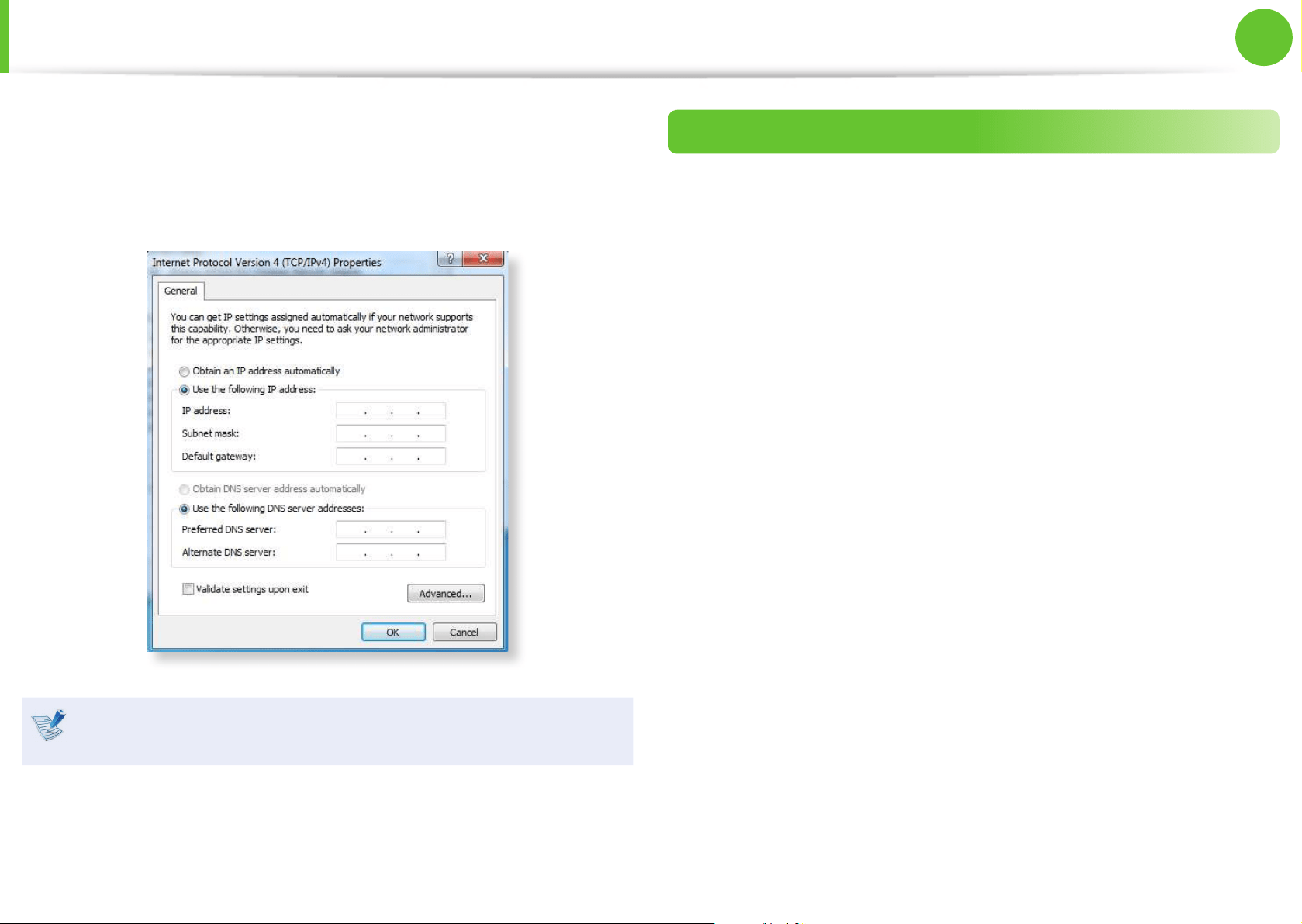

66 Wired Network

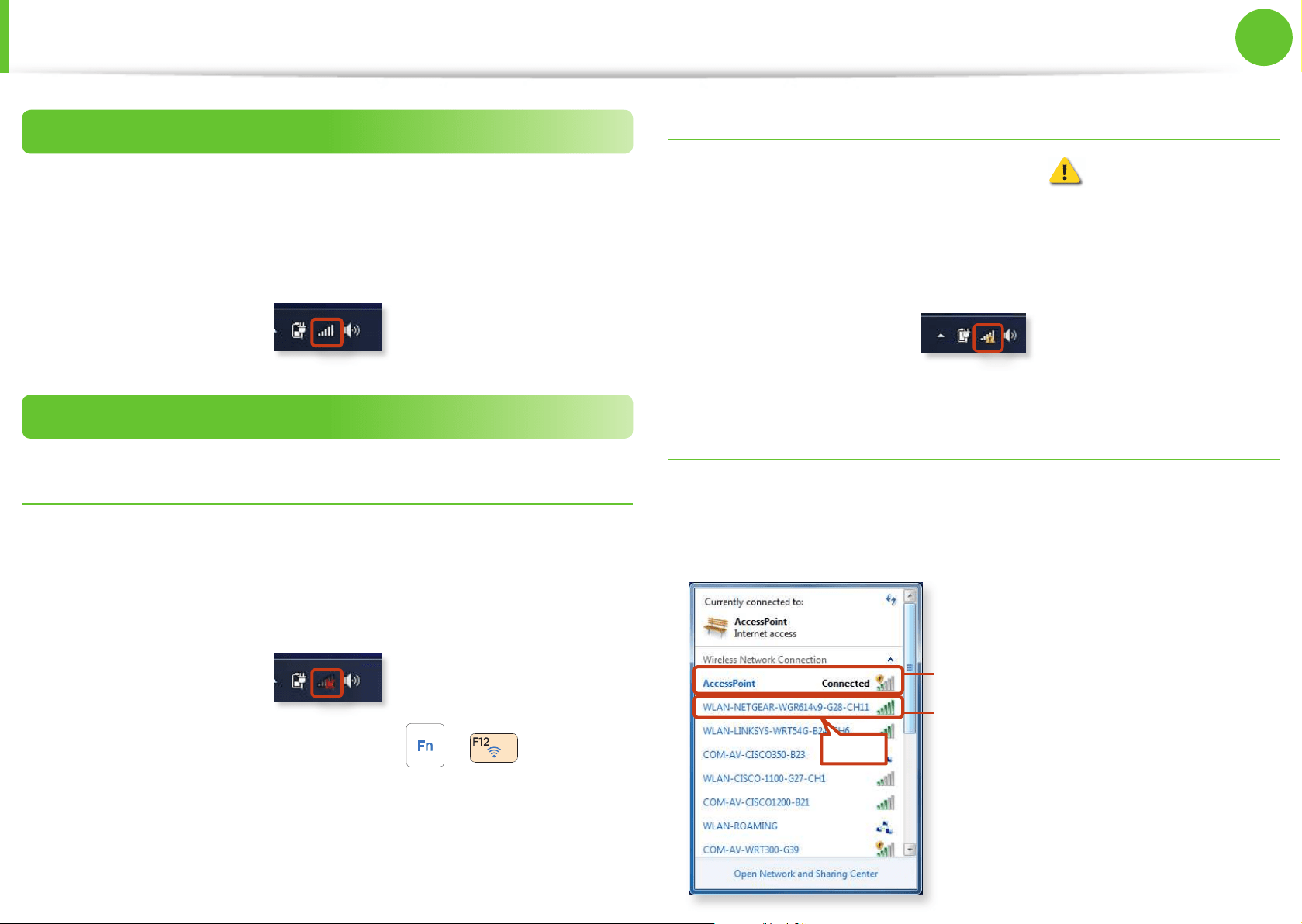

70 Wireless Network (Optional)

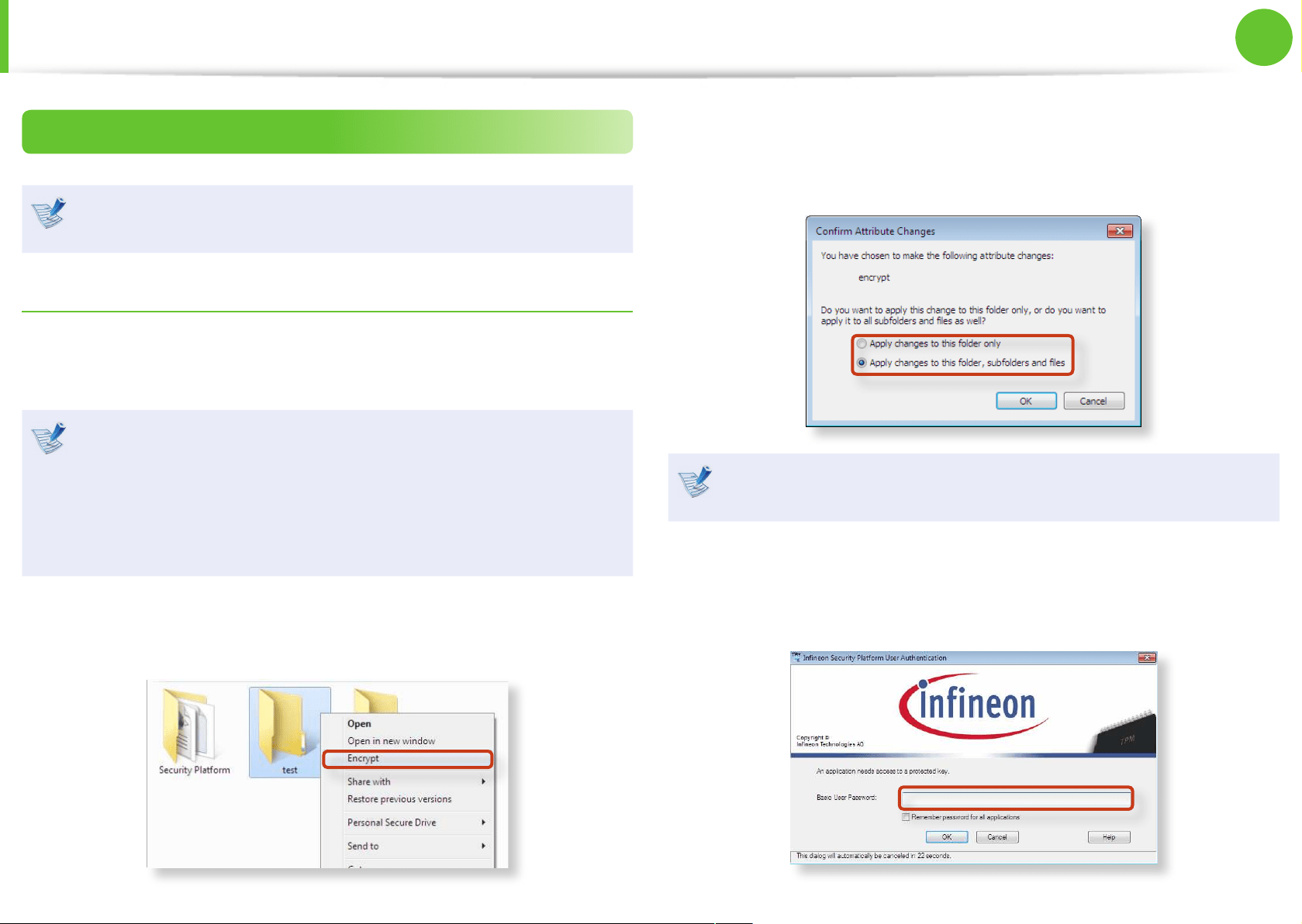

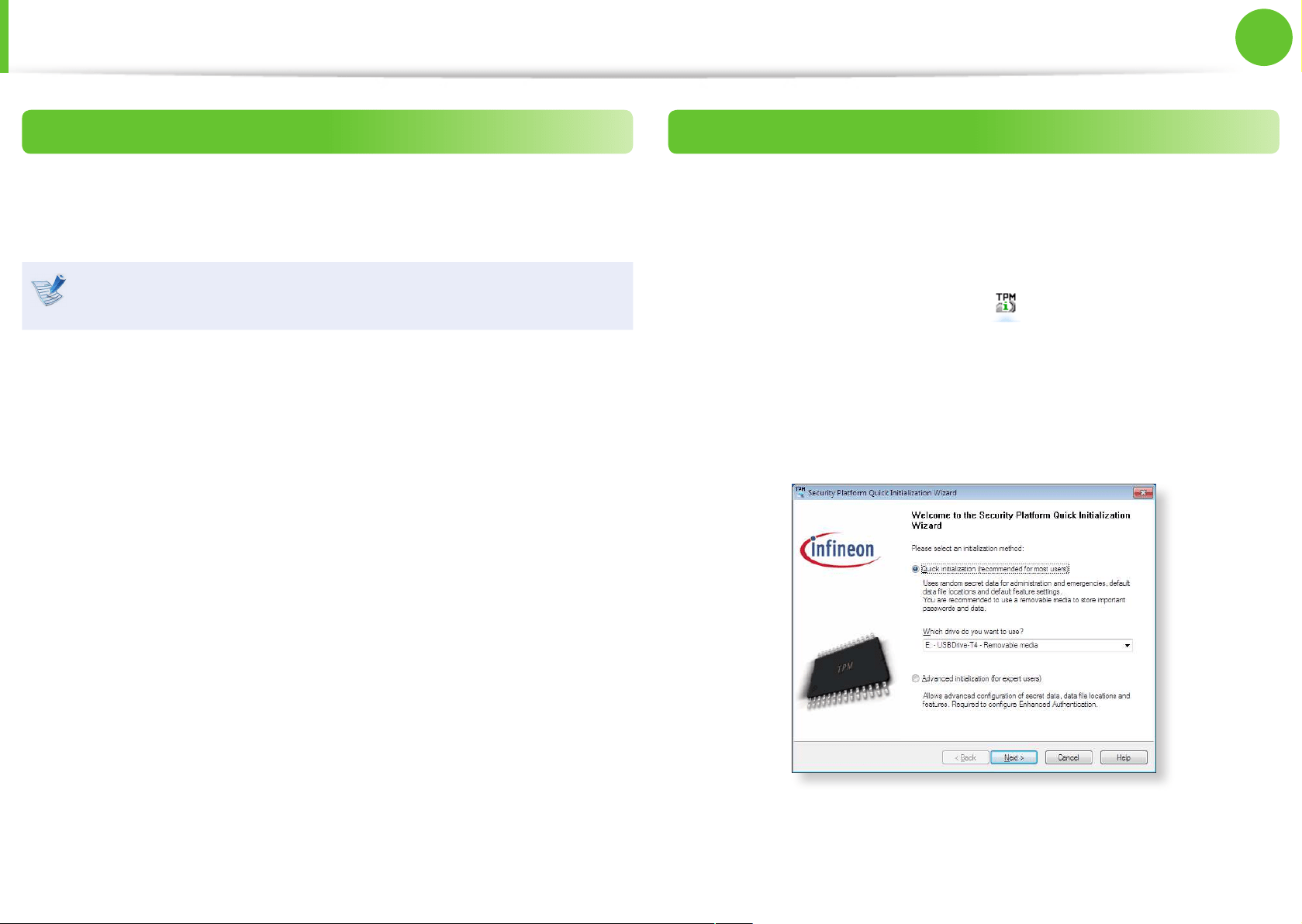

73 Using the TPM Security Device (Optional)

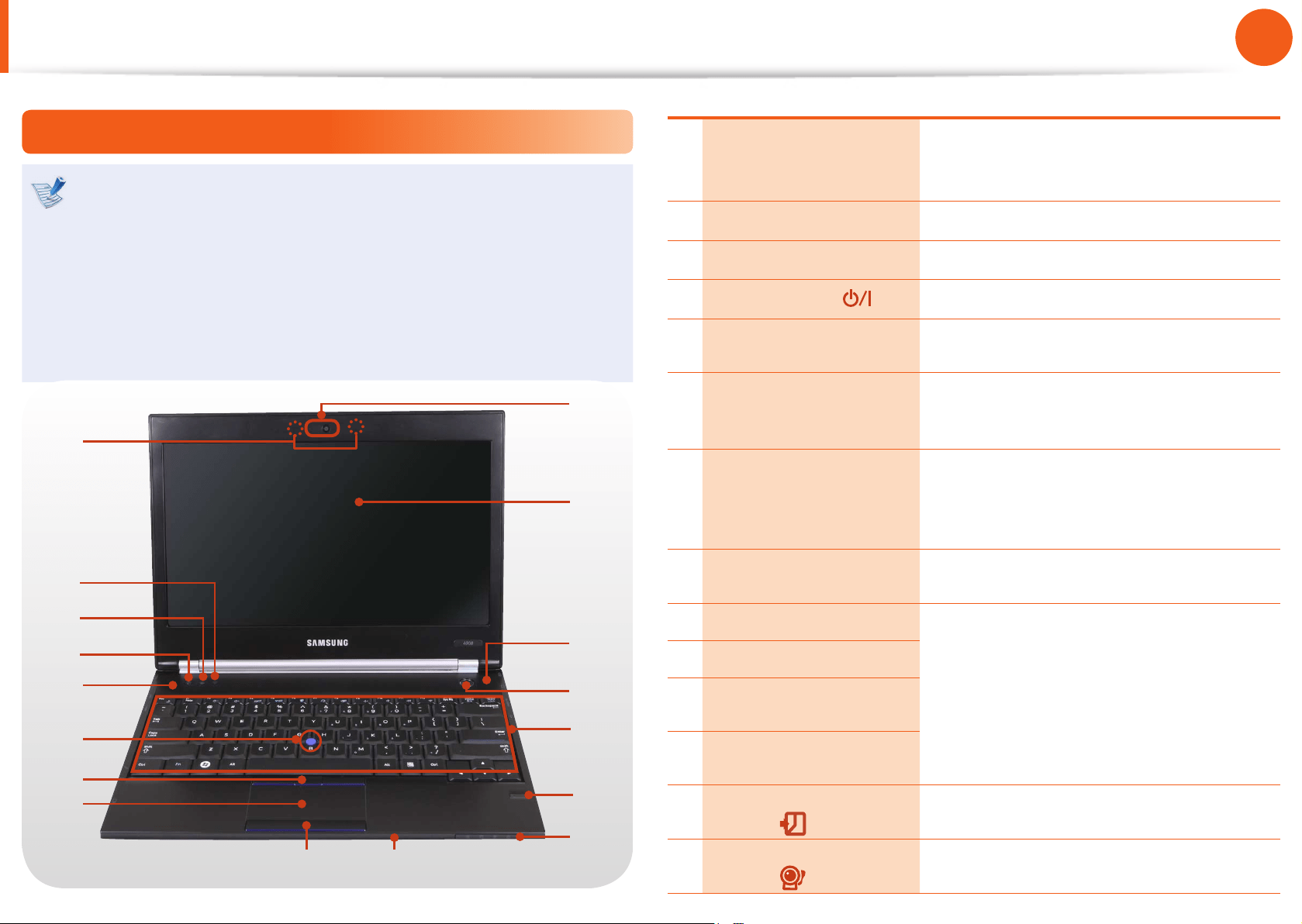

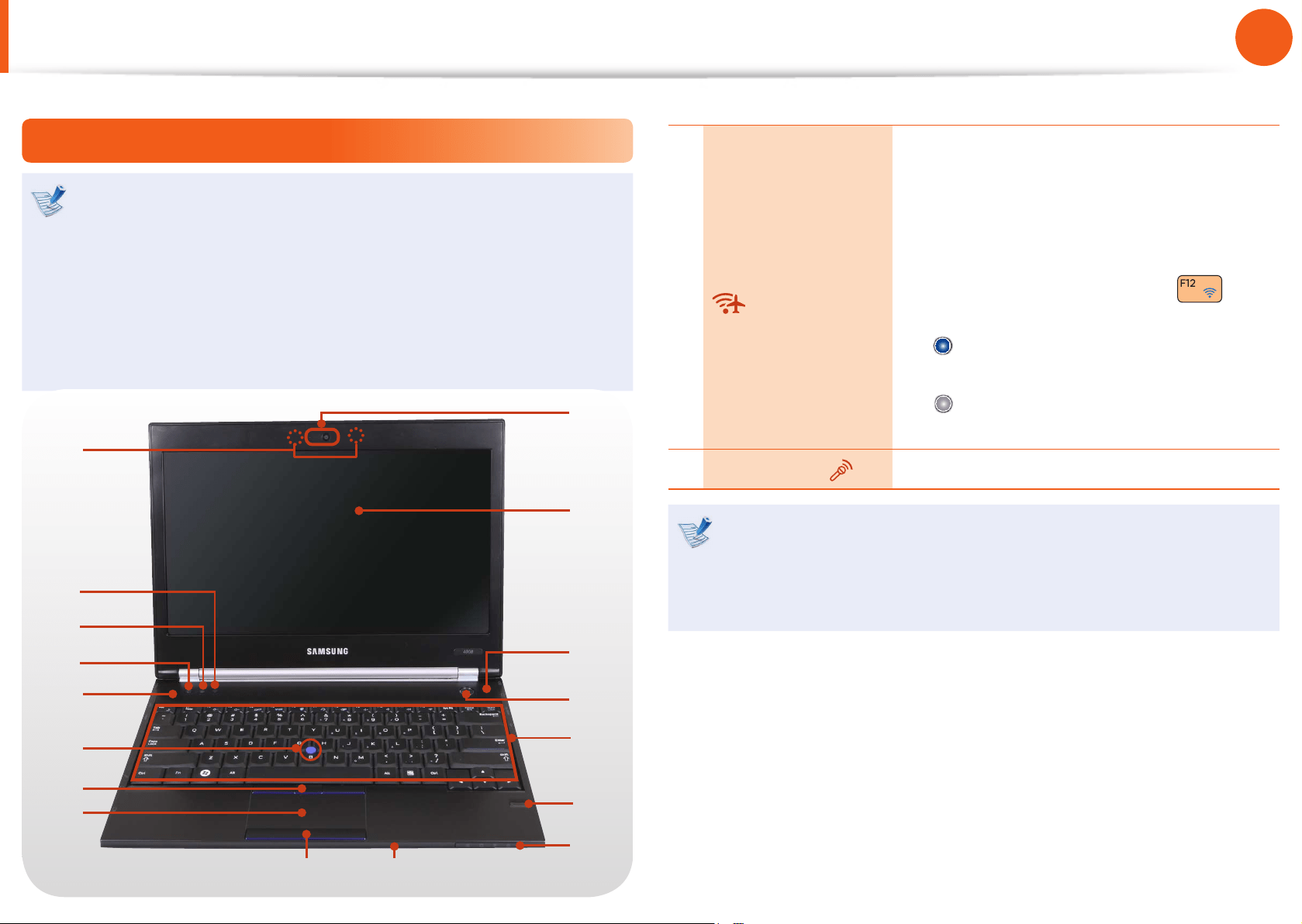

Chapter 3. Settings and Upgrade
83 LCD Brightness Control

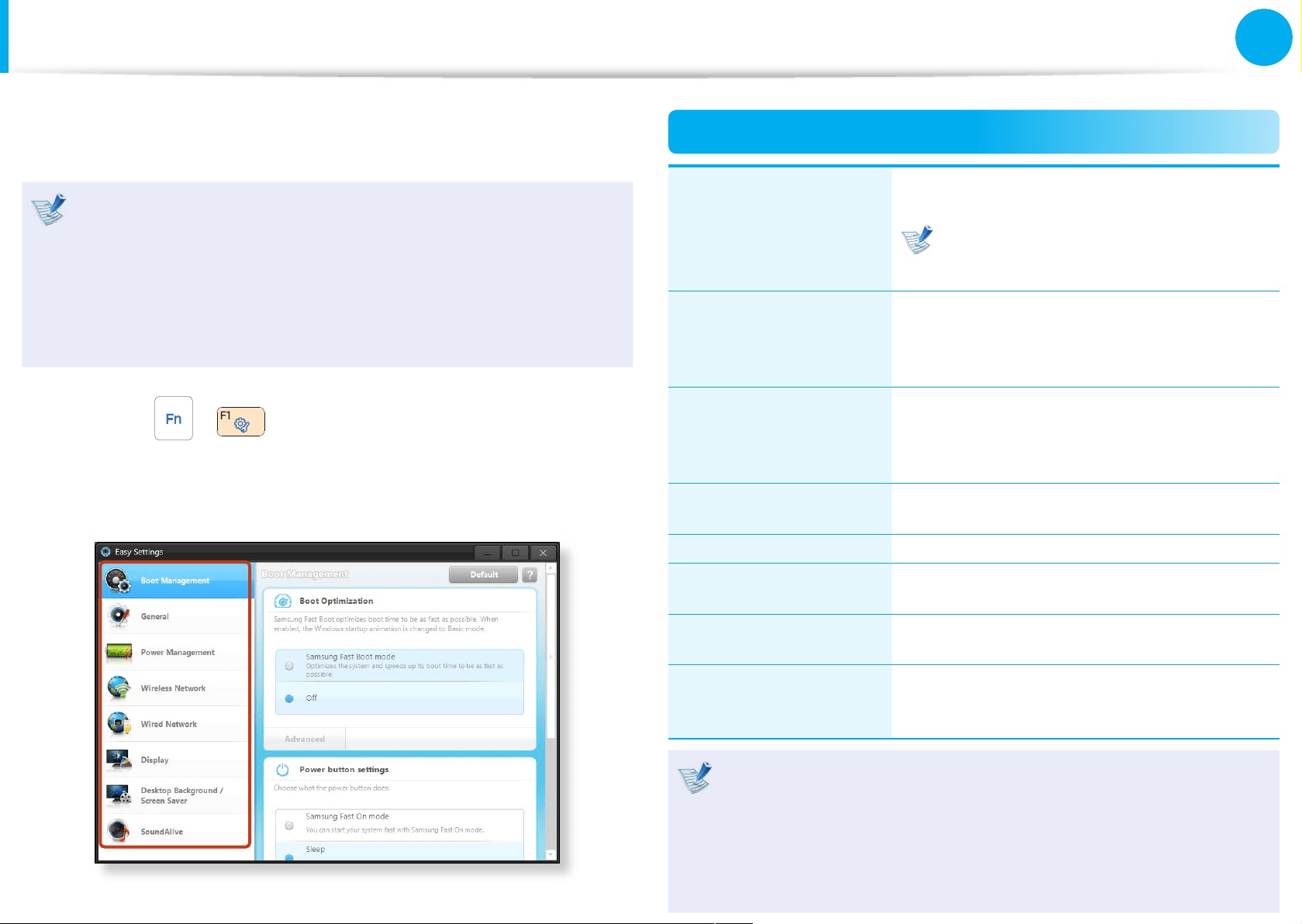

85 Easy Settings (Optional)

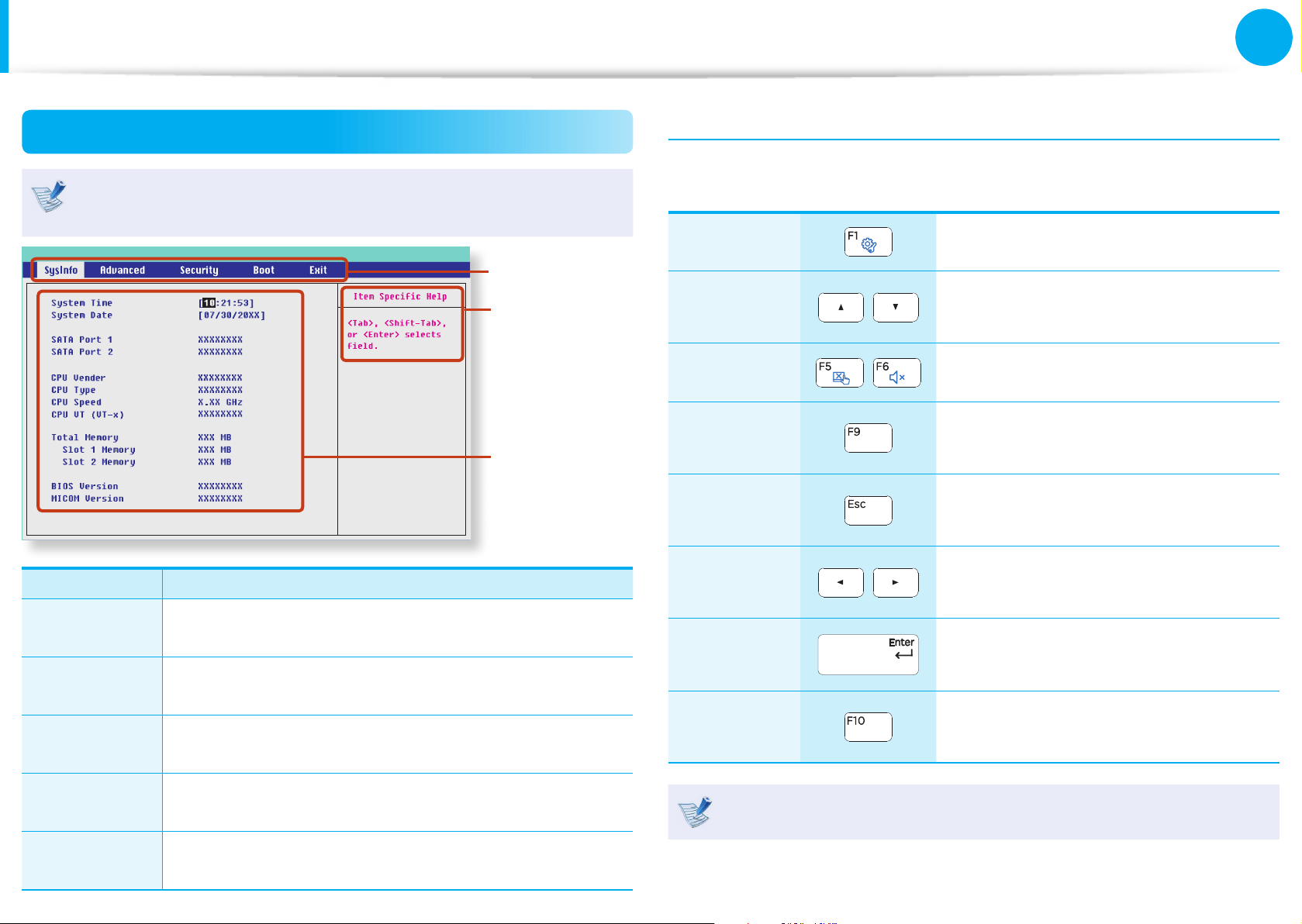

86 BIOS Setup

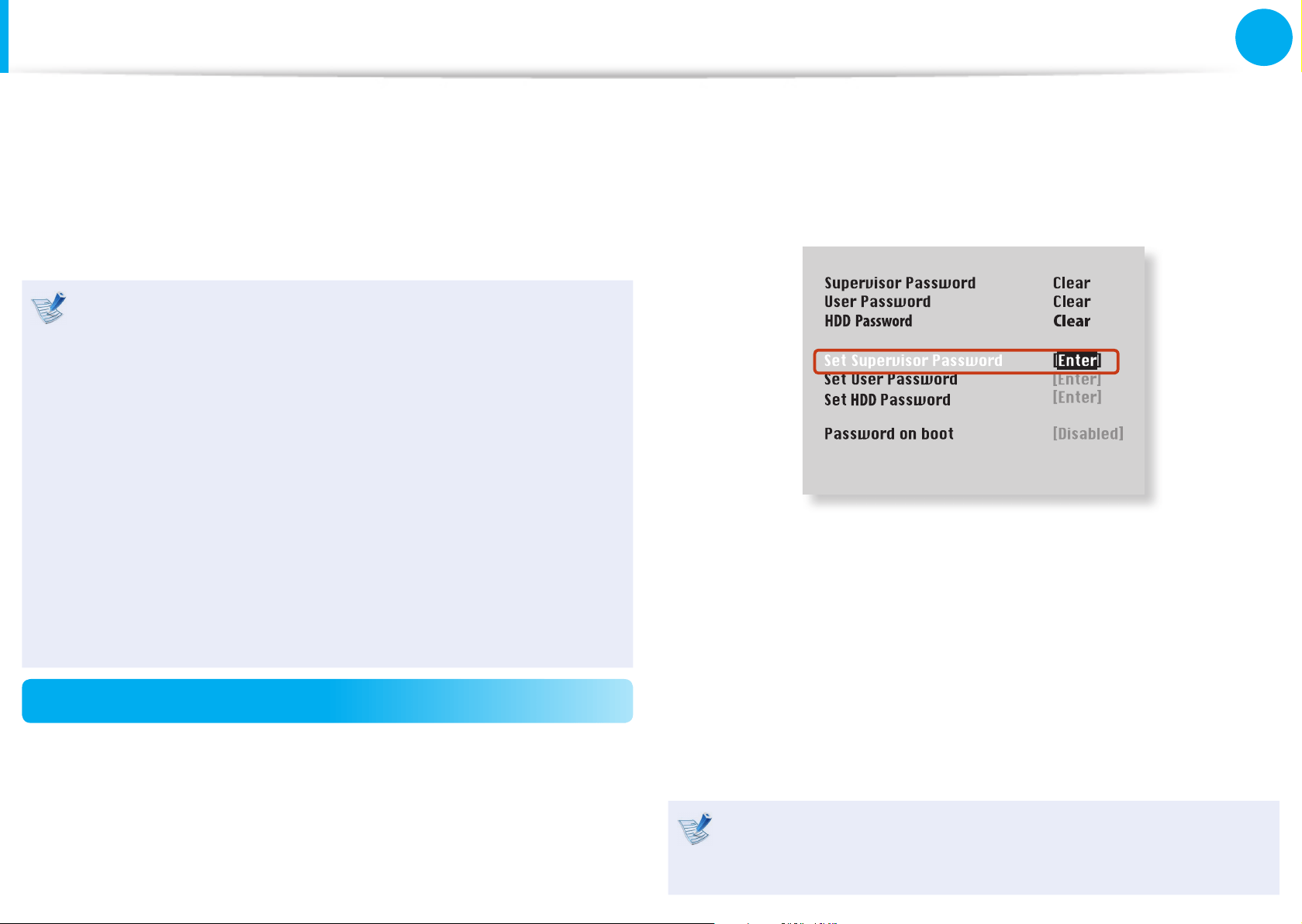

88 Setting a Boot Password
91 Changing the Boot Priority

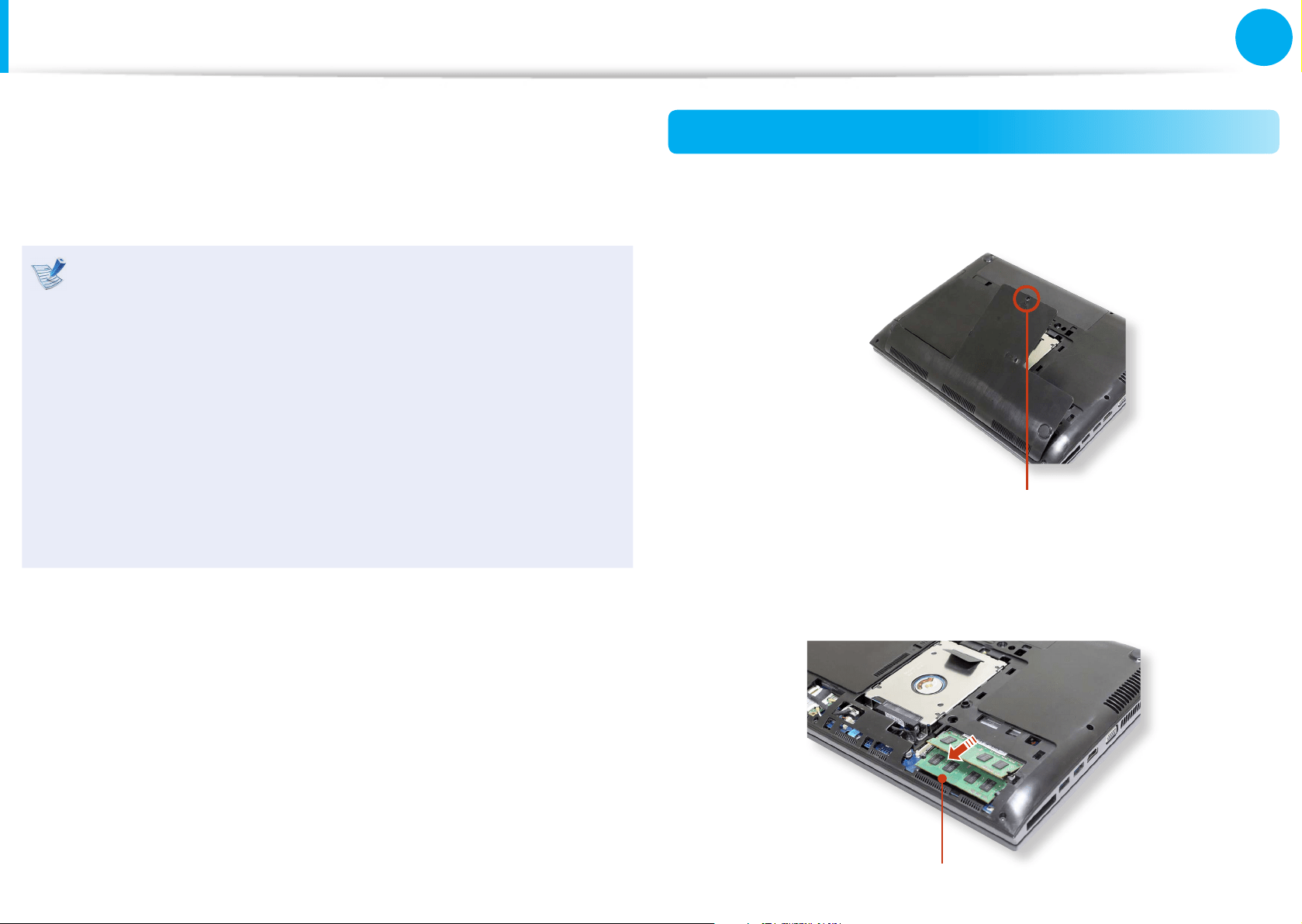

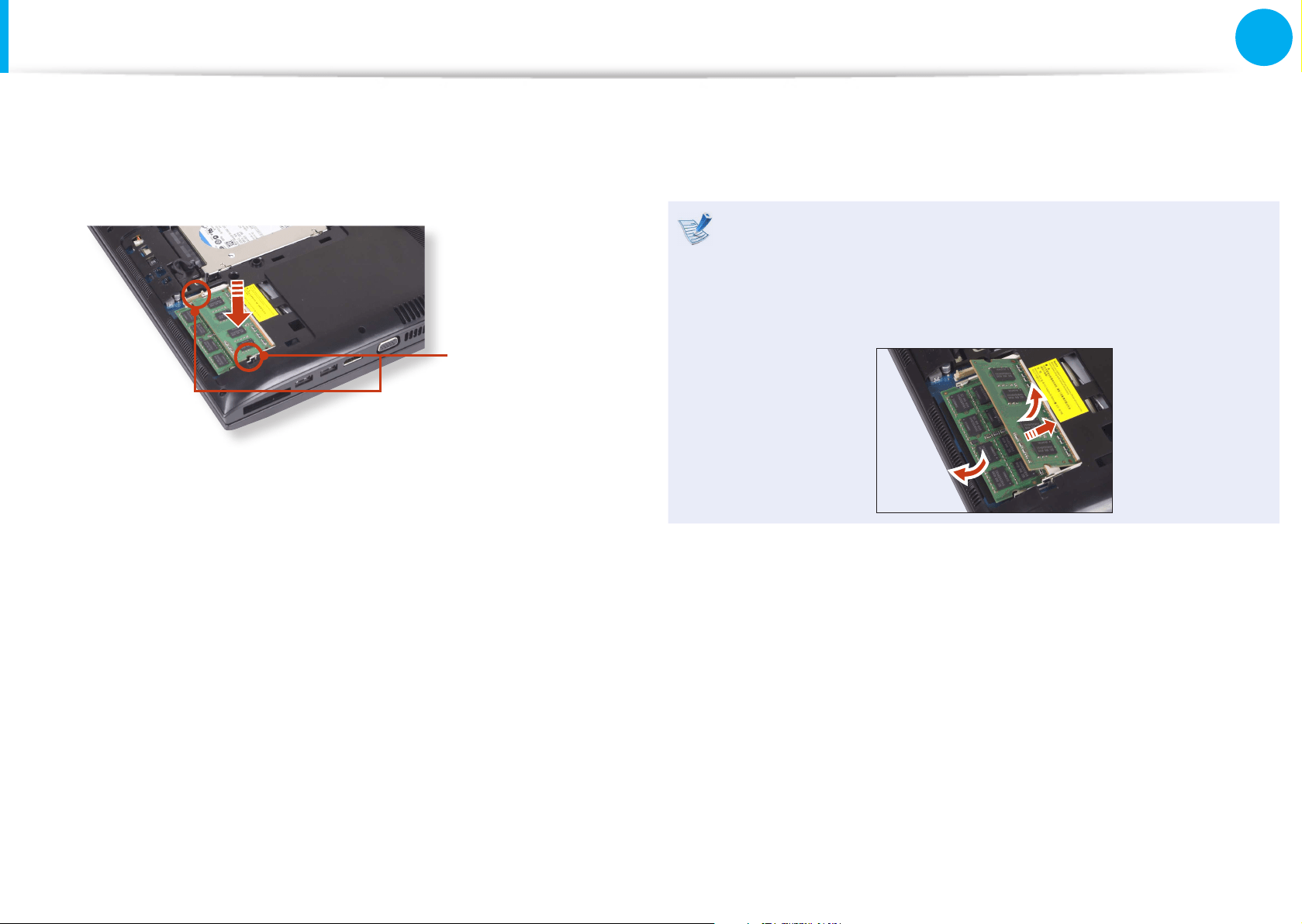

92 Upgrading Memory
94 Battery
99 Using the Security Slot
Chapter 4. Backup/Restore

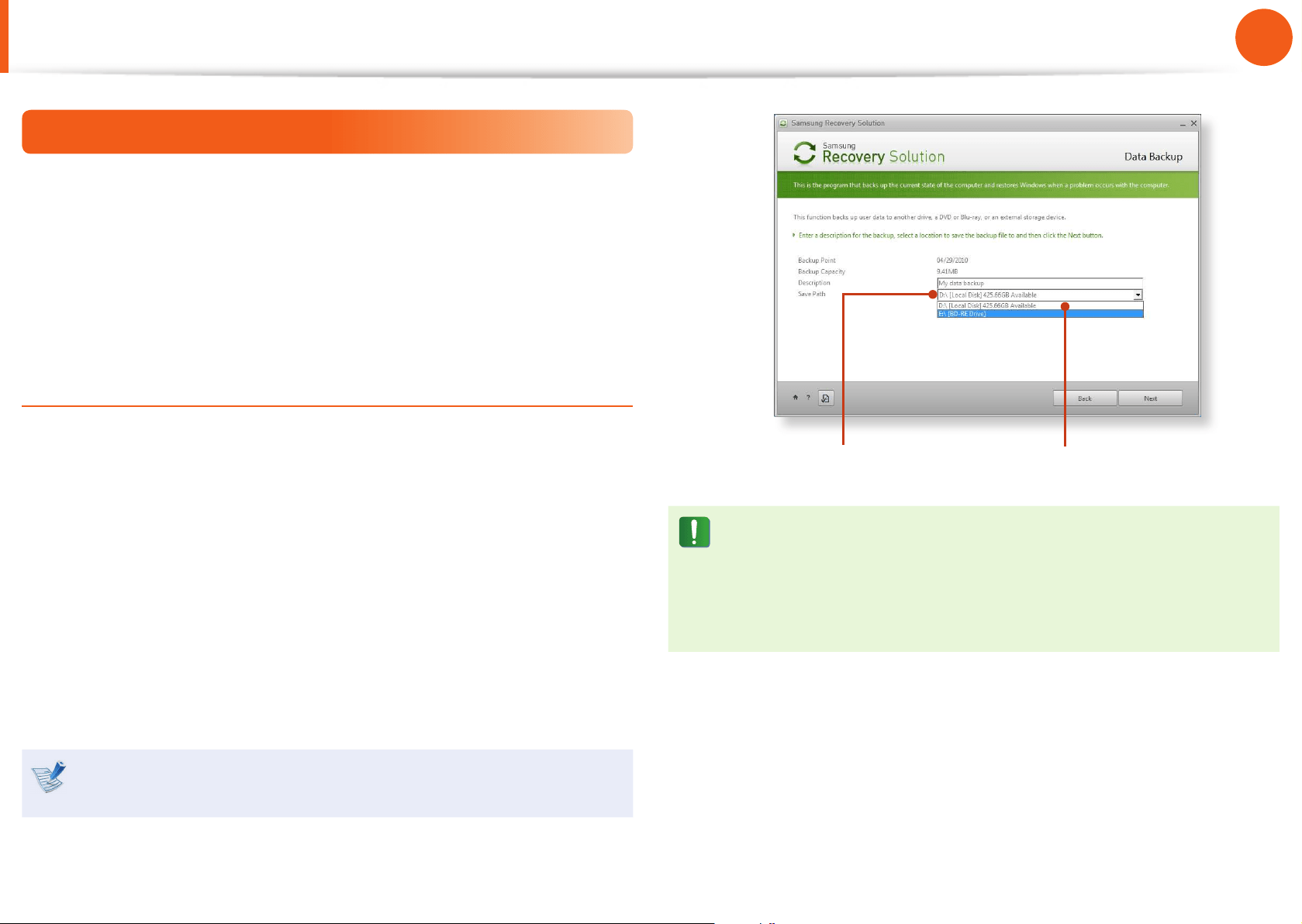

101 Samsung Recovery Solution (Optional)
Chapter 5. Appendix
114 Important Safety Information
116 Replacement Parts and Accessories
118 Regulatory Compliance Statements
134 WEEE Symbol Information
135 TCO Certied (for corresponding models only)
136 Product Specications
138 Glossary
142 Index
3
Chapter 1
Getting Started
3
Tips
Tip
Chapter 1.
Getting Started
The computer is not turning on or does not respond
and displays a blank screen.

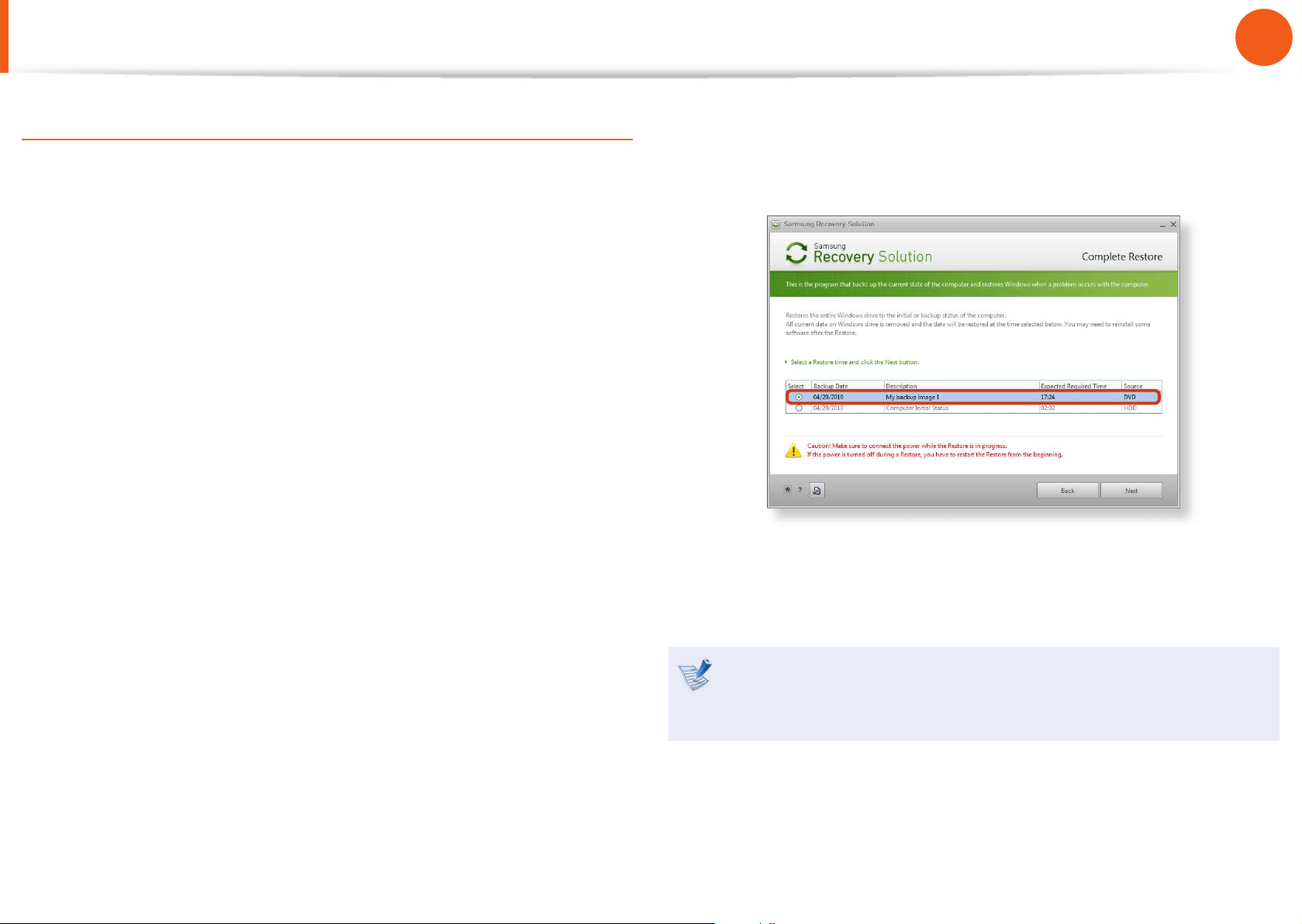

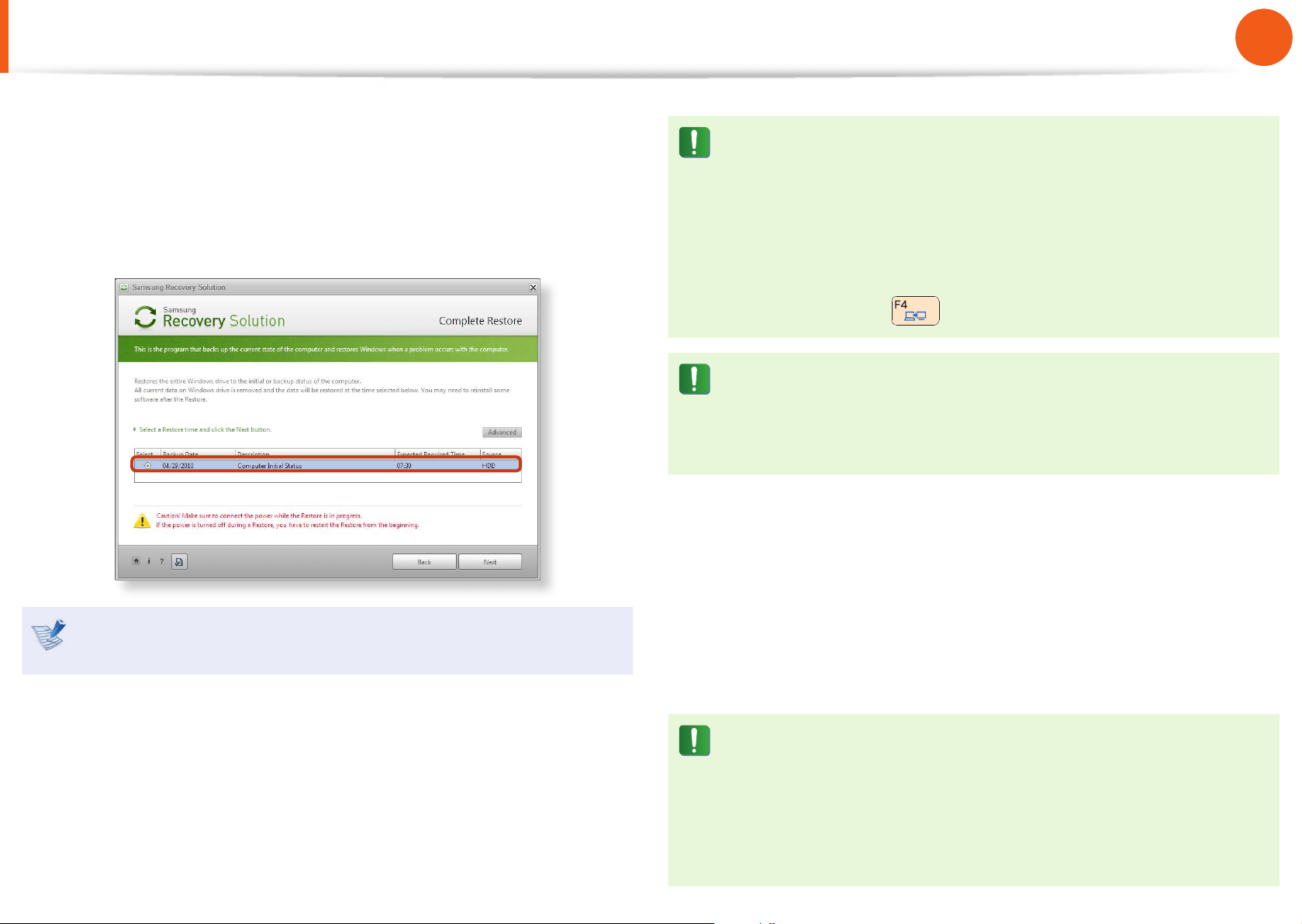

Restore the computer using Samsung Recovery Solution.
1. Turn the computer on and press the F4 key when the
booting screen (SAMSUNG logo) appears.
2. The computer will boot up in restore mode after a short
while and Samsung Recovery Solution appears.
3. When the start menu screen appears, click Restore.
Pressing Fn + shortcut keys (F1~F12) simultaneously
does not work.
Press the Fn Lock. If the Fn Lock OFF message appears on
the screen, press the Fn key + a hot key at the same time.
I want to restore the computer to the state when it was
purchased.
If you use the Samsung Recovery Solution function, you
can easily and quickly restore the computer to a previous
state even if you do not have a separate OS recovery DVD
or recovery CD.
I cannot boot up into DOS using a USB device.
To boot up into DOS using a USB device, enter the BIOS
Setup, select the Advanced menu and set the Fast BIOS
Mode item to Disabled.

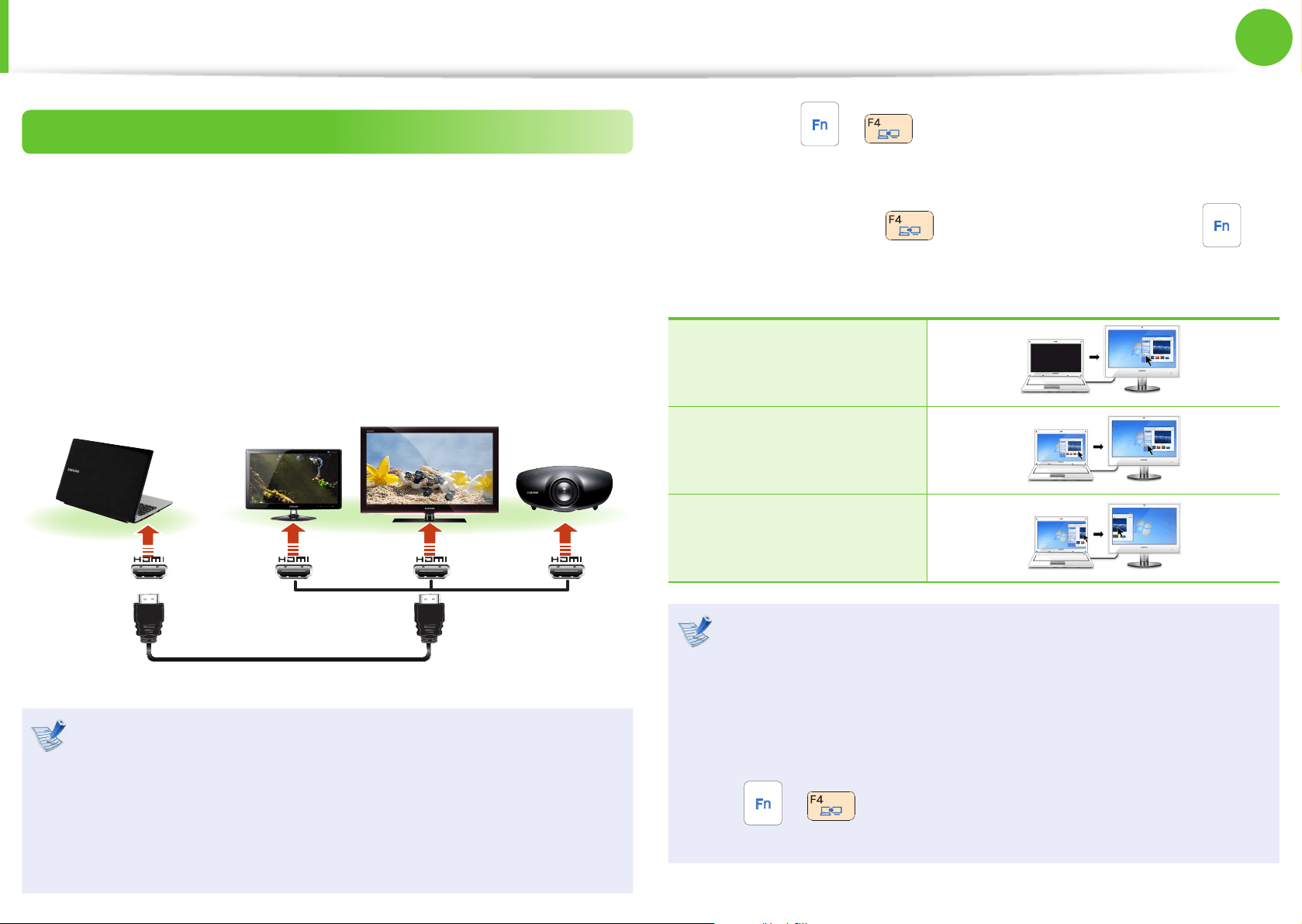

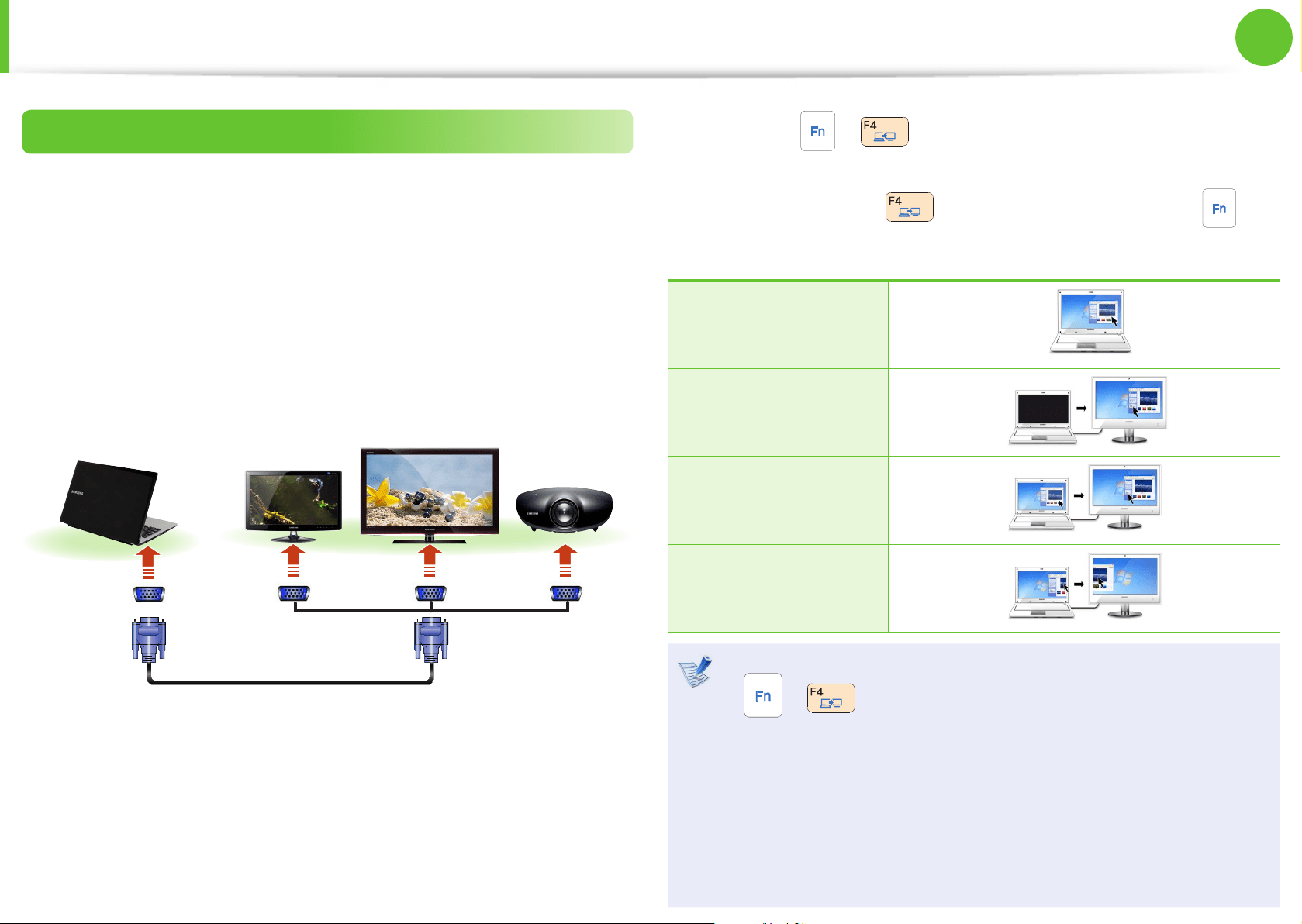

I want to connect an external monitor, TV or projector.
Connect the display device and the computer with the
monitor and repeatedly press the F4 key while holding
down the Fn key.
When I turn the computer on for the rst time after
purchasing it, the computer does not turn on.
To turn the computer on for the rst time, you have to
connect the AC adapter and then press the power button.
The power from the internal battery of the computer is cut
when you purchase the computer for safety purposes.
How can I extend the battery usage time?
The battery usage time may be shortened if you recharge
the battery before it is completely discharged.
To resolve this problem, enter the BIOS Setup and select
Smart Battery Calibration to discharge the battery
completely and then recharge the battery.
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
Q
A
For detailed information on a function, refer to
the corresponding section of the User Manual.
4
Chapter 1
Getting Started
Before You Start
Before reading the User Guide, rst check the following
information.
Optional items, some devices and software referred to in •
the User Guide may not be provided and/or changed by
upgrade.
Note that the computer environment referred in the User
Guide may not be the same as your own environment.
The pictures used for the cover and the main body in the •
User Manual are those of the representative model of each
series and may dier from the actual appearance of the
product.
This guide decribes procedures for using both the mouse •
and the touchpad.
This manual has been written for the Windows operating •
system. The descriptions and gures may dier depending
on the installed operating system.
The User guide supplied with this computer may vary •
depending on your model.
Using the software
The software described in the main text can be launched •
using the following menu path.
- Start > All Programs
- Start > All Programs > Samsung

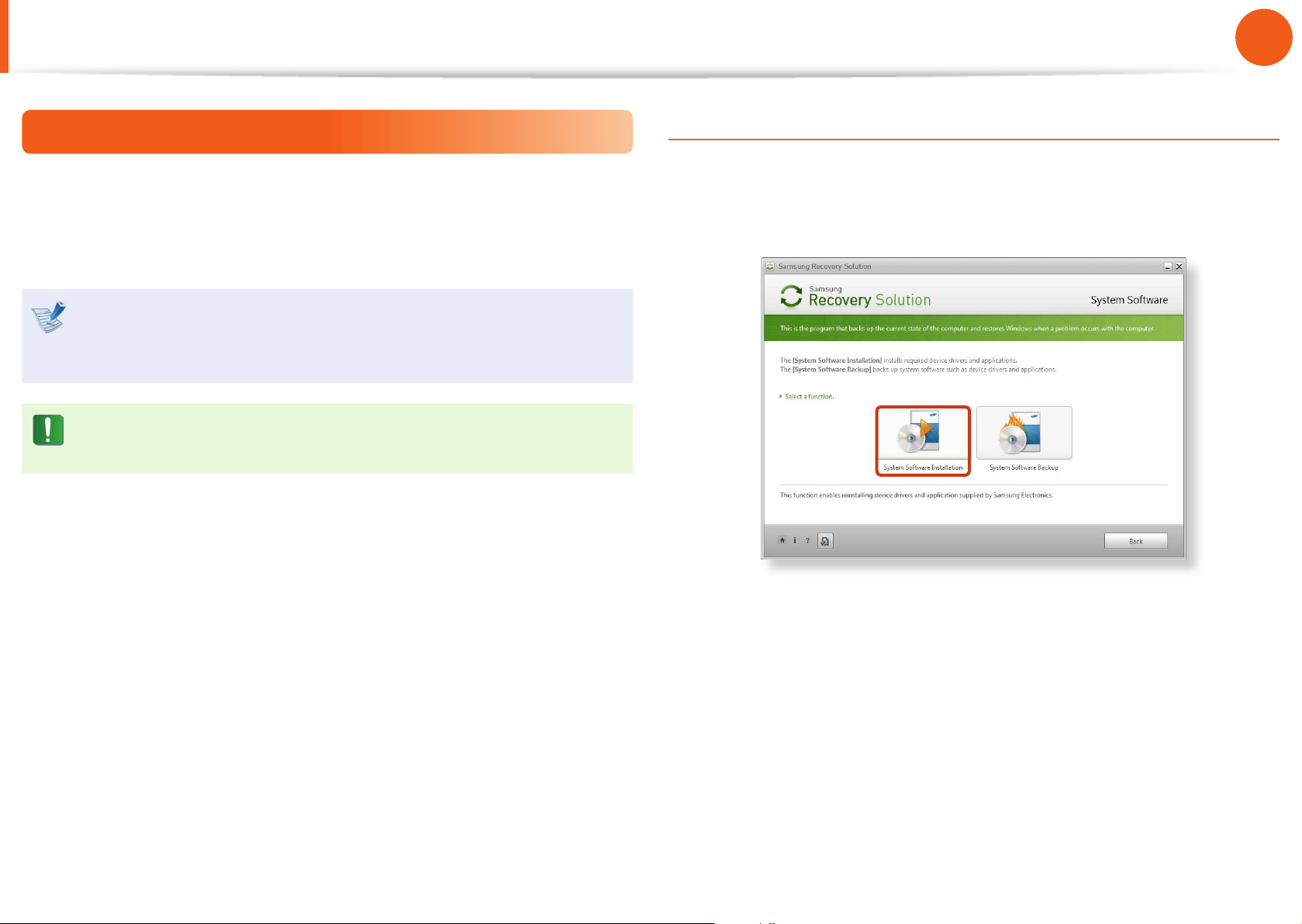

When the programs are not installed, select • Samsung
Recovery Solution > System Software to install the
programs. (Only for models supplied with Samsung
Recovery Solution)
5
Chapter 1
Getting Started
Before You Start
Safety Precaution Notations
Icon Notation Description
Warning
Failure to follow instructions marked with
this symbol, may cause personal injury
and or fatality.
Caution
Failure to follow instructions marked with
this symbol, may cause slight injury to
yourself or damage your property.
Text Notations
Icon Notation Description
Caution
Content included in this section includes
information required about the function.
Note
Content included in this section includes
helpful information to use the function.
Copyright
© 2012 Samsung Electronics Co., Ltd.
Samsung Electronics Co., Ltd. owns the copyright of this manual.
No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, without the
consent of Samsung Electronics Co., Ltd.
The information in this document is subject to change without
notice due to improving the performance of the product.
Samsung Electronics shall not be liable for any data loss. Please
take care to avoid losing any important data and backup your data
to prevent any such data loss.
Precautions for Operating System Support
If a problem occurs because of the reinstallation of other
operating systems(OS) or a previous version of a OS pre-installed
on this computer, or a software that does not support the OS, the
company will not provide technical support, a replacement or
refund, and if our service engineer visits you due to this problem,
a service charge will be applied.
6
Chapter 1
Getting Started
About the Product Capacity Representation
Standard
About the capacity representation of the storage
The capacity of the storage device (HDD, SSD) of the manufacturer
is calculated assuming that 1KB=1,000 Bytes.
However, the operating system (Windows) calculates the storage
device capacity assuming that 1KB=1,024 Bytes, and therefore the
capacity representation of the HDD in Windows is smaller than the
actual capacity due to the dierence in capacity calculation.
(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB,
80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)
In addition, the capacity representation in Windows may be even
smaller because some programs such as Recovery Solution may
reside in a hidden area of the HDD.
About Memory Capacity Representation
The memory capacity reported in Windows is less than the actual
capacity of memory.
This is because BIOS or a video adapter uses a portion of memory
or claims it for further use.
(E.g. For 1GB(=1,024MB) memory installed, Windows may report
the capacity as 1,022MB or less)
For more information, refer to the Samsung Recovery Solution
section.
Before You Start
7
Chapter 1
Getting Started

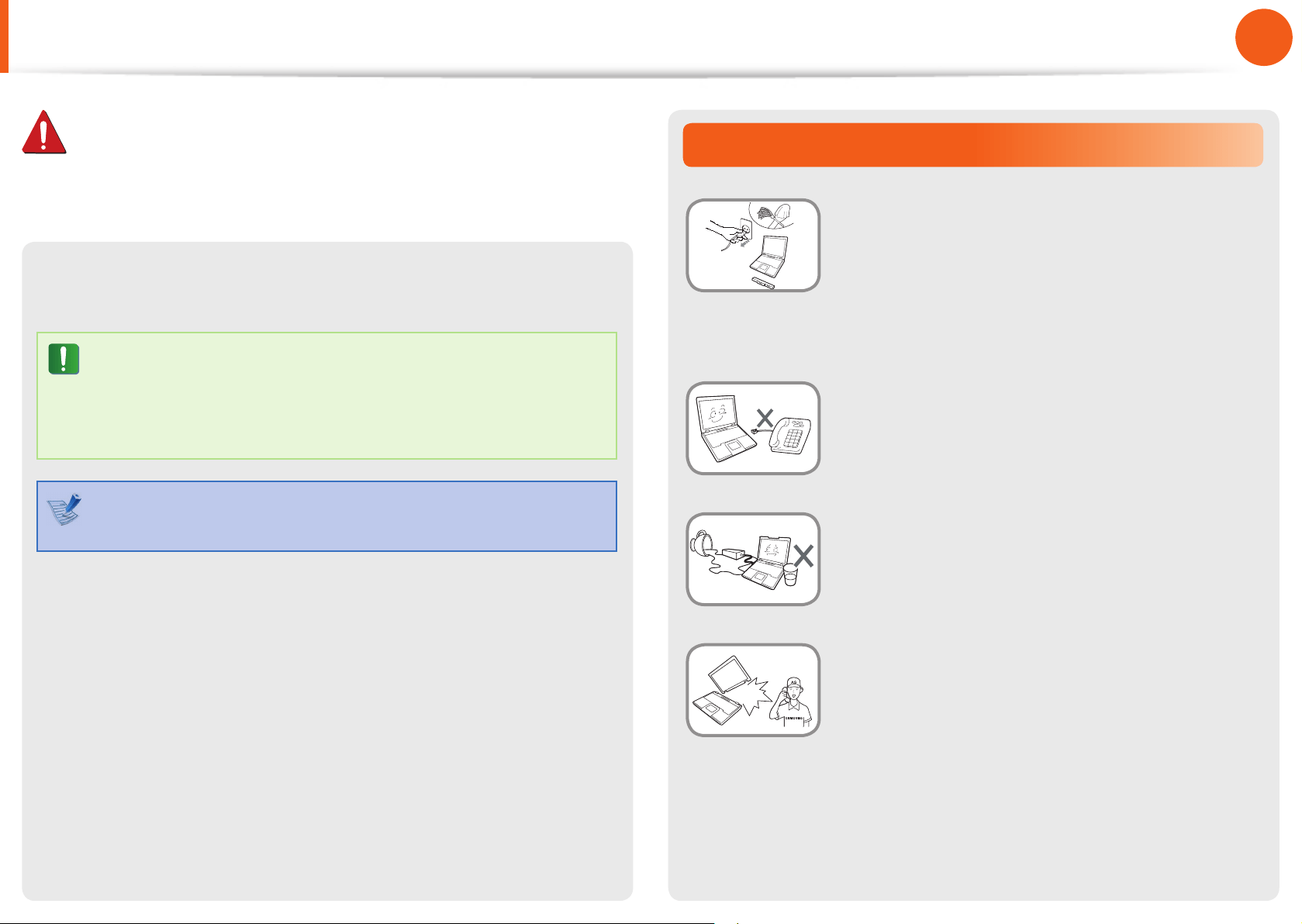

Installation Related
Do not install the product in places exposed
to humidity such as a bathrooms.
There is a danger of electric shock. Use the
product within the operating conditions
specied in the Manufacturers User Guide.
Keep the plastic bags out of the reach of
children.
There is a danger of suocation.

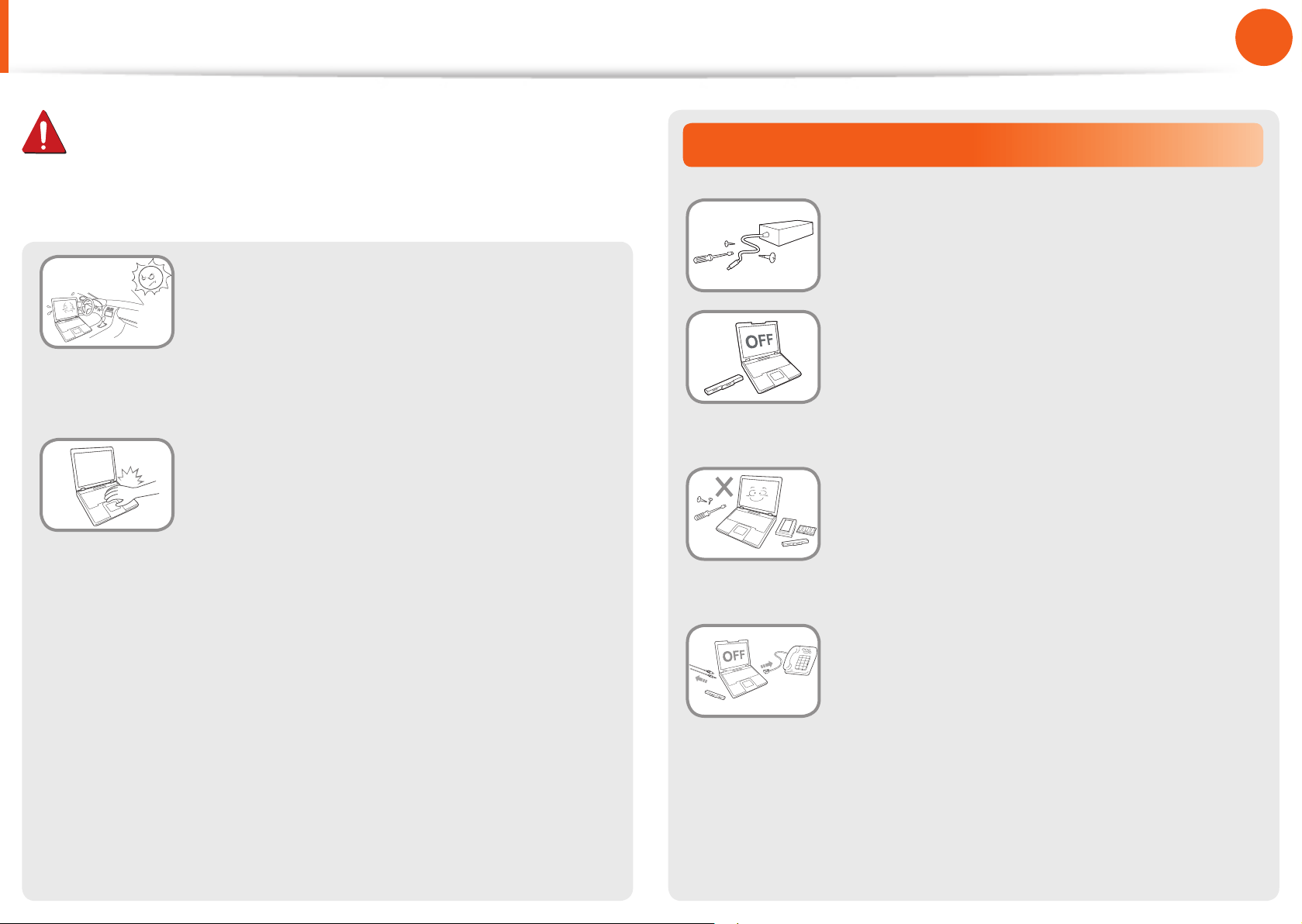

Safety Precautions
Keep a distance of 15cm or more between
the computer and the wall and do not place
any objects between them.
This may increase the internal temperature of
the computer and may cause an injury.
Do not install the computer on a slant or a
place prone to vibrations, or avoid using the
computer in that location for a long time.
This increases the risk that a malfunction or
damage to the product will occur.
Avoid exposing any part of your body to the
heat from the computer vent or AC adapter
for a long time when the computer is on.
Exposing a part of your body close to the heat
from the vent or AC adapter for long periods of
time may cause a burn.
Avoid blocking the vent at the bottom or
side of the computer when using it on a bed
or cushion.
If the vent is blocked, there is a danger of
damaging the computer or overheating the
inside of the computer.
For your security and to prevent damage, please read the
following safety instructions carefully.
Since this is commonly applied to Samsung Computers,
some pictures may dier from actual products.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Ver 3.1
8
Chapter 1
Getting Started
If the power cord or power outlet makes a
noise, disconnect the power cord from the
wall outlet and contact a service center.
There is a danger of electric shock or re
hazard.
Do not use a damaged or loose main plug or
power cord or power outlet.
There is a danger of electric shock or re
hazard.

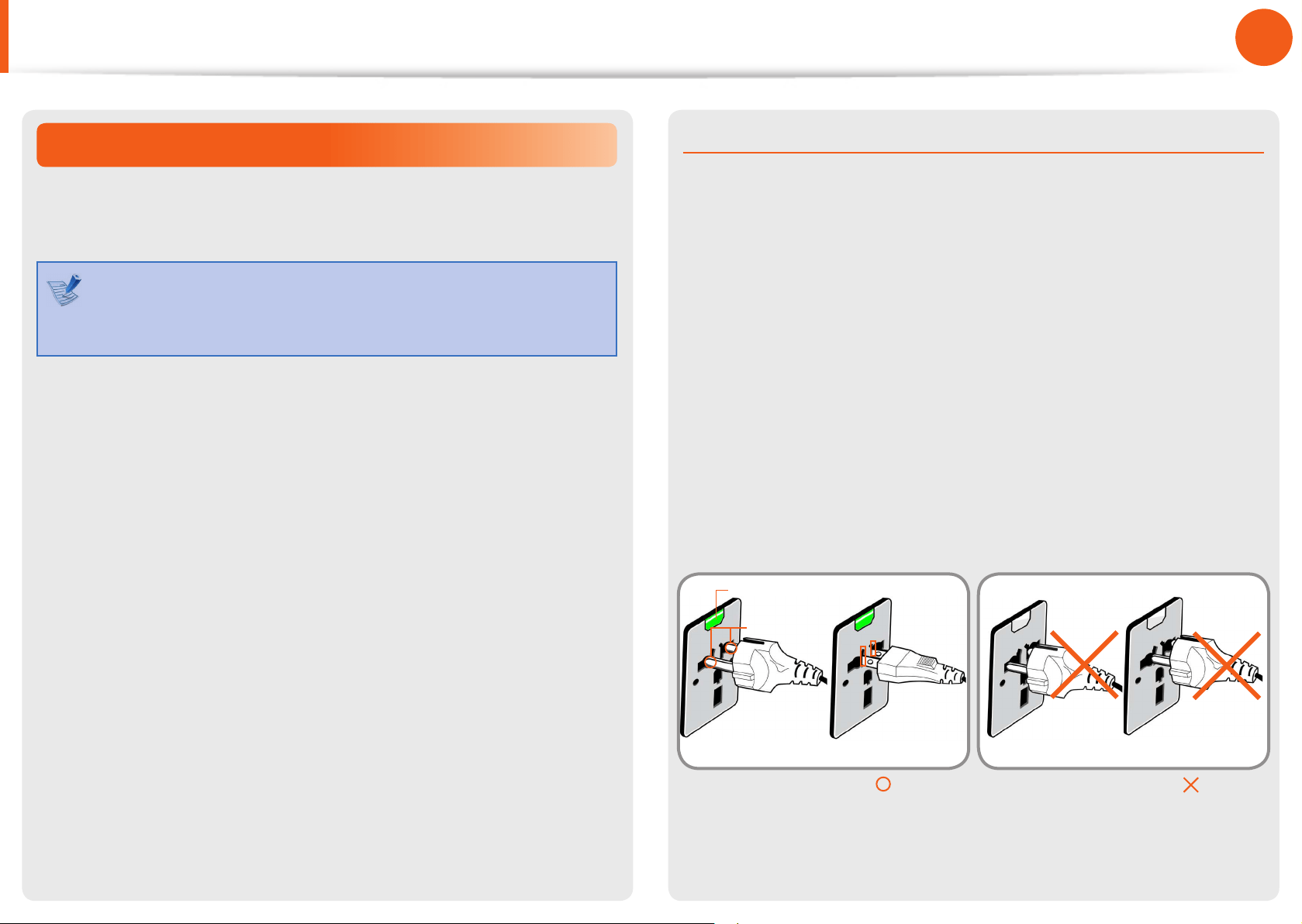

Plug the power cord rmly into the power
outlet and AC adapter.
Failure to do so may cause re hazard.
Do not unplug the power cord by pulling
the cable only.
If the cord is damaged, it may cause electric
shock.
Do not bend the power cord excessively or
do not place a heavy object over the power
cord. It is especially important to keep the
power cord out of reach of infants and pets.
If the cord is damaged, it may cause electric
shock or re.
Power Related
The power plug and wall outlet gures may dier
depending on the country specications and the product
model.
Do not touch the main plug or power cord
with wet hands.
There is a danger of electric shock.
Do not exceed the standard capacity
(voltage/current) of a multiplug or power
outlet extension when using it for the
product.
There is a danger of electric shock or re
hazard.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
9
Chapter 1
Getting Started

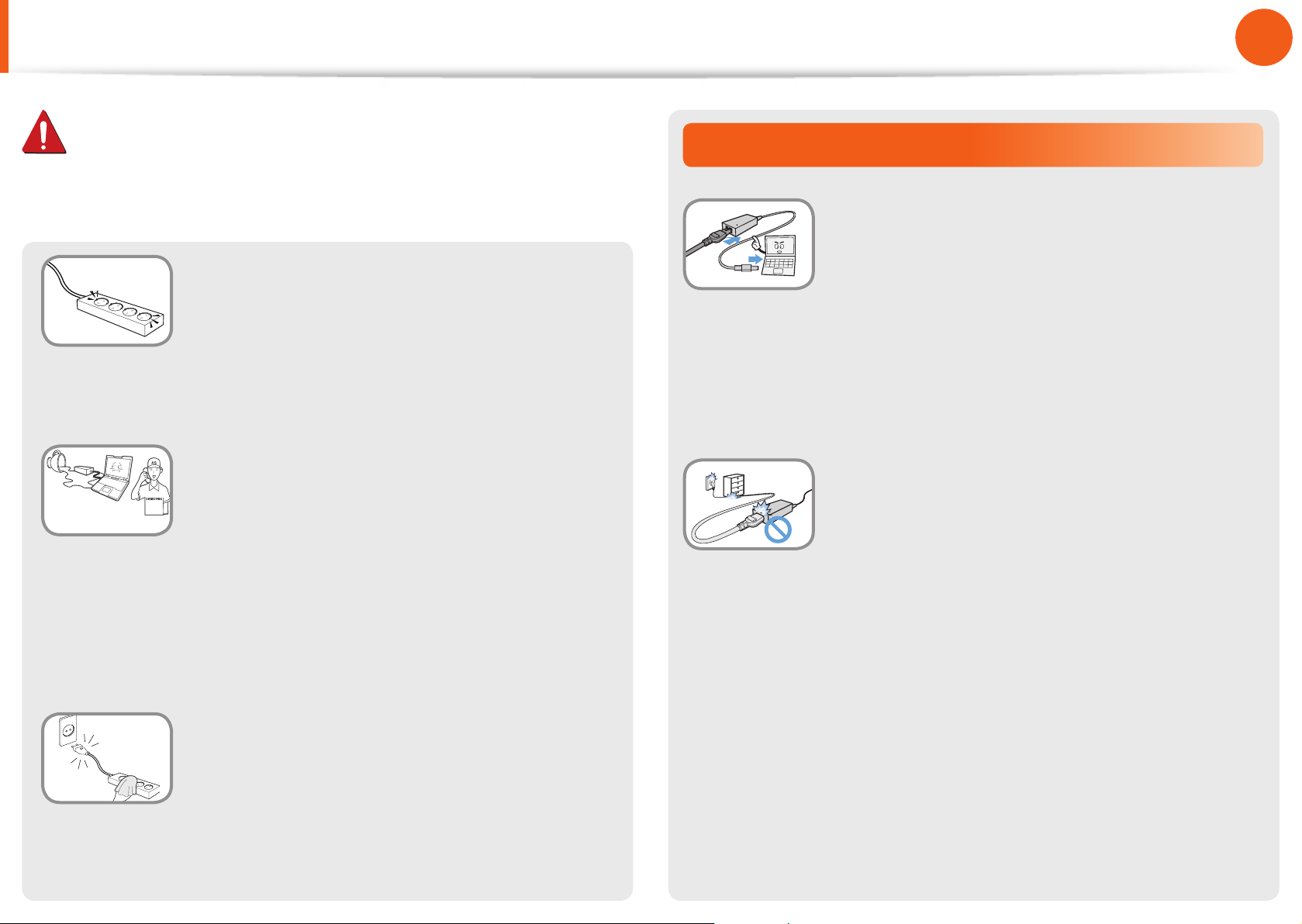

Connect the power cord to an outlet or
multiple power plug (extended cable) with
a ground terminal.
Failure to do so may result in electric shock.
When the power supply is ungrounded, the
current may leak resulting in electric shock.
If water or another substance enters
the power input jack, AC adapter or the
computer, disconnect the power cord and
contact the service center.
If the notebook computer has an external
type (removable) battery, separate the
battery also.
Damage to the device within the computer
may cause electric shock or re hazard.
Keep the power cord or outlet clean so that
they are not covered with dust.
Failure to do so may result in re.
AC Adapter Usage Precautions
Connect the power cord to the AC adapter
rmly.
Otherwise, there is a danger of re due to an
incomplete contact.
Use only the AC adapter supplied with the
product.
Using another adapter may cause the screen to
icker.
Do not place heavy objects or step onto
the power cord or AC adapter to avoid
damaging the power cord or AC adapter.
If the cord is damaged, there is a danger of
electric shock or re.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Safety Precautions
10
Chapter 1
Getting Started

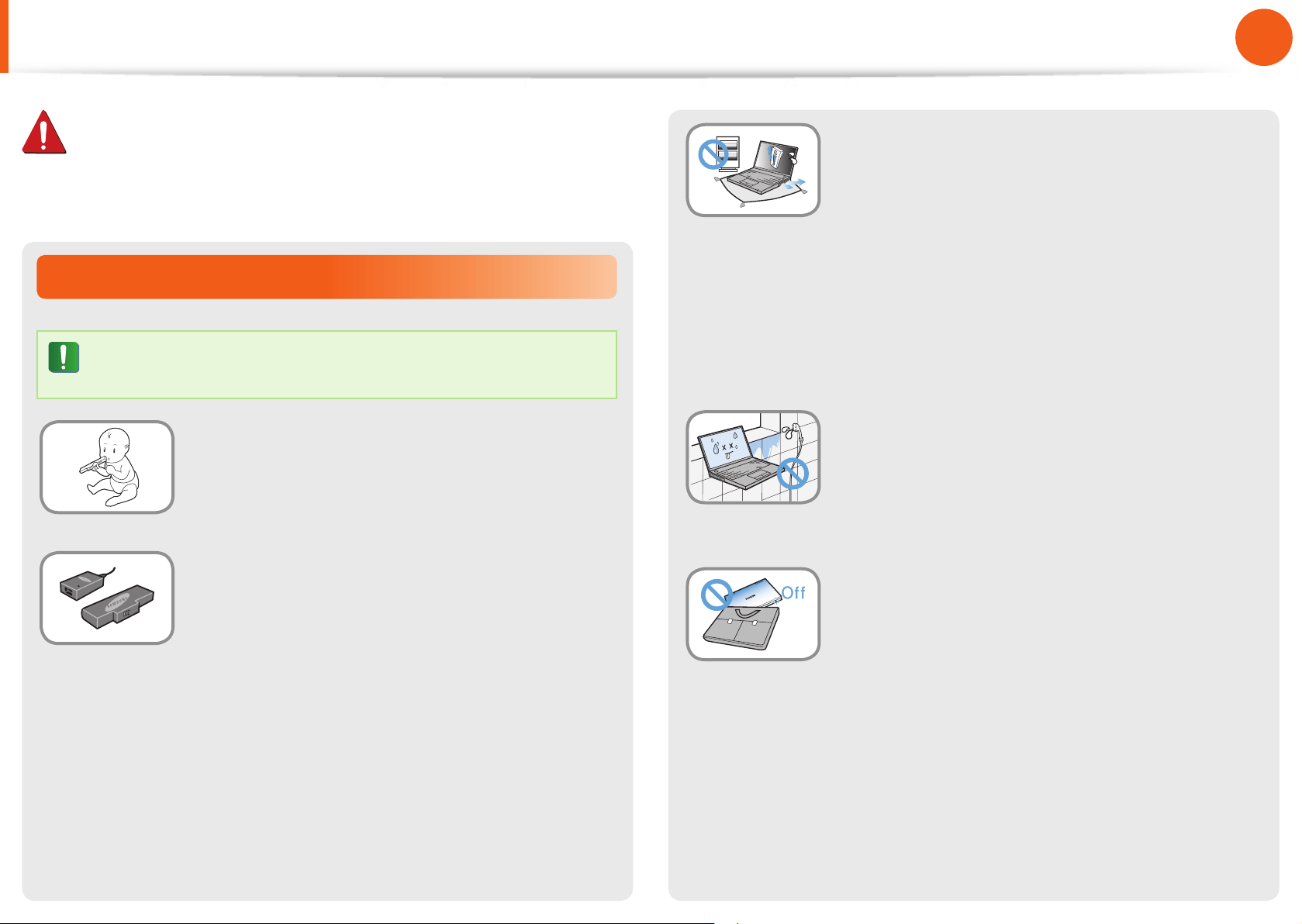

Battery Usage Related
Please charge the battery fully before using the
computer for the rst time.
Keep the battery out of the reach of infants
and pets, as they could put the battery into
their mouths.
There is a danger of electric shock or choking.
Use an authorized battery and AC adapter
only.
Please use an authorized battery and adapter
approved by Samsung Electronics.
Unauthorized batteries and adapters may not
meet the proper safety requirements and may
cause problems or malfunctions and result in
an explosion or re.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Safety Precautions
Do not use the computer in a badly
ventilated location such as on bedding, on a
pillow or cushion, etc, and do not use it in a
location such as room with oor heating as
it may cause the computer to overheat.
Take care that the computer vents (on the side
or the bottom) are not blocked especially in
these environments. If the vents are blocked,
the computer may overheat and it may cause a
computer problem, or even an explosion.
Do not use the computer in a humid
location such as a bathroom or sauna.
Please use the computer within the
recommended temperature and humidity
range (10~35ºC, 20~80% RH).
Do not close the LCD panel and put the
computer into your bag to move it when it
is still turned on.
If you put the computer into your bag without
turning it o, the computer may overheat and
there is a danger of re. Shut the computer
down properly before moving it.
11
Chapter 1
Getting Started

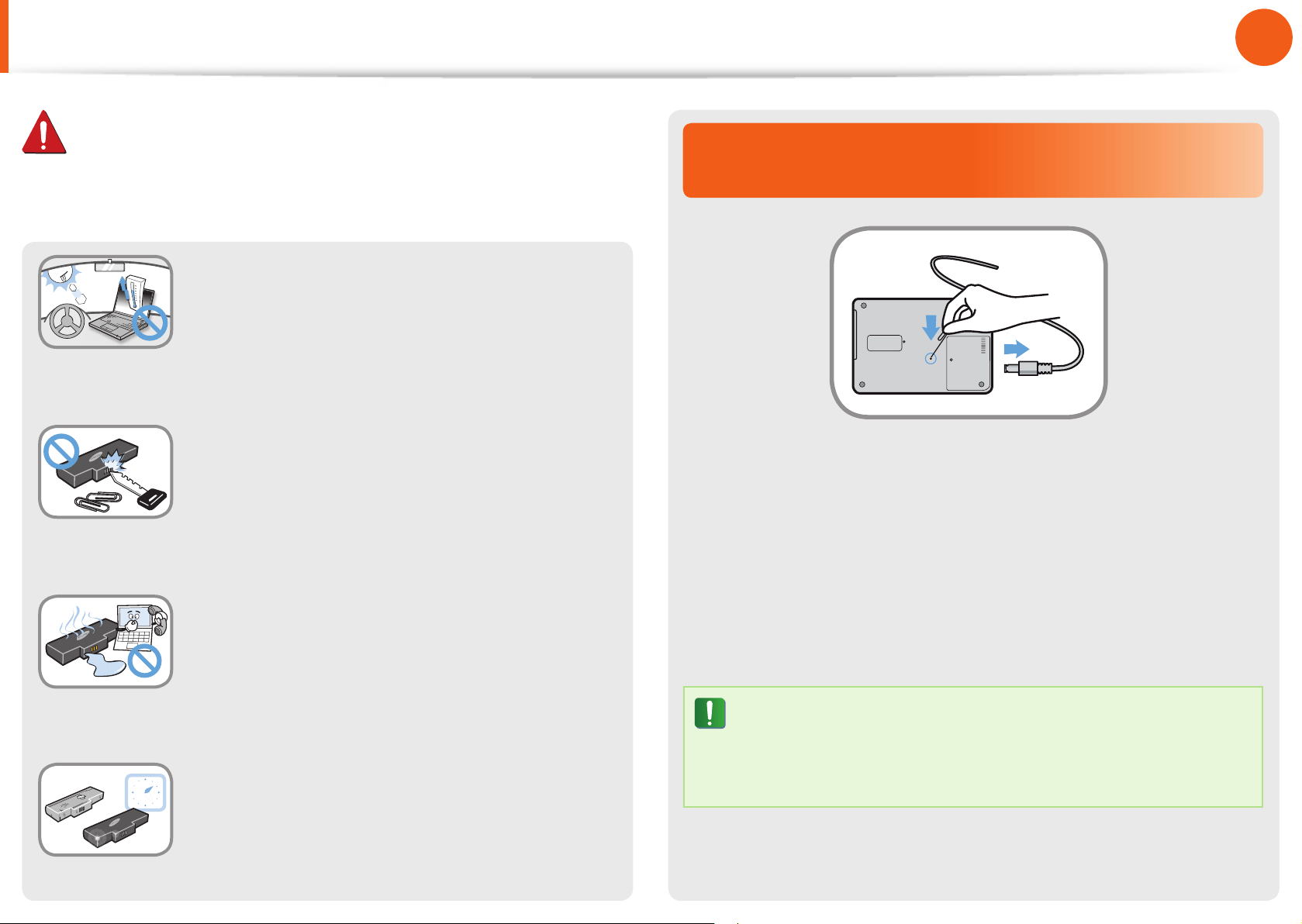

Cutting the power to the internal battery
(for corresponding models only.)
For products with built-in batteries, customers cannot remove •
the battery.

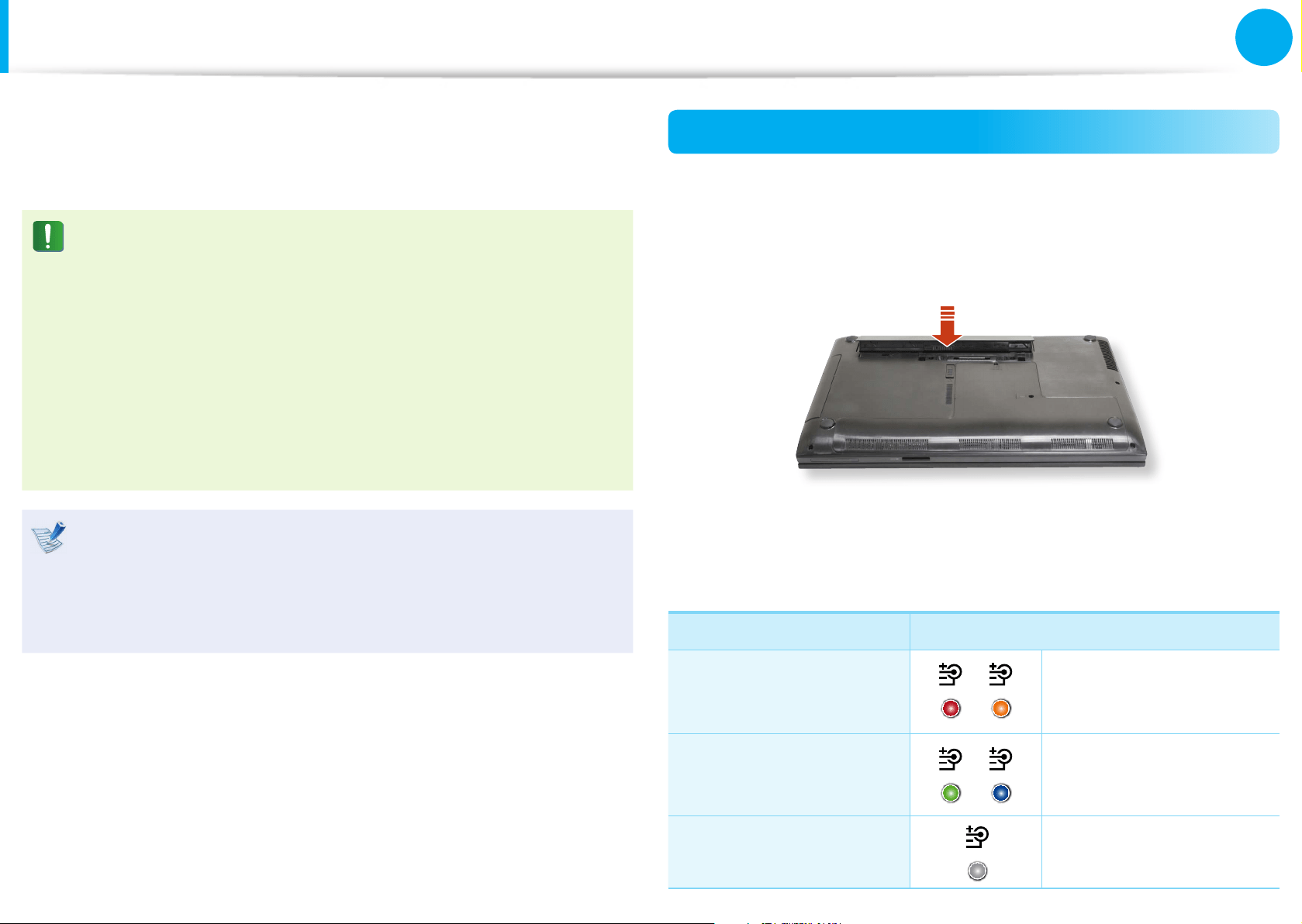

In the case of ooding, lightning or explosions, you can cut •
the battery power by inserting an object such as a paper clip
into the [Emergency Hole] at the bottom of the computer.
Disconnect the AC adapter and insert an object such as a •
paper clip into the hole at the bottom of the computer to cut
the battery power.
In the case of ooding, lightning or explosions, cut
the battery power, do not reconnect the AC adapter,
and immediately contact Samsung Electronics so that
the appropriate countermeasures can be taken.
Never heat the product(or battery) or put
the product(or battery) into a re. Do not
put or use the product(or battery) in a hot
location such as a sauna, inside a vehicle
exposed to the heat, and so on.
There is a danger of an explosion or re.
Take care not to allow metal objects such as
a key or clip to touch the battery terminal
(metal parts).
If a metal object touches the battery terminals,
it may cause excessive current ow and it may
damage the battery, or result in a re.
If liquid leaks out of the product(or battery)
or there is a funny smell coming from
the product(or battery), remove the the
product(or battery) the computer and
contact a service center.
There is a danger of an explosion or re.
To use the computer safely, replace a dead
battery with a new, authorized battery.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
12
Chapter 1
Getting Started
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Thereafter, if you connect the AC adapter, the battery power •
will be supplied again.
Do not cut the battery power under normal •
conditions.
This may result in data loss or a product •
malfunction.
The location of the Emergency Hole may dier depending
on the model.
Usage Related
Disconnect all cables connected to the
computer before cleaning it. If your
notebook is external & removable battery
type, remove the external battery.
There is a danger of electric shock or damage
to the product.
Do not connect a phone line connected to a
digital phone to the modem.
There is a danger of a electric shock, re or
damage to the product.
Do not place any container lled with water or
chemicals over or near the computer.
If water or chemicals enter the computer, this
may cause re or electric shock.
If the computer is broken or dropped,
disconnect the power cord and contact a
service center for a safety check.
If the notebook computer has an external
type (removable) battery, separate the
battery also.
Using a broken computer may cause electric
shock or re hazard.
13
Chapter 1
Getting Started
Upgrade Related
Never disassemble the power supply or AC
adapter.
There is a danger of electric shock.
When removing the RTC (Real Time Clock)
battery, keep it out of the reach of children
as they could touch and/or swallow it.
There is a danger of choking. If a child has
swallowed it, contact a doctor immediately.
Use only authorized parts (multi-
plug, battery and memory) and never
disassemble parts.
There is a danger of damaging the product,
electric shock or re hazard.
Shut down the computer and disconnect
all cables before disassembling the
computer. If there is a modem, disconnect
the phone line. If your notebook is external
& removable battery type, remove the
external battery.
Failure to do so, may cause electric shock.
Avoid direct sunlight when the computer
is in an air-tight location such as inside a
vehicle.
There is a danger of a re hazard. The computer
may overheat and also present opportunity to
thieves.
Do not use your notebook PC for long
periods of time while any part of your
body is making direct contact with it. The
temperature of the product may increase
during normal operation.
This may result in harming or burning your skin.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
14
Chapter 1
Getting Started
When carrying the notebook computer
with other items, such as the adapter,
mouse, books etc, take care not to press
anything against the notebook computer.
If a heavy object is pressed against the
notebook computer, a white spot or stain may
appear on the LCD. Therefore, take care not to
apply any pressure to the notebook.
In this case, place the notebook computer in
a separate compartment away from the other
objects.
Security and Movement Related
Follow the instructions for the relevant
location (e.g. airplane, hospital, etc.) when
using a wireless communication device
(wireless LAN, Bluetooth, etc.).
Avoid exposing a drive to magnetic elds.
Security devices with magnetic elds in-
clude airport walk-through devices and se-
curity wands.
The airport security devices that check car-
ry-on luggage, such as conveyor belts, use
x-rays instead of magnetism and will not
damage a drive.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
15
Chapter 1
Getting Started
Safety Precautions
Installation Related
Do not block the ports (holes), vents, etc. of the product and
do not insert objects.
Damage to a component within the computer may cause electric
shock or re.
When using the computer with it lying on its side, place it so
that the vents face upwards.
Failure to do so, may cause the internal temperature of the
computer to rise and the computer to malfunction or halt.
Do not place a heavy object over the product.
This may cause a problem with the computer. In addition, the
object may fall and cause injury, or damage the computer.
Battery Usage Related
Dispose of worn-out batteries properly.
There is a danger of re or explosion.•
The battery disposal method may dier depending on •
your country and region. Dispose of the used battery in an
appropriate way.
Do not throw or disassemble the battery and do not put it
into water.
This may cause an injury, re or explosion.
Use only a battery authorized by Samsung Electronics.
Failure to do so may cause an explosion.
Avoid contact with metal objects such as car keys or clips
when keeping or carrying a battery.
Contact with a metal may cause excessive current and a high
temperature and may damage the battery or cause a re.
Charge the battery according to the instructions in the manual.
Failure to do so, may cause an explosion or re from damage to
the product.
Do not heat the product(or battery) or expose it to heat (e.g.
inside a vehicle during the summer).
There is a danger of explosion or re.
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
16
Chapter 1
Getting Started
Usage Related
Do not place a candle, light cigar, etc. over or on the product.
There is a danger of re.
Use a wall outlet or multi-plug with a grounding part.
Failure to do so may cause electric shock hazard.
Make sure to have the product tested by a safety service
engineer after repairing the product.
Authorized Samsung Repair Centers will carry out safety checks
after a repair. Using a repaired product without testing it for
safety may cause an electric shock or re.
In case of lightning, immediately turn the system o,
disconnect the power cord from the wall outlet and phone
line from modem. Do not use a modem or phone.
There is a danger of electric shock or re.
Do not use your computer and AC-Adapter on your lap or
soft surfaces.
If the computer temperature increases, there is a danger of
burning yourself.
Connect only permitted devices to the connectors or ports
of the computer.
Failure to do so, may cause electric shock and re.
Close the LCD panel only after checking if the notebook
computer is turned o.
The temperature may rise and it may cause overheating and
deformation of the product.
Do not press the Eject Button while the Floppy Disk/CD-ROM
drive is in operation.
You might lose data and the disk might be suddenly ejected and
could cause an injury.
Take care not to drop the product while using it.
This may cause personal injury or loss of data.
Do not touch the antenna with electricity facility such as the
power outlet.
There is a danger of electric shock.
When handling computer parts, follow the instructions on
the manual supplied with the parts.
Failure to do so, may cause damage to the product.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
17
Chapter 1
Getting Started
If the computer emits smoke, or there is a burning smell,
disconnect the power plug from the wall outlet and contact
a service center immediately. If your notebook is external &
removable battery type, remove the external battery.
There is a danger of re.
Do not use a damaged or modied CD/Floppy Disk.
There is a danger of damaging the product or personal injury.
Do not insert your ngers into the PC Card Slot.
There is a danger of injury or electric shock.
Use recommended computer cleansing solution when
cleaning the product and only use the computer when it is
completely dried.
Failure to do so may cause electric shock or re.
Emergency disk eject method using paperclip should not
be used while the disk is in motion. Make sure to use the
emergency disk eject method only when the Optical Disk
Drive has stopped.
There is a danger of injury.
Do not place your face close to the Optical Disk Drive tray
when it is operating.
There is a danger of injury due to an abrupt ejection.
Check CDs for cracks and damage prior to use.
It may damage the disc and cause disorder of device and injury of
user.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
18
Chapter 1
Getting Started
Upgrade Related
Take care when touching the product or parts.
The device may be damaged or you may be injured.
Take care not to throw or drop a computer part or device.
This may cause injury or damage to the product.
Make sure to close the computer cover before connecting
the power after a reassembly.
There is a danger of electric shock if your body touches an
internal part.
Use parts authorized by Samsung Electronics only.
Failure to do so, may cause re or damage the product.
Never disassemble or repair the product by yourself.
There is a danger of electric shock or re.
To connect a device that is not manufactured or authorized
by Samsung Electronics, enquire at your service center
before connecting the device.
There is a danger of damaging the product.
Security and Movement Related
When moving the product, turn the power o and separate
all connected cables rst.
The product might be damaged or users may trip over the cables.
For long periods of not using the notebook computer,
discharge the battery and preserve as it is detached.
(For external & removable battery type)
The battery will be preserved at its best condition.
Do not operate or watch the computer while driving a
vehicle.
There is a danger of a trac accident. Please concentrate on
driving.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
19
Chapter 1
Getting Started
Cautions on Preventing Data Loss
(Hard Disk Management)
Take care not to damage the data on a hard disk drive.
A hard disk drive is so sensitive to external impact that an •
external impact may cause loss of data on the surface of the
disk.
Take extra care, because moving the computer or an impact •
on the computer when it is turned on may damage the data of
the hard disk drive.
The company is not liable for any loss of data on the hard disk •
drive.
Causes that may damage the data of a hard disk drive and
the hard disk drive itself.
The data may be lost when an external impact is applied to the •
disk while disassembling or assembling the computer.
The data may be lost when the computer is turned o or reset •
by a power failure while the hard disk drive is operating.
The data may be lost and irrecoverable due to a computer virus •
infection.
The data may be lost if the power is turned o while running a •
program.
Sudden impact or movement to the computer while the hard •
disk drive is operating, may cause les to be corrupted or bad
sectors on the hard disk.
To prevent data loss due to damage to the hard disk drive,
please backup your data frequently.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
20
Chapter 1
Getting Started
Safety Precautions
Using the power supply in an airplane
Since the power outlet type diers depending on the type of
airplane, connect the power appropriately.
Since the representative gures of the power plug and
the auto adapter are used, they may dier from the actual
parts.
When using the AC power plug
Connect the power plug pins perpendicular into the center of the
power outlet.
If the plug pins are not inserted into the center of the holes, the •
plug pins are only inserted up to half their length. In this case,
reconnect the power plug.
You have to insert the power plug into the outlet when the •
power indicator (LED) of the power outlet is lit green. If the
power is connected properly, the power indicator (LED)
remains green.
Otherwise, the power indicator (LED) is turned o. In this case,
unplug the power, check if the power indicator (LED) is green,
and then reconnect the power plug.
Wrong Example
Good Example
220V Power Plug 110V Power Plug
Center
Holes
Power Indicator (LED)
21
Chapter 1
Getting Started
Safety Precautions

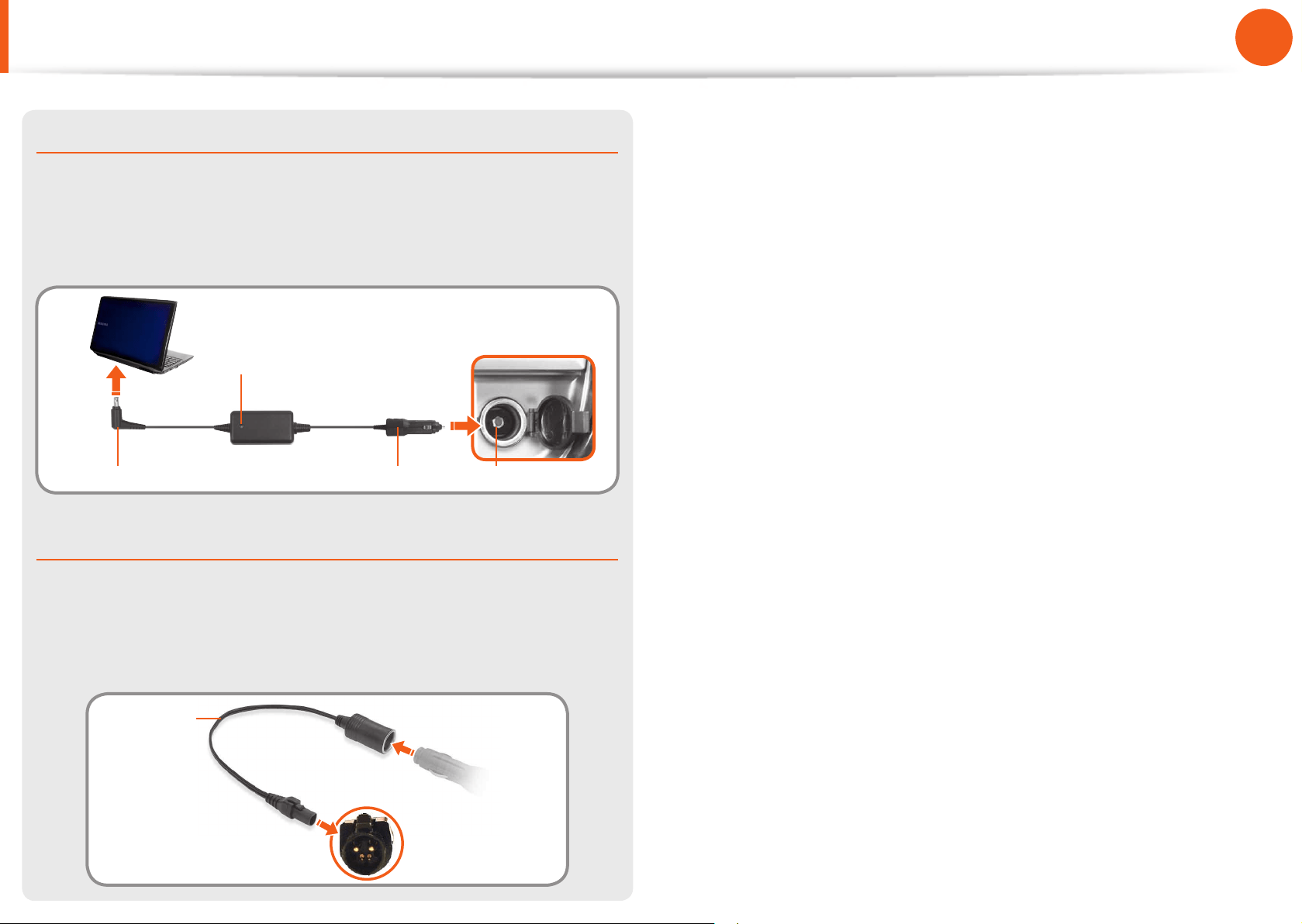

When using the auto adapter
When the cigar socket is provided, you have to use the auto
adapter (optional). Insert the cigar plug of the auto adapter into
the cigar socket and connect the DC plug of the auto adapter to
the power input port of the computer.
Auto Adapter
In-ight Cigar SocketCigar PlugDC Plug
When using the Airplane Charging Converter
Depending on the airplane, you have to use the auto adapter
and charging converter. Connect the airplane charging converter
(optional) to the auto adapter (optional) and then insert the
airplane power input jack into the power outlet.
Charging
Converter
1
Connect this end to
the auto adapter.
Connect the airplane power
input jack to the power
outlet of the airplane.
2
22
Chapter 1
Getting Started
Proper Posture During Computer Use
Maintaining a proper posture during computer use is very
important to prevent physical harm.
The following instructions are about maintaining a proper posture
during computer use developed through human engineering.
Please read and follow them carefully when using the computer.
Otherwise, the probability of (RSI: Repetitive Strain Injury) from
repeated operations may increase and serious physical harm may
be caused.
The instructions in this manual have been prepared so that •
they can be applied within the coverage of general users.
If the user is not included in the coverage, the •
recommendation is to be applied according to the user’s
needs.
Proper Posture
Adjust the heights of desks and chairs appropriate to your
height.
The heights are to be adjusted so that your arm forms a right
angle when you place your hand over the keyboard while sitting
down on a chair.
Adjust the height of chair so that your heel is comfortably placed
on the oor.
Do not use the computer while you are lying down, but only •
while you are sitting down.
Do not use the computer on your lap. If the computer •
temperature increases, there is a danger of burning yourself.
Work while keeping your waist straight.•
Use a chair with a comfortable back.•
Keep the center of your leg weight not on the chair but on •
your feet when you are sitting on a chair.
To use the computer while talking over the telephone, use a •
headset. Using the computer with the phone on your shoulder
is bad for posture.
Keep frequently used items within a comfortable work range •
(where you can reach them with your hands).
23
Chapter 1
Getting Started
Proper Posture During Computer Use
Eye Position
Keep the monitor or LCD away from your eyes by at least
50cm.
Adjust the height of the monitor and the LCD screen so that its •
top height is equal to or lower than your eyes.
Avoid setting the monitor and LCD excessively bright.•
Keep the monitor and LCD screen clean.•
If you wear glasses, clean them before using the computer.•
When entering contents printed on a paper into the computer, •
use a static paper holder so that the height of the paper is
almost equal to that of the monitor.
Hand Position
Keep your arm at a right angle as shown by the gure.
Keep the line from your elbow to your hand straight.•
Do not place your palm over the keyboard while typing.•
Do not hold the mouse with excessive force.•
Do not press the keyboard, touchpad or mouse with excessive •
force.
It is recommended connecting an external keyboard and •
mouse when using the computer for long periods of time.
24
Chapter 1
Getting Started
Proper Posture During Computer Use

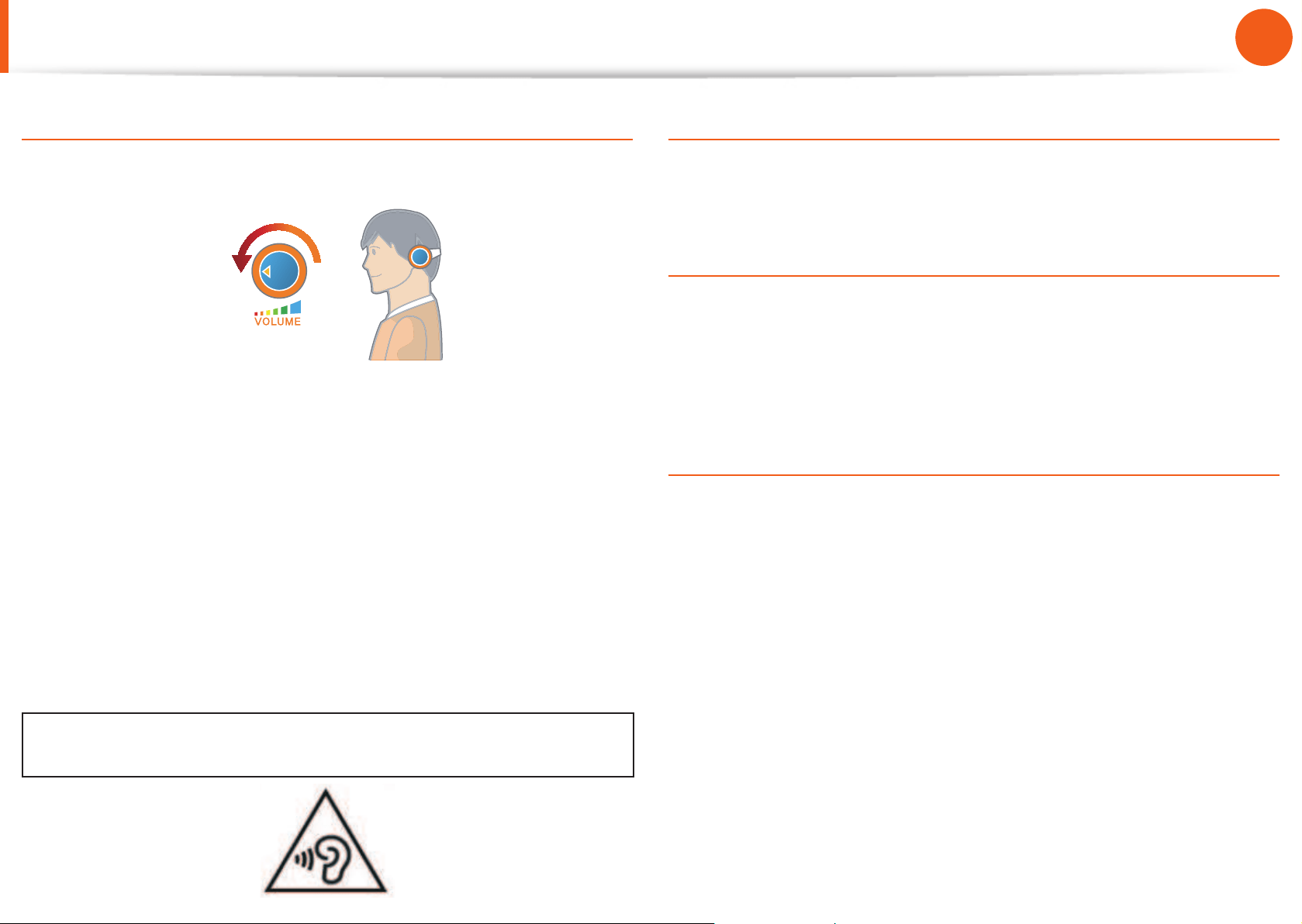

Volume Control (Headphones and Speakers)
Check your volume fi rst to listen to music.
Check your
volume!
Check if the volume is too loud before using headphones.•
It is not recommended using headphones for long periods of •
time.
Any deviation from the equalizer default setting could cause •
hearing impairment.
The default setting can be changed through software and •
driver updates without your intervention. Please check the
equalizer default setting before fi rst usage.
To prevent possible hearing damage, do not listen at high volume
levels for long periods.
Use Time (Break Time)
Take a break for 10 minutes or more after a 50-minute period •
when working for more than one hour.
Illumination
Do not use the computer in dark locations. The illumination •
level for computer use must be as bright so for reading a book.
Indirect illumination is recommended. Use a curtain to prevent •
refl ection on the LCD screen.
Operation Condition
Do not use the computer in hot and humid locations.•
Use the computer within the allowed temperature and •
humidity range specifi ed in the User Guide.
25
Chapter 1
Getting Started
Overview
Front View
The pictures used for the cover and the main body in the •
User Manual are those of the representative model of each
series. Therefore the colors and appearance of the pictures
may dier from the actual appearance of the product
depending on the model.
The actual color and appearance of the computer may •
dier from the pictures used in this guide.
This may not be supported for some devices.•
1
2
6
7
5
4
3
89
14
15
10
11
13
12
3
16
1
Camera/Camera LED
(Optional)
Using this camera, you can take still
pictures and record video.
If you use this, the LED will turn on.
2 LCD The screen images are displayed here.
3 Speaker A device used to generate sound.
4
Power Button
Turns the computer on and o.
5 Keyboard
A device to enter data by pressing the
keys.
6
Fingerprint Sensor
(Optional)
This is the device that recognizes
ngerprints. Use the device with the
security program.
7 Status Indicators
Shows the operating status of
the computer. The corresponding
operating LED is lit when the
corresponding function operates.
8
Multi Card Slot
(Optional)
A card slot supports multi cards.
9 Touchpad buttons
These devices provide functions similar
to the mouse ball and buttons.
10 Touchpad
11
Pointing Stick Buttons
(Optional)
12
Pointing Stick
(Optional)
13
Computer Lock
Button
You can lock Windows or switch users.
14
Webcam/Internal MIC
Button
Press this button to turn the webcam
and the internal microphone on or o.
26
Chapter 1
Getting Started
Overview
Front View
The pictures used for the cover and the main body in the •
User Manual are those of the representative model of each
series. Therefore the colors and appearance of the pictures
may dier from the actual appearance of the product
depending on the model.
The actual color and appearance of the computer may •
dier from the pictures used in this guide.
This may not be supported for some devices.•
1
2
6
7
5
4
3
89
14
15
10
11
13
12
3
16
15
Wireless Button
Easily turns on or o the several wireless
network settings at the same time.
- This button is useful on the airplane to
turn o every wireless network device.
- You also can set up a specic wireless
network device with the Fn +
key
combination.
On
: Shows that any wireless network
devices are turned on.
O
: Shows that no wireless network
device is turned on.
16 Microphone
You can use the built-in microphone.
Using the camera, web cam
Using the Cyberlink YouCam program (optional), you can
take pictures or record video by using the computer’s built-in
camera by adding the balloon talk or frame eect.
27
Chapter 1
Getting Started
Overview
Status Indicators
1 2 3 4
1
Caps Lock
This turns on when the Caps Lock key is
pressed allowing capital letters to be typed
without holding the Shift button down.
On: Upper-case alphabetic input
O: Lower-case alphabetic input
2
HDD/ODD
This turns when either the HDD or ODD is
being accessed.
3 Charge Status
This shows the power source and the
battery charge status.
Green: When the battery is fully charged
or the battery is not installed.
Orange: When the battery is being
charged.
O: When the computer is running on
battery power without being connected
to AC adapter.
4 Power
This shows the computer operating status.
On: When the computer is operating.
Blinks: When the computer is in Sleep
mode.
28
Chapter 1
Getting Started
Overview

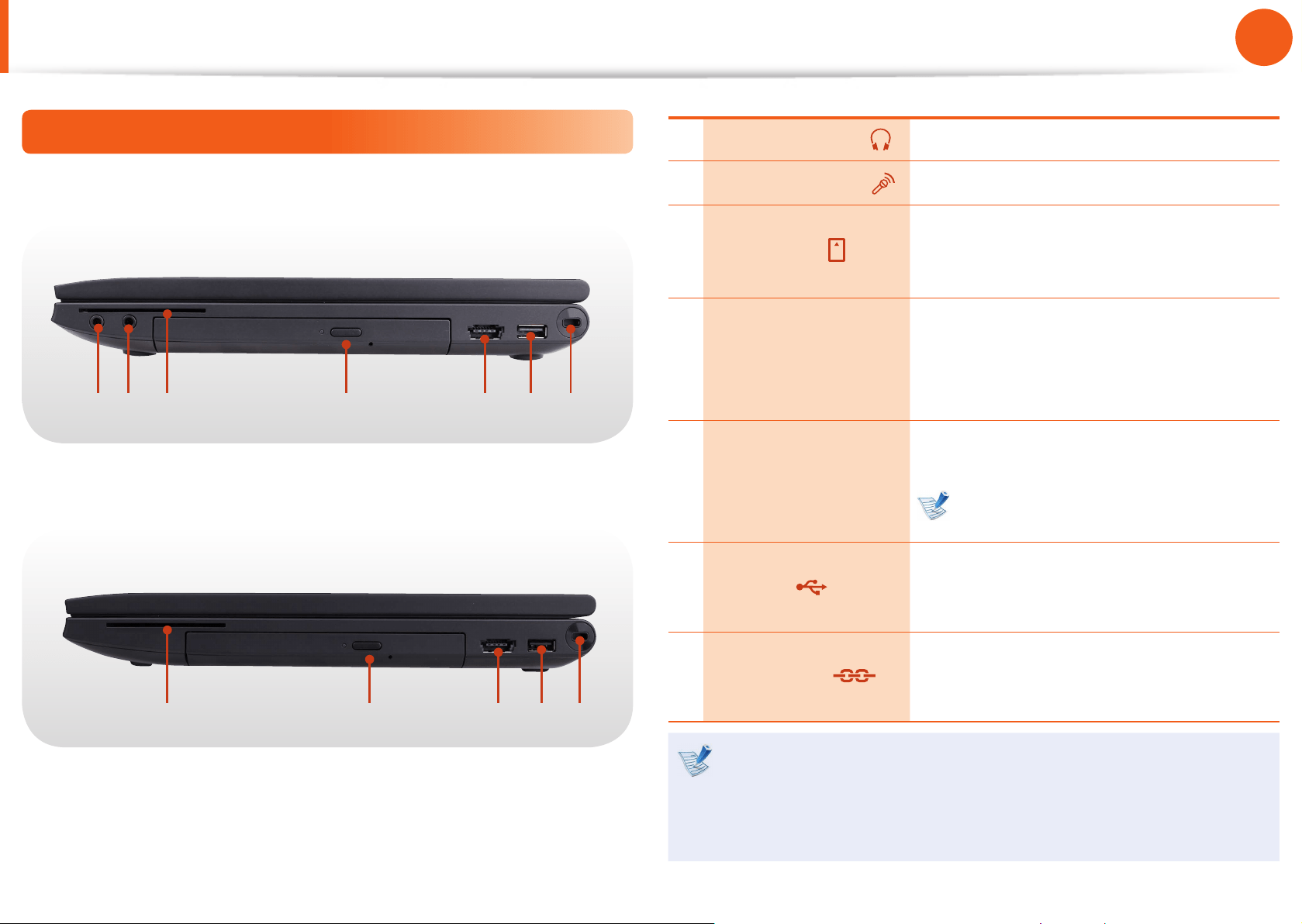

Right View
►
For 14 inch models
5 6 71 2 3 4
►
For 15.6 inch models
6 743 5
1
Headphone Jack
A jack used to connect the headphones.
2
Microphone Jack
A jack used to connect the microphone.
3
Contact-type Smart
Card Reader
(Optional)
A card slot supports smart cards.
4
CD Drive (ODD)
(Optional)
Plays CD or DVD titles.
Since an ODD(Optical Disk Drive) is
optional, the installed drive depends on
the computer model.
5
eSATA/
USB Common Port
(Optional)
This port can be used to connect a USB
or eSATA device.
Windows XP does not support
eSATA.
6 USB Port
You can connect USB devices to the USB
port such as a keyboard/mouse, digital
camera, etc.

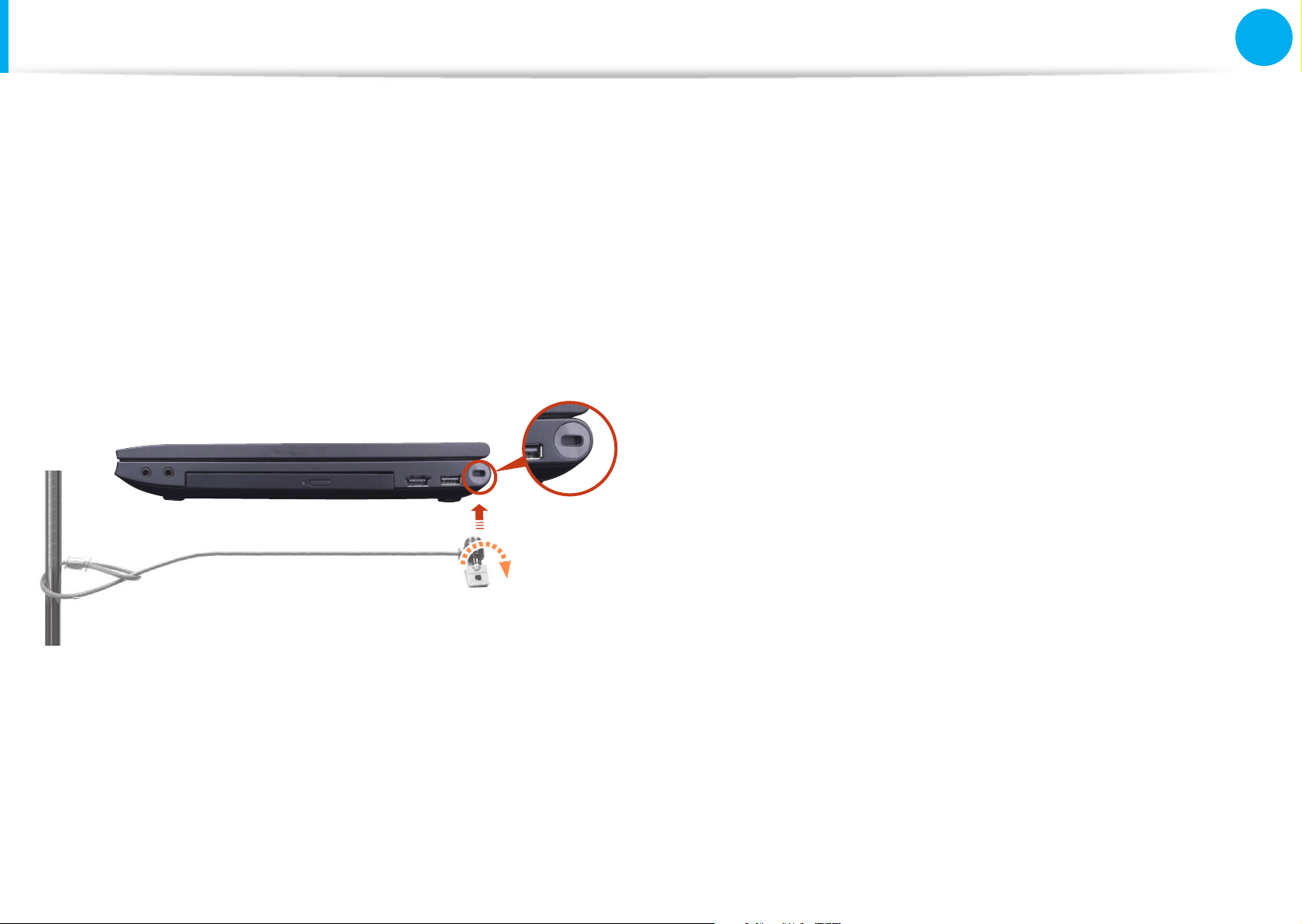

7 Security Slot
You can secure the computer by
connecting a lock and cable to the
Security Slot.
What is an e-SATA port?
This is a new type of connection between a PC and peripheral
devices. It is generally used to connect a PC and an external-
type hard disk drive.
29
Chapter 1
Getting Started
Overview

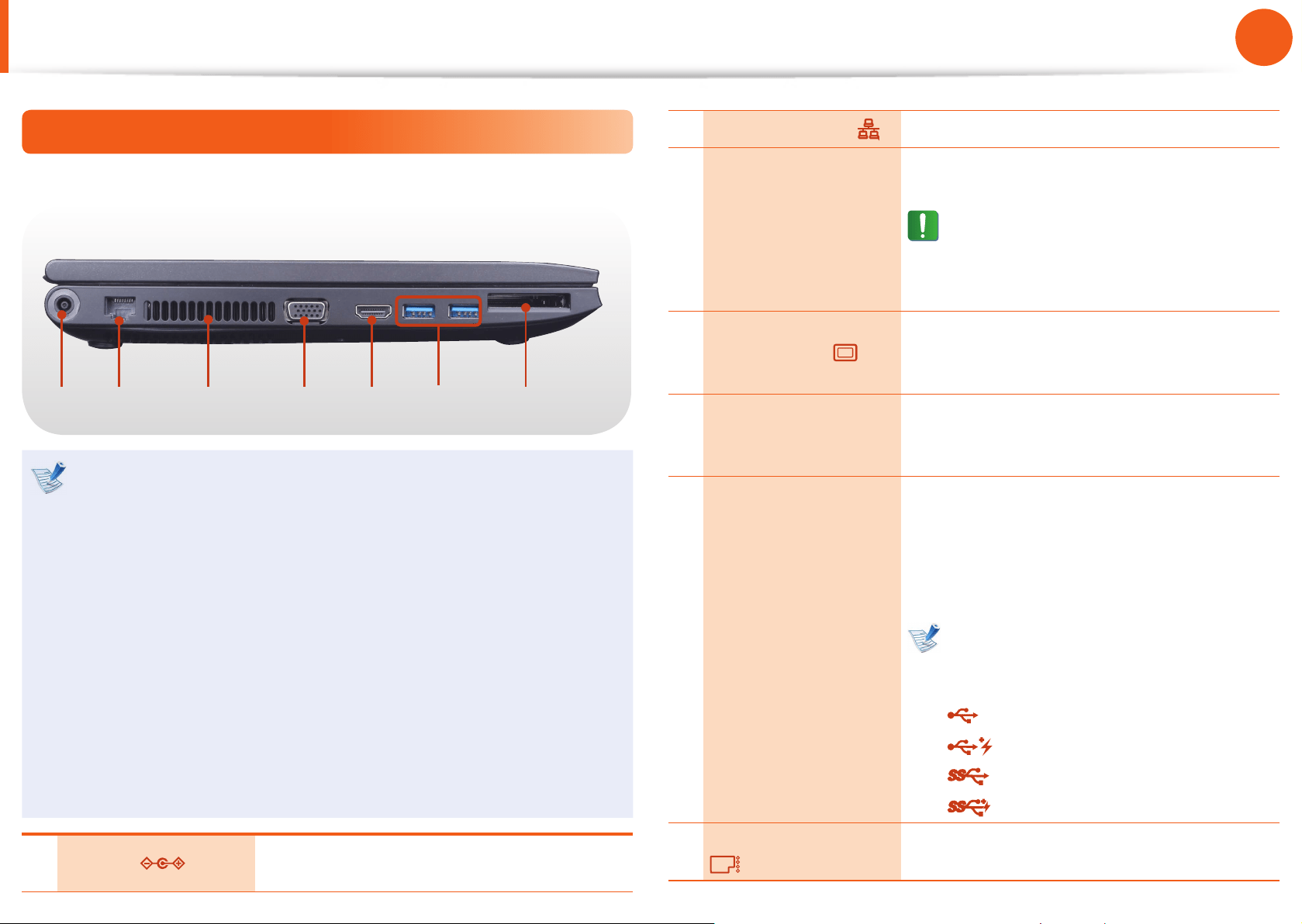

Left View
►
For 14 inch models
21 3 4 5 6 7
What is a Chargeable USB port?
USB device accessing and charging functions are •
supported.
The USB charging function is supported regardless of •
whether the power is turned on or o.
Charging a device through a Chargeable USB port may •
take longer than general charging.
Using the Chargeable USB function when the computer is •
running on battery power reduces the battery usage time.
The user cannot evaluate the charging status of the USB •
device from the computer.
This may not be supported for some USB devices.•
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2
Wired LAN Port
Connect the Ethernet cable to this port.
3 Fan Vents
The internal heat of the computer is
emitted through these holes.
If the vents are blocked the
computer may overheat.
Avoid blocking the vents as this may
be dangerous.
4 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
5
Digital Video/
Audio Port (HDMI)
(Optional)
You can connect an HDMI cable to this
port. Using this port, you can enjoy
digital video and audio on the TV.
6
USB Port or
Chargeable USB
Port (Optional)
USB ports to which you can connect USB
devices as well as a Chargeable USB port
are provided.
Using a Chargeable USB port, you can
access or charge a USB device.
The port can be distinguished by
the gure printed on the port of the
product.
USB 2.0 port
Chargeable USB 2.0 port
USB 3.0 port
Chargeable USB 3.0 port
7
ExpressCard Slot
(Optional)
Install the Express card into this slot.
30
Chapter 1
Getting Started
Overview
Left View
►
For 15.6 inch models
21 4 5 63 7 8 9
What is a Chargeable USB port?
USB device accessing and charging functions are •
supported.
The USB charging function is supported regardless of •
whether the power is turned on or o.
Charging a device through a Chargeable USB port may •
take longer than general charging.
Using the Chargeable USB function when the computer is •
running on battery power reduces the battery usage time.
The user cannot evaluate the charging status of the USB •
device from the computer.
This may not be supported for some USB devices.•
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2
Wired LAN Port
Connect the Ethernet cable to this port.
3
USB Port or
Chargeable USB
Port (Optional)
USB ports to which you can connect USB
devices as well as a Chargeable USB port
are provided.
Using a Chargeable USB port, you can
access or charge a USB device.
The port can be distinguished by
the gure printed on the port of the
product.
USB 2.0 port
Chargeable USB 2.0 port
USB 3.0 port
Chargeable USB 3.0 port
4 Fan Vents
The internal heat of the computer is
emitted through these holes.
If the vents are blocked the
computer may overheat.
Avoid blocking the vents as this may
be dangerous.
5 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
6
Digital Video/
Audio Port (HDMI)
(Optional)
You can connect an HDMI cable to this
port. Using this port, you can enjoy
digital video and audio on the TV.
7
Microphone Jack
A jack used to connect the microphone.
8
Headphone Jack
A jack used to connect the headphones.
9
ExpressCard Slot
(Optional)
Install the Express card into this slot.
31
Chapter 1
Getting Started

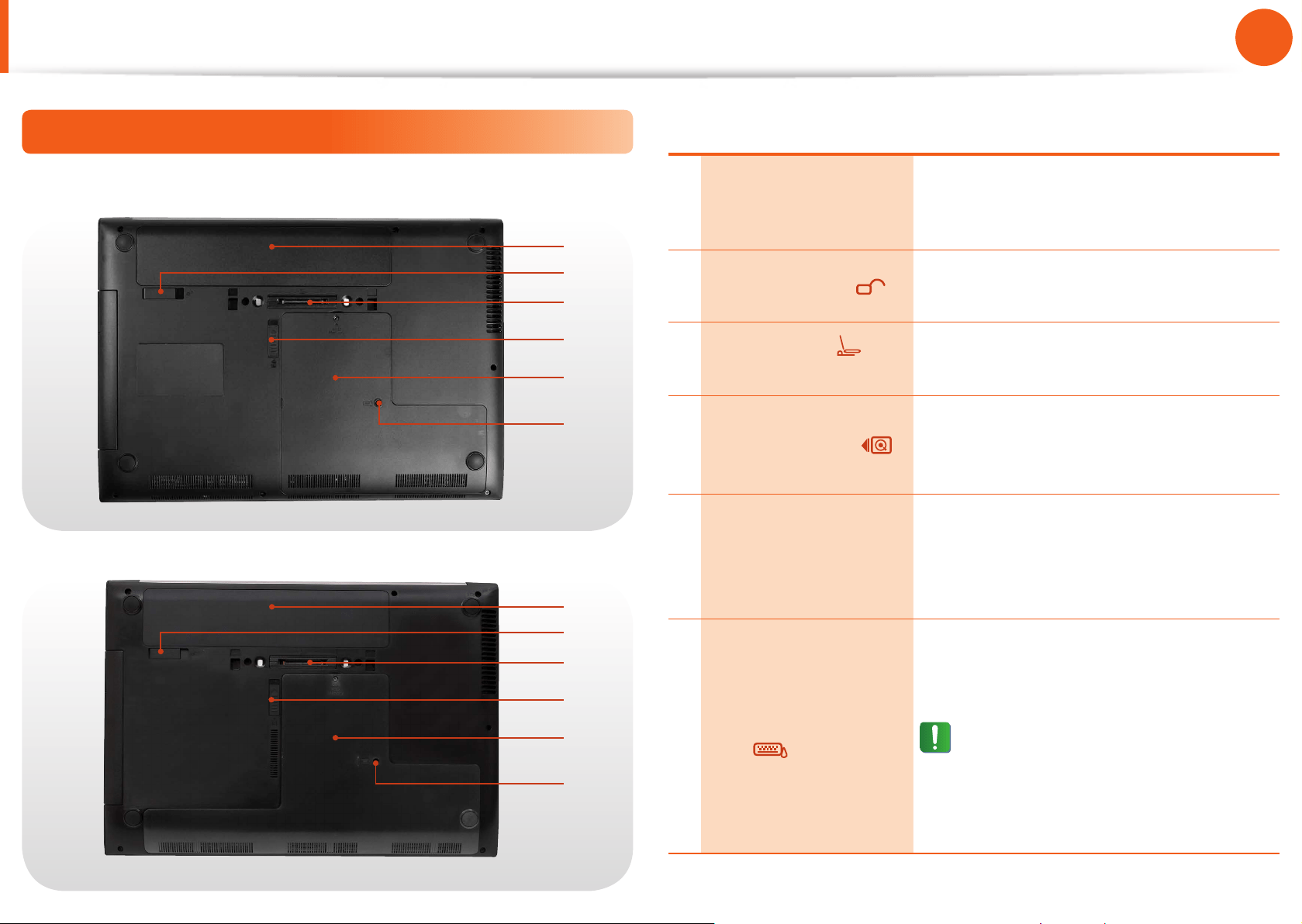

Bottom View
►
Type A Model
1
2
3
4
6
5
►
Type B Model
1
2
3
4
6
5

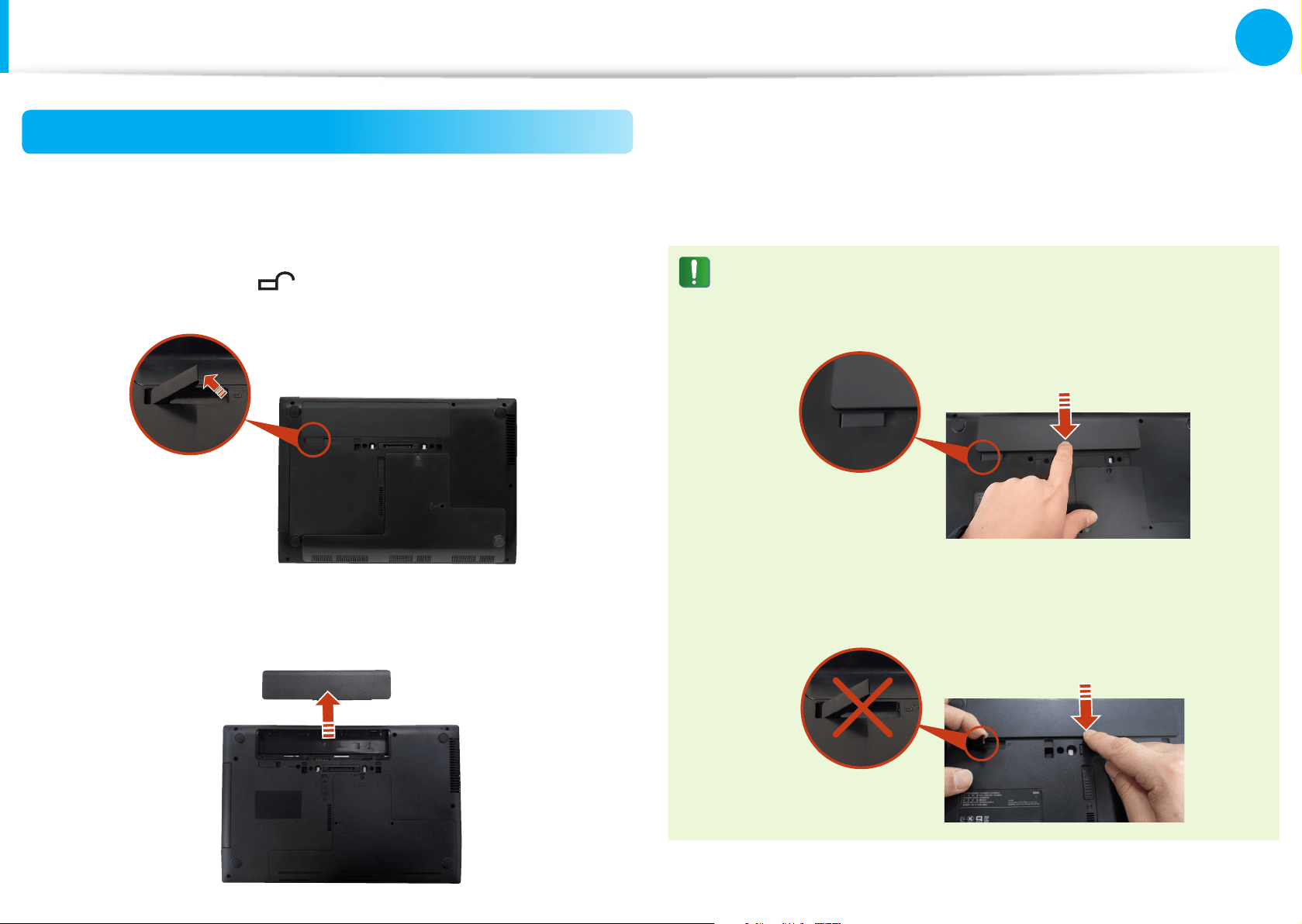

1
Battery
This is a Lithium-Ion rechargeable
battery that supplies power to the
computer.
2
Battery Latches
The latch used to remove or install the
battery.
3
Docking Port
(Optional)
This is the port to connect the Business
Docking Station to (sold separately).

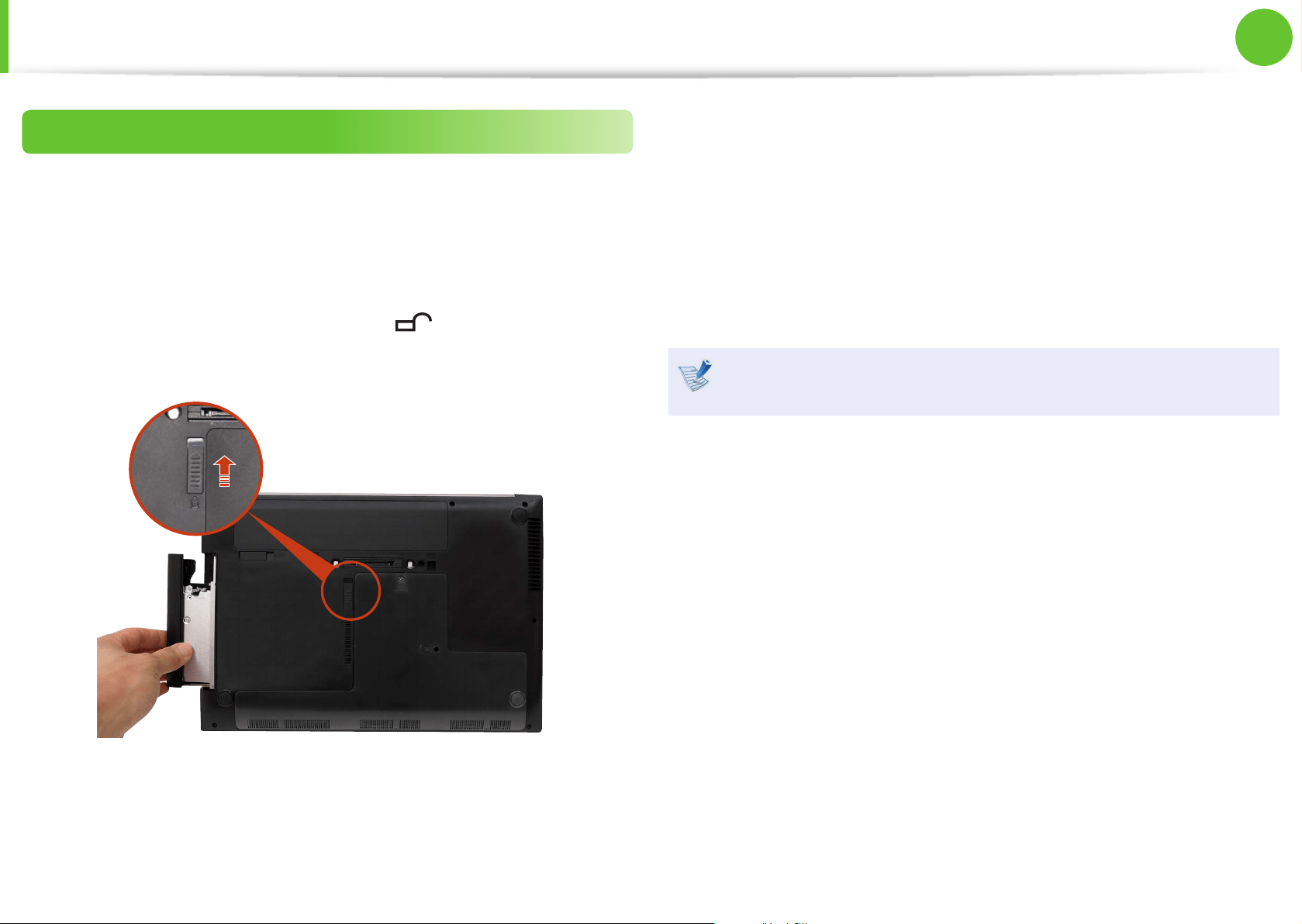

4
CD drive (ODD)
separation latch
(Optional)
This latch is to separate the CD or DVD
drive from the computer.
5
Memory
Compartment Cover/
Hard Disk Drive
Compartment Cover
The main memory and hard disk drive
is installed inside the cover.
6
Keyboard draining
hole
When a small amount of liquid is spilt
over the keyboard, the liquid can be
drained through this hole.
Since completely water proong
the product is not guaranteed, in
the case of inundation, immediately
separate the power cord and
battery and call the service center.
Overview
32
Chapter 1
Getting Started
Turning the Computer On and O
Turning the computer on
1
Install the battery and connect the AC adapter.
2
Lift the LCD panel up.
3
Press the Power button to turn the computer on.
About Windows Activation
When you turn the computer on for the rst time, the Windows
activation screen appears.
Follow the activation procedures according to the instructions on
the screen to use the computer.
Entering Sleep mode
When the computer is turned on, press the computer’s power
button once briey.

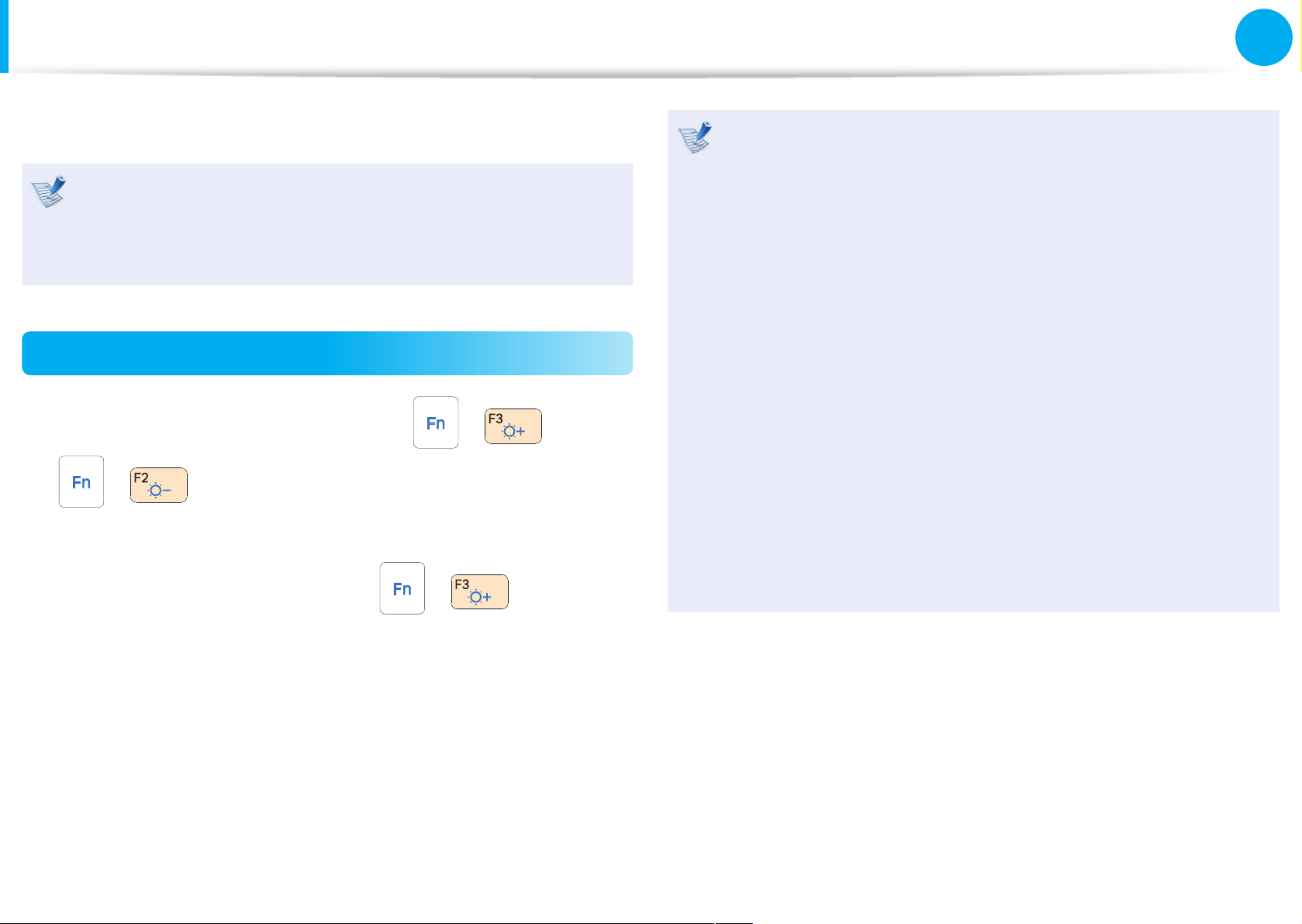

Adjusting the screen brightness
When the computer runs on battery power, the LCD brightness is
automatically set to low.
Press the
+ key combination to increase the screen
brightness.
33
Chapter 1
Getting Started
Turning the computer o
Since the procedures to turn the computer o may dier •
depending on the installed operating system, please turn
the computer o according to the procedures for the
purchased operating system.
Save all your data before clicking on • Shut down.
If • Easy Settings is installed, the system shutdown location
may dier.
Click
z
Start >
x
Shut down mode to shutdown
the computer.
z x
z x
or
Turning the Computer On and O
Keyboard 35

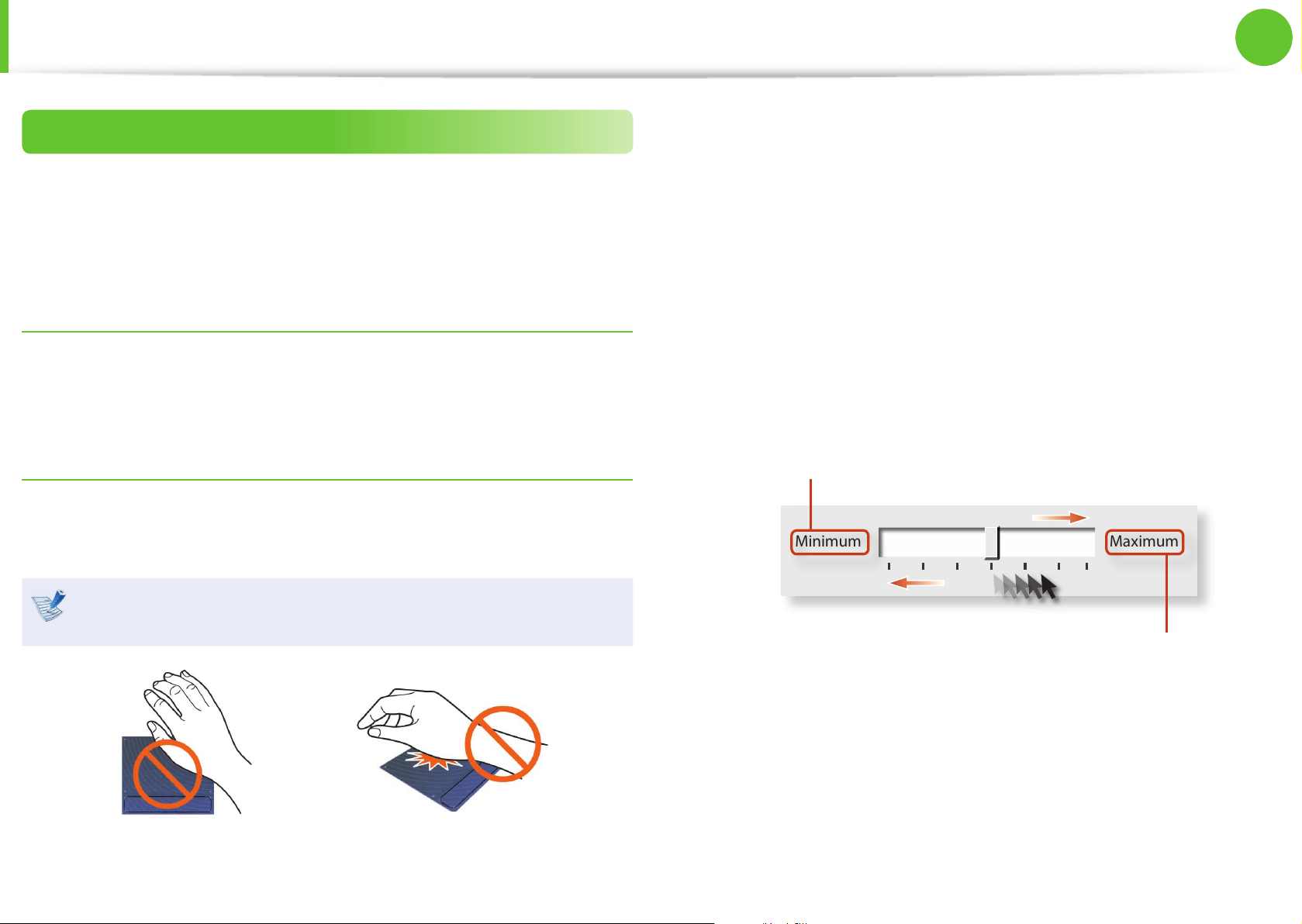

Touchpad 38

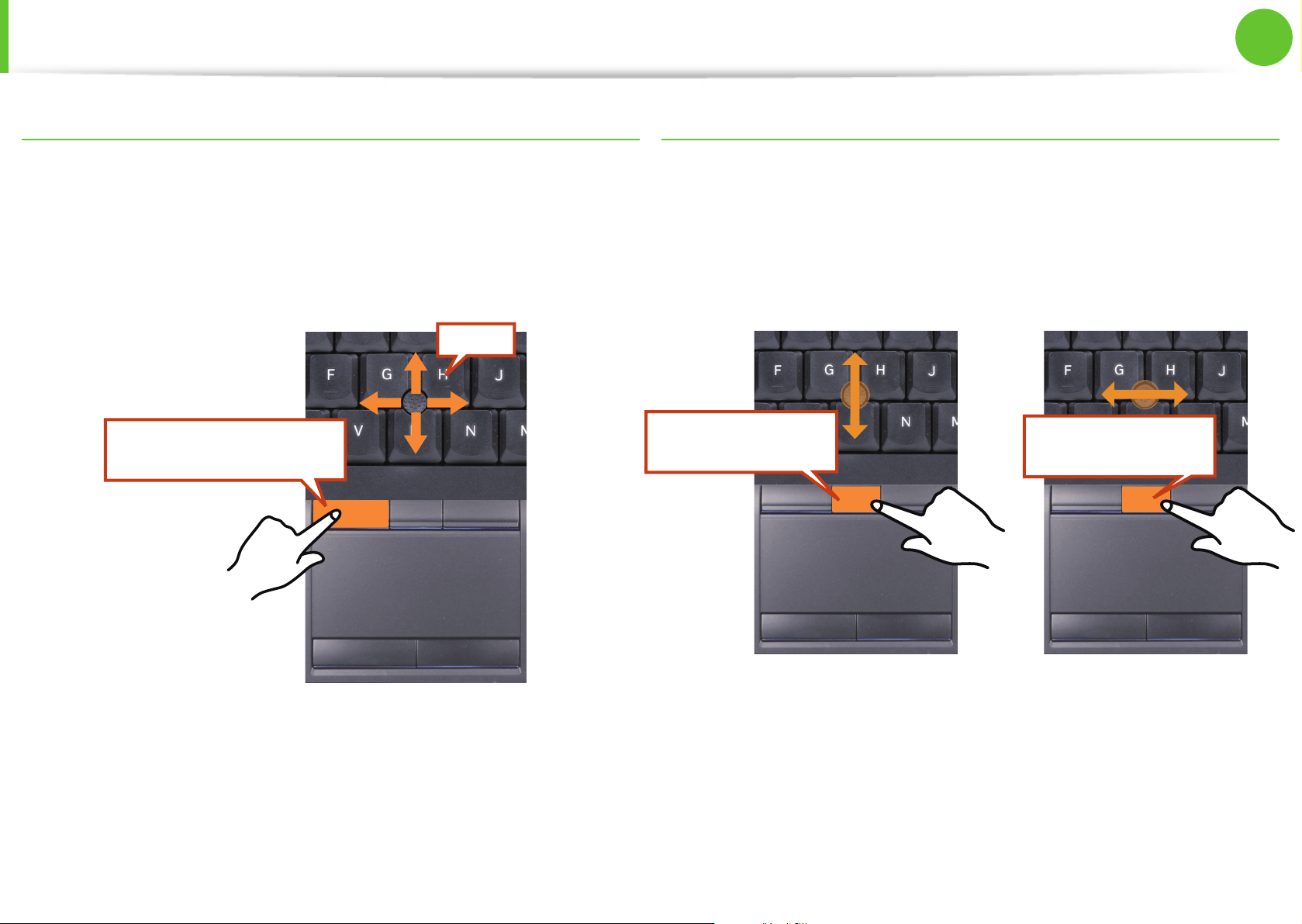

Pointing Stick (Optional) 44
CD Drive (ODD, Optional) 49
ExpressCard Slot (Optional) 51
Multi Card Slot (Optional) 52
Connecting an External Display Device 55
Connecting an External Digital Device 62

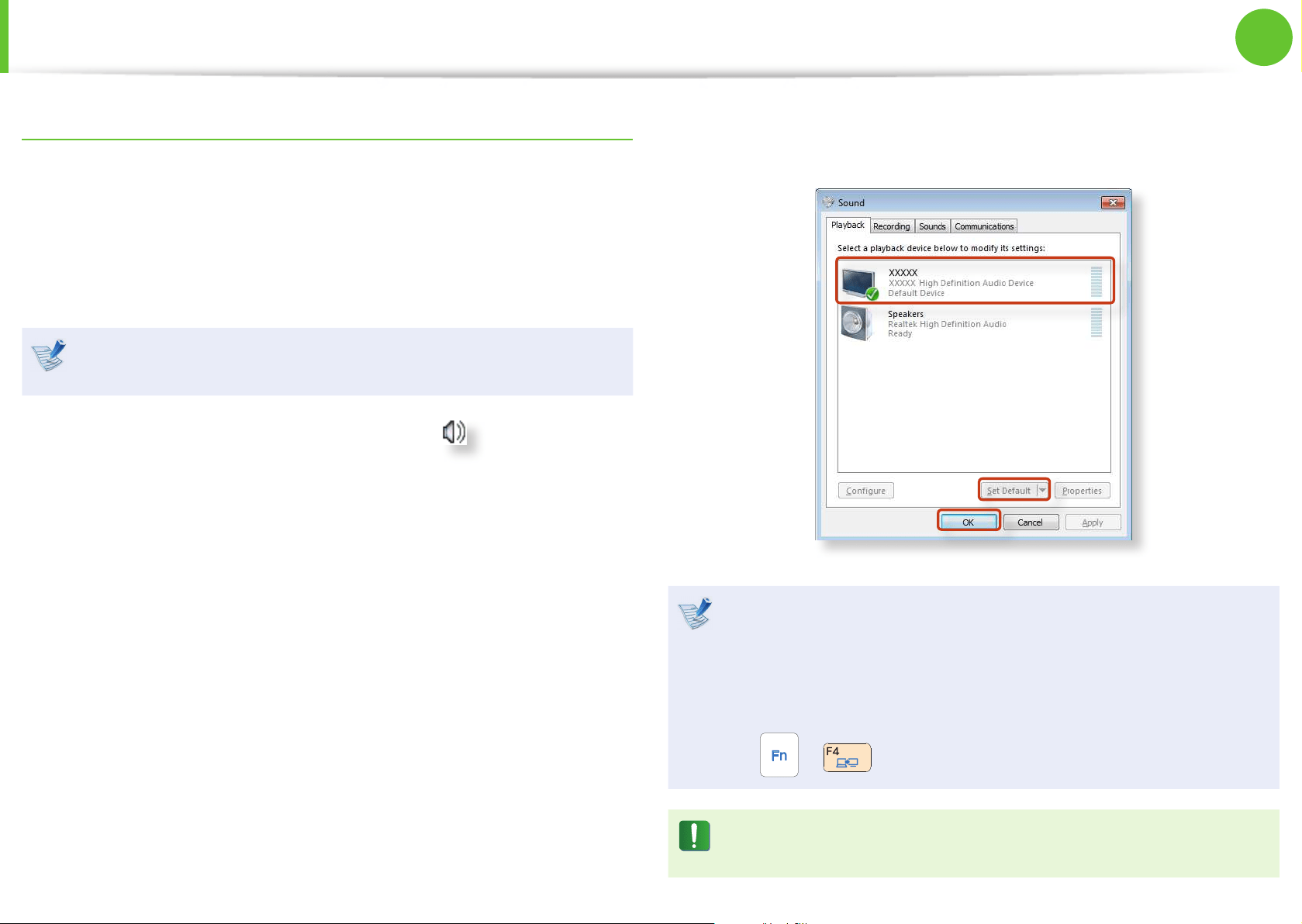

Adjusting the Volume 63
Wired Network 66
Wireless Network (Optional) 70
Using the TPM Security Device (Optional) 73
Chapter 2.
Using the computer
35
Chapter 2.
Using the computer
Keyboard
Shortcut key functions and procedures are discussed in the following sections.
The keyboard image may dier from the actual keyboard.•
The keyboard may dier depending on your country. The following mainly describes the shortcut keys.•
Shortcut Keys
You can use the following functions by pressing the keys below with the Fn key.
+
36
Chapter 2.
Using the computer
Keyboard
Fn Name Function
+
REST
(Sleep Mode)
Switches to Sleep mode. To wake the computer up, press the Power button.
Screen
Brightness
Control
Controls the screen brightness.
CRT/LCD
Switches the screen output to the LCD or external monitor when an external monitor (or TV) is
connected to the computer.
Touchpad/
Pointing Stick
Turns the touchpad function or pointing stick function on or o.
Omnipass The Omnipass security program is executed.
Easy Support
Center
System diagnosis, recovery and Internet consultation program, Easy Support Center, will be launched.
(Optional)
Battery mode To use the battery eciently, you can change the battery mode according to your usage environment.
Mute Mutes or cancels mute.
Volume
Control
Controls the volume.
Wireless
network
You can turn the wireless network device on or o. (Only for models with a wireless network device.)
37
Chapter 2.
Using the computer
Numeric Key (For 14, 15.6 inch models)
For 14-inch models, press the NumLock key to use some of the
keys as numeric keys.
For 15.6-inch models, once the NumLock is on, the numeric
keypad in the right side of the keyboard is enabled.
NumLock
ScrollLock
Other Function Keys
Performs the right-click mouse function (touchpad).
If the hot keys do not work properly, you have to install the
Easy Settings.
Keyboard
38
Chapter 2.
Using the computer
Touchpad
The touchpad provides the same function as a mouse and the left
and right buttons of the touchpad plays the role of the left and
right buttons of a mouse.
To use the touchpad, the touchpad driver is required.
A built-in Windows driver and a driver provided by the
manufacturer are provided. For a better performance, using the
driver provided by the touchpad manufacturer is recommended.
The driver provided by the touchpad manufacturer is already
installed in this product by default when you purchase this
product. When you reinstall Windows or change the operating
system, using the driver provided by the corresponding
manufacturer is recommended.
Touch the touchpad with your ngers only. •
Anything other than your ngers, such as a ball-point pen,
will not be recognized by the touchpad.
If you touch the Touchpad or press the Touchpad buttons •
while booting up, the Windows boot time may be
extended.
Checking the touchpad manufacturer Click the • Start
> Control Panel > Hardware and Sound > Mouse >
Hardware tab and check the device (E.g. Elan, Synaptics,
etc. ).
The Windows driver provides basic touchpad functions •
(moving the pointer, clicking, etc.) but the gesture function
is not supported.
Basic Touchpad Functions
Moving the cursor on the screen
Place your nger on the touchpad slightly and move your nger.
The mouse cursor will move accordingly. Move your nger in the
direction you wish to move the cursor.
39
Chapter 2.
Using the computer

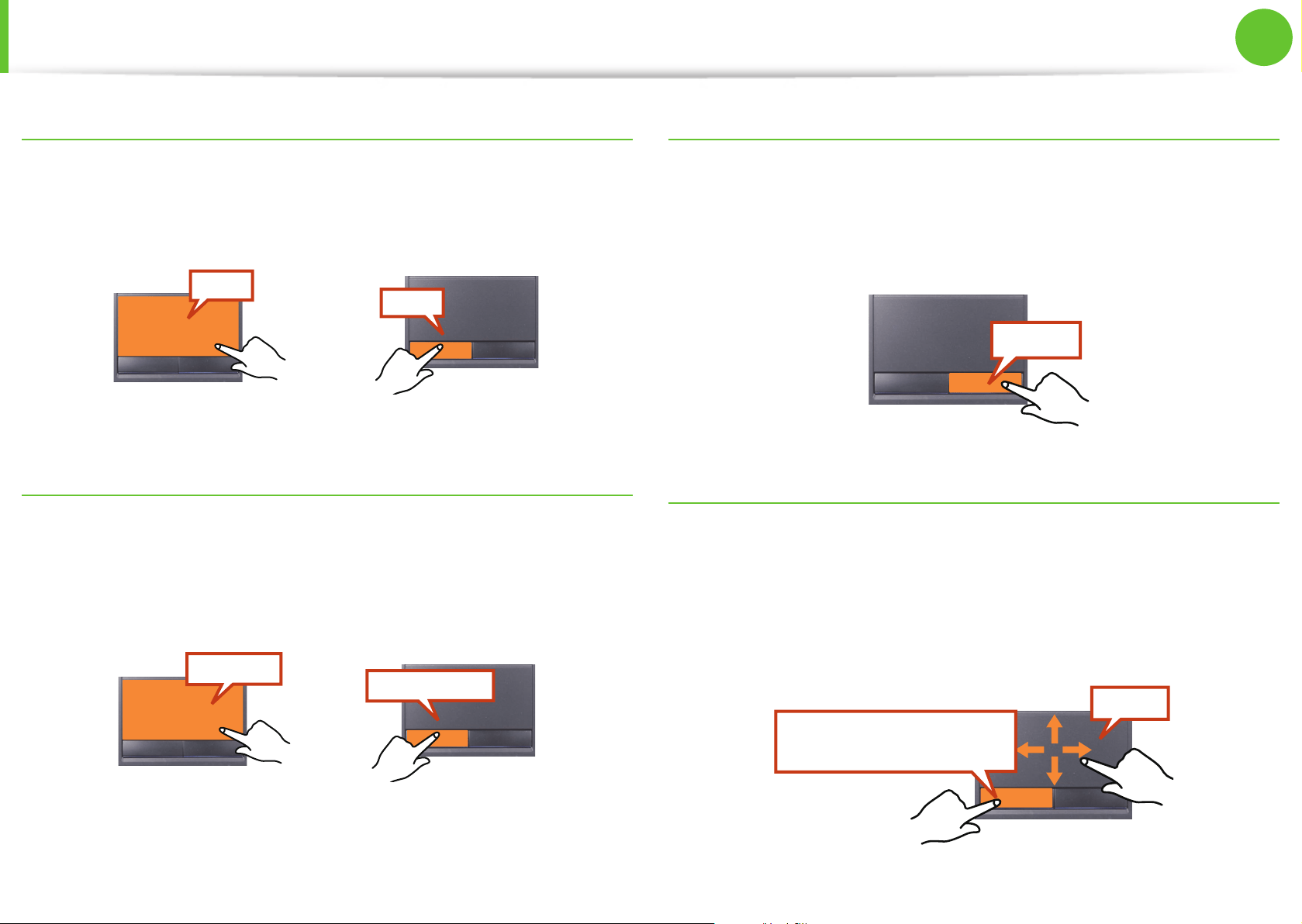

Click Function
Place a nger on the touchpad and click on an item once.
Alternatively, press the left button once quickly and release it.
Tap
Click
or
Double-Click Function
Put your nger on the touchpad and quickly tap twice with your
nger on an item you want.
Alternatively, press the left touchpad button twice quickly.
ClickClick
TapTap
or
Right Button Function
This corresponds to clicking the right mouse button.
Press the right touchpad button once. The corresponding pop-up
menu appears.
Click
Drag Function
Dragging refers to moving an item to another place after selecting
it.
Press and hold down the left touchpad button over an item you
want to drag and move the item to the new location.
Holding down the left
touchpad button
Move
Touchpad
40
Chapter 2.
Using the computer
The Gesture Function of the Touchpad (Optional)
The Touchpad Gesture function may not be provided and •
the version of the function may dier depending on the
model. Some usage procedures may dier depending on
the version.
For detailed usage procedures, refer to the description in •
the Touchpad Settings window.
Since these descriptions are written on the basis of the •
latest operating system, Windows 7, some of the content
and the gures of the descriptions may dier depending
on the operating system. Since the procedures for other
Windows operating systems are similar, use the computer
referring to these descriptions.
Using the Touchpad, you can use the following additional Gesture
functions.
Scroll function•
Zoom functions•
Page Move Function•
Conguring the Gesture Function
Some gesture functions may not be congured.
In this case, you can congure them using the following path.
1
►
When using the Elan driver
Click the Start > Control Panel > Hardware and Sound >
Mouse > ELAN > Options button.
►
When using the Synaptics driver
Click the Start > Control Panel > Hardware and Sound >
Mouse > Device Settings tab > Settings button.
2
The Touchpad Settings window appears. Click over the
corresponding item to select the item in the Select an item
and click OK.
To cancel the Gesture function, unselect the corresponding
item in the Touchpad Settings window and click OK.
Touchpad
41
Chapter 2.
Using the computer

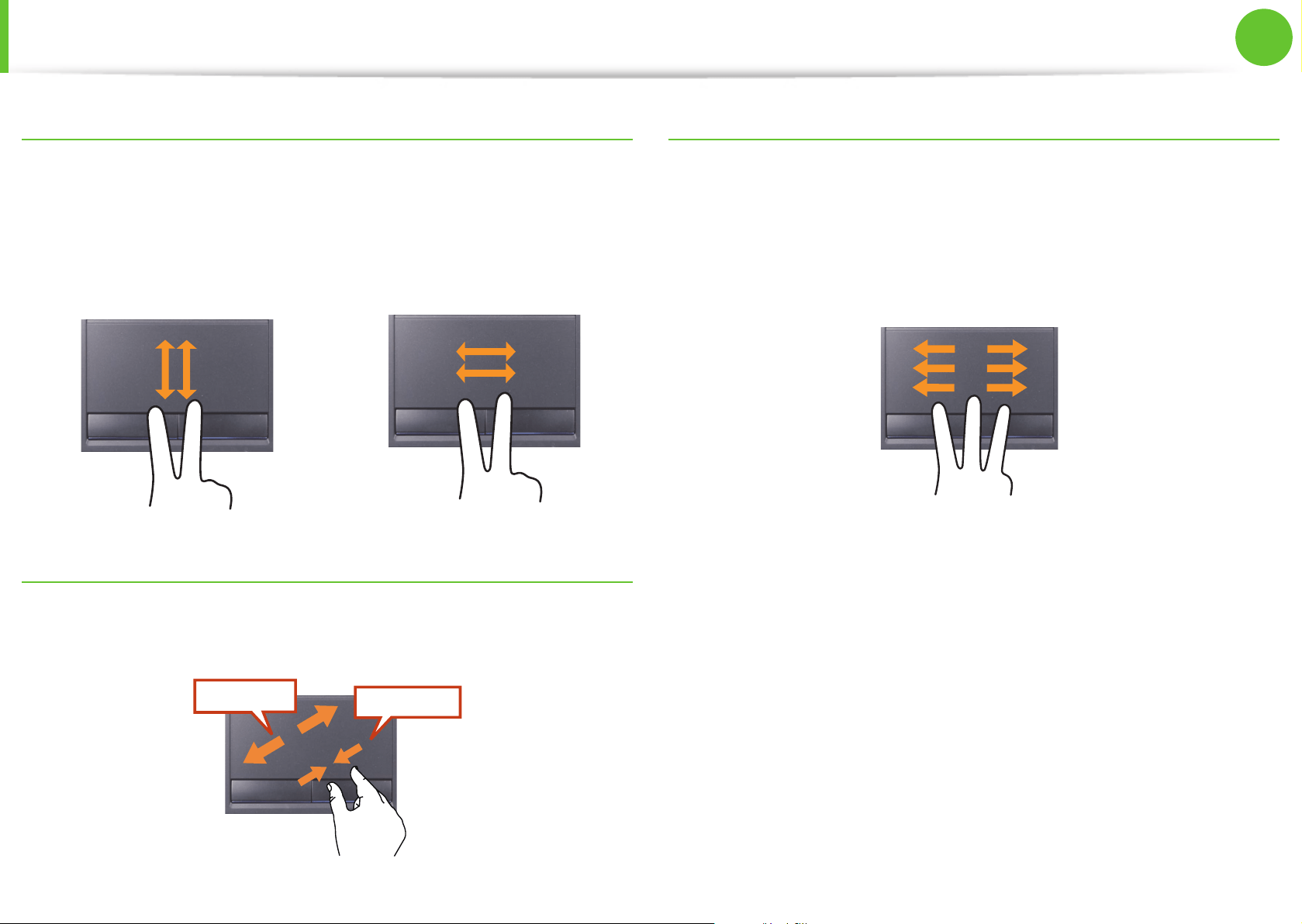

The Scroll Function
This function is the same as the scroll area of the Touchpad.
If you place two ngers over the Touchpad and move them up,
down, left or right, the screen is scrolled up, down, left or right
accordingly.
or
Zoom Functions
If you place two ngers over the Touchpad together or apart, the
current image or text is zoomed in or out.
Zoom-out
Zoom-in
or
Page Move Function
You can move to the previous or next page when you are looking
at a photo or surng the Internet.
For example, if you lightly brush three ngers to the left while you
are looking at a web site, you will return to the previous page.
Touchpad
42
Chapter 2.
Using the computer
Setting the Touchpad Sensitivity
If the touchpad reacts too sensitively or the pointer moves
unintentionally, please adjust the touchpad pointer speed and
sensitivity.
Adjusting the Touchpad Pointer Speed
Click Start > Control Panel > Hardware and Sound > Mouse >
Pointer Options and then adjust the pointer speed.
Adjusting the Touchpad Palm Detection Function
The palm detection function is to avoid malfunctions when the
palm touches the touchpad by mistake.
This function is provided by the touchpad driver provided by
the manufacturer.
►
When using the Elan driver
Click Start > Control Panel > Hardware and Sound > Mouse
> ELAN > Options > PalmTracking and then adjust the
sensitivity.
►
When using the Synaptics driver
Click Start > Control Panel > Hardware and Sound > Mouse
> Device Settings > Settings > SmartSense and then adjust
the sensitivity.
Minimum Maximum
When the touchpad pointer moves unintentionally (excessively):
Slide the bar appropriately in the direction of Maximum.
When the touchpad pointer does not move smoothly:
Slide the bar appropriately in the direction of Minimum.
Touchpad
43
Chapter 2.
Using the computer
Touchpad
Touchpad On/O Function
Locking with shortcut keys
If you don’t want to use the touchpad, you can turn the touchpad
o.
Press the
+ key combination once. Then the screen
appears where you can select a device mode.
Since pressing the
key while holding down the key
chnges the selection, select a device mode.
- Touchpad ON / Pointing Stick ON
- Touchpad ON / Pointing Stick OFF
- Touchpad OFF / Pointing Stick ON
You can set the touchpad and touchpad button settings in
the tabs that appear when clicking Start > Control Panel >
Hardware and Sound > Mouse.
Auto-locking when connecting USB mouse
►
When using the Elan driver
Click Start > Control Panel > Hardware and Sound > Mouse
> ELAN, and check the Disable When external USB mouse
plug in option. This will turn the touchpad o when a USB
mouse is connected.
►
When using the Synaptics driver
Click Start > Control Panel > Hardware and Sound > Mouse
> Device Settings, and check the Disable internal pointing
device when external USB pointing device is attached in
option. This will turn the touchpad o when a USB mouse is
connected.
This auto-locking function is not provided for some models.
44
Chapter 2.
Using the computer
Pointing Stick
(Optional)
The pointing stick provides the same function as a mouse.
The buttons of the pointing stick plays the role of the left and
right buttons and wheel button of a mouse.
To use the pointing stick, the pointing stick driver is required.
The driver provided by the pointing stick manufacturer is already
installed in this product by default when you purchase this
product. When you reinstall Windows or change the operating
system, using the driver provided by the corresponding
manufacturer is recommended.
Use the pointing stick with your ngers. Using a sharp •
object may damage the pointing stick.
If you touch the pointing stick or press the pointing stick •
buttons while booting up, the Windows boot time may be
extended.
Checking the pointing stick manufacturer •
Click the Start > Control Panel > Hardware and Sound
> Mouse > Hardware tab and check the device (E.g. Elan,
Synaptics, etc.).
Pointing Stick
Use to move the cursor.
Pointing Stick Left Button
You can select or run a
program using this button.
Pointing Stick Right Button
Plays the role of the right
mouse button.
Scroll Button
This corresponds to the wheel of the mouse.
45
Chapter 2.
Using the computer
Pointing Stick
(Optional)

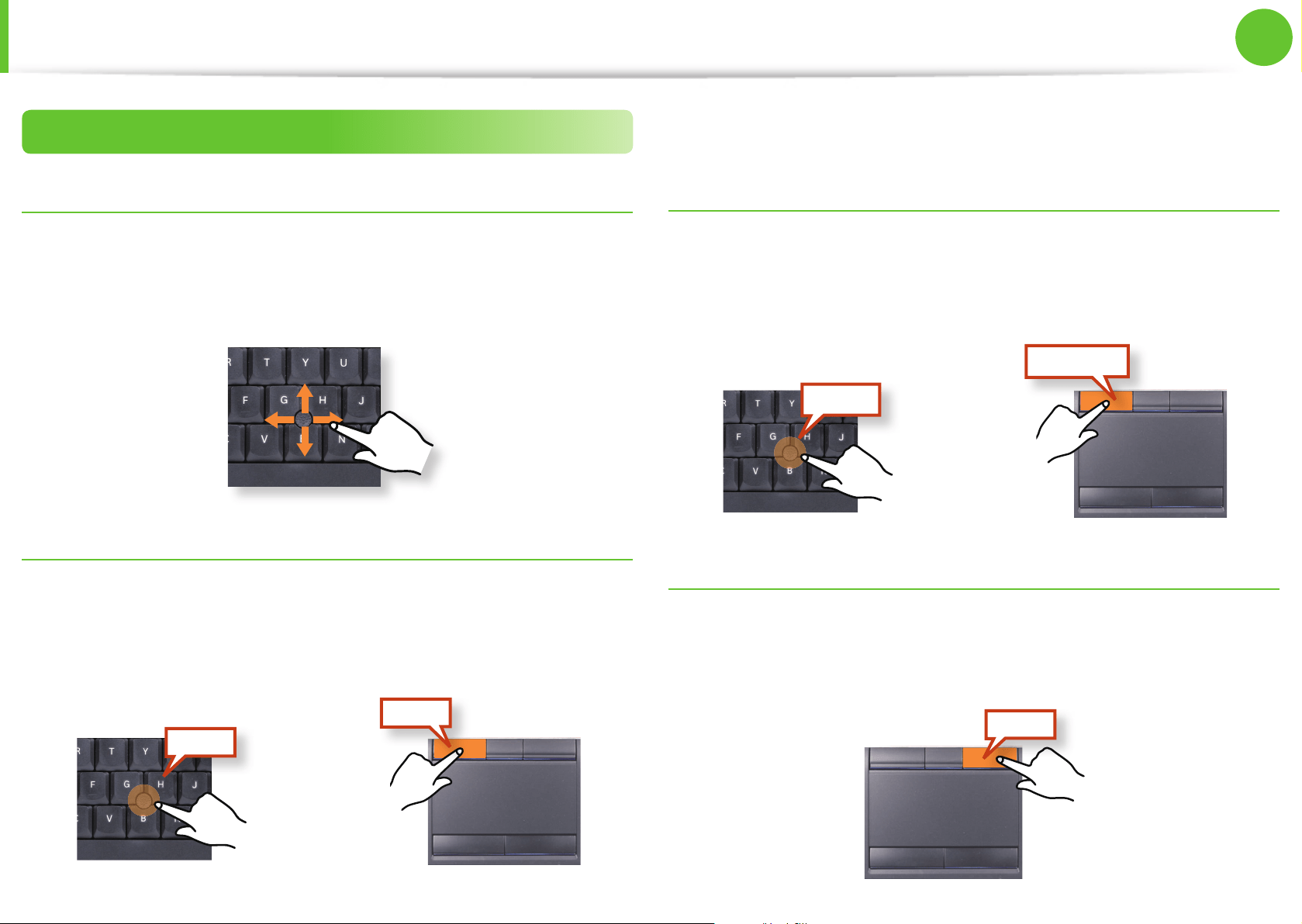

Basic Pointing Stick Functions
Moving the cursor on the screen
Place your nger on the pointing stick slightly and move your
nger. The mouse cursor will move accordingly. Move your nger
in the direction you wish to move the cursor.
Click Function
Place a nger on the pointing stick and click on an item once.
Alternatively, press the pointing stick left button once quickly and
release it.
Tap
Click
or
Double-Click Function
Put your nger on the pointing stick and quickly tap twice with
your nger on an item you want.
Alternatively, press the pointing stick left button twice quickly.
or
ClickClick
TapTap
Right Button Function
This corresponds to clicking the right mouse button.
Press the pointing stick right button once. The corresponding
pop-up menu appears.
Click
46
Chapter 2.
Using the computer
Drag Function
Dragging refers to moving an item to another place after selecting
it.
Press and hold down the pointing stick left button over an item
you want to drag and move the item to the new location.
Holding down the
pointing stick left button
Move
Scroll Function
This function is the same as the scroll area of the Touchpad.
Press and hold down the scroll button and move the pointing stick
up, down, left or right.
Then, the screen is scrolled up, down, left or right accordingly.
or
Holding down the
scroll button
Holding down the
scroll button
Pointing Stick
(Optional)
47
Chapter 2.
Using the computer
Pointing Stick
(Optional)
Adjusting the Pointing Stick Sensitivity
If the pointing stick reacts too sensitively or the pointer moves
unintentionally, please adjust the pointing stick pointer speed and
sensitivity.
Adjusting the Pointer Speed
Click Start > Control Panel > Hardware and Sound > Mouse >
Pointer Options and then adjust the pointer speed.
Adjusting the Pointing Stick Touch Sensitivity
You can control how much nger pressure is required to move the
pointer.
►
When using the Synaptics driver
Click Start > Control Panel > Hardware and Sound > Mouse
> Device Settings > Settings > Touch Sensitivity and then
adjust the sensitivity.
Pointing Stick On/O Function
Locking with short keys
If you don’t want to use the pointing stick, you can turn the
pointing stick o.
Press the
+ key combination once. Then the screen
appears where you can select a device mode.
Since pressing the
key while holding down the key
chnges the selection, select a device mode.
- Touchpad ON / Pointing Stick ON
- Touchpad ON / Pointing Stick OFF
- Touchpad OFF / Pointing Stick ON
You can set the pointing stick and pointing stick button
settings in the tabs that appear when clicking Start > Control
Panel > Hardware and Sound > Mouse.
48
Chapter 2.
Using the computer
Pointing Stick
(Optional)
Auto-locking when connecting USB mouse
►
When using the Synaptics driver
Click Start > Control Panel > Hardware and Sound > Mouse
> Device Settings, and check the Disable internal pointing
device when external USB pointing device is attached in
option. This will turn the touchpad and the pointing stick o
when a USB mouse is connected.
In case of some touch-screen model, checking option locks
the touchpad and the pointing stick even though you did not
connect a USB mouse.
This auto-locking function is not provided for some models.
49
Chapter 2.
Using the computer
CD Drive
(ODD, Optional)
An optical disk drive is optional and may dier depending on
your computer model. For detailed specications, refer to the
catalogue.
Do not insert a cracked or scratched CD. •
Otherwise, the CD may break and damage the optical disk
drive when the CD rotates at a high speed.
When you clean a CD or DVD title, wipe with a soft cloth •
from inside to outside.
Insert a Mini CD into the center of the CD drive.•
The gures used for the description are of a representative •
model. Therefore the gures may dier from the real ones.
Using a CD that is not in the shape of a circle is not •
recommended.
Inserting and Ejecting a CD
1
Press the Eject button of the optical disk drive at the side of
the computer.
Emergency
Hole
Eject Button
Status Indicator
2
When the CD tray opens, insert a CD or DVD and push the
tray in until it clicks.
3
Push the CD tray inward until it clicks.
The CD drive status indicator is turned on.
A CD drive’s reading and writing speed may dier •
depending on the condition and type of the media.
To eject a CD when the CD drive does not work or the •
computer is o, place the end of a paper clip (
) into
the Emergency Hole until the CD tray is ejected.
50
Chapter 2.
Using the computer
CD Drive
(ODD, Optional)
Installing/Removing the CD drive
1
Shutdown the system, close the LCD panel and place the
computer upside down on a at surface.
2
Pull the CD drive separation latch outward, then
remove the CD drive.
3
To install the CD drive again, slide the CD drive separation
latch into the system.
The CD drive separation latch move inward and x the CD
drive automatically.
Check if the CD drive separation latch has been moved
inward.
51
Chapter 2.
Using the computer

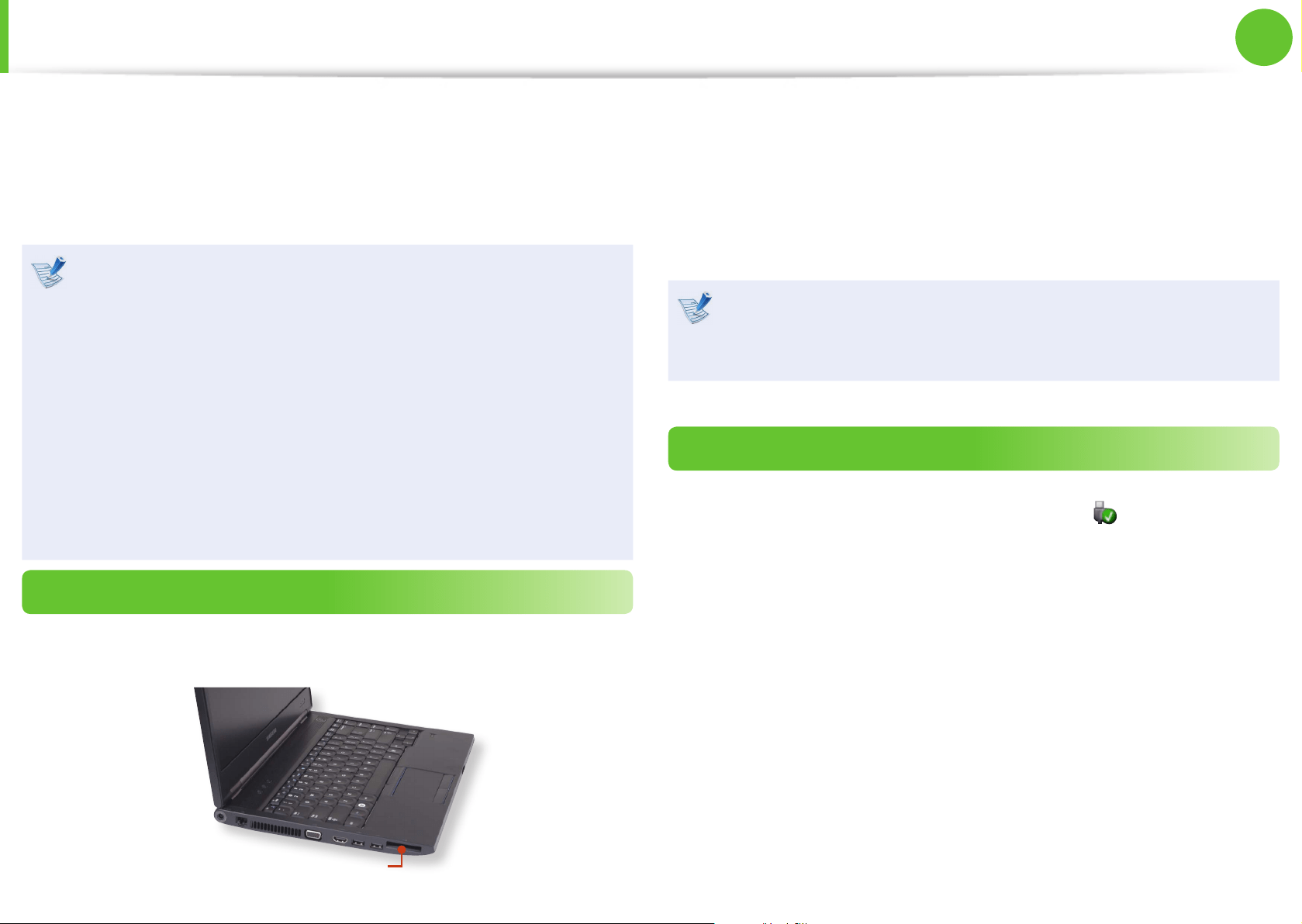

ExpressCard Slot
(Optional)
The ExpressCard slot can be regarded as the next generation
PCMCIA card specication and supports LAN, TV Tuner and Sound
cards.
This computer’s slot supports the Express Card/34 specication.
If a slot protection dummy card is inserted into your •
computer, remove the dummy card before using the
computer.
This slot is a ExpressCard slot. You cannot connect a •
PCMCIA card here.
Since these descriptions are written on the basis of the •
latest operating system, Windows 7, some of the content
and the gures of the descriptions may dier depending
on the operating system. Since the procedures for other
Windows operating systems are similar, use the computer
referring to these descriptions.
To insert a card
1
Insert a card into the slot on the side of the computer.
ExpressCard slot
2
If you insert a card into the slot, Windows recognizes the
card automatically or a message telling you to install a driver
appears.
If the card is not automatically recognized, install the device
driver supplied with the card.
If a window asking whether you want to scan and change
appears, click on Continue Without Scan.
This will proceed to Step 2 above.
To remove a card
1
Click the Safely Remove Hardware icon on the task bar.
2
Click Remove ExpressCard.
3
You can remove the express card when the Safely Remove
Hardware message appears.
4
Push the card in the slot lightly.
Then the card pops up.
5
Eject the card.
52
Chapter 2.
Using the computer
Multi Card Slot
(Optional)
Using the multi card slot, you can read and write data to cards.
You can use a card as a removable disk and conveniently
exchange data with digital devices such as a digital camera, digital
camcorder, MP3, etc..
Supported Cards : SD Card, SDHC Card, SDXC Card•
You have to additionally purchase a multi card with the •
necessary capacity depending on your requirements.
You can use a multi card just like any data storage device. •
A copyright protection function is not supported.
Since you can lose a card when moving the computer, •
keep the card separately.
The gures used for the description are of a representative •
model. Therefore the gures may dier from the real ones.
If a slot protection dummy card is inserted into your •
computer, remove the dummy card before using the
computer.
These descriptions are written based on Windows 7, the •
latest operating system. Therefore, some descriptions and
gures may dier from your operating system. But as the
usage is similar to other Windows operating systems, you
can use these descriptions for reference.

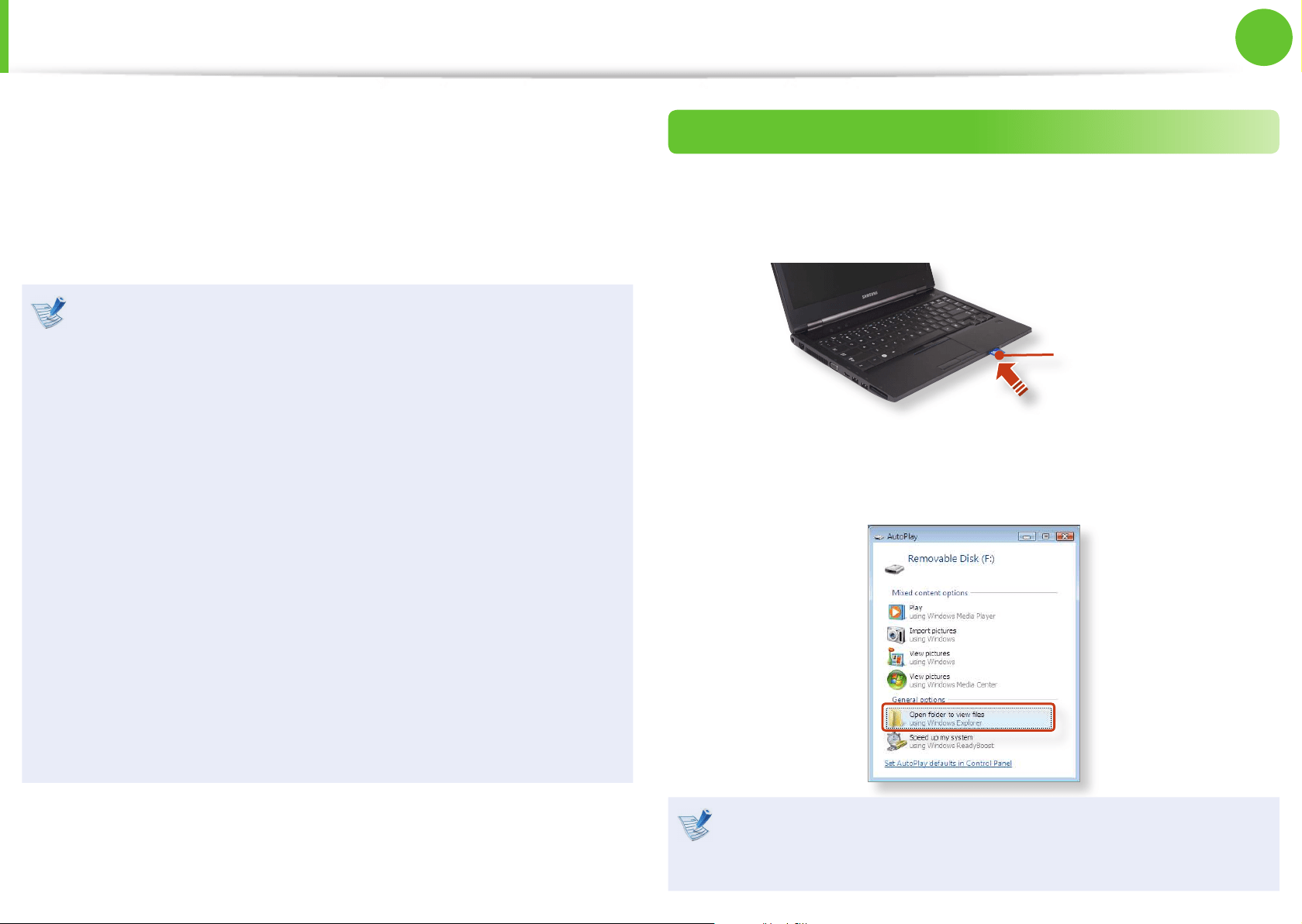

Using the card
1
Insert the card into the multi card slot in the indicated
direction.
Example)
SD Card
2
The card drive appears. Click Open folder and view les.
If the window does not appear, click Start > Computer.
If a window asking to scan and change appears, click
Continue Without Scanning. This will proceed to Step 2
above.
53
Chapter 2.
Using the computer
Multi Card Slot
(Optional)

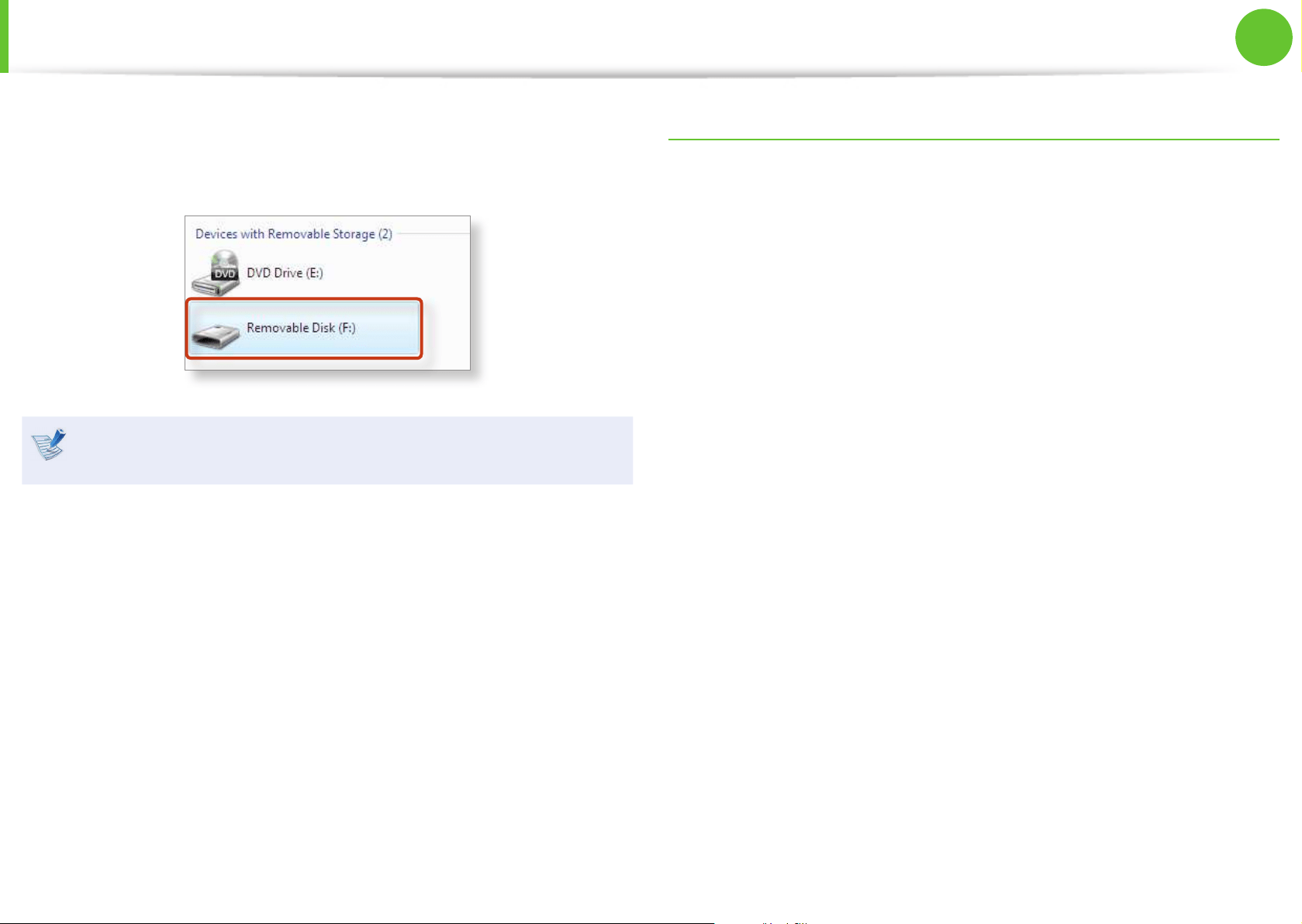

3
You can save, move and delete data by double-clicking the
corresponding drive.
You can only use the card after formatting it.
The device name of the card drive may dier depending on
your computer model.
Using a Mini SD
Since the above cards are too small, you cannot insert the cards
into the slot directly.
Insert the card into the dedicated adapter (available from most
electronic retailers) and then insert the adapter into the multi card
slot.
54
Chapter 2.
Using the computer
To remove a memory card
Take hold of the end of the card and remove the card.
To format a memory card
When using the memory card for the rst time, you must format
the card before using it.
Formatting a card deletes all data saved on the card. If the
card includes data, backup the data before formatting it.
1
Click Start > Computer.
2
Right-click over a card drive with the touchpad and select
Format.
3
Click Start to the formatting.
To use a card to exchange data with a digital device such •
as a digital camera, formatting the data using the digital
device is recommended.
When you try to use a card, which is formatted in the •
computer, in another digital device, you may have to
format the card again in the device.
You cannot format, write or delete data from a SD, or SDHC •
card with a write protection tab when it is in the Lock
position.
Inserting and removing a memory card repeatedly may •
damage the memory card.
Multi Card Slot
(Optional)
55
Chapter 2.
Using the computer
Connecting an External Display Device
If you connect an external display device such as a monitor, TV,
projector, etc., you can view the picture on the wider screen of the
external device when you give a presentation or watch a video or
movie.
The computer provides an analog monitor port (RGB) and a digital
video/audio port (HDMI).
The visual quality is sharper when a display device is connected
through the HDMI port rather than the analog monitor port (RGB)
port. Therefore, when multiple ports are supported, connect a
display device to a port that provides the better visual quality.
Before you start, check the port and cable of the external •
display device and then connect the display device to the
computer.
Due to restrictions of the operating system the DualView •
function is not supported for Windows 7 Starter.
About the connection cable
Users should additionally purchase the necessary connection
cables.
Analog Monitor (RGB) Cable
HDMI Cable
56
Chapter 2.
Using the computer
Connecting to the monitor port
You can experience a wider screen by connecting the computer to
a monitor, TV or projector with a monitor port.
You can give better presentations by connecting the computer to
a projector.
1
Connect the RGB port of the computer and the port of the
monitor or TV with the monitor cable (15 pin).
External
Monitor
TV
Projector
2
Connect the power cord of the connected monitor, TV or
projector and turn the power on.
3
Press the + key combination once. Then the setting
screen appears where you can select the monitor mode.
Since pressing the
key while holding down the key
changes the selection, select a display device.
LCD
CRT
LCD+CRT Clone
LCD+CRT Dual View
If the screen is not switched even if you press the •
+ key combination, you have to install the Easy
Settings program.
Alternatively, to set up dual view:•
Open the Display Settings window in the Control Panel,
select Monitor 2 and select the Expand to t to this
monitor checkbox to set dual view. For more detailed
information, refer to the Windows online help.
Connecting an External Display Device
57
Chapter 2.
Using the computer
Connecting through the HDMI port (Optional)
By connecting the computer to a TV with a HDMI port, you can
enjoy both a high visual quality and a high sound quality.
After connecting a TV through HDMI, you have to congure the
screen and sound.
1
Connect the HDMI cable to the HDMI port of the TV.
External
Monitor
TV
Projector
This is only supported for models that support a TV output •
port (HDMI).
When a TV provides more than one HDMI port, connect •
the computer to the DVI IN port.
When connecting the computer to a TV, switch the •
external input mode of the TV to HDMI.
2
Press the + key combination once.
Then the setting screen appears where you can select the
monitor mode.
Since pressing the
key while holding down the key
changes the selection, select a display device.
HDMI
LCD+HDMI Clone
LCD+HDMI Dual View
External Monitor / TV is not supported in the DOS •
Command Prompt window.
Simultaneous output to all 3 (LCD + CRT + HDMI) is not •
supported.
If the screen is not switched even if you press the •
+ key combination, you have to install the Easy
Settings program.
Connecting an External Display Device
58
Chapter 2.
Using the computer
Connecting an External Display Device

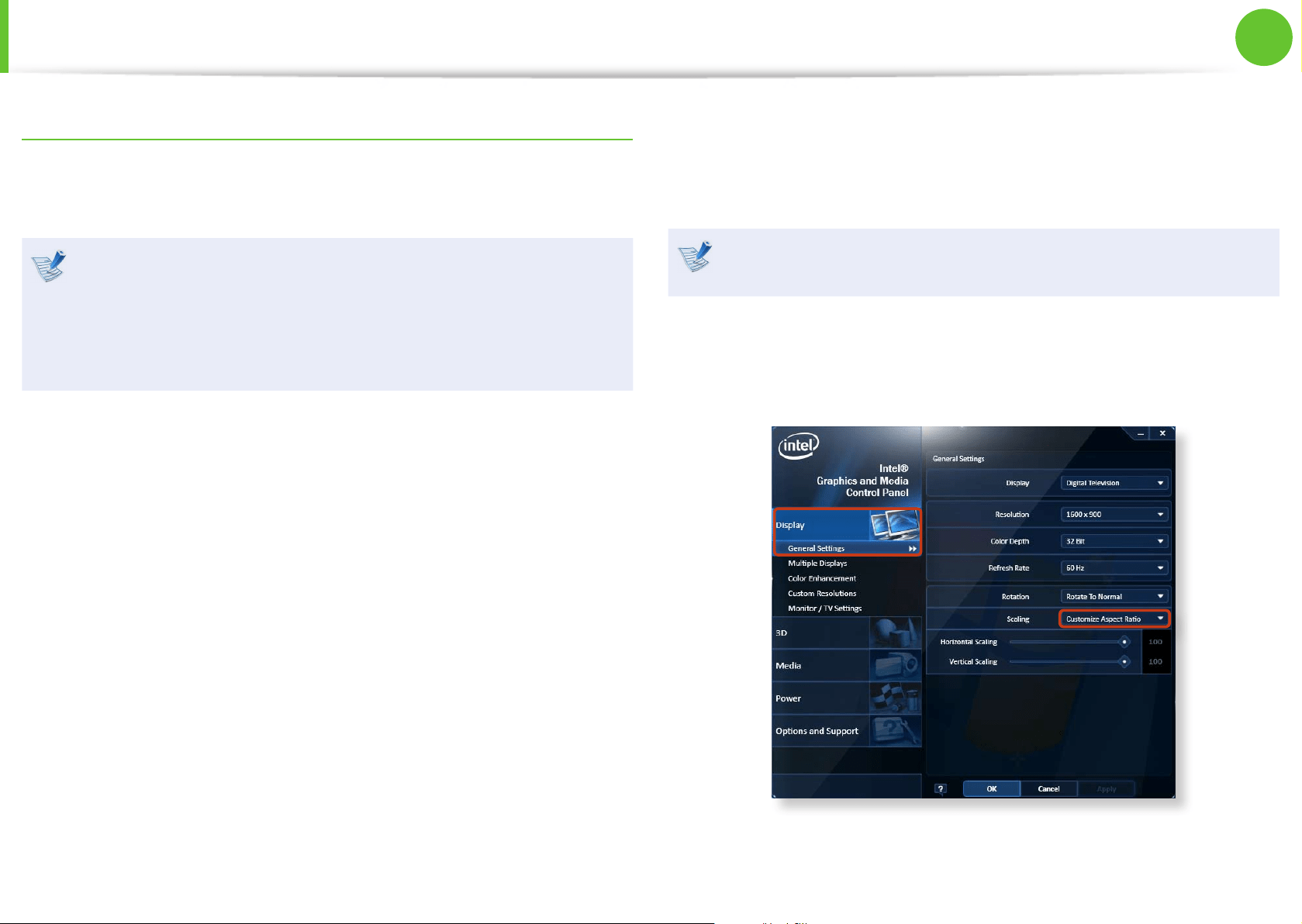

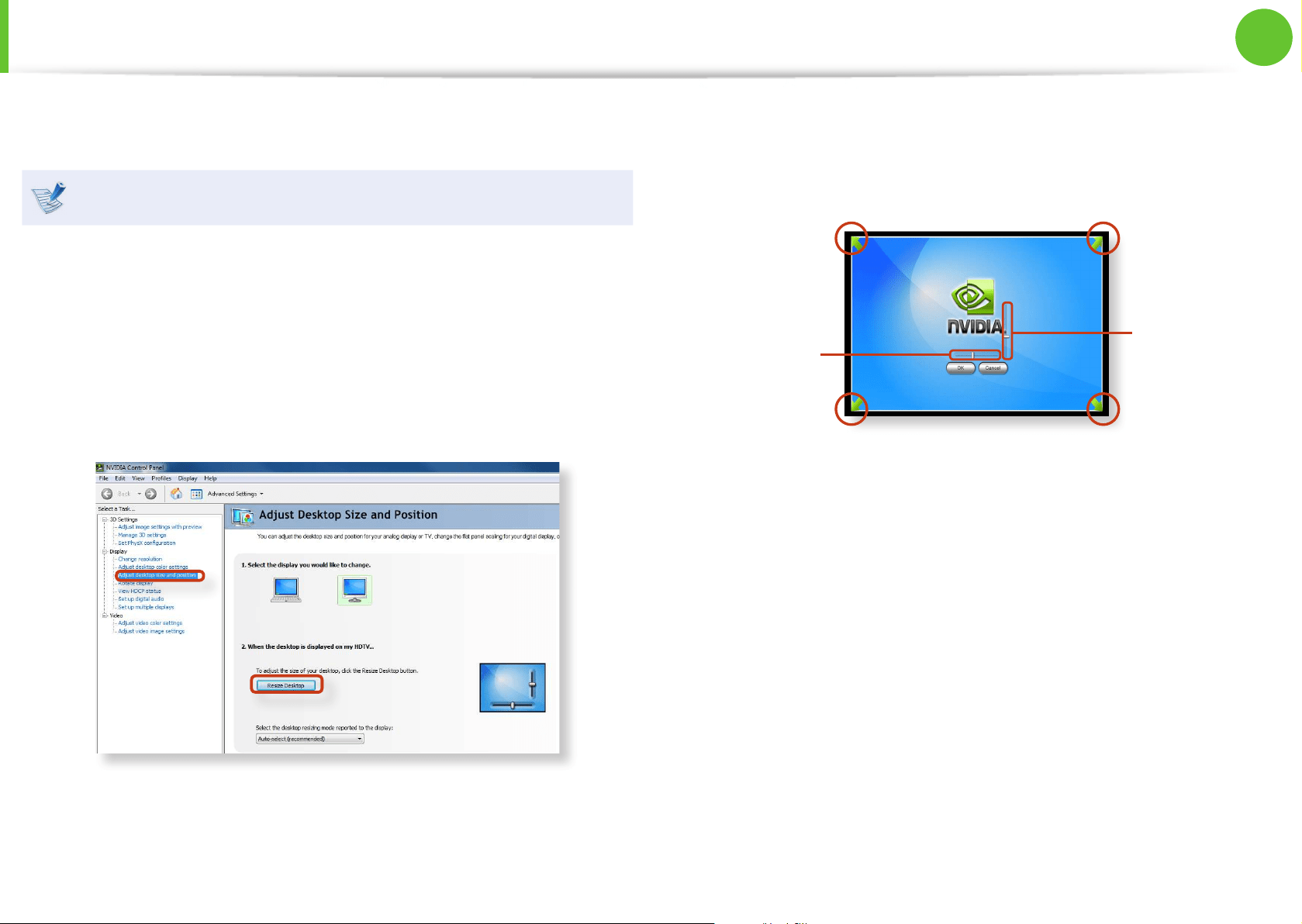

Setting up HDMI TV video (Optional)
If the Desktop screen displayed on the TV does not t to the TV
screen, congure it as follows depending on the graphics card.
You can view the graphics card type by selecting • Device
Manager > Display adapters and then clicking the +
symbol.
The screen images and terms may dier from actual product •
depending on the computer model and driver version.
►
For Intel graphics cards
1
Right-click over the Desktop and select Graphics Properties.
If a window appears where you can select the mode, select
Basic Mode and click OK.
2
Click Display > General Settings, select Customize Aspect
Ratio in the Scaling eld, t the Desktop to the TV screen
and click OK.
59
Chapter 2.
Using the computer
►
For NVIDIA graphics cards
This function is not provided in the Optimus specications.
1
Right-click over the Desktop and select NVIDIA Control
Panel.
2
In the Select a Task window in the left panel, select the
Dispaly > Adjust Desktop Size and Positon item and then
click Resize Desktop.
3
Resize the Desktop using the resize bars so that the four
arrows at the corners of the Desktop are placed in the corners
of the TV and then click OK.
Horizontal
Resize Bar
Vertical
Resize Bar
Connecting an External Display Device
60
Chapter 2.
Using the computer
Connecting an External Display Device
Setting up HDMI TV audio (Optional)
You can congure the sound of the computer to be played
through the HDMI TV.
You have to congure the sound device in the Control Panel
whenever you connect the HDMI TV in order to hear sound from
the computer on the TV.
The screen images and terms may dier from actual product
depending on the computer model.
1
Right-click over the Volume Control icon in the notication
area at the bottom right of the Desktop and select Playback
Devices.
(Alternatively, click the Control Panel > Hardware and
Sound > Sound.)
2
Change the setting to Digital Audio (HDMI), HDMI Device or
Digital Output Device, click Set Default and click OK.
HDMI Output Device may not appear on the playback device
list depending on the computer model.
In this case, turn on the TV, connect the TV to the computer
using a HDMI cable and then switch to HDMI or LCD+HDMI
Clone or LCD+HDMI DualView mode using the Shortcut
Key(
+ ).
To listen to sound on the computer after disconnecting the
HDMI TV, you have to set the Playback Device to Speakers.
61
Chapter 2.
Using the computer

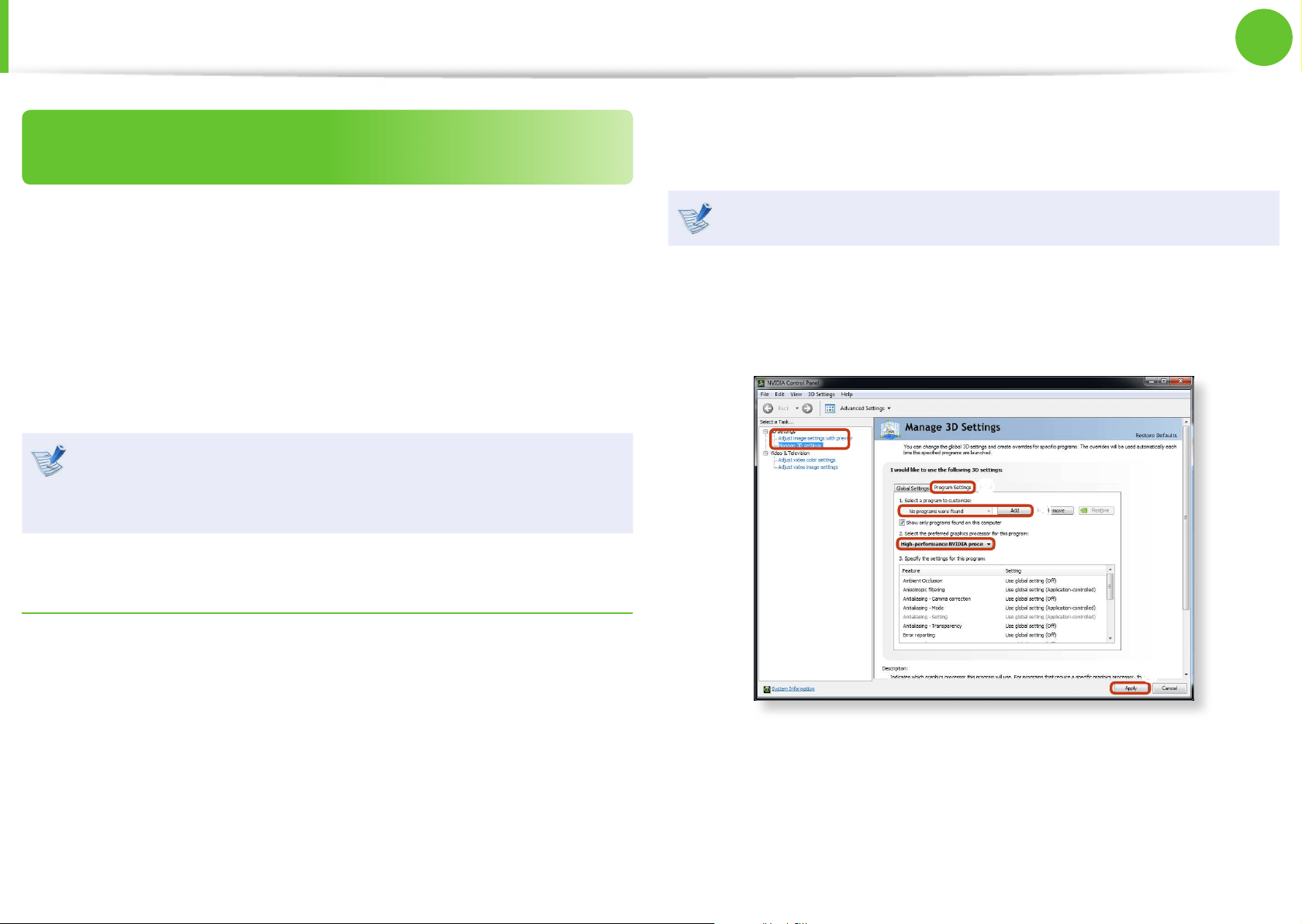

Using NVIDIA graphics more eciently
(optional)
NVIDIA Optimus is a function that enables automatic selection
and usage of the internal or external graphics chipsets depending
on the currently running software.
For example, the internal graphics chipset can be used for
Internet surng or word processing to minimize battery power
consumption and the high-performance external graphics graphic
chipset can be used for gaming or video processing to deliver a
more realistic experience.
The NVIDIA Optimus model supports Windows 7 only.•
This function is only available in models that support the •
NVIDIA Optimus technology.
Registering programs to be executed by the external
graphics chipset
To run a program using the external graphics graphic chipset, you
have to register the program in the NVIDIA Panel.
Some programs are pre-registered. To register more programs (e.g.
3D games, etc.), complete the following steps.
1
Right-click over the Desktop and select NVIDIA Panel.
2
Select 3D Settings > Manage 3D settings in the left pane
and select the Program Settings tab.
3
In the Select a program to customize(S) eld, click the Add
button to register the software.
You can register executable les (EXE) only.
4
In the Select the preferred graphics processor for this
program (O) eld, select High-performance NVIDIA
processor and click the Apply button.
x
x
c
v
v
5
The program has been registered.
When you run the registered program, the program is
executed using the external graphics chipset without
requiring additional conguration.
Connecting an External Display Device
62
Chapter 2.
Using the computer

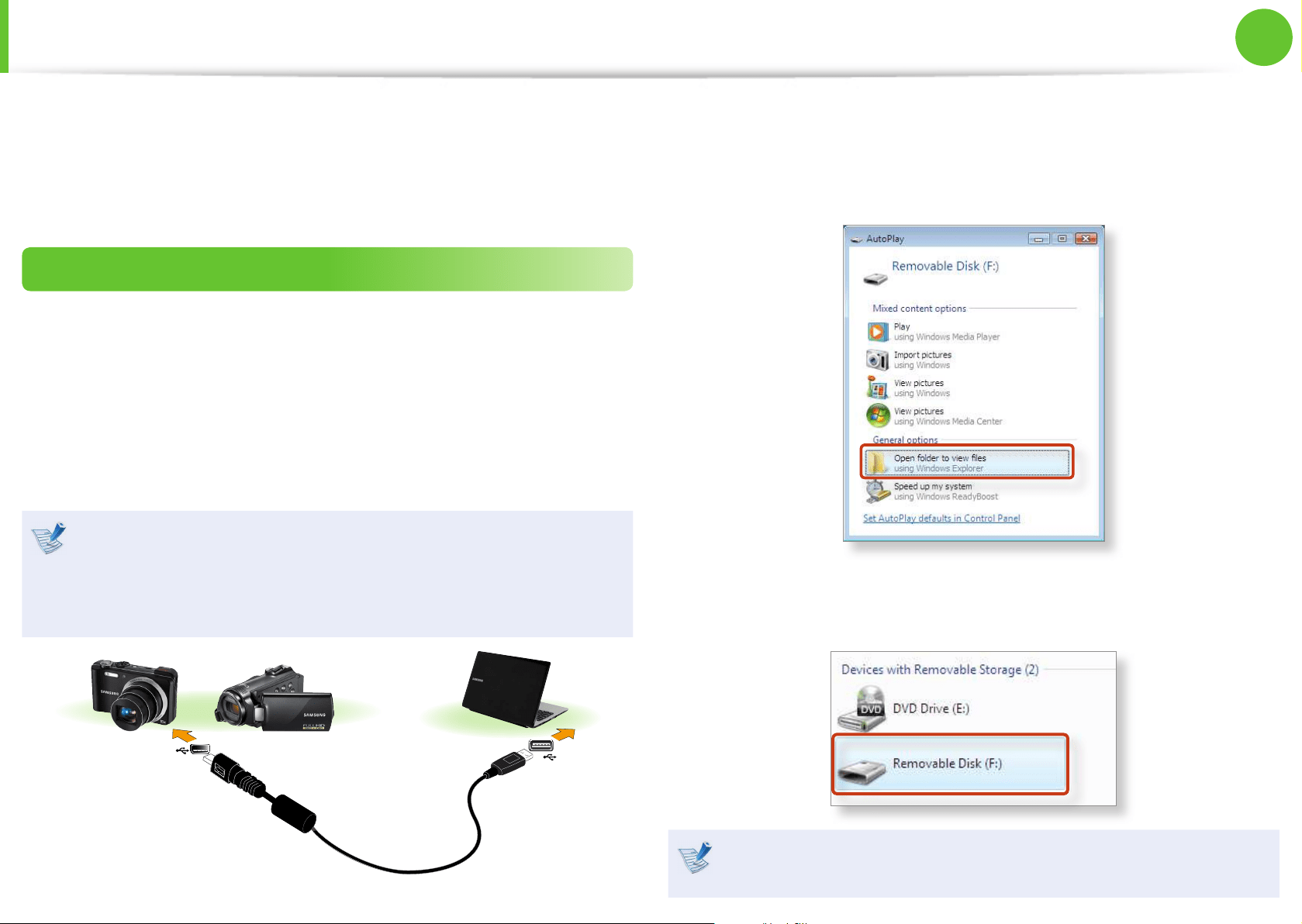

Connecting an External Digital Device
You can save a le stored on a device onto the computer by
connecting a digital device such as a camera, camcorder or mobile
phone to the computer and using the le management functions.
Connecting and using a camera or camcorder
If a digital device such as a camera or camcorder is connected with
the computer, it is recognized as a removable disk so that you can
copy or move the les on the device.
1
Connect the USB port of the notebook computer and the
USB port of the digital device such as a camera using the USB
cable.
Both the computer and the digital device must be turned •
on.
You have to additionally purchase the USB cable necessary •
to connect the computer and the device.
Camera
Camcorder
2
The Auto run window appears. Click Open folder and view
les.
If the window does not appear, click Start > Computer.
3
Double-click the corresponding drive. You can then save,
move or delete data.
The device name of the card drive may dier depending on
the model.
63
Chapter 2.
Using the computer

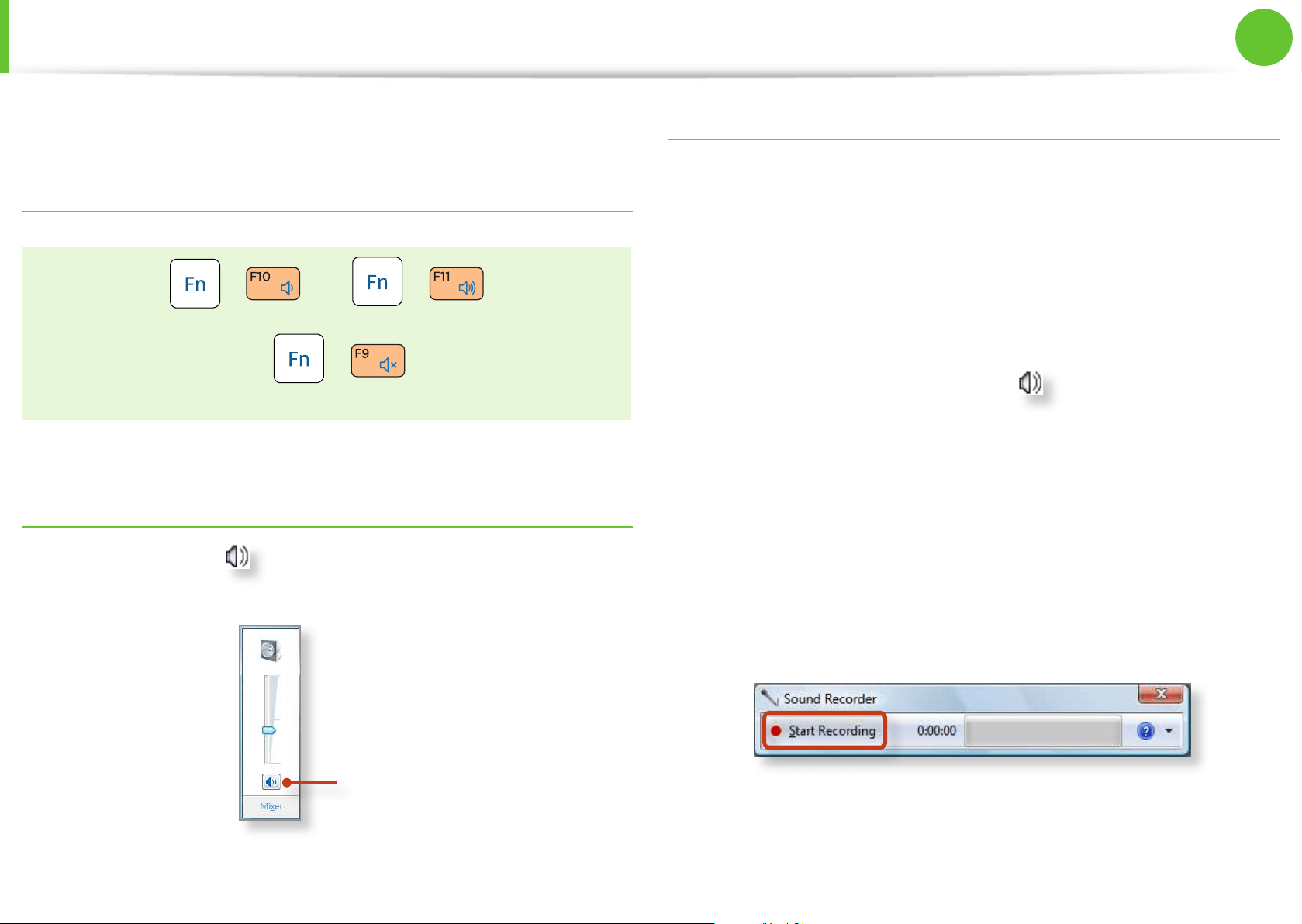

Adjusting the Volume
You can adjust the volume using the keyboard and the volume
control program.
Adjusting the Volume using the Keyboard
+
Or
+
Alternatively, press the + key combination to
turn the volume on or o.
Adjusting the Volume using the Volume Adjustment
Program
Click the Volume icon
on the taskbar and slide the volume
control bar to adjust the volume.
Mute
Using the Sound Recorder
The procedures to record sound using the Windows Recorder are
described below.
1
Connect a microphone to the microphone jack.
You can also use the internal MIC.
2
Right-click over the Volume icon on the taskbar and select
Recording Device.
3
Check if the microphone is set as the default recording
device.
If this is the case, it is already set as the default device. If not,
right-click over the microphone and select Set default.
4
Click Start > All Programs > Accessories > Sound Recorder
and click Start recording to start a recording.
64
Chapter 2.
Using the computer
Using SoundAlive (Optional)
The SoundAlive function enables you to experience more
stereophonic sound using stereo speakers.
SoundAlive is only supported in Windows 7.•
The software programs provider may vary, depending on •
your computer model.
In addition, some pictures may dier from actual product •
depending on the computer model and software version.
1
Right-click over the Volume Control icon in the
notication area at the bottom right of the Desktop and
select Playback Devices. (Alternatively, click the Control
Panel > Hardware and Sound > Sound.)
2
Right-click over the Speakers and select Properties.
3
Select the SoundAlive tab and select one of the modes.
►
Basic Mode
Music Select this mode to listen to music.
Movie Select this mode to watch a movie.
Speech Emphasizes voice over other sounds.
Silver
Silver mode is for people who have diculty in
hearing.
3D Depth
Sound Mode
Provides 3D depth perception for movie and
game sounds.
►
Advanced Mode
Finely tuned 25 presets are arranged on a square according to
their relative sound characteristics.
►
User Mode
You can control a variety of sound eects.
Adjusting the Volume
65
Chapter 2.
Using the computer
Adjusting the Volume
Connecting and using a headphone or
microphone
Using the headphone jack
1
Right-click over the Volume Control icon in the
notication area at the bottom right of the Desktop and
select Playback Devices. (Alternatively, click the Control
Panel > Hardware and Sound > Sound > Playback tab.)
2
Select the Speakers, click Set Default and click OK.
Using the microphone jack
1
Right-click over the Volume Control icon in the
notication area at the bottom right of the Desktop and
select Recording Devices. (Alternatively, click the Control
Panel > Hardware and Sound > Sound > Recording tab.)
2
Select the Microphone, click Set Default and click OK.
66
Chapter 2.
Using the computer

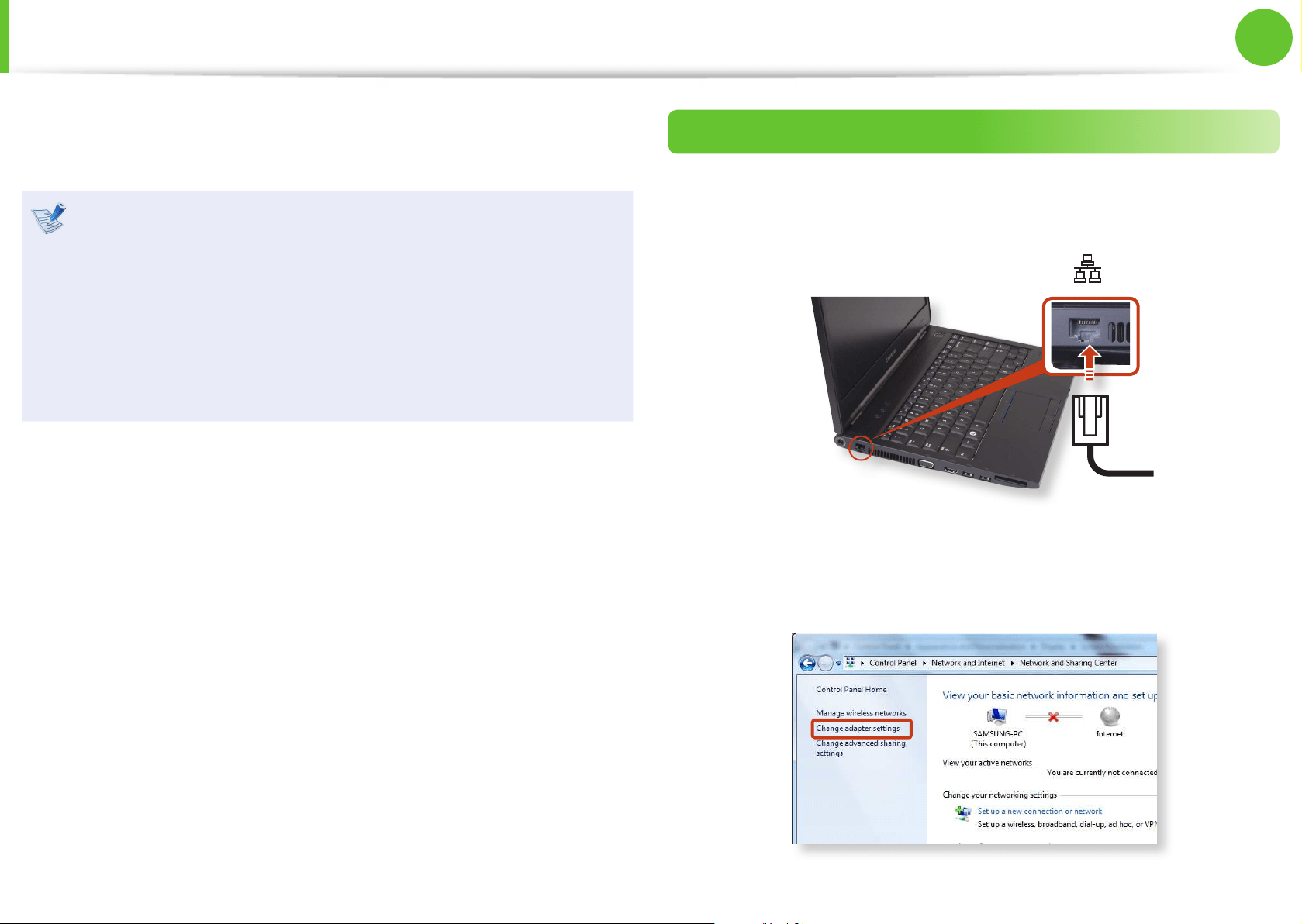

Wired Network
A wired network is a network environment used for a company
network or broadband internet connection at home.
Since these descriptions are written on the basis of the •
latest operating system, Windows 7, some of the content
and the gures of the descriptions may dier depending
on the operating system. Since the procedures for other
Windows operating systems are similar, use the computer
referring to these descriptions.
The gures used for the description are of a representative •
model. Therefore the gures may dier from the real ones.
Connecting to a Wired LAN through Windows
1
Connect a LAN cable to the computer’s LAN port.
2
Click Start > Control Panel > Network and Internet >
Network and Sharing Center and click on Change adapter
settings in the left menu pane.
67
Chapter 2.
Using the computer

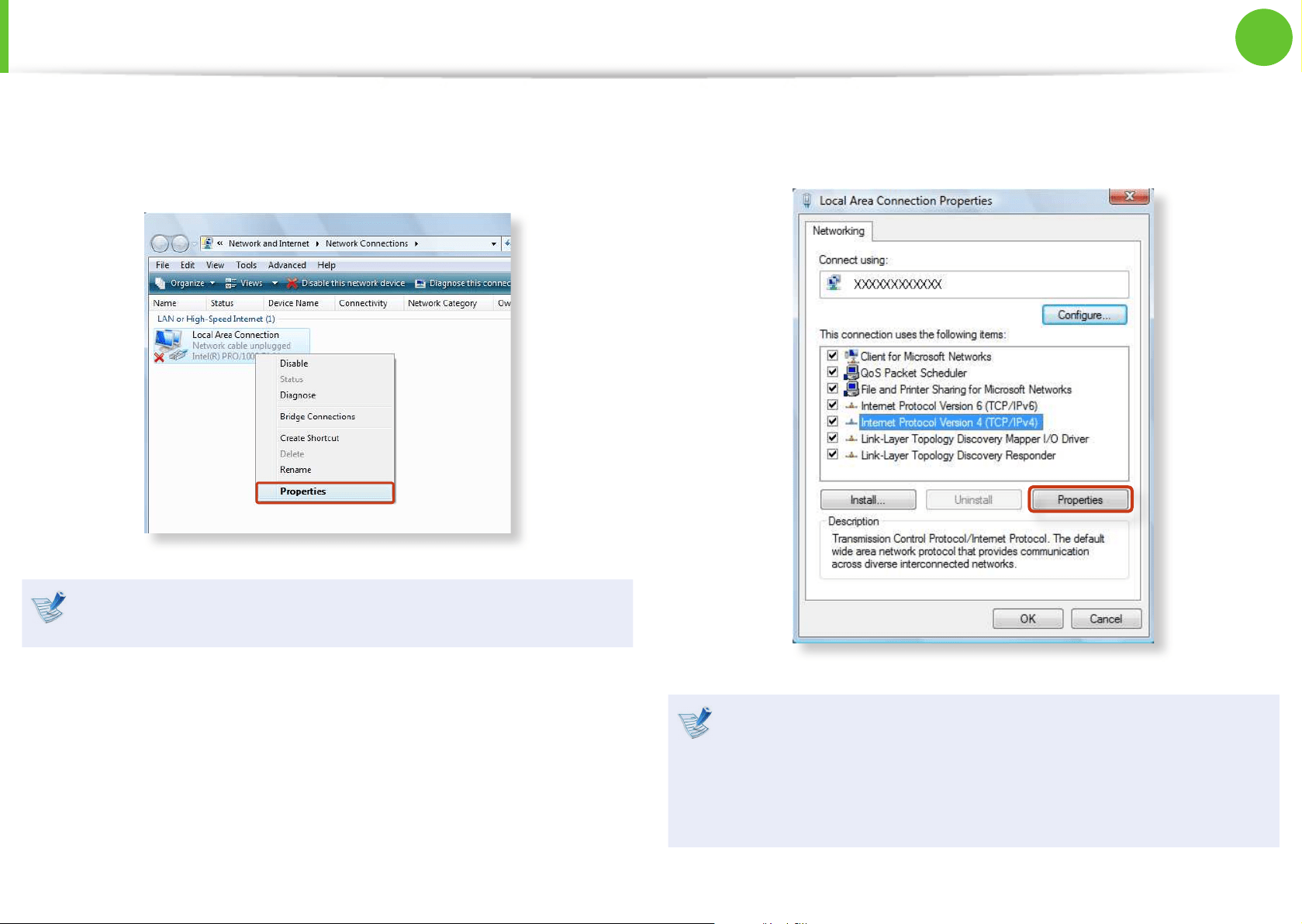

3
Select Local Area Connection and click the right button of
the touch pad and select Properties.
The LAN Device name may dier depending on your
computer’s Network Device.
4
Select Internet Protocol Version 4(TCP/IPv4) from the list
of Network Components and click Properties.
The Network Component name may dier depending on •
the Operating System Installed.
To add a network component, click Install in the screen •
shown in the gure above. You can add clients, services,
and protocols.
Wired Network
68
Chapter 2.
Using the computer
Wired Network
5
Congure the IP settings.
When using DHCP, select Obtain an IP address
automatically. To use a static IP address, select Use the
following IP address, and set the IP address manually.
When not using DHCP, ask your network administrator for the
IP address.
6
When you have completed the settings, click the OK button.
The network settings have been completed.
Using the WOL (Wake On LAN) function
<Wake On LAN> is a function that activates the system from Sleep
mode when a signal (such as a ping or magic packet command)
arrives over the network (wired LAN).
1
Click Start > Control Panel > Network and Internet >
Network and Sharing Center and click on Change adapter
settings in the left menu pane.
2
Right-click on the Local Area Connection and select
Properties.
69
Chapter 2.
Using the computer
Wired Network
3
Click Congure > Power Management tab. Select Allow
this device to bring the computer out of standby, then
click OK. Restart the system.
- If the system wakes up from Sleep mode even though there
is no received signal, use the system after disabling the
<Wake On LAN> function.
- The LAN LED may not be turned o if System is shoutdown
without disabling the WOL (Wake on LAN) option.
-
Connecting a wired LAN while using a wireless LAN may not
activate the
<Wake On LAN> function. Set the Wireless LAN
to Disable to use the <Wake On LAN> function.
- <Wake On LAN> feature may not work while using Hybrid
power saving feature.
For Win7, Wake On LAN is not supported by Ping.
When connected to a 100Mbps/1Gbps wired LAN and the
computer exits Sleep/hibernation mode, a message appears
informing you of a connection to a 10Mbps/100Mbps
wired LAN. This happens because when the computer exits
standby/hibernate mode, restoring the network takes about
3 seconds. When the network is restored, it operates at
100Mbps/1Gbps.
When system is running on battery, some time it takes about
20sec after inserting LAN cable to be able to connect to
internet. This symptom happen as a result of power saving
feature to reduce battery consumption.
When system is running on battery, the Wired LAN speed
is decreased automatically to reduce battery consumption.
In such case, a 1Gbps /100Mbps LAN would function at
100Mbps/10Mbps speed.
70
Chapter 2.
Using the computer

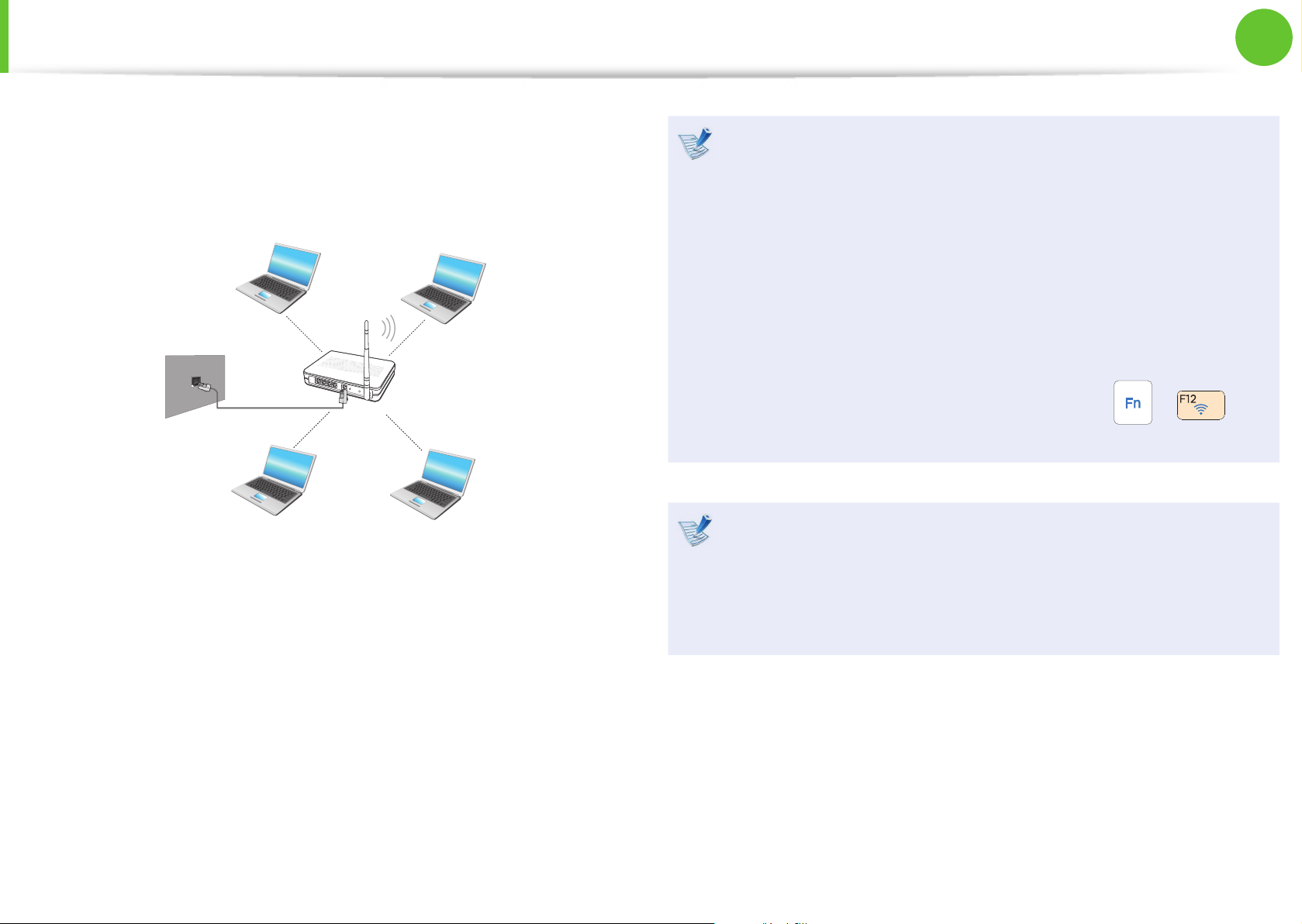

A wireless network (Wireless LAN) environment is a network
environment that enables communicating between multiple
computers at home or a small-size oce through wireless LAN
devices.
The screen gures and terms may dier depending on the •
model.
Depending on the program version, some functions may •
not be provided or dierent functions may be provided.
The descriptions below are for computer models with •
a Wireless LAN card or device. A Wireless LAN device is
optional.
The pictures in this manual may dier from the actual
product depending on your wireless LAN device model.
If the wireless LAN is turned o, press the •
+ key
combination to turn it on.
What is an Access Point (AP)?
An AP is a network device that bridges wired and wireless
LANs, and corresponds to a wireless hub in a wired network.
You can connect multiple wireless LAN installed computers
to an AP.
Wireless Network
(Optional)
71
Chapter 2.
Using the computer
Wireless Network
(Optional)
Connecting to a Wireless LAN through Windows
If there is an AP, you can connect to the Internet via the AP using
the Wireless LAN connection method provided by Windows.
1
If you click the Network Connections icon in the system
tray, a list of available APs appears. If you select an AP to
connect to, the Connect button appears.
AP List
2
Click Connect.
If a network key is set for the AP, enter the network key and
then click Connect.
For the network key, please ask your network administrator.
3
When Connected to the AP is displayed, click the Close
button.
You can access the network.
72
Chapter 2.
Using the computer
Wireless Network
(Optional)
Normal Wireless LAN Status
If the wireless LAN icon is displayed in the system tray of the
Taskbar, it indicates that the computer is connected to the Internet
properly (see below).
Abnormal Wireless LAN Status
When the wireless LAN is not connected
If the wireless LAN icon is displayed with an “X” in the system
tray of the Taskbar, it indicates that the wireless LAN device is
turned o or that there are no available APs. Or the wireless LAN is
disconnected.
If the wireless LAN is turned o, press the + key
combination to turn it on.
When you are not connected to the Internet
This is indicated by the wireless LAN icon
in the system tray of
the Taskbar. In this case, you have to check the IP address settings.
Please contact your network administrator and recongure the IP
address.
When APs are found but your computer is not
connected to the Internet
This is the case when an AP with a weak signal has been set to
a high priority. Connect to an AP with a strong signal by clicking
it.
An AP with a strong signal strength
The currently connected AP.
The signal strength is low.
Click
73
Chapter 2.
Using the computer
Using the TPM Security Device
(Optional)
A TPM (Trusted Platform Module) security device is a security
solution that protects your personal information by saving
the user authentication data on the TPM chip installed on the
computer.
To use the TPM security device, you have to initialize the TPM chip
in the BIOS Setup, initialize the TPM program, and then register
the user.
This function is only supported for models with TPM •
(security chip).
For more information, refer to the online help for the •
program.
The program version described in this manual is subject to •
change and the screenshots and terms used in this manual
may dier from the actual product.
Setting Up the TPM
To use the TPM function, you have to complete the following
steps.
1
Initializing the TPM chip
Initializes the authentication information saved on the TPM
chip.
2
Installing the TPM program
Installs the TPM program.
3
Registering the TPM program
Registers the TPM program.
If you complete the steps above, you can use the TPM function.
74
Chapter 2.
Using the computer
Using the TPM Security Device
(Optional)
Initializing the TPM chip
When you use the TPM function for the rst time or you want to
register the user again, you have to initialize the TPM chip.
Initializing the TPM chip erases all authentication •
information saved on the TPM chip. Any decision to
initialize must be taken carefully.
To initialize the TPM chip again while the TPM function is •
in use, you have to decrypt any existing les and folders
encrypted by the TPM function rst. Otherwise, you
will not be able to access the les and folders after re-
initialization.
1
Restart the computer.
When the Samsung logo screen appears, press the F2 key
repeatedly.
2
If the BIOS screen appears, select the Security > TPM
Conguration item and press Enter.
SAMSUNG BIOS Conguration
SysInfo
Supervisor Password
User Password
HDD Password
Set Supervisor Password
Set User Password
Set HDD Password
Password on Boot
AdvancedSecurityBoot
Clear
Clear
Clear
[Enter]
[Enter]
[Enter]
[Enabled]
▶ TPM Conguration
Exit
3
Set the TPM Support item to Enabled and set the Change
TPM Status to Clear.
SAMSUNG BIOS Conguration
TPM Conguration
TPM Support
Change TPM Status
Security Chip State
Security
[Enabled]
[
No Change]
Disabled and Deactivated
No Change
Clear
Enable and Activate
Disable and Deactivate
75
Chapter 2.
Using the computer
Using the TPM Security Device
(Optional)
4
Press the F10 key to save the changes.
5
When the computer restarts automatically and the Samsung
logo screen appears, press the F2 key repeatedly.
6
Select the Security > TPM Conguration > Change TPM
Status item and set the item to Enable and Activate.
SAMSUNG BIOS Conguration
TPM Conguration
TPM Support
Change TPM Status
Security Chip State
Security
[Enabled]
[
No Change]
Disabled and Deactivated
No Change
Clear
Enable and Activate
Disable and Deactivate
7
Press the F10 key to save the changes.
8
The computer automatically restarts. Initialization of the TPM
chip has been completed. Now, install the TPM program and
register the TPM program.
76
Chapter 2.
Using the computer
Installing the TPM program
You can install the TPM program as follows. Install the program
according to the procedures below.
This program is only provided for models with Samsung
Recovery Solution and the TPM function.
1
Launch the Samsung Recovery Solution.
2
Click the System Software icon.
3
Click the System Software Installation icon.
4
Select TPM Host SW and click Install Now.
If the system software media is supplied with the product, you
can install the program by using the system software media (only
when supplied.)
Registering the TPM program
1
When the TPM program installation is completed, click Start
> All Programs > Inneon Security Platform Solution
> Manage Security Platform > User Settings. (with
administrator authority)
Alternatively, double-click the
icon on the Taskbar and
run initialization with administrator authority.
2
The security authentication settings begin with the
Initialization Wizard. When the Initialization Wizard appears,
click Next.
Using the TPM Security Device
(Optional)
77
Chapter 2.
Using the computer
Using the TPM Security Device
(Optional)
If the status not initialized message appears, click Yes.
If you backup the emergency recovery le to an external
storage device according to the instructions of the
Initialization Wizard, you can use the TPM security device
more safely.
3
Select a Security Platform Feature and set a basic user
password.
4
The Security Platform is now ready for construction.
Click Next to start constructing the Security Platform.
5
If the Initialization Wizard completion window appears, click
Finish.
6
The user registration for the TPM program has been
completed. You can encrypt les and folders by using
the encryption le system, and use les and folders to be
encrypted by creating or copying them to the virtual drive.
The virtual drive is created in the following location.
78
Chapter 2.
Using the computer
Using the TPM Security Device
(Optional)
Using the TPM program
For more information about using the TPM program, refer to
the online help for the program.
Encrypting a le (folder)
This function enables encrypting les and folders. You can safely
protect documents through the Encrypt File System (EFS).
The Encrypt File System(EFS) function is supported by the
following operating systems.
Windows XP Professional •
Windows Vista Business / Enterprise / Ultimate•
Windows 7 Professional / Enterprise / Ultimate •
1
Right-click over the folder (or le) to be encrypted, and select
Encrypt from the pop-up menu.
2
If the Conrm Attribute Changes window appears, select
the range to apply the encryption to and click OK.
(This dialog box only appears when the folder is encrypted.)
If the current operating system is Windows 7 or Vista, the user
account control window appears. In this case, click Continue.
3
In the user authentication window, enter the Basic user
password you entered when registering the user and click
OK.
79
Chapter 2.
Using the computer

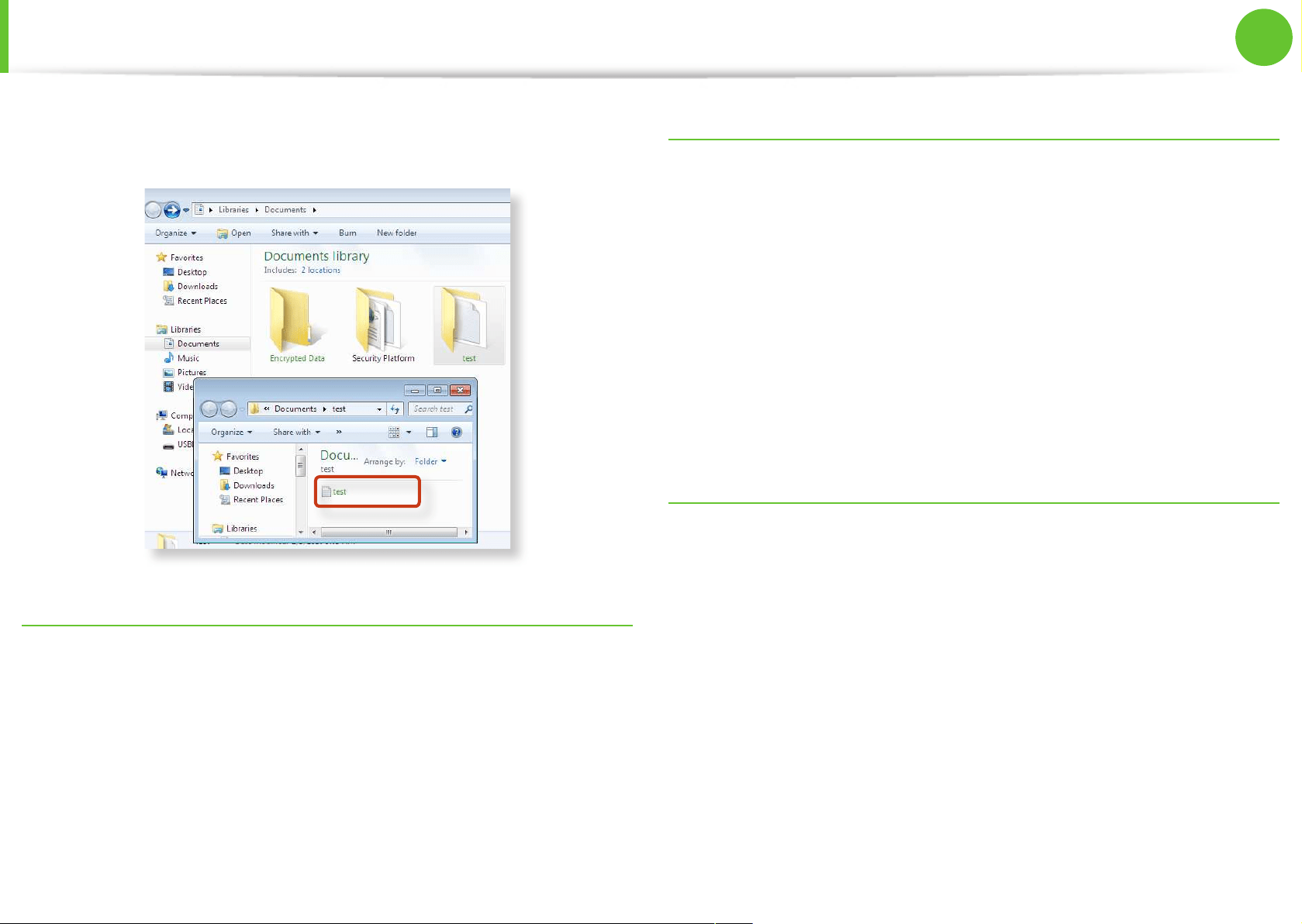

4
You will be able to conrm that the color of the folder (le)
name in the encrypted folder has been changed to green.
Opening an encrypted folder (le)
1
Double-click an encrypted folder (le).
2
If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3
The folder (le) opens.
Decrypting an encrypted folder (le)
1
Right-click over an encrypted folder (le) and select Decrypt
from the pop-up window.
2
If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3
The folder (le) is decrypted.
Using the virtual drive (Personal Secure Drive: PSD)
The virtual drive (PSD) is a virtual space to save and manage
condential data. In the created virtual drive (PSD), you can create
les and folders as with a normal drive (e.g. drive C:) and you can
use condential data saved on another drive by copying the data
to the virtual drive (PSD).
Using the TPM Security Device
(Optional)
80
Chapter 2.
Using the computer
When the virtual drive (PSD) does not appear
You can only use the virtual drive (PSD) when you have selected
the Personal Secure Drive (PSD) option during the program
registration.
If you have not selected the option during the registration,
complete the following steps.
1
Click start > All Programs > Inneon Security Platform
Solution > Manage Security Platform and click the User
Settings tab > Security Platform Features and then
Congure.
2
When the Initialization Wizard appears, select Personal
Secure Drive (PSD) and enter the user password.
3
Click Next several times according to the instructions of the
Initialization Wizard to nish the wizard.
When the virtual drive (PSD) is not loaded
To use the virtual drive (PSD), the virtual drive (PSD) should be
loaded rst. If it is not loaded, you can load it according to the
procedures below.
1
Right-click over the Security Platform icon in the system
tray of the Taskbar and select Personal Secure Drive > Load
from the pop-up menu.
2
In the load window, enter the basic user password and click
OK.
3
If you click Start > Computer, you will be able to conrm that
the Personal Secure Drive is created.
Note that when you have copied condential data to the PSD,
the original data les are not encrypted.
When you have to register again (to erase the
authentication information on the TPM chip)
To register a user again, you need to delete the existing
authentication information saved on the TPM chip and then clear
the TPM chip.
Register the user in the following order.
1
Delete the virtual drive.
2
Delete the existing authentication information saved on the
TPM chip.
Using the TPM Security Device
(Optional)
81
Chapter 2.
Using the computer
Deleting the virtual drive
If a virtual drive has been created, you have to delete the virtual
drive before deleting the existing authentication information
saved on the TPM chip.
1
Right-click over > and click Personal Secure Drive >
Create/Manage.
2
Click Next.
3
Enter the password that you entered when registering the
TPM program and click Next.
4
Select Delete selected PSD and click Next.
5
Select “I want to permanently delete my Personal
Secure Drive without saving an unencrypted copy of its
contents.” and click Next.
6
Click Next and then Finish.
7
Now the virtual drive has been deleted.
Deleting the existing authentication information saved
on the TPM chip.
1
Click the Start > Control Panel > Programs > Uninstall
Program > Inneon TPM Professional Package and click
Uninstall.
2
If the message window appears, click Yes to remove the
program.
3
If the Inneon Security Platform message appears, click No.
4
Click the Start > Computer > Organize > Folder and Search
Options > View > Hidden les and folders item, select
Show hidden les and folders and click OK.
5
Click the Start > Computer > Drive C: > ProgramData
folder and delete the Inneon folder.
6
Now the TPM Program has been deleted.
To use the TPM function, please repeat the procedures of the
TPM chip initialization process.
Using the TPM Security Device
(Optional)
83
Chapter 3.
Settings and Upgrade
LCD Brightness Control
You can adjust the LCD brightness in 8 levels.
The screen brightness is automatically set to the brightest
level when AC power is connected and the brightness is
automatically set dimmer when the computer runs on battery
power to extend the battery use time.
Controlling the Brightness Using the Keyboard
Adjust the LCD brightness by pressing the + key or
the
+ key.
The LCD brightness can change up to 8 levels and the brightness
increases by 1 level when pressing the
+ key once.
Maintaining the changed LCD brightness even after •
turning the computer on again
To maintain the LCD brightness set by using the brightness
control keys or through the Power Options, follow the
procedures below.
►
For Windows 7
1. Click Control Panel > Hardware and Sound > Power
Options.
2. Click Change the settings of the currently congured
mode.
3. Adjust the display brightness adjustment menu bar and
click the Save the changes button.
Saving battery power consumption•
Decreases the LCD brightness when the computer
is running on battery power to save battery power
consumption.
84
Chapter 3.
Settings and Upgrade
LCD Brightness Control
LCD bad pixels principle of computer•
Samsung observes the specications regarding strict
quality and reliability of LCD. But in spite of that, it is
inevitable that there might be a small number of bad
pixels. A large number of bad pixels can cause problems in
appearance, but a small number of pixels doesn’t aect the
computer performance.
Therefore Samsung observes and manages the following
dot principles:
- Bright dot : 2 or less
- Black dot : 4 or less
- Combination of Bright and Dark : 4 or less
Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened with
computer cleansing detergent moving in one direction.
Cleaning the LCD panel with excessive force can damage the
LCD.
85
Chapter 3.
Settings and Upgrade
The Easy Settings is the integrated Samsung software control
program that allows users to congure various settings.
This description is for models that support this function •
running on Windows 7.
The screen image and terminology may change depending •
on the model.
Depending on the program version, some functions may •
not be provided or dierent functions may be provided.
1
Press the
+ key combination to launch the Easy
Settings.
2
Select an item to congure the corresponding function.
Functions
Boot Management
(Optional)
You can congure Boot Optimization ,
Power Button settings , Lid Open Action.
If you select Samsung Fast Boot
mode, your PC will be optimized for
the fastest booting time.
General
You can congure USB Charging, Battery
Life Extender, Silent Mode, Keyboard
backlit, User Account Control, Intel Rapid
Start Technology.
Power Management
You can congure Power Plan (high-
performance, power-saving, Samsung
optimal mode), Eco Mode, the power-
saving settings and the display settings.
Wireless Network
You can congure whether to use the
Bluetooth and Wi-Fi options.
Wired Network You can select automatic or xed IP settings.
Display
You can congure external display devices,
and the screen brightness/color.
Desktop Background /
Screen Saver
You can congure the Desktop
background and the screen saver.
SoundAlive
You can congure the sound mode (Music,
Classic, Concert Hall, Movie, 3D Depth
Sound Mode, Advanced, etc.).
Express cache (Optional)
This solution improves the system boot and application
loading performance.
A Fast Start function is only provided for models that support
the Express Cache function. Take care not to delete the
Express Cache area.
Easy Settings
(Optional)
86
Chapter 3.
Settings and Upgrade
BIOS Setup
The BIOS Setup enables you to congure your computer hardware
according to your needs.
Use the BIOS setup to dene a boot password, change the •
booting priority, or add a new device.
Since incorrect settings may cause your system to •
malfunction or crash, take care when conguring the BIOS.
The functions of the BIOS setup are subject to change for •
product function enhancement purposes.
The BIOS Setup menus and items may dier depending on •
your computer model.
Entering the BIOS Setup
1
Turn the computer on.
2
When the booting screen (SAMSUNG logo) appears, press the
F2 key to enter the BIOS Setup.
3
After a moment, the BIOS setup screen appears.
The items in the BIOS setup may dier depending on the
product.
87
Chapter 3.
Settings and Upgrade
The BIOS Setup Screen
The BIOS Setup menus and items may dier depending on
your computer model.
SAMSUNG BIOS Configuration
Setup Menu
Setup Items
Help
Help for the
selected
item appears
automatically.
Setup Menu Description
SysInfo
This is a description about the basic specications
of the computer.
Advanced
Using this menu, you can congure the major
chipsets and additional functions.
Security
Used to congure security functions, including
passwords.
Boot
This menu enables you to congure peripherals and
booting related settings such as the boot priority.
Exit
Used to exit the Setup either saving the changes or
not.
System Setup Keys
In the Setup, you have to use the keyboard.
F1 Press to view the Setup Help.
Up & Down
Keys
Press to move up and down.
F5/F6
Press to change the item value.
F9
Press to load the default Setup
settings.
ESC
Press to return to a higher level
menu or to move to the Exit menu.
Left & Right
Keys
Press to move to another menu.
Enter
Press to select an item or to enter a
sub menu.
F10
Press to save the changes and exit
Setup.
The keyboard image may dier from the actual keyboard.
BIOS Setup
88
Chapter 3.
Settings and Upgrade
Setting a Boot Password
If you set a password, you have to enter the password when you
turn the computer on or enter the BIOS Setup.
By conguring a password, you can restrict system access to
authorized users only and protect data and les saved on the
computer.
The password setting provides the following 3 sub menus.•
(Supervisor Password, User Password and HDD Password)
Do not lose or forget your password. •
Do not let others know your password.•
If you forget the Supervisor Password or HDD Password, •
you will need to request assistance from the service center.
In this case, a service fee will be charged.
When you forget the User Password, you can disable •
the Supervisor Password, and the User Password is also
automatically disabled.
The screen images and terms may dier from actual •
product depending on the computer model and driver
version.
Setting a Supervisor Password
If you set a Supervisor Password, you need to enter the password
when you turn the computer on or enter the BIOS Setup.
Setting only the Supervisor Password and User Password is not
very secure. You can use an HDD Password as well to increase the
security level.
1
Select the Security menu in the BIOS Setup.
2
In the Set Supervisor Password item, press <Enter>.
3
Enter a password, press <Enter>, re-enter the password for
conrmation, and press <Enter> again.
The password can be up to 8 alphanumeric characters.
Special characters are not allowed.
4
The supervisor password has been set.
The supervisor password is required to turn the computer on
or to enter the BIOS Setup.
For some models, if the password entered message appears
in the Setup Notice window, the settings are not complete
until the <Enter> key is pressed.
89
Chapter 3.
Settings and Upgrade
Setting a Boot Password
Setting a User Password
Using the User Password, you can turn the computer on but you
cannot change the major settings of the BIOS Setup because you
cannot enter the BIOS Setup.
This helps prevent unauthorized access to the major settings in
the BIOS Setup menu.
Before conguring a user password, a supervisor password must
have been congured. Deactivating the supervisor password also
deactivates the user password.
In the Set User Password item, press <Enter> and complete the
procedures from Step 3 of Setting a Supervisor Password.
Setting Up a Boot Password
To setup a boot password, the administrator password (Set
Supervisor Password) should be set in advance.
Set the Password on boot item to Enabled.
Once a boot password is set, you have to enter a password to boot
up the computer.
Be sure to remember the password for later use.
Setting up a Hard Disk Drive Password
(Optional)
If you set a password for a hard disk drive, it cannot be accessed
from another computer.
Press <Enter> in the Set HDD Password item and dene a
password as described in Step 3 of the Setting up the Supervisor
Password.
The hard disk drive password setting function is not •
provided for some models.
Changing the hard disk drive password•
For security purposes, you can only change a hard disk
drive password after restarting the computer by pressing
the computer Power button.
If you cannot change the hard disk drive password or the
HDD Password Frozen message appears when entering
the BIOS Setup and then selecting Security > HDD
Password, press the Power button to turn the computer
on again.
90
Chapter 3.
Settings and Upgrade
Setting a Boot Password
Deactivating the Password
1
Press <Enter> on the password to be deactivated. For
example, to deactivate a supervisor password in the Set
Supervisor Password item, press <Enter>.
2
In the Enter Current Password item, enter the currently
congured password and press <Enter>.
3
Leave the Enter New Password item eld empty, and press
<Enter>.
4
Leave the Conrm New Password eld empty, and press
<Enter>.
The password is deactivated.
For some models the password is only canceled if the
<Enter> key is pressed in the Setup Notice window.
91
Chapter 3.
Settings and Upgrade

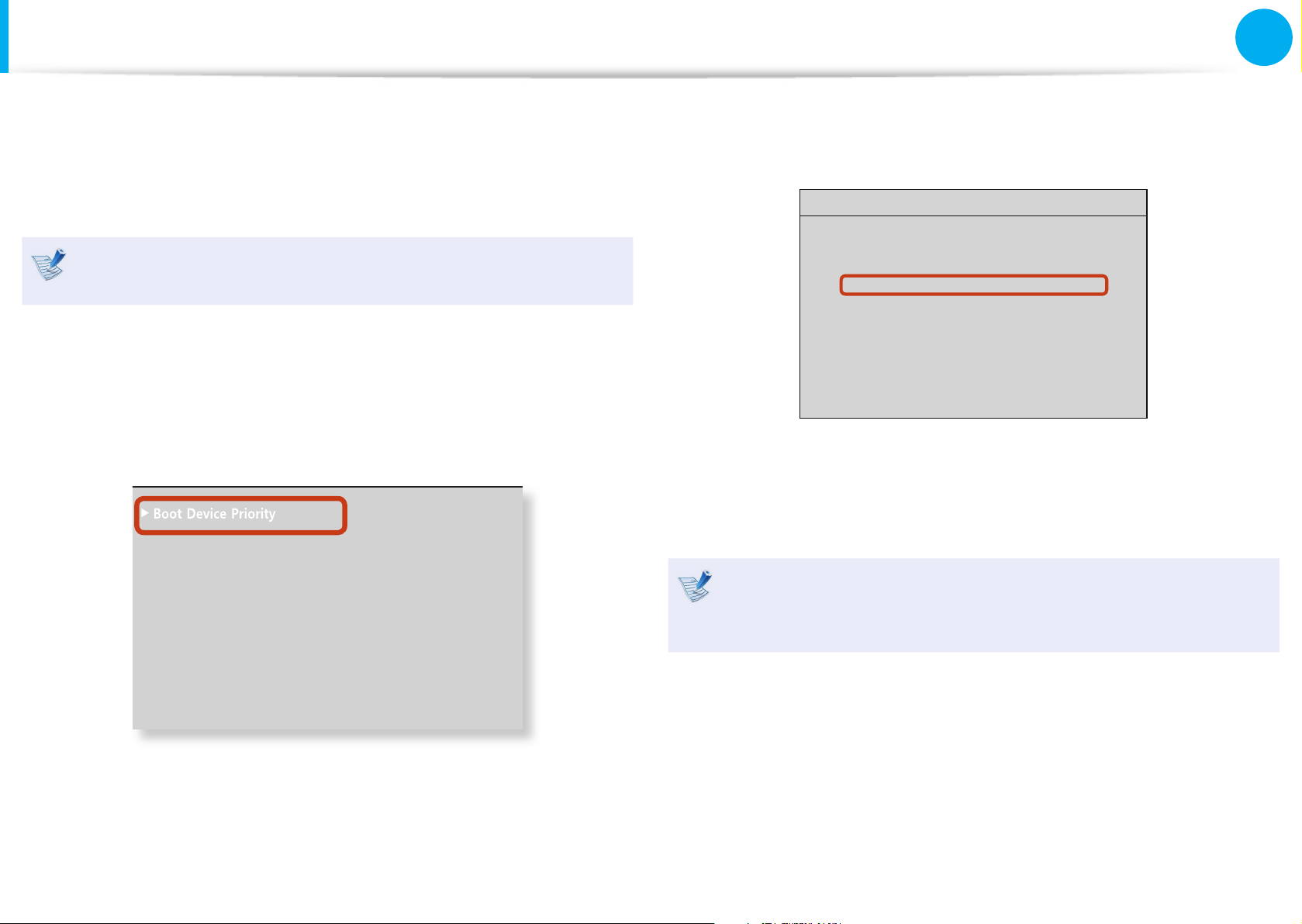

Changing the Boot Priority
By default, the highest boot priority device is set to the CD-ROM/
DVD drive. As an example, the procedures to change the highest
boot priority device to the hard disk drive are described below.
The screen images and terms may dier from actual product
depending on the computer model and driver version.
1
Select the Boot menu in the BIOS Setup.
2
Press <Enter> on the Boot Device Priority item.
0WO.QEM=1HH?
'PCDNG-G[RCF=$[0WO.QEM?
6QWEJ2CF/QWUG='PCDNGF?
+PVGTPCN.#0='PCDNGF?
2:'1241/=&KUCDNGF?
5OCTV$CVVGT[%CNKDTCVKQP
3
Press the down key (
↓
) to move to the SATA HDD item and
press the F6 key to move up to the top item.
Boot Menu
[Boot Priority Order]
1. SATA CD : XXXXXXXXXXXX
2. SATA HDD : XXXXXXXXXXXX
3. USB CD : N/A
4. USB FDD : N/A
5. USB HDD : N/A
6. NETWORK : N/A
4
Press the F10 key to save the settings and exit Setup.
The highest boot priority device is now set to the Hard Drive.
If you need to boot to DOS using a USB device, enter the
BIOS Setup, select the Advanced menu and set the Fast
BIOS Mode item to Disabled.
92
Chapter 3.
Settings and Upgrade
Upgrading Memory
One or more memory modules are installed on the computer.
There are 2 memory slots and users can replace the installed
memory or add new memory.
Replace or install new memory only after shutting the •
computer down completely. Do not replace or install
memory when the computer is in Sleep mode.
Disconnect main power plug and remove the battery
before continuing.
To utilize the dual channel feature, using memory modules •
with the same specications (of the same capacity and
from the same manufacturer) is recommended.
The images used for the illustration are of a representative •
model, therefore the images may dier from the the actual
product.
Adding or Replacing Memory Modules
1
Remove the screw on the memory compartment cover at the
bottom of the computer using a screw driver.
Fixing Screw
2
Insert a new memory module into the memory slot at an
angle of approximately 30 degrees aligning it to the angle of
the memory slot.
Memory Slot
93
Chapter 3.
Settings and Upgrade
Upgrading Memory
3
Push the memory module down so that it is completely xed.
If the memory does not t easily, push the memory module
down while pulling the memory module latches outward.
Memory module
latches
4
Close the memory compartment cover and fasten the screw.
Removing a memory module
Pull the memory module latches outward.
The memory module will pop up.
Remove the memory module out at an angle of 30 degrees.
94
Chapter 3.
Settings and Upgrade
Battery
Please refer to the following instructions when running the
computer on battery power without connecting the AC power.
This computer is equipped with an internal battery.
Precautions
To remove or replace the battery, use an authorized •
service center in order to protect the product and
users. You will be charged for this service.
Use only chargers specied in the User Manual.•
Never heat the battery pack, put it near or in a re or use at •
a temperature higher than 60°C, as this may cause re.
Please refer to the system operation environment of •
this manual and operate and store the battery at room
temperature.
Before using the computer for the rst time, make sure to •
connect the AC adapter and charge the battery completely.
The images used for the illustration are of a representative •
model, therefore the images may dier from the the actual
product.
Charging the Battery
1
Attach the battery and connect the AC adapter to the DC-in
jack of the computer.
The battery will then start charging.
2
When charging is complete, the Charge LED turns green.
Status Charge LED
Charging
Red or Orange
Charging complete
Green or Blue
AC adapter not
connected
O
95
Chapter 3.
Settings and Upgrade
Battery

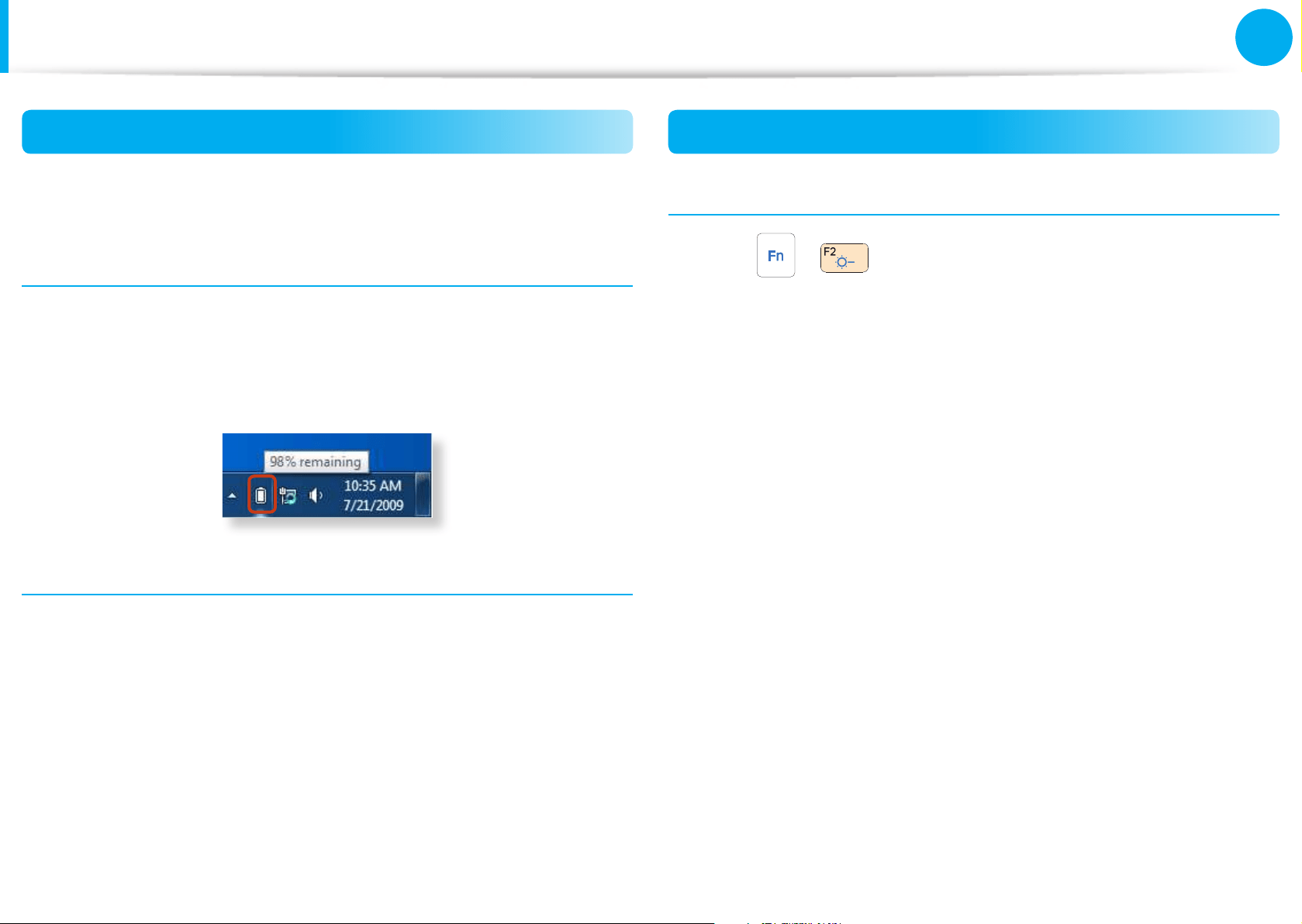

Measuring the Remaining Battery Charge
You can view the battery charge status by completing the
following procedures.
Conrming the battery charge in the Taskbar
Disconnect the AC adapter and move the mouse cursor over
the battery icon in the system tray of the Taskbar to conrm the
remaining battery charge.
Battery Usage Time Information
A battery is an expendable supply, so when using it over a long
time, the capacity/battery life is shortened. If the battery life is
reduced to under half of its initial time, we recommend purchasing
a new battery.
When not using the battery for a long time, store the battery after
charging it to 30-40% of its capacity. This extends the battery life
time.
Extending the Battery Usage Time
Decreasing the LCD Brightness
Press the
+ keys on the keyboard to decrease the LCD
brightness to extend the battery usage time.
96
Chapter 3.
Settings and Upgrade
Battery
Installing/Removing the Battery
1
Shutdown the system, close the LCD panel and place the
computer upside down on a at surface.
2
Lift the battery latch forward to remove the battery.
3
Lift up on the battery to remove it from the compartment.
4
To install the battery again, slide the battery into the system.
The battery latches move inwards and x the battery
automatically.
Battery installation precautions
Correct installation•
Incorrect installation •
Do not install the battery with the latch lifted up.
97
Chapter 3.
Settings and Upgrade
Battery

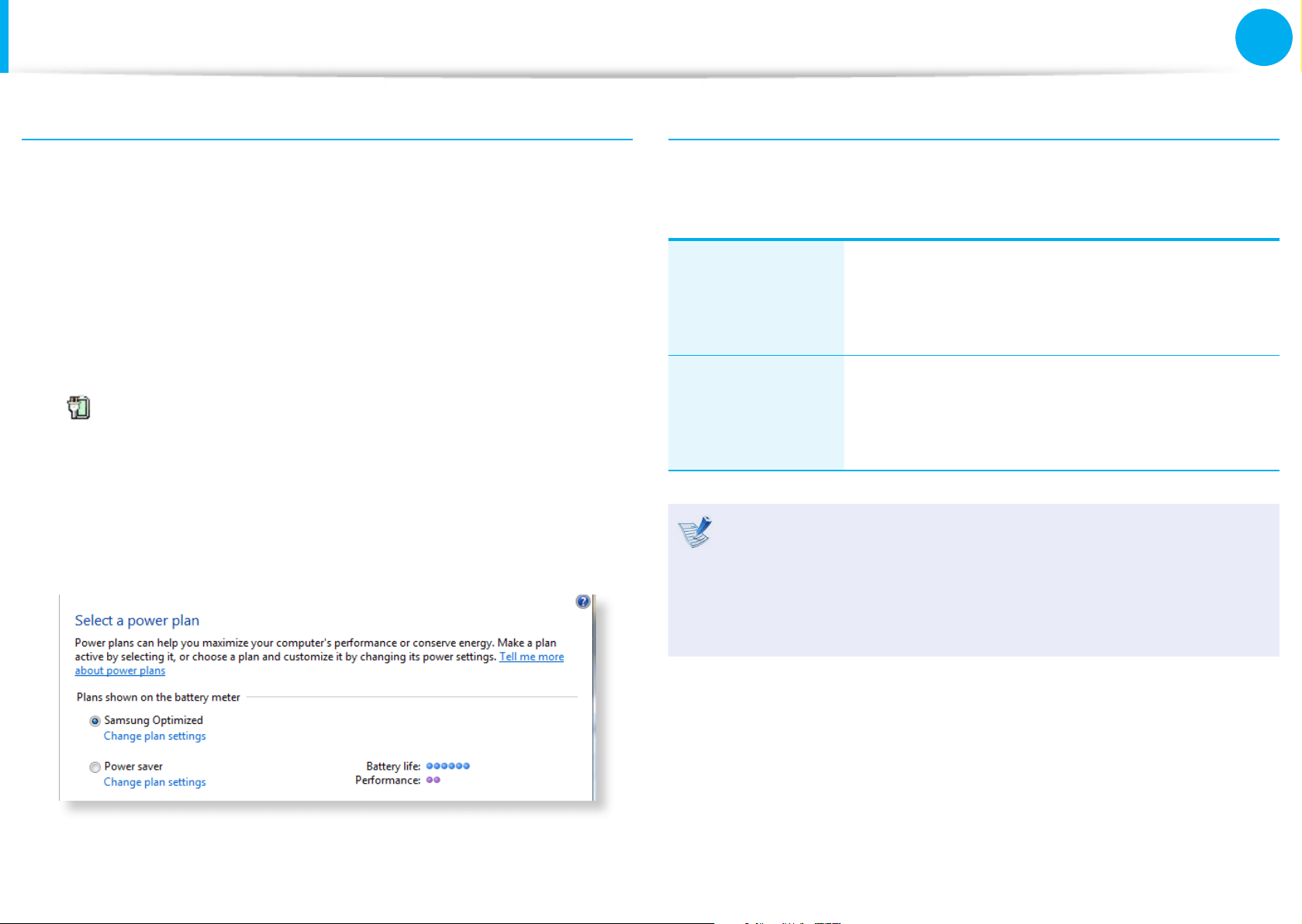

Using the power management program
This program helps you use the battery more eciently
and supports the power mode optimized for the operating
environment.
1
Click Start > Control Panel > Hardware and Sound >
Power Options.
Alternatively, right-click the power measuring device icon
in the notication area of the taskbar and select Power
Options.
2
If the following screen appears, select one of the modes.
Extending the Battery Life (Optional)
In the Easy Settings program, click General and set the Battery
Life Extender to ON or OFF.
OFF
This mode maintains 100% of the battery
charge when using the computer on AC power.
In this case, although the battery use time
increases, the battery life is reduced.
ON
This mode maintains 80% of the battery charge
when using the computer on AC power. In this
case, although the battery use time decreases,
the battery life is extended.
Alternatively, to extend the battery life
Press the F2 key when the Samsung logo appears in the
booting sequence to enter the BIOS Setup, select Advanced
> Battery Life Cycle Extension, and set it to Enable.
Then you can use the battery life cycle extension mode.
98
Chapter 3.
Settings and Upgrade
Battery
Using the Battery Calibration Function
When charging/discharging the battery repeatedly for a short time
only, the battery usage time may be reduced by the dierence
between the actual battery charge and the remaining charge
display.
In this case, the actual battery charge and the remaining charge
display will be the same by discharging the battery completely
using the Battery Calibration function, and then recharging it
again.
The screen images and terms may dier from actual product
depending on the computer model and driver version.
1
Disconnect the AC power adapter after turning o the
computer.
2
Restart your computer and press the F2 button when the
Samsung logo appears, to start the BIOS Setup.
3
Move to the Boot > Smart Battery Calibration item using
the direction keys and press <Enter>.
0WO.QEM=1HH?
'PCDNG-G[RCF=$[0WO.QEM?
6QWEJ2CF/QWUG='PCDNGF?
+PVGTPCN.#0='PCDNGF?
2:'1241/=&KUCDNGF?
5OCTV$CVVGT[%CNKDTCVKQP
4
Highlight Yes in the Battery Calibration Conrmation
window and press <Enter>.
The Battery Calibration function is activated and the battery
is forcefully discharged. To stop the operation, press the
<Esc> button.
This operation requires 3~5 hours depending on the battery
capacity and the remaining battery charge.
99
Chapter 3.
Settings and Upgrade
Using the Security Slot
You can secure the computer by connecting a lock and cable to
the Security Slot.
To use this feature, you have to purchase the lock and cable
additionally. To use the lock and cable, refer to the product
manual.
Tie the lock and cable to a xed object and install the other end of
the cable to the security slot.
101
Chapter 4.
Backup / Restore
Samsung Recovery Solution
(Optional)
Samsung Recovery Solution is a program that enables restoring
or backing up the hard disk drive for when a problem occurs with
the computer.
If the computer fails to boot up, you can restore the computer by
pressing the
key in the booting screen.
If the default storage device of the product is an SSD, do •
not add a partition. If you add a partition, the recovery
function will not work.
Samsung Recovery Solution may not be provided or the •
version may dier depending on the model. In addition,
some functions may not be provided or may dier
depending on the version.
For more information on using Samsung Recovery
Solution, please refer to the online help of the program.
The screen images in this document may dier from actual •
product.
If your computer does not have an internal ODD, you need •
an external ODD connected to your computer to use the
Backup Function or Restore Function using DVDs.
The System Software function may not be provided •
depending on the program version.
Samsung Recovery Solution Functions
Backup/Restore Functions
Backup Function
Backs up drive C or required folders and les.
Complete Backup•
Backs up drive C.
Data Backup•
Backs up important folders and les.
A problem
occurs
V I R U S
Restore Function
Restores major Windows les, drive C, or
folders and les to the previous state.
Basic Restore•
Restores only major Windows les in a short
time.
Complete Restore•
Restores drive C to the previous, normal
state.
Data Restore•
Restores important les or folders to the
previously backed up state.
102
Chapter 4.
Backup / Restore
System Software Functions
Samsung Recovery Solution provides system software so that
you can reinstall or copy the device drivers and system software
necessary for normal operations onto a separate storage device.
Restore Function
Not only can you use Samsung Recovery Solution when Windows
is running, but also when you are unable to boot up into Windows.
Let’s learn how to use Samsung Recovery Solution.
Optional functions such as Initial State Image, Initial Status Backup,
and Partitioning are only available in some models.
If the image of the initial state is saved on a DVD or removable
storage device, connect the DVD drive or removable storage
device to the computer before using the function.
Partition Setup & Initial Status Backup
If you turn your computer on for the rst time, the Initial Status
Backup function is performed after registering Windows. This
function saves an image of the Initial Status of the C drive to a
secure location so that users can restore the computer to the
Initial Status using the Complete Restore function. An Initial Status
Backup is only performed once immediately after the computer is
purchased.
1
If you turn the power on for the rst time, the Register
Windows screen appears. If you register Windows according
to the instructions on the screen, the computer will be
restarted.
2
After the computer has been restarted, the Partition Setup
screen appears.
To resize the C and D drives, adjust the partition size using
the slide bar and the click Next.
The Partition Setup function is only available when the
computer is turned on for the rst time and will not
be available afterwards. Once you have completed the
partitioning, it cannot be resized. Partition the disk carefully.
3
The Initial Status Backup screen appears.
To continue the Initial Status Backup, click Restart Now. The
computer will restart.
4
The Initial Status Backup is performed to backup the initial
status of the C drive to a secure location. This backup image
is used for the Complete Restore function that restores your
computer to the initial status.
5
When the Initial Status Backup is complete, restart Windows.
Samsung Recovery Solution
(Optional)
103
Chapter 4.
Backup / Restore

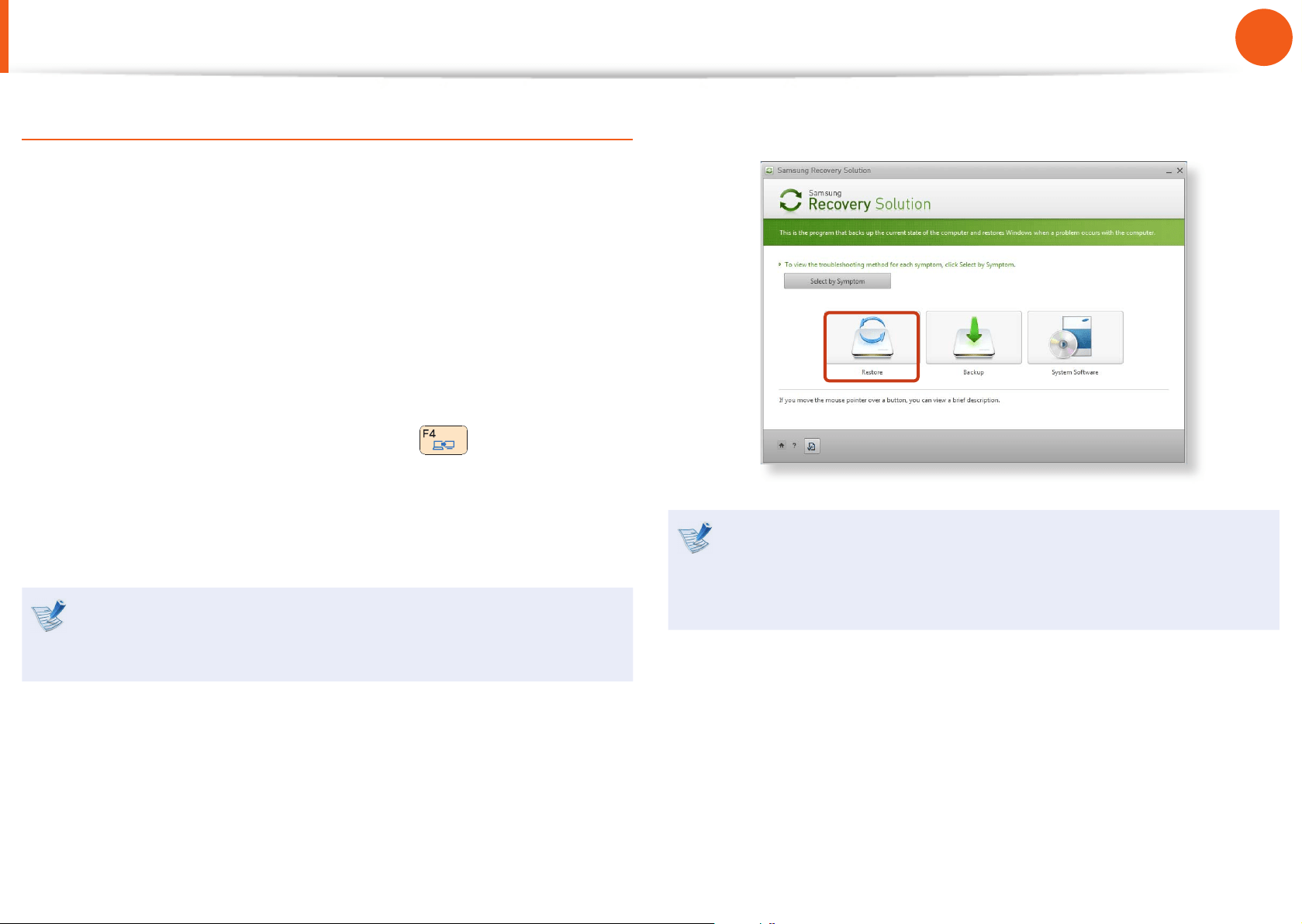

Restoring the computer
Restore is a function that enables restoring the computer to a saved
point when the computer was purchased or a user-saved point.
The Restore function provides the Basic Restore and Complete
Restore options.
1
– When Windows is running:
Click Samsung Recovery Solution.
– When Windows does not start:
Turn the computer on and press the
key when the
boot screen (SAMSUNG logo) appears. After a moment, the
computer boots up in Restoration mode and the Samsung
Recovery Solution screen appears.
For computers supporting the touch screen function, the
touch screen function does not work during Restore Mode. In
this case, please use the touchpad or mouse.
2
If the initial menu screen appears, click Restore.
If you click Select by Symptom, the Select by Symptom
menu appears. If you select a symptom, a recommended
restoration option will blink. Click the restoration option to
continue.
Samsung Recovery Solution
(Optional)
104
Chapter 4.
Backup / Restore
3
Select either Basic Restore or Complete Restore from the
Restore menu.
To restore the computer to the initial state, click Computer
Initial State and perform the restoration process according
to the instructions that appear on the screen.
Run Complete Restore if the computer does not work even
after Basic Restore has been completed.
In the Advanced menu, you can change the size of the hard
drive partitions (e.g. C: and D:).
Make sure to backup your data in advance, as all data will •
be deleted after the partition size is changed.
The • Advanced menu is only activated when the computer
boots up in the restoration area.
(by pressing the
key during the booting sequence.)
Since a Complete Restore deletes all user data as well
as additionally installed programs, please backup your
important data rst using the Data Backup function, before
running Complete Restore.
4
The computer boots up into restoration mode and the
restoration progress message appears. If you click OK, the
restoration begins. The restoration may take some time,
please wait for a moment.
5
When the ‘Restart the System’ message appears after the
restoration is complete, click OK to restart the system.
Make sure that the power cord is connected while the
restoration is in process. The rst time the computer boots
up after a Complete Restore has been performed, the speed
of the boot process may be slowed down due to the system
optimization process. At this time, do not shut the computer
down by force.
Samsung Recovery Solution
(Optional)
105
Chapter 4.
Backup / Restore
Complete Backup/Restore
A Complete Backup saves the complete image of the C drive
onto another drive or DVD. A Complete Restore restores the
image le saved by the Complete Backup onto the C drive.
Complete Backup
If you perform the Complete Backup function onto a DVD or
removable storage device, you can restore your computer
even when a problem occurs with the hard disk or when the
restoration area is removed.
To create a backup, a removable storage device with at least
15 GB of free space is required.
1
Click Backup in the start screen of the Samsung Recovery
Solution.
2
Enter a description of the current status of the computer and
click Next.
After connecting a DVD drive or removable storage device,
you can specify the DVD drive or removable storage device
as the Save Path.
Select Drive D. Select the DVD drive.
3
When the option selection item appears, select an option
and click Next.
The LiveImaging and System Software Backup functions are
supported as options for the Complete Backup operation.
LiveImaging:• Performs the Complete Backup operation
while Windows is running. The backup operation using
LiveImaging may slow down if the hard disk drive is
accessed frequently by other applications.
System Software Backup: • This function backs up the
system software on to the DVD after the completion of the
Complete Backup operation.
Samsung Recovery Solution
(Optional)
106
Chapter 4.
Backup / Restore

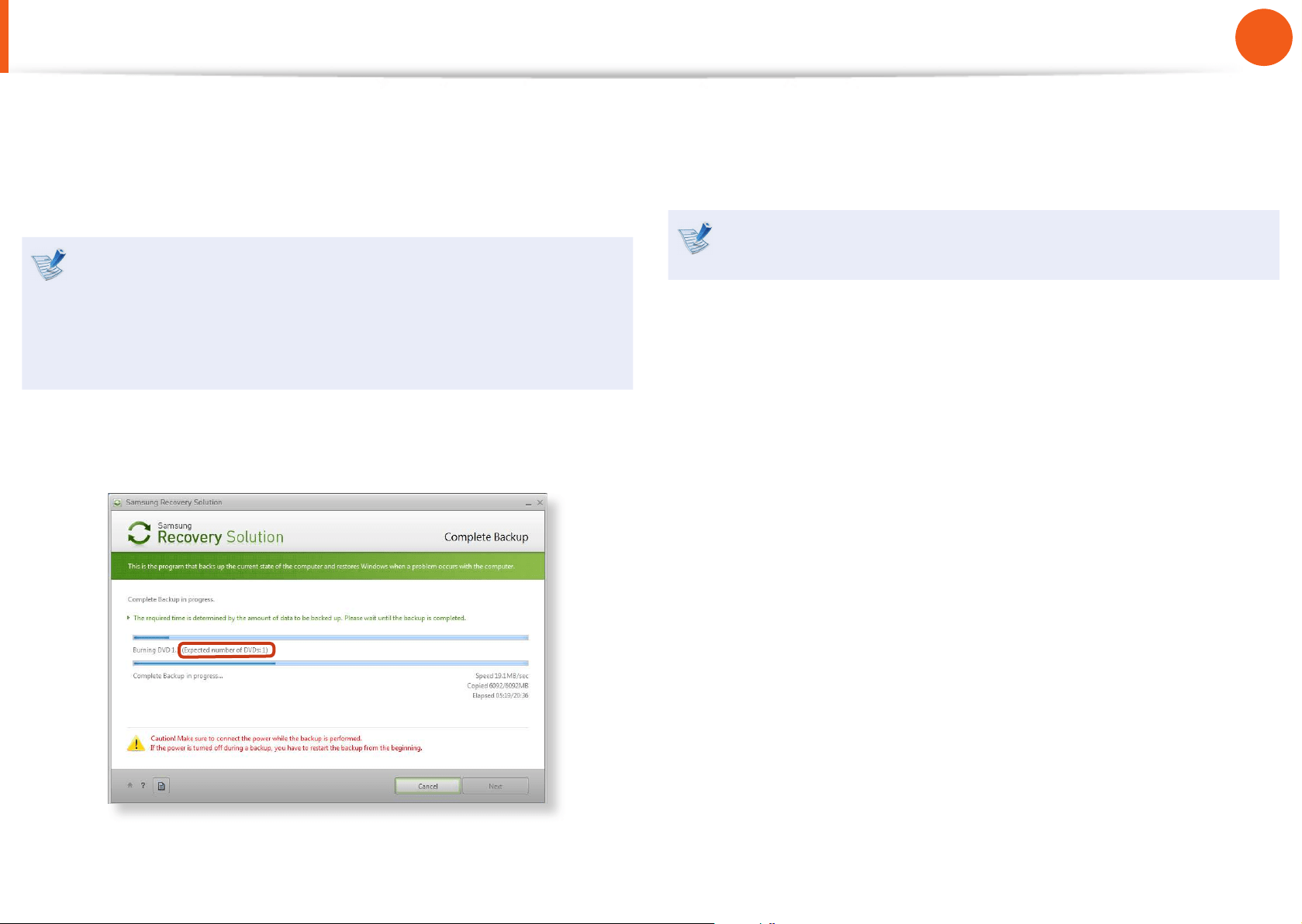

4
When the system restarts in Restoration Mode, the Complete
Backup operation begins. Continue with the backup by
following the instructions.
Samsung Recovery Solution supports the DVD+R, DVD-R, •
DVD+RW and DVD-RW formats.
If the LiveImaging option has been selected, the Complete •
Backup operation begins without the computer being
restarted.
5
Continue with the Complete Backup operation by following
the instructions.
6
When the ‘Restart the System’ message appears after the
backup is complete, click OK to restart the system.
If the LiveImaging option has been selected, the computer is
not restarted.
Samsung Recovery Solution
(Optional)
107
Chapter 4.
Backup / Restore
Complete Restore
1
– When backing up onto DVD
Turn the computer on and insert the backup DVD into the
DVD drive.
If there are multiple backup DVDs, insert the rst DVD.
– When backing up to a removable storage device
Connect the removable storage device.
– When backing up to another drive
Proceed to Step 2.
2
When the Samsung Recovery Solution start screen appears,
click Restore and then click Complete Restore.
3
Select a Complete Backup restoration point in the
restoration point selection screen and click the Next button.
The system is restarted.
4
The restoration progress message appears after the computer
boots up in restoration mode. If you click OK, the restoration
begins.
If multiple DVDs have been used for a Complete Backup,
whenever burning a DVD is completed, the “Insert the next
DVD” message will appear.
5
When the ‘Restart the System’ message appears after the
restoration is complete, click OK to restart the system. The
Complete Restore has been completed.
Samsung Recovery Solution
(Optional)
108
Chapter 4.
Backup / Restore
Data Backup/Restore
The Data Backup function enables you to backup specic les
and folders to another drive, DVD or removable storage device.
Data Restore enables you to restore data using the data saved by
a Data Backup when data is lost. This guide describes the Backup
and Restore procedures on the basis of backing up and restoring
by using DVD.
Data Backup
1
When the Samsung Recovery Solution start screen appears,
click Backup and then click Data Backup.
2
In the data selection screen, select either Basic Selection or
Select from all, select a folder or le to be backed up, and
then click the Next button.
3
Enter a description for the backup in the Description eld
so that you can easily recognize it later and specify the Save
Path.
If your computer has a DVD-Writer, you can specify the DVD
drive as the Save Path.
Select Drive D. Select the DVD drive.
If you have specied a hard disk drive or a removable disk as
the Save Path, the SamsungRecovery\SamsungData folder
is created on the corresponding drive (e.g. D:\) and the data
is saved to the folder. Take care to not delete the folder by
mistake or on purpose.
4
If you click the Next button, the Data Backup begins. If you
have selected the DVD drive as the Save Path, the “Insert a
blank DVD” message appears. Insert a blank DVD and click
the OK button.
5
The “Backup is completed” message appears.
Samsung Recovery Solution
(Optional)
109
Chapter 4.
Backup / Restore
Data Restore
1
– When backing up onto DVD
Turn the computer on and insert the backup DVD into the
DVD drive.
– When backing up to a removable storage device
Connect the removable storage device.
– When backing up to another drive
Proceed to Step 2.
2
When the initial menu screen appears, click Restore and then
click Data Restore.
3
Select a backup item to be restored in the backup list and
click the Next button.
4
Select a folder for the restoration and click the Next button.
Data Restore begins.
5
When Data Restore is completed, check if the data has been
restored to the specied folder.
Samsung Recovery Solution
(Optional)
110
Chapter 4.
Backup / Restore
System Software Function
The System Software function is a function that enables you to
reinstall device drivers and System Software Programs or back up
those programs.
The system software function is supported by Samsung
Recovery Solution version 4 or later. Therefore, the
function may not be supported depending on the version.
The System Software Installation Function only works in
Microsoft Windows.
Installing System Software
1
When the initial menu screen appears, click System Software
> System Software Installation.
2
Move to the Easy Software Manager.
Using the Easy Software Manager, you can install device
drivers and applications.
3
After the installation is complete, the computer will restart.
Samsung Recovery Solution
(Optional)
111
Chapter 4.
Backup / Restore
Samsung Recovery Solution
(Optional)
System Software Backup
1
When the initial menu screen appears, click System Software
> System Software Backup.
2
Specify the Save Path.
If your computer has a DVD-Writer, you can specify the DVD
drive as the Save Path.
Select Drive D. Select the DVD drive.
If you have specied a hard disk drive or a removable disk as
the Save Path, the SamsungSoftware folder is created on
the corresponding drive (e.g. D:\) and the system software
programs are saved to that folder. Take care to not delete the
folder.
3
If you click the Next button, the Software Backup begins. If
you have selected the DVD drive as the Save Path, the “Insert
a blank DVD” message appears. Insert a blank DVD and click
the OK button.
4
After the backup, the System Software Backup is
completed message appears.
If you want to install the System Software Programs backed •
up on the drive, run the SecSWMgrGuide.exe le in the
SystemSoftware folder.
When installing System Software Programs from the •
backed-up DVD, insert the DVD and follow the System
Software Installation directions.
To delete Samsung Recovery Solution, refer to the Help •
section of the program.
112
Chapter 4.
Backup / Restore
Recovery Solution Representation (Optional)
What is a Recovery Area?
Samsung computers have an additional partition to recover •
computers or save backup les.
(Only for models with the Samsung Recovery Solution.)
This partition is called a Recovery Area and it includes a recovery
image that comprises of the OS and application programs.
You can either double-click the Samsung Recovery Solution •
icon on the desktop or press
while booting the computer
to enter the Recovery Area. Then you can back up the present
computer state or recover the computer from backed up images.
For deleting the Recovery Area, you need to use an additional •
Recovery Area Removal Tool. After deleting the recovery area,
you can use the newly created partition for other uses, such as
for saving personal data. Be careful that once the recovery area is
deleted, the Samsung Recovery Solutions will not work anymore.
The capacity representation of the hard disk drive(HDD)
in Windows is dierent from the product specications.
The capacity of the storage device (HDD) of the manufacturer is •
calculated assuming that 1KB=1,000 Bytes. However, the operating
system (Windows) calculates the storage device capacity assuming
that 1KB=1,024 Bytes, and therefore the capacity representation of
the HDD in Windows is smaller than the actual capacity.
This is due to the dierence in capacity calculation and does
not mean the installed HDD is dierent from the product
specications.
The capacity representation in Windows may be smaller than the •
actual capacity because some programs occupy a certain area of
the HDD outside of Windows.
For models with Samsung Recovery Solution, the HDD capacity •
representation in Windows may be smaller than the actual
capacity because Samsung Recovery Solution uses a hidden area
of about 5~20GB of the HDD to save the recovery image, and
that hidden area is not counted towards the total size available to
Windows.
The size of Samsung Recovery Solution varies by models because
of the dierent size of applied programs.
Samsung Recovery Solution
(Optional)
114
Chapter 5
Appendix
Safety Instructions
Your system is designed and tested to meet the latest standards
for safety of information technology equipment. However, to
ensure safe use of this product, it is important that the safety
instructions marked on the product and in the documentation are
followed.
Always follow these instructions to help guard against
personal injury and damage to your system.
Setting Up your System
Read and follow all instructions marked on the product and in •
the documentation before you operate your system. Retain all
safety and operating instructions for future use.
Do not use this product near water or a heat source such as a •
radiator.
Set up the system on a stable work surface.•
The product should be operated only with the type of power •
source indicated on the rating label.
Ensure that the electrical outlet you are using to power your •
equipment is easily accessible in case of re or short circuit.
If your computer has a voltage selector switch, make sure that •
the switch is in the proper position for your area.
Openings in the computer case are provided for ventilation. •
Do not block or cover these openings. Make sure you provide
adequate space, at least 6 inches (15 cm), around the system
for ventilation when you set up your work area. Never insert
objects of any kind into the computer ventilation openings.
Ensure that the fan vents on the bottom of the casing are clear •
at all times. Do not place the computer on a soft surface, doing
so will block the bottom vents.
If you use an extension cord with this system, make sure that •
the total power rating on the products plugged into the
extension cord does not exceed the extension cord power
rating.
For Notebooks with glossy display bezels the user should •
consider the placement of the Notebook as the bezel may
cause disturbing reections from surrounding light and bright
surfaces.
Important Safety Information
NB Ver 3.1
115
Chapter 5
Appendix
Care During Use
Do not walk on the power cord or allow anything to rest on it.•
Do not spill anything on the system. The best way to avoid •
spills is to not eat or drink near your system.
Some products have a replaceable CMOS battery on the •
system board. There is a danger of explosion if the CMOS
battery is replaced incorrectly. Replace the battery with the
same or equivalent type recommended by the manufacturer.
Dispose of batteries according to the manufacturers
instructions. If the CMOS battery requires replacement insure
that a qualied technician performs the task.
When the computer is turned o, a small amount of electrical •
current still ows through the computer.
To avoid electrical shock, always unplug all power cables,
remove the battery and modem cables from the wall outlets
before cleaning the system.
Unplug the system from the wall outlet and refer servicing to •
qualied personnel if:
– The power cord or plug is damaged.
– Liquid has been spilled into the system.
– The system does not operate properly when the operating
instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.
The Instruction On Safety Operation of NotePC
1.
When installing and operating devices please refer to safety
requirements in the user guide.
2.
Devices can be used only with the equipment specied in the
technical specications of the devices.
3. If any smell of burning or smoke is detected from the computer
the unit should be switched o and battery removed. The unit
should be checked by a qualied technician before reuse.
4.
Service and repair of devices should be carried out by
authorized service centers.
5.
Do not allow your portable computer to operate with the base
resting directly on exposed skin for extended periods of time.
The surface temperature of the base will rise during normal
operation (particularly when AC Power is present). Allowing
sustained contact with exposed skin can cause discomfort or
eventually a burn.
Important Safety Information
116
Chapter 5
Appendix
Replacement Parts and Accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of re, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classied as hazardous.
Such areas include patient care areas of medical and dental
facilities, oxygen rich environments, or industrial areas.
Battery Disposal
Do not put rechargeable batteries or products powered by
non-removable rechargeable batteries in the garbage.
Contact the Samsung Helpline for information on how to dispose
of batteries that you cannot use or recharge any longer.
Follow all local regulations when disposing of old batteries.
THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Laser Safety
All systems equipped with CD or DVD drives comply with the
appropriate safety standards, including IEC 60825-1. The laser
devices in these components are classied as “Class 1 Laser
Products” under a US Department of Health and Human Services
(DHHS) Radiation Performance Standard. Should the unit ever
need servicing, contact an authorized service location.
Laser Safety Note:•
Use of controls or adjustments or performance of
procedures other than those specied in this manual
may result in hazardous radiation exposure. To prevent
exposure to laser beams, do not try to open the enclosure
of a CD or DVD drive.
Class 1M laser radiation when operating part is open.•
Do not view directly with optical instruments.
Class 3B invisible laser radiation when open.•
Avoid exposure to the beam.
117
Chapter 5
Appendix
Replacement Parts and Accessories
Connect and Disconnect the AC adapter
The socket-outlet shall be installed near the equipment and shall
be easily accessible.
Do not unplug the power cord by pulling the cable only.
Power Cord Requirements
The power cord set (wall plug, cable and AC adapter plug) you
received with your computer meets the requirements for use in
the country where you purchased your equipment.
Power cord sets for use in other countries must meet the
requirements of the country where you use the computer. For
more information on power cord set requirements, contact your
authorized dealer, reseller, or service provider.
General Requirements
The requirements listed below are applicable to all countries:
All power cord sets must be approved by an acceptable •
accredited agency responsible for evaluation in the country
where the power cord set will be used.
The power cord set must have a minimum current capacity •
of 7 A and a nominal voltage rating of 125 or 250 volts AC, as
required by each country’s power system. (USA ONLY)
The appliance coupler must meet the mechanical conguration •
of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector,
for mating with appliance inlet on the computer.
118
Chapter 5
Appendix
Regulatory Compliance Statements
Wireless Guidance
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. The following
section is a general overview of considerations while operating a
wireless device.
Additional limitations, cautions, and concerns for specic countries
are listed in the specic country sections (or country group
sections). The wireless devices in your system are only qualied for
use in the countries identied by the Radio Approval Marks on the
system rating label. If the country you will be using the wireless
device in, is not listed, please contact your local Radio Approval
agency for requirements. Wireless devices are closely regulated
and use may not be allowed.
The RF eld strength of the wireless device or devices that may
be embedded in your notebook are well below all international
RF exposure limits as known at this time. Because the wireless
devices (which may be embedded into your notebook) emit less
energy than is allowed in radio frequency safety standards and
recommendations, manufacturer believes these devices are safe
for use. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
Some circumstances require restrictions on wireless devices.
Examples of common restrictions are listed on the next page:
Radio frequency wireless communication can interfere •
with equipment on commercial aircraft. Current aviation
regulations require wireless devices to be turned o while
traveling in an airplane.
802.11ABGN (also known as wireless Ethernet or Wi) and
Bluetooth communication devices are examples of devices
that provide wireless communication.
In environments where the risk of interference to other •
devices or services is harmful or perceived as harmful,
the option to use a wireless device may be restricted or
eliminated. Airports, Hospitals, and Oxygen or ammable
gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When
in environments where you are uncertain of the sanction
to use wireless devices, ask the applicable authority for
authorization prior to use or turning on the wireless device.
Every country has dierent restrictions on the use of •
wireless devices. Since your system is equipped with
a wireless device, when traveling between countries
with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on
the use of a wireless device in the destination country.
If your system came equipped with an internal embedded •
wireless device, do not operate the wireless device unless
all covers and shields are in place and the system is fully
assembled.
119
Chapter 5
Appendix
Regulatory Compliance Statements
Wireless devices are not user serviceable. Do not modify •
them in any way. Modication to a wireless device will void
the authorization to use it. Please contact manufacturer for
service.
Only use drivers approved for the country in which •
the device will be used. See the manufacturer System
Restoration Kit, or contact manufacturer Technical Support
for additional information.
United States of America
USA and Canada Safety Requirements and Notices
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that the
antenna is very close or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the
antenna is connected; if not, the radio may be damaged.
Use in specic environments:
The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits
set forth by each hospital.
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an
explosive environment unless the device has been modied
to be qualied for such use.
120
Chapter 5
Appendix
Use On Aircraft Caution
Regulations of the FCC and FAA prohibit airborne operation
of radio-frequency wireless devices because their signals
could interfere with critical aircraft instruments.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network:
Refer to the documentation supplied with wireless Ethernet
adapters or other devices in the wireless network.
The Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes
or modication to said product not expressly approved by
Intel could void the user’s authority to operate this device.
Unintentional Emitter per FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it may cause
harmful interference. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and •
receiver.
Connect the equipment into an outlet on a circuit dierent •
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician •
for help.
Regulatory Compliance Statements
121
Chapter 5
Appendix
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user
may nd the following booklet helpful: “Something About
Interference.”
This is available at FCC local regional oces. Our company is not
responsible for any radio or television interference caused by
unauthorized modications of this equipment or the substitution
or attachment of connecting cables and equipment other than
those specied by our company. The correction will be the
responsibility of the user. Use only shielded data cables with this
system.
Intentional emitter per FCC Part 15
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the United States of America if an FCC ID number is on the
system label.
This device is restricted to indoor use due to its operation in the
5.15 to 5.25 GHz frequency range. FCC requires this product to be
used indoors for the frequency range 5.15 to 5.25 GHz to reduce
the potential for harmful interference to co-channel Mobile
Satellite systems. High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar
stations can cause interference with and /or damage this device.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify
them in any way.
Modication to a wireless device will void the authorization
to use it. Contact manufacturer for service.
Regulatory Compliance Statements
122
Chapter 5
Appendix
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certication Information (SAR)
This product can be embedded a radio transmitter and receiver.
It is designed and manufactured not to exceed the exposure
limits for radio frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two
expert organizations, the National Council on Radiation Protection
and Measurement (NCRP) and the Institute of Electrical and
Electronics Engineers (IEEE). In both cases, the recommendations
were developed by scientic and engineering experts drawn from
industry, government, and academia after extensive reviews of the
scientic literature related to the biological eects of RF energy.
The exposure limit set by the FCC for wireless devices employs a
unit of measurement known as the Specic Absorption Rate (SAR).
The SAR is a measure of the rate of absorption of RF energy by the
human body expressed in units of watts per kilogram (W/kg). The
FCC requires wireless devices to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates
a substantial margin of safety to give additional protection to the
public and to account for any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the wireless transmitting at its highest
certied power level in all tested frequency bands. Although the
SAR is determined at the highest certied power level, the actual
SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Before a new model is available for sale to the public, it must
be tested and certied to the FCC that it does not exceed the
exposure limit established by the FCC. Tests for each model are
performed in positions and locations (e.g. at the bottom on the
body) as required by the FCC.
For body worn operation, this model has been tested and meets
the FCC RF exposure guidelines when used with a Samsung
accessory designated for this product. Non-compliance with the
above restrictions may result in violation of FCC RF exposure
guidelines.
SAR information on this and other model can be viewed on-line
at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC
ID number on the outside of the product. Sometimes it may be
necessary to remove the battery pack to nd the number. Once
you have the FCC ID number for a particular product, follow the
instructions on the website and it should provide values for typical
or maximum SAR for a particular product.
Regulatory Compliance Statements
123
Chapter 5
Appendix
FCC Part 68 (If tted with a modem device.)
This equipment complies with part of the FCC rules. On the
back of this equipment is a label that contains, among other
information, the FCC registration number and ringer equivalence
number (REN) for this equipment. If requested, this information
must be provided to the telephone company.
This equipment uses the following USOC jacks : RJ11C
An FCC compliant telephone cord and modular plug is provided
with this equipment. This equipment is designed to be connected
to the telephone network or promises wiring using a compatible
modular jack which is Part 68 compliant. See Installation
Instructions for details.
The REN is used to determine the quantity of devices which may
be connected to telephone line. Excessive RENs on the telephone
line may result in the devices not ringing in response to an
incoming call. In most, but not all areas, the sum of RENs should
not exceed ve (5.0). To be certain of the number of devices that
may be connected to a line, as determined by total RENs, contact
the local telephone company to determine the maximum REN for
the calling area.
If the terminal equipment causes harm to the telephone network,
the Telephone Company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice
is not practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to le a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities,
equipment, operations, or procedures that could aect the
operation of the equipment. If this happens, the telephone
company will provide advanced notice in order for you to make
necessary modications to maintain uninterrupted service.
If trouble is experienced with this equipment (Modem) for repair
or warranty information, please contact your local distributor.
If the equipment is causing harm to the telephone network,
the telephone company may request that you disconnect the
equipment until the problem is resolved.
The user must use the accessories and cables supplied by the
manufacturer to get optimum performance from the product.
No repairs may be done by the customer.
This equipment cannot be used on public coin phone service
provided by the telephone company. Connection to party line
service is subject to state taris.
The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device, including fax machines, to send any message unless such
message clearly contains in a margin at the top or bottom of
each transmitted page or on the rst page of the transmission,
the date and time it is sent and an identication of the business
or other entity, or other individual sending the message and the
telephone number of the sending machine or such business, other
entity, or individual. (The telephone number provided may not
be any number for which charges exceed local or long-distance
transmission charges.)
In order to program this information into your fax machine, refer
to your communications software user manual.
Regulatory Compliance Statements
124
Chapter 5
Appendix
Canada
Unintentional Emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits
radioélectriques dépassant les limitesapplicables aux appareils
numériques de Classe B prescrites dans le règlement sur le
brouillage radioélectrique édicté par Industrie Canada.
Intentional Emitter per RSS 210
This device complies with RSS 210 of Industry Canada. Operation
is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of this device.”
L‘ utilisation de ce dispositif est autorisée seulement aux
conditions suivantes : (1) il ne doit pas produire de brouillage et (2)
l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
The term “IC” before the equipment certication number only
signies that the Industry Canada technical specications were
met. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required
for successful communication. To prevent radio interference
to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empecher que cet appareil cause du brouillage au service
faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait
etre place loin des fenetres an de Fournier un ecram de blindage
maximal. Si le matriel (ou son antenne d’emission) est installe a
l’exterieur, il doit faire l’objet d’une licence.
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in Canada if an Industry Canada ID number is on the system
label.
Regulatory Compliance Statements
125
Chapter 5
Appendix
When using IEEE 802.11a wireless LAN, this product is restricted to
indoor use due to its operation in the 5.15- to 5.25-GHz frequency
range. Industry Canada requires this product to be used indoors
for the frequency range of 5.15 GHz to 5.25 GHz to reduce the
potential for harmful interference to co-channel mobile satellite
systems. High power radar is allocated as the primary user of the
5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations
can cause interference with and/or damage to this device.
The maximum allowed antenna gain for use with this device
is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to
5.35 and 5.725 to 5.85 GHz frequency range in point-to-point
operation.
The power output of the wireless device (or devices), which may
be embedded in your notebook, is well below the RF exposure
limits as set by Industry Canada.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
To prevent radio interference to licensed service, this device
is intended to be operated indoors and away from windows
to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Wireless devices are not user serviceable. Do not modify
them in any way. Modication to a wireless device will void
the authorization to use it. Contact manufacturer for service.
(Si l’appareil est équipé d’une bande 2,4 G ou 5 G)
Des dispositifs de basse puissance, de type radio LAN
(périphériques de communication sans l par radiofréquence
RF) fonctionnant sur une bande de 2.4GHz/5GHz sont peut-
être intégrés dans votre appareil. Cette section est applicable
uniquement si ces dispositifs sont présents. Consultez l’étiquette
du système pour vériez la présence de dispositifs sans l.
Les dispositifs sans l qui peuvent être intégrés dans votre système
sont uniquement aptes pour une utilisation au Canada si l’étiquette
du système présente un nombre d’identication d’Industrie
Canada.
En cas d’utilisation d’un LAN sans l IEEE 802.11a, ce produit ne
peut être utilisé qu’à l’intérieur en raison de son fonctionnement
dans une plage des fréquences allant de 5,15 à 5,25 GHz. Industrie
Canada exige l’utilisation de ce produit à l’intérieur pour une
plage des fréquences allant de 5,15 à 5,25 GHz an de réduire
les éventuelles interférences nuisibles avec les systèmes mobiles
par satellite du même canal. Le radar de grande puissance est
considéré comme l’utilisateur principal des bandes de 5,25 à 5,35
GHz et de 5,65 à 5,85 GHz. Ces stations radar peuvent provoquer
des interférences avec ce périphérique et/ou l’endommager.
Le gain d’antenne maximum autorisé avec ce périphérique est
de 6 dBi an de respecter la limite de P.I.R.E. pour une plage des
fréquences de 5,25 à 5,35 GHz et de 5,725 à 5,85 GHz dans un
fonctionnement point à point.
La sortie de puissance du dispositif sans l (ou des dispositifs) qui
peut être intégré dans votre système est bien inférieure aux limites
d’exposition de RF établies par Industrie Canada.
Regulatory Compliance Statements
126
Chapter 5
Appendix
Son utilisation est soumise aux deux conditions suivantes : 1) ce
dispositif ne peut pas provoquer d’interférences nuisibles et 2
2) ce dispositif doit accepter toute interférence reçue, y compris
les interférences qui peuvent provoquer des anomalies dans le
système.
An de prévenir des interférences de radio au service
autorisé, ce dispositif est prévu pour être utilisé à l’intérieur et
éloigné des fenêtres pour fournir une protection maximum.
Un équipement (ou son antenne de transmission) qui est
installé à l’extérieur est sujet à une autorisation.
Les dispositifs sans l ne peuvent pas être réparés par
l’utilisateur. Ne les modiez en aucune façon. La modication
d’un dispositif sans l annulera votre autorisation à son
utilisation. Contactez le fabricant pour la réparation.
Telecommunications per DOC notice
(for products tted with an IC-compliant modem)
The Industry Canada label identies certied equipment.
This certication means that the equipment meets certain
telecommunications network protective, operation, and safety
requirements. The Department does not guarantee the equipment
will operate to the users’ satisfaction.
Before installing this equipment, users should make sure that
it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. In some
cases, the inside wiring associated with a single-line individual
service may be extended by means of a certied connector
assembly. The customer should be aware that compliance with
the above conditions may not prevent degradation of service in
some situations.
Repairs to certied equipment should be made by an authorized
Canadian maintenance facility designated by the supplier. Any
repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should make sure, for their own protection, that the
electrical ground connections of the power utility, telephone lines,
and internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
Regulatory Compliance Statements
127
Chapter 5
Appendix
To avoid electrical shock or equipment malfunction do not
attempt to make electrical ground connections by yourself.
Contact the appropriate inspection authority or an electrician,
as appropriate.
The Ringer Equivalence Number (REN) assigned to each
terminal device provides an indication of the maximum number
of terminals allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not exceed 5.
Déclarations sur les télécommunications selon DOC
(pour des produits munis d’un modem homologué par
la IC)
L’étiquette d’Industrie Canada identie un équipement autorisé.
Cette autorisation signie que l’équipement satisfait certaines
exigences pour la sécurité, fonctionnement et protection des
réseaux téléphoniques. Le département ne garantie pas que
l’équipement fonctionne comme le désirerait l’utilisateur.
Avant d’installer l’équipement, les utilisateurs doivent s’assurer
que leur connexion aux installations de la compagnie de
télécommunication locale soit permise.
L’équipement doit être également installé selon une méthode
acceptable de connexion. Dans certains cas, l’installation
électrique associée à un service de ligne individuel peut être
rallongé par un connecteur homologué. Le client doit savoir que
la conformité aux conditions précédentes ne garantit pas un
fonctionnement parfait dans toutes les situations.
Les réparations de l’équipement homologué doivent être
eectuées dans les installations de maintenance canadiennes
autorisées par le fournisseur. Les réparations ou modications
eectuées par l’utilisateur sur cet équipement, ou anomalies
de l’équipement, peuvent faire que la compagnie de
télécommunication demande la déconnexion de l’équipement.
Les utilisateurs doivent s’assurer, pour leur propre protection, que
les raccordements électriques à la terre, les lignes de téléphone
et l’infrastructure de la conduite d’eau, si il y en a, sont connectés
ensemble. Cette précaution peut être particulièrement importante
dans les zones rurales.
An d’éviter une électrocution ou le disfonctionnement
de l’équipement, n’essayez pas de faire vous-même les
raccordements électriques à la terre. Contactez l’autorité
inspectrice adéquate ou un électricien, selon il conviendra.
Le Numéro d’équivalence d’appel (REN) attribué à chaque
dispositif terminal fourni une indication du nombre maximum
de terminales qui peuvent être connectées à une interface
téléphonique. Le bout d’une interface peut contenir n’importe
quelle combinaison de dispositifs sujets uniquement à la
condition que le total des numéros d’équivalence d’appel de tous
les dispositifs ne dépasse pas 5.
Regulatory Compliance Statements
128
Chapter 5
Appendix
Brazil
Este produto esta homologado pela ANATEL, de acordo com
os procedimentos regulamentados pela Resolucao 242/2000, e
atende aos requisitos tecnicos aplicados.
Este equipamento opera em caráter secundário, isto é, não
tem direito a proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
European Union
European Union CE Marking and Compliance Notices
Products intended for sale within the European Union are marked
with the Conformité Européene (CE) Marking, which indicates
compliance with the applicable Directives and European standards
and amendments identied below. This equipment also carries
the Class 2 identier.
The following information is only applicable to systems labeled
with the CE mark
.
European Directives
This Information Technology Equipment has been tested and
found to comply with the following European directives:
EMC Directive 2004/108/EC•
Low Voltage Directive 2006/95/EC•
R&TTE Directive 1999/5/EC•
Manufacturer Information
Samsung Electronics Co., Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,
443-742, Korea
Samsung Electronics Suzhou Computer Co., Ltd.
No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province,
215021, China
Tel: +86-512-6253-8988
For the web or the phone number of Samsung Service Centre, see
the Warranty or contact the retailer where you purchased your
product.
Regulatory Compliance Statements
129
Chapter 5
Appendix
European Radio Approval Information
(for products tted with EU-approved radio devices)
This Product is a Notebook computer; low power, Radio LAN type
devices (radio frequency (RF) wireless communication devices),
operating in the 2.4GHz/5GHz band, may be present (embedded)
in your notebook system which is intended for home or oce use.
This section is only applicable if these devices are present. Refer to
the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the European Union or associated areas if a CE mark
with a Notied Body Registration Number and the Alert Symbol is
on the system label.
The power output of the wireless device or devices that may be
embedded in you notebook is well below the RF exposure limits
as set by the European Commission through the R&TTE directive.
The low band 5.15 - 5.35 GHz is for indoor use only.
See 802.11b and 802.11g restrictions for specic countries
or regions within countries under the heading “European
Economic Area Restrictions” below.
EU R&TTE Compliance Statements
Česky
[Czech]
Samsung tímto prohlašuje, že tento Notebook
PC je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk
[Danish]
Undertegnede Samsung erklærer herved, at
følgende udstyr Notebook PC overholder de
væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Samsung, dass sich das Gerät
Notebook PC in Übereinstimmung mit den
grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG bendet.
Eesti
[Estonian]
Käesolevaga kinnitab Samsung seadme
Notebook PC vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, Samsung, declares that this Notebook
PC is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Samsung declara
que el Notebook PC cumple con los requisitos
esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Regulatory Compliance Statements
130
Chapter 5
Appendix
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ
Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Samsung déclare que l’appareil
Notebook PC est conforme aux exigences
essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Samsung dichiara che questo
Notebook PC è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Samsung deklarē, ka Notebook PC atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Samsung deklaruoja, kad šis Notebook PC
atitinka esminius reikalavimus ir kitas 1999/5/
EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Samsung dat het toestel
Notebook PC in overeenstemming is met
de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Samsung, jiddikjara li dan
Notebook PC jikkonforma mal-ħtiāijiet
essenzjali u ma provvedimenti oħrajn relevanti
li hemm d-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Samsung nyilatkozom, hogy a
Notebook PC megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski
[Polish]
Niniejszym Samsung oświadcza, Ŝe Notebook
PC jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
Samsung declara que este Notebook PC está
conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Samsung izjavlja, da je ta Notebook PC v skladu
z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky
[Slovak]
Samsung týmto vyhlasuje, že Notebook PC
spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Samsung vakuuttaa täten että Notebook
PC tyyppinen laite on direktiivin 1999/5/
EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Samsung att denna Notebook
PC står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/
EG.
Regulatory Compliance Statements
131
Chapter 5
Appendix
Íslenska
[Icelandic]
Hér með lýsir Samsung yr því að Notebook PC
er í samræmi við grunnkröfur og aðrar kröfur,
sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
Samsung erklærer herved at utstyret Notebook
PC er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Türkiye
[Türkçe]
Bu belge ile, Samsung bu Notebook PC’nin
1999/5/EC Yönetmeliğinin temel gerekliliklerine
ve ilgili hükümlerine uygun olduğunu beyan
eder.
To view the EU Declaration of Conformity for this product (in
English only), go to: http://www.samsung.com/uk/support/
download/supportDownMain.do then search the model number
of the product.
If the Declaration of Conformity for the model you are interested
in is not available on our web-site, please contact your distributor.
European Economic Area Restrictions
Local Restriction of 802.11b/802.11g Radio Usage
[Note to integrator: The following statements on local restrictions
must be published in all end-user documentation provided with
the system or product incorporating the wireless product.]
Due to the fact that the frequencies used by 802.11b/802.11g
wireless LAN devices may not yet be harmonized in all
countries, 802.11b/802.11g products are designed for use
only in specic countries or regions, and are not allowed
to be operated in countries or regions other than those of
designated use.
As a user of these products, you are responsible for ensuring
that the products are used only in the countries or regions
for which they were intended and for verifying that they
are congured with the correct selection of frequency and
channel for the country or region of use. Any deviation from
permissible settings and restrictions in the country or region
of use could be an infringement of local law and may be
punished as such.
Regulatory Compliance Statements
132
Chapter 5
Appendix
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted
in particular countries or regions within countries, as follows:
General
European standards dictate maximum radiated transmit power
of 100 mW eective isotropic radiated power (EIRP) and the
frequency range 2400 – 2483.5 MHz.
The low band 5.15 - 5.35 GHz is for indoor use only.
Belgium
The product may be used outdoors, but for outdoor transmissions
over a distance of 300m or more, a license from the BIPT is
required.
This restriction should be indicated in the manual as follows:
Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-
dessus d’un espace public, aucun enregistrement n’est nécessaire
pour une distance de moins de 300m. Pour une distance
supérieure à 300m un enregistrement auprès de l’IBPT est requise.
Pour une utilisation publique à l’extérieur de bâtiments, une
licence de l’IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l’IBPT.
France
For Metropolitan departments:
2.400 - 2.4835 GHz for indoor use.
2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.
For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:
2.400 - 2.4835 GHz for indoor and outdoor use.
For Reunion, Guyane:
2.400 - 2.4835 GHz for indoor use.
2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)
The low band 5.15 - 5.35 GHz is for indoor use only.
Regulatory Compliance Statements
133
Chapter 5
Appendix
Regulatory Compliance Statements
European Telecommunication Information
(for products tted with EU-approved modems)
Marking by the symbol
indicates compliance of this equipment
to the Radio and Telecom Terminal Equipment Directive 1999/5/
EC. Such marking is indicative that this equipment meets or
exceeds the following technical standards:
CTR 21 - Attachment requirements for pan-European approval for
connection to the analogue Public Switched Telephone Networks
(PSTNs) of TE (excluding TE supporting voice telephony services) in
which network addressing, if provided, is by means of Dual Tone
Multi-Frequency (DTMF) signaling.
Although this equipment can use either loop disconnect
(pulse) or DTMF (tone) signaling, only the performance of
the DTMF signaling is subject to regulatory requirements for
correct operation.
It is therefore strongly recommended that the equipment
is set to use DTMF signaling for access to public or private
emergency services. DTMF signaling also provides faster call
setup.
This equipment has been approved to Council Decision 98/482/
EEC - “CTR 21” for Pan-European single terminal connection to the
Public Switched Telephone Network (PSTN).
However, due to dierences between the individual PSTNs
provided in dierent countries, the approval does not, of itself,
give an unconditional assurance of successful operation on every
PSTN termination point. In the event of problems, you should
contact manufacturer Technical Support.
134
Chapter 5
Appendix
WEEE Symbol Information
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government oce, for details
of where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
Pb
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material re-use, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
USA ONLY
This Perchlorate warning applies only to primary CR
(Maganese Dioxide) Lithium coin cells in the product sold or
distributed ONLY in California USA.
“Perchlorate Material- special handling may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate.”
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278-0799
For battery recycling go to call2recycle.org; or call 1-877-723-1297
135
Chapter 5
Appendix
TCO Certied
(for corresponding models only)
Congratulations!
This product is TCO Certied for Usability and the
Environment.
The product you have just purchased carries the
TCO Certied label. This means that your
computer is designed, manufactured and tested
according to some of the strictest performance
and environmental criteria in the world. That makes for a high
performance product designed with the user in focus and one
that also minimizes the impact on the climate and our natural
environment.
TCO Certied is a third party veried program, where every
product model is tested by an accredited impartial test laboratory.
All criteria have been developed by TCO Development in
collaboration with scientists, product experts, users as well as
manufacturers all over the world.
Here are some of the features oered with this product:
Usability – Designed for You
Good visual ergonomics and image quality, ensuring •
top performance and reduced risk of eye strain. Several
requirements within the area of luminance, contrast, resolution
and color
Designed with the option to connect an external display, •
keyboard and mouse (recommended when working with a
notebook or netbook for longer periods)
Ergonomic keyboard design – for ease of use and good •
readability
Fully tested according to rigorous safety standards•
Low Electric and Magnetic eld emissions. Low acoustic noise •
levels
Environment– Designed for the Planet
Brand demonstrates corporate social responsibility and has •
a certied environmental management system (EMAS or ISO
14001)
Very low energy consumption both in idle- and standby mode, •
reducing climate impact
Restrictions on hazardous materials: chlorinated and •
brominated ame retardants, plasticizers, plastics and heavy
metals such as cadmium, mercury, lead and hexavalent
chromium (mercury ban and limits on hazardous ame
retardants go beyond RoHS compliance)
Both product and product packaging are designed for •
recycling
The brand company oers take-back options•
For more information, please visit
www.tcodevelopment.com
TCO Certied – Technology for You and the Planet
TCOF1190 TCO Document Version 2.0
136
Chapter 5
Appendix
The system specications may dier depending on the derived
models.
For detailed system specications, refer to the product catalogue.
CPU (Optional)
Intel Core™ i7/i5/i3 Processor
Intel Celeron Processor
Main Memory Memory type: DDR3 SODIMM
Main Chipset
(Optional)
Intel HM77/QM77
Storage Device
7mmH SATA3 SSD,
9.5mmH SATA2 HDD
Graphics (Optional)
Intel HD Graphics (Internal)
NVIDIA NVS 5200M (Optimus)
Operating
Environment
Temperature: -5~40°C for storage,
10~35°C when operating
Humidity: 5~90% for storage,
20~80% when operating
AC/DC Rating
(Optional)
Input: 100-240VAC, 50~60Hz,
Output: 19VDC 3.16A , 19VDC 4.74A
PC Rating (Optional) 19VDC 3.16A(60W) / 19VDC 4.74A(90W)
Optional components may not be provided or dierent •
components may be provided depending on the computer
model.
The system specications are subject to change without •
notice.
The hard disk drive capacity of a computer in which •
Samsung Recovery Solution is installed, is represented as
smaller than the product specication.
The amount of memory that Windows can use may be •
smaller than the actual amount of memory available.
Product Specications
137
Chapter 5
Appendix
Product Specications
Registered Trademarks
Samsung is a registered trademark of Samsung Co., Ltd.
Intel, Pentium/Dual-Core/Quad-Core are registered trademarks of
the Intel Corporation.
AMD, Dual-Core/Quad-Core are registered trademarks of the AMD
Corporation.
Microsoft, MS-DOS, and Windows are registered trademarks of the
Microsoft Corporation.
All other product or company names mentioned herein are
registered trademarks of their respective companies.
ENERGY STAR® Partner
As an ENERGY STAR® Partner, SAMSUNG has
determined that this product meets the ENERGY STAR®
guidelines for energy eciency.
HDMI
138
Chapter 5
Appendix
Glossary
The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.
Backup
A way to save the current data to restore it later if necessary.
A backup is a way to restore computer data when the data or
computer is damaged.
Chargeable USB
This program enables supplying power to a specic USB port when
the system is in power saving mode, hibernation mode or o.
Client
This refers to a computer that uses a shared network resource
provided by a server.
DDR SDRAM
(Double Data Rate Synchronous Dynamic Random Access Memory)
DRAM is a memory type whose cells consist of a capacitor and
transistor manufactured at a low price. SDRAM is a memory type
whose performance has been improved by synchronizing the clock
with the external CPU clock. DDR SDRAM is a memory type whose
performance has been improved by doubling the operating speed
of the SDRAM and is widely used nowadays. This computer uses
DDR SDRAM.
Device Manager
An administrative tool used to manage computer devices. You can
add or remove hardware or update a device driver using the Device
Manager.
DHCP (Dynamic Host Conguration Protocol)
This refers to automatically allocating IP addresses to the users on
the network by the network administrators.
Direct X
An application interface developed to enable Windows application
programs to access hardware devices at a very high speed. Since
the operating speed of graphics, memory and sound cards must be
very fast to provide high quality video and sound for games, Direct
X enables faster control and interaction between applications and
hardware devices. By using Direct X, the multimedia performance
of Windows has been hugely improved.
Driver
Software that interacts between the hardware and the operating
system. An operating system knows the hardware information
and controls the hardware. In general, a driver is supplied with the
corresponding hardware device.
D-sub (D-subminiature)
This is the cable connecting a general CRT monitor and the
computer. Analog video is output through this cable.
139
Chapter 5
Appendix
DVD (Digital Versatile Disk)
DVD was developed to replace CD (compact disk). Although the
shape and size of the disc are the same as that of a CD, the capacity
of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD
video is digital unlike VHS (analog) video and supports MPEG2
compression and digital audio. To play a DVD, a DVD drive is
required.
Firewall
A security system used to protect an internal network or intranet
from external networks through an authentication procedure.
HDMI
This is a digital video / audio interface specication that transmits
video and audio signals over a single cable.
Hibernation Mode
A power mode that saves all data in memory to the hard disk and
turns the CPU and hard disk o. When canceling Hibernation Mode,
all application programs that were running are restored to their last
state.
Icon
This refers to a small image that represents a le that users can use.
IEEE802.XX
This is a set fo specications developed by the 802 committee of
IEEE for the LAN connection method called XX.
LAN (Local Area Network)
A communications network connecting computers, printers and
other devices within a local area such as within a building. A LAN
enables all connected devices to interact with other devices on the
network. The current LAN uses the Ethernet media access control
method developed in the early 1980s. To connect to an Ethernet, a
network card called a LAN card, Ethernet card or network interface
card is required. To exchange data between computers, a protocol
is required besides the hardware equipment. Windows Vista uses
TCP/IP as the default protocol.
LCD (Liquid Crystal Display)
There are Passive Matrix and Active Matrix LCD types. This
computer uses the Active Matrix type LCD called a TFT LCD. Since
an LCD is implemented by transistors instead of a cathode-ray tube
unlike a CRT, its size can be slim. And because it does not blink, it
reduces eye strain.
Glossary
140
Chapter 5
Appendix
Network
A group of computers and devices, such as printers and scanners,
connected by a communications link. A network can be either
small or large and can be connected permanently through cables
or temporarily through telephone lines or wireless links. The
biggest network is the Internet, a worldwide network.
Network Administrator
A user who plans, congures and manages network operations.
Sometimes, a network administrator is called a system
administrator.
Notication Area
This refers to the right area of the Taskbar including program icons
such as the volume control, the power options and the time.
Partition
This refers to the act or practice of dividing the storage space of
a hard disk drive into separate data areas known as partitions. If a
100GB hard disk drive is partitioned into 2 x 50GB partitions, the
hard disk drive can be used as if there are 2 hard disk drives.
PCMCIA( Personal Computer Memory Card International
Association) card
This is an extended card slot specication for mobile computers
such as a notebook computer. Not only a memory, device but also
most peripherals such as hard disk drives, LAN cards, etc. can be
connected to this card slot.
Protocol
A protocol is a set of rules used by computers to communicate with
each other across a network. A protocol is a convention or standard
that controls or enables the connection, communication, and
data transfer between computing endpoints. It denes the data
transmission procedures and the transmission medium for more
ecient network functions.
Quick Launch
This refers to a toolbar that can be congured so that you can
launch a program such as Internet Explorer or display the Windows
Desktop with one click. You can add any icon to the quick launch
area of the Taskbar and launch frequently used program by clicking
that icon.
SDHC (Secure Digital High Capacity) card
This is the extension of the SD card that supports over 2GB bytes.
Glossary
141
Chapter 5
Appendix
Server
In general, a server refers to a computer that provides shared
resources for network users.
Share
This refers to setting a resource of a computer such as a folder or
printer so that other users can also use it.
Shared Folder
A folder that can be used by other users on the network.
Sleep Mode
A power mode that enables computers to save power consumption
when they are not being used. When a computer is in Sleep Mode,
the data on the computer memory is not saved to the hard disk. If
the power is turned o, the data in memory will be lost.
System File
System Files refer to les that are read and used by the Windows
operating system. In general, system les must not be deleted or
moved.
TCP/IPv4
This is a 4 byte (32 bit) address system separated into each byte
(8 bits) by a dot and each byte is represented as a decimal number.
USB (Universal Serial Bus)
This refers to a serial interface standard developed to replace the
conventional interface standards such as Serial and PS/2.
The data transmission specications are one of the interface
standards used to connect a computer to peripheral devices.
These specications include USB 1.0, 1.1, 2.0 and 3.0.
It is appropriate to support peripheral devices that require high
data rates such as an AV device, secondary HDD or CD-RW.
The higher the version (e.g. USB 3.0), the higher the data rate
provided.
Windows Media Player
A multimedia program included with Windows. Using this
program, you can play a media le, create an audio CD, listen to a
radio broadcast, search and manage media les, and copy les to a
portable device, etc.
Glossary
142
Chapter 5
Appendix
Index
A
AP 70
B
Battery 94
BIOS Setup 86
Booting Priority 91
C
CD Drive 49
Charge 94
Click 39
D
Double-Click 39
Drag 39
Dual View 56
L
LCD Brightness 83
M
Memory 92
Monitor Connection / Output 55
Multi Card Slot 52
O
Overview 25
P
Password 88
Product Specications 136
R
Recorder 63
S
Safety Precautions 7
Samsung Recovery Solution 101
Scroll 41
Security Slot 99
Shortcut Key 35
Status Indicators 27
Supervisor Password 88
T
Touchpad 38
U
User Password 89
V
Volume Control 63
W
Wired Network 66
Wireless Network 70
