Operation & Care Instructions
This vacuum cleaner is a high quality, precision made product. All parts used in
the manufacturing of this vacuum cleaner have passed rigid quality control stan-
dards prior to assembly and an “each unit”final inspection prior to packaging to
assure proper assembly. This vacuum cleaner was protectively packed to pre-
vent possible damage in transit. Should damage occur, please notify the
transporting carrier immediately for loss and/or claim.
45-10 Gallon Dry HEPA Filter Poly Vacuum
ABOUT THE MACHINE
Save For Future Reference
TO CONNECT THE HOSE
Simply push the swivel hose cuff into the tank inlet until the lock
feature engages. Press the button to remove the hose assembly.
The wand and/or tools are attached to the opposite (non-swivel)
end of the hose.
DRY OPERATION
The cloth filter located inside the can provides highly efficient sepa-
ration of dust and dirt particles from the incoming air stream.
The use of a disposable paper bag is strongly recommended for
picking up very fine dry materials. The paper bag not only makes
dirt disposal clean and convenient,but also provides an additional
layer of filtration. CLEAN CLOTH FILTER AFTER EACH USE!
DRY FILTER CLEANING
Remove the filter from the vacuum and clean by brushing the
Never-Clog bag to remove direct accumulation from outer surface.
Do not attempt to clean the HEPA filter.
MOTORHEAD
When removing the motorhead, care in handling is essential.
Dropping, banging or other abuse may result in a poor vacuum seal
and loss in suction power.
STORAGE
Store in a dry location indoors. Wrap the cord carefully around the
vacuum head to avoid accidental damage. Clean the tank, filter,
hose and tools prior to storage.
CAUTION
Never lubricate the vacuum cleaner motor. The motor bear-
ings are permanently sealed. Introduction of lubricant into
the motor may cause premature failure.
CAUTION
Never operate the vacuum cleaner unless the HEPA and never
clog filter is in good condition and properly installed.
NEVER USE THIS VACUUM CLEANER TO PICK UP COMBUS11BLE OR
EXPLOSIVE MATERIALS SUCH AS GASOUNE OR KEROSENE,ETC.
HAZARDOUS MATERIAL PICKUP & CLEAN-UP
FOR DRY OPERATION:
With the HEPA Filter Assembly in place, the motor head securely
clamped,and the hose adapter connected to the inlet, plug the
power cable into the proper outlet. Select the appropriate hose,
wand and/or tool and connect to the hose adapter.The vacuum
cleaner is ready for dry use.
DISPOSABLE BAG CHANGING:
Over filling the bag will result in loss of vacuum efficiency.The rec-
ommended bag replacement procedure is as follows:
1. Remove vacuum head and HEPA filter.
2. Tape a 6-mil poly bag over the canister so that the canister is
completely enclosed.
3. Using the poly bag as a glove, disengage the paper bag from the
vacuum inlet stem inside the canister.
4. Invert the canister so that the paper bag tails into the poly bag.
Seal the poly bag and dispose as prescribed by law.
5. Attach a new paper bag to the vacuum inlet securely and fold
the top of the bag down so it does not interfere with the HERA
filter.
6. Replace the HEPA filter and motor head.
7. Thoroughly vacuum the work area to recover any asbestos dust
which may have been dropped.
Dacron "Never Clog"
Filter Bag: H.E.P.A. filter equipped vacuums are sup-plied with a white
"Never Clog" filter bag surrounding the H.E.P.A. filter barrel.The bag
should be changed fre-quently and can be washed in laundry deter-
gent and warm water.
Warning
A used filter is contaminated and must be disposed of in
accordance with local and federal E.P.A. regulations.
EXTENSION CORDS:
Vacuums that have 3 wire cords requiring grounding must only be
used with extension cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required, refer to the chart
below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate Total Extension Cord Length (Feet)
Rating-Amps 25 50 75 100 125 150 175 200
0-10.0 18 18 16 16 14 14 12 12
10.1-13.0 16 16 14 14 14 12 12 12
13.1-15.0 12 12 12 12 12 12 12 –
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or break-
down, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This appliance is equipped
with a cord having equipment grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes
and ordinances.
This appliance is for use on a nominal 120- Volt circuit, and has a
grounded plug that looks like the plug illustrated in sketch A above.
A temporary adapter that looks like the adapter illustrated in sketch-
es B and C may be used to connect this plug to a 2-pole receptacle
as shown in sketch B if a properly grounded receptacle is not avail-
able. The temporary adapter should be used only until a properly
grounded outlet (sketch A) can be installed by a qualified electrician.
The green colored ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be
held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted
by the Canadian Electrical Code.
WARNING
Improper connection of the equipment grounding conductor can
result in a risk of electric shock. Check with a qualified electrician
or service person if you are in doubt as to weather the outlet is prop-
erly grounded.
Do not modify the plug provided with the appliance – if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
WARNING
To reduce the risk of fire, electric shock or injury:
1. Do not leave appliance when plugged in. Unplug from outlet
when not in use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s
recommended attachments.
5. Do not use with damaged cord or plug. If appliance is not work-
ing as it should, has been dropped, damaged, left outdoors, or
dropped into water, contact Customer Service.
6. Do not pull or carry by cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any open-
ing blocked; keep free of dust, lint, hair and anything that may
reduce air flow.
10.Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
11.Do not pick up anything that is burning or smoking, such as cig-
arettes, matches, or hot ashes.
12.Turn off all controls before unplugging.
13.Use extra care when cleaning on stairs.
14.Do not use to pick up flammable or combustible liquids such as
gasoline, or use in areas where they may be present.
17.Be sure that the vacuum is connected to a properly grounded
outlet, inspect the ground pin on the power cord prior to each
use.
18.Do not use this vacuum to pick up hazardous materials unless the
vacuum is equipped with an appropriate HEPA filter.
READ ALL INSTRUCTIONS
BEFORE USING THIS VACUUM CLEANER
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
Warning
Before using an extension cord, inspect it for loose or
exposed wire, damaged insulation and defective plugs.
Warning
Electrical repairs should be performed only by a qualified,
licensed electrician.

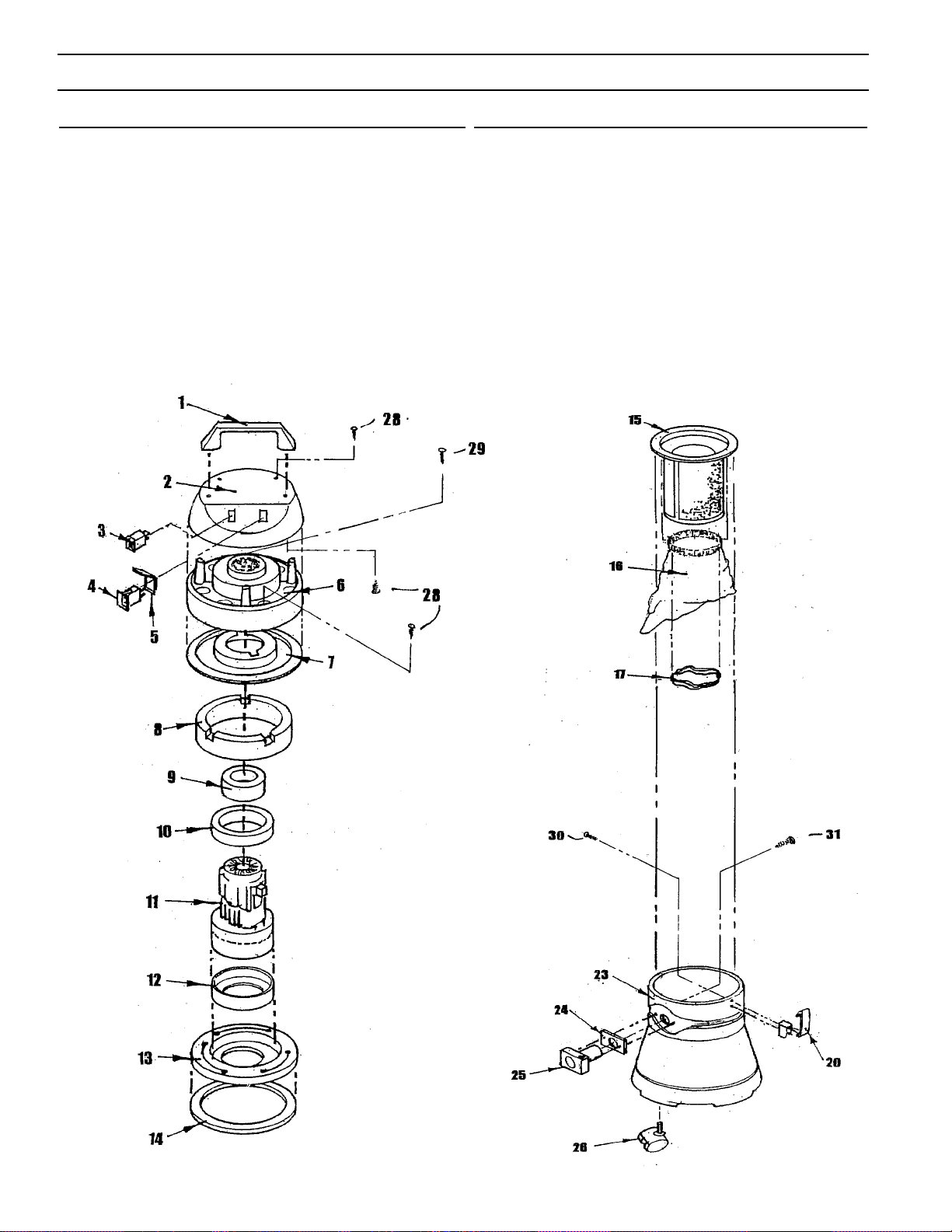

REPLACEMENT PARTS LIST
Ref.
No. Part No. Description Qty.
13 B701900 Can Cap 1
14 B701901 Gasket for Can Cap 1
15 B702340 HEPA Filter 1
16 B000517 Never Clog Filter Bag 1
17 B702343 Bag Retainer - Rubber 1
20 B701891 Clamp - Spacer and Canister 2
23 B701905 10 Gal. Canister 1
24 B701888 Inlet Gasket 1
25 B701889 Inlet Assembly 1
26 B701906 Dual Wheel Caster 4
27 B701894 Cord Set (Not Shown) 1
28 B701877 Screw, 4.8 x 19, type Black 14
29 B701892 Screw, 2.9 x 19, type A, zn 3
30 B702390 Screw, 4.8 x 19, type A, ss 4
31 B702391 Screw, 4.8 x 25, type A, ss 2
Ref.
No. Part No. Description Qty.
1 B701878 Handle Vac Head 1
2 B701879 Dome - Red 1
3 B701881 On - Off Electrical Switch 1
4 B701880 Power Head Plug Assembly 1
5 Plug Shield (Part of Plug Assembly) 1
6 B701884 Motor Head Chamber - Red 1
7 B701896 Motor Retainer - Top 1
8 B701883 Foam Baffle - Silencing 1
9 B701897 Gasket - Motor Top 1
10 B701898 Gasket - Motor Plenum Top 1
11 B000479 Motor - 115 Volt 1
12 B701898 Gasket - Motor Plenum Bottom 1
B702926
2/02
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Loss of Suction 1.Obstruction in hose or wand. 1.Clean hose or wand.
2.Clogged filter assembly. 2.Clean or replace filter.
3.Uneven gasket fit. 3.Reposition or replace gasket.
4.Collection can rim is chipped or cracked. 4.Replace plastic tank.
Motor Won’t Run 1.Blown building fuse or tripped circuit breaker. 1.Replace fuse or circuit breaker.
2.Defective switch. 2.Replace switch.
3.Defective power cord. 3.Replace power cord.
4.Worn motor brushes. 4. Replace brushes.
Operator Being Shocked 1.Defective ground in vacuum or building. 1.Consult a qualified electrician to check and
repair ground circuit.
TROUBLE SHOOTING GUIDE
The vacuum cleaner is warrantied from the date of purchase as
shown on your distributor’s invoice as listed below.
Motor - 3 years
Parts - 1 years
Labor - 1 year
LIMITED WARRANTY
The warranty covers only failure due to defective parts or work-
manship and will be invalidated by improper application and abuse.
Items excluded from warranty coverage, unless found and reported
defective immediately upon removal from the original shipping con-
tainer and before being used by the original purchaser, include:
power cords, floor brushes, floor pads, vacuum and solution hoses,
belts, screens, strainers, squeegee blades, motor carbon brushes,
and filters.
Warning
Always disconnect power cable from electrical outlet before
working on this vacuum cleaner.
10702 N. 46th Street
Tampa, FL 33617
toll free: 800-237-7582
fax: (813) 971-6090
In NO circumstance should you return a failed unit to the factory or a service center.
If you experience any problems with your vacuum during the warranty period, contact the Pullman-Holt National Service Manager in
Tampa, FL at (800)237-7582.
