UNIDOOR
SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine
TM
reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com
web page.
Please carefully read the instructions before installing. If you have any questions
regarding installation, please call our technical support specialists Monday through
Friday 9:00 AM – 5:00 PM EST at 1-866-731-8378, ext. 3 or e-mail our technical
support group at
Rev 2.2
1
For more information on DreamLine
TM
Shower Doors please visit www.BathAuthority.com

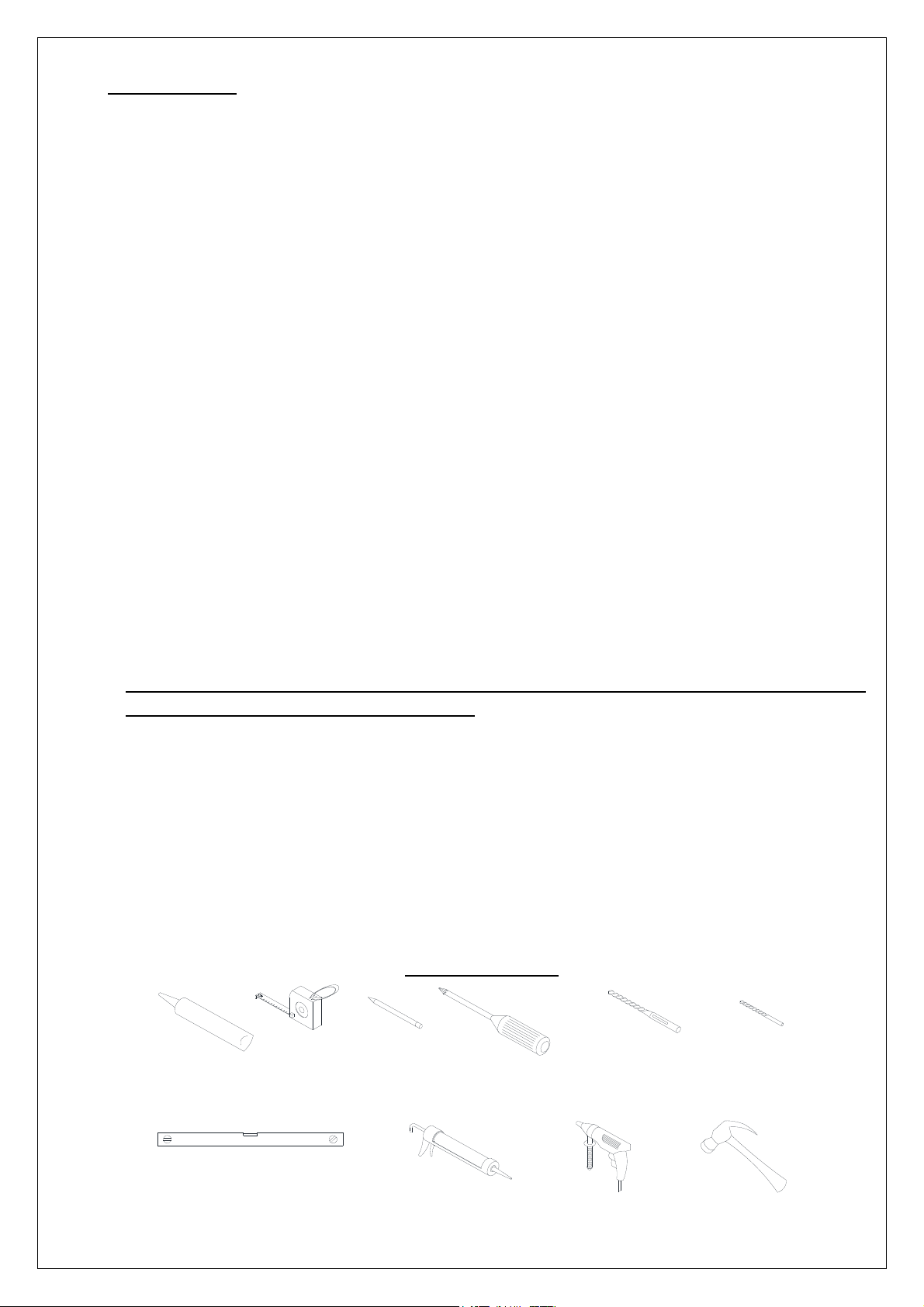

Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of
the needed parts are included in the package, by marking all the components on the
“Detailed Diagram of Shower Enclosure Components”. Examine boxes and packages for
shipping damage. If the unit has been damaged, has a finishing defect, or has missing
parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine
TM
will not replace any damaged products or
missing parts free of charge after 3 business days or if the product has been
installed. Feel free to contact DreamLine
TM
if you have any questions.
2. Please note that you should consult your local building codes with questions on
installation compliance standards. Building and plumbing codes may vary by
location, and DreamLine is not responsible for code compliance standards for your
project.
3. If this unit is going to be installed in a new construction, please, install all of the required
plumbing and drainage before installing the shower. Use a competent and licensed (if
required by local code) plumber for all plumbing installation
4. Please insure that prior to the installation the installation surface is leveled and solid and
will be able to support the total weight of the unit. Also make sure the walls are at right
angles. While some adjustment in leveling of the door is possible, irregular installation
surface level or improper angle of side walls will result in serious problems for your
installation. Please, note that some adjustments and drilling might be necessary during
the installation process.
5. Please, NOTE! The doors that are under 30” do not have out-of-plumb adjustment.
Make sure your walls are at right angles
6. a) If the width of your door is less than 30” and you are installing the door without
stationary glass, you only need to refer to (Diagram A) with (Packing List A).
b) If the width of your door is 30” and over, and you are installing the door and
stationary glass with support arm, you have to use (Diagram A and B) with (Packing
List A and B) to complete the installation
c) If the width of your door is 30” and over, and you are installing the door and
stationary glass with glass shelves, you have to use (Diagram A, and C) with (Packing
List A, and C) to complete the installation
Tools Required
Hammer
Electric
Drill
Caulk
Gun
Level
Phillips
Screwdriver
Pencil
Measure
Tape
Caulk
Drill bit
(Ø=5/16")
Drill bit
(Ø=3/16")
Rev 2.2
2

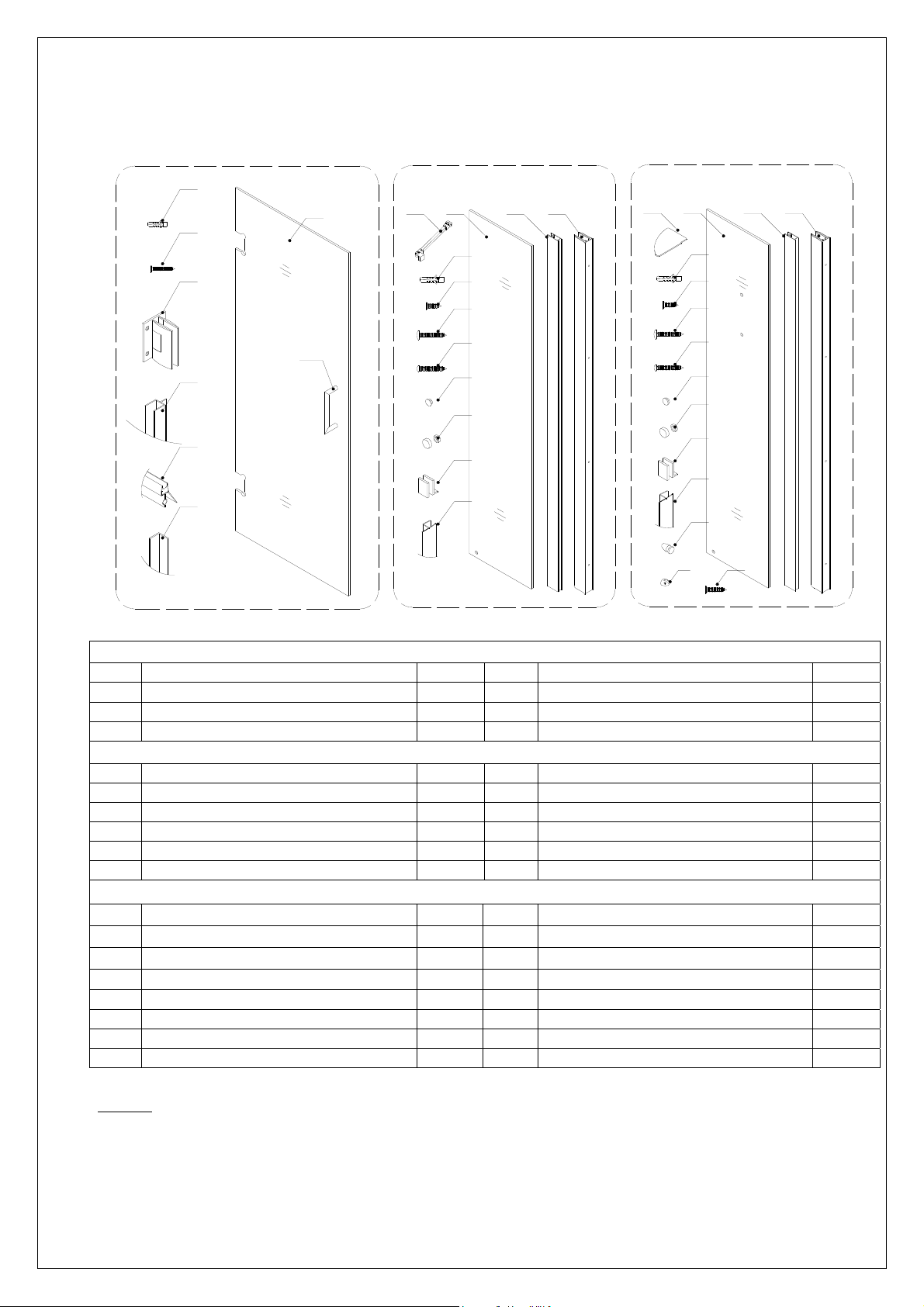

Detailed Diagrams of Shower Door Components
Diagram A Diagram B Diagram C
1
2
3
4
5
6
7
8
9101112
13
14
15
16
17
18
19
20
9101112
13
14
15
16
17
18
19
20
22
21
23
Packing List A
01 Glass door 1pc 05 Hinge 2pcs
02 Handle 1pc 06 Side strip ( 3 sections to cut) 1pc
03 Wall Anchor 8pcs 07 Bottom anti-water strip 1pc
04 Countersunk screw ST5×50 8pcs 08 L-shaped strip 1pc
Packing List B
09 Wall profile 1pc 15 Round head screw ST 4.2×30 4pcs
10 Glass profile 1pc 16 Round head screw ST 4.2×25 1pc
11 Stationary glass 1pc 17 Decorative plug 3pcs
12 Support bar 1pc 18 Decorative cover 1pc
13 Wall Anchor 5pcs 19 Bottom bracket 1pc
14 Countersunk screw ST 4.2×18 3pcs 20 Anti-Water strip 1pc
Packing List C
09 Wall profile 1pc 17 Decorative plug 3pcs
10 Glass profile 1pc 18 Decorative screw cover 1pc
11 Stationary glass 1pc 19 Bottom bracket 1pc
12 Glass shelf 2pc 20 Anti-water strip 1pc
13 Wall anchor 8pcs 21 Shelf bracket (with nut) 2pcs
14 Flat head screw ST4.2×18 3pcs 22 Shelf bracket (without nut) 4pcs
15 Round head screw ST4.2×30 4pcs 23 Countersunk screw ST4.2×25 4pcs
16 Round head screw ST4.2×25 1pc
Rev 2.2
3
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the carton,
check for small hardware bags that tend to fall to the bottom of the box. If any parts are
damaged or missing, please contact DreamLine
TM
for replacement.

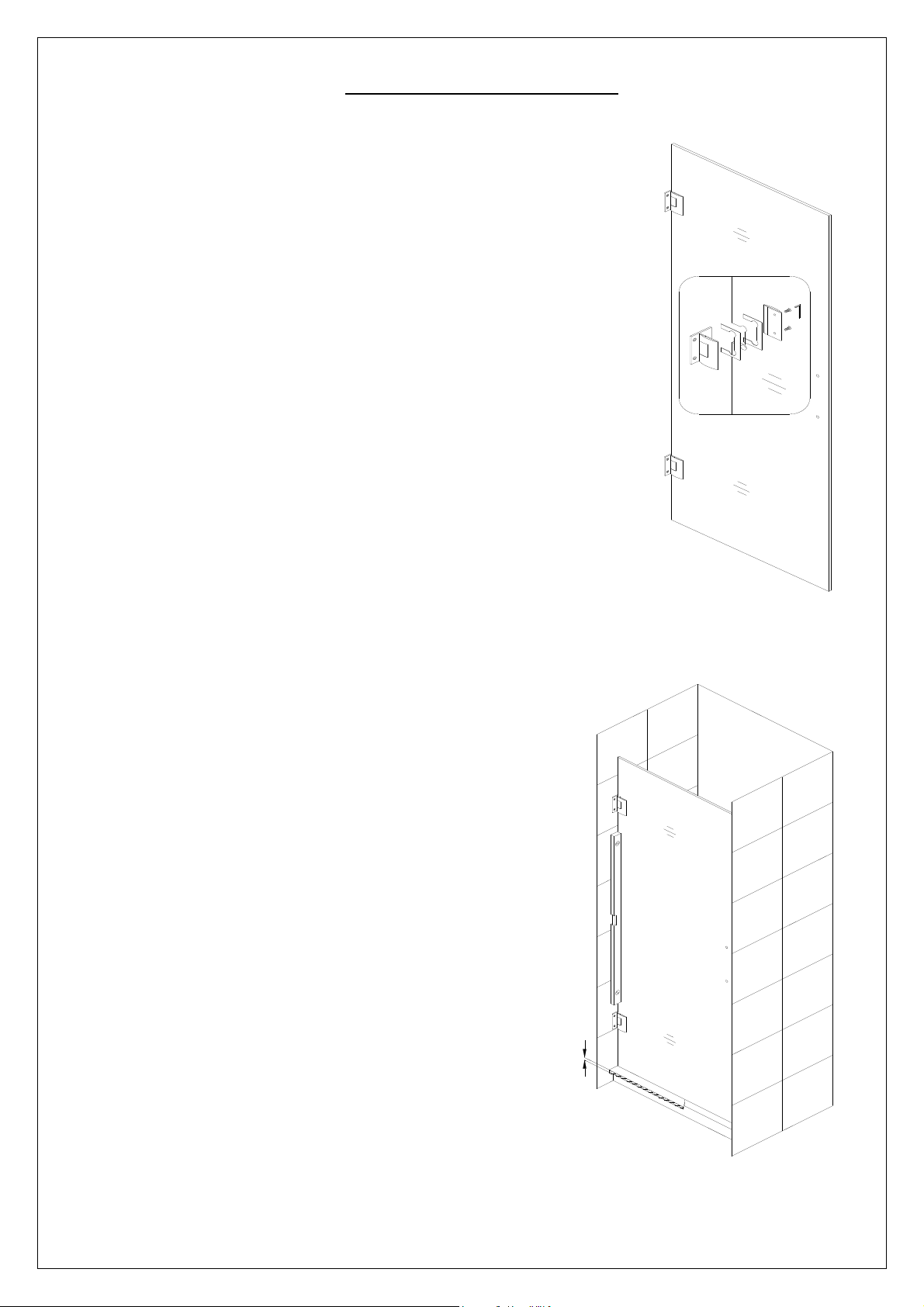

Shower Door Installation
1. Attach the Hinges (05) to the Glass door (01).
See Fig. 1 for details.
Fig. 1
2. Place a piece of flat timber (5/8” thick) on the
threshold or the shower base. Take the Glass
door (01) and place it on the flat timber. Butt up
the door with hinged side against the wall, adjust
its position and level it.
Be sure the door is absolutely vertical.
See Fig. 2 for details.
Fig. 2
Rev 2.2
4
5/8"

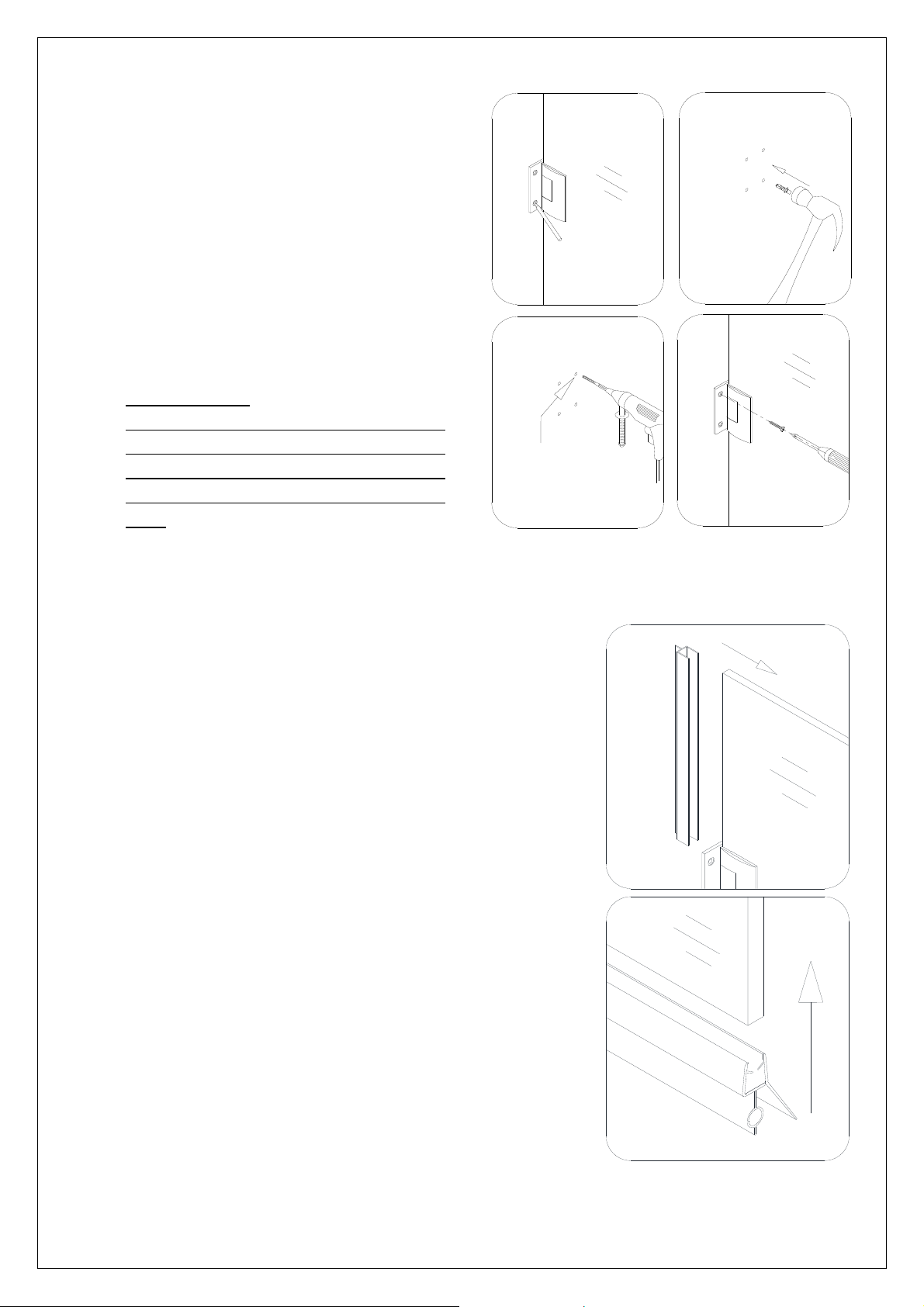

3. Mark the drill holes for both hinges on
the wall. Set the door aside, drill the
holes in the wall using Ø 5/16” drill bit,
and insert the Wall Anchors (03).
Place the Glass door back on the flat
timber and attach both hinges to the
wall with the Countersunk screws
ST5×50 (04).
See Fig. 3 for details.
PLEASE NOTE:
The manufacturer strongly
recommends to attach this heavy
door to the studs or to preinstalled
2x6 wood reinforcement behind the
wall.
Fig. 3
4. Get three measurements:
• from the top edge of the Glass door (01) to the
upper edge of the top Hinge (05);
• from the bottom edge of the upper Hinge to the top
edge of the bottom Hinge;
• from the bottom edge of the bottom Hinge to the
bottom of the Glass door
.
Cut the Side strip (06) according to the measurement.
Remove the timber plate, open the door to its full
section and press the cut strips on the vertical edge of
the Glass door.
Press the Bottom anti-water strip (07) on the
bottom edge of the glass door.
See Fig. 4 for details.
Fig. 4
Rev 2.2
5
Ø 5/16”
4
3
2
1
2
1
2
1

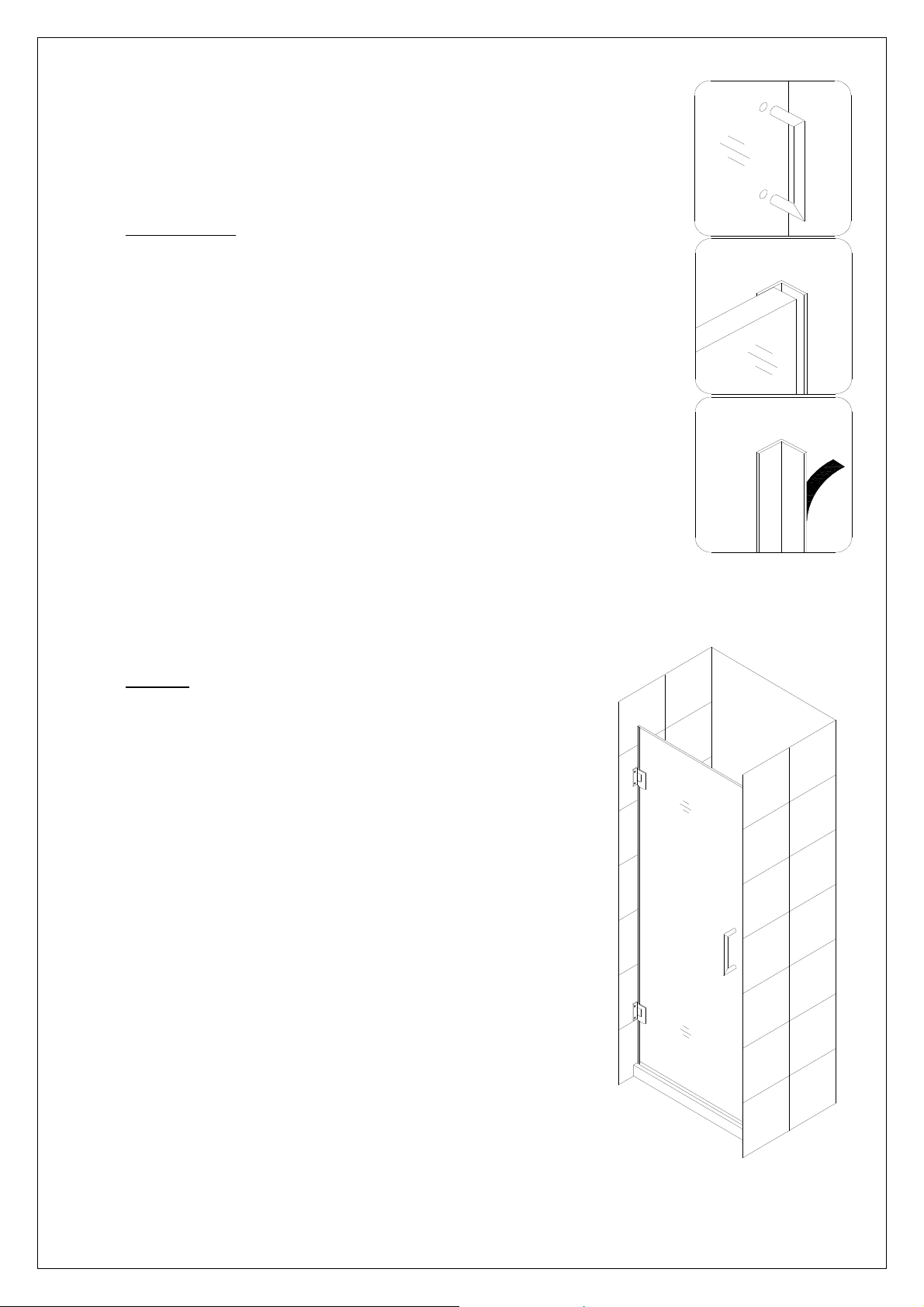

5. Mount the Handle (02) to the Glass door (01).
See Fig. 5.1 for details.
ATTENTION;
Prior to the next step, please be sure the part of the wall
for installation of the L-shaped strip (08) is clean, dry and
free from soap, oil and any construction debris.
6. With the door closed place the L-shaped strip (08) on the
door edge and mark its location on the wall.
Please note that the corner of the L-shaped strip (08)
should face inward.
Open the door. Gently remove the plastic tape from the
adhesive side of the L-shaped strip (08) and firmly press it to
the wall.
See Fig. 5.2 and Fig. 5.3 for details.
Fig. 5

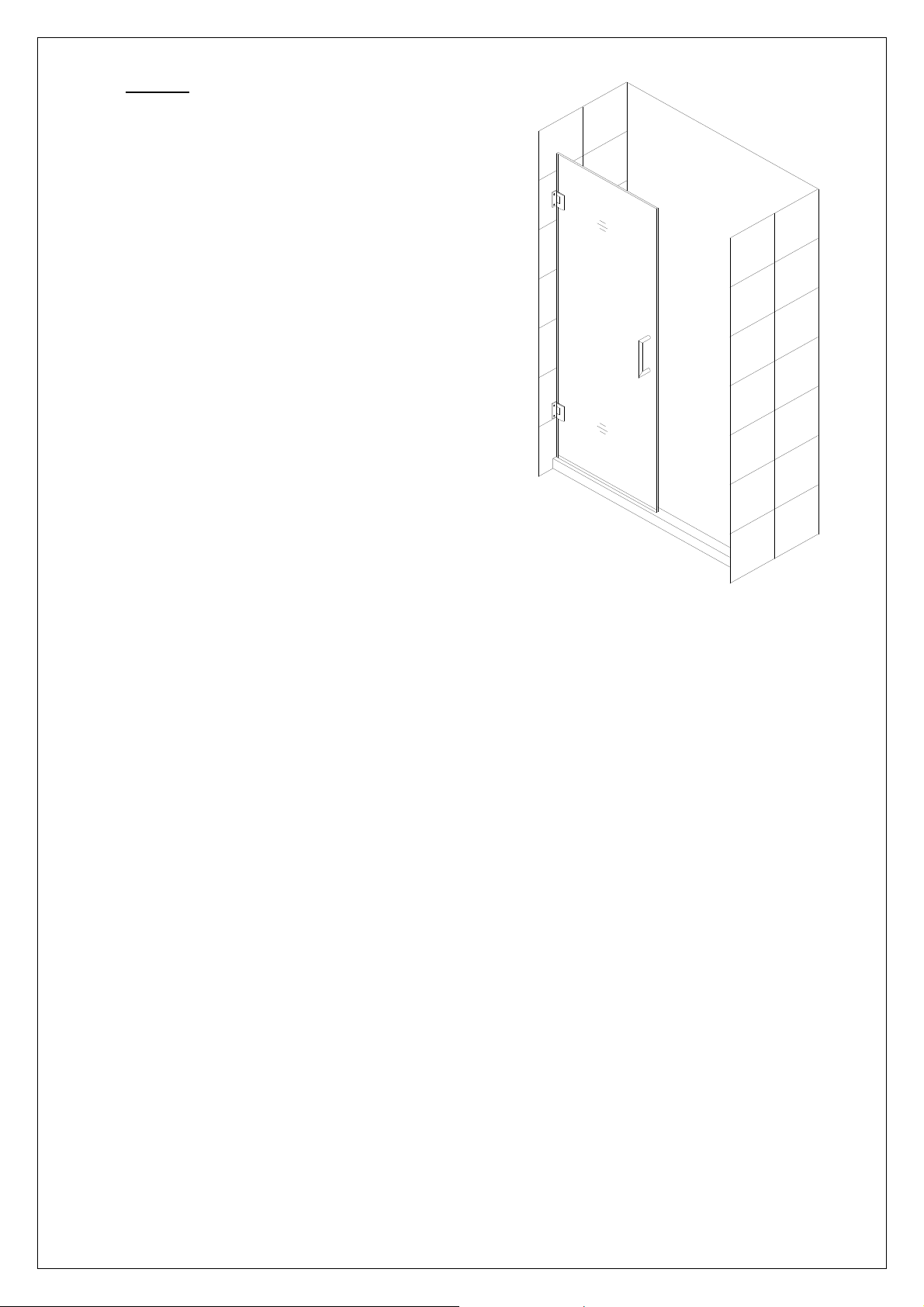

NOTE:
If your shower door is up to 30” in width
and you don’t have the Stationary glass,
you only need to assemble parts from
Packing List A and your installation is
finished.
See Fig. 6 for details.
Fig. 6
Rev 2.2
6
3
2
1
NOTE:
If your door is more than 30” in
width, you will need to add
Stationary glass panel (11):
a) For installation of the Stationary
Glass with Support bar, you will
need to refer to Packing List B.
b) For installation of the Stationary
Glass with Glass Shelves, you will
need to refer to Packing List C.

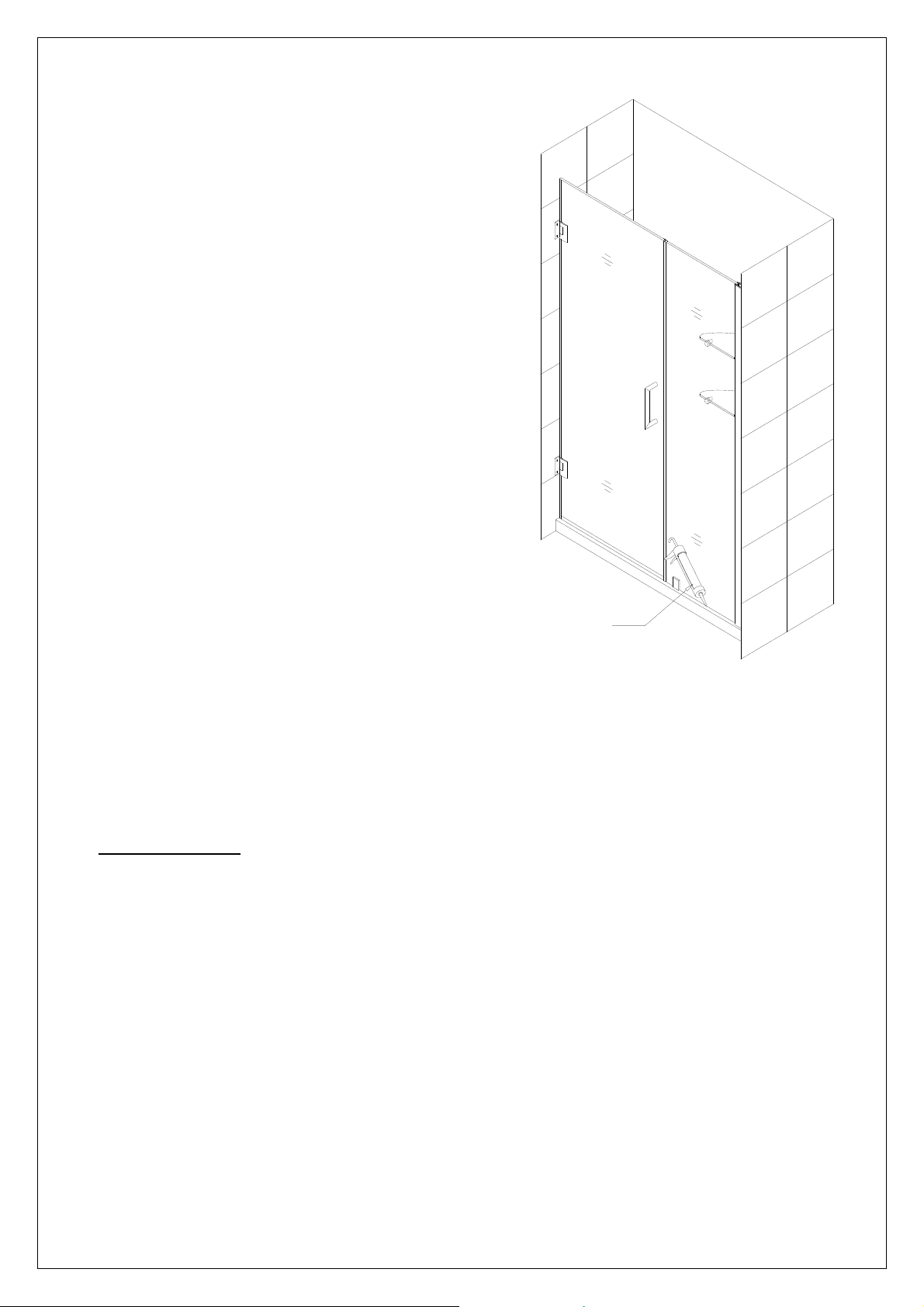

See Fig. 7 for details.
Fig. 7
Rev 2.2
7

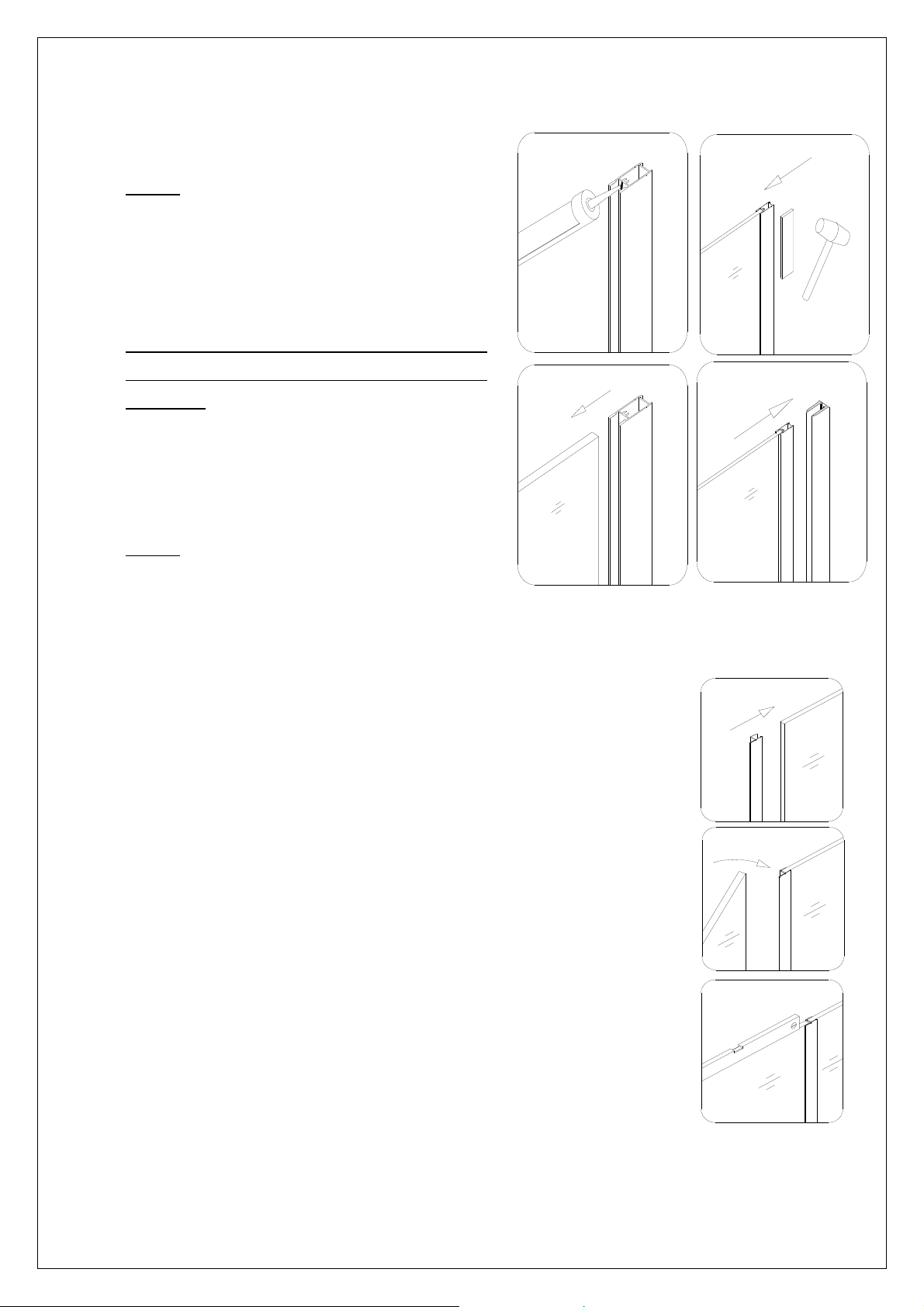

Stationary Glass Installation
7. Apply clear silicone along the inner channel
of the Glass profile (10) and push the
Stationary glass (11) inside the channel.
NOTE: If you have difficulty sliding the
Glass profile over the Stationary glass, you
can slightly tap on the Glass profile with a
rubber hammer and a piece of wood.
See Fig. 8.1, Fig. 8.2 and Fig. 8.3 for details.
NEVER use the metal hammer or
hit the profile without the wood
bumper.
8. Push the Glass profile (10) inside the Wall
profile (09).
See Fig. 8.4 for details.
NOTE: Please note that the hole in the
corner of the Glass panel should be at
the bottom, farther from the wall.
Fig. 8
9. Press the Anti-Water strip (20) on the vertical edge of the
Stationary glass (11). Align the Stationary glass with the Glass
Door and then close the Glass door.
If needed adjust the position of the Stationary glass to make
sure the Anti-water strip (20) and the Glass door (1) work well.
See Fig. 9 for details.
Please note: The Stationary glass must be leveled with the
Glass door
Fig. 9
Rev 2.2
8
4
3
2
1
3
2
1

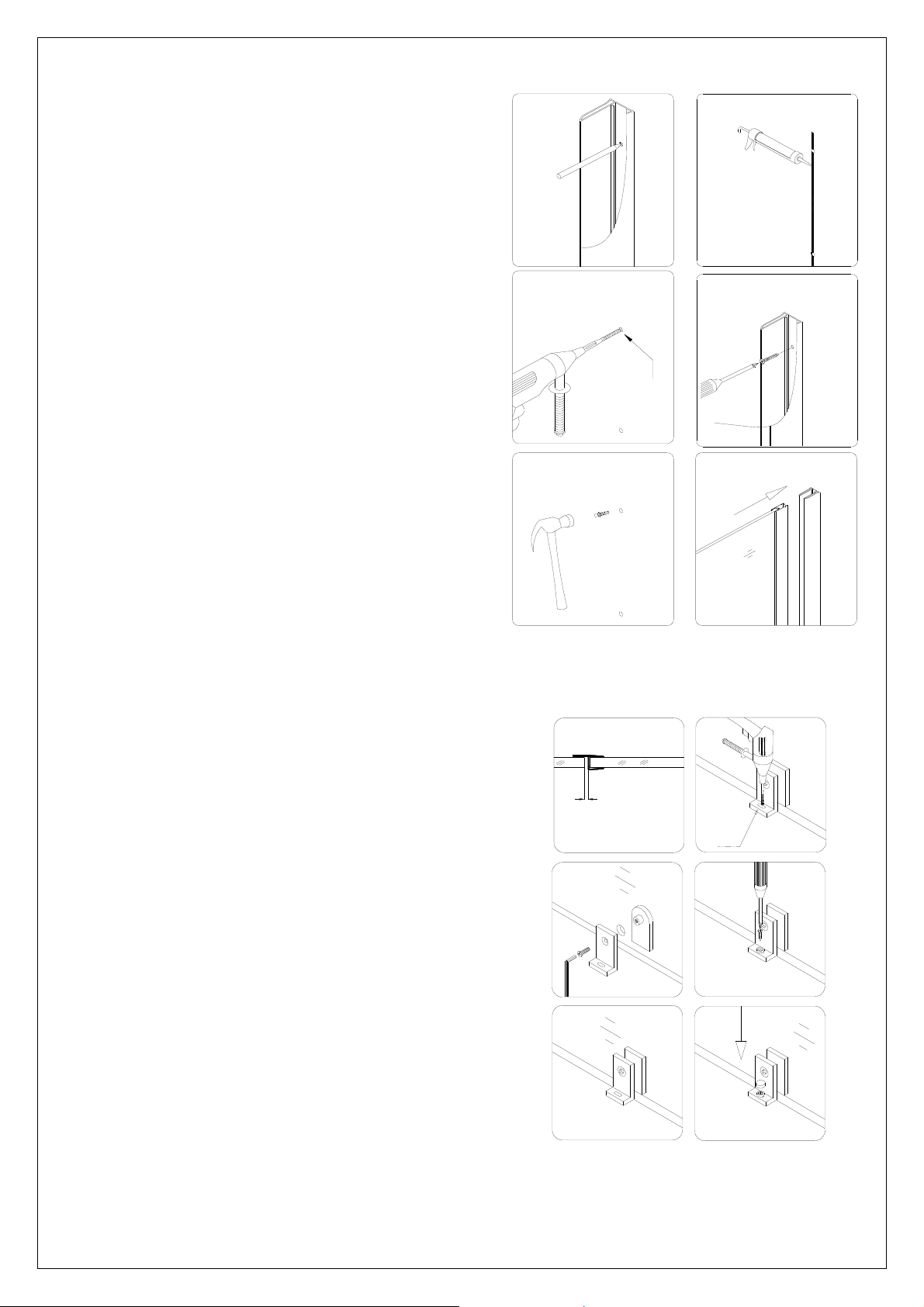

10. Draw a line along the inner edge of the
Wall profile on the wall. Detach the Wall
profile from the Stationary glass and the
Glass profile assembly. Place the Wall
profile to the outlined position and mark
the drilling holes through the predrilled
holes in the Wall profile.
Now drill the holes using Ø 5/16” drill bit
in the wall and insert the Wall anchors
(13) into the holes.
Apply silicone along the Wall profile and
around the holes. Fasten the Wall profile
to the wall with the Round head Screw
ST4.2×30 (15). Then push the Stationary
glass and Glass profile assembly into the
Wall profile.
See Fig. 10 for details.
Fig. 10
11. Adjust the Stationary glass position to
ensure that when the glass door is closed,
there is a gap (1/16”-1/8”) between the two
glass panels.
To adjust and secure the stationary glass in
place, install the Bottom Bracket (19) to the
Stationary glass;
Mark the drilling hole for the bracket. Make
sure the mark is clear and visible and drill the
hole using Ø 1/8” drill bit.
Use the Round head screws ST4.2×25 (16)
to attach the Bottom Bracket (19) to the
shower base or the threshold. Cover the
screw head with Decorative cover (18).
See Fig. 11 for details.
Fig. 11
Rev 2.2
9
(1/16--1/8)"
6
5
4
3
2
1
Ø 1/8”
Ø 5/16”
6
5
4
3
2
1

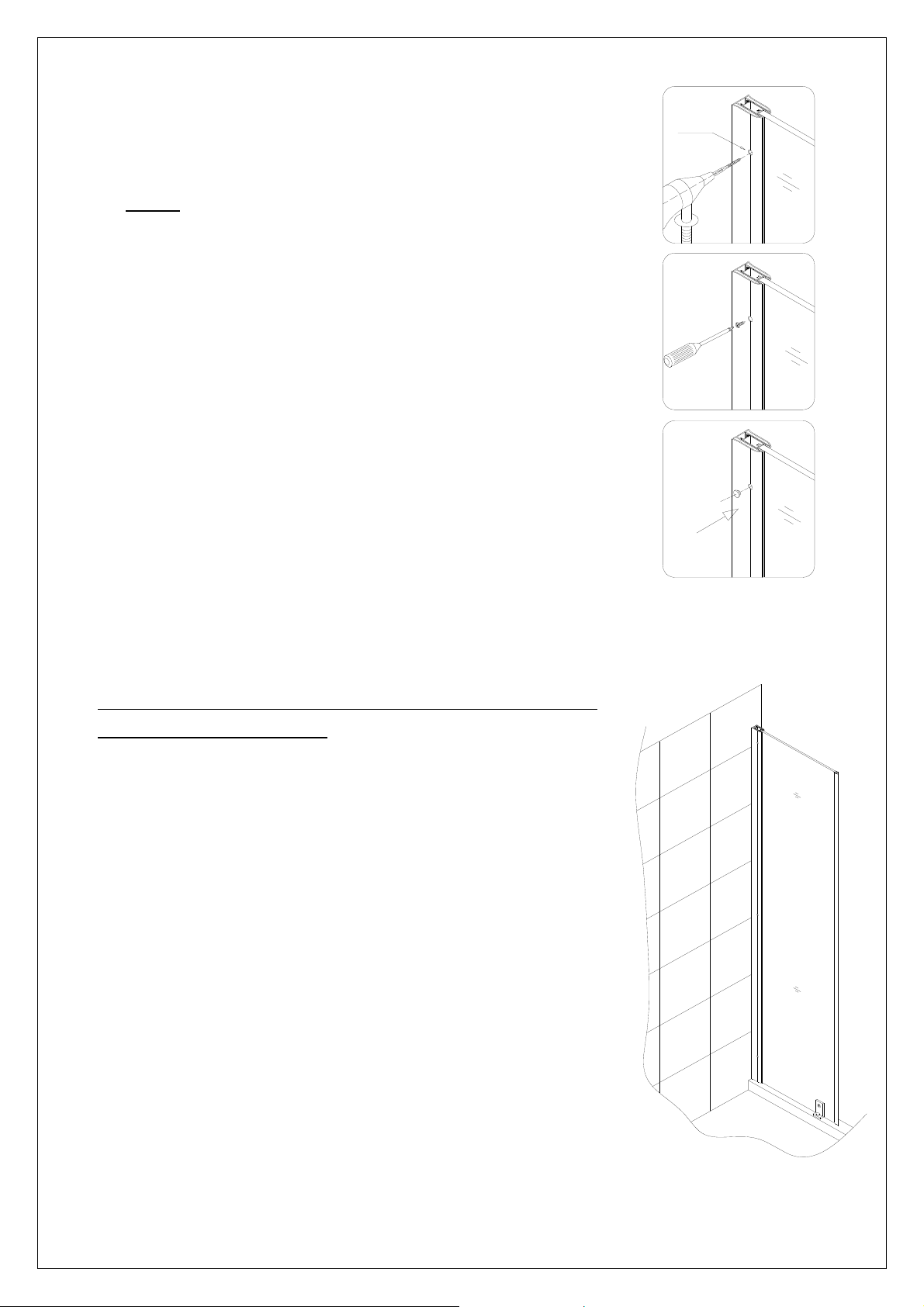

12. After final adjustments of the Stationary glass drill the
holes in the Glass profile through predrilled holes in the
Wall profile using Ø 1/8” drill bit.
NOTE: You only need to drill through the first layer of the
Glass Profile.
Use Countersunk screws ST4.2×18 (14) to attach the
Wall profile to the Glass profile. Cover the exposed screw
heads with Decorative Plugs (17).
See Fig. 12 and Fig. 13 for details.
Fig. 12
If the Stationary Panel width is 6”, the
installation is finished.
If the Stationary Glass width is 12” and over you
will need to continue your installation from:
a) Step 13 for Support Bar installation.
b) Step 15 for Glass Shelves installation.
Fig. 13
Rev 2.2
10
3
2
1
Ø 1/8”

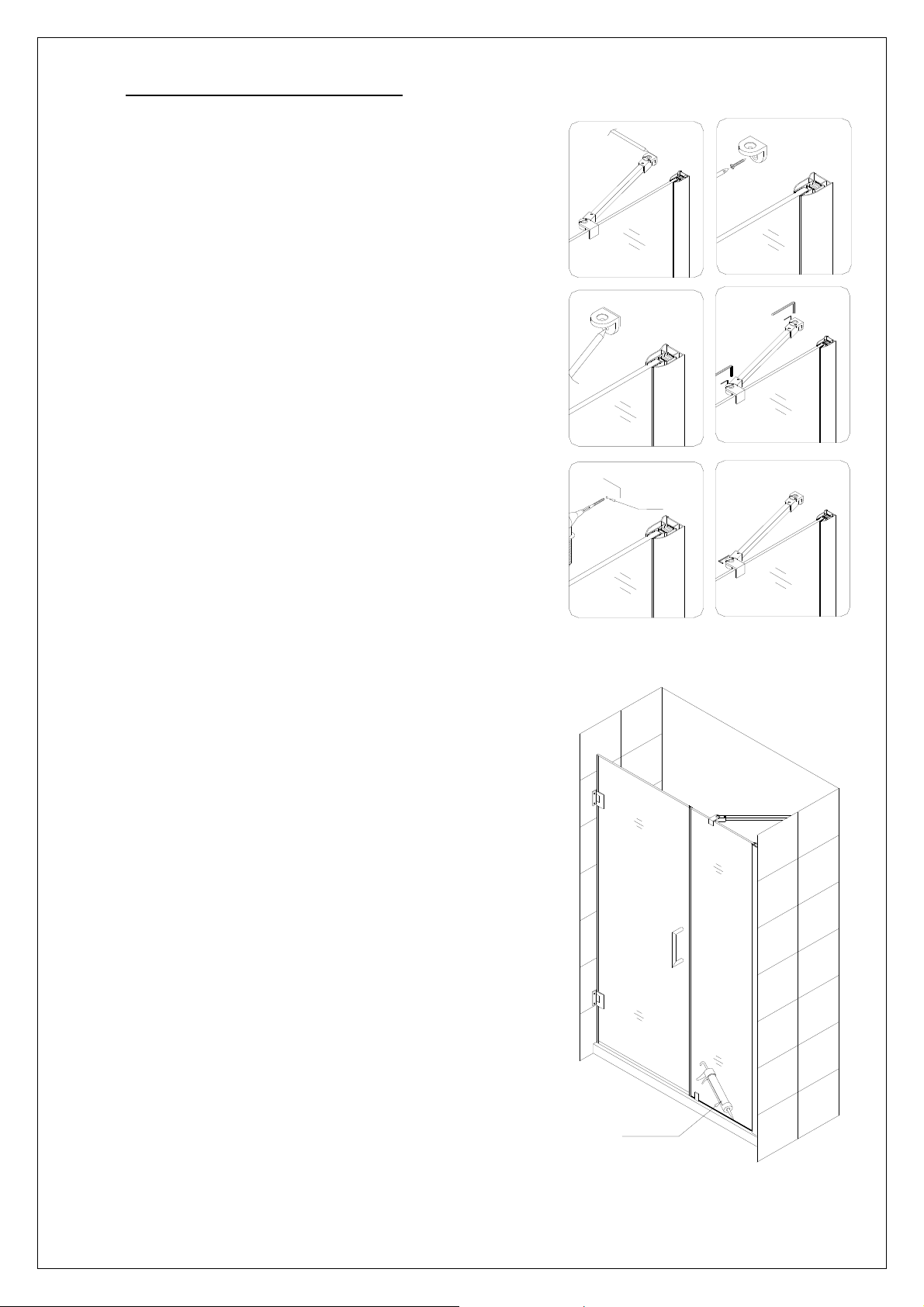

Support bar installation
13. Locate the Support bar (12).
Adjust the bar to a proper position on the glass
and the wall. Level it horizontally. Hold it firmly and
outline the bracket’s position on the wall. Remove
the Support bar and detach the wall bracket from
it. Place the wall bracket against its outlined
position on the wall and mark the drilling hole.
Drill the hole using Ø 5/16” drill bit; insert the Wall
anchor (13) and fasten the wall bracket to the wall
with the Screw ST4.2×30 (15). Attach the Support
bar to the wall as shown on Fig 14.5 and tighten
the set screws and the glass holding screw to
secure the glass.
See Fig. 14 for details.
Fig. 14
14. Apply the sealant along the connection of the
Stationary glass and the Shower base or
threshold.
See Fig. 15 for details.
Fig. 15
Rev 2.2
11
1
2
3
4
5
6
Ø 5/16”
Caulk

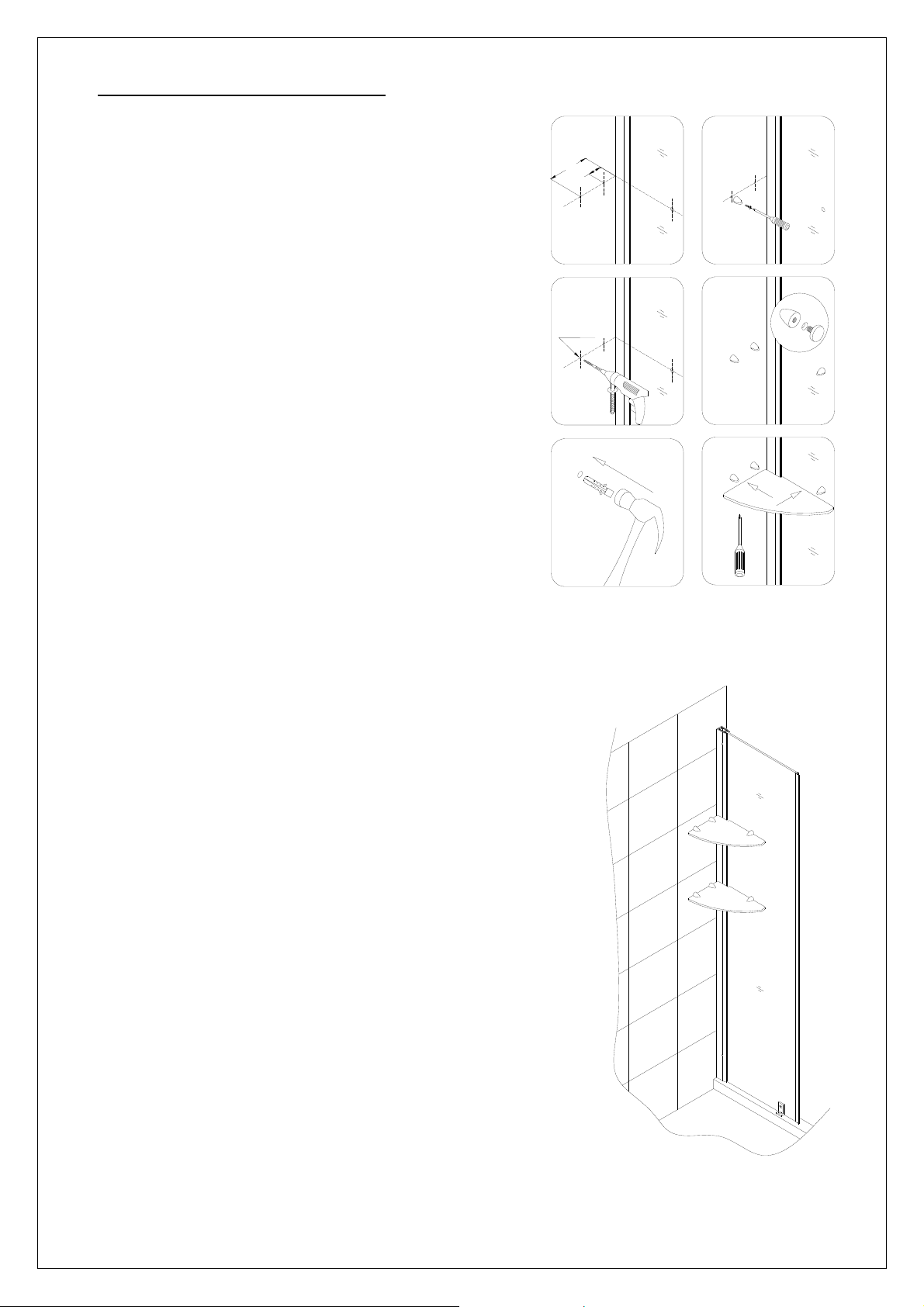

Glass shelves installation
15. Mark the Glass shelf (12) position on the
wall. According to the measurements in Fig.
16.1, mark the drilling holes for the shelf
brackets.
Drill the holes using Ø 5/16” drill bit and
insert the Wall anchors (13).
Attach the Shelf brackets (without nut) (22)
to the wall using the Countersunk screw
ST4.2×25 (23) and attach the Shelf brackets
(with nut) (21) to the Stationary glass (11).
Insert the Glass shelves into the Shelf
brackets and fasten the screws at the bottom
of the brackets.
See Fig. 16 and Fig. 17 for details.
Fig. 16
Fig. 17
Rev 2.2
12
2"
6
"
Ø 5/16”
6
5
4
3
2
1
16. Apply the sealant along the connection of
the Stationary glass and the Shower base or
the threshold.
See Fig. 18 for details.
Fig. 18
Rev 2.2
13
Maintenance
To insure long lasting life for your acrylic back walls, wipe them off after each use with a soft cloth.
To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive
cleansers, metal brushes or scrapers that could scratch or dull the surface.
To insure long lasting life for your glass shower products, wipe them off after each use with a soft
cloth. Rinse and wipe of the glass using either soft cloth or squeegee to prevent soap buildup. Never
use abrasive cleaners and cleaning products that contain scoring agent because this may scratch the
surface. Never use bristle brushes or abrasive sponges.
To assure a long lasting finish wipe off the metal parts after each use with a soft cloth. Do not use
abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse
the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny finishes,
rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week.
When applying stainless steel cleaner or polish, work with (not across) the grain. Never use abrasive
sponge or cloth, steel wool or wired brushes.
caulk
© 2012 Bath Authority LLC.
All Rights Reserved.
DREAMLINE
™
LIMITED WARRANTY
This is Bath Authority LLC’s (“DreamLine”) exclusive written warranty effective April 2, 2012
This warranty extends only to the original owner/end-user for household use only and is not transferable to a subsequent owner. This warranty applies only
to DreamLine™ products purchased from an authorized dealer and installed in United States or Canada. Proof of purchase (original sales receipt) must be
provided with all warranty claims. In no event shall the liability of DreamLine™ exceed the purchase price of the unit.
If DreamLine™ shower & tub doors, shower enclosures and shower bases are used commercially, DreamLine™ warrants such products to be free from
defects in material and workmanship for one (1) year from initial date of purchase from an authorized dealer, with all other terms of this warranty applying
except duration. If DreamLine™ vanities, vessel sinks and shower columns are used commercially, DreamLine™ warrants such products to be free from
defects in material and workmanship for three (3) months from initial date of purchase from an authorized dealer, with all other terms of this warranty ap-
plying except duration. DreamLine™ Jetted and Steam Shower Cabins are not intended for commercial use and there is no warranty extended
for these products for commercial use.
DreamLine™ hereby disclaims all warranties for products sold as dealer or store displays. DreamLine™ hereby disclaims all warranties for products used outside of
the United States or Canada whether expressed or implied, including but not limited to the implied warranties of merchantability and tness for a particular purpose.
DreamLine™ will, at its election, repair, replace with product of equal value or make appropriate adjustment where DreamLine’s analysis or inspection of
warranty claim discloses any such defects occurring in normal usage within the warranty period. DreamLine warranty obligation shall be discharged upon
tender of replacement or repair. Purchaser’s refusal to accept the tender terminates warranty obligation.
Cost of freight for returning products to DreamLine™ for repairs or replacement under this limited warranty are the responsibility of the customer. Cost of
freight associated with shipping of replacement product or parts to the customer may be charged to customer. Any product replaced or repaired during the
warranty period will be covered only for the remaining period of the original warranty. In no event will DreamLine be liable for costs of repair or replacement
of any installation material, including but not limited to tiles, marble, etc. DreamLine™ is not responsible for installation, removal or reinstallation
costs of any product requiring warranty services.
Improper modication or alteration of any DreamLine™ products will void the warranty. DreamLine product installations and repairs must be performed
by either a DreamLine authorized agent or a licensed experienced professional contractor - installation or repairs performed by any other party shall void
the warranty. This warranty shall not apply to breakage or damages caused by normal wear and tear, fault, carelessness, abuse, misuse, misapplication,
improper maintenance, alteration or modication of the unit, as well as chemical or natural corrosion, accident, re, ood, act of God or any other casu-
alty. Improper care and cleaning will void the warranty. Use of cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents
or other products not recommended for chrome or similar nish, glass or acrylic will void the warranty. For additional product maintenance instructions
please refer to product installation manual. DreamLine™ is not responsible for any issues arising in connection with errors or omissions in information
provided on DreamLine’s websites. The warranty does not extend to any non-DreamLine™ plumbing or components installed by installers, end users
or by any party other than DreamLine™.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BATH AIU-
THORITY LLC (“DREAMLINE”) AND/OR SELLER DISCLAIM ALL LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES. DREAMLINE™ IS NOT LIABLE FOR PERSONAL INJURIES OR DEATH TO ANY PERSON OR FOR ANY DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGE, LOSS OF USE, LOSS OF TIME, LOSS OF PROFITS, INCONVENIENCE,
INCIDENTAL EXPENSES, LABOR OR MATERIAL CHARGES, OR ANY OTHER COSTS RESULTING FROM THE USE OF ITS
PRODUCTS OR PERTAINING TO THE APPLICATION OF THE PRESENT WARRANTY, OR RESULTING FROM THE REMOVAL OR
REPLACEMENT OF ANY PRODUCT OR ELEMENT OR PART COVERED BY THIS WARRANTY.
DreamLine™ is not responsible for product code compliance or for verifying building code restrictions on installation or use and any such compliance is
excluded from this warranty. DreamLine™ reserves the right to modify this warranty at any time - such warranty modication will not alter warranty ap-
plicable at the time of sale of the products in question. The warranty terms for specic products are:
SHOWER & TUB DOORS, SHOWER ENCLOSURES AND SHOWER BASES
DreamLine™ warrants shower & tub doors, shower enclosures and shower bases to be free from defects in workmanship and materials under
normal residential use for a period of ve (5) years from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
SHOWER CABINS (JETTED & STEAM)
DreamLine™ warrants glass, acrylic and nish to be free from defects in workmanship for a period of ve (5) years from initial date of purchase by
the owner/end-user, contractor or builder from an authorized dealer; and plumbing, electrical and steam generator components for a period of
one (1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
SHOWER COLUMNS
DreamLine™ warrants shower columns to be free from defects in workmanship and materials under normal residential use for a period of one
(1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
VANITIES AND VESSEL SINKS
DreamLine™ warrants bathroom vanities and vessel sinks to be free from defects in workmanship and materials under normal residential use
for a period of one (1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential
damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights. You may also have other rights, which
vary from state/province to state/province.
WARRANTY
