Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 093 840
Contents
2
Warning and Safety instructions...................................................................... 4
Caring for the environment .............................................................................. 13
Guide to the cooker hood................................................................................. 14
Modes of operation ........................................................................................... 16
Operation............................................................................................................ 17
Switching the fan on............................................................................................ 17
Selecting the power level .................................................................................... 17
Run-on time......................................................................................................... 17
Switching the fan off ........................................................................................... 17
Switching the hob lighting on/off ........................................................................ 17
Power management ............................................................................................ 18
Switching Power management on/off ............................................................ 18
Safety switch-off ................................................................................................. 19
Energy saving tips ............................................................................................. 20
Cleaning and care ............................................................................................. 21
Housing ............................................................................................................... 21
Important information for appliances with lacquered casing......................... 21
Grease filters ....................................................................................................... 22
Replacing the grease filters............................................................................ 24
Charcoal filter ...................................................................................................... 24
Disposing of charcoal filters ........................................................................... 24
Reactivatable charcoal filter ........................................................................... 24
Changing a lamp ................................................................................................. 25
Installation.......................................................................................................... 26
Before installation................................................................................................ 26
Assembly parts.................................................................................................... 26
Appliance dimensions ......................................................................................... 27
Safety distance between hob and cooker hood (S) ............................................ 28
Installation recommendations ............................................................................. 29
Protective foil....................................................................................................... 29
Connection for air extraction............................................................................... 41
Non-return flap ............................................................................................... 41
Condensation ................................................................................................. 41
Silencer........................................................................................................... 42
Electrical connection ........................................................................................... 43
Technical data.................................................................................................... 44
Service................................................................................................................ 46
Contact in the event of a fault ............................................................................. 46
Position of the data plate .................................................................................... 46
Warning and Safety instructions
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter (e.g. GasSafe in the UK) for more information if necessary.
Warning and Safety instructions
5
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
6
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
7
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
8
Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out to the open air through a chimney or extraction
ducting. They include gas, oil, wood and coal-fired boilers and
heaters, continuous flow or other water heaters, gas hobs and
ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
- extraction mode,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
9
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
Warning and Safety instructions
10
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
- When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
- Select a pan which is suitable for the size of the burner.
- Regulate the flame so that it does not burn up the sides of the
pan.
- Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
This cooker hood is not suitable for placing objects on.
Warning and Safety instructions
11
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Warning and Safety instructions
12
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your vapour extraction unit.
Caring for the environment
13
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old
appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law,
you are solely responsible for deleting
any personal data from the old
appliance prior to disposal. You are
legally obliged to remove any old
batteries which are not securely
enclosed by the appliance and to
remove any lamps without destroying
them, where this is possible. These
must be taken to a suitable collection
point where they can be handed in free
of charge. Please ensure that your old
appliance poses no risk to children
while being stored for disposal.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Telescopic extension piece
b
Tower
c
Canopy
d
Control elements
e
Grease filters
f
Spacer frame
The spacer frame creates a shadow gap between the tower and the ceiling. The
cooker hood can be installed with or without the spacer frame.
g
Recirculation grille
Only for recirculation mode
h
Hob lighting
i
Charcoal filter
Disposable or reactivatable charcoal filter
Optional accessory for recirculation mode
j
Control for switching the fan on and off
k
Controls for setting the fan power level
l
Control for switching the lighting on and off
Modes of operation
16
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
(recirculation mode cooker hoods
require a conversion kit and charcoal
filter, see “Technical Data”)
The air is drawn in and cleaned first by
the grease filters and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.
Operation
17
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Press the On/Off control .
The fan will switch on at setting 2 and
the symbol and 2 will light up in the
power setting display.
Selecting the power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level you want by
pressing the or control.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5minutes.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering
vapours and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
Switching the fan off
Press the On/Off control to switch
the fan off.
The symbol will go out.
Switching the hob lighting on/
off
The hob lighting can be switched on
and off independently of the fan.
To do so press the lighting control.
The symbol will light up when the
hob lighting is switched on.
Operation
18
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
You can deactivate power
management.
Keep in mind that deactivating this
function may increase energy
consumption.
Switching Power management on/off
You can deactivate Power
management.
This can result in increased electricity
consumption.
To set this option, both the fan and
the hob lighting must be switched off.
Press the “” and “” controls at the
same time for approx. 10 seconds,
until the 1 lights up.
Then press in turn,
- the lighting control ,
- the “” button and then
- the lighting control again.
If Power management is switched on,
the 1 and B indicators will light up
constantly.
If it is switched off, 1 and B will flash.
Press “” to switch Power
management off.
The 1 and B indicators will flash.
To switch it on, press “”.
The 1 and B indicators will light up
constantly.
Confirm your choice with the On/Off
control .
All the indicator lamps will go out.
If you do not confirm within 4minutes,
the cooker hood will revert to the old
setting.
Operation
19
Safety switch-off
If Power management has been
deactivated, the cooker hood will
switch itself off automatically after
12hours if it has been left on (fan and
hob lighting).
To switch it on again press the On/
Off control or the lighting
control.
Energy saving tips
20
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
- Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the Booster
setting when necessary.
- When a large volume of cooking
vapours is being produced, switch to
a high power level in good time. This
is more efficient than operating the
cooker hood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
- Make sure that you switch the cooker
hood off after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
21
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control
elements can be cleaned using hot
water with a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered casing
(Customisation on request)
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Cleaning and care
22
Important information for the control
elements
If soiling is not removed promptly, it
could cause the control elements to
alter or discolour.
Remove any soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Grease filters
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
Cleaning and care
23
To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning the grease filters in the
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commercially available
household dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discoloured. This will not
affect the functioning of the grease
filters in any way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
Refit the grease filters, making sure
that the latch faces outwards.
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Cleaning and care
24
Replacing the grease filters
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
the Miele Customer Service Department
(see end of these operating instructions
for contact details) or from your Miele
dealer.
Charcoal filter
With recirculation mode, a charcoal
filter must be fitted in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odours.
The charcoal filter is fitted in the canopy
above the grease filters.
Fitting/replacing charcoal filters
Remove the grease filter before fitting
or replacing a charcoal filter.
Take the charcoal filter out of its
packaging.
Press the charcoal filter into the
frame.
Refit the grease filters.
When to change the charcoal filter
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
It should, however, be replaced at
least every 6 months.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filter
A reactivatable charcoal filter is
available for this cooker hood. It can be
used several times after being
reactivated in the oven.
Please follow the operating
instructions supplied with the filter.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Cleaning and care
25
Changing a lamp
Only use the specified lamps.
Other lamps, e.g. halogen lamps,
may become damaged due to the
high generation of heat.
The lamps should be replaced with a
lamp of the same type:
Manufacturer ............................... EGLO
Lamp type .................................... GU10
Specification................. 11427 or 12981
Wattage ........................................... 3W
ILCOS D Code...... DR-3-H-GU10-50/56
Alternatively the following lamps can be
used:
Manufacturer ............................... EGLO
Lamp type .................................... GU10
Specification................................ 11511
Wattage ........................................... 5W
ILCOS D Code...... DR-5-H-GU10-50/54
These lamps have a different luminosity.
Only use lamps of the same type in the
cooker hood.
These lamps are available from Miele or
from specialist retailers.
Switch off the fan and the lighting.
The lamps can get very hot when
in use.
Allow the lamps to cool down for a
few minutes before changing them.
Disconnect the cooker hood from the
mains electrical supply before
replacing the lamps (see “Warning
and Safety instructions”).
Insert the lever supplied into the gap
between the lamp and the lamp
holder.
The lamp will then drop downwards.
Grip the lamp, turn it anti-clockwise
and take it out.
Screw the new lamp into the socket
and push it upwards. Please follow
the manufacturer's instructions.
Installation
*INSTALLATION*
26
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Assembly parts
4 screws, 7 x 110mm and
4 plugs, 10 x 80mm
for securing the cooker hood to the
ceiling
The plugs meet European technical
requirements for use in concrete
ceilings.
They must only be used together
with the 7 x 110mm screws
supplied. For other types of ceiling
construction, alternative fixings will
be required. Make sure the ceiling is
able to take the weight of the cooker
hood.
4 extension piece holders
for aligning and securing the telescopic
extension piece
4 screws M4 x 8.5mm
for securing the extension piece
holders
14 screws M4 x 8mm
for securing the spacer frame and
securing the cooker hood to the
installation frame
1 screw M4 x 16mm
for securing the tower
DUI 32 conversion kit for
recirculation mode
(not supplied, available as an optional
accessory). The kit includes a
directional unit, aluminium hose and
hose clips.
Keep the following in a safe place:
1lever
for replacing lamps.
Installation
*INSTALLATION*
27
Appliance dimensions
a
Installation area: cut-out for feeding
through the exhaust ducting and the
mains cable. In recirculation mode,
only the mains cable is required.
b
Possible height range for appliance
in extraction mode
c
Possible height range for appliance
in recirculation mode
d
Alternative installation with spacer
frame
e
Ventilation grille positioned at the
top for recirculation
f
A mains connection cable is required
to connect the cooker hood to the
socket in the ceiling. With air
extraction mode flexible ducting is
also required.
Exhaust connection 150 mm
Installation
*INSTALLATION*
28
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
Installation
*INSTALLATION*
29
Installation recommendations
- When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650mm above electric cookers/hobs
may be preferable to give more
working space under the hood.
- Account should also be taken of the
height of the person who will be
using the hood most often. They
should have sufficient space to work
comfortably at the hob, and be able
to reach the cooker hood controls
with ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour
extraction, the cooker hood must be
centred over the hob, not to the side
or behind it.
- The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
Protective foil
The housing components have
protective foil around them to protect
them from transport damage.
Please remove this foil before fitting
the housing components. It can be
peeled off easily.
Installation
*INSTALLATION*
30

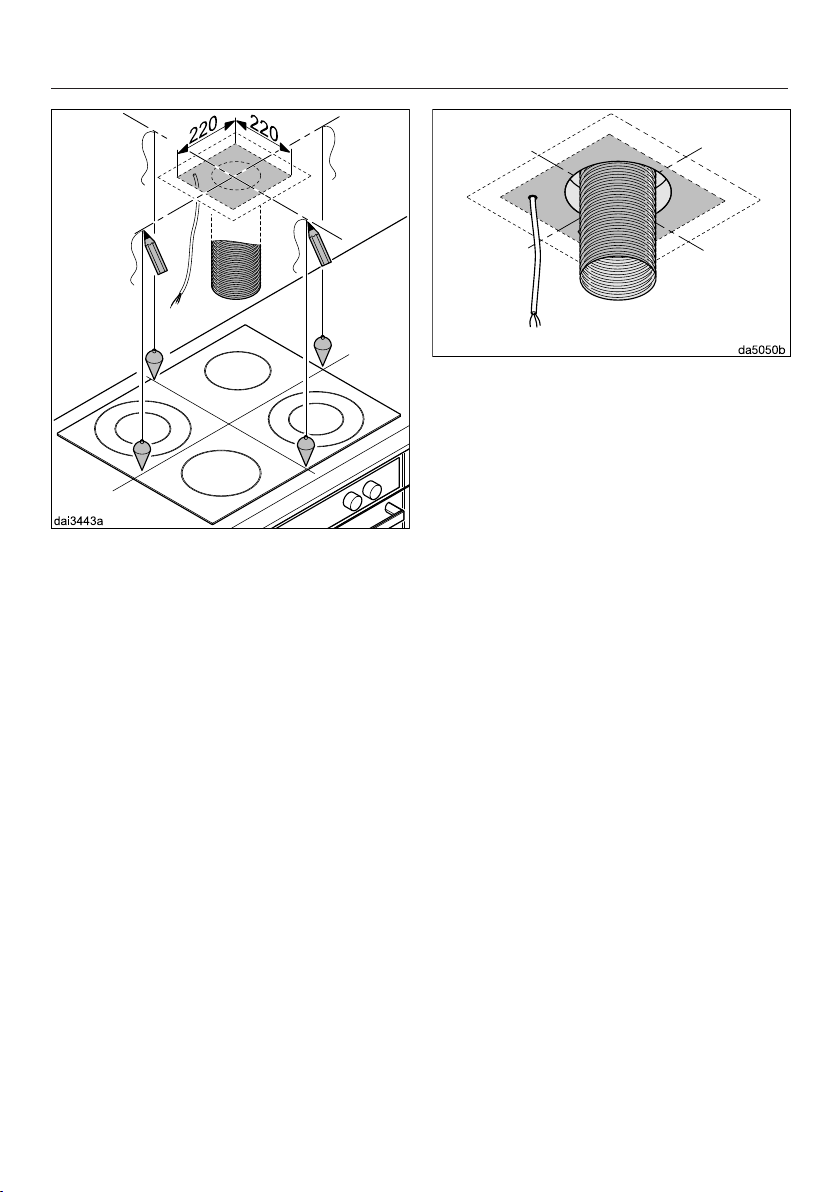

Draw two intersecting lines on the
ceiling.
For extraction mode:
- Lay the vent ducting and feed it
down through the ceiling in the area
shown. A section of flexible vent duct
approx.700mm in length is required
between the ceiling and the cooker
hood exhaust duct.
Lay the mains connection cable and
feed it down through the ceiling in the
area shown. A cable approx.700mm
in length is required between the
ceiling and the cooker hood power
connection.
Installation
*INSTALLATION*
31
Use a knife to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Drill four holes 10mm, approx.
115mm deep for the plugs supplied.
Place the four plugs in the holes and
screw in the 4 screws so that they
protrude by approx. 30mm.
Installation
*INSTALLATION*
32
The spacer frame can be installed
between the tower and the ceiling. This
creates a shadow which gives the
illusion of a gap between the ceiling and
the tower. This is useful if the ceiling is
not level or is uneven. The cooker hood
is aligned vertically with the spacers
supplied. Visual irregularities between
the tower and the ceiling are then
concealed by the shadow.
If you wish to install the cooker hood
with the spacer frame, remove the
four inserts from the fixing holes.
Mount the spacer frame onto the
installation frame.
Installation
*INSTALLATION*
33
Hang the installation frame on the
four screws. The front of the frame is
marked with a “V”.
If using the spacer frame, place the
two covers into the fixing holes.
Align the installation frame with the
intersecting lines and secure it with
the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the cooker hood
vertically.
Installation
*INSTALLATION*
34
Holding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Replace the screws.
The directional unit from conversion kit
DUI 32 (optional accessory) is installed
for recirculation mode (UL):
Bend the four retaining tabs on the
installation frame outwards.
Lay the mains connection cable
inside the installation frame.
Fit the directional unit as shown. Note
the marking on the front.
Bend the retaining tabs back and
approx. 45° inwards to hold the
directional unit in place.
Installation
*INSTALLATION*
35
Secure the hose to the directional unit
socket using a hose clip.
Check that the hose is held securely.
Push the telescopic piece over the
installation frame:
- with the recirculation grilles at the
bottom for extraction mode (AL)/
external motor (EXT),
- with the recirculation grilles at the top
for recirculation mode (UL).
Bend the two retaining tabs outwards
to prevent the telescopic piece from
slipping down again.
Installation
*INSTALLATION*
36
Fit the four telescopic piece clamps.
When the screws are tightened, the
clamps spread out and push the
telescopic piece upwards.
Tighten the screws only until the top
edge of the telescopic piece is
evenly aligned with the ceiling or the
spacer frame.
Bend back the two retaining tabs.
Push the tower over the telescopic
piece and bend the retaining tabs
outwards again to prevent the tower
from slipping down again.
Installation
*INSTALLATION*
37
Hang the cooker hood on the
brackets, making sure that the
controls are at the front.
Secure the cooker hood with the
screws supplied.
Installation
*INSTALLATION*
38
Connect the mains cable. See
“Electrical connection”.
Slide the vent ducting onto the vent
socket and secure it (using a hose
clip, for example).

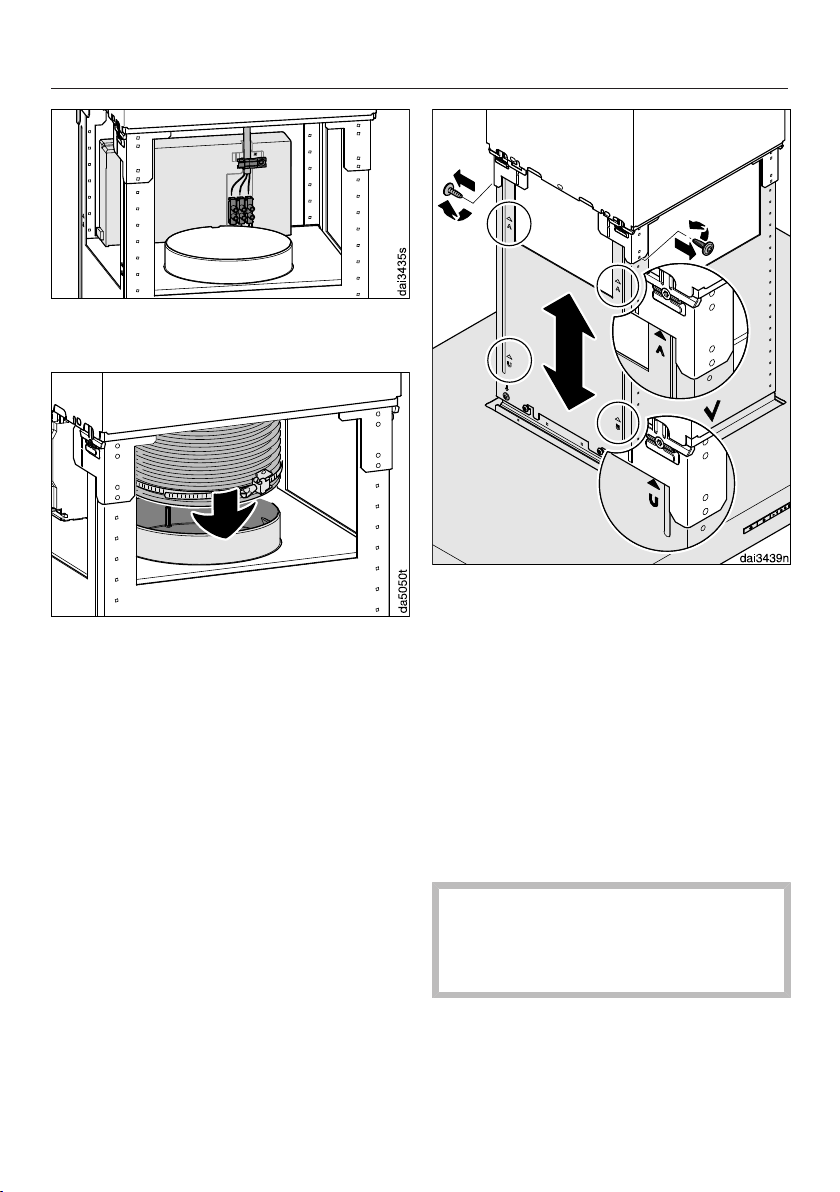

Unscrew both screws from the
installation frame again.
The canopy can now be adjusted to the
desired height, observing the
permissible height ranges:
- With extraction mode: upwards as far
as it will go, downwards only to the
“A” marking.
- With recirculation mode: upwards
only to the “U” marking, dowards as
far as it will go.
Follow the instructions in “Appliance
dimensions”. Safety distances
between the hob and cooker hood
must be observed.
Installation
*INSTALLATION*
39
Raise the canopy to the desired
height and secure it with the screws.
Hold the tower securely, bend back
the retaining tabs and carefully lower
the tower.
The tower will locate in the cut-out in
the canopy.
Installation
*INSTALLATION*
40
Remove the grease filters from the
cooker hood.
Insert the safety screw on the inside.
With recirculation mode (UL) cooker
hoods, insert the charcoal filter.
Carefully remove the protective foil
from the grease filters.
Replace the grease filters.
Installation
*INSTALLATION*
41
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from
approved non-flammable materials
for exhaust ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps,
these must be opened whenever the
cooker hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, you can
purchase one as an optional accessory.
Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for
example, the significant variations in
Installation
*INSTALLATION*
42
temperature between the different areas
can cause condensation to form.
Insulate the exhaust ducting to reduce
temperature variations.
If the exhaust ducting is to be laid
horizontally, it must be laid with a
downwards sloping gradient of at least
1cm per meter. This is to ensure that
condensation cannot drain back into
the cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust
ducting.
Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating
outside reaching the kitchen through
the exhaust ducting (e.g. traffic noise).
For this reason, the silencer must be
positioned as close as possible to the
ducting exit.
Installation
*INSTALLATION*
43
Electrical connection
Installation, maintenance or
repair work by unqualified persons
could be extremely dangerous. The
manufacturer cannot be held liable
for unauthorised work.
All electrical work should only be
undertaken by a suitably qualified
and competent electrician in strict
accordance with current national and
local safety and building code
regulations (BS7671 in the UK).
This cooker hood must only be
connected to a properly installed power
supply.
The electrical system must comply with
VDE0100 (BS 7671 in the UK).
For increased safety you should protect
the appliance with a suitable Residual
Current Device with a current trip of
30mA.
A suitable means of disconnection must
be provided on site for each pole.
Suitable means of disconnection
include switches with an all-pole
contact gap of at least 3mm. These
include circuit breakers, fuses and
contactors (EN60335).
The relevant connection data can be
found on the data plate (see “After
sales/Warranty”). Ensure that this data
matches the voltage and frequency of
your household power supply.
If a flexible connection cable is being
used to connect the appliance to the
power supply, the cross-sectional area
of the individual leads must be between
0.75mm² and 1.5mm².
The strain relief must be used to ensure
problem-free connection.
Technical data
44
Fan motor 220W
Hob lighting 4 x 3W
Total connected load 232W
Voltage, frequency AC 230V, 50Hz
Fuse rating 5A
Weight 34kg
Accessories required for recirculation mode
DUI 32 kit to convert from extraction mode to recirculation mode and Charcoal
filter DKF12-P or DKF12-R (reactivatable).
Technical data
45
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier PUR 98 D
Annual Energy Consumption (AEC
hood
) 51,8 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 50,0
Fluid Dynamic Efficiency (FDE
hood
) 33,5
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 41,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,1%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
410,1 m
3
/h
Air flow (min. speed)
280 m
3
/h
Air flow (max. speed)
400 m
3
/h
Air flow (intensive or boost setting)
650 m
3
/h
Max. air flow (Q
max
)
650 m
3
/h
Air pressure at best efficiency point 436 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 48 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 57 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
69 dB
Electrical power input at best efficiency point 148,3 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,20 W
Nominal power of lighting system 12,0 W
Average illumination of the lighting system on the cooking surface 500 Ix
Time increase factor 0,8
Service
46
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele Customer
Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filters.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
sTel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
M.-Nr. 12 093 840 / 00en-GB
PUR 98 D
