Operating and installation instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 10 940 830
Contents
2
Warning and Safety instructions.......................................................................... 3
Caring for the environment ................................................................................ 12
Modes of operation ............................................................................................. 13
Guide to the appliance........................................................................................ 14
Operation.............................................................................................................. 16
Switching the fan on.............................................................................................. 16
Select the power level ........................................................................................... 16
Run-on time........................................................................................................... 16
Switching the fan off ............................................................................................. 16
Switching the hob lighting on/off .......................................................................... 16
Energy saving tips ............................................................................................... 17
Cleaning and care ............................................................................................... 18
Housing ................................................................................................................. 18
Grease filters ......................................................................................................... 19
Charcoal filters ...................................................................................................... 21
Disposing of charcoal filters ............................................................................. 21
After Sales / Warranty ......................................................................................... 22
Position of the data plate ...................................................................................... 22
Installation............................................................................................................ 23
Before installation.................................................................................................. 23
Installation recommendations ............................................................................... 23
Dimensions............................................................................................................ 23
Safety distance between hob and cooker hood (S) .............................................. 24
Fitting the furniture front........................................................................................ 25
Depth adjustment.................................................................................................. 25
Wall installation...................................................................................................... 26
Height adjustment ................................................................................................. 27
Connecting to adjacent furniture units/fitting side panels..................................... 28
For air extraction mode ......................................................................................... 29
For recirculation mode........................................................................................... 29
Electrical connection ............................................................................................. 29
Electrical connection .......................................................................................... 30
Connection for air extraction ............................................................................. 31
Technical data...................................................................................................... 32
Special accessories for recirculation mode .......................................................... 32
Warning and Safety instructions
3
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please
read these instructions carefully before using it for the first time.
They contain important notes on the safety, installation, use and
maintenance of the appliance. Miele cannot be held liable for non-
compliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter (e.g. GasSafe in the UK) if necessary.
Warning and Safety instructions
4
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it safely and
recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.
Warning and Safety instructions
5
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Reliable and safe operation of this cooker hood can only be
assured if it has been connected to the mains electricity supply.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
6
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
7

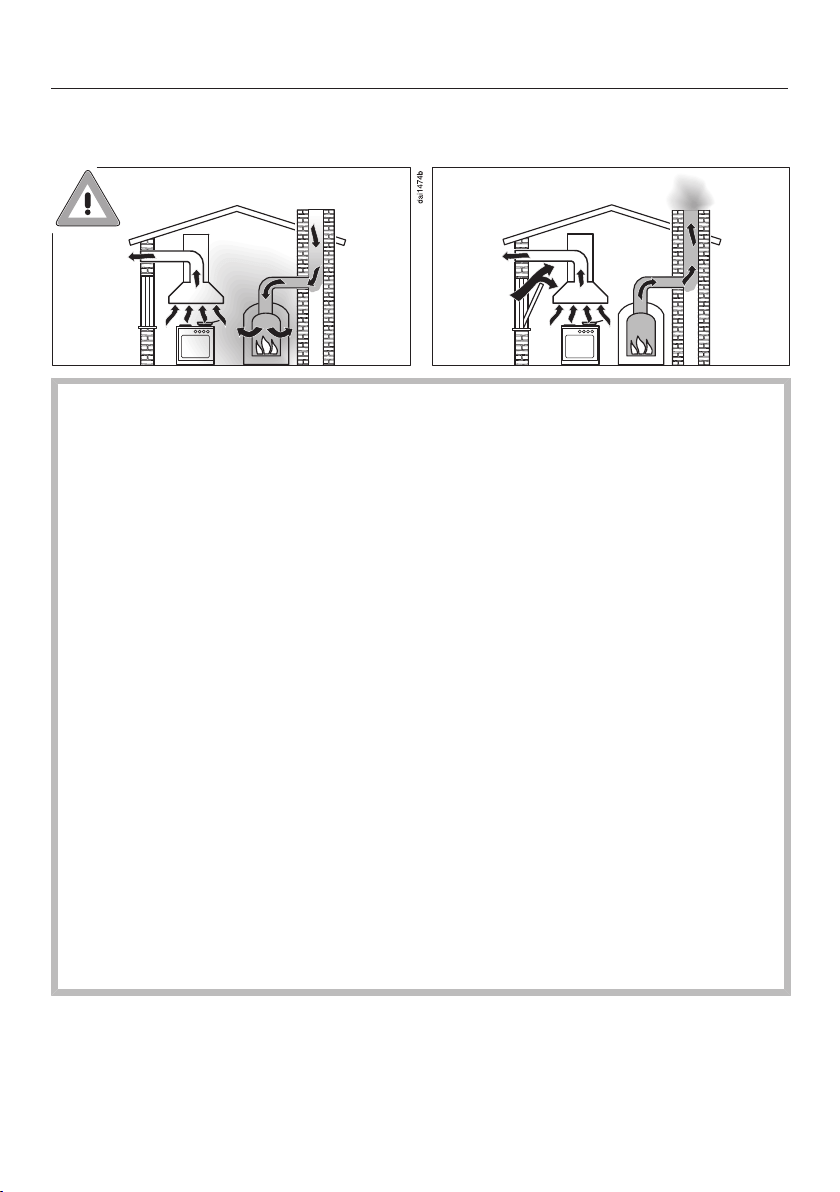

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out to the open air through a chimney or extraction
ducting. They include gas, oil, wood and coal-fired boilers and
heaters, continuous flow or other water heaters, gas hobs and
ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
- extraction mode,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
8
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
Warning and Safety instructions
9
Correct use
Never use a naked flame beneath the cooker hood. To avoid the
danger of fire, do not flambé or grill over a naked flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
– When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Warning and Safety instructions
10
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Correct installation
Refer to the cooker or hob manufacturer's instructions as to
whether a cooker hood may be operated above the cooker/hob.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the cooker or hob
and the bottom of the cooker hood given in the “Installation” section
of this booklet must be maintained, unless the hob manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The distances given in “Installation” must be observed when
fitting the cooker hood.
Warning and Safety instructions
11
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Caring for the environment
12
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible (by law, depending on
country) for deleting any personal data
that may be stored on the appliance
being disposed of. Please ensure that
your old appliance poses no risk to
children while being stored prior to
disposal.
Modes of operation
13
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Non-return flap
The non-return flap is designed to
prevent the exchange of room and
outside air taking place when the
cooker hood is switched off.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
If the on-site ventilation system does
not have a non-return flap, the non-
return flap supplied must be fitted in the
exhaust socket in the motor unit.
Recirculation mode
Recirculation mode cooker hoods
require charcoal filters. These are
available to purchase: see “Technical
Data”.
The air is drawn in and cleaned first by
the grease filters and then by the
charcoal filters. The cleaned air is then
recirculated back into the kitchen.
Guide to the appliance
14
Guide to the appliance
15

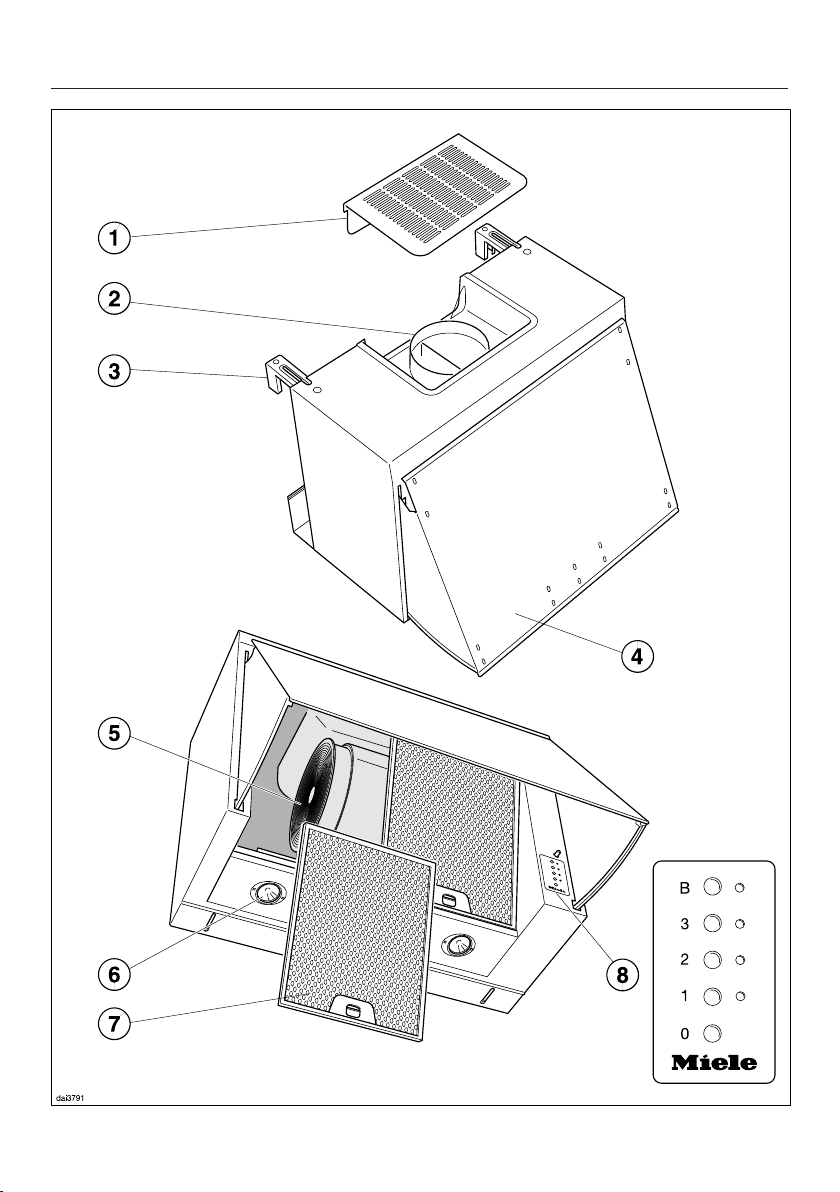

a
Recirculation grille
b
Exhaust connection
c
Adjustable bracket
d
Open-out vapour canopy
to which a furniture panel is fitted
e
Charcoal filter
Accessory required for recirculation mode
f
Hob lighting
g
Grease filters
h
Controls
Operation
16
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Open the vapour canopy.
The fan will come on at power level2.
Select the power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
setting B.
Press the appropirate button for the
power level you want.
Reducing power down from
the Booster setting
Press theB again to switch the
Booster off.
The fan will switch down to the
previously selected power level.
If you do not switch the Booster
setting off, the fan will automatically
revert to the previously selected power
level after 5minutes.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering
vapours and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
Switching the fan off
To switch the fan off close the vapour
canopy, or press the 0button for
longer.
To switch the fan back on with the
vapour canopy open, press a button
between 1 and 3.
Switching the hob lighting on/
off
You can switch the hob lighting on
and off by opening and closing the
vapour canopy.
If there is an interruption to the power
supply, the fan and the hob lighting
will switch off automatically.
With the vapour canopy open, the fan
will switch back on at power level 2
and the hob lighting will come back on
once the power supply is restored.
Energy saving tips
17
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
– Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the Booster
setting when necessary.
– When a large volume of cooking
vapours is being produced, switch to
a high power level in good time. This
is more efficient than operating the
cooker hood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
– Make sure that you switch the cooker
hood off after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
18
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply, see “Warning
and safety instructions”.
Housing
Removing the canopy
The vapour canopy can be taken off for
better accessibility.
Open the vapour canopy.
Pull the catch downwards to unlock
the vapour canopy and then swing
the canopy forwards.
To refit the canopy fit it back into the
guides at the top and then swing the
canopy back down.
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Make sure that water does not
get into the cooker hood.
Only clean the area of the controls
with a damp cloth.
Then wipe the surfaces dry using a
soft cloth.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
Cleaning and care
19
Important for the controls
Do not leave soiling on the controls
for any length of time.
Otherwise they may suffer
discolouration or damage.
Remove soiling straight away.
Please observe the general notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Fire hazard!
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
Cleaning and care
20
Open the retainer catch for the
grease filter and lower the filter to
remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents
– powder cleaners, cream cleaners
– aggressive multi-purpose cleaning
agents or spray cleaners for grease
– oven sprays
Cleaning the grease filters in the
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commercially available
household dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discoloured. This will not
affect the functioning of the grease
filters in any way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
Replace the grease filters.
Cleaning and care
21
Charcoal filters
With recirculation mode, two charcoal
filters must be fitted in addition to the
grease filters. These are designed to
absorb cooking odours.
They are fitted either side of the fan.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer. The type of charcoal filter
required is listed under "Technical data"
at the back of this booklet.
Fitting/replacing charcoal filters
Before fitting or replacing a charcoal
filter, the vapour canopy must be
opened out and the grease filters
must be taken out (see previous
section for instructions on how to do
this).
To replace a charcoal filter push the
lever back a little and then take the
filter out.
Fitting for the first time: fit an adapter
onto each side of the fan and turn to
secure position in their holders.
Push the charcoal filters into the
adapters until they engage.
Replace the grease filters.
When to change the charcoal filters
Replace the charcoal filters when
they no longer absorb kitchen odours
effectively.
They should, however, be replaced at
least every 6 months.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with the normal household waste.
After Sales / Warranty
22
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or the Miele Service
Department.
Contact details for Miele are given at
the end of this booklet. N.B. A call-out
fee will be charged for service visits
where the problem could have been
resolved as described in these
instructions.
When contacting your dealer or Miele,
please quote the model and serial
number of your appliance.
These are shown on the data plate.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty: U.K.
In the U.K., the appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Please note that telephone calls may
be monitored and recorded for training
purposes.
Warranty: Other countries
For information on the appliance
warranty specific to your country please
contact Miele. See end of this booklet
for contact details.
Installation
23
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation recommendations
– To achieve optimum vapour
extraction, the cooker hood must be
positioned centrally over the hob, not
to the side.
– The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
– The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.

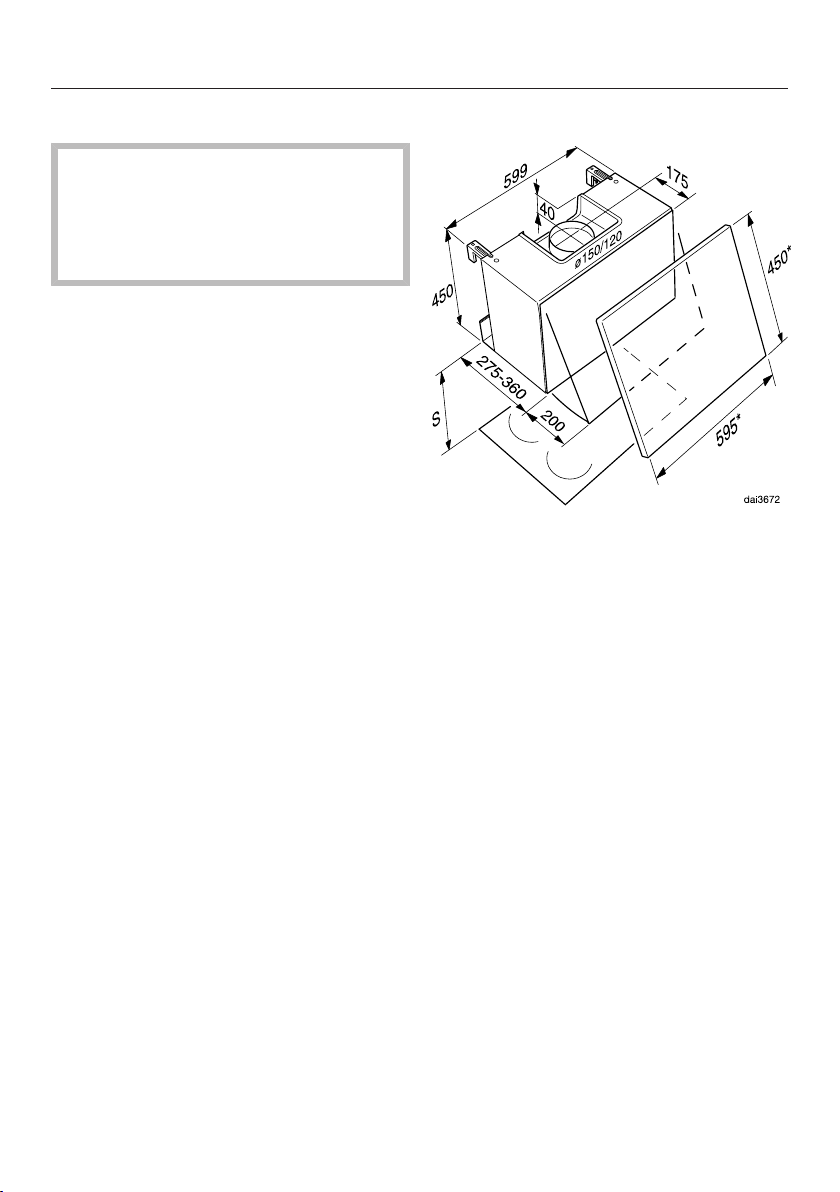

Dimensions
* Furniture front dimensions
Connection for air extraction 150
mm, or 120 mm with reducing collar.
Installation
24
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 650 mm
Electric grill, deep fat fryer (electric) 650 mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650 mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760 mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650 mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760 mm
Single burner gas hob, output > 8.1 kW Not possible
If you are fitting a front panel made of wood or laminate to the cooker hood,
observe the safety distances given by the hob manufacturer regarding the use
of easily flammable materials.
Installation
25
Fitting the furniture front
There are several holes on the
appliance's vapour plate for securing
the front panel. A drilling template is
supplied for correct positioning.
Open the vapour canopy.
Pull the catch forwards for releasing
the canopy and then swing the
canopy upwards.
Cut the drilling template for the front
panel to size and place it on the
reverse of the panel. Drill the
appropriate holes.
Then screw the furniture panel to the
vapour canopy with suitable screws.

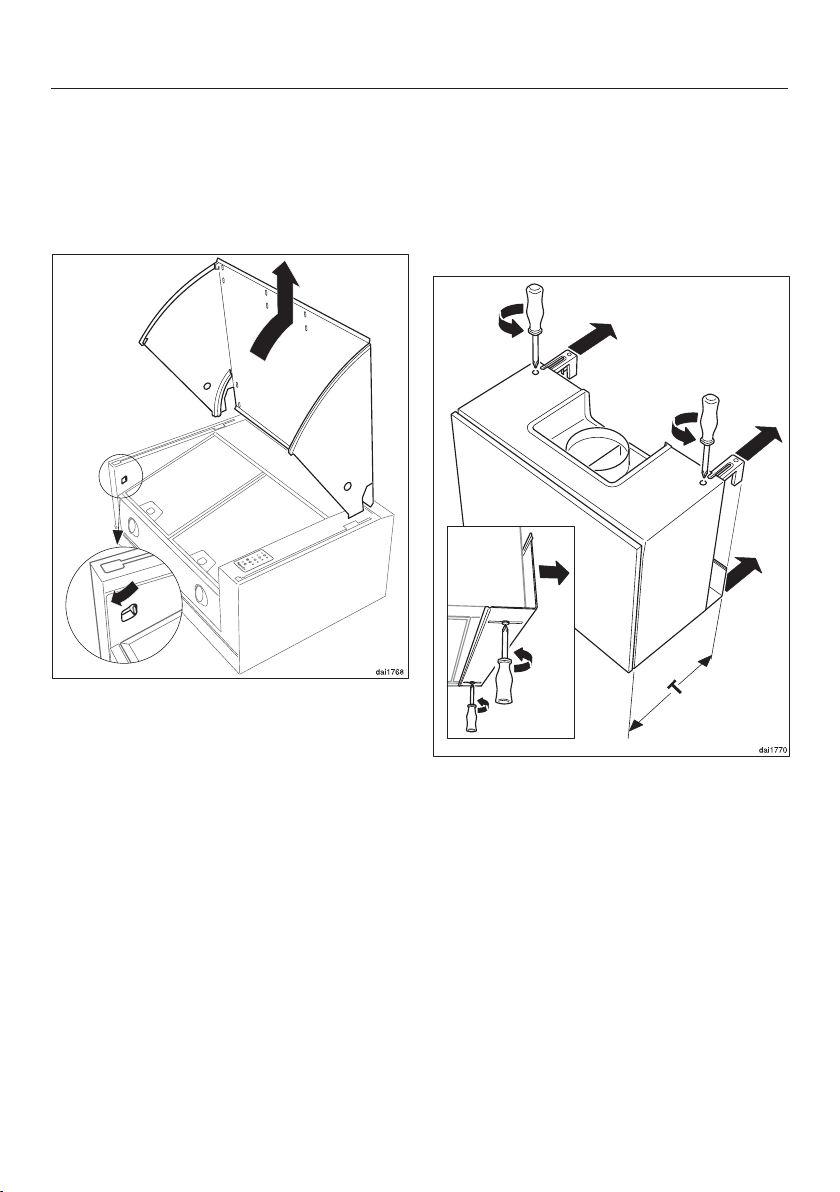

Depth adjustment
There are two adjustable brackets at
the top of the unit and an adjustable
trim at the bottom of the unit for setting
the unit depth T between 275mm and
360mm.
Loosen the screws in the adjustable
brackets.
Extend the brackets to dimension T.
Tighten the screws up.
Loosen the screws in the adjustable
trim.
Adjust the trim to the required depth.
Tighten the screws up.
If the adjustable trim is too short,
unscrew it, turn it around and refit it
to use the longer side.
Installation
26
Wall installation
The cooker hood is fitted to the wall
inbetween two wall units. Screws and
plugs are supplied for this.
Cut the drilling template to size and
position against the wall. The top
edge of the template indicates the
top edge of the cooker hood. Please
observe the safety distance (S) to the
hob (see “Appliance dimensions”).
Mark and drill four holes for the fixing
brackets (8mm).
Remove the drilling template.
Secure the fixing brackets to the wall
using the plugs and screws supplied.
The screws and plugs are
designed for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
Attach the corresponding drilling
template to the adjacent cabinet or
the side panel.
Drill two holes into the adjacent
cabinet or the side panel (2 mm).

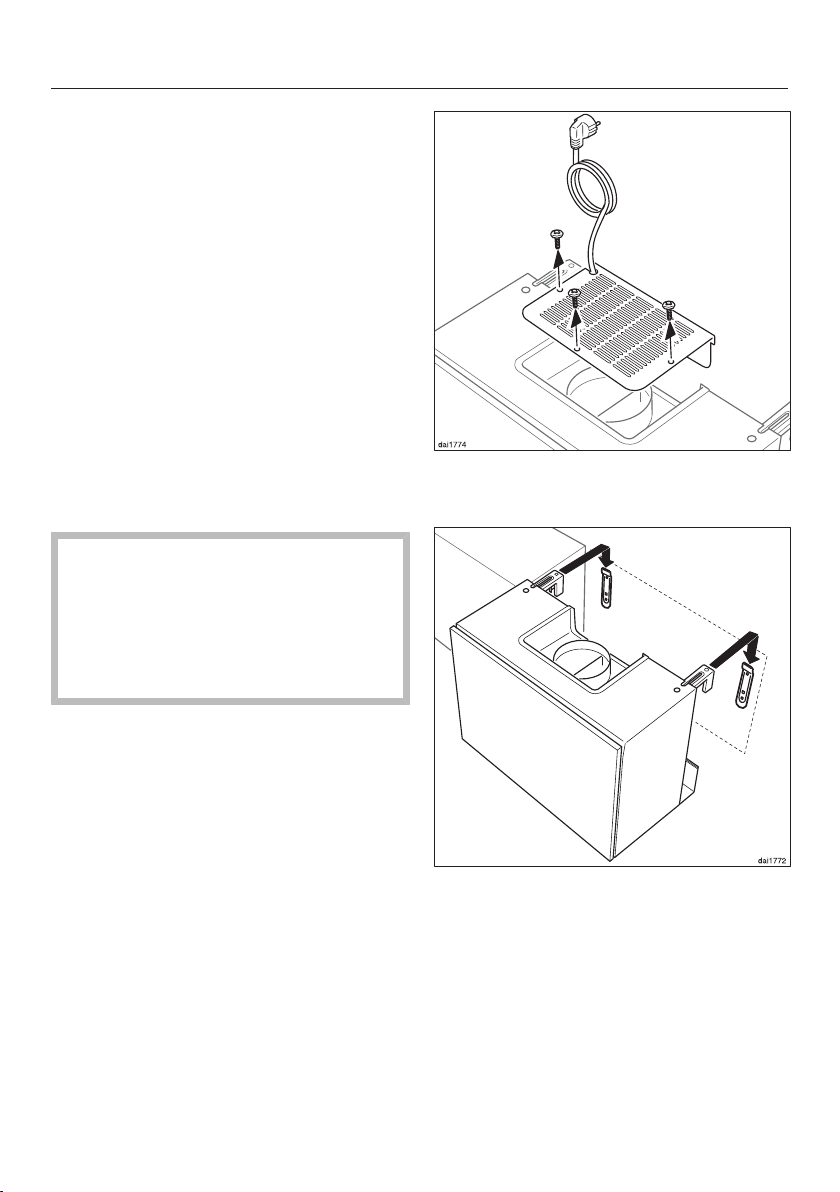

Remove the recirculation grille for
extraction mode.
Hang the cooker hood into position
using the adjustable brackets.
Installation
27

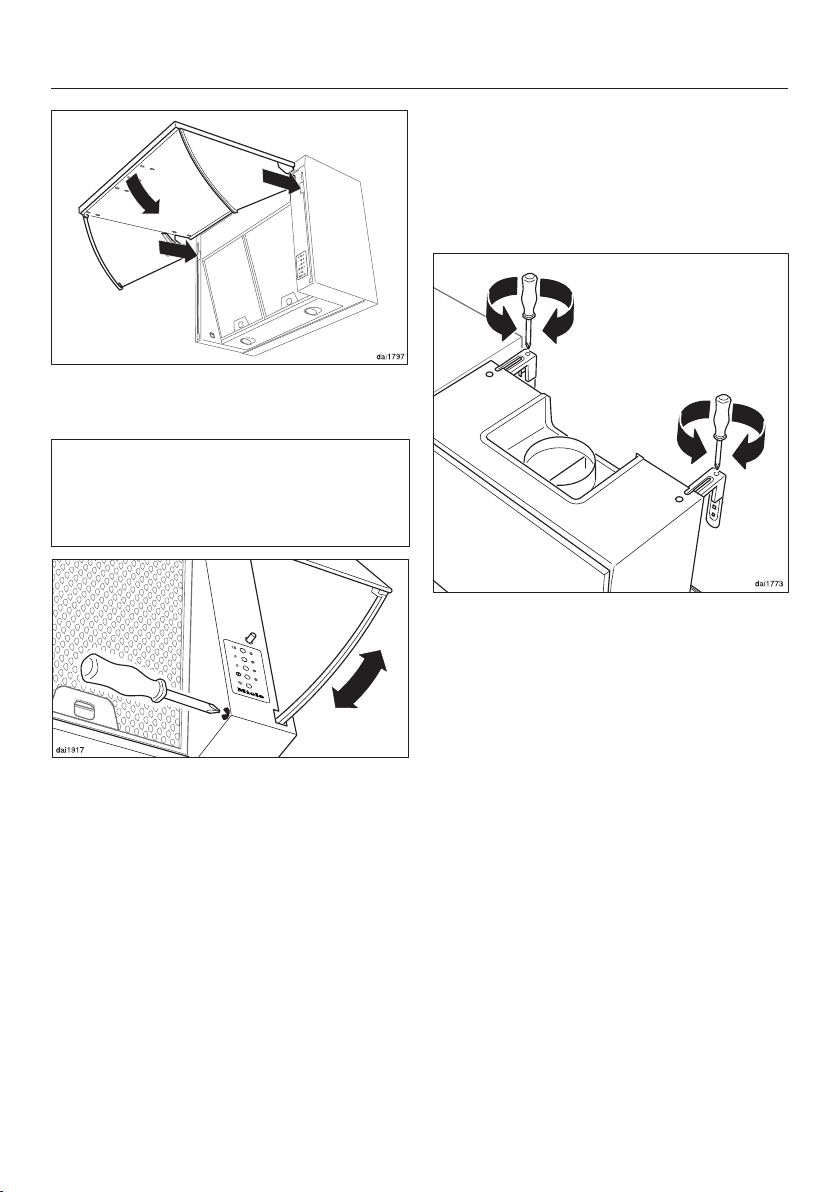

Attach the vapour canopy with
cabinet door fitted and then close it.
It is possible to adjust the movement
of the vapour canopy. This may be
required if a heavy cabinet door is to
be fitted, for example.
Remove the two cover caps which
conceal the adjusting screws at the
front right and left on the lower edge
of the appliance.
Adjust the screws evenly on both
sides using a cross-slotted
screwdriver. Turn clockwise to tighten
the mechanism and anti-clockwise to
loosen the mechanism.
Refit the caps.
Height adjustment
Adjusting screws in the brackets
located at the top of the appliance are
used for aligning the appliance with
adjoining furniture units.
Turning the screws anti-clockwise
raises the appliance and clockwise
lower it.
You may also have to adjust the
depth again.
Installation
28
Connecting to adjacent
furniture units/fitting side
panels
The cooker hood is supplied with two
screws on each side for securing it to
adjacent furniture units or for fitting side
panels.
Remove the vapour canopy.
Remove the grease filters.
Turn the top screws in the adjacent
furniture units or side panels.

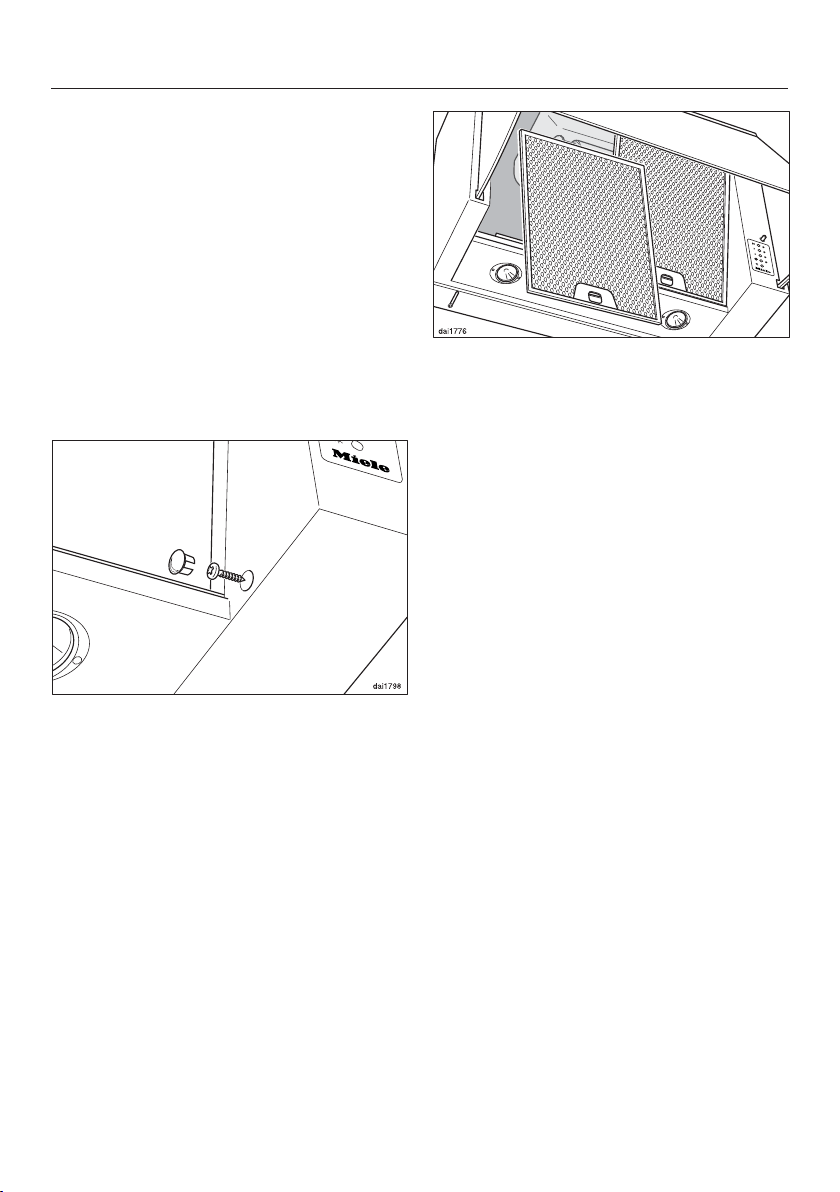

Remove the cover caps from the
lower screws.
Screw in the lower screws.
Refit the caps.
Refit the vapour canopy.
Replace the grease filters.
Installation
29

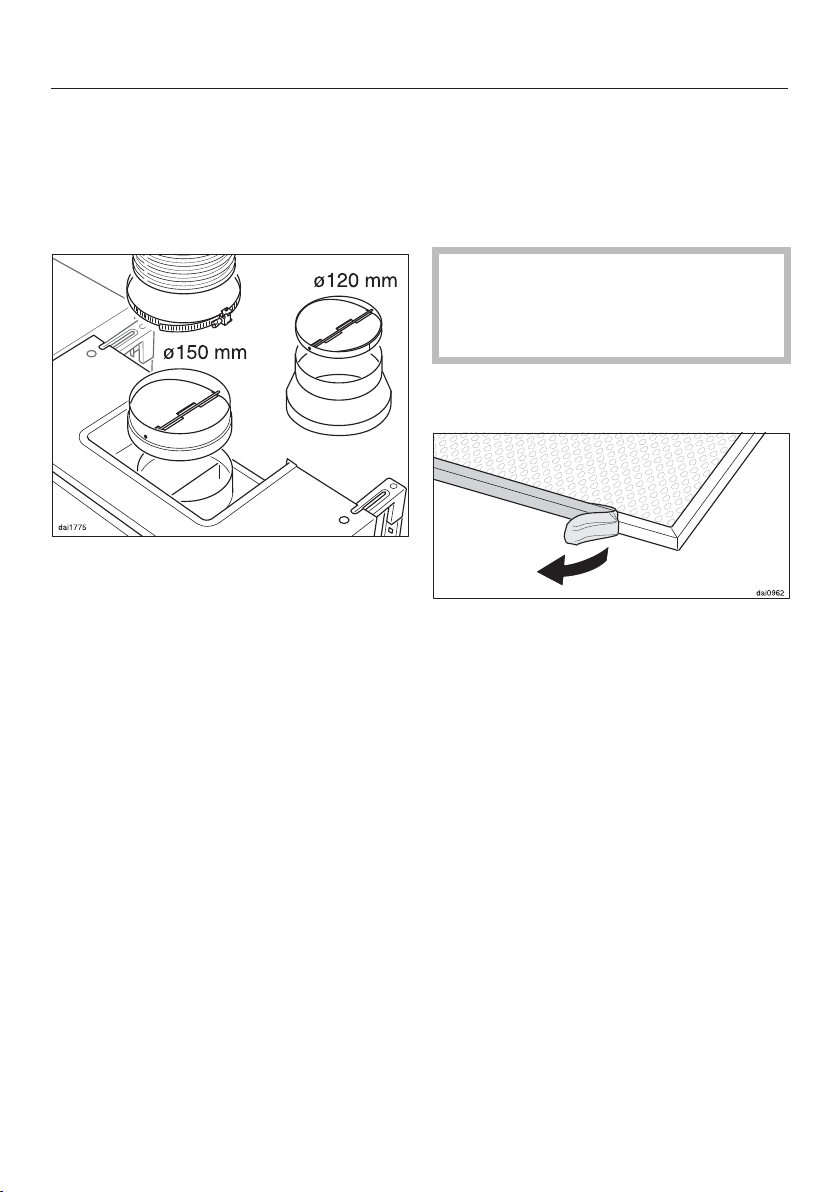

For air extraction mode
If your ducting system does not have a
non-return flap, two are supplied with
the cooker hood. One for 150mm
and one for 120mm ducting.
For 150mm ducting fit the non-
return flap into the ducting
connection.
For 120mm ducting fit the
reducing collar supplied onto the
ducting connection and then fit the
appropriate non-return flap onto the
reducing collar.
Attach the exhaust ducting, e.g.
flexible hose, to the exhaust socket
using a hose clip (available as an
optional accessory).
See “Connection for air extraction”
for further instructions on fitting the
ducting.
For recirculation mode
Fit the charcoal filters (see “Cleaning
and care”).
Electrical connection
Refer to the notes in “Electrical
connection” and “Warning and
Safety instructions” before
connecting to the electricity supply.
Connect the cooker hood to the
electricity supply.

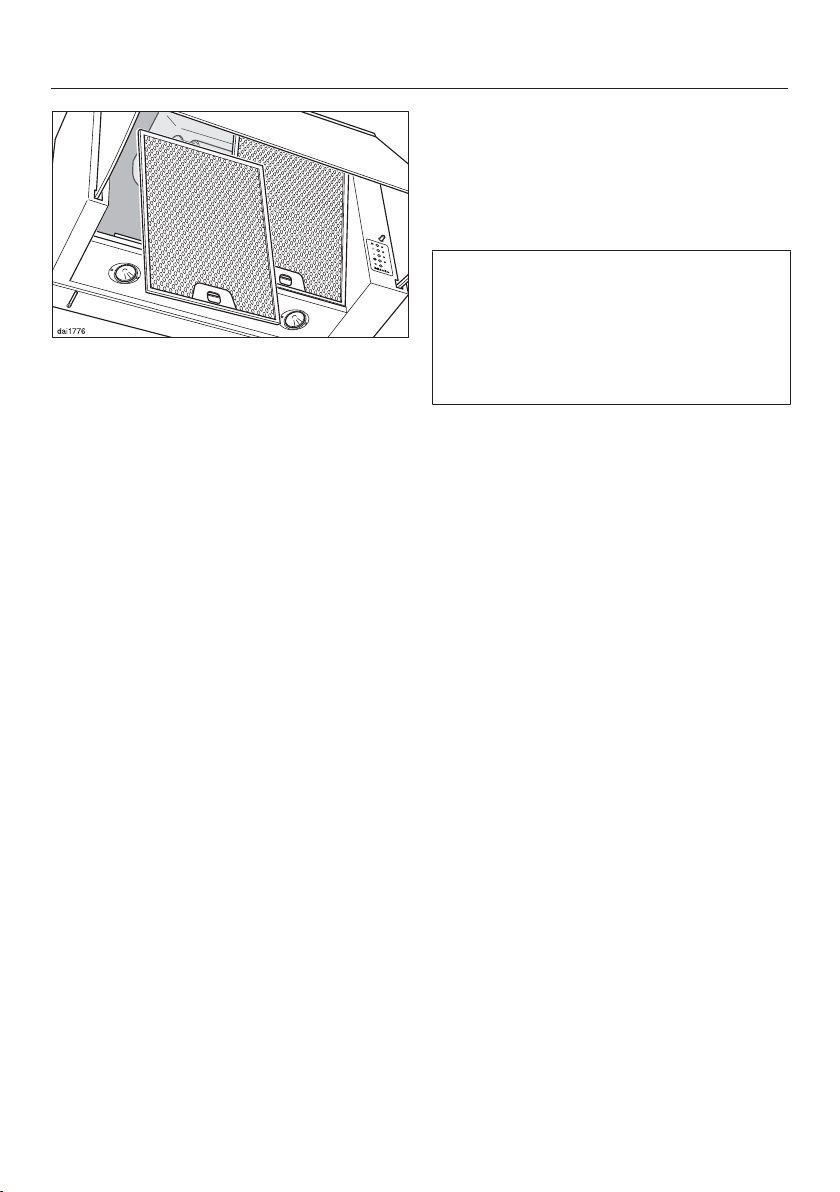

Take the grease filters out and pull
the protective foil off the filter frame.
Then replace the grease filter.
Electrical connection
30
All electrical work should be
undertaken by a suitably qualified
and competent person in strict
accordance with current national and
local safety regulations (BS 7671 in
the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
The connection data is given on the
data plate. This is visible when the
grease filters have been removed.
Ensure that this data matches the
household mains supply.
Connection of this appliance should be
made via a suitable isolator or a double
pole fused spur connection unit which
complies with national and local safety
regulations and the On-Off switch
should be easily accessible after the
appliance has been built in. When
switched off there must be an all-pole
contact gap of 3 mm in the switch
(including switch, fuses and relays
according to EN 60335).
If the switch is not accessible after
installation (depending on country), an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.
Important
This appliance is supplied for
connection to an a.c. 230 V single
phase 50 Hz supply. The wires in the
mains lead are coloured in accordance
with the following code:
Green/yellow .................................earth
Blue ............................................. neutral
Brown ................................................live
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Connection for air extraction
31
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Use smooth or flexible ducting made
from approved non-flammable
materials for exhaust ducting.
To achieve the most efficient air
extraction with the lowest noise levels,
please note the following:
– The diameter of the exhaust ducting
should not be less than 150mm.
– If flat ducting is being used, the cross
section must not be smaller than the
cross sectional area of the exhaust
connection.
– The exhaust ducting should be as
short and straight as possible.
– Only use wide radius bends.
– The exhaust duct must not be kinked
or compressed.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the air flow will reduce extraction
performance and increase operating
noise.
If the exhaust is ducted through an
outside wall, a telescopic wall vent or
a roof vent (available as an optional
accessory) is recommended.

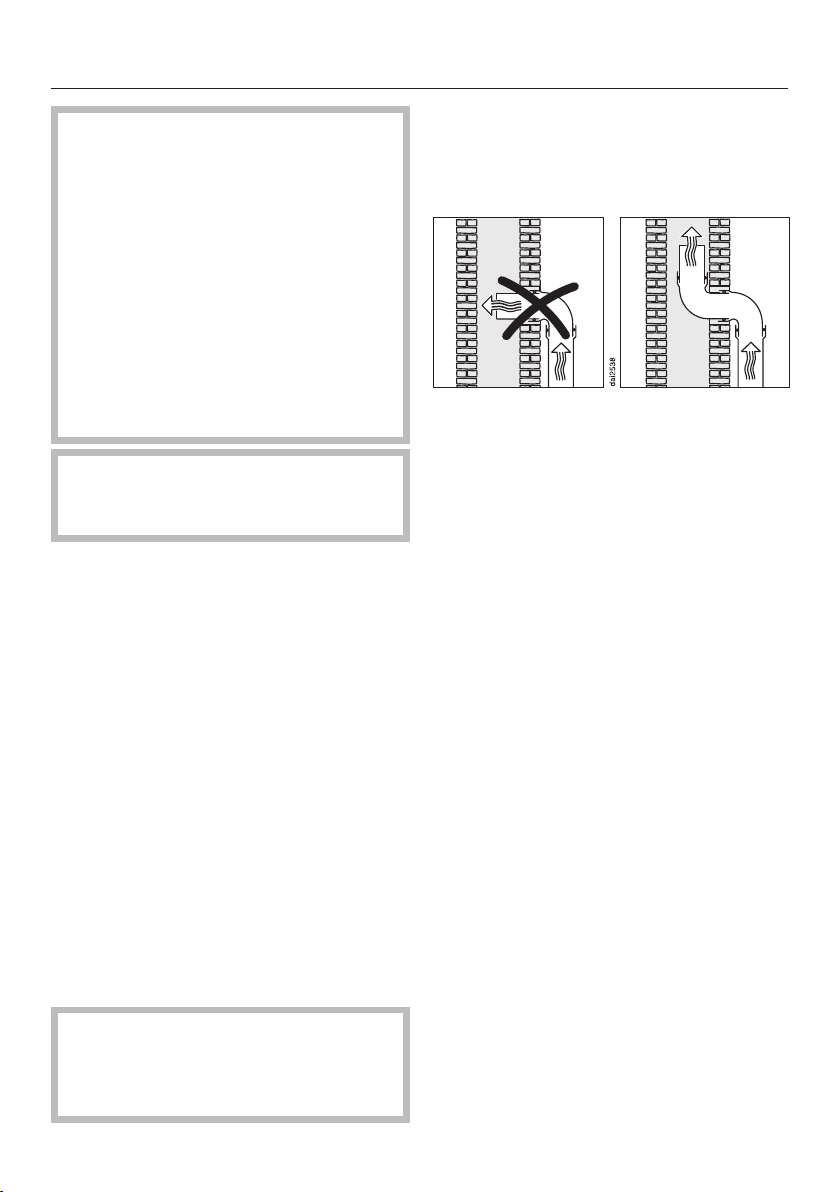

If the exhaust air is to be ducted into
a flue, the ducting must be directed in
the flow direction of the flue.
When ducting is horizontal it must be
laid to slope away at at least 1cm per
metre. This is to ensure that
condensate cannot drain back into
the appliance.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas, the problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
Technical data
32
Fan motor 250W
Hob lighting 2x1.1W
Total connected load 252.2W
Voltage, frequency AC 230 V, 50 Hz
Fuse rating 5 A
Mains connection cable length 1.2 m
Weight 11.8kg
Special accessories for recirculation mode
Charcoal filter set DKF14-1. The set contains two active charcoal filters.
Technical data
33
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 1867
Annual Energy Consumption (AEC
hood
) 101,3 kWh/year
Energy efficiency class C
Energy efficiency index (EEI
hood
) 76,7
Fluid Dynamic Efficiency (FDE
hood
) 18,3
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) C
Lighting Efficiency (LE
hood
) 95,4 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 85,1%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
398,0 m
3
/h
Air flow (min. speed)
320 m
3
/h
Air flow (max. speed)
610 m
3
/h
Air flow (intensive or boost setting)
690 m
3
/h
Max. air flow (Q
max
)
690 m
3
/h
Air pressure at best efficiency point 347 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 52 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 67 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
69 dB
Electrical power input at best efficiency point 210 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,49 W
Nominal power of lighting system 2,2 W
Average illumination of the lighting system on the cooking surface 210 Ix
Time increase factor 1,3
United Kingdom
Miele Co. Ltd.
Fairacres, Marcham Road
Abingdon, Oxon, OX14 1TW
Customer Contact Centre Tel: 0330 160 6600
E-mail: [email protected]
Internet: www.miele.co.uk
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
1 Gilbert Park Drive
Knoxfield, VIC 3180
Tel: 1300 464 353
Internet: www.miele.com.au
Miele (Shanghai) Trading Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Miele (Hong Kong) Limited
Miele India Pvt. Ltd.
Ground Floor
Copia Corporate Suites
Plot No. 9, Jasola
New Delhi - 110025
Tel: 011-46 900 000
Fax: 011-46 900 001
E-mail: [email protected]
Internet: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
163 Penang Road
# 04 - 03 Winsland House II
Singapore 238463
Tel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Gold & Diamond Park
Office No. 6-217
Sheikh Zayed Road
P.O. Box 11 47 82 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
K.E. & Kingstone Co., Ltd.
6th Fl., No. 120, Sec. 2
Jianguo N. Rd.
Taipei, Taiwan
TEL: +886 2 2502-7256
FAX: +886 2 2502-3077
E-mail: [email protected]
Website:
www.kenk.com.tw/ke/miele
Taiwan
Thailand
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
M.-Nr. 10 940 830 / 00en-GB
DA 1867
