operator's
manual
MODEL NO. 143.015001
5.0 RESERVE POWER
12.04 CUBIC INCH(195 cc
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
ENGIN
• Operating
• Maintenance
• Repair Parts
_ alifornia Proposition 65 WARNING: The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects or other reproductive harm.
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
Printed in U.S.A. 2/1/00 181-1221-11

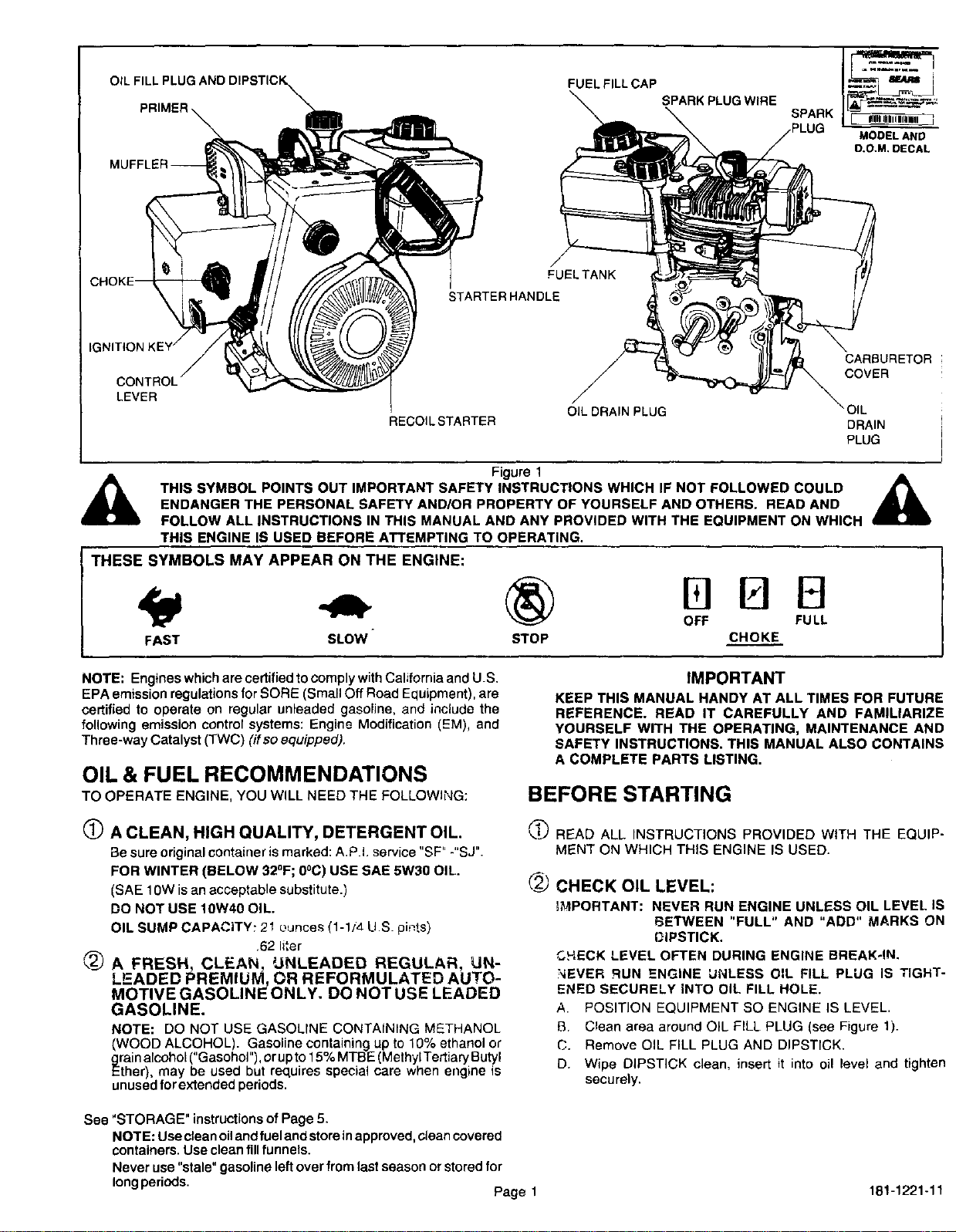

I
OIL FILL PLUG AND DIPSTICH
PRIMER
FUEL FILL CAP
SPARK PLUG WIRE
SPARK
MODEL AND
D.O.M, DECAL
i FUELTANK
I
STARTERHANDLE
CONTROL
LEVER
RECOIL STARTER
OiL DRAIN PLUG
CARBURETOR
COVER
_)IL
DRAIN
PLUG
Figure 1
Ab,
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED COULD
ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND
FOLLOW ALL INSTRUCTIONS IN THIS MANUAL AND ANY PROVIDED WITH THE EQUIPMENT ON WHICH
THIS ENGINE IS USED BEFORE ATTEMPTING TO OPERATING.
THESE SYMBOLS MAY APPEAR ON THE ENGINE:
'rR BF1Fi
OFF FULL
FAST SLOW STOP CHOKE
NOTE: Engines which are certified to comply with California and U.S.
EPA omission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and include the
following emission control systems: Engine Modification (EM), and
Three-way Catalyst (TWC) (ifso equipped).
OIL & FUEL RECOMMENDATIONS
TO OPERATE ENGINE, YOU WILL NEED THE FOLLOWING:
Q A CLEAN, HIGH QUALITY, DETERGENT OIL.
Be sure original container is marked: A.P.I. service "SF" -"SJ".
FOR WINTER (BELOW 32°F; O°C) USE SAE 5W30 OIL.
(SAE 10W isan acceptable substitute.)
DO NOT USE 10W40 OIL.
OIL SUMP CAPACITY: 21 c__unces(1-!/4 US. pints)
.62 liter
A FRESH, CLEAN. _JNLEADED REGULAR, UN-
LEADED PREMIUM, OR REFORMULATED AUTO-
MOTIVE GASOLINEONLY, DO NOT USE LEADED
GASOLINE.
NOTE: DO NOT USE GASOLINE CONTAINING METHANOL
(WOOD ALCOHOL). Gasoline containing up to 10% ethanol or
grainalcohol( Gasohol ), or upto 15% MTBE (MethyITertiary Butyl
Ether), may be used but requires special care when engine is
unused for extended periods.
IMPORTANT
KEEP THIS MANUAL HANDY AT ALL TIMES FOR FUTURE
REFERENCE. READ IT CAREFULLY AND FAMILIARIZE
YOURSELF WITH THE OPERATING, MAINTENANCE AND
SAFETY INSTRUCTIONS. THIS MANUAL ALSO CONTAINS
A COMPLETE PARTS LISTING.
BEFORE STARTING
L_1_READ ALL INSTRUCTIONS PROVIDED WiTH THE EQUIP-
MENT ON WHICH THiS ENGINE IS USED.
@
CHECK OIL LEVEL:
_,_PORTANT: NEVER RUN ENGINE UNLESS OIL LEVEL IS
BETWEEN "FULL" AND "ADD" MARKS ON
DIPSTICK.
CHECK LEVEL OFTEN DURING ENGINE BREAK-IN.
?_EVER F_UN ENGINE UNLESS OIL FILL PLUG IS TIGHT-
ENED SECURELY iNTO OIL FILL HOLE.
A. POSITION EQUIPMENT SO ENGINE IS LEVEL.
13. Clean area around OIL FILL PLUG (see Figure 1).
C. Remove OIL FILL PLUG AND DIPSTICK.
D. Wipe DIPSTICK clean, insert it into oil level and tighten
securely.
See "STORAGE" instructionsof Page 5.
NOTE: Use cleanoil and fuel and storein approved, clean covered
containers. Use clean fill funnels.
Never use "stale" gasoline left over from last season or stored for
long periOdS. Page 1
181-1221-11
BEFORE STARTING (Continued)
E. Remove OIL FILL PLUG and check oil level. If level isnot up
to 'FULL" mark on DIPSTICK, add recommended oil,untilitis.
POUR SLOWLY.
Wipe DIPSTICK clean each timeoil levelischecked. DO NOT
FILL ABOVE "FULL" MARK ON DIPSTICK.
F. Replace OIL FILL PLUG and tighten securely.
See "MAINTENANCE" section forany futu reoilleveland oilchange
instructions (see Page 2).
(_) FILL FUEL TANK with gasoline as specified in the precading
"OIL & FUEL RECOMMENDATIONS" item 2.
NEVER MIX OIL WITH GASOLINE
Never use "stale" gasoline left over from lastseason or stored for
long periods.
_NEVER FILL FUEL TANK INDOORS. NEVER FILL FUEL
TANK WHEN ENGINE IS RUNNING OR HOT. DO NOT
l SMOKE WHEN FILL FUEL TANK.
_ NEVER FILL FUEL TAN K COMPLETELY. FILL TANK TO 1/2"
BELOW BOTTOM OF FILLER NECK TO PROVIDE SPACE
I FOR FUEL EXPANSION. WIPE ANY FUEL SPILLAGE FROM
ENGINE AND EQUIPMENT BEFORE STARTING ENGINE.
,_ANY LIQUEFIED PETROLEUM (LPG) OR NATURAL GAS
FUEL SYSTEM MUST BE LEAKPROOF AND MEET ALL
_ APPLICABLE CODES AND REGULATIONS.
CHECK THE FOLLOWING:
A. BE SURE EQUIPMENT IS IN NEUTRAL GEAR WITH
_ CLUTCHES, BELTS, CHAINS AND SAFETY SWITCHES
DISENGAGED. (FOLLOW EQUIPMENT MANUFACTUR-
ER'S INSTRUCTIONS.) THIS SHOULD PLACE ANY
SAFETY SWITCHES IN SAFE STARTING POSITION.
B. Be sure SPARK PLUG WIRE is attached to SPARK PLUG
(see Figure 1).
C. Insert ignition key into ignition keyslot in carburetor cover
(see Figures 2 and 3).
NOTE: If engine isused for anything except snow removal,
the CARBURETOR COVER (see Figure 1) must be re-
moved, and an approved air cleaner installed. See your
nearby Sears Roebuck and co. (or Sears Canada, Inc.)
Service Center.
STARTING
_lk NEVER RUN ENGINE INDOORS OR IN ENCLOSED, POORL'_
VENTILATED AREAS. ENGINE EXHAUST CONTAINS CAR-_
BON MONOXIDE, AN ODORLESS AND DEADLY GAS (CAR-{
BON MONOXIDE IS ALSO PRESENT IN ENGINE EXHAUS_
FROM LIQUID PETROLEUM (LPG) AND NATURAL GAS_
FUEL SYSTEMS). |
,_ KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING AWA'_
FROM ANY MOVING PARTS ON ENGINE AND EQUIPMENT 1
_ EVER LEAVE EQUIPMENT UNATTENDED WHEN ENGIN 1
IS OPERATING.
_ WARNING: TEMPERATURE OF MUFFLER AND NEARB_
AREAS MAY EXCEED 150°F (65° C). AVOID THESE AREAS 1
(_ RECOIL STARTER (see Figure 1):
A. Move engine CONTROL LEVER (see Figure 2) to "FAST".
B. Move engine CHOKE (see Figure 2) to "FULL".
NOTE: IF RESTARTING A WARM ENGINE AFTER A
SHORT SHUTDOWN:
1. MOVE CHOKE TO "OFF" INSTEAD OF "FULL".
2. DO NOT USE PRIMER.
C. Push PRIMER three (3) times (see Figure 2). Always cover
vent hole when pushing primer.
STARTING (Continued)
D. Grasp STARTER HANDLE (see Figure 2), and pull rope out,
slowly, until it pulls slightly harder. Let rope rewind slowly.
Then pull rope with a rapid full arm stroke. Let rope rewind
SLOWLY. Do notlet STARTER HANDLE snap back against
starter.
NOTE: If RECOIL STARTER is frozen and won't crank
engine, proceed as follows:
1. Pull as much rope out of starter as possible.
2. Release STARTER HANDLE and let it snap back
against starter.
NOTE: The preceding should be done only when neces-
sary to free a frozen starter.
E. If engine fails to start after 3 pulls, repeat preceding instruc-
tions C - E, until engine starts.
F. When engine starts, move CHOKE gradually "OFF".
G. If engine falters, move CHOKE immediately to "FULL" and
then gradually to "OFF".
STARTER
HANDLE
ENGINEWILLNOTSTARTUNLESS
IGNITIONKEYISINSERTEDINT0
IGNITIONKEYSLOTINCARBURETOR
COVER.
DON0TTURNIGNITIONKEY.
IGNITION KEY
Figure 2
ELECTRIC STARTER- 120 VOLT A.C. (see Figure 3):
,_ WARNING: IS EQUIPPED WITH A THREE-WIRE
THIS STARTER
POWER CORD AND PLUG AND IS DESIGNED TO OPERATE ON 120
VOLTAC ROUSEHOLO CURRENT. IT MUST BE PROPERLYGROUND-
ED AT ALL TIMES TO AVOID THE POSSIBILITY OF ELECTRIC SHOCK
WHICH MAY BE INJURIOUS TO THE OPERATOR. FOLLOW ALL
INSTRUCTION CAREFULLY AS SET FORTH BELOW. DETERMINE
THAT YOUR HOUSE WIRING IS A THREE-WIRE GROUNDED SYS.
TEM. ASK A LICENSED ELECTRICIAN IF YOUR ARE NOT SURE. IF
YOUR HOUSE WIRING SYSTEM IS NOT A THREE-WIRE GROUNDED
SYSTEM, OO NOT ' USE THIS ELECTRIC STARTER UNDER ANY
CONDITION. IF YOUR SYSTEM IS GROUNDED AND ATHREE-HOLE
RECEPTACLE IS NOT AVAILABLE AT THE POINT YOUR STARTER
WILL NORMALLY BE USED, ONE SHOULD DE INSTALLED BY
LICENSED ELECTRICIAN.
_ WHENCONNECTING120 VOLTAC"POWER CORD",ALWAYS CON-
NECTCORD TO "SWITCHBOX"ONENGINEFIRST,ANDTHEN PLUG
I
I THE OTHER ENDINTO THREE-HOLE GROUNDED RECEPTACLE.
,_ WHEN DISCONNECTING "POWER CORD",ALWAYS UNPLUGTHE
ENDIN THE TREE-HOLE GROUNDED RECEPTACLEFIRST.
I
Page 2 181-1221-11
STARTING (Continued)
STOPPING (Continued)
ELECTRIC STARTER (Continued- see Figure 3):
NOTE: THIS ELECTRIC STARTER IS THERMALLY PROTECTED. IF
OVERHEATED IT WILL STOP AUTOMATICALLY,AND CAN BE RE-
STARTEDONLYWHENITHASCOOLEDTOASAFETEMPERATURE.
(AWAITOF ABOUT5TO 10MINUTES ISREQUIRED.)
NOTE: DO NOT USE PRIMER WHEN USING 120 VOLT ELECTRIC
STARTER.
A. Move engine CONTROL LEVER (see Figure 3) to "FAST".
B. Move engine CHOKE (see Figure 3) to "OFF'.
C. Connect POWER CORD to SWITCHBOX (see Figure 3).
D. Plug other end of POWER CORD into athree-hole, GROUND-
ED 120V, AC receptacle. (See "WARNING" at beginning of
these instructions.)
E. Push STARTER BUTTON (see Figure 3) to crank engine.
F. Move engine CHOKE to "FULL" while cranking engine.
G. When engine starts, release STARTER BUTTON and move
CHOKE gradually to "OFF".
H. If engine falters, move CHOKE immediately to "FULL", and
then gradually to "OFF".
I. Disconnect POWER CORD from receptacle first, and then
from SWlTCHBOX.
If, after following the preceding instructions, your engine
fails to start, have itchecked by your nearby Sears Roebuck
and Co. (of Sears Canada, Inc.) Service Center.
STARTI
IGNITION KEY -_
CONTROL Fq
LEVER
ENGINEWILL NOTSTARTUNLESS
IGNITION KEYIS INSERTEDINT0
IGNITION KEYSLOTINCARBURETOR
COVER.
DO NOTTURN IGNITION KEY.
IGNITION KEY
Figure 3
STOPPING
(_) BEFORE STOPPING (see Figure 3):
A. Run engine for a few minutes to help dry off any moisture on
engine.
B. To help avoid possible freeze-up of starter, proceed as
follows:
RECOIL STARTER:
With engine running, pull starter rope with a rapid continuous
full arm stroke three (3) or four (4) times.
NOTE: The unusual sound made by pulling starter rope will
not harm engine or starter.
Page 3
ELECTRIC STARTER:
1. Connect power cord to switchbox, then to 120 Volt AC
receptacle.
2. With engine running, push starter button and spin
starter for several seconds.
NOTE: The unusual sound made by spinning starter
will not harm engine or starter.
3. Disconnect power cord from receptacle first, and then
from switchbox.
STOP ENGINE (seeFigure3):
A. Move control lever to "STOP" OR "OFF".
B. Remove ignition key (see Figure 2 or 3) from carburetor
cover.
DO NOT TURN IGNITION KEY.
(_ AFTER ENGINE IS STOPPED (see Figure 3):
A. Tohelpavoidpossible freeze-up ofenginecontrols,proceed
as follows:
1. Wipe all snow and moisture from engine in vicinity of
control lover and choke.
2. Move equipment control (see equipment manufactur-
er's instructions) or engine control lever back and forth
several times and leave in the "STOP" or "OFF" posi-
tion.
3. Move engine choke back and forth several times and
leave in the "FULL" position.
_II=B DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG ]
AND KEEP IT AWAY FROM SPARK PLUG.
=1_C. REMOVE IGNITION KEY FROM CARBURETOR COVER. ]
TH S W LL REDUCE THE POSS B L TY OF UNAUTHO-
RIZED STARTING OF ENGINE WHILE EQUIPMENT IS l
NOT IN USE.
,_ NEVER STORE ENGINE WITH FUEL IN TANK INDOORS I
OR IN ENCLOSED, POORLY VENTILATED AREAS, i
WHERE FUEL FUMES MAY REACH AN OPEN FLAME, i
SPARK OR PILOT LIGHT AS ON A FURNACE, WATER I
HEATER, CLOTHES DRYER OR OTHER GAS APPLI-I
ANCE. j
MAINTENANCE
_IL WARNING: TEMPERATURE OF MUFFLER AND NEARB_
AREAS MAY EXCEED 150°F (65°C). AVOID THESE AREAS_
(_ ENGINE OIL LEVEL:
Checkoilleveleveryfive(5)operatinghoursoreachtimeengine
is used, See "2 CHECK OIL LEVEL"on Page 1.
@
CHANGE OIL:
Change oil after first two (2) operating hours and every 25
operating hours thereafter, more often if operated in extremely
dusty or dirty conditions. Change oil while engine is still warm
from recent running.
A. Clean area around oil drain plug.
B. Position equipment soengine oil drain plugislowest pointon
engine (see Figure 1).
C. Remove oil drain plug and oil fill plug tO drain oil.
D. Replace oil drain plug and tighten securely.
E. Fill oil sump with recommended oil. See "OIL & FUEL
RECOMMENDATIONS" and "CHECK OIL LEVEL" on Page
1.
Replace oil fill plug and tighten securely.
181-1221-11
F.
G. Wipe up any spilled oil.

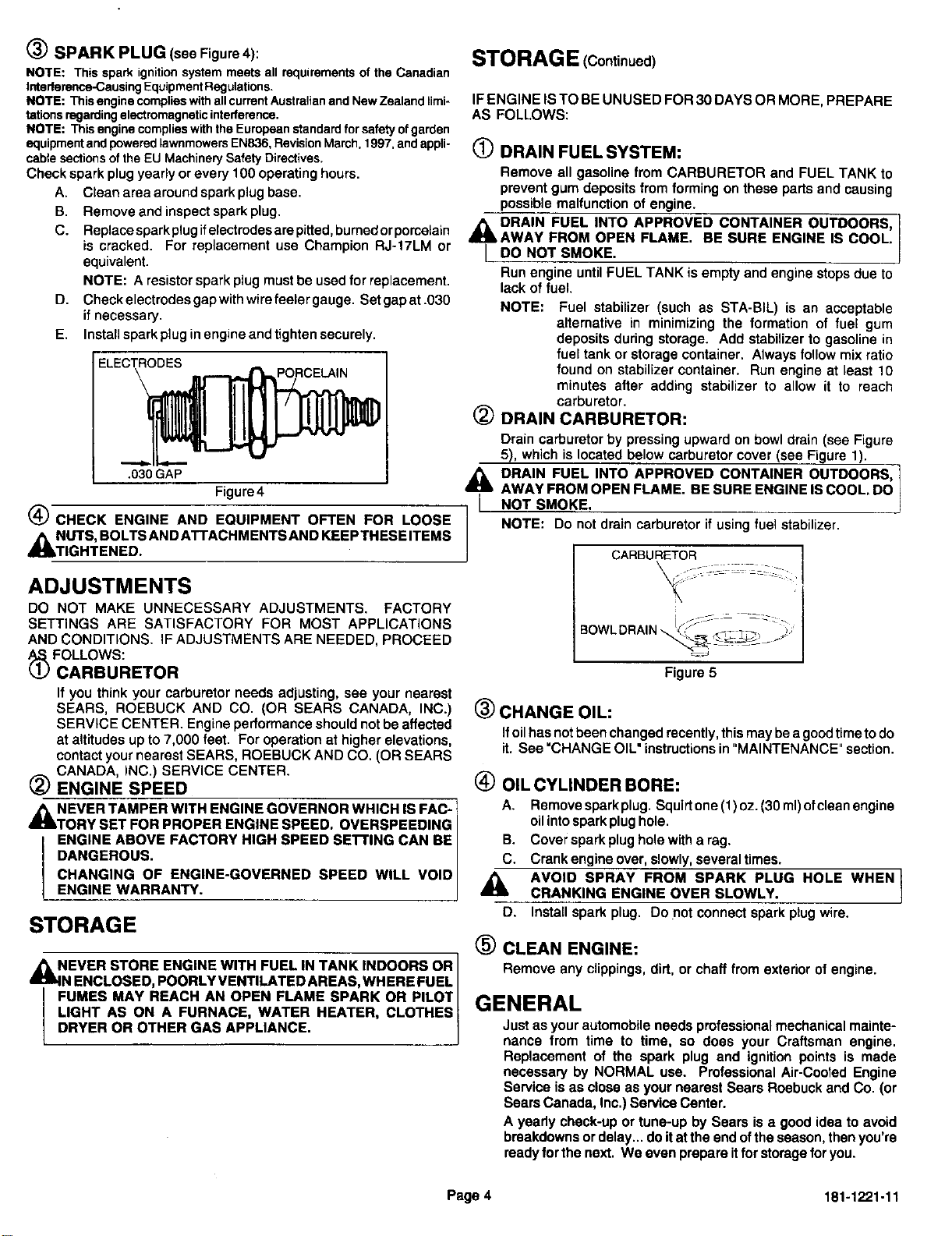

(_) SPARK PLUG (see Figure4):
NOTE: This spark ignitionsystemmeetsall requirementsof the Canadian
Interference-CausingEquipmentRegulations.
NOTE: ThisenginecomplieswithallcurrentAustralianand NewZealandlimi-
tationsregardingelectromagneticinterference.
NOTE: This enginecomplieswiththeEuropeanstandardfor safetyofgarden
equipmentandpoweredlawnmowersEN836,RevisionMamh,1997,andappli-
cablesectionsofthe EU MachinerySafetyDirectives.
Check spark plug yearly or every 100 operating hours.
A. Clean area around spark plug base.
B. Remove and inspect spark plug.
C. Replace spark plugifelectrodes are pitted,burnedor pomelain
is cracked. For replacement use Champion RJ-t7LM or
equivalent.
NOTE: A resistor spark plug must be used for replacement.
D. Checkelectrodesgapwithwirefeelergauge. Setgapat.030
if necessary.
E. Install spark plug in engine and tighten securely.
ELECTRODES
PORCELAIN
.030GAP
Figure4
(_) CHECK ENGINE AND EQUIPMENT OFTEN FOR LOOSE
_NUTS, BOLTS AND ATTACHMENTS AND KEEP THESE ITEMS
mI, TIGHTENED.
ADJUSTMENTS
DO NOT MAKE UNNECESSARY ADJUSTMENTS. FACTORY
SETTINGS ARE SATISFACTORY FOR MOST APPLICATIONS
AND CONDITIONS. IF ADJUSTMENTS ARE NEEDED, PROCEED
_) FOLLOWS:
CARBURETOR
If you think your carburetor needs adjusting, see your nearest
SEARS, ROEBUCK AND CO. (OR SEARS CANADA, INC.)
SERVICE CENTER. Engine performance should notbe affected
at altitudes up to 7,000 feet. For operation at higher elevations,
contact your nearest SEARS, ROEBUCK AND CO. (OR SEARS
(_ CANADA, iNC.) SERVICE CENTER.
ENGINE SPEED
,_NEVER TAMPER WITH ENGINE GOVERNOR WHICH IS FAC- t
TORY SET FOR PROPER ENGINE SPEED. OVERSPEEDING /
ENGINE ABOVE FACTORY HIGH SPEED SETTING CAN BE/
DANGEROUS. /
CHANGING OF ENGINE-GOVERNED SPEED WILL VOID|
ENGINE WARRANTY. J
STORAGE
_IEVER STORE ENGINE WITH FUEL IN TANK INDOORS ORI
ENCLOSED, POORLY VENTILATED AREAS, WHERE FUEL I
FUMES MAY REACH AN OPEN FLAME SPARK OR PILOT I
LIGHT AS ON A FURNACE, WATER HEATER, CLOTHES
DRYER OR OTHER GAS APPL ANCE. 1
STORAG E(Continued)
IF ENGINE IS TO BE UNUSED FOR 30 DAYS OR MORE, PREPARE
AS FOLLOWS:
IL]J DRAIN FUEL SYSTEM:
Remove all gasoline from CARBURETOR and FUEL TANK to
prevent gum deposits from forming on these parts and causing
possible malfunction of engine.
,_kDRAIN FUEL INTO APPROVED CONTAINER OUTDOORS,
AWAY FROM OPEN FLAME. BE SURE ENGINE IS COOL.
I DO NOT SMOKE.
Run engine until FUEL TANK is empty and engine stops due to
lack of fuel.
NOTE: Fuel stabilizer (such as STA-BIL) is an acceptable
alternative in minimizing the formation of fuel gum
deposits during storage. Add stabilizer to gasoline in
fuel tank or storage container. Always follow mix ratio
found on stabilizer container. Run engine at least 10
minutes after adding stabilizer to allow it to reach
carburetor.
_) DRAIN CARBURETOR:
Drain carburetor by pressing upward on bowl drain (see Figure
5), which is located below carburetor cover (see Figure 1).
_k DRAIN FUEL INTO APPROVED CONTAINER OUTDOORS,
AWAY FROM OPEN FLAME. BE SURE ENGINE IS COOL, DO
I NOT SMOKE.
NOTE: Do not drain carburetor if using fuel stabilizer.
CARBURETOR
BOWLDRAIN--. ,_ _- _ _J
Figure 5
(_) CHANGE OIL:
Ifoilhasnotbeenchangedrecently,thismay beagoodtimetodo
it. See "CHANGEOIL"instructionsin"MAINTENANCE"section.
(_ OIL CYLINDER BORE:
A. Removesparkplug.Squirtone(1)oz.(30ml)ofcleanengine
oil intosparkplug hole.
B. Cover spark plug hole with a rag.
C. Crank engine over, slowly, several times.
AVOID SPRAY FROM SPARK PLUG HOLE WHEN
CRANKING ENGINE OVER SLOWLY.
D. Install spark plug. Do not connect spark plug wire.
CLEAN ENGINE:
Remove anyclippings,dirt,or chafffromexteriorof engine.
J
GENERAL
Just as your automobile needs professional mechanical mainte-
nance from time to time, so does your Craftsman engine.
Replacement of the spark plug and ignition points is made
necessary by NORMAL use. Professional Air-Cooled Engine
Service is as close as your nearest Sears Roebuck and Co. (or
Sears Canada, Inc.) Service Center.
A yearly check-up or tune-up by Sears is a good idea to avoid
breakdowns or delay.., do it at the end of the season, then you're
ready for the next. We even prepare itfor storage for you.
Page 4 181-1221.11

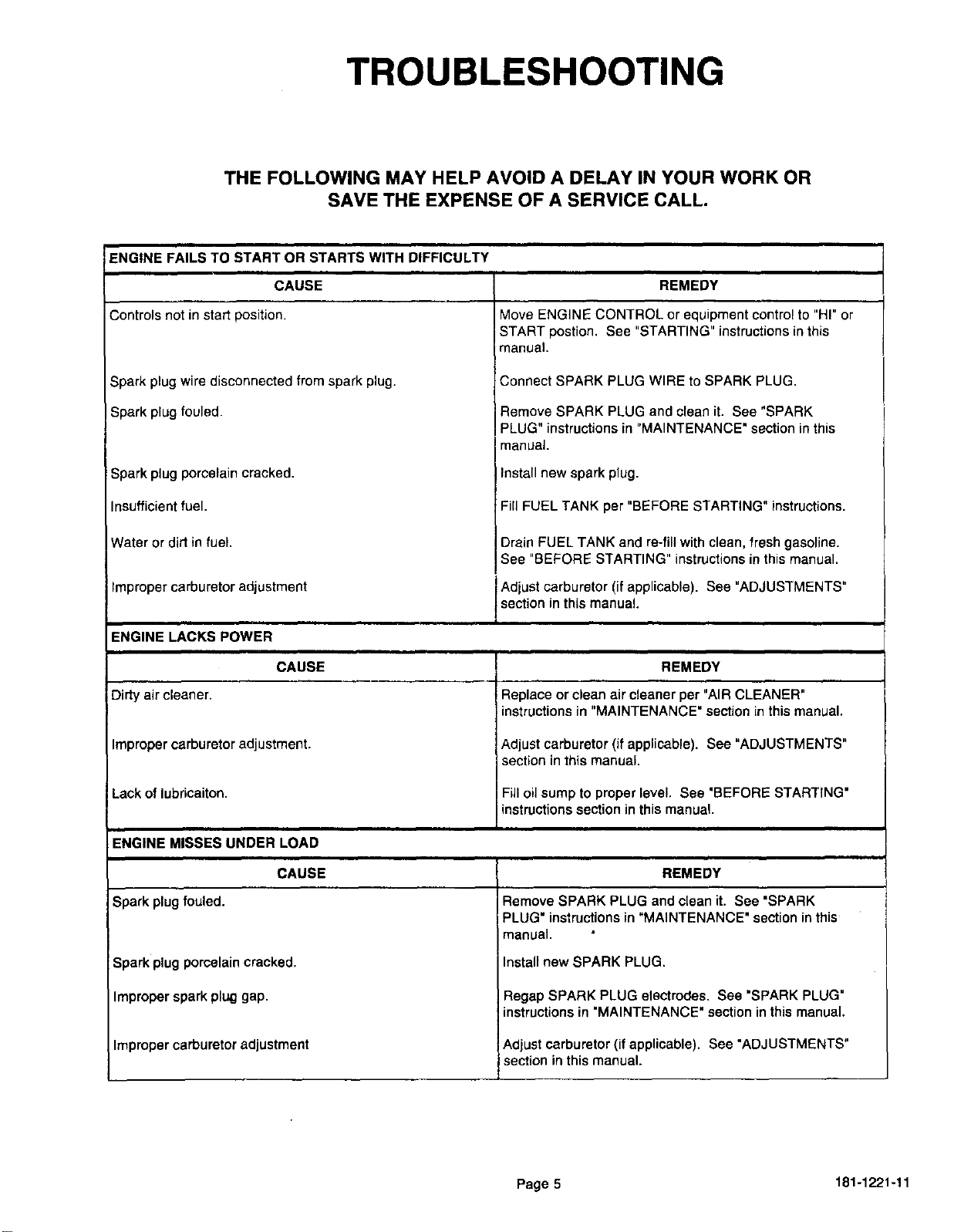

TROUBLESHOOTING
THE FOLLOWING MAY HELP AVOID A DELAY IN YOUR WORK OR
SAVE THE EXPENSE OF A SERVICE CALL.
!NGINE FALLS TO START OR STARTS WITH DIFFICULTY
CAUSE
Controls not instart position,
Spark plug wire disconnected from spark plug.
Spark plug fouled.
Spark plug porcelain cracked.
Insufficient fuel.
Water or dirt in fuel.
Improper carburetor adjustment
ENGINE LACKS POWER
REMEDY
Move ENGINE CONTROL or equipment control to "HI" or
START post!on. See "STARTING" instructions in this
manual.
Connect SPARK PLUG WIRE to SPARK PLUG.
Remove SPARK PLUG and clean it. See "SPARK
PLUG" instructions in "MAINTENANCE" section in this
manual.
Install new spark plug.
Fill FUEL TANK per "BEFORE STARTING" instructions.
Drain FUEL TANK and re-fill with clean, fresh gasoline.
See "BEFORE STARTING" instructions in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual.
CAUSE
Dirty aircleaner.
Improper carburetoradjustment.
Lack of lubdcaiton.
REMEDY
Replace or clean air cleaner per "AIR CLEANER"
instructions in "MAINTENANCE" section in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual.
Fill oilsump to proper level. See "BEFORE STARTING"
instructions section in this manual.
ENGINE MISSES UNDER LOAD
CAUSE
Spark plug fouled.
Spark plug porcelain cracked.
Improper spark plug gap.
Improper carburetor adjustment
REMEDY
Remove SPARK PLUG and clean it. See "SPARK
PLUG" instructions in "MAINTENANCE" section in this
manual.
Install new SPARK PLUG.
Regap SPARK PLUG electrodes, See "SPARK PLUG"
instructions in "MAINTENANCE" section in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual.
Page 5 181-1221-11

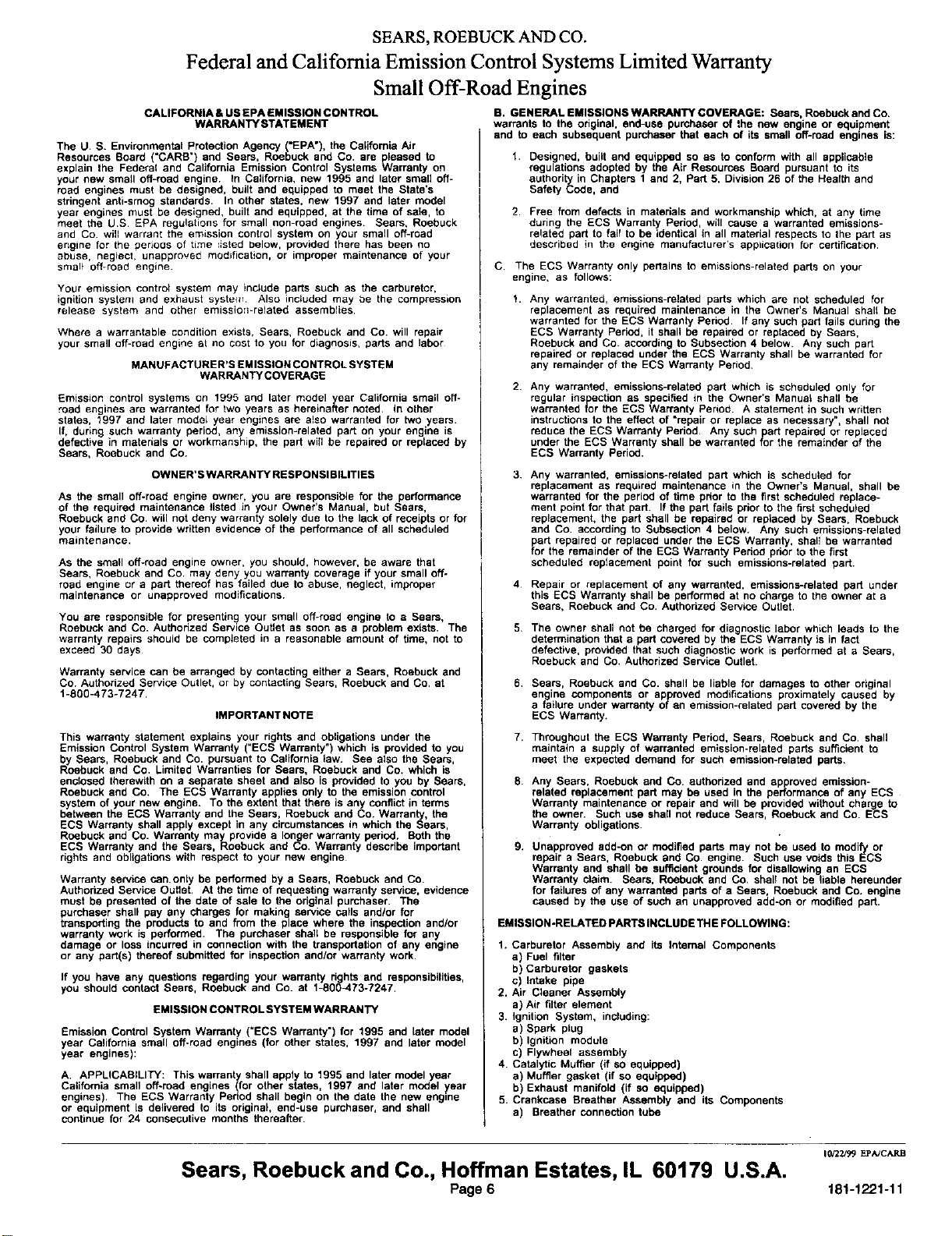

SEARS, ROEBUCK AND CO.
Federal and California Emission Control Systems Limited Warranty
Small Off-Road Engines
CALIFORNIA & US EPA EMISSION CONTROL
WARRANTY STATEMENT
The U. S. Environmental Protection Agency ('EPA'), the California Air
Resources Board ("CARB') and Sears. Roebuck and Co. are pleased to
explain the Federal and California Emission Control Systems Warranty on
your new small off-road engine In California, new 1995 and later srnall off-
road engines must be designed, built and equipped to meet the State's
stringent anti-smog standards. In other states, new 1997 and later model
year engines must be designed, built and equipped, at the time of sale, to
meet the US EPA regulations for small non-road engines Sears, Roebuck
and Co. will warrant the emission control system on your small off-road
engine for the perioos of time =isted below, provided there has been no
abuse, neg}ect, unapproved modification, or improper maintenance of your
smelt off-road engine
Your emission control system may include parts such as the carburetor,
ignition system and exhaust system¸ Also included may be the compression
release system and other emissierl-related assemblies.
Where a warrantable condition exists. Sears. Roebuck and Co. will repair
your small off-road engine at no cost to you for diagnosis, parts and labor
MANUFACTURER'S EMISSION CONTROL SYSTEM
WARRANTY COVERAGE
Emission control systems on !995 and later model year Calgomia small off-
road engines are warranted for two years as hereinafter noted, in other
states, 1997 and later mede£ year eng:nes are a!so warranted for two yea[s.
If, during such warranty period, any emission+related part on your engine is
defective in matedals or workmanship, the part will be repaired or replaced by
Sears, Roebuck and Co.
OWN ER'S WARRANTY RESPONSIBILITIES
As the small off-rued engine owner, you are responsible for the performance
of the required maintenance listed in your Owner's Manual, but Sears,
Roebuck and Co. will not deny warranty solely due to the lack of receipts or for
your failure to provide wntten evidence of the performance of all scheduled
maintenance,
AS the small off*road engine owner, you should, however, be aware that
Sears. Roebuck and Co may deny you wa_anty coverage if your small off-
road engine or a part thereof has failed due to abuse, neglect, improper
maintenance or unapproved modifications
You are responsible for presenting your small off-road engine to a Sears,
Roebuck and Co. Authodzed Service Outlet as soon as a problem exists, The
warranty repairs should be completed in a reasonable amount of time, not to
exceed 30 days
Warranty service can be arranged by contacting either a Sears, Roebuck and
Co Authorized Service Outlet, or by contacting Sears, Roebuck and Co. at
1-800-473-7247.
IMPORTANTNOTE
This warranty statement explains your rights and obligations under the
Emission Control System Warranty ("ECS Warranty') which is provided to you
by Sears, Roebuck and Co. pursuant to California law. See also the Sears,
Roebuck and Co. Limited Warranties for Sears, Roebuck and Co. which is
enclosed therewith on a separate sheet and also is provided to you by Sears,
Roebuck and Co. The ECS warranty applies only to the emission control
system of your new engine. To the extent that there is any conflict in terms
between the ECS Warranty and the Sears, Roebuck and Co. Warranty, the
ECS Warranty shall apply except in any circumstances in which the Sears,
Roebuck and Co. Warranty may provide a longer warranty period. Both the
ECS Warranty and the Sears, Roebuck and Co. Warranty deschbe important
rights and obligations with respect to your new engine
Warranty service can.only be performed by a Sears, Roebuck and Co.
Authorized Service Outlet. At the time of requesting warranty service, evidence
must be presented of the date of sale to the original purchaser. The
purchaser shall pay any charges for making service calls andlor for
transporting the products to and from the place where the inspection and/or
warranty work is performed. The purchaser shall be responsible for any
damage or loss incurred in connection with the transportation of any engine
or arty part(s) thereof submitted for inspection and/or warranty work.
If you have any questions regarding your warranty dghts and responsibili0es,
you should contact Sears, Roebuck and Co. at 1-800_73-7247.
EMISSION CONTROL SYSTEM WARRANTY
Emission Control System Warranty (=ECS Warranty") for 1995 and later model
year California small off-road engines (for other states, 1997 and later model
year engines):
A. APPLICABILITY: This warranty shall apply to 1995 and later model year
California small off-road engines If°r other states, 1997 and later model ),ear
engines), The ECS Warranty Pertod shall begin on the date the new engine
or equipment is delivered to its original, end-use purchaser, and shall
continue for 24 consecutive months thereafter.
B. GENERAL EMISSIONS WARRANTY COVERAGE: Sears, Roebuck and Co.
warrants to the ohginal, end-use purchaser of *,he new engine or equipment
and to each subsequent purchaser that each of its small off-road engines is:
1. Designed, built and equipped so as to conform with all applicable
regulations adopted by the Air Resources Board pursuant to its
authority in Chapters 1 and 2, Part 5, Division 26 of the Health and
Safety Code, and
2 Free from defects in materials and workmanship which, at any time
during the ECS Warranty Period, will cause a warranted emissions-
related part to fail to be identical in all material respects to the part as
described in the engine manufacturer's applicaedn for certification.
C The ECS Warranty only pertains to emissions-related parts on your
engine, as follows:
Any warranted, emissions-retsted parts which are not scheduled for
replacement as required maintenance in the Owner's Manual shall be
warranted for the ECS Warranty Period If any such part fails during the
ECS Warranty Period, it shall be repaired or replaced by Sears,
Roebuck and Co. according to Subsection 4 below Any such part
repaired or replaced under the ECS Warranty shall be warranted for
any remainder of the ECS Warranty Period
Any warranted, emissions-related part which is scheduled only for
regular inspection as specified in the Owner's Manua_ shall be
warranted for the ECS Warranty Period. A statement in such written
instructions to the effect of "repair or replace as necessary", shall not
reduce the ECS Warranty Period. Any such part repaired or replaced
under the ECS Warranty shall be warranted for the remainder of the
ECS Warranty Period.
3.
Any warranted, emissions-related part which is scheduled for
replacement as required maintenance in the Owner's Manual, shall be
warranted for the period of time prior to the first scheduled replace-
ment point for that part. If the part fails prior to the first scheduled
replacement, the part shall be repaired or replaced by Sears. Roebuck
and Co. according to Subsection 4 below. Any such emissions-related
part repaired or replaced under the ECS Warranty. shall be warranted
for the remainder of the EC8 Warranty Pedod prior to the first
scheduled replacement point for such emissions-related part.
4 Repair or replacement of any warranted, emissions-related part under
this ECS Warranty shall be performed at no charge to the owner at a
Sears. Roebuck and Co. Authodzed Service Outlet.
5. The owner shall net be charged for diagnostic labor which leads to the
determination that a part covered by the ECS Warranty is in fact
defective, provided that such diagnostic work is performed at a Sears,
Roebuck and Co. Authorized Service Outlet.
6.
7.
8.
9.
Sears, Roebuck and Co. shall be liable for damages to other original
engine components or ap,proved modifications proximately caused by
a failure under warranty of an emission-related part covered by the
ECS Warranty.
Throughout the ECS Warranty Period, Sears, Roebuck and Co. shall
maintain a supply of warranted emission-related parts sufficient to
meet the expected demand for such emission-related pads.
Any Sears, Roebuck and Co. authorized and approved emission-
related replacement part may be used in the performance of any ECS
Warranty maintenance or repair and will be provided without charge to
the owner. Such use shall not reduce Sears, Roebuck and Co. EGS
Warranty obligations.
Unapproved ned-on or modified parts may not be used to modify or
repair a Sears, Roebuck and Co. engine. Such use voids this ECS
Warranty and shall be sufficient grounds for disallowing an ECS
Warranty claim. Sears. Roebuck and Co, shal! not be liable hereunder
for failures of any warranted parts of a Sears. Roebuck and Co. engine
caused by the use of such an unapproved edd-on or modified part.
EMISSION .RELATED PARTS INCLUDE TH E FOLLOWING:
1• Carburetor Assembly and its Internal Components
a) Fuel filter
b) Carburetor gaskets
c) Intake pipe
2. Air Cleaner Assembly
a) Air filter element
3. Ignition System, including:
a) Spark plug
b) Ignition module
c) Flywheel assembly
4. Catalytic Muffler (if so equipped)
a) Muffler gasket (if so equipped)
b) Exhaust manifold (if so equipped)
5. Crankcase Breather Assembly and its Components
a) Breather connectiontube
I_Z/99EP_CARB
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Page 6 181-1221-11

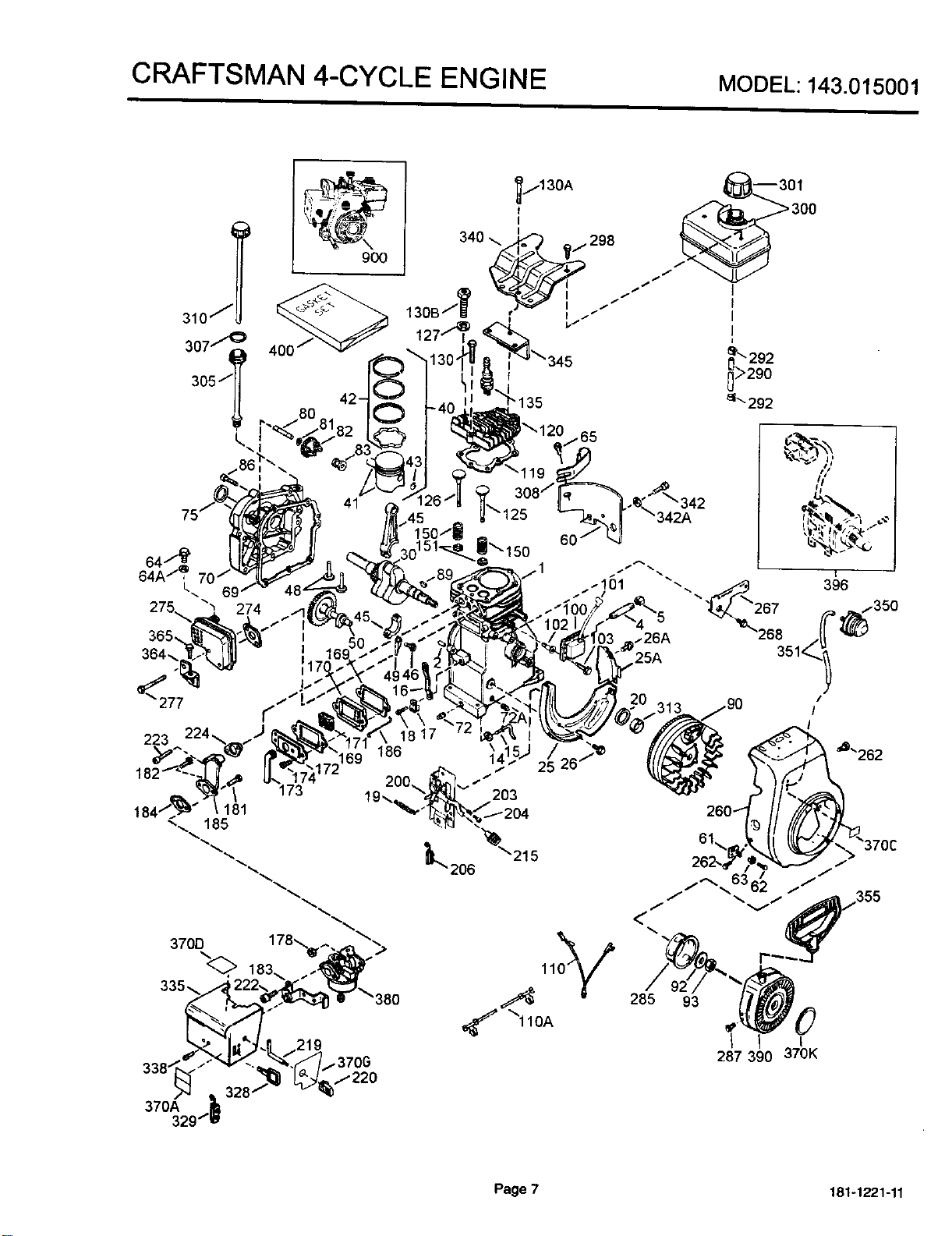

CRAFTSMAN 4-CYCLE ENGINE MODEL: 143.015001
400
135
292
29O
ek. 292
365.
364,
328 /
370A
329
25A
219
.370G
I
396
285 93
I
287 390 370K
Page 7 181-1221-11
CRAFTSMAN 4-CYCLE ENGINE MODEL:143.015001
Ref.
No.
1
2
4
5
14
15
16
17
18
19
20
25
25J,
26
26t,
30
40
40
40
41
41
41
42
42
42
43
45
46
48
49
5O
60
61
62
63
64
64A
65
69
70
72
72A
75
80
81
82
83
86
89
9O
92
93
100
101
102
103
110
110A
Part
No.
36469A
26727
30966
30969
28277
31334
31510
31335
651018
31426
32600
36552
35883
650802
650926
34740
36073
36074
36075
36070
36071
36072
36076
36077
36078
20381
32875A
32610A
27241
32654
33158
29745
34126
650760
28545
30063
8345
650128
"27677A
34674C
27642
28582
27897
30574A
30590A
30591
30588A
650488
610961
611199
650815
650816
34443B
610118
651024
651007
35557
36874
Part Name
Ref. Part
No. No.
Cylinder (Incl. 2,20,72 & 125)
Dowel Pin
Oil Drain Extension
Extension Cap
Washer
Governor Rod
Governor Lever
Governor Lever Clamp
Screw, T-15, 8-32 x 19/64"
Extension Spring
Oil Seal
Blower Housing Baffle
Baffle Extension
Screw, !/4-20 x 5/8"
Screw, 8-32 x 21/64"
Crankshaft
Piston, Pin & Ring Set (Std.)
Piston, Pin & Ring Set (.010" OS)
Piston, Pin & Ring Set (.020" OS)
Piston & Pin Ass'y. (Std.) (Incl. 43)
Piston & Pin Ass'y. (.010" OS) (Incl.
43)
Piston & Pin Ass'y. (.020" OS) (Incl.
43)
Ring Set (Std.)
Ring Set (.010" OS)
Ring Set (.020" OS)
Piston Pin Retaining Ring
Connecting Rod Ass'y. (Incl. 46 & 49)
Connecting Rod Bolt
Valve Lifter
Oil Dipper
Camshaft (BCR)
Slower Housing Extension
Mounting Bracket
Screw, 8-32 x 3/8"
Grommet
Screw, T-30, 1/4-20 x 1/2"
Washer
Screw, 10-24 x 1/2"
Cylinder Cover Gasket
Cylinder Cover (Incl. 75 thru 83)
Oil Drain Plug
Oil Drain Plug
Oil Sea]
Governor Shaft
Washer
Governor Gear Ass'y. (Incl. 81)
Governor Spool
Screw, 1/4-20 x 1-1/4"
Flywheel Key
Flywheel (WIRing Gear)
Bellevifle Washer
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Solid State Mounting Stud
Screw, T-15, 10-24 x 15/16"
Ground Wire
Ground Wire
119 *36443
120 36441
125 36471
125 36472
126 32644A
127 650691
130 6021A
130A 650694A
130B 650818
!38 35395
150 31672
151 31673
169 "27234A
170 27668
171 31410
172 34146
173 35350
174 650783
178 29752
181 650870
182 6201
183 34583A
184 *26756
185 33691
186 32698
200 36677
203 31342
204 651029
206 610973
215 35440
219 34582
220 35438
222 28820
223 650664
224 "33673A
260 35656A
262 650737
267 34212
268 30200
274 "33670A
275 35771
277 650327
285 36467A
287 650926
290 30705
292 26460
298 650665
300 35584
301 35355
305 35554
Part Name
Cylinder Head Gasket
Cylinder Head (Incl. 131)
Exhaust Valve (Std.) (Incl. 151)
Exhaust Valve (1/32" OS) (incl. 151)
Intake Valve (Std.) (Incl. 151 )
Washer
Screw, 5/16-18 x 1-1/2"
Screw, 5/16-18 x 2"
Screw, 5/16-18 x 1-1/2"
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
Valve Cover Gasket
Breather Body
Breather Element
Valve Cover
Breather Tube
Screw, 10-24 x 3/4"
Nut & Lock Washer, 1/4-28"
Screw, 1/4-28 x 1-11/16"
Screw, 1/4-28 x 7/8"
Choke Bracket
Carburetor To Intake Pipe Gasket
Intake Pipe
Governor Link
ControlBracket (Incl. 203 thru209A)
Compression Spring
Screw, T-10, 5-40 x 7/16"
Terminal
ControlKnob
Choke Rod
Choke Knob
Screw, 10-32 x 1/2"
Screw, 1/4-20 x 1-19/32"
Intake Pipe Gasket
Blower Housing
Screw, 1/4-20 x 1/2"
Hold Down Bracket
Screw, 10-24 x 9/16"
Exhaust Gasket
Muffler (Incl. 274)
Screw, 1/4-20 x 2-27/64"
Starter Cup
(NOTE: This engine could have been
built with 590707 starter.)
Screw, 8-32 x 21/64"
Fuel Line
Fuel Line Clamp
Screw, 1/4-15 x 3/4"
Fuel Tank (Incl. 292 & 301 )
Fuel Cap
Oil Fill Tube
*Indicates Parts Included in
Gasket Set, Ref. No. 400.

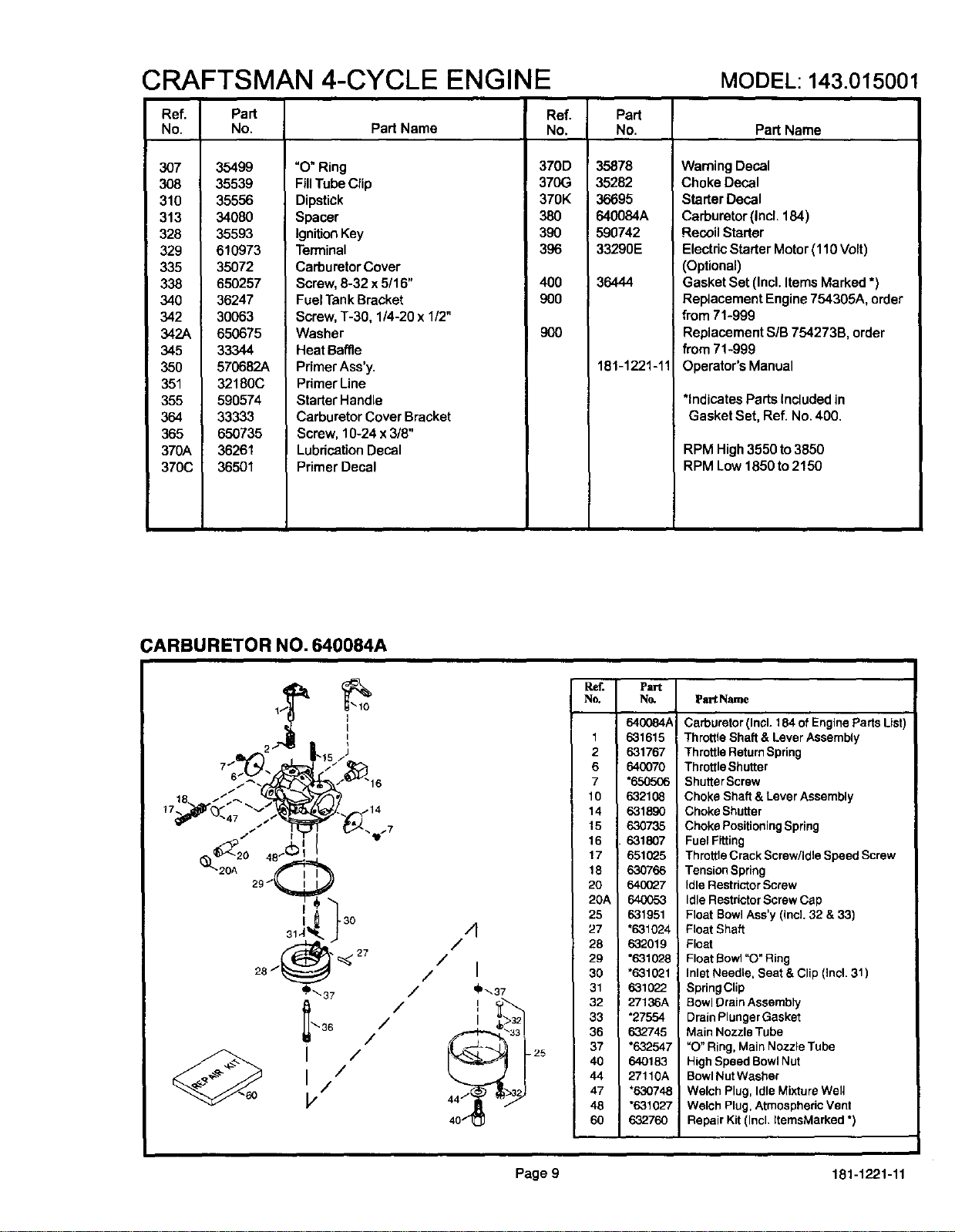

Page 8 181-1221-11
CRAFTSMAN 4-CYCLE ENGINE MODEL:143.015001
Ref. Part
No. No.
307 35499
308 35539
310 35556
313 34080
328 35593
329 610973
335 35072
338 650257
340 36247
342 3OO63
342A 650675
345 33344
350 570682A
351 32180C
355 590574
364 33333
365 650735
370A 36261
370C 36501
Part Name
"O" Ring
FillTube Clip
Dipstick
Spacer
IgnitionKey
Terminal
Carburetor Cover
Screw, 8-32 x 5/16"
FuelTank Bracket
Screw, T-30, 1/4-20 x 1/2"
Washer
Heat Baffle
Primer Ass'y.
Primer Line
Starter Handle
Carburetor Cover Bracket
Screw, 10-24 x 3/8"
Lubdcetion Decal
Primer Decal
Ref.
No.
370D
370G
370K
380
390
396
400
9OO
9O0
Part
No.
35878
35282
36695
640084A
590742
33290E
36444
181-1221-11
Part Name
Warning Decal
Choke Decal
Starter Decal
Carburetor (incl. 184)
Recoil Starter
ElectricStarter Motor (110 Volt)
(Optional)
Gasket Set (Incl. Items Marked *)
Replacement Engine 754305A, order
from 71-999
Replacement S/B 754273B, order
from 71-999
Operator's Manual
*Indicates Parts Included in
Gasket Set, Ref. No. 400.
RPM High3550 to3850
RPM Low 1850 to 2150
CARBURETOR NO. 640084A
4
I
q I
.- .15/
18 --/_. i _ _._/14
_20 48"_
k'_ 20A 29/0
28/_ !_027
d,IP_.37 /
l "
\36 /
/
@ ' ,
I//
P
4
/
/
/ I
4D_37
44 /
40 /
Ref. Part
No. No. Part Name
e40_4A
1 631615
2 631767
6 640070
7 *650506
10 632108
14 631890
15 630735
16 631807
17 6510_5
18 630766
20 640027
20A 640053
25 631951
27 *631024
28 632019
29 "631028
30 *631021
31 6310_2.
32 27136A
33 *27554
36 632745
37 *632547
40 640183
44 27110A
47 *630748
48 *631027
60 632760
Carburetor (Incl. 184 of Engine Parts List)
Thrott e Shaft & Lever Assembly
Throttle Return Spring
Throttle Shutter
Shutter Screw
Choke Shaft & Lever Assembly
Choke Shutter
Choke Positioning Spring
Fuel Fitting
Throttle Crack Screw/Idle Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Restrictor Screw Cap
Float Bowl Ass'y (IncL 32 & 33)
Float Shaft
Float
Float Bowl"O" Ring
Inlet Needle, Seat & Clip (Incl. 31)
Spring Clip
Bowl Drain Assembly
Drain Plunger Gasket
Main Nozzle Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
BowlNut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair Kit (Incl. ItemsMarked *)
Page 9 181-1221-11
REWIND STARTER NO. 590742
13
-oy
IIi II -7
Ref. Pad
No. No, Pa_ Name
3
7
8
11
12
13
14
590742
590740
590616
590617
590645A
59O647
590535
590574
590760
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y
Starter Housing Ass'y
Starter Rope (Length 98" x 9/64"
dia.)
Mitten Grip Handle (Not included w/
starter)
Spring Clip
ELECTRIC STARTER MOTOR NO. 33290E
5A
Ref.
No.
2
3
4
5A !
6
7
8
9
10A
13
!4
!5
16
19
24
25
26
26
29
3O
Part
No.
33290E
31749
33522
33769
37332
35461
3545O
35912
35452A
59O5O0
33441
3.5453
35454
35911
35462
35456
650819
651032
32450B
650759
Part Nine
Electric Starter (110 Volt)
Retainer Ring
Spring Retainer
Anti-drift Spring
Nut & Gear (Incl. 2)
Drive End Cap Ass'y. (IncL 7)
"O" Ring
Armature
Housing Ass'y. (Must Purchase
Complete Motor)
Brush & Spring Card Ass'y.
Thrust Washer
Ground Screw
Commutator End Cap Ass'y. (IncL 7)
Switch Box Ass'y
Thrust Washer
Case Bolt
Grounding Screw
Screw, 6-32 x 2-I/2"
Screw, 12-16 x 5/8"
Extension Cord (10'6")
Screw, Torx T-30, 1/4-20 x 23/32"
Page 10 181-1221-11
_AUk S

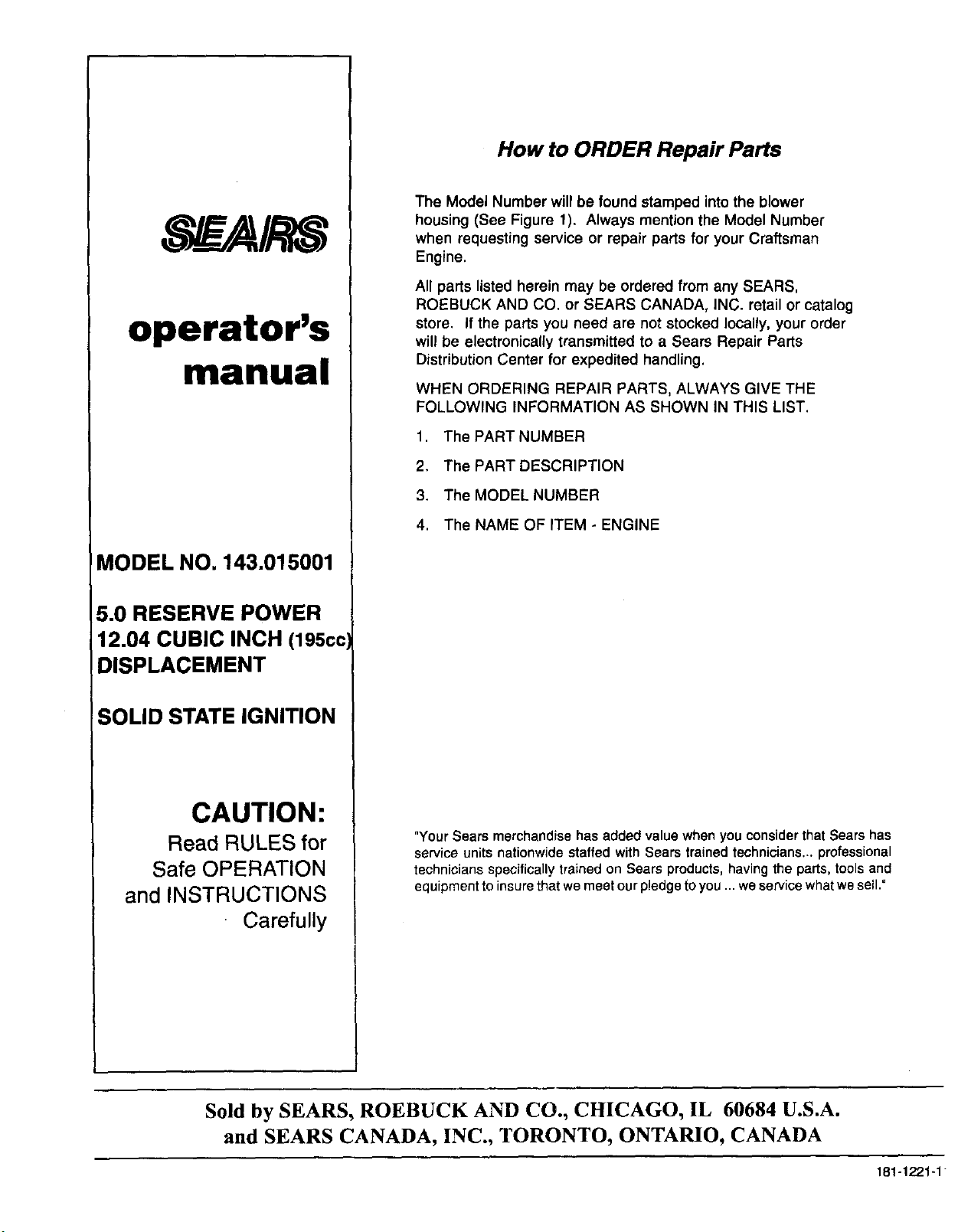

operator's
manual
MODEL NO. 143.015001
5.0 RESERVE POWER
12.04 CUBIC INCH (195cci
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
How to ORDER Repair Parts
The Model Number will be found stamped into the blower
housing (See Figure 1). Always mention the Model Number
when requesting service or repair parts for your Craftsman
Engine.
All parts listed herein may be ordered from any SEARS,
ROEBUCK AND CO. or SEARS CANADA, INC. retail or catalog
store. If the parts you need are not stocked locally, your order
will be electronically transmitted to a Sears Repair Parts
Distribution Center for expedited handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION AS SHOWN IN THIS LIST.
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER
4. The NAME OF ITEM - ENGINE
"Your Sears merchandise has added value when you consider that Sears has
service units nationwide staffed with Sears trained technicians.., professional
technicians specifically trained on Sears products, having the parts, tools and
equipment to insure that we meet our pledge to you ... we service what we sell."
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
181-1221-1
