EN
DETAILED
INSTRUCTIONS
HOW TO USE YOUR
DRYER
www.gorenje.com
We thank you for the
confidence you have shown us by
purchasing this dryer. Your new
dryer complies with the requirements
of modern laundry care; it will
dry your laundry quickly, leaving
it soft and smooth, while use of
special programs will not deform
it. SenzoCare technology will allow
simple operation of the dryer with
very low power consumption.
This appliance is designed exclusively
for household use for clothes which
may be drying in a dryer.
3
TABLE OF CONTENTS
350077
DRYING
STEPS
CLEANING
AND
MAINTANCE
OF THE
APPLIANCE
INTRODUCTION
TROUBLE-
SHOOTING
GETTING
STARTED
OTHER
4 APPLIANCE
5 Technical information
6 Control panel description
8 SAFETY PRECAUTIONS
10 INSTALLATION AND CONNECTION
10 Selecting the room
13 Installation
14 Moist air evacuation
15 Condensate discharge
16 Electrical connections
17 Moving and transport
17 Subsequent transport
18 BEFORE THE FIRST USE
19 DRYING STEPS (1 - 6)
19 1. Step: Check the tags on your laundry
20 2. Step: Preparing the laundry
23 3. Step: Selecting a program
25 4. Step: Additional functions (extra)
27 5. Step: Program start-up
27 6. Step: End of drying cycle
28 CLEANING AND MAINTENANCE
29 Cleaning the filter on the lower side of the door opening
30 Cleaning the net filter in the door
31 Cleaning of water condenser
33 Emptying the condensate tank
34 Cleaning of evacuation duct
34 Cleaning the dryer
35 INTERRUPTING AND CHANGING THE PROGRAM
36 What to do...?
38 TIPS AND RECOMMENDATIONS FOR DRYING AND ECONOMIC USE
OF YOUR DRYER
39 DISPOSAL
40 TYPICAL CONSUMPTION TABLE
4
APPLIANCE
(DRYER DESCRIPTION)
350077
FRONT
1 Program selector dial
2 Control panel
3 Condensate tank
(depending on the model)
4 Door
5 Net filter
6 Filter on the lower side
of the door opening
(depending on the model)
7 Condenser
(depending on the model)
8 Evacuation opening
(depending on the model)
9 Rating plate
BACK
1 Condensate discharge pipe
(depending on the model)
2 Evacuation opening
(depending on the model)
3 Power cord
4 Adjustable feet
1
2
5
6
7
9
4
8
3
2
2
3
4
4
4
4
1
8
5
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: SP10/XXX
Art.No.: XXXXXX
AC 220-240V 50 Hz
Pmax.: XXXXW
10A
MADE IN SLOVENIA
MODEL: XXXXXX
Ser.No.: XXXXXX
X
kg
IPX4
350077
The rating plate with the basic information on the dryer is located under the door frame.
Width
600mm
Height
850mm
Depth
600mm
Depth with door
open
1100mm
Weight
XX/YY kg
(depending on the
model)
Rated voltage
See rating plate
Fuse
See rating plate
Nominal power
See rating plate
Maximum load
See rating plate
The rating plate
66
CONTROL PANEL DESCRIPTION
FOR MODELS A) CONDENSATION AND
B) AIR VENTED
START|PAUSE
12h
4h
2h
OFF
30
90
60
1
4c
5
2c
2a
3c
3b
3a
4b
4a
START|PAUSE
12h
4h
2h
OFF
30
90
60
1
4c
5
2c
2b
2a
3c
3b
3a
4b
4a
350077
1
START/ PAUSE key,
use this key to start or
stop the program. When
selected, the signal light on
the key will flash. When the
program has started it will
be lit continuously.
2
a, b, c: SIGNAL
LIGHTS are on: when
it is necessary to clean the
filter, empty the condensate
tank (depending on the
model) or when the child
lock is on.
3
LAMPS indicating
delayed start of the
operation, or display of
drying, cooling, and end of
drying stages.
B) AIR VENTED
A) CONDENSATION
77
START|PAUSE
12h
4h
2h
OFF
30
90
60
1
4c
5
2c
2b
2a
3c
3b
3a
4b
4a
350077
4
a, b, c: ADDITIONAL
FUNCTION keys, to
extend or adjust the basic
programs.
5
ON/OFF and PROGRAM
SELECTOR dial
MOST USED PROGRAMS
8
SAFETY PRECAUTIONS
350077
Please don´t use the appliance unless you
have studied and understood the instruction
manual.
Your dryer is intended solely for household
use.
If the dryer is used for professional, for-profit
purpose or purpose exceeding normal use
in a household, or if the dryer is used by a
person who is not a consumer, the warranty
period shall be equal to the shortest warranty
period required by relevant legislation.
Before connecting the dryer to the power
mains, please read carefully the instructions
for use which describe the dryer and its
correct and safe use. The instructions apply
for several appliance types/models; thus,
settings or equipment may be described
herein which is not available in your dryer.
Failure to observe instructions or incorrect
use of the dryer, can lead to damage of
laundry, dryer or the user.
Store the instruction manual nearby the
dryer.
Do not allow the children to play with the
appliance.
Prevent your children and pets to enter the
dryer drum.
Air in the dryer environment should not
contain dust particles.
The air where the dryer is installed, should
be well ventilated to prevent feedback of
gases released from the gas appliances with
open fire (e.g. fireplace).
Clean the filters after each drying cycle. If
you have removed the filters, replace them
before the next drying cycle.
After each cleaning insert the condenser
back into the air duct (depending on
model). Operation of the appliance without
condenser, or with damaged condenser is
extremely dangerous and may cause fire.
Always switch off the dryer after use (the
program selector switch should be in the
"OFF" position) and unplug the power cord
from the wall outlet (to prevent the hazard of
lightning or voltage overload).
Leave any repairs and similar tasks on the
dryer to an expert.
Unprofessional repair may result in an
accident or major malfunction. Call the
authorized service department (see list of
service departments attached).
The warranty does not cover (consumables
(light bulbs), minor deviations in colour,
increased noise which is a consequence of
the appliance age and does not affect the
functionality of the appliance, and aesthetic
defects on components that do not affect
the functionality and safety of the appliance.
The appliance is manufactured in
compliance with all effective safety
standards.
Nevertheless, we recommend it is not used
by persons with impaired physical or mental
abilities and motor skills, or persons with
deficient experience or knowledge, without
due supervision. The same recommendation
applies to the use of appliance by minors.
9
350077

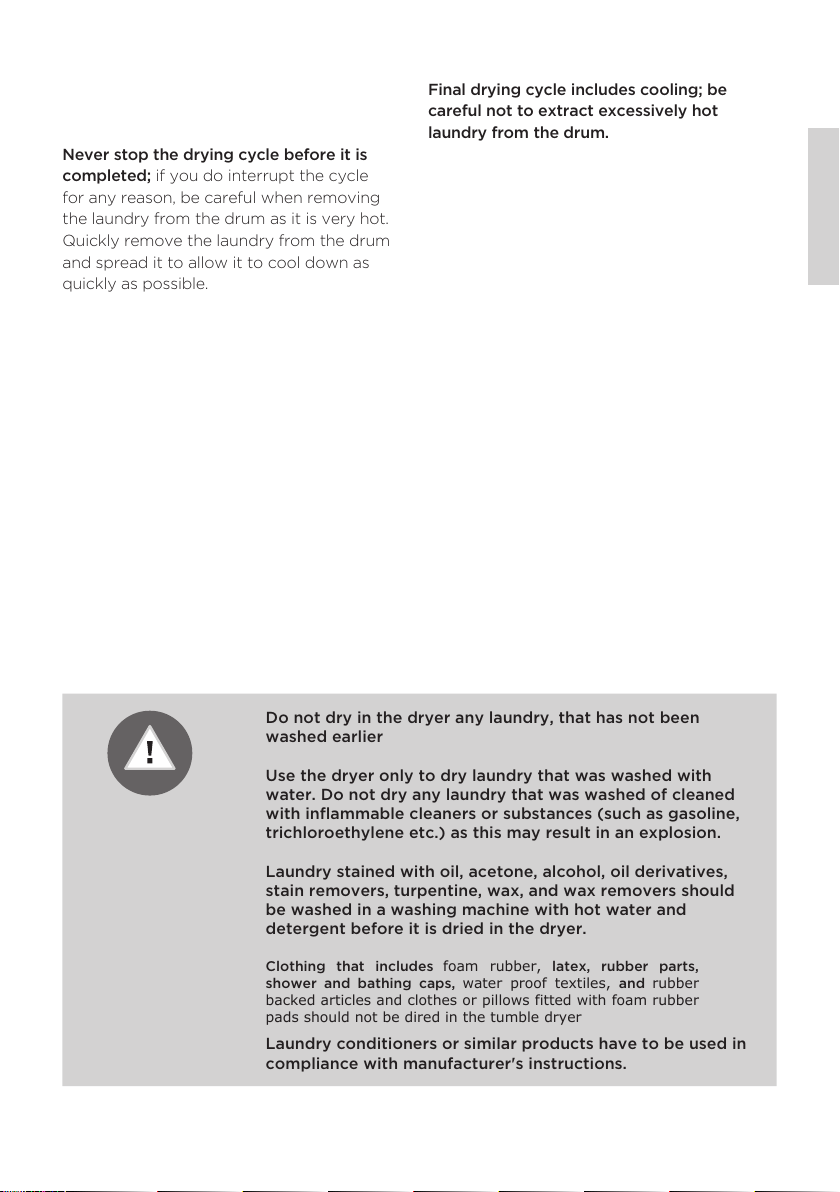

TO REDUCE FIRE HAZARD, PLEASE READ THE
FOLLOWING INSTRUCTIONS:
Do not dry in the dryer any laundry, that has not been
washed earlier.
Use the dryer only to dry laundry that was washed with
water. Do not dry any laundry that was washed of cleaned
with inflammable cleaners or substances (such as gasoline,
trichloroethylene etc.) as this may result in an explosion.
Laundry stained with oil, acetone, alcohol, oil derivatives,
stain removers, turpentine, wax, and wax removers should
be washed in a washing machine with hot water and
detergent before it is dried in the dryer.
Clothing that includes foam rubber, latex, rubber parts,
shower and bathing caps, water proof textiles, and rubber
backed articles and clothes or pillows fitted with foam rubber
pads should not be dired in the tumble dryer
Laundry conditioners or similar products have to be used in
compliance with manufacturer's instructions.
The dryer back wall can be hot danger of
burns.
Never stop the drying cycle before it is
completed; if you do interrupt the cycle
for any reason, be careful when removing
the laundry from the drum as it is very hot.
Quickly remove the laundry from the drum
and spread it to allow it to cool down as
quickly as possible.
Final drying cycle includes cooling; be
careful not to extract excessively hot
laundry from the drum.
10
INSTALLATION AND
CONNECTION
SELECTING THE ROOM
10 cm
10 cm
5 cm
350077
Ventilation slots and the opening on the front and rear side should always be
kept free.
When installing the dryer in a room, note the required clearance as indicated
in the image. In case of failure to heed the required minimum clearance, the
dryer may overheat.
For condensation dryer
Do not install the appliance in a room where there is danger of frost.
The room in which the appliance is installed should be adequately ventilated,
with temperature between 10°C and 25°C. When the dryer is operated at a
lower ambient temperature, condensate can accumulate in the appliance
interior.Frozen water in the condensate tank or pump may damage the dryer.
For vented dryer
Place the appliance in well aerated room with a window or fitted with a fan.
Put the evacuation tube into the appropriate opening. Evacuation duct may
not be placed into the chimney or other type of air duct used for evacuation
of exhaust fumes and smoke of appliances using other combustible
substances.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels
11

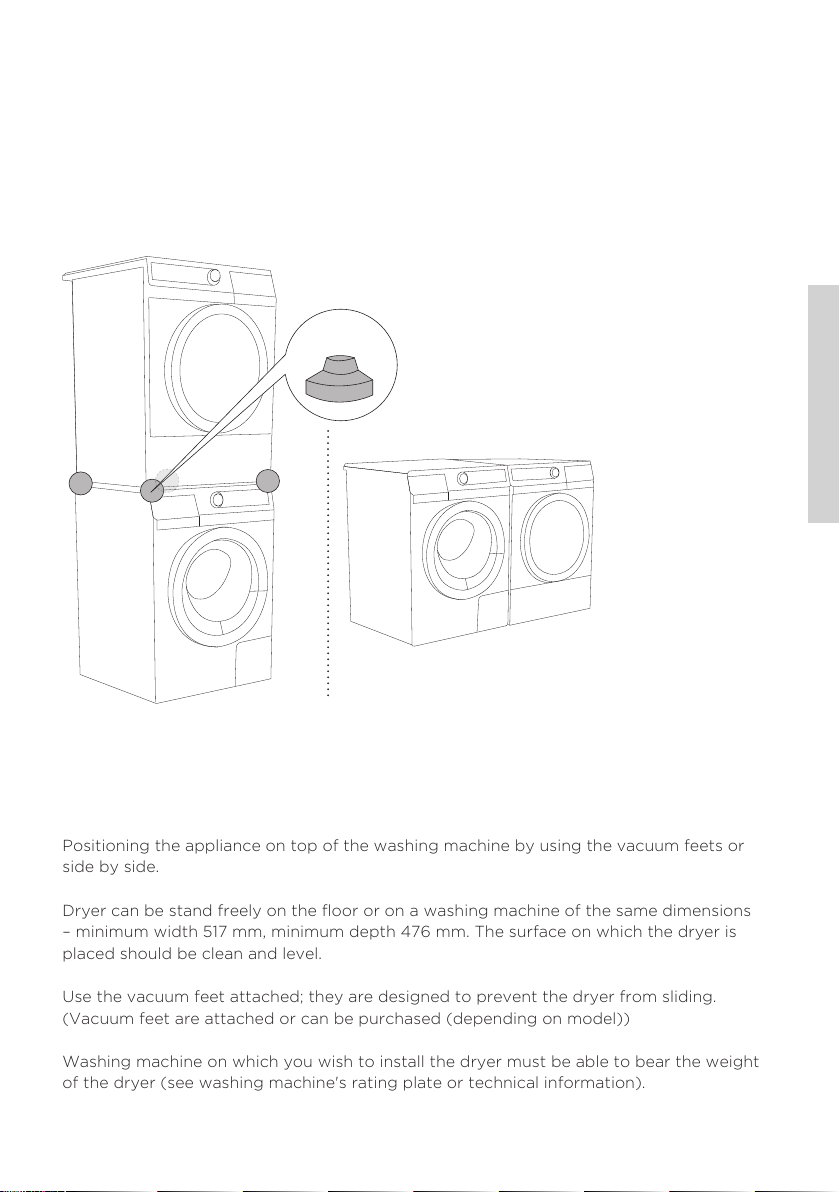

POSITIONING THE APPLIANCE
4X
350077
Positioning the appliance on top of the washing machine by using the vacuum feets or
side by side.
Dryer can be stand freely on the floor or on a washing machine of the same dimensions
– minimum width 517 mm, minimum depth 476 mm. The surface on which the dryer is
placed should be clean and level.
Use the vacuum feet attached; they are designed to prevent the dryer from sliding.
(Vacuum feet are attached or can be purchased (depending on model))
Washing machine on which you wish to install the dryer must be able to bear the weight
of the dryer (see washing machine's rating plate or technical information).
12
350077
Do not place the dryer behind lockable or sliding door or door
with a hinge opposite the dryer. Install the dryer in such way
that the door can always be freely opened.
Air ventilation duct must be kept unobstructed (see
"Description of the appliance").
Drying machine on top should be placed by at least two
persons.
Do not place the dryer on a carpet with long fibres as this may
impede air circulation.
The appliance may not be in contact with a wall or adjacent
furniture.
13
INSTALLATION
350077
Level the dryer in
longitudinal and
traverse direction
by rotating the
adjustable feet
which allow levelling
by +/- 1 cm. Use
key nr. 22 and spirit
level.
Floor on which the machine is placed must have a concrete
base. They must be clean and dry; otherwise, the machine may
slide. Also clean the adjustable feet.
The appliance must stand level and stable on a solid base.
Vibrations, moving of the appliance across the room, or loud
operation due to improperly adjusted feet are not covered by
the warranty.
Sometimes, unusual or loud noise may appear during
appliance operation; these are mostly the result of improper
installation.
14
MOIST AIR EVACUATION
(For vented dryer)
Distance between the drying machine and the evacuation
opening (vent duct, window) may not be more than 2 m,
otherwise you may expect concentration of moisture within
the exhaust tube.
The appliance is fitted with two openings for moist air evacuation
(option a/b), of which one must be covered with the lid, and other
used to fix the exhaust tube.
a b
max 2 m
max 2 m
350077
Lint must not be allowed to accumulate around the tumble dryer
15
CONDENSATE DISCHARGE
(For condensation dryer)
max 80 cm
350077
The moisture from the laundry is extracted in the condenser unit
and accumulated in the condensate tank.
During the drying process, a control light will warm you of a full
condensate tank which has to be emptied.
Interruption of the drying cycle due to full condensate tank can be
avoided by running the condensate discharge tube found at the
back of the appliance directly into a drain.
If the condensate discharge tube is run into a drain, make sure
the tube is firmly secured. This will prevent any water spillage
which could result in unexpected damage.
In this case, the steam generator tank will not be filled
automatically. It will always require manual filling (see section
Filling and replenishing the steam generator tank).
1
Pull the tube to
remove it with
flat screw-driver,
from the holder on
the appliance back
wall.(on the left
hand side under the
cover).
2
Install tube into
the drain, at
a height of 80 cm
from the ground.
16
ELECTRICAL CONNECTIONS
2h
350077
The dryer should be left to stand still for at least two hours
before it is connected to the power mains to allow the system to
stabilize.
Use the power cord to connect the dryer to the power mains
through a power outlet. The dryer may not be connected to the
power mains through an extension cable (danger of overheating
and fire). Nominal voltage and other information is given on the
rating plate located under the door frame.
To prevent from damage by excess voltage on the mains due
to lightning strike we recommend to use a class I over-voltage
protector between the machine and the mains.
After installation, the wall outlet should be freely accessible.
The outlet should be fitted with an earth contact (in
compliance with the relevant regulations).
A damaged power cord may only be replaced by a person
authorized by the manufacturer.
17
SUBSEQUENT TRANSPORT
MOVING AND TRANSPORT
350077
After each drying certain amount of condensed water is retained
in the appliance. Switch on the appliance and choose one of the
programs, then let the appliance operate for approximately half
a minute. This will pump out the remaining water and prevent
damage to the dryer during transport.
After transport, the dryer should be left to stand still for at
least two hours before it is connected to the power mains to
allow the system to stabilize. We recommend that installation
and connection should be done by a qualified person.
If the appliance was not transported in compliance with the
instructions, the dryer should be left to stand still at least two
hours before it is reconnected to the power mains.
Before connecting the appliance, read the instructions for
use. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
The belt can be replaced by a servising engineer only, who
incorporates an original spare part with the marking OPTIBELT
EPH 1906, code 104265, OPTIBELT 8 EPH 1941, code 160165
(depending on model).
18
BEFORE THE FIRST USE
1 2
350077
Clean the dryer
drum before using
the dryer for the first
time. Use a damp
cloth and a mild
cleaning agent.
Open the disconnected dryer by pressing the door on the left side.
19
DRYING STEPS (1 - 6)
350077
1. STEP: CHECK THE TAGS ON YOUR LAUNDRY
Normal wash
Delicate wash
Max.
washing
95°C
95
95
Max.
washing
60°C
60
60
Max.
washing
40°C
40
40
Max.
washing
30°C
30
30
Manual
washing
Washing
not
allowed
Whitening Whitening in cold water
c1
Whitening not allowed
Dry cleaning Dry cleaning in
all solvents
A
Perchloret-
yhlene R11, R113,
Petrolej
P
Dry cleaning in
kerosene, in pure
alcohol and in
R 113
F
Dry cleaning
not allowed
Ironing Hot iron max.
200°C
Hot iron max.
150°C
Hot iron max.
110°C
Ironing not
allowed
Drying Place on flat
surface
Hang wet
Hang
High temp.
Low temp.
Tumble drying
not allowed
20
2. STEP: PREPARING THE LAUNDRY
350077
1. Sort the laundry by type and thickness of the fabric (see Program Table).
2. Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry washing bag.
The following types of laundry may not be dried in the dryer
as this may cause your garments to deform:
• leather garments and other leather products;
• garments that are waxed or treated in any other way;
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.
The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be damaged.
Remove all objects from pockets such as lighters and matches.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The
items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items
can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and
so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care products
be placed in a tumble dryer they should first be washed in hot
water with extra detergent - this will reduce, but not eliminate,
the hazard
21
DRYING IN A BASKET (ONLY WITH SOME MODELS)
350077
Prior to first drying remove the basket and any wrappings
from the drum.
1
Before installing
the basket, it is
necessary to remove
the filter situated on
the lower side of the
door opening.
Drying in a basket may be selected only at time defined drying.
Mount the basket in the opposite order of the procedure for its
removal, but without the transport packaging.
The basket drying function is used to dry sneakers or other things
which you want to prevent from tumbling within the drum (max.
load: 2,5 kg).
Dry only clean sneakers. Wring them after washing to such extent
that they do not drip water prior inserting into the dryer.
During this function the basket remains still. Be careful to avoid
things which are being dried to touch the drum as they may get
stuck and thus damaged.
After the drying is over, replace the filter again.
22
SWITCHING ON THE DRYER
LOADING THE DRYER
1 2
350077
Connect the appliance to the power mains by plugging in the
power cord.
To light up the drum, rotate the program selector dial to any
position.
Open the dryer door by pressing it on the left side towards the
dryer.
Insert the laundry into the drum (make sure the drum is empty).
Do not insert laundry into the dryer if it has not been wrung or
spun (recommended minimum spinning cycle: 800 rpm).
Close the dryer door.
23
3. STEP: SELECTING A PROGRAM
5
START|PAUSE
12h
4h
2h
OFF
30
90
60
1
4c
5
2c
2a
3c
3b
3a
4b
4a
350077
During operation, the dial will not rotate automatically.
To select a program, rotate the program selector dial (5) to the left
or to the right (according to the type of desired level of dryness of
the laundry).
24
PROGRAM TABLE
350077
Program
Dryness levels
Max.
load
Laundry Extra functions
Cotton
Ultra
Storage
Standard*
Iron
7
kg
D722CM
Non-delicate cotton laundry (towels,
terry towels, stockinette, T-shirts,
trousers, kitchen cloths etc.)
NOTE: Cotton Ultra, Extra dry is the
program used for drying a normal load
at rated capacity
• Low temperature
• Start delay
• Extra dry
Mix
Storage
Iron
3 kg/
3,5 kg
Clothing made of a mixture of fibres
(trousers, T-shirts, suits etc.)
• Low temperature
• Start delay
• Extra dry
Timed program
Duration: 30´/60´/90´
3 kg/
3,5 kg
Laundry that needs to be thoroughly
dried, or a small amount of laundry, or
individual garments.
• Low temperature
• Start delay
Bedlinen
5 kg/
5 kg
Larger pieces of laundry (bedding, large
tablecloths, large towels etc.) – prevents
the laundry from forming into a bulk.
• Low temperature
• Start delay
• Extra dry
Wool softening
2 kg/
2 kg
Wool garments and garments with
mixed fibres containing wool, which you
wish to soften (sweaters, scarves, shawls
etc.)
Shirts
2 kg/
2 kg
Shirts and blouses • Low temperature
• Start delay
• Extra dry
Synthetics
Dry
Ultra
3 kg/
3,5 kg
Garments made of or containing with
synthetic fibres (T-shirts, trousers, suits,
socks and stockings, gowns etc.)
• Low temperature
• Start delay
• Extra dry
Sensitive
2 kg/
2 kg
Laundry that requires drying at lower
temperatures (blouses, delicate
underwear, shirts with additional décor
etc.) - Use of special-purpose laundry
washing bag is recommended.
• Start delay
• Extra dry
25
4. STEP: ADDITIONAL FUNCTIONS
(EXTRA)
START|PAUSE
12h
4h
2h
OFF
30
90
60
4a
4b
4c
350077
Activate/deactivate
the function by
pressing the relevant
key (before pressing
the START/PAUSE
key).
Extra dry
Each time the key is pressed (three levels), the final level of laundry
dryness and drying time will change.
Lower temperature
Used for delicates. Reduced temperature depends upon the
program where this function is applied. After the program is
completed the option is not memorized.
Start delay
For delayed start of operation. Push the button to gradually
change delayed start for: 2h, 4h or 12h.
Function is activated by pushing the START/PAUSE button.
Countdown time is displayed by signal lamps 3a,b,c. When the
countdown is completed, the drying program automatically starts.
The function is activated when the START/PAUSE key is pressed.
Time is counted down by minutes. When the countdown reaches
zero, the selected drying program will start automatically.
To interrupt or change the program delay time press the START/
PAUSE key. Press the (4c) key to select a new delay time. To
confirm the new setting, press the START/PAUSE key.
To quickly cancel the delayed start setting, press the (4c) key and
hold it for 3 seconds.
4a
4b
4c
26
350077
Child lock
To activate the child lock by simultaneously pressing the (4b) and
(4c) keys and holding them for at least three seconds. The signal
light will light up to confirm the selection.
Follow the same procedure to deactivate the child lock. As long as
the child lock is activated, program or additional functions cannot
be changed. The appliance can only be switched off by rotating
the program selector dial to the "OFF" position. Child lock will
remain activated even after the appliance is switched off. In order
to select a new program, it has to be switched off.
4b 4c
+
Some functions cannot be selected with some programs; an
acoustic signal and a flashing light will remind you of such
cases (see Program Table).
When the appliance is switched off, all optional settings are
reset to basic settings, except for the Child Lock.
ANTICREASE EXTRA
Option for crease prevention when laundry is not extracted from the dryer immediately
upon the end of drying. Default setting is 2 hours. Function stops when the door of the
appliance is opened.
STANDBY MODE
If no program is selected and started and no other action is taken within five minutes after
turning on the machine, the display will be automatically turned off to save energy. Signal light
on the START/PAUSE key will flash.
The display will turn on again when you rotate the program selector dial or press any button.
If no action is taken after the end of the program, the display will also be turned off after five
minutes. Signal light on the START/PAUSE key will flash.
P o = weighted power in ‘off mode’ [W] 0,02
P I = weighted power in the ‘left on mode’ [W] 0,5
T I = time in ‘left on mode’ [min] 10,0
Drying time can change as a result of low mains voltage or
different laundry loads.
27
350077
5. STEP: PROGRAM START-UP
Press the START/PAUSE key.
In case of selected countdown time to the end of the program,
appropriate signal lamps are lit, otherwise drying stage signal
lamps are lit (operation 3a, cooling 3b, end of drying 3c).
START|PAUSE
12h
4h
2h
OFF
90
30
6. STEP: END OF DRYING CYCLE
An acoustic signal will indicate the end of the drying cycle. Signal
lights will light up and the light on the START/PAUSE key will flash.
OFF
1. Open the dryer door.
2. Clean the filters (see section Cleaning ...).
3. Take the laundry from the drum.
4. Close the door!
5. Switch off the appliance (rotate the program selector dial (5)
to the "OFF" position).
6. Empty the condensate tank.
7. Unplug the power cord from the outlet.
Drying time indicated is based on tests according to the
EN 61121 standard and it may change in steps during the
drying process, depending on the load and initial moisture of
thelaundry.
28
CLEANING AND MAINTENANCE
1
3
2
4
350077
The dryer should never be operated without the filters in place,
or with damaged filters as excessive amount of accumulated
fibres from the fabric could cause malfunction or failure of the
dryer.
Dryer is fitted with the filtering system containing several filters.
1
Net filter
2
Filter on the
lower side of
the door opening
(depending on the
model)
3
Evacuation
opening
(depending on the
model)
4
Condenser
(depending on
the model)
29
CLEANING THE FILTER ON THE LOWER SIDE OF
THE DOOR OPENING
(DEPENDING ON THE MODEL)
350077
Before emptying the drum, clean the filter on the lower door
opening using your hand or a damp cloth
If the filter is not cleaned regularly, airflow will be reduced
which in turn prolongs the drying time; in addition, this could
result in a dryer malfunction due to overheating.
After five drying cycles, clean the filter with water and dry it
before replacing it.
1
If the filter is
clogged and
requires washing,
remove it from the
support bed.
2
Rinse it under
running water,
and dry it. Make sure
the filter snaps back
into place before
you close the filter
cover.
30
CLEANING THE NET FILTER IN THE DOOR
350077
» CLICK «
1
Lift the filter
cover.
Gently scrape the
filter to remove the
lining of fibres and
threads.
2
Remove the net
filter from the
support bed
3
Wash it under
running water
and dry it.
4
«Click« the
filter back to its
place.
Clean the net filter after each drying cycle.
Make sure the net filter snaps back into place before you
close the filter cover. (Otherwise, the filter will not perform its
function, which may result in clogging of the system.)
Close the filter cover in the door always carefully not to crush
your fingers.
If necessary, clean the filter housing and door gasket as well.
31
CLEANING OF WATER CONDENSER
(CONDENSATION DRYER ONLY)
350077
Certain amount of water may drip out from the condenser,
so it is advisable to spread absorbent cloth on the floor prior
commencement of cleaning.
1
Open exterior lid,
grab the handle
on the left and pull
downwards. Remove
interior lid by
turning the handle
downwards.
2
Turn the
condenser
handle upwards.
3
Use the handle
to pull the
condenser out.
4
Rinse the
interior of the
condenser on both
sides with lukewarm
jet of water, and let
dry thoroughly.
32
350077
After five drying cycles:
1
Extract, wash
and reinstall
water condenser
(see »Cleaning of
water condenser« on
preceding page).
2
Use damp cloth
to clean the
water condenser
cavity;
2a
Wipe
thoroughly
the back of the
condenser cavity
(reach deeply into
the cavity to be able
to touch the rear
wall with your hand),
2b
use damp
cloth to wipe
and clean all seals
and sealing surfaces
of the condenser
cavity and door.
33
EMPTYING THE CONDENSATE TANK
(CONDENSATION DRYER ONLY)
350077
Empty the condensate tank after each drying cycle.
1
Remove the
condensate tank
and turn it.
2
Pour out the
water and put
the tank back to its
place.
Water from the condensate tank is not potable. If thoroughly
filtered, it can be used for ironing.
Never add any chemical means or scents or perfumes into the
condensate tank.
Make sure you disconnect the appliance from the power
mains before cleaning. Set the program selector dial to "0FF"
position and unplug the power cord from the outlet.
(2)
Pull out
the spout
for easier emptying
(only some models)
34
CLEANING THE DRYER
2h
350077
Additional equipment and facilities for maintenance can be seen on: www.gorenje.com
Wipe the dryer exterior using a damp cloth and mild detergent.
Do not use detergents or cleaners that could damage the dryer
(heed the recommendations and warnings by the cleaner/
detergent manufacturers).
Use a soft cloth to wipe dry all parts of the dryer.
Always disconnect the dryer from the power mains before
cleaning.
CLEANING OF EVACUATION DUCT
(FOR VENTED DRYER ONLY)
The interior of the air exhaust and evacuation duct opening must
be cleaned (vacuumed) periodically.
35
INTERRUPTING AND CHANGING
THE PROGRAM
350077
INTERRUPTIONS
Interrupting the program process
Press the START/PAUSE key to pause/
resume and the program.
Open door
If the dryer door is opened during the
drying process, the drying cycle will be
interrupted.
When the door is closed and the START/
PAUSE key is pressed, the drying will
resume from the point at which it was
interrupted.
Full condensate tank
(samo za kondenzacijski sušilni stroj)
When the condensate tank is full, the drying
program will be interrupted (signal light 2b
will flash).
Empty the condensate tank (see section
Cleaning and Maintenance).
Press the START/PAUSE key to resume the
drying cycle from the point at which it was
interrupted.
Power supply failure
When power supply is resumed, the signal
light on the START/PAUSE key will flash.
To resume the drying process, press the
START/PAUSE key.
CHANGING THE PROGRAM/
FUNCTIONS
Press the START/PAUSE key and rotate the
program selector dial to the "OFF" position.
Select another program/function and press
the START/PAUSE key again.
36
WHAT TO DO...?
350077
Disturbances from the environment (e.g.
the power grid) may result in various error
reports (see Table on the next page) In
such case:
• switch off the appliance and wait at
least one minute;
• switch on the appliance and restart the
drying program.
• If the error persists, call an authorized
service unit.
• You will be able to solve most of
the problems in dryer operation by
yourself.
• Repairs may only be carried out by an
adequately trained person.
• Repair or any warranty claim resulting
from incorrect connection or use of
the dryer shall not be covered by the
warranty. In such cases, the costs of
repair shall be charged to the user.
The warranty does not cover the errors or failures resulting
from disturbances from the environment (lightning strike,
power grid failures, natural disasters etc.).
37
350077
Problem/error Cause What to do ...?
The dryer does not work. •No voltage in the power
outlet
•Check if the power cord plug
is correctly inserted into the
power outlet.
•Check the fuse.
There is voltage in the
outlet, but the drum
does not spin and the
dryer does not work.
•Program was not started
in accordance with the
instructions.
•The door is not properly
closed.
•Condensate tank is full
(condensation dryer only).
•Delayed start function has
been selected.
•Reread the instructions for use
again.
•Push the door towards the
appliance.
•Empty the condensate tank
(see section Cleaning and
Maintenance).
•Wait until delayed time elapses.
Laundry is not dried, or
drying temperature is
longer than 4h.
•Filters are not clean. The
room is not sufficiently
ventilated.
•Inappropriate temperature
in the room.
•Laundry was not sufficiently
wrung or spun.
•Amount of laundry dried in
the appliance is too large or
insufficient.
•Clean the filters.
•Install the dryer in an
appropriate room (see section
Installation ...)
•Check if the temperature in
the room where the dryer is
installed is too high (over 25°C)
or too low (below 5°C).
•Check the length of the
evacuation tube - max. 2 m
(only for air vented model of the
dryer).
•Laundry inserted into the dryer
was not sufficiently wrung or
spun, or an inappropriate drying
program was selected.
•Use an appropriate program or
use the timed program. Increase
the final level of dryness for the
selected program (intensive
drying function).
Poor condensation
(condensation dryer
only)
•Inadequate location of the
dryer.
•Check whether the ambient
temperature of the room is not
too high.
•Check whether the condenser is
clean.
Unevenly dried laundry. •The amount of laundry
dried at a time is too large.
•Drying the pieces of
different thicknesses
•Drying the different types
of laundry
•Make sure the laundry is sorted
by type and size of items given
the selected program (see
section Drying – Preparing
the Laundry and the Program
Table).
Error in the drum
lighting.
•There is no lighting when
the dryer door is opened.
•Disconnect the dryer from
the power mains and call an
authorized service unit.
When all lamps are blinking switch the appliance off and call nearest authorized service
shop (assistance center).
38
TIPS AND RECOMMENDATIONS
FOR DRYING AND ECONOMIC
USE OF YOUR DRYER
350077
The most economical way of drying is to dry the recommended
amount of laundry in each batch (see Program Table).
Drying laundry made of particularly delicate fabrics that may be
deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the
laundry is soft and smooth after drying in the dryer. Drying
time will be shorter and power consumption will be lower if the
garments are thoroughly wrung or spun before drying. By selecting
the appropriate drying program, you will avoid overdrying your
laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and
minimum power consumption.
When drying smaller amounts of laundry or individual garments,
the sensor may not perceive the actual level of moisture in the
laundry. In such cases, it is recommended to dry smaller items
or amounts with programs for dryer laundry or with the timed
program.
39
DISPOSAL
350077
Packaging is made of environmentally friendly materials that can
be recycled, disposed of, or destroyed without any hazard to
the environment. To this end, packaging materials are labelled
appropriately.
The symbol on the product or its packaging indicates that the
product should not be treated as normal household waste. The
product should be taken to an authorized collection center for
waste electric and electronic equipment processing.
When disposing of an obsolete appliance, make sure you remove
the power cord and destroy the door switch and latch to prevent
the door from closing (children safety).
Disposing the product in the correct manner will help prevent
any negative consequences and effects on the environment and
human health which could occur in case of inappropriate product
disposal. For detailed information on disposal and processing of
the product, contact your relevant municipal authorities in charge
of waste management, waste management service, or the store at
which you bought the product.
We reserve the right to any changes and errors in the instructions for use.
