E-MANUAL

Thank you for purchasing this Samsung product.

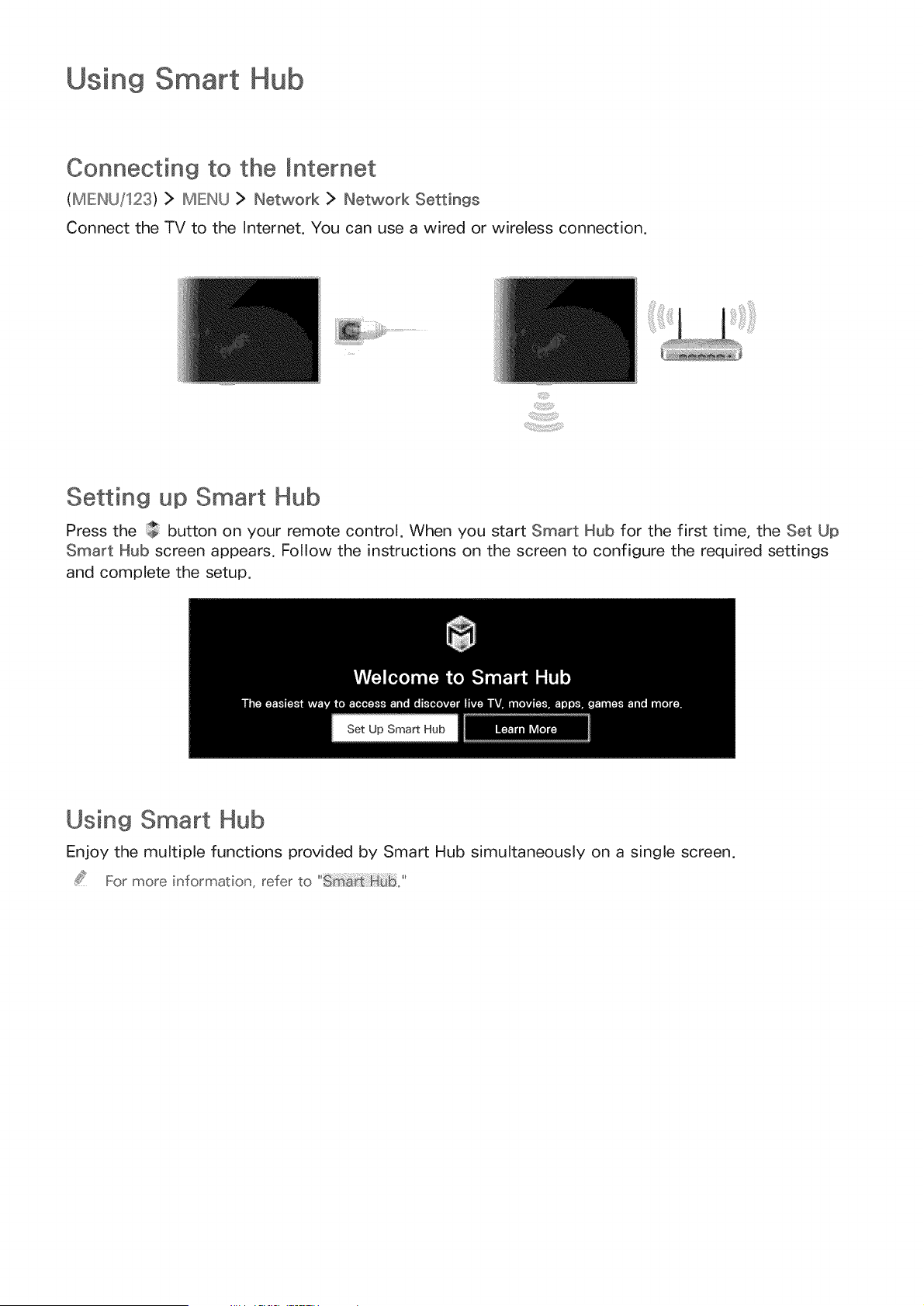

Connecting to the Wnternet

(IMIENU/123) > IMIENU > Network > Network Settings

Connect the TV to the Internet.
You can use a wired or wireless connection.

Setting up Smart Hub

Press the button on your remote control.
When you start Smart Hub for the first time. the Set Up

Smart Hub screen appears.
Follow the instructions on the screen to configure the required settings

Using Smart Hub

Enjoy the multiple functions provided by Smart Hub simultaneously on a single screen.

For_morseinfor_mation_ r_eferto

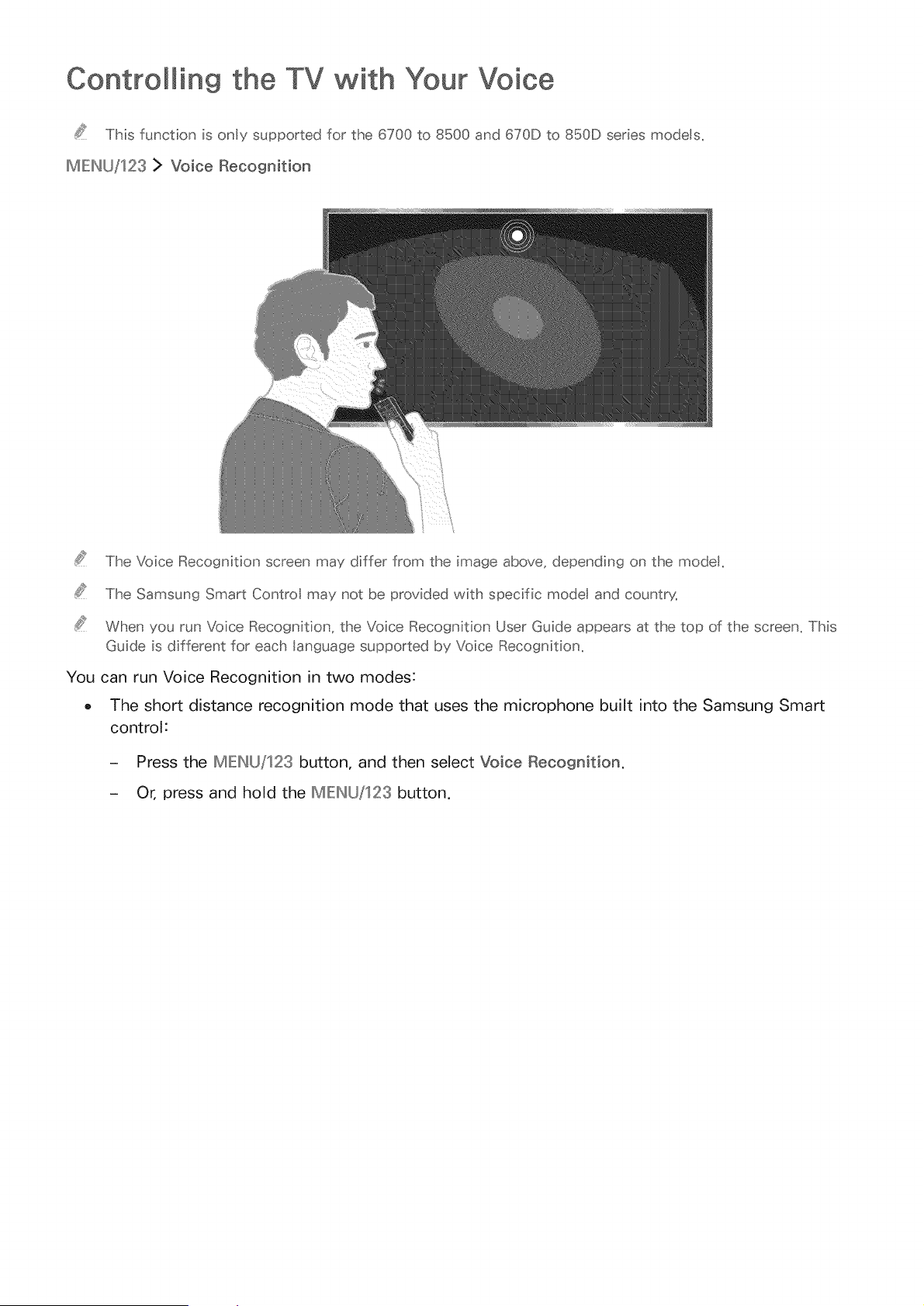

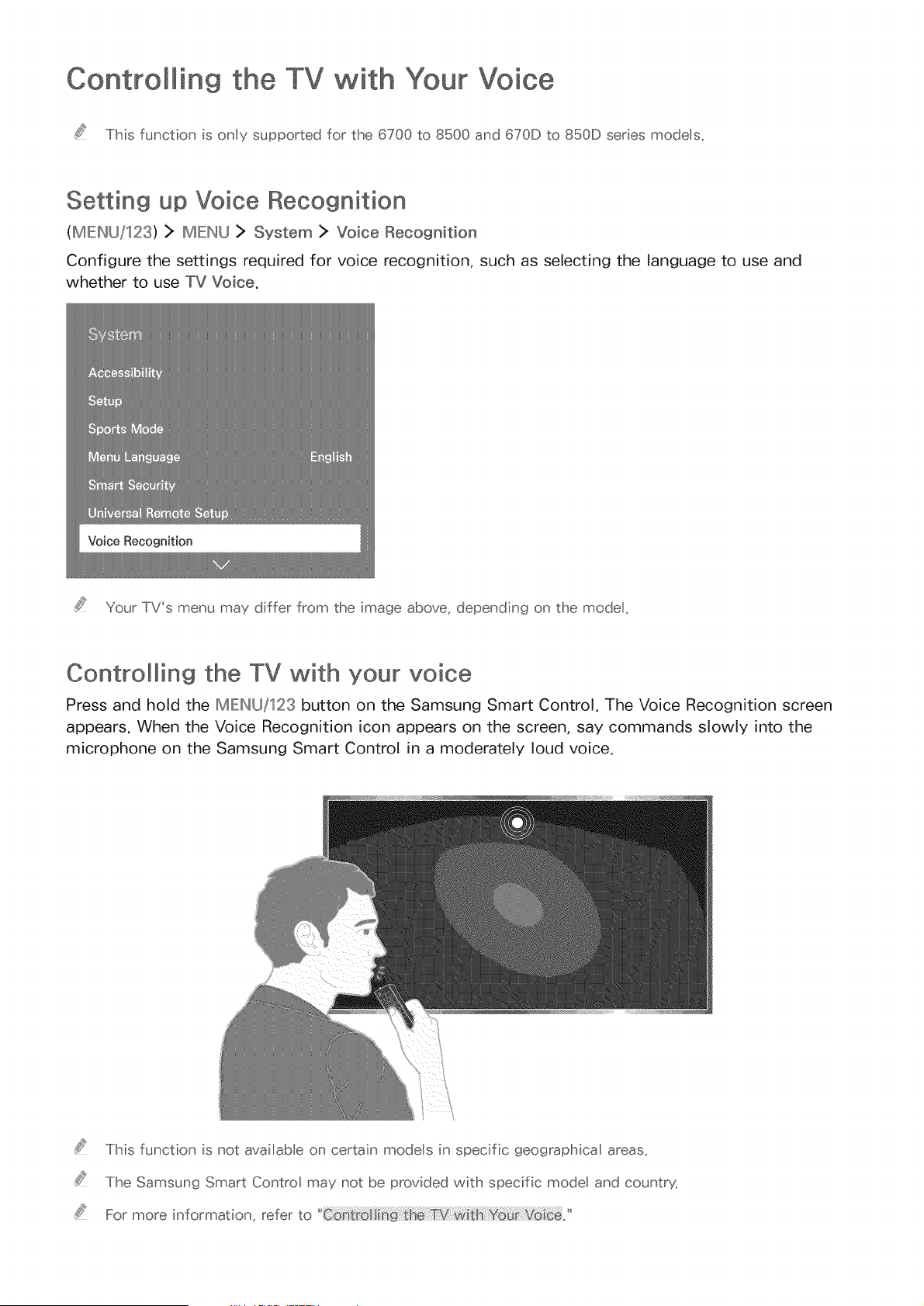

Controlling the TV with Your Voice

This function is oniy supported for the 6700 to 8500 and 670D to 850D series modets.

Setting up Voice Recognition

(IMIEINkJ/123) > IMIEINkJ> System > Voice Recognition

Configure the settings required for voice recognition. such as selecting the language to use and whether to use TV Voice.

Your TV's menu may differ from the image above, depending on the modet.

Controlling the TV with your voice

Press and hold the IMIEHU/123 button on the Samsung Smart Control.
The Voice Recognition screen

This function is not avai able on certain models in specific geographical areas.

The Samsung Smart Centre may not be provided with specific model and country.

For more information. refer to

Controlming the TV with Motion

Setting up Motion Controm

(IMIEINU/123) > IMIEINU> System > Motion Control

Perform the Motion Control Environment Test. and then configure the settings required to run Motion Control. such as adjusting the Pointer Speed and deciding whether to display the Animated Motion

Your TV's menu may differ from the image above. depending on the [email protected]

Controlling the TV using motions

(IMEINU/123) > IMIEINU> System > Motion Control Motion Control

Set Motion Control to On.

Face the TV camera. raise your hand to a comfortable position. fully extended your index finger

Curl your index finger down to select a function. and then raise it again to run the selected

Motion Control is available in either direction contro or motion pointing mode_

To use Motion Control. you must connect a TV camera (sold separately} to the TV.

For more information. refer to

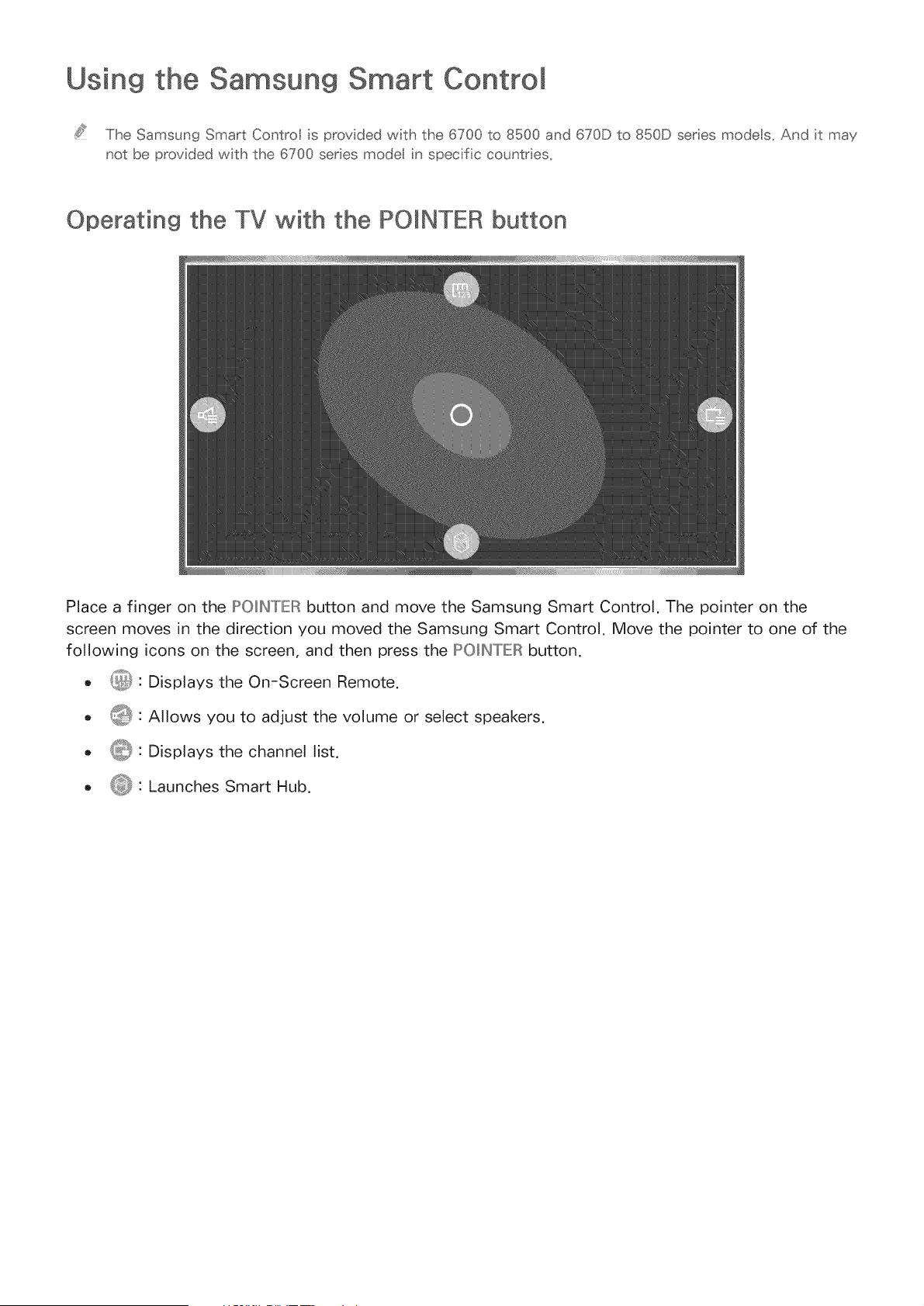

Using the Samsun9

The Samsung Smart Contro is provided wth the
6700 to 8500 and

Newest Added: UN55KU6500FXZA-FA01 WF338AAW/XAA-00 NX58M5600SW/AA-00 NE59M6850SS/AA-00 WF45H6300AW/A2-01
670D to 850D series mode s, And may

Operating the TV with the POINTER button

Place a finger on the POH_TIER button and move the Samsung Smart Control.
The pointer on the

: Displays the On-Screen Remote.

: Allows you to adjust the volume or select speakers.

: Displays the channel list.

: Launches Smart Hub.

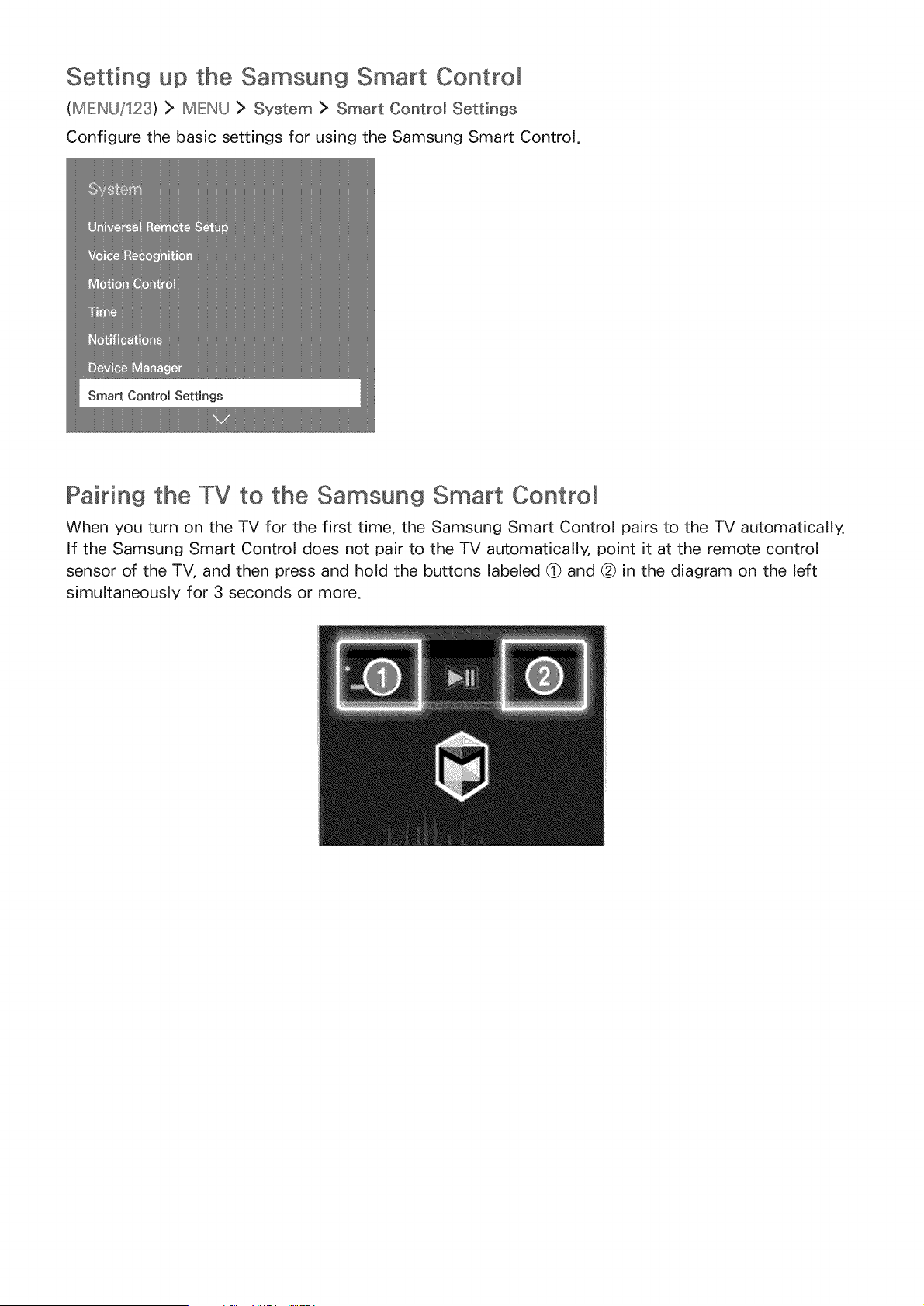

Settin9 up the Samsun9 Smart Controm

(IMIEINU/123) > IMIEINU> System > Smart Control Settings

Configure the basic settings for using the Samsung Smart Control.

Pairing the TV to the Samsung Smart Control

When you turn on the TV for the first time. the Samsung Smart Control pairs to the TV automatically.
If the Samsung Smart Control does not pair to the TV automatically. point it at the remote control

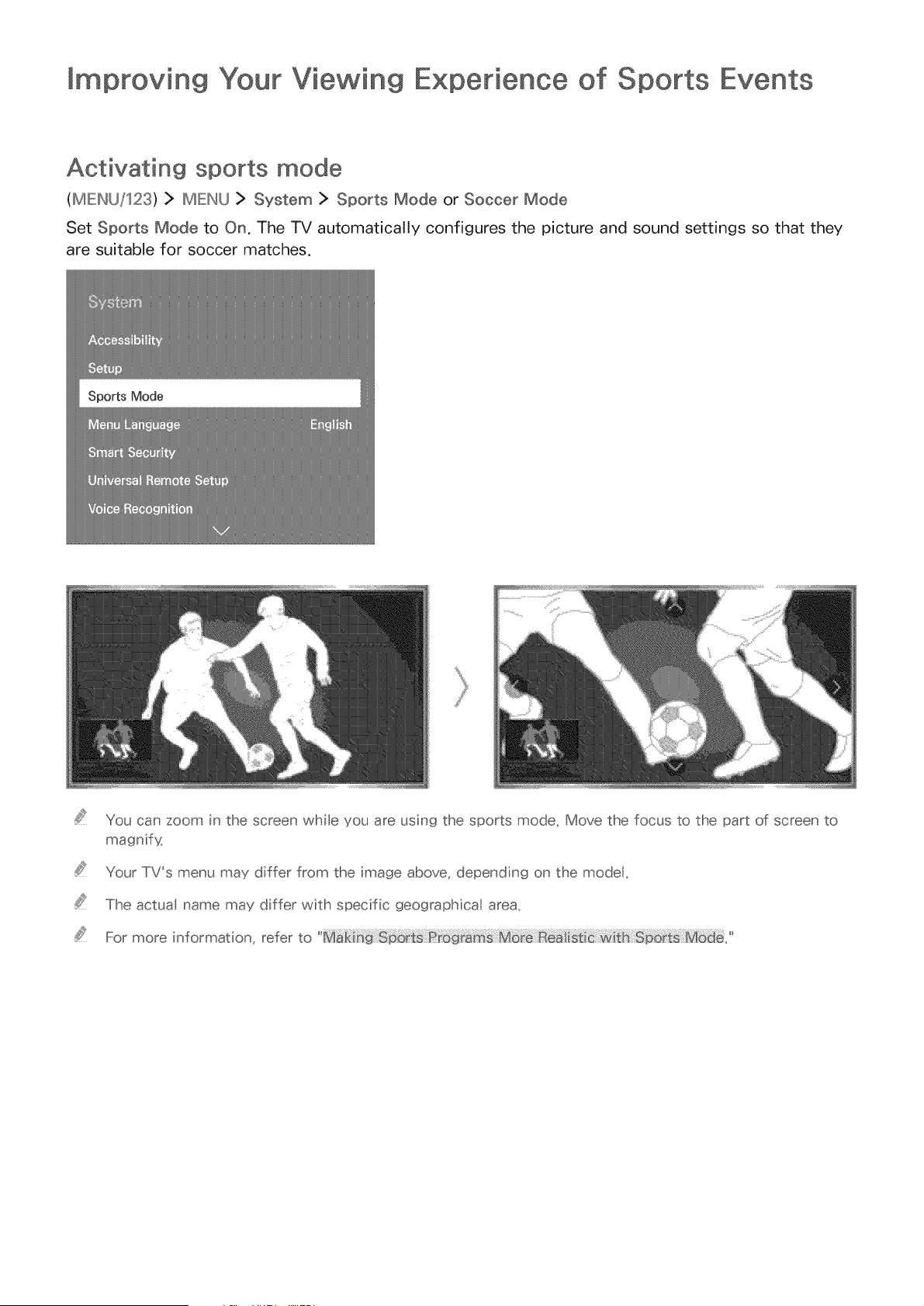

Improving Your Viewing Experience of Sports Events

Activating sports mode

(MIEINU/123) MIEINU > System Sports Mode or Soccer Mode

Set Sports Mode to On.
The TV automatically configures the picture and sound settings so that they

You can zoom in the screen while you are using the sports mode.
Move the focus to the part of screen to

Your TV's menu may differ from the image above. depending on the modeI.

The actua name may differ with specific geographical area_

For more information. refer to

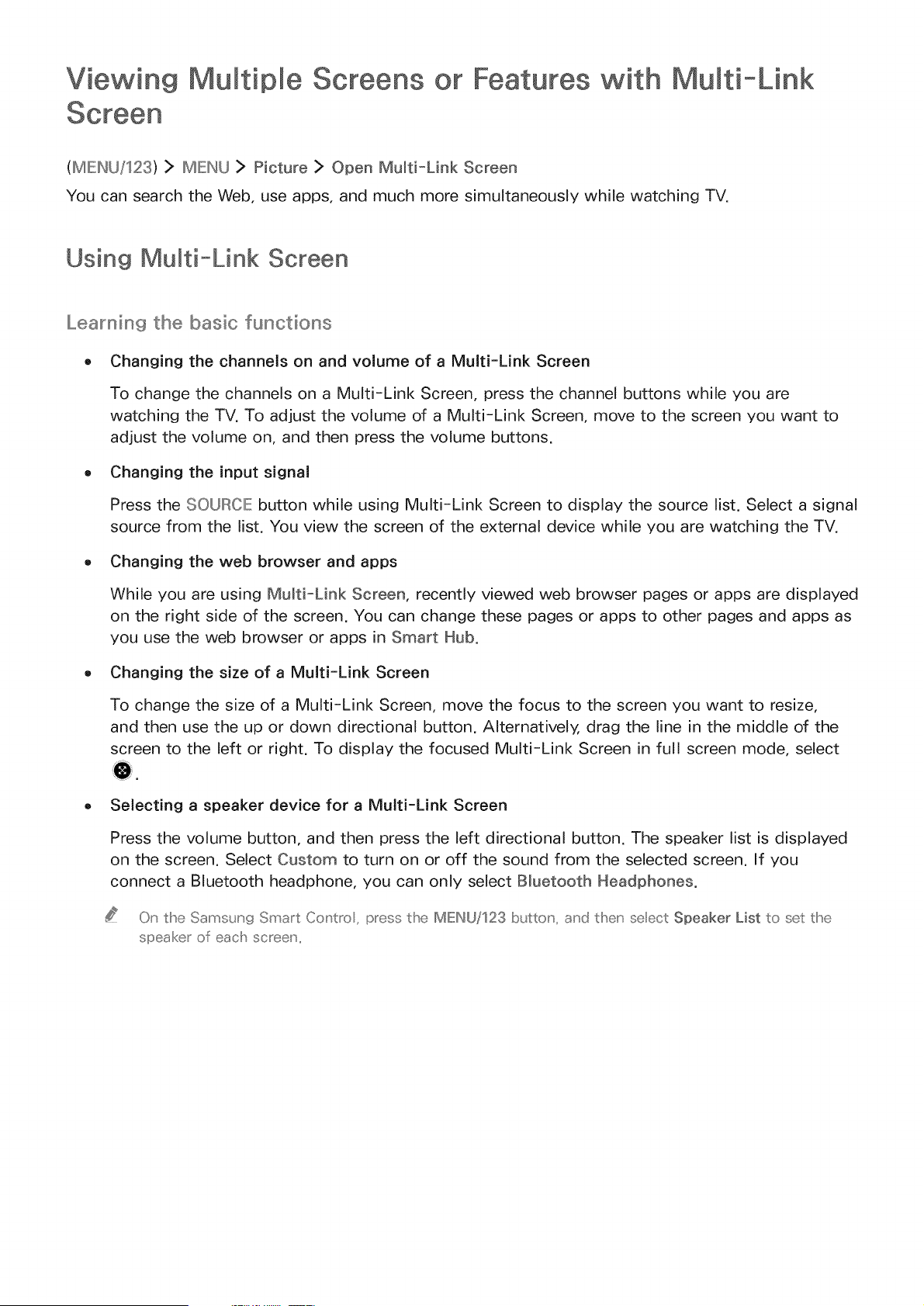

Displaying Multiple Screens

You can surf the web or run an app while viewing the TV. You can change the size of each screen by

The image of the remote contro may differ with the TV model_

For more information. refer to

Connecting an Antenna

Connect a cable from an antenna or cable wall outlet to the ANT IN connector. as shown in the image

An antenna connect on is not necessary f you connect a cabe box or satel te rece ver_

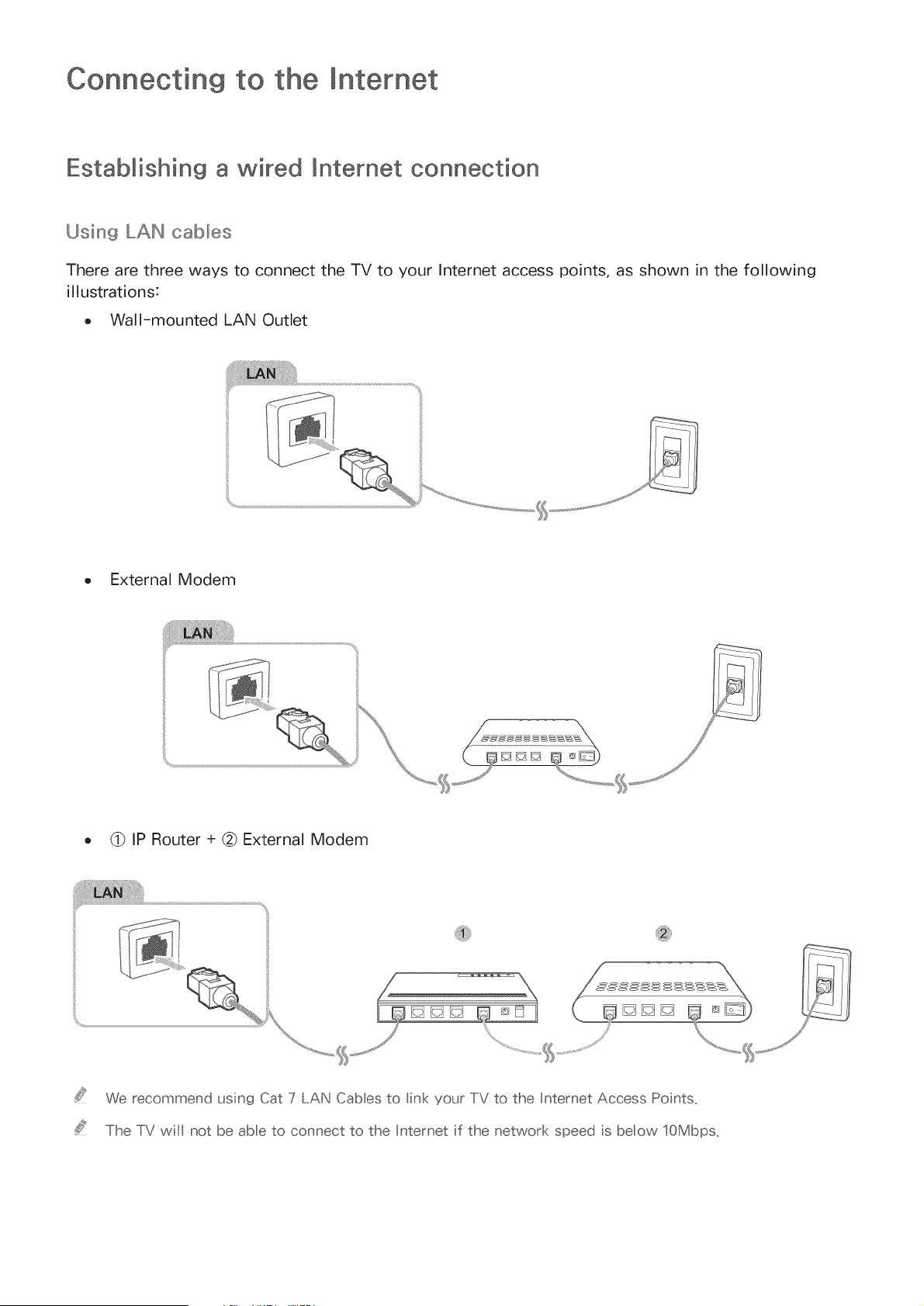

Connecting to the

Establishing a "wired [nternet connection

Using LAN cabbs

There are three ways to connect the TV to your Internet access points. as shown in the following

Wall-mounted LAN Outlet

External Modem

+ IP Router
+ @ External Modem

We recommend usn9 Cat
7 LAN Cabes to In< your TV to the [nternet Access Points_

The TV wi not be abe to connect to the [nternet the network speed s beow
10Mbps_

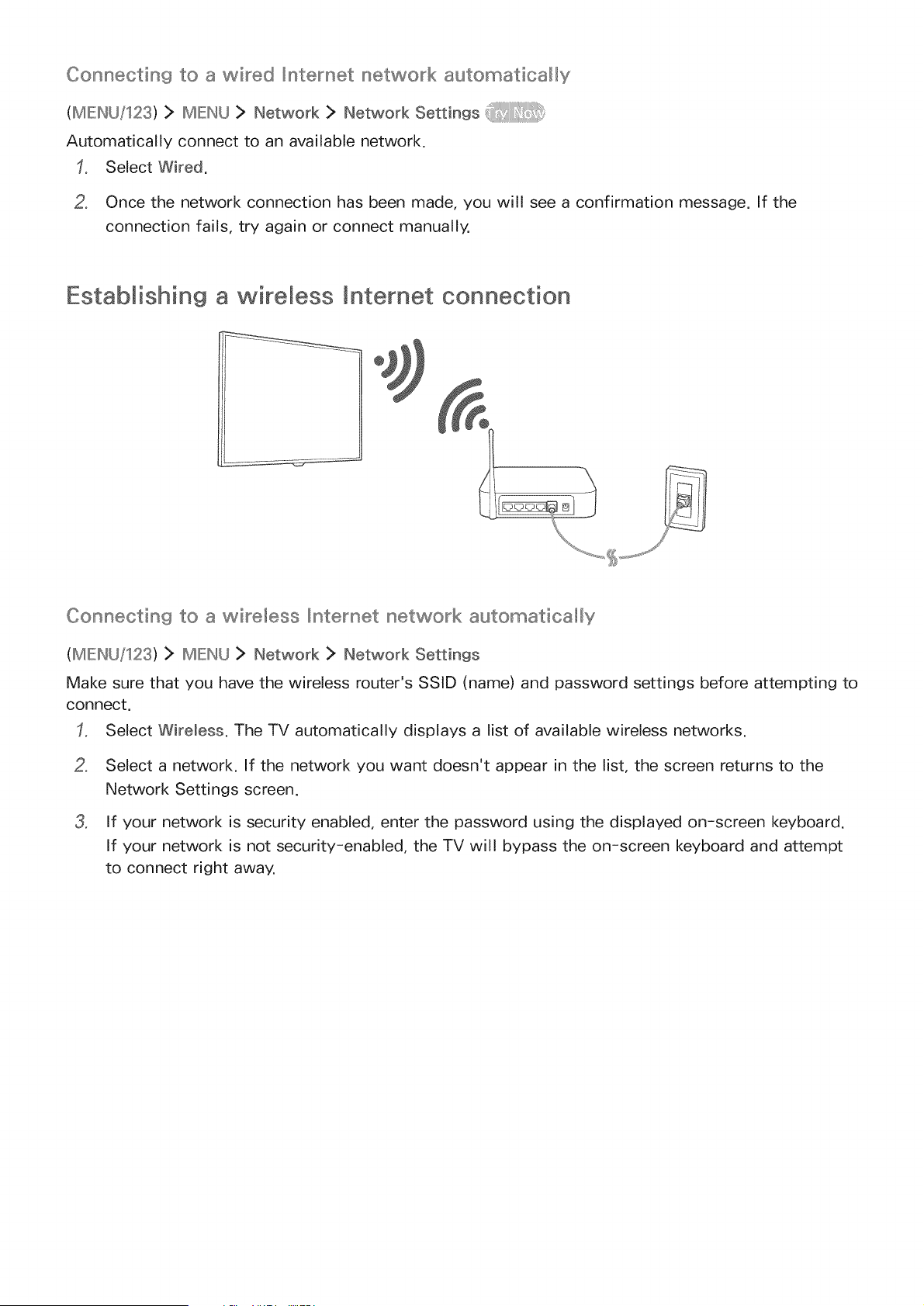

Connecting to a wired _ntennet network automatically

(IMIENU/123) > IMIENU > Network > Network Settings

Automatically connect to an available network.

Select Wired.

Once the network connection has been made. you will see a confirmation message.
If the

Establishing a wireless mnternet connection

Connecting to a wireless _ntemet network automatica!_y

(IMENU/123) > IMIENU > Network > Network Settings

Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect.

Select Wireless.
The TV automatically displays a list of available wireless networks.

Select a network.
If the network you want doesn't appear in the list, the screen returns to the

Network Settings screen.

If your network is security enabled. enter the password using the displayed on-screen keyboard.

If your network is not security-enabled. the TV will bypass the on-screen keyboard and attempt

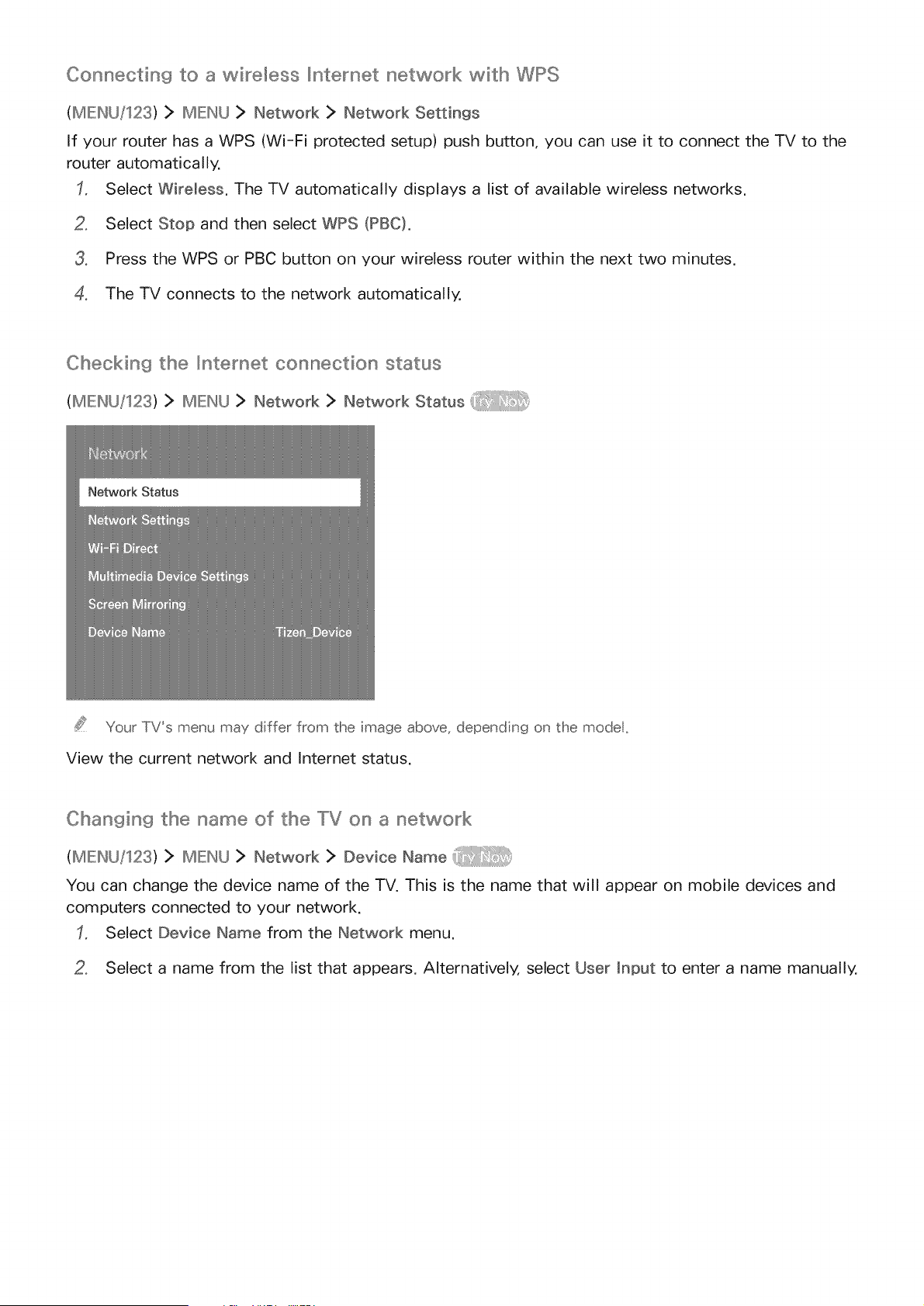

Connecting to a wireless _ntemet network with WPS

(IMEINU/123) > IMEINU > Network > Network Settings

If your router has a WPS (Wi-Fi protected setup) push button. you can use it to connect the TV to the

Select Wireless.
The TV automatically displays a list of available wireless networks.

Select Stop and then select WPS (PBC).

Press the WPS or PBC button on your wireless router within the next two minutes.

The TV connects to the network automatically.

Checking the _ntemet connection status

(IMIENU/123) > IMIENU > Network > Network Status

Your TV's menu may differ from the image above, depending on the model.

View the current network and Internet status.

Changing the name of the "[V on a network

(IMIEN(]/123) > IMIEN(] > Network > Device Name

You can change the device name of the TV. This is the name that will appear on mobile devices and

Select Device Name from the Network menu.

Select a name from the list that appears.
Alternatively. select User input to enter a name manually.

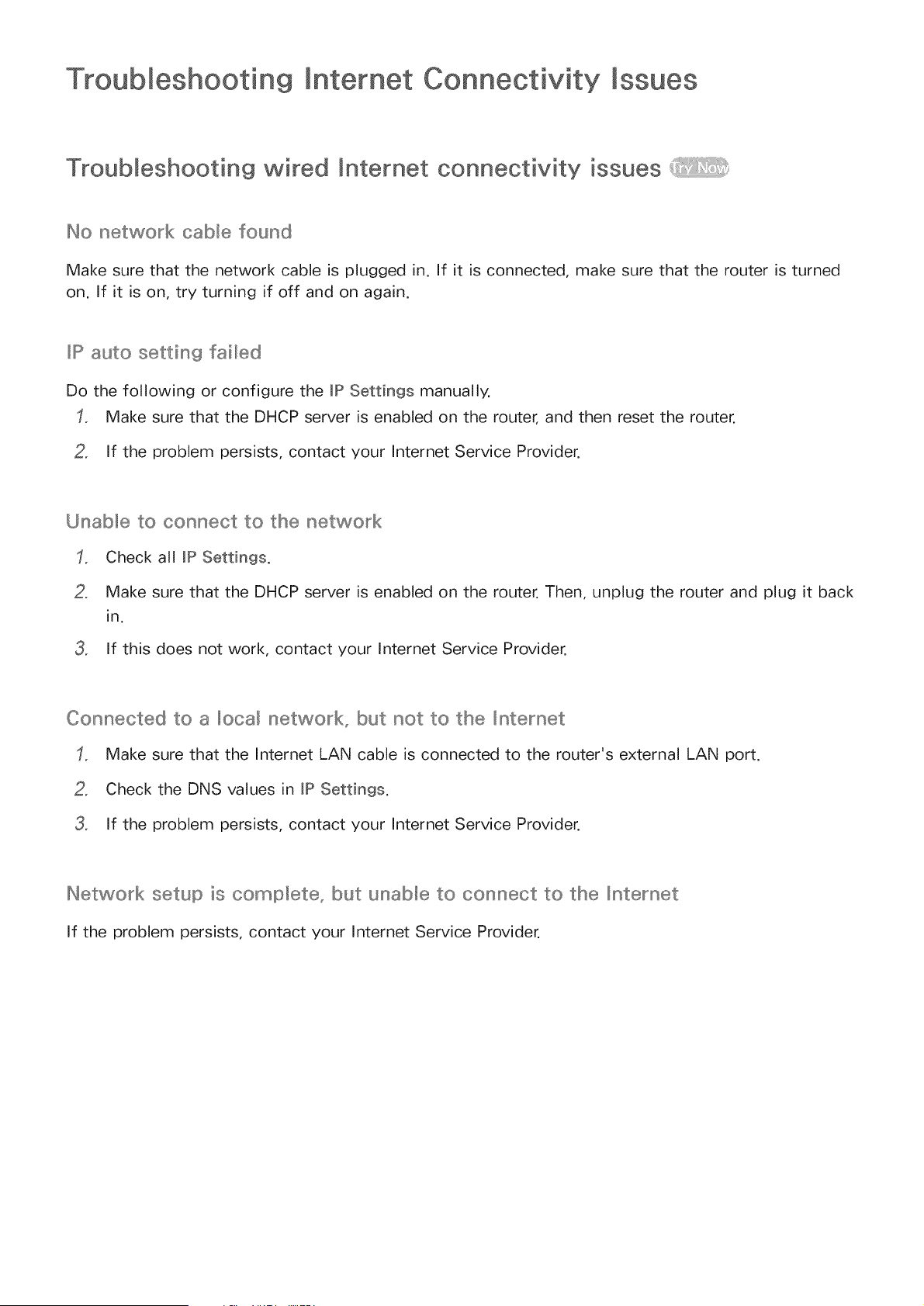

Troubleshooting Internet Connectivity Issues

Tr ou b Ieshoot ing w ired [nt er net co nnect ivity issues

No network caUe found

Make sure that the network cable is plugged in. If it is connected. make sure that the router is turned

[P auto setting fai_ed

Do the following or configure the lP Settings manually.

Make sure that the DHCP server is enabled on the router, and then reset the router.

If the problem persists. contact your Internet Service Provider.

UnaUe to connect to the network

Check all JP Settings.

Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back

If this does not work. contact your Internet Service Provider.

Connected to a Ioca_ network_ but not to the _nternet

Make sure that the Internet LAN cable is connected to the router's external LAN port.

Check the DNS values in JP Settings.

If the problem persists. contact your Internet Service Provider.

Network setup is comp_ete_ but unable to connect to the Internet

If the problem persists. contact your Internet Service Provider.

Troubleshooting wireless mnternet connectivity issues

Wireless network connection fai_ed

UnaUe to connect to a wireless router

Check if the router is turned on.
If it is, turn it off and on again.

Enter the correct password if required.

_P auto setting fai_ed

Do the following or configure the _P Settings manually.

Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back

Enter the correct password if required.

If the problem persists. contact your Internet Service Provider.

UnaUe to connect to the network

Check all JP Settings.

Enter the correct password if required.

If the problem persists. contact your Internet Service Provider.

Connected to a Ioca_ network_ but not to the _nternet

Make sure that the Internet LAN cable is connected to the router's external LAN port.

Check the DNS values in JP Settings.

If the problem persists. contact your Internet Service Provider.

Network setup is comp_ete_ but unable to connect to the Internet

If the problem persists. contact your Internet Service Provider.

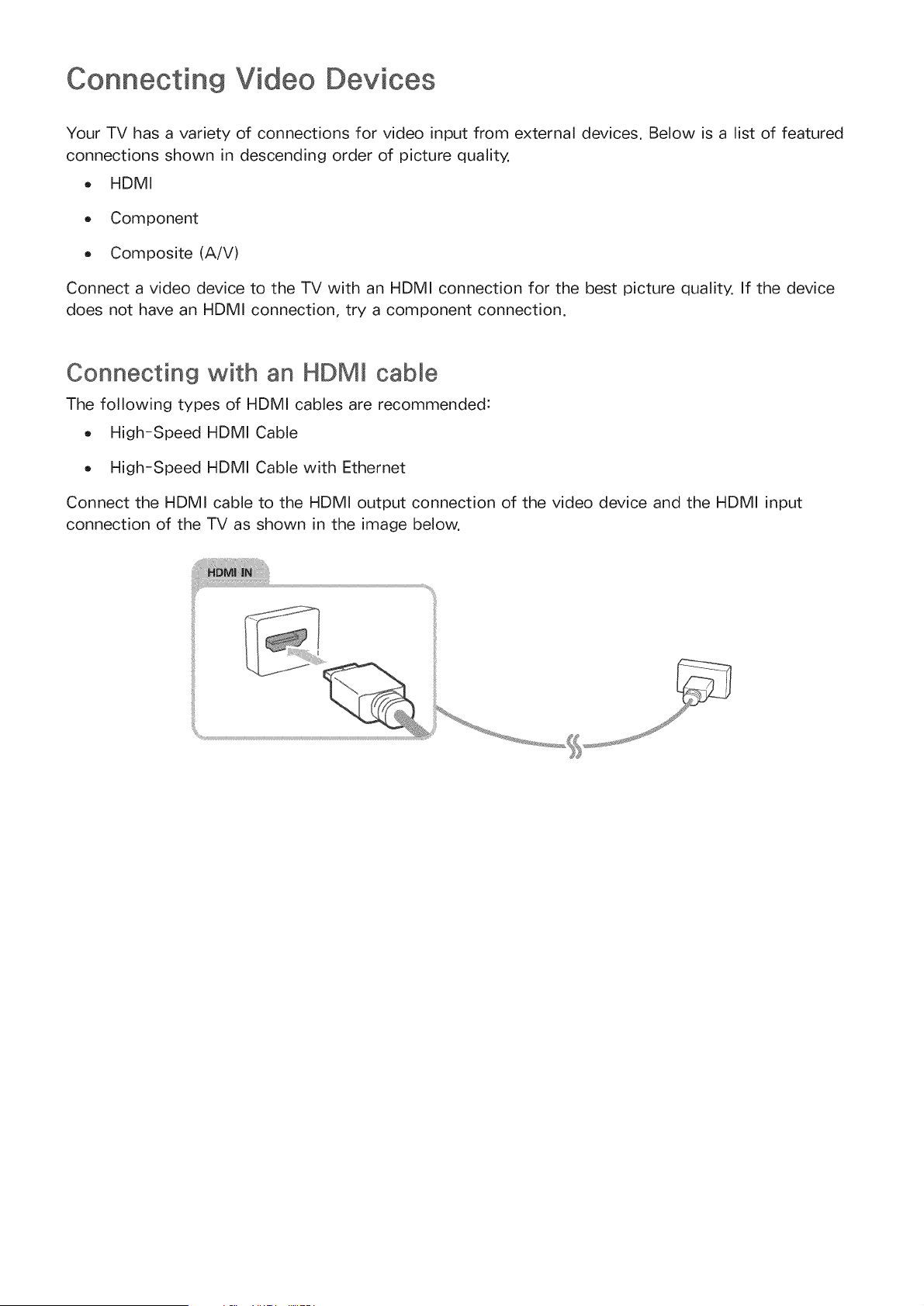

Connecting Video Devices

Your TV has a variety of connections for video input from external devices.
Below is a list of featured

HDMI

Component

Composite (A/V)

Connect a video device to the TV with an HDMI connection for the best picture quality.
If the device

Connecting "with an HDMI cable

The following types of HDMI cables are recommended:

High-Speed HDMI Cable

High-Speed HDMI Cable with Ethernet

Connect the HDMI cable to the HDMI output connection of the video device and the HDMI input

Connecting with a component cable

Connect the component cable to the component input connections of the TV and the component

For the 6400 to 6700 scabies models

For the 7S00 to 8500 se_']es mode_s

COMPONENTIN

AV IN

Connecting with a composite (A/V) cable

Connect the AV cable to the input connections of the TV and the AV output connections of the device

For the 6400 to 6700 series models

For the 7100 to 8500 series mode_s

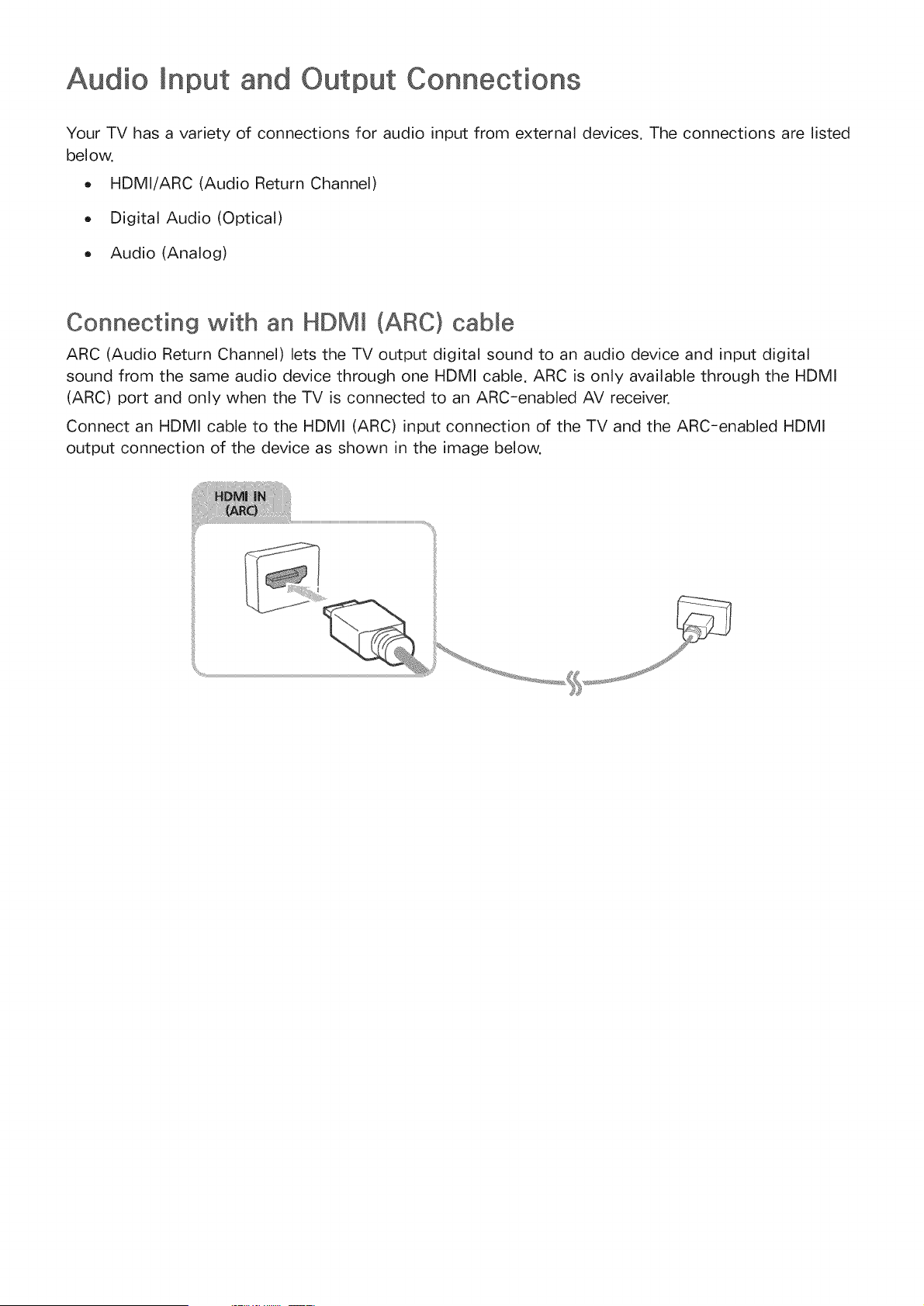

Input and Output Connections

Your TV has a variety of connections for audio input from external devices.
The connections are listed below.

HDMI/ARC (Audio Return Channel)

Digital Audio (Optical)

Audio (Analog)

Connecting with an HDMm (ARC) cabme

ARC (Audio Return Channel) lets the TV output digital sound to an audio device and input digital

(ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

Connect an HDMI cable to the HDMI (ARC) input connection of the TV and the ARC-enabled HDMI

Connecting "with a digital audio (optical) cable

You can listen to digital audio by connecting an AV receiver to the TV via a digital audio (optical) cable.

Connect the optical cable to the digital audio output connection of the TV and the digital audio input

Connecting with a stereo audio cable

Connect a stereo audio cable to the audio output connection of the TV and the audio input connection

Connecting a Computer

The kinds of connections you can make are listed below.

To use the TV as a computer monitor

Connect through the HDMI port with an HDMI cable.

Connect though the HDMI (DVI) port with an HDMI-to-DVI cable.

To view or play the content saved in a computer on the TV

Connect through your home network.

Connecting through the HDMI port

For an HDMI connection. we recommend one of the following HDMI cable types:

High-Speed HDMI Cable

High-Speed HDMI Cable with Ethernet

Connect an HDMI cable to the HDMI input connection of the TV and the HDMI output connection of

Set Edit Device Type to DW PC for a computer connected with a HDMI--to-DVP cable. and PC for

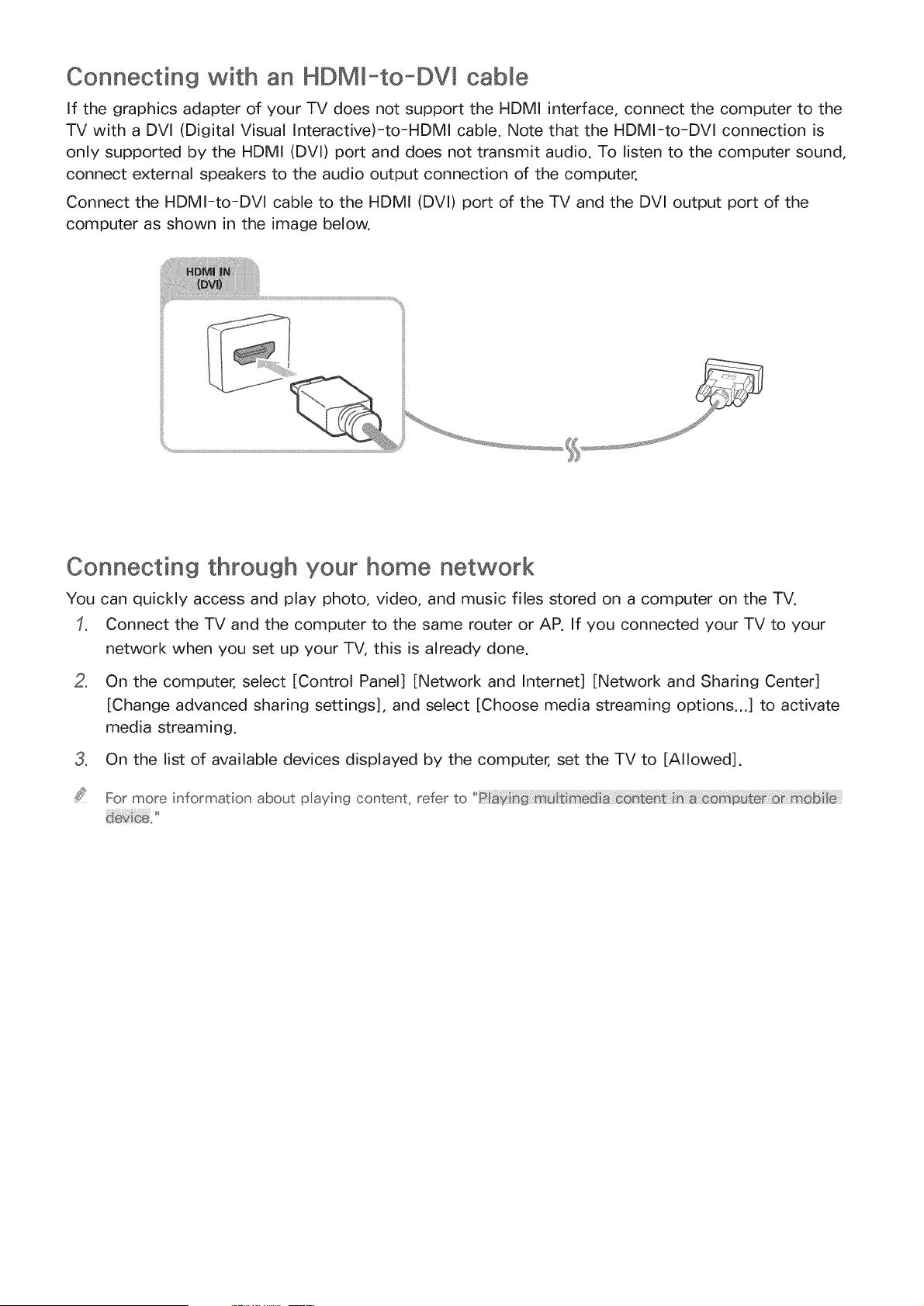

Connecting with an HDM -to-DVm cable

If the graphics adapter of your TV does not support the HDMI interface. connect the computer to the TV with a DVI (Digital Visual Interactive)-to-HDMI cable.
Note that the HDMI-to-DVI connection is

Connect the HDMI-to-DVI cable to the HDMI (DVI) port of the TV and the DVI output port of the

Connecting through your home network

You can quickly access and play photo. video. and music files stored on a computer on the TV.

Connect the TV and the computer to the same router or AP. If you connected your TV to your

On the computer. select [Control Panel] [Network and Internet] [Network and Sharing Center]

[Change advanced sharing settings]. and select [Choose media streaming options...] to activate

On the list of available devices displayed by the computer. set the TV to [Allowed].

For more information about playing content. referto _i yh uiim _i_ _tin_ m_t mo_ii_

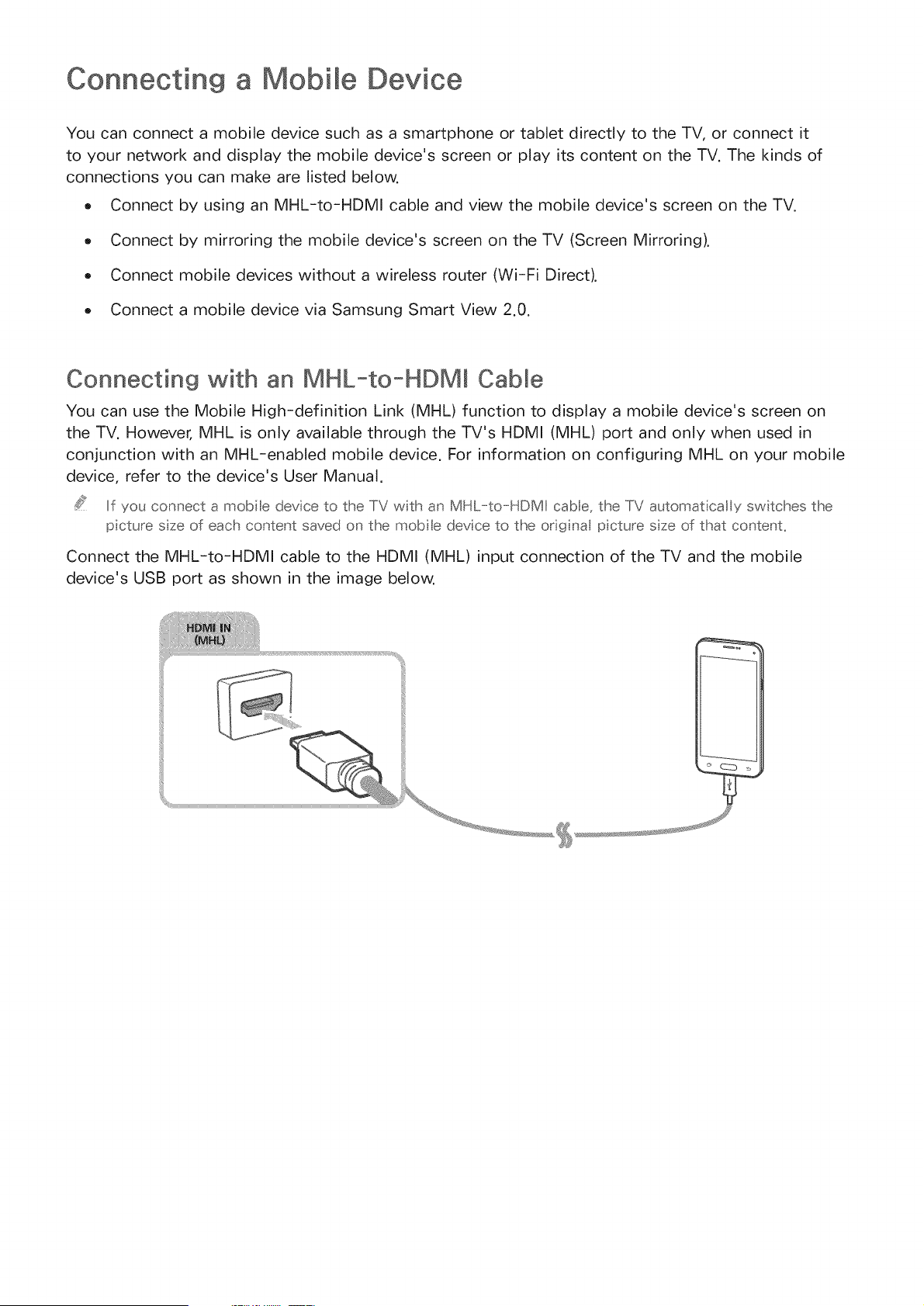

Connecting a Mobile Device

You can connect a mobile device such as a smartphone or tablet directly to the TV, or connect it

Connect by using an MHL-to-HDMI cable and view the mobile device's screen on the TV.

Connect by mirroring the mobile device's screen on the TV (Screen Mirroring).

Connect mobile devices without a wireless router (Wi-Fi Direct).

Connect a mobile device via Samsung Smart View
2.0.

Connecting with an MHL-to-HDMJ Cable

You can use the Mobile Iligh-definition Link (MILL) function to display a mobile device's screen on

Connect the MHL-to-HDMI cable to the HDMI (MHL) input connection of the TV and the mobile

Using Screen Mirroring (ME NU/ 2S) > ME NU > .etwork>ScreenM rror n9

You can wirelessly connect a mirroring-enabled mobile device to the TV and play the video and audio

Connecting via a mobillie device

Launch the Screen Mirroring function on your mobile device. The mobile device searches for

Select the TV from the list, and then enter the password. The TV automatically allows the

Select Allow to connect the mobile device.

If you selec_ Deny. the device cannot connecL To change the cor_nection' status of a denied device. Seect MENU Network > Multimedia Device Manager. seect the device. a_'d seect Ailow,.

Connecting by automatically albwin9 the connection

Select Network > Screen Mirroring. You can also start screen mirroring by pressing the SOURCE

Launch the Screen Mirroring function on your mobile device.
The mobile device searches for

Select the TV from the list. The TV automatically allows the connection and the device connects.

If the mobile device ca_' u'ot co_' ,' ect. turn the TV a_'d mobile device off a_'d theu' o_',.

Connecting mobile devices without a wireless router (Wi-Fi Direct)

(MIEIIUU/123) > MIEINU > Network > Wi-Fi Direct

You can connect a mobile device with the Wi-Fi Direct feature directly to the TV without using

Enable Wi-Fi Direct on the mobile device. and then run Wi-Fi Direct on the TV. The TV

Select the device from the list to initiate a connection.
If a connection request is made by the TV.

Allow the connection.
The TV and mobile device connect.

For more information. refer to

To confirm whether a mobile device alows or denies a connection. seect MENU > Network > Wi-Fi Direct Device Manager.

To connect more easib; activate Wi-Fi Direct on your TV and mobile device. and then pace the mobile device close to the TV. The connection permission confirmation window appears on the bottom left of the

TV screen so that you can easily connect the device.

Mana9in9 the connection status of Iprevious_y connected mobile devices

Select MIEINLJ> Network > Wi-Fi Direct > Device Manager.
The TV displays a list of devices

Select a device.

Select connection type or delete the device from the fist.

This function is only avai able if the devices have previous y connected to the TV or have previous y attempted to connect and been denied.

Connecting a mobime device via Samsung Smart View

When you install and then launch Samsung Smart View
2.0 on a mobile device connected to the TV.

You can also send text messages or control the TV using the mobile device.

Pairing a  aptop to the TV (wireless PC mirrorin.

You can view the enhanced or dual mode screen of a laptop on your TV by pairing the laptop to the

TV wirelessly.

Connect a Wireless PC Mirroring Adapter (VG-SWD1000) to the laptop's HDMI port. and then connect

(VG-SWD1000) and a USB port of the laptop.
A pairing message appears on the TV's screen.
If you

Thsfuncton snotava abeoncertan models inspecficgeographca areas.

Ths functon s not ava abe on thrd-party TVs or non-laptop devices.

If two Samsung TVs are located c osey. turn off the TV to whch you don't want to par the laptop. and

Switching between external devices connected to the TV

Press the SOURCE button to switch between external devices connected to the TV.

Options

To view the options menu. press the down directional button.
The functions that appear in the

.... /he connector names may vary depeu'di,' g o_' the product..

Edit Device Type: Changes the type of external devices connected to the TV. Select an

Edit Name: You can rename devices connected to the TV to facilitate identifying external

Anynet÷ (HDM_-CEC): Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are

TMs option is only availab e wlhe,' Anynet+ (HDM_-OEC) is set to On..

Remove USB Device: Removes a USB device connected to the TV.

Remove Source Thumbnail: Removes the captured images of the video that you viewed most

Delete Universal Remote: Deletes the external device connected to the TV via the Universal

Remote function.

Universal Remote Setup

You can use your TV remote control to control external devices.

For more information on using the Universa Remote function. refer to

Connection Notes

The number of connectors and their names and locations may vary depending on the modet.

Refer to the external device's operating manuat when connecting it to the TV. The number of external device

Connection notes for HDMI

Use an HDMI cable with a thickness of 0.55 inches (14 mm) or less.

Using a non-certified HDMI cable may result in a blank screen or a connection error.

Some HDMI cables and devices may not be compatible with the TV due to different HDMI

This TV does not support HDMI Ethernet Channel.
Ethernet is a Local Area Network (LAN) built

Use a cable shorter than
10 feet (3m) to get the best UHD viewing quality.

Many computer graphics adaptors do not have HDMI ports. but have DVl ports instead.
If your

I_or more information_ refer to ICQ_ _:_ _

If you are using an HDMI adapter to connect an MHL device. the TV recognizes the signal as an

HDMI signal and may respond differently than it would to an MHL-to-HDMI cable connection.

Certain functions such as Smart Hub may not be available if the Source is set to HDMI and 3D

Auto View is set to Auto1 or Auto2.
If this is the case. set 3D Auto View or 3D Mode to Off.

Connection notes for audio devices

For better audio quality. it is a good idea to use an AV receiver.

Connecting a device using an optical cable does not automatically turn off the TV speakers.
To

Select) to something other than TV Speaker.

An unusual noise coming from the audio device while you are using it may indicate

Digital audio is only available with
5.1-channel broadcasts.

Connection notes for computers

For the resolutions supported by the TV, refer to

As long as file sharing is activated. unauthorized access may occur.
When you do not need to

Your PC and Smart TV must be connected to each other on the same network.

Connection notes for mobile devices

To use the Screen Mirroring function. the mobile device must support a mirroring function

To use Wi-Fi Direct. the mobile device must support the Wi-Fi Direct function.
Please check if

The mobile device and your Smart TV must be connected to each other in the same network.

The video or audio may stop intermittently. depending on network conditions.

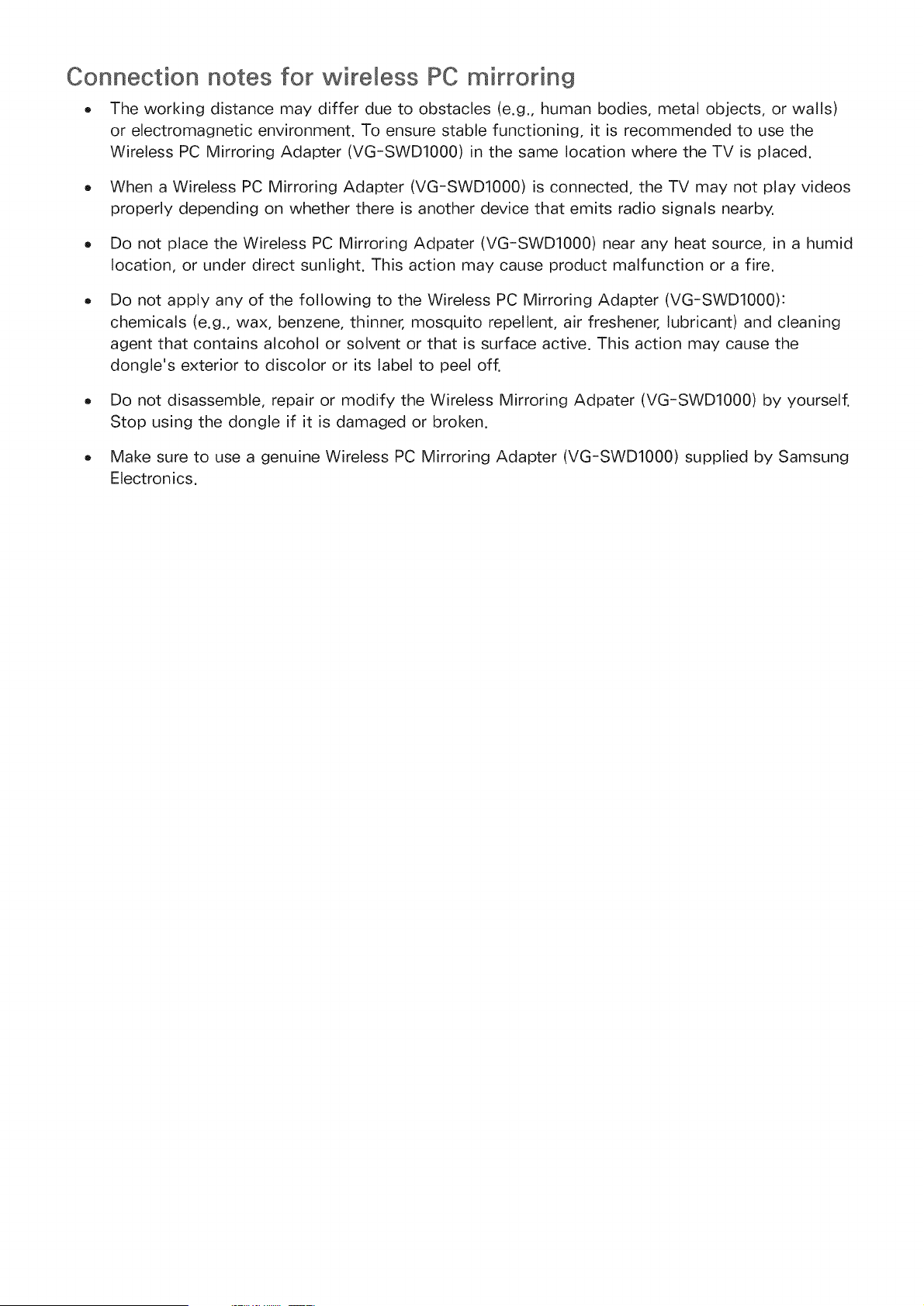

Connection notes for wireless PC mirroring

The working distance may differ due to obstacles (e.g.. human bodies. metal objects. or walls)

When a Wireless PC Mirroring Adapter (VG-SWD1000) is connected. the TV may not play videos

Do not place the Wireless PC Mirroring Adpater (VG-SWD1000) near any heat source. in a humid

Do not apply any of the following to the Wireless PC Mirroring Adapter (VG-SWD1000):

Do not disassemble. repair or modify the Wireless Mirroring Adpater (VG-SWD1000) by yourself.

Stop using the dongle if it is damaged or broken.

Make sure to use a genuine Wireless PC Mirroring Adapter (VG-SWD1000) supplied by Samsung Electronics.

About the Samsung Smart Control

The Samsung Smart Control is provided with the
6700 to 8500 and
670D to 850D series modets. And it may

Press this button to mute the sound temporarily.

/ CC Press and hold this button to bring up the Accessibility Shortcuts menu that enables or disables the Accessibility menu functions (MENU System

Displays numeric buttons. the content control button. and other function buttons on the screen so that you can run a function conveniently.
Press and hold this MENU/123 button to run the Voice Recognition function.

For more information. refer to

Place a finger on the POH/TER button and move the Samsung Smart Control.
The pointer on the screen moves in the direction you moved the Samsung Smart POINTER Control.
Press the POINTER button to select or run a focused item.

+_ For more information. refer to

4 directional buttons Moves the focus and changes the values seen on the TV's menu.

Selects or runs a focused item.
Enter button Press and hold this button to launch the Guide while you are watching the TV.

Returns to the previous menu or channel.
RETURN / EXiT Press and hold to exit the currently running function on the TV's screen.

Launches Smart Hub applications.

_, H Controls the content when playing movies or music or viewing pictures.

EXTRA Displays related information about the current program.

SOURCE Displays and selects the available video sources.

Your Samsung Smart Contro may differ from the images of the Samsung Smart Contro in this e-Manua.

Use the Samsung Smart Control at a distance of less than
20 feet. The usable distance may differ with the wireless environmental condition.

The buttons and functions of the Samsung Smart Contro may differ by model.

Using the Samsun9

Operating the TV with the POINTER button

Place a finger on the IPOH_TER button and move the Samsung Smart Control.
The pointer on the

Operating the TV with the directionam buttons and the Enter button

Press the directional buttons (up, down. left. and right) to move the pointer. focus. or cursor in the

To adjust the pointer speed, select MENU > System > Smart Contro_ Settings > Motion Sensitivity.

To use the POINTER button and the movement of the Samsung Smart Contro to operate your TV, Voice Guide must be set to Off.

To view a tutoria! that shows how to use the POINTER button. seect MENU > Support > Smart Contro_ Tutor_a_

Displaying and using the On-Screen Remote

You can display and use the On-Screen Remote on the TV's screen by pressing IMIEINU/123 button on

Menu Displays the menu on the screen.

Runs the Voice Recognition function.

Voice Recognition For more information. refer to "

Picture Size Changes the picture size.

Caption Turns captions on or off.

Network Settings Displays screens that allow you to change your network settings.

3D Turns the 3D function on or off.

[nfo Displays information about the current program or content.

Guide Displays the Guide screen.

[email protected] List Launches the Channe_ List.

Splits the TV screen and allows you to use multiple functions
- such as watching TV, surfing the web. and playing a video
- at the same time.
Multi-Link Screen f:_ For more information. refer to "

Enables/Disables Sports Mode.

Sports Mode or Soccer _* The actual name may differ with specific geographical area.

Mode For more information. refer to the

:: e-Manual Opens the e-Manual.

Picture Mode Changes the picture mode.

Speaker List Allows you to select the speakers that will play the TV's audio.

Allowsyouto changethebroadcastaudioto stereo,mono,orSAP(Second MTS AudioProgram)for analogchannels.

S_eepTimer Shutsoff theTVautomaticallyaftera presetperiodof time.

Tools DisplaystheToolsmenuonthescreen.

Source DisplaystheSourcescreen.

Power TurnsofftheTV.

Usethesecoloredbuttonsto accessadditionaloptionsspecificto thefeaturein use
+_ These buttons are only available in the U,S,A. and Canada.

Move Number Pad to the Right / Move Number Moves the number pad to the left or right.
Pad to the Left

_//_' This function is not availabe on certain models in specific geographica areas.

The On-Screen Remote buttons may varx depending on the TV model and the TV functions you are using.

To change the order of the menu options on the first row, select a menu option to move. press and hod the

Enter button. and then seect the directiona buttons displayed to specify a new position.

Pairing the TV to the Samsung Smart Control

When you turn on the TV for the first time. the Samsung Smart Control pairs to the TV automatically.

If the Samsung Smart Control does not pair to the TV automatically. point it at the remote control

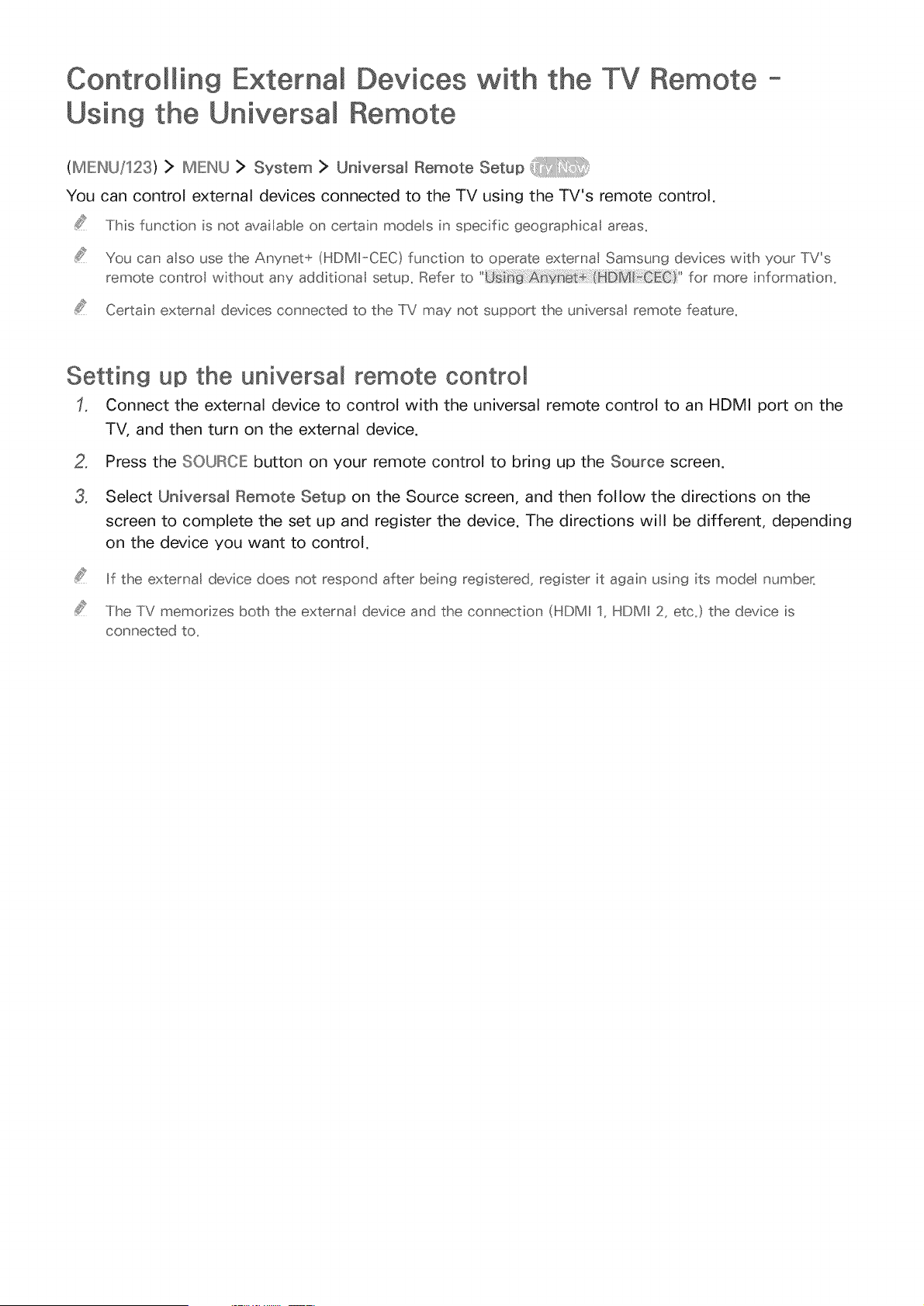

Contromling External Using the Universal Devices with the TV Remote

(IMEINU/123) > IMIEINU> System > Universal Remote Setup

You can control external devices connected to the TV using the TV's remote control.

This function is not availabb on certain models in specific geographical areas.

You can aso use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TV's remote contro without any additiona setup, Refer to for more information.

Certain externa devices connected to the TV may not support the universa remote feature.

Setting up the universal remote control

Connect the external device to control with the universal remote control to an HDMI port on the

TV, and then turn on the external device.

Press the SOURCE button on your remote control to bring up the Source screen.

Select Universal Remote Setup on the Source screen. and then follow the directions on the

The TV memorizes both the external device and the connection (HDMI
1, HDMI
2, etc,) the device is

ControMling the TV with a Keyboard

(MIEINU/123) > MIEINU > System > Device Manager Keyboard Settings

Certain models are not compatib e with USB HiD cass keyboards.

Connecting a keyboard

Connectin9 a USB keyboard

Plug the keyboard cable into the TV's USB port.

Connectin9 a B_uetooth keyboard

Place the Bluetooth keyboard into standby status.

Select MIEIN/J > System Device Manager > Keyboard Settings > Add Bluetooth Keyboard.

The TV automatically scans for available keyboards.

If you_ keyboard was not detected, position' the keyboard cose to the TV, and then select Refresh, The .... /V sca_'s for availab e keyboards agaiu',.

3o Select the Bluetooth keyboard from the scan list, and then select Pair and connect.
A number

Enter the number using the Bluetooth keyboard.
This pairs the Bluetooth keyboard to the TV.

Using the keyboard

You can use the following keys on a USB or Bluetooth keyboard connected to the TV to control the

Changing keyboard settings

(MIEINU/123) > MIEINU > System > Device Manager Keyboard Settings > Keyboard Options (:} ':}

Keyboard Language

Displays the languages you can use on your keyboard and lets you select a language.

Keyboard Type

Displays a list of keyboard types and lets you select a type that matches the Keyboard language

The ist of keyboa_d types differs depeu'diu'g o_' the anguage yo_Jseected _JnderKeyboard Language..

Switch input Language

Displays a list of keys you can use to toggle between languages and lets you select a key.

ControMlin9 the TV with

(M,E,NU/12S) > M,E:,NU > System> DeviceManager > MouseSett_ogs

Certain models are not compatib e with USB HiD cass mice.

Connecting a mouse

Connecting a USB mouse

Plug the mouse cable into the TV's USB port.

Connecting a B_uetooth mouse

Place the Bluetooth mouse in standby status.

MIEINU > System > Device Manager > Mouse Settings > Add Bluetooth Mouse

3o Select the Bluetooth mouse from the scanned list, and then select Pair and connect.
This pairs

Using a mouse

You can use a pointer to control the TV in the same way you use a pointer on a computer.

Selecting and running an item

Left-click the mouse.

Scrolling the TV menu or screen

Scroll the mouse wheel up or down.

Exiting the TV menu or feature

Place the pointer in any blank point on the screen. and then left-click the mouse.

Changing mouse buttons and pointer speed

(MIENU/123) > MIENU > System > Device Manager :> Mouse Settings Mouse Options

Primary Button

Select which button (left or right) to use when selecting and running items.

Pointer Speed

Adjust the movement speed of the pointer.

Connecting a Bluetooth Gamepad

(MIENU/123) > MENU > System > Device Manager Bluetooth Gamepad Settings

You can play the games downloaded and installed using the Smart Hub service with a Bluetooth

Entering Text using the QWERTY Keyboard

Using additionam functions

Select on the QWERTY keyboard screen.
The following options are available:

Recommended text

Enables or disables the recommended text feature.
The keyboard displays recommended words

Reset recommended text data

Deletes both the recommended words and the memorized words to clear the list.

Predict Next Character (when using direction buttons}

Enables or disables the Text Prediction feature.

Select a language from the list.

Viewing Multiple Screens or Features with Multi-Link

(MIEIHU/123) > MIEIHU > Picture > Open Multi-Link Screen

You can search the Web, use apps. and much more simultaneously while watching TV.

Using Multi-Link Screen

Learning the basic functions

Changing the channels on and volume of a Multi-Link Screen

To change the channels on a Multi-Link Screen. press the channel buttons while you are

Changing the input signal

Press the SOURCE button while using Multi-Link Screen to display the source list. Select a signal

Changing the web browser and apps

While you are using Multi-Link Screen. recently viewed web browser pages or apps are displayed

Changing the size of a Multi-Link Screen

To change the size of a Multi-Link Screen. move the focus to the screen you want to resize.

Selecting a speaker device for a Multi-Link Screen

Press the volume button. and then press the left directional button.
The speaker list is displayed

0_'_tHseSamsun9 S_r_art Co_'tro. press the IMENU!123 I>utto_', and theu' seect Speaker List to set the

Read before using Multi-LTnk Screen

Before using Multi-Link Screen. make sure the TV is connected to the Internet_

Before using Smart Hub with Multi-Link Screen. make sure to finish configuring Smart Hub_

UHD content and channels cannot be viewed simultaneous y_

Certain TV features and apps may not be supported by Multi-Link Screen_ If this is the case. exit from

Mu ti-Link Screen. and then use the feature_

You can hear the selected audio while you are using the Multi-Link Screen through the TVs speakers and you can hear the other screen's audio through Bluetooth headphones.

Smart Hub

The image may differ with the specific model and area.

You can surf the web and download apps with Smart Hub. In addition. you can enjoy photo. video.

Place a finger on the POIINTIER button to display the pointer on the screen. Select at the bottom of the screen to launch Smart Hub.

To run Smart Hub while you are using a service provided by Smart Hub, use the same path described above.

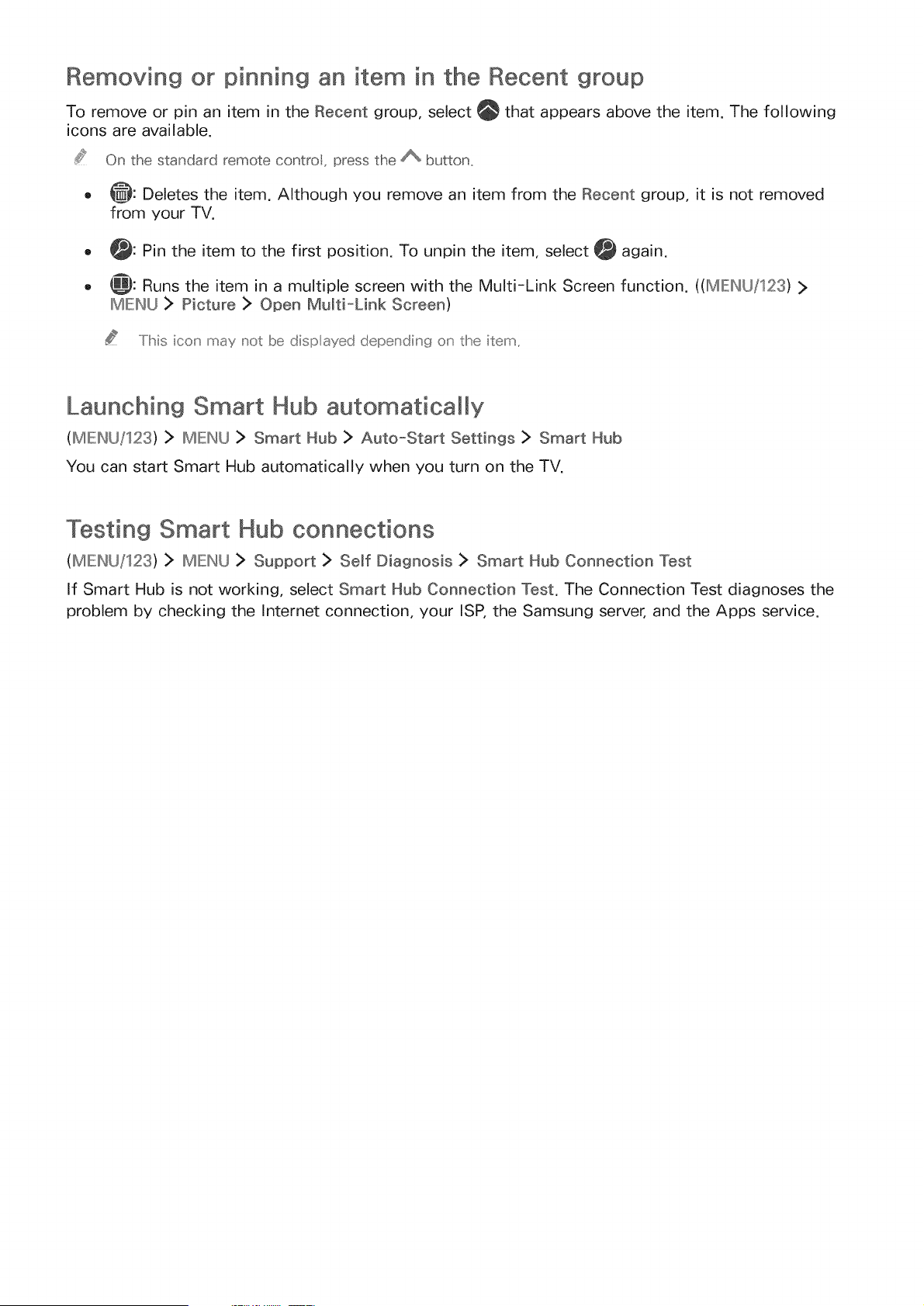

Removing or pinning an item in the Recent group

To remove or pin an item in the Recent group. select that appears above the item.
The following icons are available.

On the standard remote conb'o. press the A button.

O: Deletes the item.
Although you remove an item from the Recent group. it is not removed from your TV.

Pin the item to the first position.
To unpin the item. select _I again.

Runs the item in a multiple screen with the Multi-Link Screen function. ((MIEIN(J/123) > MIEINkJ> Picture > Open Multi-Link Screen)

.....
Ill'sis icon' may not be disp ayed depeu' diu' g o_' the item,.

Launching Smart Hub automatically

(MIEIN(J/123) > MIEIN(J > Smart Hub > Auto-Start Settings > Smart Hub

You can start Smart Hub automatically when you turn on the TV.

Testing Smart Hub connections

(MIEINU/123) > IMIEIN/J> Support > Self Diagnosis > Smart Hub Connection Test

If Smart Hub is not working. select Smart Hub Connection Test.
The Connection Test diagnoses the

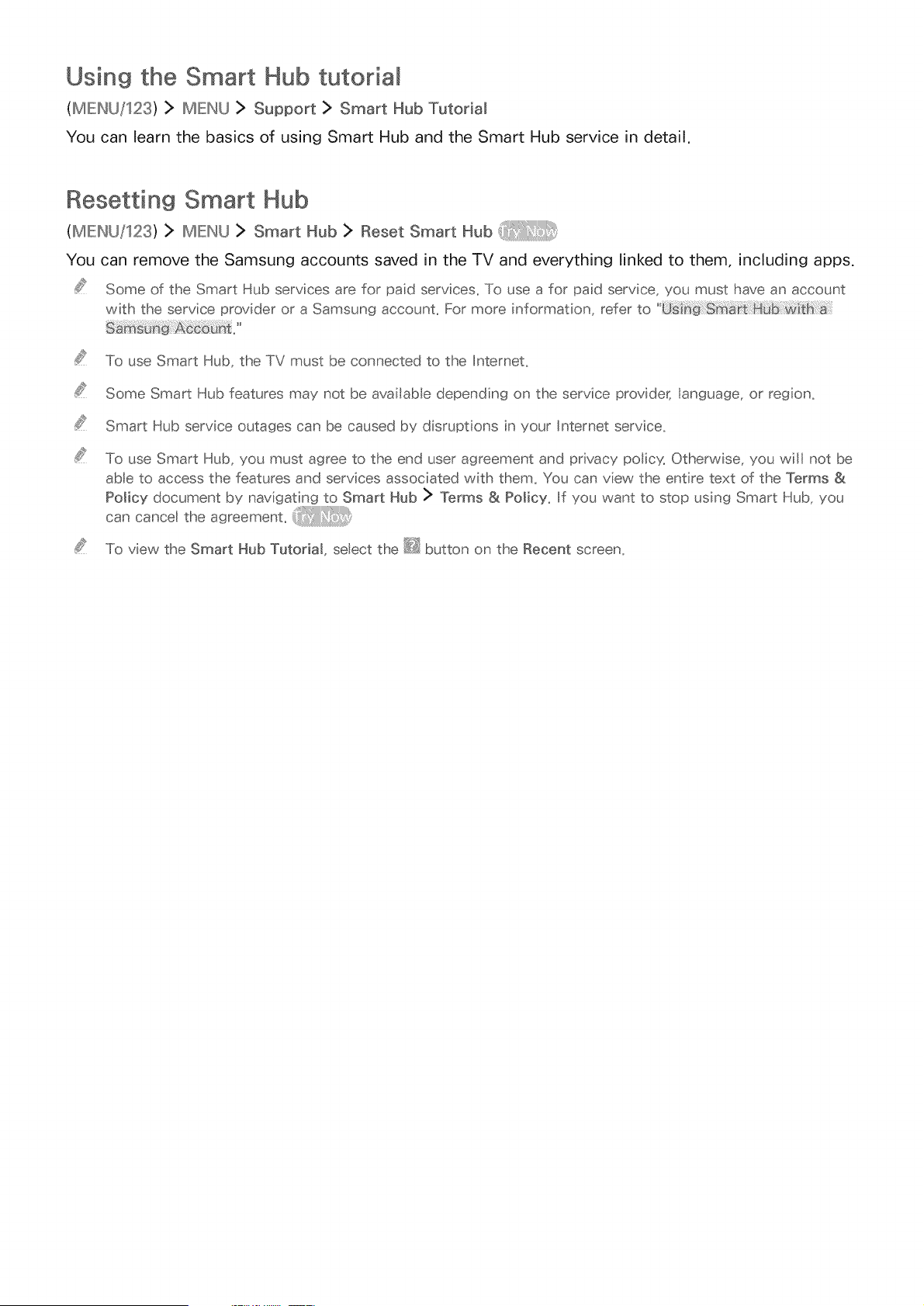

Using the Smart Hub tutorial

(IMIEINU/123) IMIEINU > Support Smart Hub Tutorial

You can learn the basics of using Smart Hub and the Smart Hub service in detail.

Resetting Smart Hub

(IMIEINU/123) IMIEINU > Smart Hub > Reset Smart Hub

You can remove the Samsung accounts saved in the TV and everything linked to them. including apps.

Some of the Smart Hub services are for paid services.
To use a for paid service. you must have an account with the service provider or a Samsung account.
For more information. refer to

To use Smart Hub, the TV must be connected to the Internet.

Some Smart Hub features may not be avai ab e depending on the service provider. language. or region.

Smart Hub service outages can be caused by disruptions in your Internet service.

To use Smart Hub, you must agree to the end user agreement and privacy policy.
Otherwise. you will not be able to access the features and services associated with them.
You can view the entire text of the Terms Policy document by navigating to Smart Hub _> Terms & Po_icy_ If you want to stop using Smart Hub, you cancance theagreement

To view the Smart Hub Tutorial seect the @ button on the Recent screen.

Using Smart Hub with a Samsun9 Account

Creating a Samsung account

(IMIEINU/123) > IMIEINU> Smart Hub > Samsung Account

Some of the Smart Hub services are for paid services.
To use a for paid service. you must have an account with the service provider or a Samsung account.

You can create a Samsung account using your email address as your ID.

To create a Samsung account, you must agree to the Samsung account end user agreement and privacy policy: To view the entire content of the agreement. seect MENU > Smart Hub > Samsung Account

Terms and Conditions. Privacy Policy_

You can aso create a Samsung account at http://contenLsamsung_com_ Once you have an account, you can use the same ID on both the TV and the Samsung website_

C_'eating a Samsung account

(IMIEINU/123) > IMIEINU> Smart Hub > Samsung Account > Create Account > Create Samsung Account

You can create a Samsung account by following the on-screen instructions.
Once a Samsung account

Creating a Samsung account using a Facebook account

(IMEINU/123) > IMIEINU> Smart Hub > Samsung Account > Create Samsung Account with Facebook

Enter your Facebook ID and password. and then follow the on-screen instructions to complete account

Your Samsung account and Facebook account are automatical y linked when you create a Samsung account

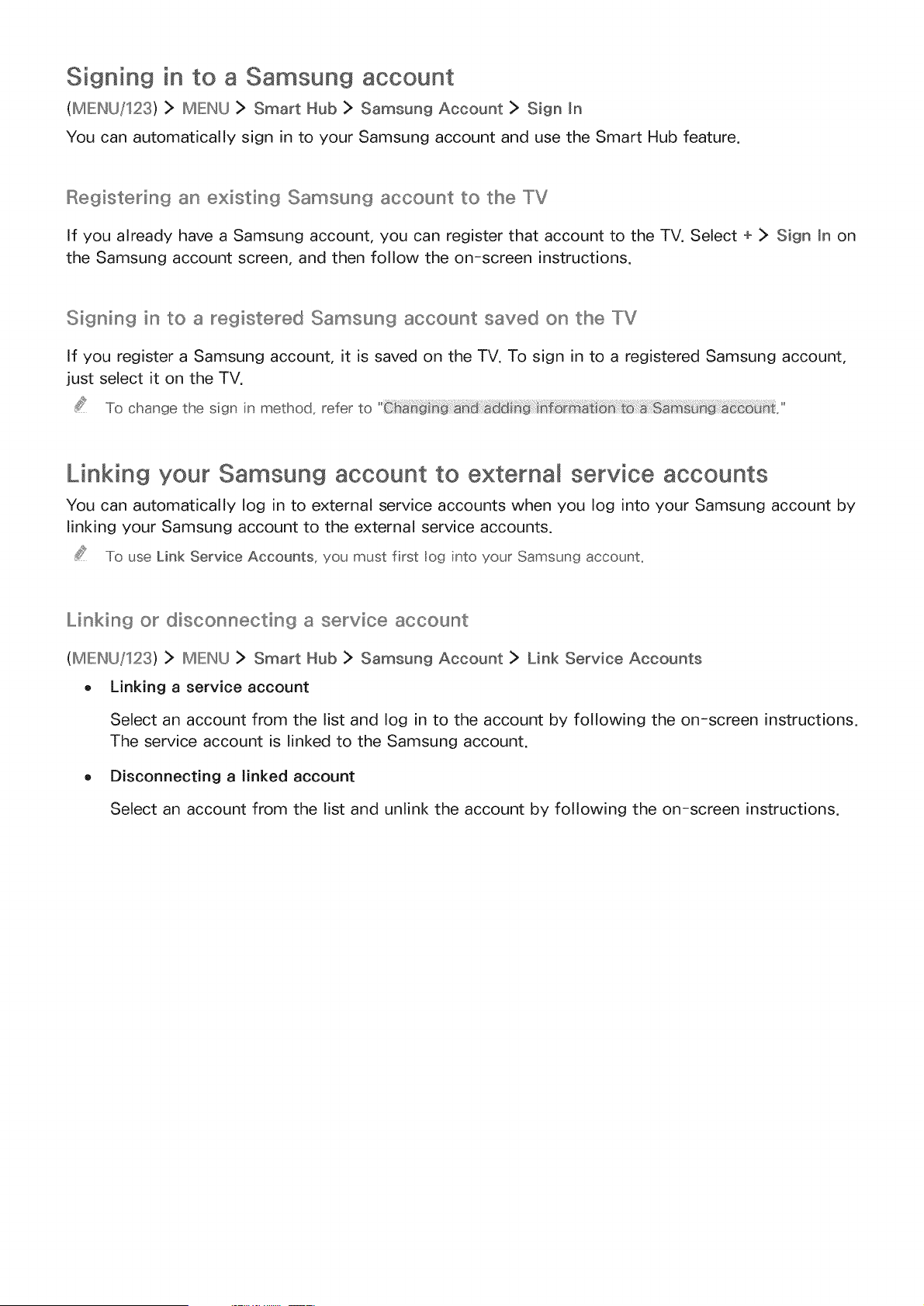

Signing in to a Samsung account

(IMIEINU/123) > IMIEINU> Smart Hub > Samsung Account > Sign Jn

You can automatically sign in to your Samsung account and use the Smart Hub feature.

Registering an existing Samsung account to the "IV

If you already have a Samsung account. you can register that account to the TV. Select
+ > Sign Jn on

Signing in to a registered Samsung account saved on the "IV

If you register a Samsung account. it is saved on the TV. To sign in to a registered Samsung account.

To change the sign in method, refer to

Linking your Samsung account to external service accounts

You can automatically log in to external service accounts when you log into your Samsung account by

To use Link Service Accounts. you must first log into your Samsung account.

Linking or disconnecting a service account

(IMIEINU/123) > IMIEINU> Smart Hub > Samsung Account > Link Service Accounts

Linking a service account

Select an account from the list and log in to the account by following the on-screen instructions.

The service account is linked to the Samsung account.

Disconnecting a JJnked account

Select an account from the list and uniink the account by following the on-screen instructions.

Changing and adding information to a Samsung account

(IMIEINkJ/123) > IMIEINkJ> Smart Hub > Samsung Account > Edit Profile

You can manage your Samsung account.
Enter your password with the keyboard displayed on the TV's

To change the account information. you must be logged in to your Samsung account_

Change Your Profile Image

Register Your Face to your Samsung Account

Registered faces are used with the Login Options.

Select a Samsung Account sign-in method

Turn auto Iogin on or off

Enter Basic User Information

Subscribe to the Samsung e-Newsletter

Deleting a Samsung account from the TV

(IMIEIN(J/123) > IMIEIN(J> Smart Hub > Samsung Account > Remove Accounts from TV

You can remove a Samsung account and password information from your TV. The account information

To remove the account information. you must be logged in to your Samsung account_

Using the GAMES

> Featured > GAMES

You can download. play, and manage games or games purchased with your Samsung account.
Select

New. or Top Grossing from the top of the screen. and then select a game in the genre you selected.

You can also manage downloaded games in My Page.

This function is only available in the U,SA. and Canada.

To use this feature. the TV must be connected to the Internet.

The genre categories at the top of the screen may differ with the model and geographical area.

Managing games with the pop-up Options menu

Move the focus to a game. and then press and hold the Enter button.
An option menu appears

Download / Remove

View Details

Update

The pop-up menu may differ with the app you se ected_

Viewing the DetaiMed mnformation screen

Move the focus to a game. and then press the Enter button.
You can also select the View Details function.
See above.

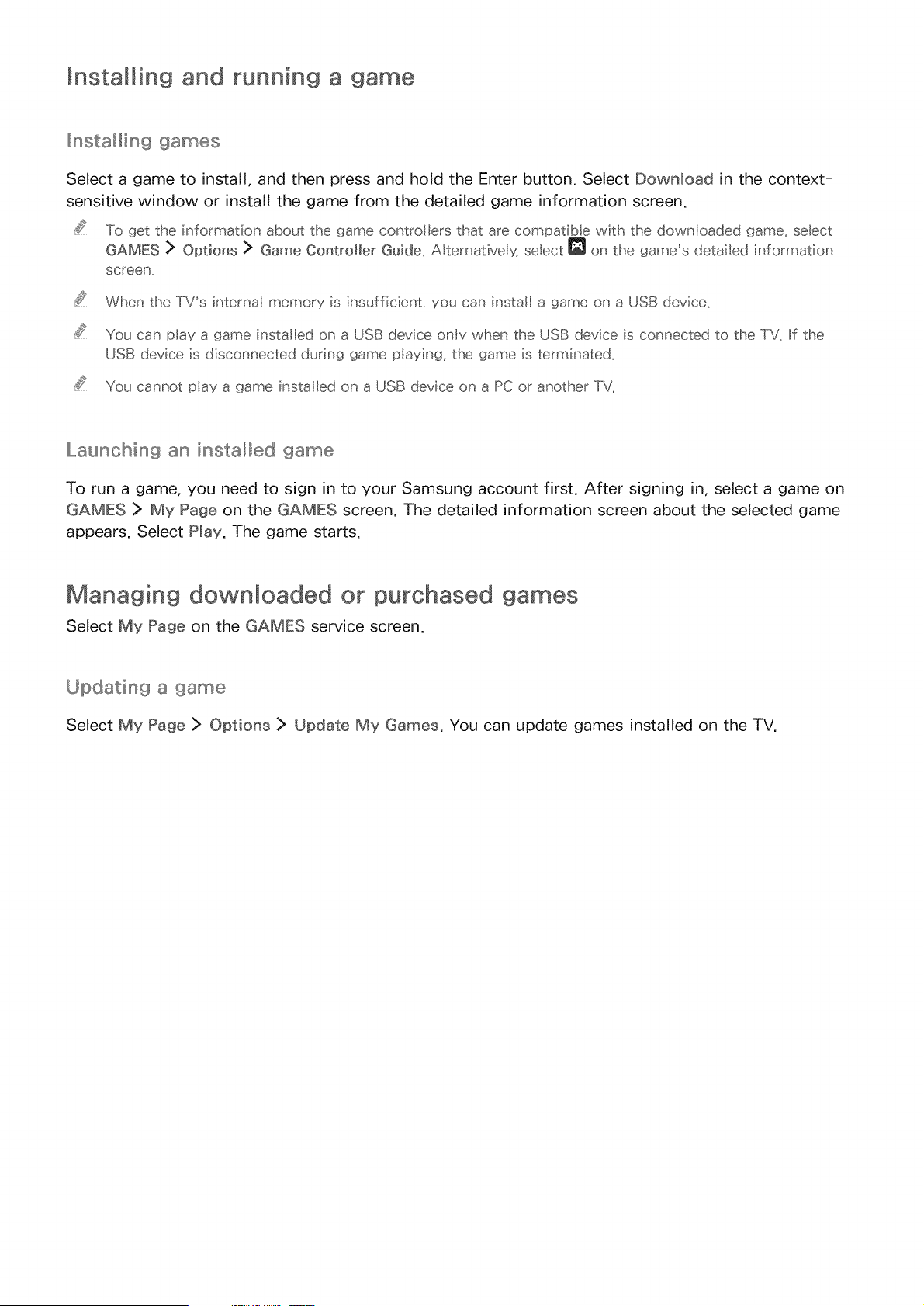

Installing and running a game

_nsta_in9 games

Select a game to install. and then press and hold the Enter button.
Select Download in the context-

To get the information about the game contro lets that are compatible with the downloaded game, select GAMES ]> Options ]> Game Controller Guide_ A ternative[g seect on the game's detailed information

When the TVs intema memory is insufficient. you can install a game on a USB device.

You can play a game installed on a USB device only when the USB device is connected to the TV, If the USB device is disconnected during game playing. the game is terminated.

You cannot play a game installed on a USB device on a PC or another TV_

Launching an installed game

To run a game. you need to sign in to your Samsung account first.
After signing in, select a game on GAMES > My Page on the GAMES screen.
The detailed information screen about the selected game

Managing downloaded or purchased games

Select My Page on the GAMES service screen.

Updating a game

Select My Page > Options > Update My Games.
You can update games installed on the TV.

Enabling automatic game updates

(IMIEIN(J/123) > IMIEIN[J> Smart Hub > App & Game Auto Update or App Auto Update

To update games automatically. set App Auto Update to On. Games will be updated automatically

The actua name may differ with specific geographica area_

Removing a game

Select on the My Page screen. and then select Delete My Games.

Select a game to remove. and then press the Enter button.
Repeat the process to select additional

Yo_Jca_' remove a game by seectin9 the game, and theu' pressu' 9 a_'d ho di,' 9 the Iliater button'.

When your are done selecting games. select Delete.

Rating a game

You can rate a game on the detailed information screen.

This feature is only availab e when the game is installed on your TV_

Registering a coupon

Enter the coupon number on the My Page screen to register it.

Using the APPS Service

> Featured > APPS

You can enjoy a wide range of content including news. sports. weather and games by installing the

My Apps.

To use this feature. the TV must be connected to the Internet.

When Smart Hub is Iaunched for the first time. the default apps are automatical y insta ed, The default apps may differ by region_

Managing Apps with the pop-up Options menu

Move the focus to an app and then press and hold the Enter button.
The option menu appears displaying some or all of the following functions.

Delete

View Details

Reinstall

The pop-up menu may differ with the app you se ected.

Viewing the DetaiMed mnformation screen

Move the focus to an App. and then press the Enter button.
You can also select the View Details function.
See above.

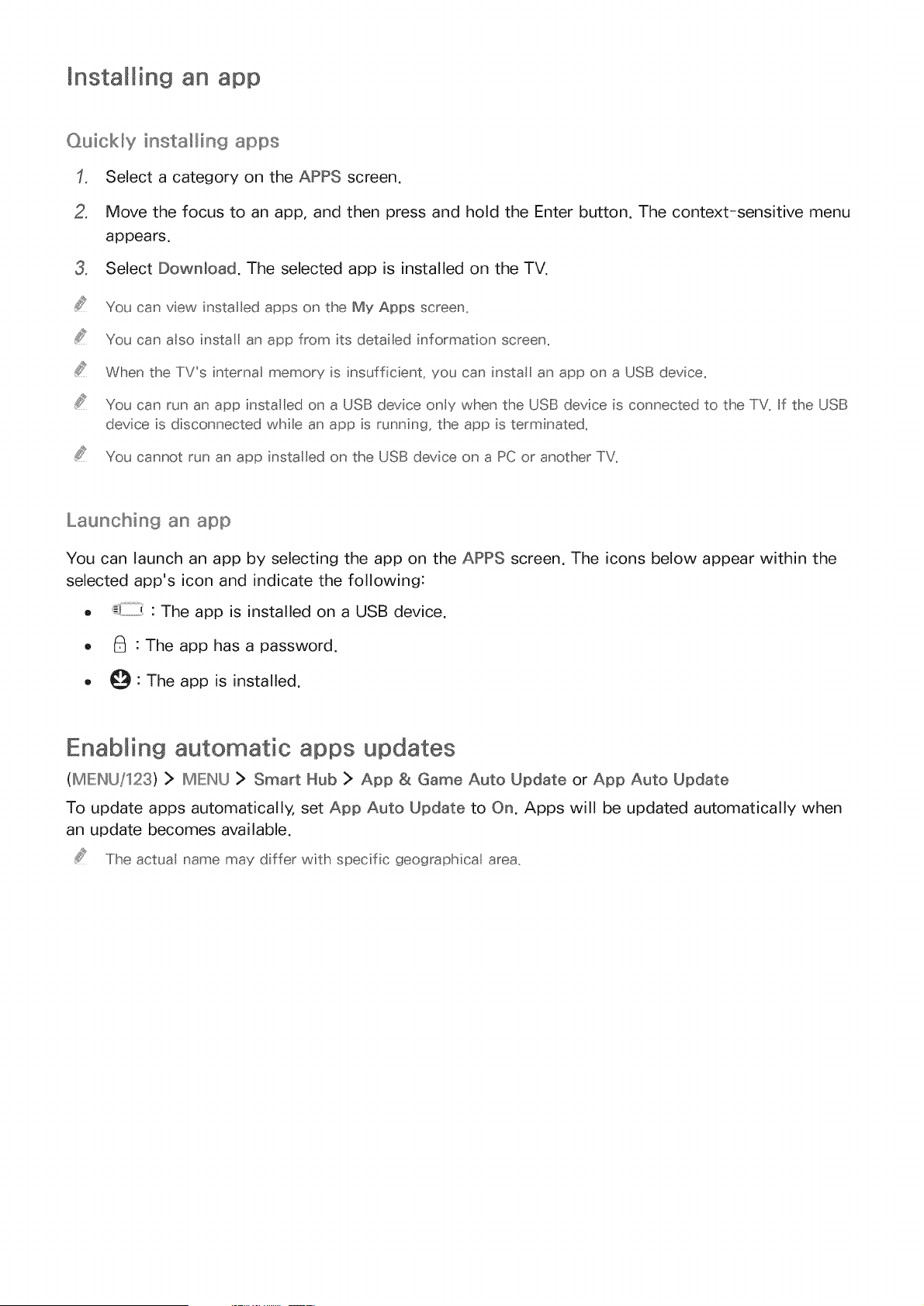

QuicMy insta_in9 apps

Select a category on the APPS screen.

Move the focus to an app. and then press and hold the Enter button.
The context-sensitive menu

Select Download.
The selected app is installed on the TV.

You can view installed apps on the My Apps screen_

You can aso instal an app from its detai ed information screen_

When the TV_s internal memory is insufficient_ you can instal an app on a USB device.

You can run an app insta led on a USB device only when the USB device is connected to the TV_ If the USB device is disconnected whib an app is running_ the app is terminated_

You cannot run an app insta ed on the USB device on a PC or another TV.

Launchin9 an app

You can launch an app by selecting the app on the APPS screen.
The icons below appear within the

: The app is installed on a USB device.

: The app has a password.

: The app is installed.

Enabling automatic apps updates

(IMIEINU/123) :> IMIEINU> Smart Hub > App & Game Auto Update or App Auto Update

To update apps automatically. set App Auto Update to On. Apps will be updated automatically when

The actua name may differ with specific geographica area.

Removing an app from the TV

Select an app to remove on the APPS screen and press and hold the Enter button to confirm.
If you

Ensure that the related app data is also removed when you remove an app_

Locking and unlocking apps

Select Options > Lock/Unlock My Apps on the APPS screen.
The password input screen appears.

Enter your password. and then select apps to lock or unlock.
When done selecting. select Save.
All

Updating apps

Select Options > Update Apps on the top of the APPS screen.
The TV searches the for app updates.

Rearranging apps

Select Options > Sort by on the APPS screen. and then sort the apps by date. time or others by

Rating purchased apps

You can set the star score by using the left or right directional buttons on the detailed information

Using other app features and functions

(IMIEINU/123) > IMIEINU> Smart Hub > Auto-Start Settings > ChanneFbound Apps & Ticker

You can configure additional app features and functions.

Usin9 oham'sn÷l bound apps

A channel bound app provides information about offerings and services available on one channel.
You

This function is only availab e when an app supporting Channel-bound Apps & Ticker is installed on the TV.

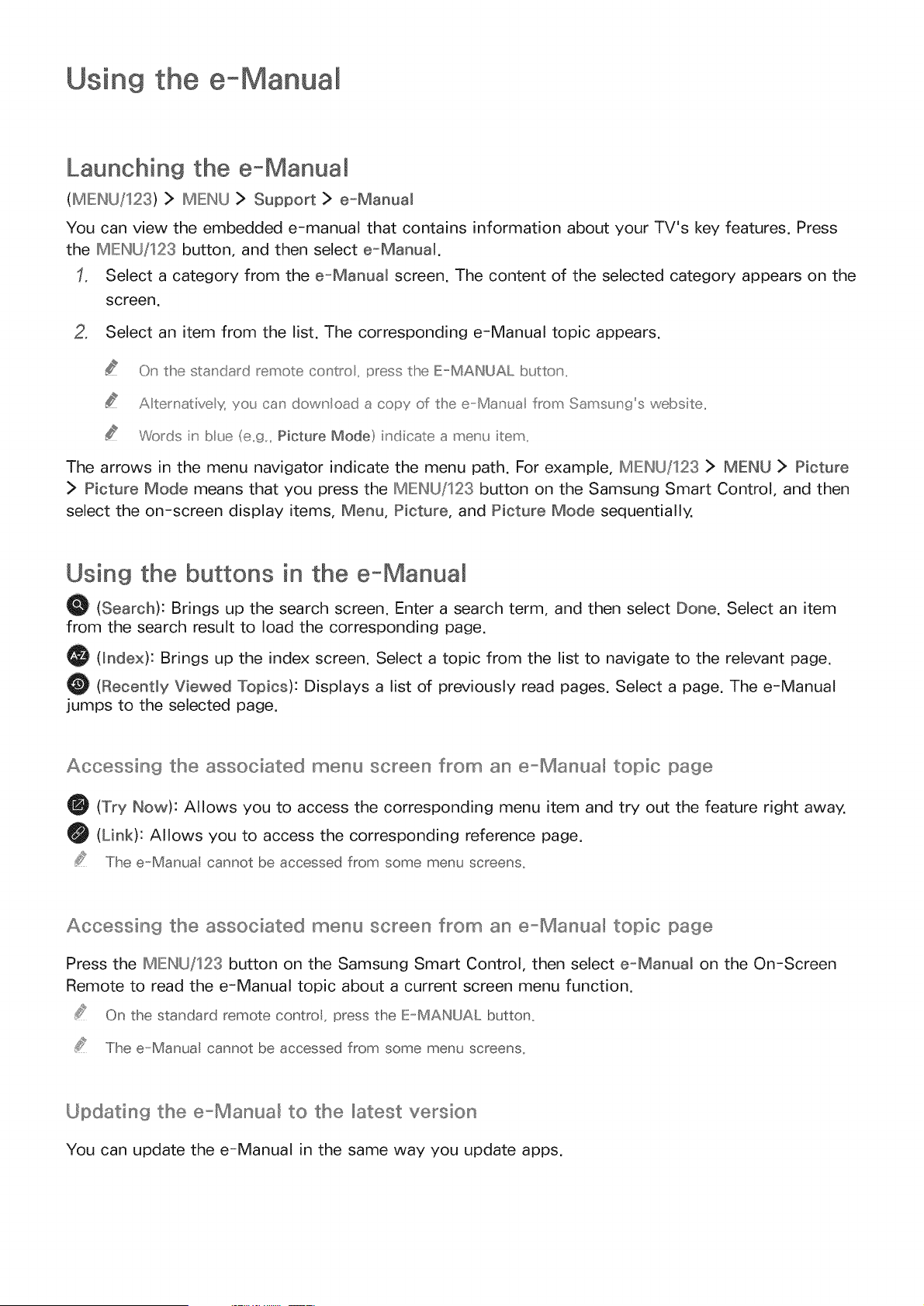

Using the e-Manua

Launching the e-Manual

(MENU/123) > MENU > Support > e-Manual

You can view the embedded e-manual that contains information about your TV's key features.
Press the MENU/123 button. and then select e-Manual.

Select a category from the e-Manual screen.
The content of the selected category appears on the

Select an item from the list. The corresponding e-Manual topic appears.

0_' the standard remote co_'tro. press the IE,oMAHUAL H)utto_',.

A ternativex you ca_' download a copy of the e Manua from Samsung_s website,.

Words iu' bue (e,,9,,,Picture Mode} iu'dicate a meu'u item,.

The arrows in the menu navigator indicate the menu path.
For example. MENU/123 > MENU > Picture

> Picture Mode means that you press the MENU/123 button on the Samsung Smart Control. and then

Using the buttons in the e, Manual

(Search): Brings up the search screen.
Enter a search term. and then select Done.
Select an item from the search result to load the corresponding page.

(_ndex): Brings up the index screen.
Select a topic from the list to navigate to the relevant page.

(Recently Viewed Topics): Displays a list of previously read pages.
Select a page.
The e-Manual jumps to the selected page.

Accessing the associated menu screen ff_om an e_Manua_ topic page

(Try Now): Allows you to access the corresponding menu item and try out the feature right away.

(Link): Allows you to access the corresponding reference page.

The e-Manua cannot be accessed from some menu screens_

Accessing the associated menu screen f_om an e_Manua_ topic page

Press the MENU/123 button on the Samsung Smart Control. then select e-Manual on the On-Screen

Remote to read the e-Manual topic about a current screen menu function.

On the standard remote contro. press the E,oMANUAL button_

The e-Manua cannot be accessed from some menu screens_

Updating the e_Manua_ to the latest version

You can update the e-Manual in the same way you update apps.

Using the Web Browser

You can surf the Internet on the TV as you would on a PC - even while watching a TV program using

PIP. Select Help to view the information about the Internet web browser.

For a more convenient web browsing experience, connect a keyboard and mouse to the TV.

You can scrol the Web browser page with the
4 directiona buttons.

The Web browser page may differ from that on a PC.

Browsing preferences

Configure the browsing settings for your convenience or to meet you needs.
Select > Settings.

General

Hides browser tabs or menu bars automatically after a period of inactivity.
Also allows you to

Y_',urbookmarks a_'d browsiu' _ histories wil not be reset.

Home Page

Sets the home page.
When you launch the browser. it will display this page.

Search Engine

Searches for information that you requested. and then displays a list of web pages that contain the information.

Privacy & Security

Prevents access to inappropriate web pages.
Also allows you to select not to save your browsing

Blocked pages

Blocks or unblocks pages.
You can manage the list of pages you blocked.

Approved pages

Limits the browser to only the pages you have approved.
To use this option. you must set a

Gives you the option to set the encoding to Auto or select an encoding method from a list.

About

Displays the current version of Web Browser.

Using the MY CONTENT Service

:> Featured MY CONTENT

You can play media content saved on storage devices. such as USB devices. mobile devices. and

You cannot play media content if the content or the storage device is not supported by the TV. For more information. refer to

Backup important ties before connecting a USB device, Samsung is not responsible for damaged or lost lies.

Read before playing media content

To connect the TV to a computer. refer to

To connect a USB or external storage device to the TV, use the TV's USB port.

To connect the TV to a mobie device. refer to

Playing multimedia content in a computer or mobile device

Before connecting to a computer or mobie device, configure the network settings_

Playin9 multimedia content saved on a computer or mobile device

> Featured > MY CONTENT

To play multimedia content located on a computer or mobile device on the TV, you must allow the

Connect a computer or mobile device.
The TV displays the device's name and lists the media files

Select a media file to play from the list. The selected media plays.

Select the @ button to stop playing or press the I[o_ETURNbutton.

A ternativelg move to the media content you want to pla'_ and then press the _ button to play the content.

To connect a computer through your home network, refer to

The TV may not play content located on a computer or mobile device depending on the encoding type and fie format of the contenL

To connect a mobie device through Smart View 2_0, refer to

Content may not play smoothly depending on the netwod< status_ If this occurs, transfer the content to a USB storage device, and then play the content from the device.

Playing media content saved on a USB device

Select a USB device name on the MY CONTENT screen.
The TV displays a thumbnail list of the

Select the media content to play from the list. The media content plays.

Select the @ button to stop playing or press the RETURN button.

While video with UHD-level reso ution is being played. Motion Contro_ is not avai[ab e_

Alternative g if you seect a USB device on the Source screen. the TV iumps to the MY CONTENT screen

Safely Removing a USB Device

Press the SOURCE button.
The Source screen appears.

Move the focus to the USB device you want to remove. and then press the down directional

Select Remove USB Device in the list.

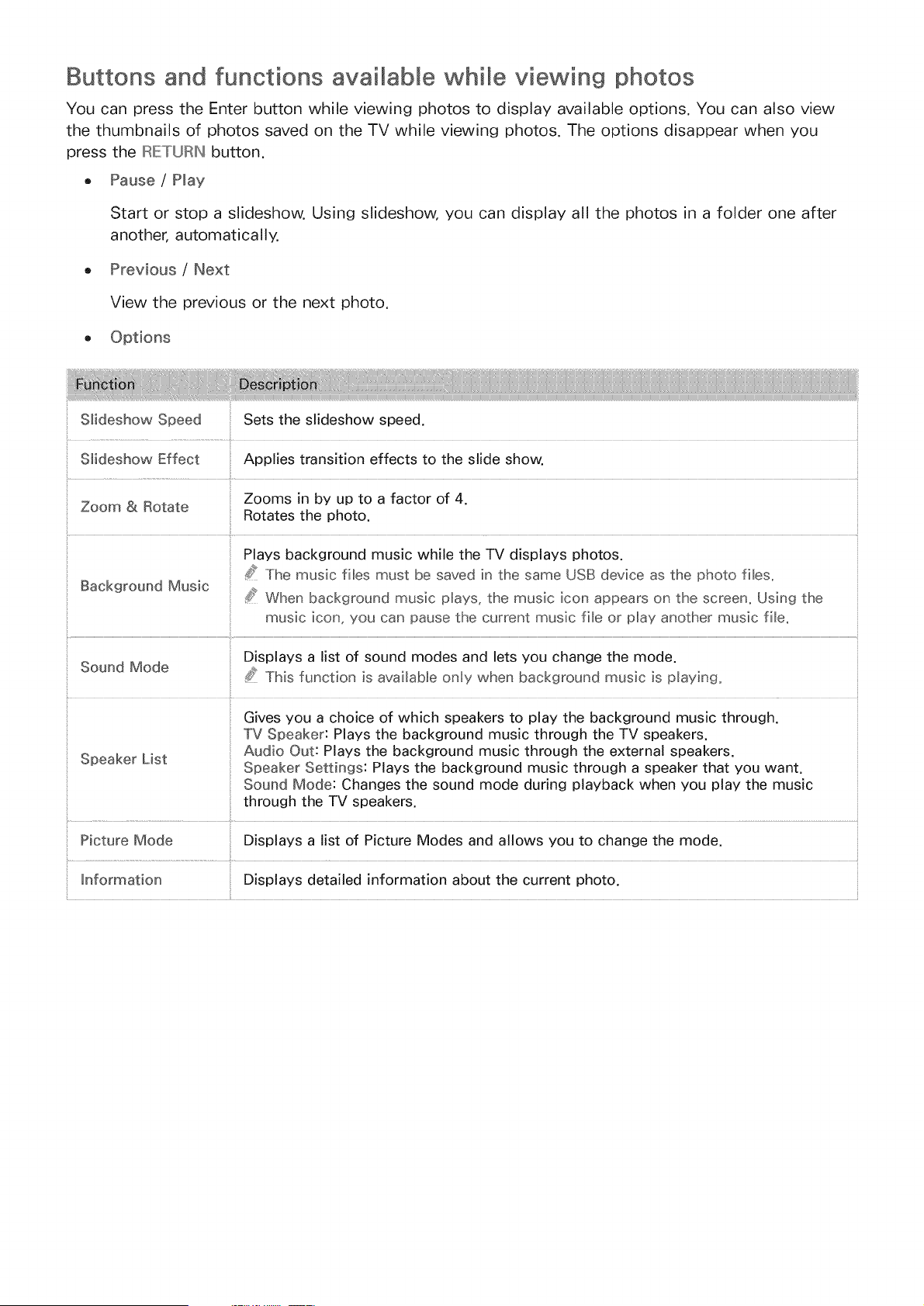

Buttons and functions available while viewing photos

You can press the Enter button while viewing photos to display available options.
You can also view

Pause / Hay

Start or stop a slideshow.
Using slideshow. you can display all the photos in a folder one after

Previous / Next

View the previous or the next photo.

S_ideshow Speed Sets the slideshow speed.

S_ideshow Effect Applies transition effects to the slide show.

Zooms in by up to a factor of 4.
Zoom & Rotate Rotates the photo.

Plays background music while the TV displays photos. The music fibs must be saved in the same USB device as the photo files.

Background Music _'s When background music plays. the music icon appears on the screen.
Using the

Displays a list of sound modes and lets you change the mode.
Sound Mode S? This function is avai_aMe only when background music is p_aying.

Gives you a choice of which speakers to play the background music through.
TV Speaker: Plays the background music through the TV speakers.
Audio Out: Plays the background music through the external speakers.
Speaker List Speaker Settings: Plays the background music through a speaker that you want.
Sound Mode: Changes the sound mode during playback when you play the music through the TV speakers.

Picture Mode Displays a list of Picture Modes and allows you to change the mode.

_nformation Displays detailed information about the current photo.

Buttons and functions avaiMable whi e viewing videos

You can press the Enter button while viewing videos to display available options.
Preview images of

Pause / Play

Pauses or plays the video.
You can use the following functions when the video is paused.

Witlh the video paused, the TV does not pay audio,.

Step: Allows you to step through the paused video one frame at a time by pressing the H

Slow Motion: Allows you to play the video in slow playback speed (1/8, 1/4, 1/2) by pressing

Rewind / Fast Forward

Rewinds or fast forwards the video.
To increase the rewind or fast forward speed up to 3 times

Previous / Next

Plays the previous or next video.
Press the _44button twice to play the previous video.
Press the

_44button once to start the current video from the beginning.

Press the _ button to play the next video.

Repeat

Plays the current video file repeatedly or all video files in the same folder repeatedly.

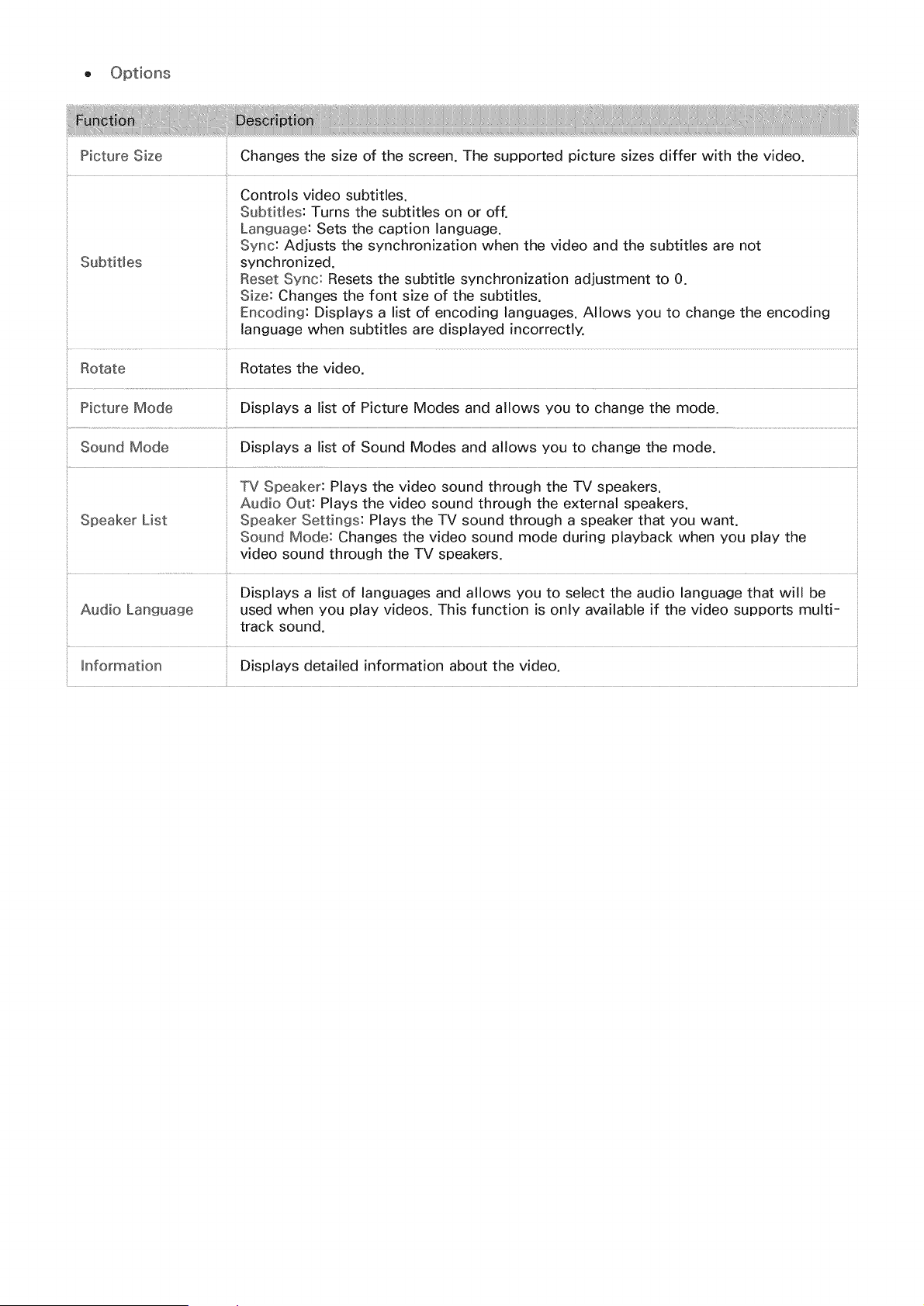

:: Picture Size Changes the size of the screen.
The supported picture sizes differ with the video.

Controls video subtitles Subtitles: Turns the subtitles on or off.
Language: Sets the caption language.
Sync: Adjusts the synchronization when the video and the subtitles are not Subtitles synchronized.
Reset Sync: Resets the subtitle synchronization adjustment to 0.
Size: Changes the font size of the subtitles.
Encoding: Displays a list of encoding languages.
Allows you to change the encoding language when subtitles are displayed incorrectly.

Rotate Rotates the video.

Picture Mode Displays a list of Picture Modes and allows you to change the mode.

Sound Mode Displays a list of Sound Modes and allows you to change the mode.

TV Speaker: Plays the video sound through the TV speakers Audio Out: Plays the video sound through the external speakers Speaker List Speaker Settings: Plays the TV sound through a speaker that you want.
Sound Mode: Changes the video sound mode during playback when you play the video sound through the TV speakers.

Displays a list of languages and allows you to select the audio language that will be Audio Language used when you play videos.
This function is only available if the video supports multi- track sound.

Information Displays detailed information about the video.

Buttons and functions avaimable whi e playing music

You can use the following functions when you select a music file.

Pause / Play

Pauses or resumes the music.

Previous / Next:

Plays the previous or next music file.
Press the 14_button twice to play the previous music file.
Press the _4_button once to start the current music file from the beginning.

Press the _ button to play the next music file.

Repeat

Plays the current music file repeatedly or all music files in the same folder repeatedly.

Shuffle

Plays the music files in random order.

Speaker List

TV Speaker: Plays the music through the TV speakers.

Audio Out: Plays the music through the external speakers.

Speaker Settings: Plays the music through a speaker that you want.

Sound Mode: Changes the sound mode during playback when you play the music through

Screen Off

Plays the music files only with the screen off.

Listening to music in ND quality

You can enjoy HD music in HD native quality.
Set HD Audio (IMIEINU > Sound > Additional Settings

HD Audio) to On.
Then. move to the MY CONTENT service screen. and select an HD music file to play

Standard audio signa s are sampled at 48 kHz whie HD audio signals are sampled at 96 kHz.

Some S/PDIF receivers may not be compatib e, For incompatib e receivers. deactivate HD Audio and use

Some external audio players connected via HDMI. BIuetooth. or Wi-Fi networks are not able to play HD audio signa s.

If a music fie supports the HD audio format. the HD icon appears in the list.

Select a music file. and then select to play it.

When you set HD Audio to Off during playback. the next music file is played in the standard audio format.

When you play an HD music fie while Multi-Link Screen is running. Multi-Link Screen is automatical terminated.

Functions on the media content list screen

You can use the following functions on the media content list screen of a storage device.

Filter By

Filters the media content to display the type of media you want.

Sort By

Sorts the content list.
The sorting methods change depending on the type of content you have

This f_Jnctio_' is not availab e wheu' Filter By is set to All,.

Delete

Deletes the recorded media content from the media content list.

.... /his function' is not availabe iu' the U,,S,,A,, a_'d Canada,.

This function is o_'y availab e wl!seu' the storage device has the recorded media co_' tent,.

Play Selected

Plays the selected media content from the media content list.

.... /his flJnctio_' is not availab e wheu' Filter By is set to All,.

Using the NewsON Service

> Featured > NewsON

You can find daily information on a wide variety of topics in a smart and convenient way, updated in

This function is not avai able in the U,S,A, and Canada.

Before you use the NewsON service. check if the TV is connected to the Internet.

Using the NewsON content

Watching news videos

You can watch the latest news videos and related news videos.

Reading articles

You can read news articles on the screen.

Viewing the weather information

You can view the current weather forecast and forecasts for the next
7 days for cities you select.

You can seect up to 5 cities.

Using the Soccer Service

> Featured > Soccer

You can get a wide range of information about world soccer matches. including videos. news.

This function is not avai able in the U,S,A, and Canada.

Before you use the Soccer service, chec< if the TV is connected to the Internet.

Configuring the Soccer service screen to display your favorite soccer teams

You can configure the Soccer service screen to display only your favorite soccer teams.
To add a

You can add up to 6 teams to the favorite soccer" team list.

Using addidonam functions

Select at the top of the Soccer service screen.
The following functions are available:

Add Teams

Displays the league selection screen to allow you to add teams to the favorite soccer team list.

Move Teams

Allows you to rearrange the order of the selected teams.

Remove Teams

Removes teams you select from the favorite soccer team list.

Replace Teams

Allows you to change your favorite team to another.
Select an existing team. and then select

Viewing soccer videos

You can view the soccer videos and highlights of your favorite soccer teams.
On the Soccer service

Buttons and functions available while watchin9 a soccer video

Play / Pause

Pauses or plays the video.

Previous / Next

Plays the previous or next video.

Rewind / Fast Forward

Rewinds or fast forwards the video.

Plays the video repeatedly.

Picture Size

Picture Mode

Changes the size of the screen.

Allows you to change the picture mode of the current video.

TV Speaker: Plays the video sound through the TV speakers :: Speaker List Audio Out: Plays the video sound through the external speakers.
Speaker Settings: Plays the sound from the TV through a speaker that you select.

Sound Mode Changes the sound mode of the current video when you play the video though the TV speaker.

Controlming the TV with Your Voice

This function is only supported for the 6700 to 8500 and 670D to 850D series modets.

IMIEINU/123 > Voice Recognition

The \/oice Recognition screen may differ from the image above. depending on the modet.

The Samsung Smart Contro may not be provided with specific model and country.

When you run Voice Recognition. the Voice Recognition User Guide appears at the top of the screen. This

Guide is different for each language supported by \/oice Recognition.

You can run Voice Recognition in two modes:

The short distance recognition mode that uses the microphone built into the Samsung Smart

Press the IMIEINU/123 button. and then select "Voice Recognition.

Or, press and hold the IMIEINU/123 button.

Read before using voice recognition

(IMIEINkJ/123) > IMIEINkJ> System > "Voice Recognition

You can access and select certain menu options and functions using voice commands.
For more

> "Voice Recognition Language option.

For' more information about voice recognition. refer to

Learning voice recognition basics

View all voice commands:

Press the down directional button on Samsung Smart Control to display a complete list of voice commands by category.
Alternatively. say "Help."

Deactivating voice recognition:

Say "Close". or press the RIET/JRINbutton to terminate voice recognition.

The TV recognizes predefined voice commands onI'¢_These voice commands may differ from the manua depending on the version of the TV.

EnaMing or disaMin9 IV voice

(IMIEIN(J/123) > IMIEIN(J> System > "Voice Recognition > TV "Voice

Enable or disable the voice the TV uses to respond to your voice commands.

Selectin(_ a gender fo_" the IV voice

(IMIEINkJ/123) > IMIEINkJ> System > "Voice Recognition > "Voice Gender

You can select the gender of the voice the TV will use when you use the Voice Recognition function.

Changin9 the voice _ecognition Illanguage

(I,slEINu/12S) > IMIEINu > Sy_tom>Vo_c_ R_cogo_tioo > Laoguogo

You can select a language to use with the Voice Recognition function.

You can search for content that is available in the TV program or execute various other functions

Activate Voice Recognition and say a command.
See the examples below:

When you want to find a specific content:

"***(Title)"/"Find
+**(title)")

When you want to know specific information:

"What's the weather in ***(place name)?" / "What is the
+**(company) stock pnce./ "Show me

When you use the TV's function:

"Set Sleep Timer (function name) in 30 minutes"

Some sentences above may not be supported depending on the country_

Using the voice recognition tutorial

(IMIEINU/123) > IMIEINU> Support > Voice Recognition Tutorial

The tutorial lets you familiarize yourself with the basics of using Voice Recognition.
Run Voice

Recognition Tutorial from the Support menu. or run Voice Recognition and say "Tutorial".

ControMlin9 the TV using Motions (Motion Control)

(MIEINU/123) > MEINU > System > Motion Control

To use the Motion Control feature. you must install a separately-sold camera on the TV.

Motion Control is not available:

When you are playing UHD-level video saved on a USB device

When you are viewing a digital channel with UHD-level resolution

When you are using the Samsung Smart Control or a mouse

This function is not supported by some apps.

For more _nformat_on, refer to

Z_ The optional TV camera must be connected to the dedicated USB port at the back of the TV.

The other USB ports do not support the camera or Motion Control.

Testing ambient illumination using the TV camera

(MIE:IN(J/123) > IMIE:IN(J> System > Motion Control Motion Control Environment Test

Run this test before using Motion Control to ensure proper functionality.

Stand
5 to 11.5 feet (1.5 to 3.5 m) from the TV screen.
Launch the Motion Control Environment

Test. and then select Start.
If the TV screen is reflecting light or there are objects moving in the

Face the TV camera. and follow the onscreen instructions.

Checking ambient i_umination (Motion control environment Check}

(MIEIN(J/123) > MIEIN(J > Support > Self Diagnosis > Motion Control Environment Check

You can test the ambient brightness levels around the TV camera and microphone to ensure that they are suitable for motion control use.

The actua name may differ from specific geographical areas or [email protected]

Activating motion control

(MIEIN(J/123) > MIEIN(J > System > Motion Control Motion Control

Face the TV camera.
Lower your hand to a comfortable position.
Raise your hand with your index

To deactivate motion control. move your hand out of the range of the TV camera. To reactivate it, simply move your hand toward the TV camera within
3 seconds.

Motion Contro may be terminated if your index finger is not fully extended or you move it to fasL

Using the motion control tutorial

(MIEIN/J/123) > MIEIN(J > Support > Motion Control Tutorial

You can learn the basics of using motion control.

Leamin9 motion control basics

The following actions are available:

Moving the pointer

Move your hand to move the pointer accordingly.

Selecting an item

Fold down and raise your index finger to select items.
You can select a TV menu

Returningto the previousmenu

Make a circle with your hand in the counterclockwise direction to return to the

Displaying the context-sensitive menu / Viewing broadcast information

Fold your index finger down for
1 second and then raise it. This action displays

Showing and hidinfs the animated motion
9uide

(MIEINU/123) > MIEINU > System > Motion Control > Animated Motion Guide

You can display an animated guide when motion control is activated.

When you run an app using motion conb'o for the first time, the animated guide appears_

Selecting a pointer and ad,iustin9 Ipointer Slpeed

(MIEINU/123) > MIE:INU> System > Motion Control > Pointer Speed

Select a pointer and adjust its speed.

Changing the motion control screens

Changin9 the motion cont_'ol screens whi_e viewin9 a broadcast

Direction Control Mode Motion Pointing Mode

Direction Control Mode

If you run Motion Control for the first time by raising you hand while viewing a broadcast. the

Direction Control Mode screen appears.
The screen contains the Direction Control icon.

Motion Pointing Mode

Move to the center of the Direction Control icon with your index finger. and then fold down your

Select ""'band -- to adjust the volume.
Select _ and V to change the current channel.

Select the point at the center of this icon to change to the Motion Pointing Mode screen.

Displays the On-Screen Remote.

Displays the channel list or information about the current program.

Launches Smart Hub.

Allows you to adjust the volume or select the speakers to use.

Displayin9 the Direction Contro_ icon whi_e not viewing a broadcast

To display the Direction Control icon while not viewing a broadcast. move to the center of the top side

Displaying the hidden direction control icon while using various services when not viewing broadcasts

Using Face on

You can register your face using the TV camera. and sign in to your Samsung accounts using the

To use the Face Recognition feature. you need to install a camera (sold separately) on the TV.

Z:_ The optional TV camera must be connected to the dedicated USB port at the back of the TV.

The other USB ports do not support the TV camera or Face Recognition.

Registering your face to your Samsung account

(IMIEINU/123) > IMIEINLJ> Smart Hub > Samsung Account > Edit Profile

Select l_ after entering your account password.
Select Take Picture. and then align your face within the red circle.
When the circle turns green. the TV has registered your face.

To use this function. you must sign in to your Samsung account_

Your entire face must be visible to the camera, Avoid shadows over your face, Shadows prevent the camera from recognizing your face accuratek¢.

Keep your expression as neutral as possible, Also, keep your mouth cosed and as neutral as possible.

For more information. refer to

Changing your Iogin method to face recognition

(MIEINU/123) :> MIEINU > Smart Hub > Samsun9 Account > Edit Profile

You can change your log in method to face recognition.
To change the log in method. follow these

Enter your password. and then select OK.

On the Edit Profile screen. select Signqn Method.
In the drop down list that appears. select

Profile linage selection and facial recognition (Medium security).

Select Done.

Signing in to a Samsun9 account using face recognition

(MEINU/123) :> MIEINU > Smart Hub > Samsung Account > Edit Profile

Select your Samsung account.

If you have set the Samsung account sign in option to Face Recognition. the TV automatically

Yo_r entire face must be visib e to the camera,, Avoid slhadows over yo_.Jrface,, Shadows preveu't the camera from reco%' iziu'g yo_r face accurate %

Keep your expression' as neutra as possib e,,Aso. keep your mouth cosed a_'d as neutra as possib e,.

Once recognition succeeds_ the TV ogs in to Smart Hub automatica y, If the TV reco%' izes two or more ref/_istered faces_ a ist of corresponding accounts appears,, Seect the appropriate account,, If the .... /V detects a_' unregistered face, it disp ays 'U,' registered" o_' the scree,' ,.

Viewing Digital Information at a Glance

Using the guide (I,%EINU/ 2S) > IMIEINU > Broadcaat og > Go,de

You can check the program schedules and set up a Schedule Viewing from the Guide.

You can move through the Guide in 2 hour jumps in either direction by pressing the 44 or bb button.

You can only view programs scheduled after the current time.

You can select the buttons that appear at the bottom of the screen by using the POIINTIER button of

The information in the Guide is for digital channe s only, Analog channels are not supported_

To view the Guide, you must first set the TVs cock (MENU > System > Time > C_ock)_

To access the Guide functions after launching the Guide. press and hold the Enter button on the

Channel Filter

Filters the channels displayed in the Guide by the following categories: All. and Favorites Favorites

Schedule Manager

Displays the Schedule Manager.

FOr ir fom_stior
8bout the Sohed_ e Msr
89e_ refer to

Edit Favorite Channels

Allows you to set a channel that you select in the Guide as a favorite.

View details

Displays detailed information about a selected program.
The program information may differ

Select a current program on another channel. and then select View Details to Watch or

Record the program.

Select an upcoming program. and then select View Details to set up a Schedule Viewing or

Schedule Recording.

Recording is not supported in the U,S,A ard Canada.

Or the standard remote cot tro. press the IINFObutton,.

For more irfformatior abo_Jtwatchir 9 or Schedub Viewing. refer to

You csr cry view programs scheduled after the currer t time.

For more ir formatior or Schedule Recording. refer to

Record

Starts instant recording of the selected program.

Checking current program info

You can view information about. start instant recording of. or apply the Timeshift function to a show

Program Info window displayed for that program.

Recording is not supported in the U,S,A and Canada.

On the standard remote control. press the INFO button.

To view program info. you must first set the TV's cock (MENU System > Time > Clock).

For more information on Schedule Recording. refer to

Program information may differ with the type of incoming signal and may not be available at al for certain

For more information on Schedule Viewing. refer to

Changing the broadcast signal

(l_IE:NU/123) I_IE:NU > Broadcasting > Antenna

You can choose the appropriate DTV mode for your viewing environment.
Select Air or Cable.
Air is

You do not need to use this function if your TV is connected to a cable or satellite box.

Checking digital channel signal info and strength

(l_lE:l/U/123) I_lE:l/U Support Self Diagnosis Signal information

You can check the digital channel's signal information and strength.

If your TV is attached to a separate. over-the-air antenna. you can use the signat strength information to

This function is only availab e for digital channe s.

Recording Programs

The @ appears next to programs and channels for which a Schedule Recording has been set.

This function is not avaitab e in the U_S_A_and Canada_

Read all precautions before using the recording feature_ Refer to for more informatior_

Recording programs

You can record current and upcoming programs.

_nstant recording

To begin recording the current program right away. press the MIEINU/123 button. and then select the button.

On the standard remote contro. press the ® button.

Using the instant and schedule recording options from the guide

To start instant recording of a current program. select that program from the Guide. and then select

Record.
To start a schedule recording of a program that will air in the future. select that program from

Using the instant and schedule recording options from program info window

To start instant recording or a schedule recording of a program. press the Enter button.
The Program

Info window appears.

To start instant recording of a current program. select O.

To start a schedule recording of a program that will air in the future. press the left or right directional

On the standard remote contro. press the Enter button or IINFObutton.

Using schedule recording to record on a specified date and time

(MEINU/123) > Broadcasting > Schedule Manager > Schedule.

Select Schedule Recording.

Specify the Source. Channel. Repeat. Start Time. and End Time options for the program you

Using the functions available whi_e recording a program

Press the Enter button while recording a program.
The following buttons and the recording progress

More _nfo

Displays detailed information about the program being recorded.

.... /Ihe program [email protected]' may differ wish the broadcasting sig,' a a,'d may not be availabe at a for certain pFOgFamS..

REC Time

Sets the recording time.

Stop Recording / Go to Live TV

Stops recording. / Shifts viewing to live TV.

Using the buttons on the remote control whi_e recording a program

Pause / Play

Press the _ or H button on the remote control to pause the recording screen or resume the

When the recording is paused. you can use the following functions.
However. no audio is heard

Step: Press the MIEIHU/123 button on the Samsung Smart Control. and then select the IT!

Slow Motion: Press the MEIHU/123 button on the Samsung Smart Control. and then select the

Rewind / Fast forward

Press the MEIHU/123 button on the Samsung Smart Control. and then select I_ or !_ button to

O_' the standard remote co_' tro. press the << or }} [email protected]'.

.... /liis flmctio_' is not availab e wMle yo_J are watclhin9 a program that is currel' tly beiu' 9 broadcast.

Managing the schedule recording list

(MIEIHU/123) > MIEIHU > Broadcasting > [email protected] Manager

You can change the settings of scheduled recording sessions or cancel scheduled sessions altogether.

Viewing recorded programs

> Featured > MY CONTENT

Select a USB recording device.
The CONTENTS folder appears.

Select a recorded program file from the CONTENTS folder to play the selected file.

Using the functions avai_aUe whi_e playing a _ecordin9

Press the Enter button.
The following buttons appear.
To hide the buttons. press the RET(JRN button.

Buttons that appear are different depending on the fie being played_

Pause / Play

Pauses the recorded program file or resumes playing the file if paused.

When the video is paused. you can use the following functions.
However. while the video is

Step: Select the H button to scan through a video one frame at a time.

Slow Motion: Select the bb button to play the video back at 1/2 the normal speed.

Rewind / Fast forward

Speeds up rewind/fast forward.
To restore normal playback speed. press the b. button.

Previous / Next

To restart the current video from the beginning. select the _44button once.

To play the next recorded program file. select the b_ button.

Repeat

Plays the current file repeatedly or all files in the same folder repeatedly.

Highlight Player

Displayshighlightsof the currentrecording.

.....
Iihisfunctionisonlyavailableif youhavesavedI"_iglifiiglnts of :_programwhichwas_eco_ded inSports Mode,.

Picture Size Changes the size of the screen.
The supported picture sizes differ by video.

Turns the subtitles on or off.

I.......

Picture Mode Displays a list of Picture modes and lets you change the mode.

Sound Mode Displays a list of Sound modes and lets you change the mode.

Speaker List Gives you a choice of speakers to play the audio through.

Displays a list of languages and lets you select the audio language that will be used Multi-Track Sound when you play videos.
This function is only available with files that support multi-track sound.

Information Displays detailed information about the current file.

Managing recorded files

> Featured > MY CONTENT

Select a USB device containing recordings.
A list of recordings appears.

Using the functions on the recorded files screen

Filter

Displays only files that match the selected filter.

Sort By

Sorts files according to the selected viewing mode.

This f_.Jnctio_'is _Jnavailabe if Filter is set to All,.

Delete

Deletes selected files. except for locked files.

This function is _Jnavailabe if FHter is set to AH,.

Play Selected

Plays selected files.
Select files from the file list and then select Play.

If the viewing mode is set to Folder view; you can only select files in the same folder.
To add

.... /Ibis flJnctio_' is _Jnavailabe if Filter is set to All,.

Setting Up a Schedule Viewing

The '*__:_appears next to programs that have been configured for a schedule viewing.

To set up a schedule viewing. you must first set the TVs cloc< (MENU > System > Time > Clock).

Setting up a schedule viewing for a channel

Setting up a schedule viewing for a digita_ channel

You can set up a schedule viewing for a digital channel on the Guide or Information screen.

The Guide screen

On the Guide screen. press the left or right directional button to move to a program you would

The Program Info window

Press the Enter button while you are watching the TV. The Program Info window appears.
Press

Or the standard remote. press the let ter or IINFO I)uttor.

Setting up a schedule viewing an analog channel

(ME:INU/12S) > ME:INU > Broadcaat_og > Schedule Manager

You can set up a schedule viewing for an analog channel.
Select Schedule > Schedule Viewing.

Specify the Source. Channel. Repeat. and Start Time options for the program you want to watch. and

Editing a schedule viewing

(MIEINU/123) > MENU Broadcasting > Schedule Manager

On the Scheduled screen. select a schedule viewing.
A pop-up menu appears.
Select Edit.
Change the

Cancemin9 a schedule viewing

(MIEINU/123) > MENU Broadcasting > Schedule Manager

On the Scheduled screen. select a schedule viewing.
A pop-up menu appears.
Select Delete.
Select

OK in the pop-up menu.
The schedule viewing is removed.

You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.

Timeshift

You can pause and rewind live TV as you would a DVD by using Timeshift.

Activating this function disables the Broadcasting function.

This function is not avai abe in the U.S.A. and Canada.

Read all precautions before using the Timeshift function.
For more information. refer to

To activate the Timeshift function while watching TV, press the Enter button. and then select on the Program Info window.
The TV displays a progress bar and the following buttons at the top of the screen:

Displays detailed information about the current program.

.... /he program information' may differ wish the type of iu'comiu'9 si{_u'a a_'d may not be availab e at a for certaiu' programs,.

This button' is o_'y availab e wlhe,' you are watchiu' 9 a ive program,.

Record

Starts instant recording of the current program.

Go to Live TV / Stop Timeshift

Shifts to live TV or exits Timeshift.

Using the buttons on the remote control while using Timeshift

Pause / Play

Press the _ or H button on the remote control to pause or resume watching the current program

Step: Press the IMEINU/123 button on the Samsung Smart Control. and then select the 11111

Slow Playback: Press the MEINU/123 button on the Samsung Smart Control. and then select

O_' the standard remote co_' tro. press the << or _} button' ,.

Rewind / Fast forward

Press the IMEINU/123 button on the Samsung Smart Control. and then select the _ or _ button

O_' the standard remote co_' tro. press the <_ or bb button' ,.

.... /he IFast IForward flJnctio_' is not availab e while yo_J are watcMu' 9 a program that is curreu' tly beiu' 9 broadcast,.

Using the Channe

(IMIEINU/123) > IMIEINU> Broadcasting > Channel List

By using the Channel List. you can change the channel or check programs on other digital channels

Smart Control. and then select the icon that appears at the right side of the screen.

On the standard remote control. press the CH ILllSTbutton.

The Channel List screen contains the following icons:

• An analog channel

• A favorite channel

I_1 " A locked channel

Press the left directional button.
The following functions are available:

Displays a list of channels that you viewed recently.

Add a New List

Allows you to create a new channel list by adding channels from a favorites list.

This option' is availab e o_'y if you have registered o_'e or more chanu'es to at east o_'e favorites ist..

Added Cho

Displays the selected channel list.

Allows you to select Air or CaMe as the DTV mode. Air is suitable for homes equipped

Antenna with separate, over-the-air antennas. CaMe is suitable for homes that subscribe to a local cable-service or satellite-service provider. You do not need to use this function if your TV is connected to a cable or satellite box.

Edit Channel Allows you to rearrange the order of channels in the channel list or remove channels from

Lists the channel list.

Edit [email protected] Allows you to remove channels from the channel index, restore removed channels, and rename analog channels.

Sets favorite channels.
Edit Favorites £s_For more information. refer to

Registering. Removing. and Editing Channels

(ME:INU/12S/ > ME:INU > Broadoaat_og > EaStChaooem

The Edit Channel screen icons indicate the following:

" An analog channel

" A favorite channel

• A locked channel

Registering and removing channels

Bemovin9 registe_e_ channels

You can remove a registered channel or all channels from the channel index.
To remove a channel.

Adding back removed channels

You can add back removed channels from the All list only. Removed channels are displayed in gray in the All list. To display the All list. select Options > Category > All.
Then, to add back a removed

> Add.

Editing registered channels

You can access the following options by selecting Options at the bottom left of the screen.
The

Select All / Deselect All

Selects or deselects all channels displayed on the Edit Channel screen.

Antenna

Allows you to select Air or Cable as the DTV mode.

Displays the channels of a selected category in the list. The channels stored in the TV are

Edit Favorites

Sets favorite channels.

II::::::or mo_e hrfformat,_o_'_refe__to (}_eaEm{_a _eL,'[email protected] _st._'_: _ s_

Rename Channel

Renames analog channels.
The new name can be up to 5 characters long.

Displays detailed information about the current program.

Usin9 Program Rating Lock (ME:INW12S) > ME:INU > Broadcaat o% > Program Ratio% Lock

You can block programs based on their ratings by using Pro%ram Ratin% Lock.
This function is useful

Every time you access Pro%ram Ratin% Lock. you must enter the security PIN. You must also enter this

PiN to watch a blocked program.
The default PIN is 0000.
To change the PIN, go to System > Chan%e

PIN.

The Program Rating Lock may not supported depending on the input signal you are using_

B_ocking programs based on thei_ _TV Rating

You can block TV programs based on their rating.
To block content. select a rating category to lock.

All programs at that level and higher are blocked and require the PIN to watch.
To unblock a category.

Categories on the left:

TWY: Young children

TV-Y7: Children
7 and over

TV-G: General audience

TV-PG: Parental guidance

TV-14: Viewers
14 and over

TVIMA: Mature audience

Categories on the top:

ALL: Lock all TV ratings.

FV: Fantasy violence

V: Violence

S: Sexual situations

L: Adult Language

D: Sexually Suggestive Dialog

Bleckiln_j movies base on their Movie Ratiln_j (MRAA}

You can block movies based on their MPAA rating. This rating system applies to all material with

From the MPAA:

"The Motion Picture Association of America (MPAA) has implemented a rating system that provides

Select a lock beside one of the rating categories to block that category and all higher categories. To

G: General audience (no restrictions).

PG: Parental guidance suggested.

PG-13: Parents strongly cautioned.

R: Restricted. Children under
17 should be accompanied by an adult.

N0-17: No children under age 17.

X: Adults only.

NR: Not rated.

Blockiln_j programs based on thei_ " Canadian English Rati_s_j

You can block programs based on their Canadian English Rating. This rating system applies to all rated

Select a lock beside one of the rating categories to block that category and all higher categories. To

0: Programming intended for children under age 8

08+: Programming generally considered acceptable for children
8 years and over to watch on their own

G: General programming. suitable for all audiences.

PG: Parental Guidance

14+: Programming containing themes or content which may not be suitable for viewers under the

18+: Adult programming

Blockiln_j programs based on thei_ " Canadian French Rati_s9

You can block programs based on their Canadian French Rating.
This rating system applies to all rated

Select a lock beside one of the rating categories to block that category and all higher categories.
To

G: General

8 ans+: Programming acceptable for children
8 years and over to watch on their own

13 ans+: Programming that may not be suitable for children under the age of 13

16 ans+: Programming not suitable for children under the age of 16

18 ans+: Programming restricted to adults

Blockiln_j Programs Based on their II[XX}ownloadab_e US Ratios9

You can block programs based on their Downloadable UoSo Rating.
This rating system only applies to

Parental restriction information is automatically downloaded while you watch DTV channels.
This

Parental restriction levels differ with the broadcasting station.
The default menu name and the

Downmoadable UoSo Rating name changes depending on the downloaded information.

Even when the on-screen display is set to another language. the Downmoadable UoSo Rating menu

Select a lock beside one of the rating categories to block that category and all higher categories.
To

Watchiln_j Uocked / _'estdcted programs

To watch a blocked program. enter the PIN when requested.

When initially showing a restricted program or movie. the screen is blank because the Program Rating

Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.

Creating a Personal Favorites List

Favorite channels are highlighted in the Edit Channel and Channel List screens with the symbol.
You can create up to 5 favorite channel lists.

Registering channels as favorites

(IMIEINLJ/123) > IMIEINLJ> Broadcasting > Edit Favorites

You can register multiple channels as favorites at the same time.

Select the channels that you want to add to your favorites list(s) from the list on the screen.

Select Change Favo on the screen to select a favorites list.

Select Add on the screen.
The TV adds the channels you selected to the favorites list you chose.

Viewing and selecting channels on Favorites lists only

(IMIEINLJ/123) > IMIEINLJ> Broadcasting > Channel List

You can display a favorites list and select a channel using the channel up/down buttons.

Press the left directional button.
A favorites list appears.
Select Change Favo to select a different

Highlight a channel from the selected favorites list using the channel up/down buttons. and then

A tavodtes ist can be seected onY if it contains at east one tavodte channe

Editin9 a Favorites List

(IMIEINU/123) > IMIEINU> Broadcasting > Edit Favorites

Using the Edit Favorites screen menu items

You can access the following options by selecting Options on the Edit Favorites screen.

Select All / Deseleet All

Selects or deselects all channels saved on the TV.

Copy to Favor[tea

Copies channels from one favorite channels list to another.

[FOr [_'/or(_} il_ for_'_'/atiol' r(_}f(_}r _,o

This optior_ is availab e o_'y if yo_Jhave registered o_'e or more chanu'e s to at east o_'e favorites ist,.

Rename Favorites

Rename an existing favorite channels list.

For more information'. refer to

This optio_' is availab e o_'y if yo_Jhave registered o_'e or more chanu'es to at east o_'e favorites ist,.

Antenna

Allows you to select Air or Cable.

Edit Channel

Allows you to manage the channels saved on the TV.

For morn h'formafio_'. mff_r to _

Removing channels from a favorites list

Select Edit Favorites.
Select Change Fav° to move to the favorites list that has the channels you want

Rearranging a favorites list

Select Edit Favorites.
Select Change Fav. to move to the favorites list that has the channels you want

Press the up/down arrow buttons to indicate the new location for the channels.
Press the Enter button

Renaming a favorites Iliist

Select Options > Rename Favorites.
Select the favorites list you want to rename.
Enter a new name

Copying channels from on÷ favorites list to another

Select Edit Favorites.
Select Change Favo to move to the source favorites list, and then select the channels to copy.
Select Options > Copy to Favorites.
Select the destination favorites list, and then

Copy to Favorites is only availab e if there are channe s in at least one favorites list.

Makin9 Sports Programs More Realistic with

(MENU/12S) > MENU > System> SportsModeorSoccerMode

You can use Sports Mode to get optimal picture and sound settings for soccer events. making them

The actua name may differ with specific geographica area.

Enabling sports mode

(MENU/123) :> MEINU > System > Sports Mode or Soccer Mode > Sports Mode or Soccer Mode

You can set Sports Mode to On to optimize the picture and sound modes of the TV automatically for

Enabling Sports Mode changes Picture Mode to Stadium and Sound Mode to Stadium. and disables some Picture and Sound menus_

Extracting highMights automatically

(MENUJ123) > MENU > System > Soccer Mode > Auto Highlights

You can set Auto Highlights to On to configure the TV to extract highlights of a sporting event

However. Auto Highlights is not available:

When you are switching the input signal using the SOURCE button.

When
3D mode is active

When Audio Description is on

When you are viewing the content in MY CONTENT

When the Screen Mirroring function is running

When you are viewing highlights of the current soccer game in the UHD resolution by using the

Highlight Player function

This function is not availab e in the U_S,A_and Canada_

The performance of Auto Highlights depends on the characteristics of the transmitted signa.

It is advisabte to use Auto Highlights only while watching a soccer game, If you use this function for other sporting events, it may dispIay irrelevant picture frames_

Using the functions avaimable whi e watching sports in sports mode

You can use the following functions when you press the Enter button in sports mode.

This function is not avaitab e in the U_S_A_and Canada_

Zoom

Pauses the current screen and zooms in any part of the screen by using
4 directional buttons.

O_' the standard remote co_'tro. press the [] H)utto_'..

.... / Ii'fisfu,' ctio_' is not availab e wlhe,' yo_Jare watclhiu'9 3D chan,' e s or wlhe,' P_Por MY CONTENT is acdve,.

Instantly records the game that you are currently watching on the TV.

This function' is o_'y availab e if the TV supports the recordi,' g flJnctio_'.

More _nfo

Displays detailed information about the current program.

.... /his flJnctio_' is o_'y availab e while yo_Jare watclhiu'g a ive program..

Using the functions available while recording sports in sports

You can use the following functions when you press the Enter button in sports mode.

Manual Highlight

Saves a video from
10 seconds before you press the button to 10 seconds after.

0_' the standard remote co_'tro. press the D button' ..

You can set the TV to automatica y save Ilsighlights witlho_£ user iu'terveu'riot' ,,Seect MENU > System > Sports Mode, and theu' set Auto Highlights to On..

Recording Time

Sets the recording time.

Stop Recording / Go to Live TV

Stops a recording when you are watching a live program.

Switches to a live program when you are watching a recorded program.

Rewind / Fast Forward

Press the MIEINU/123 button on the Samsung Smart Control. and then select or I1_ button to

O,' the standard remote co,' tro. press the <_ or b_ burro,' ..

Pause/ Play

Pauses or resumes the video.

Highlights Player

Displays the Highlights Player screen and plays the highlights saved in the recorded file automatically or manually.
Highlights Player is not available when:

You are switching the input signal with the SO/JROIE button.

3D mode is active

When Video Description is on

Watch Live TV at the same time

Allows you to watch a current program in a PIP window while watching a recorded program.
To

You are switching the input signal using the SO/JROIE button.

3D mode is active

When Video Description is on

When you are viewing a soccer game in the UHD resolution

.... /Ibis flJnctio_' is o_'y _vailab e wlhile yo_J_re watcM,' c__ recorded prof_r_m..

Viewing a game recorded in sports mode

You can view a recorded game on the MY CONTENT screen.

This function is not avaitab e on certain models in specific geographical areas.

For more information. refer to

Making Sports Programs More Realistic with Hockey

(MEIHU/123) > MEIHU > System > Hockey Mode > Hockey Mode

You can use Hockey Mode to get optimal picture and sound settings for hockey events. making them

This function is avai abb on certain modes in specific geographical areas_

EnabIing Hockey Mode changes the Picture Mode to Stadium and the Sound Mode to Stadium. and disables some Picture and Sound menus.

Press the HOCKEY button to turn Hockey Mode on or of{

TV-Viewin9 Support Functions

Showing captions

(MIEIHU/123) > MIEIHU > System > Accessibility > Caption

You can watch TV broadcasts with captions.
Press and hold the E_ button to turn the Caption function on or off.

This function is not avaitab e on certain models in specific geographical areas.

Captions are not displayed by programs that do not support captions_

On the standard remote contro. press and hod the CO button to turn the Caption function on or of{

Enabling captions

Select System > Accessibility > Caption

The TV cannot control or modify DVD or B u,-ray subtitles.
To control DVD or' BIu--ray subtitles. use the sub- title feature of the DVD or B u--ray player and the player s remote contro _

Selecting the caption Illanguag÷

(MIEIHU/123) > MIEIHU > System > Accessibility > Caption Mode

Default / CCl ~ CC4 / Text1 ~ Text4

(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied

Default / Service1 ~ Service6 / CCl ~ 004 / Text1 ~ Text4

(Digital channels only) Works with digital channels.
Service1
- Service6 may not be available in

Changing the font co_or_ caption size_ and font opacity

You can change the font color. background color. and size settings.

(IMEIN(J/123) > IMIEIN(J_ System > Accessibility > Caption > Digital Caption Options

Size

Changes the font size.
Size is not supported by analog channels.

Font Style

Changes the font style for the subtitles.

Font Color

Changes the font color.

Background Color

Changes the caption's background color.

Window Color

Selects the color of the digital caption window.

Font Opacity

Changes the caption's opacity.

Background Opacity

Changes the background's opacity.

Window Opacity

Adjusts the transparency level of the digital caption window.

Edge Type

Selects the outline type for the digital captions.

Edge Color

Selects the color outline for the digital captions.

Return to Default

Restores all caption display options to the Default setting.
The Default setting applies the TV

The foreground and background coot and opacity settings cannot be the same.

Enabling the audio guide for the video description

(IMIEINU/123) > IMIEINU> System > Accessibility > Video Description

You can activate the audio guide for the visually impaired.
This function is only available with

On the standard remote centre. press and hod the CO button to turn the Video Description function on or of{

Scanning for available channels

(IMIEINU/123) > IMIEINU> Broadcasting > Auto Program

Automatically scans and indexes all channels received through the TV's antenna input connector.

Do not use this function if your TV is connected to a cabe or satellite box.

Selecting the broadcast audio language

(IMIEINU/123) > IMIEINU> Broadcasting > Audio Options

You can select the TV's audio language.
This is the language you will hear while watching TV, if the

To view the current broadcast's audio signal information. press the _NFO button on the standard remote

Selecting the Broadcast Audio IIIanguag® for Digita_ Broadcasts

Selecting a Language

Select Audio Options > Preferred Language. and then select a language.
Digital programs that

Selecting the Broadcast Audio Language and Other Options for Analog Broadcasts

Uatening toMulti-Track Sound

Select Audio Options > Multi-Track Sound.
Configure the audio for the current broadcast.
Mu_ti-

Track Sound can be set to mono or stereo. depending on the broadcast signal or program.
This

Select Program to see if the program you are watching is being transmitted with a track

Fine-tuning anamog broadcasts

(IMIEINkJ/123) > IMIEINkJ> Broadcasting > Channel Settings > Fine Tune

When analog pictures become shaky and full of noise. fine-tune the signal to clear up the picture.

This function is only availab e for' analog broadcasts.

Removing pay channels

(IMIEINU/123) > IMIEINkJ> Broadcasting > Channel Settings > Clear Scrambled Channel

Auto Program scans and indexes all channels. both free and pay respectively.
You can remove all

Adjusting the Quality

Choosing a picture mode

(MIEINU/123) > MIEINU > Picture > Picture Mode

You can select the picture mode that provides the best viewing experience.

Makes the picture clearer when the ambient lighting is so bright that it makes the picture difficult to see.

Standard

Is the default mode suitable for most environments.

Natural

Reduces eye strain.

Movie

Darkens the screen. reduces glare. and relieves eye fatigue.
Use this mode while viewing the TV

Entertain

Sharpens images for a more dynamic viewing experience.

When the input source is set to PC, Standard and Entertain modes are only avai able_

When a PC is connected to the TV, but the Entertain mode is not availab e, set Edit Device Type to DVI PC or PC.

Stadium

When you set Sports Mode (MEINU > System > Sports Mode or Soccer Mode > Sports Mode

The TV changes the picture and sound settings so that they are suitable for soccer events.

Adjusting the picture quality

(MIEINU/123) > MIEINU > Picture

You can adjust the following picture quality settings manually for each combination of input source

Adjusts the brightness of individual pixels.
Decrease this brightness to reduce power

Contrast

Adjusts the screen contrast. . Brightness

Adjusts the overall brightness. . Sharpness

Sharpens or dulls the edges of objects.

Color

Adjusts the overall color saturation. . T_nt/GJR_

Adjusts the ratio of green to red.
Increase the green value to saturate the greens and the red

The TV saves the adjusted values for the current input source and picture mode. These values remain in

The Color and Tint (G/R) settings cannot be adjusted when the TV is connected to a computer via an HDMI- to-DVl cable.

Aplp_ying the cL_rrent Ipioture settings to other input sources

(MIEINU/123) > MIEINU > Picture > Apply Picture Mode

You can apply the picture quality settings to the current source and other input sources.

All Sources

Applies the settings to all external devices connected to the TV.

Current Source

Applies the settings to the current source only.

Adjusting advanced settings

(IMIEINU/123) :> IMIEINU> Picture :> Advanced Settings

You can fine-tune how images are displayed on the TV screen for the Standard and Movie picture modes.

Advanced Settings is only available when Picture Mode is set to Standard or Movie.

When the TV is connected to a computer via an HDMI-to-DVl cable, only White Balance and Gamma are avaitable_

Dynamic Contrast

Automatically adjusts the screen contrast for an optimal contrast setting. , Bmack Tone

Adjusts the black color depth. . noahTooo

Darkens or lightens skin tones. . RGBOnlyMode

Adjusts the red, green. and blue levels individually. . Comor Space

Adjusts the range of colors that can be displayed on the screen.

Auto: Automatically adjusts the color space to match the input signal.

Native: Applies a range of colors that is wider than the input signal.

Custom: Allows you to adjust the color space manually.
Select Color. and then change its

Red, Green. and Blue saturations.
Reset allows you to restore the default values for Color

Space.

You can configure the Color functior cry whet Color Space is set to Custom.

White Balance

Adjusts the colortemperature of the pictureto make white objectslook white and the overall

2 Point:Allows you to adjustred,green, and blue luminositywith the offsetmenu and

10 Point:Dividesred,green, and blue into10 sectionseach, and allows you to modify the

You can use the 10 Point function cry whet Picture Mode is set to Movie, TMs functior may not, be supported by some extema devices.

Adjusts the primary color intensity.

Adjusting picture options

(IMIEINU/123) > IMIEINU> Picture > Picture Options

You can adjust the picture options to optimize your viewing experience.
Select a picture mode. and

Adjusts the color tone.
The color tone you select is stored in the TV's memory.
When you change

Cool and Standard are ony availab e wlher Picture Mode is set to Dynamic,.

Color Tone is only available wlher the TV is corrected to a computer via an HDMI to DV[ cabe..

Digital Clean View

Reduces static and ghosting caused by a weak signal.
When you select Auto Visualization. the

TV displays the signal strength on the bottom of the screen.
Green indicates the best possible

This function is available for arao9 charres or g.

MPEG Noise Filter

Reduces MPEG noise and improves video quality. . .DM Bmook Leve

Compensates for effects caused by a low black level, such as low contrasts and dull colors.

.... / Ihisfunction is or yavailabewlher theirputsigra,correctedtothe/V viaar HDM[correctoc is set to RGB444.. . F,mMode

Optimizes the picture quality for movies.

.... /his functior is or y availabe wlher the h'put sigra is IV} AV, Conw)orert (480i, 1080i:_,or HDMI (S080_),.

HDMI UHD Color

Allows you to set the NDMJ UHD Color mode to On or Off for each HDMI connector on the TV.

When set to On, the TV optimizes processing of UHD 50P/60P signals.

If yo_Jset the HDMI correction to On, the/V turns off ard ther or a_£omatica

.... /he HDMI connection with HDMI UHD CoJor set to Off supports up to UHD 501P/601! :::>4::2:0 input signa s. wMle the HDMI cent ection with HDMJ UHD Color set to On suppo_'ts up to UHD 50P/60P 4:4::4 aLqd
4::2::2input sigr a s,,For more ir formatior. refer to

For the
7 series o_ Iqigllser modes. each HDMI cot nection can be individua y optimized fo_ HDMI UHD Color,. When you connect the TV to the exU:ema device that suppo_ts ory UHD 24 o_ 30 Hz frequency

I1::::::o_ the 6 sedes models el Iowe( make su_e to correct to the HDMI IN {STBiDVD port of the TV,.

Auto Motion Plus

Removes blurring and judder from scenes with rapid movement.
If you select Custom. you can configure Blur Reduction and Judder Reduction manually and set LED Clear Motion to On for

When LED Clear Motion is set to On, the sc_eer appears darker than wlher it is Off,.

Smart LED

Controls the brightness of individual areas on the screen to maximize contrast automatically.

This function is not availabe or ce_'tair modes ir specific geog_aplhica areas,. C nema Bmaek

In Movie mode. this function dims the top and bottom areas of the video image to provide

.... /his functior is not availabe or ce_'tair modes ir specific geog_aplhica areas,.

This function is only supported for the 7100 to 8500 and 710D to 850D series modets.

(IMIEINU/123) > IMEINU > Picture > 3D

You can view
3D media content and broadcasts.
To view
3D content. you need to wear current

Samsung
3D Active Glasses.
IR-type Samsung
3D Active Glasses and third-party
3D glasses are not

The Samsung
3D Active Glasses is not provided with the
7100 and
710D series models.
And it may not be provided with the
7500 series model in specific countries. Ma 3D glasses.

Before viewing
3D content. carefully read the heaIth and safety information concerning
3D viewing_ For more information. refer to ®ns.

Whether
3D video is dispIayed in true HD is usua Iy determined by the qua ity and format of the video.

Starting
3D

(MIEINU/123) > MIEINU > Picture > 3D

Put on and then turn on the Samsung
3D glasses. and then select a 3D Mode.
Note that the
3D modes

(Off)

Deactivates
3D viewing.

(Normal)

Converts normal images to 3D images.

(L/R)

Splits a single image into left and right overlapping images to create the 3D effect.

(T/B)

Splits a single image into top and bottom overlapping images to create the 3D effect.

The supported reso utions vary for each mode_ For more information. refer to

The ideal viewing distance is three times the height of the screen or more.
3D images may not appear

The 3D function may not work properly if there is another
3D product or an electronic device running

Glasses.

The left and right
3D images may initially overlap when the TV is turned on. It takes a moment for the

When you use the
3D mode. note the following limitations:

The
3D mode is automatically disabled when you launch Smart Hub.

PIP cannot be used.

Certain picture options are disabled.

Adjusting
3D effects

(MIEINU/123) > MIEINU > Picture > 3D

Configures the viewpoint. depth. and other
3D settings for a custom viewing experience.

AI
3D effects with the exception of 3D Auto View can only be used whie watching
3D content.

3D Perspective

Adjusts overall
3D perspective for images on the screen.

3D Depth

Adjusts overall
3D depth for images on the screen.

This function cannot Hbeused if 3D Mode is set to _ (LilR) or _ (T/B),.

L/R Change

Switches the left image to the right image and vice versa. . SD

Converts
3D images to 2D images.

Tlhis function is not availab e if 3D Mode is set to _ (INorma) or _ (Offt.

3D Auto View

Activates
3D Mode automatically whenever it detects
3D content or a 3D broadcast.

3D Optimize _:!/_

Allows you to optimize
3D pictures with an adjustment bar.

You might not be abe to view the TV ir 3D mode while some app icatiors are runt ir g./o view the TV i,' 3D mode, exit those app icatior s.

Picture Support Functions

Viewing a picture-in-picture (PIP)

(IMIEINU/123) > IMIEINU> Picture > P_P

While viewing video from an external device such as a Blu-ray player on the main screen. you can

Activates/deactivates PIP.

Antenna

Selects Air or Cable as the digital channel mode.

Channel

Selects the PIP channel.

Size

Sets the PIP window size.

Position

Sets the PIP window position.

Select Sound

Selects the audio source.
To adjust the connected audio device's volume. you must use the

Sound Share function or connect the audio source to the TV's HDMI (ARC) port.

PIP cannot be used while Smart Hub or 3D is active.

Playing a game or using the karaoke function on the main screen can result in lower PiP picture qua it'¢_

The PIP function is only availabb under the foUowing conditions:
1) The main screen's source is a Component or HDM_ connection.
2) The input resolution is less than FHD (FuII HD).

The PIP window supports digita channe s only and does not support UHD channe s.

Changing the picture size and position

Changin9 the Ipioture size

(IMIEINU/123) > IMIEINU> Picture > Picture Size > Picture Size

You can change the size of the picture displayed on the TV screen.

16:9

Sets the picture size to the
16:9 wide screen format.

Zoom

Magnifies
16:9 pictures vertically.
A magnified picture can be moved up and down.

Custom

Magnifies or shrinks
16:9 pictures vertically and/or horizontally.
A magnified or shrunk picture

Sets the picture size to the basic
4:3 mode.

Supported picture sizes differ with the input signal.
For more information about supported picture sizes. refer to

Fitting the Ipiot[,_re to the screen

(IMIEIN(J/123) > IMIEINLJ> Picture > Picture Size > Fit to screen

You can configure the TV so that the full picture fits the screen without any cutoff in the size you have chosen.

This function is not avaitab e when you set the Picture Size to the 4:3 mode.

Ad,iustin(_ the Ipioture position

(IMIEINkJ/123) > IMIEINLJ> Picture > Picture Size > Zoom/Position

You can adjust the picture position.

This function is only available when Picture Size is set to Zoom or Custom. However: you cannot change the picture position when the TV is tuned to a digita channe and Picture Size is set to Custom.

Listening to audio only (Picture Off}

(IMIEIN(J/123) > IMIEIN(J> Picture > Picture Off

You can turn off the screen and play only audio through the speakers.
To turn the screen back on. press any button other than the Power and Volume buttons.

Resetting the picture mode settings

(IMIEIN(J/123) :> IMIEINLJ> Picture > Reset Picture

You can reset the current picture mode to its factory defaults.
This action does not affect the settings

Adjusting the Sound Quality

Choosing a sound mode (ME:_NU/_2S) > ME:_NU > Sound> SoundMode

You can select a sound mode to optimize your listening experience.

Standard

Is the default mode suitable for most environments.

Music

Emphasizes music instead of voices.

Movie

Provides the best sound for movies.

Clear Voice

Emphasizes voices.

Increases the overall intensity of high-frequency sound to help hearing-impaired listeners.

Stadium

When you set Sports Mode (MIEINL_> System > Sports Mode or Soccer Mode) to On, Sound

Mode is set to Stadium automatically so that the picture and sound settings are fixed at settings most suitable for soccer events.

Applying sound effects

(IMIEINUJ123) > IMIEINU> So=nd > So=nd Effect

You can apply sound effects to alter how the TV emits sound. . wrtoom Sor,oond

Produces sound that makes you feel like you are sitting in a movie theater or concert hall.

Dialog Clarity

Increases voice intensity to make dialog clearer.

Headphone Sorroond

Experience home theater-like surround sound through your headphones.

Allows you to adjust the sound settings of the left and right speakers for a better sound balance.

To restore the defaults. select Reset. . Eqoo,zor

Allows you to adjust the loudness of specific frequency ranges to control the richness of the

This function is not avaitabe when you 8re istening to audio through externa speakers.

This function is only availab e when Sound Mode is set to Standard.

Using the Sound Support Functions

Selecting speakers

(MIEINU/123) > MIEINU > Sound > Speaker Settings > Speaker Select

You can select which speakers the TV uses for audio output.

When Speaker Select is set so that sound comes from external speakers onIx the Voume and Mute buttons and some Sound functions are disab ed.

Specifying the TV's installation type

(IMIEINU/123) :> IMIEJNLJ> Sound > Speaker Settings > TV installation Type

You can specify the TV's installation type. either Wall Mount or Stand. to optimize the TV's sound

Listening to TV sound through a Samsung Bluetooth audio device

(MIEINLJ/123) > MIEINU :> Sound > Speaker Settings > TV SoundConneet

You can connect Samsung Bluetooth audio devices to the TV. They must be paired using the TV's

Bluetooth function.
For more information on pairing. refer to the Samsung Bluetooth audio device's

Add New Device

Adds a new device to the list of paired devices.
If Add New Device is set to Off. the connection

Samsung Audio Device List

Displays a list of paired Samsung audio devices.
Select a device to display its menu options.
You can activate/deactivate the audio device or remove it from the list.

This function is only available for Samsung audio devices that support TV SoundConnecL

TV SoundConnect. Surround. and BIuetooth headphones can't be used simuftaneous

Before using a BIuetooth device. refer to

Listening to TV sound through a Samsung Multiroom Link compatible speaker

(IMIEINU/123) > IMIEINU> Sound > Speaker Settings > Multiroom Link

You can connect a Samsung Multiroom Link compatible speaker to the TV to enjoy a richer sound.

This function is not avaitab e on certain models in specific geographical areas.

Settings

Sets the Samsung Multiroom Link compatible speaker(s) to one of the following options.

Surround

Select this option when you want to enjoy a surround system using multiple Samsung

Multiroom Link compatible speakers in a single space or room.

SoundBar+Surround

Select this option when you want to enjoy a surround sound system by connecting

Volume Level

Adjusts the volume of the speaker you have selected in the list of speakers.

Speaker Test

Sends a test sound to each speaker to make sure that your Multiroom Link system works

Edit Name

Allows you to give a name to each speaker.

The Multiroom Link function is ony avai able when at least one Samsung Muftiroom Link compatible speaker is connected to the TV.

The sound quality may be affected by the condition of your wireless network.

The Multiroom Link function is deactivated when you activate Screen Mirroring.

The networked speakers may disconnect on their own, depending on your network environmenL

For more information. refer to the Multiroom Link manua on the Samsung web site, (www_samsung,com OWNERS & SUPPORT > Manua s & Downloads}

The audio from the secondary device(s) may lag behind the audio and video of the main device which is playing the source content_

Listening to the TV through BMuetooth headphones

(IMEIHU/123) > IMEINU > Sound > Speaker Settings > Bluetooth Headphones

You can connect Bluetooth headphones to the TV. They must be paired using the TV's Bluetooth

Bluetooth Headphone List

Displays a list of Bluetooth headphones that can be paired with the TV. Select a Bluetooth

Mu_ti-Output Audio

Allows you to listen to audio through the TV's speakers and the connected headphones

When Mu_ti-Link Screen is terminated. the BIuetooth headphone is disconnected from the TV.

When you turfs on a paired B uetooth headphone, the TV detects it automatica Iy, and then dispIays a pop- up window_ Use this pop--up window to activate!deactivate the Btuetooth headphone.

Before using a BIuetooth device, refer to

Enabling digital audio output

(IMEIH/J/123) > IMIEIHU> Sound > Additional Settings

Since this Smart TV is Sony/Philips Digital Interface Format (S/PDIF)-enabled. you can set the TV to

HDMI Audio Format

Sets the format of the audio input signal so that it is suitable for the external device connected

Selects the digital audio output (S/PDIF) format.
The available formats depend on the input

Audio Delay

Helps correct timing mismatches between the audio and video tracks when you are watching TV

Dolby Digital Comp

Sets the Dolby Digital compression mode.

HD Audio

Provides the TV sound resampled at HD audio quality.

Some SiPDH:: receivers may not be compatib e,, For ir compatib e receivers. deactivate this mode and use norton audio mode instead,.

.....
Ilhe liD audio signa s availabe or the TV are not availab e or extema audio payers corrected via

HII)MI, %uetooth. or WilFi networks,.

Auto Volume

Automatically adjusts the TV's volume level when you change channels. video sources. or

It you want to use the voume contro of a corsnected source device to contro the sour d_ deactivate

Auto Volume,. Wlher you use Auto Volume with a source device. the devices voume cot tro may not functior proper

Listening to 3D audio in 3D mode

(IMIE:INU/123) > IMIE:INU> Sound > 3D Audio

You can adjust audio depth so that the TV provides immersive sound that matches the pop-up effect

This function is onty supported for' the 7100 to 8500 and 710D to 850D series modets.

This function is only availab e in 3D mode.

Resetting all sound settings

(IMIEINU/123) > IMIEINU> Sound > Reset Sound

Resets all sound settings to the factory defaults.

Setting the Time and Using the Timer

Setting the current time

(IMIE:INU/123) > IMIE:INU> System > Time > Clock

You can set the clock manually or automatically.
Once the clock is set, you can view the current time on the TV anytime.
Press the MIEINU/123 button. and then select JNFO.

On the standard remote centre. press the IINFObutton.

The coc< must be reset every time the power is disconnected.

Setting the clock using digita_ broadcast info

(MIEINU/123) > MIEINU > System > Time > Clock Mode

You can have the TV automatically download time information from a digital channel and set the

This function works only when the TV_s antenna iac< is connected to either an antenna or a cable output and is receiving digital broadcasts.

The accuracy of the time information received may differ with the channel and signal.

_f the clock is wrong in auto mode,,.

(IMIE:INU/123) > IMIE:INU> System > Time > Clock > Time Offset

You can offset the clock in 1-hour increments by as much as -/+
12 hours if the TV fails to display the

Time Offset adjusts the time through a network connection.
This function is only available if C_ock Mode is

Time Offset adjusts the time if the TV fails to receive time information through norma digital broadcast signals_

Setting the clock manually

(IMIEINU/123) > IMIEINU> System > Time > Clock Set

You can set the clock manually.
Set Clock Mode to Manual. and then input present date and time.

Using the timers

Using the sleep timer

(IMIEINU/S23) > IMIEINU> System > Time > Sleep Timer

You can use this function to automatically shut off the TV after a pre-set period of time.
You can set

Tun'sin9 on the "IV using the on timer

(ME NU/ 2S) > I%El u> Syatem>T me> OnT mer

You can set On Timer to make the TV turn on automatically at a specific time.
You can use up to three

If you select Manual. you can highlight and select each day to select the specific days that you want On Timer to turn on the TV.

Time

Volume

Source

From the list, select a signal source for the TV to use when it turns on. If you want to play

Antenna

Allows you to select a broadcast signal source. Air or Cable. when source is set to TV.

Channel

Allows you to select a channel when source is set to TV.

Music / Photo

Allows you to specify a USB device folder containing music files in the music field and/or

If the foder that you clhoose has suH)foderx_, you can seect a suH)foder _i,' the same faslhio,'.

.... /Ibis function does not work proper y if the se ected USB device does not co,' tai,' media flies or a fo der" has not been specified..

No sideshow starts if tlher'e is onY one imaf_e fib on the USB device..

IFoders wid_ on9 names cannot be seected..

Make sure to use differ'e,' t foder" names for mu tiple USB devices..

Use a USB memory stick of mu ti card reader: On Timer may not work wid_ certain batter'y power'ed USB devices, MI!:::_3payers. or IPMI!:::_s because the TV may take too on9 to recognize the device..

Tun'sing off the TV using the off timer

(IMIEINU/123) > IMIEINU> System > Time > Off Timer ]:i:S

You can set Off Timer to turn off the TV automatically at a specified time.
You can set up three

Sets days of the week that the TV is turned off automatically.
If you select Manual. you can

Time

Sets the time for the TV to turn off automatically.

Using the Screen Burn Protection and Energy Saving Functions

Preventing screen burn

(IMIEINU/123) > IMIEINU> System > Auto Protection Time

You can use the Screen Burn Protection function to protect the screen.
Still images can leave burned-

Reducing the energy consumption of the

(IMIENU/123) > IMIENU > System > Eco Solution _i_{i_/_i:

You can adjust the brightness level of the TV and prevent overheating to reduce overall power

Allows you to select a brightness setting from the list to reduce the TV's power consumption. , EeoSensor

Automatically adjusts the brightness level of the TV, according to the ambient light level, to

Allows you to select a length of time from the list.
If no signal has been received for the length

Automatically turns off the TV to prevent overheating when the TV remains on for the specified

Motion Lighting

Adjusts the brightness in response to on-screen movements to reduce power consumption.

.... /his feature is cry availab e wlher the Picture Mode is set to Standard ard is not availab eir
3D mode..

.... /his flJnctior is deactivated wlher yo_.Jadiust a picture q_Jai_y setting, such as Contrast and Brightness..

Using Anynet+ (HDMi-CEC)

You can use the TV's remote control to control external devices that are connected to the TV by

Setting up Anynet+ (HDME-CEC}

(IMIEINU/123) > IMIEIH_U> System > Anynet+ (HDMI-CEC)

Anynet+ (HDMI-CEC} _:!/:_

You can enable or disable Anynet+ (HDMI-CEC).
Set to Off or On to disable or enable all Anynet+ related functions.

Auto Turn Off

When set to Yes, turns off Anynet+ compatible external devices when the TV is turned off.

This funcdon is not supported H)ysome Anynet+ compatib e devices,. . Devicesearch

Automatically searches for and identifies Anynet+ (HDMI-CEC) compatible external devices that are connected to the TV.

Using Anynet+ (HDMJ-CEC}

Viewing Anynet+ (HDM_CEC)_compliant devices

After connecting external devices to the TV, select (MENU/123) > MENU > System > Anynet+ (HDMI-

CEC) > Device Search.
The TV displays a list of Anynet+ (HDMI-CEC)-compliant devices that you

If an external device is set up as both an Anynet+-enabled device (i.e. a device that can be controlbd with the TV's remote control) and a Universal Remote_enabbd device (i.e.. a device that can be centre ed with

Setting up as an Anynet+ (HDM_-CEC}-enabled device

Press the SOURCE button. The Source screen appears. Select a connected device. and then press

Select Anynet+ (HDMW-OEC} from the menu. The selected device is set up as an Anynet+ (HDMI-

CEC)-enabled device. The following menu options are available.

The menu options disp ayed o_' the meu'u may differ by extema device,.

Anynet+ (HDMI-CEC}

Sets up the selected device as an Anynet+ (HDMl-CEC)-enabled device. and then displays

Read before connecting an Anynet+ (NDMI-CEC}

You can configure the TVs Universal Remote to control third--party cabIe boxes. Blue-ray players. and home theaters that do not support HDMI-CEC. For more information. refer to :U ivr:_

Anynet+ cannot be used to contro externaI devices that do not support HDMI-CEC.

Anynet+ (HDMI-CEC}-enabbd devices must be connected to the TV with an HDMI cable.
Note that some

HDMI cables may not support Anynet+ (HDMI-CEC).

The TV remote contro may not work under certain circumstances.
If this occurs. set up the device as the Anynet+ (HDMI-CEC}-enab ed device again.

Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and ony when those

Anynet+ (HDMI-CEC} can contro up to 12 compliant externa devices (up to 3 of the same type} except for home theaters.
Anynet+ (HDMI-CEC} can contro only one home theater system.

To listen to 5,[email protected] audio from an externat device. connect the device to the TV via an HDMI cable and

Updating the TV's Software

(IMIEINUJ123) > IMIEINU> Support > Software Update

You can view your TV's software version and update it if necessary.

Updating the TV's software to the latest version

(IMIEINU/123) > IMIEINU> Support > Software Update > Update now

You can update your TV's software by downloading the update from the Internet directly to your TV or

This function requires an Internet connection_

Save the update package in the USB device's top-level fo der, Otherwise. the TV wil not be abe to locate

4s DO NOT turn off the TV's power until the update is complete.
The TV will turn off and on

Updating the TV automatically

(IMIEINU/123) > IMIEINU> Support > Software Update > Auto Update

If the TV is connected to the Internet. you can have the TV's software update itself automatically while

This function may take a longer time if a different networking function is running concurrentl'¢.

This function requires an Internet connection.

If you agree to the Smart Hub terms and conditions. Auto Update is set to On automatical y_ If you do not want the TV's software to update itsef automatical
4 set Auto Update to Off_

Protecting the TV from Hacking and Malicious Code

(IMIEINU/123) > IMIEIMJ> System > Smart Security

You can use Smart Security to protect the TV from hacking and malicious code when it is connected

Checking the TV and connected storage for maMicious code

(IMIEINU/123) :> IMIEINU> System > Smart Security > Scan

You can scan the TV and connected media to detect the presence of malicious code.
If there is no

_f malicious code is detected,,.

If malicious code is found. the results of the scan will appear on the screen.
This result window

Select all the malicious code to either quarantine or block.

Select isolate or Block.
These options relocate the selected malicious code to the isolated List or

Blocked List.

.... /Ihe Isolated List disp ays a quarantined ma icious codes,.

.... /IheBIockedListdispaysa bockedmaiciouscodes,,Youcar asoquarartineora ow codes from this ist,.

Configuring additional functions

(IMIEN(J/123) > IMIENLJ> System > Smart Security > Settings

Antivirus

Monitors the TV in real-time to prevent viruses from infecting the TV.

Network Security

Protects the TV from hacking to minimize a leaks of private information.

Camera

Permits the cameras connected to the TV to be used.

Permits the microphones connected to the TV to be used.

Auto Scan

Makes the TV automatically scan itself and any connected storage media when it is turned on.

Auto isolate

Adds malicious codes found during the scanning process to the Isolated List automatically.

Using Other Functions

Running the accessibility functions quickly

You can use the Accessibility Shortcuts menu to quickly run the accessibility functions for the

Learn Remote Control and Multi-Output Audio menu options.

With Accessibility shortcuts menu. some functions are not avai able in specific countries_

On the standard remote control. press and hod the CC button.

Even if Voice Guide is set to Off or the Mute mode is activated. you can run the "voice Guide function from

Enabling voice guides for the visually impaired

(MEN(ill23) > MEN(J > System > Accessibility > "Voice Guide

You can activate voice guides that describe the menu options aloud to aid the visually impaired.
To

The Voice Guide is provided in the anguage that is specified on the Menu Language screen.
However. some

If Voice Guide is set to On, the Samsung Smart Contro's motion sensor does not work To use the motion sensitivity sensor. set "voice Guide to Of L

If Voice Guide is set to On, the Motion Contro_ function is disabled. To enable this function again, set Voice Guide to Of L

Changing the voBme_ speed_ and pitch of the voice guide

You can configure the volume. speed. pitch. and level of the Voice Guide.

VoBme

Changes the Voice Guide's volume level.

Speed

Changes the Voice Guide's tempo.

Pitch

Tunes the pitch of the Voice Guide.

White text on black background (high contrast)

(MIEINU/123) :> MIEINU > System > Accessibility > High Contrast

You can change major service screens to white text on a black background or change the transparent

TV menus to opaque so that text can be more easily read.
To activate this function. set High Contrast to On.

Adjusting the menu transparency

(MEIHLJ/123) > MEIHLJ > System > Accessibility > Menu Transparency

You can adjust the menu's transparency.

Setting High Contrast (MENU > System > Accessibility > High Cor_trast) to On automatically switches the menu display mode to opaque. You cannot manua y change the Menu Transparency settings.

Enlarging the font (for the visually impaired}

(MEIHLJ/123) :> MEIHLJ > System > Accessibility :> Enlarge

You can enlarge the size of the font on the screen.
To activate. set Enlarge to On.

Learning about the remote control (for the visually impaired}

(MIEINU/123) :> MIEINU :> System > Accessibility > Learn Remote Control

This function helps individuals with a visual impairment to learn the positions of the buttons on the

TV will tell you its name. To return to the previous screen. press the RIETURIN button twice.
To exit.

This function is only available in the U.S.A. and Canada.

Listening to the TV through Bluetooth headphones (for the hearing

(MEIHU/123) > MEIHU > Sound > Speaker Settings > Bluetooth Headphones > Multi-Output Audio

You can turn on both the TV speaker and Bluetooth headphones at the same time.
When this function

When you connect the Bluetooth headphones to the TV, Multi-Output Audio menu is activated.
For more information about connecting Biuetooth headphones to the TV, refer to

Changing the menu language /MENU/ 2S/> MENU > System> Men°Langoage

You can use this function to change the menu language.
Choose a language from the list.

Setting up a password

(MIENU/123) > MIENU > System > Change PiN _ :!/:_

You can set a Personal Identification Number (PIN) to lock channels. reset the TV, and change TV

The PIN input window appears.
Enter a PIN. Enter it again to confirm it. The default PIN is 0000.

Checking Notifications

(MIENU/123) > MIENU > System > Notifications

You can view the list of event messages generated by the TV. Notifications appear on the screen when

To delete all notifications. seect Delete AH_

To check the SMART TVs service notifications in a web browse£ seect Service Notice.

Enabling game mode

(MIENU/123) > MIENU > System > General > Game Mode :!/:_

You can enable the game mode to optimize the TV's settings for playing video games with a gaming console. such as a PlayStation TM or Xbox TM.

The game mode is not available for normal TV viewing_

The screen may shake somewhat_

When Game Mode is enabled_ Picture Mode and Sound Mode are switched to Game automaticalk_

To use a different external device, first disconnect the game conso e and disab e Game Mode.

Richer colors and superior picture quality (BD Wise) (,,s,E,NU/_2S/> ,,S,E,NU > System> Gene_am > BDw_se

You can enhance colors and picture quality if you connect a Samsung DVD player. Blu-ray player. or

This function is only available when the externa device is connected via an HDMI cable.

Enabling/Disabling sound feedback

(IMIEINU/123) > IMIEINU> System > General > Sound Feedbaok
+iliiiiiI_)

You can use Sound Feedback to get audio cues as you navigate through menus and select menu

Locking/UnlocMng the Control Stick /,,s,E,NU/S2S/> ,,S,E,NU > System> 6eneram > Panem Look£,i11ilI

You can lock and unlock the front panel buttons (menu. channel. and volume) of the TV and the control stick on the back of the TV.

Showing/Hiding the Samsung logo while booting

(IMIEINLJ/123) > IMIEINLJ> System > General > Boot Logo

You can enable or disable the Samsung logo display that appears when the TV starts up.

This function is not avai abe when Samsung Instant On is set to On.

Enabling the TV to boot faster

(IMIEINLJ/123) :> IMIEIUU> System > General > Samsung Instant On

You can set Samsung Instant On to On so that the TV boots up faster.

When Samsung Instant On is set to On, the use history of the apps that you used on the TV may be stored in the TV.

The Samsung Instant On function works when you turn on the TV while its power came is still connected

Even if the Samsung Instant On function is on, the power consumption while the TV is turned off meets the

Registering the TV as a DivX-certified device (watching for pay DivX movies)

(MIEINU/123) > MIEINU > System > DivX(8} Video On Demand

You can watch DivX DRM protected movies on the TV only if it is registered as a DivX-certified device.

Digital Rights Management (DRM} functions as a technica security mechanism to protect the content provider's copyrighL

You can watch recorded movies or free DivX movies without registration.

Visit the DivX website (http://www. divx.com} and tog in to your user account before registering the TV as a DivX-certified device, if you do not have an account, create one.

Restoring the TV to the factory settings

(IMIEINU/123) > IMIEINU> Support > Self Diagnosis > Reset

You can restore all TV settings (excluding the Internet and network settings) to the factory defaults.

Select Reset.
The security PIN entry window appears.

Enter the security PIN, and then select Yes. All settings are then reset.
The TV turns off and on

For more iu'formation' o_' Setup. refer to the user ma_' ua that came wi_lh the TV.

Using the TV as a display modem (for retail stores)

(MIEINU/123) > IMIEINU> Support > Use Mode

You can turn the TV into a display model for retail environments by setting Use Mode to Store Demo.

For al other uses, select Home Use.

With Store Demo. some functions are disabled. and the TV automatical y resets itsef after a preset amount of time_

Getting Support

Getting support through Remote Management

(IMIEINU/123) > IMIEINU> Support: > Remote Management

You can use this feature to let Samsung Electronics diagnose your TV remotely when you need assistance with your TV. You will need to read and agree to the service agreement before using this

This function requires an Internet connection.

Getting _emote support

You can get one-on-one support offered by a Samsung Remote Support service technician who can

Diagnose your TV

Adjust the TV settings for you

Reset your TV to its factory settings

Install recommended firmware updates

How does _emote support work?

You can get Samsung Remote Support easily by following these steps:

Call the Samsung Contact Center and ask for remote support.

Open the menu on your TV, and then go to the Support section.

Select Remote Management. and then read and agree to the service agreements.
When the PIN screen appears. provide the PIN number to the agent.

The agent accesses your TV.

Finding the contact information for service

(IMIEINU/123) :> IMIEINU> Support > Contact Samsung

You can view the address of the Samsung website. the call center phone number. your TV's model

To view the Open Source License, press the 8 button.

Requesting service

(IMIEINU/123) :> IMIEINL}> Support > Request Support

You can request a service when you encounter a problem with the TV. Select Request Support. and

This function is not availabe in specific geographica areas.

There Is a Problem with the

Testing the picture

(IMIEINU/123) IMIEINU > Support Self Diagnosis Picture Test

Before you review the list of problems and solutions below. use Picture Test to determine if the

If your Samsung Television is flickering or dimming sporadically. you may need to Flickering and disable some of the energy efficiency features.
Disable Energy Saving ((MENU!123) Dimming > MENU System Eco Solution _> Energy Saving) or Eco Sensor ((MENU/123) > MENU _> System Eco Solution Eco Sensor).

If the color on your Samsung television screen is not correct or the black and white colors are off, run Picture Test ((MENU/123) MENU > Support > Self Diagnosis ]> Picture Test).
If the test results indicate that the problem is not caused by the TV, do the Component following: Connections/Screen Confirm that the TV's video input connectors are connected to the correct

Color external device video output connectors.

Check the other connections as well.
If the TV is connected to an external

If the colors on your Samsung TV are correct but just a little too dark or bright. try adjusting the following settings first.
Screen Brightness Go to the Picture menu and adjust the Backlight. Contrast. Brightness.

Sharpness. Color. and Tint (G!R) settings.

Ghosting. Blurring. or If you notice ghosting or blurring on the screen. use the Auto Motion Plus function ((MENU/123) MENU > Picture Options Auto Motion P_us) to resolve Juddering the issue.

If your Samsung TV appears to turn off by itself. try disabling some of the TV's energy efficiency functions.
See if S_eep Timer ((MENU!123) MENU > System > Time > Sleep Timer) has been enabled.
The Sleep Timer automatically turns the Unwanted Powering Off TV off after a specified period of time.
If the Sleep Timer has not been enabled. see if No Signal Power Off ((MENU!123) MENU > System > Eco Solution No Signal Power Off) or Auto Power Off ((MENU/123) MENU > System Eco Solution > Auto Power Off) has been enabled and disable them.

When the TV is turned on, the remote control receiver flashes
5 times before the screen turns on.
If you are having problems powering on your Samsung television. there are

Problems Powering On number of things to check before calling the service department.
Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally. Make sure that the antenna cable or cable TV cable is firmly connected.
If you have a cable or satellite box. confirm that it is plugged in and turned on.

Unable to find a Channel If your TV is not connected to a cable or satellite box, run Setup ((MENU!123) > MENU > System > Setup) or Auto Program (Broadcasting > Auto Program).

Store displays are all tuned to digital. HD (high definition) channels.
If you have an analog cable/set top box. upgrade to a digital set top box.
Use HDMI or Component cables to deliver HD (high definition) picture quality.

The TV image does Many HD channels are upscaled from SD (Standard Definition) content.
Look for not look as good as it channel that is broadcasting true HD content. Cable/Satellite Subscribers: Try HD channels from the channel lineup. did in the store. Air/Cable Antenna Connection: Try HD channels after running the Auto Program

Adjust the cable or satellite box's video output resolution to 1080i or 720p.

The compression of video content may cause picture distortions. especially in fast moving pictures from sports programs and action movies.
The picture is A weak or bad quality signal can cause picture distortions.
This is not an issue distorted. with the TV.
Mobile phones used close to the TV (within
3.2 ft) may cause noise in analog and digital channels.

If you're using a Component connection. make sure that the Component cables are The color is wrong or connected to the correct jacks. incorrect or loose connections may cause color missing. problems or a blank screen.

Go to the Picture menu and then adjust the Picture Mode. Brightness. Sharpness. The color is poor and Co,or settings. or the picture is not See if Energy Saving ((MENU!123) MENU > System > Eco Solution > Energy bright enough.
Saving) has been enabled.
Try resetting the picture. (Picture Picture Reset)

There is a dotted line on the edge of the Change Picture Size to 16:9. screen.

The picture is black If you are using AV composite input. connect the video cable (yellow) to the TV's and white. green component jack.

If the test picture does not appear or there is noise or distortion. the TV may have a prob era, Contact

Samsung's Call Center for assistance.

If the test picture is dispIayed proper x there may be a problem with an externa device_ Please check the connections.

If the problem persists. check the signal strength or refer to the external device's user manua.

[ Can't Hear the Sound Clearly

Testing the sound

(II_IEII_U/123) IMIEII_LJ> Support Self Diagnosis Sound Test

If the TV plays the Sound Test melody without distortion. there may be a problem with an external

There is no sound or Check the volume control of the device (cable or satellite box. DVD. Biu-ray. the sound is too low at etc.) connected to your TV. maximum volume.

Set (MENU!123) MENU Sound Speaker Settings Speaker Select to TV Speaker.
If you are using an external device. check the device's audio output option. (For example. you may need to change your cable box's audio option to HDMI if the The picture is good but box connected to your TV is using an HDMI cable.) there is no sound.
To listen to computer sound. connect an external speaker to the computer's audio output connector.
If your TV has a headphone jack. make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the device's power cable.

The speakers are making an odd sound.

Make sure that the audio cable is connected to the correct audio output connector on the external device.
For antenna or cable connections. check the signal information.
A low signal level may cause sound distortions.
Run Sound Test ((MENU/123) > MENU > Support > Serf Diagnosis > Sound Test).

[ Can't See 3D Images Clearly

This function is only supported for the 7100 to 8500 and 710D to 850D series models.

Testing
3D picture quality

(IMIEINU/123) IMIEINU > Support: Self Diagnosis
3D Pioture Test

If the test picture does not appear or there is noise or distortion. the TV may have a problem.
Contact

Samsung's Call Center for assistance.

The 3D glasses are not working correctly.

Make sure the glasses are powered on.
The 3D feature may not work properly if there is another
3D product or an electronic device running nearby.
If there is a problem. keep other electronic devices as far away as possible from the
3D Active Glasses.

.... {...... [ can't see 3D images The ideal viewing distance is three times or more the height of the screen. clearly.
We also recommend watching
3D content with your eyes level with the screen.

The batteries in the 3D glasses are discharged.
Turn off the 3D glasses when they are not in use. If you leave the 3D glasses on. the battery lifespan is shortened.

_Jf_' To test
3D picture qualtx you must be wearing
3D glasses and the glasses and the TV must be paired.

There is a Problem with the

The TV is not receiving all channels. ((MENU/123) MENU Broadcasting > Auto Program). If you are using an antenna. verify it is positioned correctly and all the

Go to Caption ((MENU!123) MENU System > Accessibility > Caption) and There captions are no with digital channels. change the Caption Mode.
Some channels may not have caption data.

The compression of the video content may cause picture distortions.
This is especially true with fast moving pictures from sports programs and action The picture is distorted. movies.

A weak signal can cause picture distortions.
This is not a problem with the TV.

My Computer Won't Connect

The "Mode Not Supported" message Set your PC's output resolution so it matches a resolution supported by the TV. appears.

The video is OK but If you are using an HDMI connection. check the audio output setting on your PC. there is no audio.
If you are using an HDMI-to-DVI cable. a separate audio cable is required.

The TV Won't Connect to the

The wireless network Confirm your wireless modem/router is on and connected to the mnternet. connection failed.

Check the network connection status ((MENU/123) MENU > Network The software update over the Internet has Network Status).
If the TV is not connected to a network. connect to a network. failed.
The upgrade stops if you already have the latest software version.

The Schedule Recording/Timeshift Function Isn't Working

This function is not available in the U,S,A. and Canada.

USB device.

(HDMI-CEC) lsn°t Working

Confirm that the device is an Anynet+ device.
The Anynet+ system supports Anynet+ devices only.
Check if the power cord of the Anynet+ device is properly connected.
Check the cable connections of the Anynet+ device.
Go to Anynet+ (HDMI-CEC) ((MENU!123) MENU System Anynet+ (HDMI- Anynet+ does not CEC)) and see if Anynet+ (HDMI-CEC) has been set to On. work.
Check whether the TV remote control is in TV mode.
Check whether the remote control is Anynet+ compatible.
Anynet+ may not function when some other functions are active. including Channel Search. Smart Hub. Initial Setup. etc.
If you have disconnected and then reconnected the HDMI cable. scan for devices again or turn your TV off and on.

Check if the Anynet+ device is properly connected to the TV, and then select the i want to start Anynet+ (HDMI-CEC} ((MENU/123) MENU System > Anynet+ (HDM_-CEC)) Anynet+ ....... menu to see Jf Anynet+ (HDMI-CEC) is set to On.

I want to exit Anynet+ Select View TV from the Anynet+ menu. Select a non-Anynet+ device from the Source list.

The message "Connecting to You cannot use the remote control when you are configuring Anynet+ or switching Anynet+ device..." to a viewing mode.
Use the remote control after the TV has completed the Anynet+ or "Disconnecting from Anynet+ device" configuration or has switched to a viewing mode. appears on the screen.

The Anynet+ device You cannot use the play function when Setup is in progress. won't play.

CEC)) and see if Anynet+ (HDMI-CEC) has been set to On. :: The connected device Scan for Anynet+ devices again. is not displayed.
Anynet+ devices must be connected to the TV using an HDMI cable.
Make sure the device is connected to your TV with an HDMI cable.
Some HDMI cables may not support Anynet+.
If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected. please scan for the device again.

Connect an optical cable to the TV and the receiver.
The TV audio is not being played through ARC enables the TV to output digital sound via the HDMI (ARC) port. the receiver.
However. ARC is only available when the TV is connected to an audio receiver that supports ARC.

I Have Trouble Launching/Using Apps

I launched an app. but it's in English.
Languages supported by the app may be different from the user interface language.
How can I change the The ability to change the language depends on the service provider. language?

My application is not Check with the service provider. working.
Refer to the Help section on the application service provider's website.

My File Won't

Some files can't be played.
This problem may occur with high-bitrate files.
Most files can be played back. but you might experience problems with high-bitrate files.

I Want to Reset the TV

(MENU/123) MENU Reset Settings Support Self Diagnosis >Reset

(M[{NU!S2S)> MENU Resetting Smart Smart Hub > Reset Hub Smart Hub

Reset Picture. Sound. Channel. Smart Hub, and all other settings. except for the network settings. to the default settings.

Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts. linked service accounts. Smart Hub service agreements. and Smart Hub applications.

Other Issues

Watching TV for an extended period of time causes the panel to generate heat.
The heat from the panel is dissipated through internal vents running along the

The TV is hot. top of the TV. The bottom. however. may feel hot to the touch after extended use. Children watching TV need constant adult supervision to prevent them from touching the TV. This heat. however. is not a defect and does not affect the TV's functionality.

HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.
The picture won't Black bars will appear at the top and bottom of the screen when you watch display in full screen. movies that have aspect ratios different from your TV.
Adjust the picture size options on your external device or set the TV to full screen.

The "Mode Not The output resolution of the attached device is not supported by the TV. Check Supported" message the TV's supported resolutions and adjust the external device's output resolution appears. accordingly.

You cannot select the Caption menu if you have selected a source connected to The Captions item in the the TV via HDMI or Component.
To view captions. turn on the external device's TV menu is grayed out. caption function.

The TV smells of plastic.
This smell is normal and will dissipate over time.

The Signal hformation option under Self Verify that the current channel is a digital channel.
Diagnosis isn't activated.
The Signal _nformation is only available for digital channels.

The TV is tilted to the Remove the base stand from the TV and reassemble it. side.

The Broadcasting option has been deactivated.

Broadcasting is only available when the Source is set to TV.
The Broadcasting menu cannot be accessed while you watch TV using a cable box or satellite receiver.
The Broadcasting menu cannot be accessed while a recording is in progress or the Timeshift function is running.

The settings are lost after
5 minutes or every time the TV is turned off.

If the Use Mode is set to Store Demo, the TV's audio and video settings are automatically reset every 5 minutes.
Change the Use Mode ((MENU/123) > MENU > Support > Use Mode) to Home Use.

Check the cable connections and reconnect them.
There is an intermittent Loss of audio or video can be caused by using overly rigid or thick cables. loss of audio or video.
Make sure the cables are flexible enough for long term use.
If you are mounting the TV to a wall. we recommend using cables with
90-degree connectors.

There are small particles This is part of the product's design and is not a defect. on the TV's bezel.

The PIP menu is not PIP functionality is only available when you are viewing video from an HDMI or available.
Component source on the main screen.

A POP (TV's internal Change the Use Mode ((MENU/123) MENU Support Use Mode) to Horse banner ad) appears on Use. the screen.

The TV is making The expansion and contraction of the TV's outer casing may cause a popping popping noise. noise.
This does not indicate a product malfunction.
The TV is safe to use.

Your TV utilizes high-speed switching circuits and high levels of electrical current.
Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.
The TV is making Your TV has undergone strict quality control procedures that meet our humming noise. demanding performance and reliability requirements.
Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.

Before Using the Recording and Timeshift Functions

Before using the recording and schedume recording functions

Recordin9 is not supported in the U_S_Aand Canada_

To set up a Schedule Recording. you must first set the TV's clock.
Set the Clock ((IMIEINU/123) >

IMIEINU> System > Time > Clock).

You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.

Recordings are DRM-protected and therefore cannot be played back on a computer or on a

A USB hard drive with a speed of 5,400rpm or above is recommended.
However. RAID-type USB

USB memory sticks are not supported.

The total recording capacity may differ with the amount of available hard drive space and the

Schedule Recording requires at least 100MB of free space on the USB storage device.
Recording

If the available storage space falls below
500MB while both the Schedule Recording and

Timeshift functions are in progress. only the recording will stop.

The maximum recording time is 720 minutes.

Videos are is played according to the TV settings.

If the input signal is changed while recording is in progress. the screen will go blank until the

When using the Record or Schedule Recording function. the actual recording may start a second

If the Schedule Recording function is operating while a recording is being made on an HDMI-

CEC external device. the priority is given to the Schedule Recording.

Connecting a recording device to the TV automatically deletes abnormally saved recording files.

If the Off Timer or Auto Power Off has been set, the TV will override these settings. continue to

Before using the timeshift function

Timesh ft s not supported n the U_S_Aand Canada_

A USB hard drive with a speed of 5,400 rpm or above is recommended.
However. RAID-type USB

USB memory sticks or flash drives are not supported.

The total recording capacity may differ with the amount of available hard drive space and the

If the available storage space falls below
500MB while both the Schedule Recording and

Timeshift functions are in progress. only the recording will stop.

The maximum amount of time available for the Timeshift function is 90 minutes.

The Timeshift function is not available for locked channels.

Time-shifted videos are is played according to the TV settings.

The Timeshift function may be terminated automatically once it reaches its maximum capacity.

The Timeshift function requires at least 1.5GB of free space available on the USB storage device.

Read Before Using 3D Mode

Ths funct on s only supported for the
7100 to 8500 and
710D to 850D series mode s.

3D precautions

/iX Warning

When viewing a 3D video under a fluorescent lamp (50 Hz - 60 Hz) or 3-wavelength lamp. you

Iif this symptom occ_ rs, dim or t_r_ off tlhe ight

Switching the input mode while watching a 3D mowe may disable the 3D function on the TV.

Ill this symptom occurs. the 3D glasses may a_tomatica y t_rn of_.

If you lie on your side while watching TV with
3D active glasses. the picture may appear dark or

The 3D effect may not be visible if the visual ability of your left eye differs greatly from the

If a part of the 3D glasses or lenses is defective or damaged. it cannot be repaired and the

If the eye sight in one of your eyes differs greatly from the eye sight in the other eye, you may

Ensure you are within the working distance of the glasses when you view a 3D video.

.....
Iihe mages may _ot Hoevewabe
3D f yo_ move o_ts de of tlhe working distance for
3 seconds,.

Iif the 3D glasses are moved o_ ts de of ther working distance. the s[gna from the IiV wl discor_nect

The 3D glasses may not work properly due to interference from other
3D products or electronic

The vividness of the image may appear degraded if you view
3D video in a place that is exposed

The 3D glasses may malfunction if there is an electric field or metallic object such as a steel plate nearby.
Keep the glasses as far away as possible from electric fields and metallic objects.

With SSG-3570 model glasses. the glasses may power off if you remain stationary while viewing

3D video for an extended period of time.

With SSG-3570 model glasses. if the 3D glasses do not function immediately after you put them

AX Caution

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D VIEWING.
READ THE FOLLOWING

CAUTIONS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.

Adults should frequently check on children who are using the
3D function.
If there are any

Do not use the 3D glasses for other purposes such as general wear, sunglasses. protective

Some viewers may experience discomfort such as dizziness. nausea. and headaches while

3D glasses. and rest for awhile.

Watching
3D pictures for an extended period of time may cause eye strain.
If you experience any

Do not use the 3D function or 3D glasses while walking or moving around.
Using the
3D function

Do not sleep with the 3D glasses on. You can damage or break the temples.

The temples on your
3D glasses are not foldable.
Forcing the temples to fold will damage the 3D

With SSG-3570 model glasses. do not shake your
3D glasses repeatedly.
Shaking the glasses

With SSG-5100GB and SSG-5150GB models glasses. there is a danger of explosion if you

With SSG-5100GB and SSG-5150GB models glasses. make sure to replace the battery with the

/f_ Safety precautions

The following safety instructions are provided to ensure your personal safety and prevent property

Do not place the product in a location exposed to direct sunlight. heat, fire. or water.
Exposure

Do not apply force to the lenses of the
3D glasses.
Do not drop or bend the glasses.
Applying

Keep the components of the 3D glasses out of reach of children.
Especially. ensure children do not swallow any of the components.
If your child swallows a component. consult your doctor

When cleaning the glasses. do not spray water or cleaner directly onto its surface.
Spraying

Do not apply chemicals containing alcohol. solvent. or surfactant such as wax. benzene. thinner.

Do not disassemble. or attempt to repair or modify your
3D active glasses by yourself.

Be careful not to let the temple ends of the 3D active glasses harm your eye.

Do not sleep with the 3D glasses on. You can break the arms.

Use your hands to put on or remove the 3D glasses.

For SSG-5100 and SSG-5150 model glasses. use only the specified standard batteries.
When

For SSG-5100 and SSG-5150 model glasses. keep used batteries out of the reach of children

Swallowing the cylindrical (button type) battery can cause serious damage to your internal

Resolutions for 3D

These specifications appIy to the 16:9 dispIay ratio onI'¢_

3D Mode: (L/R), _ (T/B)

1280x720p
50/ 60

1920 x 1080i
50 / 60

1920 x 1080p
24 / 25 / 30 / 50 / 60

3840 x 2160p
24 / 25 / 30 / 50 / 60

1280 x 720p
59.94 / 60

1920 x 1080i
59.94 / 60

1920 x 1080p
23.98 / 24 / 29.97 / 30 / 59.94 / 60

Digital channe_

1280 x 720p
59.94 / 60

1920 x 1080i
59.94 / 60

Computer via HDM_ cable

The optimal resolution for computers connected to the TV via an HDMI cable is 1920 x 1080.
If you

Resomutions for each of UHD Input Signams

Resolution:
3840 x 2160p.
4096 x 2160p

.....
Iihe HDMII connection wth HDMI UHD Color set to Off st pports up to UHD 501!::::2/601! ::::>4:2:0 nptt s gna s. while the HDMII connectio_ wth HDM_ UHD Color set to On s_ ppo_ts _p to UHD 501!::::>/601! ::::>
4:4:4 and

4:2:2 ;np_t signa s,.

If HDM! UHD Color is set to Off

50 / 60
8 bit

12 bit

_'s For the 6 series modes or lower:, make sure to connect to the HDMI IN (STBiDVl) port of the TV.

S Recommendation disclaimer

Some of the features recommended by S Recommendat on may not be ava abe on atl models.

S Recommendat;on s only ava abe for the modes made for the U,S,A.

S Recommendation "with voice interaction

For recommendations given in response to common speech commands:

Voice Interaction is limited to the official language of the country of purchase. Performance may vary

Certain Samsung Smart TV features may not be available if you do not give your expressed consent to

Certain features within S Recommendation require Internet access and may not be available based on

Your remote control may differ from the images shown in this manual.

S Recommendation

For content recommendations given to fit your TV viewing preferences:

Certain Samsung Smart TV features may not be available if you do not give your expressed consent to

Certain features within S Recommendation require Internet access and may not be available based on

Your remote control may differ from the images shown in this manual.

Read Before Using Voice. Motion. or Face Recognition

Precautions for voice. motion. and face recognition

Face _'_ecognition

This product saves thumbnail images of users' faces for use during the Face Recognition Login.

Logging into the Smart Hub via Face Recognition may be less secure than logging in using an ID

Using the TV camera

Under some circumstances and under certain legal conditions. the use/misuse of the TV camera

By using the TV camera. users agree that it will not be used (i) in locations where cameras are

When you are no longer using the camera. close the lens cover of the camera or retract it. This

Motion Control

Motion Control functions through the camera connected to the TV. For Motion Control to work.

Run the Motion Control Environment Test before using Motion Control to determine the

You may experience physical fatigue when using Motion Control for extended periods.

Voice Recognition

Voice Recognition is not available in all languages. dialects. or regions.
Its performance differs

Voice Text Input requires that you agree to any third-party app's voice privacy policy.

Voice Text Input lets you enter text using voice commands instead of a mouse. keyboard. or

You must agree to the following privacy notices before using Interactive Voice Recognition:

Voice Recognition Privacy Notice. Nuance Privacy Notice

Requirements for using voice. motion. or face recognition

Requi_"_ements for using voice _"_ecognition

The voice recognition rate differs with the volume/tone. pronunciation. and ambient sound

Requi_"_ements for Usin9 Motion Reco%nition

Be sure to use Motion Control within the recommended distance of between
4.9 ft (1.5 m) and

11.4 ft (3.5 m). The actual recognition range may differ with the camera angle and other factors.

You must be located within a range of the camera lens, because Motion Control relies on the

TV's built-in camera.
Adjust the camera's angle by pressing the front of the camera down and

For the camera to recognize movement. you must stand out from the background.

The appropriate ambient brightness is 50 to 500 lux. (A bathroom typically has 100 Lux, a living

Avoid direct sunlight when using Motion Control.

Run the Motion Control Environment Test to assess the camera's recognition range before using Motion Control.

Requi_"_ements for usin9 Face Reco%nition

Be sure to use Face Recognition within the recommended distance of between
4.9 ft (1.5 m) and

13.1 ft (4 m). The actual recognition range may differ with the camera angle and other factors.

The appropriate ambient brightness is 50 to 500 lux. (A bathroom typically has 100 Lux, a living

Face Recognition can recognize up to 5 different users at a time.

The TV may have difficulty recognizing twins and people with similar faces as two different individuals.

Note the following when using Face Recognition:

Do not cover your face with a hat, a pair of sunglasses. or your hair.

Your entire face must be visible to the camera.
Avoid shadows over your face.
Shadows

Keep your expression as neutral as possible.
In addition. keep your mouth closed and as

When you log into your Samsung account. your facial expression must be the same as the facial expression you had when you registered.

Read Before Using Apps

Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in

Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services

Application services may be provided in English only and available content may differ with the

For more information about applications. visit the applicable service provider's website.

An unstable Internet connection may cause delays or interruptions.
In addition. applications

Internet connection and try again.

Application services and updates may become unavailable.

Application content is subject to change by the service provider without prior notice.

Specific services may differ with the version of the application installed on the TV.

An application's functionality may change in future versions of the application.
If this occurs. run

Depending on the service provider's policies. certain applications may not support multitasking.

Read Before Using the Browser

Select Web Browser.
The browsing screen may differ from the one on your computer.

The web browser is not compatible with Java applications.

You can download the supported types of files. such as videos. mp3 files. and images. but

The web browser may not be able to access certain websites.

The TV does not support playback of flash videos.

E-commercefor onlinepurchasesis not supported.

With websitesthat havescrollablewindows,scrollinga window canresultin corrupted characters.

ActiveX is not supported.

Certainoptionsarenot accessiblein Link Browsingmode.(Switchto PointerBrowsingto activatethoseoptions.)

Only a limited numberof fonts aresupported.Certainsymbolsand charactersmay not be displayedproperly.

+ The responseto remotecommandsandthe resultingon-screendisplaymay bedelayedwhilea webpageis loading.

Loadinga webpagemaybe delayedor suspendedcompletelywith certainoperatingsystems.

+ The copyand pasteoperationsarenot supported.

Whencomposinganemailor a simplemessage,certainfunctions suchas the font sizeand color selectionmay not beavailable.

+ Thereis a limit to the numberof bookmarksand the sizeof the log file that canbe saved.

+ The numberof windows that canbeopenedconcurrentlydiffers with the searchconditionsand the TVmodel.

+ Theweb browsingspeedwill differ with the networkenvironment.

Embeddedvideoscanplay at the sametime the PIP(picture-in-picture)function is operating.

+ Theweb browsersupports.mp3 audio files only.

If the Clock ((IMIENUJ123) > IMIEINU> System > Time > Clock) has not been set, the browsing

The browsing history is saved from latest to oldest. with the oldest entries being overwritten

Depending on the types of video/audio codecs supported. it might not be possible to play

Video sources from PC-optimized streaming service providers may not play properly on our proprietary web browser.

Using the on-screen QWERTY keyboard automatically disables PIP (except when you are entering

Read Before Pmayin9 Photo. Video. or Music Fi es

The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for

When connecting an external hard drive. use the USB (HDD) port.
We recommend that you use

Certain digital cameras and audio devices may not be compatible with the TV.

If there are multiple USB devices connected to the TV, the TV might not be able to recognize

1A] port.

The TV supports the FAT, exFAT, and NTFS file systems.

After sorting files in the Folder view mode. the TV can display up to 1000 files per folder.
If the

USB device contains more than
8,000 files and folders. however. some files and folders might not be accessible.

The PTP (pier to pier) connection mode is available only for digital cameras.
If you connect

Be sure to connect USB or external hard drives that support USB 3.0, to the USB 3.0 port.

Certain files. depending on how they are encoded. may not play on the TV.

Certain files are not supported on all models.

Supported externa_ subtitles

SubRip .srt

SubViewer .sub

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

Powerdivx .psb

SMPTE-TT Text ,xml

Supported internal subtitles

Xsub

SubStation AIpha

Advanced SubStation Alpha MKV

SubRip MKV

VobSub MKV

MPEG-4 Timed text MP4

TTML in smooth streaming MP4

SMPTE-TT Text MP4

SMPTE-TT PNG MP4

Supported image formats and resolutions

.jpg JPEG
15360x8640 .jpeg

_.bmp BMP
4096x4096

_.mpo
15360x8640

Supported music formats and codecs

_.mp3 MPEG MPEG1 Audio Layer

_,aac

_.flac FLAC Supports up to 2 channels

_.ogg OGG Vorbis Supports up to 2 channels

Supports up to 10 Pro 5.1 channels. _.wma WMA Iossless audio is not supported.
Supports up to the M2 profile.

_+.way way

_.mid Supports type
0 and type midi Seek is not supported. _.midi Supports USB device only.

_.ape ape

AIFF _.aiff

_.m4a ALAC

Supported video codecs

+.avi

.mkv

.asf

,wmv

+.mp4

,mov

+.3gp

,vro

.mpg

+.mpeg

+.trp

.mov

.flv

+.vob

+.svi

+.m2ts

.mts

.divx

SVAF

H.264 BP/MP/HP

HEVC (H.265 - Main, Main10. Main4:2:2

Motion JPEG

4096x2160

4096X2160:24
3840X2160:30

DivX 3.11 / 4 / 5 / 6

MPEG4 SP/ASP

Window Media Video v9(VCl)

MPEG2
1920x1080

MPEG1

Microsoft MPEG-4 vl, v2, v3

Window Media Video v7 (WMVl) ,v8 (WMV2)

H.263 Sorrenson

VP8
1920x1080 .webm WebM
4096X2160:24 VP9
4096x2160
3840X2160:30

Dolby Digital

LPCM

ADPCM(IMA. MS)

HE-AAC

Dolby Digital Plus

MPEG(MP3)

DTS(Core, LBR)

G.711(A-Law. u-Law)

Vorbis

Other restrictions

Codecs may not function properly if there is a problem with the content.

Video content does not play or does not play correctly if there is an error in the content or

Sound or video may not work if they have standard bit rates/frame rates above the TV's

If the Index Table is has an error, the Seek (Jump) function will not work.

When playing video over a network connection. the video may not play smoothly because of

Some USB/digital camera devices may not be compatible with the TV.

HEVC codec is only available in MKV/MP4 / TS containers.

Video decoders

H.264 FHD is supported up to Level
4.1. (does not support FMO/ASO/RS)

H.264 UHD is supported up to Level
5.1.

HEVC FHD is supported up to Level 4.1, and HEVC UHD is supported up to Level
5.1.

VC1 AP L4 is not supported.

All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC. and VP6:

Below
1280x720:60 frame max

Above
1280x720:30 frame max

GMC 2 or above is not supported.

Supports SVAF Top/Bottom.
Side by Side. and Left/Right view sequence type (2ES) only.

Supports BD MVC specs only.

Audio decoders

WMA
10 Pro supports up to 5.1 channels.
Supports up to the M2 profile.
WMA Iossless audio is

QCELP and AMR NB/WB are not supported.

Vorbis is supported for up to 5.1 channels.

Dolby Digital Plus is supported for up to 5.1 channels.

The DTS LBR codec is only available for MKV / MP4/TS containers.

The supported sample rates are 8, 11.025, 12, 16, 22.05.
24, 32, 44.1, and 48 KHz, and differ by the codec.

Read After Installing the TV

Picture sizes and input signals

The Picture Size setting is applied to the current source.
The applied Picture Size will remain in effect

Component
16:9, Zoom. Custom, 4:3

Component (1080i, 1080p)
16:9, Zoom. Custom, 4:3

Digital channel (720p, 1080i, 1080p)
16:9, Zoom. Custom, 4:3

Digital channel (3840 x 2160p)
16:9, Zoom. Custom

Digital channel (4096 x 2160p)
16:9, Zoom. Custom

HDMI (720p)
16:9, Zoom. Custom, 4:3

HDMI (1080i, 1080p)
16:9, Zoom. Custom, 4:3

HDMI (3840 x 2160p)
16:9, Zoom. Custom

HDMI (4096 x 2160p)
16:9, Zoom. Custom

An anti-theft lock is a physical device that can be used to protect the TV against theft.
Look for the lock slot on the back of the TV. The slot has a _t icon next to it. To use the lock. wrap the lock cable

This function is not avaitab e on certain models in specific geographical areas.

Read before setting up a "wireless mnternet connection

Precautions for wireless _nternet

This TV supports the IEEE 802.11 a/b/g/n/ac communication protocols.
Samsung recommends

To use wireless Internet. the TV must be connected to a wireless router or modem.
If the wireless

Select a channel that is not currently in use for the wireless router.
If the channel set for the

Most wireless networks have an optional security system.
To enable a wireless network's security

Wireless security protocols

The TV only supports the following wireless network security protocols.
The TV cannot connect to non-certified wireless routers.

Authentication Modes: WEP, WPAPSK. WPA2PSK

Encryption Types: WEP, TKIP, AES

In compliance with the newest Wi-Fi certification specifications. Samsung TVs do not support WEP

WPS (Wi-Fi Protected Setup). you can connect the TV to your network using PBC (Push Button

Configuration) or a PIN (Personal Identification Number).
WPS automatically configures the SSID and

WPA key settings.

Before Connecting Resomutions) a Computer (Supported

When you connect your TV to a computer. set the computer's video card to one of the standard

Choosing a resolution not included in the tables can result in a blank screen or just the power indicator

640 x 480
67 Hz
35.000
66.667
30.240

1152 x 870
75 Hz

VESA DMT

640 x 480
60 Hz
31.469
59.940
25.175
- / -

640 x 480
72 Hz
37.861
72.809
31.500
- / -

640 x 480
75 Hz
37.500
75.000
31.500

800 x 600
72 Hz
48.077
72.188
50.000
+ / +

800 x 600
75 Hz
46.875
75.000
49.500
+ / +

1024 x 768
60 Hz
48.363
60.004
65.000
- / -

1024 x 768
70 Hz
56.476
70.069
75.000
- / -

1024 x 768
75 Hz
60.023
75.029
78.750
+ / +

1152 x 864
75 Hz
67.500
75.000
108.000
+ / +

1280 x 720
60 Hz
45.000
60.000
74.250
+ / +

1280 x 800
60 Hz
49.702

1280 x 1024
60 Hz
63.981

1280 x 1024
75 Hz
79.976

1366 x 768
60 Hz
47.712

59.810

60.020

75.025

59.790

83.500

108.000

135.000

85.500
+ / +

1440 x 900
60 Hz
55.935
59.887
106.500

.......
1600 x 900RB
60 Hz
60.000
108.000
+ / ÷

1680 x 1050
60 Hz
65.290
59.954
146.250
- / +

1920 x 1080
60 Hz
67.500
60.000
148.500
+ / +

Resomutions for Video Signams

720(1440) x 576i
50 Hz
15.625
50.000
27.000
- / -

720(1440) x 480i
60 Hz
15.734
59.940
27.000
- / -

720 x 576
50 Hz
31.250
50.000
27.000
- / -

1280 x 720
50 Hz
37.500
50.000
74.250
+ / +

1280 x 720
60 Hz
45.000
60.000
74.250
+ / +

1920 x 1080i
50 Hz
28.125
50.000
74.250
+ / +

1920 x 1080i
60 Hz
33.750
60.000
74.250
+ / +

1920 x 1080
24 Hz
27.000
24.000
74.250
+ / +

25.000
74.250
+ / +

1920 x 1080
30 Hz
33.750
30.000
74.250
+ / +

1920 x 1080
50 Hz
56.250
50.000
148.500
+ / +

1920 x 1080
60 Hz
67.500
60.000
148.500
+ / +

3840 x 2160
24 Hz
54.000
24.000
297.000
+ / +

3840 x 2160
25 Hz
56.250
25.000
297.000
+ / +

3840 x 2160
30 Hz
67.500
30.000
297.000
+ / +

+3840 X 2160
50 Hz
112.500
50.000
594.000
+ / +

+3840 x 2160
60 Hz
135.000
60.000
594.000
+ / +

4096 x 2160
24 Hz
54.000
24.000
297.000
+ / +

4096 x 2160
25 az
56 250
25 000
297 000
+ / +

4096 x 2160
30 Hz
67.500
30.000
297.000
+ / +

.4096x 2160
50Hz
112.500
50.000
594.000
+/ +

+4096 X 2160
60 Hz
135.000
60.000
594.000
+ / +

_'s _-: For the 6 series modes or lower:, make sure to connect to the HDMI IN (STBiDVI) port of the TV.

Read Before Using Bluetooth Devices

Restrictions on using Bluetooth

The Samsung Bluetooth Speaker function is only available for devices supporting TV

You can't use Bluetooth devices. TV SoundConneet (IMIEHU > Sound > Speaker Settings > TV

SoundConnect). and the Surround feature simultaneously.

Compatibility issues may occur. depending on the Bluetooth device. (A Mobile exclusive

Lip-sync errors may occur.

The TV and Bluetooth device may disconnect. depending on the distance between them.

A Bluetooth device may hum or malfunction:

When a part of your body is in contact with the receiving/transmitting system of the

Bluetooth device or the TV.

When the device is subject to electrical variation from obstructions caused by a wall. corner.

When the device is exposed to electrical interference from same frequency-band devices

If the problem persists. try connecting the device using the digital optical port or the HDMI (ARC)

License

This DivX [email protected] device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies. first register your device at vod.divx.com.
Find your registration code in the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p. including premium content.
DivX®. DivX Certified® and associated Iogos are trademarks of DivX. LLC and are used under license.
Covered by one or more of the following U.S. patents:
7,295,673;
7,460,668;
7,515,710;
7,519,274.
This device supports DivX Plus Streaming® for enjoying HD movies and TV shows with advanced features (multi-language subtitles. multiple audio tracks. chapters. smooth FF/RW. etc.) streamed to your device.

PremiumS0und 15.1

For DTS patents. see http://patents.dts.com.
Manufactured under license from DTS. Inc. DTS, the Symbol. DTS in combination with the Symbol. DTS Premium Soundl5.1. DTS Digital Surround. DTS Express. and DTS Neo2:5 are registered trademarks or trademarks of DTS. Inc. in the United States and/or other countries.
+ DTS. Inc. All Rights Reserved.

For DTS patents. see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited.
DTS. the Symbol. & DTS and the Symbol together are registered trademarks. and HEADPHONE:X and the DTS HEADPHONE:X logo are trademarks of DTS. Inc. @ DTS. Inc. All Rights Reserved.

DOLBY DiGiTAL PLUS

Manufactured under license from Dolby Laboratories.
Dolby and the doubte-D symbol are trademarks of Dolby Laboratories.

||||

The terms HDMI and HDMI High-Definition Multimedia Interface. and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source License Notice

Open Source used in this product can be found on the following webpage.

(http://opensource.samsung.com) Open Source License Notice is written only English.

This Iicense is may not be supported depend ng on the country or model_

480i / 480p / 720p / 1080i / 1080p

Generally refers to the number of effective scanning lines that determines the screen's resolution.

There are two scanning methods: interlaced and progressive.

Scanning

Sequential projection of pixels to form images.
The higher the number of pixels. the clearer

Progressive

A sequential scanning method that scans every line, one after another.

Interlaced

A staggered scanning method that scans every other line until the end of the screen and then fills in the remaining lines.

Example) If the number of horizontal scan lines is 480i

Scans
240 lines from start to finish and then scans the remaining
240 lines for a total of 480

<- General differences between
480i and 480p are as follows:

Horizontal Frequency
15.75Khz
31.5Khz FPs Go

............. i.... ARC (Audio Return Channel)

ARC lets the TV output digital sound to an audio device and input digital sound from the same

DVI (Digital Visual Interface)

Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable

HDMI (High Definition Multimedia Interface)

HDMI is a method of transmitting both video and audio signals via a single cable.

DynamicversusStatic IPAddresses

If the networkrequiresa dynamicIPaddress,useanADSLmodemor routerthat supports automaticallyprovidethe IPaddress,subnetmask,gatewayand DNSvaluesthe TV needsto accessthe Internet,so they do not haveto beenteredmanually.Most homenetworksusea dynamicIPaddress.

If the networkrequiresa static IPaddress,enterthe IPaddress,subnetmask,gateway,and DNS valuesmanuallywhensetting upthe networkconnection.To get the IPaddress,subnetmask. gatewayand DNSvalues,contact your InternetServiceProvider(ISP).

If the networkrequiresa static IPaddress,useanADSLmodemthat supportsDHCP.ADSL modemsthat supportDHCPalso allow static IPaddresses.

Bluetooth

Ethernet

Ethernetis a LAN (LocalArea Network)that usescoaxialcablesstandardizedby the IEEE.

ComponentConnection

Componentconnectionsaremostlyusedfor gameconsolesandtransmitthe video signalby splitting it into a luminancesignal(Y) andtwo color signals(Pband Pr).Theconnectoris marked as [ComponentIN]_(Pr,Pb,Y) on the backof the TV.On somedevices,it is sometimesmarked as Cr,Cb,Y. Cband Crarethe digital conversionsof the Pband Prsignals.

Theconnectorsarenormallycolor-codedred (R),blue(B),and green(G)and offer the best picturequality possiblefor ananalogconnection.


Samsung UN65JU7100FXZA-TH01 | Pages: 172 | File type: PDF | Filename: 47347399_un65ju7100fxza-th01.pdf | Size: 25.34 MB | Language: English

Download User Manual

Contact us

Samsung in United States

1-800-726-7864 Mon - Fri: 8AM - 12AM (EST) / Sat - Sun: 9AM - 11PM (EST) Sat - Sun: HOME APPLIANCE 9AM - 6PM (EST)
