1. Description of the controls

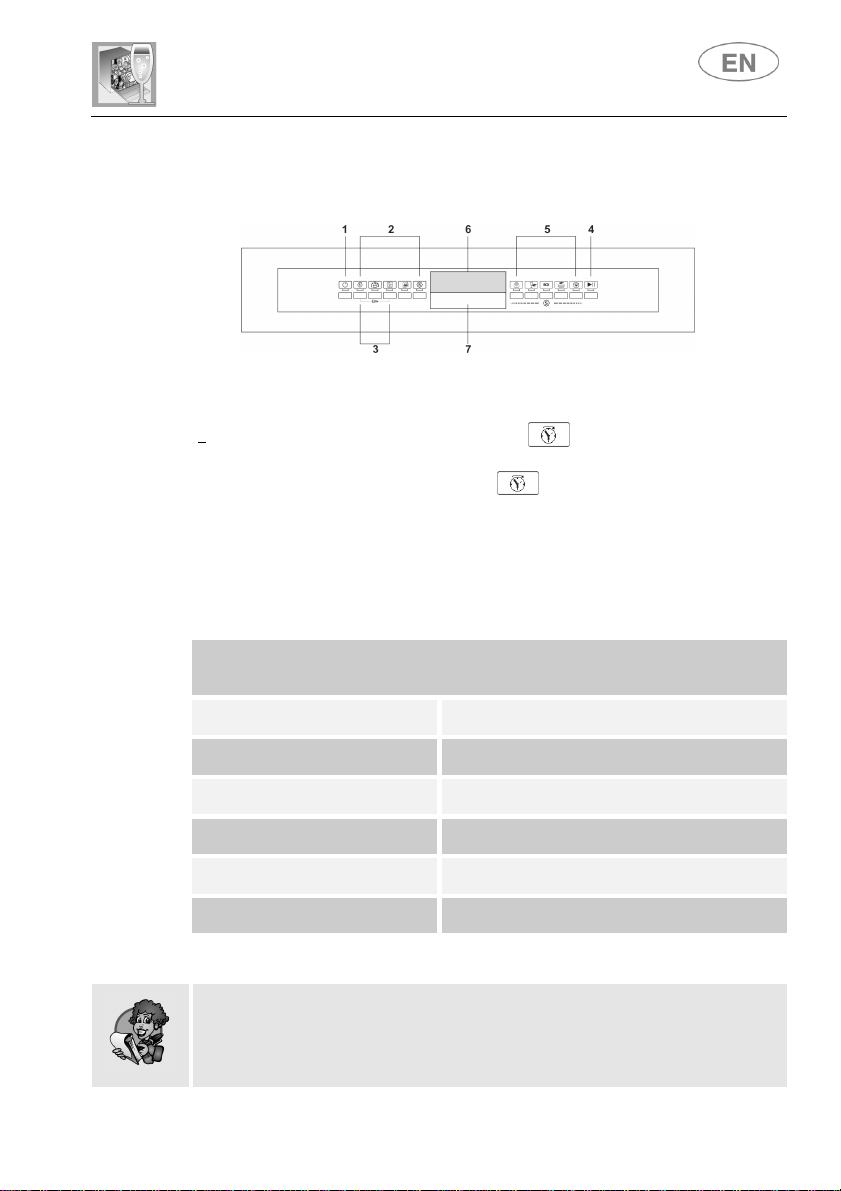

1.1 Front panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 “CHILD LOCK” ACTIVATION BUTTONS
4 START/PAUSE BUTTON
5 PROGRAM SELECTION BUTTONS
6 INFORMATION DISPLAY
7 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
User instructions
3
1.2 Information display

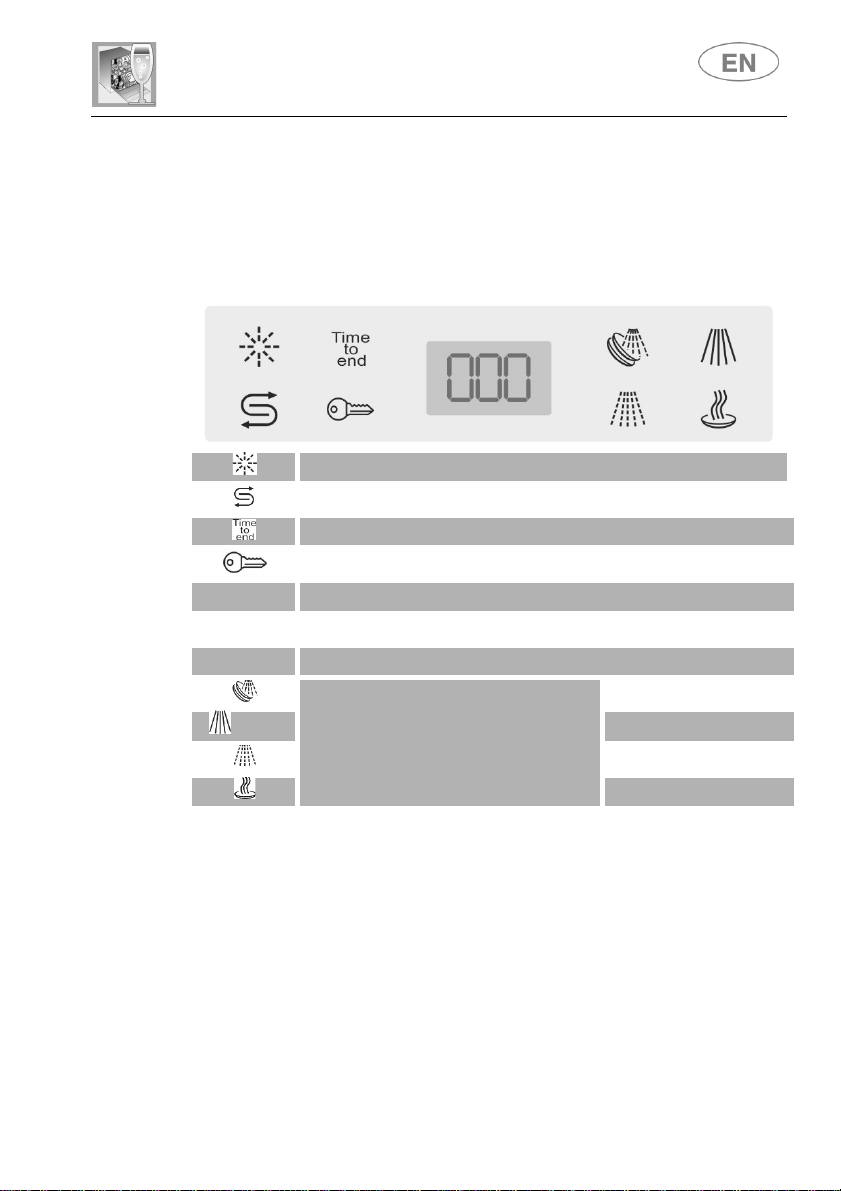

The dishwasher is equipped with a practical DISPLAY which provides
information on the programmed dishwasher functions.
Rinse aid lack warning indicator
Salt lack warning indicator
End of cycle signal
“Child lock” option warning light
000
Delayed start indicator, wash cycle duration and alarms
H
0….H5
Water softener setting indicator
b0….b5
Rinse aid setting indicator
Program phases warning lights
With program in progress, it
indicates the status of the program
Prewash
Wash
Rinse
Drying
User instructions
4
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
1 SOAK
Recommended for rinsing
dishes while waiting for
another wash cycle.
Cold prewash
15 3,5 0,02
2 CRYSTAL 45°
Wash cycle for delicate
items, such as wine
glasses and lightly soiled
fine china. Ideal when you
require dazzlingly clean
glassware
Wash at 45°C
2 Cold rinses
Rinse at
55°C/70°C (3)
Dry
145/
75 (3)
10,5 1,15
3 (*)
EN 50242
Wash cycle with lower
water and energy
consumption,
recommended for washing
normally soiled dishes, even
with dried-on residues.
Wash at 45°C
Cold rinse
Rinse at
55°C/70°C (3)
Dry
**/
185 (3)
** **
4 MIX 65é
IEC/DIN***
Wash cycle for normally
soiled mixed loads such as
dishes and pans, even with
dried-on residues.
Cold prewash
Wash at 65°C
Cold rinse
Rinse at
55°C/70°C (3)
Dry
170/
110 (3)
13,5 1,35
5 INTENSE 70°
****
Program suitable for heavily
soiled plates, pots and
pans, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at
55°C/70°C (3)
Dry
205/
155 (3)
15,5 1,60
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
User instructions
5
EXPRESS TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
6 EXPRESS
27’
+
Quick wash cycle for lightly
soiled dishes, washed
immediately after use.
Wash at 38°C
Rinse at 50°C
27 6,5 0,70
7 DELICATE
50°
+
Wash cycle for mixed loads
such as wine glasses and
lightly soiled dishes.
Cold prewash
Wash at 50°C
2 Cold rinses
Rinse at
55°C/70°C (3)
Dry
150/
85 (3)
12,5 1,20
8 SILENT
+
Wash cycle suitable for
normally soiled dishes, even
with dried-on residues.
Ensures maximum noise
reduction and is therefore
ideal if you wish to run it
during the night.
Wash at 55°C
Cold rinse
Rinse at
55°C/65°C (3)
Dry
290/
245 (3)
12,5 1,25
9 FULL
EXPRESS 60’
+
Quick wash cycle for
normally soiled mixed loads
such as dishes and pans,
even with dried-on residues.
Dishes are washed and
dried in 60 minutes.
Wash at 65°C
Cold rinse
Rinse at 70°C
55°C/70°C (3)
Dry
130/
60 (3)
13 1,40
10 STERILISE
75°
+
Intensive wash cycle ideal
for plates, pots, pans,
cutting boards, feeding
bottles. Ideal for baby
dishes or if there are allergy
sufferers in the family in
order to achieve a higher
level of hygiene.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at
55°C/70°C (3)
Dry
180/
130 (3)
10 1,20
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
The
STERILISE
program terminate with an extra anti-bacteria rinse that ensures a
further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights
flash to warn that the anti
-
bacteria effect is not guaranteed.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
User instructions
6
NOTES AND REFERENCES
Only
run the soak program with half loads.
Options cannot be used with the soak program.
Enersave is activated automatically if the selected program is compatible with the
option. It can be deactivated before the program is started.
* Standard programme under
EN 50242
. The
ENERSAVE
option must
be
enabled
.
**
See information sheet provided
***
IEC/DIN
reference programme. The
ENERSAVE
option must
be enabled
.
**** Reference program for laboratories: Detergent:
20g
in the
dispenser
+
10g
in
the
door
or tablet.
Configuration
: see photo in “Using the baskets”.
(1) Program consumption and duration figures have been measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
room temperatures and the type and quantity of dishes loaded.
(2)
1 or 2 cold rinses depending on the
model.
(3)
ENERSAVE option selected (default)/not selected.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
If the form for the testing institutes is missing from
the documentation, please request the guidelines by
contacting us at the following e-mail address:
dishwasher@test-domestic-appliances.com
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.
User instructions
7
1.3 Washing programs
The dishwasher is equipped with a control panel and an
INFORMATION
DISPLAY from which it is possible to carry out all the power switch-on,
switch
-
off and programming operations.
Before starting a washing program make sure that:
The water supply tap is open.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
LIGHTING
Pressing the ON/OFF button will start the dishwasher and will lit up the
dishwasher pilot light. After approximately 3 second from this operation
the DISPLAY will be turned on with a visualization that will depend upon
the state of the dishwasher.
PROGRAMMING
All the programming operations are possible only with closed door. With
open door, on the
DISPLAY
will appear
-
-
:
-
-
.
SELECTION PROGRAM
The program selection is possible
through the relative buttons.
By pressing the relative button of the desired program (see table) it will
light up the relative pilot light to confirm that the operation occurred and
on the
DISPLAY
a program duration forecast will appear
(“
h.mm
”).
User instructions
8
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/PAUSE for some seconds until the symbol START/PAUSE
start to flash and confirmation “beep” is heard. From this moment the cycle
duration on the DISPLAY starts to decrease.
This phase, that updates itself during the cycle, is “indicative” since it is
influenced by the washing conditions such as dishwasher type and
quantity, entry temperature etc. For this reason it is normal to see the
updating during a program (increment and decrease of minutes) specially
in the passage from one phase to the other (for example, from washing to
rinse).
Program progress is indicated by the program phases that show the status
of the current cycle.
The current phase flashes, while the next washing phases lights stay on.
At the end of each phase, the signal will turn off.
N.B.: when a program which does not need the prewash phase is
selected, the prewash signal stays off.
Prewash
Wash
Rinse
Drying
END PROGRAM
At the end of the program the DISPLAY shows “end”. By pressing one of
the program buttons the
dishwasher
is ready to start a new cycle.
INTERRUPTING
A
PROGRAM
In order to interrupt a running program it is necessary:
to press the START/PAUSE for some seconds until when the
led START/PAUSE remains lit on (confirmation beep). At this point,
it is possible to start the cycle again, otherwise:
User instructions
9
TO CHANGE A PROGRAM
To change the running program it is necessary:
to interrupt the running program (see “INTERRUPTING A PROGRAM”);
select the new program;
to press again the START/PAUSE button to make start the new
program.
STOPPING A PROGRAM
To cancel a program which is running:
Interrupt the program (see "INTERRUPTING A PROGRAM")
Press the START/PAUSE button and hold it down; the
display will show "P0" and the dishwasher will immediately
switch to the end of the cycle and drain the tank (during this
process, the "START/PAUSE led will flash). When the drain
procedure ends, the end of cycle "End" message appears on
the display
.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “STARTING THE PROGRAM”. The program will resume from the
point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.
User instructions
10
OPTIONS
The selection of options is controlled by the
relative buttons and indicated by the warning
light below the symbol. Please read the
paragraphs relating to each option for their
usage details.
SPECIAL
Allows you to enable additional programs when selected together with any
wash cycle. After having selected the required wash cycle, press the button
(the light turns on). It turns off automatically when the cycle has finished.
DRY ASSIST
The door opens automatically, allowing the dishes to be dried perfectly
even at low rinse temperatures, and therefore significant energy savings.
The door opens automatically by a few centimetres at the end of the wash
cycle. The dishwasher remains inactive between the final rinse and the
end of the cycle to allow the load to be properly dried (the display shows
the time remaining to the end of the cycle). The program is interrupted if
the door is opened during this stage. A short beep is emitted and cycle
lights 4 and 5 flash to indicate that the cycle has finished. It starts
automatically if the selected program is compatible with the option. It can
be disabled before starting the program.
There must be sufficient space available
for the door to open. The
door must not be forced open and closed before the wash cycle has
ended completely.
1/2 LOAD FLEXI ZONE
Ideal if just a few dishes need to be washed, allowing energy savings. The
dishes should be placed in both baskets and less detergent should be
placed in the detergent dispenser compared to the amount used for a full
load.
User instructions
11
SELF CLEAN
Dishwasher cleaning cycle. The cycle should be started with the machine
empty, without dishes. It is recommended to run the program every 2-3
months, using special dishwasher detergents. The light flashes during
operation. At the end of the cycle it remains on and cycle lights 4 and 5
flash. The display (if available) shows “End”.
DELAY
Allows you to program the dishwasher cycle to start during the required time
period (e.g. night). Press the DELAY button to activate the option. The
following appears on the display: 1:h (the relevant light turns on). Pressing
the button repeatedly will allow you to select the required delay of up to
12/24 hours depending on the model. Press the START/PAUSE button
until the light of the selected cycle starts to flash. The dishwasher will carry
out a pre-wash cycle, after which the set “cycle delay” option will be
activated. The option cannot be selected once the cycle is running. To
cancel the setting:
- Press the START/PAUSE button until the light of the selected cycle stops
flashing;
- Press the DELAY button until the setting on the display returns to zero;
-
Press the
START/PAUSE
button to start the cycle immediately.
“CHILD LOCK” OPTION

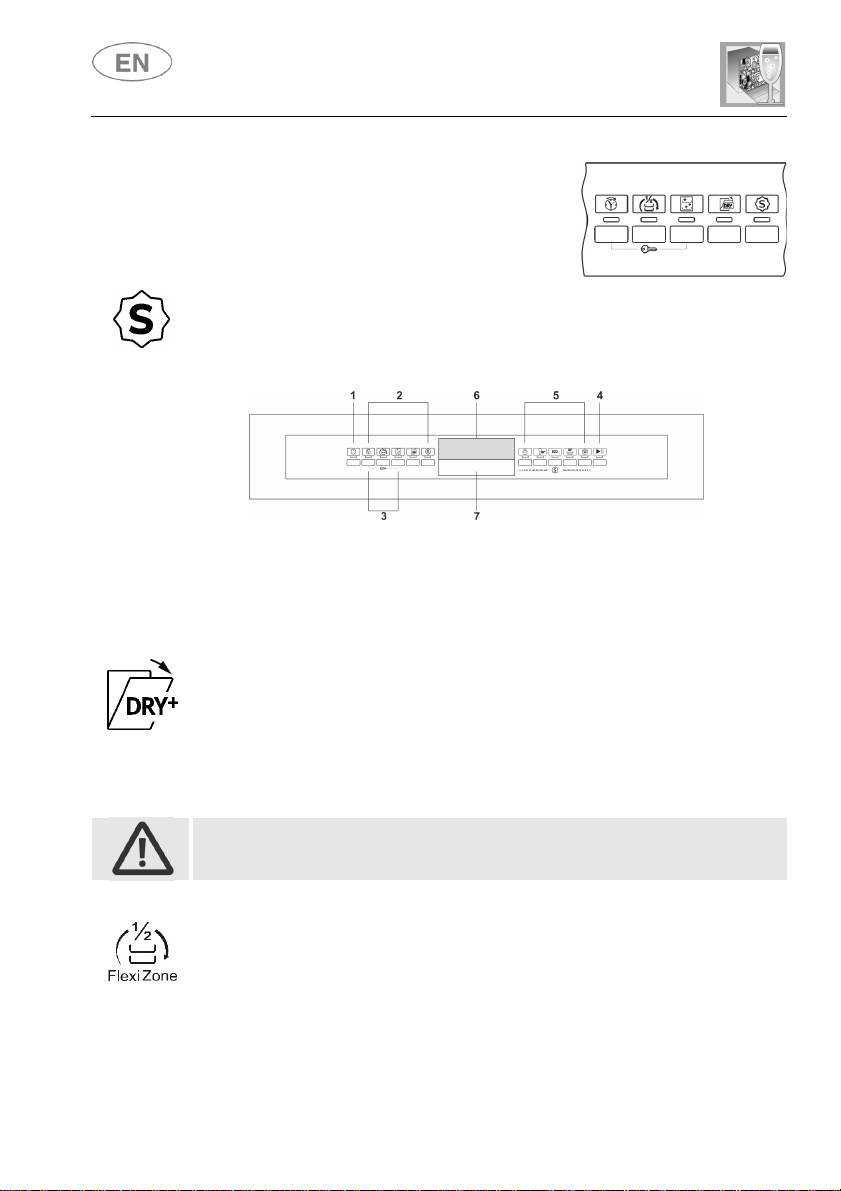

By pressing the indicated buttons (3) at the same time, the controls are
locked, which is confirmed when the warning light on display turns on. This
option stays active until the buttons
(3)
are pressed again.
User instructions
12
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always try to run the dishwasher fully loaded.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type of
load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
do not pour the detergent directly on the dishes.
ENERGY MANAGEMENT
At the end of the program, afterwards 5 minutes, the washing machine
switches off automatically in order to reduce standby power consumption.
In order to switch it on again, it is necessary to press the ON/OFF button.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower basket,
it is advisable to unload the lower basket first, and then the upper basket.
User instructions
13
2. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
Adjust the water softening system (on some models only);
Add the regenerating salt (on some models only);
Add the rinse aid and detergent.
2.1 Using the water softening system
(on some models only)
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 Kg of salt in grains. The container is
situated at the bottom of the dishwasher. After removing the lower basket,
unscrew the salt container cap by turning it anticlockwise and pour in the
salt using the funnel supplied with the dishwasher. Before replacing the
cap, remove any salt residues from around the opening.
When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the warranty
will be invalidated.
Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT
User instructions
14
Do not use table salt as it contains insoluble substances which, over
time, may damage the water softening system.
When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
WATER SOFTENER SETTING
(available in all programs except the soak program)
The setting can be adjusted using the
PROGRAM DELAY BUTTON.
To access the programming environment, the
appliance
must
be turned
on with the door closed. Then proceed as follows:
press the PROGRAM DELAY button until the H symbol appears
on the display, followed by the number currently set (e.g. H3)
press the PROGRAM DELAY button the number of times
needed to select the right setting level for the hardness of the water
(H0, H1, H2, H3, H4, H5, H5);
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
User instructions
15
WATER HARDNESS TABLE
WATER HARDNESS
SETTING
German Degrees (°dH) French Degrees (°dF)
0 - 6 0 - 11 H0 NO SALT
7 - 10 12 - 18 H1
11 - 15 19 - 27 H2
16 - 21 28 - 37 H3
22 - 28 38 - 50 H4
29 - 50 51 - 90 H5
Contact your local water board for information on the hardness of your
water supply.
Default settings:
H3
-
16
-
21°dH
–
28
-
37°dF
2.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
User instructions
16
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:

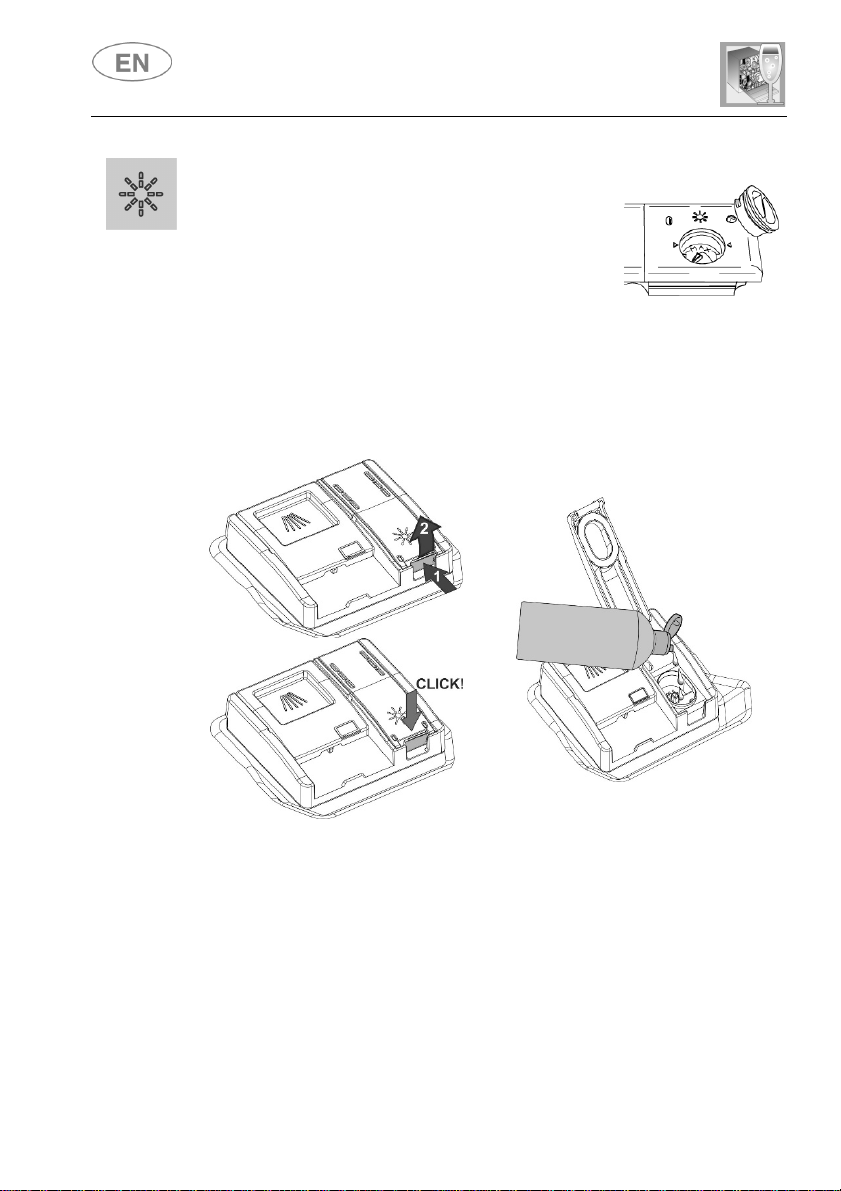

Open the dispenser by pressing and lifting the tab on the cover.
Fill the dispenser with rinse aid. Top up again when the rinse aid
indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
User instructions
17
RINSE AID SETTING
(available in all programs except the soak program)
The setting can be adjusted using the
PROGRAM DELAY BUTTON.
To access the programming environment, the
appliance
must
be turned
on with the door closed. Then proceed as follows:
press the PROGRAM DELAY button until the b symbol appears
on the display, followed by the number currently set (e.g. b5)
press the PROGRAM DELAY button the number of times
needed to select the right setting level for amount rinse aid (b0, b1,
b2, b3, b4, b5, b5);
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
b0
0 – not dispensed
b1
minimum 2 ml
b2
3 ml
b3
4 ml
b4
5 ml
b5
maximum 6 ml
Default settings:
b4
-
5
ml
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
User instructions
18
ADDING THE DETERGENT
To open the detergent dispenser cover, lightly press button
P
. Add the
detergent or tablet and close the cover by sliding it until it stops, indicated
by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent (also in
tablet form) if the dispenser is dry
When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
Use only detergents specially formulated for dishwashers. The
detergent packs must be sealed and stored in a dry place to prevent
the formation of lumps which may negatively affect washing results.
Once opened the detergent packs should not be kept for too long,
otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
User instructions
19
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
2.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing results.
User instructions
20
WARNING!
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made from anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after a great many washes. If in doubt as to the
fastness of the colours, it is advisable to wash just a few items at a
time for approximately one month.
User instructions
21
2.4 Using the baskets
The dishwasher has a capacity of 13 place-settings, including serving
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
With fixed supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
With tip-up supports
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve
the drying of dishes. The inserts are supplied in the accessories bag; to
use them, simply fit them into place as shown.
User instructions
22
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
User instructions
23
CUTLERY BASKET
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be
placed in
any position to allow optimal use of the space in the bottom basket.
User instructions
24
FLEXI DUO TOP RACK (on some models only)
This comprises two independent sliding, pull-out tray racks for easier
loading/unloading of cutlery. Various loading systems and configurations
are possible. For example, tea cups can be loaded with the right-hand
rack set in the low position, while the left-hand rack or both can be
removed to allow large dishes to be put in the top basket.
In order to position the right hand basket in a low position, the upper
basket has to be adjusted so that it is in the lowest position (see “adjusting
the upper basket).
User instructions
25

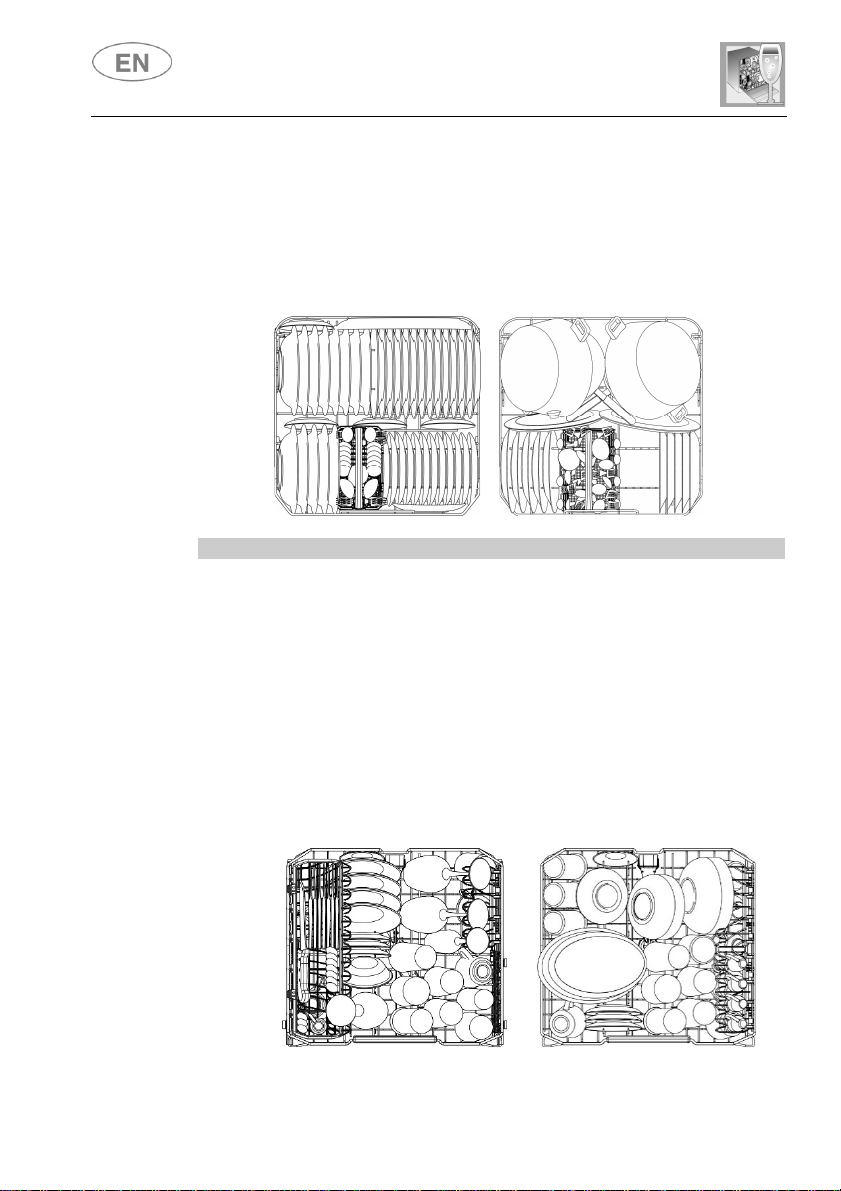

EXAMPLES OF LOADING FOR INTENSIVE DIRT
13 Standard place setting
If the bottom basket inserts are of the fold
-
down type,
they should be laid flat for easier loading.
13 Standard place setting
FLEXI DUO TOP RACK (on some models only)
If the bottom basket inserts are of the fold
-
down type,
they should be laid flat for easier loading.
User instructions
26
UPPER BASKET EQUIPMENT
(depending on the model)
Cutlery tray
For knives, spoons (tea and dessert) and long objects. The ends are
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers (B) at the
same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
User instructions
27
Fold
-
down shelves
For mugs, cups and long objects. The ends are designed to hold long
stemmed glasses
When not used they can be moved to a vertical position (until a click is
heard).
Shelves with expandable wings
For small objects, mugs and cups.
They can be used either closed or open (pull the upper, sliding part). To
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they can be moved to a vertical position (until a click is
heard).
User instructions
28
Fold
-
down tines
These can be secured in a vertical position, resting on the bottom of the
basket if unused, or placed in an intermediate position, as required.
The single
tine on the right is ideal for supporting long stemmed glasses.
User instructions
29

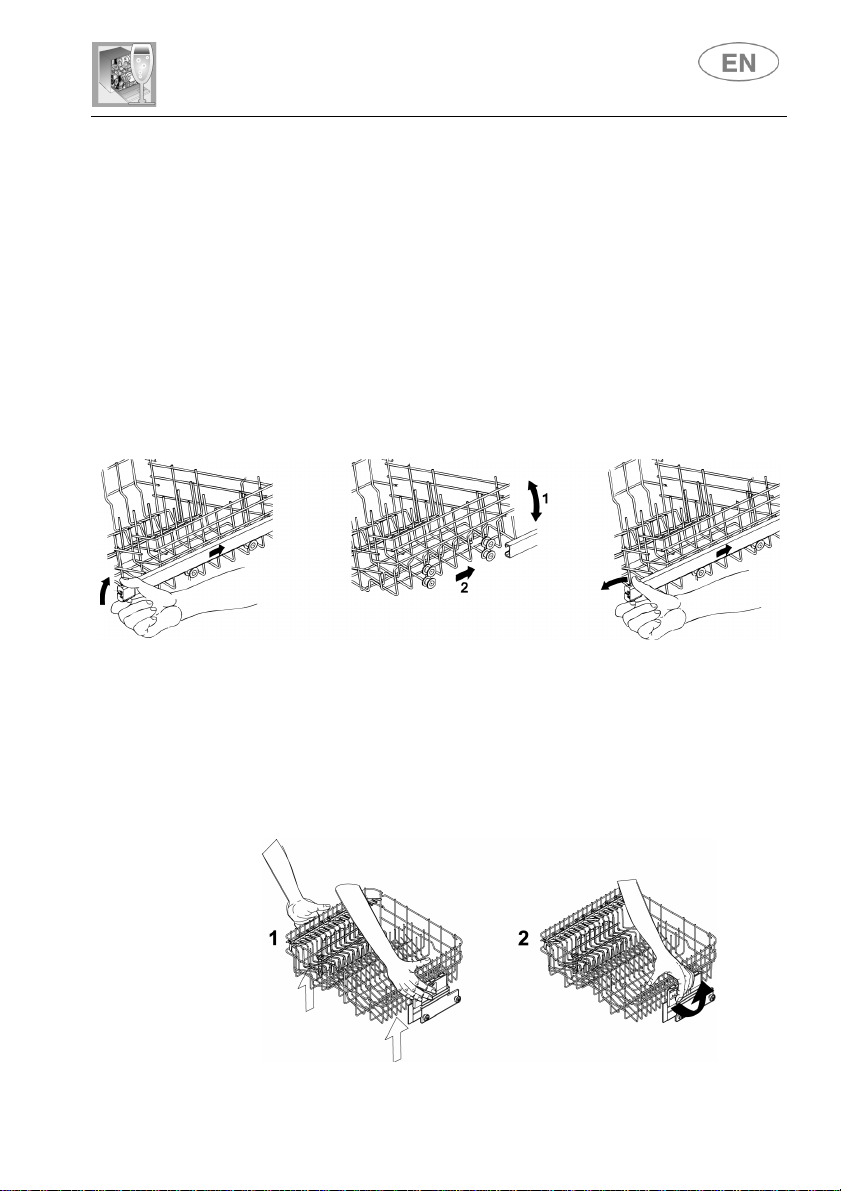

ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket.
The adjustment procedure may be type A or B, depending on the
dishwasher model purchased.
Version A:
pull
-
out
with adjustment in
two positions.
Pull out both the basket guides.
Remove the stops, first releasing them as shown in the diagram.
Pull out the basket.
Fit the upper or lower pair of wheels into the guide, depending on the
setting required;
Return the stops to their original position.
The left hand and right hand sides of the basket must always be set at
the same height
.
Version B:
with adjustment in
three positions
on both sides.
The sides of the basket must always be set at the same height.
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
User instructions
30
3. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the all-pole disconnection device.
3.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank and
gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE
FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter A and clean it delicately under running
water. Reassemble filter A in its seat and carefully screw the water intake
hose back into position.

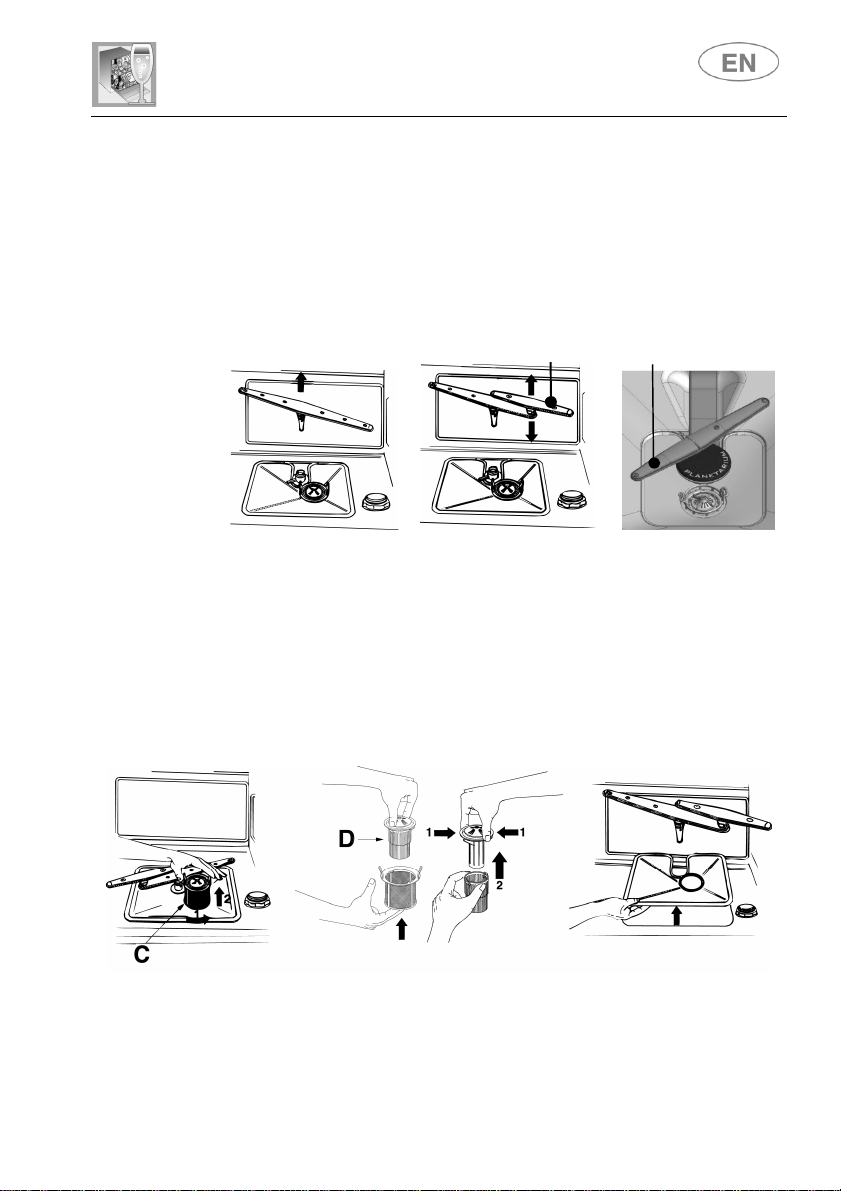

CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
User instructions
31
To remove the lower spray arm, simply lift it up, pulling by the central
part.
To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.
To remove and clean the planetarium sprayer follow the instructions
provided.
CLEANING THE FILTER UNIT
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
ORBITAL
PLANETARIUM
User instructions
32
CLEANING THE FILTER UNIT (
models with planetarium sprayer
)
It is advisable to periodically inspect the centre filter and, if necessary,
to clean it.
remove the planetarium sprayer follow the instructions provided.
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or foul the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
PROLONGED DISUSE:
Run the soak program twice in succession.
Unplug the power cord from the socket.
Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
Fill the rinse aid dispenser.
Shut off the water supply tap.
User instructions
33
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
Plug the power cord back into the socket.
Reconnect the water intake hose and open the tap again.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
the dishwasher is connected to the electrical power supply;
there is no power failure;
the water tap is open;
the dishwasher door is properly closed.
the door won’t close > the door latch was released > use greater
strength to close the door.
If water remains inside the dishwasher, check that:
the drain hose is not kinked;
the drain siphon is not obstructed;
the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
the correct amount of detergent has been added;
there is regenerating salt inside the special container;
the dishes are being loaded correctly;
the selected program is suitable for the dish types and their degree of
soiling;
all the filters are clean and positioned correctly;
the spray arm nozzles are not obstructed;
there is no object obstructing the rotation of the spray arms.
User instructions
34
If the dishes fail to dry or remain dull, check that:
there is rinse aid inside the special container;
the rinse aid dispenser setting is correct;
the detergent used is of good quality and has not lost its effectiveness
(for example, through incorrect storage, with the box left open).
Non-dry synthetic dishes.
Synthetic material has a lower heat storage capacity and is therefore
harder to dry.
If the dishes show signs of streaking, staining, etc., check that:
the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
check that the cap of the salt container is securely closed, and that
the water softening setting is correct.
User instructions
35
Only for models with this lock version.

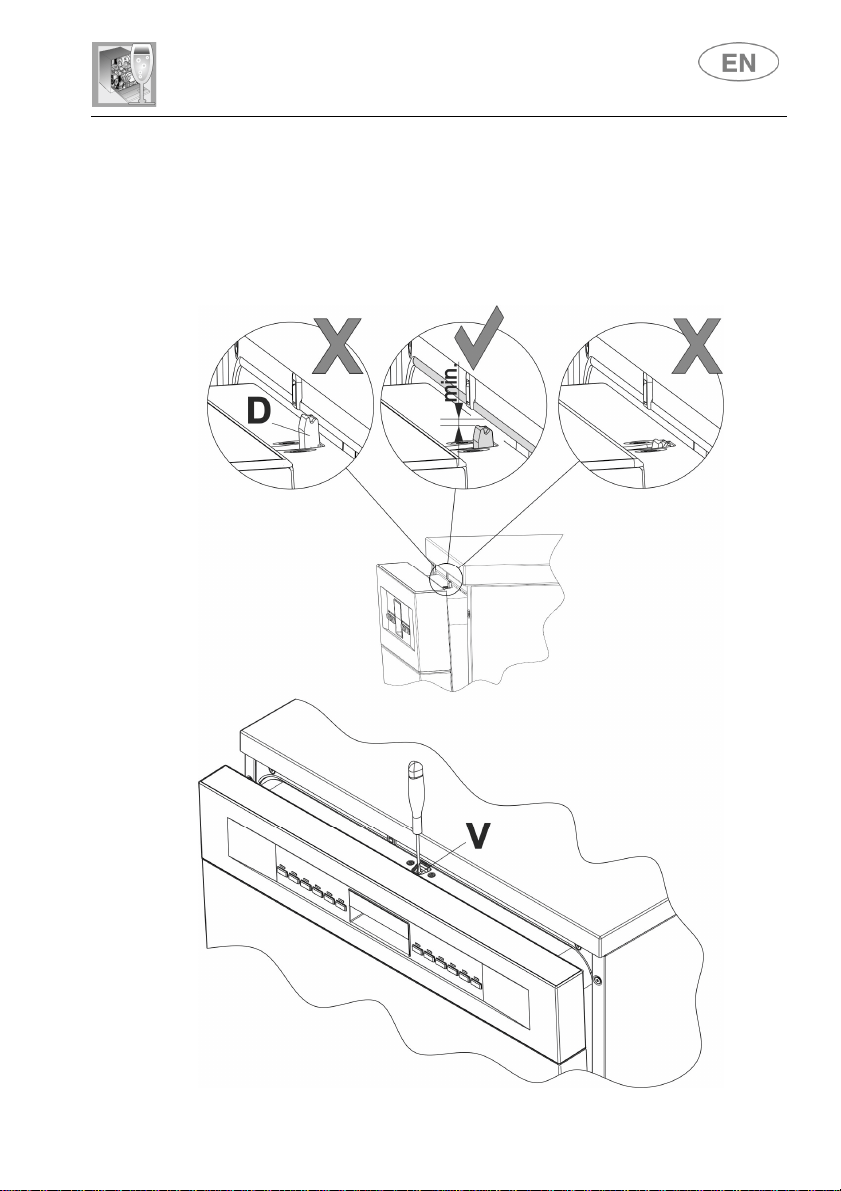

If the door does not close:
1 - Check the position of the door lock catch (D)
2 - If necessary, raise it by adjusting the plastic screw (V) next to the
catch.
3 - Check the condition of the lock hook; if it has not triggered (reference
N), the door opens and closes normally. If it has triggered (reference S),
close the door with force until it resets; open and close the door.
User instructions
36
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
User instructions
37
4. Troubleshooting
The dishwasher is equipped with a self-diagnostics system that is capable
of detecting and
signalling a number of possible faults.
TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM
FAULT DESCRIPTION
E 01
The anti-flooding system (where present) has been tripped service.
E 02
The water level limitation system has tripped.
E 03
The appliance cannot heat the water.
E 04
The temperature sensor is disconnected.
E 05
The appliance cannot take in the water.
E 06
The appliance cannot drain the water from the tank.
E 07
The dishwasher cannot measure the precise water quantity that has
been loaded.
E 08
Problem on the water distribution system to the baskets.
E 09
Water intake system malfunction.
E 11
Wash motor pump does not work
If an alarm occurs the appliance interrupts the program in progress and signals a fault.
Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program immediately.
The E5, E6 alarms interrupts the running program once the cause is resolved, it will
bring bach the execution of the program.
The alarm E7 is visualized at the end of the cycle that comes, however, brought to the
end since the operation of the dishwasher is not harmed.
Alarm E11: contact your authorised Service Centre
To “reset” an alarm is necessary:
Open and close the door, or turn off and on the machine. At this point is possible to
program the dishwasher again.
If the malfunction persists, contact your authorised Service Centre.
