SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS
POWER SUPPLY REQUIREMENTS 120 V, 60 Hz 12 V, DC*
MOTOR Single Phase, Dielectric Oil Filled Permanent Magnet DC
POWER
1/2 HP 100 Watts
CIRCUIT REQUIREMENTS 15 A (minimum) 15 A (minimum)
DIMENSIONS
11 ½ in. high x 9 ¾ in. base 11 ½ in. high x 9 ¾ in. base
ON LEVEL Approximately 9 in. 10-12 in.
OFF LEVEL
Approximately 4 in. N/A
670006W-001 H 02/20
© 2020, WAYNE/Scott Fetzer Company
CONSTRUCTION AC DC
MOTOR HOUSING Coated Steel
VOLUTE
Cast Iron
IMPELLER Glass Reinforced Thermoplastic
SHAFT Steel Stainless Steel
DISCHARGE 1-1/2 in. NPT

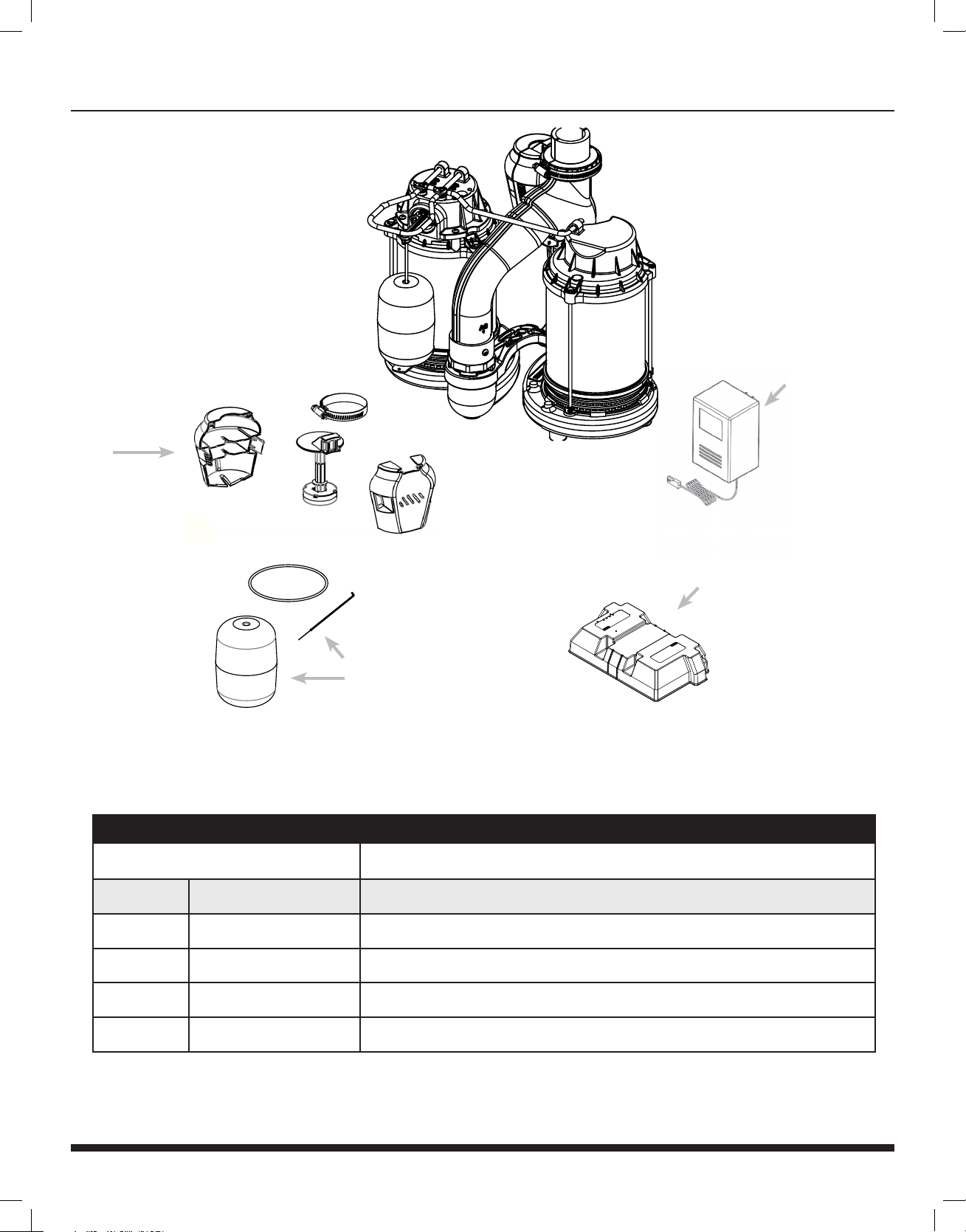

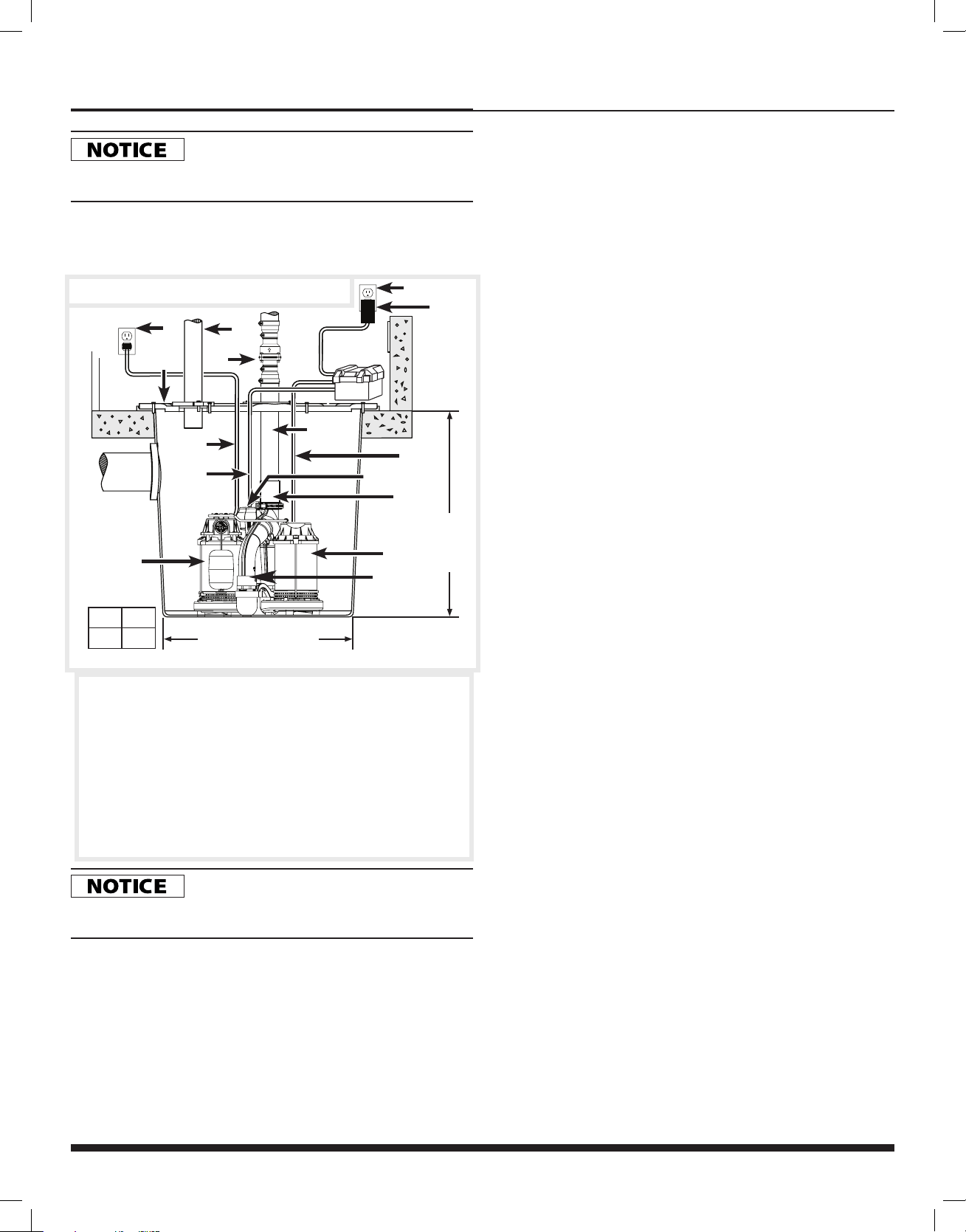

Submersible Sump Pump System
www.waynepumps.com
Intended for Indoor Use Only
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Operating Instructions and Parts Manual WSS30Vn
PERFORMANCE GAL/HR
Model HP
Discharge Head (Lift Distance)
0 ft 5 ft 10 ft 15 ft
WSS30Vn AC 1/2 5100 4500 3840 3060
WSS30Vn DC 12 V 2700 2100 1500 660
* Battery not included. A Wayne WSB1275 75 Amp
Hour Battery is recommended
