INSTALLATION GUIDE
INTEGRATED
DD24STX6I, DD24STX6HI
SINGLE DISHDRAWER™ DISHWASHER
US CA
3
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Fitting an integrated panel requires access to
electrical service areas. This must be performed
by a Fisher & Paykel trained and supported
service technician or qualified person.
• Before fitting the front panel, the dishwasher
must be disconnected from the power supply.
• After installing the front panel, the installer
must ensure that the following components
are electrically earthed: the panel bracket and
any custom metal component (e.g. handle) that
extends past the rubber seal.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• WARNING – Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – panel edges are sharp.
SAFETY AND WARNINGS
4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
z
Do not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
z
Installation of this DishDrawer™ Dishwasher requires basic mechanical and
electrical skills.
z
Installation must comply with your local building and electricity regulations.
z
Remove all packaging materials supplied with the dishwasher.
z
Be sure to leave these Instructions with the Customer.
z
At the completion of the installation, the Installer must perform the Final Checklist.
z
This dishwasher is manufactured for indoor use only.
z
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
z
The DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
z
The switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
z
Care should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
z
If the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
z
Ensure only supplied hoses are used for connection. Old hoses should not be reused.
z
Failure to install correctly could invalidate any warranty or liability claims.
z
If the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
5

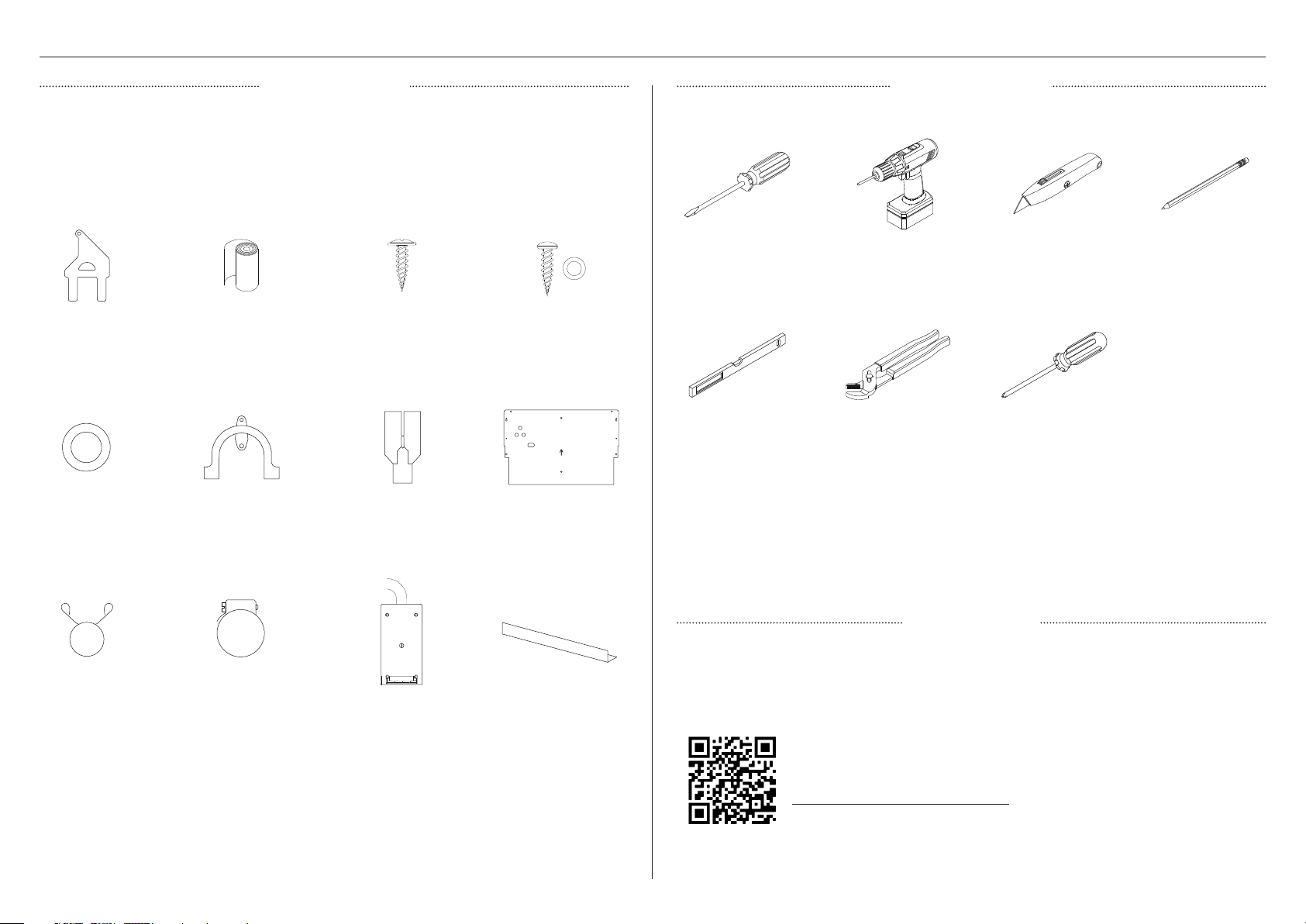

TOOLS AND COMPONENTS
z
Keep all packing materials until the unit has been inspected.
z
Inspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
z
Fisher & Paykel is not responsible for shipping damage.
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product
Rubber washer (1)** Drain hose support (1)
1 1/2" 38mm bottom fixing
screws and washers (2)
Drain hose joiner (1)
Moisture protection
tape (1)
Wire clip (1)
5/8" 16mm Phillips screws
(16)
Clamp (1)
Panel bracket kits (1)**
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
External venting kit (1)
Flat-blade screwdriver
Level
Powered driver
Pliers
Box cutter Pencil
Trim bracket
Phillips screwdriver
6
PRODUCT DIMENSIONS
PRODUCT DIMENSIONS INCHES MM
A Overall height 17 7/8 454
B Overall width 23 9/16 599
C Overall depth* 22 1/2 571
D Depth of chassis 21 3/4 553
E Front panel depth** 5/8 – 13/16 16 – 20
F Max. drawer extension*** 20 3/4 527
*based on front panel thickness of 11/16" (18mm)
**refer to 'Custom panel dimensions' for more information
***excluding custom panel and handle
PLAN ISOMETRIC
PROFILEFRONT
A
C
b
f
D
e
Actual product dimensions may vary by ± 1/16" (2 mm)
7
CUSTOM PANEL DIMENSIONS
CABINETRY DIMENSIONS
STANDARD INSTALL
ASSISTED OPENING
INSTALL**
INCHES MM INCHES MM
A Minimum panel height* 17 13/16 452 19 5/8 498
B Minimum panel width 23 7/16 596 23 7/16 596
C Panel depth 5/8 – 13/16 16 – 20 5/8 – 13/16 16 – 20
D Minimum clearance between base of door
panel and cabinetry
1/16 2 1/16 2
E Minimum clearance between top of door
panel and countertop
1/16 2 1/16 2
Maximum weight of each drawer panel (including handle)
19lb 9 kg
*Core panel dimension. Panel can be extended or lowered to suit installation
**for more information on panel placement refer to fisherpaykel.com
ISO PROFILE
Material specifications
z
Maximum weight of panel must not exceed 19lb (9kg) (including handle)
z
The panel should be adequately sealed to withstand moisture (122°F/50°C
@ 80% RH). The back and sides of the panel should be completely sealed
with a waterproof vapour barrier, such as polyurethane, to prevent damage.
z
The back of the panel should be completely flush so that the seal between
the panel and the rubber trim is maintained.
z
Installation outside these specifications may result in condensation on
cabinetry surfaces.
A
A
D
e
C
B
C
Standard installation illustrated
8

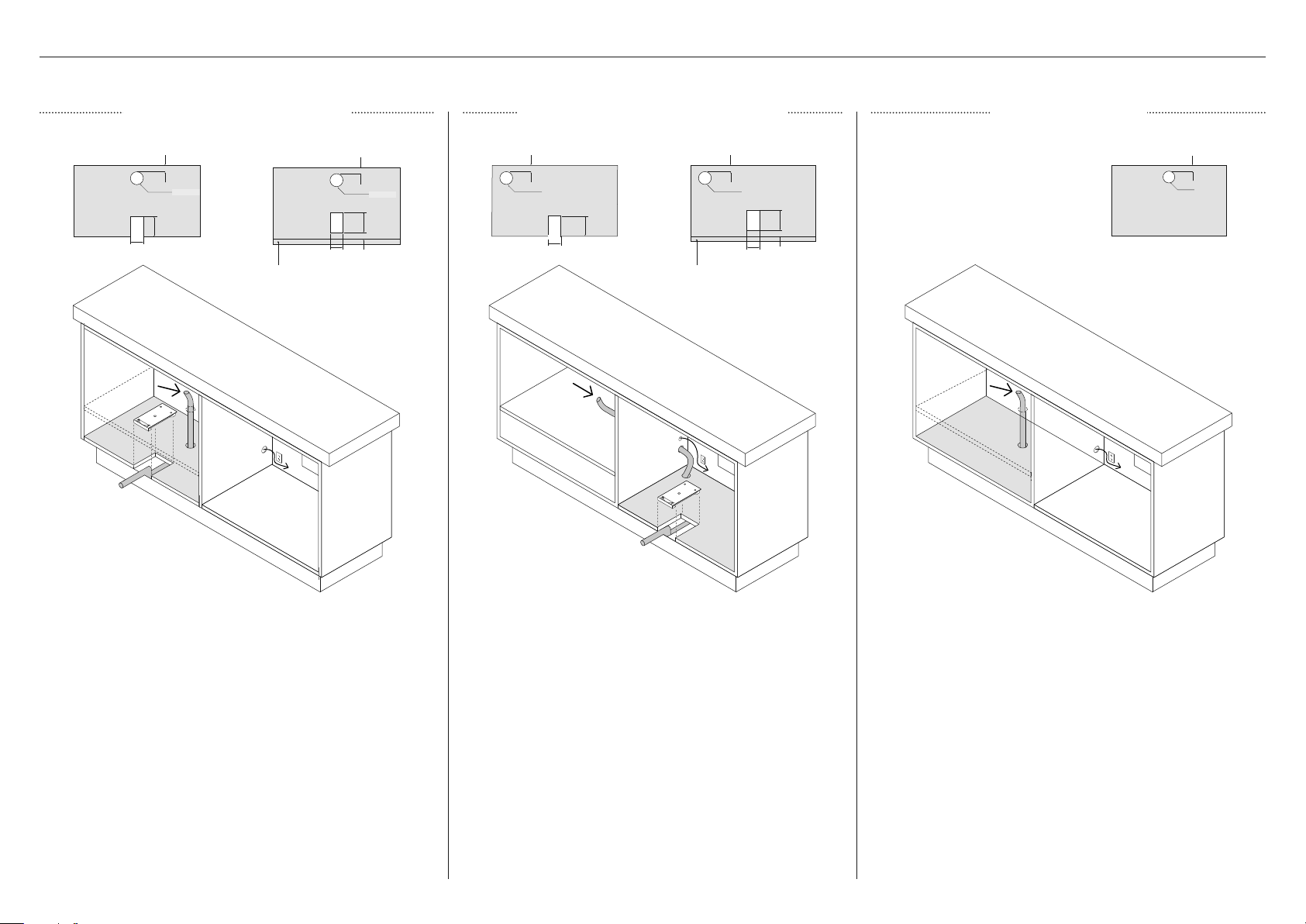

CABINETRY
CABINETRY DIMENSIONS INCHES MM
A Minimum inside height 17 15/16 456
B Inside width 23 5/8 600
C Minimum inside depth* 22 3/4 578
D Minimum toe kick height** 3 15/16 100
*including 11/16" (18mm) door panels on adjacent cabinetry
**when venting through the same or adjacent cabinet. Refer to 'External venting preparation' for more information.
***for more information on service requirements, refer to 'Plumbing & electrical considerations' and 'Cabinetry preparation'.
CABINETRY DIMENSIONS INCHES MM
A Minimum inside height* 20 1/8 511
B Minimum inside height from top of spacer blocks 17 15/16 456
C Inside width 23 5/8 600
D Minimum inside depth** 22 3/4 578
E Minimum toe kick height*** 3 15/16 100
*including an 11/16" (18mm) high spacer and two 2 3/16" (55mm) high spacer blocks
**including 11/16" (18mm) door panels on adjacent cabinetry
***when venting through the same or adjacent cabinet. Refer to 'External venting preparation' for more information.
****for more information on service requirements, refer to 'Plumbing & electrical considerations' and 'Cabinetry preparation'.
STANDARD INSTALL ASSISTED OPENING INSTALL
ISOMETRIC ISOMETRIC
A
C
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher***
B
D
The assisted opening unit should be installed at the centre front of the cavity. For more
information on assisted opening installations, refer to fisherpaykel.com
Assisted opening units can be purchased separately.
A
D
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher****
C
E
B
9
B A
PLAN
CLEARANCES
CABINETRY CLEARANCES INCHES MM
A Minimum clearance to adjacent cupboard door 1/16 2
B Minimum clearance to corner cupboard* 1/2 13
*Access to both sides of the product will be required during installation. If access is not possible, the tubs may need to be
removed for door installation and adjustments. Refer to page 11 for guidance on drawer removal.
10
PLUMBING & ELECTRICAL CONSIDERATIONS
a a b cb
G G
c
d d
H H
e e
f f
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
INCHES MM INCHES MM
A Length of drain hoses 78 1/2 2000 66 15/16 1700
B Length of power cord** 29 1/2 750 27 1/2 700
C Length of inlet hose 64 3/4 1650 49 3/16 1250
D Distance from floor to top of
hose support
29 1/2 –
34 3/4
750 – 883
29 1/2 –
34 3/4
750 – 883
E Minimum distance from floor to end
of drain hoses***
19 11/16 500 19 11/16 500
F Minimum distance from floor to inlet
hose connection
7 7/8 200 7 7/8 200
G Maximum distance from cabinetry
centre of electrical outlet
17 11/16 450 17 11/16 450
H Maximum distance from floor to top
of Air Break
37 3/8 950 37 3/8 950
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for sink trap installations.
Hose and cord lengths
z
Your services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to 'Cabinetry preparation'
for service access requirements.
z
If the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
z
Recommended water temperature: hot (Maximum 140°F/60°C).
z
Supplied hose to suit 3/8" (9 mm) male compression fitting.
z
Ensure water connection complies with local plumbing regulations.
Water pressure
z
Water softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
z
Non-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z
120 V, 60 Hz, 15A
11
You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend
to remove the supplied power cord and do the hardwiring installation as close to the cavity
as possible.
1
2
3
5
4
6
7
8
HARD WIRING (OPTIONAL)
Open the drawer and press both locking
tabs back to release.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out
too far to prevent any strain on the
hoses. Where possible, protect the
base of the tub to prevent damage.
Lift the cover upwards until you are able
to pull out towards you to remove.
Fit a suitable cable clamp for the
conduit through the metal knock-
out. Route wiring behind the tab and
through the toroid removed earlier.
Ensure only copper conductors
are used.
Unscrew the Live, Neutral and Earth
wires as illustrated.
Ensure the upper Earth wire is
not removed.
Carefully remove the cord from the
product. Set toroid aside to for later use.
knock-out
Push the upper latch back to unlock
using your hand.
Release the remaining locking clips
using a flat-bladed screwdriver.
Remove the screw securing the cover.
Set aside.
upper latch
upper Earth
wire location
12
9
!3
!0
!1
!2
Ensure the hoses are not twisted before
refitting the drawer to the runners and
clipping into place via both locking tabs.
HARD-WIRING (OPTIONAL)
Fix the Live and Neutral wires to the
terminal block and the Earth wire to
the chassis.
Lock clips back into place by pressing
down on the cover firmly. Ensure all
illustrated areas are engaged.
Refit screw to secure cover.
rear
hook
cover fill
valve
top view
Position the cover fill valve into place
before lowering the rest of the cover
into position.
Lower the cover back into place
ensuring the locking clips are aligned,
the rear hook is positioned over the slot
and the L rib is cleared.
L rib
13
CABINETRY PREPARATION
1
SERVICE ACCESS MOISTURE PROTECTION
REAR
WALL
SHELF*
PROFILE
SERVICE HOLE DIMENSIONS INCHES MM
A Maximum distance between rear of cavity and service hole 3/16 5
B Maximum distance between shelf* and service hole 3/8 10
C Minimum diameter of service hole 2 1/4 57
D If venting through the adjacent cabinetry, the rear edge of the service hole should be
enlarged by cutting out the bottom corner
*For assisted opening installations, maximum distance should be referenced from the top of the spacer blocks
A
B
C
D
z
Service holes can be created on either side of the DishDrawer™ Dishwasher cavity as
shown below.
z
If the hole is created through wood, ensure the edges are smooth and rounded
z
If the hole is created through metal, ensure the supplied edge protector is fitted.
3/8"
(10mm)
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
14
EXTERNAL VENTING PREPARATION
To prevent the build up of condensation produced by your DishDrawer™ Dishwasher, the external venting kit must be installed via one of the following options:
THROUGH SAME CABINET THROUGH ADJACENT CABINET THROUGH FLOOR
z
There is no minimum toe kick height for venting the
DishDrawer™ Dishwasher through the floor below the
cabinetry, the space below the floor however, must be a
sub-area of the house and have adequate airflow.
z
A Ø2 1/4" (Ø57mm) service hole should be created
through the side wall following the guidance under
‘Cabinetry preparation’. In addition to this, a Ø2 1/4"
(Ø57mm) service hole must be also be created through
the shelf, the base of the cavity and the floor to route the
venting hose through.
z
The duct is not required for this venting method.
z
Ensure all cutout edges are smooth and rounded and the
supplied edge protector is fitted if required.
z
Ensure cutout in the floor is sealed adequately.
z
A toe kick height of at least 3 15/16" (100mm) is required.
z
A Ø2 1/4" (Ø57mm) service hole should be created
through the side wall following the guidance under
‘Cabinetry preparation’. In addition to this, a second
Ø2 1/4" (Ø57mm) service hole must be also be created
through the shelf and the base of the cavity to route the
venting hose through.
z
Frameless cabinetry: A 3 15/16 – 7 7/8" (100mm x 200mm)
cutout must be created at the front of the cabinetry base
to secure the duct to.
z
Framed cabinetry: A toe kick depth of at least 2 3/8"
(60mm) is required. In addition, a 3 15/16 – 7 7/8"
(100mm x 200mm) cutout must be created within the
adjacent cabinetry base to secure the duct to. This cutout
should be set back a minimum of 1" (25mm) from the
frame edge for optimal venting.
z
A toe kick height of at least 100mm is required.
z
A notched-out Ø2 1/4" (Ø57mm) service hole should
be created through the side wall following the
guidance under ‘Cabinetry preparation’.
z
Frameless cabinetry: A 3 15/16 – 7 7/8" (100mm x
200mm) cutout must be created in the base of the
adjacent cabinetry to secure the duct to.
z
Framed cabinetry: A toe kick depth of at least 2 3/8"
(60mm) is required. In addition, a 3 15/16 – 7 7/8"
(100mm x 200mm) cutout must be created within the
adjacent cabinetry base to secure the duct to. This
cutout should be set back a minimum of 1" (25mm)
from the frame edge for optimal venting.
FRAMED FRAMED FRAMED & FRAMELESSFRAMELESS
ISO* ISO* ISO
FRAMELESS
1"
1"
7 7/8"
7 7/8"
7 7/8"
7 7/8"
3 15/16"
3 15/16"
3 15/16"
3 15/16"
Ø2 1/4"
Ø2 1/4"
Ø2 1/4" Ø2 1/4"
Ø2 1/4"
3/16" 3/16" 3/16" 3/16" 3/16"
custom framed edge custom framed edge
*Frameless install illustrated *Frameless install illustrated
15

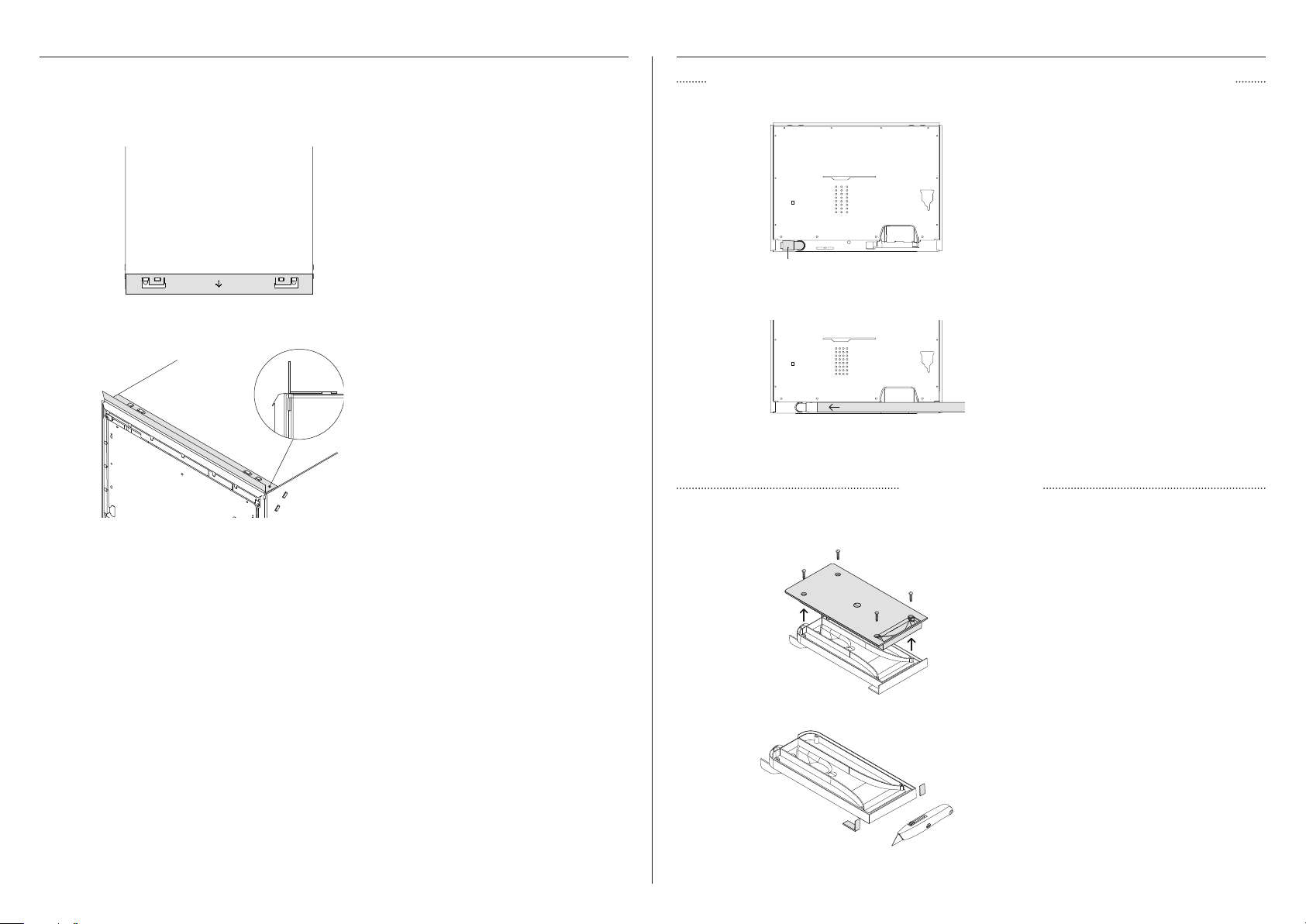

FIT THE TRIM BRACKET PREPARE EXTERNAL VENTING
2
Check the trim seal is facing forward
and sitting flat under the bracket.
1
Align the bracket to the chassis ensuring
the arrow is facing forward and firmly
slot the tabs into place to secure.
Ensure the ends of the tabs are not
pushed into the chassis.
Rotate the elbow at the rear of the
product to either the left or right
depending on your venting location.
Push the vent hose onto the elbow
firmly to secure.
We recommend fitting the trim bracket when installing your DishDrawer™ Dishwasher into a
18 7/8" (480mm) cavity to conceal any visible gap left between the countertop and chassis.
FIT THE VENTING HOSE TO THE DISHDRAWER™ DISHWASHER
TRIM THE DUCT
On a protected surface, carefully cut
and remove the clips from the vent as
shown. Refit the top cover.
Unscrew the top cover from the vent
and set aside.
2
2
1
1
Framed cabinetry only
elbow
16
If securing via bracket method:
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Route the venting hose through
the floor. Ensure any excess hose
is removed.
Unframed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Push the duct onto the cabinetry and
secure using the four provided screws.
Framed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Place duct into cutout and insert the
bracket into vent slot. Secure using the
five provided screws.
1
2
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them.
PUSH THE PRODUCT INTO THE CAVITY SECURE THE VENTING HOSE TO CABINETRY
VENTING THROUGH FLOOR
VENTING THROUGH CABINETRY
A
A
B
B
17

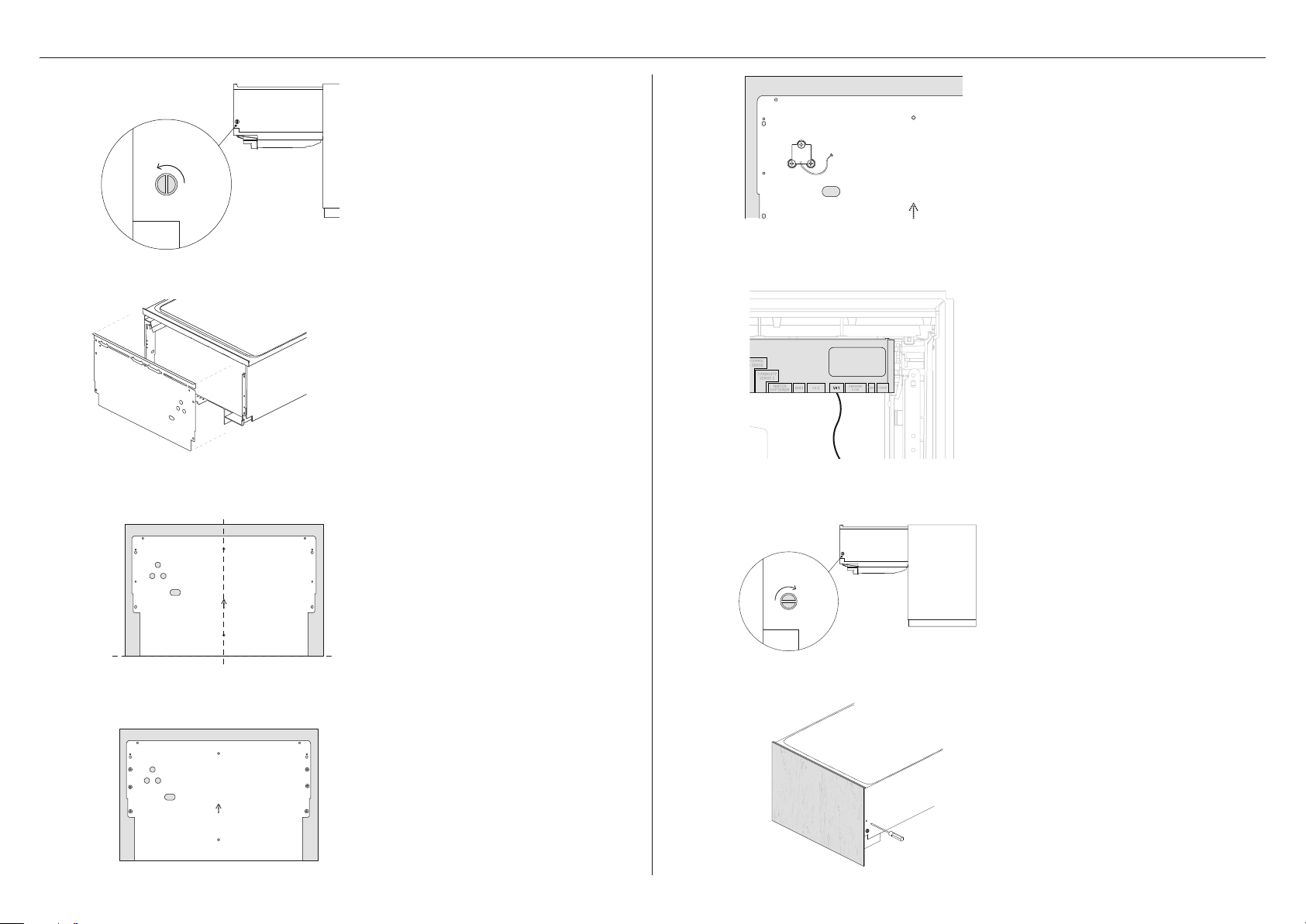

FIT THE CUSTOM PANEL
2
6
3
7
4
8
Carefully pull the bracket down and
out from DishDrawer™ Dishwasher and
unplug the Knock-to-Pause module and
earth wire.
Remove the Knock-to-Pause module
from the back of the bracket.
Attach the Knock-to-Pause module to
the panel as shown.
Ensure the Knock-to-Pause module is
oriented correctly and is not in contact
with the bracket before securing.
On the back of the panel, mark the
centre and align the base of the bracket
with the base of the panel.
Secure the bracket to the panel using a
minimum of 3 screws on either side.
Insert a Phillips screwdriver into the
hole above the side pin and rotate
to adjust the panel alignment. There
is a maximum travel distance of
± 1/16" (2mm).
Repeat on the other side if required.
Ensure the minimum clearance gap of
1/16" (2mm) is maintained.
1
5
Remove both side pins by twisting a
quarter-turn towards the product front.
Pull outwards to remove pin.
Re-insert both side pins to each drawer
by pushing in and twisting a quarter-turn
towards the rear of the product to secure
panels into place.
Electric shock hazard:
To earth the panel bracket, connect the
earth wire from the product to one of
the tabs. Any custom metal components
(e.g. handle) that extend past the
rubber seal must be earthed also.
Reconnect the Knock-to-Pause module
to the UI 1 slot on the wash controller as
shown. Reconnect the earth wire to the
panel bracket before fitting the panel to
the product.
18

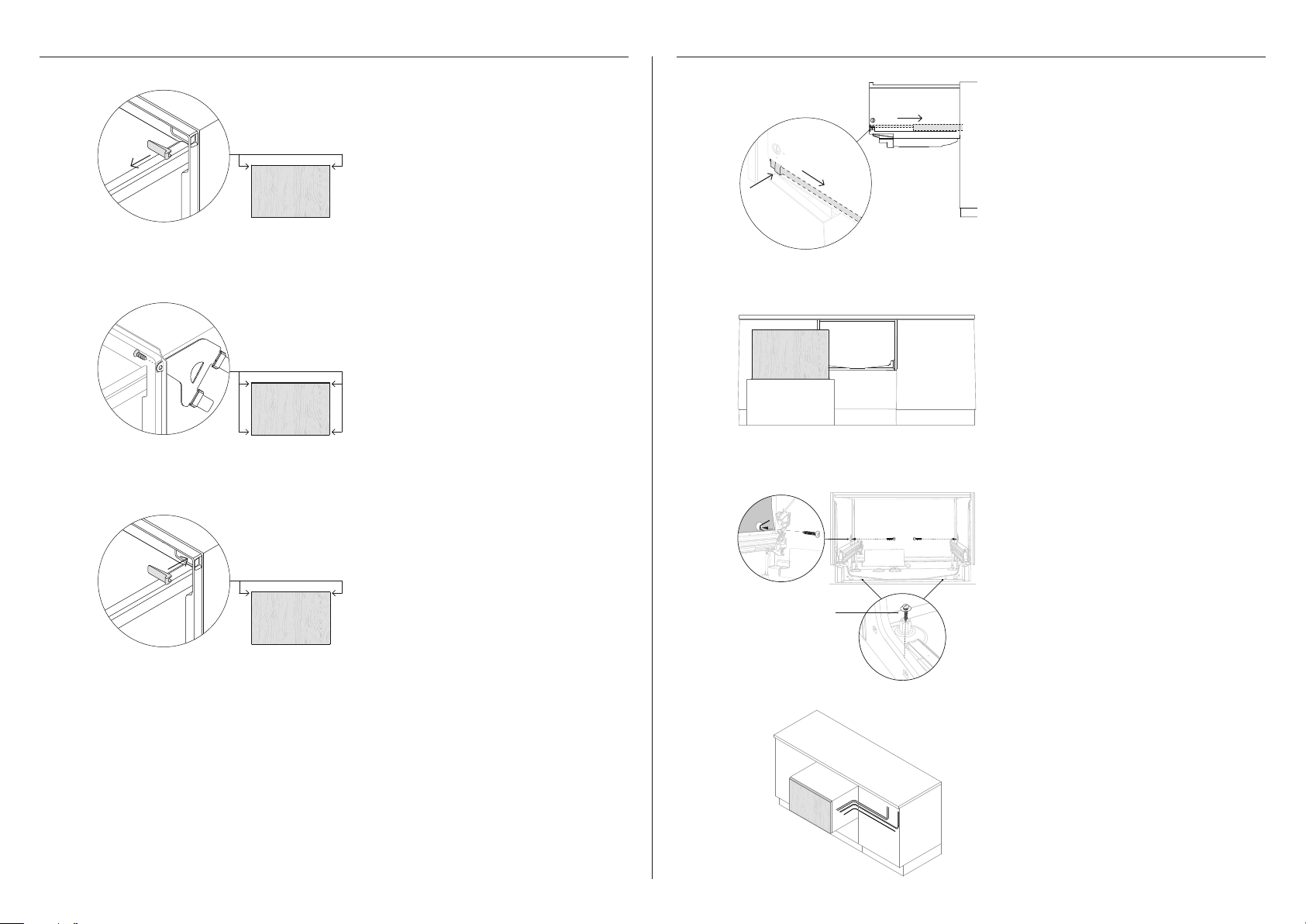

SECURE TO CABINETRY VIA BRACKETS (METHOD A)
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
2
3
Replace the trim cover and repeat for
the remaining brackets.
SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Secure to cabinetry via all three
fixing locations in the tub.
Ensure sound insulation is
replaced correctly.
3
1
2
4
Before refitting the drawer, ensure the
hoses are not twisted.
Refit the drawer to the runners and clip
into place via both locking tabs.
Partially open the drawer and remove
the first screw cover from the
trim moulding.
1
Open the drawer and press both locking
tabs back to release.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out
too far to prevent any strain on the
hoses. Where possible, protect the
base of the tub to prevent damage.
1 1/2" 38mm screw
and large washer
19
PLUMBING & ELECTRICAL CONNECTION
Install the drain hose support to the
back wall, as close to the underside
of the benchtop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside
of the benchtop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the hoses do not extend any
further than 4 3/4" (120mm) into the
standpipe to prevent waste water from
siphoning back into the tub.
Thread wire clip on to the hose before
pulling the hose through the support
guide and fitting to the supplied hose
joiner. Secure using the wire clip.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorted the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
Plug product in. Plug product in.
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
1 1
2 2
3 3
4 4
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
4 3/4"
(120mm)
20
Install your single Air Gap Kit to the
benchtop like shown.
Refer to ‘'Plumbing & electrical
considerations' for minimum
install heights.
Thread wire clip on to the hose before
securing the drain hose to the supplied
hose joiner and fit to the Air Gap Kit.
Ensure hose is routed straight to the
joiner, removing excess drain hose
if necessary.
Unplug or drill out the waste tee before
securing to sink trap or waste tee.
Plug product in.
SINGLE AIR GAP INSTALLATION
1
2
3
4
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
PLUMBING & ELECTRICAL CONNECTION
21
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure DishDrawer™ Dishwasher is secure and drawer opens and closes freely with
no resistance.
Ensure panel is fitted correctly to the DishDrawer™ Dishwasher
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum 150mm
higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation
INSTALLER CHECKLIST
22
TROUBLESHOOTING
No program indicator lights up when the drawer is opened
z
Ensure power is connected and is switched on.
z
AUTO POWER-ON may need to be activated. Refer to your user guide for details.
Drawer doesn’t close properly
z
Ensure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
z
Check hoses, connections and existing plumbing for leaks.
z
Check rubber washer and hose clamp are correctly fitted.
Product is tipping
z
Ensure the product is secured to the cabinetry.
Front panels are misaligned to surrounding cabinetry
z
Check cabinetry is square.
z
Re-adjust door panels using the door adjustment screws. Refer to page 17 for guidance.
z
Re-secure DishDrawer
TM
Dishwasher to cabinetry
If a problem occurs that is not listed, refer to your user guide for additional troubleshooting If
after checking these points, you still need assistance, please refer to the Service & Warranty
book for warranty details or contact us through our website fisherpaykel.com
DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers
A1: Water
Supply fault.
1 Ensure the water supply is turned on.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
ECO, RINSE + all modifiers
A3: Drawer
cannot drain. The
drainage hose
may be blocked
or kinked, or the
connection to
drainage pipe may
be blocked.
1 Ensure the drainage hose and
connection to pipes are not blocked.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
1 Ensure the filter is installed correctly.
Refer to 'Replacing the filter' in your
user guide.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
GLASSWARE, ECO + all
modifiers
A6: The spray
arm has loosened
or come off its
mounting, or
water pressure
is too low, or
a combination
of low water
pressure and
excessive foaming.
1 Open the drawer and check the
spray arm.
2 If the spray arm has loosened or
come off its mounting, re-fit it. Check
that it is firmly seated and turns
freely. Refer to 'Maintenance' in your
user guide.
3 Press
once to stop the beeping, then
again to clear the fault.
4 Press
to resume the wash program.
592429A 04.21
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
FISHERPAYKEL.COM
