• Page 1: User Manual Dishwasher HDW15V2 HDW15V3 Models AA
• Page 2 - English - : Please read these instructions carefully before using this appliance The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation use and maintenance Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance If you sell the appliance give it away or leave it behind when you move house make sure you also pass on this manual so that the new owner can become familiar with the appliance and safety warnings Legend General information and tips Warning Important Safety information Environmental information Disposal Help protect the environment and human health Put the packaging in applicable containers to recycle it Help to recycle waste of elec trical and electronic appliances Do not dispose appliances marked with this symbol with the household waste Return the product to WARNING Risk of injury or suffocation Disconnect the appliance from the mains supply Cut off the mains cable and dispose of it Remove the door catch to prevent children and pets to get closed in the appliance Thank you for purchasing a Haier product
• Page 3 - English - : Safety 3 Product Description 5 Control Panel 6 Programmes 9 Daily Use 14 Care and Cleaning 24 Troubleshooting 26 Economic and Environmental Use 29 Installation 30 Technical Data 34 Customer Service 35 Content Standards Test 36
• Page 4 - English - : Intended Use The appliance is designed for domestic use inside the house It is not intended for commercial or industrial use Do not use it for purposes other than that for which it was designed may cause hazards and loss of warranty claims Standards and Directives This product meets the requirements of all applicable EC directives with the corresponding harmonised standards which provide for CE marking Safety Before Switching on the Appliance for the First Time Do make sure all packaging is removed and is kept out of childrens reach make sure that the electrical information on the rating plate agrees with the power supply If it does not contact an electrician use a separate earthed socket for the power supply The appliance must be earthed make sure the plug is easy accessible make sure only the delivered electric cable and hose set are used hold the plug and not the electric cable when unplugging the power supply make sure not to damage the electric cable and the plug If damaged have it replaced by an electrician leakage Do not install or use the appliance where the temperature is below 5 C use multiplug adapters and extension cables let persons children included with reduced physical sensory reduced mental functions or lack of experience and knowledge use the appli ance if not supervised by a person responsible for their safety products in near or on the appliance
• Page 5 - English - : During Daily Use Do supervise children to prevent them playing with the appliance put sharp pointed objects eg knives in a way that there is no danger of injury Do not open the door while a programme operates The appliance can release hot steam keep the appliance door open without supervision to prevent trip ping and falling let children or pets come close to the appliance when the door is open sit or place heavy items on the open door remove the dishes from the appliance until the programme is completed There can still be detergent on the dishes drink the water in the appliance The water may be contaminated with detergent residues cover any ventilation openings in the base by a carpet or similar object use water spray or steam to clean the appliance Safety let the children make the cleaning and user maintenance without supervision WARNING Some dishwasher detergents are strongly alkalineThey can be extremely dangerous if swallowedAvoid contact with the skin and eyes and keep children away from the dishwasher when the door is openCheck that the detergent receptacle is empty after completion of the wash cycle
• Page 6 - English - : Product Description Top spray Detergent dispenser Upper spray arm Rating label Lower spray arm Cutlery basket Filters Lower basket Upper basket Rinse aid dispenser Knife rack User manual Accessories Check the accessories and literature in accordance with this list Usupport water inlet hose The third basket Thermo dry 1 2 1 Applicable to models HDW15V2 2 Applicable to models HDW15V3
• Page 7 - English - : Control Panel HDW15V2W1S1 HDW15V3W1S1 ON OFF button Time amp Info DisplayIndicator Icon START PAUSE button Option Indication PROGRAMME Touch button Status Indication 5 3 36 5 5 3 6 3 5 ON OFF button Time amp Info Display START PAUSE button Option Indication PROGRAMME Touch button Status Indication
• Page 8 - English - : Control Panel Time amp Info display like Programme cycle time Programme start delay time Error codes and service information Remaining time in hours of a delayed programme starts eg Remaining programme cycle time in hours minutes eg While running it may vary due to local conditions and daily working load Rinse aid Water tap If the indicator lights up If the indictor lights upChild lock mode has been opened If the indictor lights upDelay start mode has been opened Rinse aid is empty After adding Rinse Aid press for 3 seconds and the light goes out water Check section TROUBLESHOOTING Child Lock Delay start Status Indicators Wash If the indicator lights up the Dishwasher is washing Rinse If the indicator lights up the Dishwasher is rinse washing Dry If the indicator lights up the Dishwasher is drying Indicator Icon
• Page 9 - English - : Control Panel Option Indication Delay start You can delay the start of a programme in 1 hour steps up to 24 hours Check the according paragraph under Daily use Child Lock To activate or cancel Child lock press and hold until the Child lock indicator comes on or turn off Extra shine This option reduces spots on glassware and dinnerware The option adds an extra intermediate rinse Half load Add time Use this option if you have only a few items to wash This will save water energy and time If you use powder detergent use a little less detergent than for a full load Multitab Activate this option only when you use the Tablet detergent Related indication The programme duration can increase tablets This option decreases the flow of rinse aid and salt Press this button when you want to increase washing time increase by 10 minutes at a time increase to three times
• Page 10 - English - : Programmes Light to heavy soil Casseroles sauces potatoes roasted or fried food Nondelicate Dinnerware cutlery pots and pans Auto Heavy ECO Heavy soil Casseroles sauces potatoes rice roasted or fried f ood Nondelicate Dinnerware pots and pans Normal soil Soups eggs sauces potatoes pasta rice roasted or fried food Nondelicate Dinnerware cutlery glassware Fresh soil Coffee cake milk cold drinks salad sausages Nondelicate Dinnerware cutlery glassware Light soil Coffee cake milk cold drinks salad sausages Delicate Glassware dinnerware cutlery Dishes to be stored for a few days before washing All Dinnerware cutlery glassware pots and pans GlassAuto Rinse 1 The appliance senses the type of soil and the quantity of items in the baskets It automatically adjusts the temperature and quantity of water energy consumption and programme duration 2 3 With this programme you can wash a load with fresh soil It gives good washing results in a short time Use this programme to quickly rinse the dishes This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance Do not use detergent with this programme Fast Mix Hygiene Hygiene soil Casseroles sauces potatoes pasta rice Nondelicate Dinnerware cutlery pots and pans Mixed soil Coffee cake milk cold drinks salad sausages casseroles potatoes pasta rice roasted or fried food Nondelicate Dinnerware cutlery glassware pots and pans sauces pasta rice pasta cutlery roasted or fried food 1 2 3
• Page 11 - English - : Programmes Saving PreRinse Nondelicate cutlery Dinnerware Light or fresh soil Soups eggs sauces pasta rice roasted or fried food Mixed soil Coffee cake milk cold drinks salad sausages casseroles potatoes pasta rice roasted or fried food Nondelicate Dinnerware cutlery glassware pots and pans sauces potatoes On HDW15V3 models
• Page 12 - English - : First Steps Remove all packaging materials keep them out of childrens reach and dispose them in an environmentally friendly manner There could be water residue inside the appliance due to quality checks in the factory Perform the following steps 1 Install the appliance Refer to section INSTALLATION Only for use of Multitabs Adjust the rinse aid setting Refer to section DIFFERENT SETTINGS FOR RINSE AID Fill the rinse aid dispenser Refer to section HOW TO FILL THE RINSE AID DISPENSER Open the water tap Start any wash programme apart from Rinse programme with detergent but no load to remove possible manufacturing resi dues Activate DeActivate the Buzzer An accoustic signal informs about the end of a programme This signal can be switched off Refer to section HOW TO ADJUST SETTINGS and select the setting If the display shows the signal is switched off If the display shows the signal is switched on
• Page 13 - English - : Different Settings for Rinse Aid Rinse aid is added during the last rinsing phase to dry the dishes without streaks and stains Detergent eg powder tablets requires separate rinse aid Factory default setting No settings are necessary The rinse aid is added from the rinse aid dispenser only Detergent with multifunction eg Multitabs combine detergent and rinse aid The rinse aid setting should be adjust to Please use the setting instructions in section HOW TO ADJUST SETTINGS and select the setting The rinse aid is added from the rinse aid dispenser in addition to the multitabs rinse aid Setting cuts off the rinse aid dosage and the rinse aid indication The higher the value for the higher the dosage Usually the recommended setting performs well In case of streaks stains shimmer etc refer to section TROUBLESHOOTING CAUTION Only use rinse aid for dishwashers Other products can cause damage to the appliance 1 Press the release button B to open the lid Fill the tank A up to the max mark Remove any spilled rinse aid with an absorbent cloth Overdosed or spilled rinse aid may cause problems creating foam Close the lid Make sure that the release button locks into position
• Page 14 - English - : How to Adjust Settings 1 The appliance is switched off 2 Press and hold an d a bout 3 seconds until To adjust the Rinse Aid level The display shows the current Rinse Aid setting the default is Press to change the Rinse Aid setting minimum dispense and maximum dispense To exit the Rinse Aid menu press and hold for 1 second Activate DeActivate the Buzzer 1 The appliance is switched off 2 Press and hold and for about 3 seconds until The display shows the current Rinse Aid setting Press to scroll to the buzzer menu The display will show buzzer off or buzzer on Press to toggle between To exit press and hold 1 second 6 Child lock This feature disables all the buttons on the dishwasher If any other buttons are pressed while Child lock is activated the Child lock indicator will flash for a few seconds 1To activate Child lock press and hold for 3 seconds 2The display will remain on if no programme has been started it will continue to flash while the control panel is locked 3To cancel Child lock press and hold for 3 seconds in steps between buzzer off or buzzer on
• Page 15 - English - : Please note that not all sales models comes with identical features and options So pictures of that chapter are sometimes different to your dish washer model Explanations try only to point out basic model variants 1 Load the baskets 2 Press the ONOFF button to activate the appliance the rinse aid indicator refer to section HOW TO RESET THE RINSE AID IDNICATOR Add the detergent refer to section DETERGENT Close the door 5 Set the programme according to the type of load and how dirty the dishes cups and cutlery are 6 Maybe select a start delay time 7 Press the START PAUSE button to start the programme After programme end the appliance change to auto off Unload the baskets How to Reset Rinse Aid Indicator The appliance is switched on The rinse aid indicator is on 2 Press and hold the STARTPAUSE button until the Rinse Aid light up The Status Indicators light up Daily Use If the rinse aid indicator is on fill the rinse aid dispenser and reset Always completely fill the rinse aid before starting the next wash cycle indicators

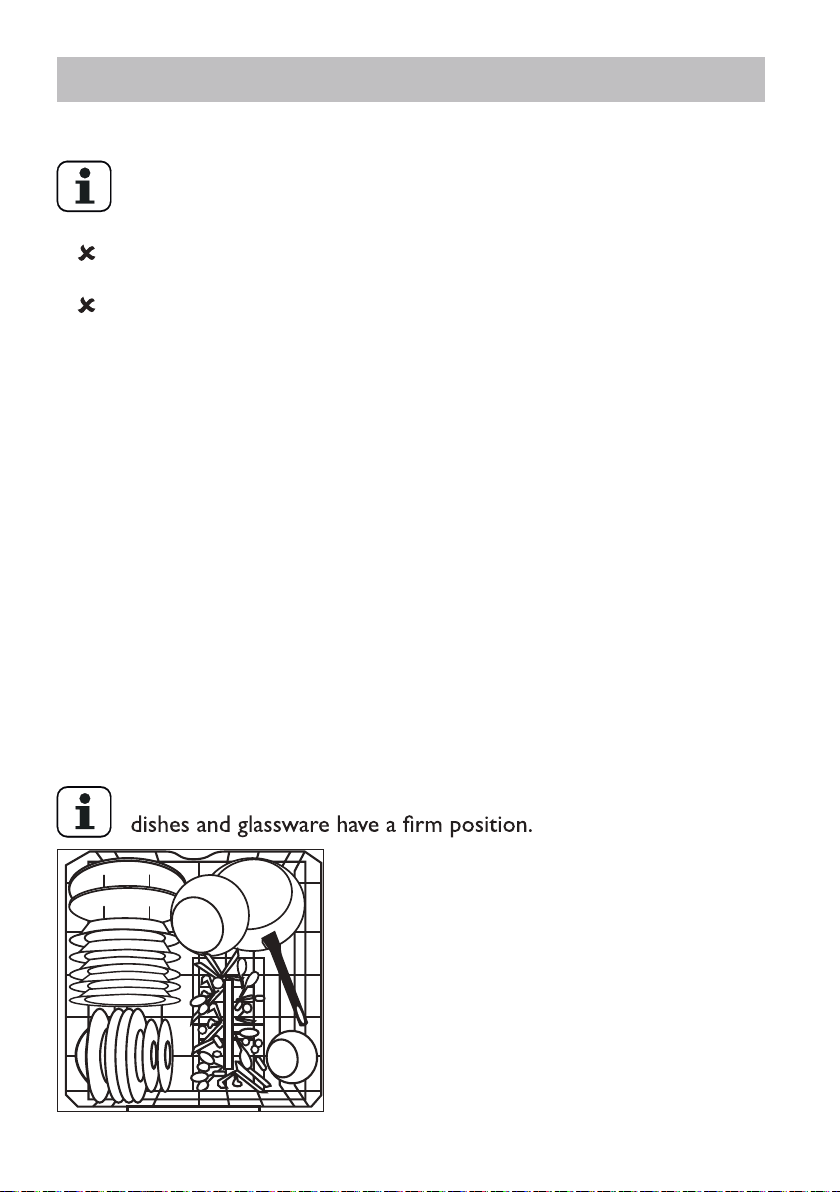

• Page 16 - English - : Daily Use Load the Baskets With delicate glasses and porcelain make sure they are labelled dishwasherproof Do not put in the appliance items made of wood horn aluminium pewter and copper Do not put in the appliance items that can absorb water sponges household cloths Only use the appliance to wash items that are dishwashersafe Remove remaining food from the items Soften burned food on the items before washing Put hollow items cups glasses and pans with the opening down Put items with deep hollows in a slanted position Mix spoons with other cutlery to prevent them to bond together Make sure that cutlery and dishes do not bond together and there is a gap between each item Make sure that glasses do not touch other glasses Put small items in the cutlery basket Put light items in the upper basket Make sure that the items do not move Make sure that the spray arms can move freely before you start a programme If jingling noises are heard during a programme run Check that the Lower Basket Place heavily soiled items like pots and pans or dinner plates in the bottom basket The more powerful spray jet provides a better dishwashing result

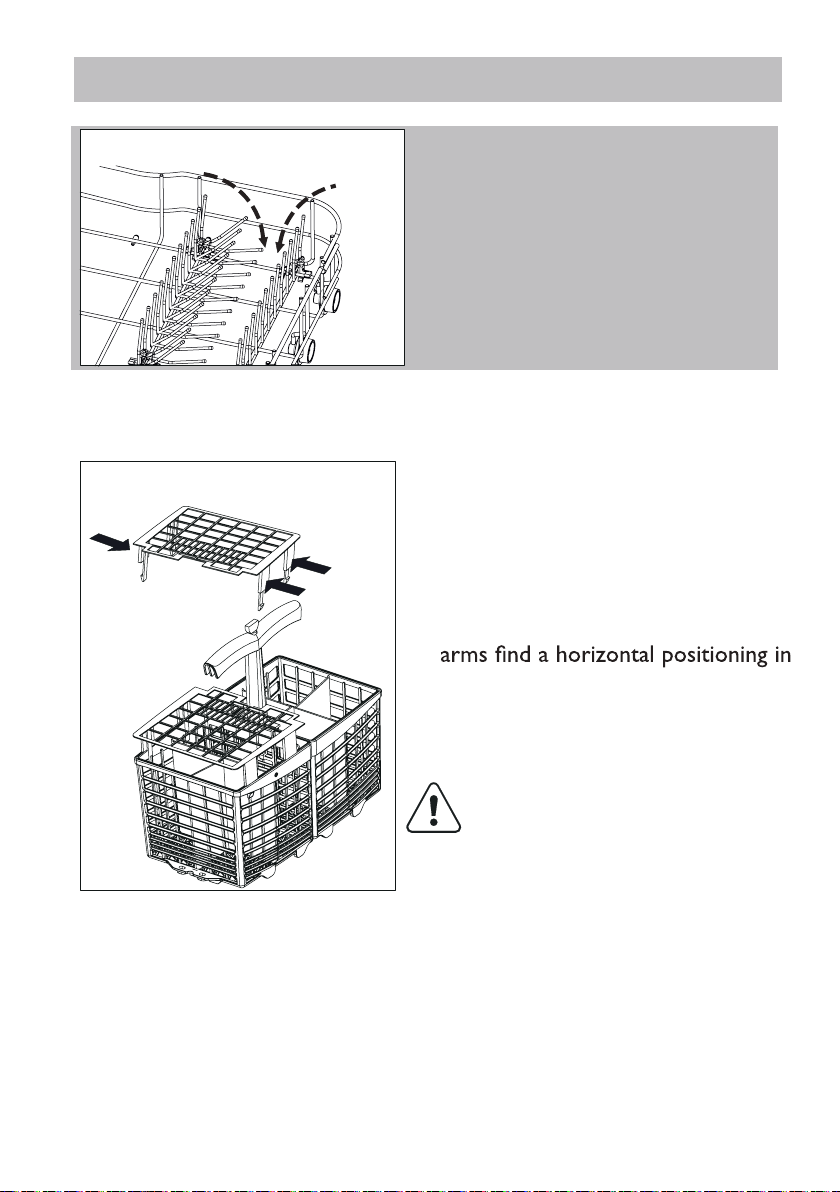

• Page 17 - English - : Daily Use Cutlery Basket Mix spoons with other cutlery to prevent them to bond together Use the grid element in order to separate the cutlery Place cutlery with the handles down for better washing results If long items may block the spray the upper basket CAUTION Put sharp and pointed items with the blade pointing downward to keep them out of harms way The lower basket has folding spikes Fold down these spikes to improve arrangement of pots pans and bowls HDW15V2 HDW15V2 and HDW15V3

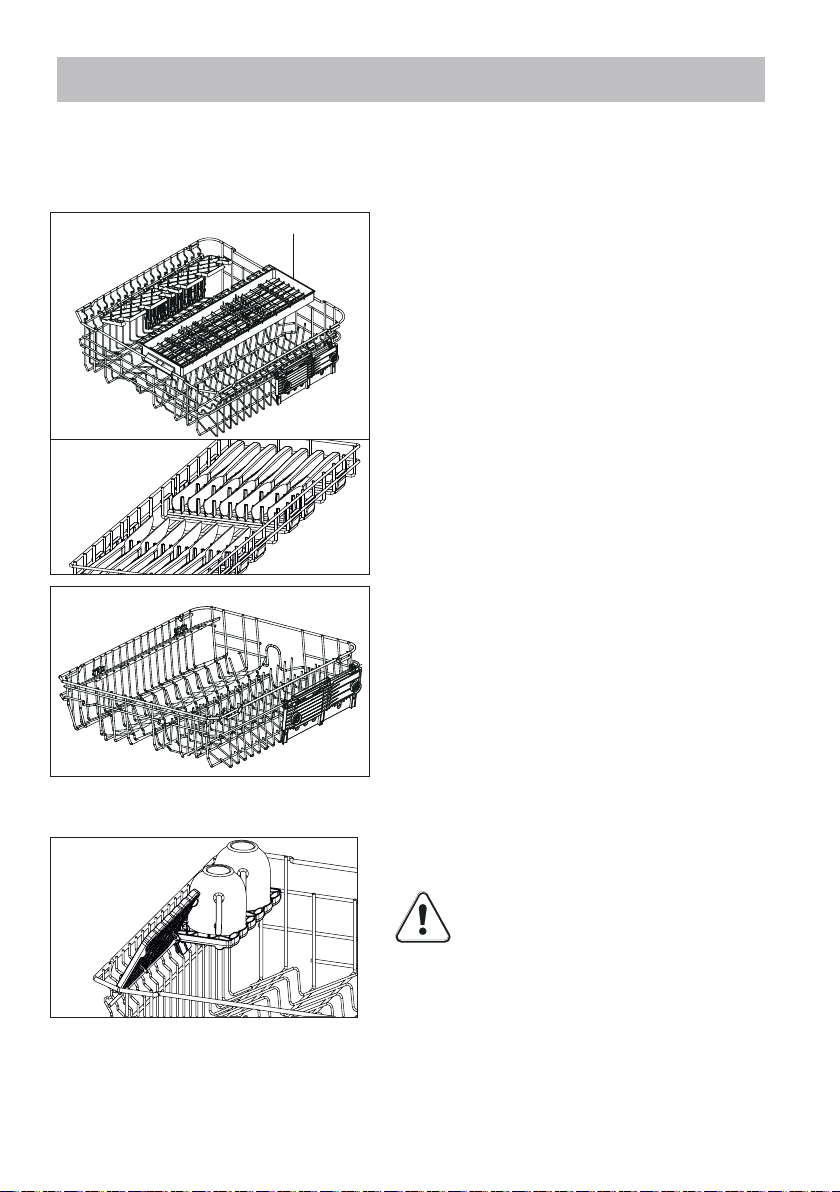

• Page 18 - English - : Upper Basket and utensil tray Place small items on the foldable cup holder Daily Use Utensil tray The upper basket is designed to hold items like glasses cups saucers plates small bowls and shallow pans Use the utensil tray to securely hold long or sharp items like knives chopsticks or ladles Ensure that knife blades are facing down Slide or remove the utensil tray if you need the space for other items below You can adjust the height of the upper basket to create more space for tall items in the lower basket HDW15V2 CAUTION Place sharp and pointed items with the blade pointing down ward into the knife rack to keep them out of harms way Utensil tray HDW15V3 For best washing results place the table knifes in the knife rack
• Page 19 - English - : Daily Use Lift the basket 1 Pull out the upper basket 2 Hold the basket on both sides on the edge above the lever 3 Lift the basket till you hear a click 4 Check the horizontal position and safe lock of the basket Model with lever for easy height adjustment of the upper basket HDW15V2 HDW15V3 Lower the basket Press the lever on both sides to lower the basket 2 Check the horizontal position and safe lock of the basket Lever

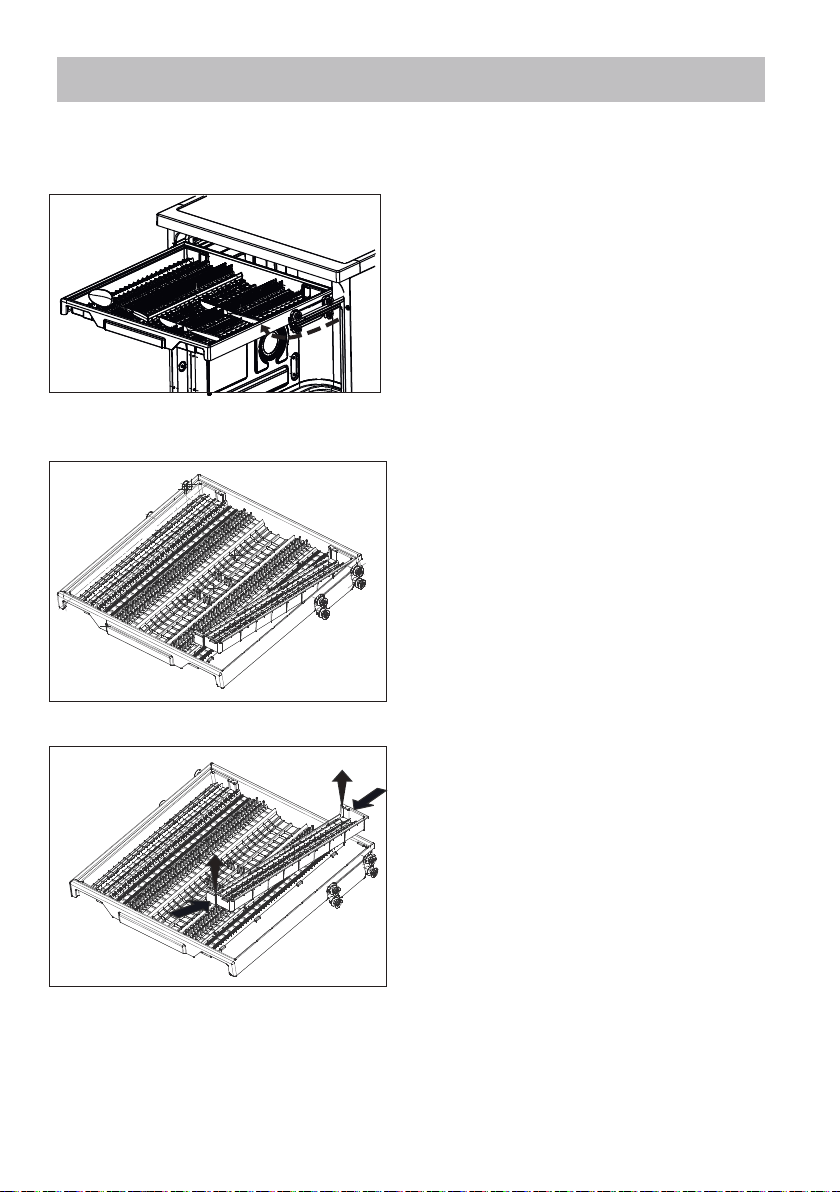

• Page 20 - English - : Daily Use The third Basket The third basket can be pulled out it is easy to put down and take out the cutlery Depending on the model you can take out the left and right side shelves to provide more room for taller goblet Depending on the model you can take out the third basket
• Page 21 - English - : Detergent Please use only a dedicated dishwasher detergent and follow the related instructions and dosage on its package If the lid is closed press the release button A to open the lid Put any detergent into compart ment B If the programme has a prewash phase put a small quantity of detergent on the inner part of the appliance door Refer to section PROGRAMMES Close the lid Make sure that the release button locks into position Daily Use Multitabs These Multitabs detergent tablets could include two different agents for water softening rinse aid and other functions The softener and rinse aid setting must be adjusted according to section BEFORE FIRST USE Usually the default setting performs well If there are streaks stains shim mer etc refer to section TROUBLESHOOTING and BEFORE FIRST USE Detergent tablets do not fully dissolve with short programmes That may cause bad washing results and detergent residues If detergent without multifunction should be used again 1 Save 3 to 5 tablets 2 Adjust the softener and rinse aid setting according to section BEFORE FIRST USE 3 Use Multitabs detergent tablets for the next 3 to 5 wash cycles
• Page 22 - English - : Daily Use Start a Programme Close the door Press the ONOFF button and then the required programme indicator lights up If desired select a start time for a delay start Refer to section START A PROGRAMME WITH DELAY Press the STARTPAUSE button to activate the programme or the delay start The programme starts The display acts now as countdown of the remaining runtime The appliance remembers the last programme you used The next time the appliance will switch on the appliance preselects the programme last used Interrupt a Running Programme To interrupt a programme run Press the STARTPAUSE button In the display is flashing andor Press the STARTPAUSE button andor close the door to continue the programme from the point of interruption Longer breaks may cause bad cleaning results On some models the combination of all options is possible with all programmes You can set one option or combine all options 1 Switch on the appliance The display shows the duration of the programme Activate Deactivate options Press the program button you want to select Press any of the currently extinguished washing procedure icons to select the washing procedure If neededpress any unlit additional function button 12 wash block increase the brightness If it can be matched with the current washing procedure
• Page 23 - English - : Start a Programme with Delay Set a start time by the following procedure in order to delay a programme start Set a programme Daily Use Cancel a Delayed Start Press the STARTPAUSE button The display shows the countdown of the start delay The count down decreases with steps of 1 hour When the countdown is completed the programme starts The selected programme starts after a few seconds the additional function indicates that the icon will be lit and if it cannot be matched it will not be lit If the currently selected washing procedure is rapid washing washing and single rinsing press the and add the button the washing time can be increased by 10 minutes at a time up to three times Press the button to start the program until the display flashes the required delay time from 1 to 24hours When the current reservation time is displayed for 24h press the reservation button again to cancel the reservation Press and hold the reservation button Afterwards the display flashes with the duration time for the set programme
• Page 24 - English - : Daily Use 3 Remove dishes Let the dishes become cold before removing them from the appli ance Hot dishes damage more easily First remove the items from the lower basket then from the upper basket There can be water on the sides and on the door of the appliance Stainless steel becomes cool more quickly than the dishes End of Programme When the programme is completed the display shows and an ac coustic signal is heard if it is not switched off The display switches off 1 Press to switch off the appliance or the appliance switches into standby mode automatically after 2 minutes 2 Open the door CAUTION If the door will be opened immediately after the end of programme hot steam can escape Danger of scalding Open the door carefully Standby Mode Cancel Start Delay Programme 1 Press the ONOFF button for about 1 second The start delay is cancelled The programme is aborted The appliance is switched off 2 Start a new programme and a delayed start if desired CAUTION If a programme will be aborted in the process of washing dishes the residue of detergent remains on the dishes These can cause damage to health Make sure to rinse off the detergent residues completely before using these dishes again Make sure that there is detergent in the detergent dispenser before start a new programme The switched on appliance will go into standby mode if it is not activated within 2 minutes before starting a programme or at the end of a programme This saves energy The display switches off To interrupt the standby mode push one button Open the door slightly and leave it ajar about 100 mm to help the drying process
• Page 25 - English - : Inspect and clean your appliance at regular intervals Basically any detergent Care and Cleaning the Filters 1 A anticlockwise and remove it A press the latches and unplug A1 from A2 B Care and Cleaning 5 B to its initial posi tion A and put it into B Turn it clockwise until it locks washing results and possibly serious damage to the appliance If any filter is removed make sure that no solid object of any size is left beyond these filters

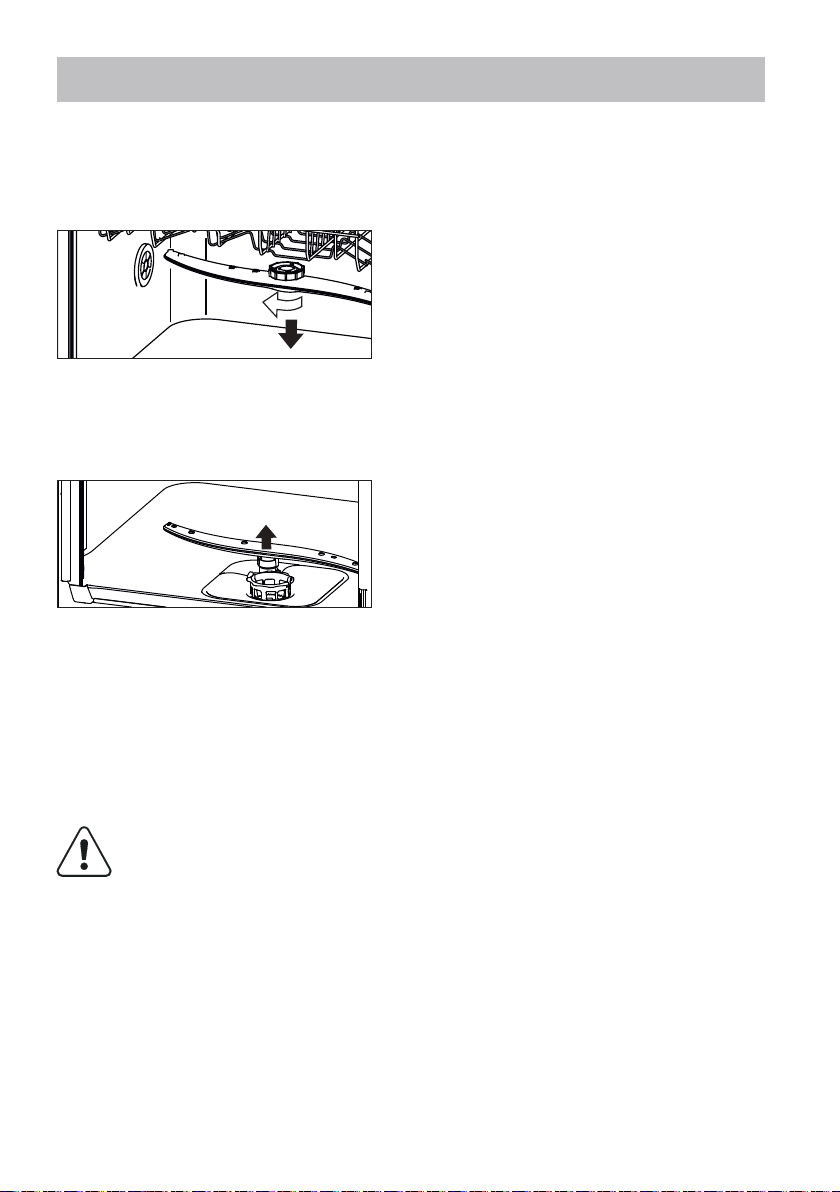

• Page 26 - English - : Care and Cleaning Care and Cleaning of the Spray Arms Spray arms should be regularly inspected for dirt If needed the spray arms could be removed Upper spray arm 1 Turn bayonet socket to the left to remove spray arm 2 Remove remaining parts of food remnants with a thin pointed object 3 Flush with water and check all the holes are clear 4 Turn bayonet socket clockwise to fasten spray arm Lower spray arm 1 Pull at the center to remove spray arm 2 Remove remaining parts of food remnants with a thin pointed object 3 Flush with water and check all the holes are clear 4 Place spray arm at the center with a light push External Cleaning CAUTION Never clean the appliance with a steam cleaner Never use bleach or other chlorinated detergents Clean the appliance with a damp soft cloth Only use neutral detergents Do not use abrasive products abrasive cleaning pads or solvents Clean the door seal with a damp soft cloth
• Page 27 - English - : expertise In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service CAUTION Before maintenance deactivate the appliance and disconnect the mains plug from the mains socket trical experts because improper repairs can cause considerable consequential damages The appliance does not start or it stops during operation Problem Possible cause Possible solution The programme does not start Appliance door is open Close the appliance door Delay start is set Refer to displayed time Mains plug is not connected in the mains socket Connect the mains plug Fuse in the house circuit is damaged Replace the fuse Rinse Aid Indicator is lighted Rinse aid dispenser is empty Press and hold the START PAUSE button for 3 sec after Troubleshooting Refill Rinse aid until full
• Page 28 - English - : All other Alarmcodes Note Alarmcode Contact Service refer to CUSTOMER SERVICE Troubleshooting Problem Possible cause Possible solution Acoustic alarm display shows ALARMCODE The appliance does Water tap is closed Open the water tap Note Whenever Error is solved switch off the appliance and restart the programm Water inlet hose has a kink or a bend Make sure that the position of the hose is correct In case of aquastop system water protection is triggered the marker C is red The hose must be replaced Filter in the water inlet hose is clogged Water inlet is clogged Check water flow from tap Water pressure is too low Contact your local water authority Acoustic alarm display shows ALARMCODE The appliance does Filters are clogged Scoop out as much water as possible Continue programme by pressing the STARTPAUSE button The drainage is blocked Scoop out as much water as possible Make sure that drain water connection and piping is correct and not blocked Continue programme by pressing the STARTPAUSE button Acoustic alarm display shows ALARMCODE Leak The drain pump runs permanently There are water leakages in the appliance The water inlet valve is open and blocked The drainage is blocked 1 Close the water tap 2 Disconnect appliance from power supply 3 Contact Service Error codes on the display Clean the filter at the inlet hose connections at tap and the rear of the appliance If the fault persists contact customer care Antiflood device is on
• Page 29 - English - : Troubleshooting Washing Results are not satisfactory Problem Possible cause Possible solution The dishes are not clean Filters are clogged Filters are not correctly assem bled and installed correctly assembled and installed Spray arms are clogged Remove remaining food remnants with a thin pointed object Programme was not applicable for the type of load and food remnants Make sure that the programme is applicable for the type of load and food remnants Incorrect position of the items in the baskets Water could not wash all items Make sure that the position of the items in the baskets is correct and that the water can easily wash all items Spray arms could not turn freely Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms quantity of detergent in the deter gent dispenser Make sure that you add the correct quantity detergent in the dispenser before you start a programme The wash cycle was interrupted by a long break Do not open the door or cut power supply during the wash cycle Whitish streaks stains or bluish layers on glasses and dishes Released quantity of rinse aid is too much Decrease the released quan tity of rinse aid Refer to section DIFFERENT SETTINGS FOR RINSE AID Quantity of detergent was too much Make sure that you add the correct quantity of detergent in the dispenser before you start a programme Multitab detergent tablets used with a short programme might not fully dissolve Select a longer programme when using Multitab detergent tablets No detergent or insufficient
• Page 30 - English - : Troubleshooting Problem Possible cause Possible solution Dry water drop stains on glasses and dishes Rinse aid dosage is too low Increase the released quantity of rinse aid Refer to section DIFFERENT SETTINGS FOR RINSE AID Quality of rinse aid or Multitab Cleaning product too old change the product The dishes are wet Programme had no drying phase Programme had a low temperature drying phase The dishes are wet and matte Rinse aid dispenser is empty reset the rinse aid indicator Quality of rinse aid or Multitab Cleaning product too old change the product Economic and Environmental Use It is not recommended to prerinse the dishes under running water Select the washing programmes by type and degree of contamina tion of the dishes Select the economy mode programme ECO for normal soiled items The most economically use you will have with full loading Open the door slightly and leave it ajar about 100 mm to help the drying process Only use the manufacturers recommended detergent or rinse aid dosages Refill rinse aid into the dispenser and
• Page 31 - English - : WARNING Any i refer to section SAFETY Free Standing Installation Install the appliance on solid ground Adjust accurately all feet INFORMATION Only with a correct level the appliance door closes and seals correctly Installation under Worktop 1 The dimensions of the recess should at least agree with the dimensions in 2 Put the appliance adjacent to the slot Make sure that all connections water drain water power are neatly positioned and connected Installation 3 Optional Remove the worktop of the appliance level position 5 Install the appliance carefully into the recess WARNING If used as free standing appli ance again the worktop must be remounted
• Page 32 - English - : Installation Fresh Water Connection figA gt10mm The appliance should be connected to the water main using the new water inlet hose supplied Old hoses should not be used Do not shorten the inlet hose IMPORTANT 25C 1 Take note of water connection requirements The dishwasher has a single valve water connection We recommend a cold water connection for best performance and energy efficiency The incoming water temperature should not exceed 2 Take note of the permitted water pressure extremes Lowest 03 bar 3 Ncm 30kPa Where pressure is below 1 bar contact a qualified plumber Highest 10 bar 100 Ncm 1MPa Where pressure is above 10 bar a pressure reduction valve must be installed Contact a qualified plumber 3 Connect the water inlet hose to an accessible water tap with a 34 BSP connector see figA Ensure that there is no kink in the inlet hose that could restrict the flow of water A 90 bend requires a minimum height of 200 mm for a kinkfree curve Ensure incoming water is clear If the water pipes have not been used for a long period of time let the water run to make sure it is clear with no impurities Not doing so may result in the water inlet hose getting blocked and damaging the appliance If required use a filter insert to filter out deposits from the piping The filter insert is available from your Authorised Service Centre or Customer Care 4 Tighten the hose coupling a further half turn after seal contact 5 Check that the connection does not leak
• Page 33 - English - : Installation AntiFlooding protection The dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water supply hose or leaks within the unit in order to prevent damage to your home If for any reason the box containing the electrical components happens to get damaged turn off the power supply and remove the plug for the appliance from the socket immediately In order to guarantee that the antiflooding feature operates properly the A box with water supply hose must be attached to the water supply tap as shown in figB No other type of connection is acceptableThe water supply hose must not under any circumstances be cut as it contains electrical parts which are live If the length of the hose is not adequate to make a proper connection the hose must be replaced with one which is long enough This hose is available upon request from specialised retailers and Authorised Service Center Some models are fitted with an Aquastop water supply hose see figB in which the small filter is already housed in the threaded end figB

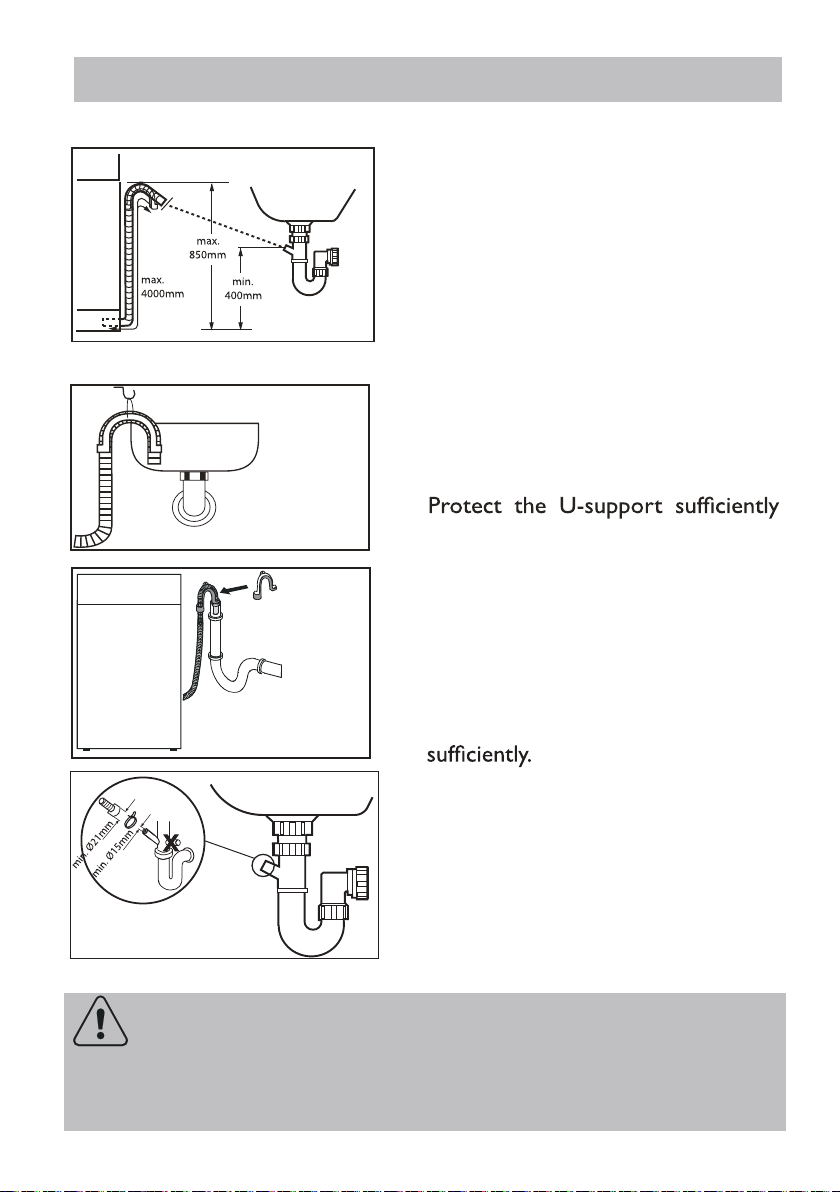

• Page 34 - English - : Installation Drain hose to waste water connection The internal diameter of the stand pipe with venthole must be minimum 40 mm Put the drain hose for approx mm in the wastewater pipe Attach the Usuppor t and secu re it Drain hose to sink connection CAUTION Ensure always that all connections power supply drain and fresh Take care these parts are never to be crushed kinked or twisted If the supply cord is damaged it must be replaced by the service agent see warranty card in order to avoid a hazard Drain Water Connection Fix the water drain hose properly to the piping The hose has to reach at one point a height between 400 and 850 mm above the appliance bottom line An extension hose for the water drain hose must not exceed a total length of 4 m and must have the same diameter as the water drain hose Following connections are possible Drain hose to sink Hang the drain hose with the Usupport over the edge of a sink with adequate size against slipping water hose are firm dry and leak free When connecting the drain hose to a sink trap with a drain hose spigot make sure that the drain hose is supported to the height of the bench Ensure the drain spigot has a minimum hole diameter of 15 mm and it has been drilled out
• Page 35 - English - : Technical Data Suppliers name or trade mark Haier Suppliers model identifier Rated capacity in standard place settings Check the electrical data on the rating label located on the lefthand side of the dishwashers stainless steel inner door Should the data on the rating label be different to those specified below consider those on the rating label as correct Mains water pressure 0031 MPa 0310 bar Maximum current intensity 10 A Total absorbed power Colour White Stainless Steel HDW15V2W1 HDW15V2S1 HDW15V3W1HDW15V3S1 220240 V 50Hz Power voltage HDW15V2 HDW15V3 220240 V 50Hz 17202050 W 17202050 W
• Page 36 - English - : We recommend our Haier Customer Service and the use of original spare parts TROUBLESHOOTING your local dealer or the Service amp Support area at wwwhaiercomau To contact our Service ensure that you have the following data available The information can be found on the rating plate at the door Model Serial No Customer Service or at wwwhaierconz
• Page 37 - English - : Standards Test Wash programme Eco When the programme is finished open the door 100mm to help with drying Powdered detergent quantities 5 g prewash g main wash Rinse aid dosage level HDW15V2 model Maximum number of place settings 15 Height adjustment of upper basket Ensure the upper basket is in its upper most position Recommended loading patterns Upper basket Cutlery basket Lower basket Upper basket with Utensil tray 1 1 1 3 3 3 2 2 2 3 3 2 2 1 1 1 2 3 4 5
• Page 38 - English - : Standards Test Wash programme Eco When the programme is finished open the door 100mm to help with drying Powdered detergent quantities 5 g prewash 2875 g main wash Rinse aid dosage level HDW15V3 Maximum number of place settings 15 Height adjustment of upper basket Ensure the upper basket is in its lower most position Recommended loading patterns Upper basket The third basket Lower basket
