HDW15F1B1/HDW15F1S1
NZ AU
User Manual
Dishwasher
1
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the
best out of the appliance and ensure safe and proper installation, use
and maintenance.
Keep this manual in a convenient place so you can always refer to it for
the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning–Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the
packaging in applicable containers to recycle it. Help to recycle
waste of elec- trical and electronic appliances. Do not dispose
appliances marked with this symbol with the household waste.
Return the product
to your local recycling facility or contact
your municipal office.
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the
mains cableand dispose of it. Remove the door catch to prevent
children and pets to get closed in the appliance.
Thank you
NZ AU
2
Safety .....................................................................................................................
Content
NZ AU
Installation ............................................................................................................
Product Description ..........................................................................................
Control Panel ......................................................................................................
Programme ..........................................................................................................
Before first use ...................................................................................................
Daily Use ..............................................................................................................
Care and Cleaning ..............................................................................................
Troubleshooting .................................................................................................
Standards Test ..... ...............................................................................................
3
5
11
Technical Data .....................................................................................................
10
12
15
16
21
27
30
33
Customer service ...............................................................................................

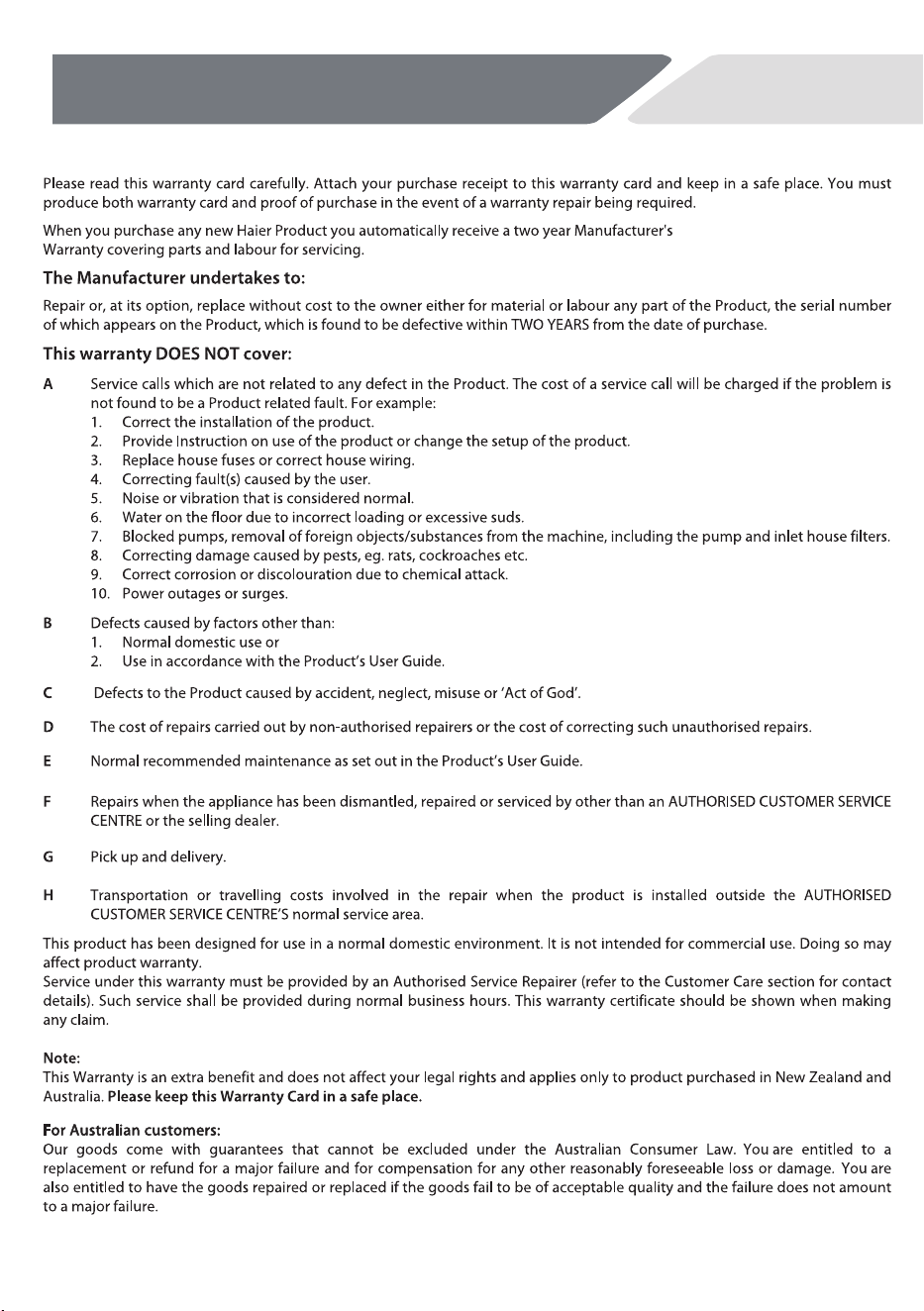

Manufacturer’s Warranty..................................................................................
34
35
Intended Use
The appliance is designed for domestic use inside the house，or in similar
applications such as staff kitchen areas in working environments, farm
houses, by clients in hotels, motels or other residential environments,
and bed and breakfast environments.It is not intended for commercial or
industrial use. Do not use it for purposes other than that for which it
was designed.
Changes or modifications to the device are not allowed. Unintended use
may cause hazards and loss of warranty claims.
Before Switching on the Appliance for the First Time
Do…
make sure all packaging is removed and is kept out of children’s reach.
make sure that the electrical informatio
n on the rating plate agrees
with the power supply. If it does not, contact an electrician.
use a separate earthed socket for the power supply. The appliance
must be earthed.
make sure the plug is easy accessible.
make sure only the delivered electric cable and hose set are used.
hold the plug and not the electric cable when unplugging the power supply.
make sure not to damage the electric cable and the plug. If dam aged,
have it replaced by an electrician.
make sure the hose joints and connections are firm and there is no leakage.
Do not…
install or use the appliance where the temperature is below 5 °C. use
multi-plug adapters and extension cables.
let persons, children included, with reduced physical sensory, reduced
mental functions or lack of experience and knowledge use the appli-
ance if not supervised by a person responsible for their safety.
put flammable products or items that are wet with flammable products
in, near, or on theappliance.
3
Safety
NZ AU
During Daily Use
Do…
supervise children to prevent them playing with the appliance.
put sharp pointed objects (e.g. knives) in a way that there is no danger
of injury.
Do not…
open the door while a programme operates. The appliance can release
hot steam.
keep the appliance door open without supervision to prevent tripping
and falling.
let children or pets come close to the appliance when the door is open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is completed.
There can still be detergent on the dishes.
drink the water in the appliance. The water may be contaminated with
detergent residues.
cover any ventilation openings in the base by a carpet or similar object.
use water spray or steam to clean the appliance.
let the children make the cleaning and user maintenance without
supervision.
WARNING:
Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep
childre
n away from the dishwasher when the door is open.Check that
the detergent receptacle is empty after completion of the wash cycle.
- The door is not left in the open position since this could present a
tripping hazard.
- Warning: Knives and other utensils with sharp points must be loaded in
the basket with their points down or placed in a horizontal position.
- Only use hose-set provided by manufacture, old hose-set cannot be reused.
4
Safety
NZ AU
WARNING!

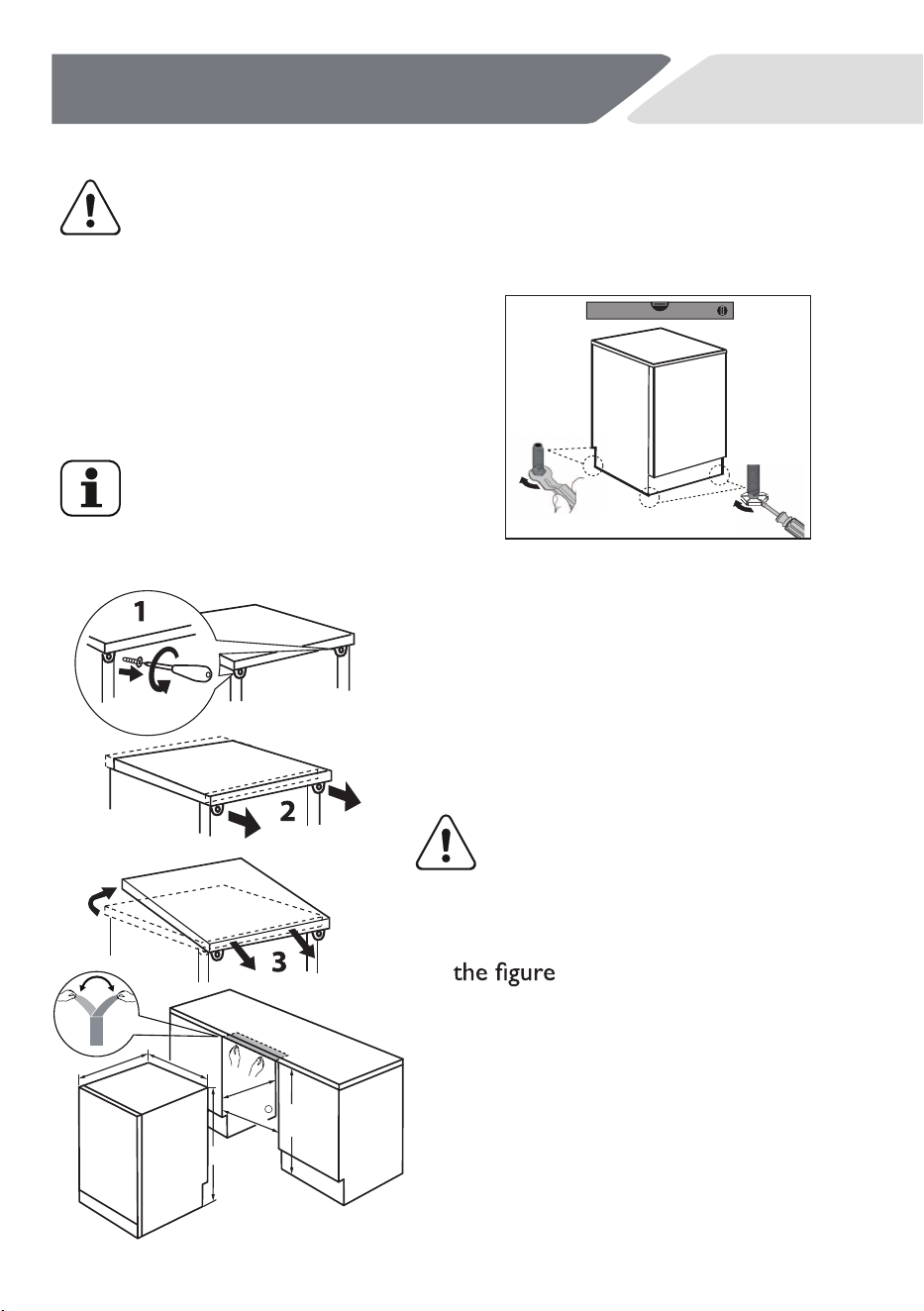

Installation under Worktop
5. The dimensions of the recess should
at least agree with the dimensions in
.
7. Put
6.
After installation, the minmum gap
between the side planel and the
cupboard is 1mm, and the minmum
gap between the rear and the cupboard
is 10mm. The top gap is controlled
by adjusting the feet.
the appliance adjacent to the
slot. Make sure that all connections
(water, drain water, power) are neatly
positioned and connected.
1.
2.
4.
Install the appliance carefully into
the recess.
3.
Stick the water-proof sticker on the
bottom of the countertop.
WARNING!
If used as free standing appli-
ance again, the worktop must be
remounted.
598
min580
570
820
min820
min600
Any installation may be carried out only by a qualitied technician
refer to section SAFETY.
5
Installation
NZ AU
Optional:Remove the work top of
the appliance.
Adjust accurately all feet to get a
firm level position.
Free Standing Installation
Install the appliance on solid ground.
Adjust accurately all feet to get a firm,
horizontal position.
Only with a correct level the
appliance door closes and seals
correctly.
Fresh Water Connection
fig.A
>10mm
The appliance should be connected to
the water main using the new water
inlet hose supplied. Old hoses should
not be used.
Do not shorten the inlet hose.
IMPORTANT!
25°C.
1. Take note of water connection requirements.
The dishwasher has a single valve water connection.
We recommend a cold water connection for best performance
and energy efficiency.
The incoming water temperature should not exceed
2. Take note of the permitted water pressure extremes.
Lowest: 0.3 bar = 3 N/cm = 30kPa
Where pressure is below 1 bar, contact a qualified plumber.
Highest: 10 bar = 100 N/cm = 1MPa
Where pressure is above 10 bar, a pressure reduction valve
must be installed. Contact a qualified plumber.
2
2
3. Connect the water inlet hose to an accessible water tap with
a 3/4” BSP connector (see fig.A). Ensure that there is no kink in
the inlet hose that could restrict the flow of water. A 90° bend
requires a minimum height of 200 mm for a kink-free curve.
Ensure incoming water is clear. If the water pipes have not
been used for a long period of time, let the water run to make
sure it is clear with no impurities. Not doing so may result in
the water inlet hose getting blocked and damaging the appliance.
If required, use a filter insert to filter out deposits from the
piping. The filter insert is available from your Authorised
Service Centre or Customer Care.
4. Tighten the hose coupling a further half turn after seal contact.
5. Check that the connection does not leak.
6
Installation
NZ AU

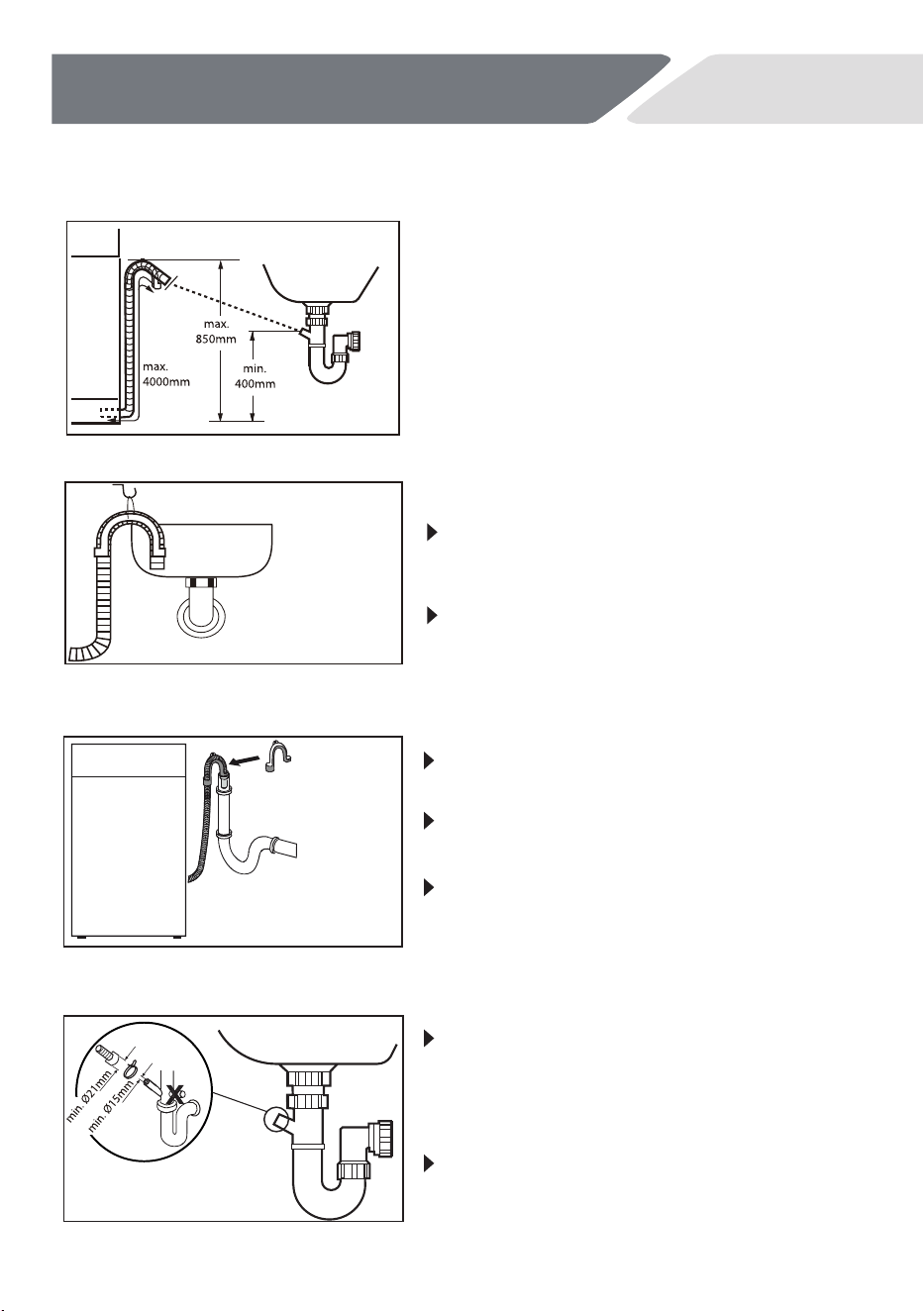

Drain Water Connection
Fix the water drain hose properly to
Following connections are possible:
Drain hose to sink
the piping.The hose has to reach at one
point a height between 400 and 850 mm
above the appliance bottom line.
An extension hose for the water drain
hose must not exceed a total length of 4
m and must have the same diameter as
the water drain hose.
Hang the drain hose with the
U-support over the edge of a sink
with adequate size.
Protect the U-support sufficiently
against slipping.
7
Installation
NZ AU
Drain hose to waste water connection
Drain hose to sink connection
When connecting the drain hose to a
sink trap with a drain hose spigot, make
sure that the drain hose is supported
to the height of the bench.
Ensure the drain spigot has a minimum
hole diameter of 15 mm and it has been
drilled out.
The internal diameter of the stand pipe
with vent-hole must be minimum 40 mm.
Put the drain hose for approx.80 mm
in the wastewater pipe.
Attach the U-support and secure it
sufficiently
CAUTION!
Power connection
Ensure always that all connections (power supply, drain and fresh
water hose) are firm, dry and leak free.
Take care these parts are never to be crushed, kinked, or twisted
If the supply cord is damaged, it must be replaced by the service
agent (see warranty card) in order to avoid a hazard.
As shown in the figure, the power supply
is plugged into an externally accessible
place through the service hole for easy
plugging.
8
Installation
NZ AU
9
Installation
NZ AU

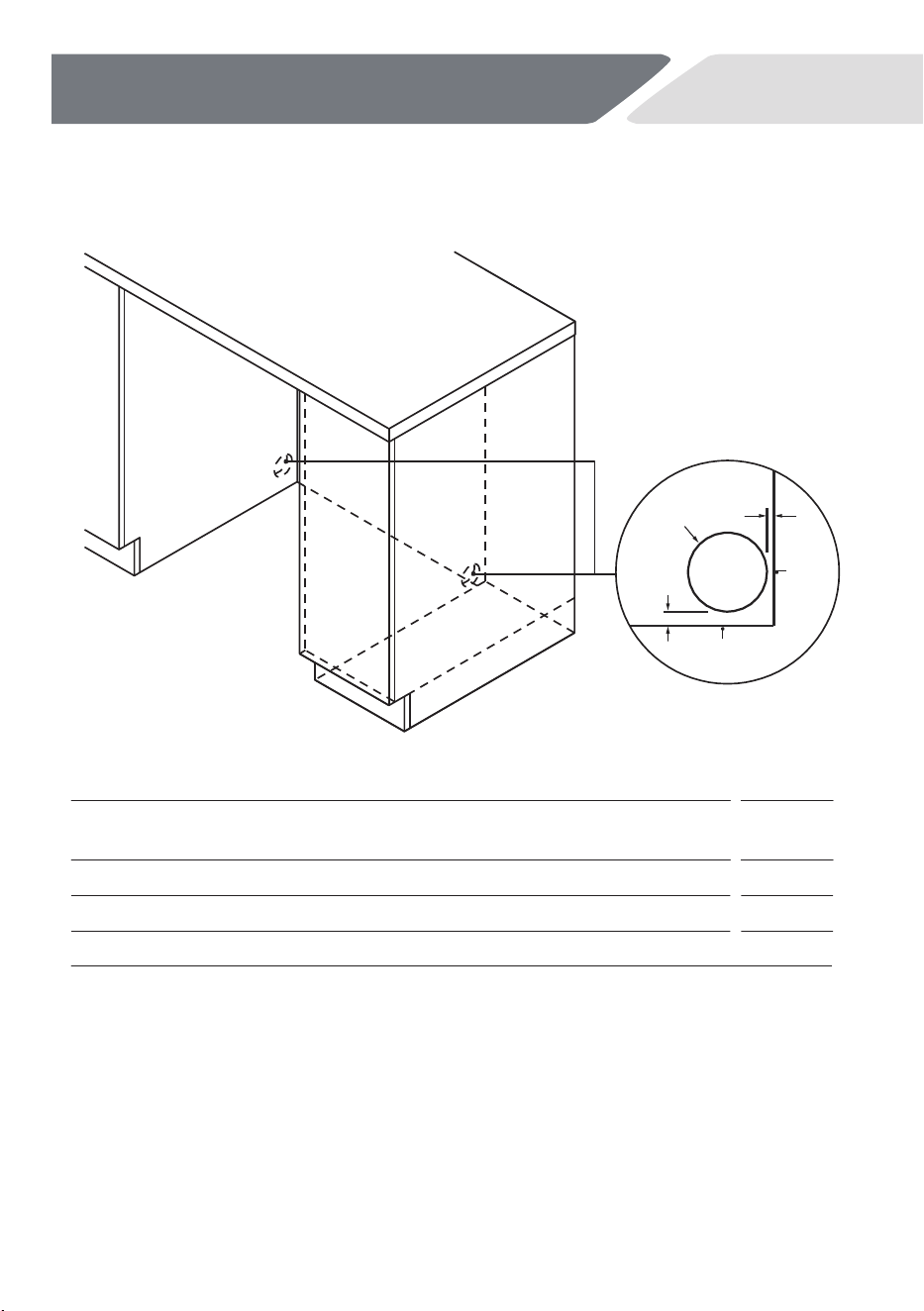

C
A
REAR
WALL
B
FLOOR
PROFILE
MM
A
B
C
Minimum diameter of service hole
15
0-50
70
Maximum distance between rear of cavity and service hole*
Maximum distance between floor and service hole**
*
based on a cabinetry depth of 580mm.
**
depending on adjustment of levelling feet.
Service hole dimensions
Service hole
10
Technical Data
NZ AU
Suppliers name or trade
mark
Haier
Supplier´s model identifier
HDW15F1B1/HDW15F1S1
Rated capacity in standard
place settings
15
Mainswater pressure
0.03 -1Mpa=0.3-10bar
Power voltage
220-240 V (50Hz)
Maximum current int ensity
10 A
Total abso rbed p ower 1720-2050 W
Check the electrical data on the rating label (located on the left-hand side
of the dishwasher’s stainless steel inner door). Should the data on the
rating label be different to those specified below, consider those on the
rating label as correct.
Accessories
Check the accessories and literature in accordance with this list:
7
U-supportwater inlet hose
8 964
5
1 2 3
User manual
11

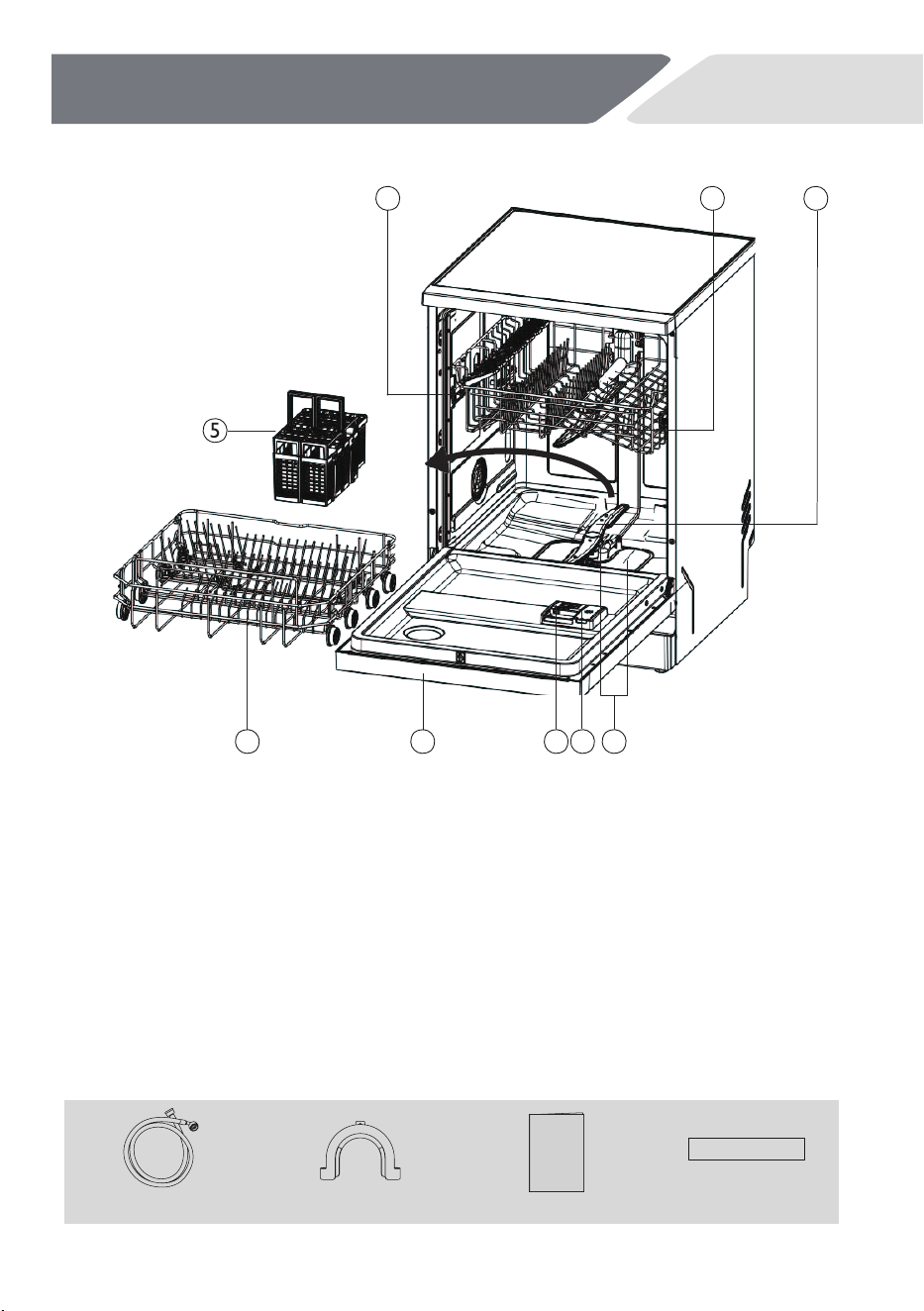

Product Description
NZ AU
water-proof
sticker
1. Upper basket
2. Upper spray arm
3. Lower spray arm
4. Lower basket
5. Cutlery basket
6. control panel
7. Detergent dispenser
8. Rinse aid dispenser
9. Filters

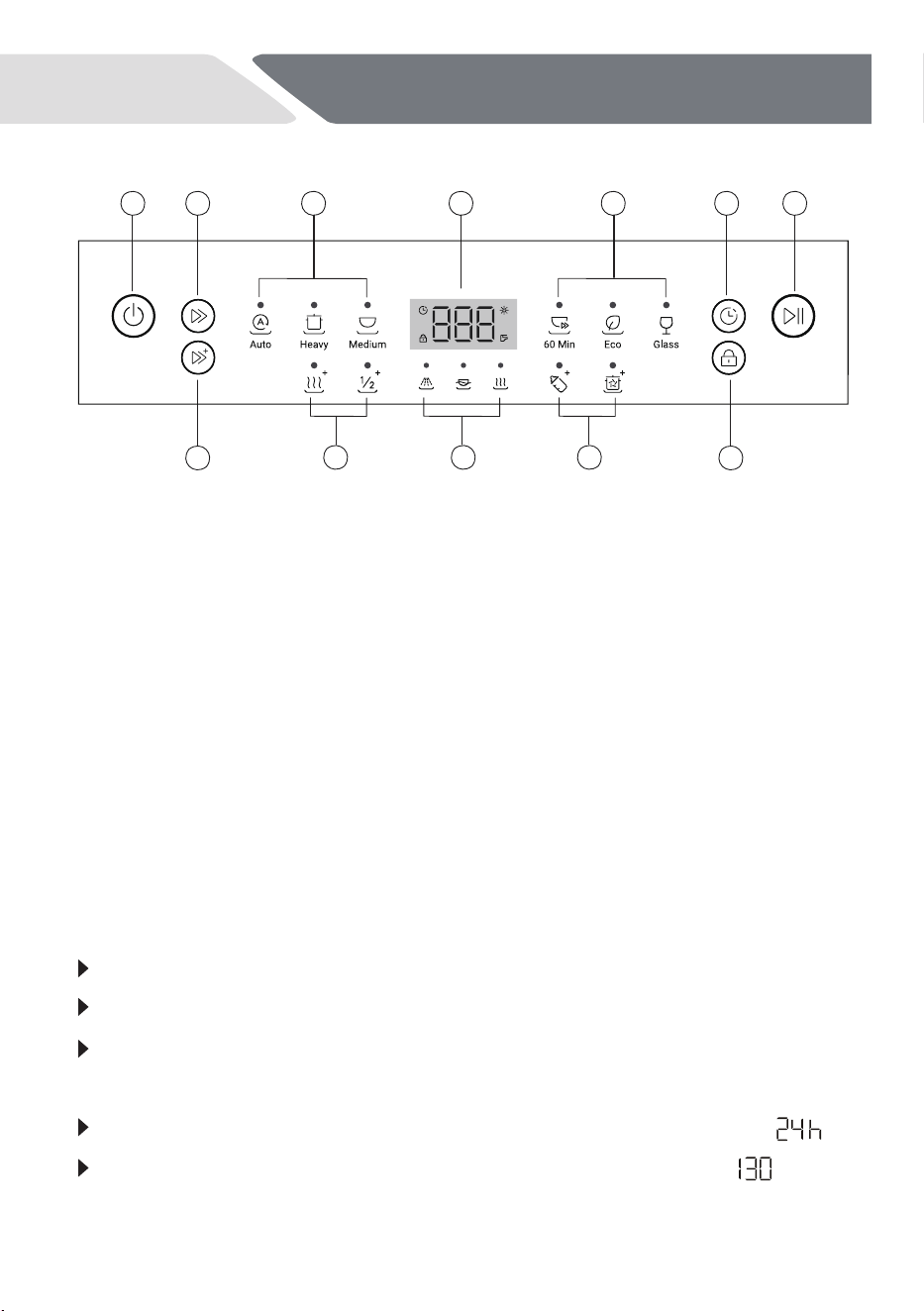

Time & Info display
During any selection the display shows by flashing related information like
Programme cycle time
Programme start delay time
Error codes and service information
After start of an operation it dispalys without flashing
Remaining time in hours of a delayed programme starts, e.g.
Remaining programme cycle time in hours + minutes, e.g.
While running it may vary due to local conditions and daily working load.
12
Control Panel
NZ AU
1. ON / OFF button
2. PROGRAMME SELECT button
3. Programme indicators
4. Status indication
5. Option indication
6. START DELAY button
7. START / PAUSE button
8.
9.
10.
Time & Info Display/Indicator
Modifier button
Child lock
icon
1 2
9 10
3 8
5 4 5
3 6 7
Status Indicators
Indicator Icon
Rinse aid
Water tap
If the indicator lights up: Rinse aid is empty!
After adding Rinse Aid,the indicator lights off.
If the indicator lights up, The appliance does not fill
with water.Check section:“TROUBLE SHOOTING”
Delay
If the indicator lights up, a delay start has been
activated.
Wash
Rinse
If the indicator is flashing: the Dishwasher is washing.
If the indicator is flashing: the Dishwasher is
rinsing.
Dry If the indicator is flashing: the Dishwasher is drying.
Optional function
Child Lock
Half load
To activate or cancel Child lock , press and hold
until the Child lock indicator comes on or turn off.
Use this option if you have only a few items to wash.
This will save water, energy and time. If you use powder
detergent use a little less detergent than for a full load.
13
Control Panel
NZ AU
If the indictor lights up:Child lock mode has been
activated.
Child Lock
Wash programa
Auto Dry+
Dry+，
Intensive +，1/2load
Dry+，
Intensive +，1/2load
/
Dry+，1/2load
Intensive +
Dry+，，1/2load
Heavy
Medium
60min
Eco
Glass
14
Control Panel
NZ AU
Intensive+
Hygiene
Dry+
Delay start
Hygiene，
Hygiene，
You can delay the start of a programme in 1 hour
steps up to 24 hours. Check the according
paragraph under“Daily use”.
In the last stage of rinsing, the washing temperature
is increased and the drying time is prolonged to
enhance the drying effect of tableware.
This function increases the temperatures and
retains them for an extra long time to obtain
a defined disinfection performance. Continuous
use of this function increases the hygiene status.
Prolong washing time and enhance washing effect.
Modifier avaiable
Programme Type of food residue Type of load
Light to heavy soil:
Casseroles,sauces, potatoes，
pasta, rice，roasted or fried food
Non-delicate:
Dinnerware, cutlery，
pots and pans
Heavy soil:
Casseroles, sauces, potatoes ,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware, cutlery，
pots and pans
Daily soil:
Soups, eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware，cutlery，
pots and pans
Mixed soil:
Coffee, cake, milk, cold drinks, salad,
sausages, pasta, roasted or fried food
Non-delicate:
Dinnerware，cutlery，
pots and pans
Normal soil:
Soups , eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware，cutlery,
glassware
Light soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Delicate:
Glassware, dinnerware,
cutlery
1). The appliance senses the type of soil and the quantity of items in the baskets. It
automatically adjusts the temperature and quantity of water, energy consumption and
programme duration.
2). With this programme you can wash a load with fresh soil. It gives good washing results
in a short time.
1)
2)
15
Programme
NZ AU
First Steps
Remove all packaging materials, keep them out of children’s reach and
dispose them in an environmentally friendly manner.There could be water
residue inside the appliance due to quality checks in the factory.
Perform in the following steps:
1. Install the appliance.
Refer to section INSTALLATION.
2. Only for use of Multitabs: Adjust the rinse aid setting.
Refer to section DIFFERENT SETTINGS FOR RINSE AID.
3. Fill the rinse aid dispenser.
Refer to section HOW TO FILL THE RINSE AID DISPENSER.
4. Open the water tap.
5. Start any wash programme (apart from Rinse programme）
with detergent but no load to remove possible manufacturing residues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal can
be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the setting:
If the display shows the signal is switched off.
If the display shows the signal is switched on.
16
Before first use
NZ AU
Different Settings for Rinse Aid
Rinse aid is added during the last rinsing phase to dry the dishes without
streaks and stains.
Detergent (e.g. powder, tablets, ...)
requires separate rinse aid:
Factory default setting: .No settings are necessary.
The rinse aid is added from the rinse aid dispenser only.
Detergent with multifunction (e.g. Multitabs)
combine detergent and rinse aid:
The rinse aid setting should be adjust to . Please use the setting
instructions in section HOW TO ADJUST SETTINGS and select the
setting.
The rinse aid is added from the rinse aid dispenser in addition to the
multitabs rinse aid.
Setting cuts off the rinse aid dosage and the rinse aid indication.
The higher the value for the higher the dosage.
Usually the recommended setting performs well. In case of streaks, stains,
shimmer etc.， refer to section TROUBLESHOOTING.

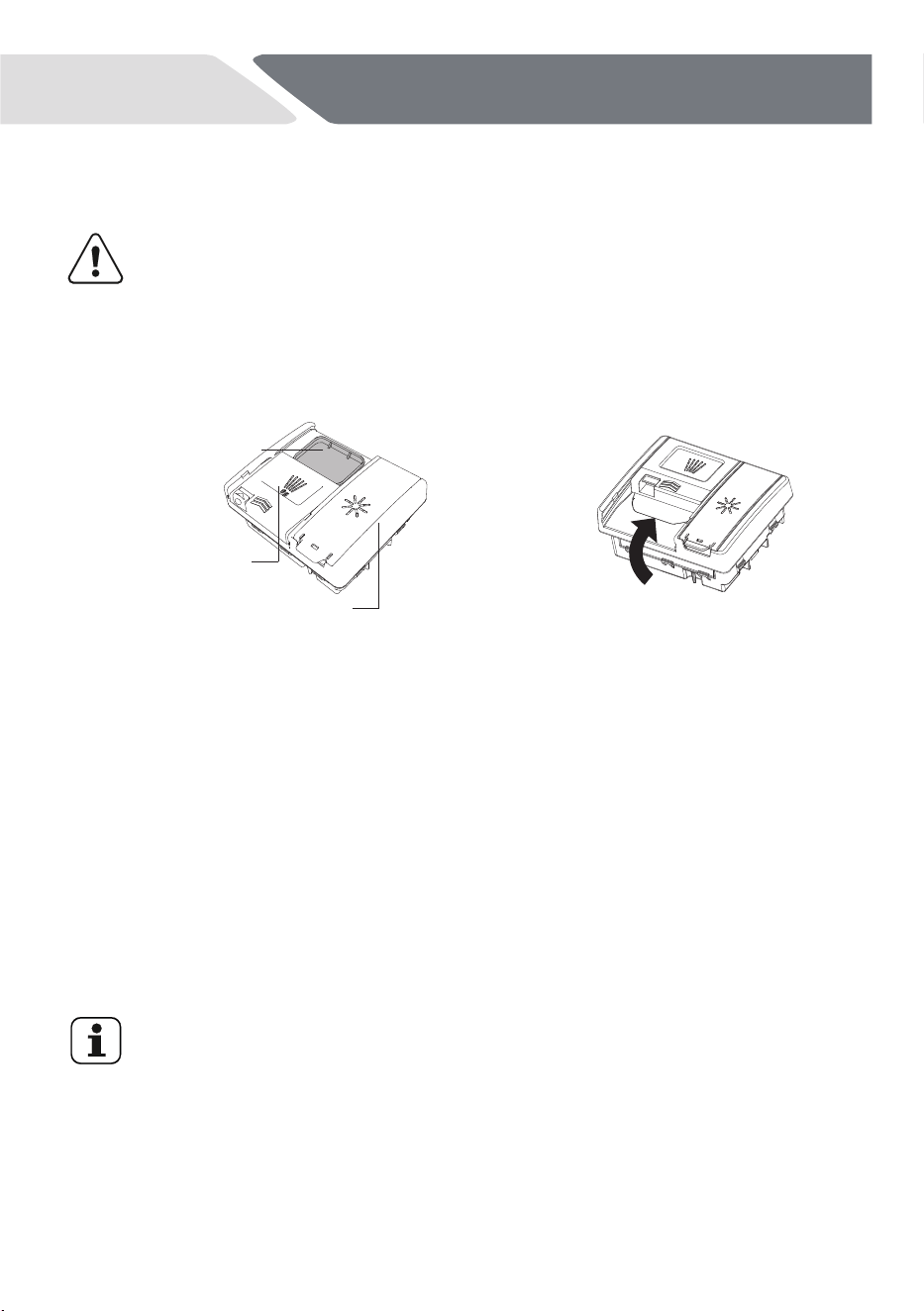

How to fill the Rinse Aid Dispenser
CAUTION!
Only use rinse aid for dishwashers.
Other products can cause damage to the appliance.
17
Before first use
NZ AU

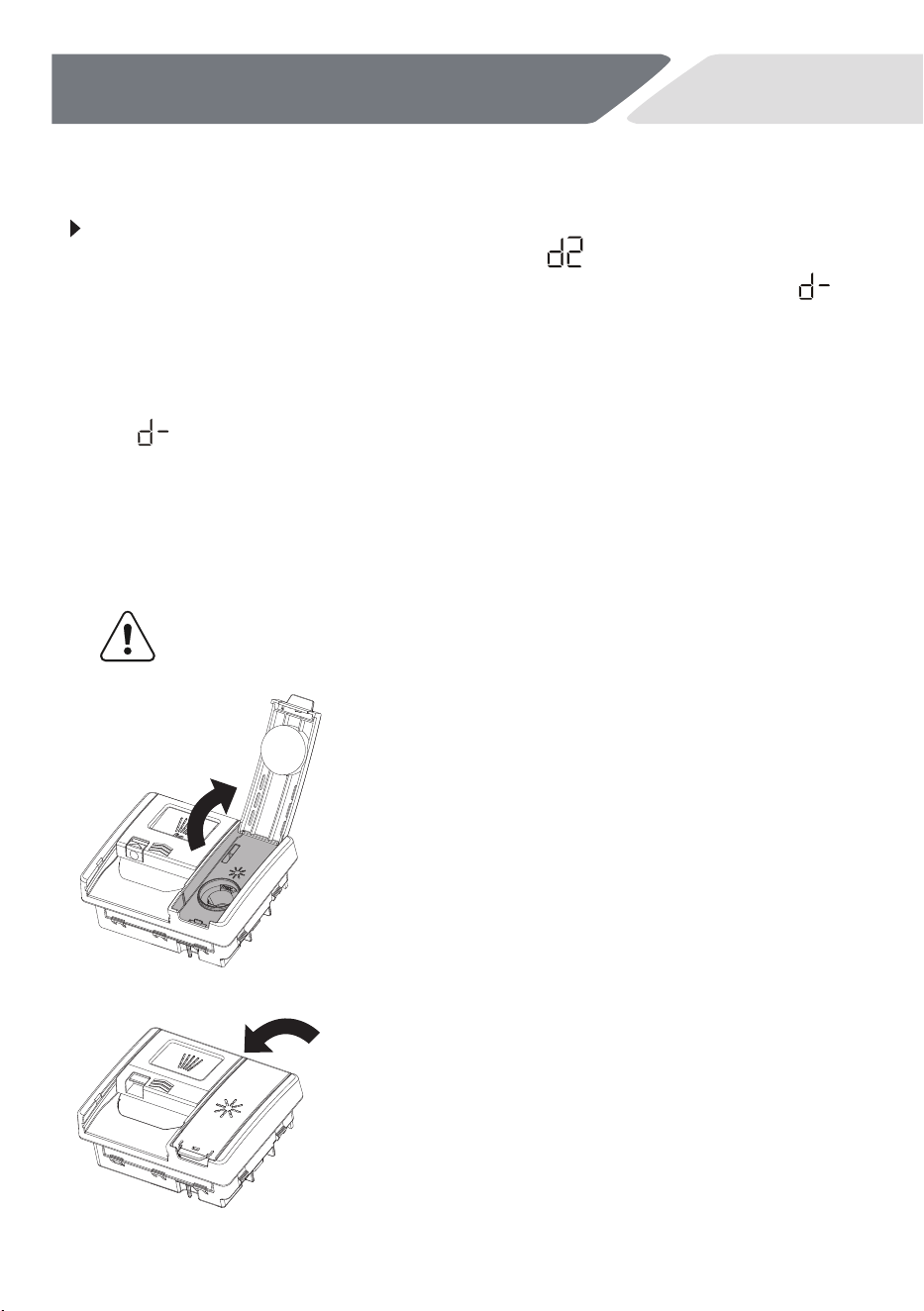

Lift the cover open and pour rinse aid
into the opening.
Do not fill exceeding the MAX line.
Take care not to spill any onto the door
or detergent bucket.
Close the cover, ensuring it clicks shut.
Powder detergent quantity recommendations
Use the table below to determine the optimal powder detergent
quantity for each wash programme.
If the water is hard
in your area, more detergent may be required.
Refer to 'Water Hardness' for more details.
WASH
PROGRAM
Auto
Heavy
Medium
Eco
60Min
Glass
PRE WASH
COMPARTMENT
None
Full
Full
Full
Full
Full
MAIN WASH
COMPARTMENT
1/2 - 2/3
2/3
2/3
2/3
1/2
2/3
18
Before first use
NZ AU
How to Adjust Settings
Adjust the Rinse Aid level
1. The appliance is switched on.
2. Press and hold about 3 seconds until:
The display shows the current Rinse Aid setting (the default is ).
3. Press to change the Rinse Aid setting in steps between
(minimum dispense,no rinse aid is set) and (maximum dispense,
represents putting in 6ml rinse aid).
5. To exit the Rinse Aid menu, press and hold for 1 second.
Activate / De-Activate the Buzzer
1. The appliance is switched on.
2. Press and hold for about 3 seconds until :
The display shows the current Rinse Aid setting.
3. Press to scroll to the buzzer menu.
4. The display will show (buzzer off) or (buzzer on).
5. Press to toggle between
(buzzer off) or (buzzer on),
7. To exit，press and hold 1 second.
Child lock
This feature disables all the buttons on the dishwasher. If any other buttons
are pressed while Child lock is activated, the Child lock indicator will flash
for a few seconds.
1. To activate Child lock, press and for 3 seconds.
2. The display will remain on (if no programme has been started it will
continue to flash while the control panel is locked).
3. To cancel Child lock, press and for 3 seconds.
4. Press to save the option.
6. Press to save the option.
19
Before first use
NZ AU
Dishwasher operation
1. Load the baskets.
2. Press the ON/OFF button to activate the appliance.
If the rinse aid indicator is on, fill the rinse aid dispenser and reset
the rinse aid indicator，refer to section HOW TO RESET THE RINSE
AID IDNICATOR.
3. Add the detergent; refer to section DETERGENT.
4. Close the door.
5. Set the programme according to the type of load and how dirty the
dishes, cups and cutlery are.
6. Maybe select a start delay time.
7. Press the START / PAUSE button to start the programme.
8. After programme end the appliance change to auto off. Unload the
baskets.
How to Reset Rinse Aid Indicator
The rinse aid indicator is on:
1. Always completely fill the rinse aid before starting the next wash cycle.
2. After adding Rinse Aid,the indicator lights off.
20
Before first use
NZ AU

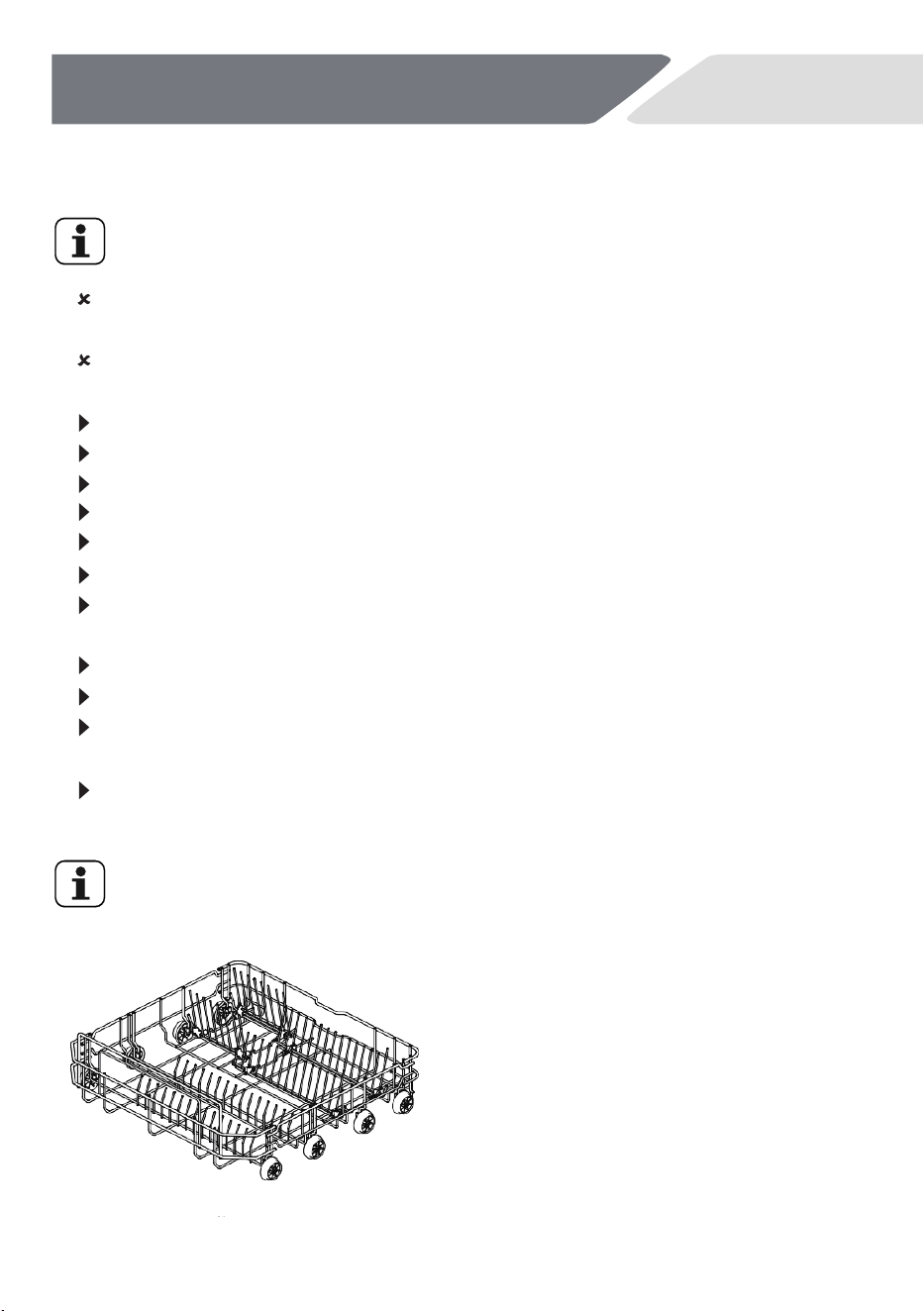

Load the Baskets
With delicate glasses and porcelain make sure they are labelled
dishwasher-proof.
Place heavily soiled items (like pots and
pans or dinner plates) in the bottom
basket. The more powerful spray jet
provides a better dishwashing result.
If jingling noises are heard during a programme run: Check that the
dishes and glassware have a firm position.
Do not put in the appliance items made of wood, horn, aluminium,
pewter and copper.
Do not put in the appliance items that can absorb water (sponges,
household cloths).
Only use the appliance to wash items that are dishwasher-safe.
Remove remaining food from the items.
Soften burned food on the items before washing.
Put hollow items (cups, glasses and pans) with the opening down.
Put items with deep hollows in a slanted position.
Mix spoons with other cutlery to prevent them to bond together.
Make sure that cutlery and dishes do not bond together and there
is a gap between each item.
Make sure that glasses do not touch other glasses.
Put small items in the cutlery basket.
Put light items in the upper basket. Make sure that the items do not
move.
Make sure that the spray arms can move freely before you start a
programme.
21
Daily Use
NZ AU
The upper basket is designed to
hold items like glasses,cups,
saucers, plates, small bowls and
shallow pans.
Upper baskets
22
Daily Use
NZ AU

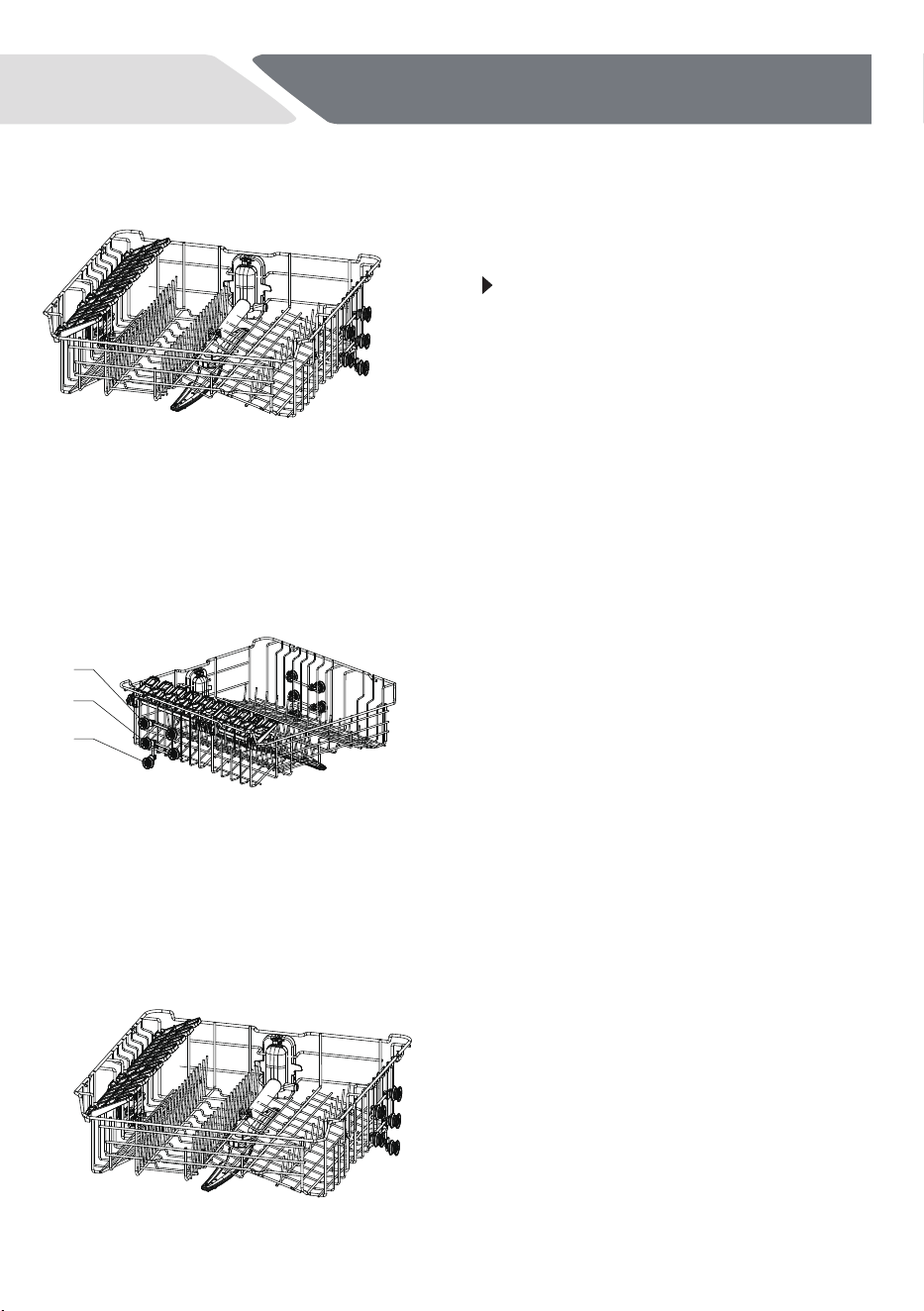

Adjusting the height of the upper basket
Adjust the height of the upper basket to make space for taller items.
The basket must be empty before the height is adjusted. Both sides of
the basket must be adjusted to the same height.
High position
When the middle shelf slide is in the
assembly position of wheel 1 and wheel 2,
the middle shelf is in the high position.
When the middle shelf slide is in the
assembly position of wheel 2 and wheel
3,the middle shelf is in the low position.
Low position
Foldaway cup racks
Adjust the height to suit or fold out of the way to make space for other
items. Use the notches to support wine glass stems.
To adjust height
1. Fold up to unlock.
2. Adjust the height to suit by sliding
up or down.
3. Fold back down to lock in position.
1
2
3
23
Daily Use
NZ AU

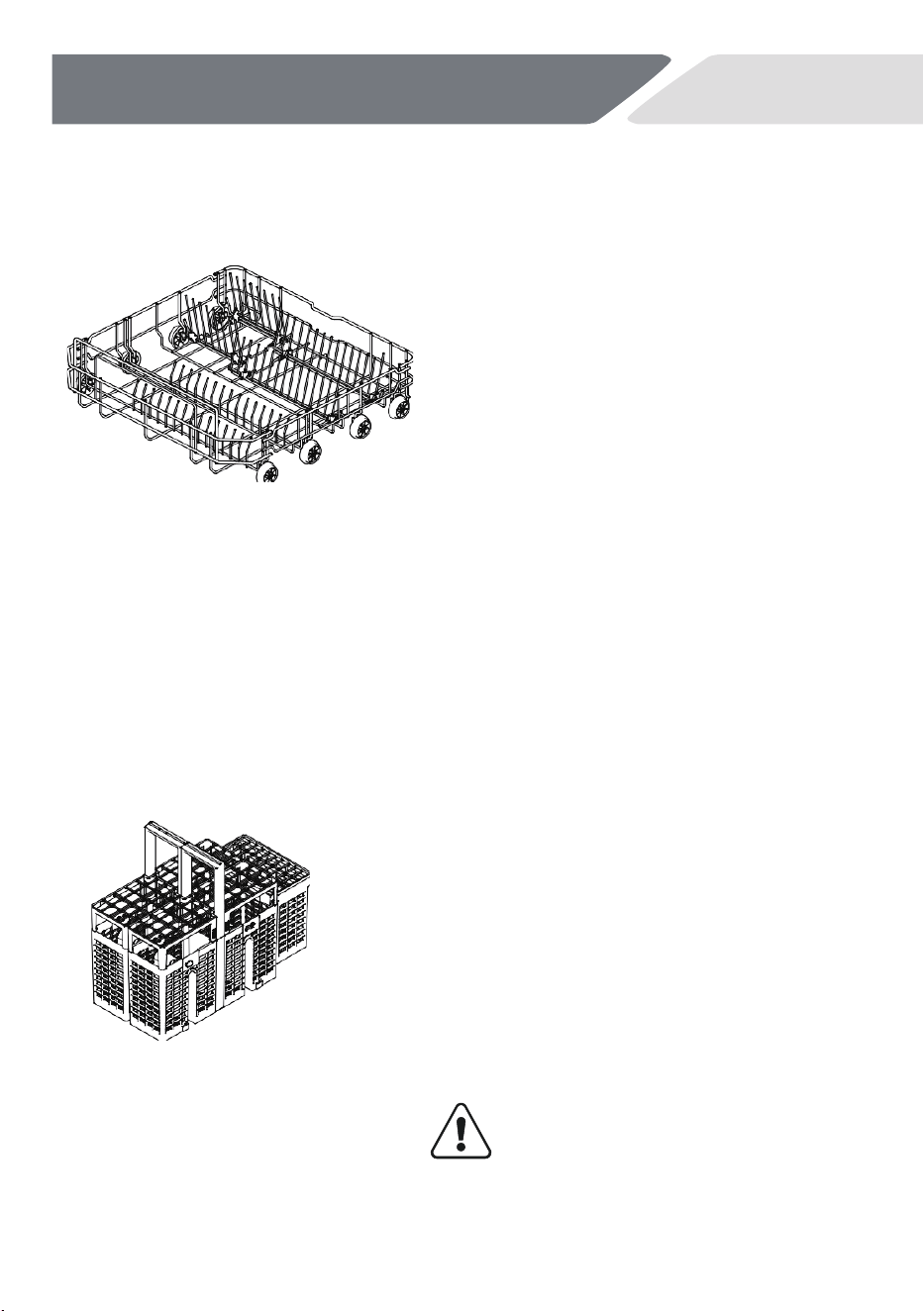

Lower basket
Cutlery basket
►
Place the largest items here:
pots, pans, lids, serving dishes
and bowls.
►
Fold down the tines to place
pots and pans flat on the
bottom.
►
Ensure dishware items do not
block the spray arm above
from rotating.
►
If you need more height for
tall items, you can raise the
upper basket. See instructions
on previous pages.
►
Mix spoons with other cutlery to
prevent them to bond together.
►
Use the grid element in order to
separate the cutlery.
►
Place cutlery with the handles down
for better washing results.
►
If long items may block the spray
arm find a horizontal positioning in
the upper basket.
CAUTION!
Put sharp and pointed items with
the blade pointing downward to
keep them out of harm’s way.
Detergent
Please use only a dedicated dishwasher detergent and follow the
related instructions and dosage on its package.
Detergent tablets do not fully dissolve with short programmes.
That may cause bad washing results and detergent residues.
If detergent without multifunction should be used again:
1. Save 3 to 5 tablets.
2. Adjust the softener and rinse aid setting according to section BEFORE
FIRST USE.
3. Use Multitabs detergent tablets for the next 3 to 5 wash cycles.
Multitabs
These Multitabs detergent tablets could include two different agents for
water softening, rinse aid and other functions.The softener and rinse aid
setting must be adjusted according to section BEFORE FIRST USE.
Usually the default setting performs well. If there are streaks, stains, shim-
mer etc., refer to section TROUBLESHOOTING and BEFORE FIRST USE.
24
Daily Use
NZ AU
Using powder detergent
For powder detergent quantities, refer to the following 'Powder detergent
quantity recommendations' table and the detergent manufacturer’s
guidance. No detergent is needed for RINSE.
Check that the dispenser is empty
and dry. Add powder detergent
or tablets to the detergent dispenser.
Remove any excess detergent then slide
the cover closed. It will click into place.
If required, add additional detergent to
the pre-wash compartment on top of
the dispenser.
Main wash compartment
Rinse aid compartment
Pre-wash compartment
When washing heavily soiled dishware in hard water, more detergent may
be required. Refer to 'Powder detergent quantity recommendations'.
Start a Programme
1. Close the door.
2. Press the ON/OFF button
button
button
button
button
button
.
3. Press the pr
ogram
you want to select and then the required
programme indicator flashes.
Additionally the display shows the programme run-time.
4. If need select a start time for a delay start, refer to section START
A PROGRAMME WITH DELAY.
5. Press the START/PAUSE to activate the programme or the
delay start.
The programme starts.The display acts now as countdown of the
remaining run-time.
The appliance remembers the last programme you used.The
next time the appliance is switched on, the appliance pre-selects
the programme used last time.
Interrupt a Running Programme
To interrupt a running programme:
To continue a paused programme:
Press the START/PAUSE
. The displayed cycle time
is
flashing.
Open the door.
Close the door and press the
to continue the programme
Activate / Deactivate options
1. Switch on the appliance.
2.
press to select the wash programme，
The display
duration o
show
s the
f the programme.
3.
If needed，select and it can
be matched with the current
washing procedure.
4. Press the
to start the program.
25
Daily Use
NZ AU
from the point of interruption.To prevent poor wash performance, do not
leave the door open for a long time.
On some models, you can combine a washing program and an additional
function program to operate.
Cancel Start Delay Programme
Press the ON/OFF for about 1 second.
The start delay is cancelled.
The programme is aborted.
The appliance is switched off.
Start a new programme and a delayed start if needed.
CAUTION!
If a programme will be aborted in the process of washing dishes，
the residue of detergent remains on the dishes. These can cause
damage to health. Make sure to rinse off the detergent residues
completely before using these dishes again.
Make sure that there is detergent in the detergent dispenser before
start a new programme.
26
Daily Use
NZ AU
If the door will be opened immediately after the end of programme,
hot steam can escape. Danger of scalding. Open the door carefully.
button
Start a Programme with Delay
Set a start time by the following procedure in order to delay a programme
start:
1. Set a programme.
2. Press the reservation button until the display shows the required
delay time (from 1 to 24hours).
3. Press the START/PAUSE button .
►
The display shows the countdown of the start delay.
►
When the countdown is completed, the programme starts.
Cancel a Delayed Start
When the current reservation time is displayed for 24h, press the
reservation button again to cancel the reservation. Afterwards
the display shows with the duration time for the set programme.
滚滚长江东逝水
27
NZ AU
Care and Cleaning
Cleaning the filter, spray arms and filter plate
We recommend that the drain filter and filter plate are removed and cleaned
once a month or whenever there is evidence of food particles. The spray arms
in normal use should require cleaning less frequently. Lower and upper spray
arms can be shaken to remove any foreign material, cleaned in hot water, then
rinsed in clean water.
The dishwasher must be used with the filter plate, drain filter and spray arms
correctly in place. If using a dishwasher cleaner or descaler, refer to manufacturer
instructions.
Disconnect the dishwasher from the power supply and allow it to cool
before undertaking any clea
ning or maintenance.
1
2

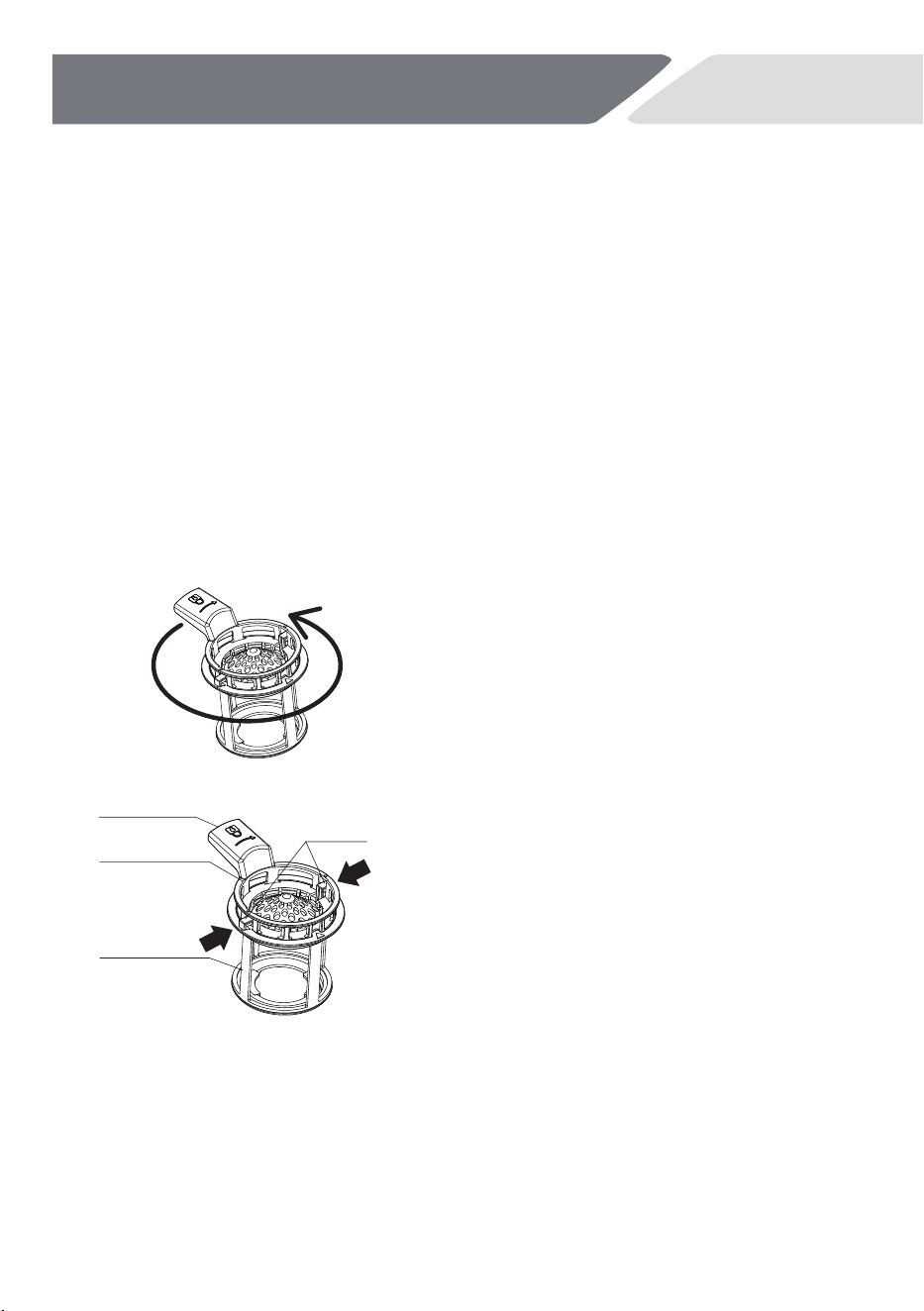

Removing and cleaning the filter
Twist the filter anti-clockwise to release.
Lift to remove.
button
filter base
filter cap
Twist the filter handle anti-clockwise to
release. Lift to remove from the filter plate.
Separate the filter cap from the base by
pressing the release buttons and lifting.
Remove the filter plate gently from the
locating clips at the rear of the drain.
Do not attempt to remove the filter by
force as this may cause damage. Clean
under hot water and rinse thoroughly.
filter handle
28
Care and Cleaning
NZ AU
1
2

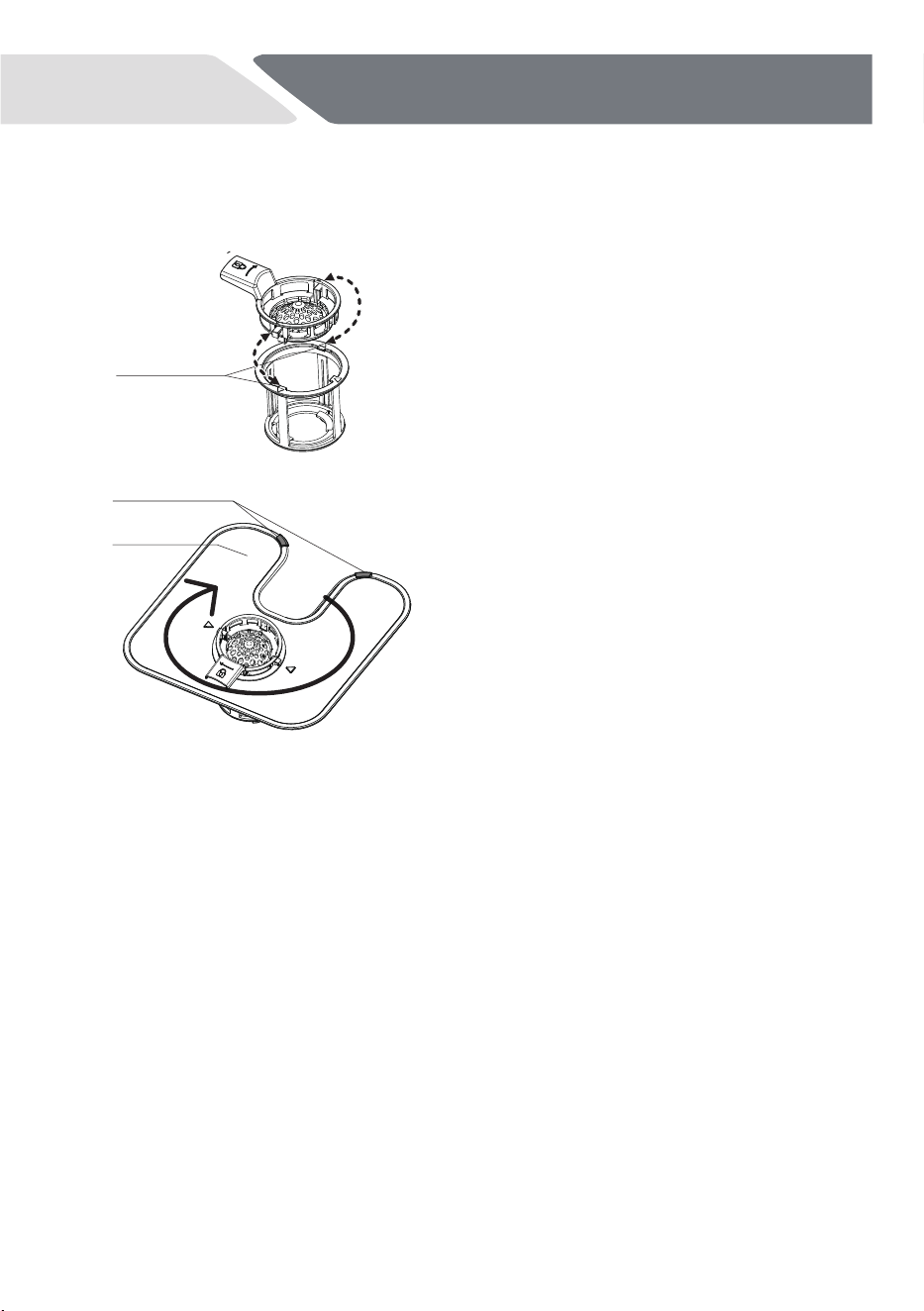

Replacing the filters:
1. Align the filter cap with the notch on
the filter base for one side.
2. Press the button to clip the filter cap
under the filter base locating notches for
the other sides.
3. Slot the filter plate under the locating
clips at the rear of the drain and push
firmly back into the clips. Ensure the filter
plate is flush with the dishwasher base.
4. Place the drain filter back into the
dishwasher base. Rotate the filter handle
clockwise to click into place.
clips
locating notch
filter plate
29
Care and Cleaning
NZ AU
Care and Cleaning of the Spray Arms
Spray arms should be
regularly inspected for dirt. If needed the spray arms
could be removed.
External Cleaning
CAUTION!
Never clean the appliance with a steam cleaner.
Never use bleach or other chlorinated detergents.
Clean the appliance with a damp soft cloth.
Only use neutral detergents. Do not use abrasive products, abrasive
cleaning pads or solvents.
Clean the door seal with a damp soft cloth.
Do not remove the top spray arm
for cleaning.
Clean with a small, plastic-bristled brush.
If heavily soiled or blocked use a
dishwasher cleaner/descaler. Follow the
manufacturer’s instructions.

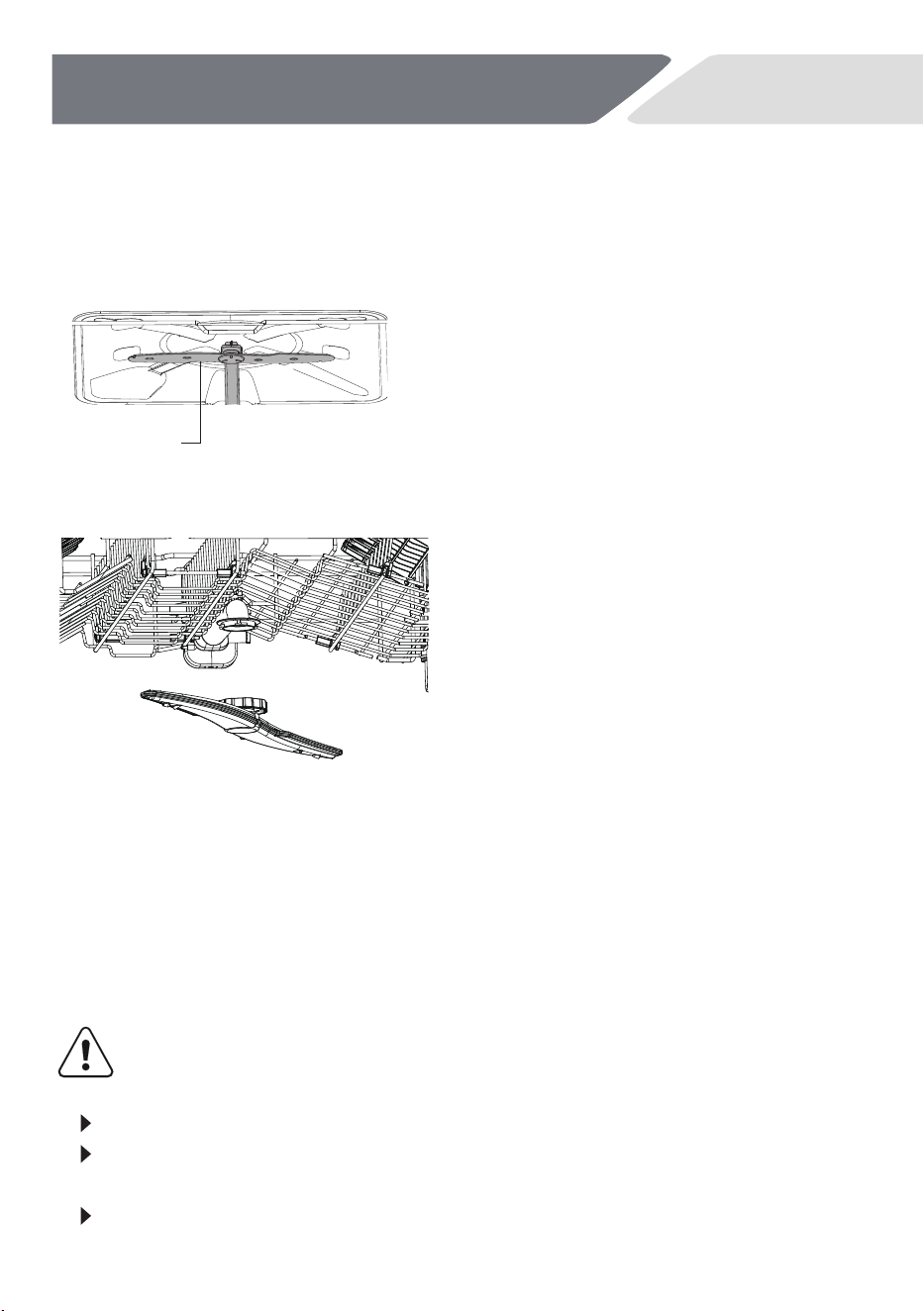

To remove the upper spray arm, turn
the locking nut clockwise to release.
Rinse the spray arm thoroughly under
running water, then refit.
top spray arm
Cleaning the Upper spray arm
To remove the lower spray arm, lift it from the base of the dishwasher.
Rinse the spray arm thoroughly under running water, then refit.
Ensure the arm rotates freely when refitted.
Cleaning the lower spray arm
30
Troubleshooting
NZ AU
Many occuring problems could be solved by yourself without specific
expertise. In case of a problem please check all shown possibilities and follow
below instructions before you contact an after sales service.
CAUTION!
Before maintenance, deactivate the appliance and disconnect the
power plug from the power socket.
Electrical equipment should be serviced only by qualified
electrical
experts, because improper repairs can cause considerable
consequential damages.
The appliance does not start, or it stops during operation
Problem Possible cause Possible solution
The programme
does not start.
Appliance door is open.
Close the appliance door.
Refer to displayed time.
Connect the power plug.
Fuse in the house circuit is
damaged.
Replace the fuse.
Rinse Aid Indicator
is light.
Rinse aid dispenser is empty.
Refill Rinse aid until full.
Delay start is set.
Power plug is not connected
in the power socket.
Acoustic alarm,
display shows
ALARMCODE
The
not fill with water.
appliance does
Water tap is closed.
• Open the water tap.
Note: Whenever Error ‘ ’ is
solved switch off the appliance
and restart the programm.
Water inlet hose has a kink or
a bend.
Make sure that the position of
the hose is correct.
In case of aqua-stop system:
water protection is triggered;
the marker (C) is red.
The hose must be replaced.
Filter in the water inlet hose
is clogged.
Water inlet is clogged. Check water flow from tap.
Water pressure is too low.
Contact your local water
authority.
Clean the filter at the inlet hose
connections at tap and the rear
of the appliance.
Error codes on the display
31
NZ AU
滚滚长江东逝水
Problem Possible cause Possible solution
Acoustic alarm,
display shows
ALARMCODE
Leak: The drain
•
•
•
•
•
•
Close the water tap.
Disconnect appliance from
power supply.
Contact Service.
Anti-flood device is on:
There are water leakages
in the appliance.
The water inlet valve is
open and blocked.
The drainage is blocked.
The dishes are not
clean.
Filters are clogged.
Filters are not correctly assem-
bled and installed. correctly assembled and installed.
Spray arms are clogged.
Rem
Clean the filters.
Make sure that the filters are
ove remaining food remnants
with a thin pointed object.
Programme was not applicable
for the type of load and food
remnants.
Make sure that the programme is
applicable for the type of load and
food remnants.
Incorrect position of the items
in the baskets. Water could not
wash all items.
Make sure that the position of the
items in the baskets is correct and
that the water can easily wash all
items.
Spray arms could not turn freely.
Make sure that the position of the
items in the baskets is correct and
does not cause the blockage of the
spray arms.
quantity of detergent in the deter-
gent dispenser.
Make sure that you add the correct
quantity detergent in the dispenser
before you start a programme.
The wash cycle was interrupted
by a long break.
Do not open the door or cut power
supply during the wash cycle.
Whitish streaks,
stains or bluish layers
on glasses and dishes.
Released quantity of rinse aid is
too much.
Decrease the released quantity of
rinse aid. Refer to section
DIFFERENT SETTINGS FOR RINSE
AID.
Quantity of detergent was too
much.
Make sure that you add the correct
quantity of deterge
nt in the dispenser
before you start a programme.
Multitab detergent tablets used
with a short programme might
not fully dissolve.
Select a longer programme when
using Multitab detergent tablets..
No detergent or insufficient
Washing Results are not satisfactory
Troubleshooting
pump runs
permanently.
32
NZ AU
Problem Possible cause Possible solution
Dry water drop
stains on glasses
and dishes.
Rinse aid dosage is too low.
Increase the released quantity of rinse aid.
Refer to section DIFFERENT SETTINGS
FOR RINSE AID.
Quality of rinse aid or Multitab.
Cleaning product too old, change the
product.
The dishes are
wet.
• Programme had no drying
phase.
• Programme had a low
temperature drying phase.
The dishes are
wet and matte.
Rinse aid dispenser is empty.
reset the rinse aid indicator.
Quality of rinse aid or Multitab.
Cleaning product too old; change the
product.
Economic and Environmental Use
Open the door slightly and leave it ajar
(about 100 mm) to help the drying
process.
Refill rinse aid into the dispenser and
It is not recommended to pre-rinse the dishes under running water.
Select the washing programmes by type and degree of contamination
of the dishes.
Select the economic mode programme ECO for normal soiled items.
The most economically use you will have with full loading.
Only use the manufacturer’s recommended detergent or rinse aid
dosages.
Troubleshooting
33
NZ AU
Standards Test
Wash programme
Eco
When the programme is finished, open the
door to help with drying
Powder detergent quantities 5g pre-wash+28.75 g main wash
Rinse aid dosage level
Maximum number of place settings 15
Height adjustment of upper basket
Ensure the upper basket is in its lower most
position
Recommended loading patterns
Upper basket
Lower basket
34
NZ AU
Customer service
Your local dealer.
If you cannot find a solution there, please contact:
If you have a problem with your appliance, please first check
TROUBLESHOOTING.
Model _____________________
Serial No. _____________________
We recommend our Haier Customer Service and the use of original spare
parts.
The Service & Support area at www.haier.com.au
or at www.haier.co.nz
where you can activate the service claim and also find FAQs.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate at the door.
35
NZ AU

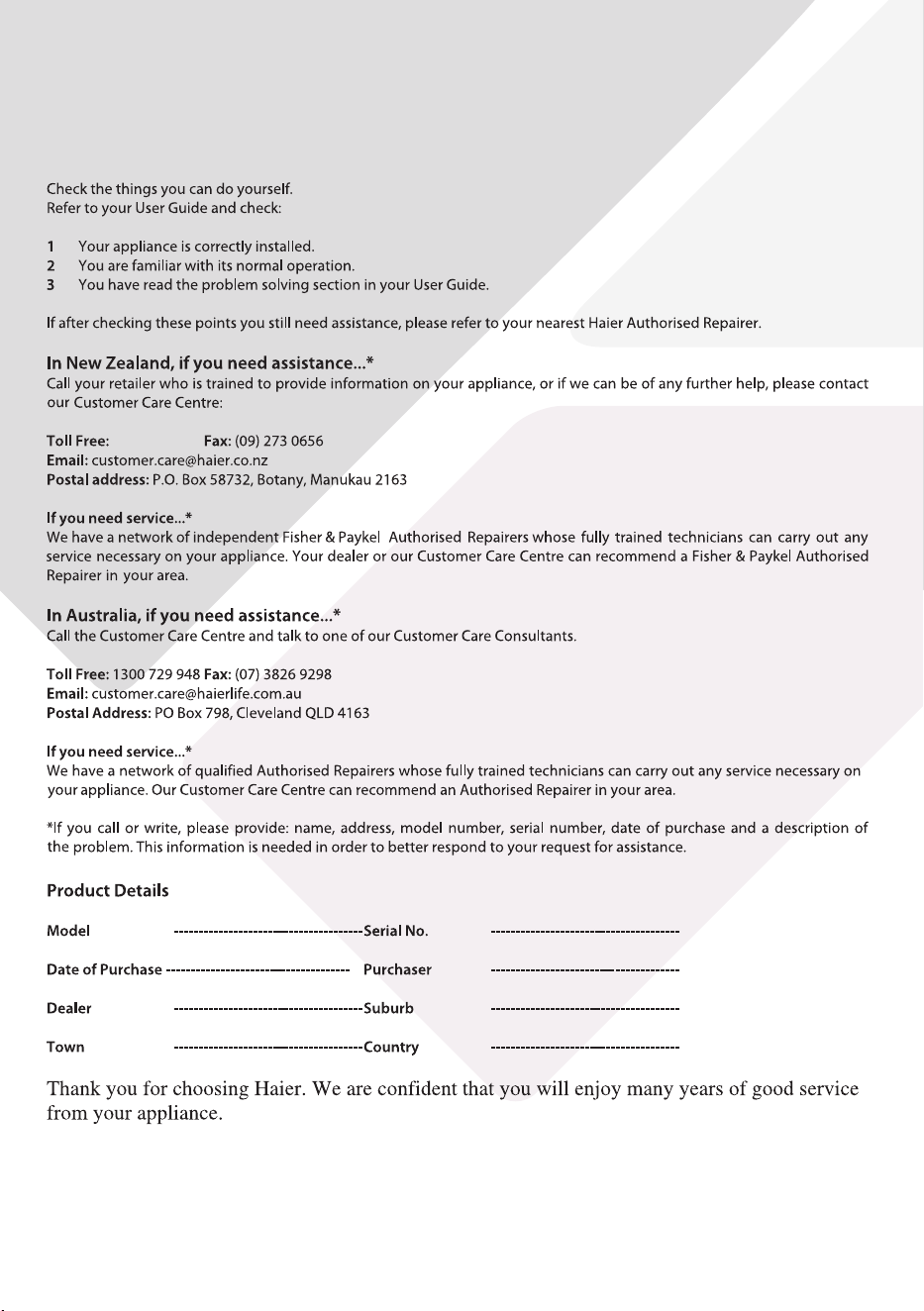

Manufacturer’s Warranty
Customer Care
0800 242 437
36
431050 0120506218A
条形码尺寸40*8mm，由厂家生成。
