USE AND CARE MANUAL FOR
MEDALLION DUAL FUEL RANGES
MODEL NUMBERS: ARR-304DF, ARR-364GDDF, ARR-366DF, ARR-364GRDF,
ARR-486GDDF, ARR-484X2GRDF, ARR-486GDGRDF, ARR-4842GDDF, ARR-486GRDF,
ARR-606GDGRDF, ARR-6062GDDF, ARR-60X2GRDF
PROFESSIONAL QUALITY COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
© 2012 American Range
All Rights Reserved
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death and will void warranty. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
This equipment is design engineered for commercial use only.
IMPORTANT SERVICE NOTICE!
Using any part other than genuine American Range factory supplied
parts relieves the manufacturer of all liability.
American Range reserves the right to change specications and
product design without notice. Such revisons do not entitle the buyer
to corresponding changes, improvements, additions or replacements
for the previously purchased equipment.
Instruction to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
To Our Most Valued Customer:
Congratulations on your purchase of an American Range product. We hope you will enjoy the
design, manufactured quality, innovative features and cooking performance of this product – it
represents our continuing dedication to satisfying the most demanding needs of customers
like you.
Please read this manual and become familiar with important safety information about how
to install and set-up the unit, basic operating instructions, and how to maintain that just-like-
brand-new appearance and performance - over years of day-to-day and special holiday use.
If you should encounter any sort of problem, turn to the section of the manual entitled,
"Troubleshooting" – for a quick solution or guidance regarding the next step required to get
back to tip-top condition.
Thank you for choosing an American Range product for your home. As you can expect, this
appliance is designed for years of reliable service. If you have any questions or comments,
please contact the dealer from whom you purchased the unit, or contact American Range
Customer Service at www.americanrange.com or 818.897.0808.
PROFESSIONAL QUALITY COOKING EQUIPMENT
Sincerely,
President, American Range Corporation
Shane Demirjian
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
Table of Contents
GENERAL ..............................................................................................................1-5
General Information .............................................................................................................. 1
About This Manual .................................................................................................................2
Shipping Damage Claim Procedure ............................................................................. 3
Precautions .............................................................................................................................3-5
INSTALL .............................................................................................................. 6-14
Site Preparation ........................................................................................................................6
Gas Connection ....................................................................................................................... 6
Model Numbers ...................................................................................................................... 7
Installation Diagrams ..........................................................................................................8-9
Cabinet Preparation............................................................................................................... 9
Electrical Service ....................................................................................................................10
Gas Supply .................................................................................................................................10
Preparation for Installation ...............................................................................................10
ModelandPartsIdentication .......................................................................................11
Final Installation .......................................................................................................................12
Before Using the Appliance .............................................................................................12
Installation Checklist .............................................................................................................13
Performance Checklist ........................................................................................................14
Start-up Procedure ..............................................................................................................14
OPERATE ..........................................................................................................15-21
Cook Top ....................................................................................................................................15
Cookware ..................................................................................................................................16
Suggested Burner Settings ................................................................................................16
Control Panel/Keys ...............................................................................................................17
Ovens ...........................................................................................................................................18
Control Panel ...........................................................................................................................19
Sabbath Mode .........................................................................................................................19
Grill ................................................................................................................................................20
Griddle .........................................................................................................................................21
MAINTAIN ....................................................................................................... 22-24
Self-Cleaning .............................................................................................................................22
Cleaning Stainless Steel, Glass ........................................................................................22
Care & Cleaning .............................................................................................................23-24
Cleaning Recommendations ...........................................................................................24
TROUBLESHOOT ................................................................................................ 25
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
1
WARNING
If the information in this manual is not followed exactly, a re or
explosion may result causing damage, personal injury or death.
• INSTALLATION AND SERVICE MUST BE PERFORMED BY A
CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER
•Donotstoreorusegasolineorotherammablevaporsorliquidsinthevicinity
of this or any other appliance.
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product.
• Please ensure that this product is electrically grounded.
• Consumers should retain these instructions for local inspectors and for
future use.
• The included Anti-Tip Device must be installed prior to operation
• WHAT TO DO IF YOU SMELL GAS
º
Do not try to light any appliance.
º
Do not touch any electrical switch, do not use any phone in your building.
º
Immediately call your gas company. Follow the gas supplier instructions.
º
If you cannot reach your gas supplier, call the Fire Department.
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment
mustbeinstalledbyacertied/licensedcontractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the
receiptprovingcertiedinstallationmustbemadeavailabletoAmericanRangefor
verication.
Ifinstallationwasnotperformedbyacertied/licensedcontractorbepreparedto
submit a major credit card for payment for proper installation.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
2
The Use and Care Manual is divided into several sections:
The Safety Sectioninformsyouaboutsignicantsafetyprecautionswheninstallingandoperatingyour
new fryer. This is a must read section of the manual.
Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard,
installation dimensions, gas and electrical connections and how to identify the primary parts of the
product so you can better understand what’s going on “under the hood”.
How to Use Your Product and How to Use the Oven (where applicable) Sections show you how to
light the burners, set the range for broil or bake and how to use convection to speed cooking times and
improve the quality of your baked and roasted dishes.
The Care and Maintenance and Troubleshooting and Service Sections discuss how to keep your product
in good operating condition, how to identify what might be going wrong with the unit, and how to
communicateyourobservationswithauthorizedeldservicetechnicians.
Before using your appliance, please read this manual paying special attention to the important safety
instructions located in the next several pages.
ABOUT THIS MANUAL
DANGER
!
CAUTION
!
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury or death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.
WARNING
!
Hazards or unsafe practices which may result in severe
personal injury or death.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of
California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure
to such substances. To minimize exposure to these substances, always operate this unit according to the Owners Manual,
ensuring you provide proper ventilation when cooking with gas.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
3
PRECAUTIONS
CAUTION
!
Check your local building codes for proper installation methods. In the absence of local codes, this appliance should be installed
in accordance with the National Fuel Gas Code No. Z223.1 current issue, and the National Electrical Code ANSI/NFPA No. 70
current issue, or the CAN – B149 Installation Codes for Gas Burning Appliances, and C22.1 Canadian Electrical Code Part 1.
Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for which it is
certied. Models come from the factory certied for use with Natural Gas (NG) or Liquid Propane (LP) gas. Your product,
shown on the rating label and the supplied gas type must be the same. Upon opening your product, the rating label can be
located on the front panel if it is a range or oven. If it is a cook top it can be found on the side panel underneath the left burner.
Your appliance must be installed by a qualied gas installation technician. Have the technician show you the exact location of the
gas shut-off valve on the incoming gas line so you know how to turn off the gas if necessary.
If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-pressure
regulator - in addition to the pressure regulator supplied with this product when applicable. The maximum propane gas
pressure to this appliance must not exceed 14.0 inches of water column (34.9 millibar) from the propane gas tank to the
pressure regulator.
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a
two-prong outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong
electrical outlet by a licensed technician. The gas surface burner re-ignition system when applicable depends on a low resistance
electrical ground connection for reliable operation.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
• Do not plug the appliance into an electrical outlet with a Ground Fault Circuit Interrupter (GFCI)
CAUTION
!
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company
assumes full responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making
the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le
a "Concealed Damage" claim with them. This should be done within fteen (15) days from the date that delivery
is made to you. Retain the shipping container for inspection.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
4
Always disconnect the electrical plug from the wall outlet before servicing the unit. It is recommended that a dedicated
electrical circuit be used for this appliance.
Always turn gas shut-off valve to OFF position before servicing unit.
WARNING
!
POWER FAILURE WARNING
Due to safety considerations and the possibility of personal injury, do not attempt to light or operate range burners, grills,
griddles, the oven or broiler during a power failure. Safety systems which detect the presence of an ignition source and operate
the gas safety valve do not function during a power failure. Be sure all gas valve knobs are turned to and remain in the OFF
position during a power failure.
IMPORTANT SAFETY NOTICE AND WARNING
The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to
publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to
warn customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is
operated, there may be some low-level exposure to some of the listed substances including carbon monoxide. Exposure to
these substances can be minimized by properly venting the oven to the outdoors using approved overhead ventilation equipment
or by opening the windows and/or doors in the room where the appliance is located.
This appliance should not be operated without a properly sized and functional ventilation hood.
WARNING
!
To reduce the risk of appliance tipping, it must be secured to the wall with a properly installed anti-tip bracket. To make sure the
bracket has been installed properly, inspect behind the range using a ashlight.
• Anti-tip devices are only necessary for range products.
• This range can tip causing personal injury
• See Installation Instructions supplied with the range and install the anti-tip device packaged with the range
• If the anti-tip device cannot be located, contact American Range Customer Service by calling 818.897.0808 or by
contacting us at www.americanrange.com
WARNING
!
Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to
sit, stand or climb on any part of the appliance. Serious personal injury may occur.
DANGER
!
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such
as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as
aerosol cans, away from the product. Do not store explosive or ammable materials in nearby cabinets or areas.
When operating the oven or broiler, do not touch the surfaces of the ceramic tile broiler, the rack or rack supports, the
walls of the oven or the inside surfaces of the oven door - interior surfaces become hot enough to cause burns. The heat
deector, which deects heat away from the control panel, and the oven door sides will also be hot during use.
DANGER
!
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
5
NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning
and overheating of the appliance. Do not use the range top or oven as a food or kitchen item storage area.
Never block or cover any slots, holes or passages located anywhere inside or outside the range. These structures are
important to safe operation of the appliance and doing so may block airow through the oven or cook top possibly causing
carbon monoxide poisoning or re. Routinely keep all slots free of grease and other materials.
This appliance has been tested for safe performance using conventional cookware. DO NOT USE any device or accessory not
specically recommended in this guide. DO NOT USE pan or pan covers on surface units, grills or griddles. These devices can
create serious safety hazards including personal injury, create performance problems and may damage the appliance.
Do not store or use corrosive chemicals, vapors, ammables or non-food products in or near this appliance. It is specically
designed for use when heating or cooking food. The use of corrosive chemicals while heating or cleaning could result in
personal injury or damage to the appliance.
WARNING
!
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled
re occur, never use water on grease res. Never pick up a aming pan.The oven door interior and exterior, especially the oven
door glass can get hot during operation. Do not touch the glass – use the door handle to open or close the range door.
The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee
of operation. Children should not be left alone or unattended in the kitchen while the appliance is in use.
Never leave the appliance unattended during use. Boil-overs may occur, causing spills which may ignite.
Never wear loose tting or long sleeved apparel while cooking. Never wear garments made of ammable materials.
Clothing may ignite or catch utensil handles. DO NOT drape towels or other items on door handles. These
items could ignite and cause burns.
If your product is a range or oven ALWAYS place oven racks in the desired position before you start cooking and while the oven
is cool. Always use dry and sturdy pot-holders to carefully slide the oven rack out to add or remove food.
If your product is a range or cooktop located near a window, be certain window curtains or other ammable objects do not
blow over or near the range burners; the items could catch on re.
If operating the surface burners, the ame should be adjusted to just cover the bottom of the pan or pot.
Excessive high ame settings may cause scorching of the nearby counter-top surface, as well as the outside of the utensil
and handles.
ALWAYS turn the appliance off at the end of cooking.
When dehydrating food items, periodically check during the process to ensure that they do not catch on re.
If you are “aming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft from the fan could cause the
ames to spread out of control.
Care should be exercised if your appliance is equipped with a high-shelf. During heavy or continuous use, this shelf may be
come hot. Do not place combustible materials or plastic items on the shelf.
Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.
CAUTION
!
Medallion Dual Fuel Ranges
Use & Care Manual
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
6
The location selected for the range must meet the following criteria. If any of these criteria are not met, select another location.
SITE PREPARATION
0 The range is a free standing appliance. If the range is to be installed adjacent to cabinets, the clearances where indicated are
required.
0 This range may not be recessed into the cabinets. The rear of the oven door must be beyond the edge of the frontface of the
adjacent cabinet.
0 The gas and electrical supplies should be located below the unit or in the adjacent right cabinet.
0 Anyopeningsinthewallbehindtherangeandintheoorundertherangemustbesealed.
0 Alwayskeeptheappliancefreeandclearofcombustiblematerials,gasoline,orotherammablevaporsandliquids.
0 Donotobstructtheowofcombustionexhaustandventilationairtotheunit.
ELECTRICAL CONNECTION
0 The Range must be electrically grounded in compliance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA70.
0 The electrical service in the building must be equipped with a properly grounded NEMA 14 - 30 receptacle.
POWER REQUIREMENTS FOR THIS RANGE
0 240 VAC, 60 Hz, single phase, 30 AMP Max
GAS CONNECTION
Be certain the appliance being installed is correct for the gas service being provided. Refer to the appliance data plate for the gas
supply requirements.
A manual gas shut-off valve must be remotely installed and easily accessible in the adjacent cabinet. The regulator inlet is for a 3/4
inch gas line. The appliance ships with a 1/2 inch to 3/4 inch adapter connected to the regulator.
0 Useatleasta1/2"commercialexhosetoconnectrangetothegassupply(serviceline).
0 Amanualgasshut-offvalvemustbeinstalled,ineasyaccessinfrontofthegassupply(serviceline)andaheadoftherangefor
safety and ease of maintenance.
0 All valves must be in the OFF position before connecting to the gas supply line.
INSTALLATION INSTRUCTIONS
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
7
Medallion Dual Fuel Ranges
Use & Care Manual

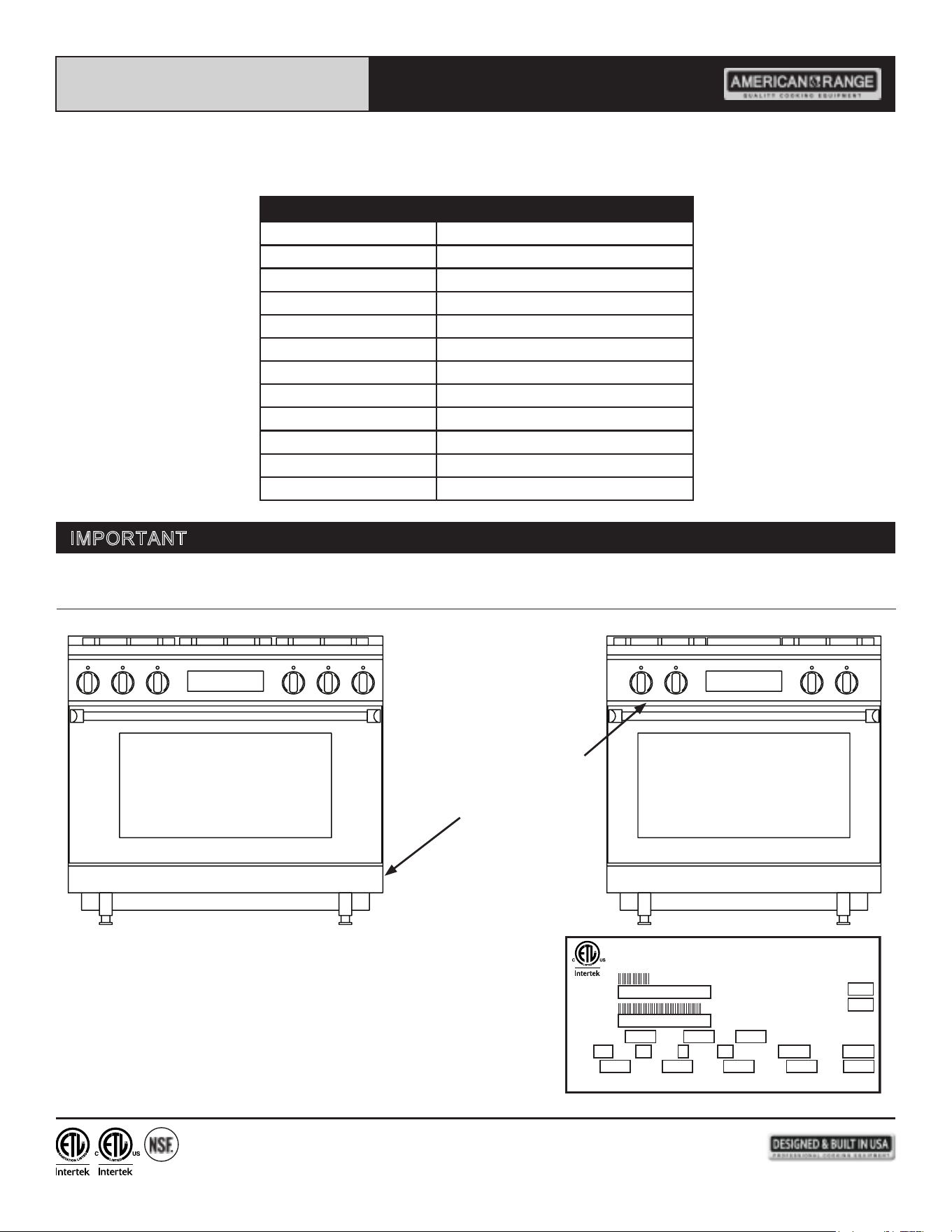

MODEL NUMBERS AND ELECTRICAL CURRENT RATINGS
CAUTION
!
Do not operate an appliance that has been misused, abused, neglected, damaged, or altered/modied from that of
the original manufactured specications.
IMPORTANT
The model and serial number
are listed on the data plate
located under the control panel
or on the kickplate on the front
of the appliance.
MODELS ELECTRICAL CURRENT
ARR-304DF 30A
ARR-364GDDF 30A
ARR-366DF 30A
ARR-364GRDF 40A
ARR-486GDDF 40A
ARR-484X2GRDF 40A
ARR-486GDGRDF 40A
ARR-4842GDDF 40A
ARR-486GRDF 40A
ARR-606GDGRDF 60A
ARR-6062GDDF 60A
ARR-60X2GRDF 60A
RATING PLATE - The location of the rating plate is shown above. The
informationontheratingplatedenesthemodel,serialnumber,gastype
(naturalorliquidpropane),operatingpressuresandburnerBTUratings.Keep
thisinformationforfuturereference.Itisessentialforproperidentication
of the unit when requesting additional information or factory support.
BTU INPUT/HR/SECTION
3013256
MODEL NO.
ARR-304DF
XXXXXX-XXX
XXX
GAS TYPE
MAN. PRESS.
IN W.C.
X.X
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
COOK TOP Large
17,000
Medium
13,500
Small
9,000
VOLTS
240 1
CYCLES
60
CONVECTION
2200W
GRIDDLEAMPS
30
PHASE
BAKE 30 BAKE 18
3500W
GRILLBROIL 18
3500W3500W
BROIL 30
3500W
SERIAL NO.
ANSI Z21. 1b - HOUSEHOLD COOKING APPLIANCES
ANS1/UL 858-2005 CSA C22.2 No. 61 Household Cooking Appliances
Rating Plate
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
8
Medallion Dual Fuel Ranges
Use & Care Manual
INSTALLATION INSTRUCTIONS
GENERAL
Theseinstructionsareprovidedtoassistthequaliedinstaller.Itistheowner’sresponsibilitytoensurethatallgoverningcodesand
ordinances are observed during the planning and installation of this appliance.

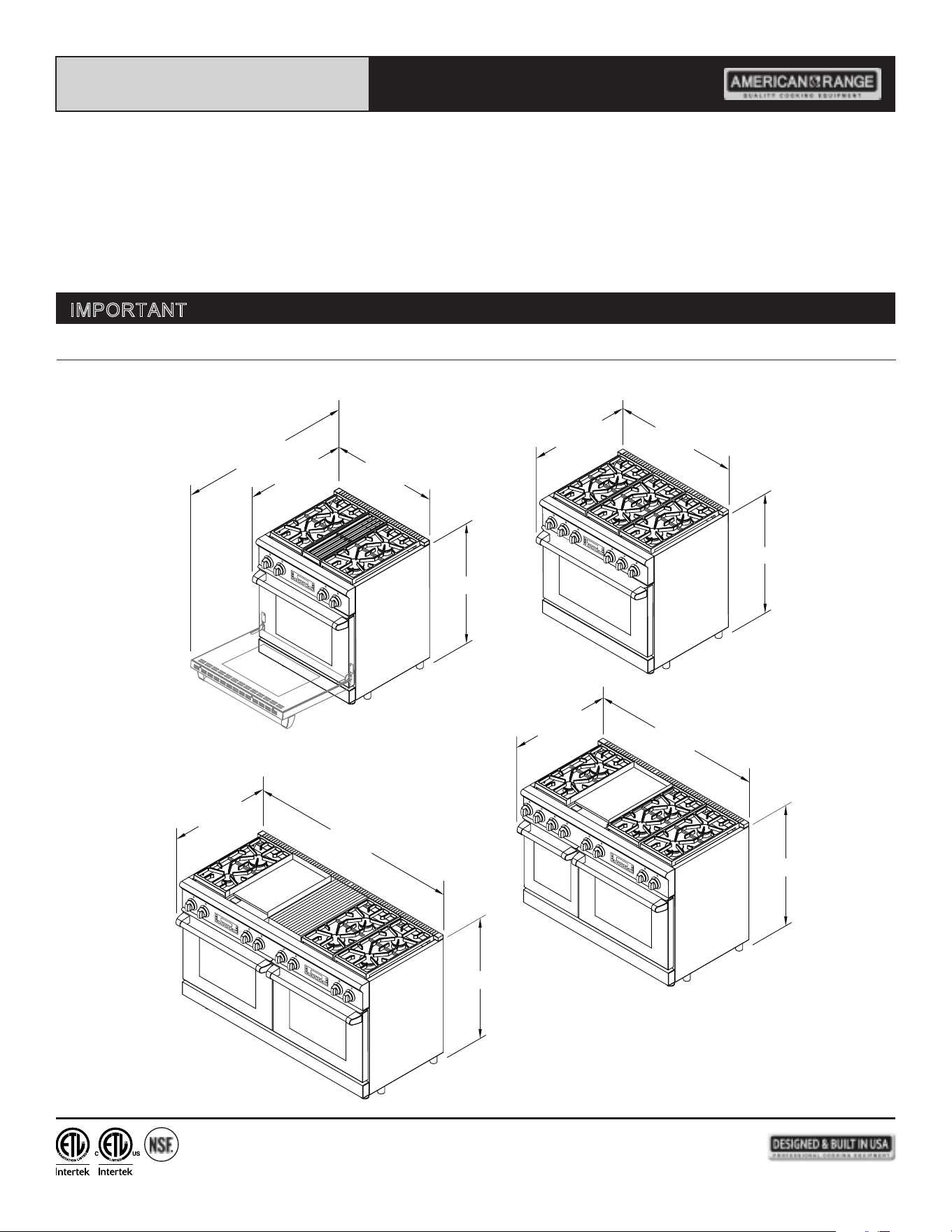

OVERALL RANGE DIMENSIONS
CAUTION
!
Failure to follow these installation guidelines will affect warranty coverage.
IMPORTANT
30 -1/2"
29-7/8"
30 -1/2"
35-7/8"
47-7/8"
30 -1/2"
37"
59-7/8"
30 -1/2"
46 -1/2"
37"
37"
37"
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
9
Medallion Dual Fuel Ranges
Use & Care Manual
INSTALLATION INSTRUCTIONS

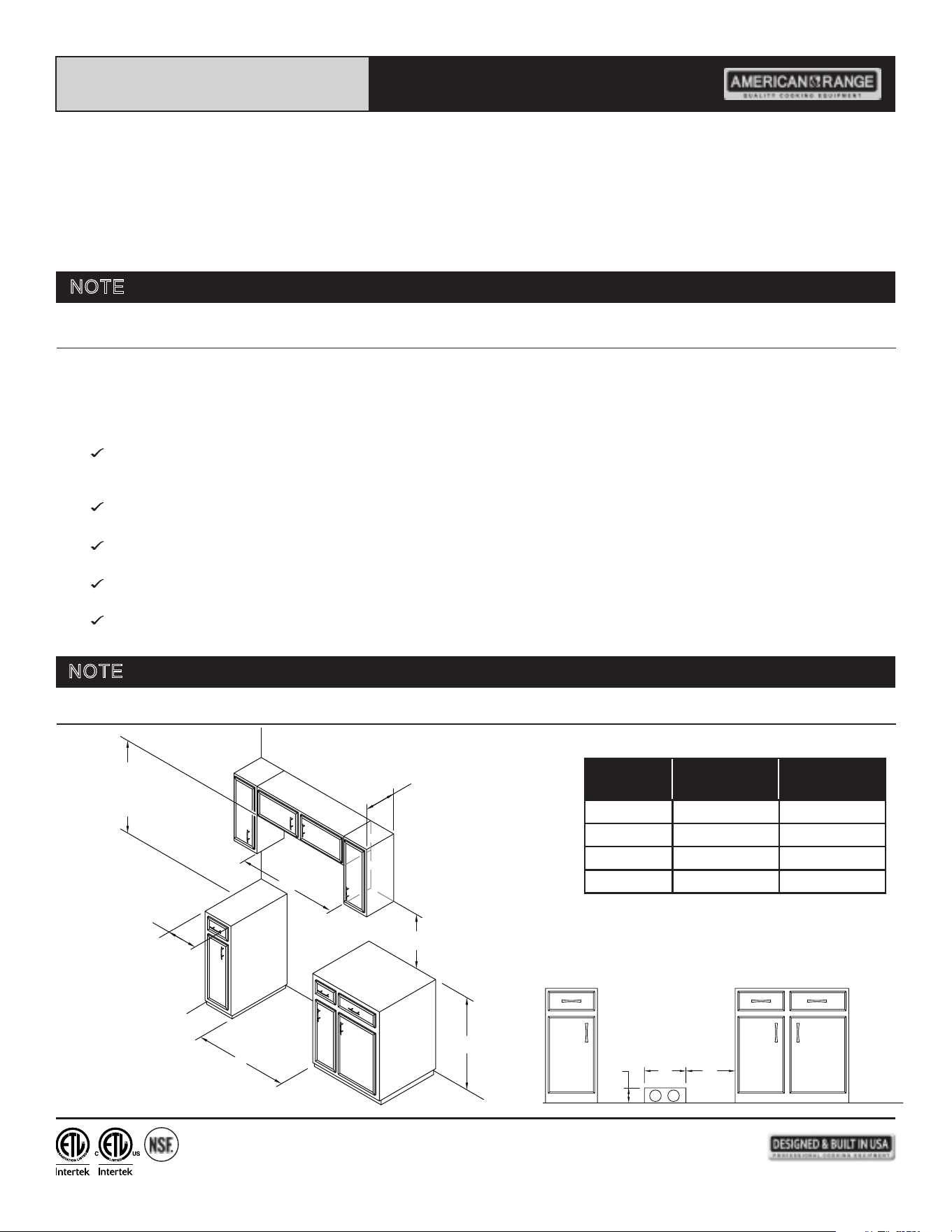

RANGE LOCATION
The location selected for the range must meet the following criteria. If any of these criteria are not met, select another location.
CABINET PREPARATION
The Range is a free standing appliance. If the Range is to be installed adjacent to cabinets, the clearances shown below are required.
This Range may not be recessed into the cabinets. The rear of the oven door must be beyond the edge of the front face of
the adjacent cabinet.
The gas and electrical supplies should be located in adjacent right cabinet.
AnyopeningsinthewallbehindtheRangeandintheoorundertherangemustbesealed.
Alwayskeeptheapplianceclearandfreefromcombustiblematerials,gasoline,orotherammablevaporsandliquids.
Donotobstructtheowofcombustionandventilationairtotheunit.
CAUTION
!
The maximum depth of the overhead cabinets installed on either side of the hood is 13" (330).
NOTE
For optimal performance, the range should be installed away from drafts that may be caused by doors, windows, and heating and
air conditioning outlets.
NOTE
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
RANGE
WIDTH
“A”
DIMENSION
“B”
DIMENSION
29-7/8" 30" 36"
35-7/8" 36" 42"
47-7/8" 48" 54"
59-7/8" 60" 66"
0
0
0
0
0
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
10
Medallion Dual Fuel Ranges
Use & Care Manual
INSTALLATION INSTRUCTIONS
IMPORTANT
It is the owner’s responsibility to ensure
that the electrical connection of this
appliance is performed by a qualied
electrician. The electrical installation
must be in accordance with the latest
version of the National Electrical code
ANSI/NFPA 70 and local codes and
ordinances.
WARNING
!
IMPORTANT
Check your local building codes for the
proper method of installation. In the
absence of local codes, this appliance
should be installed in accordance with
the National Fuel Gas Code ANSI Z223.1.
Be certain that the appliance being
installed is correct for the gas service
being provided.
WARNING
!
IMPORTANT
Within the Commonwealth of
Massachusetts, this appliance must be
installed by a licensed plumber or gas
tter.
IMPORTANT
Do not attempt to disengage the hinge
catch with the door removed from the
oven. The hinge spring could release
causing personal injury.
Do not lift or carry the oven door by
the door handle.
WARNING
!
ELECTRICAL SERVICE
A 240VAC, 60Hz separately grounded circuit that is protected by a 30A circuit
breaker or time delay fuse must be supplied to the appliance.
Afour-wireconnection(notprovided)isrequiredtoconnecttheappliancetothe
electrical supply junction box. Consult local building codes for the type and minimum
wire gauge to use. The wiring to the appliance from the electrical supply junction box
needs to be long enough to allow the appliance to be pulled out from the wall for
service, while remaining connected.
GAS SUPPLY
Be certain that the appliance being installed is correct for the gas service being
provided. Refer to the appliance data plate for the gas supply requirements.
Minimum Natural Gas Supply Required – 6" water column
MinimumLiquidPropane(LP)GasSupplyRequired–11"watercolumn
A manual gas shut-off valve must be remotely installed and easily accessible in the
adjacent cabinet.
The regulator inlet is for a 1/2" gas line.
PREPARING FOR INSTALLATION
UNPACKING THE APPLIANCE
Unpack all parts boxes and verify that all of the required components have been
provided. If any items are missing or damaged, please contact your dealer immediately.
Do not install a damaged or incomplete appliance.
REMOVING THE OVEN DOOR
To make the appliance easier to move, remove the door to reduce weight.
1. Open the door to its fully opened position.
2. Place hinge pin in the hole located in hinge arm.
3. Remove left and right hinge locks.
4. Move door upward to engage pin.
5. Lift door out.
CONNECTING THE ELECTRICAL SERVICE
1. Make sure that the conduit or appliance wire is long enough to allow the range
to be pulled out for service without disconnecting it.
2. Connect the wires on the appliance wall electrical box.
CONNECTING THE GAS SUPPLY
1. Make sure the gas supply valve is in the OFF position.
2. Make sure all surface burner knobs are in OFF position.
3. Connect the gas line to the appliance.
4. Connect the gas line to the supply line.
5. Turn on the gas supply and check for leaks.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
11
Oven Racks: Each oven is supplied with two heavy chrome-
plated adjustable oven racks.
Rack Supports: On each side of the oven, heavy chrome-plated
racksupportsallowvepositions,numberedfromthebottom
up.
Oven Control Knob: The oven control knob is used to set the
Baking temperature or to select the Broil function. During baking,
the convection fan may be activated.
Bake Burner: The Bake burner is located in the center of the
oven,belowtheoorandisactivatedbytheOvenControlKnob.
Magma Grill Infrared Broil Burner: Positioned in the oven ceiling,
a highly insulated ribbon element lights up to a temperature of
1,850ºF – creating searing heat similar to the glowing coals of a
woodre.
Inconel
®
Screen Infrared Broil Burner: This broil burner is also
positioned in the oven ceiling, burning gas heats the Inconel
Screen to 1,850ºF, perfect for browning and crisping.
Broil Burner Igniter: The igniter glows a very hot, bright red-
orange color, reaching proper ignition temperature to light the
Inconel Screen Infrared Broil Burner.
Burner On Indicator Light: Whenever an oven burner is
activated(eitherBakeorBroil),theburneronindicatorwillglow.
It is normal for the indicator light to cycle off and on during
baking or broiling – showing that the requested temperature has
been achieved – or that more heat is required.
Door Gasket: The door gasket is made from high temperature
materials and creates a seal between the hot oven and the cool
kitchen.
Convection Fan and Switch: Operated by the front panel
switch, the convection fan circulates oven air, removing the
“thermal boundary layer” on items being baked – and in doing
so – speeding up heat transfer and cook time by as much as 25%.
Convection is active only during baking.
Oven Light and Switch: A single lamp is provided in the oven
to illuminate baked and broiled food items, as well as shed some
light on the wall to help during clean-up – activated by the front
panel switch.
MODEL AND PARTS IDENTIFICATION
Oven Racks 2 2 2 2 4 4 4 4 4 4 4 4
Sealed Burners 4 4 6 4 6 4 6 4 6 6 6 6
Center Plate 1 0 0 0 0 0 0 0 0 0 0 0
Grates 3 2 3 3 3 4 4 2 4 4 3 5
Control Knobs 4 5 6 5 7 6 8 6 7 8 8 8
Griddle 0 1 0 0 1 0 1 1 0 1 1 0
Backyard Grill 0 0 0 1 0 2 1 0 1 1 0 2
Regis. Card 1 1 1 1 1 1 1 1 1 1 1 1
U&C Manual 1 1 1 1 1 1 1 1 1 1 1 1
ARR-304DF
ARR-364GRDF
ARR-366DF
ARR-364GDDF
ARR-486GDDF
ARR-4842GDDF
ARR-486GDGRDF
ARR-484X2GRDF
ARR-486GRDF
DESCRIPTION
MEDALLION SERIES - DUAL FUEL RANGES
ARR-606GDGRDF
ARR-60X2GRDF
ARR-6062GDDF
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
12
Medallion Dual Fuel Ranges
Use & Care Manual
INSTALLATION INSTRUCTIONS
FINAL INSTALLATION
SLIDING THE APPLIANCE INTO THE CABINET
Make sure that the gas supply and electrical service are properly connected.
Peel the protective coating off the appliance, if applicable.
Carefully slide the appliance into position in the cutout. Install the anti-tip system.
LEVELING AND ADJUSTING THE APPLIANCE
To adjust the height of the Range, turn the bottom of the leg. Use a spirit level to make sure that the appliance
doesnottilttothefront/backortoeitherside.Theappliancesidepanelmustbeushwiththecountertop.
RE-INSTALLING THE OVEN DOOR
Grasp both sides of the oven door.
Slide the hinges into the hinge openings, resting the bottom of the hinge arms in the hinge openings.
Lower the door to the fully opened position.
Remove the hinge pins on each hinge and secure hinges with hinge lock.
Slowly close and open the oven door completely to ensure that it is properly reinstalled.

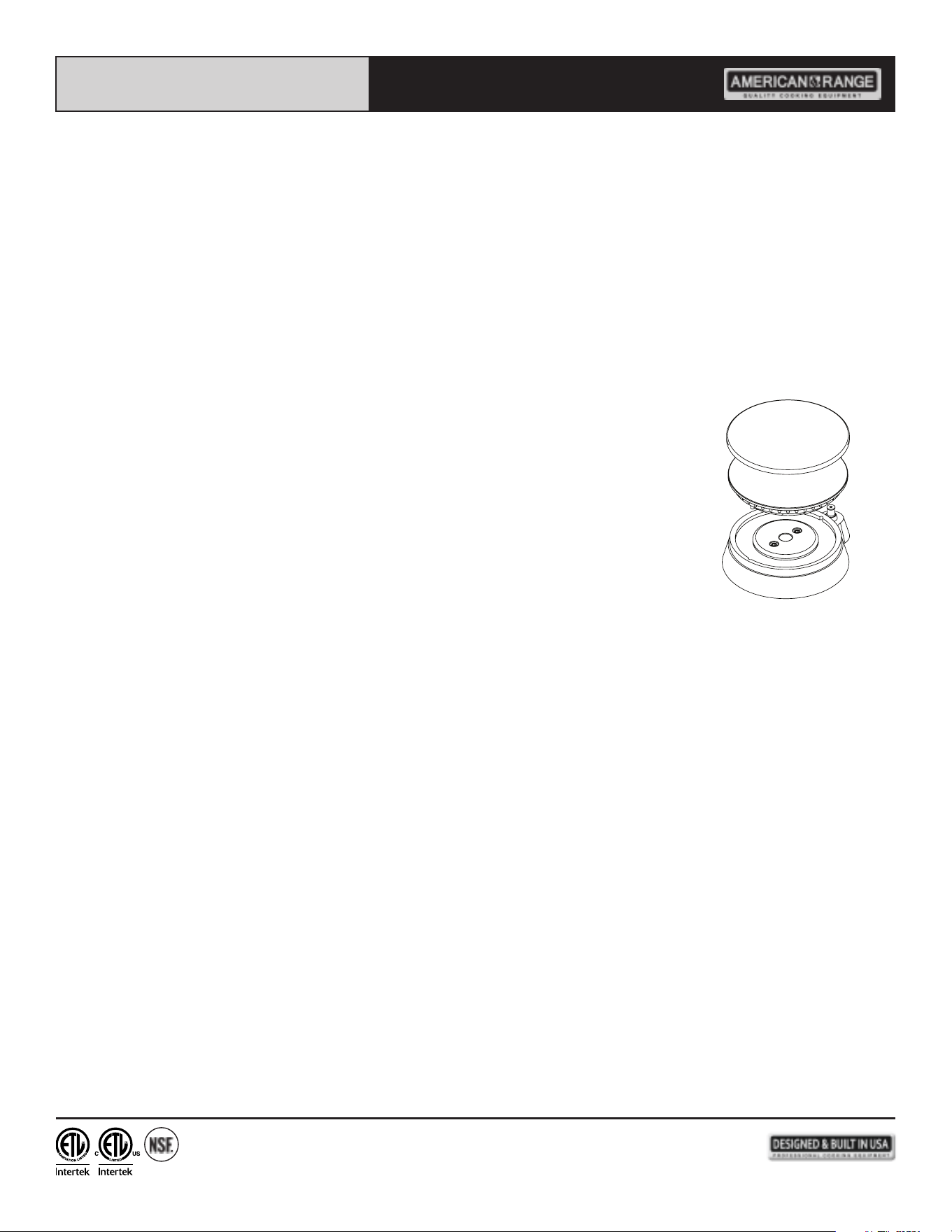

INSTALLING THE BURNER COMPONENTS
Install the burner components as shown to the right.
BEFORE USING THE APPLIANCE
• Prior to operating this appliance, please read the operation and maintenance sections of this manual.
• Before beginning the test procedure, verify that all cook top control knobs are in the OFF position. Turn on the gas supply at
the manual shut-off valve.
• Turn ON each cook top burner separately by pushing in the control knob and turning it counterclockwise to the
HIGH position. It may take a few seconds for ignition to occur. After ignition, rotate the control knob counterclockwise from
HIGHtoLOWtoadjusttheame.
• Turn the control knob to the OFF position.

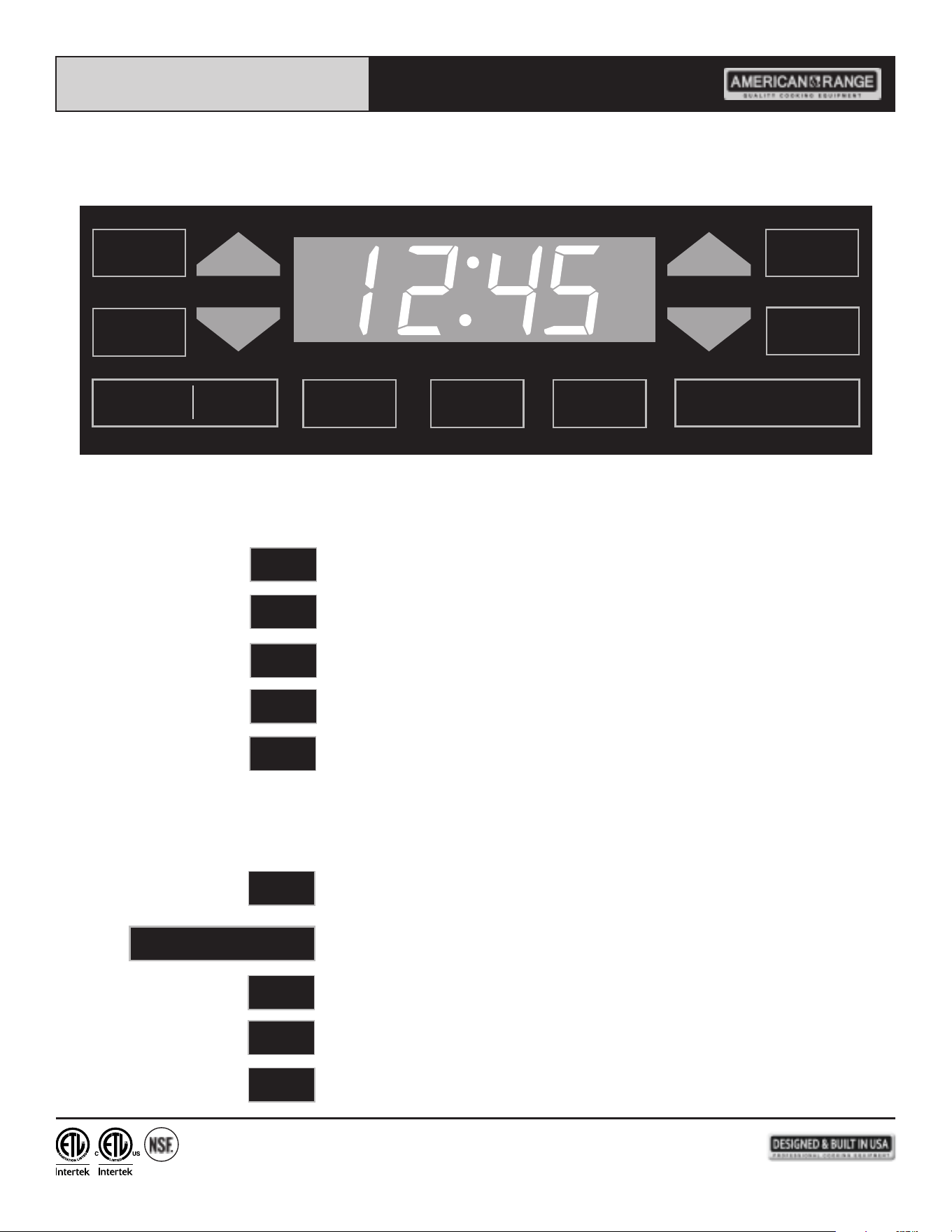

• To set the time of day press the clock button, adjust the clock by press the time UP and DOWN buttons.
• Press the BAKE button.
• Adjust the temperature to 375ºF using the UP and DOWN TEMP buttons.
• The display should show BAKE, and the preheating temperature.
• Press the OFF button to stop the oven preheating process.
• If either the cook top or oven does not operate properly, do not attempt to repair the appliance yourself.
American Range Corporation is not responsible for service required to correct a faulty installation.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
13
CHECK ALL THAT APPLY
Appearance and Aesthetics
0 Exterior
0 Top section
0 Oven interior
Installation
0 Read User Manual
0 Review Safety Instructions
0 Proximity to cabinets
0 Backguard in place
0 Level
0 Ventilation system
Ignition
0 Top Burners
0 Griddle
0 Char Broiler
0 Oven Burner
0 Infrared Broiler
Controls
0 Burner Knobs
0 Thermostats
0 Char Broiler
0 Convection Oven Fan & Switch
0 Oven Light Switch
Air/Gas Mixture
0 Top Burners
0 Griddle
0 Char Broiler
0 Oven Burner
0 Infrared Broiler
Flame Adjustment
0 Top Burners
0 Griddle
0 Char Broiler
0 Oven Burner
0 Infrared Broiler
Oven Door
0 Alignment
0 Door Seal
0 Hinges
Valve Operation
0 Top Burners
0 Griddle
0 Char Broiler
0 Oven Burner
0 Infrared Broiler
Customer Copy
Electrical Connection
0 Correct voltage
0 Grounded outlet
0 Polarized outlet
0 No GFCI
Gas Connection
0 Verify fuel: 0 Natural -or- 0 LP
0 Gas shut-off present and accessible
0 Gas Supply line properly sized
0 Gas Supply pressure checked
0 Operating pressure checked
0 All connections checked for leaks
INSTALLATION CHECKLIST
This checklist has been developed to assure proper installation of your oven.
To validate warranty, you must mail, e-mail or fax this form and a copy of your receipt to:
AMERICAN RANGE CUSTOMER SERVICE, 13592 DESMOND STREET, PACOIMA, CA 91331
818.897.8839 FAX
Street:___________________________________________
City, State, Zip Code:_______________________________
E-mail:__________________________________________
Telephone:______________________________________
Dealer:________________________________________
Purchase Date:___________________________________
Installation Date:__________________________________
Installer’s Name:__________________________________
Company:______________________________________
Telephone:______________________________________
Medallion Dual Fuel Rangess
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
14
PERFORMANCE CHECKLIST
AqualiedinstallershouldcarryoutthefollowingperformancechecksreferringtotheUserManualasnecessary:
Check operation of oven setting Bake at 350°.
Check operation of Broil function.
Checkoperationofalltopburnersathighandlowame.
Check operation of oven light using front panel control switch.
Check operation of the convection fan using front panel control switch.
Check operation of all indicator lights on control panel.
Beforecookinginyourovenforthersttimeremoveovenracksandwashthemwithhotsoapywater.Thoroughlyrise,dryand
replace them in the oven.
During initial start-up of the oven, after all performance checks and adjustments have been made, the oven should be allowed to
burn off any oils or solvents left from the manufacturing process. In any case, these materials are safe for the environment – but it is
besttheynotcontributetothetasteorodorofyourrstovencookingexperience.
OVEN BURN-OFF PROCEDURE
• Turn on the kitchen ventilating hood.
• Light the oven according to the instructions in the manual.
• Set the oven thermostat temperature to 350ºF.
• Let the oven run for one hour.
• Turn on the convection fan.
• Set the oven thermostat to 450ºF.
• Leave the oven operational for an additional hour.
• Shut off the oven by turning the thermostat to the OFF position.
BROILER BURN-OFF PROCEDURE
• Turn on the kitchen ventilating hood.
• Light the broil burner according to the instructions in the manual.
• Operate the broiler for ten minutes.
• Openthedoorbriey–abouttenseconds.
• Operate the broiler for an additional ten minutes.
• Shut off the broiler by turning the thermostat to the OFF position.
During the oven or broiler burn-off process, some strong odors or minor smoke may be experienced as remaining oils or solvents
on internal parts are oxidized. This is the primary reason for the burn-off process and should dissipate by the completion of the
time period.
RANGE START-UP PROCEDURE
0
0
0
0
0
0
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
15
OPERATION OF THE BURNERS
1. Pressinontheknobthatcorrespondstotheburnerthatyouwouldliketolight.Usethefrontpanelgraphictoconrm
your selection until you become familiar with the range. Turn the knob counter-clockwise to the "American Flame" icon
located on the knob – this is the light position of the burner valve.
2. Theigniterforallthesurfaceburnerswillbeginsparking–however,gaswillowtoonlytheselectedburner.
3. Aftertheburnerlights,theigniterclickingwillstop–indicatingthattheamesensingandre-ignitionsystemisactiveonthe
selected burner.
4. RotatetheknobtoanyamesettingthatyoudesirebetweenMAXandSIMMER.Thebluepanellightwillremainlituntil
the valve is returned to the OFF position.
The surface burners are rated at different power levels:
When you are using the surface burners, select the burner power and location depending on the heating or cooking function you
would like to perform.
Anormalameisblueincolorandsteady.Foreignmaterialsinthekitchenairorthegasline,especiallyinnewconstruction
installations, may cause some orange color bursts during initial operation. This will disappear with continued use. Small yellow tips
ontheendsofamesarenormalwhenusingLPgas.
Iftheameslookodd,(toosmall,toolarge,lazyordrifting,unevenaroundtheburnercircle,etc.),checktoseethattheburnerhead
is seated correctly on the burner base. Do this when the burner is cold by gently rocking the burner head or rotating the head from
side to side. If it is correctly seated, it will nest in detents, in the case of the sealed burners, or on the corresponding pin/hole for
open burners. If this does not correct the problem, turn to the Troubleshooting section of this manual.
AUTO RE-IGNITION
Thesurfaceburnersareequippedwithaspecialignitionandre-ignitionsystemthatsensesthepresenceofameandre-ignitesthe
burnershouldtheamedisappearwhilegasisstillowingtotheburner.
Strongdrafts,spillsandgeneralgrimeinuencetheoperationoftheautomaticre-ignitionsystem–acleansystemwillgenerally
function better than a dirty system. Periodically, remove any materials or grime that might build up on the high voltage spark
electrode – using a toothbrush or other non-metallic cleaning utensil.
BEFORE USING THE NEW COOK TOP
• Beforeusingthecooktopforthersttime,washtheoutsideareawithsoapandwatertoremoveanyshipping&factory
residue.
• The burner grates are designed in sections and are easy to remove and clean. They are made of cast iron with a porcelain
coating and will remain hot after the burner is turned off creating a residual heat for continued cooking. Use
caution when handling.
• Your new professional Range is equipped with burners that are similar to those used in restaurants.
The burner heads are large and designed to ensure even heat distribution for better cooking. They must be in place and
properly seated before lighting.
• The Range must not be operated without the burner heads.
• Therearenocontinuouslyburningpilotlights.Anelectronicsparkignitionsystemisusedtolighttheburner.Iftheame
should go out from a boil-over or a strong draft, the burner will automatically re-ignite.
OPERATING INSTRUCTIONS
BURNER TYPE SMALL MEDIUM LARGE
Open Burners 12,000 BTU/hr. 18,000 BTU/hr. 25,000 BTU/hr.
Sealed Burners 9,000 BTU/hr. 13,000 BTU/hr. 17,000 BTU/hr.
Medallion Dual Fuel Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
16
COOKWARE RECOMMENDATIONS
To avoid the risk of serious injury, damage to the range or cookware, please observe the following guidelines.
Bakeware, such as large casserole pans, cookie sheets, etc., should never be used on the cook top.
Placement of large stock pots should be staggered when used on the cook top.
Selectthebasediameterofthepottomatchthediameteroftheame.Thediameteroftheameandthediameterofthepan
bottom should match or be slightly smaller. Too large or too small pots on a burner will compromise cooking performance.
Do not place food packaged or wrapped in aluminum foil directly on the burner grate above the burner. Aluminum foil can melt
during cooking.
Becarefultonotletplastic,paperorclothcomeincontactwithahotburnergrate.Thesematerialscancatchreormelt.
Never let a pan boil dry – and if it occurs remember it can be extremely hot – and very dangerous. If this should occur, turn off the
burner immediately. Wait a while, until the pot cools down enough to handle – this could be several minutes, but could save you
from burns or other serious injury.
Thepanbottomshouldbeat,theheavierthebetter–andwellbalancedonthecooktopgrate–sittingatwithoutrocking–
preferablywithtightttinglids.Trynottoslidethepotacrossthegrates–whileitisveryhandytodoso–youmayendup
scratching the pot or the grate.
Alwaysbecarefulwhenusinghighames,asinwokcooking,astheymaycontactammablematerialsormakethehandlesofthe
wokveryhot.Usethewokring(optional)tostabilizethewok.
SUGGESTED BURNER SETTINGS
HEAT SETTINGS USE
Simmer Melting small quantities of butter, simmer grains, rice, oatmeal
Low Poachingeggs,sh,poultry
Low - Medium Fry eggs, heat milk, cream sauces
Medium Puddings, custards, gravies
Medium High
Sauté vegetables, braise meats, soups and stews, deep fat frying, boiling water and pasta, blanching
vegetables, searing meats
High Large quantity of water to boil, large quantity frying and cooking
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
17
Medallion Dual Fuel Ranges
Use & Care Manual
APPLIANCE OPERATION
OFF
LOCK
CLOCK
CLOCK TIMER
BAKE
BROIL
CONVECTION
CLEAN WARMLIGHT
TIMER TEMP
CONTROL PANEL KEYS
COOKING MODES
Use this key to set the clock.
Use this key to turn off the oven.
Use this key to time an event. You can use the timer without oven on.
Pressing this key for six seconds will lock or unlock the control panel.
Use this key to turn on or off the oven lights.
Activates the oven self-cleaning feature.
This mode is for single and double rack baking.
Uses only a heat source from below the food.
Uses a top heat source.
Is used to warm food.
Selects the type of cooking you
want to perform by pressing one
of the cooking mode keys.
OFF
LOCK
BAKE
CLEAN
WARM
LIGHT
CLOCK
TIMER
BROIL
CONVECTION BAKE
OFF
LOCK
BAKE
CLEAN
WARM
LIGHT
CLOCK
TIMER
BROIL
CONVECTION BAKE
Medallion Dual Fuel Ranges
Use & Care Manual
CONTROL PANEL
The Dual Fuel Range control panel is your portal into a new dimension of cooking. A few presses of the keypad program the range
to Bake, Broil, Convection Bake, Warm food, Self-Clean the oven or set the time of day clock or kitchen timer. The following is a
"cook's tour" of the brains behind your dual fuel range.
To stop any heating process, like bake or broil or self-clean, press the OFF key.
HoldingtheLOCKkeyforseveralsecondslocksthecontrolpanelforcleaning-orkeepsinquisitivengersofchildrenfromactivating
the appliance.
Press CLOCK, then use the TIME up or TIME down pyramids to roll the value shown in the display to the desired setting. If the
display changes too quickly, simply let go of the button and start again – the rolling gets faster and faster the longer you hold the key
pressed.
An on-board kitchen timer can be programmed using the TIME up or TIME down pyramids as well – press TIMER, then enter the
desired setting.
To program SELF-CLEANING, press the CLEAN key, and enter a time period in hours. The oven will automatically lock, heat the
oven cell to a high temperature, hold it hot for a period of time, and then cool down and unlock.
Press the LIGHT key to turn on the oven light – press it again to turn it OFF.
Use the WARM key to hold the oven at a temperature between 80F and 200F. The TEMP pyramids increase or decrease the
temperature setting shown in the display. When you are done programming, wait three seconds for your input to be accepted.
After that, the controller goes to work.
For standard baking recipes, press the BAKE key, using the TEMP pyramids to enter the recipe temperature. Wait three seconds for
the input to be accepted. Preheat icons will illuminate on the display; when the oven has reached the desired temperature an audio
alert tone will sound.
Press the BROIL key and use the TEMP pyramids to select HI or a regulating temperature. For special recipes, the regulating
temperature will control just how much searing will occur during BROIL.
Convection cooking is performed using the CONVECTION key. Simply press CONVECTION, set a temperature using the TEMP
pyramids and wait three seconds. After preheating, the controller operates the convection ring and other heat sources to create the
requested temperature.
SABBATH MODE
1. Press the BAKE key and select an oven operating temperature using the TEMP UP or TEMP DOWN keys. The red colored
“BAKE”iconwillashforafewsecondswhiletheelectroniccontrol"accepts"thenewlyprogrammedovenoperating
temperature.
2. Now,pressandholdtheBAKEkeyforthree(3)seconds.Thetemperaturedisplayportionofthecontrolwillshow---o.
3. Finally, press the TEMP UP or DOWN key to enter the Sabbath operating mode – shown in the oven
control display as SAB.
4. To cancel the Sabbath operating mode, depress the OFF key.
5. Once you become familiar with the programming of the control, you might look at selecting Sabbath mode BAKE as entering
standard baking mode and then, re–entering standard baking mode again!
6. As always, if you need to start over, press the OFF button – no harm done!
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
18
Medallion Dual Fuel Ranges
Use & Care Manual
APPLIANCE OPERATION
OVENS 101
The oven is an electrically heated, temperature controlled cooking cavity which is highly insulated to keep the kitchen cool and the
foodhot.Theovencontainstwoburners-theBakeburnerpositionedbelowtheovenoorandtheBroilburnerlocatedinthe
ceiling of the oven. Bake and Broil are very different cooking operations and the burners are designed to deliver energy in a way
appropriate to the task.
Therearetwotypesofbaking-calledStandardBake(orconventional)andConvectionBake.Standardorconventionalbakingmake
bestuseofGrandma’scookie,cakeorpierecipes–likeBakeat350ºFforforty-veminutes–togetthejobdone.Theserecipesare
tried and true – conventional or standard bake will deliver wonderful performance every time you cook.
Whenyouconvectioncook(usingafantocirculatethehightemperatureairinsidetheoven)youcanlowerthethermostatabout
25ºandreducethecooktimebyabout25%-andachievenecookingresultsjustlikeGrandma’s–takinglesstimeandusingless
energy. Use the same recommended temperatures for meats and poultry dishes – but keep watch of the time. Convection cooking
technologywasrstdevelopedinEuropeandhasbeenusedformanyyears–recentlytakingholdinUSresidentialkitchensand
cookbooks.
In convection cooking, not only is the cook time faster, but also, the oven temperature is more even, top to bottom and side to side
– so cookies on several racks will have the same brown color and texture. Food does not need to be rotated to get uniform color.
However, to best take advantage of convection, use low, shallow bakeware so that moving air can get over the sides and up to the
foodsurface.Foodsincovereddishes(likecasserolesorpotroasts)donotbenetfromconvectioncooking.
Togetstarted,removeallplasticwrappersusedtoprotectthenishoftheStainlessSteelsurfaces.Ifyoudonot,thewrappermay
getstuckontheStainlessSteelwhentheovenishot–makingremovallaterverydifcult.
Althoughcareistakenatthefactorytoremoveprocessingoils,consideranalwipedownusingasoftclothandhot,soapywater,
well rinsed and dried from the surface.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
19
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
20
Medallion Dual Fuel Ranges
Use & Care Manual
GRILL OPERATION
To turn on the grill, make sure there is nothing on the grilling rack, push in and turn the control counter now clockwise to the HIGH
position.ThepowerONindicatorlightwillglowindicatingthegrillvalveison.Thegrillisequippedwithaame-sensingignition
system–thatautomaticallydetectsthepresenceofameonthegrillburner–andrelightsitintheeventitshouldgoout.
After cooking, allow the module to cool completely and remove the drip tray slowly, discarding grease and other food particles. The
grill grate may be removed - exposing the radiants - which may be lifted out and placed in the dishwasher along with the drip tray
for cleaning. The grate is porcelain coated and may be washed with hot soapy water and a soft brush.
BEST COOKING RESULTS WHEN USING YOUR GRILL
Theintenseradiantheatfromthegrillvaporizesthesurfaceofyourfood,lockinginavor.
• Add any barbecue sauces during the last few minutes of cooking, long enough to caramelize the sauce.
• Forbestresults,turnfoodwithtongsoraatspatulatoavoidpiercingmeatorpoultry.
• Turn meat once when juices rise to the surface. Turning meat more than once results in the loss of meat juices.
• Never squeeze juices out of meat.
• Beforecookingsteaksorchops,trimmostoftheoutsidefattopreventexcessiveare-ups.Slashintotheedges
ofsteaksorchopstokeepmeatatonthegrill.
GRILL CHART
FOOD ITEM INTERNAL TEMPERATURE TIME
Hamburgers 1/2" to 3/4" 160º 8 to 10 minutes
Steaks 1" to 1-1/2" Rare 140º 10 to 20 minutes
Steaks 1" to 1-1/2" Medium 160º 12 to 25 minutes
Pork chops 3/4" to 1" 145º & 3 minutes rest time 15 to 25 minutes
Lamb chops 160º 12 to 15 minutes
Poultry pieces 170º 25 to 35 minutes
Fish 1" thick 145º Minimum 8 to 10 minutes
Allow grill to cool completely before cleaning. Remove the grates, grease collector and Stainless Steel
Radiant and place in hot soapy water. Clean the grill with hot soapy water and a soft grill brush.
Do not apply water or cleaner directly on the infrared burner.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
21
Medallion Dual Fuel Ranges
Use & Care Manual
GRIDDLE CHART
FOOD ITEM TEMP. SETTING HEAT SETTING
Eggs 225ºF to 250ºF Low
Bacon, Ham, Hot dogs 300ºF to 325ºF Medium - Low
Sausage, Grilled cheese sandwiches 325ºF to 350ºF Medium
Pancakes, French toast 350ºF to 375ºF Medium
Hash brown potatoes, Grilled onions 400ºF to 425ºF Medium - High
The temperature settings
are meant as a guide.
You may need to vary
the settings according
to taste.
GRIDDLE OPERATION
The built-in griddle is made of polished steel to provide a smooth cooking surface. A griddle drip pan is included.
Always pre-heat the griddle on the low setting, at least ten minutes before cooking. The griddle burner is equipped with a hot surface
igniter and gas safety valve system.
TO START COOKING:
Push knob in and turn the knob clockwise to the MAX position. Preheat griddle for two to three minutes and turn knob to a
medium or low cook setting.
The blue indicator light comes on and stays on until the desired setting is reached and then turns off and on with the heating
cycle.
For best results, add a small amount of butter, oil, or a cooking spray to the griddle surface. Fatty meats like bacon and sausage
do not need extra fat.
SEASON THE GRIDDLE:
1. Thegriddlehasafactoryappliedcoatingthatmustbewashedoffpriortouse.(SeeCleaningtheGriddle)
2. Pour1tablespoonofvegetableoil(notcornoroliveoil)andrubontheentiresurfaceofthegriddleusingaroughtowel.
3. Pushthegriddlecontrolknobinandturntoamediumsetting(350°F).
4. Heat until griddle begins to smoke. Turn off griddle and allow it to cool.
5. Returning to step 2, repeat the process.
When you are done "griddling" and while the griddle surface is still warm, remove any left-on food particles. Allow the griddle to cool
andscrapeoffanyexcessgreasefromthesurfacewithaexiblenylonspatula.Pullthespatulaforwardtowardthefrontandpushany
material into the front grease receiver.
To clean the griddle, moisten a soft scrub cloth, adding a drop of mild degreaser dish soap to create a soapy lather - and wipe the
griddle from left to right. Clean in rows from the top to the bottom, taking time to wash the entire griddle surface, including the
sides. When you are done, rinse away all the soap from the cloth and wipe any suds from the griddle surface. Remove all remaining
moisture from the griddle with the second, clean soft cloth. Wipe the area in rows again as well as the sides and front. You may have
to repeat action to ensure the griddle plate is dry and sparkling.
CLEANING THE GRIDDLE:
The griddle is not to be removed for cleaning.
Usingaatplasticspatulagentlyremoveburnedonfood.
Clean the griddle thoroughly with hot soapy water and a rough towel.
The griddle drip pan and trough should be cleaned after each use with hot soapy water and a sponge.
It is normal for the griddle to darken with age and use, similiar to commercial cooking equipment.
0
0
0
0
0
0
0
0
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
22
Medallion Dual Fuel Ranges
Use & Care Manual
MAINTENANCE
Do not use abrasive cleaners or scrubbers on the control. They will permanently damage the nish.
NOTE
CAUTION
!
Always wipe Stainless Steel surfaces with the grain. To prevent scratching, do not use abrasive cleaners or scrubbers on
Stainless Steel surfaces.
NOTE
CAUTION
!
CLEANING STAINLESS STEEL SURFACES
Clean with a soft dampened sponge with a mild solution of detergent and warm water. Rinse and dry completely with a soft
lint-free cloth.
CLEANING GLASS (INTERIOR AND EXTERIOR)
Useamildglasscleaner(i.e.;SimpleGreen)toremovengerprintsonglasssurfaces.YoucanalsocleanglasssurfaceswithCook
top Cleaning Cream. Use according to manufacturer’s directions.
The control panel automatically locks the oven door during self-cleaning. The latch
prevents the door from being opened since the high interior oven temperatures can
easily cause injury.
After the Self-Clean cycle is complete reinstall the oven racks. You may also notice
powder ash in the bottom of the oven after Self-Cleaning. This is normal. Use a damp
cloth or sponge to wipe up the residue after the oven cools down.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
23
Medallion Dual Fuel Ranges
Use & Care Manual
CARE AND CLEANING
It is always easier to clean as you go – and while some evenings you’d rather sit down with a good book instead of a Scrubbie,
keeping your range cook top and oven in a ready to go state for the next meal makes everything a little more tolerable.
When cleaning the range:
0 Usethemildestprocedurethatwilldothejobefcientlyandeffectively–andsincesomecleanersareharsherthanothers,it
isbesttotrythemonasmall,inconspicuousarearst.
0 Use only clean, soft cloths, sponges, paper towels, plastic brushes, non-metal soap pads for cleaning and scouring.
0 Whencleaningtheovendoor,controlpanel,topcurvedsection(calledthebullnose)ortheattoparea–alwayspretend
itismadeofwood–andrubthenishinthedirectionofthegrain.Thisisthemosteffectivecleaningdirection,toprevent
marring the surface.
0 Any part of this appliance can be cleaned with hot, sudsy water. When rinsing is required, rinse thoroughly.
0 Always wipe dry immediately to reduce the appearance of water marks.
TO CLEAN THE COOK TOP
The cook top is brushed Stainless Steel with polished aluminum burner heads. The burner caps are steel coated porcelain.
0 Do not use abrasives on Stainless Steel. Use towels, sponges or soft plastic scrubbers. RUB ONLY WITH THE "GRAIN".
0 Do not use steel wool pads or green rough Scrubee’s.
0 Wash all cooking surfaces with hot water and dish detergent such as Simple Green, Ivory Liquid, or Joy.
0 Rub stubborn spots with baking soda or liquid cleaner such as Windex All Surface Cleaner or 409.
0 Grates and burner caps can be soaked in hot soapy water. Mild scouring cleaners can be used, such as Bon Ami or Cameo
on grates and burner caps.
TO CLEAN THE OVEN
The oven cavity is porcelainized with steel rack guides and racks. The infrared broiler does not need to be cleaned. Any soil is
burned off by the intense heat.
0 Placeamediumglassbakingdishlledwithtwocupsofammonia.Closethedoorandallowthedishtositovernight.This
process softens the soil for easier removal.
0 Wash the interior of the oven with soap and water. Make a paste with baking soda and water and using a sponge or nylon
pad rub away stubborn stains.
0 Use mild scrubbing compounds such as Bon Ami or Cameo if necessary.
0 Do not use steel wool pads or abrasive sponges or scrubbers.
0 If necessary, spray oven cleaner can be used. DO NOT SPRAY OVEN CLEANER INTO THE CONVECTION FANS OR UP
ONTO THE INFRARED BROILER.
0 When spray oven cleaners are used, follow using a 1/4 cup vinegar mixed with one quart of water to rinse the oven.
0 Do not use scouring powders on the glass window; oven spray may be used on the window. Rinse with vinegar and water
solution.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
24
Medallion Dual Fuel Ranges
Use & Care Manual
CLEANING RECOMMENDATIONS
PART / MATERIAL CLEANING SUGGESTIONS BEING CAREFUL
Main Top/
Porcelain Enamel
Soft Scrub may be used here. With a cool or
slightly warm surface, use a damp sponge or cloth
as recommended by the manufacturer.
Sincethesurfaceisglass(itcanbescratchedby
certainmaterials)trytorubgentlyinsmallcirclesto
allow time and chemical reactions to take place.
Sealed Burners
Caps and burner heads can be removed for
cleaning using hot sudsy water. A stiff nylon bristle
tooth brush can be used to clean burner port
openings.
Remembertodryouttheports(trytoblowair
throughthemifyoulike).Watercloggedportsburn
witherraticamesandcouldbedangerous.
Open Burners
The cast iron burner heads are heavy and porcelain
coated. If they are dirty, remove any large debris
and gently scrub under hot, soapy water.
Like the sealed burners, remember to dry out the
ports(trytoblowairthroughthemifyoulike).
Watercloggedportsburnwitherraticamesand
could be dangerous.
Control Knobs/
Power Paint
Use dry hands to pull off the knobs; hot sudsy
water works best here…
…with a sponge to avoid scratching
Chrome Knob
Bezels
Hot soapy water works well here, with a sponge or
soft cloth.
As with any round feature that meets the stainless
steel grain, be careful to clean the bezels in a circular
motion – and not contact the S/Steel control panel.
Exterior Finish
Island Trim
Use hot soapy water, Fantastic, Formula 409, rinse
and dry immediately. For hard water spots, try
household vinegar or CLR. If there is any heat
discoloration, consider using Zud, Wright’s All
Purpose Polish or Blue Away.
Rub lightly in the direction of the grain of the
StainlessSteel.Salt(sodiumchloride),chlorineor
chlorine compounds in some cleaners are corrosive
to Stainless Steel.
Grates/Porcelain
Enamel on
Cast Iron
Hotwater&detergentwithscrubbie,orsoaplled
steel wool pad for really tough stains will work.
Remove sugar or acid based spills, they tend to attack
the enamel. Remember the grates are heavy, use care
when lifting and replacing.
Griddle
Moisten a soft scrub cloth, adding a drop of mild
dish soap to create a soapy lather - and wipe the
griddle from left to right.
Use plastic spatulas and spoons when working the
griddle. See more tips in the discussion on griddle
operation on page 21.
Notes
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
25
Medallion Dual Fuel Ranges
Use & Care Manual
MEDALLION DUAL FUEL RANGES
PROBLEM POSSIBLE CAUSE WHAT TO DO
Nothing works.
• Range not connected to electrical power. • Have electrician connect range to properly
• wire electrical connection.
• Power to range is off. • Turn power on at the junction box.
• Check for tripped circuit breaker or blown fuse.
• Control panel locked. • Press and hold LOCK key for six seconds
• to reactivate control panel.
• Power outage. • Contact power company.
Oven will not heat.
• No electrical power to the range
• Gas service is turned off
• Gas supply has been interrupted
• Look for red glow of hot surface igniter
• Oven setting not correct.
• Press BAKE and program a new temperature using
• TEMP UP or TEMP DOWN.
Time on display
not correct.
• Time of day not set. • Set time.
• Power failure or power was turned off. • Reset time.
Time ashes on display.
• Power failure or power was turned off. • Reset time.
Oven does not
self-clean.
• Door not shut correctly. • Check for obstructions.
Oven light does not
work
• Light switch is in the off position
• Light is burned out
• Try switching the light on
• Locate and test a new replacement light, unscrew glass
lens, remove bad light, replace
Broiler will not light
• No electrical power to the range
• Gas service is turned off
• Look for red glow of hot surface igniter
• Check circuit breakers in house
• Try to light a surface burner
• If no glow, call for service
Burner lights, but
clicking won’t stop
• Mis-wired high voltage connections • See that the burners are correctly matched to the high
voltage connections
Convection fan does
not turn
• Switch the fan on
• Unit in Broil mode
• Bad fan
• Use the control panel switch
• Turn thermostat to Bake temperatures
• Call for service
Igniters keep clicking
• Reverse polarity of the electrical
supply line
• Poor electrical ground
• Check the polarity with hand held tester
• Be sure range power cord has three prongs and plugs
directly(noadapter)intothepowerreceptacle
Condensation on the
oven window
• Cold appliance • During cold weather, it is normal for some
• condensation to appear of the window, it will
• disappear in about ten minutes.
Foods over-cook
• Incorrect temperature or cooking time
• Defective thermostat
• Reduce cooking time or temperature
• Watch that thermostat indicator light cycles on and
offeveryveortenminutesattemperature
TROUBLESHOOTING GUIDE
Notes
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must
be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the receipt
proving certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor be prepared to submit
a major credit card for payment for proper installation prior to service.
13592 Desmond Street, Pacoima, CA 91331
818.897.0808 tel 888.753.9898 toll free
818.897.1670 fax
www.americanrange.com
R70002 011812
