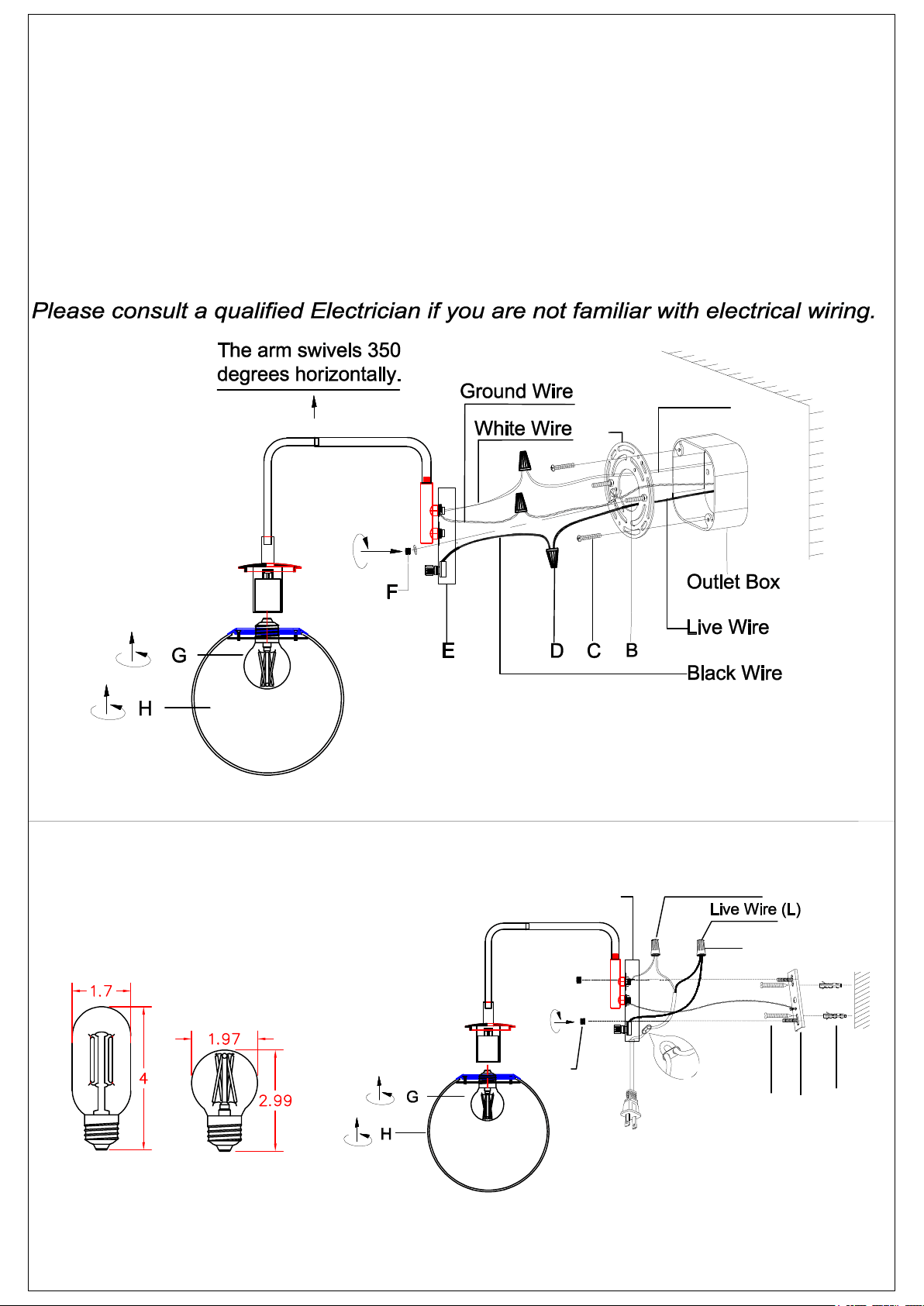

1.Adjust the length of the screw (B) to suit your needs.
2.Install the mounting plate (A) on the outlet box by using the screws (C).
3.Connect the fixture wire to the mains wire by wire nuts (D), black wire with live
wire, white wire with negative wire, ground wire with ground wire.
4.Fix the lamp body (E) to the mounting plate (A) by the ball nuts (F).
ITEM NO. :T3084BU-J-C
ASSEMBLY INSTRUCTIONS
A
Negative Wire
5.Screw the bulb (G) into the lamp holder.
Installation Process With a Junction Box
A
B
C
E
F
D
Negative Wire (N)
Note: The way to differ the negative wire from the live wire is that a
white line is printed on the cover of the negative wire.
Installation Process Without a Junction Box
6.Screw the glass shade (H) into the bobeche.
Max. Size of Bulb: 1.97 Inches
Wide * 5.3 Inches High
