Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions
Cautions on Using Batteries
Power cord
Remote control unit
(RC-1215)
R03/AAA batteries
Coaxial digital cable
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

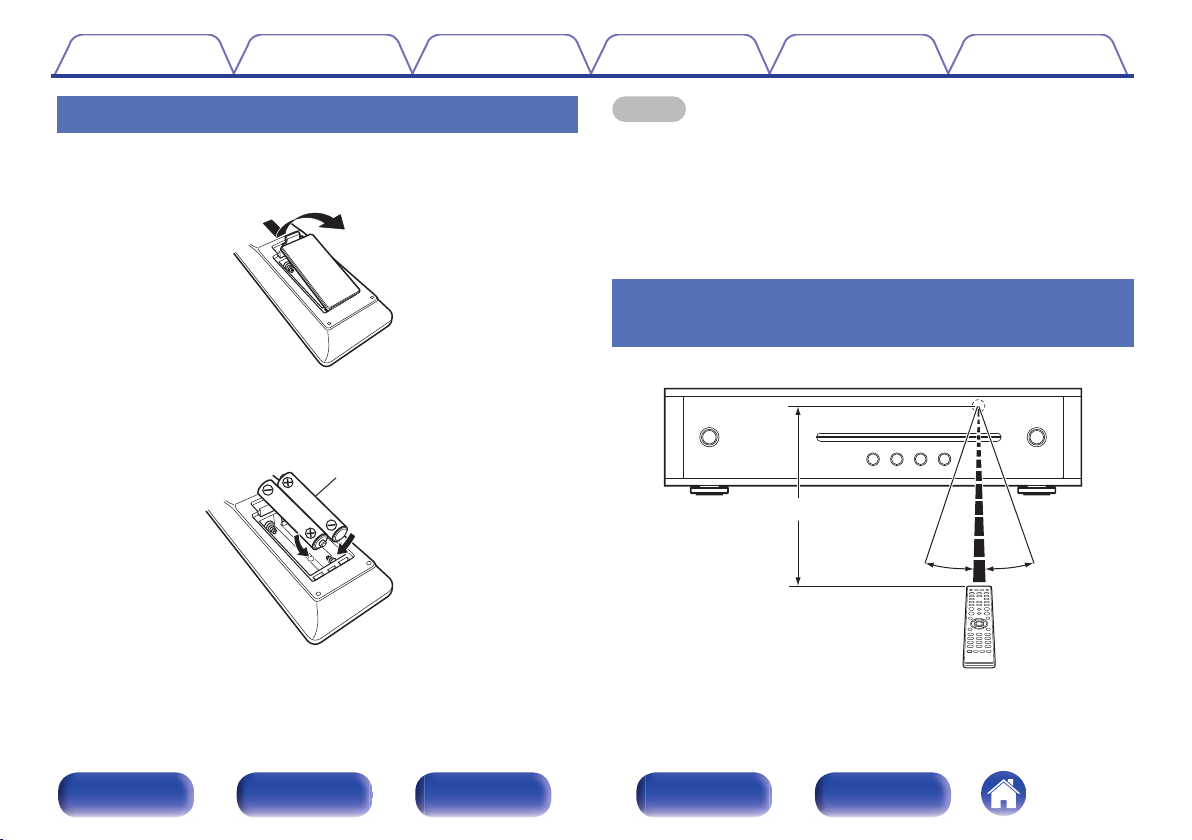

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30°
30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
Features
High quality
0
A new style of CD player with Denon's trademark quality,
containing a high-precision 32-bit D/A converter
The D/A converter is a key element of sound quality, so this product
contains our 32 bit/384 kHz D/A converter, renowned for its high degree
of precision, to bring you the best sound quality possible.
0
This unit can be combined with the DRA-100, a network receiver
with a high-quality class-D amplifier, to achieve high-quality
reproduction of even the finest signals.
In addition to a high-quality class-D amplifier, the DRA-100 network
receiver contains Advanced AL32 Processing, a unique analog
waveform recreation technology from Denon. Combine it with this unit to
enjoy sound with an intricacy and power far greater than you’d expect
from a device of its size.
High performance
0
This new design is the optimal match for our DRA-100 network
receiver
0
Slot-in CD mechanism with smooth and steady operation.
0
Supports MP3 and WMA file playback
This unit can play back MP3 and WMA files recorded on CD-R and CD-
RW discs.
The high-visibility organic EL display can show information such as the
track name and artist name when playing back MP3s and WMAs.
0
The auto standby function reduces power consumption
0
This unit comes with a system remote control that can also
operate the DRA-100
Contents
Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
.
qrt y
ew
uioQ
0
A
Power operation button (X)
This turns the power on/to standby. (v p. 20)
The power status is indicated as follows.
0
Power on: Display lit
0
Standby: Display off
B
Protection circuit indicator
This blinks when the protection circuit has operated. (v p. 32)
C
Display
This displays various pieces of information. (v
p. 9)
D
CD slot (v p. 39)
E
Remote control sensor
This receives signals from the remote control unit. (v
p. 5)
F
CD Eject button (5)
Ejects the disc.
G
Play/pause button (1 / 3)
Plays the track/Pauses the track.
H
Stop button (2)
Stops playback.
I
Reverse-skip button (8)
Returns to the start of the currently playing track.
J
Forward-skip button (9)
Plays the next track.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Rear panel
.
OUT
IN
AC
IN
COAXIAL
IR CONTROL
ANALOG
OUTOUT
DIGITAL
q w e r
A
AC inlet (AC IN)
Used to connect the supplied power cord. (v
p. 18)
B
IR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
C
DIGITAL OUT connector (COAXIAL)
Used to connect an amplifier equipped with digital audio input
connector. (v p. 16)
D
ANALOG OUT connectors
Used to connect an amplifier equipped with analog audio input
connectors. (v
p. 17)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
Remote control unit
o
Operating this unit
To operate CD player, press REMOTE MODE CD button to switch the
remote control to the CD operation mode.
0
REMOTE MODE CD button lights for approximately two seconds.
A
Power operation button (CD POWER X)
This turns the power on/to standby.
B
Remote mode select button (REMOTE MODE CD)
This switches the remote control operating mode to CD.
C
System buttons
These perform playback related operations.
D
RANDOM button (P)
Switches the random playback.
E
Number buttons (0 – 9, +10)
These enter numbers into the unit.
F
SLEEP button
This sets the sleep timer. (v
p. 29)
G
PROGRAM button
This sets program playback. (v
p. 24)
q
w
e
r
t
y
u
Contents
Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
H
Signal transmitter
This transmits signals from the remote control unit. (v
p. 5)
I
REPEAT button (L)
Switches the repeat playback.
J
INFO button
This switches the track information shown in the display during playback.
K
ENTER button
This determines the selection.
L
Cursor buttons (uio p)
These select folders or files on a data CD.
M
CLEAR button
This clears the program registration.
N
DIMMER button
Adjust the display brightness of this unit. (v
p. 21)
O
MODE button
This switches the playback mode. (v p. 25)
i
o
Q2
Q1
Q3
Q4
Q5
Q0
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
o

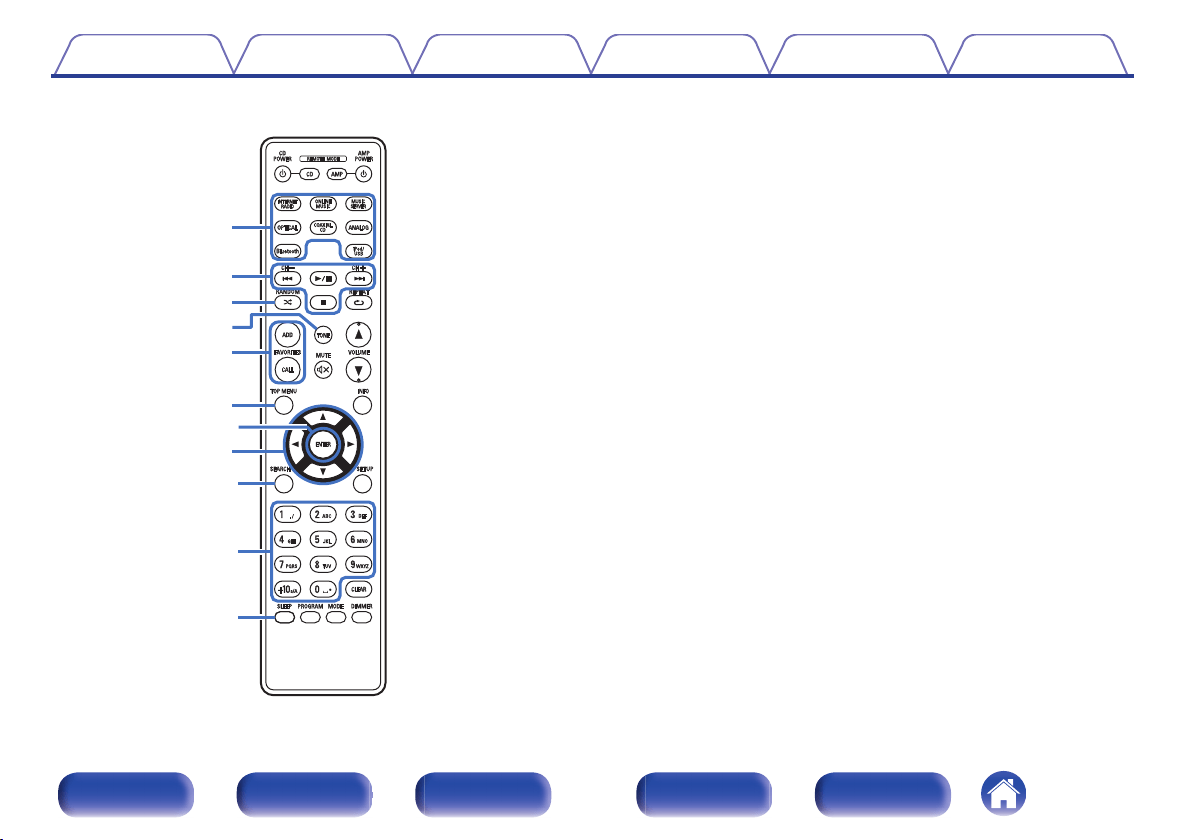

Network receiver operations
To operate a Denon network receiver, press the REMOTE MODE AMP
button to switch the remote control to the network receiver operation mode.
0
REMOTE MODE AMP button lights for approximately two seconds.
A
Input source select buttons
B
System buttons
Channel buttons (CH +, –)
C
RANDOM button (P)
D
TONE button
E
FAVORITES ADD / CALL buttons
F
TOP MENU button
G
ENTER button
H
Cursor buttons (uio p)
I
SEARCH button
J
Number buttons (0 – 9, +10)
K
SLEEP button
w
q
e
r
t
y
i
o
u
Q0
Q1
Contents
Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
L
Power operation button (AMP POWER X)
M
Remote mode select button (REMOTE MODE AMP)
N
REPEAT button (L)
O
VOLUME buttons (df)
P
INFO button
Q
MUTE button (:)
R
SETUP button
S
CLEAR button
T
DIMMER button
U
MODE button
0
The remote control may not operate some products.
Q2
Q3
W0
W1
Q6
Q9
Q8
Q7
Q4
Q5
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
o
Contents
Connecting a digital device 16
Connecting an analog device 17
Connecting the power cord 18
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
.
R
L
R
L
Coaxial digital cable
(supplied)
.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
Basic operation
.

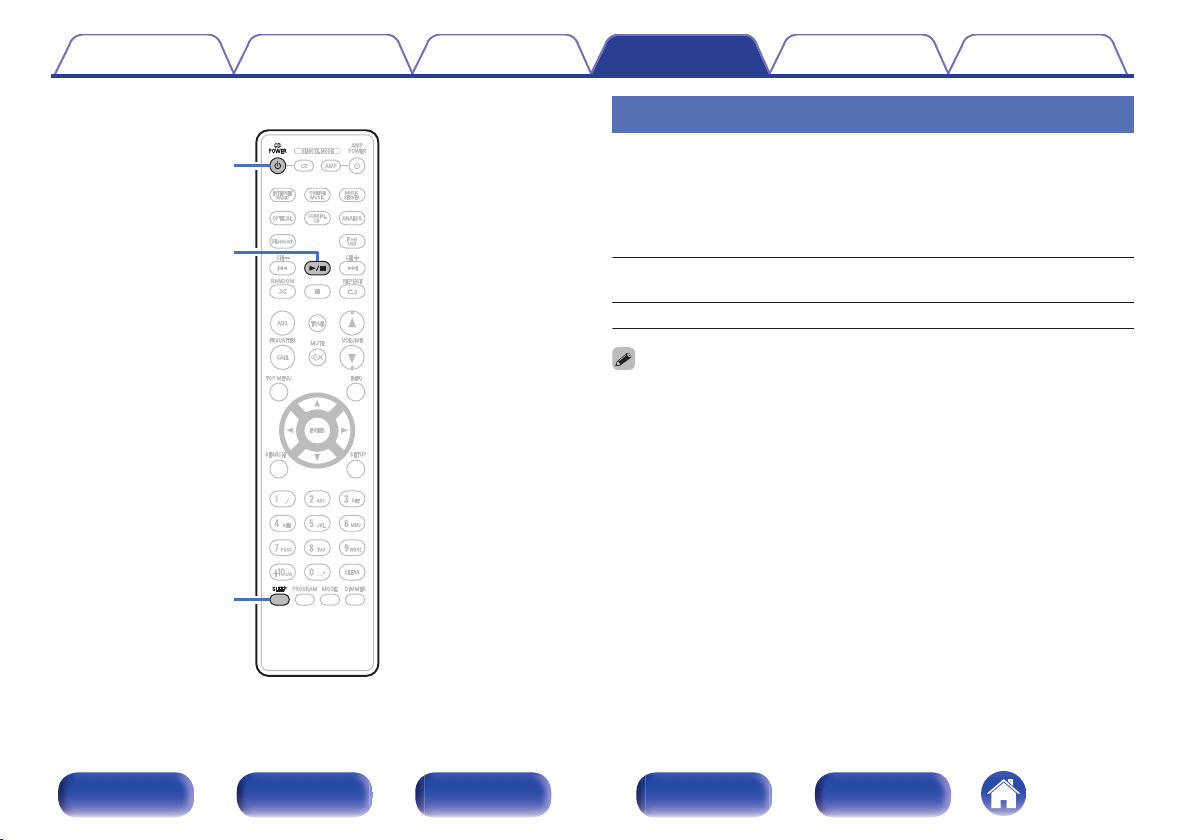

CD POWER
X
DIMMER
Turning the power on
1
Press CD POWER X to turn on power to the unit.
Turns the display on.
0
You can also press X on the main unit to turn on power from standby mode.
Switching the power to standby
1
Press CD POWER X.
Turns the display off.
0
You can also switch the power to standby by pressing X on the main unit.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, unplug the power cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
Switching the display’s brightness
The brightness of the display can be adjusted to one of three levels.
1
Press DIMMER.
0
The brightness of the display switches each time the button is
pressed.
0
The display brightness is set to most brightly by default.
Contents Connections Playback Settings Tips Appendix
21
Front panel Display Rear panel Remote Index
Playing CDs
.
PROGRAM
8
1
/
3
INFO
CLEAR
2
9
REPEAT
RANDOM
0 – 9, +10
Playing CDs
1
Insert a disc. (v p. 39)
2
Press 1/3.
The 1 indicator lights on the display. Playback starts.
0
You can set whether to automatically play CDs. (v p. 29)
NOTE
0
8 cm discs cannot be used on this unit. Do not insert 8 cm discs into the CD slot.
0
Do not put anything other than a CD to CD slot. Doing so could result in damage.
o
Eject CDs
1
Press 5 on the main unit while playback is stopped.
Contents Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index
Operation buttons Function
1 / 3
Play/Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
0 – 9, +10 Select the track
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Time display switching
0
Track elapsed time, Track remaining
time and Total remaining time.
o
Playing a specific track (Direct searching)
1
Use 0 – 9 and +10 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers +10 and 2 consecutively to select track 12.
Contents Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
Playing tracks in a specific order
(Program playback)
Up to 25 tracks can be programmed.
1
In the stop mode, press PROGRAM.
“PROG” is displayed on the display.
2
Use 0 – 9 and +10 to select the tracks.
GExampleH
To program tracks 3, 12 to play in that order: Press 3, +10 and 2 one
after the other.
3
Press 1/3.
Playback starts in the programmed order.
0
When RANDOM P is pressed during program playback, the programmed tracks
are played in random order.
0
When REPEAT L is pressed during program playback, the tracks are played
repeatedly in the programmed order.
NOTE
0
The program is cleared when the disc is ejected or the power is turned off.
o
Checking the order of the programmed tracks
In the stop mode, press 9.
The tracks are shown in the programmed order in the display each
time 9 is pressed.
o
To clear the last track programmed
In the stop mode, press CLEAR.
To clear the last track programmed.
The last track programmed is cleared each time the button is pressed.
o
Clearing the all programmed track
In the stop mode, press PROGRAM.
Contents Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index
Playing DATA CDs (MP3 and WMA files)
.
8
1
/
3
uio
p
ENTER
INFO
2
9
REPEAT
RANDOM
0 – 9, +10
MODE
0
This section explains how to playback music files that are recorded onto
a CD-R or CD-RW.
0
There are many music distribution sites on the Internet allowing you to
download music files in MP3 or WMA (Windows Media
®
Audio) format.
The music (files) downloaded from such sites can be stored on CD-R or
CD-RW discs and played on this unit.
“Windows Media” and “Windows” are the trademarks or
registered trademarks of Microsoft Corporation in the United
States and other countries.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playable files” for details. (v
p. 37)
0
MP3
0
WMA
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Playing files
1
Insert a CD-R or CD-RW containing music files into the
CD slot. (v p. 39)
2
Press MODE to select the folder mode or all mode.
About the display
0
When “Folder mode” is selected
“t” indicator lights.
All the files in the selected folder are played.
0
When “All mode” is selected
“t” indicator turns off.
After the selected folder and files are played, all the files in all the
folders are played.
3
Use ui to select the folder to be played.
4
Use o p to select the file to be played.
5
Press 1/3.
Playback starts.
0
You can set whether to automatically play CDs. (v p. 29)
Operation buttons Function
1 / 3
Play/Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
u i
Folder select
o p
File select
0 – 9, +10 Select the track
MODE
Switch playback mode
0
Switching between playing back all files
within the selected folder or all tracks on
the disc.
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
0
The folder and file numbers are set automatically when the disc is loaded.
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
NOTE
0
Programmed playback is not possible with MP3/WMA discs.
0
Copyright-protected files cannot be played.
If you attempt to play a copyright-protected file, this unit skips the file and plays the
next file.
Note that depending on the software used for burning and other conditions, some
files may not play or display correctly.
o
Files that can be played back
See “Playable files” (v p. 37).
o
To switch the folder or file during playback
0
Folder
Use ui to select the folder, then press ENTER.
0
Files
Use o p to select the file, then press ENTER.
Also use 8, 9 to select the file, or use 0 – 9, +10 to select the
file number.
o
Switching the display
During playback, press INFO.
0
Switching between the title name, artist name and album name.
0
The player can display the following characters:
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ \ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = (space)
0
If there is no title, the file name is displayed instead.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
.
CD POWER
X
1
/
3
SLEEP
Auto Standby
Sets whether to automatically switch the unit to the standby mode when
the unit remains in the stop mode for more than 30 minutes.
1
When this unit in the power on, press and hold CD
POWER X for 5 seconds.
On
(Default):
Enable Auto Standby mode.
Off: Disable Auto Standby mode.
0
Press and hold CD POWER X to turn this setting “On” or “Off”.
0
When the setting is “On”, the display shows “Auto Standby On”.
0
When the setting is “Off”, the display shows “Auto Standby Off”.
Contents
Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
Auto Play
Set whether to automatically start playback after inserting a disc.
1
When this unit in the power on, press and hold 1/3 for
5 seconds.
On: Playback starts automatically.
Off
(Default):
Playback does not start automatically.
0
Press and hold 1/3 to turn this setting “On” or “Off”.
0
When the setting is “On”, the display shows “Auto Play On”.
0
When the setting is “Off”, the display shows “Auto Play Off”.
0
Playback starts automatically when Auto Play is set to On and the power is turned
on when a disc is already inserted.
Sleep timer function
You can have the power automatically switched to standby once a set time
has elapsed. This is convenient for listening while going to sleep.
1
Press SLEEP during playback and select the setting
time.
0
The o indicator on the display lights.
0
You can set the sleep timer in the range from 10 to 90 minutes in
steps of 10 minutes.
o
To cancel the sleep timer
Press SLEEP to set “Sleep Off”.
The o indicator on the display turns off.
0
The sleep timer setting is canceled when the unit switches to standby mode.
0
To check the time remaining until the sleep timer is activated, press SLEEP.
Contents Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want to playback just the specified folder 31
I want to start playback automatically after inserting a disc 31
I want to play back music with a single operation from the standby
state 31
Troubleshooting
Power does not turn on / Power is turned off 32
LED is flashing 32
Operations cannot be performed through the remote control unit 33
No sound comes out 33
Sound is interrupted or noise occurs 34
Cannot playback Discs 34
File names or tag data are not displayed correctly 35
Contents Connections Playback Settings Tips Appendix
30
Front panel Display Rear panel Remote Index
Tips
I want to playback just the specified folder
0
The MODE button to set the playback range to “Folder mode”. (v p. 26)
I want to start playback automatically after inserting a disc
0
Turn Auto Play on. (v p. 29)
I want to play back music with a single operation from the standby state
0
Make sure that a disc is inserted and then press the 1/3 button on the unit or remote control. Playback starts when the unit powers on.
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following.
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the items listed in the table below.
Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.
o
Power does not turn on / Power is turned off
Symptom Cause / Solution Page
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. 18
0
This unit is in standby mode. Press the X button on the unit or CD POWER X button on the remote
control.
20
Power automatically turns
off.
0
The sleep timer is set. Turn on the power again. 29
0
The Auto Standby mode is set. The Auto Standby mode switches the unit to standby mode when the unit
is not operated for approximately 30 minutes. To disable the Auto Standby mode, press and hold the CD
POWER X button on the remote control unit for more than 5 seconds when the Auto Standby mode is
enabled.
28
o
LED is flashing
Symptom Cause / Solution Page
Flashing red.
0
A circuit in the unit has malfunctioned. Disconnect the power and contact the repair center. －
Contents Connections Playback Settings Tips Appendix
32
Front panel Display Rear panel Remote Index
o
Operations cannot be performed through the remote control unit
Symptom Cause / Solution Page
Operations cannot be
performed through the
remote control unit.
0
Batteries are worn out. Replace with new batteries. 5
0
Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. 5
0
Remove any obstacle between this unit and the remote control unit. －
0
Insert the batteries in the proper direction, checking the F and G marks.
5
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb
light, etc.). Move the unit to a place in which the remote control sensor will not be exposed to strong light.
－
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of
infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the
direction of units with the 3D communications function and their distance to ensure they do not affect
operations from the remote control unit of this unit.
－
o
No sound comes out
Symptom Cause / Solution Page
No sound is produced. Or
sound is distorted.
0
Check the connections for all devices. 15
0
Insert connection cables all the way in. －
0
Check that input connectors and output connectors are not reversely connected. －
0
Check cables for damage. －
0
Check the amplifier’s functions and controls and adjust as necessary. －
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index
o
Sound is interrupted or noise occurs
Symptom Cause / Solution Page
During playback from the
CD-R/CD-RW, sound is
occasionally interrupted.
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly
recorded disc.
－
o
Cannot playback Discs
Symptom Cause / Solution Page
Cannot playback when the
1/3 button is pressed, or
cannot correctly play back
a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. 40
Cannot playback CD-
R/CD-RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. 36
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly
recorded disc.
－
0
The DATA CD playback function of this unit only supports playback of MP3 and WMA files. 37
“Unsupported” is
displayed.
0
The disc is loaded upside-down. 39
0
The disc that cannot be played is loaded. 39
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index
o
File names or tag data are not displayed correctly
Symptom Cause / Solution Page
The file names are not
displayed properly (“_ _ _”,
etc.).
0
Characters that cannot be displayed are used. This is not a malfunction. On this unit, characters that
cannot be displayed are replaced with a “_”.
－
Contents Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Playable media
Discs
Playable media
CD
.
CD-R
.
CD-RW
.
NOTE
0
Some discs and some recording formats may not be playable.
0
Non-finalized discs cannot be played.
Files
CD-R and CD-RW discs created in the format described below can be
played.
o
Writing software format
ISO9660 level 1, 2
Expansion format (Juliet)
When written in other formats, it may not be possible to play the disc
properly.
o
Maximum number of playable files and folders
Maximum number of folders : 255
Maximum number of files : 999
o
Tag data
ID3-TAG (Ver.1.x and 2.x)
WMA-TAG
(The title, artist, and album tag data are supported)
Contents
Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
o
Playable files
Sampling
frequency
Bit rate Extension
MP3 32/44.1/48 kHz 32 – 320 kbps .mp3
WMA 32/44.1/48 kHz 64 – 192 kbps .wma
NOTE
0
Be sure to give files the extension “.mp3” or “.wma”. Files with any other
extensions or files with no extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment, and
as per copyright laws may not be used in other ways without permission of the
copyright holder.
Playback order of music files
When there are multiple folders containing music files, the playback order
of folders is automatically set when this unit reads the media. The files in
each folder are played back in the order in which the files were recorded
on the media, from the oldest date and time.
CD-R/CD-RW
For playback of files on CD-R or CD-RW, files in all folders on the first
layer are played first, next on the second layer, then next on the third layer,
and so on in this order.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a CD-R/CD-RW may differ, depending on the writing
software.
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
About discs and files

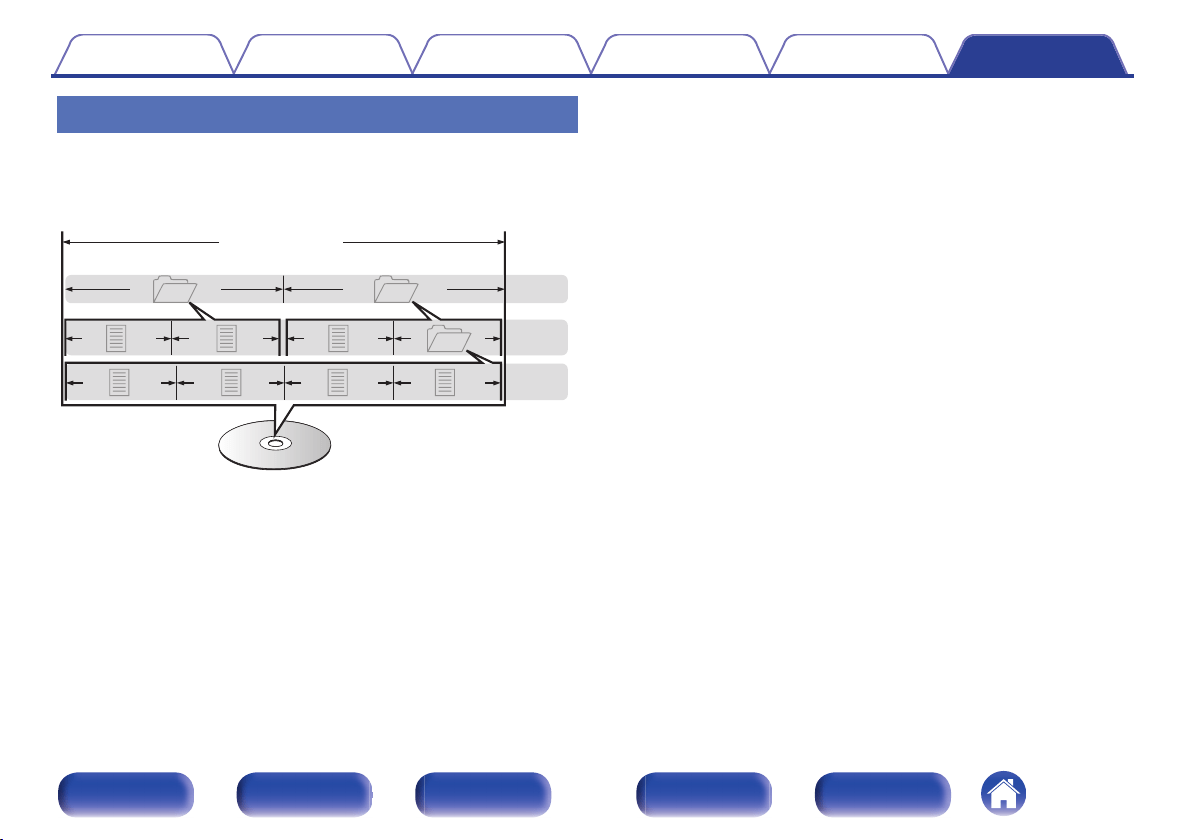

Music files recorded on CD-R/-RW are divided into large segments
(folders) and small segments (files). Files are stored in folders, and folders
can be placed for storage in a hierarchy. The unit can recognize up to 8
levels of folders.
.
3rd level
File 7
File 6
File 5
File 4
2nd level
Folder 3
File 3File 2
File 1
1st level
Folder 1
Folder 2
CD-R/-RW
When writing music files on a CD-R/-RW disc, set the writing software’s
format to “ISO9660”. The files may not play properly if they are recorded in
other formats. For details, refer to the instructions of your writing software.
Contents
Connections Playback Settings Tips Appendix
38
Front panel Display Rear panel Remote Index
Cautions on using media
Loading Discs
0
Insert the disc with the label side up.
0
Insert the disc into the CD slot slowly. Release your hand once the disc
is drawn in.
.
0
When no disc is loaded, “No Disc” is displayed.
0
When the disc is loaded upside-down, “Unsupported” is displayed.
0
When the disc’s information could not be read properly, “Unsupported” is
displayed.
Cautions on Loading Discs
0
8 cm discs cannot be used on this player. Do not insert 8 cm discs into
the CD slot.
0
Do not use an 8 cm disc adapter.
0
Only load one disc at a time. Loading two or more discs can damage
the unit or scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired
with adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is
exposed or on which there are traces of where labels have been
removed. Such discs can get caught inside the player and damage it.
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
.

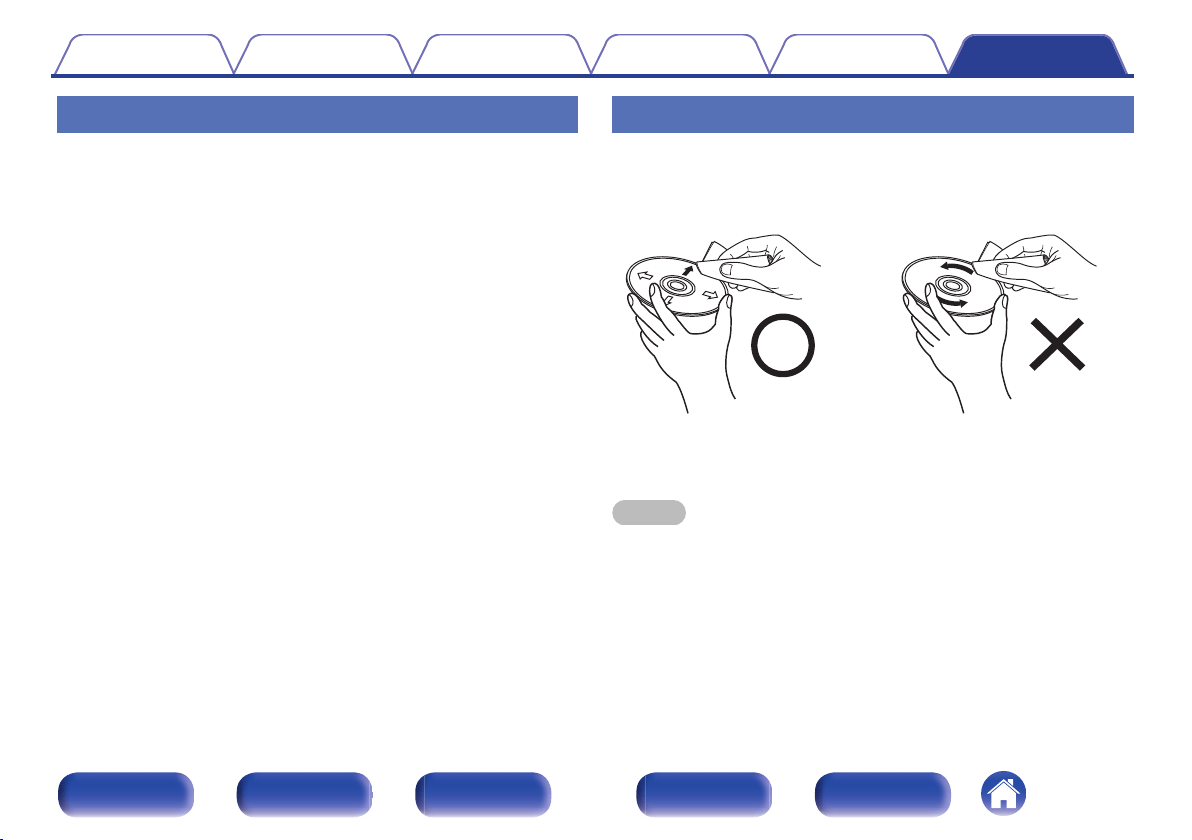

Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
Explanation of terms
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables CDs recorded with a CD recorder or drive to be
played by other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Contents
Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
Specifications
o
Audio performance
0
Analog output
Channels: 2-channels
Playable frequency range: 2 Hz – 20 kHz
Playable frequency response: 20 – 20 kHz (±1%)
S/N: 105 dB
Dynamic range: 100 dB
Channel Separation: 100 dB
Harmonic distortion: 0.004 % (1 kHz)
Wow & flutter: Crystal accuracy
0
Output level
Signal type: 2 V RMS stereo
0
Digital output
Coaxial: 0.5 Vp-p / 75 Ω/ohms
0
Optical readout system
Laser: AlGaAs
Wave length: 780 nm
Signal type: 16-bit linear PCM
Sampling frequency: 44.1 kHz
Contents Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
o
General
Power supply: AC 230 V, 50/60 Hz
Power consumption: 10 W
Power consumption in standby mode: 0.4 W or less
Operating temperatures: +5 ℃ - +35 ℃
Operating humidity: 5 – 90 % (without dew)
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
Index
v A
Analog device ................................................ 17
Auto Play ........................................................ 29
Auto Standby ................................................. 28
v C
CDs ................................................................ 22
v D
DATA CDs ..................................................... 25
Digital device .................................................. 16
Display ............................................................. 9
Display’s brightness ....................................... 21
v F
Front panel ....................................................... 7
v P
Program playback .......................................... 24
v R
Rear panel ...................................................... 10
Remote control unit ........................................ 11
v S
Sleep timer ..................................................... 29
Contents Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
.
www.denon.com
3520 10550 00AD
Copyright ©2017 D&M Holdings Inc.All Rights Reserved.
46
