AEG L6WEJ841N 6000 OneGo 8kg

User Manual - Transcript

• Page 1: USER MANUAL EN User Manual Washer Dryer L6WEJ841N
• Page 2 - English - : CONTENTS 1 SAFETY INFORMATION3 2 SAFETY INSTRUCTIONS 6 3 PRODUCT DESCRIPTION8 4 TECHNICAL DATA 8 5 INSTALLATION9 6 CONTROL PANEL12 7 DIAL AND BUTTONS 13 8 PROGRAMMES16 9 BEFORE FIRST USE22 10 DAILY USE 22 11 DAILY USE WASHING amp DRYING26 12 DAILY USE DRYING ONLY 27 13 FLUFF IN THE FABRICS28 14 HINTS AND TIPS29 15 CARE AND CLEANING 31 16 TROUBLESHOOTING36 17 CONSUMPTION VALUES40 18 ENVIRONMENTAL CONCERNS42 FOR PERFECT RESULTS Thank you for choosing this AEG product We have created it to give you impeccable performance for many years with innovative technologies that help make life simpler features you might not find on ordinary appliances Please spend a few minutes reading to get the very best from it Visit our website to Get usage advice brochures trouble shooter service and repair information wwwaegcomsupport Register your product for better service wwwregisteraegcom Buy Accessories Consumables and Original spare parts for your appliance wwwaegcomshop CUSTOMER CARE AND SERVICE Always use original spare parts When contacting our Authorised Service Centre ensure that you have the following data available Model PNC Serial Number The information can be found on the rating plate Warning CautionSafety information General information and tips Environmental information Subject to change without notice wwwaegcom2
• Page 3 - English - : 1 SAFETY INFORMATION Before the installation and use of the appliance carefully read the supplied instructions The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage Always keep the instructions in a safe and accessible location for future reference 11 Children and vulnerable people safety WARNING Risk of suffocation injury or permanent disability This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised Children of less than 3 years of age should be kept away from the appliance unless continuously supervised Children should be supervised to ensure that they do not play with the appliance Keep all packaging away from children and dispose of it appropriately Keep detergents away from children Keep children and pets away from the appliance when the door is open If the appliance has a child safety device it should be activated Children shall not carry out cleaning and user maintenance of the appliance without supervision ENGLISH 3
• Page 4 - English - : 12 General Safety Do not change the specification of this appliance This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops offices and other working environments by clients in hotels motels bed amp breakfast and other residential type environments areas for communal use in blocks of flats or in launderettes The appliance shall be installed as a freestanding product or below the kitchen worktop if space margins permit Do not install the appliance behind a lockable door a sliding door or a door with a hinge on the opposite side that would prevent the appliance door from being fully open Connect the mains plug to the mains socket only at the end of the installation process Make sure that the mains plug is accessible after installation The ventilation opening in the base must not be covered by a carpet mat or any floor covering WARNING The appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by a utility Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels including open fires Exhaust air must not be discharged into a flue which is used for exhausting fumes from any appliances burning gas or other fuels The operating water pressure at the water entry point from the outlet connection must be between 05 bar 005 MPa and 8 bar 08 MPa wwwaegcom4
• Page 5 - English - : The appliance maximum load is 8 kg Do not exceed the maximum load of each programme refer to the quotProgrammesquot chapter The appliance must be connected to the water mains using the new supplied hose sets or other new hose sets supplied by the Authorised Service Centre Old hose sets must not be reused If the mains power supply cable is damaged it must be replaced by the manufacturer its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard Wipe away lint or packaging debris that has accumulated around the appliance Items that have been soiled with substances such as vegetable or mineral oil acetone alcohol petrol kerosene spot removers turpentine waxes and wax removers should be washed separately with an extra amount of detergent before being dried in the washer dryer Do not use the appliance if items have been soiled with industrial chemicals Do not dry unwashed items in the wash dryer Items such as foam rubber latex foam shower caps waterproof textiles and rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the washer dryer Fabric softeners or similar products should only be used as specified by the product manufacturers instructions Remove all objects from items that could be a source of fire ignition such as lighters or matches Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and separated so that residual heat can dissipate The final part of the washer dryer cycle takes place without heat cool down cycle to ensure that items reach a temperature that will not cause damage to them ENGLISH 5
• Page 6 - English - : Do not use high pressure water sprays andor steam to clean the appliance Clean the appliance with a moist cloth Use only neutral detergents Do not use abrasive products abrasive cleaning pads solvents or metal objects Before any maintenance operation deactivate the appliance and disconnect the mains plug from the socket 2 SAFETY INSTRUCTIONS 21 Installation The installation must comply with relevant national regulations Follow the installation instructions supplied with the appliance Do not install or use the appliance where the temperature can be less than 0C or where it is exposed to the weather Always keep the appliance vertical when it is being moved Make sure that there is air circulation between the appliance and the floor Remove all the packaging and the transit bolts The floor area on which the appliance is to be installed must be flat stable heat resistant and clean Keep the transit bolts in a safe place If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage Always take care when moving the appliance as it is heavy Always use safety gloves and enclosed footwear Do not install or use a damaged appliance Do not install the appliance where the appliance door cannot be fully opened Adjust the feet to have the necessary space between the appliance and the flooring When the appliance is in its permanent position check if it is levelled correctly with the aid of a spirit level If it is not adjust the feet accordingly 22 Electrical Connection WARNING Risk of fire and electric shock WARNING This appliance is designed to be installed connected to a grounding connection in the building Always use a correctly installed shockproof socket Do not use multiplug adapters and extension cables Do not pull the mains cable to disconnect the appliance Always pull the mains plug Do not touch the mains cable or the mains plug with wet hands 23 Water Connection The inlet water shall not exceed 25 C Do not cause damage to the water hoses Before connection to new pipes pipes not used for a long time where repair work has been carried out or new devices fitted water meters etc let the water flow until it is clean and clear Ensure that there are no visible water leaks during and after the first use of the appliance Do not use an extension hose if the inlet hose is too short Contact the wwwaegcom6
• Page 7 - English - : Authorised Service Centre for the replacement of the inlet hose When unpacking the appliance It is possible to see water flowing from the drain hose This is due to the testing of the appliance with the use of water in the factory You can extend the drain hose to maximum 400 cm Contact the Authorised Service Centre for the other drain hose and the extension Make sure that there is access to the tap after the installation 24 Use WARNING Risk of injury electric shock fire burns or damage to the appliance Do not put flammable products or items that are wet with flammable products in near or on the appliance Do not touch the glass door while a programme operates The glass can get hot Do not dry damaged torn frayed items that contain padding or fillings If laundry has been washed with a stain remover carry out an additional rinse cycle before starting a drying cycle Make sure that all metal objects are removed from the laundry Dry only fabrics that are suitable to dry in the appliance Follow the cleaning instruction on the item label Do not sit or stand on the open door of the appliance Do not dry dripping wet clothes in the appliance Do not let hot items to touch the plastic parts of the appliance Remove a detergent ball if used before starting a drying programme Do not use a detergent ball if setting a nonstop programme 25 Service To repair the appliance contact the Authorised Service Centre Use original spare parts only Please note that selfrepair or non professional repair can have safety consequences and might void the guarantee The following spare parts will be available for 10 years after the model has been discontinued motor and motor brushes transmission between motor and drum pumps shock absorbers and springs washing drum drum spider and related ball bearings heaters and heating elements including heat pumps piping and related equipment including hoses valves filters and aquastops printed circuit boards electronic displays pressure switches thermostats and sensors software and firmware including reset software door door hinge and seals other seals door locking assembly plastic peripherals such as detergent dispensers Please note that some of these spare parts are only available to professional repairers and that not all spare parts are relevant for all models Concerning the lamps inside this product and spare part lamps sold separately These lamps are intended to withstand extreme physical conditions in household appliances such as temperature vibration humidity or are intended to signal information about the operational status of the appliance They are not intended to be used in other applications and are not suitable for household room illumination 26 Disposal Disconnect the appliance from the mains electrical and water supplies Cut off the mains electrical cable close to the appliance and dispose of it Remove the door catch to prevent children or pets from becoming trapped in the drum Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment WEEE ENGLISH 7
• Page 8 - English - : 3 PRODUCT DESCRIPTION 31 Appliance overview 1 2 3 Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for levelling the appliance 00A Mod xxxxxxxxx 000V 00Hz 0000 W A B C ProdNo D The rating plate reported the electrical rat ings C and appliance identifiers such as model name A product number B and serial number D 4 TECHNICAL DATA Dimension Width Height Total depth 597 cm 847 cm 557 cm Electrical connection Voltage Overall power Fuse Frequency 230240 V 2200 W 13 A 50 Hz Level of protection against ingress of solid particles and moisture ensured by the protective cover ex cept where the low voltage equipment has no pro tection against moisture IPX4 Water supply 1 Cold water Water supply pressure Minimum Maximum 05 bar 005 MPa 8 bar 08 MPa Maximum wash load Cotton 8 kg Maximum dry load Cotton Synthetics 4 kg 3 kg wwwaegcom8
• Page 9 - English - : Spin Speed Maximum spin speed 1551 rpm 1 Connect the water inlet hose to a water tap with a 34 thread 5 INSTALLATION WARNING Refer to Safety chapters 51 Unpacking 1 Open the door Remove all the items from the drum Accessories delivered with the appliance may vary depending on the model 2 Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side Remove the polystyrene protection from the bottom CAUTION Do not lay washing machine on its front 3 Put the appliance back into an upright position Remove the power supply cable and the drain hose from the hose holders It is possible to see water flowing from the drain hose This is because the washing machine has been tested at the factory 4 Remove the three transit bolts and pull out the plastic spacers We recommend that you keep the packaging and the transit bolts for any transport of the appliance 5 Put the plastic caps that you find in the user manual bag in the holes ENGLISH 9
• Page 10 - English - : 52 Information for installation Positioning and levelling Adjust the appliance correctly to prevent vibration noise and movement of the appliance when it operates 1 Install the appliance on a flat hard floor The appliance must be levelled and stable Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance 2 Loosen or tighten the feet to adjust the level All feet must rest firmly on the floor WARNING Do not put cardboard wood or equivalent materials below the appliance feet to adjust the level The inlet hose CAUTION Make sure there is no damage to hoses and there are no leaks from the couplings Do not use an extension hose if the inlet hose is too short Contact the service centre for a replacement inlet hose 1 Connect the water inlet hose to the back of the appliance 20º20º 45º45º 2 Position it toward left or right depending on the positon of the water tap Make sure that the inlet hose is not in vertical position 3 If necessary loosen the ring nut to set it in the correct position 4 Connect the water inlet hose to the cold water tap with 34 thread WARNING The inlet water shall not exceed 25 C Water drainage The drain hose should stay at a height of no less than 60 cm and not more than 100 cm You can extend the drain hose to maximum 400 cm Contact the authorised service centre for the other drain hose and the extension It is possible to connect the drain hose in different ways 1 Make a U shape with the drain hose and put it around the plastic hose guide wwwaegcom10
• Page 11 - English - : 2 On the edge of a sink Fasten the guide to the water tap or to the wall Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water There may be a return of dirty water into the appliance 3 If the end of the drain hose looks like this see the picture you can push it directly into the stand pipe 4 To a stand pipe with vent hole Insert the drain hose directly into a drain pipe Refer to the illustration The end of the drain hose must always be ventilated ie the inner diameter of the drain pipe min 38 mm min 15quot must be larger than the external diameter of the drain hose 5 Without the plastic hose guide to a sink spigot Put the drain hose in the spigot and tighten it with a clamp Refer to the illustration Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink ø16 W011 Connect the drain hose to the spigot and tighten it with a clamp Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink 6 Position the hose directly to a builtin drain pipe in the room wall and tighten it with a clamp ENGLISH 11
• Page 12 - English - : 53 Electrical connection At the end of installation you can connect the mains plug to the mains socket The rating plate and the Technical Data chapter indicate the necessary electrical ratings Make sure that they are compatible with the mains power supply Check that your domestic electrical installation can take the maximum load required also taking into account any other appliances in use Connect the appliance to an earthed socket The power supply cable must be easily accessible after installing the appliance For any electrical work required to install this appliance contact our Authorised Service Centre The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution 6 CONTROL PANEL 61 Control panel description Eco 4060 Cottons Synthetics Delicates Wool 20 Min 3 kg SpinDrain Cottons NonStop 1h1kg Steam Refresh Synthetics Delicates Wool Rinse OnOff Spin D ryness Level T i m e Drying Delay start Ex t ra Dry Cupboard Dr y Iron Dry Rinse Hold No S pin Temp e rat ur e S t artPau se 9 8 7 Programme dial Display Delay Start touch button Delay Start Drying time touch button Time Drying StartPause touch button Start Pause Drying level touch button Dryness Level Extra Dry option Cupboard Dry option Iron Dry option wwwaegcom12
• Page 13 - English - : Spin reduction touch button Spin No Spin Rinse Hold Temperature touch button Temperature OnOff push button OnOff 62 Display The digital indicator can show Programme duration e g washing andor drying phase Delay time e g or Cycle end Warning code eg Prewash indicator Stain indicator Drying phase indicator It blinks during drying phase Door locked indicator 7 DIAL AND BUTTONS 71 OnOff Pressing this button for a few seconds allows to activate or deactivate the appliance Two different tunes sound while switching the appliance on or off As the Standby function automatically deactivates the appliance to decrease the energy consumption in a few cases you may need to activate the appliance again For more details refer to Standby paragraph in Daily Use chapter ENGLISH 13
• Page 14 - English - : 72 Introduction The optionsfunctions are not selectable with all washing programmes Check the compatibility between optionsfunctions and washing programmes in the quotProgramme Chartquot An optionfunction can exclude another one in this case the appliance doesnt allow you to set the incompatible optionsfunctions together Make sure the screen and touch buttons are always clean and dry 73 Temperature When you select a washing programme the appliance automatically proposes a default temperature By means of this option you can change the default temperature and set the desired one the relevant indicator illuminates If you set programme Cottons at 20 C the appliance does not heat the water 74 Spin When you set a programme the appliance automatically sets the default spin speed Tap on this button repeatedly to change the spin speed or to set Activate the Rinse Hold option Set this option to prevent the laundry creases The related indicator comes on There is a water in the drum when the programme is completed The door stays locked and the drum turns regularly to reduce creasing You must drain the water to unlock the door If you touch the StartPause button the appliance performs the spinning phase and drains the water The appliance empties the water out automatically after 18 hours approximately Activate the No Spin option Set this option to deactivate all spin phases Only the drain phase is available The related indicator comes on Set this option for very delicate fabrics The rinses phase uses more water for some washing programmes The spin speed can be reduce 75 Prewash Use this option to add a prewash phase before the washing phase This option is recommended for heavily soiled laundry especially if containing sand dust mud and other solid particles To activatedeactivate this option touch the Temperature and the Spin buttons simultaneously until the indicator comes ongoes off on the display The options can increase the programme duration 76 Dryness Level By means of this button you can set one of the 3 automatic dryness levels proposed by the appliance in the programmes where there are selectable The relevant dryness level indicator goes on Iron Dry laundry to be ironed Cupboard Dry laundry to be put in store Extra Dry laundry to be fully dried You can not set all automatic levels for each type of fabrics 77 Stains Select this option to add an antistain phase to a programme in order to treat heavily soiled or stained laundry with stain remover Pour the stain remover into compartment The stain remover will be added in wwwaegcom14
• Page 15 - English - : the appropriate phase of the washing programme To activatedeactivate this option touch the Spin and the Dryness Level buttons simultaneously until the indicator comes ongoes off on the display This option can increase the programme duration This option is not available with a temperature lower than 40 C 78 Delay Start With this option you can delay the start of a programme in a more convenient time Tap on the button repeatedly to set the required delay The time increases by steps of 30 minutes up to 90 and from 2 hours up to 20 h After starting the cycle by the means of the StartPause button the display shows the selected delay time and the appliance begins the countdown 79 Time Drying In the programme where it is selectable touch this button to set the time that suits the fabrics you have to dry refer to quotTimed dryingquot table The display shows the set value Each time you touch this button the time value increases by 5 minutes You cannot set all time values for different types of fabrics 710 Child Lock With this option you can prevent that the children play with the control panel To activatedeactivate this option touch the Delay Start and the Time Drying buttons simultaneously until the indicator LOC comes on on the display To activatedeactivate this option touch the Delay Start and the Time Drying buttons simultaneously until the indicator UnL comes on on the display You can activate this option After you touch the StartPause button all the buttons and the programme dial are deactivated except OnOff button Before you touch the StartPause button the appliance cannot start The appliance keeps the selection of this option after you switch it off 711 StartPause Touch the StartPause button to start pause the appliance or interrupt a running programme ENGLISH 15
• Page 16 - English - : 8 PROGRAMMES 81 Programme Chart Programme Default temperature Temperature range Maximum load Reference spin speed Programme description Type of load and level of soiling Eco 4060 Wash only mode 40 C 1 8 kg 1600 rpm White cotton and fastcoloured cotton Normally soiled items Eco 4060 Cupboard dry level Wash amp Dry mode 40 C 2 4 kg 1600 rpm Eco 4060 Cupboard dry level Dry only mode 4 kg White cotton and fastcoloured cotton Cottons 40C 95C 20C 8 kg 1600 rpm White cotton and coloured cotton Nor mally heavily and lightly soiled items Synthetics 40C 60C 20C 3 kg 1200 rpm Synthetic items or mixed fabric items Normally soiled items Delicates 30C 40C 20C 2 kg 1200 rpm Delicate fabrics such as acrylics vis cose and mixed fabrics requiring gentler washing Normally and lightly soiled items wwwaegcom16
• Page 17 - English - : Programme Default temperature Temperature range Maximum load Reference spin speed Programme description Type of load and level of soiling Wool 40C 40C 20C 15 kg 1200 rpm Machine washable wool hand washable wool and other fabrics with hand wash ing care symbol 3 The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as quothand washquot provided that the garments are washed according to the instructions is sued by the manufacturer of this washing machine Follow the garment care label for drying and other laundry instructions M1380 The Woolmark symbol is a Certification mark in many countries 20 Min 3 kg 30C 40C 30C 3 kg 1200 rpm Cotton and synthetic items Lightly soiled or worn only once SpinDrain 4 8 kg 1600 rpm All fabrics except woollens and delicate fabrics To spin the laundry and to drain the water in the drum Rinse Cold 8 kg 1600 rpm To rinse and spin the laundry All fabrics except woollens and very delicate fabrics Reduce the spin speed accordingly to the type of laundry Wool 1 kg Drying programme for wool fabrics Gentle drying for handwashable woollens Re move immediately the items when the pro gramme is completed The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as quothand washquot provided that the garments are dried according to the instructions issued by the manufacturer of this machine Follow the garment care label for other laundry in structions M1381 The Woolmark symbol is a Certification mark in many countries Delicates 2 kg Drying programme for delicate items ENGLISH 17
• Page 18 - English - : Programme Default temperature Temperature range Maximum load Reference spin speed Programme description Type of load and level of soiling Synthetics 3 kg Drying programme for synthetics items and mixed fabrics Cottons 4 kg Drying programme for cotton items NonStop 1h1kg 30C 40C 30C 1 kg 1200 rpm Complete programme composed of a wash ing phase and of a drying phase for a small load of mixed shirts Steam 1 kg Cotton synthetic and mixed items Spe cial steam cycle without washing that can be used to prepare your dried laundry for ironing or refresh garments worn once This programme reduces creases odours and relaxes the fibres Do not use any deter gent 1 According to UK Ecodesign for EnergyRelated Products and Energy Information Regulations this programme at default temperature and spin speed in washing only mode with rated capacity 8 kg is able to clean normally soiled cotton laundry declared to be washable at 40 C or 60 C together in the same cycle For the reached temperature in the laundry the programme duration and other data please refer to Consumption Values chapter The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration 2 According to UK Ecodesign for EnergyRelated Products and Energy Information Regulations this programme at default temperature and spin speed in washing and drying mode with rated capacity 4 kg and with Cupboard dry level performs the wash and dry cycle able to clean normally soiled cotton laundry declared to be washable at 40 C or 60 C together in the same cycle and after drying phase the laun dry can be immediately stored in a cupboard 3 During this cycle the drum rotates slowly to ensure a gentle wash It can seem that the drum doesnt rotate or doesnt rotate properly but this is normal for this programme 4 Set the spin speed Make sure it is suitable for the type of fabric being washed If you set the No Spin option then only the drain phase is available wwwaegcom18
• Page 19 - English - : Programme options compatibility Spin No Spin Rinse Hold 1 Dryness Level 2 Delay Start Time Drying Eco 4060 3 Cottons Synthetics Delicates Wool 20 Min 3 kg SpinDrain 4 Rinse Wool Delicates Synthetics Cottons NonStop 1h1kg ENGLISH 19
• Page 20 - English - : Spin No Spin Rinse Hold 1 Dryness Level 2 Delay Start Time Drying Steam 1 Prewash and Stains option are not selectable together 2 The Stain option is not available with a temperature lower than 40 C 3 Iron Dry option is not available 4 Set the spin speed Make sure it is suitable for the type of fabric being washed If you set the No Spin option then only the drain phase is available Selectable Only Cupboard Dry option is available Suitable detergents for each programme Programme Universal powder 1 Liquid Uni versal Liquid for coloureds Delicates woollens Special Eco 4060 Cottons Synthetics Delicates Wool 20 Min 3 kg NonStop 1h1kg 1 At temperature higher than 60 C the use of powder detergent is recommended Recommended Not recommended 82 Automatic drying Initial cycle times for programmes with Dryness Level option are only estimates the actual drying time may slightly differ from the time displayed wwwaegcom20
• Page 21 - English - : Dryness Level Type of fabric Load Extra Dry For towelling materials Cottons and Linen bathrobes bath towels etc up to 4 kg For items to be stored Cottons and Linen bathrobes bath towels etc up to 4 kg Synthetics and mixed fab rics jumpers blouses under wear household and bed lin en up to 3 kg Delicates acrylics viscose and deli cate mixed fabrics up to 2 kg Wool items woollen jump ers up to 1 kg Iron Dry Suitable for ironing Cottons and Linen sheets tablecloths shirts etc up to 4 kg 83 Timed drying Dryness Level Type of fabric Load kg Spin speed rpm Suggested duration mins Extra Dry For towelling materials Cottons and Linen bathrobes bath towels etc 1600 165 180 2 1600 90 100 1 1600 60 70 Cupboard Dry For items to be stored Cottons and Linen bathrobes bath towels etc 4 1600 155 170 2 1600 80 90 1 1600 50 60 Synthetics and mixed fab rics jumpers blouses under wear household and bed lin en 3 1200 90 105 1 1200 40 50 ENGLISH 21
• Page 22 - English - : Dryness Level Type of fabric Load kg Spin speed rpm Suggested duration mins Delicates acrylics viscose and deli cate mixed fabrics 2 1200 120 140 1 1200 65 85 Wool woollen jumpers 1 1200 80 100 Iron Dry Suitable for ironing Cottons and Linen sheets tablecloths shirts etc 4 1600 110 125 2 1600 65 75 1 1600 40 50 9 BEFORE FIRST USE During installation or before first use you may observe some water in the appliance This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern 1 Make sure that all transit bolts have been removed from the appliance 2 Make sure that the electrical power is available and the water tap is open 3 Pour 2 litres of water into the detergent compartment marked by This action activates the drain system 4 Pour a small quantity of detergent into the compartment marked by 5 Set and start a programme for cotton at the highest temperature without any laundry in the drum This removes all possible dirt from the drum and the tub 10 DAILY USE 101 Loading the laundry 1 Open the appliance door 2 Put the laundry in the drum one item at a time 3 Shake the items before you put them in the appliance Make sure you do not put too much laundry in the drum 4 Close the door firmly wwwaegcom22
• Page 23 - English - : CAUTION Make sure that no laundry becomes trapped between the seal and the door There is a risk of water leakage or damage to the laundry 102 Filling the detergent and additives Compartment for prewash phase soak programme or stain remover Compartment for washing phase Compartment for liquid additives fabric conditioner starch Maximum level for quantity of liquid additives Flap for powder or liquid detergent Always follow the instructions that you find on the packaging of the detergent products 103 Check the position of the flap 1 Pull out the detergent dispenser until it stops 2 Press the lever down to remove the dispenser 3 To use powder detergent turn the flap up A 4 To use liquid detergent turn the flap down B ENGLISH 23
• Page 24 - English - : With the flap in the position DOWN Do not use gelatinous or thick liquid detergents Do not put more liquid detergent than the limit shown on in the flap Do not set the prewash phase Do not set the delay start function 5 Measure out the detergent and the fabric conditioner 6 Carefully close the detergent dispenser Make sure that the flap does not cause a blockage when you close the drawer 104 Activating the appliance 1 Connect the mains plug to the mains socket 2 Open the water tap 3 Press the OnOff button to activate the appliance A short tune sounds 105 Setting a programme 1 Turn the programme knob and set the programme The related programme indicator comes on The indicator of StartPause flashes The display shows the default temperature the spin speed and the programme duration 2 If necessary change the temperature the spin speed or add available options When you activate an option the indicator of the set option comes on In case a selection is not possible no indicator comes on and an acoustic signal sounds 106 Starting a programme without the delay start Press the StartPause button to start the programme The relevant indicator stops to flash and stays on The programme starts the door is locked The display show the indicator The drain pump can operate for a short time when the appliance fills water 107 The ProSense System load detection After touching the StartPause button 1 The ProSense System starts estimating the weight of the load to calculate the real programme duration During this phase the two dots separating hours from minutes are blinking 2 After about 1520 minutes new cycle duration is displayed The appliance automatically adjusts the programme duration to the load to achieve perfect washing results in the minimum possible time The ProSense System is not available with all programmes such as Wool and programmes with short cycles 108 Starting a programme with the delay start 1 Press the Delay Start button again and again until the display shows the number of minutes or hours of delay The related indicator comes on 2 Press the StartPause button The appliance starts the countdown of the delay start When the countdown is completed the programme starts automatically Before you press the Start Pause button to start the appliance you can cancel or change the set of the delay start 109 Cancelling the delay start To cancel the delay start wwwaegcom24
• Page 25 - English - : 1 Press the StartPause button to set the appliance to pause The related indicator flashes 2 Press the Delay Start button repeatedly until the display shows 3 Press the StartPause button again to start the programme immediately 1010 Interrupting a programme and changing a option You can change only some options before they operate 1 Press the StartPause button The related indicator flashes 2 Change the option set 3 Press the StartPause button again The programme continues 1011 Cancelling a running programme 1 Press the OnOff button to cancel the programme and to deactivate the appliance 2 Press the OnOff button again to activate the appliance Now you can set a new washing programme Before starting the new programme the appliance could drain the water In this case make sure that the detergent is still in the detergent compartment if not fill the detergent again 1012 Opening the door If the temperature and level of the water in the drum are too high andor the drum still rotates you cannot open the door While a programme or the delay start operates the appliance door is locked 1 Press the StartPause button In the display the related door lock indicator goes off 2 Open the appliance door 3 Close the door and press the Start Pause button The programme or the delay start continues 1013 End of cycle When the programme has finished the appliance stops automatically The acoustic signal operates In the display comes on and the door locked indicator goes off The indicator of the StartPause button goes off 1 Press the OnOff button to deactivate the appliance After five minutes from the end of the programme the energy saving function automatically deactivates the appliance When you activate the appliance again the display show the end of the last set programme Turn the programme knob to set a new cycle 2 Remove the laundry from the appliance 3 Make sure that the drum is empty 4 Keep the door ajar to prevent mildew and odours 1014 Draining water out after end of cycle The washing programme is completed but there is water in the drum The drum turns regularly to prevent the creases in the laundry The door lock indicator is on The door stays locked You must drain the water to open the door 1 If necessary decrease the spin speed 2 Press the StartPause button The appliance drains the water and spins 3 When the programme is completed and the door lock indicator goes off you can open the door 4 Press the OnOff button some seconds to deactivate the appliance ENGLISH 25
• Page 26 - English - : The appliance drains and spins automatically after approximately18 hours 1015 AUTO Standby option The AUTO Standby function automatically deactivates the appliance to decrease the energy consumption when You do not use the appliance for 5 minutes before you press the Start Pause button Press the OnOff button to activate the appliance again After 5 minutes from the end of the washing programme Press the OnOff button to activate the appliance again The display shows the end of the last set programme Turn the programme knob to set a new cycle If you set a programme or an option that ends with water in the drum the AUTO Standby function doesnt deactivate the appliance to remind you to drain the water 11 DAILY USE WASHING amp DRYING WARNING Refer to Safety chapters This appliance is an automatic washer dryer 111 Wash and dry combined programme 1 Press the OnOff button for some seconds to activate the appliance 2 Load the laundry one item at a time To have a good drying performance do not exceed the maximum drying loads recommended in the user manual Do not set a spin speed lower than the automatic speed of the set programme 3 Put the detergent and the additives in the appropriate compartment 4 Turn the programme dial to the washing programme The display shows the indicators of the different washing phases 5 Set the available options The NonStop programme is already a complete washamp dry programme and it is not necessary to set the Dryness Level or the Time Drying 112 Washing amp Automatic drying 1 Press the Dryness Level button again and again until the display shows one of the dryness level indicator Iron Dry Cupboard Dry option Extra Dry option The display shows the indicator The time value on the display is the duration of the washing drying cycles calculated on a default load size To have a good drying the appliance does not let you set a too low spin speed for the items to be washed and dried 2 Press the StartPause button to start the programme In the display the indicator of the set dryness level stays on The door locked indicator goes on The display shows regularly a new time value The last minutes of the drying cycle the appliance performs the anticrease and the cooling phases 113 Washing amp Timed Drying To have a good drying the appliance does not let you set a too low spin speed for the items to be washed and dried wwwaegcom26
• Page 27 - English - : 1 Press the Time Drying button to set the drying time value The display shows 10 minutes The indicator comes on in the display The display shows the set drying value time for example After some seconds the display shows the final time value that is the total duration of the washing and drying cycles washing drying anticrease cooling phases If you set only 10 minutes of drying after washing the appliance calculates also the duration of the anticrease and the cooling phases 2 Press the StartPause button to start the programme In the display the indicator comes on The door is locked The display shows regularly a new time value 114 End of the programme The appliance stops automatically The acoustic signals operate For more information see quotAt the end of the drying programme quot of the previous chapter 1 Remove the laundry from the appliance Make sure that the drum is empty 2 Keep the door ajar to prevent mildew and odours 12 DAILY USE DRYING ONLY WARNING Refer to Safety chapters This appliance is an automatic washer dryer 121 Drying setting WARNING Make sure that the water tap is open 1 Press the OnOff button for some seconds to activate the appliance 2 Load the laundry one item at a time 3 Turn the programme dial to the desired drying programme The display shows the drying indicator To have a good drying performance do not exceed the maximum drying loads recommended in the user manual Do not set a spin speed lower than the automatic speed of the set programme 122 Drying at automatic levels The laundry can be dried at predefined levels of dryness 1 Press the Dryness Level button again and again until the display shows one of the dryness level indicator Iron Dry Cupboard Dry option Extra Dry option The display shows a time value calculated on the default load size If the amount of your laundry is more or less than the default size the appliance adjusts automatically the time value during the cycle 2 Press the StartPause button to start the programme The display shows the door locked indicator The drying indicator starts to flash You cannot set all dryness levels for any type of laundry 123 Timed Drying The laundry can also be dried with a manual timed drying ENGLISH 27
• Page 28 - English - : 1 Press the Time Drying button again and again to set the drying time value The display shows 10 minutes The display shows the set time value eg Each time you press this button the time value increases by 5 minutes After some seconds the display shows a new time value eg The appliance calculates also the duration of the anticrease and the cooling phases 2 Press the StartPause button to start the programme The display shows regularly a new time value The drying indicator starts to flash The display shows the door locked indicator If you set only 10 minutes of drying the appliance performs only a cooling phase If the laundry is not sufficient dry set again a short drying time 124 End of the drying programme The appliance stops automatically The acoustic signals operate In the display comes on The indicator StartPause goes off The last minutes of the drying cycle the appliance performs a cooling and anticrease phase The door is still locked When the door locked goes off in the display you can open the door 1 Press the OnOff button for some seconds to deactivate the appliance After some minutes from the end of the programme the energy saving function automatically deactivates the appliance 2 Remove the laundry from the appliance Make sure that the drum is empty 3 Keep the door ajar to prevent mildew and odours 13 FLUFF IN THE FABRICS During the washing andor drying phase some types of fabric sponge wool sweatshirt could release fluff The released fluff could stick to the fabrics during the next cycle This inconvenient increases with technical fabrics To prevent the fluff in your laundry Do not wash dark fabrics after you washed and dried light coloured fabrics hand towel wool sweatshirt and the contrary Dry this type of fabrics at open air when they are washed the first time Clean the drain filter After the drying phase clean the empty drum the gasket and the door with a wet cloth To remove the fluff inside the drum proceed as follows Empty the drum Clean the drum the gasket and the door with a wet cloth Set the rinse programme Simultaneously press the Temperature and the Dryness Level buttons until the display shows CLE to activate the cleaning function Touch the StartPause button to start the programme If the appliance is frequently used carry out the CLE programme regularly wwwaegcom28
• Page 29 - English - : 14 HINTS AND TIPS WARNING Refer to Safety chapters 141 The laundry load Divide the laundry into white coloured synthetics delicates and wool Follow the washing instructions on the laundry care labels Do not wash white and coloured items together Some coloured items can discolour with the first wash We recommend that you wash them separately for the first couple of times Turn multilayered fabrics wool and items with printed illustrations inside out Pretreat stubborn stains Wash stubborn stains with a special detergent Be careful with curtains Remove the hooks and put the curtains in a washing bag or pillowcase A very small load can cause balance problems with the spin phase leading to excessive vibration If this occurs a interrupt the programme and open the door refer to quotDaily Usequot chapter b manually redistribute the load so that the items are spaced evenly around the tub c press the StartPause button The spin phase continues Button up pillowcases close zippers hooks and poppers Tie up belts cords shoelaces ribbons and any other loose elements Do not wash laundry without hems or with cuts Use a washing bag to wash small andor delicate items eg underwired bras belts tights shoelaces ribbons etc Empty pockets and unfold the items 142 Stubborn stains For some stains water and detergent is not sufficient We recommend that you pretreat these stains before you put the items in the appliance Special stain removers are available Use the special stain remover that is applicable to the type of stain and fabric Do not spray stain remover on garments near the appliance as it is corrosive to the plastic parts 143 Detergent type and quantity The choice of detergent and use of correct quantities not only affects your wash performance but also helps to avoid waste and protect the environment ENGLISH 29
• Page 30 - English - : Use only detergents and other treatments specially made for washing machines First follow these generic rules powder detergents also tablets and singledose detergents for all types of fabric excluding delicate Prefer powder detergents containing bleach for whites and laundry sanitization liquid detergents also singledose detergents preferably for low temperature wash programmes 60 C max for all types of fabric or special ones for woollens only The choice and quantity of detergent will depend on type of fabric delicates woollens cottons etc the colour of clothes size of the load degree of soiling wash temperature and hardness of the water used Follow the instructions that you find on packaging of the detergents or other treatments without exceeding the indicated maximum level Do not mix different types of detergents Use less detergent if you are washing a small load the laundry is lightly soiled there is large amounts of foam during washing When using detergent tabs or pods always put them inside the drum not in the detergent dispenser and follow the manufacturers recommendations Insufficient detergent may cause unsatisfactory washing results the wash load to turn grey greasy clothes mould in the appliance Excessive detergent may cause sudsing reduced washing effect inadequate rinsing a greater impact for the environment 144 Ecological hints To save water energy and to help protect the environment we recommend that you follow these tips Normally soiled laundry may be washed without prewash in order to save detergent water and time the environment is protected too Loading the appliance to the maximum capacity indicated for each programmes helps to reduce energy and water consumption With adequate pretreatment stains and limited soiling can be removed the laundry can then be washed at a lower temperature To use the correct quantity of detergent refer to the quantity suggested by the detergent producer and check the water hardness of you domestic system Refer to Water hardness Set the maximum possible spin speed for the selected programme for saving energy during drying phase 145 Water hardness If the water hardness in your area is high or moderate we recommend that you use a water softener for washing machines In areas where the water hardness is soft it is not necessary to use a water softener To find out the water hardness in your area contact your local water authority Use the correct quantity of water softener Follow the instructions that you find on the packaging of the product 146 Prepare the drying cycle Open the water tap Check if the drain hose is connected properly Refer to installation chapter for more information For the maximum laundry load of the drying programmes refer to the drying programmes table 147 Items not suitable for drying Do not set a drying programme for this laundry Synthetic curtains Pieces of clothing with metal inserts Nylon stockings Quilts Bed covers Duvets wwwaegcom30
• Page 31 - English - : Anoraks Sleeping bags Fabrics with residue of hair sprays nail solvents or similar Garments with foamrubber or materials similar to foamrubber 148 Garment labels When you dry the laundry obey the indications on the labels of the manufacturers The item can be tumble dried The drying cycle is at high temperature The drying cycle is at reduced temperature The item can not be tumble dried 149 Drying cycle duration The drying time can change depending on speed of the last spin dryness level type of laundry weight of the load 1410 Additional drying If at the end of the drying programme the laundry is still damp set a short drying cycle again WARNING To avoid creasing and shrinkage do not overdry the laundry 1411 General Tips Refer to the Drying programmes table to find the average drying times Experience will help you to dry the laundry better Take note of the duration of the cycles done before To avoid the static charge at the end of the drying cycle 1 Use fabric conditioner in the washing cycle 2 Use special fabric conditioner for tumble dryers When the drying programme is completed remove the laundry promptly 15 CARE AND CLEANING WARNING Refer to Safety chapters 151 Periodic cleaning schedule Periodic cleaning helps to extend the life of your appliance After each cycle keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance this will prevent mildew and odours If the appliance is not used for a long time close the water tap and unplug the appliance Indicative periodic cleaning schedule Descaling Twice a year Maintenance wash Once a month Clean door seal Every two months Clean drum Every two months Remove fluff inside the drum Twice a month 1 Clean detergent dis penser Every two months Clean drain pump filter Twice a year Clean the inlet hose and the valve filter Twice a year 1 Refer to Fluff in the fabrics chapter The following paragraphs explain how you should clean each part ENGLISH 31
• Page 32 - English - : 152 Removing foreign objects Make sure that pockets are empty and all loose elements are tied up before running your cycle Refer to The laundry load in Hints and tips Remove any foreign objects such as metal clip buttons coins etc that you may find in the door seal the filters and the drum Refer to Door seal with double lip trap Cleaning the drum Cleaning the drain pump and Cleaning the inlet hose and the valve filter paragraphs If necessary please contact the Authorised Service Centre 153 External cleaning Clean the appliance with soap and warm water only Fully dry all the surfaces Do not use a scouring pads or any scratching material CAUTION Do not use alcohol solvents or chemical products CAUTION Do not use the metal surfaces with chlorinebased detergent 154 Descaling If the water hardness in your area is high or moderate we recommend that you use a water descaling product for washing machines Regularly examine the drum to prevent limescale and rust particles To remove rust particles use only special products for washing machines Do this separately from the laundry wash Always obey the instructions that you find on the packaging of the product 155 Maintenance wash With the low temperature programmes it is possible that some detergent stays in the drum Perform a maintenance wash regularly To do this Remove all laundry from the drum Select the cotton programme with the highest temperature with a small quantity of detergent 156 Door seal with double lip trap This appliance is designed with a self cleaning draining system allowing light fluff fibers that fall off the clothes to be drained out with the water Regularly examine the seal Coins buttons other small items can be recovered at the end of the cycle Clean it when needed using ammonia cream cleanser agent without scratching the seal surface Always obey the instructions that you find on the packaging of the product Check and remove objects if there are any that could be trapped in the fold Make sure that no laundry remains between the seal and the door Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle wwwaegcom32

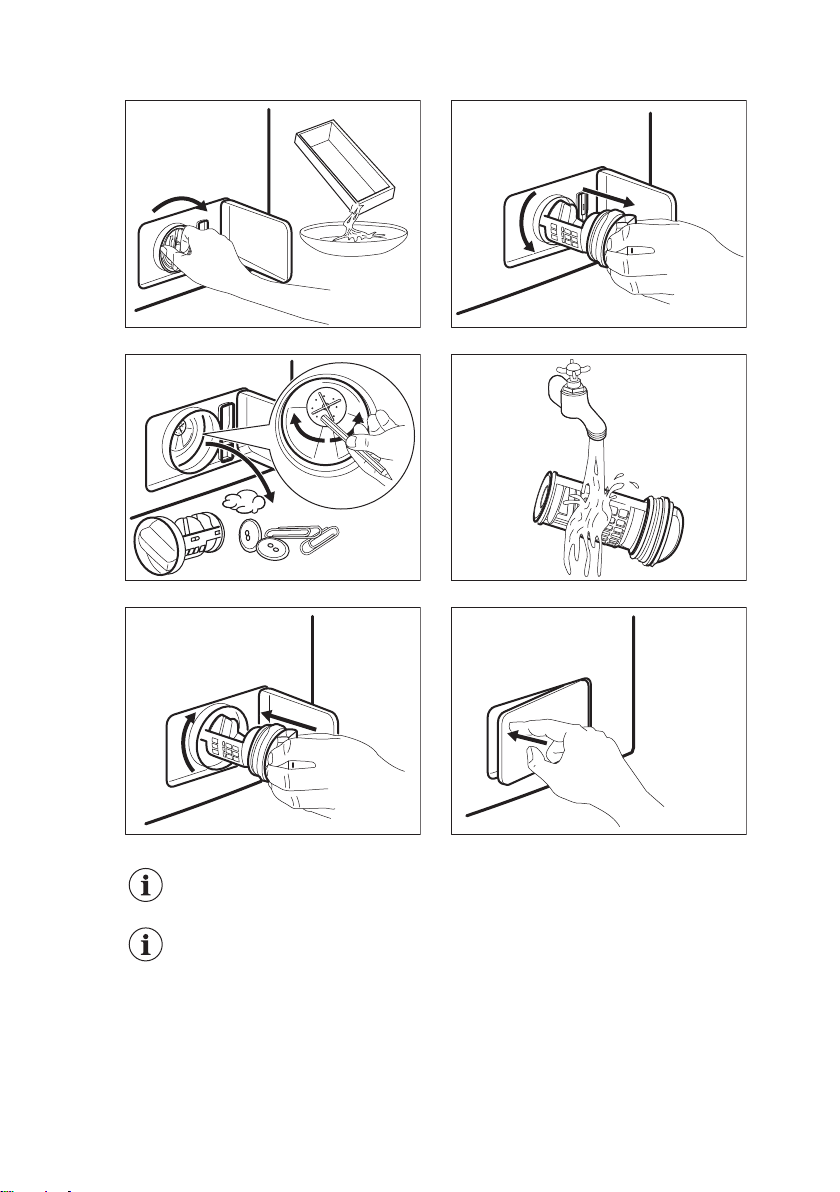

• Page 33 - English - : 157 Cleaning the detergent dispenser 1 2 3 4 158 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot Repeat the steps 2 and 3 until the water stops flowing out Always keep a rag nearby to dry up any water spillage 1 2 180 ENGLISH 33
• Page 34 - English - : 5 6 Regularly check the drain pump filter and make sure that it is clean Make sure that the impeller of the pump can rotate If it does not rotate contact the Authorised Service Centre Make sure also that you tighten the filter correctly to prevent leakages wwwaegcom34
• Page 35 - English - : 159 Cleaning the inlet hose and the valve filter 3 4 45 20 1510 Emergency drain Because of a malfunction the appliance cannot drain the water If this occurs do steps 1 through 8 of Cleaning the drain filter If necessary clean the pump When you drain the water with the emergency drain procedure you must activate the drain system again 1 Put 2 litres of water in the main wash compartment of the detergent dispenser 2 Start the programme to drain the water 1511 Frost precautions If the appliance is installed in an area where the temperature can be less than 0 C remove the remaining water from the inlet hose and the drain pump 1 Disconnect the mains plug from the mains socket 2 Close the water tap 3 Put the two ends of the inlet hose in a container and let the water flow out of the hose 4 Empty the drain pump Refer to the emergency drain procedure 5 When the drain pump is empty install the inlet hose again WARNING Make sure that the temperature is higher than 0 C before you use the appliance again The manufacturer is not responsible for damages caused by low temperatures ENGLISH 35
• Page 36 - English - : 16 TROUBLESHOOTING WARNING Refer to Safety chapters 161 Alarm Codes and Possible failures The appliance does not start or it stops during operation First try to find a solution to the problem refer to the tables WARNING Deactivate the appliance before carrying out any check With some problems the display shows an alarm code and the StartPause button may flash continuously If the appliance is overloaded remove some items from the drum andor keep pressed the door while touching the StartPause button until the indicator stops flashing see the picture below Problem Possible solution The appliance does not fill with water prop erly Make sure that the water tap is open Make sure that the pressure of the water supply is not too low For this information contact your local water authority Make sure that the water tap is not clogged Make sure that the inlet hose has no kinks damages or bends Make sure that the connection of the water inlet hose is cor rect Make sure that the filter of the inlet hose and the filter of the valve are not clogged Refer to Care and cleaning wwwaegcom36
• Page 37 - English - : The appliance does not drain the water Make sure that the sink spigot is not clogged Make sure that the drain hose has no kinks or bends Make sure that the drain filter is not clogged Clean the filter if necessary Refer to quotCare and cleaningquot Make sure that the connection of the drain hose is correct Set the drain programme if you set a programme without drain phase Set the drain programme if you set an option which ends with water in the tub The appliance door is open or not closed correctly Make sure that the door is properly closed Internal fail No com munication between electronic elements of the appliance The programme was not finished properly or the appliance stopped too early Switch the appliance off and on again If the alarm code appears again contact the Authorised Serv ice Centre The mains supply is unstable Wait until mains supply is stable The antiflood device is on Disconnect the appliance and close the water tap Contact the Authorised Service Centre If the display shows other alarm codes deactivate and activate the appliance If the problem continues contact the Authorised Service Centre In case of different problem with the washing machine check the table below for possible solutions Problem Possible solution The programme does not start Make sure that the mains plug is connected to the mains socket Make sure that the appliance door is closed Make sure that there is no damaged fuse in the fuse box Make sure that the StartPause has been touched If the delay start is set cancel the setting or wait for the end of countdown Deactivate the Child Lock function if it is on Check the position of the knob on the selected programme The appliance fills with water and drains im mediately Make sure that the drain hose is in the correct position The hose may be positioned too low Refer to quotInstallation instruc tionquot ENGLISH 37
• Page 38 - English - : Problem Possible solution The spin phase does not operate or the washing cycle lasts longer than usual Set the spin programme Make sure that the drain filter is not clogged Clean the filter if necessary Refer to quotCare and cleaningquot Adjust manually the items in the tub and start the spin phase again This problem may be caused by balance problems There is water on the floor Make sure that the couplings of the water hoses are tight and there is not water leakages Make sure that the water inlet hose and the drain hose have no damages Make sure you use the correct detergent and the correct quantity of it You cannot open the appliance door Make sure that a washing programme that ends with water in tub has not been selected Make sure that the washing programme is finished Set the drain or the spin programme if there is water in the drum Make sure that the appliance receives electrical power This problem may be caused by a failure of the appliance Contact the Authorised Service Centre If you need to open the door please read carefully quotEmergen cy door openingquot The appliance makes an unusual noise and vibrates Make sure the levelling of the appliance is correct Refer to quotInstallation instructionquot Make sure that the packaging andor the transit bolts are re moved Refer to quotInstallation instructionquot Add more laundry in the drum The load may be too small The programme dura tion increases or de creases during pro gramme execution The ProSense System is able to adjust the programme dura tion according to the type and the laundry load size Refer to quotThe ProSense System load detectionquot in quotDaily Usequot chapter The washing results are not satisfactory Increase the detergent quantity or use a different detergent Use special products to remove the stubborn stains before you wash the laundry Make sure that you set the correct temperature Decrease the laundry load Too much foam in the drum during the wash ing cycle Reduce the quantity of detergent or the number of tablets or singledose detergents After the washing cy cle there are some detergent residues in the dispenser drawer Make sure that the flap is in the correct position UP for pow der detergent DOWN for liquid detergent Make sure you have used the detergent dispenser according the indications given in this user manual wwwaegcom38
• Page 39 - English - : Problem Possible solution The appliance does not dry or does not dry correctly Turn the water tap on Make sure the drain filter is not clogged Reduce the laundry load Make sure you have set the correct cycle if necessary set again a short drying time The laundry is full of different colours fluff The fabrics washed in the previous cycle released fluff of a differ ent colour The drying phase helps to eliminate some fluff Clean the clothes with a fluff remover In case of an excessive amount of fluff in the drum run the special programme to clean it refer to Fluff in the fabricsquot for more de tails After the check activate the appliance The programme continues from the point of interruption If the problem occurs again contact the Authorised Service Centre The necessary data for the service centre are on the rating plate 162 Emergency door opening In case of power failure or functioning failure the appliance door remains locked The washing programme continues when the power is restored If the door remains locked in case of failure it is possible to open it using the emergency unlock function Before opening the door CAUTION Make sure that the water temperature is not too high and the laundry is not hot If necessary wait until they cool down CAUTION Make sure that the drum is not rotating If necessary wait until the drum stops rotating Make sure that the water level inside the drum is not too high If necessary proceed with an emergency drain refer to Emergency drain in Care and cleaning chapter To open the door proceed as follows 1 Press the OnOff button to switch the appliance off 2 Disconnect the mains plug from the mains socket 3 Open the filter flap 4 Pull the emergency unlock trigger downward once Pull it downward once again keep it tensed and in the meanwhile open the appliance door ENGLISH 39
• Page 40 - English - : 5 Take out the laundry and then close the appliance door 6 Close the filter flap 17 CONSUMPTION VALUES 171 Introduction See the web link wwwtheenergylabeleu for detailed information about Energy Label The QR code on the energy label supplied with the appliance provides a web link to the product information sheet Keep the energy label for reference together with the user manual and all other documents provided with this appliance 172 Legend kg Laundry load hmm Programme duration kWh Energy consumption C Temperature in the laundry Litres Water consumption rpm Spin speed Remaining moisture at the end of the cycle The higher is the spin speed the higher is the noise and the lower is the remaining moisture at the end of washing cycle Values and programme duration may differ depending on different conditions eg room temperature water temperature and pressure load size and type of laundry supply voltage and also if you change the default setting of a programme 173 According to UK Ecodesign for Energy Related Products and Energy Information Regulations Washing only Eco 4060 pro gramme kg kWh Litres hmm C rpm 1 Full load 8 1065 57 330 52 46 1551 Half load 4 0655 45 245 52 37 1551 wwwaegcom40
• Page 41 - English - : Eco 4060 pro gramme kg kWh Litres hmm C rpm 1 Quarter load 2 0410 33 240 54 33 1551 1 Maximum spin speed Wash and dry cycle Eco 4060 pro gramme and Cupboard dry level kg kWh Litres hmm C rpm 1 Full load 4 3215 68 615 0 41 1551 Half load 2 1825 48 435 0 37 1551 1 Maximum spin speed Power consumption in different modes Off W Standby W Delay start W 050 050 400 Time to OffStandby mode is 15 minutes maximum 174 Common programmes Washing only These values are indicative only Programme kg kWh Litres hmm C rpm 1 Cottons 2 95C 8 215 90 325 44 85 1600 Cottons 60C 8 125 85 300 44 55 1600 Cottons 3 20C 8 035 85 245 44 20 1600 Synthetics 40C 3 065 50 145 35 40 1200 Delicates 4 30C 2 030 40 125 35 30 1200 ENGLISH 41
• Page 42 - English - : Programme kg kWh Litres hmm C rpm 1 Wool 30C 15 025 60 105 30 30 1200 1 Reference indicator of the spin speed 2 Suitable for washing heavily soiled textiles 3 Suitable for washing lightly soiled cottons synthetic and mixed fabrics 4 It also performs as quick washing cycle for lightly soiled laundry 175 Common programmes Wash and dry These values are indicative only Programme kg kWh Litres hmm C rpm 1 Synthetics 40C 3 200 75 400 1 40 1200 1 Reference indicator of the spin speed 18 ENVIRONMENTAL CONCERNS Recycle materials with the symbol Put the packaging in relevant containers to recycle it Help protect the environment and human health by recycling waste of electrical and electronic appliances Do not dispose of appliances marked with the symbol with the household waste Return the product to your local recycling facility or contact your municipal office wwwaegcom42
