DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEGHSL60
DEGHSL75
DEGHSL90
GAS COOKTOPS
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd
2
PRODUCT LABEL
This cooktop has been designed and constructed in accordance with the following codes
and specications:
AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NSZ 60335.2.102
Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
3
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. Thislmmustberemovedbeforeusingthe
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
• CAUTION: This appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance thus make it unsafe.
4
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in barefoot.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs/controls are in the off position.
• Children should be supervised to ensure that they do not play
with this appliance.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch off the appliance and then cover ame e.g.
with a lid or a re blanket.
5
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR
THIS APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
• DO NOT MODIFY THIS APPLIANCE.
• WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT
OR IN CARAVANS, IT SHALL NOT BE USED AS A SPACE
HEATER.’
6
INSTALLATION
CAUTION:
■ Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
■ This appliance must be installed in accordance with these installation
instructions, local gas tting regulations, municipal building codes, water
supply regulations, electrical wiring regulations, - Gas Installations and ony
other relevant statutory regulations.
■ The appliance must be housed in heat-resistant units.
■ We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150°C to avoid delamination.
■ Donotinstaltheappliancenearinammablematerials(eg.curtains).
■ This appliance is to be installed only by an authorised person.
■ This appliance shall be only be serviced by authorized personnel.
■ Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■ Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.
■ In the room where the appliance is installed, there must be enough air to allow
the gas to burn correctly, according to the current local regulations.
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
underneath of the appliance as this area is not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
ELECTRICAL REQUIREMENTS
■ The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
■ The plug must be connected to an earthed socket in compliance with safety standards.
■ If the appliance is supplied without plug, t a standard plug which is suitable for the
power consumed by the appliance.
■ The wires in the power cable are coloured in accordance with the following code:
Green/Yellow = Earth, Blue = Neutral, Brown = Active.
If the colours of the wires in the power cable to the appliance do not correspond with
the coloured markings identifying the terminals in the junction terminal, proceed as
follows:
1. The wire which is coloured green and yellow must be connected to the terminal
marked “E” (Earth) or “
” coloured Green.
2. The wire which is coloured blue must be connected to the terminal marked “N”
(Neutral) or coloured Black.
7
L N
3. The wire which is coloured brown must be connected to the terminal marked “L”
(Live) or “A” (Active) or coloured Red.
■ A suitable isolating switch providing full disconnection from the mains power supply
(under overvoltage category III conditions) shall be incorporated in the permanent
wiring, mounted and positioned to comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap contact
separation in all poles (or in all active [phase] conductors if the local wiring rules allow
for this variation of the requirements).
■ The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 50°C above ambient.
■ Once the appliance has been installed, the switch or socket must always be accessible.
■ If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied
electrician.
He should also check that the socket cable section is suitable for the power drawn by the
appliance.
Replacingthepowercordmustbedonebyaqualiedelectricianinaccordance
with the instructions supplied by the manufacturer and in compliance with
established electrical regulations.
ELECTRIC DIAGRAM KEY
A Ignition coil
PA Ignition switches group (4÷6 depending on model)
CA Spark electrodes (4÷6 depending on model)
M Terminal block
DEGHSL75 model only:
If fitted with a 6-spark ignition coil,
the 6
th
outlet, not used, is earthed
by a ground strap in contact with
the basepan.
M
A
PA
CA
Figure 1
8
CLEARANCES
Installation clearances and protection of combustible surfaces shall comply with the current
local regulations e.g. AS/NZS5601 - Gas Installations code.
Measures (mm)
Description A B C D E F
(minimum)
G
(minimum)
Model DEGHSL60 600 510 49 (*) 560 480 60 (**) 200 (***)
Model DEGHSL75 750 510 49 (*) 560 480 60 (**) 200 (***)
Model DEGHSL90 900 510 49 (*) 840 480 60 (**) 200 (***)
650 mm
500 mm
450 mm
E
F
D
G
B
A
C
Cooktop
installed
G
40 mm
Space for
connections
Clearance
Door
Thermal
protection
barrier
The thermal protection barrier must
be:
• removable with the use of a
tool for installation and service;
• heat-resistant;
• made from low thermal
conductivity material.
Figure 2cFigure 2b
Figure 2a
9
(*) From top of countertop
(**) Between the back edge of the cut-out and the back of the countertop.
(***) From the side edge of the cut-out to any vertical combustible surface. If this distance is less than
200 mm, the surface shall be protected (in accordance with AS/NZS5601) to a height of not less
than 150 mm above the hob for the full dimension (width or depth) of the cooking surface area.
IMPORTANT NOTE:
THIS APPLIANCE SHALL NOT BE USED AS A SPACE HEATER, ESPECIALLY IF
INSTALLED IN MARINE CRAFT OR CARAVANS.
The installation shall comply with the dimensions in gs. 2a, 2b bearing in mind that:
■ A 40mm ventilation gap must be provided between the bottom of the appliance and
any cabinetry, draw unit, thermal protection barrier or appliance.
■ If the cooktop is installed directly above an oven (which does not have a cooling fan
motor) or if its base is accessible through a cupboard or drawer space after installation,
a thermal protection barrier must be installed below the base of the cooktop as
indicated in g. 2c.
■ If the oven installed below the cooktop has a cooling fan motor, the thermal protection
barrier is not required.
■ If the cooktop is installed above an oven, the two appliances shall be connected to the
gas and/or electrical supply with independent connections.
■ Overhead clearances - In no case shall the clearance between the highest part of
the hob and a range hood be less than 600 mm, or for an overhead exhaust fan 750
mm. Any other downward facing combustible surface less than 600 mm above the
highest part of the hob shall be protected for the full width and depth of the cooking
surface area in accordance with local regulations in force. However, in no case shall
this clearance to any surface be less than 450 mm.
Standards requirement
Temperature of nearby surfaces. Australian and New Zealand Gas Installation Standards
(AS/NZS5601) require a cooktop to be installed so that the surface temperature of any
nearby combustible surface will not exceed 65°C above ambient.
This is typically achieved by:
■ having the cooktop spaced away from the wall (see gures 2a, 2b);
AND
■ protecting the wall to a height of at least 150 mm along its length (minimum height of
non-combustible material when used on adjacent walls) with non-combustible surface
materials such as:
– 5 mm-thick ceramic tiles (these alone are adequate);
– tempered glass or sheetmetal, minimum thickness 0.4 mm (acceptable when used
in front of a re resistant material).
10
FASTENING THE COOKTOP
Each cooktop is provided with an installation kit including brackets and screws for fastening
the cooktop to benches from 30 to 40mm thick.
ModelsDEGHSL60,DEGHSL75(g.3a): The kit includes two “F” type brackets (for the
front of the cooktop), two “R” type brackets (for the rear of the cooktop) and four self-
threading screws “S”.
Model
DEGHSL90
(g.3b): The kit includes four “F” type brackets (for the front of the cooktop),
three “R” type brackets (for the rear of the cooktop) and seven self-threading screws “S”.
• Cut the unit according to the dimensions
in g. 2a.
•
Stretch gasket “G” over the edge of the
hole made, being careful to overlay the
junction edges.
– Fasten the brackets “F” and “R” to
the appropriate socket holes, without
tightening the screws “S” for the
moment. Make sure that the tabs are
mounted correctly, as shown (gs. 3a,
3b, 3c, 3d). Rotate the tabs so that the
cooktop can be put into the cutout.
– Put the cooktop into the cutout and
position it correctly.
– Put the brackets “F” and “R” into place;
tooth “A” of the brackets should go into
the hole (gs. 3c, 3d).
– Tighten screws “S” until the cooktop is
completely secured to the bench.
– Using a sharp cutter or trimmer knife,
trim the excess sealing material around
the edge of the cooktop.
Take care not to damage the workbench.
30 mm min.
40 mm max.
40 mm min.
S
A
R
G
30 mm min.
40 mm max.
S
A
F
G
40 mm min.
F
F
F
F
R
R
R
R
F
F
R
R
Rear Fixing Brackets Front Fixing Brackets
Figure3a
Figure3b
Figure3dFigure3c
11
GAS SUPPLY
■ This appliance is suitable for use
with Natural Gas or ULPG (Check
the “gas type” sticker attached to the
appliance).
■ For Natural Gas the gas supply must
be regulated to obtain a pressure of 1
kPa:
– with the two semi-rapid (SR) burners
operating at the maximum - model
DEGHSL60 only;
– with the triple-ring (TR) burner
operating at the maximum - model
DEGHSL75 only;
– with the dual (DB) burner operating
at the maximum (inside and outside
ames in simultaneously at the
maximum) - model DEGHSL90
only.
■ For ULPG models connect the gas
supply directly to the appliance test
point adaptor (supplied with the
conversion kit) and ensure that the
supply pressure is regulated to 2.75
kPa.
■ Do NOT force the ”elbow“ rotation
prior to loosening nut.
■ Do NOT over tighten the nut at the
”elbow“.
1. After connecting the gas supply, check
the piping and connections for leaks
using a soap and water solution. The
presence of bubbles indicates a leak,
Gas connection for
NATURAL GAS
Gas inlet pipe
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas regulator
Test
point
Gas connection for
ULPG
Test point adaptor
Gasket
Gas inlet pipe
Test
point
Brass conical adaptor
(Thread tight: use
suitable seal)
Figure 4a
Figure 4b
Figure 4c
12
tighten or replace connections as appropriate.
Warning: Do not use any naked ame to check for leaks.
2. The operation of the appliance MUST be tested before leaving.
3. Adjust the test point pressure or supply pressure to the value which is appropriate for
the gas type.
4. Turn on the appliance gas controls and light each burner. Check for a well dened
blue ame without any yellow tipping. If any abnormality is evident then check that the
burner ame spreader and burner cap/s are both located properly.
5. Check the minimum burner setting by quickly rotating the gas control knob from the
maximum to the minimum position, the ame must not go out. If adjustment is required
carry out the “MINIMUM BURNER SETTING ADJUSTMENT” procedure described
below.
6. If satisfactory performance cannot be obtained, the installer shall check the installation
and notify the local gas supply authority for a gas supply problem, or if it is an appliance
problem, our Customer Service Centre should be called to obtain the nearest
authorized Delonghi Service Agent.
7. Where the appliance data plate cannot be easily read with the appliance in the
installed position the duplicate data plate must be attached to adjacent surface and
the duplicate Natural gas / ULPG conversion label should also be included where a
Natural gas / ULPG conversion has been completed.
INSTALLATION WITH A FLEXIBLE HOSE ASSEMBLY
■ If this appliance has to be installed with a hose assembly, the installer shall refer to the
network operator or gas supplier for conrmation of the gas type, if in doubt.
■ When used with a exible hose, the connector on the wall should be between 800 mm
to 850 mm above the oor and in the region outside the width of the appliance to a
distance of 250 mm.
The supply connection point shall be accessible with the appliance installed.
■ Flexible hose assemblies should be AS/NZS 1869 Class B or Class D certied.
The thread connection shall be Rp 1/2” (ISO 7-1) male.
■ IMPORTANT WARNING: After connection the installer must check that the hose is
not kinked, subjected to abrasion or permanently deformed. The installer must check
also that the hose is not near (or in contact) with any hot surfaces e.g. base of metal
hotplate, underbench oven etc.
■ The hose assembly shall be as short as practicable and comply with relevant
AS/NZS5601 requirements.
■ IMPORTANT WARNING: The installer shall ensure the hose assembly is restrained
from accidental contact with the ue outlet of an underbench oven.
13
TABLE FOR THE CHOICE OF THE INJECTORS
Natural Gas ULPG
Test Point Pressure [kPa] 1.0 2.75
BURNER
Injector
Orifice
Dia.
[mm]
Gas
Consumption
[MJ/h]
Injector
Orifice
Dia.
[mm]
Gas
Consumption
[MJ/h]
Auxiliary (AUX) 0.92 3.90 0.56 3.90
Semi-rapid (SR) 1.17 6.50 0.70 6.20
Rapid (R) (
1
) 1.54 11.75 0.98 11.75
Triple-ring compact (TRC) (
2
) 1.48 10.70 0.88 9.60
Triple-ring (TR) (
3
) 1.68 13.70 1.04 14.10
Dual (DB) - inner crown (
4
) 0.72 2.40 0.43 2.10
Dual (DB) - outer crown (
4
) 1.23 (x2) 13.80 0.66 (x2) 11.40
(
1
) Only for the models DEGHSL75, DEGHSL90
(
2
) Only for the model DEGHSL60
(
3
) Only for the model DEGHSL75
(
4
) Only for the model DEGHSL90
(Note: Gas type sticker and data plate are attached to the underside of the base of the
appliance.)
CONVERSION PROCEDURE (to convert to Natural gas or to ULPG)
REPLACING THE INJECTORS
The conversion procedure must be carried out only by an authorised person.
This appliance is suitable for use with Natural gas or Universal LPG (check the “gas type”
sticker attached to the appliance).
The nominal gas consumption and injector size details are provided in table above.
To replace the injectors proceed as follows:
■ Remove pan supports and burners from the cooktop.
■ Using a wrench, substitute the injectors “J” (gs. 5a, 5b, 5c, 5d) with those most
suitable for the kind of gas for which it is to be used (see table above).
■ Afx to the appliance the warning label stating that the cooktop has been converted
for use with Natural gas/ULPG (supplied with the Natural gas/ULPG conversion kit).
A second Natural gas/ULPG conversion label should also be afxed to an adjacent
surface along with the duplicate data plate.
IMPORTANT
■ If the cooktop is suitable for use with Natural gas and must be converted for use with
Universal LPG, before connecting to gas main remove the appliance gas regulator
14
and replace with test point adaptor
(see gs. 4a, 4b).
■ If the cooktop is suitable for use with
Universal LPG and must be converted
for use with Natural gas, before
connecting to the gas main remove
the appliance test point adaptor and
replace with gas regulator (see gs.
4a, 4b).
NOTE:
Gas regulator and test point adaptor are
supplied with the appliance (packed with
conversion kit).
The burners are designed so that
regulation of primary air is not required.
J
Auxiliary, semi-rapid and rapid
burner (rapid only for the models
DEGHSL75,
DEGHSL90)
J
J
J
J
Triple-ring compact
burner (only for the
model DEGHSL60)
Triple-ring burner (only for the model
DEGHSL75)
Dual burner (only for the model DEGHSL90)
Injector for
inner crown
Injectors
for outer
crown
Figure 5a
Figure 5b
Figure 5cFigure 5d
15
MINIMUM BURNER SETTING ADJUSTMENT
Check whether the ame spreads to all burner ports when the burner is lit with the gas
tap set to the minimum position. If some ports do not light, increase the minimum gas rate
setting.
Check whether the burner remains lit even when the gas tap is turned quickly from the
maximum to the minimum position. If the burner does not remain lit, increase the minimum
gas rate setting.
The procedure for adjusting the minimum gas rate setting is described below.

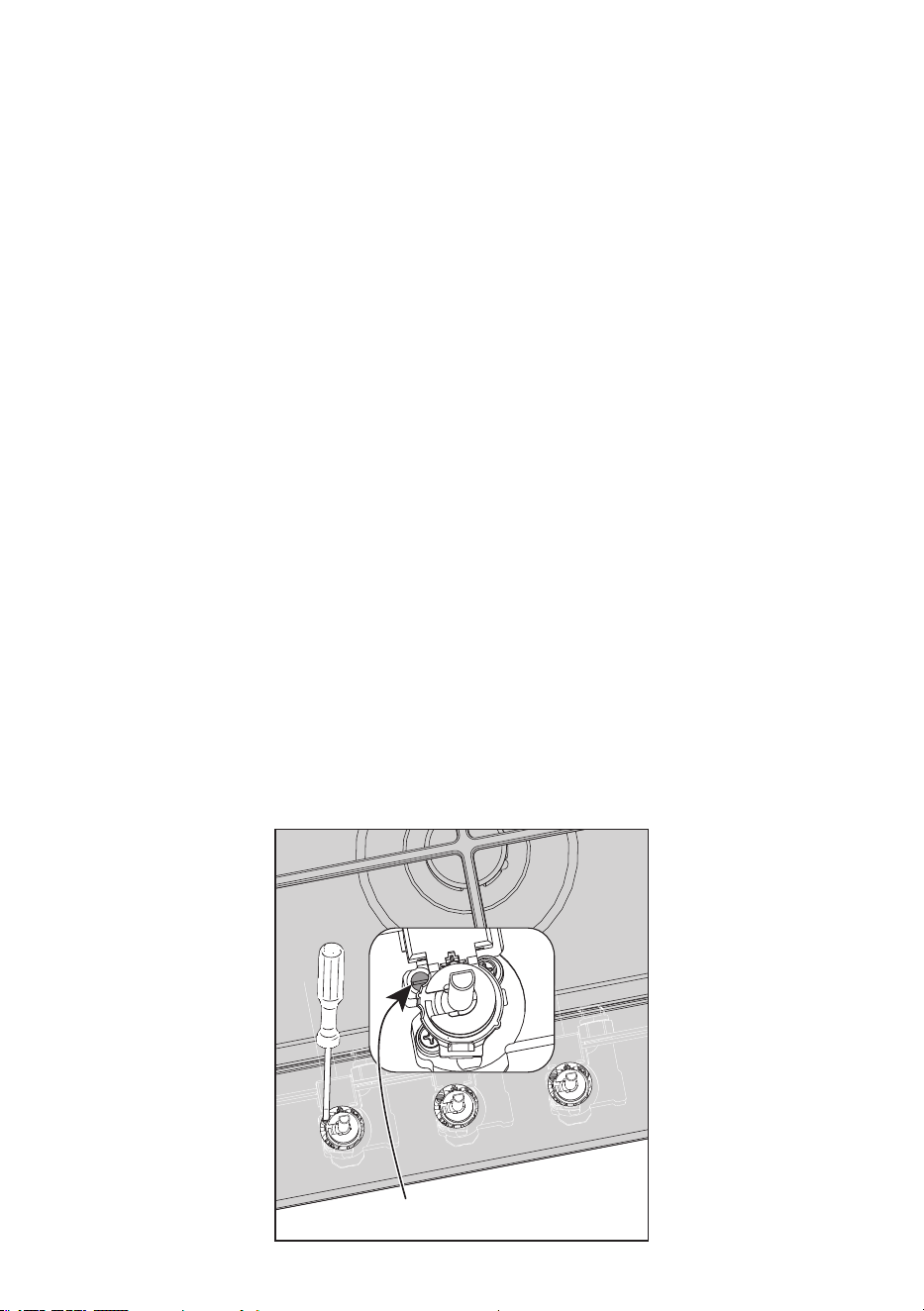

■ Using a screwdriver turn screw “A” until the ame setting is correct (g. 6).
■ Dual burner, model DEGHSL90 only: For the dual burner set the minimum (as
indicated above) for both the gas valves (one for the inner and one for the outer
crown). The operations must be carried out one gas valve at a time.
Normally for ULPG fully tighten the adjustment screw.
LUBRICATING THE GAS TAP
If a gas tap is difcult to turn, disassemble it, clean it carefully with petrol and spread a little
high-temperature-resistant grease on it.
These operations must be performed by an Authorized person/Service agent.
Note: Servicing of this appliance is only to be carried out by Authorised Person.
A
Figure 6
16
USE and CARE
CAUTION:
■ This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous. Do not use this appliance as a space heater.
■ Do NOT place combustible materials or products on this appliance at any time. Do
NOT use or store ammable materials near this appliance.
■ Do NOT spray aerosols in the vicinity of this appliance while it is in use.
■ Before using for the rst time, clean the cooktop with warm soapy water.
■ DO NOT MODIFY THIS APPLIANCE.
■ IMPORTANT NOTE: THIS APPLIANCE SHALL NOT BE USED AS A SPACE
HEATER, ESPECIALLY IF INSTALLED IN MARINE CRAFT OR CARAVANS.
Model: DEGHSL60
Model: DEGHSL75
1
12
11
10
10 13
9
9
8
8
1
2
6
23
4
3
5
Figure 7a
Figure 7b
17

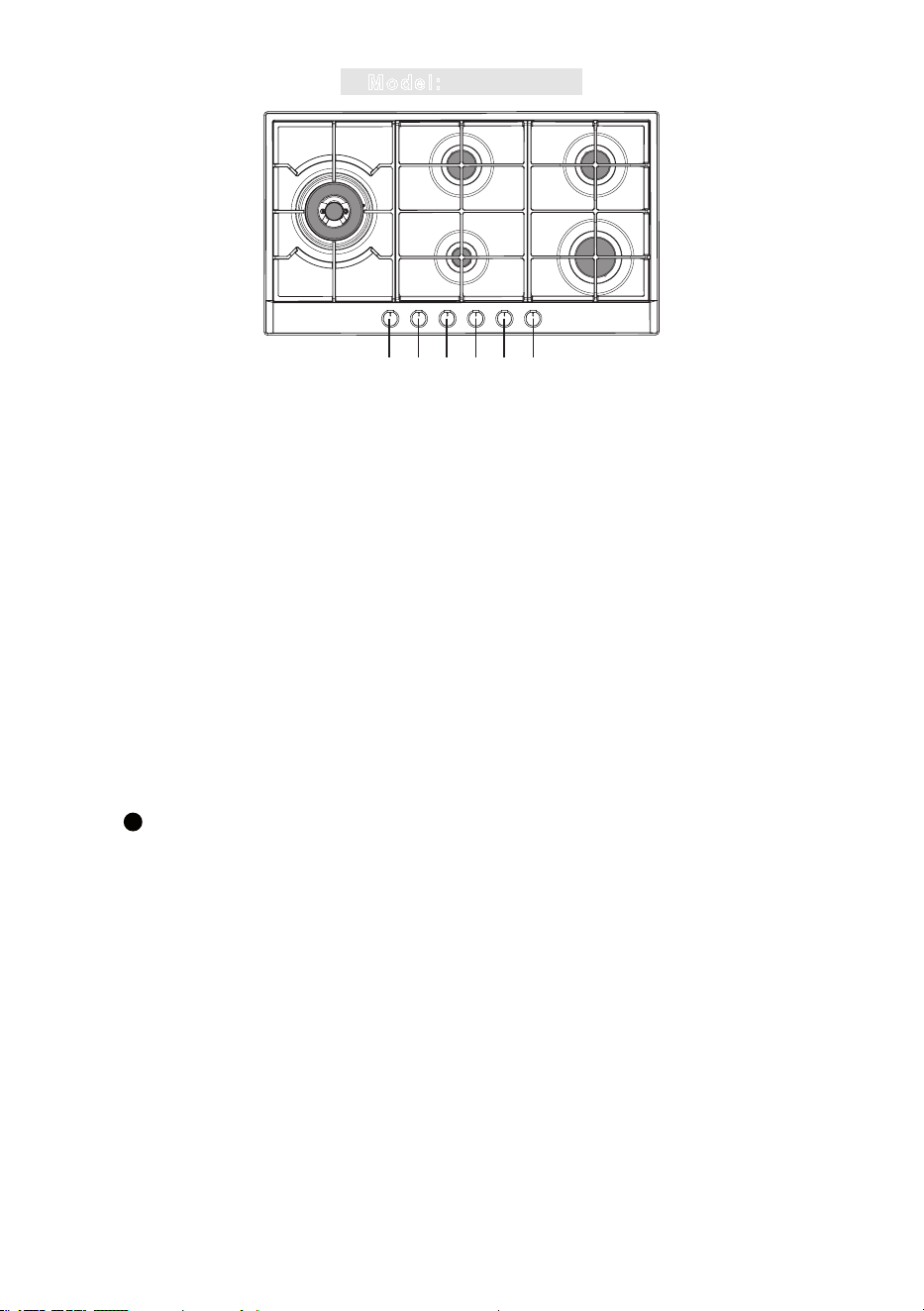

Model: DEGHSL90
15 14 8 9 10 11
1
7
2 3
4
Figure 7c
GAS BURNERS
1. Auxiliary (A)
2. Semi-rapid (SR)
3. Semi-rapid (SR)
4. Rapid (R)
5. Triple-ring compact (TRC)
6. Triple-ring (TR)
7. Dual (DB) (*)
(() IMPORTANT: The Dual burner (model DEGHSL90 only) is controlled by two
separate knobs; one knob for the inner crown only and one knob for the outer
crown only.
The inner and outer crown can be used together or separately.
After using the dual burner check both the control knobs are in the closed
“
” position.
CONTROL KNOBS
8. Burner control knob (1) - Auxiliary
9. Burner control knob (2) - Semi-rapid
10. Burner control knob (3) - Semi-rapid
11. Burner control knob (4) - Rapid
12. Burner control knob (5) - Triple-ring compact
13. Burner control knob (6) - Triple-ring
14. Burner control knob (7) - Dual, inner crown only
15. Burner control knob (7) - Dual, outer crown only
NOTES:
■
The electric ignition is incorporated in the knobs.
■ The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
18
USING GAS BURNERS
■ Check that the electricity is switched on to allow spark ignition.
■ Make sure that all controls are turned to “
” (burner off).
■ The gas ow to the burner is controlled by a tap incorporating a safety cut-off valve.
If the burner ame should go out for some reason, the safety valve will automatically
stop the gas ow. The switch of the electric ignition is incorporated in the knobs.
■ You control the ow by turning the knob indicator to line up with the following symbols:
– Symbol
: tap closed (burner off)
– Symbol
: High (maximum)
– Symbol
: Low (minimum)
■ You can control the temperature by the knob to “High” (maximum) from “Low” “Minimum”.
■ To switch off, turn the knob clockwise until you hear the safety click.
■ Note that, if you are using a burner at the minimum setting, you turn the knob clockwise
past the maximum setting before reaching the off position.
■ Whenever lighting any of the burners produces an abnormal ame, switch that burner
off and relight using the minimum setting.
■ If after relighting the burner, the ame is still abnormal, turn the burner off and contact
our Customer Service Centre to obtain the nearest authorized Delonghi Service Agent.
■ In the case of a mains failure light the burner with a match or lighted taper.
■ Note: When the cooker top is not being used, set the gas knobs to their closed
positions and also close the cock valve on the gas bottle or the main gas supply line.
Figure 8a
Figure 8b
19
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE SAFETY DEVICE
In order to light the burner, you must:
1. Turn the knob (gs. 8a - 8b) in anti-clockwise direction up to the maximum aperture
(symbol “
” ), push in and hold the knob; this will light the gas.
If there is no mains electrical supply, bring a lighted match close to the burner.
2. Wait for about ten seconds after the gas burner has been lit before letting go of the
knob (valve activation delay).
3. Adjust the gas valve to the desired position.
Important
■ If the burner ame should go out, the safety valve will automatically stop the gas ow
■ To re-light the burner, return the knob to closed “
” position (burner off), wait for at
least 1 minute and then repeat the lighting procedure.
■ N.B. If your local gas supply makes it difcult to light the burner with the knob set to
maximum, set the knob to minimum and repeat the operation.
DUAL BURNER - MODELS DEGHSL90 ONLY
The Dual Burner is a very exible burner which allows different regulations and optimal
cooking.
It is composed by one inner and one outer crown: the inner and outer crown can be used
together or separately.
The Dual burner is controlledbytwoseparateknobs(g.9):
■ one knob for the inner crown only (“ ” symbol identifying the control knob)
;
■ one knob for the outer crown only (“
” symbol identifying the control knob).
The Dual burner can be used:
■ as a small burner (ame produced only by the inner crown);
■ as a Ultra-rapid burner (ame produced only by the outer crown);
■ as a high-power burner (all ames produced simultaneously by inner and outer crown).
IMPORTANT: After using the dual burner check both the control knobs
are in the closed “ ” position.
20
1
2
1 2 1+2
Figure 9

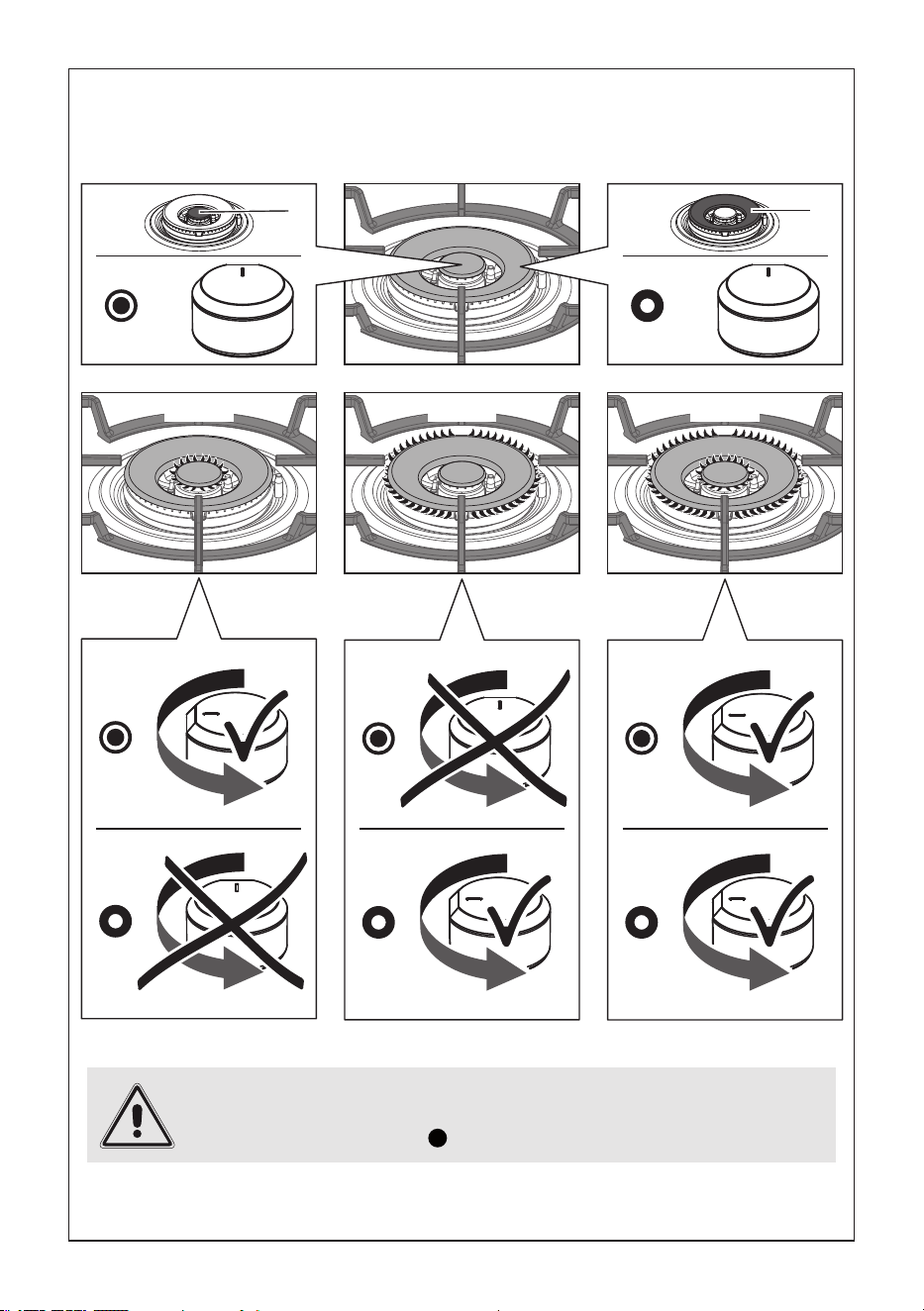

DUAL BURNER OPERATION/CONTROL KNOBS
MODEL DEGHSL90 ONLY
IMPORTANT: After using the dual burner check both the control
knobs are in the closed “ ” position.
21
COOKING HINTS FOR GAS HOBS
■ The burner must be chosen according to the
diameter of the pans and energy required.
■ The largest can be used for boiling, to seal meat
or foods that are cooked quickly, and the smallest
for stews and sauces.
■ Always ensure that you use the correct size of
saucepan.
■ For fast boiling, make sure the ame just reaches the edge of the pan. Flames going
up the side of the pan means wasted heat and the contents of the pan will take longer
to boil.
■ For optimum efciency use a wok or pan no smaller than 230mm diameter.
■ Saucepans with handles which are excessively heavy, in relationship to the weight of
the pan, are safer as they are less likely to tip.
■ Pans which are positioned centrally on burners are more stable than those which are offset.
■ It is far safer to position the pan handles in such a way that they cannot be accidentally
knocked.
■ When deep fat frying:
– Fill the pan only one third full of oil.
– DO NOT cover the pan with a lid and DO NOT leave the pan unattended.
– In the unfortunate event of a re, leave the pan where it is and turn off all controls.
– Place a damp cloth or correct tting lid over the pan to smother the ames.
– DO NOT use water on the re.
– Leave the pan to cool for at least 30 minutes.
WARNING - VERY IMPORTANT NOTICE
During use cooking vessels become hot. Pay special attention not to touch the hot
vessels positioned on the cooking hob especially when operating the control knobs.
DIAMETERS OF PANS WHICH MAY BE USED ON THE BURNERS
BURNERS MINIMUM MAXIMUM
Auxiliary 6 cm 14 cm
Semi-rapid 16 cm 24 cm
Rapid (models DEGHSL75, DEGHSL90) 24 cm 26 cm
Triple-ring compact (model DEGHSL60) 26 cm 28 cm
Triple-ring (model DEGHSL75) 26 cm 28 cm
Dual (inner crown only) (model DEGHSL90) (*) 20 cm 24 cm
Dual (outer crown only) (model DEGHSL90) 26 cm 28 cm
Dual (inner+outer crown) (model DEGHSL90) 26 cm 28 cm
Wok (**) - Max 36 cm
do not use pans with concave or convex bases
(*) with small pan adapter: minimum diameter 6 cm
(**) triple-ring compact, triple-ring or dual burner (depending on models) with wok adapter correctly tted
Figure 10
22

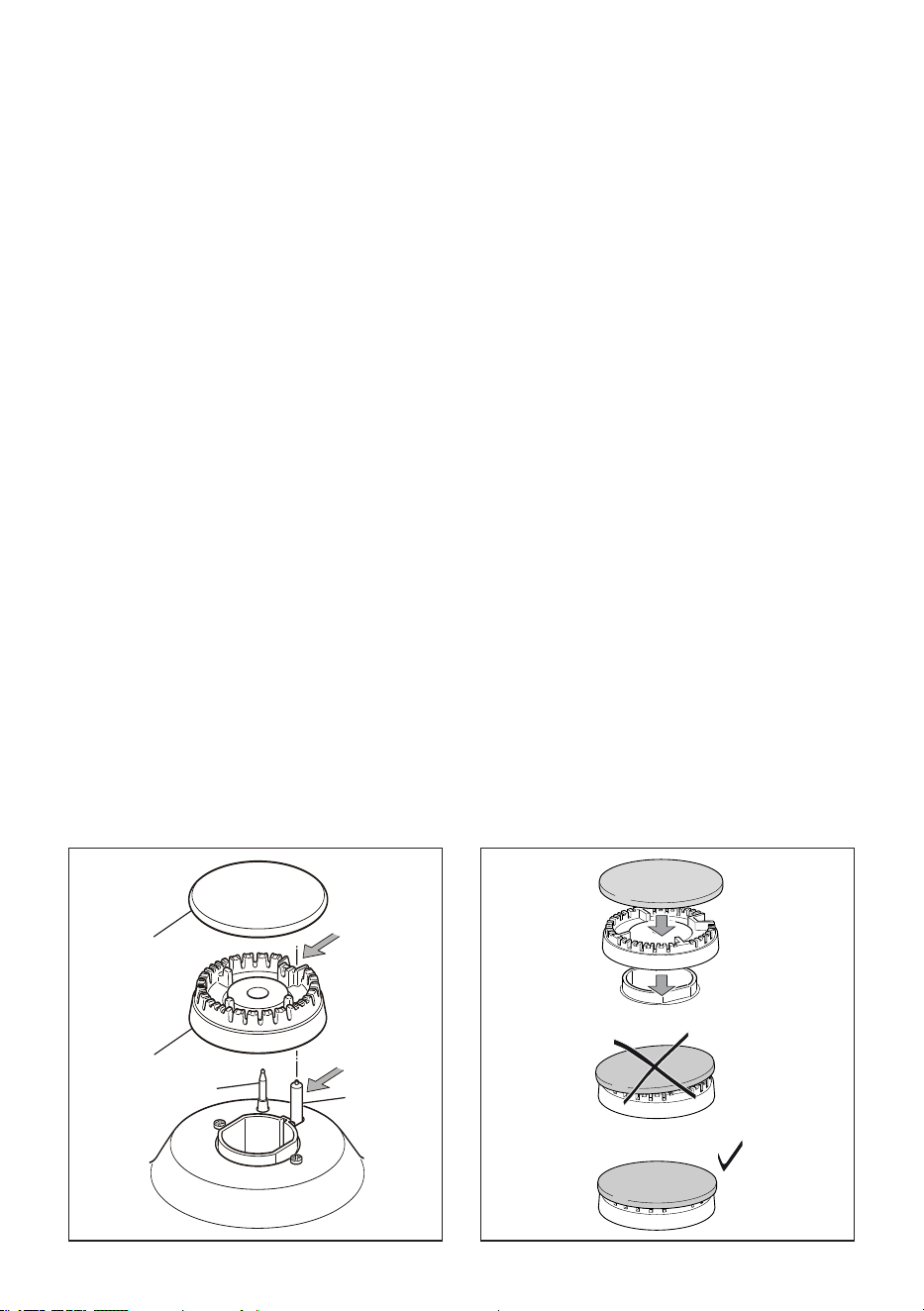

SMALL PAN ADAPTER - MODEL DEGHSL90 ONLY
This adapter is to be placed:
■ on top of the Dual burner (used with the inner crown only) when using small diameter
pans, in order to prevent them from tipping over.
IMPORTANT:
To avoid any burner malfunction:
■ thisadapterMUSTbeplacedcorrectly(gs.11a,11b,11c);
■ DO NOT USE the outer crown of the Dual burner with the small pan adapter in
place;
■ DO NOT USE the inner and outer crown of the Dual burner at the same time with
the small pan adapter in place.

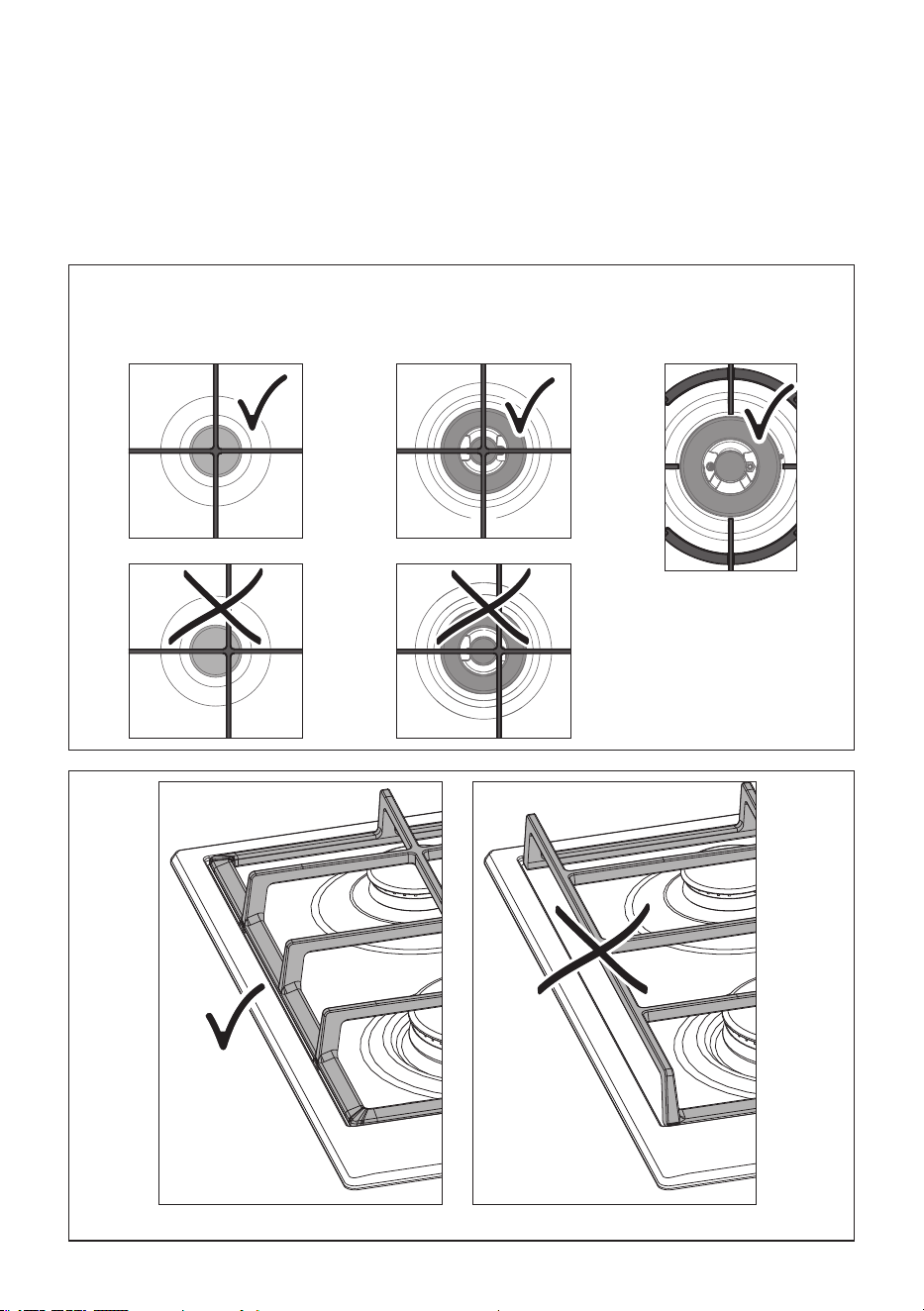

CORRECT
CORRECT
WRONG
WRONG
Figure 11a
Figure 11b
Figure 11c
23
Model:
DEGHSL60 (
with triple-ring compact burner)
CORRECT
WRONG

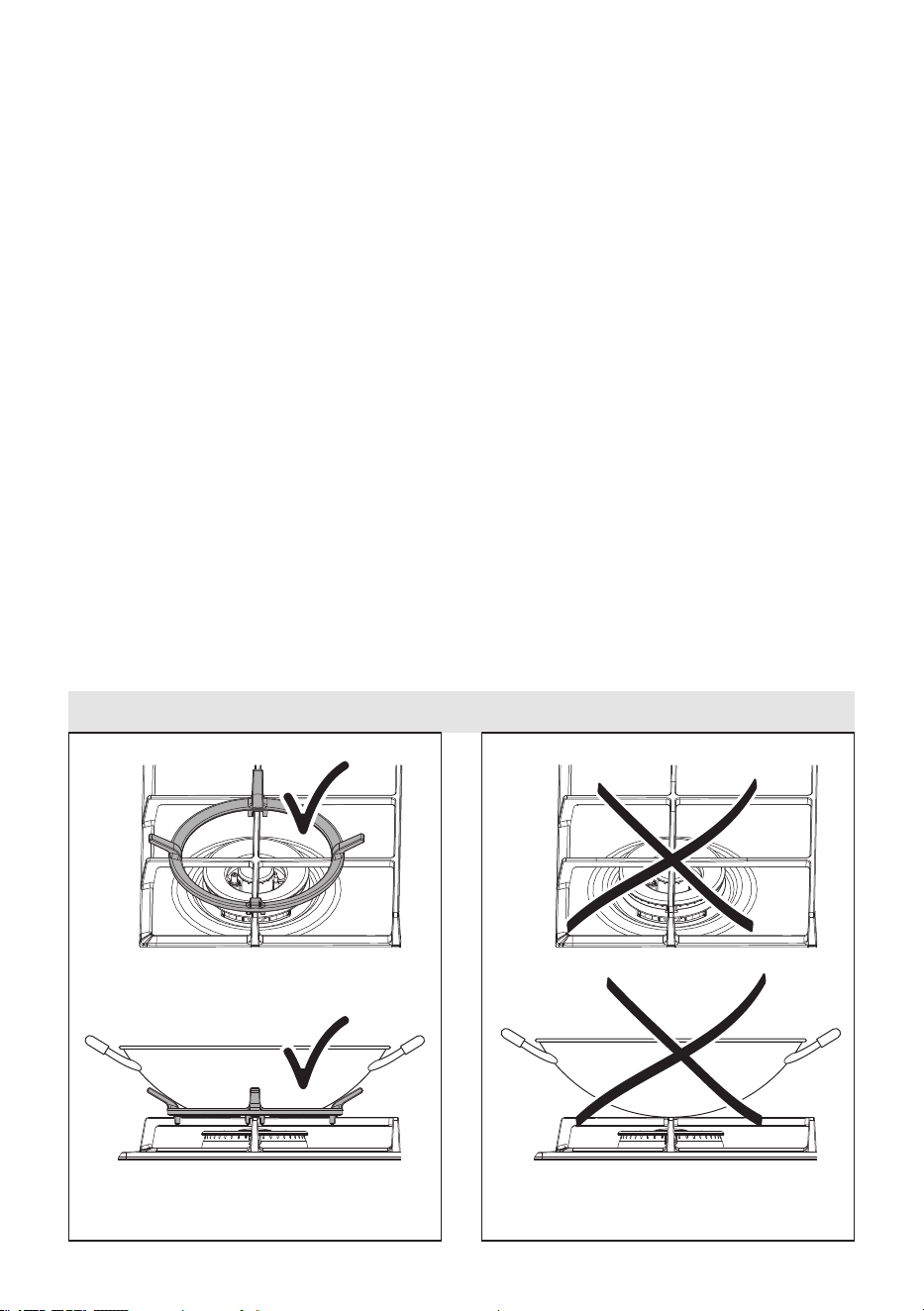

WOK STAND
(gs. 12a - 12b, 13a - 13b, 14a - 14b)
This special grille for woks should be placed over the pan-rest for the triple-ring compact,
triple ring or Dual burner (depending on models).
Warning:
■ The at-bottomed pans are to be placed directly onto the pan-support.
■ To use the WOK, you must place the wok stand in the CORRECT position as shown.
IMPORTANT:
The special grille for wok pans MUST BE PLACED ONLY over the pan-rest for the
triple-ring compact, triple ring or Dual burner (depending on models).
Figure 12a Figure 12b
24
Model:
DEGHSL90
(with dual burner)
Model:
DEGHSL75
(with triple-ring burner)
CORRECT
CORRECT
WRONG
WRONG
Figure13a
Figure 14a
Figure13b
Figure 14b
25
CLEANING and MAINTENANCE
GENERAL ADVICE
■ Before you begin cleaning, you must ensure that the appliance is switched off
and disconnected from the electrical power supply.
■ Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
■ Under no circumstances should any external covers be removed for servicing or
maintenanceexceptbysuitablequaliedpersonnel.
■ It is advisable to clean when the appliance is cold and especially when cleaning
the enamelled parts.
■ Be very careful that no water penetrates inside the appliance.
■ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the
surfaces.
■ Avoid using cleaning products with a chlorine or acidic base.
■ Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
WARNING: When correctly installed, your product meets all safety requirements
laid down for this type of product category. However special care should be taken
around the underneath of the appliance as this area is not designed or intended to
be touched and may contain sharp or rough edges, that may cause injury.
ENAMELLED PARTS
■ All the enamelled parts must be cleaned with a sponge and soapy water only or other
non-abrasive products.
■ Dry preferably with a soft cloth.
■ If acid substances such as lemon juice, tomato conserve, vinegar etc. are left on the
enamel for a long time they will etch it, making it opaque.
STAINLESS STEEL SURFACES
■ Stainless steel parts must be rinsed with water and dried with a soft and clean cloth.
■ For persistent dirt, use specic non-abrasive products available commercially or a little
hot vinegar.
PAINTED PARTS AND SILKSCREEN PRINTED SURFACES
■ Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion.
You are advised to use a soft cloth and neutral soap.
CAUTION: Do not use abrasive substances or non-neutral detergents as these will
irreparably damage the surface.
GAS TAPS
■ Periodic lubrication of the gas taps must be carried out by specialist personnel only.
■ In the event of operating faults in the gas taps, call the Service Department.
26
BURNERS
■ These parts can be removed and cleaned with appropriate products.
■ After cleaning, the burners and their ame spreaders must be well dried and correctly
replaced.
■ Check that the electrode/s “S” (gs. 15a, 15c, 15d, 15e) next to each burner is/are
always clean to ensure trouble-free sparking.
■ Check that the probe/s “T” (gs. 15a, 15c, 15d, 15e) next to each burner is/are always
clean to ensure correct operation of the safety valves.
■ Both the probe and ignition plug must be very carefully cleaned.
■ Note: To avoid damage to the electric ignition do not use it when the burners are
not in place.
CORRECT REPLACEMENT OF THE AUXILIARY, SEMI-RAPID AND RAPID
BURNER (the rapid burner is available for the models DEGHSL75, DEGHSL90
only)

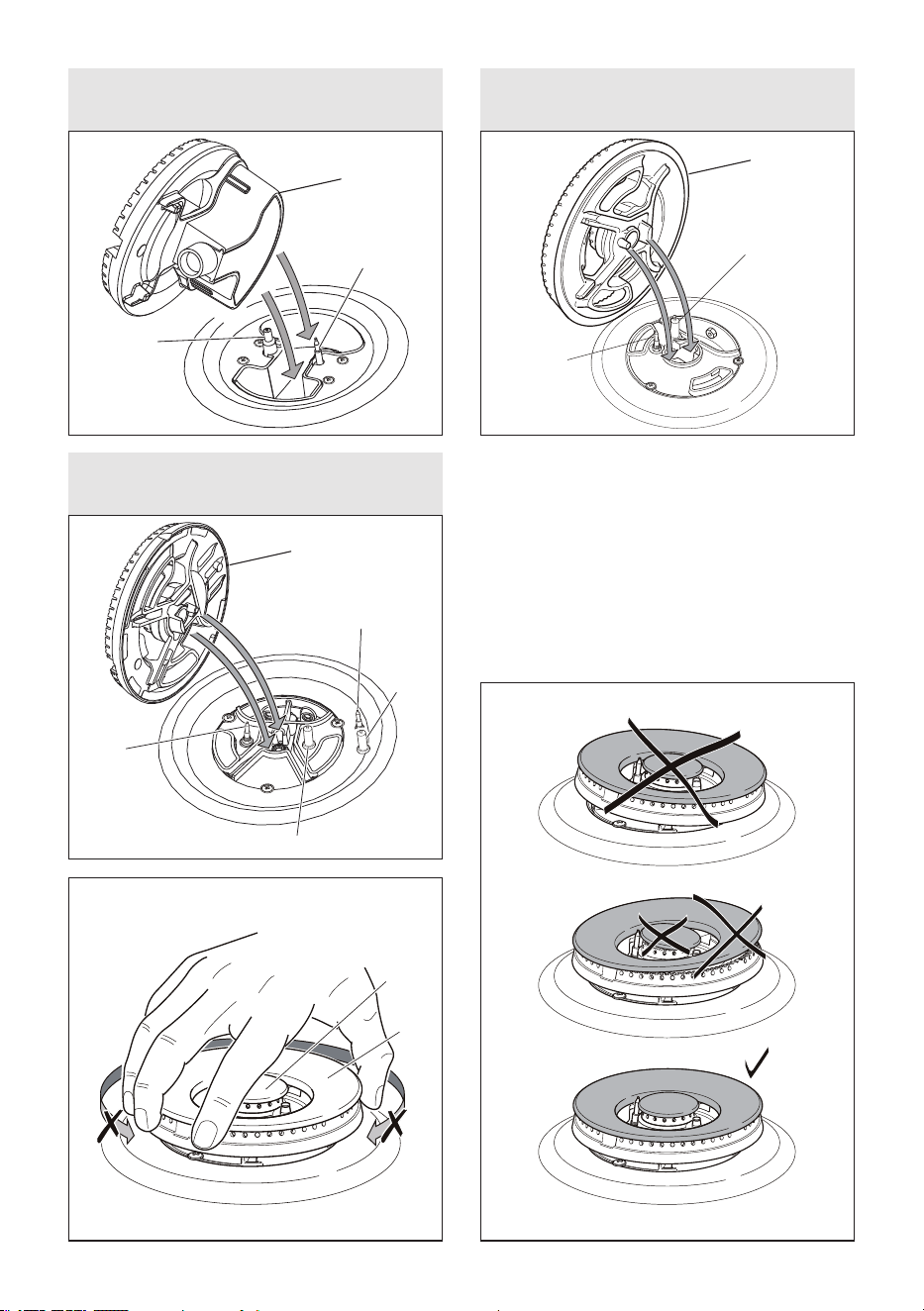

It is very important to check that the burner ame spreader “F” and the cap “C” have been
correctly positioned (see gs. 15a and 15b). Failure to do so can cause serious problems.
■ They shall be level and the ame spreader must not rotate.
CORRECT REPLACEMENT OF THE TRIPLE-RING COMPACT (model
DEGHSL60 only), TRIPLE-RING (model DEGHSL75 only) AND DUAL
BURNER (model DEGHSL90 only)
It is very important to check that the burner ame spreader “F1”, “F2” or “F3” and the caps
“A”, “B” have been correctly positioned (see gs. 15c, 15d, 15e, 15f, 15g). Failure to do so
can cause serious problems.
■ Fit the ame spreader to the housing: the burner ribs must be tted in their housing as
shown by the arrows (see gs. 15c, 15d or 15e).
■ Then position the cap “A” and the ring “B” (see g. 15f).
■ They shall be level and the ame spreader must not rotate (see g. 15g).
S
F
C
T
Figure 15a Figure 15b
27
S
T
T
S
TRIPLE-RING COMPACT BURNER
(Model:
DEGHSL60)
TRIPLE-RING BURNER
(Model:
DEGHSL75)
A
B
T
T
S
S
DUAL BURNER
(Model:
DEGHSL90)
Figure 15f Figure 15g
Figure 15e
Figure 15dFigure 15c
F1
F2
F3
28
PAN SUPPORTS
■ These parts can be removed and cleaned with appropriate products.
■ After cleaning, they must be well dried and correctly replaced.
■ It is very important to check that the pan supports have been correctly positioned.
Failure to do so can cause serious problems.
■ The prongs of the pan supports must always be centred with the burners (g. 16a).
■ The raised portion of the pan supports shall NOT face the sides of the cooktop (g. 16b).
Auxiliary, Semi-rapid &
Rapid burner (Rapid for
models DEGHSL75 &
DEGHSL90 only)
Triple-ring compact
burner (model
DEGHSL60 only)
Triple-ring burner (model
DEGHSL75 only) &
Dual burner (model
DEGHSL90 only)
Figure 16a
Figure 16b
29
SERVICE AND MAINTENANCE
If the ignition spark fails to ignite or does not light the gas, check the following items before
calling our Customer Service Centre to obtain the nearest Authorised Delonghi Service
Agent:
■ Burner is reassembled and located correctly.
■ Spark electrode and white ceramic are clean and dry.
■ 230 or 240 VAC power supply is connected.
Contact the local gas utility or our Customer Service Centre to obtain the nearest Authorized
Delonghi Service Agent.
■ You can smell gas when all burners are turned on.
■ The burners do not remain alight at the minimum marked setting.
■ The burner ame is yellow or emits an unusual odour.
Note that a bi-annual inspection of the appliance by an authorized service agent or your
locate gas utility will ensure many years of trouble free operation of your appliance.
Servicing the appliance:
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised Delonghi Service Agent.
Servicing shall be carried out only by authorized personnel.
Theapplianceshallnotbemodied.

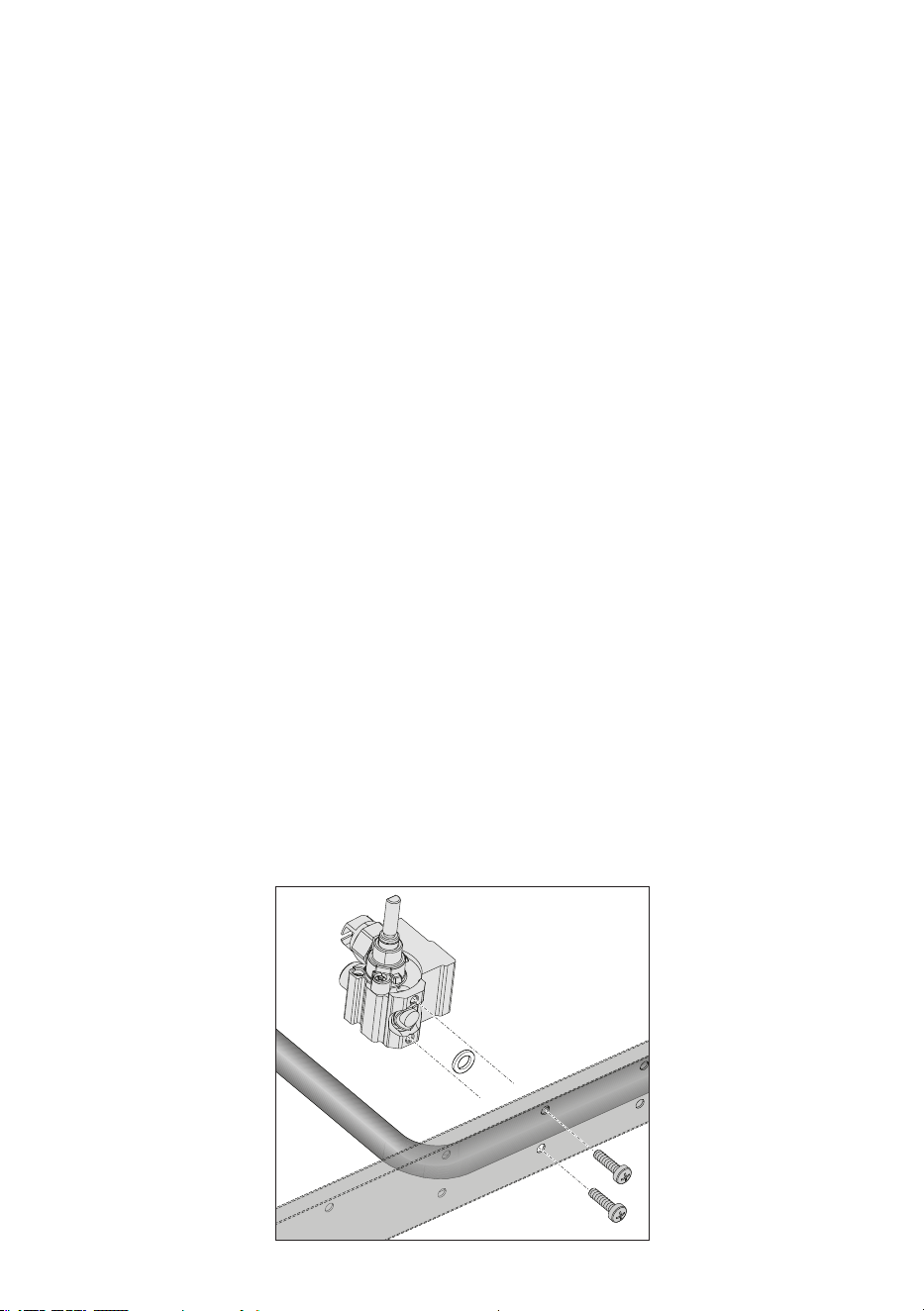

LUBRICATION OF THE GAS TAPS
If the gas tap becomes stiff, it is necessary to dismantle it carefully and clean it with
petroleum spirit.
Specialist high temperature resistant grease should be used to lubricate the tap before
replacing.
These operations must be carried out by an authorized person/service agent.
Figure 17
30
31
www.delonghi.com.au
www.delonghi.co.nz
Cod. 1105177 - ß0
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
modifications for their construction or for commercial needs.
