DIGITAL CAMERA
Thank you for purchasing an Olympus digital camera. Before you start to use your new camera,
please read these instructions carefully to enjoy optimum performance and a longer service life.
Be sure you have read and understood the contents of “9. SAFETY PRECAUTIONS”, before using
this product. Keep these instructions available for future reference.
We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
The screen and camera illustrations shown in this manual were produced during the development
stages and may differ from the actual product.
If there are additions and/or modifications of functions due to firmware update for the camera, the
contents will differ. For the latest information, please visit the Olympus website.
Table of Contents
Feature Index
1. Preparation
2. Shooting
3. Playback
4. Menu functions
5.
Connecting the camera to a
smartphone
6.
Connecting the camera to a
computer
7. Cautions
8. Information
9. SAFETY PRECAUTIONS
Model No.: IM021
Instruction Manual
Before You Begin
2
EN
Before You Begin
Read and Follow Safety Precautions
To prevent incorrect operation resulting in re or other damage to property or harm to
yourself or to others, read “9. SAFETY PRECAUTIONS” (P. 176) in its entirety before
using the camera.
While using the camera, consult this manual to ensure safe and correct operation. Be
sure to keep the manual in a safe place once it is read.
Olympus will not be held liable for violations of local regulations arising from use of this
product outside the country or region of purchase.
Wireless LAN and Bluetooth
®
The camera features built-in wireless LAN and Bluetooth
®
. Use of these features
outside the country or region of purchase may violate local wireless regulations; be
sure to check with local authorities before use. Olympus will not be held liable for the
user’s failure to comply with local regulations.
Disable wireless LAN and Bluetooth
®
in areas where their use is prohibited.
g “Disabling wireless LAN/Bluetooth
®
” (P. 150)
User Registration
Visit the OLYMPUS website for information on registering your OLYMPUS products.
Installing PC Software/Apps
Olympus Workspace
This computer application is used to download and view photos and movies recorded
with the camera. It can also be used to update the camera rmware. The software can be
downloaded from the website below. Be prepared to provide the camera serial number when
downloading the software.
https://support.olympus-imaging.com/owdownload/
OLYMPUS Image Share (OI.Share)
You can load images in the camera to a smartphone.
You can also operate the camera remotely and take pictures from a smartphone.
https://app.olympus-imaging.com/oishare/
Product Manuals
3
EN
Product Manuals
Indications used in this manual
The following symbols are used throughout this manual.
$
Notes and other supplementary information.
%
Tips and other helpful information for using the camera.
g
References to other pages in this manual.
In addition to the “Instruction Manual”, we also offer a “Camera Function Guide”.
Consult these manuals when using the product.
DIGITAL CAMERA
Thank you f or purchasing an Oly mpus digital camera . Before you start to us e your new camera,
please read these instructions carefully to enjoy optimum performance and a longer service life.
Be sure you h ave read and understoo d the contents of “9. SA FETY PRECAUTIONS ”, before using
this product. Keep these instructions available for future reference.
We recom mend that you take test shot s to get accustomed to you r camera before taki ng important
photographs.
The scr een and camera illust rations shown in this m anual were produced du ring the development
stages and may differ f rom the actual produ ct.
If there are a dditions and/or modi fications of func tions due to firmwar e update for the camera , the
contents will diff er. For the latest informati on, please visit the Ol ympus website.
Table of Contents
Feature Index
1. Preparation
2. Shooting
3. Playback
4. Menu functions
5.
Connecting the camera to a
smartphone
6.
Connecting the camera to a
computer
7. Cautions
8. Information
9. SAFETY PRECAUTIONS
Model No.: IM021
Instruction Manual
Instruction Manual (this pdf)
A how-to guide to the camera and its features. The Instruction
Manual can be downloaded from the OLYMPUS website or directly
using the “OLYMPUS Image Share” (OI.Share) smartphone app.
Camera Function Guide
A function and setting guide that helps you use camera features to the full. It has been
optimized for display on mobile devices and can be viewed using OI.Share.
https://cs.olympus-imaging.jp/jp/support/cs/webmanual/index.html
Table of Contents
4
EN
Table of Contents
Before You Begin 2
Product Manuals 3
Feature Index 9

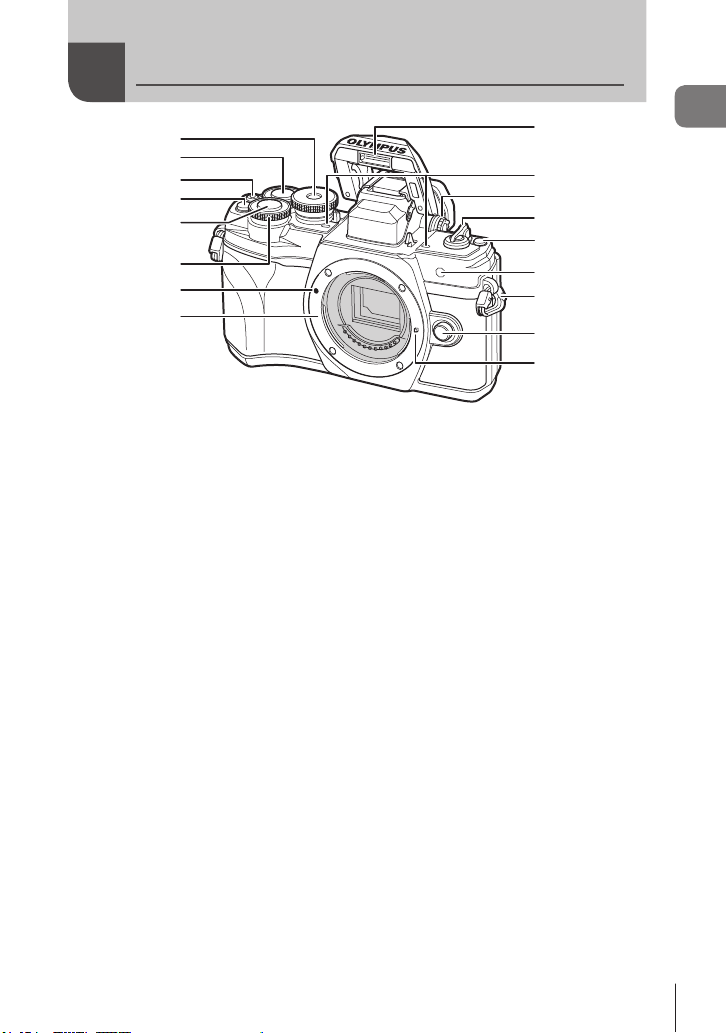

Names of parts 11
Preparation 13
Unpacking the box contents .....13
Attaching the Strap ....................14
Inserting and Removing the

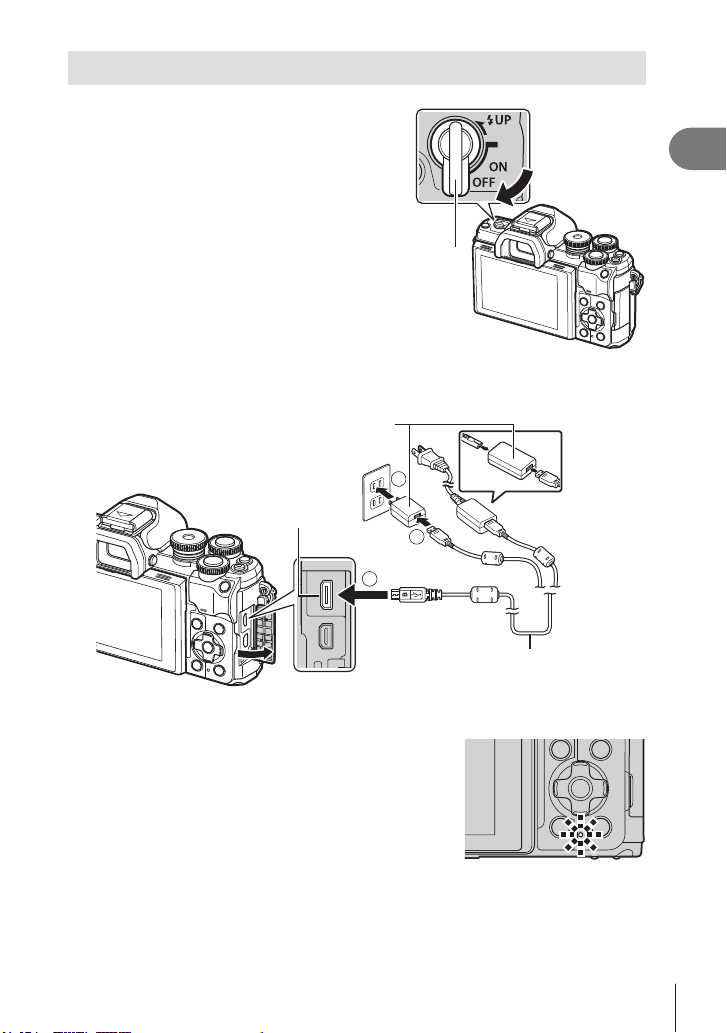

Battery and Card ........................15
Removing the battery ...............16
Removing the card ...................16
Charging the Battery .................. 17

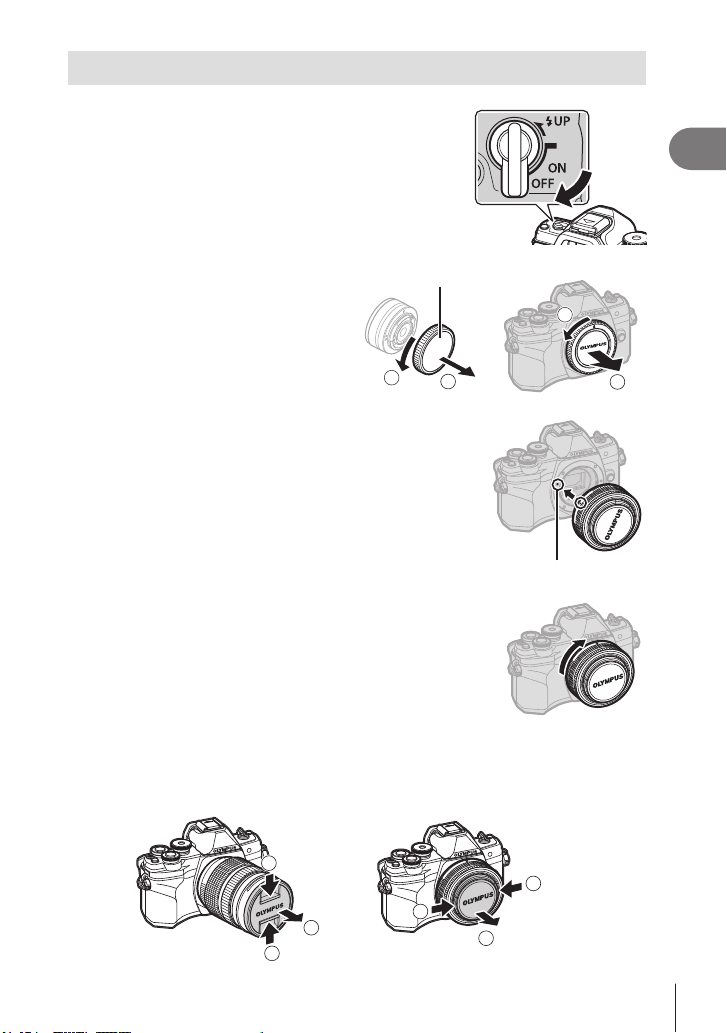

Attaching a lens to the
camera ......................................... 19
Removing Lenses .......................20

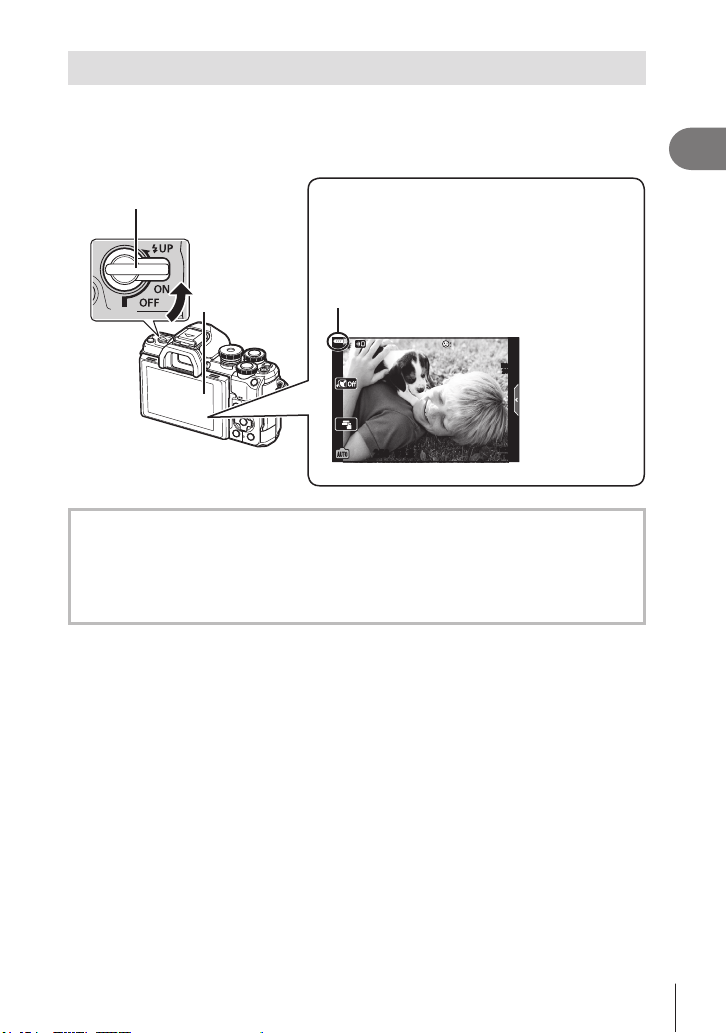

Turning the camera on ............... 21
Initial setup .................................22
Camera displays unreadable/
not in the selected language .....24
Shooting 25

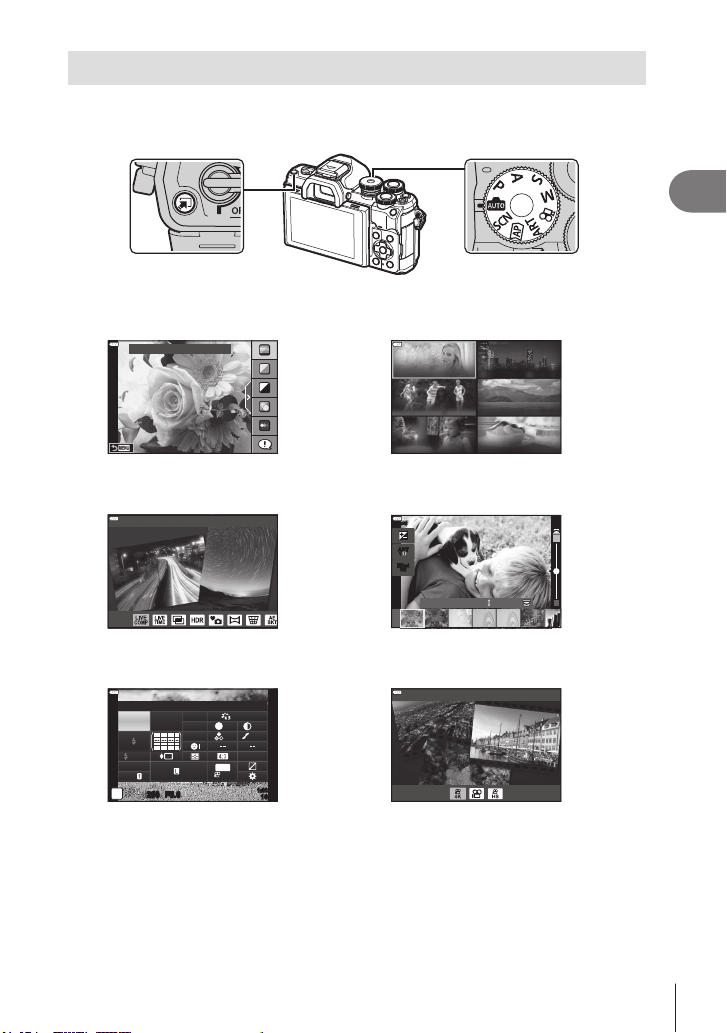

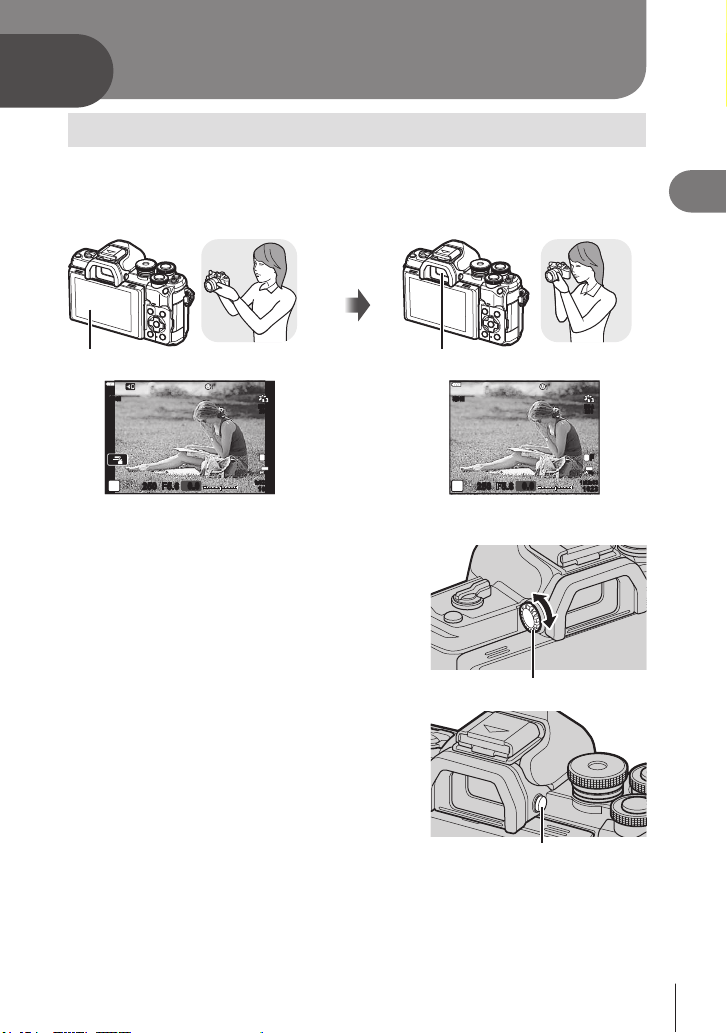

Switching between displays ......25
Information displays while
shooting ......................................26

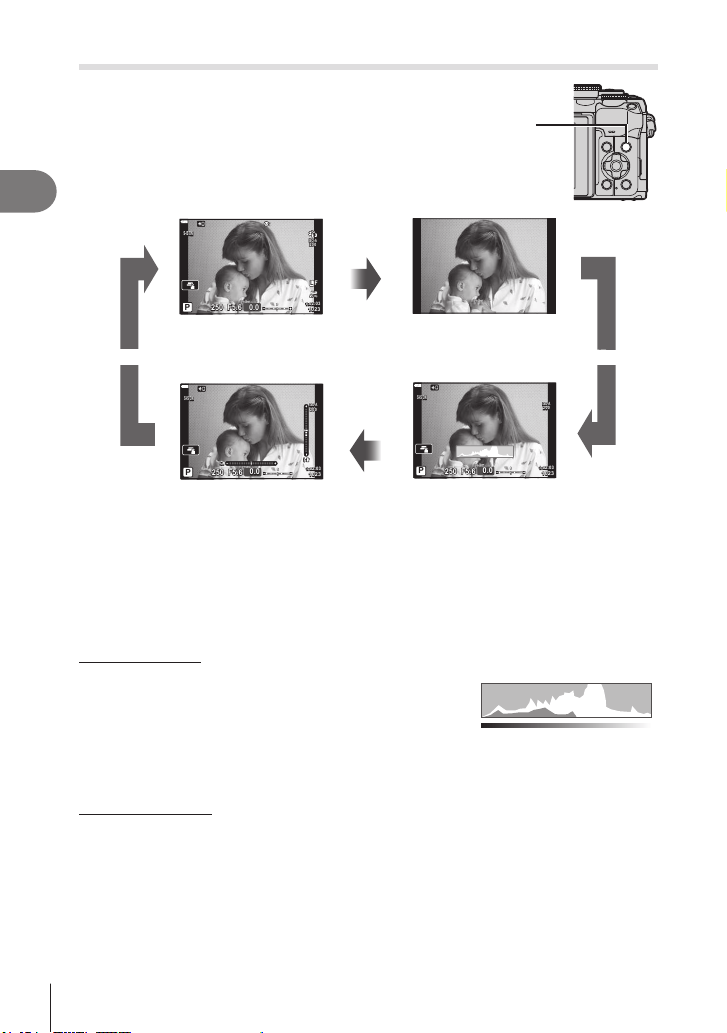

Switching the information
display ......................................28
Choosing a shooting mode and
taking photos .............................. 29
Types of shooting modes..........29

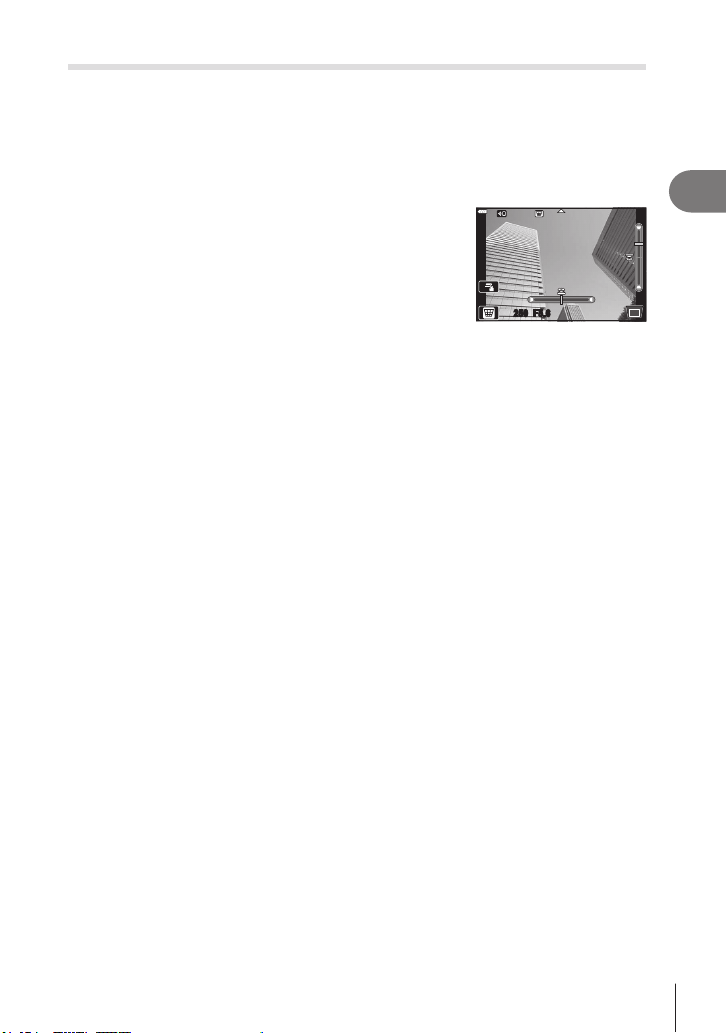

Taking high angle and low angle
shots ............................................ 31
Shooting with touch screen
operations ...................................32
Switching Displays with the u
(Shortcut) Button ........................33
Letting the camera choose the
settings (AUTO mode) ...............34

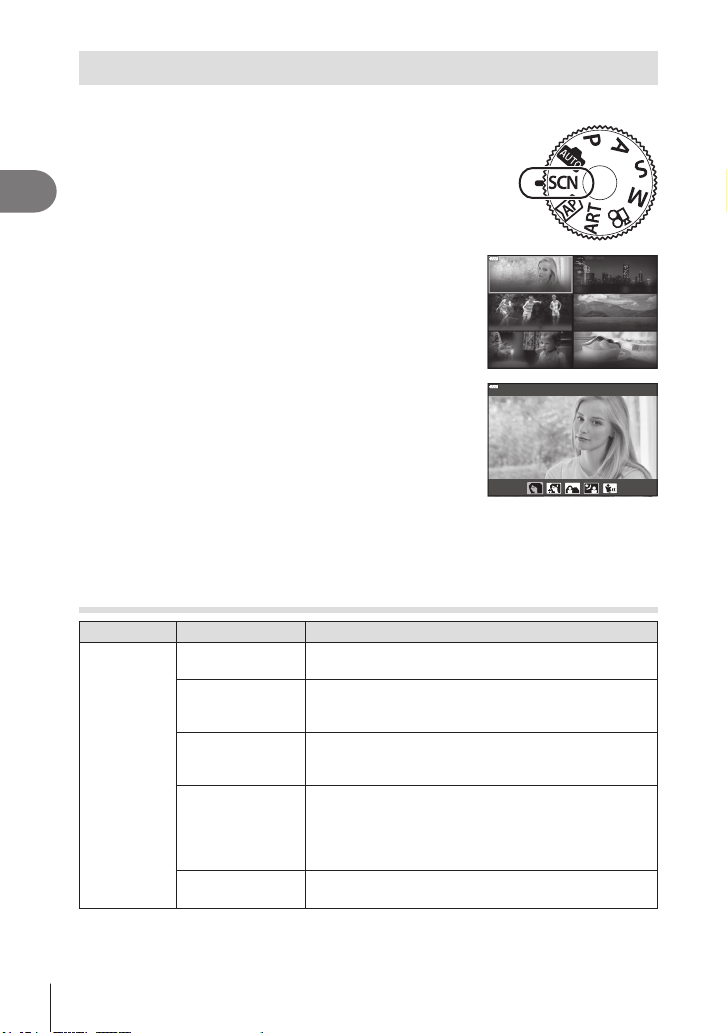

Shooting in scene mode
(SCN mode) ................................36
Types of scene modes..............36
Shooting in advanced photo
mode (Z mode) ........................ 40
AP Mode Options .....................40
[Live Composite]: Live Composite
Photography .............................41
[Live Time]: Live Time
Photography .............................42
[Multiple Exposure]: Shooting
Multiple Exposures ...................43
[HDR]: Taking Composite Photos
with HDR ..................................44
[Silent s] Mode ....................... 45

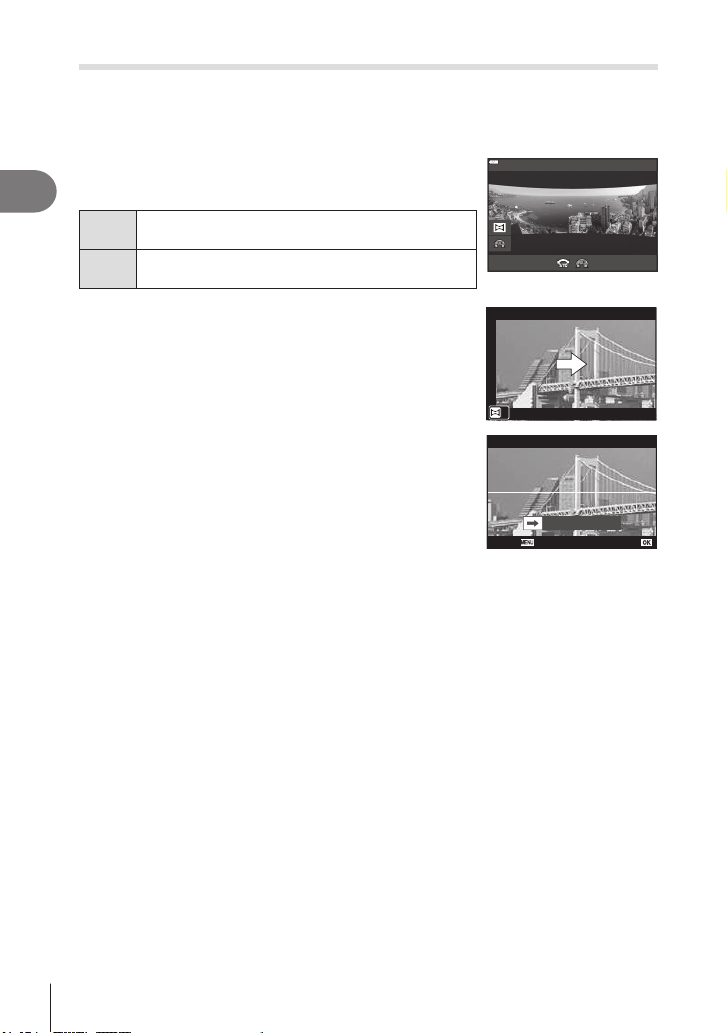

Shooting a Panorama ............... 46
[Keystone Compensation] ........47
[AE Bracketing]: Varying Exposure
over a Series of Shots ..............48
[Focus Bracketing]: Varying
Focus Distance over a
Series of Shots .........................49
Using art lters (ART mode) ......50
Types of art lters .....................52
Adjusting the degree of the art
lter effect (Fine-Tuning)...........53
Using [Partial Color]..................53
Letting the camera choose
aperture and shutter speed

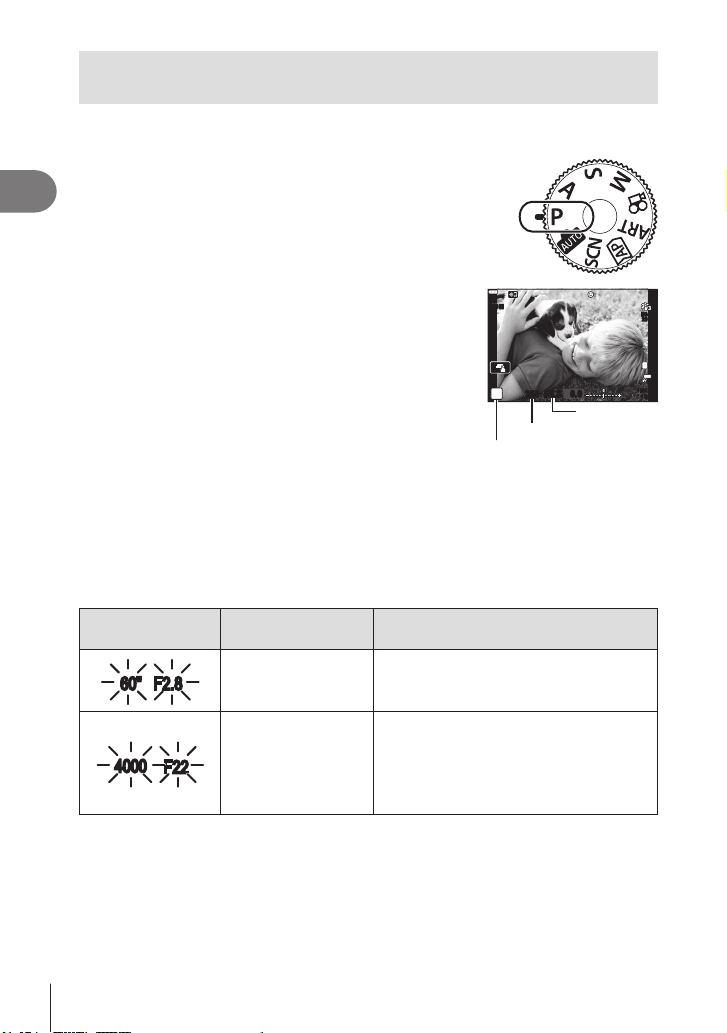

(Program mode) ..........................54

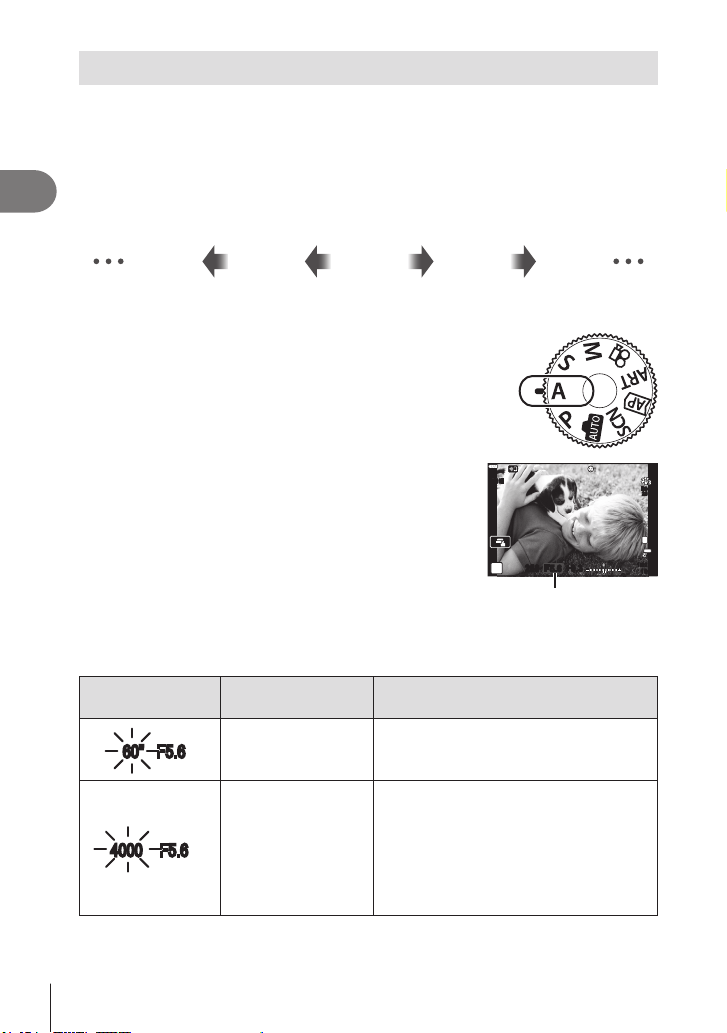

Choosing aperture
(Aperture Priority mode) ............ 56
Table of Contents
5
EN
Choosing shutter speed
(Shutter Priority mode) ..............58

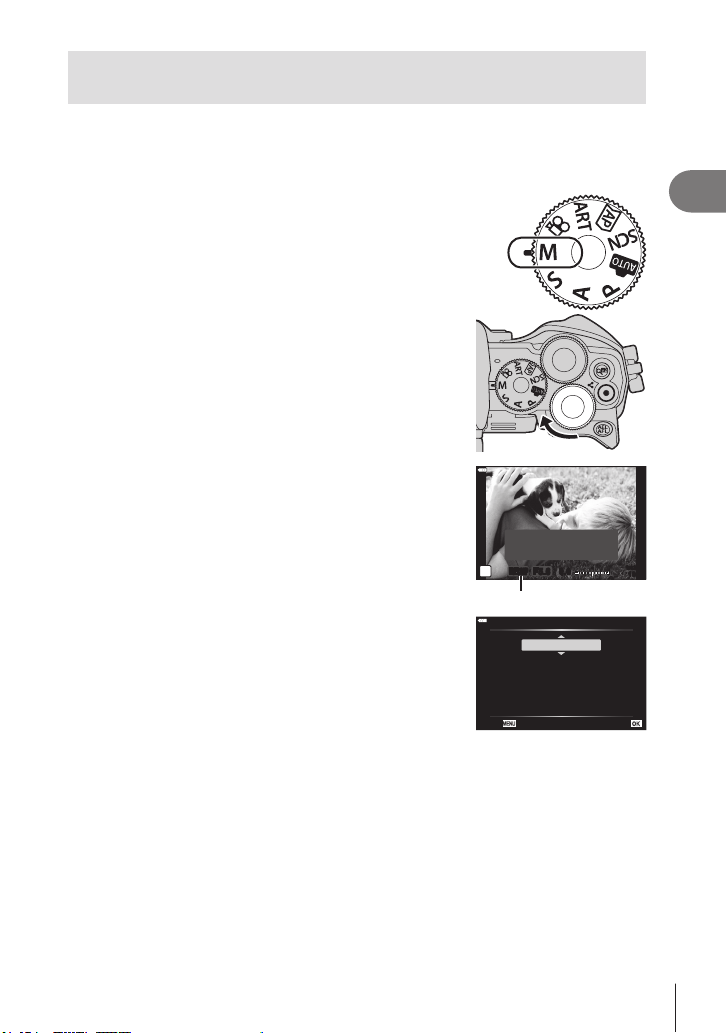

Choosing aperture and shutter
speed (Manual mode) .................60
Shooting with long exposure time
(BULB/LIVE TIME) ......................61
Live composite
photography (dark and light eld
composite) ..................................63
Recording movies in photo
shooting modes ..........................65
Recording movies in movie
mode ............................................ 66
Movie Mode Options.................67
Recording Slow Motion
Movies .........................................68
Silencing Camera Sounds While
Shooting Movies .........................68

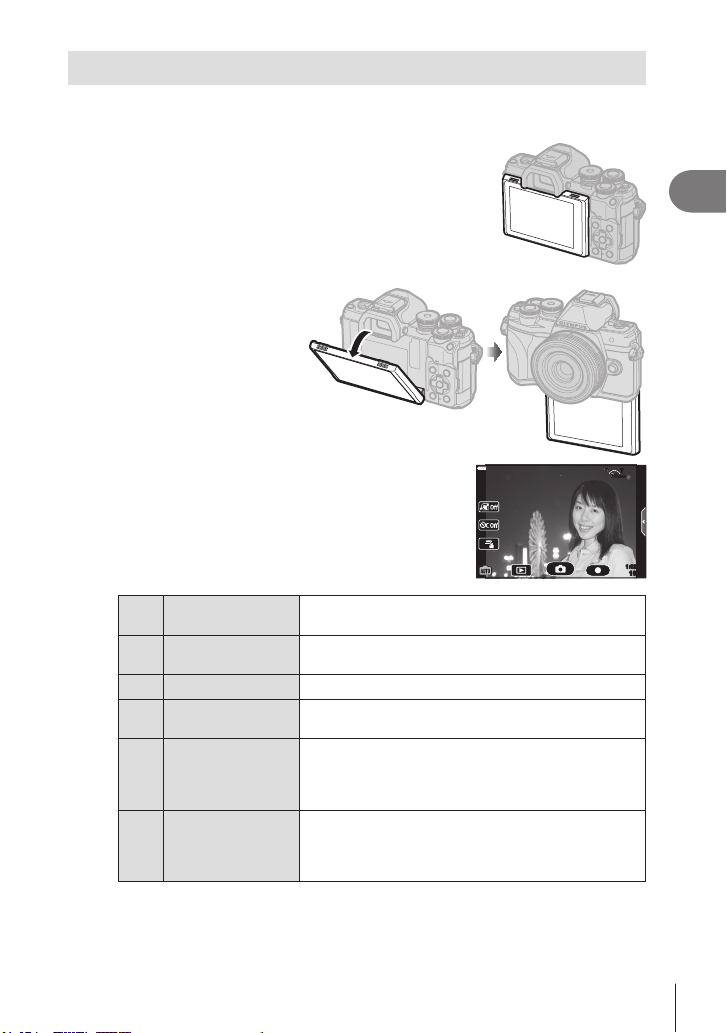

Taking Photos in Self-Portrait
Mode ............................................69
Using various settings ............... 71
Controlling exposure
(Exposure F) ...........................71
Digital Zoom
(Digital Tele-converter) .............71
Selecting the AF target mode
(AF target settings) ...................72
Setting the AF target .................72

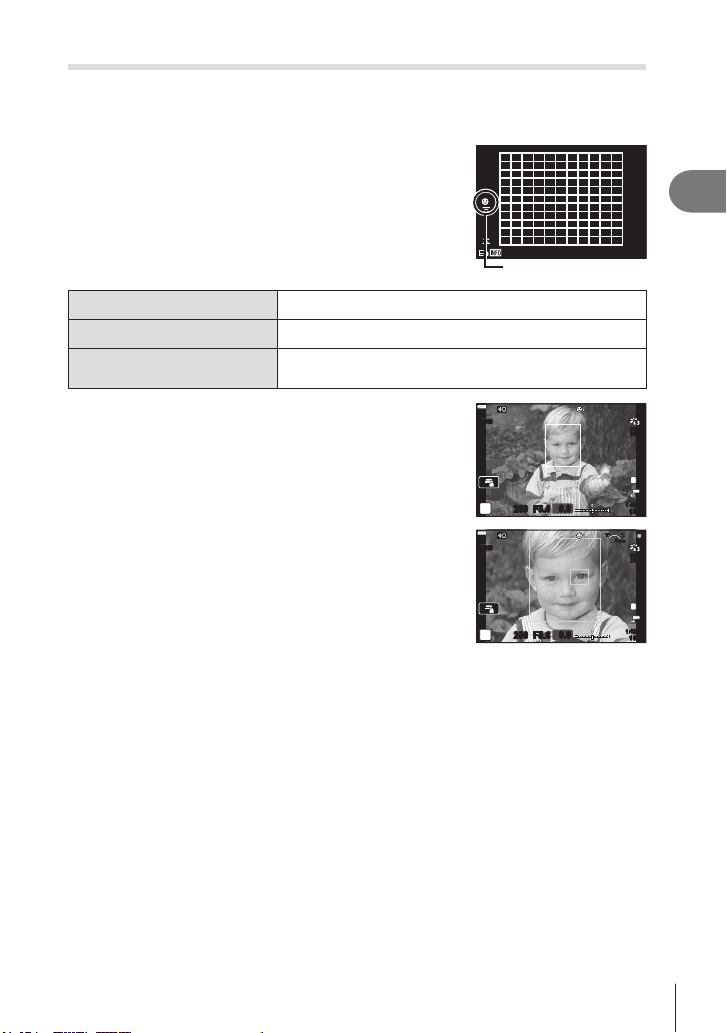

Face priority AF/Eye
priority AF .................................73
Changing ISO sensitivity
(ISO) .........................................74
Using a ash
(Flash photography) .................75
Performing the sequential/
self-timer shooting ....................77
The Electronic Shutter
(Silent s) ................................78
Calling shooting options ...........79
Processing options
(Picture Mode) ..........................81
Adjusting overall color
(Color Creator)..........................82
Adjusting color
(WB (white balance)) ................83
Choosing a focus mode
(AF Mode).................................84
Setting the image aspect ..........86
Selecting image quality
(Still image quality, KK) ......86

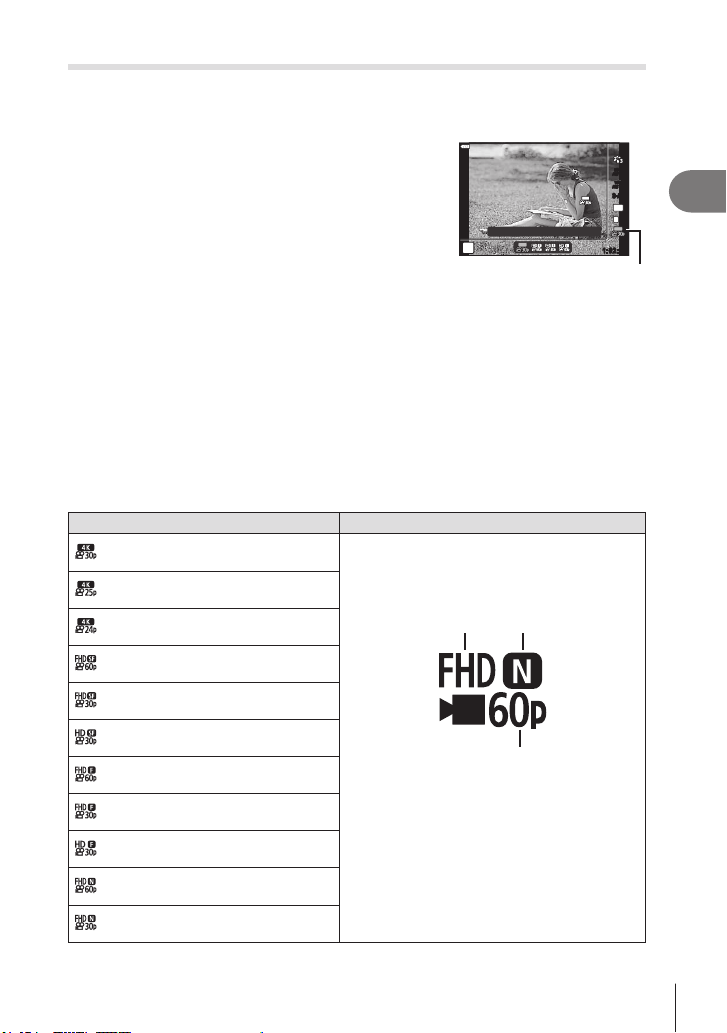

Selecting image quality
(Movie quality, nK) ..............87
Choosing an Exposure Mode
(n Mode (Movie Exposure
Modes)) ....................................91
Adjusting ash output
(Flash intensity control) ............92
Reducing camera shake
(Image Stabilizer) .....................93
Making ne adjustments to white
balance (WB Compensation)....94
Choosing how the camera
measures brightness
(Metering) .................................95
Making ne adjustments to
sharpness (Sharpness) ............95
Making ne adjustments to
contrast (Contrast) .................... 96
Making ne adjustments to
saturation (Saturation) ..............96
Making ne adjustments to tone
(Gradation) ...............................97
Applying lter effects to
monochrome pictures
(Color Filter)..............................97
Adjusting the tone of a
monochrome image
(Monochrome Color).................98
Adjusting i-Enhance effects
(Effect) ......................................98
Setting the color reproduction
format (Color Space) ................99
Changing the brightness
of highlights and shadows
(Highlight&Shadow Control) ...100
Assigning functions to buttons
(Button Function) ....................101
Table of Contents
6
EN
Zoom frame AF/Zoom AF
(Super Spot AF) ...................... 103
Playback 105
Information display during
playback ....................................105
Playback image information ...105
Switching the information

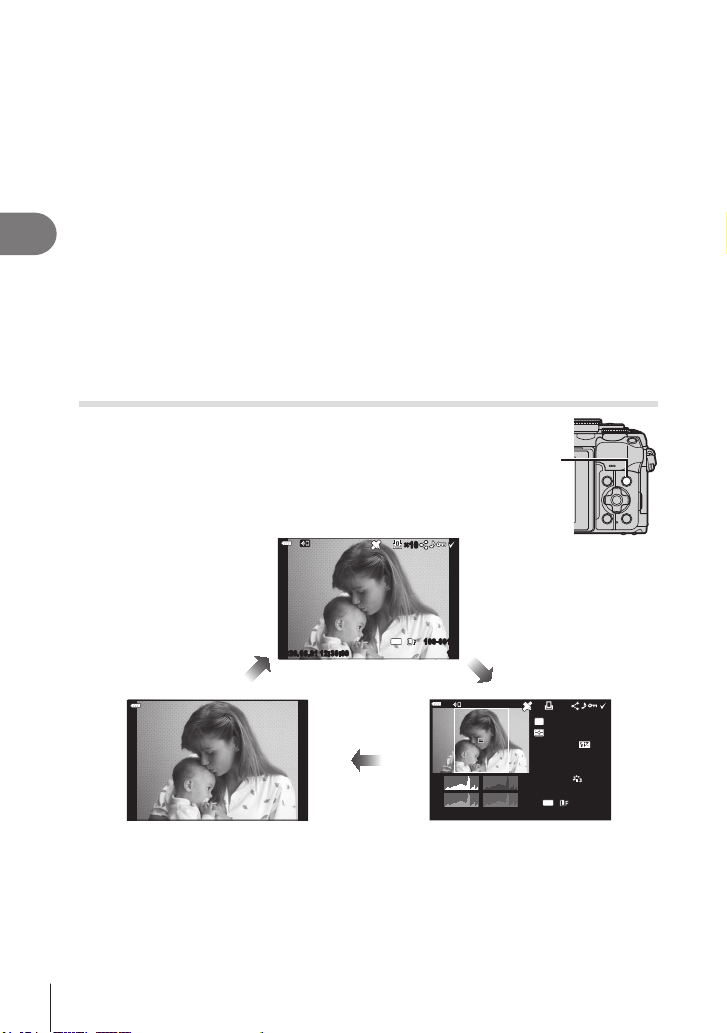

display ....................................106
Viewing photographs and
movies .......................................107
Finding Pictures Quickly (Index
and Calendar Playback) .........108
Zooming In
(Playback Zoom) ....................108
Rotating Pictures (Rotate) ......108
Viewing Images as a Slideshow
(L) .........................................109
Watching movies .................... 11 0
Protecting Pictures (0) ....... 110
Deleting Pictures (Erase)........ 110
Selecting Pictures for Sharing
(Share Order) ......................... 111
Cancelling all share orders
(Reset share Order)................ 111
Selecting Multiple Pictures
(0, Erase Selected, Share
Order Selected) ...................... 111
Creating a print order
(DPOF) ................................... 11 2
Removing all or selected pictures
from the print order ................. 113
Adding Audio to Pictures
(R) .......................................... 11 3
Audio Playback (Play 7) ........ 113
Scrolling Panoramas .............. 114
Using the touch screen ............115
Single-frame playback ............ 115
Index/Calendar playback ........ 115
Selecting and protecting
images .................................... 116

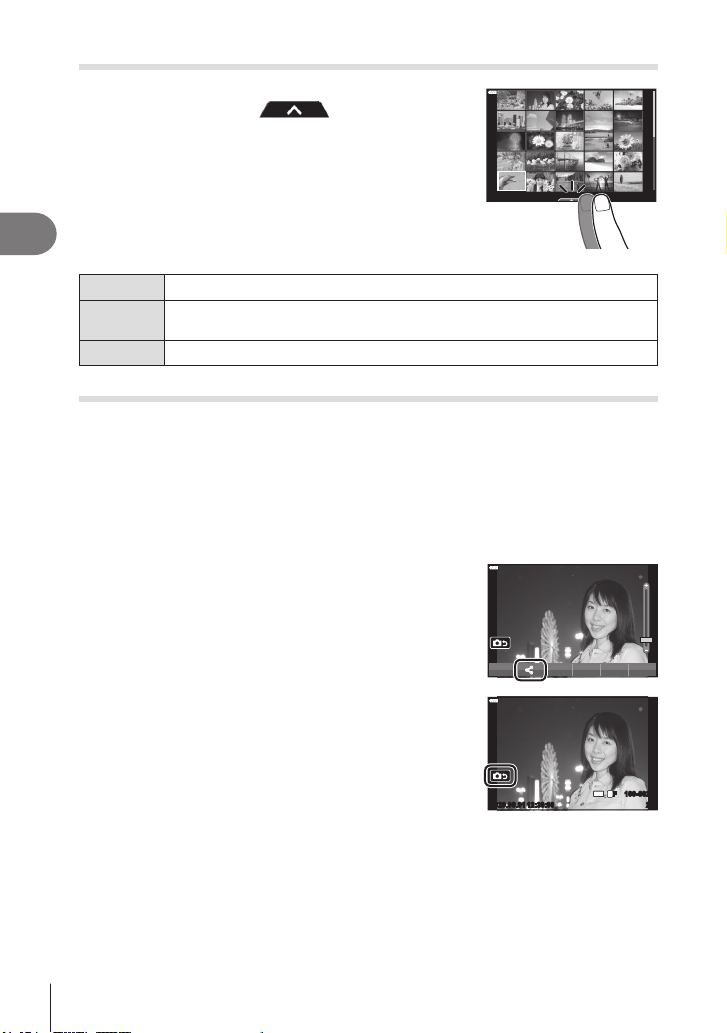

Viewing pictures in self-portrait
mode....................................... 116
Menu functions 117
Basic menu operations ............117
Using Shooting Menu 1/
Shooting Menu 2 ......................118
Returning to default settings
(Reset) .................................... 118
Processing options
(Picture Mode) ........................ 119
Digital Zoom
(Digital Tele-converter) ........... 119
Improving Focus in Dark
Surroundings
(AF Illuminator) ....................... 119
Choosing a Zoom Speed
(K Elec. Zoom Speed) .........120
Recording multiple exposures
in a single image
(Multiple Exposure).................120
Shooting automatically
with a xed interval
(Intrvl. Sh./Time Lapse) ..........122
Silent-Mode Options
(Silent s Settings) ................123
Wireless remote control
ash photography
(# RC Mode) .........................124
Using the Video Menu ..............125
Using the Playback Menu ........126
Automatically Rotating
Portrait-Orientation Pictures for
Playback (R) ........................126
Retouching Pictures (Edit) ...... 126
Combining Pictures
(Image Overlay) ...................... 128
Creating Movie Stills
(In-Movie Image Capture).......128
Trimming movies
(Movie Trimming) .................... 129
Removing Protection from All
Pictures (Reset Protect) .........129
Table of Contents
7
EN
Using the setup menu .............. 130
Formatting the card
(Card Setup) ...........................131
Deleting all images
(Card Setup) ...........................131
Choosing a language (W) .... 131
Using the custom menus .........132
a AF/MF................................132
M Button/Dial.........................132
N Disp/8/PC ......................133
O Disp/8/PC .......................133
P Exp/ISO/BULB ..................134
Q Exp/ISO/BULB ..................134
b # Custom .........................135
W K/WB/Color ....................135
X Record...............................136
c EVF ...................................137
a
K
Utility ...........................137
AEL/AFL .................................138
Manual Focus Assist
(MF Assist)..............................138
Adding information displays....139
Viewing camera images on TV
(HDMI) ....................................140
Shutter speeds when the
ash res
(#X-Sync./#Slow Limit) ........141
Combinations of JPEG image
sizes and compression rates
(K Set) .................................141
Connecting the camera to a
smartphone 142
Pairing the Camera and
Smartphone ..............................143
Wireless Connection Standby
Setting for When the Camera Is
On ..............................................144
Wireless Settings for When the
Camera Is Off ............................145
Transferring images to a
smartphone ............................... 147
Automatically uploading images
while the camera is off ............. 147
Shooting remotely with a
smartphone (Live View) ...........148
Shooting remotely with a
smartphone
(Remote Shutter) ......................148
Adding position information to
images .......................................149
Resetting wireless LAN/
Bluetooth
®
settings ..................149
Changing the password ...........150
Disabling wireless LAN/
Bluetooth
®
................................. 150
Connecting the camera to a
computer 151
Copying pictures to a
computer ...................................151
Installing the PC software .......152
Cautions 153
Batteries ....................................153
Using your USB-AC adapter
abroad .......................................153
Usable cards .............................154
Record mode and le size/number
of storable still pictures ........... 154
Interchangeable lenses ............155

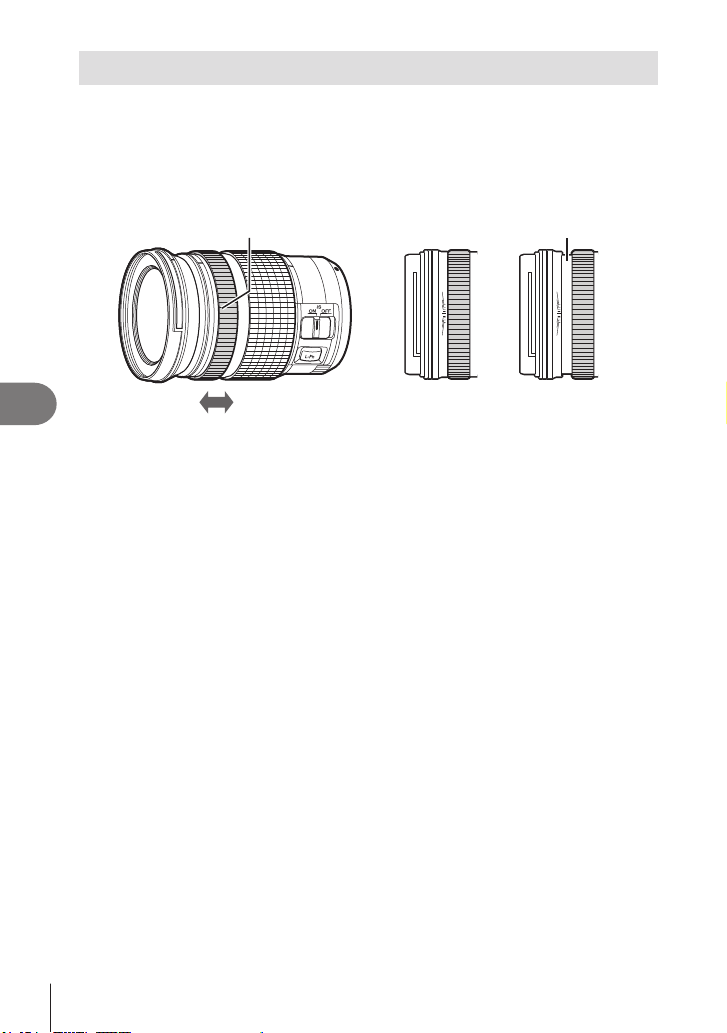

MF Clutch Lenses .....................156
Compatible Flash Units ...........157
Wireless remote control ash
photography............................158
Other external ash units ........159
System chart ............................. 160
Table of Contents
8
EN
Information 162
Cleaning and storing the
camera ....................................... 162
Cleaning the camera ..............162
Storage ...................................162
Cleaning and checking the image
pickup device .......................... 162
Pixel Mapping - Checking the
image processing functions ....163
Shooting tips and information 164
Error codes ...............................167
Defaults .....................................169
Specications ...........................173
SAFETY PRECAUTIONS 176
SAFETY PRECAUTIONS ..........176
Index 181
Feature Index
9
EN
Feature
g
Shooting Mode 29
Monitor Display 28, 106
Live Controls 79
LV Super Control Panel 80
W Shooting Menu 1
Reset 118
Picture Mode 81, 119
Digital Tele-converter 119
Metering 95
AF Illuminator 119
X Shooting Menu 2
K Image Stabilizer
93
K Elec. Zoom Speed
120
x
92
Multiple Exposure 120
Intrvl. Sh./Time Lapse 122
Silent s Settings
123
# RC Mode
124
n Video Menu
Movie R
125
Recording Volume
125
n AF Mode
125
n Image Stabilizer
93
n Elec. Zoom Speed
125
Video Frame Rate
87, 125
Video Bit Rate
87, 125
q Playback Menu
y
109
R
126
Edit 126
Print Order
112
Reset Protect
129
Reset share Order
111
Device Connection
143
Feature
g
G Custom Menu
a AF/MF
AEL/AFL 132, 138
AF Targeting Pad
132
IFace Priority
73, 132
MF Assist 132, 138
Reset Lens 132
M Button/Dial
Button Function 101, 132
qR Function
132
Dial Function 132
N Disp/8/PC
K Control Settings
80, 133
G/Info Settings
133, 139
Live View Boost
133
Flicker Reduction
133
Displayed Grid
133
Peaking Color
133
O Disp/8/PC
8
133
HDMI 133, 140
USB Mode 133
P Exp/ISO/BULB
Exposure Shift 134
ISO-Auto Set 134
Noise Filter 134
Noise Reduct. 62, 134
Q Exp/ISO/BULB
Bulb/Time Timer
61, 134
Live Bulb
61, 134
Live Time
61, 134
Composite Settings
63, 134
Feature Index
Feature Index
10
EN
Feature
g
b # Custom
#X-Sync.
135, 141
#Slow Limit
135, 141
w+F
71, 92, 135
#+WB
135
W K/WB/Color
K Set
135, 141
WB
83, 135
W Keep Warm Color
135
Color Space
99, 135
X Record
File Name
136
Edit Filename
136
Copyright Settings 136
c EVF
EVF Auto Switch 137
EVF Adjust 137
a
K
Utility
Pixel Mapping
137, 163
Level Adjust
137
Touchscreen Settings
137
Sleep
21, 137
Certication
137
e Setup Menu
Card Setup
131
X
23
W
130, 131
s
130
Rec View
130
Wi-Fi/Bluetooth Settings 150
Firmware 130
Names of parts
11
EN
Names of parts
1
2
3
4
5
6
7
8
0
a
9
b
c
d
f
e
g
1 Mode dial ........................................P. 29
2 Rear dial* (o) .................. P. 54-60, 107
3 R (Movie)/h button ............ P. 65/P. 111
4 b (Digital Tele-converter) button
................................................P. 71, 101
5 Shutter button .................................P. 30
6 Front dial* (r) ..............P. 54-60, 71, 75, 107
7 Lens attachment mark ....................P. 19
8 Mount (Remove the body cap before
attaching the lens.)
9 Built-in ash ....................................P. 75
0 Stereo microphone .......P. 113, 125, 127
a Diopter adjustment dial ...................P. 25
b ON/OFF lever ................................P. 21
c u (Shortcut) button .......................P. 33
d Self-timer lamp/AF illuminator
.............................................P. 77/P. 119
e Strap eyelet.....................................P. 14
f Lens release button ........................P. 20
g Lens lock pin
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
Names of parts
12
EN
1
2
3
4
h abd cf eg
5
6
7
8
9
0
k jl
i
1 Viewnder .......................................P. 25
2 Eye sensor ......................................P. 25
3 Eyecup ..........................................P. 159
4 Monitor (Touch screen)
............................ P. 26, 32, 79, 105, 115
5 Hot shoe (Hot shoe cover) ............P. 157
6 u (LV) button ...............................P. 25
7 AEL/AFL button ..........P. 101, 102, 138
8 Connector cover
9 Micro-USB connector....................P. 151
0 HDMI micro connector ..................P. 140
a INFO button ...................P. 28, 106, 139
b Q button ................................P. 79, 107
c q (Playback) button ....................P. 107
d CHARGE (battery charge) lamp ....P. 17
e D (Erase) button ..........................P. 110
f Arrow pad* .................P. 22, 72 – 77, 107
g MENU button ...............................P. 117
h Speaker
i Card slot .........................................P. 16
j Battery/card compartment cover
..................................................P. 15, 16
k Battery/card compartment lock
..................................................P. 15, 16
l Tripod socket
* In this manual, the FGHI icons represent operations performed using the arrow pad.
Preparation
1
13
EN
1
Preparation
Unpacking the box contents
At purchase, the package contains the camera and the following accessories.
If anything is missing or damaged, contact the dealer from whom you purchased the
camera.
Camera Body cap * EP-15 eyecup * Hot shoe cover * Strap
or
USB cable
CB-USB12
Lithium-ion battery
BLS-50
USB-AC adapter F-5AC
Basic Manual Warranty Card
* The body cap, eyecup, and hot shoe cover attached to or inserted in the camera.
Preparation
1
14
EN
Attaching the Strap
1
Before attaching the strap, remove the end
from the keeper loop and loosen the strap
as shown.
Keeper loop
2
Pass the end of the strap through the strap
eyelet and back through the keeper loop.
3
Pass the end of the strap through the buckle and tighten as shown.
• Attach the other end of the strap to the other eyelet.
• After attaching the strap, pull on it rmly to ensure that it will not come loose.
Preparation
1
15
EN
Inserting and Removing the Battery and Card
In this manual, all storage devices are referred to as “cards.”
The camera uses third-party SD, SDHC, or SDXC memory cards conforming to the SD
(Secure Digital) standard.
Cards must be formatted with this camera before rst use or after being used with
other cameras or computers. g “Formatting the card (Card Setup)” (P. 131)
1
Conrm that the ON/OFF lever
is in the OFF position.
ON/OFF lever
2
Opening the battery/card
compartment cover.
1
2
Battery/card compartment lock
Battery/card compartment cover
3
Loading the battery.
• Use only BLS-50 batteries
(P. 13, 175).
Direction
indicating
mark
Preparation
1
16
EN

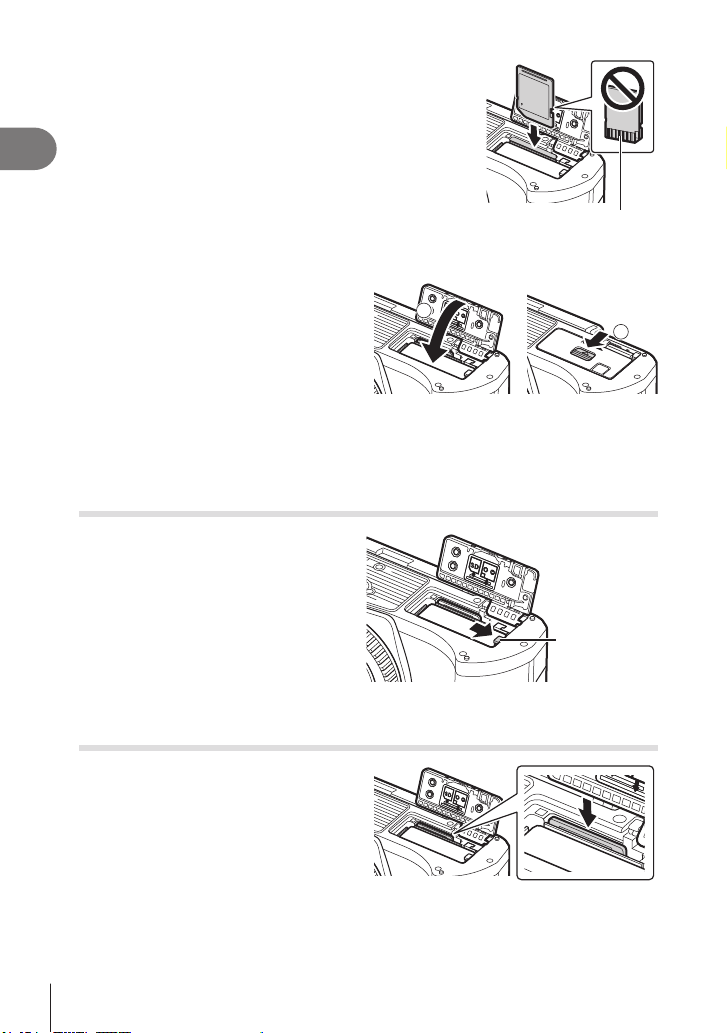

4
Loading the card.
• Slide the card in until it is locked into place.
g “Usable cards” (P. 154)
Terminal area
• Do not forcibly insert a damaged or deformed card. Doing so may damage the card
slot.
5
Closing the battery/card
compartment cover.
• Be sure the battery/card compartment
cover is closed before using the camera.
2
1
$
• It is recommended to set aside a backup battery for prolonged shooting in case the
battery in use drains.
• Also read “Batteries” (P. 153).
Removing the battery
Turn off the camera before opening or
closing the battery/card compartment cover.
To remove the battery, rst push the battery
lock knob in the direction of the arrow and
then remove.
• Do not remove the battery while the card
write indicator is displayed (P. 26,
27).
• Contact an authorized distributor or
service center if you are unable to
remove the battery. Do not use force.
Battery lock knob
Removing the card
Press the inserted card lightly and it will be
ejected. Pull out the card.
• Do not remove the card while the card
write indicator is displayed (P. 27).
Preparation
1
17
EN
Charging the Battery
1
Conrm that the ON/OFF lever
is in the OFF position.
ON/OFF lever
2
Check that the battery is in the camera, and connect the USB cable and
USB-AC adapter.
1
2
3
AC outlet
USB cable (supplied)
or
USB-AC adapter
(supplied)
Micro-USB connector
• Never use any cable other than supplied or Olympus-designated USB cable. This
may cause smoking or burning.
• The CHARGE lamp light during charging. Charging
takes about 4 hours. The lamp goes out as the
batteries reach full charge.
• Even if charging is in progress, it stops when the
camera is turned on.
• The USB-AC adapter cannot be used to charge the batteries when the camera is on.
• If a charging error occurs, the CHARGE lamp will blink. Disconnect and reconnect the
USB cable.
• USB charging is available when the battery temperature is between 0 and 40 °C (32 and
104 °F).
Preparation
1
18
EN
• A charger (BCS-5: sold separately) can be used to charge the battery.
%
• For safety reasons, charging may take longer, or the battery may not reach full charge,
when the battery is charged in a high-temperature environment.
• The batteries will not charge while the camera is off if pictures are being uploaded to a
smartphone via Wi-Fi (background auto upload). g “Automatically uploading images
while the camera is off” (P. 147)
$ The USB-AC Adapter
• Be sure to unplug the USB-AC adapter for cleaning. Leaving the USB-AC adapter
plugged in during cleaning could result in injury or electric shock.
Preparation
1
19
EN
Attaching a lens to the camera
1
Conrm that the ON/OFF lever is in the
OFF position.
2
Remove the rear cap of the lens
and the body cap of the camera.
1
2
1
2
Rear cap
3
Align the lens attachment mark (red) on
the camera with the alignment mark (red)
on the lens, then insert the lens into the
camera’s body.
Lens attachment mark
4
Rotate the lens as shown until it clicks into
place.
• Do not press the lens release button.
• Do not touch internal portions of the camera.
5
Remove the front lens cap.
1
1
2
1
1
2
Preparation
1
20
EN
Removing Lenses
1
Conrm that the ON/OFF lever is in the
OFF position.
2
Hold the lens release button and rotate
the lens as shown.
1
2
Lens release button
Interchangeable lenses
Read “Interchangeable lenses” (P. 155).
Preparation
1
21
EN
Turning the camera on
1
Set the ON/OFF lever to the ON position.
• When the camera is turned on, the monitor will turn on.
• To turn the camera off, return the lever to the OFF position.
ON/OFF lever
Monitor
Battery level
The battery level icon will be displayed.
j
(green): The camera is ready to shoot.
k
(green): The battery is not full.
l
(green): The battery is low.
m
(blinks red): Charge the battery.
250250 F5.6
ISO-A
200
1023
1:02:03
Camera sleep operation
If no operations are performed for a minute, the camera enters “sleep” (stand-by) mode to
turn off the monitor and to cancel all actions. Pressing the shutter button reactivates the
camera. The camera will turn off automatically if left in sleep mode for 4 hours. Turn the
camera on again before use. You can choose how long the camera remains idle before
entering sleep mode. g [Sleep] (P. 137)
Preparation
1
22
EN
Initial setup
After turning the camera on for the rst time, perform the initial setup by choosing a
language and setting the camera clock.
• Date and time information is recorded on the card together with the images.
• The le name is also included with the date and time information. Be sure to set the
correct date and time before using the camera. Some functions cannot be used if the date
and time have not been set.
1
Press the Q button when the initial setup
dialog is displaying prompting you to choose a
language.
Please select your language.
Por favor, selecciona tu idioma.
Veuillez choisir votre langue.
Bitte wählen Sie Ihre Sprache.
2
Highlight the desired language using the front or
rear dial or the FGHI buttons on the arrow
pad.
• The language-selection dialog has two pages of
options. Use the front or rear dial or the FGHI
buttons on the arrow pad to move the cursor
between pages.
Cursor
W
Hrvatski
Dansk
Eesti
Deutsch
Indonesia
Norsk
Česky
English
Suomi
Ελληνικά
Italiano
Latviski
Polski
Български
Nederlands
Français
Magyar
Lietuvių k.
Português(Pt)
Set
W
Romanian
Español
Viet Nam
Русский
Slovensky
Svenska
Türkçe
Srpski
Slovenščina
Українська
Setare
3
Press the Q button when the desired language
is highlighted.
• If you press the shutter button before pressing the
Q button, the camera will exit to shooting mode and
no language will be selected. You can perform the
initial setup by turning the camera off and then on
again to display the initial setup dialog and repeating
the process from Step 1.
W
Set
Hrvatski
Dansk
Eesti
Deutsch
Indonesia
Norsk
Česky
English
Suomi
Ελληνικά
Italiano
Latviski
Polski
Български
Nederlands
Français
Magyar
Lietuvių k.
Português(Pt)
• The language can be changed at any time from the e setup menu. g “Choosing a
language (W)” (P. 131)
Preparation
1
23
EN
4
Set the date, time, and date format.
• Use the HI buttons on the arrow pad to highlight
items.
• Use the FG buttons on the arrow pad to change
the highlighted item.
• The clock can be adjusted at any time from the
e setup menu. g [X] (P. 130)
X
2020
Y M D Time
Y/M/D
Cancel
The time is displayed using
a 24-hour clock.
5
Complete the initial setup.
• Press the Q button to set the clock.
• If the battery is removed from the camera and the camera is left for a while, the date and
time may be reset to the factory default setting.
• If you are going to record movies, adjust the frame rate according to the video standard of
the country/region. g [Video Frame Rate] (P. 125)
Turning the camera off
To turn the camera off, return the ON/OFF lever to the OFF
position. See page 145 for information on how to proceed
if the camera displays the dialog shown in the illustration.
Power-off Standby
Activate Wi-Fi/Bluetooth Power-off
Standby so images can be imported
while power is off?
Yes
No
Set
Power-off Standby:On
Confirm whether or not to activate
Power-off Standby every time power
is turned off? This setting can be
changed from the menu anytime.
Confirm every time
Don't show this screen again
Back Set
Preparation
1
24
EN
Camera displays unreadable/not in the selected language
If the camera displays are in an unfamiliar language or use characters you are unable
to read, you may have accidentally selected the wrong language in the language-
selection dialog. Follow the steps below to change languages.
1 Press the MENU button to display the
menus.
2 Highlight the e tab using FG and press
I.
2
1
1
เมนูถ่ายภาพ 1
p
โหมดภาพ
ดิจิทัลเทเลคอน
โหมดวัดแสง
รีเซ
็
ต
ปิ ด
ไฟช
่
วย AF เ ปิ ด
ก ล ับ ตั�งค่า
2
1
เมนูตั�งค่า
X
ไทย
s
เฟิ ร์มแวร์
การตั�งค่า Wi-Fi/Bluetooth
ดูภาพบันทึก
j±0 k±0
0.5 วินาที
’--.--.-- --:--:--
ตั�งค่าการ์ด
ก ล ับ ตั�งค่า
W
3 Highlight [W] using FG and press I.
4 Highlight the desired language using
FGHI and press the Q button.
2
1
เมนูตั�งค่า
X
W ไทย
s
เฟิ ร์มแวร์
การตั�งค่า Wi-Fi/Bluetooth
ดูภาพบันทึก
j±0 k±0
’--.--.-- --:--:--
ตั�งค่าการ์ด
0.5 วินาที
ก ล ับ ตั�งค่า
W
Back Set
Hrvatski
Dansk
Eesti
Deutsch
Indonesia
Norsk
Česky
English
Suomi
Ελληνικά
Italiano
Latviski
Polski
Български
Nederlands
Français
Magyar
Lietuvių k.
Português(Pt)
Shooting
2
25
EN
2
Switching between displays
Shooting
The camera is equipped with an eye sensor, which turns the viewnder on when you
put your eye to the viewnder. When you take your eye away, the sensor turns the
viewnder off and turns the monitor on.
Monitor
Put your
eye to the
viewnder
Viewnder
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
L
0.0
F
4K
30p
250250 F5.6
P
1:02:0
3
1023
S-IS ONS-IS ON
ISO-A
200
L
0.0
F
4K
30p
View through lens shown in monitor View through lens shown in viewnder
• If the viewnder is not in focus, put your eye to the
viewnder and focus the display by rotating the
diopter adjustment dial.
Diopter adjustment dial
• You can display the EVF Auto Switch setting menu
if you press and hold the u button. g [EVF
Auto Switch] (P. 137)
• When [Off] is selected for [EVF Auto Switch], you
can switch displays by pressing the u button.
u button
$
• Tilting the monitor disables the eye sensor.
Shooting
2
26
EN

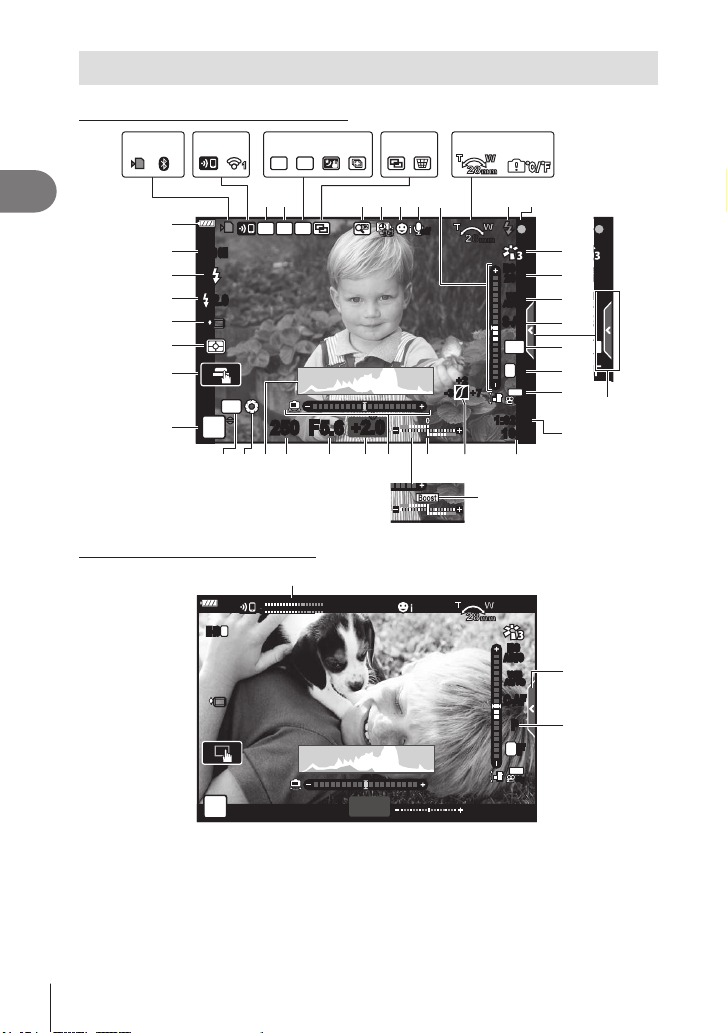

Information displays while shooting
Monitor display during still photography
250250 F5.6
L
F
4:3
AEL
HDR
+
2.0
+
2.0
P
off
FP
+7+7-3-3
+2+2
S-AF
WB
AUTO
-
2.0
28
mm
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
RC
4K
30p
L
WB
AUT
O
ISO-A
200
4:
3
S-AF
BKT
HDR
28
mm
1
2.02.0
m
n
o
p
q
l
k
L
r
3 41 2 7 8 9 0 a b g h
56 ef ic
v
jd
yB x w v uz t sA
K
E
D
F
G
H
I
J
C
Monitor display during movie mode
28
mm
n
M-ISM-IS
1
L
R
L
R
ISO
AUTO
C-AF
P
1:02:03
WB
AUTO
L
F
4K
30p
0.0
O
N
M
Shooting
2
27
EN
1 Card write indicator .........................P. 16
2 Bluetooth
®
connection status
.............................................P. 142 – 150
3 Wireless LAN connection starting up
.............................................P. 142 – 150
4 Wireless LAN connection status
.............................................P. 142 – 150
5 Super FP ash ..............................P. 157
6 RC mode.......................................P. 157
7 HDR ................................................P. 44
8 AE Bracketing .................................P. 48
Focus Bracketing ............................P. 49
9 Handheld Starlight ..........................P. 37
0 Multi Focus Shot .............................P. 39
a Multiple exposure....................P. 43, 120
b Keystone compensation .................P. 47
c Digital Tele-converter .................... P. 119
d Time lapse shooting ......................P. 122
e Face priority/Eye priority .................P. 73
f Movie sound .................................P. 125
g Zoom operation direction/Focal length
h Internal temperature warning ........ P. 167
i Flash ...............................................P. 75
(blinks: charging in progress, lights up:
charging completed)
j AF conrmation mark......................P. 30
k Picture mode...........................P. 81, 119
l ISO sensitivity .................................P. 74
m White balance .................................P. 83
n AF mode .........................................P. 84
o Aspect ratio .....................................P. 86
p Image quality (still images) .............P. 86
q Record mode (movies) ...................P. 87
r Available recording time
s Number of storable still pictures ...P. 154
t Highlight & shadow control ...........P. 100
u Top: Flash intensity control .............P. 92
Bottom: Exposure compensation ....P. 71
v Level gauge ....................................P. 28
w Exposure compensation value........P. 71
x Aperture value .........................P. 54 – 60
y Shutter speed ..........................P. 54 – 60
z Histogram .......................................P. 28
A Preview .........................................P. 102
B AE lock..................................P. 102, 138
C Shooting mode.........................P. 29 – 68
D Touch operation ..............................P. 32
E Metering mode ................................P. 95
F Sequential shooting/Self-timer ........ P. 77
Silent shooting ................................P. 45
G Flash intensity control .....................P. 92
H Flash mode .....................................P. 75
I Image stabilizer...............................P. 93
J Battery level ....................................P. 21
K Live guide recall ..............................P. 34
L Live view boost .............................P. 133
M Recording level meter ...................P. 125
N Silent shooting tab ..........................P. 68
O Movie (exposure) mode ..................P. 91
Shooting
2
28
EN
Switching the information display
You can switch the information displayed in
the monitor during shooting using the INFO
button.
INFO button
INFO
Level Gauge display
(Custom2)
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
INFO
Image Only
Histogram display
(Custom1)
Basic Information*
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
L
F
4K
30p
INFO
INFO
* Not displayed in n mode (movie mode) unless recording is in progress.
• You can change Custom1 and Custom2 settings. g [G/Info Settings] > [LV-Info]
(P. 133)
• The information display screens can be switched in either direction by rotating the front
dial while pressing the INFO button.
Histogram display
A histogram showing the distribution of brightness
in the image is displayed. The horizontal axis
gives the brightness, the vertical axis the number
of pixels of each brightness in the image. During
shooting, overexposure is indicated in red,
underexposure in blue, and the range metered
using spot metering in green.
More
Less
Dark Bright
Level gauge display
The orientation of the camera is indicated. The “tilt” direction is indicated on the vertical bar
and the “horizon” direction on the horizontal bar. The camera is level and plumb when the
bars turn green.
• Use the indicators on the level gauge as a guide.
• Error in the display can be corrected via calibration (P. 137).
Shooting
2
29
EN
Choosing a shooting mode and taking photos
Use the mode dial to select the shooting mode,
and then shoot the image.
Indicator Mode icon
Types of shooting modes
For how to use the various shooting modes, see the following.
Shooting mode Description
g
B
The camera automatically selects the most appropriate shooting
mode.
34
SCN
The camera automatically optimizes settings for the subject or
scene.
36
Z
Use for quick access to advanced shooting settings. 40
ART You can shoot with the effect of artistic expression added. 50
P
The camera meters subject brightness and automatically adjusts
shutter speed and aperture for optimal results.
54
A
You choose the aperture and the camera automatically adjusts
shutter speed for optimal results.
56
S
You choose the shutter speed and the camera automatically
adjusts aperture for optimal results.
58
M
You choose both the aperture and shutter speed. 60
n
Shoot movies of various types. 66
Functions that cannot be selected from menus
Some items may not be selectable from the menus when using the arrow pad.
• Items that cannot be set with the current shooting mode.
• Items that cannot be set because of an item that has already been set:
Settings such as picture mode are unavailable when the mode dial is rotated to B.
Shooting
2
30
EN
1
Rotate the mode dial to choose a mode.
2
Frame the shot.
• Be careful that your ngers
or the camera strap do
not obstruct the lens or AF
illuminator.
Landscape position Portrait position
3
Adjust the focus.
• Display the subject in the center of the monitor, and lightly press the shutter button
down to the rst position (press the shutter button halfway).
The AF conrmation mark (() will be displayed, and a green frame (AF target) will
be displayed in the focus location.
250250 F5.6
1023
1:02:03
28
mm
ISO-A
200
AF conrmation mark
AF target
Press the shutter
button halfway.
• If the AF conrmation mark blinks, the subject is not in focus (P. 164).
4
Release the shutter.
• Press the shutter button all the way
(fully).
• The camera will release the shutter
and take a picture.
• The shot image will be displayed on
the monitor.
Press the shutter
button all the way.
$
• You can focus and take pictures using touch controls. g “Shooting with touch screen
operations” (P. 32)
• To exit to shooting mode from menus or playback, press the shutter button halfway.
Shooting
2
31
EN
Taking high angle and low angle shots
You can change the orientation and angle of the monitor.
Lower angle Upper angle
Rotating the Monitor: Cautions
• Rotate the monitor gently within the limits shown. Do not use force; failure to observe
this precaution could damage the connectors.
• Do not touch the areas indicated in the illustration. Failure to observe this precaution
could damage the product or cause it to malfunction.
$
• Inverting the monitor allows you to take pictures of yourself while you preview the frame.
g “Taking Photos in Self-Portrait Mode” (P. 69)
Shooting
2
32
EN
Shooting with touch screen operations
Tap d to cycle through touch screen settings.
250250 F5.6
ISO-A
200
1023
1:02:03
d
Tap a subject to focus and automatically release the shutter.
This feature is not available in movie mode and during bulb, time, or
composite photography.
U
Touch screen operations are disabled.
V
Tap to display an AF target and focus on the subject in the selected area.
Photographs can be taken by pressing the shutter button.

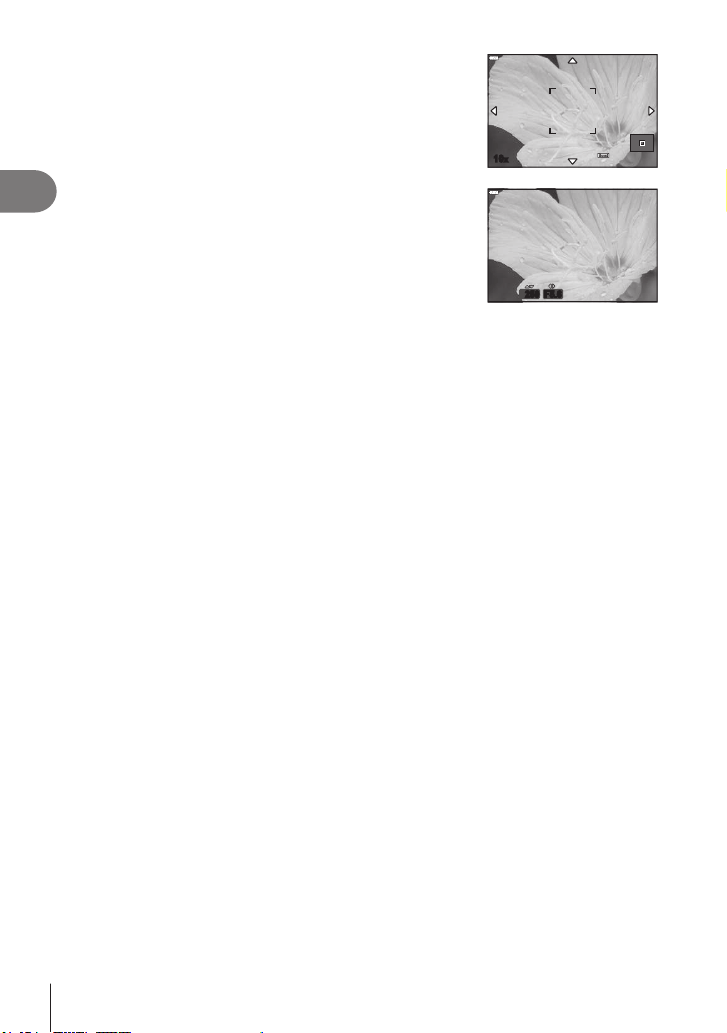

Previewing the subject (V)
1
Tap the subject in the display.
• An AF target will be displayed.
• Use the slider to choose the size of the frame.
• Tap S to turn off the display of the AF target.
1414
1010
7
7
5
5
3x
3x
Off
250250 F5.6
2
Tap Y to zoom in at the frame position.
• Use your nger to scroll the display when the
picture is zoomed in.
• Tap Z to cancel the zoom display.
• You cannot resize or zoom in on the target in movie
mode.
• The situations in which touch screen operations are not available include the following.
One-touch WB, while buttons or dials are in use, etc.
• Do not touch the display with your ngernails or other sharp objects.
• Gloves or monitor covers may interfere with touch screen operation.
• You can disable the touch screen operation. g [Touchscreen Settings] (P. 137)
Shooting
2
33
EN
Switching Displays with the u (Shortcut) Button
Press the u button to switch to each screen of the selected shooting mode between
shots.
u (Shortcut) button
Mode dial
B
Live guide (P. 34)
SCN
Scene mode (P. 36)
Change Color Saturation
Motion Scenery
Nightscapes
Indoors Close-ups
People
Z
Advanced photo mode (P. 40)
ART
Art lter mode (P. 50)
Live Composite
Effect
Off
ART
1
ART
1
Pop Art
P/A/S/M
LV super control panel (P. 80)
n
Movie mode (P. 66)
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Recommended ISO
4K
Shooting
2
34
EN
Letting the camera choose the settings (AUTO mode)
The camera adjusts settings to suit the scene; all you have to do is press the shutter
button.
Use live guides to easily adjust such parameters as color, brightness, and background
blurring.
1
Set the mode dial to B.
• In auto mode, the camera automatically selects
the scene mode option appropriate to your subject
when you press the shutter button halfway. Once the
selection has been made, the B icon in the bottom
left corner of the display will be replaced by the icon
for the chosen scene.
2
To adjust shooting settings, display the live guide
by pressing the u button.
• Use FG to highlight an item in the live guide and
press Q to display a slider.
Change Color Saturation
Guide item
3
Use FG to position the slider and choose a
level.
• Press the Q button to save changes.
• To exit, press the MENU button.
• When [Shooting Tips] is selected, use FG to
highlight the item and press the Q button to display
the detail.
• The effect of the selected level is visible in the
display.
If [Blur Background] or [Express Motions] is selected,
the display will return to normal, but the selected
effect will be visible in the nal photograph.
0
Clear & Vivid
Flat & Muted
Slider
4
To set multiple live guides, repeat Steps 2 and 3.
• A check is displayed on the guide item for live guides
that are already set.
• [Blur Background] and [Express Motions] cannot be
set at the same time.
Change Color Saturation
5
Shoot.
• To clear the live guides from the display, press the MENU button.
• If [RAW] is currently selected for image quality, image quality will automatically be set to
RAW+JPEG.
• Certain live guide settings are not applied to the RAW copy.
• Pictures may appear grainy at some live guide setting levels.
Shooting
2
35
EN
• Changes to live guide setting levels may not be visible in the monitor.
• Frame rates drop the closer the [Express Motions] slider is to [Blurred Motion].
• The ash cannot be used when a live guide is set.
• Choosing live guide settings that exceed the limits of the camera exposure meters may
result in pictures that are overexposed or underexposed.
$
• Touch controls can also be used.

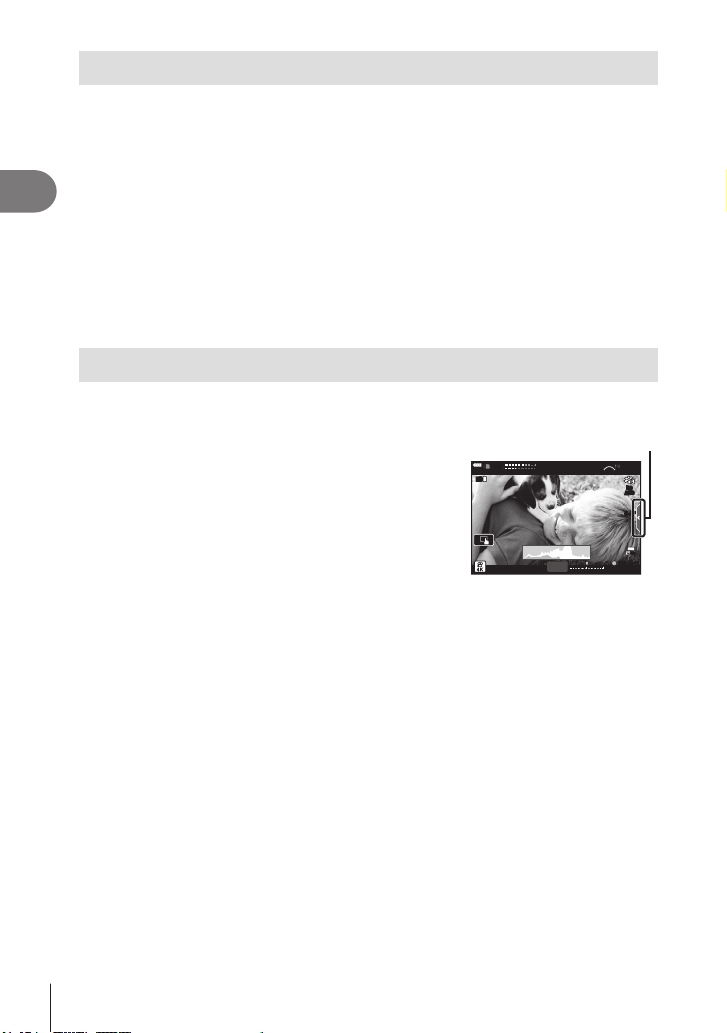

One-Touch e-Portrait
To enable one-touch e-Portrait so that the camera
smooths the complexions of portrait subjects, tap the
A (one-touch e-Portrait) icon to turn it on (B).
g “Taking Photos in Self-Portrait Mode” (P. 69)
250250 F5.6
ISO-A
200
1023
1:02:03
One-touch e-Portrait icon
Shooting
2
36
EN

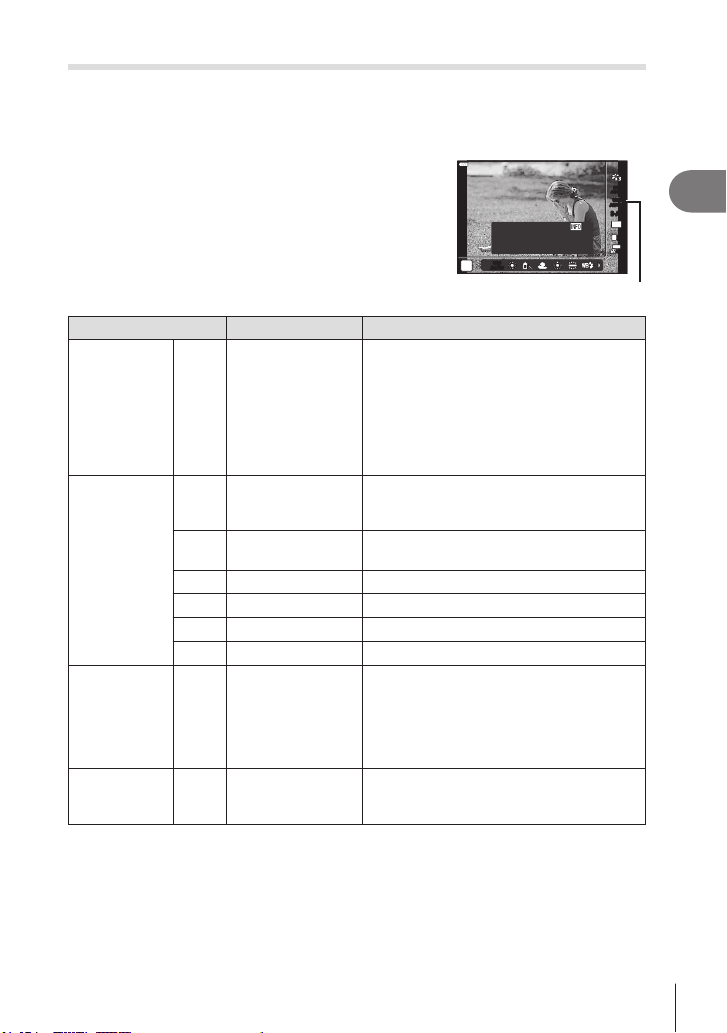

Shooting in scene mode (SCN mode)
The camera automatically optimizes settings for the subject or scene.
1
Rotate the mode dial to SCN.
2
Use FGHI to highlight a scene and press the
Q button.
Motion Scenery
Nightscapes
Indoors Close-ups
People
3
Use HI to highlight a scene mode and press the
Q button.
• Press the u button to choose a different scene.
Portrait
4
Shoot.
$
• Touch controls can also be used.
Types of scene modes
Subject type Scene mode Description
People
B
Portrait
Suitable for portrait shooting.
Brings out skin texture.
e
e-Portrait
Smooths out skin tones and texture.
The camera records two pictures: one with the effect
applied and one without.
D
Portrait +
Landscape
Suitable for portraits featuring a landscape in the
background.
Blues, greens, and skin tones are captured beautifully.
U
Portrait +
Nightscape
Suitable for portrait shooting against a background of
night view.
Raise the ash (P. 75).
Use of a tripod and remote control via OI.Share is
recommended (P. 143, 148).
m
Children
Suitable for photographs of children and other active
subjects.
Shooting
2
37
EN
Subject type Scene mode Description
Nightscapes
G
Nightscape
Suitable for tripod shooting of night scenes.
Use of a tripod and remote control via OI.Share is
recommended (P. 143, 148).
U
Portrait +
Nightscape
Suitable for portrait shooting against a background of
night view.
Raise the ash (P. 75).
Use of a tripod and remote control via OI.Share is
recommended (P. 143, 148).
H
Handheld
Starlight
Suitable for shooting night scenes without a tripod.
Reduces blur when shooting low light/illuminated
scenes.
The camera makes eight exposures and combines
them into a single photograph.
X
Fireworks
Suitable for shooting reworks at night.
Use of a tripod and remote control via OI.Share is
recommended (P. 143, 148).
d
Light Trails
The camera automatically shoots multiple images,
takes newly bright areas only, and composites them
into a single image.
With normal long exposure, an image of light trace such
as star trails with bright buildings tends to get too bright.
You can capture them without over exposure while
checking the progress.
Press the shutter button to start shooting, then view the
changing result in the monitor and press the shutter
button again to end shooting once the desired result is
achieved (maximum 3 hours).
Use of a tripod and remote control via OI.Share is
recommended (P. 143, 148).
• Advanced settings can be accessed via live
composite photography (dark and light eld
composite) in M mode (P. 63).
Motion
C
Sport
Suitable for fast action shooting.
The camera will take photos while the shutter button is
pressed.
m
Children
Suitable for photographs of children and other active
subjects.
J
Panning
Choose to blur the background behind moving objects.
The camera chooses the optimal shutter speed for
panning shots based on camera motion.
Shooting
2
38
EN
Subject type Scene mode Description
Scenery
F
Landscape Suitable for landscape shooting.
`
Sunset Suitable for shooting the sunset.
g
Beach & Snow
Suitable for shooting at snow-capped mountains,
seascapes in the sun, and other whitish scenes.
s
Panorama
Take panoramic photos with a wider angle of view than
other shots.
• For information on taking photos using this feature,
see “Shooting a Panorama” (P. 46), starting from
Step 3.
E
Backlight HDR
Suitable for high-contrast scenes. Each time the shutter
button is pressed, the camera takes four shots and
subsequently merges them into one, correctly exposed
image.
Indoors
W
Candlelight
Suitable for shots of candlelit scenes. Warm colors are
preserved.
k Silent s
Disable camera sounds and lights in situations in which
they may be unwelcome.
• For information on taking photos using this feature,
see “[Silent s] Mode” (P. 45), starting from Step 2.
B
Portrait
Suitable for portrait shooting.
Brings out skin texture.
e
e-Portrait
Smooths out skin tones and texture.
The camera records two pictures: one with the effect
applied and one without.
m
Children
Suitable for photographs of children and other active
subjects.
E
Backlight HDR
Suitable for high-contrast scenes. Each time the shutter
button is pressed, the camera takes four shots and
subsequently merges them into one, correctly exposed
image.
Shooting
2
39
EN
Subject type Scene mode Description
Close-ups
i
Macro Suitable for close-ups.
j
Nature Macro Suitable for vivid close-ups of owers or insects.
d
Documents
Suitable for photos of timetables or other documents.
The camera heightens the contrast between the text
and background.
t
Multi Focus
Shot
The camera takes eight photos, varying the focus
distance with each shot.
• For information on taking photos using this feature,
see “[Focus Bracketing]: Varying Focus Distance over
a Series of Shots” (P. 49), starting from Step 2.
• To maximize the benets of the scene modes, some of the shooting function settings are
disabled.
• Some time may be needed to record pictures taken using [e-Portrait]. In addition, when
the image quality mode is [RAW], the image is recorded in RAW+JPEG.
• Movies cannot be recorded using [e-Portrait], [Handheld Starlight], [Panorama], or
[Backlight HDR].
• [Handheld Starlight] pictures taken with [RAW] selected for image quality will be recorded
in RAW+JPEG format, with the rst frame recorded as a RAW image and the nal
composite as a JPEG image.
• [Backlight HDR] records HDR-processed images in JPEG format. When the image quality
mode is set to [RAW], the image is recorded in RAW+JPEG.
• In [Panning], J is displayed during panning detection, and I is displayed when nothing
is detected.
• When using a lens with an image stabilizer switch in [Panning], turn the image stabilizer
switch off.
Sufcient panning effects may not be obtained in bright conditions. Use a commercially
available ND lter to obtain effects more easily.
Shooting
2
40
EN
Shooting in advanced photo mode (
Z
mode)
Use for quick access to advanced shooting settings.
1
Rotate the mode dial to Z.
2
Use HI to highlight an AP mode.
• Some modes offer additional options that can be
accessed using G.
Live Composite
3
Press the Q button to select the highlighted mode.
• Press the u button to choose a different mode. If additional options are displayed,
press F.
$
• In some modes, the front dial can be used for exposure compensation (P. 71) and the
rear dial for program shift (P. 55).
• Touch controls can also be used.
AP Mode Options
AP mode Description
g
Live Composite
Record light trails from stars and other objects while
keeping exposure constant overall.
41
Live Time
Choose for photos of reworks and night scenery. Make
long time exposures at selected shutter speeds.
42
Multiple Exposure Combine two different images on top of one another. 43
HDR Capture details in both highlights and shadows. 44
Silent s
Disable camera sounds and lights in situations in which
they may be unwelcome.
45
Panorama
Take a series of shots that are joined together to create
a wide-angle photo. Choose from two angles of view: a
wider angle than normal shots (z), or an even wider
angle (y).
46
Keystone
Compensation
Correct the effects of perspective in photos of buildings or
landscapes.
47
AE Bracketing
Each time the shutter button is pressed, the camera takes
a series of photos, varying exposure with each shot.
48
Focus Bracketing
Each time the shutter button is pressed, the camera takes
a series of eight photos, varying the focus distance with
each shot.
49
Shooting
2
41
EN
[Live Composite]: Live Composite Photography
Create photos that record light trails from stars and other objects without changing the
brightness of the background; during shooting, the changing results can be viewed
in the monitor. You can adjust white balance or picture mode and other settings not
available with the SCN mode “Light Trails” option.
1
Highlight [Live Composite] in the AP mode menu (P. 40) and press the Q
button.
2
Press the shutter button halfway down to focus.
• To reduce blur caused by camera shake, x the camera securely to a tripod and use
a remote shutter release controlled via OI.Share (P. 148).
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down to shoot.
• The camera congures the proper settings automatically and starts shooting.
• After pressing the shutter button, there is a time lag until shooting starts.
• The composite image will be displayed at regular intervals.
4
Press the shutter button again to stop shooting.
• View the changing result in the monitor and press the shutter button to end shooting
once the desired result is achieved.
• The recording length in one shooting is up to 3 hours.
$
• Advanced settings can be accessed via live composite photography (dark and light eld
composite) in M mode (P. 63).
Shooting
2
42
EN
[Live Time]: Live Time Photography
You can make long exposures without having to keep the shutter button pressed. The
changing result can be viewed in the monitor during shooting.
1
Highlight [Live Time] in the AP mode menu (P. 40).
2
Press G, use HI to choose the maximum
exposure time, and press the Q button.
• The display refresh rate may change automatically
depending on the maximum exposure time selected.
• The shorter the maximum exposure time, the faster the
display refresh rate.
2
min
2
min
2
min
1
min
4
min
Live Time
3
Press the shutter button halfway down to focus.
• To reduce blur caused by camera shake, x the camera securely to a tripod and use
a remote shutter release controlled via OI.Share (P. 148).
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to start live time photography.
• The camera adjusts settings automatically and begins shooting.
• The changing result can be viewed in the monitor.
5
Press the shutter button again to stop shooting.
• View the changing result in the monitor and press the shutter button to end shooting
once the desired result is achieved.
• Shooting ends automatically when the selected exposure time is reached.
$
• The long exposure (bulb/time) options in M mode offer more advanced settings (P. 61).
Shooting
2
43
EN
[Multiple Exposure]: Shooting Multiple Exposures
Combine two different images on top of one another.
1
Highlight [Multiple Exposure] in the AP mode menu (P. 40) and press the
Q button.
2
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down for the rst shot.
• a is displayed in green if shooting starts.
• The image is shown superimposed on the monitor.
• Press
D to delete the last shot.
4
Take the second shot.
• Use the rst image as a guide to compose the second shot.
• The camera will not go to sleep while multiple exposure is in effect.
• Performing any of the following actions automatically deletes the second shot:
The camera is turned off, the q button is pressed, the MENU button is pressed,
pressing the u button, rotating the mode dial, the battery power runs out, or any cable
is connected to the camera.
%
• For more information on creating image overlays: g “Combining Pictures (Image
Overlay)” (P. 128)
$
• Advanced settings can be used when you select [Multiple Exposure] in the P/A/S/M
mode.
g “Recording multiple exposures in a single image (Multiple Exposure)” (P. 120)
Shooting
2
44
EN
[HDR]: Taking Composite Photos with HDR
Capture details in both highlights and shadows. The camera varies exposure over a
series of four shots and combines them into a single image.
1
Highlight [HDR] in the AP mode menu (P. 40).
2
Press G, use HI to choose [HDR1] or [HDR2],
and press the Q button.
HDR1
Four shots are taken, each with a different
exposure, and the shots are combined into one
HDR image inside the camera. HDR2 provides a
more impressive image than HDR1. ISO sensitivity
is xed to 200.
HDR2
HDR
1
HDR
2
HDR
1
HDR
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to start HDR photography.
• The camera automatically takes four shots when the shutter button is pressed.
• Noise may be more noticeable in photos taken in conditions associated with slow shutter
speeds.
• For best results, secure the camera by, for example, mounting it on a tripod.
• The image displayed in the monitor or viewnder during shooting differs from the nal
HDR picture.
• The HDR-processed image will be saved as a JPEG le. When the image quality mode is
set to [RAW], the image is recorded in RAW+JPEG.
• The picture mode is xed to [Natural] and the color space is xed to [sRGB].
Shooting
2
45
EN
[Silent s] Mode
Disable camera sounds and lights in situations in which they may be unwelcome.
1
Highlight [Silent s] in the AP mode menu (P. 40) and press the Q button.
2
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
3
Press the shutter button all the way down to shoot.
• When the shutter is released, the monitor screen will go dark for a moment. No
shutter sound will be emitted.
• The desired results may not be achieved under ickering light sources such as uorescent
or LED lamps or if the subject moves abruptly during shooting.
• When [Silent s] is selected in the SCN or Z mode, the following measures are
undertaken to reduce the sound and light produced by the camera.
- Electronic shutter: Enabled
- 8: Off
- AF Illuminator: Off
- Flash mode: Off
• Noise reduction is not available when [Silent s] is selected in the SCN or Z mode.
• Note that due to the electronic shutter, the subject may appear to be distorted in
photographs if camera moves quickly during shooting or when shooting fast-moving
subjects.
$
• Press G for sequential/self-timer photography (P. 77).
• Advanced settings can be used when you select Silent s photography (P. 78) in the
P/A/S/M/ART mode. g “Silent-Mode Options (Silent s Settings)” (P. 123)
Shooting
2
46
EN
Shooting a Panorama
Pan the camera following an on-screen guide to create a single wide-angle (panorama)
photo.
1
Highlight [Panorama] in the AP mode menu (P. 40).
2
Press G, then use HI to highlight the desired
panorama type and press the Q button.
z
Take panorama photos with a wider angle of view
than other shots.
y
Take panorama photos with a wider angle of view
than z.
Panorama
3
Highlight a pan direction using FGHI and press
the Q button.
• You can also select the pan direction using the front and
rear dials.
4
Press the shutter button halfway to focus.
5
Press the shutter button the rest of the way down to
start shooting, and then pan the camera slowly in
the direction indicated by the arrow in the display.
• The arrow in the display moves as the camera is
panned.
• To cancel shooting and return to Step 3, press the
MENU button.
Cancel Save
6
When the arrow in the display reaches the end of the progress bar, shooting
will end and the camera will create a panorama.
$
• Focus, exposure, and the like are xed at the values in effect at the start of shooting.
• Before the arrow reaches the end of the progress bar, you can press the Q button or
press the shutter button again to end shooting and record a panorama from the data
recorded to the current point.
• Shooting may be cancelled and an error displayed if:
the camera is panned too slowly or too quickly/the camera is panned diagonally/
the camera is panned in the opposite direction to the arrow in the display/the lens is
zoomed in or out/panning does not start within a set period
• Panorama photography may be unavailable with some lenses.
Shooting
2
47
EN
[Keystone Compensation]
Keystone distortion due to the inuence of lens focal length and proximity to the subject
can be corrected, or enhanced to exaggerate the effects of perspective. Keystone
compensation can be previewed in the monitor during shooting. The corrected image is
created from a smaller crop, slightly increasing the effective zoom ratio.
1
Highlight [Keystone Compensation] in the AP mode menu (P. 40) and press
the Q button.
2
Frame the shot and adjust keystone compensation
while viewing your subject in the display.
• Use the front and rear dials to choose the compensation
amount.
• Use FGHI to choose the area to be recorded.
Depending on the compensation amount, you may be
unable to choose the area recorded.
• Press and hold the Q button to cancel any changes.
250250 F5.6
• To adjust exposure compensation and other shooting options while keystone
compensation is in effect, press the INFO button to view a display other than
keystone compensation adjustment. To resume keystone compensation, press the
INFO button until keystone compensation adjustment is displayed.
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• As the compensation amount increases:
- The image will become coarser
- The zoom ratio of the crop will increase
- It will no longer be possible to reposition the crop in both the vertical and horizontal
displays
• Photos are recorded in RAW+JPEG format when [RAW] is selected for image quality.
• The desired results may not be obtained with converter lenses.
• Depending on the amount of correction, some AF targets may be outside the display area.
An icon (g, h, i or j) is displayed when the camera focuses on an AF target outside
the display area.
• If a focus distance is selected for [Image Stabilizer], the correction will be adjusted for
the selected focus distance. Except when using a Micro Four Thirds or Four Thirds lens,
choose a focal length using the [Image Stabilizer] option (P. 93).
Shooting
2
48
EN
[AE Bracketing]: Varying Exposure over a Series of Shots
Take a series of photos, varying exposure with each shot.
1
Highlight [AE Bracketing] in the AP mode menu (P. 40).
2
Press G, use HI to choose the number of shots,
and press the Q button.
3f
Take 3 shots, the rst at optimal exposure (±0.0 EV),
the second at −1.0 EV, and the third at +1.0 EV.
5f
Take 5 shots, the rst at optimal exposure (±0.0 EV),
the second at −1.3 EV, the third at −0.7 EV, the fourth
at +0.7 EV, and the fth at +1.3 EV.
5
f
3
f
5
f
AE Bracketing
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• Take the set number of shots.
• The t indicator turns green during bracketing.
• The camera brackets the value currently selected for exposure compensation.
Shooting
2
49
EN

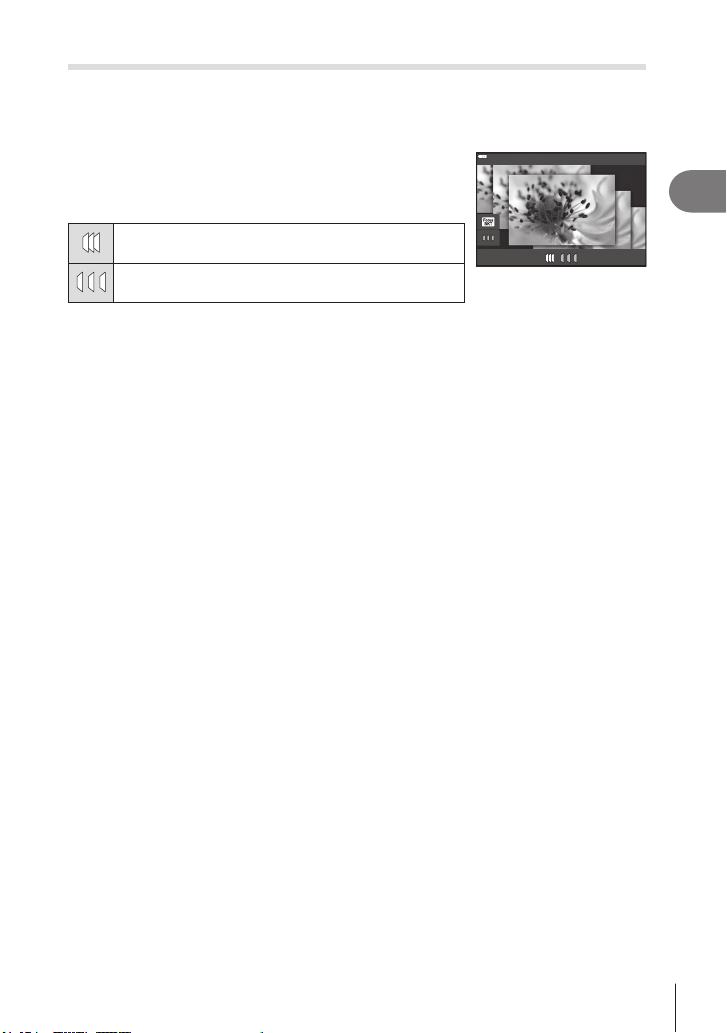

[Focus Bracketing]: Varying Focus Distance over a Series of Shots
Each time the shutter button is pressed, the camera takes a series of eight photos,
varying the focus distance with each shot.
1
Highlight [Focus Bracketing] in the AP mode menu (P. 40).
2
Press G, use HI to choose the amount focus
distance changes with each shot, and press the Q
button.
The focus distance changes by a small amount with
each shot.
The focus distance changes by a large amount with
each shot.
Focus Bracketing
3
Press the shutter button halfway down to focus.
• If the focus indicator blinks, the camera is not in focus.
4
Press the shutter button all the way down to shoot.
• The camera takes eight photos, varying the focus distance with each shot. The camera
will take pictures at, and at distances in front of and behind, the focus distance chosen
when the shutter button is pressed halfway.
• The t indicator turns green during bracketing.
• Focus bracketing ends if zoom is adjusted during shooting.
• Shooting ends when focus reaches ) (innity).
• Focus bracketing uses the electronic shutter.
• Focus bracketing is not available with lenses that have mounts conforming to the Four
Thirds or some Micro Four Thirds standards.
Shooting
2
50
EN
Using art lters (ART mode)
Using art lters, you can easily have fun with artistic effects.
1
Rotate the mode dial to ART.
2
Use HI to highlight a lter.
• The slider appears on the display when [Pop Art I] or
[Soft Focus] is highlighted. Use the slider to adjust the
degree of the art lter effect (P. 53).
Effect
Off
ART
1
ART
1
Pop Art
Slider
3
Press G, and highlight an effect using HI.
• The effects available vary with the selected lter
(Soft Focus Effect, Pin Hole Effect, Frame Effect,
White Edge Effect, Star Light Effect, Color Filter,
Monochrome Color, Blur Effect, or Shade Effect).
O
ff
ART
1
ART
1
Frame Effect
4
Press G to adjust exposure compensation.
• The slider will appear on the display.
• Rotate the front dial to adjust exposure compensation.
• Choose positive (“+”) values to make pictures
brighter, negative (“–”) values to make pictures darker.
Exposure can be adjusted by ±5.0 EV. During live
view, the brightness of the monitor will be adjusted to
a maximum of only ±3.0 EV. If the exposure exceeds
±3.0 EV, the exposure bar will begin ashing.
• To reset exposure compensation, press and hold the
Q button.
Effect
Off
ART
1
ART
1
Exposure/Brightness
0.00.0
Exposure bar
Slider
5
Press the Q button.
6
Shoot.
• Press the u button to choose a different art lter. If effects are displayed, press F.
If [Exposure/Brightness] is displayed, press G.
Shooting
2
51
EN
$
• [Color Filter] (P. 97) and [Monochrome Color] (P. 98) options are available with some
art lters.
• After you press the Q button in Step 5, the front dial can be used for exposure
compensation (P. 71) and the rear dial for program shift (P. 55).
• Touch controls can also be used.
Shooting
2
52
EN
Types of art lters
Pop Art I/II Creates an image that emphasizes the beauty of color.
Soft Focus Creates an image that expresses a soft tone atmosphere.
Pale&Light Color I/II
Creates an image that expresses warm light by scattering overall
light and slightly overexposing the image.
Light Tone
Creates a high-quality image by softening both shadows and
highlights.
Grainy Film I/II
Creates an image that expresses the roughness of black and
white images.
Pin Hole I/II/III
Creates an image that looks as if it was taken using an old or toy
camera by dimming the image perimeter.
Diorama I/II
Creates a miniature-like image by emphasizing saturation and
contrast, and blurring unfocused areas.
Cross Process I/II
Creates an image that expresses a surreal atmosphere. Cross
Process II creates an image that emphasizes magenta.
Gentle Sepia
Creates a high-quality image by drawing out shadows and
softening the overall image.
Dramatic Tone I/II
Creates an image that emphasizes the difference between
brightness and darkness by partially increasing contrast.
Key Line I/II
Creates an image that emphasizes edges and adds an illustrative
style.
Watercolor I/II
Creates a soft, bright image by removing dark areas, blending
pale colors on a white canvas, and further softening contours.
Vintage I/II/III
Expresses an everyday shot in a nostalgic, vintage tone using
printed lm discoloration and fading.
Partial Color I/II/III
Impressively expresses a subject by extracting colors you want to
emphasize and keeping everything else monotone.
Bleach Bypass I/II
The “bleach bypass” effect, which you may recognize from motion
pictures and the like, can be used to great effect in shots of
streetscapes or metal objects.
Instant Film
A contemporary take on the skin tones and shadow gradations
typical of lm.
II and III are altered versions of the original (I).
• To maximize the benets of the art lters, some of the shooting function settings are
disabled.
• If [RAW] is currently selected for image quality (P. 86), image quality will automatically
be set to RAW+JPEG. The art lter will be applied to the JPEG copy only.
• Depending on the subject, tone transitions may be ragged, the effect may be less
noticeable, or the image may become more “grainy.”
• Some effects may not be visible during movie recording.
• Your choice of lters, effects, and movie quality when recording movies may affect
playback speed and smoothness.
Shooting
2
53
EN
Adjusting the degree of the art lter effect (Fine-Tuning)
You can adjust the degree of the lter effect for Pop Art I and Soft Focus before taking
pictures.
1
Select [Pop Art I] or [Soft Focus] in the art lter
menu (P. 52).
• The slider will appear on the display.
• Rotate the front dial to ne-tune the art lter.
• Touch controls can also be used.
• The effect is visible in the display.
• To reset the lter effect, press and hold the Q button.
Effect
Off
ART
1
ART
1
Pop Art
Slider
2
Press the Q button.
3
Shoot.
• Press the u button if you want to ne-tune the art lter again.
Using [Partial Color]
Record only selected hues in color.
1
Select [Partial Color I/II/III] in the art lter menu
(P. 52).
• A color ring appears in the display.
Effect
Off
ART
14
ART
14
ColorColor
Partial Color
2
Rotate the front dial to select a color.
• The effect is visible in the display.
• Touch controls can also be used.
3
Press the Q button.
4
Shoot.
• To choose a different color after shooting, press the u button.
Shooting
2
54
EN
Letting the camera choose aperture and shutter speed
(Program mode)
The camera chooses the optimal aperture and shutter speed according to subject
brightness.
1
Rotate the mode dial to P.
2
Focus and check the display.
• The shutter speed and aperture chosen by the camera
are displayed.
3
Take pictures.
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
L
F
4K
30p
Shooting mode
Shutter speed
Aperture
• You can use the front dial to select exposure compensation.
• You can use the rear dial to select program shift.
• The shutter speed and aperture value displays will blink if the camera is unable to achieve
correct exposure.
The aperture value at the moment when its indication blinks varies with the lens type and
focal length of the lens.
When using a xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 74)
Warning display
example (blinking)
Status Action
60" F2.8
The subject is too
dark.
Use the ash.
F22
4000
The subject is too
bright.
• The metered range of the camera is
exceeded. A commercially available ND
lter (for adjusting the amount of light) is
required.
• Take pictures in silent mode. g “The
Electronic Shutter (Silent s)” (P. 78)
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
• You can choose whether the display reects the effects of exposure compensation or
maintains a constant brightness for ease of viewing. At default settings, the effects of
exposure settings are visible in the display. g [Live View Boost] (P. 133)
Shooting
2
55
EN
Program Shift
Without changing exposure, you can choose from different
combinations of aperture and shutter speed selected
automatically by the camera. This is known as program
shift.
• Rotate the rear dial until the camera displays the desired
combination of aperture and shutter speed.
• The shooting mode indicator in the display changes from P
to
Ps
while program shift is in effect. To end program shift,
rotate the rear dial in the opposite direction until
Ps
is no
longer displayed.
250250 F5.6
P
s
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
WB
AUTO
S-AF
4:3
28
mm
L
F
4K
30p
Program shift
Shooting
2
56
EN
Choosing aperture (Aperture Priority mode)
In this mode, you choose the aperture (f/-number) and the camera automatically sets
the shutter speed for optimal exposure according to subject brightness. Lower aperture
values (larger apertures) reduce the depth of the area that appears to be in focus
(depth of eld), blurring the background. Higher aperture values (smaller apertures)
increase the depth of the area that appears to be in focus in front of and behind the
subject.
Lower aperture values… Higher aperture values…
F5.6F4.0F2.8 F8.0 F11
…reduce depth of eld and increase
blur.
…increase depth of eld.
1
Rotate the mode dial to A.
2
Choose an aperture.
• At default settings, aperture is selected by rotating the
rear dial.
• The shutter speed selected automatically by the camera
will appear in the display.
• You can use the front dial to select exposure
compensation.
3
Take pictures.
250250 F5.6
A
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
+0.3
L
F
4K
30p
Aperture value
• The shutter speed display will blink if the camera is unable to achieve correct exposure.
When using a xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 74)
Warning display
example (blinking)
Status Action
60" F5.6
The subject is
underexposed.
Decrease the aperture value.
4000 F5.6
The subject is
overexposed.
• Increase the aperture value.
• If the warning display does not disappear,
the metered range of the camera is
exceeded. A commercially available ND
lter (for adjusting the amount of light) is
required.
• Take pictures in silent mode. g “The
Electronic Shutter (Silent s)” (P. 78)
Shooting
2
57
EN
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
• You can choose whether the display reects the effects of exposure compensation or
maintains a constant brightness for ease of viewing. At default settings, the effects of
exposure settings are visible in the display. g [Live View Boost] (P. 133)
Shooting
2
58
EN
Choosing shutter speed (Shutter Priority mode)
In this mode, you choose the shutter speed and the camera automatically sets aperture
for optimal exposure according to subject brightness. Faster shutter speeds appear
to “freeze” fast-moving subjects. Slower shutter speeds add blur to moving objects,
lending them a sense of motion for a dynamic effect.
Slower shutter speeds… Faster shutter speeds…
125 250 400060301560”
…produce dynamic shots with a sense
of motion.
…“freeze” the motion of fast-moving
subjects.
1
Rotate the mode dial to S.
2
Choose a shutter speed.
• At default settings, shutter speed is selected by rotating
the rear dial.
• Shutter speed can be set to values between 1/4000 and
60 s.
• Shutter speeds as fast as 1/16000 s are available in s
(silent) mode. g “The Electronic Shutter (Silent s)”
(P. 78)
• The aperture selected automatically by the camera will
appear in the display.
• You can use the front dial to select exposure
compensation.
3
Take pictures.
250250 F5.6
S
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
+0.3
L
F
4K
30p
Shutter speed
• The aperture value display will blink if the camera is unable to achieve correct exposure.
The aperture value at the moment when its indication blinks varies with the lens type and
focal length of the lens.
When using a xed [ISO] setting, change the setting. g “Changing ISO sensitivity
(ISO)” (P. 74)
Shooting
2
59
EN
Warning display
example (blinking)
Status Action
2000 F2.8
The subject is
underexposed.
Set the shutter speed slower.
125 F22
The subject is
overexposed.
• Choose a faster shutter speed. Shutter
speeds as fast as 1/16000 s are available
in silent mode. g “The Electronic
Shutter (Silent s)” (P. 78)
• If the warning display does not disappear,
the metered range of the camera is
exceeded. A commercially available ND
lter (for adjusting the amount of light) is
required.
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
• You can choose whether the display reects the effects of exposure compensation or
maintains a constant brightness for ease of viewing. At default settings, the effects of
exposure settings are visible in the display. g [Live View Boost] (P. 133)
Shooting
2
60
EN
Choosing aperture and shutter speed (Manual mode)
In this mode, you choose the aperture and shutter speed. You can adjust settings
according to your goals, for example by combining fast shutter speeds with small
apertures (high f/-numbers) for increased depth of eld.
1
Rotate the mode dial to M.
2
Adjust aperture and shutter speed.
• At default settings, aperture is selected with the front
dial and shutter speed with the rear dial.
• The exposure determined by the aperture value and
shutter speed you have set and the difference from
the suitable exposure measured by the camera are
displayed on the monitor.
• Shutter speed can be set to values between 1/4000 and
60 seconds or to [BULB (LIVE BULB)], [TIME (LIVE
TIME)], or [LIVECOMP].
• Shutter speeds as fast as 1/16000 s are available in s
(silent) mode. g “The Electronic Shutter (Silent s)”
(P. 78)
3
Take pictures.
250250 F5.6
M
+
2.0
+
2.0
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
L
F
4K
30p
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
• The brightness of the image displayed in the monitor will change with changes in aperture
and shutter speed. You can x the brightness of the display so that you can keep the
subject in view while shooting. g [Live View Boost] (P. 133)
Shooting
2
61
EN
Shooting with long exposure time (BULB/LIVE TIME)
Leave the shutter open for a long exposure. Use when long exposures are required, for
example when photographing night scenes or reworks.
“Bulb” and “Live Bulb” Photography
The shutter remains open while the shutter button is pressed. Releasing the button ends the
exposure.
• The amount of light entering the camera increases the longer the shutter is open.
• When live bulb photography is selected, you can choose how often the camera updates
the live view display during the exposure.
“Time” and “Live Time” Photography
The exposure begins when the shutter button is pressed all the way down. To end the
exposure, press the shutter button all the way down a second time.
• The amount of light entering the camera increases the longer the shutter is open.
• When live time photography is selected, you can choose how often the camera updates
the live view display during the exposure.
1
Rotate the mode dial to
M
.
2
Set the shutter speed to [BULB] or [LIVE TIME].
• At default settings, this is done by rotating the rear dial
in the direction shown.
1:02:03
BULB
F5.6
1023
ISO-A
200
L
F
4K
30p
M
Bulb or time photography
3
Press the MENU button.
• You will be prompted to choose the interval at which the
preview is updated.
Live Bulb
ISO LOW ~
ISO 400 ~
ISO 800 ~
ISO 1600
24 times
19 times
14 times
9 times
Off
Display Count
Back Set
4
Highlight an interval using FG on the arrow pad.
Shooting
2
62
EN

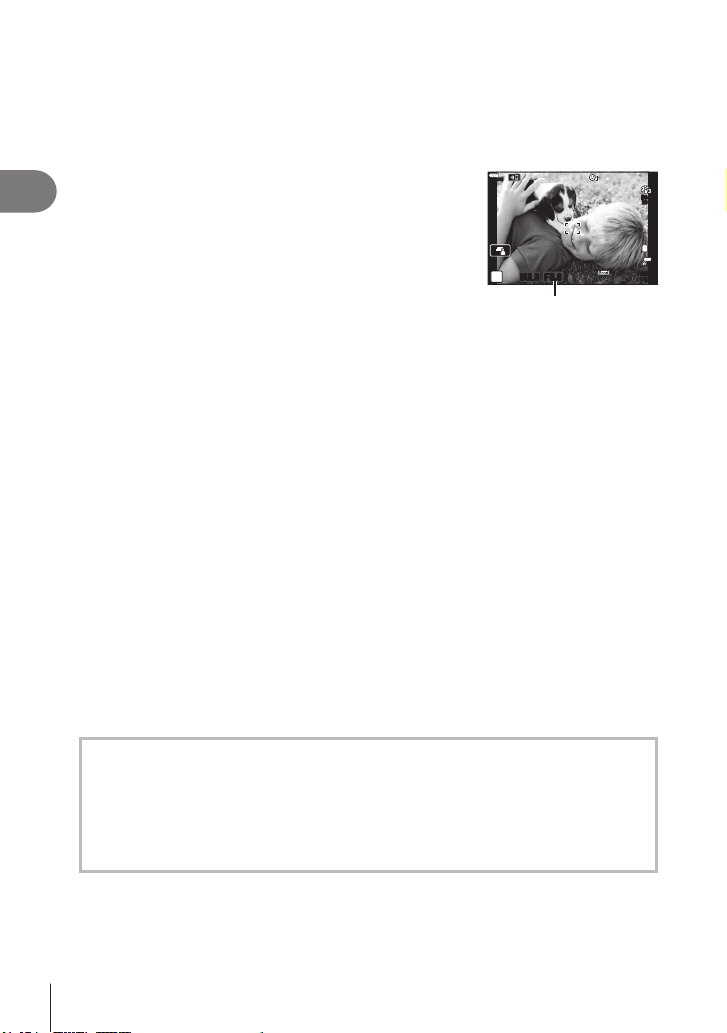

5
Press the
Q
button to select the highlighted option.
• The menus will be displayed.
6
Press the MENU button to exit the menus.
• If an option other than [Off] is selected, [LIVE BULB] or [LIVE TIME] will appear in the
display.
7
Adjust aperture.
• At default settings, aperture can be adjusted using the
front dial.
1:02:03
BULB
F5.6
1023
ISO-A
200
L
F
4K
30p
M
Aperture
8
Take pictures.
• In bulb mode, keep the shutter button pressed. The exposure ends when the button
is released.
• In time mode, press the shutter button all the way down once to start the exposure
and again to end it.
• The exposure ends automatically when the time selected for [Bulb/Time Timer] is
reached. The default is [8 min]. The time can be changed. g [Bulb/Time Timer]
(P. 134)
• [Noise Reduct.] is applied after shooting. The display shows the time remaining until
the process is complete. You can choose the conditions under which noise reduction
is performed (P. 134).
• During live time photography, you can refresh the preview by pressing the shutter button
halfway.
• Some limitations apply to the choice of ISO sensitivity settings available.
• There are limits on the settings for the following functions.
Sequential shooting, self-timer shooting, time lapse shooting, image stabilizer, multiple
exposure*, etc.
* When an option other than [Off] is selected for [Live Bulb] or [Live Time] (P. 134)
• [K Image Stabilizer] (P. 93) turns off automatically.
• Depending on camera settings, the temperature, and the situation, you may notice noise
or bright spots in the monitor. These may sometimes appear in pictures even when [Noise
Reduct.] (P. 134) is enabled.
Noise in images
While shooting at slow shutter speeds, noise may appear on screen. These phenomena
occur when the temperature rises in the image pickup device or image pickup device
internal drive circuit, causing current to be generated in those sections of the image pickup
device that are not normally exposed to light. This can also occur when shooting with a
high ISO setting in a high-temperature environment. To reduce this noise, the camera
activates the noise reduction function. g [Noise Reduct.] (P. 134)
%
• During bulb/time photography, the brightness of the subject in the display is enhanced for
ease of viewing when lighting is poor. g [Live View Boost] (P. 133)
Shooting
2
63
EN
Live composite photography (dark and light eld
composite)
Leave the shutter open for a long exposure. You can view the light trails left by
reworks or stars and photograph them without changing the exposure of the
background. The camera combines multiple shots and records them as a single
photograph.
1
Rotate the mode dial to
M
.
2
Set the shutter speed to [LIVE COMP].
• At default settings, this is done by rotating the rear dial
in the direction shown.
1:02:03
LIVECOMP
F5.6
Press shutter button once
to prepare for composite
shooting.
0
0.0
1023
M
Live composite photography
3
Press the MENU button.
• The [Composite Settings] menu will be displayed.
Composite Settings
1sec
Exposure time per image.
Exposure time and aperture
will determine your base exposure.
Back Set
4
Highlight an exposure time using FG on the arrow pad.
• Choose an exposure time of from 1/2 to 60 s.
5
Press the Q button to select the highlighted option.
• The menus will be displayed.
6
Press the MENU button repeatedly to exit the menus.
7
Adjust aperture.
• At default settings, aperture can be adjusted using the front dial.
Shooting
2
64
EN
8
Press the shutter button all the way down to ready
the camera.
• The camera is ready to shoot when [Ready for
composite shooting] is displayed.
1:02:03
LIVECOMP
F5.6
Ready for composite shooting
0.0
0
1023
30
p
30
p
4K
L
F
M
ISO-A
200
9
Press the shutter button to start shooting.
• Live composite photography will start. The display will be updated after each
exposure.
10
Press the shutter button again to end shooting.
• Live composite photography can continue for up to three hours. The maximum
recording time available varies with battery level and shooting conditions.
• Some limitations apply to the choice of ISO sensitivity settings available.
• To reduce blur caused by camera shake, x the camera securely to a tripod and use a
remote shutter release controlled via OI.Share (P. 148).
• During shooting, there are limits on the settings for the following functions.
Sequential shooting, self-timer shooting, time lapse shooting, image stabilizer, multiple
exposure, etc.
• [K Image Stabilizer] (P. 93) turns off automatically.
Shooting
2
65
EN
Recording movies in photo shooting modes
The R button can be used for movie recording even when the mode dial is not in the
n position.
• Be sure that [R REC] is assigned to the R button (P. 101).
1
Press the R button to begin recording.
• Movie you are recording will be displayed on the monitor.
• If you put your eye to the viewnder, movie you are recording will be displayed in the
viewnder.
• You can change the focus location by tapping the screen while recording.
R button
2
Press the R button again to end recording.
• The sound of touch operations and button operations may be recorded.
• CMOS image sensors of the type used in the camera generate a so-called “rolling shutter”
effect that can cause distortion in pictures of moving objects. This distortion is a physical
phenomenon that occurs in pictures of fast-moving subjects or if the camera is moved
during shooting. It is particularly noticeable in pictures taken at long focal lengths.
• If the size of the movie le being recorded exceeds 4 GB, the le will be split
automatically. (Depending on shooting conditions, movies under 4 GB in size may be split
into multiple les.)
• If the camera is used for extended periods, the temperature of the image pickup device
will rise and noise and colored fog may appear in images. Turn off the camera for a short
time. Noise and colored fog may also appear in images recorded at high ISO sensitivity
settings. If the temperature rises further, the camera will turn off automatically.
• The R button cannot be used to record movies in the following instances:
While shutter the button is pressed halfway; during bulb, time, composite, sequential or
time lapse photography; or when e-portrait, handheld starlight, panorama, or backlight
HDR is selected in SCN mode or keystone compensation, panorama, live time, multiple
exposure, or HDR is selected in Z mode
• When recording movies, use an SD card that supports an SD speed class of 10 or higher.
• A UHS-II or UHS-I card with a UHS speed class of 3 or better is required when:
a movie resolution of [4K] is selected in the [nK] menu
• When using a Four Thirds system lens, the AF will not operate while recording movies.
$
• Some settings, such as AF mode, can be set separately for movies and photographs.
g “Using the Video Menu” (P. 125)
Shooting
2
66
EN

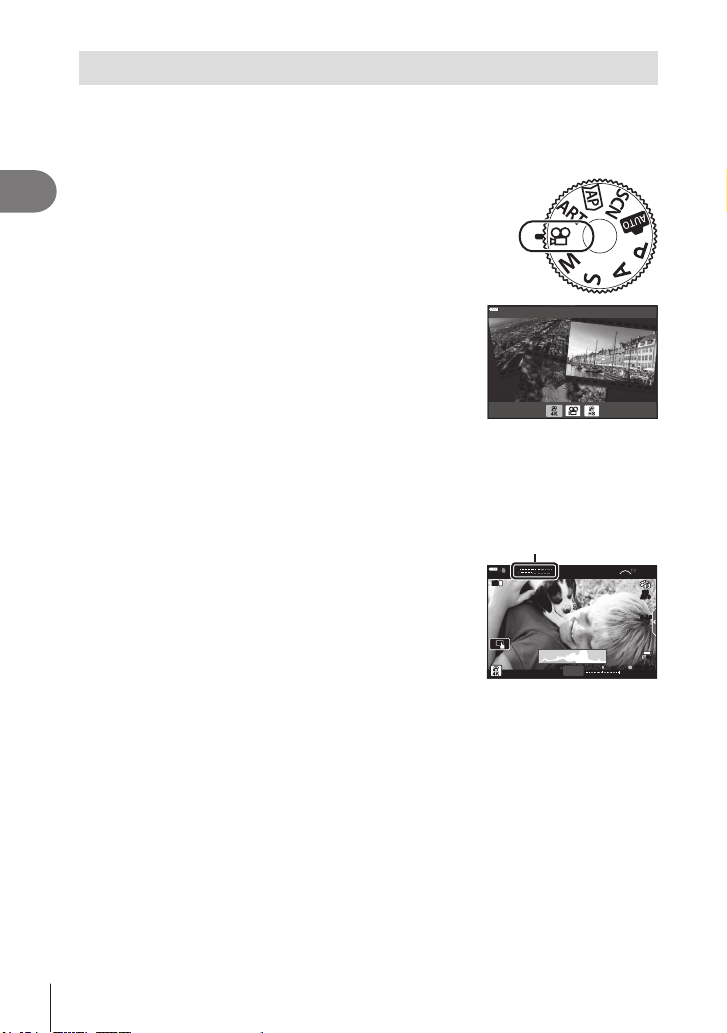

Recording movies in movie mode
When the mode dial is rotated to n, movies can be recorded using functions such as
the slow-motion mode.
• The effects available in P, S, A, and M modes can be applied to movies. g “Choosing
an Exposure Mode (n Mode (Movie Exposure Modes))” (P. 91)
1
Rotate the mode dial to n.
2
Use HI to highlight movie mode (P. 67).
4K
3
Press the Q button to select the highlighted mode.
• Press the u button to choose a different movie mode.
4
Press the R button to begin recording.
• Be sure that [R REC] is assigned to the R button (P. 101).
• Press the R button again to end recording.
• The sound level during recording is shown by the
recording level meter. The more the meter extends into
the red, the higher the recording level.
• The recording level can be adjusted from the n video
menu. g [Recording Volume] (P. 125)
Recording level meter
L
R
L
R
28
mm
1:02:03
M-ISM-IS
1
ISO
AUTO
C-AF
REC 00:12
4K
30p
0.0
• A beep does not sound when the camera focuses in movie mode.
$
• You can prevent the camera from recording operating sounds that occur due to camera
operations while shooting. g “Silencing Camera Sounds While Shooting Movies”
(P. 68)
• Touch controls can also be used.
Shooting
2
67
EN
Movie Mode Options
Movie mode Description
g
o
4K Shoot 4K movies. ―
n
Standard Shoot standard movies. ―
p
High-speed Record slow-motion movies. Sound will not be recorded. 68
• The picture modes available vary with the movie mode.
• When recording movies, use an SD card that supports an SD speed class of 10 or higher.
• Use UHS-II or UHS-I memory card with a UHS Speed Class of 3 when shooting in [4K] or
[High-speed] mode.
• Depending on the system, some computers may be unable to play movies recorded at
[4K]. See the OLYMPUS website for information on the system requirements for viewing
4K movies on a computer.
Shooting
2
68
EN
Recording Slow Motion Movies
Record slow-motion movies. Footage shot at 120 fps plays back at 30 fps; quality is
equivalent to [HD].
1
Highlight [High-speed] in the movie mode option (P. 67) and press the Q
button.
2
Press the R button to start shooting.
• Press the R button again to end shooting.
• Focus and exposure are xed at the start of recording.
• Recording can continue for up to 20 seconds.
• Sound will not be recorded.
Silencing Camera Sounds While Shooting Movies
You can prevent the camera from recording operating sounds that occur due to camera
operations while shooting.
Tap the silent shooting tab to display the function items.
After tapping an item, tap the displayed arrows to select
the settings.
• Electronic zoom*, recording volume, aperture, shutter
speed, exposure compensation, ISO sensitivity
* Only available with power zoom lenses
• The options available vary with the shooting mode.
• This option is not available in self-portrait mode (P. 69).
Silent shooting tab
L
R
L
R
28
mm
1:02:03
M-ISM-IS
1
ISO
AUTO
C-AF
REC 00:12
4K
30p
0.0
Shooting
2
69
EN
Taking Photos in Self-Portrait Mode
Inverting the monitor allows you to take pictures of yourself while you preview the
frame.
1
If the monitor is open, close it.
2
Open the monitor downward.
• Read “Rotating the Monitor:
Cautions” (P. 31) before
moving the monitor.
• If a power zoom lens is attached, the camera
automatically switches to wide angle.
• The self portrait menu is displayed in the monitor.
• Different icons may be displayed depending on the
shooting mode.
28
mm
1023
1:02:03
C
Shutter Touch
When the icon is touched, the shutter is released
about 1 second later.
R
Movie
When you touch this icon, movie recording will start.
To stop recording, press the (Q) icon.
5
Playback Tap to switch to playback mode (P. 116).
A
One-Touch
e-Portrait
Turning this on makes skin look smooth and
translucent.
D
One-Touch
Custom Self Timer
Shoot 3 frames using the self timer. You can set
the number of times the shutter is released and the
interval between each release using Custom Self
Timer. g “Custom Self-timer” (P. 77)
E
Brightness
adjustment
(Exposure
compensation)
Touch [+] or [-] icon to adjust the brightness.
Shooting
2
70
EN
3
Frame the shot.
• Be careful that your ngers or the camera strap do not obstruct the lens.
4
Touch C and shoot.
• You can also shoot by touching the subject displayed in the monitor, or by pressing
the shutter button.
• The shot image will be displayed on the monitor.
• Be careful not to drop the camera when using the touch screen with the camera held in
one hand.
Shooting
2
71
EN
Using various settings

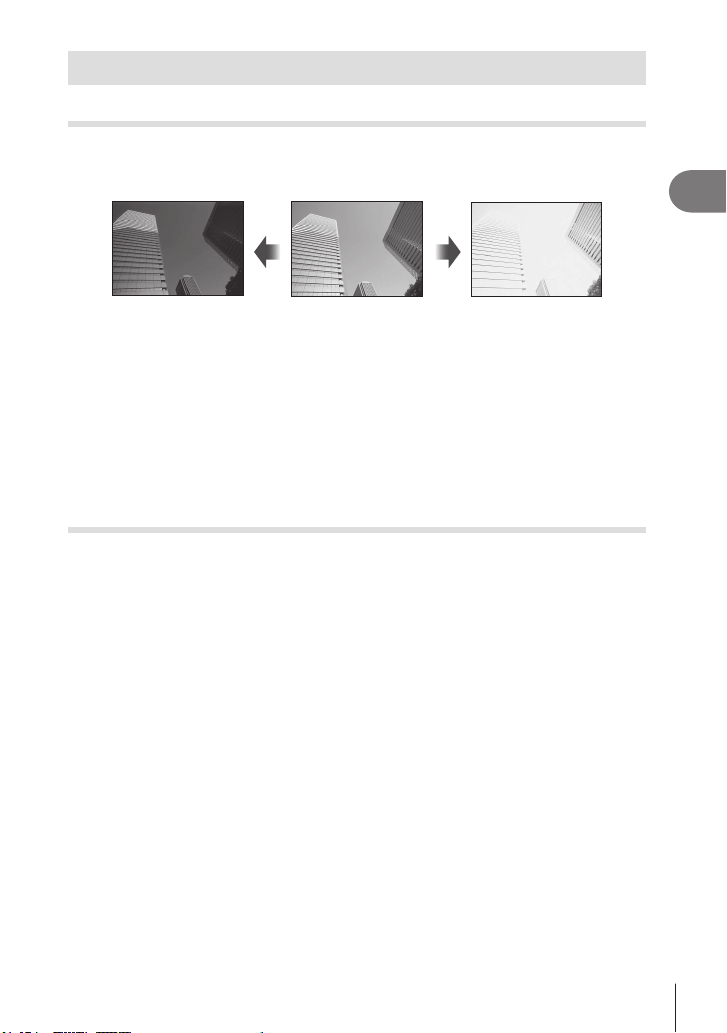

Controlling exposure (Exposure F)
The exposure selected automatically by the camera can be altered to suit your artistic
intent. Choose positive values to make pictures brighter, negative values to make them
darker. Exposure compensation can be adjusted by up to ±5.0 EV.
Negative (–) No compensation (0) Positive (+)
• Rotate the front dial to adjust exposure compensation.
• Exposure compensation is not available in B, M, or SCN mode or when Live Time or
panorama is selected in Z mode.
• The viewnder and live view show the effects of values not exceeding ±3.0 EV. If the
exposure exceeds ±3.0 EV, the exposure bar will begin ashing.
• Movies can be corrected in a range up to ±3.0 EV.
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
Digital Zoom (Digital Tele-converter)
This option takes a crop at the center of the frame the same dimensions as the size
option currently selected for image quality and zooms it in to ll the display. The zoom
ratio increases by about 2×. This allows you to zoom in past the lens’ maximum focal
length, making it a good choice when you are unable to switch lenses or nd it difcult
to get any closer to your subject.
• Press the b button to turn on digital zoom.
• H is displayed on the monitor.
• If another role is assigned to the b button, choose [b] (P. 101).
• To exit digital zoom, press the b button again.
• This function cannot be used with panorama, multiple exposure, or keystone
compensation.
• When a RAW image is displayed, the area visible in the monitor is indicated by a frame.
• AF target drops.
• Digital Tele-converter can also be selected from W Shooting Menu 1 (P. 119).
Shooting
2
72
EN
Selecting the AF target mode (AF target settings)
The frame showing the location of the focus point is referred to as the “AF target”. You
can change the size of the AF target. You can also select Face priority AF (P. 73).
1
Press the N (H) button to display the AF target.
2
Select [I (Single Target)] or [J (9-Target Group)] using the front dial.
o
ii
ii
ii
o
All Targets
The camera automatically chooses from the full set of focus
targets.
I
Single Target
You can choose a single AF target.
J
9-Target Group
The camera automatically chooses from the targets in the selected
nine-target group.
• The single target mode is automatically applied in movie shooting if the group target mode
is set.
Setting the AF target
You can position the target over your subject.
1
Press the N (H) button to display the AF target.
• If [o (All Targets)] is selected, select [I (Single Target)] or [J (9-Target Group)]
using the front dial.
2
Use FGHI to choose a focus area.
• The size and number of the AF targets changes with the aspect ratio (P. 86) and the
option selected for [Digital Tele-converter] (P. 119).
$
• Touch controls can also be used.
Shooting
2
73
EN
Face priority AF/Eye priority AF
The camera automatically detects and focuses on the faces or eyes of portrait
subjects. When digital ESP metering is used, exposure will be weighted according to
the value metered for the face.
1
Press the N (H) button to display the AF target.
2
Select an option using the rear dial.
o
ii
Selection method
I
Face Priority On The camera detects and focuses on faces.
N
Face Priority Off
Face priority AF off.
K
Face & Eye Priority On
The camera detects faces and focuses on the eye closest
to the camera.
3
Point the camera at your subject.
• If a face is detected, it will be indicated by a white
frame.
4
Press the shutter button halfway to focus.
• When the camera focuses on the face in the white
frame, the frame will turn green.
250250 F5.6
P
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
L
F
4K
30p
• If the camera is able to detect the subject’s eyes, it
will display a green frame over the selected eye (eye
priority AF).
5
Press the shutter button the rest of the way down
to shoot.
250250 F5.6
P
ISO-A
200
1023
1:02:03
28
mm
S-IS ONS-IS ON
0.0
L
F
4K
30p
• Depending on the subject and the art lter setting, the camera may not be able to correctly
detect the face.
• When set to [p (Digital ESP metering)] (P. 95), metering is performed with priority
given to faces.
$
• Face priority is also available in [MF] (P. 84). Faces detected by the camera are
indicated by white frames.
Shooting
2
74
EN
Changing ISO sensitivity (ISO)
Select a value according to subject brightness. Higher values let you photograph
darker scenes but also increase image “noise” (mottling). Select [AUTO] to let the
camera adjust sensitivity according to lighting conditions.
1
Press the ISO (F) button.
2
Use the front dial to select an option.
250
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
AUTOAUTO
LOWLOW
200200 250250 320320 400400 500500
0.0F5.6
Recommend
4K
ISO
AUTO
Sensitivity is adjusted automatically according to shooting conditions.
Use [ISO-Auto Set] (P. 134) in G Custom Menu P to choose the
maximum sensitivity selected by the camera and the shutter speed at
which auto sensitivity control takes effect.
LOW, 200–25600
Choose a value for ISO sensitivity. ISO 200 offers a good balance
between noise and dynamic range.
Shooting
2
75
EN
Using a ash (Flash photography)
The ash can be used for ash photography in a variety of shooting conditions.
1
Rotate the ON/OFF lever to #UP to raise the ash.
ON/OFF lever
2
Press the # (I) button.
3
Select an item using the front dial and press the Q button.
• The options available and the order in which they are displayed vary depending on
the shooting mode. g “Flash modes that can be set by shooting mode” (P. 76)
#
Fill In
The ash res.
• Shutter speed can be set to values between that
selected for [#Slow Limit] (P. 135) and [#X-Sync.]
(P. 135) in G Custom Menu b.
0
Redeye
The ash res so that the red-eye phenomenon is
reduced.
$
Flash Off The ash does not re.
1
Red-Eye Slow
Slow synchronization
(1st curtain/Red-eye
reduction ash)
The slow synchronization is combined with the red-eye
reduction ash.
2
Slow
Slow synchronization
(1st curtain)
The ash res with slow shutter speeds to brighten
dimly-lit backgrounds.
M
Slow2
Slow synchronization
(2nd curtain)
The ash res immediately before the
shutter closes to create trails of light
behind moving light sources.
3
,
4
etc.
Manual Value
For users who prefer manual operation. Press the
INFO button and use FG to adjust ash output.
• In [0 (Redeye)], after the pre-ashes, it takes about 1 second before the shutter is
released. Do not move the camera until shooting is complete.
• [0 (Redeye)] may not work effectively under some shooting conditions.
• When the ash res, the shutter speed is set to 1/250 seconds or slower. When shooting a
subject against a bright background with the ash, the background may be overexposed.
• The ash sync speed for the silent mode (P. 78) is 1/20
seconds
or less.
Optional Flash Units
When using optional ash units, be sure the built-in ash has been securely restored to its
housing.
Shooting
2
76
EN
Flash modes that can be set by shooting mode
Shooting
mode
Monitor Flash mode
Flash
timing
Conditions for
ring the ash
Shutter speed limit
P/A
#
Fill In
1st
curtain
Always res
30 sec. – 1/250 sec.*
0
Redeye
1/30 sec. –
1/250 sec.*
$
Flash Off — — —
1
Red-Eye Slow
Slow
synchronization
(1st curtain/
Red-eye
reduction ash)
1st
curtain
Always res 60 sec. – 1/250 sec.*
2
Slow
Slow
synchronization
(1st curtain)
M
Slow2
Slow
synchronization
(2nd curtain)
2nd
curtain
S/M
#
Fill In
1st
curtain
Always res 60 sec. – 1/250 sec.*
0
Redeye
$
Flash Off — — —
M
Slow2
Slow
synchronization
(2nd curtain)
2nd
curtain
Always res 60 sec. – 1/250 sec.*
• Only # and $ can be set in B mode.
* The shutter speed is 1/200 seconds when using a separately sold external ash. For the
silent mode, the shutter speed is 1/20 seconds.
Minimum range
The lens may cast shadows over
objects close to the camera,
causing vignetting, or the ash
may be too bright even at
minimum output.
Lens
Approximate distance at
which vignetting occurs
14-42mm f3.5-5.6 II R 1m
ED 14-42mm f3.5-5.6 EZ 0.5m
ED 40-150mm f4.0-5.6 0.9 m
ED 14-150mm f4.0-5.6 II 0.5m
• External ash units can be used to prevent vignetting. To prevent photographs from being
overexposed, select A or M mode, and choose a high aperture value or reduce ISO
sensitivity.
Shooting
2
77
EN
Performing the sequential/self-timer shooting
Adjust settings for burst or self-timer photography. Choose an option according to your
subject.
1
Press the jY (G) button.
2
Use the front dial to select an option.
o/
o/
♥o
Single 1 frame is taken at a time when the shutter button is pressed.
T/
♥T
Sequential High
With T, pictures are taken at up to about 8.7 frames per
second (fps) while the shutter button is pressed all the way
down. With ♥T, pictures are taken at up to about 15 fps.
Focus, exposure, and white balance are xed at the values for
the rst shot in each series.
S/
S/
♥S
Sequential Low
Pictures are taken at up to about 5 frames per second (fps)
while the shutter button is pressed all the way down. Focus
and exposure are xed according to the options selected for
[AF Mode] (P. 84) and [AEL/AFL] (P. 138).
Y12s
Y 12 sec
Press the shutter button halfway to focus, the rest of the way
down to start the timer. First, the self-timer lamp lights up for
approximately 10 seconds, then it blinks for approximately
2 seconds and the picture is taken.
Y2s Y 2 sec
Press the shutter button halfway to focus, the rest of the
way down to start the timer. The self-timer lamp blinks for
approximately 2 seconds, and then the picture is taken.
YC/
YC/
♥YC
Custom
Self-timer
Press the INFO button to set [Y Timer], [Number of Frames],
and [Interval Length].
Use HI to highlight items and FG to choose a value.
Items marked with allows you to take pictures with the small amount of blur caused by
operation of the shutter reduced.
Items marked with ♥ use the electronic shutter. Use these with shutter speeds faster than
1/4000 seconds, or in settings where the sound of the shutter would be unwelcome.
3
Press the Q button.
• Fix the camera securely on a tripod for self-timer shooting.
• If you stand in front of the camera to press the shutter button when using the self-timer,
the picture may be out of focus.
• When you are using S, S or ♥S, live view is displayed. In T or ♥T, the display
shows the last photograph taken during the sequential shooting.
• The speed of sequential shooting varies depending on the lens you are using and the
focus of the zoom lens.
• During sequential shooting, if the battery level icon blinks due to low battery, the camera
stops shooting and starts saving the pictures you have taken on the card. The camera
may not save all of the pictures depending on how much battery power remains.
$
• To cancel the activated self-timer, press G.
Shooting
2
78
EN
The Electronic Shutter (Silent s)
Take pictures using the electronic shutter. Use for shutter speeds faster than 1/4000 s
or in settings where the sound of the shutter would be unwelcome. The electronic
shutter can be used in single-frame mode and self-timer modes and for frame rates
as high as about 15 fps in sequential shooting modes. This setting is only available in
P/A/S/M/ART modes.
• The ash sync speed is 1/20 s.
• In [Silent s] mode, [8], [AF Illuminator], and [Flash Mode] are set to [Not Allow] by
default. You can enable each operation in [Silent s Settings].
1
Press the jY (G) button.
2
Highlight one of the options marked with ♥ using the front dial.
3
Press the Q button.
• When the shutter is released, the monitor screen will go dark for a moment. No
shutter sound will be emitted.
• The desired results may not be achieved under ickering light sources such as uorescent
or LED lamps or if the subject moves abruptly during shooting.
• Note that due to the electronic shutter, the subject may appear to be distorted in
photographs if camera moves quickly during shooting or when shooting fast-moving
subjects.
Shooting
2
79
EN
Calling shooting options
Live control
You can use live control to select the shooting function while checking the effect on the
screen.
WB
AUTO
WB
AUTO
WB Auto
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
Off
W Keep Warm Color
4K
30p
Functions
Live control screen
Settings
Available settings
Picture mode ........................................P. 81
ISO sensitivity .......................................P. 74
White balance .......................................P. 83
AF mode ...............................................P. 84
Aspect ratio*
1
........................................P. 86
KK ...................................................P. 86
nK ...................................................P. 87
Movie (exposure) mode ........................P. 91
Scene mode*
2
.......................................P. 36
Art lter mode*
3
.....................................P. 50
*1 Not available in movie mode.
*2 Available in SCN mode.
*3 Available in ART mode.
1
Press Q to display the live control.
• To hide the live control, press Q again.
2
Use FG to highlight the desired
function and HI to highlight a
setting, and then press the Q
button.
• You can use the front and rear dials
to select a setting.
• The selected settings take effect
automatically if no operations are
performed for about 8 seconds.
WB
AUTO
WB
AUTO
WB Auto
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
Off
W Keep Warm Color
4K
30p
Cursor
Cursor
HI or r
F
G
or
o
Displays the selected
function name
• Some items are not available in some shooting modes.
$
• For the default settings of each option, refer to “Defaults” (P. 169).
Shooting
2
80
EN

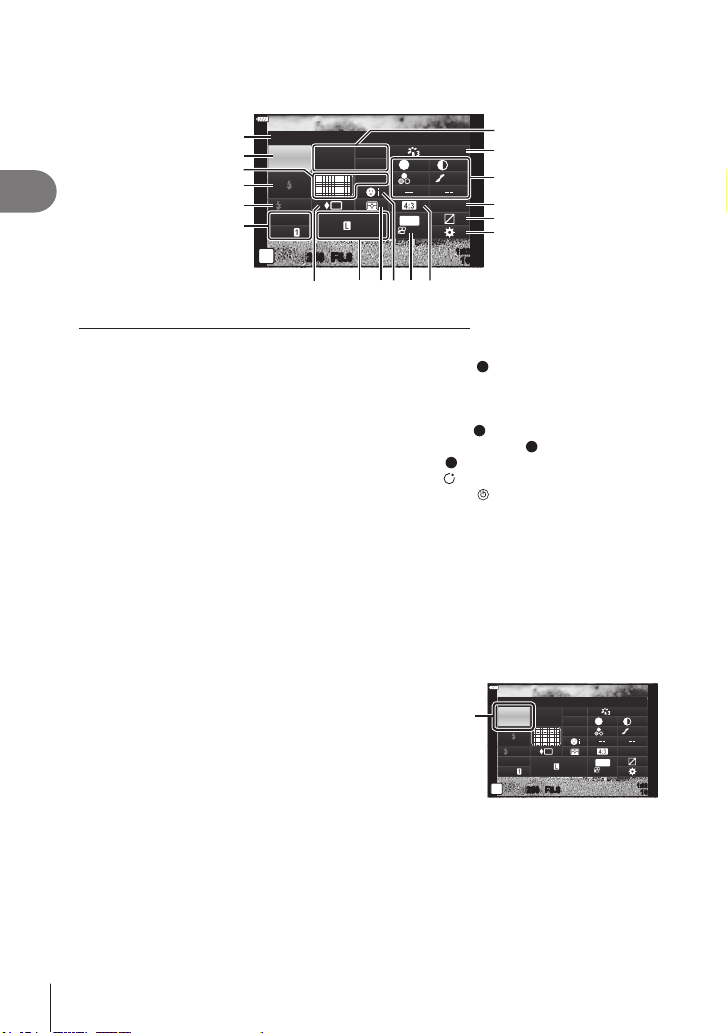

LV super control panel
Other shooting options can be accessed via the LV super control panel, which lists the
options selected for the following shooting settings.
250250 F5.6
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
P
1023
1:02:03
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Recommended ISO
1
2
4
5
6
c
d
e
f
g
h
a b
3
8 097
Settings that can be modied using LV super control panel
1 Currently selected option
2 ISO sensitivity .................................P. 74
3
K
AF mode ...................................P. 84
AF target .........................................P. 72
4 Flash mode .....................................P. 75
5 Flash intensity control .....................P. 92
6 Image stabilizer...............................P. 93
7 Sequential shooting/Self-timer ........ P. 77
8 KK .............................................P. 86
9 Metering mode ................................P. 95
0 Face priority ....................................P. 73
a nK..............................................P. 87
b Aspect ratio .....................................P. 86
c White balance .................................P. 83
White balance compensation..........P. 94
d Picture mode...................................P. 81
e Sharpness
S
*
1
................................P. 95
Contrast u*
1
...................................P. 96
Saturation t*
1
................................P. 96
Gradation z*
1
................................P. 97
Color lter
F
*
1
................................P. 97
Monochrome color
T
*
1
...................P. 98
Effect
E
*
1
........................................P. 98
Color
*
1
*
2
......................................P. 53
Color/Vivid
*
1
*
3
.............................P. 81
Effect*
1
............................................P. 50
Fine-Tune*
1
................................ ….P. 53
f Color space.....................................P. 99
g Highlight & shadow control ...........P. 100
h Button function assignment ..........P. 101
*1 The display may differ when Art Filter is selected for picture mode.
*2 Displayed when Partial Color is set.
*3 Displayed when Color Creator is set.
1
Press the u button in P/A/S/M modes.
• The LV super control panel will be displayed.
• In B, ART, SCN, and Z modes, the
display of the LV super control panel is
controlled via [K Control Settings] (P. 133).
• The LV super control panel is not displayed in
movie mode.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Recommended ISO
Cursor
2
Highlight an item using FGHI and press the Q button.
3
Use HI to highlight an option.
$
• Settings can also be adjusted using the dials or touch controls.
• For the default settings of each option, refer to “Defaults” (P. 169).
Shooting
2
81
EN
Processing options (Picture Mode)
Choose how pictures are processed during shooting to enhance color, tone, and other
properties. Choose from preset picture modes according to your subject or artistic
intent. Contrast, sharpness, and other settings can be adjusted separately for each
mode. You can also add artistic effects using art lters. Art lters give you the option
of added frame effects and the like. Adjustments to individual parameters are stored
separately for each picture mode and art lter.
• This item applies during both still photography and movie recording.
1
Press the Q button and use FG to highlight
Picture Mode.
2
Highlight an option using HI and press the Q
button.
JJ KK
Natural
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
4K
Picture Mode
Picture mode options
A
i-Enhance
The camera adjusts colors and contrast for optimal results
according to the type of subject (P. 98).
B
Vivid Choose for vivid colors.
C
Natural Choose for natural colors.
D
Muted Choose for pictures that will later be retouched.
E
Portrait Enhance skin tones.
J
Monochrome
Record pictures in monochrome. You can apply color lter
effects and choose a tint (P. 98).
K
Custom
Adjust picture mode parameters to create a custom version of a
selected picture mode.
v
e-Portrait Smooth complexions.
c
Color Creator Adjust hue and color to suit your creative intent
e
Pop Art*
1
Uses Art Filter settings. Art effects can also be used.
f
Soft Focus*
1
g
Pale&Light Color
h
Light Tone
i
Grainy Film
j
Pin Hole
k
Diorama
l
Cross Process
m
Gentle Sepia
n
Dramatic Tone
o
Key Line
p
Watercolor
q
Vintage
r
Partial Color*
2
v
Bleach Bypass
9
Instant Film
Shooting
2
82
EN
*1 After choosing Pop Art I or Soft Focus using the HI buttons, press the INFO button to
display the slider for Fine Tuning (P. 53).
*2 After choosing Partial Color using HI, press the INFO button to display the color ring
(P. 53).
Adjusting overall color (Color Creator)
The overall color of the image can be adjusted using any combination of 30 hues and
8 saturation levels.
1
Press the Q button and use FG to highlight
Picture Mode.
JJ KK
Natural
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
4K
Picture Mode
2
Highlight [Color Creator] using HI and press
the INFO button.
3
Adjust saturation and hue.
• Rotate the front dial to adjust hue.
• Rotate the rear dial to adjust saturation.
• To restore default values, press and hold the Q
button.
ColorColor
ViVid±0ViVid±0
RESETRESET
OK
HOLD
4
Press the Q button to save changes.
• You can also save changes by pressing the shutter button halfway.
• Photos are recorded in RAW+JPEG format when [RAW] is selected for image quality
(P. 86).
• Pictures taken using [Multiple Exposure] (P. 120) are recorded at the [Natural] setting.
Shooting
2
83
EN
Adjusting color (WB (white balance))
White balance (WB) ensures that white objects in images recorded by the camera
appear white. [AUTO] is suitable in most circumstances, but other values can be
selected according to the light source when [AUTO] fails to produce the desired results
or you wish to introduce a deliberate color cast into your images.
1
Press the Q button and use FG to highlight
White Balance.
2
Highlight an option using HI and press the Q
button.
WB
AUTO
WB
AUTO
WB Auto
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
P
Off
W Keep Warm Color
4K
30p
White Balance
WB mode Color temperature Light conditions
Auto white
balance
AUTO —
For most light conditions (when there is a
white portion framed on the monitor). Use
this mode for general use.
• When this option is highlighted, you
can press the INFO button and use
FGHI or the front or rear dial to
select [On] or [Off] for [W Keep Warm
Color] (P. 135).
Preset white
balance
5
5300 K
For shooting outdoors on a clear day, or to
capture the reds in a sunset or the colors in
a reworks display
N
7500 K
For shooting outdoors in the shadows on a
clear day
O
6000 K For shooting outdoors on a cloudy day
1
3000 K For shooting under a tungsten light
>
4000 K For shooting under a uorescent light
n
5500 K For ash shooting
One-touch
white balance
P/
Q/
W/
X
Color temperature
set by one-touch
WB
Press the INFO button to measure white
balance using a white or gray target when
using a ash or other light source of an
unknown type or when shooting under
mixed lighting. g “One-touch white
balance” (P. 84)
Custom white
balance
CWB 2000 K – 14000 K
After pressing the INFO button, use
FGHI to select a color temperature and
then press the Q button.
Shooting
2
84
EN
One-touch white balance
Measure white balance by framing a piece of paper or other white object under the lighting
that will be used in the nal photograph. This is useful when shooting a subject under natural
light, as well as under various light sources with different color temperatures.
1
Select [P], [Q], [W], or [X] (one-touch white balance 1, 2, 3, or 4) and
press the INFO button.
2
Photograph a piece of colorless (white or gray) paper.
• Frame the paper so that it lls the display and no shadows fall it.
• The one-touch white balance screen appears.
3
Select [Yes] and press the Q button.
• The new value is saved as a preset white balance option.
• The new value is stored until one-touch white balance is measured again. Turning the
power off does not erase the data.
Choosing a focus mode (AF Mode)
You can select a focusing method (focus mode). You can choose separate focusing
methods for still photography mode and movie mode.
1
Press the Q button and use FG to highlight
AF Mode.
S-AFS-AF
C-AFC-AF
MFMF
S-AFS-AF
MF
C-AFC-AF
TR
Single AF
S-AFS-AF
4:3
WB
AUTO
WB
AUTO
ISO
AUTO
L
F
P
4K
AF Mode
2
Highlight an option using HI and press the Q button.
S-AF
(Single AF)
The camera focuses once when the shutter button is pressed
halfway. When the focus is locked, a beep sounds, and the AF
conrmation mark and the AF target mark light up. This mode
is suitable for taking pictures of still subjects or subjects with
limited movement.
C-AF
(Continuous AF)
The camera repeats focusing while the shutter button remains
pressed halfway. When the subject is in focus, the AF
conrmation mark lights up on the monitor and the beep sounds
when the focus is locked at the rst time.
Even if the subject moves or you change the composition of the
picture, the camera continues trying to focus.
MF
(Manual focus)
This function allows you
to manually focus on any
position by operating the
focus ring on the lens.
Near
Focus ring
)
Shooting
2
85
EN
S-AF+MF
(Simultaneous use of
S-AF mode and MF
mode)
After pressing the shutter button halfway to focus in [S-AF]
mode, you can turn the focus ring to ne-adjust focus manually.
C-AF+TR
(AF tracking)
Press the shutter button halfway to focus; the camera then
tracks and maintains focus on the current subject while the
shutter button is held in this position.
• The AF target is displayed in red if the camera can no longer
track the subject. Release the shutter button and then frame
the subject again and press the shutter button halfway.
• The camera may be unable to focus if the subject is poorly lit, obscured by mist or smoke,
or lacks contrast.
• AF mode is unavailable when a Four Thirds system lens is used.
• AF mode is unavailable when the lens MF focus clutch is set to MF.
• If [MF], [C-AF], or [C-AF+TR] is selected in P, A, S, M,
n
or ART mode, the shutter can
be released even when the camera is not focus.
• If [C-AF] or [C-AF+TR] is selected, keep the shutter button pressed halfway to let the
camera focus on the subject for a little while, and then press the shutter button all the way
down to shoot.
• If you operate the zoom during sequential shooting when [C-AF] or [C-AF+TR] is selected,
the focus may move off the subject.
• If shooting a fast-moving person in sequential shooting mode when [C-AF] is selected, it is
recommended that you select [NFace Priority Off] (P. 73).
• If shooting a fast-moving subject in sequential shooting mode when [C-AF+TR] is
selected, the focus may move off the subject.
$
• The focus method can be chosen in the G custom menu. g “AEL/AFL” (P. 138)
Shooting
2
86
EN
Setting the image aspect
Choose the ratio of width to height for pictures according to your intent or your goals
for printing or the like. In addition to the standard aspect (width-to-height) ratio of [4:3],
the camera offers settings of [16:9], [3:2], [1:1], and [3:4].
1
Press the Q button and use FG to highlight
Image Aspect.
2
Use HI to choose a value and press the Q
button.
4:3
16
:9
3:2 1:1 3:4
5184x3888
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
4K
Image Aspect
• Image aspect can only be set for still images.
• JPEG images are recorded at the selected aspect ratio. RAW images are the same size
as the image sensor and are recorded at an aspect ratio of 4:3 with a tag indicating the
aspect ratio selected. A crop indicating the selected aspect ratio is displayed when images
are played back.
Selecting image quality (Still image quality, KK)
You can set an image quality mode for still images. Select a quality suitable for the
application (such as for processing on PC, use on website etc.).
1
Press the Q button and use FG to highlight
(Still image quality, KK).
5184x3888
4:3
S-AFS-AF
ISO
AUTO
WB
AUTO
WB
AUTO
L
F
L
SFSF
RAW
F
L
N
L
N
M
P
1023
+RAW+RAW
L
SFSF
4K
Still Image Quality
2
Highlight an option using HI and press the Q button.
• Choose from JPEG (YSF, YF, YN, and XN) and RAW modes. Choose a
JPEG+RAW option to record both a JPEG and a RAW image with each shot. JPEG
modes combine image size (Y, X, and W) and compression ratio (SF, F, and N).
• When you want to select a combination other than YSF, YF, YN, and XN, change
the [K Set] (P. 135) settings in Custom Menu.
RAW image data
RAW images consist of unprocessed image data to which settings such as exposure
compensation and white balance have yet to be applied. They serve as raw data for
images that will be processed after shooting. RAW image les:
- Have the extension “.orf”
- Cannot be viewed on other cameras
- Can be viewed on computers using Olympus Workspace photo editing software
- Can be saved in JPEG format using the [RAW Data Edit] (P. 126) retouch option in
the camera menus
g “Retouching Pictures (Edit)” (P. 126)
Shooting
2
87
EN
Selecting image quality (Movie quality, nK)
Choose the image quality options available for movie recording. When choosing an
option, consider how the movie will be used: for example, are you planning to process
it on a computer, or is it intended for upload to a website?
1
Press the Q button and use FG to highlight
(Movie quality, nK).
2
Use HI to choose a value and press the Q
button.
3840×2160 30p
4:3
WB
AUTO
WB
AUTO
S-AFS-AF
ISO
AUTO
L
F
P
1:02:03
4K
4K
4K
Movie Quality
Available Movie Quality Options
The options available for movie quality vary with the movie mode (P. 67) and the
options selected for [Video Frame Rate] and [Video Bit Rate] in the video menu
(P. 125).
• When shooting movies that will be viewed on a television, choose a frame rate that
matches the video standard used in the device, as otherwise the movie may not play back
smoothly. Video standards vary by country or region: some use NTSC, others PAL.
- When shooting for display on NTSC devices, choose 60p (30p)
- When shooting for display on PAL devices, choose 50p (25p)
The following options are available when the mode dial is rotated to a position
other than n:
Movie quality Movie quality components
3840×2160 30p
Choose the desired combination of frame size,
bit rate, and frame rate.
1 2
3
1 Frame size
4K : 3840×2160
FHD : 1920×1080
HD : 1280×720
2 Bit rate (compression ratio)*
1
SF (Super Fine), F (Fine), N (Normal)
3 Frame rate
30p (60p), 25p (50p), 24p
3840×2160 25p
3840×2160 24p
1920×1080 Super Fine 60p
1920×1080 Super Fine 30p
1280×720 Super Fine 30p
1920×1080 Fine 60p
1920×1080 Fine 30p
1280×720 Fine 30p
1920×1080 Normal 60p
1920×1080 Normal 30p
Shooting
2
88
EN
Movie quality Movie quality components
1280×720 Normal 30p
Choose the desired combination of frame size,
bit rate, and frame rate.
1 2
3
1 Frame size
4K : 3840×2160
FHD : 1920×1080
HD : 1280×720
2 Bit rate (compression ratio)*
1
SF (Super Fine), F (Fine), N (Normal)
3 Frame rate
30p (60p), 25p (50p), 24p
1920×1080 Super Fine 50p
1920×1080 Super Fine 25p
1280×720 Super Fine 25p
1920×1080 Fine 50p
1920×1080 Fine 25p
1280×720 Fine 25p
1920×1080 Normal 50p
1920×1080 Normal 25p
1280×720 Normal 25p
1920×1080 Super Fine 24p
1280×720 Super Fine 24p
1920×1080 Fine 24p
1280×720 Fine 24p
1920×1080 Normal 24p
1280×720 Normal 24p
*1 The bit rate can not be changed when the frame size is [4K].
Shooting
2
89
EN
The following options are available when [4K] is selected for movie mode *
2
:
Movie quality Movie quality components
3840×2160 30p
Choose the desired combination of frame size
and frame rate.
1
2
1 Frame size
4K : 3840×2160
2 Frame rate
30p, 25p, 24p
3840×2160 25p
3840×2160 24p
*2 The bit rate can not be changed.
The following option is available when [High-speed] is selected for movie
mode *
3
:
Movie quality Movie quality components
1280×720 HighSpeed 120fps
1
2
1 Frame size
HD : 1280×720
2 Frame rate
120fps
*3 The frame rate and bit rate can not be changed.
Shooting
2
90
EN
The following options are available when [Standard] is selected for movie mode:
Movie quality Movie quality components
1920×1080 Super Fine 60p
Choose the desired combination of frame size,
bit rate, and frame rate.
1 2
3
1 Frame size
FHD : 1920×1080
HD : 1280×720
2 Bit rate (compression ratio)
SF (Super Fine), F (Fine), N (Normal)
3 Frame rate
30p (60p), 25p (50p), 24p
1920×1080 Super Fine 30p
1280×720 Super Fine 30p
1920×1080 Fine 60p
1920×1080 Fine 30p
1280×720 Fine 30p
1920×1080 Normal 60p
1920×1080 Normal 30p
1280×720 Normal 30p
1920×1080 Super Fine 50p
1920×1080 Super Fine 25p
1280×720 Super Fine 25p
1920×1080 Fine 50p
1920×1080 Fine 25p
1280×720 Fine 25p
1920×1080 Normal 50p
1920×1080 Normal 25p
1280×720 Normal 25p
1920×1080 Super Fine 24p
1280×720 Super Fine 24p
1920×1080 Fine 24p
1280×720 Fine 24p
1920×1080 Normal 24p
1280×720 Normal 24p
• Movies are stored in MPEG-4 AVC/H.264 format. The maximum size of individual le is
limited to 4 GB. The maximum recording time of individual movie is limited to 29 minutes.
• Depending on the type of card used, recording may end before the maximum length is
reached.
Shooting
2
91
EN

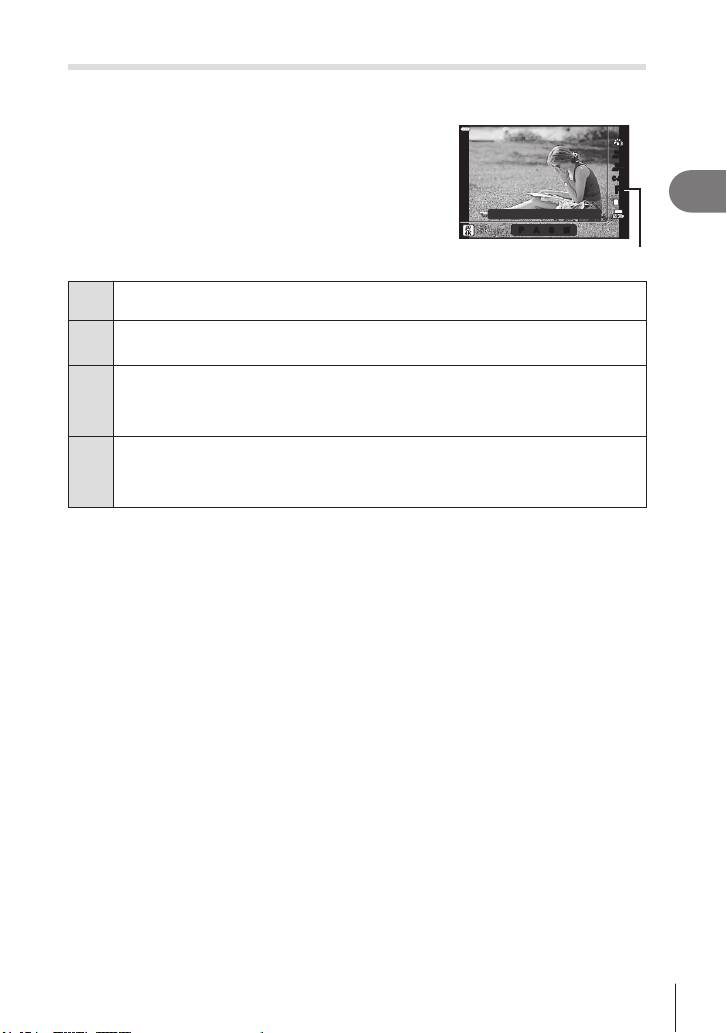

Choosing an Exposure Mode (n Mode (Movie Exposure Modes))
You can create movies that take advantage of the effects available in P, A, S, and M
modes. This option takes effect when the mode dial is rotated to n.
1
Rotate the mode dial to n.
2
Press the Q button and use FG to highlight
movie (exposure) mode.
3
Use HI to choose a value and press the Q
button.
Program Auto
P
A S M
WB
AUTO
WB
AUTO
C-AFC-AF
ISO
AUTO
P
L
F
4K
Movie (exposure) mode
P
Exposure is automatically adjusted in response to subject brightness.
Use the front dial to adjust exposure compensation.
A
Depiction of background is changed by setting the aperture.
Use the front dial to adjust exposure compensation and rear dial to adjust aperture.
S
Shutter speed affects how the subject appears.
Use the front dial to adjust exposure compensation and rear dial to adjust shutter
speed.
Shutter speed can be set to values between 1/24 s and 1/4000 s.
M
Aperture and shutter speed can be manually set.
Use the front dial to select aperture value and the rear dial to select shutter speed.
Shutter speed can be set to values between 1/24 s and 1/4000 s.
ISO sensitivity can only be set manually to values between 200 and 6400.
• Blurred frames caused by such factors as the subject moving while the shutter is open
can be reduced by selecting the fastest available shutter speed.
• The low end of the shutter speed changes according to the frame rate of the movie record
mode.
%
• You can choose the functions performed by the front and rear dials. g [Dial Function]
(P. 132)
Shooting
2
92
EN
Adjusting ash output (Flash intensity control)
Flash output can be adjusted if you nd that your subject to appears overexposed, or is
underexposed even though the exposure in the rest of the frame is just right.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [x], then press the Q
button.
3
Use HI to choose a value and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Flash intensity control
• This setting has no effect when the ash control mode for the external ash unit is set to
MANUAL.
• Changes to ash intensity made with the external ash unit are added to those made with
the camera.
Shooting
2
93
EN
Reducing camera shake (Image Stabilizer)
You can reduce the amount of camera shake that can occur when shooting in low light
situations or shooting with high magnication.
The image stabilizer starts when you press the shutter button halfway.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Image Stabilizer], then
press the Q button.
3
Highlight an option using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
K
Image Stabilizer
n
Stabilizer
K
Stabilizer
Still picture
(S-IS)
S-IS Off Image stabilizer is off.
S-IS On
The camera detects the panning direction and applies the
appropriate image stabilization.
Movie
(M-IS)
M-IS Off Image stabilizer is off.
M-IS
The camera uses both sensor shift (VCM) and electronic
correction.
M-IS
The camera uses sensor shift (VCM) correction only.
Electronic correction is not used.
• The edges of the frame are cropped out when [M-IS
] is selected, reducing the area
recorded.
• The image stabilizer cannot correct excessive camera shake or camera shake that occurs
when the shutter speed is set to the slowest speed. In these cases, it is recommended
that you use a tripod.
• When using a tripod, set [Image Stabilizer] to [S-IS Off]/[M-IS Off].
• When using a lens with an image stabilization function switch, priority is given to the lens
side setting.
• You may notice an operating sound or vibration when the image stabilizer is activated.
Using lenses other than Micro Four Thirds/Four Thirds System lenses
You can use focal length information to reduce camera shake when shooting with lenses that
are not Micro Four Thirds or Four Thirds system lenses.
• Press the INFO button while [Image Stabilizer] is selected, use FGHI to highlight a
focal length, and press the Q button.
• Choose a focal length between 0.1 mm and 1000.0 mm.
• Choose the value that matches the one printed on the lens.
• Selecting [Reset] (basic) in Shooting Menu 1 does not reset the focal length.
Shooting
2
94
EN
Making ne adjustments to white balance (WB Compensation)
You can set and nely adjust the compensation values for both auto white balance and
preset white balance.
Before proceeding, choose a white balance option to which to make ne adjustments.
g “Adjusting color (WB (white balance))” (P. 83)
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Highlight white balance compensation using
FGHI and press the Q button.
3
Use HI to choose an axis.
4
Choose a value using FG and press the Q
button.
WB
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
±
0
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Auto x
White balance compensation
For compensation on the A axis (Red-Blue)
Move the bar in the + direction to emphasize red tones and in the – direction to
emphasize blue tones.
For compensation on the G axis (Green-Magenta)
Move the bar in the + direction to emphasize green tones and in the – direction to
emphasize magenta tones.
• Selecting [Reset] (basic) in Shooting Menu 1 does not reset the values selected.
Shooting
2
95
EN

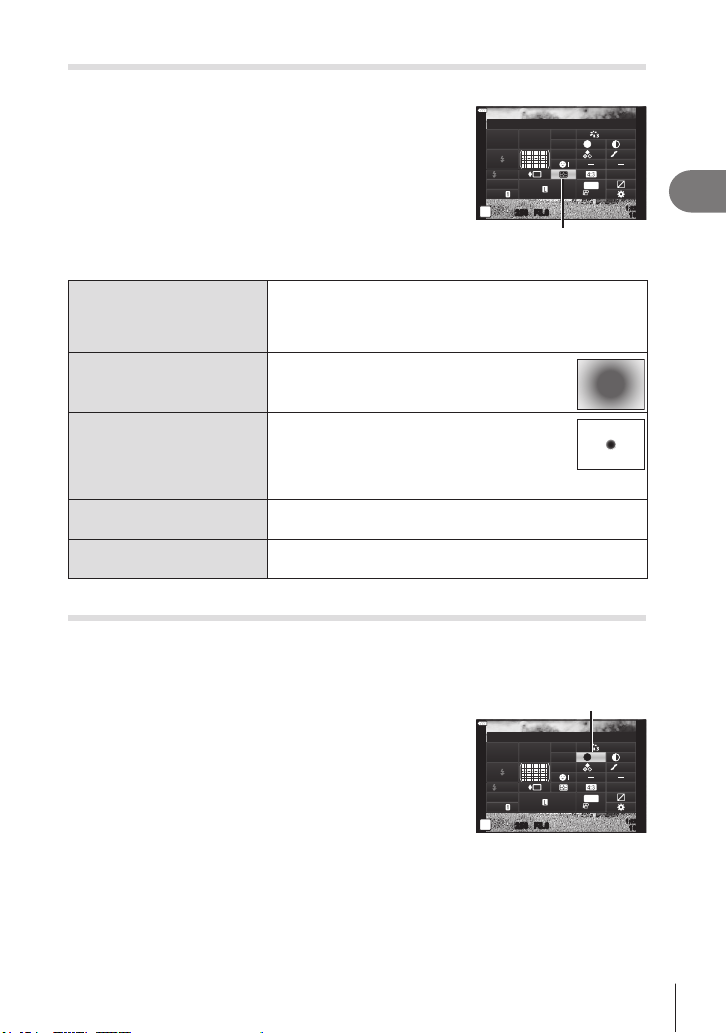

Choosing how the camera measures brightness (Metering)
You can choose how the camera meters subject brightness.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Metering], then press the
Q button.
3
Highlight an option using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Metering
Metering
p
Digital ESP
metering
Meters exposure in 324 areas of the frame and optimizes
exposure for the current scene or portrait subject (if an
option other than [OFF] is selected for [I Face Priority]).
This mode is recommended for general use.
H
Center weighted
averaging metering
Provides the average metering between the
subject and the background lighting, placing
more weight on the subject at the center.
I
Spot metering
Meters a small area (about 2% of the frame)
with the camera pointed at the object you
wish to meter. Exposure will be adjusted
according to the brightness at the metered
point.
IHI
Spot metering
(highlight)
Increases spot metering exposure. Ensures bright subjects
appear bright.
ISH
Spot metering
(shadow)
Lowers spot metering exposure. Ensures dark subjects
appear dark.
Making ne adjustments to sharpness (Sharpness)
Adjust image sharpness. Outlines can be emphasized for a sharp, clear picture.
Settings are stored separately for each picture mode.
• Adjustments may not be available depending on the shooting mode.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Sharpness], then press
the Q button.
3
Adjust sharpness using HI and press the Q
button.
Sharpness
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Sharpness
Shooting
2
96
EN
Making ne adjustments to contrast (Contrast)
Adjust image contrast. Increasing contrast heightens the difference between bright and
dark areas for a harder, more well-dened picture. Settings are stored separately for
each picture mode.
• Adjustments may not be available depending on the shooting mode.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Contrast], then press the
Q button.
3
Adjust contrast using HI and press the Q button.
Contrast
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Contrast
Making ne adjustments to saturation (Saturation)
Adjust color saturation. Increasing saturation makes pictures more vivid. Settings are
stored separately for each picture mode.
• Adjustments may not be available depending on the shooting mode.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Saturation], then press the
Q button.
3
Adjust saturation using HI and press the Q
button.
Saturation
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Saturation
Shooting
2
97
EN

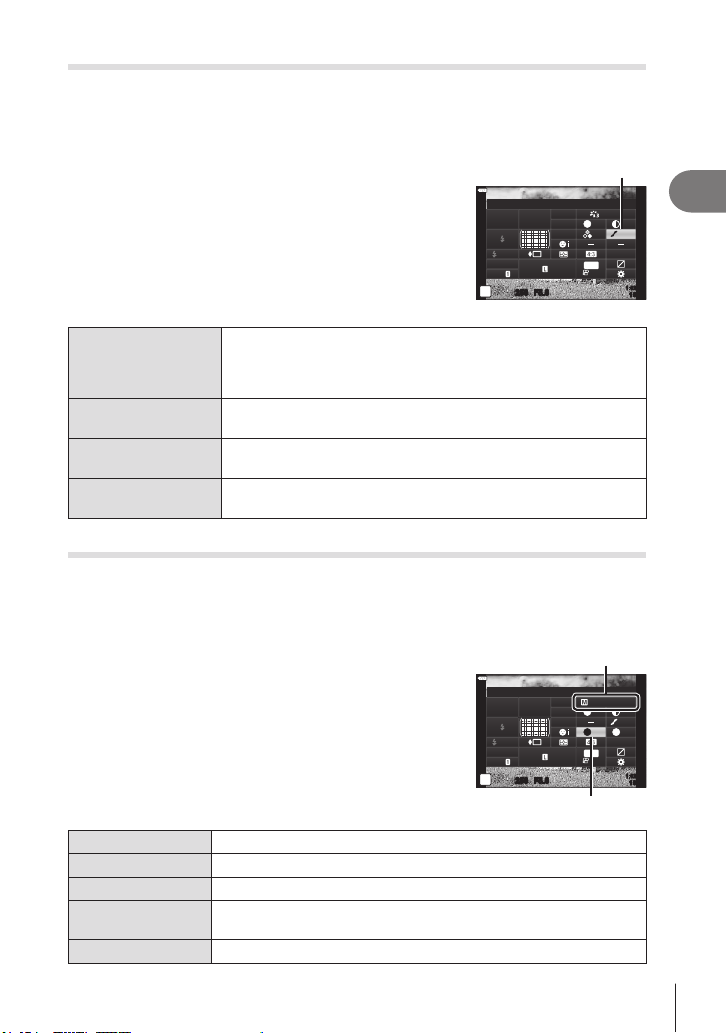

Making ne adjustments to tone (Gradation)
Adjust color brightness and shading. Bring pictures closer to what you envisage by, for
example, brightening the entire picture. Settings are stored separately for each picture
mode.
• Adjustments may not be available depending on the shooting mode.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Gradation], then press the
Q button.
3
Adjust tone using HI and press the Q button.
Gradation
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Gradation
z Auto
(Shadow Adj)
Divides the image into detailed regions and adjusts the brightness
separately for each region. This is effective for images with areas
of large contrast in which the whites appear too bright or the
blacks appear too dark.
z Normal
(Gradation Normal)
Optimal shading. Recommended in most circumstances.
z High
(Gradation High Key)
Uses a tone suitable for a bright subject.
z Low
(Gradation Low Key)
Uses a tone suitable for a dark subject.
Applying lter effects to monochrome pictures (Color Filter)
Color lter effects can be added when [Monochrome] is selected for picture mode
(P. 81). Depending on the color of the subject, color lter effects can make subjects
brighter or enhance contrast. Orange adds more contrast than yellow, red more
contrast than orange. Green is a good choice for portraits and the like.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Color Filter], then press
the Q button.
3
Highlight an option using HI and press the Q
button.
Picture Mode
N
F
250250 F5.6
Normal
P
1023
1:02:03
N
T
S
-
AF
F
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
S
±
0
±
0
sRGB
G
±
0
30p
4K
Monochrome
Color Filter
Color Filter
N:None Creates a normal black and white image.
Ye:Yellow Reproduces clearly dened white cloud with natural blue sky.
Or:Orange Slightly emphasizes colors in blue skies and sunsets.
R:Red
Strongly emphasizes colors in blue skies and brightness of crimson
foliage.
G:Green Strongly emphasizes colors in red lips and green leaves.
Shooting
2
98
EN
Adjusting the tone of a monochrome image (Monochrome Color)
Add a tint to black-and-white pictures in the [Monochrome] picture mode (P. 81).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Monochrome Color], then
press the Q button.
3
Use HI to choose a value and press the Q
button.
Picture Mode
N
F
250250 F5.6
Normal
P
1023
1:02:03
N
T
S
-
AF
F
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
sRGB
S
±
0
±
0
G
±
0
30p
4K
Monochrome Color
Monochrome
Monochrome Color
N:Normal Creates a normal black and white image.
S:Sepia Shoot in sepia-tinted monochrome.
B:Blue Shoot in blue-tinted monochrome.
P:Purple Shoot in purple-tinted monochrome.
G:Green Shoot in green-tinted monochrome.
Adjusting i-Enhance effects (Effect)
Choose the strength of the i-Enhance effect when [i-Enhance] is selected for picture
mode (P. 81).
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Effect], then press the Q
button.
3
Adjust the effect using HI and press the Q
button.
Picture Mode
Standard
250250 F5.6
P
1023
1:02:03
S
-
AF
F
WB
Auto
ISO
Auto
M-IS
S-IS On
sRGB
S
Normal
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Effect
i-Enhance
Effect
3Low (Effect: Low)
Adds a low i-Enhance effect to images.
3Standard
(Effect: Standard)
Adds an i-Enhance effect between “low” and “high” to images.
3High (Effect: High)
Adds a high i-Enhance effect to images.
Shooting
2
99
EN
Setting the color reproduction format (Color Space)
You can select a format to ensure that colors are correctly reproduced when shot
images are regenerated on a monitor or using a printer. This option is equivalent to the
[Color Space] (P. 135) in Custom Menu.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Color Space], then press
the Q button.
3
Select a color format using HI and press the Q
button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Color Space
Color Space
sRGB
The established color space standard for Windows systems. It
is widely supported across displays, printers, digital cameras,
and computer applications. This setting is recommended in most
circumstances.
AdobeRGB
A color space standard dened by Adobe Systems Inc. It can
reproduce a wider gamut of colors than sRGB. Accurate color
reproduction is available only with software and devices (displays,
printers, and the like) that support this standard. An underscore (“_”)
appears at the beginning of the le name (e.g., “_xxx0000.jpg”).
• [AdobeRGB] is not available in AUTO (B, P. 34), ART (P. 50), SCN (P. 36), Z
(P. 40), or movie (n) mode.
Shooting
2
100
EN
Changing the brightness of highlights and shadows
(Highlight&Shadow Control)
Adjust brightness separately for highlights, mid-tones, and shadows. You gain greater
control over exposure than you would with exposure compensation alone. You can
selectively make highlights darker or shadows brighter.
• Adjustments may not be available depending on the shooting mode.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Highlight&Shadow
Control], then press the Q button.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Highlight&Shadow Control
Highlight&Shadow Control
3
Press the INFO button to choose the desired tone
range.
• The tone range changes each time the button is
pressed.
Shadow
±
0
HighLight
±
0
Midtone
Selected tone range
4
Rotate the dials to choose the desired setting.
• [Hi. & Sh.] selected
Adjust highlights using the front dial and shadows using
the rear dial.
• [Midtone] selected
Use the front or rear dial.
• Press and hold the Q button to restore the default
curve.
Midtone
Shadow
±
0
HighLight+5
5
Press the Q button to save changes.
• You can also save changes by pressing the shutter button halfway.
Shooting
2
101
EN
Assigning functions to buttons (Button Function)
Other roles can be assigned to buttons in place of their existing functions.
Customizable Controls
Button Default
t Function
AEL/AFL
b Function b (Digital Tele-converter)
R Function R REC
To change the function assigned to a button, follow the steps below.
1
Press the u button in P/A/S/M modes.
• In B, ART, SCN, and Z modes, the display of the
LV super control panel is controlled via [K Control
Settings] (P. 133).
2
Use FGHI to select [Button Function], then
press the Q button.
• The custom menu [Button Function] item will be
displayed.
250250 F5.6
P
1023
1:02:03
sRGB
Natural
S
-
AF
F
S
Normal
WB
Auto
ISO
Auto
M-IS
S-IS On
A
±
0
±
0.0
±
0
±
0
±
0
G
±
0
30p
4K
Button Function
Button Function
• [Button Function] can also be accessed from the menus (P. 117, 132).
3
Use FG to highlight the desired button and press I.
4
Use FG to highlight the desired function and press the Q button.
5
Press the Q button again to exit.
$
• The functions assigned to the buttons may be unavailable in some modes.
• The options available vary with the current mode.
Shooting
2
102
EN
Available Roles
t (AEL/AFL)
Press the button to use AE lock or AF lock. The function
changes according to the [AEL/AFL] (P. 138) setting.
When AEL is selected, press the button once to lock the
exposure and display u on the monitor. Press the button
again to cancel the lock.
R REC
Press the button to record a movie.
z (Preview)
Aperture is stopped down to the selected value while the
button is pressed.
k (One-touch white
balance)
Press the shutter button while the button is pressed to
acquire a white balance value (P. 84). Highlight the
desired number and press the Q button to save the value.
N (AF Area Select)
Press the button to choose the AF target (P. 72).
MF Press the button to select [MF] mode. Press the button
again to restore the previously selected AF mode. The
focus mode can also be selected by holding the button and
rotating a dial.
F (Exposure
compensation)
Press the button to adjust exposure compensation.
In P, A, S, ART, Z, and movie modes, you can adjust
exposure compensation by pressing the button and using
HI or the front or rear dial to choose the desired value.
In M mode, you can adjust shutter speed or aperture by
pressing the button and using FGHI or the front or rear
dial to choose the desired values.
b (Digital Tele-converter)
Press the button to turn digital zoom [On] or [Off] (P. 119).
a (Magnify)
Press the button to display the magnication frame and
press it again to magnify the image. Press and hold the
button to cancel magnied display.
Peaking Press the button to turn on and off the peaking display.
When peaking is displayed, histogram and highlight/
shadow display are not available (P. 138).
G (Switch G Lock)
Press and hold the button to enable and disable touch
screen operation.
Locking the exposure (AE Lock)
You can lock the exposure by pressing the AEL/AFL button. Use this when you want
to adjust the focus and exposure separately or when you want to shoot several images
at the same exposure.
• If you press the button to which t has been assigned once, the exposure is locked and
u is displayed. g “AEL/AFL” (P. 138)
• Press the button to which
t has been assigned once again to release the AE Lock.
• The lock will be released if you operate the mode dial, MENU button, or Q button.
Shooting
2
103
EN
Zoom frame AF/Zoom AF (Super Spot AF)
You can zoom in on the display during shooting. For greater precision during focusing,
zoom in on the focus area. At higher zoom ratios, you can focus on areas smaller than
the standard focus target. You can reposition the focus area as desired during zoom.
• To use Super Spot AF, you must rst assign [a] to a button with Button Function
(P. 132).
250250 F5.6
P
L
F
S-IS ONS-IS ON
ISO-A
200
1023
1:02:03
0.0
4K
30p
Shooting display
P
1:02:03
250 F5.6
Off
0.0
0
1023
S-IS ONS-IS ON
ISO-A
200
L
F
4K
30p
Zoom frame AF display
10
x
Zoom AF display
a
a
a
a
(Press and hold) / Q
1
Press the button to which [a] (magnify) is
assigned.
• The zoom frame will be displayed.
• The frame is displayed in the same position as the
target most recently used for autofocus.
P
1:02:03
250 F5.6
Off
0.0
0
1023
S-IS ONS-IS ON
ISO-A
200
L
F
4K
30p
2
Use FGHI to position the zoom frame.
• To re-center the frame, press and hold the Q button.
P
1:02:03
250 F5.6
Off
0.0
0
1023
S-IS ONS-IS ON
ISO-A
200
S-AF
L
F
4K
30p
3
Adjust the size of the zoom frame to choose the
zoom ratio.
• Press the INFO button and then use the FG buttons
or the front or rear dial to adjust the size of the zoom
frame.
• Press the Q button to accept and exit.
5
x
Shooting
2
104
EN
4
Press the button to which [a] is assigned once
more.
• The camera will zoom the selected area in to ll the
display.
• Use the front or rear dial to zoom in or out.
• You can also scroll the display using the arrow pad
(FGHI).
10
x
• In M mode, you can press the INFO button during
zoom to choose aperture or shutter speed.
• Press the a button to return to the zoom frame.
• Press the Q button to end focus zoom.
• You can also end focus zoom by pressing and holding
the a button.
250 F5.6
Exposure adjustment display
for
M
mode
5
Press the shutter button halfway to focus using autofocus.
• Focus zoom applies to the display only. Pictures taken with the camera are not affected.
%
• Touch controls can be used for focus zoom. g “Shooting with touch screen operations”
(P. 32)
Playback
3
105
EN
3
Information display during playback
Playback image information
Simplied display
15
100-0015
4
:
3
×10
2020.06.01 12:30:00
e
0
a
1 5 7 89
bcd
3 4 62
Overall display
F5.6F5.6
+1.0+1.0
G+4G+4A+4A+4
NaturalNatural
ISO 400ISO 400
45mm45mm
1/85184×3888
4
:
3
15
100-0015
WB
AUTO
P
×10×10
2020.06.01 12:30:00
250
+2.0
sRGB
gf h
n
k
l
m
o
q
p
rst
u
v
ji
Playback
Playback
3
106
EN
1 Battery level ....................................P. 21
2 Bluetooth
®
connection status
.............................................P. 142 – 150
3 Wireless LAN connection......P. 142–150
4 Including GPS information ............P. 149
5 Print order
Number of prints ...........................P. 112
6 Share order ................................... P. 111
7 Sound record ........................P. 113, 127
8 Protect ..........................................P. 110
9 Image selected ............................. P. 111
0 File number ...................................P. 136
a Frame number
b Image quality ..................................P. 86
c Aspect ratio .....................................P. 86
d HDR image .....................................P. 44
e Date and time .................................P. 22
f Aspect border .................................P. 86
g AF area pointer ...............................P. 72
h Shooting mode..........................P. 29–66
i Shutter speed ...........................P. 54–60
j Exposure compensation .................P. 71
k Aperture value ..........................P. 54–60
l Focal length
m Flash intensity control .....................P. 92
n White balance compensation..........P. 94
o Color space.....................................P. 99
p Picture mode...........................P. 81, 119
q Compression rate .........................P. 141
r Pixel count ....................................P. 141
s ISO sensitivity .................................P. 74
t White balance .................................P. 83
u Metering mode ................................P. 95
v Histogram .......................................P. 28
Switching the information display
You can switch the information displayed during playback
by pressing the INFO button.
INFO button
15
100-0015
12:30:00
P
F5.6F5.6
+1.0+1.0
G+4G+4A+4A+4
NaturalNatural
ISO 400ISO 400
45mm45mm
1/8
5184×3888
15
100-0015
WB
AUTO
2020.06.01 12:30:00
×10×10
×10×10
4
:
3
4
:
3
2020.06.01
250
+2.0
sRGB
Image only Overall display
Simplied display
INFO
INFO
INFO
• You can add histogram and highlight & shadow to the information displayed during
playback. g [q Info] (P. 139)
Playback
3
107
EN
Viewing photographs and movies
1
Press the q button.
• A photograph or movie will be displayed.
• Select the desired photograph or movie using the front dial or arrow pad.
• To return to shooting mode, press the shutter button halfway or press the q button.
Front dial
Displays
the previous
frame
Displays
the next
frame
q button
20
100-0020
12:30:002020.06.01
4
:
3
L
F
100-0004
WB
AUTO
WBWBWB
AUTOAUTOAUTO
P
42020.06.01 12:30:00
4K
30p
Still image
Movie
Rear dial
Zoom in (p)/Index (q)
Front dial
Previous (t)/Next (s)
Operation also available during close-up playback.
Arrow pad (FGHI)
Single-frame playback: display the next frame (I)/display the
previous frame (H)/jump ahead 10 frames (G)/jump back
10 frames (F)
Close-up playback: Changing the close-up position
You can display the next frame (I) or the previous frame (H)
during close-up playback by pressing the INFO button.
Index/calendar playback: Highlight image
INFO button
View image info
h (R) button
Select images for sharing (P. 111)
b button
Protect picture (P. 110)
D button
Delete picture (P. 110)
Q button
View menus (in calendar playback, press this button to exit to single-
frame playback)
Playback
3
108
EN
Finding Pictures Quickly (Index and Calendar Playback)
• In single-frame playback, rotate the rear dial to G (q) for index playback. Rotate further
for calendar playback.
• Turn the rear dial to a (p) to return to single-frame playback.
Q
Single-frame
playback
20
100-0020
12:30:002020.06.01
4
:
3
L
F
Index display
202020.06.01 12:30:00
Calendar display
13
20191817161514
27262524
232221
4321302928
98765
65432131
127 8 9 10 11
2020.6
Mon Tue Wed Thu Fri SatSun
q
p
q
p
• You can change the number of frames for index display. g [G Settings] (P. 139)
$
• Touch controls can also be used (P. 115).
Zooming In (Playback Zoom)
In single-frame playback, turn the rear dial to a (p) to zoom in. Turn to G (q) to
return to single-frame playback.
2× zoom
Close-up playback
Single-frame
playback
14× zoom
2
x
q
p
q
p
20
100-0020
12:30:002020.06.01
4
:
3
L
F
14x
$
• Touch controls can also be used (P. 115).
Rotating Pictures (Rotate)
Choose whether to rotate photographs.
1
Play the photograph back and press the Q button.
2
Select [Rotate] and press the Q button.
3
Press F to rotate the image counterclockwise, G to rotate it clockwise; the
image rotates each time the button is pressed.
• Press the Q button to save settings and exit.
• The rotated image is saved in its current orientation.
• Movies and protected images cannot be rotated.
%
• The camera can be congured to automatically rotate portrait-orientation pictures during
playback. g q playback menu > [R] (P. 126)
[Rotate] is not available when [Off] is selected for [R].
Playback
3
109
EN
Viewing Images as a Slideshow (L)
This function displays images stored on the card one after another.
1
Press the Q button in the playback display.
2
Select [L] and press the Q button.
JPEG
JPEG Edit
Share Order
0
R
Rotate
Back Set
3
Adjust settings.
Start
Start the slideshow. Images are displayed in order, starting with the
current picture.
BGM
Set [On] or [Off].
Slide
Set the type of data to be played back.
Slide Interval
Choose the length of time each slide is displayed from 2 to 10 seconds.
Movie Interval
Select [Full] to play back full length of each movie clip in the slideshow or
[Short] to play back only the opening portion of each movie clip.
4
Select [Start] and press the Q button.
• The slideshow will start.
• Press FG during the slideshow to adjust the overall volume of the camera speaker.
Press HI while the volume adjustment indicator is displayed to adjust the balance
between the sound recorded with the image or movie and background music.
• Press the Q button to stop the slideshow.
Playback
3
110
EN

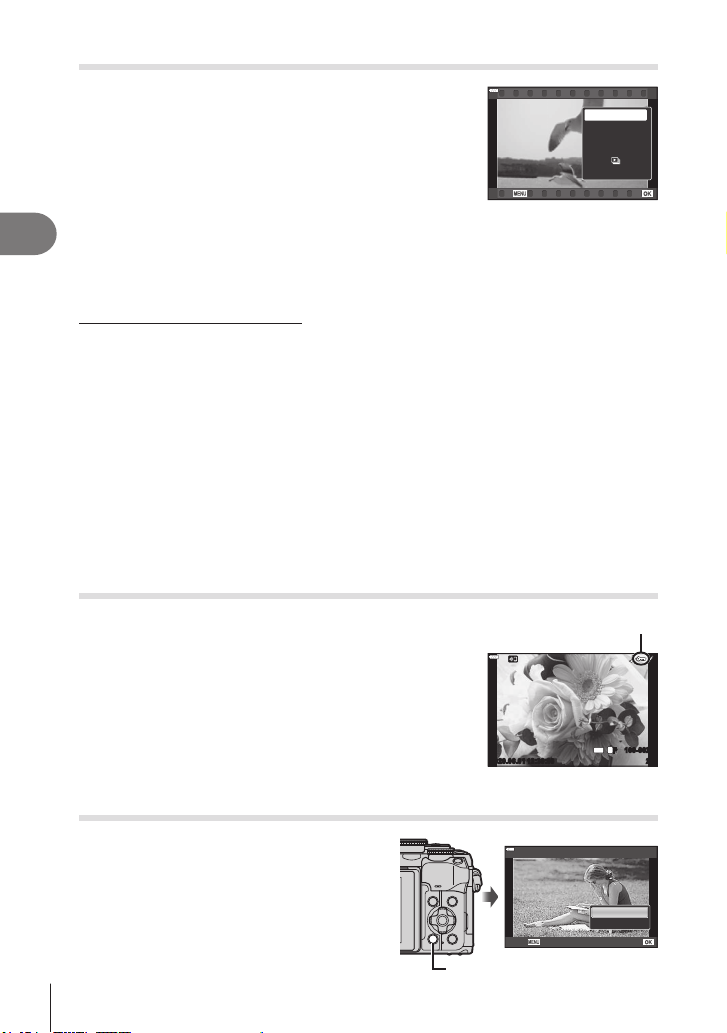

Watching movies
Select a movie and press the Q button to display the
playback menu. Select [Play Movie] and press the Q
button to begin playback. Fast-forward and rewind using
H/I. Press the Q button again to pause playback. While
playback is paused, use F to view the rst frame and G
to view the last frame. Use HI or the front dial to view
previous or next frame. Press the MENU button to end
playback.
Movie
Share Order
Movie Edit
Play Movie
0
Erase
Back Set
• Use FG to adjust the volume during movie playback.
$
• Touch controls can also be used (P. 115).
Viewing Movies over 4 GB in Size
Long movies may exceed 4 GB in size. Movies over 4 GB in size are recorded over multiple
les. The les can be played back as a single movie.
1
Press the q button.
• The most recent picture will be displayed.
2
Display a long movie you want to view and press the Q button.
[Play from Beginning]: Plays back a split movie all the way through
[Play Movie]: Plays back les separately
[Delete entire n]: Deletes all parts of a split movie
[Erase]: Deletes les separately
• We recommend using the latest version of Olympus Workspace to play back movies on
a computer. Before launching the software for the rst time, connect the camera to the
computer.
Protecting Pictures (0)
Protect images from accidental deletion. Display the image
you want to protect and press the b button to add 0
to the image (protection icon). Press the b button again
to cancel protection. You can also protect multiple selected
images.
g “Selecting Multiple Pictures (0, Erase Selected,
Share Order Selected)” (P. 111)
0 (protect) icon
20
100-0020
4
:
3
12:30:002020.06.01
L
F
• Formatting the card erases all data including protected images.
Deleting Pictures (Erase)
Display an image you want to delete and press
the D button. Select [Yes] and press the Q
button.
D button
Erase
Yes
No
Back Set
Playback
3
111
EN

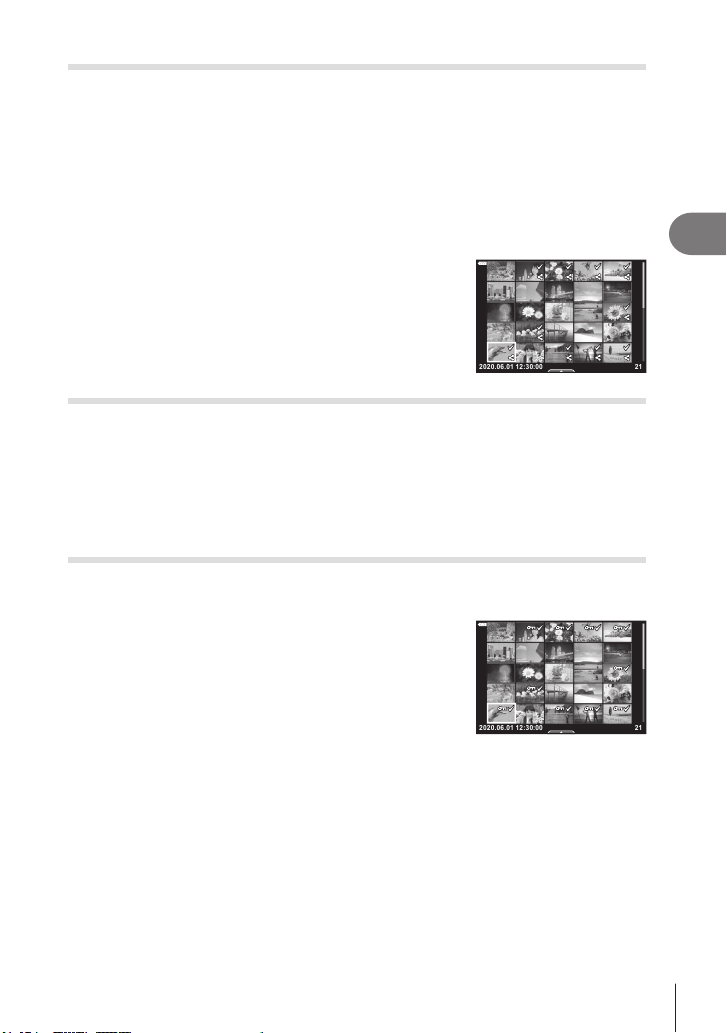

Selecting Pictures for Sharing (Share Order)
You can select images you want to transfer to a smartphone in advance. You can also
use OI.Share to browse the images included in the share order. Display the image you
want to transfer and press the h (R) button to set a share order. A h icon will appear
on the image. Press the h (R) button again to cancel a share order.
You can select images you want to transfer in advance and set a share order all at
once.
• You can set a share order on 200 frames.
• Share orders cannot include RAW images.
$
If the h (R) button is currently assigned a role other than [h],
assign it the [h] role using the [qR Function] option in the
custom menus (P. 132).
21
2020.06.01 12:30:00
Cancelling all share orders (Reset share Order)
Cancel share orders that are set on images.
1
Highlight [Reset share Order] in the q playback menu and press the Q
button.
2
Select [Yes] and press the Q button.
Selecting Multiple Pictures
(0, Erase Selected, Share Order Selected)
You can select multiple images for [0], [Erase Selected] or [Share Order Selected].
• To select multiple images, you will rst need to select [H] for [qR Function] (P. 132).
Press the h (R) button on the index display screen
(P. 108) to select an image; a v icon will appear on
the image. Press the h (R) button again to cancel the
selection.
Press the Q button to display the menu, and then select
from [0], [Erase Selected] or [Share Order Selected].
This function is also available in single-frame playback.
212020.06.01 12:30:00
$
• Touch controls can also be used (P. 116).
Playback
3
112
EN
Creating a print order (DPOF)
You can select pictures for printing and choose the number of copies and the
information printed on each picture. The pictures can be printed at print shops that
support the Digital Print Order Format (DPOF). A digital print order is stored on the
memory card.
1
Press the Q button in the playback display.
2
Select [< (Print Order)] and press the Q button.
<
Erase
JPEG
Back Set
3
Select [<] or [<ALL] and press the Q button.
Individual picture
Press HI to select the frame that you want to set as print reservation, then press FG
to set the number of prints.
• To set print reservation for several pictures, repeat this step. Press the Q button
when all the desired pictures have been selected.
All pictures
Select [<ALL] and press the Q button.
4
Select the date and time format and press the Q button.
No
The pictures are printed without the date and
time.
Date
The pictures are printed with the shooting
date.
Time
The pictures are printed with the shooting
time.
• When printing images, the setting cannot be changed between the images.
5
Select [Set] and press the Q button.
• The setting will be applied to the images saved on the card being used for playback.
• The camera cannot be used to modify print orders created with other devices. Creating a
new print order deletes any existing print orders created with other devices.
• Print orders cannot include RAW images or movies.
$
• Pictures can also be marked for printing using the h (R) button. If the h (R) button is
currently assigned a role other than [], assign it the [] role using the [qR Function]
option in the custom menus (P. 132).
Playback
3
113
EN
Removing all or selected pictures from the print order
You can reset all print reservation data or just the data for selected pictures.
1
Press the Q button in the playback display.
2
Select [< (Print Order)] and press the Q button.
3
Select [<] and press the Q button.
• To remove all pictures from the print order, select [Reset] and press the Q button. To
exit without removing all pictures, select [Keep] and press the Q button.
4
Press HI to select images you wish to remove from the print order.
• Use G to set the number of prints to 0. Press the Q button once you have removed
all the desired pictures from the print order.
5
Select the date and time format and press the Q button.
• This setting is applied to all frames with print reservation data.
• The setting will be applied to the images saved on the card being used for playback.
6
Select [Set] and press the Q button.
Adding Audio to Pictures (R)
You can record audio using the built-in stereo microphone and add it to pictures. The
recorded audio provides a simple replacement for written notes about the pictures.
• Audio recordings can be up to 30 s long.
1
Display the image to which you want to add audio and press the Q button.
• Audio recording is not available with protected images.
• Audio can also be added to pictures using the [Edit]
option in the playback menu. Use [Edit] > [Sel. Image]
to select the picture, then press the Q button and
select [R].
2
Select [R] and press the Q button.
• To exit without adding audio, select [No].
JPEG
JPEG Edit
Share Order
0
R
Rotate
Back Set
3
Select [R Start] and press the Q button to begin
recording.
4
Press the Q button to end recording.
• Images recorded with audio are indicated by a H icon.
R
R Start
No
Erase
Back Set
• To delete recorded audio, select [Erase] in Step 3.
Audio Playback (Play 7)
If an audio recording is available for the current picture, pressing the Q button will
display audio playback options. Highlight [Play 7] and press the Q button to begin
playback. To end playback, press the Q or MENU button. During playback, you can
press FG to raise or lower the volume.
$
• Audio recordings can also be played back using touch controls (P. 115).
Playback
3
114
EN
Scrolling Panoramas
Panoramas made up of multiple images joined together can be viewed in a scrolling
display.
1
Select a panorama in single-frame playback.
2
Turn the rear dial to a.
• Use FGHI to scroll.
1x
• During playback, you can turn the rear dial further to a to zoom in from 2x to 14x or turn
it to G to zoom out. Press the Q button to return to single-frame playback.
• To view other images at zoom ratios above 2×, press the INFO button and then press
HI. Press the INFO button again to re-enable scrolling. You can also view other images
using the front dial.
$
• Touch controls can also be used (P. 115).
Playback
3
115
EN
Using the touch screen
You can use the touch screen to manipulate images.
• Do not tap the display with your ngernails or other sharp objects.
• Gloves or monitor covers may interfere with touch screen operation.
Single-frame playback
Displaying the previous or next image
• Slide your nger to the left to view the next image, and
right to view the previous image.
Magnify
• Lightly tap the screen to display the slider and P.
• Slide the bar up or down to zoom in or out.
• Slide your nger to scroll the display area when the
picture is zoomed in.
Audio playback/Movie playback
• Tap 8 to start playback.
• To adjust volume during playback, place a nger on the
display and slide it up or down.
• Movie playback can be paused by tapping the display.
Tap again to resume playback.
• While playback is paused, you can slide the playback
position indicator at the bottom of the screen left or right
to choose a new starting point.
• Tap 6 to end playback.
100-0004
WB
AUTO
WBWBWB
AUTOAUTOAUTO
P
42020.06.01 12:30:00
4K
30p
Index/Calendar playback
Lightly tapping the display during single-frame playback displays a P icon. Tap P
to display index playback. Tap Q for calendar playback.
Displaying the previous or next page
• Slide your nger up to view the next page, and down to
view the previous page.
• Tap Q or R to switch the number of images
displayed. g [G Settings] (P. 133)
• Tap R several times to return to single-frame
playback.
S
Viewing images
• Tap an image to view it full frame.
Playback
3
116
EN
Selecting and protecting images
To view the touch menu, lightly tap the display (single-
frame playback) or tap the
icon (index
playback). You can then perform the desired operation
by tapping the icons in the touch menu.
212020.06.01 12:30:00
H
Select an image. You can select multiple images and delete them collectively.
h
Images you want to share with a smartphone can be set. g “Selecting
Pictures for Sharing (Share Order)” (P. 111)
0
Protects an image.
Viewing pictures in self-portrait mode
Displaying the previous or next image
The controls are the same as for single-frame playback (P. 115).
Magnify
The controls are the same as for single-frame playback (P. 115).
Audio playback/Movie playback
The controls are the same as for single-frame playback (P. 115).
Selecting pictures for sharing
• Tap the monitor to display the share icon.
• Tap h to select pictures for sharing.
Returning to shooting mode
• Tap 7 to return to shooting mode (P. 69).
20
100-0020
12:30:002020.06.01
4
:
3
L
F
$
• The INFO button is disabled in self-portrait mode.
Menu functions (Basic operations)
4
117
EN
4
Basic menu operations
The menus can be used to customize the camera for ease of use and include shooting
and playback options not accessible via the live control, LV super control panel, or the
like.
Tab Tab name Description
W
Shooting Menu 1
Photography-related items. Ready the camera for shooting or
access photo settings.
X
Shooting Menu 2
n
Video Menu
Items related to movie recording. Adjust basic and custom
settings.
q
Playback Menu Playback- and retouch-related items.
G
Custom Menu Items for customizing the camera.
e
Setup Menu Items for setting the clock, choosing a language, and the like.
Functions that cannot be selected from menus
Some items may not be selectable from the menus when using the arrow pad.
• Items that cannot be set with the current shooting mode.
• Items that cannot be set because of an item that has already been set:
Settings such as picture mode are unavailable when the mode dial is rotated to B.
1
Press the MENU button to display the menus.
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Reset
Back Set
AF Illuminator
p
Off
On
Preliminary and basic
shooting options.
Press the Q button to conrm
the setting
Operation guide
Press the MENU button
to go back one screen
Tab
Guide
• A guide is displayed in 2 seconds after you select an option.
• Press the INFO button to view or hide guides.
2
Use FG to select a tab and press I.
• The menu group tab appears when the G Custom
Menu is selected. Use FG to select the menu group
and press I.
2
1
A. AF/MF
AEL/AFL S1/C2/M1
A
B
C1
C2
D1
D2
E
F
Back Set
Reset Lens
MF Assist
Face Priority
AF Targeting Pad
Off
On
A
Menu group
Menu functions
Menu functions (Shooting menu)
4
118
EN
3
Select an item using FG and press I to display options for the selected
item.
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
OnAF Illuminator
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
AF Illuminator On
Off
On
The current
setting is
displayed
Function
I
4
Use FG to highlight an option and press the Q button to select.
• Press the MENU button repeatedly to exit the menu.
$
• For the default settings of each option, refer to “Defaults” (P. 169).
Using Shooting Menu 1/Shooting Menu 2
2
1
1
Shooting Menu 1
Picture Mode
Digital Tele-converter
Metering
Off
p
Reset
Back Set
AF Illuminator On
Shooting Menu 1 Shooting Menu 2
W
Reset
Picture Mode (P. 81, 119)
Digital Tele-converter (P. 119)
Metering (P. 95)
AF Illuminator (P. 119)
X K Image Stabilizer (P. 93)
K Elec. Zoom Speed (P. 120)
x (P. 92)
Multiple Exposure (P. 120)
Intrvl. Sh./Time Lapse (P. 122)
Silent s Settings (P. 123)
# RC Mode (P. 124)
Returning to default settings (Reset)
Camera settings can be easily restored to default settings. You can opt to reset almost
all settings or only those directly related to photography.
1
Select [Reset] in W Shooting Menu 1 and press I.
2
Highlight a reset option ([Full] or [Basic]) and press the Q button.
• To reset all settings except the time, date, and a few others, highlight [Full] and press
the Q button.
g “Defaults” (P. 169)
3
Select [Yes] and press the Q button.
Menu functions (Shooting menu)
4
119
EN
Processing options (Picture Mode)
You can make individual adjustments to contrast, sharpness and other parameters in
[Picture Mode] (P. 81) settings. Changes to parameters are stored for each picture
mode separately.
1
Select [Picture Mode] in W Shooting Menu 1 and
press I.
• The camera will display the picture mode available in the
current shooting mode.
2
1
1
Shooting Menu 1
p
Picture Mode
Digital Tele-converter
Metering
Reset
Back Set
Off
AF Illuminator On
2
Select an option with FG and press the Q button.
• Press I to set the detailed options for the selected picture mode. Detailed options are not
available for some picture modes.
• Changes to contrast have no effect at settings other than [Normal].
Digital Zoom (Digital Tele-converter)
This option takes a crop at the center of the frame the same dimensions as the size
option currently selected for image quality and zooms it in to ll the display. The zoom
ratio increases by about 2×. This allows you to zoom in past the lens’ maximum focal
length, making it a good choice when you are unable to switch lenses or nd it difcult
to get any closer to your subject.
1
Select [On] for [Digital Tele-converter] in W Shooting Menu 1.
2
The view in the monitor will be enlarged by a factor of two.
• The subject will be recorded as it appears in the monitor.
• Digital zoom is not available when panorama, multiple exposure, or keystone
compensation is selected.
• When a RAW image taken with [On] selected for [Digital Tele-converter] is displayed, the
area visible in the monitor is indicated by a frame.
• AF target drops.
• H is displayed on the monitor.
Improving Focus in Dark Surroundings (AF Illuminator)
The AF illuminator (AF assist lamp) lights to assist the focus operation in dark
environments. Select [Off] to disable AF illuminator.
Menu functions (Shooting menu)
4
120
EN
Choosing a Zoom Speed (K Elec. Zoom Speed)
Choose the speed at which electronic zoom lenses can be zoomed in or out using the
zoom ring during still photography.
1
Highlight [K Elec. Zoom Speed] in X Shooting Menu 2 and press I.
2
Select an option with FG and press the Q button.
Recording multiple exposures in a single image
(Multiple Exposure)
Take two shots and combine them into a single picture. Alternatively, you can take a
shot and combine it with an existing picture stored on the memory card.
The combined image is recorded at current image quality settings. Only RAW pictures
can be selected for multiple exposures that include an existing image.
If you record a multiple exposure with RAW selected for [KK], you can then select
it for subsequent multiple exposures using [Overlay], allowing you to create multiple
exposures combining three or more photographs.
• This option is available in P, A, S, and
M
modes.
1
Select [Multiple Exposure] in X Shooting Menu 2 and press I.
2
Use FG to select the item and press I.
• Use FG to select the setting and press the Q button.
Multiple Exposure
Number of Frames Off
Auto Gain Off
Overlay Off
Back Set
Number of
Frames
[Off]: Do not create additional multiple exposures.
[2f]: Create a multiple exposure from 2 pictures.
Auto Gain
[On]: Halve the brightness of each picture in the multiple exposure.
[Off]: Do not adjust brightness the brightness of the pictures in the
multiple exposure.
Overlay
[On]: Shoot a multiple exposure that includes an existing RAW image
stored on the memory card.
[Off]: Create a multiple exposure from the next 2 pictures taken.
• [Overlay] is only available when [2f] is selected for [Number of
Frames].
3
If [On] is selected for [Overlay], you will be
prompted to choose a picture for the multiple
exposure.
• Highlight a picture using the arrow pad (FGHI) and
press the Q button.
• Only RAW images can be selected.
Overlay
RAW RAW RAW
RAW
RAW RAW RAW
Back Set
4
Press the Q button in the multiple exposure menu to save the selected
settings.
• The shooting menu will be displayed.
Menu functions (Shooting menu)
4
121
EN
5

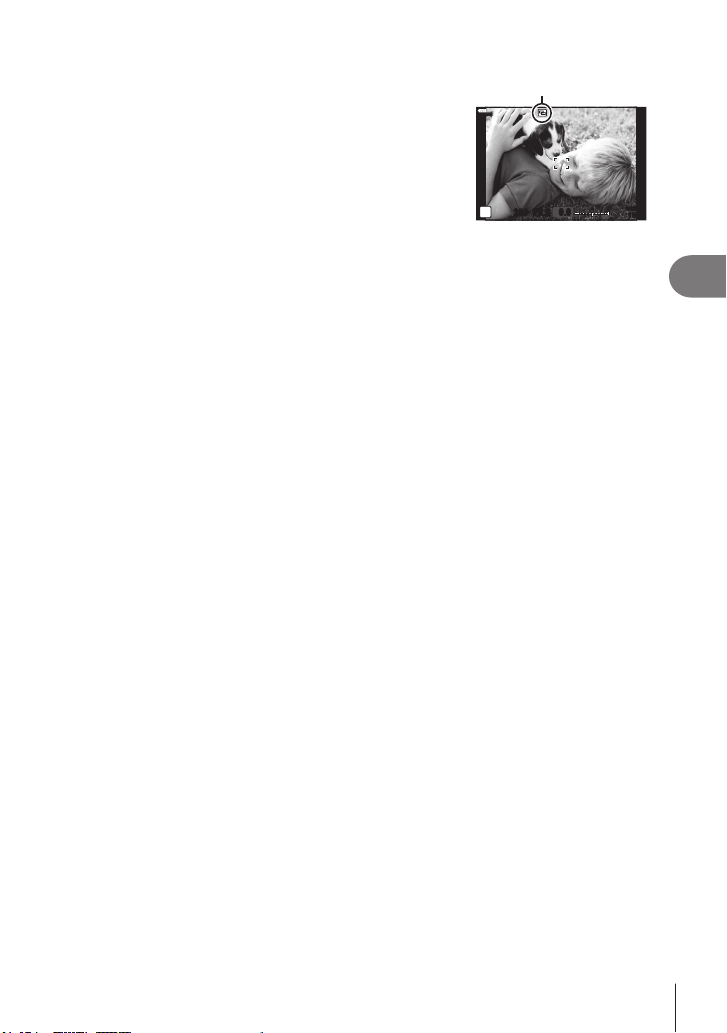

Press the MENU button to exit the menus.
• A a icon will be displayed.
• If [Overlay] is selected, the chosen photograph will be
visible superimposed on the view through the lens.
a icon
P
1:02:03
250 F5.6
0.0
0
1023
6
Take pictures.
• The rst shot (or if [Overlay] is selected, the previously-chosen photograph) will be
visible superimposed on the view through the lens as you compose the next shot.
• The a icon turns green.
• Normally, a multiple exposure will be created after the second shot is taken.
• Pressing the D button allows you to retake the rst shot.
• If [On] is selected for [Overlay], you can take additional pictures that will be overlaid
on the previously-chosen photograph.
7
Press the MENU button or press the q button to end multiple exposure
photography.
• If you end multiple exposure photography by pressing the MENU button, [Off] will be
selected for [Number of Frames] in the multiple exposure menu.
• The a icon clears from the display when multiple exposure photography ends.
• The camera will not enter sleep mode during multiple exposure photography.
• Pictures taken with other cameras cannot be used for multiple exposures.
• The RAW pictures listed in the image-selection display when [On] is selected for [Overlay]
are those processed using the settings in effect at the time the photograph was taken.
• The image-selection display for [Overlay] shows the RAW copies of photographs taken
with RAW + JPEG selected for image quality.
• Exit multiple exposure mode before adjusting shooting settings. Some settings cannot be
adjusted while multiple exposure mode is in effect.
• Performing any of the following operations after the rst shot is taken ends multiple
exposure photography:
turning the camera off, pressing the q or MENU button, choosing a different shooting
mode, or connecting cables of any type. Multiple exposure is also canceled when the
battery is exhausted.
• This function cannot be used with interval-timer photography.
• Pictures taken with RAW selected for [KK] can also be overlaid during playback.
Menu functions (Shooting menu)
4
122
EN
Shooting automatically with a xed interval (Intrvl. Sh./Time Lapse)
You can set the camera to shoot automatically with a set time lapse. The shot frames
can also be recorded as into a single movie. This setting is only available in P/A/S/M
modes.
1
Highlight [Intrvl. Sh./Time Lapse] in X Shooting
Menu 2 and press I.
2
1
Shooting Menu 2
K
Elec. Zoom Speed
±0.0
Normal
S-IS On
K
Image Stabilizer
Intrvl. Sh./Time Lapse Off
Back Set
#RC Mode Off
Silent [♥] Settings
Multiple Exposure Off
2
2
Select [On] and press the I.
3
Adjust the following settings and press the Q button.
Number of Frames Sets the number of frames to be shot.
Start Waiting Time Sets waiting time before starting to shoot.
Interval Length Sets interval between shots after shooting starts.
Time Lapse Movie
Sets recording format of frame sequence.
[Off]: Records each frame as a still picture.
[On]: Records each frame as a still picture and generates a single
movie from the frame sequence.
Movie Settings
[Movie Resolution]: Choose a size for time lapse movies.
[Frame Rate]: Choose a frame rate for time lapse movies.
• The starting and ending times shown in the display are intended as a guide only. The
actual times may vary with shooting conditions.
4
The [Off]/[On] options will be displayed once more; conrm that [On] is
highlighted and press the Q button again.
5
Shoot.
Menu functions (Shooting menu)
4
123
EN
• Frames are shot even if the image is not in focus after AF. If you wish to x the focus
position, shoot in MF.
• [Rec View] (P. 130) operates for 0.5 seconds.
• If either of the time before shooting, or shooting interval is set to 1 minute 31 seconds
or longer, the monitor and camera power will turn off after 1 minute. 10 seconds before
shooting, the power will automatically turn on again. When the monitor is off, press the
shutter button to turn it on again.
• If the AF mode (P. 84) is set to [C-AF] or [C-AF+TR], it is automatically changed to
[S-AF].
• Touch operations are disabled during time lapse shooting.
• Bulb, time, and composite photography are not available during time lapse photography.
• This function cannot be used with multiple exposure.
• The ash will not work if the ash charging time is longer than the interval between shots.
• If any of still pictures are not recorded correctly, the time lapse movie will not be
generated.
• If there is insufcient space on the card, the time lapse movie will not be recorded.
• The following cancel time-lapse shooting:
using the mode dial, MENU button, q button, or lens-release button; connecting a USB
cable; turning the camera off
• If there is not enough charge left on the battery, the shooting may end partway through.
Make sure the battery is charged enough before shooting.
• Movies recorded with [4K] selected for [Movie Settings] > [Movie Resolution] may not
display on some computer systems. More information is available on the OLYMPUS
website.
Silent-Mode Options (Silent s Settings)
Choose the following options when shooting in the silent mode (P. 78):
- Noise reduction on/off
- Whether or not to enable [8], [AF Illuminator], and [Flash Mode]
1
Highlight [Silent s Settings] in X Shooting Menu 2
and press I.
2
1
Shooting Menu 2
K
Elec. Zoom Speed
Normal
S-IS On
±0.0
K
Image Stabilizer
Intrvl. Sh./Time Lapse Off
Back Set
#RC Mode Off
Silent [♥] Settings
Multiple Exposure Off
2
2
Select an option with FG and press I.
Menu functions (Shooting menu)
4
124
EN
3
Adjust the following settings and press the Q button.
Noise Reduction
s
[Auto]: Reduce noise in long exposures when shooting in the silent
mode (P. 78). The sound of the shutter may be audible when
noise reduction is active.
[Off]: Noise reduction off.
8 (Beep sound)
[Allow]: Uses the settings currently selected for [8] in G Custom
Menu O (P. 133).
[Not Allow]: Turns off the beep sound when shooting in the silent
mode.
AF Illuminator
[Allow]: Uses the settings currently selected for [AF Illuminator] in
W Shooting Menu 1 (P. 119).
[Not Allow]: Disables the AF Illuminator when shooting in the silent
mode.
Flash Mode
[Allow]: Uses the current ash settings (P. 75).
[Not Allow]: Disables the ash when shooting in the silent mode.
Wireless remote control ash photography (# RC Mode)
You can take wireless ash photographs using the built-in ash and a special ash with
a remote control function. g “Wireless remote control ash photography” (P. 158)
Menu functions (Video menu)
4
125
EN
Using the Video Menu
Movie recording functions are set in the Video Menu.
2
1
Video Menu
nImage Stabilizer
nElec. Zoom Speed
C-AF
30p
Fine
nAF Mode
Video Frame Rate
Video Bit Rate
Normal
On
±0Recording Volume
Movie R
M-IS
1
Back Set
Option Description
g
Movie R
[Off]: Record movies without sound.
[On]: Record movies with sound.
[On e]: Record movies with sound; wind noise reduction
enabled.
―
Recording Volume Adjust the sensitivity of the built-in microphone. Adjust
the sensitivity using FG while checking the peak sound
level picked up by the microphone over the previous few
seconds.
―
n AF Mode
Choose the AF mode for movie recording.
84
n Image Stabilizer
Sets image stabilization for movie recording.
93
n Elec. Zoom Speed
Choose the speed at which electronic zoom lenses can
be zoomed in or out during movie recording.
―
Video Frame Rate Choose the frame rate for movie recording.
• When shooting movies that will be viewed on a
television, choose a frame rate that matches the video
standard used in the device, as otherwise the movie
may not play back smoothly. Video standards vary by
country or region: some use NTSC, others PAL.
- When shooting for display on NTSC devices, choose
60p (30p)
- When shooting for display on PAL devices, choose
50p (25p)
87
Video Bit Rate Choose the compression ratio for movie recording. 87
• Operation sounds of the lens and camera may be recorded in a movie. To prevent it from
recording, reduce the operation sounds by setting [AF Mode] to [S-AF] or [MF], or by
minimizing the button operations of the camera.
• Sound cannot be recorded in k (Diorama) mode.
• When [Movie R] is set to [Off], O is displayed.
Menu functions (Playback menu)
4
126
EN
Using the Playback Menu
Playback Menu
y (P. 109)
2
1
Playback Menu
R
Edit
On
Reset Protect
Reset share Order
Device Connection
Print Order
Back Set
R
Edit
Print Order (P. 112)
Reset Protect (P. 129)
Reset share Order (P. 111)
Device Connection (P. 143)
Automatically Rotating Portrait-Orientation Pictures for Playback
(R)
If set to [On], images in portrait orientation are automatically rotated to be displayed in
the correct orientation on the playback display.
Retouching Pictures (Edit)
Create retouched copies of pictures. In the case of RAW pictures, you can adjust the
settings such as art lters, which are usually applied when the pictures are taken. With
JPEG pictures, you can make simple edits such as cropping and resizing.
1
Select [Edit] in the q Playback Menu and press I.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select the image to be edited and press the Q button.
• [RAW Data Edit] is displayed if a RAW image is selected, and [JPEG Edit] if a JPEG
image is selected. For images recorded in RAW+JPEG format, both [RAW Data Edit]
and [JPEG Edit] are displayed. Select the desired option from them.
4
Select [RAW Data Edit] or [JPEG Edit] and press the Q button.
RAW Data
Edit
Creates a JPEG copy of a RAW image according to the selected settings.
Current
The JPEG copy is processed using the current camera settings. Adjust
the camera settings before choosing this option. Some settings such as
exposure compensation are not applied.
ART BKT
The camera creates multiple JPEG copies of each image, one for each
art lter selected. Select one or more lters and apply them to one or
more images.
Menu functions (Playback menu)
4
127
EN
JPEG Edit
The [JPEG Edit] menu contains the following options.
Shadow Adj.
Brighten back-lit subjects.
Red-eye Fix
Reduce “red-eye” in pictures taken with a ash.
P
Crop pictures. Size the crop with the front or rear dial and position it with
the arrow pad.
Aspect
Change the aspect ratio from the standard 4:3 to [3:2], [16:9], [1:1], or
[3:4]. After choosing an aspect ratio, use the arrow pad to position the
crop.
Black & White
Create a black-and-white copy of the current picture.
Sepia
Create a sepia copy of the current picture.
Saturation
Adjust the vividness of colors. The results can be previewed in the
display.
Q
Create a resized copy 1280 × 960, 640 × 480, or 320 × 240 pixels in size.
Pictures with an aspect ratio other than the standard 4:3 are resized to
dimensions as close as possible to the selected option.
e-Portrait
Smooth complexions. The desired effect may not be achieved if no faces
are detected.
5
When the settings are complete, press the Q button.
• The settings are applied to the image.
6
Select [Yes] and press the Q button.
• The edited image is stored in the card.
• Red-eye correction may not work depending on the image.
• Editing of a JPEG image is not possible in the following cases:
When an image is processed on a PC, when there is not enough space in the card
memory, or when an image is recorded on another camera.
• The image cannot be resized (Q) to the larger size than the original size.
• Some images can not be resized.
• [P] (trimming) and [Aspect] can only be used to edit images with an aspect ratio of 4:3
(standard).
Audio recording
Audio can be added to still images (up to 30 sec. long).
This is the same function as [R] during playback (P. 113).
Menu functions (Playback menu)
4
128
EN
Combining Pictures (Image Overlay)
Overlay existing RAW photos and to create a new picture. Up to 3 pictures can be
included in the overlay.
1
Select [Edit] in the q Playback Menu and press I.
2
Use FG to select [Image Overlay] and press the Q button.
3
Select the number of images to be overlaid and press the Q button.
4
Use FGHI to select the RAW images and press
the Q button to add them to the overlay.
• The overlaid image will be displayed if images of the
number specied in step 3 are selected.
5
Adjust the gain for each image to be overlaid.
• Use HI to select an image and FG to adjust gain.
• Gain can be adjusted in the range 0.1 – 2.0. Check the
results in the monitor.
6
Press the Q button to display the conrmation
dialog. Select [Yes] and press the Q button.
RAW RAW RAW
RAW
RAW RAW RAW
Image Overlay
Back Set
×1.5×1.5×0.3 ×0.5
Image Overlay
Back Set
$
• To overlay 4 or more frames, save the overlay image as a RAW le and use [Image
Overlay] repeatedly.
Creating Movie Stills (In-Movie Image Capture)
Save a still copy of a selected frame.
• This option is available only with [4K] movies recorded with the camera.
1
Select [Edit] in the q Playback Menu and press I.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select a movie and press the Q button.
4
Select [Movie Edit] and press the Q button.
5
Use FG to select [In-Movie Image Capture] and press the Q button.
6
Use HI to select a frame to be saved as a still image and press the Q
button.
• Use FG or to skip multiple frames.
• The date of recording of the still may differ from that of the original movie.
Menu functions (Playback menu)
4
129
EN
Trimming movies (Movie Trimming)
Cut selected footage from movies. Movies can be trimmed repeatedly to create les
containing only footage you want to preserve.
• This option is available only with movies recorded with the camera.
1
Select [Edit] in the q Playback Menu and press I.
2
Use FG to select [Sel. Image] and press the Q button.
3
Use HI to select a movie and press the Q button.
4
Select [Movie Edit] and press the Q button.
5
Use FG to select [Movie Trimming] and press the Q button.
6
Select [Overwrite] or [New File] and press the Q button.
• If the image is protected, you cannot select [Overwrite].
7
Choose whether the section to be deleted begins with the rst frame or ends
with the last frame, using HI to highlight the desired option and pressing
the Q button to select.
8
Use HI to choose the section to be deleted.
• The section to be deleted is shown in red.
9
Press the Q button.
10
Select [Yes] and press the Q button.
• The date of recording of the still may differ from that of the original movie.
Removing Protection from All Pictures (Reset Protect)
Protections of multiple images can be canceled at a time.
1
Select [Reset Protect] in the q Playback Menu and press I.
2
Select [Yes] and press the Q button.
Menu functions (Setup menu)
4
130
EN

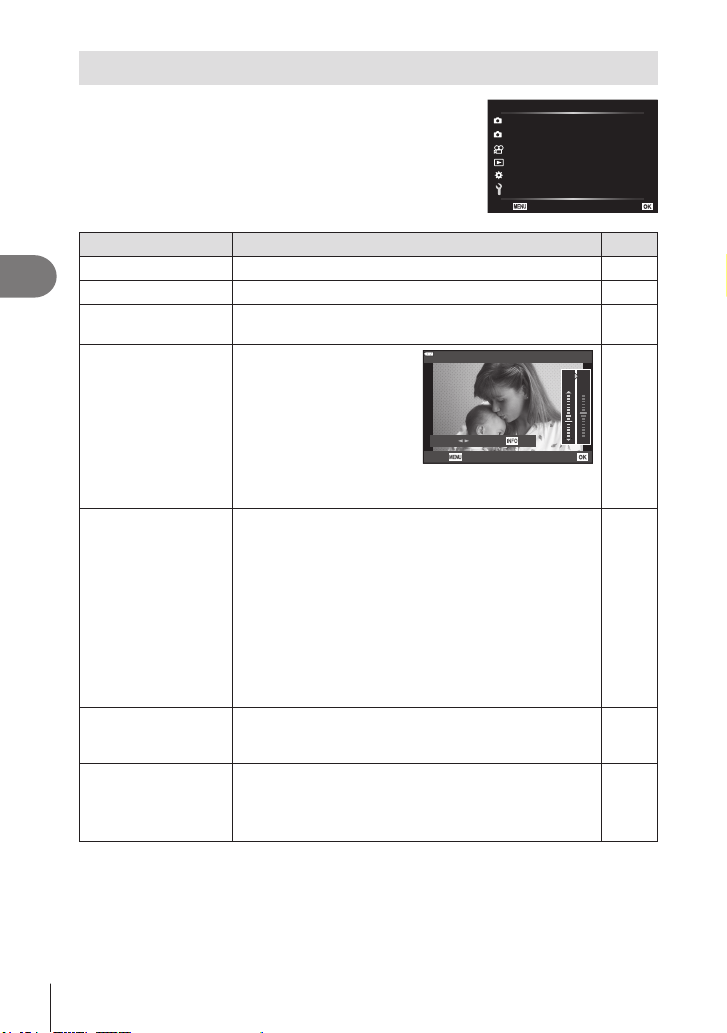

Using the setup menu
Adjust basic camera settings. Examples include language
selection and monitor brightness. The setup menu also
contains options used during the initial setup process.
2
1
Setup Menu
X
W English
s
Firmware
Wi-Fi/Bluetooth Settings
Rec View
j±0 k±0
’--.--.-- --:--:--
Card Setup
Back Set
0.5 sec
Option Description
g
Card Setup Format the card and delete all images. 131
X (Date/time setting)
Set the camera clock.
22
W (Changing the
display language)
Choose a language for camera menus and guides. 131
s (Monitor
brightness adjustment)
You can adjust the
brightness and color
temperature of the monitor.
Use HI to highlight j
(color temperature) or k
(brightness) and FG to
adjust the value.
s
Back Set
Vivid Natural
-
2
j
+1
k
—
Press the INFO button to switch the saturation of the
monitor between [Natural] and [Vivid] settings.
Rec View Sets whether to display the captured image on the
monitor after shooting, and the length of time for the
display. This is useful for a brief check of the picture you
have taken. You can shoot the next shot by pressing the
shutter button halfway even while the captured image is
displayed on the monitor.
[0.3sec] – [20sec]: Sets the length of time (seconds) to
display the captured image on the monitor.
[Off]: The captured image is not displayed on the monitor.
[Auto q]: Displays the captured image, and then
switches to playback mode. This is useful for erasing a
picture after checking it.
—
Wi-Fi/Bluetooth
Settings
Adjust settings for connection to Wi-Fi/Bluetooth
compatible smartphones using the camera’s wireless
function.
145,
149,
150
Firmware
View the versions of the rmware for the camera and
any lenses or other peripherals currently connected.
You may need this information when contacting
customer support or performing rmware updates.
—
Menu functions (Setup menu)
4
131
EN
Formatting the card (Card Setup)
Cards must be formatted with this camera before rst use or after being used with
other cameras or computers.
All data stored on the card, including protected images, is erased when the card is
formatted.
When formatting a used card, conrm there are no images that you still want to keep
on the card. g “Usable cards” (P. 154)
1
Select [Card Setup] in the e Setup Menu and press
I.
• If there is data on the card, menu items appear. Select
[Format] and press the Q button.
2
Select [Yes] and press the Q button.
• Formatting is performed.
Card Setup
All Erase
Format
Back Set
Deleting all images (Card Setup)
All images on a card can be deleted at a time. Protected images are not deleted.
1
Select [Card Setup] in the e Setup Menu and press
I.
2
Select [All Erase] and press the Q button.
3
Select [Yes] and press the Q button.
• All images are deleted.
Card Setup
All Erase
Format
Back Set
Choosing a language (W)
Choose a language for camera menus and guides.
1
Select [W] in the e Setup Menu and press I.
2
Highlight the desired language using the front or
rear dial or the FGHI buttons on the arrow pad.
• The language-selection dialog has two pages of
options. Use the front or rear dial or the FGHI
buttons on the arrow pad to move the cursor between
pages.
W
Back Set
Hrvatski
Dansk
Eesti
Deutsch
Indonesia
Norsk
Česky
English
Suomi
Ελληνικά
Italiano
Latviski
Polski
Български
Nederlands
Français
Magyar
Lietuvių k.
Português(Pt)
3
Press the Q button when the desired language is highlighted.
Menu functions (Custom menus)
4
132
EN
Using the custom menus
Camera settings can be customized using the G Custom Menu.
Custom Menu
a
AF/MF
2
1
A. AF/MF
AEL/AFL S1/C2/M1
A
B
C1
C2
D1
D2
E
F
Back Set
Reset Lens
MF Assist
Face Priority
AF Targeting Pad
Off
On
A
M
Button/Dial
N/O Disp/8/PC (P. 133)
P/Q
Exp/ISO/BULB (P. 134)
b
# Custom (P. 135)
W K/WB/Color (P. 135)
X
Record (P. 136)
c
EVF (P. 137)
a K Utility (P. 137)
a AF/MF
Option Description
g
AEL/AFL Customize AF and AE lock. 138
AF Targeting Pad If [On] is selected, the AF target can be positioned by
tapping the monitor during viewnder photography. Tap the
monitor and slide your nger to position the AF target.
• When set to [On], drag operation can be disabled or
enabled by double-tapping the monitor.
• [AF Targeting Pad] can also be used with zoom frame AF
(P. 103).
—
I Face Priority
You can select the face priority or eye priority AF mode.
73
MF Assist When set to [On], you can automatically switch to zoom or
peaking in manual focus mode by rotating the focus ring.
138
Reset Lens When set to [Off], the focus position of the lens is not reset
even when the power is turned off. When set to [On], the
focus of power zoom lenses is also reset.
—
M Button/Dial
Option Description
g
Button Function Choose the function assigned to the selected button. 101
qR Function Choose the role played by the R button during playback.
[h]: Mark pictures for sharing.
[H]: Select multiple pictures.
[<]: Mark pictures for printing at a later date. The number
of copies is set to 1. The date is not printed.
111,
112
Dial Function You can change the function of the front dial and rear dial. —
MENU
G a
MENU
G M
Menu functions (Custom menus)
4
133
EN
N Disp/8/PC
Option Description
g
K Control
Settings
For each shooting mode except movie, choose whether
pressing the Q button displays live controls or LV super
controls.
79, 80
G/Info Settings
Choose the information displayed when the INFO button
is pressed.
[q Info]: Choose the information displayed in full frame
playback.
[LV-Info]: Choose the information displayed when the
camera is in shooting mode.
[G Settings]: Choose the information displayed in index
and calendar playback.
139
Live View Boost Shoot while checking the subject even under low-light
conditions.
[Off]: Preview exposure in live view. Exposure can be
previewed before shooting.
• The setting automatically switches to [On2] during bulb or
time photography.
• The setting automatically switches to [On1] during zoom
or preview display.
[On1]: Exposure preview disabled; brightness is adjusted for
ease of viewing. The brightness of the preview differs from
the nal photograph.
[On2]: As for [On1] but brighter. Choose when framing shots
of the night sky or the like.
• The brightness of the preview differs from the nal
photograph. Subject motion may also appear slightly jerky.
—
Flicker Reduction Reduce the effects of icker under some kinds of lighting,
including uorescent lamps. When icker is not reduced by
the [Auto] setting, set to [50Hz] or [60Hz] in accordance with
the commercial power frequency of the region where the
camera is used.
—
Displayed Grid
Select [w], [x], [1], [y], [X] or [x] to display a grid on
the monitor.
—
Peaking Color Choose the color of the outlines (red, yellow, white, or
black) in the focus peaking display.
138
O Disp/8/PC
Option Description
g
8 (Beep sound)
When set to [Off], you can turn off the beep sound that is
emitted when the focus locks by pressing the shutter button.
—
HDMI [Output Size]: Selecting the digital video signal format for
connecting to a TV via an HDMI cable.
[HDMI Control]: Select [On] to allow the camera to be
operated using remotes for TVs that support HDMI control.
This option takes effect when pictures are displayed on a TV.
140
USB Mode Choose a mode for connecting the camera to a computer.
Choose [Auto] to display USB mode options every time the
camera is connected.
—
MENU
G N
MENU
G O
Menu functions (Custom menus)
4
134
EN
P Exp/ISO/BULB
Option Description
g
Exposure Shift Adjust correct exposure separately for each metering mode.
• This reduces the number of exposure compensation
options available in the selected direction.
• The effects are not visible in the monitor. To make
normal adjustments to the exposure, perform exposure
compensation (P. 71).
—
ISO-Auto Set Choose the upper limit and default value used for ISO
sensitivity when [Auto] is selected for ISO.
[Upper Limit]: Choose the upper limit for auto ISO sensitivity
selection.
[Default]: Choose the default value for auto ISO sensitivity
selection.
—
Noise Filter Choose the amount of noise reduction performed at high
ISO sensitivities.
—
Noise Reduct. This function reduces the noise that is generated during
long exposures.
[Auto]: Noise reduction is performed at slow shutter speeds,
or when the internal temperature of the camera has risen.
[On]: Noise reduction is performed with every shot.
[Off]: Noise reduction off.
• The time required for noise reduction is shown in the
display.
• [Off] is selected automatically during sequential shooting.
• This function may not work effectively with some shooting
conditions or subjects.
• When shooting in the silent mode, priority is given to the
[Noise Reduction s] setting in the [Silent s Settings]
menu (P. 123).
62
Q Exp/ISO/BULB
Option Description
g
Bulb/Time Timer* Choose the maximum exposure for bulb and time
photography.
61
Live Bulb Choose the display interval during shooting. The number
of update times is limited. The frequency drops at high ISO
sensitivities. Tap the monitor or press the shutter button
halfway to refresh the display. Choose [Off] to disable the
display.
Live Time*
Composite
Settings*
Set an exposure time to be the reference in composite
photography.
63
* Settings for bulb/time maximum exposure and live composite photography apply only in
mode M. These do not apply when [Live Composite] or [Live Time] is selected from the
AP mode menu.
MENU
G P
MENU
G Q
Menu functions (Custom menus)
4
135
EN
b # Custom
Option Description
g
# X-Sync.
Choose the shutter speed used when the ash res.
141
# Slow Limit
Choose the slowest shutter speed available when a ash
is used.
141
w+F
When set to [On], the exposure compensation value is
added to the ash compensation value.
71, 92
#+WB
Adjust white balance for use with a ash.
—
W K/WB/Color
Option Description
g
K Set
You can select the JPEG image quality mode from
combinations of three image sizes and three compression
rates.
1) Use HI to select a
combination ([K1] –
[K4]) and use FG to
change.
2) Press the Q button.
5184x3888
1
SF
2
F
3
N
4
N
Pixel Count
Back Set
K Set
Compression
rate
Image size
86, 141
WB Set the white balance. You can also ne-tune the white
balance for each mode.
83, 94
W Keep Warm
Color
Select [On] to preserve “warm” colors in pictures taken
under incandescent lighting.
—
Color Space You can select a format to ensure that colors are correctly
reproduced when shot images are regenerated on a monitor
or using a printer.
99
MENU
G b
MENU
G W
Menu functions (Custom menus)
4
136
EN
X Record
Option Description
g
File Name [Auto]: Even when a new card is inserted, the le numbers
are retained from the previous card. File numbering
continues from the last number used or from the highest
number available on the card.
[Reset]: When you insert a new card, the folder numbers
starts at 100 and the le name starts at 0001. If a card
containing images is inserted, the le numbers start at the
number following the highest le number on the card.
—
Edit Filename Choose how image les are named by editing the portion of
the lename highlighted below in gray.
sRGB: Pmdd0000.jpg Pmdd
Adobe RGB: _mdd0000.jpg mdd
1) Highlight [sRGB] or [AdobeRGB] and press I.
2) Use HI to move the cursor and FG to edit the
highlighted character.
3) Repeat Step 2 as necessary to create the desired
lename and then press Q.
—
Copyright
Settings*
Add the names of the photographer and copyright holder to
new photographs. Names can be up to 63 characters long.
[Copyright Info.]: Select [On] to include the names of the
photographer and copyright holder in the Exif data for new
photographs.
[Artist Name]: Enter the name of the photographer.
[Copyright Name]: Enter the name of the copyright holder.
1) Select characters from 1 and press the Q button.
The selected characters appear in 2.
2) Repeat Step 1 to complete the name, then highlight
[END] and press the Q button.
• To delete a character, press the INFO button to
place the cursor in the name area 2, highlight
the character, and press D.
! ” # $ % &
( )
* + , - . /
0 1 2 3 4 5 6 7
’
8 9 : ; < = > ?
@
A B C D E F G H I J K L M N O
P Q R S T U V W X Y Z
[ ] _
a b c d e f g h i j k l m n END
o p q r s t u v w x y z
{ }
ABCDE
05/63
Delete
Copyright Name
Cancel Set
2
1
* OLYMPUS does not accept liability for damages arising
from disputes involving the use of [Copyright Settings].
Use at your own risk.
—
MENU
G X
Menu functions (Custom menus)
4
137
EN
c EVF
Option Description
g
EVF Auto Switch If [Off] is selected, the viewnder will not turn on when
you put your eye to the viewnder. Use the
u
button to
choose the display.
—
EVF Adjust Adjust viewnder brightness and hue.
Brightness is automatically adjusted when [EVF Auto
Luminance] is set to [On]. The contrast of the information
display is also adjusted automatically.
—
a
K
Utility
Option Description
g
Pixel Mapping The pixel mapping feature allows the camera to check
and adjust the image pickup device and image processing
functions.
163
Level Adjust You can calibrate the angle of the level gauge.
[Reset]: Resets adjusted values to the default settings.
[Adjust]: Sets the current camera orientation as the 0
position.
—
Touchscreen
Settings
Activate the touch screen. Choose [Off] to disable the touch
screen.
—
Sleep The camera will enter sleep (energy saving) mode if no
operations are performed for the selected period. The
camera can be reactivated by pressing the shutter button
halfway.
—
Certication Display certication icons. —
MENU
G c
MENU
G a
Menu functions (Custom menus)
4
138
EN
AEL/AFL
MENU
G a [AEL/AFL]
Autofocus and metering can be performed by pressing the
AEL/AFL button. Choose a mode for each focus mode.
AEL
AFL
mode1
AEL/S-AF
AEL
S-AF AEL/AFL
ExposureFully
Half Way
Back Set
Assignments of AEL/AFL function
Mode
Shutter button pressed AEL/AFL button
Halfway All the way down Kept pressed
AF AE AF AE AF AE
S-AF
mode1 S-AF Locked – – – Locked
mode2 S-AF – – Locked – Locked
mode3 – Locked – – S-AF –
C-AF
mode1 C-AF start Locked
Ends
– – Locked
mode2 C-AF start –
Ends
Locked – Locked
mode3 – Locked
Ends
– C-AF start –
mode4 – –
Ends
Locked C-AF start –
MF
mode1 – Locked – – – Locked
mode2 – – – Locked – Locked
mode3 – Locked – – S-AF –
Manual Focus Assist (MF Assist)
MENU
G a [MF Assist]
This is a focus assist function for MF. When the focus ring is rotated, the edge of the
subject is enhanced or a portion of the screen display is magnied. When you stop
operating the focus ring, the screen returns to the original display.
Magnify Magnies a portion of the screen. The portion to be magnied can be
set in advance using AF target. g “Setting the AF target” (P. 72)
Peaking Displays clearly dened outlines with edge enhancement. You can
choose the color of the outlines. g [Peaking Color] (P. 133)
• When Peaking is in use, the edges of small subjects tend to be enhanced more strongly.
This is no guarantee of accurate focusing.
$
• [Peaking] can be displayed using button operations. The display is switched every time
the button is pressed. Assign the switching function to one of the buttons in advance using
Button Function (P. 101).
Menu functions (Custom menus)
4
139
EN
Adding information displays
MENU
G N [G/Info Settings]
q Info (Playback information displays)
Use [q Info] to add the following playback information
displays. The added displays are displayed by repeatedly
pressing the INFO button during playback. You can also
choose to not show displays that appear at the default setting.
Highlight & Shadow display
Shadow
Highlight
15
Histogram display
15
q Info
Overall
Image Only
Highlight&Shadow
Back H
• The Highlight & Shadow display shows overexposed areas in red, underexposed areas in
blue.
LV-Info (Shooting information displays)
The histogram, Highlight & Shadow, and level gauge displays
can be added to [LV-Info]. Choose [Custom 1] or [Custom 2]
and select the displays you wish to add.
The added displays
are displayed by repeatedly pressing the
INFO
button during
shooting.
You can also choose to not show displays that appear
at the default setting.
Custom1
Highlight&Shadow
Level Gauge
Back
H
G Settings (Index/calendar display)
You can change the number of frames to be displayed on the
index display and set to not display the screens that are set
to be displayed by default with [G Settings]. Screens with a
check can be selected on the playback screen using the rear
dial.
G Settings
B 9
A 4
C 25
C 100
Calendar
Back H
12:30:00 202020.06.01
2012:30:002020.06.01
12:30:00 20
2020.06.01
20
100-0020
12:30:002020.06.01
4
:
3
L
F
13
20191817161514
27262524
232221
4321302928
98765
65432131
127 8 9 10 11
2020.6
Mon Tue Wed Thu Fri SatSun
Q
Index display
4 frames 9, 25, or 100
frames
Single-frame
playback
Calendar display
q
p
q
p
q
p
Menu functions (Custom menus)
4
140
EN
Viewing camera images on TV (HDMI)
MENU
G O [HDMI]
Use the separately sold cable with the camera to playback recorded images on your
TV. This function is available during shooting. Connect the camera to an HD TV using
an HDMI cable to view high-quality images on a TV screen.
1
Turn the camera off and connect it to the TV.
Type A
HDMI cable
(Connect to the HDMI
connector on the TV.)
HDMI micro connector
• The location of the HDMI connector varies with the TV. For details, refer to the TV's
instruction manual.
2
Turn the camera on.
3
Switch the input source of the TV.
• The camera monitor turns off when it is connected
via an HDMI cable.
• For details on changing the input source of the TV,
refer to the TV’s instruction manual.
• Depending on the TV’s settings, the displayed
images and information may become cropped.
• If the camera is connected via an HDMI cable, you
will be able to choose the digital video signal type.
Choose a format that matches the input format
selected with the TV.
ON/OFF lever
4K Priority is given to 4K HDMI output.
1080p Priority is given to 1080p HDMI output.
720p Priority is given to 720p HDMI output.
480p/576p 480p/576p HDMI output.
• Do not connect the camera to other HDMI output devices. Doing so may damage the
camera.
• HDMI output is not performed while connected via USB to a computer.
• When [4K] is selected, video output in shooting mode is [1080p].
• Turn the camera off before disconnecting the HDMI cable.
Menu functions (Custom menus)
4
141
EN
Using the TV remote control
The camera can be operated by a TV remote control when connected to a TV that
supports HDMI control. Select [On] for [HDMI Control]. When [On] is selected,
camera controls can be used for playback only.
• You can operate the camera by following the operation guide displayed on the TV.
• During single-frame playback, you can display or hide the information display by
pressing the “Red” button, and display or hide the index display by pressing the
“Green” button.
• Some televisions may not support all features.
Shutter speeds when the ash res (#X-Sync./#Slow Limit)
MENU
G b [# X-Sync.]/[# Slow Limit]
You can set shutter speed conditions for when the ash res.
Shooting mode Flash ring shutter speed Upper limit Lower limit
P
The camera automatically sets the
shutter speed.
[# X-Sync.]
setting*
1
[# Slow Limit]
setting*
2
A
S
The set shutter speed No lower limit
M
*1 1/200 seconds when using a separately sold external ash.
*2 Extends up to 60 seconds when slow synchronization is set.
Combinations of JPEG image sizes and compression rates
(K Set)
MENU
G W [K Set]
You can set the JPEG image quality by combining image size and compression rate.
Image size Compression rate
Name Pixel Count
SF
(Super Fine)
F
(Fine)
N
(Normal)
Y(Large)
5184×3888
YSF
Y
F
Y
N
X
(Middle)
3200×2400
XSF XF
X
N
W
(Small)
1280×960
WSF WF
W
N
Connecting the camera to a smartphone
5
142
EN
5
Use the camera’s wireless LAN (Wi-Fi) and Bluetooth
®
features to connect to a
smartphone, where you can use the dedicated app to enhancement your enjoyment of
the camera both before and after shooting. Once a connection has been established,
you can download and take pictures remotely and add GPS tags to the images on the
camera.
• Operation is not guaranteed on all smartphones.
Things you can do with the specied app, OLYMPUS Image Share (OI.Share)
• Download images from the camera to the smartphone
You can load images in the camera to a smartphone.
You can also use the smartphone to select images for download from the camera.
• Remote shooting from a smartphone
You can remotely operate the camera and shoot using a smartphone.
• Access information to help you enjoy your camera and photography.
You can easily access explanations of photographic techniques (Photo Guide), the
Instruction Manual, and the photo-sharing community site even when on the go.
For details, visit the address below:
https://app.olympus-imaging.com/oishare/
Things you can do with the specied app, Olympus Image Palette (OI.Palette)
• Beautiful image processing
Use intuitive controls to apply impressive effects to images downloaded to your smartphone.
For details, visit the address below:
https://app.olympus-imaging.com/oipalette/
Things you can do with the specied app, OLYMPUS Image Track (OI.Track)
• Addition of GPS tags to camera images
You can add GPS tags to images simply by transferring the GPS log saved on the
smartphone to the camera.
For details, visit the address below:
https://app.olympus-imaging.com/oitrack/
• Before using the wireless LAN function, read “Using the wireless LAN/Bluetooth
®
functions” (P. 179).
• Olympus accepts no responsibility for violations of local regulations governing wireless
communications caused by the use of the camera’s wireless LAN/Bluetooth
®
features
outside the country or region of purchase.
• As with any wireless communication, there is always a risk of interception by a third party.
• The wireless LAN function on the camera cannot be used to connect to a home or public
access point.
• The transceiver antenna is located inside the grip. Keep the antenna away from metal
objects whenever possible.
• Depending on the composition of the container or the objects it contains, the camera may
be unable to connect to a smartphone when placed inside a bag or other container.
• During wireless LAN connection, the battery will run down faster. If the battery is running
low, the connection may be lost during a transfer.
• Connection may be difcult or slow in proximity to devices that generate magnetic elds,
static electricity or radio waves, such as near microwaves, cordless telephone.
• Wireless LAN can not be used when the memory card write-protect switch is in the
“LOCK” position.
Connecting the camera to a
smartphone
Connecting the camera to a smartphone
5
143
EN
Pairing the Camera and Smartphone
Follow the steps below when connecting the devices for the rst time.
• Adjust pairing settings using OI.Share, not the settings app that is part of the smartphone
operating system.
1
Launch the copy of the dedicated OI.Share app previously installed on your
smartphone.
2
Select [Device Connection] in the q Playback Menu and press I.
• You can also connect by tapping G in the monitor.
3
Follow the on-screen guide to adjust Wi-Fi/Bluetooth settings.
• The Bluetooth local name and passcode, the Wi-Fi SSID and password, and a QR
code are displayed in the monitor.
Connection Setup
Scan the QR code, using
the Olympus Image Share
app.
Disconnect
Bluetooth Name
Bluetooth Passcode
Wi-Fi SSID
Wi-Fi Password
: xxxxxxxxxxx
: 000000
: xxx-x-x-xxxxxxxx
: 00000000
3/3
QR code
Wi-Fi SSID
Wi-Fi Password
Bluetooth local name
Bluetooth Passcode
4
Tap the camera icon at the bottom of the OI.Share display.
• An [Easy Setup] tab will be displayed.
5
Follow the on-screen instructions in OI.Share to scan the QR code and adjust
connection settings.
• If you are unable to scan the QR code, follow the on-screen instructions in OI.Share
to adjust settings manually.
- Bluetooth: To connect, select the local name and enter the passcode displayed in
the camera monitor into the Bluetooth settings dialog in OI.Share.
- Wi-Fi: To connect, enter the SSID and password displayed on the camera
monitor into the Wi-Fi settings dialog in OI.Share.
•
w
1 will be displayed when pairing is complete.
• The Bluetooth
®
icon indicates the status as follows:
0: The camera is emitting wireless signal.
1: Wireless connection has been established.
6
To end the Wi-Fi connection, press MENU on the camera or tap [Disconnect]
on the monitor screen.
• You can also turn the camera off and end the connection from OI.Share.
• At default settings, Bluetooth
®
connection is kept active even after Wi-Fi connection
is terminated, allowing you to shoot remotely with a smartphone. To set the camera
to also terminate Bluetooth
®
connection when terminating Wi-Fi connection, set
[Bluetooth] to [Off].
Connecting the camera to a smartphone
5
144
EN
Wireless Connection Standby Setting for When the
Camera Is On
You can choose whether the camera will be on standby for wireless connection with
the smartphone when the power is on.
1
Highlight [Wi-Fi/Bluetooth Settings] in the e setup menu and press I.
2
Highlight [Bluetooth] and press I.
• Complete the pairing of camera and smartphone beforehand. [Bluetooth] cannot be
selected unless the pairing has been completed.
3
Highlight the desired option and press the Q button.
Off The camera will not be on standby for wireless connection and wireless
signal will not be emitted even when the power is on. For connection with
a smartphone, start [Device Connection] in the q playback menu of the
camera.
On When the camera is on, it will emit wireless signal and be on standby for
wireless connection.
You can connect the camera and the smartphone through operation of
OI.Share and shoot remotely or transfer images.
• Because the [Bluetooth] setting also serves as an indicator of Bluetooth
®
connection
status of the camera, [Stopped] and [Running] may be displayed besides the setting
options [Off] and [On].
Connecting the camera to a smartphone
5
145
EN
Wireless Settings for When the Camera Is Off
You can choose whether the camera will maintain a wireless connection to the
smartphone when off.
1
Highlight [Wi-Fi/Bluetooth Settings] in the e setup menu and press I.
2
Highlight [Power-off Standby] and press I.
3
Highlight the desired option and press the Q button.
Select When you turn the camera off, you will be prompted to choose whether to
maintain the wireless connection to the smartphone.
Off Turning the camera off terminates the wireless connection to the
smartphone.
On When the camera is turned off, the connection to the smartphone remains
active and the smartphone can still be used to download or view the
pictures on the camera.
“Select”
When [Select] is chosen for [Power-off Standby], a
conrmation dialog will be displayed before the camera
turns off if all the following conditions are met:
• [On] is selected for [Wireless Functions]
• The camera is currently connected with a smartphone
(P. 143)
• The memory card is correctly inserted
Power-off Standby
Activate Wi-Fi/Bluetooth Power-off
Standby so images can be imported
while power is off?
Yes
No
Set
Yes
Turn the camera off but leave the wireless smartphone connection active.
No
Turn the camera off and terminate the wireless smartphone connection.
• If no operations are performed about a minute after the conrmation dialog is displayed,
the camera will end the wireless connection to the smartphone and turn off automatically.
• The rst time you turn the camera off after connecting to
a smartphone (P. 143), you may be prompted to choose
whether to hide the conrmation dialog in future. To keep the
camera from displaying the conrmation dialog when turned
off in future, select [Don’t show this screen again].
Power-off Standby:On
Confirm whether or not to activate
Power-off Standby every time power
is turned off? This setting can be
changed from the menu anytime.
Confirm every time
Don't show this screen again
Back Set
Connecting the camera to a smartphone
5
146
EN
$
• If left active, the wireless connection will automatically terminate if:
- the connection remains inactive for 12 hours
- the memory card is removed
- the battery is replaced
- a charging error occurs during on-board battery charging
The connection can be restored by turning the camera on.
• Note that if [On] is selected for [Power-off Standby], camera may not turn on immediately
when the ON/OFF lever is rotated to ON.
Connecting the camera to a smartphone
5
147
EN
Transferring images to a smartphone
You can select images in the camera and load them to a smartphone. You can also use
the camera to select images you want to share in advance. g “Selecting Pictures for
Sharing (Share Order)” (P. 111)
1
Start [Device Connection] on the camera
(P. 143).
• You can also connect by tapping G in the
monitor.
• If you have previously connected to the
smartphone, the camera will start the connection
automatically.
•
w
1 will be displayed when pairing is complete.
250250 F5.6
1023
1:02:03
S-IS ONS-IS ON
ISO-A
200
2
Tap [Import Photos] in OI.Share on the smartphone.
• The images in the camera are displayed in a list.
3
Select the pictures you want to transfer and tap the Save button.
• When saving is completed, you can turn off the camera from the smartphone.
$
• If the following options are selected for [Wi-Fi/Bluetooth settings] in the camera e (setup)
menu, you can download pictures to the smartphone as described in Steps 3 and 4,
above, even when the camera is off:
- [Wireless Functions]: [On]
- [Power-off standby]: [On]
Automatically uploading images while the camera is off
To congure the camera to automatically upload images to a smartphone while off:
• Mark images for sharing (P. 111)
• Enable power-off standby (P. 145)
• If you are using an iOS device, launch OI.Share
$
• Auto upload is not available if you are connected via a router (for example, a home
network), in which case you will need to transfer pictures using OI.Share.
• Some smartphones may terminate upload on entering sleep mode. Keep the smartphone
awake while upload is in progress.
Connecting the camera to a smartphone
5
148
EN
Shooting remotely with a smartphone (Live View)
You can shoot remotely by operating the camera with a smartphone while checking the
live view on the smartphone screen.
• The camera shows the connection screen and all operations are performed from the
smartphone.
1
Start [Device Connection] on the camera.
• You can also connect by tapping G in the monitor.
2
Launch OI.Share and tap [Remote Control].
3
Tap [Live View].
4
Tap the shutter button to shoot.
• The image taken is saved on the memory card in the camera.
• Available shooting options are partially limited.
Shooting remotely with a smartphone (Remote Shutter)
You can shoot remotely by operating the camera with a smartphone (Remote Shutter).
• All operations are available on the camera. In addition, you can shoot pictures and record
movies using the shutter button displayed on the smartphone screen.
• If [Bluetooth] (P. 144) is set to [Off], set it to [On].
• If [Bluetooth] is set to [On], the camera will be on standby for wireless connection as soon
as it is turned on.
1
Launch OI.Share and tap [Remote Control].
2
Tap [Remote Shutter].
3
Tap the shutter button to shoot.
• The image taken is saved on the memory card in the camera.
• The camera does not enter sleep mode while connected with a smartphone.
• Even if [Bluetooth] is set to [Off], [Remote Shutter] can be used by starting [Device
Connection] on the camera.
Connecting the camera to a smartphone
5
149
EN
Adding position information to images
You can add GPS tags to images that were taken while the GPS log was saving by
transferring the GPS log saved on the smartphone to the camera.
1
Before taking pictures with the camera, launch OI.Track on the smartphone to
begin saving the GPS log.
• Before starting a GPS track log, you will need to connect once via OI.Track and
synchronize the clock.
• You can use the phone or other apps while the GPS log is saving. Do not terminate
OI.Track.
2
Once you have nished taking pictures with the camera, end tracking in
OI.Share.
3
Tap the G icon in the camera monitor to connect to the smartphone.
• You can also connect by selecting [Device Connection] in the q playback menu.
4
Upload the GPS log to the camera using OI.Track.
• The GPS log will be used to add location data to any pictures taken after you
launched OI.Track in Step 1.
• g is displayed on images to which position information has been added.
• Addition of location information can only be used with smartphones that have a GPS
function.
• Position information cannot be added to movies.
Resetting wireless LAN/Bluetooth
®
settings
To restore [Wi-Fi/Bluetooth Settings] to default values:
1
Select [Wi-Fi/Bluetooth Settings] in the e Setup Menu and press I.
2
Select [Reset Settings] and press I.
3
Select [Yes] and press the Q button.
• The following settings will be reset:
[Wireless Functions] (P. 150)/[Bluetooth] (P. 144)/[Connection Password]/[Power-
off Standby] (P. 145)
• When you reset the settings, pairing with the smartphone will also be reset. To
connect the camera to a smartphone, start [Device Connection] again.
Connecting the camera to a smartphone
5
150
EN
Changing the password
To change the Wi-Fi/Bluetooth passwords:
1
Select [Wi-Fi/Bluetooth Settings] in the e Setup Menu and press I.
2
Select [Connection Password] and press I.
3
Follow the operation guide and press the R button.
• A new password will be set.
• Both the Wi-Fi connection password and Bluetooth
®
connection passcode can be
changed.
• Reconnect to the smartphone after changing passwords. g “Pairing the Camera and
Smartphone” (P. 143)
Disabling wireless LAN/Bluetooth
®
To disable wireless LAN/Bluetooth
®
:
1
Select [Wi-Fi/Bluetooth Settings] in the e Setup Menu and press I.
2
Select [Wireless Functions] and press I.
3
Select [Off] and press the Q button.
• The following functions will be disabled.
[Device Connection] (P. 143)/[Power-off Standby] (P. 145)/[Bluetooth] (P. 144)
$
• To disable wireless LAN/Bluetooth
®
only while the camera is off, select [Off] for [Wi-Fi/
Bluetooth Settings] > [Power-off Standby]. g “Wireless Settings for When the Camera
Is Off” (P. 145)
• To disable wireless connection standby only while the camera is on and stop the emission
of wireless signal, select [Off] for [Wi-Fi/Bluetooth Settings] > [Bluetooth]. g “Wireless
Connection Standby Setting for When the Camera Is On” (P. 144)
Connecting the camera to a computer
6
151
EN
6
Copying pictures to a computer
1
Turn the camera off and connect it to the computer.
• The location of the USB port varies with the computer. For details, refer to your
computer’s manual.
2
Turn the camera on.
• The selection screen for the USB connection is
displayed.
• When the camera is connected to a computer
via USB, a dialog should be displayed in the
monitor prompting you to choose a host. If it is
not, select [Auto] for [USB Mode] (P. 133) in
the camera custom menus.
• If nothing is displayed on the camera screen
even after connecting the camera to the
computer, the battery may be exhausted. Use a
full-charged battery.
3
Press FG to select [Storage]. Press the Q
button.
USB
Storage
Exit
MTP
Set
Micro-USB connector
Smaller terminal
USB cable USB port
Connecting the camera to a computer
ON/OFF lever
Connecting the camera to a computer
6
152
EN
4
The computer recognizes the camera as a new device.
• Data transfer is not guaranteed in the following environments, even if your computer is
equipped with a USB port.
Computers with a USB port added by means of an extension card, etc., computers
without a factory-installed OS, or home-built computers
• Camera controls cannot be used while the camera is connected to a computer.
Installing the PC software
Install the following software to access the camera while it is connected directly to the
computer via USB.
Olympus Workspace
This computer application is used to download and view photos and movies recorded
with the camera. It can also be used to update the camera rmware. The software can be
downloaded from the website below. Be prepared to provide the camera serial number when
downloading the software.
https://support.olympus-imaging.com/owdownload/
Cautions
7
153
EN
7
Batteries
• The camera uses a single Olympus lithium-ion battery. Never use any battery other than
genuine OLYMPUS batteries.
• The camera’s power consumption varies widely with usage and other conditions.
• As the following consume a lot of power even without shooting, the battery will be drained
quickly.
• Performing auto focus repeatedly by pressing the shutter button halfway in shooting
mode.
• Displaying images on the monitor for a prolonged period.
• When connected to a computer.
• Leaving wireless LAN/Bluetooth
®
enabled.
• When using a drained battery, the camera may turn off without the low battery warning
being displayed.
• Remove the batteries before putting the camera into storage for periods of a month or
more.
Leaving the batteries in the camera for extended periods shortens their lives, potentially
rendering them unusable.
• The battery will not be fully charged at the time of purchase. Charge the battery using the
supplied USB-AC adapter before use.
• The normal charging time using the provided USB-AC adapter is approximately 4 hours
(estimated).
• Do not use USB-AC adapters or chargers not specically designated for use with batteries
of the supplied type. Similarly, do not use the supplied USB-AC adapter with batteries
(cameras) other than those of the designated type.
• There is a risk of explosion if the battery is replaced with the incorrect battery type.
• Dispose of the used battery following the instructions “CAUTION” (P. 178) in the
instruction manual.
Using your USB-AC adapter abroad
• The USB-AC adapter can be used in most home electrical sources within the range of
100 V to 240 V AC (50/60 Hz) around the world. However, depending on the country or
area you are in, the AC wall outlet may be shaped differently and the USB-AC adapter
may require a plug adapter to match the wall outlet.
• Do not use commercially available travel adapters as the USB-AC adapter may
malfunction.
Cautions
Cautions
7
154
EN
Usable cards
In this manual, all storage devices are referred to as “cards.” The
following types of SD memory card (commercially available) can
be used with this camera: SD, SDHC, and SDXC. For the latest
information, please visit the Olympus website.
SD card write protect switch
The SD card body has a write protect switch. Setting the switch to
“LOCK” prevents data being written to the card. Return the switch to
the unlock position enable writing.
LOCK
• Cards must be formatted with this camera before rst use or after being used with other
cameras or computers. g “Formatting the card (Card Setup)” (P. 131)
• The data in the card will not be erased completely even after formatting the card or
deleting the data. When discarding, destroy the card to prevent leakage of personal
information.
• Access to some playback functions and the like may be restricted when the write-protect
switch is in the “LOCK” position.
Record mode and le size/number of storable still pictures
The le size in the table is approximate for les with a 4:3 aspect ratio.
Record mode
Image size
(Pixel Count)
Compression
File
format
File size (MB)
Number of
storable still
pictures*
RAW
5184×3888
Loss-less
compression
ORF 17.4 867
YSF
1/2.7
JPEG
13.1 1054
YF
1/4 8.9 1549
YN
1/8 4.6 3013
XSF
3200×2400
1/2.7 5.1 2696
XF
1/4 3.6 3905
XN
1/8 1.9 7395
WSF
1280×960
1/2.7 1.0 13559
WF
1/4 0.8 18079
WN
1/8 0.5 28713
* Assumes a 16GB SD card.
• The number of storable still pictures may change according to the subject, whether or not
print reservations have been made, and other factors. In certain instances, the number
of storable still pictures displayed on the monitor will not change even when you take
pictures or erase stored images.
• The actual le size varies according to the subject.
• The maximum number of storable still pictures displayed on the monitor is 9999.
• For the available recording time for movies, see the Olympus website.
Cautions
7
155
EN
Interchangeable lenses
Choose a lens according to the scene and your creative intent. Use
lenses designed exclusively for the Micro Four Thirds system and
bearing the M.ZUIKO DIGITAL label or the symbol shown at right.
With an adapter, you can also use Four Thirds System and OM System
lenses. The optional adapter is required.
• When you attach or remove the body cap and lens from the camera, keep the lens mount
on the camera pointed downward. This helps prevent dust and other foreign matter from
getting inside the camera.
• Do not remove the body cap or attach the lens in dusty places.
• Do not point the lens attached to the camera toward the sun. This may cause the camera
to malfunction or even ignite due to the magnifying effect of sunlight focusing through the
lens.
• Be careful not to lose the body cap and rear cap.
• Attach the body cap to the camera to prevent dust from getting inside when no lens is
attached.
Lens and camera combinations
Lens Camera Attachment AF Metering
Micro Four Thirds system
lens
Micro Four Thirds system
camera
Yes Yes Yes
Four Thirds system lens
Attachment
possible
with mount
adapter
No*
1
Yes
OM System lenses No Yes*
2
*1 Only MF (manual focus) is available.
*2 Accurate metering is not possible.
Cautions
7
156
EN
MF Clutch Lenses
The “MF clutch” (manual focus clutch) mechanism on MF clutch lenses can be used to
switch between auto and manual focus simply by repositioning the focus ring.
• Check the position of the MF clutch before shooting.
• Sliding the focus ring to the AF/MF position at the end of the lens selects autofocus, while
sliding it to the MF position closer to the camera body selects manual focus, regardless of
the focus mode chosen with the camera.
Focus distances visible
2 1 5 3 mm
∞
0.5
5.6 8 11 16
5.681116
2 1 5 3 mm
∞
0.5
5.6 8 11 16
5.681116
Focus ring
AF/MF MFAF/MF MF
• Selecting [MF] for focus mode on the camera disables autofocus even when the focus
ring is in the AF/MF position.
Cautions
7
157
EN
Compatible Flash Units
Choose a ash unit to suit your needs, taking into consideration such factors as the
output required and whether the unit supports macro photography. Flash units designed
to communicate with the camera support a variety of ash modes, including TTL auto and
super FP. Flash units can be mounted on the camera hot shoe or connected using a cable
(available separately) and ash bracket. See the documentation provided with the ash
unit for information on ash features and their use. The camera also supports the following
wireless ash control systems:
Radio-Controlled Flash Photography: CMD, #CMD, RCV, and X-RCV Modes
The camera controls one or more remote ash units by means of radio signals. The
range of locations in which ash units can be placed increases. Flash units can control
other compatible units or be tted with radio commander/receivers to allow the use of
units that do not otherwise support radio ash control.
Wireless Remote-Control Flash Photography: RC Mode
The camera controls one or more remote ash units by means of optical signals.
The ash mode can be selected using camera controls (P. 75).
Features Available with Compatible Flash Units
Flash unit
Supported ash control
modes
GN (Guide Number,
ISO 100)
Supported wireless
systems
FL-700WR
TTL-AUTO, MANUAL,
FP TTL AUTO,
FP MANUAL, MULTI, RC,
SL MANUAL
GN 42 (75/150 mm *
1
)
GN 21 (12/24 mm *
1
)
CMD, #CMD, RCV,
X-RCV, RC
FL-900R
TTL-AUTO, AUTO,
MANUAL, FP TTL AUTO,
FP MANUAL, MULTI, RC,
SL AUTO, SL MANUAL
GN 58 (100/200 mm *
1
)
GN 27 (12/24 mm *
1
)
RC
STF-8
TTL-AUTO, MANUAL,
RC *
2
GN 8.5 RC *
2
*1 Maximum lens focal length at which unit can provide ash coverage (gures following
slashes are 35 mm format equivalent focal lengths).
*2 Functions as commander (transmitter) only.
Cautions
7
158
EN
Wireless remote control ash photography
External ash units that are designated for use with this camera and have a remote
control mode can be used for wireless ash photography. The camera can separately
control each of three groups of remote ash units, and the internal ash. See the
instruction manuals provided with the external ash units for details.
1
Set the remote ash units to RC mode and place them as desired.
• Turn the external ash units on, press the MODE button, and select RC mode.
• Select a channel and group for each external ash unit.
2
Select [On] for [# RC Mode] in X Shooting Menu 2 (P. 118).
• Press the Q button to exit to the RC mode display. Press the INFO button to cycle
between LV super controls or live controls and the RC mode display.
• Select a ash mode (note that red-eye reduction is not available in RC mode).
3
Adjust the settings for each group in the RC mode display.
250
A Mode
TTL
Manual
Off
+5.0
TTL +3.0
1/8
–
Low
1
Ch
1023
F5.6250
P
1:02:03
Flash intensity value
Group
• Select the ash control
mode and adjust the ash
intensity separately for
each group. For MANUAL,
select the ash intensity.
Normal ash/Super FP ash
• Switch between normal
ash and Super FP ash.
Communication light level
• Set the communication
light level to [HI], [MID],
or [LO].
Channel
• Set the communication
channel to the same
channel used on the ash.
Flash intensityFlash control
mode
Adjust settings for the
camera ash unit.
4
Rotate the ON/OFF lever to #UP to raise the ash.
• After conrming that the ash has charged, take a test shot.
Wireless ash control range
Position the wireless ash units with their remote sensors facing the camera. The following
illustration shows the approximate ranges at which the ash units can be positioned. The
actual control range varies with local conditions.
• We recommend using a single group of up to
three remote ash units.
• Remote ash units cannot be used for second
curtain slow synchronization exposures longer
than 4 seconds.
• If the subject is too close to the camera,
the control ashes emitted by the camera
ash may affect exposure (this effect can be
reduced by reducing the output of the camera
ash by, for example, using a diffuser).
7m
5m
100°100°
50°
50°
50°
50°
60°
60°
30°
30°
30°
30°
• The upper limit of ash synchronization timing is 1/160 sec. when using the ash in RC
mode.
Cautions
7
159
EN
Other external ash units
Note the following when using a third-party ash unit mounted on the camera hot shoe:
• Using obsolete ash units that apply currents of more than about 24 V to the X-contact will
damage the camera.
• Connecting ash units with signal contacts that do not conform to Olympus specications
may damage the camera.
• Set the Shooting mode to M, set the shutter speed to a value no higher than ash
synchronous speed, and set ISO sensitivity to a setting other than [AUTO].
• Flash control can only be performed by manually setting the ash to the ISO sensitivity
and aperture values selected with the camera. Flash brightness can be adjusted by
adjusting either ISO sensitivity or aperture.
• Use a ash with an angle of illumination suited to the lens. Angle of illumination is usually
expressed using 35-mm format equivalent focal lengths.
Principal Accessories
Converter lenses
Converter lenses attach to the camera lens for quick and easy sh-eye or macro
photography. See the OLYMPUS website for information on the lenses that can be
used.
Eyecup (EP-16)
You can switch to a large-size eyecup.
Removal
1
2
Cautions
7
160
EN
*1 HDMI cables are available from third-party suppliers.
*2 Not all lenses can be used with adapter. For details, refer to the Olympus Official Web Site.
*3 For compatible lens, refer to the Olympus Official Web Site.
System chart
SD/SDHC/
SDXC
Memory Card
Case / Strap
Shoulder Strap /
Camera Case /
Body Jacket
Connection
Cable
USB Cable /
HDMI Cable*
1
For the latest information, please visit the Olympus website.
: E-M10 Mark IV compatible products
: Commercially available products
Power Supply
BLS-50
Lithium-ion battery
BCS-5
Lithium-ion Charger
Software
Olympus Workspace
Photo editing software
OLYMPUS Image Share (OI.Share)
Olympus Image Palette (OI.Palette)
OLYMPUS Image Track (OI.Track)
Smartphone App
F-5AC
USB-AC Adapter
Viewfinder
EP-16
Eyecup
Dot Sight
EE-1
Dot Sight
Cautions
7
161
EN
Lens
Flash
FL-900R
Electronic Flash
FL-700WR
Electronic Flash
STF-8
Macro Flash
MMF-2/MMF-3
*2
Four Thirds Adapter
Four Thirds System Lenses
BCL-1580/BCL-0980
Body Cap Lens
Converter
Lens*
3
FCON-P01
Fisheye
WCON-P01
Wide
MCON-P01
Macro
MCON-P02
Macro
MC-14
Teleconverter
MC-20
Teleconverter
Micro Four Thirds system lenses
Radiowave System Accessories
FC-WR
Wireless radiowave
commander
FR-WR
Wireless radiowave receiver
Information
8
162
EN
8
Cleaning and storing the camera
Cleaning the camera
Turn off the camera and remove the battery before cleaning the camera.
• Do not use strong solvents such as benzene or alcohol, or a chemically treated cloth.
Exterior:
• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water
and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you
have used the camera at the beach, use a cloth soaked in clean water and well wrung.
Monitor:
• Wipe gently with a soft cloth.
Lens:
• Blow dust off the lens with a commercially available blower. For the lens, wipe gently with
a lens cleaning paper.
Storage
• When not using the camera for a prolonged period, remove the battery and card. Store
the camera in a cool, dry place that is well ventilated.
• Insert the battery periodically and test the camera’s functions.
• Remove dust and other foreign matter from the body and rear caps before attaching them.
• Attach the body cap to the camera to prevent dust from getting inside when no lens is
attached. Be sure to replace the front and rear lens caps before putting the lens away.
• Clean the camera after use.
• Do not store with insect repellent.
• Avoid storing the camera in places where chemicals are treated, in order to protect the
camera from corrosion.
• Mold may form on the lens surface if the lens is left dirty.
• Check each part of the camera before use if it has not been used for a long time. Before
taking important pictures, be sure to take a test shot and check that the camera works
properly.
Cleaning and checking the image pickup device
This camera incorporates a dust reduction function to keep dust from getting on the
image pickup device and to remove any dust or dirt from the image pickup device
surface with ultrasonic vibrations. The dust reduction function operates when the
camera is turned on.
The dust reduction function operates at the same time as the pixel mapping, which
checks the image pickup device and image processing circuitry. Since dust reduction
is activated every time the camera’s power is turned on, the camera should be held
upright for the dust reduction function to be effective.
Information
Information
8
163
EN
Pixel Mapping - Checking the image processing functions
The pixel mapping feature allows the camera to check and adjust the image pickup
device and image processing functions. Before using the pixel mapping function to
ensure that it operates correctly, wait for 1 minute or longer immediately after shooting
or playback.
1
In Custom Menu a, select [Pixel Mapping] (P. 137).
2
Press I, then press the Q button.
• The [Busy] bar is displayed when pixel mapping is in progress. When pixel mapping
is nished, the menu is restored.
• If you accidentally turn the camera off during pixel mapping, start again from Step 1.
Information
8
164
EN
Shooting tips and information
The camera does not turn on even when a battery is loaded
The battery is not fully charged
• Charge the battery with the USB-AC adapter.
The battery is temporarily unable to function because of the cold
• Battery performance drops at low temperatures. Remove the battery and warm it by
putting it in your pocket for a while.
A language-selection prompt is displayed
The dialog shown in the illustration will be displayed in the
following circumstances:
• The camera is turned on for the rst time
• You previously ended initial setup without choosing a
language
Please select your language.
Por favor, selecciona tu idioma.
Veuillez choisir votre langue.
Bitte wählen Sie Ihre Sprache.
Choose a language as described in “Initial setup” (P. 22).
The date and time has not been set
The camera is used with the settings at the time of purchase
• The date and time of the camera is not set when purchased. Set the date and time before
using the camera. g “Initial setup” (P. 22)
The battery has been removed from the camera
• The date and time settings will be returned to the factory default settings if the camera is
left without the battery for approximately 1 day. The settings will be canceled more quickly
if the battery was only loaded in the camera for a short time before being removed. Before
taking important pictures, check that the date and time settings are correct.
Set functions are restored to their factory default settings
Options selected in AUTO (B), SCN, or Z mode are reset when the mode dial is rotated
to another setting.
Functions that cannot be selected from menus
Some items may not be selectable from the menus when using the arrow pad.
• Items that cannot be set with the current shooting mode.
• Items that cannot be set because of an item that has already been set:
Combinations of [T] (P. 77) and [Noise Reduct.] (P. 134), etc.
The number of AF targets is reduced
The size and number of the AF targets changes with the aspect ratio (P. 86), the AF target
mode (P. 72), and the option selected for [Digital Tele-converter] (P. 119).
Information
8
165
EN
No picture is taken when the shutter button is pressed
The camera has turned off automatically
• The camera automatically enters sleep mode to reduce the drain on the battery if no
operations are performed for a set period of time. g [Sleep] (P. 137)
Press the shutter button halfway to exit the sleep mode.
The camera will turn off automatically if no operations are performed for an additional
4 hours.
The ash is charging
• On the monitor, the # mark blinks when charging is in progress. Wait for the blinking to
stop, then press the shutter button.
Unable to focus
• The camera cannot focus on subjects that are too close to the camera or that are not
suited to autofocus (the AF conrmation mark will blink in the monitor). Increase the
distance to the subject or focus on a high contrast object at the same distance from the
camera as your main subject, compose the shot, and shoot.
Subjects that are difcult to focus on
It may be difcult to focus with auto focus in the following situations.
Subject with low
contrast
Excessively bright
light in center of frame
AF conrmation
mark is blinking.
These subjects
are not focused.
Subjects at different
distances
Fast-moving subject Subject not inside
AF area
AF conrmation
mark lights up but
the subject is not
focused.
Noise reduction is activated
• When shooting night scenes, shutter speeds are slower and noise tends to appear in
images. The camera activates the noise-reduction process after shooting at slow shutter
speeds. During which, shooting is not allowed. You can set [Noise Reduct.] to [Off].
g [Noise Reduct.] (P. 134)
Image taken appears whitish
This may occur when the picture is taken in backlight or semi-backlight conditions. This is
due to a phenomenon called are or ghosting. As far as possible, consider a composition
where strong light source is not taken in the picture. Flare may occur even when a light
source is not present in the picture. Use a lens hood to shade the lens from the light
source. If a lens hood does not have effect, use your hand to shade the lens from the light.
g “Interchangeable lenses” (P. 155)
Unknown bright dot(s) appear on the subject in the picture taken
This may be due to stuck pixel(s) on the image pickup device. Perform [Pixel Mapping].
If the problem persists, repeat pixel mapping a few times. g “Pixel Mapping - Checking the
image processing functions” (P. 163)
Information
8
166
EN
The subject appears distorted
The following functions use an electronic shutter:
movie recording (P. 65)/silent (P. 78)/the SCN mode panorama (P. 38),
“silent” (P. 38), and “multi-focus shot” (P. 39) options/the Z mode “silent” (P. 45),
panorama (P. 46), and “focus bracketing” (P. 49) options
This may cause distortion if the subject is moving rapidly or the camera is moved abruptly.
Avoid moving the camera abruptly during shooting or use standard sequential shooting.
Lines appear in photographs
The following functions use an electronic shutter, which may result in lines due to icker and
other phenomena associated with uorescent and LED lighting, an effect that can sometimes
be reduced by choosing slower shutter speeds:
movie recording (P. 65)/silent (P. 78)/the SCN mode panorama (P. 38),
“silent” (P. 38), and “multi-focus shot” (P. 39) options/the Z mode “silent” (P. 45),
panorama (P. 46), and “focus bracketing” (P. 49) options
The camera is stuck in manual focus (MF) mode
Some lenses are equipped with a manual focus clutch that engages manual focus when the
focus ring is slid back. Check the lens. g [MF Clutch Lenses] (P. 156)
Changing the number of frames or adding frames to the index
playback display
Use the [G/Info Settings] > [G Settings] option in custom menu N to change the number
of frames shown in or add frames to the index playback display (P. 139).
Hiding menu guides
Press the INFO button to hide or show on-screen guides in the menu display (P. 117).
Viewing the functions assigned to dials and buttons
Use the options in Custom Menu M to view the functions assigned to camera controls.
[Button Function] (P. 132)/[qR Function] (P. 132)/[Dial Function] (P. 132)
Movies do not play back smoothly when viewed on a TV
The movie frame rate may not match the video standard used in the TV. View the movie on
a computer instead. Before recording movies for display on a TV, choose a frame rate that
matches the video standard used in the device. g [Video Frame Rate] (P. 125)
Information
8
167
EN
Error codes
Monitor indication Possible cause Corrective action
No Card
The card is not inserted, or it
cannot be recognized.
Insert a card or insert a different
card.
Card Error
There is a problem with the card.
Insert the card again. If the
problem persists, format the card.
If the card cannot be formatted, it
cannot be used.
Write Protect
Writing to the card is prohibited.
The card write-protect switch is set
to the “LOCK” side. Release the
switch. (P. 154)
Card Full
• The card is full. No more
pictures can be taken or no
more information such as print
reservation can be recorded.
• There is no space in the card
and print reservation or new
images cannot be recorded.
Replace the card or erase
unwanted pictures.
Before erasing, download
important images to a PC.
No Picture
There are no pictures on the
card.
The card contains no pictures.
Record pictures and play back.
Picture Error
The selected picture cannot be
displayed for playback due to
a problem with this picture. Or
the picture cannot be used for
playback on this camera.
Use image processing software to
view the picture on a PC.
If that cannot be done, the image
le is damaged.
The Image Cannot
Be Edited
Pictures taken with another
camera cannot be edited on this
camera.
Use image processing software to
edit the picture.
Y/M/D The clock is not set. Set the clock (P. 23).
m
The internal temperature of
the camera has risen due to
sequential shooting.
Turn off the camera and wait for
the internal temperature to cool.
Internal camera
temperature is too
high.
Please wait for
cooling before
camera use.
Wait a moment for the camera to
turn off automatically.
Allow the internal temperature
of the camera to cool before
resuming operations.
Battery Empty
The battery is drained. Charge the battery.
Information
8
168
EN
Monitor indication Possible cause Corrective action
No Connection
The camera is not correctly
connected to a computer, HDMI
display, or other device.
Reconnect the camera.
Cannot Print
It may not be possible to create
print reservations for pictures
recorded on other cameras via
this camera.
Print separately via a personal
computer, etc.
The lens is locked.
Please extend the
lens.
The lens of the retractable lens
stays retracted.
Extend the lens.
Please check the
status of a lens.
An abnormality has occurred
between the camera and the
lens.
Turn off the camera, check the
connection with the lens, and turn
the power on again.
This function
requires a
compatible lens.
Please attach a
compatible lens.
The lens does not support the
selected shooting mode.
Choose a lens that does or
choose a different shooting mode.
Information
8
169
EN
Defaults
*1: Default can be restored by selecting [Full] for [Reset].
*2: Default can be restored by selecting [Basic] for [Reset].
Button Functions/Live Control/LV Super Control
Function Default *1 *2
g
ISO AUTO
a a
74
Sequential shooting/Self-timer
o
a a
77
AF target settings
o
a a
72
Flash photography
#
a a
75
K AF mode
S-AF
a a
84
n AF mode
C-AF
a a
125
Aspect ratio 4:3
a a
86
KK YF
a a
86
nK (4K)
3840×2160 30p ― ― 89
nK (Standard)
1920×1080 Fine 60p
a a
90
nK (High-speed)
1280×720 HighSpeed
120fps
― ― 89
Movie (exposure) mode
P
a
― 91
K
Shooting Menu
Tab Function Default *1 *2
g
W
Reset Basic ― ― 118
Picture Mode
C Natural
a a
81, 119
Digital Tele-converter Off
a a
119
Metering
p
a a
95
AF Illuminator On
a a
119
X
K Image Stabilizer
S-IS On
a a
93
K Elec. Zoom Speed
Normal
a
― 120
x
±0.0
a a
92
Multiple Exposure
Number of Frames
Off
a a
120
Auto Gain Off
a a
Overlay Off
a a
Intrvl. Sh./Time Lapse Off
a a
122
Silent s Settings
Noise Reduction
s
Off
a
―
123
8
Not Allow
a
―
AF Illuminator Not Allow
a
―
Flash Mode Not Allow
a
―
# RC Mode
Off
a a
124
Information
8
170
EN
n Video Menu
Tab Function Default *1 *2
g
n
Movie R
On
a a
125
Recording Volume ±0
a
― 125
n AF Mode
C-AF
a a
125
n Image Stabilizer
M-IS
a a
93
n Elec. Zoom Speed
Normal
a
― 125
Video Frame Rate 30p
a
― 87, 125
Video Bit Rate Fine
a
― 87, 125
q
Playback Menu
Tab Function Default *1 *2
g
q
y
Start ― ― ―
109
BGM On
a a
Slide All
a a
Slide Interval 3 sec
a
―
Movie Interval Short
a
―
R
On
a a
126
Edit
Sel. Image
RAW Data Edit ―
― ―
126
JPEG Edit ― 127
Movie Edit ―
128,
129
R
― 113, 127
Image Overlay ― 128
Print Order ― ― ― 112
Reset Protect ― ― ― 129
Reset share Order ― ― ― 111
Device Connection ― ― ― 143
G Custom Menu
Tab Function Default *1 *2
g
G
AF/MF
a
AEL/AFL
S-AF mode1
a a
132,
138
C-AF mode2
MF mode1
AF Targeting Pad Off
a a
132
IFace Priority
K
a
― 73, 132
MF Assist
Magnify Off
a
―
132,
138
Peaking Off
a
―
Reset Lens On
a a
132
Information
8
171
EN
Tab Function Default *1 *2
g
G
Button/Dial
M
Button
Function
t Function
AEL/AFL
a
―
101, 132
b Function b
a
―
R Function R REC
a
―
qR Function
h
a
― 132
Dial Function
P
Front dial: F
Rear dial: Ps
a
― 132
A
Front dial: F
Rear dial: FNo.
S
Front dial: F
Rear dial: Shutter
M
Front dial: FNo.
Rear dial: Shutter
Disp/8/PC
N
K Control
Settings
B
LV-C
a
―
80, 133
P/A/S/M
LV-C
a
―
ART
LV-C
a
―
SCN/Z
LV-C
a
―
G/Info
Settings
q Info
Image Only, Overall
a a
133,
139
LV-Info
Custom1 (u), Custom2
(Level Gauge)
a
―
G Settings
25, Calendar
a
―
Live View Boost Off
a a
133
Flicker Reduction Auto
a
― 133
Displayed Grid Off
a
― 133
Peaking Color Red
a
― 133
O 8
On
a a
133
HDMI
Output Size 1080p
a
―
133,
140
HDMI Control Off
a
―
USB Mode Auto
a a
133
Exp/ISO/BULB
P
Exposure Shift
p
±0
a
― 134
J
5
ISO-Auto Set
Upper Limit 6400
a a
134
Default 200
a a
Noise Filter Standard
a a
134
Noise Reduct. Auto
a a
62, 134
Q
Bulb/Time Timer 8min
a a
61, 134
Live Bulb Off
a
― 61, 134
Live Time 0.5 sec
a
― 61, 134
Composite Settings 1 sec
a
― 63, 134
Information
8
172
EN
Tab Function Default *1 *2
g
G
# Custom
b
#X-Sync.
1/250
a a
135,
141
#Slow Limit
1/60
a a
135,
141
w+F
Off
a a
71, 92,
135
#+WB
W
a
― 135
K/WB/Color
W
K Set
K1 YSF, K2 YF,
K3 YN, K4 XN
a a
135,
141
WB Auto
a a
83, 135
W Keep Warm Color
On
a a
135
Color Space sRGB
a a
99, 135
Record
X
File Name Reset
a
― 136
Edit Filename ―
a
― 136
Copyright
Settings
Copyright Info. Off
a
―
136Artist Name ― ― ―
Copyright Name ― ― ―
EVF
c
EVF Auto Switch On
a
― 137
EVF Adjust EVF Auto
Luminance
Off
a
― 137
EVF Adjust
j±0, k±0
a
―
K
Utility
a
Pixel Mapping ― ― ―
137,
163
Level Adjust ―
a
― 137
Touchscreen Settings On
a
― 137
Sleep 1 min
a a
21, 137
Certication ― ― ― 137
e Setup Menu
Tab Function Default *1 *2
g
e
Card Setup ― ― ― 131
X
― ― ― 23
W
English ― ―
130,
131
s
j ±0, k ±0, Natural
a
― 130
Rec View 0.5 sec
a
― 130
Wi-Fi/Bluetooth
Settings
Wireless Functions On
a
― 150
Bluetooth On
a
― 144
Power-off Standby Select
a
― 145
Connection Password
― ― ― 150
Reset Settings ― ― ― 149
Firmware ― ― ― 130
Information
8
173
EN
Specications
Camera
Product type
Product type Digital camera with interchangeable Micro Four Thirds Standard lens
system
Lens M.Zuiko Digital, Micro Four Thirds System Lens
Lens mount Micro Four Thirds mount
Equivalent focal length on
a 35 mm lm camera
Approx. twice the focal length of the lens
Image pickup device
Product type 4/3” Live MOS sensor
Total no. of pixels Approx. 21.77 million pixels
No. of effective pixels Approx. 20.30 million pixels
Screen size 17.4 mm (H) × 13.0 mm (V)
Aspect ratio 1.33 (4:3)
Viewnder
Type Electronic viewnder with eye sensor
No. of pixels Approx. 2.36 million dots
Magnication 100%
Eye point Approx. 19.2 mm (−1 m
−1
)
Live view
Sensor Uses Live MOS sensor
Magnication 100%
Monitor
Product type 3.0" TFT color LCD, Vari-angle, touch screen
Total no. of pixels Approx. 1.04 million dots (aspect ratio 3:2)
Shutter
Product type Computerized focal-plane shutter
Shutter speed 1/4000 - 60 sec., bulb photography, time photography
Auto focus
Product type Hi-Speed Imager AF
Focusing points 121 points
Selection of focusing point Auto, Optional
Exposure control
Metering system TTL metering system (imager metering)
Digital ESP metering/Center weighted averaging metering/Spot metering
Metered range EV –2 - 20 (f/2.8 lens, ISO100)
Shooting modes
B: AUTO/P: Program AE (Program shift can be performed)/
A: Aperture priority AE/S: Shutter priority AE/M: Manual/
n
: Movie/
ART: Art Filter/SCN: Scene/Z: Advanced Photo
ISO sensitivity LOW, 200 - 25600 (1/3 EV step)
Exposure compensation ±5.0 EV (1/3 EV step)
White balance
Product type Image pickup device
Mode setting Auto/Preset WB (6 settings)/Customized WB/One-touch WB (camera can
store up to 4 settings)
Information
8
174
EN
Recording
Memory SD, SDHC and SDXC
UHS-II compatible
Recording system Digital recording, JPEG (DCF2.0), RAW Data
Applicable standards Exif 2.31, Digital Print Order Format (DPOF)
Sound with still pictures Wave format
Movie MPEG-4 AVC/H.264
Audio Stereo, PCM 48kHz
Playback
Display format Single-frame playback/Close-up playback/Index display/Calendar display
Drive
Drive mode Single-frame shooting/Sequential shooting/Self-timer/Silent shooting
Sequential shooting
Up to approximately 8.7 fps (
T
) /
Up to approximately 15 fps (♥T)
Self-timer Operation time: 12 sec./2 sec./Customized
Energy saving function Switch to sleep mode: 1 minute (This function can be customized.)
Power OFF: 4 hours
Flash
Guide number 5.1 (ISO100•m)/7.2 (ISO200•m)
Firing angle Covers the angle of view of a 14 mm lens (28 mm in 35 mm format)
Flash control mode TTL-AUTO (TTL pre-ash mode)/MANUAL
Sync speed 1/250 s or slower
Wireless LAN
Compatible standard IEEE 802.11b/g/n
Bluetooth
®
Compatible standard Bluetooth Version 4.2 BLE
External connector
Micro-USB connector/HDMI micro connector (type D)
Power supply
Battery Lithium-ion Battery ×1
Dimensions/weight
Dimensions 121.7 mm (W) × 84.6 mm (H) × 49.0 mm (D) (4.8" × 3.3" × 1.9")
(excluding protrusions)
Weight Approx. 383 g (0.8 Ib.) (including battery and memory card)
Operating environment
Temperature
0 °C - 40 °C (32 °F - 104 °F) (operation)/
–20 °C - 60 °C (–4 °F - 140 °F) (storage)
Humidity 30% - 90% (operation)/10% - 90% (storage)
The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United
States and other countries.
Information
8
175
EN
Lithium-ion battery
MODEL NO. BLS-50
Product type Rechargeable Lithium ion battery
Nominal voltage DC 7.2 V
Nominal capacity 1210 mAh
No. of charge and discharge times Approx. 500 times (varies with usage conditions)
Ambient temperature 0 °C - 40 °C (32 °F - 104 °F) (charging)
Dimensions
Approx. 35.5 mm (W) × 12.8 mm (H) × 55 mm (D) (1.4" × 0.5" × 2.2")
Weight Approx. 46 g (0.1 Ib.)
USB-AC adapter
MODEL NO.
F-5AC-1/F-5AC-2
Rated input AC 100 V - 240 V (50/60 Hz)
Rated output
DC 5 V, 1500 mA
Ambient temperature 0 °C - 40 °C (32 °F - 104 °F) (operation)/
–20 °C - 60 °C (–4 °F - 140 °F) (storage)
• SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR
OBLIGATION ON THE PART OF THE MANUFACTURER.
• Visit our website for the latest specications.
SAFETY PRECAUTIONS
9
176
EN
9
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.
An exclamation mark enclosed in a triangle alerts you to important operating
and maintenance instructions in the documentation provided with the
product.
WARNING
If the product is used without observing the information given under this
symbol, serious injury or death may result.
CAUTION
If the product is used without observing the information given under this
symbol, injury may result.
NOTICE
If the product is used without observing the information given under this
symbol, damage to the equipment may result.
WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE
THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.
General Precautions
Read All Instructions — Before you use the
product, read all operating instructions. Save all
manuals and documentation for future reference.
Power Source — Connect this product only to
the power source described on the product label.
Foreign Objects — To avoid personal injury,
never insert a metal object into the product.
Cleaning — Always unplug this product from
the wall outlet before cleaning. Use only a damp
cloth for cleaning. Never use any type of liquid or
aerosol cleaner, or any type of organic solvent to
clean this product.
Heat — Never use or store this product near
any heat source such as a radiator, heat register,
stove, or any type of equipment or appliance that
generates heat, including stereo ampliers.
Attachments — For your safety, and to avoid
damaging the product, use only accessories
recommended by Olympus.
Location — To avoid damage to the product,
mount the product securely on a stable tripod,
stand, or bracket.
WARNING
• Do not use the camera near ammable or
explosive gases.
• Rest your eyes periodically when using
the viewnder.
Failure to observe this precaution could result
in eyestrain, nausea, or sensations similar to
motion sickness. The length and frequency
of the required rest varies with the individual;
use your own judgement. If you feel tired
or unwell, avoid using the viewnder and if
necessary consult a physician.
• Do not use the ash and LED (including
AF illuminator) on people (infants, small
children, etc.) at close range.
• You must be at least 1 m (3 ft.) away
from the faces of your subjects. Firing the
ash too close to the subject’s eyes could
cause a momentary loss of vision.
• Do not look at the sun or strong lights
with the camera.
SAFETY PRECAUTIONS
9
177
EN
• Keep young children, infants away from
the camera.
• Always use and store the camera out of
the reach of young children and infants to
prevent the following dangerous situations
which could cause serious injury:
• Becoming entangled in the camera
strap, causing strangulation.
• Accidentally swallowing the battery,
cards or other small parts.
• Accidentally ring the ash into their
own eyes or those of another child.
• Accidentally being injured by the
moving parts of the camera.
• If you nd that the USB-AC adapter is
extremely hot or notice any unusual
odors, noise, or smoke around it,
unplug the power plug from wall outlet
immediately and stop using it. Then,
contact an authorized distributor or
service center.
• Stop using the camera immediately if
you notice any unusual odors, noise, or
smoke around it.
• Never remove the batteries with bare
hands, which may cause a re or burn
your hands.
• Never hold or operate the camera with wet
hands.
This may cause overheating, exploding,
burning, electrical shocks, or malfunctions.
• Do not leave the camera in places where
it may be subject to extremely high
temperatures.
• Doing so may cause parts to deteriorate
and, in some circumstances, cause the
camera to catch re. Do not use the
charger or USB-AC adapter if it is covered
(such as a blanket). This could cause
overheating, resulting in re.
• Handle the camera with care to avoid
getting a low temperature burn.
• When the camera contains metal
parts, overheating can result in a low-
temperature burn. Pay attention to the
following:
• When used for a long period, the
camera will get hot. If you hold on
to the camera in this state, a low-
temperature burn may be caused.
• In places subject to extremely cold
temperatures, the temperature of the
camera’s body may be lower than the
environmental temperature. If possible,
wear gloves when handling the camera
in cold temperatures.
• To protect the high-precision technology
contained in this product, never leave the
camera in the places listed below, no matter if
in use or storage:
• Places where temperatures and/or
humidity are high or go through extreme
changes. Direct sunlight, beaches, locked
cars, or near other heat sources (stove,
radiator, etc.) or humidiers.
• In sandy or dusty environments.
• Near ammable items or explosives.
• In wet places, such as bathrooms or in
the rain.
• In places prone to strong vibrations.
• The camera uses a lithium ion battery
specied by Olympus. Charge the battery
with the specied USB-AC adapter or
charger. Do not use any other USB-AC
adapters or chargers.
• Never incinerate or heat batteries in
microwaves, on hot plates, or in pressure
vessels, etc.
• Never leave the camera on or near
electromagnetic devices.
This may cause overheating, burning, or
exploding.
•
Do not connect terminals with any metallic
objects.
• Take precautions when carrying or storing
batteries to prevent them from coming into
contact with any metal objects such as
jewelry, pins, fasteners, keys, etc.
The short circuit may cause overheating,
exploding, or burning, which burn or damage
you.
• To prevent causing battery leaks or damaging
their terminals, carefully follow all instructions
regarding the use of batteries. Never attempt
to disassemble a battery or modify it in any
way, solder, etc.
• If battery uid gets into your eyes, ush
your eyes immediately with clear, cold
running water and seek medical attention
immediately.
• If you cannot remove the battery from the
camera, contact an authorized distributor
or service center. Do not try to remove the
battery by force.
Damage to the battery exterior (scratches,
etc.) may produce heat or an explosion.
• Always store batteries out of the reach of
small children and pets. If they accidentally
swallow a battery, seek medical attention
immediately.
• To prevent batteries from leaking,
overheating, or causing a re or explosion,
use only batteries recommended for use with
this product.
SAFETY PRECAUTIONS
9
178
EN
• If rechargeable batteries have not been
recharged within the specied time, stop
charging them and do not use them.
• Do not use batteries with scratches or
damage to the casing, and do not scratch
the battery.
• Never subject batteries to strong shocks or
continuous vibration by dropping or hitting.
This may cause exploding, overheating, or
burning.
• If a battery leaks, has unusual odor, becomes
discolored or deformed, or becomes
abnormal in any other way during operation,
stop using the camera, and keep away from
re immediately.
• If a battery leaks uid onto your clothing
or skin, remove the clothing and ush the
affected area with clean, running cold water
immediately. If the uid burns your skin, seek
medical attention immediately.
• Never use lithium-ion batteries in a low-
temperature environment. Doing so may
cause generation of heat, ignition, or
explosion.
• The Olympus lithium-ion battery is designed
to be used only for the Olympus digital
camera. Do not use the battery to other
devices.
• Do not allow children or animals/pets to
handle or transport batteries (prevent
dangerous behaviour such as licking,
putting in mouth or chewing).
Use Only Dedicated Rechargeable
Battery, Battery Charger and
USB-AC adapter
We strongly recommend that you use only
the genuine Olympus dedicated rechargeable
battery, battery charger and USB-AC adapter
with this camera. Using a non-genuine
rechargeable battery, battery charger and/or
USB-AC adapter may result in re or personal
injury due to leakage, heating, ignition or damage
to the battery. Olympus does not assume any
liability for accidents or damage that may result
from the use of a battery, battery charger and/or
USB-AC adapter that are not genuine Olympus
accessories.
CAUTION
• Do not cover the ash with a hand while
ring.
• The included USB-AC adapter F-5AC is
designed to be used only with this camera.
Other cameras cannot be charged with this
USB-AC adapter.
• Do not connect the included USB-AC adapter
F-5AC to equipment other than this camera.
• Never store batteries where they will be
exposed to direct sunlight, or subjected to
high temperatures in a hot vehicle, near a
heat source, etc.
• Keep batteries dry at all times.
• The battery may become hot during
prolonged use. To avoid minor burns, do not
remove it immediately after using the camera.
• This camera uses one Olympus lithium-ion
battery. Use the specied genuine battery.
There is a risk of explosion if the battery is
replaced with the incorrect battery type.
• Please recycle batteries to help save our
planet’s resources. When you throw away
dead batteries, be sure to cover their
terminals and always observe local laws and
regulations.
NOTICE
• Do not use or store the camera in dusty or
humid places.
• Use SD/SDHC/SDXC memory cards only.
Never use other types of cards.
If you accidently insert another type of card
into the camera, contact an authorized
distributor or service center. Do not try to
remove the card by force.
• Regularly back up important data to a
computer or other storage device to prevent
accidental loss.
• OLYMPUS accepts no liability for any loss of
data associated with this device.
• Be careful with the strap when you carry the
camera. It could easily catch on stray objects
and cause serious damage.
• Before transporting the camera, remove
a tripod and all other non-OLYMPUS
accessories.
• Never drop the camera or subject it to severe
shocks or vibrations.
• When attaching the camera to or removing
it from a tripod, rotate the tripod screw, not
the camera.
• Do not touch electric contacts on cameras.
• Do not leave the camera pointed directly
at the sun. This may cause lens or shutter
curtain damage, color failure, ghosting on
the image pickup device, or may possibly
cause res.
• Do not leave the viewnder exposed to a
strong light source or direct sunlight. The
heat may damage the viewnder.
• Do not push or pull severely on the lens.
• Be sure to remove any water droplets or
other moisture from the product before
replacing the battery or opening or closing
covers.
• Before storing the camera for a long period,
remove the batteries. Select a cool, dry
SAFETY PRECAUTIONS
9
179
EN
location for storage to prevent condensation
or mold from forming inside the camera. After
storage, test the camera by turning it on and
pressing the shutter button to make sure that
it is operating normally.
• The camera may malfunction if it is used in
a location where it is subject to a magnetic/
electromagnetic eld, radio waves, or high
voltage, such as near a TV set, microwave,
video game, loud speakers, large monitor
unit, TV/radio tower, or transmission towers.
In such cases, turn the camera off and on
again before further operation.
• Always observe the operating environment
restrictions described in the camera’s
manual.
• Insert the battery carefully as described in the
operating instructions.
• Before loading, always inspect the battery
carefully for leaks, discoloration, warping, or
any other abnormality.
• Always unload the battery from the camera
before storing the camera for a long period.
• When storing the battery for a long period,
select a cool location for storage.
• For plug-in type USB-AC adapter:
Connect the plug-in type USB-AC adapter
F-5AC correctly by plugging it vertically into
the wall outlet.
•
Power consumption by the camera varies
depending on which functions are used.
• During the conditions described below, power
is consumed continuously and the battery
becomes exhausted quickly.
• The zoom is used repeatedly.
• The shutter button is pressed halfway
repeatedly in shooting mode, activating
the auto focus.
• A picture is displayed on the monitor for
an extended period of time.
• Using an exhausted battery may cause the
camera to turn off without displaying the
battery level warning.
• If the battery’s terminals get wet or greasy,
camera contact failure may result. Wipe the
battery well with a dry cloth before use.
• Always charge a battery when using it for
the rst time, or if it has not been used for a
long period.
• When operating the camera with battery
power at low temperatures, try to keep
the camera and spare battery as warm as
possible. A battery that has run down at
low temperatures may be restored after it is
warmed at room temperature.
• Before going on a long trip, and especially
before traveling abroad, purchase extra
batteries. A recommended battery may be
difcult to obtain while traveling.
Using the wireless LAN/
Bluetooth
®
functions
• Turn off the camera in hospitals and other
locations where medical equipment is
present.
The radio waves from the camera may
adversely affect medical equipment, causing
a malfunction that results in an accident. Be
sure to disable wireless LAN/Bluetooth
®
functions in the vicinity of medical equipment
(P. 150).
• Turn off the camera when onboard aircraft.
Using wireless devices onboard may hinder
safe operation of the aircraft. Be sure to
disable wireless LAN/Bluetooth
®
functions
onboard aircraft (P. 150).
Monitor
• Do not push the monitor forcibly; otherwise
the image may become vague, resulting in
a playback mode failure or damage to the
monitor.
• A strip of light may appear on the top/bottom
of the monitor, but this is not a malfunction.
• When a subject is viewed diagonally in the
camera, the edges may appear zigzagged on
the monitor. This is not a malfunction; it will
be less noticeable in playback mode.
• In places subject to low temperatures, the
monitor may take a long time to turn on or its
color may change temporarily.
When using the camera in extremely cold
places, it is a good idea to occasionally place
it in a warm place. The monitor exhibiting
poor performance due to low temperatures
will recover in normal temperatures.
• The monitor of this product is manufactured
with high-quality accuracy, however, there
may be a stuck or dead pixel on the monitor.
These pixels do not have any inuence
on the image to be saved. Because of the
characteristics, the unevenness of the color
or brightness may also be found depending
on the angle, but this is due to the structure
of the monitor. This is not a malfunction.
Legal and Other Notices
• Olympus makes no representations or
warranties regarding any damages, or
benet expected by using this unit lawfully,
or any request from a third person, which
are caused by the inappropriate use of this
product.
• Olympus makes no representations or
warranties regarding any damages or any
benet expected by using this unit lawfully
which are caused by erasing picture data.
SAFETY PRECAUTIONS
9
180
EN
Disclaimer of Warranty
• Olympus makes no representations or
warranties, either expressed or implied, by
or concerning any content of these written
materials or software, and in no event
shall be liable for any implied warranty of
merchantability or tness for any particular
purpose or for any consequential, incidental
or indirect damages (including but not limited
to damages for loss of business prots,
business interruption and loss of business
information) arising from the use or inability
to use these written materials or software
or equipment. Some countries do not allow
the exclusion or limitation of liability for
consequential or incidental damages or of
the implied warranty, so the above limitations
may not apply to you.
• Olympus reserves all rights to this manual.
Warning
Unauthorized photographing or use of
copyrighted material may violate applicable
copyright laws. Olympus assumes no
responsibility for unauthorized photographing,
use or other acts that infringe upon the rights of
copyright owners.
Copyright Notice
All rights reserved. No part of these written
materials or this software may be reproduced
or used in any form or by any means, electronic
or mechanical, including photocopying and
recording or the use of any type of information
storage and retrieval system, without the prior
written permission of Olympus. No liability
is assumed with respect to the use of the
information contained in these written materials
or software, or for damages resulting from
the use of the information contained therein.
Olympus reserves the right to alter the features
and contents of this publication or software
without obligation or advance notice.
Trademarks
• Microsoft and Windows are registered
trademarks of Microsoft Corporation.
• SDXC Logo is a trademark of SD-3C, LLC.
• Apical logo is a registered
trademark of Apical Limited.
• Micro Four Thirds, Four Thirds,
and the Micro Four Thirds and
Four Thirds logos are trademarks
or registered trademarks of the
OLYMPUS CORPORATION in
Japan, the United States, the countries of the
European Union, and other countries.
• Wi-Fi is a registered trademark of the Wi-Fi
Alliance.
• The Wi-Fi CERTIFIED logo
is a certication mark of
the Wi-Fi Alliance.
• The Bluetooth
®
word mark
and logos are registered
trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by OLYMPUS
CORPORATION is under license.
• The standards for camera le systems
referred to in this manual are the “Design
Rule for Camera File System/DCF” standards
stipulated by the Japan Electronics and
Information Technology Industries Association
(JEITA).
• All other company and product names are
registered trademarks and/or trademarks of
their respective owners.
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NONCOMMERCIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD (“AVC
VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTP://WWW.
MPEGLA.COM
The software in this camera may include third
party software. Any third party software is subject
to the terms and conditions, imposed by the
owners or licensors of that software, under which
software is provided to you.
Those terms and other third party software
notices, if any, may be found in the software
notice PDF le stored at
http://www.olympus.co.jp/en/support/imsg/
digicamera/download/notice/notice.cfm
181
EN
Index
Numbers
8 (Beep sound) ...............................133
# Slow Limit..............................135, 141
#+WB ...............................................135
# X-Sync. .................................135, 141
# RC Mode ....................................... 158
0 (Protect) ..................................... 11 0
s (Monitor brightness
adjustment) ....................................130
n Mode (movie exposure mode) .......91
G (Index display) ..................... 115, 139
P
(Trimming) ...................................127
G/Info Settings ........................133, 139
w
+
F
...............................................135
j/Y ..................................................77
G (Index display/Calendar display) .108
W (language) .................................. 130
k (One-touch white balance) ..101, 102
D (Single-frame erase) ..................... 11 0
I (Face priority AF) ............................73
W Keep Warm Color .......................135
z (Preview) .......................................102
S (Sequential Low) ...........................77
T (Sequential High) ..........................77
q Info ..............................................133
G Settings .......................................133
K Control Settings ...........................133
# UP ...........................................75, 158
u (Shortcut) Button............................33
R (Movie) button ................65, 101, 132
v (Image selection) ......................... 111
a (Close-up playback) .....................108
R (Image rotation) ........................... 126
A
A (Aperture priority mode) ..................56
Accessories .......................................159
AdobeRGB ..........................................99
Advanced photo mode.........................40
AE Bracketing ...................................... 48
AEL/AFL ............................................138
AE lock ..............................102, 132, 138
AF Area................................................72
AF illuminator............................... 30, 119
AF Mode ..............................................84
Movie ..............................................125
AF Targeting Pad ............................... 132
AF target settings ................................72
AF tracking ..........................................85
AP Mode .............................................. 40
ART (Art lter) ..................................... 50
Aspect ratio..........................................86
Audio recording
Still image ....................................... 113
AUTO mode (B) ................................34
B
Backlight HDR .....................................38
Battery charge .....................................17
Battery level ......................................... 21
Beep sound .......................................133
Bleach Bypass ..................................... 52
Bluetooth
®
........................................142
Bulb .....................................................61
BULB ...................................................61
Bulb/Time Timer ................................134
Button Function .................................101
C
C-AF (Continuous AF) .........................84
C-AF+TR (AF tracking) ........................85
Calendar display ................ 108, 115, 139
Card ............................................. 15, 154
Card Setup ........................................131
Certication........................................137
Close-up playback ............................. 108
Color Creator .......................................82
Color Filter ...........................................97
Color Space ................................. 99, 135
Composite Settings ...........................134
Compression rate ................86, 141, 154
182
EN
Computer ........................................... 151
Connection
Computer ........................................151
Smartphone ....................................142
Continuous AF .....................................84
Contrast ...............................................96
Control Settings ................................. 133
Copyright Settings .............................136
Custom Menu ............................132, 170
D
Date/time setting (X) ..........................22
Dial Function......................................132
Digital Tele-converter ................... 71, 119
Diopter adjustment dial ........................ 25
Displayed Grid ...................................133
DPOF ................................................. 112
E
Edit ....................................................126
Edit Filename.....................................136
Effect (i-Enhance) ................................ 98
Elec. Zoom Speed
Movie ..............................................125
Still image .......................................120
Erase
All images .......................................131
Selected images ............................. 111
Single-frame ................................... 110
EVF Adjust ......................................... 137
EVF Auto Switch ................................137
Exif data.............................................136
Exposure compensation ...................... 71
Exposure Shift ...................................134
External ash units ............................157
Eye priority AF .....................................73
F
Face priority AF ...................................73
File format..........................................154
File Name ..........................................136
File size .............................................154
Fine-Tune ............................................53
Firmware ............................................130
Flash .................................................... 75
Flash intensity control .......................... 92
Flicker Reduction ............................... 133
Fn button ...........................................101
Focus Bracketing ................................. 49
Focus mode ......................................... 84
Focus ring ............................................ 84
Format ...............................................131
G
GPS log .............................................149
Gradation ............................................. 97
H
HDMI .........................................133, 140
HDR ..................................................... 44
Highlight&Shadow Control.................100
Histogram display ................................ 28
I
Image aspect .......................................86
Image Overlay ...................................128
Image quality
Movie (nK) ...................................87
Still image (KK) ........................... 86
Image quality settings
Movie ................................................87
Still image .........................86, 135, 154
Still image (K Set) ........................ 141
Image size
Movie ................................................87
Still image .......................135, 141, 154
Image Stabilizer ................................... 93
Movie ..............................................125
Image transfer to smartphone ...........147
Index display...................... 108, 115, 139
INFO button ........................ 28, 106, 117
Information display ..............................26
Playback .........................................105
In-Movie Image Capture .................... 128
Installation .........................................152
Instant Film ..........................................52
Interchangeable lenses .....................155
ISO-Auto Set .....................................134
183
EN
ISO sensitivity ...................................... 74
K
Keystone Compensation .....................47
L
Language setting (W) .....................130
Level Adjust .......................................137
Level gauge ......................................... 28
Light Trails ...........................................37
Live Bulb ...................................... 61, 134
Live composite photography..........41, 63
Live control ..........................................79
Live Time .............................................61
LIVE TIME .....................................42, 61
Live View Boost .................................133
Long time exposure
(BULB/LIVE TIME) ..........................61
LV-Info .......................................133, 139
LV super control panel ......................... 80
M
M (Manual mode) ................................60
Manual focus .......................................84
Manual focus clutch (MF clutch) ........ 156
Menu.......................................... 117, 169
Metering...............................................95
MF Assist ...................................132, 138
MF (Button Function) ......................... 102
MF Clutch ..........................................156
MF (Manual focus)...............................84
Mode dial .............................................29
Monitor brightness adjustment ..........130
Monochrome Color .............................. 98
Movie R .............................................125
Movie exposure mode .........................91
Movie mode .........................................67
Movie shooting ....................................65
Movie Trimming .................................129
Multiple Exposure ........................ 43, 120
N
Noise Filter ........................................134
Noise Reduct. ....................................134
Number of storable still pictures ........154
O
OI.Palette...........................................142
OI.Share ............................................142
OI.Track ............................................. 142
Olympus Workspace .....................2, 152
One-touch white balance (k) ....84, 102
P
P (Program mode) ...............................54
Panorama .................................... 46, 114
Partial Color ......................................... 53
PC software .......................................152
Peaking......................................102, 138
Peaking Color .................................... 133
Picture Mode ............................... 81, 119
Pixel Count ................................141, 154
Pixel mapping ............................ 137, 163
Playback
Movie ...................................... 107, 110
Still image .......................................107
Playback Menu .......................... 126, 170
Position information ........................... 149
Preview (z) .......................................102
Program shift (%) ...............................55
Protect ............................................... 110
% (Program shift) ...............................55
R
Radio-Controlled Flash
Photography ..................................157
RAW Data Edit ..................................126
RAW image .........................................86
RC Mode (# RC Mode) ....................158
Recording Volume .............................125
Rec View ...........................................130
Remote shooting ...............................148
Reset ................................................. 118
Reset Lens ........................................132
184
EN
Reset Protect ..................................... 129
Rotate ................................................108
S
S (Shutter priority mode) .....................58
S-AF+MF (Single AF and
Manual focus) .................................. 85
S-AF (Single AF)..................................84
Saturation ............................................96
SCN (Scene).......................................36
SD card..............................................154
Formatting the card .........................131
Self-portraits ........................................69
Self-timer .............................................77
Sequential shooting ............................. 77
Setup Menu ...............................130, 172
Share Order ....................................... 111
Sharpness ...........................................95
Shooting Menu .......................... 118, 169
Shooting Menu 1 ............................. 118
Shooting Menu 2 ............................. 118
Shooting modes...................................29
Silent s .................................. 38, 45, 78
Silent s Settings .............................. 123
Single AF .............................................84
Sleep ...........................................21, 137
Slow-motion movie ..............................68
sRGB ...................................................99
Storage ..............................................151
Super Spot AF ...................................103
T
Time .....................................................61
Time Lapse Movie .............................122
Time lapse shooting ..........................122
Touch screen operations ............. 32, 115
Touchscreen Settings ........................137
TV ......................................................140
U
USB Mode .........................................133
User registration ....................................2
V
Video Bit Rate ..............................87, 125
Video Frame Rate .......................87, 125
Video Menu ...............................125, 170
Volume adjustment ............................ 110
W
WB ..................................................... 135
White balance ...................................... 83
White balance compensation ..............94
Wi-Fi/Bluetooth Settings
......................130, 144, 145, 149, 150
Wireless Remote Control Flash ......... 158
Z
Zoom frame AF ..................................103
WD720000
date of issue 2020.6.
