LG Electronics DLG2524W LG dryer User Manual

ElectricandGasDrye

DLE2512W/DL G2522W

DLE2514W/D LG2524W

Thank you for buying a LG dryer.

Pleaseread your owner's manual carefully, as it provides

instructions on safe installation, use and maintenance.

Retain it for future reference and record the model and serial

number ofyour dryer.

P/No.: 3828EL3004B

OUTSTANDING PERFORMANCE

Not to mention unmatched big capacity, you can benefit from good

time efficiency, quiet operation and energy saving system.

DOUBLE-COATEDSTEELDRUM

It is coated with one metal coating and the other polymer coating in order to guarantee high

durability and the long life.

ARTISTICDESIGN

Modern front panel look and big crystal-clear glass door make your house look stylish.

DIGITALFABRICCARE

Multi-level temperature control heater takes a better care on your valued clothes.

EASYOF USE

A whole selection of user-friendly functions always make you comfortable with dryer operation.

PART1. SPECIFICATIONS ..................................................................................................................................... 3

PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS ................................................................. 4-6

PART3. INITIAL STEPS FOR INSTALLING YOUR DRYER ............................................................................. 7-12

PART4. ACCESSORIES INSTALLATION ....................................................................................................... 13-14

PART5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER ............................................................... 15-18

PART6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS ............................................................................ 19

PART7. GAS REQUIREMENTS AND INSTRUCTIONS ........................................................................................ 20

PART8. EXHAUST REQUIREMENTS AND MAINTENANCE .......................................................................... 21-22

PART9. OPERATING YOUR DRYER ............................................................................................................... 23-28

PART10. TROUBLESHOOTING GUIDE .......................................................................................................... 29-31

LG DRYER LIMITED WARRANTY ........................................................................................................................ 32

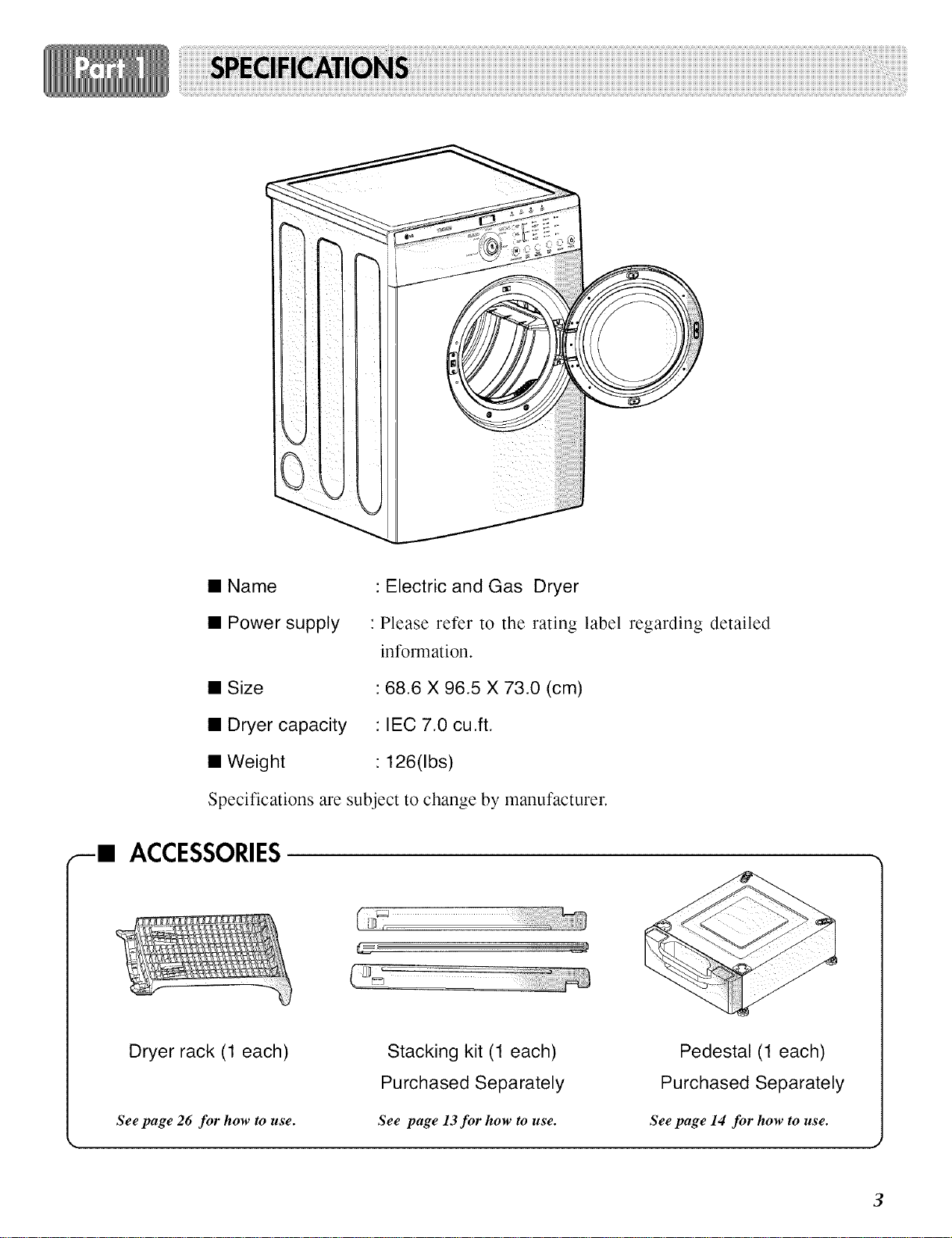

• Name : Electric and Gas Dryer

• Power supply : Please refer to the rating label regarding detailed

information.

: 68.6 X 96.5 X 73.0 (cm)

: IEC 7.0 cu.ft.

: 126(Ibs)

Specifications are subject to change by manufacturer.

• Size

• Dryer capacity

• Weight

--II ACCESSORIES

Dryer rack (1 each)

See page 26 for how to use.

Stacking kit (1 each)

Purchased Separately

See page 13for how to use.

Pedestal (1 each)

Purchased Separately

See page 14 for how to use.

SEEKING WARRANTY ASSISTANCE

Warranty Service. The warranty for your dryer is printed the end of this manual.

Warranty service is available by contacting your nearest LG Service Center and, for warranty period

from the date of purchase, if this dryer is installed and operated according to the instructions in this

manual, LG will repair or replace any of its mechanical or electrical parts if they are defective in

material or workmanship.

WARNINGS

For your safety, the recommendations in this manual must be followed. To reduce the risk

of fire or explosion, electric shock, or to prevent property damage, personal injury, or

death when using your appliance, follow basic precautions, including the following.

Warranty Restriction: If the dryer is subjected to other than private family use, all warranty

coverage is effective for only 90 days.

You will need the complete model and serial numbers when requesting information. We recommend

that you staple your sales slip or cancelled check here, because proof of original purchase date is

needed to obtain warranty service. Your dryer's model and serial numbers are located on the Model

and Serial Number Plate located on the front of the dryer behind the door.

Use the space below to record the model number and serial number of your new LG dryer.

Model No.

Serial No.

Date of Purchase

\t/

_:_Staple your receipt hear.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

to help reduce any risk of electric shock, fire, or other personal or property injury

1) Read all instructions before using the appliance.

2) Do not dry articles that have come into contact with

gasoline, dry-cleaning solvents, or other flammable

or explosive substances, as they give off vapors that

could ignite or explode.

3) Do not allow children to play on or in the appliance.

Close supervision of children is necessary when

using the appliance.

4) Before the appliance is removed from service or

discarded, remove the door to the drying

compartment.

5) Do not reach into the appliance if the drum is

moving.

6) Do not install or store this appliance where it will be

exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or

attempt any servicing unless specifically

recommended in the user-maintenance instructions.

9) Do not use heat to dry articles containing foam

rubber or similarly textured rubber-like materials.

10)

11)

Clean lint screen before or after each load.

Keep area around the exhaust opening and adjacent

surrounding areas fiee fiom the accumulation of

lint, dust, and dirt.

12) The interior of the appliance and exhaust duct

should be cleaned periodically by qualified service

personnel.

13) Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a

load to catch fire.

14) Do not use fabric soflners or products to eliminate

static unless recommended by the manufacturer of

the fabric softner or product.

SAVETHESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least

resistance t_r electric current. This appliance is

equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

WARNING - hnproper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or service

person if you are in doubt as to whether the appliance is

properly grounded.

Do not modify the plug provided with the appliance: if

it will not fit the outlet, have a proper outlet installed by

a qualified electrician.

This appliance must be connected to a grounded metal,

permanent wiring system or an equipment-grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead

on the appliance.

,_ WHAT TO DO IF YOU SMELL

GAS:

• Do not try to light a match or cigarette, or turn

on any gas or electrical appliance.

• Do not touch any electrical switches. Do not

use any phone in your building.

• Clear the room, building or area of all

occupants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions carefully.

• If you cannot reach your gas supplier, call the

fire department.

WARNING!

• Keep flammable materials and vapors, such

as gasoline, away from dryer.

• Place dryer at least 18 inches above the floor

for a garage installation.

• Failure to do so can result in death,

explosion or fire.

_Ik WARNING

To reduce the risk of fire or explosion, electric

shock, property damage, personal injury or death

when using this appliance, please follow all

instructions and information, including those in

this manual and instructions and information

provided by your gas supplier, including the

following:

• Do not store or use any gasoline, dry-cleaning

solvents any other flammable vapors or

liquids in the area surrounding this appliance.

• Do not dry anything that has ever had anything

flammable on it, even after washing.

• No washer can completely remove oil. Do not

dry any articles that have ever had any kind of

oil on them, including cooking oil.

• Articles containing foam, rubber, rubber-like

materials, plastic or similar materials should be

dried on a clothesline or by using an air cycle.

• Failure to follow these instructions can result in

fire, death or serious injury.

• A qualified service person or company must

perform installation and service of this

appliance.

California safe drinkinq water and

toxic enforcement act

This act requires the governor of California to

publish a list of substances known to the state to

cause cancer, birth defects or other reproductive

harm and requires businesses to warn customers

of potential exposure to such substances.

Gas appliances can cause minor exposure to four

of these substances, namely benzene, carbon

monoxide, formaldehyde and soot, caused

primarily by the incomplete combustion of

natural gas or LP fuels.

Properly adjusted dryers will minimize

combustion. Exposure to these substances can be

minimized further by properly venting the dryer

to the outdoors.

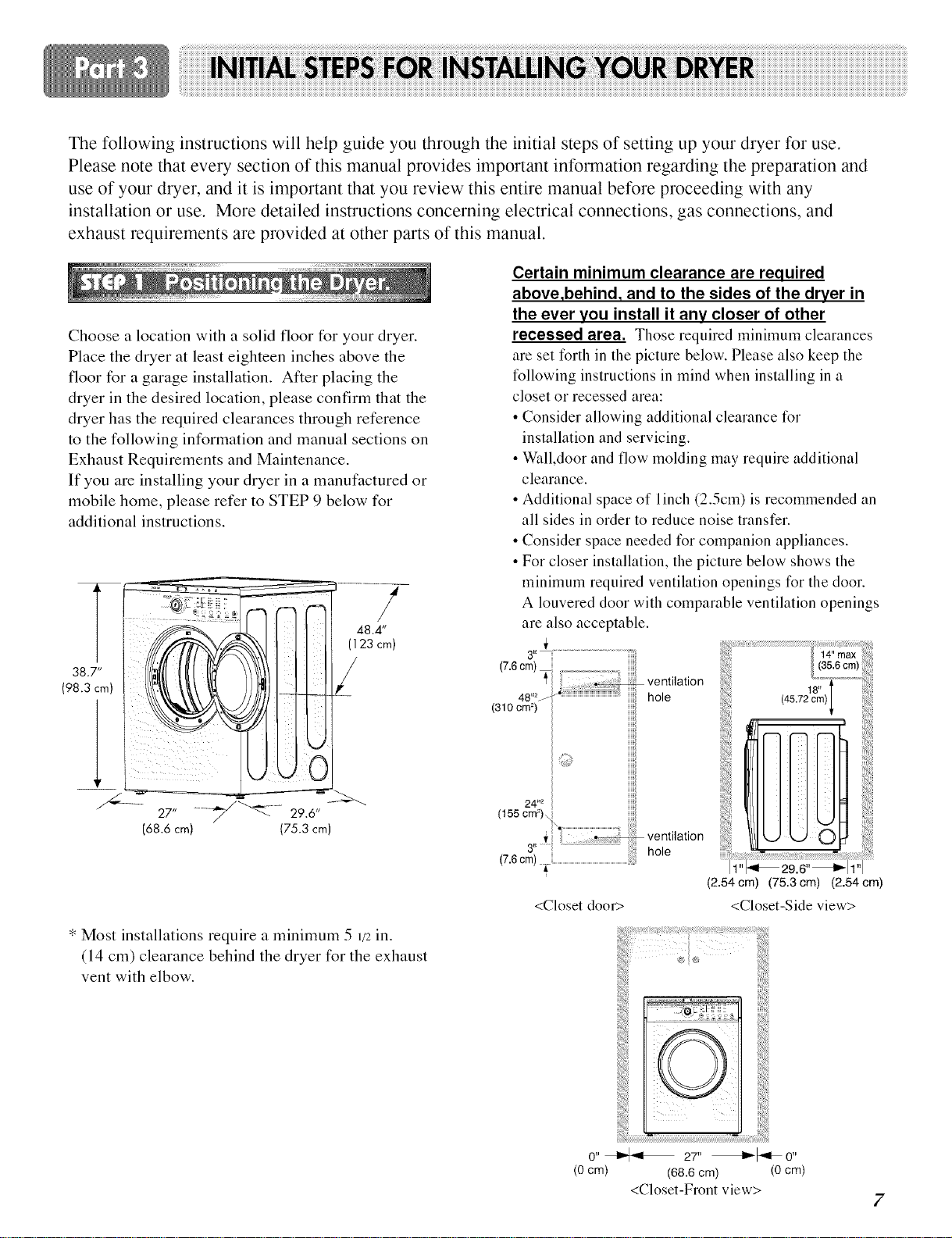

The following instructions will help guide you through the initial steps of setting up your dryer for use.

Please note that every section of this manual provides important information regarding the preparation and

use of your dryer, and it is important that you review this entire manual before proceeding with any

installation or use. More detailed instructions concerning electrical connections, gas connections, and

exhaust requirements are provided at other parts of this manual.

Choose a location with a solid floor for your dryer.

Place the dryer at least eighteen inches above the

floor for a garage installation. After placing the

dryer in the desired location, please confirm that the

dryer has the required clearances through reference

to the following information and manual sections on

Exhaust Requirements and Maintenance.

If you are installing your dryer in a manufactured or

mobile home, please refer to STEP 9 below for

additional instructions.

38.7"

(98.3 crn)

27" ---"=_""_'--- 29.6"

(68.6 cm) (75.3 cm)

Certain minimum clearance are required

above,behind, and to the sides of the dryer in

the ever you install it any closer of other

recessed area. Those required minimum clearances

are set forth in the picture below. Please also keep the

following instructions in mind when installing in a

closet or recessed area:

• Consider allowing additional clearance t_r

installation and servicing.

• Wall,door and flow molding may require additional

clearance.

• Additional space of linch (2.5cm) is recommended an

all sides in order to reduce noise transfer.

• Consider space needed t_r companion appliances.

• For closer installation, the picture below shows the

minimum required ventilation openings t_r the door.

A louvered door with comparable ventilation openings

are also acceptable.

3 _t

iiiii_il

(310 cm_) iiiiiiii

iiiii_il

iiiiill

24 *'2 iiiiill

* Most installations require a minimum 5 1/2in.

(14 cm) clearance behind the dryer for the exhaust

vent with elbow.

(2.54 cm) (75.3 cm) (2.54 cm)

<Closet-Side view>

(0 cm) (68.6 cm) (0 cm)

<Closet-Front view>

Once in position, adjust the leveling legs of the dryer

until it is level from left to right and from front to

back. The leveling legs must remain firmly on the

floor and the dryer should not rock. The maximum

slope of the dryer from left to right or from front to

back should not exceed 2.5 cm (1 inch). If the dryer

is not level, and if the slope exceeds 2.5 cm (1 inch),

a load may not tumble properly and internal sensors

may malfunction. Note: Other sections of this

manual also provide important information

concerning the placement of and clearances for your

dryer. Please review this entire manual before

proceeding with any installation.

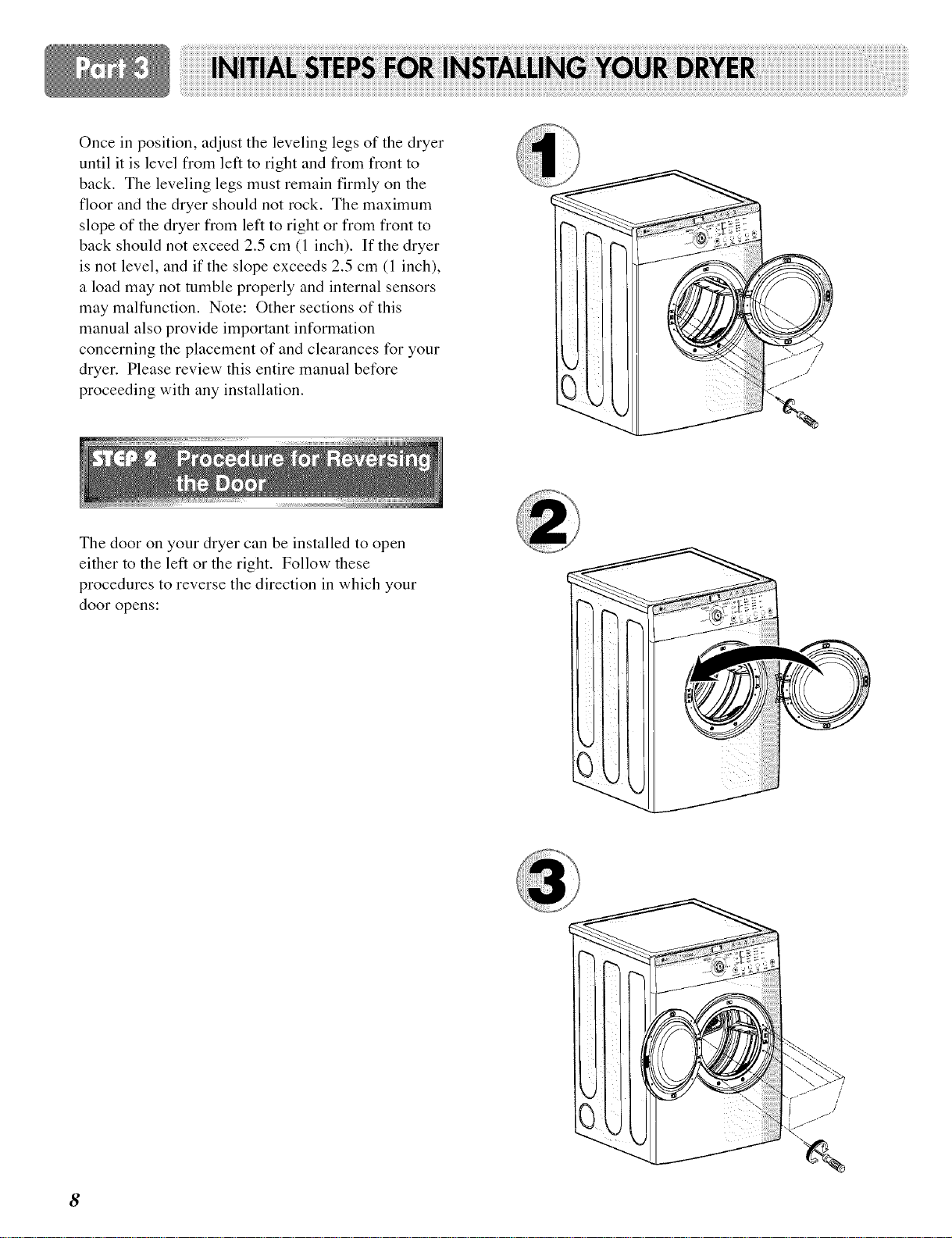

The door on your dryer can be installed to open

either to the left or the right. Follow these

procedures to reverse the direction in which your

door opens:

In addition to the following warnings, please refer

to manual section on Exhaust Requirements and

Maintenance. IMPORTANT." To reduce the risk of

fire, combustion, and gas accumulation, the dryer

must be vented to the outdoors. Please follow the

instructions (and all others in this manual) very

carefully.

• Do not use thin plastic or foil ducting.

• Use 4" (10.2 cm) diameter rigid or flexible metal

duct (note: venting materials are not supplied with

the dryer, and you should obtain the venting

materials necessary for proper installation)

• Position the dryer where the exhaust duct is

shorter as possible

• Clean old ducts beJbre installing this dryer

• The male end of each section of exhaust duct must

point away from the dryer

• Use fewer elbow joints as possible

• Use duct tape on all duct joints

• Insulate ductwork that runs through unheated

areas in order to reduce condensation and lint

build-up on pipe walls; and

• PLEASE BE AWARE THAT FAILURE TO

EXHAUST THE DRYER CORRECTLY WILL

VOID THE DRYER'S WARRANTY.

WARNING!

• Use a heavy metal vent.

• Do not use a plastic vent.

• Do not use a metal foil vent.

• Failure to follow these instructions can

result in death or fire.

• Clean old ducts before installing this dryer

• ALTERNATE EXHAUST DIRECTIONS

] • Remove a screw and exhaust duct.

2- ]. Detach and remove a knockout at the

button, left or right side as desired. (Right

Side Vent not available on Gas dryer)

(1-3, ('_), (5) the order of work.

PORTION "A" I

2-2.

Reconnect the another duct[11 in(28cm)]

to the blower housing, and attach the

duct to the base. (Duct is a SVC part)

3-1. Pre-assemble 4" elbow with 4" duct.

Wrap duct tape around joint.

DUCT

TAPE

3-2. Insert elbow duct assembly first through the

side opening and connect the elbow to the

internal duct.

(Gas dryer only). In addition to the following,

please refer to manual section on Gas Requirements

and Instructions.

_-3

New stainless steel flexible connector. Use this type of

connector only if allowed by local codes. Use Design AGA

Certified Connector.

2. 1/8" NPT Pipe Plug (for checking inlet gas pressure)

3. Equipment Shut-Off Valve-

Installed within 6' ( 1.8 m) of dryer

4. Iron Pipe. Shorter than 20' (6,1 m)

Use 3/8" pipe. Longer than 20' (6.1 m) - Use 1/2" pipe.

5.3/8" N.P.T. Gas Conuection

1. Confirm that the type of gas available in your

laundry room is appropriate for the dryer. The

dryer is prepared for Natural Gas with a 3/8"

NPT gas connection.

2. Remove the shipping cap from the gas

connection at the back of the dryer. Make sure

that you don't damage the threads of the gas

connection pipe when you remove the shipping

cap.

3. Connect the dryer to your laundry room's gas

supply using a new flexible stainless steel

connector (as noted below, only use a new

stainless steel flexible connector if allowed by

your local codes).

4. Securely tighten all connections between the

dryer and your laundry room's gas supply. Turn

on your laundry room's gas supply and check all

pipe connections (both internal and external) for

gas leaks with a non-corrosive leak detection

fluid.

5. For LP (Liquefied Petroleum) gas connection,

refer to this manual's section entitled Gas

Requirements and Instructions.

Following are several warnings and instructions

concerning making the electrical connection for

electric dryers. More detailed information

concerning the electrical connection is provided at

the manual section entitled Electrical Requirements

For Electric Dryer and it is important that you

thoroughly review that section, and the remainder of

this manual, before taking any steps to install or use

this dryer.

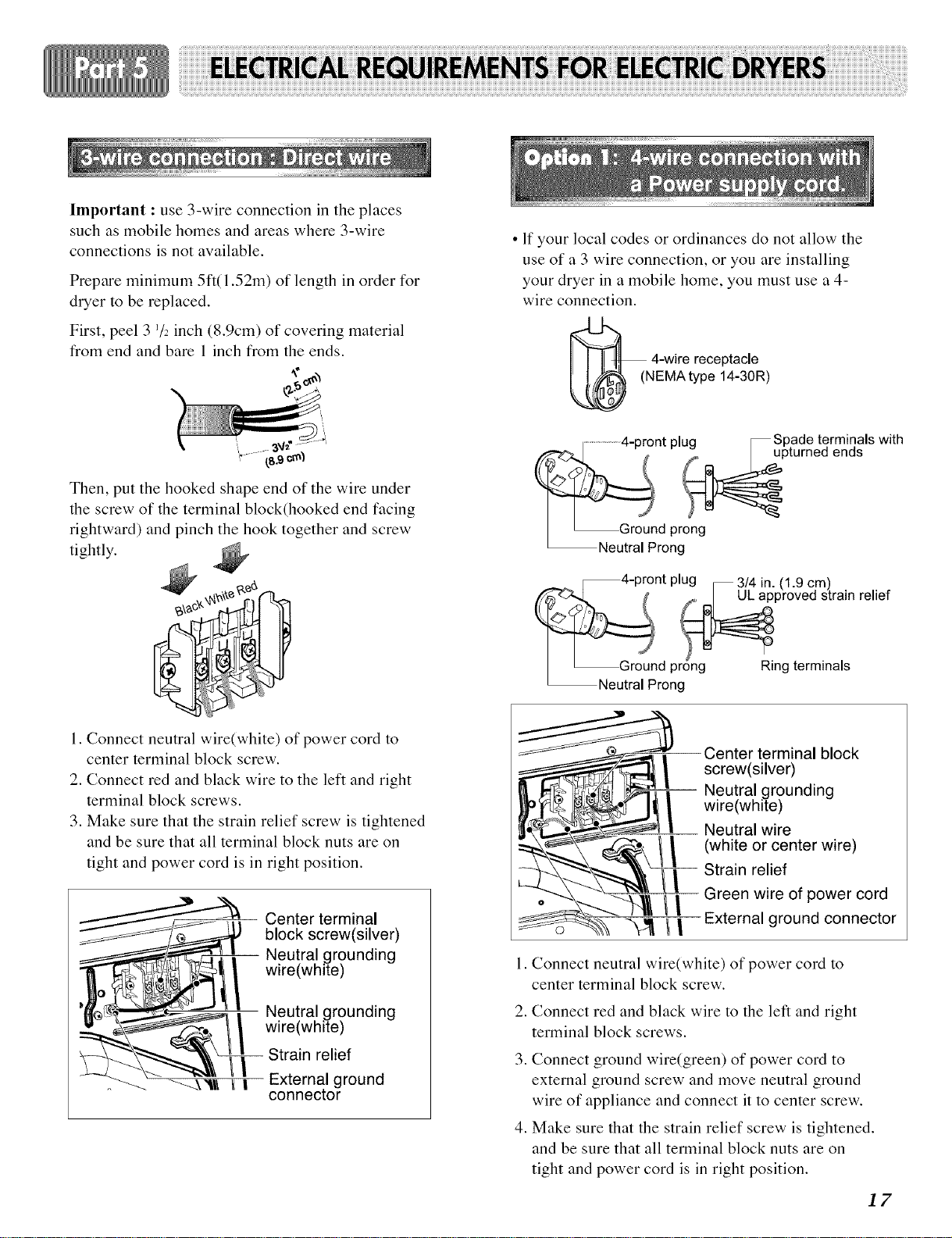

1. Use only a new U.L. listed No. 10 (copper wire

only) three conductor power supply cord kit rated

240 Volts (minimum) 30 Amperes and labeled as

suitable for use in a clothes dryer.

2. Four-wire cord is requited for manufactured

(mobile) home installations and use and where

local codes do not allow grounding of this

appliance through neutral.

3. Thc wiring diagram is providcd insidc thc drycr

control hood. Label all wires prior to

disconnection when servicing the dryer, because

wiring errors can cause serious injury to you and

your dryer.

4. For additional instruction on connecting the dryer

to an electrical power source, please refer to this

manual's section on Electrical Requirements and

Electric Dryer.

WARNING!

• Use a new UL approved 30 amp power

supply cord or 10 gauge solid copper wire.

• Use a UL approved strain relief.

• Disconnect power before making electrical

connections.

•Connect neutral wire(white or center wire)

to center terminal.

• Ground wire(green or bare wire) must be

connected to green ground connector.

• Securely tighten all electrical connections

• See installation instructions for complete

instructions.

• Failure to do so can result in fire or

electrical shock.

Prior to the first use of this appliance, use all-

purpose cleaning products or a solution of detergent

and water, with damp clothes to remove from the

inside of the dryer drum/drying compartment any

dust or dirt that may have accumulated the inside of

the dryer. Plug-in your dryer after reviewing the

following parts on your dryer's Electrical

Requirements.

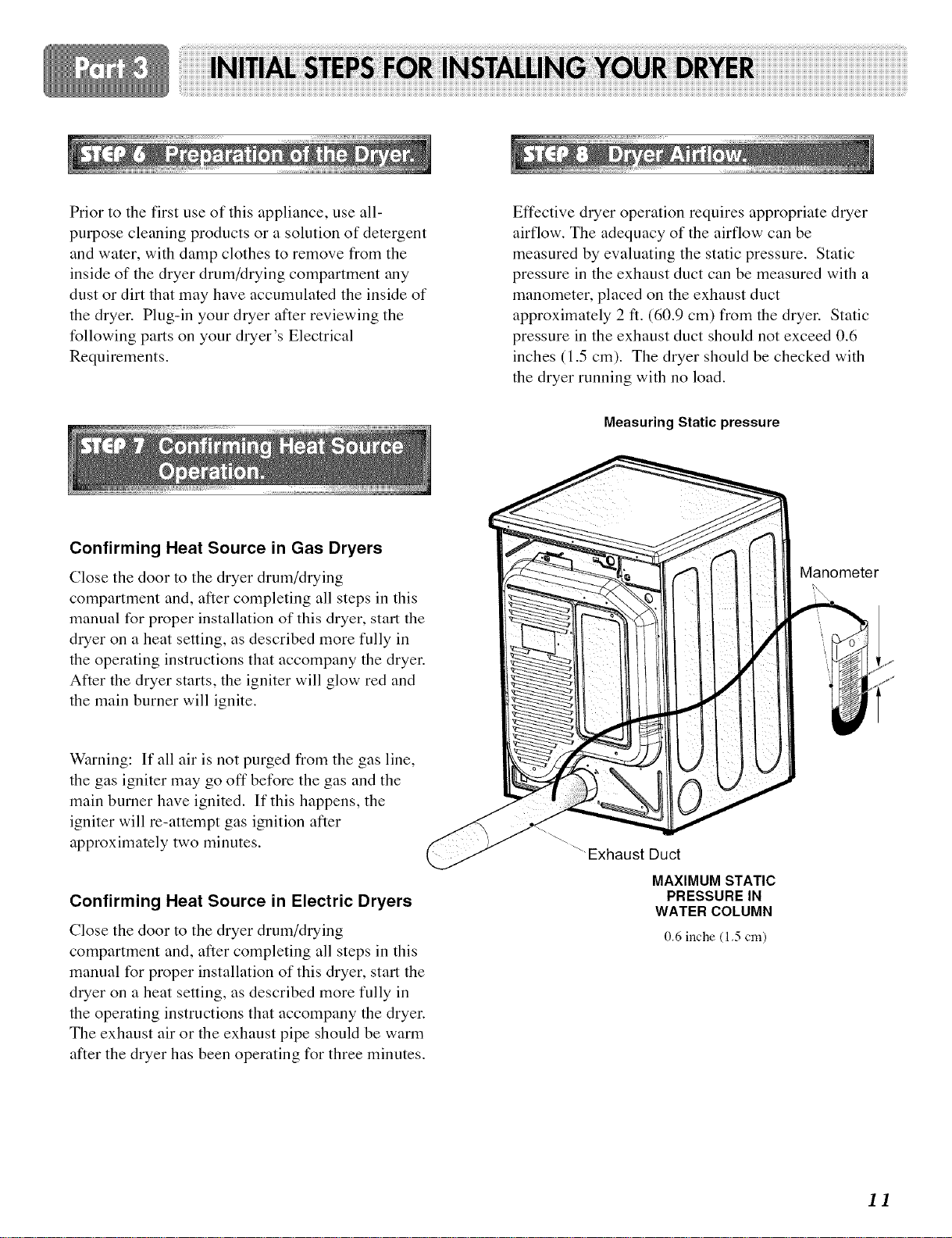

Effective dryer operation requires appropriate dryer

airflow. The adequacy of the airflow can be

measured by evaluating the static pressure. Static

pressure in the exhaust duct can be measured with a

manometer, placed on the exhaust duct

approximately 2 ft. (60.9 cm) from the dryer. Static

pressure in the exhaust duct should not exceed 0.6

inches (1.5 cm). The dryer should be checked with

the dryer running with no load.

Measuring Static pressure

Confirming Heat Source in Gas Dryers

Close the door to the dryer drum/drying

compartment and, after completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting, as described more fully in

the operating instructions that accompany the dryer.

After the dryer starts, the igniter will glow red and

the main burner will ignite.

Warning: If all air is not pinged from the gas line,

the gas igniter may go off before the gas and the

main burner have ignited. If this happens, the

igniter will re-attempt gas ignition after

approximately two minutes.

Confirming Heat Source in Electric Dryers

Close the door to the dryer drum/drying

compartment and, after completing all steps in this

manual for proper installation of this dryer, start the

dryer on a heat setting, as described more fully in

the operating instructions that accompany the dryer.

The exhaust air or the exhaust pipe should be warm

after the dryer has been operating for three minutes.

"-Exhaust Duct

MAXIMUM STATIC

PRESSURE IN

WATER COLUMN

0.6 inche (1,5 cm)

Manometer

The following instructions are applicable to

installations of the dryer in a manufactured or

mobile home. Any installation in a manufactured or

mobile home must comply with the Manufactured

Home Construction and Safety Standards Title 24

CFR, Part 32-80 or Standard CAN/CSAOZ240 MH

and local codes and ordinances. If you are

uncertain whether your proposed installation will

comply with these standards, please contact a

service and installation professional for assistance.

The following instructions apply to any installation

of the dryer in a manufactured or mobile home:

1) The gas dryer must be permanently attached to

the floor.

2) The electrical connection for an electric dryer

must be a 4-wire connection. More detailed

information concerning the electrical connection

is provided at the manual section entitled

Electrical Requirements for Electric Dryer

3) To reduce the risk of combustion and fire, the

dryer must be vented to the outside.

4) Electric dryers may be vented to the outside

using the back, left, right, or bottom panel.

5) Gas dryers may be vented to the outside using the

back, left, or bottom panel. Gas dryer may not be

vented to the outside using the right side panel

because of the burner housing.

6) The dryer exhaust duct must be affixed securely

to the manufactured or mobile home structure,

and the exhaust duct must be made of a material

that will resist fire and combustion, and it is

recommended that you use a rigid or flexible

metal pipe.

7) DO NOT connect the exhaust duct with any other

duct, vent, chimney, or other exhaust duct.

8) Make sure the dryer has adequate access to

outside fresh air to ensure proper operation. The

opening for outside fresh air must be at least 25

ira' (163 cm_).

9) It is important that the clearance of the duct from

any combustible construction be at least 2 inches

(5 cm), and, when venting the dryer to the

outdoors, the dryer can be installed with a

clearances of 1 inch at the sides and back of the

dryer.

10) Please be aware that venting materials are not

supplied with the dryer. You should obtain the

venting materials necessary for proper

installation.

WARNING!

DO NOT connect exhaust ducts with

metal screws or fasteners that extend

into the duct.

WARNING!

NOT vent the exhaust duct under the

manufactured or mobile home.

To ensure safe and secure installation, please

observe the instructions below.

Do not attempt installation with one person.

Incorrect installation procedure can cause

serious accidents and physical Injuries.

The weight of the dryer and the height of

installation makes the stacking procedure

too risky for one person. This procedure

should be performed by 2 or more

experienced service personnel.

...#

Stachingkit

Place washer firmly on a stable, even and

solid floor as product installation instructions

describes in owner's manual.

Secure stacking kit side bracket to the

washer with a screw on the back of bracket.

Repeat Steps 2, 3, 4 for the other side.

Place the dryer on top of the washer by fitting

legs as shown in the picture. Avoid finger

injuries - be careful not to pinch fingers

between the washer and dryer. Slide washer

slowly backwards to the stopper of kit.

iiii!ii!ii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!i!il

Peel protective paper off the tape from the

stacking kit side bracket.

Fit the stacking kit side bracket firmly to the

side of top plate by attaching the double-

faced tape to top plate as picture shows.

Insert the front stacking kit. Push the front

stacking kit back to the stoppers of side

stacking _'_s

Screw both sides of the front kit.

•Do not use stacking kit with a gas dryer in

potentially unstable conditions like a mobile

home.

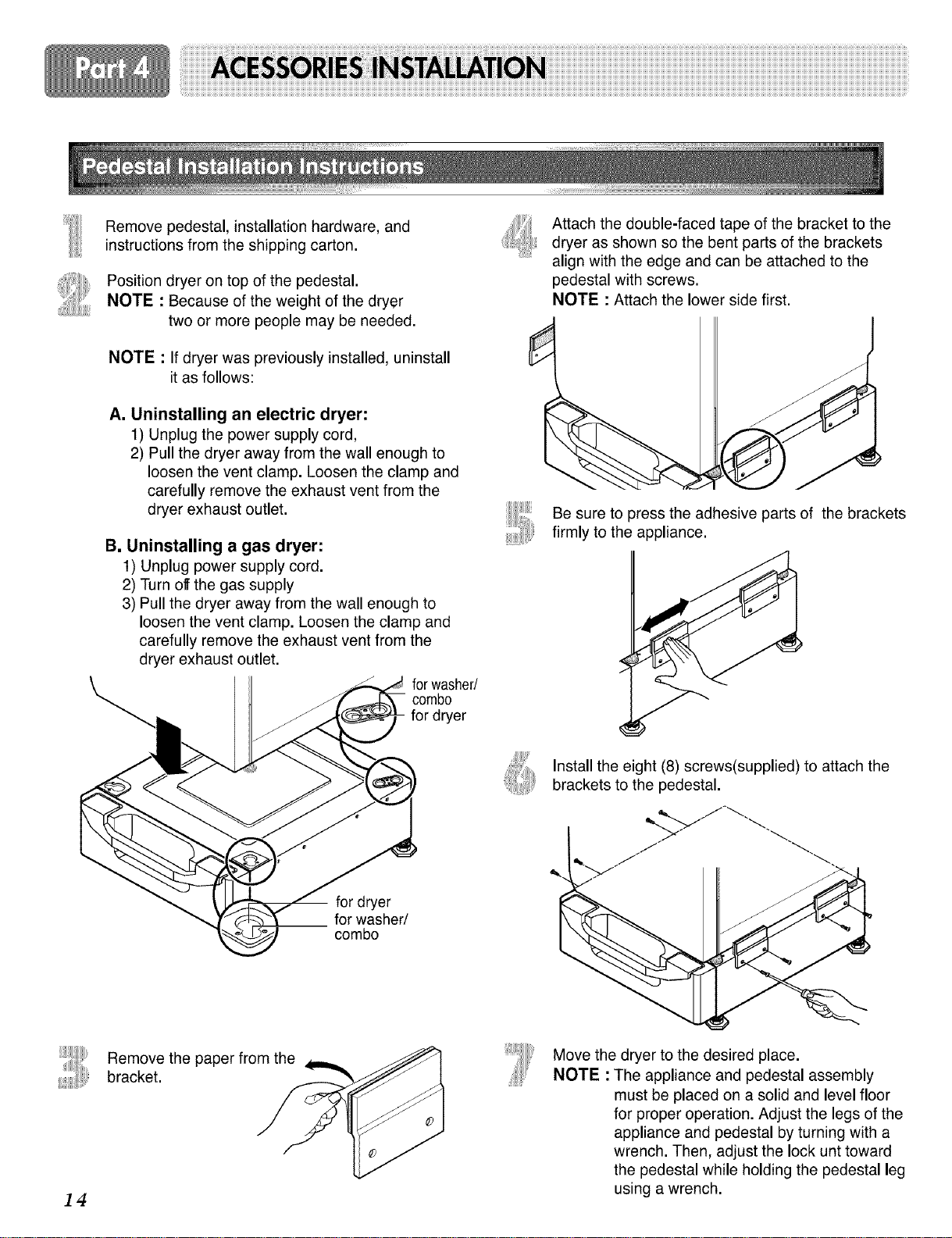

Remove pedestal, installation hardware, and

instructions from the shipping carton.

Position dryer on top of the pedestal.

NOTE : Because of the weight of the dryer

two or more people may be needed.

NOTE : If dryer was previously installed, uninstall

it as follows:

A. Uninstalling an electric dryer:

1) Unplug the power supply cord,

2) Pull the dryer away from the wall enough to

loosen the vent clamp. Loosen the clamp and

carefully remove the exhaust vent from the

dryer exhaust outlet.

B. Uninstalling a gas dryer:

1) Unplug power supply cord.

2) Turn of the gas supply

3) Pull the dryer away from the wall enough to

loosen the vent clamp. Loosen the clamp and

carefully remove the exhaust vent from the

dryer exhaust outlet.

for dryer

for washer/

combo

forwasher/

combo

for dryer

Attach the double-faced tape of the bracket to the

dryer as shown so the bent parts of the brackets

align with the edge and can be attached to the

pedestal with screws.

NOTE : Attach the lower side first.

Be sure to press the adhesive parts of the brackets

firmly to the appliance.

Install the eight (8) screws(supplied) to attach the

brackets to the pedestal.

•_....'_.j" "_

Remove the paper from the

bracket.

Move the dryer to the desired place.

NOTE • The appliance and pedestal assembly

must be placed on a solid and level floor

for proper operation. Adjust the legs of the

appliance and pedestal by turning with a

wrench. Then, adjust the lock unt toward

the pedestal while holding the pedestal leg

using a wrench.

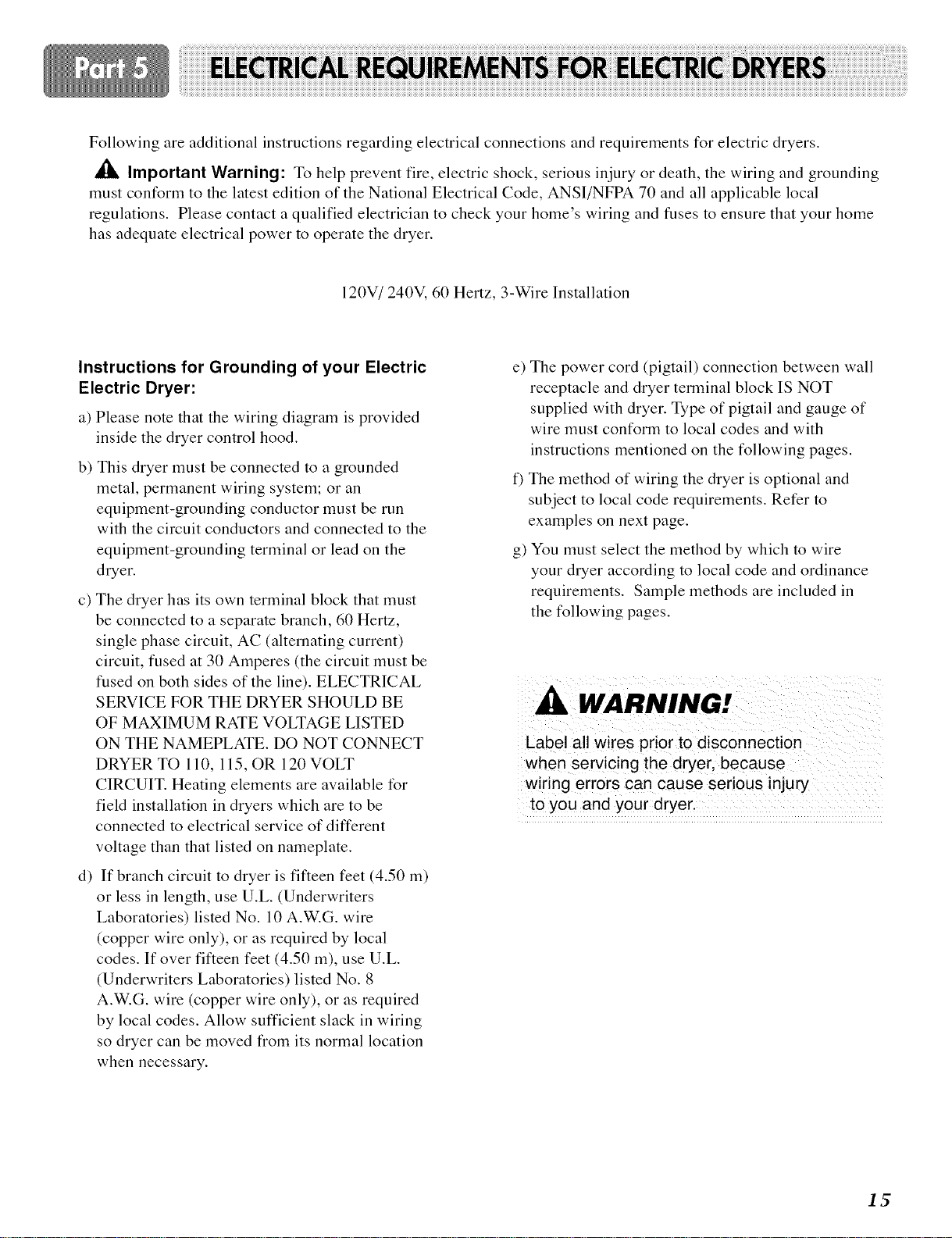

Following are additional instructions regarding electrical connections and requirements for electric dryers.

A_, Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local

regulations. Please contact a qualified electrician to check your home's wiring and fuses to ensure that your home

has adequate electrical power to operate the dryer.

120V/240M 60 Hertz, 3-Wire Installation

Instructions for Grounding of your Electric

Electric Dryer:

a) Please note that the wiring diagram is provided

inside the dryer control hood.

b) This dryer must be connected to a grounded

metal, permanent wiring system; or an

equipment-grounding conductor must be run

with the circuit conductors and connected to the

equipment-grounding terminal or lead on the

dryer.

c) The dryer has its own terminal block that must

be connected to a separate branch, 60 Hertz,

single phase circuit, AC (alternating current)

circuit, fused at 30 Amperes (the circuit must be

fused on both sides of the line). ELECTRICAL

SERVICE FOR THE DRYER SHOULD BE

OF MAXIMUM RATE VOLTAGE LISTED

ON THE NAMEPLATE. DO NOT CONNECT

DRYER TO 110, 115, OR 120 VOLT

CIRCUIT. Heating elements are available for

field installation in dryers which are to be

connected to electrical service of different

voltage than that listed on nameplate.

d) If branch circuit to dryer is fifteen feet (4.50 m)

or less in length, use U.L. (Underwriters

Laboratories) listed No. 10 A.W.G. wire

(copper wire only), or as required by local

codes. If over fifteen feet (4.50 m), use U.L.

(Underwriters Laboratories) listed No. 8

A.W.G. wire (copper wire only), or as required

by local codes. Allow sufficient slack in wiring

so dryer can be moved from its normal location

when necessary.

e) The power cord (pigtail) connection between wall

receptacle and dryer terminal block IS NOT

supplied with dryer. Type of pigtail and gauge of

wire must conform to local codes and with

instructions mentioned on the following pages.

t) The method of wiring the dryer is optional and

subject to local code requirements. Refer to

examples on next page.

g) You must select the method by which to wire

your dryer according to local code and ordinance

requirements. Sample methods are included in

the following pages.

WARNING!

Label all wires orior to disconnection

when servicing the dryer, because

wiring errors can cause serious injury

to you and your dryer.

Review the following options to determine the appropriate electrical connection

for your home:

Use the instructions at this section if your home has

a 4-wire receptacle (NEMA type 14-30R) and you

will be using a UL listed, 120/240 volt minimum,

30 amp, dryer power supply cord.

Important : use 4-wire connection in the places such

as mobile homes and areas where 3-wire connections

is not available.

Prepare minimum 5fl(l.52m) of length in order t_r

dryer to be replaced.

First, peel 5 inch (12.7cm) of covering material from

end. Make a 5 inch of ground wire bared. After cutting

172inch (3.8cm) from 3 other wires, peel insulation

back linch (2.5cm). Make ends of 3 wires a hook

shape.

Use the instructions at this section if your home has

a 3-wire receptacle (NEMA type 10-30R) and you

will be using a UL listed, 120/240 volt minimum,

30 amp, dryer power supply cord.

4!wiledirect

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

3!wire direct

If this type is available at your home. you will be

connecting to a fused disconnect or circuit breaker

box

Then, put the hooked shape end of the wire under the

screw of the terminal block(hooked end facing rightward)

and pinch the hook together and screw tightly.

1. Connect neutral wire(white) of power cord to center

terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to external

ground screw and move neutral ground wire of

appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on tight and

power cord is in right position.

Center terminal block

screw(silver)

Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

Important : use 3-wire connection in the places

such as mobile homes and areas where 3-wire

connections is not available.

Prepare minimum 5ft(1.52m) of length in order for

dryer to be replaced.

First, peel 3 '/2 inch (8.9cm) of covering material

from end and bare 1 inch from the ends.

Then, put the hooked shape end of the wire under

the screw of the terminal block(hooked end facing

rightward) and pinch the hook together and screw

tightly.

1. Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Make sure that the strain relief screw is tightened

and be sure that all terminal block nuts are on

tight and power cord is in right position.

connector

• If your local codes or ordinances do not allow the

use of a 3 wire connection, or you are installing

your dryer in a mobile home, you must use a 4-

wire connection.

(N4-wirereceptacle

EMAtype 14-30R)

nt plug _ SPtadeetcer2nic_alswith

_1 NeeG/°/pdoP rg ng

nt pl_p(1o.v9e_Im{rai n relief

d0P_ong Ring terminals

Center terminal block

screw(silver)

Neutral grounding

wire(white)

Neutral wire

(white or center wire)

Strain relief

Green wire of power cord

External ground connector

1. Connect neutral wire(white) of power cord to

center terminal block screw.

2. Connect red and black wire to the left and right

terminal block screws.

3. Connect ground wire(green) of power cord to

external ground screw and move neutral ground

wire of appliance and connect it to center screw.

4. Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

If your local codes or ordinances permit the

connection of a frame-grounding conductor to the

neutral wire, use these instructions. If your local

codes or ordinances do not allow the connection of

a frame-grounding conductor to the neutral wire,

use the instructions under Section 3: Optional

3-wire connection.

• If your local codes or ordinances do not allow the

connection of a frame-grounding conductor to the

neutral wire, use the instructions under this

section.

_( N3-wire receptacle

EMA type 10-3OR)

3-wire plug _ Spade terminals with

_ _p turned ends

Neutral _pron_

3-wire plug _ 3/4 in. (1.9 cm)

pproved strain relief

ron_ Ring terminals

r _ _Neutral (white or center wire)

Neutral grounding

wire(Green)

Neutral wire(white)

EXternal ground

connector

_arate ground

_'w

Center terminal

block screw(silver)

Neutral grounding

wire(white)

Neutral grounding

wire(white)

Strain relief

External ground

connector

Connect neutral wire(white) of power cord to

center terminal block screw.

Connect ground wire of appliance and neutral

wire of power cord to center terminal block

screw.

Connect red and black wire to the left and right

terminal block screws.

Make sure that the strain relief screw is tightened.

and be sure that all terminal block nuts are on

tight and power cord is in right position.

Connect a independent ground wire from external

ground connector to proper ground.

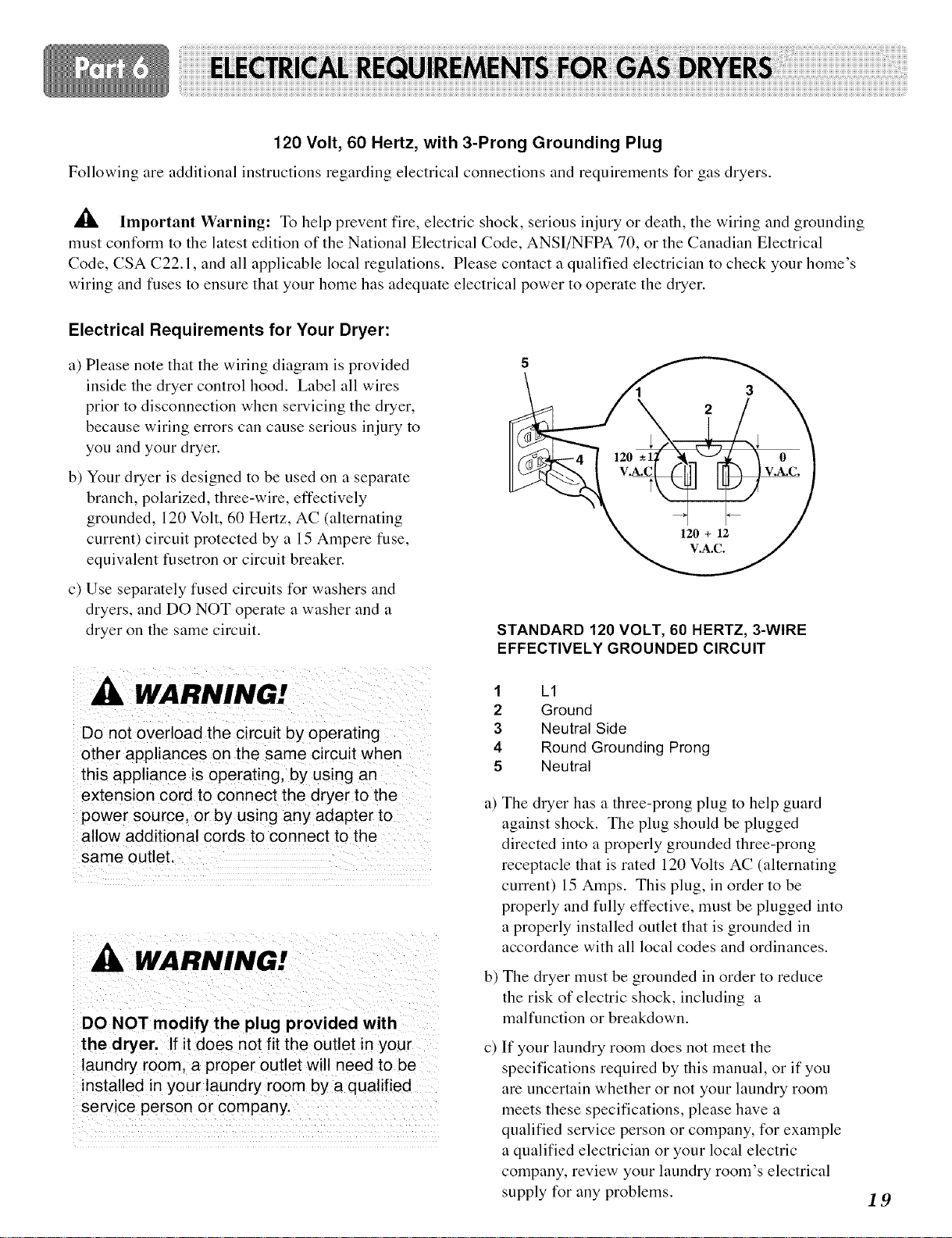

120 Volt, 60 Hertz, with 3-Prong Grounding Plug

Following are additional instructions regarding electrical connections and requirements for gas dryers.

Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding

must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1, and all applicable local regulations. Please contact a qualified electrician to check your home's

wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.

Electrical Requirements for Your Dryer:

a) Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wMng errors can cause serious injury to

you and your dryer.

b) Your dryer is designed to be used on a separate

branch, polarized, three-wire, effectively

grounded, 120 Volt, 60 Hertz, AC (alternating

current) circuit protected by a 15 Ampere fuse,

equivalent fusetron or circuit breaker.

c) Use separately fused circuits for washers and

dryers, and DO NOT operate a washer and a

dryer on the same circuit. STANDARD 120 VOLT, 60 HERTZ, 3-WIRE

EFFECTIVELY GROUNDED CIRCUIT

Do not overload the circuit by operating

other appliances on the same circuit when

this appliance is operating, by using an

extension cor d to connect the dryer to the

power source, or by using any adapter to

allow additional cords to Connect to the

same outlet.

WARNING!

DO NOT modify the plug provided with

the dryer. If it does not fit the outlet in your

laundry room a proper outlet will need to be

nstalled in your laundry room by a qualified

service person or corn party.

Ground

Neutral Side

Round Grounding Prong

Neutral

a)The dryer has a three-prong plug to help guard

against shock. The plug should be plugged

directed into a properly grounded three-prong

receptacle that is rated 120 Volts AC (alternating

current) 15 Amps. This plug, in order to be

properly and fully effective, must be plugged into

a properly installed outlet that is grounded in

accordance with all local codes and ordinances.

b) The dryer must be grounded in order to reduce

the risk of electric shock, including a

malfunction or breakdown.

c) If your laundry room does not meet the

specifications required by this manual, or if you

are uncertain whether or not your laundry room

meets these specifications, please have a

qualified service person or company, for example

a qualified electrician or your local electric

company, review your laundry room's electrical

supply for any problems.

Following are important instructions and information concerning the requirements for the gas supply and service for

gas dryers. ,_ Important Warning: The gas supply and service for a gas dryer must comply with all local codes

and ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas

dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

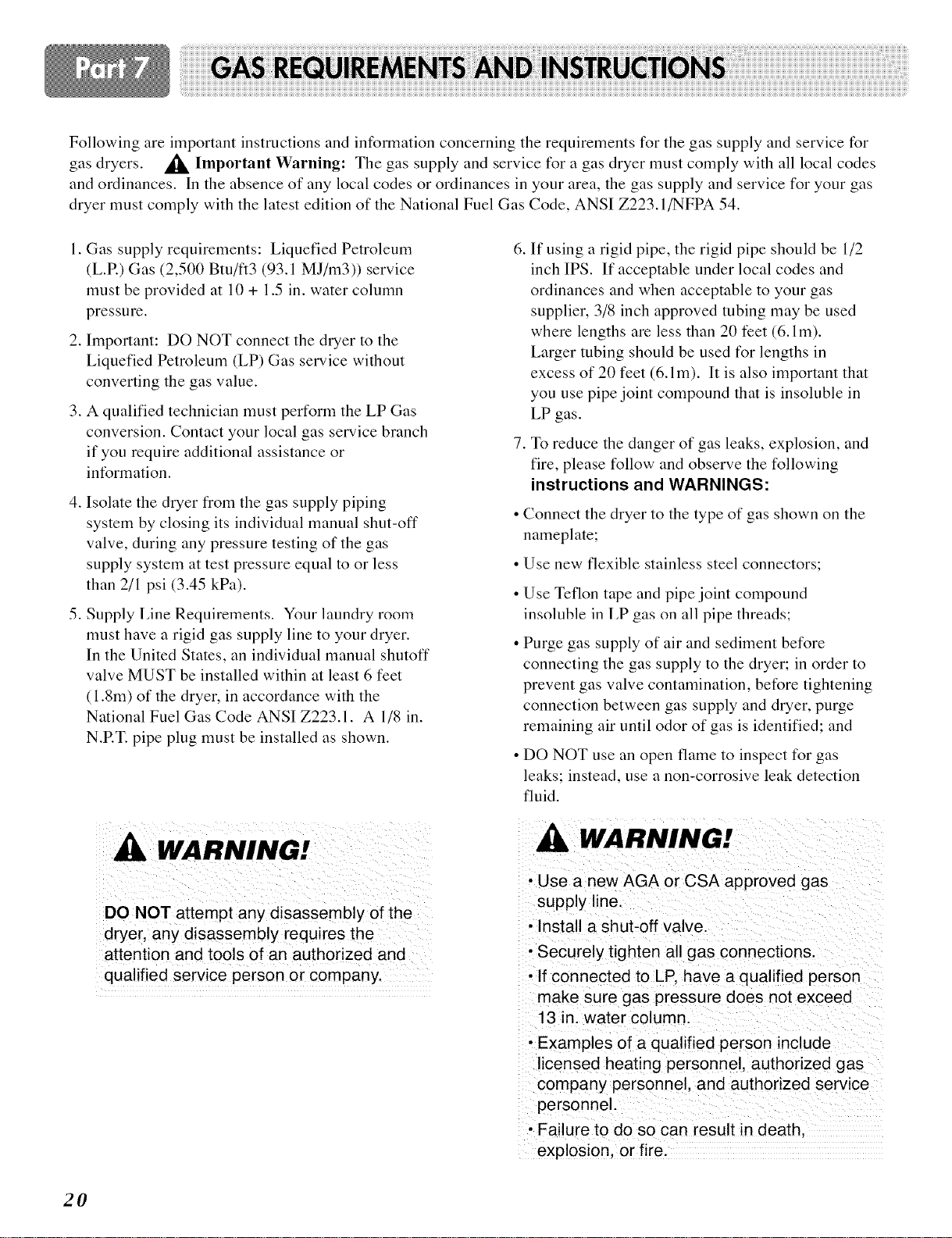

1. Gas supply requirements: Liquefied Petroleum

(L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service

must be provided at 10 + 1.5 in. water column

pressure.

2. Important: DO NOT connect the dryer to the

Liquefied Petroleum (LP) Gas service without

converting the gas value.

3. A qualified technician must perform the LP Gas

conversion. Contact your local gas service branch

if you require additional assistance or

information.

4. Isolate the dryer from the gas supply piping

system by closing its individual manual shut-off

valve, during any pressure testing of the gas

supply system at test pressure equal to or less

than 2/1 psi (3.45 kPa).

5. Supply l.ine Requirements. Your laundry room

must have a rigid gas supply line to your dryer.

In the United States, an individual manual shutoff

valve MUST be installed within at least 6 feet

(1 .Sm) of the dryer, in accordance with the

National Fuel Gas Code ANSI Z223.1. A 1/8 in.

N.P.T. pipe plug must be installed as shown.

DO NOT attempt any disassembly Ofthe

dryer, any disassembly require s the

attention and tools of an authorized and

qualified service person or company

If using a rigid pipe, the rigid pipe should be 1/2

inch IPS. If acceptable under local codes and

ordinances and when acceptable to your gas

supplier, 3/8 inch approved tubing may be used

where lengths are less than 20 feet (6.1 m).

Linger tubing should be used for lengths in

excess of 20 feet (6.1m). It is also important that

you use pipe joint compound that is insoluble in

LP gas.

To reduce the danger of gas leaks, explosion, and

fire, please follow and observe the following

instructions and WARNINGS:

Connect the dryer to the type of gas shown on the

nameplate;

Use new flexible stainless steel connectors;

Use Teflon tape and pipe joint compound

insoluble in I.P gas on all pipe threads;

Purge gas supply of air and sediment before

connecting the gas supply to the dryer; in order to

prevent gas valve contamination, before tightening

connection between gas supply and dryer, pmge

remaining air until odor of gas is identified; and

DO NOT use an open flame to inspect for gas

leaks; instead, use a non-corrosive leak detection

fluid.

WARNING!

• Use a new AGA or CSA approved gas

supply line.

• Instal a shut-off valve.

• Securely tighten all gas connections.

• If connected to LP, have a qualified person

make sure gas pressure does not exceed

13 in. water column.

• Examples of a qualified person include

licensed heating personnel, authorized gas

company personnel, and authorized service

personnel.

• Failure to do so can result in death

explosion, or fire.

Following are important instructions and information concerning the exhaust requirements for your dryer.

,_t Important Warning: To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT

exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas

vent, or concealed space of a building. To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil

ducting.

Recommended

M__.

(10.2 cm)

4 _

(10.2 cm)

Use Only for Short Run

Installations

2-1/2"

(6.35 cm)

0 65 feet (19.8 m) 45 feet (13.7 m)

1 55 feet (16.8 m) 35 feet (10.7 m)

2 47 feet (14.3 m) 30 feet (9.1 m)

3 36 feet (11.0 m) 25 feet (7.6 m)

4 28 feet (8.5 m) 20 feet (6.1 m)

55 feet ( 16.8m)

47 feet (14.3 m)

41 feet (12.5 m)

30 feet (9.1 m)

22 feet (6.7 m)

35 feet (10.7 m)

27 feet (8.2 m)

21 feet (6.4 m)

17 feet (5.2 m)

15 feet (4.5m)

NOTE : Deduct 6 feet (1.8 m) for each additional elbow.

It is not recommended to use more than 4 90 ° elbows.

Exhaust Requirements and Instructions:

1. Venting materials are not provided with the dryer

and you should obtain the necessary venting

materials locally. For example, the outer end of

exhaust pipe must have a weather hood with

hinged dampers to prevent back-draft when the

dryer is not in use.

2. The exhaust duct must be four inches (10.2 cm)

in diameter with no obstructions. The exhaust

duct should be kept as short as possible. Make

sure to clean any old ducts before installing your

new dryer.

3. Rigid metal duct is recommended. Do not install

flexible duct in concealed spaces.

Non-combustible flexible metal duct is

acceptable. Do not use plastic or thin foil ducting.

4. DO NOT use sheet metal screws on exhaust pipe

joints or other fastening means which extend into

the duct that could catch lint and reduce the

efficiency of the exhaust system. Secure all joints

with duct tape.

5. To maximize operating results, please observe the

duct length limitations noted in the chart above.

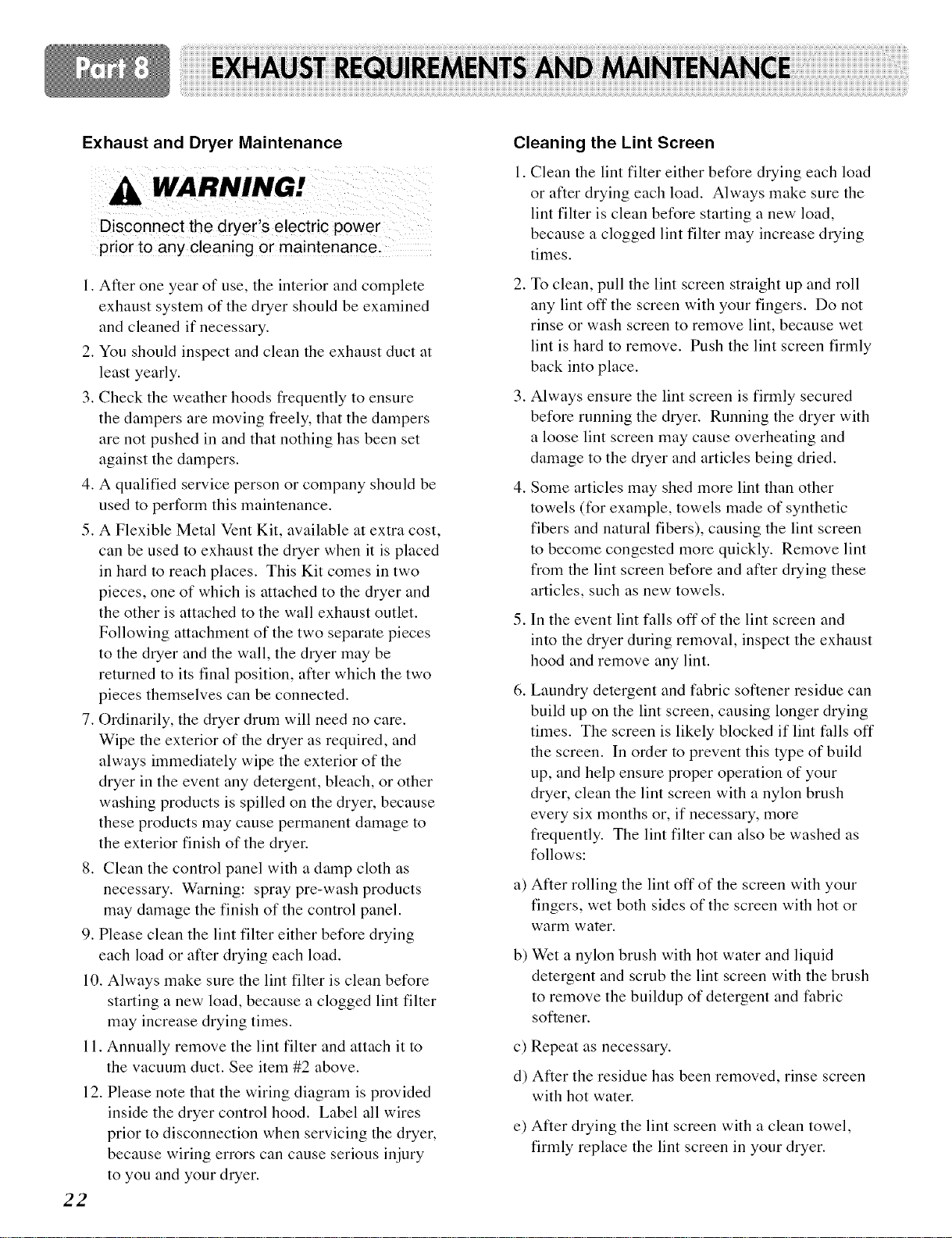

Exhaust and Dryer Maintenance

Disconnect the dryer,s electric power

prior to any cleaning or maintenance.

1. After one year of use, the interior and complete

exhaust system of the dryer should be examined

and cleaned if necessary.

2. You should inspect and clean the exhaust duct at

least yearly.

3. Check the weather hoods frequently to ensure

the dampers are moving freely, that the dampers

are not pushed in and that nothing has been set

against the dampers.

4. A qualified service person or company should be

used to perform this maintenance.

5. A Flexible Metal Vent Kit, available at extra cost,

can be used to exhaust the dryer when it is placed

in hard to reach places. This Kit comes in two

pieces, one of which is attached to the dryer and

the other is attached to the wall exhaust outlet.

Following attachment of the two separate pieces

to the dryer and the wall, the dryer may be

returned to its final position, after which the two

pieces themselves can be connected.

7. Ordinarily, the dryer drum will need no care.

Wipe the exterior of the dryer as required, and

always immediately wipe the exterior of the

dryer in the event any detergent, bleach, or other

washing products is spilled on the dryer, because

these products may cause permanent damage to

the exterior finish of the dryer.

8. Clean the control panel with a damp cloth as

necessary. Warning: spray pre-wash products

may damage the finish of the control panel.

9. Please clean the lint filter either before drying

each load or after drying each load.

10. Always make sure the lint filter is clean before

starting a new load, because a clogged lint filter

may increase drying times.

11. Annually remove the lint filter and attach it to

the vacuum duct. See item #2 above.

12. Please note that the wiring diagram is provided

inside the dryer control hood. Label all wires

prior to disconnection when servicing the dryer,

because wiring errors can cause serious injury

to you and your dryer.

Cleaning the Lint Screen

1. Clean the lint filter either before drying each load

or after drying each load. Always make sure the

lint filter is clean before starting a new load,

because a clogged lint filter may increase drying

times.

To clean, pull the lint screen straight up and roll

any lint off the screen with your fingers. Do not

rinse or wash screen to remove lint, because wet

lint is hard to remove. Push the lint screen firmly

back into place.

Always ensure the lint screen is firmly secured

before running the dryer. Running the dryer with

a loose lint screen may cause overheating and

damage to the dryer and articles being dried.

Some articles may shed more lint than other

towels (for example, towels made of synthetic

fibers and natural fibers), causing the lint screen

to become congested more quickly. Remove lint

from the lint screen before and after drying these

articles, such as new towels.

In the event lint falls off of the lint screen and

into the dryer during removal, inspect the exhaust

hood and remove any lint.

Laundry detergent and fabric softener residue can

build up on the lint screen, causing longer drying

times. The screen is likely blocked if lint falls off

the screen. In order to prevent this type of build

up, and help ensure proper operation of your

dryer, clean the lint screen with a nylon brush

every six months or, if necessary, more

frequently. The lint filter can also be washed as

follows:

a) After rolling the lint off of the screen with your

fingers, wet both sides of the screen with hot or

warm water.

b) Wet a nylon brush with hot water and liquid

detergent and scrub the lint screen with the brush

to remove the buildup of detergent and fabric

softener.

c) Repeat as necessary.

d) After the residue has been removed, rinse screen

with hot water.

e) After drying the lint screen with a clean towel,

firmly replace the lint screen in your dryer.

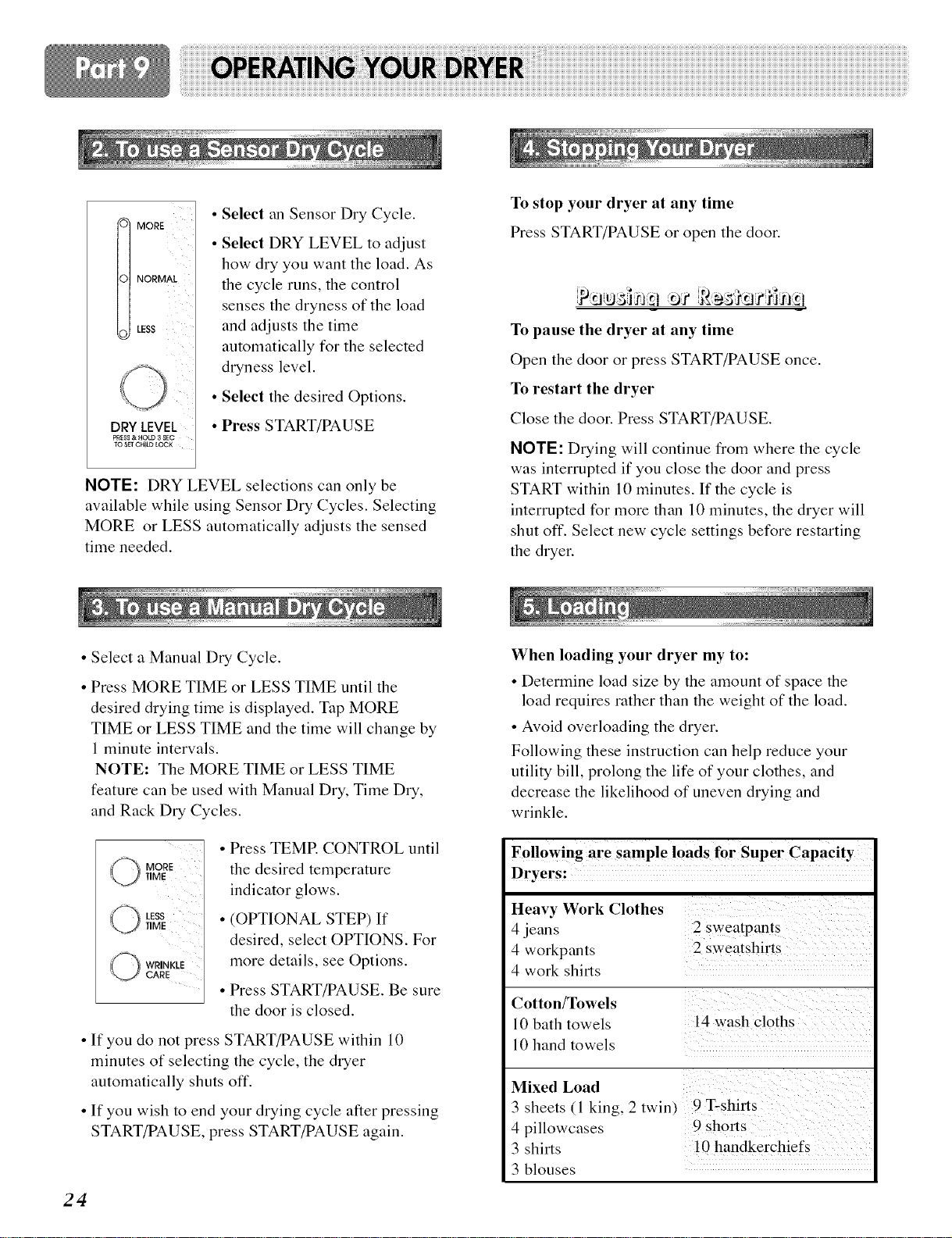

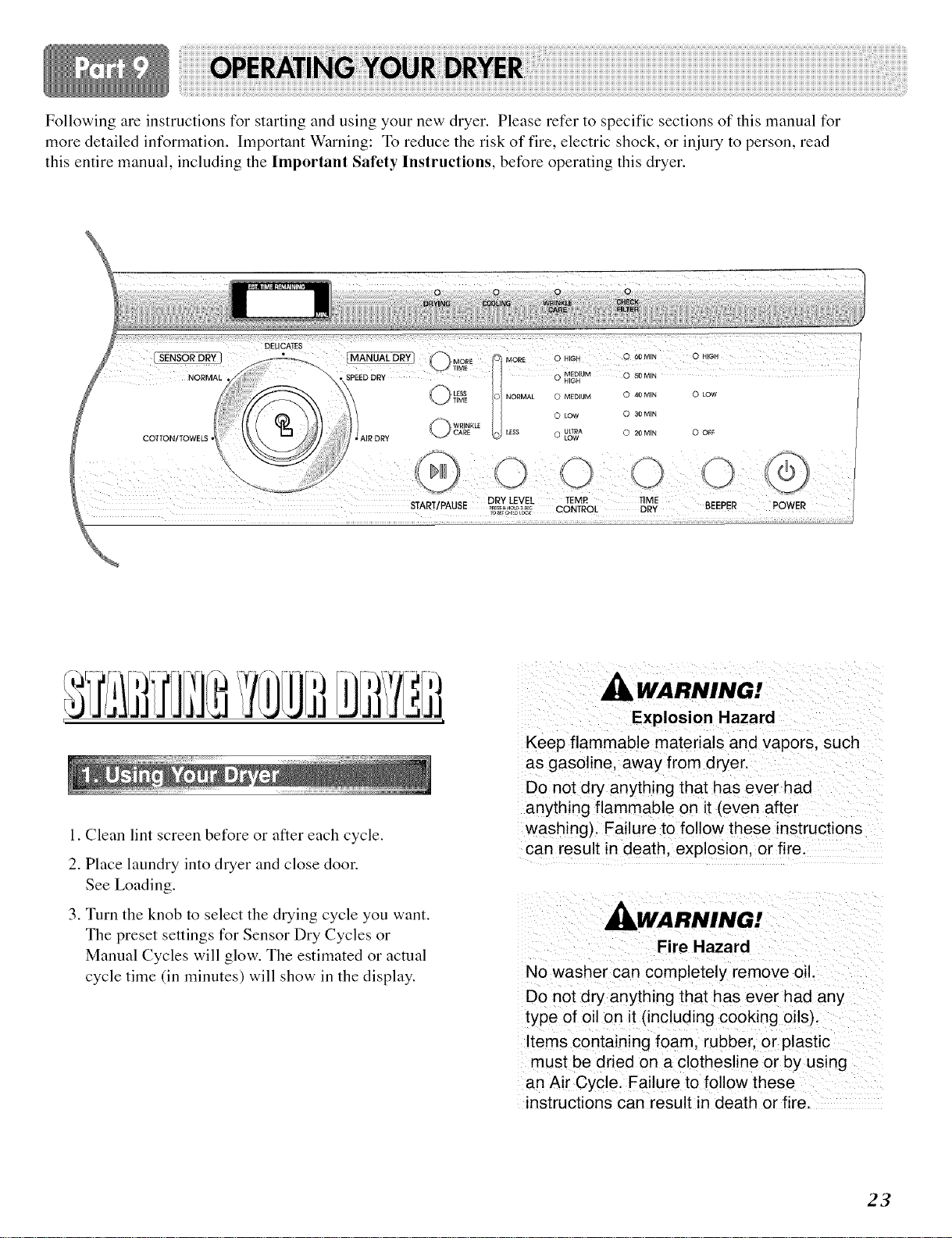

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for

more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to person, read

this entire manual, including the Important Safety Instructions, before operating this dryer.

COTTON/TOWELS ,

1. Clean lint screen before or after each cycle.

2. Place laundry into dryer and close door.

See Loading.

3. Turn the knob to select the drying cycle you want.

The preset settings for Sensor Dry Cycles or

Manual Cycles will glow. The estimated or actual

cycle time (in minutes) will show in the display.

Keep flammable mate rials and vapors: suc h

as gas°line! away fr° m d rye r.

Donot drY anything that has ever had

anything flammable on it (even after

washing), Fai!ure to follow these !nstructions

Ca n result in death, explosion, or f! re:

No washer can comp etely remove oil,

Do not dry anYthing that has ever had any

type of oil on it (including cooking oils),

Items containing foam, rubber, or plastic

must be dried on a clothesline orby using

an Air Cycle: Failure to follow these

instructions can result in death or fire.

NORMAL

LESS

• Select an Sensor Dry Cycle.

Select DRY LEVEL to adjust

how dry you want the load. As

the cycle runs, the control

senses the dryness of the load

and adjusts the time

automatically for the selected

dryness level.

• Select the desired Options.

• Press START/PAUSE

NOTE: DRY LEVEL selections can only be

available while using Sensor Dry Cycles. Selecting

MORE or LESS automatically adjusts the sensed

time needed.

To stop your dryer at any time

Press START/PAUSE or open the door.

To pause the dryer at any time

Open the door or press START/PAUSE once.

To restart the dryer

Close the door. Press START/PAUSE.

NOTE: Drying will continue from where the cycle

was interrupted if you close the door and press

START within 10 minutes. If the cycle is

interrupted for more than 10 minutes, the dryer will

shut off. Select new cycle settings before restarting

the dryer.

• Select a Manual Dry Cycle.

• Press MORE TIME or LESS TIME until the

desired drying time is displayed. Tap MORE

TIME or LESS TIME and the time will change by

1 minute intervals.

NOTE: The MORE TIME or LESS TIME

feature can be used with Manual Dry, Time Dry,

and Rack Dry Cycles.

TIME

LESS

TIM£

WRINKLE

CARE

• Press TEMR CONTROL until

the desired temperature

indicator glows.

• (OPTIONAL STEP) If

desired, select OPTIONS. For

more details, see Options.

• Press START/PAUSE. Be sure

the door is closed.

• If you do not press START/PAUSE within 10

minutes of selecting the cycle, the dryer

automatically shuts oft'.

• If you wish to end your drying cycle after pressing

START/PAUSE, press START/PAUSE again.

When loading your dryer my to:

• Determine load size by the amount of space the

load requires rather than the weight of the load.

• Avoid overloading the dryer.

Following these instruction can help reduce your

utility bill, prolong the life of your clothes, and

decrease the likelihood of uneven drying and

wrinkle.

Following are sample loads for Super Capacity

Dryers:

Heavy Work Clothes

4 jeans

4 workpants

4 work shirts

2 sweatpants

2 sweatshirts

Cotton!Towels

10 bath towels 14 wash cloths

10 hand towels

Mixed Load

3 sheets (1 king, 2 twin)

4 pillowcases

3 shirts

3 blouses

9 T-shirts

9 shorts

10 handkerchiefs

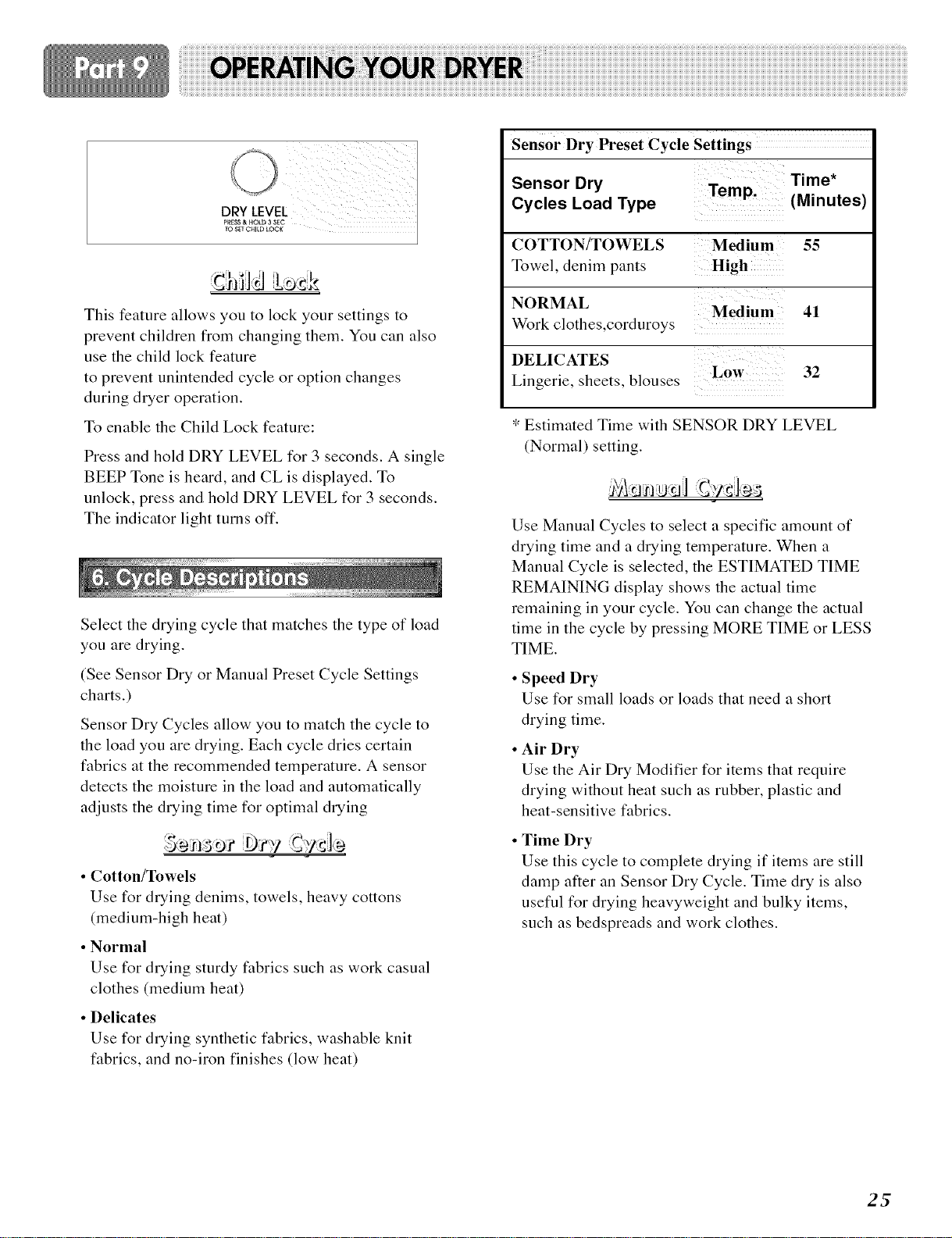

This feature allows you to lock your settings to

prevent children from changing them. You can also

use the child lock feature

to prevent unintended cycle or option changes

during dryer operation.

To enable the Child Lock feature:

Press and hold DRY LEVEL for 3 seconds. A single

BEEP Tone is heard, and CL is displayed. To

unlock, press and hold DRY LEVEL for 3 seconds.

The indicator light turns off.

Select the drying cycle that matches the type of load

you are drying.

(See Sensor Dry or Manual Preset Cycle Settings

charts.)

Sensor Dry Cycles allow you to match the cycle to

the load you are drying. Each cycle dries certain

fabrics at the recommended temperature. A sensor

detects the moisture in the load and automatically

adjusts the drying time for optimal drying

f._ .....

• Cotton!Towels

Use for drying denims, towels, heavy cottons

(medium-high heat)

• Normal

Use for drying sturdy fabrics such as work casual

clothes (medium heat)

• Delicates

Use for drying synthetic fabrics, washable knit

fabrics, and no-iron finishes (low heat)

Sensor Dry Preset Cycle Settings

Sensor Dry Temp: Time*

Cycles Load Type (Minutes)

COTTON/TOWELS Medium 55

Towel, denim pants High

NORMAL

Work clothes,corduroys

DELICATES

Lingerie, sheets, blouses

Medium 41

Low 32

* Estimated Time with SENSOR DRY LEVEL

(Normal) setting.

Use Manual Cycles to select a specific amount of

drying time and a drying temperature. When a

Manual Cycle is selected, the ESTIMATED TIME

REMAINING display shows the actual time

remaining in your cycle. You can change the actual

time in the cycle by pressing MORE TIME or LESS

TIME.

• Speed Dry

Use for small loads or loads that need a short

drying time.

• Air Dry

Use the Air Dry Modifier for items that require

drying without heat such as rubber, plastic and

heat-sensitive fabrics.

• Time Dry

Use this cycle to complete drying if items are still

damp after an Sensor Dry Cycle. Time dry is also

useful for drying heavyweight and bulky items,

such as bedspreads and work clothes.

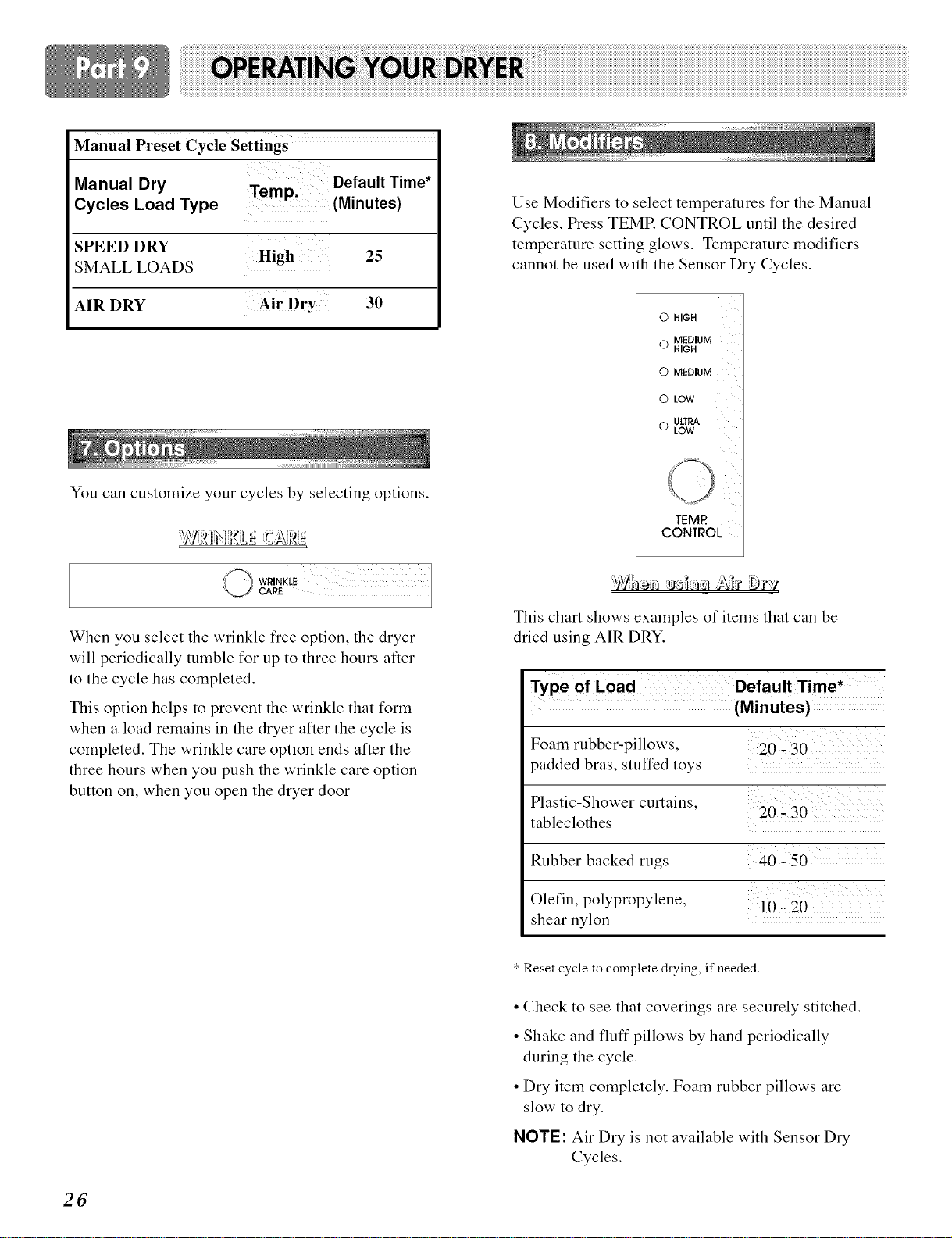

Manual Preset Cycle Settings

Manual Dry ..- Default Time*

Cycles Load Type lempl (Minutes)

SPEED DRY

SMALL LOADS High 25

AIR DRY Air DrY 30

You can customize your cycles by selecting options.

When you select the wrinkle free option, the dryer

will periodically tumble for up to three hours after

to the cycle has completed.

This option helps to prevent the wrinkle that form

when a load remains in the dryer after the cycle is

completed. The wrinkle care option ends after the

three hours when you push the wrinkle care option

button on, when you open the dryer door

Use Modifiers to select temperatures for the Manual

Cycles. Press TEMP. CONTROL until the desired

temperature setting glows. Temperature modifiers

cannot be used with the Sensor Dry Cycles.

O HIGH

MEDIUM

o HIGH

o MEDIUM

0 LOW

ULTRA

0 LOW

TEMR

CONTROL

This chart shows examples of items that can be

dried using AIR DRY.

Type of Load

Default Time*

(Minutes)

Foam rubber-pillows. 20 - 30

padded bras. stuffed toys

Plastic-Shower curtains.

20 - 30

tableclothes

Rubber-backed rugs 40 - 50

Olefin. polypropylene. 10 - 20

shear nylon

* Reset cycle to complete drying, if needed.

• Check to see that coverings ate securely stitched.

• Shake and fluff pillows by hand periodically

during the cycle.

• Dry item completely. Foam rubber pillows ate

slow to dry.

NOTE: Air Dry is not available with Sensor Dry

Cycles.

Thedryerrackisshippedinplaceinyourdryer.

Removeanddiscardanypackingmaterialbefore

use.

The RACK DRY is designed for use with items that

you do not want to tumble dry, including sweaters

and similar items. The heated dryer rack allows the

heated air inside the dryer to flow in a concentrated

pattern, allowing effective and consistent drying.

Use RACK DRY to select the desired time.

• When drying washable wool items, block and

shape the items to lay flat on the dryer rack.

1.Open the door.

Hold the dryer rack

with both hands.

2. Put the dryer rack

into the drum

3. Make sure that

dryer is evenly

placed right onto

the drum inside

and door rim.

NOTE: Check the lint screen and remove any lint

accumulated from items dried on the rack.

LG Electronics DLG2524W LG dryer

Product's Documents

User Manual

Specifications

LG Electronics DLG2524W Questions and Answers
