Craftsman 917271813 lawn tractor User Manual

Owner's Manual

19.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271813

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Seam, Roebuck and Co., Hoffman Estates, IL 60179

visit our Craftsmanwebsite:www.sears.corn/craftsman

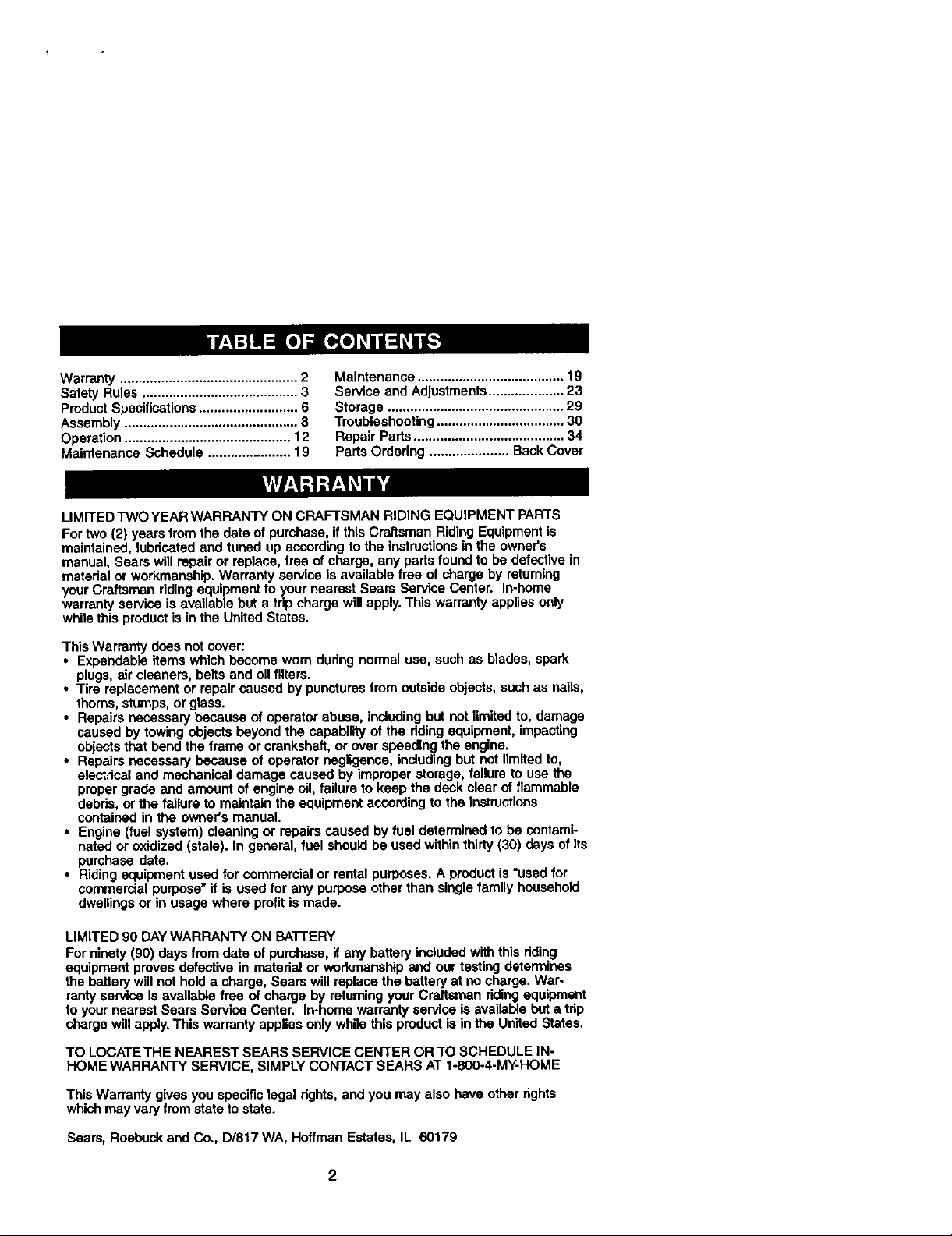

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments .................... 23

Storage ............................................... 29

Troubleshooting .................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman riding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

• Expendable items which become wom during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by puncturesfrom outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limitedto, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

eisctdcal and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil,failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is =usedfor

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED g0 DAY WARRANTY ON BA'I-rERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in matedal or workmanship end our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by retuming your Craftsman riding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply.This warranty applies only while this product is in the United States.

TO LOCATETHE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffrnan Estates, IL 60179

MPORTANT:Thscuttingmachineiscapable.ofamputatingI'_...dsand.feetand

throwingobacts. Failure to observe the tallowing sarety Instruct=onsCoula resun in

serious injury or death.

I. GENERAL OPERATION

• Read, understand, end follow all

instmctiorlsin the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instmCtiens,to operate

the machine.

• Clear the area of objects such as

rocks,toys, wire, etc., which couldbe

picked up and thrown by the blade.

• Be surethe area isclear of other

people before mov_r_3- Stop machine

if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless abso-

utely necessary. Always lock clown

and behind before and while back ng.

• Be aware of the mower discharge

directionand do not point itat anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place,

• Slow down before turning.

• Never leave a running machine

unattended. Always tum off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or gc<_dartif_el

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch fortraffic when operating near or

crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicatesthat operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protectthemselves and others from

serious injury.

II. SLOPE OPERATION

Slopes are a major factor related to Ioss-of-

contro and tipover accidents which can

result in severe in ury or death. All slopes

requireextra caution. Ifyou cannot back up

the slope or if youfeel uneasy on it, do not

maw it.

DO:

• Mow up and down dopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, orbu_rnps.

Uneven terrain could overtum the

machine. Tall grass can hide ob-

stacles.

• Use slowspeed. Choose a low gear

so that you will nothave to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations tot wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

end gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowlyand gradu-

ally downhill, if possible.

• Do not maw near drop-offs, ditches, or

embankments, The mower could

suddenly turn over if a wheel is over

the edge of a cliffor ditch, or it an edge

caves In.

• Do not maw on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilizethe machine by

puttingyour foot on the ground.

• Do not use grass catcher on steep

dopes-

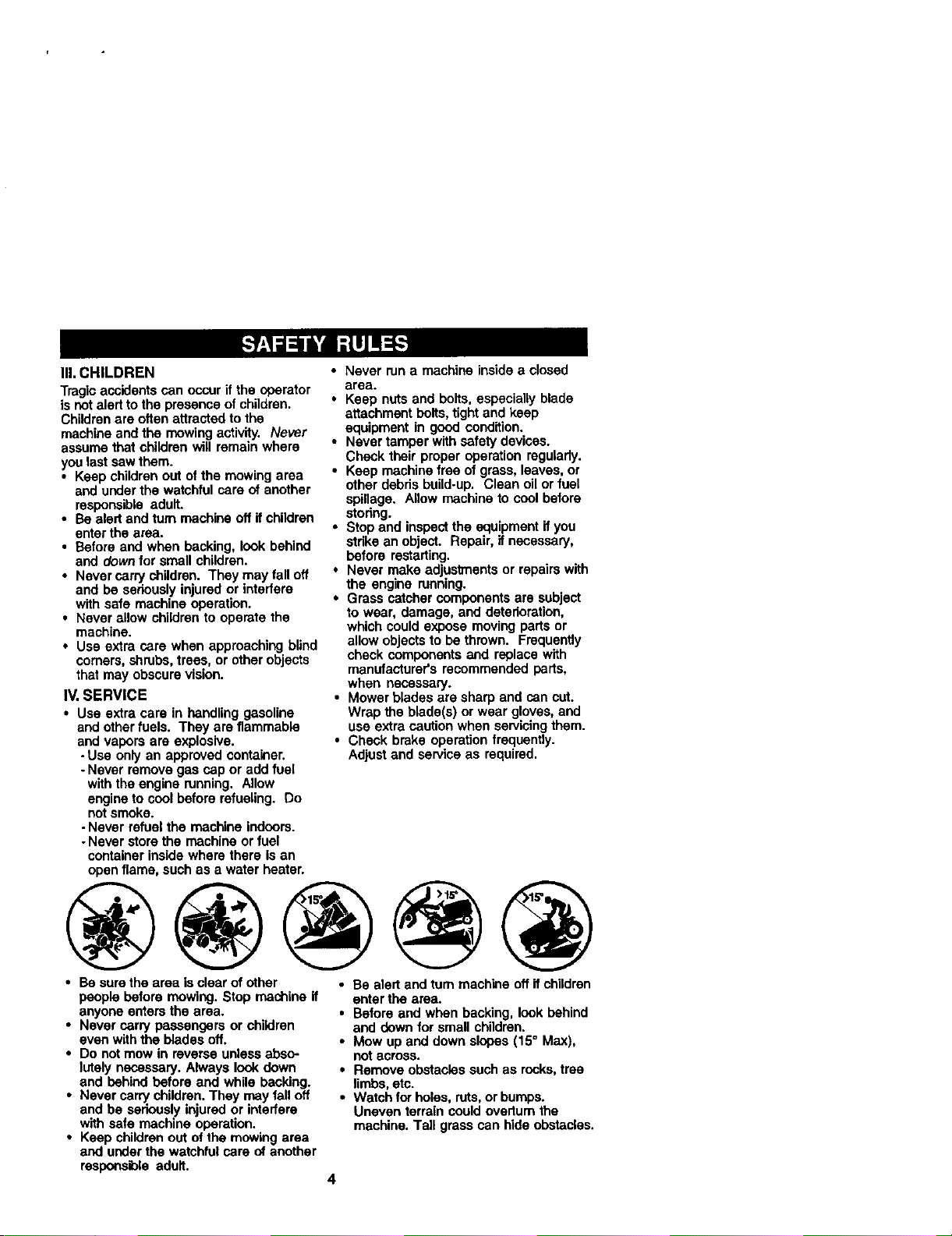

Ill.CHILDREN

Tragicaccidentscanoccuriftheoperator

isnotaledtothepresenceofchildren.

Childrenare often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out ofthe mowing area

and under the watchful care of another

responsible adult.

• Be aled and turn machine off if children

enter the area.

• Before and when backing, look behind

and downfor small children.

• Nevercarrychildren. They may fall off

and be sedously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

notsmoke.

-Never refuel the machine indoors.

-Never storethe machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tightand keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation ragulady.

• Keep machine free of grass, leaves, or

other debds build-up. Clean oil or fuel

spillage. Allow machine to cool before

stodng.

• Stop and inspectthe equipment ifyou

stdke an object. Repair, if necessary,

before rastarting.

• Never make adjustments or repairswith

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving pads or

allow objects to be thrown. Frequently

check components and r_lace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicingthem.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or chiidran

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off ifchildren

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as rocks,tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could ovedum the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you willnot have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, sh_ into reverse

and back down slowly.

• Do not turn on slopes unless neces.

sery, and then, turn slowly and gradu-

ally downhill, if possible.

_Look forthis symbol to pointout

importantsafety precautions. It means

CAUTIONI!I BECOME ALERTIfl YOUR

SAFETY IS INVOLVED.

CAUTION: In orderto prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disoonnectspark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose contrct ofthe

tractor.

CAUTION: Towonly the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate onlyat the lowest

possiblespeed when on a slope. Too

heavy ofa load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known tothe State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accassories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

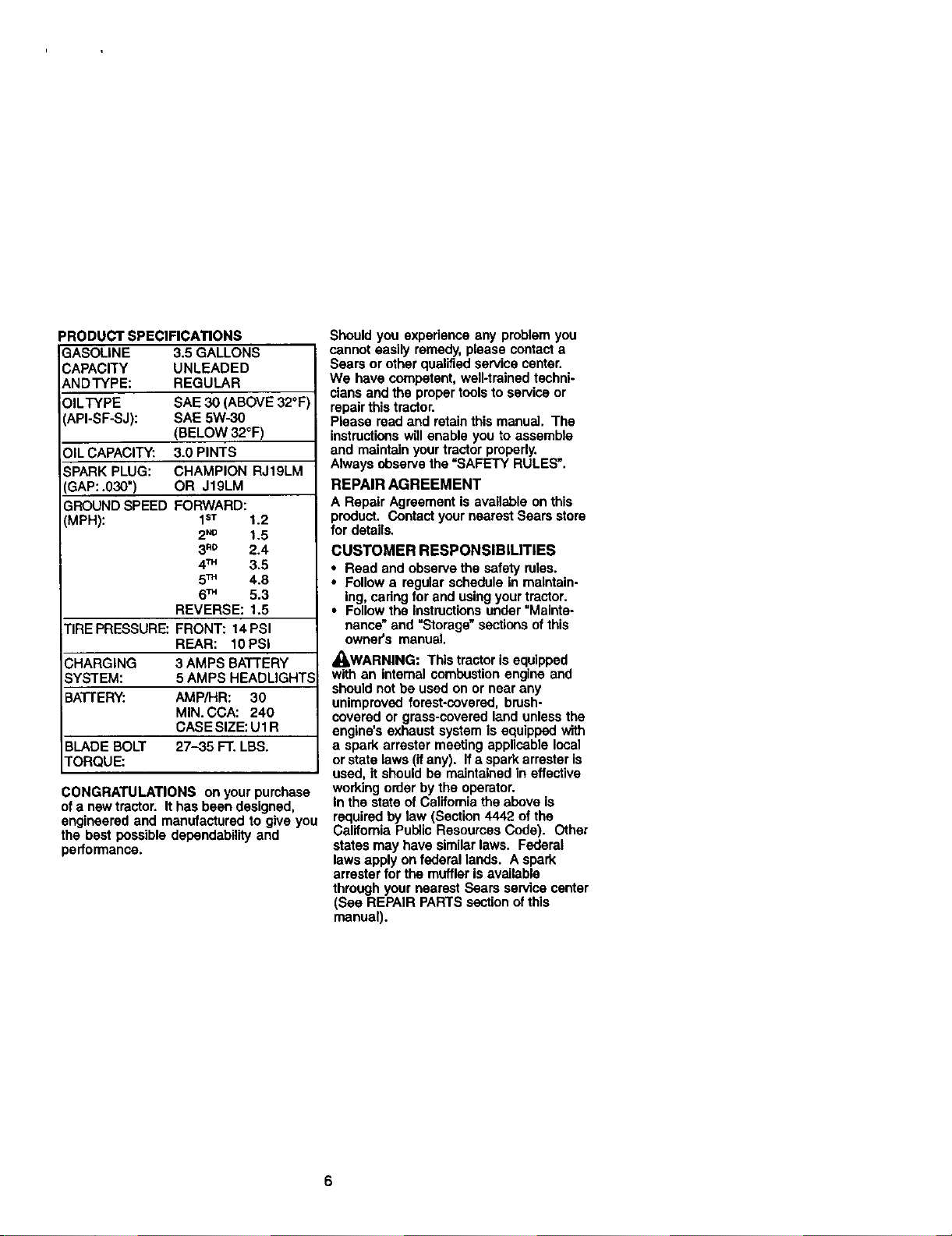

PRODUCTSPECIFICATIONS

3ASOLINE 3.5GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

)ILTYPE SAE 30 (ABOVE 32°F

API-SF-SJ): SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0 PINTS

;PARK PLUG: CHAMPION RJ19LM

GAP: .030") OR J19LM

GROUND SPEED FORWARD:

(MPH): 1sT 1.2

2N° 1.5

3_° 2.4

4TM 3.5

5TM 4.8

6TM 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14PSI

REAR: 10PSI

CHARGING 3 AMPS BAT'rERY

SYSTEM: 5AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1 R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

ofa newtractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you expedence any problem you

cannot easily remedy, please contacta

Sears or other qualifiedservice center.

We have competent, well-trained techni-

clans and the proper tools to service or

repair thistractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the =SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears store

for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, cadng for and usingyour tractor.

• Follow the Instructionsunder "Mainte-

nance" and "Storage" sections of this

owner's manual,

• kWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or gress-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (ifany). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Cede). Other

states may have similarlaws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available

through your nearest Sears service center

(See REPAIR PARTS section ofthis

manual).

Steering Wheel

_ (1)HexBolt

Ill Large Flat Washer

(l) HexBolt 5/16-18X1-1/4 (1) L 6-1 _ (I>L 3/8 r=l

_/ Steedng II

IIIIIIII IISteedng Wheel _J_ Extension I I

, _ , Adapter _ S'_tg _haft U

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys Slope Sheet

(2) Keys

Video Cassette

Your new tractor has been assembled at the factory with exceptionof those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

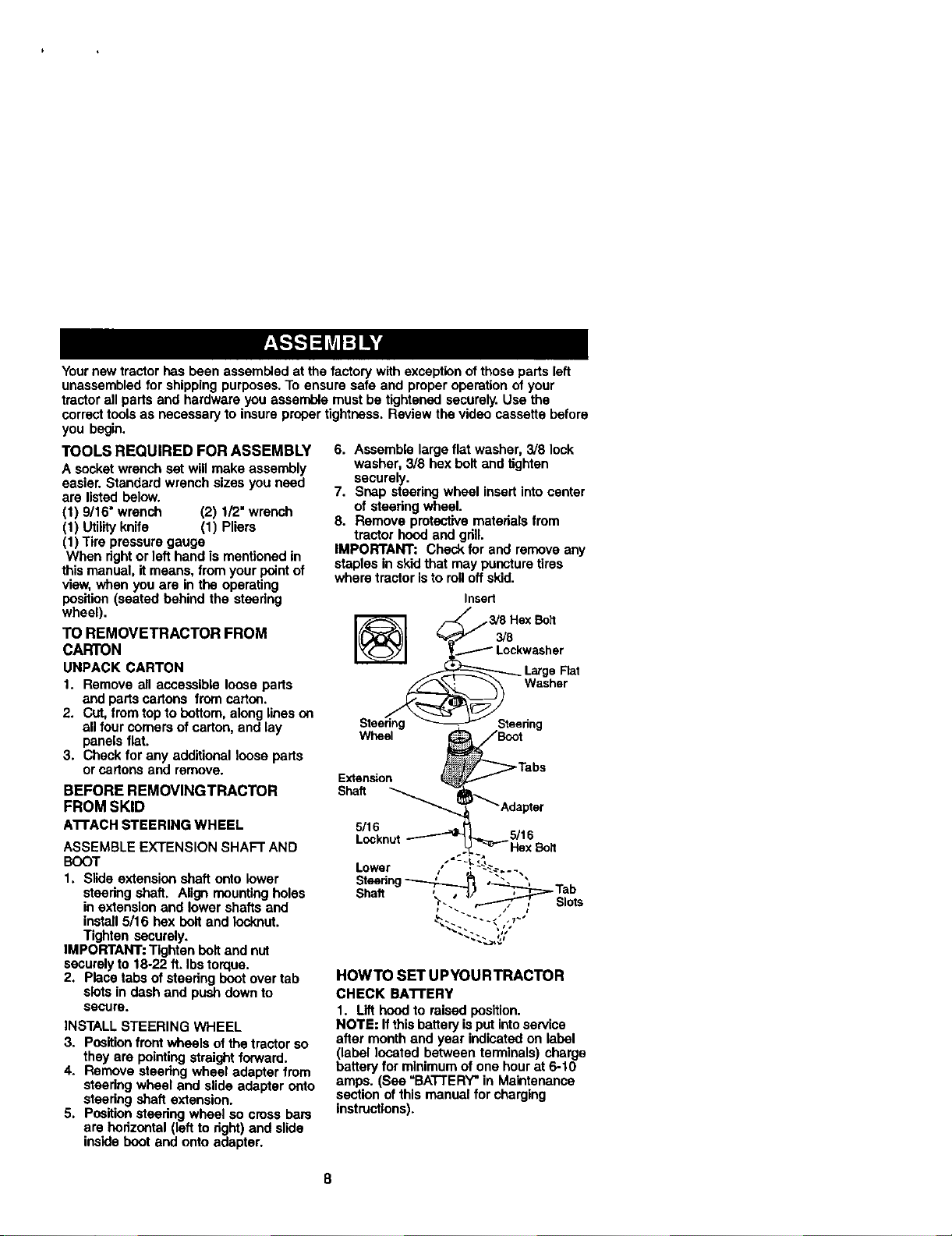

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (2) 1/2" wrench

(1) Utility knife (1) Pliers

(1) Tire pressure gauge

When dght or left hand is mentioned in

this manual, it means, fromyour pointof

view, when you are in the operating

position (seated behind the steedng

wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

eli fourcomers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVINGTRACTOR

FROM SKID

A'I'FACHSTEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1, Slide extension shaft onto lower

steering shaft, Align mountingholes

in eXtensionand lower shafts and

install 5/16 hex belt and locknut.

Tighten securely.

IMPORTANT: Tighten belt and nut

securelyto 18-22 ft. Ibstorque.

2. Place tabs of steedng boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Positionfront wheels of the tractor so

they are pointingstraight forward.

4. Remove steering wheel adapter from

steedng wheel and slide adapter onto

steedng shaft extension.

5. Positionsteering wheel so cross bars

are horizontal (left to dght) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor isto roll off skid.

Insert

_L a::: rFlat

stoo ow2 sh°r

Wheel _ :_: Boot

'_ _Tabs

Extension _

Shaft _ _Adagler

5/16

Locknut_ 5/16

""_'_ HexBoil

Lower ,, ._.-...

Steenng_ _ , . ,

Shaft ,'-"_ jl "_Tab

_'- /, : Slots

HOWTO SET UPYOURTRACTOR

CHECK BA'I'I'E RY

1. Lift hoodto raised position.

NOTE: Ifthis baftery isput intoservice

after month end year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See =BATTERY"in Maintenance

section ofthis manual for charging

instructions).

..-"P_,* o_ °-... ~

,* J _

_°_ _

_%°'*_..,.

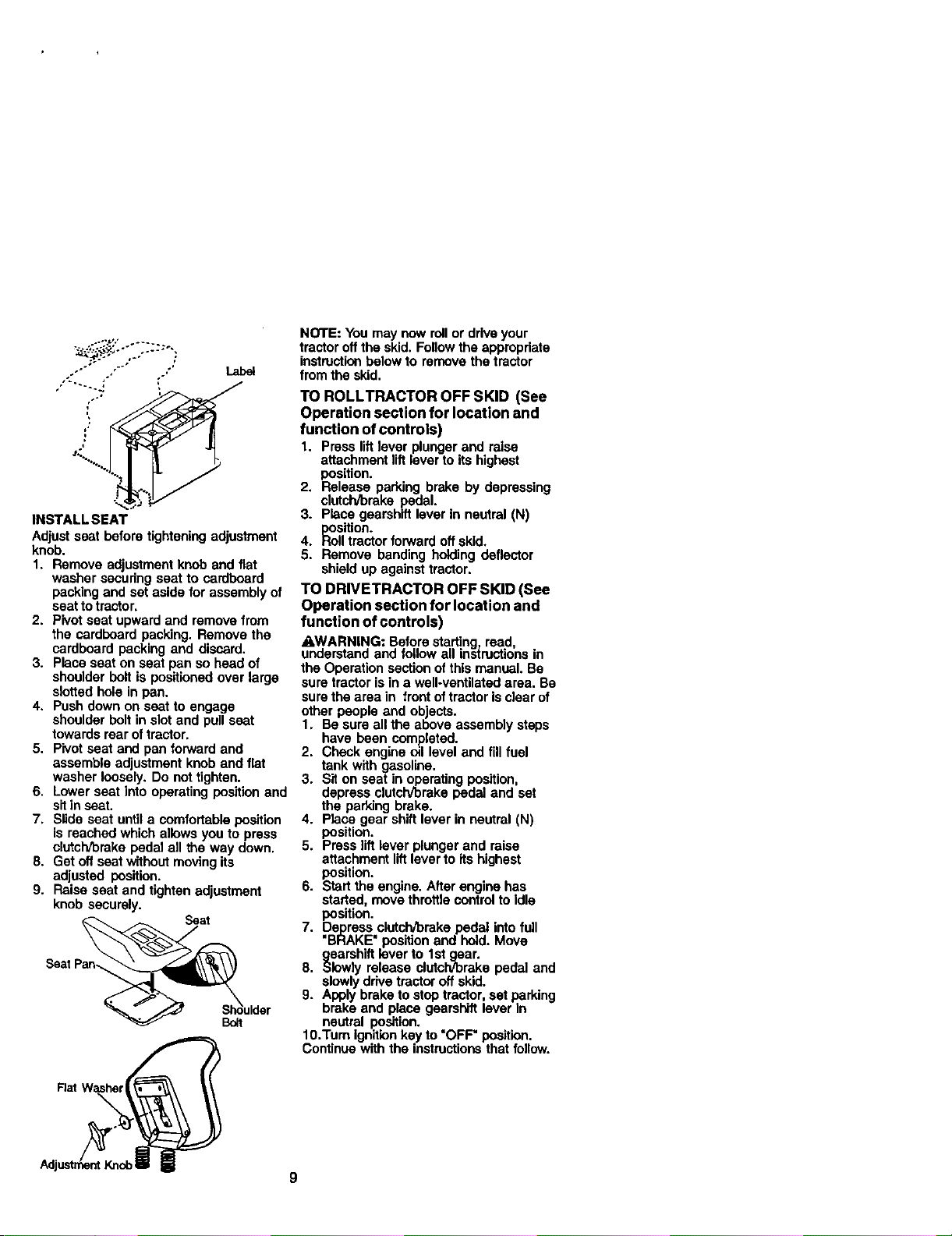

INSTALL SEAT

Adjust seal before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer secudng seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder belt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder belt in slot and pull seat

towards rear oftractor.

5. Pivotseat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6, Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down,

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan_,

Bolt

NOTE: You may now rollor drive your

tractor off the skid. Follow the appropdate

instructionbelow to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractorforward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_.WARNING: Before starting read,

understand and follow all instructions n

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front oftractor is clear of

other people and ob ects.

1. Be sure a the above assemb y steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment liftlever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto Idle

position.

7. Depress clutch/brake pedal into full

"BRAKE' positionand hold. Move

gearshift laver to 1st gear.

8. Slowly release clutch/brake pedal and

slowlydrive tractor off skid.

9. Apply brake to stop tractor, set perking

brake and place gearshift lever In

neutral po,_ion.

10.Turn ignitionkey to "OFF" position.

Continue with the instructionsthat follow.

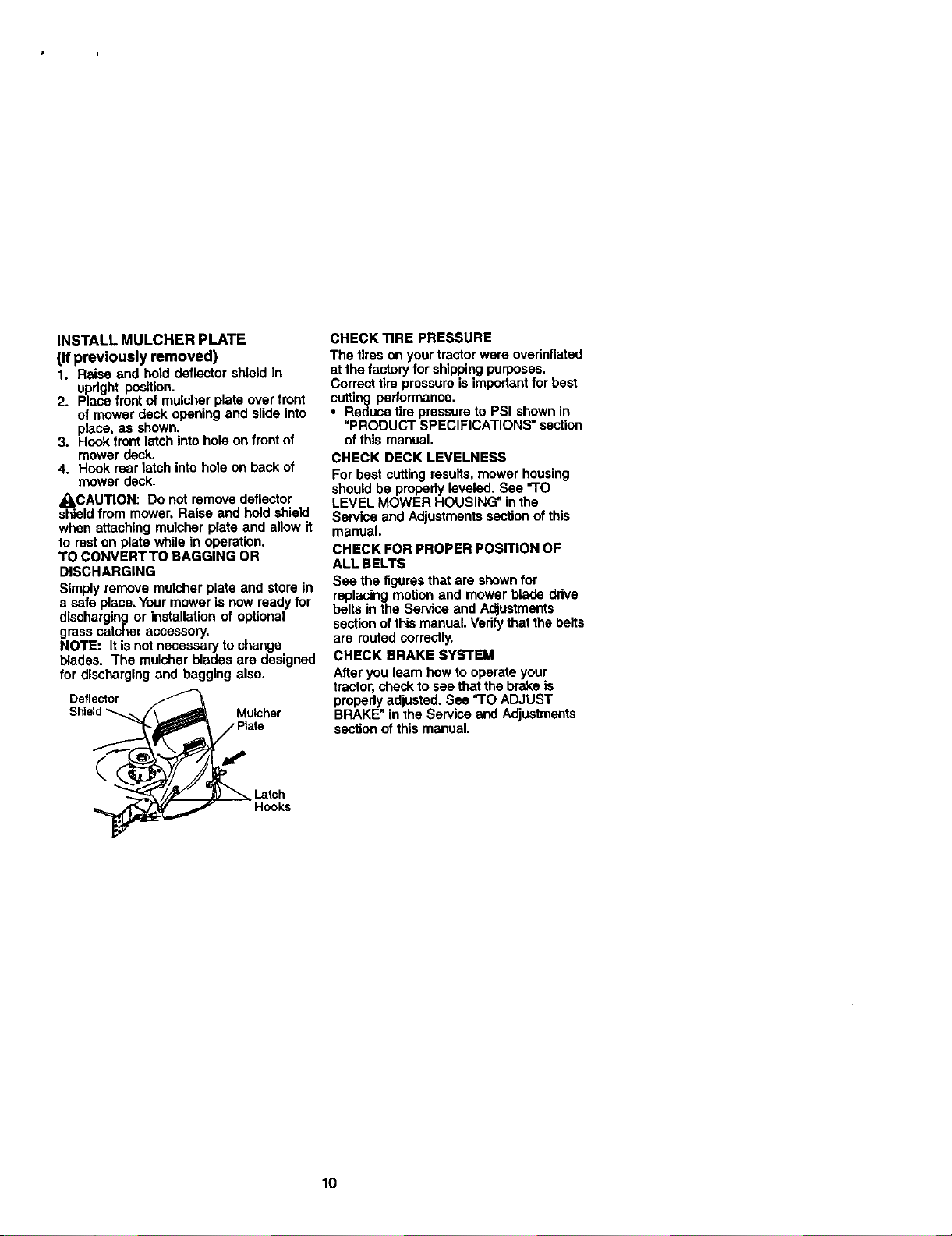

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

updght position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook frontlatch into hole on front of

mower deck.

4. Hook roar latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to reston plate while in operation.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove muioher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcber blades are designed

for discharging and bagging also.

Mulcher

Latch

Hooks

CHECK TIRE PRESSURE

The tires on your tractorwere overinflated

at the factory for shipping purposes.

Correct tire pressure isimportantfor best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

ofthis manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be propedy leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section ofthis

manual.

CHECK FOR PROPER PosmoN OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of thismanual. Verify that the belts

are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, checkto see that the brake is

propedy adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

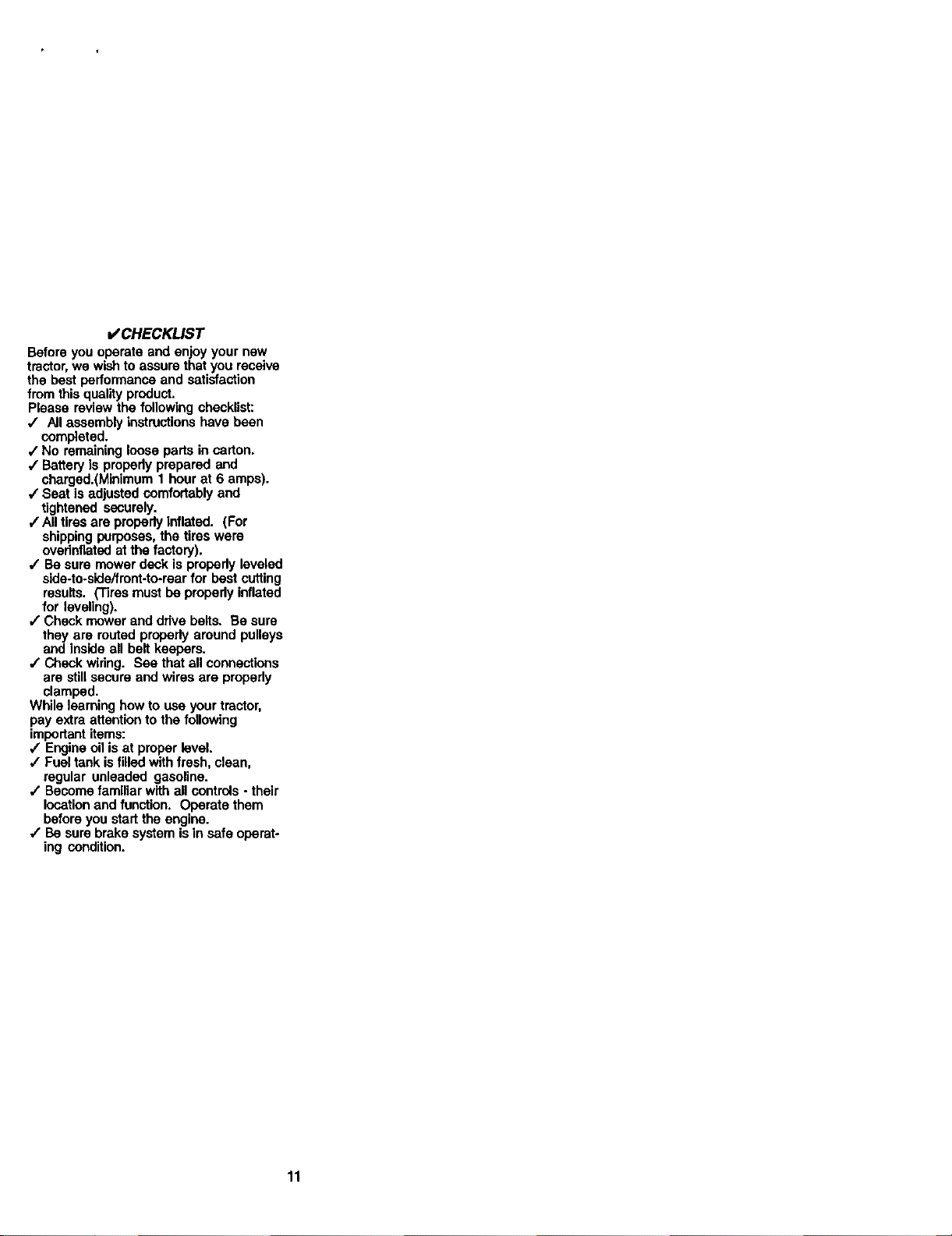

=/CHECKLIST

Before you operate and enjoy your new

tractor,we wish to assure that you receive

the best performance and satisfaction

from this quality product.

Please review the following checklist:

,/ All assembly instructionshave been

completed.

,/No remaining loose parts in carton.

4" Battery is probedy prepared and

chargod.(Minimum 1 hour at 6 amps).

/ Seat is adjusted comfortably and

tightened securely.

/ Alltires are properlyinflated. (For

shipping purposes, the tires were

overinflated at the factory).

/ Be sure mower deck is proberly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attentionto the following

importantitems:

,/Engine oil is at prober level.

,/Fuel tank is filledwith fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

locationand function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING DRAKE UNLOCKED

LOCKED

MOWERLI_

H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED

PARKING BRAKE

IGNITION

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

CLUTCH DISENGAGED (SEE SAFE'I3f RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(AutomaticModels only)

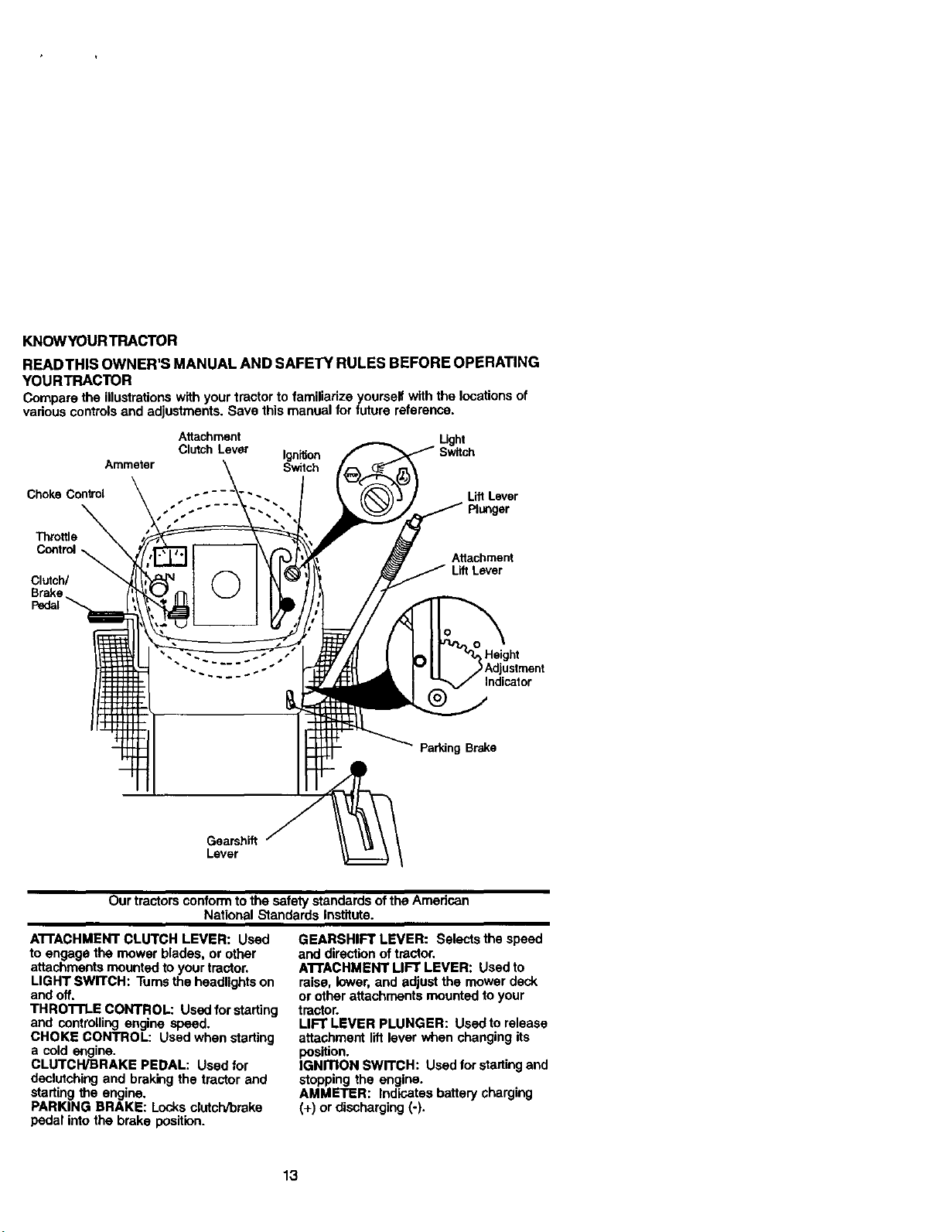

KNOWYOURTRACTOR

READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOURTRACTOR

Comparethe illustrationswithyourtractorto familiarizeyourselfwiththelocationsof

variouscontrolsand adjustments.Savethismanualforfuturereference.

Attachment

Clutch Lever Ignition

Ammeter Switch

Ught

Choke Con_'ol

•.- "" Lift Lever

," . Plunger

Throttle

Control_

ClutcW

Brake

Attachment

L_ Lever

_Height

Adjustment

Indicator

Parking Brake

Gearshift

Lever

Our tractors conformto the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted toyour tractor.

LIGHT SWITCH: Tums the headlightson

and off.

THROTFLE CONTROL: Usedforstarting

and controlling engine speed.

CHOKE CONTROL: Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

A'n'ACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment liftlever when changing its

position.

IGNITION SWITCH: Used forstarting and

stopping the engine.

AMMETER: Indicates battery charging

(+) or discharging (-).

HOWTO USEYOURTRACTOR

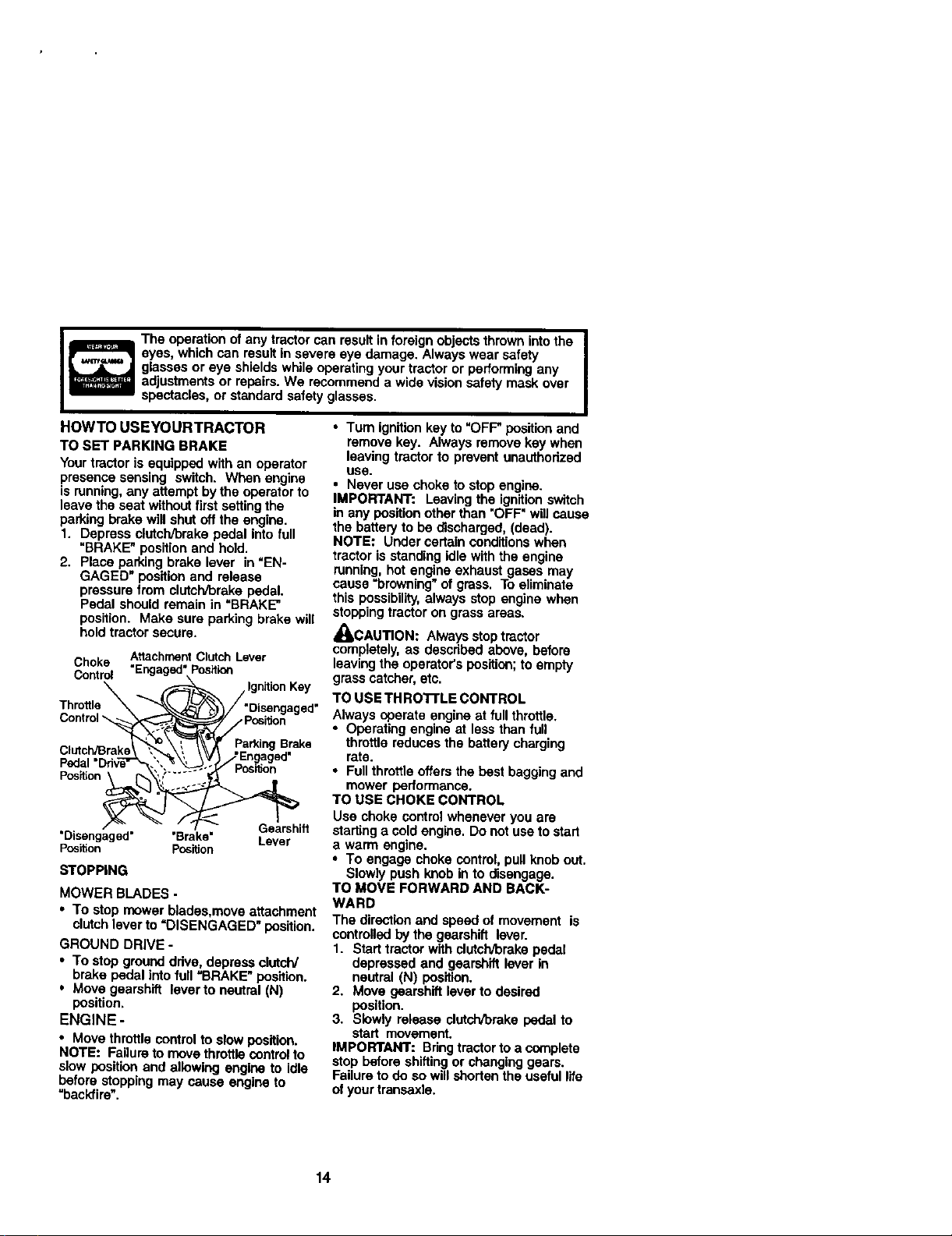

TO SET PARKING BRAKE

Yourtractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat withoutfirst settingthe

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

=BRAKE" positionand hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in =BRAKE"

position. Make sure parking brake will

hold tractorsecure.

The operation of any tractor can resultin foreign objectsthrown intothe I

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles, or standard safety glasses.

Choke AttachmentClutchLever

Control "Engaged"Position

\ - -_ IgnitionKey

Throttle _-_/=Disengaged"

..... t _o \ _--_\\-T ParkingBrake

.,utc,,,orako

"Disengaged" "Brake= Lever

Position position

STOPPING

MOWER BLADES -

• To stop mower blades,move attachment

clutch lever to =DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal intofull "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttlecontrol to slow position.

NOTE: Failure to move throttlecontrol to

slow position and allowing engine to idle

before stopping may cause engine to

=back/ire".

• Turn ignitionkey to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF"will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause =browning" of grass. To eliminate

this possibility,always stop engine when

stoppingtractor on grass areas.

_CAUTION: Alwaysstop tractor

completely, as descdped above, before

leaving the operator's position;to empty

grass catcher, etc.

TO USE THRoI"rLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttleoffers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke controlwhenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACK-

WARD

The direction and speed of movement is

controlledby the gearshift lever.

1. Start tractor with clstchlbrake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bringtractor to a cornplete

stop before shiftingor changing gears.

Failure to do so will shorten the useful life

ofyour transaxle.

TO ADJUST MOWER CUI"FING HEIGHT

The positionof the attachment lift lever

determines the cuttingheight.

• Grasp liftlever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

withthe engine not running. These

heightsare approximate and may vary

depending upon soil conditions, height of

grass and typos of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches duringthe

cool season and to over 3 inches

duringhot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cuttingperformance, grass

ever 6 inches in height should be

mowed twice. Make the firstcut

relativelyhigh;the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightlyoff tha ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

positionto help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cuttingheight

(See "TO ADJUST MOWER CU'I-rlNG

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightlyoff the

ground. Install gauge wheal

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side Installing

gauge wheel in same adjustment hole.

GaugeWheel _ "_ _\

Mounting.. -_fF_

or,cke,

3/8 Washer.-----J_'_'_".#_ "J Shoulder

GaugeWhael------"_'_ -'-- Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine runningand the attachment clutch

engaged will shut off the engine.

1. Select desired height ofcut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch Attachment Lift Lever

Hig

Position

Low

Position _ Position

_Shield

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hillswith slopes greater than 15° and do

not drive across any slope. A slope guide

at the back of your manual is providedfor

your use.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stoppingis absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move geershift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightlyas you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment liftto highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transportingyour tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood totractor (rope, cord,

etc.).

TOWING CARTS AND OTHER A'n'ACH-

MENTS

Tow onlythe attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the groundand cause you to lose control

ofyour tractor.

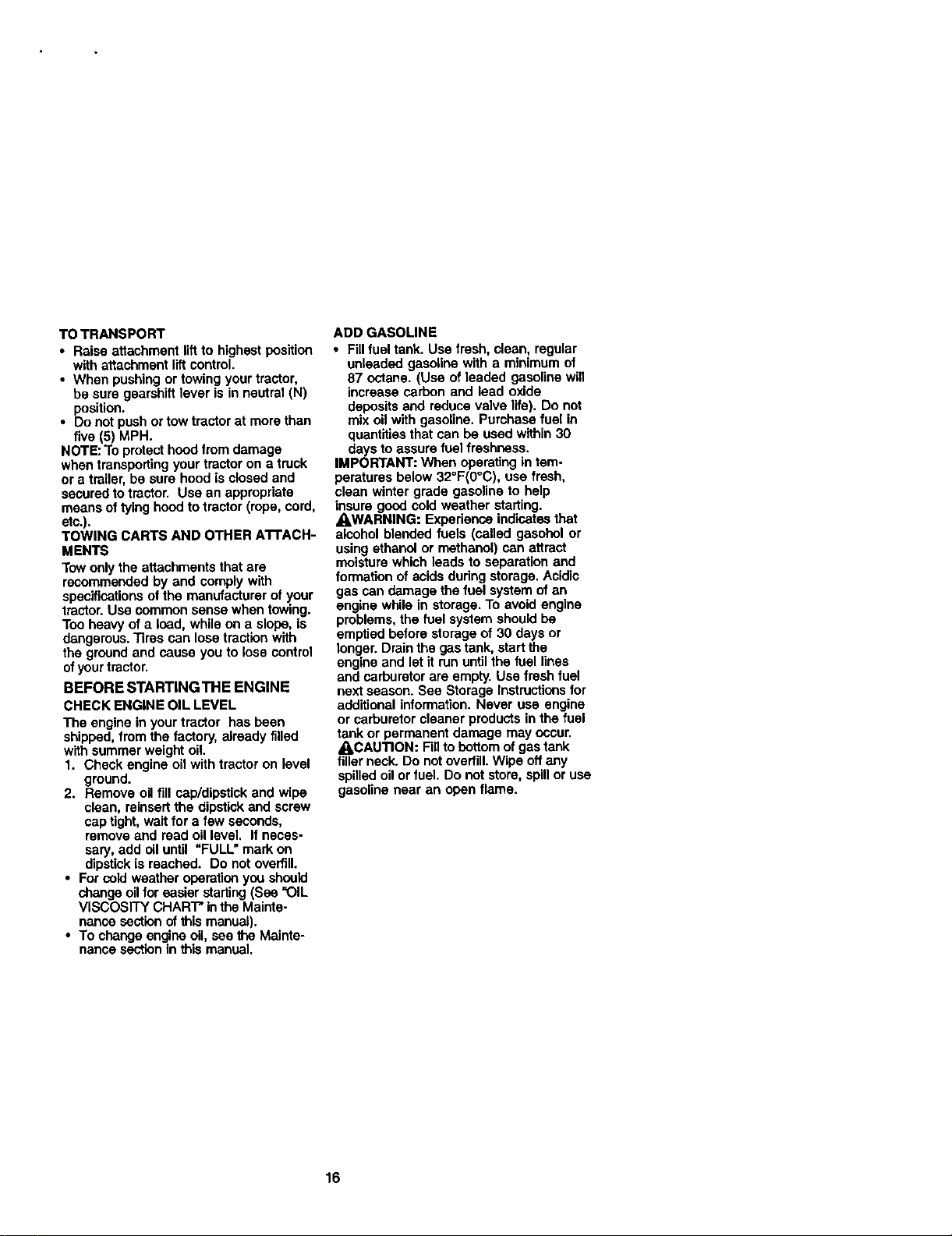

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in yourtractor has been

shipped,from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, rainsert the dipstick and screw

cap tight, waif for a few seconds,

remove and read oil level. If neces-

sary, add oil until UFULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operationyou should

change oilfor easier starling(See "OIL

VISCOSITY CHART" in the Mainte-

nance sectionofthis manual).

• To change engine oil,see the Mainte-

nance sectionin this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantifiesthat can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

poraturas below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starfing.

AWARNING: Experience indicates that

alcohol blended fuels (called geaohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system ofan

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer.Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructionsfor

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

• II,CAUTION: Fillto bottomof gas tank

filler neck. Do notoverfill.Wipe offany

spilled oil or fuel. Do not store, spillor use

gasoline near an open flame.

TO START ENGINE

Wben star_ng1been_ forthefirsttime orit

the enginehas runoutoffual, itwill take extra

crankk_ _meto move fualfromthe tenkto the

engine.

1. Sit on seat in operating position,

depress clutch/broke pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment dutch to =DISEN-

GAGED" position.

4. Move throttlecontrolto fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Beforesta_hlg,readthe warmand

coldstaring proceduresbelow.

6. Insert key into ignitionand turn key

clockwiseto =START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

Ifthe engine does not startafter

several attempts, push choke control

in, wait a few minutes and try again. If

engine stilldoes not start, pullthe

choke control out and retry.

WARM WEATHER STARTING(50° F a_d

above)

7. When engine starts, slowly push

choke control in untilthe engine

beginsto run smoothly. If the engine

startsto run roughly,pull the choke

controlout slightlyfor a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restartthe engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING(50° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature,

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "ro ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

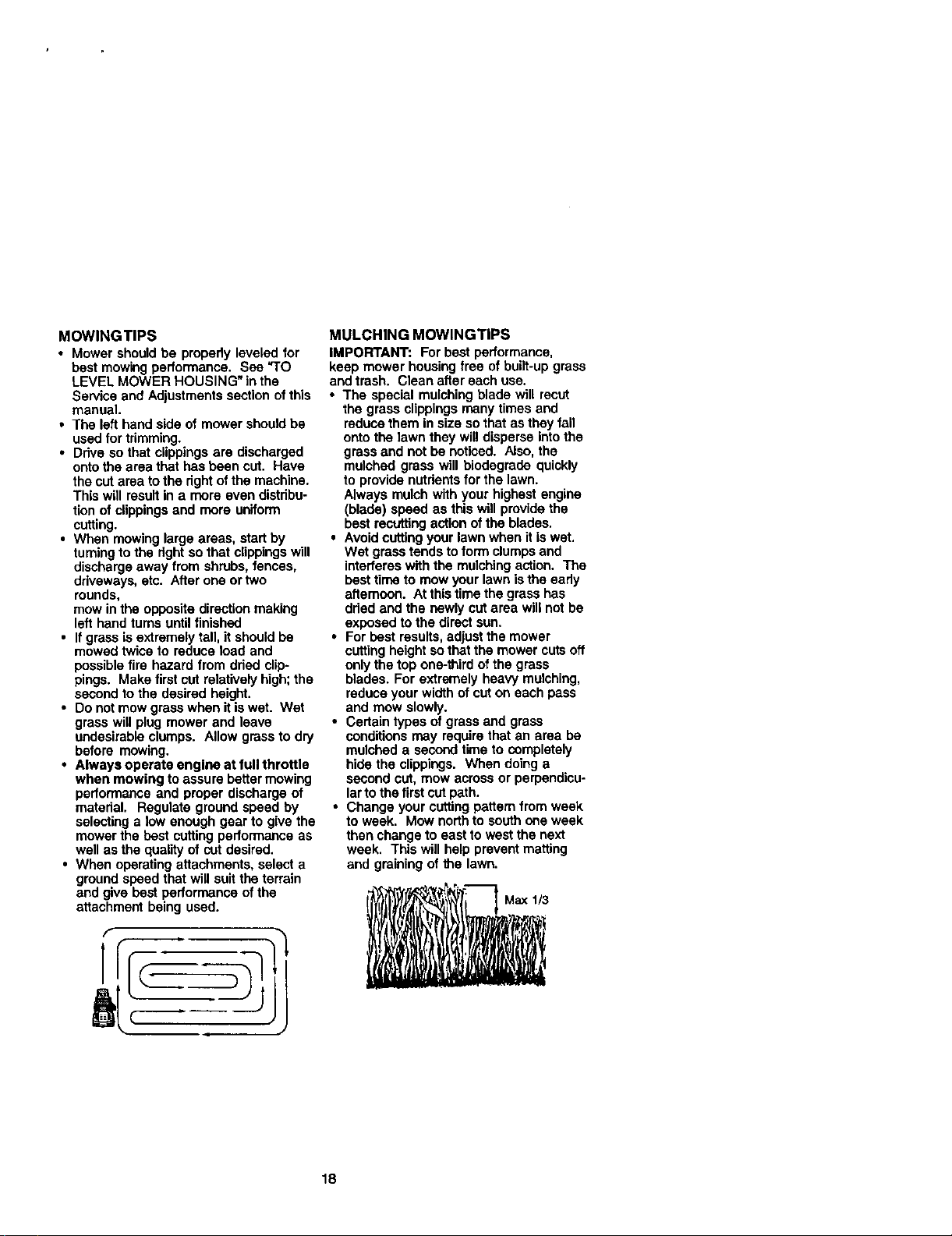

MOWINGTIPS

• Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING _in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings era discharged

onto the area that has been cut. Have

the cut area to the dght of the machine.

This will resultin a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turningto the rightso that clippingswill

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds,

mow in the opposite direction making

left hand turns untilfinished

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip.

pings. Make first cut relatively high;the

second to the desired height.

• Do not mow grasswhen it iswet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower the best cuttingperformance as

well as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWINGTIPS

IMPORTANT: For best performance,

keep mower housing free of built-up grass

and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse intothe

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recufting actionof the blades.

• Avoid cuttingyour lawn when it iswet.

Wet grass tends toform clumpsend

interfereswith the mulchingaction. The

besttime to mow your lawn is the eady

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cuttingheight sothat the mower cuts off

onlythe top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types ofgrass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

larto the first cut path.

• Change your cuttingpattern from week

to week. Mow northto southone week

then change to east to west the next

week. This will help prevent matting

and grainingof the lawn.

FILL IN DATES

AS YOU COMPLETE

DATES

c_,=_ P.==., V' t/

Check Cperat 0r Presence and

T _k,_ Sym V'

R Ch_<fo_Loo=,F._._,,_ t/ I/, _/

Sl_r_ Mowr Blades bl,

0 CtnId_ Baldly Level

(:_e_< Transmde Coolbg t¢_

AdjustBlade Belt(s) Tmak0n I_s

Adju_ Me6=n Drbe B_t(s) Tension f//_

Ch,=_0_,o=>,_ V' v'

E c_. A__r I/_

R_ O_Rlter(IfequCped) (l_t.2

N Cleen Engkle Coding Fins _2

Ref_ace Fuel Rlter (1_

3- :i_u_p_ tdlholh. o_ age,e_ys0h_m_ 7. T_Ptm_ sdepi_t bali_o35_4_. n,_,4nx,,_

GENERAL RECOMMENDATIONS

The warranty on thistractordoes not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty,operatormust maintain

tractor as instructedin this manual.

Some adjustmentswill need to be mode

periodicallyto properlymaintain your

tractor.

All adjustmentsinthe Service and

Adjustmentssection of this manual should

be checkedat least once each season.

• Once a year you should replacethe

spark plug, clean or replace air fitter,and

check blades and beffsfor wear. A new

spark plug and clean air f_er assure

proper air-fuai mixtureand help your

engine ran better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(2_Spindle__-_-_f'_'_L_-- Spindle_)

(_ Front /_i_ ....... :_,'_'_Front _)

Bearing _-_/ J-, Beadng

Zerk _---_----:- / ,_ zerk

_---' '---J Pivots

_SAE 30 or 10w30 motoroil

_Ganeral Purpose Grease

O_Refer to Maintenance "ENGINE"

Section

IMPORTANT: Do not oilor grease the

pivot points which have special nylon

bearings. Viscous lubricantswill attract

dust and dirt that willshorten the life ofthe

self-lubricating bearings, if you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

Iftractor requiresmore than six (6) feet

stoppingdistance at high speed in

highest gear, then brake must be ad-

justed. (See "ro ADJUST BRAKE" inthe

Service and Adjustments section ofthis

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section ofthis manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your Icoal parts

dealer. Tire sealant also preventstire dry

rotand corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not functionas de-

scribedbelow, repair the problem

immediately.

• The engine should not start unless the

clutch]brake pedal is fully depressed

and attachment clutchcontrol is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat withoutfirst setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutchis engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seal

BLADE CARE

For best results mower blades must be

keptsharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown,

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandral assembly.

4. Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

5. Tighten boltsecurely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade boltis grade 8 heat

treated.

TrailingEdgeUp_. MandrelA,_mbly

_.. _adecenter ,6_fZ_lx

(.._ Hole _'_

Flat Washar_'-._:_= / ._'_J"

,ock

*A Grade8 heat1='earedboltcanbe identified

bysixlinesonthebolthead,

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grindingwheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bel-

ancer, follow the instructionssupplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

ofthe steel bolt or pin and holdthe bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end untilthe blade is balanced.

5/8" lade

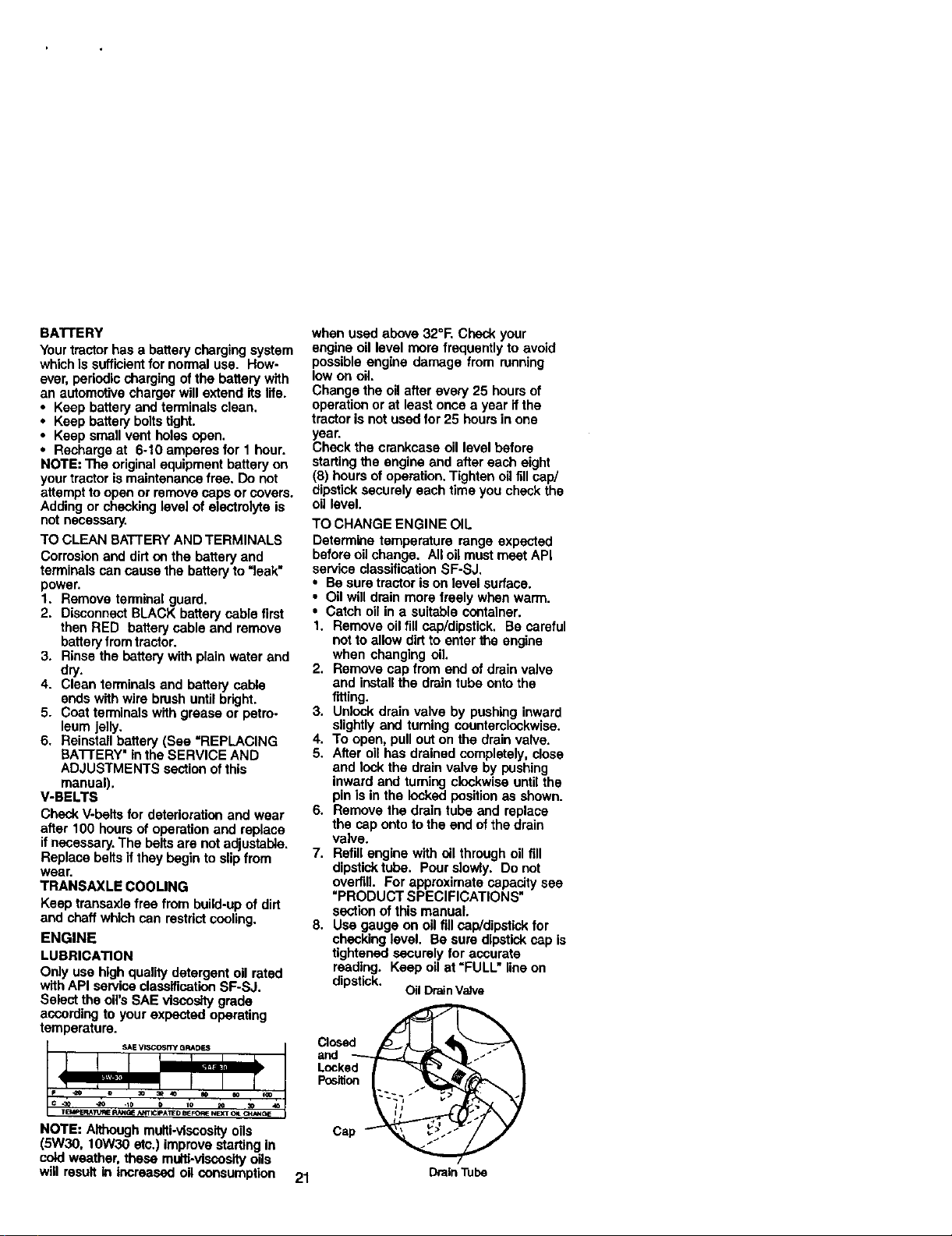

BATI'ERY

Your tractorhas a battery charging system

which is sufficientfor normal use. How-

ever, periodic charging ofthe battery with

an automotivecharger will extend its llfe.

• Keep battery and terminals clean,

• Keep hattery boltstight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The originalequipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checkinglevel of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosionand dirton the battery and

terminals can cause the battery to =leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED batterycable and remove

batteryfromtractor.

3. Rinse the hattery with plain water and

dry,

4. Clean terminals and battery cable

ends with wire brash untilbright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See =REPLACING

BA'I-rERY" inthe SERVICE AND

ADJUSTMENTS section ofthis

manual),

V-BELTS

Check V-pelts for deterioration and wear

after 100 hours of operation and replace

ifnecessary. The beltsare not adjustable.

Replace belts ifthey begin to slip from

wear,

TRANSAXLE COOLING

Keep trensaxle free from build-upof dirt

and chaff which can restrictcooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classificationSF-SJ.

Select the oil's SAE viscos_ grade

according to your expected operating

temperature.

NOTE: Although multi-viscosityoils

(5W30. lOW30 etc.) impmve starting in

coldweather, these multi-viscosityoils

will result in increased oil consumption

when used above 32=F.Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operationor at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipsticksecurely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oilmust meet API

service classificationSF-SJ.

• Be sure tractoris on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

notto allow dirt to enter the engine

when changing oil.

2. Remove cap from end of drain valve

and install the drain tube onto the

fitting.

3. Unlock drain valve by pushing inward

slightly and turning countemlockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drainvalve by pushing

inward and turning clockwise until the

pin is in the locked positionas shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipsticktube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Usa gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at =FULL"line on

dipstick.

Oil DrainValve

Closed __"t

DrainTube

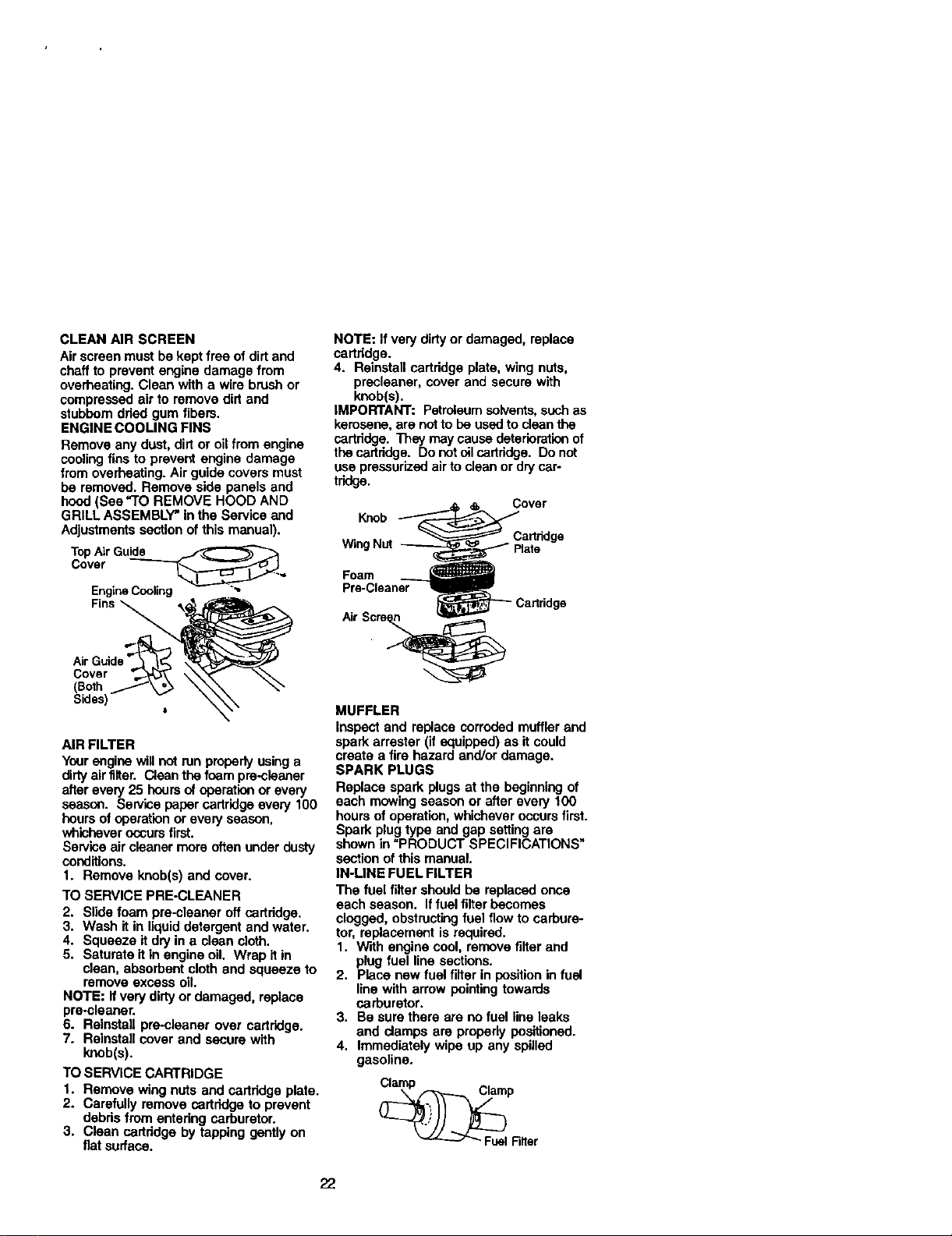

CLEANAIRSCREEN

Airscreenmustbe kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborndded gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oilfrom engine

coolingfins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See'TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustmentssection of this manual).

TopAirGuide

Cover _,_

EngineCooling "*

Cover

(Both

Sides)

AIR FILTER

Your engine will not run properlyusing a

dirtyair filter. Clean the foam pre-cleaner

after every 25 hoursof operationor every

season. Servide paper cartridge evanJ100

hours of operationor even/season,

whichever occurs first.

Serviceair cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2, Slide foam pre-cleaner off cartddge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a olean cloth.

5. Saturate it In engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: Ifvery dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and oartddge plate.

2. Carefully remove cartridge to prevent

debds from entering carburetor.

3. Clean cartridge by tapping gently on

fiat surface.

NOTE: If very dirtyor damaged, replace

cartridge.

4. Reinstall cartddge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum sctvents,such as

kerosene, are notto be used to clean the

cartridge. They may cause deteriorationof

the cartridge. Do not oil cartridge. Do not

use pressurizedairto dean or drycar-

tridge.

Cover

Knob

Cartddge

WingNut

Pr_Cleaner

Air Scre_

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown In "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. Iffuel filterbecomes

clogged, obstructingfuel flow to carbure-

tor, replacement is required.

1. With engine cool, removefilter and

plug fuel line sections.

2. Place new fuel filter in positionin fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are propedy positioned.

4. Immediately wipe up any spilled

gasoline.

pClarnp

FuelFilter

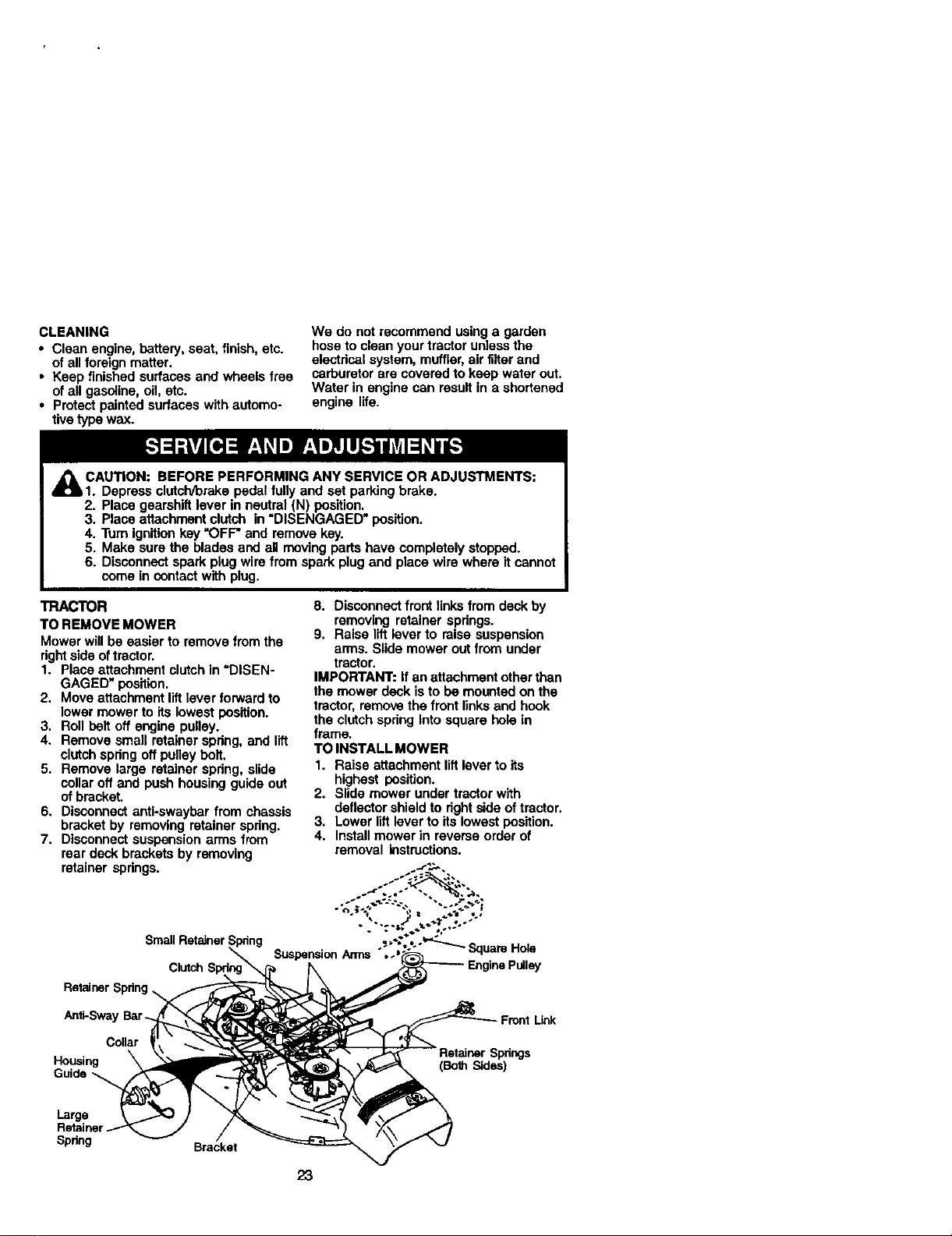

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. "rumignition kay "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

rightside oftractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment liftlever forward to

lower mower to its lowest position.

3. Roll bait off engine pulley.

4. Remove small retainer spring, and lift

clutch spring offpulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

ofbracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

Small Retainer ',

8. Disconnect front linksfrom deck by

removing retainer spdngs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor,remove the front linksand hook

the clutchspring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment liftlever to its

highest position.

2. Slide mower under tractor with

deflector shield to rightside of tractor.

3. Lower liftlever to its lowest position.

4. Install mower in reverse order of

removal instructions.

I "÷ ";.',

SuspensionArms ,.J ,._....... e

Retainer Spring

Anti-Swa

Collar

Housing

Front Link

Springs

(Both S_des)

Large

Spdng Bracket

TO LEVEL MOWER HOUSING

Adjustthe mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PRODUCT

SPECIFICATIONS nsection ofthis manual).

If tires are over or undednflated, you will

not properly adjust your mower.

SiDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpointof both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A"on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

linkadjustment nut on that side.

NOTE: Each fulltum of adjustment nut will

change mower height about 1/8".

• Recheck measurements after adjusting.

BottomEdge _ BottomEdge

ofMowertoF-_t_l_-"-_K-"_of Mowerto

GroundX_..___.__ _ound

Suspension

Arm

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one linkto same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance=D" is 1/8" to 1/2" lower

at front than rear, tighten nuts"F"

against trunnion on both front links.

• To raise front of mower, loosennut =F"

from trunnionon both front links.

Tighten nut "1_ on both front links an

equal number of tums.

• When distance "Eftis 1/8"to 1/2" lower

at front than rear, tighten nut "F" against

trunnionon both front links.

• Recheck side-to-side adjustment.

Mandrel

BothFrontLinksShouldbe EquatinLength

Nut"E"

Nut

Lift Unk Adjustment

Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower willstay

level side-to-side.

To obtain the best cuttingresults,the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is In

its highest position.

Chec_ adjustment on right side of tractor.

Measure distance "D" directlyin front and

behind the mandrel at bottom edge of

mower housing as shown.

Trunnion

Front Links

TO REPLACE MOWER BLADE DRWE

BELT

The mower blade drive belt may be

replaced withouttools. Park the tractor on

level surface. Engage parkingbrake.

BELT REMOVAL -

1. Remove mower from tractor (See =TO

REMOVE MOWER" inthis sectionof

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

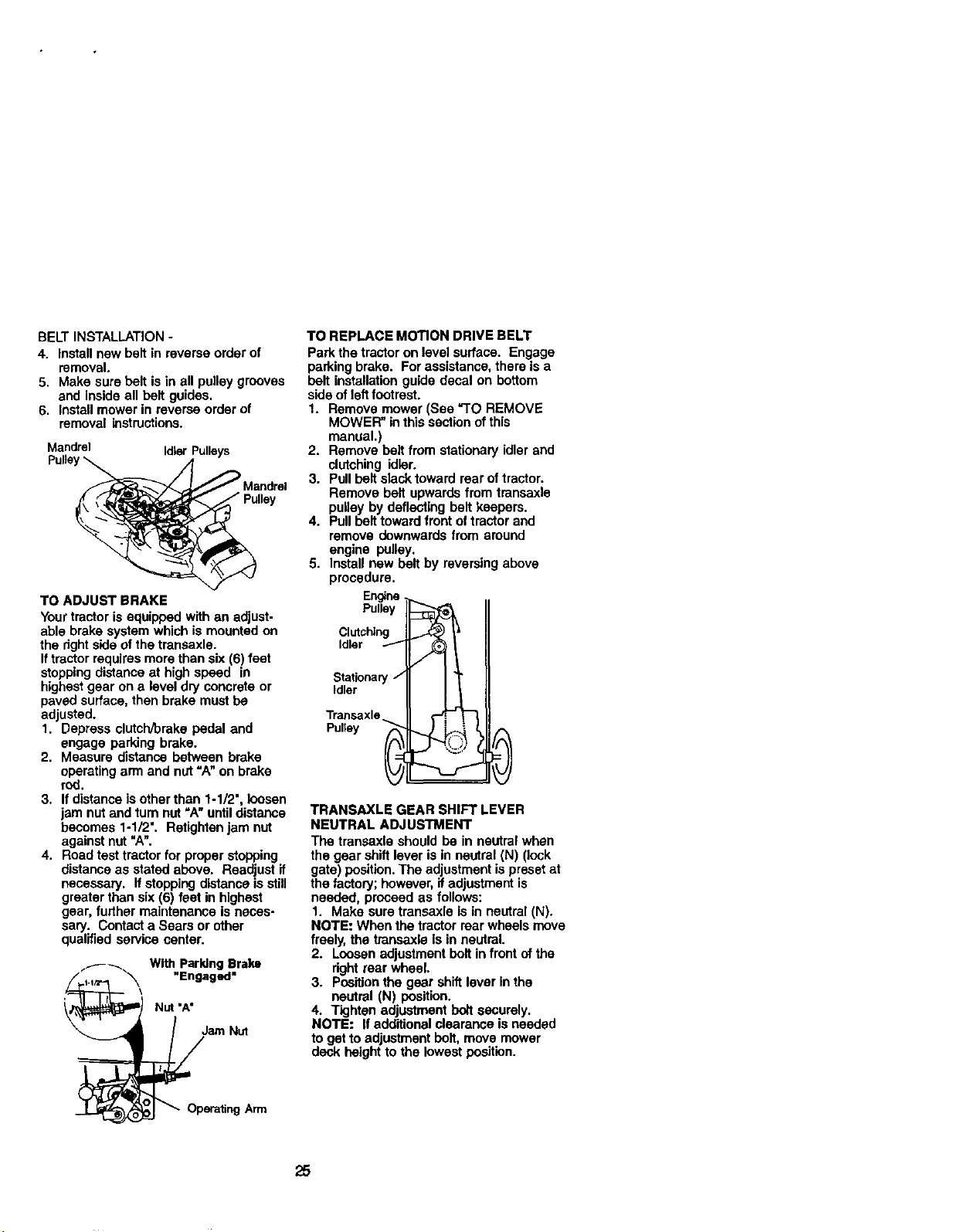

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel Idler Pulleys

TO ADJUST BRAKE

Yourtractor is equipped with an adjust-

able brake system which is mounted on

the dght side ofthe transaxle.

If tractorrequiresmore than six (6) feet

stoppingdistance at high speed in

highestgear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutclVorake pedal and

engage perking brake.

2. Measure distance between brake

operatingarm and nut "A"on brake

rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut =A" untildistance

becomes 1-1/2". Retightenjam nut

against nut"A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. Ifstopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

_ With Parl_aggedB.rakeNut "A"

ring Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of leftfootrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

3. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

4. Pull belt toward front of tractor and

remove downwards from around

engine pulley.

5. Install new belt by reversing above

procedure.

Engine

Pulley

Clutching

Idler ,---""

Stationary /

Idler

Transaxle

Pulley

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxla should be in neutral when

the gear shiftlever is in neutral (N) (lock

gate) position.The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle Is in neutral (N).

NOTE: When the tractor rear wheels move

freely,the transaxle isin neutral.

2. Loosenadjustment boltin front of the

dght rear wheel.

3. P_ltion the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: Ifadditional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

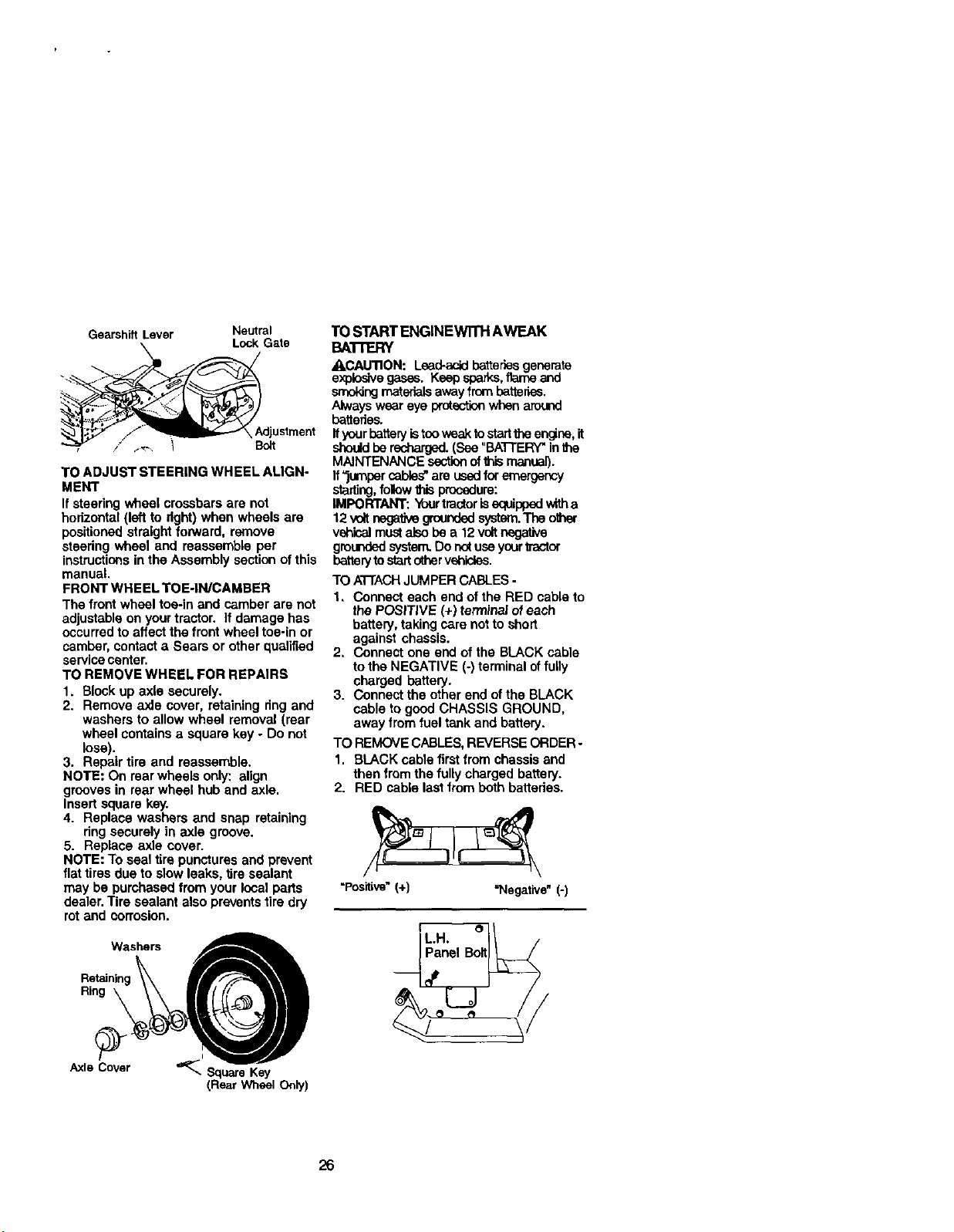

Gearshift Lever Neutral

Lock Gate

Adjustment

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positionedstraight forward, remove

steedng wheel and reassemble per

instructionsin the Assembly section of this

manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustableon your tractor. If damage has

occurredto affect the front wheel toe-in or

camber, contact a Sears or other qualified

servicecenter.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

dng securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

AxleCover _- SquareKey

(Rear WheelOnly)

TO START ENGINEWITH AWEAK

BATrERY

_.CAU'nON: Lead-acidbatteriesgenerate

explosivegases. Kq_pspa6ra,_ and

smoking materials awayfrom batteries.

Always wear eye protection when around

battedes.

Ifyeer batterylstoo week tostartthe engine,it

sho_ be recharged. (See "BATTERY"inthe

MAINTENANCE sectionof this manual).

If=jumpercables"are used for emergency

starting,folow this procedure:

IMPORTANT: "_dr tractorisequippedwitha

12voltnegativegroundedsystem.The other

vehlcalmustalso be a 12voltnegative

groundedsystem.Do notuseyourtractor

batteryto startothervehicles.

TO ATTACHJUMPER CABLES-

1, Connect each end of the RED cable to

the POSITIVE (+) terminal ofeach

battery, taking care not to short

against chassis.

2, Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVECABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both battedes.

"Positive"(+) "Negative" (-)

REPLACING BAI"rERY

ACAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact beth terminals at

the same time. Before connectingbattery,

remove metal bracelets, wristwatch

bands, rings,etc.

Positiveterminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hoodto raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

belt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex belt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Terminal

Access

Cable

Terminal

Guard I Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the gdU.

3. Replace bulb in holder and push bulb

holder securely back intothe hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Looseor damaged wiringmay cause your

tractorto run poorly, stop runolng,or

preventitfromstarting.

• Check widng. See elentdcel wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

ping-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hoodat

sides, tilttoward engine and liftoff of

tractor.

4. To replace, reverse above procedure.

Conne_or

ENGINE

Maintenance, repair,or replacement of

the emis,_on control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttlecontrol has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever tofast position.

2. Check that swivel is against side of

quartercircle. If itis not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

Clamp

Quarter Circle

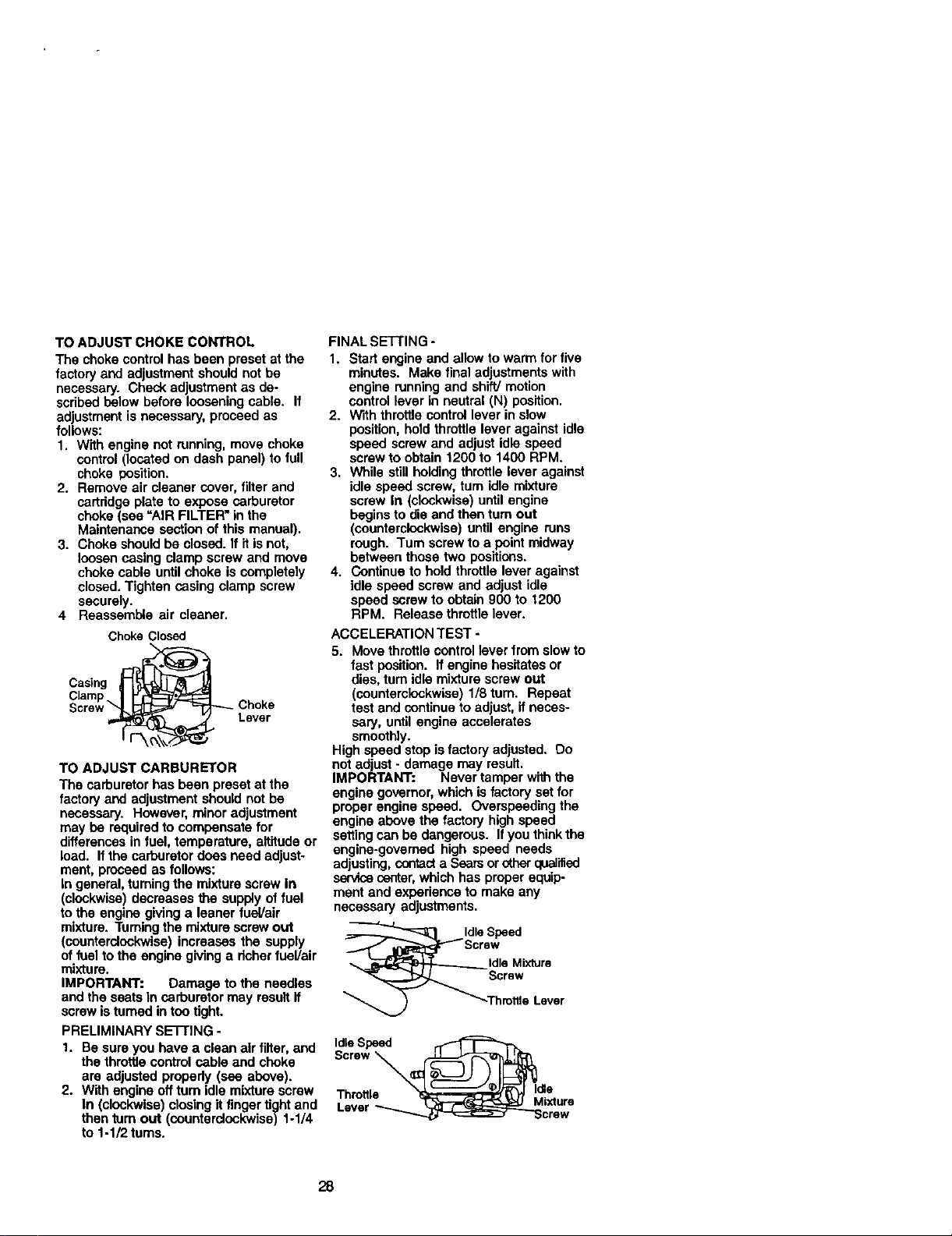

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribedbelow before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartddga plate to expose carburetor

choke (see =AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed.Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Choke Closed

Ca_ng

Choke

Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factoryand adjustment should notbe

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude or

load. If the carburetor does need adjust-

ment, proceed as follows:

In general, turningthe mixturescrew In

(clockwise) decreases the supply of fuel

to the engine giving a leaner fubl/air

mixture. Turningthe mixturescrew out

(counterclockwise) increases the supply

offuel to the engine giving a richer fueVair

mixture.

IMPORTANT: Damage to the needles

and the seats In carburetor may result If

screw isturned in toe tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter,and

the throttle control cable and choke

are adjusted propedy (see above).

2. With engine off turn idle mixture screw

In (clockwise) dosing it finger tight and

then tam out (counterclockwise) 1-1/4

to 1-1/2 tams°

FINAL SETrlNG -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM.

3. While stillholding throttle lever against

idle speed screw, turn idle mixture

screw In (clockwise) until engine

begins to die and then turn out

(counterclockwise)until engine runs

rough. Turn screwto a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Movethrottle control lever from slowto

fast position. If engine hesitates or

dies, turn idle mixturescrew out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, it noses-

sary, until engine accelerates

smoothly.

High speed stop isfactory adjusted. Do

notadjust - damage may result.

IMPORTANT: Never tamper withthe

engine governor, which isfactory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you thinkthe

engine-governed high speed needs

adjusting, contacta Searsorotherqualified

servicecenter,which has proper equip-

ment and expedance to make any

necessary adjustments.

ldleSpeed

raw

rottle Lever

IdleSpeed

Scrow

Throttle Idle

_crew

Lever Mixture

Immediately prepare your tractor for

storage at the end of the season or if the

tractor willnot be used for 30 days or

more.

4_kCAUTON: Never store thetractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor forwinter

storage. When mower isto be stored for

a period of time, clean itthoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructionsin

the Service and Adjustments section

ofthis manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightlybefore painting.

BAI-rERY

• Fully charge the batteryfor storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage dudng long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contactwith battery

terminals.

• If batteryis removed from tractorfor

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It la importanttoprevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank dudng storage.

Also, expedance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run untilthe

fuel lines and carburetor are empty.

• Never use angina or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizingthe formation of

fuel gum deposits dudng storage. Add

stabilizerto gasoline in fuel tank or

storage container. Alwaysfollowthe mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizerto reach

the carburetor. Do not drainthe gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Tum ignitionkey to "START" position

for a few secondsto distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

startsto rust. Rust and/or dirtin your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and willcause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

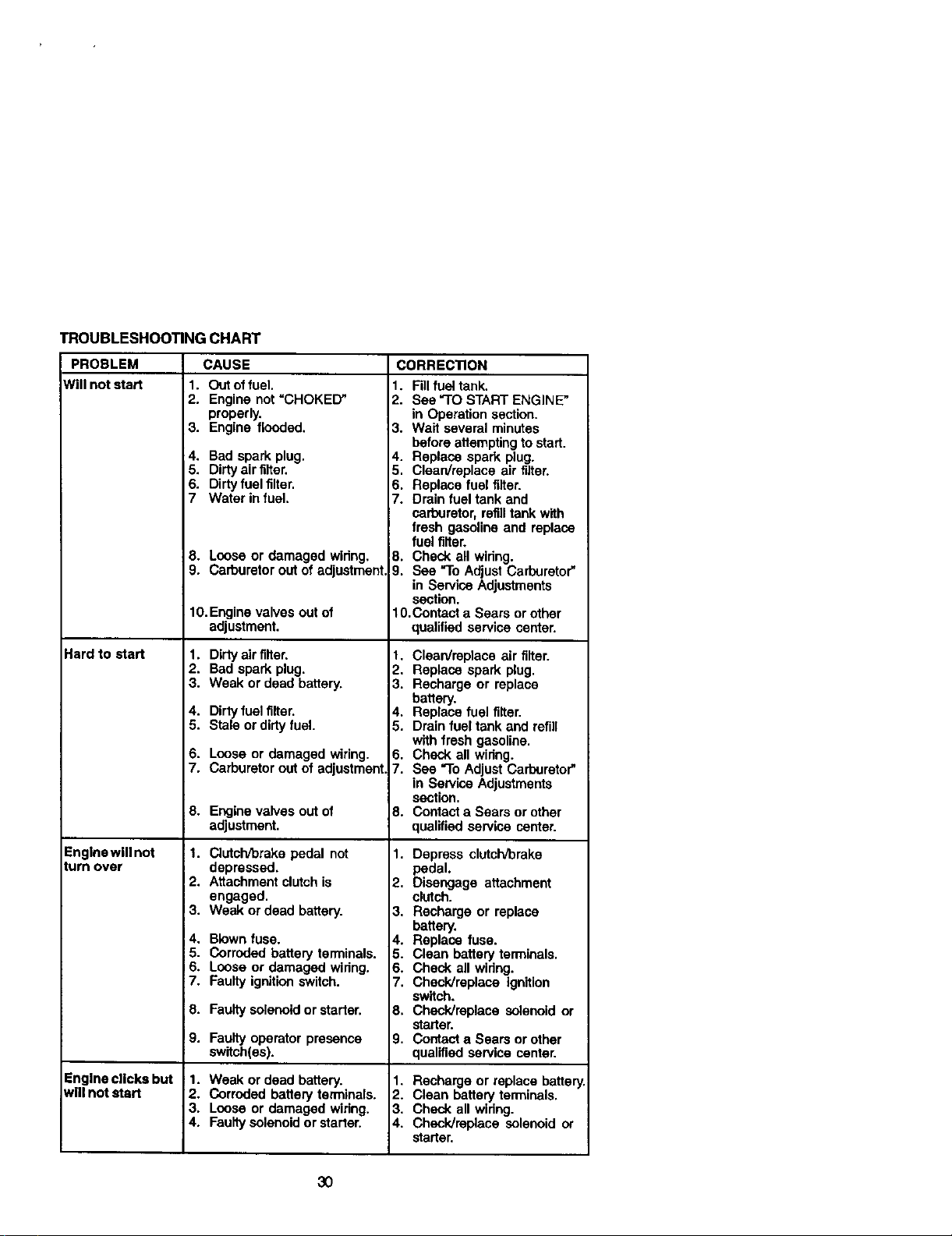

TROUBLESHOOTINGCHART

PROBLEM CAUSE CORREC_ON

Willn_ start

Hard to start

Engine will not

turn over

Engineclicksbut

willnot start

1. Out of fuel.

2. Engine not =CHOKED'

properly,

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filler.

6. Dirty fuelfilter,

7 Water in fuel.

8. Loose or damaged wiring,

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery,

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Enginevalvesoutof

adjustment.

;1. Clutch/brake pedal not

depresseS.

2. Attachment clutchis

engaged.

13. Weak or dead battery.

4. Blown fuse.

i5. Corroded battery terminals.

i6. Loose or damageS widng.

:7. Faulty ignition switch.

8. Faulty solenoidor starter.

!g. Faulty operator presence

swllch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faultysolenoid or starter,

1. Fill fuel tank.

2. See =TO START ENGINE"

in Operation section.

3. Wait seveml minutes

before attempting tostart.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filler.

7. Drain fuel tank and

carburetor, refilltank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "ToAdjust Carburetor"

in Service Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter,

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service Adjustments

section.

8. Contact a Sears or other

qualifies service center.

1. Depress clutch/brake

pedal.

2, Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all widng.

7. Check/replaca ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualifieS service center.

1. Recharge or replace batter_

2. Clean battery terminals.

3, Check all wiring.

4. CheckJreplace solenoid or

starter.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Loss of power 1. Cutting too much grassAoo

fast.

2. Throttle in =CHOKE"

position.

3. Build-upof grass, leaves 3.

and trash under mower.

4. Dirty air filter. 4.

5. Low oil leveVdirty oil. 5.

6. Faulty spark plug. 6.

7. Dirty fuelfilter. 7.

8. Stale or dirty fuel. 8.

9. Waterinfuel.

Excessive

vibr_lon

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poorcut-uneven

1O.Spark plug wire loose.

11.Dirty engine air screen/fins.

12,Dirty/clogged muffler.

13.Loose or damaged wiring.

14,Carburetor out of

adjustment.

15.Engine vaJvesout of

adjustment.

1. Wom, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator.safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildupof grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

holes from buildupof

grass, leaves, and trash

around mandrels.

CORRECTION

1. Set in UHigher Cut" position/

reduce speed.

2. Adjust throttlecontrol.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and rogap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refillwitl"

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refilltank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten louse part(s).

Replace damaged parts.

Check widng, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Mower blades will 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

2. Worn/damaged mower 2. Replace mower drive bell.

drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass 1. Engine speed too slow.

discharge

Headlight(s) not

working

[Ifso equipped)

Batterywillnot

charge

Engine "backfires'

wbenturning

engine "OFF"

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

1O.lmproper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switchis"OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty lightswitch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faultyalternator.

1. Enginethrottlecontrolnot

setat"SLOW"position

for30 secondsbefore

stoppingengine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch"ON'.

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1, Move throttle control to

=SLOW"position and allow

to idlefor 30 seconds befor*

stopping engine.

SCHEMA_C

TRACTOR - -MODEL NUMBER 917.271813

BATrERY

AMMETER

_(OPTIONAL)

IGNmON SWITCH

PoarilO_l I_IROLI_ "hlAKr

RUN4JGKr _AI

RUN 6,*A1

FUSE

CLUTCH/ BRAKE

(PEDALUP)

_"__ STARTER e_

oW-

L I

SEATSWITCH

....... (NOTO_UPIED)

i , • i _.

i _ I -i-

(OPTIONAL) _ SPARK

_ PLUG

_ IGNITION GAP _

, FOEL_ UNIT

Lue _1 UNE : J (2 PLUGSON

"nNINCYL. ENQtNES)

i r_rGNG 8ySr_4 _ _'_,_ _ MK e_RpM

3_,qP _ O _ _tPA4 _CM_RG_P4LI_ _

FUELSPR.IT-OFFSOLENOID _ '" q

(IFSO EQUIPPED) n

NOTE

YOUR TRACTOR IS mo_ _A (_ _=,

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATfERY BUT HAVE THEIR

OWN ELECTR CAL SOURCE. HEADLIGHTS

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLETHE LIGHTS

WILL DIM. ASTHE ENGINE IS NON-REMOVABLE

SPEEDED UP,THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CUPS WERE REMOVED FOR

SERVICING OF UNIT THEY SHOULD BE REPLACED TO

PROPERLY SECURE'YOUR WIRING.

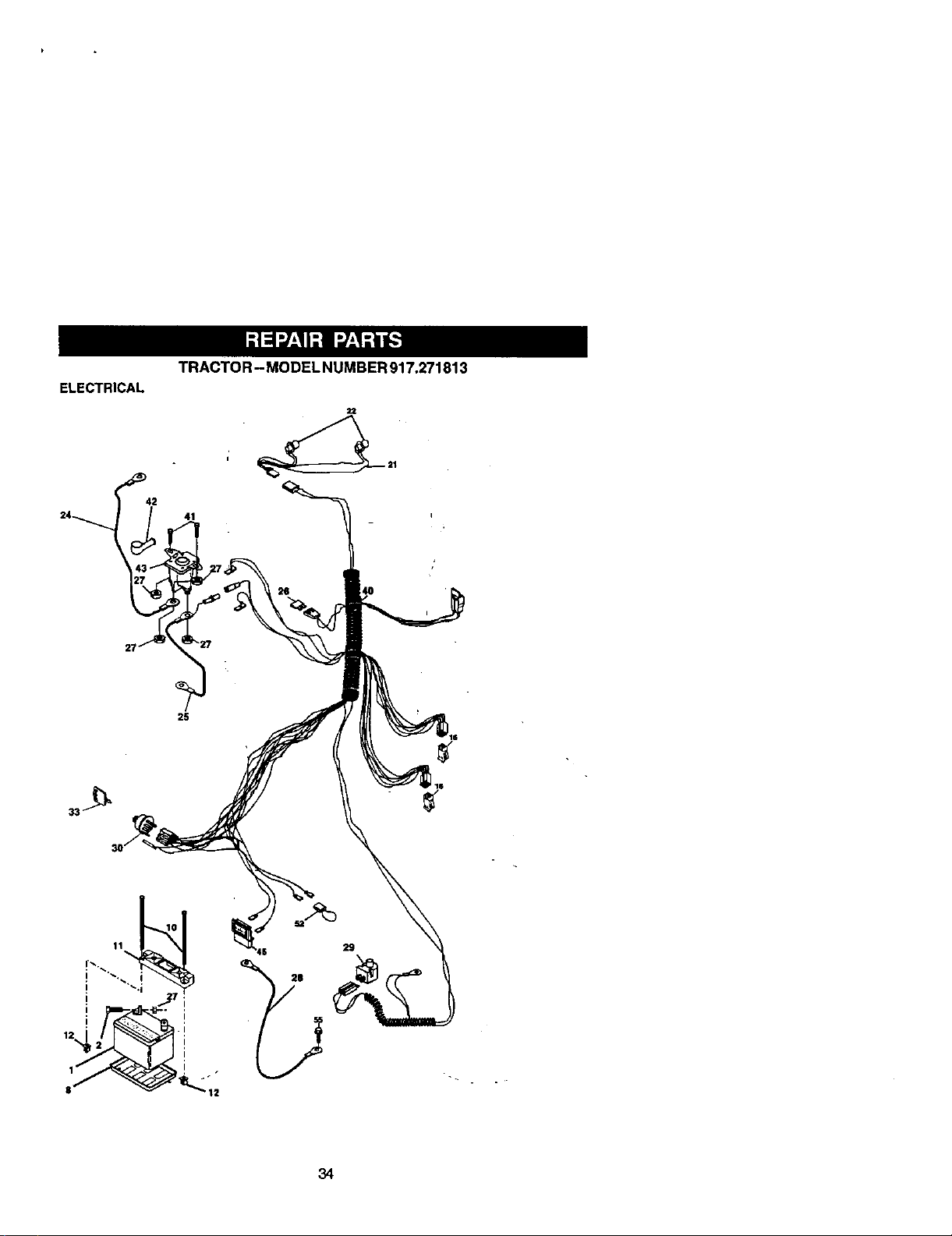

TRACTOR-MODELNUMBER917.271813

ELECTRICAL

24 41

ELECTRICAL

TRACTO R- MODEL NUMBER 917.271813

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery 12 VOLT 28 AMP

2 74760412 Bolt He)( Hd II_20_ x 3/4

8 7603,1 Case Battmy

10 145211 Bolt, Btr FrOnl 1/4-20 x 7-1/2

11 150109 Ho]ddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

18 153664 Swflch. Interlock Push-In

21 175688 Harness Ught Socket (W/4152j)

22 4152,3 BulbLlgh1#1156

24 4799J CabCeBattery

25 146148 Cab4eBattery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 14.5491 Cable Ground

29 1213()5X Switch Seat

30 175566 Switch Ign

33 140403 KeyMolded Crallsrnan

40 170_17 Harness Ign

41 71110408 Ba(t BII<.Fin Hex 1/4-20 Uric x 1/2

42 131563 CoverTermJnaJ

43 175141 SoCenold

45 121433X Amrr_ter Rectangular 6 Amp

52 141940 Protection Wire Loop

55 17490,5_6 ScrewTndrol 5/16-18 x 1/2

NOTE: All component dimensions given In U. S.

inches 1 Inch = 25.4 mm

TRACTOR-MODELNUMBER917.271813

CHASSISANDENCLOSURES

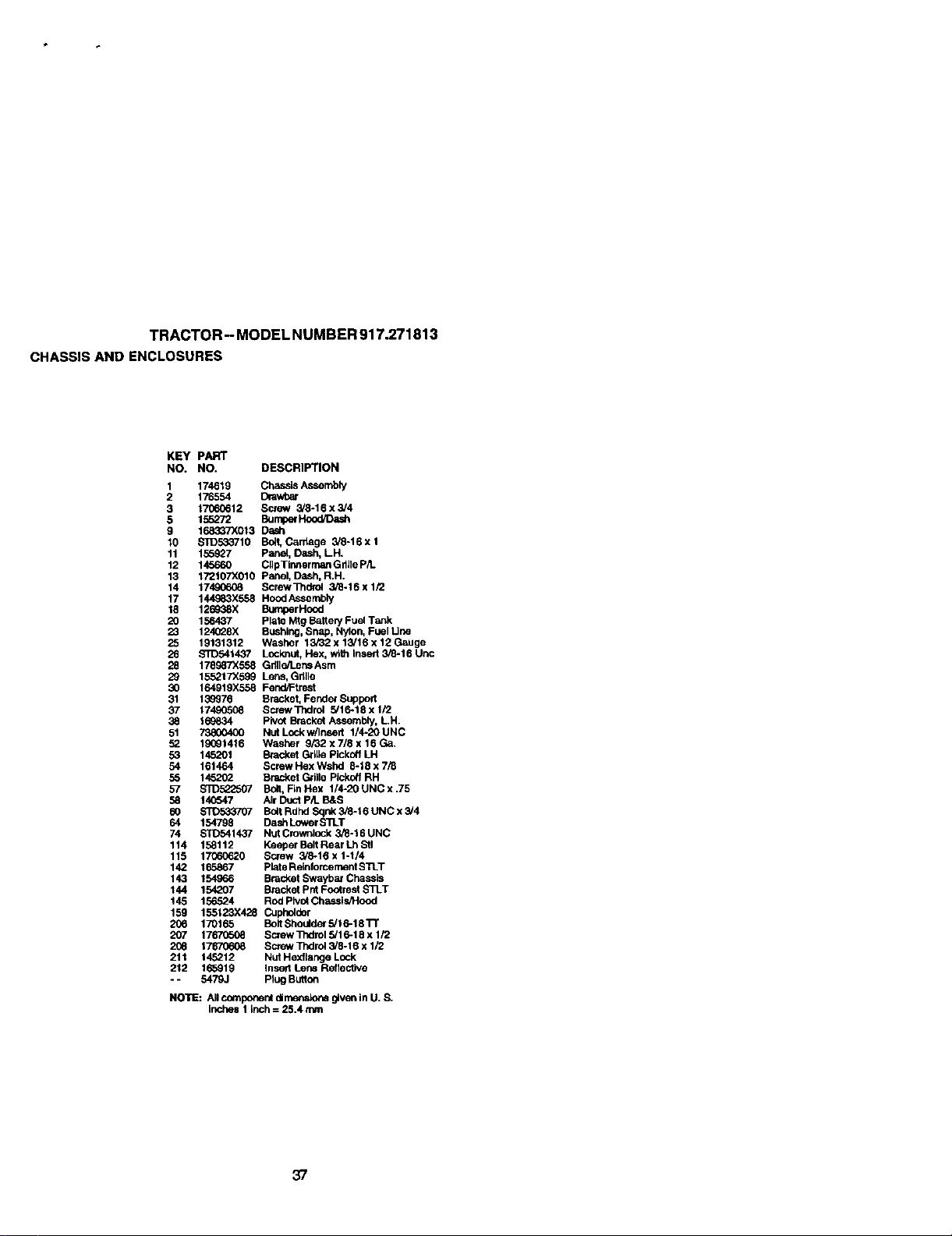

TRACTOR-MODELNUMBER917.271813

CHASSISANDENCLOSURES

KEY PART

NO. NO. DESCRIPTION

ChaSSisAssembly

Drav,bar

Screw 3/8-16 x 3/4

Bumper Hood'Dash

Dash

B_t, Carriage 3/8-16 x 1

Par,st, Dash, LH.

Clip TinnerrnanG rtJIeP/1.

Panel, Dash, R.H.

ScrewThdrol 3/8-15 x 1/2

HoodAssernUy

BumporHood

Plate Mtg Barter/Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Lock.nut,Hex, with insert 3/8-16 Uric

Grille/Lens Asm

Lens, Gdlle

Fend/Ftre_t

Bracket, Fender Support

Screw "l_drol 5/16-18 x 1/2

Phtet Bracket Assembly, L.H.

Nut Lockw/Insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga.

Bracket Grille picketf LH

Scow Hex Wshd 8-18 x 7/_

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/,I-20 UNC x .75

Air Duct P/L B&S

Belt Rdhd Sqnk 3_-t6 UNC x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 UNC

Keeper Belt Rear Lh Sti

Screw 3/8-16 x 1-1/4

plste Reinforcement STLT

Bracket Swaybar Chasds

Bracket Pnt Footrest SR.T

Rod Plvet Chassts,_lood

1 174619

2 176554

3 t7_6_612

5 155272

9 168337X013

10 STD533710

11 155927

12 145660

13 172107X010

14 174_0608

17 1_X558

18 1269_8X

20 156437

23 124028X

25 19t31312

26 $3D541437

28 175967X558

29 155217X599

30 164919X558

31 139975

37 1749(T008

38 169834

52 19091416

53 145201

54 161464

55 1452O2

57 STD522507

58 140547

6O s'rD533707

64 154798

74 STD541437

114 158112

115 17060620

142 165867

143 154966

t44 154207

145 156524

159 155123x428 Cuphelder

206 170165 Bolt Shoulder 3/16-18 TT

207 17670508 S_rew Tndml 5,'16-18 x 1/2

2_8 178706(_ Screw Tndrol 3/8-16 x 1/2

211 145212 Nut Hexllange Lock

212 165919 Inselt Lens Rettective

o- 5479J Ptug Button

NOTE: All componer_ dimenstons _ven in U. S.

inches 1 inch = 25.4 rnm

TRACTOR- MODELNUMBER917.271813

GROUNDDRIVE

212

116

26 27

TRACTOR-MODELNUMBER917.271813

GROUNDDRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Transaxle (See Breakdown) 82

Peedass 206-545C 82

2 146682 Spr_ng,Return, Brake 64

3 123666X pulley, Transaxle 65

4 12000028 Ring, Retainer 66

5 12152OX Strap,Torque 70

6 1706_512 Bemw 5/16-18 x 3/4 74

8 165866 Rod ShitterFender STLT 75

10 $10561210 P_n, Cotter 76

11 105701X Washer, Shllt Plata 77

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 78

14 10040400 Washer Lock H,.,yHelica_ 79

16 _ Nut Lock Hx W/lns 5/16-18 80

18 STD823710 Bolt Fin Hex 3/8-16UNC x I Gr 5 81

19 STD541437 Nut 82

21 lC6933X Knob 83

22 13C804 Rod, Brake 84

24 S'rD541237 Nut 85

25 106888X Spring, Brake Rod 89

26 S'rD551037 Washer 90

27 STD561210 Pin g6

28 175765 ROd,Parking Brake 112

29 71673 Cap, Parking Brake 113

30 169592 Bracket, Transax]e 116

32 STD823107 Bo;t 120

34 175578 She# Assembly, Foot Pedal 145

35 120183X Bearing, Ny_n 150

36 S3D551082 Washer 151

37 STD571810 Roll Pin 156

38 165938 Pulley, Composite, Flat 158

39 74760648 Bolt, Fin Hex 3/8-16 x 3 159

40 175461 Spacer, Sl_lt 161

41 175556 Keeper, Belt, Idler 182

42 19131312 Washer 13/32 x 13/16 x 12 Ca. 163

47 127783 Pulley, idler, V-Groove, P_stlc 164

48 154407 Bellcrank Clutch Gmd Dry St_ 165

49 123_X Retainer, Belt 166

50 SRD523715 B_t Hex Hd 3/8-15 x 1-1/2 168

51 STD541437 Nut Crown Lock3/8-16 UNC 169

82 S/D541431 Nut Crown Lock5116-18 UNC 170

53 105710)( Link, Clutch 197

55 1(_5709X Sprlng, Clutch Return 198

56 17060616 SCIt3W 3/8-16 x 1.0

57 130801 V-Belt, Gtouod Drive 212

59 169691 Keeper, Bell, Center Span

61 17060612 Screw 3/8-16 x 3/4

8882R Cover, Pedal

175410 Pultey, Engine

71170764 BOd, Hex 7/15-20 x 4 G_ode 5

STD5.51143 Wa._,dler

154778 Keeper, Belt, Engine, Foo_-Proof

134683 Guide, Mower Drive Belt, R.H.

137057 Spacer, Axle

121749X W;udler 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Rng

123583)( Key, Square 2.0 x .1845/.1865

121748X Washer 25/32 x 1-5/8 x 16 Ga

STD580825 Key Woodruff

1450_0 Arm, Shilt

165592 Spafl Asm Cross Tapamd 650 20

165711 Spring,Torsion

19171215 Washer 17/32 x 3/4 x 16 Ga.

166231 Link Tmnsaxle

150360 Nut, Nylock

15839tX428 Console, SNIt, STLT

124346X NUt,Self-ThdJng, WSh Hd 1/4

S'i_)824003 Retainer Spring 1"

19091210 Washer 9/32 x 3/4 x 10 Gauge

127285)( Sbap Torque 90Degrees

721406(_ Bolt Rdhd Sqneck 3/8-16 x 1

7390(_00 Nut Lock Rg. 3/8-16

7_ Bolt, Hex Flghd 5/16-18 Gr. 5

175456 Spacer Retainer

19133210 Washer 13/32 x 2 x 10 Ga_

166(X_ Washer Srdod 5/161D x 1.125

165589 Bradxet Shift Mouot

165494 Hub Tapered Flange Shift Lt

72140406 Bo;tRdhd Sqnk I/4-20 x 3/4 Gr.5

73680400 Nut Crownlock 1/4-20 Une

74780416 Bo_tHex Rn 1/4-20Unc x 1 Gr5

19(_1010 Washer 5/_ x .281 x 10 Ga

165623 Bracket Pivot Lever

166880 Screw 5/16-18 x 5/8

165492 Belt Shoulder 5/16-18 x .561

165580 Rate Fastanlng Lt

t 73898 Keeper BeltTransaxle Gear

169613 Nyltner Snap-In

169593 Washer Nyllner

72110614 Bo_tCart. SH 3/8-16 x 1o3/4Gr. 5

145212 Nut Hex Rg. Lock

NOTE: Altcomponent _lrnensions given InU. S.

Inches 1 inch = 25.4 mm

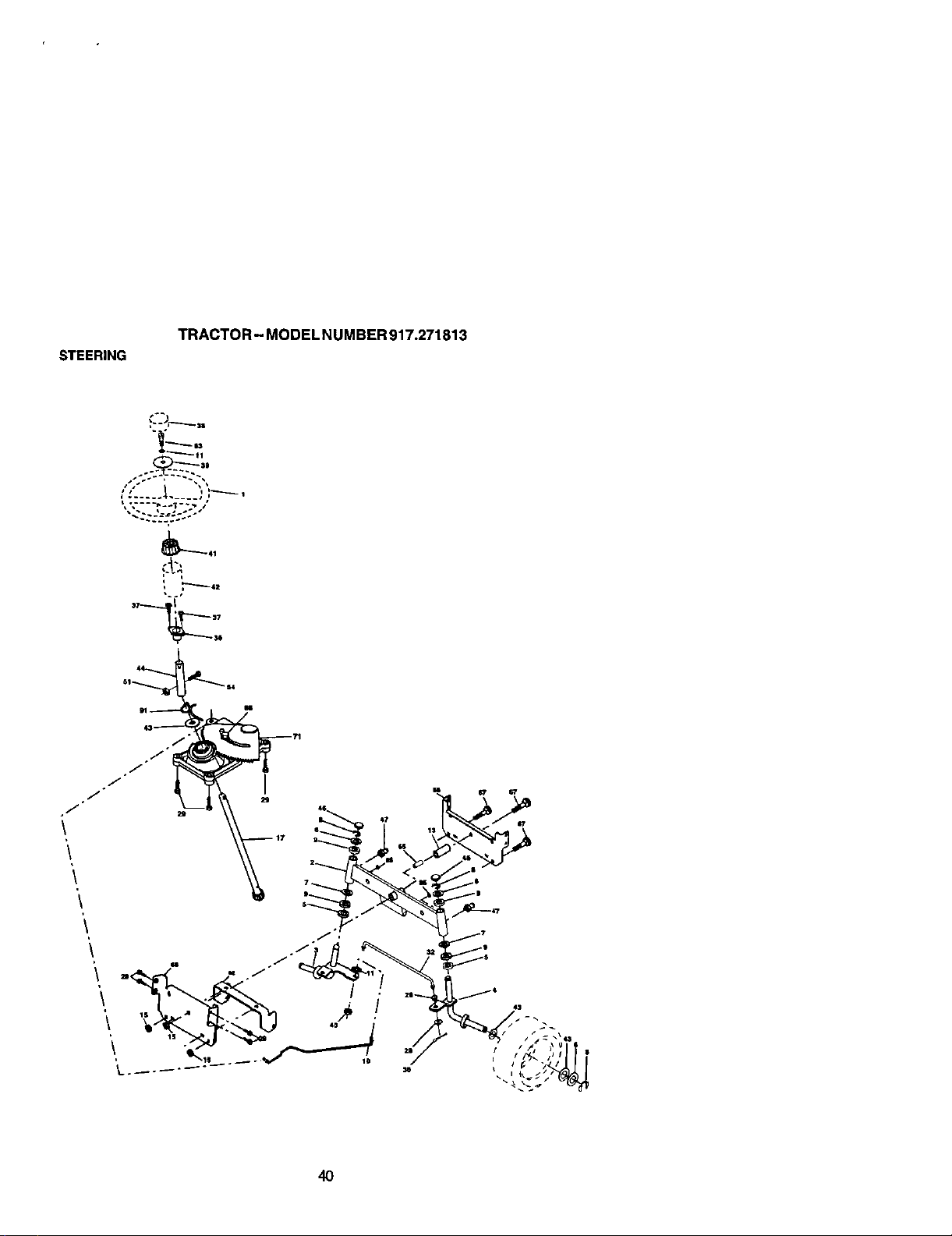

STEERING

TRACTOR - MODEL NUMBER 917.271813

STEERING

TRACTOR-MODELNUMBER917._1813

KEY PART

NO. NO. DESCRIPTION

1 139768 Steering W11eel

2 154427 Axle Assernbly STMP Dropged STL

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Beadng, R=ce, Tit_ust, Ha_dennd

6 121748X Washm 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/3_ x 1-1/4 x 16 Gauge

8 12000(_g Ring, Klip

9 3366R Beadrlg, Stee ringCdlutnn

10 175121 Drag_nk

11 S]13551137 Washer, Lock

13 136518 Spacer, I}e_tring, Axle

15 145212 Nut, Hexllange Lock

17 177876 Shait Assembly, Steering

26 126847X Bushing, Unk, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 1706_612 Screw 3/8-16 x 3/4

30 STD561210 pk_

32 130465 Rod, Tie

36 155099 Bushing, Steedng

37 152927 Screw

38 13_769 Insed, Steering Wheel

3_ 19133812 Washer 13/32 x 2-3/8 x 12 Gauge

40 STD541537 Gdpco NUt

41 100711L Adaptor, Steedng Wheel

42 145054X428 Boot, Steedng Shelt

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44 153720 Extep,slon Shaft Steeling LR.LT

46 121232X Cap, Spindle

47 6855M Fitting, Grease

51 STD541431 NutLockHexwJlns, 5,'16-18UNC

54 74780520 Bdt Fin Hex 5/16-18 UNC x 1-1/4

63 STD523710 Bolt, Fin Hex 3/8-16 UNC x 1Gr 5

66 154404 Beadng Arm Plttman

67 72140618 B_t RDHD SQNK 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steedng Asrn

82 169835 Bracket Susp Chassis Front

85 133835 Fastner Christmas Tree

88 175118 Bolt shoulder 7/16-20

91 175553 Clip Stsedng

NOTE: All component dimensions given In U. S,

inches 1 inch = 25.4

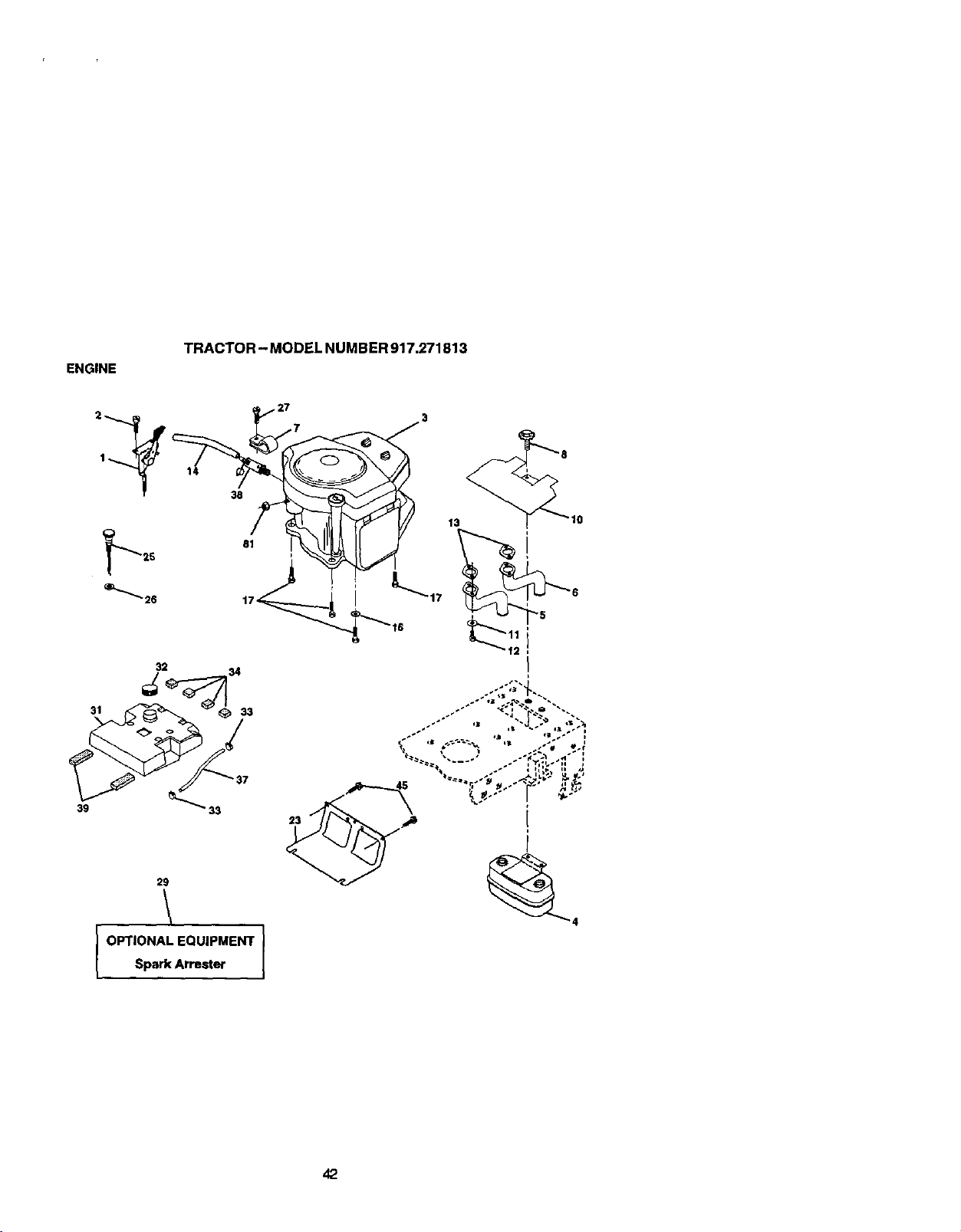

ENGINE

TRACTOR - MODEL NUMBER 917.271813

OPTIONAL EQUIPMENT

Spark Arrester

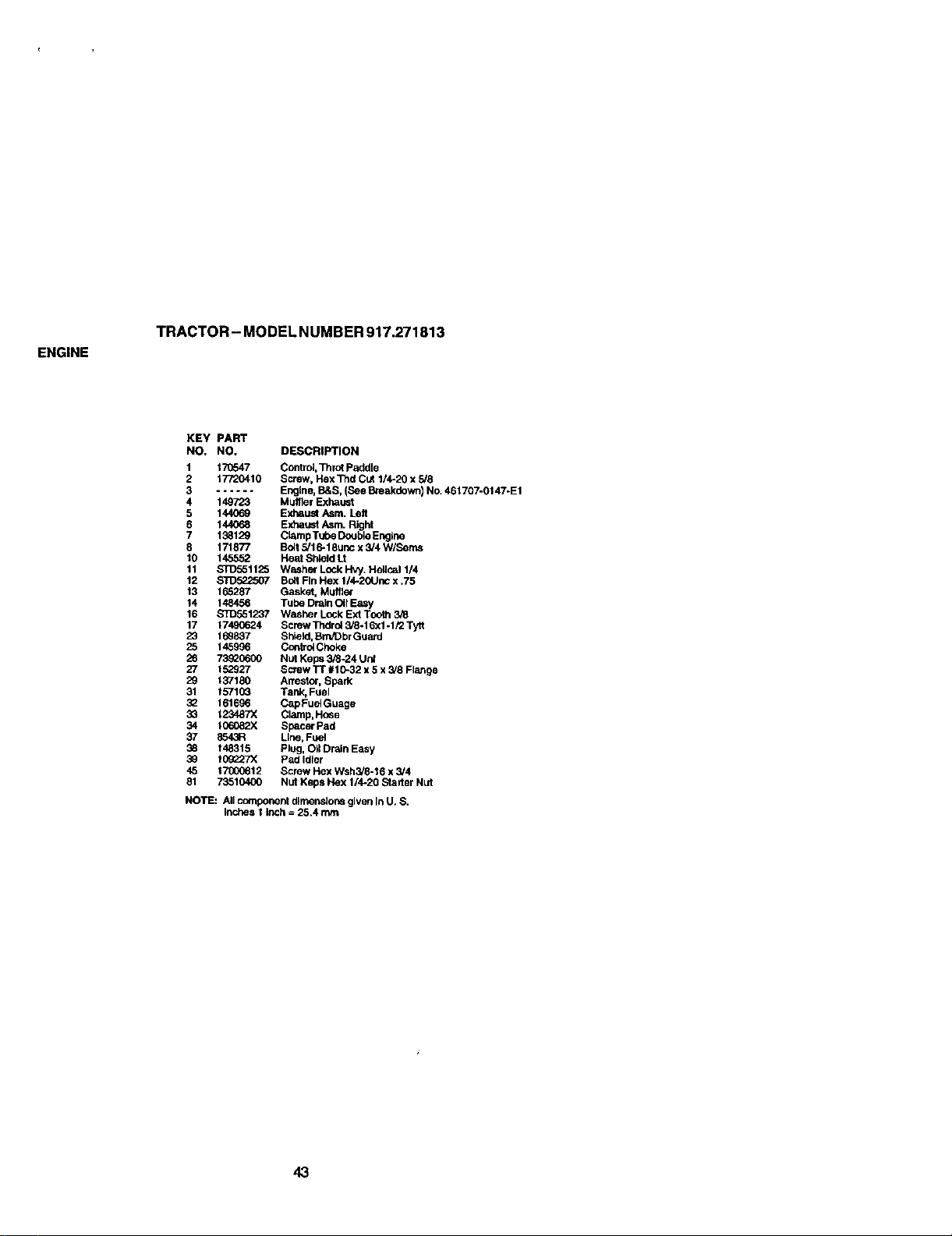

ENGINE

TRACTOR - MODEL NUMBER 917.271813

KEY PART

NO, NO, DESCRIPTION

1 t70547 Control,Thrut Paddle

2 J7720410 Screw, Hex Thd CUt 1/4-20 x 5/8

3 ...... EugEne,B&S, (See B_eakdown) No. 461707-0147-E1

4 149723 Muffler Exhaust

5 144069 Exhaust Asm. Left

6 144_68 Exhaust Asm. Right

7 138129 Clamp Tube Double Engine

8 171877 Bo_t5/16-18unc x 3/4 W/Serns

10 145552 Heet Shkald U

11 S]D551125 Washer Lock Hvy. Hellcet 1/4

12 STD522507 Bolt Fin Hex 1/4-20Unc x .75

13 166287 Gasket, Muffler

14 148456 Tube Drain Oit Eusy

16 $30551237 Washer Lock Ext Toeth 3/8

17 17490624 Screw Thdrd 3/8.16xl .1/2 Tyft

23 169837 Shietd,BnVDbr Guard

25 145996 ControlChoke

26 73_0600 Nut Kepa 3_-24 Un_

27 152927 Scl_w TT #10-32 x 5 x 3/8 Flange

29 137180 Arrestor, Spark

31 t5710_ Tank, Fuel

3_ 161696 Cap Fuel Guage

33 123487X Clamp,Hose

34 106082X Spacer Pad

37 8543R Line, Fuel

38 148315 Plug. Oil Drain Easy

39 t0_27X Pad Idler

45 17000612 Screw Hex Wshs/8-16 x 3/4

81 73510400 NUt t<epsFlex 1/4-20 Stader NUt

NOTE: All component dimensions given In U. S.

Inches 1 inch = 25.4 mm

TRACTOR- MODELNUMBER917.271813

SEATASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 140123 Seat 3350 BIk_l< Craftsman 13 121248X Bushing Snap BIk Nil 50 Id

2 14_551 Bracket Pnt Pivot Seat (blk) 14 72050412 Bolt Rdhd Shl Nk 1/4-20x1-1/2

3 71110616 Bolt Rn Hex 3/8-16unc X 1 15 134300 Spacer Split28 X 96 Ztnc

4 19131610 Washer 13,'32 X 3/4 X 10 Ga 16 121250X Spring Cprsn 1 27 BIk Prd

5 145006 Clip Push In Hinged 17 123976X Nut Lock 1/4 Lge Fig Gr 5 Zinc

6 ST_541437 Net Hex Lock w/Ins 3/8-15 Unc 21 171852 Boit Shoulder 5/19-18 Unc-2A

7 124181X Spring Seat Cprsn 2 250 BIk Zi 22 $1D541431 Nut Hex Lock w/ins 5/16-18

8 17000616 Screw 3/8-16 x 1.5 SMGML 24 19171912 Washer 17/32 X 1-3/16 X 12 Ga.

9 19131614 Washer 13/32 X 1 X 14 Ga 25 127018X Bo_tShoL_der 5/16-18 X 62

10 174894 Pan Pnt Seat (blk)

11 166369 Knob Seat NOTE: All comporlent dimensions given In U. S.

12 121246X Bracket pot Mouoting Switch Inches 1 Lnch= 25.4 rnm

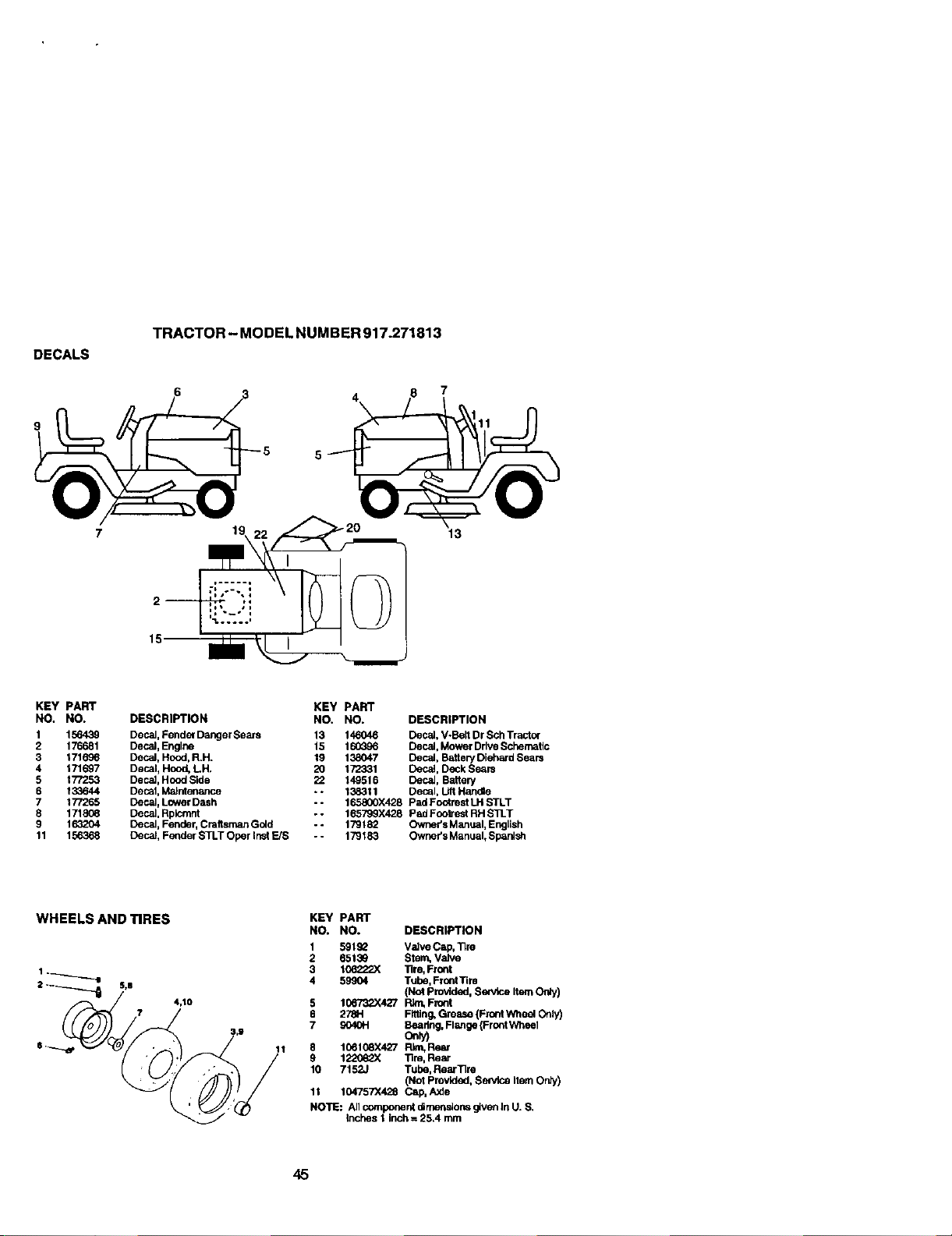

DECALS

TRACTOR- MODEL NUMBER 917.271813

KEY PART

NO. NO.

1 156439

2 176681

3 171696

4 171697

5 177253

6 t 33644

7 177265

8 1718C_

9 1632O4

11 156368

DESCRIPTION

Decal, Fende_ Danger Sears

Decal, Engine

Decal, Hood, R.H.

Decal, Hood, LH.

DecaJ,Hood Side

Decal, MaJntenaJlce

Decal, Lower Dash

Decal, Rpicmnt

Decal, Fender, Craftsman Gold

Dec;d, Fender STLT Oper Inst E/S

KEY PART

NO. NO. DESCRIPTION

13 146046 Decal, V-Belt Dr Sch Tractor

15 1603S6 Decal, Mower DriveSchematic

19 138047 Decal, Battery Diehard Sears

20 172331 Decal, Deck Sears

22 149516 Decal, Battery

-- 138311 Decal, IJftHandle

-- 165800X428 pad Footrest I.H STLT

.. 165799X428 Pad Footrest RH S'I]_T

-- 179182 OwneCs Manual, English

-- 179183 Owner's Manual, Spanlsh

WHEELS AND TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tim

2 65139 Stem, Valve

3 t06222)( Tim, F_ont

4 59904 Tuhe, Fl'ontTim

(Not provided, Sen,ice item Only)

5 106732)(427 R_k Frord

6 278H Fh'tlng,Grease (Front Wheel Only)

7 9040H Bearing, Flange (Front Wheel

On_A

8 106108X427 Rim, Rear

9 122_82X Tim, Rear

10 7152,1 Tuhe, RearTIre

(Not provided, Sendce Item Only)

It 104757X428 Cap, A)de

NOTE: Allcomponent elrnermlons given In U. S.

inches 1 inch = 25.4 mrn

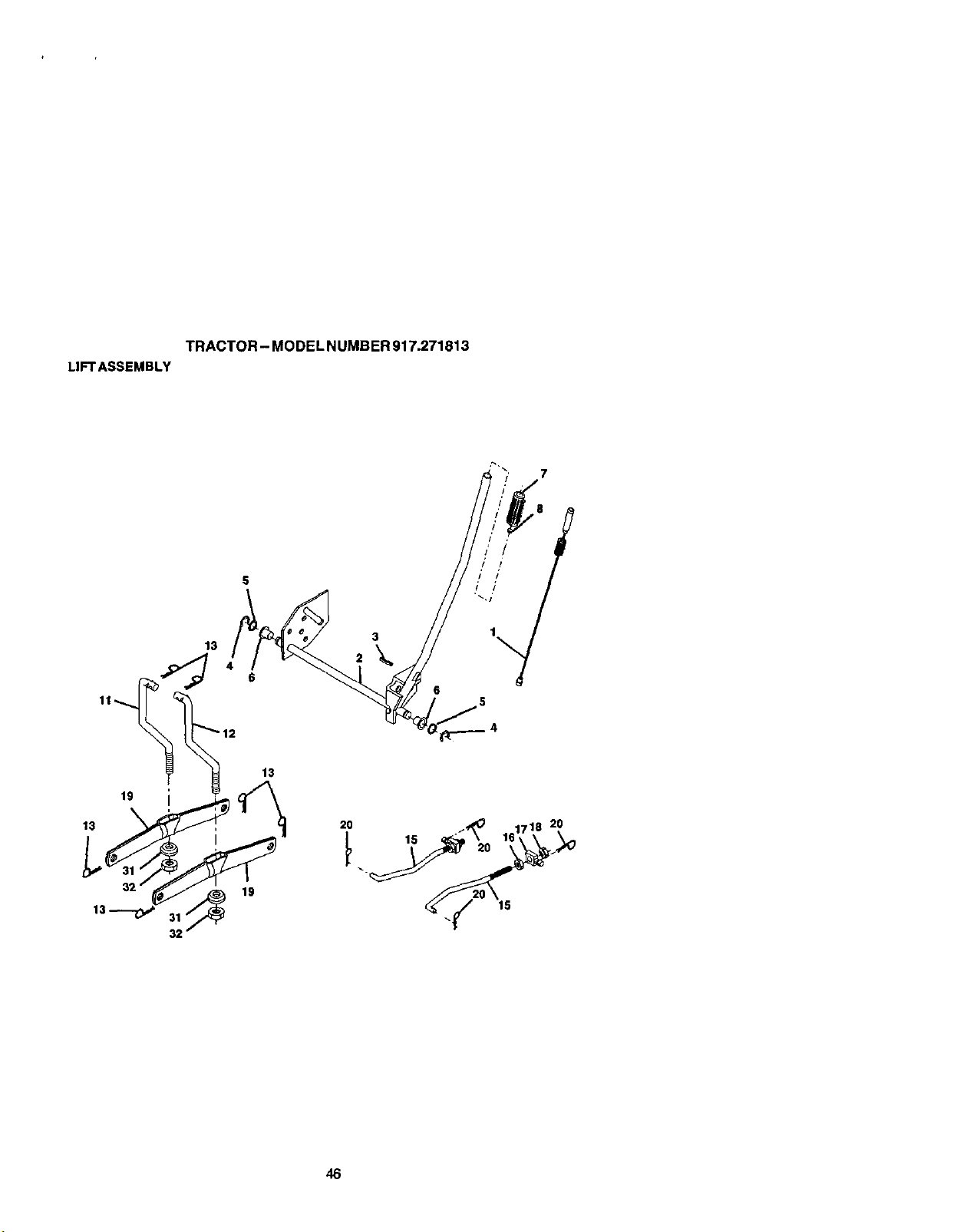

TRACTOR-MODELNUMBER917.271813

LIFTASSEMBLY

11__ 6

19 i 13

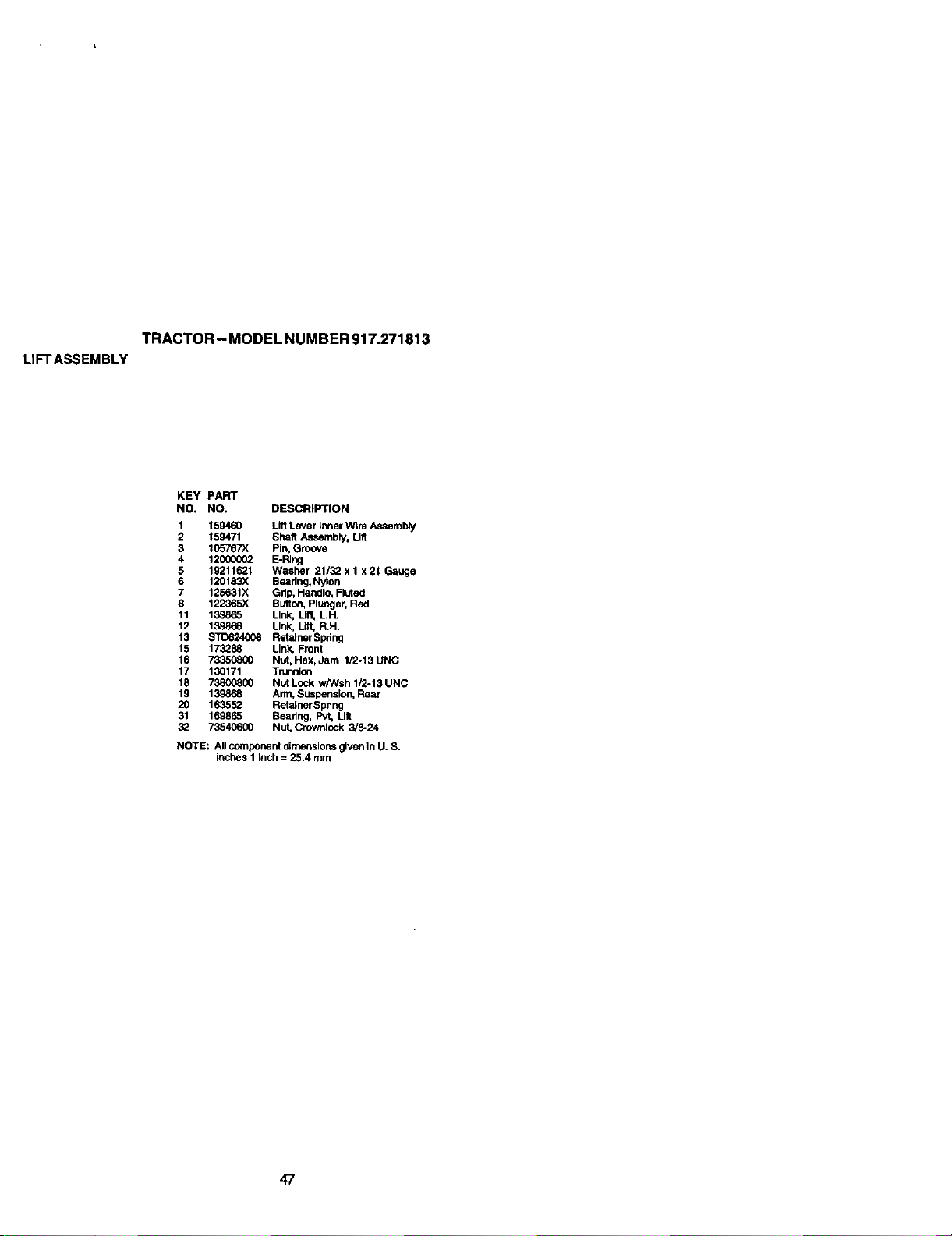

TRACTOR - MODEL NUMBER 917.271813

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift L_er Inner whe Assembly

2 159471 Shag Assembl,/, Ult

3 105767X Pin, Groove

4 12000002 E-RJUg

5 19211621 Washer 21/32 x 1 x21 Gauge

6 120183)( Beadng, Nylon

7 125631X Gdp, Hahele, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, L.H.

12 139866 Link, Litt, R.H.

13 STD624008 Retainer Spdug

15 173288 LIn:<,Front

16 733508G0 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunn4on

18 73800800 Nut Lock w/Wsh 1/2-13 UNC

19 139868 Arm, SL_pens_on, Rear

20 163552 Reta;nerSpdng

31 169865 Bearing, Pvt, UIt

:_ 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given ]n U. S.

inches 1 inch = 25.4 mm

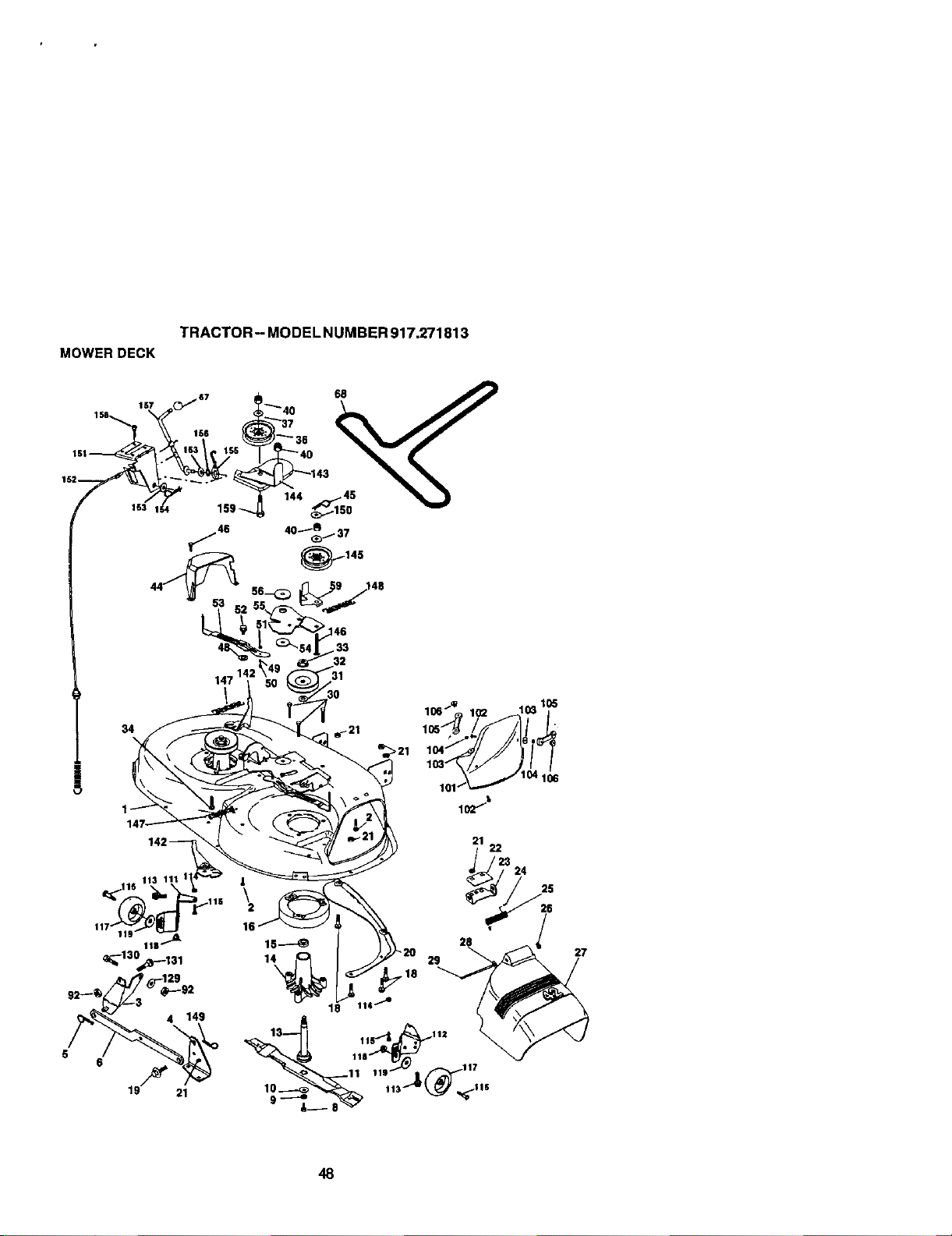

TRACTOR- MODELNUMBER917.271813

MOWERDECK

147 14

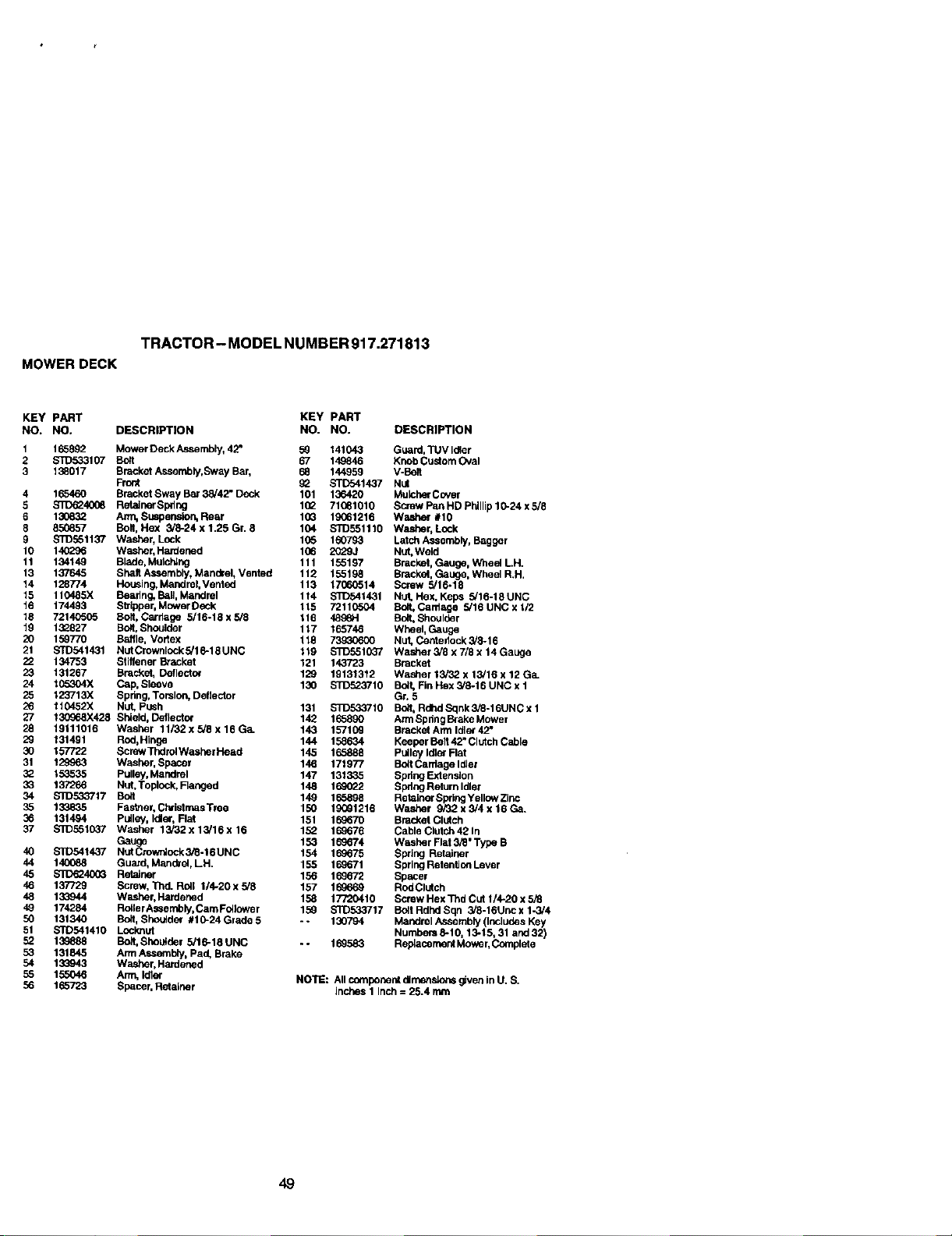

TRACTOR- MODELNUMBER917.271813

MOWERDECK

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Deck Assembly, 42" 59 141043 Guard,TUV Idler

2 STD533107 Bolt 67 149846 Knob Custom Oval

3 138017 Bracket Assembly,Sway Bar, _8 144959 V-Belt

Front 92 STD541437 Nul

4 165460 Bracket Sway Bat 38/42" Deck 101 136420 Mulcher Corm

5 _4006 RetainerSprlng 1(_ 71061010 ScrawPanHDPhlllip10-24xS/8

6 130632 Ann, Suspemdork Rear 103 19061215 Washer #10

8 850657 Boll, Hex 3/8-24x1.25Gr. 8 104 $3"D551110 Washer, Lock

9 STD551137 Washer, Lock 106 160793 Latch Assembly, Bagger

10 14_o96 Washer, Hardened 106 2029J Nut, Weld

11 134149 Blade, Mulching 111 155197 Bracket, Gauge, Wheel LH.

13 137645 Shaff Assembly, Mandrel, Vented 112 155106 Brackel, Gauge, Wheel R.H.

14 128774 Housing, Mandrel, Vented 113 17(_(_14 Screw 5/16-18

15 110485X Bearlng, Ba_l,Mandrel 114 STD541431 Nul,Hex, Keps 5/16-18UNC

16 174493 Sbipper, MowerD_k 115 72110504 I_ Card_je 5/16 UNC x t/2

18 72140505 Bott, Carrlage 5/16-18x5/8 116 489_-I Belt, Shoulder

19 132827 Bolt,Shculder 117 165746 Wheel, Gauge

20 159770 Baffle, Vodex 118 _ Nut, Centehecks/8-16

21 STD541431 NutCrowelocks/16-18UNC 119 $1_551037 Washer3/Sx7/Sx14Gauge

22 134753 Stiffener Bracket 121 143723 Bracket

23 131267 Bracket, Deflector 129 19131312 Washer 13/32 x 13/16 x 12 Ga.

24 106304X Cap, Sleeve 130 STD523710 Bell, Fin Hex 3/8-16 UNC x 1

25 123713X Spring, Torsion, Deflector Gr, 5

26 110452X Nut, Push 131 $1D533710 Belt, Rdhd Sqnk 3/8-16UNC x 1

27 19OOfo8X428 Shield, Dellectm 142 165890 Ann Spdng Brake Mower

28 19111016 Washer 11/32x5/Sx16Ga. 143 157109 BracketArrnldler42"

29 131491 Red, Hinge 144 158634 Keeger Belt 42" Clutch Cable

30 157722 ScrewThdrolWasherHead 145 165888 pulley Idle_ Flat

31 129963 Washer, Spacer 146 171977 Belt Cardage Idler

153535 Pulley, Mandrel 147 131335 Spdng Exlension

3_ 137266 Nut, Toplock, Flar_ed 148 169022 Spdng Return Idler

34 $3D533717 Bed 149 165898 RetainerSpringYellowZinc

35 133835 Fastner, ChdstrnasTree 150 19_1216 Washer 9/32 x 3/4 x 16 Ga.

36 131494 Pdlley, Idler, Flat 151 169670 Bracket Clutch

37 S]D551037 Washer 13i'32x15/16x16 152 169676 Cable Clutch 421n

Gauge 153 le_674 Washer Flat 3/8" Type B

40 $1D541437 NutCmwnlock3i8-t6UNC 154 169675 Spring Retainer

44 14_068 Guard, Mandrel, LH. 155 169671 SpringRetention Lever

45 S]1_2400G Retelner 156 169672 Spacer

46 137729 Screw, Thd. Roll t/4-20 x 5/8 157 16_669 RodClutch

48 133944 Washer, Hardened 158 17720410 Screw Hex Thd Cut 1/4-20 x 5/_

49 174284 RellerAssernbly, CamFellower 159 s'rD533717 BoffRdndSqn 3/8-16Uncx1-3/4

50 131340 Belt, ShoLddel'#10*24 Grade 5 - - 130794 Mandrel Assembly (Includes Key

51 S'rD541410 Locknut Numbers 8-10, 13-15, 31 and 32)

52 139888 Boff, Sheu_der 5/16-18 UNC -- 169583 ReplacerrmrdMov_ r,Complele

53 131845 Arm A,_embly, Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idle_ NOTE: All comgenenl dlrnettsLonsgiven in U. S.

56 165723 Spacer, Retainer inches 1 Inch = 25.4 mm

TRACTOR- MODELNUMBER917.271813

PEERLESSTRANSAXLE-MODELNUMBER206-545C

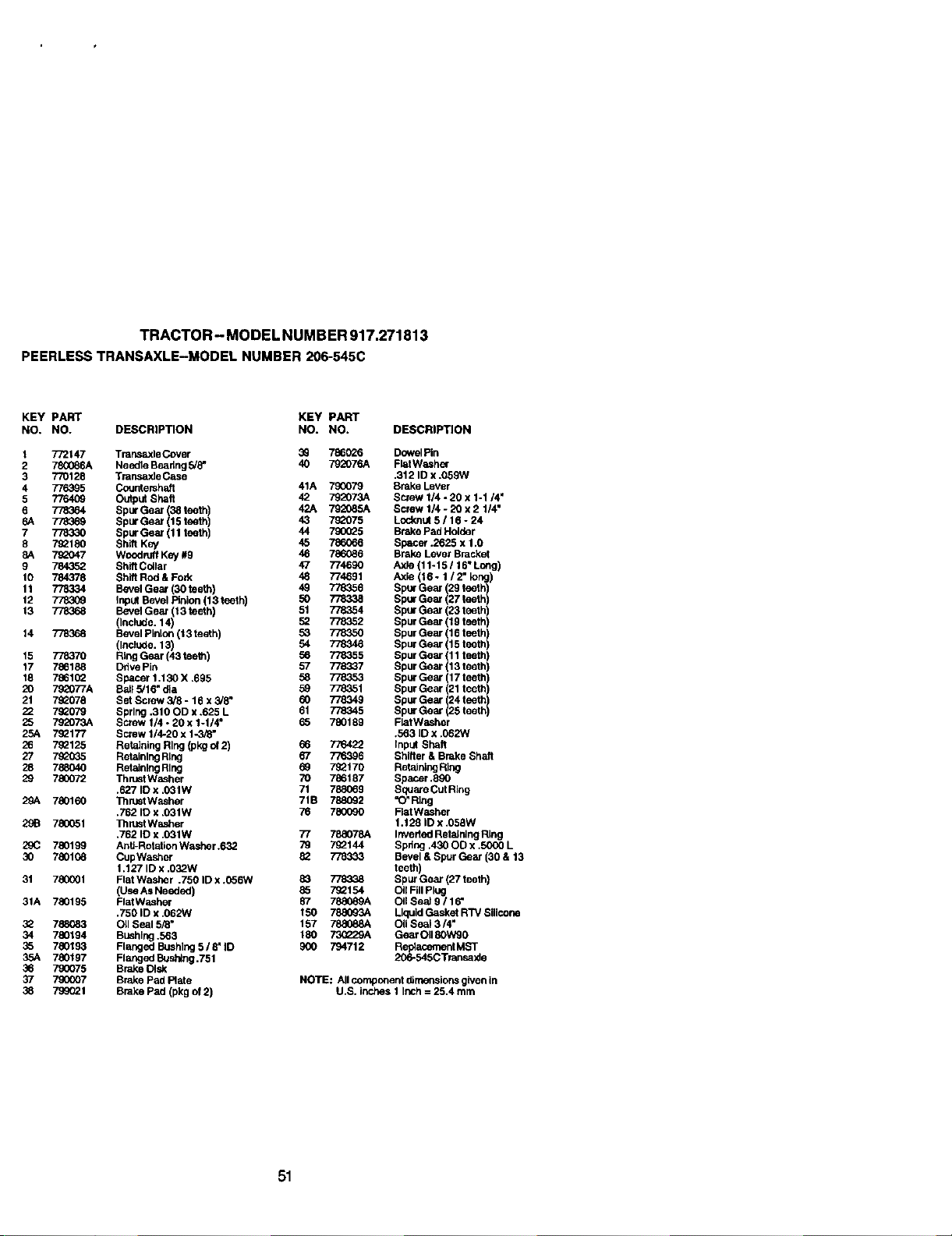

TRACTOR- MODELNUMBER917.271813

PEERLESSTRANSAXLE-MODELNUMBER206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 Tmns_xle Covar 58 7860_6 Dowel Pin

2 780586A Needle Beadng 5/6" 40 792076A Flat Washer

3 770128 TransaxJe Case ,312 ID x .059W

4 776395 Countershaft 41A 790079 Brake Lever

5 77640G Output Shaft 42 792073A Screw 1/4 - 20 x 1-1/4"

6 778364 Spur Gear (38 teeth) 42A 792Q85A Screw 1/4 - 20 x 2 1/4"

6A 778389 Spur Gear (15 teeth) 43 7o_075 Locknut 5 / 16 - 24

7 778330 Spur Gear (11 teeth) 44 7gOO25 Brake Pad Holder

8 79_180 Shift Key 45 766066 Spacer .2625 x 1.0

8A 7_047 Woodruff Key #9 46 786086 Brake Lever Bracket

9 784352 Shlft Cdilar 47 774690 Ax_ (11-15116" Long)

10 784378 Shift Red & Fork 48 774691 Axk3(16 - 1/ 2" _ong)

11 778334 Bevet Gear (30 teeth) 49 778356 Spur Gear (29 teeth)

12 778309 Input Bevel Pinion (13 teeth) 50 778358 Spur Gear (27 teeth)

13 778368 Bevel Gear (13 tenth) 51 778354 Spur Gear (23 teeth)

(Include. 14) 52 778352 Spur Gear (19 teeth}

14 778368 Bevel Pinion (t3 teeth) 53 778350 Spur Gear (16 teeth)

(Include, 13) 54 778,346 Spur Gear (15 teeth)

15 778370 Ring Gear (43 teeth) 56 778355 Spur Geaz (11 teeth)

17 786188 Ddve Pin 57 778337 Spur Gear (13 teeth)

18 78610'2 Spacer 1,130 X ,695 58 778353 Spur Gear (17 teeth)

20 7o_077A _ 5/16" dla 58 778351 Spur Gear (21 teeth)

21 70_078 Set Screw 3/8 - 16 x 3/8" 60 778349 Spur Gear (24 teeth)

22 79_079 Spring .310 OD x .625 L 61 778345 Spur Gear (25 teeth)

25 792073A Screw 1/4 - 20 x 1-1/4" 65 780189 FlatWasher

25A 792177 Screw 1/4-20 x 1-3/8" .563 ID x .062W

26 79_125 Retaining Ring (pkg of2) 66 776422 Input Shaft

27 7_o_35 Rntainlng Ring 67 776396 Shifter & Brake Shaft

28 788040 Retaining Ring 58 7o_170 RetaJdingRing

29 78(;072 Thrunt Washer 70 786187 Spacer .890

.627 IDx .031W 71 788069 Square Cut Ring

29A 758160 *l'nrdntWasher 71B 788092 "O"Ring

.762 ID x .031W 76 780090 FlatWashar

2*36 780051 ThrustWasher 1.128 ID x .058W

.762 ID x .031W 77 788078A InVerted RntaJnlngRing

29C 780199 AntJ-RofntlonWashar .632 79 792144 Spdng .430 OD x .5000 L

58 7581(_8 Cup Washer 82 778333 Bevel & Spur Gear (30 & 13

1.127 ID x ,032W teeth)

31 780(01 Flat Washer .750 ID x .056W 83 778338 Spur Gear (27 teeth)

(Uee As Needed) 85 758154 OilFill Plug

31A 780195 FlntWasher 87 788_89A OII Seal 9 / 16"

.750 ID x .062W 150 7858_3A LlqutdGasket RTV Silicone

32 788083 Oil Seal 5/8" 157 788588A OII Seal 3/4"

34 780194 Bushing .563 180 _ Gear OII 80W90

58 780193 Ranged Bushing 518" ID 900 794712 ReplacemeofMST

35A 780197 Flanged Bushlng ,751 206-545CTransaxle

58 790075 Brake Disk

37 790007 Brake Pad Piete NOTE: All component dimensions given in

58 799_Zl Brake Pad (pkg of 2) U.S. inches 1 Inch = 25,4 mm

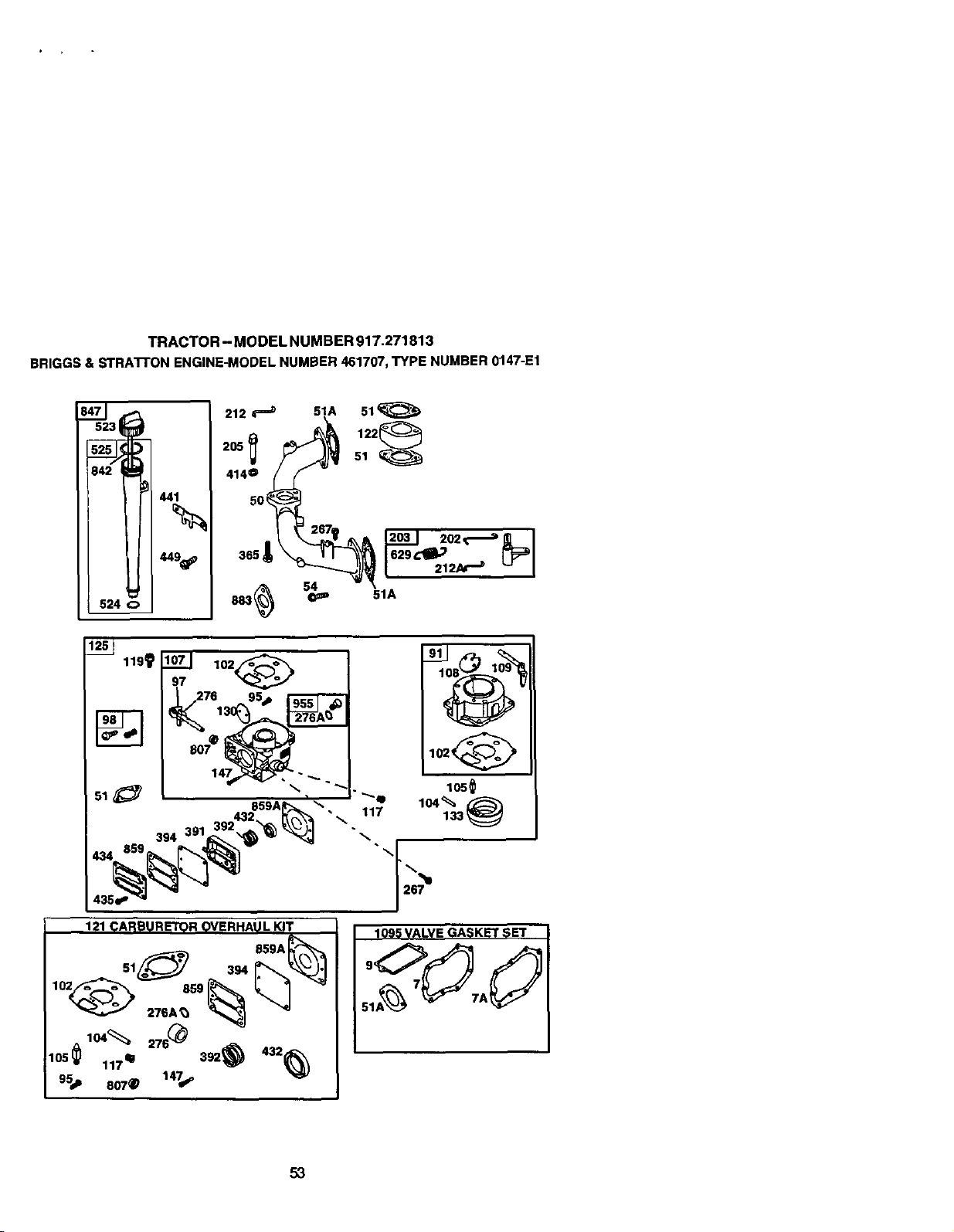

TRACTOR- MODEL NUMBER 917,271813

BRIGGS& STRATrON ENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

22A

TRACTOR- MODELNUMBER917.271813

BRIGGS&STRATrONENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

441

212

4140

365 _

51A 51

_1 mg+ 212_'-_ I

5_,_ 51A

119_

394 391

121 CARBURETOR QVERHAQL K_T

276A_ _

105_ 117 Q

.s_, 8o7_ 14_,

102_

11"/ 3

267

!095 VALVE GASKET SET

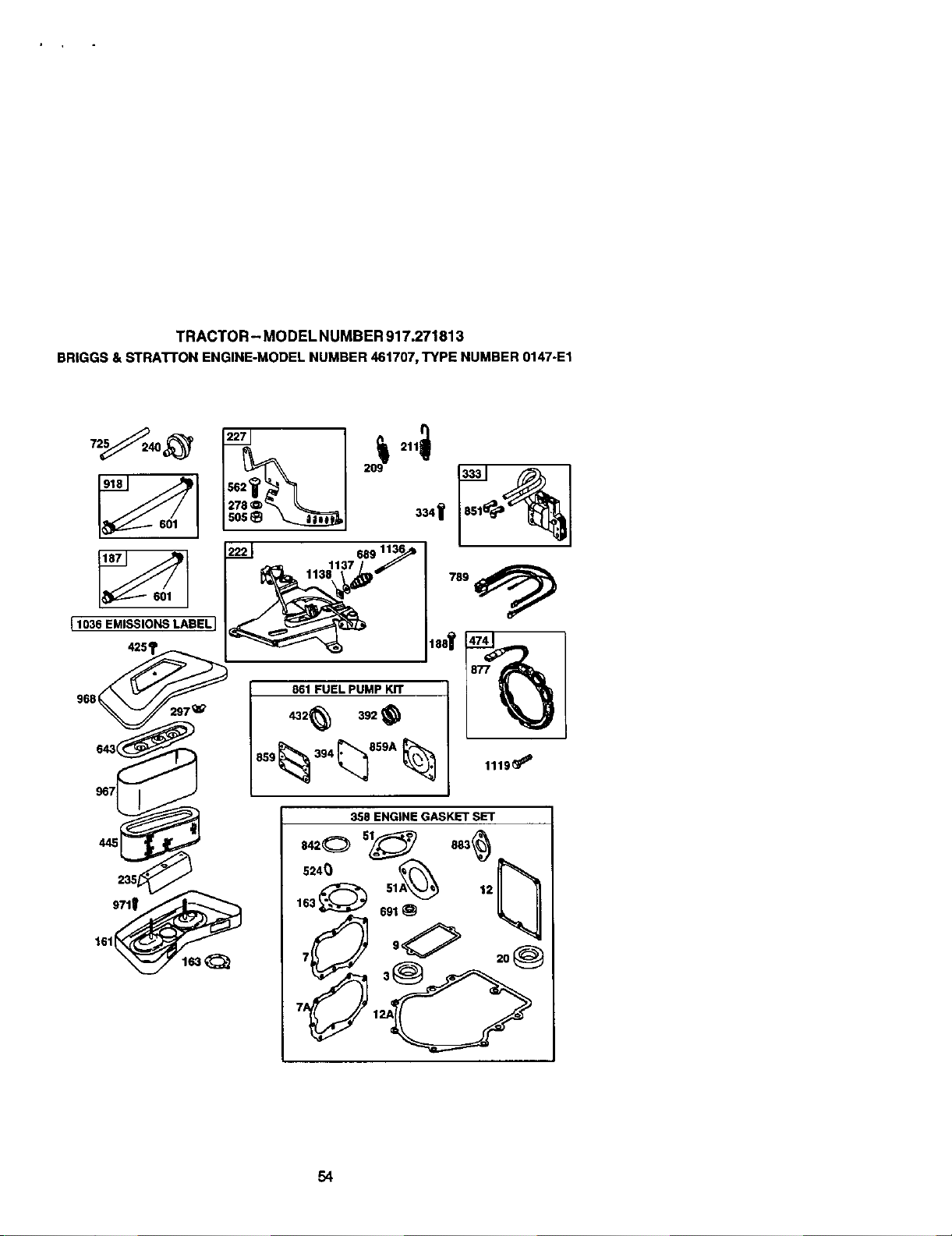

TRACTOR-MODELNUMBER917,271813

BRIGGS&STRA'I'FONENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

I 1036 EMISSIONS LABEL I

425

222_ 689 1136_

968_

861 FUEL PUMP KiT

,34

1119_I_

161

9711

358 ENGINE GASKET SET

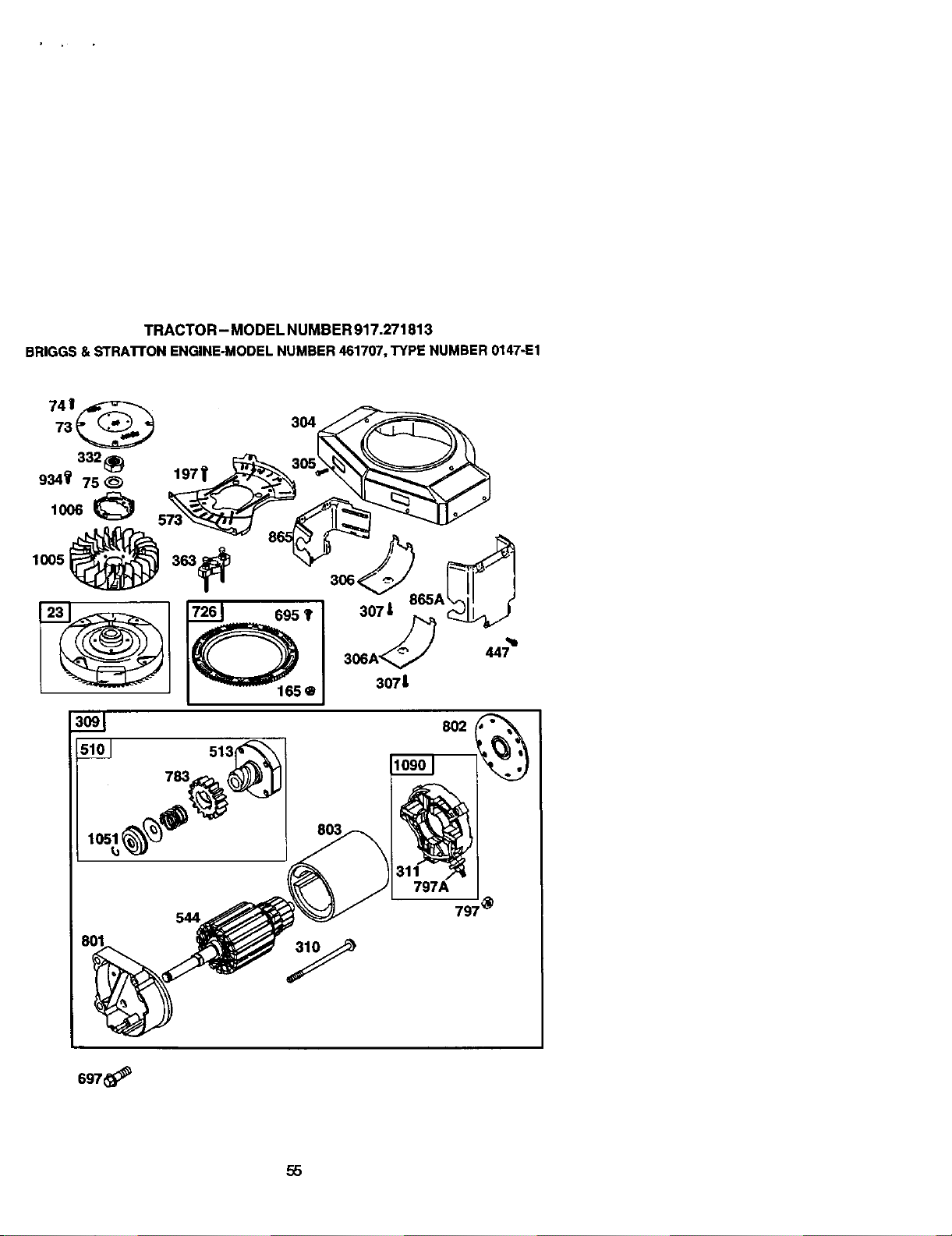

TRACTOR - MODEL NUMBER 917.271813

BRIGGS& STRA'I'FONENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

783

306A 447

e 3071

8O2

797A

544

797

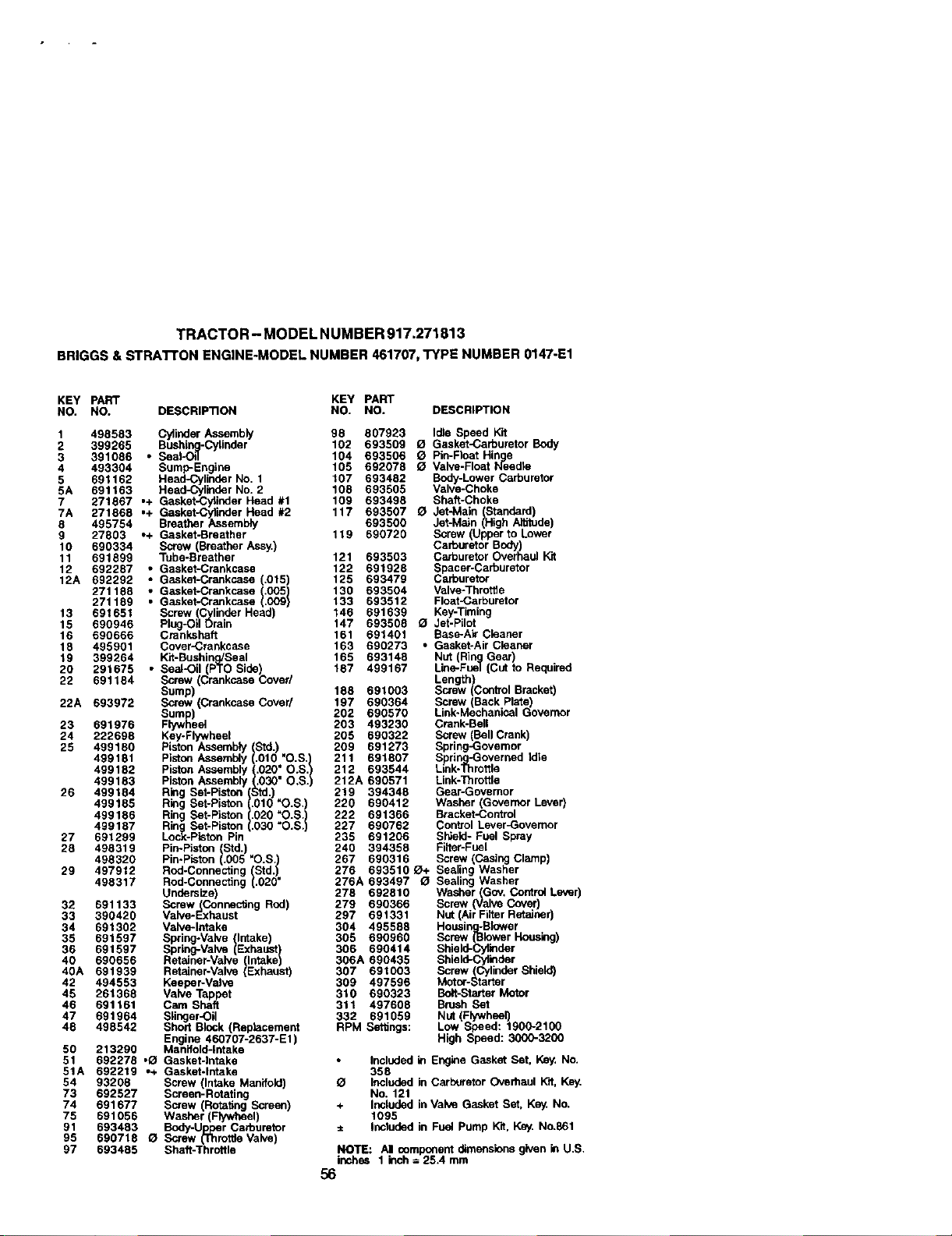

TRACTO R- MODE LNUMBER917.271813

BRIGGS&STRATrON ENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 498583 Cylinder Assembly 98 807923 Idle Speed Kit

2 399265 Bushing-CyUnder 102 693509 O Gasket-Carburetor Body

3 391086 • Seal-O{I 104 693506 _ Pin-Float Hinng_e

105 692078 _ Vaive-FIoat Needle

4 493304 Bump-Engine

5 691162 Head-Cylinder No. 1 107 693482 Body-Lower Carburetor

5A 691163 Head-Cylinder No. 2 108 693505 Vaive-Choke

7 271867 ,+ Gasket-Cyitnder Head #1 109 693498 Shaft-Choke

7A 271868 ,+ Gasket-Cylinder Head #2 117 693507 O Jet-Main (.Standard)

8 495754 Breather Assembly 693500 Jet-Main IHigh Altitude)

9 27803 o+ Gasket-Breather 119 690720 Screw (Upper to Lower

10 690334 Screw (Breather Assy.) Carburetor Body)

11 691899 Tube-Breather 121 693503 Carburetor Overhaul Kit

12 692287 • Gasket-Crankcase 122 691928 Spacer-Carburetor

12A 692292 ° Gasket-Crankcase (.015) 125 693479 Carburetor

271188 _ Gasket-Crankcase .0051 130 693504 Valve-Throne

271189 Gasket-Crankcase .009 133 693512 Float-Carburetor

13 691651 Screw (Cylinder Head) 146 691639 Key-Timing

15 690946 Plug-Oil Drain 147 693508 Q Jet-Pilot

16 690666 Crankshaft 161 691401 Base-Ak" Cleaner

18 495901 Cover-Crankcase 163 690273 , Gasket-Air Cleaner

19 399264 Kit-Bushin_VBeal 165 693148 Nut Ring Gear)

20 291675 • Seal-Oil PTo Side 187 499167 Line-Fuel (Cut to Requred

22 691164 Screw Crankcase Cover/ Lengtl)

Bump) 188 691003 Screw {Control Bracket)

22A 693972 Screw {Crankcase Cover/ 197 690364 Screw (Back Plate)

Bump) 202 690570 Link*Mechaalcal Governor

23 691976 Flywheel 203 493230 Crank-Ball

24 222696 Key-Flywheel 205 690322 Screw Ball Crank)

25 499180 Piston Assembly (Std.) 209 691273 Spring-Governor

499181 Piston Assembly (.010 "O.S.) 211 691807 Spring-Governed Idle

499182 Piston Assembly {.020" O.S.) 212 693544 Link-Throttle

499183 Piston Assembly (.030" O.S.) 212A 690571 Link-Throttle

26 499184 Ring Set-Piston (Std.) 219 394348 Gear-Governor

499165 Ring Set-Piston (.010 =O.S.) 220 690412 Washer (Governor Lever)

499186 Ring Bat-Pleton (.020 =O.S.) 222 691366 Bracket-Control

499187 Ring Set-Piston (.030 "O.S.) 227 690762 Control Lever_iovemor

27 691299 Lock-Piston Pin 235 691206 Shield- Fuel Spray

28 498319 Pin-Piston (Std. 240 394358 Filtar-Fuel

498320 Pin-Piston (.605 _O.S.) 267 690316 Screw (Casing Clamp)

29 497912 Rod-Connesting (Std.) 276 693510 O+ Sealing Washer

496317 Rod-Connectiug (.020" 276A 693497 _ Sealing Washer

Undersize) 278 692810 Washer (Gov. Control Lever)

32 691133 Screw(Connecting Rod) 279 690366 Screw (Valve Cover)

33 390420 Valve-Exhaust 297 691331 Nut (Air Filter Retainer)

34 691302 Valve-Intake 304 495588 Houelng-ui-BIower

35 691597 Spring-Valve (Intake) 305 690966 Screw (Blower Housing)

36 691597 Spring-Valve (Exhaust) 306 690414 Shield-Cygnder

40 690656 Retainer-Valve (Intake) 306A 690435 Shield-Cylleder

4OA 691939 Retainer-Valve {Exhaust) 307 691003 Screw (Cylinder Shield)

42 494553 Keeper-Valve 309 497596 Motor-Starter

45 261368 Valve Tap)det 310 690323 Bolt-Starter Motor

46 691161 Cam Shaft 311 497608 Brush Set

47 691964 Stiuger-OU 332 691059 Nut {Flywheel)

48 498542 Short Block (Replacement RPM Seffings: Low Speed: 1900-2100

Engine 460707-2637-E1 High Speed: 3000-3200

50 213290 Manifo d- ntake

51 692278 o_l Gasket-Intake Included in Engine Gasket Set. Key. No.

51A 692219 ,+ Gasket-Intake 358

54 93208 Screw {Intake Manifold) _ Included in Carburetor Overhaul lot. Key.

73 692527 Screen-Rotating No. 121

74 691677 Screw (Rotating Screen) + Included in Valve Gasket Set. Key. No.

75 691056 Washer(Flywheel) 1095

91 693483 Body-Upper Carburetor ± Included in Fuel Pump K'_. Key. No.861

95 690718 O Screw ('rhmttle Valve)

97 693485 Shaft-Throttle NOTE: AI component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR-MODELNUMBER917.271813

BRIGGS&STRAT]'ONENGINE-MODELNUMBER461707,TYPENUMBER0147-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

333 394891 Armature-Magneto 797 690968 Nut (BrushRetainer}

334 691061 Screw (Armature) 797A 693167 Nut (BrushRetaine

337 802592 Sparkplug 601 691967 Cap-Ddve

358 495868 Gasket Set 602 691286 Cap-End

359 691077 Washer-GroundTe;m_nal 803 691427 _ous_ng-Starter

363 691062 Flywheel Puler 807 693511 _ Spacer-Thret6e

365 690321 Screw (Carburetor) 842 271170 • C-Ring Seal (DipstickTube)

373 691612 Nut (GroundTerminal) 847 495715 Dipstick/TubeAssembly

365 59638 Wrench-Spark Plu9 651 493860 Termk_at-Sp_.rkpiug

391 693487 Body-Fuel Pump 659 693488 121:_Gasket- Carbu_et(xPump

392 693491 6± Spring-PumpClaphragm 859A 693490 IZI± Gasket- CarburetorPump

394 693489 O± D_aphragm-Carburetor 861 693502 Kit-Fuel Pump

395 690481 Cover-Valve Chamber 865 691196 Cover-AirGu4de

404 690442 Washer (GovernorCrank) 865A 691197 Cover-AirGuide

414 691872 Washer (Bell Crank) 668 497656 Seal-Valve

425 691675 Screw (Ak CleanerCover) 868A 273312 Seal-Valve

432 693492 _l± Cap-Spring 669 691802 Seet-Valve (intake)

434 693493 Cover Diaphragm 670 691844 Seat-Valve (Exhauet)

435 6{)3494 Screw Diaphragm Cover) 871 231218 Bushing-Valve Exhaust)

441 691176 Bracket-O F 871 231218 Bushing-Valve (Intake)

Wire/Connector-Alternator445 394019 Filter-AirCleaner Carbidge 877 393456

447 690297 SC_,_ (Air Guide Cover) 553 692282 • Gasket-Exhaust

449 691044 Screw(Oil FillBracket) 916 393815 Hose-Vacuum (Cutto

474 691063 Alternator Required Length)

505 691029 NUt (Governorcontrol Lever) 934 691058 Screw Fan Retainer)

507 691972 Insulator 955 693513 Plu_-Carburetor

510 497606 Ddve-Starter 967 272490 Filter-Pre Cleaner

513 692024 Clutch-Ddve 968 691207 Cover-Air Cleaner

520 691084 Terminal-Ground 971 691100 Screw (Air Cleaner Base)

523 691385 Dipstick 1005 498157 Fan-Flywheel

524 692532 , SeaI-DipstickTube 1006 691247 Retainer-Fan

525 690823 Tube-Dipstick 1019 496726 I@-Label

544 692034 Annature-Starter 1036 695702 Label-Emissions

551 690415 Cover-Valve 1051 691265 Ring-Retalning

552 690553 Bushing-GovernorCrank 1056 274279 Owner's _anual

552A 690552 Bushing-GovernorCrank 1090 691293 Retainer-Brush

562 69031 t Bolt (Governor Lever) 1095 498047 Gasket Set-Valve

573 696040 Plate-Back 1119 691183 Sorew (Alternator)

601 95162 ClampHose 1132 690353 Sc_'ew(O] S_k_3ef)

615 690317 Retainer-GovemorShait 1136 690329 Screw (CorCffolBracket)

616 491530 Crank-Governor 1137 690390 Washer (ControlBracket

629 262539 Spring-Throttle Return 1t 38 690330 Nut (ConVolBracket)

635 66538 Boot-Sparkplug RPM Settings: Low Speed: 1900-2100

643 496700 Retainer-AirFilter High Speed: 3000-3200

689 690555 Spdn_l-rFdctien

691 690657 • Seal-_iovemor Shaft Includedin Engine Gasket Set, Key.No

695 693149 Screw (RingGear) 358

697 691625 Screw (DriveCap) (_ Irmludedin Carbureto_OverhaulKit, Key.

725 280866 Shield Heat No. 121

726 391362 Gear-Ring + Includedin Valve Gasket Set, Key. No

741 691285 Gear-Timm

g 1095

742 690325 RetaineT-E_

ing ± intruded _nFUel Pump _, Key.N0861

783 693059 Gear-Pinion

789 695050 Harness-Wiring NO'RE: All componentdimensio_s givenin U.S

inches 1 inch = 254 mm

NOTES

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

._% Operate your Tractor up and down the face of slopes (not J

greater than 15 ), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes. I

cautl_nging direction on slopes.

Forrepairofmajorbrandapprancesinyourown home...

nomatterwhomadeit,nomatterwhosold

1-800..4-MY-HOME _ Anyl_ne,dayorr_J_

(1-800-_9-48S3) (U.SA_d Conada)

www.sear_com wwwJ_o,._.c_

Forrepairofcany-inproductslikevacuums,lawnequipment,and

electronics,callforthenearestSears Partsand RepairCenter.

1-800.488-1222 h-_me,dayo_r_ (U.S.Acx_ly)

Forthereplacementparts,accessoriesandowner'smanuais

thatyouneedtodo-it-yourself,callSearsParLsDirecP'!

1-800-366-PART 6a.m.- 11p.m.,7daysaweek

(l-_e-36e727a) (u.s._ore)

w_w_rect

To purchaseorinquireabouta SearsServiceAgreement

or SeamMaintenanceAgreement:

1-800-827-6655 (u,sA) 1-800-361-6665 (Canada)

7a.rn.-5 p.n%CST, Mo_ - Sat 9aJn.- 8p.m.EST, M- F,4p.rrLSat.

parapedr s_v_ciodempamc_ a

dome,o,yp_audenarp_:as:

1.4B_B-SU-h_DGAR_

(1-8_-TS4-S427)

AuCanadapoursauceenfrar,_s:

1-8_04.E-FOYER_c

"_Nw.se_P&ca

® Registered Trademark I TMTrademark I suService Mark of Sears, Roebuck and Co.

® Mama Reglsb'ada / _MMama de F_bdca / s_ Mama de Sei_cio de Seats, Roebuck and Co.

_c Marque de commerce I MoMarque d_posde de Sears, Roebuck and Co.

179182 3,30.01 JH Printed in U.S.A.

Craftsman 917271813 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271813 Questions and Answers
