DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEIND603
DEIND604
DEIND804
INDUCTION BUILT-IN COOKTOPS
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd
2
Dear Customer,
Thank you for having purchased and given your preferen-
ce to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They will
also provide a means by which to make full use of the fea-
tures offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking fo-
odstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or illo-
gical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following codes
and specications:
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.
Important:
This appliance is designed and manufactured solely for the coo-
king of domestic (household) food and is not suitable for any non
domestic application and therefore should not be used in a com-
mercial environment.
The appliance guarantee will be void if the appliance is used within
a non domestic environment i.e. a semi commercial, commercial
or communal environment.
3
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a se-
ries of fundamental rules. In particular:
■ Never touch the appliance with wet hands or feet.
■ Do not operate the appliance barefooted.
■ The appliance is not intended for use by young children or inrm
persons without supervision.
■ Young children should be supervised to ensure they do not play
with the appliance.
The manufacturer cannot be held responsible for any damages cau-
sed by improper, incorrect or illogical use of the appliance.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not
damaged.
In case of doubt, do not use it and consult your supplier or a profes-
sionally qualied technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
■ Read the instructions carefully before installing and using the ap-
pliance.
■ The appliance should be installed and all the electrical connections
made by a qualied engineer in compliance with local regulations in
force and following the manufacturer’s instructions.
■ Do not attempt to modify the technical characteristics of the ap-
pliance as this may become dangerous to use.
■ Do not carry out cleaning or maintenance operations on the ap-
pliance without having previously disconnected it from the elec-
tric power supply.
■ After use, ensure that the controls are switched off.
■ Keep children away from the appliance when it is in use.
4
■ WARNING: Accessible parts will become hot when in use. To
avoid burns and scalds, young children should be kept away.
■ Young children should be supervised to ensure that they do not
play with the appliance.
■ Children, or persons with a disability which limits their ability to
use the appliance, should have a responsible person to instruct
them in its use. The instructor should be satised that they can
use the appliance without danger to themselves or their surroun-
dings.
■ During and after use of the appliance, certain parts will become
hot. Do not touch hot parts.
■ Make sure that electrical cables connecting other appliances in the
proximity of the cooktop cannot come into contact with the hob.
■ Do not allow heavy or sharp objects to drop on the glass cera-
mic hob. If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the electrical power cord and call Custo-
mer Service.
■ Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
■ WARNING:
When correctly installed, your product meets all safety
requirements laid down for this type of product category. However
special care should be taken around the underneath of the applian-
ce as this area is not designed or intended to be touched and may
contain sharp or rough edges, that may cause injury.
■ Fire risk! Do not store ammable material on the hob top.
■ The manufacturer declines all liability for injury to persons or dama-
ge to property caused by incorrect or improper use of the appliance.
■ IMPORTANT NOTE: This appliance shall not be used as a spa-
ce heater, especially if installed in marine craft or caravans.
■ Do not operate your appliance by means of an external timer
or separate remote-control system.
■ This appliance is for domestic use only.
■ If the supply cord (not supplied with the appliance) is dama-
ged, it must be replaced by the manufacturer or its service
agent or a similarly qualied person in order to avoid a hazard.
5
OTHER IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
■ Do not place or leave empty pans on the glass ceramic hob.
■ Metallic objects such as knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
■ Do not use metallic kitchen utensils (e.g. ladles). It is preferable
to use plastic or wood kitchen utensils.
■ Please use pans of recommended size (see minimum pan dia-
meter recommended). It is not advisable to use pans smaller
than the cooking zone. The pans have to be placed in the centre
of the cooking zone.
■ Do not use defective pans or pans with a curved bottom.
■ Please use suitable pans marked for induction cooking.
■ Please keep your distance from the electromagnetic elds by
standing 5-10 cm from the cooking zones. When possible use
the rear cooking zones.
■ Magnetic objects (e.g. credit cards, oppy disks, memory cards)
and electronic instruments (e.g. computers, MP3 players) should
not be placed near the appliance, as they may be affected by its
electromagnetic eld.
■ The heating of magnetic tins is forbidden! Close tins may ex-
plode by exceeding pressure while heating. There is a burning
risk with open tins as well, because the integrated temperature
protection can’t work well.
■ HEALTH HAZARD! This appliance complies with electroma-
gnetic safety standards. However, persons with cardiac pa-
cemakers or other electrical implants (such as insulin pum-
ps) must consult with their doctor or implant manufacturer
before using this appliance to make sure that their implants
will not be affected by the electromagnetic eld.
Failure to follow this advice may result in death.
6
INSTALLATION
CAUTION:
■ This appliance must be installed in accordance with these installation instructions.
■ This appliance shall only be serviced by authorised personnel.
■ This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■ Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■ Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.
FITTING REQUIREMENTS
This cooktop can be built into a working surface 30 to 40 mm thick and 600 mm deep.
In order to install the ceramic hob into the kitchen xture, a hole with the dimensions shown
in gure 1 has to be made, keeping in consideration the following:
■ The cooktop shall not be installed directly above a dishwasher, fridge, freezer, washing
machine or clothes dryer, as the humidity may damage the cooktop electronics.
■ If the cooktop is installed above an oven, the oven shall be provided with cooling fan.
The two appliances should be connected to the electrical supply with independent
connections.
■ IMPORTANT WARNING! This cooktop requires adequate supply of fresh, cool
air to fully function. The base of the cooktop must have direct unrestricted ven-
tilation to the room where the cooktop is installed. Follow the requirements of
gure 3 or 4.
■ There must be a distance of at least 650 mm between the hob and any wall cupboard
or extractor hood positioned immediately above (see g. 2).
■ We would point out that the adhesive which bonds the plastic laminate to the fur-
niture must withstand temperatures not less than 150° C to avoid delamination.
■ The walls of the units must be capable of resisting temperatures of 75 °C above
room temperature.
■ Do not seal the cooktop into the benchtop with silicone or glue; this makes futu-
re servicing difcult. Delonghi will not cover the costs of removing the cooktop,
or of damage caused by this removal.
■ The walls surrounding the cooktop must be made of heat-resistant material.
■ Do not install the appliance near inammable materials (eg. curtains).
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the un-
derneath of the appliance as this area is not designed or intended to be touched and
may contain sharp or rough edges, that may cause injury.
7

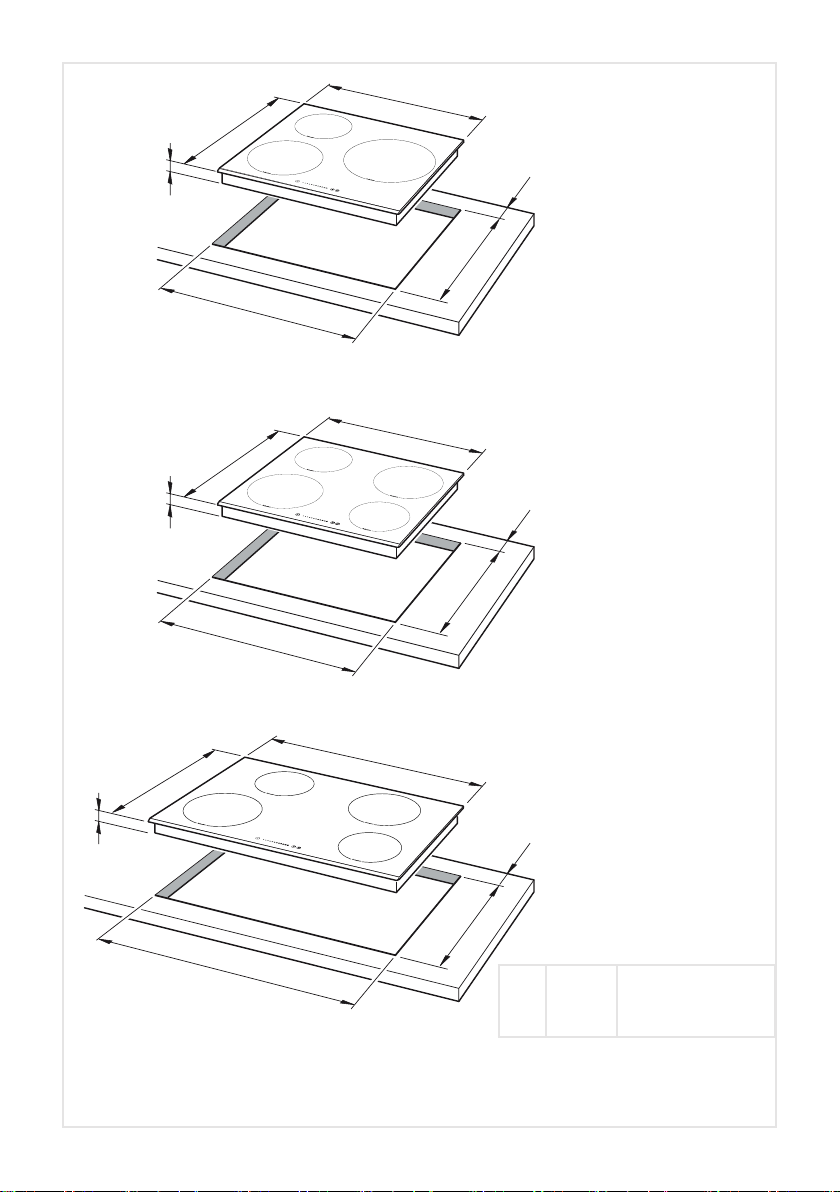

490
740
770
510
A
490
50
(1)
50
(1)
50
(1)
560
580
510
A
490
560
580
510
A
A 58 mm
from the top of
countertop to
bottom of cooktop
(1) at least 50 mm between the
back side of the cut-out and
the back of the countertop.
Mod. DEIND804
Mod. DEIND604
Mod. DEIND603
Figure 1
8
min 5 mm
min 30 mm
min 25 mm
min 5 mm
min 30 mm
min 25 mm

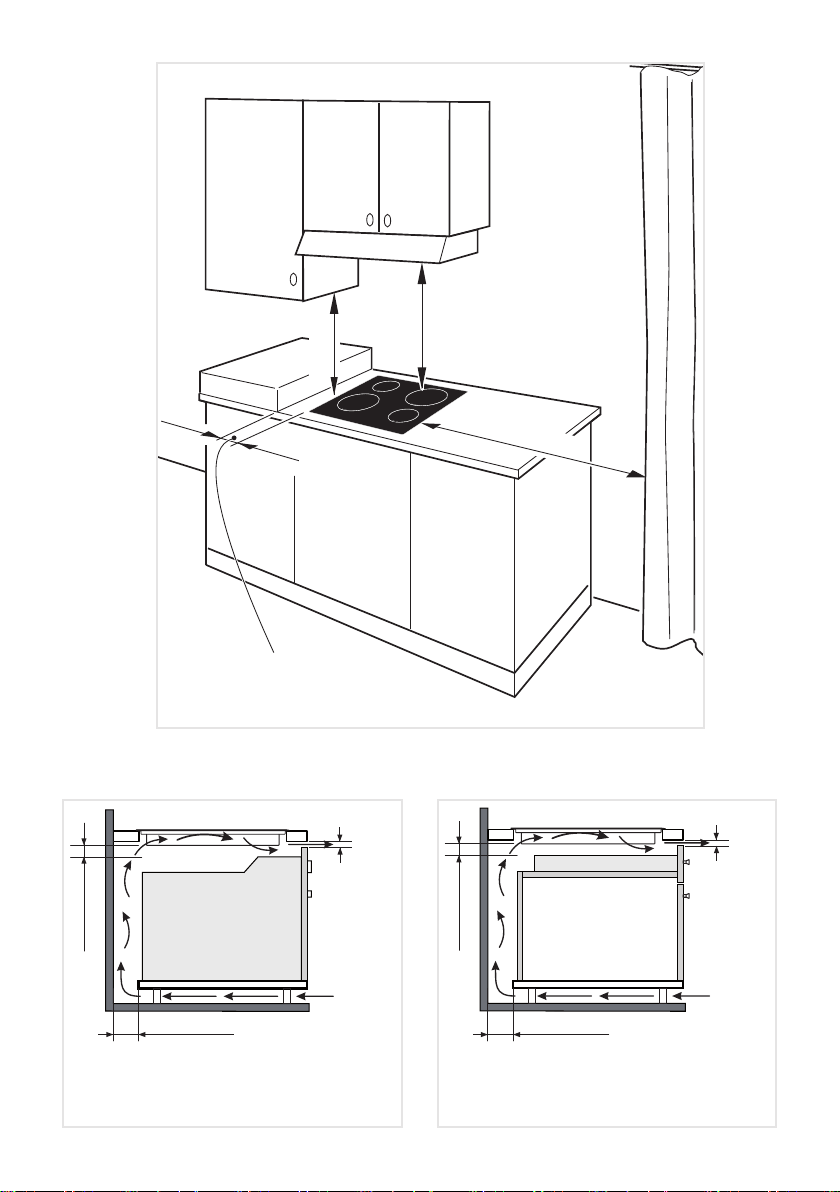

Minimum clearances and
ventilation requirements
(oven installed below)
Minimum clearances and
ventilation requirements
(cupboard or drawer space below)
Oven with
cooling fan
650 mm
500 mm
450 mm
65 mm minimum
between the side of the
cut-out and the side wall
Figure 2
Figure 3 Figure 4
9

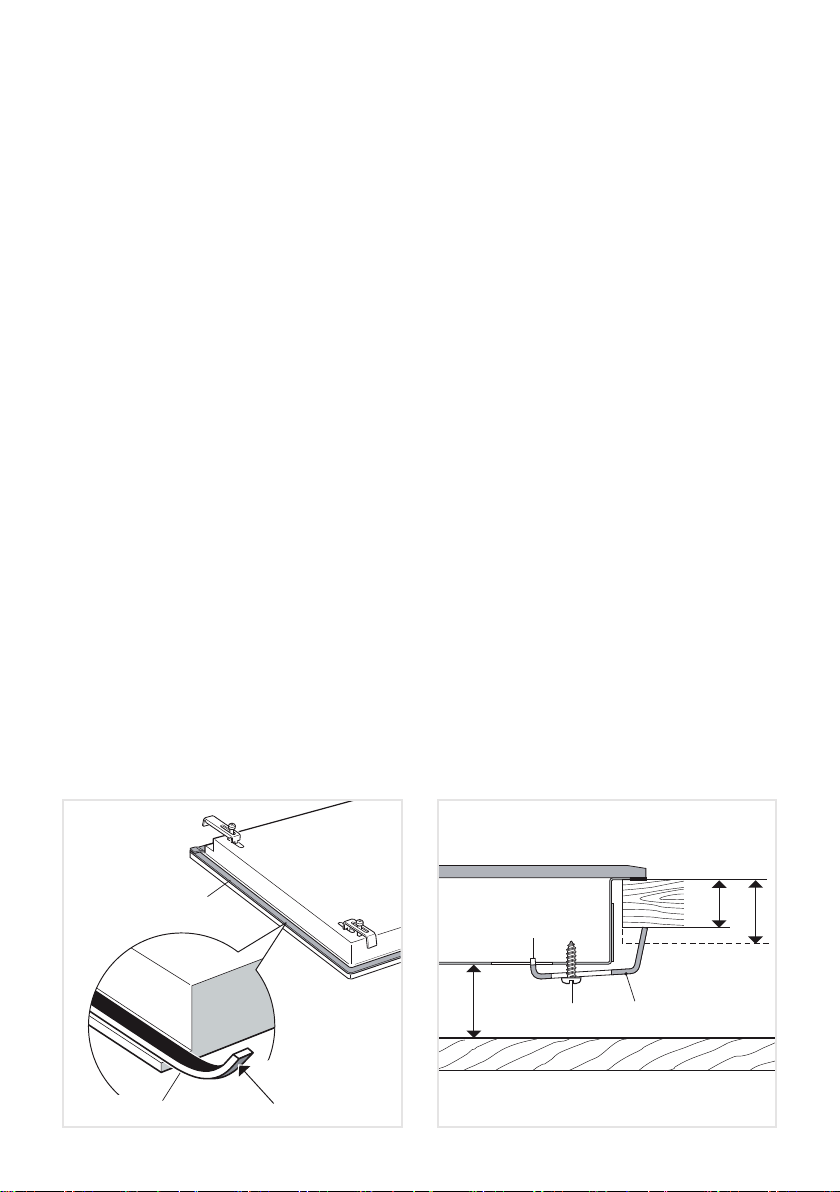

FASTENING THE COOKTOP
Each cooktop is provided with an installation kit including brackets and screws for fastening
the cooktop to benches from 30 to 40 mm thick.
The kit includes four “F” brackets and four self-threading screws “S” (g. 6).
■ Cut the unit according to the dimensions in g. 1.
■ Turn the hob upside down and rest the glass side on a soft surface.
■ Spread the seal “G” around the edge of the hob (g. 5).
■ Fasten the brackets “F” to the appropriate socket holes, without tightening the screws
“S” for the moment. Make sure that the tabs are mounted correctly, as shown. Rotate
the tabs so that the cooktop can be put into the cutout.
■ Put the cooktop into the cutout and position it correctly.
■ Put the brackets “F” into place; tooth “A” of the brackets should go into the hole (g. 6).
■ Tighten screws “S” until the cooktop is completely secured to the bench.
■ Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge
of the cooktop. Take care not to damage the workbench.
3 cm
min
A
3 cm
4 cm
F
S
Adhesive side
G
G
Figure 5 Figure 6
25 mm
10
ELECTRICAL REQUIREMENTS
■ The appliance must be connected to the mains checking that the voltage correspon-
ds to the value given in the rating plate and that the electrical cable sections can
withstand the load specied on the plate.
■ A suitable isolating switch providing full disconnection from the mains power supply
shall be incorporated in the permanent wiring, mounted and positioned to comply with
the local wiring rules and regulations. The isolating switch must be of an approved
type and provide a 3 mm air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the requirements).
■ The isolating switch shall be easily accessible to the customer with the cooktop installed.
■ The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 75°C above ambient.
■ To connect the appliance to the mains electricity supply, do not use adapters, reducers
or branching devices as they can cause overheating and burning.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied elec-
trician. He should also check that the domestic electrical system is suitable for the power
drawn by the appliance.
Replacing the power cord (not supplied with the appliance) must be done by a qua-
lied electrician in accordance with the instructions supplied by the manufacturer
and in compliance with established electrical regulations.
CONNECTION OF THE POWER SUPPLY CABLE
Important! This cooktop must be connected to the electricity supply only by an au-
thorised person.

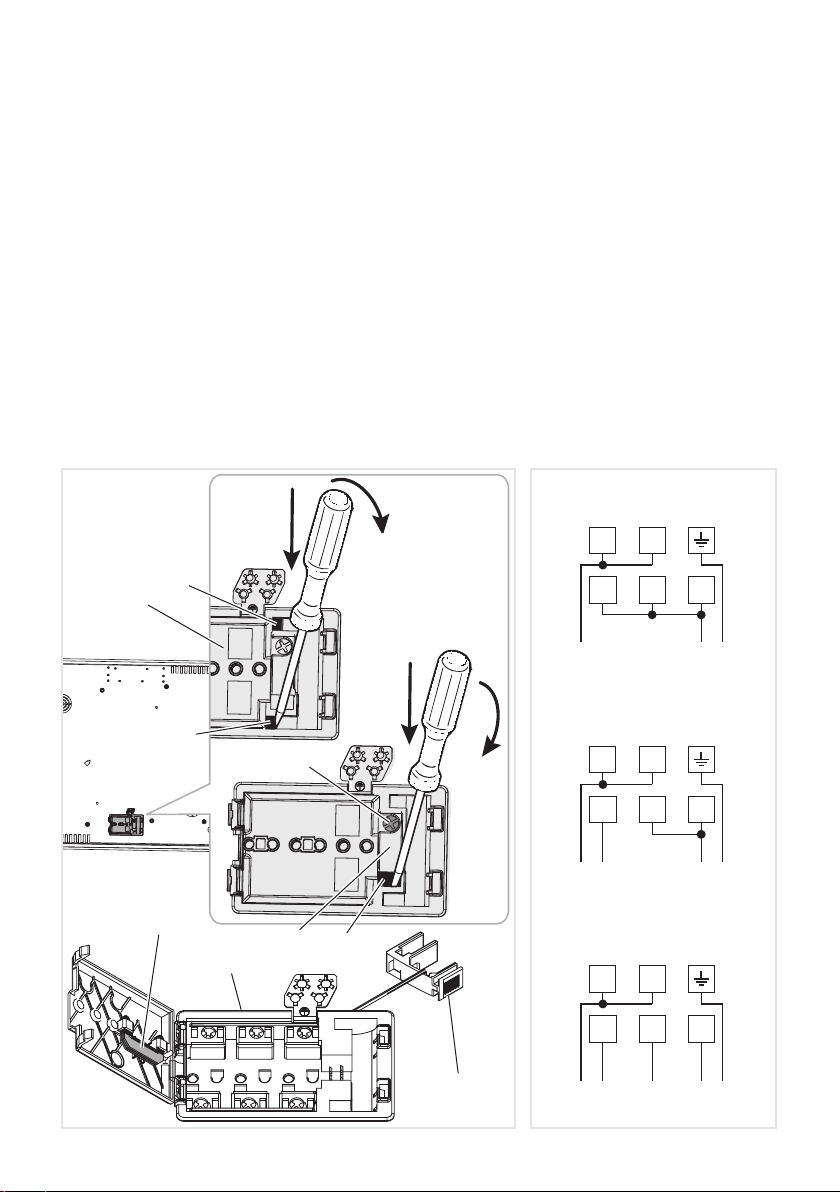

To connect the feeder cable to the hob it is necessary to carry out the following operations:
■ Unhook the terminal board cover “A” by inserting a screwdriver into the two hooks “B”
(g. 7). Open completely the terminal block cover “A”.
■ Unscrew the screw “C”, then unhook the cable clamp “D” by inserting a screwdriver
into the hook “E”. Remove completely the cable clamp “D” (g. 7).
■ Connect the phase, neutral and earth wires to terminal board “F” according to the
diagrams in g. 8; the U bolts “G” (g. 7) shall be used as indicated in the diagrams
in g. 8 (they are supplied already tted to the terminals or inside the terminal board,
behind the cover).
■ Strain the feeder cable and block it with cable clamp “D” (by hooking hook “E” and
screwing screw “C”).
■ Close the cover “A” of the terminal board “F” (check the two hooks “B” are correctly hooked).
VOLTAGE AND POWER CONSUMPTION
Mod. DEIND603
220-240/380-415 V 3N~ 50/60 Hz 6700 W 29.13 A (diversity not applied)
Mod. DEIND604 - DEIND804
220-240/380-415 V 3N~ 50/60 Hz 7400 W 32.17 A (diversity not applied)
11
FEEDER CABLE SECTION
This hob must be connected to electrical supply using V105 insulated cable.
220-240 V ac 3 x 4 mm
2
(*) (**)
380-415 V 2N ac 4 x 2.5 mm
2
(*) (**)
380-415 V 3N ac 5 x 2.5 mm
2
(*) (**)
(*) Connection with wall box connection
(**) Notes for models DEIND604, DEIND804 only:
– Diversity factor applied
– A diversity factor may be applied to the total loading of the appliance only by a
suitably qualied person
If the supply cord (not supplied with the appliance) is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualied person in order to
avoid a hazard.
Figure 7 Figure 8
1
2
1
2
220 - 240 V~
L
1
N (L
2
) PE
4
2
5
1
3
380 - 415 V 2N~
L
1
N PE
4
2
5
1
3
L
2
380 - 415 V 3N~
L
3
N PE
4
2
5
1
3
L
1
L
2
A
B
B
E
F
G
C
D
D
12
UI
MS
LB LB
ID160
ID200
ID160
ID200
ID160
ID200
ID250
UI
IPS
MS
LB LBIPS
TB TB

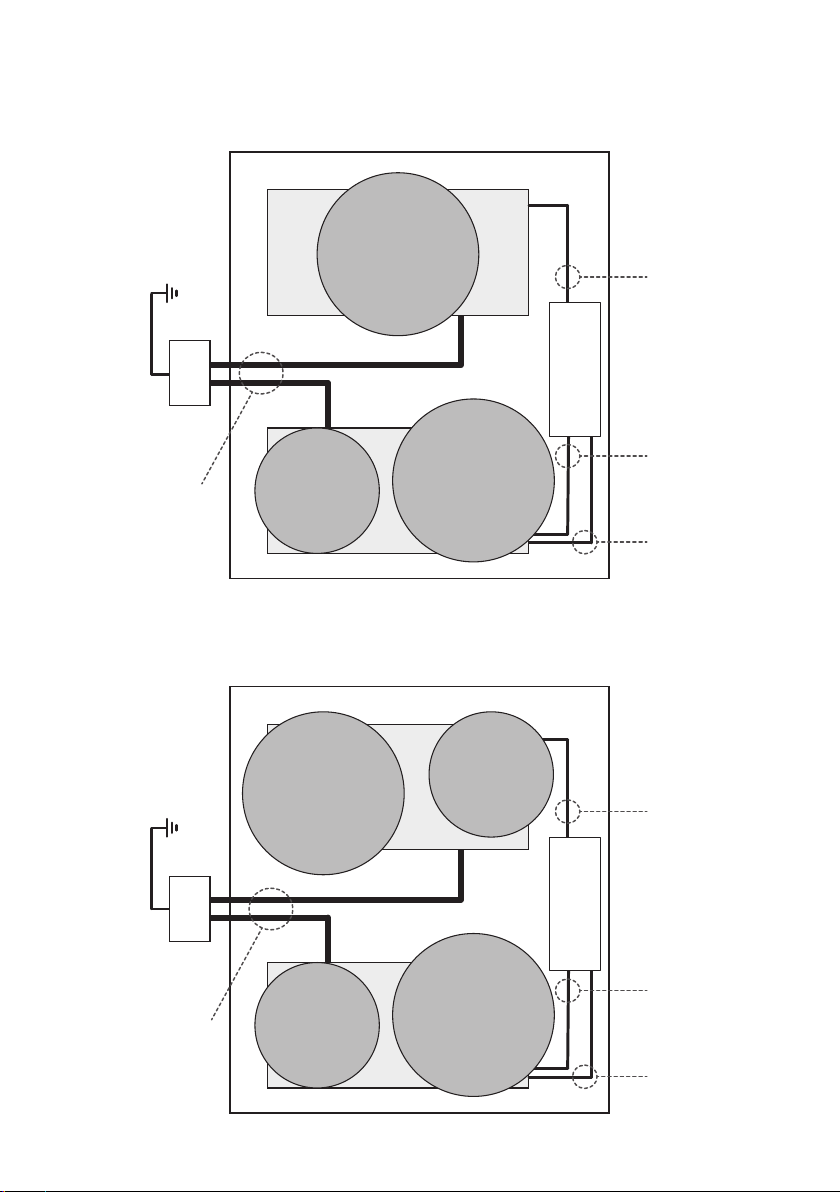

ELECTRIC DIAGRAMS
Figure 9
Figure 10
Models DEIND604, DEIND804
Model DEIND603
13
ELECTRIC DIAGRAM KEY
ID160 Induction zone, Ø 160 mm
ID200 Induction zone, Ø 200 mm
ID250 Induction zone, Ø 250 mm
UI User interface
LB Lin-Bus
IPS Interface power supply
MS Main supply (L, N)
TB Terminal block
14
USE AND CARE
1. Induction cooking zone Ø 160 mm Normal Power: 1200 W
Booster Power: 1400 W
2. Induction cooking zone Ø 160 mm Normal Power: 1400 W
3. Induction cooking zone Ø 200 mm Normal Power: 2300 W
Booster Power: 3000 W
4. Induction cooking zone Ø 250 mm Normal Power: 2300 W
Booster Power: 3000 W
5. Touch controls
Note: The Nominal and Booster Power may change depending on the size and material of
the pan set on the cooking zone.
FEATURES AND TECHNICAL DATA
2
2
3
3
5
1
3
4
5
2
2
3
3
5
Mod. DEIND603 Mod. DEIND604
Mod. DEIND804
Figure 11 Figure 12
Figure 13
15
1 3 42
7
8
5
6
9
10
TOUCH CONTROLS
1. ON/OFF key
2. Setting selector
3. Booster function key (some zones only) and Child Lock selection key (to be set in
combination with other keys, see chapter CHILD LOCK SAFETY)
4. Pause function key
5. Front right cooking zone display (for models DEIND604, DEIND804 only)
6. Rear right cooking zone display (or Central right zone display for model DEIND603 only)
7. Front left cooking zone display
8. Rear left cooking zone display
9. Automatic cooking timer key/display
10. Led indicating the programmed zone
Notes:
■ Each selection (by touching one of the keys) is indicated by an acoustic signal (beep).
■ The touch control area is switched off automatically (and a warning beep sounds for
10 seconds):
– if one or more keys are touched for more than 10 seconds;
– if an object is positioned on the touch control area;
– in the case of spillage of liquids on the control keys.
Attention: Detach the appliance from the mains if the ceramic glass is cracked and
contact the After-Sales Service. Metallic objects such as knives, forks, spoons and
lids should not be placed on the hob surface since they can get hot.
Figure 14
16
= Cooking zone Off (not activated)
= Cooking zone On (activated but not operating).
If all the zones are in zero setting, the touch control system switches off
automatically (touch controls Off) after about 10 seconds.
÷
= Power levels
= “Booster” function (available for some zones only)
= Remaining heat indicator
= Pan detection indicator
= Child Lock safety
= Automatic cooking timer
Note: Each lit gure (excluding the “Automatic cooking timer” display) refers to the rele-
vant cooking zone.
Figure 15
The ceramic hob is tted with induction cooking zones.
These zones, shown by painted disks on the ceramic
surface, are controlled by a touch control system.
In the front central area of the hob, the displays of the
touch control system
indicate:
INDUCTION COOKING SYSTEM
When your induction hob is switched On and a cooking zone has been selected, the elec-
tronic circuits produce induced currents that instantaneously heat the bottom of the pan
which then transfers this heat to the food. Cooking takes place with hardly any energy loss
between the induction hob and the food.
Your induction hob operates only if a correct pan with the right features is placed on a coo-
king zone. Please refer to COOKWARE FOR INDUCTION COOKING.
If the pan detection symbol
appears on the display, your pan is not suitable and your
induction hob will not operate. After 10 minutes without detecting any pan, the cooking
zone switches Off automatically.
HOW TO USE THE COOKING HOB
17
REMAINING HEAT INDICATORS
When the temperature of a cooking zone is still hot, the relevant remaining heat indica-
tor lights up on the display to alert you of the hot surface.
Avoid touching the hob surface over the cooking area. Please pay special attention to
children.
When the
is lit on the display, it is still possible to start cooking again; just operate the
cooking zone as indicated in the chapter
POWER IGNITION AND ADJUSTMENT OF A
COOKING ZONE
.
COOKWARE FOR INDUCTION COOKING
The induction cooking system OPERATES ONLY if using correct cookware suitable for
induction cooking.
The bottom of the pan has to be ferromagnetic to generate the electromagnetic eld ne-
cessary for the heating process (meaning a magnet has to stick to the bottom of the pan).
Pans made from the following materials are not suitable:
■ glass, wood, porcelain, ceramic, stoneware;
■ pure stainless steel, aluminium or copper without magnetic bottom.
To check if a pan is suitable or not:
■ test the bottom of the pan with a magnet: if the magnet sticks, the pan is suitable.
■ if a magnet is not available pour a small amount of water inside the pan and place the
pan on a cooking zone. Switch on the cooking zone: if the symbol
(pan detection)
appears on the cooking zone display (instead of the power level), the pan is not sui-
table.
Important note: the cooking zones will not operate if the pan diameter is too small (
pan detection symbol will appear on the cooking zone display). To correctly use the cooking
zones follow the indications given in the following table.
Induction cooking zone
Minimum pan diameter recommended
(referred to the bottom of the pan)
Cooking zone Ø 160 mm 110 mm
Cooking zone Ø 200 mm 145 mm
Cooking zone Ø 250 mm 180 mm
Pay attention: The pan shall always be centred over the middle of the cooking zone. It
is possible to use oversized pans but the bottom of the pan cannot touch other cooking
zones.
Always use pans with thick, completely at bottom.
Do not use pans with concave or convex bottom; these could cause overheating of the
cooking zone.
Note: Some types of pans could cause noise when used on an induction cooking zone.
The noise does not mean any failure on the appliance and does not inuence the cooking
operation.
18

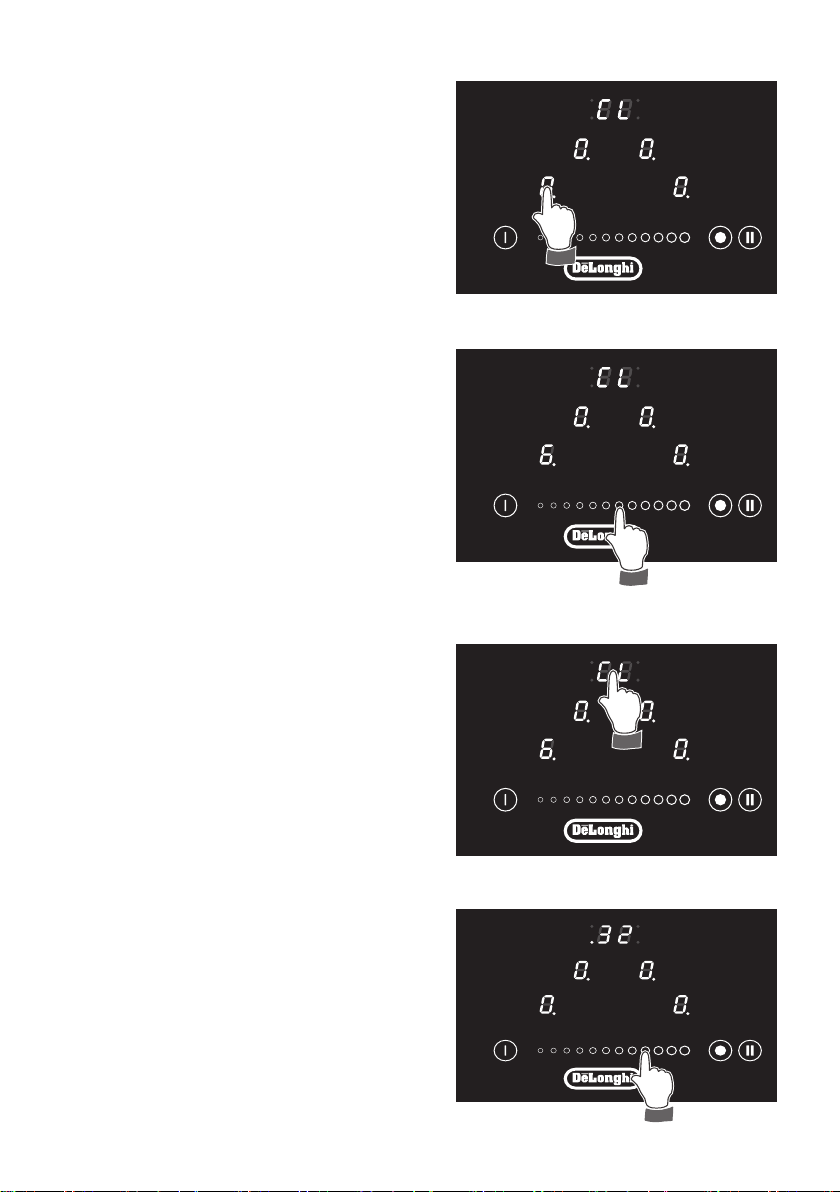

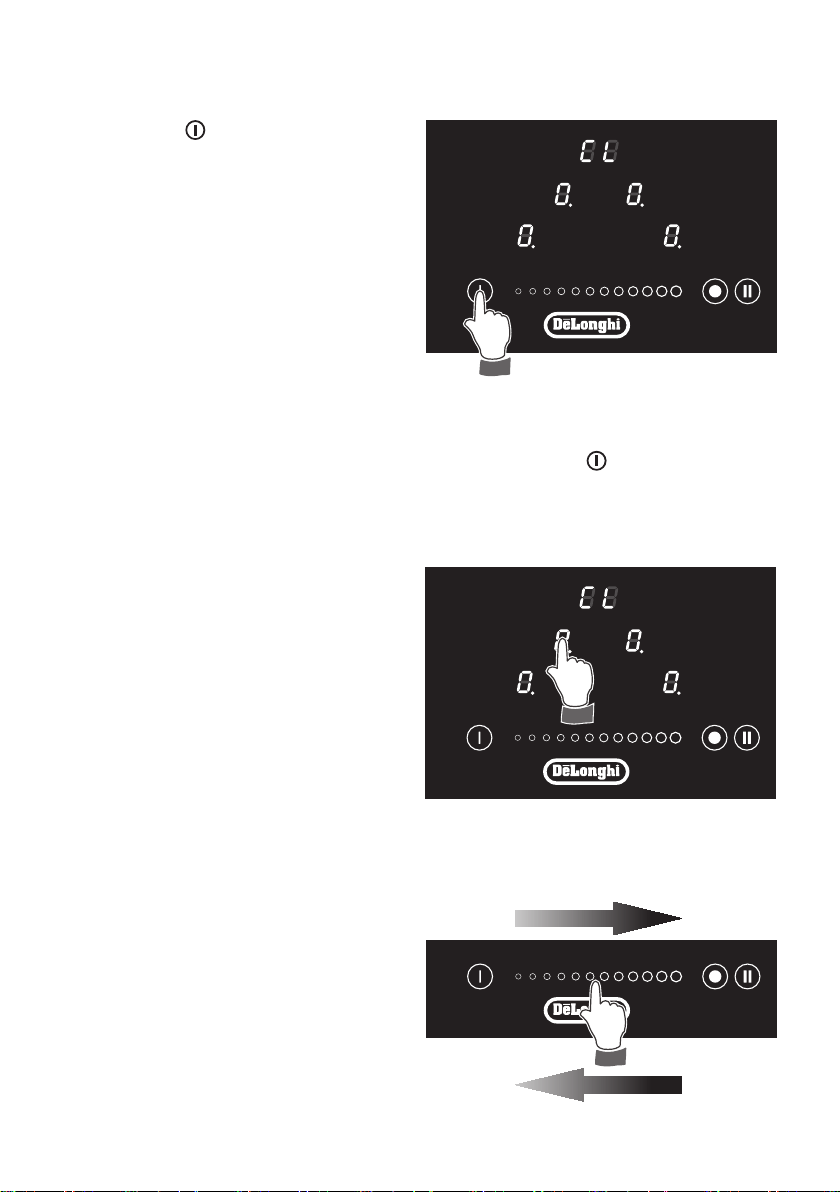

HOW TO SWITCH ON/OFF THE COOKTOP
Switching ON
Touch the key
until the touch control
system is lit (g. 16). The displays of the
cooking zones read “ 0 ”.
Notes:
■ If the safety Child Lock protection is
active, the cooktop can be used only
after having deactivated this protec-
tion (see chapter CHILD LOCK SA-
FETY).
■ Auto switch-Off: If a cooking zone is
not turned On within 15 seconds, the
cooktop will automatically switch off.
Switching OFF
The cooktop may be switched Off at any time by pressing the key
.
If any cooking zones are turned On, they will be turned Off.
Figure 16
POWER IGNITION AND
ADJUSTMENT OF A COOKING
ZONE
To turn On a cooking zone the cooktop
must be switched On (see section “HOW
TO SWITCH ON/OFF THE COOKTOP”).
■ Select a cooking zone by touching
the relevant display of the cooking
zone to be used (g. 17).
■ Select a setting on the selector
[between “
1 ” (minimum) and “ 9 ”
(maximum)]: touch at one point to
“jump” to a specic setting or slide
your nger along the selector (g.
18).
■ The cooking zone display shows the
selected level.
■ The power level can be modied at
any time.
increase
Increase
Decrease
Figure 17
Figure 18
19
BOOSTER FUNCTION
This function allows the cooking zone to operate at the “Booster” maximum power (above
the nominal power) for maximum 5 minutes; it could be used, for example, to rapidly heat
up large amount of water.
– The “Booster” function is always limited to a maximum of 5 minutes.
– This function is NOT available on the smaller cooking zones (Ø 160 mm) of
models DEIND604, DEIND804.
To activate the “Booster” function:
■ Set the power level “
9 ” on the selected cooking zone, then just touch the key until
the relevant display shows “ P ” (g. 19).
■ At the end of the “Booster” program (5 minutes) the cooking zone is automatically set
to the power level “
9 ”.
■ Note: if a cooking zone is still hot, it is not possible to use the “Booster” function and
“
P ” will ash if you try to activate. The cooking zone is automatically set to the ma-
ximum power level (“
9 ”).
To deactivate the “Booster” function:
■ Set a different power level on the selected cooking zone.
or
■ Switch Off the cooktop.
IMPORTANT NOTES:
■ The “Booster” function is not suitable for use with non water based cooking.
■ Do not use this function for heating oil (e.g. deep fat frying).
Figure 19
20
OPERATION TIME LIMIT OF
THE COOKING ZONES
Each cooking zone is automatically
switched Off after a maximum preset
time if no operation is performed.
The maximum preset time limit depen-
ds on the set power level, as illustra-
ted in this schedule.
Each operation on the cooking hob by
using the touch controls will reset the
maximum operation time at its initial
value.
POWER LEVEL OF
COOKING ZONES
OPERATION
TIME LIMIT
480 minutes
360 minutes
300 minutes
300 minutes
240 minutes
90 minutes
90 minutes
90 minutes
90 minutes
5 minutes
21
EXAMPLES OF COOKING POWER SETTING
0
Cooking zone not operating
1 to 2
Melting
Reheating
Sauces, butter, chocolate, gelatine
Dishes prepared beforehand
2 to 3
Simmering
Defrosting
Rice, pudding, sugar syrup
Dried vegetables, sh, frozen products
3 to 4
Steam Vegetables, sh, meat
4 to 5
Water
Steamed potatoes, soups, pasta,
fresh vegetables
6 to 7
Medium cooking
Simmering
Meat, lever, eggs, sausages
Goulash, roulade, tripe
7 to 8
Cooking Potatoes, fritters, wafers
9
Frying, roasting
Boiling water
Steaks, omelettes, fried dishes
Water
P
Rapidly heat up large amount of water
COOKING
ZONE
POWER
LEVEL
COOKING
ZONE
Ø 160 mm (*)
(Watt power)
COOKING
ZONE
Ø 160 mm (**)
(Watt power)
COOKING
ZONE
Ø 200 mm
(Watt power)
COOKING
ZONE
Ø 250 mm
(Watt power)
42 36 70 70
70 60 120 120
112 100 180 180
168 140 276 276
252 215 420 420
392 336 645 645
588 500 960 960
896 770 1470 1470
1400 1200 2300 2300
not available 1400 3000 3000
(*) only for models DEIND604, DEIND804
(**) only for model DEIND603
22
PROGRAM FOR AUTOMATIC
SWITCHING OFF OF A COOKING
ZONE
This function permits to set a timer from “ 1 ”
to “ 99 ” minutes for automatic turning Off the
cooking zone/s.
With the cooktop switched On:
■ Select the cooking zone and set the de-
sired power level.
■ Within 8 seconds, touch the timer key
“
CL ” (the led indicating the programmed
zone starts blinking) and set the timer:
– The display reads “
0- ”: set the se-
cond digit of the timer by using the
setting selector. If the value shall be
zero touch the display and the second
digit ( 0 ) will start ashing. Touch the
display to conrm o wait a few secon-
ds till the programmer automatically
turns to the next step.
– When the display reads “ -Z ” (where
“ Z ” indicates the second digit pre-
viously set): set the rst digit of the
timer by using the setting selector. If
the value shall be zero touch the di-
splay and the rst digit ( 0 ) will start
ashing. Touch the display to conrm o
wait a few seconds till the programmer
automatically turns to the next step.
– The program is now processed (led
indicating the programmed zone ste-
ady lit).
■ The time can be changed at any time fol-
lowing the same procedure here above
indicated (selecting previously the coo-
king zone).
■ To program another cooking zone, repe-
at as described above.
Now the program for automatic switching Off
is complete.
At the end of the countdown the cooking
zone will switch Off automatically, an acoustic
signal (beep) will sound (for 2 minute only),
“
00 ” will ash on the timer display and the
led next to the heater display will blink.
Touch one of the keys to stop the beep.
Figure 20
Figure 21
Figure 22
Figure 23
23
The program for automatic switch Off can be cancelled at any time:
■ Select the programmed cooking zone by touching the relevant display of the cooking
zone.
■ Touch one time the timer key and then, within 8 seconds, the timer display will switch
Off.
■ IMPORTANT: Remember to switch Off the zone manually.
PAUSE MODE
When at least one cooking zone is in opera-
tion, the cooking may be paused temporarily
by touching the key
(g. 24).
Already programmed automatic cookings are
stopped and do not continue during the pause.
The residual heat calculation and operating
time limitation continue and are not stopped.
The pause mode may last for max 10 minutes.
If the pause mode is not terminated within the
time, the cooktop switches Off automatically.
To deactivate the pause mode touch again
the key
and then touch any cooking zone
display.
The cooktop may be switched Off at any time
with the On/Off key; any possibly program
already set (pause mode included) is then
terminated.
CHILD LOCK SAFETY
When not using the induction hob, set the
Child Lock safety to prevent children from
accidentally switching On the cooking zones.
■ Ensure all cooking zones are switched
Off.
■ Simultaneously touch the front right co-
oking zone display and the key
(mo-
dels DEIND604, DEIND804) or the central
right cooking zone display and the key
(model DEIND603); then touch again the
same cooking zone display until
“ L ”
lights
up (g. 25a, 25b).
■ To deactivate the Child Lock, touch
simultaneously the front right or cen-
tral right cooking zone display (de-
pending on models) and the key
;
then touch again the key
until
“ 0 ”
lights up on the displays of the cooking
zones.
Figure 24
Models DEIND604, DEIND804
Model DEIND603
Figure 25a
Figure 25b
24
MAXIMUM USABLE POWER FOR THE
COOKING ZONES
The left and right cooking zones are controlled
by two separate power boards.
Where a power board manages two zones
(front/rear LH zones; front/rear RH zones in
model with four zones) the maximum total po-
wer per each power board is 3700 W.
Should the cooking zones of one power board
require more than 3700 W, the last selected po-
wer level has priority and the power of the other
cooking zone is automatically reduced to the
remaining power available.
If this occurs, the cooking zone will display a
ashing gure for about 3 seconds before auto-
matically displaying the new power level.
This means for example that:
■ When setting a “Booster” programme for the second zone, the setting for the other
zone could be reduced to the remaining power available.
■ When setting a “Booster” programme for a zone and then another setting on the se-
cond zone, if the total power exceed 3700 W the “Booster” programme is deleted and
the power reduced to the maximum power available.
THERMAL PROTECTIONS
The induction hob is tted with safety devices to protect the electronic system and to pro-
tect each cooking zone from overheating.
In case of overheating, one of the following automatic functions could be started by the
electronic system:
■ “Booster” program deleted and power reduced.
■ One or more cooking zone switched Off.
■ Cooling fan motor of the induction unit switched On.
Controlled by 2nd power board
(models with four induction zones only)
Controlled by
1st power board
Figure 26
25
Error code Example What to do
Erxx
or Ex (not E2 or
EH)
or
display
not operative
1. Switch Off the cooktop and discon-
nect it from the mains.
2. Wait for about 1 minute, then recon-
nect the cooktop and turn on the co-
oking zones.
3. Wait for about 1 minute and if the er-
ror message does not appear again
the cooking zones can be used.
4. If the error message does not disap-
pear repeat step from 1 to 3.
5. If the problem continues do not use
the induction hob and contact your
Authorised Service Centre.
E2
or
EH
E and 2 or E and H alternating for one or
more cooking zones.
This indicates an overheating of the coo-
king zone/s.
1. Switch Off the cooking zone/s and le-
ave to cool.
2. If the problem continues do not use
the induction hob and contact your
Authorised Service Centre.
E6
or
display
not operative
The cooktop has been incorrectly con-
nected.
The appliance shall be connected to the
appropriate power supply by a qualied
technician.
ERROR CODES ON THE DISPLAYS OF THE COOKING ZONES
26
ADVICE FOR SAFE USE OF THE HOB
■ Before switching on make sure that
you have the correct cooking zone for
the hotplate chosen. It is advisable
to put the pan on the hotplate before
switching on and to take it away after
switching off.
■ Use cookware with at and even bot-
toms. Uneven bottoms can scratch the
glass ceramic surfaces. Be careful that
the bottom is clean and dry.
■ Do not leave wet or damp lids on the
hob.
■ The glass-ceramic surface and pans
must be clean. Carefully eliminate any
food remains (especially containing
sugar), dirt etc. with the aid of a clean-
sing agent.
■ Make sure that the handles of cookwa-
re do not stick out over the edge of the
hob, to avoid them being knocked over
by accident. This also makes it more
difcult for children to reach the co-
oking vessels.
■ Do not lean over the cooking zones
when they are switched on.
■ Do not drop heavy or sharp objects on
the glass ceramic cooktop. If the sur-
face is broken or damaged unplug
the cooktop and contact the after-
sales service.
■ Do not put aluminium foil or plastic
objects on the cooking zones when
they are hot.
■ Follow the cleaning instructions care-
fully.
DO NOT USE PANS WITH ROUGH
CIRCULAR MACHINED BASE.
Figure 27
Figure 28
27
GENERAL ADVICE
■ Before you begin cleaning, you must ensure that the appliance is switched off
and disconnected from the electrical power supply.
■ It is advisable to clean when the appliance is cold.
■ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
■ Avoid using cleaning products with a chlorine or acidic base.
■ Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
■ Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
■ Do not scratch the cooktop with cutting or sharp objects.
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the un-
derneath of the appliance as this area is not designed or intended to be touched and
may contain sharp or rough edges, that may cause injury.
CLEANING THE CERAMIC HOB
■ Remove spillages and other types of incrustations.
■ Dust or food particles can be removed with a damp cloth.
■ If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive
or scouring powders can damage the glass surface of the hob.
■ All traces of the cleaner must be removed with a damp cloth.
■ Dust, fat and liquids from food that has boiled over must be removed as soon as possible.
■ If they are allowed to harden they become increasingly difcult to remove.
This is especially true in the case of sugar/syrup mixtures which could permanently pit
the surface of the hob if left to burn on it.
■ If any of these products has melted on
the ceramic surface, you should remove
it immediately (when the surface is still
hot) by using a proper scraper to avoid
any permanent damage to the surface
of the hob.
■ Do not put articles on the hob which can
melt: i.e plastic, aluminium foil, sugar,
sugar syrup mixtures etc.
■ Avoid using a knife or other sharp uten-
sil as these may damage the ceramic
surface.
■ Do not use steel wool or an abrasive
sponge which could scratch the surface
permanently.
CLEANING AND MAINTENANCE
Figure 29
28
SERVICE AND MAINTENANCE
Servicing the appliance:
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised Delonghi Service Agent:
Servicing shall be carried out only by authorized personnel.
The appliance shall not be modied.
29
30
31
www.delonghi.com.au
www.delonghi.co.nz
Cod. 1104193 - ß3
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
modifications for their construction or for commercial needs.
