Craftsman 917270774 lawn tractor User Manual

Owner's Manual

CRRFTXMRN

19.0 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.270774

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon-Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

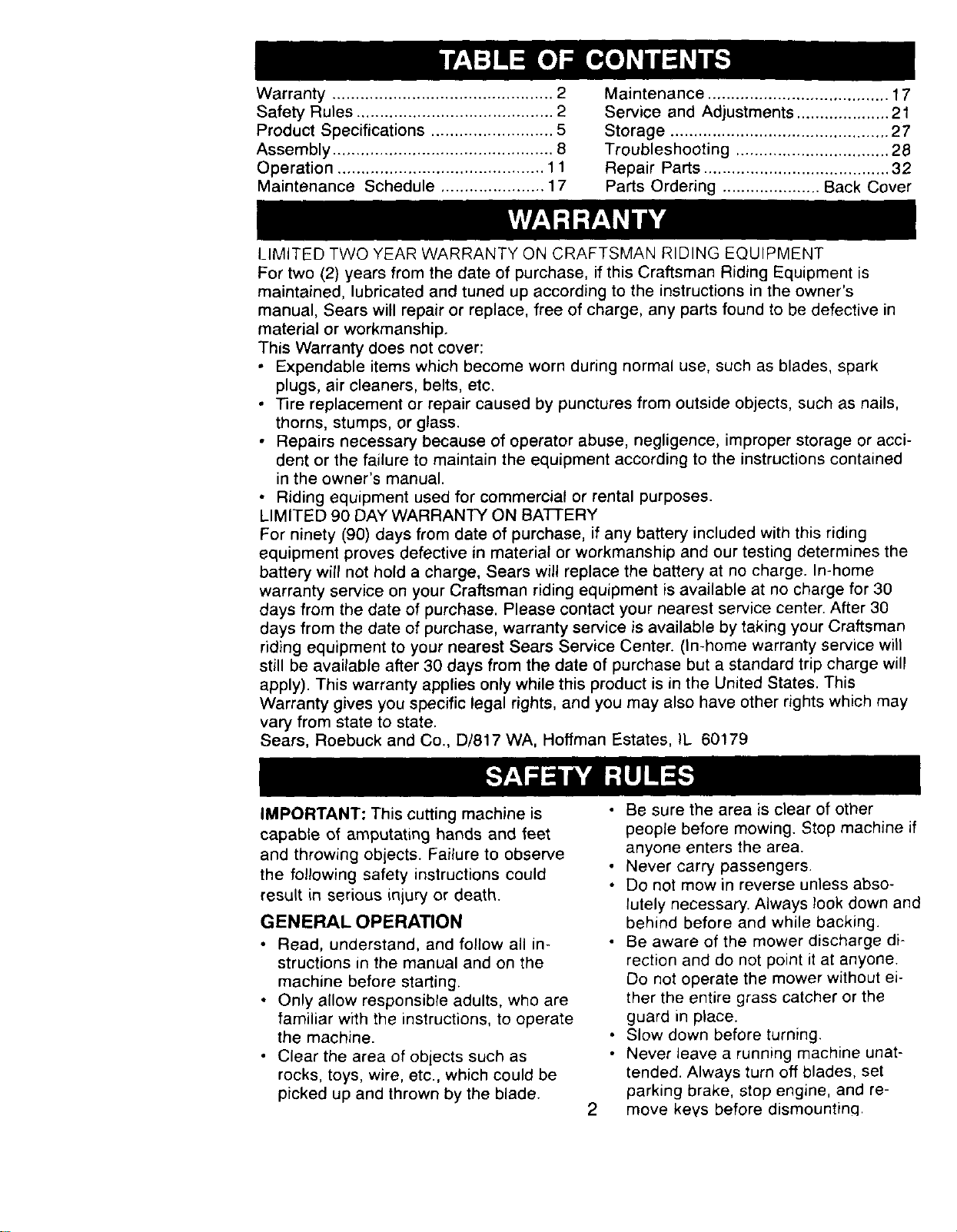

Warranty ............................................... 2

Safety Rules .......................................... 2

Product Specifications .......................... 5

Assembly ............................................... 8

Operation ............................................ 11

Maintenance Schedule ...................... 17

Maintenance ....................................... 17

Service and Adjustments .................... 21

Storage ............................................... 27

Troubleshooting ................................. 28

Repair Parts ........................................ 32

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained

in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman riding equipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but a standard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all in-

structions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge dk

rection and do not point it at anyone.

Do not operate the mower without ei-

ther the entire grass catcher or the

guard in place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and re-

2 move keys before dismountincl.

• Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

• Do not operate the machine while un-

der the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

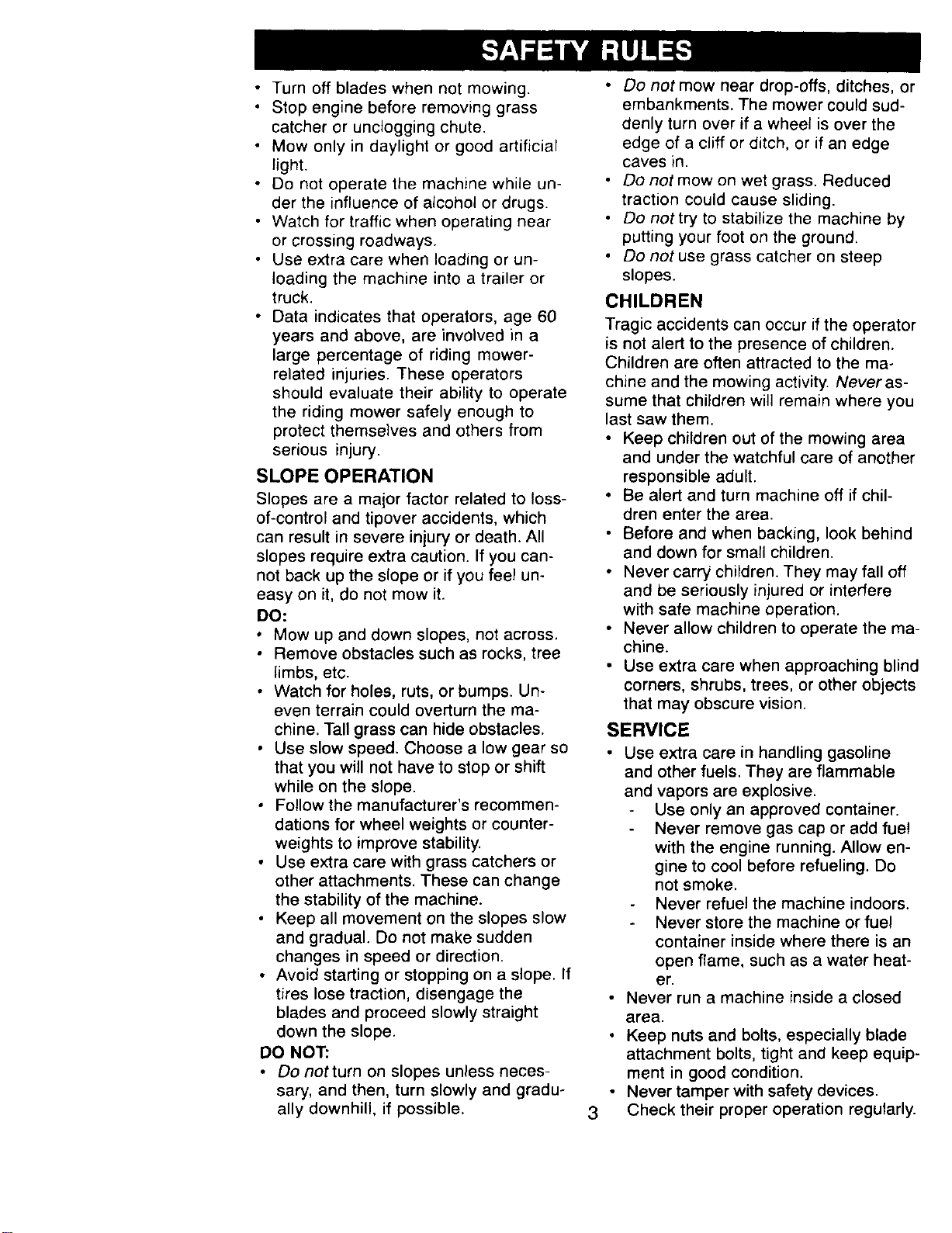

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you can-

not back up the slope or if you feel un-

easy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do notturn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do nottry to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if chil-

dren enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do

not smoke,

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heat-

er.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or al-

low objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing

them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if chil-

dren enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

Do notturn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

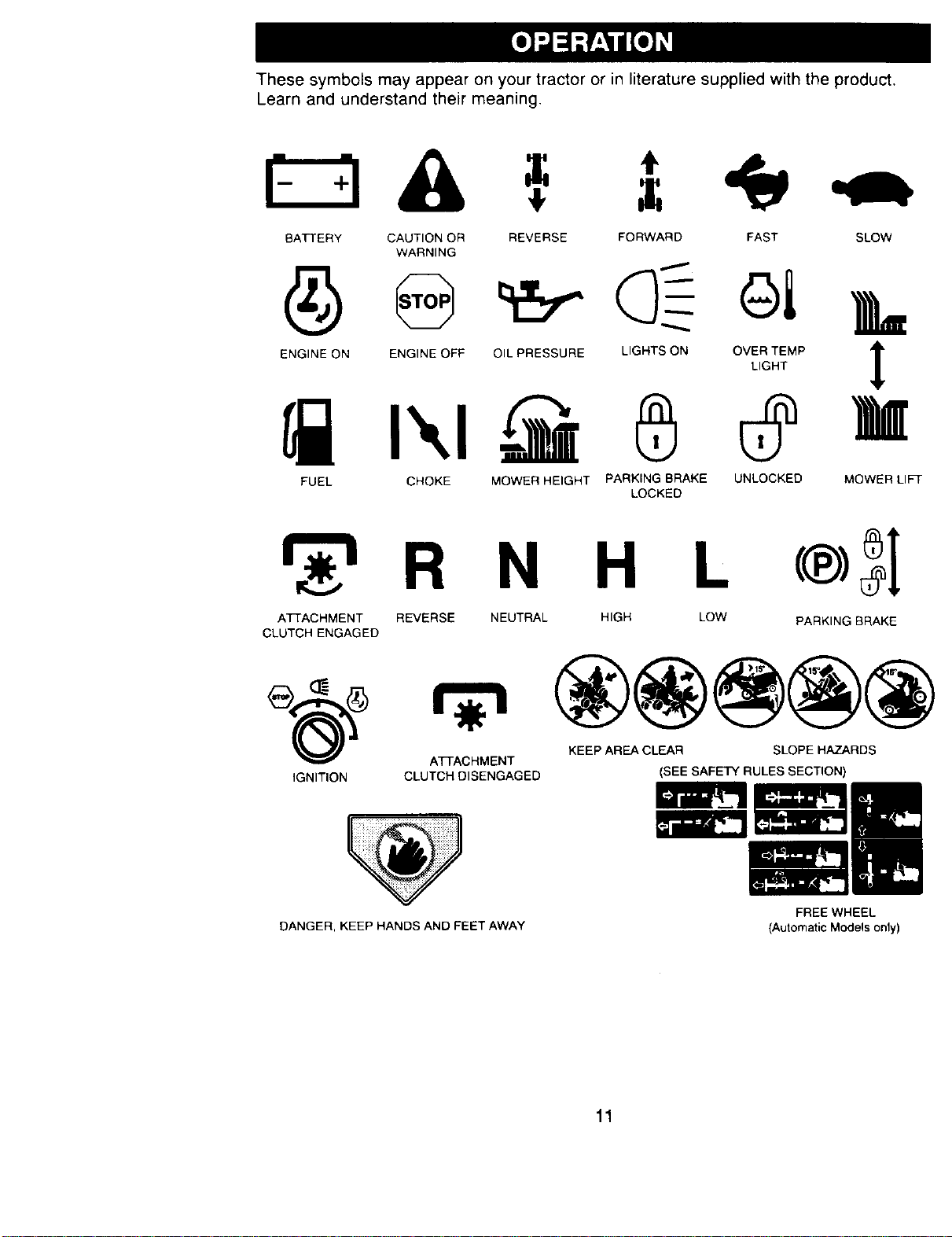

_i, Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME AWARE!!! YOUR

SAFETY IS INVOLVED.

_iLWARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

_rI,CAUTION: In order to prevent acci-

dental starting when setting up, trans-

porting, adjusting or making repairs al-

ways disconnect spark plug wire and

place wire where it cannot contact spark

plug.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

_APACITY UNLEADED

_ND TYPE: REGULAR

DILTYPE SAE 30(ABOVE 32°F)

API-SF/SG/SH): SAE 5W-30

(BELOW 32"F)

OIL CAPACITY: 3.5 PINTS

SPARK PLUG: CHAMPION

GAP: .030") RC12YC

VALVE INTAKE: .004 -.006'

SLEARANCE: EXHAUST .004 -.006'

GROUND SPEED FORWARD:

(MPH): 1ST 1.2

2ND 1.5

3RD 2.3

4TH 3.5

5TH 4.8

6TH 5.4

REVERSE: 1.5

FRONT: 14 PSI

REAR: 10 PSI

16AMPS @ 3600RPM

TIRE

PRESSURE:

CHARGING

SYSTEM:

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U 1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabil-

ity and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester

is used, it should be maintained in

effective working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears Authorized

Service Center/Department (See

REPAIR PARTS section of this manual).

Parts Bag contents shown full size

Locknut 5/16-18

(1) Hex Bolt

3/8-16 x 1

(1) Lockwasher 3/8

(1) Large Flat Washer

(1) Hex Bolt

5/16-18 x 1-1/4

(1) Knob

(1) Shoulder Bolt 5/16-18

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_ #10x5/8

3/16(2)3/W4axSh16r_auge@

(2) Lock Washers #10

(2) Weld Nuts #10

Seat

Parts packed separately in carton

Mulcher

Plate

F-q

"-t

Video

Cassette

Manual

Steering

Wheel

Parts Bag contents not shown full size

Steering

Boot

Parts Bag

(_ _'i'_ I I I

Slope Sheet

(2) Latch Hook

Assemblies

Steering

Extension

Shaft

Steering Wheel

Adapter

Steering

Wheel

Insert

(2) Keys

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

(1) Phillips screwdriver

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

• Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs. torque.

• Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

• Slide steering wheel adapter onto

steering shaft extension.

[_ .F--_Steering

%,_ Wheel Insert

_-'_ Hex Bolt

_Lock Washer

iS"-_.'_.'_ _- Large Flat

_ Washer

. z_,.__ ('L , /-Steering Boot

S,eering Wheel _-"

/ _Tabs

Extension _

Shaft "__._-_- -Adapter

5/16 Locknut _5/16 Hex Bolt

L°wer Steering _

Shaft Tab

, "- .' , Slots

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center

of steering wheel.

Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

Lift hood to raised position.

If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BAFFERY"

in Maintenance section of this manual

for charging instructions).

Label

INSTALLSEAT

Adjust seat before tightening adjustment

knob.

• Remove cardboard packing on seat

pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its

adjusted position.

Raise seat and tighten adjustment

knob securely.

Seat

Shoulder Seat Pan

Bolt

Flat Washer

Adjustment

Knob

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

• Place gearshift lever in neutral iN)

position.

Roll tractor forward off skid.

Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

_IL WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

Be sure all the above assembly steps

have been completed.

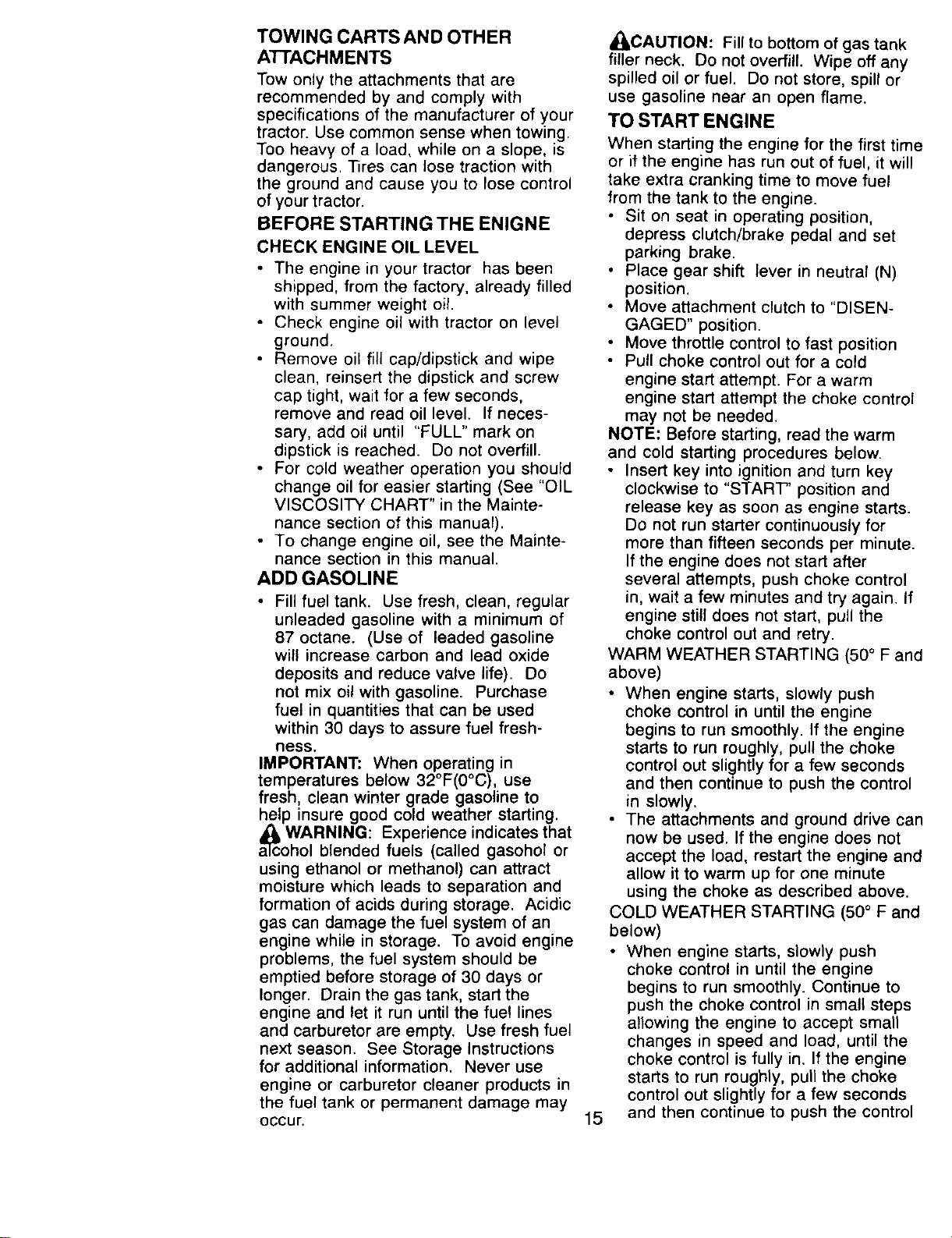

• Check engine oil level and fill fuel tank

with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

• Place gear shift lever in neutral iN)

position.

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and

slowly drive tractor off skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

INSTALL MULCHER PLATE

• Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

• Tighten hardware securely.

• Raise and hold deflector shield in

upright position.

• Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow i

to rest on plate while in operation.

Weld Nut

From The To

Lock

Washer

Weld Nut

Latch

Hook_,

Washer

MulcherPlate ',_.Screw

HookPoints

Down

Latch

Hook

Nut

Washer

Shield

Latch Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overin-

tIated at the factory for shipping pur-

poses. Correct tire pressure is important

for best cutting performance.

Reduce tire pressure to PSL shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

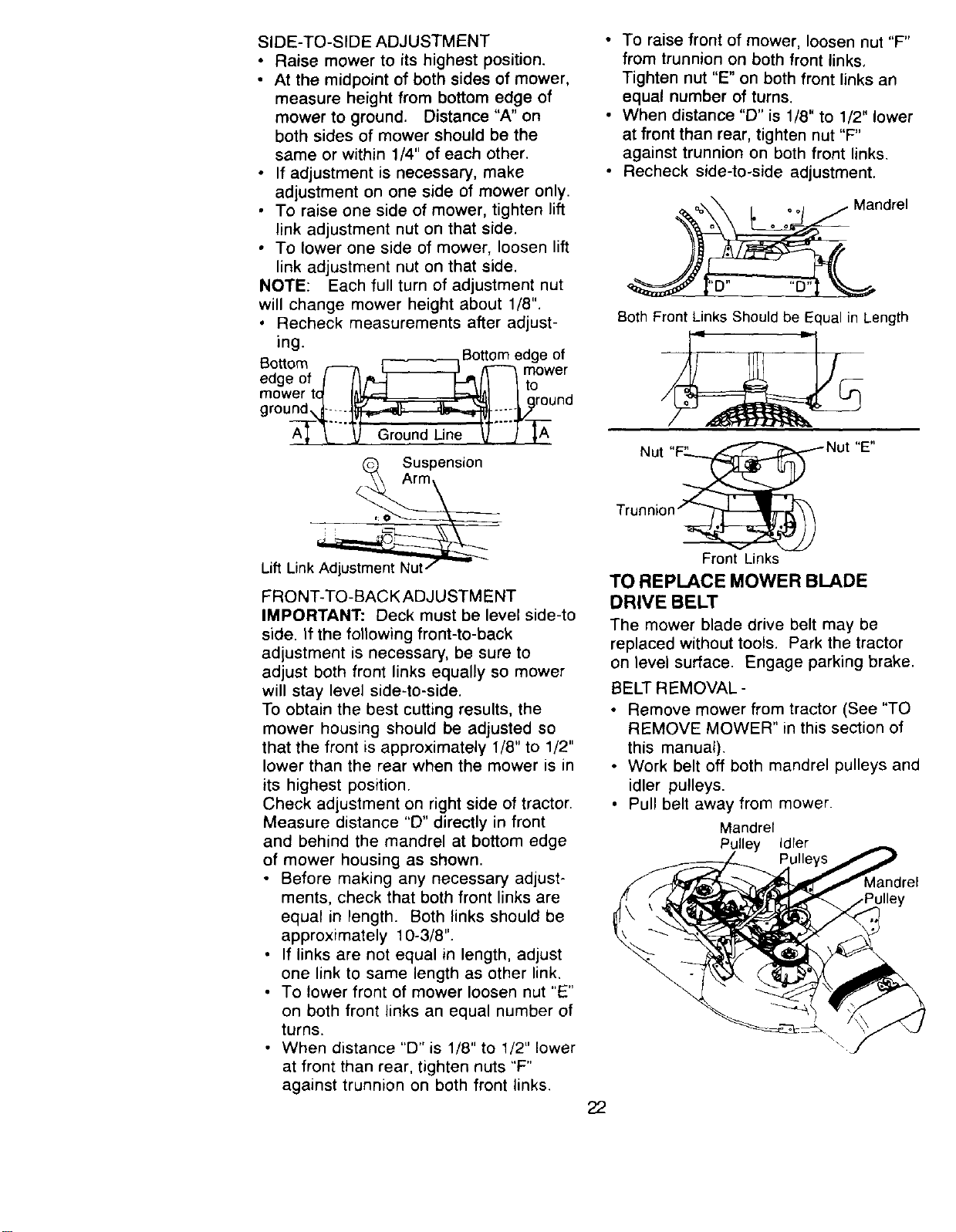

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

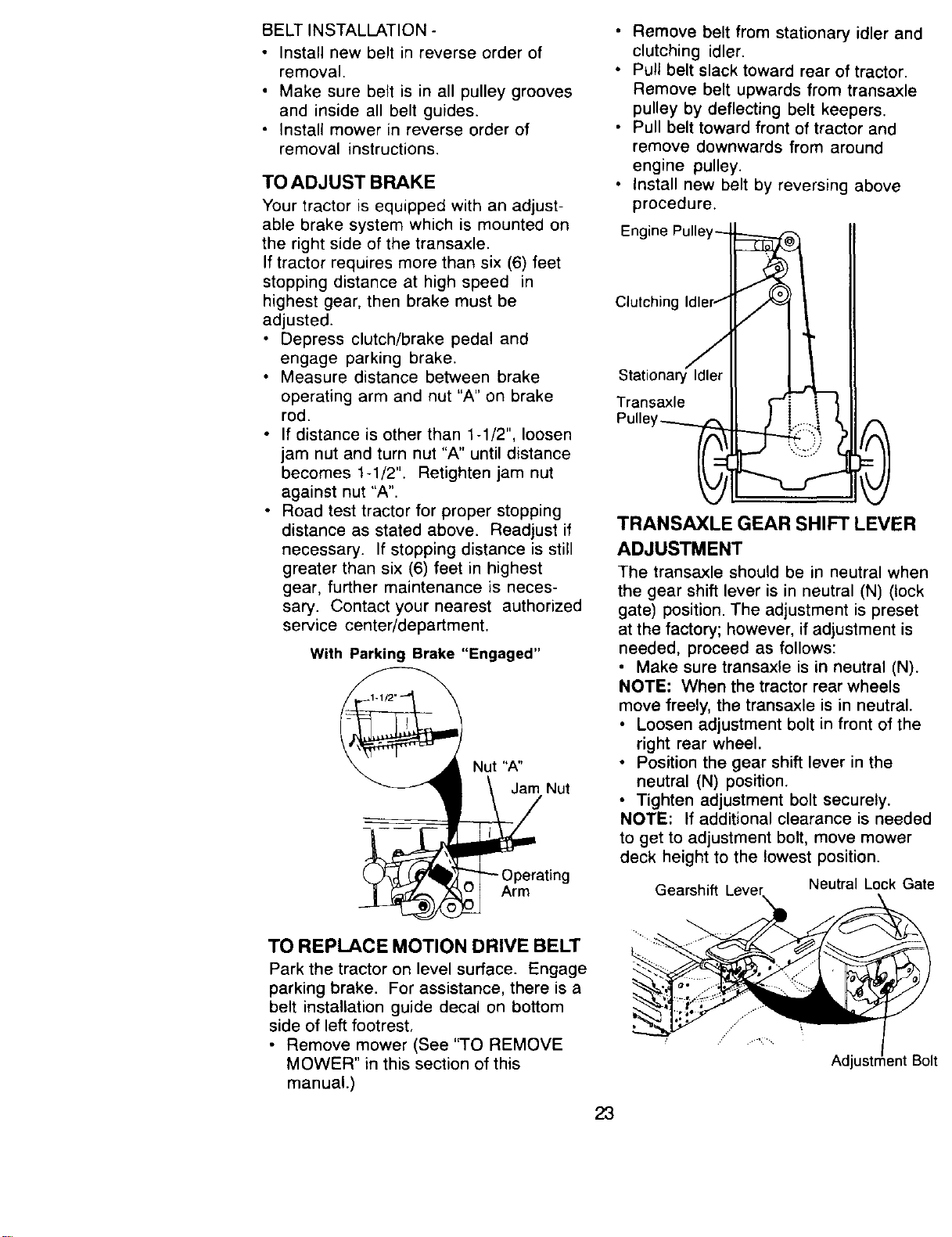

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

•/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

,,/Seat is adjusted comfortably and

tightened securely.

,1'All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

properly inflated for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulley_

and inside all belt keepers.

,I Check wiring. See that all connections

are still secure and wires are properly

clamped.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAATI'ENTION TO

THE FOLLOWING IMPORTANT ITEMS:

J" Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

Z" Be sure brake system is in safe

operating condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE

LIGHTS ON OVER TEMP 1 L

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

ATIACHMENT

IGNITION CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself withthe locations of

various controls and adjustments, Save this manual for future reference,

Attachment Ignition Switch

Clutch Lever

Switch

Ammeter Lever

Plunger

LiftLever

Pedal

Height

Brake Lever

Gearshift

nu i,

Our tractors conform to the safety standards of the American National Standards

Institute.

u,,,

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER- Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor,

CHOKE CONTROL - Used when starting

a cold engine,

CLUTCH/BRAKE PEDAL- Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position,

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER- Locks

clutch!brake pedal into the brake position.

THROTTLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask

over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

• Depress clutch/brake pedal into full

"BRAKE" position and hold.

• Place parking brake lever in "EN-

GAGED" position and release pres-

sure from clutch/brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Attachment Clutch Lever

Choke "Engac ed" Position .

Control _ _ / "Disengaged

_ _,_--------__,_j_['_ Position

Control_...,_ _'t \\\_ \__ParRing Brake

,,_._ _, _vJ)/,/"Engaged"

Clutch/Brake-k,_', --._- --- ........

"Di en ]a_-ied.......

s g g Position

Position

STOPPING

MOWER BLADES -

• To stop mower blades.move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition

switch in any position other than "OFF"

will cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging

and mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob

out. Slowly push knob in to disen-

gage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

• Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful

life of your transaxle.

TO ADJUST MOWER CUTTING

HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

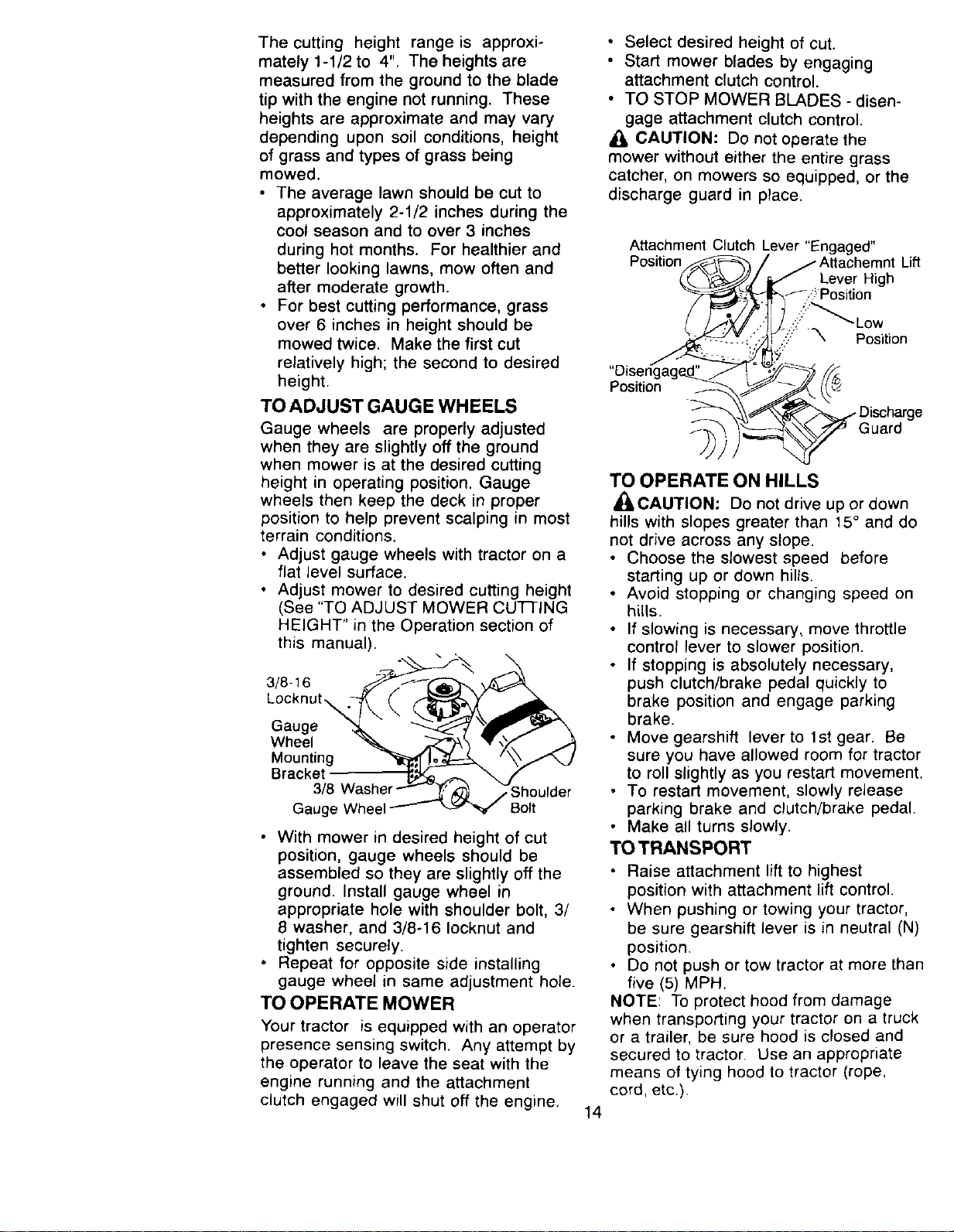

Thecutting height rangeis approxi-

mately1-1/2to 4". Theheightsare

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height

of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

• Adjust gauge wheels with tractor on a

flat level surface.

• Adjust mower to desired cutting height

(See "TO ADJUST MOWER CU-I-TING

HEIGHT" in the Operation section of

this manual).

3/8-16

Locknut\

Gauge

Wheel

Mounting

Bracket

3/8

Gauge Wheel

;houlder

Bolt

• With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8o16 Iocknut and

tighten securely.

• Repeat for opposite side installing

gauge wheel in same adjustment hole.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine.

• Select desired height of cut.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

CAUTION: Do not operate the

mower without either the entire grass

catcher, on mowers so equipped, or the

discharge guard in place.

Attachment Clutch Lever "Engaged"

Pos_ _Attachemnt Lift

Lever High

f.-i_ Post on

.:::('_Low

.S/ -'k Position

,,Disen_gagdedededededededede_._---_ ° =>.

Position _-_ _._ _

_-_'_/_ _ Discharge

Guard

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

If slowing is necessary, move throttle

control lever to slower position.

If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

Raise attachment lift to highest

position with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope,

cord, etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Rres can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENIGNE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

• Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do

not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel fresh-

ness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use

fresh, clean winter grade gasoline to

help insure good cold weather starting.

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions

for additional information. Never use

engine or carburetor cleaner products in

the fuel tank or permanent damage may

occur.

_'_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutral (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm

and cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

• When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pult the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

• When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

15 and then continue to push the control

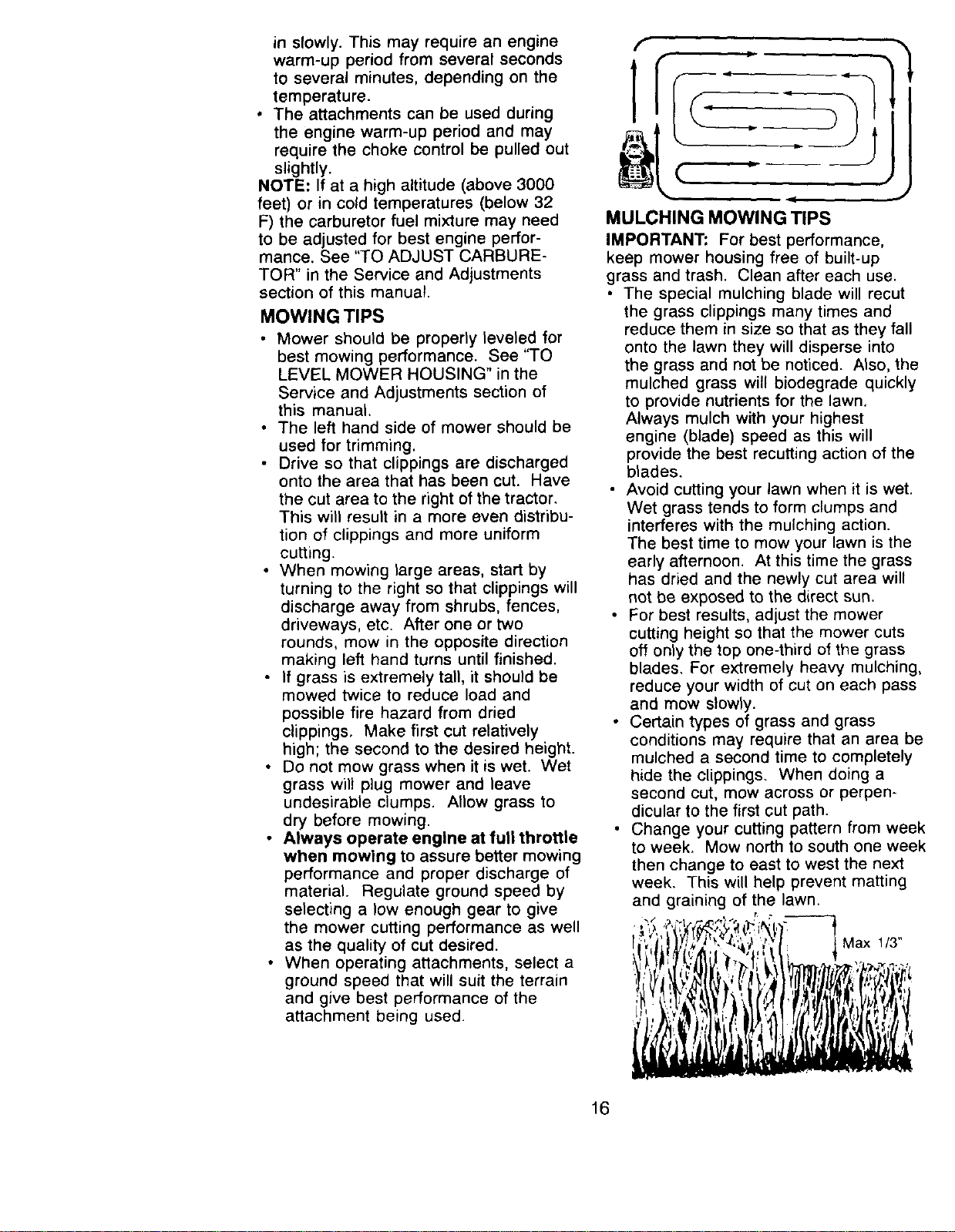

in slowly.Thismayrequirean engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32

F) the carburetor fuel mixture may need

to be adjusted for best engine perfor-

mance. See "TO ADJUST CARBURE-

TOR" in the Service and Adjustments

section of this manual.

MOWING TIPS

• Mower should be property leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings, Make first cut relatively

high; the second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give

the mower cutting performance as well

as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

i I-

¢-----'--

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn,

Always mulch with your highest

engine (blade) speed as this will

provide the best recutting action of the

blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades, For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings, When doing a

second cut, mow across or perpen-

dicular to the first cut path.

• Change your cutting pattern from week

to week, Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

_1 Max 1/3"

MAINTENANCE SCHEDULE .,,j,_. _ -

"_'_'_7"_'4_F_ ">_¢ _S_ j_" SERVICE DATES

Check Brake Operation _l_ '

Check Tire Pressure _l_ !

Check Operalor Presence and

Interlock Systems

Check for Loose Fasteners _ _l_;,

Sharpen/Replace Mower Blades V'4

Lubrication Chad _ _#

Check Battery Level

Clean Battery and Terminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension Ks

Adjust Motion Orive _elt(s) Tension I

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

Clean Air Screen

Inspect Muffler/Spark Arrester

Replace Oil Filler (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

RePlace Air Filter Paper Cartridge

Replace Fuel Filter

=/ l/

v'2

i/2

i,,'

1 - Change more often when operaling under a heavy ioad Or in h=gh ambient temperatures 5 . If equipped with adjust 8hie system

2 . Service more o_len when oper_iting in dirty or dustty co_dilions e Not requJte_ if equipped With mairTtenanc A flee b_ttery

3 - If equipped wtih Oil fitter, change oil everY/ 50 hour_ 7 . Tighlen front oxpe pivot bol! to 35 f_ Ibs r_aximum

4 Replace blades more often when mowing in sandy soil Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To

receive full value from the warranty,

operator must maintain tractor as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and

help your engine run better and last

longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

)indle

Zerk _'; = Zerk

(_Front Wheel

Bearing Bearing Zerk

Zerk

(_SAE 30 or 10w30 MOTOR OIL

_)GENERAL PURPOSE GREASE

(_REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the pivot

points which have special nylon bearings.

Viscous lubricants will attract dust and dirt

that will shorten the life of the self-lubricat-

ing bearings. If you feel they must be

lubricated, use only a dry, powdered

graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted. (See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or

insect control chemicals which can

harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in

the disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

• Raise mower to highest position to

allow access to blades.

• Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assem-

bly, center hole in blade must align with

star on mandrel assembly,

• Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated.

Trailing Edge Up Mandrel Assembly

Blade Center

Hole

Flat Washer

Lock Washer

_---Hex Bolt (Grade)

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you de, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a

file or on a grinding wheel. Do not

attempt to sharpen while on the

mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a

cone balancer. (When using a cone

balancer, follow the instructions

supplied with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain

in a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8'" B_ade

BATFERY

Your tractor has a battery charging

system which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend

its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for I hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or

covers. Adding or checking level of

electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

• Remove terminal guard.

• Disconnect BLACK battery cable first

then RED battery cable and removu

battery from tractor.

• Rinse the battery with plain water and

dry.

• Clean terminals and battery cable

ends with wire brush until bright.

• Coat terminals with grease or petro-

leum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LU BRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check

the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil,

• Remove drain plug.

• After oil has drained completely,

replace oil drain plug and tighten

securely.

• Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

Air Screen,

Oil Fill Cap/

Dipstick

Oil Drain Plug

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

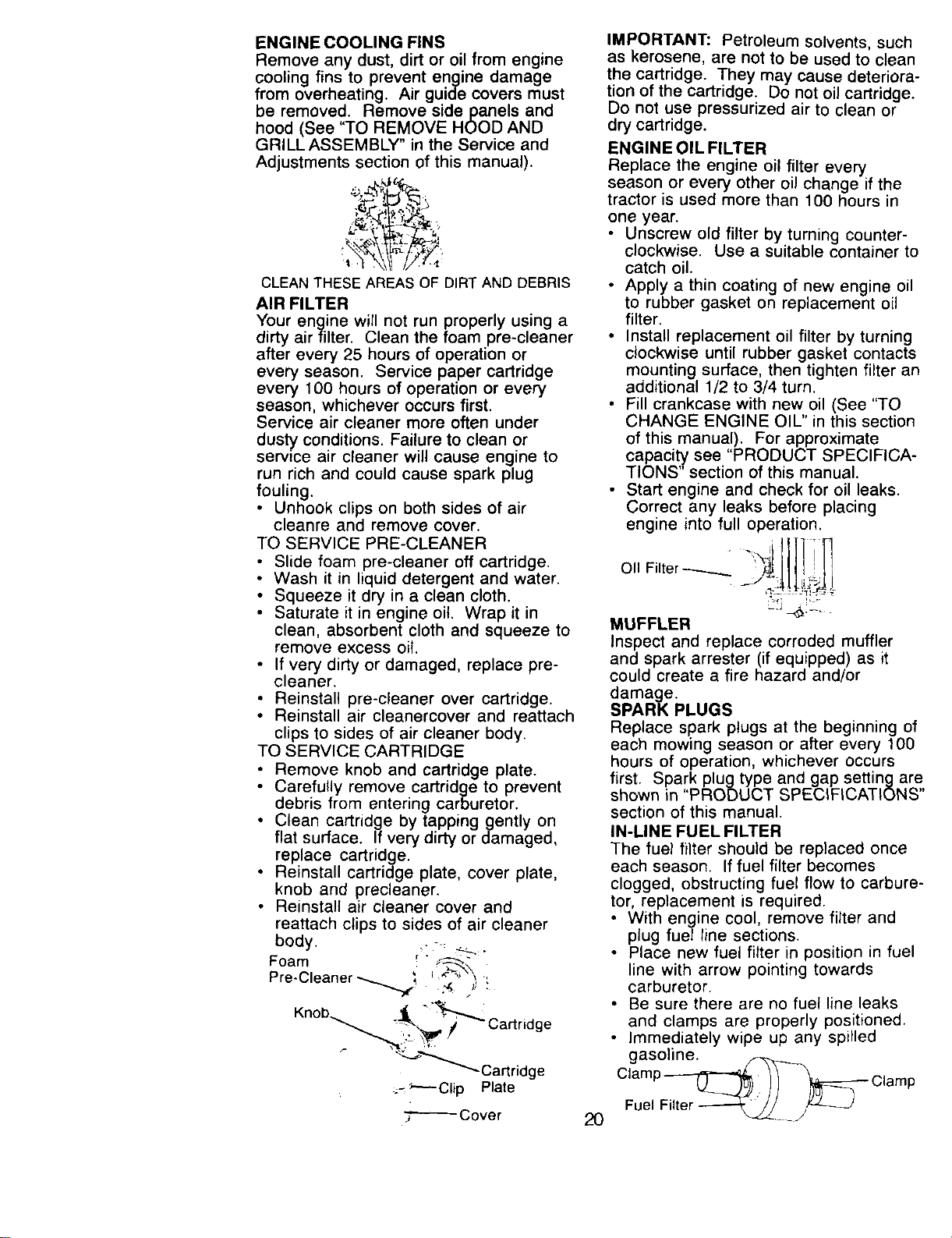

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove sidepanels and

hood (See "TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

_. .... .-_:

CLEAN THESE AREAS OF DIRT AND DEBRIS

AIR FILTER

Your engine will not run properly using a

dirty airfilter. Clean the foam pre-cleaner

after every 25 hours of operation or

every season. Service paper cartridge

every 100 hours of operation or every

season, whichever occurs first.

Service air cleaner more often under

dusty conditions. Failure to clean or

service air cleaner will cause engine to

run rich and could cause spark plug

fouling.

• Unhook clips on both sides of air

cleanre and remove cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

• If very dirty or damaged, replace pre-

cleaner.

• Reinstall pre-cleaner over cartridge.

• Reinstall air cleanercover and reattach

clips to sides of air cleaner body.

TO SERVICE CARTRIDGE

• Remove knob and cartridge plate.

• Carefully remove cartridge to prevent

debris from entering carburetor.

• Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

• Reinstall cartridge plate, cover plate,

knob and precleaner.

• Reinstall air cleaner cover and

reattach clips to sides of air cleaner

body. .-._ "_.."

Foam

Pre-Cleaner _

Knob_

_-- _ y Cartridge

..- _"---Clip Plate

7------ Cover

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or

dry cartridge.

ENGINE OIL FILTER

Replace the engine oil filter every

season or every other oil change if the

tractor is used more than 100 hours in

one year.

• Unscrew old filter by turning counter-

clockwise. Use a suitable container to

catch oil.

• Apply a thin coating of new engine oil

to rubber gasket on replacement oil

filter.

• Install replacement oil filter by turning

clockwise until rubber gasket contacts

mounting surface, then tighten filter an

additional 1/2 to 3/4 turn.

• Fill crankcase with new oil (See "TO

CHANGE ENGINE OIL" in this section

of this manual). For approximate

capacity see "PRODUCT SPECIFICA-

TIONS" section of this manual.

• Start engine and check for oil leaks.

Correct any leaks before placing

engine into full operation.

OII Filte r----'-"-" "__ ]] _,!]

_:J_ K_

MUFFLER

Inspect and replace corroded muffler

and spark arrester (if equipped) as it

could create a fire hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plugtype and gap settingare

shown in "PRODUCT SPECIFICATIONS'

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and

plug fuel line sections.

• Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

• Be sure there are no fuel line leaks

and clamps are properly positioned.

• Immediately wipe up any spilled

gasoline.

Clamp _ Clamp

20 Fuel Filter _ /,_--_J

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a short-

ened engine life.

_I, CAUTION: Before performing any service or adjustments:

Depress clutch/brake pedal fully and set parking brake.

• Place gearshift lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

• Place attachment clutch in "DISEN-

GAGED" position.

• Move attachment lift lever forward to

lower mower to its lowest position.

• Roll belt off engine pulley.

• Disconnect clutch rod from clutch lever

by removing retainer spring.

• Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

• Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

• Disconnect front links from deck by

removing retainer springs.

• Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

Clutch

Suspension

IMPORTANT: If an attachment other

than the mower deck is to be mounted

on the tractor, remove the front links.

TO INSTALL MOWER

• Raise attachment lift lever to its

highest position,

• Slide mower under tractor with

discharge guard to right side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of

removal instructions.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

Lever

Retainer Spring

Enc mePulley

Front Link

Retaine_

Retainer Springs

(Both Sides)

Anti-Sway

Retainer S

(Both Sides)

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

o Recheck measurements after adjust-

ing.

B " __ Bottom edge of

otlom __ mower

edge of . .. _,

mower t ""

A_-_'""_ Ground Line _'-Tq_

(_ Suspension

Lift LinkAdjustment Nut /

FRONT-TO-BACK ADJUSTM ENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links,

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F"

against trunnion on both front links.

• Recheck side-to-side adjustment.

ndrel

Both Front Links Should be Equal in Length

C4E_,

Front Links

TO REPLACE MOWER BLADE

DRIVE BELT

The mower blade drive belt may be

replaced without tools. Park the tractor

on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

• Work belt off both mandrel pulleys and

idler pulleys.

• Pull belt away from mower.

Mandrel

Pulley Idler

Pulle

BELT INSTALLATION -

• Install new belt in reverse order of

removal.

• Make sure belt is in all pulley grooves

and inside all belt guides.

• Install mower in reverse order of

removal instructions.

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted.

• Depress clutch/brake pedal and

engage parking brake.

• Measure distance between brake

operating arm and nut "A" on brake

rod.

• If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact your nearest authorized

service center/department.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

Arm

• Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

• Pull belt toward front of tractor and

remove downwards from around

engine pulley.

• Install new belt by reversing above

procedure.

Engine Pulley_

Clutching IdlerI

Stationary dler

TRANSAXLE GEAR SHIFT LEVER

ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

• Make sure transaxle is in neutral (N).

NOTE: When he tractor rear wheels

move freely, the transaxle is in neutral.

• Loosen adjustment bolt in front of the

right rear wheel.

• Position the gear shift lever in the

neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift

Neutral Lock Gate

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest,

• Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

Adj _ntBolt

TO ADJUST STEERING WHEEL

AUGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel

toe-in or camber, contact your nearest

authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS

• Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in

rear wheel hub and axle. Insert

square key.

• Replace washers and snap retaining

ring securely in axle groove.

Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

Washer

Retaining

Axle

Cover

Square Key--_

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries, Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emer-

gency starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

(+)

(-)

REPLACING BATTERY

_3AUTION: Do not short battery

terminars by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift hood to raised position.

• Remove terminal guard.

• Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

• Install new battery with terminals in

same position as old battery.

• Reinstall terminal guard.

• First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

• ConnectBLACKgroundingcableto

negative(-)batteryterminalwith

remaininghex boltandkepsnut.

Tightensecurely

Closeterminalaccessdoors.

Closehood.

Terminal Keps Nut Hex Bolt

Access ---/

_Positive

Terminal

?al "/_ (Red)

Guard "-"_"_"*--'_ 1 Cable

_"_J. _'_Nega_ive (B,ack)

L_ ;/ Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOODAND GRILL

ASSEMBLY

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

• To replace, reverse above procedure.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and

systems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTI'LE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as

described below before loosening cable.

If adjustment is necessary, proceed as

follows:

• With engine not running, move throttle

control lever to fast position.

• Check that swivel is against stop. If it is

not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

Throttle

Cover

Cable/Clamp Screw/Swivel _\\

ed Idle Spring "Stop -

(Red or White)

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move choke

control (located on dash panel) to full

choke position.

• Loosen knob and remove cover

assembly from air cleaner.

• Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

• Replace air cleaner cover assembly

and tighten knob.

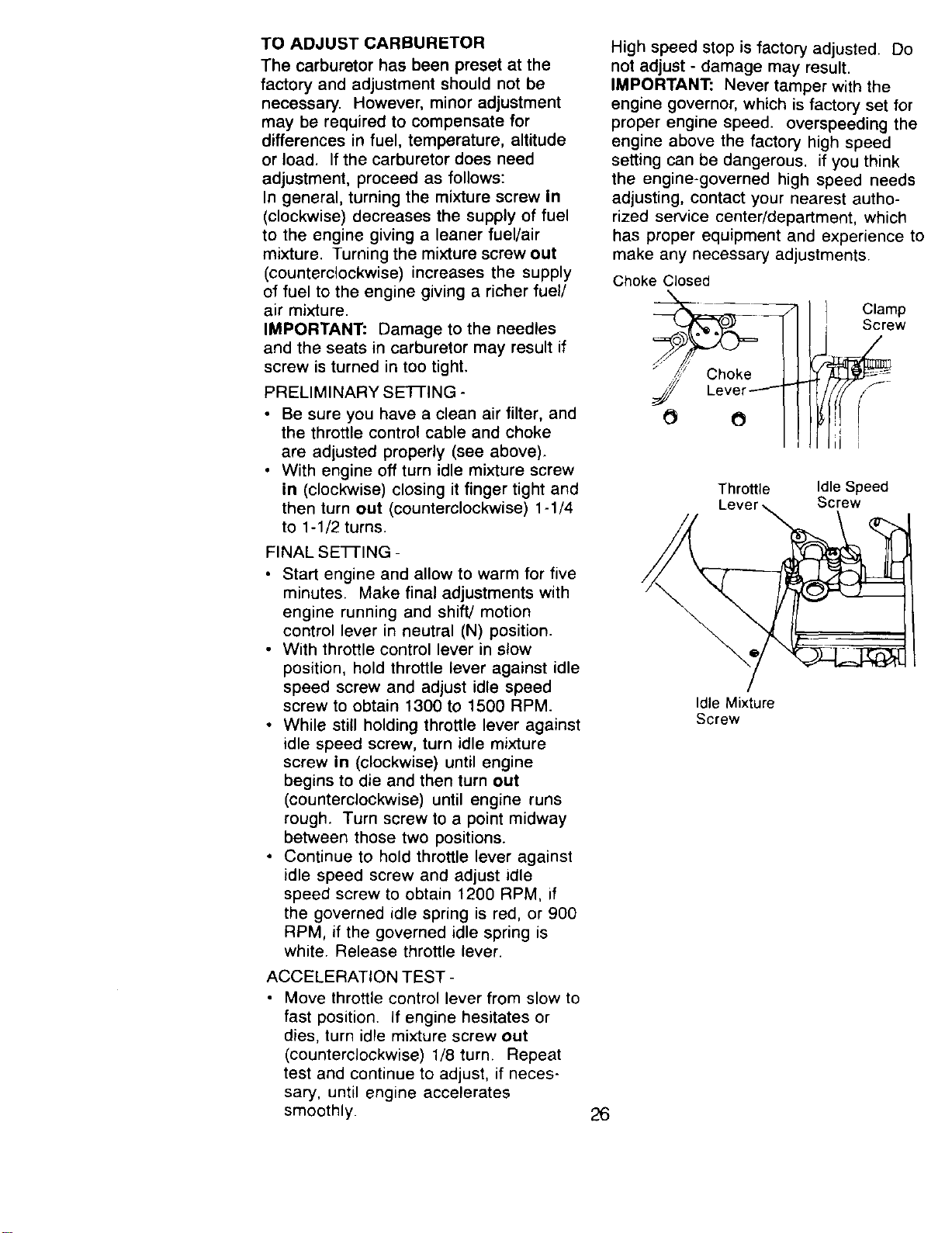

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SE]-I-IN G -

• Be sure you have a clean air filter, and

the throttle control cable and choke

are adjusted properly (see above).

• With engine off turn idle mixture screw

in (clockwise) closing it finger tight and

then turn out (counterclockwise) 1-1/4

to 1-1/2 turns.

FINALSE-I-I-ING-

• Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

• With throttle control lever in slow

position, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1300 to 1500 RPM.

• While still holding throttle lever against

idle speed screw, turn idle mixture

screw In (clockwise) until engine

begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

• Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 1200 RPM, if

the governed idle spring is red, or 900

RPM, if the governed idle spring is

white. Release throttle lever.

ACCELERATION TEST -

• Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed, overspeeding the

engine above the factory high speed

setting can be dangerous, if you think

the engine-governed high speed needs

adjusting, contact your nearest autho-

rized service center/department, which

has proper equipment and experience to

make any necessary adjustments.

Choke Closed

J Leve/:; C hoke..._._._

O o

Clamp

Screw

Throttle Idle Speed

Screw

Idle Mixture

Screw

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

w_ttCAUTION: Never store the tractor

h gasoline in the tank inside a

building where fumes may reach an

open flame or spark. Allow the engine to

cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

• Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

• Lubricate as shown in the Mainte-

nance section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage,

battery may require recharging.

• To help prevent corrosion and power

leakage during long periods of

storage, battery cables should be

disconnected and battery cleaned

thoroughly (see "TO CLEAN BAFFERY

AND TERMINALS" in the Maintenance

section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

puUm deposits from forming in essential

el system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels 9called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor

cleaner products in the fuel tank or

permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

Remove spark plug(s).

Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to "START" position

for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from

dust and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still

warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE

_NIIInot start

Hard to start

• Out of fuel.

I, Engine not "CHOKED"

properly.

I, Engine flooded.

Engine will not turn

_ver

Engine clicks but will

not start

I- Bad spark plug.

Dirty air filter.

I• Dirty fuel filter.

• Water in fuel.

• Loose or damaged

wiring.

• Carburetor out of

adjustment.

• Engine valves out of

adjustment.

• Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

• Loose or damaged

wiring.

• Carburetor out of

adjustment.

• Engine valves out of

adjustment.

• Clutch/brake pedal not

depressed.

• Attachment clutch is

engaged.

• Weak or dead battery.

• Blown fuse.

• Corroded battery

terminals.

• Loose or damaged

wiring.

• Faulty ignition switch.

• Faulty solenoid or

starter.

• Faulty operator

presence switch(es).

• Weak or dead battery.

• Corroded battery

terminals.

• Loose or damaged

wiring.

• Faulty solenoid or

starter.

CORRECTION

• Fill fuel tank.

• See "TO START ENGINE"

in Operation section.

• Wait several minutes

before attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and carburetor

refill tank with fresh gasoline

and replace fuel filter.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

Clean/replace air filter.

Replace spark plug.

• Recharge or replace battery.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

• Depress clutch/brake pedal.

• Disengage attachment

clutch,

Recharge or replace battery.

• Replace fuse.

Clean battery terminals.

• Check all wiring.

• Check/replace ignition switch,

• Check/replace solenoid or

starter.

• Contact an authorized

service center/department.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

• Check/replace solenoid or

starter.

TROUBLESHOOTING

PROBLEM

Loss of power

Excessive vibration

Engine continues

to run when operator

leaves seat with

attachment clutch

engaged

Poorcut-uneven

Mower biades wlll not

rotate

:HART

CAUSE

• Cutting too much

grass/too fast.

• Throttle in "CHOKE"

position.

• Build-up of grass,

leaves and trash

under mower.

• Dirty air filter.

• Low oil level/dirty oil.

• Faulty spark plug.

• Dirty fuel filter.

• Stale or dirty fuel.

• Water in fuel.

• Spark plug wire loose.

• Dirty engine air screen/

fins.

• Dirty/clogged muffler.

• Loose or damaged

wiring.

• Carburetor out of

adjustment.

• Engine valves out of

adjustment.

• Worn, bent or loose

blade.

• Bent blade mandrel.

• Loose/damaged part(s).

• Faulty operator-safety

presence control

system.

• Worn, bent or loose

blade.

• Mower deck not level.

• Buildup of grass,

leaves, and trash

under mower.

• Bent blade mandrel.

• Clogged mower deck

vent holes from buildup

of grass, leaves, and

trash around mandrels.

• Obstruction in clutch

mechanism.

• Worn/damaged mower

drive belt.

CORRECTION

Set in "Higher Cut" position/

reduce speed.

Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carburetor

refill tank with fresh gasoline

and replace fuel filter.

Connect and tighten spark

plug wire.

• Clean engine air screen/fins.

• Clean/replace muffler.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

• Replace blade. Tighten

blade bolt.

• Replace blade mandrel.

• Tighten loose part(s).

Replace damaged parts.

• Check wiring, switches and

connections. If not corrected,

contact an authorized

service center/department.

• Replace blade. Tighten

blade bolt.

• Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

• Clean around mandrels to

open vent holes.

Remove obstruction.

Replace mower drive belt.

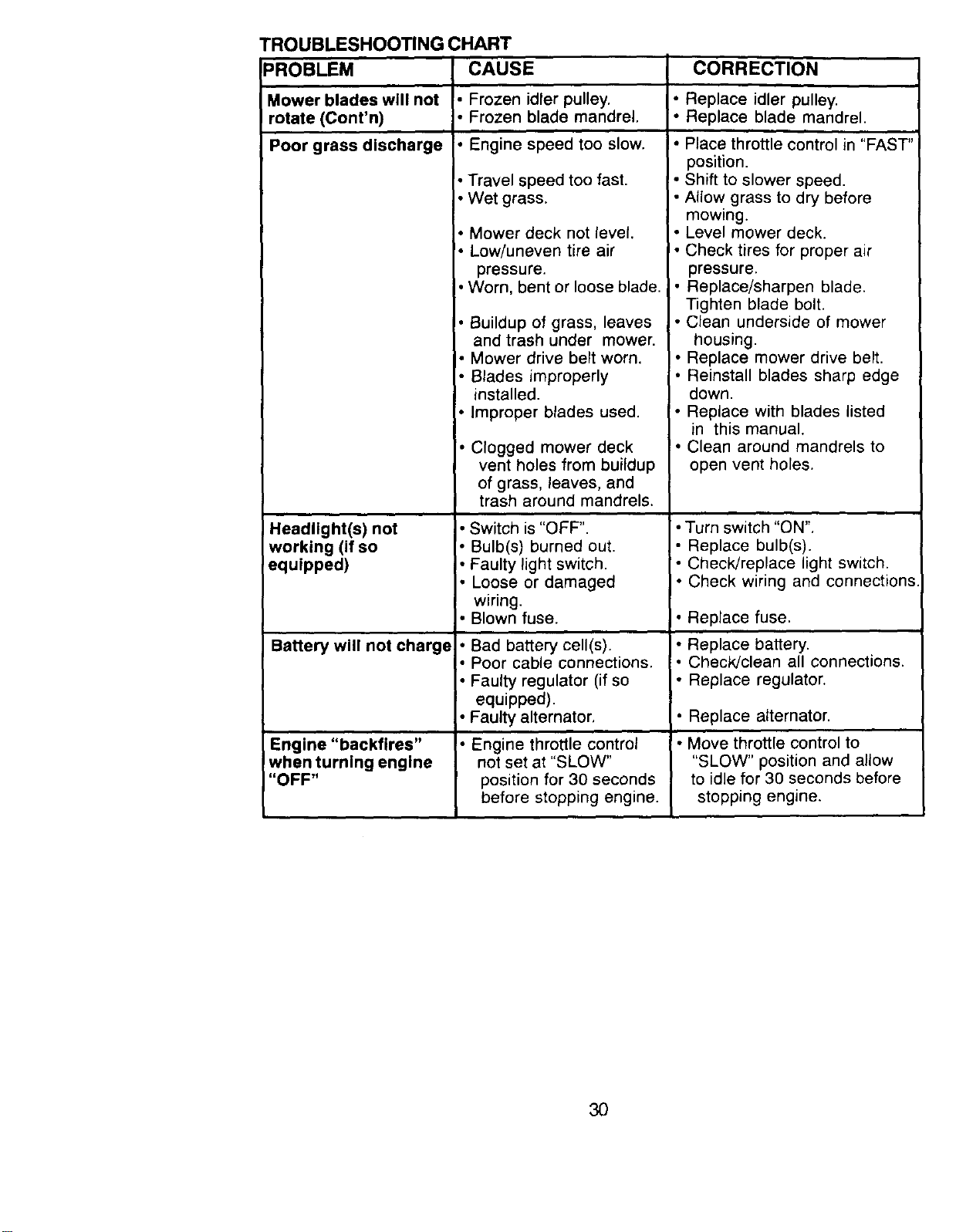

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Mower blades will not !, Frozen idler pulley. • Replace idler pulley.

rotate (Cont'n) Frozen blade mandrel. • Replace blade mandrel.

Poor grass discharge Engine speed too slow.

Headlight(s) not

working (if so

equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

Travel speed too fast.

• Wet grass.

• Mower deck not level.

• Low/uneven tire air

pressure.

• Worn, bent or loose blade.

• Buildup of grass, leaves

and trash under mower.

• Mower drive belt worn.

• Blades improperly

installed.

• Improper blades used.

• Clogged mower deck

vent holes from buildup

of grass, leaves, and

trash around mandrels.

• Switch is "OFF".

• Bulb(s) burned out.

• Faulty light switch.

• Loose or damaged

wiring.

• Blown fuse.

• Bad battery cell(s).

• Poor cable connections.

• Faulty regulator (if so

equipped).

• Faulty alternator,

• Engine throttle control

not set at "SLOW"

position for 30 seconds

before stopping engine.

• Place throttle control in "FAST"

position.

• Shift to slower speed.

• Allow grass to dry before

mowing.

• Level mower deck.

• Check tires for proper air

pressure.

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

Replace mower drive belt.

Reinstall blades sharp edge

down.

• Replace with blades listed

in this manual.

Clean around mandrels to

open vent holes.

•Turn switch "ON",

Replace bulb(s).

• Check/replace light switch.

• Check wiring and connections

• Replace fuse.

• Replace battery.

• Check/clean all connections.

• Replace regulator.

• Replace alternator.

!. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

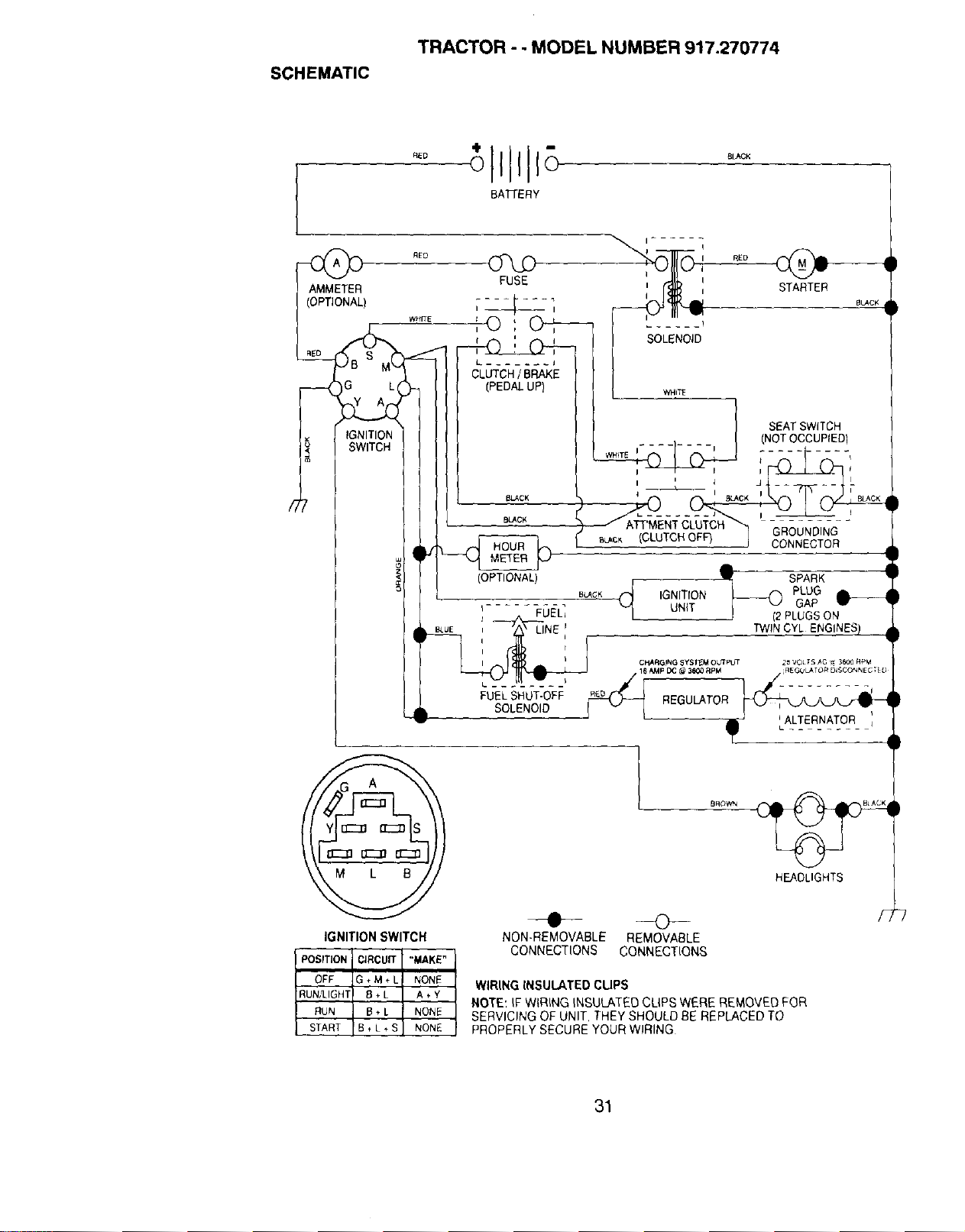

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.270774

RED 0 BLACK

BAI_'ERY

RED

--_ )G L(

IGNITION

SWITCH

BLUE

rr--'n rr--n rr--"n

IGNITIONSWITCH

POSITION CIRCUIT "MAKE"

OFF _ ÷ M + L NONE

RUN/LIGH1

FUSE

BLACK

a_c_ (CLUTCH OFF) GROUNDING

CONNECTOR

(OPTIONAL)

B_CK

FUEL'_

L----

FUEL SHUT-OFF

SOLENOID

--t-- ©

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIQNS

WIRING INSULATED CUPS

8+L A*Y

NOTE:_F WIR_NG_NSULATEO CLIPS WERE REMOVED FOR

RUN B*L NONE SERVICING OF UNIT. THEYSHOULD BE REPLACED TO

START B,L+S NONE PROPERLY SECURE YOUR WlRING

TRACTOR - - MODEL NUMBER 917.270774

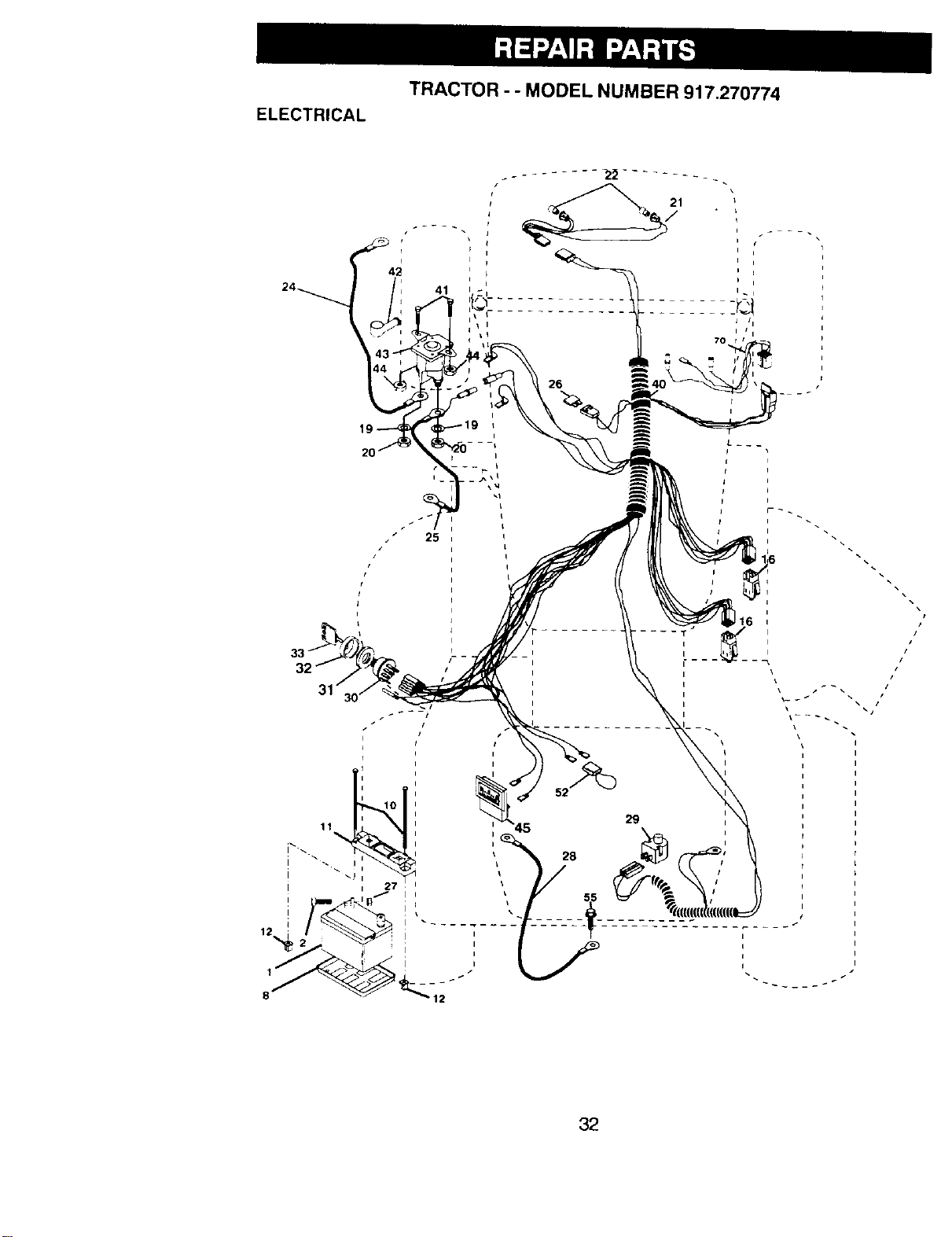

ELECTRICAL

/ 25

i- ......

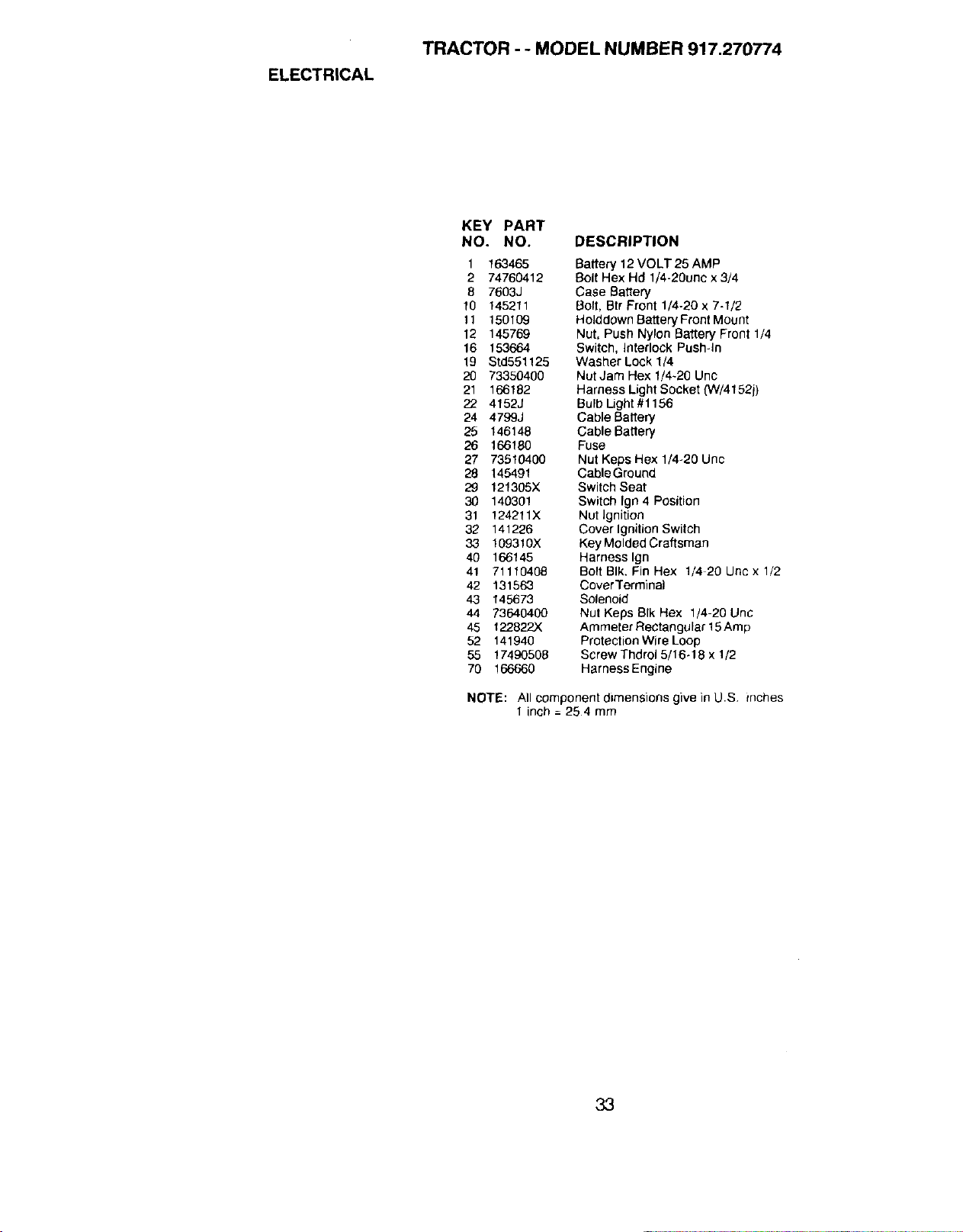

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.270774

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery 12 VOLT 25 AMP

2 74760412 Bolt Hex Hd 1/4-20une x 3/4

8 7603J Case Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Hoiddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch, interlock Push-In

19 Std551125 Washer Lock 1/4

20 73350400 NutJam Hex 1/4-20 Unc

21 166192 Harness Light Socket (W/4152i)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 166180 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable Ground

29 121305X Switch Seat

30 140301 Switch Ign 4 Position

31 1242t 1X Nut Ignition

32 141226 Cover Ignition Switch

33 109310X Key Molded Craftsman

40 166145 Harness Ign

41 71110408 BoltBIk. FinHex 1/4 20 Unc x1/2

42 131563 Cover Terminal

43 145673 Solenoid

44 73640400 Nut Keps BIk Hex 1/4 20 Unc

45 122822X Ammeter Rectangular 15Amp

52 141940 Protection Wire Loop

55 17490508 Screw Thdrol 5/16-18 x 1/2

70 166660 Harness Engine

NOTE: All component dimensions give in U.S. inches

1 inch = 254 mm

TRACTOR - - MODEL NUMBER 917.270774

CHASSIS AND ENCLOSURES

58 12

11116

3 /

38_ 39

TRACTOR - - MODEL NUMBER 917.270774

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 166819

2 140356

3 17060612

4 STD551025

5 155272

9 161917X013

10 STD533710

11 155927

12 145660

13 169117X010

14 17490608

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 156725X558

29 155217X599

30 151287)(558

31 139976

37 17490508

38 139886

39 139887

51 738O04OO

52 19091416

53 145201

54 161464

55 145202

57 STD522507

58 150127

60 STD533707

64 154798

74 STD541437

114 158112

115 17060620

116 19131614

140 158418

142 165867

143 154966

144 154207

145 156524

- - 5479J

Chassis Assembly

Drawbar

Screw 3/8-16 x .75

Washer 13/32 x 3/4 x 16 Gauge

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 3/4

Panel, Dash, L.H.

Clip Tinnerman Grille P/L

Panel, Dash, R.H.

Screw Thdrol 3/8-16x 1/2

Hood Assembly

BumperHood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with insert 3/8-16 Uric

GriUe/LensAsm.

Lens, Grille

Fend/Ftrest

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2

Pivot Bracket Assembly, L,H.

Pivot Bracket Assembly, RH

Nut Lock w/Insert !/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga

Bracket Grille Pickoff LH

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/4-20 UNC x 75

Air Duct P/L Engine

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 UNC

Keeper Belt Rear Lh

Screw 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga

Bracket Suspension Front

Plate ReinforcementSTLT

Bracket Swaybar Chassis

Bracket Pnt FootrestSTLT

Rod Pivot Chassis/Hood

Plug Btn

NOTE: All component dimensions give in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270774

GROUND DRIVE

163 168

1,8 113" "'8-_ 42""t_40-_

i 8 39 _

2 62

61 _ 34

!_!64

TRACTOR - - MODEL NUMBER 917.270774

GROUND DRIVE

KEY PART

NO. NO. DESCRIPTION

1 ........

2 146682

3 123666X

4 12000028

5 121520)(

6 17060512

8 165866

10 STD561210

11 105701X

13 74550412

14 STD551125

18 STD5237t 0

19 STD541437

21 106933X

;_ 130804

24 STD541237

25 106888X

26 STD551037

27 STD561210

28 145204

29 124236X

30 130807

31 127275X

32 STD523107

34 155071

35 120183X

36 STD551062

37 STD571810

38 131494

39 STD523727

40 4470J

41 165838

42 19131312

47 127783

48 154407

49 123205X

50 STD523715

51 STD5414.37

52 STD541431

53 105710X

55 105709X

56 STD523712

57 130801

58 127274X

KEY PART

NO. NO. DESCRIPTION

Transaxle (See Breakdown) 59 140312

Peerless206-545C 61 17060612

Spring, Return, Brake 62 8883R

Pulley, Transaxle 63 140186

Ring, Retainer 64 71170764

Strap, Torque 65 STD551t 43

Screw 5/16_18 x 3/4 66 154778

Rod Shifter Fender Adjust 70 134683

Pin, Cotter 72 19132012

Washer, Shift Plate 74 137057

Bolt 1/4-28 UNF W/Patch Gr. 8 75 121749)(

Washer 76 STD581075

Bolt Fin Hex 3/8-16 unc x 1.Gr 5 77 123583X

Nut 78 121748X

Knob 79 SDT580025

Rod, Brake 80 145090

Nut 81 165592

Spring, Brake Rod 82 165711

Washer 83 19171216

Pin 84 166231

Rod, Parking Brake 85 150360

Cap, Parking Brake, Red 89 158391X428

Bracket, Transaxle 90 124346X

Keeper, Belt, L.H. £6 STD624003

Bolt 112 19091210

Shaft Assembly, Foot Pedal 113 127285X

Bearing, Nylon 118 72110610

Washer 145 74490540

Roll Pin 150 165850

Pulley, Idler, Flat 151 19133210

Bolt 158 166002

Spacer, Split .395 x 59 156 165689

Keeper, Belt, Idler Fool-Proof 159 165494

Washer 13/32 x 13/16 x 12 Ga 160 19292016

Pulley, Idler, V-Groove, Plastic 161 72140406

Bellcrank Clutch Grnd Dry Stl 162 73680400

Retainer, Belt 163 74780416

Bolt 164 19091010

Nut Crown Lock 3/8-16 UNC 165 165623

Nut Crown Lock 5/16-18 UNC 166 166880

Link, Clutch 168 165492

Spring, Clutch Return 169 165580

Bolt Fin Hex 3/8-16 x 1 1/4

V_Belt, Ground Drive

Keeper, Belt, R H. 1 inch = 25.4 mm

Keeper, Belt, Center Span

Screw 3/8-16 x .75

Cover, Pedal

Pulley, Engine

Bolt, Hex Fin 7/16-20 x 4 Gr. 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt, RH

Washer 13/32x 1 1/4x 12Ga

Spacer, Axle

Washer 25/32x 1 1/4x 16Ga

E-Ring

Key, Square 20 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Woodruff Key

Arm, Shift

Shaft Assembly

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Not, Nylock

Console, Shift, STLT

Nut, Self-Thding, Wsh Hd 1/4

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 125

Bolt Hex FIghd 5/16-18 x Gr5

Bushing Be/Icrank Grd Drive

Washer 13/32x2x !0Ga

Washer Srrted 5/161D x 1 125

Bracket Shift Mount

Hub Tapered Flange Shift LT

Washer 29/32 x 1-1/4 x 16 Ga

Bolt Rdhd Sqnk t/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga.

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Cross Shf STLT/

CRD

NOTE: All component dimensions give in US inches

TRACTOR - - MODEL NUMBER 917.270774

STEERING ASSEMBLY

_63

_.o-

_41

<!-,

__2L

62 44

TRACTOR - - MODEL NUMBER 917.270774

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD55t t37

13 154779

15 73901000

17 156546

18 57079

t9 160395

22 165857

23 165851

25 t 54406

26 126847X

27 136874

28 19131416

29 17060612

30 STD561210

32 130465

36 t 55O99

37 152927

38 139769

39 19133812

40 STD5415,37

41 I00711L

42 145054

43 121749X

44 153720

46 121232)(

47 6855M

51 STD54143t

54 74780520

62 167902

63 STD523710

65 154780

66 154404

67 74781044

68 154429

79 19132012

80 74950612

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L+H.

Spindle Assembly, R.H,

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink Extended Stamped

Washer, Lock

Bearing Axle STLT/GT

Nut, Lock, Flange 5/8-11 UNC

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x +033

Support, Shaft

Screw, Hex Wshhd Torx

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8+16 x .75

Rod, Tie

Bushing, Steering

Screw

insert, Steering Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

Nut Lock Center 3/8-24 UNF

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LRLT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins. 5/16-18 UNC

Bolt Fin Hex 5/16118 UNC x t 1/4

Kit Steering Asm Service

Bort, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt, Fin Hex 5/8+1t UNC x 2 3/4

Axle, Brace

Washer 13/32 x 1+1/4x 12Ga

Bolt He;<Nylon 3/8-16 x 3/4

NOTE: All component dimensions given in US, inches

1 inch = 254 mm

ENG|NE

TRACTOR "" MODEL NUMBER 911 ._, v. • -

32 34

ENGINE

TRACTOR - - MODEL NUMBER 917.270774

KEY PART

NO. NO. DESCRIPTION

1 162153 Control, Throt Paddle 36.00

2 17720410 Screw, Hex Thd Cut 1/4-20 x 5/8

3 ...... Engine (See Breakdown)

Mode1350777-1034-A1

4 149723 Muffler Exhaust

5 122434X Exhaust Asm. Left

6 122435X Exhaust Asm. Right

7 138129 Clamp Tube Double Engine

8 150176 Bolt 5/16-18unc x 3/4 W/Sems

10 145552 Heat Shield Lt

13 805024 Gasket Manifold Vanguard B&S

14 13280336 Nipple, Pipe 4-1/2

15 13200300 Elbow, Standard 90 °, 3/8-18 NPT

16 STD551237 Washer Lock Ext Tooth 3/8

23 159880 Shield, Brn/DbrGuard

25 145996 ControIChoke

26 73920600 Nut Keps 3/8-24 Unf

29 137180 Arrestor, Spark

31 157103 Tank, Fuel

32 161696 Cap FuelGuage

33 123487X Clamp, Hose

34 106082X Spacer Pad

35 17060512 Screw 5/16-18 x 3/4

37 854,3R Line, Fuel

38 ..... Plug, Oil Drain (See Engine Breakdown)

39 109227X Pad Idler

78 17060620 Screw 3/8-16x1-1/4

81 128861 Nut Flange 1/4-20 Starter Nut

103 805158 Screw Manifold Vanguard B&S

NOTE: All component dimensions given in U.S. inches

1 inch : 25.4 mm

TRACTOR - - MODEL NUMBER 917.270774

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140122

2 140551

3 STD523710

4 19131610

5 145006

6 STD541437

7 124181X

8 17060616

9 19131614

10 155925

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3/4 X 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 X 1.5

Washer 13/32 X 1X 14 Ga

Pan Pat Seat (blk)

Knob Seat

Bracket Pnt MountingSwitch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 153236

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20xl -1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 127 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 X 1-3/16 X t 2 Ga.

Bolt Shoulder 5/16- t 8 X 62

NOTE: AIIcomponentdimensions givenin U.S. inches

1 inch = 25.4mm

DECALS

TRACTOR - - MODEL NUMBER 917.270774

6 9

KEY PART

NO. NO.

1 156439

2 160880

3 169434

5 163207

6 133644

7 166799

9 163204

11 156368

13 146046

KEY PART

DESCRIPTION NO. NO.

Decal, Fender Danger Sears 15 160396

Decal, Engine 19 138047

Decal, Engine Srs 20 166887

Decal, Fender 22 149516

Decal,Maintenance 23 160879

Decal, Panel Dash - 138311

Decal, Hood/Fender - - 154515

Decal, Fender STLT Oper Inst E/S - - 154516

Decal, V-Belt Dr Sch Tractor - 169476

- - 169477

DESCRIPTION

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck EZ3

Decal, Battery

Decal, Engine Radius

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner'S Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

2 _ 5,8

4,10

KEY PART

NO. NO.

1 59192

2 65139

3 1062223(

4 59904

5 106732)(427

6 278H

11 7 9040H

8 106108X427

9 138468

10 7152J

11 104757X

- 144334

DESCRIPTION

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, SerVice Item Only)

Cap, Axle

Sealant, Tire 10 oz

NOTE: All component dimensions given in US inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270774

LIFT ASSEMBLY

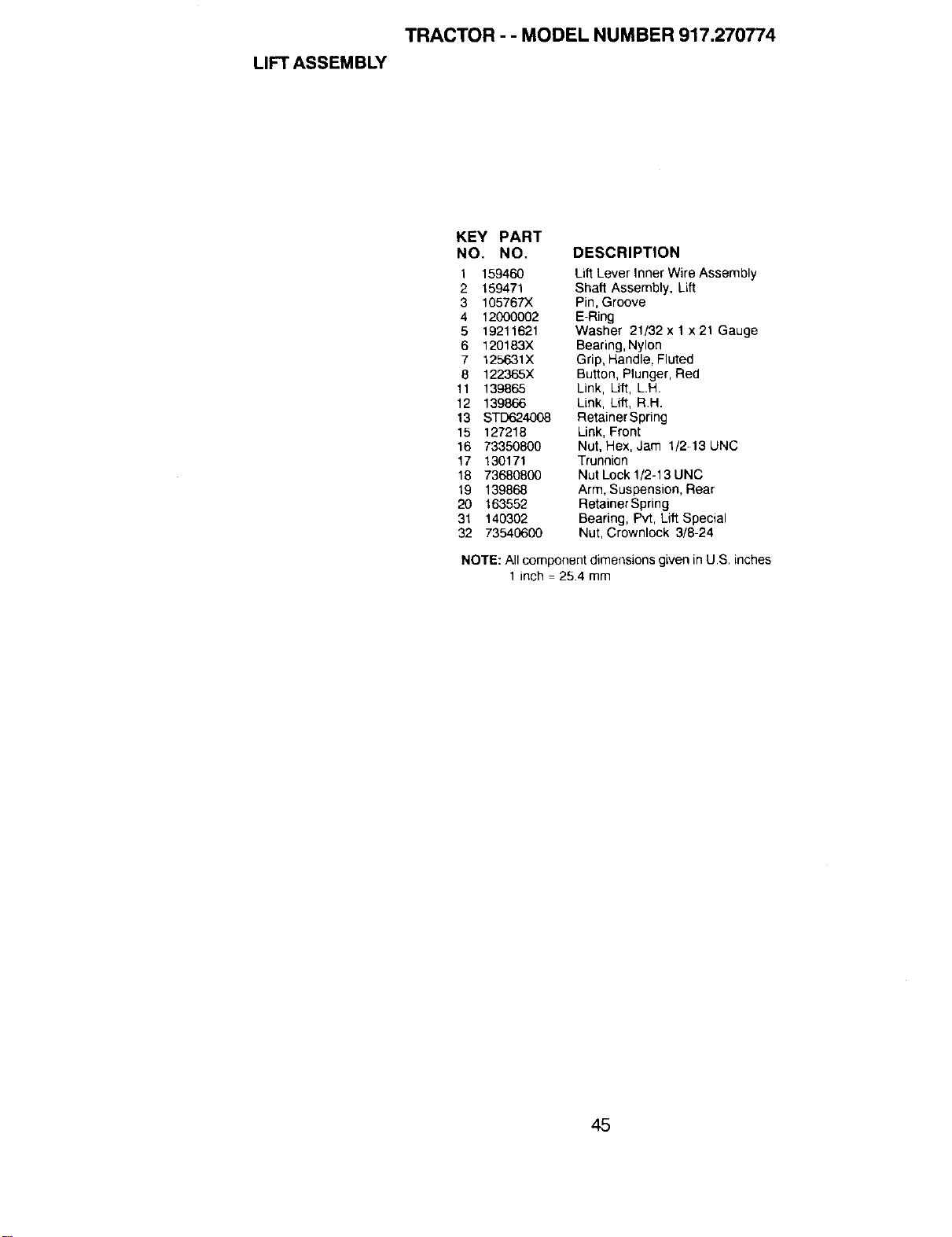

TRACTOR- - MODEL NUMBER917.270774

LIFTASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1x 21 Gauge

6 120183X Bearing,Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Uft, L.H,

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 127218 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73680800 Nut Lock 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 140302 Bearing, Pvt, Lift Special

32 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given in U.S, inches

1 inch - 25.4 mm

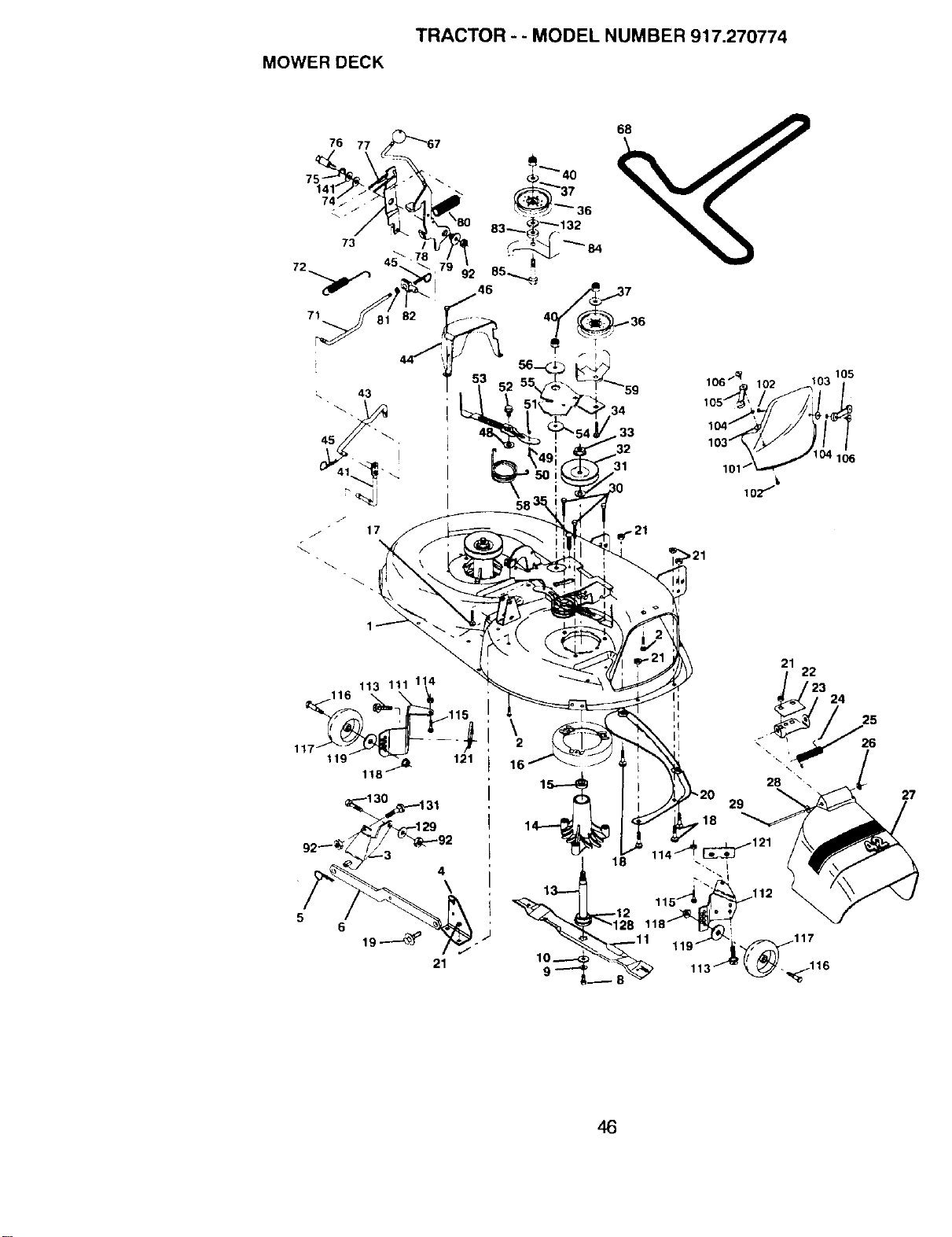

MOWER DECK

TRACTOR -- MODEL NUMBER 917.270774

73 /

_- 78

116 113 111 114

1!8 _"

,,18

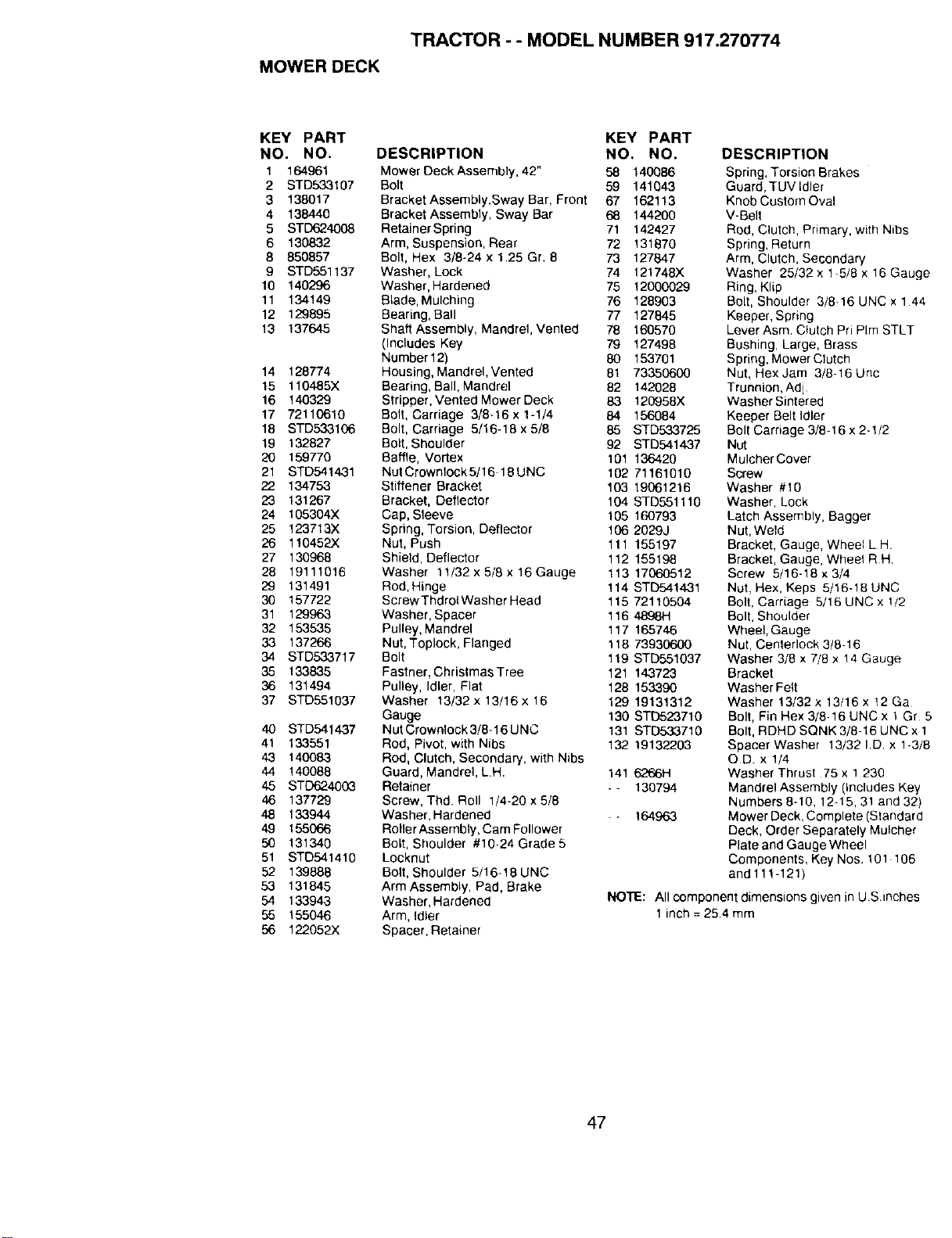

MOWER DECK

TRACTOR - - MODEL NUMBER 917.270774

KEY PART

NO. NO.

1 164981

2 STD533197

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

12 129895

13 137645

14 128774

15 110485X

16 140329

17 72110610

18 STD,533106

19 132827

20 159770

21 STD541431

22 134753

23 131267

24 105304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 STD551037

40 STD541437

41 133551

43 140083

44 140088

45 STD624003

46 137729

48 133944

49 155066

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155046

56 122052X

KEY PART

DESCRIPTION NO. NO.

Mower Deck Assembly, 42" 58 140086

Bolt 59 141043

Bracket Assembly,Sway Bar, Front 67 162113

Bracket Assembly, Sway Bar 68 144200

Retainer Spring 71 142427

Arm, Suspension, Rear 72 131870

Bolt, Hex 3/8-24 x 1.25 Gr. 8 73 127847

Washer, Lock 74 121748X

Washer, Hardened 75 12000029

Blade, Mulching 76 128903

Bearing, Ball 77 127845

Shaft Assembly, Mandrel, Vented 78 160570

(Includes Key 79 127498

Number 12) 80 153701

Housing, Mandrel, Vented 81 73350600

Bearing, Ball, Mandrel 82 142028

Stripper, Vented Mower Deck 83 120958X

Bolt, Carriage 3/8-16 x 1-1/4 84 156084

Bolt, Carriage 5/16-18 x 5/8 85 STD533725

Bolt, Shoulder 92 STD541437

Baffle, Vortex 101 136420

Nut Crowniock 5/16 18 UNC 102 71161010

Stiffener Bracket 103 19061216

Bracket, Deflector 104 STD551110

Cap, Sleeve 105 160793

Spring, Torsion, Deflector 106 2029J

Nut, Push 111 155197

Shield, Deflector 112 155198

Washer 11/32 x 5/8 x 16 Gauge 11317060512

Rod, Hinge 114 STD5414.31

ScrewThdrolWasher Head 115 72110504

Washer, Spacer 116 4898H

Pulley, Mandrel 117 165746

Nut, Toplock, Flanged 118 73930600

Bolt 119 STD551037

Fastner, Christmas Tree 121 143723

Pulley, Idler, Flat 128 153390

Washer 13/32 x 13/16 x 16 129 19131312

Gauge 130 STD523710

Nut Crownlock 3/8-16 UNC 131 STD533710

Rod, Pivot, with Nibs 132 19132203

Rod, Clutch, Secondary, with Nibs

Guard, Mandrel, LH. 141 6266H

Retainer - 130794

Screw, Thd Roll 1/4-20 x 5/8

Washer, Hardened - 164963

Roller Assembly, Cam Follower

Bolt, Shoulder #10 24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

DESCRIPTION

Spring, Torsion Brakes

Guard, TUV idler

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x !-5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/8-16 UNC x 1 44

Keeper, Spring

Lever Asm. Ctutch Pri PIm STLT

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj

Washer Sintered

Keeper Belt Idler

Bolt Carriage 3/8 16 x 2-1/2

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel LH

Bracket, Gauge, Wheel RH

Screw 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8 16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Bolt, RDHD SQNK 3/8 16 UNC x 1

Spacer Washer 13/32 ID. x 1-3/8

OD. x 1/4

Washer Thrust 75 x 1 230

Mandrel Assembly (includes Key

Numbers 8-10, 12 15, 31 and 32)

Mower Deck, Complete (Slandard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, KeyNos 101 106

and 111-121)

NOTE: All component dimensions given in U S inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270774

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

35A

67'

0 -- 718

70 6A .--_O @

157 2gB 77

MODEL and SERIAL

j NUMBERS HERE

,52

!57

41A _/"

42A

TRACTOR - - MODEL NUMBER 917.270774

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (15 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 Input Bevel Pinion (13 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) (Include. 54 778346

14) 56 778355

14 778368 Bevel Pinion (13 teeth) (Include. 57 778337

13) 58 778,353

15 778370 Ring Gear (43 teeth) 59 778351

17 786188 Drive Pin

60 778349

18 786102 Spacer 1.130 X .695

61 778345

20 79207-/A Ball 5/16" dia

65 780189

21 792078 Set Screw 3/8 - 16 x 3/8"

66 776422

22 792079 Spring .310 OD x .625 L 67 776396

25 792073A Screw 1/4 - 20 x 1 I/4"

69 792170

25A 792177 Screw 1/4-20 x t-3/8"

70 786187

26 792125 Retaining Ring (pkg of 2) 71 788068

27 792035 Retaining Ring 71B 788(_2

28 788040 Retaining Ring 76 780090

2g 780072 Thrust Washer .627 ID x .031W

77 788078A

29A 780160 Thrust Washer .762 IO x 031W

79 792144

296 780051 Thrust Washer .762 ID x .031W

82 778333

29C 780199 Anti-Rotation Washer 632

30 780108 Cup Washer 1.127 ID x .032W 83 778338

31 780001 Flat Washer .750 ID x .056W 85 792154

(Use AS Needed) 67 788089A

31A 780195 Flat Washer .759 ID x .062W

150 788093A

788083 Oil Seal 5/8"

_4 780194 Bushing .563 157 788088A

180 730229A

5 780193 Flanged Bushing 5 / 8" ID 900 794712

5A 780197 Flanged Bushing ,751

790075 Brake Disk

' 790007 Brake Pad Plate

I 799021 Brake Pad (pkg of 2)

786026 Dowe4 Pin

792076A Flat Washer 312 ID x 059W

Brake Lever

Screw 1/4 - 20 x 1-1 /4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5/16 - 24

Brake Pad Holder

Spacer .2625 x t O

Brake Lever Bracket

Axle (11-15 / 16" Long)

Axle(16 1/2"long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x 062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cul Ring

"O" Ring

Flat Washer 1.128 ID x .058W

Inverted Retaining Ring

Spring .430 OD x 5000 L

Bevel & Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 / 16"

Liquid Gasket RTV Silicene

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST- 206 545C

Transaxle

NOTE: All component dimensions given in US inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270774

BRIGGS & STRA'I-I'ON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

|71

_ss2

e87

* REQUIR£S SPECIAL TOOLS TO INSTALL

(SEE REPAIR INSTRUCTtON MANUAL)

TRACTOR - - MODEL NUMBER 917.270774

BRIGGS & STRATTON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

1091

127

127A

_1037

947

_467

4_535

161

TRACTOR - - MODEL NUMBER 917.270774

BRIGGS & STRATTON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

32_ _332_668

_,.._. 1006

729

lOO5

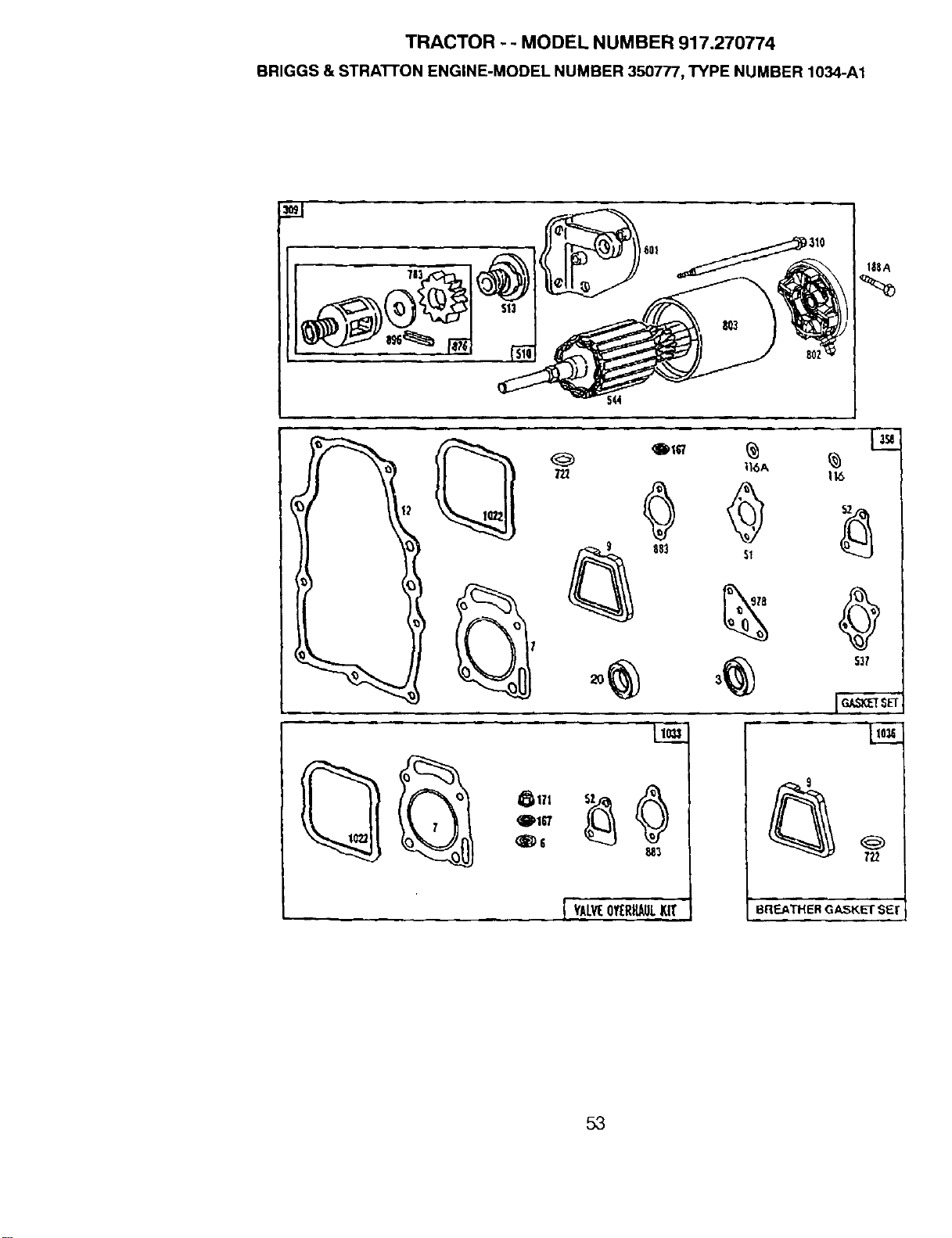

TRACTOR - - MODEL NUMBER 917.270774

BRIGGS & STRAI-I'ON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

188A

_Lw 0VEnaLK_r

BRF-ATHER GASKL_I" SEt

TRACTOR -- MODEL NUMBER 917.270774

BRIGGS & STRAI-FON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 807787 Cylinder Assembly 116A 805198 * O-Ring, Crankcase Cover

2 805107 Bearing, Cylinder 1168 224531 ** Washer, Bowl

3 805101 * Seal, Oil 117 806109 ** Jet, Main

5 1 807821 Head, Cylinder, Cylinder #1 ! 18 808374 ** Valve, Idle Adjusting

5 2 807822 Head, Cylinder, Cylinder #2 Needle

7 805653 *"* Gasket, Cylinder Head 121 807708 Carburetor Overhaul Kit

8 807795 Breather Assembly 122 805674 Spacer, Carburetor

9 805379 * Gasket.Breather 125 808372 Carburetor Assembly

10 805751 Screw 127 805570 Plug, Welch

11 805362 Tube, Breather 127A 805571 Plub, Welch

12 805112 * Gasket, Crankcase Cover 130 808572 Valve, Throttle

13 805097 Screw, Cylinder Head 131 808375 Shaft, Throttle Assembly

15 805048 Plug, Oil Drain 133 807710 Float, Bowl

16 807779 Crankshaft 137 --- ** Gasket, Bowl (Sold in Kit

94196 Key, Timing Gear Retaining Only)

18 807638 Cover Assembly, Crankcase 141 807711 Shaft, Choke

20 805049 * Seal, Oil 142 806110 ** Nozzle, Carburetor

22 805696 Screw, Crankcase Cover 161 807857 Base, Air Cleaner

23 808132 Flywheel, Magneto 166 805343 Stud, Rocker Arm

24 805016 Key, Flywheel 166A 805073 Stud, Oil Filter Adapter

25 807888 Piston Assembly, Standard 167 805420 **** Washer, Valve Cover

Size 171 805019 *'** Nut, Nylock

807991 Piston Assembly, .010" 187 393815 Hose, Fuel, 11" Long

Oversize 296004 Hose, Fuel, 23" Long

807992 Piston Assembly, .020" (Cut to Required Length)

Oversize 188 94627 Screw, Fan Retainer

807993 Piston Assembly, .030" Mounting

Oversize 188A 805247 Screw, Starter Mounting

26 807889 Ring Set, Piston, Standard 189 805449 Washer, Lock

Size 192 807623 Screw, Valve Adjustment

807994 Ring Set, Piston, .010 '1 (Includes Jam Nut)

Oversize 201 805480 Link, Governor

807995 Ring Set, Piston, .020" 209 805462 Spring, Governor

Oversize 209A 805453 Spring, Governed Idle

807996 Ring Set, Piston, .030" 216 805439 Link, Choke

Oversize 222 808195 Bracket, Governor Control

27 805099 Lock, Piston Pin 227 807528 Lever Assembly, Governor

28 807886 Pin Assembly, Piston, 232 805465 Spring, Governor Link

Standard 240 493629 Filter, Fuel

29 807900 Rod Assembly, Connecting 243 805964 Screen, Oil

32 805395 Screw, Connecting Rod 254 807713 Drain, Carburetor Bowl

33 805089 Valve, Exhaust 265 221535 Clamp, Casing

34 805090 Valve, Intake 271 808145 Bracket, Choke Control

35 805078 Spring, Valve 277 805018 Washer

37 805506 Cover, Starter 304 808220 Housing, Blower, Black

40 805092 Retainer, Valve Spring 305 805406 Screw, Sems

42 805161 Retainer, Valve 307 805025 Screw, Sems

45 262679 Tappet, Valve 308.1 808309 Cover, Air Guide, Cylinder

46 807542 Gear, Cam #1

50 805772 Manifold, Intake 308.2 808098 Cover, Air Guide, Cylinder

51 805700 * Gasket, Carburetor #2

Mounting 309 494990 Motor, Starting

52 805023 *'*'** Gasket, Intake Manifold 310 94004 Bolt

53 805669 Stud, Carburetor Mounting

54 605006 Screw, Seres * Included in Gasket Set (807887)

75 805007 Washer, Spring _ included in Carburetor Overhaul Kit

78 605447 Screw, Seres (807708)

84 914889 Plug, Pipe *_ included in Valve Overhaul Kit (807910)

87 605054 Seal, Governor Shaft _ Included in both Gasket Set (807887),

95 805561 Screw, Valve Mounting and Valve Overhaul Kit (807910)

95A 94466 Screw, Valve Mounting

98 807705 Screw, Throttle Adjustment NOTE: All component dimensions given in U.S.

104 805586 ** Pin, Float Hinge inches 1 inch = 25.4 mm

105 807706 ** Fuel Inlet Assembly

108 805562 Valve, Choke

116 805058 * O-Ring, Oil Pump

TRACTOR - - MODEL NUMBER 917.270774

BRIGGS & STRATrON ENGINE-MODEL NUMBER 350777, TYPE NUMBER 1034-A1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

324 494439 Screen, Rotating

332 806028 Nut, Hex

333 492341 Armature, Magneto

334 806104 Screw, Mounting

337 491055 Plug, Spark

351 805169 Screw, Hex Head

353 94791 Washer, Lock

353A 806101 Washer, Lock

354 90576 Nut, Hex

354A 810078 Nut, Hex

356 493792 Wire, Ground

358 807887 Gasket Set

363 19203 Pul_er, Flywheel

387 808322 Pump, Fuel

423 805260 Screw, Sems

445 394018 Cartridge, Air Cleaner

467 491875 Knob, Air Cleaner

474 393295 Stator, Alternator

501 394890 Regulator, Alternator

510 495878 Drive Assembly

513 398003 Clutch Assembly

520 93722 Terminal, Spade

523 507985 Dipstick

524 805011 Seal, Filler Tube

525 807611 Tube, Oil Filler

526 805448 Screw, Regulator Mounting

527 223167 Clamp, Fuel Pipe

535 272490 Element, Foam

537 805655 * Gasket, Air Cleaner

544 490309 Armature Assembly

552 805412 Bushing, Governor Shaft

552A 805413 Bushing, Governor Shaft

562 805381 Bolt

572 805197 Baffle, Breather

573 807663 Back Plate Assembly

592 805383 Nut, Hex

601 93053 Clamp, Hose

613 805158 Screw, Sems

614 806096 Pin, Cotter

615 808578 _ Retainer

615A 808577 ** Retainer

616 807596 Fork, Governor

634 805416 Washer, Governor Shaft

634A 805580 ** Shaft Seal Kit

6348 805574 *'* Collar, Throttle Shaft

634C 806079 Seal, Throttle Shaft

634D 805576 *'* Washer, Plain

635 805529 Elbow, Spark Plug

642 807862 Cover, Air Cleaner

643 805631 Plate, Cartridge

557 805009 Screw, Seres

568 805402 Spacer, Rotating Screen

718 805103 Dowel, Crankcase

722 805483 * Seal, Breather Screw

'26 807805 Gear, Flywheel Ring

'27 805505 Shield, Starter

_.9 805641 Grommet

9A 224356 Clip, Debris

:JB 280470 Clip, Wire

805675 Gear, Timing

280104 Gear

807685 Bracket, Fuel Pump

394856 Cap Assembly, Drive End

494988 Cap Assembly, Commutator

End

494205 Housing Assembly

305057 Screw, Sems

823 805317 Screw, Mounting

842 270920 O-Ring

851 473880 Terminal, Ignition Cable

862 807859 Bracket, Air Cleaner

864 805083 Liner, Exhaust Port

866 805738 Valley Cover, Air Guide

868 805094 Seal, Valve Guide

869 805085 Seat, Intake Valve

870 805086 Seat, Exhaust Valve

871 805084 Guide, Valve

876 495877 Retainer Kit

879 805841 Cover, Carburetor

883 805024 _ Gasket, Exhaust Manifold

896 94288 Pin, Roll

918 393815 Line, Vaccum

947 808154 Solenoid

975 807913 Bowl, Fuel Asssembly

977 807916 Gasket Set, Carburetor

(Consists of Key Numbers

116B and 137)

978 805250 * Gasket, Oil Filter Adapter

982 805030 Screw, Sems

985 398525 Insulator Assembly

1004 805632 Tube, Air Inlet

t 005 808082 Fan, Flywheel

1006 224413 Retainer, Fan

1013 805581 '_ Seal, Choke Shaft

1014 807963 Shield, Carburetor

1022 806039 **** Gasket, Valve Cover

1023 805100 Cover, Valve

807665 Cover, Valve (Used on

Cylinder #1 on Fuel Pump

Applications)

1024 807546 Oil Pump Assembly

1025 805313 Slider, Governor

1026 805352 Rod, Push(Intake)

1026A 805617 Rod, Push (Exhaust)

1027 492932 Filter, Oil

1028 805292 Adapter, Oil Filter

1029 808096 Arm, Rocker

1030 805342 Shaft, Rocker Arm

1031 805341 Support, Rocker Arm

1033 807910 Overhaul Kit, Valve

1036 807688 Breather Gasket Set

1037 807217 ** Ball, Choke Locator

1054 280275 Tie, Cable

1054A 270723 Tie, Cable

1058 272104 Manual, Operator's

1091 805858 Cap, Limiter

RPM Settings:

Low Speed: !200-1600

High Speed: 3200 3400

Included in Gasket Set (807887)

** Included in Carburetor Overhaul Kit

(807708)

*** included in Valve Overhaul Kit (807910)

Included in both Gasket Set (807887),

and Valve Overhaul Kit (807910)

NOTE: All component dimensions given _n U.S

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING _ CUT

GUIDE TH"_

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15° MAX.

/1_ Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme I

caution when changing direction on slopes. I

[

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME SM (1-800-469-4663)

Para pedir servicio de reparacibn a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pieces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect S"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday - Saturday

1-800-827-6655

p.-

SEARS

Home Central 'M

ii •

Printed in U.S.A.

1169476 Rev. 3 8.23.99 TR/SV

[

Craftsman 917270774 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917270774 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
