Elechomes US5001 5L(1.32Gal) Top Fill Ultrasonic Humidifier

User Manual - Transcript

• Page 1 - English - : Model: US5001 Top Fill Ultrasonic Aroma Humidifier User Manual Thank you for choosing Elechomes! Please read this manual carefully to ensure safe use and keep it on hand for future reference.

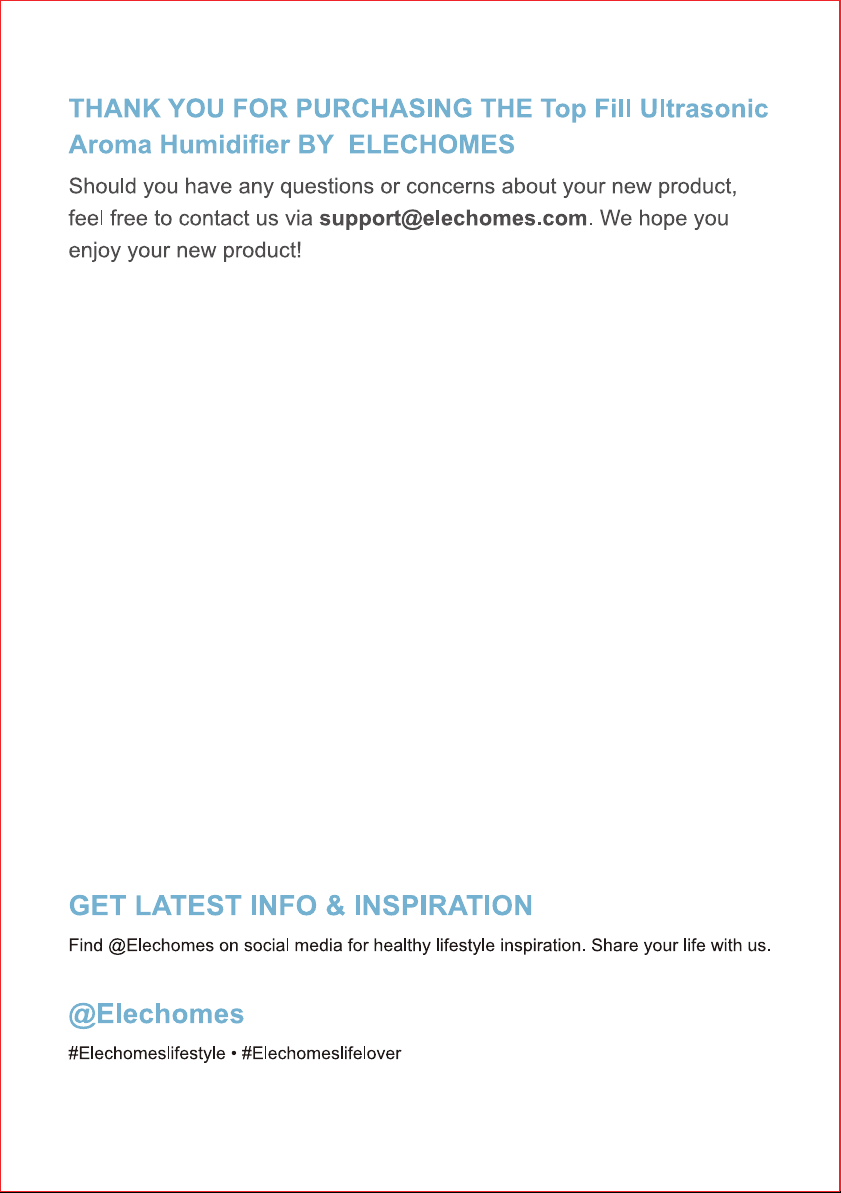

• Page 2 - English - : THANK YOU FOR PURCHASING THE Top Fill Ultrasonic Aroma Humidifier BY ELECHOMES Should you have any questions or concerns about your new product. enjoy your new product! GET LATEST INFO & INSPIRATION Find @Elechomes on social media for healthy lifestyle inspiration. Share your life with us. @Elechomes #Elechomeslifestyle * #Elechomeslifelover

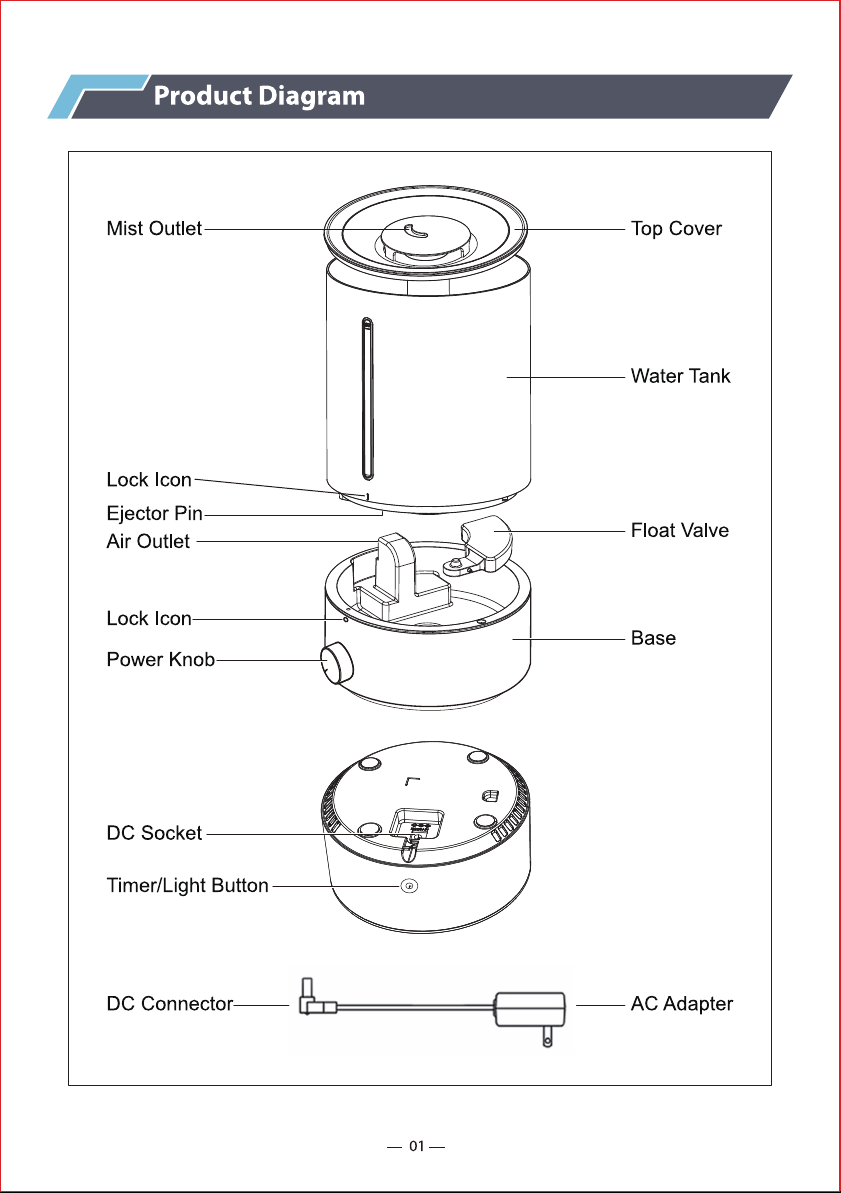

• Page 4 - English - : 4 Product Diagram Water Tank Ejector Pin Air Outlet ——— <>» t Float Valve Power Knob DC cost RO Timer/Light Button ———_\—_—-® DC Connector. fo} — AC Adapter

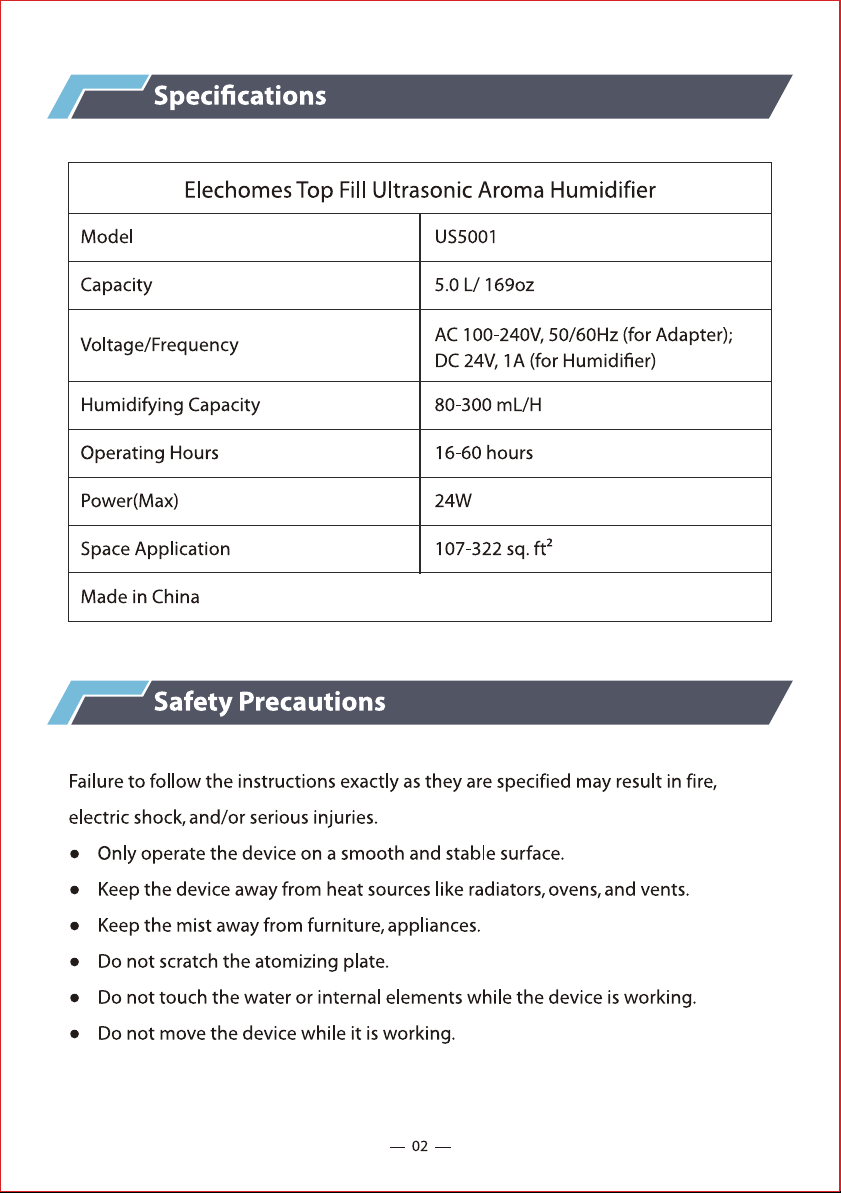

• Page 5 - English - : f Specifications Elechomes Top Fill Ultrasonic Aroma Humidifier Model US5001 Capacity 5.0 L/ 1690z AC 100-240V. 50/60Hz (for Adapter); Voltage/Frequenc g q y DC 24V. 1A (for Humidifier) Humidifying Capacity 80-300 mL/H Operating Hours 16-60 hours Space Application 107-322 sq. ft? 4 Safety Precautions Failure to follow the instructions exactly as they are specified may result in fire. electric shock. and/or serious injuries. e@ Only operate the device on a smooth and stable surface. e Keep the device away from heat sources like radiators. ovens. and vents. e Keep the mist away from furniture. appliances. e Donot scratch the atomizing plate. e Do not touch the water or internal elements while the device is working. e Do not move the device while it is working.

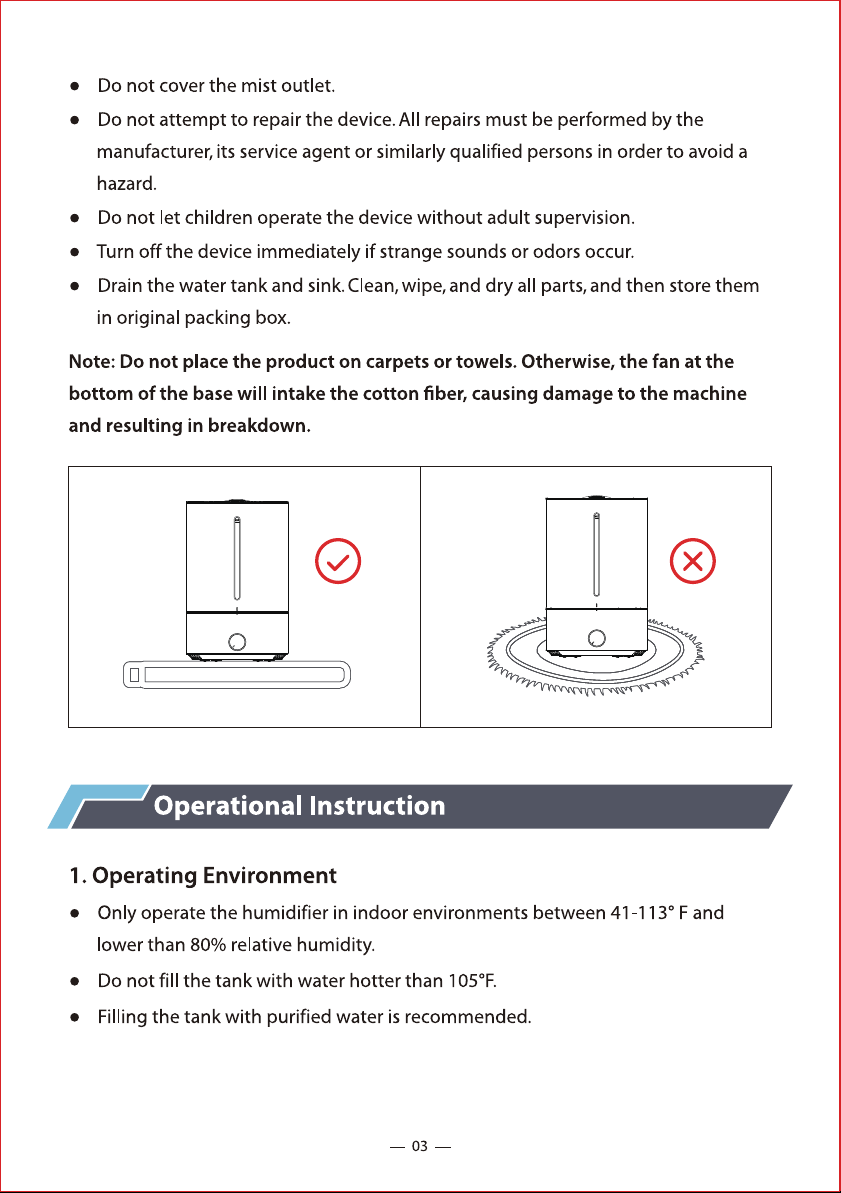

• Page 6 - English - : e Donot cover the mist outlet. e Do not attempt to repair the device. All repairs must be performed by the manufacturer. its service agent or similarly qualified persons in order to avoid a e Donot let children operate the device without adult supervision. e Turn off the device immediately if strange sounds or odors occur. e Drain the water tank and sink. Clean. wipe. and dry all parts. and then store them in original packing box. Note: Do not place the product on carpets or towels. Otherwise. the fan at the bottom of the base will intake the cotton fiber. causing damage to the machine and resulting in breakdown. f Operational Instruction 1. Operating Environment e Only operate the humidifier in indoor environments between 41-113° F and lower than 80% relative humidity. e Donot fill the tank with water hotter than 105°F. e Filling the tank with purified water is recommended.

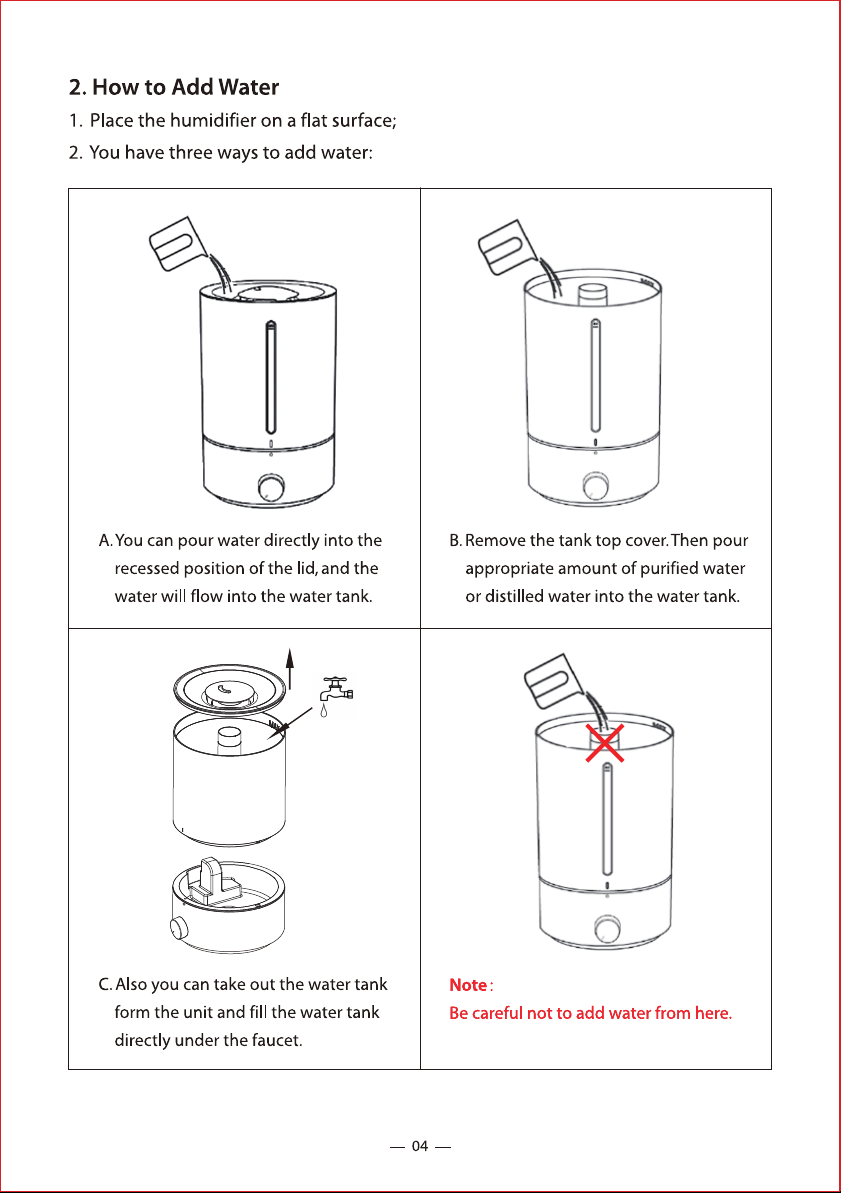

• Page 7 - English - : 2. How to Add Water 1. Place the humidifier on a flat surface; 2. You have three ways to add water: A.You can pour water directly into the B. Remove the tank top cover. Then pour recessed position of the lid. and the appropriate amount of purified water water will flow into the water tank. or distilled water into the water tank. C. Also you can take out the water tank Note: form the unit and fill the water tank Be careful not to add water from here. directly under the faucet.

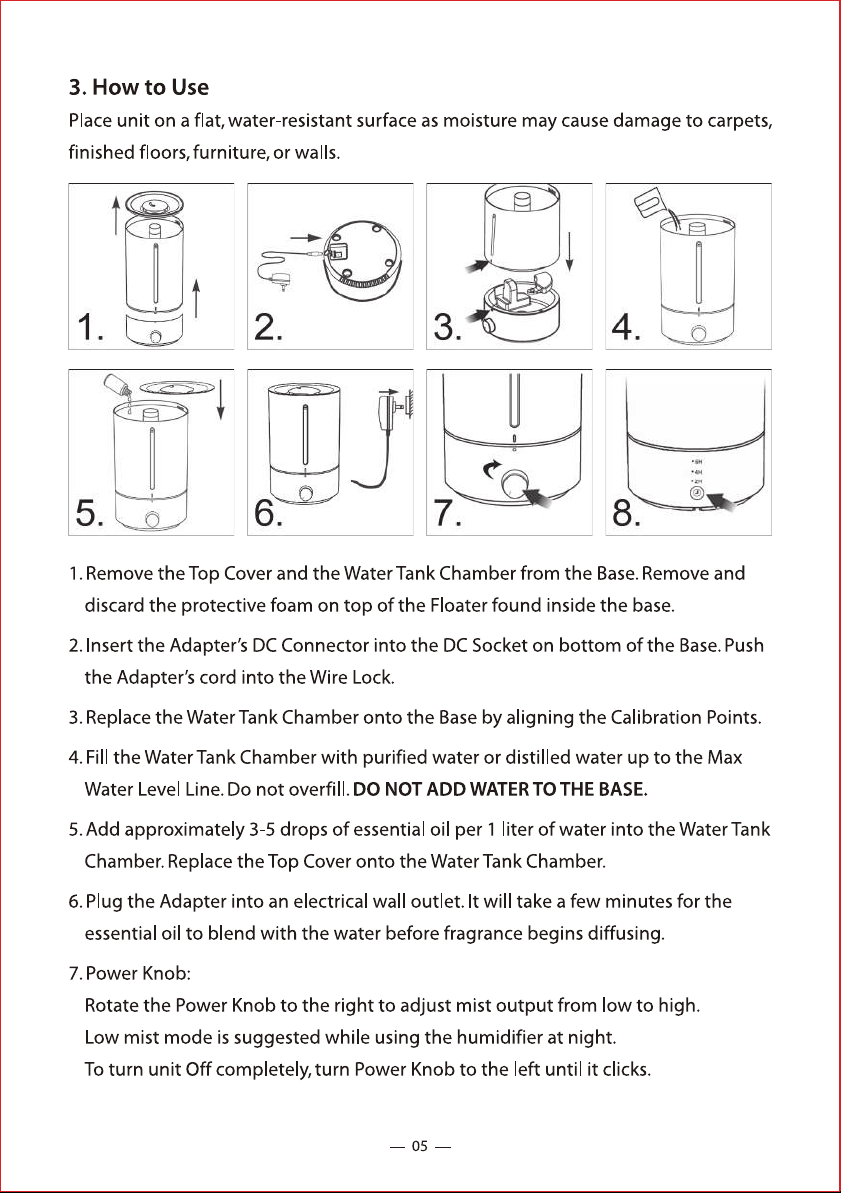

• Page 8 - English - : 3. How to Use Place unit on a flat. water-resistant surface as moisture may cause damage to carpets. finished floors. furniture. or walls. 1.Remove the Top Cover and the Water Tank Chamber from the Base. Remove and discard the protective foam on top of the Floater found inside the base. 2.Insert the Adapter’s DC Connector into the DC Socket on bottom of the Base. Push the Adapter’s cord into the Wire Lock. 3.Replace the Water Tank Chamber onto the Base by aligning the Calibration Points. 4. Fill the Water Tank Chamber with purified water or distilled water up to the Max Water Level Line. Do not overfill. DO NOT ADD WATER TO THE BASE. 5.Add approximately 3-5 drops of essential oil per 1 liter of water into the Water Tank Chamber. Replace the Top Cover onto the Water Tank Chamber. 6. Plug the Adapter into an electrical wall outlet. It will take a few minutes for the essential oil to blend with the water before fragrance begins diffusing. 7.Power Knob: Rotate the Power Knob to the right to adjust mist output from low to high. Low mist mode is suggested while using the humidifier at night. To turn unit Off completely. turn Power Knob to the left until it clicks.

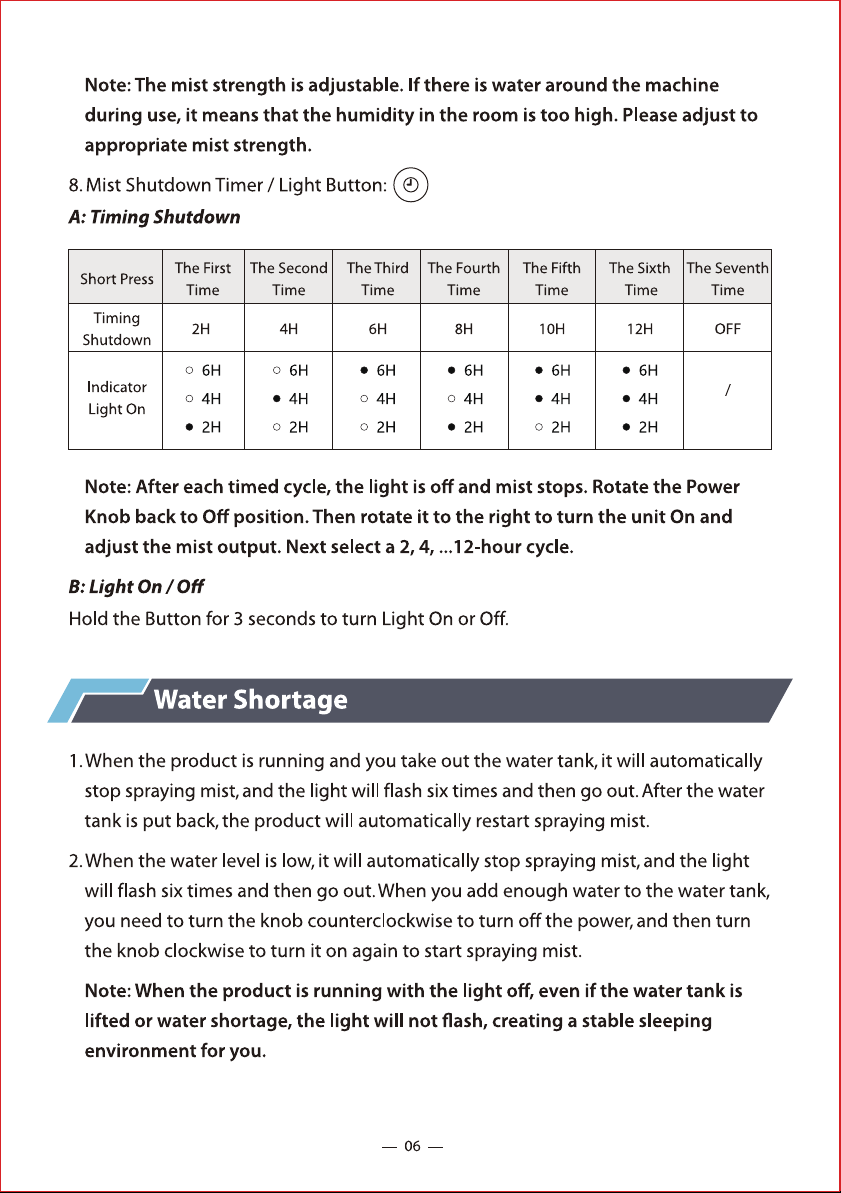

• Page 9 - English - : Note: The mist strength is adjustable. If there is water around the machine during use. it means that the humidity in the room is too high. Please adjust to appropriate mist strength. 8. Mist Shutdown Timer / Light Button: A: Timing Shutdown The First | The Second] TheThird | The Fourth | The Fifth oreeress Time Time Note: After each timed cycle. the light is off and mist stops. Rotate the Power Knob back to Off position. Then rotate it to the right to turn the unit On and adjust the mist output. Next select a 2. 4. ...12-hour cycle. B: Light On / Off Hold the Button for 3 seconds to turn Light On or Off. f Water Shortage 1.When the product is running and you take out the water tank. it will automatically stop spraying mist. and the light will flash six times and then go out. After the water tank is put back. the product will automatically restart spraying mist. 2.When the water level is low. it will automatically stop spraying mist. and the light will flash six times and then go out.When you add enough water to the water tank. you need to turn the knob counterclockwise to turn off the power. and then turn the knob clockwise to turn it on again to start spraying mist. Note: When the product is running with the light off. even if the water tank is lifted or water shortage. the light will not flash. creating a stable sleeping environment for you.

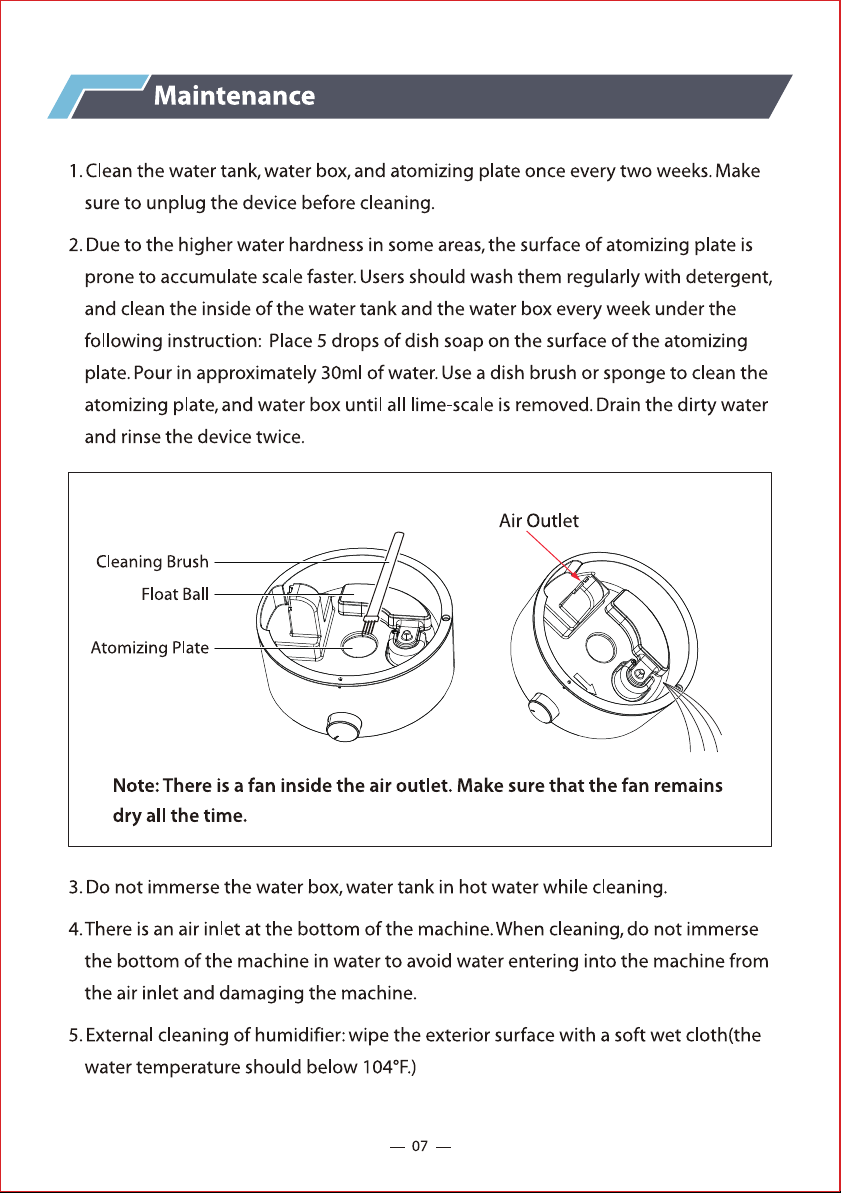

• Page 10 - English - : 1.Clean the water tank. water box. and atomizing plate once every two weeks. Make sure to unplug the device before cleaning. 2.Due to the higher water hardness in some areas. the surface of atomizing plate is prone to accumulate scale faster. Users should wash them regularly with detergent. and clean the inside of the water tank and the water box every week under the following instruction: Place 5 drops of dish soap on the surface of the atomizing plate. Pour in approximately 30m! of water. Use a dish brush or sponge to clean the atomizing plate. and water box until all lime-scale is removed. Drain the dirty water and rinse the device twice. Air Outlet Cleaning Brush Float Ball Atomizing Plate Note: There is a fan inside the air outlet. Make sure that the fan remains dry all the time. 3.Do not immerse the water box. water tank in hot water while cleaning. 4.There is an air inlet at the bottom of the machine. When cleaning. do not immerse the bottom of the machine in water to avoid water entering into the machine from the air inlet and damaging the machine. 5.External cleaning of humidifier: wipe the exterior surface with a soft wet cloth(the water temperature should below 104°F.)

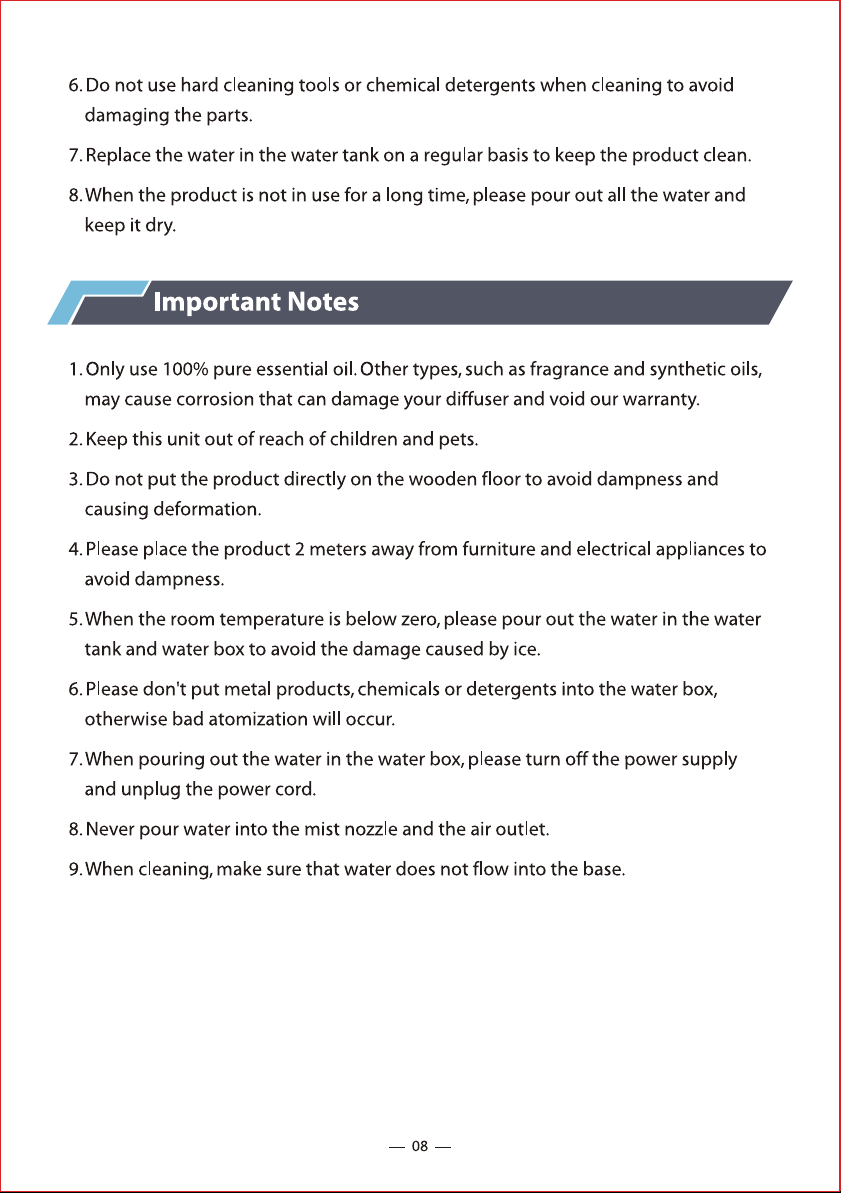

• Page 11 - English - : 6.Do not use hard cleaning tools or chemical detergents when cleaning to avoid damaging the parts. 7.Replace the water in the water tank on a regular basis to keep the product clean. 8.When the product is not in use for a long time. please pour out all the water and keep it dry. f Tiny ekela tlie Cel c=ry 1.Only use 100% pure essential oil. Other types. such as fragrance and synthetic oils. may cause corrosion that can damage your diffuser and void our warranty. 2. Keep this unit out of reach of children and pets. 3.Do not put the product directly on the wooden floor to avoid dampness and causing deformation. 4.Please place the product 2 meters away from furniture and electrical appliances to avoid dampness. 5.When the room temperature is below zero. please pour out the water in the water tank and water box to avoid the damage caused by ice. 6. Please don't put metal products. chemicals or detergents into the water box. otherwise bad atomization will occur. 7.When pouring out the water in the water box. please turn off the power supply and unplug the power cord. 8. Never pour water into the mist nozzle and the air outlet. 9.When cleaning. make sure that water does not flow into the base.

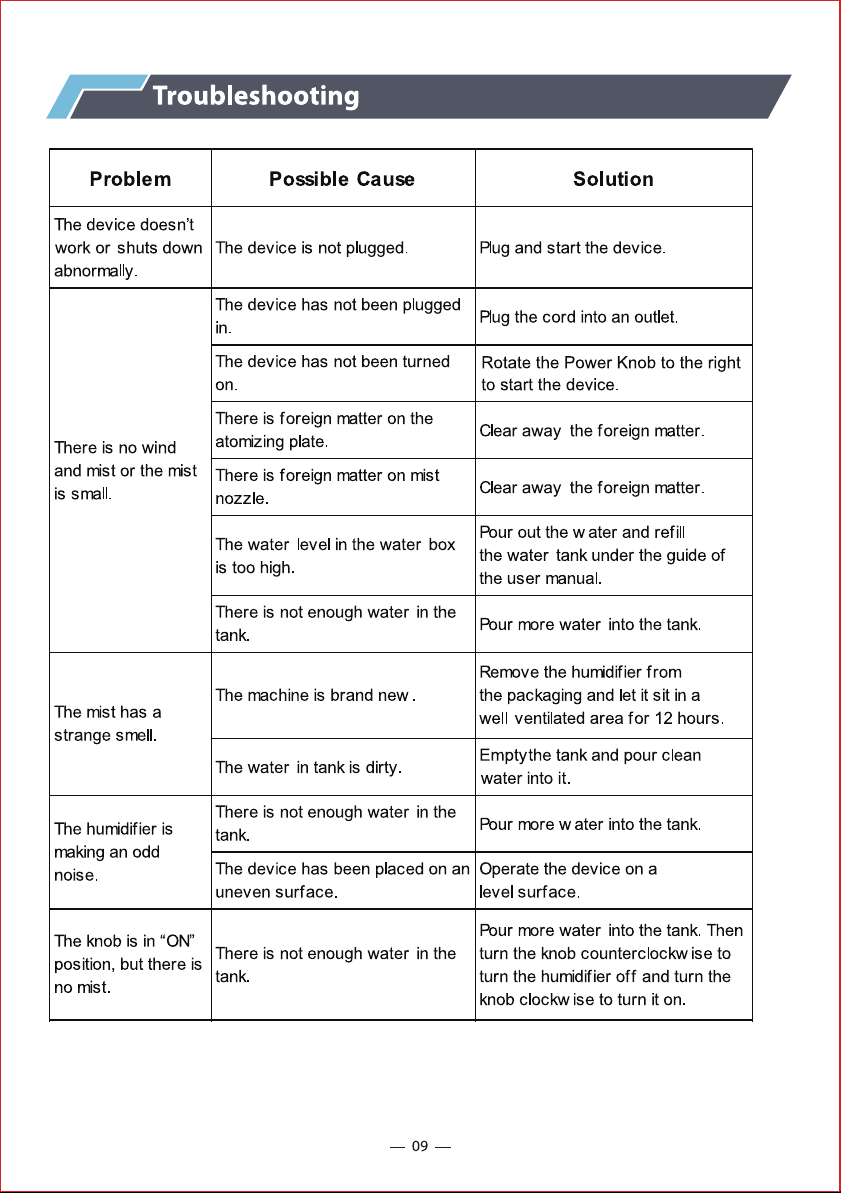

• Page 12 - English - : f Troubleshooting The device doesn't work or shuts down |The device is not plugged. Plug and start the device. abnormally. There is no wind and mist or the mist The mist has a strange smell. The humidifier is making an odd The knob is in “ON” position. but there is The device has not been plugged The device has not been turned Rotate the Power Knob to the right on. to start the device. There is foreign matter on the _: Clear away the foreign matter. atomizing plate. There is foreign matter on mist Clear away the foreign matter. Pour out the w ater and refill the water tank under the guide of the user manual. The water level in the water box is too high. Th i t h water in th ork. S norenougn Waren nin’ Pour more water into the tank. Remove the humidifier from The machine is brand new. the packaging and let it sitina well ventilated area for 12 hours. Emptythe tank and pour clean The water in tank is dirty. P " P water into it. There is not enough water in the g Pour more water into the tank. The device has been placed on an | Operate the device ona uneven surface. level surface. Pour more water into the tank. Then There is not enough water in the |turn the knob counterclockw ise to tank. turn the humidifier off and turn the knob clockwise to turn it on.

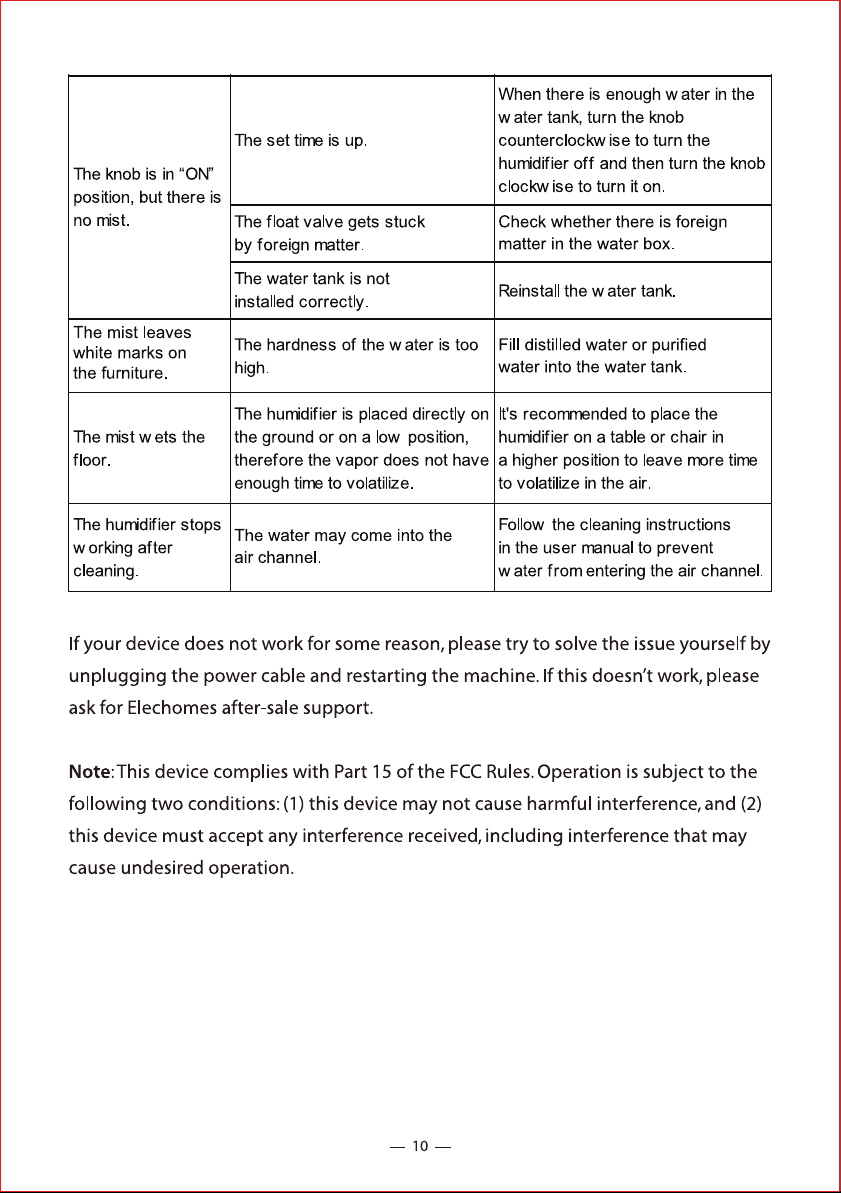

• Page 13 - English - : The knob is in “ON” position. but there is The mist leaves white marks on the furniture. The mist w ets the The humidifier stops w orking after When there is enough w ater in the w ater tank. turn the knob The set time is up. counterclockwise to turn the humidifier off and then turn the knob clockw ise to turn it on. The float valve gets stuck Check whether there is foreign by foreign matter. matter in the water box. The water tank is not ; Reinstall the w ater tank. installed correctly. The hardness of the water is too |Fill distilled water or purified water into the water tank. The humidifier is placed directly on | It's recommended to place the the ground or on a low position. humidifier on a table or chair in therefore the vapor does not have Ja higher position to leave more time enough time to volatilize. to volatilize in the air. Follow the cleaning instructions in the user manual to prevent w ater from entering the air channel. The water may come into the air channel. If your device does not work for some reason. please try to solve the issue yourself by unplugging the power cable and restarting the machine. If this doesn’t work. please ask for Elechomes after-sale support. Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received. including interference that may cause undesired operation.
• Page 14 - English - : f Warranty Information Product Name Top Fill Ultrasonic Aroma Humidifier Model Name US5001 Default Warranty Period 18 Months For your own reference. we strongly recommend that you record your order number and date of purchase. Date of Purchase Order Number TERMS & POLICY The Elechomes products are premium in material. craftsmanship. and service. They are effective from the date of purchase. Elechomes will replace defective products based on eligibility. Refunds are available to the original purchasers of our products within the first 30 days of purchase. This warranty extends only to personal use instead of commercial. rental. or any other uses in which the product is not intended for. Each product has no other warranties other than the already provided warranties. This warranty is non-transferable. Elechomes is not responsible for any damages. losses or inconveniences caused by equipment’s failure. user’s negligence. user’s abuse. or improper operation that does not follow the included user manual. This warranty does not apply to the following situations: Damage due to abuse. accident. alteration or vandalism. Improper or inadequate maintenance. Damage in return transit. Unsupervised use by children under 18 years old.

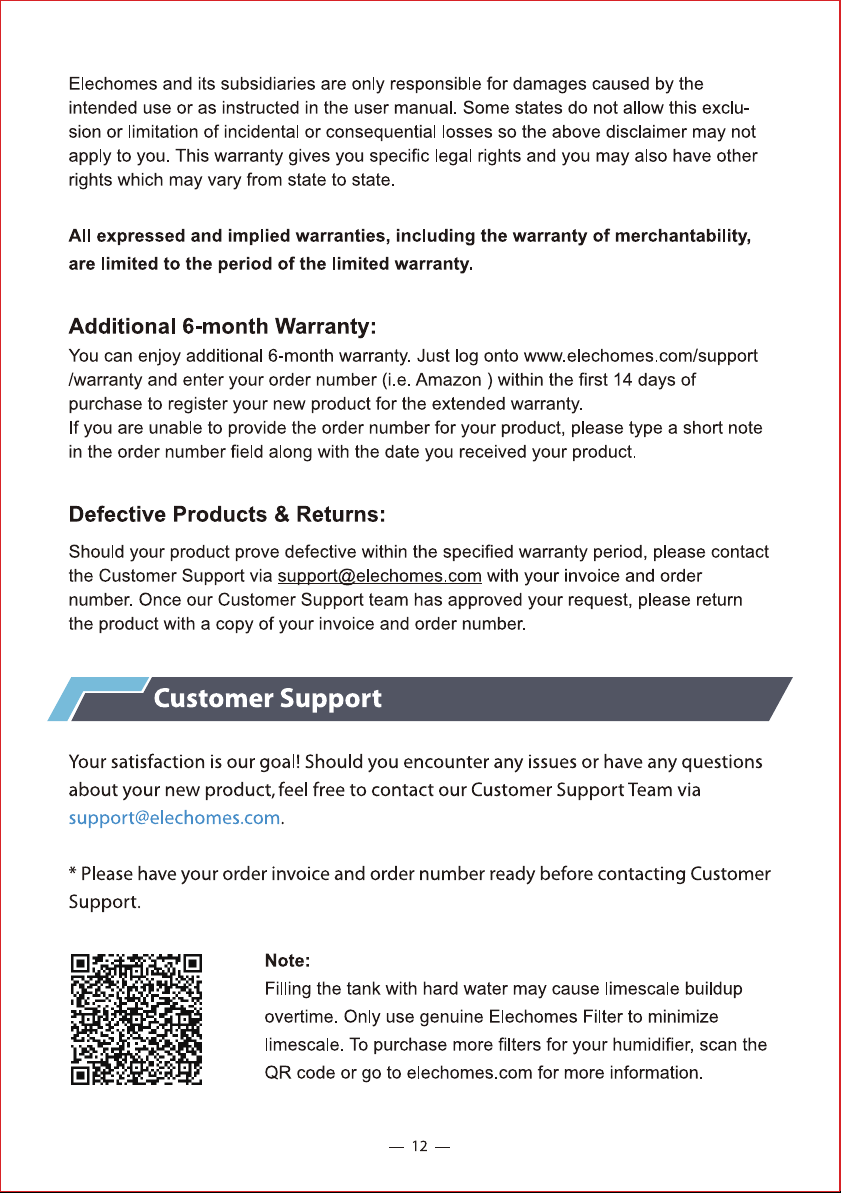

• Page 15 - English - : Elechomes and its subsidiaries are only responsible for damages caused by the intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the above disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. All expressed and implied warranties. including the warranty of merchantability. are limited to the period of the limited warranty. Additional 6-month Warranty: /warranty and enter your order number (i.e. Amazon ) within the first 14 days of purchase to register your new product for the extended warranty. If you are unable to provide the order number for your product. please type a short note in the order number field along with the date you received your product. Defective Products & Returns: Should your product prove defective within the specified warranty period. please contact number. Once our Customer Support team has approved your request. please return the product with a copy of your invoice and order number. f Customer Support Your satisfaction is our goal! Should you encounter any issues or have any questions about your new product. feel free to contact our Customer Support Team via * Please have your order invoice and order number ready before contacting Customer Filling the tank with hard water may cause limescale buildup overtime. Only use genuine Elechomes Filter to minimize limescale. To purchase more filters for your humidifier. scan the QR code or go to elechomes.com for more information.

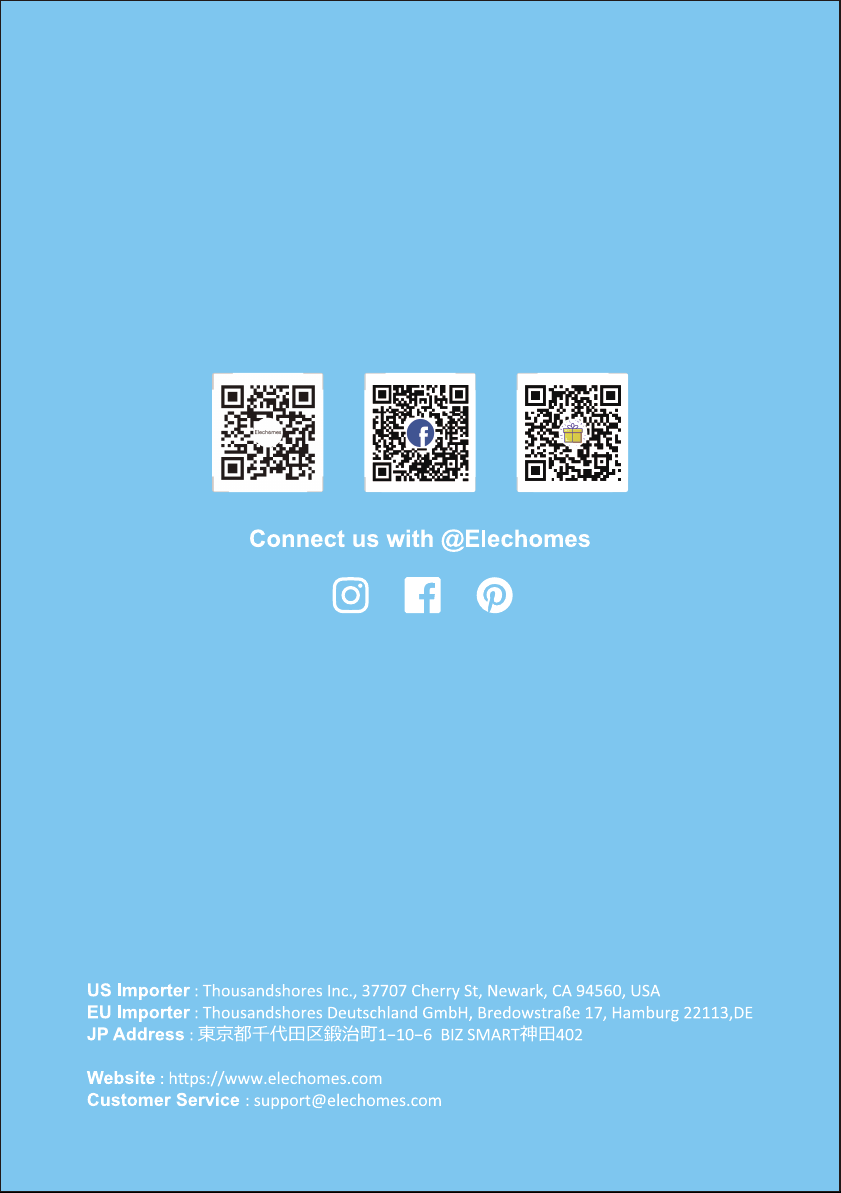

• Page 17 - English - : Connect us with @Elechomes US Importer : Thousandshores Inc. 37707 Cherry St. Newark. CA 94560. USA EU Importer : Thousandshores Deutschland GmbH. Bredowstrae 17. Hamburg 22113. E JP Address : 2 Rab (tH Xia HJ 1-10-6 BIZ SMART#HEN402
