USER MANUAL
Top Control Dishwasher
F24DWS650PR
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Main components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installing and setting up your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before using your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Providing a proper power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Understanding your dishwashers features . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Wash cycle selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Filter system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Smart wash system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Adjustable upper rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

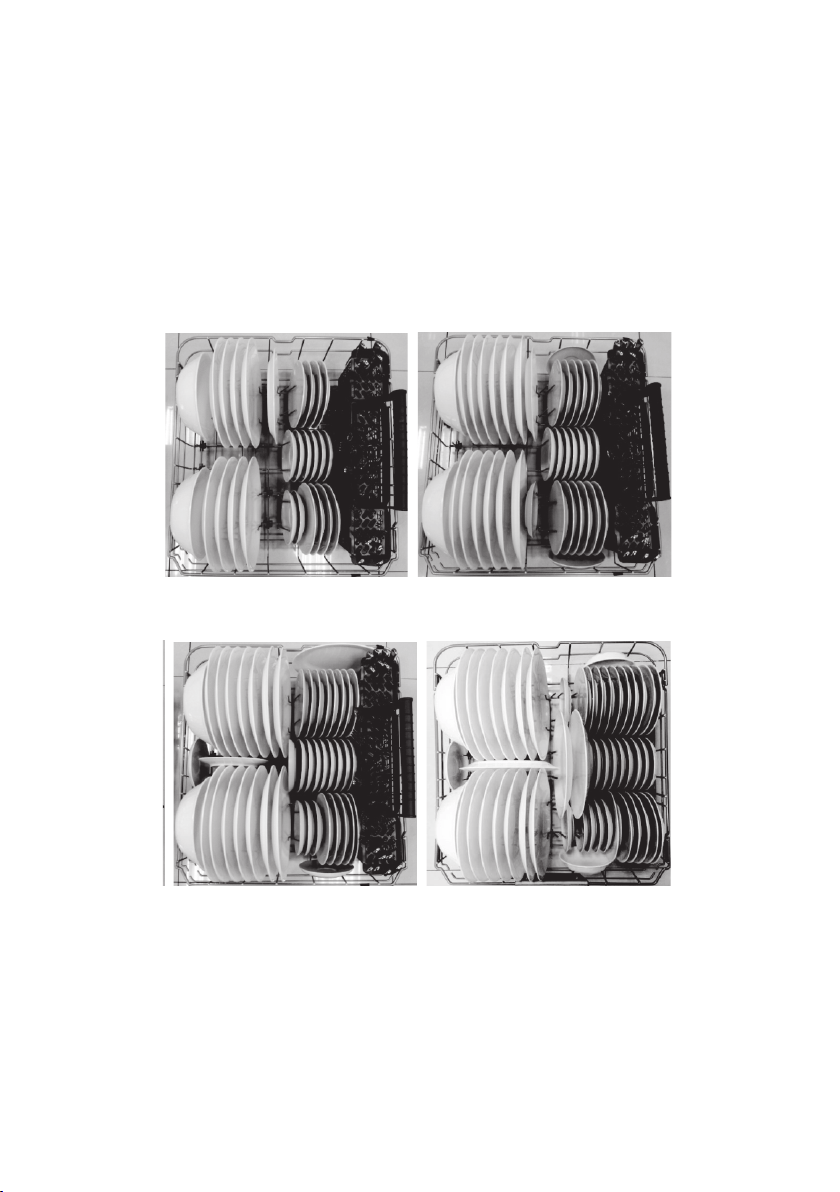

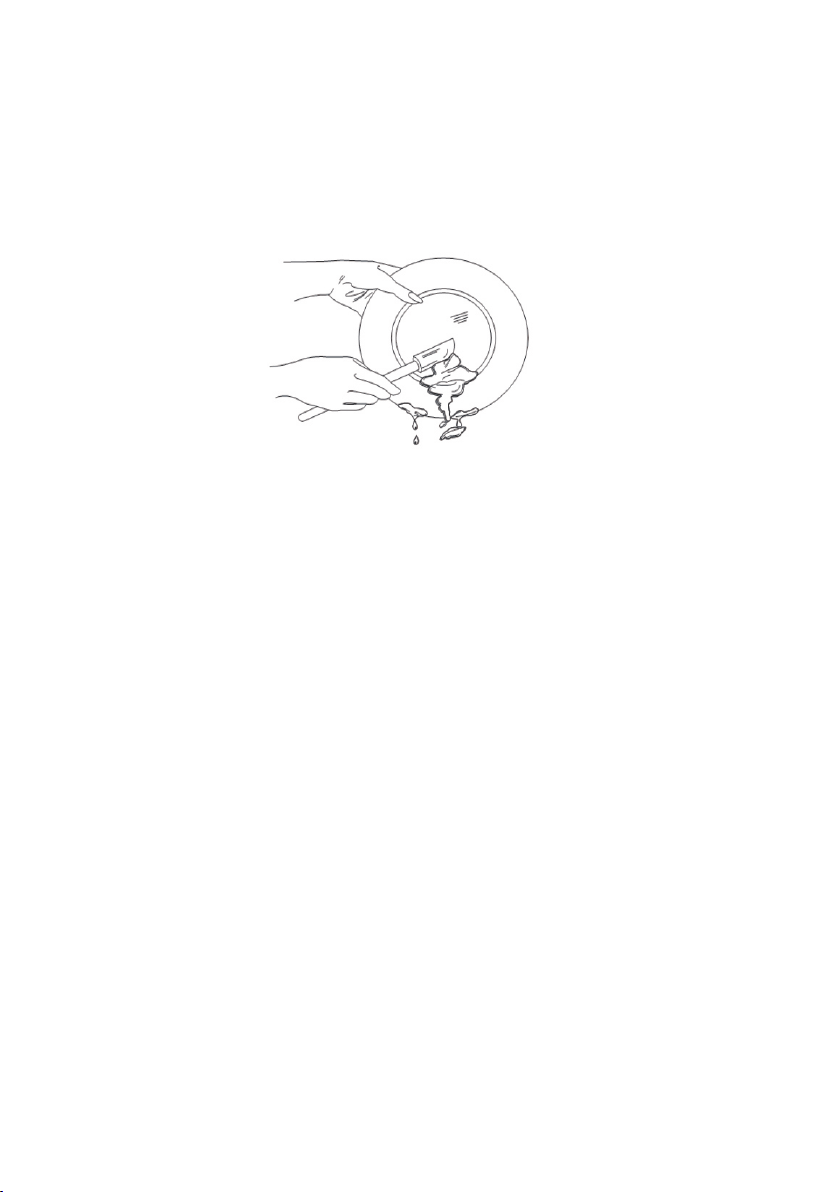

Preparing and loading dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Adding a dish. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Filling the detergent dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Filling the rinse aid dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Factors affecting performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Water temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintaining your dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the stainless steel panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the stainless steel inner door and tub . . . . . . . . . . . . . . . . . . . .22

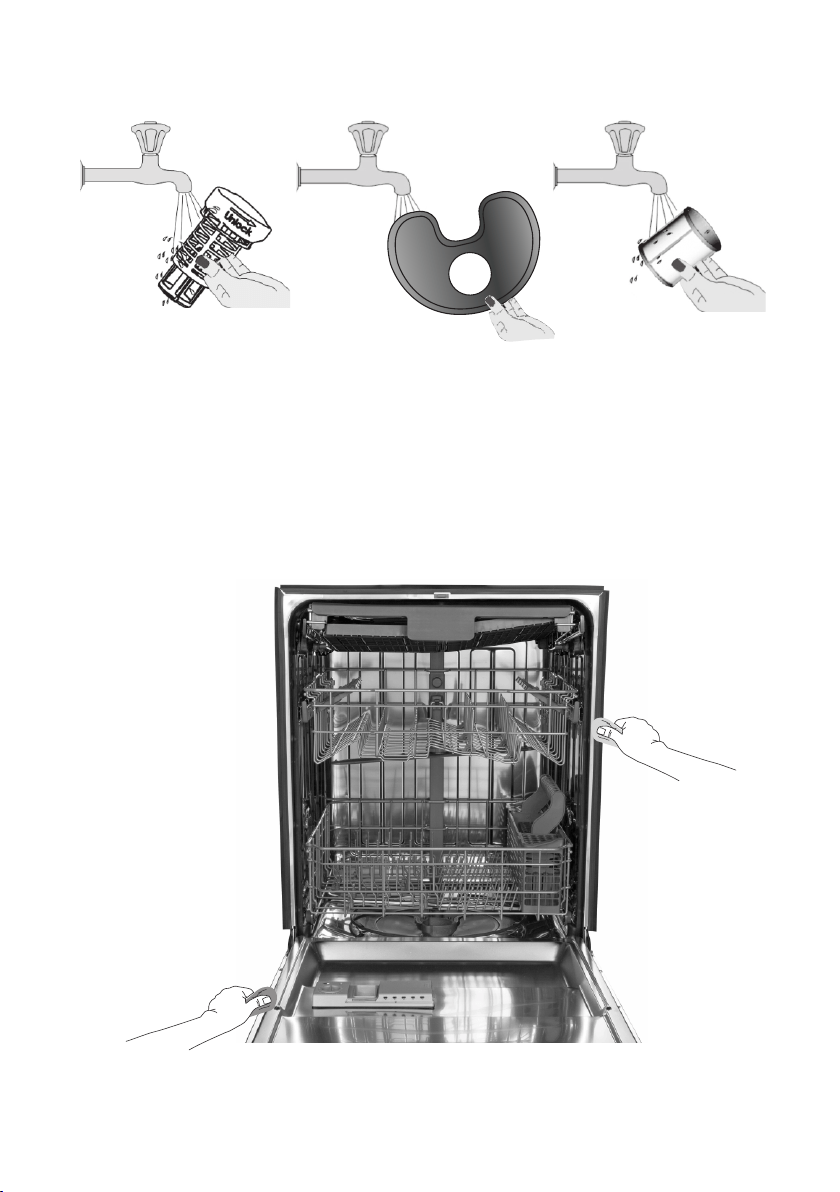

Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Cleaning the door and tub gaskets . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Cleaning the air gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Protecting your dishwasher for long periods . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Error codes . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Contents
3
WARNING
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within your dishwasher.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying your dishwasher.
- When using your dishwasher, follow basic
safety precautions, including the following:
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Clean only with a damp cloth.
6 Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
7 Make sure that the available AC power matches the voltage
requirements of this appliance.
8 Refer all servicing to qualified service personnel. Servicing is required
when the appliance has been damaged in any way or it does not
operate normally.
1
2
3
4
•
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or
death.
WARNING-DANGER Never allow children to
play with, operate, or crawl inside the dishwasher.
Turn off the dishwasher before carrying out user maintenance on it.
If a component part is damaged, it must be replaced by the manufacturer,
its service agent, or similar qualified persons in order to avoid a hazard.
This appliance is intended to be used in household and similar environments.
Basic precautions before use:
Read all instructions before using the dishwasher.
The manual does not cover every possible condition and situation that may occur.
Use the dishwasher only for intended function as described in this manual.
When loading items to be washed:
Load sharp items and knives so that they are not likely to damage the door
seal and tub.
Load sharp items and knives with the handles up to reduce the risk of
cut-type injury.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent, if not marked, check with manufacture for recommendation, items
that are not dishwasher safe may melt and create a potential fire hazard.
If the dishwasher drains in to a garbage disposal, make sure disposal is
completely empty before running dishwasher.
Do not tamper with the controls.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Do not touch the heating element during or immediately after use, especially if
the sanitize option has been selected.
Do not let children abuse, sit, or stand on door or racks of the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water system
that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used for such a period, before using on all
hot water faucets and let water flow from each for several minutes. This will
release any accumulated hydrogen gas. Hydrogen gas is flammable. Do not
smoke or use an open flame during this time.
•
•
•
•
•
•
•
•
•
•
•
•
4
•
Do not store or use combustible materials, gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Use only detergents or rinse agents recommended for use in a dishwasher and
keep them out of the reach of children.
Keep young children and infants away from dishwasher when it is operating.
Do not use the dishwasher if it has a damaged power line or plug, and do not
plug the dishwasher into a damaged outlet, failure to observe these instructions
may result in electrical shock.
Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
To reduce the risk of injury, do not allow children to play in or on a dishwasher.
•
•
•
•
•
SAVE THESE INSTRUCTIONS
5
Package contents
Dishwasher
Hose
Installation kits
User Guide
Installation Guide
•
•
•
•
•
6
Main components
Top light
Upper spray
arm
Middle spray
arm
Vortex wash
arm (left side)
Lower spray
arm
Detergent
dispenser
Rinse aid
dispenser
Top rack
Cup shelf
Adjustable
upper rack
Tub gasket
Silverware
basket
Bottom rack
Heating
element
Installing and setting up your dishwasher
Water supply temperature should be between 120° F and 149° F (49° C and
65° C).
Dispose of the discarded appliance and packing material properly.
The dishwasher must be grounded or it can result in a risk of electric shock.
If there is any damage of the contact to the dishwasher, please contact
Customer Service. Do to attempt to repair or replace any part by yourself.
1
2
3
4
For information on installing and setting up your dishwasher, refer to
the Installation Guide provided.
Before using your dishwasher
1 Remove the interior packing.
2 Clean the interior surface with lukewarm water using a soft cloth.
Finding a suitable location
This dishwasher is designed to be built-in.
The dishwasher door must be able to swing fully open.
Providing a proper power supply
Check your local power source. This dishwasher requires a 120V, 60Hz
power supply.
Refer to the Installation Guide for additional information
•
•
Understanding your dishwashers features
How your dishwasher cleans
The dishwasher fills with water, covering the filter area at the bottom.
Water is then pumped through the various filter and spray arms, spraying a
mixture of hot water and detergent against the soiled surfaces of your
dishes and silverware. Soil particles are separated and go down the drain as the
dirty water is drained and replaced with clean water. The number of water fills
is determined by the cycle selected.
Wash cycle selections
Cycle times are approximate and will vary with options selected. Hot water is
necessary to activate dishwasher detergent and melt fatty food soils.
An automatic sensor checks the incoming water temperature and, if it is not
hot enough, the timer will be delayed to allow for the water to heat for the
main wash of all cycles. This happens even when hi-temp wash is selected,
so that higher temperature will be available to handle heavier soil loads.
7
Filter system
Your dishwasher has a multiple filter system which includes four separate filter
meshes. It separates dirty water and clean water into different chambers.The
multiple filter system helps your dishwasher to get better performance with less
water and less energy.
Smart wash system
Your dishwasher has a smart wash system under the normal wash program
which selects the wash cycle based on how large and how soiled the load,
permitting your dishwasher to clean more efficiently every time. When a partial
load of lightly soiled dishes is placed in the unit, a short wash cycle is
automatically selected. When a full load of heavily soiled dishes is placed in the
unit, a heavy wash cycle is automatically selected.
Adjustable upper rack
The upper rack of your dishwasher can be raised or lowered to accommodate
loading dishes of varying heights in either rack. After removing the 3rd rack,
the upper rack clearance height can be adjusted from 8" to 10". The lower
rack clearance height can be adjusted from 11" to 13". See Adjusting the
upper rack on page 15.
10"
8"
11"
13"
8
Using your dishwasher
Using the control panel
Your dishwasher's control panel is located on the top edge of the door.
The door must be opened to make settings and operate the dishwasher.
Cycles
Select a cycle based on the type of dishes to be washed and the level of soil on
the dishes.
Cycle times are approximate and will vary with options selected. The timer will
be delayed to allow for the water to heat for the main wash of all cycles if the
sensor detects the water is not hot enough. Below is water use and cycle times
under standard conditions.
CYCLE# DESCRIPTION WATER USE CYCLE TIME
(MINUTES)
1
2
3
4
5
6
AUTO Auto sensing wash, lightly, or heavily
soiled crockery, with or with out
dried-on food.
3.0 - 5.9 gal.
(11.4 - 22.5 l)
100 - 133
NORMAL Use for regularly soiled dinner
dishes or silverware.
3.0 - 5.9 gal.
(11.4 - 22.5 l)
102 - 120
HEAVY
Use for hard-to-clean, heavily soiled
dishes, pots, and pans.
6.9 gal. (26.2 l) 138
DELICATE
Use for lightly soiled crockery and glass. 5.9 gal. (22.5 l) 114
EXPRESS
Use for pre-rinsing dishes or glasses.
This is only a rinse that keeps food from
drying on your dishes and reduces odor
buildup in your dishwasher until you are
ready to wash a full load. Do not use
detergent.
4.0 gal. (15.1 l)
60
RINSE
2.0 gal. (7.7 l) 20
9
Use for lightly soiled and pre-rinsed
dishes and silverware.
10
7 - DISPLAYShows the remaining hours and minutes of the current cycle,
delay hours remaining, and error codes (see Error codes on page 26).
8 - Rinse AidTurns on when you need to add rinse aid.
9 - SanitizedTurns on when a sanitized cycle is finished. Turns off after
30 seconds, when the door is opened.
10 - CleanTurns on after a cycle finished. Turns off after 30 seconds when
the door is opened.
11 - DELAYPress repeatedly to delay the start of the selected wash cycle
until the delay time you want is shown on the display. You can select from
one to 24 hours delay. After you select the delay time you want, press
START/CANCEL once, then close the door within four seconds. The delay
begins to count down.
If you open the door while delay is running, press the START/CANCEL,
then close the door within four seconds to begin the cycle from that point.
To cancel the delay and begin the cycle before the delay period is complete,
open the door, then press and hold DELAY for three seconds.
Controls and indicators
Options can add enhancements to the cycle selected.
15 - START/CANCELPress to start the dishwasher after you have selected a
cycle and function (if desired). Close the door. The cycle indicator begins to
blink and the function indicator turns on. If you dont close the door within
four seconds of pressing START/CANCEL, the dishwasher pauses.
Press START/CANCEL again to continue with the cycle.
To cancel a running cycle, open the door, then press and hold START/CANCEL
for three seconds. The dishwasher will return to standby status.
To load more dishes or pause the dishwasher while its already running, open
the door. A safety mechanism stops the cycle.
Caution
To avoid injury open the door slowly and carefully. There is a
possibility of hot steam from inside the dishwasher.
You can add more dishes before the main wash cycle has started. To determine
this, check the detergent dispenser in the door. If the detergent dispenser is still
closed, you can add more dishes. If it is open, you can add dishes to the
dishwasher if the dish quantity is small. If the quantity is large, restart the cycle.
11
Basic operation
1 Load the dishwasher (See Preparing and loading dishes on page 12).
2 Add detergent (See Filling the detergent dispenser on page 18).
3 Add rinse aid, if needed (See Filling the rinse aid dispenser on page 19).
4 Select the cycle you want (See the Basic operation on page 11). The
indicator will light when the selection is made.
5 Select the function you want. The indicator will light when the selection
is made.
6 To start, press START/CANCEL on the control pad.
7 Close the door within four seconds and the wash cycle will begin.
14 - HI TEMP WASHUse to maintain the water temperature at140° F
(60° C) max. This option is available with the AUTO, NORMAL, and
HEAVY cycles.
Notes
Certified residential dishwashers are not intended for licensed food
establishments.
The sanitize cycle is NSF certified.
•
•
12 - HEATED DRYUse to heat-dry your dishes. This function is not available
for rinse only cycle.
13 - SANITIZEUse to sanitize your dishes and glassware. Maintains the
water temperature at158° F (70° C) max., and is available with the
AUTO, NORMAL, and HEAVY cycles.
Options
•
•
•
•
•
Preparing and loading dishes
Preparing dishes for washing
Scrape away large pieces of food, bones, pits, toothpicks, and similar
items.The continuous filtered wash system will remove the remaining
food particles.
Burned-on foods should be loosened before loading.
Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise, vinegar, lemon juice, and tomato-based
products may cause discoloration of stainless steel and plastics if allowed to sit
for a long period of time.Unless the dishwasher isto be operated at once, it is
best to rinse off these types of foods.
If the dishwasher drains into a garbage disposal, be sure the disposal is
completely empty before starting dishwasher.
12

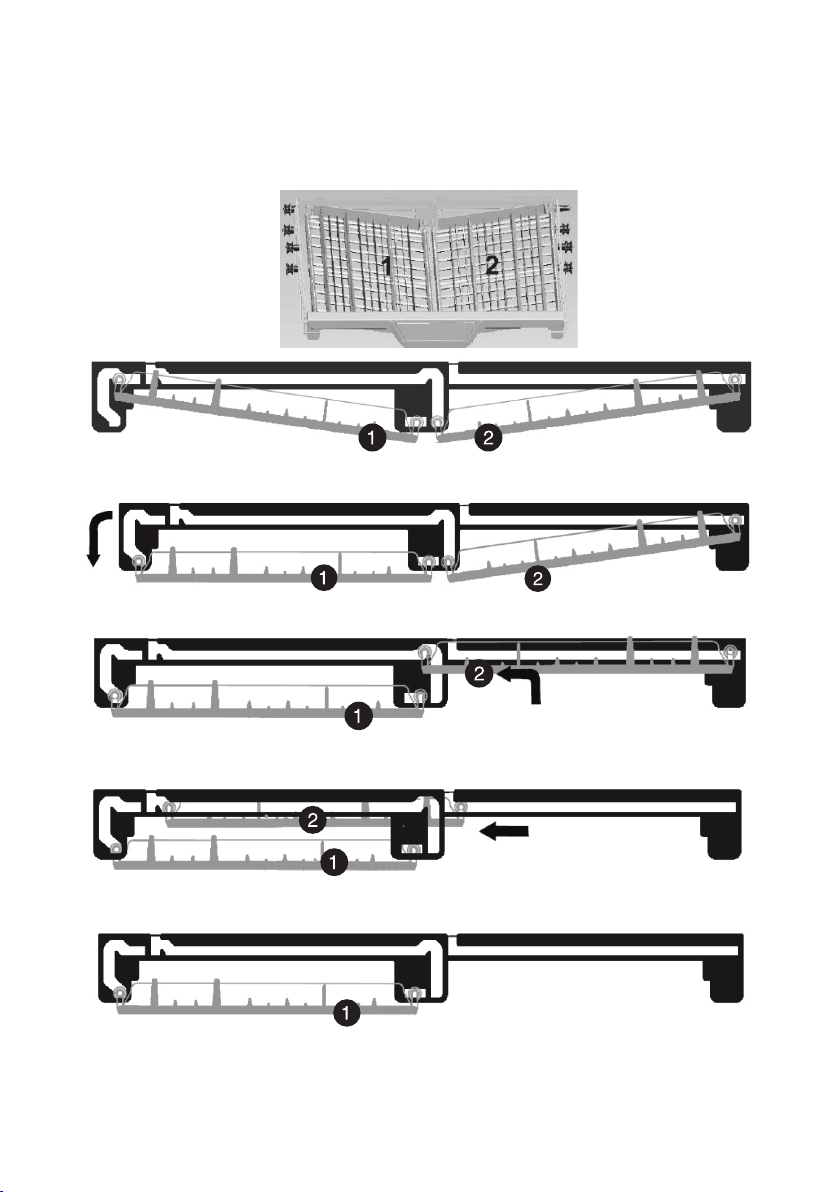

Adjusting the top rack
This dishwasher has a convenient top rack for silverware, cutlery,
and small items. This rack can be adjusted to accommodate varying loads,
as shown below.
Left and right racks aligned
Left rack adjusted to lower position and right rack angled
Left rack adjusted to lower position and right rack to upper position
Left rack adjusted to lower position and right rack moved to the left
Left rack adjusted to lower position and right rack removed
13
Adjusting the upper rack
The height of the upper rack can be adjusted to accommodate loading taller
dishes in either rack.
1 Lift the rack to move it to the upper position.
2 Press the handle to move it to the lower position.
Loading the upper rack
The upper rack is designed for cups, glasses, small plates, bowls, and plastic
items marked dishwasher-safe.For best results, place the items with the soiled
surface facing down or toward the center.Tilt them slightly for better drainage.
Notes
Make sure the loaded dishes do not interfere with the rotation of the
middle spray arm, which is located just below the upper rack.You can
check this by rotating the middle spray arm by hand.
Upper rack in the upper position
Upper rack in the Lower position
14
Loading the top rack
You can place the items in the top rack randomly or in an orderly fashion.
The image below shows how to load the top rack for 16 place settings:
15
Large spoons
Large spoonsLarge forks
Knives
Knives
Small forks
Spoons
Small
spoons
Forks
16
Loading suggestions are shown below:
12 place settings8 place settings
16 place settings14 place settings
17
Loading the bottom rack
The bottom rack is designed to accommodate plates, bowls, saucers, and
cookware. The adjustable rack lets you load items up to 13 inches high.
Large items should be placed along the edge, with the inside faces down, so
they do not interfere with the middle or lower spray arms or prevent the
detergent dispenser from opening.
The fold-down tines on the bottom rack are provided to support extra large
and hard-to-f it items. The tines may be left up for normal use or folded down
for more flexible loading of larger items.
Loading suggestions are shown below:
12 place settings8 place settings
16 place settings14 place settings
Loading the silverware basket
The silverware basket is divided into three separate sections, which can be
placed in either the upper or lower racks.
Forks and salad forks
Spoons
Forks and salad forks
Knives Large forks Large spoons Large forks Knives
Caution
Make sure that nothing protrudes through
the bottom of the silverware basket to
block the lower spray arm.
Caution
TO AVOID BURN INJURY: Open the door
slowly and wait until the spray arms and
wash action stop. Hot water may splash
out of dishwasher. Failure to do so may
result in injury.
Adding a dish
Before adding dishes, refer to Preparing and loading dishes on page 12 for
instructions on loading more dishes. Also see information on Start/cancel in
the Controls and indicators section on page 10. To addor remove items
after the wash cycle starts:
1 Open the door slightly and wait a few seconds until wash action stops
before completely opening.
2 Add the item.
3 Press START/CANCEL on the control pad and close the door within four
seconds. The cycle automatically resumes.
18
Filling the detergent dispenser
1 Push the detergent dispenser cover latch downwards to open the
detergent cup.
2 Add detergent (dry powder, liquid, or packets) to the cup.
3 Close the detergent dispenser cover.
The amount of detergent required depends on the cycle selected and the soil
level on the dishes. Refer to the following table for the recommended amount.
Open detergent cup
Cycle Soft Water (0-3
grains)
Medium Hard
Water (4-8
grains)
Hard Water
(9-12 grains)
Very Hard
Water (over 12
grains)
2 tsp.
(main wash cup
1/4 full)
5 tsp.
(main wash cup
fill to line above
regular)
Main wash cup
completely full
(water softener
recommended)
Rinse No detergent No detergent No detergent
8 tsp.
(main wash cup
completely full)
No detergent
19
AUTO
NORMAL
HEAVY
DELICATE
EXPRESS
Filling the rinse aid dispenser
Your dishwasher is designed to use a liquid rinse aid. The use of rinse aid
greatly improves drying performance after the final rinse. Do not use a solid or
bar-type rinse aid. Under normal conditions, the rinse aid will last approximately
one month. Try to keep the dispenser full, but do not over fill it.
1 Turn rinse aid dispenser cap 1/4 turn counterclockwise and lift it out.
2 Add rinse aid until liquid touches the indicated fill level. Do not overfill since
this can cause oversudsing. Wipe up any spills with a damp cloth. The
dispenser holds enough for 35 to 140 washes, depending on the dial setting.
Dispenser cap
More rinse aid
Less rinse aid
3 Replace the cap and turn it 1/4 turn clockwise.
20
Factors affecting performance
Using rinse aid
Rinse aid greatly improves drying and reduces water spots and filming. Without
rinse aid, your dishes and dishwasher interior will have excessive moisture.
In addition, the heated dry option will not perform as well without rinse aid.
The rinse aid dispenser, located next to the detergent cup, automatically
releases a measured amount of rinse aid during the last rinse.
If spotting and poor drying is a problem, increase the amount of rinse aid
dispensed by rotating the dial to a higher number. The dial is located under the
dispenser cap.
If the rinse aid is low, the rinse aid light turns on at the beginning and end of
the cycle indicating that it is time to refill. Refer to Filling the rinse aid
dispenser on page 19.
Water temperature
Hot water is required for optimum dishwashing and drying results. Water
entering the dishwasher should be at least 120° F (49° C) to achieve
satisfactory results.
To check water temperature entering dishwasher:
1 Turn on the hot water faucet near the dishwasher and let it run for
several minutes.
2 Hold a thermometer (a candy or meat thermometer will work) in the
water stream to check the temperature. If temperature is below 120° F
(49° C), have a qualified person raise the hot water heater thermostat setting.
Important
To make sure that the water entering the dishwasher is hot, run hot
water from the nearest hot water faucet to clear cool water from the
pipe before starting the cycle.
Heat dry function
The heat dry function, when used with a rinse aid, enhances drying
performance. If you do not choose the heat dry function, items in your load
that will not be completely dry at the end of the cycle.
Water pressure
For optimum performance, the hot water supply line for your dishwasher
must provide water pressure of at least 20 psi and not more than 120 psi.
You may experience low water pressure during high-demand periods,
such as when laundry or showers are in use while you are washing the
dishes. To eliminate this problem, wait until hot water demand is reduced
before starting the dishwasher.
21
Factors affecting performance
Caution
TO AVOID BURN INJURY: Allow the heating element to cool before
attempting to clean the interior of your dishwasher.
Cleaning the stainless steel panel
Clean the stainless steel door and handle regularly with a soft cloth and
standard household cleaner to remove the debris
Caution
Do not use appliance wax, polish, bleach or products containing
chlorine to clean the stainless steel door.
Cleaning the control panel
Clean the control panel gently with a soft, lightly dampened cloth.
Cleaning the stainless steel inner door and tub
The tub is made of stainless steel. It will not rust or corrode, even if the
dishwasher should be scratched or dented.
Clean the spots on the steel inner door and tub with a damp non-abrasive cloth.
Cleaning the filters
The filters are designed to collect debris and need to be cleaned monthly to
maximize wash performance.
22
1 Remove the bottom rack.
Lock
2 Rotate the cylinder filter, then lift it out.
3 Lift the fine filter from the bottom of the tub.
4 Take out the fabric filter.
23
5 Flush the filters by holding them under running water.
6 Replace the fabric filter.
7 Replace the fine filter.
8 Replace the cylinder filter.
9 Replace the bottom rack.
Cleaning the door and tub gaskets
Clean the door gasket with a damp cloth to remove food particles regularly.
24
Cleaning the air gap
If there is an air gap installed with your dishwasher, make sure it is clean so
the dishwasher will drain properly. Air gap is not part of your dishwasher.
Before you clean the air gap, turn off the dishwasher, then remove the
plastic air gap cover and clean with a toothpick.
The inside of the dishwasher is self-cleaning under normal use. If needed,
the tub gasket can be cleaned with a damp cloth. Use a brush to clean the
opening in the end of the gasket.
Protecting your dishwasher for long
periods
Your dishwasher should be protected from freezing if you plan to leave it for
extended periods in an unheated place. Have a qualified person do the
following:
To disconnect service:
1 Turn off the electrical power to the dishwasher at the supply source by
moving fuses or tripping circuit breaker.
2 Turn off the water supply.
25
To restore service:
1 Reconnect the water, drain, and electrical power.
3 Place a pan under the inlet valve, then disconnect water line from the inlet
valve and drain it into a pan.
4 Disconnect drain line from pump and drain the water into a pan.
2 Turn on water and electrical power supply.
3 Fill the detergent cup and the rinse aid cup and run the dishwasher through
a heated-wash cycle.
4 Check all connections to make sure they do not leak.
Troubleshooting
Refer to this table to correct minor issues before calling for service.
Error codes
CODE MEANING POSSIBLE CAUSE
E1 Longer inlet time Faucet is not opened
Water intake is restricted
Water pressure is too low
E4 Overflow A leak in the dishwasher
E8 The orientation of the distributary valve
not working.
The wire is not connected correctly,
or the distributary valve is broken.
E9 A button has been touched for more than
30 seconds (by anything, including water).
Anything (including water)
touching a button.
Caution
If an overflow occurs, turn off the main water supply before calling
for service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
•
•
•
•
•
26
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The dishwasher won’t
start
The door may not be closed
properly.
Make sure that the door is closed and latched.
The power is off or not
connected.
Make sure that the power is connected and turned on.
The delay start option is
selected.
Refer to the “Delay” section under “Controls and
indicators” on page 10.
The child lock is activated. Deactivate the child lock. Refer to the “Child lock”
section under “Functions” on page 10.
The dishwasher beeps
atthe end of the cycle
This is normal and indicates
thatthe wash cycle is complete.
The rinse aid light is on The rinse aid level is low. Add rinse aid.
The dishwasher runs
toolong
The dishwasher is connected to
acold water supply.
Make sure that the dishwasher is connected to a hot
watersupply. If not, change the water supply to a hot
water source.
The cycle time varies, depending
on the soil level of the dishes.
When heavy soil is detected, the wash times will be
longer.
Depends on the option selected. Some options will add time to the cycle.
The dishes are not
cleanenough
The water pressure is too low. Make sure that the water pressure is above 20 psi.
Use yourdishwasher when water demand is low.
The inlet water temperature is
too low.
Make sure that the dishwasher is connected to a hot
watersupply. If not, change the water supply to a hot
water source.Use your dishwasher when hot water
demand is low.
Dishes are too close together. Reload the dishwasher as shown in “Preparing and
loadingdishes” on page 12.
Improper use of detergent. Add detergent depending on the water hardness and
washingcycle you choose. Use fresh detergent.
The selected cycle is not suitable
for the soil level on the dishes.
Choose a different cycle with a longer washing time.
The spray arms are blocked. Make sure that the spray arms are not blocked and
are free torotate.
The dishes are not
dryingenough
The rinse aid dispenser is empty
or the setting is too low.
Fill the rinse aid dispenser.
Increase the rinse aid setting.
Dishes are loaded improperly. Reload the dishwasher as shown in “Preparing and
loadingdishes” on page 12.
The cycle you chose did not
include drying.
Choose a cycle with drying.
27
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Spots and filming on
dishes
Water hardness is too high For extremely hard water, install a water softener.
Dishes are loaded improperly. Reload the dishwasher as shown in “Preparing and
loadingdishes” on page 12.
Old or damp rinse aid power is
used.
Use fresh, liquid rinse aid.
The rinse aid dispenser is empty
or the setting is too low.
Fill the rinse aid dispenser.
Increase the rinse aid setting.
Etching Using too much detergent. Use less detergent if you have soft water.
The inlet water temperature
exceeds 150° F (65.6° C).
Lower the inlet water temperature.
Detergent left in
dispenser cup
Detergent may be too old. Use fresh detergent.
The spray arm is blocked. When you load the dishes, make sure that the spray
arms arenot blocked.
The detergent dispenser
will not close
Improper operation of the
detergent cover.
Add detergent and rinse aid only as indicated in this
manual.See “Filling the detergent dispenser” and “
Filling the rinse aiddispenser” on page 18-19.
Water remains in the
dishwasher.
The previous cycle has not
finished or has been interrupted.
Make sure that the current cycle is finished.
The dishwasher does
notdrain properly.
The drain is clogged. Check the air gap (if so equipped).
Make sure that the disposer is empty (if so connected).
The drain hose is kinked. Make sure that the drain hose is not kinked and is
properlyconnected.
Suds in the tub Using improper detergent. Make sure to use only automatic dishwasher detergent.
The dishwasher leaks Excessive suds caused by using
improper detergent.
Make sure to use only automatic dishwasher
detergent.
The dishwasher is not level. Level the dishwasher (refer to the Installation Manual).
There are black or gray
marks on the dishes
Aluminum utensils have rubbed
against the dishes.
Make sure that the water inlet temperature is not less
than120° F (49° C).
The interior of the tub
isstained
Coffee or tea stains. Use a spot cleaner to remove the stains.
Reddish stain. Some tomato products may cause this. Use of the
rinse onlycycle right after loading will help this.
Noises Detergent cup opening/drain
pump.
This is normal.
A hard object has entered the
wash module. When the object
is ground up the noise will stop.
If the noise continues after the cycle is complete,
call forservice.
The dishwasher won’t
fill(the dishwasher
willbeep)
The water valve is turned off. Turn on the water valve.
The door may not be closed
completely.
Make sure that the door is closed and latched.
28
Specifications
Specifications Capacity Max 16 place settings
Dimensions (WxDxH) unit with decorated door and handle -
23.9 x 26.5 x 33.7 in.
(606 x 674 x 857 mm)
unit without decorated door and handle -
23.9 x 24 x 33.7 in.
(606 x 610 x 857 mm)
Power requirements 120 V~60 Hz
Current 8.4 A
Water pressure Between 20 and 120 psi
Noise (dB) 45 dB
29
1870 Bath Avenue, Suite 3 | Brooklyn, NY 11214 | Tel: 718.249.1217 | support@forteappliances.com |
www.forteappliances.com
Dishwasher Warranty
What this Warranty Covers & Who it Applies to: The limited warranty provided by FORTÉ in this Statement of Limited
Dishwasher Warranty applies only to the FORTÉ appliance sold to you (“Dishwasher“), provided that the Dishwasher was
purchased:
■ For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household
purposes.
■ New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.
■ Within the United States or Canada, and has at all times remained within the country of original purchase. The
warranties stated herein apply to the original purchaser of the Dishwasher warranted herein and to each succeeding
owner of the Dishwasher purchased for ordinary home use during the term of the warranty. Please make sure to return
your registration card; while not necessary to effectuate warranty coverage, it is the best way for FORTÉ to notify you in
the unlikely event of a safety notice or Dishwasher recall.
How Long the Warranty Lasts
FORTÉ warrants that the Dishwasher is free from defects in materials and workmanship for a period of three hundred
sixty-five (365) days from the date of the original purchase. The foregoing timeline begins to run upon the date of the
original purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Dishwasher is
also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel,
paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Dishwasher, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations
due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, Dishwasher
location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock
appliances.
Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than
the original part. All removed parts and components shall become the property of FORTÉ at its sole option. All replaced
and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall
not be extended with respect to such parts. FORTÉ's sole liability and responsibility hereunder is to repair manufacturer-
defective Dishwasher only, using a FORTÉ-authorized service provider during normal business hours. For safety and
property damage concerns, FORTÉ highly recommends that you do not attempt to repair the Dishwasher yourself, or use
a non-authorized service provider; FORTÉ will have no responsibility or liability for repairs or work performed by a non-
authorized service provider. Authorized service providers are those persons or companies that have been specially
trained on FORTÉ Dishwashers, and who possess, in FORTÉ's opinion, a superior reputation for customer service and
technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of
FORTÉ).
Notwithstanding the foregoing, FORTÉ will not incur any liability, or have responsibility, for the Dishwasher if it is located
in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous,
threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, FORTÉ would still
pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable
and responsible for any travel time or other special charges by the service company, assuming they agree to make the
service call. Out of Warranty Dishwasher FORTÉ is under no obligation, at law or otherwise, to provide you with any
concessions, including repairs, prorates, or Dishwasher replacement, once this warranty has expired.
Warranty Exclusions
The warranty coverage described herein excludes all defects or damage that are not the direct fault of FORTÉ, including
without limitation, one or more of the following:
1870 Bath Avenue, Suite 3 | Brooklyn, NY 11214 | Tel: 718.249.1217 | support@forteappliances.com |
www.forteappliances.com
■ Use of the Dishwasher in anything other than its normal, customary and intended manner (including without
limitation, any form of commercial use, use or storage of an indoor Dishwasher outdoors, use of the Dishwasher in
conjunction with air or water-going vessels).
■ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain,
improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service
(including self-performed "fixing" or exploration of the appliance's internal workings).
■ Adjustment, alteration or modification of any kind.
■ A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes,
regulations, or laws, including failure to install the Dishwasher in strict conformity with local fire and building codes and
regulations.
■ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or
around the Dishwasher.
■ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods,
fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges,
structural failures surrounding the appliance, and acts of God.
■ Service calls to correct the installation of your Dishwasher, to instruct you how to use your Dishwasher, to replace
house fuses or correct house wiring or plumbing. In no event shall FORTÉ have any liability or responsibility whatsoever
for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the
Dishwasher. Also excluded from this warranty are Dishwashers, on which the serial numbers have been altered, defaced,
or removed; service visits to teach you how to use the Dishwasher, or visits where there is nothing wrong with the
Dishwasher; correction of installation problems (you are solely responsible for any structure and setting for the
Dishwasher, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any
alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.
TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO
DISHWASHER, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR
OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY
IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL
BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE
MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE
DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR
RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED
EXCLUSIVELY BY FORTÉ, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of FORTÉ.
Obtaining Warranty Service: To obtain warranty service for your Dishwasher, you should contact FORTÉ Customer
Service at 718-249-1215.
