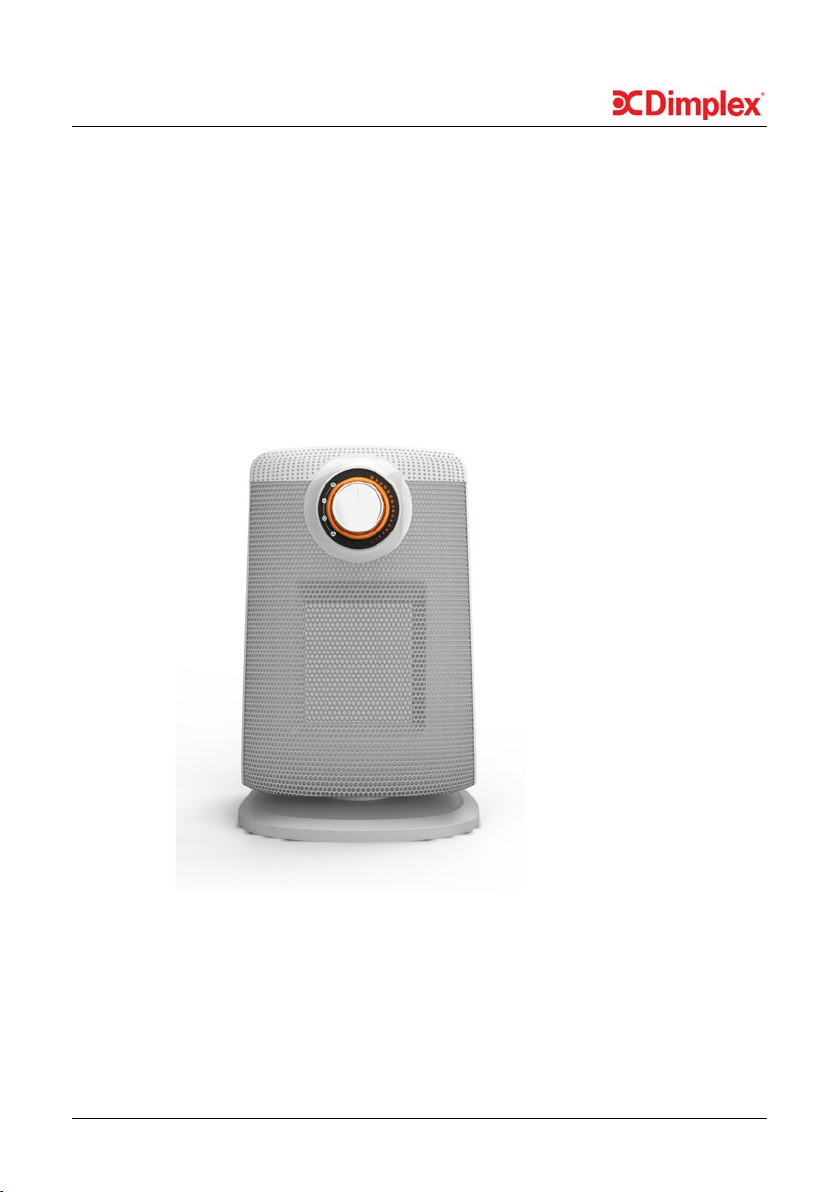

DHCER20
2kW Ceramic Heater
www.dimplex.com.au
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.
www.dimplex.com.au
CONTENTS
WARNINGS AND PRECAUTIONS 1
STRUCTURE 3
OPERATION 4
CLEANING AND MAINTENANCE 6
TECHNICAL REFERENCE DATA 7
WARRANTY 7
1
Warnings
• Never place the unit near gas appliances, ames or ammable liquids.
• Never hit or shake the unit. Doing so may cause damage.
• Never cover or obstruct the air inlet or outlet. Doing so may cause
overheating.
• Never spray water on or place the unit near water. Doing so may cause
electric shock.
• Never connect other appliances to the same power outlet.
• Never connect or disconnect the power plug with wet hands. Doing so
may cause electric shock.
• Never insert ngers or objects through the guards when the unit is
operating.
• Never use an extension cord.
• Always have a professional technician, manufacturer or service agent
replace a damaged power cord.
Precautions
• This appliance is for indoor use only.
• Do not use the unit near windows or where water collects. Rain and
water collection may lead to a risk of re or electric shock.
• Do not place the unit in a damp place or where humidity is high (such
as a bathroom).
• Do not leave the unit operating while unattended.
• Do not place the unit in direct sunlight to avoid surface discolouration.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
WARNINGS & PRECAUTIONS
2
• Children should be supervised to ensure they do not play with the
appliance.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away
from electric appliances such as televisions and radios.
• Avoid scratching and damaging the surface. Do not use chemical
solvents (i.e. Benzene, alcohol) to clean the surface.
• Place the unit on a stable surface when operating.
• Unplug the unit before cleaning, servicing or maintenance.
• Electrical connections must be in accordance with national or local
codes.
• The rear of the unit must be at least 50cm away from the wall.
• Do not place the appliance on its side, back or front while in storage
or transport. The unit must be left in an upright position 2 hours before
operation.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• WARNING: do not cover the heater. This may cause the unit to
overheat.
• Do not use the heater in the immediate surroundings of bathtubs,
showers, washing stands or swimming pools.
• The heater must not be located immediately below a socket‐outlet.
WARNINGS & PRECAUTIONS
3

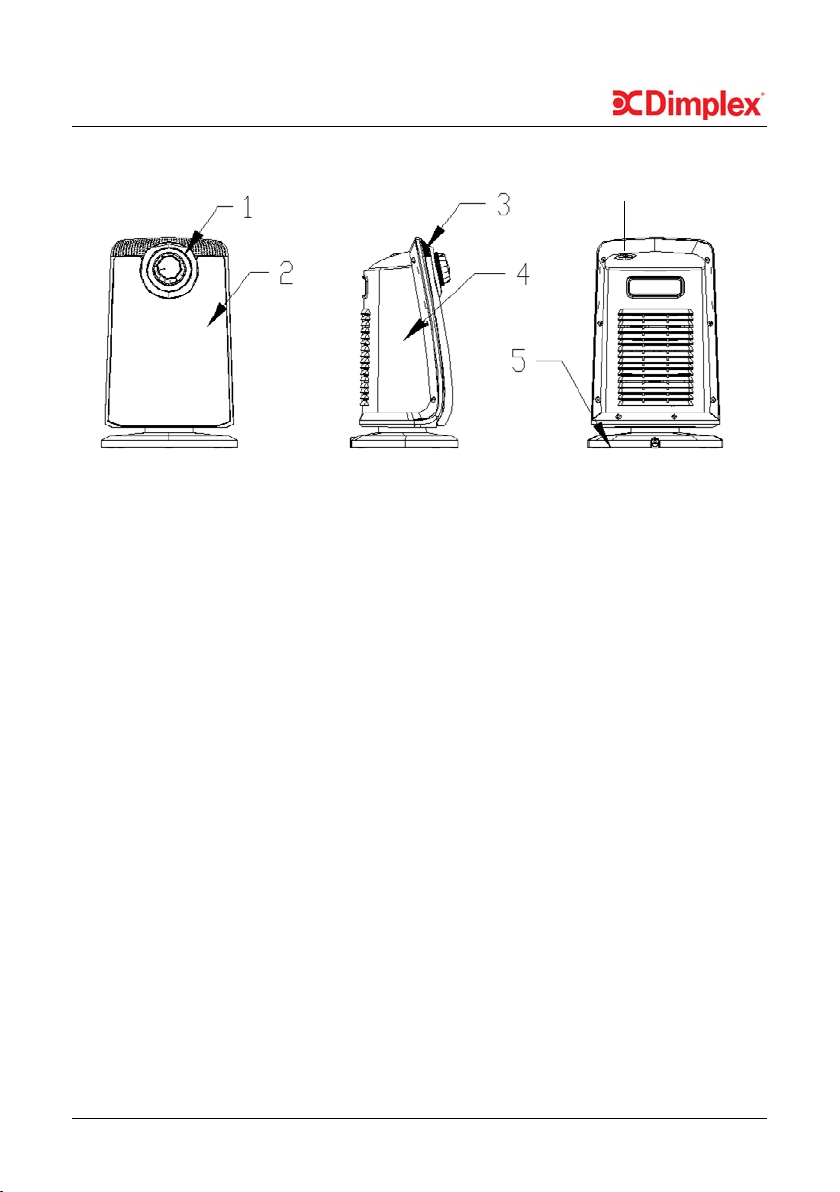

1. Control panel
2. Heat outlet
3. Front cover
4. Back cover
5. Base
6. Oscillation switch
STRUCTURE
6
4
OPERATION
BEFORE FIRST USE
•
Please read these instructions carefully before use and keep them for
future reference.
•
Check your local mains voltage is the same as stated on the appliance.
•
Before using for the rst time, remove any protective lms or stickers
from the appliance and ensure the power switch is in the “OFF” position.
Connect the plug to a power supply and switch on the power.
DISPLAY PANEL
LED Indicator
Temperature
control
High speed
Low speed
On/Off
Fan only
POWER SETTING KNOB
• Rotate the knob to the “Power” position to turn the unit ON or OFF.
• Rotate the knob to the “Low Speed” position to turn the unit on at
low heat.
• Rotate the knob to the “High Speed” position to turn the unit on at
high heat.
• Rotate the knob the “Fan Only” position to provide fan only operation.
5
OPERATION
OPERATIONAL PANEL
TEMPERATURE ADJUSTMENT KNOB
• Rotate the temperature adjustment knob to set your desired
temperature.
• Turn in counterclockwise direction for higher temperatures.
• Alternatively, turn clockwise for cooler temperatures.
OSCILLATION
• Press the oscillation button (refer to above diagram) to enable
oscillation. Press again to stop oscillation.
Temperature
adjustment
knob
Gear knob
6
CLEANING & MAINTENANCE
CLEANING
Ensure the unit is turned off and the plug is disconnected from the power
outlet before commencing any cleaning or maintenance.
Cleaning the unit’s surface:
Clean the surface with a damp cloth (add some mild detergent for stubborn
marks). Do not use corrosive detergent or solvents to clean; such as petrol/
turpentine etc. Do not wash the unit directly with water.
Cleaning the air lter:
Dirt and dust may accumulate in the lter during operation. Cleaning is
required to avoid any damage to the unit. This should be done at least once
a month.
• Use a soft cloth to clean away the dust/dirt. If you use water for
cleaning, please make sure the air lter is dry before reinstalling it.
• Do not use chemicals to clean the air lter.
IMPORTANT
The control panel and other parts must not come into contact with water or
any other liquids.
• Do not dispose of electrical appliances as unsorted municipal waste.
• Use separate collection facilities.
• Contact your local government for information regarding the collection
systems available.
7
TECHNICAL & REFERENCE DATA
WARRANTY
The warranty period is 12 months from the date of purchase. For service
advice, please contact the Customer Care Centre on 1300 556 816 (AU) /
0800 666 2824 (NZ).
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
MODEL NO. DHCER20
Rated Power 2000W
Voltage/Frequency 220-240V/50Hz
Net Weight 2kg
Dimensions Body (HxWxDmm) 347 x 222 x 177
Noise level (max) 50dB
RCM
5336
• If electrical appliances are disposed of in landlls or dumps, hazardous
substances can leak into the ground water, polluting the food chain and
damaging health and well-being.
MAINTENANCE
If the unit fails to operate efciently, is broken or other problems arise,
unplug and do not operate. Ask for advice by calling your local after sales
service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800
666 2824 (NZ).
