Contents
1
1. General safety instructions _______________________________ 2
2. Installation____________________________________________ 9
3. Description of the controls ______________________________ 21
4. Operating instructions __________________________________ 31
5. Cleaning and maintenance ______________________________ 40
6. Troubleshooting. What to do if... __________________________ 55
7. Troubleshooting ______________________________________ 60
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
This manual includes options, programs and features that may be present
on the type of dishwasher you have purchased. For the specific
characteristics of your model, please refer to the manual supplied together
with the product.
Installation
2
TRANSLATION OF THE ORIGINAL
INSTRUCTIONS
1. General safety instructions
This manual is an integral part of the appliance; it
must always be kept intact together with the
dishwasher for future reference (even if sold).
Before using the appliance, carefully read all the
instructions contained in this manual.
This appliance is intended for indoor use in a
household environment and similar such as staff
kitchens of shops, offices and other workplaces,
institutions, and for the use by guests at hotels,
hostels, bed and breakfast and other residential
facilities. The appliance is designed and
manufactured to perform the following function:
washing and drying of dishes; any other use shall
be considered improper. The manufacturer
declines all responsibility for uses other than
those described above.
Do not use appliances which have been damaged
during transit! If in doubt, contact your dealer.
The appliance must be installed and connected in
accordance with the instructions provided by the
manufacturer. Installation must be performed by
qualified technicians in accordance with
applicable regulations.
Never leave waste packaging unattended. Do not
allow children to play with packaging materials.
Installation
3
Separate waste packaging materials by type and
consign them to the nearest recycling centre.
The plate with the technical data, serial number and
marking is in a visible position on the inside edge of
the door. It must not be removed.
The appliance must be earthed in compliance with
electrical safety regulations. The manufacturer
declines all responsibility for damage to
persons or property resulting from failure to
earth the appliance or from a defective earth
connection.
During the installation the appliance must be
disconnected from the network.
Do not install the appliance in a place subject to
freezing.
Do not install the appliance near equipment with
high irradiation temperature (e.g. gas burners,
fireplaces, etc.).
If the appliance is installed in a compartment above
or below another equipment (e.g. gas burners,
ovens, etc.), read carefully the instructions provided
by the manufacturer of the equipment. If the
instructions of the equipment do not contain
information, contact the manufacturer of the
equipment to ensure that the appliance can be
installed above or below it.
Building-in the appliance underneath a hob is
absolutely forbidden. Installing a hob on top of free-
standing appliance is absolutely forbidden.
Installation
4
To ensure stability, install the appliance only under
continuous worktop, securely fixed to adjacent
cabinets. If the appliance is installed in a high
cabinet, both the appliance and the cabinet must be
adequately fixed.
If the appliance is not built-in and is therefore
accessible on one side, the door hinge area must
be covered for safety reason (injury hazard). The
covering fixtures are available as an accessory from
specialist dealers or the after-sales.
Check that the voltage and the frequency of the
mains match the ratings on the name plate of the
appliance.
The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet
the regulations in force. Do not use adaptors or
shunt connections in order to avoid the possibility of
overheating or burning.
The plug of the appliance must be accessible after
installation. Never disconnect the plug by pulling on
the power supply lead.
If the appliance is provided with a plugless supply
cord, an omnipolar circuit breaker providing a full
disconnection in overvoltage protection class III
must be installed in an easily accessible position on
the supply line.
The appliance must be connected to the water
supply by means of new hoses.
Installation
5
Briefly test the appliance after installation. Run a
wash cycle with a temperature of between 45 and
70°C with the dishwasher empty and using a
specific dishwasher detergent. (It is not sufficient to
run a soak cycle). If the dishwasher fails to operate
correctly, disconnect it from the electrical power
supply and call the nearest technical service centre.
Never attempt to repair the appliance yourself.
The dishwasher should only be used by adults. Use
by children aged from eight years and persons with
reduced physical, sensor or mental capabilities or
lack of experience and knowledge is only permitted
under the supervision of a person responsible for
their safety.
Do not allow children to play with the appliance.
Keep children away from the dishwasher when the
door is open. Always check that the detergent
distributor is empty after completion of the wash
cycle.
Cleaning and regular maintenance of the appliance
by children is only permitted under the supervision
of a person responsible for their safety.
Some detergents are strongly alkaline. Avoid
contact with the skin and eyes. Detergents can be
extremely dangerous if swallowed. They contain
substances capable of causing permanent damage
to the mouth and throat, and even leading to
suffocation. Observe all the safety instructions on
the packaging of these products.
Installation
6
Do not drink the water residues which may be
present on the dishes or appliance at the end of the
washing program.
Never place solvents such as alcohol or turpentine,
which are potentially explosive, inside the
appliance. Never load dishes soiled with ash, wax
or paint.
Never leave the dishwasher door open; people
might trip over it. Leaning or sitting on the
dishwasher door when open may cause the
appliance to overturn and/or damage it.
Switch off the dishwasher after use to avoid wasting
electricity.
Knives and other kitchen equipment with sharp
edges must be placed in the basket with their tips
downwards, or horizontally in the top basket; take
care not to injure yourself on any sharp edges
protruding from the baskets.
The appliance satisfies all applicable safety
regulations governing electrical equipment. Any
technical checks should be conducted exclusively
by trained and authorised technicians: repairs
performed by unauthorised persons not only
void the warranty but may also put the user’s
safety at risk.
In the event of a fault, disconnect the dishwasher
from the electrical power supply and shut off the
water tap. In the event of damage to the supply
Installation
7
cord, have it replaced by the manufacturer or an
authorised technical service centre.
Some components are live even with the on/off
button in the off position. Before performing any
maintenance work on the appliance, disconnect it
from the electrical power supply.
Do not clean the machine with a water jet machine,
high-pressure or steam cleaners.
Models with “acquastop” device
This device prevents flooding in case of water leak.
When the “acquastop” device is tripped, contact a
qualified technician to identify and repair the fault.
In these models the water intake hose contains a
solenoid valve. Do not cut the hose and do not
allow the solenoid valve to drop into water. In
case of damage to the water intake hose,
disconnect the appliance from the electrical and
water supply.
Warning: The device only works if the
dishwasher is connected to the mains.
Installation
8
1.1 Declaration of conformity
The appliance complies with the essential requirements
of the following European directives:
- 2009/125/EC
- 2011/65/EU
- 2014/35/EU
- IEC/EN 62471, risk group 1, for models with internal
lighting.
- IEC/EN 61770
1.2 Disposal
This appliance must be disposed of separately
from other waste (directive 2012/19/EC).
The appliance does not contain substances in quantities
sufficient to be considered hazardous to health and the
environment, in accordance with current European
directives:
To dispose of the appliance:
Cut the power cable,
make the lock unusable.
The manufacturer declines any liability for damage
or injury caused by failure to comply with the
instructions indicated above or as a result of
tampering with even just one part of the appliance,
and the use of non
-
original spare parts.
Installation
9
2. Installation
2.1 Technical characteristics
Water supply pressure min. 0.05 - max. 0.9 MPa (min. 0.5 –
max. 9 bar)
Water supply temperature
max. 60°C
Capacity
14 standard place settings
Class of protection against
moisture
IPX0
Protection against electric
shock
class I
Electrical data
see the data plate
Appliance dimensions (mm)
Installation
10
2.2 General information
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation.
This appliance may be placed up against walls or other
furniture units.
If the appliance is installed near a heat source, fit a
special insulating panel to prevent overheating and
malfunction of the appliance.
To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw
them to the adjacent units.
To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make
sure that the hoses are not kinked, crushed or pulled too
tightly.
A hole at least 8 cm in diameter is required to allow the
power supply cable and hoses to pass.
At the end of the installation, perform a short test of the
appliance: open the water tap and check that there are
no leaks.
This dishwasher is not designed for continuous use;
the maximum is 5 cycles per day.
To install the dishwasher against the back wall, the
hoses should be passed through the lower area where
there is a dedicated space for them.
The following spare parts will be available for 7 years
after the model is no longer produced: wash pump,
drain pump, heating elements; pipes and hoses, valves,
Installation
11
filters and acquastop devices; structural and internal
parts of the door (separately or as an assembly);
electronic boards and printed circuits; electronic
displays; pressure switches; thermostats and sensors,
software and firmware, including reset software.
The following spare parts will be available for 10 years
after the model is no longer produced: door hinge and
seal; other seals; spray arms; filter unit, baskets,
runners and accessories.
Some spare parts are only available to authorised
repairers.
Not all spare parts apply to all models.
Any faulty parts must only be replaced with
genuine spares, the only ones capable of ensuring
complete compliance with safety regulations.
The EU EPREL database provides information
regarding dishwasher performance. The database can
be consulted directly using the QR code on the
dishwasher's energy label or via the following link
https://eprel.ec.europa.eu. In this case, you have to
enter the name of the model indicated on the data plate
on the side of the door.
For detailed information on the energy label:
www.theenergylabel.eu
.
Level the appliance on the floor using the
appropriate Allen key to regulate the adjustable
feet. This operation is essential for ensuring
correct operation of the dishwasher.
Installation
12
Some models are equipped with
only one
adjustable foot at the rear, which can be
adjusted by turning the screw on the lower front
part of the appliance.
Building-in a dishwasher underneath a hob is
absolutely forbidden.
Moreover, dishwashers may not be installed
directly touching appliances which are not
conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the dishwasher in a
compartment next to one or more other
appliances, it is essential to comply with all the
r
ecommendations provided by the appliance’s
manufacturer (minimum distances, installation
procedures, etc.).
Contact your dealer or visit the manufacturer’s
website to find out if your dishwasher can be
installed in a raised position. If it can be, yhe
dish
washer and the furniture in which it is
installed must be secured in such a way that
makes it impossible for it to tip over.
If the dishwasher is installed in a raised
position, be extremely careful when pulling out
the baskets to prevent objects or the ba
skets
from falling. The appliance may tip over if
installed incorrectly.
Installation
13
For free-standing models only
- Installing a hob on top of a free-
standing
dishwasher is absolutely forbidden.
- If the appliance is accessible from one
side,
the door hinge area has to be covered for
safety reasons (risk of injury). The covers are
available as an accessory and can be ordered
through the Technical Assistance Service.
-
The top surface of the dishwashers can be
removed to allow installation
under a worktop.
The appropriate kit
should be purchased from
authorised dealers or via the Technical
Assistance Service. This must be carried out by
authorised personnel.
2.3 Water supply connection
Preventing the risk of clogging or damage:
if the water pipe is new or has not been used
for a long time, before connecting to the water
supply check that the water is clear and free of
impurities, to prevent damage to the appliance.
The
dishwasher must always be connected
to the water system with new hoses; old or
used hoses must never be reused.
Installation
14
CONNECTING TO THE WATER
SUPPLY
Connect the intake hose to a cold
water supply with ¾” gas thread,
inserting the filter A supplied with the
dishwasher.
Take care to screw the
hose firmly into place with your
hands and then complete by
tightening about ¼ of a turn with
pliers.
In dishwashers equipped with the
AQUASTOP device, the filters is
already fitted inside the threaded
ring.
Installation
15
The dishwasher can also be connected to a hot
water supply not exceeding 60°C
. Supplying
the appliance with hot water cuts down the
washing time be approximately 20 minutes, but
slightly reduces its effectiveness. Make the
connection to the domestic hot water supply
using the same procedure described for
connecting to the cold wate
r supply.
Supplementary note regarding the water
connection, for the German market:
Before connecting the product to the water supply,
make sure that that the water system has been fitted
with a safety device to protect drinking water against
contamination due to backflow (according to DIN EN
1717). The water valves and/or taps are fitted with these
safety devices if the water system of the house has
been properly implemented.
Installation
16
DRAIN CONNECTION
Insert the
dishwasher’s drain
hose into a drain pipe
having a diameter of
at least 4 cm
, or
alternatively, place it
inside the kitchen sink
using the plastic
support provided,
taking care not to
crush or excessively
bend the hose.
It is
important to prevent the hose from coming
loose and falling. For this purpose, the plastic
support is equipped with a hole for tying it to the
wall or water tap.
The free end should be
positioned at a height of between 30 and 100
cm, and should never be su
bmerged in water.
If a horizontal drain extension hose is used (for
a maximum 3 m), the drain hose can be placed
at a maximum height of.
85 cm
from the ground.
Class of protection against moisture: IPX0
Installation
17
2.4 Electrical connection and precautions
The dishwasher and any additional equipment must
be connected to the electrical system by authorised,
skilled staff, in accordance with the relevant regulations;
also comply with the technical instructions for the
connection.
The total rated power is stated on the appliance’s
technical data plate.
The electrical protection devices fitted for the
dishwasher must serve this appliance only.
A master switch and a differential safety breaker,
with rating suitable for the appliance’s
characteristics must be installed on the electricity
supply line in accordance with the relevant regulation.
These switches must be installed close to the
dishwasher, be easily accessible after installation, and
provide complete disconnection from the electrical
mains in overvoltage class III conditions.
Check that the voltage and the frequency of the
mains match the ratings on the name plate of
the appliance posi
tioned on the inner edge of
the door.
In the event of damage to the supply cord,
have it replaced by the manufacturer or an
Authorized Technical Service Centre
in
order to avoid any risk.
Installation
18
Some components are live even with the
ON/OFF
position. Before performing any
maintenance work on the appliance,
disconnect it from the electrical power
supply.
The dishwasher meets all the requirements set
out by the regulations in force concerning safety
and electrical equipment. Any technical checks
should be conducted exclusively by a
trained
and authorised techcician: repairs carried out
by unauthorised persons will invalidate the
warranty, as well as posing a potential
hazard
to
the
user
.
WARNING
The dishwasher is designed and equipped
to
operate at different electrical power settings.
Before installation, have a specialist electrician
check that the electrical system is correctly
rated for the power level selected above all,
check that the wiring is of suitable gau
ge and
the socket is of the appropriate type.
User instructions
19
ADJUSTING THE APPLIANCE’S POWER SETTING
The dishwasher leaves the factory in single-phase version. The power can be
set at three different levels as shown below.
Power
kW
Fuse
P3
-
Max 5,45
3x16A
P2
-
M
edium 3,50
3x16A
P3-Max: Factory setting
P1
-
Min 2,00
3x16A
To adjust the power setting, proceed as follows:
Set a washing program other than the soak program.
Press the button indicated (depending on the model) until P3 appears on the
display (maximum power).
Pressing the button again will cause the setting to move to “P1” (minimum
power) and then to “P2” (mediumm power).
The menu closes automatically after a few seconds or you can exit by pressing
any of the other buttons.
User instructions
20
CONNECTION DIAGRAM 400-415V/50Hz/3/N/PE
COLORE DEI FILI COLEUR DE FIL WIRE COLOR ADERNFABER
GRIGIO GRIS GREY GRAU
LU BLEU BLUE BLAU
MARRON MARRON BROWN BRAUN
NERO NOIR BLACK SCHWARZ
G/V GIALLO/VERDE JEUNE/VERT YELLOW/GREEN GELB/GRUN
User instructions
21
3. Description of the controls
3.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off, etc. procedures are only possible when the door
is open.
The panel shown is only a guideline example.
A
ON/OFF BUTTON
B
SALT and RINSE AID INDICATOR LIGHTS
(depending on the model)
C
PROGRAM SELECTION BUTTON
D
PROGRAM INDICATOR LIGHTS
E
OPTION (depending on the model)
F
DISPLAY
User instructions
22
Information displayed
Scheduled program duration yes
Remaining program time
yes
Delayed start
1
-
24 hours
Error message
Err
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
Press the ON/OFF button (A) and wait for the PROGRAM
INDICATOR LIGHT (D) to illuminate;
Keep pressing the PROGRAM SELECTION button (C) until the
indicator light corresponding to the desired program illuminates;
select the option required (if any and if the model provides options);
close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is be
ing executed).
User instructions
23

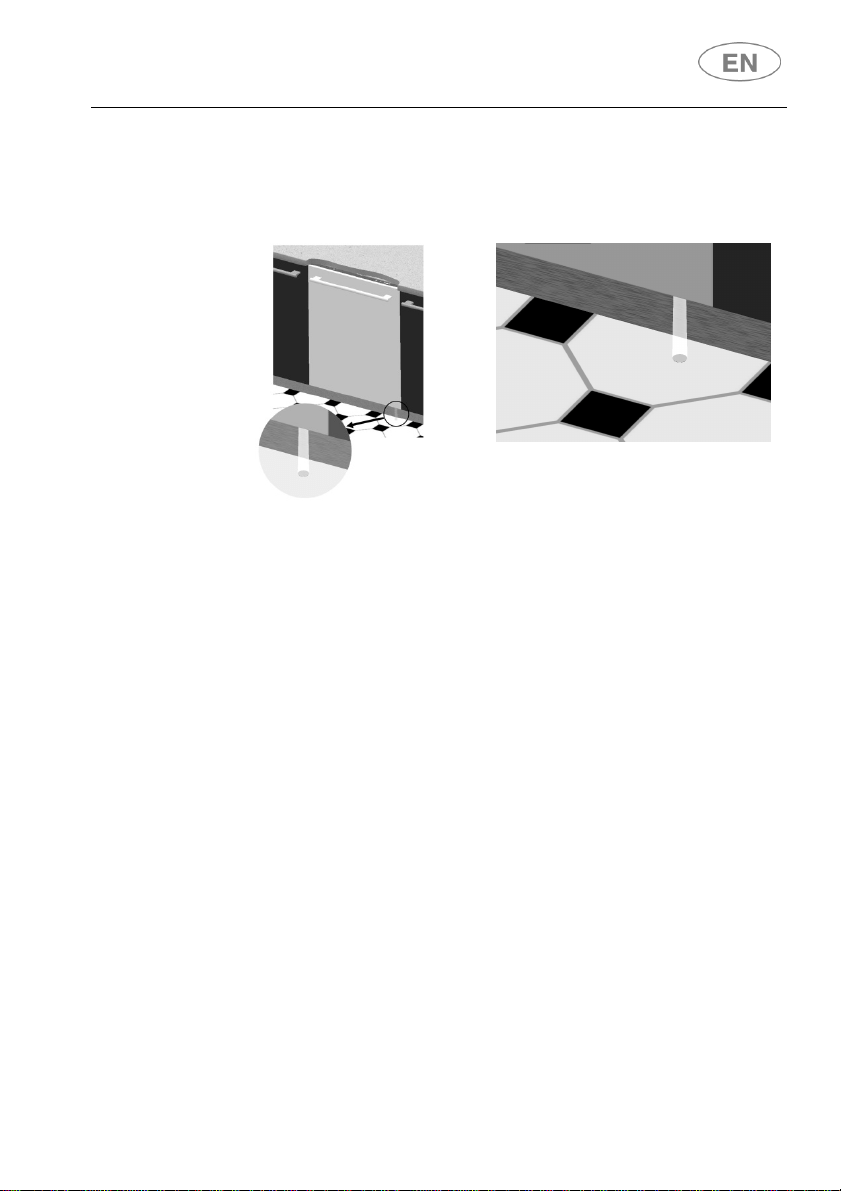

PROGRAM IN PROGRESS INDICATOR LIGHT (on some models only)
When a program is running, a flashing light is projected onto the floor
under the right-hand corner of the door. At the end of the program, the
light goes out to reduce sleep mode electricity consumption.
User instructions
24
(*)
ECO:
Program with the lowest water and energy consumption for washing
normally soiled dishes, even with dried-on residues. The information refers
to the STANDARD EN60436 program (indicated in the programs table) that
is the most efficient in terms of combined energy and water consumption.
The program is suitable for normally soiled dishes and is used to assess
compliance with EU ecodesign legislation.
SOAK
CRYSTAL 45°
Pans and dishes while waiting
for another wash cycle
Wine glasses and lightly soiled
fine china.
AUTO SENSOR
HYGIENE 99,9%
For normally soiled mixed loads
such as dishes and pans. The
dishwasher determines the
washing parameters
automatically.
Intensive cycle for plates, pots,
pans, feeding bottles. Ideal for
baby dishes or if there are
allergy sufferers in the family in
order to achieve a higher level
of hygiene.
PRO
-
GLASSES
ULTRA RAPID
Special program for washing
glasses.
Very dirty pans and dishes,
even with dried-on residues, for
fast washing.
MIX
65°
FULL EXPRESS 60’
Dishes with normal dirt, with
some fairly moist residues.
Normally soiled mixed loads
such as dishes and pans, even
with dried
-
on residues.
PRO
-
INTENSIVE
Very dirty pans and dishes, even
with dried-on residues, for fast
washing.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
HYGIENE
99,9%
Increases the temperature of the final rinse to obtain a greater level of hygiene.
Suitable for the intensive washing of plates, pots, pans, cutting boards, feeding
bottles. Ideal for baby dishes or if there are allergy sufferers in the family.
User instructions
25
AUTOMATIC DOOR OPENING
–
DRY ASSIST
(always included in the ECO program)
(it may be included in other programs, please refer to the manual supplied
with the product).
The program ends with a drying cycle that consists of a time during which the door
is closed, and a time during which the door is slightly open (just waiting, to assist
drying). The duration depends on the program and model.
Any intervention (opening / closing the door, switching off etc.) during this stage will
end the program early.
The program can be interrupted during the drying cycle and the dishwasher can
unloaded before the cycle has completely ended, which is indicated by a visual
and/or audible alarm (depending on the model), but best drying results may not be
obtained.
The complete program ends only when indicated by a visual and/or audible
signal (depending on the model).
There must be sufficient space avail
able for the door to open. The
door must not be forced open and closed before the wash cycle
has ended completely.
(*) Standard program according to EN60436. The DRY ASSIST option (if the button
is present) must be active.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- The information refers to the EN 60436 - STANDARD program (indicated in
the program table), which is the most effective in terms of combined energy
and water consumption. The program is recommended for normally soiled
dishes and is used to assess ecodesign compliance with EU legislation.
- Drying efficiency is based on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
please request the guidelines by contacting us at the
following e-mail address:
dishwasher@test-domestic-appliances.com
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.
User instructions
26
3.2 Washing programs
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
OPTION SELECTION
The options can be selected by pressing the relative button, the light turns
on to confirm activation.
All options are
deactivated
at the end of the wash cycle.
Option
Description
1 PROFESSIONAL
Creates professional programs.
2 DRY ASSIST
Allows the dishes to be dried perfectly even at low
rinse temperatures, with significant energy
savings. It starts automatically if the selected
program is compatible with it. If it is not required,
press the button to disable it.
3
½ LOAD FLEXY
ZONE
Ideal if just a few dishes need to be washed,
allowing energy savings and a shorter wash cycle.
4 DELAY
Allows the wash cycles 1 or 3 to be delayed by up
to 9, 12 or 24 hours depending on the models.
5 SELF CLEAN
Dishwasher cleaning cycle. Must be started with
the machine empty, without dishes.
User instructions
27
PROFESSIONAL PROGRAMS OPTION
Enables operation in Professional mode, giving access to 4 extra programs,
with the times and performances usually associated with professional
dishwashers.
To activate the option, first select the “basic” program corresponding to the
professional cycle required.
N.B.: the highest power and shortest times will be obtained with
dishwashers connected to the highest power supply and hot water (see
electrical and water supply hook
-
up instructions).
½ LOAD FLEXI ZONE
(if present)
Ideal if just a few dishes need to be washed, allowing energy savings. The
dishes should be placed in both baskets and less detergent should be
placed in the detergent dispenser compared to the amount used for a full
load.
DRY ASSIST (if
present)
It starts automatically if the selected program is compatible with the option.
It can be disabled before starting the program.
The door opens automatically, allowing the dishes to be dried perfectly
even at low rinse temperatures, and therefore resulting in significant
energy savings. The first part of the drying cycle takes place with the door
closed. The door then opens automatically by a few centimetres. Any
intervention (opening / closing the door, switching off etc.) during the
drying cycle (both when the door is closed or open) will end the program
early.
The program can be interrupted during the drying cycle and the
dishwasher can unloaded before the cycle has completely ended, which
is indicated by a visual and/or audible alarm (depending on the model),
but best drying results may not be obtained.
The complete program ends only when indicated by a visual and/or
audible signal (depending on the model).
There must be sufficient space available for the door to open. The
door must not be forced open and closed before the wash cycle has
ended completely.
User instructions
28
DELAY
(if present)
Press the DELAY button to set the dishwasher cycle to start during the
required time period (e.g. night). According to the model, this may be
indicated on the display or by specific lights. The option cannot be
selected once the cycle is running. To cancel the setting, press the
button several times until the lights switch off or until the number on the
display is reset. After the door has been closed, the dishwasher will carry
out a pre-wash cycle, after which the set “cycle delay” option will be
activated.
SELF CLEAN
(if present)
Dishwasher cleaning cycle. The cycle should be started with the machine
empty, without dishes. It is recommended to run the program every 2-3
months, using special dishwasher detergents. The light flashes during
operation. At the end of the cycle it remains on and cycle lights 4 and 5
flash.
The display (if available) shows “End”.
"Some dishwasher models are fitted with lights inside the chamber. The
lights come on when the door is opened by about 35 cm.
The light switches off when the door is closed.
If the door is left open, the light will turn off automatically after
approximately 14 minutes.
User instructions
29
CANCELLING THE CURRENT PROGRAM
To cancel the currently selected program open the door and hold
down the PROGRAM SELECTION (C) button for a few seconds until
the indicator lights for programs 4 and 5 illuminate simultaneously
(marked "end").
Close the door.
After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the
new program.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
If the manufacturer's instructions and recommendations are
followed, washing the same number of similarly soiled dishes in a
dishwasher consumes less water and energy than if they were
washed by hand.
Always use the dishwasher with a full load.
Load the dishwasher as indicated in the instructions manual. If the
dishwasher is loaded incorrectly, it may lead to poor results as well
as waste water, energy and detergent.
Do not wash dishes under running water before placing them in the
dishwasher. It would just waste water and energy.
Use the washing program that is most appropriate for each type of
load.
If available, connect the dishwasher to a hot water supply up to 60°C.
If the manufacturer's instructions and recommendations are followed,
washing the same number of similarly soiled dishes in a dishwasher
consumes less water and energy than if they were washed by hand.
User instructions
30
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
do not pour
detergent directly onto the dishes.
If the door has to be opened while washing is in progress, the program will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in execution of the program.
SWITCHING OFF
At the end of the program the beeper sounds
briefly and the lights of programs no. 4 and
5 (marked "end") flash.
To switch off the dishwasher, open the door and press the
ON/OFF button
(ON)
.
ENERGY MANAGEMENT
After 5 minutes of waiting (washing cycle completed, stopped or set but
not started) the dishwasher switches to a standby state to reduce energy
consumption.
In this state, the dishwasher indicator panel (lights or display depending
on model) functions more slowly (
switch
-
on once
e
very
5 seconds
).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool. To ensure that any drops of
water left in the top basket cannot drip onto the dishes still in the bottom
basket, you are advised always to
empty the bottom basket first
.
User instructions
31
4. Operating instructions
After having installed the dishwasher, remove the basket retainers and
prepare the machine for use as follows:
Regulate the water softening system;
Add regenerating salt;
Add rinse aid and detergent.
4.1 Setting the water hardness
Press and hold the program selection button until the salt light
flashes.
The program lights (D) / display (G) indicate the current setting.
Press the program selection button to select the water hardness
level.
Depending on the model
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
User instructions
32
WATER HARDNESS TABLE
WATER HARDNESS
SETTINGS
German
degrees
(°dH)
French
degrees
(°dH)
0 – 6 0 – 11
H0
All indicator
lights off
7 – 10 12 – 18
H1
One indicator
light on
11 – 15 19 – 27
H2
Two indicator
lights on
16 – 21 28 – 37
H3
Three
indicator lights
22 – 28 38 – 50
H4
Four indicator
lights on
29 - 50 51 – 90
H5
Five indicator
lights on
Contact your local water board for information on the hardness of your
water supply. Default settings:
H3
-
16
-
21°dH
–
28
-
37°dF
User instructions
33
4.2 Adding the salt
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1 kg of salt in grains. Some models are
equipped with an optical no-salt indicator. In these models, the cap of the
salt container contains a green float which descends as the salt
concentration in the water drops. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher.
The salt prevents the formation of scale
deposits.
Remove the lower basket.
Unscrew the cap of the salt container by
turning it anticlockwise.
When using the dishwasher for the first time, fill the container with a
litre of water.
Pour salt (approx. 1 kg) into the container using the funnel provided
with the dishwasher.
When finished, remove any salt residues before screwing the cap
back on.
SALT
User instructions
34
In order for the water softening system to give fault-free service, the appliance
performs a regeneration cycle of the system at regular intervals.
The regeneration process consists of several stages. It starts at the end of the last
rinse cycle, after the amount of water indicated in the mains water hardness setting
has been reached during the wash cycle, and finishes at the beginning of the
following wash cycle.
The regeneration process increases the cycle time and consumption of water and
electricity.
Below is an overview of consumption of regeneration the softening system using the
Eco program with a water hardness setting of H2.
Water
consumption
according to
model
[refer to the
programs
table]
(litres)
Regeneration
frequency
(number of
cycles)
Water
consumption
during
regeneration
(litres)
Energy
consumption
during
regeneration
(Wh)
Duration of the
regeneration
process
(min)
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
7 8
0.2
4
(10x0.4
litres)
0.3 1.2 6 4
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In this case warranty cover will be
forfeited.
Only use regeneration salt specifically for domestic
dishwashers. Do not use table salt, since it contains insoluble
substances that could damage the water softener system.
After having added salt, run a wash cycle to remove any excess salt.
In this way, the excess saline solution will be immediately removed
by the water; the prolonged presence of salt water inside the tank may
lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
User instructions
35
4.3 Adding the rinse aid
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
The rinse aid helps the dishes dry faster and prevents the formation of
scale deposits and staining; it is automatically added to the water during
the final rinse cycle, from the container situated on the inner side of the
door.
To add rinse aid:
Open the dispenser by pressing and lifting the tab on the cover.
Top up again when the rinse aid indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
User instructions
36
Adjusting the rinse aid dispenser mode
Press and hold the program selection button, after approximately
15 seconds the salt light flashes, keep it pressed until the rinse
aid light.
The program lights (D) / display (G) indicate the current setting.
Then press the program selection button several times to select
the required dosage.
Depending on the model
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
0 – not
dispensed
b0
All indicator lights off
minimum 2 ml
b1
One indicator light on
3 ml
b2
Two indicator lights on
4ml
b3
Three indicator lights on
5ml
b4
Four indicator lights on
maximum 6 ml
b5
Five indicator lights on
Default settings:
b4
-
5 ml
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
User instructions
37
4.4 Adding the detergent
Open the detergent dispenser cover by lightly pressing the button P.
Add the detergent or tablet.
Close the cover by sliding it until it stops, indicated by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent or tablet if the dispenser is dry.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
User instructions
38
When a program with a hot pre-wash is selected (see program table),
extra detergent must be placed in the cavity.
Use only detergents specially formulated for dishwashers.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
For the safeguarding of the environment we recommend the use of
phosphate
-
and chlorine free
detergents.
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
4.5 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the lower basket.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Cor
rect loading of the dishes helps ensure optimal washing results.
User instructions
39
WARNING!
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made of anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after many washes. If in doubt as to the fastness
of the colours, it is advisable to wash just a few items at a time for
approximately one month.
User instructions
40
4.6 Using the baskets
The dishwasher has a capacity of 14 place-settings, including serving
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are permitted, provided that the
dishes, pots and pans are arranged with all the soiled surfaces exposed
to the water jets coming from the bottom.
Depending on the models, the basket may be equipped with some or all
of the following accessories:

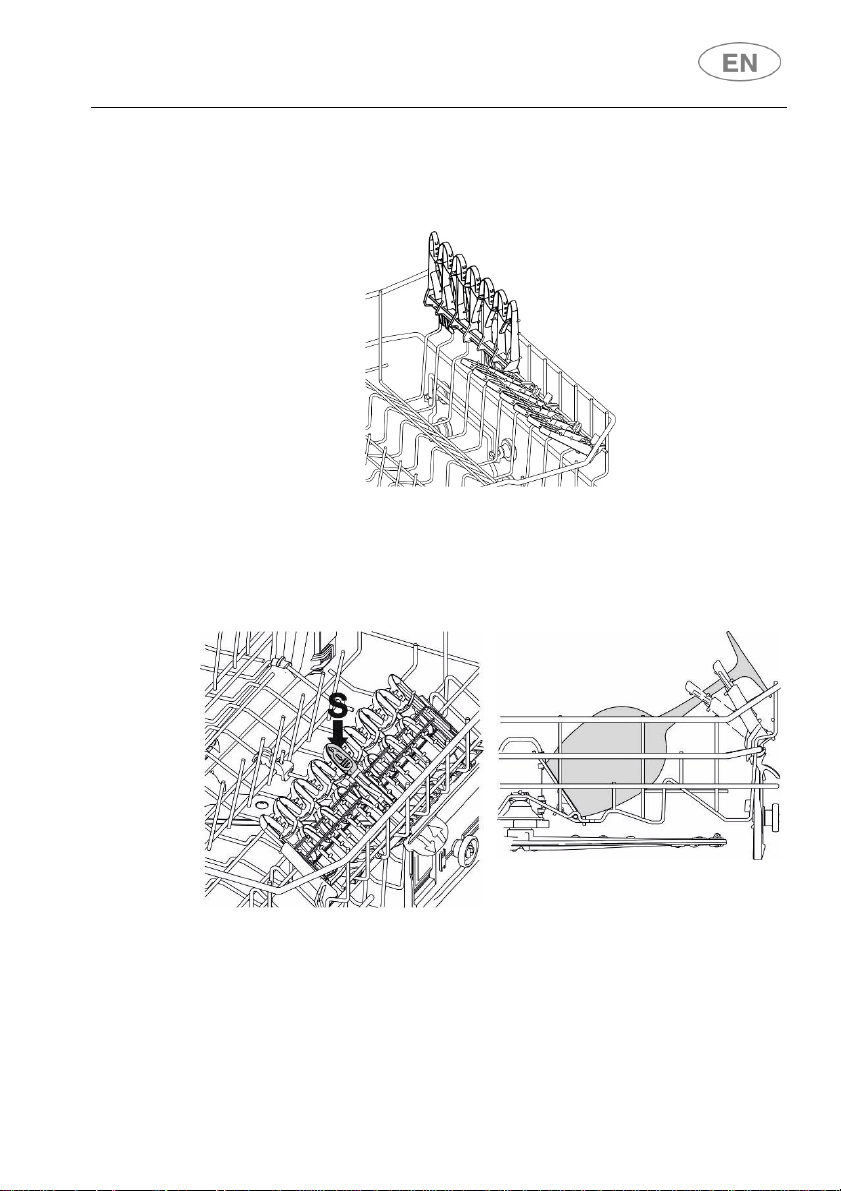

Plate racks, which can be laid flat when not in use (e.g. to accommodate
pans, bowls, etc.). To stow the racks flat, pull them upward and turn
them towards the inside of the basket.
Anti-drip inserts which improve the
drying of dishes. They may be
supplied fitted on the basket or in
the accessories bag; in this case, to
use them, simply fit them into place
as shown.
User instructions
41
Supports for cups and long objects
(ladles, spoons, etc.), in the rear;
can be tipped to the vertical position
when not in use.
Glass holder.
Support for long-
stem glasses. When lifted out of the
stowed position (0) it snaps into
three different positions (1-2-3).
2-position fold-down supports (1-2).
In position
1
(vertical) they can be
used to take plates, while in position 2 (slanted) they provide support for
long-stem glasses which will be held in place by the glass holder.
Adjustment: raise point P as shown until the support turns into position 2.
User instructions
42
To lie completely flat, lift the end and turn it towards you so that the
retainer F rotates into place above point S.
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Examples of loading
User instructions
43
CUTLERY BASKET
(on some models only)
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be
placed in
any position to allow optimal use of the space in the bottom basket.
User instructions
44
TOP CUTLERY BASKET (on some models only)
The basket is designed to take cutlery, placed in the spaces provided, and
long utensils, positioned lengthwise.
The “drawer” extraction system makes the basket easier to load, but it can
also be taken completely off its runners by removing the retainers (as
shown here).
Take great care to replace the retainers to ensure that the basket does
not come off the runners accidentally.
User instructions
45
FLEXIDUO TOP CUTLERY BASKET (on some models only)
This comprises two independent sliding, pull-out tray racks for easier
loading/unloading of cutlery. Various loading systems and configurations
are possible. For example, tea cups can be loaded with the right-hand
rack set in the low position, while the left-hand rack or both can be
re
moved to allow l
arge dishes
to be put in the
top basket.
User instructions
46
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
User instructions
47
EXAMPLES OF LOADING FOR INTENSIVE DIRT
(According to the model)
If the bottom basket inserts are of the fold
-
down type,
they should be laid flat for easier loading.
User instructions
48
UPPER BASKET EQUIPMENT
(depending on the model)
Cutlery tray
For knives, spoons (tea and dessert) and long objects. The ends are
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers
(B) at the same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
User instructions
49
Fold
-
down shelves
For mugs, cups and long objects. The ends are designed to hold long
stemmed glasses
When not used they can be moved to a vertical position (until a click is
heard).
Shelves with expandable wings
For small objects, mugs and cups.
They can be used either closed or open (pull the upper, sliding part). To
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they can be moved to a vertical position (until a click is
heard).
User instructions
50
Fold
-
down tines
These can be secured in a vertical position, resting on the bottom of the
basket if unused, or placed in an intermediate position, as required.
The single tine on the right is ideal for supporting long stemmed glasses.
User instructions
51
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket. The adjustment procedure may be type
A or B, depending on the dishwasher model purchased.
Version A: pull
-
out
with adjustment in
two positions.
Pull out both the basket guides.
Remove the stops, first releasing them as shown in the diagram.
Pull out the basket.
Fit the upper or lower pair of wheels into the guide, depending on the
setting required;
Return the stops to their original position.
The left hand and right hand sides of the basket must always be set at
the same height
.
Version B:
with adjustment in
three positions
on both sides.
The sides of the basket must always be set at the same height.
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
User instructions
52
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the omnipolar circuit breaker.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank gaskets
using a soft cloth and water to remove any deposits.
If the dishwasher is used every day, we recommend that you clean the
filter unit weekly (refer to the instructions manual) and the chamber and
the water circuit monthly using a product that is specific for domestic
dishwashers.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically. After having closed the water supply tap,
unscrew the end of the water intake hose, remove the filter A and clean it
delicately under running water. Reassemble filter A in its seat and
carefully screw the water intake hose back into position. We recommend
that you check and clean it, if necessary, at least once a year.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
User instructions
53
To remove the lower spray arm, simply lift it up, pulling by the central
part.
To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.
To remove and clean the planetarium sprayer follow the instructions
provided.
CLEANING THE FILTER UNIT
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
ORBITAL
PLANETARIUM
User instructions
54
CLEANING THE FILTER UNIT (
models with
planetarium sprayer
)
If the dishwasher is used every day, we recommend that you clean it once
a week.
It is advisable to periodically inspect the centre filter and, if necessary,
to clean it.
remove the planetarium sprayer follow the instructions provided.
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or foul the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
User instructions
55
6. Troubleshooting. What to do if...
Fault
Possible cause
Solution
The salt light does not turn on There is still enough salt Check the fill level
The rinse aid light does not
turn on
There is still enough rinse aid Check the fill level
Water collects at the bottom
of the dishwasher
The water inlet hose is kinked
or crushed
Check the route of the hose
The drain siphon is clogged Make sure that the siphon is
not clogged or partially clogged
The filter unit is clogged Clean the filters as indicated in
the manual
Cutlery not dry Water in the bowls of spoons
or ladles
Cutlery (e.g. serving spoons) in
the cutlery drawer (if present),
on the bottom of the basket or
on the fold down shelves at the
side must be arranged with
their bowls facing downwards.
Tea or lipstick residues on the
dishes
Wash temperature too low Check the fill level
Detergent insufficient or
unsuitable
Check the fill level
Cutlery arranged incorrectly in
the cutlery basket
Do not place items of cutlery
on top of one another or allow
them to touch one another
The inside of the dishwasher
is wet
Condensation The appliance is not faulty, it is
normal for there to be
condensation on the inside
walls
Change in colour of the plastic
parts inside the chamber
The colour of plastic parts
inside the dishwasher can fade
with use
This is normal and does not
affect the effectiveness of the
dishwasher
The salt and/or rinse aid light
is on
No salt Add salt
No rinse aid Add rinse aid
Detergent residues or dishes
not perfectly clean
Dishes are preventing the
cover of the detergent
dispenser from opening
completely
The dishes should not protrude
from the basket
The detergent dispenser cover
is blocked by the tablet
The tablet should be inserted
transversely, not vertically
Tablets used in a short
program; the detergent does
not have time to dissolve
Use a powder detergent or a
more intensive program
Detergent stored in an open
box in a damp environment. It
has lost its effectiveness, aged
or become lumpy
Replace detergent
Dishes arranged incorrectly Water cannot pass correctly if
the dishes are arranged
incorrectly. Take greater care
when arranging the dishes.
Traces of rust on cutlery Cutlery not oxidation resistant.
Knife blades are particularly
subject to this.
Use only stainless cutlery.
User instructions
56
Cutlery becomes oxidized
even if washed together with
other items that are subject to
oxidation (pot handles,
damaged knives, etc.)
Avoid washing parts that can
become oxidized
Too much salt in the washing
water
Tighten the cap of the water
softener container properly
The dishwasher does not start The door does not close Check the position of the door
lock catch (D). If necessary,
raise it by adjusting the plastic
screw (V) next to the catch
The door does not close Check the condition of the door
lock catch:
- if it has not triggered (N), the
door opens and closes
normally
User instructions
57
- if it has triggered (S), close
the door with force (without
slamming it) until it rearms;
then open and close the door
again
Door does not close properly Make sure that there are no
obstacles that prevent it from
closing (e.g. objects protruding
from the baskets)
Failure Contact technical assistance
No power Check the power supply.
Check the power cable
It is not clear if the spray arms
are working
The spray arms start turning
approximately 5 minutes after
the dishwasher starts. This is
normal during the washing
cycle.
No water is taken in Make sure that the water tap is
open
User instructions
58
Dishes not dry No rinse aid Add rinse aid
A program has been used that
does not involve a final drying
cycle
See program table
Water in dishes or pans When loading the dishwasher,
make sure that you place
dishes and pans at an angle
The dishes were taken out too
soon
Wait at least 20 minutes after
the end of the program
Use of ecological rinse aids Ecological products may be
less effective than traditional
products
Plastic dishes Plastic has a lower heat
storage capacity and is
therefore harder to dry
The combined detergent used
does not produce good drying
results
Use a different combined
detergent. Using traditional
rinse aids improves drying.
Clouding of glassware Glass not dishwasher safe Only use glassware that is
dishwasher safe. Check the
water softener setting (reduce
if necessary). Use a detergent
that contains additives for
protecting glass
Water marks on some items
or on plastic dishes
The formation of drops on the
plastic parts is inevitable;
stains may therefore be visible
after drying
Use a more intense program
Arrange dishes at an angle so
that the water can drain off
easily
Use a traditional rinse aid or
increase the dosage
Increase the water softener
setting
Removable streaks on
glasses, metal items and
cutlery
Too much rinse aid Reduce the amount of rinse
aid
No rinse aid or setting too low Add rinse aid or increase
supply
Detergent not very effective Packets of detergent should
not be kept open for too long.
The detergent loses
effectiveness
Food residues on the dishes Dishes too close together,
baskets too full
There must always be enough
space between the dishes to
allow water jets to pass. Avoid
contact points
The spray arms do not rotate Take care not to prevent the
spray arms from rotating when
loading the dishwasher
Clogged spray arm nozzles Clean the spray arms as
indicated in the manual
User instructions
59
Dirty filters Clean the filters as indicated in
the manual
Filters inserted incorrectly or
not fastened in place
Check and correct
Wash program unsuitable for
the type of soil
Find the suitable washing
program in the program table
Combined detergent used with
programs that are too short
Use a powder detergent or a
more intensive program
Not enough detergent (if you
are using a powder detergent)
Increase the amount of
detergent used
Upper basket not horizontal The left and right sides of the
upper basket must be at the
same level
White film in the chamber or
on the door
The substances contained in
the detergent has settled out
Use a dishwasher cleaner
Wash the appliance by hand
Change detergent
Incorrect water hardness
setting (too low or too high)
Adjust the water softener
setting
Change detergent
Salt container cap not
tightened (saline solution
mixing with the wash water)
Tighten the salt container cap
properly
Combined detergent or bio/eco
detergent not very effective
Adjust the water softener
system
Use separate products
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
User instructions
60
7. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT
DESCRIPTION
E1
Acquastop failure (some models only)
E2
Safety level
E3
Water heating fault
E4
Water temperature detection fault
E5
Water intake
fault
E6
Water drainage fault
E7
Turbine flow
-
meter fault (some models only)
E8
Alternate washing system fault
E9
Water intake system fault
E11
Wash pump fault.
Light off
Light on
Light flashing
If an alarm occurs, the machine stops the current program and indicates the fault.
Alarms E1 and E11 require you to contact the technical assistance service.
Alarm E7 is displayed at the end of the cycle, which is anyway completed, as it
does not affect the operation of the dishwasher.
For all other alarms, proceed as follows: stop the current program, switch off the
dishwasher. Switch on and program the dishwasher again to start the new wash cycle.
If the malfunction persists, contact your authorised Service Centre and
provide it with the fault code.
The contact details of the Technical Assistance Department can be found
on the warranty certificate and the website
The manufacturer reserves the right to make any changes deemed necessary for the
improvement of its products without prior notice.
