RA-7730SS RA-7736SS
RA-7742SS RA-7748SS
For residential and indoor use only.
WINDSTER recommends that all kitchen range hood
be installed by a certified installer.
Limited Warranty P.15-P.16
4
27” 35”
27”-35”

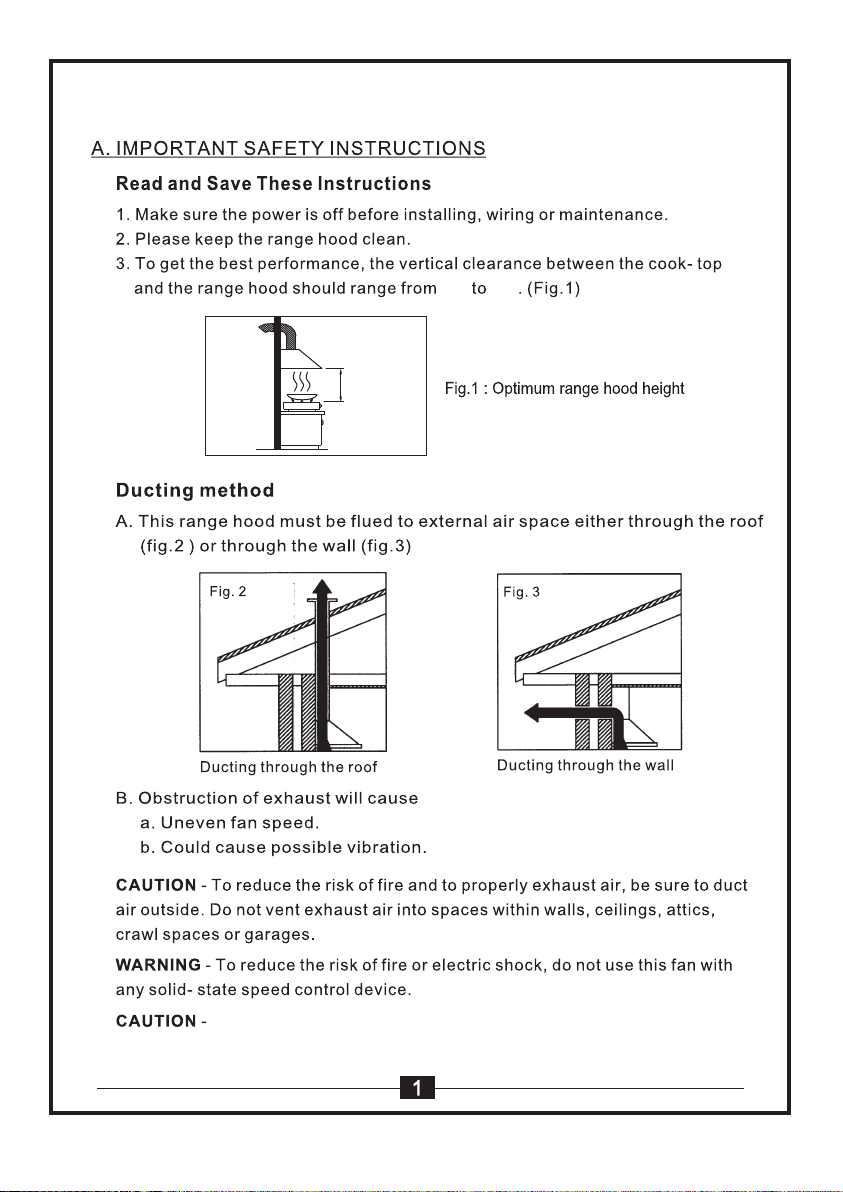

If the hood is mounted too low, it may caused heat damaged and fire hazard.
A. Use this unit only in the manner i

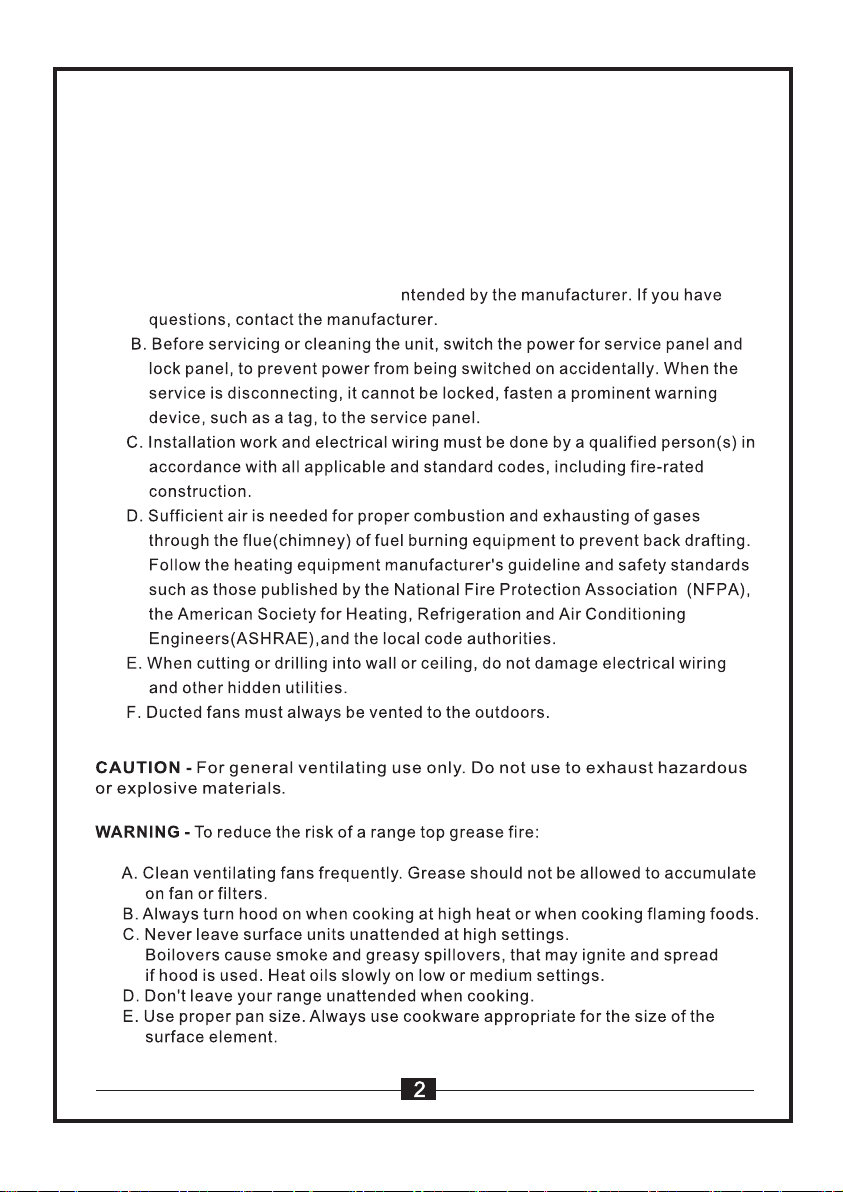

IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire, electric shock, or injury to persons, observe
the following:
DO NOT spray any liquid form cleaner on hood surface including lights and control
switch. To clean the range hood, spray liquid form cleaner directly onto cleaning
cloth for hood cleaning.

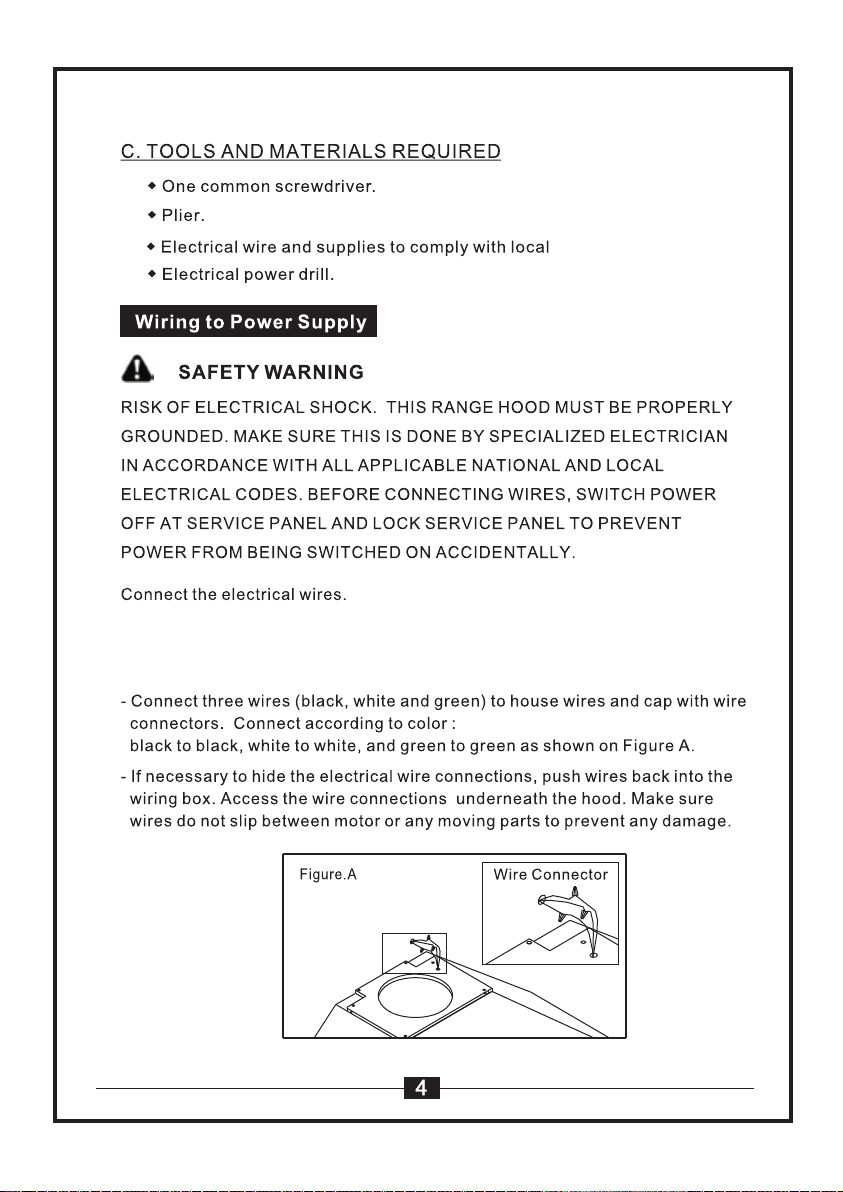

- All electrial work have to be done by certified electrician.
- This range hood requires a 120V/60Hz electrical supply and must meet local required
safety code(s).
code(s).
.
Duct cover and extension duct cover fitment may vary depend on the mounting height of the
range hood.
Installation and Maintenance must be carried out by qualified installer
5

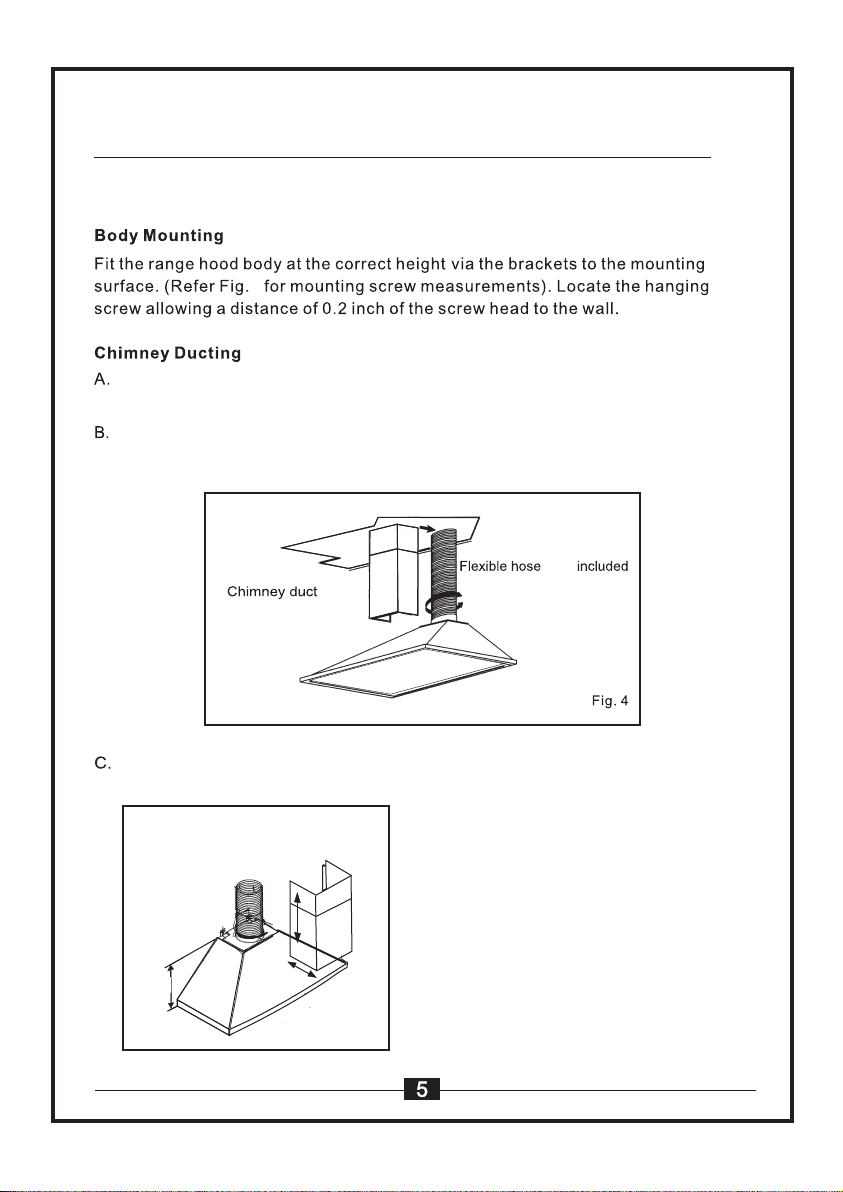

Ensure the mounted range hood is level when installed for optimum performance.
(Fig.4)
To fit the duct to the top of the chimney, slide the bottom lip under the black plastic
plate and then lock into place with the 4 screws provided(Fig. 5)
Install the Upper Mounting Bracket and then adjust the duct to the required height.
11-3/4"
Fig. 5
NOT
The chimney duct can be adjust to
desired height.
6
Fig. 6 Fig. 7
Fig. 10
Fig. 9Fig. 8
Fig. 11

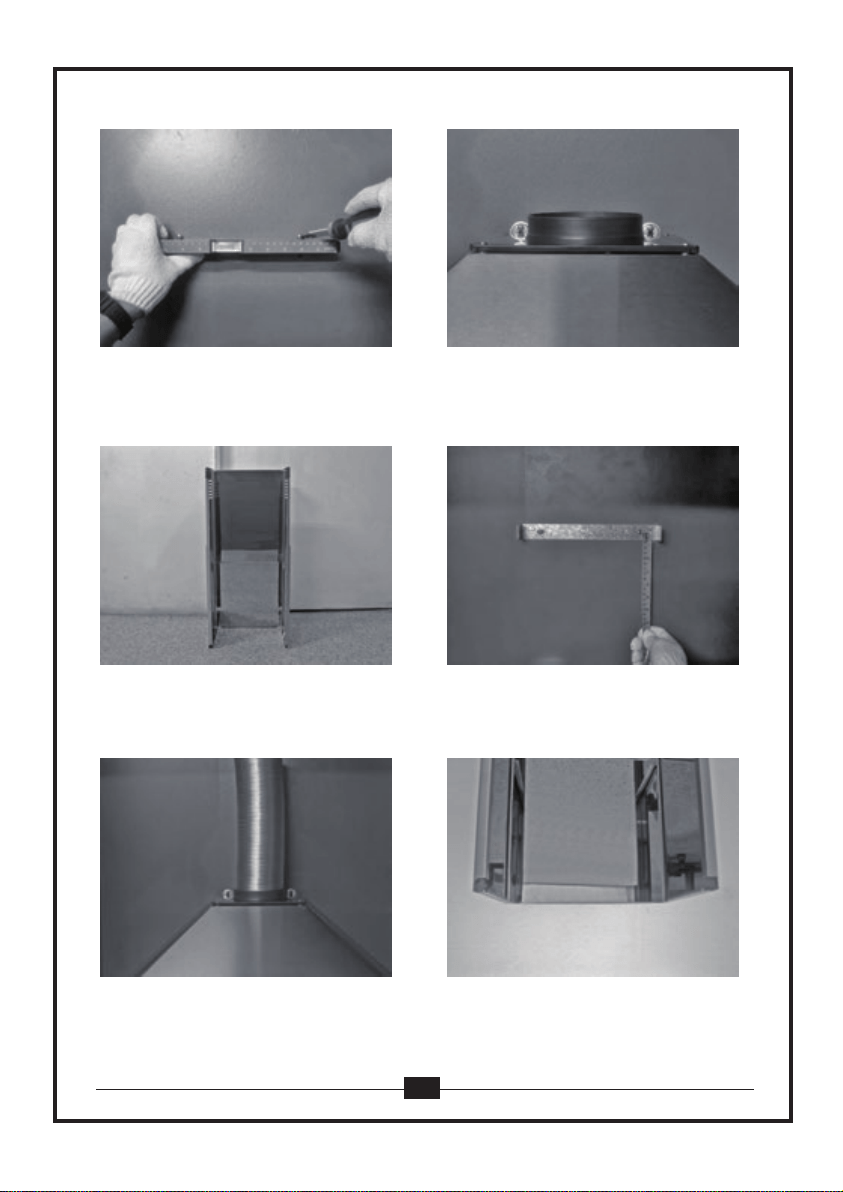

Use a level to balance out both sides to
ensure the hood will be properly mounted.
Mount the unit onto the wall with correct
wall screws. (Note different types of walls
require different types of screws)
Prepare and extend the duct cover to your
desired height for mounting.
Measure and balance the duct cover
bracket at the desired height.
Install the aluminum flex hose to the outlet
of the hood. (Flex hose not included)
Duct cover will come with “teeth” to be
installed into the slot on the hood.
7
Fig. 12
Fig. 14
Fig. 15
Fig. 16 Fig. 17
Fig. 13

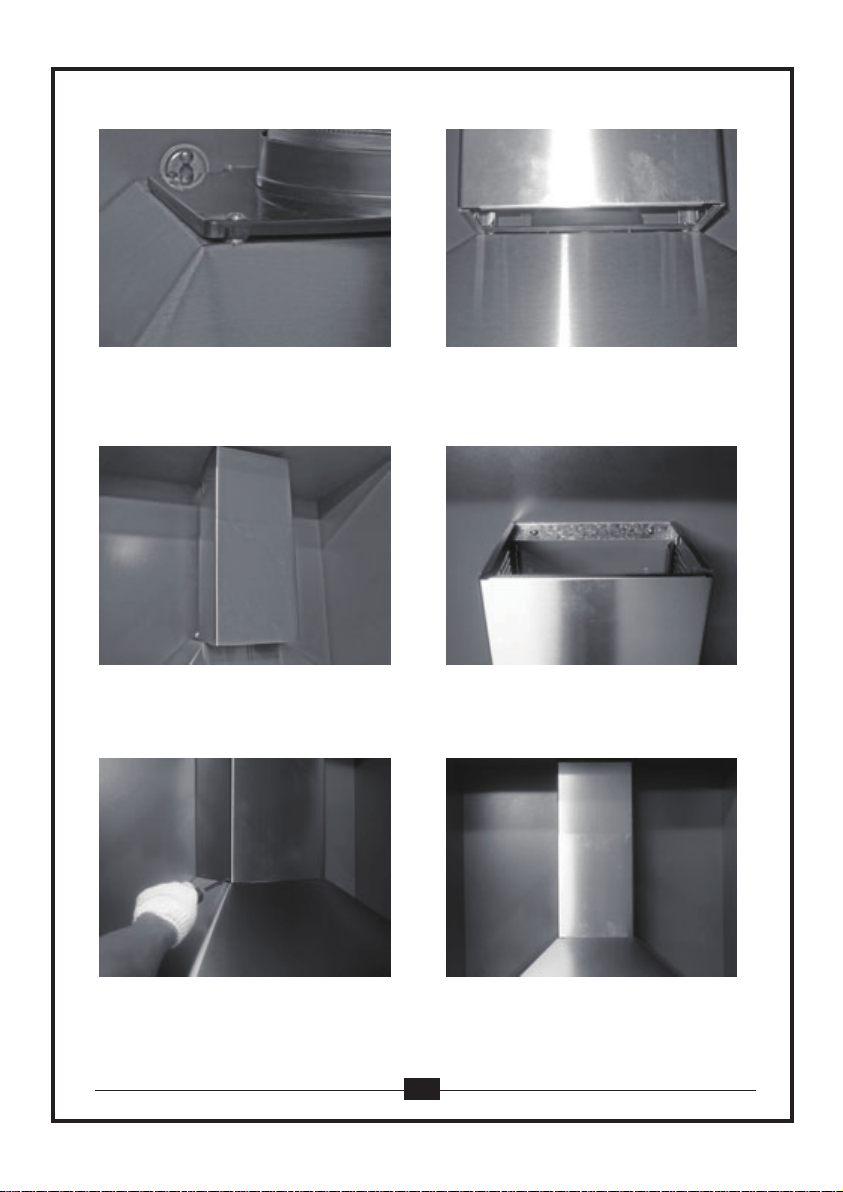

Evenly slide duct cover into the slot of the
Black plastic plate.
Correctly align the duct cover into black
plastic plate.
hood.
Attach duct cover to duct cover bracket
and screw in the screws provided.
Screw in the screws into the bottom duct
cover to the hood.
Completed photo of how the finished
installation should look like.
8
8
Fig. 18
Fig. 23
Fig. 23 Measure and balance the
recirculation exhaust and line it up
with the exhaust opening in the duct
cover.
Fig. 24
Fig. 24 Install aluminum flex hose in
between the recirculation exhaust and
the outlet of the hood.(Flex hose not
included)
Fig. 26
Fig. 26 Install covering the white
plastic grill and rotate
counter-clockwise. Installation
complete when it is secured.
Fig. 25
Fig. 25 Remove grease filters (baffle
or aluminum) to expose the motor.
Fig. 19
Fig. 22
Fig. 20
Fig. 21
All figures below are for optional ductless installation. The
steps will continue after Figure 9 above.
Figure 18 (Ductless kit box photo)
–Remove the content from box.
Kit will include:
Fig. 19 - (1) Recirculation exhaust
Fig. 20 - (1) Round collar
Fig. 21 - (2) Charcoal filter
Fig. 22 - (6) Screws
10
9
3W
AL700
AL700
27

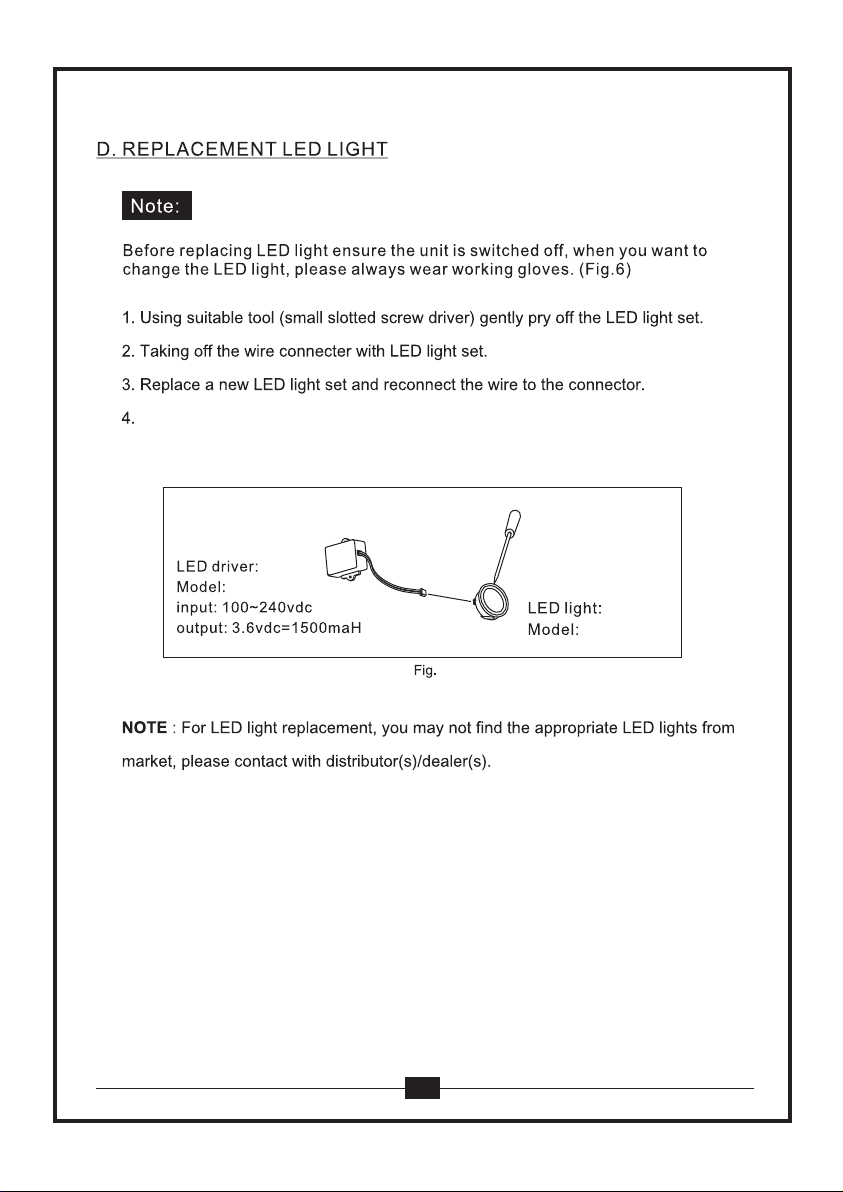

Test the LED lights after putting the LED lights back into original position.
10

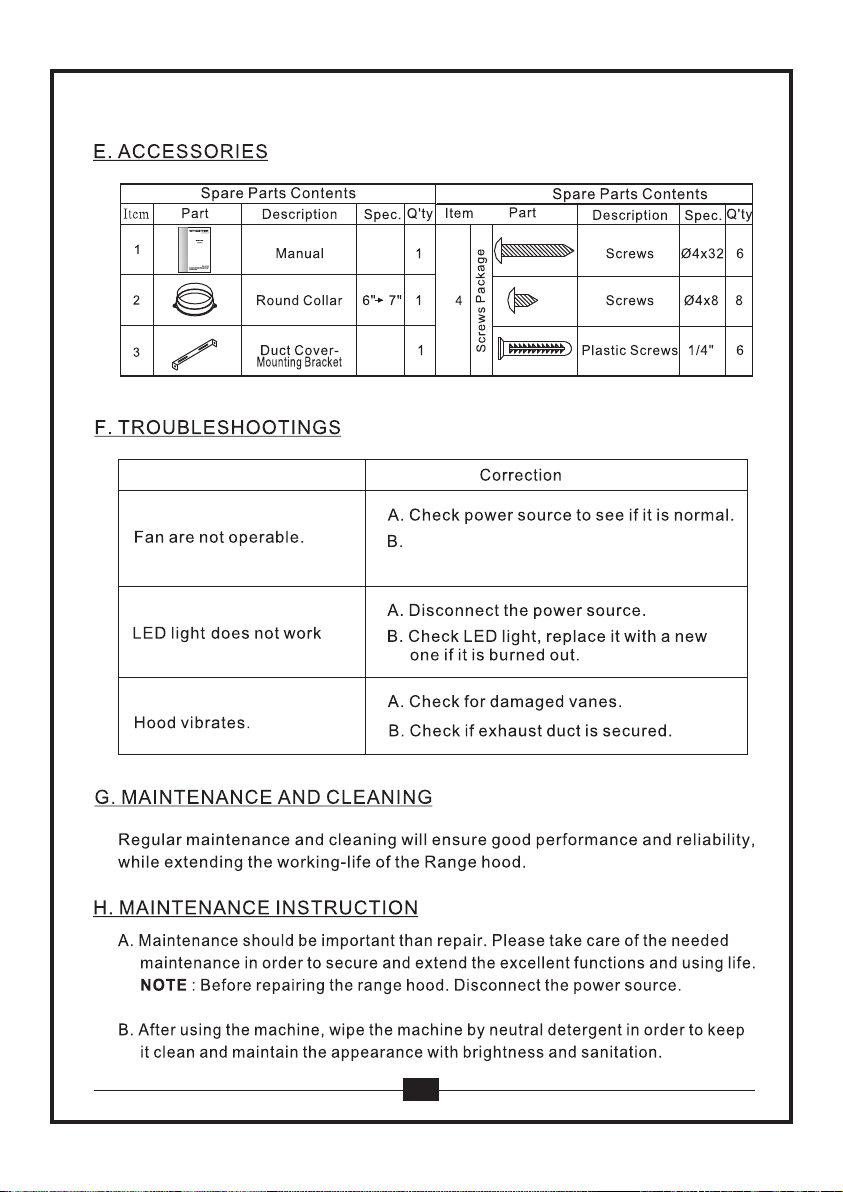

Problem
Check power plug to see if it is plugged
firmly into the power socket.
10
9
1111
11
28
28

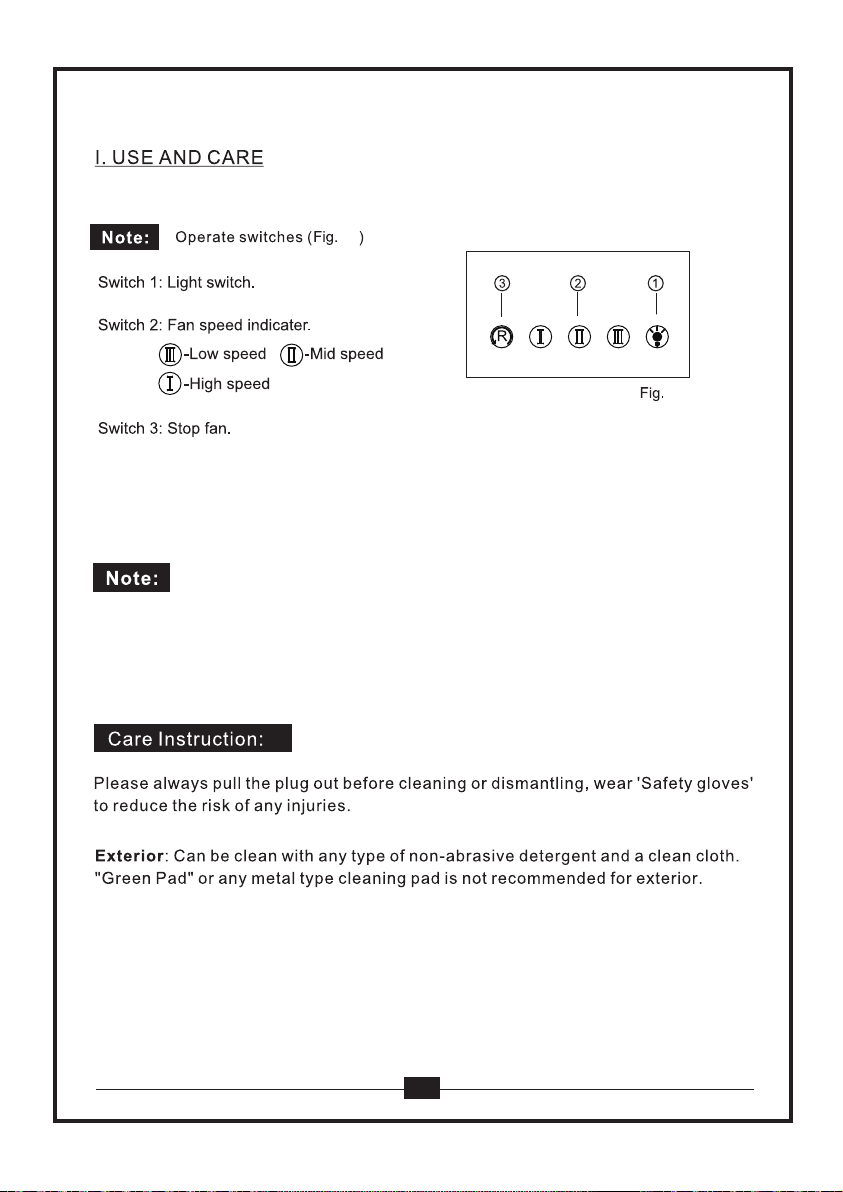

Range hood should be turn on before cooking to create air pocket.
After cooking, range hood should be kept on for additional time until complete
ventilation of cooking odor.
12

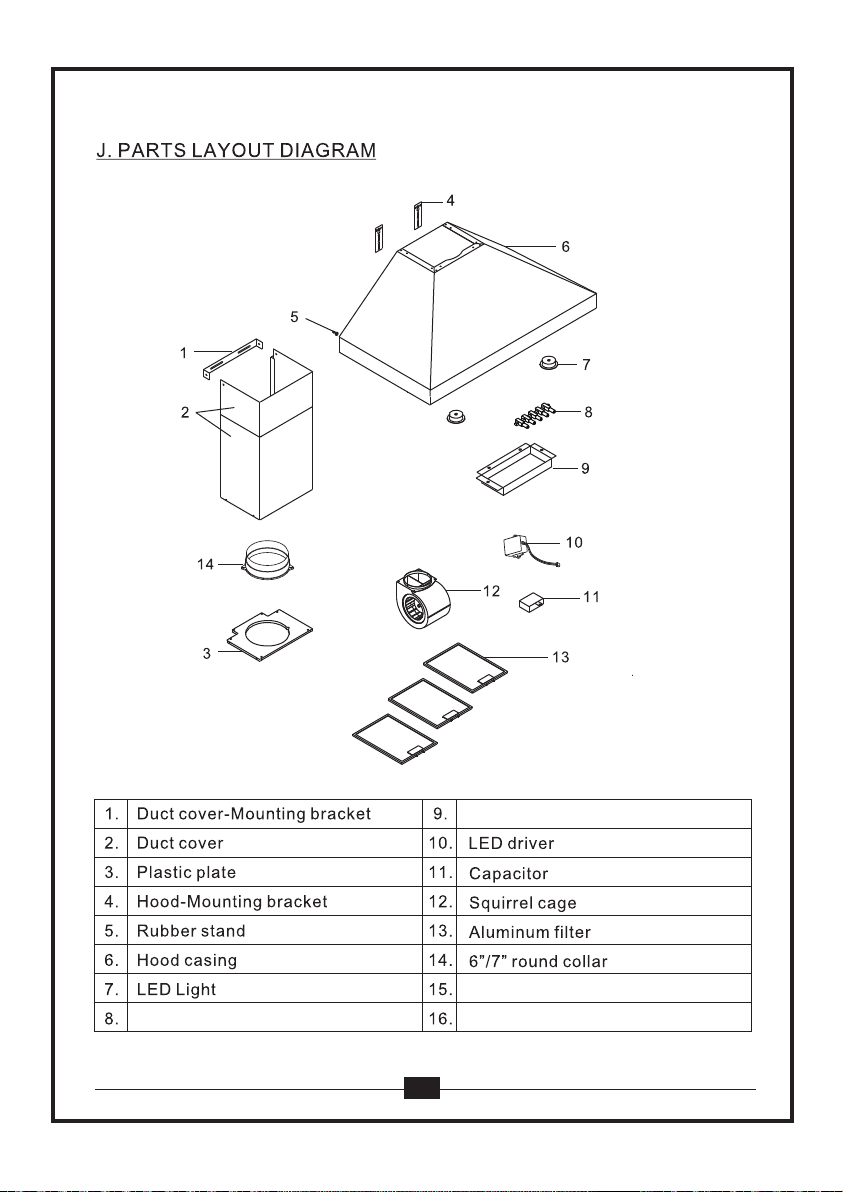

Model:
RA-77 Series
Switch
Switch holder
13

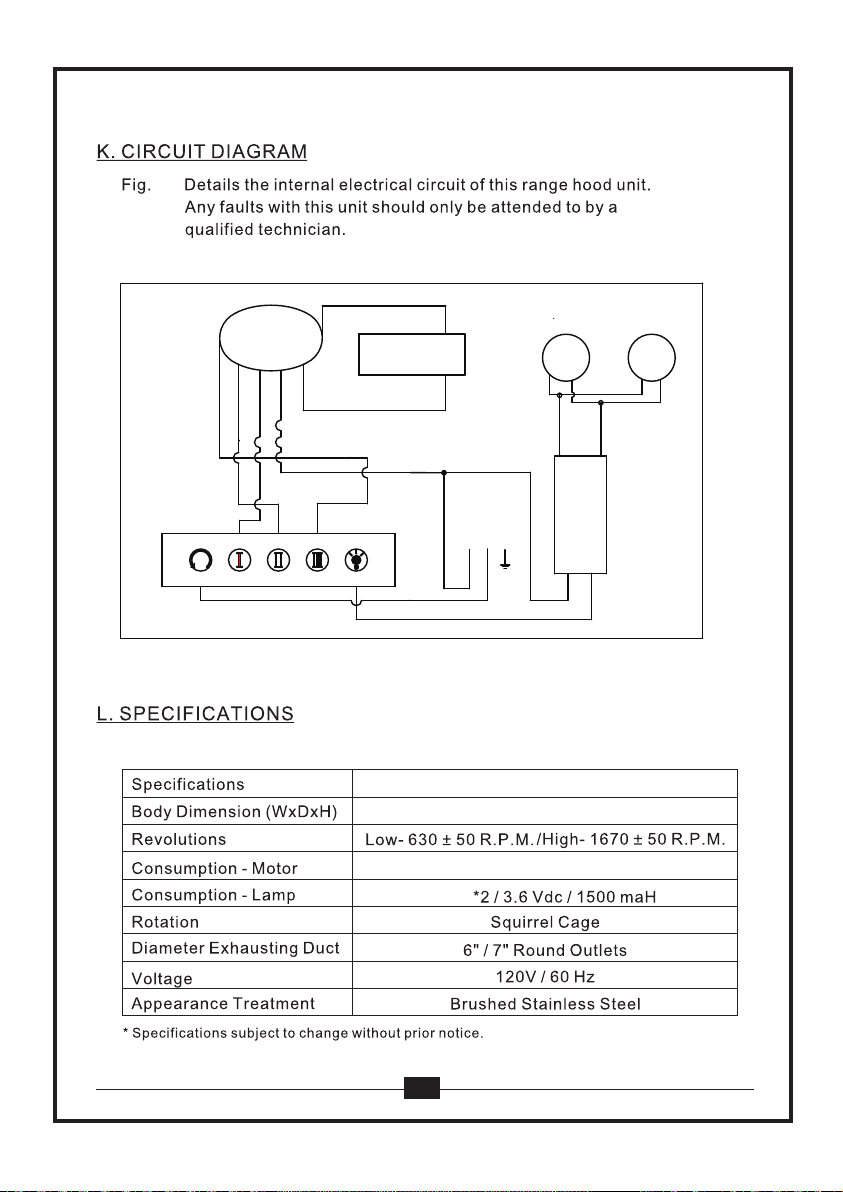

Fig. 29 RA-77 Series Electrical Schematic Diagram
White
R
Power
Black
White
LED Driver
Green
Motor
Brown
White
Blue
Gray
Red
LED LED
Capacitor
Yellow
RA-77 SERIES

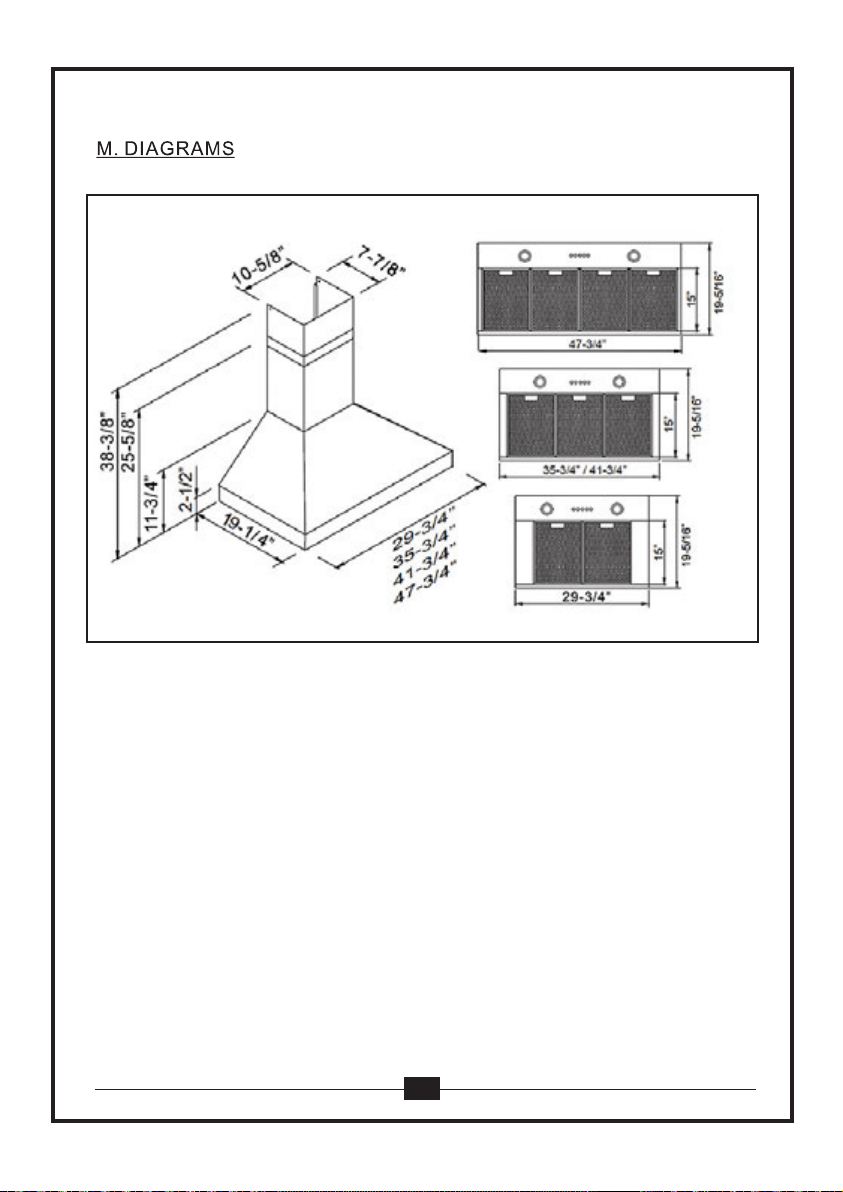

See M. DIAGRAMS (Page.14)
160W
3W
29
14
What Is Not Covered By These Warranties:
1) Conditions and damages resulting from any of the following:
Improper installation, delivery, or maintenance.
Any repair, modification, alteration or adjustment not authorized by the
manufacturer or an authorized service dealers.
Misuse, abuse, accidents, or unreasonable use.
Incorrect electric current, voltage or supply.
Improper setting of any control.
Improper chemical cleaning.
2) Light Bulbs
3) Products purchased for commercial or industrial use (such as in a hotel, office,
restaurant, or other business)
4) Damage due to earthquake, flood, storm, etc.
Limited Warranty
Windster Hoods Inc. warrants this product against defects in material or
workmanship as follows:
1) Labor: For a period of one (1) year from the date of purchase, if this product
is determined to be defective, Windster will repair or replace the product, at its
option, at no charge. After the warranty period, you must pay for all labor
charges. During the “labor” warranty period there will be no c
harge for labor.
2) Parts: In addition, Windster will supply, at no charge, new or rebuilt
replacements in exchange for defective parts for a period of two (2) years.
After the warranty period, you must pay for all parts costs. During the “parts”
warranty period, there will be no charge for parts
You must carry-in or mail-in your product during the warranty period. This warranty
only applies to products purch
ased and serviced in the United States or Canada.
15
Defective Products:
All products will be inspected, tested, and carefully packed by the manufacturer
before shipping to customers. Products that are damaged during transit can only be
exchanged for the same product, under the condition that the customer must get a
RMA (Return Merchandise Authorization) from Windster. When products are
received defective, you must notify us within the 3 business days of receiving the
package. Replacement products are only shipped when the RMA is issued. NO
EXCEPTIONS.
Return Policy
Windster offers only the best and highest quality products. If you are not satisfied
with your purchase, please contact us within 3 business days of product arrival to
obtain a Return Merchandise Authorization (RMA). Returns sent without a RMA will
not be accepted. There will be a 25% re-stocking fee for every returned items.
Shipping fee will also be deducted from the original purchase price. When returning a
package, please include a copy of your purchase receipt. Use the original shipping
box and packing materials and completely remove or cover the original shipping label
.
Make sure that products are in brand new condition, uninstalled, un-drilled, and
contain everything that came with the package as when you first received it. If any
parts or manuals are missing, we have the right not to accept the return.
16
5101 Commerce Drive
Baldwin Park, CA 91706
TEL: (626)962-8600
FAX: (626)962-8669
