Your new washer dryer
You have chosen a Neff washer dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Neff, every washer dryer that
leaves our factory is carefully checked to
ensure that it functions correctly and is in
perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.neff-
international.com or contact our after-
sales service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 11
7 Environmental protection . . . . .12
Packaging/used appliance . . . . . . . . 12
Save energy and conserve resources12
Energy saving mode. . . . . . . . . . . . . 13
5 Positioning and connecting . . .13

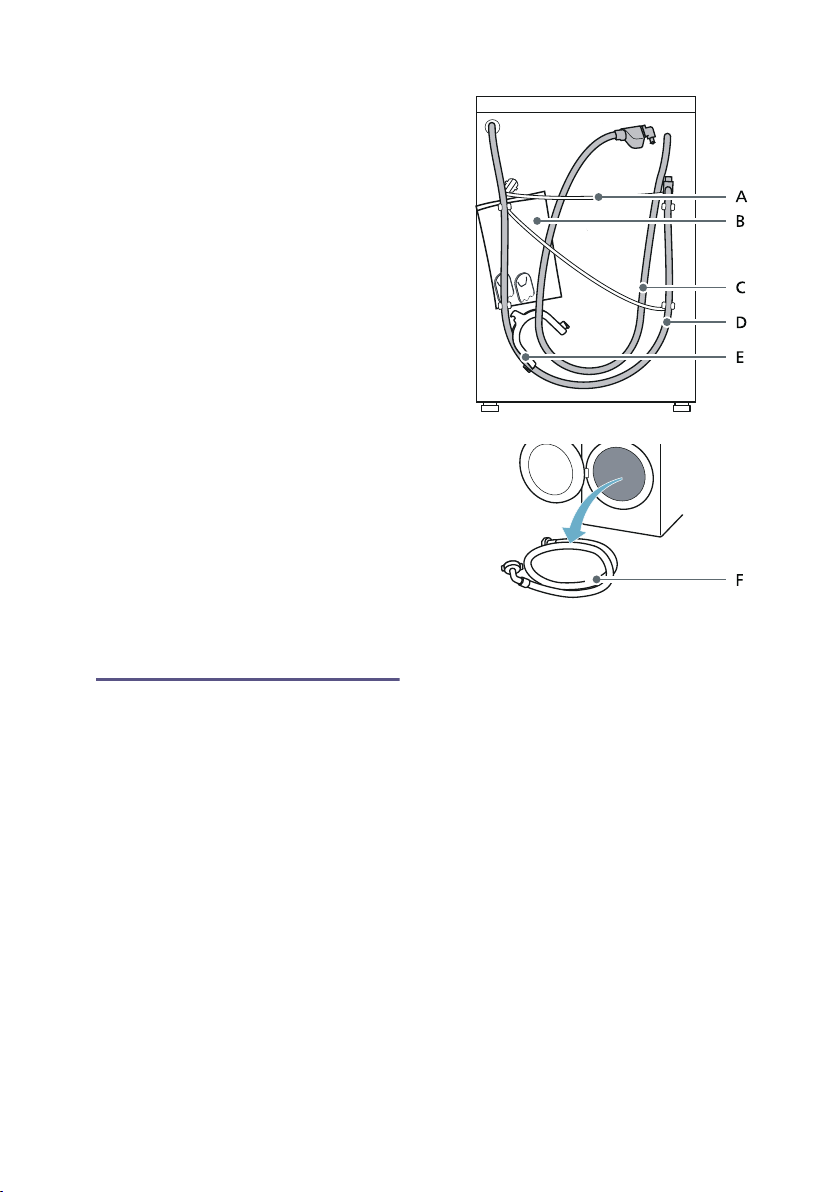

Standard accessories . . . . . . . . . . . . 13
Safety instructions. . . . . . . . . . . . . . . 14
Installation surface . . . . . . . . . . . . . . 14
Installation on a base or a wooden joist
floor . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the appliance in a kitchenette
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

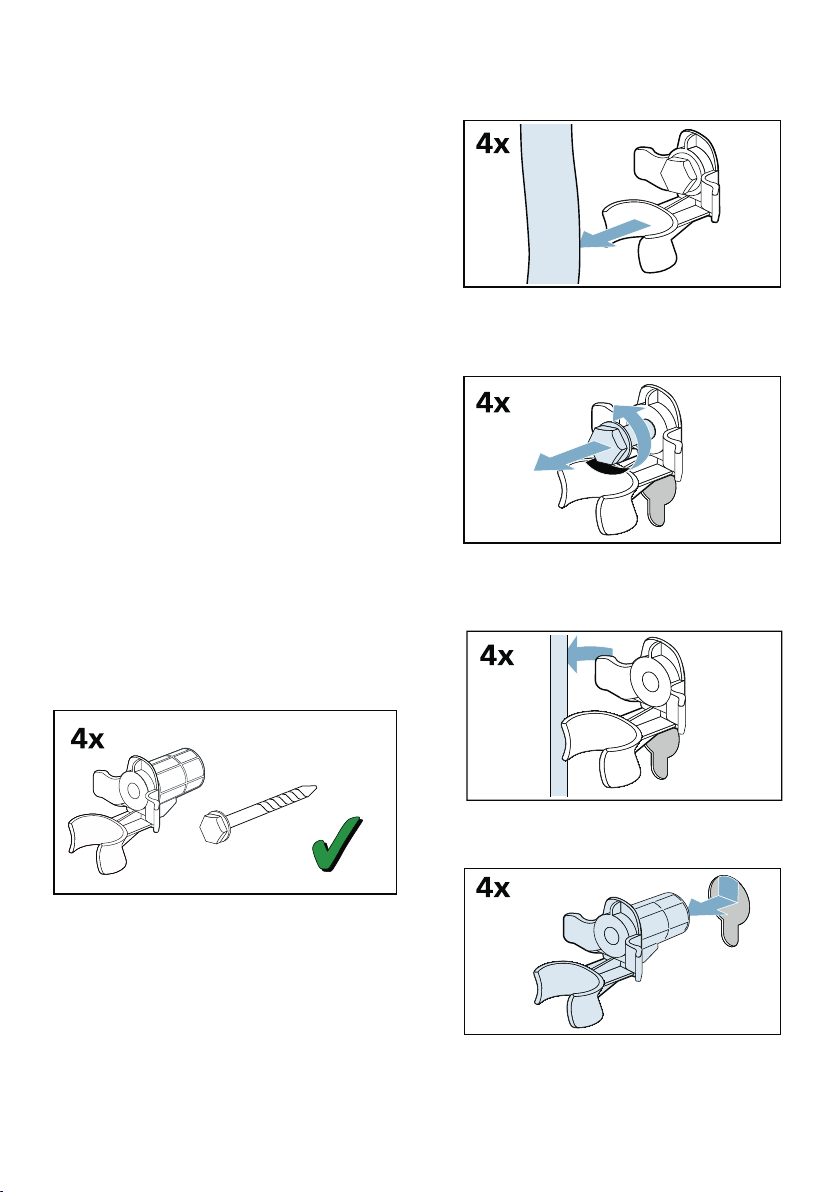

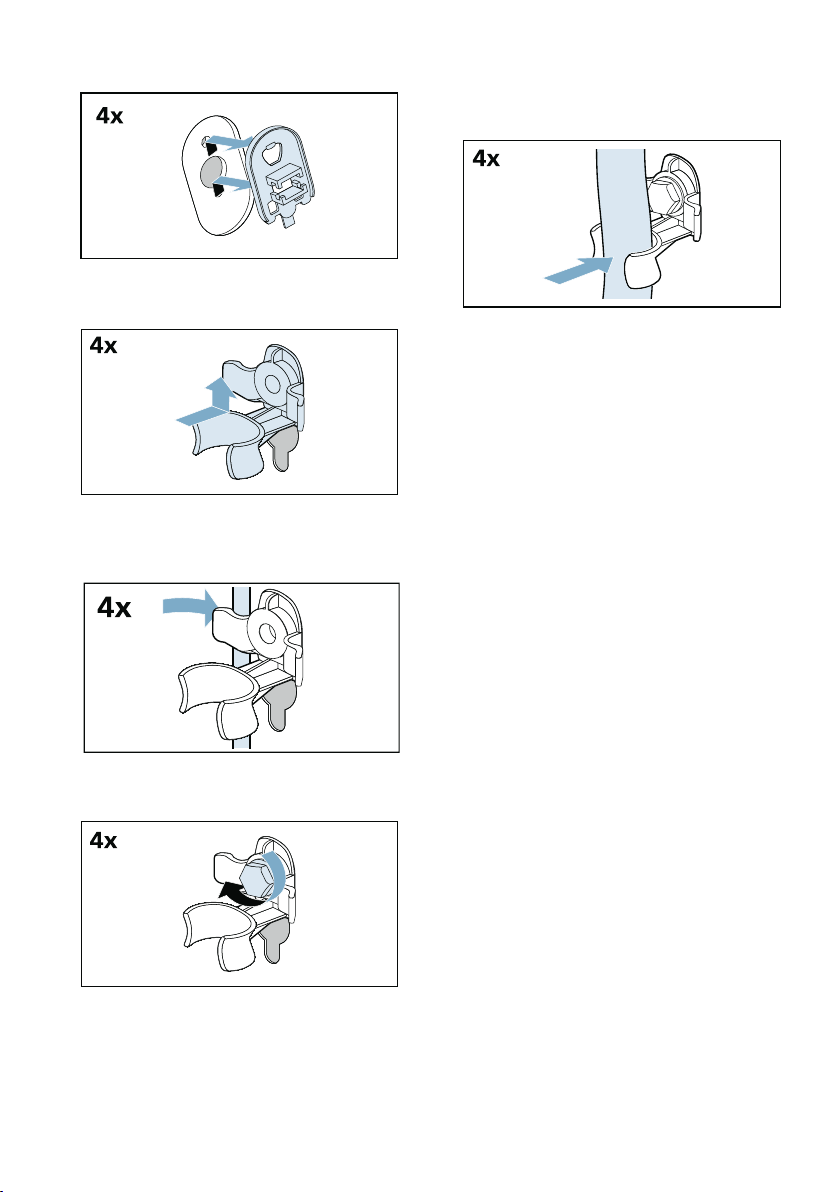

Removing the transport locks. . . . . . 15
Removing the support struts. . . . . . . 16
Hose and cable lengths . . . . . . . . . . 16
Water inlet. . . . . . . . . . . . . . . . . . . . . 17
Water outlet . . . . . . . . . . . . . . . . . . . 18
Alignment . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection. . . . . . . . . . . . . 19
Before washing for the first time . . . . 20
Transportation. . . . . . . . . . . . . . . . . . 20
* Getting to know the appliance 22

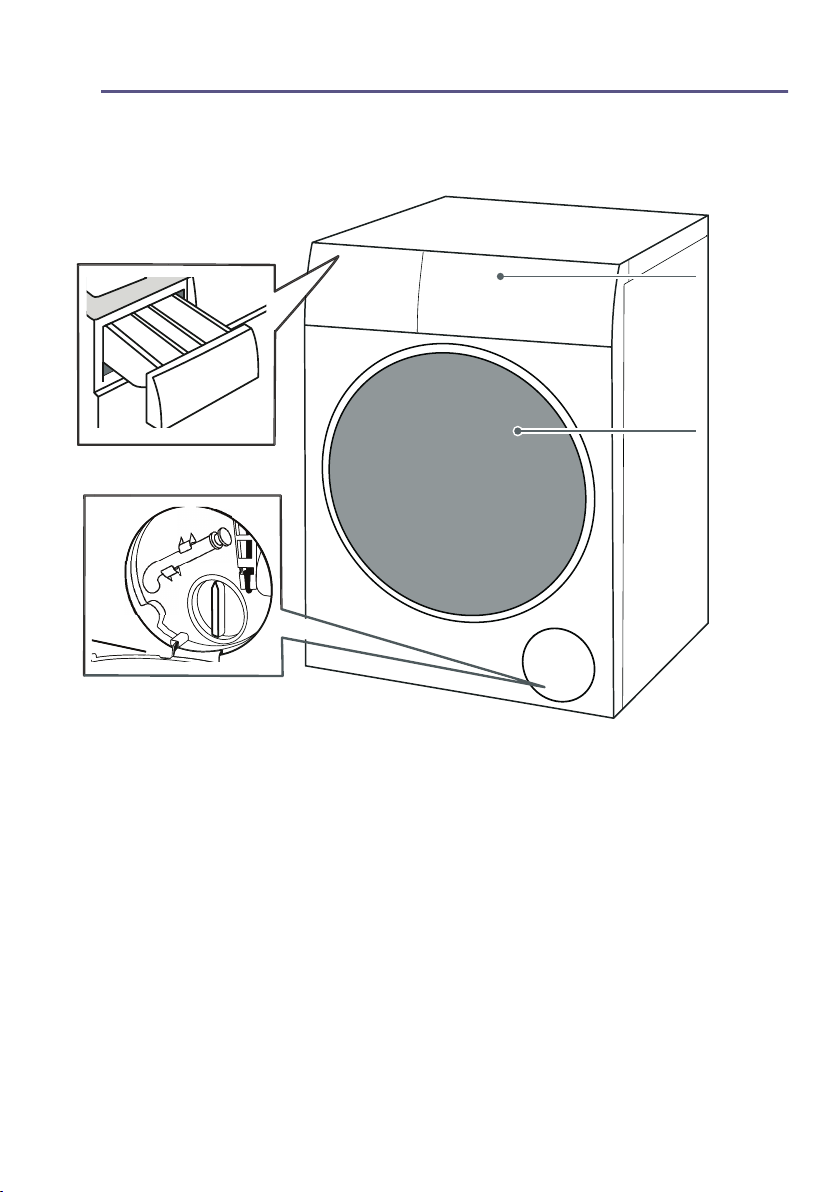

Appliance . . . . . . . . . . . . . . . . . . . . . 22
Control panel . . . . . . . . . . . . . . . . . . 23
Display panel . . . . . . . . . . . . . . . . . . 24
Z Laundry. . . . . . . . . . . . . . . . . . . .25
Preparing laundry for washing . . . . . 25
Preparing laundry for drying . . . . . . . 26
Starching . . . . . . . . . . . . . . . . . . . . . 26
Dyeing/bleaching . . . . . . . . . . . . . . . 26
C Detergents and care products . 27
Detergent recommendation. . . . . . . .28
P Overview of programmes . . . . . 29
Selectable programme . . . . . . . . . . .29
Drying table . . . . . . . . . . . . . . . . . . . .33
0 Programme default settings. . . 34
°C Temp. . . . . . . . . . . . . . . . . . . . . .34
Spin Speed. . . . . . . . . . . . . . . . . . . .34
Finished in/ Time Dry . . . . . . . . . . . .34
\ Additional programme settings35
Drying Aim A. . . . . . . . . . . . . . . . . .35
PreWash. . . . . . . . . . . . . . . . . . . . . .35
Easy Iron . . . . . . . . . . . . . . . . . . . . .35
SpeedPerfect . . . . . . . . . . . . . . . . . .36
1 Operating the appliance . . . . . . 36
Preparing the appliance . . . . . . . . . .36
Select programme/switch on the
appliance. . . . . . . . . . . . . . . . . . . . . .36

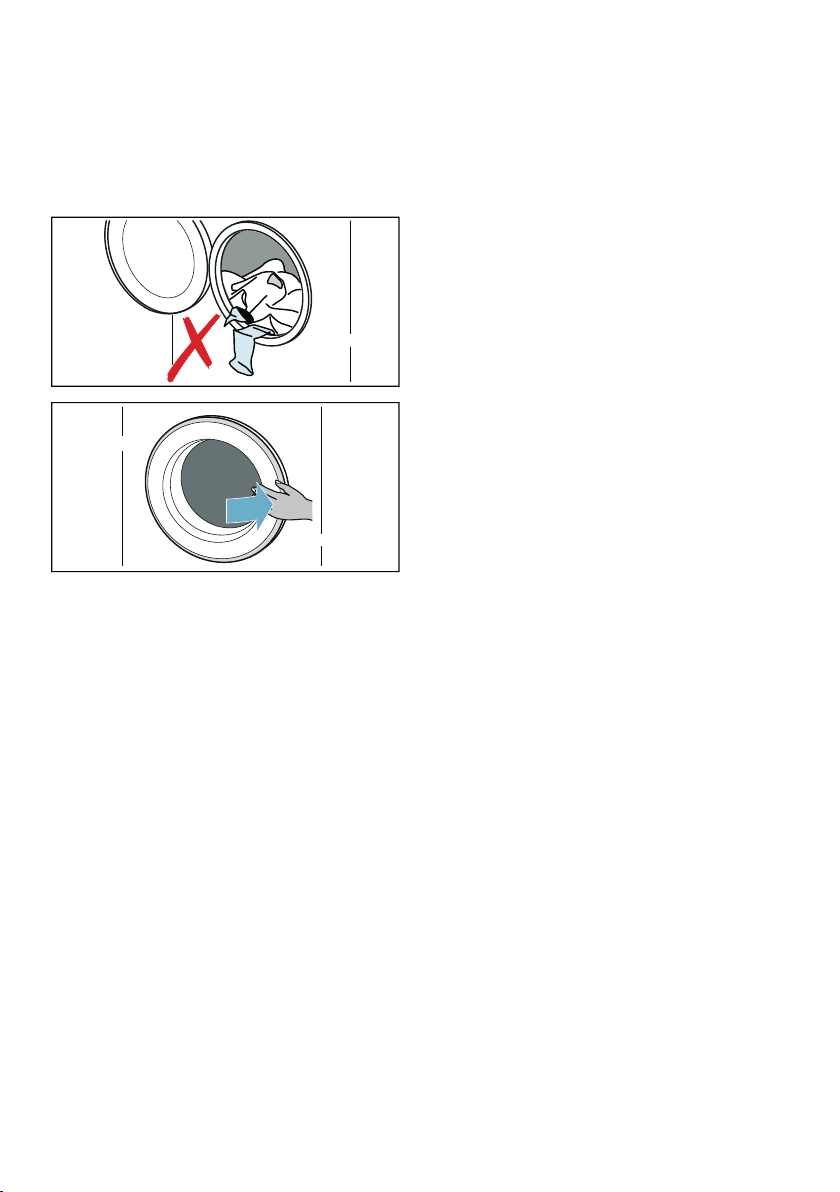

Placing laundry into the drum . . . . . .37
Dosing and adding detergent and care
products . . . . . . . . . . . . . . . . . . . . . .37
Starting the programme . . . . . . . . . .38
Childproof lock . . . . . . . . . . . . . . . . .39
Adding/removing laundry . . . . . . . . .39
Changing the programme . . . . . . . . .39
Cancel the programme . . . . . . . . . . .39
Programme end . . . . . . . . . . . . . . . .40
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .40
Q Appliance settings . . . . . . . . . . 40
H Sensors . . . . . . . . . . . . . . . . . . . 41
Unbalanced load detection system . .41
en Intended use
4
2 Cleaning and maintenance . . . 41
Appliance housing/control panel. . . 42
Drum . . . . . . . . . . . . . . . . . . . . . . . . 42
Descaling. . . . . . . . . . . . . . . . . . . . . 42

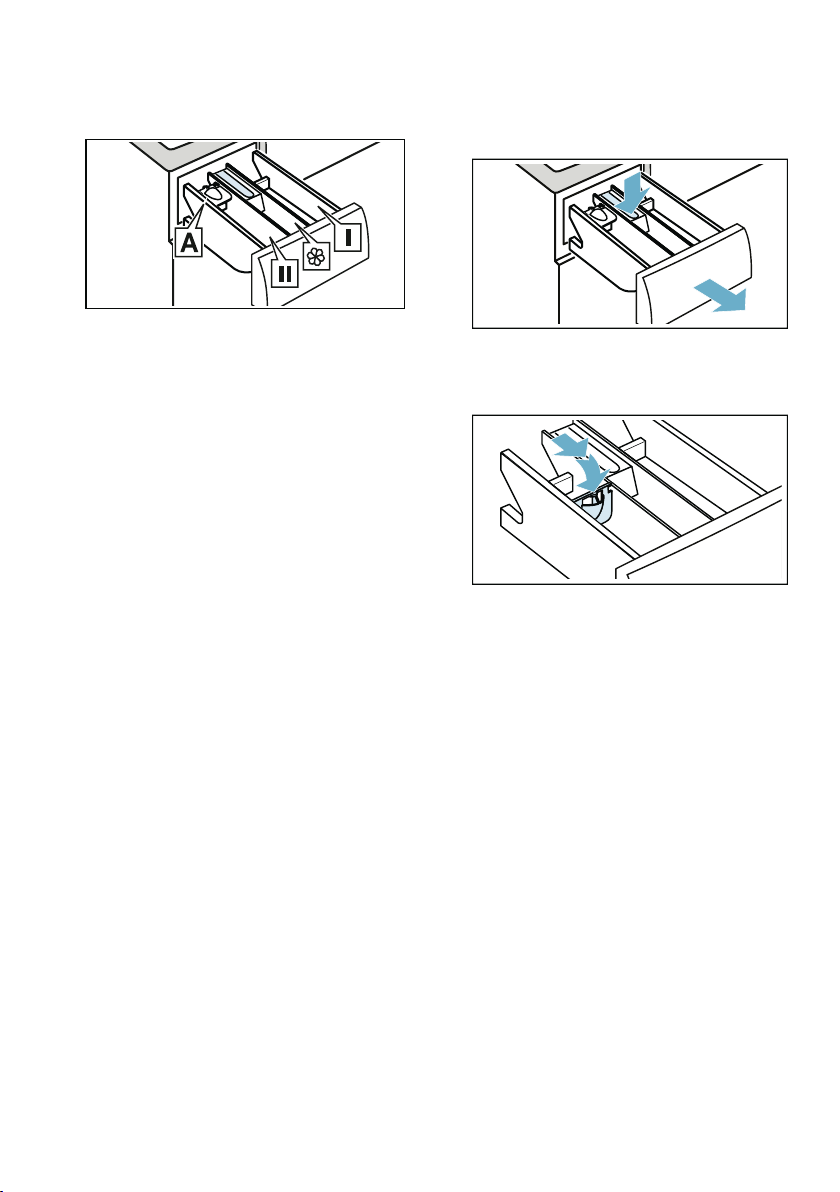

Emptying the detergent draw, cleaning
the detergent drawer and its housing42

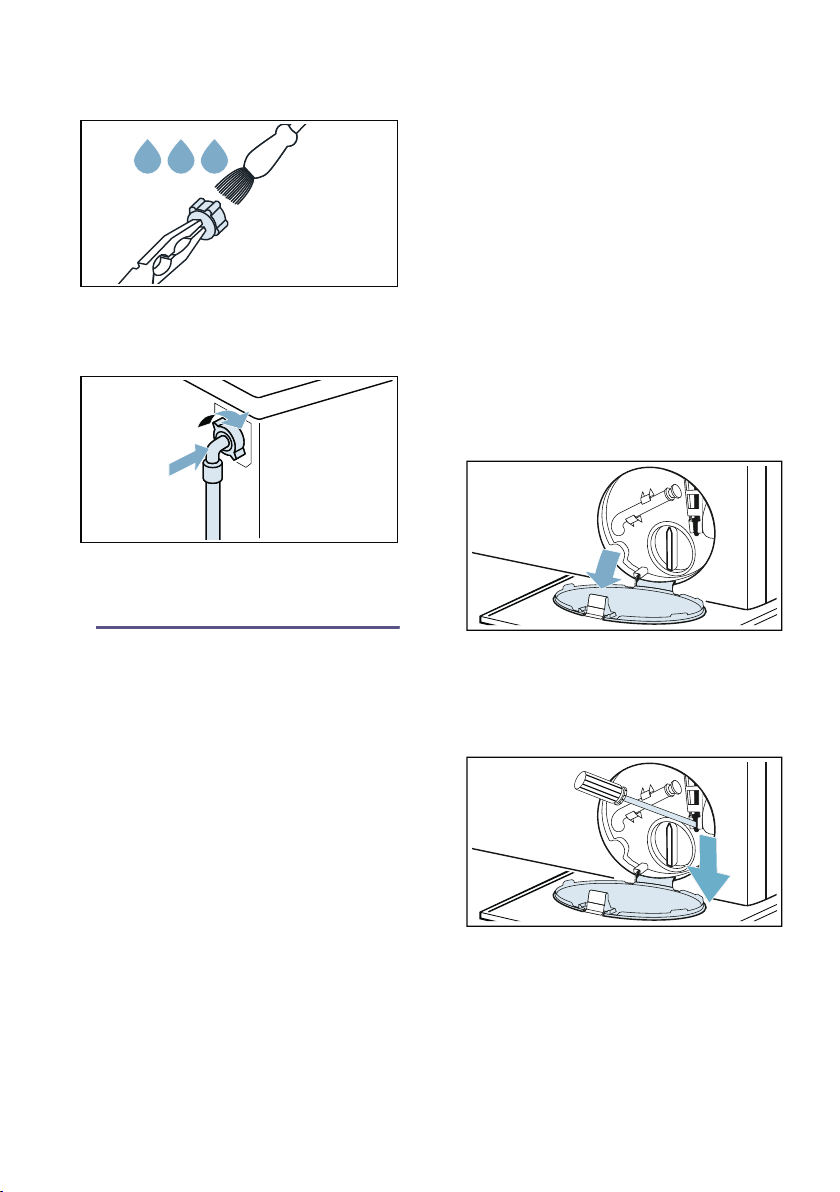

Drain pump is blocked . . . . . . . . . . 43
The drain hose at the siphon is blocked
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Filter in the water supply is blocked 44
3 Faults and what to do about them
45
Emergency release . . . . . . . . . . . . . 45
Information on the display panel . . . 46
Faults and what to do about them . . 47
4 Customer Service . . . . . . . . . . . 51
Product number (E-Nr.) and production
number (FD) . . . . . . . . . . . . . . . . . . 51
[ Consumption values . . . . . . . . 52
J Technical data. . . . . . . . . . . . . . 53
r Aqua-Stop warranty . . . . . . . . . 53
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructi ons
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
en Safety instructions
6
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a
circuit that is regularly
switched on and off by a
utility.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
Safety instructions en
7
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
en Safety instructions
8
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance
■ If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
Safety instructions en
9
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ Laundry that has been
pretreated with cleaning
agents that contain solvents,
e.g. stain remover/cleaning
solvent, may cause an
explosion in the drum.
Rinse the laundry thoroughly
with water before washing it
in the machine.
Risk of explosions/fire!
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
en Safety instructions
10
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■
If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Safety instructions en
11
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
en Environmental protection
12
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
7 Environmental
protection
Environmental protecti on
Packaging/used appliance
Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low
temperatures and longer wash times
and use maximum load capacity
~ Page 29.
■ Energy consumption and water
consumption is most efficient.
Use the economy programme settings.
■ If you adjust the programme settings
for a programme, the display shows
the expected consumption.
Add ~ Page 28 detergent based on
the laundry’s degree of soiling.
■ For light to normal soiling, a smaller
amount of detergent is sufficient.
Observe the dosage
recommendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
■ At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label are
also sufficient.
Set the maximum spin speed if you
want to dry the laundry in a tumble dryer
afterwards.
■ The drier the laundry, the shorter the
programme duration when drying
which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in the
laundry and increases the volume of
the spin noise.
Wash the laundry without prewash.
)
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
Positioning and connecting en
13
■ Washing with prewash increases the
programme duration and increases
energy and water consumption.
The appliance has a continuous
automatic load adjustment function.
■ Depending on the type of fabric and
load capacity, the continuous
automatic load adjustment function
optimally adjusts the water
consumption and programme
duration.
Energy saving mode
If the appliance is not operated for a
prolonged period (approx. 5 minutes), it
automatically switches to energy-saving
mode, the display panel lighting goes
out before the programme starts and
after the programme has ended, À
flashes. Touch any area of display panel
to activate the display backlighting.
Energy saving mode is not be activated
when the programme is running.
5 Positioning and
connecting
Positioning and connecting
Standard accessories
Note:
Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
Customer Service.
A Mains lead
B Bag:
■ Installation and operating
instructions
■ Customer Service location
directory*
■ Warranty*
■ Supplementary sheet for the
installation and operating
instructions*
■ Cover caps for openings after
the transport braces have
been removed
■ Home Connect Installation
Guides*
C Water inlet hose on aquaStop
models
D Water outlet hose
E Elbow for securing the water
outlet hose*
F Cold water inlet hose on
Standard/Aqua-Secure models
* Depending on the model
en Positioning and connecting
14
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
retailers) is required to connect the
water outlet hose to a siphon.
Useful tool
■ Spirit level for aligning
■ Wrench with:
– WAF13 for loosening the
transport braces and
– WAF17 for aligning the appliance
feet
Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Be careful when lifting/transporting
the appliance.
■ When the appliance is lifted by its
protruding parts (e.g. the appliance
door), the components may break
off and cause injuries.
Do not lift the appliance by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the appliance in areas
exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■
In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note:
The appliance must be stable
aligned so that it does not move
around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may "wander" and tip/
topple from the base when spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 975600,
CZ 110600, Z 7080X0.
Note: On wooden joist floors, install the
appliance:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installing the appliance in a
kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Positioning and connecting en
15
Notes
■ Recess width of 60 cm required.
■ Only install the appliance
underneath a continuous worktop
that is securely connected to
adjacent cabinets.

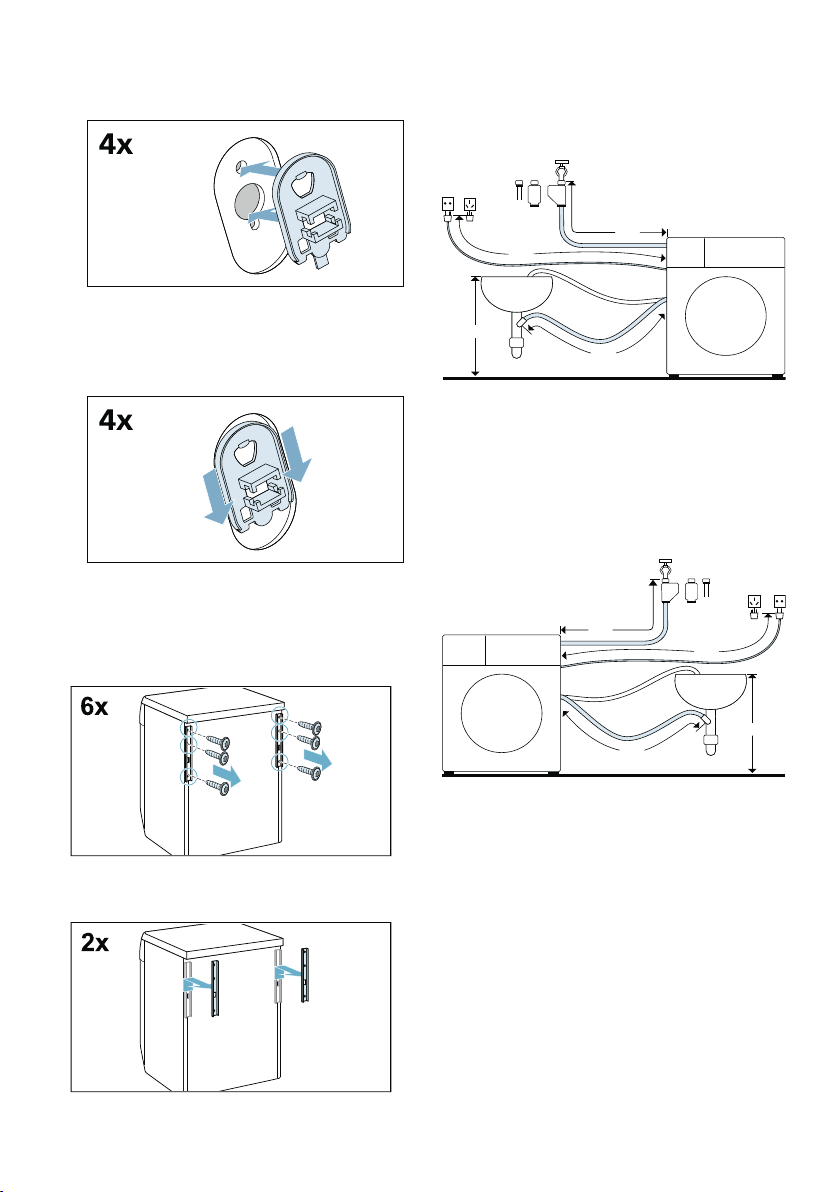

Removing the transport locks
Caution!
Damage to the appliance
■
The appliance is secured for
transportation using transport locks.
If the transport locks are not
removed, the appliance may
become damaged when it is
operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
a) Remove the mains cable from the
holders.
b) Remove the sleeves.
en Positioning and connecting
16
3. Fit the covers.
4. Lock the covers firmly in place by
applying pressure to the snap-in
hooks.
Removing the support struts
1.
Unscrew and remove all screws in
the vertical transport struts.
2. Remove the transport struts.
Hose and cable lengths
Connection on left side
or
Connection on right side
Note: If the supply hose is too short for
your connection, you can order an
extension from the after-sales service.
7
( ~ 105 cm
0 ~ 145 cm
8 ~ 95 cm
@ 60 cm ~ 100 cm
( ~ 60 cm
0 ~ 195 cm
8 ~ 140 cm
@ 60 cm ~ 100 cm
#
#
Positioning and connecting en
17
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve* in water (it contains an electric
valve).
* Depending on the model
Observe the following when connecting
the appliance:
Notes
■
Only operate the appliance using
cold mains water.
■ Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection
1. Connect the water supply hose to
the water tap (¾" = 26.4 mm) and to
the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.
en Positioning and connecting
18
2. Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point.
Secure the drain hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■ The plug does not block drainage
from the washbasin.
■ The end of the drain hose is not
immersed in the drained water.
■ The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.
Connection
■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24 - 40 mm (available
from specialist dealers).
■ Drainage into a washbasin
Secure the outlet hose so that it
cannot slip out.
Elbow available from after-sales
service:
Individual part number 00655300
■ Drainage into a plastic pipe with
rubber bushing or into a drainage
pit
Positioning and connecting en
19
Note: The plastic pipe is not
standard accessory, available from
specialist dealers.
Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a
wrench, by turning it in a clockwise
direction.
2. Check the alignment of the
appliance with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The appliance is only connected to
an alternating current via a properly
installed earthed socket.
■ The mains plug fits the socket.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
en Positioning and connecting
20
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug can be accessed at
all times.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
Before washing for the first
time
The appliance was inspected
thoroughly before leaving the factory. To
remove any residual test water, run the
Cottons 90°C programme the first time
without laundry.
Note:
■
The appliance must have been
installed and connected properly.
~ "Positioning and connecting"
on page 13
■ Never switch on a damaged
appliance.
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any
laundry.
4. Select the Cottons 90°C
programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into
dispenser II.
7. Add standard detergent to dispenser
II according to manufacturer’s
instructions for light soiling.
Note: To prevent frothing, use only
half the recommended amount
of detergent. Do not use any
woollens or mild detergents.
8. Close the detergent drawer.
9. Select Start/ Reload .
10.When the programme ends, turn the
programme selector to Û (Off).
Your appliance is now ready for use.
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose. ~ Page 44
3. Drain any residual water.
~ Page 43
4. Disconnect the appliance from the
mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance
caused by detergent/fabric softener
leaking from the dispensers
Leaking detergent/fabric softener
can prevent the appliance from
working correctly, e.g. due to
damage to the electronics.
Empty the dispensers before
transporting the appliance.
Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Note: Use a screwdriver if
necessary.
Positioning and connecting en
21
2. Insert all four sleeves.
a) Clip the mains cable securely in
the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the
holders.
Before switching on the appliance
again:
Notes
■
The support struts must be
removed.
~ "Removing the support struts"
on page 16
■ The transport braces must be
removed.
~ "Removing the transport locks"
on page 15
■ Pour approx. 1 litre of water into
dispenser II, select the Drain
programme and start.
This will prevent detergent from
flowing straight into the drain during
the next wash.
en Getting to know the appliance
22
* Getting to know the appliance
Getting to know the appliance
Appliance
#
( Detergent drawer
0 Control panel
8 Loading door
@ Service flap
Getting to know the appliance en
23
Control panel
#
( Programme default settings
can be changed.
Overview of all programme
default settings ~ Page 34
0 Additional programme
settings can be selected.
Overview of all additional
programme settings
~ Page 35
8 Start/ Reload button for
starting, interrupting, (e.g.
adding laundry) and cancelling
a programme.
@ Programme selector for
selecting the programme and
for switching the appliance on
and off.
en Getting to know the appliance
24
Display panel
Programme default settings
Additional programme settings
Status indicators for the programme
progress (programme sequence)
Display Setting Description
Ž - 90° °C Temp. Temperature that
can be set in °C
Ž = cold
2 - 1400* Spin Speed Spin speed in rpm
(revolutions per
minute)
2 = No spin
2:30* Programme
remaining time
Programme
remaining time
depends on the
programme selec-
tion in h:min
(hours:minutes)
0.5 - 24 h Finished in/
Time Dry
Programme ends
after ... h (h =
hours)
8,0* kg/
5,0* kg
Maximum load
for washing/dry-
ing
Recommended
load in kg
* Depending on the selected model and pro-
gramme.
Display Setting
¾/»/Ø Drying Aim A
s PreWash
æ Easy Iron
( SpeedPerfect
Display Setting
À Start/ Reload
s Prewash
x Wash
q Rinse
0 Spin/Drain
A Dry
Ó Wrinkle guard
“Ÿš Programme end
Laundry en
25
Z Laundry
Laundry
Preparing laundry for washing
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the
washing or components of the
appliance.
The following instructions must be
observed when preparing your laundry:
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Do not exceed maximum load.
Overfilling will impair the washing
result.
■ Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the appliance.
Using a damp cloth, immediately
remove any fine spray residue and
other residue or droplets.
■ Empty any pockets. Remove any
foreign objects.
■ Remove metal parts (paper clips,
etc.).
■ Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
■ Ensure that underwired bras are
appliance-washable.
■ Wash delicates in a net or bag
(tights, underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or place in a
net/bag.
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry may discolour. Wash
white and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
– Light: No need to pretreat, adjust
the SpeedPerfect setting if
necessary.
– Normal
– Heavy: Load less laundry, need
to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains
while they are fresh. First dab
with soapy water; do not rub.
Then wash the items of laundry
with the appropriate programme.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
■ Symbols on the care labels
M Suitable for normal washing
process;
e.g. Cottons programme
N A gentle washing process is
required;
e.g. Easy Care programme
O An especially gentle washing
process is required;
e.g. Delicates/
Silk programme
W Suitable for washing by hand;
e.g. Wool C programme
Ž Do not machine wash.
en Laundry
26
Preparing laundry for drying
Note:
To ensure an even drying result,
sort the laundry according to the:
■ Type of fabric
■ Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled
“dryer-proof” or which has the following
care symbols:
■ a : You can select
Intensive Dry A
■ ` : You can select
Gentle Dry A
The following textiles must not be dried:
■ b = care symbol “Do not dry”
■ Delicates (silk, synthetic curtains).
■ Textiles which contain foam rubber
or similar materials.
■ Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■ Textiles which still contain hairspray
or similar substances.
Notes
■
Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■ Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for
cotton, more than 800 rpm for easy-
care textiles.
■ Do not iron washing immediately
after drying. It is recommended to
roll the washing up first to distribute
residual moisture evenly.
■ To ensure a good drying
performance, quilts, terry cloths and
other large textiles should be dried
separately.
■ Do not exceed the maximum load.
Starching
Note:
Laundry should not be treated
with fabric softener.
1. Switch on the appliance.
2. Select the Rinse programme.
3. Measure starch into dispenser © in
accordance with the manufacturer's
instructions (clean first if necessary).
4. Touch the Start/ Reload button.
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the appliance to bleach
clothes.
Detergents and care products en
27
C Detergents and care
products
Detergents and care products
You can protect your appliance and
your laundry by selecting and using the
correct detergents and care products.
You can use all detergents and care
products which are suitable for your
appliance.
Note: Please read the safety
information ~ Page 5 to ensure that
you use the appliance safely.
The manufacturer’s instructions for use
and dosage can be found on the
packaging.
Notes
■
Only use liquid detergents that are
self-flowing
■ Do not mix different liquid detergents
■ Do not mix detergent and fabric
softener
■ Do not use products which have
developed a top layer or are highly
congealed
■ Do not use products containing
solvents, caustic agents or volatile
substances (e.g. bleach)
■ Use dyes sparingly as salt may
damage stainless steel
■ Do not use bleaching agents in the
appliance
en Detergents and care products
28
Detergent recommendation
This information is intended to help you
to choose the right detergent for your
items.
Tip: Visit www.cleanright.eu to find
further information on detergents, care
products and cleaning agents for
domestic use.
Fabrics Detergent Programme Temperature
Heat-resistant white fab-
rics made from cotton or
linen
Standard detergent with optical
brighteners
Cottons From cold up to 90 °C
Coloured fabrics made
from linen or cotton
Detergent for colours without
bleach or optical brighteners
Cottons From cold up to 60 °C
Coloured fabrics made
from easy-care fabrics or
synthetic materials
Detergent for colours/delicates
without optical brighteners
Easy Care From cold up to 60 °C
Delicate fabrics made from
silk or viscose
Delicates Delicates/Silk From cold up to 40 °C
Wool Detergent for Woollens Wool From cold up to 40 °C
Overview of programmes en
29
P Overview of
programmes
Overview of programmes
Selectable programme
Programme/Type of laundry Options/Information
Name of the programme
Brief explanation of the programme and for which fabrics it is
suitable.
Max. load for washing/
Max. load for drying
Max. load as kg
depending on the model and the pro-
gramme
selectable temperature* as °C
selectable spin speed* in rpm
possible additional programme settings*
possible setting for drying* (De)selecta-
ble è,
not selectable -
softener
Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or
linen.
Notes
■
The symbol k (drum clean information signal) flashes if
you have not used any programme at a temperature of
60°C or higher for an extended period. Do not load any
laundry, and select the Cottons 90°C programme to clean
and care for the drum and the outer tub, then the symbol
will disappear. ~ Page 46
■ Switching the drum clean information signal on/off.
~ "Appliance settings" on page 40
8,0 (5,0**) kg/5,0 kg
Ž - 90 °C
400 - 1400 rpm
PreWash, Easy Iron, SpeedPerfect
Drying Aim A è (¾è, » è, Ø è)
possible
* Depending on the model and the programme.
** Reduced load with SpeedPerfect additional programme setting.
en Overview of programmes
30
Eco 40-60
Suitable for washing normally soiled cotton,linen and mixed fab-
ric textiles, and drying it to be immediately stored in a cupboard.
Notes
■
Textiles which are washable based on the laundry symbol
from 40 °C 9 up to 60 °C : can be washed together
in the same cycle.
■ The washing performance conforms to the highest possible
washing performance class as defined by the legal stand-
ards. To reach the optimal energy efficiency with the best
possible washing performance, the washing temperature is
automatically adjusted according to the load capacity and
cannot be changed.
■ Wash and dry programme can be achieved by selecting
Eco 40-60 programme and activating Drying Aim A.
8,0 kg/5,0 kg
-
400 - 1400 rpm
PreWash, Easy Iron
Drying Aim A è (¾è, » è, Ø è)
possible
Easy Care
Textiles made of synthetic materials or blended fabrics.
4,0 kg/2,5 kg
Ž - 60 °C
400 - 1400 rpm
PreWash, Easy Iron, SpeedPerfect
Drying Aim A è (¾è, » è, Ø è)
possible
Mixed Load
Mixed load of cottons and synthetic fabrics.
4,0 kg/2,5 kg
Ž - 60 °C
400 - 1400 rpm
PreWash, Easy Iron, SpeedPerfect
Drying Aim A è (¾è, » è, Ø è)
possible
Red Wine
Items made from synthetic or blended fabrics.
The temperature variation, soaking time and drum movement
are all adjusted to suit the type of stain.
Notes
■
Do not let stains dry.
■ Remove any solid residues before washing.
4,0 kg/2,5 kg
Ž - 60 °C
400 - 1000 rpm
PreWash, Easy Iron
Drying Aim A è (¾è, » è, Ø è)
possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with SpeedPerfect additional programme setting.
Overview of programmes en
31
Rapid 15' / Wash & Dry
For small amount lightly soiled garments made of cotton, linen,
synthetic or blended fabrics. Approx. 15 mins for washing. If
drying function is selected, it’s followed by another approx. 45
mins drying process.
Note: The default programme is Rapid 15'. You can switch to
Wash & Dry programme by touching Drying Aim A button.
2,0 kg/1,0 kg
Ž - 40 °C
400 - 1000 rpm
-
Drying Aim Aè (¾-, » è, Ø -)
possible
Rinse
For rinsing with a subsequent spin cycle.
-/-
-
2 - 1400 rpm
Easy Iron
Drying Aim A è (¾è, » è, Ø è)
possible
Spin/Drain
For spinning with a selectable spin speed and subsequent
draining. If you have selected 2, it will run Drain programme,
the water is only drained after rinse process, no spin cycle.
-/-
-
2 - 1400 rpm
Easy Iron
Drying Aim A è (¾è, » è, Ø è)
not possible
Wool C
Hand- or appliance-washable fabrics that are made of wool or
contain wool;
particularly gentle wash programme to prevent laundry from
shrinking, with longer pauses in the programme (during which
the items rest in the water).
2,0 kg/-
Ž - 40 °C
2 - 800 rpm
-
Drying Aim A -
possible
Delicates/Silk
For delicate, washable fabrics, e.g. made of silk, satin, synthetic
fibres or blends (e.g. silk blouses, silk scarves).
2,0 kg/-
Ž - 40 °C
2 - 800 rpm
PreWash, Easy Iron
Drying Aim A -
possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with SpeedPerfect additional programme setting.
en Overview of programmes
32
Refresh
Odor removal and wrinkle reduction program, suitable for wool,
linen, suits, etc. which do not need frequent washing.
Notes
■
It is recommended to hang the clothing in a ventilated envi-
ronment for 3-5mins after program finished. In case of con-
tinuously using the refresh program, it is recommended to
run a washing cycle between each refresh program cycle
to remove odor from the appliance.
■ The detergent can not be added for this programme.
-/1,0 kg
-
-
-
Drying Aim A -
not possible
My time Dry A
Mixed fabrics; for lightly soiled laundry made of cotton and syn-
thetics.
The length of the programme can be set each time from the
minimum 20 minutes. The maximum programme length is 120
minutes, it can be reduced in 10-minute increments.
Notes
■
The Finished in/ Time Dry programme default setting can
not be selected for this programme.
■ This programme is only used for drying process, the deter-
gent can not be added.
■ It is recommended to use automatic drying function to get
better drying result and save energy.
-/5,0 kg
-
-
-
Drying Aim A -
not possible
Gentle Dry A
Single gentle dry programme for drying garments with lower
temperature,
- by selecting ¾ to achieve automatic cupboard+ dry result,
- by selecting » to achieve automatic cupboard dry result,
- by selecting Ø to achieve automatic iron dry result.
-/2,5 kg
-
-
-
Drying Aim A è (¾è, » è, Ø è)
not possible
Intensive Dry A
Single normal dry program for drying garments with higher tem-
perature,
- by selecting ¾ to achieve automatic cupboard+ dry result,
- by selecting » to achieve automatic cupboard dry result,
- by selecting Ø to achieve automatic iron dry result.
-/5,0 kg
-
-
-
Drying Aim A è (¾è, » è, Ø è)
not possible
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with SpeedPerfect additional programme setting.
Overview of programmes en
33
Drying table
Estimated drying time (min)
Recommended drying programme Drying load
(kg)
Ø (IronDry) » (Cup-
boardDry)
¾ (Cup-
boardDry+)
Intensive Dry A
0.5-2.0 40-70 40-90 60-100
2.0-3.0 70-90 90-120 100-130
3.0-5.0 90-130 120-210 130-240
Gentle Dry A
0.5-1.5 20-50 30-60 70-120
1.5-2.5 50-80 60-110 120-160
± Drying time table is only for reference. For wash + dry program, washing duration shall be added for
total program time.
± The time listed above is the reference value, the actual drying effect may be affected by the clothing
type, clothing weight, dehydration degree and ambient temperature.
± In order to achieve uniform drying effect, it is recommended to distinguish between heavy and light-
weight clothing. For example, separate the thick towel and the shirt to dry.
± ¾ (CupboardDry+) is recommended for drying bulky or heavy clothing.
± In order to reduce the folding of clothing after drying, it is recommended to put a small amount of cloth-
ing drying.
± Please refer to the panel display for the drying time of the programme not mentioned in the table above.
en Programme default settings
34
0 Programme default
settings
Programme default settings
You can change the default settings for
selected programmes. The settings can
be changed even while the selected
programme is running. The effects
depending on the progress of the
programme.
°C Temp.
Before and after the programme starts,
you can change the temperature
setting, depending on what stage the
programme is in, by adjusting the
desired temperature on the display.
The maximum temperature that can be
set depends on the programme that has
been selected.
Spin Speed
Depending on what stage the
programme is in, you can change the
spin speed (in rpm; revolutions per
minute) before and during the
programme by adjusting the desired
speed on the display.
setting 2: 2 =”No spin”. The rinsing
water is drained but there is no final
spin. The laundry stays wet inside the
drum, e.g. for items that should not be
spun.
You can select “No spin” to prevent
creasing if the laundry will not be taken
out of the appliance immediately after
the programme has ended.
The maximum speed that can be set
depending on the model and the
programme that has been selected.
Finished in/ Time Dry
Before starting the programme, you
can preselect the programme end
("Finish in" time) in 0.5h (h = hour)
increments (between “minimum
selectable ending time” and 9.5h) or 1
hour increments (between 10h and
24h) up to a maximum of 24 hours.
To do this:
1. Select a programme (except My
time Dry A
*
programme).
The programme duration is
displayed for the selected
programme, e.g. 2:30
(hours:minutes).
2. Select the Finished in/ Time Dry
button repeatedly until the required
number of hours is displayed.
3. Select the Start/ Reload button.
The programme starts.
The selected number of hours (e.g.
8h) is shown in the display panel
and counts down until the
programme starts. The duration of
the programme is then displayed.
Note: The length of the programme is
automatically adjusted when the
programme is running. Changes to the
programme default settings or
additional programme settings may also
change the programme duration.
After starting the programme (if a
“Finish in” time has been selected and
the programme has not yet started), you
can change the preselected number of
hours as follows:
1. Select the Start/ Reload button.
2. Select the Finished in/ Time Dry
button repeatedly to change the
number of hours.
3. Select the Start/ Reload button.
* Depending on the model
Additional programme settings en
35
\ Additional programme
settings
Additional programme settings
Note: You can find possible additional
programme settings in the overview;
these differ depending on the model.
By selecting additional programme
settings, you can better adapt the
washing/drying process to your items of
laundry.
The settings can be selected or
deselected depending on the progress
of the programme.
The button indicator lamps light up if a
setting is activated.
The settings are not retained after the
appliance is switched off.
Drying Aim A
Touch Drying Aim A to activate or
deactivate the drying function. Washing
and drying without interruption is
possible when the function is activated
(only for Optional drying
programmes).There are three drying
target mode can be selected as
desired:
» (CupboardDry): For single-layer
fabrics. Garments can be folded or
hung up in a cupboard. It is the
standard drying target mode. In this
mode the drying time is automatically
set according to the amount of laundry
to be dried.
¾ (CupboardDry+): For fabrics made
of thick, multilayered items of clothing,
which need to be dried longer.
Garments can be folded or hung up in a
cupboard. Laundry more dry than
Cupboard dry.
Ø (IronDry): For delicate laundry.
Fabrics suitable for ironing (iron fabrics
in order to avoid creasing). Garments
can be additionally hung up to dry.
The drying process would proceed
followed washing process when the
Drying Aim A activated. If you only
need the individual drying progamme,
you can select Intensive Dry A, Gentle
Dry A or My time Dry A.
Notes
■ Do not exceed the maximum loads
for drying.
Overview of programmes
~ "Selectable programme"
on page 29
■ Maximum spin speed for
programme with drying phase will be
selected automatically to obtain a
good drying result.
PreWash
Prewash for heavily soiled laundry.
Touch PreWash to activate or
deactivate it.
Note: Put the detergent into dispenser I
and II.
Easy Iron
A special operation using reduced spin
speed followed by fluffing to help
reduce creasing.
Touch Easy Iron to activate or
deactivate it.
Note: If Easy Iron has been activated,
the laundry will have retained a higher
than average level of moisture after
spinning.
en Operating the appliance
36
SpeedPerfect
Washing in a shorter time while
achieving a washing result that is
consistent with the normal performance.
Touch SpeedPerfect to activate or
deactivate this additional programme
setting.
Note: With the SpeedPerfect
additional programme setting activated,
the maximum load of washing will be
reduced, and extra water will be needed
for the washing process.
1 Operating the
appliance
Operati ng the appliance
Preparing the appliance
The appliance was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Cottons 90°C programme.
~ "Before washing for the first time"
on page 20
Notes
■ Never switch on a damaged
appliance!
■ Inform customer service!
1. Insert mains plug.
:Warning
Risk of death from electric shock!
Risk of death if live parts are
touched.
– Never pull out the mains plug by
tugging the power cord.
– Insert/pull out the mains plug
with dry hands only.
2. Turn the water tap on.
3. Open the appliance door.
Select programme/switch on
the appliance
Note:
If you have activated the
childproof lock, you must first deactivate
it before you can set a programme.
Use the programme selector to select
the required programme. The
programme selector can be rotated in
either direction.
The appliance is switched on.
The programme default settings for the
selected programme alternately appear
in the display panel:
■ The maximum load and
■ the duration of the programme and
■ ...
Operating the appliance en
37
Placing laundry into the drum
Open the door, place laundry in the
drum, make sure that no items of
laundry are trapped between the door
and the rubber seal, and close the door.
Notes
■
Unfold and load presorted items
of laundry. Mix large and small
items. Washing items of different
size distribute themselves better
during the spin cycle. Individual
items of washing may cause
an unbalanced load.
■ Observe the maximum specified
load. Overfilling adversely affects the
washing/drying result and promotes
creasing.
Dosing and adding detergent
and care products
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the appliance.
Keep these agents away from the
surfaces of the appliance. Using a
damp cloth, immediately remove any
fine spray residue and other residue/
droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
en Operating the appliance
38
2. Pour in detergent and/or cleaning
product.
*depending on the model
Notes
■
Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.

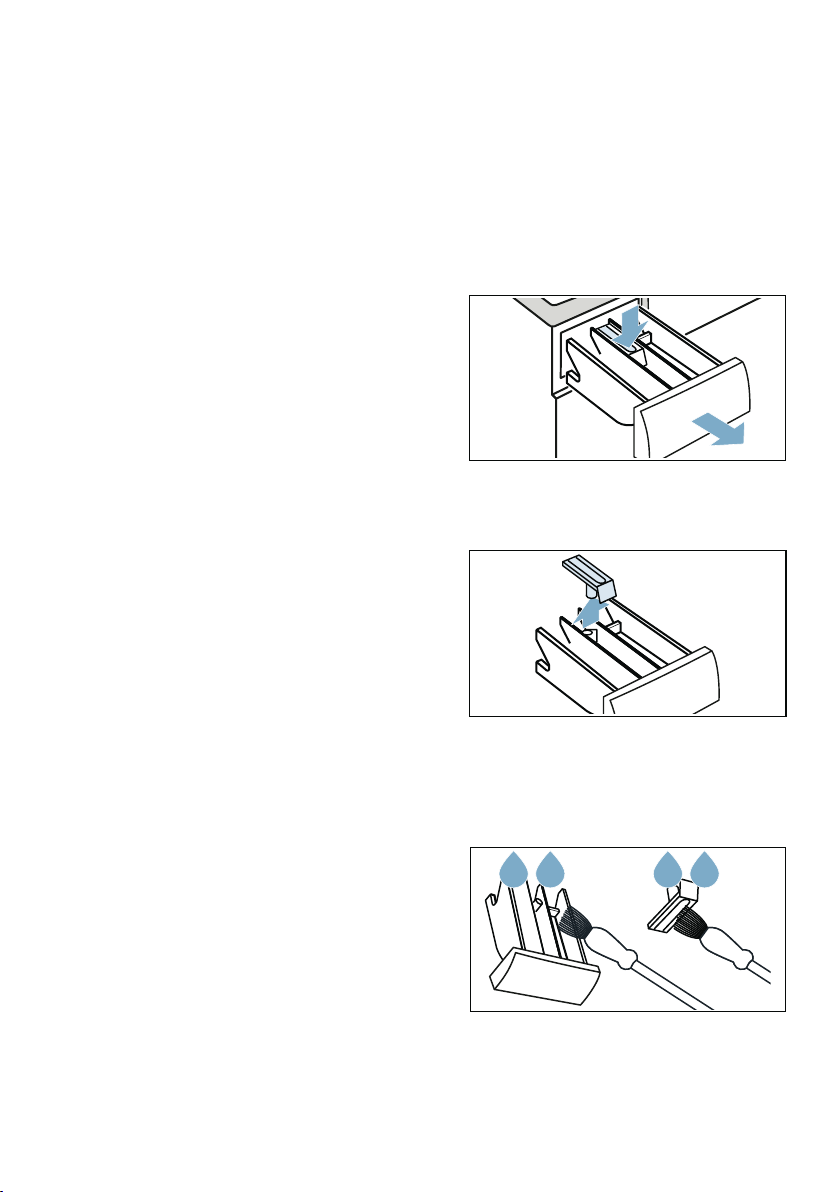

Measuring aid A* for liquid detergent
*depending on the model
Position the measuring aid A for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with pretreat or when
"Finish in" time is selected.
For models without a measuring aid,
pour the liquid detergent into the
appropriate dispenser and place it in
the drum.
Starting the programme
Touch and hold Start/ Reload button
for 1~2 seconds, then release the
button. The programme starts and the
appliance door is locked.
The finish-in time is shown in the display
panel and counts down until the
programme starts. After the programme
has started, the programme duration is
displayed. And the symbols for the
programme progress are lighting up.
Dispenser I Detergent for pretreat and
clothing disinfectant. (only for
the appliance with pretreat and
disinfectant function)
Dispenser i Softener, starch. Do not exceed
the maximum load.
Dispenser II Detergent for main wash, water
softener, bleach, stain remover.
Dispenser A* For dosing liquid detergent.
Operating the appliance en
39
Childproof lock
You can lock the appliance to prevent
the settings you have set from being
changed inadvertently. To do this,
activate the childproof lock.
To activate the childproof lock:
After the programme starts, Touch and
hold the SpeedPerfect and Finished
in/ Time Dry buttons for 3 seconds. The
symbol w lights up in the display
panel.
■ w lights up: The childproof lock is
activated.
■ w flashes: If the programme and
programme settings are adjusted
while childproof lock is activated.
Note: When the programme ends, “Ÿš
is displayed. The door is unlocked. w
symbol remain on to remind you to
deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the SpeedPerfect and
Finished in/ Time Dry buttons until the
symbol w disappears.
Adding/removing laundry
After starting the programme (only for
washing), you can add or remove
laundry if necessary.
Touch the Start/ Reload button. The
appliance checks whether reloading is
possible.
If the following appears on the display
panel:
■ The symbol Õ disappears,
reloading is possible.
■ The symbol Õ lights up, reloading is
not possible.
To continue the programme, touch the
Start/ Reload button. The programme
continues automatically.
Notes
■
Do not leave the door open for too
long when adding laundry as water
from the laundry may leak out.
■ For safety reasons, the door remains
locked when the water level or
temperature is high, or while the
drum is turning, and it is not possible
to add laundry during this time.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Touch the Start/ Reload button.
2. Select another programme.
3. And touch the Start/ Reload button
again. The new programme starts
from the beginning.
Note: If drying is activated, you can
change the programme by programme
selector directly.
Cancel the programme
For programmes washing at high
temperatures:
1. Touch the Start/ Reload button.
2. To cool down laundry: Select Rinse.
3. Touch the Start/ Reload button.
For programmes washing at low
temperatures:
1. Touch the Start/ Reload button.
2. Select Spin/Drain.
3. Touch the Start/ Reload button.
For programmes in drying process:
1. Turn the programme selector to any
other programme.
2. Wait a few minutes to cool down
laundry, then the door will be
unlocked.
en Appliance settings
40
Programme end
“Ÿš lights up on the display and À and
Õ displays are off.
If you have selected 2, the water is only
drained after rinse process, no spin
cycle.
Notes
■
If •©£ flashes in the display before
the drying programme ends, the
temperature in the drum is high. The
programme for cooling the drum
runs until the temperature in the
drum has dropped.
■ If you do not take laundry out within
15 mins after drying process
finished, wrinkle guard process will
start to prevent laundry getting
wrinkled. The process lasts about 30
minutes. 0:00, £‘˜, £© and “Ÿš will
be displayed alternately on the
display and Ó symbol will be
displayed as the status symbol. You
can touch any button to terminate
this process, then the door will be
released and laundry can be taken
out.
Removing laundry/switching
off the appliance
1.
Set programme selector to Û (Off).
2. Open the door and remove the
laundry.
3. Turn off the water tap.
Note: Not required for Aqua-Stop
models.
Notes
■
Do not leave any items of laundry in
the drum. They may shrink in the
next wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Wipe the rubber seal dry.
■ Leave the door and detergent
drawer open so that any residual
water can evaporate.
■ Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance
on and wait for it to unlock.
Q Appliance settings
Appliance settings
You can change the following settings:
■ The volume of the end signal.
■ The volume of the button signal.
■ Switching the drum care information
signal on/off.
You will need to activate the setting
mode in order to change these settings.
1/2/3/4... positions on the
programme selector
Sensors en
41

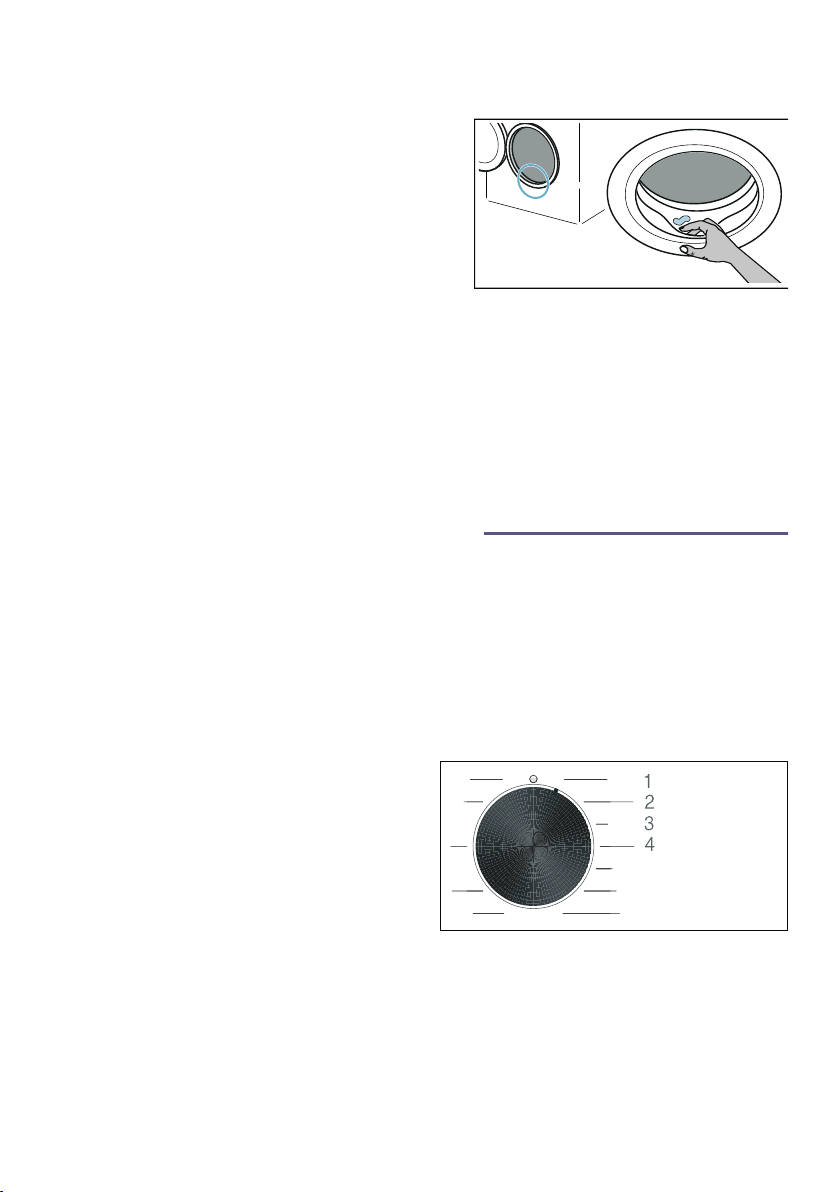

Activate setting mode:
1. Set the programme selector to
position 1. The appliance is switched
on.
2. Touch and hold the Spin Speed
button and, at the same time, turn
the programme selector clockwise to
position 2. Release the Spin Speed
button.
The setting mode is activated and the
preset setting appears in the display
panel.
Changing the volume and drum care
information
Use the Finished in/ Time Dry button
to change the following settings at the
corresponding programme selector
positions:
■ 2: The volume of the end signal.
■ 3: The volume of the button signals.
■ 4: Switching the drum care
information signal on/off.
Exiting setting mode
You can now end the process and set
the programme selector to the Û (Off)
position. The settings are saved.
H Sensors
Sensors
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the spin speed is reduced
or the spin cycle is not performed for
safety reasons.
Note: Place large and small items of
laundry evenly in the drum.
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if touch
live components.
Turn the programme selector to Û (Off).
Pull out the mains plug.
Caution!
Fire and explosion hazard!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
The appliance may be damaged!
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
appliance.
Do not use cleaning agents that contain
solvents.
0 = off, 1 = quiet,
2 = medium, 3 = loud,
4 = very loud
Ž on
Πoff
en Cleaning and maintenance
42
Appliance housing/control
panel
■
Remove the detergent residue
immediately.
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges
or detergents (stainless steel
cleaner).
■ Do not clean the appliance with a
water jet.
Drum
:Warning
Risk of injury/material damage/
damage to the appliance!
Permanently washing at low
temperatures and a lack of ventilation
for the appliance may damage the drum
and cause injury.
Regularly run a programme for cleaning
the drum or wash at temperatures of at
least 60ºC.
Leave the appliance to dry after every
operation with the door open, and leave
the detergent drawer to dry.
Use chlorine-free cleaning agents, do
not use steel wool.
If there are odours in the appliance, or
to clean the drum, run the Cottons
90°C programme without laundry.
Descaling
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from
customer services.
Emptying the detergent draw,
cleaning the detergent drawer
and its housing
If the appliance contains detergent or
fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. To remove the insert: Push the insert
upwards from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Clean the inside of the
housing as well.
Cleaning and maintenance en
43

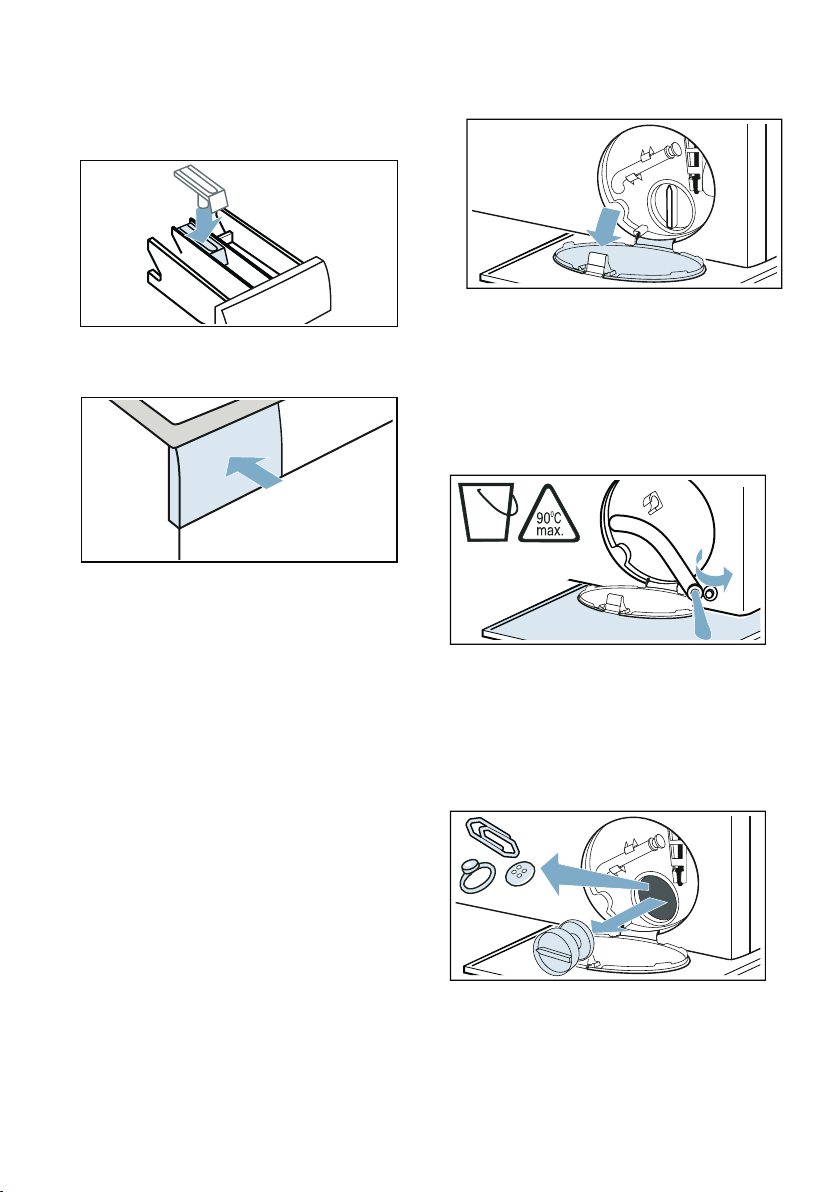

4. Fit the insert and lock it in place
(push the cylinder onto the guide
pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can
evaporate.
Drain pump is blocked
Note:
Turn the water tap off to prevent
more water from flowing in and to
ensure that it is drained via the pump.
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the water to cool down first.
1. Turn the programme selector to Û
(Off). Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the
retainer.
Remove the sealing cap and pour
the water out into a suitable
container.
Replace the sealing cap and place
the drain hose back in the retainer.
4. Carefully unscrew the pump cover;
residual water may leak out.
Clean the interior, pump cover
thread and pump housing. The
impeller in the drain pump must be
able to rotate.
en Cleaning and maintenance
44
5. Refit and screw on the pump cover.
The handle must be in a vertical
position.
6. Close the service flap.
Note: To prevent unused detergent
from flowing straight into the drain
during the next wash: Pour 1 litre of
water into dispenser II and start the
Drain programme.
The drain hose at the siphon
is blocked
1.
Turn the programme selector to Û
(Off). Pull out the mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose; residual
water may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Re-attach the drain hose and secure
the connection point using the hose
clamp.
Filter in the water supply is
blocked
Release water pressure in the supply
hose:
1. Turn off the water tap.
2. Select any programme (except
Rinse,Spin, Drain programmes).
3. Select the Start/ Reload button.
Allow the programme to run for
approx. 40 seconds.
4. Turn the programme selector to Û
(Off).
5. Pull out the mains plug.
Clean the filters:
1. Disconnect the hose from the rear of
the appliance.
2. Use pliers to remove the filter.
Faults and what to do about them en
45
3. Clean the filter with a small brush.
4. Connect the hose and check for
leaks.
3 Faults and what to do
about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a
loss of power
The programme continues when the
power supply is restored.
However, if the laundry has to be
removed, the appliance door can be
opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
and laundry.
If possible, leave it to cool down first.
:Warning
Risk of injury!
Reaching into the drum while it is still
turning may cause hand injuries.
Do not reach into the drum when it is
turning.
Wait until the drum has stopped turning.
Caution!
Water damage!
Any escaping water may cause water
damage.
Do not open the door if water can be
seen through the glass.
1. Turn the programme selector to Û
(Off). Pull out the mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 43
4. Pull the emergency release
downwards with a tool and release.
The door can then be opened.
en Faults and what to do about them
46
Information on the display panel
Display Cause/Remedy
Õ ■ Flashes fast + signal: The door was opened and the water level is too high.
Close the door, continue the programme with Start/ Reload button or select
Drain.
■ Flashes slowly: The door lock temperature is too high to open the door. Wait
approx. 30 seconds until the door lock temperature cools down.
•©£ The temperature in the drum is too high. Wait for the appliance running to cool
down the laundry till the •©£ disappears on the display panel, then the door can
be opened.
| ■ Flashes (no water supply): Water tap turned on? Filter in the water supply is
blocked? ~ "Filter in the water supply is blocked" on page 44
Is the supply hose kinked or trapped?
■ Lights up (low water pressure): For information only. This will not affect the
programme progress. The programme duration is extended.
w lights up The childproof lock is activated – deactivate it.
The symbol k
flashes
Run the Cottons 90°C programme to clean and care for the drum and the outer
tub.
Notes
■
Run the programme without laundry.
■ Use washing powder or a detergent containing bleach. To prevent foaming,
only use half the amount of detergent recommended by the detergent manu-
facturer. Do not use detergent designed for woollens or delicates.
■ Switching the drum care information signal on/off. ~ Page 40
E:36
alternating with
-10
■ Drain pipe or water drain hose is blocked. Clean the drain pipe and the water
outlet hose.
■ Drain pipe or water drain hose is caught or jammed. Ensure that the drain pipe
and water drain hose are not kinked or trapped.
■ The drain pump is blocked.
~ "Drain pump is blocked" on page 43
■ The drain hose at the siphon is blocked.
~ "The drain hose at the siphon is blocked" on page 44
■ The water drain hose is connected too high. Install the water outlet hose at a
maximum height of 1 meter.
~ Page 16
E:35
alternating with
-10 (Suitable for spe-
cial models)
There is water in the base trough, the appliance is leaking. Turn off the tap. Call
customer services.
H:95
alternating with
“Ÿš
when programme is
finished
No water detected in drying phase, may get bad drying result.
~ "Filter in the water supply is blocked" on page 44
Faults and what to do about them en
47
Faults and what to do about them
H:32
alternating with
“Ÿš
when programme is
finished
The unbalanced load detection system has interrupted the spin cycle because the
laundry is unevenly distributed. Distribute small and large items of laundry evenly in
the drum.
Other displays Turn the programme selector to Û (Off), wait for five seconds and then switch it on
again. If the display appears again, call customer services.
Faults Cause/Remedy
Water is leaking from the
appliance.
■ Attach the drain hose correctly or replace it.
■ Tighten the screw fitting on the supply hose.
The door cannot be
opened.
■ ~~~ (Rinse hold = no final drain) is activated (depending on the mod-
ule). Continue the programme by selecting Spin/Drain and pressing Start/
Reload .
■ The temperature in drum is too high to open the door.
■ The safety function is activated. Stop the programme?
■ The water level in drum is too high.
■ Can the door only be opened by the emergency release?
~ "Emergency release" on page 45
The appliance is not filling
with water.
Detergent is not being dis-
pensed.
■ Programme does not start?
■ Is the tap turned on?
■ Could the filter in the water supply be blocked?
~ "Filter in the water supply is blocked" on page 44
Note: If an additional water filter has been installed (depending on the
model), check for contaminants and clean if required ~ separate installa-
tion and cleaning instruction for water filter.
■ Is the supply hose kinked or trapped?
The programme will not
start.
■ Have you touched the Start/ Reload button or selected Finished in/
Time Dry?
■ Is the door closed?
■ Childproof lock activated? Deactivate childproof lock.
■ Shop mode activated? If the display shows à•‹ for 5 s after you have
switched on the appliance, the appliance is in shop mode. Wait for the dis-
play message à•‹ to disappear. Touch and hold Start/ Reload for at least
5 s. ‹”” will appear in the display panel. Turn the programme selector to
Û (Off). Now you already turned off the shop mode. You can use the appli-
ance now as usual.
Display Cause/Remedy
en Faults and what to do about them
48
The water is not draining. ■ Drain pipe or water drain hose is blocked. Clean the drain pipe and the
water drain hose.
■ Drain pipe or water drain hose is caught or jammed. Ensure that the drain
pipe and the water drain hose are not kinked or trapped.
■ The drain pump is blocked.
~ "Drain pump is blocked" on page 43
■ The drain hose at the siphon is blocked.
~ "The drain hose at the siphon is blocked" on page 44
■ ~~~ (Rinse hold = no final drain) is activated (depending on the
model). Continue the programme by selecting Spin/Drain and pressing
Start/ Reload .
■ The water drain hose is connected too high. Install the water drain hose at
a maximum height of 1 meter.
~ "Hose and cable lengths" on page 16
Water is not visible in the
drum.
Not a fault – the water is below the visible area.
The wrong detergent/fab-
ric softener has been
poured into the dis-
penser(s).
Empty the dispenser(s), clean it/them and pour in the correct product.
~ "Emptying the detergent draw, cleaning the detergent drawer and its hous-
ing" on page 42
~ "Dosing and adding detergent and care products" on page 37
Detergent/fabric softener
has congealed in the dis-
pensers.
Empty the dispenser(s), clean it/them and pour in the correct product.
~ "Emptying the detergent draw, cleaning the detergent drawer and its hous-
ing" on page 42
~ "Dosing and adding detergent and care products" on page 37
Foam is leaking from the
detergent drawer.
Too much detergent used?
Mix 1 tablespoon of fabric softener with ½ litre of water and pour into
dispenser II. (Not for outdoor, sports and down-filled textiles!)
Reduce detergent dosage for the next wash cycle.
Use commercially available low foam detergent and care product which are
suitable for machine.
Repeated, intensive foam-
ing.
Have you used too much detergent? Add less detergent in the next time you
run a wash cycle with the same load.
Detergent/fabric softener
drips off the seal and col-
lects on the door or in the
seal fold.
There is too much detergent/fabric softener in the dispensers. Do not fill the
dispensers above the max. mark.
The spin result is not sat-
isfactory.
Laundry wet/too damp.
■ Not a fault – the unbalanced load detection system has interrupted the
spin cycle because the laundry is unevenly distributed. Distribute small and
large items of laundry evenly in the drum.
■ Is Easy Iron additional programme setting selected (depending on the
model)?
■ Is Silent additional programme setting or Silent programme selected
(depending on the model)?
■ Is the selected speed too low?
Faults Cause/Remedy
Faults and what to do about them en
49
The spin cycle runs sev-
eral times.
Not a fault – the unbalanced load detection system is adjusting an imbalance.
The programme is taking
longer than usual.
■ Not a fault – the unbalanced load detection system is adjusting an imbal-
ance by repeatedly distributing the laundry.
■ Not a fault – the foam detection system is activated – a rinse cycle has
been switched on.
The length of the pro-
gramme changes during
the wash cycle.
Not a fault – the programme sequence is optimised for the specific washing
process. This may change the length of the programme shown on the display
panel.
Odours, stain formation in
the appliance.
Run the Cottons 90°C programme without laundry.
Add washing powder or a detergent containing bleach.
Note: To prevent foaming, only use half the amount of detergent recommend-
ed by the detergent manufacturer. Do not use detergents designed for woollens
or delicates.
Loud noises, vibrations
and appliance "move-
ment" during the spin
cycle.
■ Is the appliance aligned? ~ "Alignment" on page 19
■ Are the appliance's feet fixed? Secure the appliance's feet.
■ Have the transport locks been removed? ~ "Removing the transport
locks" on page 15
The display panel indica-
tor lights do not work
while the appliance is run-
ning.
■ Has there been a power failure?
■ Have the fuses blown? Reset/replace the fuses.
■ If the fault occurs repeatedly, call customer services.
There is detergent resi-
due on the laundry.
■ Some phosphate-free detergents contain water-insoluble residue.
■ Select Rinse or brush the laundry after washing.
Spin noise during the dry-
ing phase.
This is an innovative process known as thermal spinning used to reduce energy
consumption during the drying phase. It is designed like this, please wait until
programme finished.
Fluff found on the laundry. Run the Cottons Ž (cold) programme without laundry and detergent to
remove fluff which have accumulated inside the drum during the previous dry-
ing cycle.
Water inlet noise during
the drying phase.
The washer dryer uses water condensation technology, water is constantly
needed to dry the laundry. Therefore the water tap must be on all the time, till
the end of the drying phase.
Drying duration extended. ■ Run the Cottons Ž (cold) programme to remove fluff which has collected
in the washer drum during the drying phase.
■ If the ambient temperature is higher than 30 °C, this may extend the drying
time.
■ Insufficient air circulation in the room may increase the drying time. Venti-
late the room.
Drying programme does
not start.
■ Drying additional programme setting not selected?
■ Door not closed properly?
Faults Cause/Remedy
en Faults and what to do about them
50
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
the wrong program for the type of fabric. All the required information can
be found in the programme overview table.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
The drying result is not
satisfactory (laundry is
not dry enough).
■ After the end of the programme, warm laundry feels damper than it actu-
ally is. Spread the laundry out and allow the heat to disperse.
■ Excessively high ambient temperature (above 30 °C) or inadequate ventila-
tion in the room in which the washer dryer is situated.
■ The laundry has not been spun well enough before drying. Always set the
highest selectable spin speed for the particular washing programme.
■ Washer dryer overloaded: Observe the recommendations for the maximum
load in the programme table and on the load display. Do not overload the
washer dryer, as the maximum load for the drying phase is less than the
maximum load for the wash cycle. Unload the washer dryer after washing
with the maximum load and divide the laundry into two drying cycles.
■ The power supply voltage is too low (below 200 V) – provide a suitable
power supply.
■ The water pressure is low. According to water condensing principle, low
water pressure will cause evaporated steam to not condense properly and
completely.
■ The water tap is closed during drying. Due to the use of the water conden-
sation technology for drying, please keep the connected water tap open
during the drying process, otherwise proper drying cannot be guaranteed.
■ Thick multilayered textiles or textiles with thick fillings dry easily on the sur-
face, but not inside. This equalisation process may take longer.
If you cannot rectify a fault yourself (after turning the programme selector to Û (Off) and on again) or a repair
is required:
■ Turn the programme selector to Û (Off). Pull out the mains plug.
■ Turn off the tap and call customer services.
Faults Cause/Remedy
Customer Service en
51
4 Customer Service
Customer Service
If you have any queries on use, are
unable to rectify faults on the appliance
yourself or if your appliance needs to be
repaired, contact Customer Service.
You can solve many problems yourself
by consulting the information on
eliminating faults in this instruction
manual or on our website. If this is not
the case, contact our Customer Service
We will always find an appropriate
solution and try to avoid unnecessary
visits being made by a Customer
Service technician.
With any warranty claims we will make
sure that your appliance is repaired by
trained Customer Service technicians
using original spare parts, including
after the manufacturer’s warranty has
expired.
For safety reasons repairs to the
appliance should only be carried out by
trained specialist staff. The warranty
claim becomes void if repairs or
interventions have been carried out by
persons not authorised by us for that
purpose or if our appliances have been
fitted with spare, supplimentary or
accessory parts that were not genuine
parts and then resulted in a defect.
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on which
your appliance was placed on the
market within the European Economic
Area.
Note: Under the terms of the
manufacturer’s warranty the use of
Customer Service is free of charge.
Detailed information on the warranty
period and terms of warranty in your
country is available from our Customer
Service, your retailer or on our website.
If you contact Customer Service, you
will require the product number (E-Nr.)
and the production number (FD) of your
appliance.
The contact details for Customer
Service can be found in the enclosed
Customer Service directory or on our
website.
Product number (E-Nr.) and
production number (FD)
You can find the product number (E-
Nr.) and the production number (fd) on
the appliance’s rating plate.
Depending on the model, the rating
plate is located:
■ On the inside of the door
■ On the inside of the maintenance
flap.
■ On the rear of the appliance.
Make a note of your appliance’s details
and the Customer Service telephone
number to find them again quickly.
More information about your model can
be found online at https://
energylabel.bsh-group.com
*
This web
address is linked to the official EU
EPREL product database. At the time of
printing its web address had not yet
been published. Please then follow the
instructions on searching for models.
The model identifier is made up of the
characters before the slash in the
product number (E-Nr.) on the rating
plate. Alternatively you can also find the
model identifier in the first line of the EU
energy label.
Trust the expertise of the
manufacturer. Contact us. By doing so,
you can be sure that the repairs are
carried out by trained service personnel
using genuine spare parts.
* Only applies to countries in the
European Economic Area.
en Consumption values
52
[ Consumption values
Consumption values
The following information is provided in accordance with the EU-Ecodesign-
Regulation. The values given for programs other than the Eco 40-60 are indicative
only and were determined in accordance with the applicable standard EN60456
and EN62512.
The automatic dosing function has been deactivated for this purpose.
Note on the comparison test: Deactivate the automatic dosing function unless
this function is the object of the test.
Programme rated
capaci-
ty [kg]
energy
consump-
tion [kWh/
cycle] *
water
consump-
tion [l/cy-
cle] *
Pro-
gramm
e dura-
tion
[h:min]
*
maximum
tempera-
ture [°C] *
5min
spin
speed
[rpm] *
remaining
moisture [%] *
Eco 40-60 ** 8,0 1,102 56,0 3:32 46 1400 53
Eco 40-60 ** 4,0 0,580 43,0 2:48 36 1400 53
Eco 40-60 ** 2,0 0,145 24,0 2:10 23 1400 53
Eco 40-60 +
Drying Aim A
+ » (Cup-
boardDry)**
5,0 3,850 87,0 7:30 39 - -0,1
Eco 40-60 +
Drying Aim A
+ » (Cup-
boardDry)**
2,5 2,040 45,0 5:05 35 - -0,1
Cottons 20°C 8,0 0,390 90,0 3:05 26 1400 53
Cottons 40°C 8,0 1,140 90,0 3:21 42 1400 53
Cottons 40°C +
PreWash
8,0 1,170 96,0 3:51 42 1400 53
Cottons 60°C 8,0 1,450 90,0 3:17 53 1400 53
Easy Care 40
°C
4,0 0,815 66,5 2:29 43 1400 23
Mixed Load 40
°C
4,0 0,655 48,0 1:00 40 1400 48
Wool C 30 °C 2,0 0,215 41,5 0:41 27 800 48
* Observed values may deviate from the indicated values due to influence of water pressure, hardness
and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in power supply and selected additional functions.
** Test program according to the EU-Ecodesign-Regulation and EU-Energy Label-Regulation with cold wa-
ter (15°C).
Technical data en
53
J Technical data
Technical data
Dimensions:
84,8 cm x 59,8 cm x 59,0 cm
(height x width x depth)
Weight:
71 kg
Mains connection:
Nominal voltage 220-240V, 50 Hz
Minimum installation protection (c)10
A
Nominal power 1900-2300 W
Water pressure:
100–1000 kPa (1–10 bar)
r Aqua-Stop warranty
Aqua-Stop warranty
Only for appliances with Aqua-Stop
In addition to warranty claims against
the vendor based on the purchase
agreement and to our appliance
warranty, we will provide compensation
under the following conditions:
1. If water damage is caused due to a
fault in our Aqua-Stop system, we
will compensate domestic
customers for the damage caused.
2. The liability guarantee is valid for the
service life of the appliance.
3. It is a prerequisite of all warranty
claims that the appliance with Aqua-
Stop must have been installed and
connected correctly in accordance
with our instructions; this also
includes a correctly fitted Aqua-Stop
extension (genuine accessories).
Our warranty does not cover
defective feed lines or fittings
leading to the Aqua-Stop connection
at the tap.
4. Appliances with Aqua-Stop do not
need to be supervised during
operation, nor secured afterwards by
turning off the tap.
The tap only needs to be turned off if
you are away from home for a long
period, e.g. for several weeks'
holiday.
6
6
*9001550935*
9001550935
en
0012
Repair order and advice in the event of faults
You can find the contact information for all countries in the
attached after-sales service directory:
GB 0344 892 8989 Calls charged at local or
mobile rate.
IE 01450 2655 0.03 € per minute at peak.
Off peak 0.0088 € per minute.
