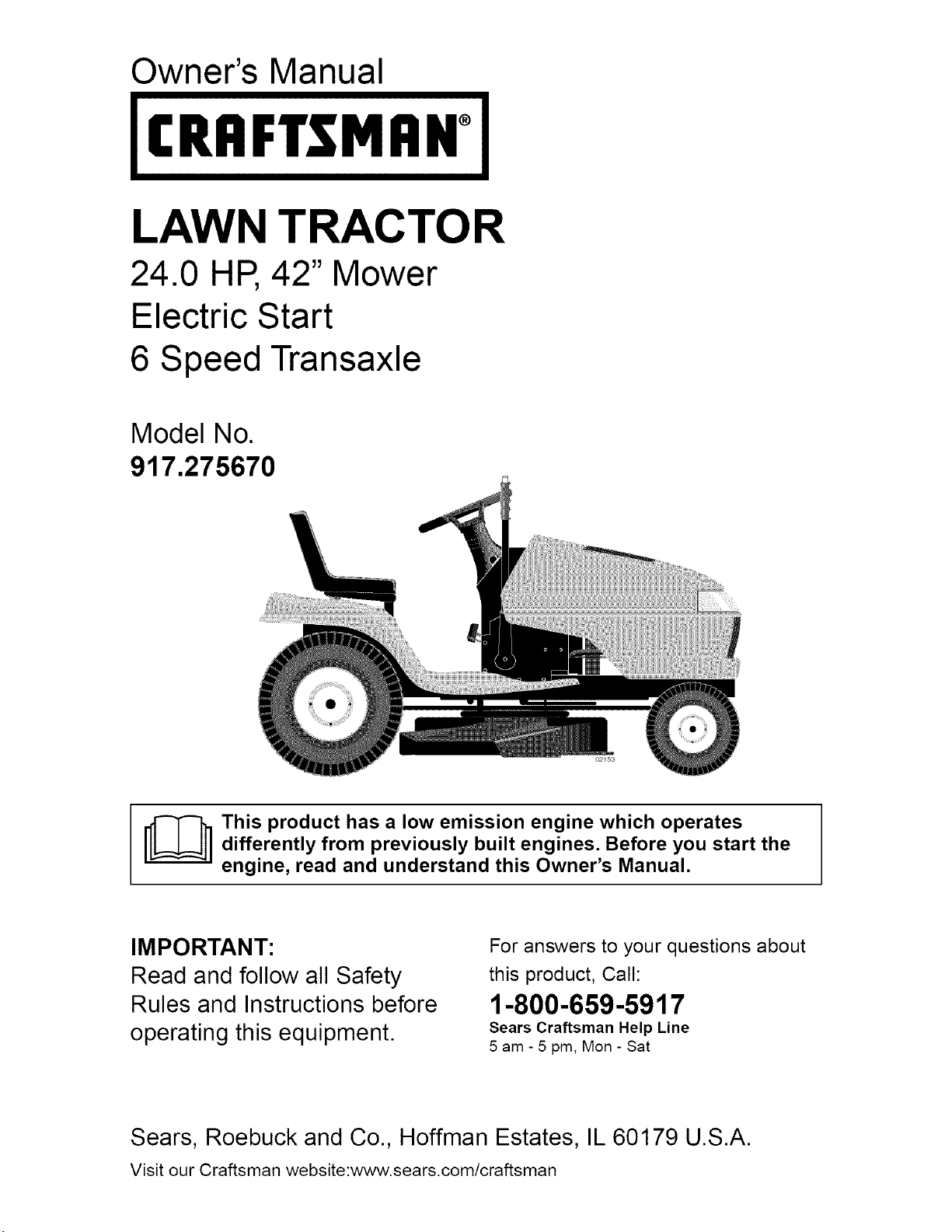

Craftsman 917275670 lawn tractor User Manual

Owner's Manual

CRRFTSMRN°

LAWN TRACTOR

24.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.275670

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

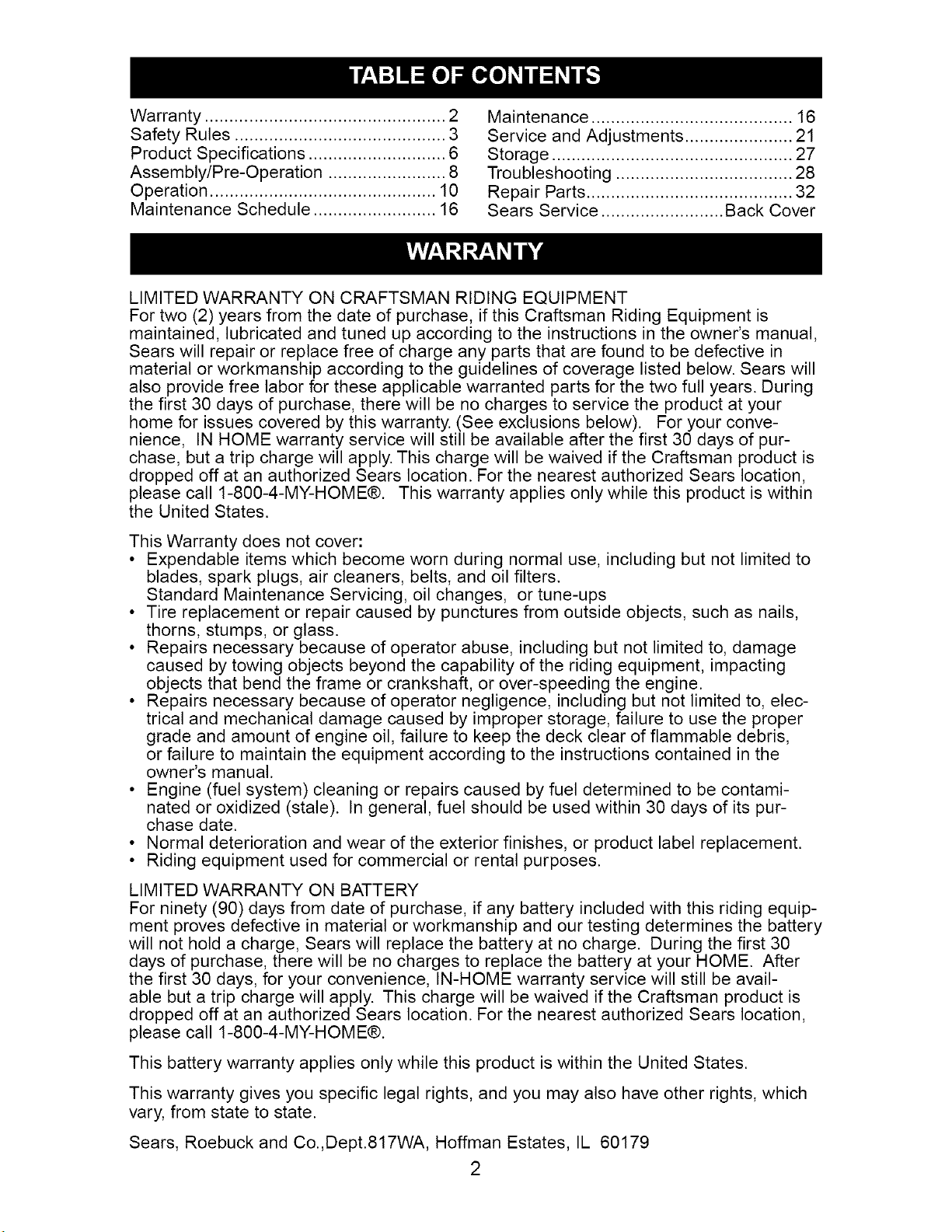

Warranty ................................................. 2

Safety Rules ........................................... 3

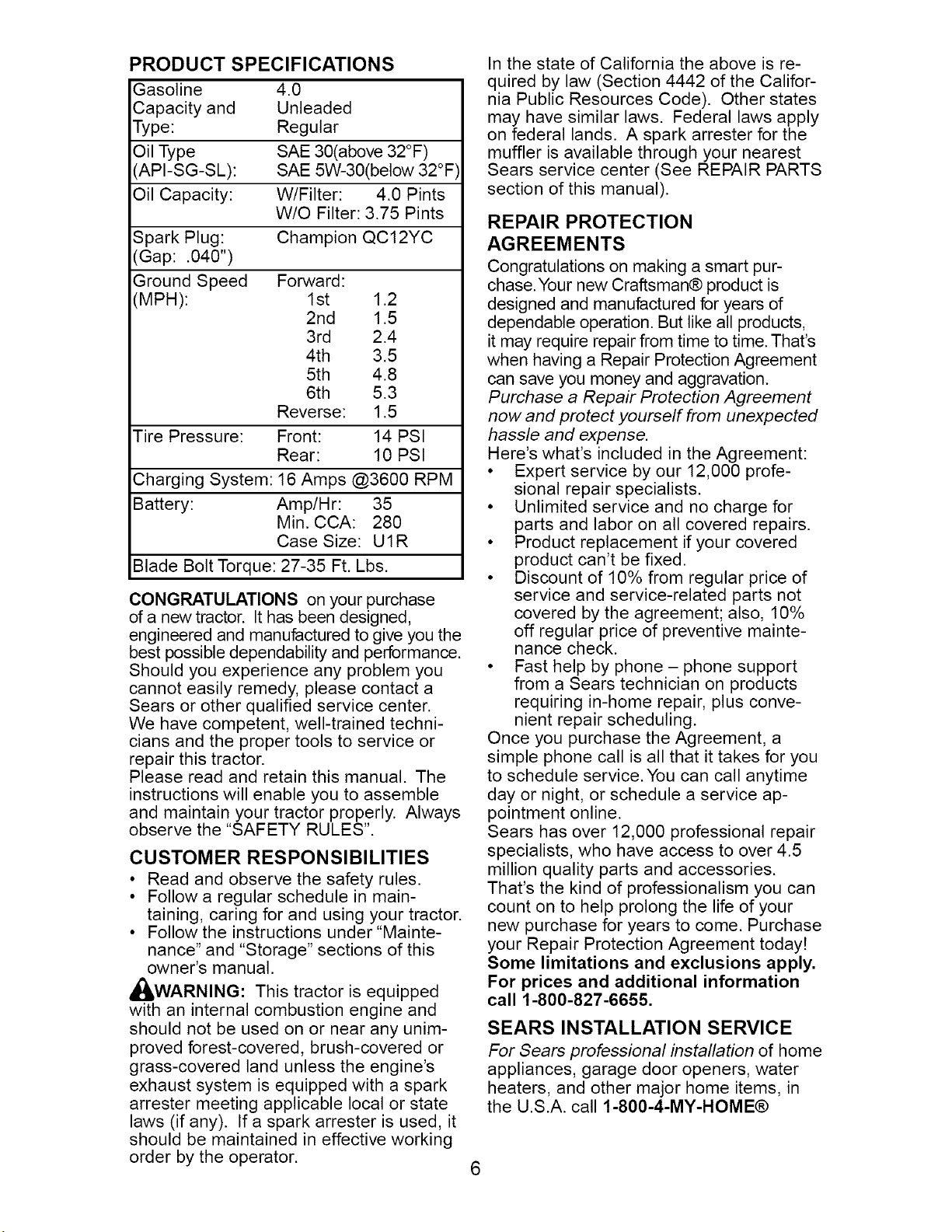

Product Specifications ............................ 6

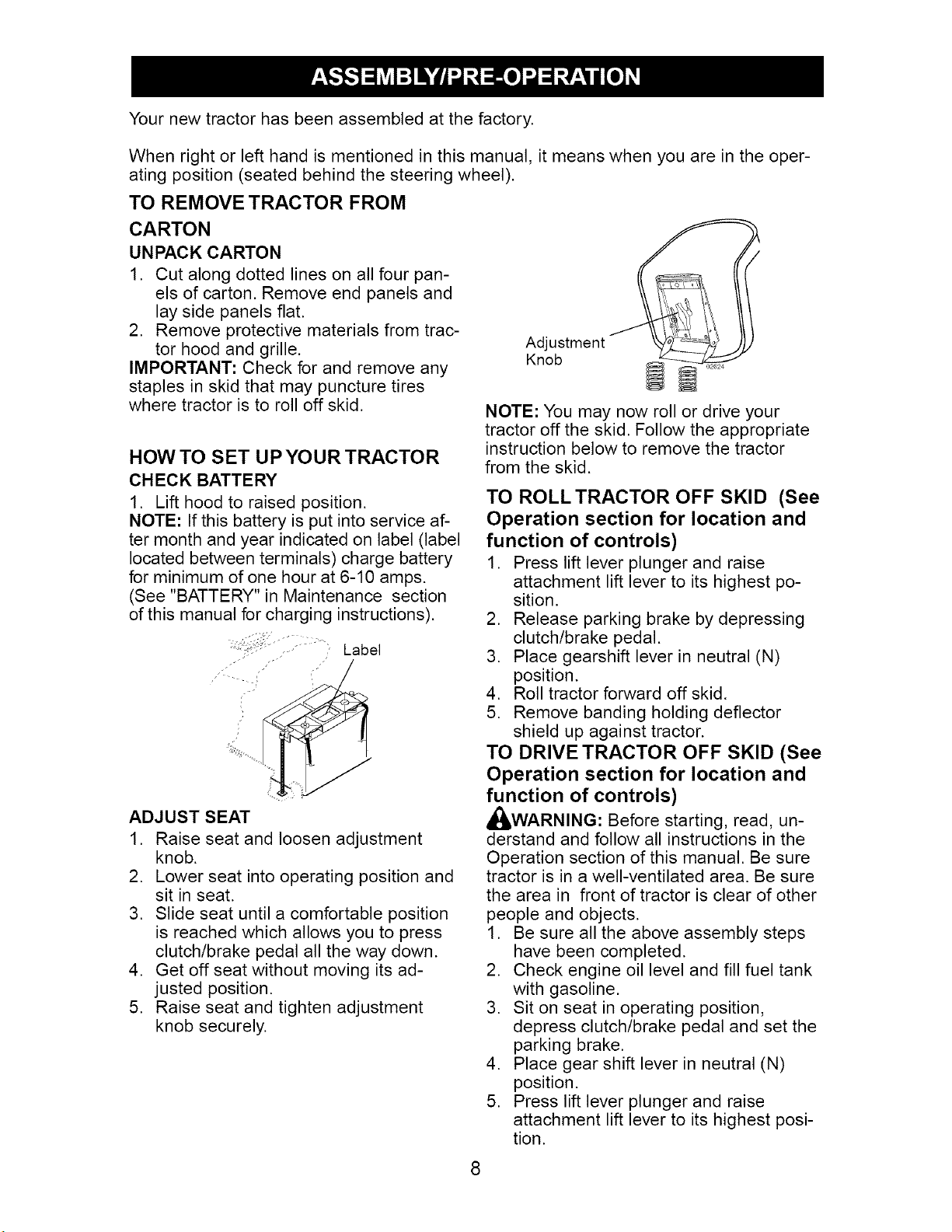

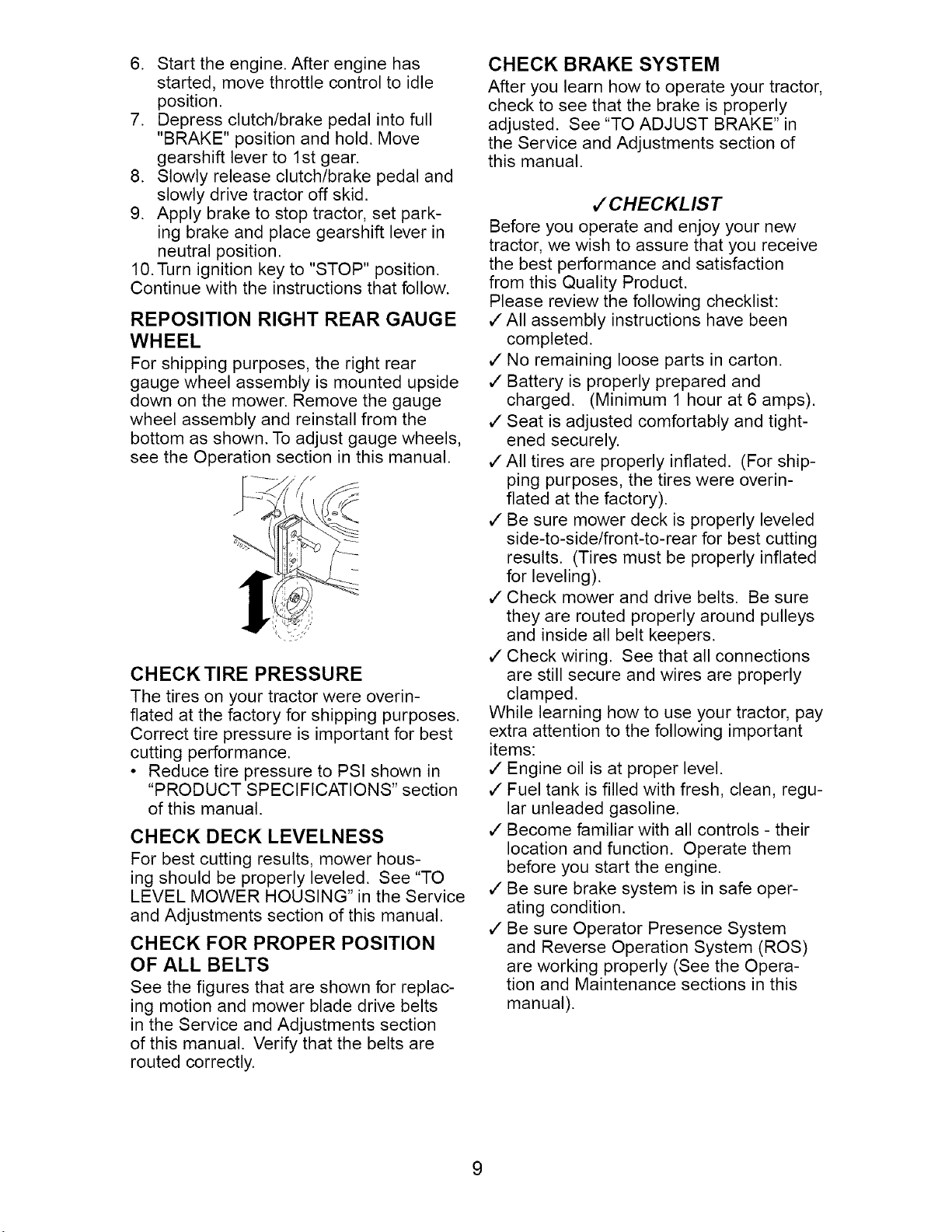

Assembly/Pre-Operation ........................ 8

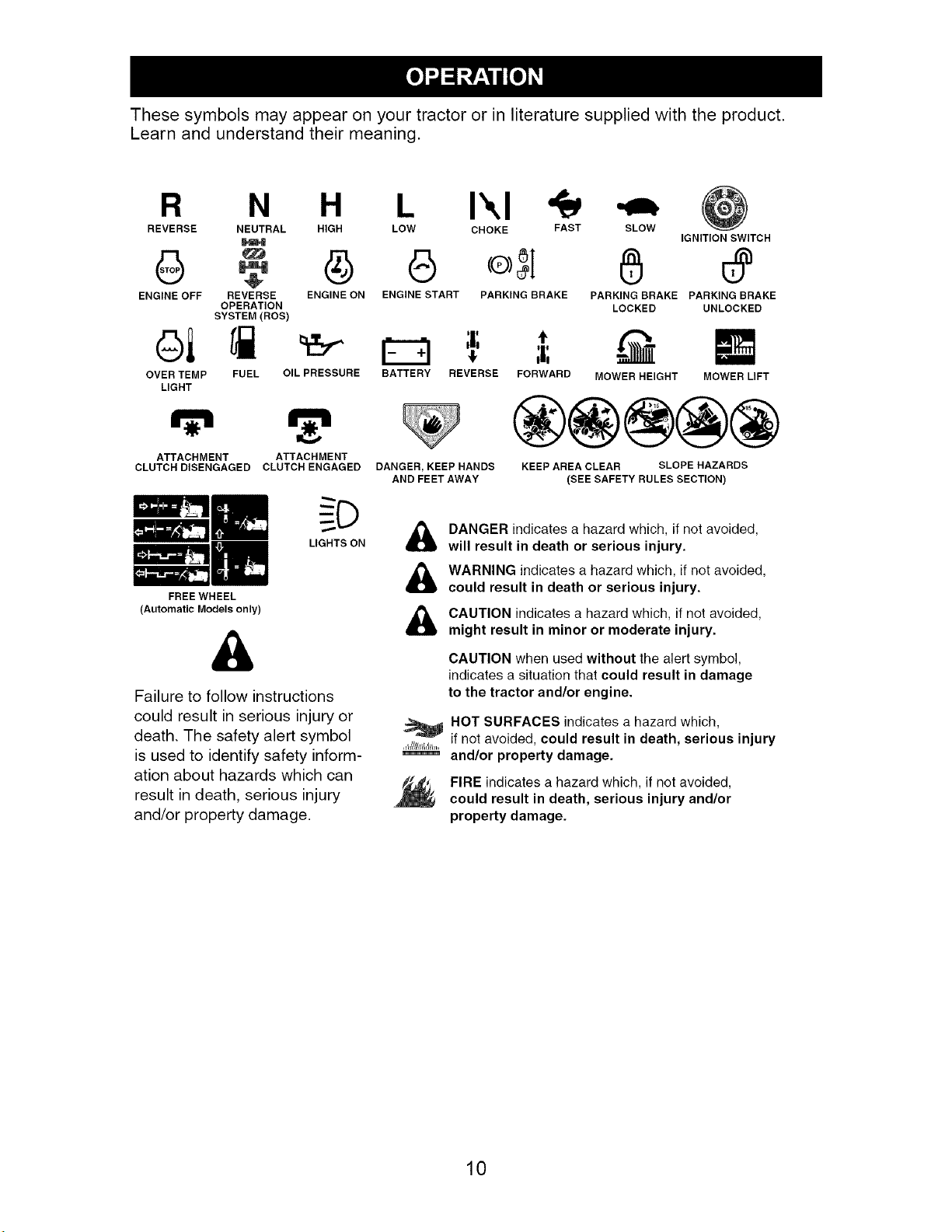

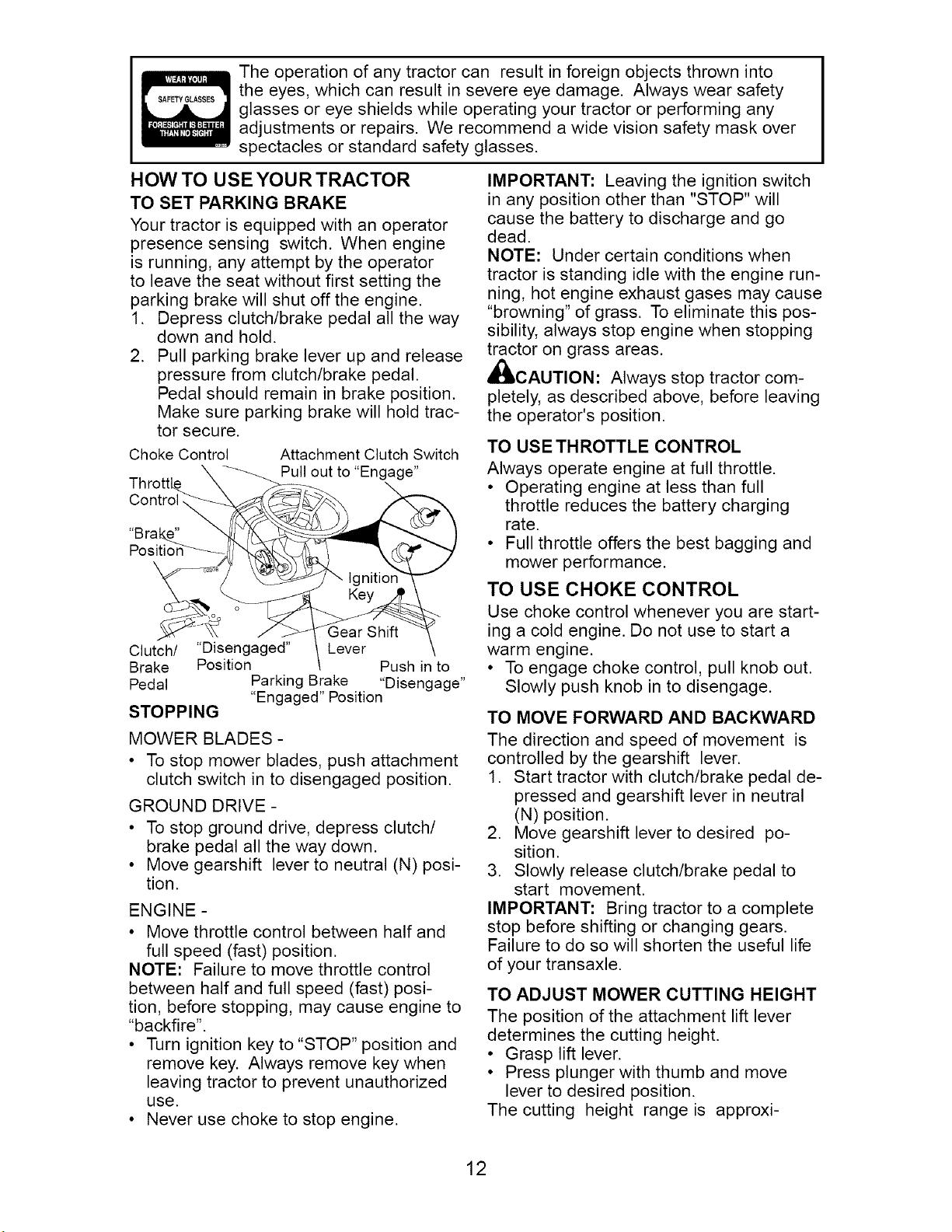

Operation .............................................. 10

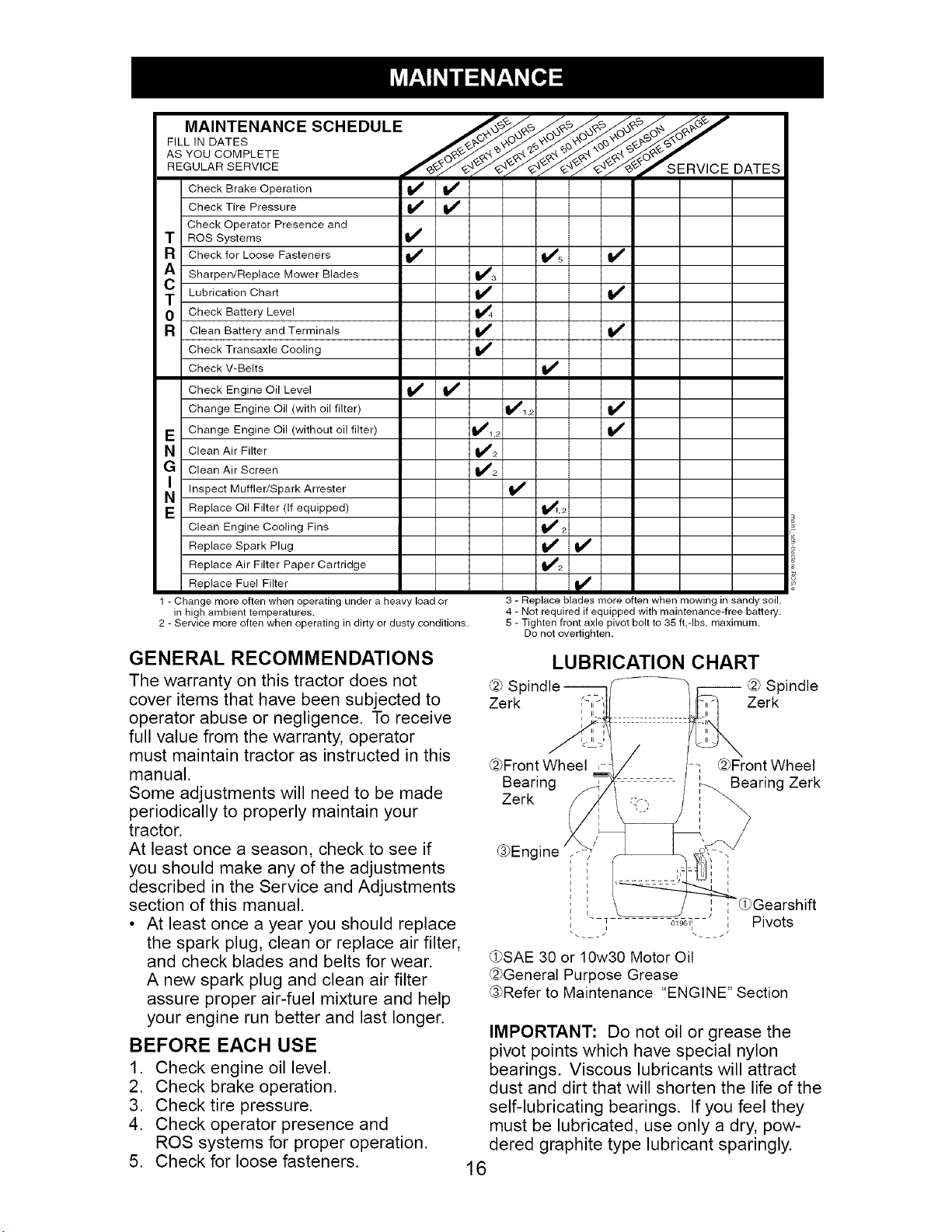

Maintenance Schedule ......................... 16

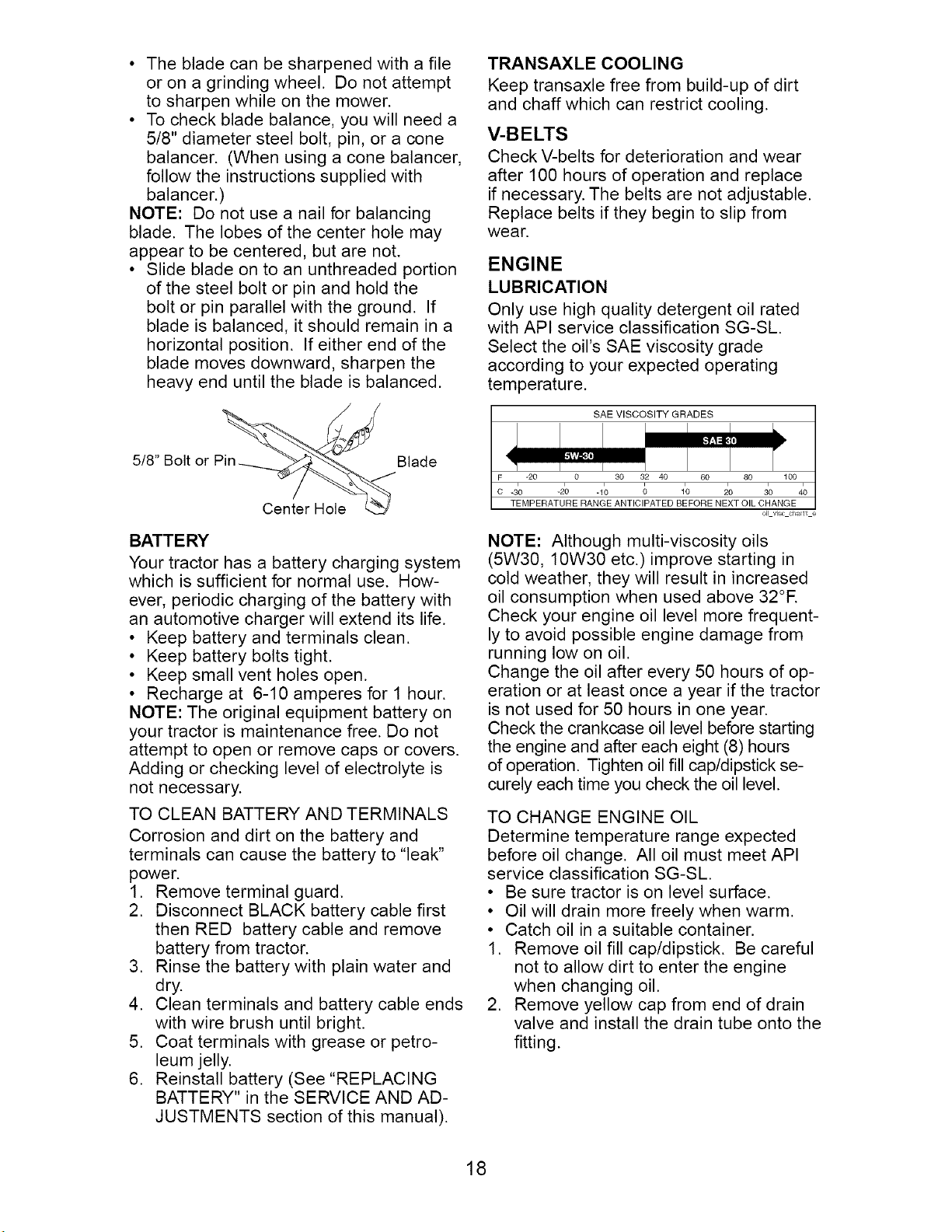

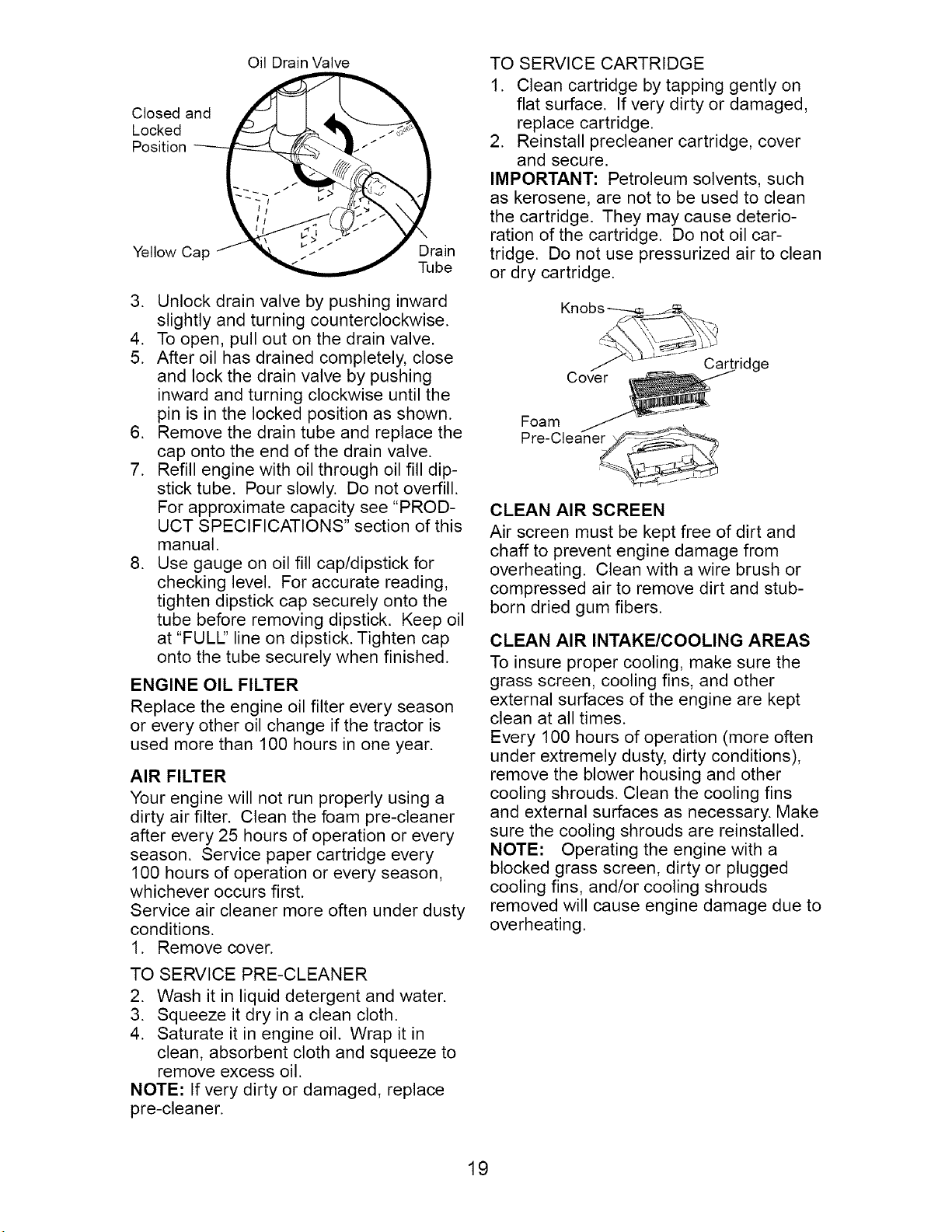

Maintenance ......................................... 16

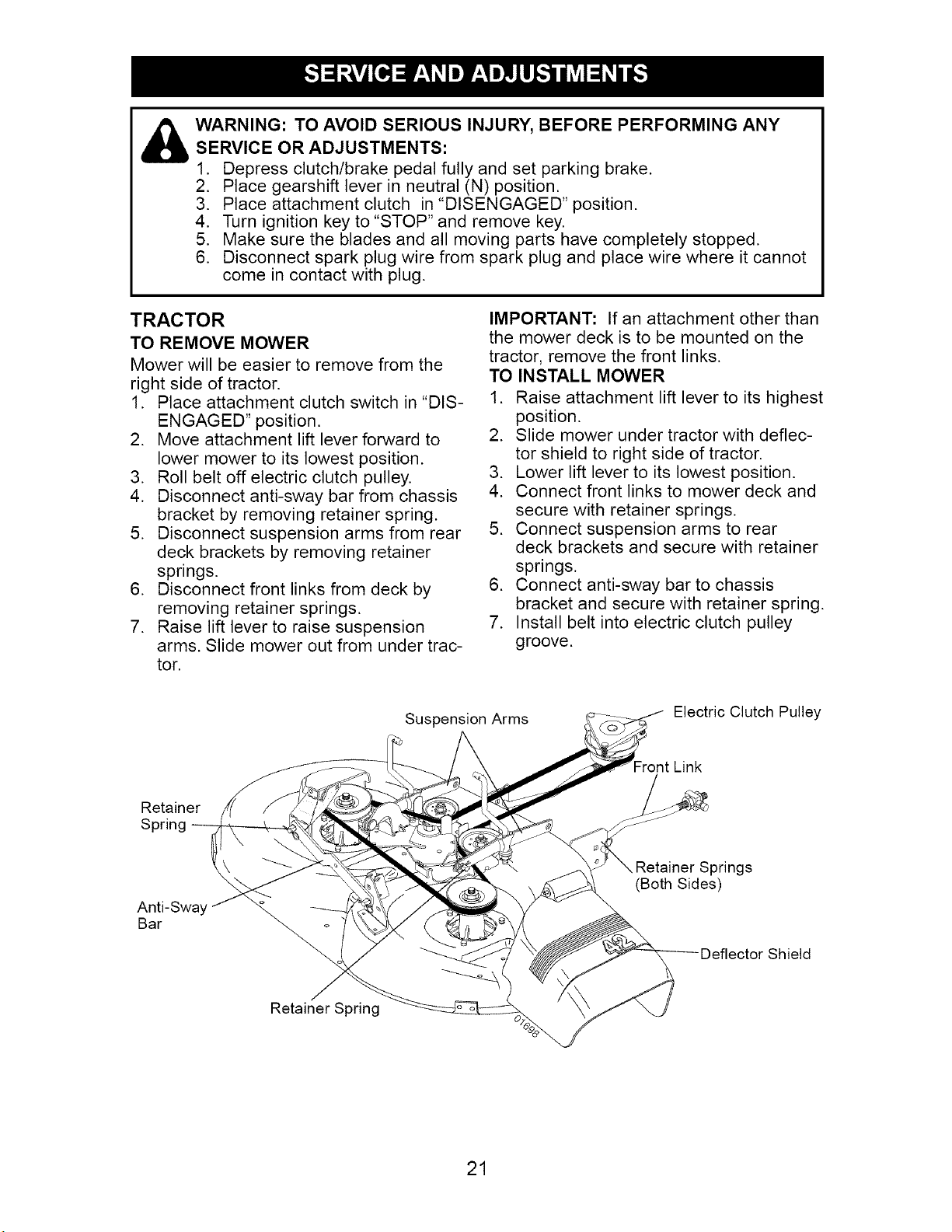

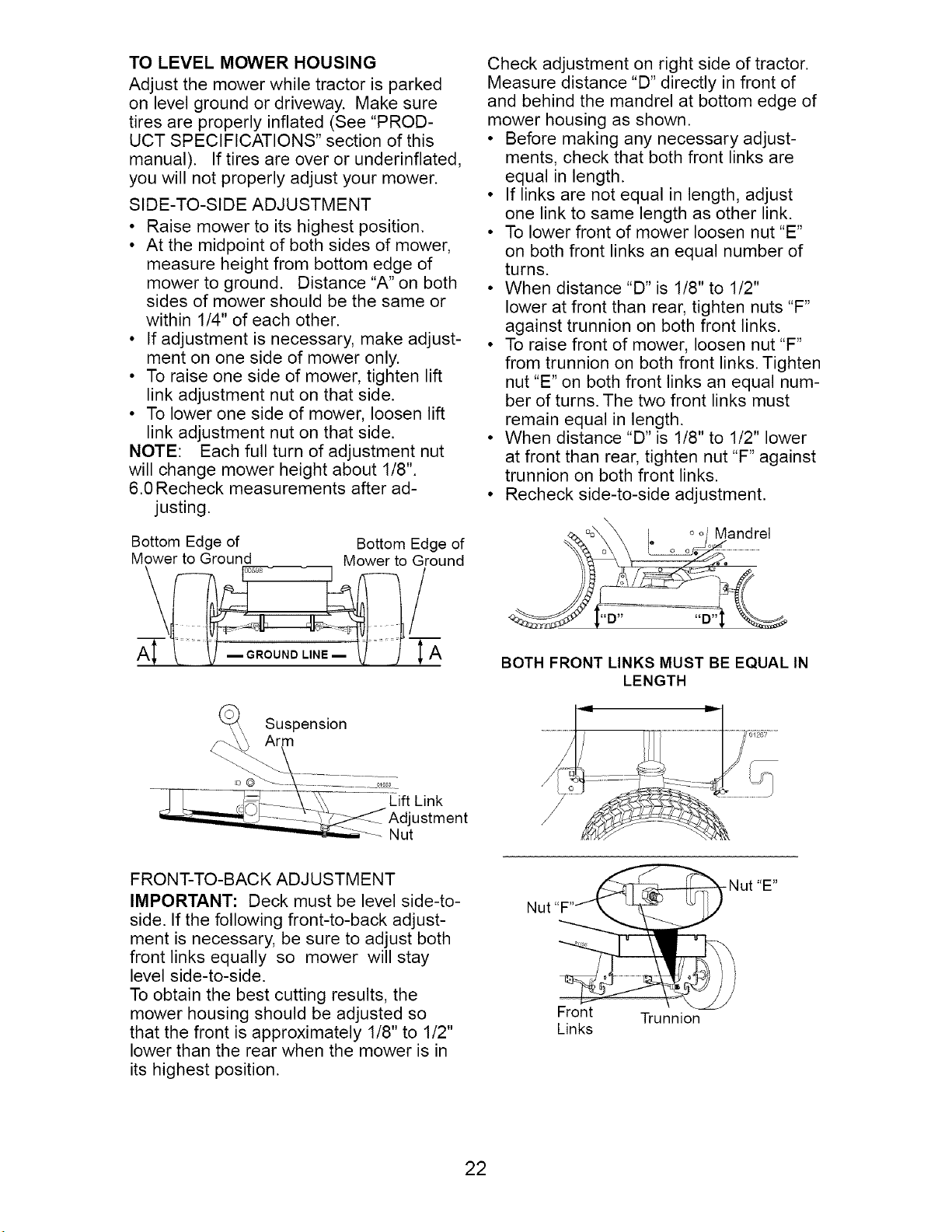

Service and Adjustments ...................... 21

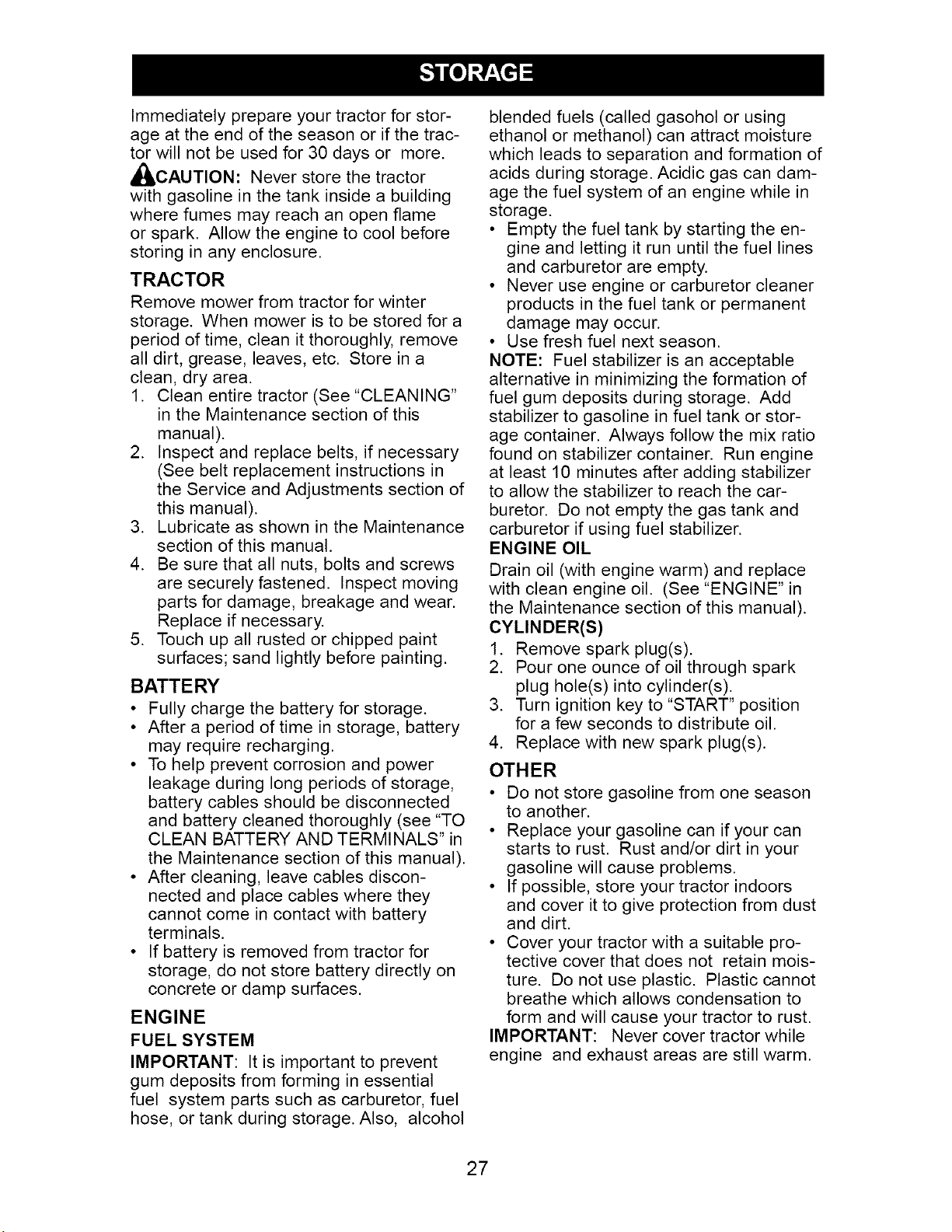

Storage ................................................. 27

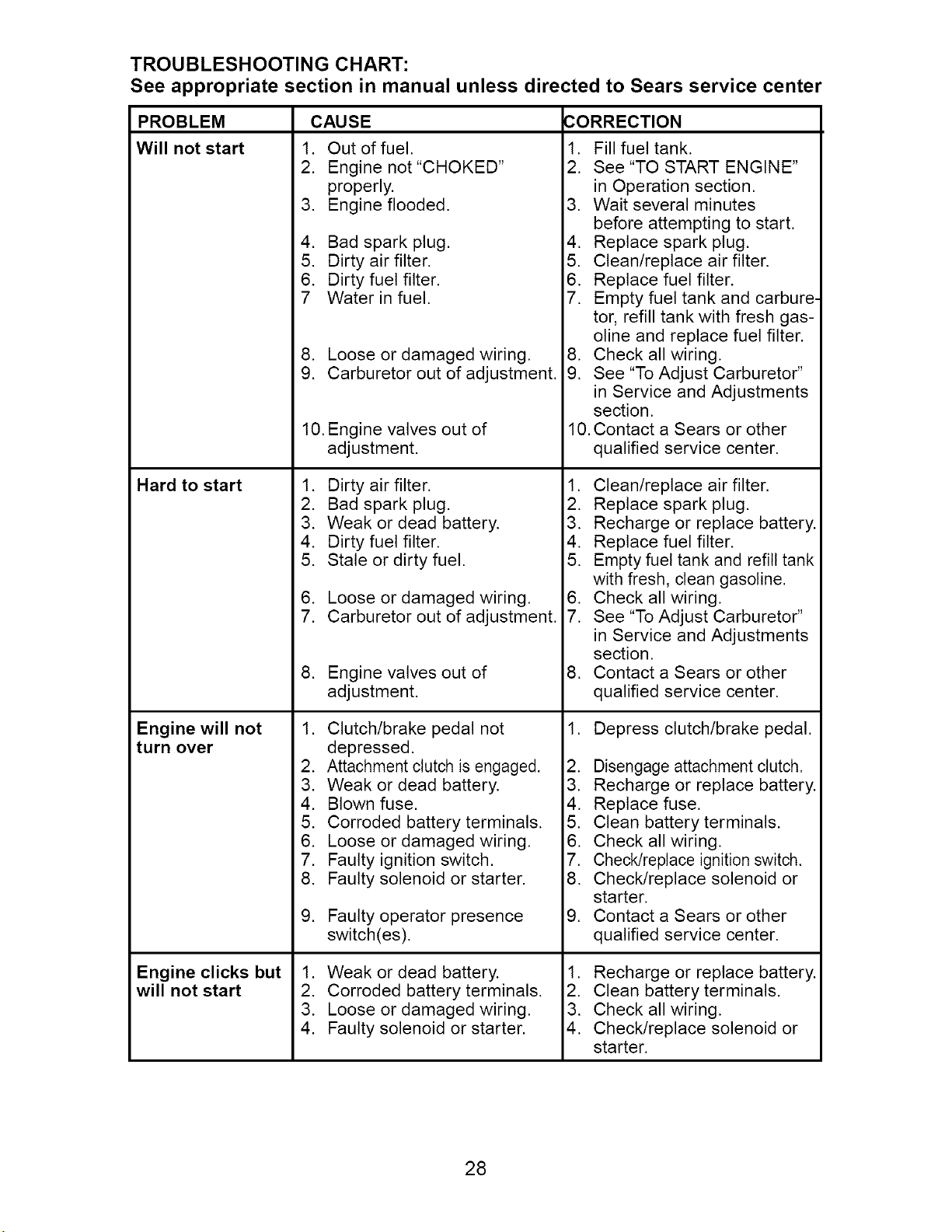

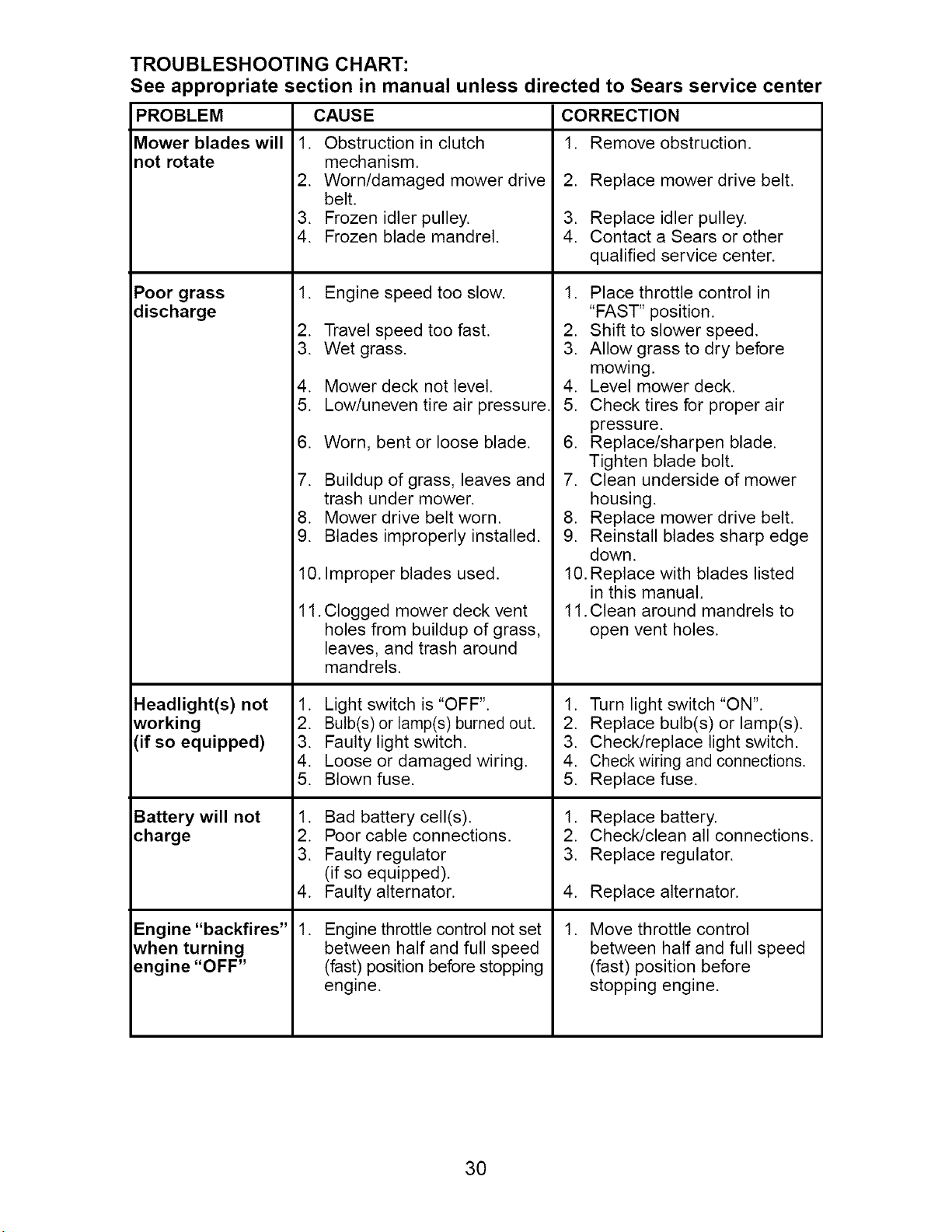

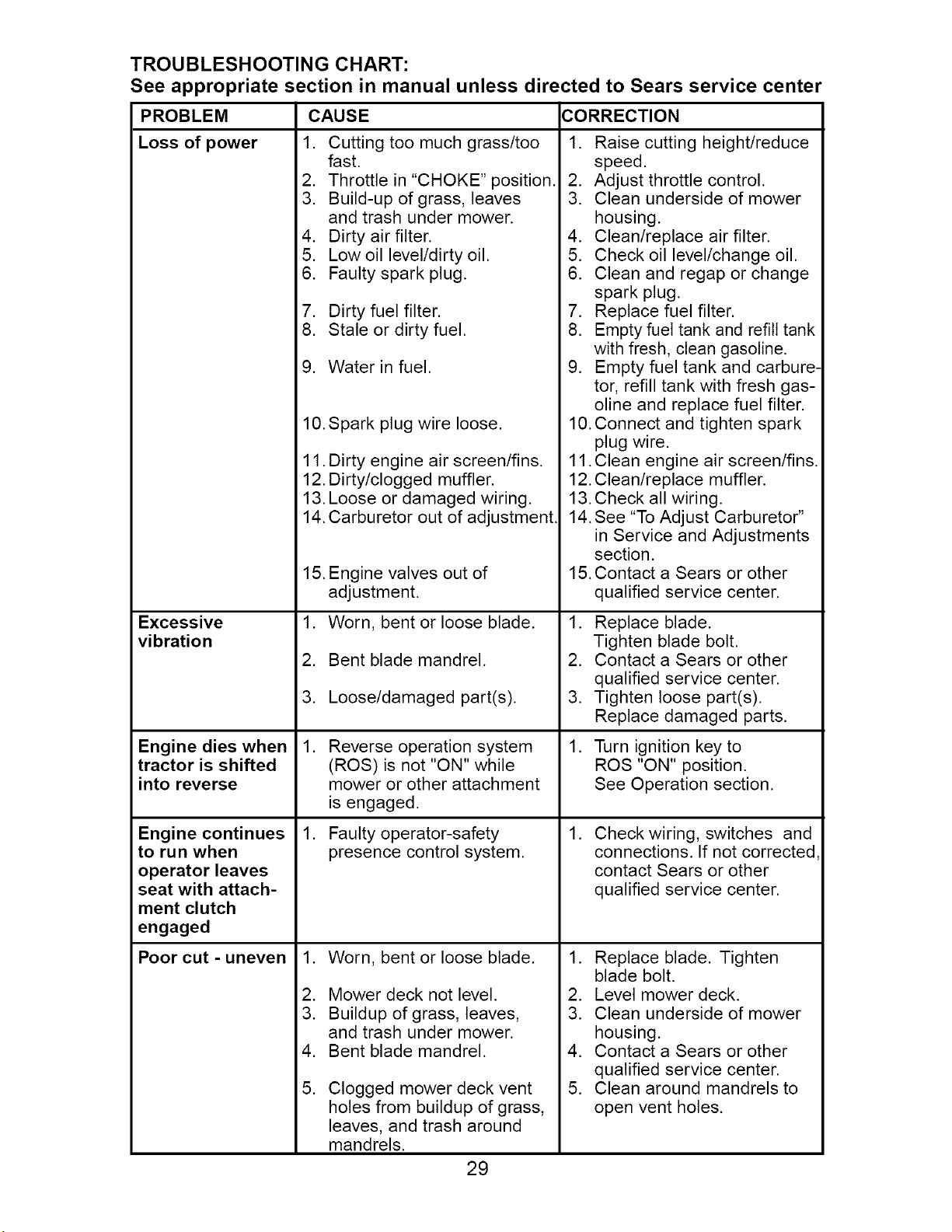

Troubleshooting .................................... 28

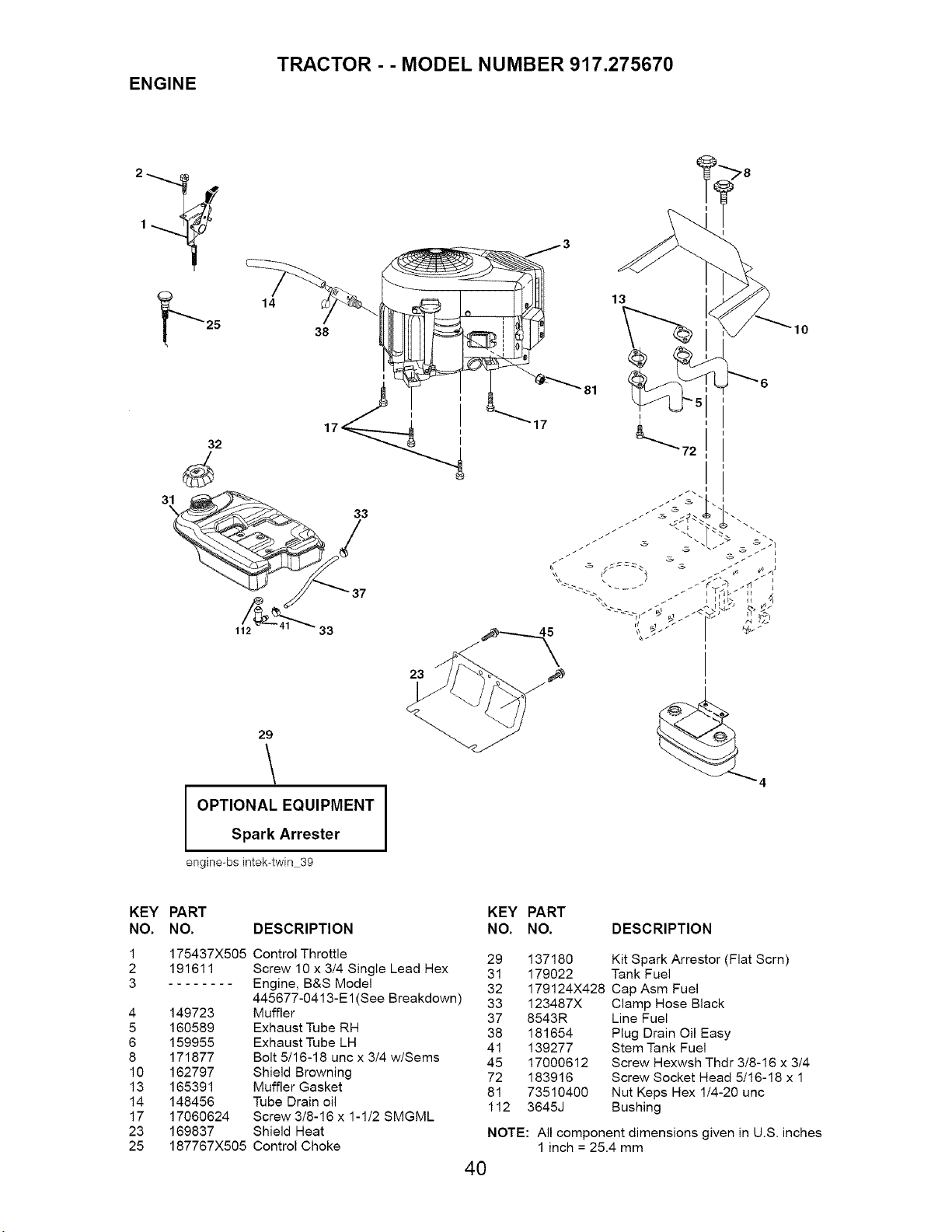

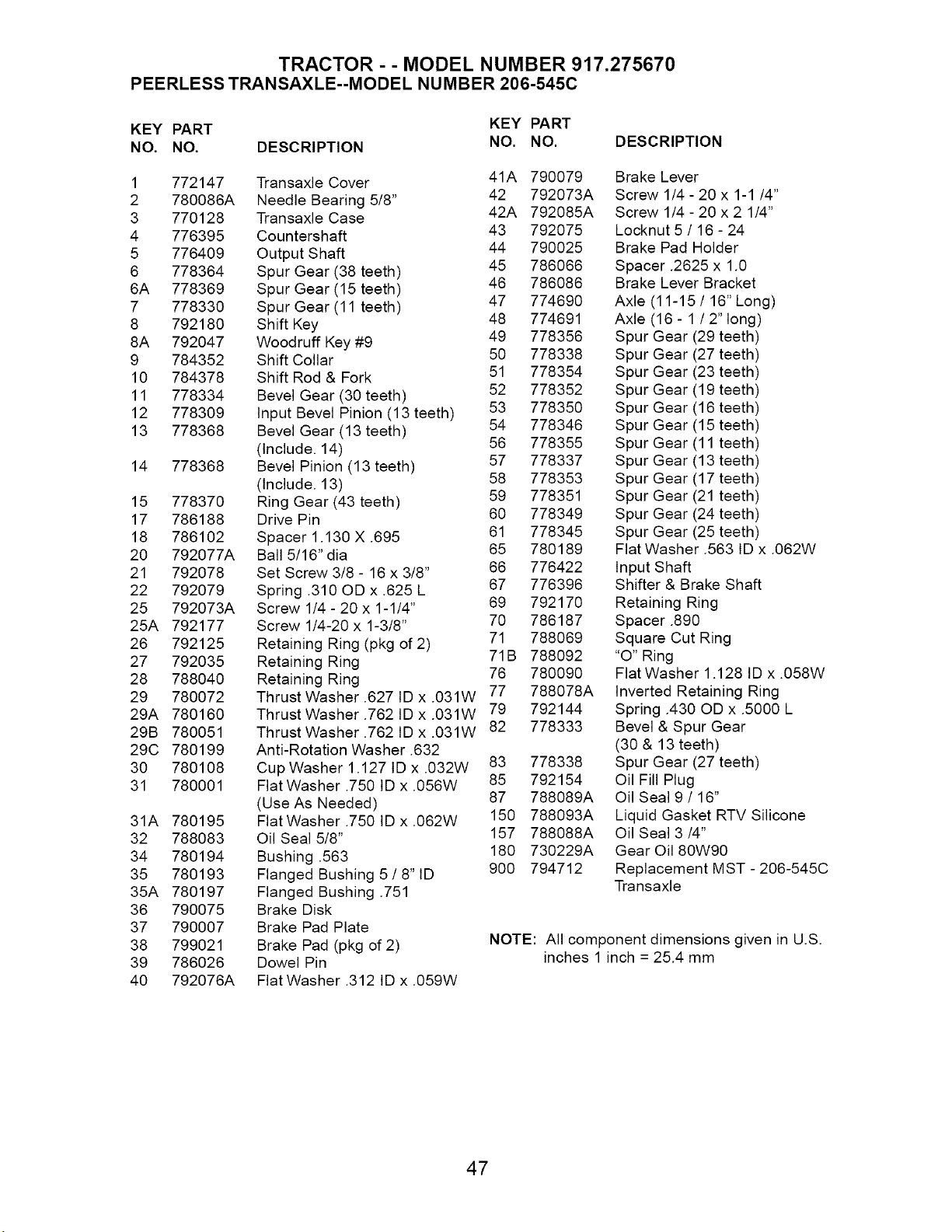

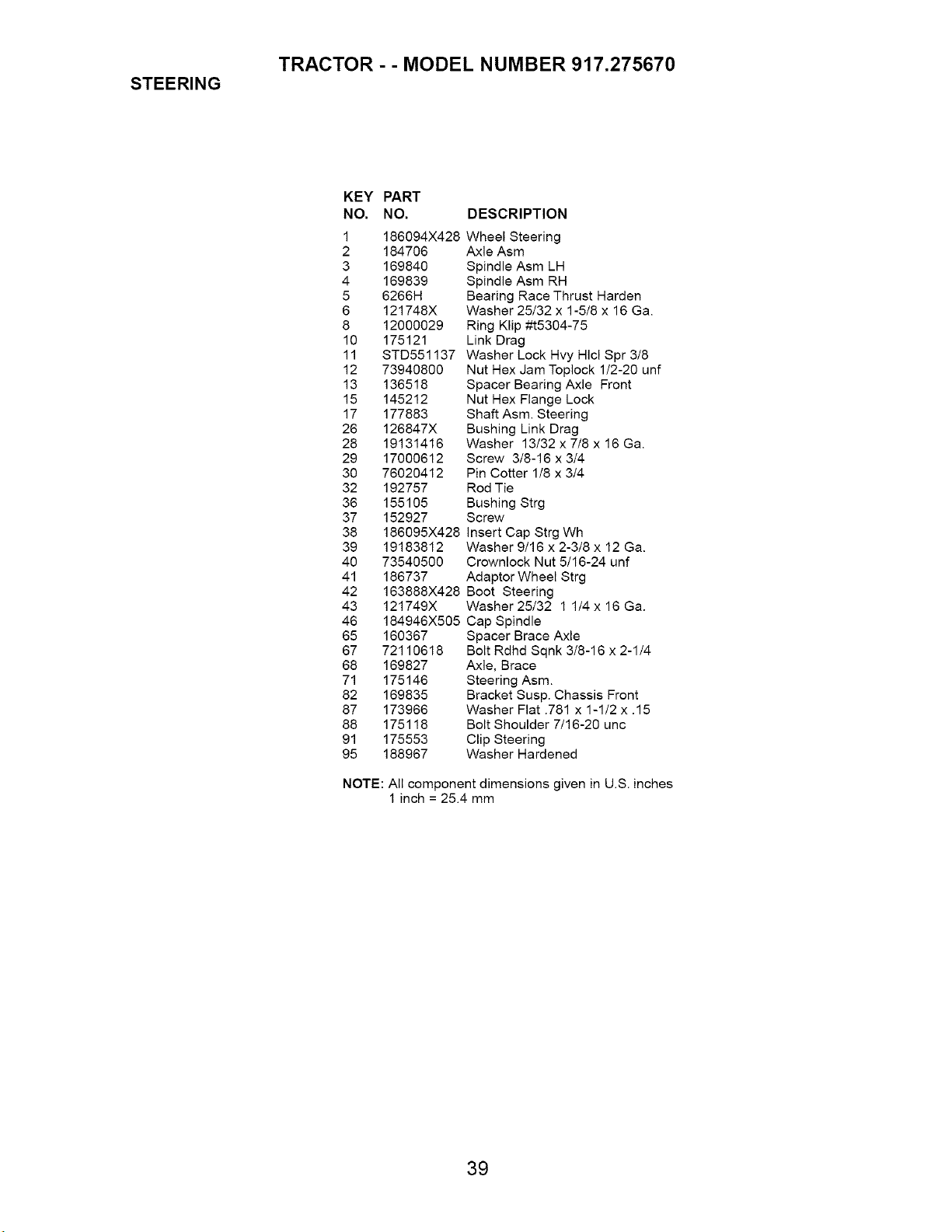

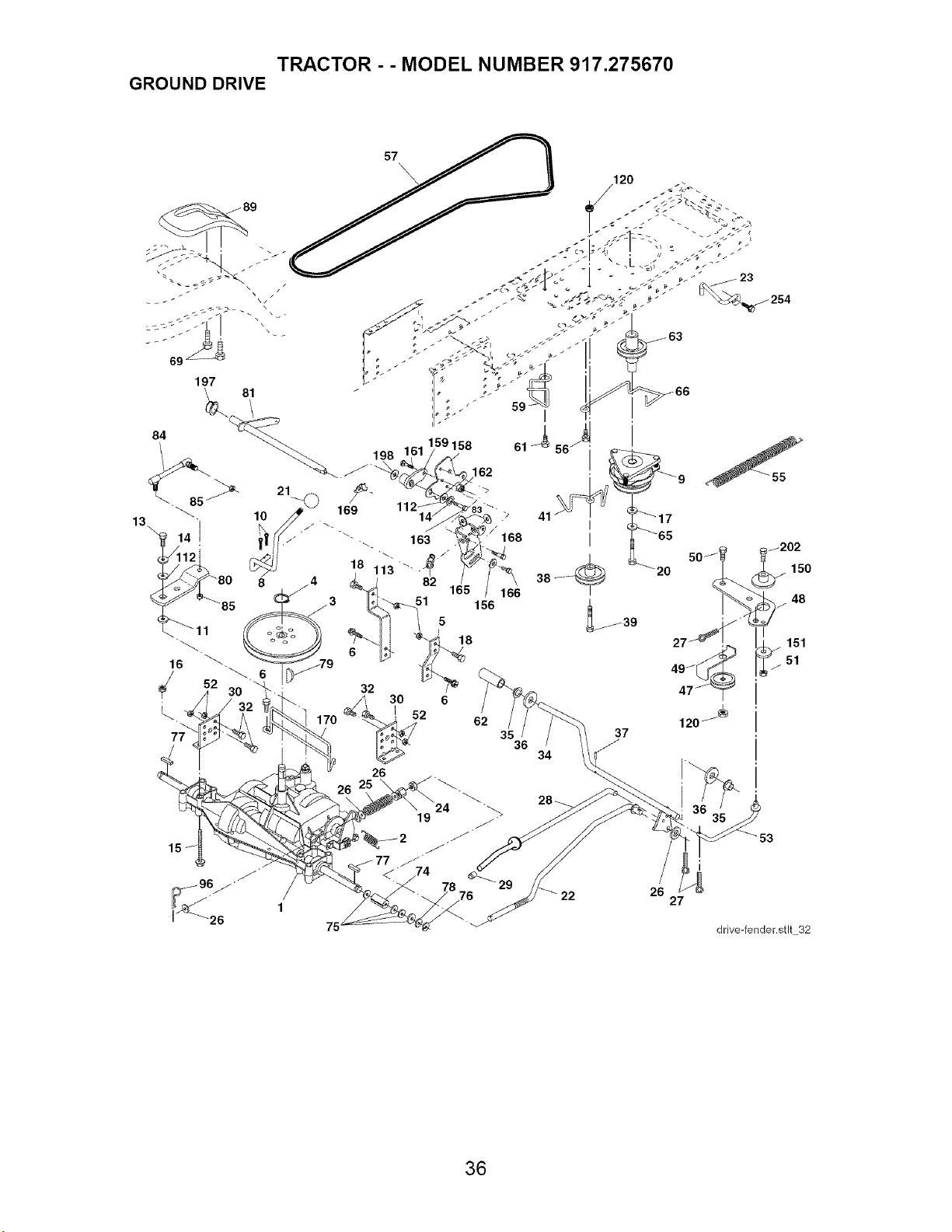

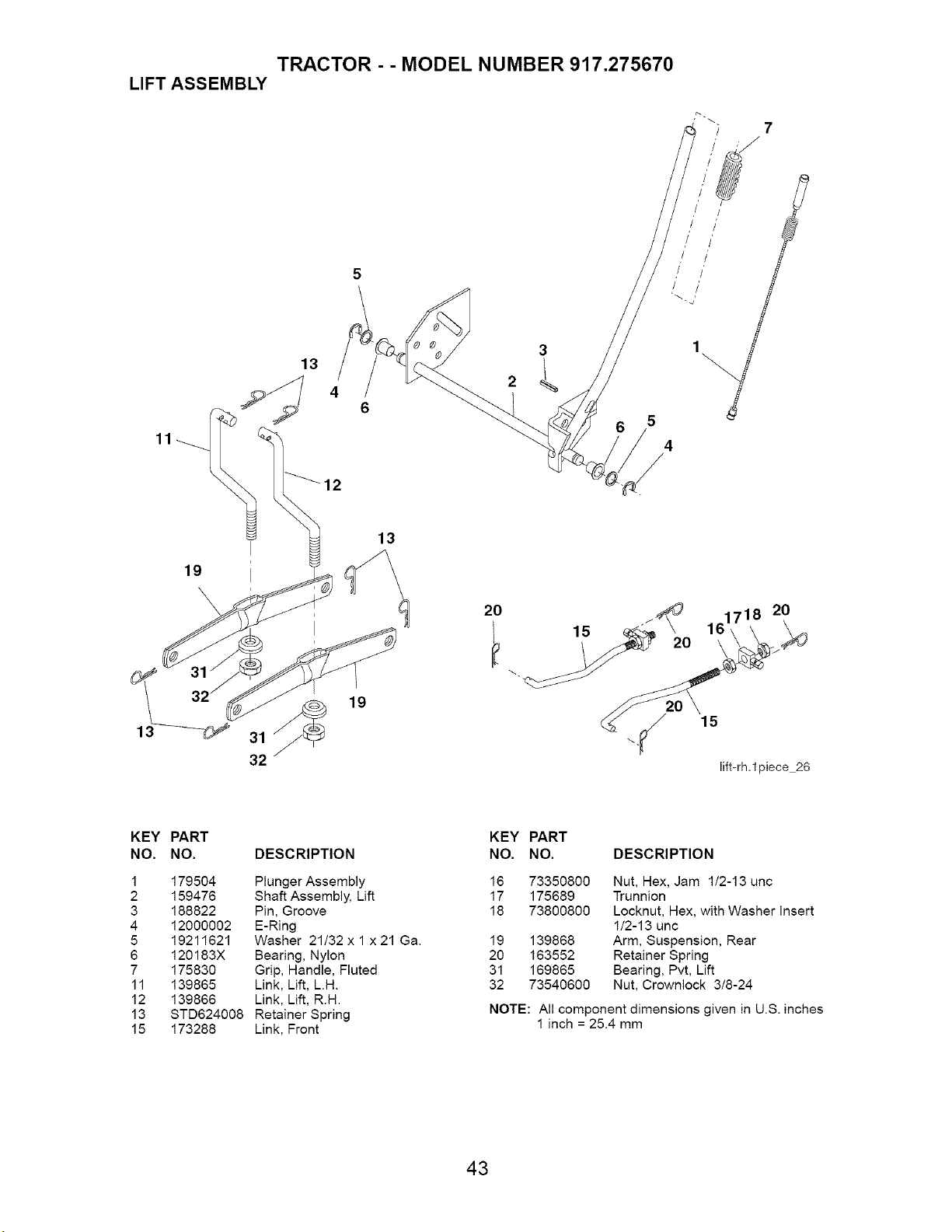

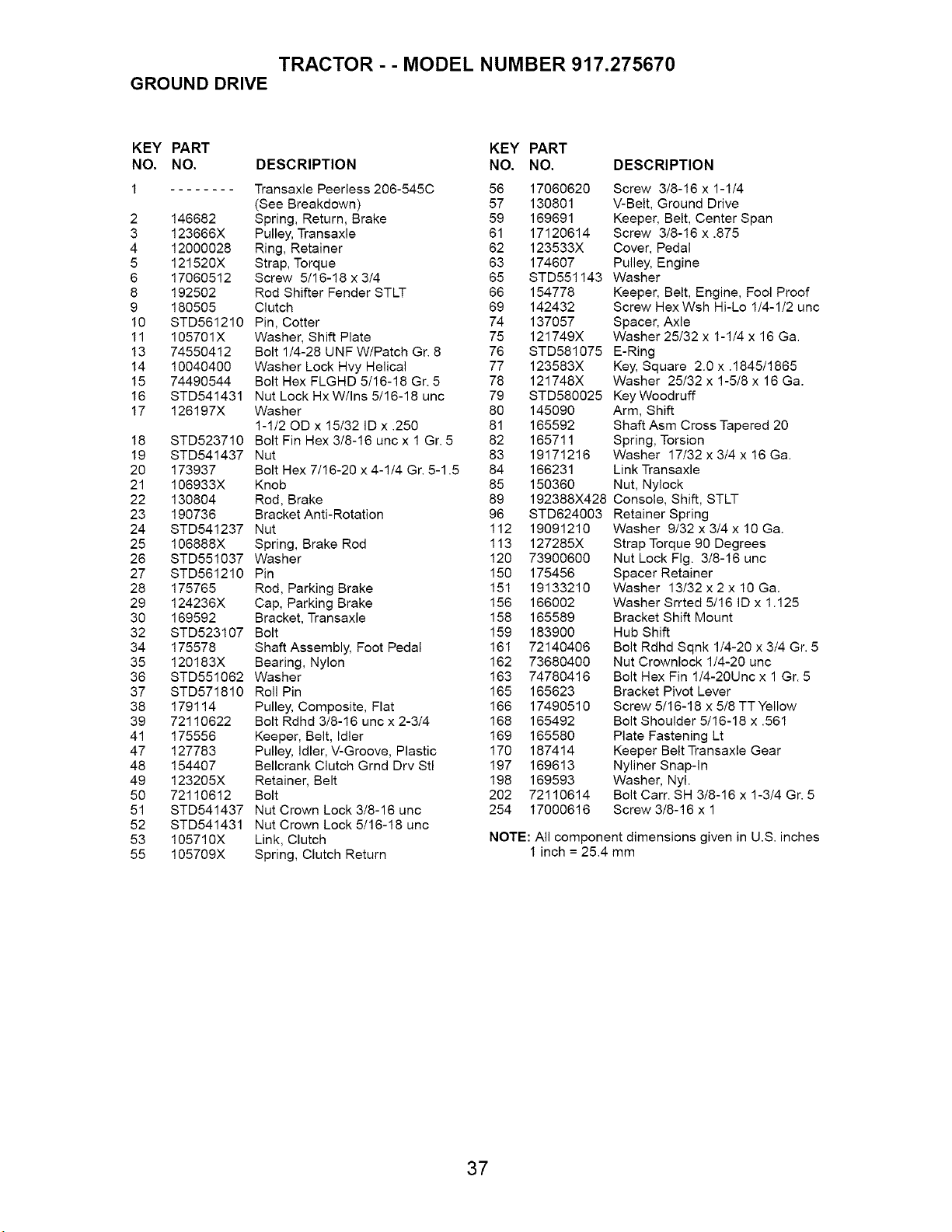

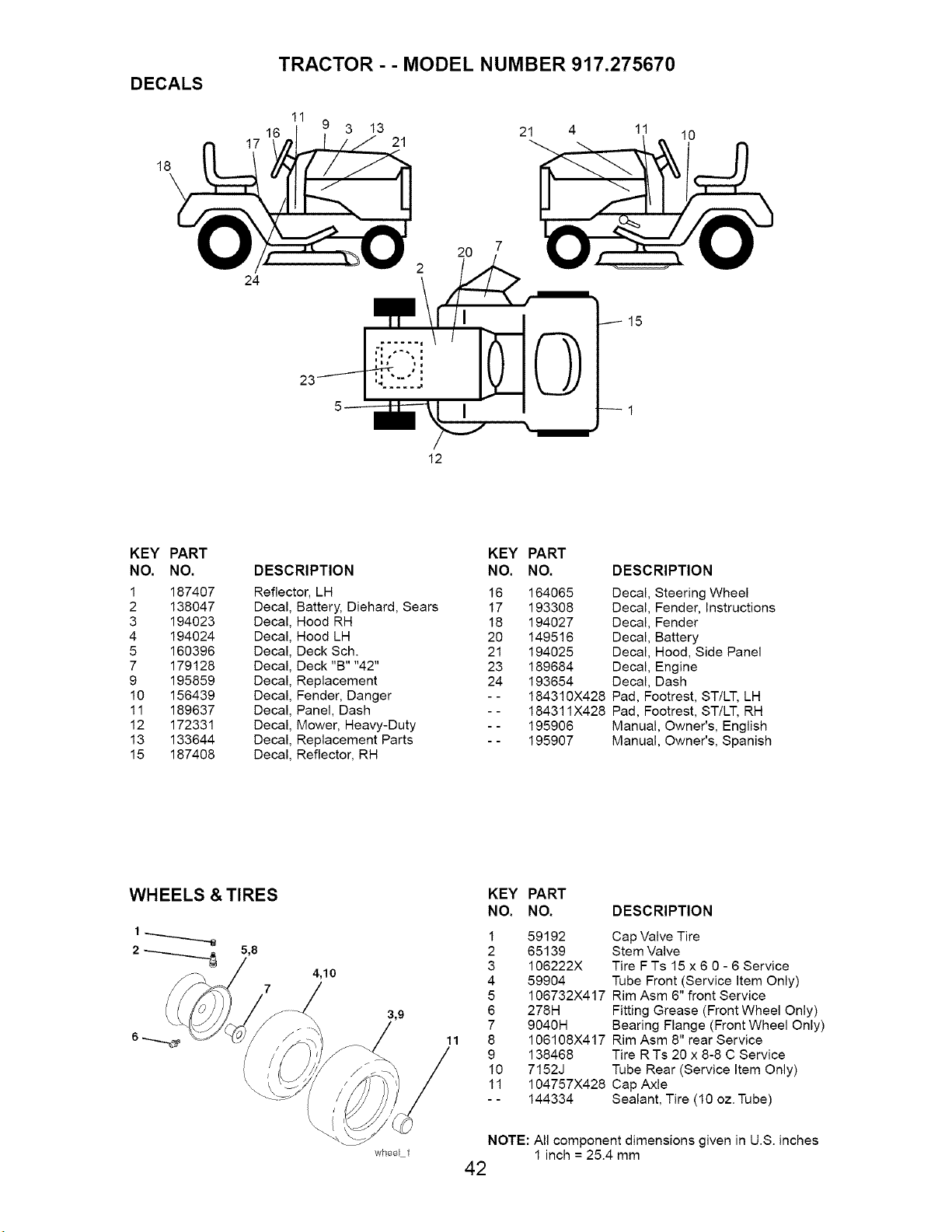

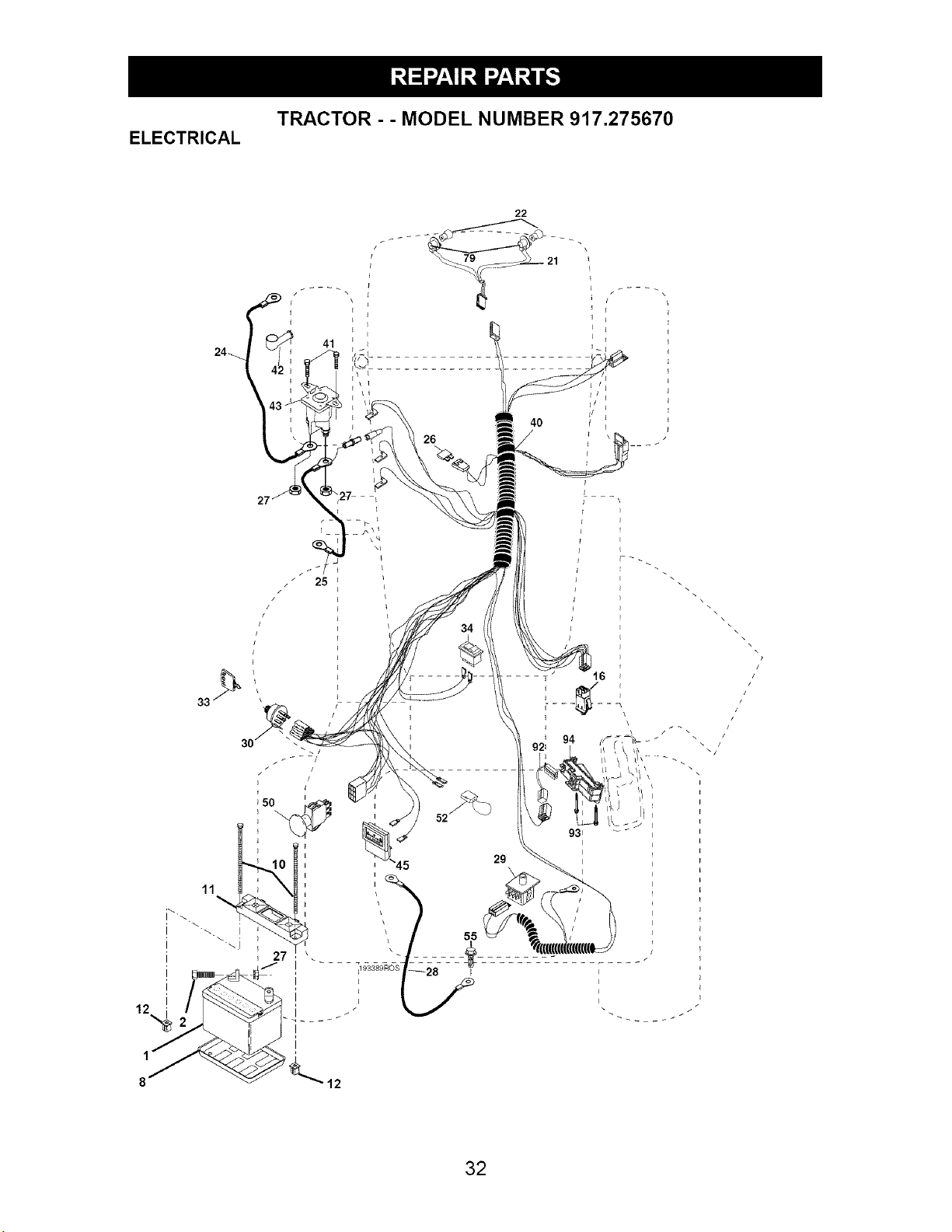

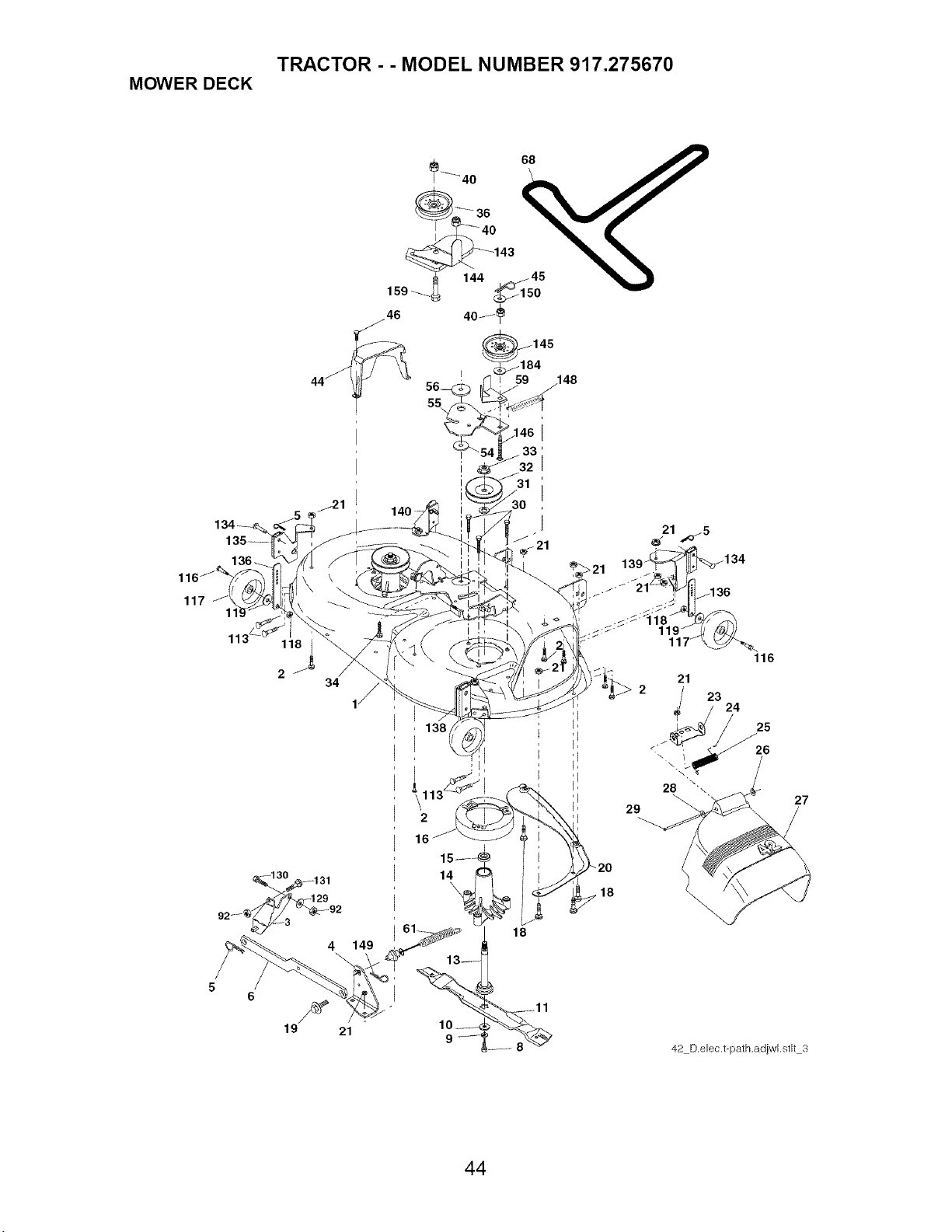

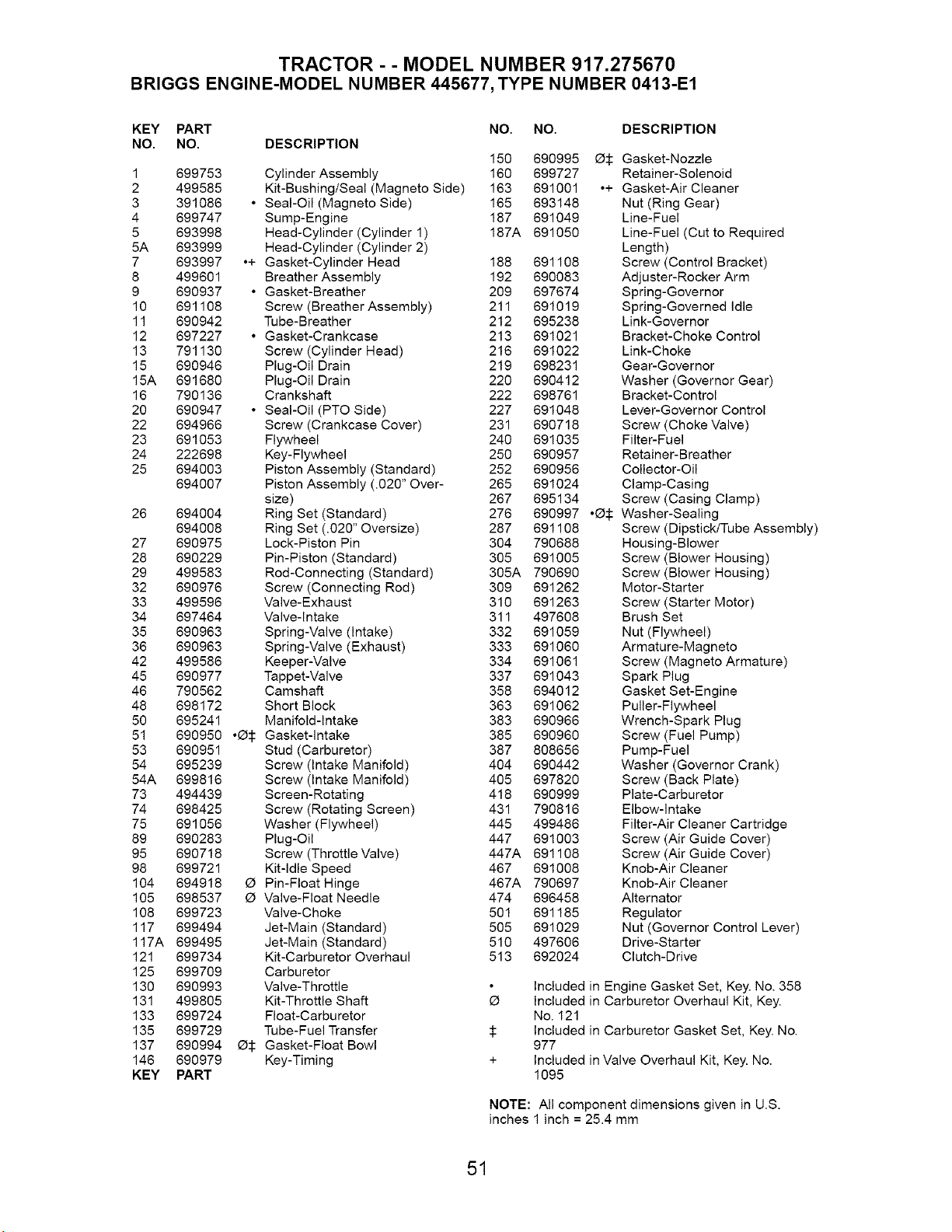

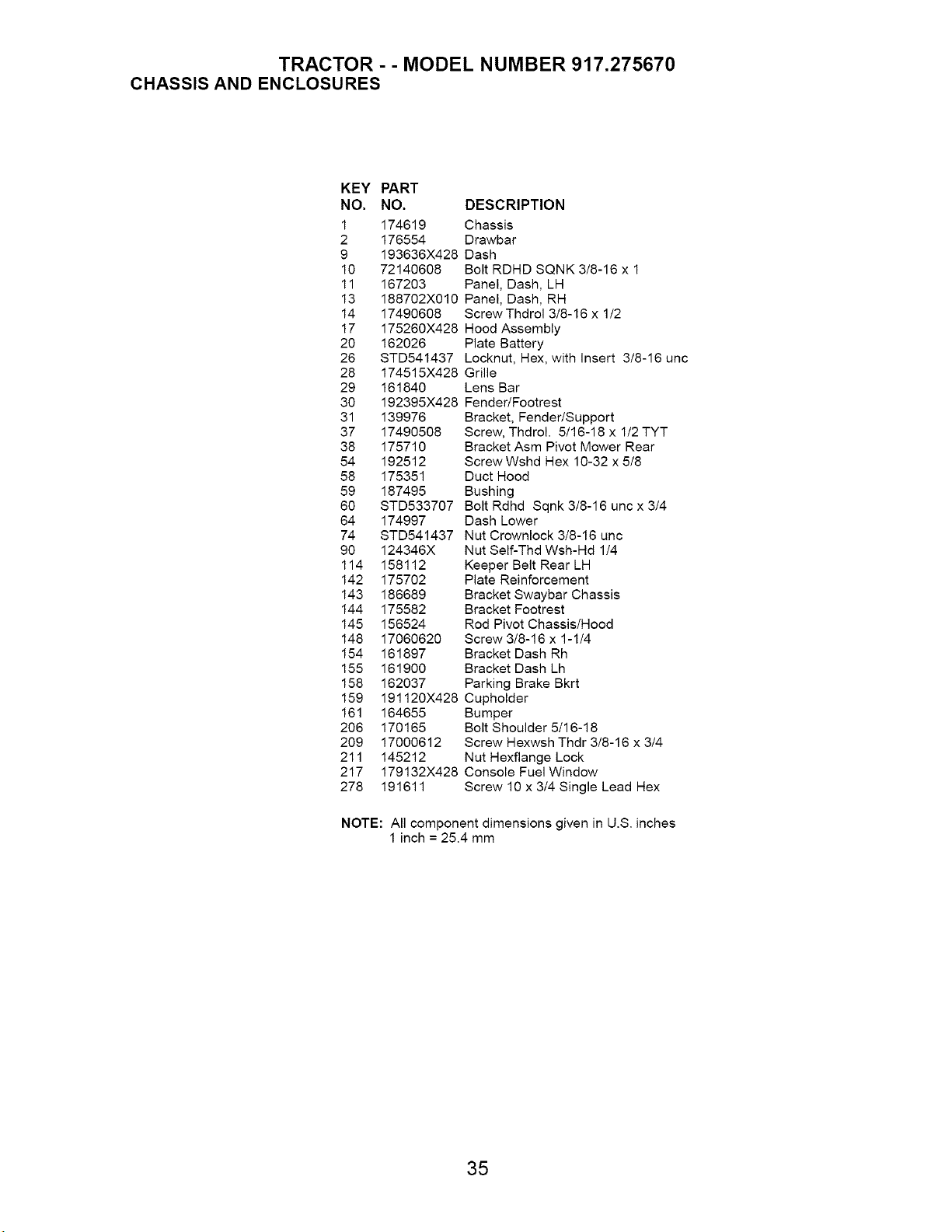

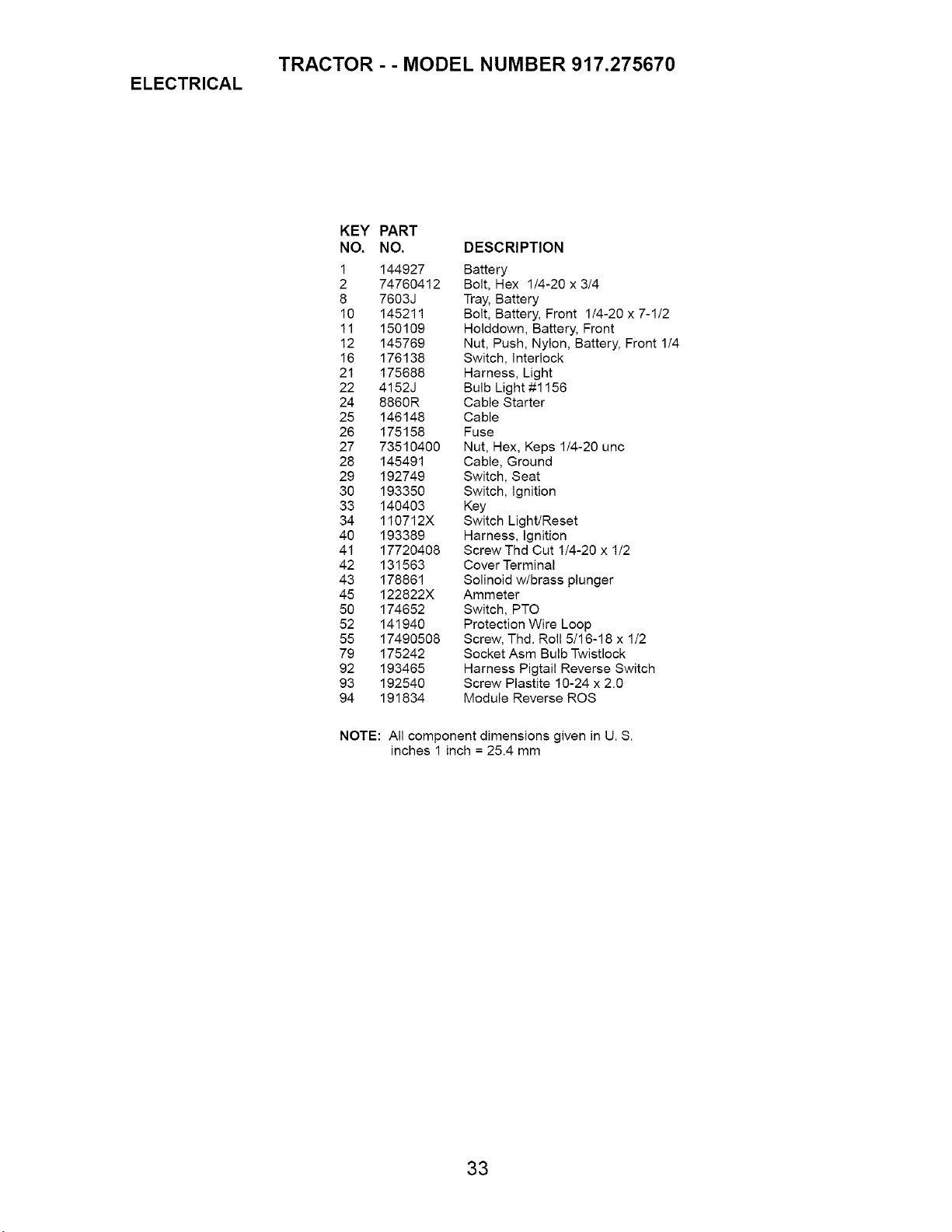

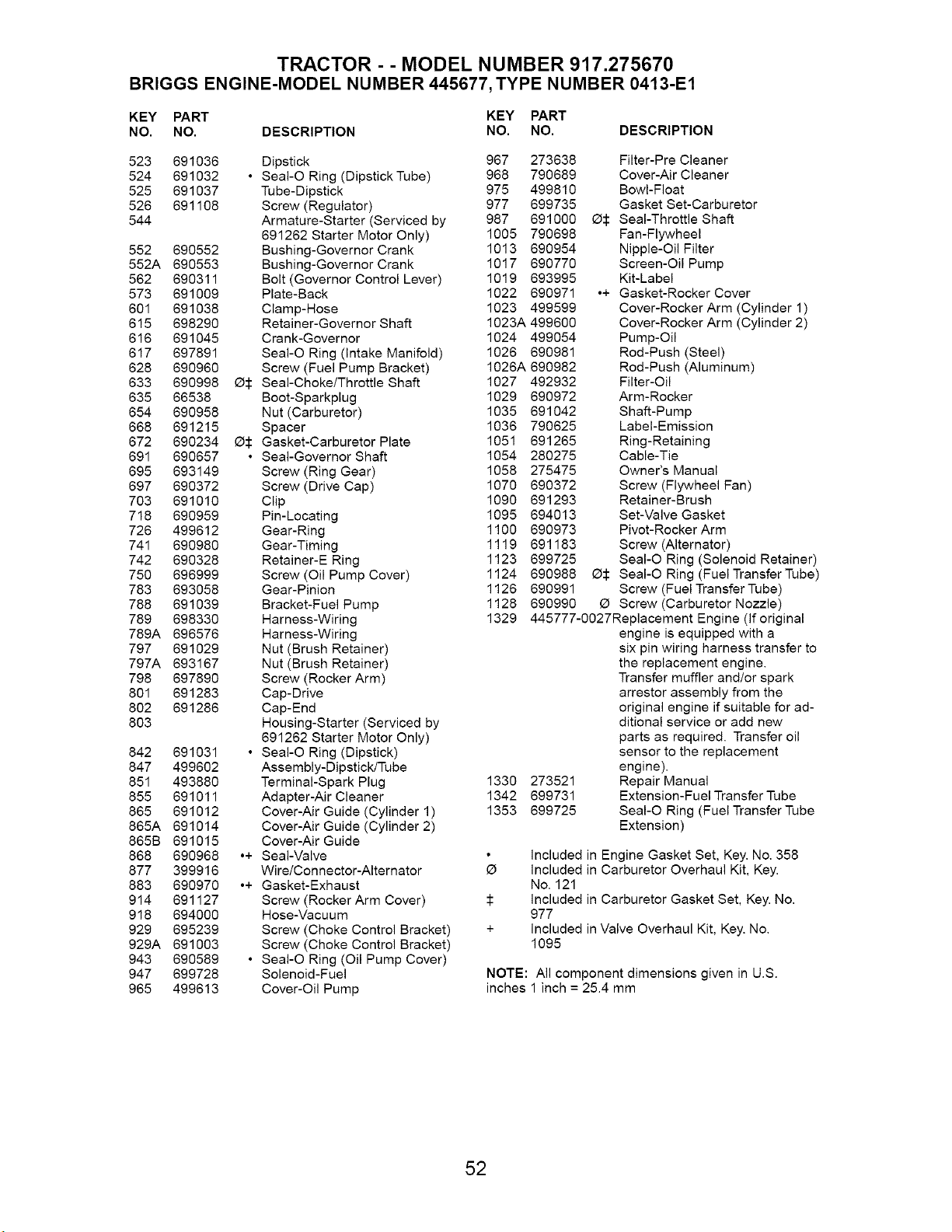

Repair Parts .......................................... 32

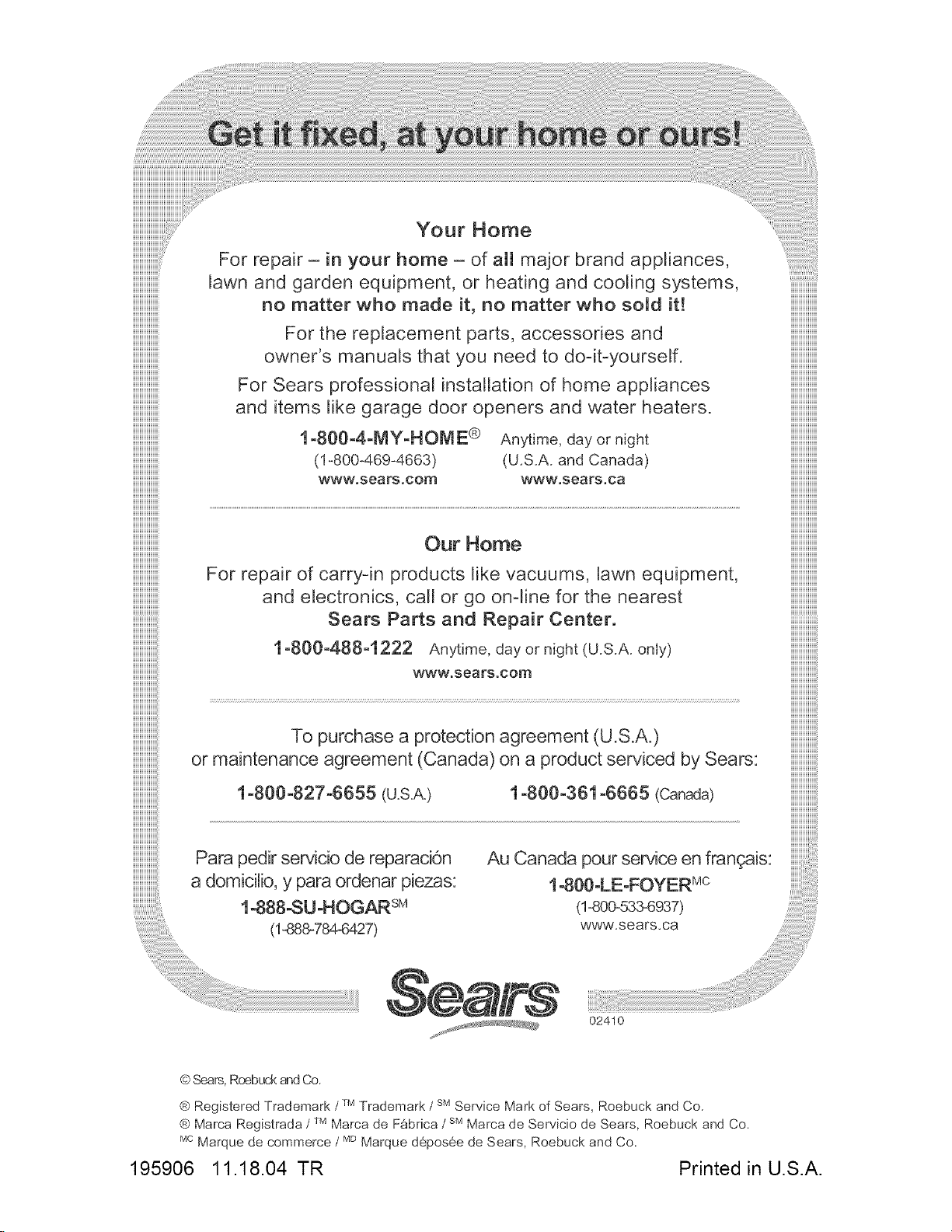

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

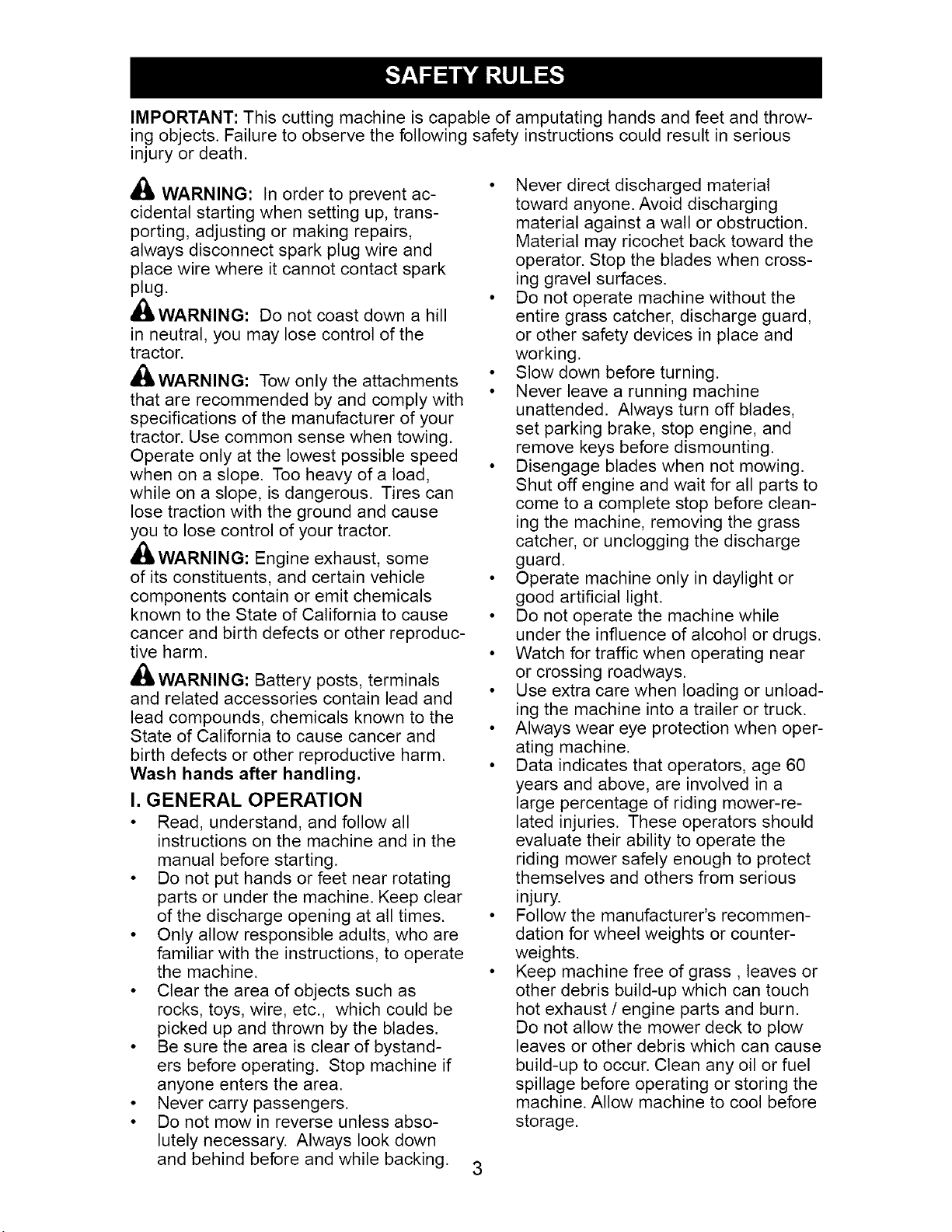

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_lb WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_IWARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

d_IWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_IIWARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm.

_IbWARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slowdown before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

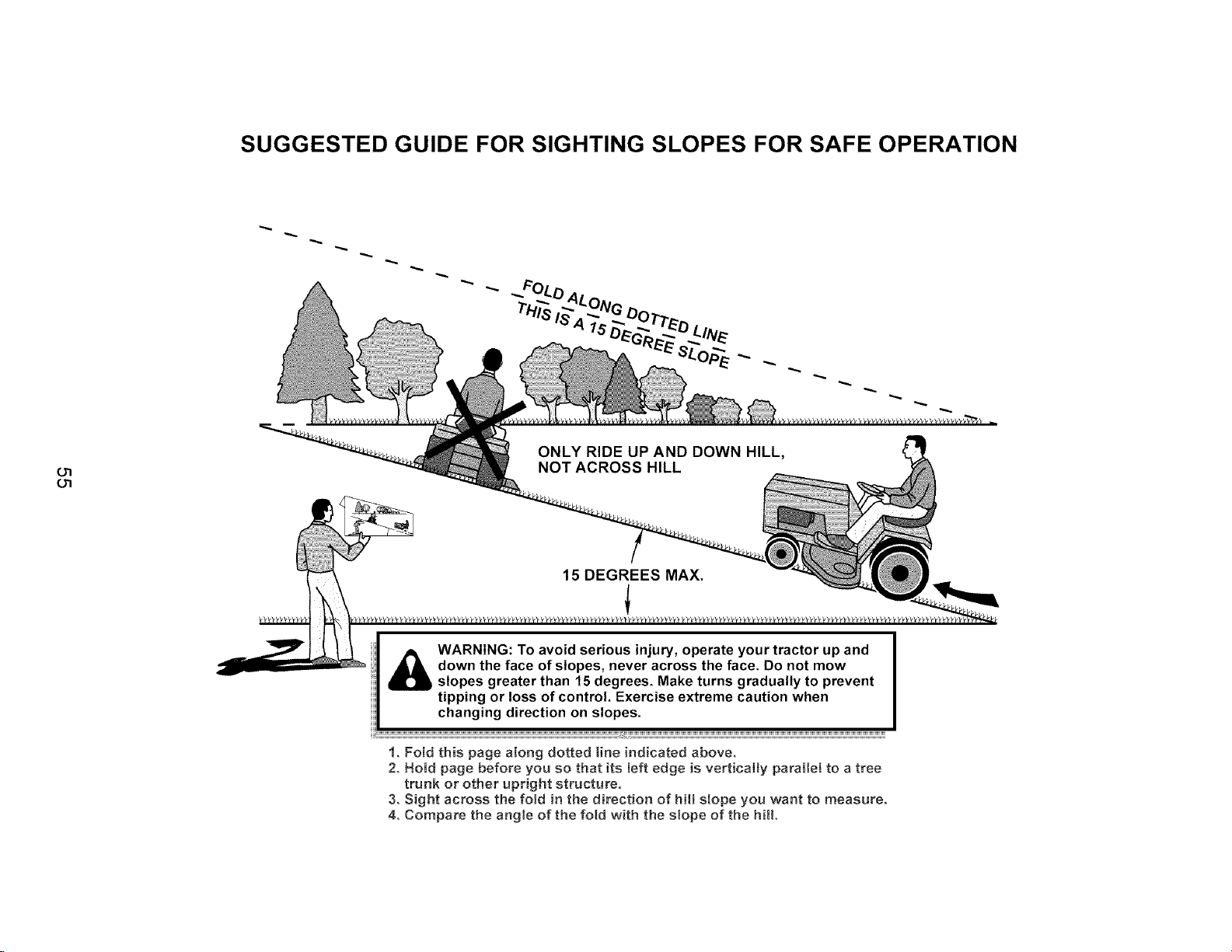

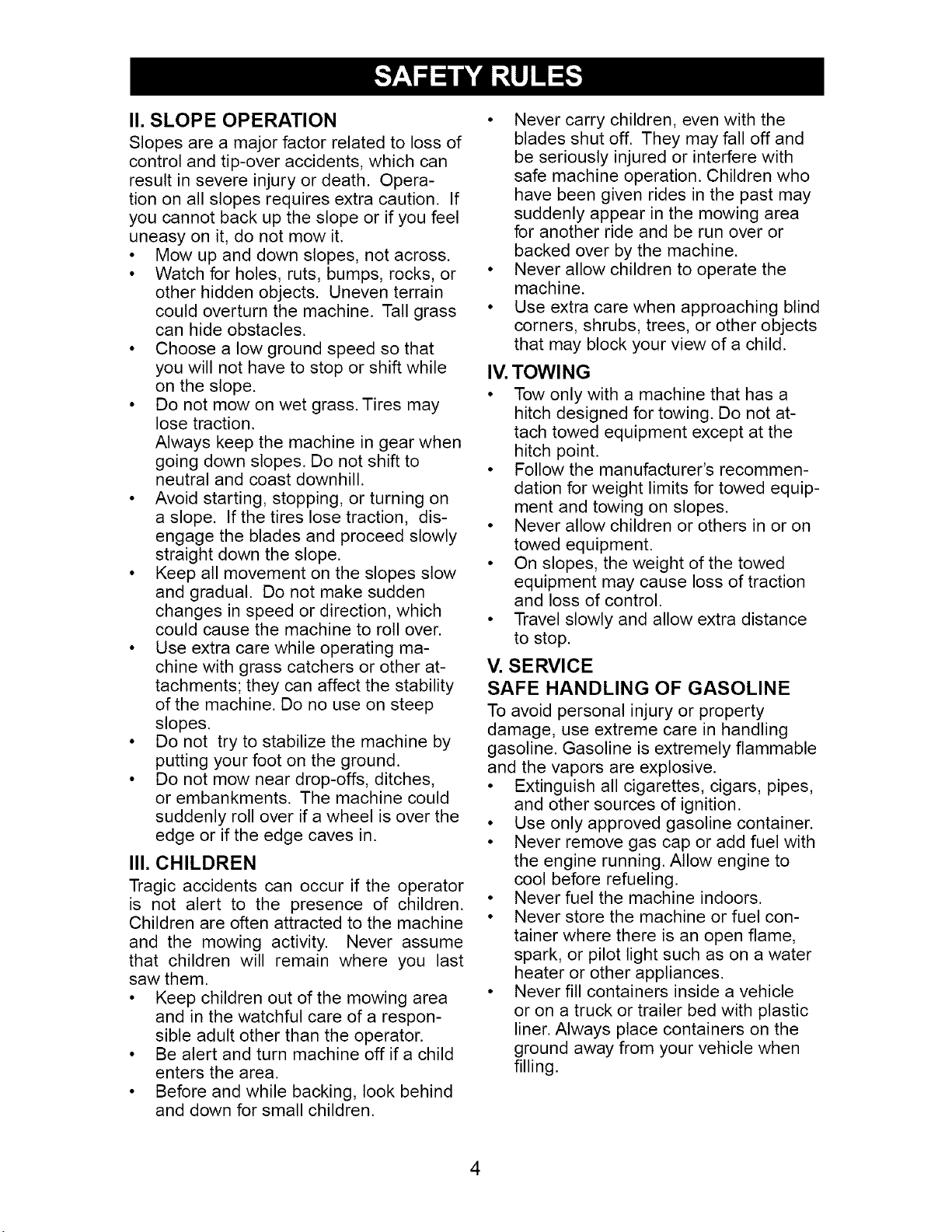

I1.SLOPE OPERATION

Slopesare a majorfactorrelatedto lossof

controlandtip-overaccidents,whichcan

resultinsevereinjuryordeath. Opera-

tion on allslopesrequiresextracaution. If

you cannotback uptheslopeor if youfeel

uneasyon it, do not mowit.

• Mowup anddownslopes,notacross.

• Watchfor holes,ruts, bumps,rocks,or

other hiddenobjects. Uneventerrain

couldoverturnthe machine.Tallgrass

canhideobstacles.

• Choosea lowgroundspeedso that

youwill nothaveto stoporshiftwhile

on theslope.

• Do notmowon wetgrass.Tiresmay

losetraction.

Alwayskeepthemachinein gearwhen

going downslopes.Do notshiftto

neutralandcoastdownhill.

• Avoidstarting,stopping,orturningon

a slope. Ifthetireslosetraction, dis-

engagethebladesand proceedslowly

straightdowntheslope.

• Keepall movementon theslopesslow

andgradual. Donot makesudden

changesin speedordirection,which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV, TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Follow the manufacturer's recommen-

dation for weight limits for towed equip-

ment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

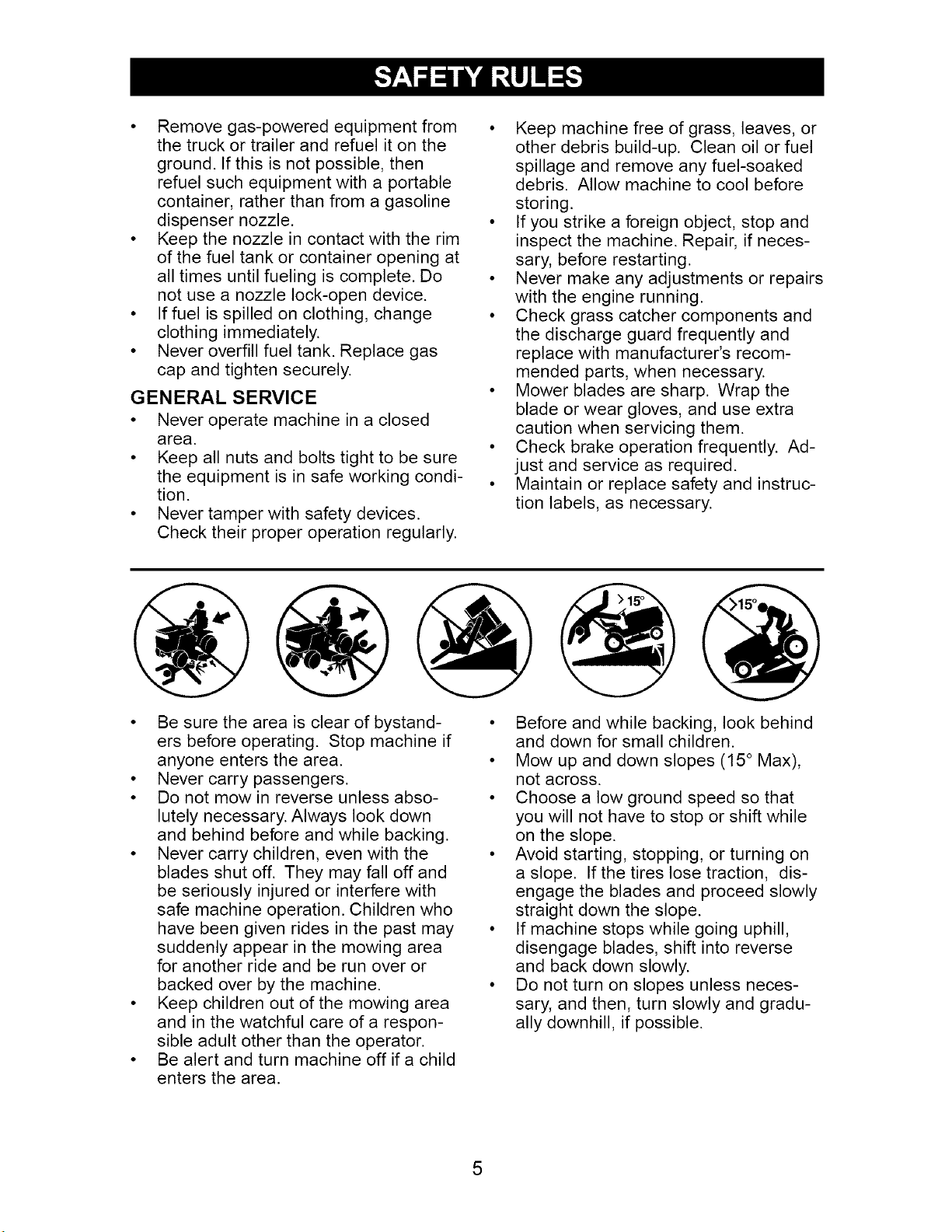

• Removegas-poweredequipmentfrom

thetruckor trailerand refuelit on the

ground.Ifthisis notpossible,then

refuelsuch equipmentwith a portable

container,ratherthanfrom agasoline

dispensernozzle.

• Keepthenozzlein contactwiththe rim

ofthefuel tankor containeropeningat

alltimesuntilfueling iscomplete.Do

notusea nozzlelock-opendevice.

• Iffuel isspilledon clothing,change

clothingimmediately.

• Neveroverfillfuel tank.Replacegas

capandtightensecurely.

GENERAL SERVICE

• Never operate machine in a closed

area.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 4.0

Capacity and Unleaded

Type: Regular

Oil Type SAE 30(above 32°F)

API-SG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed

(MPH):

Tire Pressure:

Charging System:

Battery:

Blade Bolt Torque:

Forward:

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Front: 14 PSI

Rear: 10 PSI

16 Amps @3600 RPM

Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you the

best possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

(1) Oil Drain Tube

For Future Use

Keys

Slope Sheet

(2) Keys

Your new tractor has been assembled at the factory.

When right or left hand is mentioned in this manual, it means when you are in the oper-

ating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af-

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section

of this manual for charging instructions).

Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_,WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10. Turn ignition key to "STOP" position.

Continue with the instructions that follow.

REPOSITION RIGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted upside

down on the mower. Remove the gauge

wheel assembly and reinstall from the

bottom as shown. To adjust gauge wheels,

see the Operation section in this manual.

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

JCHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

v" Be sure Operator Presence System

and Reverse Operation System (ROS)

are working properly (See the Opera-

tion and Maintenance sections in this

manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE

OPERATION

SYSTEM (ROS)

OVER TEMP

LIGHT

FUEL OIL PRESSURE

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

LIGHTS ON

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

SLOW

IGNITION SWITCH

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

,_t_llllll£1_l,,

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

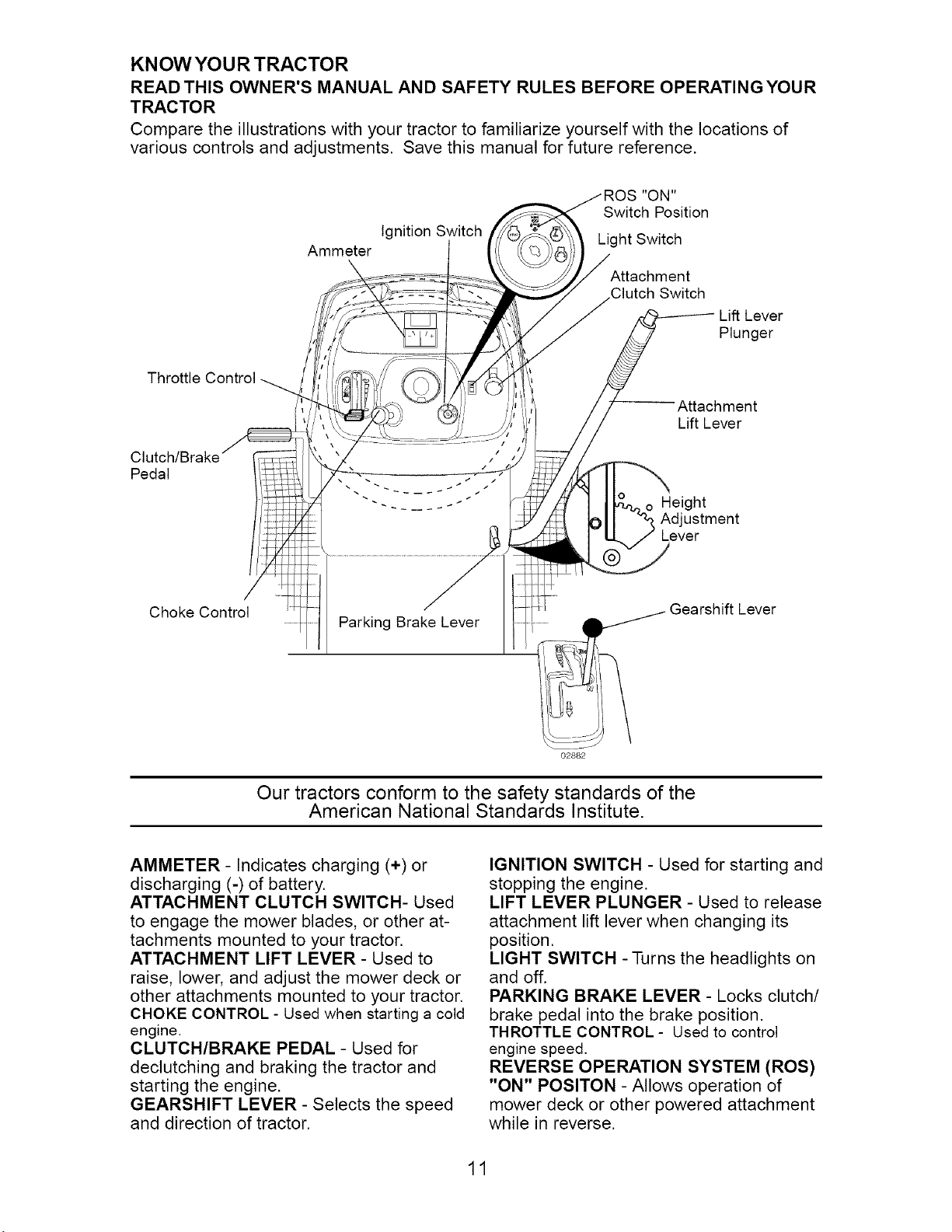

KN OW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Ignition Switch

"ON"

Switch Position

Light Switch

Attachment

Clutch Switch

Lift Lever

Plunger

Throttle Control

Attach merit

Lift Lever

Pedal

o Height

Adjustment

Lever

Choke Control

Parking Brake Lever

Gearshift Lever

02882

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH SWITCH- Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CHOKE CONTROL - Used when starting a cold

engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used to control

engine speed.

REVERSE OPERATION SYSTEM (ROS)

"ON" POSITON - Allows operation of

mower deck or other powered attachment

while in reverse.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Choke Control Attachment Clutch Switch

Pull out to "Engage"

Control

Positic

Clutch/ "Disengaged" Lever

Brake Position Push in to

Pedal Parking Brake "Disengage"

"Engaged" Position

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may cause

"browning" of grass. To eliminate this pos-

sibility, always stop engine when stopping

tractor on grass areas.

_,CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

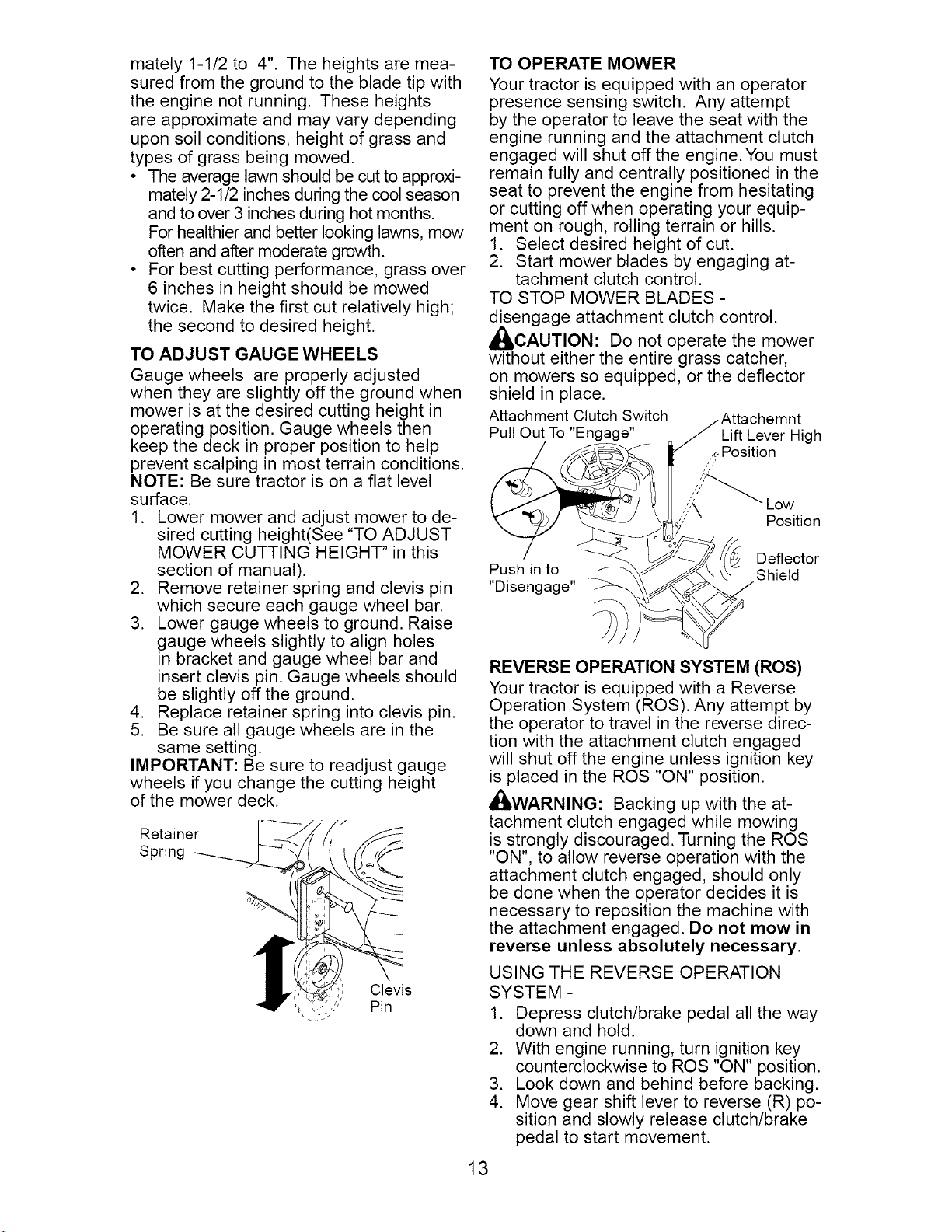

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_IbCAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch Switch

Pull Out To "Engage"

/ Attachemnt

Lift Lever High

,_ Position

";J7'_"" Low

Position

_ eflector

Shield

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse

Operation System (ROS). Any attempt by

the operator to travel in the reverse direc-

tion with the attachment clutch engaged

will shut off the engine unless ignition key

is placed in the ROS "ON" position.

_IbWARNING: Backing up with the at-

tachment clutch engaged while mowing

is strongly discouraged. Turning the ROS

"ON", to allow reverse operation with the

attachment clutch engaged, should only

be done when the operator decides it is

necessary to reposition the machine with

the attachment engaged. Do not mow in

reverse unless absolutely necessary.

USING THE REVERSE OPERATION

SYSTEM -

1. Depress clutch/brake pedal all the way

down and hold.

2. With engine running, turn ignition key

counterclockwise to ROS "ON" position.

3. Look down and behind before backing.

4. Move gear shift lever to reverse (R) po-

sition and slowly release clutch/brake

pedal to start movement.

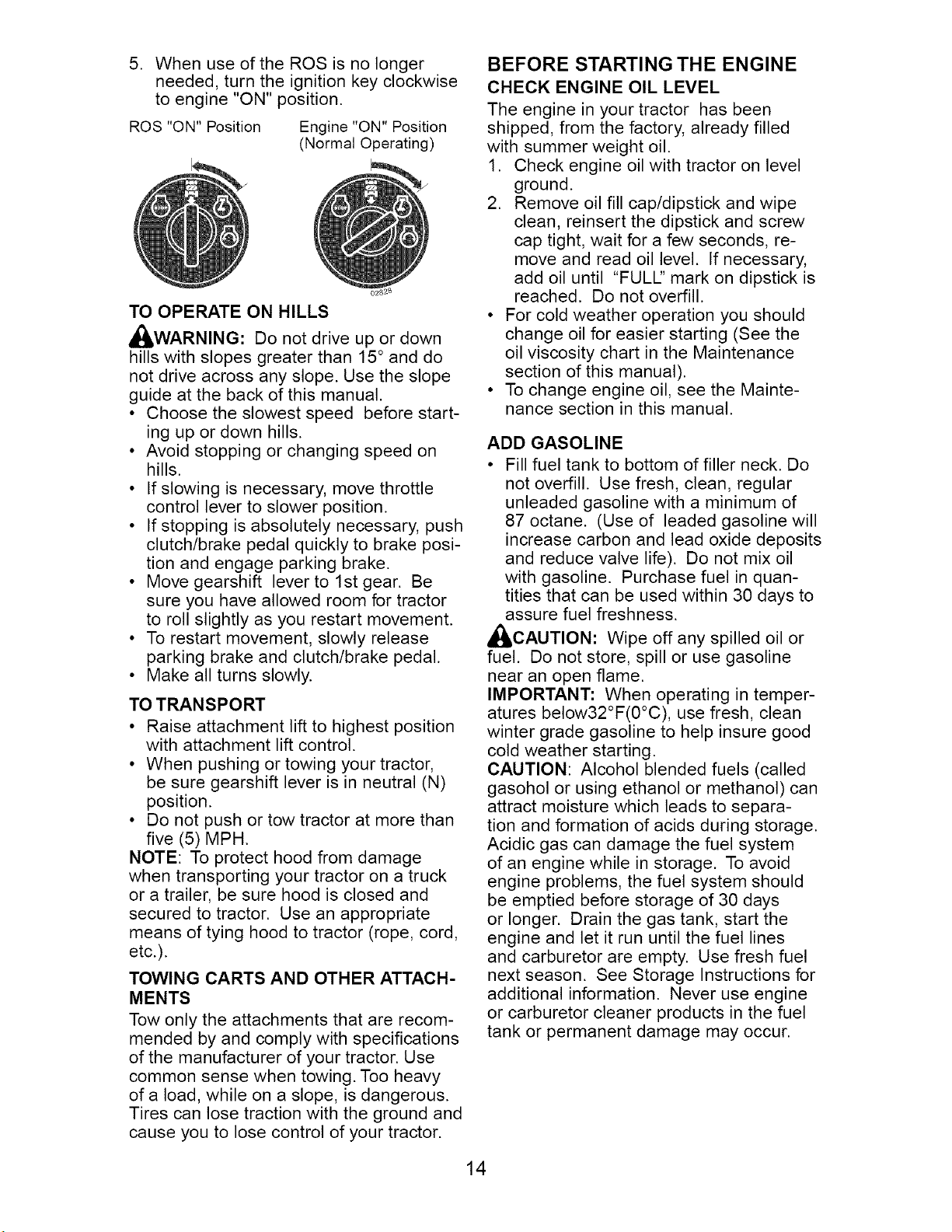

5. When use of the ROS is no longer

needed, turn the ignition key clockwise

to engine "ON" position.

ROS "ON" Position

Engine "ON" Position

(Normal Operating)

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

,_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

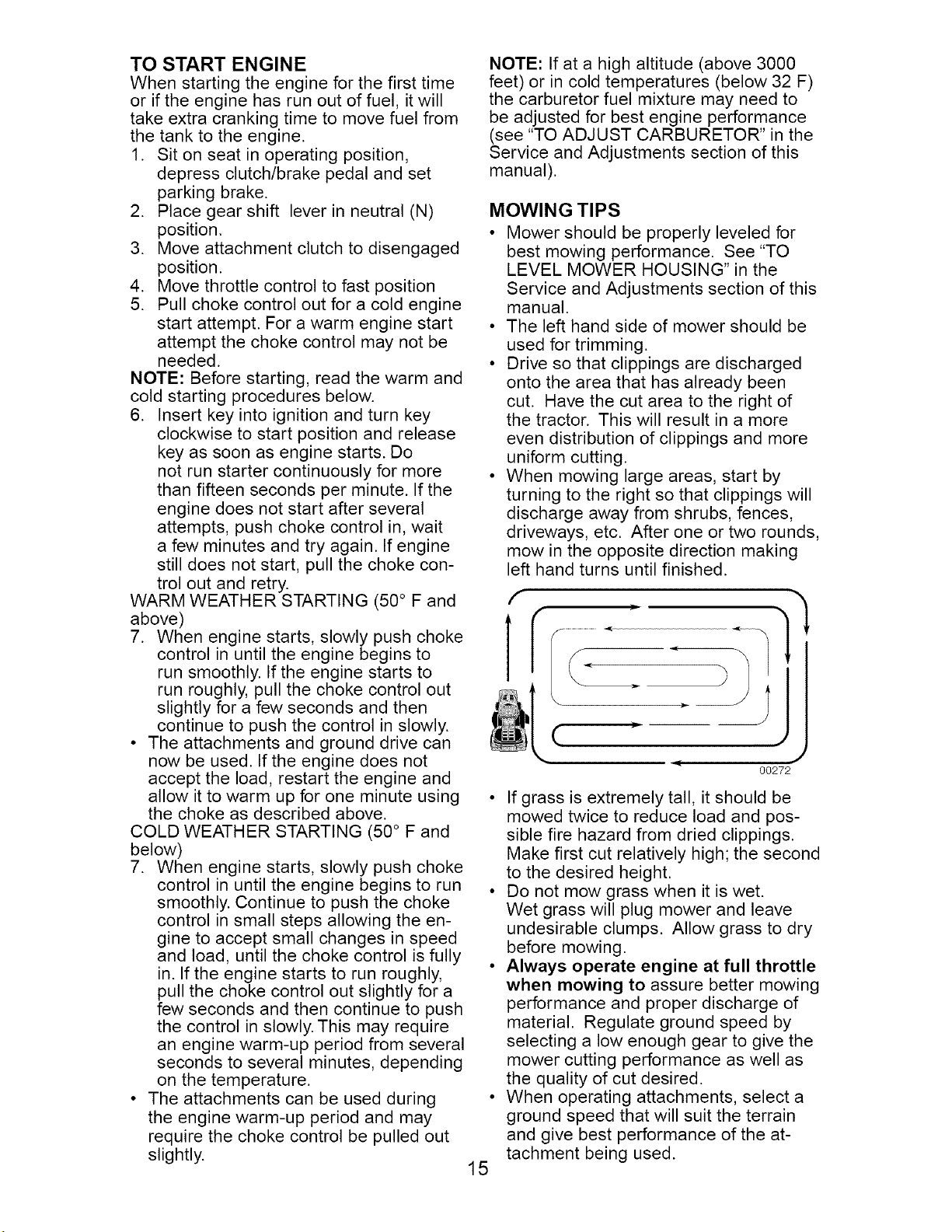

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

(

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

F,LL,NDATES

As COMPLETE ......

REGULARSERV,OE f y4 TSERV'OE DATES

Check Brake Operation If If

Check Tire Pressure if

Check Operator Presence and

T ROS Systems li_

R Check for Loose Fasteners ti_ I_s if

A Sharpen/Replace Mower Blades 1_3

C Lubrication Chart tf I_

0 Check Battery Level _4

R Clean Battery and Terminals If if

v'Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level _ If

Change Engine Oil (with oil filter) _$1, 2

E Change Engine Oil (without oil filter) _1,2

N Clean Air Filter _1_2

G Clean Air Screen _1#2

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) 1_.2

Clean Engine Cooling Fins if 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

ROS systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

@ SF -- @ Spindle

Zerk Zerk

@Front Wheel ,- i @Front Wheel

Bearing Bearing Zerk

Zerk

_SAE 30 or 10w30 Motor Oil

@General Purpose Grease

(gPReferto Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

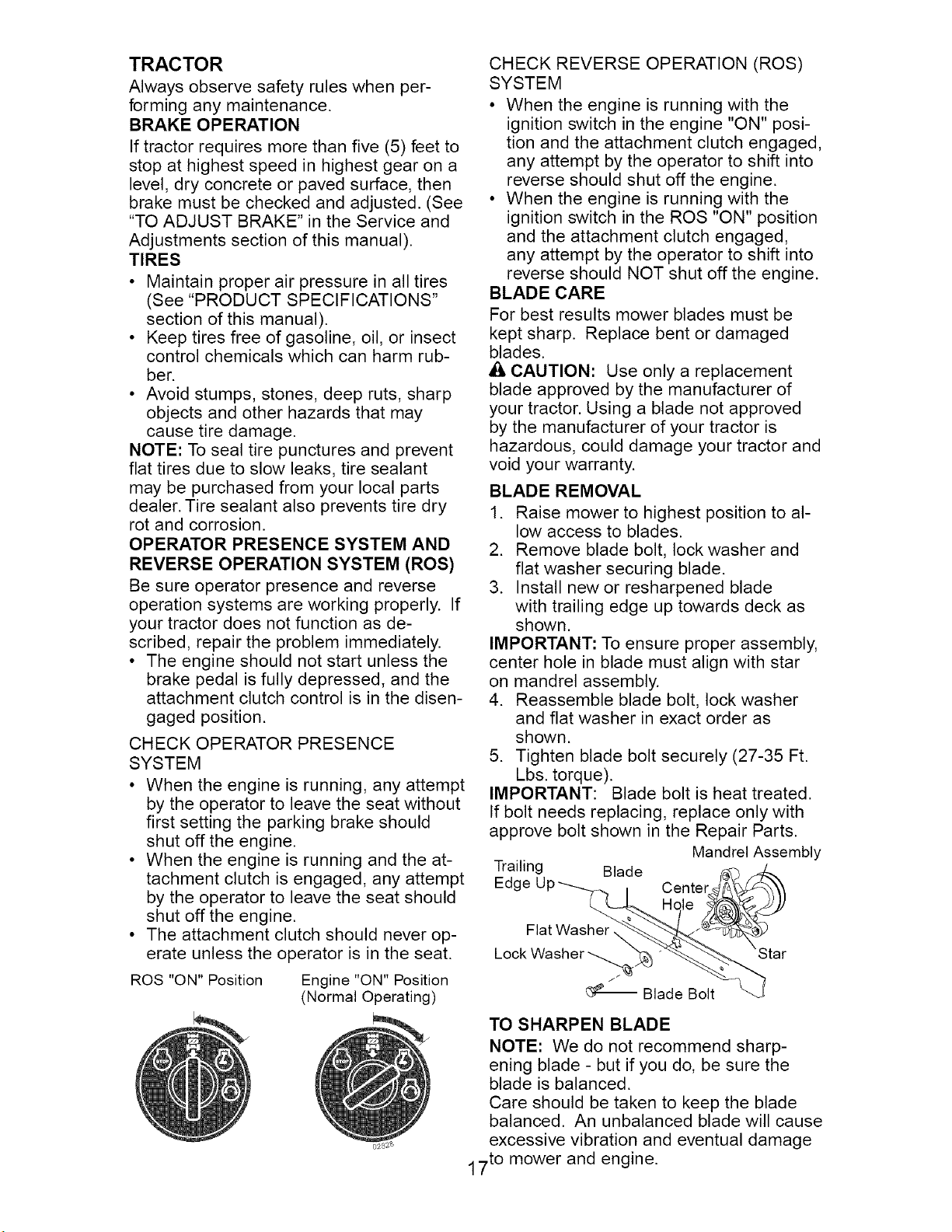

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM AND

REVERSE OPERATION SYSTEM (ROS)

Be sure operator presence and reverse

operation systems are working properly. If

your tractor does not function as de-

scribed, repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed, and the

attachment clutch control is in the disen-

gaged position.

CHECK OPERATOR PRESENCE

SYSTEM

• When the engine is running, any attempt

by the operator to leave the seat without

first setting the parking brake should

shut off the engine.

• When the engine is running and the at-

tachment clutch is engaged, any attempt

by the operator to leave the seat should

shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

ROS "ON" Position

Engine "ON" Position

(Normal Operating)

CHECK REVERSE OPERATION (ROS)

SYSTEM

• When the engine is running with the

ignition switch in the engine "ON" posi-

tion and the attachment clutch engaged,

any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the

ignition switch in the ROS "ON" position

and the attachment clutch engaged,

any attempt by the operator to shift into

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

A CAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor and

void your warranty.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel Assembly

Trailing Blade

Edge Center,

Flat Washer ,,

Lock Washer _

Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

17 t° mower and engine.

• The bladecanbe sharpenedwith afile

oron agrindingwheel. Do not attempt

tosharpenwhileon themower.

• Tocheckbladebalance,youwill needa

5/8"diametersteel bolt,pin,ora cone

balancer. (Whenusinga conebalancer,

followtheinstructionssuppliedwith

balancer.)

NOTE: Donotuse a nailfor balancing

blade.Thelobesof thecenterholemay

appearto be centered,butare not.

• Slidebladeon to anunthreadedportion

ofthesteel boltor pinandholdthe

boltor pinparallelwith theground. If

bladeisbalanced,itshould remainin a

horizontalposition. Ifeitherendof the

blademovesdownward,sharpenthe

heavyend untilthe bladeisbalanced.

5/8" Bolt

Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

-20 0 30 32 40 60 80 100

-30 -20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

o_1 vi_c ch_,_tl ÷

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°E

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before starting

the engine and after each eight (8) hours

of operation. Tighten oil fill cap/dipstick se-

curely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and

Locked

Position

Yellow Cap Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

or dry cartridge.

Cover

Cartridge

Foam

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

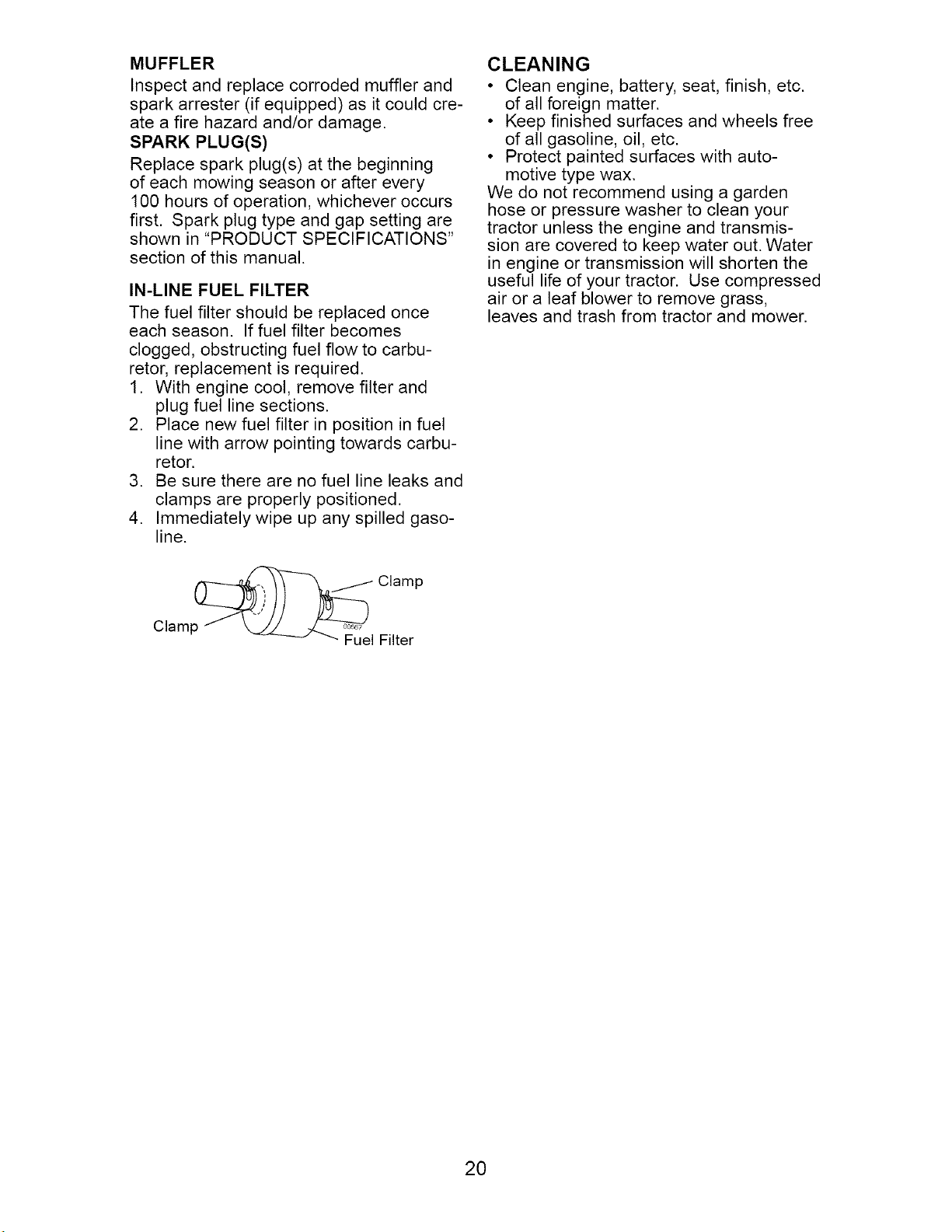

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

p_ Clamp

Clam _7

I Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch switch in "DIS-

ENGAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off electric clutch pulley.

4. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

5. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

6. Disconnect front links from deck by

removing retainer springs.

7. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Install belt into electric clutch pulley

groove.

Suspension Arms

Electric Clutch Pulley

Link

Retainer

Spring

Anti-Sway

Bar

Retainer Springs

(Both Sides)

Shield

Retainer Spring

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

6.0 Recheck measurements after ad-

justing.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

_._ uspension

lift Link

AdJtustment

Mandrel

BOTH FRONT LINKS MUST BE EQUAL IN

LENGTH

/01267

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Front Trunnion

Links

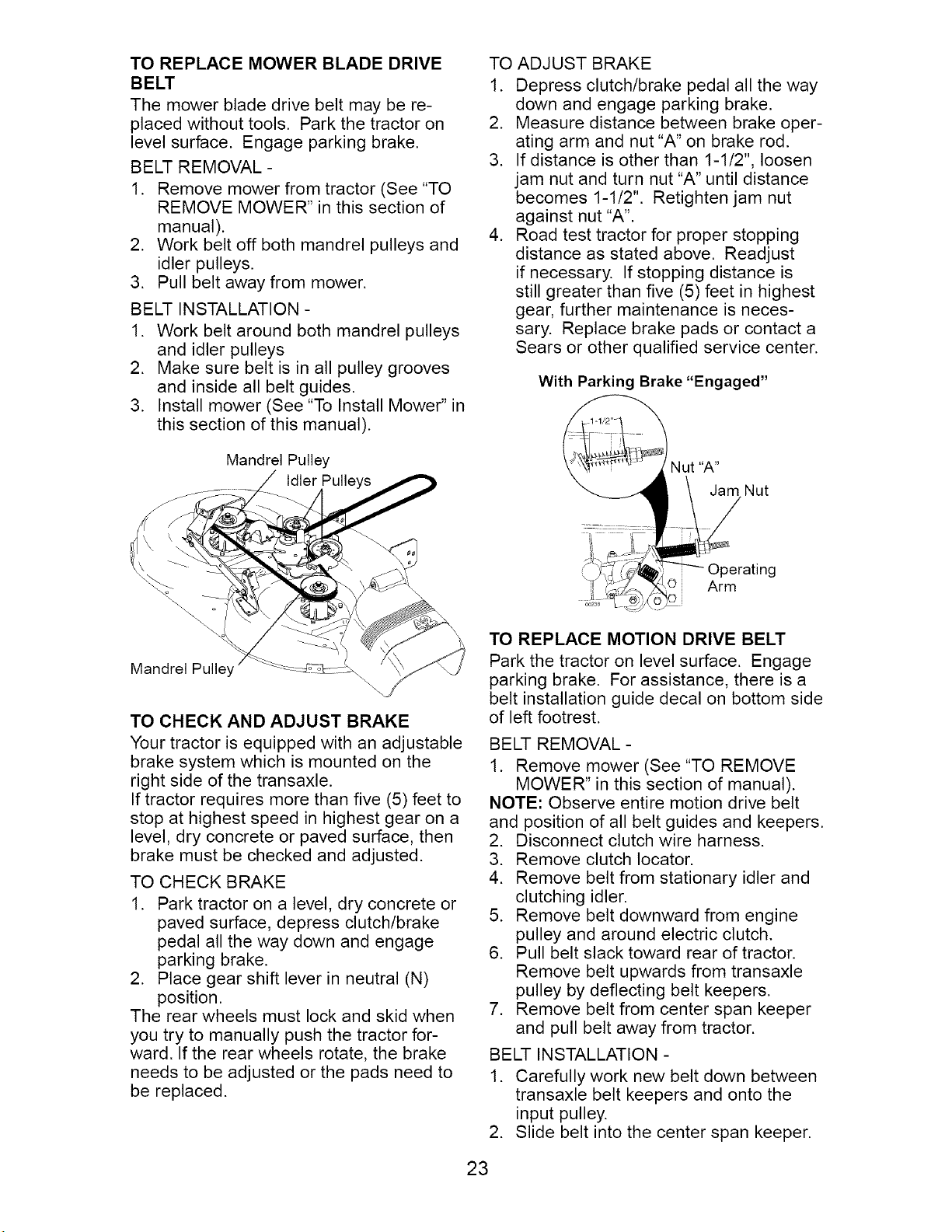

TO REPLACE MOWER BLADE DRIVE TO

BELT 1.

The mower blade drive belt may be re-

placed without tools. Park the tractor on 2.

level surface. Engage parking brake.

BELT REMOVAL - 3.

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual). 4.

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel Pulley

Idler Pulleys

ADJUST BRAKE

Depress clutch/brake pedal all the way

down and engage parking brake.

Measure distance between brake oper-

ating arm and nut "A" on brake rod.

If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake )ads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

o Arm

Mandrel Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

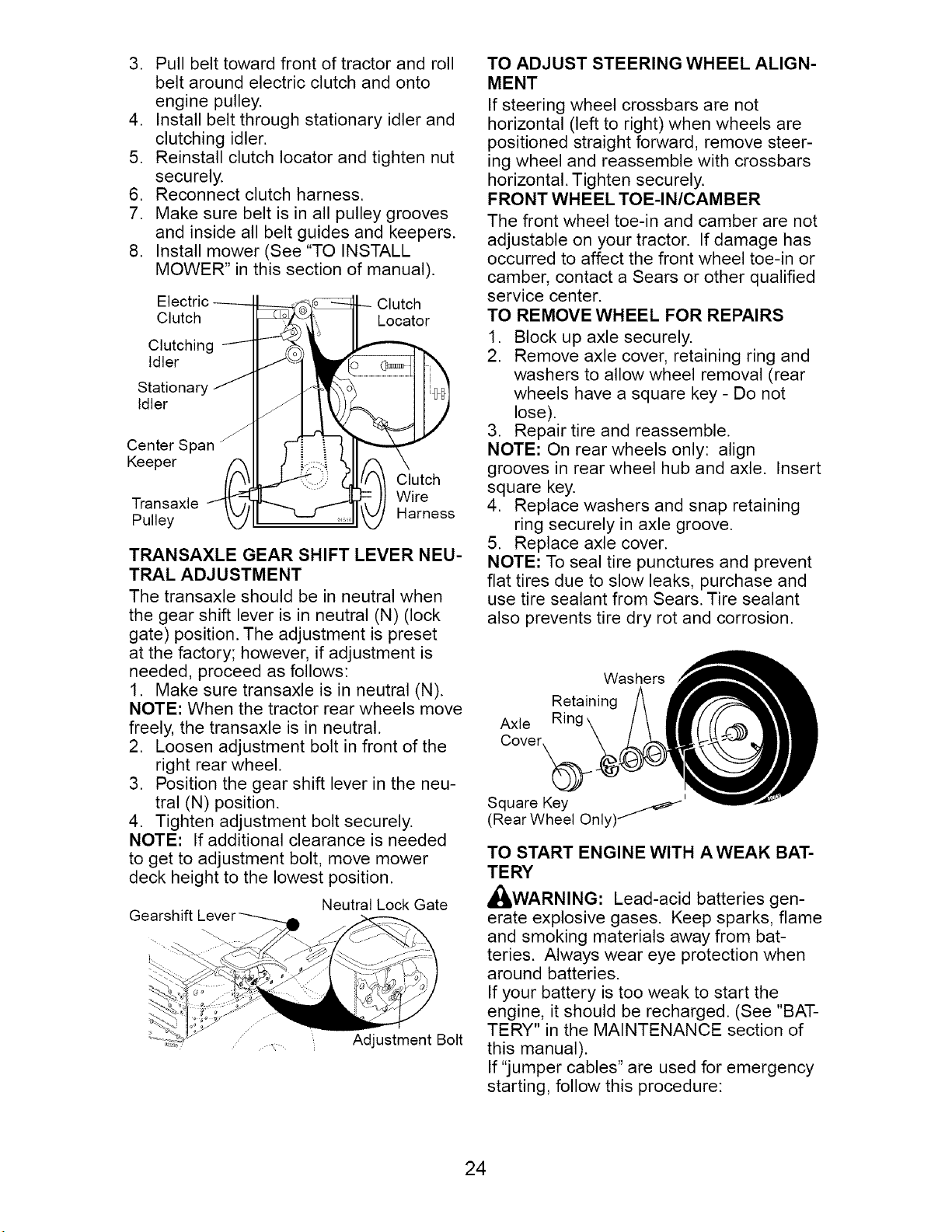

3. Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch Iocator and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

8. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Clutch

Clutching

Idler

Clutch

Locator

Stationary

Idler

Center Span

Keeper

Clutch

Transaxle Wire

Pulley Harness

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift

Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Axle

Cover

Square Key

(Rear Wheel Only) --''j'_

TO START ENGINE WITH AWEAK BAT-

TERY

_,WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

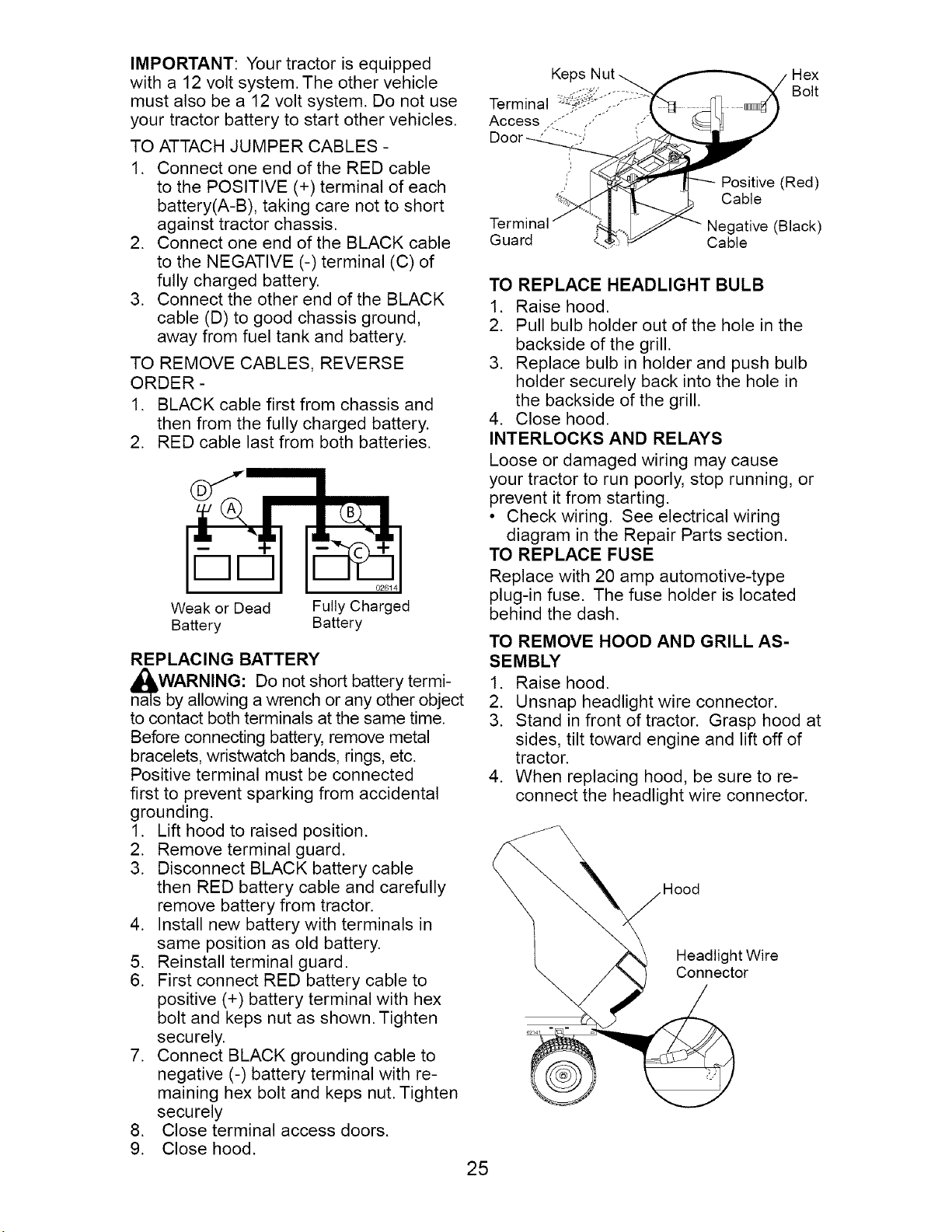

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

n_asWARNING: Do not short battery termi-

by allowing a wrench or any other object

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

KepsNut_ _ /Hex

Terminal _"__ Bolt

Access .<'

Door "Y '{"-

_="- _ Positive (Red)

. _ Cable

Terminal" ,_.,, _/-"_ _ Negative (Black)

Guard L 4_ Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

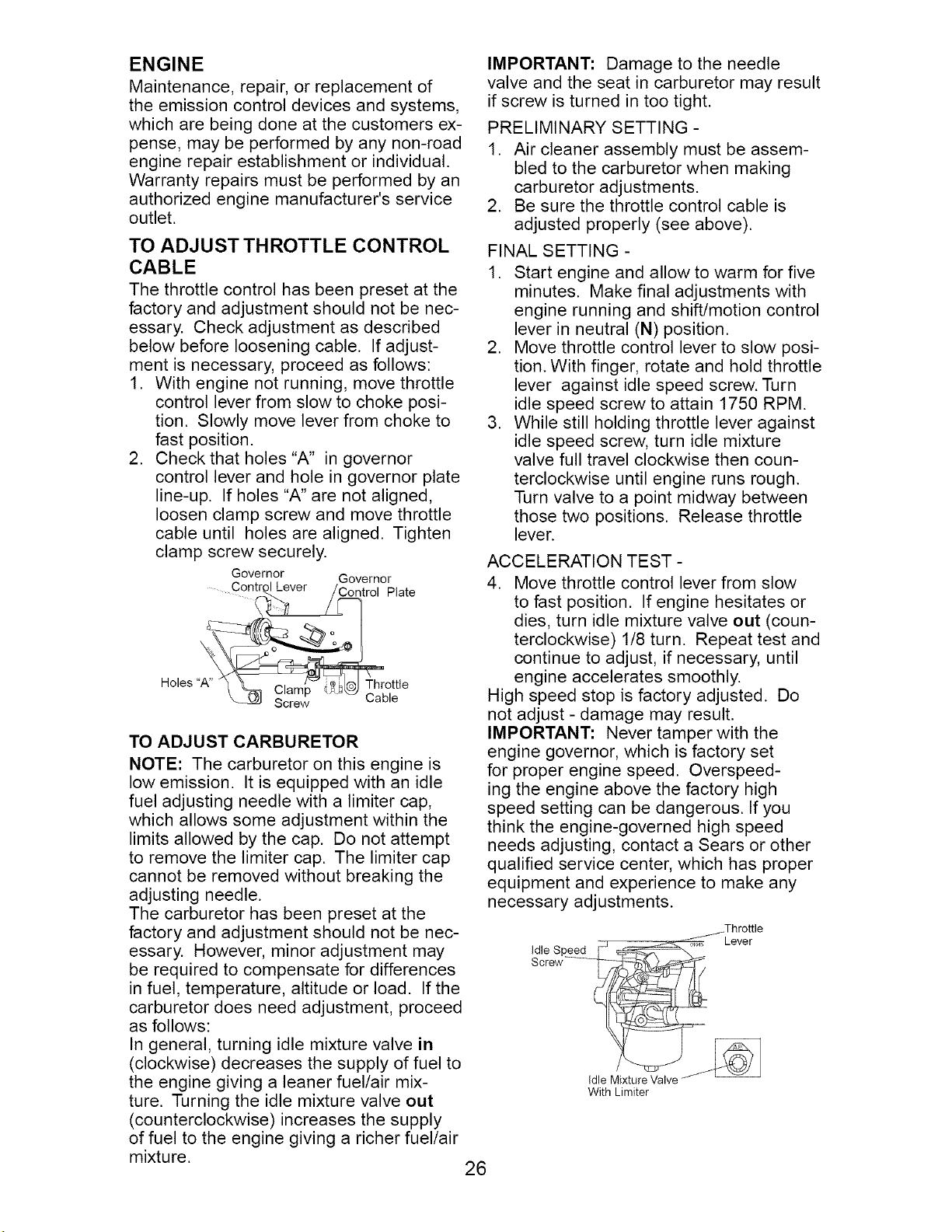

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Governor

Lever /Control Plate

Holes "A" Clamp Throttle

Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Mixture Valve /

With Limiter

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_ICAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

3ORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

PROBLEM

Loss of power

Excessive

vibration

Engine dies when

tractor is shifted

into reverse

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut - uneven

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

Reverse operation system

(ROS) is not "ON" while

mower or other attachment

is engaged.

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

1. Turn ignition key to

ROS "ON" position.

See Operation section.

Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

Mower blades will

not rotate

PROBLEM CAUSE CORRECTION

1. Remove obstruction.

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not set

between half and full speed

(fast) position before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control

between half and full speed

(fast) position before

stopping engine.

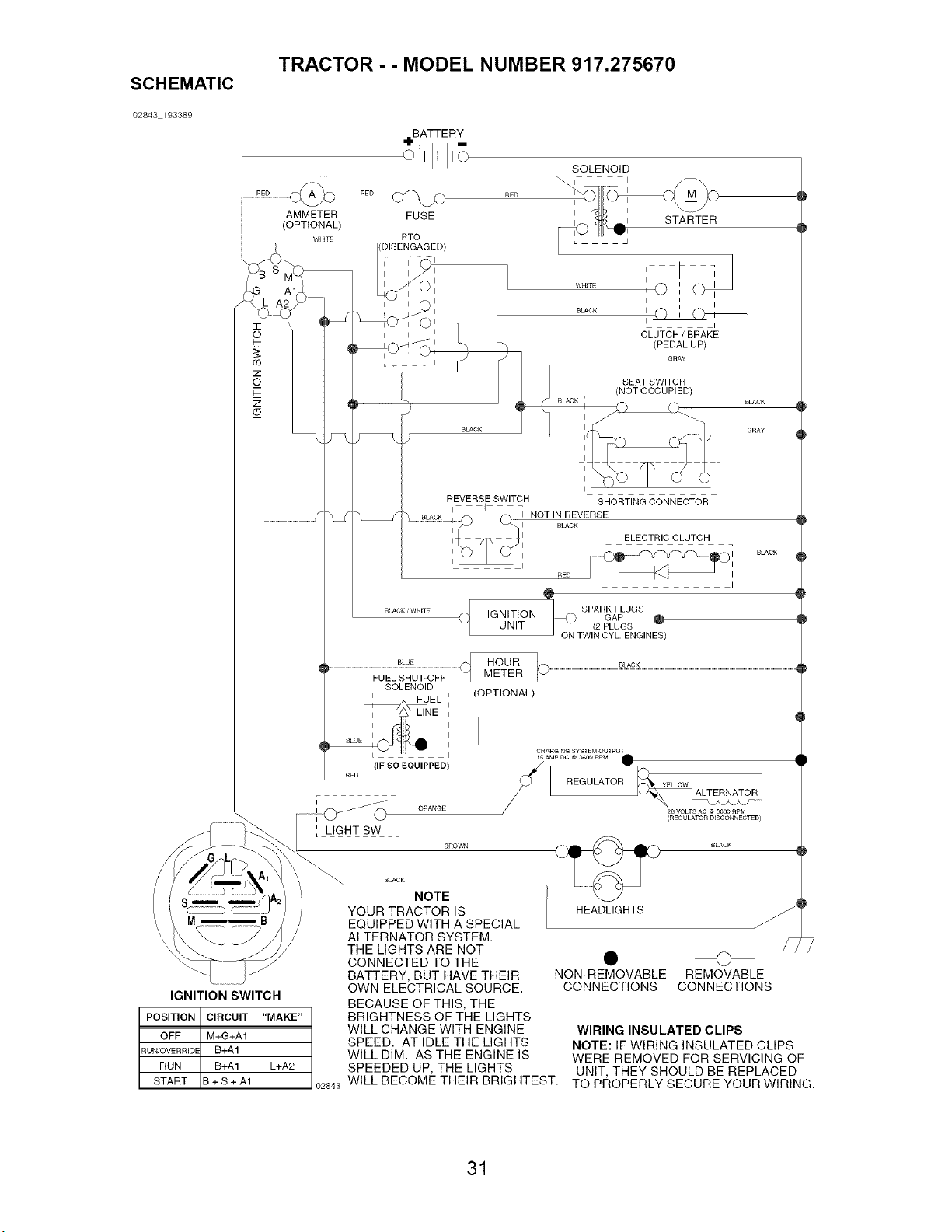

SCHEMATIC

02843 193389

TRACTOR - - MODEL NUMBER 917.275670

BATTERY

SOLENOID

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1

RUN/OVERRIDE B+A1

RUN B+A1 L+A2

START 3 + S + A1

J SPARK PLUGSGAP 0

IGNITION

L UNIT (2PLUGS

ON TW N CYL. ENG NES

HOUR

METER

SOLENOID

I FUEL i (OPTIONAL)

I LINE I

I I

CHARGING SYSTEM OUTPUT

15 AMP PC @ 36OORPM _

RED REGULATOR YELLOW

ALTERNATOR

28 VOLTS AC @ 3600 RPM

(REGULATOR D_SCONNECTED)

LIGHT SW

[

02843

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

HEADLIGHTS

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

UNIT, THEY SHOULD BE REPLACED

WILL BECOME THEIR BRIGHTEST. TO PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.275670

i i/

I I

/ \

\ /

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.275670

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2

11 150109 Holddown, Battery, Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, interlock

21 175688 Harness, Light

22 4152J Bulb Light #1156

24 8860R Cable Starter

25 146148 Cable

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 unc

28 145491 Cable, Ground

29 192749 Switch, Seat

30 193350 Switch, ignition

33 140403 Key

34 110712X Switch Light/Reset

40 193389 Harness, Ignition

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover Terminal

43 178861 Solinoid w/brass plunger

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Protection Wire Loop

55 17490508 Screw, Thd. Roll 5tl 6-18 x 1/2

79 175242 Socket Asm Bulb Twistlock

92 193465 Harness Pigtail Reverse Switch

93 192540 Screw Plastite 10-24 x 2.0

94 191834 Module Reverse ROS

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

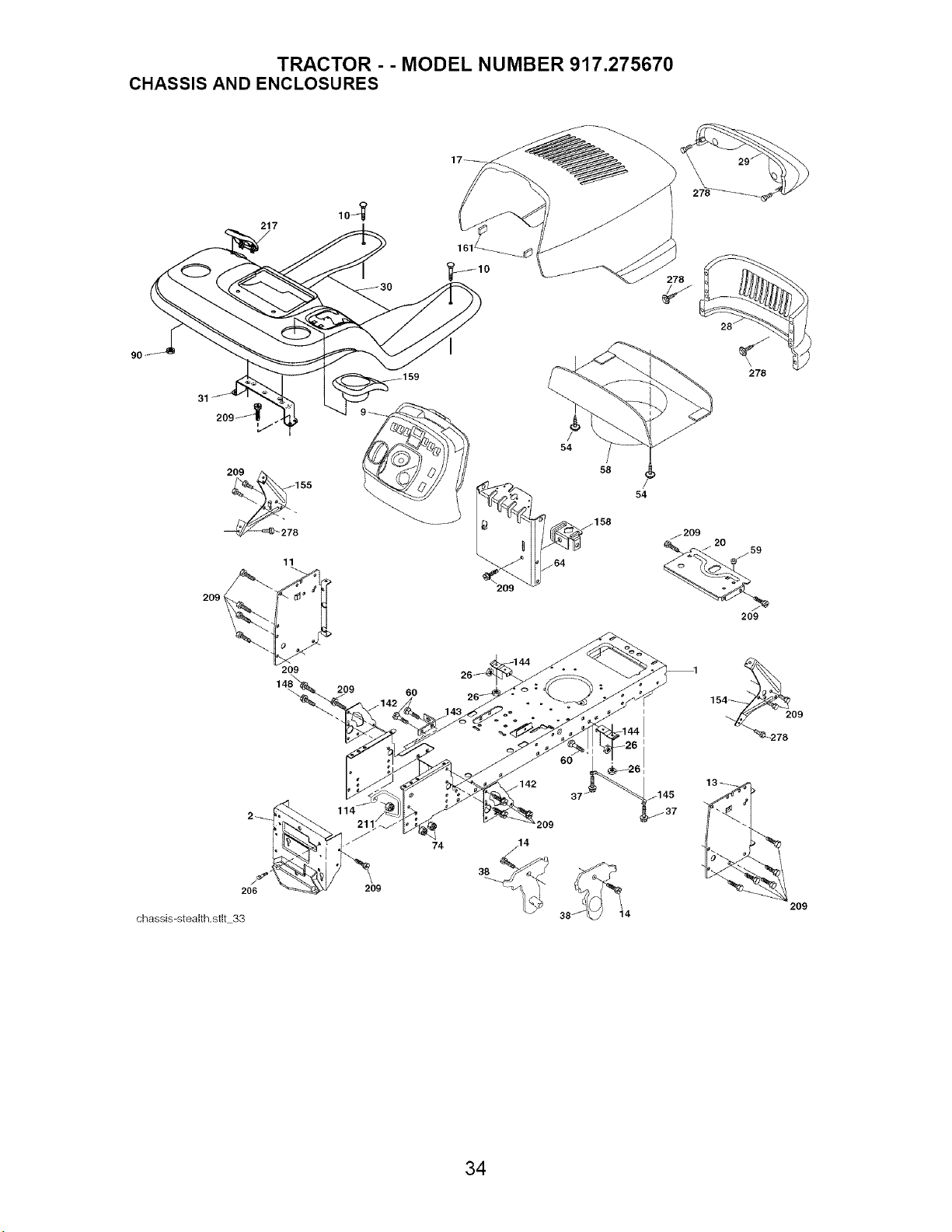

TRACTOR - - MODEL NUMBER 917,275670

CHASSIS AND ENCLOSURES

217

209 _

209

209 __

209

206

chassis-stealth,stlt 33

10_

209

278

209

//20 59

209

TRACTOR - - MODEL NUMBER 917,275670

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

9 193636X428 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 167203 Panel, Dash, LH

13 188702X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 175260X428 Hood Assembly

20 162026 Plate Battery

26 STD541437 Locknut, Hex, with insert 3/8-16 uric

28 174515X428 Grille

29 161840 Lens Bar

30 192395X428 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

54 192512 Screw Wshd Hex 10-32 x 5/8

58 175351 Duct Hood

59 187495 Bushing

60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownlock 3/8-16 uric

90 124346X Nut Self-Thd Wsh-Hd 1/4

114 158112 Keeper Belt Rear LH

142 175702 Plate Reinforcement

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod Pivot Chassis/Hood

148 17060620 Screw 3/8-16 x 1-1/4

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 191120X428 Cupholder

161 164655 Bumper

206 170165 Bolt Shoulder 5/16-18

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

211 145212 Nut Hexflange Lock

217 179132X428 Console Fuel Window

278 191611 Screw 10 x 3/4 Single Lead Hex

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,275670

GROUND DRIVE

drive-fender.stlt 32

TRACTOR - - MODEL NUMBER 917,275670

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transaxle Peerless 206-545C 56 17060620

(See Breakdown) 57 130801

2 146682 Spring, Return, Brake 59 169691

3 123666X Pulley, Transaxle 61 17120614

4 12000028 Ring, Retainer 62 123533X

5 121520X Strap, Torque 63 174607

6 17060512 Screw 5/16-18 x 3/4 65

8 192502 Rod Shifter Fender STLT 66

9 180505 Clutch 69

10 STD561210 Pin, Cotter 74

11 105701X Washer, Shift Plate 75

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 76

14 10040400 Washer Lock Hvy Helical 77 123583X

15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5 78 121748X

16 STD541431 Nut Lock HxW/Ins 5/16-18 unc 79 STD580025

17 126197X Washer 80 145090

1-1/20D x 15/32 ID x .250 81 165592

18 STD523710 BoltFinHex3/8-16uncxlGr. 5 82 165711

19 STD541437 Nut 83 19171216

20 173937 Bolt Hex 7/16-20 x 4-1/4 Gr. 5-1.5 84 166231

21 106933X Knob 85 150360

22 130804 Rod, Brake 89

23 190736 Bracket Anti-Rotation 96 STD624003

24 STD541237 Nut 112 19091210

25 106888X Spring, Brake Rod 113 127285X

26 STD551037 Washer 120 73900600

27 STD561210 Pin 150 175456

28 175765 Rod, Parking Brake 151 19133210

29 124236X Cap, Parking Brake 156 166002

30 169592 Bracket, Transaxle 158 165589

32 STD523107 Bolt 159 183900

34 175578 Shaft Assembly, Foot Pedal 161 72140406

35 120183X Bearing, Nylon 162 73680400

36 STD551062 Washer 163 74780416

37 STD571810 Roll Pin 165 165623

38 179114 Pulley, Composite, Flat 166 17490510

39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 168 165492

41 175556 Keeper, Belt, Idler 169 165580

47 127783 Pulley, idler, V-Groove, Plastic 170 187414

48 154407 Bellcrank Clutch Grnd Drv Stl 197 169613

49 123205X Retainer, Belt 198 169593

50 72110612 Bolt 202 72110614

51 STD541437 Nut Crown Lock 3/8-16 uric 254 17000616

52 STD541431 Nut Crown Lock 5/16-18 unc

53 105710X Link, Clutch

55 105709X Spring, Clutch Return

DESCRIPTION

Screw 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, Center Span

Screw 3/8-16 x .875

Cover, Pedal

Pulley, Engine

STD551143 Washer

154778 Keeper, Belt, Engine, Fool Proof

142432 Screw Hex Wsh Hi-Lo 1/4-1/2 unc

137057 Spacer, Axle

121749X Washer 25t32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

Key, Square 2.0 x .1845/1865

Washer 25132 x 1-518 x 16 Ga.

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

192388X428 Console, Shift, STLT

Retainer Spring

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Nut Lock Fig. 3/8-16 unc

Spacer Retainer

Washer 13132 x 2 x 10 Ga.

Washer Srrted 5116 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 uric

Bolt Hex Fin 1/4-20Unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5t16-18 x 5t8 TT Yellow

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snap-In

Washer, Nyl.

Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5

Screw 3/8-16 x 1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

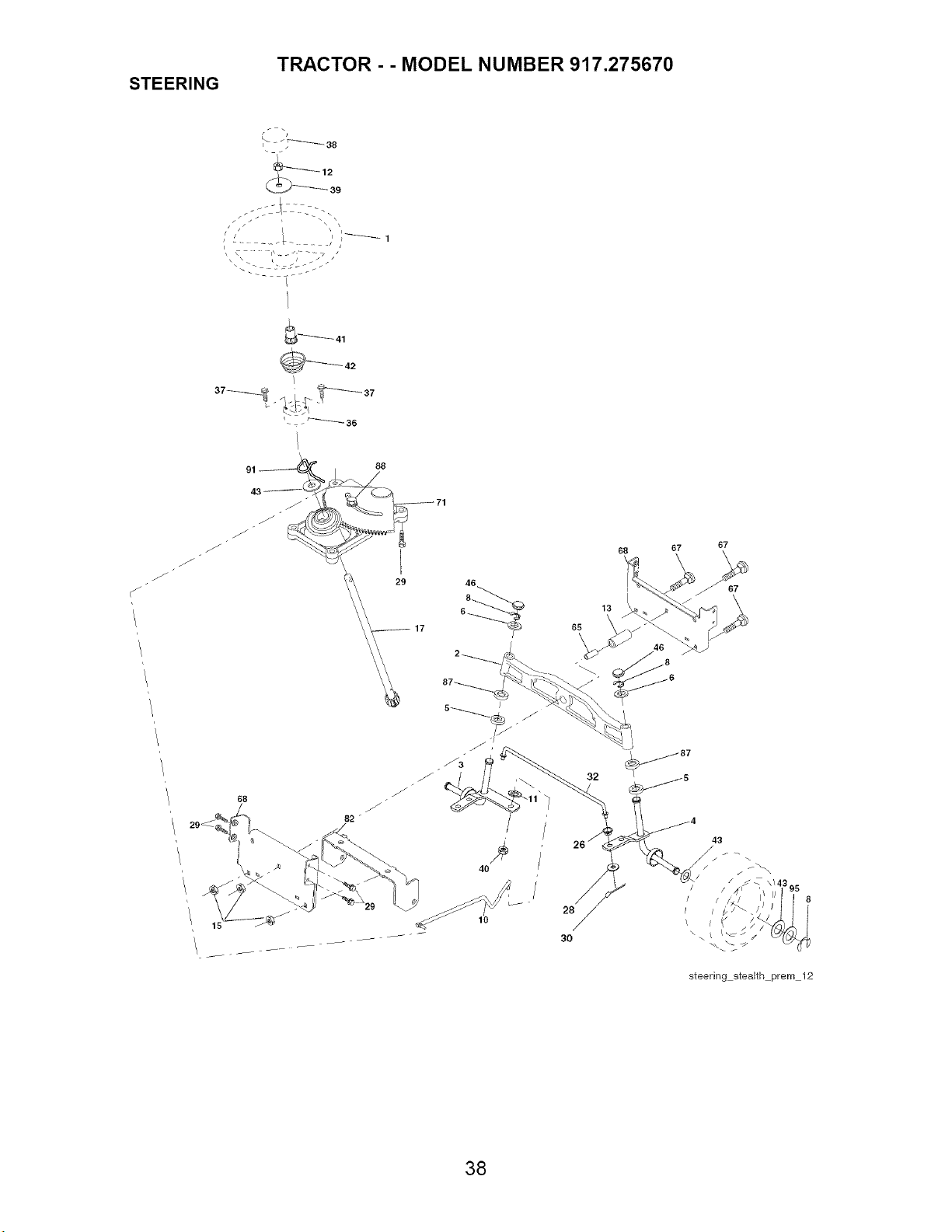

STEERING

TRACTOR - - MODEL NUMBER 917,275670

/ :

L _ 38

_39

67 67

steering stealth prem 12

STEERING

TRACTOR - - MODEL NUMBER 917,275670

KEY PART

NO. NO. DESCRIPTION

1 186094X428 Wheel Steering

2 184706 Axle Asm

3 169840 Spindle Asm LH

4 169839 Spindle Asm RH

5 6266H Bearing Race Thrust Harden

6 121748X Washer 25132 x 1-5/8 x 16 Ga.

8 12000029 Ring Klip #t5304-75

10 175121 Link Drag

11 STD551137 Washer Lock Hvy Hlcl Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm. Steering

26 126847X Bushing Link Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3t8-16 x 3/4

30 76020412 Pin Cotter 1/8 x 3/4

32 192757 Rod Tie

36 155105 Bushing Strg

37 152927 Screw

38 186095X428 Insert Cap Strg Wh

39 19183812 Washer 9/16 x 2-3/8 x 12 Ga.

40 73540500 Crownlock Nut 5/16-24 unf

41 186737 Adaptor Wheel Strg

42 163888X428 Boot Steering

43 121749X Washer 25132 1 1/4 x 16 Ga.

46 184946X505 Cap Spindle

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sqnk 318-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .15

88 175118 Bolt Shoulder 7/16-20 unc

91 175553 Clip Steering

95 188967 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917,275670

112

OPTIONAL EQUIPMENT

Spark Arrester

engine=bs intek-twin 39

-81

KEY

NO.

PART KEY PART

NO. DESCRIPTION NO. NO.

175437X505 Control Throttle 29

191611 Screw 10 x 3/4 Single Lead Hex 31

Engine, B&S Model 32

445677-0413-E 1(See Breakdown) 33 123487X

149723 Muffler 37 8543R

160589 Exhaust Tube RH 38 181654

159955 Exhaust Tube LH 41 139277

171877 Bolt 5/16-18 unc x 3/4 w/Sems 45 17000612

162797 Shield Browning 72 183916

165391 Muffler Gasket 81 73510400

148456 Tube Drain oil 112 3645J

17060624 Screw 3t8-16 x 1-1/2 SMGML

169837 Shield Heat

187767X505 Control Choke

DESCRIPTION

137180 Kit Spark Arrestor(Flat Scrn)

179022 Tank Fuel

179124X428 Cap Asm Fuel

Clamp Hose Black

Line Fuel

Plug Drain Oil Easy

Stem Tank Fuel

Screw Hexwsh Thdr 3/8-16 x 3/4

Screw Socket Head 5/16-18 x 1

Nut Keps Hex 1/4-20 unc

Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

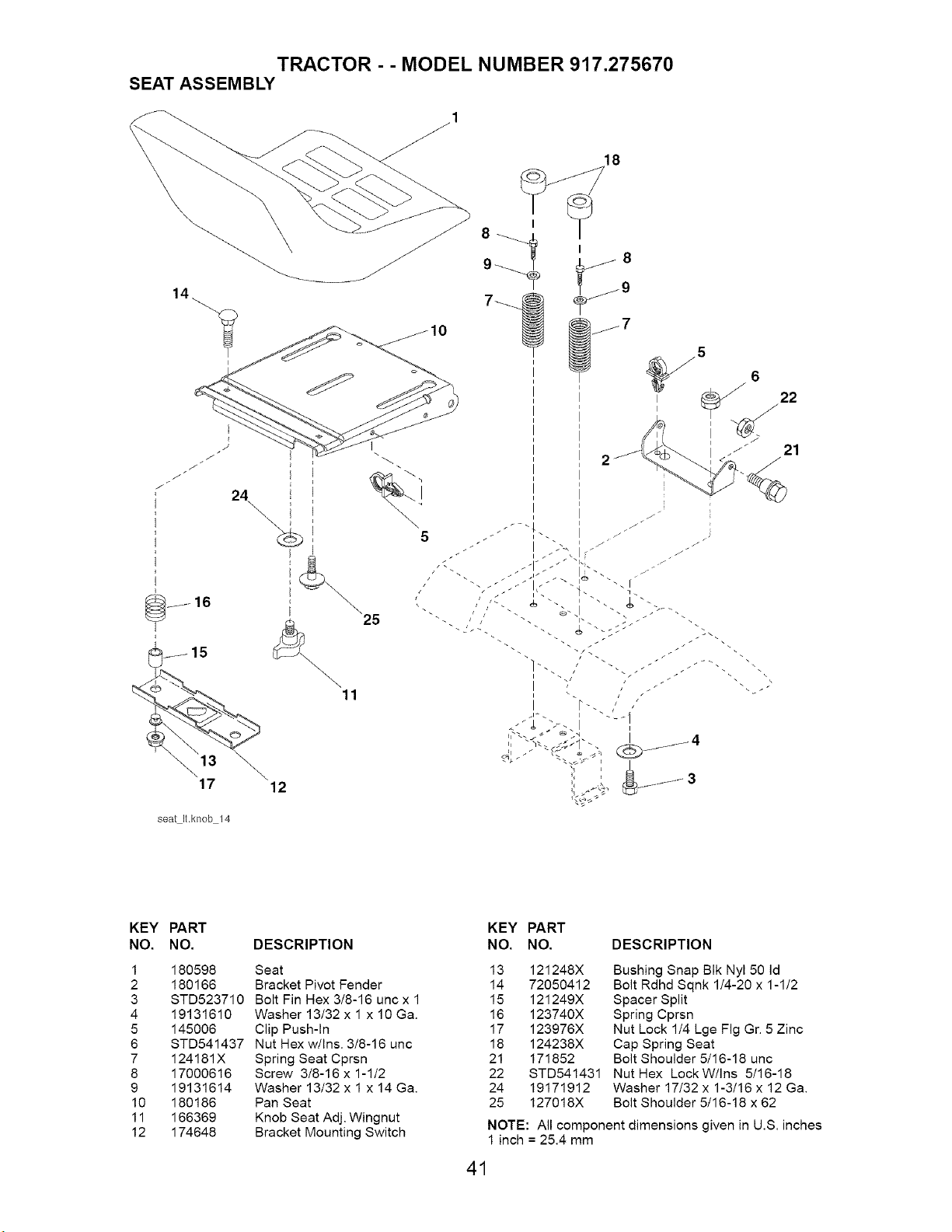

TRACTOR - - MODEL NUMBER 917.275670

SEAT ASSEMBLY

_ 13

17 12

seat It knob 14

/,-. ' "-'_ /

1_ -_.t

KEY

NO.

PART

NO.

180598

180166

STD523710

19131610

145006

STD541437

124181X

17000616

19131614

180186

166369

174648

DESCRIPTION

Seat

Bracket Pivot Fender

Bolt Fin Hex 3/8-16 uric x 1

Washer 13/32 x 1 x 10 Ga.

Clip Push-In

Nut Hex w/Ins. 3/8-16 unc

Spring Seat Cprsn

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Ga.

Pan Seat

Knob Seat Adj. Wingnut

Bracket Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing Snap BIk Nyl 50 Id

14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2

15 121249X Spacer Split

16 123740X Spring Cprsn

17 123976X Nut Lock 1/4 Lge Fig Gr. 5 Zinc

18 124238X Cap Spring Seat

21 171852 Bolt Shoulder 5/16-18 uric

22 STD541431 Nut Hex Lock W/Ins 5/16-18

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

25 127018X Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

DECALS

TRACTOR - - MODEL NUMBER 917,275670

16 3 13 21 4 11

2O 7

KEY PART

NO. NO.

1 187407

2 138047

3 194023

4 194024

5 160396

7 179128

9 195859

10 156439

11 189637

12 172331

13 133644

15 187408

KEY PART

DESCRIPTION NO. NO.

Reflector, LH 16 164065

Decal, Battery, Diehard, Sears 17 193308

Decal, Hood RH 18 194027

Decal, Hood LH 20 149516

Decal, Deck Sch. 21 194025

Decal, Deck "B" "42" 23 189684

Decal, Replacement 24 193654

Decal, Fender, Danger - - 184310X428

Decal, Panel, Dash -- 18431 lX428

Decal, Mower, Heavy-Duty -- 195906

Decal, Replacement Parts - - 195907

Decal, Reflector, RH

DESCRIPTION

Decal, Steering Wheel

Decal, Fender, Instructions

Decal, Fender

Decal, Battery

Decal, Hood, Side Panel

Decal, Engine

Decal, Dash

Pad, Footrest, ST/LT, LH

Pad, Footrest, ST/LT, RH

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS & TIRES

2 _ 5,8

4,10

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X417

3,9 6 278H

7 9040H

11 8 106108X417

9 138468

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Valve Tire

Stem Valve

Tire FTs 15 x 6 0 - 6 Service

Tube Front (Service item Only)

Rim Asm 6" front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel Only)

Rim Asm 8" rear Service

Tire R Ts 20 x 8-8 C Service

Tube Rear (Service Item Only)

Cap Axle

Sealant, Tire (10 oz. Tube)

wheel 1

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

LIFT ASSEMBLY

TRACTOR - - MODEL NUMBER 917,275670

161718 20

lift-rh.l piece26

KEY PART

NO. NO.

1 179504

2 159476

3 188822

4 12000002

5 19211621

6 120183X

7 175830

11 139865

12 139866

13 STD624008

15 173288

DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

Plunger Assembly 16

Shaft Assembly, Lift 17

Pin, Groove 18

E-Ring

Washer 21/32 x 1 x 21 Ga. 19

Bearing, Nylon 20

Grip, Handle, Fluted 31

Link, Lift, L.H. 32

Link, Lift, R.H.

Retainer Spring

Link, Front

73350800 Nut, Hex, Jam 1/2-13 unc

175689 Trunnion

73800800 Locknut, Hex, with Washer insert

1/2-13 unc

139868 Arm, Suspension, Rear

163552 Retainer Spring

169865 Bearing, Pvt, Lift

73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,275670

MOWER DECK

_ 68 ._

I-4o .f-f-

144 ,_45

ls9_ _-lso "--"

j21 140-

-134

117

92 __19192

4 149

19_ 21

34 2

__-11

116

42 D, eIec.t-path,adjwl.stlt 3

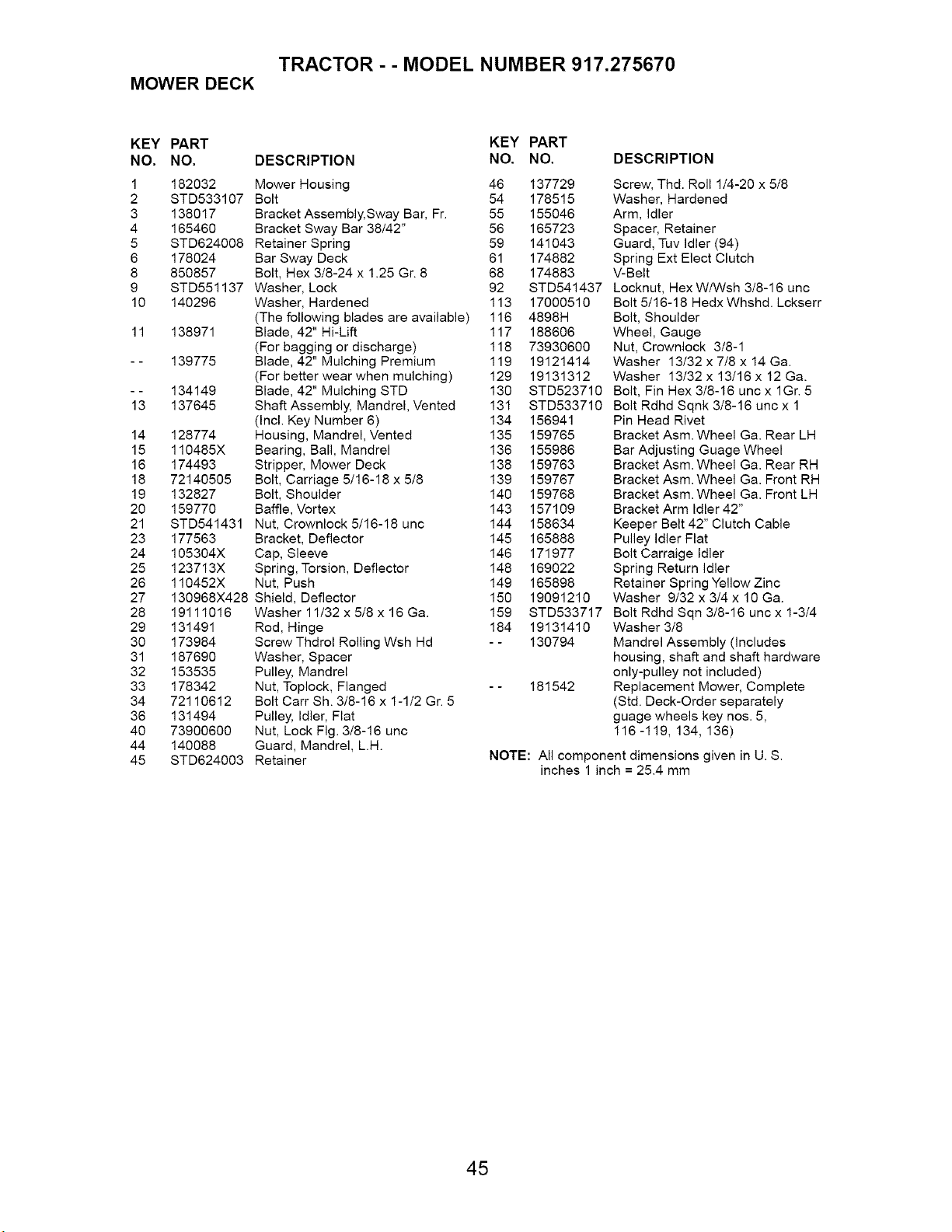

TRACTOR - - MODEL NUMBER 917.275670

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 182032 Mower Housing 46 137729

2 STD533107 Bolt 54 178515

3 138017 Bracket Assembly, Sway Bar, Fr. 55 155046

4 165460 Bracket Sway Bar 38/42" 56 165723

5 STD624008 Retainer Spring 59 141043

6 178024 Bar Sway Deck 61 174882

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 68 174883

9 STD551137 Washer, Lock 92 STD541437

10 140296 Washer, Hardened 113 17000510

(The following blades are available) 116 4898H

11 138971 Blade, 42" Hi-Lift 117 188606

(For bagging or discharge) 118 73930600

-- 139775 Blade, 42" Mulching Premium 119 19121414

(For better wear when mulching) 129 19131312

-- 134149 Blade, 42" Mulching STD 130 STD523710

13 137645 Shaft Assembly, Mandrel, Vented 131 STD533710

(Incl. Key Number 6) 134 156941

14 128774 Housing, Mandrel, Vented 135 159765

15 110485X Bearing, Ball, Mandrel 136 155986

16 174493 Stripper, Mower Deck 138 159763

18 72140505 Bolt, Carriage 5/16-18 x 5/8 139 159767

19 132827 Bolt, Shoulder 140 159768

20 159770 Baffle, Vortex 143 157109

21 STD541431 Nut, Crownlock 5/16-18 unc 144 158634

23 177563 Bracket, Deflector 145 165888

24 105304X Cap, Sleeve 146 171977

25 123713X Spring, Torsion, Deflector 148 169022

26 110452X Nut, Push 149 165898

27 130968X428 Shield, Deflector 150 19091210

28 19111016 Washer 11/32 x 5t8 x 16 Ga. 159 STD533717

29 131491 Rod, Hinge 184 19131410

30 173984 Screw Thdrol Rolling Wsh Hd - - 130794

31 187690 Washer, Spacer

32 153535 Pulley, Mandrel

33 178342 Nut, Toplock, Flanged - - 181542

34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

36 131494 Pulley, Idler, Flat

40 73900600 Nut, Lock Fig. 3/8-16 unc

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

DESCRIPTION

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Arm, idler

Spacer, Retainer

Guard, Tuv idler (94)

Spring Ext Elect Clutch

V-Belt

Locknut, Hex W/Wsh 3/8-16 unc

Bolt 5/16-18 Hedx Whshd. Lckserr

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 318-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13132 x 13/16 x 12 Ga.

Bolt, Fin Hex 318-16 unc x 1Gr. 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

Pin Head Rivet

Bracket Asm. Wheel Ga. Rear LH

Bar Adjusting Guage Wheel

Bracket Asm. Wheel Ga. Rear RH

Bracket Asm. Wheel Ga. Front RH

Bracket Asm. Wheel Ga. Front LH

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley idler Flat

Bolt Carraige Idler

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 3/8

Mandrel Assembly (includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

guage wheels key nos. 5,

116-119, 134, 136)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

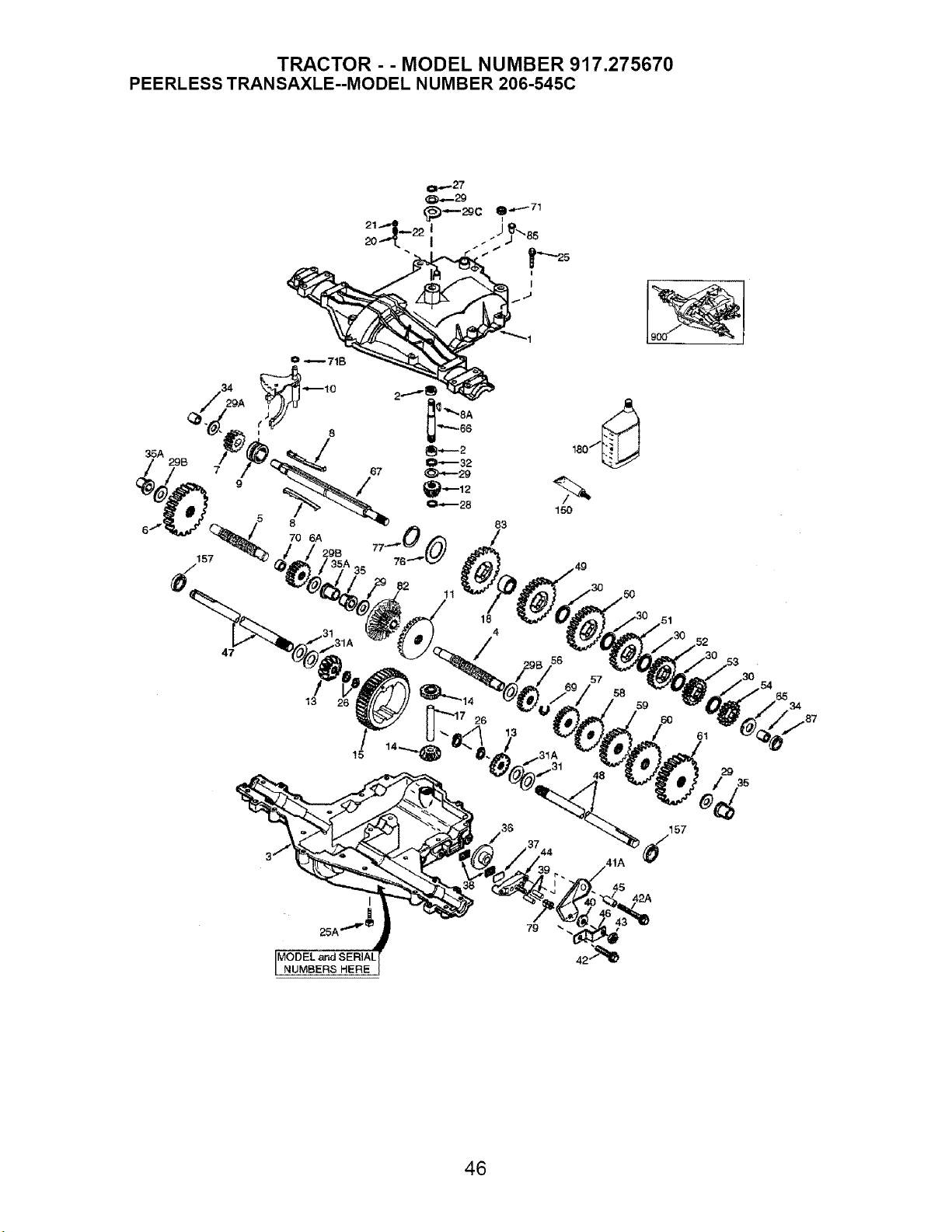

TRACTOR - - MODEL NUMBER 917,275670

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

35A

7Q_ 70 6A

15 2gB

_,/ _ 35

150

8:3

MODEL and SERIAL

NUMBERS HERE

TRACTOR - - MODEL NUMBER 917.275670

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147

2 780086A

3 770128

4 776395

5 776409

6 778364

6A 778369

7 778330

8 792180

8A 792047

9 784352

10 784378

11 778334

12 778309

13 778368

14 778368

15 778370

17 786188

18 786102

20 792077A

21 792078

22 792079

25 792073A

25A 792177

26 792125

27 792035

28 788040

29 780072

29A 780160

29B 780051

29C 780199

30 780108

31 780001

31A 780195

32 788083

34 780194

35 780193

35A 780197

36 790075

37 790007

38 799021

39 786026

40 792076A

Transaxle Cover

Needle Bearing 5/8"

Transaxle Case

Countershaft

Output Shaft

Spur Gear (38 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Shift Key

Woodruff Key #9

Shift Collar

Shift Rod & Fork

Bevel Gear (30 teeth)

Input Bevel Pinion (13 teeth)

Bevel Gear (13 teeth)

(Include. 14)

Bevel Pinion (13 teeth)

(Include. 13)

Ring Gear (43 teeth)

Drive Pin

Spacer 1.130 X .695

Ball 5/16" dia

Set Screw 3/8 - 16 x 3/8"

Spring .310 OD x .625 L

Screw 1/4 - 20 x 1-1/4"

Screw 1/4-20 x 1-3/8"

Retaining Ring (pkg of 2)

Retaining Ring

Thrust Washer .627 ID x .031W

Thrust Washer .762 ID x .031W

Anti-Rotation Washer .632

Cup Washer 1.127 ID x .032W

Flat Washer .750 ID x .056W

(Use As Needed)

Flat Washer .750 ID x .062W

Oil Seal 5/8"

Bushing .563

Flanged Bushing 5 / 8" ID

Flanged Bushing .751

Brake Disk

Brake Pad Plate

Brake Pad (pkg of 2)

Dowel Pin

Flat Washer .312 ID x .059W

41A 790079

42 792073A

42A 792085A

43 792075

44 790025

45 786066

46 786086

47 774690

48 774691

49 778356

50 778338

51 778354

52 778352

53 778350

54 778346

56 778355

57 778337

58 778353

59 778351

60 778349

61 778345

65 780189

66 776422

67 776396

69 792170

70 786187

71 788069

71B 788092

76 780090

77 788078A

79 792144

82 778333

83 778338

85 792154

87 788089A

150 788093A

157 788088A

180 730229A

900 794712

Brake Lever

Screw 1/4 - 20 x 1-1 /4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5 / 16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 / 16" Long)

Axle (16 - 1 / 2" long)

Spur Gear (29 teeth'

Spur Gear (27 teeth'

Spur Gear (23 teeth'

Spur Gear (19 teeth'

Spur Gear (16 teeth'

Spur Gear (15 teeth'

Spur Gear (11 teeth'

Spur Gear (13 teeth'

Spur Gear (17 teeth'

Spur Gear (21 teeth'

Spur Gear (24 teeth'

Spur Gear (25 teeth'

Flat Washer .563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1.128 ID x .058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear

(30 & 13 teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 / 16"

Liquid Gasket RTV Silicone

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST - 206-545C

Transaxle

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

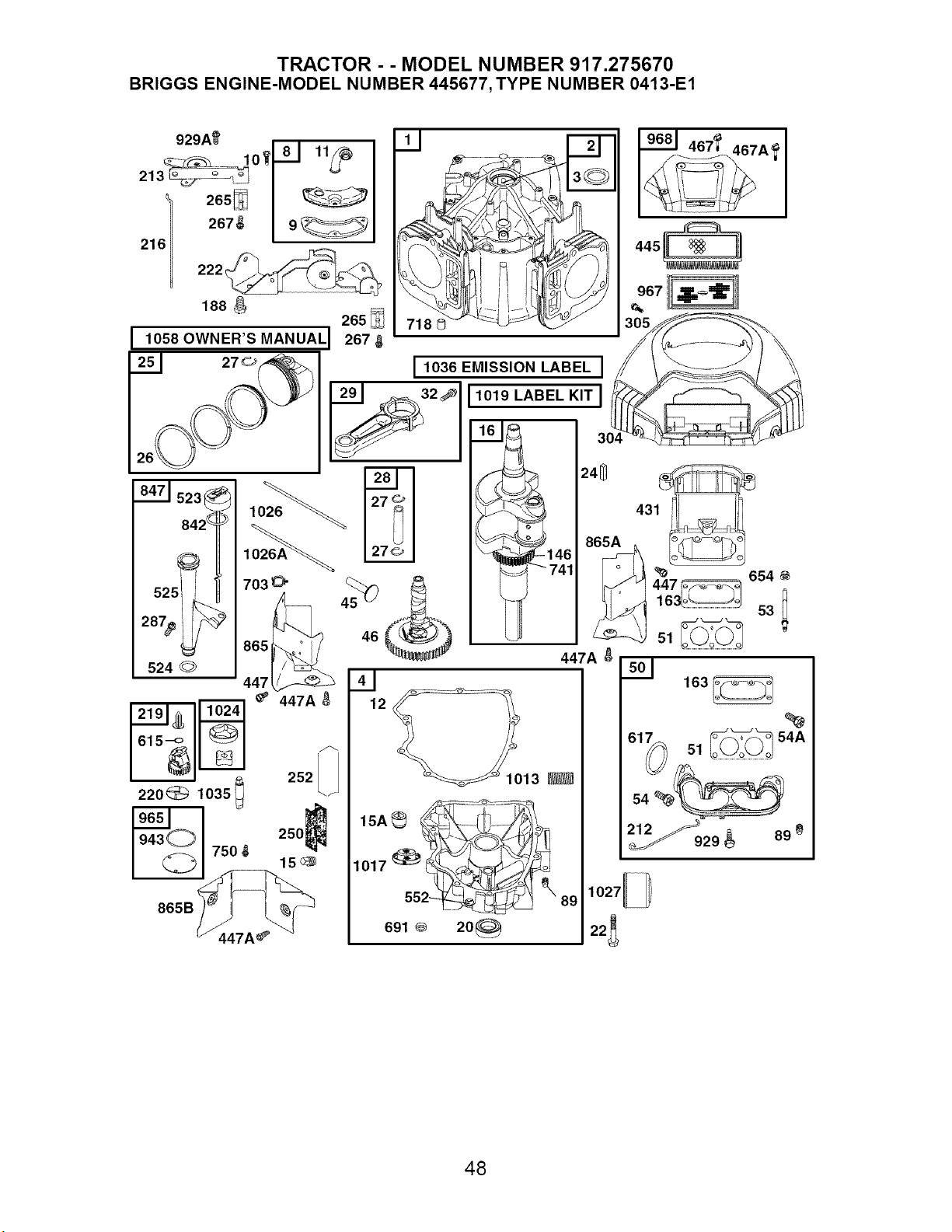

TRACTOR - - MODEL NUMBER 917.275670

BRIGGS ENGINE-MODEL NUMBER 445677, TYPE NUMBER 0413-E1

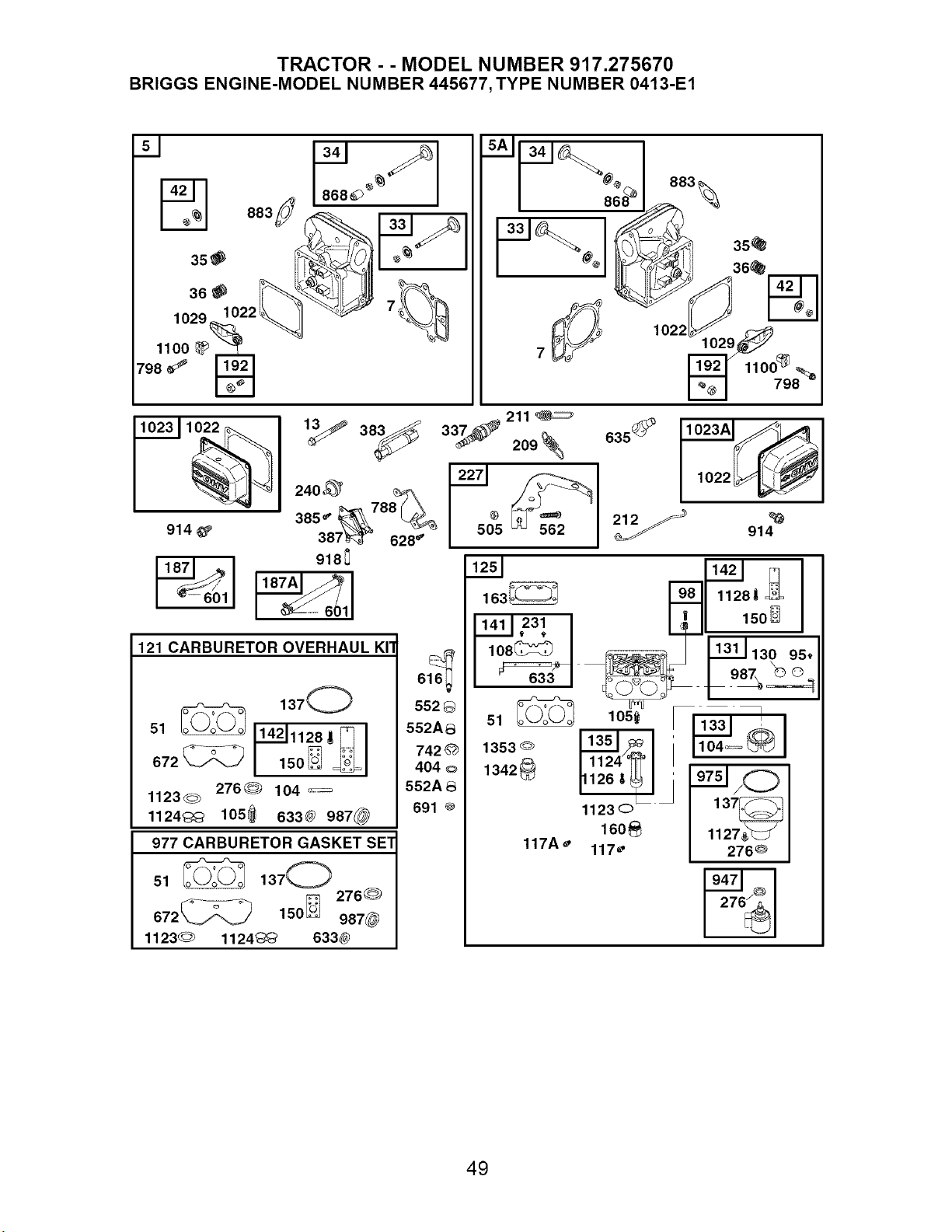

TRACTOR - - MODEL NUMBER 917.275670

BRIGGS ENGINE-MODEL NUMBER 445677, TYPE NUMBER 0413-E1

35_

1029 1022

11oo _

798 _

914_

121 CARBURETOR OVERHAUL KN

137g

61 _ 1L_._1128 |_

2760 164

1123©

1124_ 165_ 633@ 987_

977 CARBURETOR GASKET SET

51 _ 137g

_____ _ _ 276_

672_ 156_ 987@

1123_ 1124_ 6330

21_ _ 914

552 O

552A_,

742

464 ©

552A 6

691 ÷

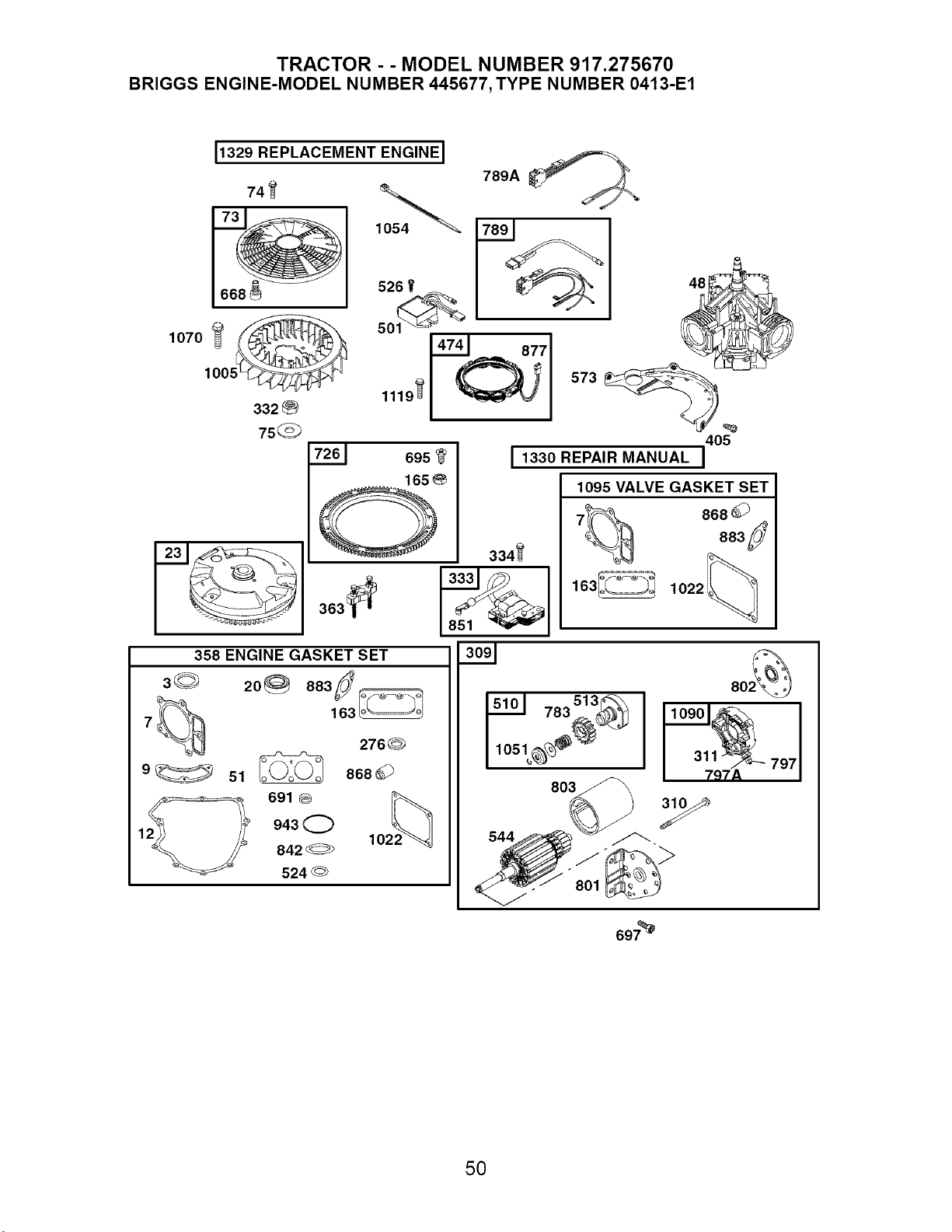

TRACTOR - - MODEL NUMBER 917.275670

BRIGGS ENGINE-MODEL NUMBER 445677, TYPE NUMBER 0413-E1

1070

11329 REPLACEMENT ENGINE I

789A

74_ 1054_%_ 789

75C?_ 4o_

11330REPAIRMANUALI

726J 695

165_

3o3

358 ENGINE GASKET SET

30 2o_ 883__

276 __

9_9 51 _ 868_

............... 691 _

1_° 943@

842 _<_ 10

524 ©>

334_

3091

1095 VALVE GASKET SET

868_

883_

1022_

78351_ _

803

697_

TRACTOR - - MODEL NUMBER 917.275670

BRIGGS ENGINE-MODEL NUMBER 445677, TYPE NUMBER 0413-E1

KEY PART NO. NO. DESCRIPTION

NO. NO. DESCRIPTION

150 690995 O5 Gasket-Nozzle

1 699753 Cylinder Assembly 160 699727 Retainer-Solenoid

2 499585 Kit-BushinglSeal (Magneto Side) 163 691001 o+ Gasket-Air Cleaner

3 391086 • Seal-Oil (Magneto Side) 165 693148 Nut (Ring Gear)

4 699747 Sump-Engine 187 691049 Line-Fuel

5 693998 Head-Cylinder (Cylinder 1) 187A 691050 Line-Fuel (Cut to Required

5A 693999 Head-Cylinder (Cylinder 2) Length)

7 693997 o+ Gasket-Cylinder Head 188 691108 Screw (Control Bracket)

8 499601 Breather Assembly 192 690083 Adjuster-Rocker Arm

9 690937 • Gasket-Breather 209 697674 Spring-Governor

10 691108 Screw (Breather Assembly) 211 691019 Spring-Governed Idle

11 690942 Tube-Breather 212 695238 Link-Governor

12 697227 • Gasket-Crankcase 213 691021 Bracket-Choke Control

13 791130 Screw (Cylinder Head) 216 691022 Link-Choke

15 690946 Plug-Oil Drain 219 698231 Gear-Governor

15A 691680 Plug-Oil Drain 220 690412 Washer (Governor Gear)

16 790136 Crankshaft 222 698761 Bracket-Control

20 690947 • Seal-Oil (PTO Side) 227 691048 Lever-Governor Control

22 694966 Screw (Crankcase Cover) 231 690718 Screw (Choke Valve)

23 691053 Flywheel 240 691035 Filter-Fuel

24 222698 Key-Flywheel 250 690957 Retainer-Breather

25 694003 Piston Assembly (Standard) 252 690956 Collector-Oil

694007 Piston Assembly (.020" Over- 265 691024 Clamp-Casing

size) 267 695134 Screw (Casing Clamp)

26 694004 Ring Set (Standard) 276 690997 oO5 Washer-Sealing

694008 Ring Set (.020" Oversize) 287 691108 Screw (DipsticktTube Assembly)

27 690975 Lock-Piston Pin 304 790688 Housing-Blower

28 690229 Pin-Piston (Standard) 305 691005 Screw (Blower Housing)

29 499583 Rod-Connecting (Standard) 305A 790690 Screw (Blower Housing)

32 690976 Screw (Connecting Rod) 309 691262 Motor-Starter

33 499596 Valve-Exhaust 310 691263 Screw (Starter Motor)

34 697464 Valve-Intake 311 497608 Brush Set

35 690963 Spring-Valve (Intake) 332 691059 Nut (Flywheel)

36 690963 Spring-Valve (Exhaust) 333 691060 Armature-Magneto

42 499586 Keeper-Valve 334 691061 Screw (Magneto Armature)

45 690977 Tappet-Valve 337 691043 Spark Plug

46 790562 Camshaft 358 694012 Gasket Set-Engine

48 698172 Short Block 363 691062 Puller-Flywheel

50 695241 Manifold-Intake 383 690966 Wrench-Spark Plug

51 690950 "O:1: Gasket-intake 385 690960 Screw (Fuel Pump)

53 690951 Stud (Carburetor) 387 808656 Pump-Fuel

54 695239 Screw (Intake Manifold) 404 690442 Washer (Governor Crank)

54A 699816 Screw (Intake Manifold) 405 697820 Screw (Back Plate)

73 494439 Screen-Rotating 418 690999 Plate-Carburetor

74 698425 Screw (Rotating Screen) 431 790816 Elbow-intake

75 691056 Washer (Flywheel) 445 499486 Filter-Air Cleaner Cartridge

89 690283 Plug-Oil 447 691003 Screw (Air Guide Cover)

95 690718 Screw (Throttle Valve) 447A 691108 Screw (Air Guide Cover)

98 699721 Kit-idle Speed 467 691008 Knob-Air Cleaner

104 694918 O Pin-Float Hinge 467A 790697 Knob-Air Cleaner

105 698537 O Valve-Float Needle 474 696458 Alternator

108 699723 Valve-Choke 501 691185 Regulator

117 699494 Jet-Main (Standard) 505 691029 Nut (Governor Control Lever)

117A 699495 Jet-Main (Standard) 510 497606 Drive-Starter

121 699734 Kit-Carburetor Overhaul 513 692024 Clutch-Drive

125 699709 Carburetor

130 690993 Valve-Throttle Included in Engine Gasket Set, Key. No. 358

131 499805 Kit-Throttle Shaft O Included in Carburetor Overhaul Kit, Key.

133 699724 Float-Carburetor No. 121

135 699729 Tube-Fuel Transfer $ Included in Carburetor Gasket Set, Key. No.

137 690994 O5 Gasket-Float Bowl 977

146 690979 Key-Timing + Included in Valve Overhaul Kit, Key. No.

KEY PART 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.275670

BRIGGS ENGINE-MODEL NUMBER 445677, TYPE NUMBER 0413-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

523 691036 Dipstick 967 273638

524 691032 • SeaI-O Ring (Dipstick Tube) 968 790689

525 691037 Tube-Dipstick 975 499810

526 691108 Screw (Regulator) 977 699735

544 Armature-Starter (Serviced by 987 691000

691262 Starter Motor Only) 1005 790698

552 690552 Bushing-Governor Crank 1013 690954

552A 690553 Bushing-Governor Crank 1017 690770

562 690311 Bolt (Governor Control Lever) 1019 693995

573 691009 Plate-Back 1022 690971

601 691038 Clamp-Hose 1023 499599

615 698290 Retainer-Governor Shaft 1023A 499600

616 691045 Crank-Governor 1024 499054

617 697891 SeaI-O Ring (Intake Manifold) 1026 690981

628 690960 Screw (Fuel Pump Bracket) 1026A 690982

633 690998 O5 Seal-Choke/Throttle Shaft 1027 492932

635 66538 Boot-Sparkplug 1029 690972

654 690958 Nut (Carburetor) 1035 691042

668 691215 Spacer 1036 790625

672 690234 O5 Gasket-Carburetor Plate 1051 691265

691 690657 • Seal-Governor Shaft 1054 280275

695 693149 Screw (Ring Gear) 1058 275475

697 690372 Screw (Drive Cap) 1070 690372

703 691010 Clip 1090 691293

718 690959 Pin-Locating 1095 694013

726 499612 Gear-Ring 1100 690973

741 690980 Gear-Timing 1119 691183

742 690328 Retainer-E Ring 1123 699725

750 696999 Screw (Oil Pump Cover) 1124 690988

783 693058 Gear-Pinion 1126 690991

788 691039 Bracket-Fuel Pump 1128

789 698330 Harness-Wiring 1329

789A 696576 Harness-Wiring

797 691029 Nut (Brush Retainer)

797A 693167 Nut (Brush Retainer)

798 697890 Screw (Rocker Arm)

801 691283 Cap-Drive

802 691286 Cap-End

803 Housing-Starter (Serviced by

691262 Starter Motor Only)

842 691031 • SeaI-O Ring (Dipstick)

847 499602 Assembly-Dipstick/Tube

851 493880 Terminal-Spark Plug 1330

855 691011 Adapter-Air Cleaner 1342

865 691012 Cover-Air Guide (Cylinder 1) 1353

865A 691014 Cover-Air Guide (Cylinder 2)

865B 691015 Cover-Air Guide

868 690968 .+ Seal-Valve

877 399916 Wire/Connector-Alternator O

883 690970 .+ Gasket-Exhaust

914 691127 Screw (Rocker Arm Cover) :l:

918 694000 Hose-Vacuum

929 695239 Screw (Choke Control Bracket) +

929A 691003 Screw (Choke Control Bracket)

943 690589 • SeaI-O Ring (Oil Pump Cover)

947 699728 Solenoid-Fuel NOTE:

965 499613 Cover-Oil Pump inches

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

O5 Seal-Throttle Shaft

Fan-Flywheel

Nipple-Oil Filter

Screen-Oil Pump

Kit-Label

•+ Gasket-Rocker Cover

Cover-Rocker Arm (Cylinder 1)

Cover-Rocker Arm (Cylinder 2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-Oil

Arm-Rocker

Shaft-Pump

Label-Emission

Ring-Retaining

Cable-Tie

Owner's Manual

Screw (Flywheel Fan)

Retainer-Brush

Set-Valve Gasket

Pivot-Rocker Arm

Screw (Alternator)

SeaI-O Ring (Solenoid Retainer)

O5 SeaI-O Ring (Fuel Transfer Tube)

Screw (Fuel Transfer Tube)

690990 O Screw (Carburetor Nozzle)

445777-0027Replacement Engine (If original

engine is equipped with a

six pin wiring harness transfer to

the replacement engine.

Transfer muffler and/or spark

arrestor assembly from the

original engine if suitable for ad-

ditional service or add new

parts as required. Transfer oil

sensor to the replacement

engine).

273521 Repair Manual

699731 Extension-Fuel Transfer Tube

699725 SeaI-O Ring (Fuel Transfer Tube

Extension)

included in Engine Gasket Set, Key. No. 358

included in Carburetor Overhaul Kit, Key.

No. 121

included in Carburetor Gasket Set, Key. No.

977

included in Valve Overhaul Kit, Key. No.

1095

All component dimensions given in U.S.

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_b ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face, Do not mow

slopes greater than 15 degrees, Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes,

I, Fold this page along dotted tine indicated above,

2_ Hold page before you so that its Ieft edge is vertically parallet to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hitl sJope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

iiiiiiiiiiiiiiiiiiii'

iiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiii?'

iiiiiiiiiiiiiiii

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourseLf.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U,S.A. and Canada)

www,sears,com www,sears,ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1o800o488o1222 Anytime, day or night (U.S.A. only)

www.seaFs.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

t-800o827-6655 (U.S.A.)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

t-888-_S[J-HOGAR sM

(1-888_784-8427)

t-800o361-6665 (Canada)

Au Canada pour service en frant;ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears,ca

02410

(_bSears,RoebuckandCo.

0 Registered Trademark /TM Trademark / sM Service Mark of Sears, Roebuck and Co.

¢_ Marca Registrada / TM Marca de Fabrica / SM Mama de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque d_pos6e de Sears, Roebuck and Co.

195906 11.18.04 TR Printed in U.S.A.

Craftsman 917275670 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917275670 Questions and Answers
