2017 OUTDOOR KITCHEN PLANNING GUIDE
2
3
Viking Professional
OUTDOOR KITCHEN
The Viking Professional outdoor products offer everything you’d expect
to nd in a kitchen – except the walls. Of course, our heavy-duty gas
grills are the pinnacle of barbecue, but you might be surprised to nd
products like warming drawers, undercounter refrigerators, and even
vent hoods in the backyard. Mother Nature likes to entertain too.
4
Stainless Steel Cabinets
VQWO4120 VQWO5311
GRILL BASE – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Fully concealed door hinges
§ Professional-style handles match Viking outdoor appliances
§ Drawers equipped with full extension slides
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
VQBO4121
§ 41 7/8”W. x 29 7/8”D. x 34 1/2”H. grill base
§ For use with any Viking 42”W. Outdoor 5 Series grill
§ Shipping wt. 235 lb (106.6 kg)
VQB05322
§ 53 7/8”W. x 29 7/8”D. x 34 1/2”H. grill base
§ For use with any Viking 54”W. Outdoor 5 Series grill
§ Shipping wt. 279 lb (126.6 kg)
VQBO4121
VQBO5322
5
GRILL BASE WITH WARMING DRAWER
ACCESS – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Fully concealed door hinges
§ Professional-style handles match Viking outdoor appliances
§ Drawers equipped with full extension slides
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
VQWO4120
§ 41 7/8”W. x 29 7/8”D. x 34 1/2”H. grill base with warming drawer
§ For use with any Viking 42”W. Outdoor 5 Series grill and 36”W.
outdoor warming drawer
§ Shipping wt. 226 lb (102.5 kg)
VQW05311
§ 53 7/8”W. x 29 7/8”D. x 34 1/2”H. grill base
§ For use with any Viking 54”W. Outdoor 5 Series grill and 36”W.
outdoor warming drawer
§ Shipping wt. 265 lb (120.2 kg)
*Note - grill is not included with the cabinet and must be purchased separately. All cabinets must be installed with locally supplieed countertops.
*Note - neither grill nor warming drawer is included with the cabinet and must be purchased separately. All cabinets must be installed with locally supplied countertops.
6
DOUBLE SIDE BURNER BASE – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Fully concealed door hinges
§ Professional-style handles match Viking outdoor appliances
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
VBBO1601
§ 16”W. x 29 7/8”D. x 34 1/2”H. side burner base
§ For use with Viking Outdoor double side burners
§ Shipping wt. 104 lb (47.2 kg)
VBBO1601
WOK BASE – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Fully concealed door hinges
§ Professional-style handles match Viking outdoor appliances
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
VBBO2602
§ 26”W. x 29 7/8”D. x 34 1/2”H. multi-use base
§ For use with Viking Outdoor wok
§ Shipping wt. 160 lb (72.6 kg)
VBBO2602
UNDERCOUNTER REFRIGERATION BASE – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
VURO3200
§ 32”W. x 30”D. x 34 1/2”H. refrigeration base
§ For use with Viking 24”W. refrigeration products
§ Shipping wt. 125 lb (56.7 kg)
VURO3200
*Note - the VGSB burners are not included with the cabinet and must be purchased separately. All cabinets must be installed with locally supplied countertop.
*Note - appliance is not included with the cabinet and must be purchased separately. All cabinets must be installed with locally supplied countertop.
*Note – refrigeration units are not included and must be purchased separately. All cabinets must be installed with locally supplied countertops.
7
Stainless Steel Cabinets
* All cabinets must be installed with locally supplied countertop. Sink and faucet are not supplied with VSBO2402.
OUTDOOR STAINLESS STEEL
BASE CABINETS – 30” DEPTH
§ Commercial-type construction, design and styling
§ Constructed completely of heavy-duty stainless steel
§ Fully concealed door hinges
§ Professional-style handles match Viking outdoor appliances
§ Heavy-duty adjustable legs
§ Optional toe kick included
§ Two year outdoor warranty
§ For general use in cabinet runs
VBO1811 – BASE CABINET
§ 18”W. x 29 7/8”D. x 34 1/2”H. base cabinet
§ Shipping wt. 141 lb (63.7 kg)
VB01830 – DRAWER CABINET
§ 18”W. x 29 7/8”D. x 34 1/2”H. base cabinet
§ Shipping wt. 156 lb (70.8 kg)
VSBO2402 – SINK BASE CABINET
§ 24”W. x 29 7/8”D. x 34 1/2”H. sink base cabinet
§ Shipping wt. 165 lb (74.8 kg)
VTPO1810 – TRASH PULLOUT CABINET
§ 18”W. x 29 7/8”D. x 34 1/2”H. trash pullout base cabinet
§ Shipping wt. 145 lb (65.8 kg)
VBO1811
VBO1830
VTPO1810VSBO2402
FILLER STRIPS
§ Attach between cabinets to separate cabinets and create turns
§ Sides are to be mounted flush with doors and not the cabinet face
§ Optional toe kick included
§ Two year outdoor warranty
VCF90
§ Each side is 2 3/4”W.
§ Corner filler strip for use in 90° cabinet bends
§ Shipping wt. 5 lb (2.3 kg)
VCF135
§ Each side is 2 3/4”W.
§ Corner filler strip for use in 135° cabinet bends
§ Shipping wt. 5 lb (2.3 kg)
VFLR4
§ 3 3/4”W.
§ General filler strip used to separate appliance based cabinets
§ Shipping wt. 5 lb (2.3 kg)
VFLR8
§ 8”W.
§ General filler strip used to separate appliance based cabinets
§ Shipping wt. 9 lb (4.1 kg)
VOCF90
§ Each side is 8”W.
§ Shipped with two unattached back panels
§ Outer corner filler strip used to connect two back panels at a 90°
angle and add countertop support
§ Shipping wt. 40 lb (18.1 kg)
VOCF135
§ Each side is 4”W.
§ Shipped with two unattached back panels
§ Outer corner filler strip used to connect two back panels at a 135°
angle and add countertop support
§ Shipping wt. 40 lb (18.1 kg)
8
CABINET SIDE PANELS
§ Heavy-duty stainless steel
§ Used to finish sides of base cabinets at the end of the cabinet run
§ Fit flush into recessed sides of cabinets
§ Optional toe kick included
§ Two year outdoor warranty
VSP30
§ 30”W. x 29 3/4”H. multi-use base
§ Shipping wt. 16 lb (7.3 kg)
VIKING BACK PANELS FOR USE IN CUSTOM
ISLAND APPLICATIONS
§ Heavy-duty stainless steel
§ For use in custom island installations
§ Individual back panels for each Viking outdoor cabinet
§ 3/4” thickness will add to the depth of the cabinetry
§ Optional toe kick included
§ Two year outdoor warranty
VBP16
§ 16”W. back panel
§ For use with VBBO1601
§ Shipping w. 10 lb (3.7 kg)
VBP18
§ 18”W. back panel
§ For use with VBO1811/VBO1830/VTPO1810
§ Shipping wt. 12 lb (5.4 kg)
VBP24
§ 24”W. back panel
§ For use with VSBO2402
§ Shipping wt. 15 lb (6.8 kg)
VBP26
§ 26”W. back panel
§ For use with VBBO2602
§ Shipping wt. 17 lb (7.7 kg)
VBP32
§ 32”W. back panel
§ For use with VURO3200
§ Shipping wt. 21 lb (9.5 kg)
VBP41
§ 41”W. back panel
§ For use with VQBO4121/VQWO4120
§ Shipping wt. 25 lb (11.3 kg)
Outdoor
9
Stainless Steel Cabinet Accessories
VBP32
Please see installation examples on page 11 for more information on when to use these.
VBP53
§ 53”W. back panel
§ For use with VQBO5322/VQWO5311
§ Shipping wt. 32 lb (14.5 kg)
VBPFLR4
§ 4”W. back panel
§ For use with VFLR4
§ Shipping wt. 5 lb (2.3 kg)
VBPFLR8
§ 8”W. back panel
§ For use with VFLR8
§ Shipping wt. 9 lb (4.1 kg)
10
11
Viking Professional Outdoor
KITCHEN PLANNING
Anticipate your requirements for your outdoor kitchen to get the most
exibility during its use. With a complete Viking outdoor kitchen, you
noW. have not only a complete line of outdoor appliances, but also the
cabinets that provide the same storage and organizational capabilities of
an indoor kitchen. NoW. you can prepare your appetizers, drinks and food
outside while remaining part of the group, rather than having to go inside.
12
13

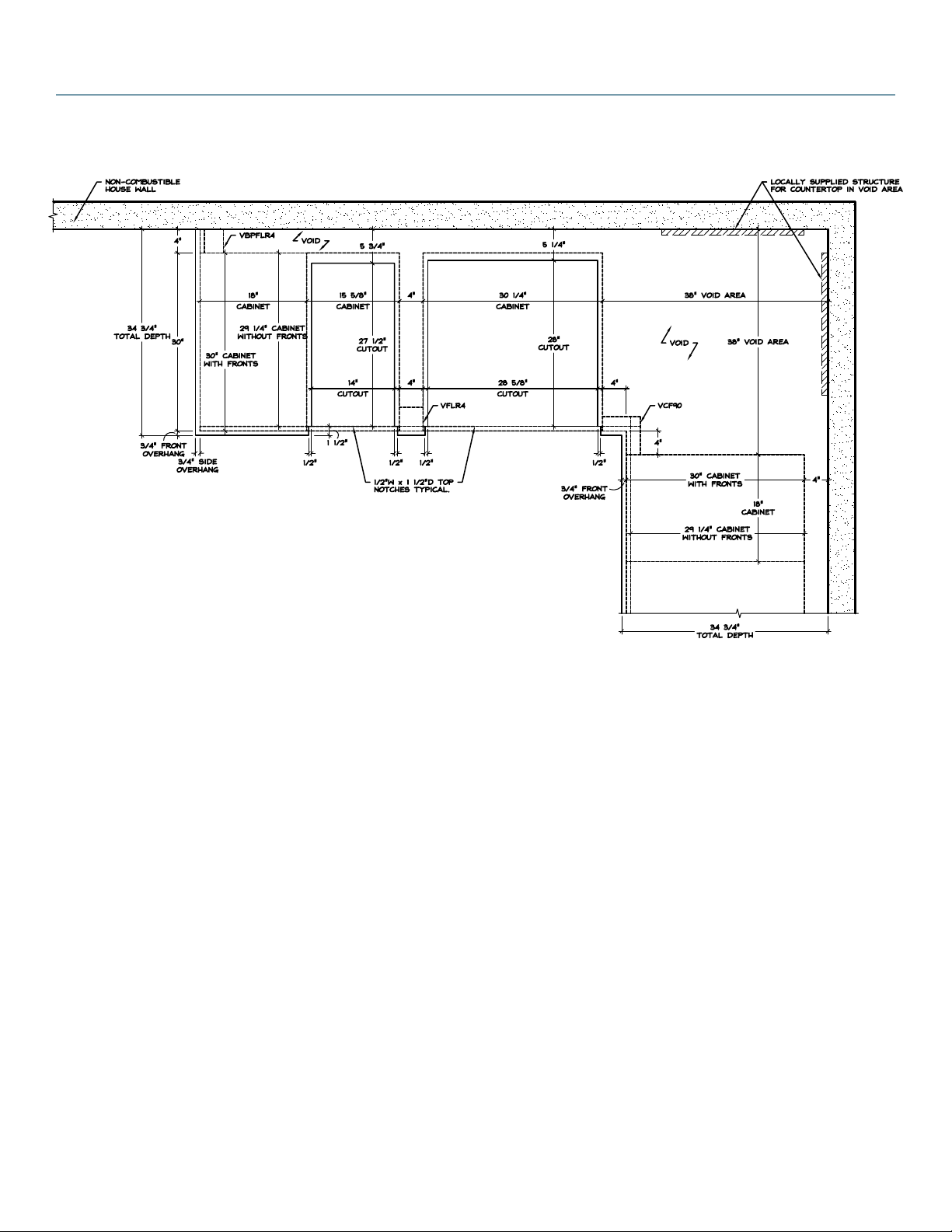

Planning Your Viking Outdoor Kitchen
COMMON INSTALLATIONS
For actual assembly of individual cabinets, please refer to Viking installation instructions
IN GENERAL
The cabinets have been designed to be easily installed by contractor or consumer. The cabinets are designed
completely of stainless steel and provide a rich, contemporary look that complements Viking outdoor appliances.
The cabinets are 34-1/2” high where the toe kick area is 4-1/2”. Locally supplied countertops must be mounted
on top. The leveling legs on each cabinet alloW. for adjustments on uneven surfaces. The leveling legs alloW. for a
minimum adjustment of 34-1/4” and a maximum of 36”. Typically, the rst cabinet is placed at the highest point and
the other cabinets are leveled from there. To gain the most exibility from the kitchen design, separate all appliances
by at least one base cabinet or with available 4”W. or 8”W. llers (VFLR4/VFLR8). Remember to account for the 8”
minimum the rotisserie motor requires for installation when placing cabinets next to a grill base. All cabinets are 30”
deep.
The cabinets can be installed against a house, a masonry, a stucco half-wall or freestanding in an island conguration.
A stainless side panel (VSP30) is available to nish ends where a wall doesn’t exist. Each cabinet is leveled using the
attached leveling legs and then together. Choose a countertop material of 1-1/4” (like granite, quartz, etc.) or more
(other stone, tile, etc.). If the countertop is greater than 1-1/4” thick, you should use shims (not included) to install the
appliance (grill, side burner, wok) ush to the countertop. After the countertop is installed the appliances are placed
in them and the kitchen is complete.
Note: The full weight of the appliance must be set on the solid bottom support, including shims if necessary, and not supported by the countertop side trim.
AGAINST A NON-COMBUSTIBLE SURFACE
When installing a run of cabinets that includes a grill base against a non-combustible surface, the back of the
cabinets should be at least 3” from the wall to insure meeting the grill specications. When this is the case, a 4”W.
back panel (VBPFLR4) along with a 30” Side Panel (VSP30) can be used to nish the end of the cabinet run. The
VBPFLR4 is screwed into the back of the cabinet that ends the run and matches up against the VSP30.
EXAMPLE:
If any of the undercounter refrigeration products are installed in the cabinet run, a VURO3200 should be
installed to alloW. for solid installation of the side panel and to make a strong base on which the countertop
will sit. If the refrigeration falls in the end of a run a, 30”W. side panel (VSP30) should be used. If used in
conjunction with a Viking outdoor grill, a VBPFLR4 should be used along with the VSP30 to insure meeting
grill specications.
VQBO4121
NON-COMBUSTIBLE
SURFACE
VSP30
VSP30
VBPFLR4 (stainless facing out)
24"W. OUTDOOR REFRIGERATION SLIDES IN
VURO3200 VBO1811
VBPFLR4 (stainless facing out)
VBO1830
= COUNTERTOP
TOP VIEW
14
ISLAND INSTALLATIONS
The cabinets can also be installed in an island format. If desired, a half-wall can be built at the back and side panels
(SP30) can be used to nish the sides. All the cabinets will be lined up ush at the face, or a 3-sided half-wall could
be built to eliminate the side panels.
Alternatively, islands can be nished with Viking produced back panels. There are individual panels made to t each
individual cabinet offered by Viking. The result is a smooth, custom t nish.
EXAMPLE:
EXAMPLE WHEN REFRIGERATION ENDS THE RUN:
VQBO5322VBO1811
VSP30
VSP30
VSBO2402
VBP18 VBP53 VBP24
= COUNTERTOP
TOP VIEW
VSP30
VQWO4120
VSP30
24"W. REF. PRODUCT SLIDES IN
VBBO1601
VBP32 VBP16 VBPFLR4* VBP41 VBP18
VURO3200
VTPO1810
VFLR4
15
Outdoor
Planning Your Viking Outdoor Kitchen
Note: If a VFLR4 is used in an island setting, a VBPFLR4 is used as the back panel.
INSTALLATIONS REQUIRE A 4”W. FILLER STRIP
There are several situations where 4”W. back panel (VBPFLR4) and back panels need to be used. The VLFR4 is a
4”W., 34-11/42”H. (includes 4-11/42” toe kick area) stainless steel “post” sandwiched between two cabinets.
1. Use a 4”W. ller whenever two Viking appliances are installed side-by-side in the run. This will give the appliances
ample room for any clearance issues they may have in their general specications. Remember that 8” is required for
proper installation of the rotisserie motor on a grill.
2. Use a 4”W. back panel whenever a Viking outdoor grill is used in a layout against a non-combustible surface (such
as a brick wall). The general specications for the grill require 3” of space between the back of the grill and any non-
combustible surface. The 4”W. back panel accounts for this. (See sample drawing on page 9)
3. If a VFLR4 is used in an island setting, a VBPFLR4 is used as the back panel.
4. Use the 4”W. ller whenever extra room in your cabinet layout is desired.
INSTALLATIONS REQUIRING 90° AND 135° INNER AND OUTER FILLER STRIP
Many installations include a “turn” in the layout. These turns can folloW. a back wall, or they may exist in an island
setting. If a layout such as this is designed, 90 or 135 degree ller strips will need to be used. IMPORTANT: When
using a VCF90, do not install a warming drawer base cabinet directly adjacent to a VBO1830 or VTPO1810. The
cabinet drawers will not be allowed to fully extend due to the warming drawer handle.
WHEN TO USE INSIDE FILLER STRIPS BY THEMSELVES
(SEE SAMPLE DRAWING BELOW)
Use a 90° (VCF90) or 135° (VCF135) inside filler whenever you have a 90 or 135 degree turn. If the layout is against
a wall, no outer corner ller will be needed. The countertop will run into the wall. Your locally-supplied countertop
installer will need to account for the void area underneath the countertop that falls in between the cabinets.
VBBO1601
VSP30
NON-COMBUSTIBLE SURFACE
VQBO4121
VCF90
VBBO2602
VTSP30
VBO1811
VBO1811
VFLR4
NON-COMBUSTIBLE SURFACE
VBPFLR4
(stainless facing out)
VBPFLR4
(stainless facing out)
16
WHEN TO USE INSIDE AND OUTSIDE FILLER STRIPS TOGETHER
(SEE SAMPLE DRAWING BELOW)
In situations where the back of your cabinet layout is exposed, such as in an island setting, inside and outside ller
strips will need to be used. Use a 90° (VCF90) or 135° (VCF135) inside ller whenever you have a 90 or 135 degree
turn. Depending on which turn you are accounting for, a 90° (VOCF90) or 135° (VOCF135) outer corner back panel
assembly must be used to complete the layout. These assemblies consist of a 4”W. stainless steel “post”, two
mounting brackets, and two stainless steel back panels.
The post is placed in the middle corner of the void area (see diagram below) and the back panels are attached to
it. The post gives support to the void area underneath the countertop that falls in between the cabinets. Next, the
supplied brackets are attached to the inside of the two adjacent cabinets in the run. The stainless steel back panels
are then attached to the brackets and t ush with the back panels attached to the back of the cabinets to the right
and left of the center post.
VBBO1601
VSP30
VBP18
VQBO4121
VCF90
VBP18
VSP30
VSP30
VOCF90
VBO1811
VBO1830
VBP16 VBPFLR4 VBP41 VOCF90 Back Panel
VOCF90 Back Panel
VFLR4
17
Outdoor
Planning Your Viking Outdoor Kitchen
EXAMPLE WHEN USING VCF135 AND VOCF135 IN AN ISLAND SETTING
The installation examples shown in this guide represent basic installations that may be encountered in common
installations. Please contact Viking, your Viking Dealer or your Viking Distributor with any questions you might have
regarding these or any other installations.
VBBO1601
VSP30
VBP18
VQBO4121
VCF135
VBO1811
VBP16 VBPFLR4 VBP41
VOCF135
Back Panel
VBO1830
VSP30
VBP26
VBP18
VFLR4
VOCF135
Back Panel
VOCF135
18
Viking Professional Outdoor Typical Kitchen
LAYOUT PACKAGES
A series of small, medium and large typical outdoor kitchen layouts, using
the Viking stainless steel outdoor cabinetry product line.
ELEVATION VIEW
1-1/4" thick countertop pieces supplied by local source
WALL INSTALLATION
1 VQWO4120
1 VURO3200
1 VTPO1810
1 VBO1830
2 VSP30
2 VBPFLR4
ISLAND INSTALLATION
1 VQWO4120
1 VURO3200
1 VTPO1810
1 VBO1830
2 VSP30
1 VBP41
1 VBP32
2 VBP18
VQWO4120
VSP30
VSP30
VBP32
VURO3200
VTPO1810
VBO1830
VBP41VBP18 VBP18
3/4“
30“
24”W. Outdoor Refrigeration slides in
19
Package 5-4 (Four Cabinets)
VQWO4120
NON-COMBUSTIBLE SURFACE
VSP30
VSP30
VBPFLR4
(stainless facing out)
VURO3200
VBPFLR4
(stainless facing out)
VTPO1810
4“ Surface
4“
30“
VBO1830
24”W. Outdoor Refrigeration slides in
ELEVATION VIEW
1-1/4" thick countertop pieces supplied by local source
WALL INSTALLATION
1 VQWO5311
1 VBO1830
1 VTPO1810
1 VSBO2402
1 VURO3200
2 VSP30
2 VBPFLR4
ISLAND INSTALLATION
1 VQWO5311
1 VURO3200
1 VTPO1810
1 VBO1830
1 VSBO2402
2 VSP30
1 VBP53
1 VBP32
1 VBP24
2 VBP18
20
Package 5-5 (Five Cabinets)
VQWO5311
NON-COMBUSTIBLE SURFACE
VSP30
VSP30
VBPFLR4
(stainless facing out)
VBO1830
VBPFLR4
(stainless facing out)
VTPO1810
4“ Surface
4“
30“
VURO3200
VSBO2402
24”W. Outdoor Refrigeration slides in
VQWO5311
VSP30
VSP30
VBO1830
VTPO1810
VURO3200
3/4“
30“
VBP18 VBP53 VBP18 VBP32 VBP24
VSBO2402
24”W. Outdoor Refrigeration slides in
ELEVATION VIEW
1-1/4" thick countertop pieces supplied by local source
WALL INSTALLATION
1 VQWO5311
1 VBO1830
1 VTPO1810
1 VSBO2402
1 VURO3200
2 VSP30
2 VBPFLR4
ISLAND INSTALLATION
1 VBO1830
1 VSBO2402
1 VQWO5311
1 VTPO1810
1 VURO3200
2 VSP30
2 VBP18
1 VBP24
1 VBP32
1 VBP53
21
Package 5-6 (Six Cabinets)
VQWO5311
NON-COMBUSTIBLE SURFACE
VSP30
VSP30
VBPFLR4
(stainless facing out)
VTPO1810
VBPFLR4
(stainless facing out)
4“ Surface
4“
30“
VURO3200
VBO1830
VSBO2402
24”W. Outdoor
Refrigeration slides in
VQWO5311
VSP30
VSP30
VTPO1810
VURO3200
VBO1830
3/4“
30“
VBP24 VBP18 VBP18 VBP53 VBP32
VSBO2402
24”W. Outdoor
Refrigeration slides in
22
ELEVATION VIEW
1-1/4" thick countertop pieces supplied by local source
WALL INSTALLATION
1 VURO3200
1 VSBO2402
1 VTPO1810
1 VQWO4120
1 VBBO1601
1 VBO1830
1 VFLR4
1 VSP30
1 VTHP30
2 VBPFLR4
ISLAND INSTALLATION
1 VURO3200
1 VSBO2402
1 VTPO1810
1 VQWO4120
1 VBBO1601
1 VBO1830
1 VSP30
1 VTHP30
1 VTBP32
1 VFLR4
2 VBP18
1 VBP16
1 VBP41
1 VBP32
1 VBP24
Package 5-7 (Seven Cabinets)
VQWO4120
VSP30
VBBO1601
VBO1830
VURO3200
VTPO1810
VFLR4
(stainless facing out)
3/4“
30“
VSBO2402
24”W. outdoor refrigeration slides in
VTHP30
VBP32 VBP24 VBP18 VBP16 VBP41 VBP18
VBPFLR4
(stainless facing out)
VQWO4120
NON-COMBUSTIBLE SURFACE
VSP30
VBPFLR4
(stainless facing out)
VBBO1601
VBPFLR4
(stainless facing out)
VBO1830
4“
30“
VURO3200
VTPO1810
4“ Surface
VSBO2402
VTHP30
24”W. outdoor refrigeration slides in
VFLR4
(stainless facing out)
23
ELEVATION VIEW
1-1/4" thick countertop pieces supplied by local source
INSTALLATION
1 VURO3200
1 VSBO2402
1 VTPO1810
1 VQWO4120
1 VBBO1601
1 VBO1830
1 VFLR4
1 VSP30
1 VBPFLR4
1 VBP41
1 VBP32
1 VBP24
1 VBP26
1 VBP18
1 VCF90
1 VOCF90
1 VBPFLR4
Package L-8 (Eight Cabinets)
3/4“
30“
VQWO4120
VSP30
VBBO1601
VTPO1810
VFLR4
(stainless facing out)
VBB02602
VSP30
VCF90
VBP41
VOID AREA
VBP26 VBP18
VOCF90 Back Panel
VOCF90 Back Panel
VBP18
VBO1830
VSBO2402
VBP24VBP32
VURO3200
VBPFLR4
24

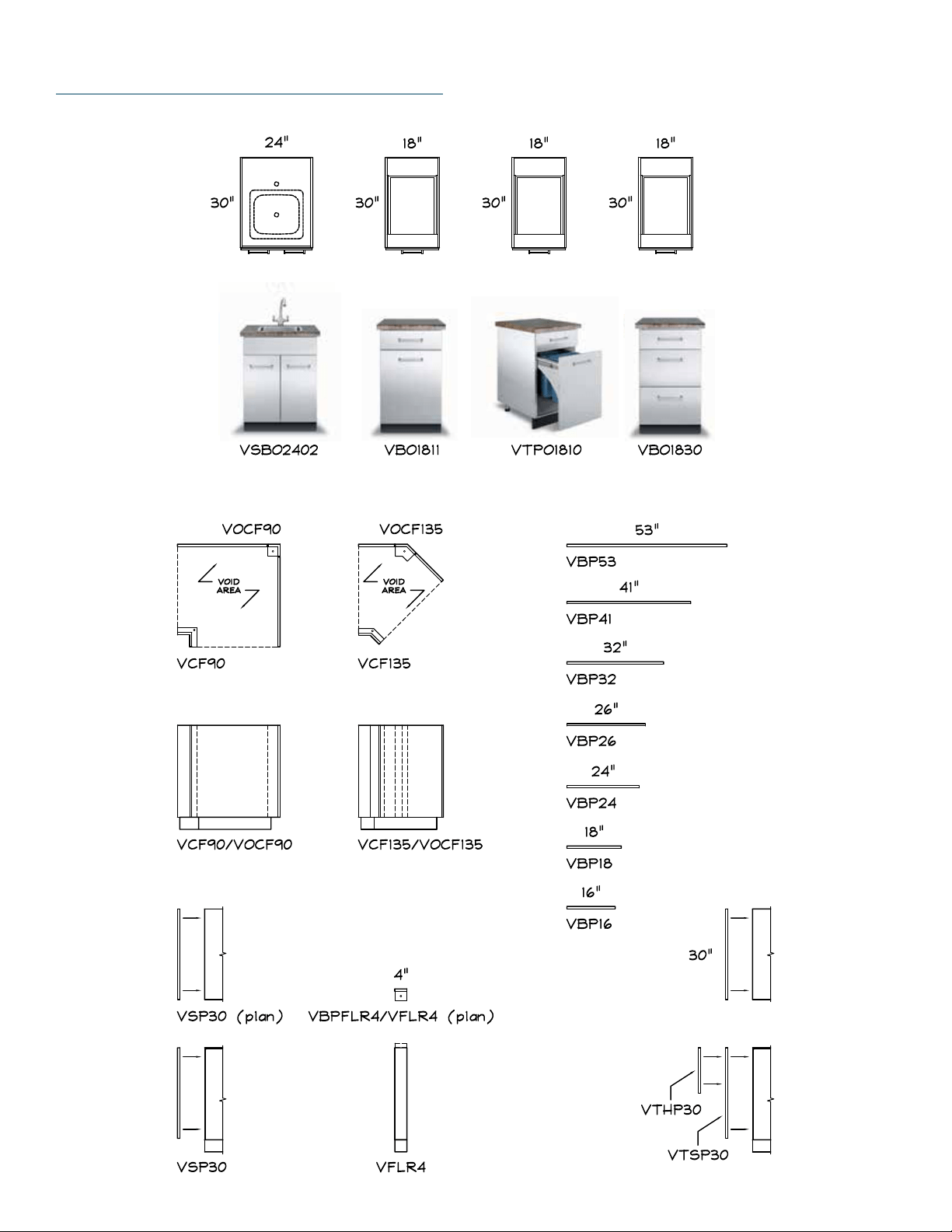

PLAN AND ELEVATIONS GRAPHIC SYMBOLS 31/48" = 1'-0'
VBBO1601
VBBO1601
VBBO2602
VBBO2602
VURO3200
VURO3200
30"
30"
30"
16"
26"
32"
42"
54"
42"
54"
VQWO4120
30"
VQWO4120
VQWO5311
VQWO5311
30"
25
Outdoor
Planning Your Viking Outdoor Kitchen
26

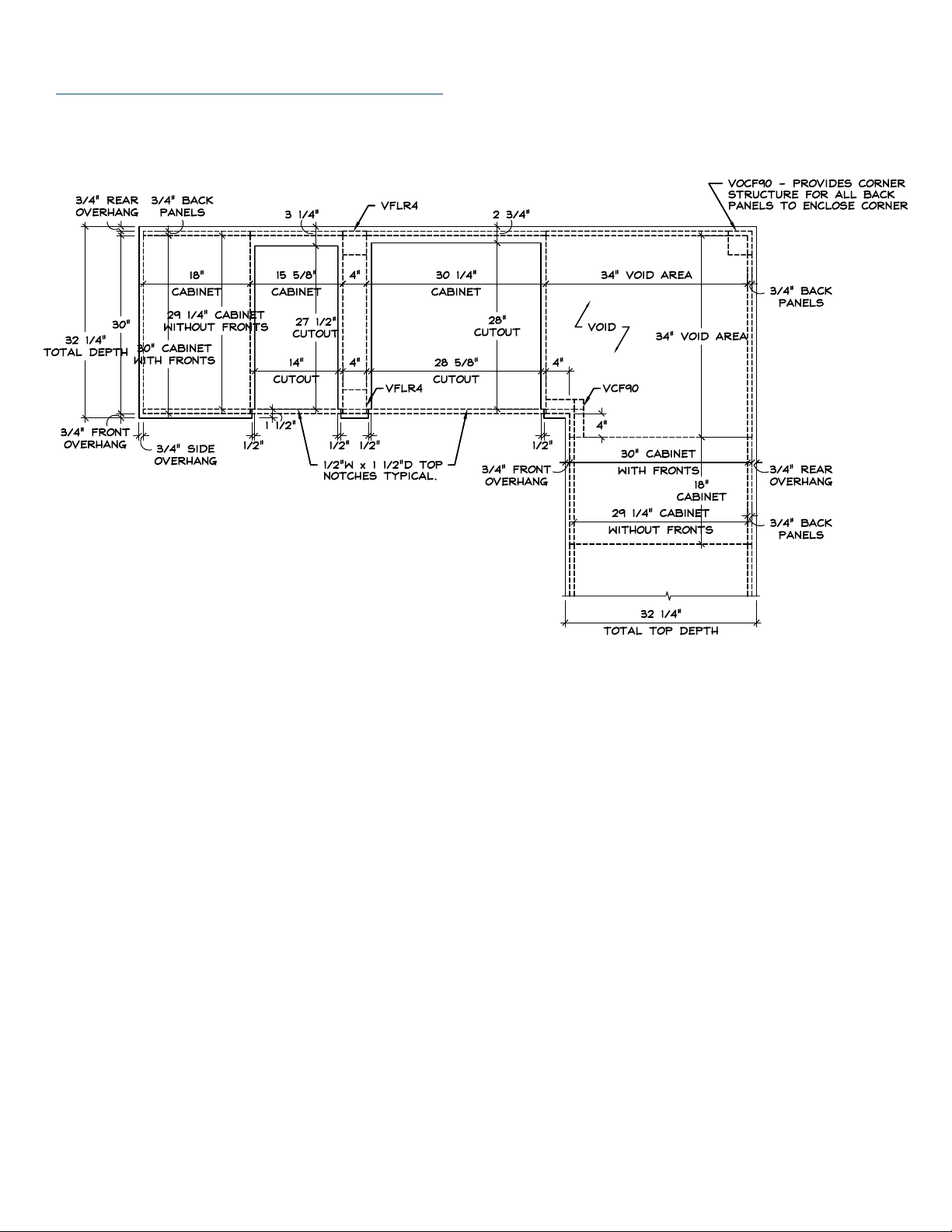

COUNTERTOP SIZING GUIDELINES FOR WALL INSTALLATIONS
While it is always recommended that eld templates be used to exactly determine countertop sizes on outdoor
cabinet layouts, the dimensions above, and following rules will be helpful in planning and costing countertop
installations:
1. Depth of counter, with a 31/44" nominal overhang, will be 34-31/44" when 4" llers (VFLR4) are used against
house walls. The depth will be 30-31/44" when no llers are used. Note: Fillers must be used if a grill is installed in
the cabinet run.
2. Notches in the countertop front edge (11/42" x 1-11/42") are required at all grill, side burner, and wok burner
cutouts.
3. Total width of countertop modules is determined by adding up the width of each cabinet and ller, in the run, and
adding 31/44" for each end overhang, and 3/4" for each back panel (if a 90° layout has exposed (island) backs. No
dimension should be added for side panels (VSP30), as they t ush into the cabinet end.
4. Countertop thickness should be 1-11/44". Any thicker countertop will require that grills, wok burners and side
burners be shimmed (shims locally supplied), to install ush with the tops.
27
Outdoor
Planning Your Viking Outdoor Kitchen
COUNTERTOP SIZING GUIDELINES FOR ISLAND INSTALLATIONS
While it is always recommended that eld templates be used to exactly determine countertop sizes on outdoor
cabinet layouts, the dimensions above, and following rules will be helpful in planning and costing countertop
installations:
1. Depth of counter, with a 31/44" nominal overhang, front and back, will be 32-11/44".
2. Notches in the countertop front edge (11/42" x 1-11/42") are required at all grill, side burner, and wok burner
cutouts.
3. Total width of countertop modules is determined by adding up the width of each cabinet and ller, in the run, and
adding 31/44" for each end overhang, and 3/4" for each back panel (if a 90° layout has exposed (island) backs. No
dimension should be added for side panels (VSP30), as they t ush into the cabinet end.
4. Countertop thickness should be 1-11/44". Any thicker countertop will require that grills, wok burners and side
burners be shimmed (shims locally supplied), to install ush with the tops.
Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA For product information, call 1∙888∙845∙4641 or visit vikingrange.com.
© 2016 VIKING RANGE, LLC. ALL RIGHTS RESERVED.
F80153 0316
