6
The multimeter has been designed according to
International Electro safety standards EN/UL/CSA
61010-1, 61010-2-030, 61010-2-033 concerning
safety requirements for electronic measuring
instruments. It meets CAT III 600V installations and
a pollution degree of 2.
Downloaded from www.ManualsFile.com manuals search engine
6
The multimeter has been designed according to
International Electro safety standards EN/UL/CSA
61010-1, 61010-2-030, 61010-2-033 concerning
safety requirements for electronic measuring
instruments. It meets CAT III 600V installations and
a pollution degree of 2.
Downloaded from www.ManualsFile.com manuals search engine
F1 400mA/600V
F2 10A/600V

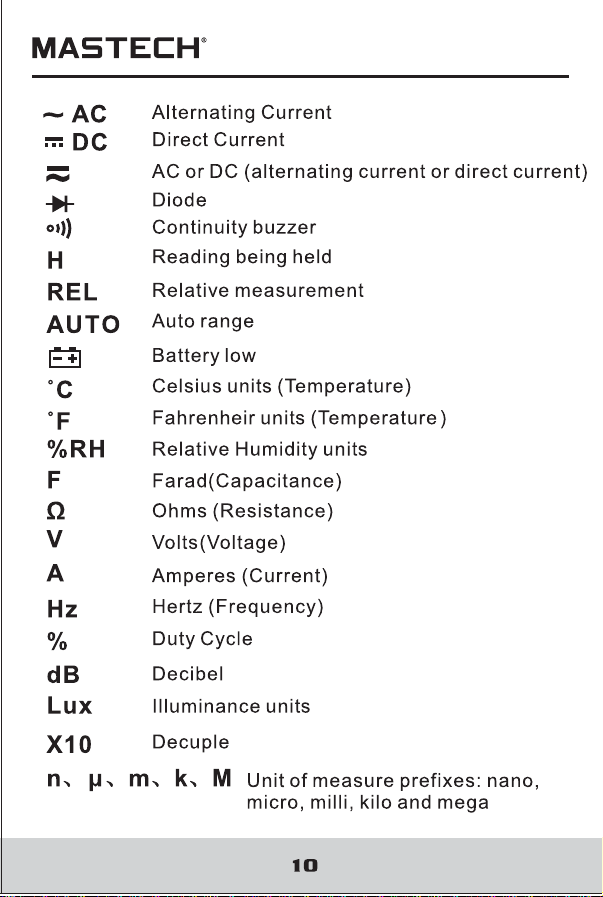

AC & DC (Both direct and Alternating Current)
Important safety information.
High voltage with danger.
Ground.
Double Insulation (Class II safety equipment).
Fuse must be replaced as per the specification herein.
Accord with the related EU laws and regulations
AC (Alternating Current)
DC (Alternating Current)
Conforms to UL STD. 61010-1, 61010-2-030 and 61010-2-033;
Certified to CSA STD. C22.2, NO. 61010-1, 61010-2-030 and
61010-2-033
CAT III
It is applicable to test and measuring circuits connected to the
distribution part of the building’s low-voltage MAINS installation.
Downloaded from www.ManualsFile.com manuals search engine
F1 400mA/600V
F2 10A/600V
AC & DC (Both direct and Alternating Current)
Important safety information.
High voltage with danger.
Ground.
Double Insulation (Class II safety equipment).
Fuse must be replaced as per the specification herein.
Accord with the related EU laws and regulations
AC (Alternating Current)
DC (Alternating Current)
Conforms to UL STD. 61010-1, 61010-2-030 and 61010-2-033;
Certified to CSA STD. C22.2, NO. 61010-1, 61010-2-030 and
61010-2-033
CAT III
It is applicable to test and measuring circuits connected to the
distribution part of the building’s low-voltage MAINS installation.
Downloaded from www.ManualsFile.com manuals search engine
6

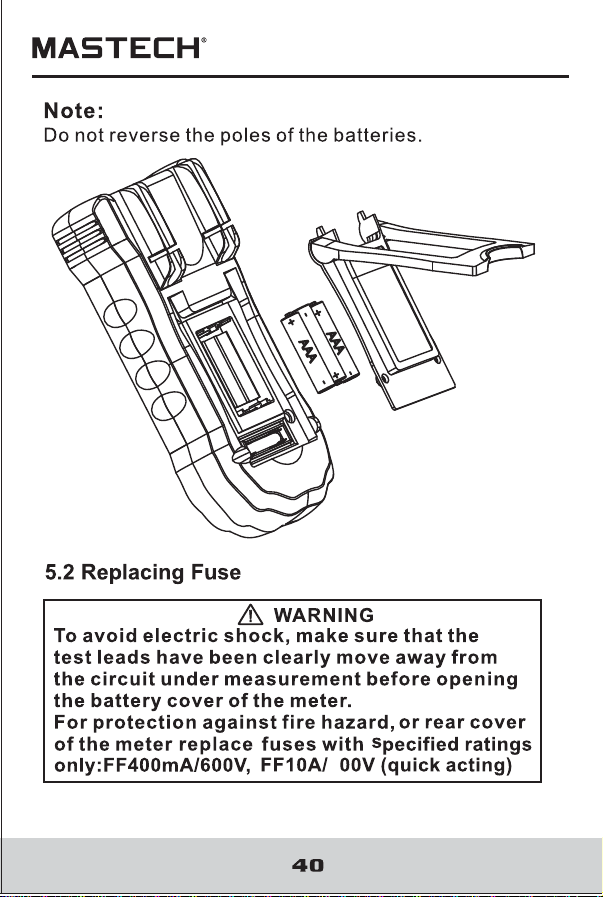

5.1 Replacing The Batteries
WARNING
To avoid electric shock, make sure that the test
leads have been clearly move away from the
circuit under measurement before opening the
battery cover of the meter.
5.1.1 If the sign “ ” appears, it means that the
batteries should be replaced.
5.1.2 Loosen the fixing screw of the battery cover and
remove it.
5.1.3 Replace the exhausted batteries with new ones.
5.1.4 Put the battery cover back and fix it again to its
origin form.
WARNING
Do not mix old and new batteries. Do not mix
alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
Downloaded from www.ManualsFile.com manuals search engine
6
5.1 Replacing The Batteries
WARNING
To avoid electric shock, make sure that the test
leads have been clearly move away from the
circuit under measurement before opening the
battery cover of the meter.
5.1.1 If the sign “ ” appears, it means that the
batteries should be replaced.
5.1.2 Loosen the fixing screw of the battery cover and
remove it.
5.1.3 Replace the exhausted batteries with new ones.
5.1.4 Put the battery cover back and fix it again to its
origin form.
WARNING
Do not mix old and new batteries. Do not mix
alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
Downloaded from www.ManualsFile.com manuals search engine
WARNING
Use meet EN 61010-031 standard, rated CAT III 600V, 10A or
better Test Leads.
•
•
•
•
Thermocouple (K type Tp01) 1set
Package 1pcs
1.5V AAA Battery 2pcs
User's Manual 1pcs
Test Leads 1set
•
Replace test leads if leads become damaged or worn.
Downloaded from www.ManualsFile.com manuals search engine
WARNING
Use meet EN 61010-031 standard, rated CAT III 600V, 10A or
better Test Leads.
•
•
•
•
Thermocouple (K type Tp01) 1set
Package 1pcs
1.5V AAA Battery 2pcs
User's Manual 1pcs
Test Leads 1set
•
Replace test leads if leads become damaged or worn.
