No.
1
2
3
4
5
6
7
8
9
10
11
12
Qty
1
1
1
1
5
1
4
5
5
1
5
5
Description
Seat cushion
Supporting plate
Pneumatic cylinder
Tool tray
Castor
Handle
M6x16 head bolt
Cap nut
Spring washer 8mmØ
Rivet 4x20mmØ
Lock washer 8mmØ
Lock washer 10mmØ
DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K.
www.drapertools.com e-mail: [email protected]
MSDH0518
54229
SPECIFICATION
Stock no. .............................................................................................................................................54229
Part no. ............................................................................................................................................ WS-1-B
Minimum seat height ........................................................................................................ 420mm (approx.)
Maximum seat height ....................................................................................................... 540mm (approx.)
Maximum weight capacity ....................................................................................................................150kg
SAFETY INSTRUCTIONS
•
Do not use as a toy or skateboard.
•
Do not stand on work stool or use as a stepping device.
•
Do not use if any part of the work stool is defective or damaged in any way.
•
Always store in an upright position in a secure place.
•
Keep out of the reach of children.

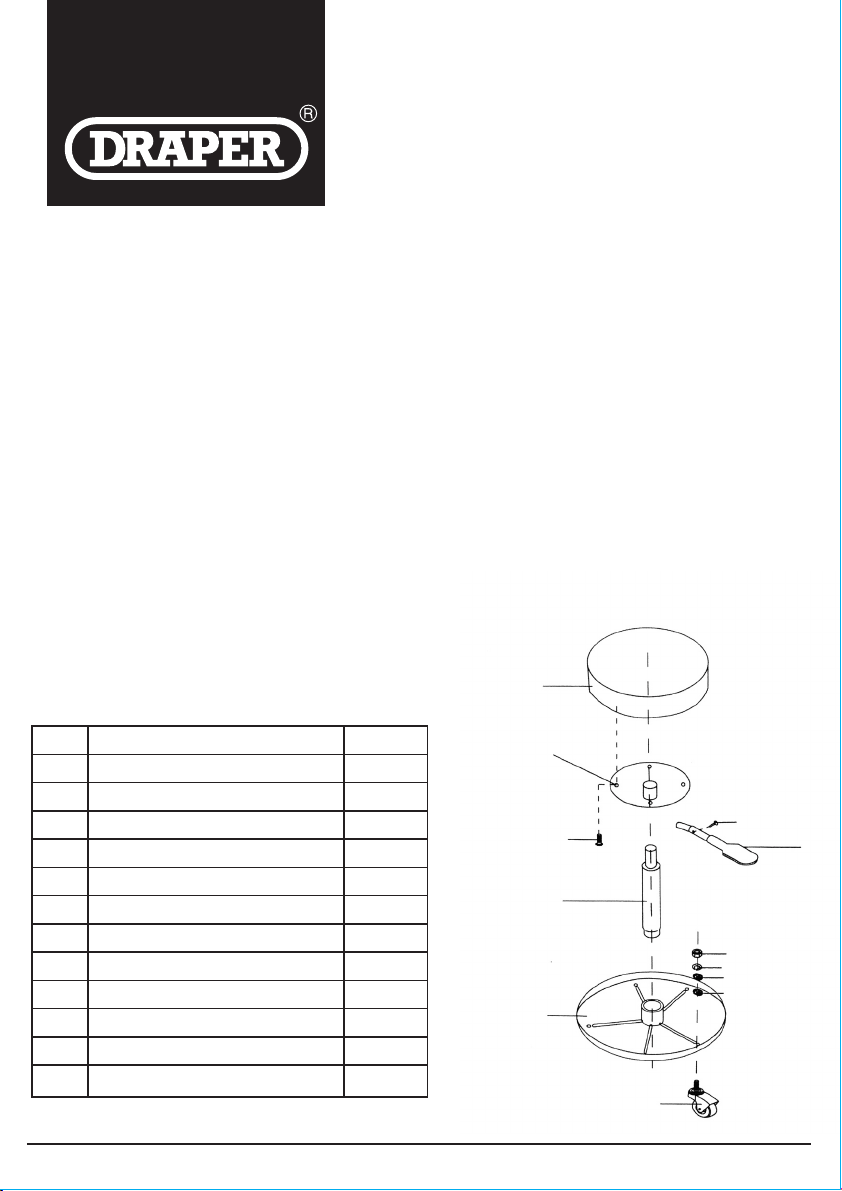

ASSEMBLY
•
Attach handle (6) to supporting plate (2) using rivet 4x20mmØ (10).
•
Connect supporting plate (2) to seat cushion (1) using
M6x16 head bolt (7).
•
Attach castors (5) to tool tray (4) using cap nuts (8),
lock washer 8mmØ (11) and lock washer 10mmØ (12).
•
Insert the bottom of the pneumatic cylinder (3) to tool
tray (4) and insert the top pneumatic cylinder to
supporting plate (2).
Adjustable Work Stool - 54219
Instruction Sheet Artwork amended
1
2
7
3
4
5
8
6
10
9
11
12
ADJUSTABLE
WORK STOOL
Manufacture change content to match 54216 AN.
