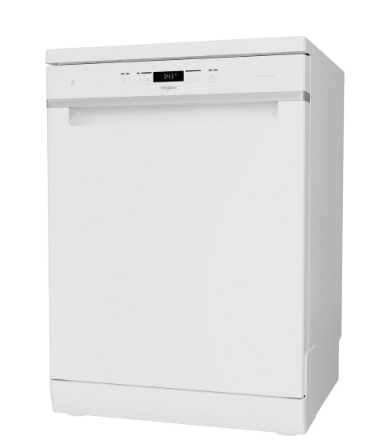

User Manual Whirlpool WFC3C33PFUK Freestanding Dishwasher
PRODUCT DESCRIPTION
CONTROL PANEL
FIRST TIME USE
SALT, RINSE AID AND DETERGENT
ADVICE REGARDING THE FIRST TIME USE
After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.
- It is mandatory that THE SALT RESERVOIR BE NEVER EMPTY.
- It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit .
- Remove the lower rack and unscrew the reservoir cap (anticlockwise).
- Only the first time you do this: fill the salt reservoir with water.
- Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately kg); it is not unusual for a little water to leak out.
- Remove the funnel and wipe any salt residue away from the opening.
SETTING THE WATER HARDNESS
To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory sets the default value for the water hardness
- Switch on the appliance by pressing the ON/OFF button.
- Switch off the appliance by pressing the ON/OFF button.
- Hold down button START/Pause for 5 seconds, until you hear a beep.
- Switch on the appliance by pressing the ON/OFF button.
- The current selection level number and the salt indicator light both flash.
- Press button P to select the desired hardness level (see WATER HARDNESS TABLE).
- Switch off the appliance by pressing the ON/OFF button. Setting is complete!
As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers. After the salt has been poured into the machine, the SALT REFILL indi- cator light switches off. If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation. Using of Salt is recommended with any type of dishwasher detergent.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit.
- Open the dispenser B by pressing and pulling up the tab on the lid.
- Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
- Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the appliance tub.
ADJUSTING THE DOSAGE OF RINSE AID
If you are not completely satisfied with the drying results, you can ad- just the quantity of rinse aid used.
- Switch the dishwasher on using the ON/OFF button.
- Switch it off using the ON/OFF button.
- Press button START/Pause three times - a beep will be heard.
- Switch it on using the ON/OFF button.
- The current selection level number and rinse aid indicator light flash.
- Press button P to select the level of rinse aid quantity to be supplied.
- Switch it off using the ON/OFF button
Setting is complete!
If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid. A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.
- If you see bluish streaks on the dishes, set a low number (2-3).
- If there are drops of water or limescale marks on the dishes, set a mid-range number (4-5).
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.
- When measuring out the detergent refer to the mentioned earlier infor- mation to add the proper quantity. Inside the dispenser D there are indi- cations to help the detergent dosing.
- Remove detergent residues from the edges of the dispenser and clo- se the cover until it clicks.
- Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.
PROGRAMS TABLE
PROGRAMS DESCRIPTION
Instructions on wash cycle selection.
1. ECO
Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.
2. 6th SENSE®
For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.
3. INTENSIVE
Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).
4. FAST WASH&DRY
Normally soiled crockery. Everyday cycle, that ensures optimal cleaning performance in shorter time.
5. CRYSTALS
Program for delicate items, which are more sensitive to high temperatu- res, for example glasses and cups.
6. RAPID 30’
Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not have drying phase.
7. SILENT
Suitable for night-time operation of the appliance. Ensures optimal cle- aning and drying performance with the lowest noise emission.
8. PRE-WASH
Use to refresh crockery planned to be washed later. No detergent to be used with this program.
Notes:
Please note that cycle Rapid 30’ is dedicated for lightly soiled dishes.
OPTIONS AND FUNCTIONS
If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.
MULTIZONE
- shown on the display (only lower rack)
- shown on the display (only upper rack)
- shown on the display (only cutlery rack)
- shown on the display (option is OFF and the appliance will wash dishes in all racks).
KEYLOCK
WATER TAP CLOSED – Alarm
Flashes when there is no inlet water or water tap is closed.
POWER CLEAN®
Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN® the indicator lights up).
TABLET
If you use powder or liquid detergent, this option should be off.
DELAY
The start of the program may be delayed for a period of time between 0:30 and 24 hours.
If at the time of the countdown the START/PAUSE button is pressed again the DELAY option is cancelled and the selected program starts automatically.
The Delay function cannot be set once a wash cycle has been started.
DRAIN OUT
NaturalDry
NaturalDry functionality could be disabled by the user as follows:
- To DISABLE: Switch On, then switch Off. Keep the P button pressed for sec., at the end of 5 sec the dishwasher plays a short beep. Switch On the machine, the display shows „oOF”.
- To ENABLE: Switch On, then switch Off the machine. Keep the P button pressed for 5 sec., at the end of 5 sec the dishwasher plays a short beep. Switch On the machine, the display shows „oOn”.
LOADING THE RACKS
CUTLERY RACK
UPPER RACK
Load delicate and light dishes: glasses, cups, saucers, low salad bowls. loading example for the upper rack)
ADJUSTING THE HEIGHT OF THE UPPER RACK
FOLDABLE FLAPS WITH ADJUSTABLE POSITION
LOWER RACK
POWER CLEAN®
How to use Power Clean®:
- Adjust the Power Clean® area G folding down the rear plate hol- ders to load pots.
- Load pots and casseroles inclined vertically in Power Clean® area. Pots have to be inclined towards the power water jets.
DAILY USE
1. CHECK WATER CONNECTION
Check that the dishwasher is connected to the water supply and that the tap is open.
2. SWITCH ON THE DISHWASHER
Press the ON/OFF button.
3. LOAD THE RACKS
(see LOADING THE RACKS).
4. FILLING THE DETERGENT DISPENSER
5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE
6. START
Start the wash cycle by pressing the START/Pause button. When the program starts you hear a beep.
7. END OF WASH CYCLE
MODIFYING A RUNNING PROGRAM
If a wrong program was selected, it is possible to change it, provided that it has only just begun: press and hold the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired op- tions; start the cycle by pressing the START/PAUSE button.
ADDING EXTRA CROCKERY
Without switching off the machine, open the door (be ware of HOT steam!) and place the crockery inside the dishwasher. Close the door and press the START/Pause button the cycle will begin from the point at which it was interrupted.
ACCIDENTAL INTERRUPTIONS
If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been closed or the electricity sup- ply is restored, to start again the cycle from where it was interrupted, press the START/Pause button.
To disable the DEMO MODE the following actions must be carried out in sequence, without breaks. Switch the machine ON and then switch it OFF again. Press the DELAY button until the buzzer is heard. Switch the machine on again. The “dOF” indicator flashes and then turns OFF.
ADVICE AND TIPS
TIPS
UNSUITABLE CROCKERY
- Wooden crockery and cutlery.
- Delicate decorated glasses, artistic handicraft and antique crockery.
- Their decorations are not resistant.
- Parts in synthetic material which do not withstand high temperat- ures.
- Copper and tin crockery.
- Crockery soiled with ash, wax, lubricating grease or ink.
The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.
DAMAGE TO GLASS AND CROCKERY
- Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
- Use a delicate detergent suitable for crockery
- Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.
TIPS ON ENERGY SAVING
- When the household dishwasher is used according to the manufac- turer’s instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
- In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in LOADING THE RACKS chapter.
- In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), fiilling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
HYGIENE
To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.
CARE AND MAINTENANCE
CLEANING THE FILTER ASSEMBLY
Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.
The dishwasher must not be used without filters or if the filter is loose.
At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a no- n-metallic brush and following the instructions below:
- Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
- Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
- Slide out the stainless-steel plate filter C (Fig 3).
- In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
- Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).
After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.
CLEANING THE WATER INLET HOSE
If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and da- mage the dishwasher.
CLEANING THE SPRAY ARMS
On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommen- ded that you check the arms from time to time and clean them with a small non-metallic brush.
To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.
The lower spray arm may be removed by pulling it upwards.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.
This system regenerates itself with salt, therefore it is required to refill salt container when empty.
- Single regeneration consumes: ~3.5 L of water;
- Takes up to 5 additional minutes for the cycle;
- Consumes below 0.005 kWh of energy.
TROUBLESHOOTING
1. Salt indicator is lit
Salt reservoir is empty (after refill the salt indicator may remain lit for several wash cycles).
- Refill reservoir with salt (for more information - see page 2).
- Adjust water hardness (see table, page 2).
2. Rinse aid indicator is lit
Rinse aid dispenser is empty (after refill the rinse aid indicator may remain lit for several wash cycles).
- Refill dispenser with rinse aid (for more information - see page 2).
3. The dishwasher won’t start or does not respond to commands.
The appliance has not been plugged in properly.
- Insert the plug into the socket.
Power outage.
- For safety reasons, dishwasher will not restart automatically when power returns.
- Press the START/Pause button to resume the cycle.
The dishwasher door is not closed. NaturalDry pin is not pulled in.
- Vigorously push the door until you hear the “click”.
Cycle is interupted by door opening for > 4 seconds.
- Close the door and press START/Pause button.
It does not respond to commands. Display shows: F9 or F12 and both On/Off and START/Pause LEDs are blinking rapidly.
- Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
4. The dishwasher won’t drain. Display shows: F3 and both On/Off and START/Pause LEDs are blinking rapidly.
The wash cycle has not finished yet.
- Wait until the wash cycle finishes.
The drain hose is bent.
- Check that the drain hose is not bent (see INSTALATION INSTRUCTION).Wait until the wash cycle finishes.
The sink drain pipe is blocked.
- Clean the sink drain pipe.
The filter is clogged up with food residues.
- Clean the filter (see CLEANING THE FILTER ASSEMBLY).
5. The dishwasher makes excessive noise.
- Position the crockery correctly (see LOADING THE RACKS).
- The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart dishwasher by pressing the DRAIN button (see OPTIONS AND FUNCTIONS) and run new program without detergent.
6. The dishes are not clean.
The crockery has not been arranged properly.
- Arrange the crockery correctly (see LOADING THE RACKS).
The spray arms cannot rotate freely, being hindered by the dishes.
- Arrange the crockery correctly (see LOADING THE RACKS).
The wash cycle is too gentle.
- Select an appropriate wash cycle (see PROGRAMS TABLE).
An excessive amount of foam has been produced.
- The detergent has not been measured out correctly or it is not suitable for use in dish- washers (see FILLING THE DETERGENT DISPENSER).
The cap on the rinse aid compartment has not been shut correctly.
- Make sure the cap of the rinse aid dispenser is closed.
The filter is soiled or clogged.
- Clean the filter assembly (see CARE AND MAINTENANCE).
There is no salt.
- Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
7. The dishwasher does not fill the water. Display shows: and F6, both On/Off and START/Pause LEDs are blinking rapidly.
No water in the water supply or the tap is closed.
- Make sure there is water in the water supply or the tap running.
The inlet hose is bent.
- Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
The sieve in the water inlet hose is clogged; it is necessary to clean it.
- After having carried out the verification and cleaning, turn off and turn on the dish- washer and restart a new program.
8. Dishwasher finishes the cycle prematurely. Display shows: F15 and both On/Off and START/Pause LEDs are blinking rapidly.
Drain hose positioned too low or siphoning into home sewage system.
- Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
Air in water supply.
- Check water supply for leaks or other issues letting air inside.
See other models: WCD5090JWH W5CE1522FBK NV51T5511DS WFG320M0BK WFG515S0JW
