1
IMPORTANT:
READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.
DANGER:
IF YOU SMELL GAS:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fire department.
WARNING:
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
CODE AND SUPPLY REQUIREMENTS: This
grill must be installed in accordance with local
codes and ordinances, or, in the absence of local
codes, with the latest National Fuel Gas Code
(ANSI Z223.1/NFPA 54), or Natural Gas and
Propane Storage and Handling Installation Code
(CSA-B149.1).
This appliance and its dedicated manual shutoff
valve must be disconnected from the gas-supply
piping system when testing the system at pressures
in excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas-
supply piping system by closing its dedicated
manual shutoff valve during any pressure testing
of the gas-supply system at pressures up to and
including ½ psig (3.5 kPa).
All electrical outlets in the vicinity of the grill must be
properly grounded in accordance with local codes,
or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1, whichever is applicable.
Keep all electrical-supply cords and fuel-supply
hoses away from any heated surface.
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
WARNING:
Improper installation, adjustment, alteration,
service, or maintenance can cause injury
or property damage. For proper installation,
refer to the installation instructions. For
assistance or additional information, consult
a qualified professional service technician,
service agency, or the gas supplier.
Proper operation of your grill
requires prompt and periodic
maintenance. See the SERVICING
AND CLEANING section for details.
Certified to: ANSI Z21.58
CSA 1.6
American Outdoor Grill • PO Box 4053 • La Puente, CA 91747
WARNINGS AND SAFETY CODES
INSTALLATION AND
OWNER’S MANUAL
US
®
C
GETTING STARTED
REV 4 - 1904111550
L-C2-438
PORTABLE OUTDOOR GAS GRILLS
24, 30, & 36 "L" Series
2
IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION
GRIL EXTÉRIEUR DE GAZ DU PORTABLE
DANGER:
SI VOUS SENTEZ LE GAZ :
1. Coupez le gaz à l’appareil.
2. Éteignez-vous n’importe quelle flamme nue.
3. Ouvrez le couvercle.
4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.
AVERTISSEMENT:
1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
inflammables à proximité de ceci ou
d’aucun autre appareil.
2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.
CONDITIONS DE CODE ET D’APPROVISIONNEMENT:
Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).
Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système sifflant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).
Cet appareil doit être isolé dans gaz-fournissent le système
sifant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz-
fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).
Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.
Maintenez tout électrique-fournissent des cordes et carburant-
fournissent des tuyaux partis de n’importe quelle surface de
chauffage.
INSTALLATEUR : Laissez ces instructions avec le consommateur.
CONSOMMATEUR : Maintenez pour la future référence.
AVERTISSEMENT:
L’installation inexacte, l’ajustement, le
changement, le service, ou l’entretien
peuvent causer des dommages ou des
dégats matériels. Référez-vous à ce manuel.
Pour de l'aide ou des renseignements
supplémentaires, consultez un technicien
professionnel qualifié de service, une
agence de service ou le fournisseur de gaz.
• Ce gril est pour ultilisation à l’extérieur seulement.
Si l’appareil est entreposé à l’intérieur, enlever les
bouteilles et les laisser à l’extérieur.
• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger.
Le non respect de cette mesure de sécurité pourrait
entraîner un incendie causant des dommages à la
propriété, des blessures ou la mort.
• Ne pas utiliser cet appareil sous une surface combustible.
• Ne pas utiliser cet appareil sous un auvent. Le non
respect de cette mesure de sécurité pourrait entraîner
un incendie ou des blessures.
• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à
partir des parois latérales et 45.7cm à partir de l’arriére).
• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce
régulateur est réglé pour une pression de sortie de 5
pouces de colonne de l’eau pour le gaz naturel, et 10
pouces pour le propane.
• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE
CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS
GRAND QUE (LIVRES PAR POUCE CARRÉ), UN
RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ
AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS
D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE
D’OFFRE DE GAZ.
• Ne couvrez jamais la surface entière de cuisine ou de
gril de gauffreuses ou de casseroles. La surchauffe se
produira et les brûleurs ne seront pas très performants
quand la chaleur de combustion est emprisonnée au-
dessous de la surface à cuire.
• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de
porcelaine ou de fer de fonte.
• Une fuite de GPL peut causer une incendie ou une
explosion si enflammée entraînant des blessures
corporelles graves ou la mort.
• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du
GPL non utilisé.
Certifié à la norme: ANSI Z21.58 / CSA 1.6
SÛRETÉ ET CODES D’AVERTISSEMENT
INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE
REV 4 - 1904111550
L-C2-438
3
TABLE OF CONTENTS
REV 4 - 1904111550
L-C2-438
GETTING STARTED
WARNINGS AND SAFETY CODES ������������������������������������1
INSTALLATION, OPERATION, AND
SAFETY INFORMATION �����������������������������������������������������4
ELECTRICAL CONNECTIONS �����������������������������������������4
GAS SAFETY INFORMATION ��������������������������������������������5
WARNING ����������������������������������������������������������������������� 5
WHEN USING PROPANE GAS ������������������������������������������ 5
WHEN USING NATURAL GAS ������������������������������������������ 5
INSTALLATION SAFETY GUIDELINES �����������������������������5
OPERATING THE UNIT SAFELY AND CORRECTLY ������ 5

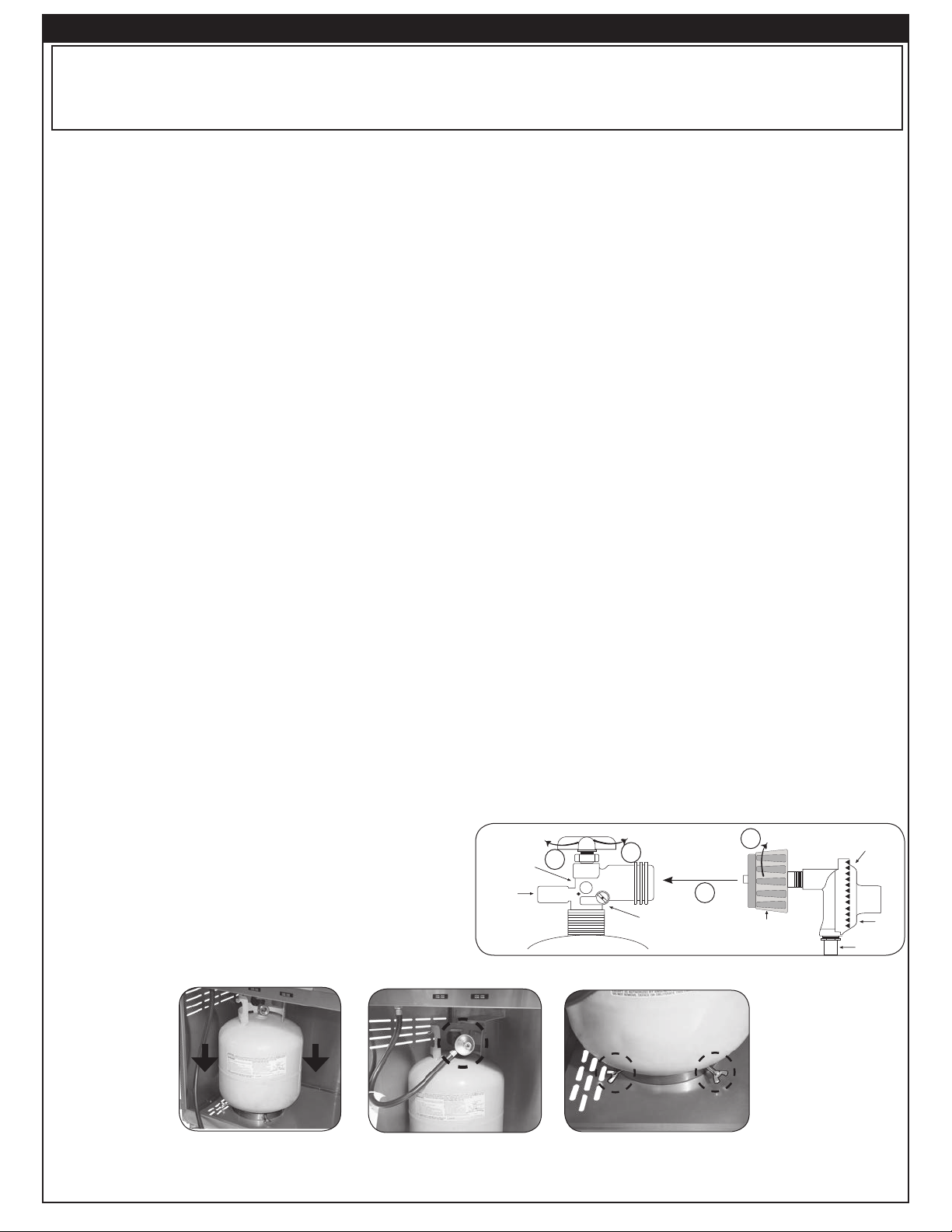

SAFE USE & MAINTENANCE OF PROPANE
GAS CYLINDERS �����������������������������������������������������������������
7
INSTALLATION REQUIREMENTS ������������������������������������8

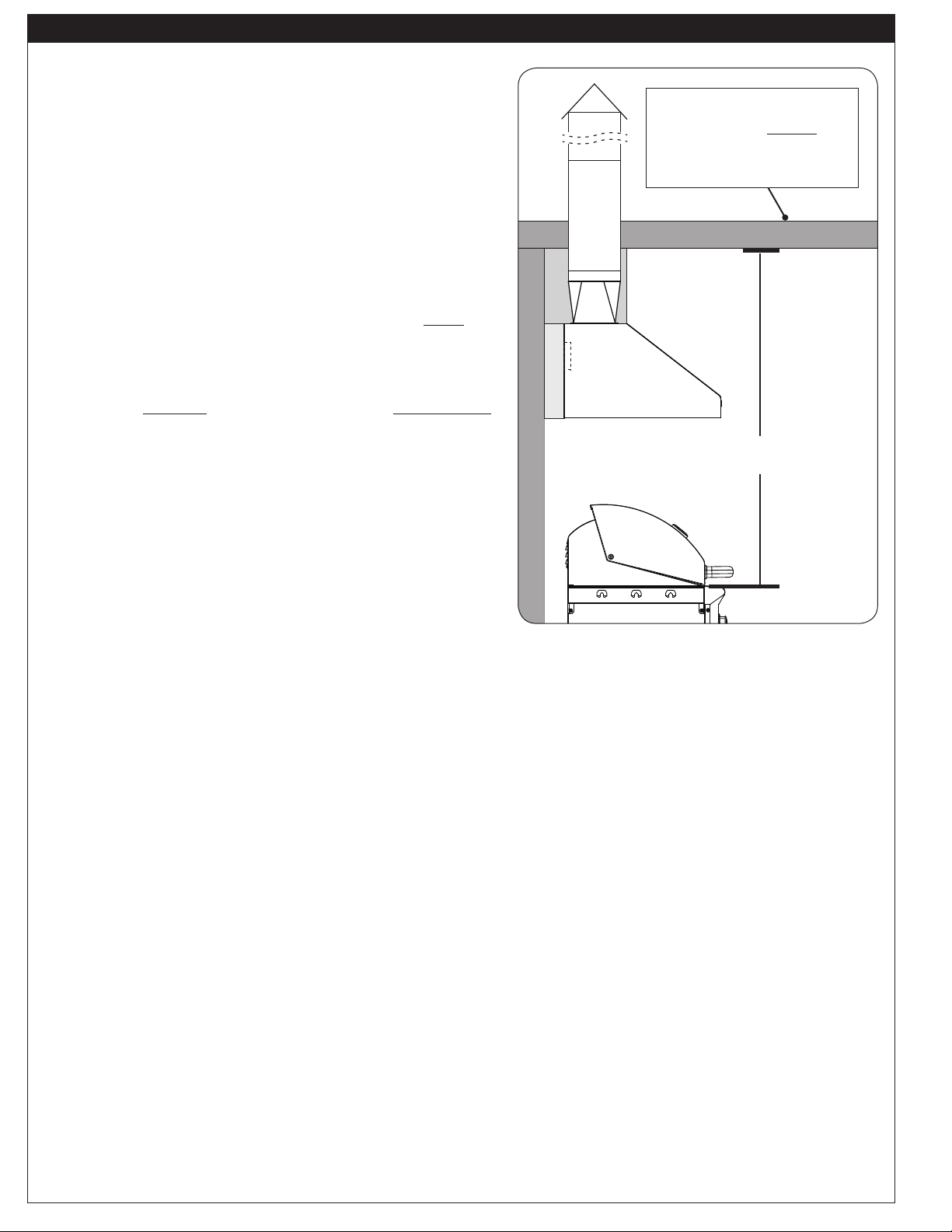

OVERHEAD CONSTRUCTION AND
EXHAUST HOOD REQUIREMENTS
��������������������������������� 8

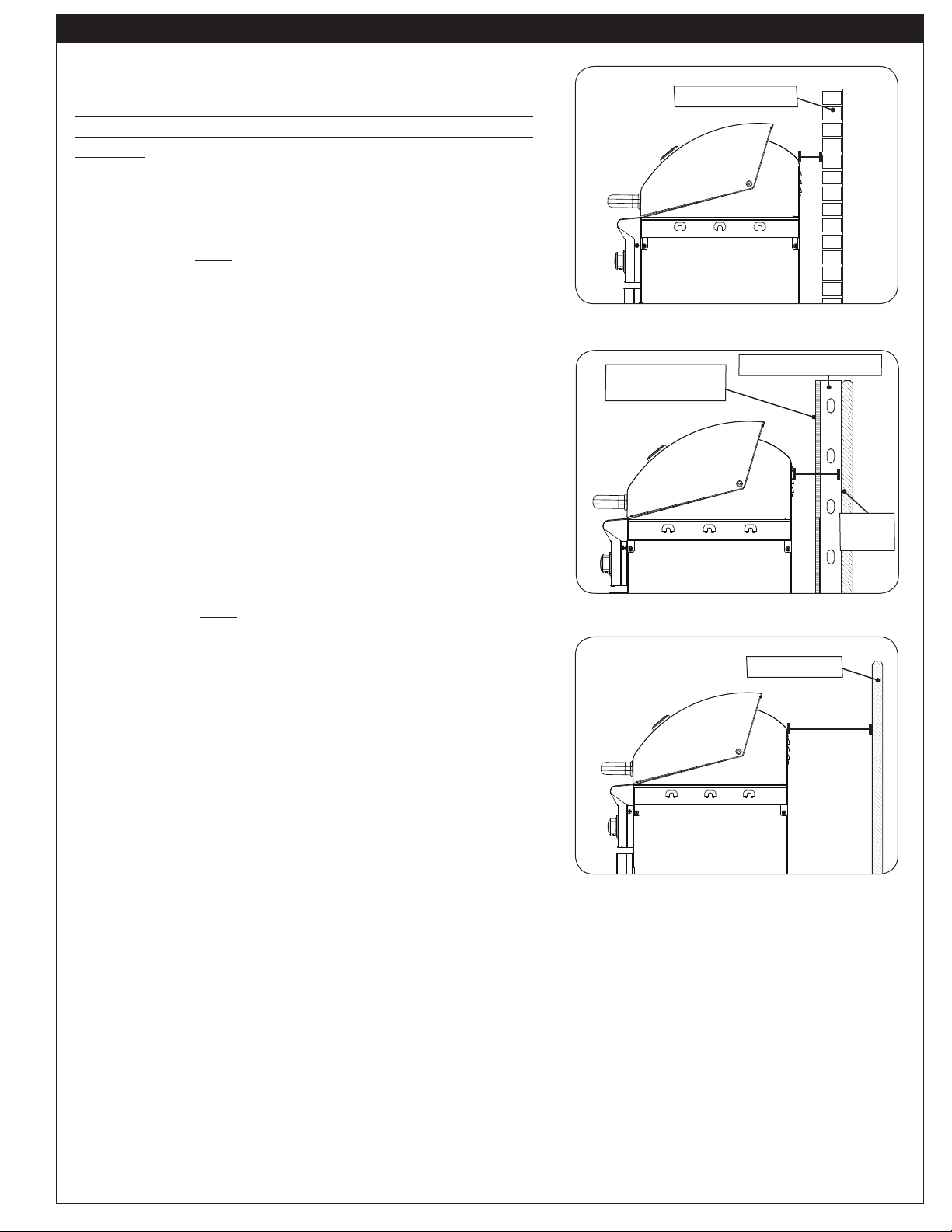

SIDE AND REAR WALL CLEARANCES �����������������������������9

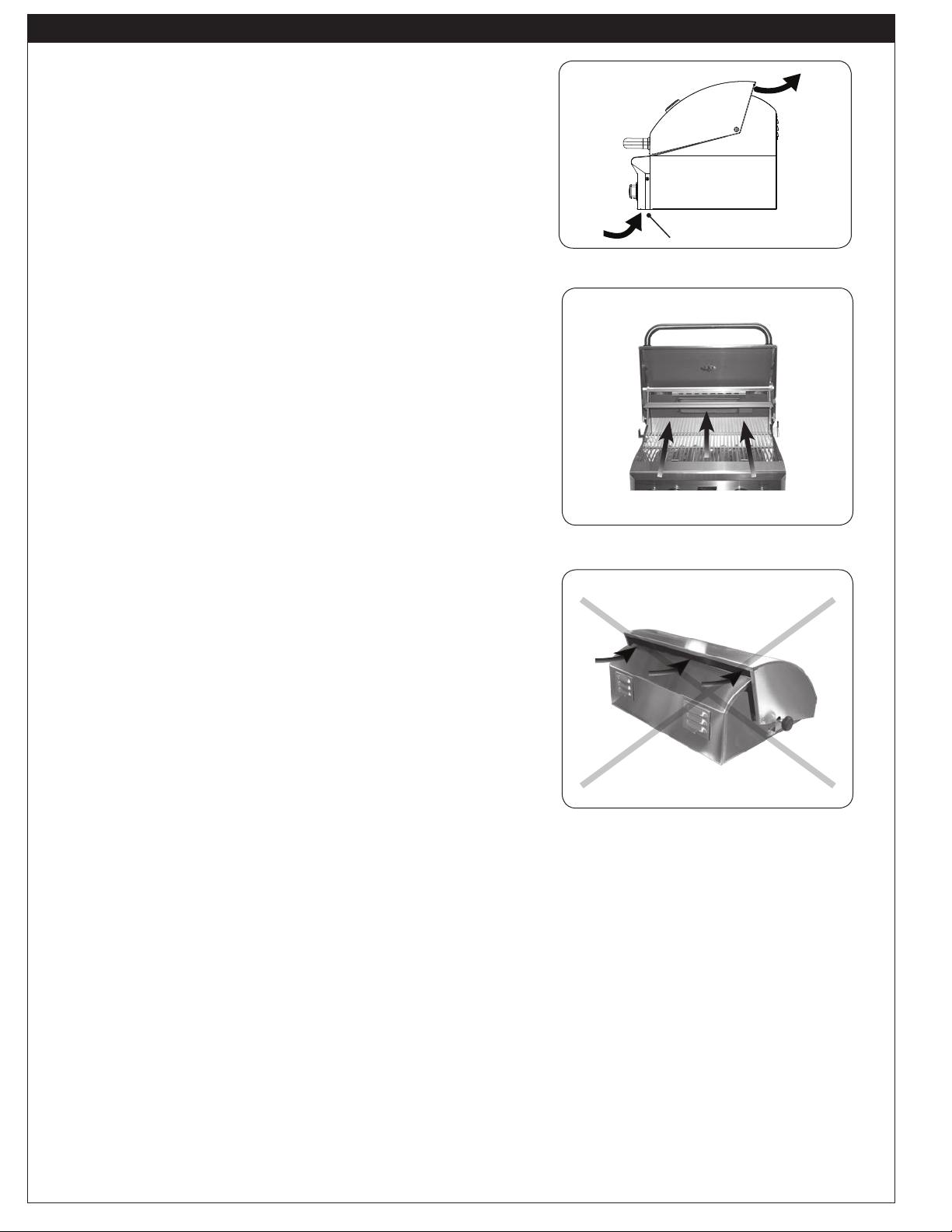

COMBUSTION AIR AND COOLING AIRFLOW ���������������10
GAS-SUPPLY PLUMBING REQUIREMENTS ������������������10
ELECTRICAL SAFETY ������������������������������������������������������ 11

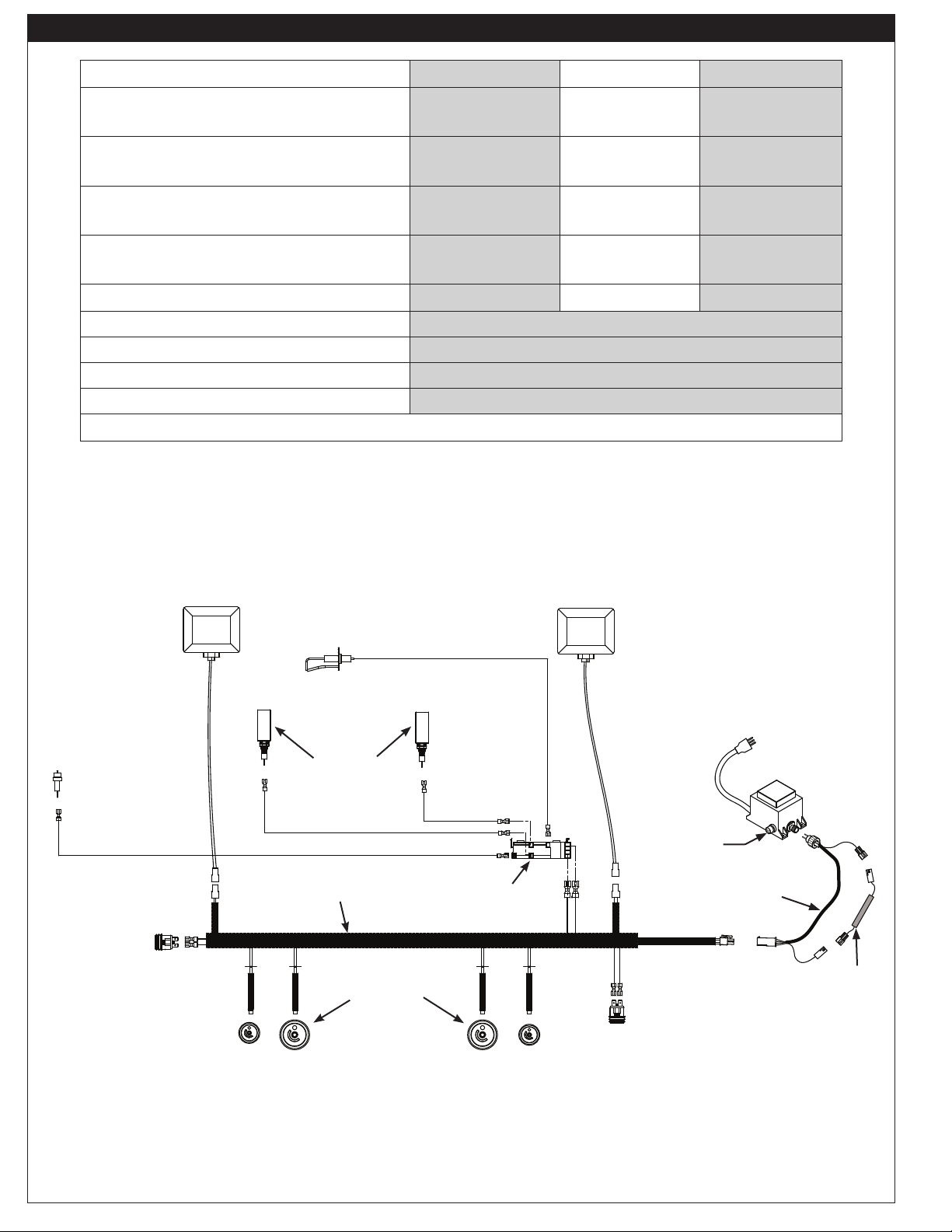

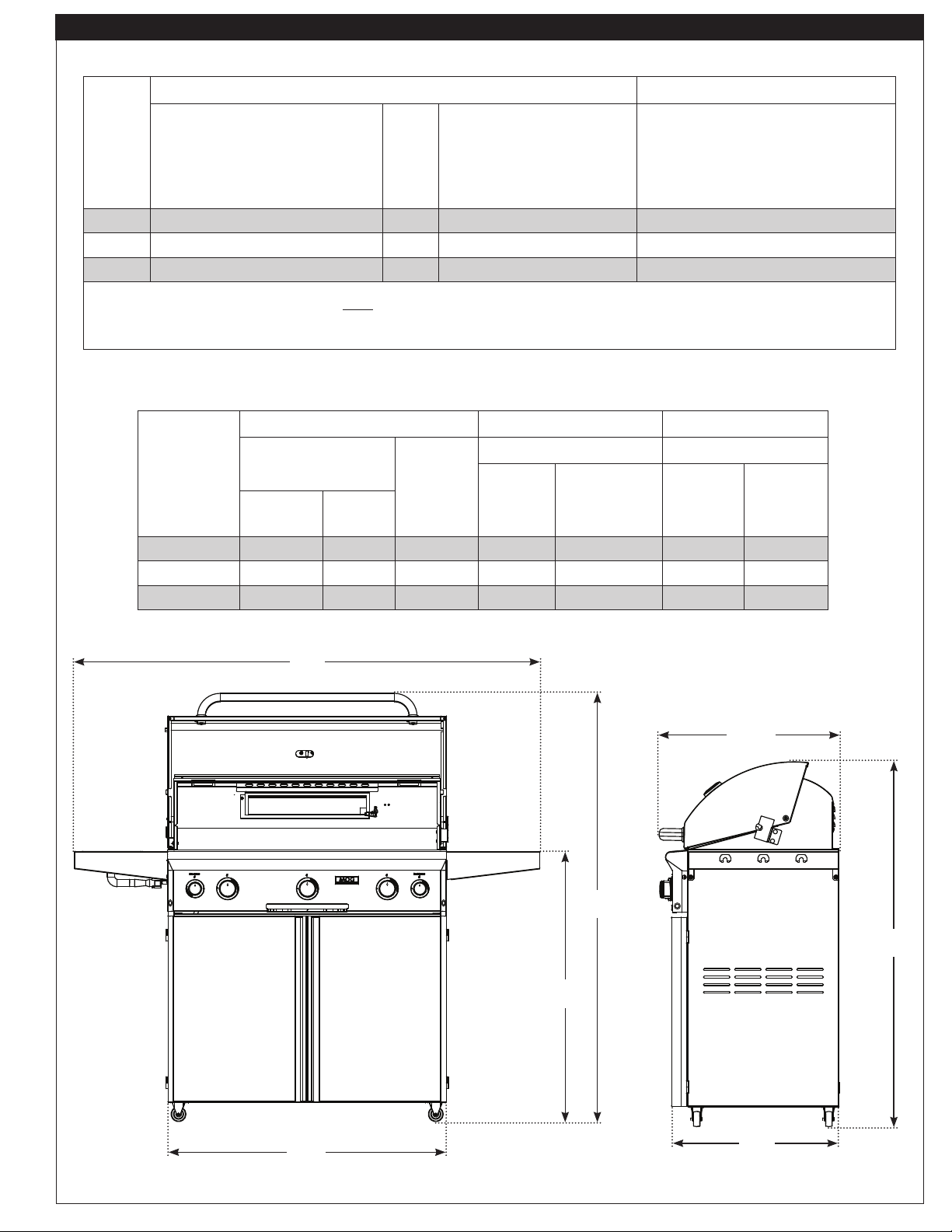

MODEL SPECIFICATIONS ������������������������������������������������12

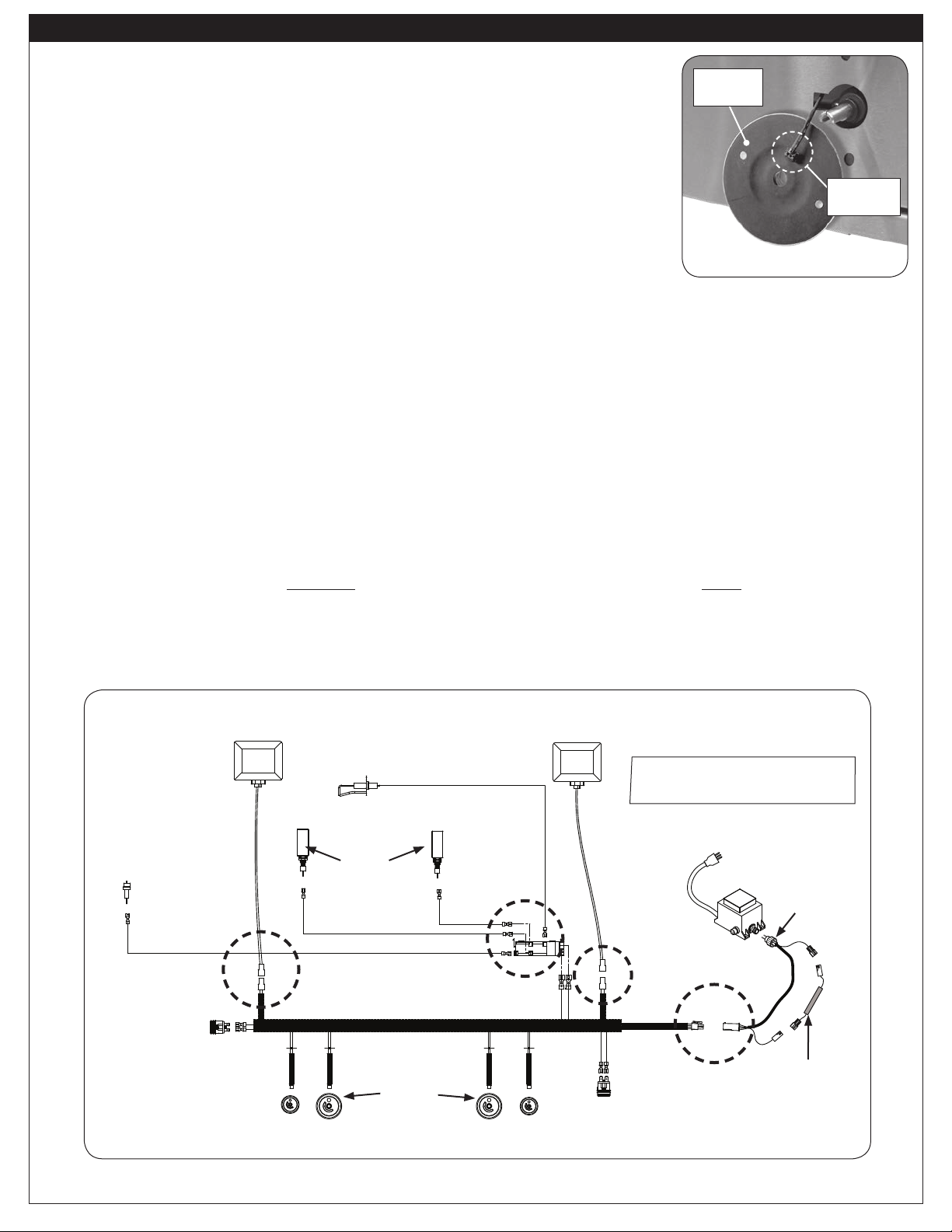

PORTABLE GRILL WIRING DIAGRAM ��������������������������� 12

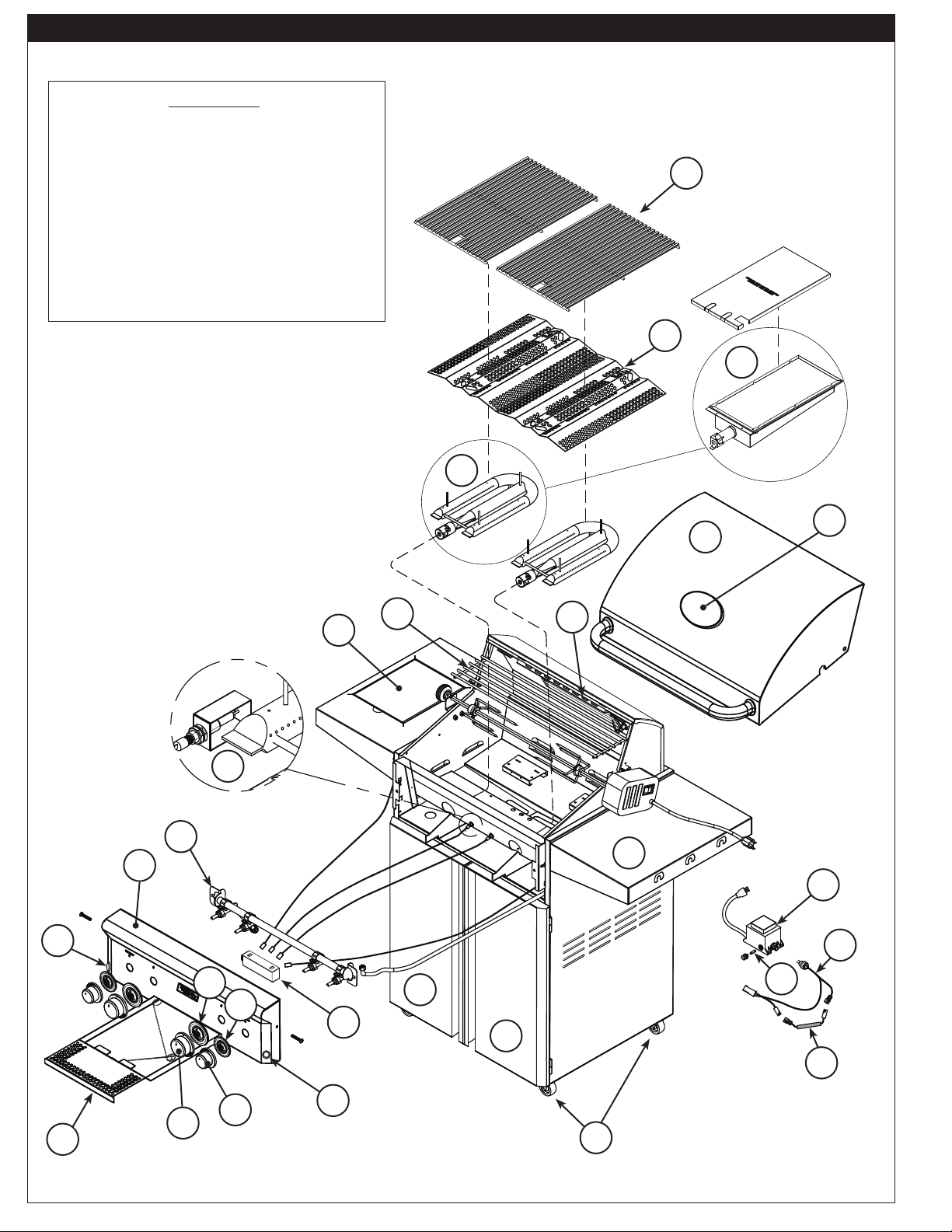

AOG GRILL REPLACEMENT PARTS LIST ��������������������� 14
INSTALLATION
INSTALLATION ������������������������������������������������������������������ 17
LOCATION PREPARATION �������������������������������������������� 17

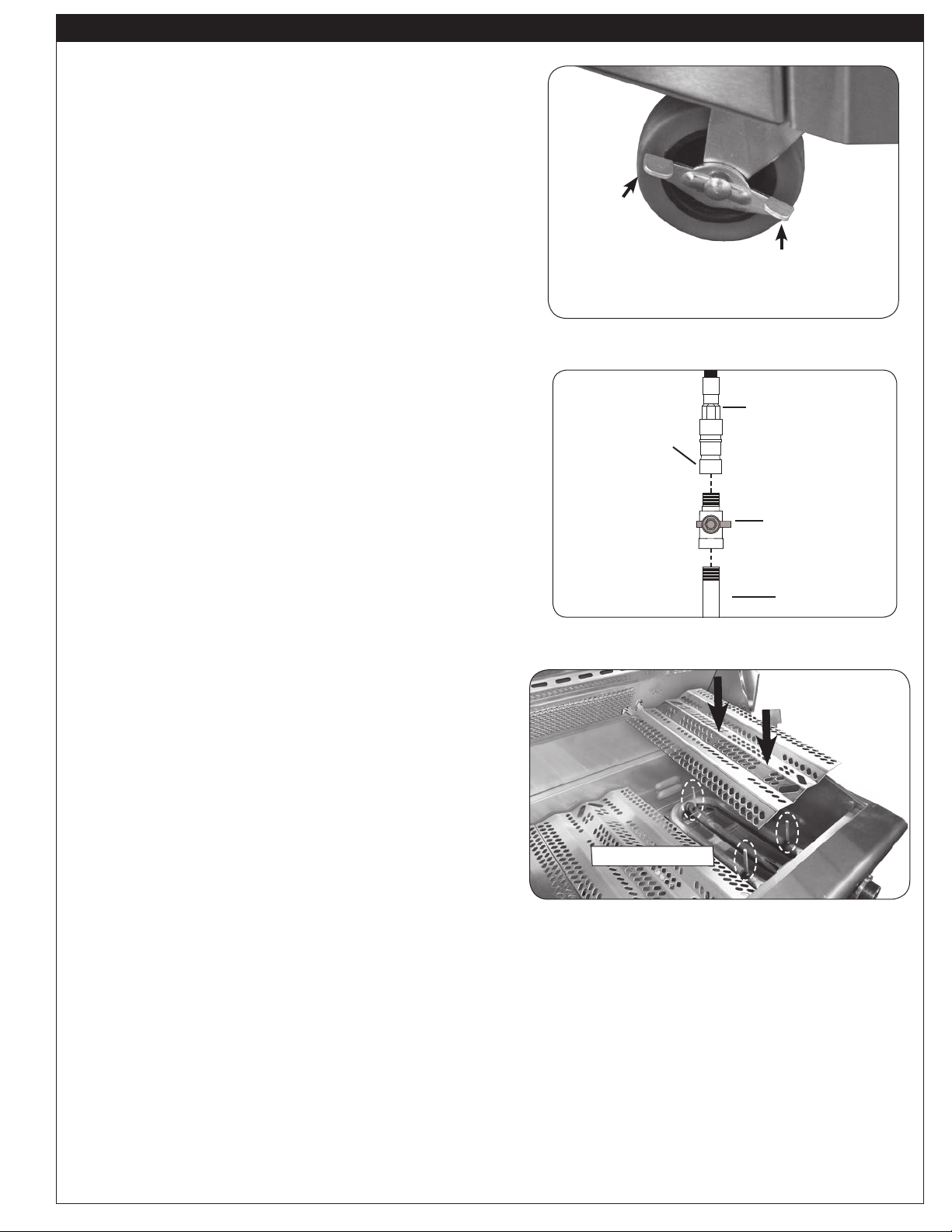

WHEELS AND CASTERS ������������������������������������������������ 17
CONNECT THE GAS SUPPLY ����������������������������������������� 17

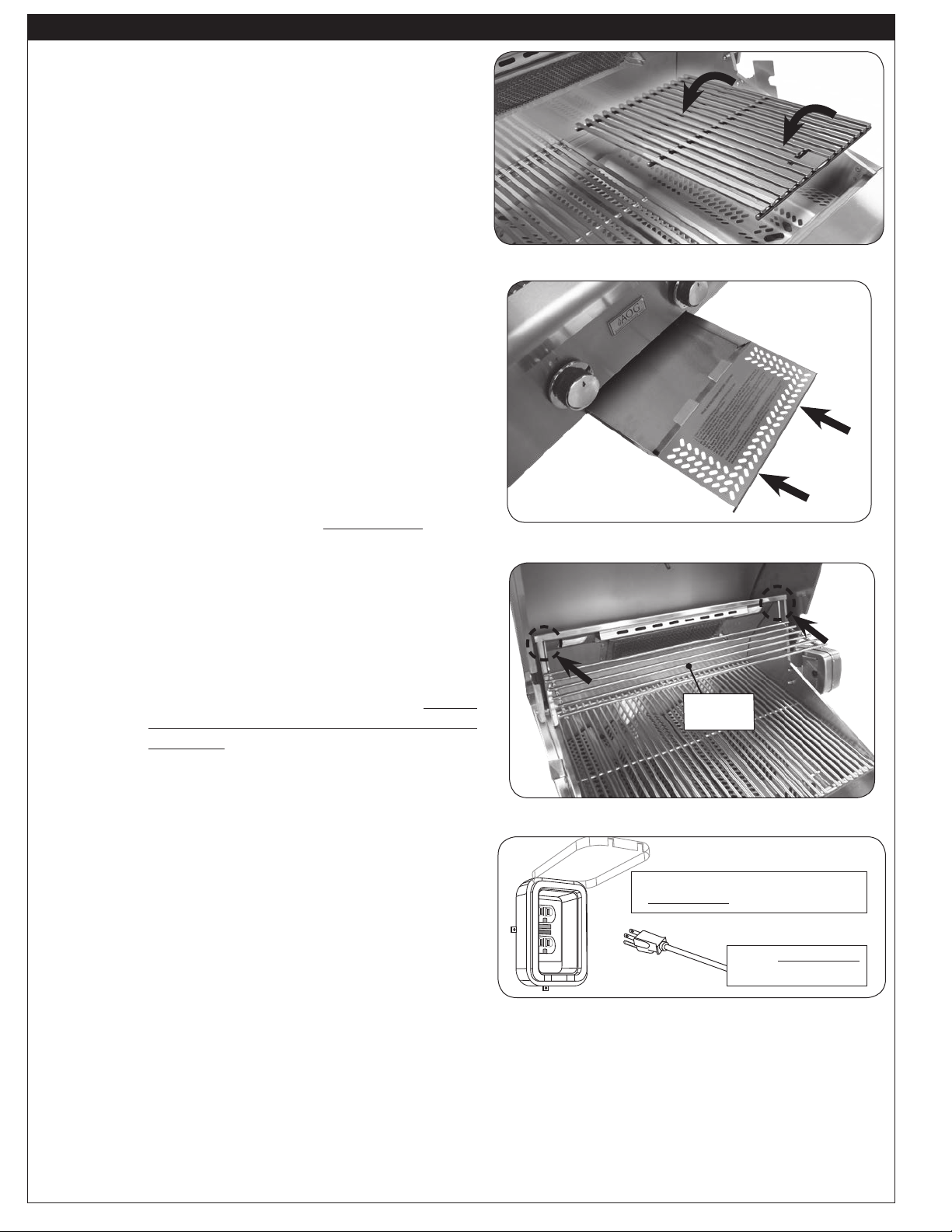

INSTALL THE COOKING GRIDS ������������������������������������ 18
INSTALL THE DRIP TRAY ���������������������������������������������� 18
INSTALL THE SIDEBURNER SHELF (IF EQUIPPED) ��� 19
RIGID SHELF INSTALLATION ����������������������������������������� 20
USE, CARE, & SERVICE

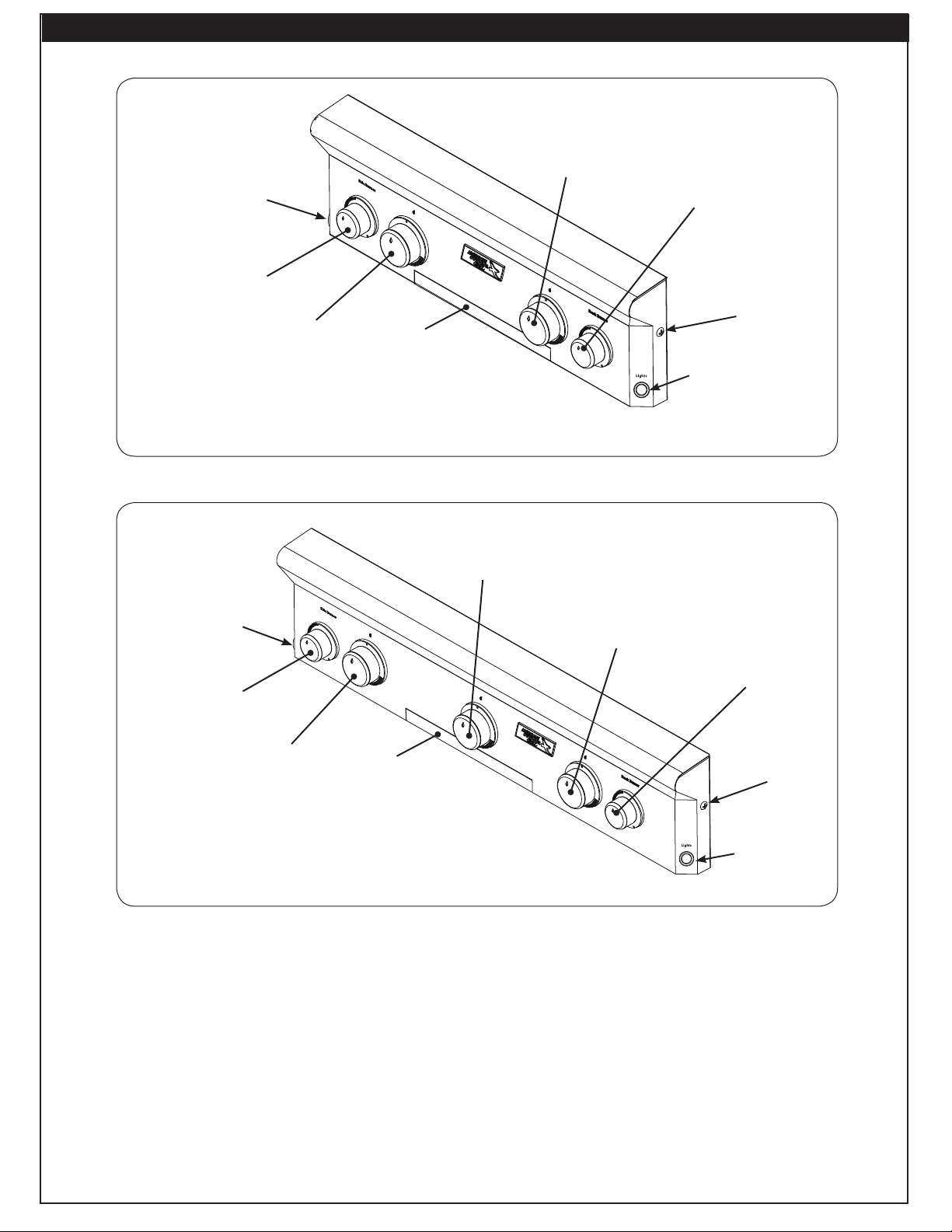

IDENTIFICATION OF GRILL CONTROLS ���������������������� 21
USING THE GRILL ������������������������������������������������������������� 22

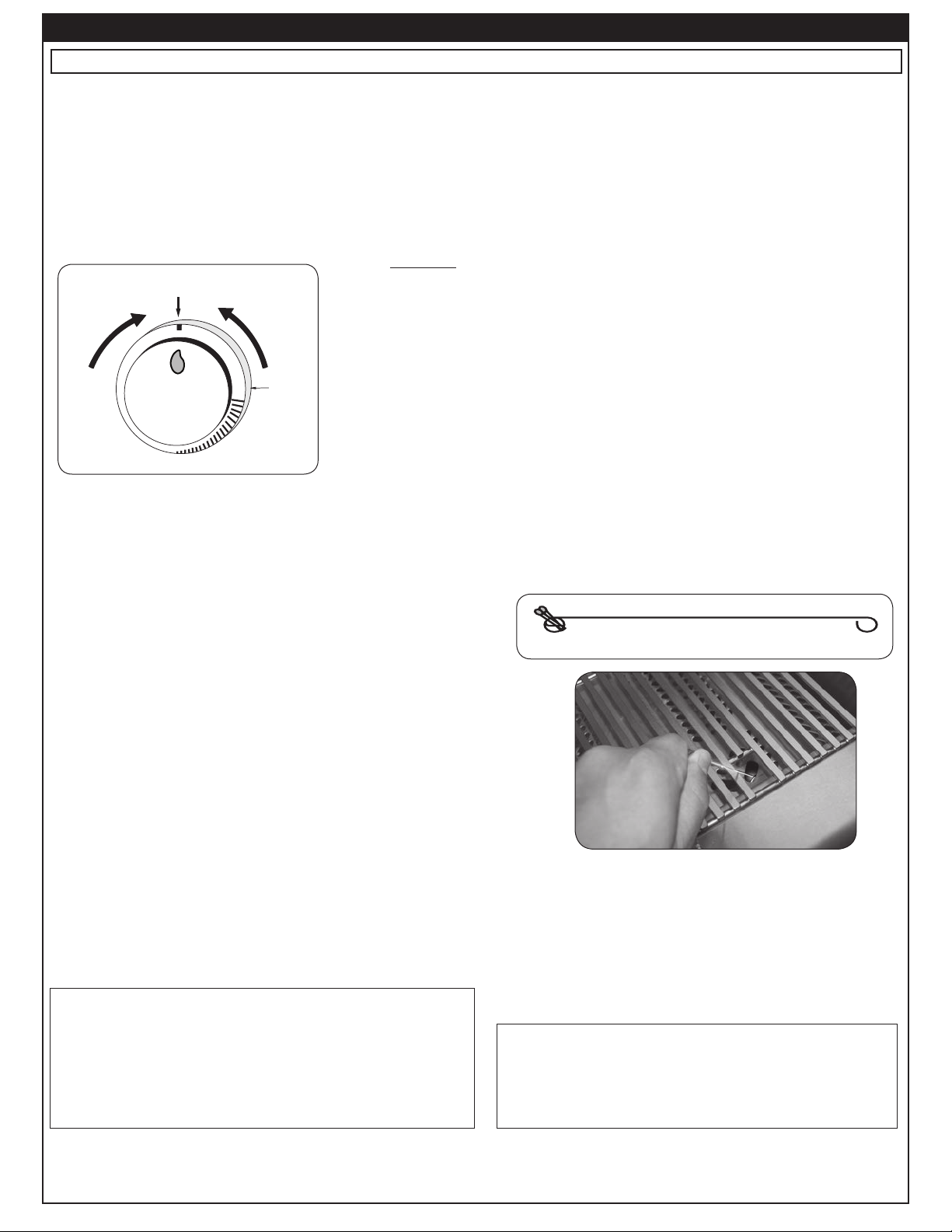

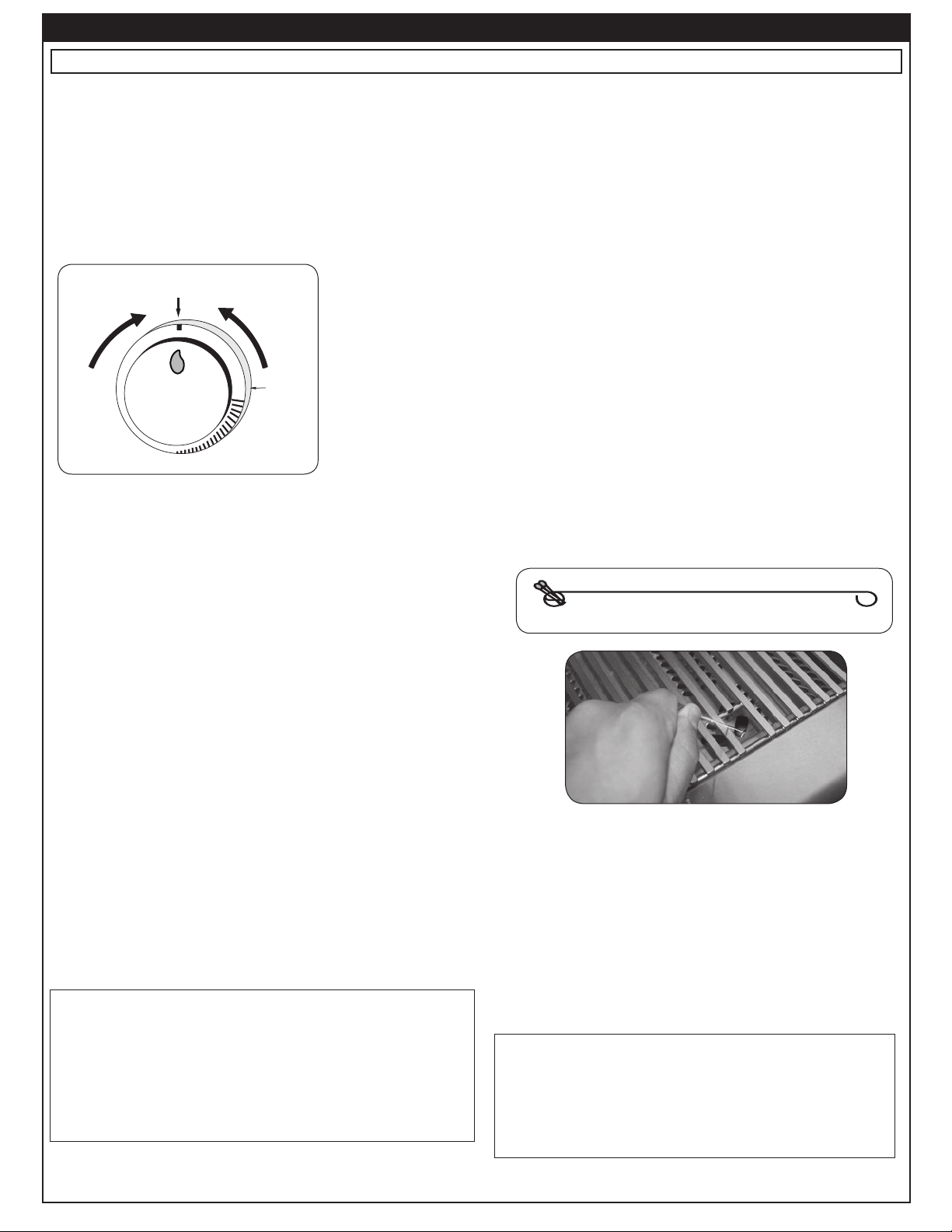

LIGHTING (IGNITION) INSTRUCTIONS ������������������������ 23
ELECTRONIC LIGHTING ���������������������������������������������� 23
MANUAL LIGHTING������������������������������������������������������ 23
ELECTRONIC LIGHTING ���������������������������������������������� 23
SHUTTING OFF THE UNIT ������������������������������������������� 23
OPTIONAL INFRARED BURNER OPERATION ������������� 25

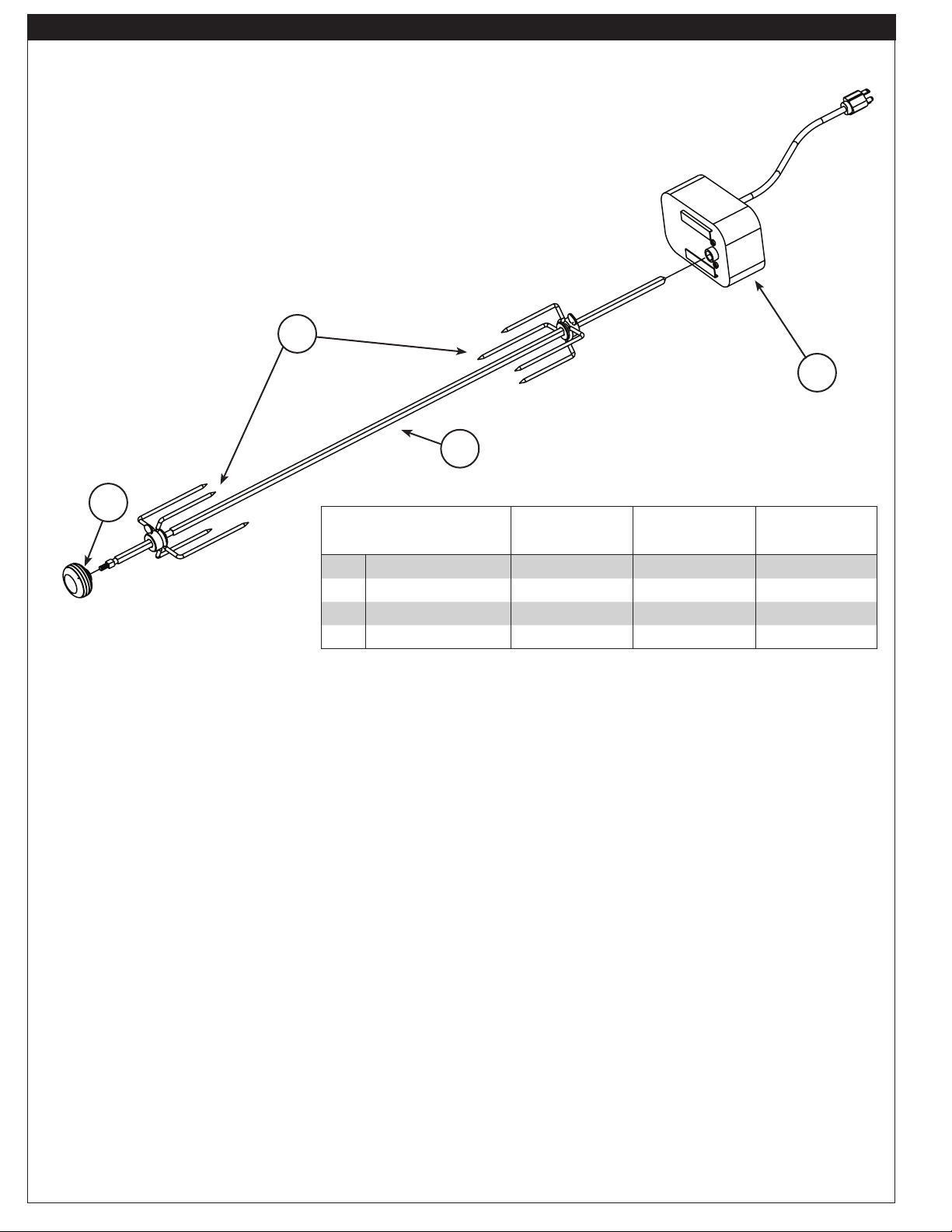

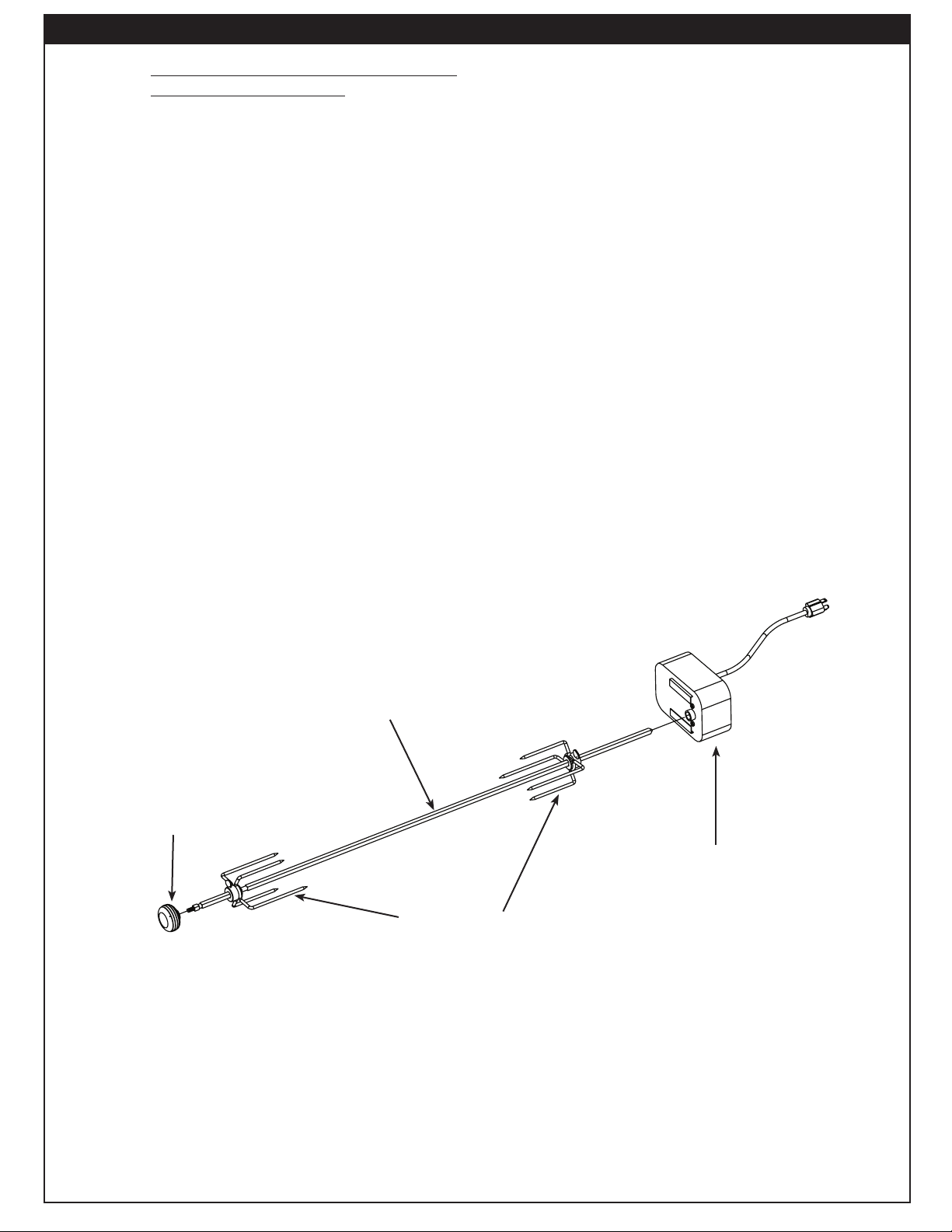

ROTISSERIE INSTRUCTIONS (IF EQUIPPED) �������������� 26
SERVICING AND CLEANING ������������������������������������������ 27
CLEANING YOUR GRILL ����������������������������������������������� 27

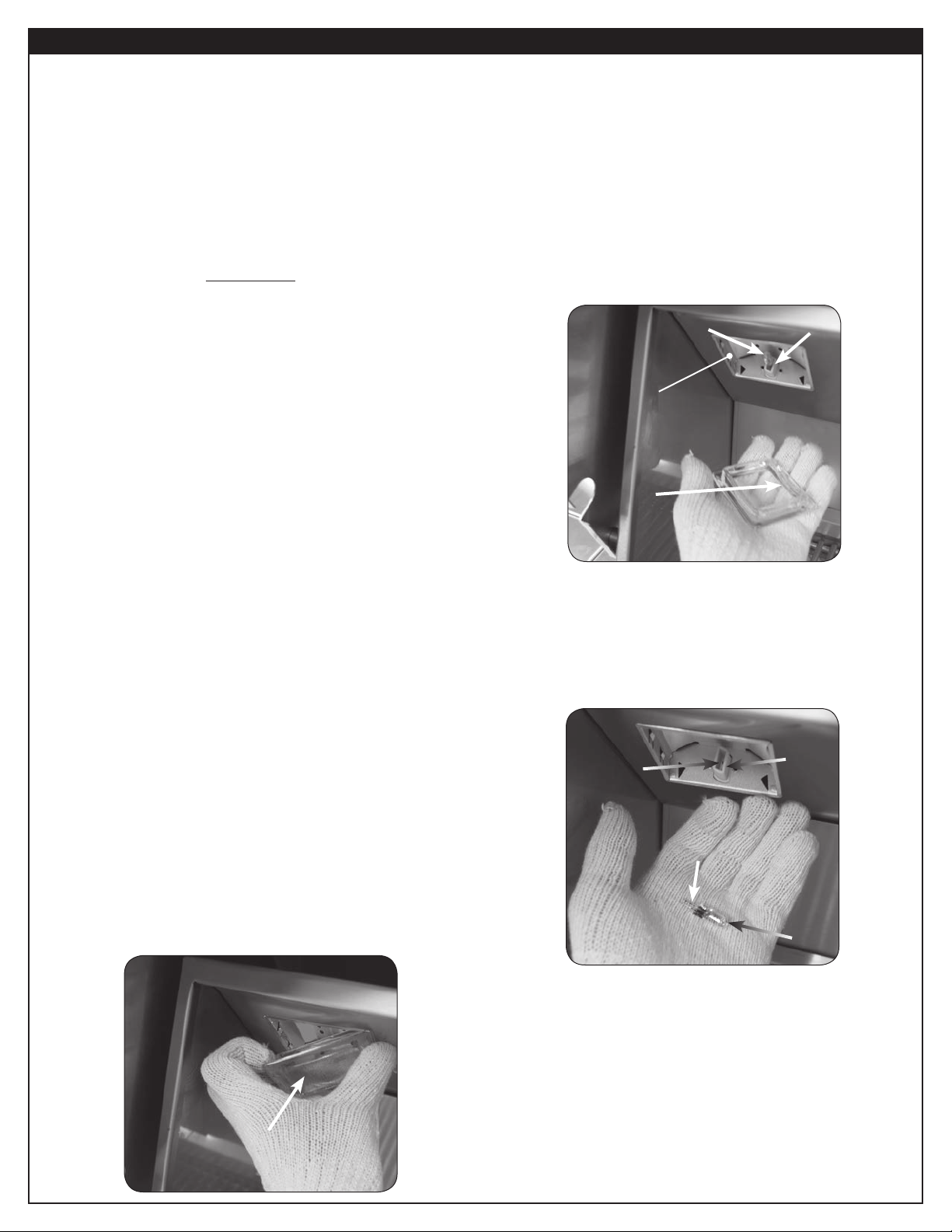

REPLACING HALOGEN BULBS ������������������������������������� 29
CONVERT GAS TYPE / CHECK BURNER ORIFICES ������ 30

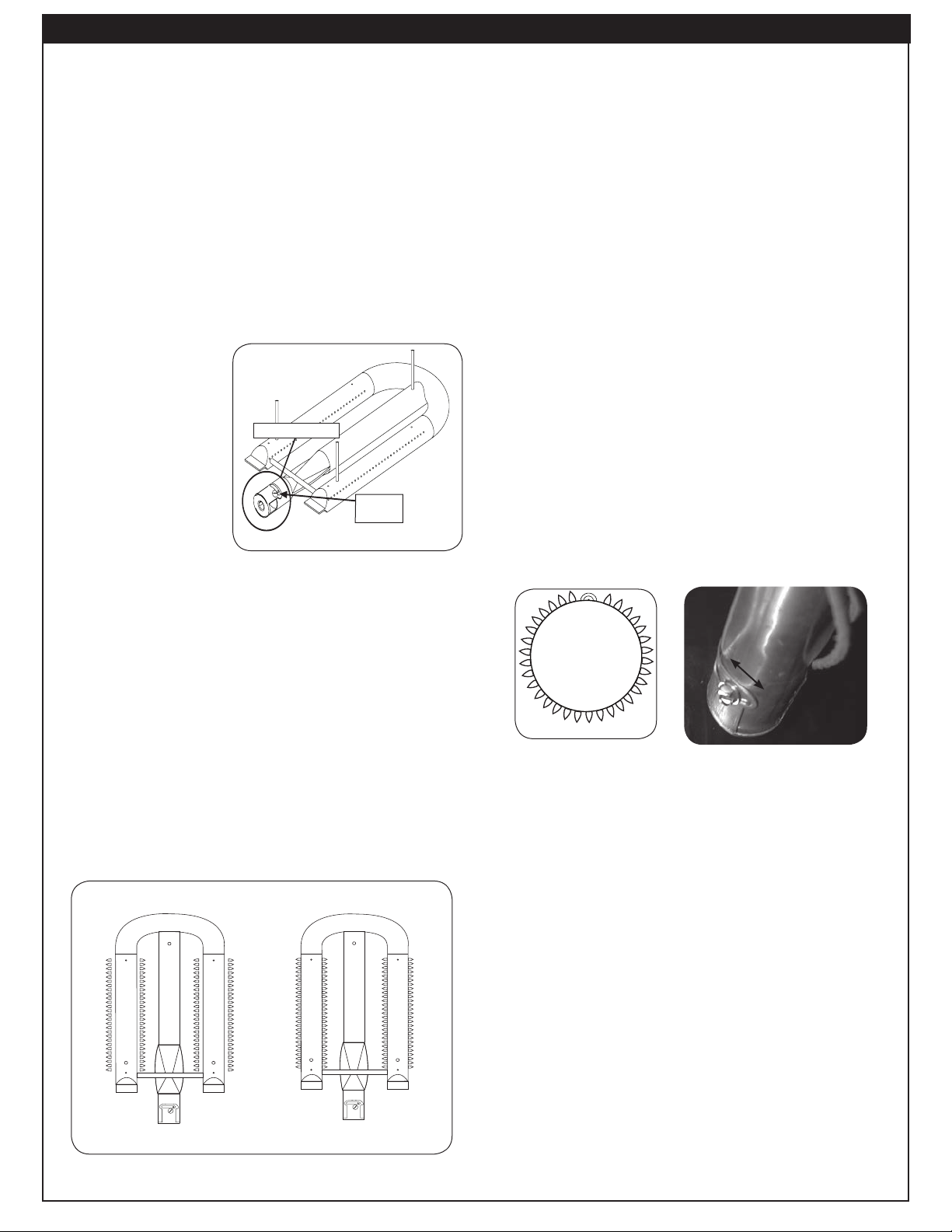

AIR SHUTTER ADJUSTMENT ���������������������������������������� 33
CONTROL PANEL REMOVAL ����������������������������������������� 34
FUSE REPLACEMENT ��������������������������������������������������� 35

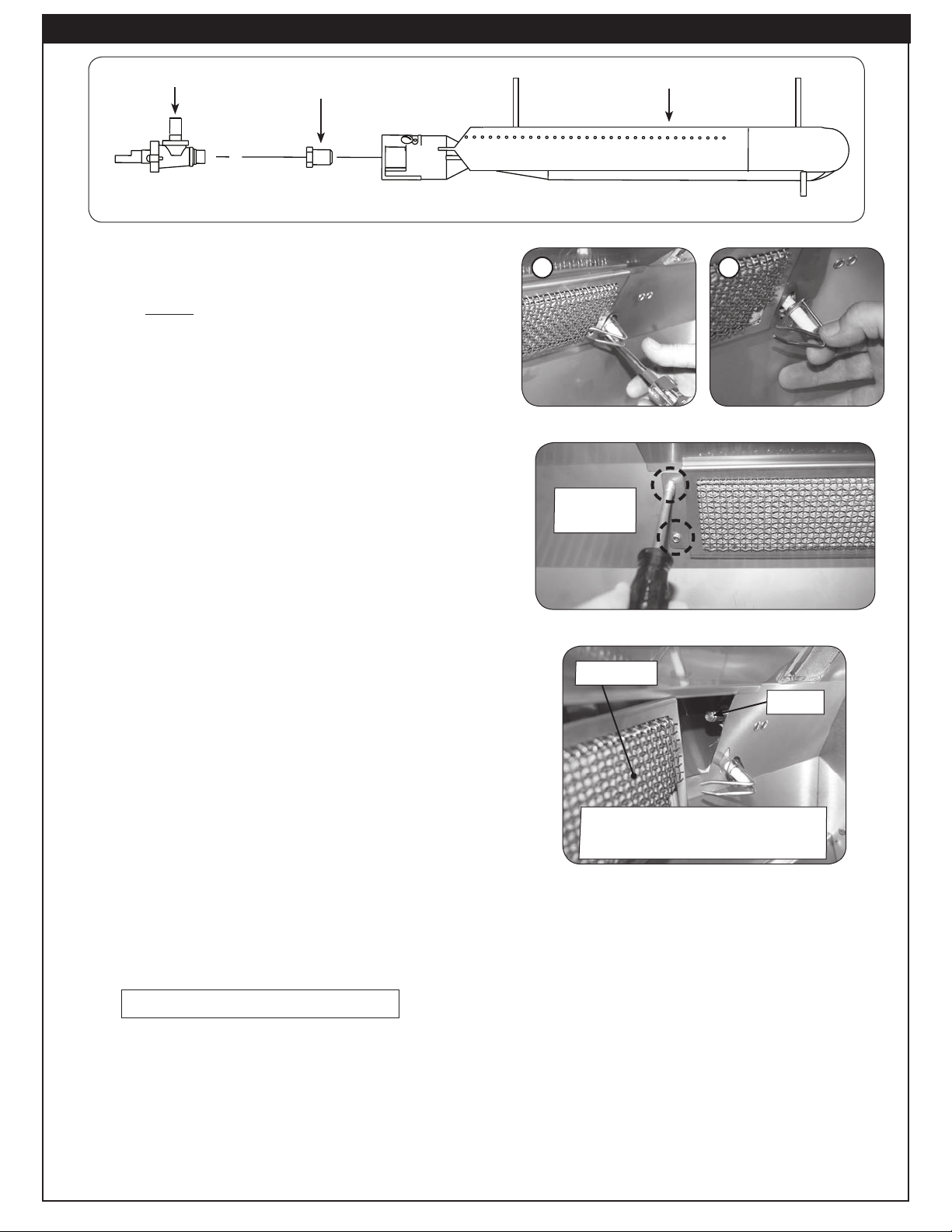

BURNER REMOVAL������������������������������������������������������� 35
NOTES PAGE ���������������������������������������������������������������������� 36
TROUBLESHOOTING ������������������������������������������������������� 37
WARRANTY ������������������������������������������������������������������������ 38
4
1. The outdoor appliance and surrounding area MUST
remain clear of flammable substances such as gasoline,
yard debris, wood, etc. Maintain a minimum horizontal
clearance of 18" (in all directions) from combustible
materials/items.
2. Do not block the 1" front air inlet along the bottom of
the control panel. See the COMBUSTION AIR AND
COOLING AIRFLOW section under INSTALLATION
REQUIREMENTS for details.
3. This unit must be installed so that the vent
openings on the cabinet remain clear and free at
all times. See the GAS SAFETY INFORMATION
section.
4. When using propane gas: the propane cylinder,
regulator, and rubber hose must be in a location
not subject to temperatures above 125° F (51° C).
5. The back burner cover, sideburner, or IR burner cover
(if equipped) must be removed before using the burner.
6. The flames on each burner burn evenly along the
entire burner with a steady flame (mostly blue). If
burner flames are not normal, check and clean the
orifice and burner/venturi tubes for insects and insect
nests. A clogged tube can lead to a fire beneath the
unit. A proper flame pattern will ensure safe operation
and optimal performance. Adjust the air shutter as
needed (see AIR SHUTTER ADJUSTMENT section).
7. The in-line gas valve or gas cylinder valve must always
be shut OFF when the unit is not in use.
8. The drip collector holes must be clear and unobstructed.
Excessive grease deposits can result in a grease fire.
9. Whenever reconnecting any wires, apply a small
amount of dielectric grease to the male connector,
then make the connection. This will ensure conductivity
and prevent moisture from affecting the contact.
10. Wear gloves and use extreme caution whenever
installing and handling this product and its accessories
as certain components have sharp edges that can
cause personal injury.
WARNING: NEVER cover more than 75% of the cooking or grill surface with griddles or pans. Overheating will occur,
and burners will not perform properly when combustion heat is trapped below the cooking surface.
IMPORTANT
IN THE EVENT OF A GREASE FIRE, IMMEDIATELY SHUT OFF THE MAIN GAS VALVE TO THE UNIT. KEEP THE LID
OPEN AND ALLOW THE FIRE TO EXTINGUISH ITSELF. KEEP AT A SAFE DISTANCE. A THOROUGH INSPECTION BY
A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN SHOULD BE CONDUCTED BEFORE FUTURE USE OF YOUR
UNIT. THE SERVICE TECHNICIAN WILL CHECK THE SYSTEM FOR GAS LEAKS AND WILL CHECK ALL ELECTRICAL
WIRING FOR DAMAGE. ALL GAS LEAKS AND WIRING MUST BE REPAIRED PRIOR TO FUTURE USE.
ELECTRICAL CONNECTIONS
A 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle (not included) is required within
the vicinity of the unit to provide power to it. The GFCI receptacle must be a WEATHER-PROOF IN-USE
COVERED RECEPTACLE.
• Observe the National Electric Code and all local codes.
• Verify proper polarity of the receptacle.
• If an extension cord is used, ensure it is a 3-wire GROUNDED cord that is rated for the power of the
equipment, and is approved for outdoor use with a W-A marking. DO NOT use 2-prong adapters.
• DO NOT TAMPER WITH THE EXTENSION CORD OR THE UNIT POWER-SUPPLY CORD.
Important: ONLY REPLACE THE INTERIOR OVEN LIGHTS WITH 12V / 10 WATT HALOGEN BULB(S).
The unit serial number tag can be found affixed to the grill body behind the control panel (on an
aluminum tag) and on the underside of the drip tray handle (on a thermal label). It is recommended
that the drip tray first be removed and cleaned / emptied of its contents, then turned over to view.
The unit rating label is located inside of the control panel.
INSTALLATION, OPERATION, AND SAFETY INFORMATION
5
WARNING
This appliance MUST be installed and operated according to the information below.
FAILURE TO PROPERLY VENT THE GRILL CABINET MAY RESULT IN A FIRE OR EXPLOSION CAUSING
PROPERTY DAMAGE, BODILY INJURY, OR DEATH.
A leaking gas connection or valve unintentionally left open will create a hazard.
WHEN USING PROPANE GAS
• Propane gas (also known as L.P. gas) is heavier than air and will accumulate or pool in an inadequately
vented enclosure or recessed area.
• If a pool of propane gas is ignited, an explosion will occur. Adequate venting at the floor level of the cabinet
eliminates this danger.
• DO NOT store a spare propane-gas cylinder in or near the unit.
WHEN USING NATURAL GAS
• Natural gas is lighter than air and will accumulate at the top of an inadequately vented enclosure.
• If an accumulation of natural gas is ignited, an explosion will occur. Adequate venting at the top of the cabinet
eliminates this danger.
INSTALLATION SAFETY GUIDELINES
THIS UNIT MUST BE INSTALLED SO THAT THE VENT OPENINGS ON THE CABINET REMAIN CLEAR AND
FREE AT ALL TIMES.
The gas cylinder, regulator, and rubber hose must be in a location not subject to temperatures above
125° F (51° C).
IF A PROPANE CYLINDER IS INSTALLED INSIDE OF THE CABINET, THE GUIDELINES FOUND IN THE SAFE
USE & MAINTENANCE OF PROPANE GAS CYLINDERS SECTION MUST BE FOLLOWED.
WHEN OPERATING THIS GAS APPLIANCE, ALL INSTRUCTIONS AND WARNINGS
MUST BE OBSERVED. FAILURE TO DO SO MAY RESULT IN A FIRE OR EXPLOSION
CAUSING PROPERTY DAMAGE, BODILY INJURY, OR DEATH.
Every time you use the unit, make sure that:
1. The area around the unit is clear and free from combustible materials, gasoline and flammable vapors/liquids.
2. There is no blockage of the airflow through the vent openings located on the cabinet.
3. The hose is inspected (if applicable). See SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS section.
DO NOT store any combustible materials, gasoline, and any other flammable vapors/liquids in the vicinity of the
unit. Provide adequate clearance for servicing and operation.
GAS SAFETY INFORMATION
OPERATING THE UNIT SAFELY AND CORRECTLY
6
U
L
Fig. 6-1 type coupleur rapide de fil de point culminant d’I
Valve
de
décompression
QCC
Type 1
Valve
Ajustage de précision
en laiton de fil de
point culminant
Indicateur
de niveau
de liquide
(facultatif)
Écrou de main avec le
fil de point culminant.
Régulateur
Passage
Tuyau
Volant de commande
main dans le sens des aiguilles d’une montre pour engager les
fils et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.
Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fig. 6-1).
Important: Avant d’employer le unité, et ensuite chaque
fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour
déceler les fuites. Arrêtez les valves de unité
et ouvrez la valve principale de cylindre, puis
vérifiez les raccordements avec de l’eau
savonneux. Réparez toutes les fuites avant
d’allumer le unité.
ATTENTION: Tournez toujours la valve principale de cylindre
de propane au loin après chaque utilisation,
et avant de déplacer le unité et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.
Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fissuré ou effiloché doit
être immédiatement remplacé.
Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
filetées étroitement installées, et ne doivent pas être stockés dans
un bâtiment, le garage, ou n'importe quel autre secteur inclus.
POUR VOTRE SÛRETÉ
a. Ne stockez pas un cylindre de gaz disponible de propane
dessous ou ne vous approchez pas de cet appareil.
b. Ne remplissez jamais cylindre au delà de 80 pour cent de
plein.
c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE
EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.
IMPORTANT POUR VOTRE SÛRETÉ
LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.
En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.
LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.
CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR
a. Des cylindres et les valves de gaz de propane doivent être
maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.
b. Ce unité, une fois utilisé avec un cylindre, devrait être relié à
un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.
c. Les dimensions de cylindre devraient être approximativement
12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.
d. Le cylindre doit inclure un collier pour protéger la valve
de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.
e. Le montage du régulateur de pression et le flexible (Fig. 6-1)
fourni avec cet appareil au gaz en plein air (modèles au
propane seulement) doit être utilisé. Assemblées d'origine et
régulateur de pression et le tuyau de remplacement doivent
être ceux spécifiés par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifiée comme de type I
par le ANSI Z 21.58/CGA 1.6 (voir liste des pièces pour les
informations de commande).
f. La valve de cylindre de gaz de propane doit être équipée
d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme définie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fil de point culminant.
g. Si votre cylindre de gaz de propane vient avec une prise
de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.
OPÉRATION DE COUPLEUR RAPIDE
Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main
sur le régulateur au-dessus de l’ajustage de précision de fil
de point culminant sur la valve de cylindre. Tournez l’écrou de
1
2
3
4
FIXATION DU CYLINDRE DE GAZ DE PROPANE
1. Ensemble cylindre-
propane gaz dans le
manchon de support.
3. Serrer les vis de serrage pour fixer
le cylindre.
2. Suivez les instructions
ci-dessus pour connecter
l’alimentation.
Renforcer
Fig. 6-2
Fig. 6-3 Fig. 6-4
Connectez-vous
à fournir
UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE
7
U
L
Fig. 7-1 Type I Acme thread quick coupler
Pressure
relief
valve
QCC
Type 1
valve
Brass Acme
thread fitting
Liquid level
indicator
(optional)
Hand nut with Acme
thread
Regulator
Vent
Hose
Hand wheel
The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.
To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 7-1).
Important: Before using the unit, and after each time
the cylinder is removed and reattached,
check the hose for wear (see a.) and check
all connections for leaks. Turn off the unit
valves and open the main cylinder valve,
then check connections with soapy water.
Repair any leaks before lighting the unit.
CAUTION: Always turn the propane cylinder main valve
off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas flow is
stopped by a safety feature when the coupler
is disconnected.
Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.
If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected cylinders must be
stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a
building, garage, or any other enclosed area.
FOR YOUR SAFETY
a. DO NOT store a spare propane-gas cylinder under or
near this appliance.
b. NEVER fill the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED
EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.
IMPORTANT FOR YOUR SAFETY
READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.
FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.
CYLINDER/CONNECTOR REQUIREMENTS
a. Propane-gas cylinders, valves, and hoses must be
maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).
b. This unit, when used with a cylinder, should be connected
to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfill Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfilling.
c. Cylinder dimensions should be approximately 12" (30.5
cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the
Specifications for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.
d. The cylinder used must include a collar to protect the
cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.
e. The pressure regulator and hose assembly (Fig. 7-1)
supplied with this outdoor gas appliance (L.P. models
only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specified by
the manufacturer for connection with a cylinder connecting
device identified as Type I by the ANSI Z 21.58/CGA 1.6
(see PARTS LIST for ordering information).
f. The propane-gas cylinder valve must be equipped with a
cylinder connection coupling device, described as Type I
in the standard defined in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.
g. If the propane-gas cylinder comes with a dust plug, place
the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.
QUICK COUPLER OPERATION
To connect the regulator/hose assembly to the propane-
gas cylinder valve fitting: Press the hand nut on the regulator
over the Acme thread fitting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.
SECURING THE PROPANE-GAS CYLINDER
1. Set the propane-gas
cylinder into the support
sleeve.
3. Tighten the thumb screws to secure
the cylinder.
2. Follow the instructions
above to connect supply.
Tighten
Fig. 7-2
Fig. 7-3 Fig. 7-4
Connect
to supply
SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
8
Installation must be performed by a qualified professional
service technician.
This unit is designed for outdoor use only. DO NOT use this
unit inside a building, garage, or enclosed area. DO NOT use
this unit in or on a recreational vehicle or boat.
OVERHEAD CONSTRUCTION AND EXHAUST
HOOD REQUIREMENTS
A minimum 5 foot clearance is required between the cooking
surface and the overhead construction.
When installed under combustible overhead construction,
the area above the cooking surface of the unit must be
covered with an exhaust hood. The exhaust hood provides
the protection for the combustible overhead construction.
See exhaust hood information below and Fig. 8-1.
Important: DO NOT use this appliance under unprotected
combustible overhead construction.
When installed under overhead non-combustible construction,
an exhaust hood is highly recommended; see exhaust hood
information below and Fig. 8-1.
Exhaust Hood
When using an exhaust hood, the area above the cooking
surface of the grill must be covered with a hood larger than
the cooking area of the grill, and with a minimum of 1200
CFM (cubic feet per minute) for proper outdoor application.
INSTALLATION REQUIREMENTS
Fig. 8-1 Overhead requirements
Min.
5'
OVERHEAD CONSTRUCTION
EXHAUST
HOOD
Combustible overhead
construction:
Exhaust hood required
Non-combustible
overhead construction:
Exhaust hood highly recommended
N
O
N
C
O
M
B
U
S
T
I
B
L
E
W
A
L
L
9
SIDE AND REAR WALL CLEARANCES
For the minimum clearances between the unit and any side
or rear walls, your setup must fall within one (or more) of the
following:
A. Clearance between unit and strictly non-combustible
wall
(i.e. brick wall, see Fig. 9-1)
• The unit must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)
B. Clearance between unit and a protected combustible
wall
(i.e. a non-combustible wall in front of a combustible wall
to serve as a barrier. This can be accomplished by brick,
or a metal stud finished with non-combustible substrate,
see Fig. 9-2)
• The unit must have a minimum of 14" right, left, and
rear clearance from the protected combustible wall.
(The 4" non-combustible material plus an additional
10" clearance between the unit and protected wall.)
C. Clearance between unit and combustible wall
• The unit must have a minimum of 18" right, left, and
rear clearance from any combustible wall (see Fig. 9-3).
INSTALLATION REQUIREMENTS (Cont.)
Fig. 9-3 Clearance 'C' Diagram
Combustible
Min.
18"
(Clearance required for
right, left, and rear)
Fig. 9-1 Clearance 'A' Diagram
Non-combustible
Min.
4"
(Clearance required for
right, left, and rear)
Fig. 9-2 Clearance 'B' Diagram
Min.
14"
Non-combustible
substrate
Non-combustible 4"
Com-
bustible
(Clearance required for
right, left, and rear)
10
The control panel MUST remain removable for servicing (see
CONTROL PANEL REMOVAL section).
COMBUSTION AIR AND COOLING AIRFLOW
Proper airflow (front-to-back, Fig. 10-1) MUST be maintained
for the unit to perform as it was designed. If airflow is blocked,
overheating and poor combustion will result. Do not block the
1" front air inlet along the bottom of the control panel.
CAUTION: Wind blowing into or across the rear oven lid
vent (Fig. 10-3) can cause poor performance
and/or dangerous overheating. Orient the grill
so that the prevailing wind blows toward the
front of the grill (Fig. 10-2). A wind deflector
is available for purchase to assist in proper
airflow during windy conditions . See Table
1 for model numbers. Follow the instructions
inlcuded with the wind deflector for installation.
GAS-SUPPLY PLUMBING REQUIREMENTS
For natural gas or a household propane system, rigid
1
/
2
" or
3
/
4
" black steel pipe or local code-approved pipe is required
to conduct the gas supply to the unit. Contact your local gas
supplier. Connect this pipe to the C.S.A.-approved quick
connect hose (attached). Apply only joint compounds that
are resistant to all gasses to all male pipe fittings except flare
fittings. Make sure to tighten every joint securely.
Note: If
1
/
2
" pipe is used with natural gas, it should be
no longer than 20'.
Important: A shut-off valve (not included) in the gas
line is required. It provides for safety when
the unit is not in use and for convenient
maintenance and repair. It must be installed
within 6 feet of the unit. Use a pipe joint
compound resistant to all gasses on all male
fittings except flare fittings.
GAS SUPPLY AND MANIFOLD PRESSURES:
For natural gas - normal 7" water column (w.c.), minimum
5", maximum 10
1
/
2
". For propane gas - normal 11" w.c.,
minimum 10", maximum 13".
INSTALLATION REQUIREMENTS (Cont.)
CORRECT
PLACE GRILL SO PREVAILING WIND
BLOWS TOWARD FRONT OF GRILL
Fig. 10-2 Airflow direction - CORRECT
Fig. 10-1 Airflow diagram
YOU MUST PROTECT REAR OVEN VENT FROM
PREVAILING WIND
Rear oven lid vent
INCORRECT
Fig. 10-3 Airflow direction - INCORRECT
(1" front air inlet)
11
• To protect against electric shock, do not immerse cord or plugs in water or other liquid.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
• Do not let the cord hang over the edge of a table or touch hot surfaces.
• Do not use an outdoor cooking gas appliance for purposes other than intended.
• When connecting, first connect plug to the outdoor cooking gas appliance then plug appliance into the outlet.
• Use only a properly wired and inspected 120VAC (15 AMP minimum) Ground Fault Circuit Interrupter
(GFCI) GROUNDED 3-wire receptacle with this outdoor cooking gas appliance.
• The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.
• Never remove the grounding plug or use with an adapter of 2 prongs.
• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a W-A marking.
• The provisions of the National Electric Code as well as any local codes must be observed when
installing the product.
ELECTRICAL SAFETY
12
MODEL SPECIFICATIONS
24" 30" 36"
Main burner quantity
N/P orifice drill size
2
1.82mm / 1.16mm
3
#50 / 1.16mm
3
#49 / #56
Backburner*
N/P orifice drill size
#53 / #64 #52 / #62 #52 / #62
Sideburner*
N/P orifice drill size
#53 / #63 #53 / #63 #53 / #63
Infrared searing burner*
N/P orifice drill size
1.82mm / 1.16mm #50 / 1.16mm #49 / #56
Wind deflector model # (not included)
24-B-24 30-B-24A 36-B-24
Input electrical requirement
120VAC / 15 AMP minimum / 60 Hz / GFCI outlet
Electrical output 12VAC / 60 Watts
Power supply fuse model # / fuse type 24-B-57 / T6.3AL (250V)
Interior oven lights rating 12V / 10 watt halogen bulb
*
If equipped
Note: In addition, a wire diagram specific to your unit can
be found affixed to the inside of the control panel.
Power
supply
Wire harness assembly
PORTABLE GRILL WIRING DIAGRAM
Interior oven
light
Light
switch
†
24" model shown. Model wire diagrams may vary.
Main burner
Igniters
Backburner
Igniter
Igniter
module
Igniter
switch
Sideburner
Igniter
†
Lighted bezels
Table 1 - Product Specifications
Interior oven
light
Power
supply fuse
AC/DC
converter
Converter
harness
13
MODEL SPECIFICATIONS (Cont.)
Grill
model
HARDWARE KIT OPTIONS
ORIFICE KIT
• 10ft. quick disconnect hose
• convertible regulator
• fittings
OR
• Convertible regulator
• fittings
• Main burner / I.R. burner orifices
• Backburner orifices
• Sideburner orifices
• Conversion label
24"
CK-41-NAT CK-42-NAT 24-B-51
30"
CK-41-NAT CK-42-NAT 30-B-51A
36"
CK- 41-NAT CK-42-NAT 36-B-51
A hardware kit and orifice kit must be purchased when converting.
Call your dealer for ordering information.
G
C
F
E
B
D
A
Fig. 13-1
Model
Height Width Depth
Floor to top
(with oven)
Floor to top
of shelf
(C)
Left to right Front to back
Cart base
(D)
Shelf to shelf
(E)
Cart base
(F)
Maximum
outer
(G)
Open (A)
Closed
(B)
24"
59" 48
1
/2" 37" 25" 50" 22
1
/4" 24
3
/4"
30"
59" 48
1
/2" 37" 31" 56" 22
1
/4" 24
3
/4"
36"
59" 48
1
/2" 37" 37
1
/4" 62
1
/4" 22
1
/4" 24
3
/4"
Table 2 - Propane To Natural Gas Conversion Kits
Table 3 - Grill Dimensions
14
IMPORTANT
This AOG oven and backburner (if equipped)
are fully pre-assembled and tested at the
factory.
DO NOT attempt to remove the oven and
backburner from the barbecue prior to
or during installation or damage to the
connecting gas line and igniter wiring may
occur.
The plastic straps that secure the oven to
the barbecue unit must be removed and
discarded prior to lighting.
Replacement parts can
be ordered from your
local AOG dealer.
AOG GRILL REPLACEMENT PARTS LIST
24" model shown
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
24
22
23
28
29
30
17
18
33
32
31
15
AOG GRILL REPLACEMENT PARTS LIST (Cont.)
24" 30" 36"
Item Description Part No. Qty. Part No. Qty. Part No. Qty.
1.
Stainless cooking grid (set of 2 or 3) 24-B-11A 1 30-B-11A 1 36-B-11A 1
2.
Vaporizer panel 24-B-05 2 30-B-05 3 36-B-05 3
3.
Main burner 24-B-06 2 24-B-06 3 24-B-06 3
4.
Infrared burner* IRB-18 1 IRB-18 1 IRB-18 1
5.
Backburner* 24-B-17A 1 30-B-17A 1 30-B-17A 1
6.
Oven hood thermometer 23305 1 23305 1 23305 1
7.
Oven lid 24-B-25A 1 30-B-25A 1 36-B-25A 1
8.
Single sideburner shelf* 24-C-02 1 24-C-02 1 24-C-02 1
9.
Warming rack 24-B-02A 1 30-B-02A 1 36-B-02A 1
10.
Drip tray with match holder 3085 1 3085 1 3085 1
11.
Control panel w/ backburner, w/ sideburner 24-C-26L 1 30-C-26L 1 36-C-26L 1
or
Control panel w/o backburner, w/o sideburner ‡ 24-C-27L 1 30-C-27L 1 36-C-27L 1
12.
Igniter module w/ backburner, w/ sideburner 3199-44 1 3199-46 1 3199-46 1
or
Igniter module w/o backburner, w/o sideburner ‡ 24-B-49 1 3199-44 1 3199-44 1
13.
Valve manifold w/ backburner, w/ sideburner (nat. gas) 24-C-08 1 30-C-08 1 36-C-08 1
or
Valve manifold w/ backburner, w/ sideburner (L.P. gas) 24-C-08P 1 30-C-08P 1 36-C-08P 1
or
Valve manifold w/o backburner, w/o sideburner (nat. gas) ‡ 24-C-34 1 30-C-34 1 36-C-34 1
or
Valve manifold w/o backburner, w/o sideburner (L.P. gas) ‡ 24-C-34P 1 30-C-34P 1 36-C-34P 1
14.
Main burner electrode / igniter assembly 24-B-04 2 24-B-04 3 24-B-04 3
15.
Large knob 24-B-37L 2 24-B-37L 3 24-B-37L 3
16.
Small knob* 24-B-38L 2 24-B-38L 2 24-B-38L 2
17.
LED disk (large) 24-B-55 2 24-B-55 3 24-B-55 3
18.
LED disk (small)* 24-B-54 2 24-B-54 2 24-B-54 2
19.
Rigid shelf 24-C-01 1
†
24-C-01 1
†
24-C-01 1
†
20.
Convertible regulator (nat. models only) ‡ PR-4 1 PR-4 1 PR-4 1
21.
Propane regulator / hose assembly ‡ 5110-07 1 5110-07 1 5110-07 1
or
Natural gas QD hose ‡ 5110-03 1 5110-03 1 5110-03 1
22.
Door (left) 24-C-53L 1 30-C-53L 1 36-C-53L 1
23.
Door (right) 24-C-53R 1 30-C-53R 1 36-C-53R 1
24.
Caster kit (set of 4) 24-C-35 1 24-C-35 1 24-C-35 1
25.
12V / 10 watt halogen light bulb ‡ 24187-15 2 24187-15 2 24187-15 2
26.
Light lens ‡ 24187-26 2 24187-26 2 24187-26 2
27.
Lamp assembly ‡ 24187-28 2 24187-28 2 24187-28 2
28.
Light switch 24-B-45 1 24-B-45 1 24-B-45 1
29.
Igniter switch 24-B-46 1 24-B-46 1 24-B-46 1
30.
Power supply 24187-64 1 24487-64 1 24187-64 1
31.
AC/DC converter 24177-33 1 24177-33 1 24177-33 1
32.
Converter harness 24-B-56 1 24-B-56 1 24-B-56 1
33.
Power supply fuse 24-B-57 1 24-B-57 1 24-B-57 1
34.
Wire harness assembly ‡
24-B-48A 1 30-B-48A 1 36-B-48A 1
*
If equipped
‡ Not shown
† If not equipped with sideburner; two rigid shelves are supplied.
16
24" 30" 36"
Item Description Part No. Qty. Part No. Qty. Part No. Qty.
1. Stainless steel motor 24-B-32 1 24-B-32 1 24-B-32 1
2. Spit prongs (set of 2) 24-B-18 1 24-B-18 1 24-B-18 1
3. Spit rod
5
/
8
" hex 24-B-33 1 30-B-33 1 36-B-33 1
4. Handle knob 24-B-09 1 24-B-09 1 24-B-09 1
2
4
1
3
ROTISSERIE KIT (if equipped)
AOG GRILL REPLACEMENT PARTS LIST (Cont.)
17
LOCK
UNLOCK
LOCATION PREPARATION
Prepare a flat, level surface capable of supporting
the weight of the portable grill and convenient to the
gas supply if connecting to a gas line.
WHEELS AND CASTERS
To lock a caster press down on the left lever until it
stops and the caster will not turn. To unlock, press
down on the right lever.
CONNECT THE GAS SUPPLY
Always ensure the orifices and regulator (if
equipped) are set for the gas type your unit is
to be installed to.
For connecting a propane unit to a portable
propane tank, read the safety warnings and follow
the instructions in the section SAFE USE AND
MAINTENANCE OF PROPANE GAS CYLINDERS.
For household propane or natural gas units:
1. Turn OFF the gas supply at the source. The
quick disconnect hose is pre-installed on the
valve manifold at the manufacturer. Run the
hose through the hole in the bottom rear of the
portable unit, to the gas supply.
2. A shut-off valve is required within 6 feet of the unit.
Connect the quick connect hose to the shut-
off valve OR gas supply using a pipe joint
compound resistant to all gasses (see Fig. 17-2).
Tighten securely.
3. Turn all burner valves to the OFF position. Turn
the gas supply on. Then carefully check all gas
connections for leaks with a brush and soapy
water before lighting. NEVER USE A MATCH
OR OPEN FLAME TO TEST FOR LEAKS.
INSTALL THE VAPORIZER PANELS
Place the vaporizer panels directly onto the studs
on the burners. See Fig. 17-3. The panels allow heat
from the burners to be evenly distributed throughout
the cooking area. The panels are stainless steel and
will heat and cool quickly, making your barbecue
very responsive to the changes you specify in
grill temperature. They are rust resistant and may
be cleaned with standard oven cleaners. Some
discoloring will be seen with use. This is normal for
stainless steel and does not affect the function.
Fig. 17-1 Wheels and casters
Fig. 17-2 Connecting to a gas line
Gas supply
Quick
connect hose
(coming from unit)
Shut-off valve
(required, not
included, must be
installed within 6
feet of the unit)
Quick connector
(can be connected
directly to gas supply
stub if shut-off valve
installed in-line)
INSTALLATION
INSTALLATION
Fig. 17-3 Install vaporizer panels
Place onto studs
18
INSTALL THE COOKING GRIDS
Carefully place each cooking grid onto the front and rear
grid rests of the grill. See Fig. 18-1.
INSTALL THE DRIP TRAY
Fully insert the drip tray into the bottom front of the control
panel. See Fig. 18-2.
INSTALL THE WARMING RACK
The warming rack (Fig. 18-3) is packed separately. To
install the warming rack, carefully insert the rack hangers
into the two holes in the back of the inner oven hood, then
lower the front of the rack to a level position.
Note: Removing the warming rack before using the
rotisserie will leave more clearance for the meat
being cooked (if applicable).
INSTALLATION (Cont.)
CONNECT THE POWER SUPPLY TO LINE
POWER
Connect the cord coming from the rear of the unit to a
120VAC (15 AMP minimum) GFCI GROUNDED 3-wire
receptacle. The GFCI receptacle must be a WEATHER-
PROOF IN-USE COVERED RECEPTACLE.
WARNING: Electrical Grounding Instructions - This
appliance is equipped with a three-
pronged (grounding) plug for your
protection against shock hazard and
should be plugged directly into a properly
grounded three-prong receptacle. Do not
cut or remove the grounding prong from
this plug.
Fig. 18-4 Electrical setup detail
3-wire GROUNDED
cord from unit
120VAC (15 AMP minimum) GFCI
GROUNDED 3-wire receptacle
Warming
rack
Fig. 18-3 Install warming rack
Fig. 18-1 Install cooking grids
Fig. 18-2 Install drip tray
19
This shelf comes separate from the grill for
convenience in shipping. The sideburner shelf
must be installed using the following instructions
before hooking up the grill to a gas source.
INSTALL THE SIDEBURNER SHELF
1. Remove the protective plastic from the grill,
sideburner, and sideburner lids by carefully
peeling it off with your fingers. Do not use tools.
2. Hold the sideburner shelf up against the left
side wall of the grill so that the holes in the shelf
line up with the four (4) threaded screw holes
in the side wall and the air-shutter end of the
sideburner venturi tube fits around the brass
orifice protruding from the side of the cart.
WARNING: It is critical for safety and for the
proper function of the sideburner
that the sideburner venturi tube with
air shutter be centered around and
completely cover the gas orifice.
3. Insert and start screws with fingers and then
tighten using a Phillips screwdriver.
Important:
Take caution to not cross-thread
when tightening the screws.
Note: Upon completion, the air shutter must still
fit around the brass orifice.
4. Connect the female connector on the end of the
hot surface igniter wire to the male connector
coming from inside the grill.
5. Place the burner cap on top of the burner, as
shown in Fig. 19-3.
6. Place the grid so that it rests on the front and
back lips of the sideburner opening (Fig. 19-4).
7. Proceed to the section on AIR SHUTTER
ADJUSTMENT and complete the installation by
adjusting the air shutter. This will also test the
sideburner installation.

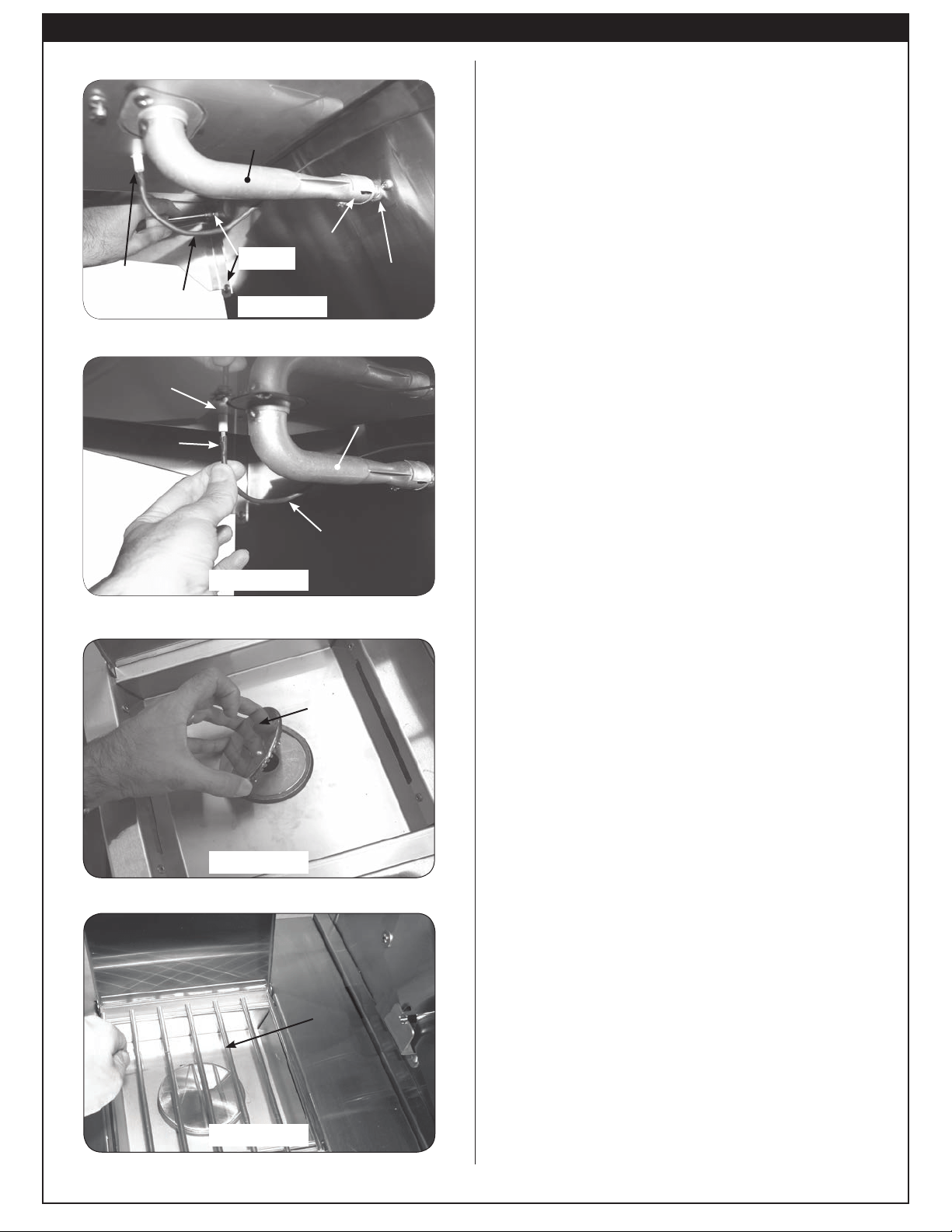

Air-shutter orifice placement - under shelf
Fig. 19-1
Connecting the igniter wires
Placing the burner cap
Fig. 19-2
Fig. 19-3
Final look
Fig. 19-4
Screw
Hole
Male
Female
Brass
orifice
Air
shutter
Grate
Lid
Cap
Shelf
Air shutter orifice placement - under shelf
Fig. 19-1
Connecting the igniter wires
Fig. 19-2
Screw
Electrode
insulator
Female
connector
Brass
orifice
Air
shutter
Shelf
Insulator
Igniter wire
Igniter wire
Venturi tube
Venturi tube
4. Connect the female connector on the end of
the igniter wire to the male igniter connector
protruding from the bottom of the white insulator.
INSTALL THE SIDEBURNER SHELF (IF EQUIPPED)
20

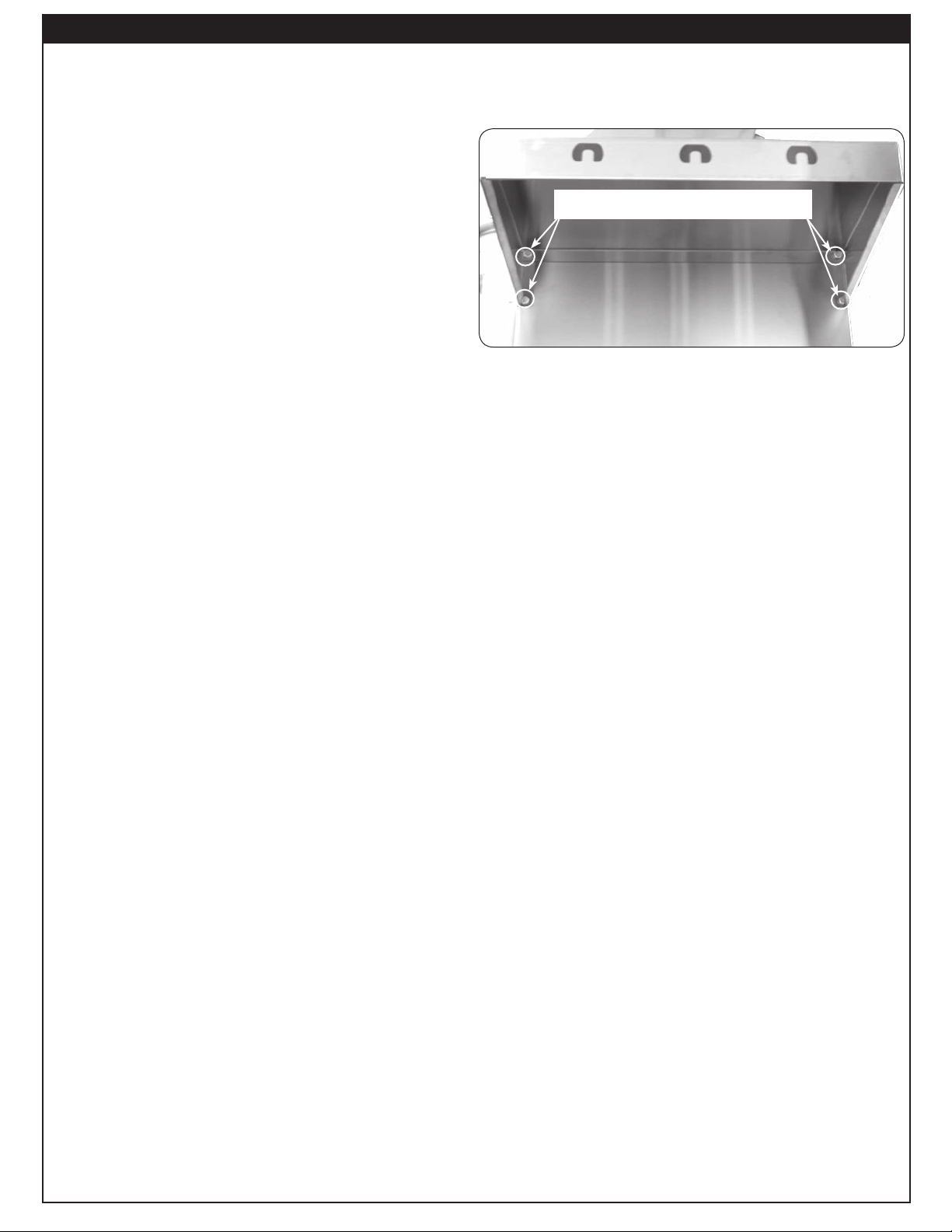

RIGID SHELF INSTALLATION
Shelf support screws
View from under right shelf
This barbecue comes with two (2) rigid shelves that
must be attached. These can be attached using the
four support screws provided and a Phillips-head
screw driver.
Important:
Take caution to not cross-thread
when tightening the screws.
1. Hold the shelf inverted so that one of the corner
holes in the shelf lines up with the appropriate
upper screw hole in the barbecue.
2. Insert the screw, but do not tighten all the way so
that the shelf can be easily rotated around the first
screw.
3. Line up the second corner hole in the shelf with
the remaining upper screw hole in the barbecue.
Insert a screw and tighten.
Note: You may lift the edge of the shelf upward
to gain better access during much of the
tightening of this screw.
4. Finally, insert the bottom screws on the left and right
side of the shelf and securely tighten all screws.
To detach, reverse the process above.
This barbecue comes with one rigid shelf that must
be attached. It can be attached using the four support
screws provided and a Phillips-head screwdriver.
Important:
Take caution to not cross-thread
when tightening the screws.
1. Insert the top two screws into the side of the
barbecue and screw them in about half way.
2. Line up the larger, bottom portion of the two
keyhole openings with the two top screws and fit
the two keyhole openings over the two screws.
With the shelf pushed all the way against the
side of the barbecue, lower the shelf so that the
screws lock into the narrower, upper portions of
the keyholes.
Note: The shelf will now stay in place on it’s
own.
3. Insert the bottom two screws into their holes and
tighten them all the way.
4. Finally, tighten the upper two screws,
completely.
To detach, reverse the process above.
21
Side Burner
Left
main burner
control knob
Right
main burner
control knob
Backburner
control knob
(if equipped)
Side Burner
Center main burner
control knob
Control panel
screw(s)
Drip
tray
Ignition
switch
Right
main burner
control knob
Backburner
control knob
(if equipped)
Control panel
screw(s)
Drip
tray
Ignition
switch
Sideburner
control knob
(if equipped)
Left
main burner
control knob
Sideburner
control knob
(if equipped)
Fig. 21-1 24" model controls
Fig. 21-2 30" and 36" model controls
Light switch*
* The light switch is push button operated, and is located on the
right side of the control panel. It controls the power to all lights.
Light switch*
* The light switch is push button operated, and is located on the
right side of the control panel. It controls the power to all lights.
IDENTIFICATION OF GRILL CONTROLS
USE, CARE, & SERVICE
22
BEFORE INITIAL USE
Ensure that:
• the unit has been properly installed and leak tested by a qualified professional service technician and as instructed
in this manual.
• you have read and understand all of the information in this manual.
BEFORE EACH USE
Ensure that:
• you smell around the appliance area for gas. If you smell gas (and all control knobs are in the OFF position),
immediately shut off the gas supply and contact a qualified professional service technician or the gas supplier
for inspection.
• the vent openings and surrounding area of the unit are clear and free at all times.
• the cooking area and drip tray are clean, and the drip tray is properly installed.
• you inspect all piping and hoses for damage, cuts, wear, and tear. Replace any damaged components prior to use.
OPERATION
• The unit becomes HOT during use. NEVER touch any part of the cooking area or surrounding hot surfaces
with bare hands. Use long-handled insulated BBQ tools and wear an insulated glove / oven mitt.
• Always keep your face and body as far from the unit as possible during use. Avoid wearing loose-fitting
clothing as they could ignite.
• NEVER use charcoal or any other solid-fuel in the unit.
• NEVER leave the unit unattended during use.
• NEVER cover more than 75% of the cooking or grill surface with griddles or pans to prevent overheating.
After reading and understanding all bullets above, follow these steps to light and use your grill:
1. Light the grill per the LIGHTING INSTRUCTIONS section.
2. Turn the control knobs to the HI-LIGHT position, close the hood, and allow the grill to preheat for 15 minutes or
until desired cooking temperature is reached.
3. Place the food on the grill and cook as desired. Monitor the flames and the temperature, and adjust the heat
setting if necessary.
4. See the sections below and the following pages for all other information regarding use.
WIND CONSIDERATIONS
Proper airflow (front-to-back, Fig. 22-1) MUST be maintained for the unit
to perform as it was designed. See the INSTALLATION REQUIREMENTS
section for details.
When using the unit in windy conditions, the wind can disrupt the airflow and
cause overheating. To prevent overheating during windy conditions, do not
leave the hood closed with the burners on high for more than 15 minutes.
AFTER EACH USE
1. Brush the cooking grids to remove all residue.
2. Operate on high with hood closed for 10-15 minutes to burn off all grease.
3. Cover the grill once it has completely cooled.
Note: For additional cleaning information, refer to the SERVICING AND CLEANING section.
Fig. 22-1 Airflow diagram
USING THE GRILL
23
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
ELECTRONIC LIGHTING
Note: Electronic lighting requires an installed 9-volt
battery with a good charge.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Note: DO NOT
turn on more
than one valve at
a time for either
electronic or
manual lighting.
4. Depress the desired control knob for 5 seconds.
Ensure the igniter is glowing (inside of lighting tube),
then, while pressing turn the knob counterclockwise
to the HI LIGHT position. Once the burner lights,
release the knob.
CAUTION: If a burner does not light within five (5)
seconds of turning on the control knob,
depress the knob and turn it to the OFF
position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the
instructions for manual lighting.
5. Repeat step 4 for each additional burner to be lit.
WHEN USING A PORTABLE PROPANE TANK
Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/flame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)
MANUAL LIGHTING
CAUTION: Always wait five (5) minutes for gas to
clear after any unsuccessful lighting
attempt.
1. Follow steps 1 through 3 (left).
2. Insert either a burning long-barrel butane lighter or
a burning long-stem match through the cooking grid
opening to the top of the lighting tube (Fig. 23-2). For
backburners, hold the flame against the surface of
the backburner.
For sideburners, hold the flame against the burner.
3. Hold the match / lighter flame at the top of the lighting
tube for 5 seconds, or, next to the sideburner /
backburner. Then depress the appropriate control
knob and while pressing turn it counterclockwise to
the HI LIGHT position. Remove the lighter or match
when the burner lights, and release the control knob.
4. If the burner does not light within five (5) seconds
of turning the control knob, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.
Read all instructions before lighting, and follow these instructions each time you light the unit.
Fig. 23-2 - Manual lighting
Lighting
tube
Lighter
Fig. 23-1 Control knob
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Read setting here
(OFF position shown)
To Turn OFF
To Turn ON
Use
HI (high)
to light
Press
knob in
to turn
Gas Flow
Indicator
For your convenience and safety; when the
control knob is turned to the on position, the gas
flow indicator will change from blue to red. (Red
indicates gas flow.) See Fig. 23-1.
ELECTRONIC LIGHTING
Note: This unit must be connected to 120VAC power
for electronic lighting.
2. Insert either a burning long-barrel butane lighter,
a burning long-stem match, or a burning match
held by a wire extension holder (Fig. 23-2)
through the cooking grids to the burner (Fig. 23-3).
For backburners, hold the flame against the
perforated material of the backburner.
3. While holding the match or lighter flame next to the
burner, depress the appropriate control knob and
while pressing turn it counterclockwise to the HI
LIGHT position. Remove the lighter or match when
the burner lights, and release the control knob.
4. If the burner does not light within five (5) seconds
of turning the control knob, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.
Fig. 23-2 - Match holder
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
Fig. 23-3 - Manual lighting
4. Press and hold the igniter switch. Ensure the igniter
is sparking (it will create a “clicking” sound), then,
depress the desired control knob, and while pressing
turn it counterclockwise to the HI LIGHT position.
Once the burner lights, release the control knob and
igniter switch.
CAUTION: If a burner does not light within five (5)
seconds of turning on the control knob,
depress the knob and turn it to the OFF
position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the
instructions for manual lighting.
5. Repeat step 4 for each additional burner to be lit.
Fig. 23-2 - Match holder
Fig. 23-3 - Manual lighting
2. Insert either a burning long-barrel butane lighter,
a burning long-stem match, or a burning match
held by a wire extension holder (Fig. 23-2)
through the cooking grids to the burner (Fig. 23-3).
For backburners, hold the flame against the perforated
material of the backburner. For sideburners, hold the
flame against the burner.
3. While holding the match or lighter flame next to the
burner, depress the appropriate control knob and
while pressing turn it counterclockwise to the HI
LIGHT position. Remove the lighter or match when
the burner lights, and release the control knob.
4. If the burner does not light within five (5) seconds
of turning the control knob, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.
LIGHTING (IGNITION) INSTRUCTIONS
24
ARRÊT DU UNITÉ
Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.
Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.
ÉCLAIRAGE ÉLECTRONIQUE
Note: L’éclairage électronique exige une batterie installée
de 9 volts avec une bonne charge.
1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs
pour être Lit.
2. Tournez tous les boutons de commande de gaz à leurs
positions de repos.
3. Allumez le gaz à sa source.
Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.
4. Appuyez sur le bouton de commande souhaité pendant 5
secondes. Assurez-vous que l’allumeur brille (à l’intérieur
du tube d’éclairage), puis tout en appuyant, tournez le
bouton dans le sens inverse des aiguilles d’une montre
jusqu’à la position HI LIGHT. Une fois le brûleur allumé,
relâchez le bouton.
ATTENTION : Si un brûleur ne s’allume pas dans cinq
(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez-
le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.
5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.
EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF
Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/flamme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)
ÉCLAIRAGE MANUEL
ATTENTION: Attendez toujours cinq (5) minutes le gaz
pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.
1. Suivez les étapes 1 à 3 (à gauche).
2. Passez un allumeur brûlant de butane de long-baril ou
une allumette brûlante de long-tige dans la grille à cuire
s’ouvrant au dessus du tube d’éclairage. (Fig. 24-2). Pour
des backburners, tenez la flamme contre le surface du
backburner. Pour des sideburners, tenez la flamme contre
le brûleur.
3. Vieux match / flamme d’un briquet à la partie supérieure
du tube d’éclairage pendant 5 secondes, ou, à côté de la
brûleur latéral / veilleuse. Puis appuyer sur le bouton de
contrôle approprié et en appuyant tourner dans le sens
antihoraire à la position HI LIGHT. Retirez le briquet ou
des allumettes quand le brûleur s’allume, puis relâchez
le bouton de commande.
4. Si le brûleur ne se allume pas dans les cinq (5)
secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.
Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.
Fig. 24-2 - Éclairage manuel
Plus
léger
Tube
d’éclairage
Fig. 24-1 - bouton de commande
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Lisez l’établissement ici
(OUTRE de montrer)
OUTRE DE
SUR
Utilisation
SALUT
(haute)
à la lu-
mière
Enfoncez
le bouton
pour
tourner
Indicateur
d’écoulement
de gaz
Pour votre convenance et sûreté ; quand le
bouton de commande est tourné a la position
de fonctionnement, l’indicateur d’écoulement
de gaz changera de bleu en le rouge. (Le rouge
indique l’écoulement de gaz.) Voir la Fig. 24-1.
Note: Le unité doit être relié à la puissance 120VAC pour
l’éclairage électronique.
2. Insérez soit un brûlant long baril briquet au butane, un
match à longue tige de brûlure, ou une allumette en feu
détenues par un titulaire d’extension de fil (Fig. 24-2) À
travers les grilles de cuisson du brûleur (Fig. 24-3). Pour
backburners, maintenez la flamme contre le matériau
perforé de la veilleuse.
3. Tout en maintenant le match ou flamme d’un briquet à
proximité du brûleur, appuyez sur le bouton de contrôle
approprié et en appuyant son tour dans le sens antihoraire
à la position LIGHT HI. Enlevez l’allumeur ou assortissez
quand le brûleur s’allume, et libérez le bouton de
commande.
4. Si le brûleur ne se allume pas dans les cinq (5)
secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.
Fig. 24-3 - Éclairage manuel
Fig. 24-2 - Titulaire de match
4. Appuyez sur le commutateur d’allumage et maintenez-
le enfoncé. Assurez-vous que l’allumeur produit des
étincelles (vous entendrez un «clic»), puis appuyez sur le
bouton de commande souhaité et, tout en appuyant sur,
tournez-le dans le sens antihoraire jusqu’à la position HI
LIGHT. Une fois le brûleur allumé, relâchez le bouton de
commande et le commutateur d’allumage.
ATTENTION : Si un brûleur ne s’allume pas dans cinq
(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez-
le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.
5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.
2. Insérez soit un brûlant long baril briquet au butane, un
match à longue tige de brûlure, ou une allumette en feu
détenues par un titulaire d’extension de fil (Fig. 24-2) À
travers les grilles de cuisson du brûleur (Fig. 24-3). Pour
backburners, maintenez la flamme contre le matériau
perforé de la veilleuse. Pour sideburners, maintenez la
flamme contre le brûleur.
3. Tout en maintenant le match ou flamme d’un briquet à
proximité du brûleur, appuyez sur le bouton de contrôle
approprié et en appuyant son tour dans le sens antihoraire
à la position LIGHT HI. Enlevez l’allumeur ou assortissez
quand le brûleur s’allume, et libérez le bouton de
commande.
4. Si le brûleur ne se allume pas dans les cinq (5)
secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.
Fig. 24-3 - Éclairage manuel
Fig. 24-2 - Titulaire de match
Note: Le unité doit être relié à la puissance 120VAC pour
l’éclairage électronique.
ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)
25

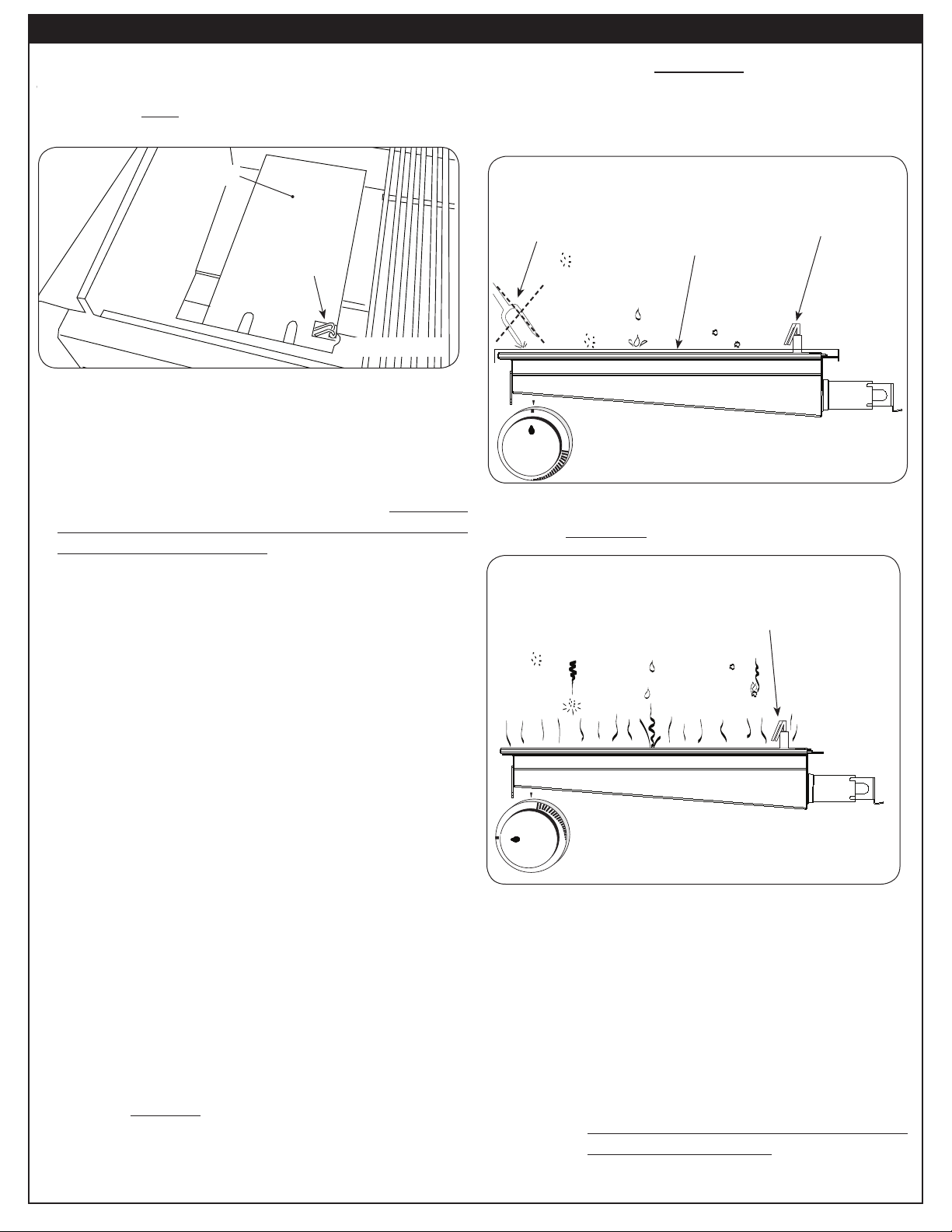

The infrared (IR) searing burner (optional) cooks with
a powerful radiant heat.
Light the infrared burner following the LIGHTING
INSTRUCTIONS in this manual or printed on the
drip tray. Follow these guidelines when operating the
Infrared burner:
• DO NOT place food on the cooking grid until
the IR burner glows orange (Fig. 25-3). Drippings
are heated and evaporate instead of sticking to and
impairing burner function.
• For cleaning purposes; always leave your burner
on (after cooking) for an additional 5 minutes, to
allow for a burnoff period. This is important to
keep your burner clean and operating properly.
As the burner is self cleaning (at full temperature);
avoid the use of cleaners or abrasives.
• When not in use, always cover the infrared burner
with the stainless-steel cover. This protects the
burner from drippings (from other cooking), water,
airborne particles, and foreign objects (Fig. 25-2).
Important: Clean burners allow the gas to circulate
and burn over the entire heating surface
for powerful and even cooking.
• Do not strike or scrape the ceramic portion of the
burner as it may chip, crack, or break (Fig. 25-2).
Note: Digital thermometer does not give accurate
readings for infrared burners.
Important: When grilling with the infrared burner,
always place a cooking grid above it.
The cooking grid must be removed for
rotisserie cooking.
CAUTION: DO NOT operate your IR burner with the
oven hood closed.
CAUTION: Never attempt to operate the IR burner
with the protective cover in place.
WARNING
Only handle the infrared burner cover when the
unit is cold or with a well-insulated long-handled
tool or heat resistant gloves.
Burner ceramic must be protected with cover when
burner is not in use.
Drips and particles evaporate before hitting infrared
burner when cooking at the maximum setting.
Note: Flavor grids are not to be used with infrared
burners.
To ensure proper operation, all infrared burners
(back and main) must be operated on the HI setting
for a minimum of 10 minutes. Thereafter, the flame
may be lowered as desired.
CAUTION: Always monitor the infrared burner flame
when operated on low, as it may blow
out in high-wind conditions.
OFF
HI
LIGHT
LOW
Fig. 25-3
SIDE VIEW
(burner on HI LIGHT
and glowing orange)
Igniter
electrode
OFF
HI
LIGHT
LOW
Fig. 25-2
Cover
SIDE VIEW (with cover on)
Igniter
electrode
Food
particles
or debris
Drippings
and other
liquids
Airborne
dust or
grease
NO foreign
objects
Fig. 25-1
Cover
Igniter
electrode
Note: Vaporizer panels are not to be used with
infrared burners.
The infrared (IR) searing burner (optional) cooks with a
powerful radiant heat.
NOTE: ONLY ONE INFRARED BURNER IS PERMITTED
FOR USE ON AOG GRILLS.
OPTIONAL INFRARED BURNER OPERATION
26
ROTISSERIE INSTRUCTIONS (IF EQUIPPED)
Spit rod
Handle
Spit prongs
Stainless
steel motor
CAUTION: WHEN USING THE BACKBURNER;
KEEP THE OVEN LID CLOSED TO
PREVENT HEAT LOSS, PROVIDE
PROPER CONVECTION, AND PROVIDE
PROPER VENTING. THIS WILL ENSURE
EVEN COOKING TEMPERATURES.
DO NOT KEEP YOUR OVEN LID OPEN
DURING ROTISSING, AS THIS MAY
CAUSE PERSONAL INJURY, OR IN
SOME CASES, IN WINDY CONDITIONS,
DAMAGE TO THE GRILL.
DO NOT USE THE ROTISSERIE MOTOR
IN THE RAIN. DO NOT LEAVE THE
MOTOR ON THE GRILL WHEN NOT IN
USE.
1. Remove the warming rack and cooking grids from
the barbecue. The vaporizer panels may also be
removed if required.
Tip: Aluminum foil or a baking pan is recommended
and may be placed over the main burners /
vaporizer panels, a little forward of center, to
catch excess drippings from the meat.
2. Attach the rotisserie motor to the rotisserie
mounting on the right side of your barbecue by
sliding the bracket attached to the motor onto the
tab on the right of the barbecue. The motor should
be installed so that the spit rod will fit into the motor
drive socket from the left.
3. Slide the left spit prong onto the rod (and tighten),
the meat onto the rod and into the prong, followed
by the right spit prong onto the rod and into the
meat. Tighten the right spit prong. Be sure the meat
is centered and balanced as well as possible.
4. Insert the pointed end of the rod into the motor drive
socket and the groove next to the handle into the
left support bracket.
5. Plug in (if necessary) and turn on the rotisserie
motor.
6. Light backburner per lighting instructions in this
manual (or on drip tray handle) and close oven lid.
7. Allow the backburner to preheat for approximately
10 minutes on HI LIGHT setting.
Note: When burning properly, the backburner grating
will glow red. The first time it is used the
backburner may smoke a little.
Important: Turn the backburner to low or off
when stopping the rotisserie to prevent
overcooking.
27
Your grill requires regular cleaning and maintenance. Refer to these instructions for details. Performing these procedures
will ensure proper operation, appearance, and safety.
WARNINGS
• Prior to servicing or cleaning make sure the unit is completely cool, the control knobs are turned to the OFF position,
the gas supply is shut off, the light switch is off, and the power supply is disconnected (as applicable and unless
otherwise stated).
• Wear appropriate gloves and safety glasses during any servicing or cleaning.
• DO NOT spray any cleaner or liquids on the grill when hot.
• The grill MUST be cleaned regularly to prevent grease build-up and other food deposits. A clean and well maintained
grill prevents the risk of grease build-up and grease fires.
• Verify proper operation after servicing or deep cleaning.
• See INSTALLATION, OPERATION, AND SAFETY INFORMATION section for additional related information.

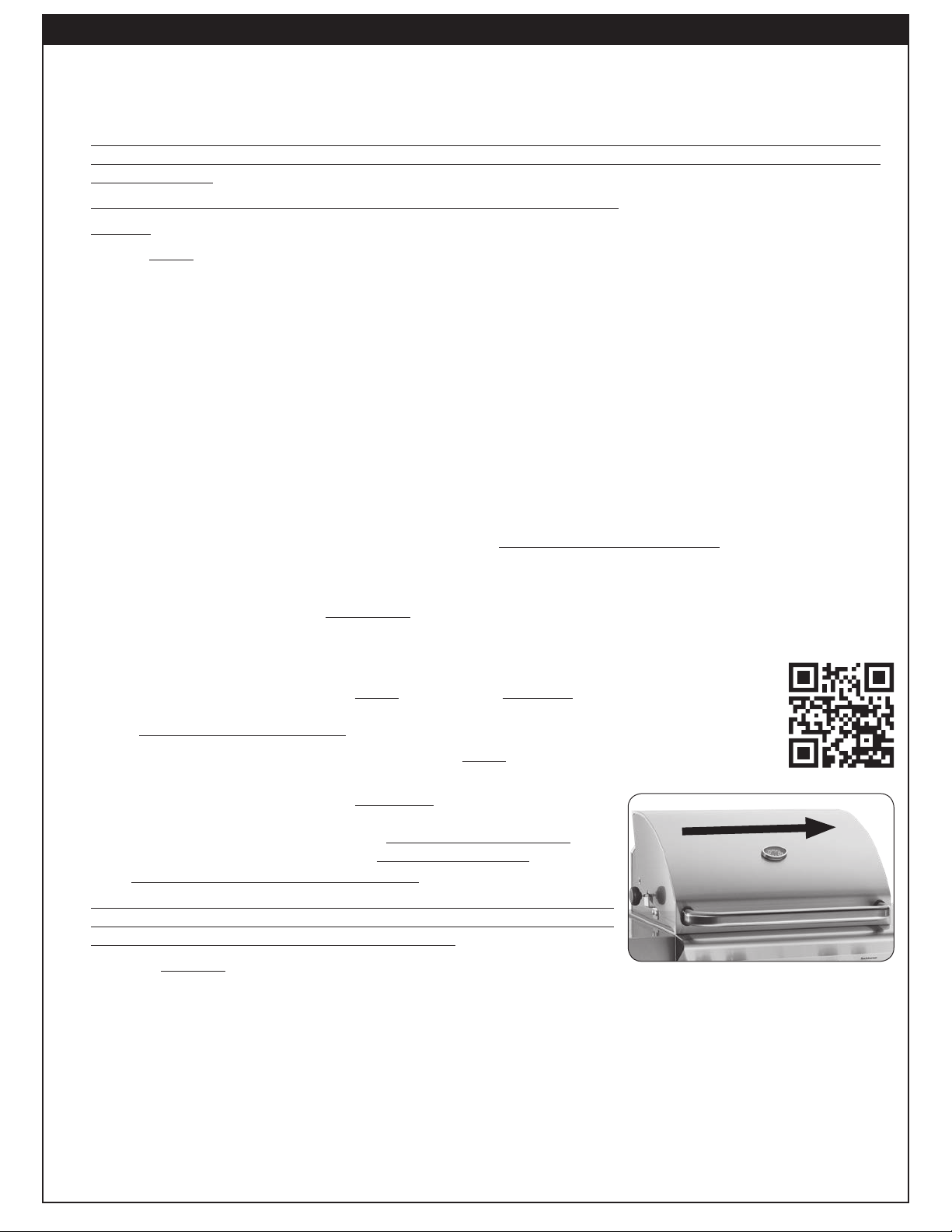

CLEANING YOUR GRILL
Before Each Use
1. Inspect and clean the exterior surfaces of the unit: With a cool grill, clean any dust, grease, splatter, or spills as needed
with a damp clean cloth.
After Each Use
1. Perform a burn-off and clean the cooking grids: Operate the grill on high with the hood closed for 15 minutes to burn-
off food and grease and allow for an easier cooking grid clean. Then turn OFF the grill and use a grill brush to clean
the cooking grids of all residue. Wear protective gloves and use caution around hot surfaces.
2. Check and clean your drip tray: When the grill is cool, carefully remove the drip tray and dispose of contents appropriately.
Clean tray in a soapy water solution if needed. For tough deposits, a copper pad can be used. Rinse and dry completely.
3. Cover your grill: Once the grill is dry and cool, cover your grill with a vinyl cover.
Twice A Year (or as needed) - Deep Clean
1. Interior of grill: In addition to cleaning the cooking grids and drip tray, a deep clean of the interior of
the grill, burners, and all components MUST be performed twice year (or as needed depending on
use). Refer to the CARE, CLEANING, & MAINTENANCE GUIDE manual provided with your grill, or
simply scan the QR code on the right.
Important: The burner ports and carry-over ports/slots MUST be kept clean to ensure proper ignition
and operation. The guide provides all details on cleaning.
2. Exterior of grill: With a cool grill, use a grill cleaner (or a soapy water solution)
and a clean cloth to remove grease and dirt from the outside of the grill. For
tough deposits, a copper pad can be used. Always wipe with the grain. Rinse
and dry completely. Then follow up with a stainless steel cleaner and a clean
cloth. DO NOT use other cleaners or chemicals.
If this routine cleaning is not performed, the stainless steel may become
dull and develop surface rust (due to use and atmospheric conditions). If left
uncleaned, significant damage and pitting may occur.
Important: DO NOT use steel wool, any other metal tools, or any other
cleaners/chemicals to clean the exterior other than recommended
above. Such items promote rust.
Note: Due to the nature of stainless steel, temperatures produced by the grilling process will cause discoloration. This
can be reduced by routine cleaning.
Wipe with grain
Fig. 27-1 Wipe with grain
SERVICING AND CLEANING
28
For Environments High In Salt, Chloride, Or Other Corrosive Chemicals
When this grill is installed in a corrosive environment such as near the ocean (salt air), poolside (chlorine and/or
pool chemicals) or any other location with exposure to high salt/chloride content or corrosive chemicals/solutions,
it will be more susceptible to corrosion and MUST be maintained/cleaned more frequently.
• DO NOT store any corrosive chemicals (chlorine, hydrochloric acid, fertilizer, etc.) near your stainless steel grill.
• DO NOT allow any corrosive materials (masonry dust, debris, etc.) to settle on your stainless steel grill.
• These environments, chemicals, and materials may cause the 304 stainless steel to develop surface rust and
consequently pitting. Under these conditions the grill exterior MUST be cleaned at least monthly. Inspect your grill
often and clean accordingly.
Protecting Your Grill
An optional vinyl cover will protect your grill when not in use. Install the cover on a cool and dry grill. DO NOT cover a damp
grill. During high humidity or after rainy conditions, remove the cover to dry trapped moisture if present. (If the cover is
installed over a damp grill it can cause surface rust.)
Ensure that the INSIDE of the cover is DRY before putting it back on the grill.
SERVICING AND CLEANING (cont.)
29
REPLACING HALOGEN BULBS
Your grill is engineered with the conveniences of
electrical power for illuminating and igniting the grill.
To replace any interior oven light, follow the instructions
below.
Important: ONLY REPLACE WITH 12V / 10 WATT
HALOGEN BULB(S).
WARNING
To protect from potentially sharp sheet metal and
glass, wear gloves and safety glasses during this
procedure.
1. Turn all burner control knobs to the OFF position
and shut off the gas supply to the grill at the source
(tank valve for propane units or gas line shut-off
valve for natural gas units.)
2. Disconnect supply of external electrical power to
the grill.
CAUTION: Wait for the grill, oven, lens, light bulb,
and fixture to cool before proceeding to
the next step.
3. Open the oven lid.
Important: Place one hand directly below the glass
lens and prepare to catch it when it is
detached.
4. Carefully insert a standard flat head screwdriver
or thin plastic spatula between the glass lens and
the stainless steel on which the light is mounted
and gently pry the glass lens out in such a way
that the stainless steel is not scratched (twisting
the screwdriver handle, for instance). Catch the
lens and set it safely aside.
Note: You may wish to take this opportunity to clean
the lens with a standard household window
cleaner and then dry it completely.
5. Wearing a pair of gloves, reach into the fixture,
gently grab the bulb, and pull it straight out of the
fixture so that the two pins at the base of the bulb
come all the way out.
Important: Bulb is halogen. DO NOT TOUCH with
bare hands. Oils from hands drastically
reduce bulb life.
Note: It may be helpful to rock the bulb gently
backward and forward while pulling it out.
6. Inspect the old bulb for broken glass or filament.
Note: It may be beneficial to test a suspect bulb
in one of the other light fixtures known to be
working and turn the power back on to be
certain the bulb is actually not working.
7. Insert the new 12V / 10 watt halogen bulb into the
socket so that both pins slide all the way into the
two holes in the bottom of the socket.
8. Place the lens back into the fixture opening with
the curved cutout on the bottom and snap it back
into place.
Fig. 29-1
Lens
Fig. 29-3
Bulb
Prongs
Socket
Holes
Fig. 29-2
Fixture
Socket
Curved
cutout
top of
lens
Bulb
SERVICING AND CLEANING (Cont.)
30

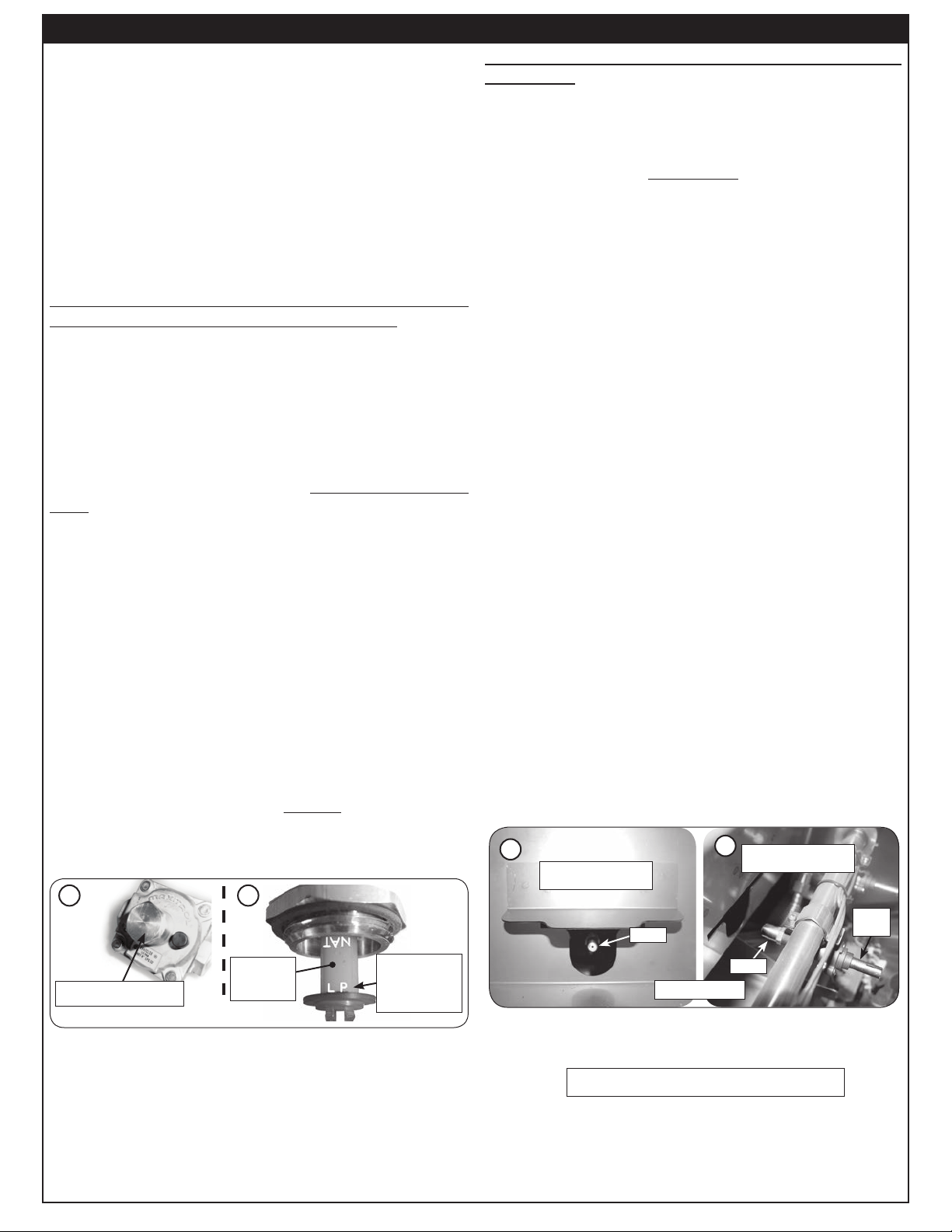

SERVICING AND CLEANING (Cont.)
Convert/Check Main Burner Orifices
Note: It may be necessary to remove the rotisserie
rod before beginning this procedure.
1. Remove the cooking grids and vaporizer panels and
set them aside.
2. Remove the burners (see BURNER REMOVAL
section for step-by-step instructions).
3. Use a
1
/
2
" hex deep socket nut driver to remove the
exposed orifices. Access the orifices through the
holes in the forward firebox plate inside the grill (see
Fig. 30-2, A). Check orifices. If needed, replace all
with the correct orifices for the new gas.
Alternatively, the orifices can be accessed through
the inside of the control panel if the proper tool is
not available (see Fig. 30-2, B). This allows a
1
/
2
"
open-end wrench to be used instead of a
1
/
2
" hex
deep socket nut driver. To open the control panel,
see the CONTROL PANEL REMOVAL section.
Procedure continued on next page
A
B
Orifice
View from forward
firebox (inside grill)
Orifice
View from inside of
control panel
Fig. 30-2
Burner
valve
CONVERT GAS TYPE / CHECK BURNER
ORIFICES
CAUTION: Make sure the grill is at a safe temperature
and isolated from gas and electrical
supplies before beginning.
For your safety, exercise caution, and make sure you
have adequate hand protection, such as gloves, when
handling metal parts.
A kit is available from the manufacturer to convert
your appliance from L.P. gas to natural gas. Contact
your dealer for ordering information.
Follow the instructions included with the conversion
kit. This section only provides an overview.
To simply check orifices, refer to the CHECK ORIFICE
sections.
Apply Conversion Label
This grill comes from the factory configured for one type
of gas as marked on the label inside the cabinet.
When the grill is converted, the label for the new gas
MUST be filled out and applied next to the existing
label mentioned above.
Convert Regulator
The gas regulator, equipped only on natural gas models
and located beneath the grill, must be set for the type of
gas used to fuel the grill. To check the regulator setting,
remove the cap in the center of the regulator (Fig. 30-1,
A). Holding the cap vertical (see Fig. 30-2, B), the letters
at the bottom of the plastic stalk indicate the gas type for
which the regulator is currently configured.
If the text on the bottom of the regulator stalk does not
match the gas type connected to the grill, remove the
stalk from the cap, invert, and replace into center of cap.
Replace cap on the regulator, screwing down until snug.
Note: Models to be connected to household propane
or natural gas lines require the regulator
(contact your dealer if a regulator needs to be
ordered). For models to be connected to L.P.
cylinders, the regulator is optional.
Convert Gas Orifices
When converting the grill to a different gas type, each
burner’s orifice must be replaced with the corresponding
orifice for the new gas (not included).
See
MODEL SPECIFICATIONS TABLE, Table 1 to
determine the proper orifice sizes for each burner.
See the following sections for details on orifice
conversion.
Important: It is critical to the operation of each
burner that its orifice be fully inserted
into the center of its orifice opening.
WARNING
HAZARDOUS OVERHEATING WILL OCCUR
IF A NATURAL-GAS ORIFICE IS USED WITH
PROPANE GAS.
Connect To New Gas Supply
Plumb the unit as appropriate for the new gas supply.
(Additional components may be needed for your specific
setup.) Be sure to leak test at all connections.
Natural-gas to propane-gas conversions using a tank
internal to a portable grill require installation of a
propane tank holder (not included). This tank holder
must be purchased separately from the manufacturer.
Fig. 30-1
A B
Invert if
needed
Gas regulator cap
Read gas
type here
(LP shown)
31
Fig. 31-3 Remove backburner mounting screws
Remove
backburner
screws
Fig. 31-2 Remove electrode
Fig. 31-1 - Main burner orifice diagram
Orifice
Burner
Valve
4. Replace burners (See BURNER REMOVAL
section).
Note: It is critical to the continued safe functioning
of the burners that the orifices are centered
and completely inside the burner gas inlets.
5. Replace the vaporizer panels and the cooking
grids.
6. If applicable, reinstall the control panel.
Convert/Check Backburner Orifice (if
equipped)
Note: It may be necessary to remove the rotisserie
rod before beginning this procedure.
1. Remove the backburner electrode mounting
screw (1/4" hex) (see Fig. 31-2, A) and loosen the
electrode. Carefully pull the electrode assembly
slightly from the grill wall to give enough clearance
for the backburner to be removed (see Fig. 31-2,
B).
2. Remove the backburner mounting screws (
1
/
4
" hex)
located at the left end of the backburner assembly
(see Fig. 31-3).
3. Carefully pull the left end of the backburner
forward until the burner can be moved to the left
pulling it free from the orifice located on the right
side (see Fig. 31-4).
4. Use a
3
/
8
" hex nut driver to remove the exposed
orifice. Check orifice. If needed, replace it with the
correct orifice for the new gas.
5. Replace the backburner assembly and the
electrode by reversing the procedure in steps 1.
through 3.
Fig. 31-4 Remove backburner
The backburner orifice can be
seen on the right side after
removing the backburner.
backburner
orifice
Procedure continued on next page
A
B
SERVICING AND CLEANING (Cont.)
32

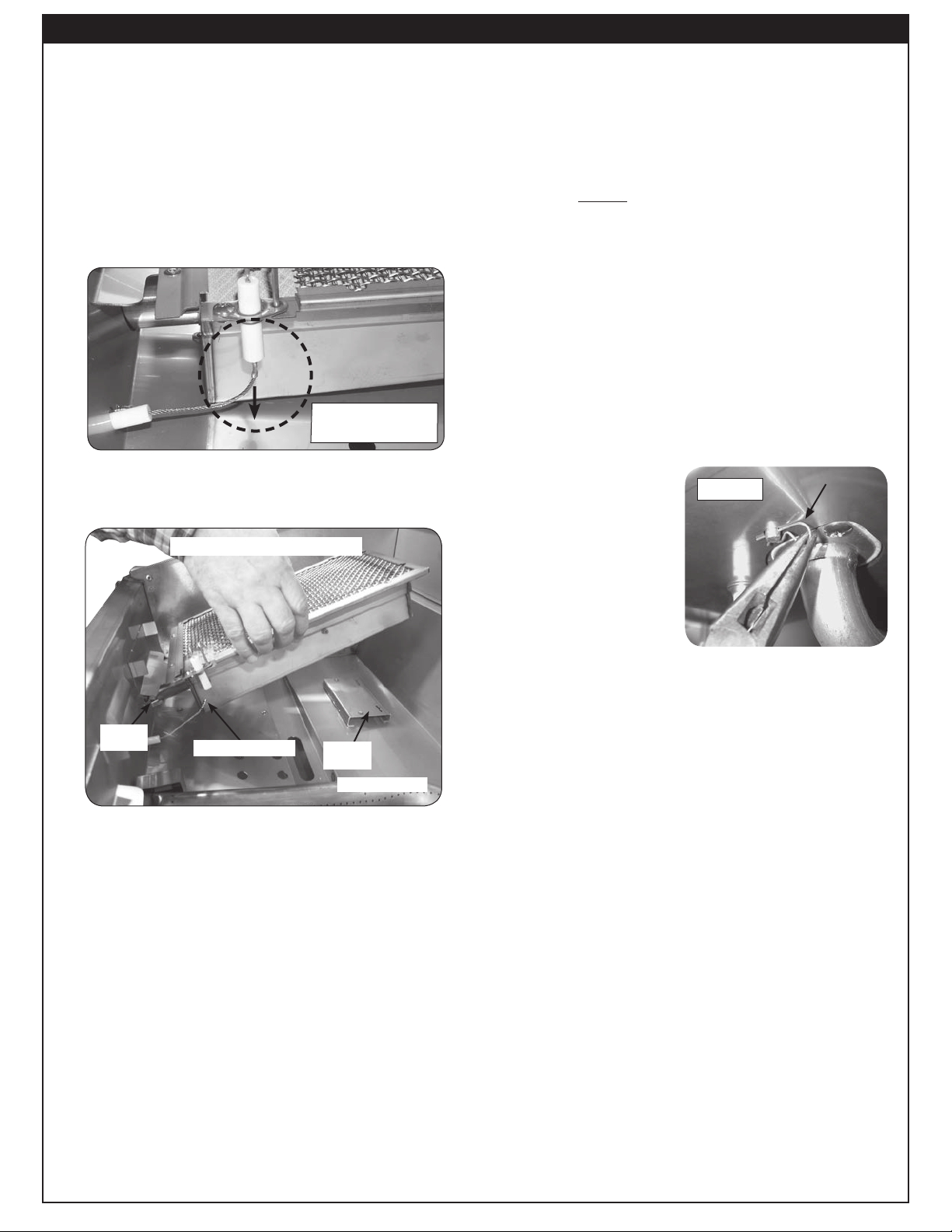

5. Replace the infrared burner over the orifice fitting,
sliding it forward, from behind the forward fire wall,
so the orifice is centered inside the burner gas
inlet, and set it gently onto the burner support. The
tabs on the bottom back of the burner must each fit
through their respective slots in the burner support.
Note: It is critical to the continued safe functioning
of the burner that the orifice is centered and
completely inside the burner gas inlet.
6. Reconnect the igniter wire to the bottom of the
electrode assembly on the infrared burner.
7. Replace the cooking grid.
8. Repeat for each infrared burner as necessary.
9. If applicable, reinstall the control panel.
Convert/Check Infrared Burner Orifice (if
equipped)
Note: It may be necessary to remove the rotisserie
rod before beginning this procedure.
1. Remove the cooking grid from above the burner you
are working on and set it aside.
2. Disconnect the igniter wire from the bottom of the
electrode assembly on the infrared burner (see Fig.
32-1).
3. Carefully lift the infrared burner from the burner
support and out from the hole in the forward fire
wall (see Fig. 32-2).
4. Use a
1
/
2
" hex nut driver to remove the exposed
orifice. Access it through the hole in the forward
firebox plate inside the grill (Fig. 32-2). Check orifice.
If needed, replace it with the correct orifice for the
new gas.
Alternatively, the orifice can be accessed through
the inside of the control panel if the proper tool is
not available. This allows a
1
/
2
" open-end wrench to
be used instead of a
1
/
2
" deep socket nut driver. To
open the control panel, see the CONTROL PANEL
REMOVAL section.
Removing / inserting infrared burner.
Fig. 32-2
Burner
support
Hole with
orifice
Wire disconnected
Fig. 32-1
Spark generator
SERVICING AND CLEANING (Cont.)
Convert/Check Side Burner Orifice (if
equipped)
1. Lift the side burner lid. Then remove the grid and
side burner cap and
set them aside.
2. Locate and remove
the cotter pin from the
side burner assembly
underneath the side
burner shelf using
needle-nose pliers.
Set it aside.
3. From the top of the
side burner shelf, lift the side burner upward while
rotating the attached tubing underneath away from
the orifice near the cart wall. Set it aside.
4. Use a
3
/
8
" hex nut driver to remove the exposed
orifice. Check orifice. If needed, replace it with the
correct orifice for the new gas.
Note: To protect the manifold threads when placing
the new orifice, start the threading manually,
and then tighten with the nut driver.
5. Rotate the burner assembly back into place over
the orifice and ensure it is firmly seated in the shelf.
6. Reinsert the cotter pin underneath the side
burner assembly using needle-nose pliers. It may
be necessary to push downward on the burner
assembly from above to fully expose the cotter
pin hole. Rotate the inserted cotter pin so that it
is flush with the underside of the shelf.
7. Replace the burner cap by centering it on the side
burner assembly and ensuring it drops in place.
8. Replace the grid with the grating running front to
back so that it drops fully down onto the shelf.
Fig. 32-3
Cotter
pin
33
AIR SHUTTER ADJUSTMENT
Important: This appliance may not light or heat evenly
or cook properly unless the air shutters
are adjusted following installation (see
AIR SHUTTER ADJUSTMENT section).
Burner air shutters are easily accessed by removing the
control panel. See the CONTROL PANEL REMOVAL
section for access.
The air shutters are located on the front portion of each
burner and have a locking screw that prevents the air
shutter from inadvertent movement (see Fig. 33-1).
Remove the cooking grids & vaporizer panels from the grill.
To close or open the
air shutters, simply
loosen the locking
screw, using a long
stemmed Phillips
screwdriver, and turn
the air shutter to open
or close it. Tighten the
screws down when
the desired setting is
achieved.
Main Burner
Light the burner to be adjusted in accordance with the
LIGHTING INSTRUCTIONS and burn for 2 minutes with
the burner control knob set to HIGH and the oven open.
After burning for 2 minutes, open the air shutter until the
flames lift off, or appear not to be touching the burner.
Then begin closing the air shutter until the flames appear
to burn while touching the burner ports (Fig. 33-2). If
flames are a lazy yellow, open the air shutters until the
flame is mostly blue.
Note: Grills in some installations achieve a better
air/gas mixture and will ignite more quickly
if the valve is first turned beyond HIGH to
MEDIUM or LOW for lighting.
Fig. 33-1
Locking
screw
Air shutter
Fig. 33-2 - Flame appearance diagram
Flame off ports
Flame on ports
SERVICING AND CLEANING (Cont.)
Sideburner (if equipped)
The flames from a properly adjusted sideburner will
touch the burner ports and appear mostly blue.
If the flames are orange, “lazy”, or lift off the burner
ports, then adjust the sideburner air shutter using the
following steps.
Sideburner adjustment is the most accessible (not
requiring any hardware to be removed first) and is
located underneath the sideburner shelf on the left side
of the grill, near the wall of the cart. The sideburner
air shutter can safely and easily be adjusted while the
sideburner is lit.
CAUTION: Do not touch the sideburner or the shelf
immediately around it. They will be
hot while adjusting the sideburner air
shutter.
1. Light the sideburner following the lighting instructions
in this manual.
2. Loosen the sideburner air-shutter adjustment
screw, then use the tip of the screwdriver to open
or close the air shutter until the flames appear blue
and touch the burner ports.
3. Re-tighten the adjustment screw.
Fig. 33-4
Close
Open
Fig. 33-3
34
Fig. 34-1 - Wire diagram
A
B
24" model shown
(Connections may vary)
C
Power
supply
box
D
Left interior
oven light
Main burner
Igniters
Backburner
Igniter
Igniter
module
Igniter
switch
Light
switch
Sideburner
Igniter
CONTROL PANEL REMOVAL
1. Turn the control knobs to the OFF position and turn off the gas supply to
the grill.
2. Turn off the light switch and disconnect the unit from the power source.
3. Pull the control knobs from their stems and set them aside.
4. Using a Phillips screwdriver, unscrew the control panel fastener screws (located
on the sides of the control panel). Retain the screws for later re-installation.
5. Carefully open the control panel by lifting and pulling the control panel from the
frame.
Important: When opening, take caution to not damage any wiring. The drip tray can be opened slightly to support the
control panel.
To completely remove the control panel:
1. Follow steps 1-5 above.
2. Disconnect the main wire harness connections (A), the left light connection (B), the right light connection (C),
and the igniter wires (D). It is recommended to temporarily label the wires for reference when reconnecting.
See Fig. 34-1. When disconnecting, be sure to pull from the connectors, and not the wires.
Note: Secure any disconnected wires (coming from the inside of the grill) to prevent them from falling into the unit.
3. Carefully remove the control panel.
Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male connector, then make
the connection. This will ensure conductivity and prevent moisture from affecting the contact.
Important: During reinstallation; prior to opening the gas shut-off valve, be sure the control knob(s) are in the OFF position.
Fig. 34-1
Remove
bezel
Carefully
disconnect
Lighted bezels
(disconnected)
Right interior
oven light
Converter
harness
AC/DC
converter
CONTROL PANEL REMOVALSERVICING AND CLEANING (Cont.)
35

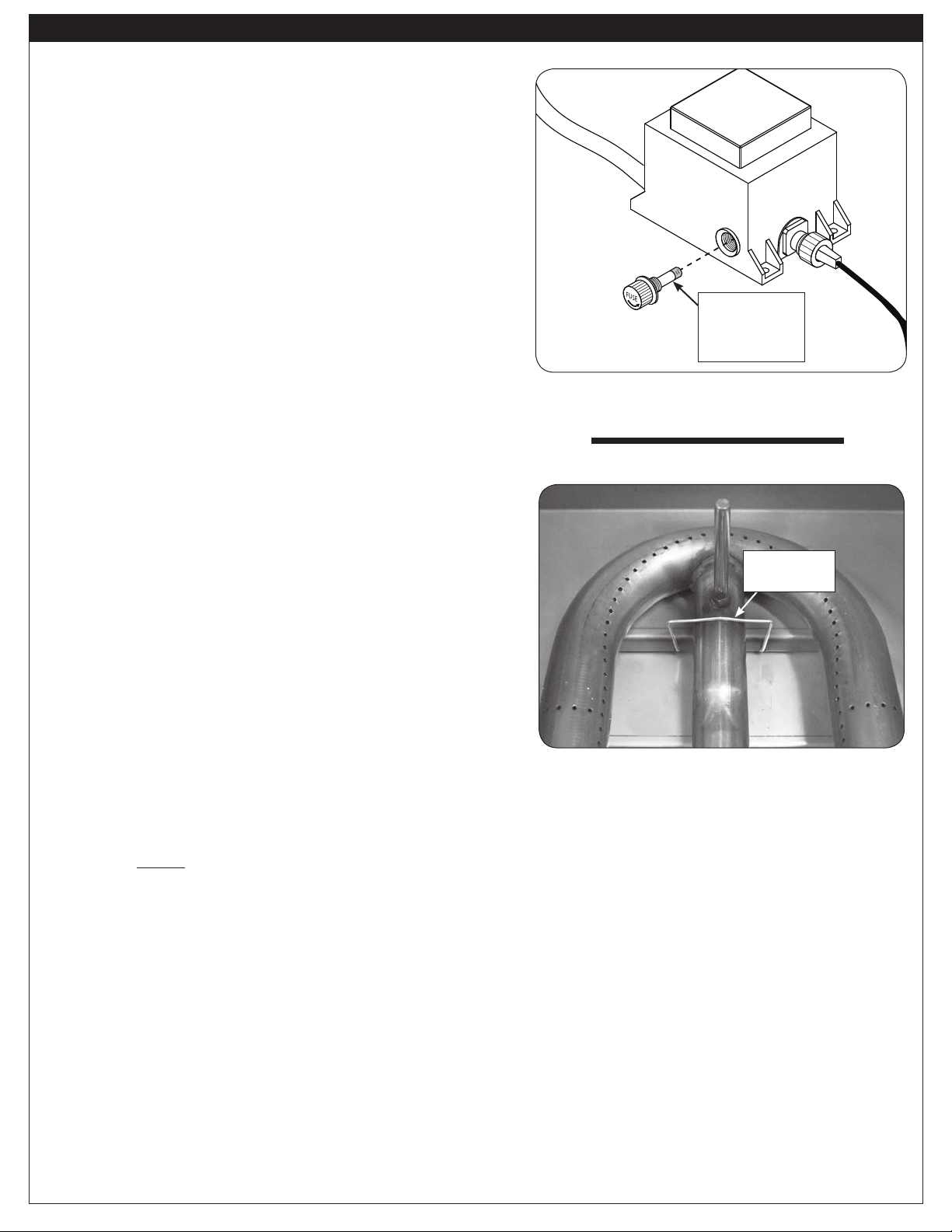

FUSE REPLACEMENT
If the unit is connected to the power supply but the ignition
system and interior oven lights are not functioning, fuse
replacement may be required.
1. Ensure the knobs are in the OFF position, the gas
supply is turned off, and the light switch is off.
2. Disconnect the power supply cord from line power.
3. Locate the fuse holder on the power supply box (see
Fig. 35-1).
4. Turn the fuse cap counterclockwise to remove the cap and
access the fuse.
5. Replace with a new fuse (model # 24-B-57).
6. Re-secure the fuse cap.
7. Reset the GFCI receptacle if needed, then test the unit.
Note: If the unit powers up but some or all components are not
responding, reference the TROUBLESHOOTING
section.
BURNER REMOVAL
1. Remove the cooking grid and vaporizer panel from above
the burner that is to be removed and set them aside.
2. Locate the burner clip (located over the rear center tube of
the burner) and slightly pinch and remove the clip from
the burner support. See Fig. 35-2.
3. Carefully lift the burner from the burner support anchor peg
holes and out from the hole in the forward fire wall.
4. To replace the burner, slide the open cylindrical end of the
burner around the orifice, enveloping it and centering on
it. Then lower the back end anchor pegs into the burner
support anchor peg holes.
Note: It is critical to the continued safe functioning of the burners
that the orifices are centered and completely inside
the burner gas inlets.
5. Re-install the burner clip around the burner and into the
holes in the burner support.
6. Replace the cooking grid and vaporizer panel.
Fig. 35-1 Replace fuse
Model #:
24-B-57
Fuse type:
T6.3AL (250V)
Fig. 35-2 Main burner removal
Remove
burner clip
SERVICING AND CLEANING (Cont.)
36
NOTES PAGE
Please use this page to record any information about your unit that you may want to have at hand.
37
If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or
if you have other technical difficulties with the unit, please contact your local dealer.
PROBLEM POSSIBLE CAUSE CORRECTION
Ignition system
failure
1.
Power supply failure
1a.Check or replace power supply fuse. See FUSE
REPLACEMENT section.
1b. Replace power supply.
2. Improper air shutter adjustment 2. Adjust air shutters.
3. Ignition wire disconnected 3. Reconnect wires into igniter module.
4. Low gas pressure 4. Have the gas co. check supply pressure.
5. Front carry-over port 5. Clean burner ports.
6. Igniter switch malfunction 6. Contact dealer for replacement.
7. Igniter malfunction 7. Contact dealer for replacement.
8. AC/DC converter malfunction (only if
oven lights function but ignition fails)
8. Contact dealer for replacement.
Insufficient heat /
low flame
1.
Burner ports clogged
2. Improper air-shutter adjustment
1. Remove burners and clean out ports.
2. Adjust air shutters.
3. Using propane orifice for natural gas 3. Check/change orifices.
4. Low gas pressure/flame (propane) 4. Refill propane tank, or reset propane tank
safety*: Shut off all valves (including propane
tank) and follow lighting instructions exactly.
5. Low gas pressure/flame (natural) 5. Have a qualified professional service technician
check for proper gas supply, setup, and pressure.
6. L.P. regulator hose cracked due to age 6. Replace L.P. regulator hose.
Uneven heating
1.
Burner ports partially blocked by
debris
1. Remove burners and clean out ports.
2. Small spiders or insects in burner 2. Inspect burners and orifices for spider webs or
other debris that may block flow.
3. Improper air shutter adjustment 3. Adjust air shutter.
Rotisserie noisy
1.
Rotisserie out of balance 1. Adjust rotisserie counterbalance.
Burner goes out on
LOW
1.
Valve “Low” setting needs adjustment 1. Light burner on HIGH, immediately turn to
LOW setting. Remove knob from valve and
using a small flat screwdriver, slowly turn the
adjustment screw in the stem, a little at a time
(30° to 45°), in either direction, until the flame is
approximately
1
/
4
” in height from burner ports.
Interior oven lights
and knob lights not
operating
1.
Light switch not functioning 1. Re-connect external power to grill or contact
dealer for replacement.
2. Interior or knob light(s) burned out 2. Contact dealer for replacement.
3. Power supply failure 3. See 1a of Ignition system failure section above
and/or replace power supply.
No power to grill
1.
Input power source failure 1. Check GFCI / circuit breaker.
2. Power supply failure 2. See 1a of Ignition system failure section above
and/or replace power supply.
Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/flame at the burners if operating and
lighting instructions are not followed exactly. If you suspect the propane tank safety shutoff is in effect: 1) Shut off all grill
valves. 2) Shut off tank valve. 3) Open and close a main burner valve. 4) Open tank valve. 5) Follow the LIGHTING INSTRUCTIONS.
Lighting instructions are located in the owner’s manual and printed on the unit's metal drip tray. If the problem persists, continue
troubleshooting, or contact your local dealer or distributor for assistance.
TROUBLESHOOTING
38
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Quality Check Date:_________________
Burner Orifices Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Back: ____ ____ Gas Type:
Nat. / L.P. Air Shutter: ___________________
Side/Power: ____ ____ Inspector: ___________________
Infrared: ____ ____
Other: ____ ____
A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED
This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.
This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specified in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure
to protect against combustibles. Product must be installed (and gas must be connected) as specified in the Owner’s Manual/Installation Instructions by
a qualified professional installer. Modifications to products which are not specifically authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.
This warranty does not cover labor or labor related charges, except as provided by separate specific written programs from the Peterson Co. All repair
work must be performed by a qualified professional service person and requires prior approval of Peterson.
Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.
This warranty specifically excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specified legal rights, and
you may have other rights that vary from state to state or province.
For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.
When contacting your Peterson dealer or the R. H. Peterson Co., please provide the following information:
- Your name, address, telephone number, e-mail
- Sales receipt showing where purchased and date purchased
- Model number, serial number of product, date code
- Relevant information: installer, additions, repairs, when defect was first noted
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
American Outdoor Grill • 14724 Proctor Avenue • City of Industry, CA 91746
AMERICAN OUTDOOR GRILL
LIMITED WARRANTY
American Outdoor Grill warrants your grill to be free from defects in material and workmanship.
American Outdoor Grill stainless-steel burners are warranted for as long as the original purchaser owns the grill -- LIFETIME. All
other American Outdoor Grill parts are warranted for TEN (10) YEARS. (Except as noted below.)
American Outdoor Grill infrared burners and vaporizer panels are warranted for THREE (3) YEARS.
American Outdoor Grill ignition systems (excluding batteries) and accessories (including sideburners, motors, and thermometers)
are warranted for ONE (1) YEAR.
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.AMERICANOUTDOORGRILL.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
WARRANTY
