IMPORTANT:
READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.
DANGER:
IF YOU SMELL GAS:
1. Shut off the gas to the appliance.
2. Extinguish any open fl ame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fi re department.
WARNING:
1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
CODE AND SUPPLY REQUIREMENTS: This
grill must be installed in accordance with local
codes and ordinances, or, in the absence of local
codes, with the latest National Fuel Gas Code
(ANSI Z223.1/NFPA 54), or Natural Gas and
Propane Storage and Handling Installation Code
(CSA-B149.1).
This appliance and its dedicated manual shutoff
valve must be disconnected from the gas-supply
piping system when testing the system at pressures
in excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas-
supply piping system by closing its dedicated
manual shutoff valve during any pressure testing
of the gas-supply system at pressures up to and
including ½ psig (3.5 kPa).
All electrical outlets in the vicinity of the grill must be
properly grounded in accordance with local codes,
or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1, whichever is applicable.
Keep all electrical-supply cords and fuel-supply
hoses away from any heated surface.
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
WARNING:
Improper installation, adjustment, alteration,
service, or maintenance can cause injury
or property damage. For proper installation,
refer to the installation instructions. For
assistance or additional information, consult
a qualifi ed professional installer, service
agency, or the gas supplier.
Proper operation of your grill
requires prompt and periodic
maintenance. See the CARE &
CLEANING section for details.
Certifi ed to: ANSI Z21.58b-2012
CSA 1.6b-2012
09-06
American Outdoor Grill • PO Box 4053 • La Puente, CA 91747
WARNINGS AND SAFETY CODES
INSTALLATION
INSTRUCTIONS AND
OWNER’S MANUAL
REV 0 - 1412011100
L-C2-438
STAND-ALONE OUTDOOR
GAS GRILLS
24, 30, & 36 "L" Series
2
IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION
GRIL EXTÉRIEUR DE GAZ DU PORTABLE
DANGER:
SI VOUS SENTEZ LE GAZ :
1. Coupez le gaz à l’appareil.
2. Éteignez-vous n’importe quelle fl amme nue.
3. Ouvrez le couvercle.
4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.
AVERTISSEMENT:
1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
infl ammables à proximité de ceci ou
d’aucun autre appareil.
2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.
CONDITIONS DE CODE ET D’APPROVISIONNEMENT:
Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).
Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système siffl ant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).
Cet appareil doit être isolé dans gaz-fournissent le système
siffl ant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz-
fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).
Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.
Maintenez tout électrique-fournissent des cordes et carburant-
fournissent des tuyaux partis de n’importe quelle surface de
chauffage.
INSTALLATEUR : Laissez ces instructions avec le consommateur.
CONSOMMATEUR : Maintenez pour la future référence.
AVERTISSEMENT:
L’installation inexacte, l’ajustement, le
changement, le service, ou l’entretien
peuvent causer des dommages ou des
dégats matériels. Référez-vous à ce
manuel. Pour l’aide ou l’information
additionnelle, consultez un installateur
professionnel qualifi é, l’agence de service,
ou le fournisseur de gaz.
• Ce gril est pour ultilisation à l’extérieur seulement.
Si l’appareil est entreposé à l’intérieur, enlever les
bouteilles et les laisser à l’extérieur.
• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger.
Le non respect de cette mesure de sécurité pourrait
entraîner un incendie causant des dommages à la
propriété, des blessures ou la mort.
• Ne pas utiliser cet appareil sous une surface combustible.
• Ne pas utiliser cet appareil sous un auvent. Le non
respect de cette mesure de sécurité pourrait entraîner
un incendie ou des blessures.
• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à
partir des parois latérales et 45.7cm à partir de l’arriére).
• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce
régulateur est réglé pour une pression de sortie de 5
pouces de colonne de l’eau pour le gaz naturel, et 10
pouces pour le propane.
• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE
CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS
GRAND QUE (LIVRES PAR POUCE CARRÉ), UN
RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ
AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS
D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE
D’OFFRE DE GAZ.
• Ne couvrez jamais la surface entière de cuisine ou de
gril de gauffreuses ou de casseroles. La surchauffe se
produira et les brûleurs ne seront pas très performants
quand la chaleur de combustion est emprisonnée au-
dessous de la surface à cuire.
• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de
porcelaine ou de fer de fonte.
• Une fuite de GPL peut causer une incendie ou une
explosion si enflammée entraînant des blessures
corporelles graves ou la mort.
• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du
GPL non utilisé.
Certifi é à la norme: ANSI Z21.58b-2012 / CSA 1.6b-2012
SÛRETÉ ET CODES D’AVERTISSEMENT
INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE
REV 0 - 1412011100
L-C2-438
3
TABLE OF CONTENTS
REV 0 - 1412011100
L-C2-438
To protect against electric shock, do not immerse cord or plugs in water or other liquid;
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts;
Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunctions
or has been damaged in any manner. Contact the manufacturer for repair;
Do not let the cord hang over the edge of a table or touch hot surfaces;
Do not use an outdoor cooking gas appliance for purposes other than intended;
When connecting, fi rst connect plug to the outdoor cooking gas appliance then plug appliance into the outlet;
Use only a Ground Fault Circuit Interrupter (GFCI) protected receptacle with this outdoor cooking gas appliance;
Never remove the grounding plug or use with an adapter of 2 prongs.
Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved for
outdoor use with a W-A marking.
ELECTRICAL SAFETY
1 WARNINGS AND SAFETY CODES
3 ELECTRICAL SAFETY
4 PARTS LIST
6 MODEL SPECIFICATIONS

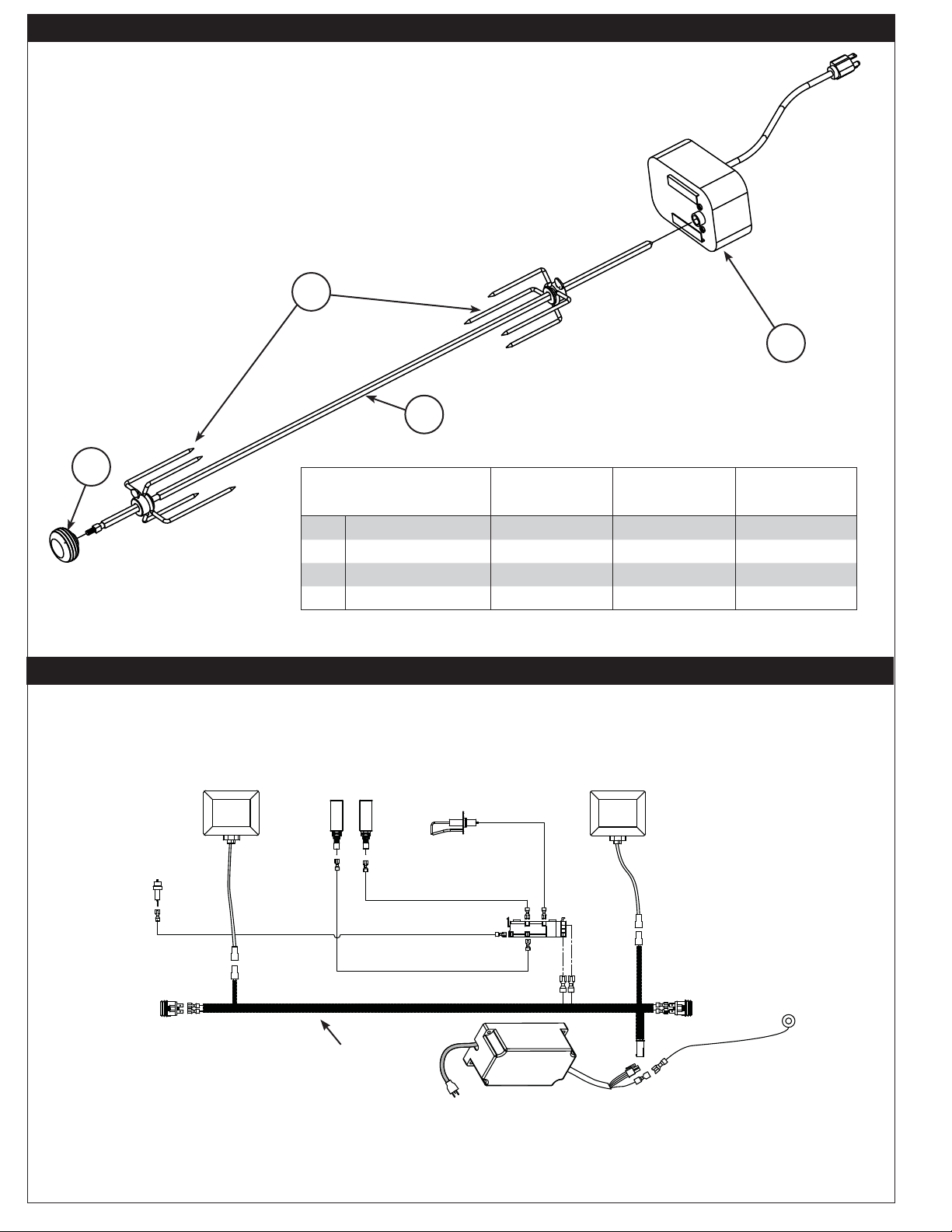

6 BUILT-IN GRILL WIRING DIAGRAM*

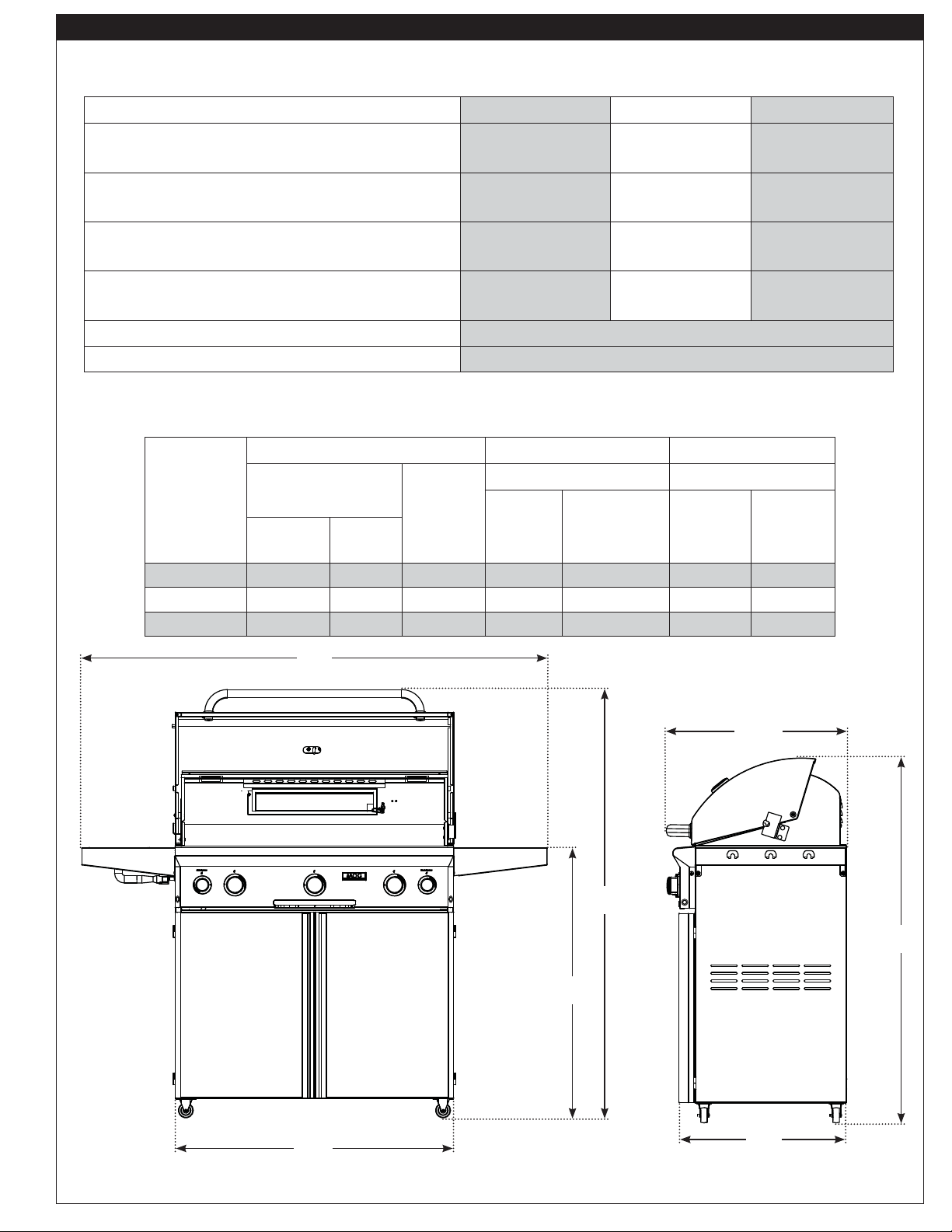

7 STAND-ALONE GRILL DIMENSIONS TABLE
8 GRILL MAINTENANCE AND SAFETY INFORMATION

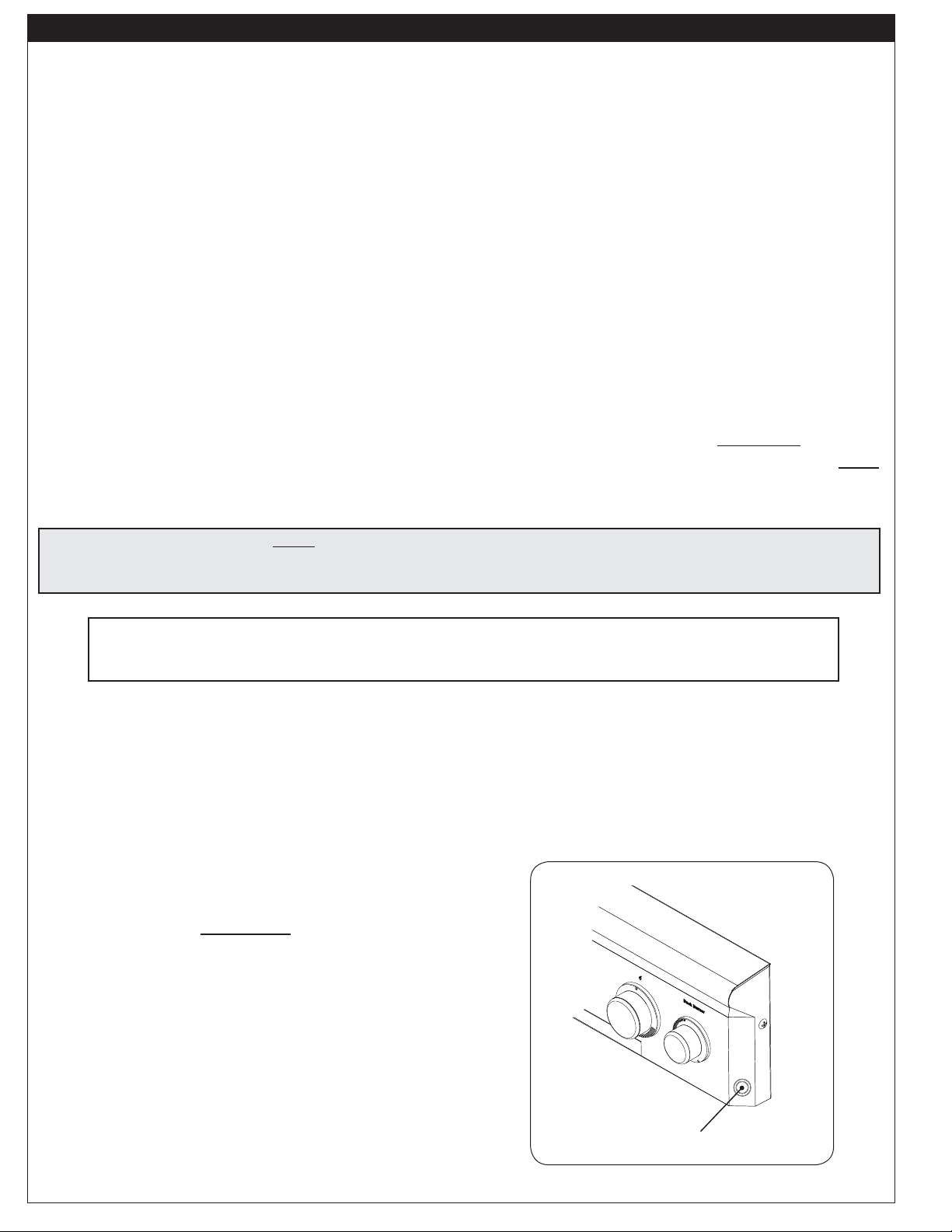

8 ELECTRICAL CONNECTIONS
8 LIGHT SWITCH

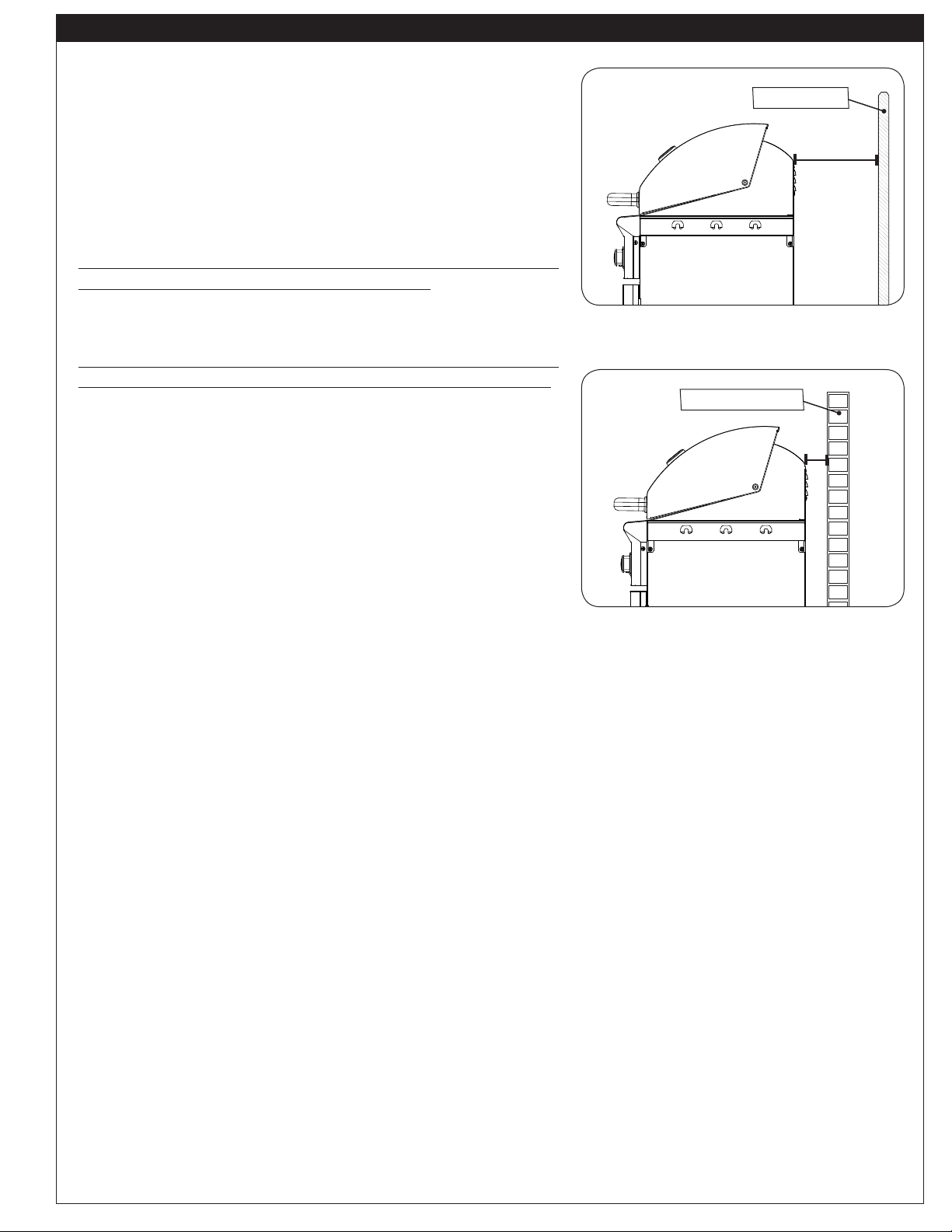

9 INSTALLATION REQUIREMENTS
10 ENSURE PROPER COMBUSTION AIR AND COOLING AIRFLOW
10 EXHAUST REMOVAL
11 INSTALLATION
11 LOCATION PREPARATION

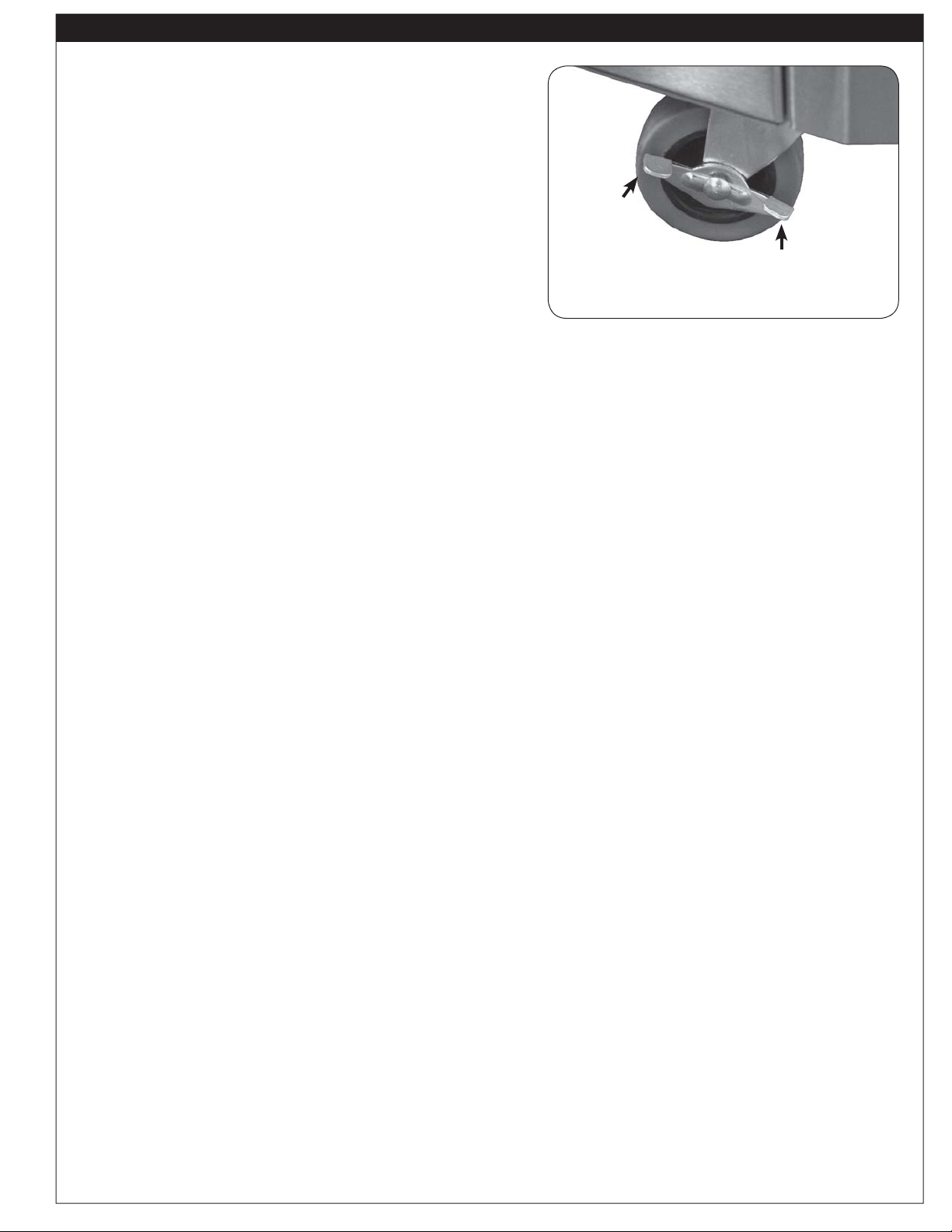

11 WHEELS AND CASTERS
11 CONNECT THE GAS SUPPLY
13 INSTALL THE SIDEBURNER SHELF (IF EQUIPPED)
14 RIGID SHELF INSTALLATION

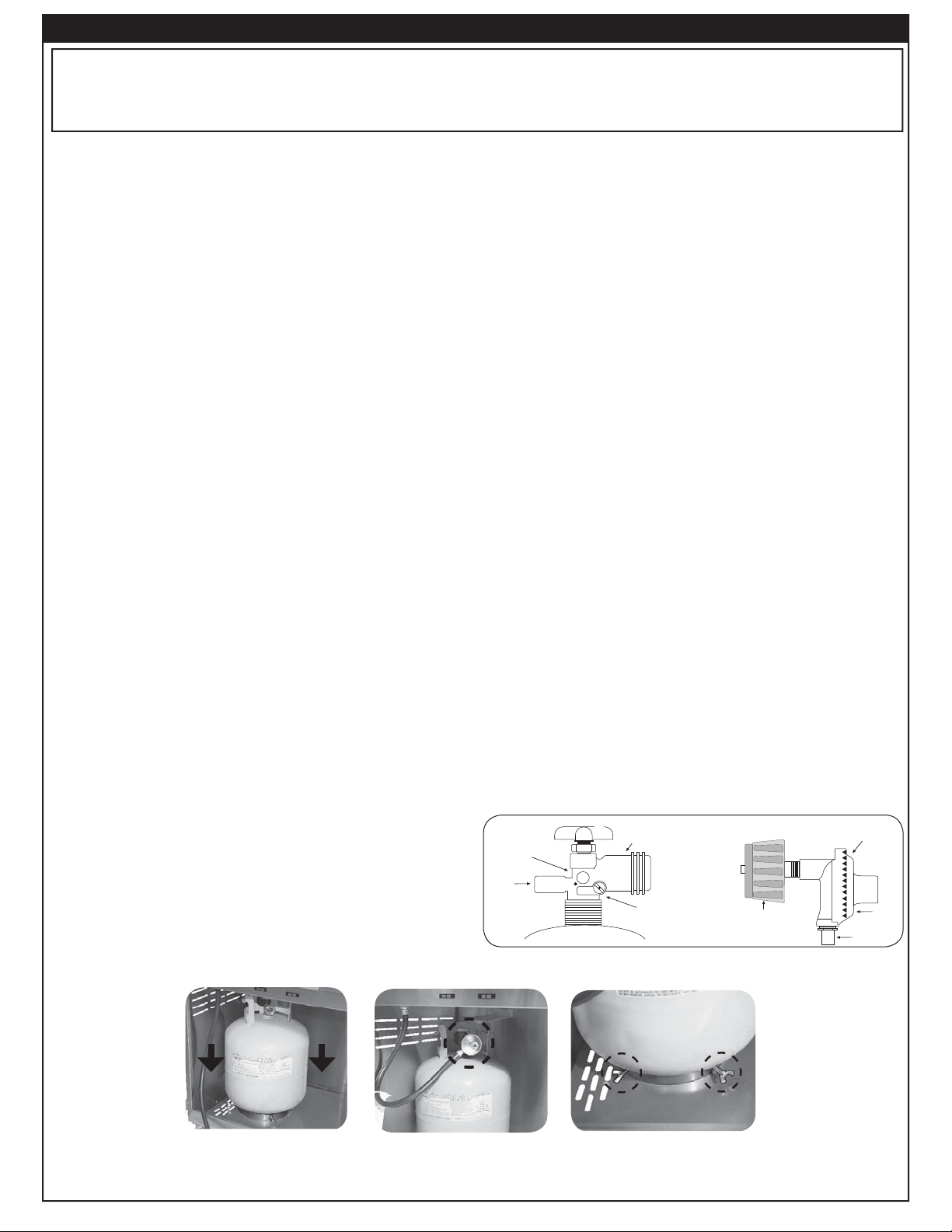

15 SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

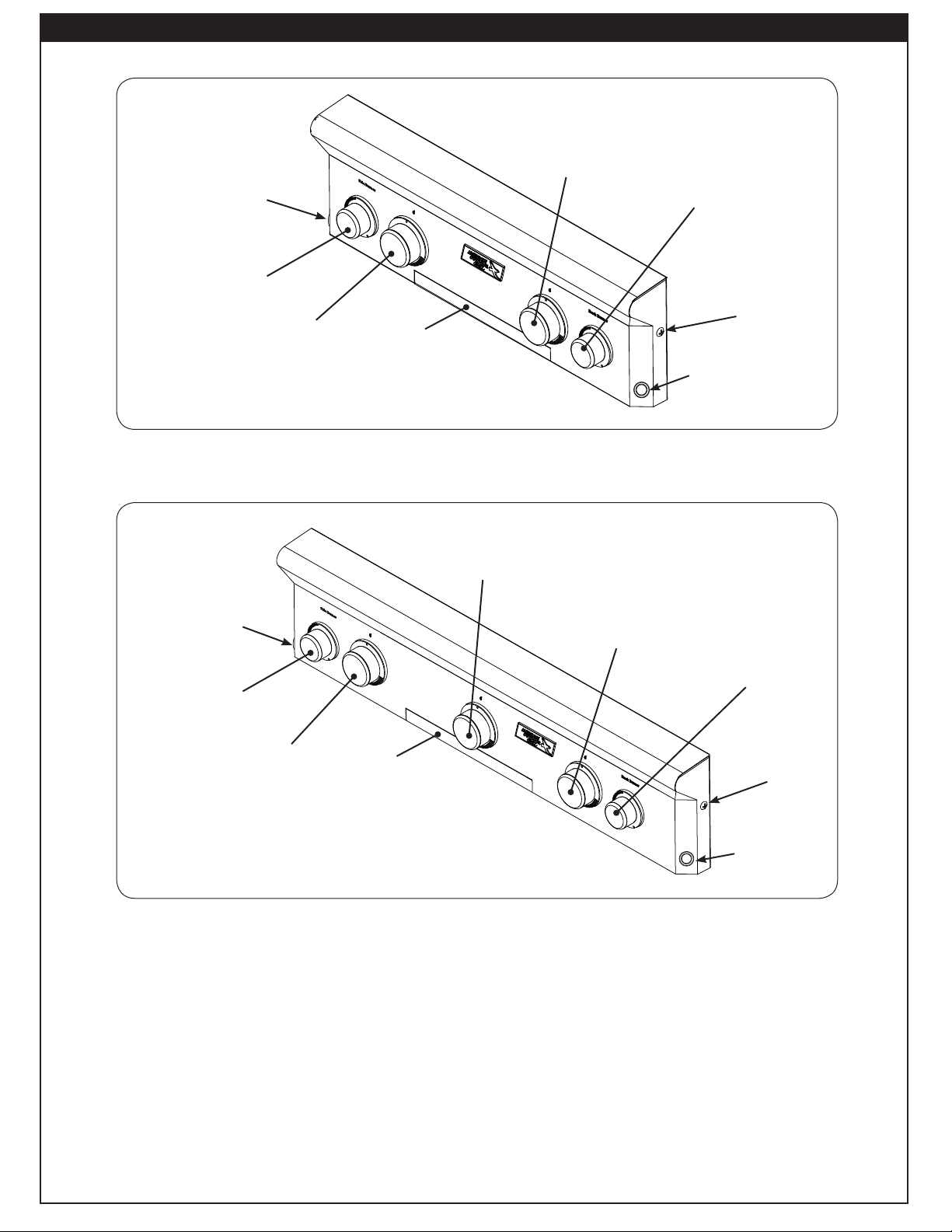

17 IDENTIFICATION OF GRILL CONTROLS
19 LIGHTING (IGNITION) INSTRUCTIONS
19 ELECTRONIC LIGHTING
19 SHUTTING OFF THE UNIT

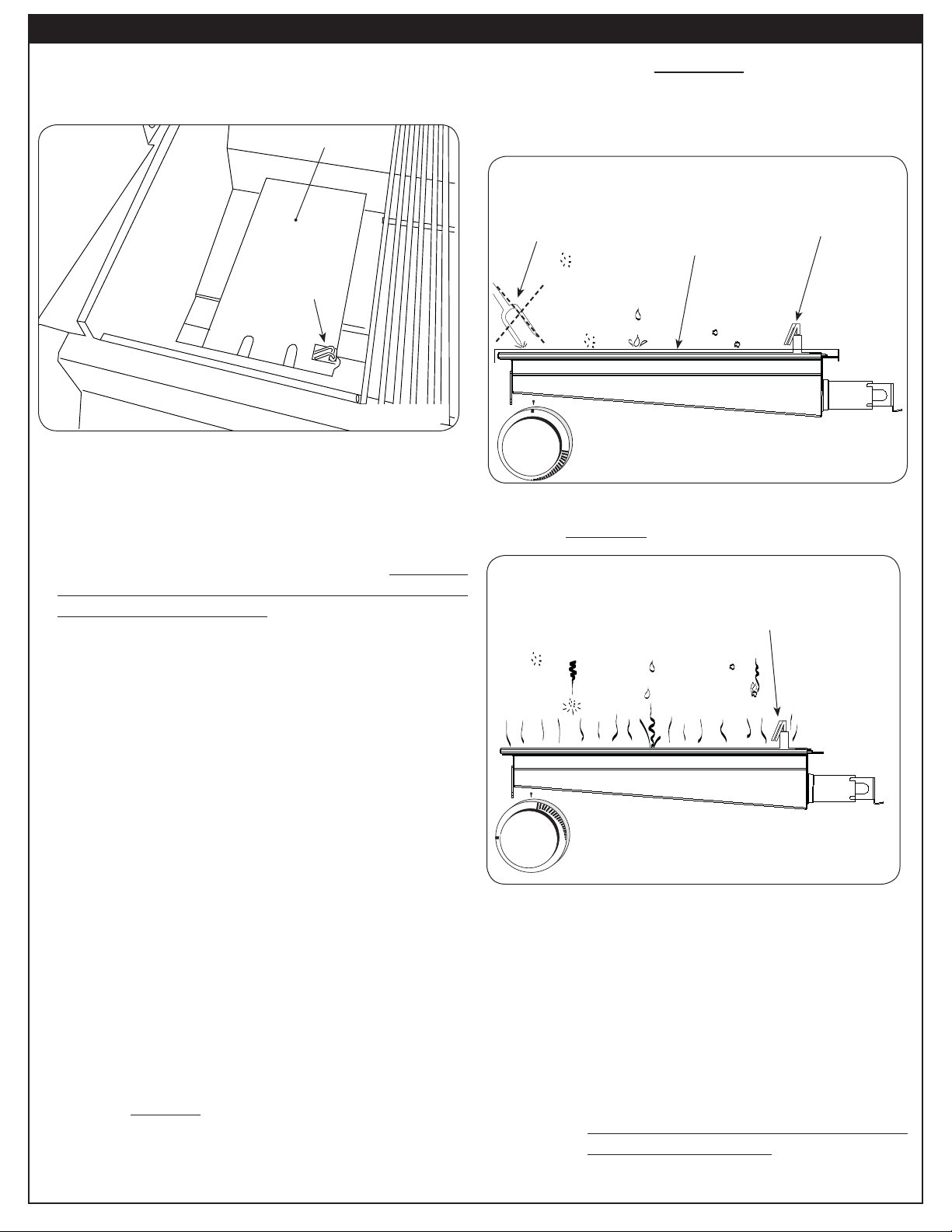

20 OPTIONAL INFRARED BURNER OPERATION

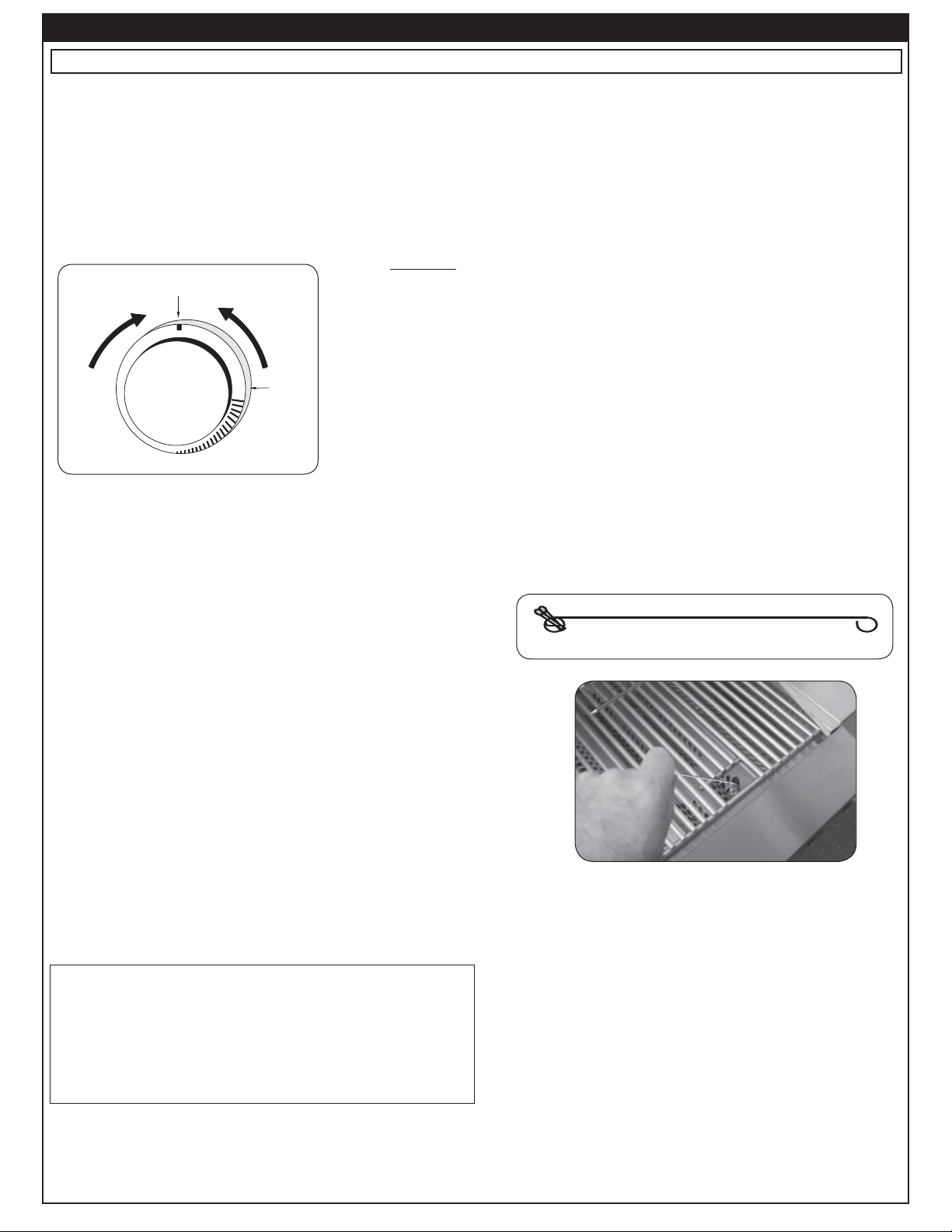

21 ROTISSERIE INSTRUCTIONS (IF EQUIPPED)
22 ACCESSORIES

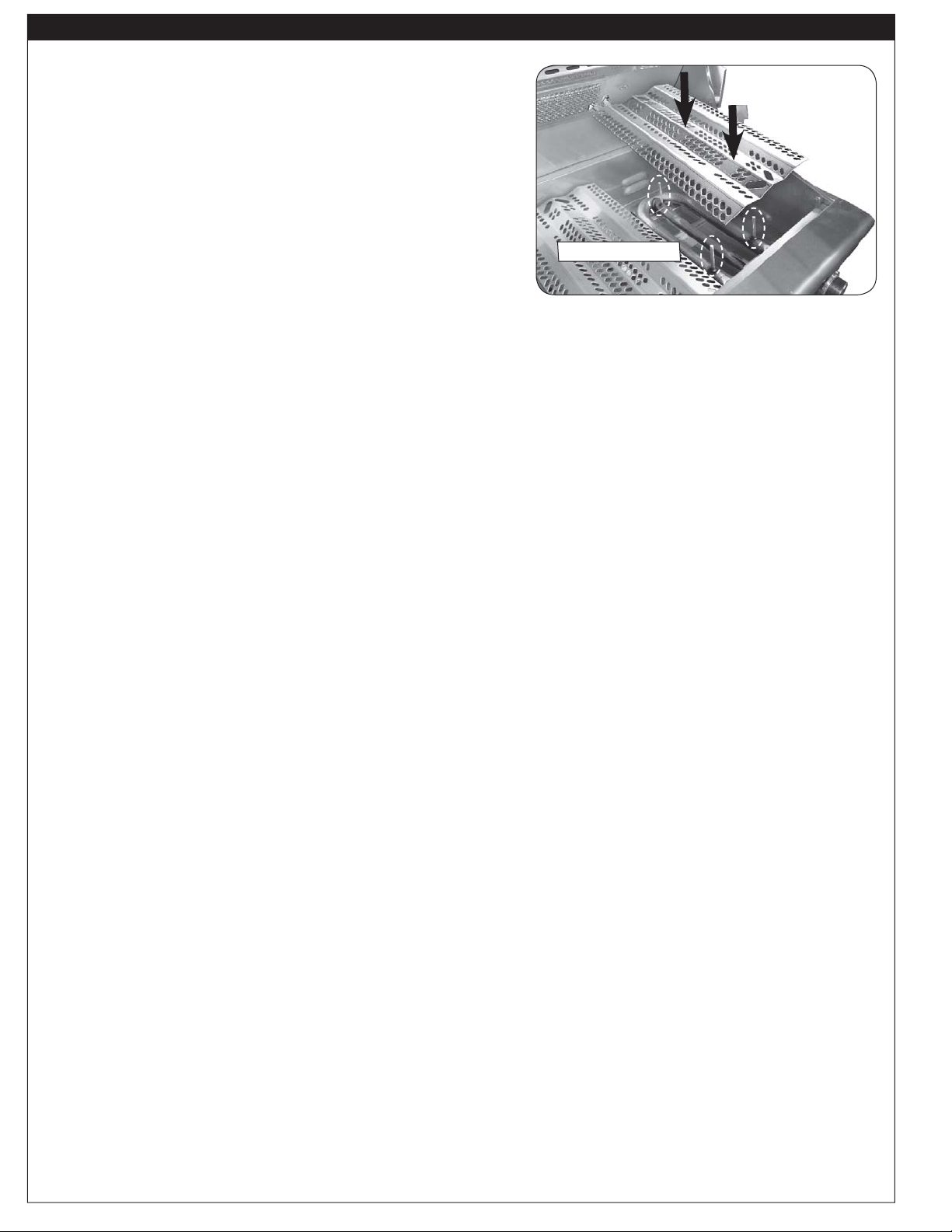

22 THE VAPORIZER PANEL(S)
23 DRIP TRAY
24 CARE & CLEANING
25 REPLACING HALOGEN BULBS
26 CHECKING AND CONVERTING GAS TYPE
26 CHECKING AND CONVERTING THE REGULATOR (IF APPLICABLE)

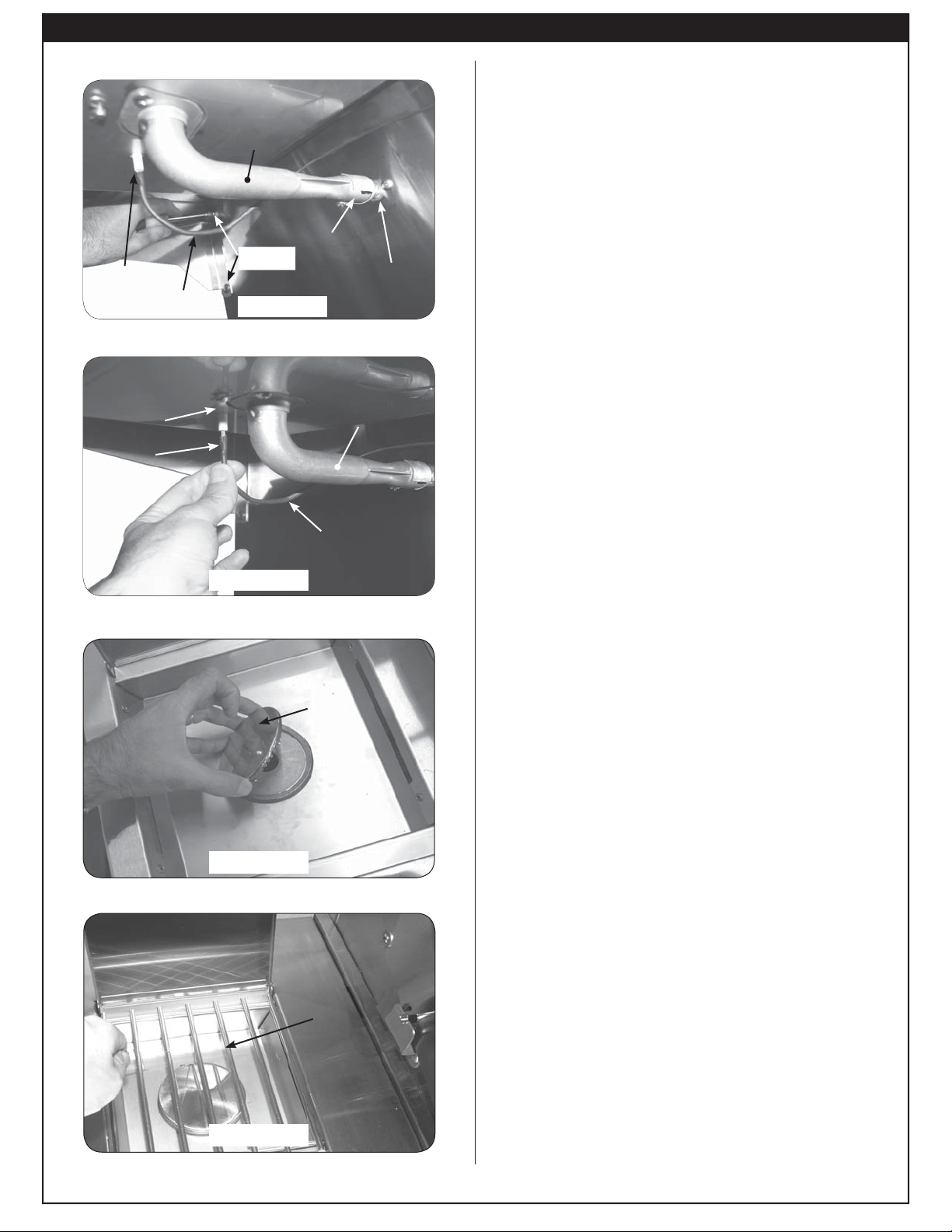

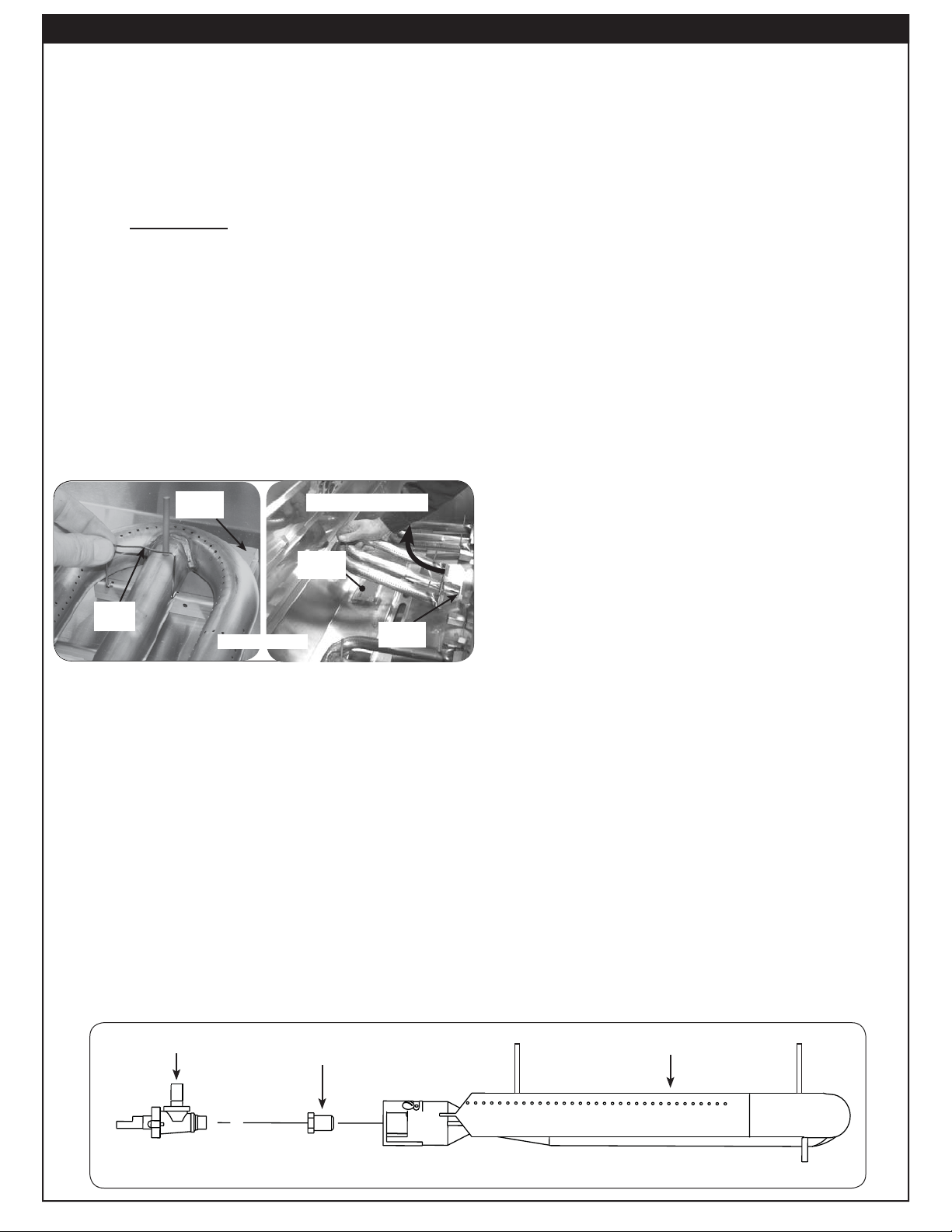

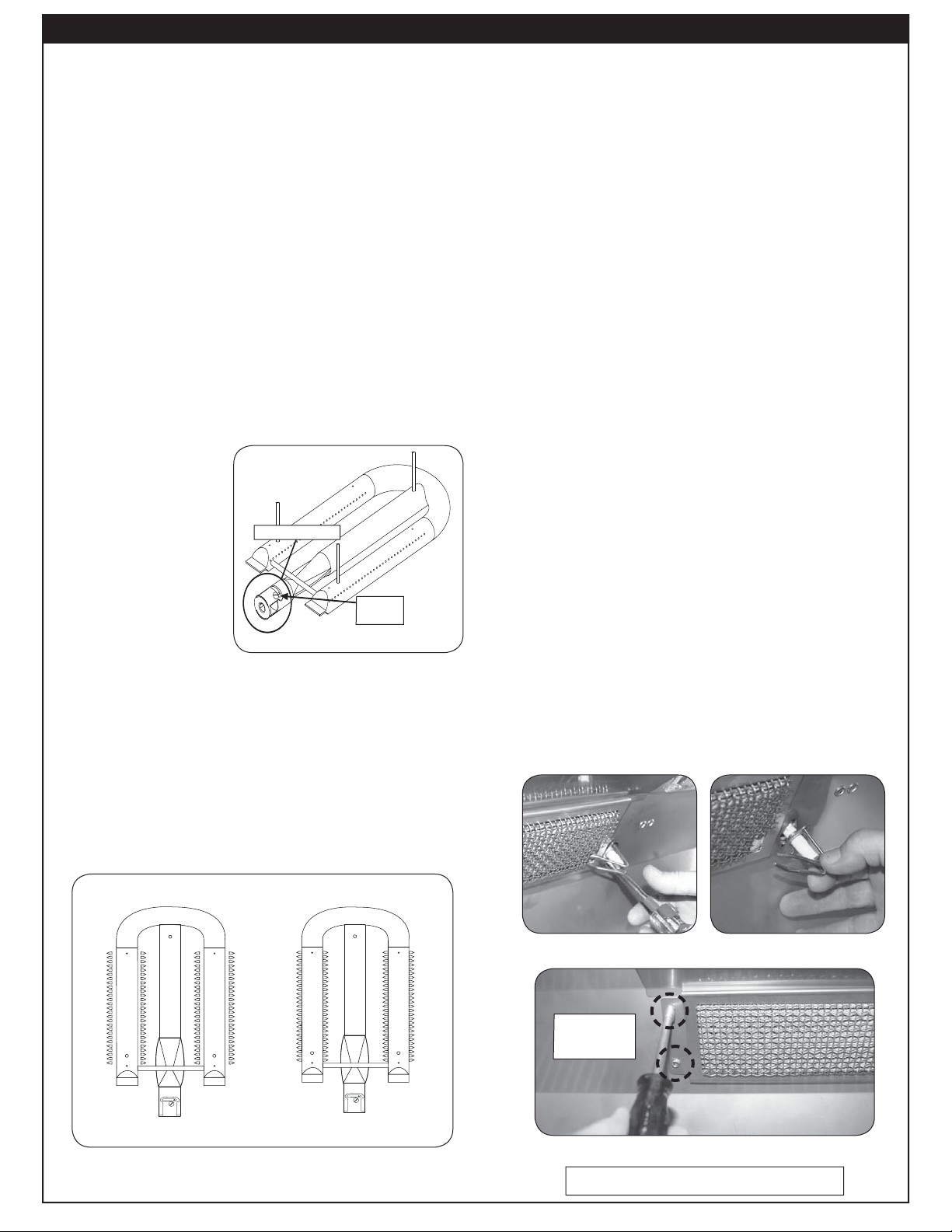

27 CHECKING/CONVERTING THE BURNER ORIFICES
30 SIDEBURNER ORIFICE SIZE CHECKING/CONVERSION (IF EQUIPPED)
30 SIDEBURNER AIR SHUTTER ADJUSTMENT (IF EQUIPPED)
31 CONTROL PANEL REMOVAL
32 NOTES PAGE
33 TROUBLESHOOTING
34 WARRANTY
4
PARTS LIST
IMPORTANT
This AOG oven and backburner (if equipped)
are fully pre-assembled and tested at the
factory.
DO NOT attempt to remove the oven and
backburner from the barbecue prior to
or during installation or damage to the
connecting gas line and ignitor wiring may
occur.
The plastic straps that secure the oven to
the barbecue unit must be removed and
discarded prior to lighting.
Replacement parts can
be ordered from your
local AOG dealer.
REV 0 - 1412011100
L-C2-438
24" model shown
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
22
20
21
23
27
28
29
5
PARTS LIST (Cont.)
REV 0 - 1412011100
L-C2-438
24" 30" 36"
Item Description Part No. Qty. Part No. Qty. Part No. Qty.
1. Stainless cooking grid (set of 2 or 3) 24-B-11 1 30-B-11 1 36-B-11 1
2. Vaporizer panel 24-B-05 2 30-B-05 3 36-B-05 3
3. Main burner 24-B-06 2 24-B-06 3 24-B-06 3
4.
Infrared burner* IRB-18 1 IRB-18 1 IRB-18 1
5. Backburner* 24-B-17T 1 24-B-17T 1 36-B-17T 1
6.
Thermometer 24-B-10 1 24-B-10 1 24-B-10 1
7.
Oven lid 24-B-25 1 30-B-25 1 36-B-25 1
8. Single sideburner shelf* 24-C-02 1 24-C-02 1 24-C-02 1
9. Warming rack 24-B-02 1 30-B-02 1 36-B-02 1
10. Drip tray with match holder 3083 1 3083 1 3083 1
11. Control panel w/ backburner, w/ sideburner 24-C-26L 1 30-C-26L 1 36-C-26L 1
or Control panel w/o backburner, w/o sideburner ‡ 24-C-27L 1 30-C-27L 1 36-C-27L 1
12. Ignitor module w/ backburner, w/ sideburner 3199-44 1 3199-46 1 3199-46 1
or
Ignitor module w/o backburner, w/o sideburner ‡ 24-B-49 1 3199-44 1 3199-44 1
13. Valve manifold w/ backburner, w/ sideburner 24-C-08 1 30-C-08 1 36-C-08 1
or Valve manifold w/o backburner, w/o sideburner ‡ 24-C-34 1 30-C-34 1 36-C-34 1
14. Main burner electrode / ignitor assembly 24-B-04 2 24-B-04 3 24-B-04 3
15. Large knob 3015 2 3015 3 3015 3
16. Small knob* 3016 1 3016 1 3016 1
17. Rigid shelf 24-C-01 1
†
24-C-01 1
†
24-C-01 1
†
18. Convertible regulator (nat. models only) ‡ PR-4 1 PR-4 1 PR-4 1
19. Propane regulator / hose assembly ‡ 5110-07 1 5110-07 1 5110-07 1
or Natural gas QD hose ‡ 5110-03 1 5110-03 1 5110-03 1
20. Door (left) 24-C-23L 1 30-C-23L 1 36-C-23L 1
21. Door (right) 24-C-23R 1 30-C-23R 1 36-C-23R 1
22. Caster kit (set of 4) 24-C-35 1 24-C-35 1 24-C-35 1
23. Drip tray heat shield 24-B-44 1 24-B-44 1 24-B-44 1
24. 12V / 10 watt halogen light bulb ‡ 24187-15 2 24187-15 2 24187-15 2
25. Light lens ‡ 24187-26 2 24187-26 2 24187-26 2
26. Lamp assembly ‡ 24187-28 2 24187-28 2 24187-28 2
27. Light switch 24-B-45 1 24-B-45 1 24-B-45 1
28. Ignitor switch 24-B-46 1 24-B-46 1 24-B-46 1
29. Power supply w/ connector 24-B-47 1 24-B-47 1 24-B-47 1
30.
Wire harness assembly ‡
24-B-48 1 24-B-48 1 24-B-48 1
*
If equipped
‡ Not shown
† If not equipped with sideburner; two rigid shelves are supplied.
6
PARTS LIST (Cont.)
24" 30" 36"
Item Description Part No. Qty. Part No. Qty. Part No. Qty.
1. Stainless steel motor 24-B-32 1 24-B-32 1 24-B-32 1
2. Spit prongs (set of 2) 24-B-18 1 24-B-18 1 24-B-18 1
3. Spit rod
5
/
8
" hex 24-B-33 1 30-B-33 1 36-B-33 1
4. Handle knob 24-B-09 1 24-B-09 1 24-B-09 1
2
4
1
3
ROTISSERIE KIT (if equipped)
REV 0 - 1412011100
L-C2-438
Note: In addition, a wire diagram specifi c to your unit can
be found affi xed to the inside of the control panel.
Power supply
Wire harness
assembly
BUILT-IN GRILL WIRING DIAGRAM*
Oven
light
Oven
light
Light
switch
*
24" model shown. Model wire diagrams may vary.
Main burner
Ignitors
Backburner
Ignitor
Ignitor
module
Ignitor
switch
Ground
wire
MODEL SPECIFICATIONS
Sideburner
Ignitor
7
Model
Height Width Depth
Floor to top
(with oven)
Floor to top
of shelf
(C)
Left to right Front to back
Cart base
(D)
Shelf to shelf
(E)
Cart base
(F)
Maximum
outer
(G)
Open (A)
Closed
(B)
24"
59" 48
1
/2" 37" 25" 50" 22
1
/4" 24
3
/4"
30"
59" 48
1
/2" 37" 31" 56" 22
1
/4" 24
3
/4"
36"
59" 48
1
/2" 37" 37
1
/4" 62
1
/4" 22
1
/4" 24
3
/4"
STAND-ALONE GRILL DIMENSIONS TABLE
REV 0 - 1412011100
L-C2-438
MODEL SPECIFICATIONS TABLE
Table 1 24" 30" 36"
Main burner quantity
N/P orifi ce drill size
2
1.82mm / 1.16mm
3
#50 / 1.16mm
3
#49 / #56
Backburner*
N/P orifi ce drill size
#53 / #64 #53 / #64 #52 / #62
Sideburner*
N/P orifi ce drill size
#53 / #63 #53 / #63 #53 / #63
Infrared searing burner*
N/P orifi ce drill size
1.82mm / 1.16mm #50 / 1.16mm #49 / #56
Power supply rating
120VAC / 0.3A / 60 Hz
Oven lights rating 12V / 10 watt halogen bulb
*
If equipped
G
C
F
E
B
D
A
Fig. 7-1
MODEL SPECIFICATIONS (Cont.)
8
1. The outdoor grill and surrounding area MUST
remain clear of fl ammable substances such as
gasoline, yard debris, wood, etc.
2. The airfl ow through the vent space located below
the control panel must remain unobstructed.
3. When using propane gas:
a. The required ventilation openings in the
enclosure must be clear of debris.
b. If connected to a propane cylinder, the
rubber hose attached to the regulator
should be carefully inspected before
each use.
c. The propane cylinder, regulator, and
rubber hose must be in a location not
subject to temperature above 125° F (51°
C).
4. The fl ames on each burner burn evenly along
the entire burner with a steady fl ame (mostly
blue). If burner fl ames are not normal, check
and clean the orifi ce and burner/venturi tubes
for insects and insect nests. A clogged tube can
lead to a fi re beneath the grill. A proper fl ame
pattern will ensure safe operation and optimal
performance. Adjust the air shutter as needed
(see AIR SHUTTER ADJUSTMENT).
5. The in-line gas valve or gas cylinder valve must
always be shut OFF when the grill is not in use.
6. The drip collector holes must be clear and
unobstructed. Excessive grease deposits can
result in a grease fi re.
7. The backburner, sideburner, or IR burner cover
(if equipped) must be removed before using the
burner.
8. Whenever reconnecting any wires, apply a
small amount of dielectric grease to the male
connector, then make the connection.
WARNING: NEVER cover the entire cooking or grill surface with griddles or pans. Overheating will occur, and
burners will not perform properly when combustion heat is trapped below the cooking surface.
CAUTION: NEVER spray water on a hot gas unit.
The grill serial identifi cation number is located on the underside of the drip tray handle. It
is recommended that the drip tray fi rst be removed and cleaned / emptied of its contents,
then turned over to view. The unit rating label is located inside the control panel.
GRILL MAINTENANCE AND SAFETY INFORMATION
REV 0 - 1412011100
L-C2-438
ELECTRICAL CONNECTIONS
This grill requires 120VAC power to operate.
Plug the power supply cord into a properly wired
and inspected GFCI electrical receptacle (15
AMP minimum). Use a heavy-duty grounded
extension cord if necessary.
WARNING
Electrical Grounding Instructions
For your protection against shock hazard, this
outdoor-cooking gas-appliance is equipped with
a three-pronged (grounding) electrical connector.
This appliance should be connected to a properly
grounded three-prong receptacle using a grounding
extension cord rated for outdoor use. Do not cut or
remove the grounding prong from the connector.
Important: ONLY REPLACE THE OVEN LIGHTS
WITH 12V / 10 WATT HALOGEN BULB(S).
LIGHT SWITCH
The light switch is push button operated, and is
located on the right side of the control panel (see
Fig. 8-1). It controls the power to all lights.
Lights
Light
switch
Fig. 8-1
9
Fig. 9-1 Clearance 'A' Diagram
Combustible
Min.
18"
(Clearance required for
right, left, and rear)
Fig. 9-2 Clearance 'B' Diagram
Non-combustible
Min.
4"
(Clearance required for
right, left, and rear)
INSTALLATION REQUIREMENTS
Installation must be performed by a qualifi ed professional
service technician.
This grill is designed for outdoor use only. DO NOT use this grill
inside a building, garage, enclosed area, or under any overhead
construction. DO NOT use this grill in or on a recreational vehicle
or boat.
Important: The grill is not insulated. Refer to the information
below to ensure all required clearances are met.
The grill must have a minimum clearance of 18" from
combustible materials/items AT ALL TIMES.
Side and Rear Wall Clearances
For the minimum clearances between the grill and any side or rear
walls, your setup must fall within one (or more) of the following:
A. Clearance between grill and combustible wall
• The grill must have a minimum of 18" right, left, and rear
clearance from any combustible wall (see Fig. 9-1).
B. Clearance between grill and strictly non-combustible wall
(i.e. brick wall, see Fig. 9-2)
• The grill must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)
REV 0 - 1412011100
L-C2-438
10
The control panel MUST remain removable for
servicing and air shutter adjustment (see PARTS
LIST).
THIS UNIT MUST NOT BE LOCATED IN A FULLY
ENCLOSED AREA OF ANY KIND.
ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW
Proper airfl ow (Fig. 10-1) MUST be maintained for
the grill to perform as it was designed. If airfl ow
is blocked, overheating and poor combustion will
result. Do not block the 1" (2.5 cm) front air inlet
along the bottom of the control panel or more
than 75% of the cooking grid surface with pans
or griddles.
Note: The 1" (2.5 cm) front air space also allows
access to the drip tray.
CAUTION: Wind blowing into or across the rear
oven lid vent (Fig. 10-2) can cause
poor performance and/or dangerous
overheating. Orient the grill so that the
prevailing wind blows toward the front
of the grill (Fig. 10-3).
GAS SUPPLY AND MANIFOLD PRESSURES:
For natural gas - normal 7" (17.78 cm) water column
(w.c.), minimum 5" (12.7 cm), maximum 10
1
/
2
" (26.7
cm). For propane gas - normal 11" w.c., minimum 10"
(25.4 cm), maximum 13" (33 cm).
INSTALLATION REQUIREMENTS (Cont.)
YOU MUST PROTECT REAR OVEN VENT FROM
PREVAILING WIND
Rear oven lid vent
INCORRECT
Fig. 10-2
REV 0 - 1412011100
L-C2-438
Fig. 10-1
Ventilation Diagram
Fig. 10-3
CORRECT
PLACE GRILL SO PREVAILING WIND
BLOWS TOWARD FRONT OF GRILL
Fig. 11-1
LOCK
UNLOCK
LOCATION PREPARATION
Prepare a fl at, level surface capable of supporting
the weight of the stand-alone grill and convenient to
the gas supply if connecting to a gas line.
WHEELS AND CASTERS
To lock a caster press down on the left lever until it
stops and the caster will not turn. To unlock, press
down on the right lever.
CONNECT THE GAS SUPPLY
Always ensure the orifi ces and regulator (if
equipped) are set for the gas type your unit is
to be installed to.
For connecting a propane unit to a portable
propane tank, read the safety warnings and follow
the instructions in the section SAFE USE AND
MAINTENANCE OF PROPANE GAS CYLINDERS.
For household propane or natural gas units:
1. Turn OFF the gas supply at the source. The
quick disconnect hose is pre-installed on the
valve manifold at the manufacturer. Run the
hose through the hole in the bottom rear of the
stand-alone unit, to the gas supply. Connect
the
1
/
2
" NPT socket at the end of the hose to
the gas supply. Use pipe joint compound that is
resistant to all gasses on the male pipe fi tting
and tighten securely. DO NOT use pipe joint
compound to connect the fl are fi ttings.
2. Turn all burner valves to the OFF position. Turn
the gas supply on. Then carefully check all gas
connections for leaks with a brush and soapy
water before lighting. NEVER USE A MATCH
OR OPEN FLAME TO TEST FOR LEAKS.
11
INSTALLATION
REV 0 - 1412011100
L-C2-438
INSTALL THE VAPORIZER PANELS
Place the vaporizer panels directly onto the studs on the
burners. The panels allow heat from the burners to be evenly
distributed throughout the cooking area. The panels are
stainless steel and will heat and cool quickly, making your
barbecue very responsive to the changes you specify in grill
temperature. They are rust resistant and may be cleaned
with standard oven cleaners. Some discoloring will be seen
with use. This is normal for stainless steel and does not
affect the function.
INSTALLATION (Cont.)
12
REV 0 - 1412011100
L-C2-438
Fig. 12-1 Install vaporizer panels
Place onto studs
13
This shelf comes separate from the grill for
convenience in shipping. The sideburner
shelf must be installed using the following
instructions before hooking up the grill to a
gas source.
INSTALL THE SIDEBURNER SHELF
1. Remove the protective plastic from the grill,
sideburner, and sideburner lids by carefully
peeling it off with your fingers. Do not use
tools.
2. Hold the sideburner shelf up against the left
side wall of the grill so that the holes in the shelf
line up with the four (4) threaded screw holes
in the side wall and the air-shutter end of the
sideburner venturi tube fi ts around the brass
orifi ce protruding from the side of the cart.
WARNING: It is critical for safety and for the
proper function of the sideburner
that the sideburner venturi tube with
air shutter be centered around and
completely cover the gas orifi ce.
3. Insert and start screws with fi ngers and then
tighten using a Phillips screwdriver.
Important: Take caution to not cross-thread
when tightening the screws.
Note: Upon completion, the air shutter must still
fi t around the brass orifi ce.
4. Connect the female connector on the end of the
hot surface ignitor wire to the male connector
coming from inside the grill.
5. Place the burner cap on top of the burner, as
shown in Fig. 13-3.
6. Place the grid so that it rests on the front
and back lips of the sideburner opening (Fig.
13-4).
7. Proceed to the section on AIR SHUTTER
ADJUSTMENT and complete the installation by
adjusting the air shutter. This will also test the
sideburner installation.
Air-shutter orifi ce placement - under shelf
Fig. 13-1
Connecting the ignitor wires
Placing the burner cap
Fig. 13-2
Fig. 13-3
Final look
Fig. 13-4
Screw
Hole
Male
Female
Brass
orifi ce
Air
shutter
Grate
Lid
Cap
Shelf
Air shutter orifi ce placement - under shelf
Fig. 13-1
Connecting the ignitor wires
Fig. 13-2
Screw
Electrode
insulator
Female
connector
Brass
orifi ce
Air
shutter
Shelf
Insulator
Ignitor wire
Ignitor wire
Venturi tube
Venturi tube
4. Connect the female connector on the end of
the ignitor wire to the male ignitor connector
protruding from the bottom of the white
insulator.
INSTALL THE SIDEBURNER SHELF (IF EQUIPPED)
14
RIGID SHELF INSTALLATION
Shelf support screws
View from under right shelf
This barbecue comes with two (2) rigid shelves that
must be attached. These can be attached using the
four support screws provided and a Phillips-head
screw driver.
Important:
Take caution to not cross-thread
when tightening the screws.
1. Hold the shelf inverted so that one of the corner
holes in the shelf lines up with the appropriate
upper screw hole in the barbecue.
2. Insert the screw, but do not tighten all the way so
that the shelf can be easily rotated around the fi rst
screw.
3. Line up the second corner hole in the shelf with
the remaining upper screw hole in the barbecue.
Insert a screw and tighten.
Note: You may lift the edge of the shelf upward
to gain better access during much of the
tightening of this screw.
4. Finally, insert the bottom screws on the left and right
side of the shelf and securely tighten all screws.
To detach, reverse the process above.
This barbecue comes with one rigid shelf that must
be attached. It can be attached using the four support
screws provided and a Phillips-head screwdriver.
Important: Take caution to not cross-thread
when tightening the screws.
1. Insert the top two screws into the side of the
barbecue and screw them in about half way.
2. Line up the larger, bottom portion of the two
keyhole openings with the two top screws and fi t
the two keyhole openings over the two screws.
With the shelf pushed all the way against the
side of the barbecue, lower the shelf so that the
screws lock into the narrower, upper portions of
the keyholes.
Note: The shelf will now stay in place on it’s
own.
3. Insert the bottom two screws into their holes and
tighten them all the way.
4. Finally, tighten the upper two screws,
completely.
To detach, reverse the process above.
15
U
L
Fig. 15-1 Type I Acme thread quick coupler
Pressure
relief
valve
QCC
Type 1
valve
Brass Acme
thread fi tting
Liquid level
indicator
(optional)
Hand nut with Acme
thread
Regulator
Vent
Hose
Hand wheel
The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.
To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 15-1).
Important: Before using the unit, and after each time the
cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.
CAUTION: Always turn the propane cylinder main valve
off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.
Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.
If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected
cylinders must be
stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a
building, garage, or any other enclosed area.
FOR YOUR SAFETY
a. DO NOT store a spare propane-gas cylinder under or
near this appliance.
b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED
EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.
IMPORTANT FOR YOUR SAFETY
READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.
FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.
CYLINDER/CONNECTOR REQUIREMENTS
a. Propane-gas cylinders, valves, and hoses must be
maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).
b. This unit, when used with a cylinder, should be connected
to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.
c. Cylinder dimensions should be approximately 12" (30.5
cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the
Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.
d. The cylinder used must include a collar to protect the
cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.
e. The pressure regulator and hose assembly (Fig. 15-1)
supplied with this outdoor gas appliance (L.P. models
only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specifi ed
by the manufacturer for connection with a cylinder
connecting device identifi ed as Type I by the ANSI Z
21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering
information).
f. The propane-gas cylinder valve must be equipped with a
cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.
g. If the propane-gas cylinder comes with a dust plug, place
the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.
QUICK COUPLER OPERATION
To connect the regulator/hose assembly to the propane-
gas cylinder valve fi tting: Press the hand nut on the regulator
over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.
SECURING THE PROPANE-GAS CYLINDER
1. Set the propane-gas
cylinder into the support
sleeve.
3. Tighten the thumb screws to secure
the cylinder.
2. Follow the instructions
above to connect supply.
Tighten
Fig. 15-2
Fig. 15-3 Fig. 15-4
Connect
to supply
SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
16
U
L
Fig. 16-1 type coupleur rapide de fi l de point culminant d’I
Valve
de
décompression
QCC
Type 1
Valve
Ajustage de précision
en laiton de fi l de
point culminant
Indicateur
de niveau
de liquide
(facultatif)
Écrou de main avec le
fi l de point culminant.
Régulateur
Passage
Tuyau
Volant de commande
main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.
Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 16-1).
Important: Avant d’employer le gril, et ensuite chaque
fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.
ATTENTION: Tournez toujours la valve principale de cylindre
de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.
Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.
Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans
un bâtiment, le garage, ou n'importe quel autre secteur inclus.
POUR VOTRE SÛRETÉ
a. Ne stockez pas un cylindre de gaz disponible de propane
dessous ou ne vous approchez pas de cet appareil.
b. Ne remplissez jamais cylindre au delà de 80 pour cent de
plein.
c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE
EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.
IMPORTANT POUR VOTRE SÛRETÉ
LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.
En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.
LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.
CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR
a. Des cylindres et les valves de gaz de propane doivent être
maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.
b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à
un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.
c. Les dimensions de cylindre devraient être approximativement
12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.
d. Le cylindre doit inclure un collier pour protéger la valve
de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.
e. Le montage du régulateur de pression et le fl exible (Fig. 16-1)
fourni avec cet appareil au gaz en plein air (modèles au
propane seulement) doit être utilisé. Assemblées d'origine et
régulateur de pression et le tuyau de remplacement doivent
être ceux spécifi és par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifi ée comme de type I par
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces
pour les informations de commande).
f. La valve de cylindre de gaz de propane doit être équipée
d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.
g. Si votre cylindre de gaz de propane vient avec une prise
de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.
OPÉRATION DE COUPLEUR RAPIDE
Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main
sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de
1
2
3
4
FIXATION DU CYLINDRE DE GAZ DE PROPANE
1. Ensemble cylindre-
propane gaz dans le
manchon de support.
3. Serrer les vis de serrage pour fi xer
le cylindre.
2. Suivez les instructions
ci-dessus pour connecter
l’alimentation.
Renforcer
Fig. 16-2
Fig. 16-3 Fig. 16-4
Connectez-vous
à fournir
UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE
17
Lights
Ignition
Side Bu
rner
Fig. 17-1
Left
main burner
control knob
Right
main burner
control knob
Backburner
control knob
(if equipped)
Lights
Ignition
Side Burn
er
Center main burner
control knob
Fig. 17-2
24" model controls
30
" and 36" model controls
Control panel
screw(s)
Drip
tray
Light switch
Ignition
switch
Right
main burner
control knob
Backburner
control knob
(if equipped)
Control panel
screw(s)
Drip
tray
Light switch
Ignition
switch
Sideburner
control knob
(if equipped)
Left
main burner
control knob
Sideburner
control knob
(if equipped)
IDENTIFICATION OF GRILL CONTROLS
18
ARRÊT DU UNITÉ
Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.
Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.
ÉCLAIRAGE ÉLECTRONIQUE
Note: L’éclairage électronique exige une batterie installée
de 9 volts avec une bonne charge.
1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs
pour être Lit.
2. Tournez tous les boutons de commande de gaz à leurs
positions de repos.
3. Allumez le gaz à sa source.
Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.
4. Diminuez le bouton de commande désiré pendant 5
secondes, puis, et tout en pressant le tour il dans le sens
contraire des aiguilles d’une montre dans la position
LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez
le bouton.
ATTENTION : Si un brûleur ne s’allume pas dans cinq
(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez-
le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.
5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.
EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF
Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/fl amme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)
ÉCLAIRAGE MANUEL
ATTENTION: Attendez toujours cinq (5) minutes le gaz
pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.
1. Suivez les étapes 1 à 3 (à gauche).
2. Passez un allumeur brûlant de butane de long-baril ou
une allumette brûlante de long-tige dans la grille à cuire
s’ouvrant au dessus du tube d’éclairage. (Fig. 18-2). Pour
des backburners, tenez la fl amme contre le surface du
backburner. Pour des sideburners, tenez la fl amme contre
le brûleur.
3. Vieux match / fl amme d’un briquet à la partie supérieure
du tube d’éclairage pendant 5 secondes, ou, à côté de la
brûleur latéral / veilleuse. Puis appuyer sur le bouton de
contrôle approprié et en appuyant tourner dans le sens
antihoraire à la position HI LIGHT. Retirez le briquet ou
des allumettes quand le brûleur s’allume, puis relâchez
le bouton de commande.
4. Si le brûleur ne s’allume pas, enfoncez immédiatement
le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4
des instructions manuelles d’éclairage.
Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.
Fig. 18-2 - Éclairage manuel
Plus léger
Tube
d’éclairage
Fig. 18-1 - bouton de commande
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Lisez l’établissement ici
(OUTRE de montrer)
OUTRE DE
SUR
Utilisation
SALUT
(haute)
à la lu-
mière
Enfoncez
le bouton
pour
tourner
Note: Le unité doit être relié à la puissance 120VAC pour
l’éclairage électronique.
4. Enfoncez le bouton de commande pour que le brûleur
soit allumé et tournez-le dans la position LÉGÈRE de
HI, puis appuyez sur le bouton d’allumage. Une fois que
le brûleur s’allume, libérez le bouton d’allumage.
2. Insérez soit un brûlant long baril briquet au butane, un
match à longue tige de brûlure, ou une allumette en feu
détenues par un titulaire d’extension de fi l (Fig. 18-2) À
travers les grilles de cuisson du brûleur (Fig. 18-3). Pour
backburners, maintenez la fl amme contre le matériau
perforé de la veilleuse.
3. Tout en maintenant le match ou fl amme d’un briquet à
proximité du brûleur, appuyez sur le bouton de contrôle
approprié et en appuyant son tour dans le sens antihoraire
à la position LIGHT HI. Enlevez l’allumeur ou assortissez
quand le brûleur s’allume, et libérez le bouton de
commande.
4. Si le brûleur ne s’allume pas, enfoncez immédiatement
le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4
des instructions manuelles d’éclairage.
Fig. 18-3 - MAllumage manuel
Fig. 18-2 - Titulaire de match
2. Insérez soit un brûlant long baril briquet au butane, un
match à longue tige de brûlure, ou une allumette en feu
détenues par un titulaire d’extension de fi l (Fig. 18-2) À
travers les grilles de cuisson du brûleur (Fig. 18-3). Pour
backburners, maintenez la fl amme contre le matériau
perforé de la veilleuse. Pour sideburners, maintenez la
fl amme contre le brûleur.
3. Tout en maintenant le match ou fl amme d’un briquet à
proximité du brûleur, appuyez sur le bouton de contrôle
approprié et en appuyant son tour dans le sens antihoraire
à la position LIGHT HI. Enlevez l’allumeur ou assortissez
quand le brûleur s’allume, et libérez le bouton de
commande.
4. Si le brûleur ne s’allume pas, enfoncez immédiatement
le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4
des instructions manuelles d’éclairage.
Fig. 18-3 - MAllumage manuel
Fig. 18-2 - Titulaire de match
Note: Le unité doit être relié à la puissance 120VAC pour
l’éclairage électronique.
ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)
19
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
ELECTRONIC LIGHTING
Note: Electronic lighting requires an installed 9-volt
battery with a good charge.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Note: DO NOT
turn on more
than one valve at
a time for either
electronic or
manual lighting.
4. Depress the desired control knob for 5 seconds,
then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release
the knob.
CAUTION: If a burner does not light within fi ve (5)
seconds of turning on the control knob,
depress the knob and turn it to the OFF
position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the
instructions for manual lighting.
5. Repeat step 4 for each additional burner to be lit.
WHEN USING A PORTABLE PROPANE TANK
Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)
MANUAL LIGHTING
CAUTION: Always wait fi ve (5) minutes for gas to
clear after any unsuccessful lighting
attempt.
1. Follow steps 1 through 3 (left).
2. Insert either a burning long-barrel butane lighter or
a burning long-stem match through the cooking grid
opening to the top of the lighting tube. (Fig. 19-2).
For backburners, hold the flame
against the surface of the backburner.
For sideburners, hold the fl ame against the burner.
3. Hold the match / lighter fl ame at the top of the lighting
tube for 5 seconds, or, next to the sideburner /
backburner. Then depress the appropriate control
knob and while pressing turn it counterclockwise to
the HI LIGHT position. Remove the lighter or match
when the burner lights, and release the control knob.
4. If the burner does not light, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING instructions.
Read all instructions before lighting, and follow these instructions each time you light the unit.
Fig. 19-2 - Manual lighting
Lighter
Lighting
tube
Fig. 19-1 - Control knob
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Read setting here
(OFF position shown)
To Turn OFF
To Turn ON
Use
HI (high)
to light
Press
knob in
to turn
ELECTRONIC LIGHTING
Note: This unit must be connected to 120VAC power
for electronic lighting.
4. Depress the control knob for the burner to be lit
and turn it to the HI LIGHT position, then press the
ignition button. Once the burner lights, release the
ignition button.
2. Insert either a burning long-barrel butane lighter,
a burning long-stem match, or a burning match
held by a wire extension holder (Fig. 19-2)
through the cooking grids to the burner (Fig. 19-3).
For backburners, hold the flame against the
perforated material of the backburner.
3. While holding the match or lighter fl ame next to the
burner, depress the appropriate control knob and
while pressing turn it counterclockwise to the HI
LIGHT position. Remove the lighter or match when
the burner lights, and release the control knob.
4. If the burner does not light, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING instructions.
Fig. 19-2 - Match holder
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
Fig. 19-3 - Manual lighting
Fig. 19-2 - Match holder
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
Fig. 19-3 - Manual lighting
2. Insert either a burning long-barrel butane lighter,
a burning long-stem match, or a burning match
held by a wire extension holder (Fig. 19-2)
through the cooking grids to the burner (Fig. 19-3).
For backburners, hold the fl ame against the perforated
material of the backburner. For sideburners, hold the
fl ame against the burner.
3. While holding the match or lighter fl ame next to the
burner, depress the appropriate control knob and
while pressing turn it counterclockwise to the HI
LIGHT position. Remove the lighter or match when
the burner lights, and release the control knob.
4. If the burner does not light, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING instructions.
LIGHTING (IGNITION) INSTRUCTIONS
20
The infrared (IR) searing burner (optional) cooks with
a powerful radiant heat.
Light the infrared burner following the LIGHTING
INSTRUCTIONS in this manual or printed on the
drip tray. Follow these guidelines when operating the
Infrared burner:
• DO NOT place food on the cooking grid until
the IR burner glows orange (Fig. 20-3). Drippings
are heated and evaporate instead of sticking to and
impairing burner function.
• For cleaning purposes; always leave your burner
on (after cooking) for an additional 5 minutes, to
allow for a burnoff period. This is important to
keep your burner clean and operating properly.
As the burner is self cleaning (at full temperature);
avoid the use of cleaners or abrasives.
• When not in use, always cover the infrared burner
with the stainless-steel cover. This protects the
burner from drippings (from other cooking), airborne
particles, and foreign objects (Fig. 20-2).
• Do not strike or scratch the burner ceramic as it
may chip, crack, or break (Fig. 20-2).
Note: Digital thermometer does not give accurate
readings for infrared burners.
Important: When grilling with the infrared burner,
always place a cooking grid above it.
The cooking grid must be removed for
rotisserie cooking.
CAUTION: DO NOT operate your IR burner with the
oven hood closed.
CAUTION: Never attempt to operate the IR burner
with the protective cover in place.
WARNING
Only handle the infrared burner cover when the
unit is cold or with a well-insulated long-handled
tool or heat resistant gloves.
Burner ceramic must be protected with cover when
burner is not in use.
Drips and particles evaporate before hitting infrared
burner when cooking at the maximum setting.
Note: Flavor grids are not to be used with infrared
burners.
To ensure proper operation, all infrared burners
(back and main) must be operated on the HI setting
for a minimum of 10 minutes. Thereafter, the fl ame
may be lowered as desired.
CAUTION: Always monitor the infrared burner fl ame
when operated on low, as it may blow
out in high-wind conditions.
OFF
HI
LIGHT
LOW
Fig. 20-3
SIDE VIEW
(burner on HI LIGHT
and glowing orange)
Ignitor
electrode
OFF
HI
LIGHT
LO
W
Fig. 20-2
Cover
SIDE VIEW (with cover on)
Ignitor
electrode
Food
particles
or debris
Drippings
and other
liquids
Airborne
dust or
grease
NO foreign
objects
Fig. 20-1
Cover
Ignitor
electrode
Note: Vaporizer panels are not to be used with
infrared burners.
OPTIONAL INFRARED BURNER OPERATION
21
ROTISSERIE INSTRUCTIONS (IF EQUIPPED)
Spit rod
Handle
Spit prongs
Stainless
steel motor
CAUTION: WHEN USING THE BACKBURNER;
KEEP THE OVEN LID CLOSED TO
PREVENT HEAT LOSS, PROVIDE
PROPER CONVECTION, AND PROVIDE
PROPER VENTING. THIS WILL ENSURE
EVEN COOKING TEMPERATURES.
DO NOT KEEP YOUR OVEN LID OPEN
DURING ROTISSING, AS THIS MAY
CAUSE PERSONAL INJURY, OR IN
SOME CASES, IN WINDY CONDITIONS,
DAMAGE TO THE GRILL.
DO NOT USE THE ROTISSERIE MOTOR
IN THE RAIN. DO NOT LEAVE THE
MOTOR ON THE GRILL WHEN NOT IN
USE.
1. Remove the warming rack and cooking grids from
the barbecue. The vaporizer panels may also be
removed if required.
Tip: Aluminum foil or a baking pan is recommended
and may be placed over the main burners /
vaporizer panels, a little forward of center, to
catch excess drippings from the meat.
2. Attach the rotisserie motor to the rotisserie
mounting on the right side of your barbecue by
sliding the bracket attached to the motor onto the
tab on the right of the barbecue. The motor should
be installed so that the spit rod will fi t into the motor
drive socket from the left.
3. Slide the left spit prong onto the rod (and tighten),
the meat onto the rod and into the prong, followed
by the right spit prong onto the rod and into the
meat. Tighten the right spit prong. Be sure the meat
is centered and balanced as well as possible.
4. Insert the pointed end of the rod into the motor drive
socket and the groove next to the handle into the
left support bracket.
5. Plug in (if necessary) and turn on the rotisserie
motor.
6. Light backburner per lighting instructions in this
manual (or on drip tray handle) and close oven lid.
7. Allow the backburner to preheat for approximately
10 minutes on HI LIGHT setting.
Note: When burning properly, the backburner grating
will glow red. The fi rst time it is used the
backburner may smoke a little.
Important: Turn the backburner to low or off
when stopping the rotisserie to prevent
overcooking.
22
THE DRIP TRAY
The drip collection system allows you to brush or scrape
excess dried residue from the grilling area directly into
the drip tray (see the DRIP TRAY section for more
information).
THE COOKING GRID LIFTER
Hold the grid lifter by gripping the center section with the
prongs pointing down (use an oven mitt or heavy glove
if the grill is hot). Insert the notched end of the grid lifter
into the cooking grid, in front of the midway point (front
to back; Fig. 22-3), and central (left to right; Fig. 22-4).
Twist the grill lifter (clockwise or counterclockwise) so
the handle is parallel to the grill rods. This “seats” the
spiked end of the grid lifter between two rods, enabling
you to safely lift out the grid. Lift slowly and adjust the
grid lifter, if necessary, for balance.
Placement of the grid lifter in cooking grid
Fig. 22-3
Fig. 22-4
GRILL BRUSH (optional)
Purchase a Fire Magic
®
stainless-steel grill brush (sold
separately) to keep your grill cleaner. It comes with
scraper for large particles and a replaceable head with
brass bristles for overall cleaning.
Grill brush with replacement head
Fig. 22-1
WARMING RACK (if equipped)
The warming rack (Fig. 22-2) is packed separately.
To install the warming rack, lift the front of the rack up
slightly and insert the rack hangers into the two holes
in the back of the inner oven hood. Then lower the front
of the rack into a level position to lock the rack in place.
To remove the warming rack, lift up on the front of the
rack until the rack hangers pull free from their supporting
holes.
Note: Removing the warming rack before using the
rotisserie will leave more clearance for the
meat being cooked. (if applicable)
Fig. 22-2 Warming rack in place inside oven
THE VAPORIZER PANEL(S)
Place each vaporizer panel directly on a burner or burner
pair. Center each panel over the burner, oriented as
shown in Fig. 22-1.
Note: This allows heat from the burners to be evenly
distributed throughout the cooking area. The
vaporizer panels heat and cool quickly, making
the grill very responsive to the changes in heat
from the burners.
Fig. 22-1
ACCESSORIES
23
The drip collection system in this barbecue is part
of the unit’s main frame and is located below the
burners. The drip collector has slots that will allow
excess drippings to fall through during cooking, while
separating the fi rebox from the drip tray. Clean the
drip tray after each use.
The drip collector allows you to brush or scrape
residue from the barbecue’s inner liner into the drip
tray. Following the manufacturers instructions and
regular cleaning of the barbecue’s interior with oven
cleaner, will help to prevent grease fi res.
Note: When cleaning the drip tray, the drip tray
heat shield will fi rst need to be removed to
properly clean/empty the tray of its contents.
See section below.
Note: There are easy to follow lighting instructions
etched onto the top of the drip tray handle.
DRIP TRAY HEAT SHIELD
The drip tray heat shield provides protection to the
grill controls from high heat. When cleaning the drip
tray, the heat shield must be removed. To re-install,
slide the front lip of the heat shield into the front
portion of the drip tray, then orient the front and side
tabs as shown in Fig. 23-2 to properly drop in place.
Fig. 23-1 Lighting instruction plate
Lighting
instructions
Drip tray
Tab on inside
Tab on outside
A
B
Fig. 23-2 Install drip tray heat shield
DRIP TRAY
24
Fig. 24-1 - Wipe with grain
PROTECTING YOUR APPLIANCE FROM THE
WEATHER
An optional cover will protect your appliance when not
in use. (Allow to cool before covering.)
Please specify the model number and serial number
of your appliance when ordering a cover.
APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.
The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.
INTERIOR
THE BURNER PORTS AND CARRY-OVER PORTS/
SLOTS MUST BE KEPT CLEAN TO ENSURE PROPER
IGNITION AND OPERATION.
Remove the burner (see orifi ce changing instructions)
and clean the ports and slots as required. Also inspect
and clean the burner inlet for insects and nests. A clogged
burner can lead to a fi re in the bottom of the appliance.
The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.
Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.
EXTERIOR
Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.
Clean your appliance by fi rst using grill cleaner to remove
grease and dirt. Always wipe with the grain (See Fig.
24-1). Next, use stainless steel cleaner to restore the
stainless steel color (Note: not for mirror fi nish). Finish
by wiping your appliance down using polish wipes. To
clean any mirror fi nish (if applicable), use a quality
brand glass cleaner only, not any of the cleaners
mentioned above.
If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.
Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.
By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.
IMPORTANT
IN THE EVENT OF A GREASE FIRE, IMMEDIATELY
SHUT OFF THE MAIN GAS VALVE TO THE UNIT.
KEEP THE LID OPEN AND ALLOW THE FIRE TO
EXTINGUISH ITSELF. A THOROUGH INSPECTION
BY A TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF YOUR
UNIT. THE SERVICE TECHNICIAN WILL CHECK THE
SYSTEM FOR GAS LEAKS AND WILL CHECK ALL
ELECTRICAL WIRING FOR DAMAGE. ALL GAS
LEAKS AND WIRING MUST BE REPAIRED PRIOR
TO FUTURE USE.
Wipe with grain
CARE & CLEANING
25
Your grill is engineered with the conveniences of
electrical power for illuminating and igniting the grill.
To replace any oven light, follow the instructions below.
Important: ONLY REPLACE WITH 12V / 10 WATT
HALOGEN BULB(S).
WARNING
To protect from potentially sharp sheet metal and
glass, wear gloves and safety glasses during this
procedure.
1. Turn all burner control knobs to the OFF position
and shut off the gas supply to the grill at the source
(tank valve for propane units or gas line shut-off
valve for natural gas units.)
2. Disconnect supply of external electrical power to
the grill.
CAUTION: Wait for the grill, oven, lens, light bulb,
and fi xture to cool before proceeding to
the next step.
3. Open the oven lid.
Important: Place one hand directly below the glass
lens and prepare to catch it when it is
detached.
4. Carefully insert a standard fl at head screwdriver
or thin plastic spatula between the glass lens and
the stainless steel on which the light is mounted
and gently pry the glass lens out in such a way
that the stainless steel is not scratched (twisting
the screwdriver handle, for instance). Catch the
lens and set it safely aside.
Note: You may wish to take this opportunity to clean
the lens with a standard household window
cleaner and then dry it completely.
5. Wearing a pair of gloves, reach into the fi xture,
gently grab the bulb, and pull it straight out of the
fi xture so that the two pins at the base of the bulb
come all the way out.
Important: Bulb is halogen. DO NOT TOUCH with
bare hands. Oils from hands drastically
reduce bulb life.
Note: It may be helpful to rock the bulb gently
backward and forward while pulling it out.
6. Inspect the old bulb for broken glass or fi lament.
Note: It may be benefi cial to test a suspect bulb
in one of the other light fi xtures known to be
working and turn the power back on to be
certain the bulb is actually not working.
7. Insert the new 12V / 10 watt halogen bulb into the
socket so that both pins slide all the way into the
two holes in the bottom of the socket.
8. Place the lens back into the fi xture opening with
the curved cut-out on the bottom and snap it back
into place.
Fig. 25-1
Lens
Fig. 25-3
Bulb
Prongs
Socket
Holes
Fig. 25-2
Fixture
Socket
Curved
cut-out
top of
lens
Bulb
REPLACING HALOGEN BULBS
26
This unit comes from the factory confi gured for one type of
gas, as marked on the label located behind the control panel,
or on the interior of the unit’s enclosure.
A certified kit is available from the manufacturer to
convert your appliance from natural gas to L.P. or vice
versa. Contact your dealer for ordering information. The
professional installer must reference the steps below
for conversion information. If the conversion kit ordered
includes instructions, follow those instructions.
1. Change brass gas orifi ces (included at original shipping)
on each burner to match the new gas type (see MODEL
SPECIFICATIONS TABLE, Table 1).
2. If applicable, switch the convertible gas regulator
(originally equipped only on natural gas models) to match
the new gas type (see section below).
Note: Models to be connected to a household propane or
natural gas line require the regulator. For models
to be connected to L.P. Cylinders, the regulator is
optional.
Note: Nat. to L.P. conversions using a tank internal to a
portable grill require use of a propane tank holder
for safety and compliance with the ANSI standards
referenced on the cover of this document. A
conversion kit (which includes this tank holder) must
be purchased separately from the manufacturer.
3. Plumb the unit as appropriate for the new gas supply.
4. Apply the label for the new gas (included at original shipping)
over the old gas information found on your unit.
THIS APPLIANCE REGULATOR IS RATED FOR
1
/
2
PSI MAXIMUM. IF YOUR GAS SUPPLY IS GREATER THAN
1
/
2
PSI, AN ADDITIONAL REGULATOR MUST BE INSTALLED TO REDUCE THE INPUT PRESSURE TO THE UNIT to
1
/
2
PSI OR LESS. SEE GAS-SUPPLY REQUIREMENTS SECTION FOR PROPER GAS-SUPPLY PRESSURE.
Note: Each end of the plastic converter is engraved with either the letters “NAT”
or “L.P.” (propane) for the respective gasses. When the converter is in the
cap and the cap is held uppermost, the letters seen indicate the gas that
the regulator is set up for.
To convert the regulator from one gas to another, follow steps 1-4.
STEP 2:
Remove the converter (the
plastic stalk) by carefully
pulling it away from the center
of the cap (it will snap out of
its seating).
STEP 1:
Unscrew and remove the cap from the
regulator, extracting the converter.
Regulator: note cap on top
STEP 3:
Turn the converter around and
replace it carefully, into the
center of the cap (it will snap
into place). Check that you can
read the type of gas the unit is
set for.
STEP 4:
Replace the unit into the
regulator and screw down
until snug.
Read gas
type here
WARNING
WARNING
HAZARDOUS OVERHEATING WILL OCCUR
IF A NATURAL-GAS ORIFICE IS USED WITH
PROPANE GAS. IF YOU ARE NOT SURE IF THE
CORRECT ORIFICES ARE INSTALLED, OR IF AN
ORIFICE CHANGE IS NECESSARY, REFER TO
THE FOLLOWING INSTRUCTIONS.
CAUTION: Make sure the unit is at a safe
temperature and isolated from
gas and electrical supplies before
beginning the tasks outlined below.
Note: The cooler the unit, the greater the
tolerances between the stainless-
steel parts, and therefore the easier to
disassemble and reassemble parts of the
unit.
CAUTION: For your safety, exercise caution and
use adequate hand protection (such
as gloves) when handling potentially
sharp sheet-metal parts.
CHECKING AND CONVERTING GAS TYPE
CHECKING AND CONVERTING THE REGULATOR (if applicable)
27
CHECKING/CONVERTING THE BURNER ORIFICES
5. If the barbecue does not have the proper
orifices installed for the gas supply you
intend to use, replace them with the correct
orifi ces. Some orifi ces were supplied with the
barbecue. They may also be obtained from the
conversion kit or supplied by your local dealer.
Note: A regulator hose will need to be
connected for conversion to propane
gas.
6. After checking the orifi ce drill size or replacing
the orifi ce, replace the burner over the orifi ce
fitting, sliding it forward, from behind the
forward fi re wall, so the orifi ce is centered
inside the burner gas inlet, and set it gently
onto the burner support. The studs on the
bottom back of the burner must each fit
through their respective holes in the burner
support. This is critical to the safe function of
the barbecue. Finally, re-install the burner clip
(from step 2) around the burner and into the
corresponding holes in the burner support (see
Fig. 27-1).
7. Replace the vaporizer panels and the cooking
grids. If applicable, reinstall the control panel.
MAIN BURNER ORIFICE SIZE CHECKING/
CONVERSION
Before beginning, make sure you have the proper
tools for the task.
This task requires:
• a #2 Phillips-head screwdriver
• a
1
/
2
" deep socket nut driver
Note: It may be necessary to remove the rotisserie
rod before beginning this procedure.
1. Remove cooking grids & vaporizer panels from the
barbecue.
2. Locate the burner. Slightly pinch and remove the
burner clip (located over the rear center of the
burner) from the burner support and set aside.
Then carefully lift the burner from the burner
support and out from the hole in the forward fi re
wall (see Fig. 27-1).
3. Using a
1
/
2
" deep socket nut driver, remove the
orifi ce from the valve. Access this through the
hole in the forward fi rebox plate inside the grill
(see PARTS LIST and Fig. 27-1).
Alternatively, the orifice can be accessed
through the inside of the control panel if the
proper tool is not available. This allows a
1
/
2
"
open-end wrench to be used instead of a
1
/
2
"
deep socket nut driver. To open the control panel,
see the CONTROL PANEL REMOVAL section.
4. Check the number stamped on the face of the
orifi ce (see Table 1). Repeat for each burner as
necessary.
Fig. 27-2 - Burner orifi ce diagram
Orifi ce
Burner
Valve
Removing main burner.
Fig. 27-1
Burner
support
Hole with
orifi ce
Burner
Clip
Burner
support
28
CHECKING/CONVERTING THE BURNER ORIFICES (Cont.)
ADJUSTING YOUR BARBECUE
Important: This appliance may not light or heat
evenly or cook properly unless the
air shutters are adjusted following
installation (see AIR SHUTTER
ADJUSTMENT section).
Burner air shutters are easily accessed by removing
the control panel. See the CONTROL PANEL
REMOVAL section for access.
The air shutters are located on the front portion of
each burner and have a locking screw that prevents
the air shutter from inadvertent movement (see
Fig. 28-1).
Remove the cooking grids & vaporizer panels from
the barbecue.
To close or open the
air shutters, simply
loosen the locking
screw, using a long
stemmed Phillips
screwdriver, and
turn the air shutter
to open or close it.
Tighten the screws
down when the
desired setting is
achieved.
MAIN BURNER AIR SHUTTER ADJUSTMENT
Light the burner to be adjusted in accordance with
the LIGHTING INSTRUCTIONS and burn for 2
minutes with the burner control knob set to HIGH
and the oven open. After burning for 2 minutes,
open the air shutter until the fl ames lift off, or appear
not to be touching the burner. Then begin closing
the air shutter until the fl ames appear to burn while
touching the burner ports (Fig.
28-2). If fl ames are
a lazy yellow, open the air shutters until the fl ame
is mostly blue.
Note: Barbecues in some installations achieve a
better air/gas mixture and will ignite more
quickly if the valve is fi rst turned beyond
HIGH to MEDIUM or LOW for lighting.
BACKBURNER ORIFICE SIZE CHECKING/
CONVERSION (IF EQUIPPED)
Before beginning, make sure you have the proper
tools for the task.
This task requires:
• a
1
/
4"
nutdriver
• a
3
/
8"
wrench or socket screwdriver
Note: It may be necessary to remove the
rotisserie rod before beginning this
procedure.
1. Remove the backburner assembly as follows:
a. Remove the backburner electrode mounting
screw (
1
/
4
" hex) (see Fig. 28-3) and loosen
the electrode. Carefully pull the electrode
assembly slightly from the grill wall to give
enough clearance for the backburner to be
removed (see Fig. 28-4).
b. Remove the backburner mounting screws
(
1
/
4
" hex) located at the left end of the
backburner assembly (see Fig. 28-5).
Fig. 28-1
Locking
screw
Air shutter
Fig. 28-2 - Flame appearance diagram
Flame off ports
Flame on ports
Procedure continued on next page
Fig. 28-5 Remove backburner mounting screws
Remove
backburner
screws
Fig. 28-3 Fig. 28-4
29
CHECKING/CONVERTING THE BURNER ORIFICES (Cont.)
3. Carefully lift the infrared burner from the burner
support and out from the hole in the forward
fi re wall (see Fig. 29-3).
4. Using a
1
/
2
" deep socket, remove the orifi ce
from the valve. Access this through the hole
in the forward fi rebox plate (see PARTS LIST
and Fig. 29-3).
Alternatively, the orifice can be accessed
through the inside of the control panel if the
proper tool is not available. This allows a
1
/
2
"
open-end wrench to be used instead of a
1
/
2
"
deep socket nut driver. To open the control
panel, see the CONTROL PANEL REMOVAL
section.
5. Check the number stamped on the face of the
orifi ce (see Table 1).
6. If the barbecue does not have the proper
orifices installed for the gas supply you
intend to use, replace them with the correct
orifi ces. Some orifi ces were supplied with the
barbecue. They may also be obtained from the
conversion kit or supplied by your local dealer.
Note: A regulator hose will need to be
connected for conversion to propane
gas.
c. Carefully pull the left end of the backburner
forward until the burner can be moved to the
left pulling it free from the orifi ce located on
the right side (see Fig. 29-1).
d. Using a
3
/
8
" socket, remove the orifi ce from
the orifi ce holder and check the number
stamped on the face.
2. If an orifi ce change is necessary, replace the
orifi ce with the correctly sized one.
3. Replace the backburner assembly and the
electrode by reversing the procedure in steps
a. through c.
INFRARED BURNER ORIFICE SIZE
CHECKING/CONVERSION (IF EQUIPPED)
Before beginning, make sure you have the proper
tools for the task.
This task requires:
• a #2 Phillips-head screwdriver
• a
1
/
2
" deep socket nut driver
Note: It may be necessary to remove the
rotisserie rod before beginning this
procedure.
1. Remove cooking grids & vaporizer panels from the
barbecue.
2. Disconnect the ignitor wire from the bottom of
the electrode assembly on the infrared burner
(see Fig. 29-2).
The backburner orifi ce can be seen on the
right side after removing the backburner.
Backburner
Orifi ce
Fig. 29-1
Removing / inserting infrared burner.
Fig. 29-3
Burner
support
Hole with
orifi ce
Wire disconnected
Fig. 29-2
Spark generator
Procedure continued on next page
30
CHECKING/CONVERTING THE BURNER ORIFICES (Cont.)
7. After checking the orifi ce drill size or replacing
the orifi ce, replace the infrared burner over the
orifi ce fi tting, sliding it forward, from behind the
forward fi re wall, so the orifi ce is centered inside
the burner gas inlet, and set it gently onto the
burner support. The tabs on the bottom back of
the burner must each fi t through their respective
slots in the burner support. This is critical to the
safe function of the barbecue.
8. Reconnect the ignitor wire to the bottom of the
electrode assembly on the infrared burner.
9. Replace the vaporizer panels and the cooking
grids. If applicable, reinstall the control panel.
6. Re-insert the cotter pin underneath the sideburner
assembly using needle-nose pliers. It may be
necessary to push downward on the burner
assembly from above to fully expose the cotter
pin hole. Rotate the inserted cotter pin so that it
is fl ush with the underside of the shelf.
7. Replace the burner cap by centering it on the
sideburner assembly and making sure it drops in
place.
8. Replace the grill with the grating running front to
back so that it drops fully down onto the shelf,
allowing the lid to close completely over it.
SIDEBURNER AIR SHUTTER ADJUSTMENT (IF
EQUIPPED)
The fl ames from a properly adjusted sideburner will
touch the burner ports and appear mostly blue.
If the fl ames are orange, “lazy”, or
lift off the burner ports, then adjust
the sideburner air shutter using the
following steps.
Sideburner adjustment is the
most accessible (not requiring
any hardware to be removed fi rst)
and is located underneath the
sideburner shelf on the left side of the barbecue, near
the wall of the cart. The sideburner air shutter can
safely and easily be adjusted while the sideburner is lit.
CAUTION: Do not touch the sideburner or the shelf
immediately around it. They will be
hot while adjusting the sideburner air
shutter.
1. Light the sideburner following the lighting
instructions in this manual.
2. Loosen the sideburner
air-shutter adjustment
screw, then use the tip
of the screwdriver to
open or close the air
shutter until the fl ames
appear blue and touch
the burner ports.
3. Re-tighten the adjustment screw.
SIDEBURNER ORIFICE SIZE CHECKING/
CONVERSION (IF EQUIPPED)
Suggested Tools:
• a pair of needle-nose pliers
• a
5
/
16
" hex nut driver
Note: It may be necessary to remove the rotisserie
rod before beginning this procedure.
1. Lift the sideburner lid. Then remove the grill and
sideburner cap and set them aside.
2. Locate and remove
the cotter pin from the
sideburner assembly
underneath the sideburner
shelf using needle-nose
pliers (Fig. 30-2). Set it
aside.
3. From the top of the
sideburner shelf lift the sideburner upward while
rotating the attached tubing underneath away from
the orifi ce near the cart wall. Set it aside.
Note: To protect the manifold threads when placing
the new orifi ce, start the threading manually,
and then tighten with the nut driver.
4. Use the nut driver to remove the exposed orifi ce
and replace it with the correct orifi ce for the gas
being converted to. (see Table 1 for correct orifi ce
sizes based on burner type and gas type).
Note: While the sideburner is still removed it may
be convenient to adjust the sideburner air
shutter.
5. Rotate the burner assembly back into place over
the orifi ce so that the orifi ce is centered deeply
into the burner pipe and the burner fi rmly seated
in the shelf.
Fig. 30-4
Close
Open
Fig. 30-3
Fig. 30-2
Cotter
pin
31
Fig. 31-1 - Wire diagram
A
B
C
D
24" model shown
(Connections may vary)
Power supply box
Wire harness
extension
Right light
Left light
Main burner
Ignitors
Backburner
Ignitor
Ignitor
module
Ignitor
switch
Light
switch
Ground wire
connection
Sideburner
Ignitor
To open the control panel:
1. Turn the control knobs to the OFF position.
2. Pull the control knobs from their stems and set them aside.
3. Using a Phillips screwdriver, unscrew the control panel fastener screws (located on the sides of the
control panel). Retain the screws for later re-installation.
4. Carefully open the control panel by lifting and pulling the control panel from the frame.
Important: When opening, take caution to not damage any wiring. The drip tray can be opened slightly
to support the control panel.
To completely remove the control panel:
1. Follow steps 1-4 above.
2. Disconnect the main wire harness connections (A), the left light connection (B), the right light
connection (C), and the ignitor wires (D). It is recommended to temporarily label the wires for reference
when reconnecting. See Fig.
31-1. When disconnecting, be sure to pull from the connectors, and
not the wires.
Note: Secure any disconnected wires (coming from the inside of the grill) to prevent them from falling
into the unit.
3. Carefully remove the control panel.
Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male
connector, then make the connection.
Important: During reinstallation; prior to opening the gas shutoff valve, be sure the control knob(s)
are in the OFF position.
CONTROL PANEL REMOVAL
32
NOTES PAGE
Please use this page to record any information about your unit that you may want to have at hand.
33
Table 2
If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or
if you have other technical diffi culties with the unit, please contact your local dealer.
PROBLEM POSSIBLE CAUSE CORRECTION
Ignition system
failure
1) Power supply failure
1a) System reset: Disconnect (wait 10 minutes
minimum) and reconnect power to unit. With lights
OFF, test ignition.
1b) Replace power supply.
2) Improper air shutter adjustment 2) Adjust air shutters.
3) Ignition wire disconnected 3) Reconnect wires into ignitor module.
4) Low gas pressure 4) Have the gas co. check supply pressure.
5) Front carry-over port 5) Clean burner ports.
6) Igniter switch malfunction 6) Contact dealer for replacement.
7) Igniter malfunction 7) Contact dealer for replacement.
Insuffi cient heat /
low fl ame
1)
Improper air-shutter adjustment 1) Adjust air shutters.
2) Using propane orifi ce for natural gas 2) Check/change orifi ces.
3) Low gas pressure/fl ame (propane) 3) Refill propane tank, or reset propane tank
safety*: Shut off all valves (including propane
tank) and follow lighting instructions exactly.
4) Low gas pressure/fl ame (natural) 4) Have the gas co. check pressure at unit.
5) L.P. regulator hose cracked due to age 5) Replace L.P. regulator hose.
Uneven heating
1) Burner ports partially blocked by
debris
1) Remove burners and clean out ports.
2) Small spiders or insects in burner 2) Inspect burners and orifi ces for spider webs or
other debris that may block fl ow.
3) Improper air shutter adjustment 3) Adjust air shutter.
Rotisserie noisy
1)
Rotisserie out of balance 1) Adjust rotisserie counterbalance.
Burner goes out on
LOW
1)
Valve “Low” setting needs adjustment 1) Light burner on HIGH, immediately turn to
LOW setting. Remove knob from valve and
using a small fl at screwdriver, slowly turn the
adjustment screw in the stem, a little at a time
(30° to 45°), in either direction, until the fl ame is
approximately
1
/
4
” in height from burner ports.
Interior light(s) not
operating
1)
Light switch not functioning 1) Re-connect external power to grill or contact
dealer for replacement.
2) Bulb(s) burned out 2) Contact dealer for replacement.
3) Power supply failure 3) See 1a of Ignition system failure section above
and/or replace power supply.
No power to grill
1)
Input power source failure 1) Check GFCI / circuit breaker.
2) Power supply failure 2) See 1a of Ignition system failure section above
and/or replace power supply.
Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/fl ame at the
burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank
safety shutoff is in effect, shut off all burner control valves and the propane tank valve. Then read and
follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are located in the owner’s manual. If
the problem persists, continue troubleshooting, or contact your local dealer or distributor for assistance.
TROUBLESHOOTING
34
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Quality Check Date:_________________
Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Back: ____ ____ Gas Type:
Nat. / L.P. Air Shutter: ___________________
Side/Power: ____ ____ Inspector: ___________________
Infrared: ____ ____
Other: ____ ____
A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED
This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.
This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.
This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.
Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.
This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.
For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
American Outdoor Grill • 14724 Proctor Avenue • City of Industry, CA 91746
AMERICAN OUTDOOR GRILL
LIMITED WARRANTY
American Outdoor Grill warrants your grill to be free from defects in material and workmanship.
American Outdoor Grill stainless-steel burners are warranted for FIFTEEN (15) YEARS. All other American Outdoor Grill parts are
warranted for TEN (10) YEARS. (Except as noted below.)
American Outdoor Grill infrared burners and vaporizer panels are warranted for THREE (3) YEARS.
American Outdoor Grill ignition systems (excluding batteries) and accesories (including sideburners, motors, and thermometers) are
warranted for ONE (1) YEAR.
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.AMERICANOUTDOORGRILL.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
WARRANTY
