COOKER HOOD
INSTRUCTION MANUAL AND
INSTALLATION GUIDE
Please read this guide before installing and using the hood
MODEL
DESCRIPTION
Emilia Glem Appliances
4
8
Perc
y
Street Au
b
urn NSW 2144
PO BOX 63 Blaxcell PO South Granville NSW 2142
l 02 9721 2755 Fax 02 9721 2766 www.glemgas.com.au
Product Specification & Technical Parameters
Model CK90TBTF/CK120TBTF
Rated Voltage 230V
Rated Power Frequency 50Hz
Light Power 1x4W MAX
Motor Power 230W
Total Power 234W
Motor Single
Diameter of Outlet Adapter 150mm
Dimension (mm) W900/1200 X D500 X H570min/1050max
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
* Please read this instruction manual before installing and using this range
hood. Please keep this instruction manual in a safe place for future
reference.
* Only a qualified and trained service technician can undertake the work of
installation and servicing.
* Check that the main voltage corresponds to the one indicated on the
rating plate fixed inside the hood.
* If the hood is used in conjunction with non-electrical appliances (e. g. gas
burning appliances), a sufficient degree of ventilation must be guaranteed in
the room in order to prevent the backflow of exhaust gas. The kitchen must
have an opening directly with the open air in order to guarantee the entry
of clean air.
* The minimum distance is 750mm from the range hood to a gas hob, and is
650mm to an electric hob. If the installation instructions for gas hobs
specify a greater distance, this must be taken into account.
NOTICE: Two or more people are required to install or move this appliance.
Failure to do so can cause physical injuries.
USE
* The range hood has been designed only for domestic use to eliminate
kitchen fumes.
* Never use the hood for purposes other than what it has not been
designed for.
* Never leave high naked flames under the hood when it is in operation.
* Adjust the flame intensity to direct it onto the bottom of the pan only;
making sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use: overheated oil
can burst into flame.
* The hood should not be used by children or persons not instructed in its
correct use.
MAINTENANCE
* Proper maintenance of the range hood will assure proper performance of
the unit.
* Disconnect the hood from the main supply before carrying out any
maintenance work.
* Clean and/or replace aluminum grease filters and activated charcoal filters
after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
WARNING!!
In certain circumstances electrical appliances may be a danger hazard.
* Do not check the status of the filters while the cooker hood is operating
* Do not touch the light bulbs after appliance use
* Do not disconnect the appliance with wet hands.
* To reduce the risk of fire or electric shock, do not use this fan with any
solid-state.
* Avoid free flame, as it would do damage to the filters from a fire hazard
* Constantly check food frying to avoid that the overheated oil may become
a fire hazard
* Disconnect the electrical plug prior to any maintenance or servicing.
* Children don’t recognize the risks of electrical appliances. Therefore use or
keep the appliance only under supervision of adults and out of the reach
from children.
* TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back drafting.
c) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
* Don’t use this product outdoors.
* This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction,
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
* There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
* There is a fire risk if cleaning is not carried out in accordance with
instructions.
* The exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
DIMENSIONS
900
/
1200
5
0
0
2
7
6
2
7
8
500-980
70
INSTALLATION & USE
OPERATION OF CONTROLS
mid
low
light
on/off
The hood is operated using the touch control.
The on/off switch turns the hood on and off.
The light switch turns the lamps on and off.
The blower switch turns the blower on to three speed settings:
1 - LOW SPEED
2 - MEDIUM SPEED
3 - BOOSTER
Grease Filters
The grease filters should be cleaned frequently. Use a warm detergent
solution. Grease filters are washable.
See “INSTALL FILTERS” section for removal and installation instructions.
INSTALL THE DUCTWORK
(DUCTED HOODS ONLY)
Caution: To reduce the risk of fire, use metal
ductwork is preferred.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the
hood to perform most efficiently.
3. Long duct runs, elbows, and transitions
will reduce the performance of the hood. Use as few of them as
possible. Larger ducting may be required for best performance with
longer duct runs.
4. The air must not be discharge into a flue that is used for exhausting
fumes from appliances burning gas or other fuels" "Regulations
concerning the discharge of air have to be fulfilled.
5. Install wall cap. Connect round metal ductwork to cap and work back
towards hood location. Use duct tape to seal the joints between
ｂｏｏｓｔｅｒ
ductwork sections.
INSTALL ELECTRICAL
Electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards. This range hood must be properly
grounded. Turn off electrical power at service entrance before wiring.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
INSTALL THE HOOD
Note 1 : On stainless steel hoods, carefully remove the plastic protective
film from all exterior surfaces of the hood and chimney prior to final
installation.
Note 2: At least two people will be required to mount the hood.
INSTALL THE HOOD
Minimum hood distance above the cooker
must not be less than 650mm.
A maximum of 750mm above the cooker is
highly recommended for best capture of
cooking impurities.
Distance over 750mm above the cooker are
at the installer’s and user’s discretion -
providing that ceiling height and flue length
permit.
1. Secure the hood mounting bracket to the
wall using (3) ST 5 x 45mm mounting screws and dry wall anchors. Align
the hood body with the hood mounting bracket. Gently lower the hood
until it securely engages the bracket.
2. Fix the discharge collar into the air outlet adapter.
3. Attach an adequate length of 150mm round duct to the air outlet
adapter(if have).
4. Carefully slide the decorative chimney top down inside the decorative
chimney bottom. Carefully place the decorative chimney bottom into
the recessed area of the hood body top.
5. Secure the chimney mounting bracket to the wall using (2) ST
x
14mm mounting screws and dry wall anchors.
6. Raise the decorative chimney top until its holes align with holes in the
chimney mounting bracket (located on the wall).
7. Level the hood and secure the chimney with 2 chimney bracket screws.
8. Fix the Decorative Chimney Bottom with 3 decorative Chimney Bottom
screws from inside of body.
Duct
(3) ST5
*45
Hoo
d Mou
nting
Bracket
(2) ST3.2*8
(2) ST4.2*30
Chim
ne
y Mounting
Bracket
1
、
2
、
3
、
4
、
5
、
6
、
(2) ST2.9*14
Deco
rative
Chimn
ey
Bottom
Chim
ne
y
Mounting
Bracket
(2) M
4*6
Deco
rative
Chimn
ey
Top
Deco
rative
Chimn
ey
Bottom
(2) ST4
.2*3
0

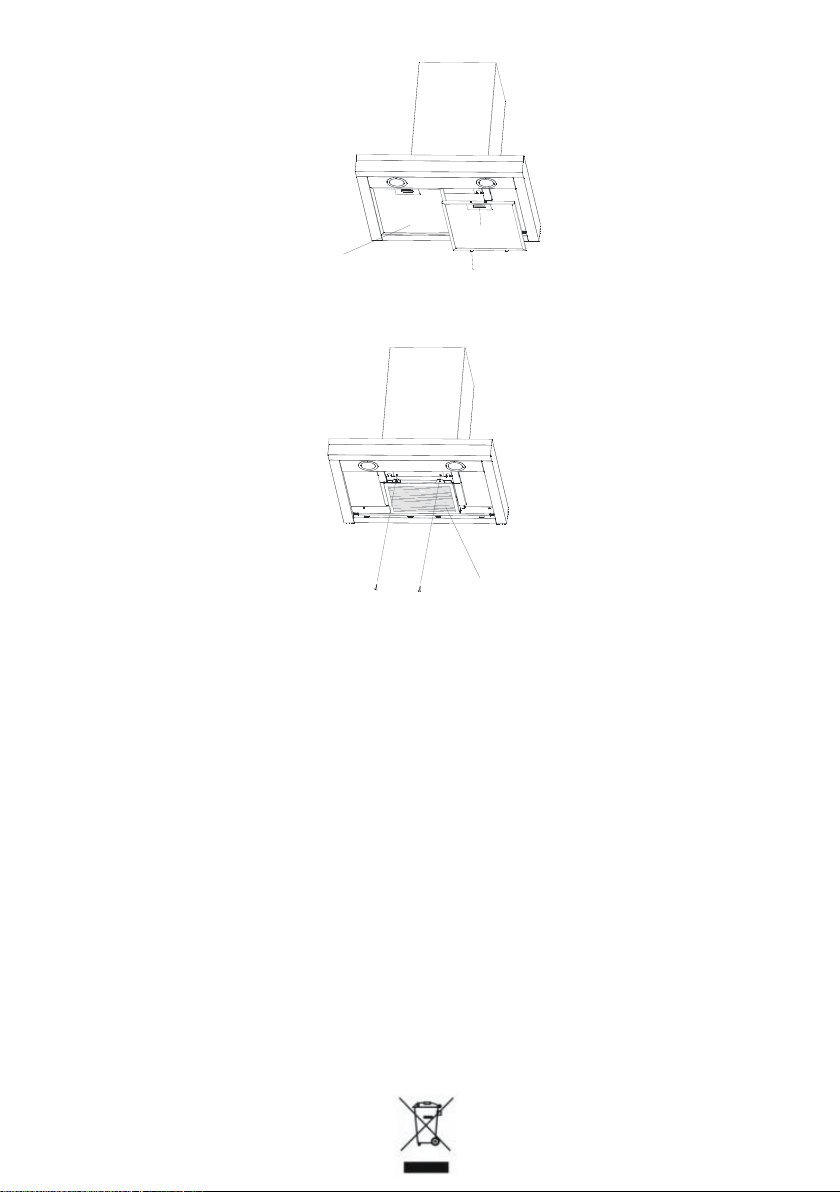

INSTALL FILTERS
1. To remove the grease filter, push in on the metal latch tab. This will
disengage the filter from the hood. Tilt the filter downward and
remove.
2. To install the grease filter, align rear filter tabs with slots in the hood.
Push in the metal latch tab, push filter into position and release. Make
sure the filter is securely engaged after assembly.
ST
(2) ST2.9*14
4
2.9
(2) Fi
lter
3．To install the charcoal filter (optional), and lock it until the stop click is
heard.
7
、
Op
tiona
l
(2) M
4*12
4. Install grease filter after charcoal filter is installed.
