User Manual Whirlpool WHES20 20000-Grain Demand Controlled Water Softener

Documents for Whirlpool WHES20

Installation and Operation Manual

For WHES20. Also, The document are for others Whirlpool models: WHES30

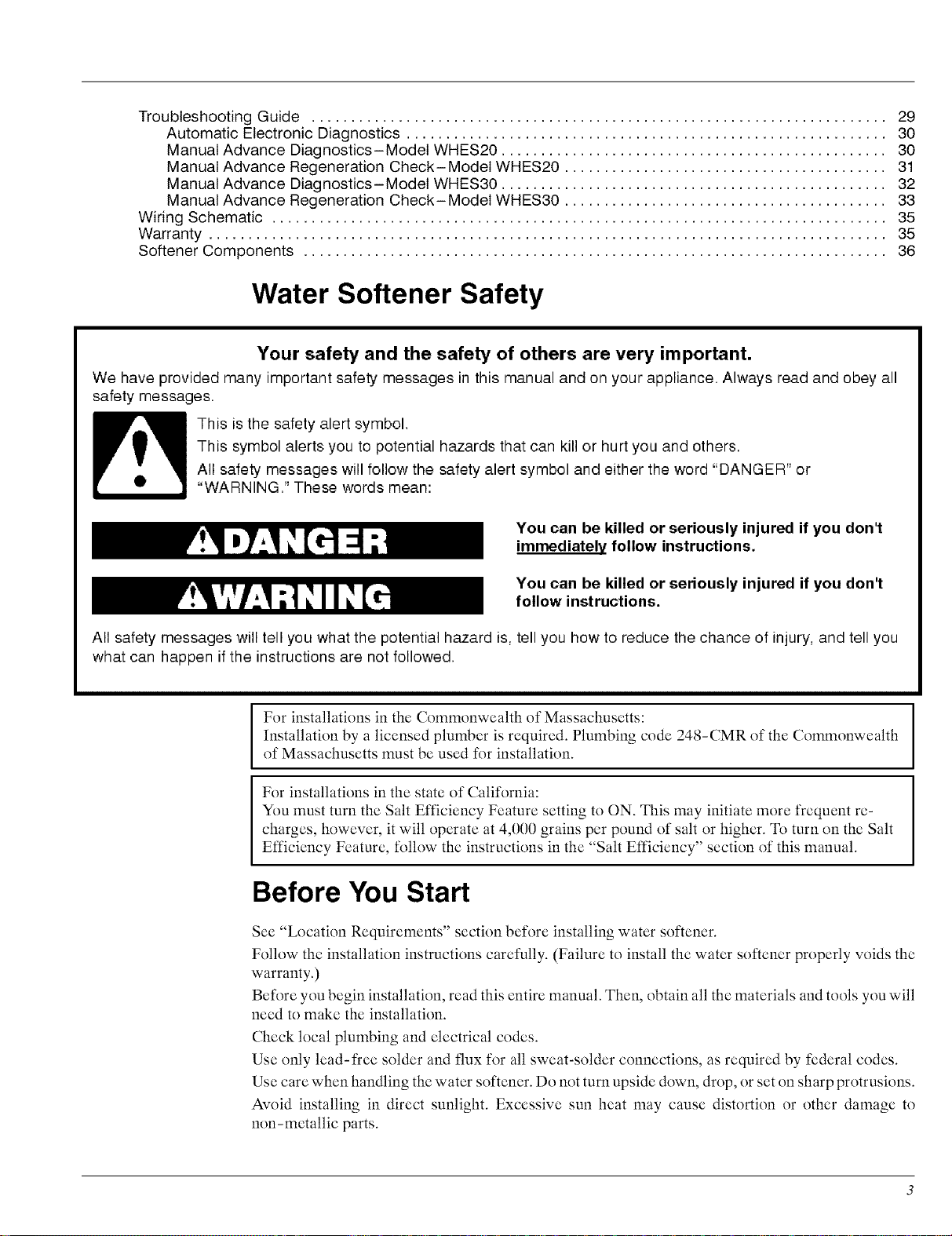

• Water Softener Safety3
• Before You Start3

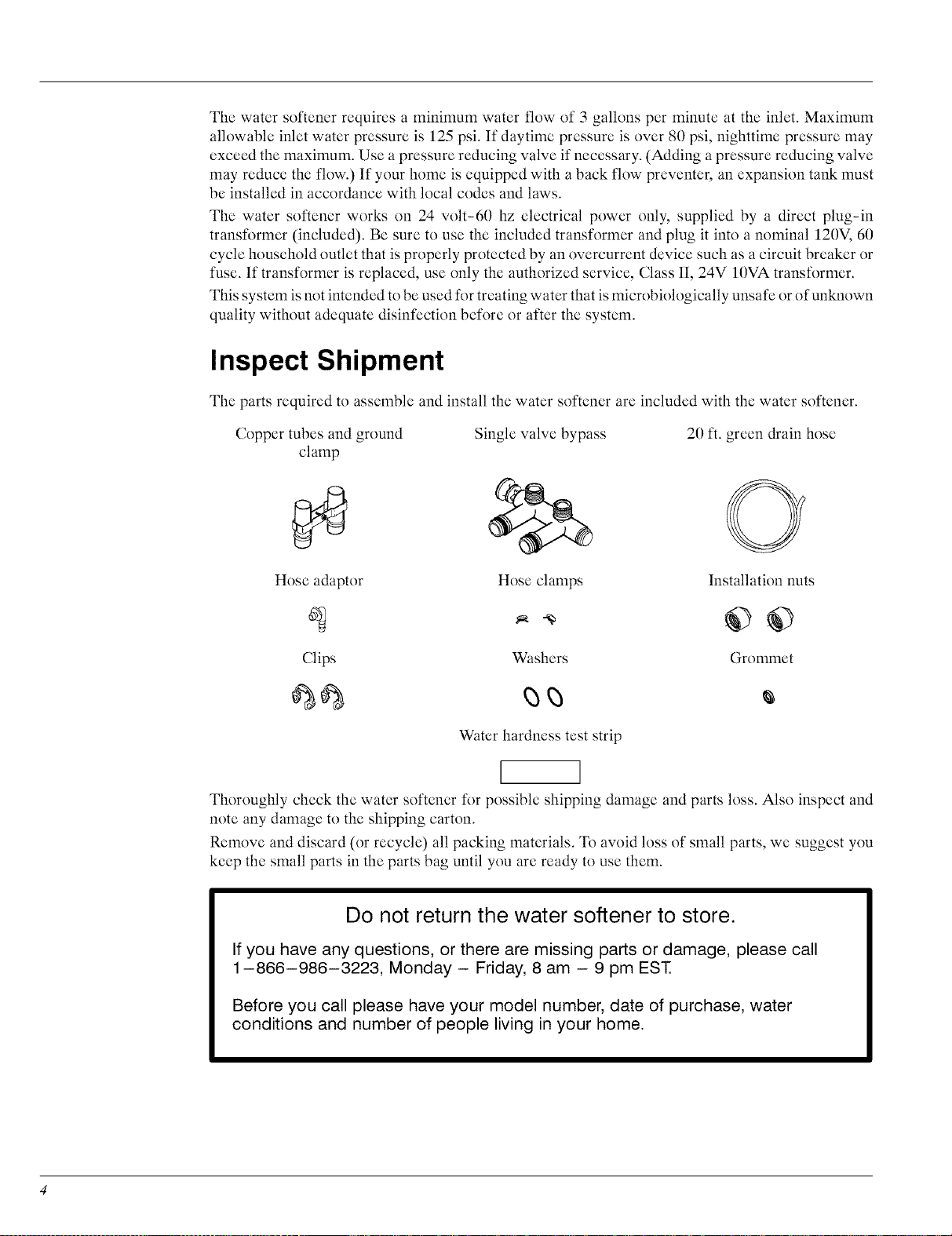

• Inspect Shipment4

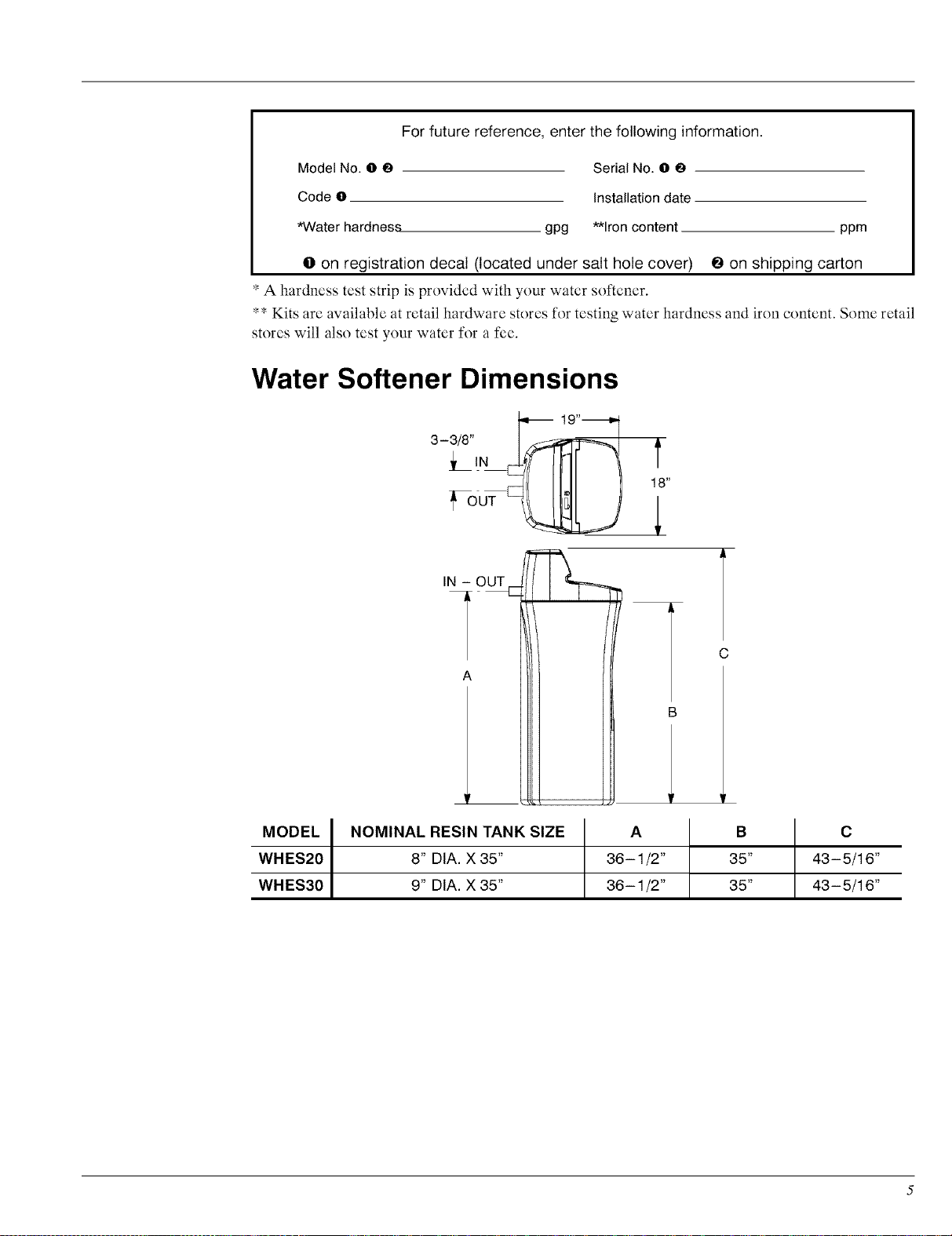

• Water Softener Dimensions5
• Water Conditioning Information6
  • Water Conditioning6

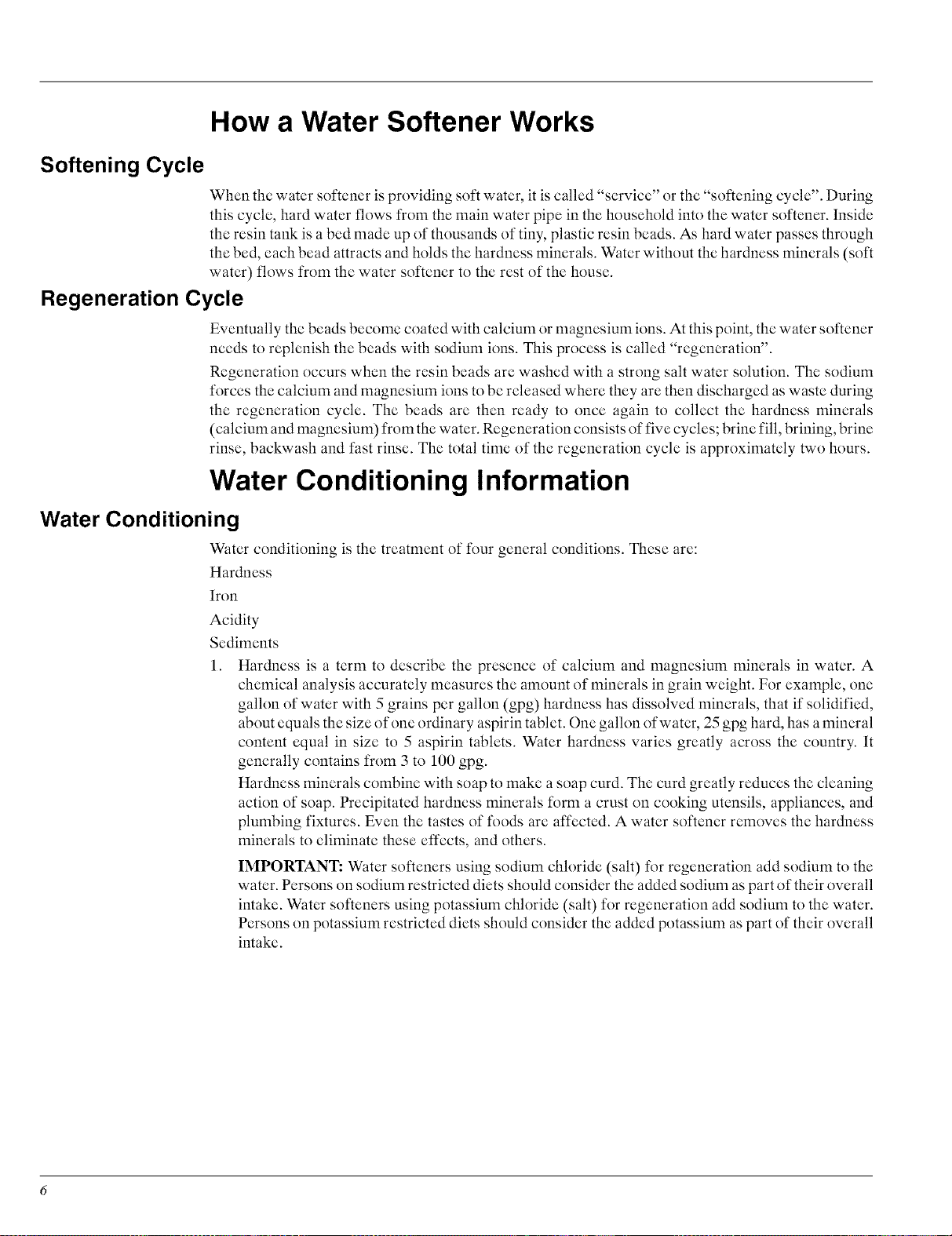

• How A Water Softener Works6
  • Softening Cycle6
  • Regeneration Cycle6
• Installation Requirements8
  • Tools And Parts Needed8
  • Location Requirements9
  • Air Gap Requirements9

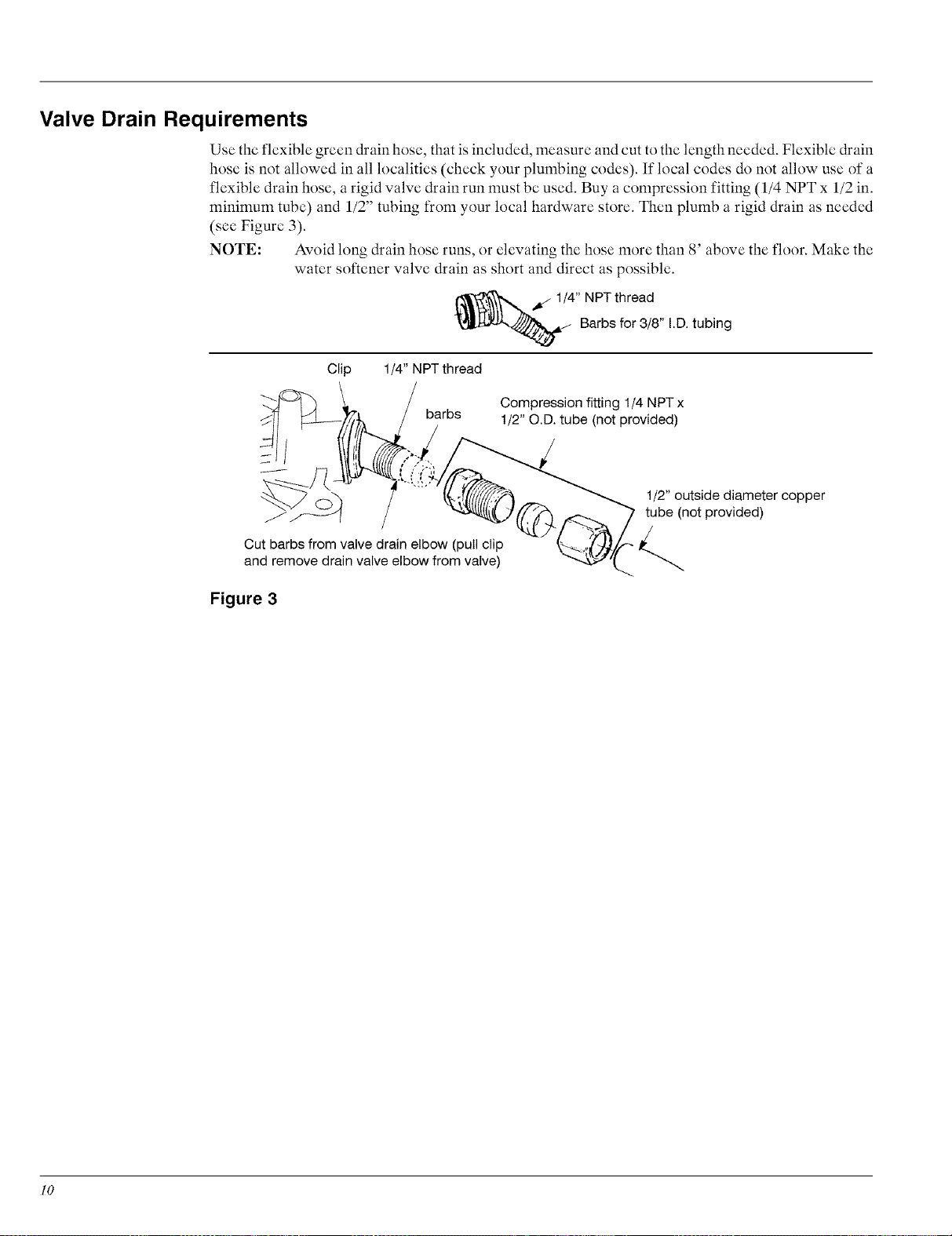

  • Valve Drain Requirements10
• Planning Installation11
  • Inlet, Outlet Plumbing Options11
• Installation12
  • Turn Off Water Supply12

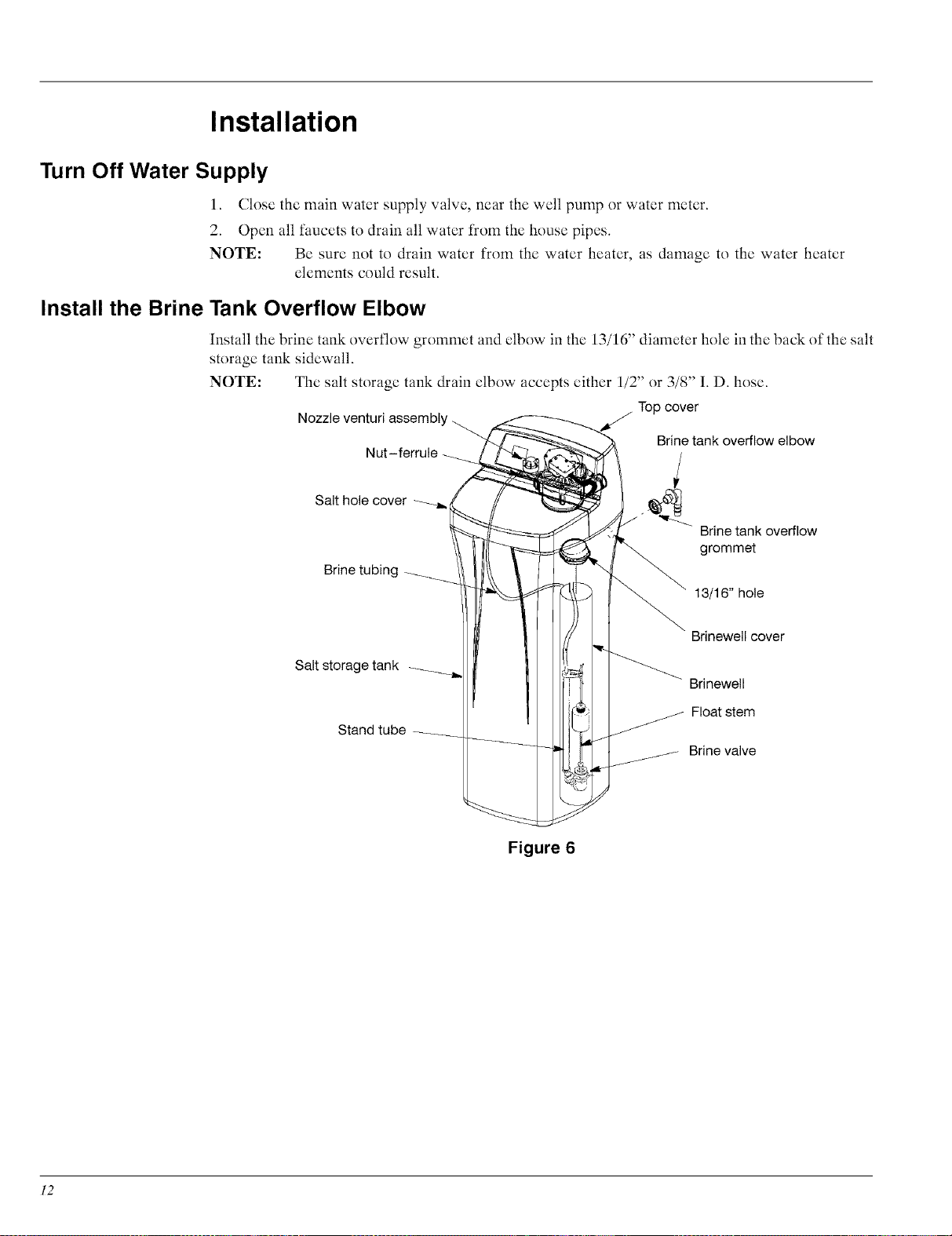

  • Install Brine Tank Overflow Elbow12

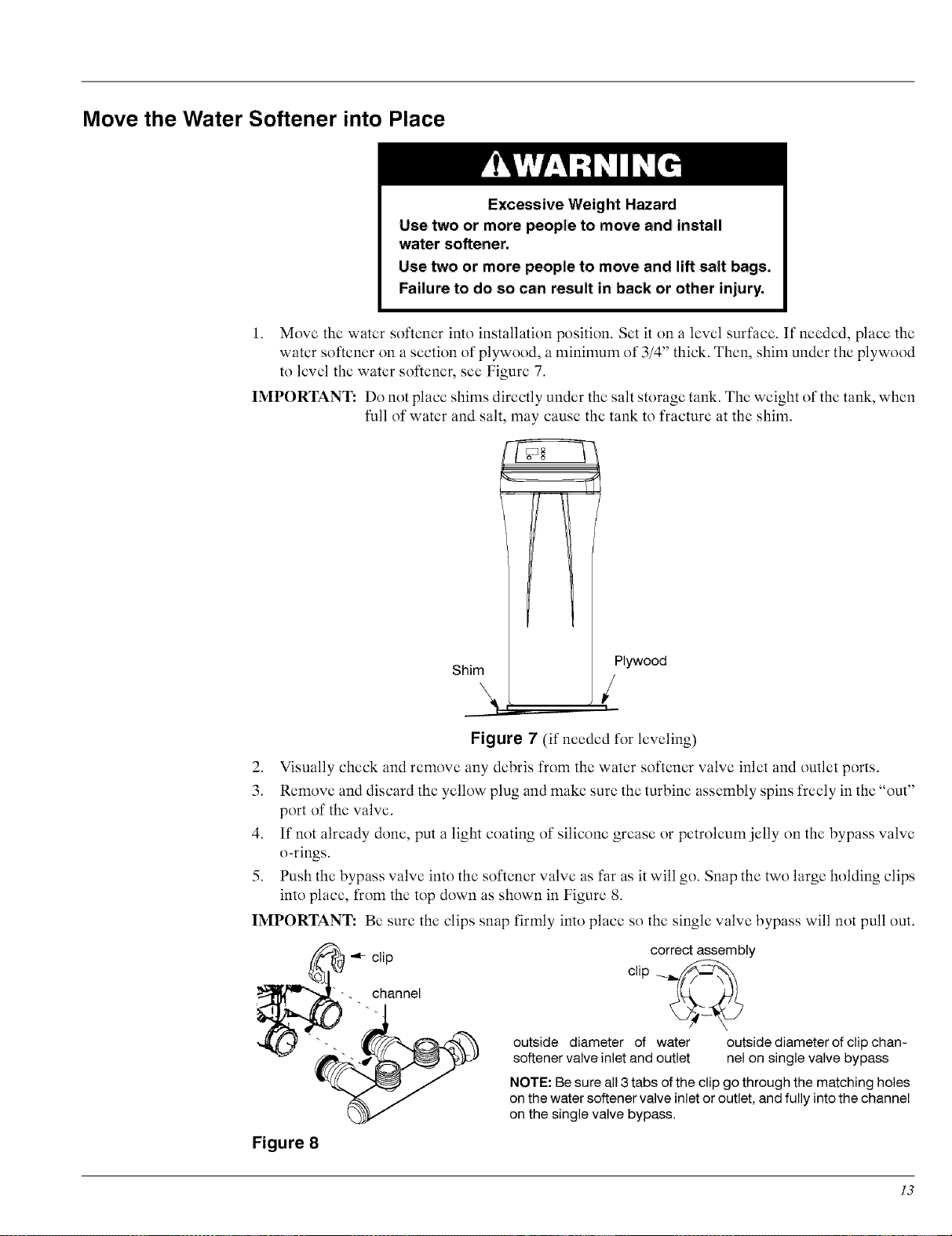

  • Move The Water Softener Into Place13
  • Assemble Inlet And Outlet Plumbing14
  • Connect Inlet And Outlet Plumbing14
  • Install Valve Drain Hose15
  • Install Salt Storage Tank Overflow Hose15
  • Test For Leaks16
  • Add Water And Salt To The Salt Storage Tank16
  • Sanitize The Softener/Sanitize After Service16
  • Plug In Water Softener16
• Program The Water Softener Model WHES2017
  • Set Time Of Day17
  • Set Water Hardness Number18
  • Set Recharge (Regeneration) Time18
  • Start A Recharge18
• Program The Water Softener Model WHES3019
  • Set Time Of Day19
  • Set Water Hardness Number20
  • Set Recharge (Regeneration) Time20
  • Start A Recharge20
• Customizing Features / Options Model WHES2021
  • Recharge21
  • Recharge Tonight21
• "Power Outage Memory"21

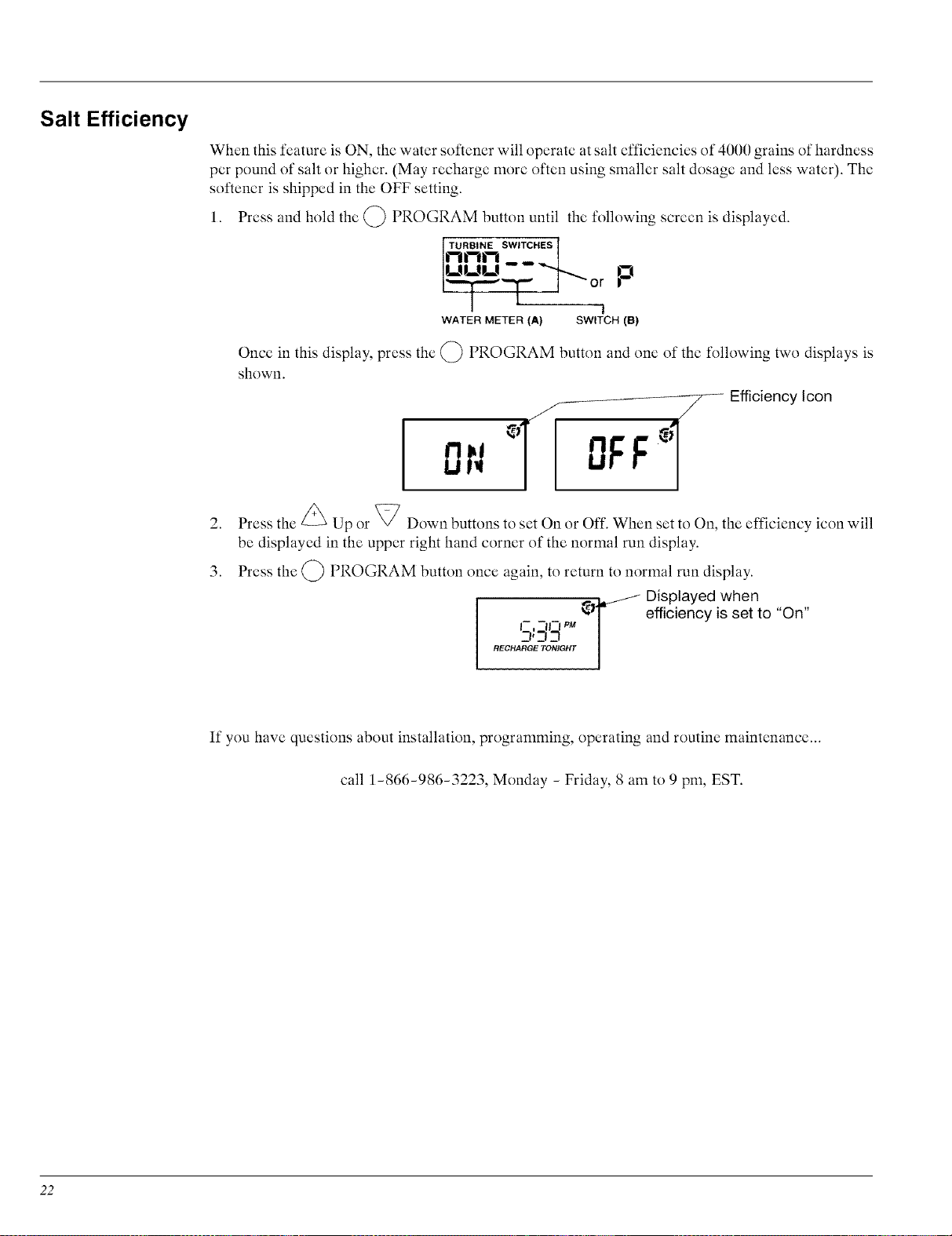

  • Salt Efficiency22

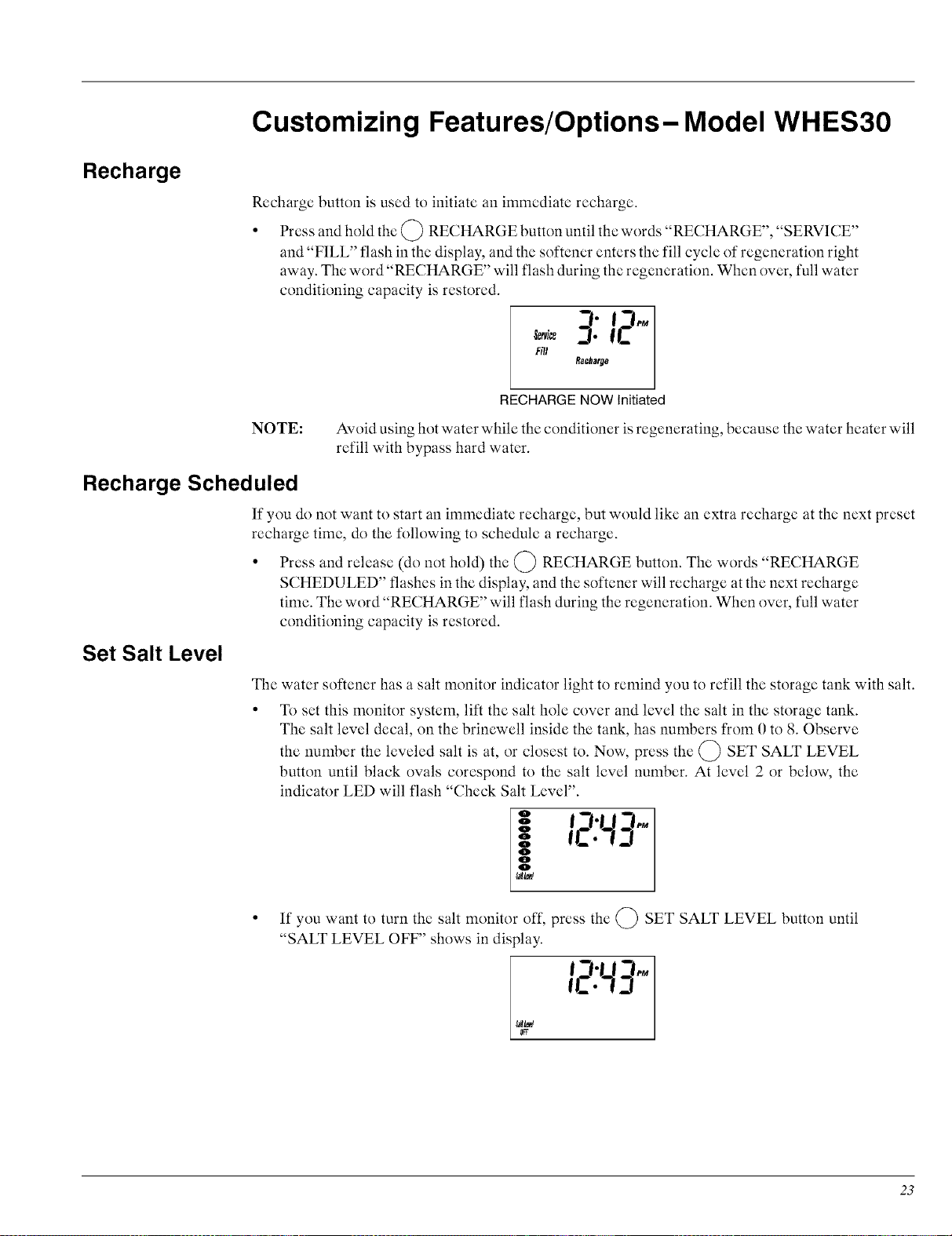

• Customizing Features / Options Model WHES3023
  • Recharge23
  • Recharge Scheduled / Tonight23
  • Set Salt Level23
  • Electronic Control / "Power Outage Memory"24
  • Water Flow Indicator24
  • Salt Efficiency24

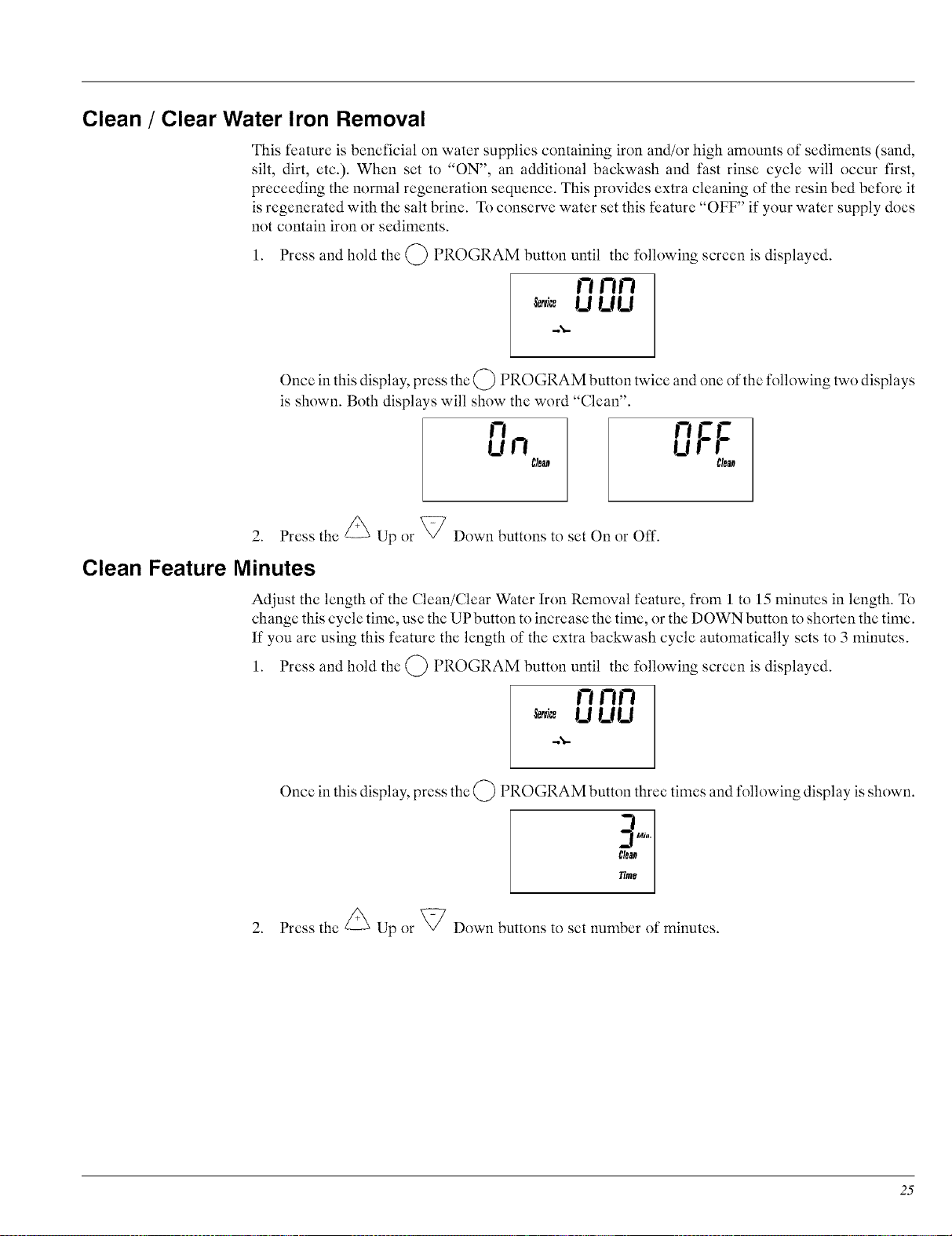

  • Clean / Clear Water Iron Removal25
  • Clean Feature Minutes25

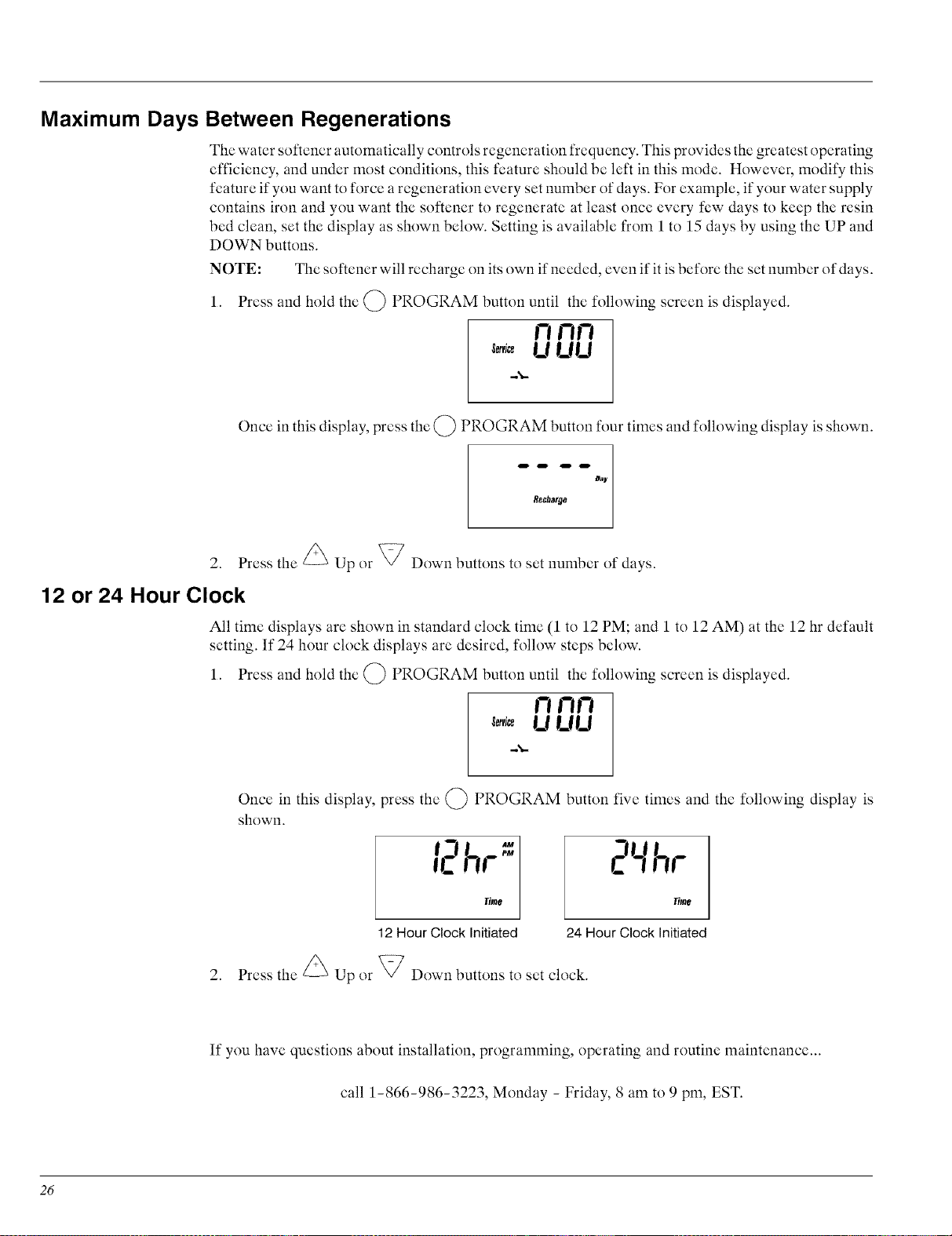

  • Maximum Days Between Regenerations26
  • 12or 24 Hour Clock26
• Routine Maintenance27
  • Refilling With Salt27

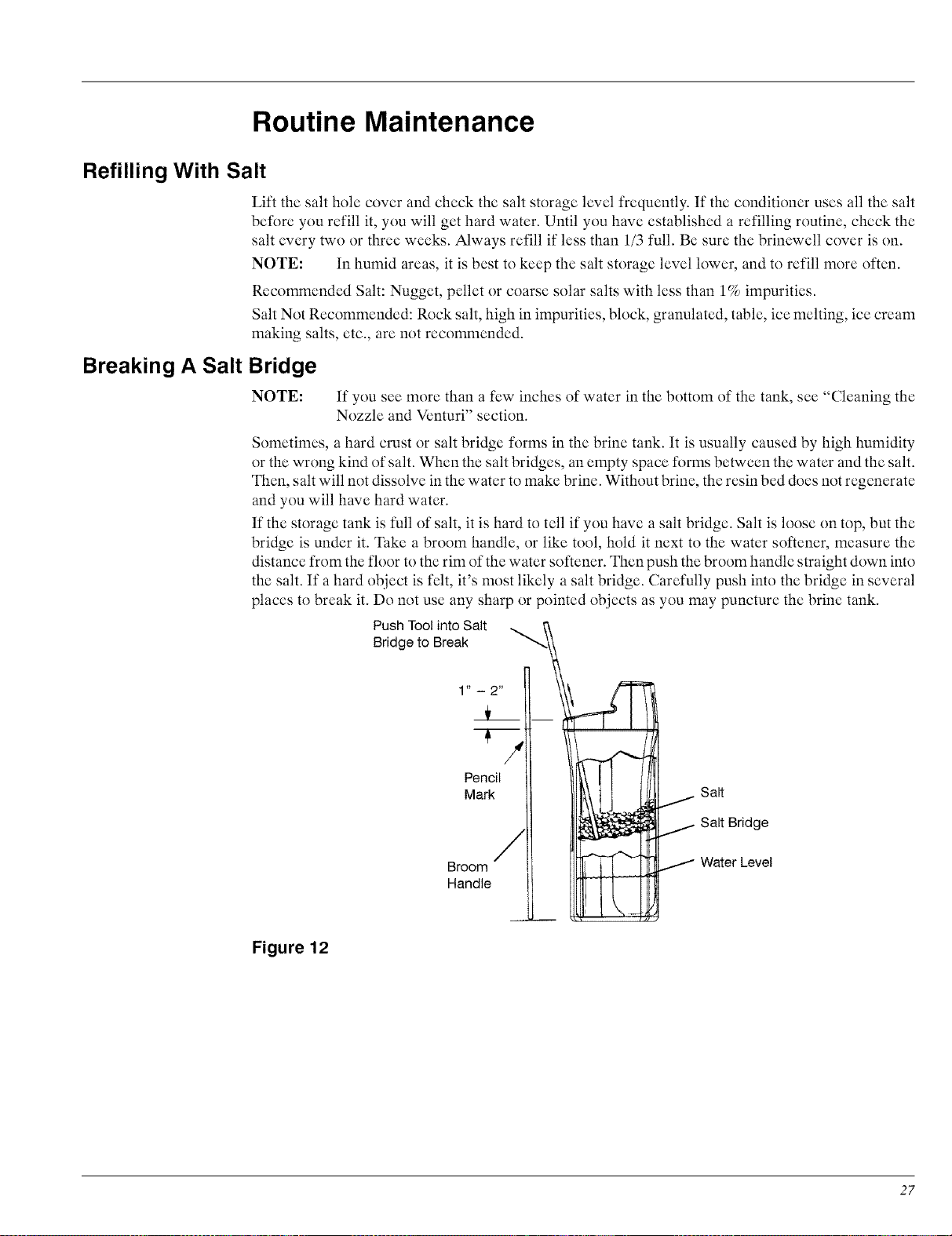

  • Breaking A Salt Bridge27
  • Cleaning The Nozzle And Venturi28
• Troubleshooting Guide29

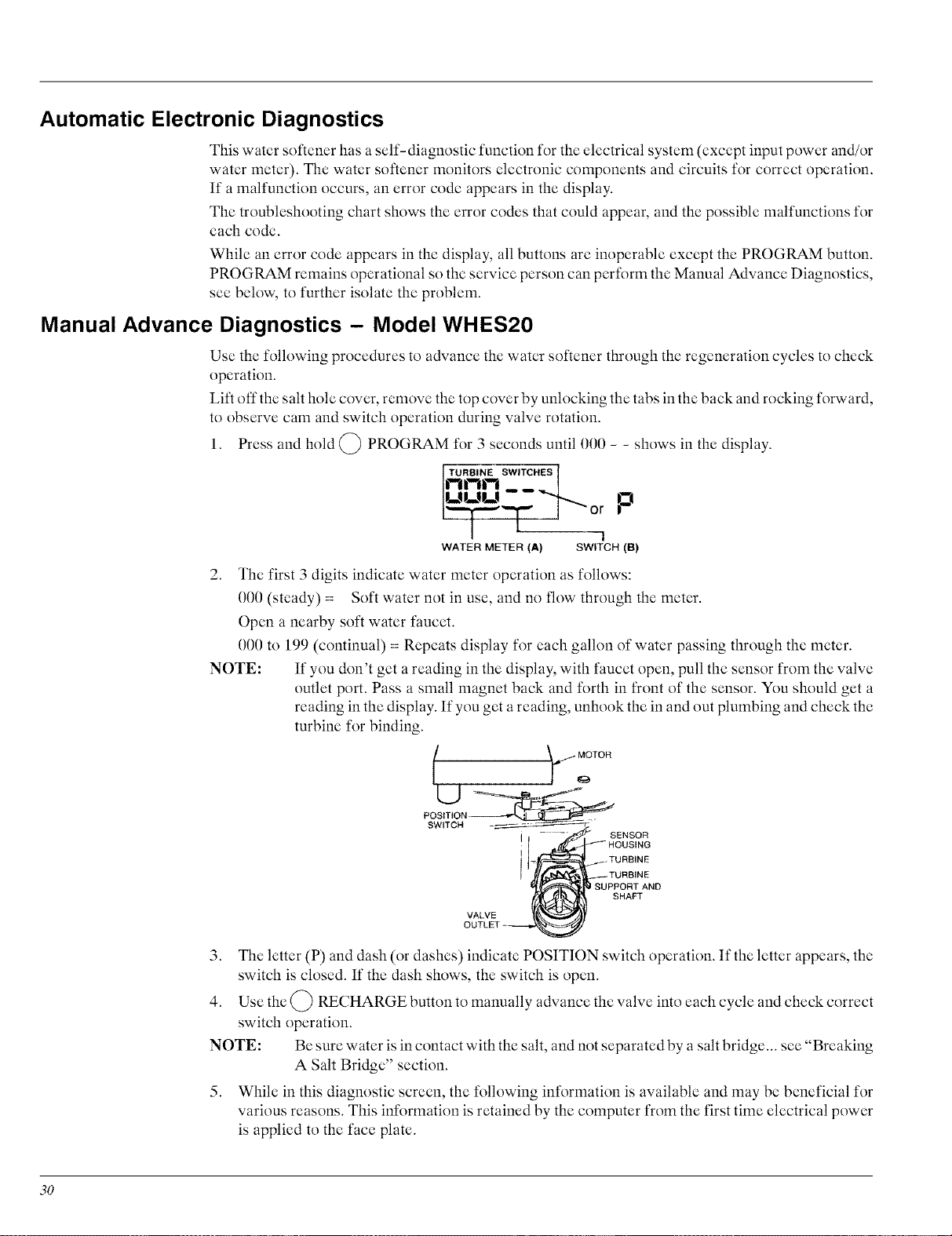

  • Automatic Electronic Diagnostics30
  • Manual Advance Diagnostics Model WHES2030

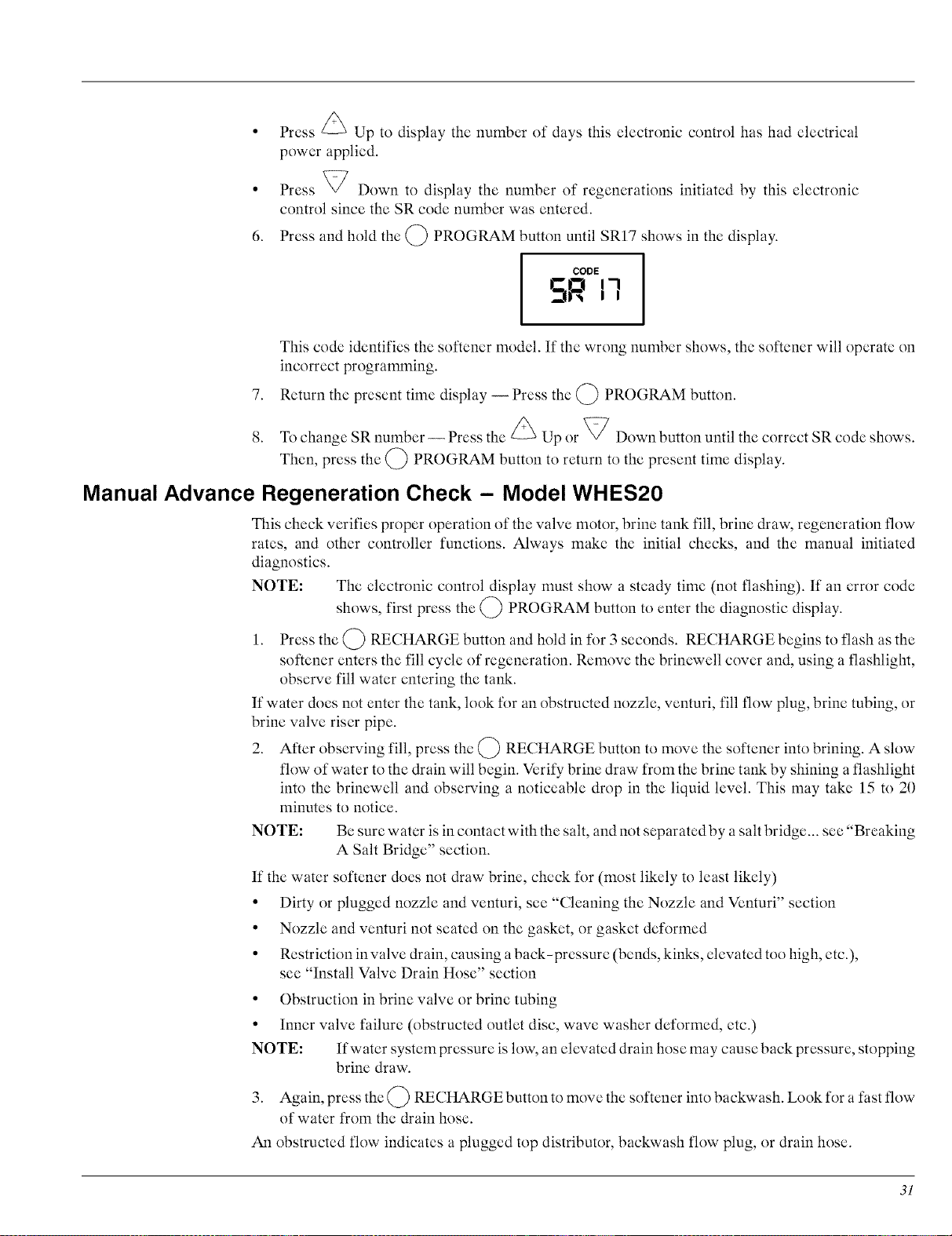

  • Manual Advance Regeneration Check Model WHES2031
  • Manual Advance Diagnostics Model WHES3032
  • Manual Advance Regeneration Check Model WHES3033
• Wiring Schematic35
• Warranty35

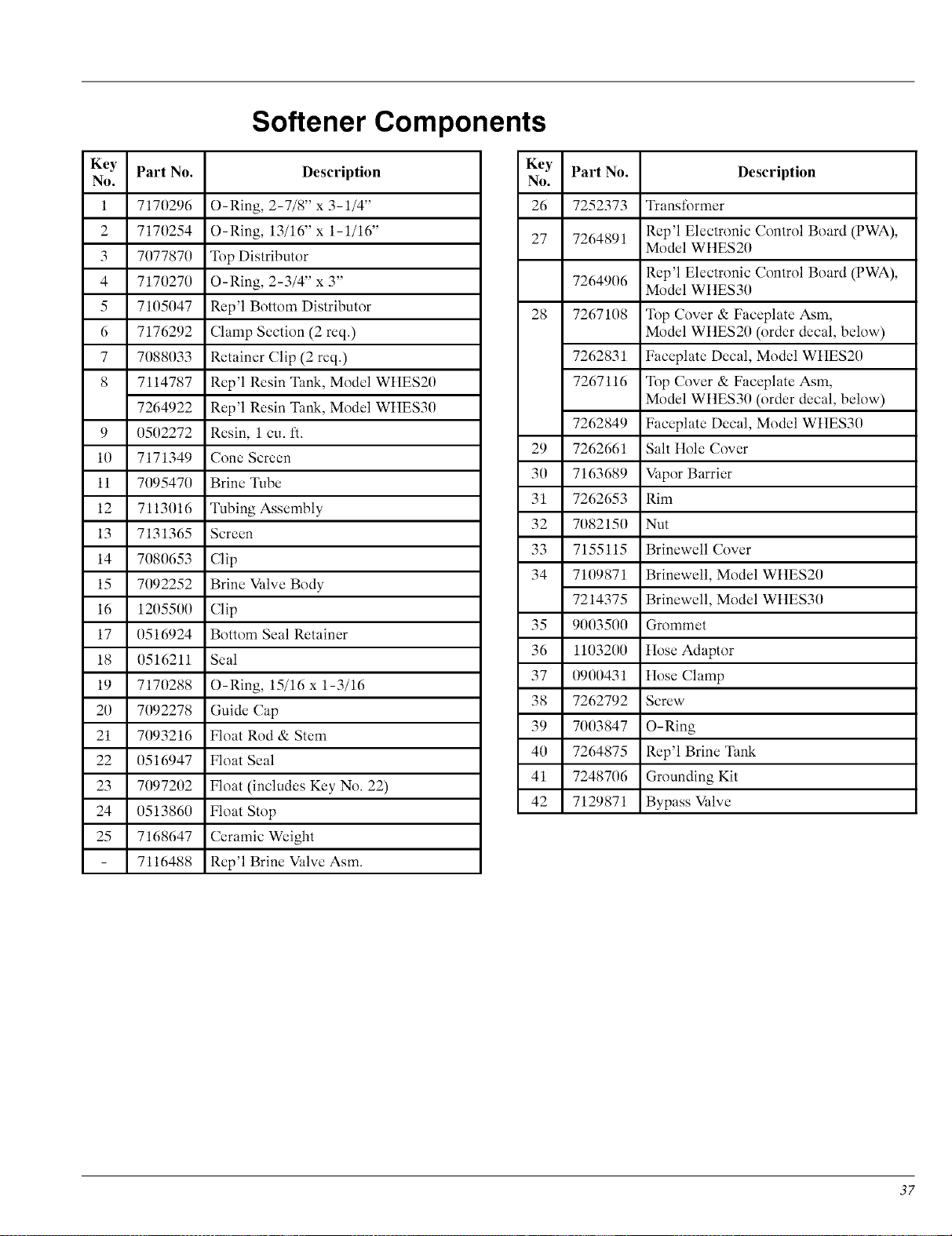

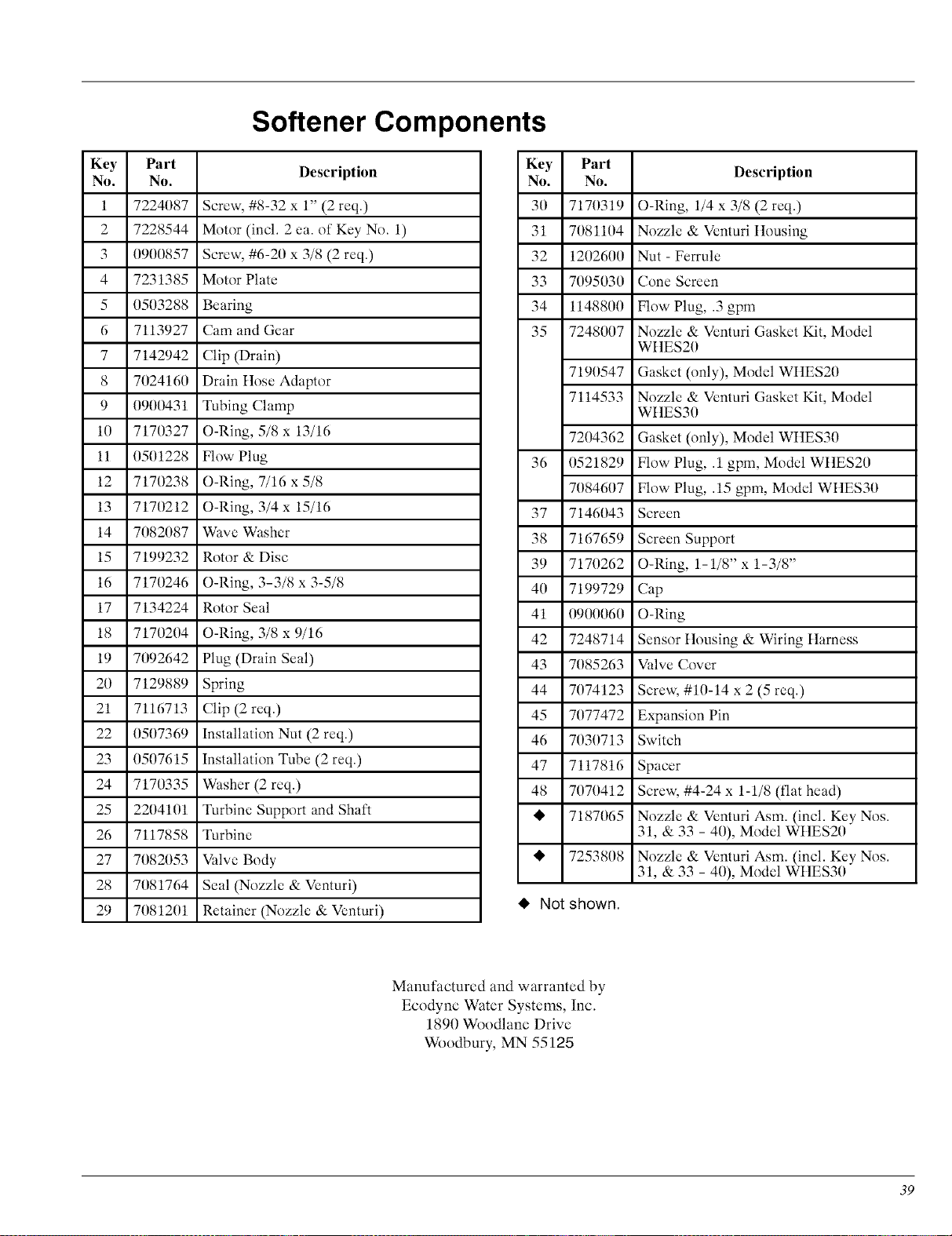

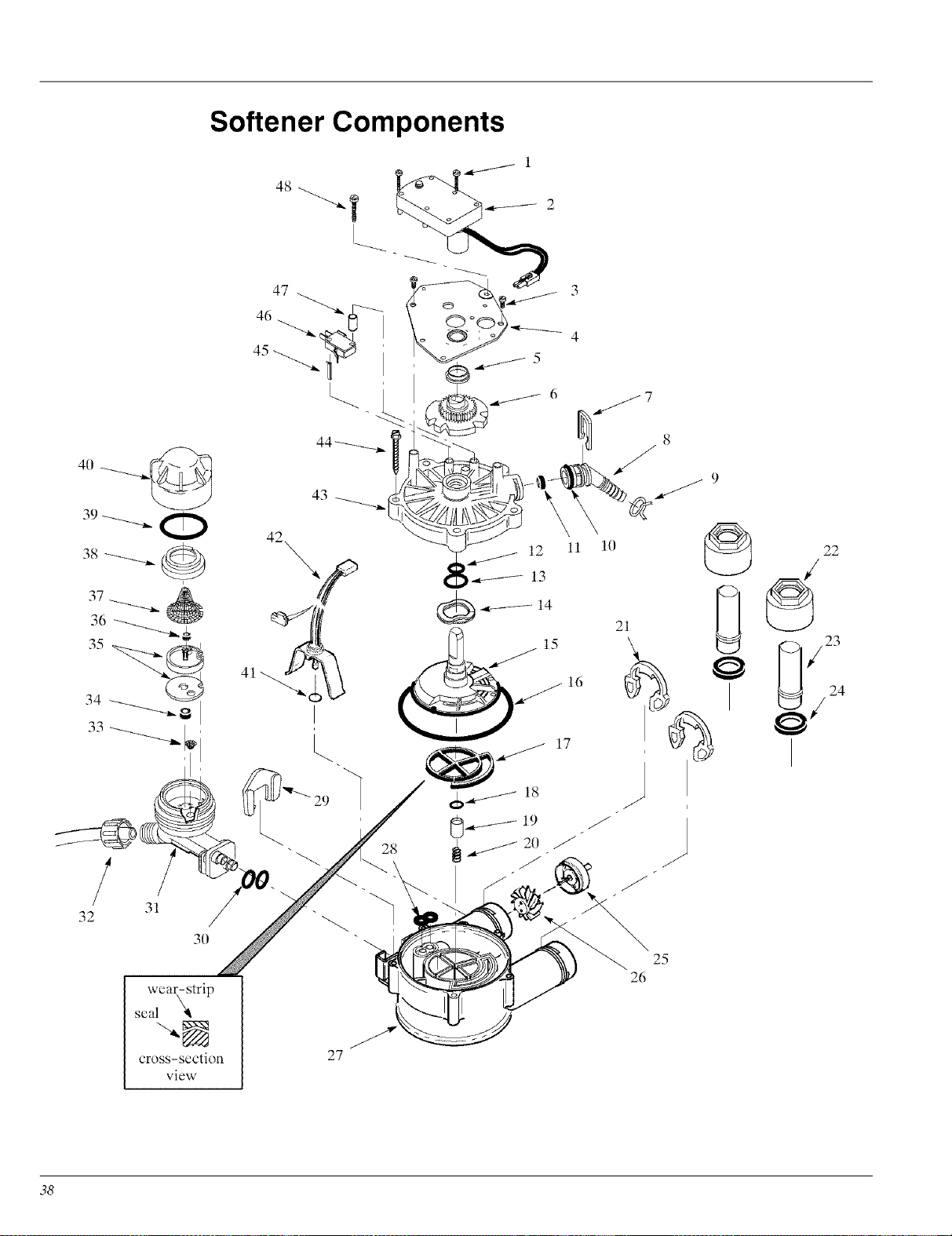

• Softener Components36
