INSTALL EASY CONNECT MOUNTING BRACKET:
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) • 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF
LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S

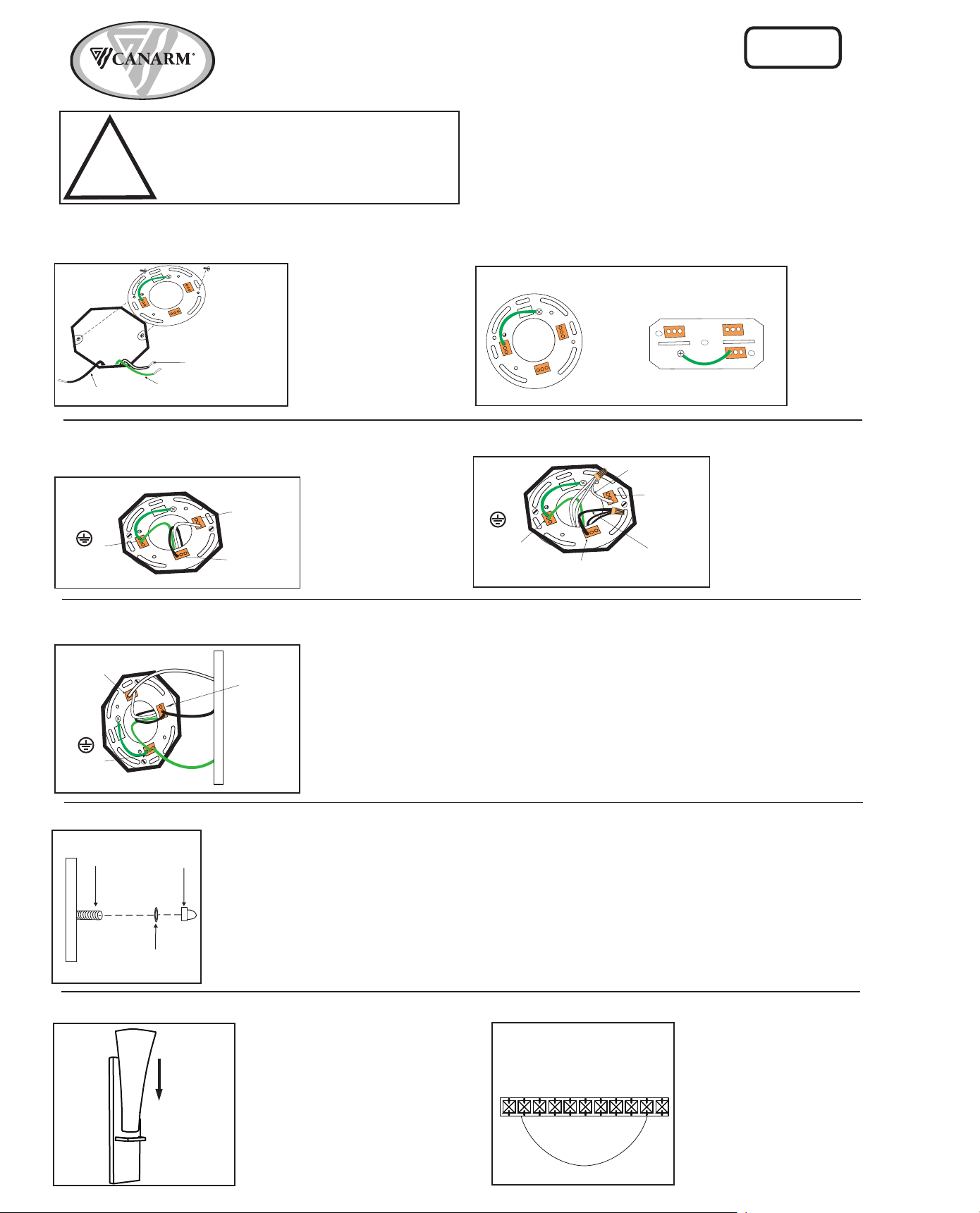

STEP 1
Connect (push) electrical wires from fixture into correct inserts.
Black (live), White (neutral), Green (ground)
EASY CONNECT®
INSTALLATION INSTRUCTIONS
L
N
Light
Fixture
STEP 3
CONNECT LIGHT FIXTURE
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
EW-4
11/14
STEP 4
Tuck electrical wires into outlet box and position fixture over studs or nipple on mounting bracket assembly.
Secure fixture in place with star washer(s) and cap nut(s).
Note: If required, assemble body and spread the arms of the fixture out evenly.
Star
Washer
Stud
Or
Nipple
Cap
Nut
Fixture
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
L
N
L
N
Connect (push) electrical
wires from electric box
(house wiring) into correct
inserts. Black (Live),
White (Neutral),
Green (Ground)
For multiple black (live) &
white (neutral) wires joined
in the electrical box
(house wiring), attach a single
“black” and “white” Jumper Wire
before connecting. Strip 7mm
from a 6” Jumper Wires (AWG 12-24)
supplied. Then connect (push) wires
into correct inserts.
STEP 2 - Option 1
Jumper Wire
Jumper
Wire
Option 2 - MULTIPLE ELECTRICAL BOX WIRES
CONNECT HOUSE WIRES
(L)
Black
(Live)
(L)
Black
(Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
STYLE#1
-
Install proper bulb type and
wattage. Slide the glass down.
Electrical
Box
Black (Live)
White
(Neutral)
Green (Ground)
Attach easy connect
mounting bracket
to electrical box with
electrical box screws
(not included).
Easy Connect
mounting
bracket
L
N
L
N
STYLE #1
STYLE #2
STYLE#2
-
Install specified bulb
type and wattage.
STYLE#2
STYLE#1
NOTE: Product May Not Look Exactly As Shown In Figures.
STEP 5- Optional for some models (
Note: Refer to the style of assembly that matches the style of your fixture.)
