Your new washer dryer
You have chosen a Siemens washer
dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Siemens, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.siemens-
home.bsh-group.com or contact our
after-sales service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use . . . . . . . . . . . . . . . . 4
( Safety instructions . . . . . . . . . . . 4
Children/people/pets . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Environmental protection . . . . . 12
Packaging/used appliance . . . . . . . . 12
Save energy and conserve
resources
. . . . . . . . . . . . . . . . . . . . . 12
5 Positioning and connecting . . . 13
Standard accessories . . . . . . . . . . . . 13
Safety instructions . . . . . . . . . . . . . . . 14

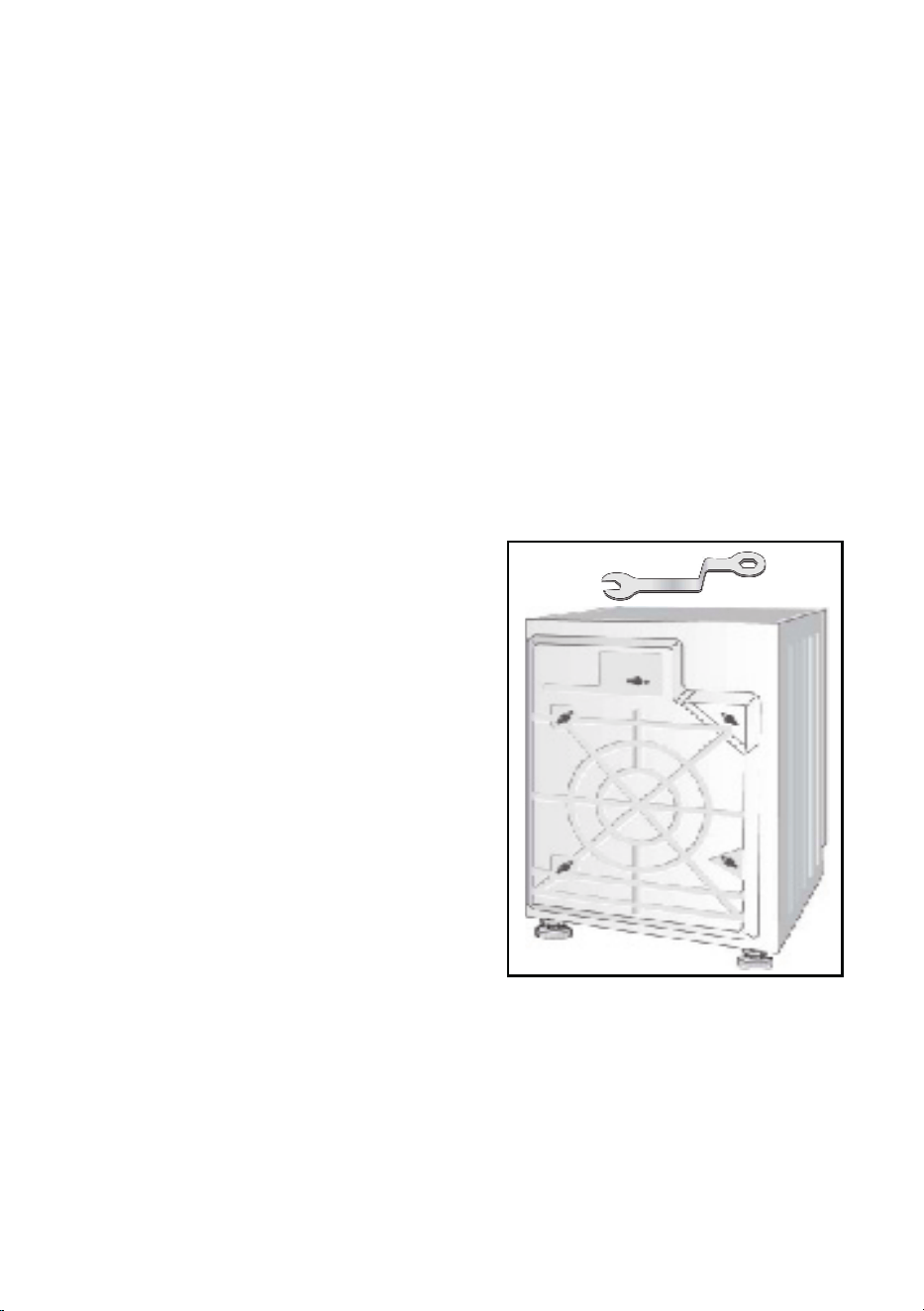

Removing the transport locks . . . . . . 14
Installation surface . . . . . . . . . . . . . . 15
Installation on a base or a wooden
joist floor
. . . . . . . . . . . . . . . . . . . . . . 16
Positioning and levelling . . . . . . . . . . 16
Installing the appliance in
a kitchenette
. . . . . . . . . . . . . . . . . . . 17
Levelling . . . . . . . . . . . . . . . . . . . . . . 18
Fitting the door hinges . . . . . . . . . . . 18

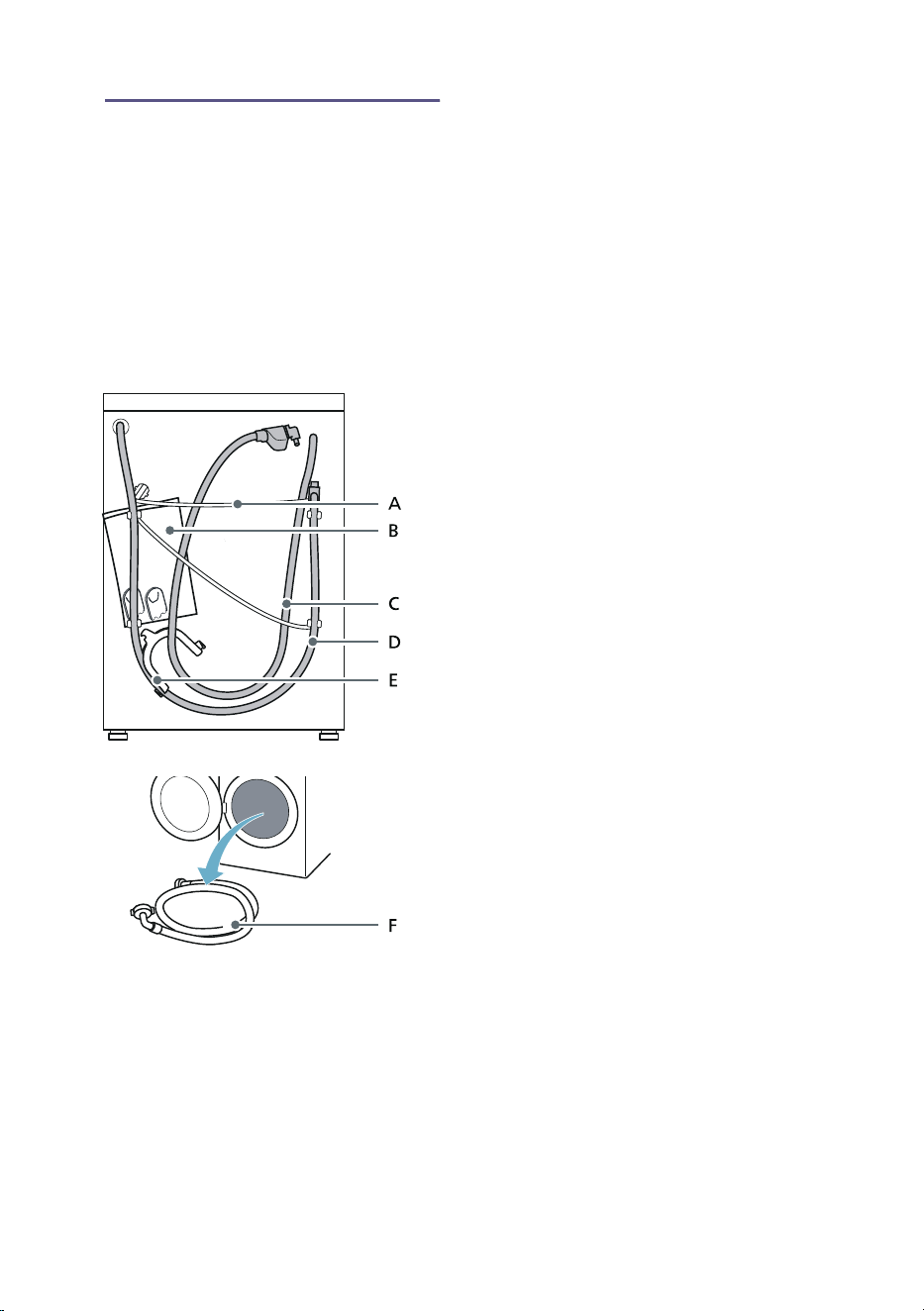

Hose and cable lengths . . . . . . . . . . 19
Water inlet. . . . . . . . . . . . . . . . . . . . . 20
Water outlet. . . . . . . . . . . . . . . . . . . . 21
Electrical connection . . . . . . . . . . . . . 22
Before washing for the first time . . . . 22
Transportation . . . . . . . . . . . . . . . . . . 23
* Getting to know
the appliance
. . . . . . . . . . . . . . .24
Appliance . . . . . . . . . . . . . . . . . . . . . 24

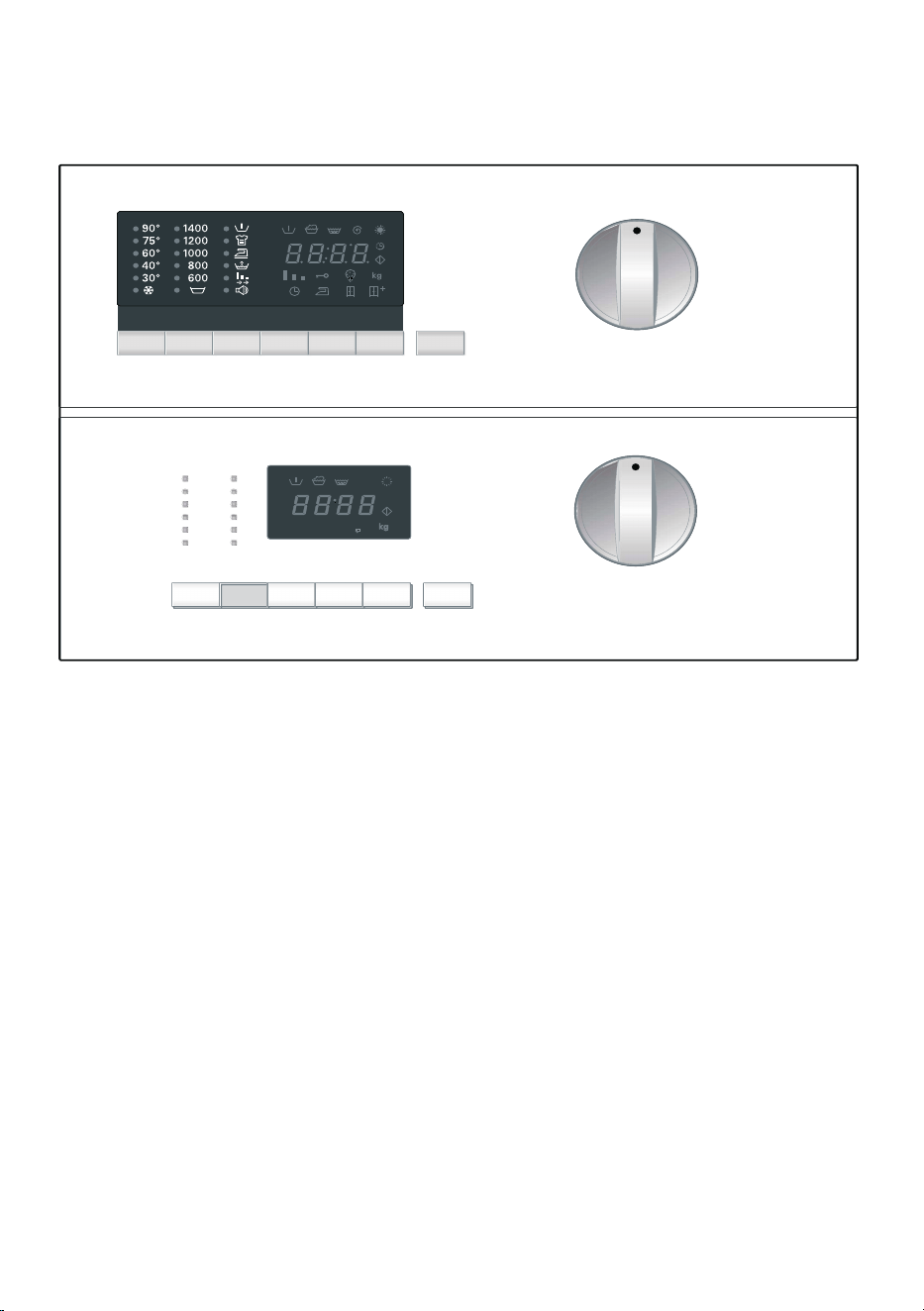

Control panel . . . . . . . . . . . . . . . . . . 25
Z Laundry . . . . . . . . . . . . . . . . . . . 30
Preparing laundry for washing. . . . . . 30
Preparing laundry for drying . . . . . . . 31
C Detergents and care
products
. . . . . . . . . . . . . . . . . . .32
Detergent recommendation. . . . . . . . 33
P Overview of programmes . . . . . 34
Selectable programme * . . . . . . . . . .34
Drying table . . . . . . . . . . . . . . . . . . . .36
Starching . . . . . . . . . . . . . . . . . . . . . .37
Dyeing/bleaching. . . . . . . . . . . . . . . .37
1 Operating the appliance . . . . . .37
Preparing the appliance. . . . . . . . . . .37
Select programme/switch on
the appliance
. . . . . . . . . . . . . . . . . . .38
Placing laundry into the drum . . . . . .38
Dosing and adding detergent and
care products
. . . . . . . . . . . . . . . . . .38
Childproof lock . . . . . . . . . . . . . . . . .40
Removing laundry/switching off
the appliance
. . . . . . . . . . . . . . . . . . .40
H Sensors . . . . . . . . . . . . . . . . . . . .41
Unbalanced load detection system . .41
2 Cleaning and maintenance . . . .41
Appliance housing/control panel . . . .41
Drum . . . . . . . . . . . . . . . . . . . . . . . . .41
Descaling . . . . . . . . . . . . . . . . . . . . .42
Detergent drawer and housing . . . . .42
Drain pump is blocked . . . . . . . . . . .43
The drain hose at the siphon
is blocked
. . . . . . . . . . . . . . . . . . . . .44
Filter in the water supply
is blocked
. . . . . . . . . . . . . . . . . . . . .44
3 Faults and what to do
about them
. . . . . . . . . . . . . . . . 45
Emergency release . . . . . . . . . . . . . .45
Information on the display panel . . . .46
Faults and what to do about them . . .46
4 Customer Service. . . . . . . . . . . .50
Product number (E-Nr.)
and production number (FD)
. . . . . . .50
[ Consumption values . . . . . . . . .51
J Technical data . . . . . . . . . . . . . .53
r Aqua-Stop warranty . . . . . . . . . .53
en Intended use
4
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
( Safety instructions
Safety instructi ons
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
Safety instructions en
5
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
en Safety instructions
6
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
Safety instructions en
7
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
50 kPa (0,5 bar), and does
not exceed 900 kPa (9 bar).
Material damage/damage to the appliance
■ If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
en Safety instructions
8
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ Laundry that has been
pretreated with cleaning
agents that contain solvents,
e.g. stain remover/cleaning
solvent, may cause an
explosion in the drum.
Rinse the laundry thoroughly
with water before washing it
in the machine.
Risk of explosions/fire!
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
Safety instructions en
9
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
en Safety instructions
10
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Material damage/damage to the appliance
■ The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a
circuit that is regularly
switched on and off by a
utility.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
Safety instructions en
11
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
en Environmental protection
12
7 Environmental
protection
Environmental protecti on
Packaging/used appliance
Save energy and conserve
resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low
temperatures and longer wash times
and use maximum load capacity
~ Page 34.
■ Energy consumption and water
consumption is most efficient.
Use the economy programme settings.
■ If you adjust the programme settings
for a programme, the display shows
the expected consumption.
Add ~ Page 33 detergent based on
the laundry’s degree of soiling.
■ For light to normal soiling, a smaller
amount of detergent is sufficient.
Observe the dosage
recommendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
■ At low temperatures, the appliance
consumes less energy. For light to
normal soiling, lower temperatures
than indicated on the care label are
also sufficient.
Set the maximum spin speed if you
want to dry the laundry in a tumble dryer
afterwards.
■ The drier the laundry, the shorter the
programme duration when drying
which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in the
laundry and increases the volume of
the spin noise.
Wash the laundry without prewash.
■ Washing with prewash increases the
programme duration and increases
energy and water consumption.
The appliance has a continuous
automatic load adjustment function.
■ Depending on the type of fabric and
load capacity, the continuous
automatic load adjustment function
optimally adjusts the water
consumption and programme
duration.
)
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
Positioning and connecting en
13
5 Positioning and
connecting
Positioning and connecting
Standard accessories
Note: Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
Customer Service.
Included with the appliance
Useful tool
■ Wrench for loosening the transport
bolts and aligning the appliance feet
■ Wrench with:
– WAF13 for loosening the
transport braces and
– WAF17 for aligning the appliance
feet
A Mains lead
B Bag*:
■ Installation and operating
instructions
■ Customer Service location
directory*
■ Warranty*
■ Supplementary sheet for the
installation and operating
instructions*
■ Cover caps for openings after
the transport braces have
been removed
C Water inlet hose on aquaStop
models
D Water outlet hose
E* Ellbow to securing the water
outlet hose
F Cold water inlet hose on
Standard/Aqua-Secure models
* Depending on the model
Num
ber
Description
5 Covers for openings left after
removing the transport bolts.
1 Spanner
1 24-40 mm dia. hose clamp for
connection to a siphon
1 Door template
2 Door hinges with screws
en Positioning and connecting
14
Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Be careful when lifting/transporting
the appliance.
■ When the appliance is lifted by its
protruding parts (e.g. the appliance
door), the components may break
off and cause injuries.
Do not lift the appliance by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the appliance in areas
exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.

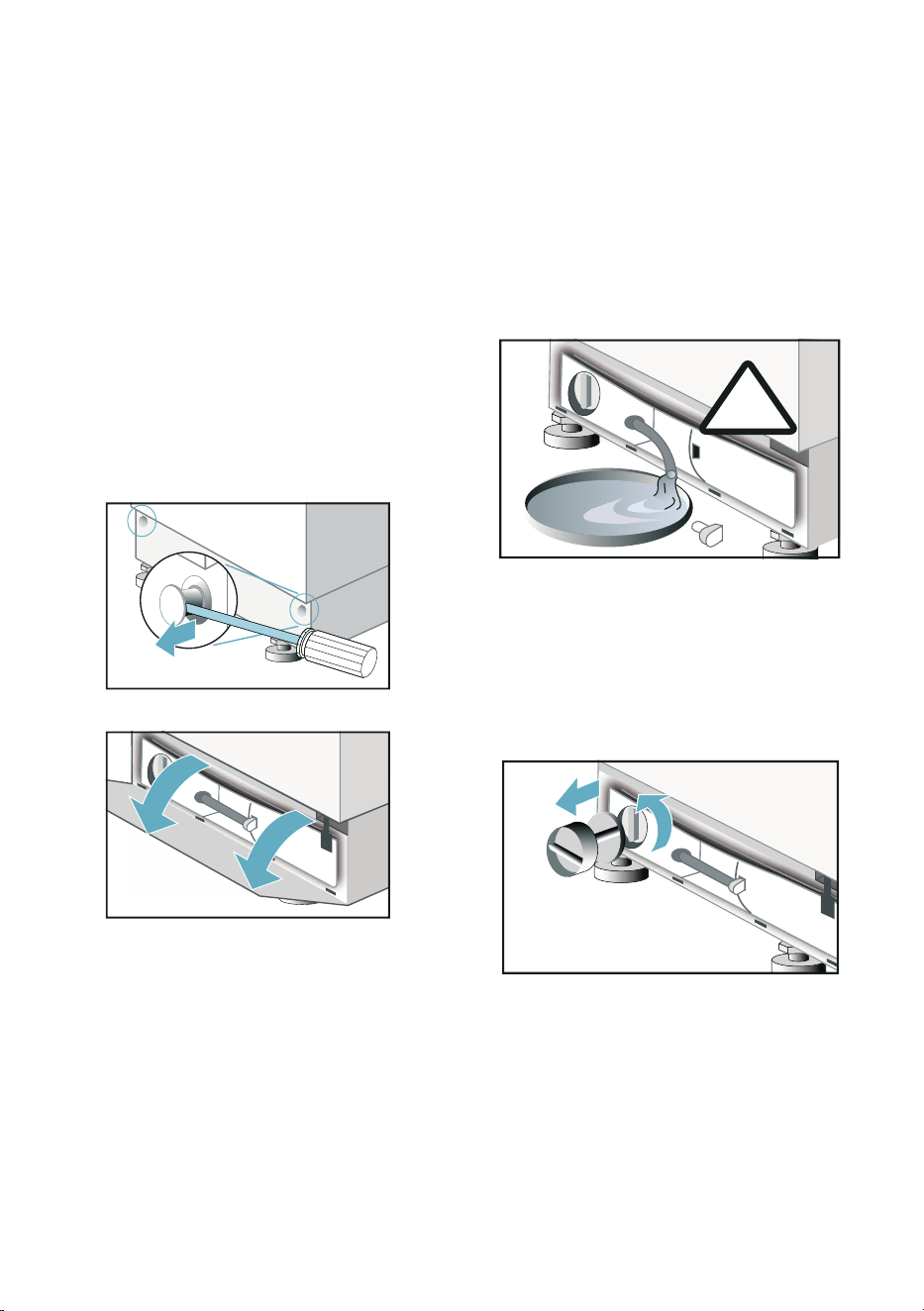

Removing the transport locks
Caution!
Damage to the appliance
■ The appliance is secured for
transportation using transport locks.
If the transport locks are not
removed, the appliance may
become damaged when it is
operated.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.
Positioning and connecting en
15

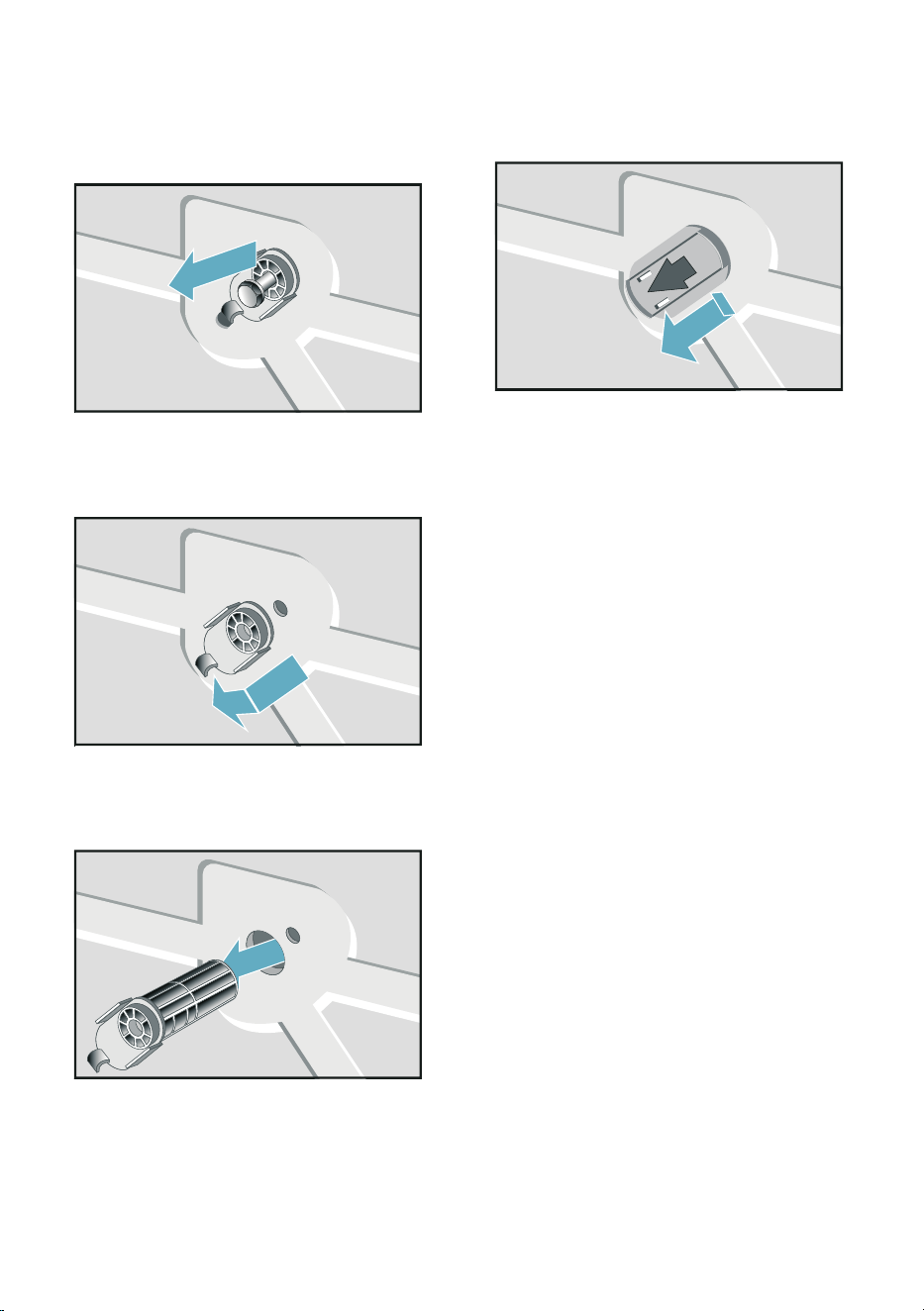

1. Unscrew all screws usingthe
spanner supplied.
– Remove all transport safety bolts
completely
– take the mains cable out of the
retainers
2. Insert the protectivecovers..
Notes
■ Before using the appliance for the
first time, make sure that all transport
safety bolts have been removed and
kept safe for any subsequent
transport.
■ If you need to transport the
appliance at alater date, always refit
the transport safetybolts to prevent
damage to the washerdryer.
Installation surface
Note: The appliance must be stable
aligned so that it does not move
around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
en Positioning and connecting
16
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may damage to the
appliance and kitchen furniture when
spinning.
Note: On wooden joist floors, install the
appliance:
■ The feet of the appliance must be
secured,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Positioning and levelling
Caution!
Appliance stability is essential to ensure
that the washer-dryer does not “creep”
during spin cycles.
The installation area must be firm, clean
and level.
Parquet floors and soft floor coverings,
e.g. carpets or foam-backed floor
coverings, are unsuitable.
Positioning and connecting en
17

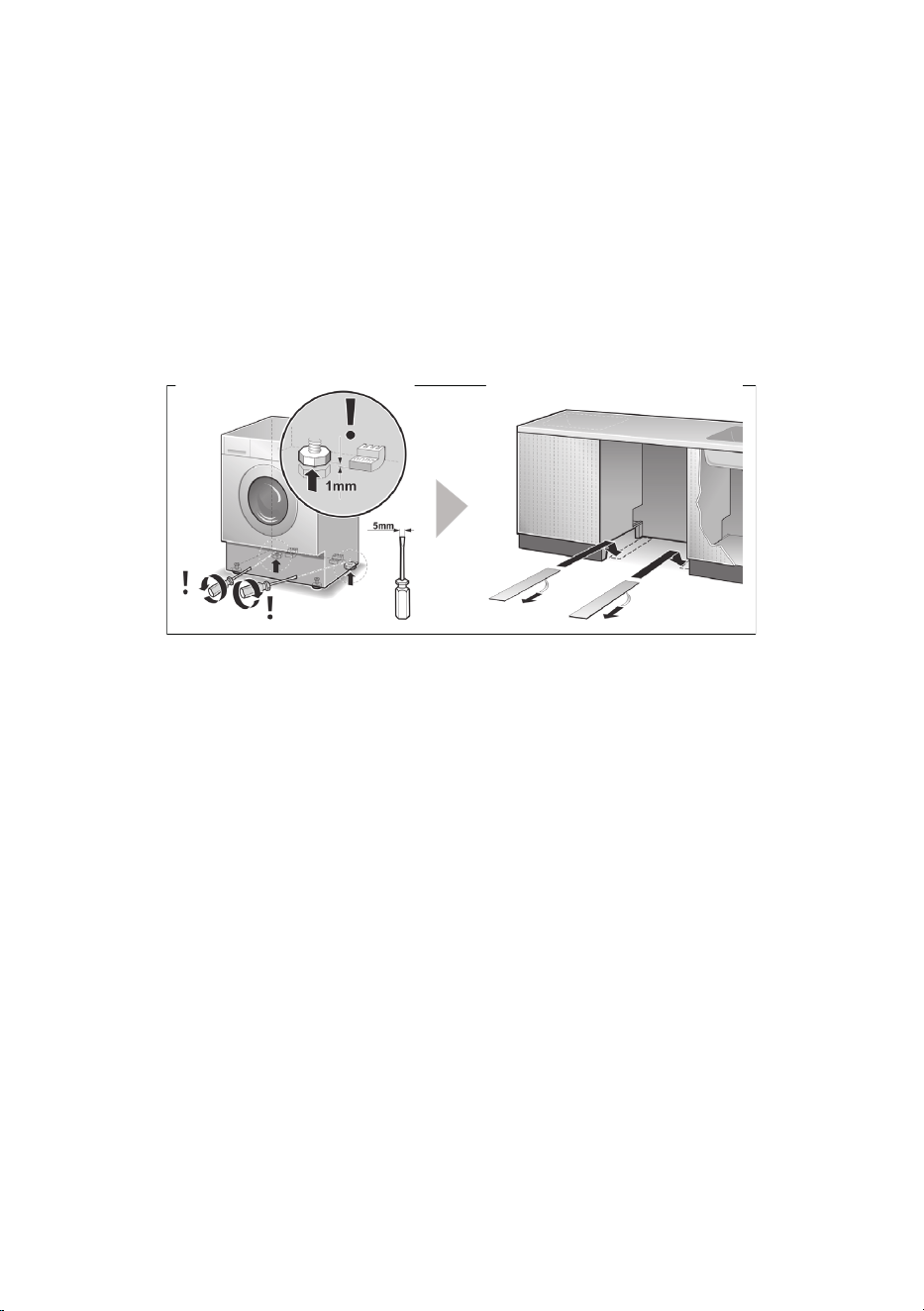

Installing the appliance in a kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you touch live components.
Do not remove the appliance covering plate.
Notes
■ Recess width of 60 cm required.
■ Only install the appliance underneath a continuous worktop that is securely
connected to adjacent cabinets
Slide sheets make it easier to slide the washing machine into the installation recess.
Notes
■ Can be ordered from the after-sales service, spare part no. 66 1827.
■ Moisten the slide sheets with a mixture of water and washing-up liquid before
sliding the washer-dryer into place. Do not use grease and/or oil.
en Positioning and connecting
18

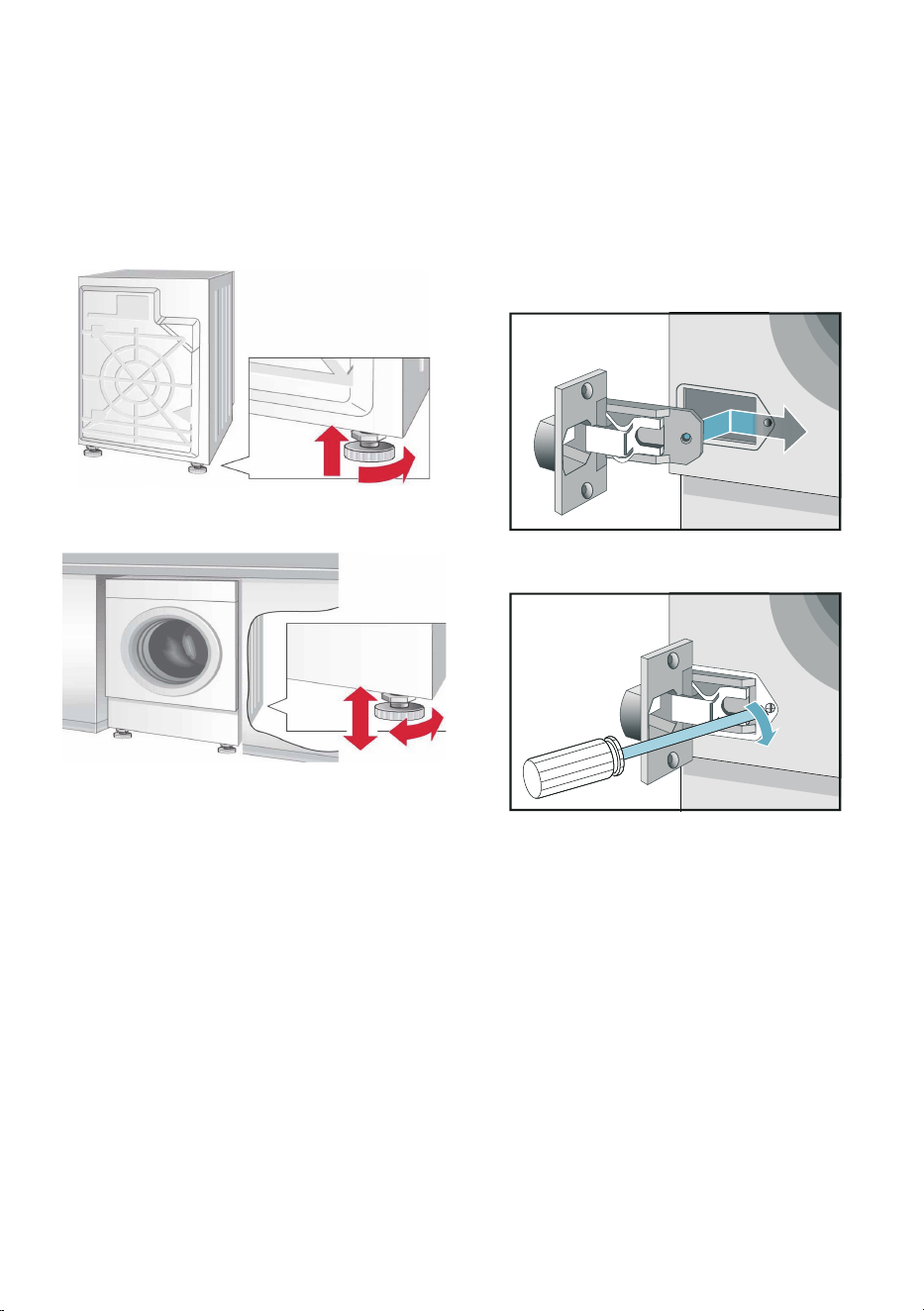

Levelling
Caution!
Intense noise, vibrations and wandering
may be the result of incorrect levelling.
Notes
■ All four appliance feet must stand
firmly on the ground.
■ The washer-dryer must not wobble.
■ Check the levelness of the washer-
dryer with a spirit level and correct if
necessary.
■ The washer-dryer must not rest
against the sides of the installation
recess.
■ The lock nuts of the front appliance
feet must be screwed tightly against
the housing.
Fitting the door hinges
Caution!
Once the washer-dryer has been instlled
in a kitchen unit, it can be concealed
with a door. Hinges supplied to the
washer-dryer must be fitted.
Positioning and connecting en
19

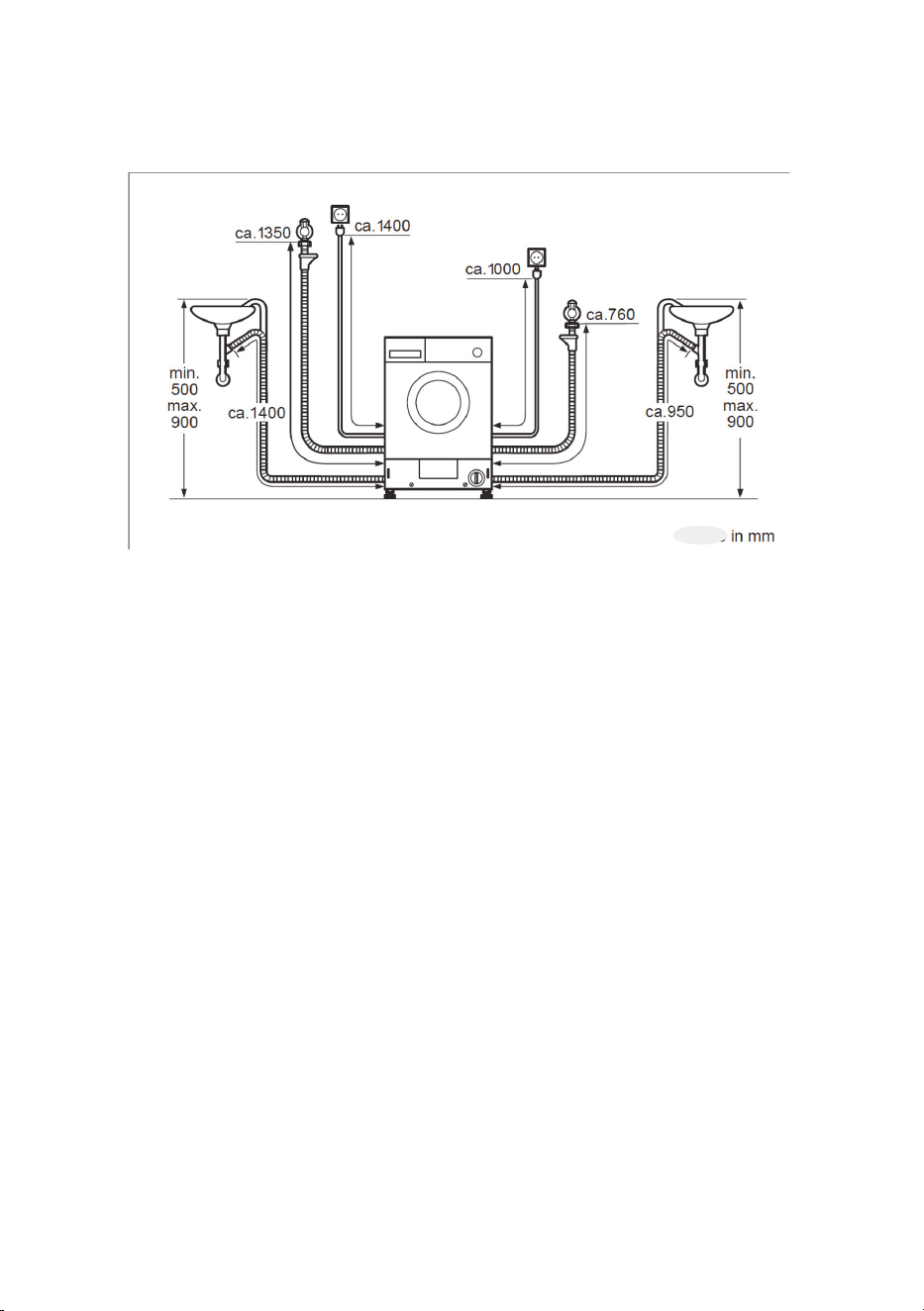

Hose and cable lengths
Connection on left side or connection on right side
Note:
If the supply hose is too short for your connection, you can order an extension from
the after-sales service.
en Positioning and connecting
20
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve* in water (it contains an electric
valve).
* Depending on the model
Observe the following when connecting
the appliance:
Notes
■ Only operate the appliance using
cold mains water.
■ Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 50 kPa (0,5 bar)
Maximum 900 kPa (9 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Caution!
Water damage
When water is being pumped away, the
outlet hose is under water pressure and
may slip out of the wash basin or
connection point. Secure the drain hose
so that it cannot slip out.

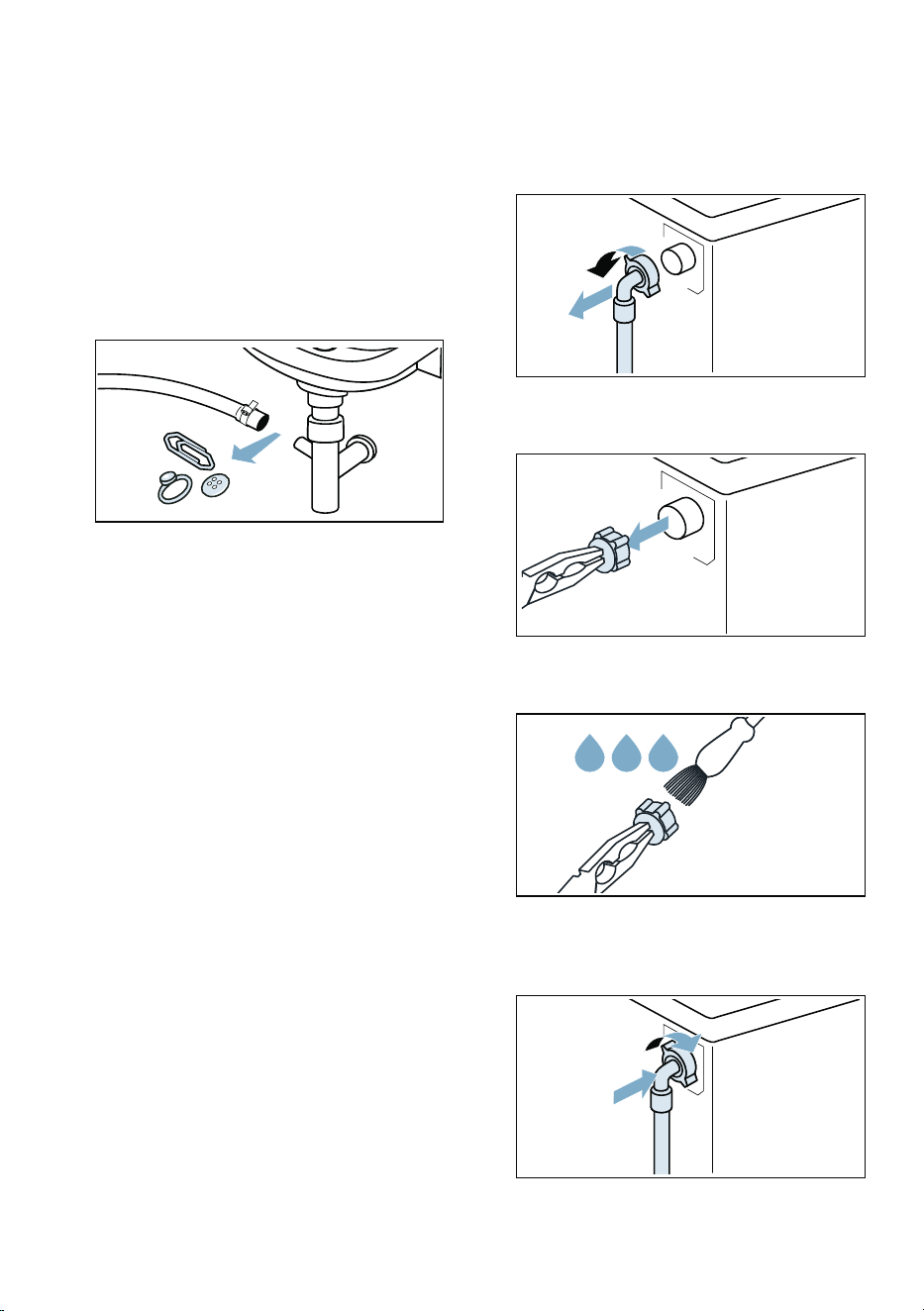

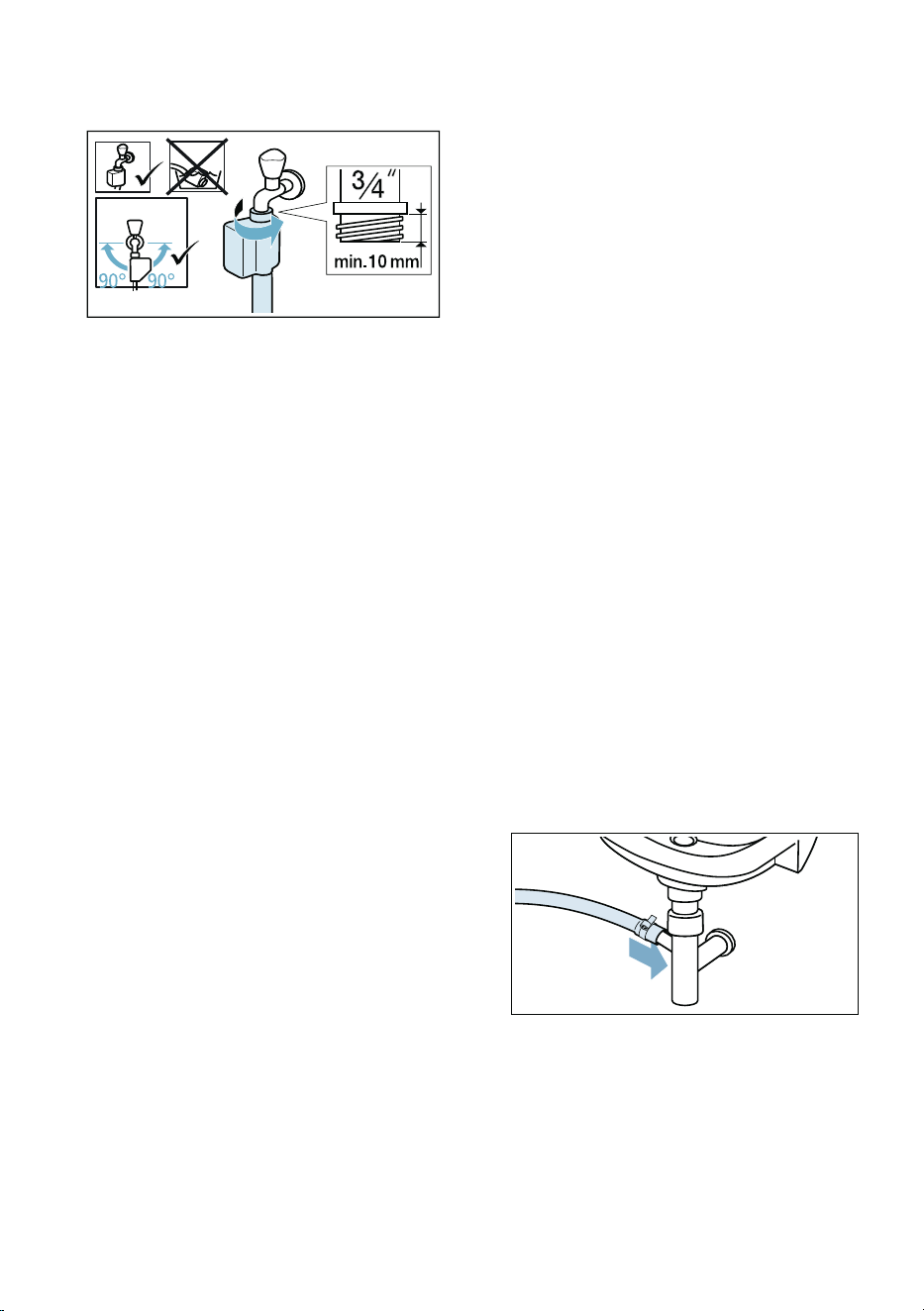

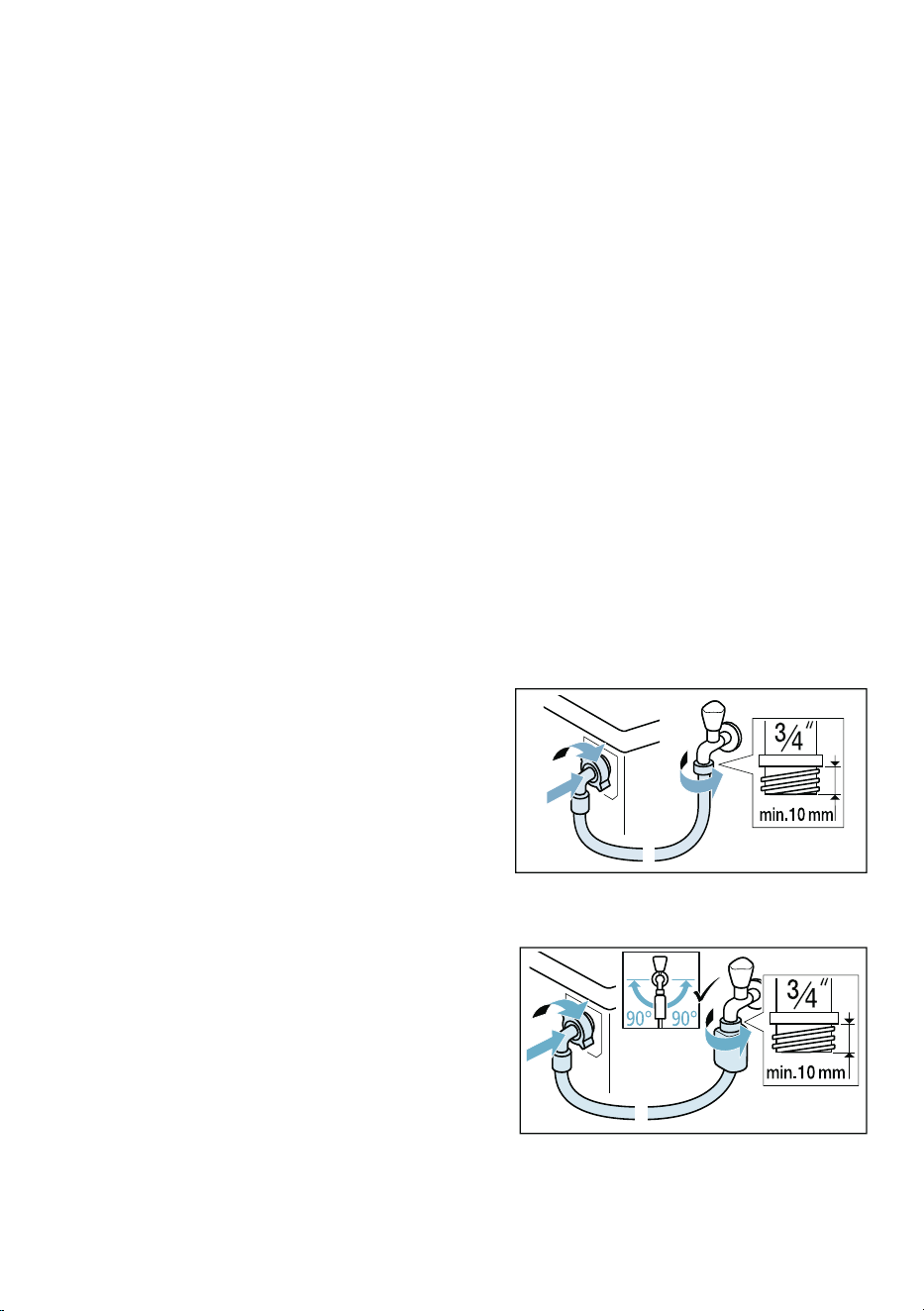

Connection
1. Connect the water supply hose to
the water tap (¾" = 26.4 mm) and to
the appliance (*depending on the
model):
– Model: Standard*
– Model: AquaSecure*
Positioning and connecting en
21
– Model: Aqua-Stop*
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.
2. Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■ The end of the drain hose is not
immersed in the drained water.
■ The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.
Connection
■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24 - 40 mm (inside
accessory).
en Positioning and connecting
22
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The appliance is only connected to
an alternating current via a properly
installed earthed socket.
■ The mains plug fits the socket.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug can be accessed at
all times.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
Before washing for the first
time
The appliance was inspected
thoroughly before leaving the factory. To
remove any residual test water, run
Cottons 60°C programme the first time
without laundry.
Note:
■ The appliance must have been
installed and connected properly.
~ "Positioning and connecting"
on page 13
■ Never switch on a damaged
appliance.
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any
laundry.
4. Select theCottons 60°C programme.
5. Open the detergent drawer.
6. Add standard detergent to
dispenser II according
to manufacturer’s instructions for
light soiling.
Note: To prevent over sudsing, use
only half the recommended amount
of detergent. Do not use any
woollens or mild detergents.
7. Close the detergent drawer.
8. Select I.
9. When the programme ends, turn the
dial to the Off position and open the
door.
Your appliance is now ready for use.
Positioning and connecting en
23
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose. ~ Page 44
3. Drain any residual water.
~ Page 43
4. Disconnect the appliance from the
mains.
5. Remove the hoses.
6. Empty the dispensers.
~ "Detergent drawer and housing"
on page 42
Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Note: Use a screwdriver if
necessary.
2. Insert all four sleeves.
a) Clip the mains cable securely in
the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the
holders.
Before switching on the appliance
again:
Note: The transport bolts must be
removed.
en Getting to know the appliance
24

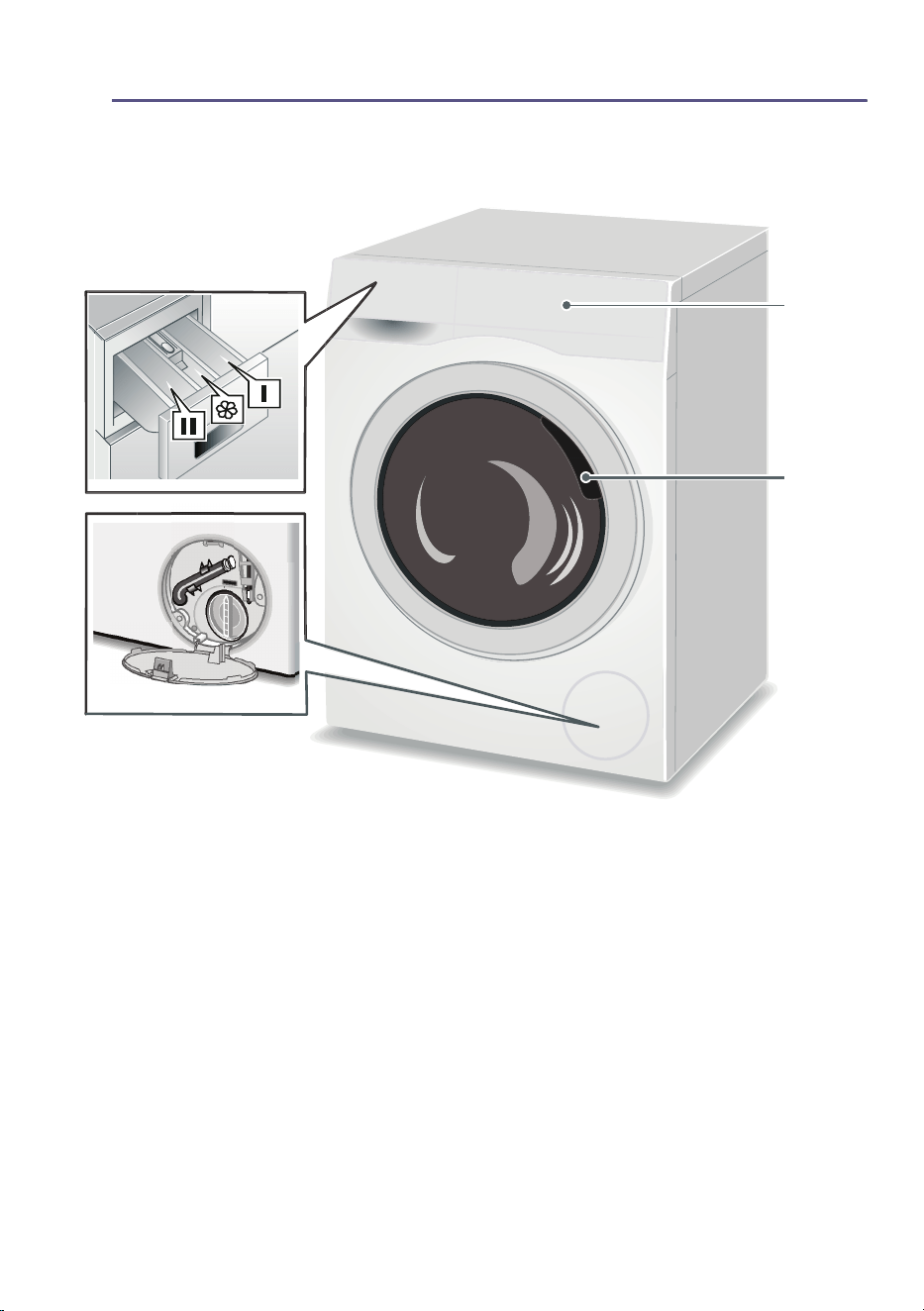

* Getting to know the appliance
Getti ng to know the appliance
Appliance
#
( Detergent drawer
0 Operating/display panel
8 Loading door
@ Service flap
Getting to know the appliance en
25
Control panel
#
#
( Indicator lamp*
Indicates the settings that have
beenselected for:
■ Temperature Ž 90°C
■ Spin speed 1400 rpm.
■ Options/signal
0 Display Panel*
Shows the settings that have been
selected (e.g. spin speed, drying
time), the progress of the current
programme and the programme
status.
■ Programme progress:
s(Prewash)
ß(Main Wash)
à(Rinse)
¹(Final Spin)
(Drying)‘
■ Drying options:
5 (Time-controlled drying)
P (Iron-damp)
»(Cupboard dry)
¾(Extra-dry)
■ Auxiliary displays:
¾(Finished in time)
# (programme start)
w (Childproof lock)
W (Fluff removal cycle)
kg(reccomended load)
en Getting to know the appliance
26
8 Buttons*
■ Temperature Ž °C: individual
adjustment of the washing
temperature.
■ Spin speed : individual
adjustment of the spin speed.
■ Options button: sets washing
options.
■ Set: activation/deactivation of
the selected washing options.
■ Finished In delays the
Programme start.
■ Drying‘ : sets the drying
options
Start/Pause I starts and stops
the washing programme.
@ Programme selector*
For switching the washer-dryer on
and off and for selecting the
programme, can be turned in both
directions. Do not adjust the
programme selector while
washing/drying is in progress.
* Depending on the model.
Getting to know the appliance en
27
Options
Option Description
s(Prewash) Prewash at 35 °C. Suitable for
heavily soiled laundry.
Spin speed The spin speed can be individu-
ally adjusted for each pro-
gramme.To set the spin speed,
press the B (Spin) button repeat-
edly until therequired spin speed
is displayed.
Rinse holdà Deactivates the spin function. The
laundry remains in therinsing
water.
Intensive Prolonged washing time. Suitable
for particularly heavily soiled laun-
drywith dried-on stains. Cannot be
combined with Flexi Time
Easy-iron5 Special spin sequence with sub-
sequent fluffing. Gentle final spin
atreduced speed. Slightly
increased residual moisture in the
laundry.Reduces creasing and
laundry is easier to iron.
Water
plusÒ
Increased water level and addi-
tional rinse cycle. For regions with
very softwater or for further
improving the rinsing result. Any
detergent residuesare removed.
Flexi Time Sets the washing time. normal-
medium-short.
SignalC Activates or deactivates the audi-
ble signal.
Finished In You can postpone Programme
start before it begins. Using the
Remainingtime, you can deter-
mine when the selected pro-
gramme is to end. Theremaining
time can be set in one-hour incre-
ments, up to a maximum of24
hours. Press the 0 (Finished in)
button repeatedly until the
requirednumber of hours is dis-
played.Then press the A (Start/
Pause) button, the programme
will start after adelay according to
the set Remaining time. The
required time to the endof the pro-
gramme is shown on the display
panel..
Option Description
en Getting to know the appliance
28
Drying options
Option Description
Drying Button The drying programmes can be
individually adapted byselecting
the drying options.– Press the
Drying button repeatedly until the
required drying option is shown
on the display panel.– To deacti-
vate, press the Drying button
repeatedly until 00:00 is shown
on the display.
5 (Time-con-
trolled drying)
The drying time can be set to
between 2:40 and 0:00 by
repeatedly pressing theDrying
button.
P (Iron-
damp)
The residual moisture in the
washing is increased. Enables
easier ironing..
»(Cupboard
dry)
The laundry is dry and ready to
put away
¾(Extra-dry) The laundry is dried intensively.
Suitable for laundry that is hard to
dry.
The laundry is
dry and ready
to put away
The laundry is dried intensively.
Suitable for laundry that is hard to
dry.
Washing only
■ Turn the programme selector
to the desired
programme,e.g.Cottons 60°C
– The display panel
alternately shows
Remaining time and the
recommended load inkg
■ If necessary, adjust the
temperature and the spin
speed and select any options
for your individualised
programme.
–
The ‘ (Drying) function
must not be activated.
■ Load the laundry.
– Observe the maximum
load.
– Programme table.
■ Press theStart/Pause I
– Remaining time is shown
on the display panel
– The washing programme
starts.
Drying only
■ Turn the programme selector
to the desired drying
programme
– The display panel
alternately shows
Remaining time and the
recommended load in kg.
■ Press the ‘ (Drying)button to
set the drying options.
– If you do not make a
selection, the»(Cupboard
dry)option is set.
■ Load the laundry.
– Observe the maximum
load.
– Programme table.
Getting to know the appliance en
29
Washing and drying
■ Turn the programme selector
to the desired
programme,e.g.Cottons 60°C
– The display panel
alternately shows
2(Remaining time) and the
commended load and
thekg
■ If necessary, adjust the
temperature and the spin
speed and select any options
for your individualised
programme.
■ Press the ‘ (Drying) button to
set the drying options.
■ Load the laundry.
– Observe the maximum
load.
– Programme table.
■ Press theStart/Pause I
The drying programme that is
carried out is automatically
determined by the washing
programme, see the Programme
table.
Changing the programme
To change the programme:
■ Select a new programme.
■ Press the Start/Pause I
button.
The new programme starts.
End of the programme
■ The washing and drying
programmes are ended
automatically. “Ÿš appears on
the display panel.
– Turn the programme
selector to Off.
– Remove the washing from
the drum.
– Leave the door open to
allow the inside of the
washer-dryer to dry out.
– Turn off the tap (not
necessary on models with
Aqua-Stop).
Cancelling the programme
Press and hold button Start/Pause
I until ‹‹:‹‹ is displayed.
For washing programmes at high
temperatures:
■ Cooling down laundry: choose
à+0+Spin
■ Press the Start/Pause I
button.
For programmes at low
temperatures:
■ Choose p+0+Spin
■ Press the Start/Pause I
button.
If you cancel the Drying
programme, the laundry may still
be very hot.
en Laundry
30
Z Laundry
Laundry
Preparing laundry for washing
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the
washing or components of the
appliance.
The following instructions must be
observed when preparing your laundry:
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Do not exceed maximum load.
Overfilling will impair the washing
result.
■ Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the appliance.
Using a damp cloth, immediately
remove any fine spray residue and
other residue or droplets.
■ Empty any pockets. Remove any
foreign objects.
■ Remove metal parts (paper clips,
etc.).
■ Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
■ Ensure that underwired bras are
appliance-washable.
■ Wash delicates in a net or bag
(tights, underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or place in a
net/bag.
Note: The higher spinning speed in the
spinning phase, the higher the noise
and the lower remaining moisture
content
Rinse hold
■ If the spin function was
deactivated at the start of the
wash cycle, the washing
programme is automatically
stopped after the final rinse.
The display panel shows Âþ¿
alternating with --:--
In order to drain the rinsing
water and, if required, spin the
laundry:
– Press theSpin repeatedly
until the required spin
speed is set. The water is
Drained and the washer-
dryer spins the laundry.
Theprogramme is
completed when “Ÿš
appears in the display field.
– The maximum spin speed
depends on the selected
wash programme.
If you do not wish to spin the
laundry:
– Press the Spin button
(remaining time for Draining
is displayed). The water is
Drained, but the washer-
dryer does not spin the
laundry. The programme is
complete when “Ÿš
appears on the display
panel.
– Set the programme selector
to Off
–
Remove the laundry.
– Leave the door open to
allow the inside of the
washer-dryer to dry out.
– Turn off the tap (not
necessary on models with
Aqua-Stop).
Laundry en
31
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry may discolour. Wash
white and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
Some examples of soiling levels can
be found in the chapter
– Light: Do not need to pretreat.
– Normal: Soiled laundry.
– Heavy: Load less laundry, need
to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains
while they are fresh. First dab
with soapy water; do not rub.
Then wash the items of laundry
with the appropriate programme.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
■ Symbols on the care labels
Preparing laundry for drying
Note: To ensure an even drying result,
sort the laundry according to the:
■ Type of fabric
■ Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled
“dryer-proof” or which has the
following
care symbols:
■ a : Dry at normal temperature
■ ` : Dry at low temperature (delicate
drying)
The following textiles should not be
dried:
■ b = care symbol “Do not dry”
■ Delicates (silk, synthetic curtains).
■ Textiles which contain foam rubber
or similar materials.
■ Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■ Textiles which still contain hairspray
or similar substances.
Notes
■ Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■ Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for
cotton, more than 800 rpm for easy-
care textiles.
■ Do not iron washing immediately
after drying. It is recommended to
roll the washing up first to distribute
residual moisture evenly.
■ To ensure a good drying
performance, quilts, terry cloths and
other large textiles should be dried
separately. Do not dry more than 6
terry cloths (or 4 kg).
■ Do not exceed the maximum load.
M Suitable for normal washing
process;
e.g. ic Cottons programme
N A gentle washing process is
required;
e.g. f Easy Care programme
O An especially gentle washing
process is required;
e.g. “ Delicate/
Silk programme
W Suitable for washing by hand;
e.g. h Wool programme
Ž Do not machine wash.
en Detergents and care products
32
C Detergents and care
products
Detergents and care products
You can protect your appliance and
your laundry by selecting and using the
correct detergents and care products.
You can use all detergents and care
products which are suitable for your
appliance.
Note: Please read the safety
information ~ Page 4 to ensure that
you use the appliance safely.
The manufacturer’s instructions for use
and dosage can be found on the
packaging.
Notes
■ Only use liquid detergents that are
self-flowing
■ Do not mix different liquid detergents
■ Do not mix detergent and fabric
softener
■ Do not use products which have
developed a top layer or are highly
congealed
■ Do not use products containing
solvents, caustic agents or volatile
substances (e.g. bleach)
■ Use dyes sparingly as salt may
damage stainless steel
■ Do not use bleaching agents in the
appliance
Detergents and care products en
33
Detergent recommendation
This information is intended to help you to choose the right detergent for your items.
Tip: Visit www.cleanright.eu to find further information on detergents, care products
and cleaning agents for domestic use.
Fabrics Detergent Programme Temperature
Heat-resistant white fab-
rics made from cotton or
linen
Standard detergent with optical
brighteners
Cottons From cold up to 90 °C
Coloured fabrics made
from linen or cotton
Detergent for colours without
bleach or optical brighteners
Cottons From cold up to 60 °C
Coloured fabrics made
from easy-care fabrics or
synthetic materials
Detergent for colours/delicates
without optical brighteners
Easy Care From cold up to 60 °C
Delicate fabrics made from
silk or viscose
Delicates Delicates/Silk From cold up to 40 °C
Wool Detergent for Woollens Wool From cold up to 40 °C
en Overview of programmes
34
P Overview of programmes
Overview of programmes
Selectable programme *
Washing Programmes*
Name of the programme
Brief explanation of the programme and for which fabrics it is suitable
Cottons
Suitable for hard-wearing fabrics, heat-resistant fabrics made from cottonor linen.– Coloureds up to 60
°C.– Whites 60 °C to 90 °C
Eco 40-60
Washing programme for the best possible washing result with minimum energy and water consumption.
Wash items made from cotton, linen or blended fabrics. Suitable for washing normally soiled cotton tex-
tiles, and drying it to be immediately stored in a cupboard.
Wash and dry programme can be achieved by selecting Eco 40-60 programme and activating
(wash&dry).
Easy Care
Washing programme for less hard-wearing fabrics made from cotton,linen, synthetic fibres or blended fab-
rics. It is advisable to sort the laundryby colour.
Delicate/Silk
Gentle programme for delicate, washable fabrics, e.g. silk, satin,synthetics or blended fabrics (e.g. cur-
tains). Gentle spinning between therinse cycles and reduced final spin speed.
h Wool
Wool becomes matted when subjected to heat, moisture and movement.
The woollens programme takes these qualities into account and finds acompromise between standing still
and movement. Suitable for hand- or machine-washable fabrics made from wool or a woolblend.
Note: In order to prevent clothing shrink, after drying still contain a small amount of water, please take out
the clothes as soon as possible after the end of the programme to flat dry.
Super Quick 15’/Rapid 15
Short programme for easy-care, lightly soiled fabrics made from cotton,linen, synthetics or blends. Suitable
for freshening up items or for washing new items before wearing for the first time.
Mix (Quick/Mix)
For mixed items of laundry made of various hard-wearing and easy-carefabrics
Shirts
For washing functional clothing and sports wear made from microfibreand synthetics. Reduced creasing
and additional rinse cycle..
* Depending on the model and the programme.
Overview of programmes en
35
Outdoor
Wash cycle followed by waterproofing of membrane-coated weatherproof and outdoor clothing or water-
resistant fabrics.
Notes
■ Use special detergent that is suitable for machine washing; add the correct dosage to the dispenser in
accordance with the manufacturer's instructions.
■ Add the dosage of waterproofing agent (max. 170ml) to the dispenser M.
■ Laundry must not be treated with fabric softener.
■ Before washing, thoroughly clean the detergent drawer.
■ It is recommended that you pull down the zipper before washing and turn the inner layer inside out.
S Night Wash
Particularly quiet wash programme with a reduced final spin.Sleep mode. Once the programme has fin-
ished, the display goes out, butcan be reactivated by pressing any button.
Drying Programmes
5 Intensive Dry
Intensive drying for a & (robust fabrics), at 90°C.
‰ Gentle Dry
Gentle drying for & (easy-care fabrics), 60°C..
* Depending on the model and the programme.
Special Programmes*
W/CLN (Fluff removal cycle)
The drum must be empty.
Programme is designed to remove any fluff deposits. The clean symbol lights up and CLN appears
on the display.
To run the Fluff Clean (Fluff removal cycle):
1. Make sure that the drum is completely empty and close the door.
2. Turn the programme selector to Fluff Clean l (Fluff removal cycle)
3. Press the A (Start/Pause) button.
The Fluff Clean (Fluff removal cycle) programme can also be runatany time without prompting by the
appliance.
* Depending on the model and the programme.
Washing Programmes*
* Depending on the model and the programme.
en Overview of programmes
36
Drying table
à+0+Spin
An additional rinse cycle with a final spin. If the laundry is to be removed dripping wet, set the Spin speed
toà(Rinse)before Programme start
p+0Empty +Spin
Drain the rinsing water following a programme with $ (Rinse hold)
1. Turn the programme selector to p+0Empty +Spin.
2. Set the spin speed to$ (Rinse hold)
3. Press the Start/Pause I
Or drain and spin at the desired spin speed:
1. Turn the programme selector to p+0Empty +Spin
2. Press the B Spin button repeatedly until the desired spin speed is set.
3. Press the Start/Pause I
Special Programmes*
* Depending on the model and the programme.
Recommended drying
programme
Load (kg) » (Cupboard dry)
[h:min]
P (Iron-damp) [h:min]
5 Intensive Dry 1,5 1:30 1:00
2 1:30 1:00
2,5 1:40 1:30
3 2:10 1:50
3,5 2:20 2:00
4 2:30 2:10
‰ Gentle Dry 1.5 1:30 1:00
2 1:40 1:00
2,5 1:50 1:30
3 2:10 140
± The values may diverge from those specified depending on over and undervoltage, fabric type, compo-
sition of the laundryto be dried, residual moisture in the fabric and the amount of the load.
Operating the appliance en
37
Starching
Note: Laundry should not be treated
with fabric softener.
1. Switch on the appliance.
2. Select the q Rinse programme.
3. Measure starch into compartment ©
in accordance with the
manufacturer's instructions (clean
first if necessary).
4. Touch the I button.
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the appliance to bleach
clothes.
1 Operating the
appliance
Operati ng the appliance
Preparing the appliance
The appliance was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Cottons 60°C programme.
Notes
■ Never switch on a damaged
appliance!
■ Inform customer service!
1. Insert mains plug.
:Warning
Risk of death from electric shock!
Risk of death if live parts are
touched.
– Never pull out the mains plug by
tugging the power cord.
– Insert/pull out the mains plug
with dry hands only.
2. Turn the water tap on.
3. Open the appliance door.
en Operating the appliance
38
Select programme/switch on
the appliance
Note: If you have activated the
childproof lock, you must first deactivate
it before you can set a programme.
Use the programme selector to select
the required programme. The
programme selector can be rotated in
either direction.
The appliance is switched on.
The programme default settings for the
selected programme alternately appear
in the display panel:
■ The maximum load and
■ the duration of the programme and
■ ...

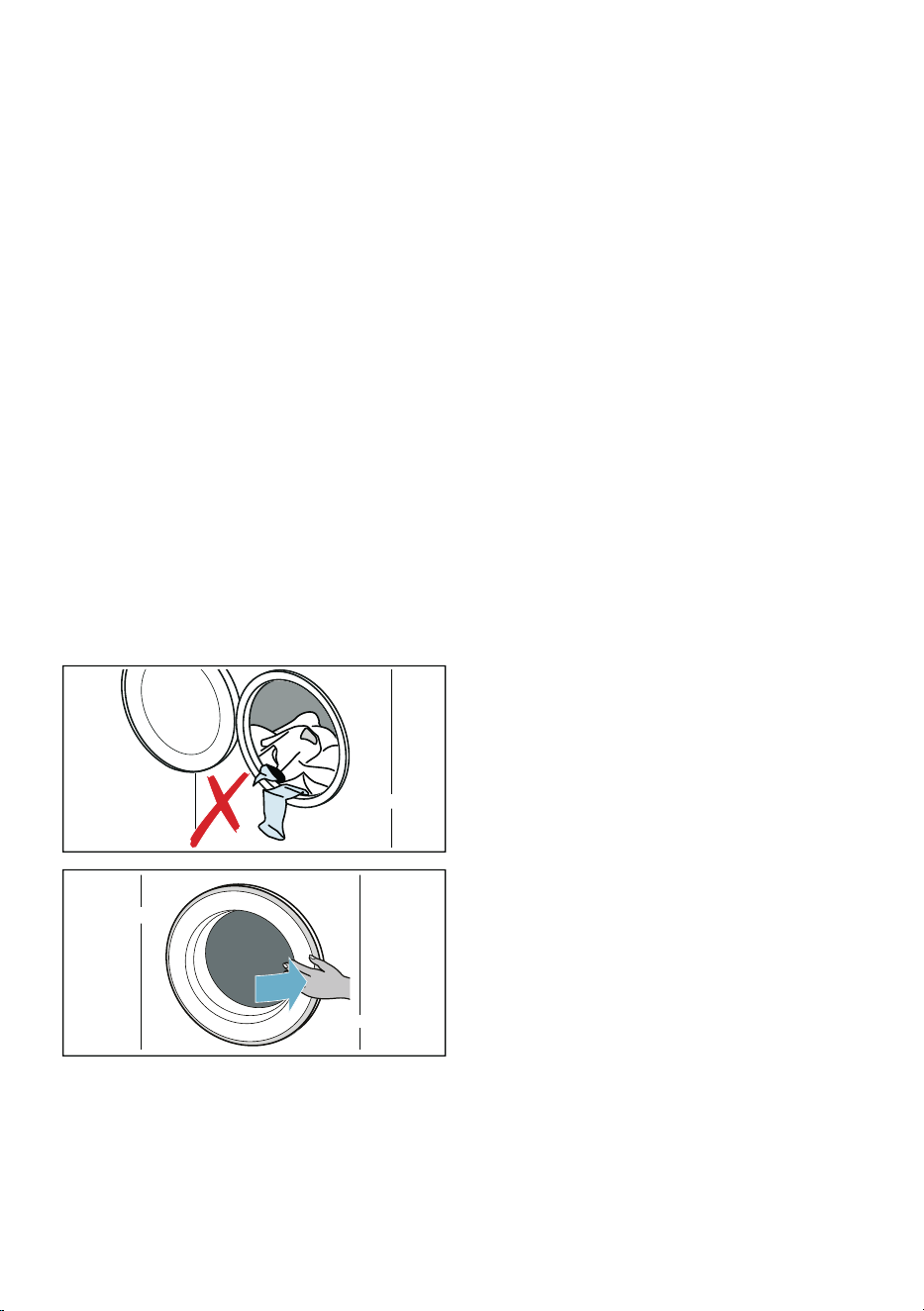

Placing laundry into the drum
Insert the laundry.
Close the door.
Notes
■ Unfold and load presorted items
of laundry. Mix large and small
items. Washing items of different
size distribute themselves better
during the spin cycle. Individual
items of washing may cause
an unbalanced load.
■ Observe the maximum specified
load. Overfilling adversely affects the
washing/drying result and promotes
creasing. Make sure that no items of
laundry are trapped between the
door and the rubber seal, and close
the door.
Dosing and adding detergent
and care products
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the appliance.
Keep these agents away from the
surfaces of the appliance. Using a
damp cloth, immediately remove any
fine spray residue and other residue/
droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Operating the appliance en
39

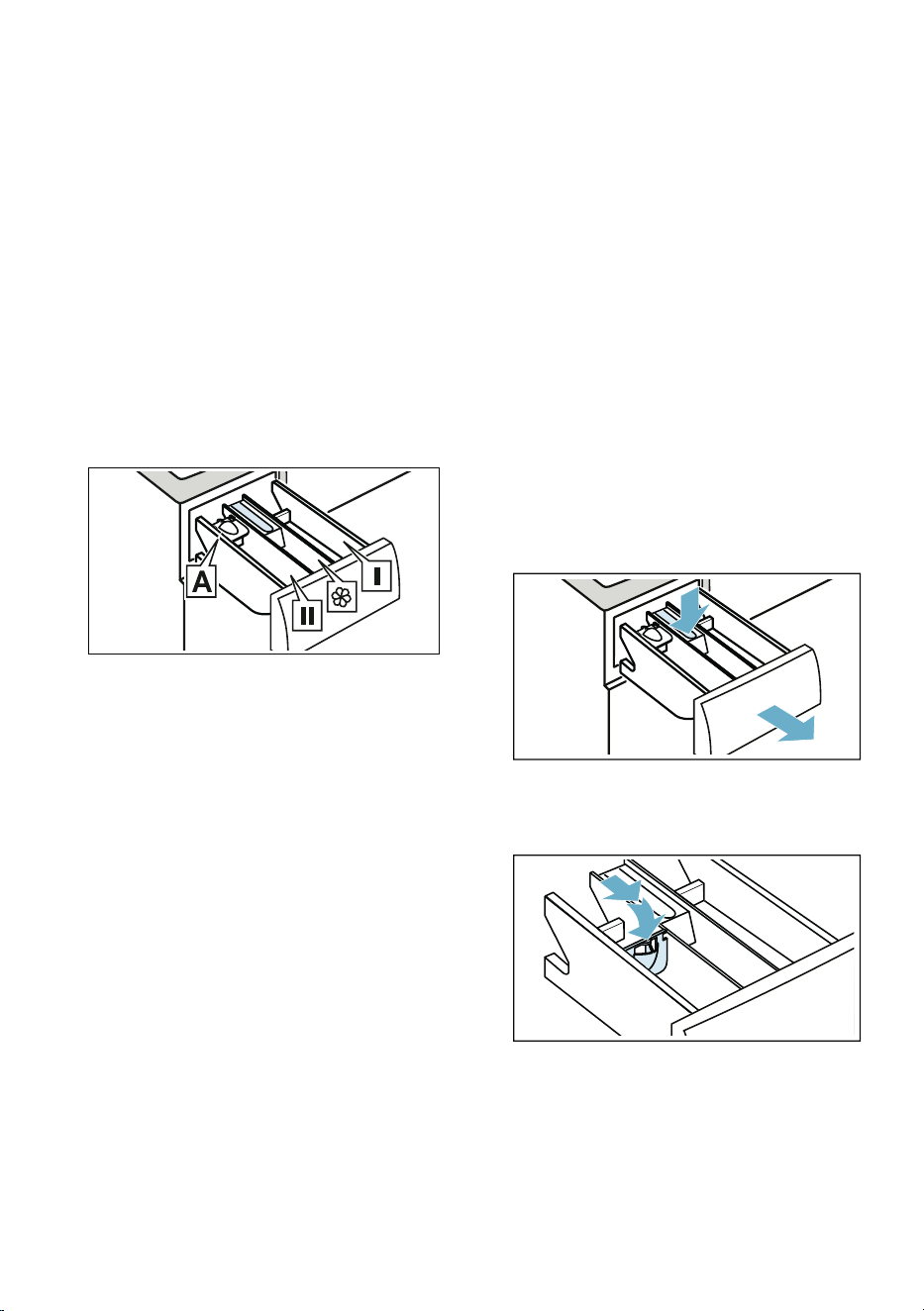

Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
*depending on the model
Notes
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.
Measuring aid A* for liquid detergent
*depending on the model
Position the measuring aid A for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with pretreat or when
"Finish in" time is selected.
Dispenser I Detergent for pretreat and
clothing disinfectant. (only for
the appliance with pretreat and
disinfectant function)
Dispenser i Softener, starch. Do not exceed
the maximum load.
Dispenser II Detergent for main wash, water
softener, bleach, stain remover.
Dispenser A* For dosing liquid detergent.
en Operating the appliance
40
Childproof lock
You can lock the appliance to prevent
the functions you have set from being
changed inadvertently. To do this,
activate the childproof lock.
To activate or deactivate the childproof
lock:
After the programme starts, press and
hold the Option button and Set button.
■ w (Childproof lock) lights up: The
childproof lock is activated.
Note: When the programme ends, the
door is unlocked. w (Childproof lock)
remain on to remind you to deactivate
the childproof lock.
Removing laundry/switching
off the appliance
1. Set programme selector to Off Off.
2. Open the door and remove the
laundry.
3. Turn off the water tap.
Note: Not required for Aqua-Stop
models.
Notes
■ Do not leave any items of laundry in
the drum. They may shrink in the
next wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Wipe the rubber seal dry.
■ Leave the door and detergent
drawer open so that any residual
water can evaporate.
■ Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance
on and wait for it to unlock.
Sensors en
41
H Sensors
Sensors
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the spin speed is reduced
or the spin cycle is not performed for
safety reasons.
Note: Place large and small items of
laundry evenly in the drum.
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if touch
live components.
Turn the programme selector to Off Off.
Pull out the mains plug.
Caution!
Fire and explosion hazard!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
The appliance may be damaged!
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
appliance.
Do not use cleaning agents that contain
solvents.
Appliance housing/control
panel
■ Remove the detergent residue
immediately.
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges
or detergents (stainless steel
cleaner).
■ Do not clean the appliance with a
water jet.
Drum
Use chlorine-free cleaning agents, do
not use steel wool.
If there are odours in the appliance, or
to clean the drum, run the Fluff Clean
programme without laundry.
en Cleaning and maintenance
42
Descaling
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from
customer services.

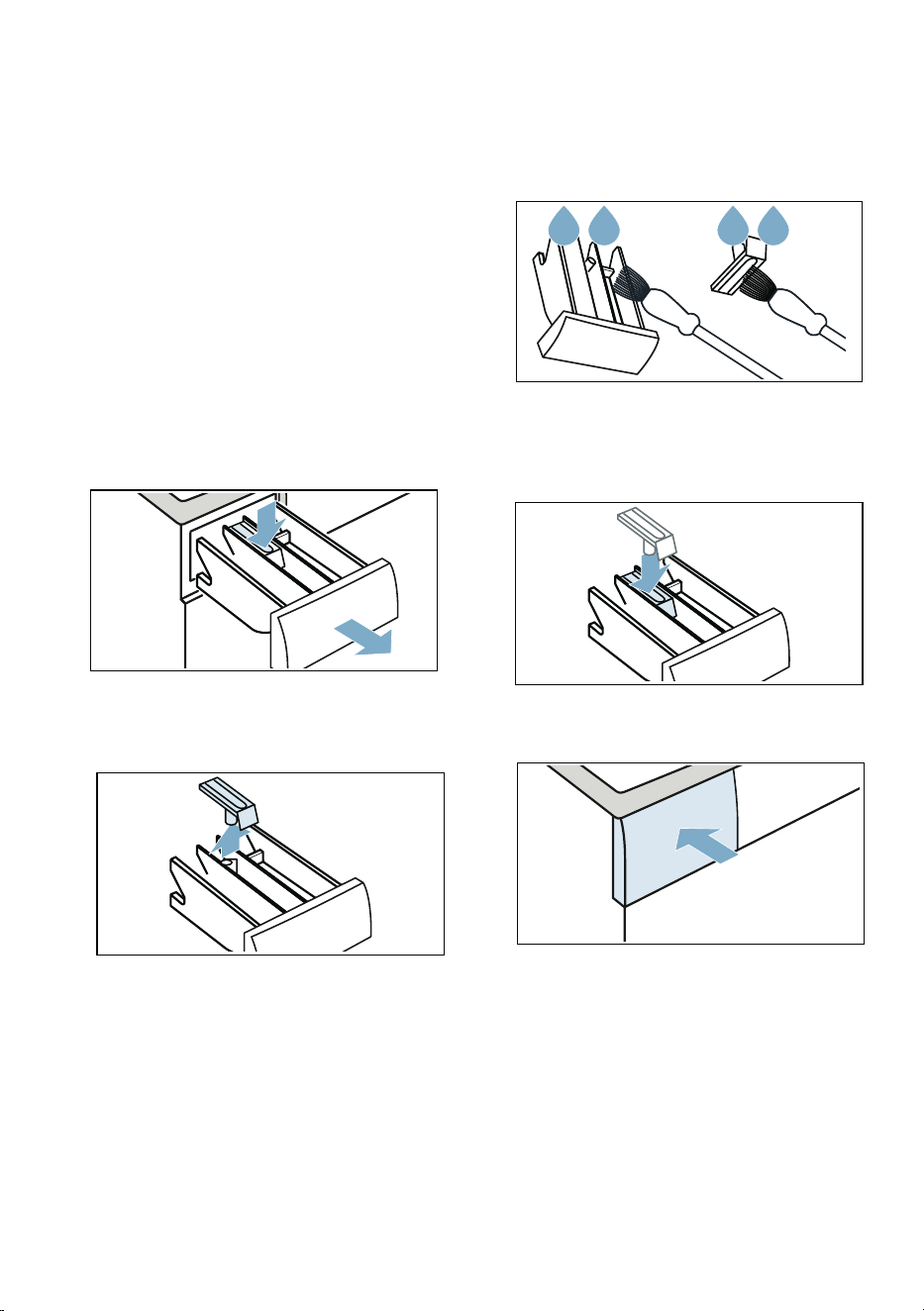

Detergent drawer and housing
If the appliance contains detergent or
fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. To remove the insert: Push the insert
upwards from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Clean the inside of the
housing as well.
4. Fit the insert and lock it in place
(push the cylinder onto the guide
pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can
evaporate.
Cleaning and maintenance en
43
Drain pump is blocked
Note: Turn the water tap off to prevent
more water from flowing in and to
ensure that it is drained via the pump.
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the water to cool down first.
1. Switch off the appliance. Pull out the
mains plug.
2. Open the service flap. Use a
screwdriver to release the lock pins
3. Take the drain hose out of the
retainer.
Remove the sealing cap and pour
the water out into a suitable
container.The container for the
drained water may have to be
emptied severaltimes.
Replace the sealing cap and place
the drain hose back in the retainer.
4. Carefully unscrew the pump cover;
residual water may leak out.
Clean the pump housing and
remove any foreign objects. The
impeller in the drain pump must be
able to rotate.
5. Replace the pump cover and screw
firmly in place. Place the kick panel
in the 4 clip-in slots and secure to
the housing using the lock pins.
&
PD[
en Cleaning and maintenance
44
The drain hose at the siphon
is blocked
1. Set the program selector to Off. Pull
out the mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose; residual
water may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Re-attach the drain hose and secure
the connection point using the hose
clamp.
Filter in the water supply is
blocked
Release water pressure in the supply
hose:
1. Turn off the water tap.
2. Select the q Rinse0Spin button and
start the program. Allow to run for
approx. 40 seconds.
3. Set the program selecor toOff
4. Pull out the mains plug.
Clean the filters:
1. Disconnect the hose from the rear of
the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for
leaks.
Faults and what to do about them en
45
3 Faults and what to do
about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a
loss of power
The programme continues when the
power supply is restored.
However, if the laundry has to be
removed, the appliance door can be
opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
and laundry.
If possible, leave it to cool down first.
Caution!
Risk when reaching into/gripping the
rotating drum!
You may injure your hands if you reach
into the drum while it is turning.
Do not reach into the drum when it is
turning.
Caution!
Water damage!
Any escaping water may cause water
damage.
Do not open the door if water can be
seen through the glass.
1. Switch off the appliance. Pull out the
mains plug.
2. Drain the water ~ Page 43
3. Pull the emergency release
downwards with a tool and open the
door on the same time.
en Faults and what to do about them
46
Information on the display panel
Faults and what to do about them
Fault code
‹˜“¯ The door is not properly closed. Close the door.
“‚ The water control system has been activated. Disconnect the appliance from the
mains, turn off the tap and advise the after-sales service.
Ҡ Water is not entering the appliance. See the fault Water is not flowing in
“‡ ˜—¯˜ The water is not Drained. See the fault Water is not Drained
—Ÿ –©‘š Not a fault! The unbalanced load detection system has detected an unbalanced
load caused by laundry items. The fluff removal cycle cannot start. Remove the
laundry.
•‚ “Ÿš
–‹ “Ÿš
Maximum or minimum drying load not taken into account. HI/End or LO/End
flash alternately in the display. See information for the Drying result not satisfac-
tory fault..
Other fault codes are only for use by the after-sales service. Make a note of the fault code to inform the
after sales service.
Fault Possible cause Remedial Action
Programme does not
start
The Start/Pause I button has not
been pressed.
Press the Start/Pause I button.
A delayed start time has been selected.. Washer dryer starts on completion
ofthe delay period. Change the “finished
in time” if necessary.
Power cut.The delayed start time that
was selected has been cleared.
Reselect the delayed start time or start-
the programme immediately. Press the
Start/Pause I button.
The door is not properly closed. Close the door.
Plug not inserted properly into socket. Insert plug correctly
The maximum spin
speed cannot be set.
The maximum spin speed depends on
the programme selected.
Change programme as required.
The water is not
Drained.
Drain hose is twisted.. Fit the Drain hose correctly.
Detergent pump is blocked. Clean the Drain pump .
Detergent residues in
the detergent drawer.
Damp or lumpy detergent. Clean and dry the detergent drawer .
Use the measuring aid for liquid deter-
gent.
Faults and what to do about them en
47
Water is not flowing in. The mains plug is not correctly plugged
in.
Plug in the mains plug correctly.
The door is not properly closed. Close the door.
The tap is not turned on. Turn on the tap.
The filter in the water supply hose is
blocked.
Clean the filter in the water supply hose.
The water supply hose is pinched or
kinked.
Check the water inlet hose.
Intense vibrations dur-
ing spinning.
The washer-dryer is not correctly lev-
elled.
Level the washer-dryer .
The transport safety bolts have not been
removed.
Remove the transport safety bolts .
Washer-dryer fills with
water and continu-
ously drains it away.
Drain hose fitted too low. Fit the Drain hose correctly.
No water can be seen
in the drum.
Not a fault. During certain programmes the water
level is below the visible range.
Water leaks from the
bottomof the appli-
ance.
Supply hose screw connection isleaking. Tighten the screw connection.
Drain hose is leaking. Have the Drain hose replaced by theaf-
ter-sales service.
Foam escapes fromde-
tergent drawer.
Too much detergent has been used. Only use detergent which is correct for
textiles, and suitable for use in auto-
matic washing machines. Make sure
that you use the correct dosage.
Several attempts to
start spinning.
Not a fault.The unbalanced load detec-
tion system attempts to redistribute an
unbalanced load by starting to spin sev-
eral times.
Always wash large and small items
together.
Washing results not-
satisfactory.
Uncleaned areas worse than expected.. s(Prewash)
Pretreat stains if necessary.
Too little or incorrect detergent used. Use the correct dosage of a suitable
detergent, in accordance with the man-
ufacturer's instructions.
Maximum load exceeded. Select the load appropriate for the pro-
gramme.
Detergent residues on
the washing.
Some phosphate-free detergentscon-
tain water-insoluble residues whichap-
pear on washing as light specks.
Rinse the laundry again or change to
using liquid detergent. Brush the laun-
dry after it has dried.
Fault Possible cause Remedial Action
en Faults and what to do about them
48
Grey residues on the
washing.
Soiling caused by ointments, grease
oroil.
Wash the laundry using the maximum-
detergent dosage and the maximump-
ermissible temperature – see thecare
label.
Programme termi-
nated unexpectedly.
Press the Start/Pause I button
elected accidentally.
Turn on the tap.
Drying result notsatis-
factory.
The laundry clings to the sides of the-
drum after being spun
Loosen up the laundry by hand; start
the drying programme.
Closed tap Turn on the tap
Selected drying time too short Select the drying time according to the
Load.
Maximum or minimum load not taken
into account
Once the programme has ended: adjust
the load quantity, select a suitable dry-
ing programme and restart.
Spinning during dry-
ing.
No fault "Thermo spin", which is for energy-effi-
cient drying, starts after a drying time of
approx. 10 minutes.
The fabric softener is
not completely flushed
in or too much water
remains in the com-
partment.
The fabric softener compartment insert
is not correctly attached or is blocked.
If necessary, clean the fabric softener
compartment insert and fit it correctly in
compartment.
The laundry is not
dried.
The tap is turned off. Turn on the tap.
The load is too large. Reduce the load size.
The drying time is too short. Select a suitable drying time.
No display on the dis-
play panel.
Power cut The programme continues when pow-
eris restored. If you wish to remove the-
laundry during a power cut, you must
first Drain out the water. Check
whether:– the plug is plugged into the
socketcorrectly.– the circuit breaker
(fuse) hastripped; if it has, call the after-
salesservice
The door cannot be
opened.
Rinse hold has been selected Select the programme p+0Empty
+Spin
and press the Start/Pause I button.
The programme is running or the dooris
locked for safety reasons
Wait until End appears on the display
panel.
Power cut. Unlock the door mechanically
Fault Possible cause Remedial Action
Faults and what to do about them en
49
Emergency release To release the door mechanically in the event of a power cut:
■ turn the programme selector to Off and unplug the mains plug from thesocket
■ open the base panel and Drain out the water
■ pull the emergency release downwards and open the door at the same time.
Before opening the door, make sure that there is no water or hot detergentsolution
in the washer dryer.
Under no circumstances open the door with the emergency release while thedrum
is still turning.
If you cannot correct a fault yourself (switching on/off) or a repair is required:– Turn the programme selector
to Off and unplug the mains plug from the socket.– Turn off the tap and call the after-sales service –> page
24.
Fault Possible cause Remedial Action
en Customer Service
50
4 Customer Service
Customer Service
If you have any queries on use, are
unable to rectify faults on the appliance
yourself or if your appliance needs to be
repaired, contact Customer Service.
You can solve many problems yourself
by consulting the information on
eliminating faults in this instruction
manual or on our website. If this is not
the case, contact our Customer Service
We will always find an appropriate
solution and try to avoid unnecessary
visits being made by a Customer
Service technician.
With any warranty claims we will make
sure that your appliance is repaired by
trained Customer Service technicians
using original spare parts, including
after the manufacturer’s warranty has
expired.
For safety reasons repairs to the
appliance should only be carried out by
trained specialist staff. The warranty
claim becomes void if repairs or
interventions have been carried out by
persons not authorised by us for that
purpose or if our appliances have been
fitted with spare, supplimentary or
accessory parts that were not genuine
parts and then resulted in a defect.
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on which
your appliance was placed on the
market within the European Economic
Area.
Note: Under the terms of the
manufacturer’s warranty the use of
Customer Service is free of charge.
Detailed information on the warranty
period and terms of warranty in your
country is available from our Customer
Service, your retailer or on our website.
If you contact Customer Service, you
will require the product number (E-Nr.)
and the production number (FD) of your
appliance.
The contact details for Customer
Service can be found in the enclosed
Customer Service directory or on our
website.
Product number (E-Nr.) and
production number (FD)
You can find the product number (E-
Nr.) and the production number (fd) on
the appliance’s rating plate.
Depending on the model, the rating
plate is located:
■ On the inside of the door
■ On the inside of the maintenance
flap.
■ On the rear of the appliance.
Make a note of your appliance’s details
and the Customer Service telephone
number to find them again quickly.
More information about your model can
be found online at https://www.bsh-
group.com/energylabel
*
This web
address is linked to the official EU
EPREL product database. At the time of
printing its web address had not yet
been published. Please then follow the
instructions on searching for models.
The model identifier is made up of the
characters before the slash in the
product number (E-Nr.) on the rating
plate. Alternatively you can also find the
model identifier in the first line of the EU
energy label.
Trust the expertise of the
manufacturer. Contact us. By doing so,
you can be sure that the repairs are
carried out by trained service personnel
using genuine spare parts.
* Only applies to countries in the
European Economic Area.
Consumption values en
51
[ Consumption values
Consumption values
The following information is provided in accordance with the EU-Ecodesign-
Regulation. The values given for programs other than the Eco 40-60 are indicative
only and were determined in accordance with the applicable standard EN60456
and EN62512.
Automatic drying machine
Programme rated
capaci-
ty [kg]
energy
consump-
tion [kWh/
cycle] *
water
consump-
tion [l/cy-
cle] *
Pro-
gramm
e dura-
tion
[h:min]
*
maximum
tempera-
ture [°C] *
5min
spin
speed
[rpm] *
remaining
moisture [%] *
Eco 40-60 ** 7 1,02 49 2:50 46 1400 48
Eco 40-60 ** 3,5 0,70 43 2:40 36 1400 49
Eco 40-60 ** 2 0,50 39 2:30 32 1400 54
Eco 40-60 +
(wash&dry) +
¾ (Cup-
board dry)**
4 3,08 75 5:30 36 1400 -
Eco 40-60 +
(wash&dry) +
¾ (Cup-
board dry)**
2 2,04 58 4:10 32 1400 -
Cottons 20°C 7 0,24 62 1:51 20 1400 53
Cottons 40°C 7 0,83 62 1:51 40 1400 53
Cottons 40°C +
s (Prewash)
7 1,02 78 2:18 40 1400 53
Cottons 60°C 7 1,11 62 1:51 55 1400 53
Easy Care
40°C
3,5 0,62 50 1:43 40 1000 30
Mixed Load
40°C
3 0,40 36 0:50 40 1200 57
Wool 30°C 2 0,20 49 0:47 30 600 55
* Observed values may deviate from the indicated values due to influence of water pressure, hardness
and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in power supply and selected additional functions.
** Test program according to the EU-Ecodesign-Regulation and EU-Energy Label-Regulation with cold wa-
ter (15°C).
en Consumption values
52
The following information is provided in accordance with the EU-Ecodesign-
Regulation. The values given for programs other than the Eco 40-60 are indicative
only and were determined in accordance with the applicable standard EN60456
and EN62512.
Timed drying machine
Programme rated
capaci-
ty [kg]
energy
consump-
tion [kWh/
cycle] *
water
consump-
tion [l/cy-
cle] *
Pro-
gramm
e dura-
tion
[h:min]
*
maximum
tempera-
ture [°C] *
5min
spin
speed
[rpm] *
remaining
moisture [%] *
Eco 40-60 ** 7 1,02 49 2:50 46 1400 48
Eco 40-60 ** 3,5 0,70 43 2:40 36 1400 49
Eco 40-60 ** 2 0,50 39 2:30 32 1400 54
Eco 40-60 +
(wash&dry) +
» (cupboard
dry)**
4 3,09 75 5:30 36 1400 -
Eco 40-60 +
(wash&dry) +
» (cupboard
dry)**
2 2,025 58 4:10 32 1400 -
Cottons 20 °C 7 0,24 62 1:51 20 1400 53
Cottons 40 °C 7 0,83 62 1:51 40 1400 53
Cottons 40 °C
+ s (Pre-
wash)
7 1,02 78 2:18 40 1400 53
Cottons 60 °C 7 1,11 62 1:51 55 1400 53
Easy Care 40
°C
3,5 0,62 50 1:43 40 1000 30
Wool Cold W 2 0,10 49 0:47 - 600 55
W Wool 30 °C 2 0,20 49 0:47 30 600 55
* Observed values may deviate from the indicated values due to influence of water pressure, hardness
and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in power supply and selected additional functions.
** Test program according to the EU-Ecodesign-Regulation and EU-Energy Label-Regulation with cold wa-
ter (15°C).
Technical data en
53
J Technical data
Technical data
Dimensions:
820 mm x 595 mm x 584 mm
(height x width x depth)
Weight:
85 kg
Mains connection:
Nominal voltage 220-240V, 50 Hz
Minimum installation protection
(c)10 A
Nominal power 1900-2300 W
Water pressure:
50–900 kPa (0,5–9 bar)
r Aqua-Stop warranty
Aqua-Stop warranty
Only for appliances with Aqua-Stop
In addition to warranty claims against
the vendor based on the purchase
agreement and to our appliance
warranty, we will provide compensation
under the following conditions:
1. If water damage is caused due to a
fault in our Aqua-Stop system, we
will compensate domestic
customers for the damage caused.
2. The liability guarantee is valid for the
service life of the appliance.
3. It is a prerequisite of all warranty
claims that the appliance with Aqua-
Stop must have been installed and
connected correctly in accordance
with our instructions; this also
includes a correctly fitted Aqua-Stop
extension (genuine accessories).
Our warranty does not cover
defective feed lines or fittings
leading to the Aqua-Stop connection
at the tap.
4. Appliances with Aqua-Stop do not
need to be supervised during
operation, nor secured afterwards by
turning off the tap.
The tap only needs to be turned off if
you are away from home for a long
period, e.g. for several weeks'
holiday.
6
6
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
*9001581144*
9001581144 (
19291038001
/
0103)
siemens-home.bsh-group.com
0DQXIDFWXUHGE\%6++DXVJHUlWH*PE+XQGHU7UDGHPDUN/LFHQVHRI6LHPHQV$*
Repair order and advice in the event of faults
You can find the contact information for all countries in the attached after-sales service
directory.
GB 0344 892 8999 (Calls charged at local or mobile rate.)
IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)
