R-VAN Adjustable Rotary Nozzle Installation Guide
R-VAN Adjustable Rotary Nozzle
Installation Guide
Introduction
Models
R-VAN18 R-VAN1724
ARC
ADJUSTMENT
CAP
ROTARY
DEFLECTOR

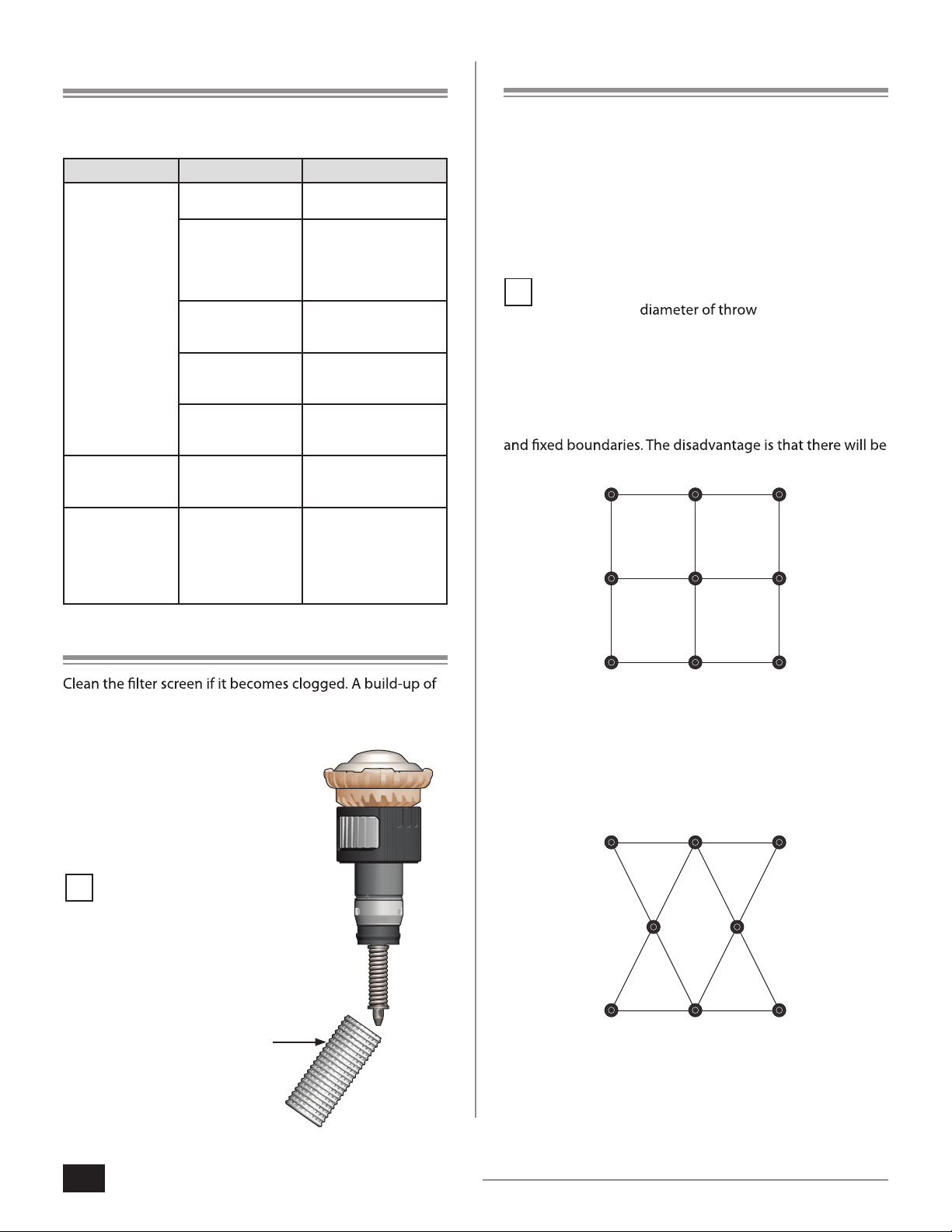

FILTER
SCREEN
RADIUS
ADJUSTMENT
DIAL
COLLAR
Features
Installation
Install Nozzle
R-VAN Adjustable Rotary Nozzles can be used for a new
installation or to replace existing sprinkler nozzles.
1. Unscrew and remove the existing sprinkler nozzle (if
applicable) from the spray body.
2. Screw the nozzle onto the spray body until secure.
Identify the Left Edge
A grooved white mark located on the collar, just under the
LEFT EDGE
INDICATOR
1. Align the nozzle to the left most edge of desired
coverage area (arc).
ARC
ALIGN LEFT EDGE
INDICATOR WITH ARC
Rain Bird R-VAN Adjustable Rotary Nozzles provide
water eciency and design exibility. R-VAN Adjustable
Rotary Nozzles feature rotating stream technology which
uniformly delivers water at a low precipitation rate,
signicantly reducing runo and erosion. Retrotting
standard spray nozzles with R-VAN Adjustable Rotary
Nozzles can reduce ow by up to 60% and improve water
eciency by up to 30%. Nozzle spray pattern and distance
are easily adjusted by hand with no tools required.
• Adjust arc and radius without tools
• Color coded for easy identication of R-VAN model
• Low precipitation rate reduces run-off and erosion
• Maintains efficient performance at high operating
pressures without misting or fogging
• Compatible with all models of Rain Bird spray bodies in
addition to a wide variety of risers and adapters
• Three year trade warranty
• Installing with Rain Bird Rotary Nozzles, and 5000 Series
Rotor matched precipitation rate (MPR) nozzles, allows
for MPR irrigation designs from 13’ to 35’ (4.0m 10.7m)
• Rotary Deector
• 13’ to 18’ (4,0 to 5,5m) radius
• 45° to 270° arc
• Yellow Rotary Deector
• 17’ to 24’ (5,2 to 7,3m) radius
• 45° to 270° arc
