Craftsman 917271843 lawn tractor User Manual

Owner's Manual

ICRAFTSMAN°I

21 .O HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271843

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

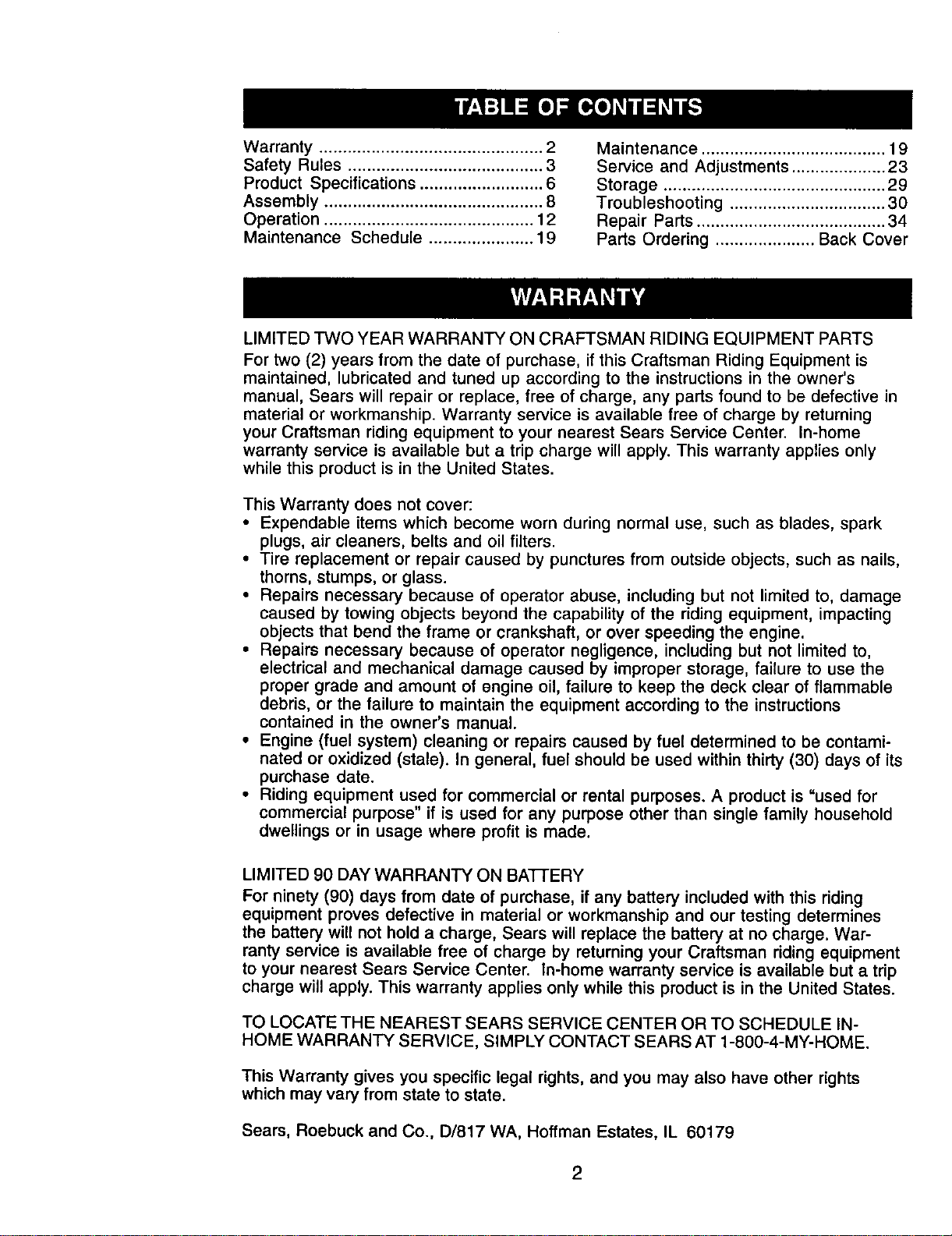

Warranty...............................................2

SafetyRules.........................................3

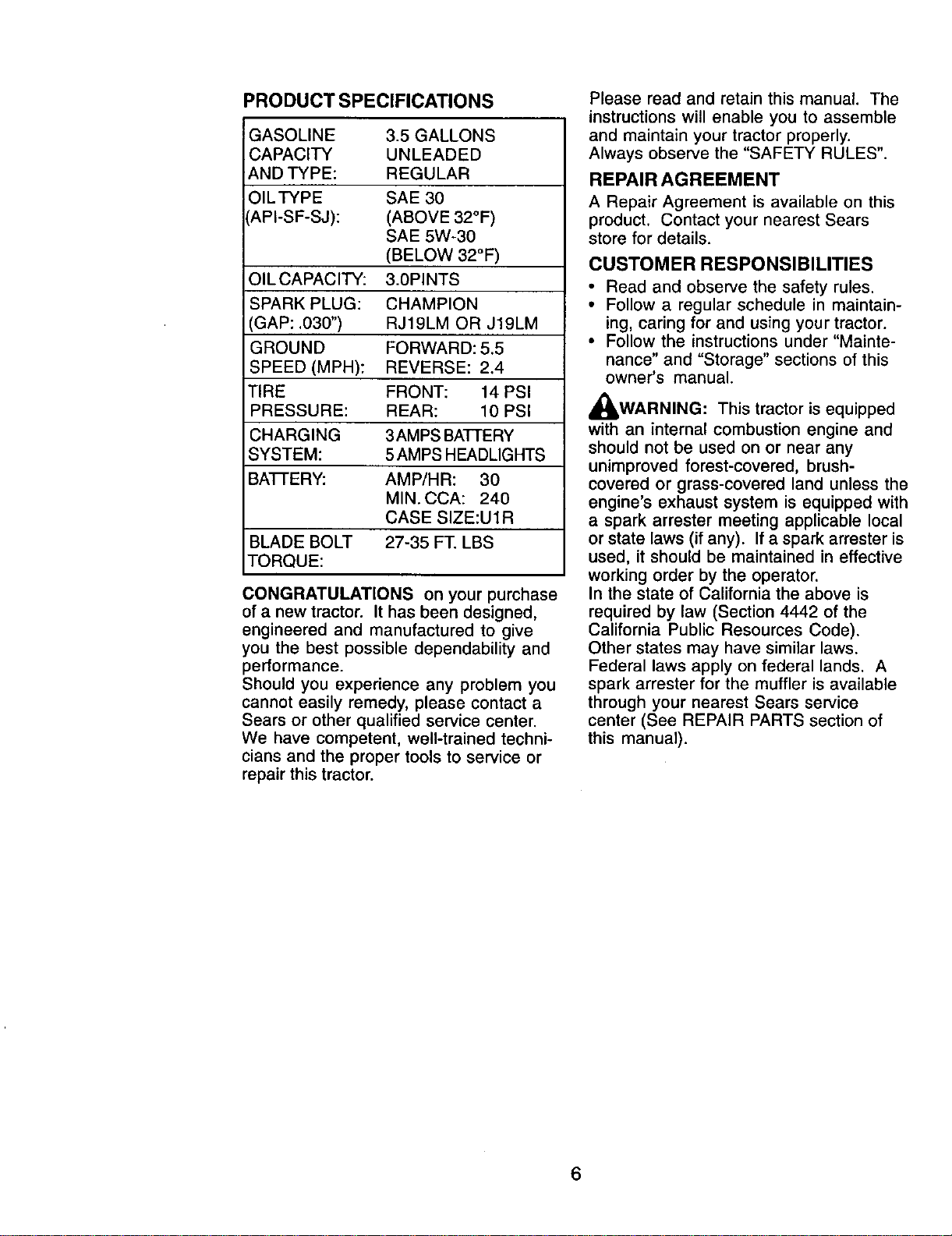

ProductSpecifications..........................6

Assembly..............................................8

Operation............................................12

MaintenanceSchedule......................19

Maintenance.......................................t 9

ServiceandAdjustments....................23

Storage...............................................29

Troubleshooting.................................30

RepairParts........................................34

PartsOrdering.....................BackCover

LIMITEDTWOYEARWARRANTYONCRAFTSMANRIDINGEQUIPMENTPARTS

Fortwo(2)yearsfromthedateof purchase,ifthisCraftsmanRidingEquipmentis

maintained,lubricatedandtunedup accordingto the instructionsin the owner's

manual,Searswillrepairorreplace,freeofcharge,anypartsfoundto bedefectivein

materialorworkmanship.Warrantyserviceisavailablefreeof chargebyreturning

yourCraftsmanridingequipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATI-ERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman riding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME.

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

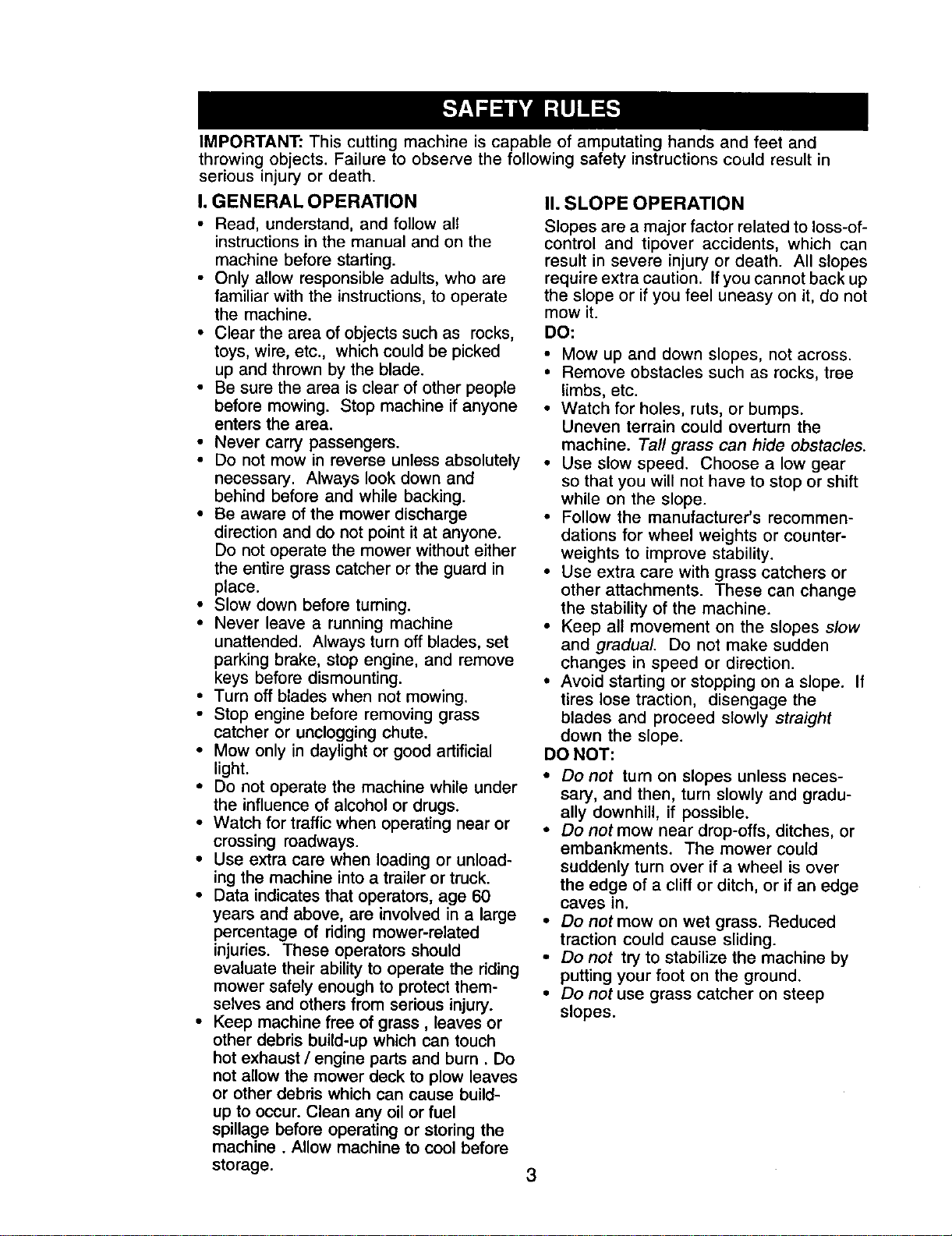

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to obsewe the following safety instructions could result in

serious injury or death.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the dding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

storage.

II1.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can out.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other • Be alert and turn machine off if children

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

enter the area.

• Before and when backing, look behind

and down for small children.

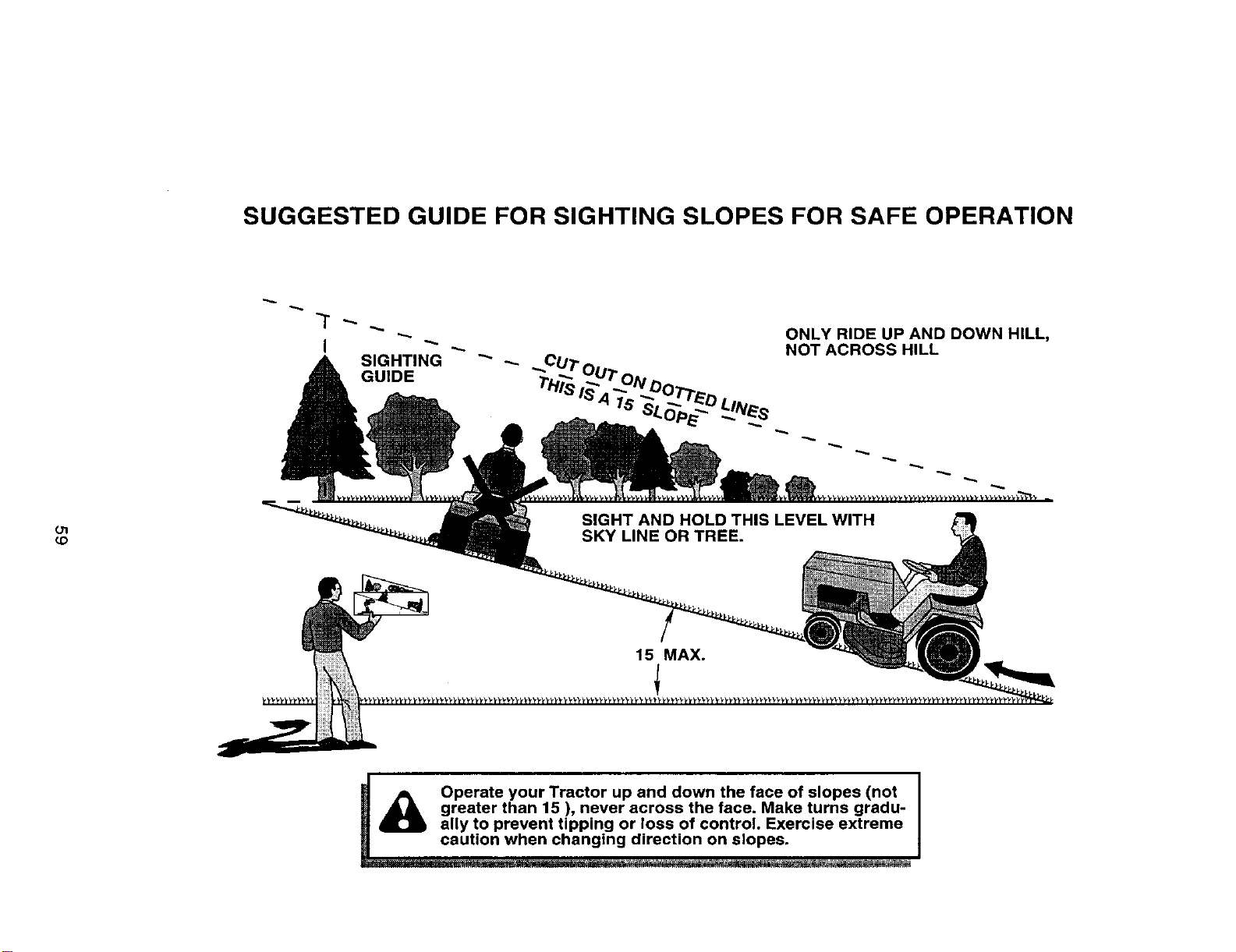

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

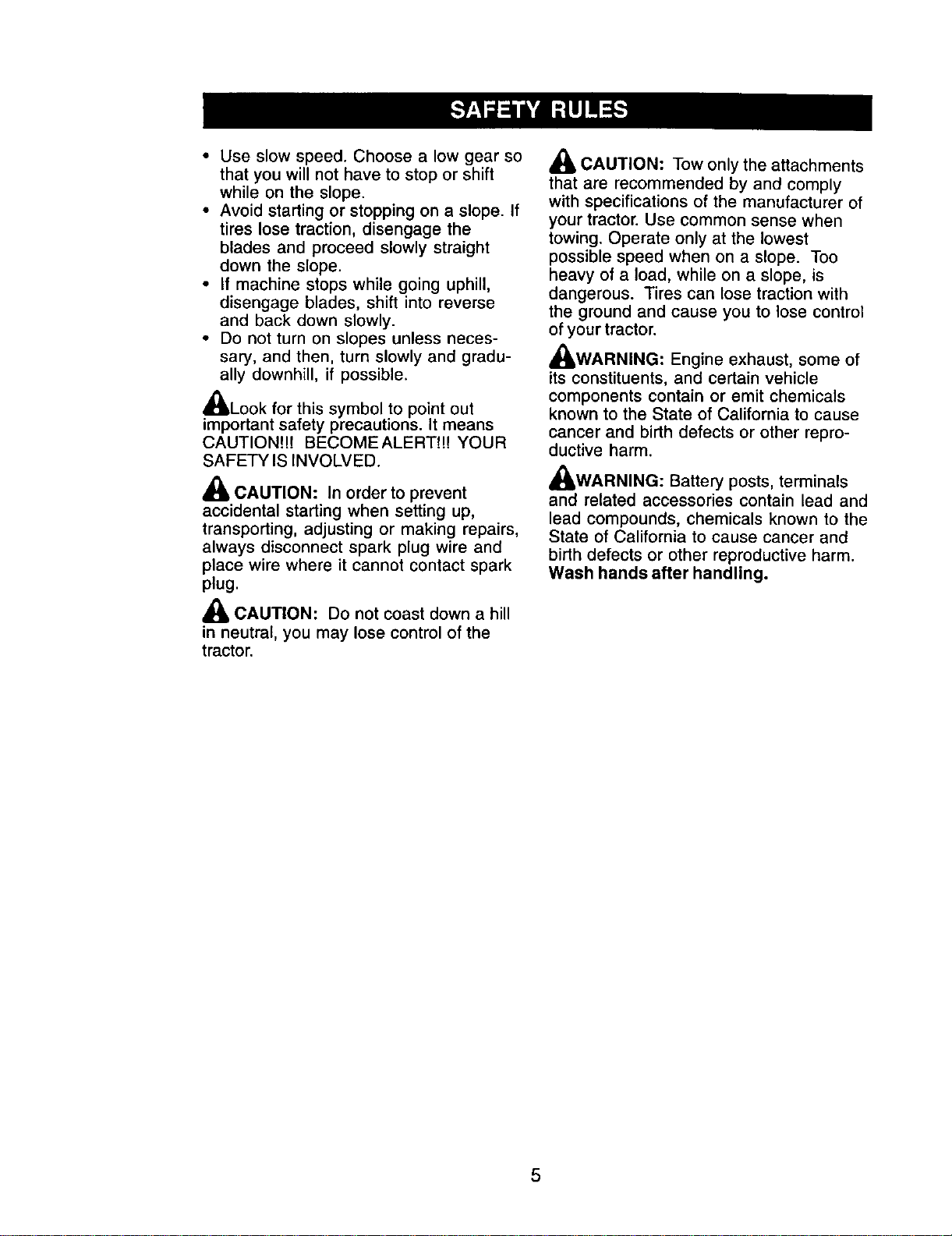

_l, Look for this symbol to point out

important safety precautions. It means

CAUTION!l! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

4_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

,_ll, CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

,4_II,WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

,4_I,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

_)ILTYPE SAE 30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

3.0PINTS

CHAMPION

RJ19LM OR J19LM

FORWARD: 5.5

REVERSE: 2.4

FRONT: 14 PSI

REAR: 10 PSI

3AMPS BATTERY

5 AMPS HEADLIGHTS

AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

27-35 FT. LBS

OIL CAPACITY:

SPARK PLUG:

'GAP: .030")

GROUND

SPEED (MPH):

TIRE

PRESSURE:

CHARGING

SYSTEM:

BA']-FERY:

BLADE BOLT

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_ILWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

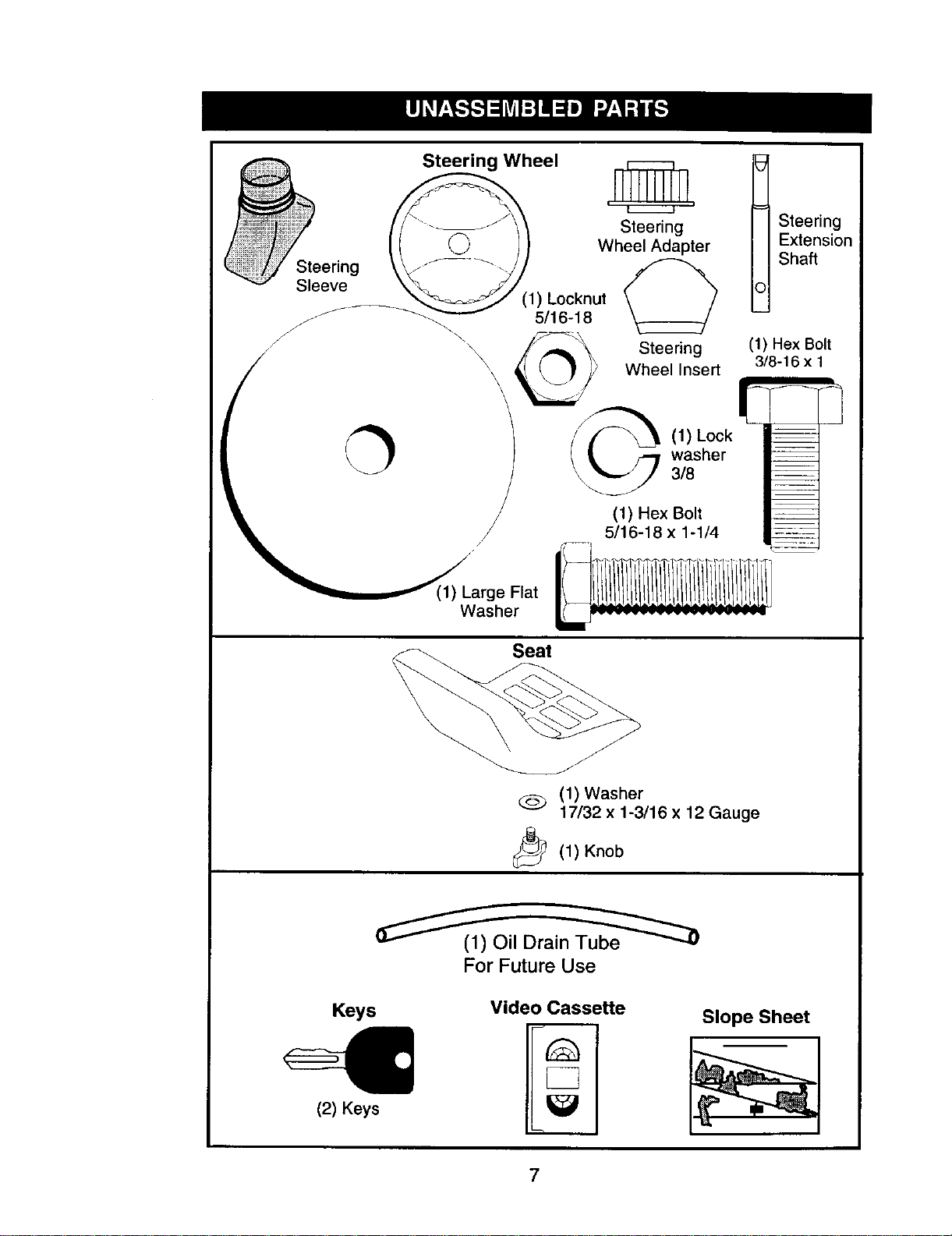

Steer,ngWhee,_ 1

Steering Steering

Wheel Adapter Extension

Steering @ Shaft

Sleeve (1) Locknut

/j -_.\ 5/16-18

/ \ _%_ Steering (1) Rex Bolt

/ _, _ ; Wheel Insert 3/8-16xl

_'_ / _ (1)Lock

t _ / _ _washer/, 3/8

_, / (1) Hex Bolt |

_. / 5/16-18 x 1-1/4 !

arge Flat I li .II !!lII/I Iit]

Washer _:: ...... %- :::-_;;_;-Y

Seat

@ (1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

For Future Use

Keys

(2) Keys

Video Cassette

Slope Sheet

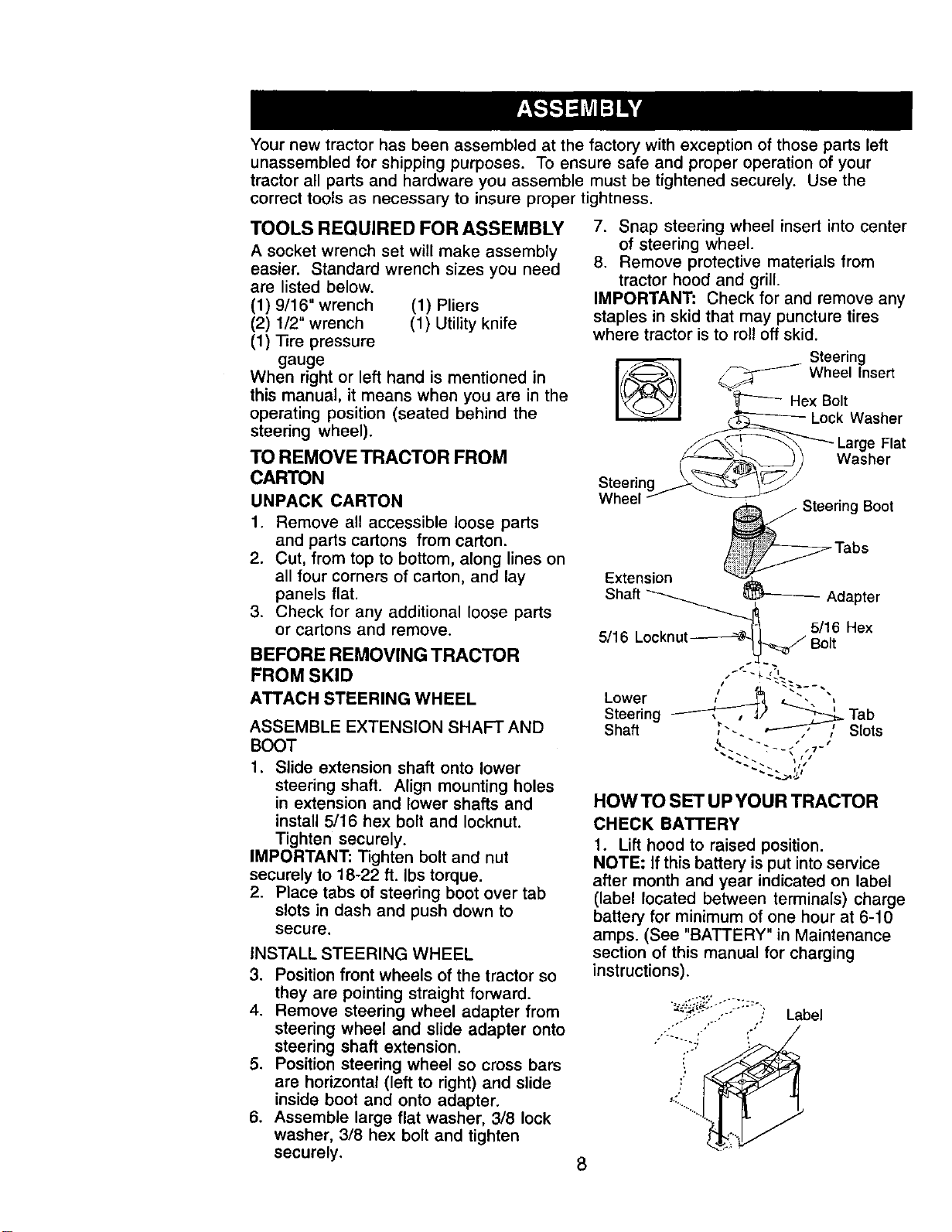

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

;- , , Label

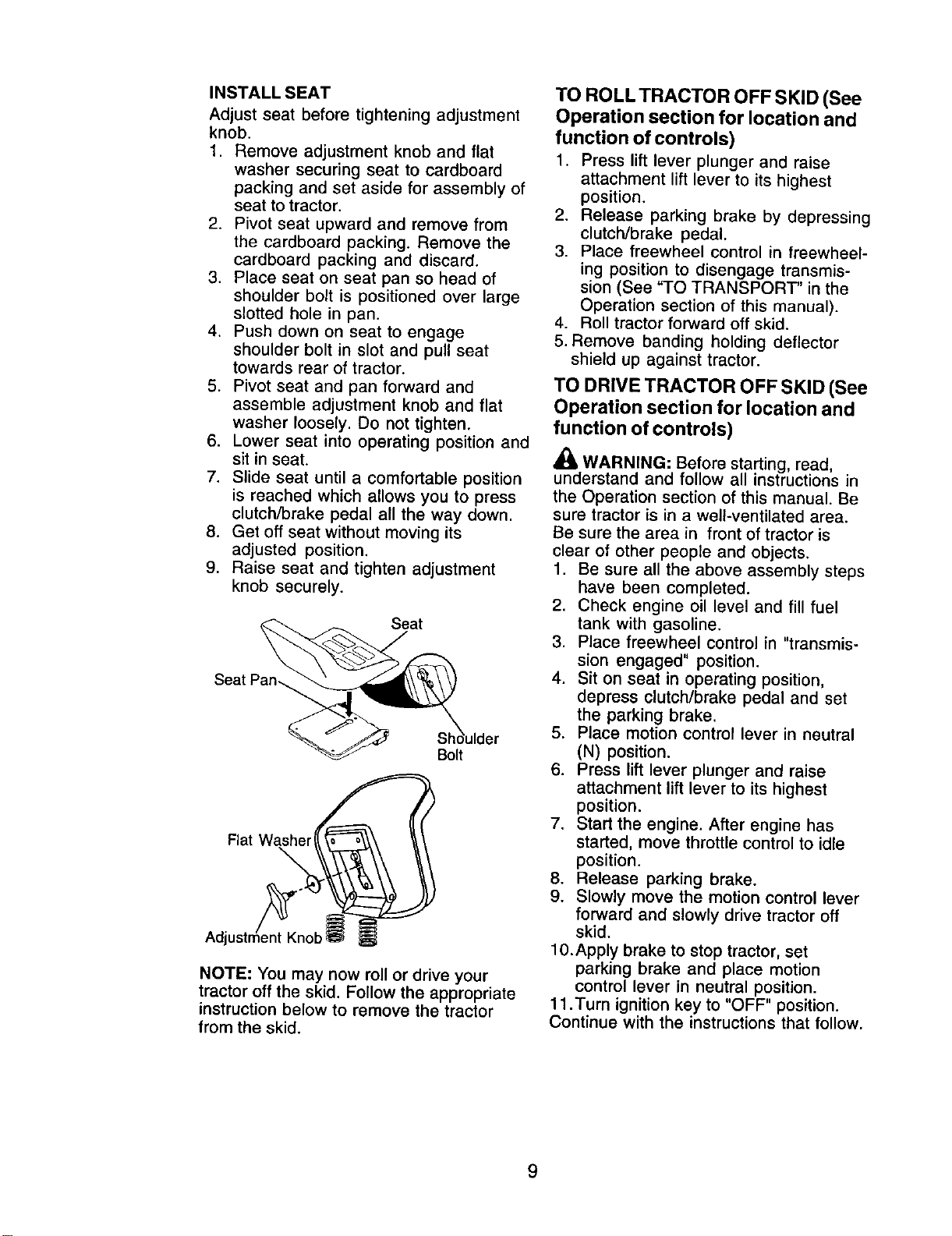

INSTALLSEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan_

Bolt

Flat Washer _

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting read

understand and fo ow a nstructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set

parking brake and place motion

control lever in neutral position.

11 .Turn ignition key to "OFF" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

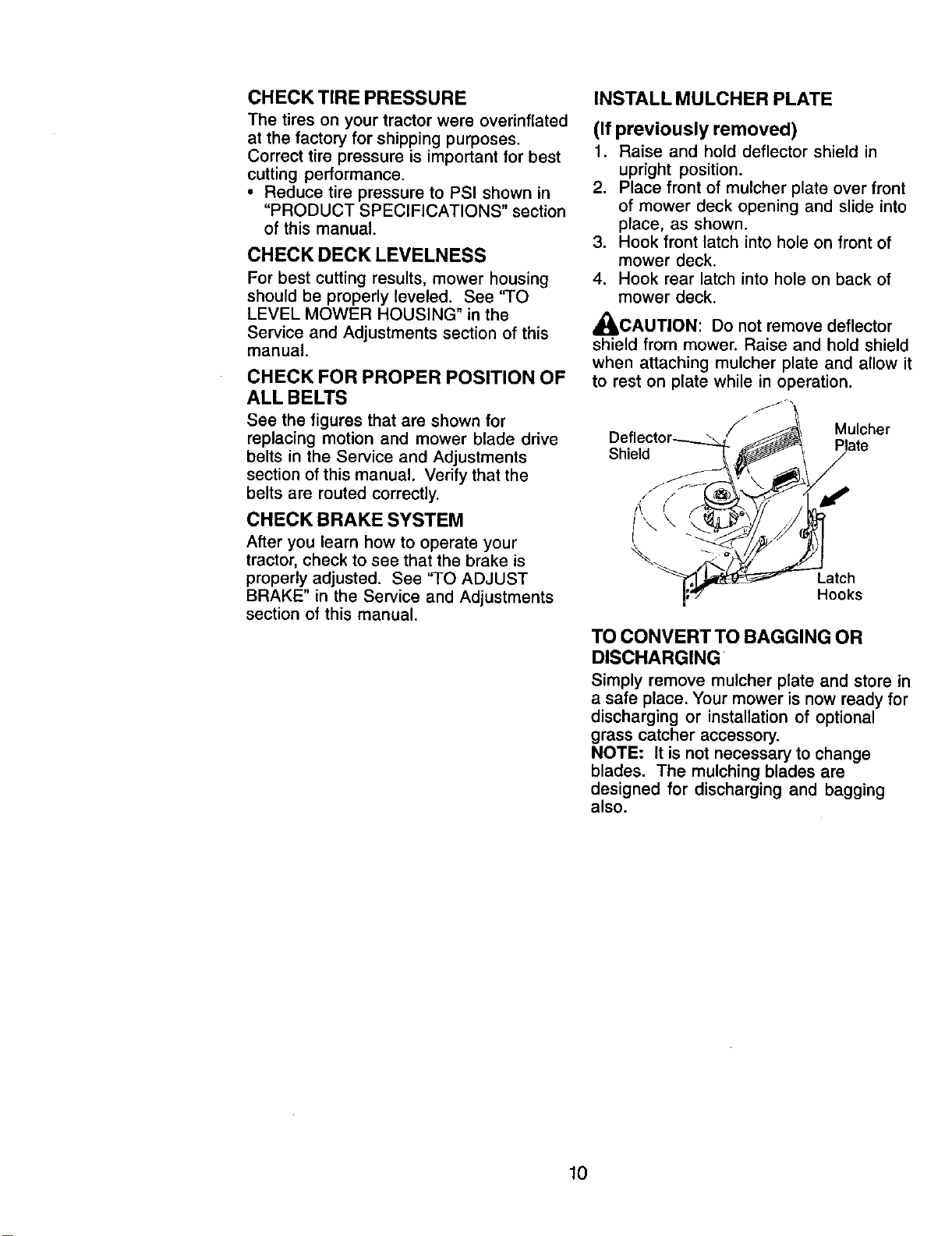

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

Shield

Mulcher

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place, Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are

designed for discharging and bagging

also.

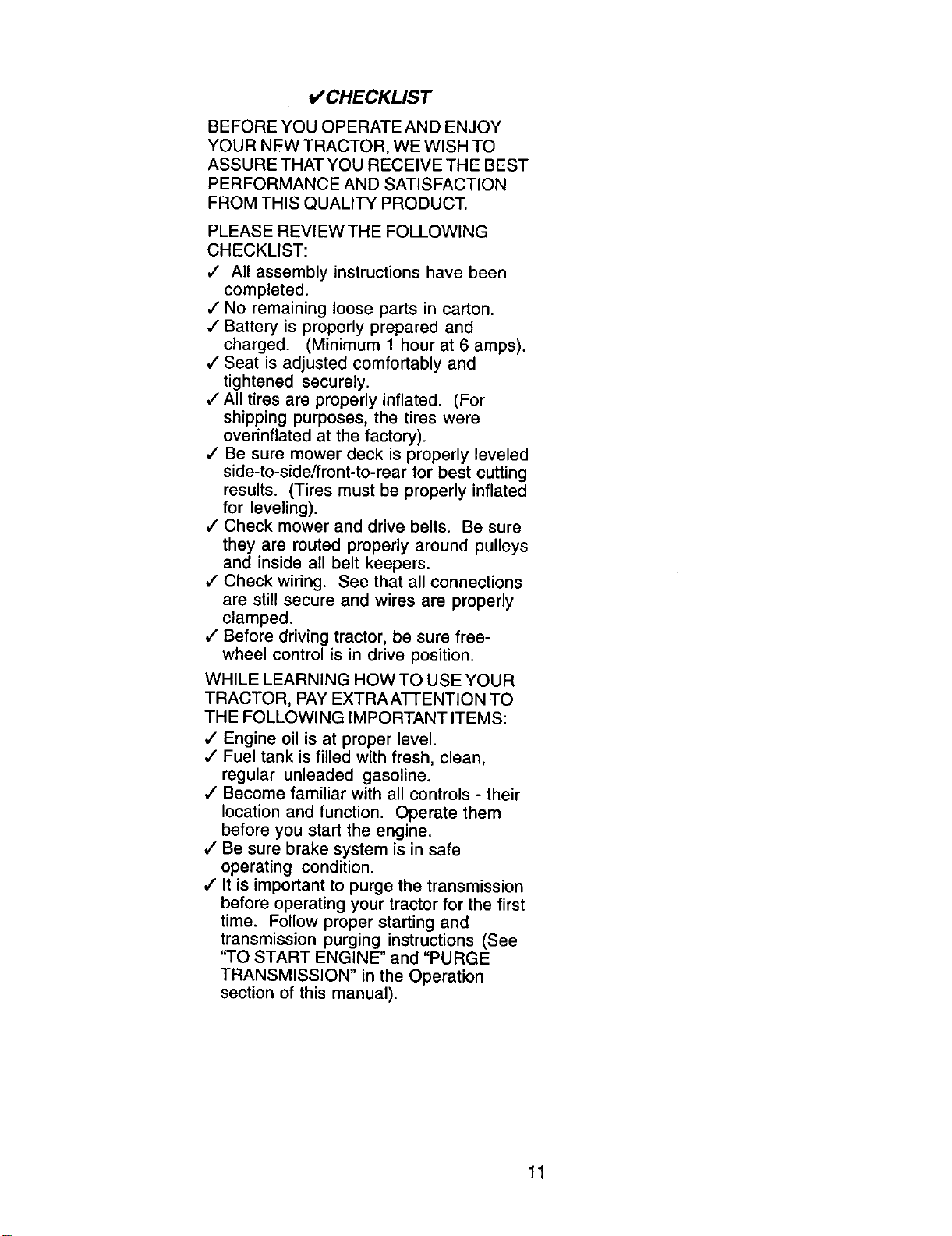

V'CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEWTHE FOLLOWING

CHECKLIST:

,/ All assembly instructions have been

completed.

/" No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

#" Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•/ Check wiring. See that all connections

are still secure and wires are properly

clamped.

,,/Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAAI-I-ENTiON TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,I Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

#' It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

'q'O START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

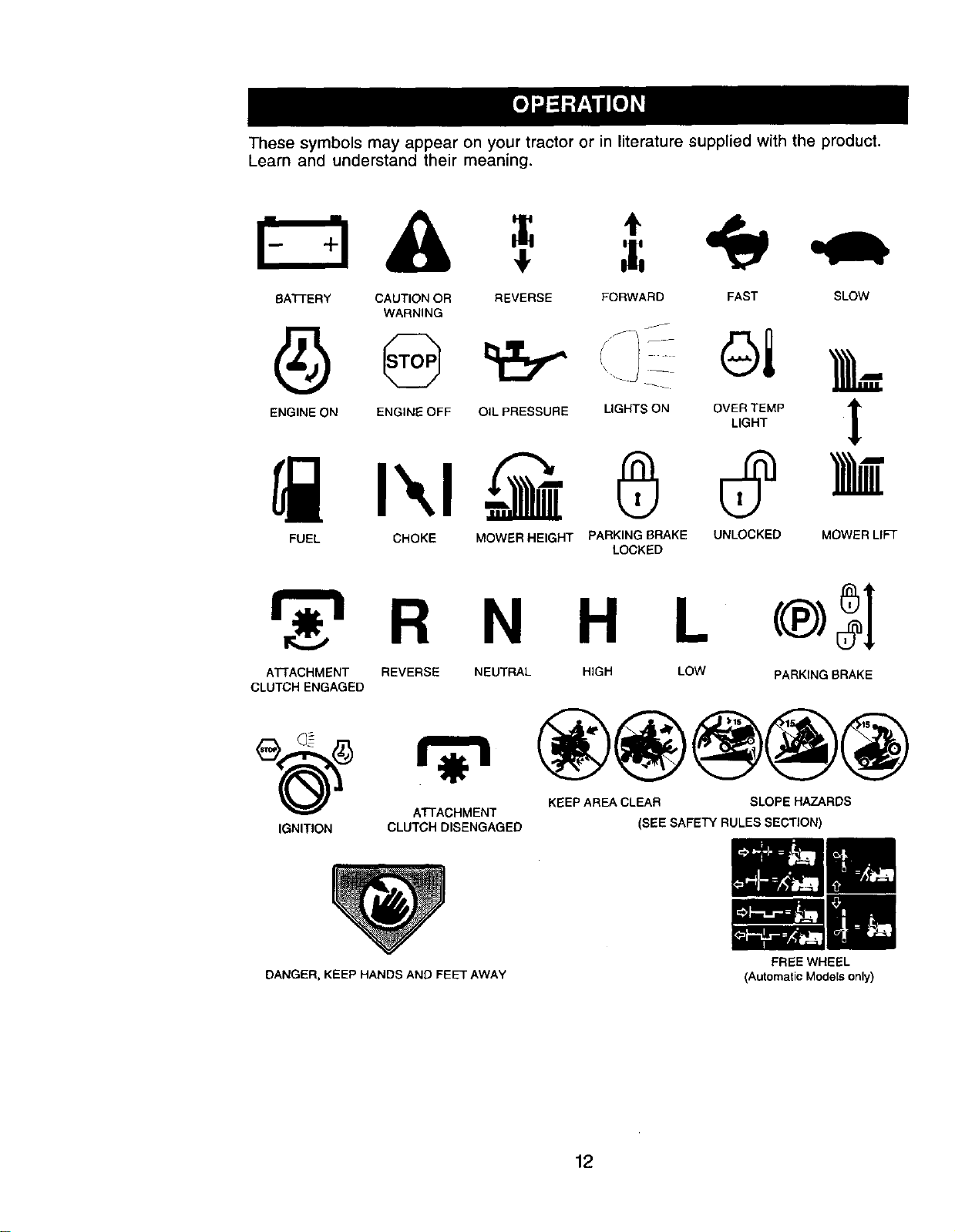

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

I- _1

BA'I-IERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

i I',,I 0

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

MOWERLI_

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

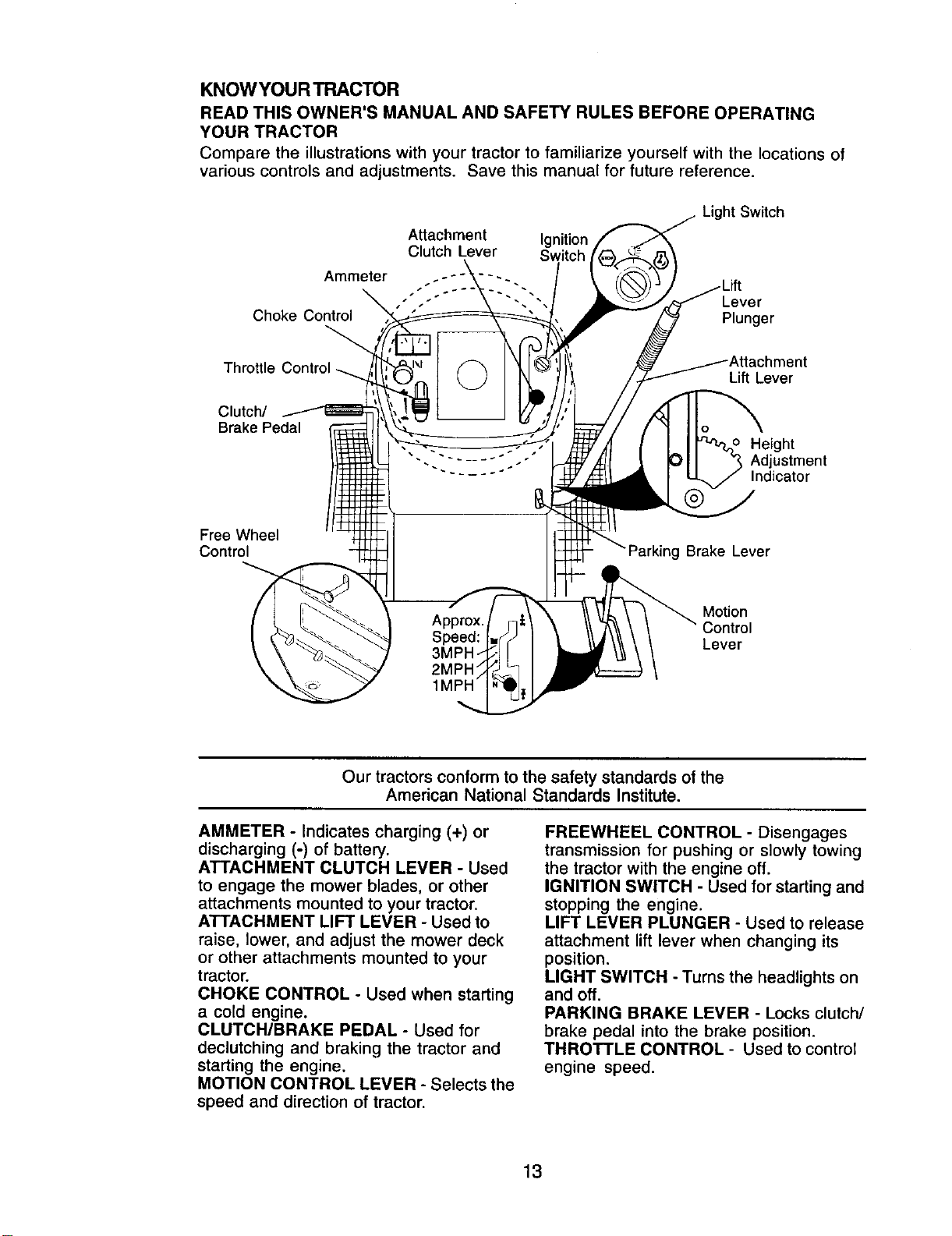

KNOW YOUR'tRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Choke Control

Thr

Clutch/

Brake Pedal

Attachment Ignition

Clutch Lever Switch

Light Switch

Lever

Plunger

Lift Lever

Height

Adjustment

Indicator

Free Wheel

Control

_gBrake Lever

Motion

Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

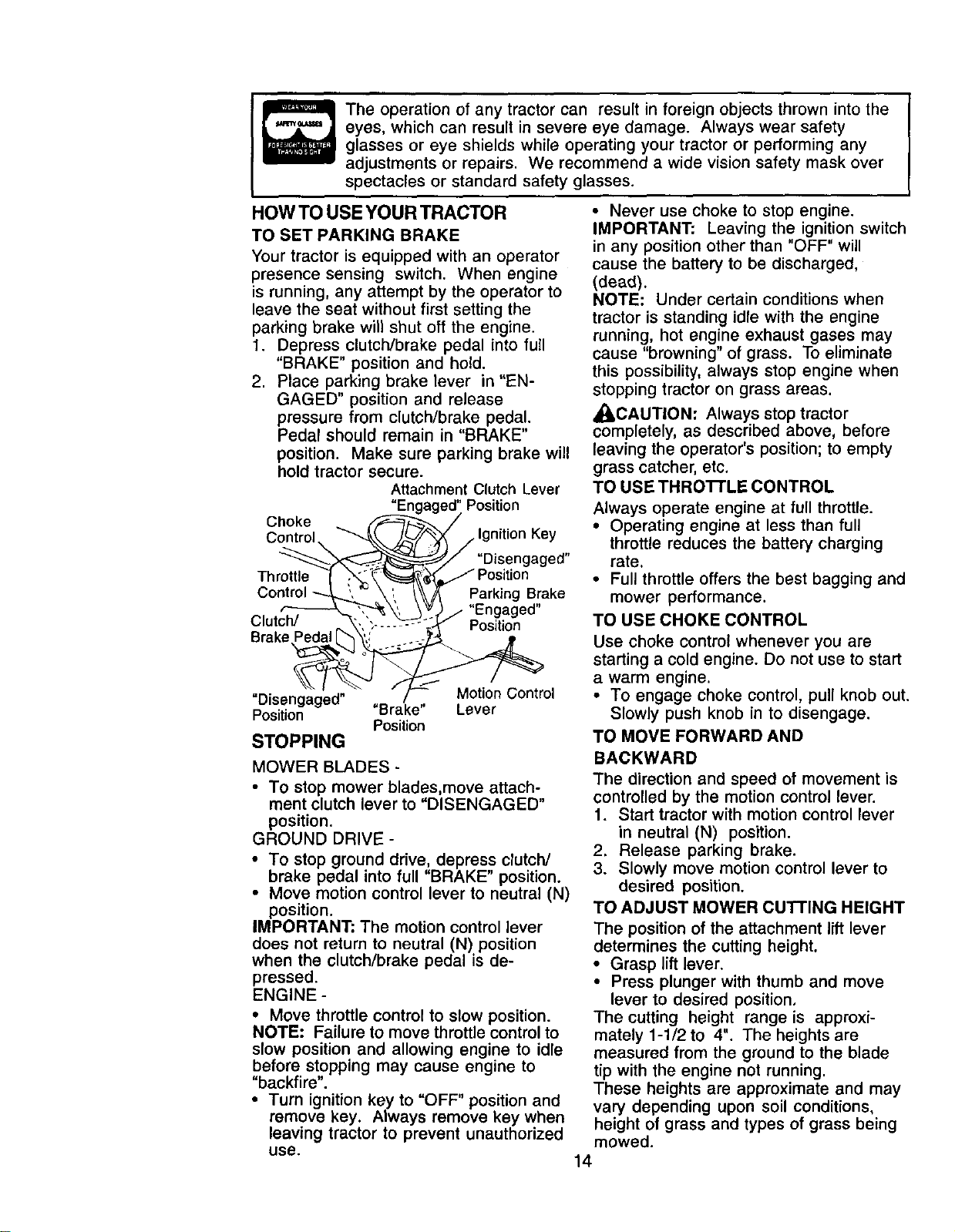

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever

Position

Choke

Control

Throttle

Control

Clutch/

Brake

"Disengaged"

Parking Brake

led"

Position

=Disengaged" Motion Control

Position "Brake" Lever

Position

STOPPING

MOWER BLADES -

• TO stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibUity, always stop engine when

stopping tractor on grass areas.

_IbCAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THRO'n'LE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever

in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position,

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

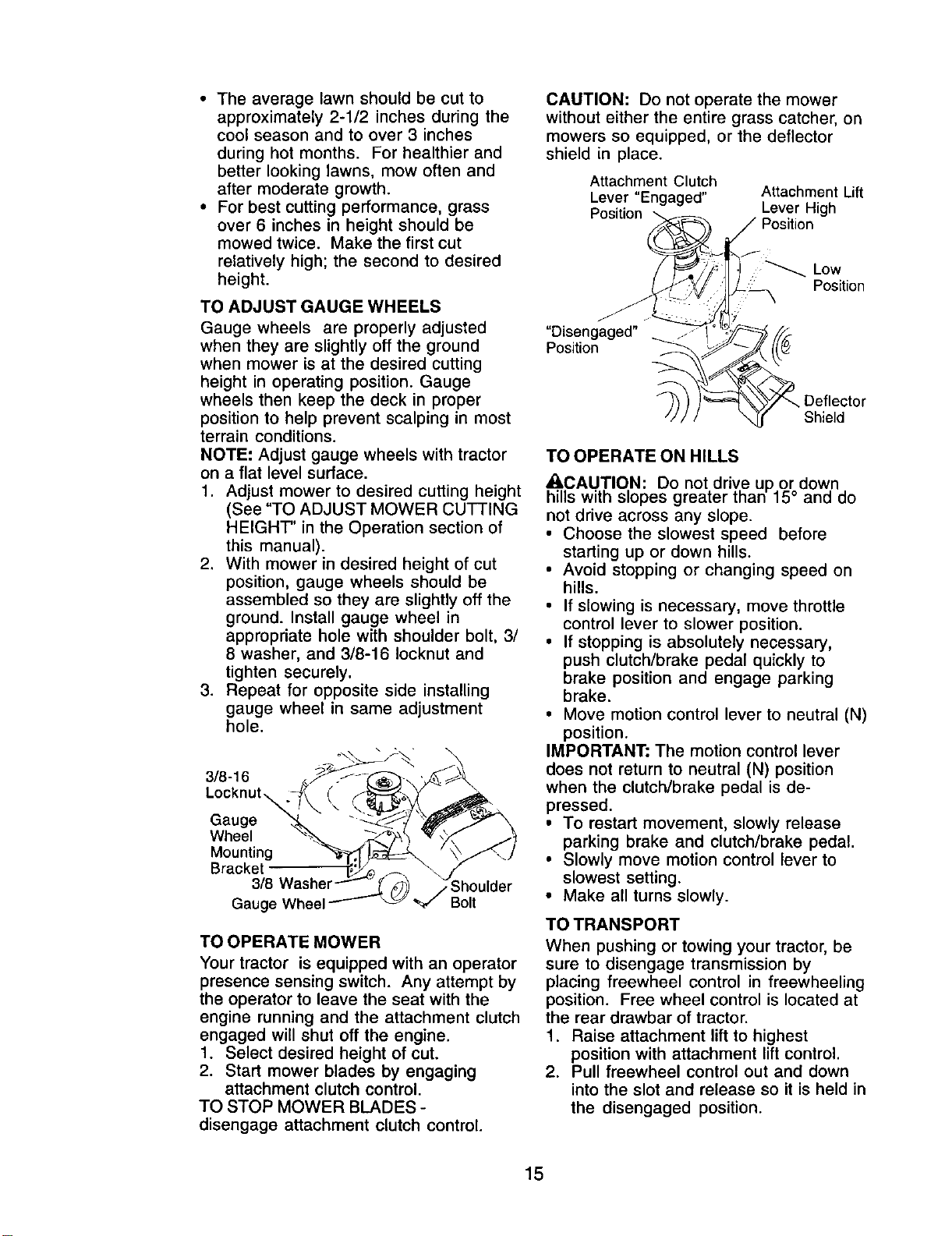

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment

hole.

3/8-16

Locknut\

Gauge

Wheel

Mounting

Bracket

3/8

Gauge Wheel

Shoulder

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Lever "Engaged"

Position

Attachment Lift

Lever High

Low

Position

"Disengaged"

Position

Deflector

Shield

TO OPERATE ON HILLS

=O=CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER

ATrACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. -13res can lose traction with

the ground and cause you to lose control

of your tractor.

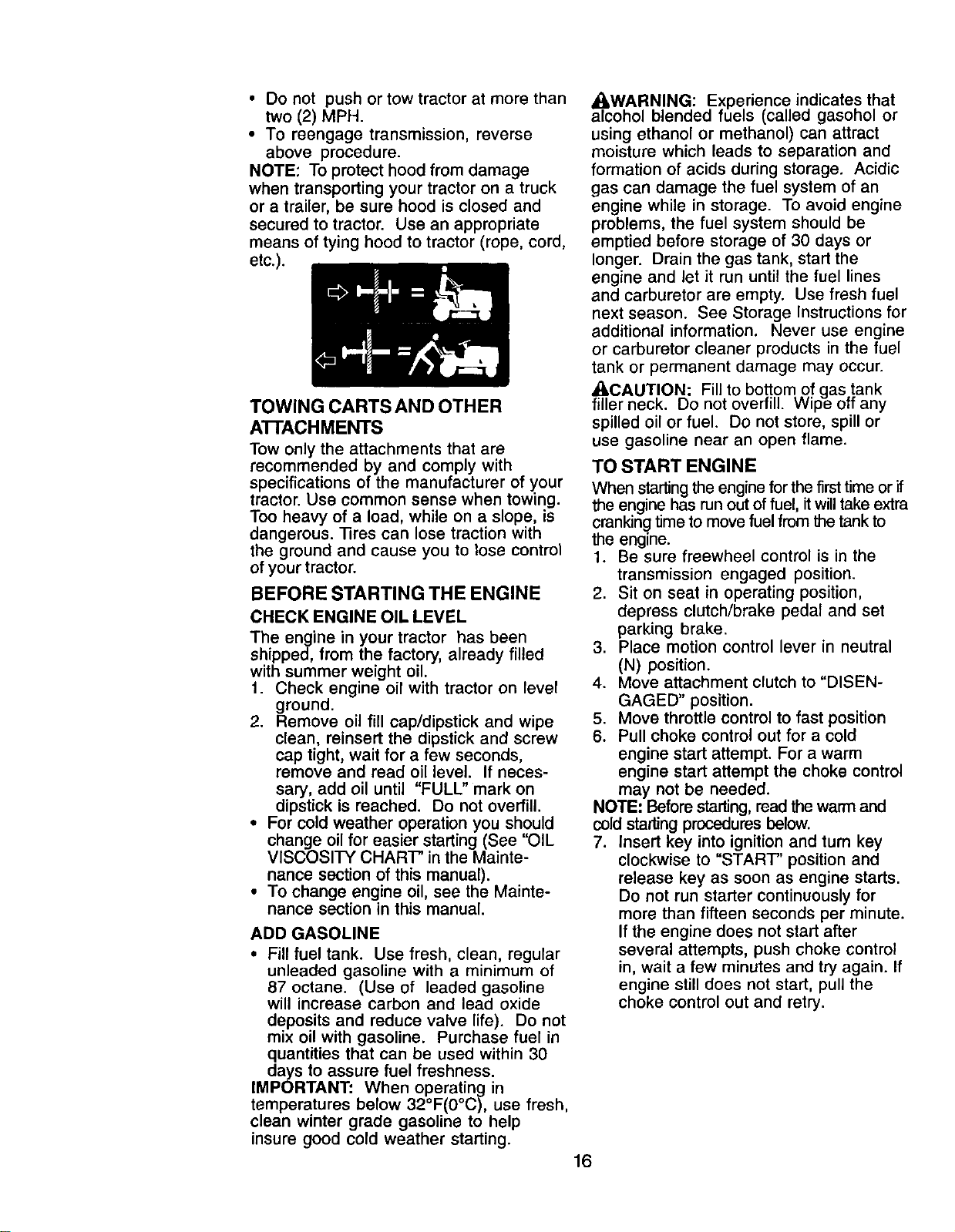

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

• t,WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

f_,,CAUTION: Fill to bo_om of gas.tank

iller neck. Do not ovenill. Wipe on any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time or if

the engine has run out of fuel, itwill take extra

cranking time to move fuel from the tank to

the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to "DISEN-

GAGED" position.

5. Move throttle control to fast position

6. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, mad the warm and

cold starting procedures below.

7. Insert key into ignition and turn key

clockwise to "START' position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

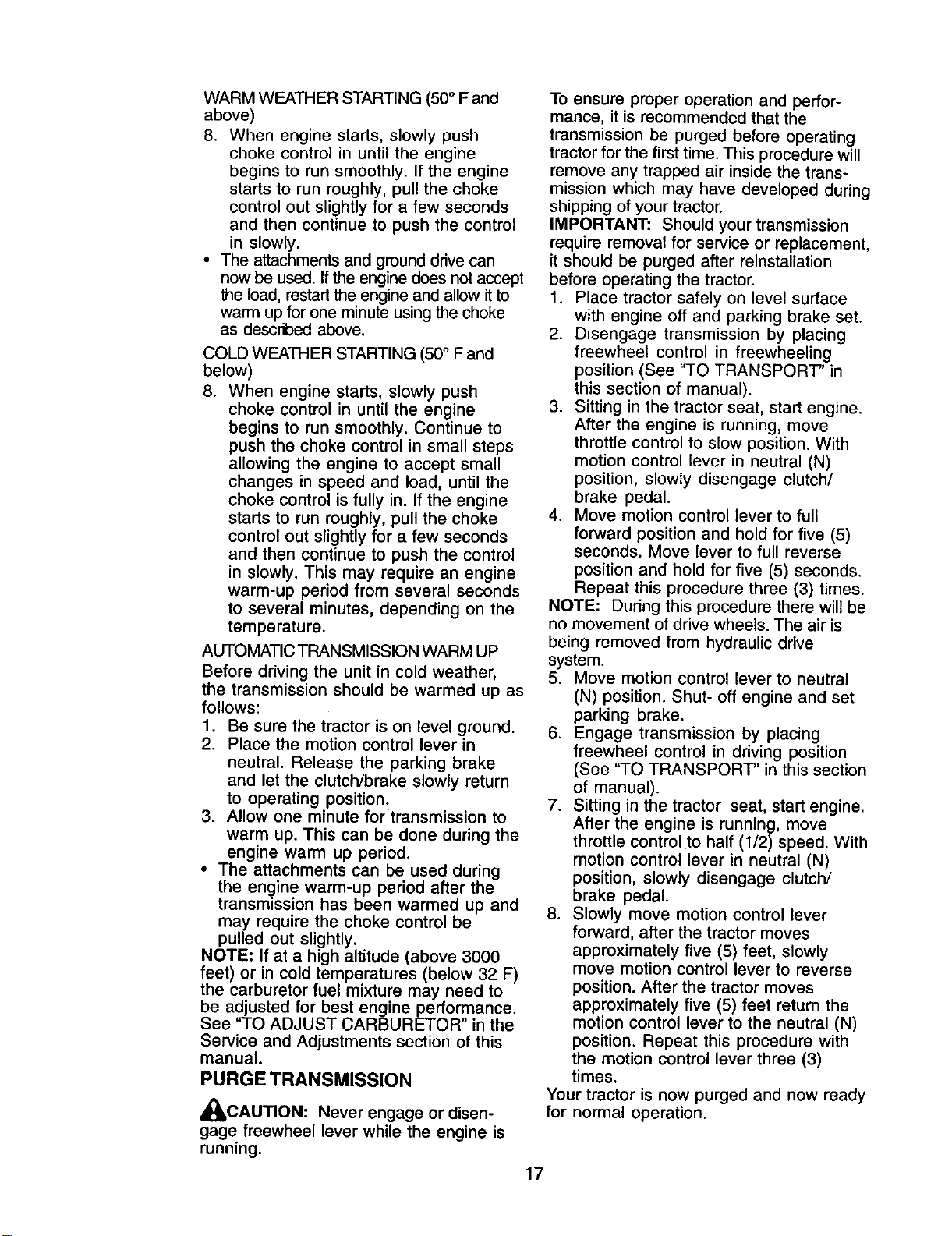

WARM WEATHER STARTING (50 ° F and

above)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not accept

the load, restart the engine and allow it to

warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and

below)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_ILCAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See 'qo TRANSPORT" in this section

of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation.

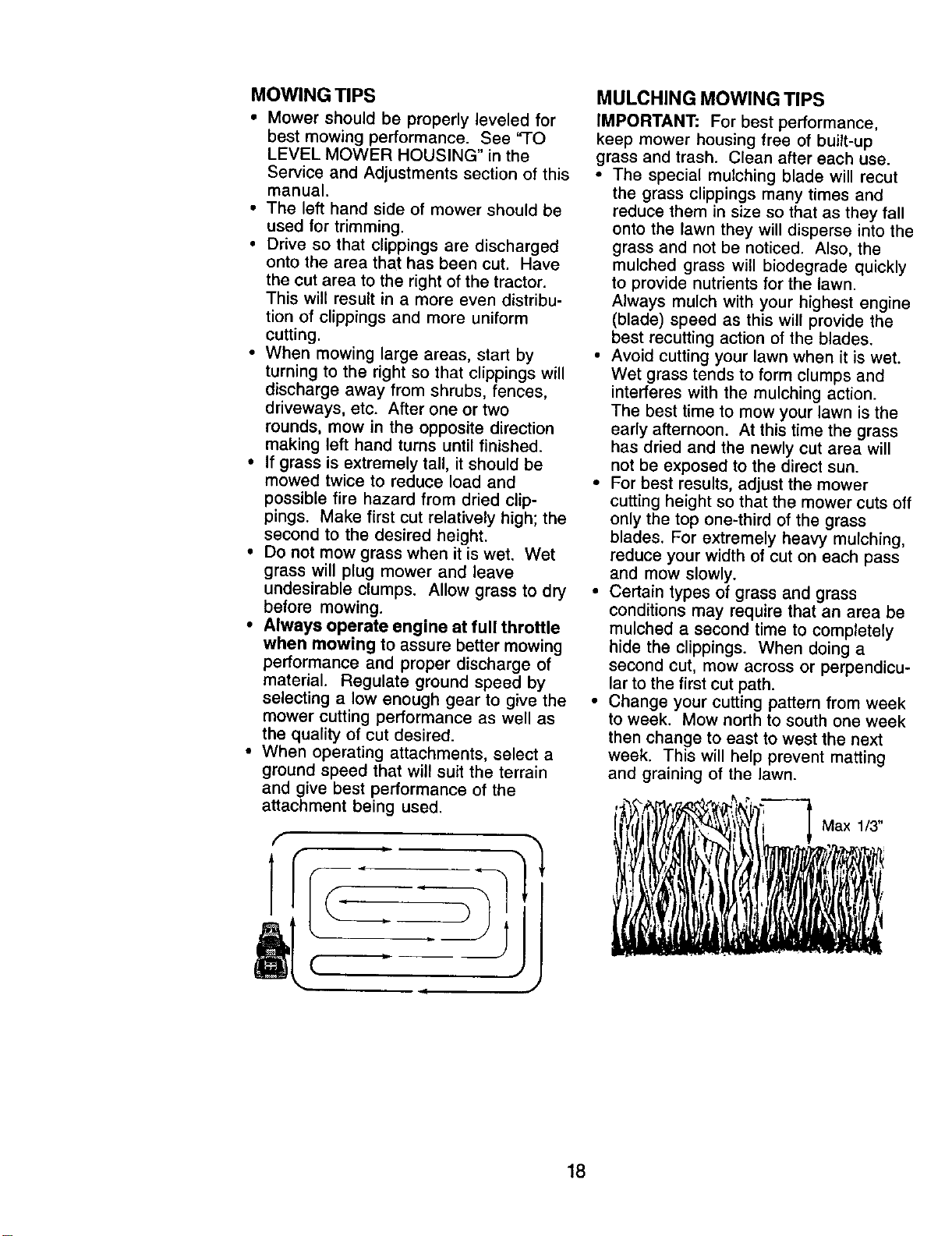

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See 'q-O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

( --

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass wilt biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3"

I - Change more often when operating under a heavy load or in high amb4enttemperatures, 5 - ff equipped with adjustable sy_em.

2 - Service more o_en when operating in dldy'o_ Clusty condikons. 6 - Not required if equipped _ mainlenance-free battery.

3 - If equil:_oedwith oil filter, change oil everV50 hours,

4. Replace blades re,m-e often when mowing ir_sandy scil,

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

7 =Tighten fro_ll_u_lepivot bOffto 35 fl.-Ib,s, h',aximem.

DO not ovortighten,

LUBRICATION CHART

_indle

Zerk

(])Front Wheel

Bearing

Zerk

.,_earing Zerk

@Engine/

(DGeneral Purpose Grease

(_Refer to Maintenance "Engine" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

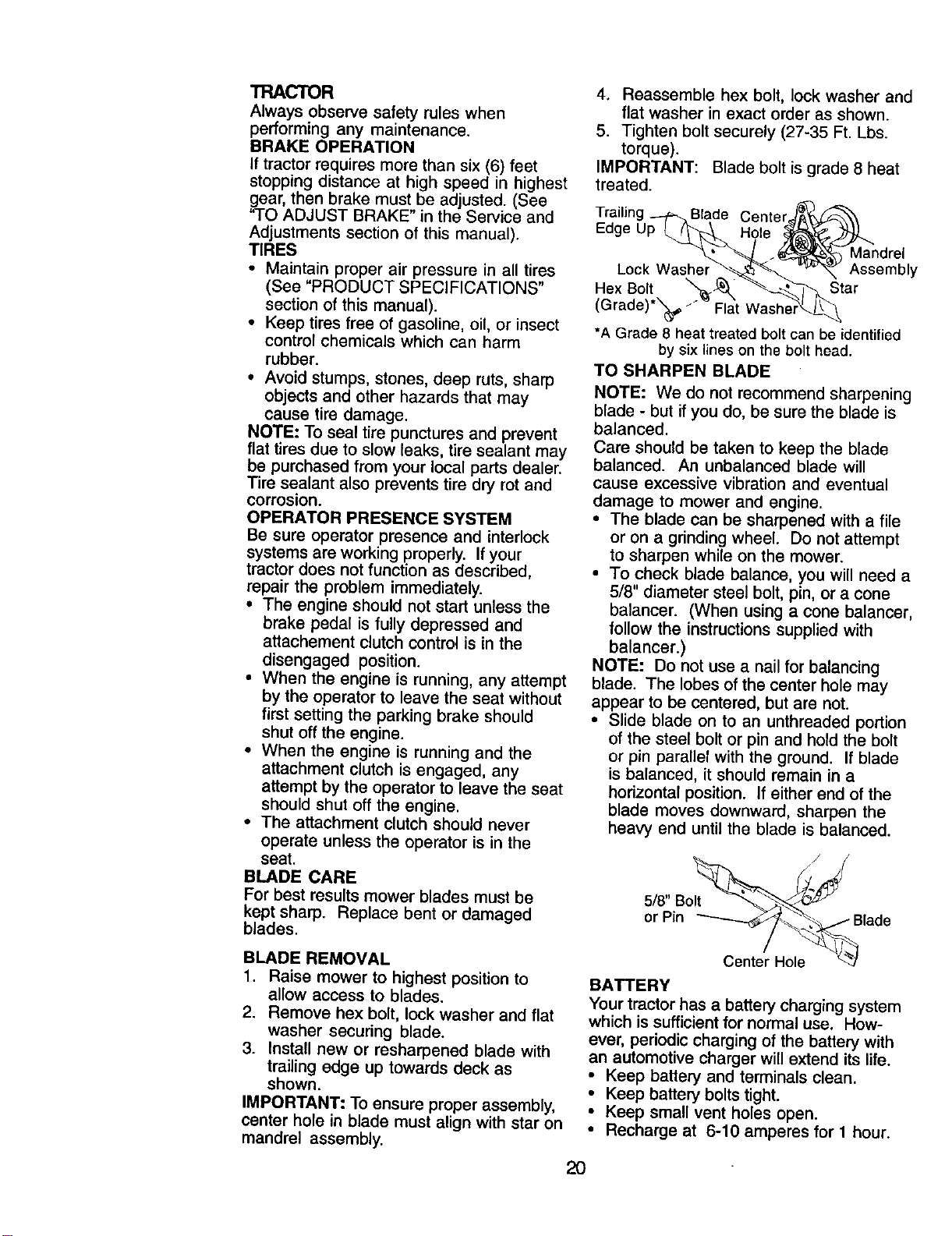

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant may

be purchased from your local parts dealer.

Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any attempt

by the operator to leave the seat without

first setting the parking brake should

shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer secudng blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star on

mandrel assembly.

4. Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Center

Edge Up Hole

Mandrel

Lock Washer Assembly

Hex Bolt "_ Star

(Grade)*'_, _j Flat

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade - but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balaneer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for I hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BAI-I-ERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petroeum

jelly.

6. Reinstall battery (See "REPLACING

BAI-I-ERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmission

while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To prevent

damage to seals, do not use compressed

air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multbviscosRy oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°E Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed

and __ "" _grainTube

Locked [_

Position _:: .'_/

Yellow Cap -"_"__

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto to the end of the drain valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section

of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See "TO REMOVE HOOD AND

GRILLASSEMBLY" in the Service and

Adjustments section of this manual).

Wing Nut Cartridge

Top Air __

Plate

Guide Cover_.. Foam Pre-

"-,, Cleaner

Engine Cooling Fins

Air Guide _

Cover "_

(Both Sides)

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge

plate.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry

cartridge.

Knob

Air Screen

MUFFLER

Cartridge

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp _

Fuel Filter_ _

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from

chassis bracket by removing retainer

spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook the

clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly adjust

your mower.

Hole

Retainer Spring

Anti-Sway Front Link

Housinc

Guide

Large

Retainer Spring Bracket

(Both Sides)

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE:Each full turn of adjustment nut will

change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of Bottom edge of

mowe_round

A_-_.'-'_J Ground Line _-"J-_

_./_<_.ASuspensi°n

Lift Link Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut "E"

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See '_ro

REMOVE MOWER" in this section of

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel Idler Pulleys1.- _

Pulley_

Mandre_

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A'.

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact your nearest Sears or other

qualified center.

WITH PARKING BRAKE

"ENGAGED"

Nut

ut "A"

_ Operating

Arm

Do not touch this nut. If further brake

adjustment is necessary contact your nearest

Sears or other qualified center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.) Motion

2. Remove belt from stationary idler and Control

clutching idler.

3. Pull belt slack toward rear of tractor. "....

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

4. Pull belt toward front of tractor and

remove downward from around

engine pulley.

5. Install new belt by reversing above

procedure. 25

Engine Pulley--

Clutching Idler F "_/I

Stationary Idler j

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Neutral Lock Gate

Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest Sears

or other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. ]]re sealant also prevents tire dry

rot and corrosion.

Retaining Ring

Washers

Axle

Square Key -----_.__..___'

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

,_I, CAUTION: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BAI-FERY" in the

MAINTENANCE section of this manual).

If '1umper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt negative grounded system. The other

vehicle must also be a 12 volt negative

grounded system. Do not use your tractor

battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" (+)

"Negative" (-)

L.H. Panel

Bolt

REPLACING BATTERY

_CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Terminal

Access

Door _

Hex Bolt

(Red)

Cable

-Negative (Black)

Guard Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. To replace, reverse above procedure.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THRO'n'LE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

Clamp Screw _

Quarter Cir¢_ \ _j /

L._L_ _ \ Swivel

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Choke Close(

Casing

Screw J-_

Choke

Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SEI-I-ING -

1. Be sure you have a clean air filter, and

the throttle control cable and choke

are adjusted properly (see above).

2. With engine off turn idle mixture screw

in (clockwise) closing it finger tight

and then turn out (counterclockwise)

1-1/4 to 1-1/2 turns.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 1200 to 1400

RPM.

3. While still holding throttle lever

against idle speed screw, turn idle

mixture screw in (clockwise) until

engine begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest Sears or

other qualified service center, which has

proper equipment and experience to

make any necessary adjustments.

Idle Speed

Idle Mixture

Screw

Thro_le

Lever

Idle Speed

Throttle Idle Mixture Screw

Lever

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'FrERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Will not start 1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Hard to start

Enginewill not

turn over

Bad spark plug.

Dirty air filter.

Dirty fuel filter.

Water in fuel.

Engine clicks but

will not start

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es),

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" ir

Service Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter,

9. Contact a Sears or other

qualified service center.

Loss of power 1. Cutting too much grass/too 1.

fast.

2. Throttle in "CHOKE" 2.

position.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

Set in "Higher Cut" position/

reduce speed.

Adjust throttle control.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Loss of power

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

10.Spark plug wire loose.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor grass 1. Engine speed too slow.

discharge

Travel speed too fast.

Wet grass.

Mower deck not level.

Low/uneven tire air

pressure.

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10. Improper blades used.

11 .Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(s) not

working

(if so equipped)

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

Battery will not 1.

charge 2.

Loss of drive 1.

Engine "backfires" 1.

when turning

engine

"OFF"

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

stopping engine.

CORRECTION

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

TRACTOR - - MODEL NUMBER 917.271843

SCHEMATIC

RED

8LAC_

AMMETER

(OPTtONAL) WHITE

--B M

----( )G MAI_.-

IGNITION

SWITCH

IGNITION SWITCH

PosmoN CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT S+A1 A2+L

RUN B+A1 NONE

START B÷S+A NONE

FUSE

: 4---,

P i

:_ : _-----

CLUTCH / BRAKE

(PEDAL UP)

BLACK

(OPTIONAL)

FUEb

ORANGE

SOLENOID

RED

STARTER

8LACK

W_MTE

SEAT SWITCH

= _ _ =, (NOT OCCUPIED)

WHITE _ r -- _1

/ AT'PMENTCLUTCH • ....

St_CK (CLUTCH GROUNDING

IX IGNITION •_ SP_L_U_K •___

UNIT I (2 PLUGS ON

TWIN CYL ENGINES).

CHARGING SYSTEM OUTPUT 28 VC_TS AC MIN. @ 3600 RPM

3AMP DC @P 3_00 RPM [C_ARQIk_i SYSTEM I_,_d_G_NECTED_

RED _ I

DIODE I ALTERNATOR

5 AMP AC @ 3600 RPM _ i

@ROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.271843

16,

TRACTOR -- MODEL NUMBER 917.271843

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, BtrFront 1/4-20 x 7-1/2

11 150109 Holddown BatteryFront Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch Interlock Push-In

21 175688 Harness, LightSocket (w/4152J)

22 4152J LightBulb

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable,Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key,Molded

40 178437 Harness, Ignition

41 71110408 BoltBik Fin Hex 1/4-20 UNC x 1/2

42 131563 Cover,Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular6Amp

52 141940 ProtectionWire Loop (Hour Meter)

55 17490508 ScrewThdrol 5/16-18 x 1/2

NOTE: Allcomponent dimensionsgivenin U.S. inches

1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

CHASSIS AND ENCLOSURES

207

208

TRACTOR -- MODELNUMBER 917.271843

CHASSISAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168337)(013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 155927 Panel, Dash, LH

12 145660 ClipTinnermanGrilleP/L

13 172107X010 Panel, Dash, RH

14 17490608 ScrewThdm13/8-16x1/2

17 144983X558 Hood Assembly

18 126938X Bumber Hood

20 156437 Plate Mtg Battery Fuel Tank

23 124028X Bushing, Snap, Nylon,Fuel Line

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Locknut, Hex, with Insert 3/8-16 UNC

28 178987)(558 Grille

29 155217X599 Lens, Grille

30 175692X558 FendedFootrest

31 139976 Bracket,Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm PivotMower Rear

51 73800400 Nut LockW/Insert 1/4 - 20 UNC

52 19091416 Washer 9/32 X 7/8 X 16 Ga.

53 145201 Bracket Grille PickoffLH

54 161464 Screw, Hex Wshd #8-18 x 7/8

55 145202 Bracket Grille Pickoff RH

57 S'rD552507 Bolt FinHex 1/4 -20 UNC X.75

58 140547 Air Duct

60 72140606 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 154798 DashLowerSTLT

74 STD541437 Nut Crownlock3/8-16 UNC

142 175702 Plate Reinforcement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cuphoider

206 170165 BoltShoulder5/16-18TT

207 17670508 Screw Thdrol 5/16-18 x 1/2

208 17670608 Screw Thdrol 3/8-16 x 1/2

212 165919 Insert, Lens

- - 5479J PlugButton

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

GROUND DRIVE

_26 1

212

116

2_ |2 i_5 • 53

TRACTOR - - MODEL NUMBER 917.271843

GROUND DRIVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 Transaxle(See Breakdown) 70

HydroGr 314-0510 71

8 165866 Rod Shift FenderAdjust 73

10 STD561210 Pin Cotter 1/8 x 1 CAD 74

14 10040400 Washer LockHvy Helical 75

15 74490544 BoltHex FLGHD 5/16-18 GR.5 76

16 STD541431 Nut LockHex W/Ins. 5/16-18 Unc 77

19 STD541437 Nut Lock Hex W/3Nsh3/8-16 Unc 78

21 130564 Knob,Deluxe 1/2-13 81

22 169498 Rod, Brake Hydro 82

24 73350600 Nut, HexJam 3/8-16 Unc 83

25 106888X Spring, Brake Rod 84

26 S'1"D551037 Washer 89

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 90

28 175765 Rod,Parking Brake 95

29 71673 Cap, Parking Brake 96

30 169592 Bracket,Transaxle 116

32 74760512 BoltHex Hd 5/16-18 Unc x3/4 120

34 175578 Shaft, Foot Pedal 150

35 120183X Bearing,Nylon 151

36 19211616 Washer 156

37 1672H Pin, Roll 158

38 179114 Pulley, Idler, Composite 159

39 74760648 Bolt Fin Hex 3/8-16 x 3 161

41 175556 Keeper, Belt Idler 162

47 127783 Pulley, Idler, V-Greove 163

48 154407 Bellcrank Clutch Grnd Dry STL 164

49 123205X Retainer, Belt 165

50 STD523715 Bolt Hex Hd 3/8-16unc x 1-1/2 166

51 STD541437 NutCrownlock 3/8-16UNC 166

52 STD541431 Nut, Crownlock 5/16-18Unc 169

53 105710X Link, Clutch 197

55 105709X Spring, Return, Clutch 198

56 17060620 Screw 3/8-16 x .75 199

57 140294 V-Belt, GroundDdve 200

59 169691 Keeper, Center Span 202

61 17120614 Screw 3/8-16 x 3/4 212

62 8883R Cover, Pedal 250

63 175410 Pulley, Engine

64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper BeltEngine Hydro

PART

NO. DESCRIPTION

134683 Guide Belt RH Engine

169183 Strap Torque Lh

169182 Strap Torque Rh

137057 Spacer, Split

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Ga.

165596 Shaft Asm Cross

165711 Spring Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga+

169594 Link Transaxle

164890X428 Console, Shift

124346X

170201

4497H

72140608

7390O600

175456

19133210

166002

165589

165494

72140406

73680400

74780416

19091010

165623

166880

165492

16558O

169613

169593

169612

72140508

72110614

145212

17060612

Nut Self-Thd Wsh-hd 1/4 Zinc

Control Bypass

RetainerSpring 1"Zinc/Cad

Bolt RDHD SQNK 3/8-16 x 1

Nut Lock Fig 3/8-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga+

Washer Srrted 5/161Dx 1.125

Bracket Shift Mount

HubTappered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

NutCrownlockl/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1Gr. 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Nyliner Snap-In

Washer Nyliner

Bolt Shoulder 5/16-18UNC

Bolt RDHDSQNK 5/16-18UNC x 1

Bolt RDHD SH 3/8-16 x 1-3/4 Gr.5

Nut Hex Fig Lock

Screw 3/8-16 x 3/4

NOTE; All componentdimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

STEERING ASSEMBLY

TRACTOR - - MODEL NUMBER 917.271843

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 175131

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 STD551137

13 136518

15 145212

17 177876

26 126847X

28 19131418

29 17060612

30 STD561210

32. 130465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054X428

43 121749)(

44 153720

46 121232X

47 6855M

51 73800500

54 74780520

63 74780616

65 160367

67 72140618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

Steering Wheel

FrontAxle Assembly

SpindleAssembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Beadng, Steering Column

Link, Drag

Washer, Lock

Spacer, Bearing, Front Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

BushingUnk Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Rod,Tie

Bushing,Steering

Screw "IF #10-32x 5 x3/8 Flange

Insert,Steering Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

LockNutCenter 3/8-24 UNF

Adaptor,SteeringWheel

Boot, Steering Dash P/L Mtl BIk

Washer 25/32 x 1-1/4 x 16 Gauge

Extension SteeringNon-Adjust

Cap, Spindle

Fitting,Grease

Nut LockHx W/Ins 5/16-18 UNC

BoltFin Hex 5/16-18 UNC x 1-1/4

Bolt Fin Hex 3/8-16 une. x 1 Gr. 5

Spacer Brace Axle

BoltRhnd Sq 3/8-16 x 2-1/4

Brace Axle

SteeringAsm

Bracket Susp Chassis Front

Fastener ChristmasTree

BoltShoulder7/16-20

ClipSteering

NOTE: All componentdimensionsgivenin U.S. inches

1 inch = 25.4 mm

TRACTOR- - MODEL NUMBER 917.271843

ENGINE

• 27

OPTIONAL EQUIPMENT

Spark Arrester

_----...._5 _, " _.-- "r_- _J_,-,

TRACTOR -- MODEL NUMBER 917.271843

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 170547

2 17720408

3 .......

4 149723

5 144069

6 144068

7 138129

8 171877

t0 145552

11 STD551125

12 STD522507

13 165287

14 148456

16 STD551237

17 17490624

23 169837

25 145996

26 73920600

27 152927

29 137180

31 157103

32 161696

33 123487X

34 106082X

37 8543R

38 148315

39 109227X

45 17000612

81 73510400

Control Throt Paddle

Screw Hex Thd Cut 1/4-20x5/8 T

Engine (See Breakdown) Bnggs Model No. 463707-0159-E 1

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

Clamp Tube DoubleEngine

Bolt 5/16 - 18 UNC X 3/4 W/Sems

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

BoltFin Hex 1/4-20 x 3/4

Gasket Muffler

Tube, Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16x1-1/2 Tytt

Shield Browning/Debris Guard

Control Choke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Fuel Guage STLT

Clamp Hose BIk

Spacer Pad

Line Fuel

Plug, Drain OUEasy

Pad Idler 1.75 x .75 x .06

Screw Hex Wsh Thdrol 3/8-16 x 3/4

Nut, Keps 1/4-20 Starter Nut

NOTE: All componentdimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140123

2 140551

3 71110616

4 19131610

5 145OO6

6 STD541437

7 124181X

8 17000616

9 19131614

10 174894

11 166369

12 121246X

DESCRIPTION

Seat 3450 BIWblk Craftsman

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3/4 X 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Une

Spring Seat Cprsn 2 250 BIkZi

Screw 3/8-16 x 1,5 SMGML

Washer 13/32 X 1 X 14 Ga

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72O50412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 3/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All componentdimensionsgiven inU.S. inches

1 inch = 25.4 mm

DECALS

TRACTOR - - MODEL NUMBER 917.271843

3 2 2 4

KEY PART

NO. NO.

1 156439

2 177253

3 171696

4 171697

5 176682

6 133644

7 171809

8 179128

9 163204

11 156811

13 146046

KEY PART

DESCRIPTION NO. NO.

Decal FenderDanger Sears 14 177289

Decal Hood Side 15 160396

Decal Hood Rh Craftsman 19 138047

Decal Hood Lh Craftsman 20 172331

Decal Engine H/P 22 149516

Decal Maint Customer Sears Dom -- 169210

Decal Replacement Srs - - 138311

Decal Deck - - 165800X428

Decal FenderCraftsmanGold - - 165799)(428

Decal Fender STLTH Oper Inst E/S - - 180595

Decal V-belt Dr Sch TractorE - - 180596

DESCRIPTION

Decal Dash Panel

Decal Mower Drive Schematic

Decal, Batten/Diehard Sears

Decal Deck Mower EZ3

Decal Batten/

Decal By Pass Lt Hydro

Decal Lift Handle

Pad Footrest Lh STLT

Fad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

4,10

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire,Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X427 Rim,Front

278H Fitting,Grease (Front Wheel Only)

9040H Bearing,Flange (FrontWheel Only)

106108X427 Rim,Rear

122082X Tire, Rear

7152J Tube, RearTire

(Not Provided, Service ItemOnly)

104757X428 Cap, Axle

144334 Sealant, Tire (10 oz. Tube)

NOTE: All componentdimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

LIFT ASSEMBLY

1/ ,s 8

!' /

/ .I

I' I

_'Jl

31"

32 /

TRACTOR -- MODELNUMBER917.271843

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever InnerWire Asm.

2 159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring

5 19211621 Washer 21/32 x 1x 21 Ga.

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Asm Lift LH.

12 139866 LinkAsm Lift R.H.

13 STD624008 RetainerSpdng

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspension Mower

20 163552 RetainerSpring

31 169865 Bearing, Pvt. Lift. Tapered

32 73540600 NutCrownlock 3/8-24

NOTE: All componentdimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

MOWER DECK

,148

34 '

19F 21

_117

_116

TRACTOR -- MODEL NUMBER 917.271843

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Housing

2 STD533107 Bolt

3 138017 Bracket Assembly,Sway Bar,

Front

4 165460 Bracket Sway Bar 38/42"

5 STD624008 Retainer Spring

6 130832 Arm, Suspension, Rear

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8

9 STD551137 Washer, Lock

10 140296 Washer, Hardened

11 134149 Blade, Mulching

13 137645 Shaft Assembly, Mandrel, Vented

(Incl. Key Number 6)

14 128774 Housing, Mandrel, Vented

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck

18 72140505 Bolt, Carriage 5/16-18 x 5/8

19 132827 Bolt, Shoulder

20 159770 Baffle, Vortex

21 STD541431 Nut, Crownlock 5/16-18 UNC

22 134753 Stiffener Bracket

23 131267 Bracket, Deflector

24 105304X Cap, Sleeve

25 123713X Spring, Torsion, Deflector

26 110452_X Nut, Push

27 130968X428 Shield, Deflector

28 19111016 Washer 11/32 x 5/8 x 16 Ga.

29 131491 Rod, Hinge

30 173984 Screw Thdrol Rolling Wsh Hd

31 129963 Washer, Spacer

32 153535 Pulley, Mandrel

33 178342 Nut,Toplock, Flanged

34 STD533717 Bolt

36 131494 Pulley, Idler, Flat

37 19131316 Washer 13/32 x 13/16 x 16 Ga.

40 STD541437 Nut, Crowelock 3/8-16 UNC

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

49 174284 RollerAssembly, Cam Follower

50 131340 Bolt, Shoulder#10-24 Grade 5

51 STD541410 Locknut

52 139888 Bolt, Shoulder5/16-18 UNC

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, Tuv Idler(94)

67 149846 Knob Custom Oval

68 144959 V-Belt

92 STD541437 Locknut, HexW/Wsh3/8-16 UNC

101 136420 Cover Mulching 42" Black

102 71081010 Screw Truss Hd Phil10-24 x5/8

103 19061216 Washer#10

104 STD551110 Washer Lock

105 160793 Latch Asm Bagger

106 2029J NutWeld

111 179292 Bracket Gauge, Wheel LH

112 179293 Bracket, Gauge, Wheel RH

113 17060508 Screw 5/16-18 x 1/2

114 73510500 Nut, Hex Keps 5/16-18 UNC

115 72110505 Bolt, Carriage 5/16 UNC x 5/8

116 4898H Bolt, Shoulder

117 165746 Wheel, Gauge

118 73930600 Nut, Crownlock 3/8-1

119 19121414 Washer 13/32 x 7/8 x 14 Ga.

129 19131312 Washer 13/32 x 13/16 x 12 Ga.

130 STD523710 Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

131 STD533710 Bolt Rdhd Sqnk3/8-16 UNC x 1

142 165890 Arm Spring Brake Mower

143 157109 Bracket Arm Idler 42"

144 158634 Keeper Belt 42" Clutch Cable

145 165888 PuUeyldler Fiat

146 171977 Bolt Carraige Idler

147 131335 Spring Extension

148 169022 Spring Return Idler

149 165898 Retainer Spring Yellow Zinc

150 19091216 Washer 9/32 x 3/4 x 16 Ga.

151 169670 Bracket Clutch

152 169676 Cable Clutch 42"

153 169674 Washer flat 3/8" Type B

154 169675 Spring Retainer

155 169671 Spring Retention Lever

156 169672 Spacer

157 169669 Rod Clutch

158 17720408 Screw Hex Thd Cut 1/4-20 x 5/6

159 STD533717 Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

- - 130794 Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

- - 169583 Replacement Mower, Complete

NOTE: All componentdimensions given inU.S.inches

1inch = 25.4 mm

80 17

119,

120-

109

124

107

128

9OO

r--t

o1"M

TRACTOR - - MODEL NUMBER 917.271843

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing,Assembly 59 170408 Rotor, Brake

2 170352 Side Housing, Assembly 60 142883 Brake Puck

3 170353 Center Section, Assembly 61 142881 Puck Plate

4 170354 Swashplate,TrunionMachined 62 142887 Brake Actuating Pin

5 169898 Block - Assembly 63 170410 Hfhcs 1/4-20x2 W/Patch,

6 170355 Sealant 10.50z SpecialFlange

7 170356 Hex Flange Screw 1/4-20 X 1.25 64 142892 Bolt, 114-20X 1 W/Patch

8 170357 Stud, 5/16-24 Hex Double End 65 170411 Spacer

9 170358 Shaft, Input 66 170412 Spring, Brake Arm Bias

10 170359 Ring -Retaining 67 170413 Sq. Hd. Bolt 5/16-24-Ribbed

11 170360 Spacer 68 170414 Arm, Brake

12 169870 Ring -Retaining 69 170415 Slotted Hex Nut 5/16-24

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416 Cotter Pin 3/32 X 3/4

14 169869 Ball Brg 17mm Id X 40mm Od X 71 170417 Compression Spring Brake Anti-

12rnm Drag

16 170362 Hex Flange Head Screw 5/16- 72 170418 Washer, Ht .5 I.D. X 10.D. X .032

24X0.75 73 142884 Flat - Washer 11/32 I.D. X 7/80.D

17 170363 Lip Seal 18 X 32 X 7 74 170419 Oil Seal .625 X 1.0 X .25

18 170364 Arm, Control 75 170420 Check Plug Assembly, .027,Washer

19 150771 Bearing, 30x52x13 Thrust 76 170421 Stud, 5/16-24 Friction Pack

23 170365 Check Plug Assembly, Washer 77 170422 Puck, .330 X 1.50 X .0975

24 170366 Shaft, Motor 78 142969 Spring, Helical Comp

27 170367 Gear - Pinion, 13t 79 142980 Spacer

28 170368 10V48t Gear 80 150778 Hex Lock Nut 5/16-24Unjf(Nylon

29 170369 Gear, 10t Jackshaft Insert)

30 170370 60t Bull Gear 81 170423 Wedge, FrictionPack

31 170371 Sleeve Bearing .75 X 1.575 X .625 82 170424 Clip, Washer .316xl .50x.1046

32 170389 SleeveBearing(Outboard) (Plated)

.75xl .750x.625 83 161162 Pin, Standard Headless

33 142991 Washer, 3/4 Id X 1-1/20d X .13 84 170425 Fitting,5/16 Sae 5/32 Tube

Thk 85 170426 Hose, Expansion Tank

34 170390 Lip Seal Axle Seal 86 170427 Expansion Tank

35 170391 Shaft, Axle .75 X t 1.39 (Key, R.H.) 87 170424 Cap - Poppet Valve

36 170392 Shaft, Axle .75 X 16.99 (Key, L.H.) 88 170429 Bolt,Self Tapping 10-32 X 1/2

37 150792 Miter Gear (Splined) 90 170430 Puck, Inner Wedge

38 150793 Miter Gear 15t (0.5 Id) 93 170431 Spring Clip - Housing Thrust

39 150809 Shaft 107 170432 Deflector

40 170.393 Ring,Spiral Retainin9 108 170433 Washer,Motor Shaft

41 170394 Pin, Jackshaft .71idxl.15odx.030thk

42 170395 Magnet, Ring 109 170434 Plug, Sae #6

43 170396 Spr;ng, Bypass 111 170435 O-Ring .07 X .301 I.D.

44 150797 Hydro Mtg Screw 3/8-24 X2.5 112 170436 Shield, Vent

Long 113 170437 Bracket, Support Expansion Tank

45 170397 Filter 116 170438 Silicon Sponge

46 170398 Base, Filter 119 170439 Fan, 7 In.

47 170999 Actuator, Bypass 120 170440 Pulley

48 170400 Rod, Bypass Actuator 121 170441 Hex Lock Nut 1/2-20 (Nylon Insert)

49 170401 Arm, Bypass 122 170442 Washer, Selleville

50 170202 Retaining Ring .250 External 123 170443 BeltKeeper

51 170403 Seal, Lip .741 X .250 X .250 Tc 124 170444 CenterSection-FUter-Bypass

52 170404 Flat Washer, 5/8 Id X 1.00d X .05 Assembly

Thk 125 170445 Filter Assembly

53 170405 Retaining Ring 126 170446 Fan - Pulley Service Assembly

54 170406 Bearing, Center Block 127 170447 Seal - O-Ring Kit

55 142977 Spring- HelicalCompression 900 166768 Transaxle Complete

56 142978 Washer

57 150798 20w-50 Oil NOTE: All component dimensions given in U.S. inches

58 170407 Brake Yoke 1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

BRIGGS & STRATTON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

520 07"_

359_ 9_

373_

279

146 I

1132 !

22,1

11019 LABEL KITI

11058OWNER'S MANUALJ

TRACTOR - - MODEL NUMBER 917.271843

BRIGGS & STRATTON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

524 o

441

449_

212_ 51A Sl

414__; Sl

50_ 26;,_ 2

365_ _ !1 _'_1 1629_

54 _IA

119_

276 9E

130(_

43859AP>_ \.

394 391 _L-_9_% _

434__

435e_'

lO2_

117

121 CARBURETOR OVERHAUL KIT

394

859A

859

276A

104_ 276(_ 231_

392_ 432_

807_ 147_

911 231 _-_

F_" lO9-_

108_ _/

102@

105_

\ _ 118

267

861 FUEL PUMP KIT

432_ 392_

859_394_859A _

TRACTOR - - MODEL NUMBER 917.271843

BRIGGS & STRATTON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

I____ 6Ol

11036 LABEL-EMISSION

425'

505

J 4

334

1137689_

789

164

643

967

445

235

161_

_ _63_

1095 VALVE GASKET SET

868

1119_

358 ENGINE GASKET SET

TRACTOR - - MODEL NUMBER 917.271843

BRIGGS & STRATTON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

332

934_ 75

1006

1005_

695

801

544

513

803

802

579 _

697_

TRACTOR -- MODEL NUM BER 917.271843

BRIGGS & STRATTON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697078 Cylinder Assembly 74 691677

2 399265 Bushing-Cylinder 75 691056

3 391086 Seal-Oil 91 693483

4 493304 Sump-Engine 95 690718

5 691162 Head-Cylinder No. 1 97 693485

5A 691163 Head-Cylinder No. 2 98 807923

7 697075 .+ Gasket-Cylinder Head #1 102 693509

7A 697076 °+ Gasket-Cylinder Head #2 104 693506

6 495754 Breather Assembly 105 692078

9 27803 ,÷ Gasket-Breather 107 693482

10 690334 Screw (Breather Assy.) 108 693505

11 691899 Tube-Breather 109 693498

12 692287 Gasket-Crankcase 117 693538

12A 692292 Gasket-Crenkcase (.015") 118 693500

271188 Gasket-Crankcase (.005") 119 690720

271189 Gasket-Crenkcase (.009")

13 691651 Screw (Cylinder Head) 12! 693503

15 690946 Plug-Oil Drain 122 691928

16 690636 Crankshaft 125 693479

18 495901 Cover-Crankcase 130 693504

19 399264 Kit-Bushing/Seal 133 693512

20 291675 • Seal-Oil (PTO Side) 146 691639

22 691104 Screw (Crankcase Cover/ 147 693508

Sump) 161 691401

22A 693972 Screw (Crankcase Cover/ 163 690273

Sump) 165 693148

23 691976 Flywheel 166 691764

24 222698 Key-Flywheel 187 499167

25 697069 Piston Assembly (Standard)

697072 Piston Assembly (.010" 188 691003

Oversize) 197 690364

697073 Piston Assembly (.020" 202 690570

Oversize) 203 493230

697074 Piston Assembly (.030" 205 690322

Oversize) 209 691273

26 690162 Ring Set-Piston (Standard) 211 691807

690164 Ring Set-Piston (.010" 212 693544

Oversize) 212A 690571

690166 Ring Set-Piston (.020" 219 696376

Oversize) 220 690412

690168 Ring Set-Piston (.030" 222 691366

Oversize) 227 690762

27 691299 Lock-Piston Pin 231 690718

28 498319 Pin-Piston (Standard) 235 691206

498320 Pin-Piston (.005" Undersize) 240 394358

29 394306 Rod-Connecting (Standard) 267 690316

397158 Rod-Connecting (.020" 276 693510

Undersize) 276A 693497

32 691133 Screw (Connecting Rod) 278 692810

33 691794 Valve-Exhaust

34 691804 Valve-intake

35 691805 Spring-Valve (Intake)

36 691597 Spring-Valve (Exhaust)

40 690656 Retainer-Valve (Intake)

40A 691939 Retainer-Vatve (Exhaust)

42 494553 Keeper-Valve

45 691800 Valve Tappet

46 691161 Cam Shaft

47 691964 Slinger-Oil

48 696942 Short Block (Replacement

Engine 463707-0143-E2)

50 691709 Manifold-Intake

51 692278 °_ Gasket-Intake

51A 692219 °+ Gasket-Intake

54 93208 Screw (Intake Manifold)

73 692527 Screen-Rotating

Screw (Rotating Screen)

Washer (Flywheel)

Body-UpperCarburetor

Screw (Throttle Valve)

Shaft-Throttle

Kit-Idle Speed

(_ Gasket-Carburetor Body

121Pin-Float Hinge

Valve-Float Needle

Body-Lower Carburetor

Valve-Choke

Shaft-Choke

O Jet-Main (Standard)

Jet-Main (High Altitude)

Screw (Upper to Lower

Carburetor Body)

Carburetor Overhaul Kit

Spacer-Carburetor

Carburetor

Valve-Throttle

Float-Carburetor

Key-Timing

O Jet-Pilot

Base-Air Cleaner

• Gasket-Air Cleaner

Nut (Ring Gear)

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Screw (Back Plate)

Link-Mechanical Governor

Crank-Bell

Screw (Bell Crank)

Spring-Governor

Spring-GovernedIdle

Link-Throttle

Gear-Governor

Washer (GovernorGear)

Bracket-Control

ControlLever-Governor

Screw (ChokeValve)

Shield- Fuel Spray

Filter-Fuel

Screw(Casing Clamp)

I_+Washer-Seaiing

O Washer-Sealing

Washer (GovernorControl

Lever)

279 690366 Screw (Valve Cover)

Included in Engine Gasket Set, Key, No.

358

t3 InCluded in Carburetor Overhaul Kit, Key.

No. 121

+ Included in Valve Gasket Set, Key. No.

1095

± Included in Fuel Pump Kit, Key. No.861

NOTE: All componentdimensions givenin U.S.

inches 1 inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.271843

BRIGGS & STRA'n'ON ENGINE-MODEL NUMBER 463707, TYPE NUMBER 0159-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO, DESCRIPTION

297 691331 Nut (Air Filter Retainer) 643 496700

304 690826 Housing-Blower 689 690555

305 690960 Screw (Blower Housing) 691 690657

306 690414 Shield-Cylinder 695 693149

306A 690435 Shield-Cylinder 697 691625

307 691003 Screw (Cylinder Shield) 725 280866

309 497596 Motor-Starter 726 391362

310 690323 Bolt-Starter Motor 741 691285

311 497608 Brush Set 742 690328

332 691059 Nut(Flywheel) 783 693059

333 394891 Armature-Magneto 789 695050

334 691061 Screw (Magneto Armature) 797 693167

337 802592 Sparkplug 801 691967

358 495868 Gasket Set-Engine 802 691286

359 691077 Washer-GroundTerminal 803 691427

363 691062 FlywheeI Puller 807 693511

365 690321 Screw(Carburetor) 842 271170

373 691612 Nut (Ground Terminal) 847 495715

383 89838 Wrench-Spark Plug 851 493880

391 693487 Body-Fuel Pump 859 693488

392 693491 O±Spring-Pump Diaphragm 859A693490

394 693489 O±Diaphragm-Carburetor 861 693502

395 690481 Cover-ValveChamber 865 691196

404 690442 Washer (Governor Crank) 865A 691197

414 691872 Washer (Bell Crank) 868 692324

425 691675 Screw (Air Cleaner Cover) 869 691802

432 693492 O±Cap-Spdng 870 691844

434 693493 Cover Diaphragm 871 261961

435 693494 Screw (Diaphragm Cover) 918 393815

441 691176 Bracket-OU Fill

445 394019 Filter-Air Cleaner Cartridge 934 691058

447 690297 Screw (Air Guide Cover) 955 693513

449 691044 Screw (Oil FiKIBracket) 967 272490

474 696459 Alternator 968 691207

505 691029 Nut (Governor Control Lever) 971 691100

507 691972 Insulator 1005498157

510 497606 Drive-Starter 1006 691247

513 692024 Clutch-Drive 1019 697080

520 691084 Terminal-Ground 1036695702

523 691385 Dipstick 1051 691265

524 692532 Seal-Dipstick Tube 1058 274796

525 690823 Tube-Dipstick 1090 691293

544 692034 Armature-Starter 1095 498047

551 690415 Cover-Valve 1119 691183

552 690553 Bushing-Governor Crank 1132 690353

552A 690552 Bushing-Governor Crank 1136 690329

562 690311 Bolt (Governor Control Lever) 1137 690390

573 696040 Plate-Back 1138 690330

579 690958 Nut (Starter Cable)

601 95162 Clamp-Hose Included

615 690317 Retainer-Governor Shaft 358

616 491530 Crank-Governor _ Included

629 262539 Spring-Throttle Return No. 121

635 66538 Boot-Sparkplug + Included

1095

± Included

Retainer-Air Filter

Spring-Friction

Seal-Governor Shaft

Screw (Ring Gear)

Screw (Drive Cap)

Shield Heat

Gear-Ring

Gear-Timing

Retainer-E Ring

Gear-Pinion

Harness-Wiring

Nut (Brush Retainer)

Cap-Drive

Cap-End

Housing-Starter

GI Spacer-Throttle

• O-Ring Seal (Dipstick Tube)

Dipstick/Tube Assembly

TerminaI-Sparkplug

_±Gasket- Carburetor Pump

O±Gasket- Carburetor Pump

Kit-Fuel Pump

Cover-Air Guide

Seal-Valve

Seat-Valve (intake)

Seat-Valve (Exhaust)

Bushing-Valve

Hose-Vacuum (Cut to

Required Length)

Screw (Fan Retainer)

Plug-Carburetor

Filter-Pre Cleaner

Cover-Air Cleaner

Screw (Air Cleaner Base)

Fan-Flywheel

Retainer-Fan

Kit-Label

Label-Emission

Ring-Retaining

Owner's Manual

Retainer-Brush

Gasket Set-Valve

Screw (Alternator)

Screw (Oil Slinger)

Screw (Control Bracket)

Washer (Control Bracket)

Nut (Control Bracket)

in Engine Gasket Set, Key. No.

in Carburetor Overhaul Kit, Key.

in Valve Gasket Set, Key. No.

in Fuel Pump Kit, Key. No.861

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

Operate your Tractor up and down the face of slopes (not

greater than 15 ), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For repairof majorbrand appliances in your own home...

no matterwho made it, no matterwho sold

1-800-4-MY-HOME @ Any'_me,dayornight

(1-800-469-4663) (U.S.A.and _)

wll_N.sears.com www.sears.ca

For repairof carry-inproducts likevacuums, lawn equipment, and

electronics, call for the nearestSears Parts and Repair Center.

1-800-488-1222 Anyame,dayornight(U.SAonly)

For the replacement parts,accessories and owner's manuals

that you need to do-it-yourself,call Sears PartsDireetsM!

1-800-366-PART 6a.m.-11 p.m., 7days aweek

(14Y30-366-7278) (U.S.A.only)

www.seal_Sireet

To purchase orinquireabout a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

7 a.m.-5 p.m.,CST,Mort.- Sat. 9a.m.- 8 p.m.EST, M- F,4 p.m.S_.

Parapedirseg4dode n_oaraciSna AuCanadapourserviceenf_:

domiclio,ypara.o_lenarpiezas: 1.800.LE..FOYERUC

1"888-SIJ-HOGARsu (1-830-533-4Y)37)

(1-888-7844427) www.seas.ca

HomeCentral®J

® Registered Trademark / "rMTrademark / su Service Mark of Seam, Roebuck and Co.

® Mama Ragistrada / TMMama de Fdbdca/ s_ Marca de Servicio de Seam, Roebuck and Co.

MCMarque de commerce / MDMarque d_posde de Sears, Roebuck and Co.

180595 9.11.01 RD Printedin U.S.A.

Craftsman 917271843 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271843 Questions and Answers
