LG Electronics LAU180HYV2 LG Air Conditioner Cooling Area, User Manual

3/4, 1, 1-1/4, 1-1/2, and 2 Tons

Models:

LA090HYV1

LA120HYV1

LA150HYV2

LA180HYV2

LA180HYV1

LA240HYV1

SINGLE ZONE WALL MOUNTED

ART COOL™ PREMIER

ENGINEERING MANUAL

For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.

PROPRIETARY DATA NOTICE

This document, as well as all reports, illustrations, data, information,

and other materials are the property of LG Electronics U.S.A., Inc., and are

disclosed by LG Electronics U.S.A., Inc. only in confidence.

This document is for design purposes only.

A summary list of safety precautions is on page 4.

For more technical materials such as submittals, catalogs, installation,

owner’s, and service manuals, visit www.lghvac.com.

Due to our policy of continuous product innovation, some specications may change without notication.

Introduction

About LG Electronics, Inc.

LG Electronics, Inc. is a global leader and technology innovator

in consumer electronics, mobile communications, and home

appliances. LG Electronics, Inc. comprises five business units—

Home Entertainment, Mobile Communications, Air Conditioning,

Business Solutions, and Home Appliance. LG is one of the world’s

leading producers of flat panel televisions, audio and video products,

mobile handsets, air conditioners, and washing machines. LG’s

commercial air conditioning business unit was established in 1968

and has built its lineup of residential and commercial products to

include VRF, Multi F, duct-free split systems, packaged terminal air

conditioners (PTACs), and room air conditioners. In 2011, the air

conditioning and energy solutions business unit grew to include LED

lighting and solar products. For more information, visit www.lg.com.

Duct-Free Split Systems

LG HVAC systems offer a range of solutions that are cost efficient,

quiet and attractive. Duct-Free Split systems are “split” into indoor

and outdoor units, and provide a smart alternative to both central

HVAC and window-mounted air conditioners. These inverter heat

pump systems are available in a variety of configurations to suit dif-

ferent cooling and heating situations. Installation by a qualified HVAC

contractor is safe and easy – little to no duct work or sheet metal is

required.

Inverter Systems

LG Single Zone Wall Mounted Art Cool™ Premier air-source systems

offer the opportunity to minimize ductwork in the same configuration.

The systems offer zoning without the need for zone damper systems.

LG Single Zone Wall Mounted Art Cool Premier systems’ advanced

controls provide exceptional building dehumidification and tempera-

ture control, and can rapidly adapt system operating parameters

to the ever changing building load. LG Single Zone Wall Mounted

Art Cool Premier systems are easy to design, install, and maintain.

The modular design allows occupants to control their environmental

condition, providing individualized control of the setpoint temperature

and allowing occupants to condition only the occupied zones.

Quality Commitment

LG is committed to the success of Duct-Free Split projects. We

provide industry leading technical support during installation and

commissioning. LG offers a variety of classes designed for installers

and servicers to ensure that every system installation is completed

successfully.

Classes are conducted at LG’s training centers and in field locations

at various times throughout the year and upon special request.

Due to our policy of continuous product innovation, some specications may change without notication.

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

TABLE OF CONTENTS

TABLE OF SYMBOLS

This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

This symbol indicates situations that may result in equipment or property damage accidents only.

This symbol indicates an action should not be completed.

DANGER

CAUTION

Introduction ..................................................................................................................................................................................................5

Architectural Appeal .....................................................................................................................................................................................6

Product Data ............................................................................................................................................................................................7-28

Product Features and Benefits ....................................................................................................................................................................8

Unit Nomenclature ......................................................................................................................................................................................9

General Data .......................................................................................................................................................................................10-12

Electrical Data ..........................................................................................................................................................................................13

Functions, Controls, Options .....................................................................................................................................................................14

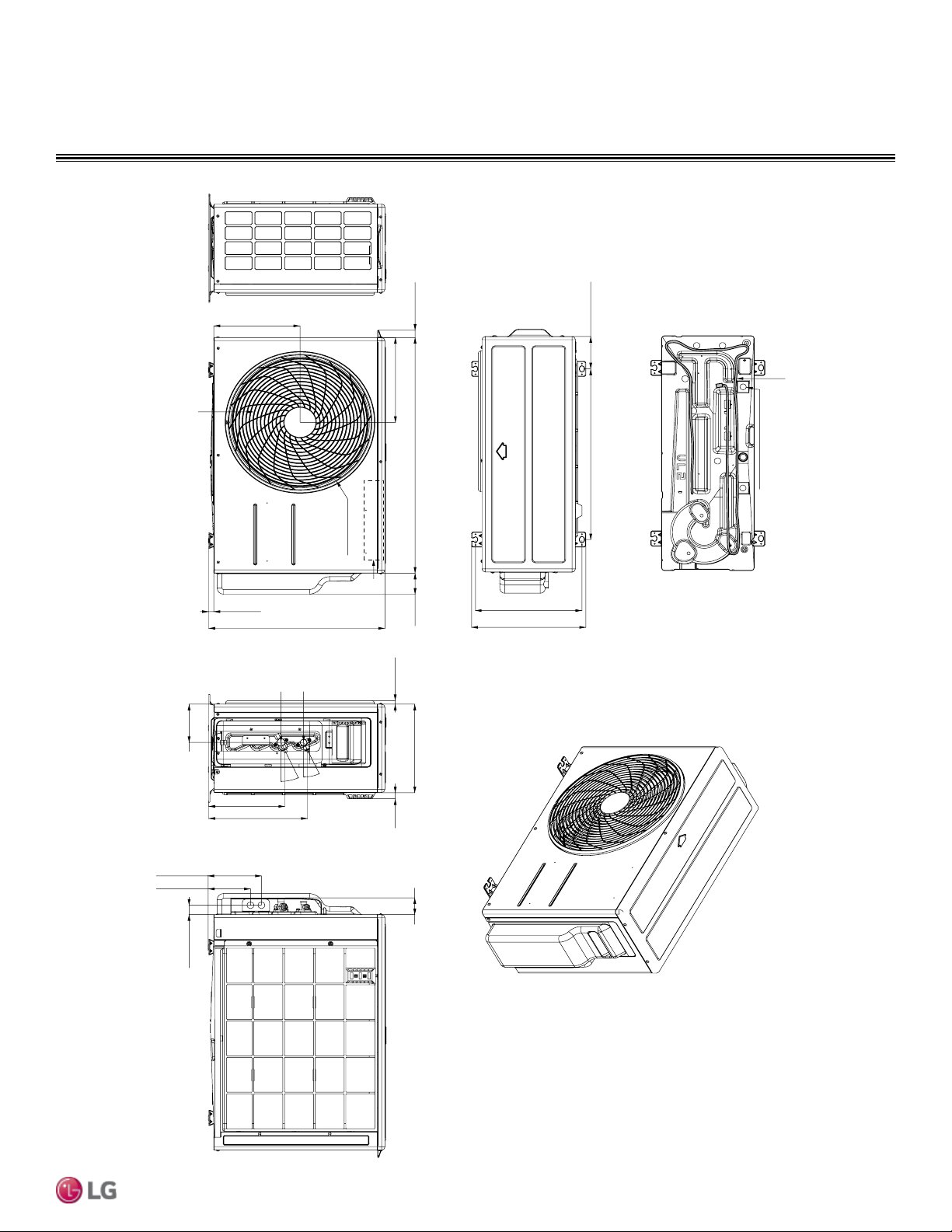

Outdoor Unit Dimensions .....................................................................................................................................................................15-16

Outdoor Unit Center of Gravity / Corner Weight .........................................................................................................................................17

Indoor Unit Dimensions ........................................................................................................................................................................ 18-19

Acoustic Data ...........................................................................................................................................................................................20

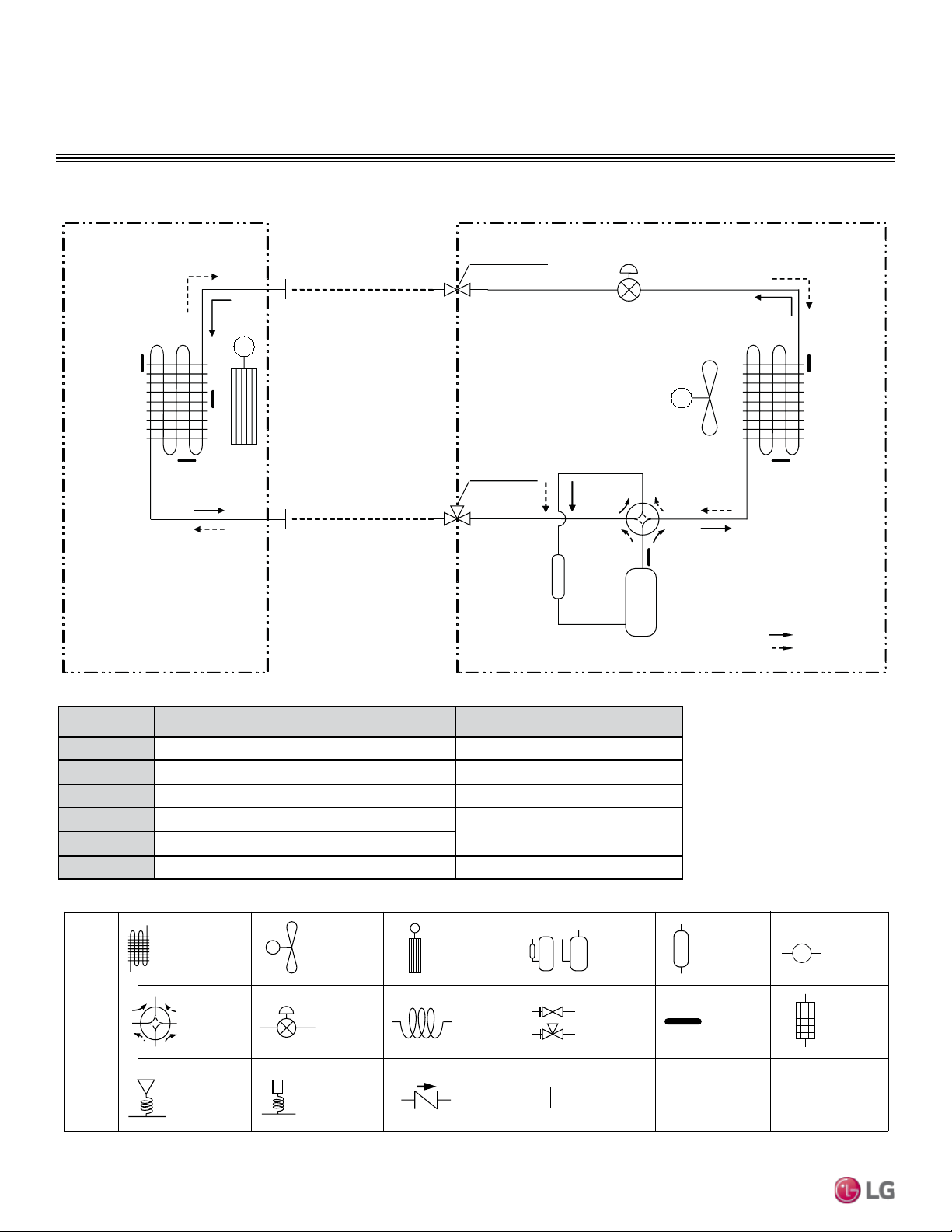

Refrigerant Flow Diagrams ...................................................................................................................................................................22-23

Indoor Unit Wiring Diagrams ................................................................................................................................................................24-25

Outdoor Unit Wiring Diagrams ..............................................................................................................................................................26-27

Accessories ..............................................................................................................................................................................................28

Performance Data ..................................................................................................................................................................................29-46

Cooling Capacity .................................................................................................................................................................................. 30-32

Heating Capacity .................................................................................................................................................................................33-35

Maximum Heating Capacity ..................................................................................................................................................................36-38

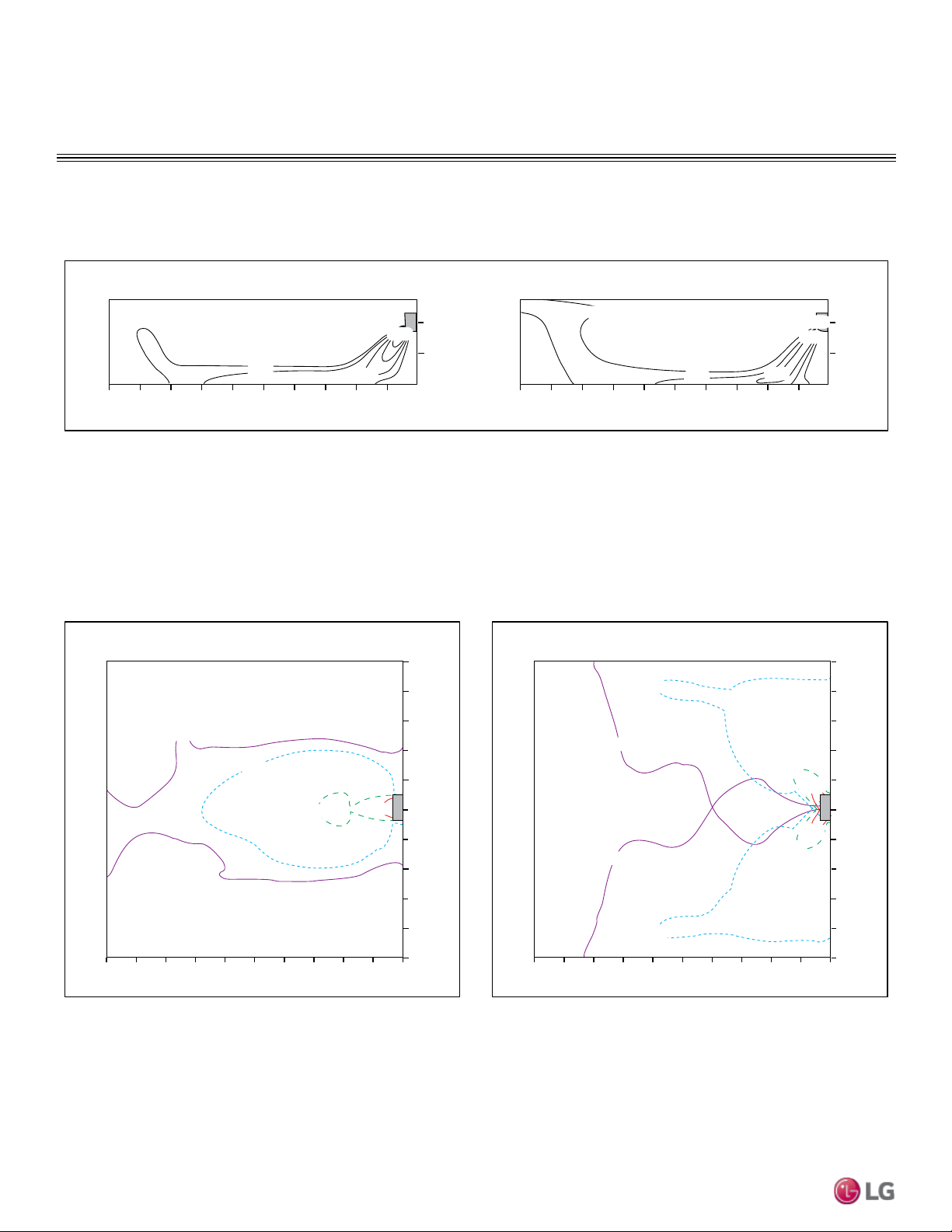

Air Flow and Temperature Distributions Graphs .................................................................................................................................... 39-46

Application Guidelines ..........................................................................................................................................................................47-53

Equipment Selection Procedure ................................................................................................................................................................48

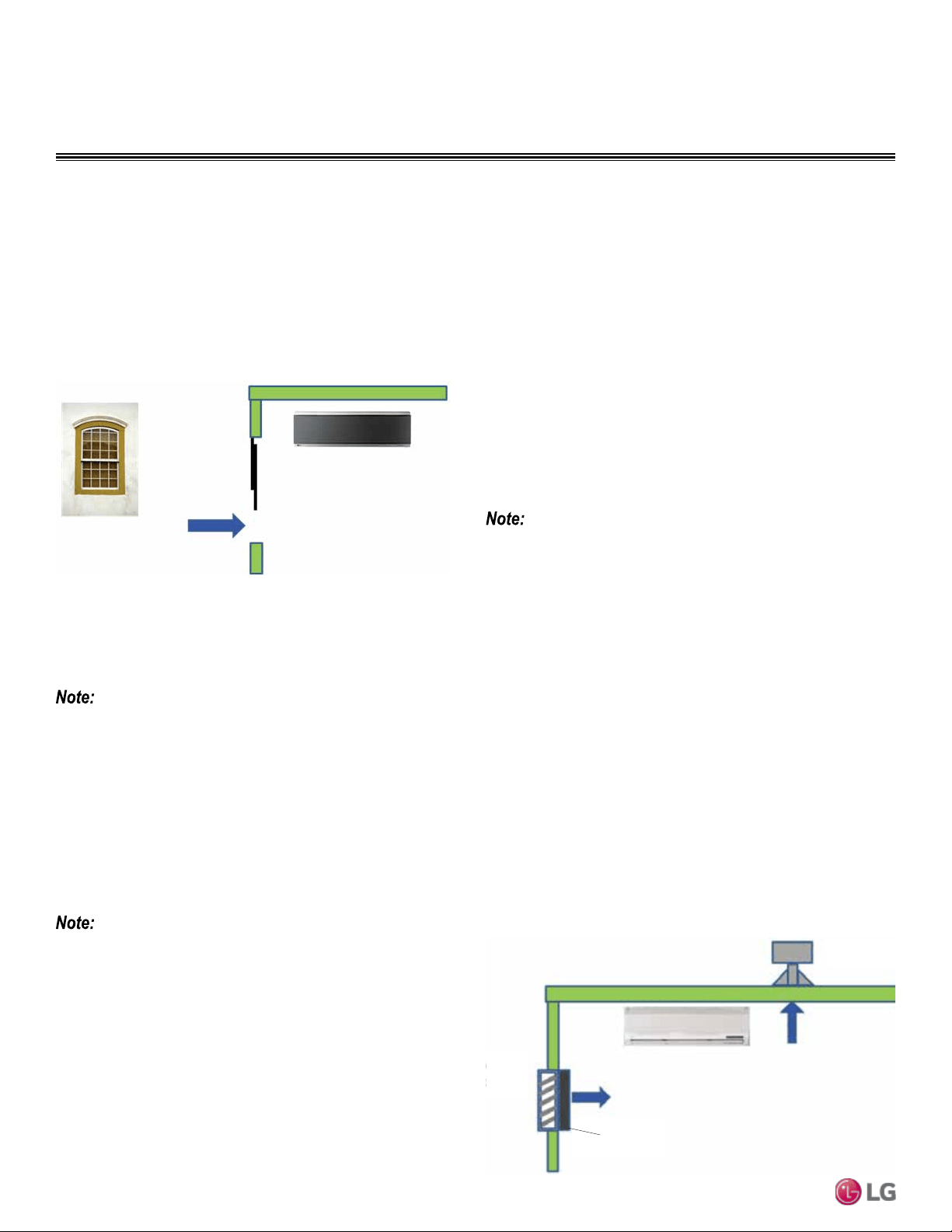

Building Ventilation Design Guide ........................................................................................................................................................49-50

Placement Considerations ...................................................................................................................................................................51-53

Refrigerant Piping Design & Layout Best Practices ............................................................................................................................54-61

Refrigerant Piping Design .........................................................................................................................................................................55

Installation & Best Layout Practices .....................................................................................................................................................56-60

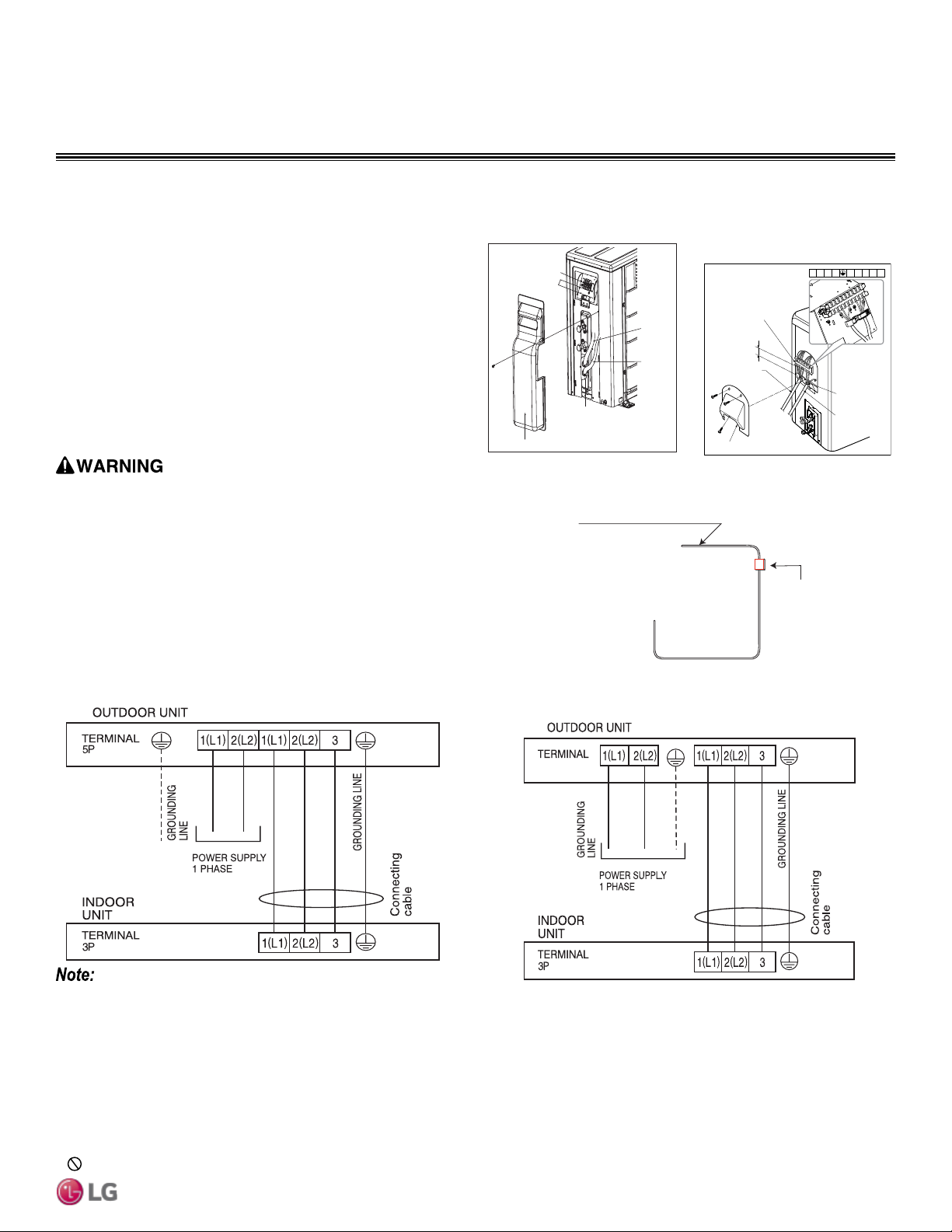

Electrical Connections ..............................................................................................................................................................................61

Technical Data .......................................................................................................................................................................................62-64

Mechanical Specifications .........................................................................................................................................................................63

Acronyms ..................................................................................................................................................................................................64

INTRODUCTION

“Architectural Appeal” on page 6

Due to our policy of continuous product innovation, some specications may change without notication.

6 | INTRODUCTION

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Benefits of Single Zone

Wall Mounted Art Cool Premier System

• Available in 9,000, 12,000, 15,000, 18,000,

and 24,000 Btu/h

• Inverter technology

• All-season use - heat pump models for both

cooling and heating capabilities

• Operating range for outdoor units of 14°F to

118°F (DB) in cooling and -13°F to 65°F (WB)

in heating

• Operating range for indoor units of 53°F to

75°F (WB) in cooling and 60°F to 86°F (DB)

in heating

• Quiet operation inside and outside

• Duct-free split system

Convergence of Technological Innovation with Flexibility and Style

Single Zone Wall

Mounted Art Cool

Premier Systems

Choosing an LG Single Zone Wall Mount-

ed Art Cool Premier product provides a

system designer an edge to engineer

a system with individual control, and

design flexibility with advanced controls.

These single-zone systems are avail-

able in a nominal capacities of 3/4 to 2

tons. These are best suited for applica-

tions with zones that require heating or

cooling, such as residential, and small

business office buildings. Single Zone

Wall Mounted Art Cool Premier out-

door and indoor units are available in

208–230V/60Hz/1Ph.

Adaptable and Flexible

Single zone wall mounted split systems

allow cooling or heating for the entire

residence or just a single room without

the need for invasive ductwork. There is

minimal renovation needed.

Long refrigerant piping lengths allow

for extra design flexibility in indoor unit

installation.

These units may be used for a number of

residential or commercial environments

such as:

• Older homes

• New home construction

• Office buildings

• Restaurants

• Hospitals / Medical facilities

• Schools

• Nursing homes

• Retail establishments

• House of worship

Inverter Technology

Inverter variable-speed duct-free split

systems are measurably quieter and

consume less energy than conventional

air conditioners. The inverter compressor

ramps up or down to match the required

room capacity and maintain the comfort

level. When the selected temperature

is reached, the inverter compressor

operates at low speed to maintain that

comfort level, thereby using less energy.

ARCHITECTURAL APPEAL

PRODUCT DATA

“Product Features and Benefits” on page 8

“Unit Nomenclature” on page 9

“General Data” on page 10

“Electrical Data” on page 13

“Functions, Controls, Options” on page 14

“Outdoor Unit Dimensions” on page 15

“Outdoor Unit Center of Gravity / Corner Weight” on page 17

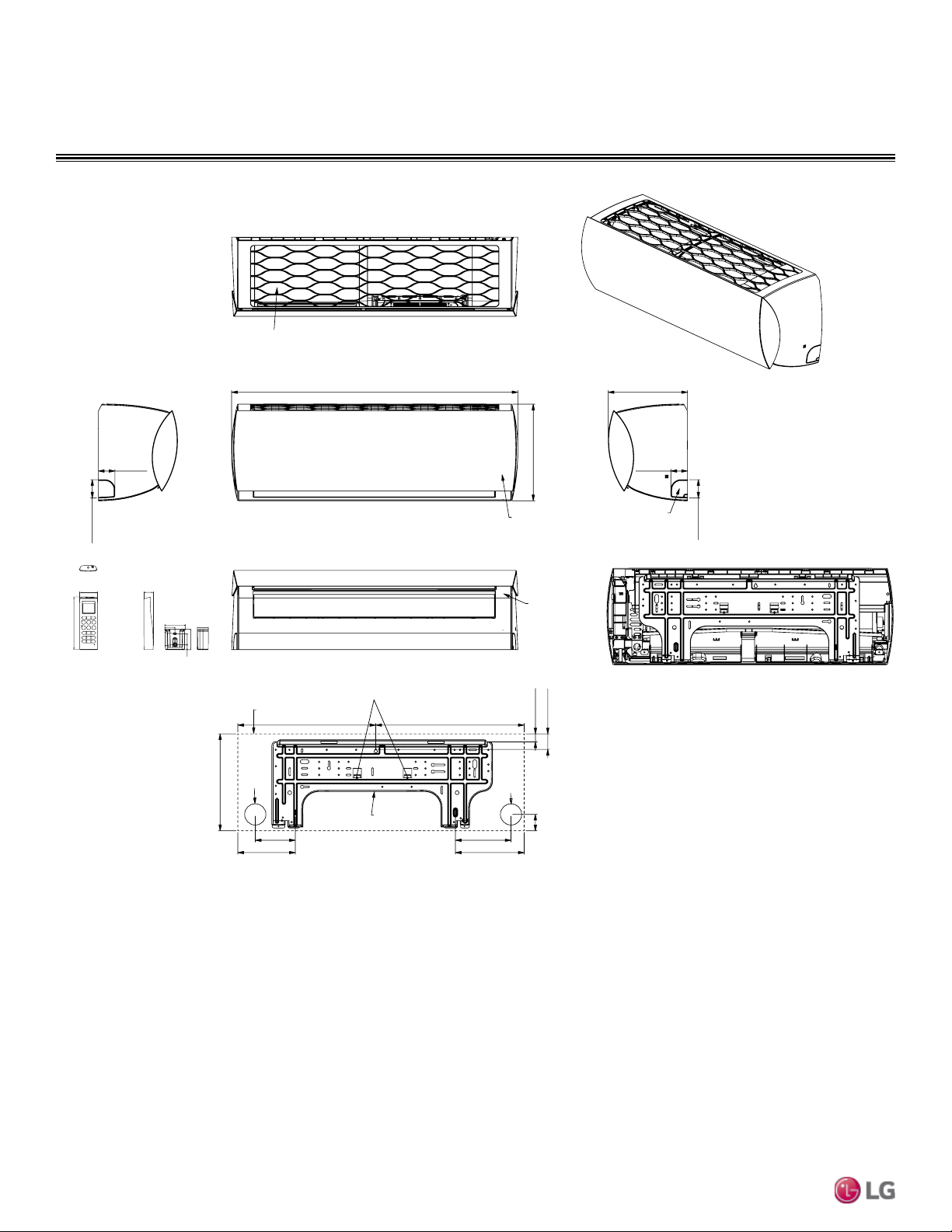

“Indoor Unit Dimensions” on page 18

“Acoustic Data” on page 20

“Refrigerant Flow Diagrams” on page 22

“Indoor Unit Wiring Diagram” on page 24

“Outdoor Unit Wiring Diagram” on page 26

“Accessories” on page 28

8 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PRODUCT FEATURES AND BENEFITS

Single Zone

Wall Mounted Art Cool

Premier

Single zone systems are equipped with

inverter components that offer superior

load matching and long piping installation.

The product works for optimizing power

consumption in residential and small office

buildings. Utilizing multiple indoor wall mount

units each with custom temperature controls

allow for precise temperature settings in

each zone of the building. Single zone sys-

tems allow flexibility in interior design and

complement any decor.

Low Sound Levels

When outdoor units run at full load, they

have a quiet operating sound level. To pro-

mote a quiet, comfortable environment, the

LG single zone system indoor units operate

at sound levels as low as 25 dB(A) (17 dB(A)

in sleep mode) and the outdoor units as low

as 45 dB(A) at full load. All rotating compo-

nents are soft-started by the controller using

digitally controlled inverters, which reduce

undesirable noise caused by fans and com-

pressors cycling on and off.

Comfort Control at Its

Best

Unlike traditional air conditioning control

systems, which use thermostatic controls to

maintain room temperatures, LG single zone

inverter controls continuously vary the indoor

unit fan speed and refrigerant flow.

LG single zone one-to-one systems continu-

ously measure the room temperatures and

adjust system operations accordingly to

maintain set temperature.

The outdoor unit responds by varying the

compressor speed and outdoor fan mo-

tors as needed to maintain system operat-

ing pressure. As a result, the single zone

systems deliver targeted space temperature

control.

Inverter Driven

The twin rotary compressors are optimized

to maximize compressor efficiency, which

reduces power consumption and monthly

utility bills. This latest inverter technology

allows single zone system outdoor units to

vary the compressor motor shaft speed to

deliver an appropriate amount of cooling to

the indoor unit. Precise refrigerant volume

delivery translates into long periods with coil

surface temperatures below dew point and

minimizes compressor and fan component

run time which may lead to lower utility us-

age.

Simplified Installation

Cooling and heating applications that use

single zone systems simplify and reduce the

mechanical and control system design time.

The designer no longer has to be concerned

with interconnecting chilled and condenser

water piping, air-distribution duct systems,

matching and selecting chillers, towers,

pumps, coils, fans, air handlers, or Variable

Air Volume (VAV) boxes.

Operating Range

Single zone systems have a nominal capac-

ity range of 3/4 to 2 tons (depending on

outdoor/indoor units).

Outdoor unit operating ranges for single

zone systems:

Cooling: 14°F DB to 118°F DB

Heating: -13°F WB to 65°F WB

(Installing an optional Low Ambient Wind

Baffle Kit will allow operation down to 0°F in

cooling mode for these single zone sys-

tems.)

Compact Size

Single zone outdoor units have the following

footprint:

LAU090HYV1, LAU120HYV1:

(WxHxD [in.]) 30-5/16 x 21-1/2 x 11-5/16.

LAU150HYV2, LAU180HYV2

(WxHxD [in]) 34-1/4 x 31-1/2 x 12-5/8.

LAU180HYV1, LAU240HYV1

(WxHxD [in]) 34-1/4 x 31-1/2 x 12-5/8.

Fin Design with Gold-

Fin™ Coating

All single zone outdoor units are provided

with large surface coils made of copper

tubes with louvered aluminum fins designed

to maximize unit operating efficiency over a

wide range of ambient conditions.

Standard from the factory, every single zone

outdoor unit coil fin surface is coated with

LG’s exclusive GoldFin™ anti-corrosive

coating designed to prevent natural surface

corrosion of the aluminum fins. This main-

tains heat transfer properties of the coil for

an extended time.

A hydrophilic coating is applied to the

outdoor unit coil fin surface over the GoldFin

coating. This coating enhances the develop-

ment of heavier water droplets gathering on

the fin surface. As a result, the droplets roll

off the fin surfaces, delaying the point when

frost forms on the coil surface during heat-

ing operation. This coating also makes it

possible to easily clean the outdoor unit coil

using a mild soap.

Other Features

• Inverter variable speed compressor

• Jet Cool / Jet Heat

• Dehumidifying mode

• 3M

™

Micro Protection Filter

• Auto Wind

• Auto restart

• Auto operation

• Self-cleaning indoor coil

• Condensate sensor connection

• Works with Smart AC

• Precision load matching

• Meets AHRI 210/240

PRODUCT DATA | 9

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

UNIT NOMENCLATURE

Single Zone Wall Mount Indoor and Outdoor Units

N 150 HYV 2

Type

N = Indoor Wall Mount Unit

U = Outdoor Heat Pump Unit

Family

LA= Art Cool Premier

Generation or Revision

1 = First

2 = Second

Nominal Capacity

(Nominal cooling capacity in Btu/h)

090 = 9,000

120 = 12,000

150 = 15,000

180 = 18,000

240 = 24,000

Indoor/Outdoor Product

HYV = Art Cool Premier

10 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

GENERAL DATA

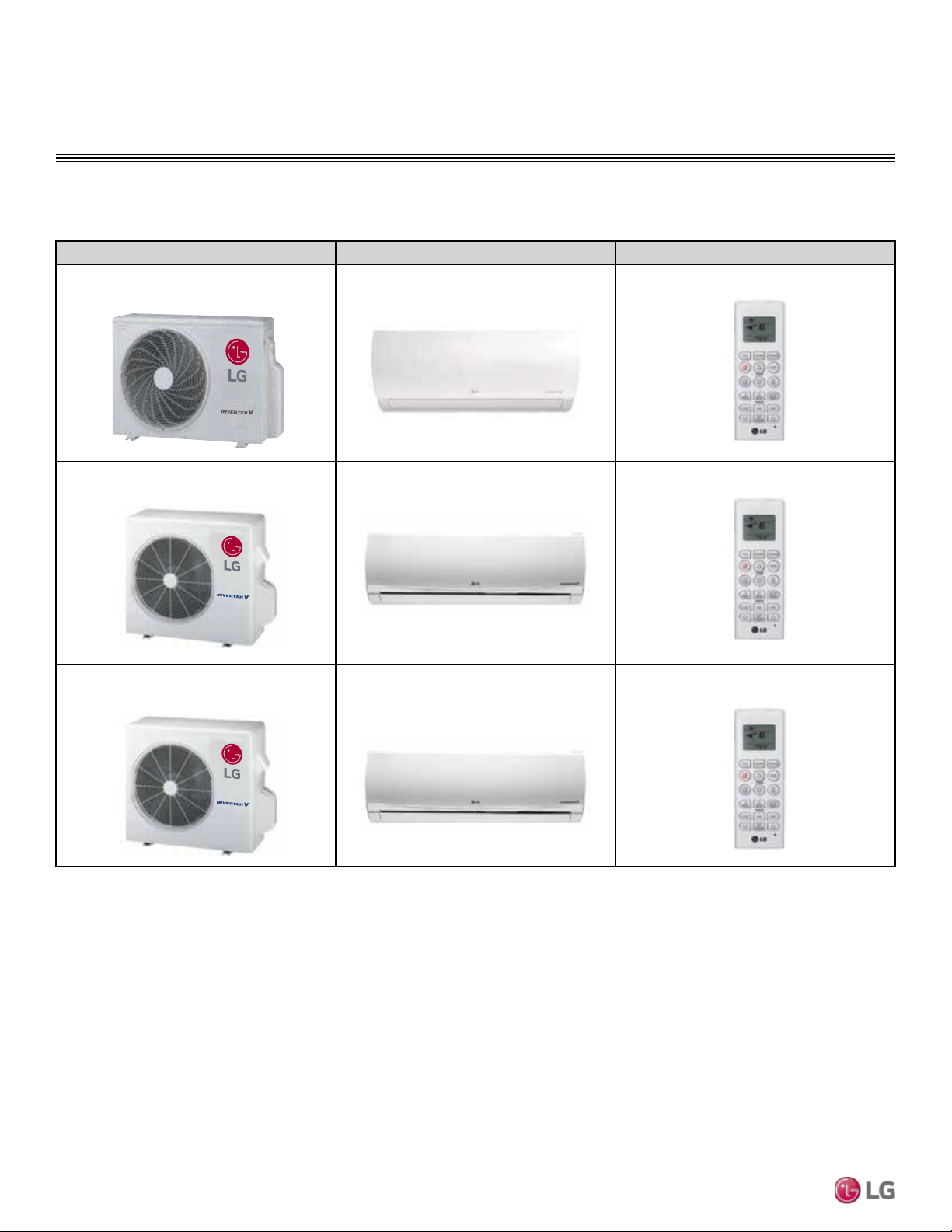

Art Cool Premier Pairing Table

The following table shows the available outdoor and indoor units, along with the factory provided controller.

Table 1: Single Zone Wall Mounted Art Cool Premier Pairing Table

Outdoor Unit Model Indoor Unit Model Controller

LAU090HYV1

LAU120HYV1

LAN090HYV1

LAN120HYV1

AKB73835320

LAU150HYV2

LAU180HYV2

LAN150HYV2

LAN180HYV2

AKB74955602

LAU180HYV1

LAU240HYV1

LAN180HYV1

LAN240HYV1

AKB74955602

PRODUCT DATA | 11

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

GENERAL DATA

Table 2: Single Zone Wall Mounted Art Cool Premier System Specications.

System Model Number (IDU/ODU)

LA090HYV1

(LAN090HYV1/

LAU090HYV1)

LA120HYV1

(LAN120HYV1/

LAU120HYV1)

LA150HYV2

(LAN150HYV2/

LAU150HYV2)

LA180HYV2

(LAN180HYV2/

LAU180HYV2)

Cooling Capacity (Min/Rated/Max) (Btu/h)

1,023 ~ 9,000 ~ 12,966 1,023 ~ 11,000 ~ 13,785 3,070 ~ 15,000 ~ 21,000 3,070 ~ 18,200 ~29,515

Cooling Power Input

(kW)

0.575 0.80 1.11 1.45

Heating Capacity (Min/Rated/Max) (Btu/h)

1,023 ~ 11,000 ~ 20,472 1,023 ~ 12,000 ~ 22,178 3,070 ~ 18,000 ~ 25,200 3,070 ~ 22,000 ~ 32,000

Heating Power Input

(kW)

0.71 0.75 1.38 1.79

COP

4.54 4.68 3.81 3.60

Maximum Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB)

11,940 (109%) 14,650 (122%) 20,970 (117%) 25,640 (117%)

Outdoor 5°F (WB)/Indoor 70°F (DB)

11,220 (102%) 13,720 (114%) 18,490 (103%) 22,600 (103%)

Outdoor -13°F (WB)/Indoor 70°F (DB)

7,920 (72%) 9,520 (79%) 14,200 (79%) 17,360 (79%)

EER

15.65 13.75 13.48 12.50

SEER

27.5 25.5 24.00 22.00

HSPF

12.0 12.0 12.5 12.0

Power Supply (V/Hz/Ø)

208-230/60/1

Outdoor Unit Operating Range

Cooling (°F DB)

14 to 118

Heating (°F WB)

-13 to +65

Indoor Unit Operating Range

Cooling (°F WB)

53 to 75

Heating (°F DB)

60 to 86

Indoor Temperature Setting Range

Cooling (°F)

64 to 86

Heating (°F)

60 to 86

Unit Data

Refrigerant Type

R410A

Refrigerant Control

EEV

IDU Sound Pressure

dB(A) (H/M/L/Sleep)

42/36/25/17 42/36/25/17 47/42/37/29 47/42/37/29

ODU Sound Pressure

dB(A)

45 45 57 57

Unit Weight (lbs)

IDU (Net/Shipping)

24/30 24/30 34/38 34/38

ODU (Net/Shipping)

77/82 77/82 122/131 122/131

Power/Communication Cable

(No. x AWG)

4 x 18

Compressor

Compressor Type (Qty)

Twin Rotary (1) Twin Rotary (1) Twin Rotary (1) Twin Rotary (1)

Fan

IDU Type (Qty)

Cross Flow (1)

ODU Type (Qty)

Propeller (1)

Motor/Drive

Brushless Digitally Controlled/Direct

Airflow Rate

IDU Max/H/M/L (CFM)

547/494/417/283 547/494/417/283 742/565/423.7/318 777/565/424/318

ODU Max (CFM)

1,165 1,165 2,119 2,119

Piping

Liquid Line (in, OD)

1/4 1/4 3/8 3/8

Vapor Line (in, OD)

3/8 3/8 5/8 5/8

Condensation Line (OD, ID)

27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

Additional Refrigerant Charge (oz/ft)

0.22 0.22 0.38 0.38

Pipe Length

(Minimum/Maximum)(ft)

6.6/65.6 6.6/65.6 9.8/98.4 9.8/98.4

Piping Length

(no add’l refrigerant, ft)

41.0 41.0 24.6 24.6

Max Elevation Difference (ft)

32.8 32.8 65.6 65.6

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

All power wiring/communication cables are field supplied and are to be minimum 18 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

12 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

GENERAL DATA

Table 3: Single Zone Wall Mounted Art Cool Premier System Specications, continued.

System Model Number (IDU/ODU)

LA180HYV1

(LAN180HYV1/LAU180HYV1)

LA240HYV1

(LAN240HYV1/LAU240HYV1)

Cooling Capacity (Min/Rated/Max) (Btu/h)

3,070 ~ 18,200 ~ 29,515 3,070 ~ 22,000 ~ 30,000

Cooling Power Input

(kW)

1.35 1.76

Heating Capacity (Min/Rated/Max) (Btu/h)

3,070 ~ 22,000 ~ 30,709 3,070 ~ 27,000 ~ 35,200

Heating Power Input

(kW)

1.69 2.19

COP

3.81 3.61

Maximum Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB)

22,340 (102%) 27,410 (102%)

Outdoor 5°F (WB)/Indoor 70°F (DB)

19,300 (88%) 23,690 (88%)

Outdoor -13 °F (WB)/Indoor 70°F (DB)

14,060 (64%) 17,250 (64%)

EER

13.48 12.50

SEER

24 22

HSPF

12.5 12

Power Supply (V/Hz/Ø)

208-230/60/1

Outdoor Unit Operating Range

Cooling (°F DB)

14 to 118

Heating (°F WB)

-13 to 65

Indoor Unit Operating Range

Cooling (°F WB)

53 to 75

Heating (°F DB)

60 to 86

Indoor Temperature Setting Range

Cooling (°F)

64 to 86

Heating (°F)

60 to 86

Unit Data

Refrigerant Type

R410A

Refrigerant Control

EEV

IDU Sound Pressure

dB(A) (H/M/L/Sleep)

47/42/37/29 47/42/37/29

ODU Sound Pressure

dB(A)

57 57

Unit Weight (lbs)

IDU (Net/Shipping)

34/38 34/38

ODU (Net/Shipping)

122/131 122/131

Power/Communication Cable

(No. x AWG)

4 x 18

Compressor

Compressor Type (Qty)

Twin Rotary (1) Twin Rotary (1)

Fan

IDU Type (Qty)

Cross Flow (1)

ODU Type (Qty)

Propeller (1)

Motor/Drive

Brushless Digitally Controlled/Direct

Airflow Rate

IDU Max/H/M/L (CFM)

742/565/424/318 777/565/424/318

ODU Max (CFM)

2,119 2,119

Piping

Liquid Line (in, OD)

3/8 3/8

Vapor Line (in, OD)

5/8 5/8

Condensation Line (OD, ID)

27/32, 5/8 27/32, 5/8

Additional Refrigerant Charge (oz/ft)

0.38 0.38

Pipe Length

(Minimum/Maximum)(ft)

9.8/98.4 9.8/98.4

Piping Length

(no add’l refrigerant, ft)

24.6 24.6

Max Elevation Difference (ft)

65.6 65.6

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

All power wiring/communication cables are field supplied and are to be minimum 18 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

PRODUCT DATA | 13

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

Model Number Nominal Tons

Compressor

Qty.

Compressor

(A)

Cool/Heat

Fan Qty.

ODU Fan

(A)

IDU Fan (A) MCA(A) MOP(A)

LA090HYV1 3/4 1 8.3/8.3 1 0.40 0.40 11.2 15

LA120HYV1 1 1 8.3/8.3 1 0.40 0.40 11.2 15

LA150HYV2 1-1/4 1 14.5/14.5 1 0.50 0.3 19.0 25

LA180HYV2 1-1/2 1 14.5/14.5 1 0.50 0.3 19.0 25

LA180HYV1 1-1/2 1 14.5/14.5 1 0.50 0.30 19.0 25

LA240HYV1 2 1 14.5/14.5 1 0.50 0.30 19.0 25

Table 4: Single Zone Wall Mounted Art Cool Premier System Electrical Data Table.

Voltage tolerance is ±10%.

Maximum allowable voltage unbalance is 2%.

MCA = Minimum Circuit Ampacity.

Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of

other motor FLA) rounded down to the nearest standard fuse size.

ELECTRICAL DATA

14 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

FUNCTIONS, CONTROLS, OPTIONS

Table 5: Indoor Units—Functions, Controls and Options.

Indoor Unit Type

Art Cool Premier

LA090HYV1 LA120HYV1 LA150HYV2 LA180HYV2 LA180HYV1 LA240HYV1

Airow

Air supply outlet

1 1 1 1 1 1

Airflow direction (left/right)

5 Steps 5 Steps 5 Steps 5 Steps 5 Steps 5 Steps

Airflow direction (up/down)

6 Steps 6 Steps 6 Steps 6 Steps 6 Steps 6 Steps

Auto swing (left/right)

√ √ √ √ √ √

Auto swing (up/down)

√ √ √ √ √ √

Airflow steps (fan/cool/heat)

6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6

Auto swing

√ √ √ √ √ √

Auto wind

√ √ √ √ √ √

Jet-cool/heat

√ / √ √ / √ √ / √ √ / √ √ / √ √ / √

One touch soft air

√ √ √ √ √ √

Air Purifying

Washable anti-fungal

√ √ √ √ √ √

Deodorizing filter

X X X X X X

Plasma

X X X X X X

Allergy free filter

X X X X X X

3M Micro Protection filter

√ √ √ √ √ √

Functions

Drain pump

X X X X X X

E.S.P. control

X X X X X X

Electric heater

X X X X X X

High ceiling

X X X X X X

Defrost

√ √ √ √ √ √

Low ambient

√ √ √ √ √ √

Hot start

√ √ √ √ √ √

Self diagnostics

√ √ √ √ √ √

Outdoor Unit Drain Pan Heater

√ √ √ √ √ √

Soft dry (dehumidification)

√ √ √ √ √ √

Auto changeover

√ √ √ √ √ √

Auto clean (coil dry)

√ √ √ √ √ √

Auto restart

√ √ √ √ √ √

Child lock (applicable with wired controller)

o o o o o o

Forced operation

√ √ √ √ √ √

Sleep mode

√ √ √ √ √ √

Timer (24hr on/off)

√ √ √ √ √ √

Weekly timer (applicable with wired controller)

o o o o o o

Two thermistor control (applicable with wired controller)

o o o o o o

Controllers

Wireless Remote Controller

√ √ √ √ √ √

Simple Controller with Mode Selection

o o o o o o

Simple Controller without Mode Selection

o o o o o o

LG Programmable Thermostat

o o o o o o

Dry contact

o o o o o o

Central control (LGAP)

X X X X X X

PI 485

X X o o o o

Special Function Kit

Zone control

X X X X X X

CTIE

X X X X X X

Electro thermostat

X X X X X X

Wi-Fi Module (Option)

o o o o o o

Water level sensor connection (for optional AG-9300-LG)

o o o o o o

Wind baffle kit

ZLABGP01A ZLABGP01A ZLABGP02A ZLABGP02A ZLABGP02A ZLABGP02A

Primary washable filters.

Secondary filters.

√ = Standard feature

o = Optional accessory (must be purchased separately)

X = Not available

• When Dry Contact Mode active, Wi-Fi Function can not be used.

• When changing from Wi-Fi mode to dry contact mode, normal operation resumes in approximately 3 minutes.

PRODUCT DATA | 15

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

LAU090HYV1, LAU120HYV1

OUTDOOR UNIT DIMENSIONS

Unit: Inch

4-3/16 22

13-15/16

10-1/2

5/8

21-1/2

4-15/16

6-7/16

5-1/8

1-1/4

12-1/16

9-5/16

30-5/16

10-15/16

Ø17-3/8

2-3/4

1/2

11-5/16

13/16

25°

2-1/8

Air Discharge Grille

Liquid Piping

Connection Port

Vapor Piping

Connection Port

Control Box

Drain Hole 8-Ø13/16

Sump Heater

16 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

LAU150HYV2, LAU180HYV2, LAU180HYV1, LAU240HYV1

OUTDOOR UNIT DIMENSIONS

Unit: Inch

13-7/16

14-3/16

6-1/2 21-1/2

2-3/4

Drain Hole 4-Ø13/16

Sheath Heater

12-5/8

34-1/4

13-1/8

15/16

5-7/8

9/16

3-3/16

21-1/2

20-7/8

31-1/2

7-11/16

4-1/4

6-13/16

7/8

15-1/8

1-13/16

25°

14°

6-15/16

Vapor Piping

Connection Port

Control Box

Liquid Piping

Connection Port

Air Discharge Grille

PRODUCT DATA | 17

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

OUTDOOR UNIT CENTER OF GRAVITY /

CORNER WEIGHT

Model

Weight (lb.) Center of Gravity (inch) Leg (inch) Corner Weight (lb.)

Shipping Net a b c d e A B C D

LAU090HYV1, LAU120HYV1 81.8 76.9 19-31/32 9-11/32 5-21/32 22 12-31/32 10.0 11.7 27.7 27.6

LAU150HYV2, LAU180HYV2 130.1 121.3 21-3/32 13-25/32 6-23/32 21-1/2 13-13/32 20.6 18.3 38.8 43.6

LAU180HYV1, LAU240HYV1 130.1 121.3 21-3/32 13-25/32 6-23/32 21-1/2 13-13/32 20.6 18.3 38.8 43.6

Table 6: Center of Gravity and Corner Weight Dimensions.

Figure 1: Center of Gravity and Corner Weight Dimensions Diagram.

18 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

INDOOR UNIT DIMENSIONS

LAN090HYV1, LAN120HYV1

Right rear piping

Left rear piping

Place a level on raised tab

Unit Outline

11-5/8

17 17-5/16

4-13/16

6-15/16

6-11/16

8-9/16

Unit: Inch

2-3/16

1-1/8

34-7/16

11-5/8

9-1/4

2-3/16

1-7/8

Ø2-9/16

Knockout Hole

Air Inlet Grille

Front Panel

Display and

Signal Receiver

Installation Plate

1-1/16

2-7/16

1-7/16

1/4 x 1/8

1/8 x 1/4

5/8

1-5/16

2-7/16

1-1/4

PRODUCT DATA | 19

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

INDOOR UNIT DIMENSIONS

LAN150HYV2, LAN180HYV2, LAN180HYV1, LAN240HYV1

Left rear piping

Unit Outline

21-11/16 21-5/16

Unit : Inch

42-15/16

9-13/16

2-1/16

2-9/16

1-7/8

2-3/8

1-7/16

1-5/16

Ø2-9/16

3-15/16

7-3/16

Ø2-9/16

2-3/4

7-11/16

Air Inlet Grille

Front Panel

Display and

Signal Receiver

Knockout Hole

Installation Plate

2-3/8

Right rear piping

Place a level on raised tab

1-1/8

1-1/16

2-7/16

1-7/16

1/4 x 1/8

1/8 x 1/4

5/8

1-5/16

2-7/16

1-1/4

20 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

Model

Sound Pressure Levels (dB[A])

Cooling (Max) Heating (Max.)

LAU090HYV1 45 45

LAU120HYV1 45 45

LAU150HYV2 57 57

LAU180HYV2 57 57

LAU180HYV1 57 57

LAU240HYV1 57 57

Table 7: Outdoor Unit Acoustic Data

Figure 2: Outdoor Unit Sound Levels

3.28 ft

Center of

Outdoor Unit

Figure 3: Sound Pressure Levels for LAU090-120HYV1 Outdoor Units.

• Measurements are taken 3.28 ft away from the front of the unit.

• Sound pressure levels are measured in dB(A) with a tolerance of ±3.

• Sound pressure levels are tested in an anechoic chamber under

ISO Standard 3745.

• Sound level will vary depending on a range of factors including the

construction (acoustic absorption coefficient) of a particular room in

which the unit was installed.

OUTDOOR UNIT ACOUSTIC DATA

Octave Band Center Frequency (Hz)

Octave Band Sound ressure Level (0dB = 20μPa)

63 125 250 500 1000 2000 4000 8000

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

Octave Band Sound Pressure Level (dB re 20µPa )

Octave Band Center Frequency (Hz)

63 125 250 500 1000 2000 4000 8000

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

LAU090HYV1 LAU120HYV1

Figure 4: Sound Pressure Levels for LAU150-180HYV2, LAU180-240HYV1 Outdoor Units.

63 125 250 500 1000 2000 4000 8000

Octave Band Sound Pressure Level (0dB = 20μPa)

Octave Band Center Frequency (Hz)

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

63 125 250 500 1000 2000 4000 8000

Octave Band Sound Pressure Level (0dB = 20μPa)

Octave Band Center Frequency (Hz)

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

Front

Back

Front

Back

LAU150-180HYV2, LAU180-240HYV1

Cooling Heating

PRODUCT DATA | 21

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

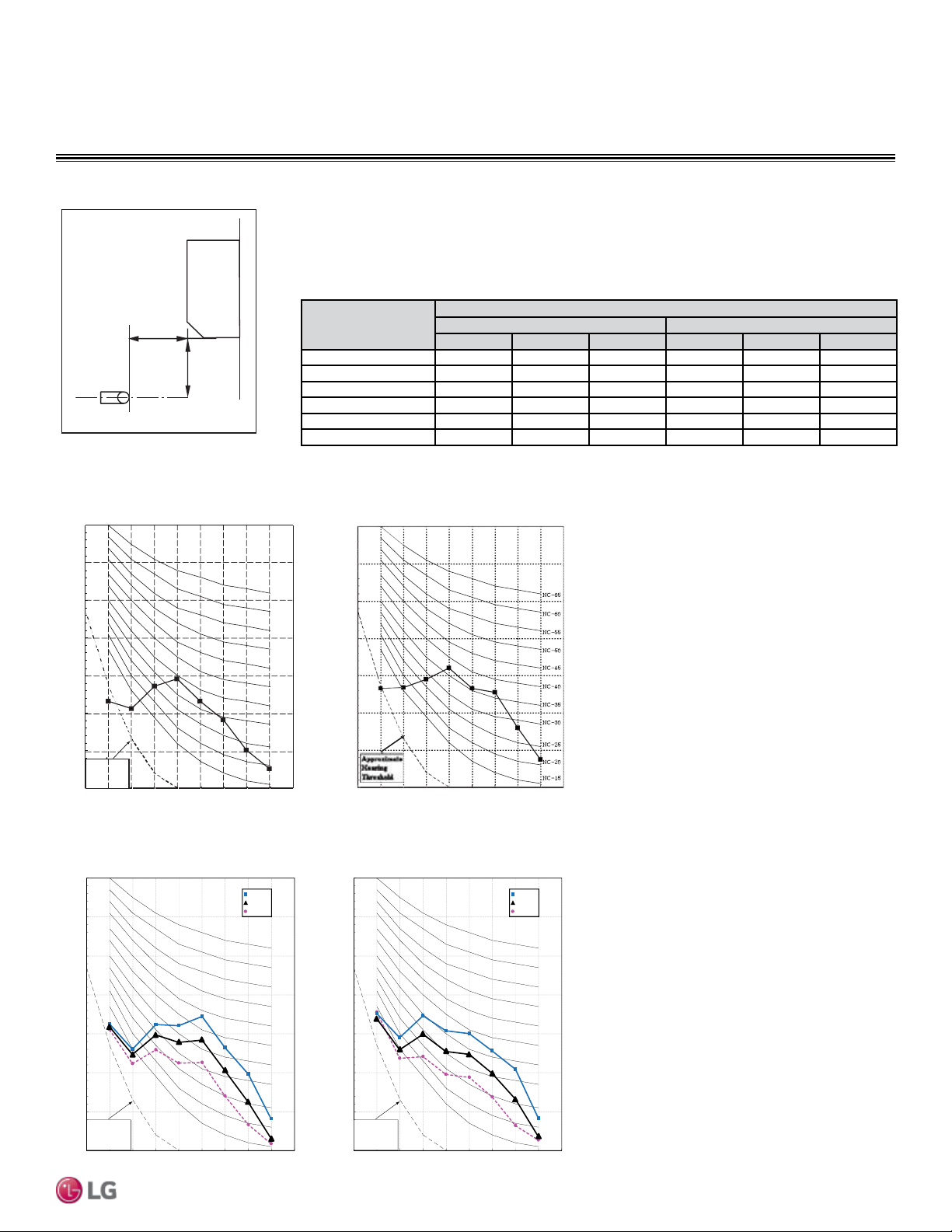

Figure 5: Indoor Unit Sound Levels

2.62 ft

3.28 ft

Microphone

Model

Sound Pressure Levels (dB[A])

Cooling Heating

H M L H M L

LAN090HYV1 42 36 25 42 36 25

LAN120HYV1 42 36 25 42 36 25

LAN150HYV2 47 42 37 47 42 37

LAN180HYV2 47 42 37 47 42 37

LAN180HYV1 47 42 37 47 42 37

LAN240HYV1 47 42 37 47 42 37

Table 8: Indoor Unit Acoustic Data

Figure 6: Sound Pressure Levels for LAN090-120HYV1 Indoor Units.

• Measurements are taken 3.28 ft away from the front of the unit.

• Sound pressure levels are measured in dB(A) with a tolerance of ±3.

• Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.

• Sound level will vary depending on a range of factors including the construction (acoustic absorp-

tion coefficient) of a particular room in which the unit was installed.

Octave Band Sound Pressure Level (0dB = 20μPa)

Octave Band Center Frequency (Hz)

63 125 250 500 1000 2000 4000 8000

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

Octave Band Sound Pressure Level (dB re 20µPa )

Octave Band Center Frequency (Hz)

63 125 250 500 1000 2000 4000 8000

LAN090HYV1 LAN120HYV1

Figure 7: Sound Pressure Levels for LAN150-180HYV2, LAN180-240HYV1 Indoor Units.

63 125 250 500 1000 2000 4000 8000

Octave Band Sound Pressure Level (0dB = 20μPa)

Octave Band Center Frequency (Hz)

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

63 125 250 500 1000 2000 4000 8000

Octave Band Sound Pressure Level (0dB = 20μPa)

Octave Band Center Frequency (Hz)

NC-15

NC-20

NC-25

NC-30

NC-35

NC-40

NC-45

NC-50

NC-55

NC-60

NC-65

Approximate

Hearing

Threshold

High

Middle

Low

High

Middle

Low

LAN150-180HYV2, LAN180-240HYV1

Cooling Heating

INDOOR ACOUSTIC DATA

22 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT FLOW DIAGRAMS

LAU/LAN090HYV1, LAU/LAN120HYV1

Thermistor Description PCB Connector

TH1

Indoor air temperature thermistor CN-TH1 (Indoor)

TH2

Water level sensor (optional) CN-TH2 (Indoor)

TH3

Evaporator middle temperature thermistor CN-TH3 (Indoor)

TH4

Outdoor air temperature thermistor

CN-TH1 (Outdoor)

TH5

Condensing temperature thermistor

TH6

Discharge pipe temperature thermistor CN-TH2 (Outdoor)

FIELD PIPING

(Ø 1/ 4” Copper Tubing)

FI ELD PIPING

(Ø 3/ 8” Copper Tubing)

Heat

Exchanger

(Evaporator)

He at

Exchanger

(Condenser)

Compressor

Accumulator

2-Way Valve

Reversing

Valv e

Indoor Unit Outdoor Unit

: Cooling

: Heating

EEV

TH1

TH3

TH2

TH4

TH6

TH5

Liquid Side

Vapor Side

Way Valv e

Appendix

Heat Exchanger

Four- Way Valve

Pressure Sensor

Propeller Fan

EEV

(Electronic

Expansion Valve)

Pressure Switch

Cross Flow Fan

Capillary Tube

Check Valve

Compressor

Two-Way Valve

Flare Joint

Accumulator

Temperature

Sensor

Three-Way Valve

Muffler

Strainer

PRODUCT DATA | 23

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT FLOW DIAGRAMS

LAU/LAN150HYV2, LAU/LAN180HYV2, LAU/LAN180HYV1, LAU/LAN240HYV1

Thermistor Description PCB Connector

TH1

Indoor air temperature thermistor CN-TH1 (Indoor)

TH2

Water level sensor (optional) CN-TH2 (Indoor)

TH3

Evaporator middle temperature thermistor CN-TH3 (Indoor)

TH4

Outdoor air temperature thermistor

CN-TH1 (Outdoor)

TH5

Condensing temperature thermistor

TH6

Discharge pipe temperature thermistor CN-TH2 (Outdoor)

FIELD PIPING

(Ø 3/8” Copper Tubing)

FIELD PIPING

(Ø

5/ 8” Coppe r Tubing)

Heat

Exchanger

(Evaporator)

Heat

Exchanger

(Condenser)

Compressor

cumulato r

2-Way Valve

Reversing

Valve

I ndoor Unit Outdoor Unit

: Cooling

: Heating

EEV

TH1

TH2

TH4

TH5

Liq

ui d Side

Vapor Side

y Valv e

Appendix

Heat Exchanger

Four- Way Valve

Pressure Sensor

Propeller Fan

EEV

(Electronic

Expansion Valve)

Pressure Switch

Cross Flow Fan

Capillary Tube

Check Valve

Compressor

Two-Way Valve

Flare Joint

Accumulator

Temperature

Sensor

Three-Way Valve

Muffler

Strainer

24 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

WIRING DIAGRAM

LAN090HYV1, LAN120HYV1

PRODUCT DATA | 25

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

WIRING DIAGRAM

LAN150HYV2, LAN180HYV2, LAN180HYV1, LAN240HYV1

26 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

WIRING DIAGRAM

LAU090HYV1, LAU120HYV1

PRODUCT DATA | 27

Product Data

Due to our policy of continuous product innovation, some specications may change without notication.

WIRING DIAGRAM

LAU150HYV2, LAU180HYV2, LAU180HYV1, LAU240HYV1

28 | PRODUCT DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

ACCESSORIES

• Actual inverter compressor speed

• Target inverter compressor speed

• Actual outdoor fan speed

• Target outdoor unit fan speed

• Actual superheat

• Inverter compressor current value

• Outdoor air temperature

• Actual high pressure/saturation temperature

• Actual low pressure/saturation temperature

• Suction temperature

• Inverter compressor discharge temperature

• Outdoor coil pipe temperature

• Liquid line pipe temperature

• Inverter compressor operation indicator

light

• Four-way reversing valve operation

indicator light

• Pressure graph showing actual low pres-

sure and actual high pressure levels

• Error code display

• Operating mode indicator

• Total number of connected indoor units (for

multi zone systems)

• Communication indicator lights

• Unit error code

• Indoor unit capacity

• Indoor unit operating mode

• Indoor unit fan speed

• Indoor unit room temperature

• Indoor unit inlet pipe temperature

• Indoor unit outlet pipe temperature

LG Monitoring View (LGMV) Diagnostic Software and Cable

LGMV software allows the service technician or commissioning agent to connect a computer

USB port to the outdoor unit main printed circuit board (PCB) using an accessory cable with-

out the need for a separate interface device. The main screen for LGMV shall allow user to

view the following real time data on one screen:

Additional screens can be accessed by tabs on the main screen:

1. Cycleview: Graphic of internal components including:

2. Setting: Converts metric values to imperial values.

3. Making Data: Recording of real time data to a separate file created to be stored on the

user’s computer.

4. Loading Data: Recorded data from a saved “.CSV” file can be loaded to create an LGMV

session.

5. Electrical Data: The lower half of main screen is changed to show the following:

• Compressors showing actual speeds

• EEVs

• IDUs

• Low and high pressures

• Temperature and pressure sensors

• Four-way reversing valve

• Outdoor fans showing status and speeds

• Inverter compressor

- Amps

- Volts

Power Hz

- Inverter control board fan Hz

In lieu of connecting to the outdoor unit, user has the option to connect to the indoor unit with the use of a USB to RS-485 connector kit.

When connected through the indoor unit, user will not be able to record data.

This software can be used to both commission new systems and troubleshoot existing systems. LGMV data can be recorded to a “.CSV” file

and emailed to an LG representative to assist with diagnostic evaluations.

Recommended Minimum PC Configuration:

• CPU: Pentium

IV 1.6 GHz

• Operating System: Windows

NT/2000/XP/Vista

• Main Memory: 256 MB

• Hard Disk: 600 MB when operating

• Web Browser: Internet Explorer

5.0

LGMV is available in different formats, including Mobile LGMV, which is a app for use on wireless devices. Contact your LG

Sales Representative for more information.

PERFORMANCE DATA

“Cooling Capacity” on page 30

“Heating Capacity” on page 33

“Maximum Heating Capacity” on page 36

“Air Flow and Temperature Distributions Graphs” on page 39

30 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

Cooling Capacity

PERFORMANCE DATA

LA090HYV1, LA120HYV1

Table 9: LAN090HYV1/LAU090HYV1 Cooling Capacities.

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 5.45 5.21 0.23 6.81 5.55 0.27 8.18 5.89 0.31 9.88 6.31 0.36 10.91 6.56 0.39 9.10 7.15 0.32 7.90 7.55 0.27

5 5.34 5.14 0.24 6.68 5.47 0.28 8.02 5.80 0.32 9.69 6.22 0.38 10.70 6.47 0.41 8.93 7.05 0.33 7.75 7.44 0.28

7 5.38 5.18 0.24 6.73 5.52 0.28 8.08 5.85 0.33 9.76 6.27 0.38 10.77 6.53 0.41 8.99 7.12 0.34 7.80 7.51 0.29

10 5.44 5.25 0.24 6.80 5.59 0.29 8.16 5.94 0.33 9.86 6.36 0.39 10.88 6.62 0.42 9.08 7.22 0.34 7.88 7.61 0.29

14 5.51 5.35 0.25 6.89 5.70 0.29 8.27 6.04 0.34 9.99 6.48 0.39 11.03 6.74 0.43 9.20 7.35 0.35 7.99 7.75 0.30

23 5.92 5.74 0.24 7.12 6.11 0.29 8.32 6.49 0.35 9.82 6.95 0.41 10.72 7.23 0.45 9.43 7.89 0.36 8.57 8.32 0.30

25 6.01 5.83 0.25 7.18 6.19 0.30 8.36 6.55 0.35 9.83 7.01 0.41 10.71 7.28 0.45 9.54 7.97 0.36 8.75 8.43 0.31

30 6.24 6.06 0.27 7.35 6.39 0.32 8.46 6.73 0.36 9.85 7.14 0.42 10.68 7.39 0.45 9.80 8.18 0.38 9.20 8.71 0.33

35 6.47 6.28 0.29 7.52 6.59 0.33 8.56 6.90 0.37 9.87 7.28 0.43 10.66 7.51 0.46 10.05 8.39 0.39 9.65 8.99 0.35

40 6.70 6.51 0.31 7.69 6.79 0.34 8.67 7.07 0.38 9.90 7.42 0.43 10.63 7.63 0.46 10.31 8.61 0.41 10.10 9.26 0.37

45 6.94 6.74 0.32 7.85 6.99 0.36 8.77 7.24 0.39 9.92 7.55 0.44 10.61 7.74 0.46 10.57 8.82 0.42 10.55 9.54 0.39

50 7.17 6.96 0.34 8.02 7.19 0.37 8.88 7.41 0.40 9.94 7.69 0.44 10.58 7.86 0.47 10.83 9.03 0.44 11.00 9.81 0.41

55 7.40 7.19 0.36 8.19 7.38 0.39 8.98 7.58 0.42 9.96 7.83 0.45 10.56 7.98 0.47 11.09 9.24 0.45 11.45 10.09 0.44

60 7.63 7.41 0.38 8.36 7.58 0.40 9.08 7.75 0.43 9.99 7.96 0.46 10.53 8.09 0.47 11.35 9.45 0.46 11.90 10.36 0.46

65 7.56 7.34 0.40 8.25 7.55 0.42 8.94 7.76 0.44 9.80 8.02 0.47 10.31 8.17 0.49 11.13 9.46 0.48 11.68 10.32 0.48

70 7.49 7.28 0.42 8.14 7.52 0.44 8.79 7.76 0.46 9.61 8.07 0.49 10.09 8.25 0.50 10.91 9.47 0.50 11.46 10.28 0.51

75 7.43 7.21 0.44 8.04 7.49 0.46 8.65 7.77 0.48 9.42 8.12 0.50 9.87 8.33

0.52 10.69 9.47 0.53 11.24 10.23 0.53

80 7.36 7.14 0.46 7.93 7.46 0.48 8.51 7.77 0.50 9.22 8.17 0.52 9.66 8.41 0.53 10.48 9.48 0.55 11.02 10.19 0.55

85 7.29 7.08 0.48 7.82 7.43 0.49 8.36 7.78 0.51 9.03 8.22 0.54 9.44 8.48 0.55 10.26 9.48 0.57 10.80 10.15 0.58

90 7.22 7.01 0.49 7.72 7.40 0.51 8.22 7.79 0.53 8.84 8.27 0.55 9.22 8.56 0.56 10.04 9.49 0.59 10.58 10.10 0.60

95 7.15 6.94 0.51 7.61 7.37 0.53 8.07 7.79 0.55 8.65 8.32 0.57 9.00 8.64 0.58 9.82 9.49 0.61 10.36 10.06 0.62

100 6.96 6.76 0.52 7.43 7.20 0.54 7.91 7.65 0.56 8.50 8.20 0.58 8.86 8.54 0.59 9.65 9.34 0.61 10.17 9.88 0.63

105 6.77 6.58 0.53 7.26 7.04 0.55 7.75 7.51 0.56 8.35 8.08 0.58 8.72 8.43 0.60 9.48 9.19 0.62 9.99 9.70 0.64

110 6.59 6.39 0.54 7.08 6.88 0.55 7.58 7.36 0.57 8.21 7.97 0.59 8.58 8.33 0.61 9.31 9.04 0.63 9.80 9.51 0.65

115 6.35 6.17 0.54 6.83 6.64 0.56 7.32 7.11 0.58 7.92 7.70 0.60 8.28 8.05 0.61 8.99 8.73 0.64 9.47 9.19 0.66

118 6.21 6.03 0.55 6.68 6.49 0.56 7.16 6.95 0.58 7.75 7.53 0.60 8.10 7.88 0.62 8.80 8.55 0.64 9.27 9.00 0.66

122 6.02 6.15 0.55 6.48 6.62 0.57 6.94 7.09 0.59 7.51 7.68 0.61 7.86 8.04 0.62 8.54 8.72 0.65 8.99 9.18 0.67

Table 10: LAN120HYV1/LAU120HYV1 Cooling Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

SHC: Sensible Capacity (kBtu/h) PI: Power Input (kW) (includes compressor, indoor fan motor and

outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Cooling range with the Low Ambient Baffle Kit (sold separately) is 0°F to +122°F.

3. Grey shading indicates reference data. When operating the unit at this temperature, these values

can be different by discontinuous operation.

4. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and

67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 6.66 5.37 0.31 8.33 5.72 0.37 10.00 6.07 0.42 12.08 6.50 0.50 13.33 6.77 0.54 11.12 7.38 0.44 9.65 7.79 0.37

5 6.53 5.30 0.33 8.17 5.64 0.38 9.80 5.98 0.44 11.85 6.41 0.52 13.08 6.67 0.56 10.91 7.27 0.46 9.47 7.68 0.39

7 6.58 5.35 0.33 8.22 5.69 0.39 9.87 6.04 0.45 11.93 6.47 0.52 13.17 6.73 0.57 10.99 7.34 0.46 9.53 7.75 0.39

10 6.65 5.42 0.33 8.31 5.77 0.40 9.97 6.12 0.46 12.05 6.56 0.53 13.30 6.82 0.58 11.10 7.44 0.47 9.63 7.85 0.40

14 6.74 5.52 0.34 8.42 5.87 0.40 10.11 6.23 0.47 12.22 6.68 0.54 13.48 6.95 0.59 11.25 7.57 0.48 9.76 7.99 0.41

23 7.23 5.92 0.34 8.70 6.31 0.41 10.17 6.69 0.48 12.00 7.17 0.57 13.10 7.45 0.62 11.53 8.13 0.49 10.48 8.58 0.41

25 7.34 6.02 0.35 8.78 6.39 0.41 10.22 6.76 0.48 12.01 7.22 0.57 13.09 7.50 0.62 11.65 8.22 0.50 10.70 8.70 0.42

30 7.63 6.25 0.37 8.98 6.59 0.43 10.34 6.94 0.50 12.04 7.37 0.58 13.06 7.62 0.63 11.97 8.44 0.52 11.25 8.98 0.45

35 7.91 6.48 0.40 9.19 6.80 0.46 10.47 7.11 0.51 12.07 7.51 0.59 13.03 7.74 0.63 12.29 8.66 0.54 11.80 9.27 0.48

40 8.19 6.71 0.42 9.39 7.00 0.48 10.59 7.29 0.53 12.09 7.65 0.59 12.99 7.86 0.63 12.61 8.88 0.56 12.35 9.55 0.51

45 8.48 6.95 0.45 9.60 7.21 0.50 10.72 7.46 0.54 12.12 7.79 0.60 12.96 7.98 0.64 12.92 9.09 0.58 12.90 9.83 0.54

50 8.76 7.18 0.47 9.80 7.41 0.52 10.85 7.64 0.56 12.15 7.93 0.61 12.93 8.10 0.64 13.24 9.31 0.60 13.45 10.12 0.57

55 9.05 7.41 0.50 10.01 7.61 0.54 10.97 7.82 0.57 12.18 8.07 0.62 12.90 8.22 0.65 13.56 9.53 0.62 14.00 10.40 0.60

60 9.33 7.64 0.52 10.22 7.82 0.56 11.10 7.99 0.59 12.21 8.21 0.63 12.87 8.35 0.65 13.88 9.75 0.64 14.55 10.69 0.63

65 9.25 7.57 0.55 10.08 7.79 0.58 10.92 8.00 0.61 11.97 8.27 0.65 12.60 8.43 0.68 13.61 9.76 0.67 14.28 10.64 0.66

70 9.16 7.50 0.58 9.95 7.76 0.61 10.75 8.01 0.64 11.74 8.32 0.67 12.34 8.51 0.70 13.34 9.76 0.70 14.01 10.60 0.70

75 9.08 7.44 0.60 9.82 7.72 0.63 10.57 8.01 0.66 11.51 8.37 0.70 12.07 8.59

0.72 13.07 9.77 0.72 13.74 10.55 0.73

80 8.99 7.37 0.63 9.69 7.69 0.66 10.40 8.02 0.68 11.27 8.42 0.72 11.80 8.67 0.74 12.80 9.77 0.75 13.47 10.51 0.76

85 8.91 7.30 0.66 9.56 7.66 0.68 10.22 8.02 0.71 11.04 8.48 0.74 11.53 8.75 0.76 12.54 9.78 0.78 13.20 10.46 0.79

90 8.82 7.23 0.68 9.43 7.63 0.71 10.04 8.03 0.73 10.81 8.53 0.76 11.27 8.83 0.78 12.27 9.78 0.81 12.93 10.42 0.83

95 8.74 7.16 0.71 9.30 7.60 0.73 9.87 8.03 0.75 10.58 8.58 0.78 11.00 8.91 0.80 12.00 9.79 0.84 12.67 10.38 0.86

100 8.51 6.97 0.72 9.09 7.43 0.74 9.67 7.89 0.77 10.39 8.46 0.79 10.83 8.80 0.81 11.79 9.63 0.85 12.44 10.19 0.87

105 8.28 6.78 0.73 8.87 7.26 0.75 9.47 7.74 0.78 10.21 8.34 0.81 10.66 8.70 0.82 11.59 9.48 0.86 12.21 10.00 0.88

110 8.05 6.59 0.74 8.66 7.09 0.76 9.27 7.59 0.79 10.03 8.22 0.82 10.49 8.59 0.84 11.38 9.32 0.87 11.98 9.81 0.90

115 7.76 6.36 0.75 8.35 6.84 0.77 8.94 7.33 0.80 9.68 7.94 0.83 10.12 8.30 0.84 10.99 9.01 0.88 11.57 9.48 0.91

118 7.59 6.22 0.75 8.17 6.70 0.78 8.75 7.17 0.80 9.47 7.77 0.83 9.90 8.13 0.85 10.76 8.82 0.89 11.33 9.28 0.91

122 7.36 6.34 0.76 7.92 6.83 0.79 8.48 7.32 0.81 9.18 7.92 0.84 9.60 8.29 0.86 10.44 9.00 0.90 10.99 9.47 0.92

PERFORMANCE DATA | 31

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

Table 11: LAN150HYV2/LAU150HYV2 Cooling Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

SHC: Sensible Capacity (kBtu/h) PI: Power Input (kW) (includes compressor, indoor fan motor and

outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Cooling range with the Low Ambient Baffle Kit (sold separately) is 0°F to +122°F.

3. Grey shading indicates reference data. When operating the unit at this temperature, these values

can be different by discontinuous operation.

4. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and

67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 9.08 7.45 0.43 11.36 7.94 0.51 13.63 8.42 0.59 16.47 9.02 0.69 18.18 9.38 0.75 15.17 10.23 0.61 13.16 10.80 0.52

5 8.91 7.35 0.45 11.14 7.82 0.54 13.37 8.30 0.62 16.16 8.89 0.72 17.83 9.25 0.78 14.88 10.09 0.64 12.91 10.65 0.54

7 8.97 7.41 0.46 11.22 7.90 0.54 13.46 8.38 0.62 16.27 8.98 0.73 17.95 9.34 0.79 14.98 10.18 0.65 13.00 10.75 0.55

10 9.06 7.52 0.46 11.33 8.00 0.55 13.60 8.49 0.63 16.43 9.10 0.74 18.14 9.46 0.81 15.13 10.32 0.66 13.13 10.89 0.56

14 9.18 7.65 0.47 11.48 8.15 0.56 13.78 8.64 0.65 16.66 9.26 0.76 18.38 9.64 0.82 15.34 10.51 0.67 13.31 11.09 0.57

23 9.86 8.22 0.47 11.86 8.75 0.57 13.86 9.28 0.66 16.36 9.94 0.79 17.86 10.34 0.86 15.72 11.28 0.69 14.29 11.91 0.57

25 10.01 8.35 0.48 11.97 8.86 0.58 13.93 9.38 0.67 16.38 10.02 0.79 17.85 10.41 0.86 15.89 11.40 0.70 14.59 12.07 0.59

30 10.40 8.67 0.52 12.25 9.14 0.61 14.10 9.62 0.69 16.42 10.22 0.80 17.80 10.57 0.87 16.33 11.71 0.72 15.34 12.46 0.63

35 10.79 8.99 0.55 12.53 9.43 0.63 14.27 9.87 0.71 16.45 10.41 0.82 17.76 10.74 0.88 16.76 12.01 0.75 16.09 12.85 0.67

40 11.17 9.31 0.59 12.81 9.71 0.66 14.45 10.11 0.74 16.49 10.61 0.83 17.72 10.91 0.88 17.19 12.31 0.78 16.84 13.25 0.71

45 11.56 9.64 0.62 13.09 10.00 0.69 14.62 10.36 0.76 16.53 10.81 0.84 17.68 11.08 0.89 17.62 12.62 0.81 17.59 13.64 0.75

50 11.95 9.96 0.66 13.37 10.28 0.72 14.79 10.60 0.78 16.57 11.00 0.85 17.63 11.24 0.90 18.06 12.92 0.84 18.34 14.04 0.80

55 12.34 10.28 0.69 13.65 10.56 0.75 14.96 10.84 0.80 16.61 11.20 0.86 17.59 11.41 0.90 18.49 13.22 0.86 19.09 14.43 0.84

60 12.72 10.60 0.73 13.93 10.85 0.77 15.14 11.09 0.82 16.64 11.39 0.88 17.55 11.58 0.91 18.92 13.52 0.89 19.83 14.82 0.88

65 12.61 10.51 0.76 13.75 10.80 0.81 14.90 11.10 0.85 16.33 11.47 0.91 17.19 11.69 0.94 18.56 13.53 0.93 19.47 14.76 0.92

70 12.49 10.41 0.80 13.57 10.76 0.84 14.66 11.11 0.88 16.01 11.54 0.94 16.82 11.80 0.97 18.19 13.54 0.97 19.10 14.70 0.97

75 12.38 10.31 0.84 13.40 10.71 0.88 14.42 11.11 0.92 15.69 11.61 0.97 16.46 11.91

1.00 17.82 13.55 1.01 18.74 14.64 1.01

80 12.26 10.22 0.88 13.22 10.67 0.91 14.18 11.12 0.95 15.37 11.69 1.00 16.09 12.02 1.03 17.46 13.56 1.05 18.37 14.58 1.06

85 12.14 10.12 0.91 13.04 10.63 0.95 13.94 11.13 0.98 15.06 11.76 1.03 15.73 12.14 1.06 17.09 13.56 1.08 18.00 14.52 1.10

90 12.03 10.03 0.95 12.86 10.58 0.98 13.70 11.14 1.02 14.74 11.83 1.06 15.36 12.25 1.08 16.73 13.57 1.12 17.64 14.45 1.15

95 11.91 9.93 0.99 12.68 10.54 1.02 13.46 11.15 1.05 14.42 11.90 1.09 15.00 12.36 1.11 16.36 13.58 1.16 17.27 14.39 1.20

100 11.60 9.67 1.00 12.39 10.31 1.03 13.18 10.94 1.07 14.17 11.74 1.11 14.77 12.21 1.13 16.08 13.36 1.18 16.96 14.13 1.21

105 11.29 9.41 1.02 12.10 10.07 1.05 12.91 10.74 1.08 13.92 11.57 1.12 14.53 12.06 1.15 15.80 13.15 1.20 16.64 13.87 1.23

110 10.98 9.15 1.03 11.81 9.84 1.06 12.64 10.53 1.10 13.68 11.40 1.14 14.30 11.92 1.16 15.52 12.93 1.21 16.33 13.61 1.25

115 10.59 8.82 1.04 11.39 9.49 1.08 12.19 10.17 1.11 13.20 11.01 1.15 13.80 11.51 1.18 14.99 12.50 1.23 15.78 13.15 1.26

118 10.35 8.63 1.05 11.14 9.29 1.08 11.93 9.95 1.12 12.91 10.78 1.16 13.50 11.27 1.18 14.67 12.23 1.24 15.45 12.88 1.27

122 10.04 8.80 1.06 10.80 9.47 1.09 11.57 10.15 1.13 12.52 10.99 1.17 13.10 11.50 1.19 14.23 12.48 1.25 14.99 13.13 1.28

Table 12: LAN180HYV2/LAU180HYV2 Cooling Capacities.

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 11.02 8.83 0.57 13.78 9.41 0.67 16.54 9.98 0.77 19.99 10.70 0.90 22.06 11.12 0.98 18.40 12.13 0.80 15.97 12.80 0.68

5 10.81 8.71 0.59 13.51 9.27 0.70 16.22 9.84 0.81 19.60 10.54 0.94 21.63 10.97 1.03 18.05 11.96 0.84 15.66 12.62 0.71

7 10.88 8.79 0.60 13.61 9.36 0.71 16.33 9.93 0.82 19.74 10.64 0.95 21.78 11.07 1.04 18.18 12.07 0.85 15.77 12.74 0.72

10 10.99 8.91 0.61 13.75 9.49 0.72 16.50 10.06 0.83 19.94 10.79 0.97 22.01 11.22 1.05 18.36 12.23 0.86 15.93 12.91 0.73

14 11.14 9.07 0.62 13.93 9.66 0.73 16.72 10.25 0.85 20.21 10.98 0.99 22.30 11.42 1.08 18.61 12.46 0.88 16.15 13.14 0.74

23 11.96 9.74 0.61 14.39 10.37 0.74 16.82 11.00 0.87 19.85 11.79 1.03 21.67 12.26 1.13 19.07 13.37 0.90 17.34 14.12 0.74

25 12.15 9.89 0.63 14.53 10.50 0.76 16.90 11.11 0.88 19.87 11.88 1.04 21.65 12.34 1.13 19.28 13.52 0.91 17.70 14.30 0.77

30 12.62 10.27 0.68 14.87 10.84 0.79 17.11 11.40 0.91 19.92 12.11 1.05 21.60 12.53 1.14 19.81 13.88 0.95 18.61 14.77 0.82

35 13.09 10.66 0.72 15.20 11.18 0.83 17.32 11.69 0.93 19.96 12.34 1.07 21.55 12.73 1.15 20.33 14.23 0.98 19.52 15.24 0.88

40 13.56 11.04 0.77 15.54 11.51 0.86 17.53 11.98 0.96 20.01 12.58 1.08 21.50 12.93 1.16 20.86 14.59 1.02 20.43 15.70 0.93

45 14.03 11.42 0.81 15.88 11.85 0.90 17.74 12.27 0.99 20.06 12.81 1.10 21.45 13.13 1.16 21.38 14.95 1.06 21.34 16.17 0.99

50 14.50 11.80 0.86 16.22 12.18 0.94 17.95 12.56 1.02 20.10 13.04 1.11 21.40 13.33 1.17 21.91 15.31 1.09 22.25 16.64 1.04

55 14.97 12.19 0.91 16.56 12.52 0.97 18.16 12.85 1.04 20.15 13.27 1.13 21.35 13.52 1.18 22.43 15.67 1.13 23.16 17.10 1.10

60 15.44 12.57 0.95 16.90 12.86 1.01 18.37 13.14 1.07 20.20 13.51 1.15 21.29 13.72 1.19 22.96 16.03 1.17 24.07 17.57 1.15

65 15.30 12.45 1.00 16.69 12.80 1.06 18.07 13.15 1.11 19.81 13.59 1.19 20.85 13.85 1.23 22.51 16.04 1.22 23.62 17.50 1.21

70 15.16 12.34 1.05 16.47 12.75 1.10 17.78 13.16 1.16 19.42 13.68 1.23 20.41 13.99 1.27 22.07 16.05 1.27 23.18 17.43 1.27

75 15.02 12.23 1.10 16.25 12.70 1.15 17.49 13.17 1.20 19.04 13.77 1.27 19.97 14.12

1.30 21.63 16.06 1.32 22.73 17.35 1.33

80 14.87 12.11 1.15 16.04 12.65 1.19 17.20 13.18 1.24 18.65 13.85 1.31 19.53 14.25 1.34 21.18 16.07 1.37 22.29 17.28 1.39

85 14.73 12.00 1.19 15.82 12.60 1.24 16.91 13.19 1.29 18.27 13.94 1.35 19.08 14.39 1.38 20.74 16.08 1.42 21.84 17.21 1.45

90 14.59 11.89 1.24 15.61 12.54 1.29 16.62 13.20 1.33 17.88 14.02 1.39 18.64 14.52 1.42 20.30 16.09 1.47 21.40 17.13 1.50

95 14.45 11.77 1.29 15.39 12.49 1.33 16.33 13.21 1.37 17.50 14.11 1.42 18.20 14.65 1.46 19.85 16.10 1.52 20.95 17.06 1.56

100 14.07 11.46 1.31 15.03 12.22 1.35 16.00 12.97 1.39 17.20 13.91 1.45 17.92 14.48 1.48 19.51 15.84 1.54 20.57 16.75 1.59

105 13.70 11.15 1.33 14.68 11.94 1.37 15.66 12.73 1.41 16.89 13.71 1.47 17.63 14.30 1.50 19.17 15.58 1.56 20.19 16.44 1.61

110 13.32 10.84 1.35 14.33 11.66 1.39 15.33 12.48 1.44 16.59 13.51 1.49 17.35 14.12 1.52 18.83 15.33 1.59 19.81 16.13 1.63

115 12.84 10.46 1.36 13.82 11.25 1.41 14.79 12.05 1.45 16.01 13.05 1.51 16.74 13.65 1.54 18.18 14.81 1.61 19.15 15.59 1.65

118 12.56 10.22 1.37 13.51 11.01 1.42 14.47 11.79 1.46 15.66 12.77 1.51 16.38 13.36 1.55 17.80 14.50 1.62 18.75 15.26 1.66

122 12.18 10.43 1.39 13.11 11.23 1.43 14.03 12.03 1.47 15.19 13.03 1.53 15.89 13.63 1.56 17.27 14.79 1.63 18.18 15.57 1.68

Cooling Capacity

PERFORMANCE DATA

LA150HYV2, LA180HYV2

32 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

Cooling Capacity

PERFORMANCE DATA

LA180HYV1, LA240HYV1

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

SHC: Sensible Capacity (kBtu/h) PI: Power Input (kW) (includes compressor, indoor fan motor and

outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Cooling range with the Low Ambient Baffle Kit (sold separately) is 0°F to +122°F.

3. Grey shading indicates reference data. When operating the unit at this temperature, these values

can be different by discontinuous operation.

4. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and

67ºF wet bulb (WB), and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Table 13: LAN180HYV1/LAU180HYV1 Cooling Capacities.

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 11.02 8.67 0.52 13.78 9.23 0.62 16.54 9.79 0.72 19.99 10.50 0.84 22.06 10.92 0.91 18.40 11.91 0.74 15.97 12.56 0.63

5 10.81 8.55 0.55 13.51 9.10 0.65 16.22 9.65 0.75 19.60 10.35 0.88 21.63 10.76 0.95 18.05 11.74 0.78 15.66 12.39 0.66

7 10.88 8.63 0.55 13.61 9.18 0.66 16.33 9.74 0.76 19.74 10.44 0.89 21.78 10.86 0.96 18.18 11.84 0.78 15.77 12.50 0.67

10 10.99 8.74 0.56 13.75 9.31 0.67 16.50 9.88 0.77 19.94 10.59 0.90 22.01 11.01 0.98 18.36 12.01 0.80 15.93 12.67 0.68

14 11.14 8.90 0.58 13.93 9.48 0.68 16.72 10.05 0.79 20.21 10.78 0.92 22.30 11.21 1.00 18.61 12.22 0.81 16.15 12.90 0.69

23 11.96 9.56 0.57 14.39 10.18 0.69 16.82 10.79 0.81 19.85 11.57 0.95 21.67 12.03 1.04 19.07 13.12 0.83 17.34 13.85 0.69

25 12.15 9.71 0.58 14.53 10.31 0.70 16.90 10.91 0.82 19.87 11.66 0.96 21.65 12.11 1.05 19.28 13.26 0.84 17.70 14.04 0.71

30 12.62 10.08 0.63 14.87 10.64 0.73 17.11 11.19 0.84 19.92 11.89 0.97 21.60 12.30 1.05 19.81 13.62 0.88 18.61 14.49 0.76

35 13.09 10.46 0.67 15.20 10.97 0.77 17.32 11.48 0.87 19.96 12.11 0.99 21.55 12.50 1.06 20.33 13.97 0.91 19.52 14.95 0.81

40 13.56 10.83 0.71 15.54 11.30 0.80 17.53 11.76 0.89 20.01 12.34 1.00 21.50 12.69 1.07 20.86 14.32 0.95 20.43 15.41 0.86

45 14.03 11.21 0.75 15.88 11.63 0.84 17.74 12.05 0.92 20.06 12.57 1.02 21.45 12.88 1.08 21.38 14.67 0.98 21.34 15.87 0.91

50 14.50 11.58 0.80 16.22 11.96 0.87 17.95 12.33 0.94 20.10 12.80 1.03 21.40 13.08 1.09 21.91 15.03 1.01 22.25 16.33 0.96

55 14.97 11.96 0.84 16.56 12.29 0.90 18.16 12.62 0.97 20.15 13.03 1.05 21.35 13.27 1.10 22.43 15.38 1.05 23.16 16.79 1.02

60 15.44 12.33 0.88 16.90 12.62 0.94 18.37 12.90 0.99 20.20 13.25 1.06 21.29 13.47 1.10 22.96 15.73 1.08 24.07 17.24 1.07

65 15.30 12.22 0.93 16.69 12.57 0.98 18.07 12.91 1.03 19.81 13.34 1.10 20.85 13.60 1.14 22.51 15.74 1.13 23.62 17.17 1.12

70 15.16 12.11 0.97 16.47 12.51 1.02 17.78 12.92 1.07 19.42 13.42 1.14 20.41 13.73 1.17 22.07 15.75 1.18 23.18 17.10 1.18

75 15.02 12.00 1.02 16.25 12.46 1.07 17.49 12.93 1.11 19.04 13.51 1.17 19.97 13.86

1.21 21.63 15.76 1.22 22.73 17.03 1.23

80 14.87 11.89 1.06 16.04 12.41 1.11 17.20 12.94 1.15 18.65 13.59 1.21 19.53 13.99 1.24 21.18 15.77 1.27 22.29 16.96 1.29

85 14.73 11.78 1.11 15.82 12.36 1.15 16.91 12.95 1.19 18.27 13.68 1.25 19.08 14.12 1.28 20.74 15.78 1.32 21.84 16.89 1.34

90 14.59 11.66 1.15 15.61 12.31 1.19 16.62 12.96 1.23 17.88 13.76 1.28 18.64 14.25 1.31 20.30 15.79 1.36 21.40 16.81 1.39

95 14.45 11.55 1.20 15.39 12.26 1.23 16.33 12.97 1.27 17.50 13.85 1.32 18.20 14.38 1.35 19.85 15.80 1.41 20.95 16.74 1.45

100 14.07 11.25 1.21 15.03 11.99 1.25 16.00 12.73 1.29 17.20 13.65 1.34 17.92 14.21 1.37 19.51 15.55 1.43 20.57 16.44 1.47

105 13.70 10.95 1.23 14.68 11.72 1.27 15.66 12.49 1.31 16.89 13.45 1.36 17.63 14.03 1.39 19.17 15.29 1.45 20.19 16.14 1.49

110 13.32 10.64 1.25 14.33 11.45 1.29 15.33 12.25 1.33 16.59 13.26 1.38 17.35 13.86 1.41 18.83 15.04 1.47 19.81 15.83 1.51

115 12.84 10.26 1.26 13.82 11.04 1.30 14.79 11.83 1.35 16.01 12.81 1.40 16.74 13.39 1.43 18.18 14.54 1.49 19.15 15.30 1.53

118 12.56 10.03 1.27 13.51 10.80 1.31 14.47 11.57 1.35 15.66 12.54 1.40 16.38 13.11 1.43 17.80 14.23 1.50 18.75 14.98 1.54

122 12.18 10.23 1.29 13.11 11.02 1.33 14.03 11.81 1.37 15.19 12.79 1.42 15.89 13.38 1.45 17.27 14.52 1.51 18.18 15.28 1.56

Table 14: LAN240HYV1/LAU240HYV1 Cooling Capacities.

Outdoor

Air

Temp.

(°F DB)

Indoor Air Temperature (°F DB/ °F WB)

64 / 53 68 / 57 72 / 61 77 / 64 80 / 67 86 / 72 90 / 75

TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI

0 13.32 10.35 0.68 16.66 11.02 0.81 19.99 11.69 0.93 24.16 12.53 1.09 26.66 13.03 1.19 22.25 14.21 0.97 19.30 15.00 0.82

5 13.07 10.20 0.72 16.34 10.86 0.85 19.61 11.52 0.98 23.70 12.35 1.14 26.15 12.84 1.24 21.82 14.01 1.01 18.93 14.78 0.86

7 13.16 10.29 0.72 16.45 10.96 0.86 19.74 11.63 0.99 23.86 12.46 1.15 26.33 12.96 1.25 21.97 14.14 1.02 19.06 14.92 0.87

10 13.29 10.44 0.73 16.62 11.11 0.87 19.95 11.79 1.00 24.10 12.63 1.17 26.60 13.14 1.27 22.20 14.33 1.04 19.26 15.12 0.88

14 13.47 10.62 0.75 16.84 11.31 0.89 20.22 12.00 1.03 24.43 12.86 1.20 26.96 13.38 1.30 22.50 14.59 1.06 19.52 15.40 0.90

23 14.46 11.41 0.74 17.40 12.14 0.90 20.33 12.88 1.05 24.00 13.80 1.24 26.20 14.36 1.36 23.06 15.66 1.08 20.96 16.53 0.90

25 14.69 11.59 0.76 17.56 12.30 0.91 20.43 13.02 1.06 24.02 13.91 1.25 26.18 14.45 1.36 23.31 15.83 1.10 21.40 16.75 0.93

30 15.25 12.03 0.82 17.97 12.70 0.96 20.68 13.36 1.10 24.08 14.19 1.27 26.11 14.68 1.38 23.94 16.25 1.15 22.50 17.30 0.99

35 15.82 12.48 0.87 18.38 13.09 1.00 20.94 13.70 1.13 24.13 14.46 1.29 26.05 14.91 1.39 24.58 16.67 1.19 23.60 17.85 1.06

40 16.39 12.93 0.93 18.79 13.48 1.05 21.19 14.04 1.16 24.19 14.73 1.31 25.99 15.15 1.40 25.21 17.09 1.23 24.70 18.39 1.13

45 16.96 13.38 0.98 19.20 13.88 1.09 21.44 14.38 1.20 24.24 15.00 1.33 25.93 15.38 1.41 25.85 17.51 1.28 25.79 18.94 1.19

50 17.52 13.82 1.04 19.61 14.27 1.13 21.69 14.72 1.23 24.30 15.27 1.35 25.86 15.61 1.42 26.48 17.94 1.32 26.89 19.49 1.26

55 18.09 14.27 1.09 20.02 14.66 1.18 21.95 15.06 1.26 24.36 15.55 1.37 25.80 15.84 1.43 27.12 18.36 1.37 27.99 20.03 1.32

60 18.66 14.72 1.15 20.43 15.06 1.22 22.20 15.40 1.30 24.41 15.82 1.39 25.74 16.07 1.44 27.75 18.78 1.41 29.09 20.58 1.39

65 18.49 14.59 1.21 20.17 15.00 1.28 21.85 15.41 1.35 23.95 15.92 1.43 25.21 16.23 1.49 27.21 18.79 1.47 28.55 20.49 1.46

70 18.32 14.45 1.27 19.91 14.94 1.33 21.50 15.42 1.40 23.48 16.02 1.48 24.67 16.38 1.53 26.68 18.80 1.53 28.02 20.41 1.53

75 18.15 14.32 1.33 19.65 14.88 1.39 21.14 15.43 1.45 23.01 16.12 1.53 24.14 16.54

1.58 26.14 18.81 1.59 27.48 20.32 1.60

80 17.98 14.19 1.38 19.39 14.81 1.44 20.79 15.44 1.50 22.55 16.22 1.58 23.60 16.69 1.62 25.61 18.82 1.65 26.94 20.24 1.68

85 17.81 14.05 1.44 19.12 14.75 1.50 20.44 15.45 1.56 22.08 16.33 1.63 23.07 16.85 1.67 25.07 18.83 1.72 26.40 20.15 1.75

90 17.64 13.92 1.50 18.86 14.69 1.55 20.09 15.46 1.61 21.62 16.43 1.67 22.53 17.00 1.71 24.53 18.84 1.78 25.87 20.07 1.82

95 17.47 13.79 1.56 18.60 14.63 1.61 19.74 15.47 1.66 21.15 16.53 1.72 22.00 17.16 1.76 24.00 18.85 1.84 25.33 19.98 1.89

100 17.01 13.43 1.58 18.17 14.31 1.63 19.34 15.19 1.69 20.79 16.29 1.75 21.66 16.95 1.79 23.58 18.55 1.86 24.87 19.62 1.92

105 16.56 13.06 1.61 17.75 13.98 1.66 18.94 14.91 1.71 20.42 16.06 1.77 21.31 16.75 1.81 23.17 18.25 1.89 24.41 19.26 1.94

110 16.10 12.70 1.63 17.32 13.66 1.68 18.54 14.62 1.74 20.06 15.82 1.80 20.97 16.54 1.84 22.76 17.95 1.92 23.95 18.89 1.97

115 15.53 12.25 1.65 16.70 13.18 1.70 17.88 14.12 1.75 19.35 15.28 1.82 20.24 15.99 1.86 21.98 17.35 1.94 23.14 18.26 2.00

118 15.18 11.98 1.66 16.34 12.89 1.71 17.49 13.81 1.77 18.93 14.96 1.83 19.80 15.65 1.87 21.52 16.99 1.95 22.66 17.88 2.01

122 14.72 12.22 1.68 15.84 13.15 1.73 16.97 14.09 1.78 18.37 15.26 1.85 19.21 15.96 1.89 20.87 17.33 1.97 21.98 18.23 2.03

PERFORMANCE DATA | 33

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Heating Capacity

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 5.08 0.43 4.93 0.44 4.88 0.44 4.83 0.42 4.79 0.42 4.69 0.43 4.58 0.43

-3 -4 5.61 0.47 5.44 0.47 5.39 0.47 5.33 0.46 5.29 0.46 5.19 0.46 5.06 0.46

0 -1 6.11 0.52 5.92 0.51 5.86 0.51 5.81 0.51 5.76 0.51 5.64 0.5 5.51 0.5

1 0 6.38 0.55 6.18 0.54 6.12 0.54 6.06 0.53 6.01 0.53 5.89 0.53 5.75 0.53

6 5 6.46 0.54 6.27 0.54 6.2 0.54 6.14 0.53 6.1 0.53 5.97 0.53 5.83 0.53

10 9 6.75 0.56 6.54 0.56 6.48 0.56 6.41 0.55 6.36 0.55 6.24 0.54 6.09 0.54

16 14 6.96 0.57 6.75 0.56 6.68 0.56 6.62 0.56 6.56 0.56 6.43 0.55 6.28 0.55

17 15 7.01 0.57 6.80 0.57 6.73 0.57 6.66 0.56 6.61 0.56 6.48 0.56 6.32 0.56

19 17 7.10 0.58 6.89 0.58 6.82 0.58 6.75 0.57 6.70 0.57 6.56 0.57 6.41 0.57

24 23 7.79 0.61 7.55 0.60 7.48 0.60 7.40 0.59 7.35 0.59 7.20 0.59 7.03 0.59

32 30 9.34 0.65 9.06 0.65 8.96 0.65 8.88 0.64 8.81 0.64 8.63 0.64 8.43 0.64

41 38 10.71 0.70 10.39 0.69 10.28 0.69 10.18 0.68 10.10 0.68 9.90 0.68 9.67 0.68

43 40 11.06 0.71 10.72 0.70 10.61 0.70 10.51 0.69 10.43 0.69 10.22 0.69 9.98 0.69

47 43 11.57 0.72 11.22 0.72 11.11 0.72 11.00 0.71 10.92 0.71 10.70 0.70 10.44 0.70

53 50 11.69 0.73 11.34 0.72 11.22 0.72 11.11 0.72 11.03 0.72 10.80 0.71 10.55 0.71

59 53 11.96 0.74 11.59 0.73 11.48 0.73 11.36 0.72 11.28 0.72 11.05 0.72 10.79 0.72

64 57 12.21 0.75 11.84 0.75 11.72 0.75 11.61 0.74 11.52 0.74 11.29 0.73 11.02 0.73

70 61 12.44 0.76 12.07 0.76 11.94 0.76 11.83 0.75 11.73 0.75 11.50 0.74 11.23 0.74

75 65 12.62 0.77 12.23 0.77 12.11 0.77 11.99 0.76 11.90 0.76 11.66 0.75 11.38 0.75

LA090HYV1, LA120HYV1

Table 15: LAN090HYV1/LAU090HYV1 Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 5.54 0.46 5.38 0.46 5.32 0.46 5.27 0.45 5.23 0.45 5.11 0.45 5 0.45

-3 -4 6.12 0.5 5.94 0.5 5.88 0.5 5.82 0.49 5.77 0.49 5.66 0.49 5.52 0.49

0 -1 6.66 0.55 6.46 0.54 6.4 0.54 6.33 0.54 6.28 0.54 6.16 0.53 6.01 0.53

1 0 6.96 0.58 6.74 0.57 6.68 0.57 6.61 0.56 6.56 0.56 6.43 0.56 6.28 0.56

6 5 7.05 0.57 6.84 0.57 6.77 0.57 6.7 0.56 6.65 0.56 6.52 0.56 6.36 0.56

10 9 7.36 0.59 7.14 0.59 7.07 0.59 7.00 0.58 6.94 0.58 6.80 0.58 6.64 0.58

16 14 7.59 0.60 7.36 0.59 7.29 0.59 7.22 0.59 7.16 0.59 7.02 0.58 6.85 0.58

17 15 7.65 0.60 7.41 0.60 7.34 0.60 7.27 0.59 7.21 0.59 7.07 0.59 6.90 0.59

19 17 7.75 0.62 7.51 0.61 7.44 0.61 7.36 0.61 7.31 0.61 7.16 0.60 6.99 0.60

24 23 8.50 0.64 8.24 0.63 8.16 0.63 8.08 0.63 8.02 0.63 7.85 0.62 7.67 0.62

32 30 10.19 0.69 9.88 0.68 9.78 0.68 9.68 0.68 9.61 0.68 9.41 0.67 9.19 0.67

41 38 11.69 0.74 11.33 0.73 11.22 0.73 11.11 0.72 11.02 0.72 10.80 0.71 10.55 0.71

43 40 12.06 0.75 11.70 0.74 11.58 0.74 11.47 0.73 11.38 0.73 11.15 0.73 10.88 0.73

47 43 12.63 0.77 12.24 0.76 12.12 0.76 12.00 0.75 11.91 0.75 11.67 0.74 11.39 0.74

53 50 12.75 0.77 12.37 0.77 12.24 0.77 12.12 0.76 12.03 0.76 11.79 0.75 11.51 0.75

59 53 13.04 0.78 12.65 0.77 12.52 0.77 12.40 0.77 12.30 0.77 12.05 0.76 11.77 0.76

64 57 13.32 0.80 12.92 0.79 12.79 0.79 12.66 0.78 12.56 0.78 12.31 0.77 12.02 0.77

70 61 13.57 0.81 13.16 0.80 13.03 0.80 12.90 0.79 12.80 0.79 12.54 0.78 12.25 0.78

75 65 13.76 0.82 13.35 0.81 13.21 0.81 13.08 0.80 12.98 0.80 12.72 0.79 12.42 0.79

Table 16: LAN120HYV1/LAU120HYV1 Heating Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

34 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Heating Capacity

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 8.31 0.84 8.07 0.85 7.98 0.85 7.91 0.83 7.84 0.83 7.67 0.84 7.50 0.84

-3 -4 9.18 0.92 8.90 0.91 8.81 0.91 8.73 0.91 8.66 0.91 8.49 0.90 8.28 0.90

0 -1 10.00 1.01 9.69 1.00 9.59 1.00 9.50 0.99 9.43 0.99 9.24 0.98 9.02 0.98

1 0 10.12 1.02 9.82 1.01 9.72 1.01 9.62 1.00 9.55 1.00 9.35 0.99 9.13 0.99

6 5 10.58 1.06 10.26 1.05 10.15 1.05 10.05 1.04 9.97 1.04 9.77 1.03 9.54 1.03

10 9 11.04 1.09 10.71 1.08 10.60 1.08 10.49 1.07 10.41 1.07 10.20 1.06 9.96 1.06

16 14 11.39 1.11 11.04 1.09 10.93 1.09 10.82 1.08 10.74 1.08 10.53 1.07 10.28 1.07

17 15 11.47 1.12 11.12 1.11 11.01 1.11 10.90 1.10 10.81 1.10 10.60 1.08 10.35 1.08

19 17 11.62 1.14 11.27 1.13 11.16 1.13 11.05 1.12 10.96 1.12 10.74 1.11 10.49 1.11

24 23 12.75 1.18 12.36 1.17 12.24 1.17 12.12 1.16 12.02 1.16 11.78 1.15 11.50 1.15

32 30 15.28 1.28 14.82 1.26 14.67 1.26 14.52 1.25 14.41 1.25 14.12 1.24 13.79 1.24

41 38 17.53 1.36 17.00 1.35 16.83 1.35 16.66 1.33 16.54 1.33 16.20 1.32 15.82 1.32

43 40 18.10 1.38 17.55 1.37 17.37 1.37 17.20 1.35 17.07 1.35 16.72 1.34 16.33 1.34

47 43 18.94 1.41 18.37 1.40 18.18 1.40 18.00 1.39 17.86 1.39 17.50 1.37 17.09 1.37

53 50 19.13 1.43 18.55 1.41 18.36 1.41 18.18 1.40 18.04 1.40 17.68 1.38 17.26 1.38

59 53 19.57 1.44 18.97 1.43 18.78 1.43 18.59 1.41 18.45 1.41 18.08 1.40 17.65 1.40

64 57 19.98 1.47 19.38 1.45 19.18 1.45 18.99 1.44 18.84 1.44 18.47 1.43 18.03 1.43

70 61 20.36 1.49 19.74 1.48 19.54 1.48 19.35 1.46 19.20 1.46 18.82 1.45 18.37 1.45

75 65 20.65 1.51 20.02 1.50 19.82 1.50 19.62 1.48 19.47 1.48 19.08 1.47 18.63 1.47

LA150HYV2, LA180HYV2

Table 17: LAN150HYV2/LAU150HYV2 Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 10.16 1.09 9.86 1.10 9.75 1.10 9.66 1.07 9.58 1.07 9.37 1.08 9.16 1.08

-3 -4 11.22 1.19 10.88 1.18 10.77 1.18 10.67 1.17 10.58 1.17 10.37 1.16 10.12 1.16

0 -1 12.22 1.31 11.85 1.30 11.73 1.30 11.61 1.29 11.52 1.29 11.29 1.27 11.02 1.27

1 0 12.37 1.32 12.00 1.31 11.88 1.31 11.76 1.30 11.67 1.30 11.43 1.28 11.16 1.28

6 5 12.93 1.37 12.53 1.36 12.41 1.36 12.29 1.34 12.19 1.34 11.95 1.33 11.66 1.33

10 9 13.50 1.41 13.09 1.40 12.95 1.40 12.83 1.39 12.73 1.39 12.47 1.37 12.17 1.37

16 14 13.92 1.43 13.50 1.41 13.36 1.41 13.23 1.40 13.13 1.40 12.87 1.39 12.56 1.39

17 15 14.02 1.44 13.59 1.43 13.45 1.43 13.32 1.42 13.22 1.42 12.95 1.40 12.64 1.40

19 17 14.21 1.47 13.77 1.46 13.64 1.46 13.50 1.44 13.40 1.44 13.13 1.43 12.82 1.43

24 23 15.58 1.53 15.11 1.51 14.96 1.51 14.81 1.50 14.69 1.50 14.40 1.48 14.06 1.48

32 30 18.68 1.65 18.11 1.63 17.93 1.63 17.75 1.62 17.61 1.62 17.26 1.60 16.85 1.60

41 38 21.43 1.76 20.78 1.74 20.57 1.74 20.37 1.72 20.21 1.72 19.80 1.71 19.33 1.71

43 40 22.12 1.79 21.45 1.77 21.23 1.77 21.02 1.75 20.86 1.75 20.44 1.73 19.95 1.73

47 43 23.15 1.83 22.45 1.81 22.22 1.81 22.00 1.79 21.83 1.79 21.39 1.77 20.88 1.77

53 50 23.38 1.84 22.67 1.83 22.44 1.83 22.22 1.81 22.05 1.81 21.61 1.79 21.09 1.79

59 53 23.91 1.86 23.19 1.84 22.95 1.84 22.73 1.83 22.55 1.83 22.10 1.81 21.57 1.81

64 57 24.42 1.90 23.68 1.88 23.44 1.88 23.21 1.86 23.03 1.86 22.57 1.84 22.03 1.84

70 61 24.89 1.93 24.13 1.91 23.89 1.91 23.65 1.89 23.47 1.89 23.00 1.87 22.45 1.87

75 65 25.23 1.95 24.47 1.93 24.22 1.93 23.98 1.92 23.80 1.92 23.32 1.90 22.76 1.90

Table 18: LAN180HYV2/LAU180HYV2 Heating Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

PERFORMANCE DATA | 35

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Heating Capacity

LA180HYV1, LA240HYV1

Table 19: LAN180HYV1/LAU180HYV1 Heating Capacities.

Table 20: LAN240HYV1/LAU240HYV1 Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 10.16 1.03 9.86 1.04 9.75 1.04 9.66 1.01 9.58 1.01 9.37 1.02 9.16 1.02

-3 -4 11.22 1.13 10.88 1.12 10.77 1.12 10.67 1.11 10.58 1.11 10.37 1.09 10.12 1.09

0 -1 12.22 1.24 11.85 1.23 11.73 1.23 11.61 1.21 11.52 1.21 11.29 1.20 11.02 1.20

1 0 12.37 1.25 12.00 1.24 11.88 1.24 11.76 1.23 11.67 1.23 11.43 1.21 11.16 1.21

6 5 12.93 1.29 12.53 1.28 12.41 1.28 12.29 1.27 12.19 1.27 11.95 1.26 11.66 1.26

10 9 13.50 1.34 13.09 1.32 12.95 1.32 12.83 1.31 12.73 1.31 12.47 1.30 12.17 1.30

16 14 13.92 1.35 13.50 1.34 13.36 1.34 13.23 1.32 13.13 1.32 12.87 1.31 12.56 1.31

17 15 14.02 1.36 13.59 1.35 13.45 1.35 13.32 1.34 13.22 1.34 12.95 1.32 12.64 1.32

19 17 14.21 1.39 13.77 1.38 13.64 1.38 13.50 1.37 13.40 1.37 13.13 1.35 12.82 1.35

24 23 15.58 1.44 15.11 1.43 14.96 1.43 14.81 1.42 14.69 1.42 14.40 1.40 14.06 1.40

32 30 18.68 1.56 18.11 1.54 17.93 1.54 17.75 1.53 17.61 1.53 17.26 1.51 16.85 1.51

41 38 21.43 1.66 20.78 1.65 20.57 1.65 20.37 1.63 20.21 1.63 19.80 1.61 19.33 1.61

43 40 22.12 1.69 21.45 1.67 21.23 1.67 21.02 1.65 20.86 1.65 20.44 1.64 19.95 1.64

47 43 23.15 1.73 22.45 1.71 22.22 1.71 22.00 1.69 21.83 1.69 21.39 1.68 20.88 1.68

53 50 23.38 1.74 22.67 1.73 22.44 1.73 22.22 1.71 22.05 1.71 21.61 1.69 21.09 1.69

59 53 23.91 1.76 23.19 1.74 22.95 1.74 22.73 1.73 22.55 1.73 22.10 1.71 21.57 1.71

64 57 24.42 1.79 23.68 1.78 23.44 1.78 23.21 1.76 23.03 1.76 22.57 1.74 22.03 1.74

70 61 24.89 1.82 24.13 1.80 23.89 1.80 23.65 1.79 23.47 1.79 23.00 1.77 22.45 1.77

75 65 25.23 1.85 24.47 1.83 24.22 1.83 23.98 1.81 23.80 1.81 23.32 1.79 22.76 1.79

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 12.47 1.34 12.10 1.35 11.97 1.35 11.86 1.31 11.76 1.31 11.50 1.33 11.25 1.33

-3 -4 13.77 1.46 13.36 1.45 13.22 1.45 13.09 1.43 12.99 1.43 12.73 1.42 12.43 1.42

0 -1 14.99 1.61 14.54 1.59 14.39 1.59 14.25 1.58 14.14 1.58 13.86 1.56 13.53 1.56

1 0 15.18 1.62 14.72 1.61 14.57 1.61 14.43 1.59 14.32 1.59 14.03 1.58 13.70 1.58

6 5 15.87 1.68 15.38 1.66 15.23 1.66 15.08 1.65 14.96 1.65 14.66 1.63 14.31 1.63

10 9 16.56 1.73 16.06 1.72 15.90 1.72 15.74 1.70 15.62 1.70 15.31 1.68 14.94 1.68

16 14 17.09 1.75 16.57 1.74 16.40 1.74 16.24 1.72 16.11 1.72 15.79 1.70 15.41 1.70

17 15 17.20 1.77 16.68 1.75 16.51 1.75 16.35 1.74 16.22 1.74 15.90 1.72 15.52 1.72

19 17 17.43 1.81 16.91 1.79 16.73 1.79 16.57 1.77 16.44 1.77 16.11 1.75 15.73 1.75

24 23 19.12 1.87 18.54 1.85 18.35 1.85 18.17 1.84 18.03 1.84 17.67 1.82 17.25 1.82

32 30 22.92 2.02 22.23 2.00 22.00 2.00 21.78 1.98 21.62 1.98 21.18 1.96 20.68 1.96

41 38 26.30 2.16 25.50 2.13 25.24 2.13 24.99 2.11 24.80 2.11 24.30 2.09 23.73 2.09

43 40 27.14 2.19 26.32 2.17 26.05 2.17 25.80 2.15 25.60 2.15 25.09 2.12 24.49 2.12

47 43 28.41 2.24 27.55 2.22 27.27 2.22 27.00 2.20 26.79 2.20 26.26 2.17 25.63 2.17

53 50 28.70 2.26 27.82 2.24 27.54 2.24 27.27 2.22 27.06 2.22 26.52 2.19 25.89 2.19

59 53 29.35 2.28 28.46 2.26 28.17 2.26 27.89 2.24 27.68 2.24 27.12 2.22 26.48 2.22

64 57 29.97 2.33 29.06 2.31 28.77 2.31 28.49 2.28 28.27 2.28 27.70 2.26 27.04 2.26

70 61 30.54 2.36 29.62 2.34 29.32 2.34 29.03 2.32 28.80 2.32 28.22 2.29 27.55 2.29

75 65 30.97 2.40 30.03 2.37 29.72 2.37 29.43 2.35 29.21 2.35 28.62 2.33 27.94 2.33

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

36 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Maximum Heating Capacity

LA090HYV1, LA120HYV1

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 7.79 1.01 7.83 1.02 7.86 1.03 7.92 1.05 7.78 1.04 7.59 1.04 6.99 1.05

-3 -4 9.82 1.06 9.76 1.06 9.71 1.06 9.69 1.06 9.62 1.08 9.47 1.10 9.02 1.17

0 -1 10.37 1.07 10.29 1.08 10.23 1.08 10.19 1.09 10.11 1.10 9.94 1.12 9.44 1.20

1 0 10.60 1.07 10.51 1.08 10.44 1.09 10.40 1.10 10.32 1.11 10.13 1.12 9.57 1.17

6 5 11.48 1.11 11.36 1.12 11.27 1.13 11.22 1.14 11.10 1.13 10.85 1.12 9.68 1.08

10 9 11.87 1.12 11.74 1.13 11.63 1.15 11.57 1.15 11.42 1.14 11.09 1.13 9.68 1.07

16 14 12.12 1.12 11.98 1.14 11.86 1.15 11.80 1.16 11.60 1.15 11.16 1.12 9.84 1.04

17 15 12.21 1.12 12.06 1.14 11.95 1.16 11.88 1.16 11.67 1.15 11.21 1.12 9.81 1.02

19 17 12.26 1.13 12.12 1.14 12.00 1.15 11.94 1.16 11.71 1.14 11.19 1.10 9.65 0.97

24 23 13.83 1.26 13.67 1.26 13.53 1.26 13.46 1.26 13.13 1.24 12.40 1.19 10.19 1.03

32 30 16.33 1.44 16.14 1.44 15.98 1.44 15.90 1.45 15.42 1.40 14.33 1.34 11.08 1.11

41 38 19.14 1.58 18.92 1.61 18.74 1.64 18.64 1.66 18.02 1.59 16.62 1.49 12.40 1.13

43 40 19.77 1.63 19.54 1.66 19.36 1.69 19.25 1.71 18.58 1.63 17.07 1.53 12.54 1.12

47 43 21.03 1.75 20.78 1.80 20.58 1.86 20.47 1.89 19.72 1.80 18.02 1.66 12.92 1.17

53 50 21.58 1.78 21.31 1.83 21.09 1.89 20.97 1.91 20.14 1.81 18.28 1.65 12.70 1.08

59 53 21.85 1.74 21.83 1.81 21.81 1.87 21.81 1.91 20.91 1.80 18.89 1.65 12.82 1.09

64 57 22.02 1.70 21.70 1.73 21.43 1.76 21.28 1.77 20.42 1.68 18.49 1.55 12.69 1.06

70 61 22.10 1.63 21.72 1.63 21.40 1.62 21.23 1.62 20.38 1.54 18.47 1.42 12.74 0.98

75 65 22.04 1.49 21.60 1.53 21.23 1.57 21.03 1.59 20.17 1.50 18.22 1.38 12.38 0.91

Table 21: LAN090HYV1/LAU090HYV1 Maximum Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 9.42 1.28 9.47 1.29 9.50 1.30 9.52 1.31 9.42 1.31 9.18 1.31 8.46 1.32

-3 -4 11.87 1.34 11.81 1.34 11.75 1.34 11.72 1.34 11.64 1.36 11.45 1.39 10.91 1.48

0 -1 12.54 1.35 12.45 1.36 12.37 1.37 12.32 1.37 12.23 1.39 12.03 1.42 11.41 1.51

1 0 12.82 1.35 12.72 1.37 12.63 1.38 12.58 1.39 12.48 1.40 12.25 1.42 11.57 1.48

6 5 13.95 1.41 13.81 1.42 13.69 1.44 13.72 1.47 13.49 1.44 13.18 1.42 11.77 1.37

10 9 14.47 1.43 14.31 1.45 14.18 1.46 14.11 1.47 13.93 1.46 13.52 1.44 11.81 1.37

16 14 14.84 1.45 14.67 1.47 14.53 1.49 14.45 1.50 14.21 1.48 13.67 1.45 12.05 1.34

17 15 14.96 1.45 14.79 1.47 14.64 1.49 14.56 1.50 14.31 1.48 13.74 1.45 12.02 1.32

19 17 15.05 1.46 14.88 1.48 14.73 1.49 14.65 1.50 14.37 1.47 13.74 1.42 11.85 1.26

24 23 16.44 1.56 16.24 1.56 16.08 1.57 15.99 1.57 15.61 1.53 14.73 1.48 12.10 1.28

32 30 18.64 1.68 18.42 1.68 18.24 1.69 18.15 1.69 17.59 1.64 16.36 1.57 12.64 1.30

41 38 21.12 1.74 20.87 1.78 20.68 1.81 20.56 1.83 19.88 1.75 18.33 1.64 13.68 1.25

43 40 21.67 1.77 21.42 1.81 21.22 1.84 21.10 1.86 20.37 1.78 18.71 1.66 13.74 1.22

47 43 22.78 1.83 22.52 1.89 22.30 1.95 22.18 1.98 21.36 1.89 19.52 1.74 14.00 1.22

53 50 23.37 1.86 23.08 1.92 22.85 1.98 22.72 2.00 21.82 1.90 19.80 1.73 13.76 1.13

59 53 23.67 1.83 23.65 1.90 23.63 1.96 23.62 2.00 22.65 1.89 20.46 1.73 13.89 1.14

64 57 23.86 1.79 23.51 1.81 23.22 1.84 23.06 1.86 22.13 1.76 20.03 1.62 13.75 1.11

70 61 23.94 1.71 23.52 1.70 23.19 1.70 23.00 1.70 22.08 1.62 20.01 1.49 13.81 1.03

75 65 23.88 1.56 23.40 1.60 23.00 1.64 22.78 1.66 21.85 1.58 19.74 1.44 13.41 0.96

Table 22: LAN120HYV1/LAU120HYV1 Maximum Heating Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

PERFORMANCE DATA | 37

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Maximum Heating Capacity

LA150HYV2, LA180HYV2

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 14.54 1.94 14.59 1.96 14.64 1.97 14.66 1.98 14.48 1.98 14.25 1.99 13.37 2.00

-3 -4 17.06 2.03 16.98 2.04 16.91 2.04 16.88 2.04 16.75 2.07 16.57 2.10 15.93 2.22

0 -1 17.84 2.05 17.74 2.06 17.63 2.08 17.59 2.08 17.44 2.11 17.24 2.14 16.52 2.27

1 0 18.17 2.07 18.05 2.09 17.94 2.10 17.88 2.11 17.73 2.12 17.51 2.14 16.72 2.22

6 5 19.33 2.12 19.18 2.15 19.02 2.17 18.95 2.18 18.74 2.17 18.44 2.15 17.37 2.07

10 9 20.25 2.13 20.08 2.16 19.90 2.19 19.82 2.20 19.53 2.18 19.14 2.15 17.71 2.06

16 14 21.33 2.15 21.13 2.17 20.94 2.20 20.85 2.21 20.45 2.18 19.91 2.14 17.92 2.01

17 15 21.49 2.16 21.29 2.19 21.09 2.22 21.00 2.23 20.59 2.19 20.03 2.13 17.99 1.93

19 17 21.94 2.17 21.73 2.19 21.53 2.21 21.43 2.22 20.96 2.18 20.31 2.12 17.94 1.90

24 23 23.05 2.18 22.84 2.19 22.62 2.19 22.52 2.20 21.88 2.15 21.01 2.08 17.81 1.84

32 30 24.19 2.12 23.96 2.13 23.74 2.13 23.63 2.13 22.79 2.07 21.64 1.99 17.42 1.69

41 38 25.26 2.00 25.02 2.03 24.79 2.06 24.68 2.08 23.70 2.00 22.37 1.89 17.48 1.49

43 40 25.49 1.92 25.25 1.95 25.01 1.99 24.90 2.00 23.87 1.92 22.47 1.81 17.32 1.40

47 43 25.80 1.86 25.56 1.91 25.31 1.97 25.20 1.99 24.10 1.90 22.59 1.78 17.07 1.32

53 50 26.39 1.89 26.12 1.94 25.86 1.99 25.74 2.01 24.53 1.91 22.88 1.77 16.83 1.24

59 53 26.68 1.86 26.66 1.92 26.65 1.98 26.64 2.01 25.32 1.90 23.53 1.76 16.97 1.24

64 57 26.87 1.82 26.55 1.84 26.22 1.87 26.07 1.88 24.82 1.79 23.11 1.67 16.83 1.22

70 61 26.95 1.75 26.57 1.75 26.19 1.74 26.01 1.74 24.77 1.66 23.08 1.55 16.88 1.14

75 65 26.89 1.62 26.45 1.66 26.00 1.69 25.80 1.71 24.54 1.63 22.81 1.51 16.49 1.08

Table 23: LAN150HYV2/LAU150HYV2 Maximum Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 18.97 2.65 19.03 2.67 19.09 2.69 19.12 2.70 18.90 2.70 18.61 2.70 17.54 2.72

-3 -4 22.05 2.76 21.96 2.77 21.87 2.78 21.82 2.78 21.67 2.81 21.45 2.85 20.67 3.01

0 -1 23.01 2.79 22.88 2.81 22.75 2.82 22.69 2.83 22.52 2.86 22.28 2.91 21.39 3.07

1 0 23.40 2.81 23.26 2.83 23.12 2.85 23.06 2.86 22.86 2.88 22.60 2.91 21.63 3.01

6 5 24.82 2.88 24.64 2.91 24.45 2.94 24.36 2.96 24.10 2.94 23.74 2.91 22.42 2.82

10 9 25.95 2.90 25.74 2.93 25.52 2.96 25.43 2.98 25.07 2.95 24.60 2.92 22.84 2.80

16 14 27.27 2.91 27.03 2.95 26.79 2.98 26.68 2.99 26.19 2.96 25.53 2.91 23.10 2.73

17 15 27.46 2.93 27.22 2.97 26.97 3.00 26.86 3.02 26.37 2.97 25.69 2.89 23.19 2.63

19 17 28.01 2.94 27.76 2.97 27.51 3.00 27.40 3.01 26.82 2.95 26.03 2.88 23.13 2.60

24 23 29.37 2.96 29.11 2.97 28.84 2.97 28.72 2.98 27.94 2.91 26.87 2.83 22.97 2.51

32 30 30.76 2.88 30.49 2.89 30.21 2.89 30.08 2.90 29.05 2.82 27.65 2.71 22.50 2.33

41 38 32.07 2.72 31.78 2.76 31.49 2.80 31.37 2.82 30.17 2.72 28.54 2.58 22.56 2.06

43 40 32.35 2.62 32.06 2.66 31.77 2.71 31.64 2.72 30.38 2.62 28.66 2.47 22.36 1.94

47 43 32.73 2.54 32.43 2.61 32.13 2.68 32.00 2.71 30.65 2.59 28.81 2.43 22.07 1.84

53 50 33.45 2.58 33.13 2.64 32.80 2.71 32.65 2.74 31.18 2.60 29.16 2.42 21.77 1.74

59 53 33.81 2.54 33.79 2.62 33.77 2.70 33.76 2.73 32.15 2.60 29.96 2.42 21.94 1.75

64 57 34.04 2.49 33.64 2.52 33.25 2.55 33.07 2.57 31.53 2.45 29.44 2.29 21.76 1.71

70 61 34.14 2.40 33.67 2.40 33.21 2.39 32.99 2.39 31.48 2.29 29.41 2.14 21.83 1.62

75 65 34.07 2.23 33.53 2.28 32.98 2.33 32.74 2.35 31.19 2.24 29.08 2.09 21.35 1.53

Table 24: LAN180HYV2/LAU180HYV2 Maximum Heating Capacities.

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

38 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Maximum Heating Capacity

LA180HYV1, LA240HYV1

Table 25: LAN180HYV1/LAU180HYV1 Maximum Heating Capacities.

Table 26: LAN240HYV1/LAU240HYV1 Maximum Heating Capacities.

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 13.48 2.12 13.55 2.14 13.60 2.15 14.06 2.14 13.47 2.17 13.13 2.17 12.10 2.19

-3 -4 16.99 2.21 16.89 2.22 16.81 2.22 16.76 2.22 16.65 2.25 16.39 2.29 15.61 2.44

0 -1 17.95 2.24 17.81 2.25 17.70 2.27 17.63 2.27 17.50 2.30 17.21 2.35 16.33 2.50

1 0 18.35 2.24 18.19 2.26 18.07 2.29 18.00 2.30 17.86 2.32 17.53 2.35 16.56 2.45

6 5 20.37 2.31 20.16 2.34 19.99 2.37 19.30 2.39 19.70 2.37 19.25 2.34 17.18 2.25

10 9 21.44 2.33 21.20 2.37 21.00 2.40 20.90 2.41 20.63 2.39 20.03 2.36 17.49 2.24

16 14 22.43 2.35 22.17 2.39 21.95 2.42 21.83 2.43 21.47 2.40 20.66 2.35 18.21 2.18

17 15 22.68 2.35 22.41 2.38 22.20 2.42 22.08 2.44 21.69 2.40 20.82 2.35 18.22 2.14

19 17 22.96 2.37 22.68 2.39 22.46 2.42 22.34 2.43 21.91 2.38 20.95 2.31 18.07 2.04

24 23 24.49 2.42 24.20 2.43 23.97 2.44 23.83 2.44 23.25 2.38 21.95 2.30 18.04 1.99

32 30 26.94 2.44 26.62 2.44 26.37 2.45 26.23 2.45 25.43 2.38 23.64 2.28 18.27 1.88

41 38 29.69 2.36 29.35 2.40 29.07 2.45 28.92 2.47 27.95 2.37 25.77 2.23 19.24 1.69

43 40 30.31 2.36 29.96 2.41 29.67 2.45 29.51 2.48 28.48 2.37 26.17 2.21 19.22 1.63

47 43 31.55 2.30 31.18 2.38 30.88 2.45 30.71 2.49 29.58 2.37 27.03 2.19 19.39 1.54

53 50 32.36 2.34 31.96 2.41 31.64 2.49 31.45 2.52 30.21 2.38 27.42 2.18 19.05 1.43

59 53 32.78 2.30 32.75 2.38 32.72 2.47 32.71 2.51 31.36 2.38 28.33 2.18 19.24 1.43

64 57 33.04 2.25 32.55 2.28 32.15 2.32 31.93 2.33 30.64 2.22 27.74 2.04 19.04 1.40

70 61 33.15 2.15 32.57 2.14 32.10 2.14 31.84 2.14 30.57 2.03 27.71 1.87 19.12 1.29

75 65 33.07 1.96 32.40 2.01 31.85 2.07 31.55 2.09 30.25 1.98 27.33 1.82 18.57 1.20

Outdoor Air

Temp.

Indoor Air Temperature (°F DB/ °F WB)

°F DB °F WB

60 64 68 70 72 75 86

TC PI TC PI TC PI TC PI TC PI TC PI TC PI

-12 -13 16.55 2.74 16.62 2.77 16.69 2.79 17.25 2.77 16.53 2.81 16.11 2.81 14.85 2.83

-3 -4 20.85 2.87 20.73 2.87 20.63 2.88 20.58 2.88 20.43 2.92 20.11 2.97 19.16 3.17

0 -1 22.03 2.90 21.86 2.92 21.72 2.94 21.64 2.95 21.48 2.98 21.12 3.04 20.04 3.24

1 0 22.51 2.90 22.33 2.93 22.17 2.96 22.08 2.98 21.91 3.00 21.52 3.04 20.32 3.18

6 5 24.99 3.00 24.74 3.04 24.53 3.07 23.69 3.10 24.17 3.07 23.62 3.04 21.08 2.92

10 9 26.30 3.03 26.01 3.07 25.77 3.11 25.64 3.13 25.32 3.10 24.58 3.06 21.46 2.91

16 14 27.52 3.06 27.20 3.10 26.93 3.14 26.79 3.16 26.34 3.12 25.34 3.06 22.34 2.84

17 15 27.83 3.05 27.50 3.10 27.24 3.15 27.09 3.17 26.61 3.12 25.55 3.05 22.36 2.79

19 17 28.17 3.08 27.83 3.11 27.56 3.14 27.41 3.16 26.89 3.10 25.71 3.00 22.17 2.65

24 23 29.60 3.15 29.25 3.16 28.96 3.17 28.80 3.17 28.10 3.10 26.52 2.99 21.79 2.59

32 30 31.87 3.17 31.50 3.18 31.20 3.19 31.03 3.19 30.09 3.10 27.97 2.96 21.62 2.45

41 38 34.43 3.07 34.04 3.13 33.71 3.19 33.53 3.21 32.41 3.09 29.88 2.90 22.31 2.19

43 40 35.01 3.07 34.60 3.13 34.27 3.19 34.09 3.22 32.90 3.08 30.22 2.88 22.19 2.12

47 43 36.16 3.00 35.74 3.09 35.39 3.19 35.20 3.24 33.90 3.09 30.98 2.85 22.22 2.00

53 50 37.10 3.05 36.64 3.14 36.26 3.23 36.05 3.28 34.63 3.10 31.43 2.84 21.84 1.85

59 53 37.57 2.99 37.54 3.10 37.51 3.21 37.49 3.27 35.95 3.09 32.47 2.83 22.05 1.87

64 57 37.87 2.92 37.31 2.97 36.85 3.01 36.60 3.04 35.12 2.88 31.79 2.66 21.83 1.82

70 61 38.00 2.79 37.34 2.79 36.80 2.78 36.50 2.78 35.04 2.64 31.76 2.44 21.91 1.68

75 65 37.90 2.55 37.14 2.62 36.51 2.69 36.16 2.72 34.68 2.58 31.33 2.36 21.29 1.56

DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)

PI: Power Input (kW) (includes compressor,indoor fan motor and outdoor fan motor)

1. All capacities are net, evaporator fan motor heat is deducted.

2. Direct interpolation is permissible. Do not extrapolate.

Nominal capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping.

0 ft. level difference between outdoor and indoor units.

Nominal heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and

60ºF wet bulb (WB), and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

PERFORMANCE DATA | 39

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

LAN090HYV1

Cooling

Air Velocity [m/s (ft./s)]

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

0.3(1)

0.5(1.6)

5 (16.4)

1(3.3)

30(86)

28(82)

26(79)

24(75)

16(61)

Air Velocity [m/s (ft./s)]

010 2468

Air Velocity [m/s (ft./s)]

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

Side View

Discharge Angle: 70˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 70˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 13.0 m (42.7 ft./s)

Top Vi ew

Discharge Angle: 70˚

Vertical Louver: Left & Right

Fan Speed: Power

40 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

LAN090HYV1, continued.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

Heating

0.3(1)

0.5(1.6)

1(3.3)

22(72)

24(75)

26(79)

28(82)

34(93)

Air Velocity [m/s (ft./s)]

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

6 (19.7)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

Air Velocity [m/s (ft./s)]

010 2468

Air Velocity [m/s (ft./s)]

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

Side View

Discharge Angle: 35˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 35˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 11.6 m (38.1 ft./s)

Top View

Discharge Angle: 35˚

Vertical Louver: Left & Right

Fan Speed: Power

PERFORMANCE DATA | 41

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

LAN120HYV1

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

Cooling

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

0.3(1)

0.5(1.6)

5 (16.4)

1(3.3)

30(86)

28(82)

26(79)

24(75)

16(61)

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

Air Velocity [m/s (ft./s)]

Air Velocity [m/s (ft./s)]Air Velocity [m/s (ft./s)]

Side View

Discharge Angle: 70˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 70˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 13.0 m (42.7 ft./s)

Top Vi ew

Discharge Angle: 70˚

Vertical Louver: Left & Right

Fan Speed: Power

42 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

LAN120HYV1, continued.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

Heating

0.3(1)

0.5(1.6)

1(3.3)

22(72)

24(75)

26(79)

28(82)

34(93)

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

6 (19.7)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

Air Velocity [m/s (ft./s)]

Air Velocity [m/s (ft./s)] Air Velocity [m/s (ft./s)]

Side View

Discharge Angle: 35˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 35˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 11.6 m (38.1 ft./s)

Top View

Discharge Angle: 35˚

Vertical Louver: Left & Right

Fan Speed: Power

PERFORMANCE DATA | 43

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

LAN150HYV2, LAN180HYV1

Cooling

28(82)

30(86)

0.3(1)

1(3.3)

0.5(1.6)

1.5(4.9)

0.3(1)

26(79)

22(72)

16(61)

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

6.5 (21.3)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

0.3(1)

0.5(1.6)

2(6.6)

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

Air Velocity [m/s (ft./s)]

Side View

Discharge Angle: 60˚

Vertical Louver: Center

Fan Speed: Power

Air Velocity [m/s (ft./s)] Air Velocity [m/s (ft./s)]

Top Vi ew

Discharge Angle: 60˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 12.6 m (41.3 ft./s)

Top Vi ew

Discharge Angle: 60˚

Vertical Louver: Left & Right

Fan Speed: Power

44 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

LAN150HYV2, LAN180HYV1, continued.

Heating

22(72)

24(75)

26(79)

30(86)

0.3(1)

0.5(1.6)

1(3.3)

1.5(4.9)

38(100)

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

6.5 (21.3)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

0.5(1.6)

1(3.3)

0.3(1)

2(6.6)

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

Air Velocity [m/s (ft./s)]

Air Velocity [m/s (ft./s)] Air Velocity [m/s (ft./s)]

Side View

Discharge Angle: 50˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 50˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 10.4 m (34.1 ft./s)

Top View

Discharge Angle: 50˚

Vertical Louver: Left & Right

Fan Speed: Power

PERFORMANCE DATA | 45

Performance Data

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

LAN240HYV1

Cooling

30(86)

28(82)

26(79)

24(75)

0.3(1)

0.5(1.6)

2(6.6)

1(3.3)

22(72)

14(57)

0.5(1.6)

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

6.5 (21.3)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

1(3.3)

0.5(1.6)

0.3(1)

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

Side View

Discharge Angle: 60˚

Vertical Louver: Center

Fan Speed: Power

Air Velocity [m/s (ft./s)]

Air Velocity [m/s (ft./s)] Air Velocity [m/s (ft./s)]

Top Vi ew

Discharge Angle: 60˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 12.2 m (40.0 ft./s)

Top Vi ew

Discharge Angle: 60˚

Vertical Louver: Left & Right

Fan Speed: Power

46 | PERFORMANCE DATA

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PERFORMANCE DATA

Air Flow and Temperature Distribution Graphs

LAN240HYV1, continued.

Heating

24(75)

26(79)

0.3(1)

0.5(1.6)

1.5(4.9)

40(104)

32(90)

28(82)

1(3.3)

2(6.6)

7(23)

2468

Temperature [°C (°F)]

ft.

032.8 6.613.119.726.2

2468

mft.

3.3

6.6

ft.

3.3

6.6

ft.

032.8 6.613.119.726.2

010 2468

032.8 6.613.119.726.2 032.8 6.613.119.726.2

ft.

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

3. 3

6. 6

9.8

13.1

9.8

6. 6

13.1

16.4

ft.

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

0.3(1)

0.5(1.6)

1(3.3)

2(6.6)

Air Velocity [m/s (ft./s)]

Air Velocity [m/s (ft./s)] Air Velocity [m/s (ft./s)]

Side View

Discharge Angle: 50˚

Vertical Louver: Center

Fan Speed: Power

Top Vi ew

Discharge Angle: 50˚

Vertical Louver: Center

Fan Speed: Power

Air speed 0.3 m/s (1 ft./s) Range: 11.6 m (38.1 ft./s)

Top View

Discharge Angle: 50˚

Vertical Louver: Left & Right

Fan Speed: Power

“Equipment Selection Procedure” on page 48

“Building Ventilation Design Guide” on page 49

“Placement Considerations” on page 51

APPLICATION

GUIDELINES

48 | APPLICATION GUIDELINES

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

EQUIPMENT SELECTION PROCEDURE

Cooling/Heating Correction Factors

For Single Zone Art Cool Premier systems, calculate the equivalent length of the liquid line from the outdoor unit to the indoor unit. Also, de-

termine the elevation difference of the indoor unit above or below the outdoor unit. Find corresponding cooling or heating capacity correction

factors as shown in the table below. Multiply the correction factors by the cooling or heating capacity obtained from the capacity tables using

design conditions. The resultant is the NET cooling or heating capacity.

Table 27: Single Zone Wall Mounted Art Cool Premier Cooling/Heating % Coefcient Factors.

Model Main Piping Length

Indoor Unit Outdoor Unit Feet 24.6 32.8 49.2 65.6 82 98.4 114.8 131.2 147.6 164

LAN090HYV1 LAU090HYV1

Cooling 100 98 93 88 - - - - - -

Heating 100 99 96 94 - - - - - -

LAN120HYV1 LAU120HYV1

Cooling 100 98 93 88 - - - - - -

Heating 100 99 96 94 - - - - - -

LAN150HYV2 LAU150HYV2

Cooling 100 100 100 100 100 100 - - - -

Heating 100 98 95 91 88 84 - - - -

LAN180HYV2 LAU180HYV2

Cooling 100 100 100 100 100 100 - - - -

Heating 100 98 95 91 88 84 - - - -

LAN180HYV1 LAU180HVY1

Cooling 100 100 100 100 100 100 - - - -

Heating 100 98 95 91 88 84 - - - -

LAN240HYV1 LAU240HVY1

Cooling 100 100 100 100 100 100 - - - -

Heating 100 98 95 91 88 84 - - - -

APPLICATION GUIDELINES | 49

Application Guidelines

Due to our policy of continuous product innovation, some specications may change without notication.

BUILDING VENTILATION DESIGN GUIDE

Method 1: Decoupled Dedicated Outdoor Air System (DDOAS)

Provide a separate, dedicated outdoor-air system designed to filter, condition, and dehumidify ventilation air and deliver it directly to the con-

ditioned space through a separate register or grille. This approach requires a separate independent ventilation duct system not associated

with single zone systems.

Advantages

• May be used with single zone systems.

• The outdoor air unit may supply “neutral” air to the occupant space

even when the single zone system indoor unit fan changes speed

or cycles on and off. DDOAS controls do not have to be interlocked

with the single zone system.

• In lieu of installing localized smaller outside air treatment

equipment throughout the building, this method centralizes the

ventilation air source making service and filter changes easier and

less disruptive for the building occupants.

• Third-party demand control ventilation controls are more readily

accommodated.

Disadvantages

• Ceiling space is required to accommodate ductwork between the

centralized outdoor air unit and ceiling diffusers.

LG recommends using the DDOAS method in all installations.

Ceiling Diffuser

Outdoor Air Unit / ERV

Outdoor Air

Wall Mount Inverter

Intake Grill

Figure 8: Decoupled Dedicated Outdoor System Diagram

Methodology illustrations are for examples only and do not depict actual

indoor units for the specic outdoor unit pairing. These are generic illus-

trations to show ventilation design only.

Building Ventilation Design Guide

ASHRAE 62.1 and local codes specify the minimum volume of outdoor air that must be provided to an occupied space. Outdoor air is re-

quired to minimize adverse health effects, and it provides acceptable indoor air quality for building occupants. The three methods of accom-

plishing this with single zone systems are summarized here.

Although we believe that these building ventilation methods have been portrayed accurately, none of the methods have been tested, veried, or

evaluated by LG Electronics, U.S.A., Inc., In all cases, the designer, installer, and contractor should understand if the suggested method is used, it

is used at their own risk. LG Electronics U.S.A., Inc., takes no responsibility and offers no warranty, expressed or implied, in law or in fact, including

but not limited to any implied warranty of merchantability or tness for a particular purpose.

• For a complete copy of Standard 62.1-2010, refer to the American Standard of Heating and Air Conditioning Engineers (ASHRAE)

website at www.ashrae.org.

• For more information on how to properly size a ventilation air pretreatment system, refer to the article, “Selecting DOAS Equipment with

Reserve Capacity” by John Murphy, published in the ASHRAE Journal, April 2010.

50 | APPLICATION GUIDELINES

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

OA Wall

Louver

Damper

Roof Fan

BUILDING VENTILATION DESIGN GUIDE

Method 2: Unconditioned Outdoor Air (Non-Ducted, Natural Ventilation)

Natural ventilation devices, such as operable windows or louvers may be used to ventilate the building when local code permits. The open

area of a window or the free area of a louver must meet the minimum percentage of the net occupied floor area.

Advantages

• Occupants control the volume of the ventilation air manually.

• Useful for historic buildings that have no ceiling space available for

outdoor air ductwork.

• May be used with single zone systems.

Disadvantages

• In some locations, it may be difficult to control humidity levels when

windows are open.

• Thermal comfort levels may be substandard when windows are

open.

• Indoor units may have to be oversized to account for the added

heating and cooling loads when windows are open.

• Provides outdoor air to perimeter spaces only. Additional mechani-

cal ventilation system may be required to satisfy requirements for

interior spaces.

• Outdoor air loads may be difficult to calculate since the quantity of

outdoor air is not regulated.

• May affect indoor unit proper operation when open.

Method 3: Unconditioned Outdoor Air (Non-Ducted, Fan Assisted Ventilation)

When approved by local codes, the fan assisted ventilation method uses exhaust fans to remove air from the building, and outdoor air is

drawn into occupied spaces through a wall louver or gravity roof intake hood. Supply fans can also be used to push the outdoor air into the

space and building positive pressure will vent the exhaust air through louvers or roof-mounted exhaust hoods. Outdoor air is neither cooled

nor heated before entering the building.

Advantages

• Outdoor air may be manually controlled by the occupant or auto-

matic controls may be installed to open/close outdoor air dampers

or to turn on/off ventilation fans.

• Useful for large open spaces like warehouses, garages, and

workshops.

• Outdoor air volume is a known quantity. Air loads may be easier to

calculate since fans will regulate the amount of outdoor air.

• May be used with single zone systems.

Disadvantages

• In some locations of the country, it may be difficult to control

humidity levels while outdoor air louvers/hoods are opened.

• Thermal comfort levels may be substandard when louvers/hoods

are opened.

• Indoor units may have to be oversized to account for the added

heating/cooling loads when louvers/hoods are open.

• Hot, cold, and/or humid areas may be present if the outdoor air is

not evenly distributed to the different spaces.

This may result in loss of building pressurization control, increasing inltration loads with adverse effects.

Figure 9: Unconditioned Outdoor Air (Non-Ducted)

Methodology illustrations are for examples only and do not depict actual

indoor units for the specic outdoor unit pairing. These are generic illus-

trations to show ventilation design only.

Methodology illustrations are for examples only and do not

depict actual indoor units for the specic outdoor unit pairing.

These are generic illustrations to show ventilation design only.

Figure 10: Unconditioned Outdoor Air Fan Assisted Ventilation.

APPLICATION GUIDELINES | 51

Application Guidelines

Due to our policy of continuous product innovation, some specications may change without notication.

PLACEMENT CONSIDERATIONS

Selecting the Best Location

DANGER

To avoid the possibility of re, do not install the unit in an area where combustible gas may generate, ow, stagnate, or leak. Failure to do so will

cause serious bodily injury or death.

Install a fence to prevent vermin from crawling into the unit or unauthorized individuals from accessing it. Do not install the unit in a location

where acidic solution and spray (sulfur) are often used as this may cause serious bodily injury or death. Do not use the unit in environments

where oil, steam, or sulfuric gas are present as this may cause serious bodily injury or death.

Select a location for installing the outdoor unit that will meet the following conditions:

• Where there is enough strength to bear the weight of the unit.

• Include space for drainage to ensure condensate flows properly out of the unit when it is in heating mode.

• Include enough space for air flow and for service access.

Dont's

• Where the unit will be subjected to direct thermal radiation from other heat sources.

• Where operating sound from the unit will disturb inhabitants of surrounding buildings.

• Where the unit will be exposed to direct, strong winds.

To ensure the outdoor unit operates properly, certain measures are required in locations where there is a possibility of heavy snowfall or

severe wind chill or cold:

1. Prepare for severe winter wind chills and heavy snowfall, even in areas of the country where these are unusual phenomena.

2. Position the outdoor unit so that its airflow fans are not buried by direct, heavy snowfall. If snow piles up and blocks the airflow, the

system may malfunction.

3. Remove any snow that has accumulated by 4 inches or more on the top of the outdoor unit.

4. Place the outdoor unit on a raised platform at least 20 inches higher than the average annual snowfall for the area. In environments where

there is a possibility of heavy snow, the frame height must be more than two (2) times the amount of average annual snowfall, and should

not exceed the width of the outdoor unit. If the frame width is wider than the outdoor unit, snow may accumulate.

5. Install a snow protection hood.

6. To prevent snow and heavy rain from entering the outdoor unit, install the suction and discharge ducts facing away from direct winds.

7. Additionally, the following conditions should be taken into consideration when the unit operates in defrost mode:

• If the outdoor unit is installed in a highly humid environment (near an ocean, lake, etc.), ensure that the site is well-ventilated and has a lot

of natural light. (Example: Install on a rooftop.)

• Sidewalks or parking lots near the outdoor unit may accumulate moisture after unit operates in defrost mode that can turn to ice.

The indoor unit may take longer to provide heat, or heating performance will be reduced in winter if the unit is installed:

1. In a narrow, shady location.

2. Near a location that has a lot of ground moisture.

3. In a highly humid environment.

4. In an area in which condensate does not drain properly.

Ambient Air Conditions

• Avoid exposing the unit to discharge from boiler stacks, chimneys, steam relief ports, other air conditioning units, kitchen vents, plumb-

ing vents, or substances that may degrade performance or cause damage to the unit.

• When installing multiple outdoor units, avoid placing the units where discharge of one outdoor unit will blow into the inlet side of an adja-

cent unit.

Avoid exposing the unit to sources of extreme temperature or gases to prevent serious bodily injury.

52 | APPLICATION GUIDELINES

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Due to our policy of continuous product innovation, some specications may change without notication.

PLACEMENT CONSIDERATIONS

Indoor Unit Clearance/Outdoor Unit Installation

Indoor Unit Best Location

Figure 11: Single Zone Indoor Unit Clearance Requirements.

General Mounting for Outdoor Units

Securely attach the outdoor unit to a condenser pad, base rails, or

another mounting platform that is securely anchored to the ground

or building structure. Attach the outdoor unit with a bolt and nut on a

concrete or rigid mount. Refer to the applicable installation manual

and follow applicable local codes for clearance, mounting, anchor

and vibration attenuation requirements.

All referenced materials are to be eld-supplied. Images are not

to scale.

Figure 12: Outdoor Unit Mounting Methods.

Bolt

Placement

& Anti-Vibration

Pad

Piping Connection

Top of Unit

Foundation

Mounting Platform

The underlying structure or foundation must be designed to sup-

port the weight of the unit. Avoid placing the unit in a low lying area

where water may accumulate. When installing the outdoor unit on

the wal, or roof top, anchor the mounting base securely to account

for wind, earthquake or vibration.

Tie-Downs and Wind Restraints

The strength of the Single Zone system frame is adequate to

be used with field-provided wind restraint tie-downs. The overall

tie-down configuration must be approved by a local professional

engineer.

Always refer to local code when designing a wind restraint system.

Snow and Ice Conditions

In climates that experience snow build-up, place the unit on a raised platform to ensure condenser airflow. The raised support platform must

be high enough to allow the unit to remain above possible snow drifts. Mount the unit on a field-provided snow stand at a minimum height

that is equal to the average annual snowfall plus 20 inches. Design the mounting base to prevent snow accumulation on the platform in front

or back of the unit case. If necessary, provide a field fabricated hood to keep snow and ice and/or drifting snow from accumulating on the coil

surfaces. Use inlet and discharge duct or hoods to prevent snow or rain from accumulating on the fan inlet and outlet guards. Best practice

prevents snow from accumulating on top of the unit. Consider tie-down requirements in case of high winds or where required by local codes.

More than 5 inches

More than

4 inches

More than

4 inches

At least 6.5 feet from the floor

When deciding on a location to place the outdoor unit, be sure to choose an area where run-off from defrost will not accumulate and freeze on

sidewalks or driveways which may create unsafe conditions.

CAUTION

Follow recommended best practices when choosing an indoor location for the

single zone indoor unit.

• Use a metal detector to locate studs in the walls. Anchor unit following stud

location, to prevent damage to the wall.

• Clearance gap between any wall or enclosure and the left or right side of the

unit must be greater than 4 inches.

• Minimum clearance of the indoor unit from its top to the ceiling is 5 inches.

• Unit should be at least 6.5 feet from the oor for adequate clearance.

• Keep unit away from any indoor steam or excessive heat.

• No obstacles should be placed around unit.

• Condensation drain (leakage piping) should be routed away from the unit.

• Do not install near doorway.

If the outdoor unit is installed between standard and minimum

clearances, capacity decreases approximately 10 to 20%.

APPLICATION GUIDELINES | 53

Application Guidelines

Due to our policy of continuous product innovation, some specications may change without notication.

Outdoor Unit Clearances

PLACEMENT CONSIDERATIONS

Minimum Clearance Requirements for Single Zone Art Cool Premier Systems

Proper clearance for the outdoor unit coil is critical for proper unit operation. When installing the outdoor unit, consider service, inlet and

outlet and minimum allowable space requirements as illustrated in the diagrams below.

Specific clearance requirements in the diagram below are for the Single Zone Wall Mounted Art Cool Premier systems. Figure 13 shows the

overall minimum clearances that must be observed for safe operation and adequate airflow around the outdoor unit.

When placing the outdoor unit under an overhang, awning, sunroof or other “roof-like structure”, observe the clearance requirements (as

shown in Cases 1 and 2 in Figure 13) for height in relation to the unit. This clearance ensures that heat radiation from the condenser is not

restricted around the unit.

Adhere to all clearance requirements if installing the unit on a roof. Be sure to level the unit and ensure that the unit is adequately anchored.

Consult local codes for rooftop mounting requirements.

In order to have successful service access to the outdoor unit, see Figure 13 for minimum spacing. When installing multiple outdoor units,

see Cases 4 and 5 in Figure 13 for correct spacing requirements.

Figure 13: Outdoor Unit Service Access and Allowable Clearances Diagram.

1/16 inch

20 inches or less

Case 1

Case 4

Case 2 Case 3

Case 5

20 inches or less

Unit: Inch A B C D E F G

Case 1

Standard 12 24 - 12 - - -

Minimum 4 10 - 4 - - 40

Case 2

Standard - - 20 - - - -

Minimum - - 14 - - - 40

Case 3

Standard - - 20 12 - - -

Minimum - - 14 4 - - -

Case 4

Standard - - - 12 24 - -

Minimum - - - 4 8 79 -

Case 5

Standard - 24 - 12 - - -

Minimum - 10 - 4 - - -

Table 28: Outdoor Unit Service Access and Allowable Clearances Diagram Legend.

Do not place the unit where animals

and/or plants will be in the path of the warm

air, or where the warm air and/or noise will

disturb neighbors.

If the outdoor unit is installed between standard and minimum clearances, capacity decreases approximately 10%.

“Refrigerant Piping Design” on page 55

"Selecting Field-Supplied Copper Tubing" on page 56

"Refrigerant Piping System Layout" on page 57

"Electrical Connections" on page 61

REFRIGERANT PIPING

DESIGN & LAYOUT

BEST PRACTICES

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT DESIGN | 55

Refrigerant Piping Design & Layout Best Practices

REFRIGERANT PIPING DESIGN

Figure 14: Single Zone Wall Mounted Art Cool Premier System Layout.

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Max Length = A

Max Elevation = B

Unit = Feet

Design Guideline Summary/Selecting Field-Supplied Copper Tubing

Device Connection Limitations

Single-zone systems consist of one outdoor unit and one indoor

unit. One of the most critical elements of a single zone system is the

refrigerant piping. The table below lists pipe length limits that must

be followed in the design of a Single Zone Wall Mounted Art Cool

Premier refrigerant pipe system. Refer to the figure for maximum

length and elevation of piping.

Table 29: Single Zone Wall Mounted Art Cool Premier Refrigerant Piping System Limitations.

Pipe Length

(ELF = Equivalent Length of

pipe in Feet)

Longest total equivalent piping

length

LA090HYV1 LA120HYV1 LA150HYV2 LA180HYV2 LA180HYV1 LA240HYV1

65.6 feet 65.6 feet 98.4 feet 98.4 feet 98.4 feet 98.4 feet

Shortest total equivalent piping

length

6.6 feet 6.6 feet 9.8 feet 9.8 feet 9.8 feet 9.8 feet

Distance between fittings and

indoor units or outdoor units

≥20 inches ≥20 inches ≥20 inches ≥20 inches ≥20 inches ≥20 inches

No Additional Refrigerant

41 feet 41 feet 24.6 feet 24.6 feet 24.6 feet 24.6 feet

Elevation

(All Elevation Limitations are

Measured in Actual Feet)

If outdoor unit is above indoor

unit

32.8 feet 32.8 feet 65.6 feet 65.6 feet 65.6 feet 65.6 feet

If outdoor unit is below indoor

unit

32.8 feet 32.8 feet 65.6 feet 65.6 feet 65.6 feet 65.6 feet

Additional Refrigerant Needed (oz/ft)

0.22 0.22 0.38 0.38 0.38 0.38

Model Refrigerant Piping Length (feet)

Indoor Unit Outdoor Unit 16.4 24.6 32.8 41 49.2 65.6 82 98.4 114.8 131.2 147.6 164.0

LAN090HYV1 LAU090HYV1 0 0 0 0 1.8 5.4 - - - - - -

LAN120HYV1 LAU120HYV1 0 0 0 0 1.8 5.4 - - - - - -

LAN150HYV2 LAU150HYV2 0 0 3.1 6.2 9.3 15.6 21.8 28.0 - - - -

LAN180HYV2 LAU180HYV2 0 0 3.1 6.2 9.3 15.6 21.8 28.0 - - - -

LAN180HVY1 LAU180HVY1 0 0 3.1 6.2 9.3 15.6 21.8 28.0 - - - -

LAN240HVY1 LAU240HVY1 0 0 3.1 6.2 9.3 15.6 21.8 28.0 - - - -

• Values are in ounces (oz.).

• Capacity is based on standard length; maximum allowance length is based on reliability.

• Equivalent pipe length = actual pipe length + number of bends x 0.3.

• Calculation: X oz. = ([Refrigerant Piping Length] - [(Chargeless Length]) × Additional Refrigerant.

Table 30: Single Zone Wall Mounted Art Cool Premier Additional Refrigerant by Piping Length (oz.).

Due to our policy of continuous product innovation, some specications may change without notication.

56 | REFRIGERANT DESIGN

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Selecting Field-Supplied Copper Tubing

REFRIGERANT PIPING DESIGN

Figure 15: Coiled Expansion Loops and Offsets.

Large Tubing U-bend (>3/4 in.) Loop Small Tubing U-bend (<3/4 in.)

Anticipated Linear

Expansion (LE) (inches)

Nominal Tube Size (OD) inches

1/4 3/8 1/2 3/4

1/2

6 7 8 9

38 44 50 59

9 10 11 13

54 63 70 83

1-1/2

11 12 14 16

66 77 86 101

12 14 16 19

77 89 99 117

2-1/2

14 16 18 21

86 99 111 131

15 17 19 23

94 109 122 143

3-1/2

16 19 21 25

102 117 131 155

17 20 22 26

109 126 140 166

R = Centerline Length of Pipe.

L = Centerline Minimum Radius (inches).

Table 31: Linear Thermal Expansion of Copper Tubing in Inches.

Physical Pipe Length: Actual length of straight segment(s) of pipe.

Equivalent Pipe Length: Actual length of pipe plus equivalent lengths of long radius elbows, Y-branches, and valves.

1. Draft a one-line diagram of the proposed piping system connecting outdoor unit to indoor units. Follow the pipe limitations listed on the

previous page.

2. Calculate the physical length of each pipe segment and note it on the drawing.

3. Calculate the equivalent pipe length of each pipe segment.

Using Elbows

Field-supplied elbows are allowed as long as they are long radius and designed

for use with R410A refrigerant. The designer should be cautious with the quantity

and size of fittings used, and must account for the additional pressure losses in

equivalent pipe length calculation. The equivalent pipe length of each elbow must

be added to each pipe segment. See the table for equivalent lengths.

Table 32: Radii of Coiled Expansion Loops and Developed Lengths of Expansion Offsets.

Definitions

Layout Procedure

Component

Size (Inches)

1/4 3/8 1/2 5/8 3/4

Long Radius Elbow (ft.)

0.5 0.6 0.7 0.8 1.2

Pipe

Length

Fluid Temperature °F

35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 95° 100° 105° 110° 115° 120° 125° 130°

0.04 0.04 0.05 0.06 0.06 0.07 0.08 0.08 0.09 0.09 0.10 0.10 0.11 0.11 0.11 0.12 0.13 0.14 0.15 0.15

0.08 0.08 0.10 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.22 0.23 0.26 0.28 0.29 0.30

0.12 0.12 0.15 0.18 0.20 0.21 0.23 0.24 0.26 0.27 0.29 0.30 0.32 0.33 0.32 0.35 0.39 0.42 0.44 0.45

0.16 0.16 0.20 0.24 0.26 0.28 0.30 0.32 0.34 0.36 0.38 0.40 0.42 0.44 0.43 0.46 0.52 0.56 0.58 0.60

0.20 0.20 0.25 0.30 0.33 0.35 0.38 0.40 0.43 0.45 0.48 0.50 0.53 0.55 0.54 0.58 0.65 0.70 0.73 0.75

0.24 0.24 0.30 0.36 0.39 0.42 0.45 0.48 0.51 0.54 0.57 0.60 0.63 0.66 0.65 0.69 0.78 0.84 0.87 0.90

Pipe length baseline temperature = 0°F. "Expansion of Carbon, Copper and Stainless Steel Pipe," The Engineers' Toolbox, www.engineeringtoolbox.com.

Table 33: Equivalent Piping Length for Piping Components.

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT DESIGN | 57

Refrigerant Piping Design & Layout Best Practices

Field-Provided Isolation Ball Valves

LG maintains a neutral position on using isolation valves in refrigerant piping systems. LG does not endorse any manufacturer of isolation

valves. It is recognized that installing isolation valves may simplify future maintenance requirements, and, if used, considerations should be

taken including, but not limited to, the following:

• Pressure drops for any component used, including isolation valves, must be known in equivalent pipe length and calculated into the total

and segment equivalent piping lengths and compared to product design limitations.

• In all cases, materials must be suitable for the application and any applicable codes, including, but not limited to, diameter and wall thick-

ness continuity per ACR standards.

Failure to do so may cause significant performance degradation. Proper leak checks must be performed. Using isolation valves does not

automatically void any LG product warranty, however, a limited warranty may be voided in whole or part should any field supplied accessory

fail in any way that causes product failure.

Refrigerant Piping System Layout

INSTALLATION & LAYOUT BEST PRACTICES

No Pipe Size Substitutions

Using a different size is prohibited and may result in a system malfunction or failure to work at all.

In-line Refrigeration Components

Components such as oil traps, solenoid valves, filter-dryers, sight glasses, tee fittings, and other after-market accessories are not permitted

on the refrigerant piping system between the outdoor unit and the indoor unit. Single Zone Wall Mounted Art Cool Premier air-source systems

are provided with redundant systems that ensure oil is properly returned to the compressor. Sight-glasses and solenoid valves may cause

vapor to form in the liquid stream. Over time, dryers may deteriorate and introduce debris into the system. The designer and installer verify

the refrigerant piping system is free of traps, sagging pipes, sight glasses, filter dryers, etc.

Pipe Supports

A properly installed pipe system should be adequately supported to avoid pipe sagging. Sagging pipes become oil traps that lead to equip-

ment malfunction. Pipe supports should never touch the pipe wall; supports shall be installed outside (around) the primary pipe insulation

jacket. Insulate the pipe first because pipe supports shall be installed outside (around) the primary pipe insulation jacket. Clevis hangers

should be used with shields between the hangers and insulation. Field provided pipe supports must meet local codes. If allowed by code, use

fiber straps or split-ring hangers suspended from the ceiling on all-thread rods (fiber straps or split ring hangers can be used as long as they

do not compress the pipe insulation). Place a second layer of insulation over the pipe insulation jacket to prevent chafing and compression of

the primary insulation within the confines of the support pipe clamp.

A properly installed pipe system will have sufficient supports to avoid pipes from sagging during the life of the system. As necessary, place

supports closer for segments where potential sagging could occur. Maximum spacing of pipe supports must meet local codes.

If local codes do not specify pipe support spacing, pipe must be supported:

• Maximum of five feet (5′) on center for straight segments of pipe up to 3/4" outside diameter size.

• Wherever the pipe changes direction, place a hanger within twelve (12) inches on one side and within twelve to nineteen (12 to 19) inches

of the bend on the other side as shown.

Figure 16: Installing Piping Above and Below an Obstacle.

Figure 17: Pipe Hanger Details. Figure 18: Typical Pipe Support Location—

Change in Pipe Direction.

Max. 12"

~ 12" – 19"

A + B ~ 12" – 19"

Obstacles

When an obstacle, such as an I-beam or concrete T, is in the path

of the planned refrigerant pipe run, it is best practice to route the

pipe over the obstacle. If adequate space is not available to route

the insulated pipe over the obstacle, then route the pipe under the

obstacle. In either case, it is imperative the horizontal section of pipe

above or below the obstacle be a minimum of three (3) times greater

than the longest vertical rise (or fall) distance.

Figure 19: Pipe Support at Indoor Unit.

MINIMUM

Above an obstacle

MINIMUM

Below an obstacle

Due to our policy of continuous product innovation, some specications may change without notication.

58 | REFRIGERANT DESIGN

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

INSTALLATION & LAYOUT BEST PRACTICES

Refrigerant Piping System Layout

Pipe Sleeves at Penetrations

LG requires that all pipe penetrations through walls, floors, and pipes buried underground be properly insulated and routed through an

appropriate wall sleeve of sufficient size to prevent compression of refrigerant pipe insulation and free movement of the pipe within the

sleeve. Underground refrigerant pipe shall be routed inside a protective sleeve to prevent insulation deterioration See figure below.

Figure 20: Pipe Sleeve Options.

Underground Refrigerant Piping

Refrigerant pipe installed underground should be routed inside a

vapor tight protective sleeve to prevent insulation deterioration and

water infiltration. Refrigerant pipe installed inside underground

casing must be continuous without any joints. Underground refriger-

ant pipe must be located at a level below the frost line.

Figure 21: Typical Arrangement of Refrigerant Pipe and Cable(s) in a

Utility Conduit.

Table 34: Utility Conduit Sizes (Inches).

OD pipe diameter in inches; Values in parenthesis () indicate OD of pipe with insulation jacket.

Diameter of pipe with insulation. Thickness of pipe insulation is typical. Actual required thickness may

vary based on surrounding ambient conditions and should be calculated and specified by the design

engineer.

Insulation thickness (value in parenthesis) = 3/8 inch.

Insulation thickness (value in parenthesis) = 3/4 inch.

Diameter of penetrations shall be determined by pipe diameter plus the thickness of the insulation.

Liquid Pipe

Vapor Pipe

3/8 (1-1/8

2,3

) 1/2 (2.0

2,4

) 5/8 (2-1/8

2,4

)

1/4 (1.0)

4 4 4

3/8 (1-1/8)

4 4 4

Table 35: Outdoor Unit Refrigerant Pipe Connections (All Brazed Type).

Vapor Line

Liquid Line

Min. 18 Gauge

Cable

Power/Communication

e Sleeve

Insulation Material

Insulation

Material

Model

Liquid Conn.

(inches)

Vapor Conn.

(inches)

LAU090HYV1, LAU120HYV1 1/4 3/8

LAU150HYV2, LAU180HYV2,

LAU180HYV1, LAU240HYV1

3/8 5/8

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT DESIGN | 59

Refrigerant Piping Design & Layout Best Practices

Refrigerant Piping System Layout

INSTALLATION & LAYOUT BEST PRACTICES

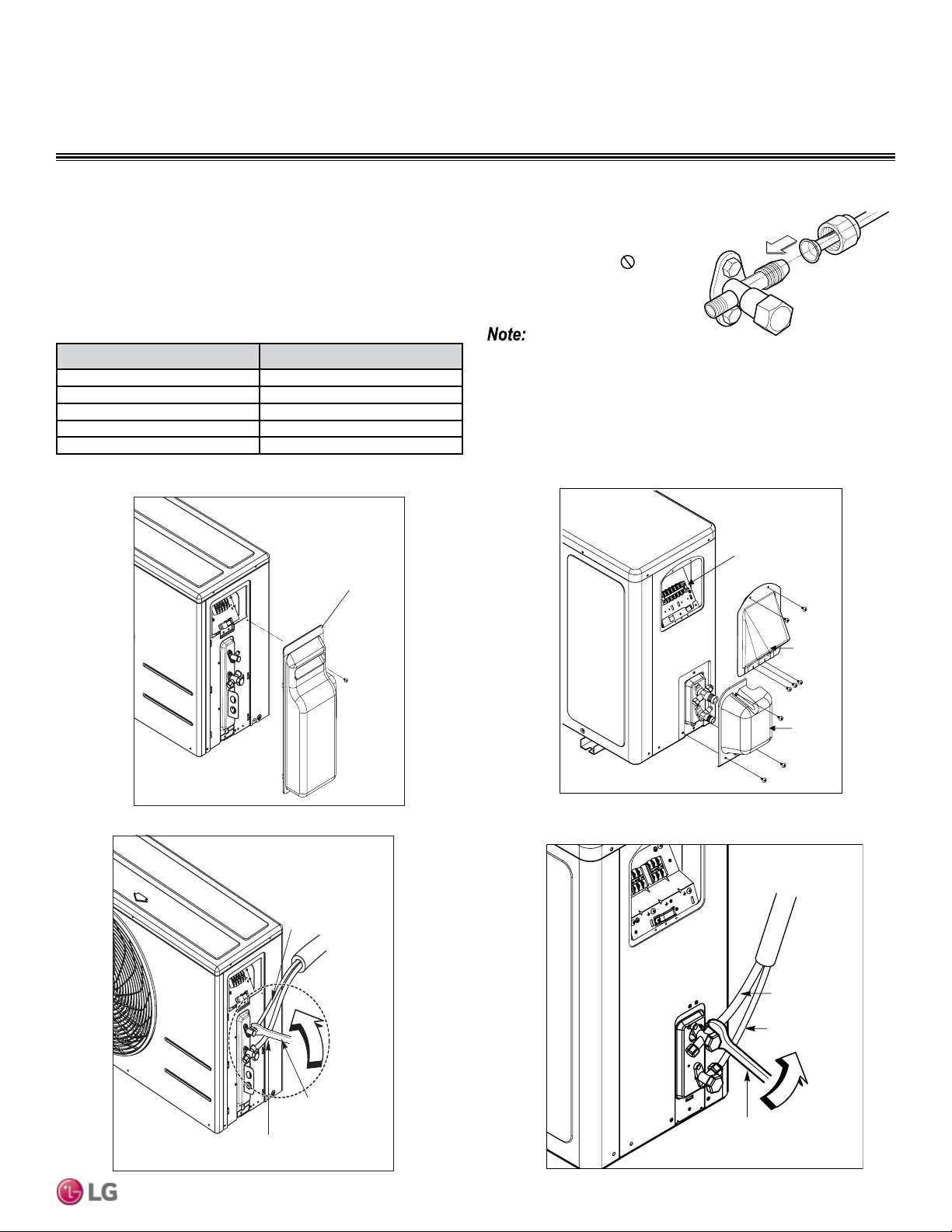

Single Zone Art Cool Premier Outdoor Unit Connections

1. Remove the tubing cover from the unit by loosening the fastening screws.

2. Align the center of the refrigerant pipe and corresponding connection.

3. Place a couple of drops of refrigerant oil on the opening rim of the flare before assembling. Do not

add any contaminants. Tighten the flare nut initially by hand.

4. Finish tightening the flare nut with a torque wrench until the wrench clicks.

Tubing cover

Figure 22: Pipe Attachment.

Outside Diameter (Inches) Torque (Lbs.-ft)

1/4 13-18

3/8 24.6-30.4

1/2 39.8-47.7

5/8 45.6-59.3

3/4 71.6-87.5

Table 36: Torque Wrench Tightening.

Outdoor unit

Gas side piping

(Bigger diameter)

Liquid side piping

(Smaller diameter )

Torque wrench

When tightening the are nut with a torque wrench, ensure the direction

for tightening follows the arrow on the wrench.

Figure 23: LAU090HYV1/LAU120HYV1 Outdoor Unit Connection Cover

Removal.

Figure 24: LAU150HYV2/LAU180HYV2, LAU180HYV1/LSU240HYV1

Outdoor Unit Connection Cover Removal.

Figure 25: LAU090HYV1/LAU120HYV1 Outdoor Unit Piping Connection.

Figure 26: LAU150HYV2/LAU180HYV2, LAU180HYV1/LAU240HYV1

Outdoor Unit Piping Connection.

Torque wrench

Liquid side piping

(Smaller diameter)

Gas side piping

(Bigger diameter)

Outdoor unit

Tubing

Cover

Terminal

Block Cover

Terminal Block

Due to our policy of continuous product innovation, some specications may change without notication.

60 | REFRIGERANT DESIGN

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

INSTALLATION & LAYOUT BEST PRACTICES

Refrigerant Piping System Layout

Refrigerant Piping / Brazing Practices

Pressure-reducing

Valve

Taping

Nitrogen

Pipe to

be brazed

Refrigerant

Piping

Figure 27: Refrigerant Pipe Brazing.

It is imperative to keep the piping system free of contaminants and debris such as copper burrs, slag, or carbon dust during installation.

All joints are brazed in the field. Single Zone Wall Mounted Art Cool Premier

refrigeration system components contain very small capillary tubes, small orifices,

electronic expansion valves, oil separators, and heat exchangers that can easily

become blocked. Proper system operation depends on the installer using best

practices and utmost care while assembling the piping system.

• While brazing, use a dry nitrogen purge operating at a minimum pressure of three

(3) psig and maintain a steady flow.

• Blow clean all pipe sections with dry nitrogen prior to assembly.

• Use a tubing cutter,

do not use a saw to cut pipe. De-burr and clean all cuts

before assembly.

• Store pipe stock in a dry place. Keep pipe capped and clean.

• Use adapters to assemble different sizes of pipe.

• Do not use flux, soft solder, or anti-oxidant agents.

• Use a 15% silver phosphorous copper brazing alloy to avoid overheating and produce good flow.

• Protect isolation valves, electronic expansion valves, and other heat-sensitive control components from excessive heat with a wet rag or a

heat barrier spray product.

Refrigerant Piping System Insulation

All refrigerant piping, field-provided isolation ball valves, service valves, and long radius elbows shall be completely insulated using closed

cell pipe insulation. The liquid and vapor lines must be insulated separately.

To prevent heat loss/heat gain through the refrigerant piping, all refrigerant piping including liquid lines and vapor lines shall be insulated

separately. Insulation shall be a minimum 1/2″ thick, and thickness may need to be increased based on ambient conditions and local codes.

All insulation joints shall be glued with no air gaps. Insulation material must fit snugly against the refrigeration pipe with no air space between

it and the pipe. Insulation passing through pipe hangers, inside conduit, and/or sleeves must not be compressed. Protect insulation inside

hangers and supports with a second layer. All pipe insulation exposed to the sun and outdoor elements shall be properly protected with PVC,

aluminum vapor barrier, or alternatively placed in a weather-resistant enclosure such as a pipe rack with a top cover, and meet local codes.

The design engineer should perform calculations to determine if the factory-supplied insulation jackets are sufficient to meet local codes and

avoid sweating. Add additional insulation if necessary. Mark all pipes at the point where the insulation jacket ends. Remove the jacket. Install

field-provided insulation on the run-out and main truck pipes first. Peel the adhesive glue protector slip from the insulation jacket and install

the clam-shell jacket over the fitting.

Charging

Each outdoor unit is factory charged (nameplate charge) for the

evaporator as well as a standard 41 foot (9k, 12k HYV1 ) or 25 foot

(15k, 18k HYV2; 18k, 24k HYV1) line. Any time a line set is used

longer then the standard line set length, the refrigerant charge has to

be adjusted.

You must adjust the charge based on how many feet of piping are

added based on 0.22 or 0.38 oz. of R410A per foot. The factory

charge accommodates pipe lengths up to the standard length without

requiring refrigerant removal.

Example: A 50 ft line set is used --

9 additional feet x 0.22 oz per ft = Add 1.98 oz

of R410A

If you are uncertain of the unit charge, reclaim, evacuate and weigh

in the correct charge using the unit nameplate (capacity) charge

adjusting for line sets longer than 24.6 or 41 ft. This will prevent any

interruptions to the functioning of the unit and possible damage.

Capacity

(Btu/h)/Model

Pipe Size

Standard

Length (ft)

Max.

Elevation (ft)

Max.

Length (ft)

Min.

Length (ft)

Additional

Refrigerant (oz/ft)

Vapor Liquid

9k, 12k HYV1 3/8 1/4 41 32.8 65.6 6.6 0.22

15k, 18k HYV2 5/8 3/8 24.6 65.6 98.4 9.8 0.38

18k, 24k HYV1 5/8 3/8 24.6 65.6 98.4 9.8 0.38

Table 37: Charging Capacity.

Due to our policy of continuous product innovation, some specications may change without notication.

REFRIGERANT DESIGN | 61

Refrigerant Piping Design & Layout Best Practices

ELECTRICAL CONNECTIONS

Figure 28: LAU090HYV1/

LAU120HYV1 Outdoor Unit

Electrical Connection.

Outdoor Electrical Connection

1. Remove the control cover from the unit by loosening the fasten-

ing screw.

2. Take off the caps on the conduit panel.

3. Connect both the power supply and low voltage lines to the cor-

responding terminals on the terminal block.

4. Be sure to ground the unit by following local codes.

5. Allow for enough length (add several inches) for each wiring.

6. Secure the cable with a cord clamp.

7. Secure conduit tubes with lock nuts.

8. Reattach the control cover to the original position with the fasten-

ing screw.

Figure 29: LAU150HYV2/

LAU180HYV2, LAU180HYV1/

LAU240HYV1 Outdoor Unit

Electrical Connection.

Figure 30: Circuit Breaker.

• Separately wire the high and low voltage lines to avoid damage to unit.

• Local codes may require field-installed disconnect switches from outdoor unit to indoor unit.

• Use heat-proof electrical wire capable of withstanding temperatures up to 167°F to avoid damage to unit.

• Always use a circuit breaker or time delay fuse when connecting electrical wiring to the unit.

• Ensure you connect the wire firmly. Loose wiring may cause unit malfunction, the wires to burnout or the terminal to overheat and catch

fire. There is a risk of equipment malfunction or property damage.

• Use outdoor and waterproof connection cable rated up to 300V for the connection between the indoor and outdoor unit to avoid dam-

age to the unit.

• Comply with local codes while running wire from the indoor unit to the outdoor unit.

•

Do not allow wire to touch refrigerant tubing, the compressor or any moving parts since it can lead to mechanical failure.

• Separately wire the high and low voltage lines. There is a risk of electric shock,

physical injury, or death.

• Use heat-proof electrical wire capable of withstanding temperatures up to 167°F

to avoid wiring malfunction and electrical shock, which may cause physical injury

or death.

• Ensure you connect the wire firmly. Loose wiring may cause unit malfunction,

the wires to burnout or the terminal to overheat and catch fire. There is a risk of

electric shock, physical injury or death.

• Use outdoor and waterproof connection cable rated up to 300V for the connection

between the indoor and outdoor unit to avoid electrical shock, which may cause

physical injury or death.

Terminal Block

Connecting

Cable

Power

Supply

Cord

Conduit Panel

Tubing Cover

Over 0.2”

Air

Conditioner

Main Power Source

Circuit Breaker

Use a circuit breaker

or time delay fuse

208/230 VAC

Figure 31: LAU090HYV1/LAU120HYV1 Outdoor Unit Electrical Connection.

Terminal Block

Over 0.2”

Terminal Cover

Conduit Panel

Connecting

Cable

Power Supply

Cord

1(L1) 2(L2) 1(L1) 2(L2)

Figure 32: LAU150HYV2/LAU180HYV2, LAU180HYV1/LAU240HYV1

Outdoor Unit Electrical Connection.

208/230 VAC

“Mechanical Specifications” on page 63

“Acronyms” on page 64

TECHNICAL DATA

Due to our policy of continuous product innovation, some specications may change without notication.

MECHANICAL SPECS | 63

Mechanical Specifications

General

LG Single Zone Wall Mounted Art Cool

Premier systems are comprised of a single

outdoor unit connected to a single indoor

unit with a single refrigerant circuit.

These single zone systems can operate in

either cooling or heating mode. These sys-

tems are capable of changing mode within

a maximum time of three (3) minutes to

ensure indoor temperature can be properly

maintained.

LG Single Zone Wall Mounted Art Cool

Premier systems are manufactured in a facil-

ity registered to ISO 9001 and ISO 14001,

which is a set of standards applying to envi-

ronmental protection set by the International

Organization for Standardization (ISO). The

units are listed by Intertek Electrical Testing

Laboratories (ETL) and bear the ETL label.

Wiring in these units are in accordance with

the National Electrical Code (NEC).

Temperature Ranges

Outdoor Unit

Operating ranges for Outdoor units of 14°F

to 118°F DB for cooling; -13°F to 65°F WB

for heating.

Indoor Unit

Operating ranges for Indoor Units of 53°F to

75°F WB for cooling; 60°F to 86°F DB for

heating.

(Installing an optional Low Ambient Wind

Baffle Kit will allow operation down to 0°F in

cooling mode for these single zone sys-

tems.)

Casing / Frame

Outdoor unit is constructed with pre-coated

metal (PCM).

Indoor unit is constructed of heavy duty

Acrylonitrile Butadiene Styrene (ABS) and

High Impact Polystyrene (HIPS) plastic.

Refrigerant System

The refrigeration system consists of a single

refrigeration circuit and uses R410A refriger-

ant. The outdoor unit is provided with factory

installed components, including a refrigerant

strainer, check valves, oil separator, accu-

mulator, four-way reversing valve, electronic

controlled expansion valve (EEV), high and

low side charging ports, service valves, and

interconnecting piping.

Refrigeration Oil Control

Heat Pump outdoor units have a centrifugal

oil separator and controls to ensure suf-

ficient oil supply is maintained, and that oil

does not travel with the refrigerant.

Compressors

The outdoor unit is equipped with one

hermetic digitally controlled inverter driven

twin-rotary compressor to modulate capacity

(modulation in 1 Hz increments).

Frequency ranges for the outdoor units are

as follows:

LAU090HYV1, LAU120HYV1 - 10-115 Hz

LAU150HYV2, LAU180HYV2 - 10-115 Hz

LAU180HYV1, LAU240HYV1 - 10-115 Hz

Overcurrent protection and vibration isolation

are integrated with the compressor.

Outdoor Unit Coil

Heat Pump outdoor unit coils are made of a

nonferrous construction with louvered fins

on copper tubing, and are protected with an

integral coil guard. Coil fins have a factory

applied corrosion resistant GoldFin™ mate-

rial with hydrophilic coating.

Fans and Motors

The outdoor unit includes one direct fan

drive, variable speed propeller type fan.

The Brushless Digitally Controlled (BLDC)

fan motor shall have inherent protection,

permanently lubricated bearings, and

variable speed with a maximum speed up to

950 rpm. Raised guards are provided to limit

contact with moving parts.

The outdoor unit has horizontal discharge

airflow.

Electrical

These units are available in 208-230V, 60

Hz, 1-phase power supply. These units are

capable of operating within voltage limits of

±10% rated voltage, and include overcurrent

protection.

Controls

These units are factory wired with neces-

sary electrical control components, integral

microprocessors, printed circuit boards,

thermistors, sensors, terminal blocks, and

lugs for power wiring.

Microprocessor-based algorithms provide

component protection, soft-start capability,

refrigeration system pressure, temperature,

defrost, and ambient control.

Single Zone Wall Mounted Art Cool Premier

MECHANICAL SPECIFICATIONS

Due to our policy of continuous product innovation, some specications may change without notication.

64 | MECHANICAL SPECS

Single Zone Wall Mounted Art Cool™ Premier Engineering Manual

Table 38: Table of Acronyms.

ACRONYMS

ABS

Acrylonitrile Butadiene Styrene

IDU

Indoor Unit

Air Conditioner

ISO

International Organization for Standardization

ACP

Advanced Control Platform

Kilo Watts

ASHRAE

American Society of Heating, Refrigeration, and

Air Conditioning

LED

Light Emitting Diode

AWG

American Wire Gauge

MBh

Thousands BTUs per hour

BLDC

Brushless Digitally Controlled/Direct

MCA

Maximum Circuit Ampacity

Btu/h

British Thermal Units per hour

MOP

Maximum Overcurrent Protection

BUS

Binary Unit System

MSC

Maximum Starting Current

CFM

Cubic Feet per Minute

Noise Criterion (regarding Sound Pressure Levels)

COP

Coefficient Of Performance

NEC

National Electrical Code

Combination Ratio

ODU

Outdoor Unit

Dry Bulb

PCB

Printed Circuit Board

dB(A)

Decibels with “A” frequency weighting

PCM

Pre-Coated Metal

DDOAS

Decoupled Dedicated Outdoor Air

PDI

Power Distribution Indicator

Digital Input

Power Input

Digital Output

PTAC

Packaged Terminal Air Conditioner

DPST

Double-Pole Single-Throw (switch)

PVC

Polyvinyl Chloride

EEV

Electronic Expansion Valve

SW or

S/W

Switch

ELF

Equivalent Length in Feet

USB

Universal Serial BUS

ESP

External Static Pressure

VAC

Voltage Alternating Current

ETL

Electronic Testing Laboratories

VAV

Variable Air Volume

HIPS

High Impact Polystyrene

VRF

Variable Refrigerant Flow

H/M/L

High/Medium/Low

Wet Bulb

HVAC

Heating, Ventilation and Air Conditioning

LG Electronics, U.S.A., Inc.

Commercial Air Conditioning Division

4300 North Point Parkway

Alpharetta, Georgia 30022

www.lg-dfs.com

EM_SZ_ArtCoolPremier_ALL_01_17

Supersedes: EM_SZ_ArtCoolPremier_ALL_12_16

EM-SZ-ArtCoolPremier-ALL12-15

EM-SZ-ArtCoolPremier-ALL-3-15

20001747 ISO 9001: 2008

LG ELECTRONICS INC.

LG Electronics Commercial Products Support

1-888-865-3026 USA

Follow the prompts for commercial A/C products.

LG Electronics LAU180HYV2 LG Air Conditioner Cooling Area,

Product's Documents

User Manual

Specifications

LG Electronics LAU180HYV2 Questions and Answers
