USER GUIDE
61-Bottle Built-In
Wine Cooler
NS-BI1ZWC
www.insigniaproducts.com
2
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Control and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setting up your wine cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Before using your cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installing the handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Front vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Building in your wine cooler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Leveling your cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Reversing the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Grounding requirement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Connecting to power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using your wine cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Turning on your cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Changing the temperature display . . . . . . . . . . . . . . . . . . . . . . . . .19
Lighting your cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Storing wine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Serving and storage tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Maintaining your wine cooler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Defrosting your cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Door ajar alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Temperature alarms and error codes. . . . . . . . . . . . . . . . . . . . . . . .22
Storing your cooler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Moving your wine cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Power failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury follow these basic
precautions when using your cooler:
• Read all instructions before using the wine cooler.
• Never allow children to operate, play with, or crawl inside the appliance.
• Refrigerants: All refrigeration products contain refrigerants. Under the
guidelines of federal law, refrigerants must be removed before the
disposal of the product. It is the consumer’s responsibility to comply with
federal and local regulations when disposing of this product.
• Never clean the appliance with flammable fluids. The fumes can create a
fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in
the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
• Do not store explosive substances, such as aerosol cans with a flammable
propellant, in this appliance.
SAVE THESE INSTRUCTIONS
DANGER: Risk of fire or explosion. Flammable refrigerant used.
• Do not puncture refrigerant tubing.
• Do not use mechanical devices to defrost your cooler.
• Ensure that servicing is done by factory authorized service personnel, to
minimize product damage or safety issues.
• Consult repair manual or owner's guide before attempting to service this
product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
• Follow handIing instructions carefully.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that
dangerous voltage constituting a
risk of electric shock is present
within your cooler.
This symbol indicates that there
are important operating and
maintenance instructions in the
literature accompanying your
cooler.
4
www.insigniaproducts.com
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in
electric shock, fire, or death.
1 WARNING–Keep ventilation openings in the
appliance enclosure or in the built-in structure
clear of obstruction.
2 WARNING–Do not touch the interior of the chiller
compartment with wet hands. This could result in
frost bite.
3 WARNING–Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
4 WARNING–Do not damage the refrigerant circuit when handling,
moving, or using your cooler.
5 WARNING–Do not use electrical appliances inside the storage
compartment of your cooler, unless they are of the type
recommended by the manufacturer.
6 WARNING–DANGER—Never allow children to play with, operate, or
crawl inside your cooler.
Risk of child entrapment. Before you throw away your old cooler:
1) Take off the door
2) Leave the shelves in place so that children may not easily climb
inside
7 Unplug your cooler before carrying out user maintenance on it.
8 This appliance is not intended for use by persons (including children)
with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
9 Please dispose of the cooler according to local regulations as the
cooler contains flammable gas and refrigerant.
10 Follow local regulations regarding disposal of the cooler due to
flammable refrigerant and gas. All refrigeration products contain
refrigerants, which under the guidelines of federal law must be
removed before disposal. It is the consumer's responsibility to comply
with federal and local regulations when disposing of this product.
5
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
11 This cooler is intended to be used in household and similar
environments, such as:
• Staff kitchen areas in shops, offices, and other working
environments
• Farm houses and by clients in hotels, motels, and other residential
environments
• Bed and breakfasts
• Catering and similar non-retail applications
12 Do not store or use gasoline or any flammable liquids inside or in the
vicinity of this cooler.
13 Do not expose this cooler to rain.
Grounding Instructions
This appliance must be grounded. Grounding reduces the risk of electrical
shock by providing an escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The
power cord must be plugged into on outlet that is properly grounded. If the
outlet is a 2-prong wall outlet, it must be replaced with a properly grounded
3-prong wall outlet. The serial rating plate indicates the voltage and
frequency the appliance is designed for.
WARNING: Improper use of the grounding plug can result in a risk of electric
shock. Consult a qualified electrician or service agent if the grounding
instructions are not completely understood, or if doubt exists as to whether
the appliance is properly grounded.
Do not connect your appliance to extension cords or together with
another appliance in the same wall outlet. Do not splice the power cord.
Do not, under any circumstances, cut or remove the third ground prong from
the power cord. Do not use extension cords or ungrounded (two prong)
adopters. If the power supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similar qualified person in order to avoid
hazard.
Features
• Built-in cabinet stores up to 61 bottles of wine, giving you space for all
your favorites
• Single-zone design keeps wine at your chosen temperature, from 41° F
and 64° F (5° C and 18° C)
• Adjustable wire shelves with wooden trim add a sophisticated touch
• Touchscreen display makes is easy to turn your cooler on/off or adjust
temperature settings
• Clear glass door and interior lighting make it easy to see inside
• Reversible door and adjustable legs give you flexible options
• Stainless steel finish looks stylish in any room and is easy to keep clean
6
www.insigniaproducts.com
Package contents
• 61-bottle built-in wine cooler
• Wire shelves (6)
•Handle
• Hardware Bag, including:
•Hex key
•Handle screws (2)
• M5 x 10 Door pivot bracket screws (2)
•Door axis sleeve
• M5 x 14 Door frame decorative screws (2)
• M4 x 12 Hinge screws (3)
• Black decorative plastic plugs (3)
• Left top hinge
• Left door pivot bracket
•User Guide
Components
Glass door
Bottom vent
Circulation fan
Wire shelves (6)
with wooden trim
Door switch
Control panel and display
Temperature sensor
7
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
Dimensions
Notes:
• For your cooler to operate normally, avoid placing it in areas with high
magnetic fields or high humidity.
• When you put a lot of wine bottles in your cooler at one time, the
temperature in your cooler may rise temporarily.
• After unplugging your cooler, to prolong the service life of the compressor,
wait for at least five minutes before plugging it back in.
34 in. (86.6 cm)
23.7 in. (60.3 cm)
23.8 in. (60.5 cm)
8
www.insigniaproducts.com
Control and display panel
BUTTON FUNCTION
Press to turn the power on or off.
Press to turn the interior light on or off. The light turns on automatically
when the door is open, and turns off when the door is closed.
Press to raise the temperature.
Press to lower the temperature.
Press and hold both buttons simultaneously to switch between F° and C°.
INDICATOR DESCRIPTION
Lights to indicate that cooling mode is on.
Indicates which temperature mode is being displayed.
Notes:
• Touch the control panel lightly when pressing the keys.
• To avoid scratching the control panel, do not touch it with sharp objects.
Up and down buttons
Light button DisplayPower button
Hold 3 Sec
°C/° F
Hold 3 Sec
On/Off
button
Interior light
button
Display
screen
Power
indicator
Tem per at ure
scale indicator
Increase/
decrease
buttons
9
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
Setting up your wine cooler
Before using your cooler
• Remove the exterior and interior packing.
• Let your cooler stand upright for approximately six hours before
connecting it to power. This reduces the possibility of a malfunction in
the cooling system from improper handling during transportation.
• Clean the exterior surface of your cooler with a soft, dry cloth and
clean the interior surface with lukewarm water using a soft cloth.
Finding a suitable location
• Your cooler is designed to be built-in or free standing.
• Place your cooler on a floor, countertop, or cabinet that is strong
enough to support it when it is fully loaded.
• Locate your cooler away from direct sunlight and sources of heat
(stove, heater, radiator, and so on). Direct sunlight may affect the
acrylic coating and heat sources may increase electrical consumption.
• Ambient temperature below 68° F (20° C) or above 90° F (32° C) will
hinder the performance of your cooler. Your cooler is not designed for
use in a garage or any other outside installation.
• Avoid locating your cooler in moist areas.
• Your cooler is intended for household use only. It is not designed for
outside installation, including anywhere that is not temperature
controlled (such as garages, porches, or vehicles). Your cooler is not
designed to be installed in an RV or used with an inverter.
• Do not stack beverage coolers.
CAUTION: This appliance is heavy. We suggest having two people set up or
move.
10
www.insigniaproducts.com
Installing the handle
1 Remove the door handle and hardware bag from your cooler. The
hardware bag contains a hex key and two extra screws.
2 Place your cooler carefully on its back.
3 Place the handle on the mounting studs. The set screws are
pre-installed in the handle and should face down when installed
correctly.
Notes:
• We recommend having two people complete the installation.
• To avoid scratching the front panel, place a soft cloth or towel against the
panel while installing the door handle.
Handle
Mounting stud
Set screw
Handle
11
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
4 Push the door handle tightly against the door.
5 Insert the short end of the hex key into the set screw and tighten until
snug (do not overtighten). The set screw is not recessed into the
handle.
6 Repeat Step 5 for the other set screw.
7 Keep the hex key with these installation instructions for future use.
Front vent
Your cooler is front vented. Do not block the front air vent. Doing so will result
in high operating temperatures, higher energy usage, and possible system
overheating and failure.
Vents
12
www.insigniaproducts.com
Building in your wine cooler
Required tools
Preparing the enclosure
We do not recommend that you install your cooler into a corner or directly
beside a wall. The door needs to be opened more than 90° to allow full
extension of the shelves. If it is necessary to place the unit next to a wall or in
a corner, leave at least 2.4 - 4 in. (6 -10 cm) between the wall and the
appliance to allow for the door opening.
CAUTION: Wear gloves and safety goggles during installation.
Notes:
• The indicated depth requirement assumes that the electrical outlet is located
in the adjacent cabinet or is flush mounted (not surface mounted) in the rear
wall of the enclosure.
• If the electrical outlet is located inside an adjacent cabinet, cut a 1.5 in.
(3.8 cm) diameter hole to route the power cord. If the cabinet wall is metal,
the hole edge must be covered with a bushing or grommet to protect the
cord.
Safety goggles
Gloves
Electric drill with 1.5
in. (38 mm) hole bit
Flashlight
Carpenter
square
Level
Tape measure
1.5 in. (3.8 cm) diameter
(if electrical outlet is in adjacent
cabinet)
2 in. (5 cm)
25 in. (63.5 cm) min.
35 in. (88.9 cm) min.
6 in. (15.2 cm)
90°
24 in. (61 cm) min.
13
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
If you are installing your cooler between frameless cabinets, a 0.5 in.(1.3 cm)
wide filler strip or side panel may be needed on both sides of your cooler. The
filler strip provides a space between the appliance case and the adjacent
cabinet door swing. The width of the opening must include the filler panels.
The door should extend at least 1 in. (2.6 cm) beyond the surrounding
cabinets.

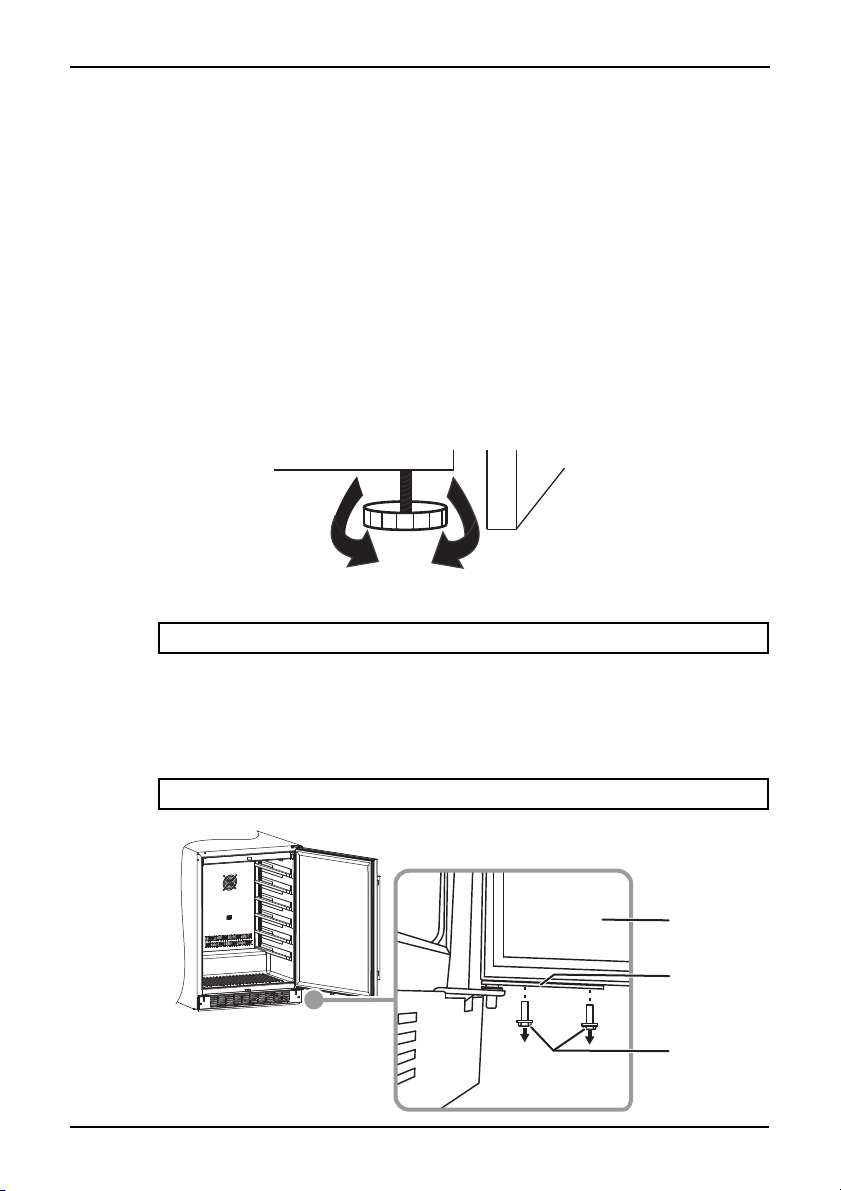

Leveling your cooler
It is very important for your cooler to be level in order to function properly. If
your cooler is not leveled during installation, the door may not close or seal
properly, causing cooling, frost, or moisture problems.
1 Move your cooler to its final location.
2 Turn the leveling foot counter-clockwise until it touches the bottom of
the cabinet.
3 Slowly turn the leveling foot clockwise until your cooler is level.
Reversing the door
1 Remove all bottles from the cooler.
2 Remove the parts from the hardware bag.
3 Open the door, then use a Phillips screwdriver to remove the pivot pin
bracket screws from the bottom of the door.
Note: We recommend having at least two people complete the installation.
Note: Lean the cooler back slightly for better access to the screws.
Pivot pin
bracket screws
Pivot pin
bracket
Door
14
www.insigniaproducts.com
4 Pull the bottom of the door out, then move the door down to release it
from the top hinge.
5 Place the door on a blanket or carpet to avoid damage.
6 Remove the top and bottom door gaskets by gently pulling the
gaskets out of the mounting groove in the door frame with your
fingers.
7 Use a screwdriver to remove the door switch pressure plate screws
from the bottom of the door and remove the pressure plate.
8 Install the door switch pressure plate to the top of the door with the
screws you removed.
9 Attach the door gasket by aligning the corners, then pressing it into
the groove in the door frame. Make sure that the gasket is firmly in the
groove and makes even contact with both the door and the cooler
when the door is closed.

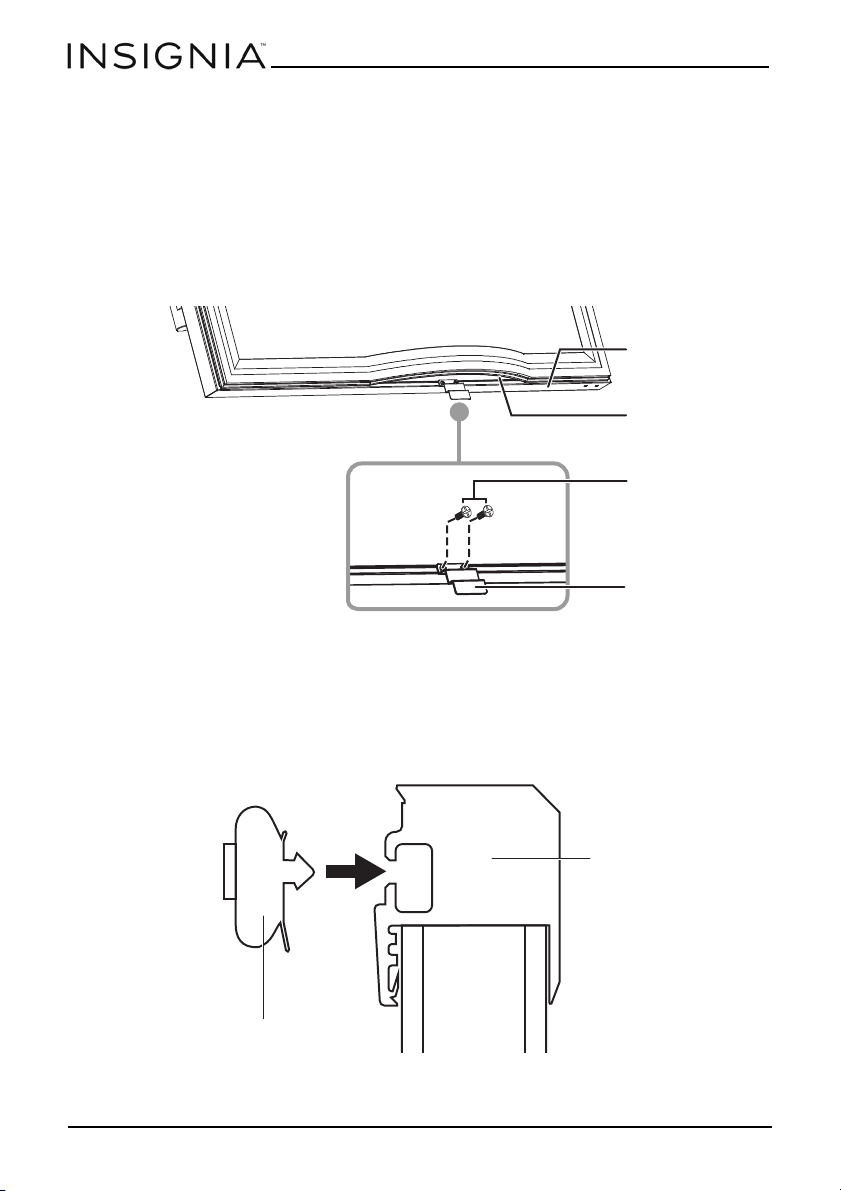

Door gasket (removed
from the door frame)
Screws
Door switch
pressure
plate
Bottom of
door
Door frame
Gasket
Groove
15
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
10 Use a thin, flat blade screwdriver or knife blade to remove door pivot
sleeve from the top of the door, then take the new door pivot sleeve
from the hardware bag and install it on the bottom of the door in the
hole provided.
11 Remove the decorative screws from the top of the door, then take the
new decorative screws from the hardware bag contents and install
them in the bottom of the door.
12 Remove the screws securing the top right hinge to the cooler, then
remove the hinge.
WARNING: Be extremely careful when using a screwdriver or knife blade so that
you don’t cut your hand or fingers, or otherwise injure yourself.
Top of door
Door pivot sleeve
Decorative screws
Top of door
Top right hinge
Hinge screws
16
www.insigniaproducts.com
13 Remove three black decorative plugs from the hardware bag and
install them in the three top right hinge holes.
14 Use a thin, flat blade screwdriver or knife blade to remove the three
black decorative plugs from the top left hinge holes.
15 Install the top left hinge with three M4 x 12 screws from the hardware
bag.
WARNING: Be extremely careful when using a screwdriver or knife blade so that
you don’t cut your hand or fingers, or otherwise injure yourself.
Decorative plugs
Top left hinge
Hinge screws
17
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
16 Rotate the glass door 180°, making sure that the door axis sleeve is on
left top side and the door switch pressure plate is on the bottom side.
17 Hold the door and insert the door pivot sleeve into the hinge pin on
the top left hinge.
18 Take the left pivot pin bracket from the hardware bag.
19 Insert the pivot pin bracket into the hole in the bottom left hinge, then
push the bottom of the door in, align the door with the holes in the
pivot pin bracket and secure the bracket with M5 x 10 screws from the
hardware bag.
20 Remove the handle, then reinstall it so that the set screws face the
bottom. See Installing the handle on page 10 for instructions.
Grounding requirement
Your cooler must be grounded. Your cooler is equipped with a cord having a
grounding wire with a three-prong grounding plug. The plug must be
inserted into an outlet that is properly installed and grounded.
Top left hinge
Hinge pin
Cooler door
Pivot pin bracket
Pivot pin
18
www.insigniaproducts.com
Consult a qualified electrician or service person if the grounding instructions
are not completely understood, or if doubt exists as to whether your cooler is
properly grounded.
Connecting to power
• Plug your cooler into a dedicated, properly installed grounded wall outlet.
Your cooler should be operated on a separate electrical circuit from other
appliances. Any questions concerning power and/or grounding should be
directed toward a certified electrician or an authorized service center.
• Plug in and run your cooler for three to four hours before making any
temperature adjustments and before adding wine. This allows your cooler
to reach a stable temperature.
• Do not use an extension cord with your cooler. If the power cord is too
short, have a qualified electrician install an outlet near your cooler. Use of
an extension cord can negatively affect your cooler’s performance.
Using your wine cooler
Turning on your cooler
Your cooler turns on automatically when you plug it in. You do not need to
push the button to turn it on.
You can manually set your cooler to “Standby” mode by pressing and holding
the button for approximately three seconds, provided that no other
setting is in effect (the display is not blinking). Repeating this action restarts
your cooler.
WARNINGS:
• Improper use or defeat of the grounding plug can result in a risk of electric
shock.
• Do not, under any circumstances, cut or remove the third ground prong from
the supplied power cord.
CAUTION: Your cooler is not designed to be installed in an RV or used with an
inverter.
Notes:
• Check your local power source. Your cooler requires a 110 V-120 V, 60 Hz
power supply.
• Use a receptacle that accepts the grounding prong. The power cord is
equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock
hazard from your cooler.
19
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
Setting the temperature
Under normal conditions, the display always shows the set temperature.
When adjusting the temperature, the display blinks to indicate that the
temperature is being adjusted.
The default temperature setting is 54° F (12° C), and the default temperature
scale is ° F.
When the or buttons are pressed, the temperature increases or
decreases in increments of one degree.
After you have adjusted your cooler to the temperature you want, release the
button. The temperature display blinks for approximately three seconds to
confirm the selected temperature. After the display stops blinking, the
temperature display indicates the set temperature.
The actual temperature inside your cooler can vary, based on ambient
temperature, how often the door is opened, and how many warm bottles
have recently been added.
Changing the temperature display
To switch the display between F° and C°, press and hold the and
buttons at the same time for approximately three to five seconds.
Lighting your cooler
Your cooler has a door switch that automatically turns on the interior LED
light when you open the door and turns it off when you close the door.
If want to light the interior of your cooler to display your wine when the door
is closed, open the door, press the button twice, then close the door. This
mode is canceled when you open the door and press the button again.
Energy-efficient LEDs are used for long-term durability.
Memory function
If you experience a power outage while your cooler is on, when the power is
restored, your cooler will resume the same temperature that was set when
the power went off.
Notes:
• A large number of bottles will lower the cooling efficiency of your cooler.
• Adjust the thermostat setting by one increment at a time. Allow several hours
for the temperature to stabilize between adjustments.
20
www.insigniaproducts.com
Storing wine
It is necessary to position the bottles alternately on the upper six shelves. This
allows for the storage of nine 750 ml bottles on each of the six shelves and
seven bottles on the bottom shelf, for a total storage capacity of 61 wine
bottles. Shelves can be removed to accommodate larger bottles.
Removing a shelf
1 Remove all bottles from the shelves.
2 Tilt one side of the shelf upward and then gently pull out the shelf.
Replacing a shelf
• To reinstall the shelf, make sure that it is resting securely on the support
brackets, then push inward until it clicks into place.
CAUTION: Make sure that the tabs are firmly engaged in the supporting guides
before storing any bottles.
Seven bottles
54 bottles
21
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
Serving and storage tips
We suggest that you pour wine at a temperature below the ideal serving
temperature, because the wine warms up quickly after it’s been poured into a
glass.
• In order to maintain good air circulation in your cooler, do not let the
bottles touch the back of your cooler.
• Do not store bottled wine by the box or case in your cooler.
• The cork of an opened bottle should always be moistened when returning
it to the bottle.
• Red wine should be allowed to breathe (oxygenate) before drinking. We
suggest that you put pink/rose type wines on the table two to five hours
before drinking and red wine four to five hours before drinking. That also
allows them to reach the suitable serving temperature. White wine, on the
other hand, can be served right away.
• Champagne should always be stored in your cooler and taken out
immediately before drinking.
WINE TYPE IDEAL SERVING TEMP
Red Bordeaux 64.4° F (18° C)
Côtes du Rhône Red/Barolo Louis Family Dry
Red Wine/Barolo
62.6° F (17° C)
Burgundy Red 60.8° F (16° C)
Port 59° F (15° C)
Young Burgundy Red 57.2° F (14° C)
Young Red Wine 53.6° F (12° C)
Young Beaujolais/All White Wines (low sugar) 51.8° F (11° C)
Old White Wines/Chardonnay 50° F (10° C)
Sherry 48.2° F (9° C)
Young White Wines (late vintage) 46.4° F (8° C)
White Wines Loire/Entre-deux-Mers 44.6° F (7° C)
22
www.insigniaproducts.com
Maintaining your wine cooler
Your cooler is designed for year-round use with only minimal cleaning and
maintenance.
When you first receive it, wipe the cabinet with a mild detergent and warm
water, then wipe dry with a dry cloth. Do this periodically to keep your cooler
looking new.
Cleaning the interior of your cooler:
1 Turn off your cooler and unplug it from the wall outlet.
2 Remove all wine.
3 Wash the inside with a warm, damp cloth soaked in a solution of one
quart of lukewarm water and two tablespoons of baking soda.
4 Be sure to keep the door gasket (seal) clean to keep your cooler
running efficiently.
5 Dry the interior and exterior with a soft cloth.
Defrosting your cooler
Your cooler is equipped with an automatic defrost function and does not
require manual defrosting. Defrost water from your cooler is channeled into a
drip tray located above the compressor. Heat transfer from the compressor
causes the defrost water to evaporate.
Alarms
Door ajar alarm
If the door is not closed completely for five minutes, an alarm sounds. Close
the door to silence the alarm.
If the door is closed and the alarm continues to sound, make sure that the
actuator at the bottom of the door is making contact with the switch on your
cooler.
If the door alarm sounds when filling your cooler, it can be silenced by
pressing the power button once.
Temperature alarms and error codes
If the inner cabinet temperature is higher than 73° F (23° C) for one hour, the
error code "HI" shows on the display and an alarm sounds.
CAUTION: To prevent damage to the finish, do not use:
• Gasoline, benzine, thinner, or other similar solvents
• Ammonia or alcohol
• Abrasive cleaners
• Sharp objects or blades
23
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
If the inner cabinet temperature is lower than 32° F (0° C), the error code "LO"
shows on the display and an alarm sounds.
If the inner cabinet temperature remains at 32° F (0° C) for more than 30
minutes, the error code “CL" shows on the display, an alarm sounds, and your
cooler stops functioning to prevent the contents from freezing.
Storing your cooler
1 Turn off your cooler and unplug it from the wall outlet.
2 Remove all wine.
3 Clean your cooler.
4 Leave the door open slightly to avoid possible formation of
condensation, mold, or odor.
Moving your wine cooler
1 Turn off your cooler and unplug it from the wall outlet.
2 Remove all wine.
3 Securely tape down all loose items inside your cooler.
4 Turn the leveling foot up to avoid damage.
5 Tape the door shut.
6 Protect the outside of your cooler with a blanket or similar item.
7 Make sure that your cooler stays in the upright position during
transportation.
If that is not possible and your cooler must be placed on its back or
side during transportation, upon reaching the destination allow it to
remain upright for six hours before plugging it in to avoid damage to
internal components.
Power failure
Most power failures are corrected within a few hours and should not affect
the temperature of your appliance, if you minimize the number of times the
door is opened. If the power is going to be off for a longer period of time, take
the proper steps to protect the contents of your cooler.
CAUTION: Use extreme caution with children. Your cooler should not be
accessible to child's play.
Note:
Wait three to five minutes before attempting to restart the
appliance if operation has been interrupted.
24
www.insigniaproducts.com
Disposal
Your cooler may not be treated as regular household waste. It should be
taken to an appropriate waste collection point for recycling of electrical
components. For information on local waste collection points, contact your
local waste removal agency or government office.
Tips on saving energy
• Locate your cooler in the coolest area of the room, away from heat
producing appliances or heating ducts and out of direct sunlight.
• Overloading your cooler forces the compressor to run longer.
• Do not open the door too often, especially if the weather is very hot. Close
the door as soon as possible to prevent cool air from escaping.
• Make sure that your cooler is sufficiently ventilated, with adequate air
circulation behind it.
Troubleshooting
Error codes
If the “HI”, “LO”, or “CL” error codes appear on the display for more than five
minutes, a power reset may rectify the issue (see Temperature alarms and
error codes on page 22). Unplug your cooler, wait five minutes, then plug it
back in. If the error code persists, contact consumer care or an authorized
service agent.
CAUTION: Do not try to repair your cooler yourself. Doing so invalidates the
warranty.
PROBLEM SOLUTION
Your cooler does not operate. • Make sure that your cooler is plugged in and that the
plug is pushed completely into the outlet.
• Check the house fuse/circuit breaker box and replace
the fuse or reset the circuit breaker.
• If a power failure occurs, your cooler turns off. Wait
until the power is restored, then turn it on again.
Your cooler door does not
close completely.
• Adjust the shelf properly.
• Clean the door gaskets.
• Level your cooler with the leveling feet.
Your cooler is not cold enough. • Make sure that the door is closed properly.
• Allow time for new beverages to cool, then check
again.
• Set the control to a colder setting.
25
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
Specifications
Your cooler makes unusual
noises or vibrates.
• Level your cooler with the leveling feet.
• Move your cooler out from the wall.
• This is normal.
Moisture is building up on the
interior walls and door of your
cooler.
• Make sure that the door is closed properly.
• Door is left open too long or opened too frequently.
Moisture is building up on the
exterior of your cooler.
• Make sure that the door is closed properly. Cold air
from inside your cooler may be leaking.
• Make sure that the door and gasket are properly
aligned.
• Weather is hot and humid (this is normal).
• Move your cooler to a dryer location.
Your cooler turns on and off
frequently.
• Cool the room or move your cooler to a cooler location.
• Make sure that the door is closed properly.
• Clean the door gaskets.
• Set the control to a colder setting.
The display shows an error
code and an alarm sounds
• See Temperature alarms and error codes
on page 22.
Dimensions (HxWxD) 34 × 23.8 × 23.7 in. (86.6 × 60.5 × 60.3 cm)
Net weight 107 lbs (48.5 kg)
Capacity 61 bottles (750 ml)
Power requirements 115 V~60 Hz
Current 1.2 A
Operating temperature 41° F to 64° F (5° C to 18° C)
Refrigerant type R600a
Humidity level in your
cooler (normal)
50%-80%
Noise (Db) level 42
Annual energy cost 19.00 dollars
Cord length 70.8 in. (≥180 cm)
PROBLEM SOLUTION
26
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your
purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a
Best Buy branded retail store or online at www.bestbuy.com
or www.bestbuy.ca and is packaged
with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your
purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced
under this warranty become the property of Insignia and are not returned to you. If service of
Products or parts are required after the Warranty Period expires, you must pay all labor and parts
charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any
Best Buy store. Make sure that you place the Product in its original packaging or packaging that
provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may
diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or
websites to the original purchaser of the product in the country where the original purchase was
made.
What does the warranty not cover?
This warranty does not cover:
• Food, beverage, and or medicine loss/spoilage.
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or otherwise used
in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
27
61-Bottle Built-In Wine Cooler
www.insigniaproducts.com
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5)
pixel failures throughout the display. (Pixel based displays may contain a limited number of
pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR
BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR
LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO
THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH
ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A
©2022 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A
©2022 Best Buy. All rights reserved.
V2 ENGLISH
22-0063
