INSTALLATION GUIDE
INTEGRATED
DD24DTX6I, DD24DTX6HI
DOUBLE DISHDRAWER™ DISHWASHER
US CA
3
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Fitting an integrated panel requires access to
electrical service areas. This must be performed
by a Fisher & Paykel trained and supported
service technician or qualified person.
• Before fitting the front panel, the dishwasher
must be disconnected from the power supply.
• After installing the front panel, the installer
must ensure that the following components
are electrically earthed: the panel bracket and
any custom metal component (e.g. handle) that
extends past the rubber seal.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• WARNING – Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – panel edges are sharp.
SAFETY AND WARNINGS
!
WARNING!
Tip Hazard
Failure to follow this advice may result in
injury or product damage.
• Take care when removing product
from packaging.
• If drawers are pulled open while product is not
secured to cabinetry, product may tip.
4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
z
Do not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
z
Installation of this DishDrawer™ Dishwasher requires basic mechanical and
electrical skills.
z
Installation must comply with your local building and electricity regulations.
z
Remove all packaging materials supplied with the dishwasher.
z
Be sure to leave these Instructions with the Customer.
z
At the completion of the installation, the Installer must perform the Final Checklist.
z
This dishwasher is manufactured for indoor use only.
z
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
z
The DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
z
The switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
z
Care should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
z
If the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
z
Ensure only supplied hoses are used for connection. Old hoses should not be reused.
z
Failure to install correctly could invalidate any warranty or liability claims.
z
If the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
5
TOOLS AND COMPONENTS
z
Keep all packing materials until the unit has been inspected.
z
Inspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
z
Fisher & Paykel is not responsible for shipping damage.
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product
Drain hose support (1)
Flat-blade screwdriver
Level
Top mounting bracket
kit (1)*
Drain hose joiner (1)
Powered driver
Pliers
Box cutter Pencil
Moisture protection
tape (1)
5/8" (16mm) Phillips
screws (32)
Clamp (1) Hex socket (2) Panel bracket kits (2)**
sound seal insulation
Wire clip (2)
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
Recessed pre-finished toe
kick (1)
Inlet hose rubber washer
(1)**
Phillips screwdriver
6
PRODUCT DIMENSIONS
Actual product dimensions may vary by ± 1/16" (2 mm)
PRODUCT DIMENSIONS INCHES MM
A Overall height* 34 – 36 3/8 864 – 924
B Overall width** 23 9/16 599
C Overall depth*** 22 1/2 571
D Height of chassis 33 11/16 855
E Depth of chassis 21 3/4 553
F Ventilation gap between door panels 5/16 8
G Depth of toe kick recess**
Custom panel installation
1 9/16 –
3 15/16
40 – 100
Pre-finished panel installation
2 5/16 –
4 5/8
58 – 118
H Minimum clearance between toe kick
panel and floor
1/2 12
I Height of feet*
3/8 –
2 3/4
10 – 70
J Door panel depth****
5/8 –
13/16
16 – 20
K Depth of drawer opening** 20 3/4 527
*depending on adjustment of levelling feet
**excluding custom panel and handle
***based on front panel thickness of 11/16" (18mm)
****refer to 'Custom panel dimensions' for more information
PLAN ISOMETRIC
PROFILEFRONT
d
j
A
i
g
h
b C
f
k
e
7
CUSTOM PANEL DIMENSIONS
CUSTOM PANEL CONSIDERATIONS INCHES MM
A
Minimum upper door panel height* 17 3/8 442
B Minimum lower door panel height* 12 1/4 311
C Minimum door panel width 23 7/16 596
D Toe kick panel height* 1 3/4 – 4 13/16 45 – 123
E Door panel depth 5/8 – 13/16 16 – 20
F Minimum toe kick panel depth** 3/8 9
G Minimum clearance between door panels 5/16 8
H Minimum clearance between top of door panel and countertop 1/16 2
I Minimum clearance between toe kick panel and floor 1/2 12
J Maximum extension of upper panel - -
K Maximum extension of lower panel 2 50
L Minimum inside cavity height 34 864
M Minimum height from floor to top of bottom drawer panel*** 16 5/16 414
Maximum weight of each drawer panel (including handle) 9kg
*the top door panel may be extended up, or the bottom panel down from the fixed gap. Toe kick panel should be adjusted accordingly.
**if using supplied toe kick mounting screws. Panel can be fixed via screwing or gluing to the supplied mounting bracket.
***depending on adjustment of levelling feet
ISO PROFILE
Material specifications
z
Maximum weight of door panels must not exceed 20lb (9kg)
(including handle)
z
The panel should be adequately sealed to withstand moisture (122°F/50°C
@ 80% RH). The back and sides of the panel should be completely sealed
with a waterproof vapour barrier, such as polyurethane, to prevent damage.
z
The back of the panel should be completely flush so that the seal between
the panel and the rubber trim is maintained.
z
Installation outside these specifications may result in condensation on
cabinetry surfaces.

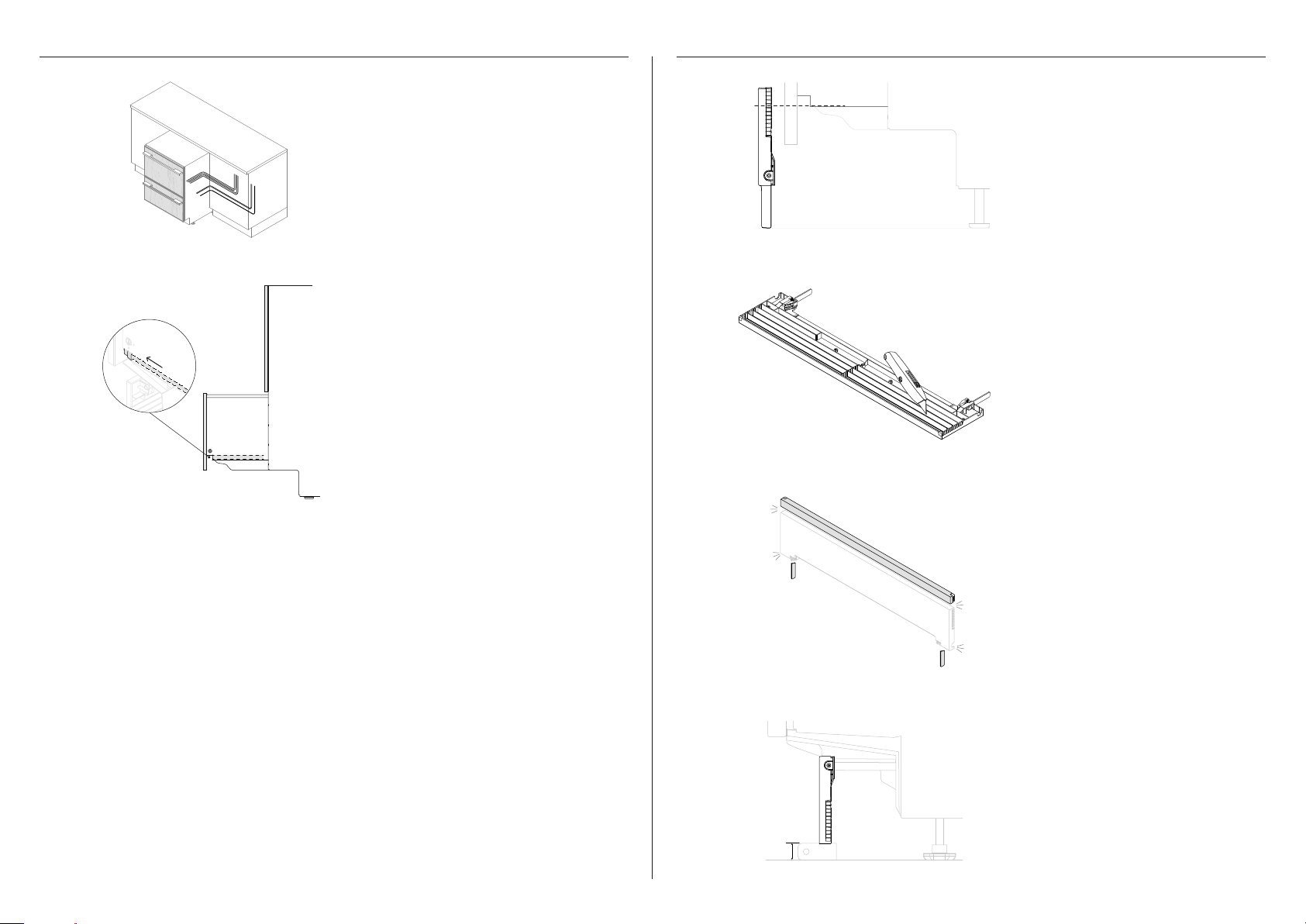

Toe kick
z
A minimum distance of 1/2" (12mm) between the floor and the base of the
toe kick must be maintained at all times.
z
Depending on the desired toe kick recess depth, the custom toe kick panel
will need to be aligned to different positions on the toe kick template to
clear the underside of the tub.
z
Toe kick panel height can be determined by using the below:
*based on a door panel depth of 11/16" (18mm)
Recess of 1 9/16 – 3 15/16
(40mm – 100mm)*
Align to template as shown
1 9/16 – 3 15/16"
(40 – 100mm)
a
B
B
a
j
m
l
c
d
I
e
f
g
m
h
e
f
l j i
30 13/16"
(783mm)
- -
=
-
cavity height upper panel extension floor clearance toe kick height
l j i
- -
=
-
cavity height upper panel extension floor clearance toe kick height
1 9/16" (40mm)
recess installations:
1 9/16 – 3 15/16"
(40 – 100mm)
recess installations:
Recess of 1 9/16" (40mm)*
Align to template as shown
1 9/16"
(40mm)
31 9/16"
(801mm)
8

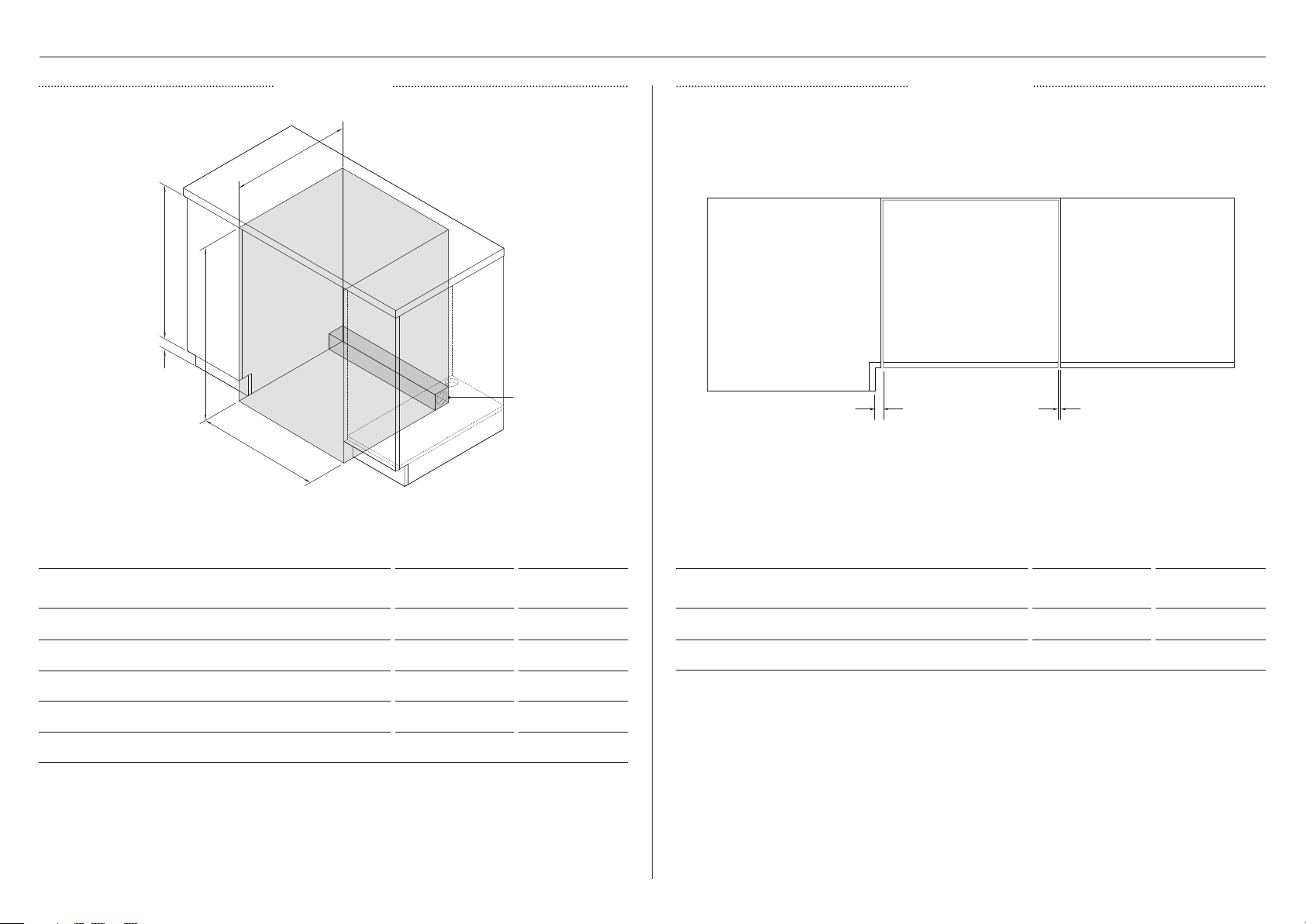

CABINETRY
CABINETRY DIMENSIONS INCHES MM
A Minimum inside height* 34 864
B Inside width 23 5/8 600
C Minimum inside depth** 22 3/4 578
D Recommended height of adjacent cabinetry 30 762
E Height of toe kick area*** 3 15/16 – 6 5/16 100 – 160
*depending on adjustment of levelling feet
**including 11/16" (18mm) door panels on adjacent cabinetry
***For more information on service requirements, refer to 'Plumbing & electrical connection' and 'Preparation'.
CABINETRY CLEARANCES INCHES MM
A Minimum clearance to adjacent cupboard door 1/16 2
B Minimum clearance to corner cupboard 1/2 13
*Access to both sides of the product will be required during installation. If access is not possible, the tubs may need to be
removed for door installation and adjustments. Refer to page 15 for guidance on drawer removal.
DIMENSIONS CLEARANCES
B A
ISOMETRIC
PLAN
A
D
E
B
C
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher***
9

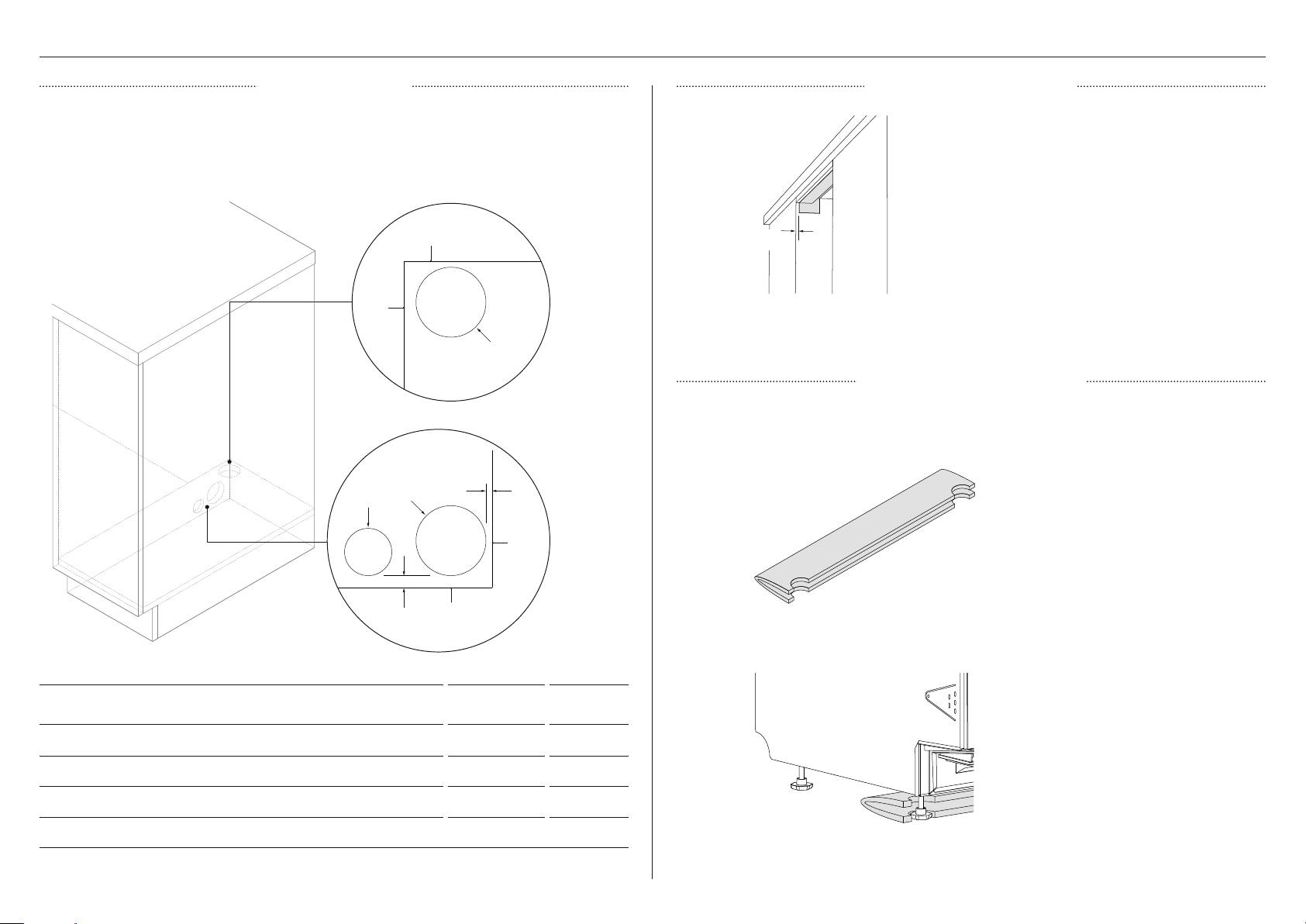

PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
INCHES MM INCHES MM
A Length of drain hoses 78 1/2 2000 70 1/2 1700
B Length of power cord** 29 1/2 750 27 1/2 700
C Length of inlet hose 64 3/4 1650 49 1250
D Minimum distance from floor to top of
hose support
29 1/2 750 29 1/2 750
E Minimum distance from floor to end of
drain hoses***
19 11/16 500 19 11/16 500
F Minimum distance from floor to inlet
hose connection
7 7/ 8 200 7 7/ 8 200
G Maximum distance from cabinetry
centre of electrical outlet
17 11/16 450 17 11/16 450
H Maximum distance from floor to top of
Air Break
37 3/8 950 37 3/8 950
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for sink trap installations.

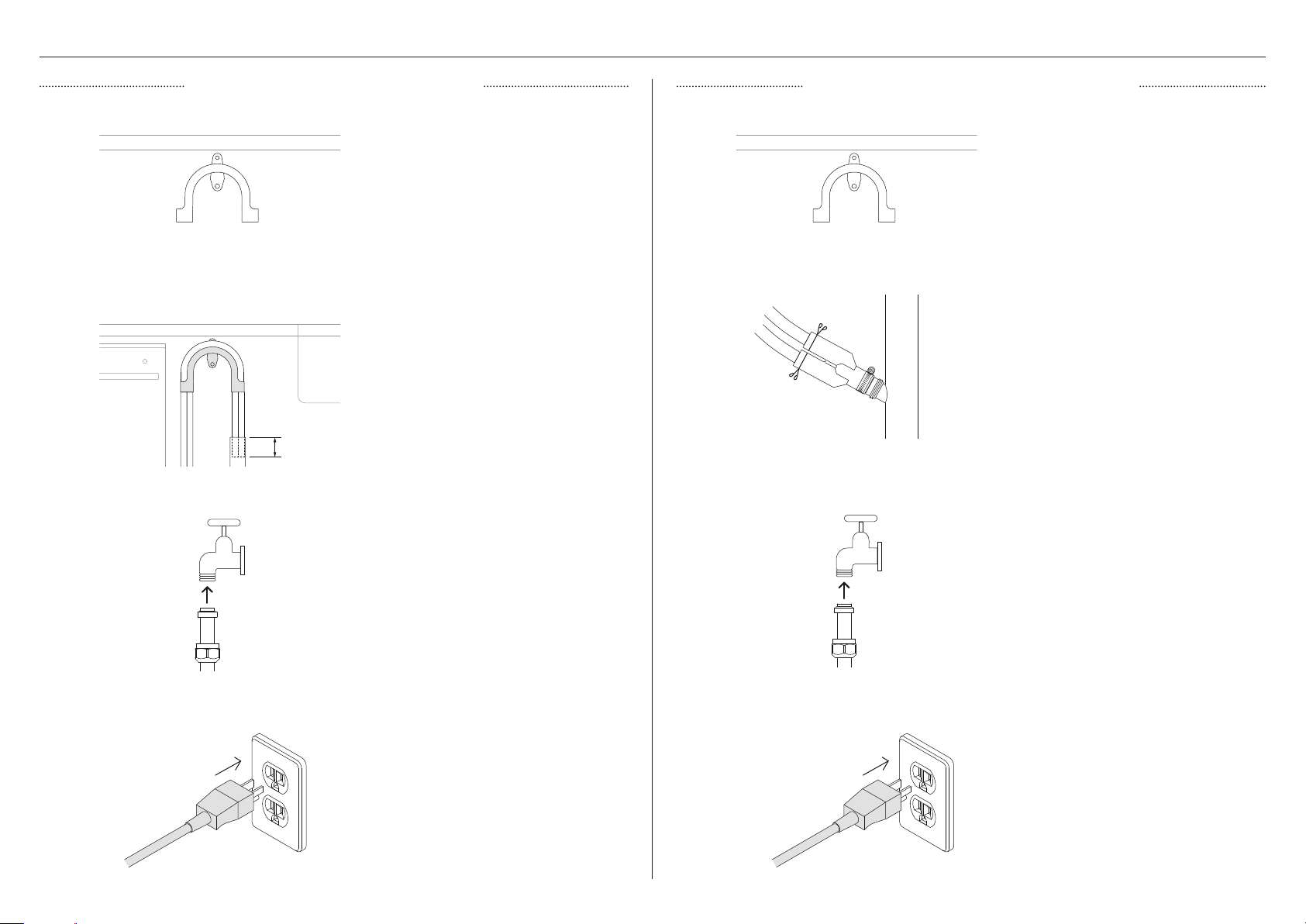

Hose and cord lengths
z
Your services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to 'Preparation' for service
access requirements.
z
If the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 12' (3.6m) (part number 525798).

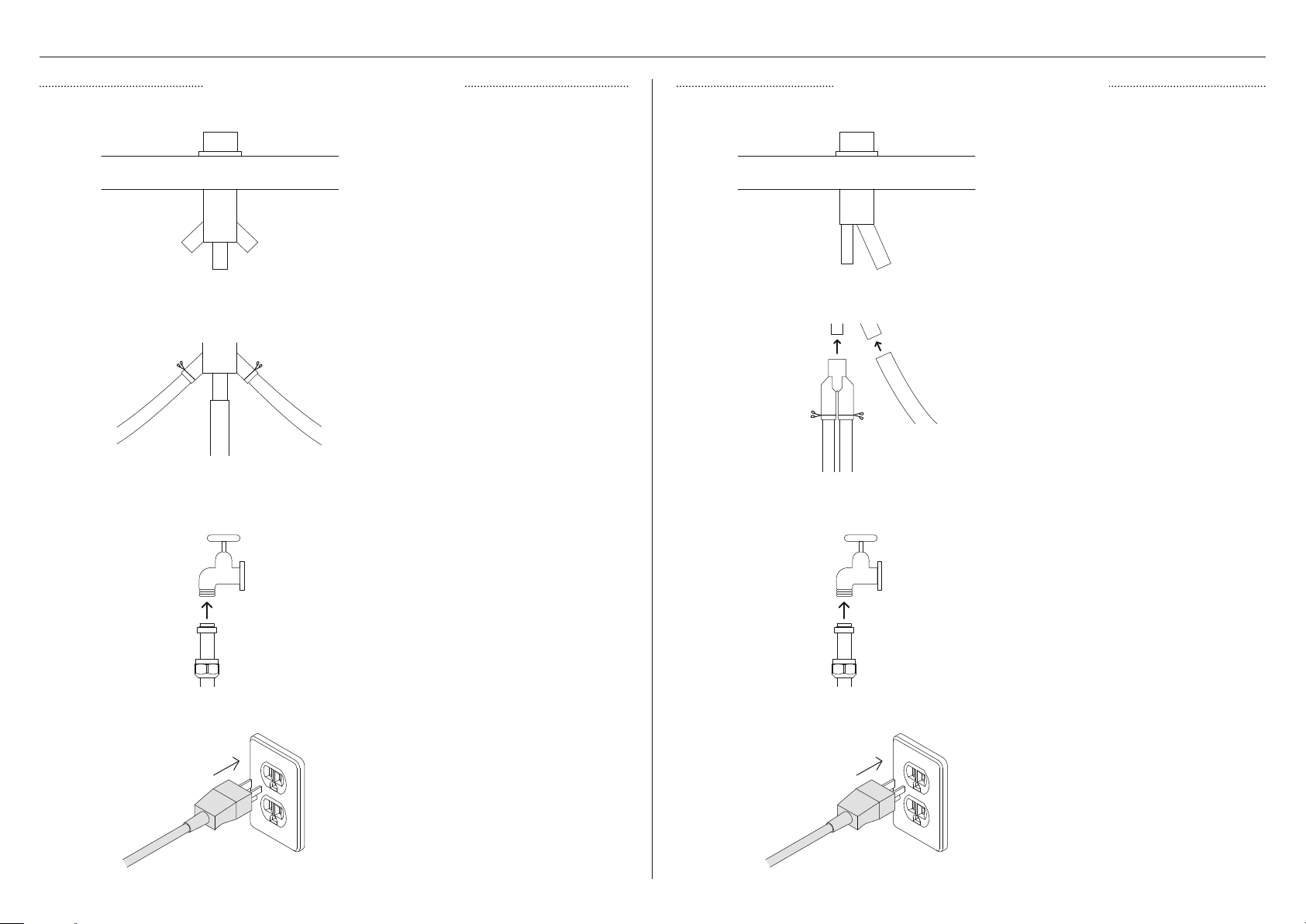

Water connection
z
Recommended water temperature: Hot (Maximum 140°F/60°C).
z
Supplied hose to suit 3/8" (9 mm) male compression fitting.
z
Ensure water connection complies with local plumbing regulations.
Water pressure
z
Water softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
z
Non-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z
120V, 60 Hz, 15A
Kosher requirements
z
Drains will need to be separated to satisfy kosher requirements.
z
We recommend confirming the acceptability with your local rabbi in
respect to kosherinstallations.
a a b cb
G G
c
d d
H H
e e
f f
10

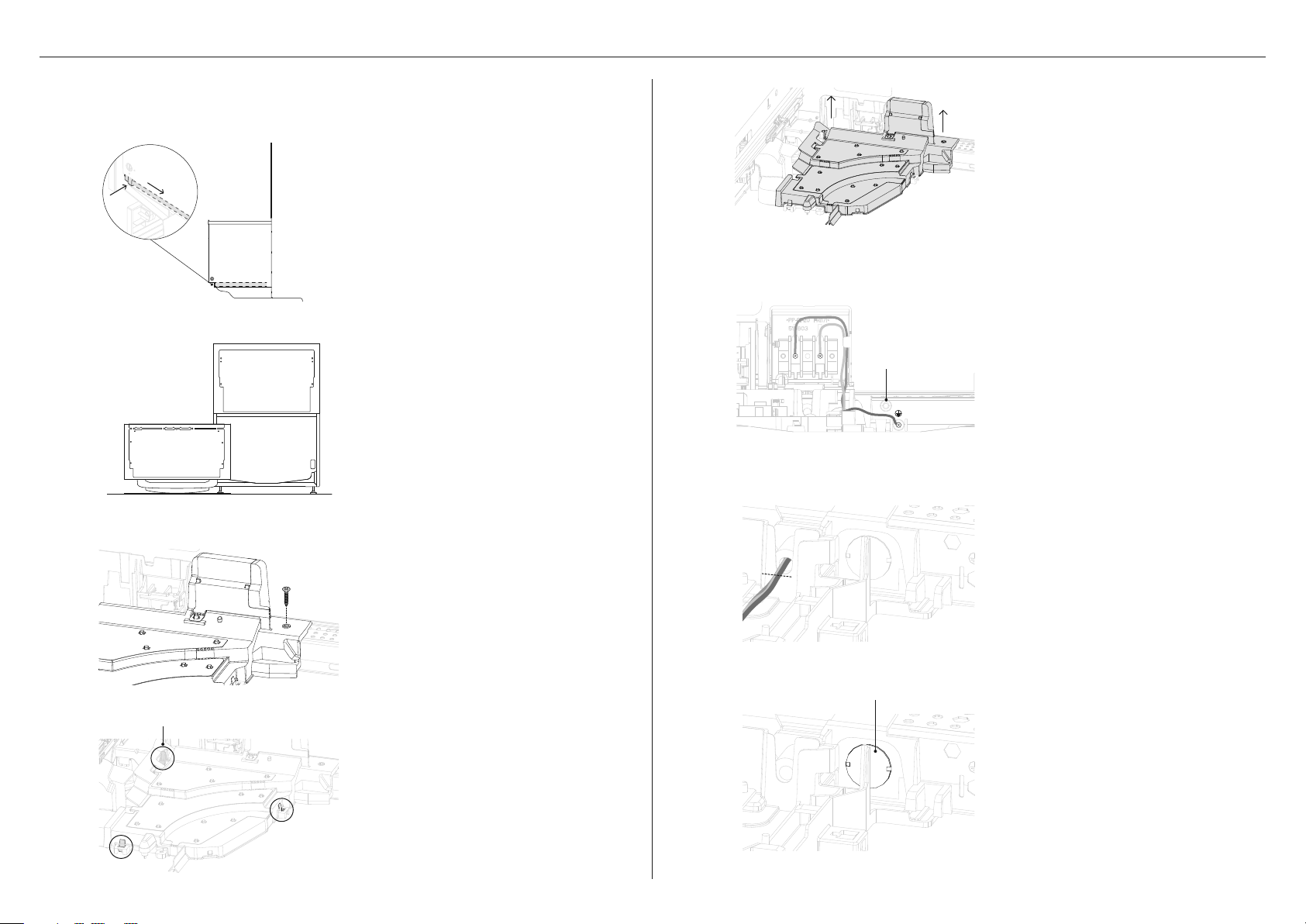

HARD-WIRING (OPTIONAL)
You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend
to remove the supplied power cord and do the hardwiring installation as close to the cavity
as possible.
1
2
3
5
4
6
7
8
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
Push the upper latch back to unlock
using your hand.
Release the remaining locking clips
using a flat-bladed screwdriver.
Lift the cover upwards until you are able
to pull out towards you to remove.
Fit a suitable cable clamp for the
conduit through the metal knock-
out. Route wiring behind the tab and
through the toroid removed earlier.
Ensure only copper conductors
are used.
Remove the screw securing the cover.
Set aside.
Unscrew the Live, Neutral and Earth
wires as illustrated.
Ensure the upper Earth wire is
not removed.
Carefully remove the cord from the
product. Set toroid aside to for later use.
Open the lower drawer and press both
locking tabs back to release.
knock-out
upper latch
upper Earth
wire location
11

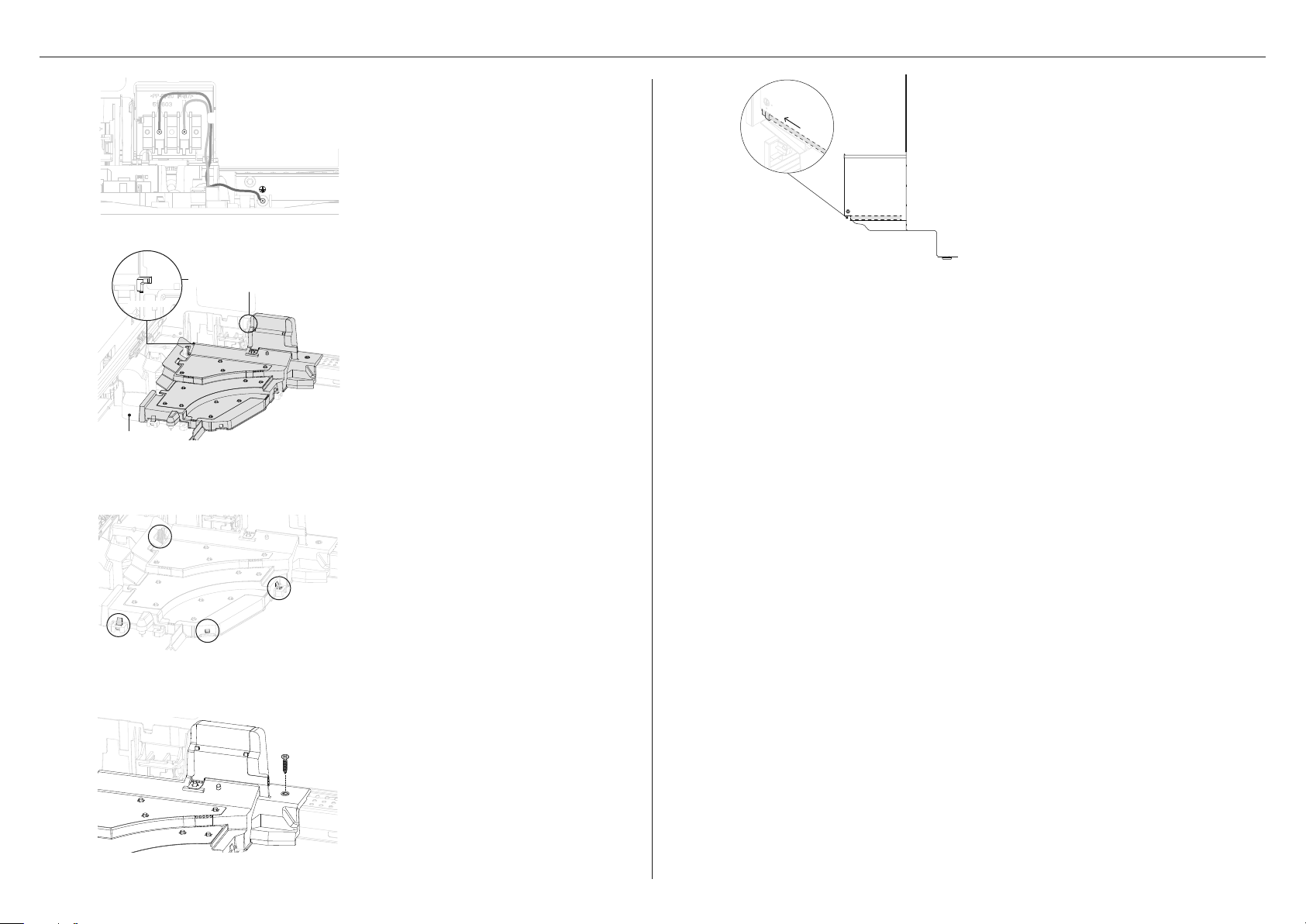

HARD WIRING (OPTIONAL)
9
!3
!0
!1
!2
Fix the Live and Neutral wires to the
terminal block and the Earth wire to
the chassis.
Position the cover fill valve into place
before lowering the rest of the cover
into position.
Lower the cover back into place
ensuring the locking clips are aligned,
the rear hook is positioned over the slot
and the L rib is cleared.
Lock clips back into place by pressing
down on the cover firmly. Ensure all
illustrated areas are engaged.
Refit screw to secure cover.
Ensure the hoses are not twisted before
refitting the drawer to the runners and
clipping into place via both locking tabs.
L rib
rear
hook
cover fill
valve
top view
12
PREPARATION
SERVICE ACCESS
REAR
WALL
REAR
WALL
INSIDE
WALL
FLOOR
PLAN
PROFILE
SERVICE HOLE DIMENSIONS INCHES MM
A Maximum distance between rear of cavity and service hole 1/4 5
B Maximum distance between floor and service hole 1/2 10
C Minimum diameter of hose service hole 2 1/4 57
D Maximum diameter of power cord service hole 1 1/2 38
A
B
D
C
C
z
We recommend locating the service holes on either side of the DishDrawer™ Dishwasher as
shown below.
z
If the holes are created through wood, ensure the edges are smooth and rounded
z
If the holes are created through metal, ensure the supplied edge protector is fitted.
z
Ensure power cord is routed through a separate service hole to the hoses.
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
1
MOISTURE PROTECTION
3/8"
(10mm)
For best results, we recommend installing the supplied sound seal to reduce the possibility of
any excess noise occurring during daily use.
SOUND SEAL (OPTIONAL)
1
2
Cavity height of 34 – 34 7/16"
(864 – 874mm)
Lay the sound seal flat, do not fold.
Cavity height of 34 7/16" + (874mm +)
Fold the sound seal as illustrated.
Gently tilt the DishDrawer™ Dishwasher
back and align the seal to the front feet.
Carefully lower product and ensure seal
is still positioned correctly.
Hole
location
created
to suit
cabinetry
13
PUSH THE PRODUCT INTO THE CAVITY FIT CUSTOM DOOR PANELS
3
4
Level the DishDrawer™ Dishwasher
by carefully tipping it onto
protected surface.
Rotate each leg clockwise to increase
the height, and anticlockwise to
decrease. Stand upright when complete.
Minor adjustments can be made by
lightly tilting the product and rotating
each leg as desired.
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them and taking
care not to bend the legs.
2
3
4
Carefully pull both brackets from
DishDrawer™ Dishwasher down and out
before unpluging the Knock-to-Pause
modules and earth wires.
Remove the Knock-to-Pause modules
from the back of the brackets.
On the back of the upper panel, mark
the centre and align the base of the
upper bracket with the base of the panel.
Secure using a minimum of 3 screws on
either side.
On the back of the lower panel, mark
the centre and align the top of the
upper bracket with the top of the panel.
Secure using a minimum of 3 screws on
either side.
If securing to cabinetry via method A
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Optionally, fit the two top brackets for
additional stability. Ensure the brackets
are oriented correctly with the raised
locking barbs facing upwards.
Ensure the ends of the brackets are not
pushed into the chassis.
1
2
A
A
B
B
1
Remove both side pins from each drawer
by twisting a quarter-turn towards
the product front. Pull outwards to
remove pin.
14

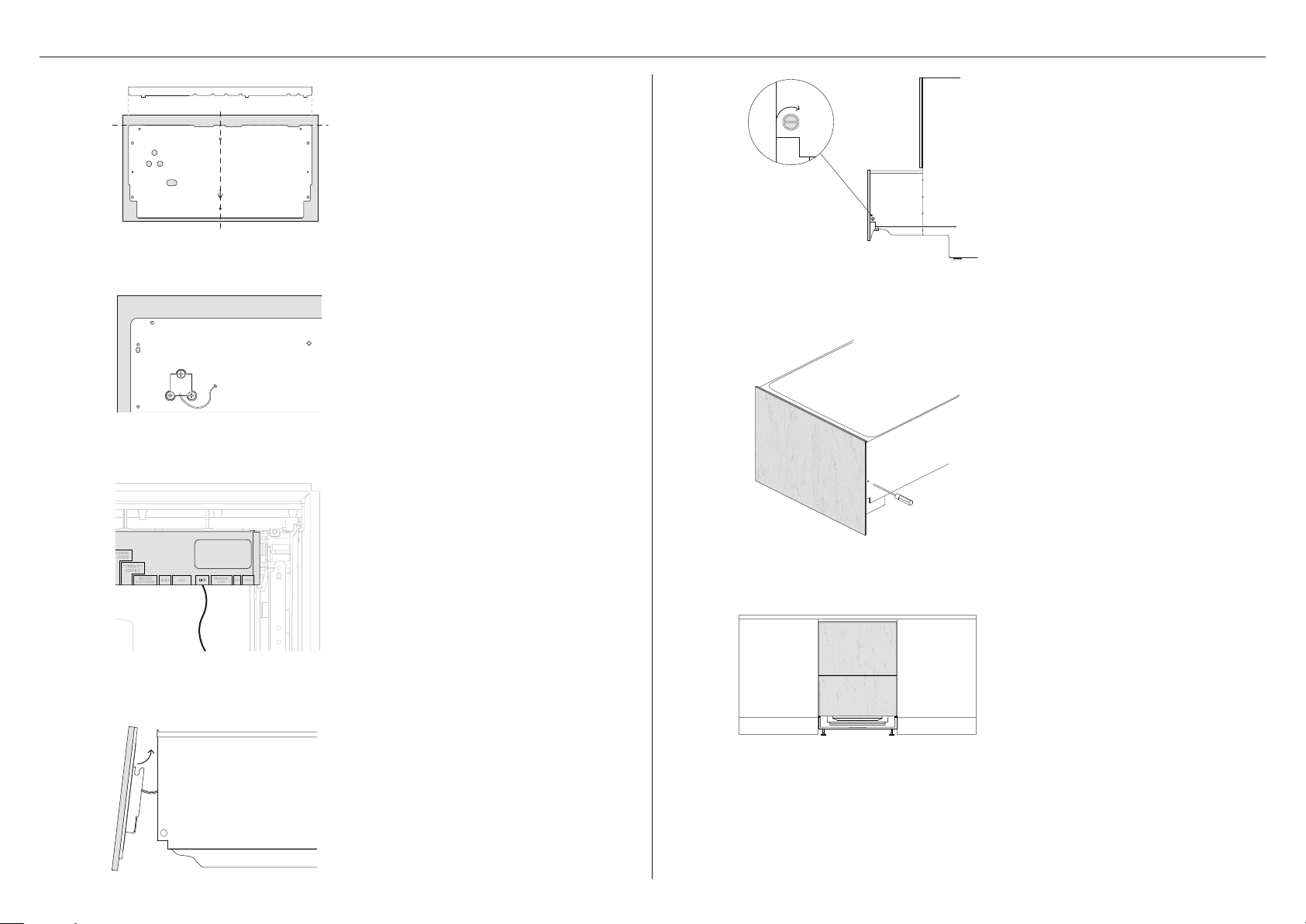

FIT CUSTOM DOOR PANELS
9
!0
!1
Insert a Phillips screwdriver into the
hole above each side pin and rotate
to adjust the panel alignment. There
is a maximum travel distance of
± 1/16" (2mm).
Repeat for both sides and drawers
if required.
Re-check clearances.
Ensure the minimum clearance gap
of 5/16" (8mm) between panels is
maintained after all adjustments have
been made.
Re-insert both side pins to each drawer
by pushing in and twisting a quarter-turn
towards the rear of the product to secure
panels into place.
Attach the Knock-to-Pause module to
the panels as shown.
Ensure the Knock-to-Pause modules
are oriented correctly and are
not in contact with the brackets
before securing.
5
6
Snap the bracket tab to remove.
Carefully fit the panels onto the
product. When refitting the lower
panel, we recommend pushing back the
drawer slides as shown on page 10
for access.
7
8
Electric shock hazard:
To earth the panel bracket, connect the
earth wire from the product to one of
the tabs. Any custom metal components
(e.g. handle) that extend past the
rubber seal must be earthed also.
Reconnect the Knock-to-Pause module
to the UI 1 slot on the wash controller as
shown. Reconnect the earth wire to the
panel bracket.
15

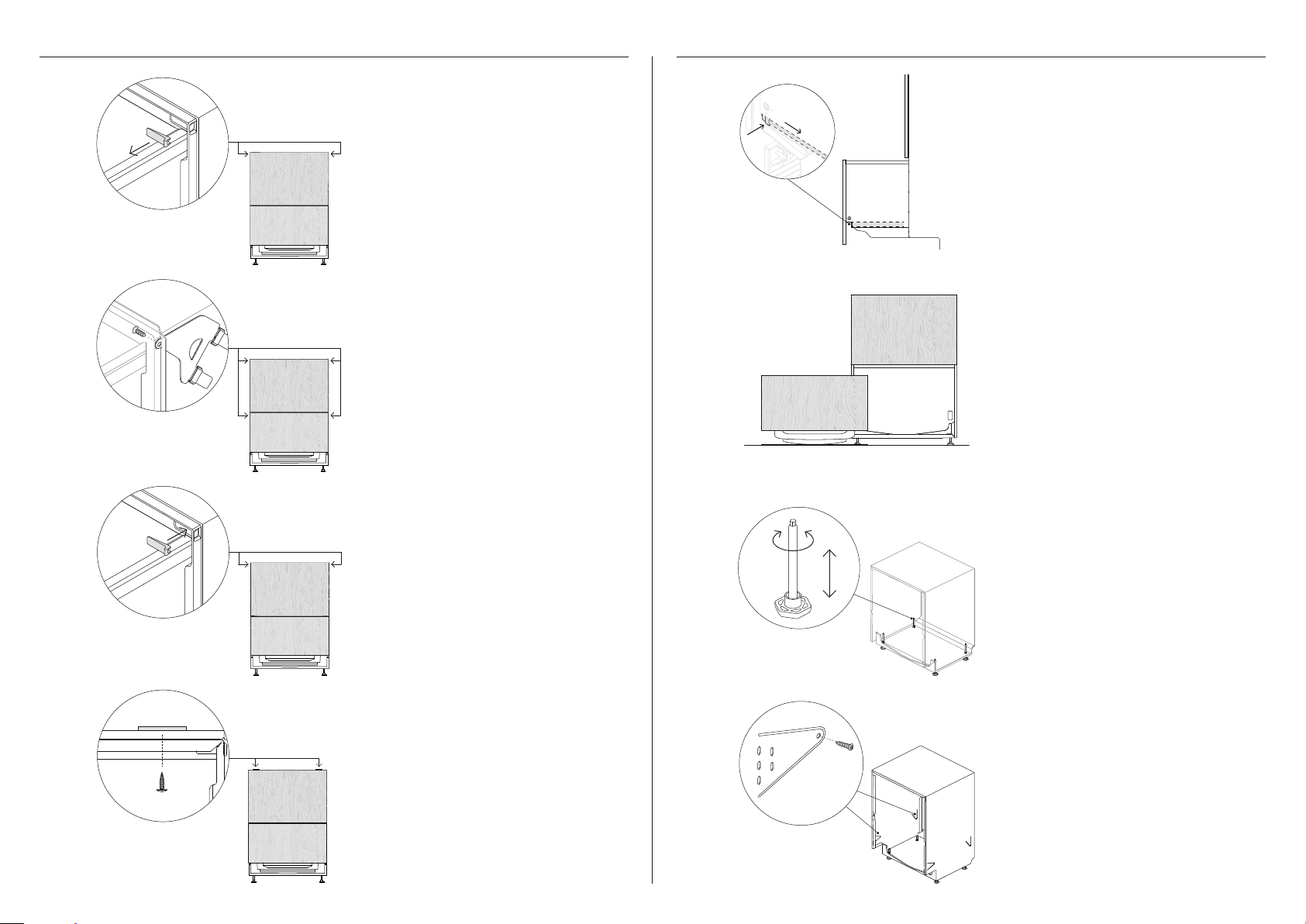

SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Partially open one of the drawers and
remove the first screw cover from the
trim moulding.
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
1
2
3
4
Replace the trim cover and repeat for
the remaining brackets.
If fitted in step 2, secure the two top
brackets to the cabinetry.
1
2
3
4
Using the supplied hex socket and
a screwdriver, level the DishDrawer™
Dishwasher as required. Rotate clockwise
to increase the height of each leg
and anticlockwise.
It can help to reduce the loading on the
feet to assist the adjustment process to
decrease the height.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
Secure to cabinetry via all four fixing
locations in the chassis.
Ensure sound insulation is
replaced correctly.
If fitted, secure the two top brackets
to the cabinetry.
Open the lower drawer and press both
locking tabs back to release.
16
SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) INSTALL PRE-FINISHED TOE KICK
5
6
Before refitting the drawer, ensure the
hoses are not twisted.
Carefully score toe kick at
desired height.
Measure toe kick height against the
base of the lower tub.
1
2
3
4
Slide toe kick onto the mounting rails
and secure. Ensure a 1/2" (12mm)
clearance is maintained between
the floor and the toe kick, the end
tabs can be used to measure this
if desired.
Do not over tighten the screws.
min 1/2" (12mm)
Snap off excess toe kick material
and both end tabs.
Smooth the edges.
Refit the drawer to the runners and clip
into place via both locking tabs.
17
INSTALL CUSTOM TOE KICK
1
2 5
3
4
Custom panel Template
Slide toe kick onto the mounting rails
and secure.
Do not over tighten the screws.
Re-align the custom panel to the
recessed panel and secure using the
provided screws.
Pre-drilling the screw bosses is
recommended for optimal results.
On a protected surface, carefully score
the toe kick at the marked height.
Align the custom panel to the recessed
pre-finished panel, referring to 'Custom
panel dimensions' for guidance.
Mark a section of the recessed panel to
be removed, ensuring it is shorter than
the custom panel.
Snap off excess toe kick material and
both end tabs.
Smooth the edges.
Custom panel Recessed
pre-finished
panel
18
PLUMBING & ELECTRICAL CONNECTION
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical connection' for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical connection' for
minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the hoses do not extend any
further than 4 3/4" (120mm) into the
standpipe. An air gap is required to
prevent waste water from siphoning
back into the tub.
Plug product in. Plug product in.
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
1
1
2
2
3
3
4 4
4 3/4"
(120mm)
Thread wire clips on to the hoses before
pulling both hoses through the support
guide and fitting to the supplied hose
joiner. Secure using the wire clips.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorten the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
19
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
PLUMBING & ELECTRICAL CONNECTION
Install your single Air Gap Kit to the
benchtop like shown.
Refer to 'Plumbing & electrical
connection' for minimum install heights.
We recommend installing a Dual
Air Gap Kit to your benchtop like
shown. This is the preferred Air Gap
installation method.
Refer to 'Plumbing & electrical
connection' for minimum install heights.
Plug product in.Plug product in.
SINGLE AIR GAP INSTALLATIONDUAL AIR GAP INSTALLATION
11
2
2
33
44
Thread wire clips on to the hoses before
fitting both hoses to the supplied hose
joiner. Secure using the wire clips. Fit to
the Air Gap Kit. Ensure hoses are routed
straight to the joiner, removing excess
drain hose if necessary.
Unplug or drill out the waste tee before
securing to sink trap or waste tee.
Thread wire clips on to the hoses before
fitting both hoses to the Dual Air Gap
Kit. Secure using the wire clips. Ensure
hoses are routed straight to the kit,
removing excess drain hose if necessary.
Unplug or drill out the waste tee before
securing to sink trap or waste tee.
20
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure all clearance gaps have been maintained.
Ensure DishDrawer™ Dishwasher is secure and drawer opens and closes freely with
no resistance.
Ensure panel is fitted correctly to the DishDrawer™ Dishwasher
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum
5 7/8" (150mm) higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation
INSTALLER CHECKLIST
21
TROUBLESHOOTING
No program indicator lights up when the drawer is opened
z
Ensure power is connected and is switched on.
z
AUTO POWER-ON may need to be activated. Refer to your user guide for details.
Drawer doesn’t close properly
z
Ensure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
z
Check hoses, connections and existing plumbing for leaks.
z
Check rubber washer and hose clamp are correctly fitted.
Product is tipping
z
Ensure the product is secured to the cabinetry.
Front panels are misaligned to surrounding cabinetry
z
Check cabinetry is square.
z
Re-adjust door panels using the door adjustment screws. Refer to page 14 for guidance.
z
Re-secure DishDrawer
TM
Dishwasher to cabinetry
If a problem occurs that is not listed, refer to your user guide for additional troubleshooting If
after checking these points, you still need assistance, please refer to the Service & Warranty
book for warranty details or contact us through our website fisherpaykel.com
DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers
A1: Water
Supply fault.
1 Ensure the water supply is turned on.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
ECO, RINSE + all modifiers
A3: Drawer
cannot drain. The
drainage hose
may be blocked
or kinked, or the
connection to
drainage pipe may
be blocked.
1 Ensure the drainage hose and
connection to pipes are not blocked.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
1 Ensure the filter is installed correctly.
Refer to 'Replacing the filter' in your
user guide.
2 Press
once to stop the beeping, then
again to clear the fault.
3 Press
to resume the wash program.
GLASSWARE, ECO + all
modifiers
A6: The spray
arm has loosened
or come off its
mounting, or
water pressure
is too low, or
a combination
of low water
pressure and
excessive foaming.
1 Open the drawer and check the
spray arm.
2 If the spray arm has loosened or
come off its mounting, re-fit it. Check
that it is firmly seated and turns
freely. Refer to 'Maintenance' in your
user guide.
3 Press
once to stop the beeping, then
again to clear the fault.
4 Press
to resume the wash program.
592424A 04.21
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
FISHERPAYKEL.COM
