Please read this manual and the safety
materials carefully!
• The door WILL NOT CLOSE unless the
Protector System
®
is connected and
properly aligned.
• Periodic checks of the garage door
opener are required to ensure safe
operation.
• The model number label is located on
the front panel of your garage
door opener.
• This garage door opener is ONLY
compatible with MyQ
®
and
Security+ 2.0
®
accessories.
• DO NOT install on a one-piece door if
using devices or features providing
unattended close. Unattended devices
and features are to be used ONLY with
sectional doors.
Models 8160•8165•8065•8075
Installation Manual
FOR RESIDENTIAL USE ONLY
LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
LiftMaster.com
Contents
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the Door Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Install the Protector System
®
. . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2
3
Preparation
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is
installed, operated, maintained and tested in strict accordance with the instructions and
warnings contained in this manual.
When you see these Safety Symbols and Signal Words on the following pages, they will
alert you to the possibility of serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come from something mechanical or
from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility
of damage to your garage door and/or the garage door opener if you do not comply with
the cautionary statements that accompany it. Read them carefully.
WARNING: This product can expose you to chemicals including lead, which
are known to the State of California to cause cancer or birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, the MyQ
®
Smartphone Control app, and MyQ
®
Garage
Door and Gate Monitor are examples of unattended close and are to be used ONLY with
sectional doors. Any device or feature that allows the door to close without being in the
line of sight of the door is considered unattended close. The Timer-to-Close (TTC)
feature, the MyQ
®
Smartphone Control, and any other MyQ
®
devices are to be used
ONLY with sectional doors.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
l ALWAYS call a trained door systems technician if garage door binds, sticks, or
is out of balance. An unbalanced garage door may NOT reverse when
required.
l NEVER try to loosen, move or adjust garage door, door springs, cables,
pulleys, brackets or their hardware, ALLof which are under EXTREME tension.
l Disable ALLlocks and remove ALLropes connected to garage door BEFORE
installation and operating garage door opener to avoid entanglement.
l DO NOT install on a one-piece door if using devices or features providing
unattended close. Unattended devices and features are to be used ONLY with
sectional doors.
To prevent damage to garage door and opener:
l ALWAYS disable locks BEFORE installing and operating the opener.
l ONLY operate garage door opener at 120V, 60Hz to avoid malfunction and
damage.
Before you begin:
1. Disable locks and remove any ropes connected to the
garage door.
2. Lift the door halfway up. Release the door. If balanced, it
should stay in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
4. Check the seal on the bottom of the door. Any gap
between the floor and the bottom of the door must not
exceed 1/4 inch (6 mm). Otherwise, the safety reversal
system may not work properly.

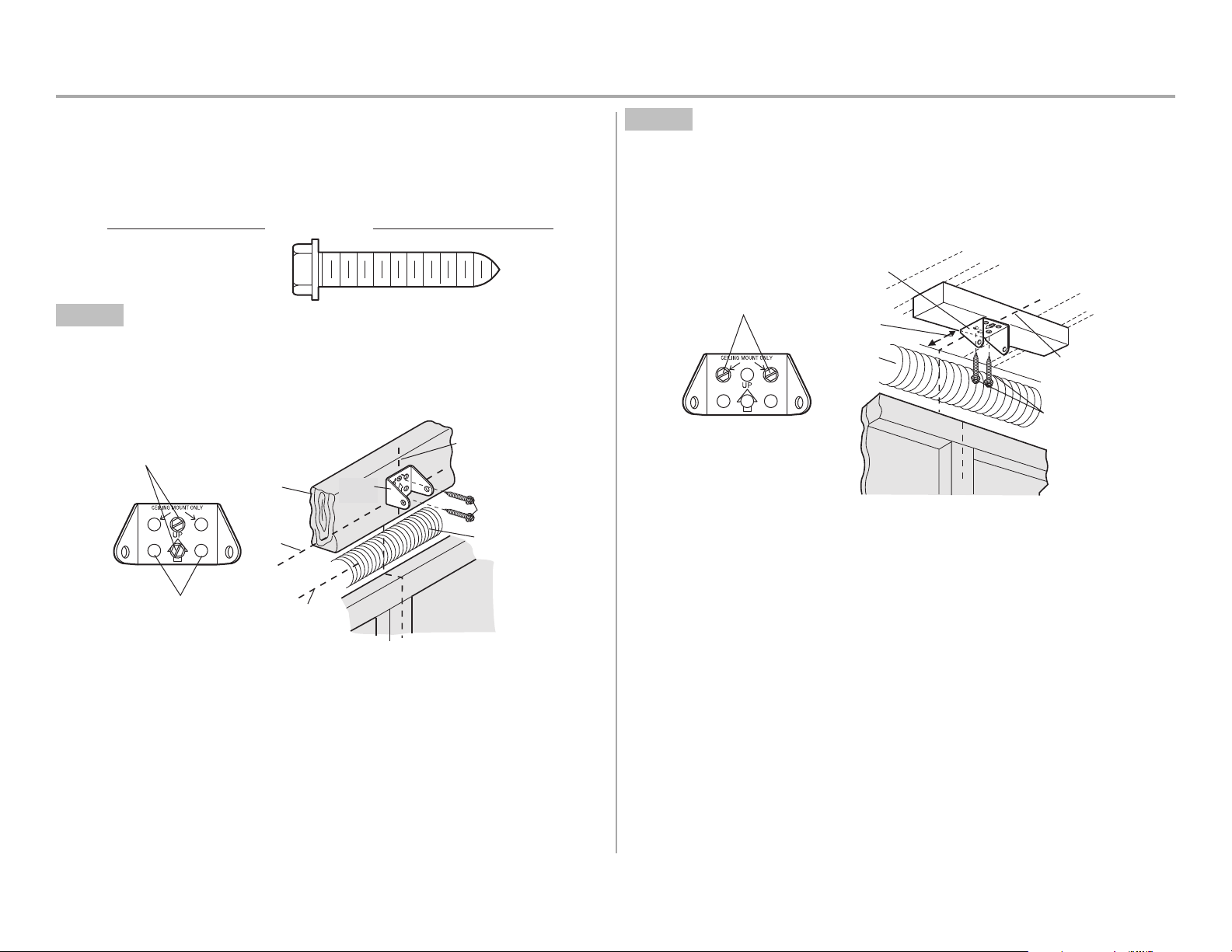

5. The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate in
the way of the header bracket, it may be installed within
4feet (1.2 m) to the left or right of the door center. See
page 11.
Torsion
Spring
Extension
Spring
OR
4
Preparation
Tools Needed
3/16
5/32
5/16
7/16
1/2
5/8
9/16
1/4
7/16
5
Preparation
Carton Inventory - Model 8065
Accessories will vary depending on the garage door opener model purchased. Depending
on your specific model, other accessories may be included with your garage door
opener. The instructions for these accessories will be attached to the accessory and are
not included in this manual. The images throughout this manual are for reference and
your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending
Sensor (1) Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Security+ 2.0
®
Accessories
883LM
Push Button Door Control
891LM
Remote Control
Hardware
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2)
Clevis Pin 5/16" x 2-3/4" (1)
Clevis Pin 5/16" x 1-1/4" (1)
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
6
Preparation
Carton Inventory - Model 8075
Accessories will vary depending on the garage door opener model purchased. Depending
on your specific model, other accessories may be included with your garage door
opener. The instructions for these accessories will be attached to the accessory and are
not included in this manual. The images throughout this manual are for reference and
your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Chain spreader
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending
Sensor (1) Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Security+ 2.0
®
Accessories
883LM
Push Button Door Control
891LM
Remote Control
Hardware
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2)
Clevis Pin 5/16" x 2-3/4" (1)
Clevis Pin 5/16" x 1-1/4" (1)
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
7
Preparation
Carton Inventory - Model 8160
Accessories will vary depending on the garage door opener model purchased. Depending
on your specific model, other accessories may be included with your garage door
opener. The instructions for these accessories will be attached to the accessory and are
not included in this manual. The images throughout this manual are for reference and
your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending
Sensor (1) Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Security+ 2.0
®
Accessories
882LMW
Multi-Function Door Control
893LM
Remote Control
Hardware
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2) Screw 6-32 x 1" (2)
Clevis Pin 5/16" x 2-3/4" (1) Drywall anchors (2)
Clevis Pin 5/16" x 1-1/4" (1) Insulated staples
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
8
Preparation
Carton Inventory - Model 8165
Accessories will vary depending on the garage door opener model purchased. Depending
on your specific model, other accessories may be included with your garage door
opener. The instructions for these accessories will be attached to the accessory and are
not included in this manual. The images throughout this manual are for reference and
your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover
K. Chain
L. Door control
M. White and red/white wire
N. The Protector System
®
Safety reversing sensors with white and white/black wire attached: Sending
Sensor (1) Receiving Sensor (1) and Safety Sensor Brackets (2)
O. Safety labels and literature
P. Rail grease
Security+ 2.0
®
Accessories
882LMW
Multi-Function Door Control
891LM
Remote Control
Hardware
Installation Door Control Hardware
Hex bolt 5/16"-18 x 7/8" (4) Screw 6AB x 1" (2)
Lag screw 5/16"-9 x 1-5/8" (2) Screw 6-32 x 1" (2)
Clevis Pin 5/16" x 2-3/4" (1) Drywall anchors (2)
Clevis Pin 5/16" x 1-1/4" (1) Insulated staples
Clevis Pin 5/16" x 1" (1)
Nut 5/16"-18 (4)
Lock washer 5/16" (4)
Self-threading screw 1/4"-14 x 5/8" (2)
Ring fastener (3)
Carriage bolt 1/4"-20 x 1/2" (2)
Wing nut 1/4"-20 (2)
A
B
C
J
N
I
O
D
E
F
H
G
K
L
M
Not Provided
Not
Provided
P
9
Assembly
1 Attach the Rail to the Garage Door Opener
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
l ALWAYS keep hand clear of sprocket while operating opener.
l Securely attach sprocket cover BEFORE operating.
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners
mounted in the top of the opener.
NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door
opener on the packing material to prevent scratching.
1. Remove the two bolts from the top of the garage door opener.
2. Align the rail and the styrofoam over the sprocket. Cut the tape from the rail,
chain, and styrofoam.
3. Fasten the rail with the previously removed bolts.
4. Position the chain around the garage door opener sprocket.
5. Install the sprocket cover by squeezing the sides and inserting the tabs into the
slots on the garage door opener.
Washered Bolt 5/16"-18 x 1/2"
(Mounted in the garage door opener)
2 Tighten the Chain
1. Loosen the inner nut and lock washer on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2 inch above the base of the rail at the
midpoint of the rail.
3. Re-tighten the inner nut.
Slack in the chain is normal when the door is closed. No readjustment is necessary.
Sprocket noise can result if the chain is too loose. During future maintenance, ALWAYS
pull the emergency release handle to disconnect the trolley before adjusting the chain.
1/2" (13 mm)
10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and lubricated garage
door. An improperly balanced door may NOT reverse when required and could
result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by
a trained door systems technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE
installing opener to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above
the floor and avoiding contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing
opener. They could be caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
l within sight of the garage door.
l out of reach of small children at a minimum height of 5feet (1.5m)
above floors, landings, steps or any other adjacent walking surface.
l away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control.
11. Place manual release/safety reverse test label in plain view on inside of garage
door.
12. Upon completion of installation, test safety reversal system. Door MUST
reverse on contact with a 1-1/2" (3.8cm) high object (or a 2x4 laid flat) on the
floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution,
disconnect ALL electric power BEFORE performing ANY service or
maintenance.
14. DO NOT install on a one-piece door if using devices or features providing
unattended close. Unattended devices and features are to be used ONLY with
sectional doors.
NOTE: If you are installing the garage door opener on a one-piece door, visit LiftMaster.com for installation instructions.
11
Installation
1 Determine the Header Bracket Location
To prevent possible SERIOUS INJURY or DEATH:
l Header bracket MUST be RIGIDLY fastened to structural support on header
wall or ceiling, otherwise garage door might NOT reverse when required. DO
NOT install header bracket over drywall.
l Concrete anchors MUST be used if mounting header bracket or 2x4 into
masonry.
l NEVER try to loosen, move or adjust garage door, springs, cables, pulleys,
brackets, or their hardware, ALL of which are under EXTREME tension.
l ALWAYS call a trained door systems technician if garage door binds, sticks, or
is out of balance. An unbalanced garage door might NOT reverse when
required.
l DO NOT enable the Timer-to-Close functionality if operating either one-piece or
swinging garage doors. To be enabled ONLY when operating a sectional door.
NOTE: If you are installing the garage door opener on a one-piece door, visit
LiftMaster.com for installation instructions.
Close the door and mark the inside vertical centerline of the garage door.
Extend the line onto the header wall above the door. You can fasten the header bracket
within 4 feet (1.22 m) of the left or right of the door center only if a torsion spring or
center bearing plate is in the way; or you can attach it to the ceiling when clearance is
minimal. (It may be mounted on the wall upside down if necessary, to gain approximately
1/2" (1 cm). If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag
screws (not provided) to securely fasten the 2x4 to structural supports.
Open your door to the highest point of travel as shown. Draw an intersecting horizontal
line on the header wall 2" (5 cm) above the high point. This height will provide travel
clearance for the top edge of the door.
NOTE: If the total number of inches exceeds the height available in your garage, use the
maximum height possible, or refer to page 12 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
12
Installation
2 Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the
ceiling. Follow the instructions which will work best for your particular requirements. Do
not install the header bracket over drywall. If installing into masonry, use concrete
anchors (not provided).
HARDWARE
Lag Screw 5/16"-9 x 1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracket
on the horizontal line as shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes (do not use the holes designated for ceiling
mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural
support with lag screws.
Wall Mount
Optional
Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
Lag Screw
5/16"-9 x 1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15cm) from the wall.
Make sure the arrow is pointing toward the wall. The bracket can be mounted
flush against the ceiling when clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a
structural support with the hardware provided.
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9 x 1-5/8"
13
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insert the clevis pin through the holes in
the header bracket and rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
HARDWARE
Clevis Pin 5/16" x 2-3/4" Ring Fastener
Ring
Fastener
Clevis Pin
5/16
" X 2-3/4"
4 Position the Garage Door Opener
To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top
section of door.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not
tall enough you will need help at this point. If the door hits the trolley when it is raised,
pull the trolley release arm down to disconnect the inner and outer trolley. Slide the outer
trolley toward the garage door opener. The trolley can remain disconnected until
instructed.
Connected Disconnected
14
Installation

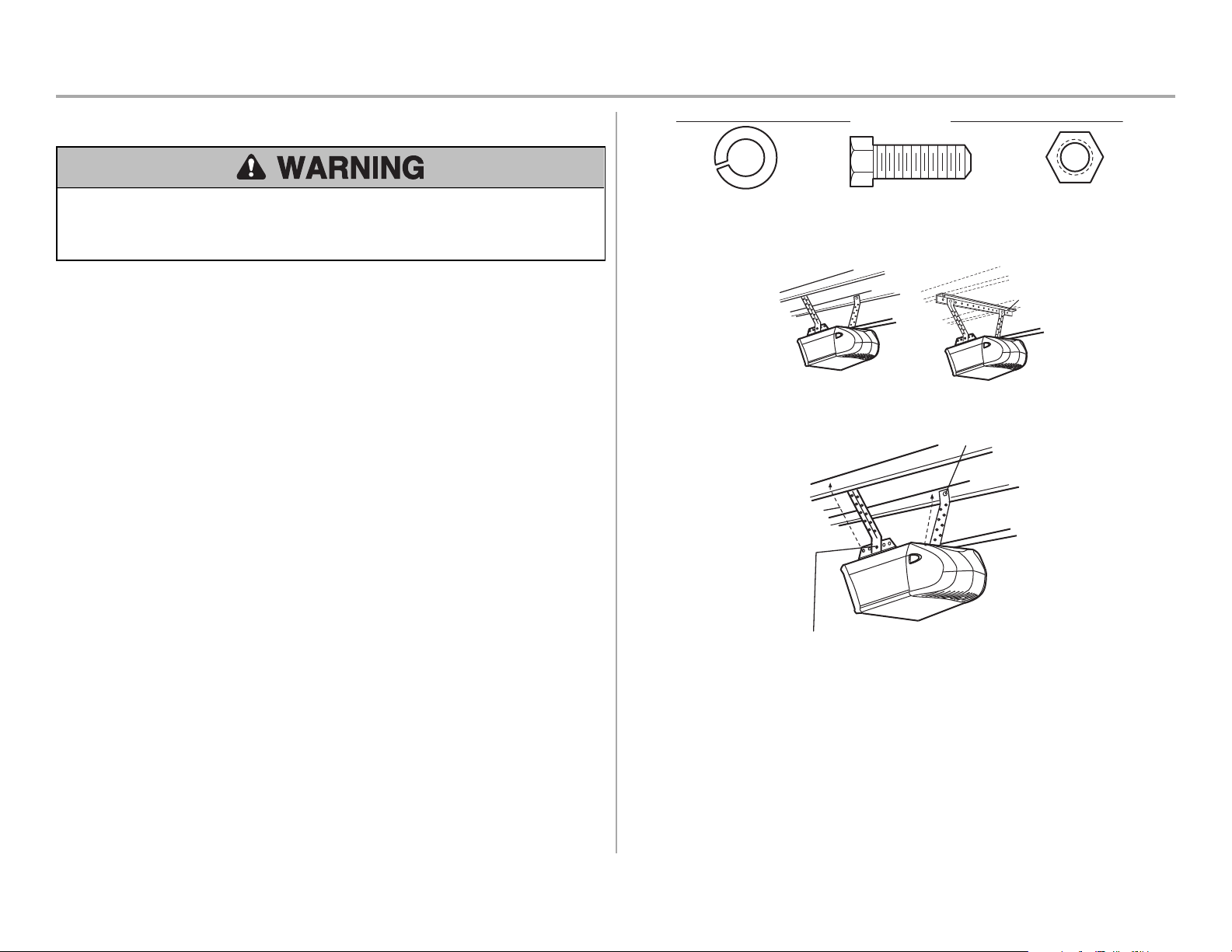

5 Hang the Garage Door Opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it
SECURELY to structural supports of the garage. Concrete anchors MUST be used if
installing ANY brackets into masonry.
Hanging your garage door opener will vary depending on your garage. Two
representative installations are shown. Yours may be different. Hanging brackets should
be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2), attach a
sturdy metal bracket to structural supports before installing the opener. This bracket and
fastening hardware are not provided.
1. Measure the distance from each side of the motor unit to the structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with 5/16"-18 x 1-7/8" lag screws
(not provided).
5. Fasten the opener to the hanging brackets with 5/16"-18 x 7/8" hex bolts, lock
washers and nuts.
6. Check to make sure the rail is centered over the door (or in line with the header
bracket if the bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the
header bracket.
NOTE: DO NOT connect power to opener at this time.
FIGURE 1
FIGURE 2
(Not Provided)
Lag Screws
5/16"- 18x1-7/8"
Measure
Distance
Hex Bolt 5/16"- 18x7/8", Lock Washer 5/16", Nut 5/16"-18
FIGURE 3
Not Provided
Finished Ceiling
Unfinished Ceiling
Hex Bolt 5/16"- 18x7/8" Nut 5/16"-18 Lock Washer 5/16"
HARDWARE
15
Installation
6 Install the Light Bulbs
To prevent possible OVERHEATING of the endpanel or light socket:
l DO NOT use short neck or specialty light bulbs.
l DO NOT use halogen bulbs. Use ONLY incandescent.
To prevent damage to the opener:
l DO NOT use bulbs larger than 100W.
l ONLY use A19 size bulbs.
1. Press the release tabs on both sides of lens. Gently rotate lens back and
downward until the lens hinge is in the fully open position. Do not remove the
lens.
2. Install a 100 watt maximum light bulb in each socket. Light bulb size should be
A19, standard neck only. The lights will turn ON and remain lit for approximately
4-1/2 minutes when power is connected. Then the lights will turn OFF.
3. Reverse the procedure to close the lens.
NOTE: If the bulbs burn out prematurely due to vibration, replace with A19, standard
neck garage door opener bulbs. The use of short neck or specialty light bulbs may
overheat the endpanel or light socket.
100 Watt (Max)
Standard Light Bulb
Release Tab
Lens Hinge
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when
garage door is CLOSED. Weak or broken springs or unbalanced door could
result in an open door falling rapidly and/or unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of
persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied,
you could fall.
1. Insert one end of the emergency release rope through the handle. Make sure that
“NOTICE” is right side up. Secure with an overhand knot at least 1" (2.5 cm) from
the end of the rope to prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley
release arm. Mount the emergency release within reach, but at least 6 feet (1.83
m) above floor, avoiding contact with vehicles to prevent accidental release and
secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match
or lighter to prevent unraveling. Ensure the emergency release rope and handle are above
the top of all vehicles to avoid entanglement.
Trolley
Release Arm
16
Installation
8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement
BEFORE installation of door bracket. Contact the garage door manufacturer or
installing dealer for opener reinforcement instructions or reinforcement kit. Failure to
reinforce the top section as required according to the door manufacturer may void the
door warranty.
A horizontal and vertical reinforcement is needed
for lightweight garage doors (fiberglass,
aluminum, steel, doors with glass panel, etc.) (not
provided). A horizontal reinforcement brace
should be long enough to be secured to two or
three vertical supports. A vertical reinforcement
brace should cover the height of the top panel.
Contact the garage door manufacturer or
installing dealer for opener reinforcement
instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and
door arm. In this case you will not need the door bracket; proceed to the next step.
SECTIONALDOORS
1. Center the door bracket on the previously marked vertical centerline used for the
header bracket installation. Note correct UP placement, as stamped inside the
bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the
door, OR directly below any structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door
panel support and the door bracket:
l Drill 3/16" fastening holes. Secure the door bracket using the two self threading
screws. (Figure1)
l Alternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided).
(Figure2)
Metal, insulated or light weight factory reinforced doors:
l Drill 3/16" fastening holes. Secure the door bracket using the self-threading
screws. (Figure3)
Wood Doors:
l Use top and bottom or side to side door bracket holes. Drill 5/16” holes through
the door and secure bracket with 5/16"-18 x 2" carriage bolts, lock washers and
nuts (not provided). (Figure4)
NOTE: The 1/4"-14 x 5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
Self-Threading Screw
1/4"-14 x 5/8"
Self-Threading
Screw
1/4"-14 x 5/8"
Vertical Centerline
of Garage Door
UP
FIGURE 4
Vertical
Centerline of
Garage Door
Bolt 5/16"-18 x 2"
(Not provided)
UP
Inside Edge of Door or
Reinforcement Board
FIGURE 2
Vertical Reinforcement
Bolt 5/16"-18 x 2"
(Not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage Door
Self-Threading Screw
1/4
"-14 x 5/8"
HARDWARE
17
Installation
9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door
arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle.
Slide the outer trolley back (away from the door) about 2" (5 cm).
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with
the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Attach with
the ring fastener.
4. Align the straight door arm with the curved door arm. Select two aligned holes (as
far apart as possible) and attach using the bolts, nuts and lock washers.
NOTE: If the holes do not line up, reverse the straight door arm. Select two aligned holes
(as far apart as possible) and attach using the bolts, nuts and lock washers.
5. Pull the emergency release handle toward the garage door opener until the trolley
release arm is horizontal. The trolley will re-engage automatically when the garage
door opener is activated.
Straight
Door Arm
Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm
Curved
Door
Arm
INCORRECT
Clevis Pin 5/16" x 1-1/4"
Ring Fastener
Clevis Pin
5/16" x 1"
Nut 5/16"-18
Lock
Washer
5/16"
Hex Bolt
5/16"-18 x 7/8"
HARDWARE
Hex Bolt 5/16"-18 x 7/8"
Nut 5/16"-18
Lock Washer 5/16"
Clevis Pin 5/16" x 1"
Clevis Pin 5/16" x 1-1/4"
Ring Fastener
18
Install the Door Control
1 Install the Door Control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
l Be sure power is NOT connected BEFORE installing door control.
l Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
l Install door control within sight of garage door, out of reach of small children
at a minimum height of 5feet (1.5m) above floors, landings, steps or any
other adjacent walking surface, and away from ALL moving parts of door.
l NEVER permit children to operate or play with door control push buttons or
remote control transmitters.
l Activate door ONLY when it can be seen clearly, is properly adjusted, and
there are no obstructions to door travel.
l ALWAYS keep garage door in sight until completely closed. NEVER permit
anyone to cross path of closing garage door.
INTRODUCTION
Compatible with MyQ
®
and Security+ 2.0
®
accessories, see page 41. Your garage door
opener is compatible with up to 2 Smart Control Panels or 4 of any other Security+ 2.0
®
door controls. NOTE:Older LiftMaster door controls and third party products are not
compatible.
Install door control within sight of garage door, out of reach of small children at a
minimum height of 5feet (1.5m) above floors, landings, steps or any other adjacent
walking surface, and away from ALL moving parts of door. For gang box installations it is
not necessary to drill holes or install the drywall anchors. Use the existing holes in the
gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw 6ABx1" (2)
1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The
wires can be connected to either screw.
3. Mount the door control with the hardware provided.
1/4" (6 mm)
1
2 3
19
Install the Door Control

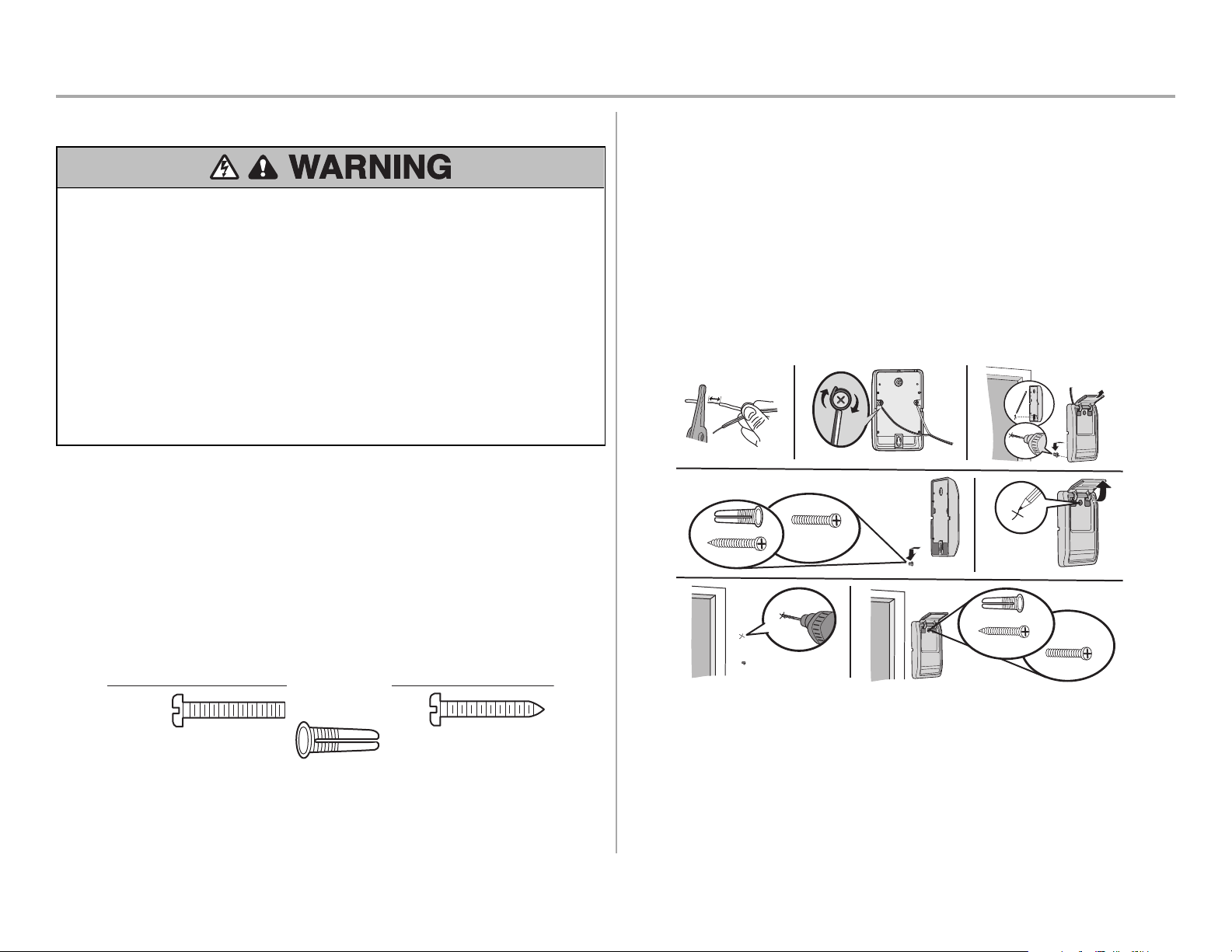

1 Install the Door Control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
l Be sure power is NOT connected BEFORE installing door control.
l Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
l Install door control within sight of garage door, out of reach of small children
at a minimum height of 5feet (1.5m) above floors, landings, steps or any
other adjacent walking surface, and away from ALL moving parts of door.
l NEVER permit children to operate or play with door control push buttons or
remote control transmitters.
l Activate door ONLY when it can be seen clearly, is properly adjusted, and
there are no obstructions to door travel.
l ALWAYS keep garage door in sight until completely closed. NEVER permit
anyone to cross path of closing garage door.
INTRODUCTION
Compatible with MyQ
®
and Security+ 2.0
®
accessories, see page 41. Your garage door
opener is compatible with up to 2 Smart Control Panels or 4 of any other Security+ 2.0
®
door controls. NOTE:Older LiftMaster door controls and third party products are not
compatible.
Install door control within sight of garage door, out of reach of small children at a
minimum height of 5feet (1.5m) above floors, landings, steps or any other adjacent
walking surface, and away from ALL moving parts of door. For gang box installations it is
not necessary to drill holes or install the drywall anchors. Use the existing holes in the
gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6AB x 1" (2)
Drywall
Anchors (2)
Screw
6-32 x 1" (2)
1. Strip 7/16" (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The
wires can be connected to either screw.
PRE-WIREDINSTALLATIONS:Choose any two wires to connect, note which
wires are used so the correct wires are connected at the garage door opener in a
later step.
3. Mark the location of the bottom mounting hole and drill a 5/32" hole.
4. Install the bottom screw, allowing 1/8" (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into
place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32" hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into
place. Attach the top screw.
7/16" (11 mm)
Wall
1
2 3
DRYWALL
GANG BOX
6AB x 1"
6-32 x 1"
Drywall Anchor
4-5
6
6-32 x 1"
GANG BOX
8
DRYWALL
6AB x 1"
Drywall Anchor
7
20
Install the Door Control
2 Wire the door control to the garage door opener
HARDWARE
Insulated Staple
(Not Shown)
PRE-WIRED INSTALLATIONS: When wiring the door control to the garage door opener
make sure you use the same wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the garage door
opener. Attach the wire to the wall and ceiling with the staples (not applicable for
gang box or pre-wired installations). Do not pierce the wire with the staple as this
may cause a short or an open circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end of the wire near the garage
door opener.
3. Connect the wire to the red and white terminals on the garage door opener. To
insert or release wires from the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED
WHITE
WHITE
GREY
3 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks
or staples.
2. Attach the manual release/safety reverse test label in a visible location on the
inside of the garage door.
21
Install the Protector System
®
Introduction
Be sure power is NOT connected to the garage door opener BEFORE installing the
safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
l Correctly connect and align the safety reversing sensor. This required safety
device MUST NOT be disabled.
l Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm)
above garage floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the
garage door opener will move in the down direction.
The sending sensor (with an amber LED) transmits an invisible light beam to the
receiving sensor (with a green LED). If an obstruction breaks the light beam while the
door is closing, the door will stop and reverse to the full open position, and the garage
door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door
is fully closed. The sleep mode shuts the garage door opener down until activated. The
sleep mode is sequenced with the garage door opener light bulb; as the light bulb turns
off the sensor LEDs will turn off and whenever the garage door opener lights turn on the
sensor LEDs will light. The garage door opener will not go into the sleep mode until the
garage door opener has completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
l Sensors are installed inside the garage, one on either side of the door.
l Sensors are facing each other with the lenses aligned and the receiving sensor
lens does not receive direct sunlight.
l Sensors are no more than 6 inches (15 cm) above the floor and the light beam is
unobstructed.

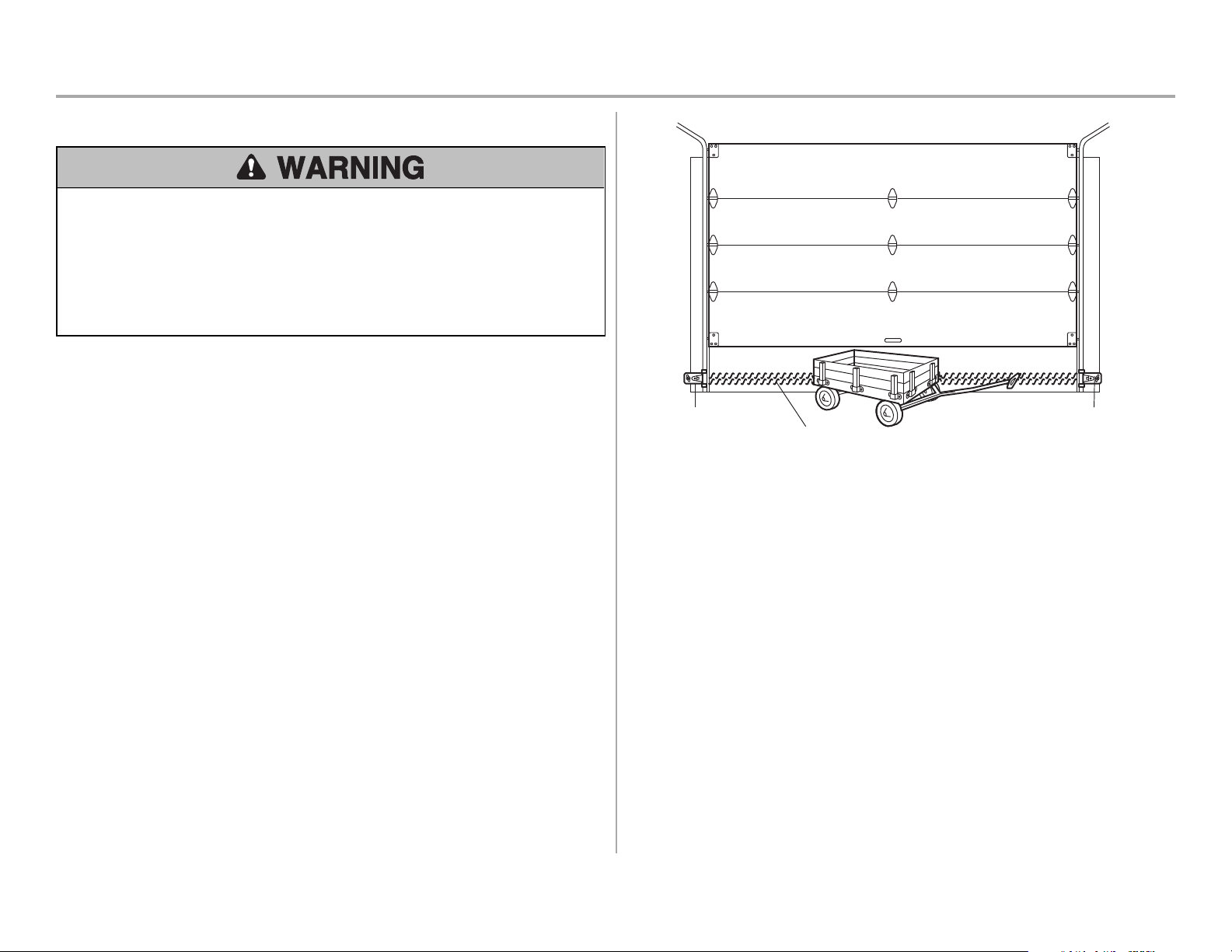

Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor
22
Install the Protector System
®
1 Install the Safety Reversing Sensors
HARDWARE
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
The safety reversing sensors can be attached to the door track, the wall, or the floor. If
the door track will not support the sensor bracket a wall installation is recommended.
Choose one of the following installations.
OPTION A DOOR TRACK INSTALLATION
1. Slide the curved arms of the sensor bracket around the edge of the door track.
Snap into place so that the sensor bracket is flush against the track.
2. Slide the carriage bolt into the slot on each sensor.
3. Insert the bolt through the hole in the sensor bracket and attach with the wing
nut. The lenses on both sensors should point toward each other. Make sure the
lens is not obstructed by the sensor bracket.
No more
than 6 inches
(15 cm)
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
1
2
3
OPTION B WALLINSTALLATION
If additional clearance is needed an extension bracket (not provided) or wood blocks can
be used. Make sure each bracket has the same amount of clearance so they will align
correctly.
1. Position the sensor bracket against the wall with the curved arms facing the door.
Make sure there is enough clearance for the beam to be unobstructed. Mark
holes.
2. Drill 3/16 inch pilot holes for each sensor bracket and attach the sensor brackets
to the wall using lag screws (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing
nut. The lenses on both sensors should point toward each other. Make sure the
lens is not obstructed by the sensor bracket.
(Not provided)
No more than
6 inches (15 cm)
1
2
Inside
G
arage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
3
4
23
Install the Protector System
®
OPTION C FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if
needed.
1. Carefully measure the position of both sensor brackets so they will be the same
distance from the wall and unobstructed.
2. Attach the sensor brackets to the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing
nut. The lenses on both sensors should point toward each other. Make sure the
lens is not obstructed by the sensor bracket.
I
nsid
e
Garage
Wal
l
(Not provided)
1 2
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
3
4
2 Wire the Safety Reversing Sensors
PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety
reversing sensors, see page 24.
HARDWARE
Insulated Staple
(Not Shown)
OPTION A INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensors to the garage door opener. Attach the wire to the
wall and ceiling with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate the wires.
Twist the white wires together. Twist the white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener. Insert
the white/black wires into the grey terminal on the garage door opener. To insert
or remove the wires from the terminal, push in the tab with a screwdriver tip.
1
2
3
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
24
Install the Protector System
®
OPTION B PRE-WIRED INSTALLATION
1. Cut the end of the safety reversing sensor wire, making sure there is enough wire
to reach the pre-installed wires from the wall.
2. Separate the safety reversing sensor wires and strip 7/16 inch (11 mm) of
insulation from each end. Choose two of the pre-installed wires and strip 7/16
inch (11 mm) of insulation from each end. Make sure that you choose the same
color pre-installed wires for each sensor.
3. Connect the pre-installed wires to the sensor wires with wire nuts making sure
the colors correspond for each sensor. For example, the white wire would
connect to the yellow wire and the white/black wire would connect to the purple
wire.
4. At the garage door opener, strip 7/16 inch (11 mm) of insulation from each end
of the wires previously chosen for the safety reversing sensors. Twist the like-
colored wires together.
5. Insert the wires connected to the white safety sensor wires to the white terminal
on the garage door opener. Insert the wires that are connected to the white/black
safety sensor wires to the grey terminal on the garage door opener.
Safety reversing
sensor wires
Pre-installed
wires
White
White/Black
Yellow (for example)
Purple (for example)
Not Provided
Pre-installed wires
Safety reversing
sensor wires
7/16"
(11 mm)
Yellow
Purple
1
3
4
7/16"
(11 mm)
2
Yellow
(for example)
Purple
(for example)
To insert or remove the wires from
the terminal, push in the tab with a
screwdriver tip.
5
RED
WHITE
WHITE
GREY
D
RED
W
RE
WHITE
WHITE
GREY
GREY
25
Power
1 Connect Power
To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:
l Be sure power is NOT connected to the opener, and disconnect power to
circuit BEFORE removing cover to establish permanent wiring connection.
l Garage door installation and wiring MUST be in compliance with ALL local
electrical and building codes.
l NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to
make it fit outlet. Be sure the opener is grounded.
To avoid installation difficulties, do not activate the garage door opener at this
time.
To reduce the risk of electric shock, your garage door opener has a grounding type plug
with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug
doesn’t fit into your outlet, contact a qualified electrician to install the proper outlet.
THERE ARE TWO OPTIONS FOR CONNECTINGPOWER:
OPTION A TYPICAL WIRING
1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.
TYPICAL WIRING
OPTION B PERMANENT WIRING
If permanent wiring is required by your local code, refer to the following
procedure. To make a permanent connection through the 7/8 inch hole in the top
of the motor unit (according to local code):
1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white
(neutral) wire to the screw on the silver terminal; and the ground wire to the green
ground screw. The opener must be grounded.
4. Reinstall the cover.
Ground Tab
Green
Ground
Screw
Ground
Wire
White Wire
PERMANENT WIRING
Black
Wire
Black
Wire
26
Power

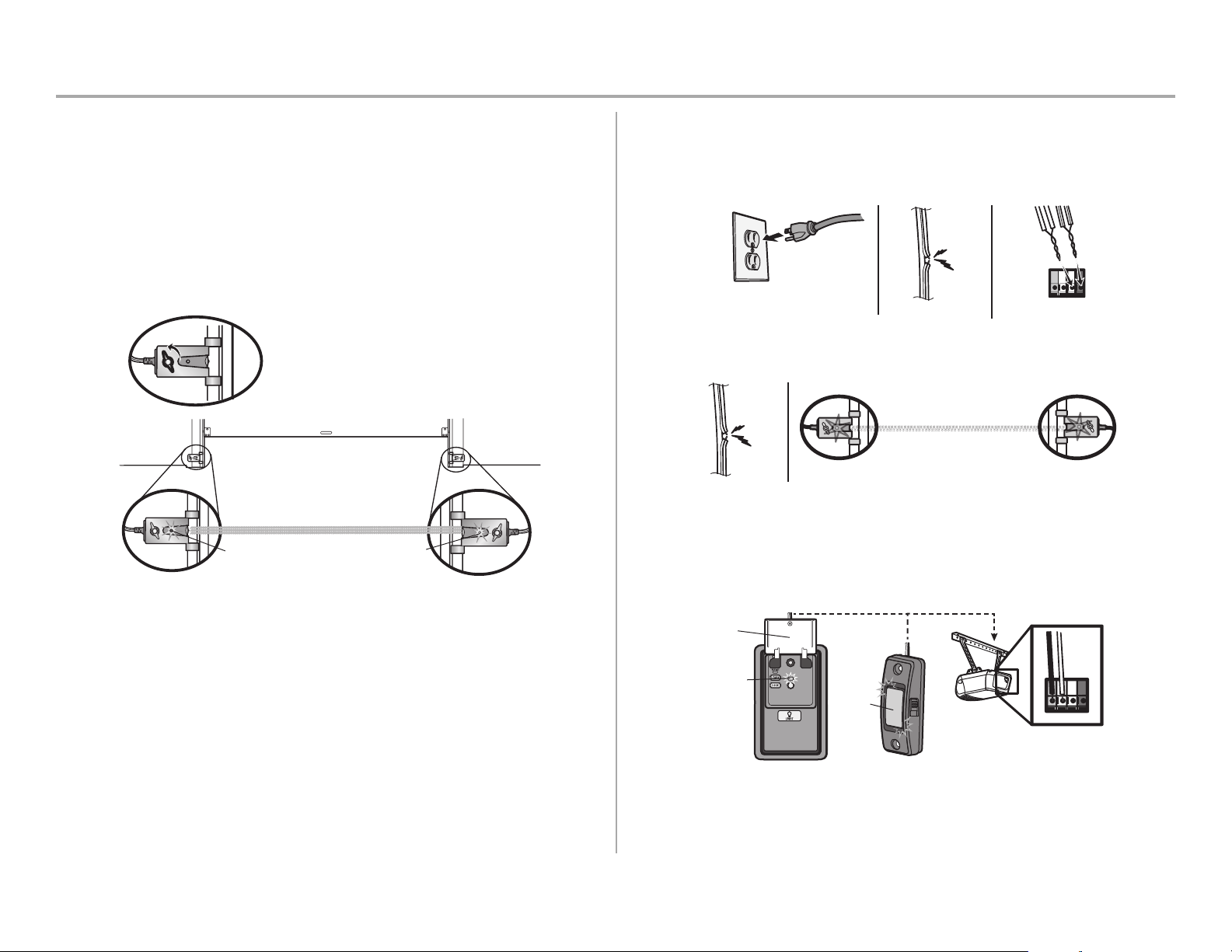

2 Ensure the Safety Reversing Sensors are Aligned
The door will not close if the sensors have not been installed and aligned
correctly.
When the light beam is obstructed or misaligned while the door is closing, the door will
reverse and the garage door opener lights will flash ten times. If the door is already open,
it will not close. The sensors can be aligned by loosening the wing nuts, aligning the
sensors, and tightening the wing nuts.
1. Check to make sure the LEDs in both sensors are glowing steadily. The LEDs in
both sensors will glow steadily if they are aligned and wired correctly.
Green LED
Amber LED
If the receiving sensor is in direct sunlight,
switch it with sending sensor so it is on the
opposite side of the door.
(invisible light beam)
SENDING SENSOR RECEIVING SENSOR
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor has been wired correctly: White wires to white terminal and
white/black wires to gray terminal.
RED
WHITE
WHITE
GREY
3
2
1
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the senors are aligned.
1
2
3 Ensure the Door Control is Wired Correctly
If the door control has been installed and wired correctly, the command LED behind the
push bar will blink (882LMW) or the LED behind the push button will blink (883LM).
COMMAND
LED
Push bar
882LMW 883LM
Push
Button
RED
WHITE
WHITE
GREY
27
Adjustments
Introduction
Without a properly installed safety reversal system, persons (particularly small
children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper
operation of safety reversal system.
l After ANY adjustments are made, the safety reversal system MUST be tested.
Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid
flat) on floor.
To prevent damage to vehicles, be sure fully open door provides adequate clearance.
Your garage door opener is designed with electronic controls to make setup and
adjustments easy. The adjustments allow you to program where the door will stop in the
open (UP) and close (DOWN) position. The electronic controls sense the amount of force
required to open and close the door. The force is adjusted automatically when you
program the travel.
NOTE: If anything interferes with the door’s upward travel it will stop. If anything
interferes with the door’s downward travel, it will reverse.
UP (Open)
DOWN (Close)
PROGRAMMING BUTTONS
The programming buttons are located on the left side panel of the garage door opener
and are used to program the travel. While programming, the UP and DOWN buttons can
be used to move the door as needed.
PROGRAMMING BUTTONS
UP Button
Adjustment Button
DOWN Button
To watch a video, go to youtu.be/Fyl1-SxQxnE
28
Adjustments
1 Program the Travel
Without a properly installed safety reversal system, persons (particularly small
children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper
operation of safety reversal system.
l After ANY adjustments are made, the safety reversal system MUST be tested.
Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid
flat) on floor.
While programming, the UP and DOWN buttons can be used to move the door as
needed.
1. Press and hold the Adjustment Button until the UP Button begins to flash and/or
a beep is heard.
2. Press and hold the UP Button until the door is in the desired UP position.
3. Once the door is in the desired UP position press and release the Adjustment
Button. The garage door opener lights will flash twice and the DOWN Button will
begin to flash.
4. Press and hold the DOWN button until the door is in the desired DOWN position.
5. Once the door is in the desired DOWN position press and release the Adjustment
Button. The garage door opener lights will flash twice and the UP Button will
begin to flash.
6. Press and release the UP Button. When the door travels to the programmed UP
position, the DOWN Button will begin to flash.
7. Press and release the DOWN Button. The door will travel to the programmed
DOWN position. Programming is complete.
If the garage door opener lights are flashing 5 times during the steps for Program the
Travel, the programming has timed out. If the garage door opener lights are flashing 10
times during the steps for Program the Travel, the safety reversing sensors are
misaligned or obstructed (refer to page 26). When the sensors are aligned and
unobstructed, cycle the door through a complete up and down cycle using the remote
control or the UP and DOWN buttons. Programming is complete. If you are unable to
operate the door up and down, repeat the steps for Programming the Travel.
PROGRAMMING BUTTONS
UP Button
Adjustment Button
DOWN Button
1 2
3
4 5
6
7
29
Adjustments
2 Test the Safety Reversal System
Without a properly installed safety reversal system, persons (particularly small
children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
l Safety reversal system MUST be tested every month.
l After ANY adjustments are made, the safety reversal system MUST be tested.
Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid
flat) on the floor.
1. With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on
the floor, centered under the garage door.
2. Press the remote control push button to close the door. The door MUST reverse
when it makes contact with the board.
If the door stops and does not reverse on the obstruction, increase the down travel (refer
to Adjustment Step 1). Repeat the test. When the door reverses upon contact with the
1-1/2 inch board, remove the board and open/close the door 3 or 4 times to test the
adjustment. If the garage door opener continues to fail the safety reversal test, call a
trained door systems technician.
1 2
3 Test the Protector System
®
Without a properly installed safety reversing sensor, persons (particularly small
children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
1. Open the door. Place the garage door opener carton in the path of the door.
2. Press the remote control push button to close the door. The door will not move
more than an inch (2.5 cm), and the garage door opener lights will flash 10 times.
The garage door opener will not close from a remote control if the LED in either safety
reversing sensor is off (alerting you to the fact that the sensor is misaligned or
obstructed). If the garage door opener closes the door when the safety reversing sensor
is obstructed (and the sensors are no more than 6inches [15 cm] above the floor), call
for a trained door systems technician.
1
2
30
Operation
IMPORTANT SAFETYINSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children
to operate or play with garage door control push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly, it is properly adjusted,
and there are no obstructions to door travel.
4. ALWAYS keep garage door in sight and away from people and objects until
completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible, use emergency release handle to disengage trolley ONLY when
garage door is CLOSED. Use caution when using this release with the door
open. Weak or broken springs or unbalanced door could result in an open
door falling rapidly and/or unexpectedly and increasing the risk of SEVERE
INJURY or DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of
persons and obstructions.
8. NEVER use handle to pull garage door open or closed. If rope knot becomes
untied, you could fall.
9. After ANY adjustments are made, the safety reversal system MUST be tested.
10. Safety reversal system MUST be tested every month. Garage door MUST
reverse on contact with 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the
floor. Failure to adjust the garage door opener properly increases the risk of
SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 3). An
improperly balanced door may NOT reverse when required and could result in
SEVERE INJURY or DEATH.
12. ALL repairs to cables, spring assemblies and other hardware, ALL of which are
under EXTREME tension, MUST be made by a trained door systems technician.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution,
disconnect ALL electric power BEFORE performing ANY service or
maintenance.
14. This operator system is equipped with an unattended operation feature. The
door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE
MOVING DOOR.
15. DO NOT install on a one-piece door if using devices or features providing
unattended close. Unattended devices and features are to be used ONLY with
sectional doors.
16. SAVE THESE INSTRUCTIONS.
31
Operation
Features
Your garage door opener is equipped with features to provide you with greater control
over your garage door operation.
Alert2Close
The Alert2Close feature provides a visual and an audible alert that an unattended door is
closing.
TIMER-TO-CLOSE (TTC)
The TTC feature automatically closes the door after a specified time period that can be
adjusted using a TTC enabled door control (Models 881LMW or 880LMW). Prior to and
during the door closing the garage door opener lights will flash and the garage door
opener will beep.
MyQ
®
MyQ
®
technology uses a 900MHz signal to provide two-way communication between the
garage door opener and MyQ
®
enabled accessories. Your garage door opener is
compatible with up to 16 MyQ
®
accessories.
SECURITY+ 2.0
®
REMOTE CONTROLS AND DOOR CONTROLS
Your garage door opener has already been programmed at the factory to operate with
your remote control, which changes with each use, randomly accessing over 100 billion
new codes. Compatible with MyQ
®
and Security+ 2.0
®
accessories, see page 41.
NOTE: Older LiftMaster remote controls, door controls, and third party products are not
compatible.
Security+2.0
®
Accessories
MEMORY CAPACITY
Remote Controls Up to 12
Door Controls
Model 8160: 1 Smart Control Panel or 2 of any other
Security+2.0
®
door controls
Models 8065/8075/8165: Up to 2 Smart Control Panels or 4 of
any other Security+2.0
®
door controls
Keyless Entries Up to 1
THE PROTECTOR SYSTEM
®
(SAFETY REVERSING SENSORS)
When properly connected and aligned, the safety reversing sensors will detect an
obstruction in the path of the infrared beam. If an obstruction breaks the infrared beam
while the door is closing, the door will stop and reverse to full open position, and the
opener lights will flash 10 times. If the door is fully open, and the safety reversing
sensors are not installed, or are misaligned, the door will not close from a remote control.
However, you can close the door if you hold the button on the door control or keyless
entry until the door is fully closed. The safety reversing sensors do not effect the
opening cycle.
ENERGY CONSERVATION
For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep
mode is sequenced with the garage door opener light bulb; as the light bulb turns off the
sensor LEDs will turn off and whenever the garage door opener lights turn on the sensor
LEDs will light. The garage door opener will not go into the sleep mode until the garage
door opener has completed 5 cycles upon power up.
LIGHTS
The garage door opener light bulbs will turn on when the opener is initially plugged in;
power is restored after interruption, or when the garage door opener is activated. The
lights will turn off automatically after 4-1/2 minutes. Use an incandescent A19 light bulb
(100 watt maximum).
Light Feature
The garage door opener is equipped with an added feature; the lights will turn on when
someone enters through the open garage door and the safety reversing sensor infrared
beam is broken. For added control over the light bulbs on your garage door opener, see
page 34.
USING YOUR GARAGE DOOR OPENER
The garage door opener can be activated through a wall-mounted door control, remote
control, wireless keyless entry or MyQ
®
accessory. When the door is closed and the
garage door opener is activated the door will open. If the door senses an obstruction or
is interrupted while opening the door will stop. When the door is in any position other
than closed and the garage door opener is activated the door will close. If the garage
door opener senses an obstruction while closing, the door will reverse. If the obstruction
interrupts the sensor beam the garage door opener lights will blink 10 times. However,
you can close the door if you hold the button on the door control or keyless entry until
the door is fully closed. The safety reversing sensors do not affect the opening cycle.
The safety reversing sensor must be connected and aligned correctly before the garage
door opener will move in the down direction.
32
Operation
Using the Door Control
SYNCHRONIZE THE DOOR CONTROL
To synchronize the door control to the garage door opener, press the push button until
the garage door opener activates (it may take up to 3 presses). Test the door control by
pressing the push button, each press of the push button will activate the garage door
opener.
Push Button
LIGHT Button
PUSH BUTTON
Press the push button to open or close the door.
LIGHT BUTTON
Press the LIGHT button to turn the garage door opener lights on or off. When the lights
are turned on they will stay on until the LIGHT button is pressed again, or until the
garage door opener is activated. Once the garage door opener is activated the lights will
turn off after the specified period of time (the factory setting is 4-1/2 minutes). The
LIGHT button will not control the lights when the door is in motion.
33
Operation
Using the Door Control
SYNCHRONIZE THE DOOR CONTROL
To synchronize the door control to the garage door opener, press the push bar until
the garage door opener activates (it may take up to 3 presses). Test the door control by
pressing the push bar, each press of the push bar will activate the garage door opener.
Push Bar
LIGHT Button
SERVICE LED
LOCK Button
COMMAND LED
LEARN Button
PUSH BAR
Press the push bar to open or close the door.
LIGHT BUTTON
Press the LIGHT button to turn the garage door opener lights on or off. When the lights
are turned on they will stay on until the LIGHT button is pressed again, or until the
garage door opener is activated. Once the garage door opener is activated the lights will
turn off after the specified period of time (the factory setting is 4-1/2 minutes). The
LIGHT button will not control the lights when the door is in motion.
The following features are accessible by lifting up the push bar:
LEARN A DEVICE
Any compatible remote controls, wireless keyless entry, or MyQ
®
accessories can be
programmed to the garage door opener by pressing the LEARN button on the door
control, see page 36.
LOCK
The LOCK feature is designed to prevent activation of the garage door opener from
remote controls while still allowing activation from the door control and keyless entry.
This feature is useful for added peace of mind when the home is empty (i.e. vacation).
AUTOMATIC LIGHT
Light Feature
The lights will turn on when someone enters through the open garage door and the
safety reversing sensor infrared beam is broken.
MAINTENANCE ALERT (MAS)
This feature assists the homeowner in ensuring the garage door opener system stays in
good working condition. When the garage door opener needs to be serviced
(approximately 4500 garage door opener cycles) the command (yellow) and service (red)
LEDs will begin to alternately flash back and forth. The factory setting for the MAS
feature is off and can be activated at time of installation. Contact your installing dealer
for service.
34
Operation
Control Panel Setup
LOCK
Your remote controls will NOT work when
LOCK mode is active however your keyless
entry will still allow access to your garage.
Activate:
Press and hold the LOCK button for 2
seconds. The command LED will flash as
long as the lock feature is activated and
your handheld remote control will not
operate your door at this time.
Deactivate:
Press and hold the LOCK button again for 2
seconds. The command LED will stop
flashing and normal operation will resume.
LOCK Button
Command LED
LIGHT
To change the amount of time the garage door opener lights will stay on:
Press and hold the LOCK button until the garage door opener lights flash.* The time
interval is indicated by the number of flashes.
Number of times garage door
opener lights flash
Time the garage door opener light stays on
1 1-1/2 Minutes
2 2-1/2 Minutes
3 3-1/2 Minutes
4 4-1/2 Minutes
To cycle through the time intervals repeat the step above.
* Approximately 10 seconds
LIGHT FEATURE (Default is Active)
Deactivate:
Press and hold the LIGHT button until the
garage door opener lights turn on, then off
again.*
Activate:
Start with the garage door opener lights on.
Press and hold the LIGHT button until the
garage door opener lights turn off, then on
again.*
If the command LED is continuously
blinking, the LOCK feature needs to be
deactivated.
LOCK Button
LIGHT Button
Command LED
MAINTENANCE ALERT SYSTEM (MAS):
Activate/Deactivate:
Press and hold the LEARN button. Then
press the LIGHT button. The service LED
will flash the status; Active is 2 flashes and
deactivated is 3 flashes.
LEARN
Button
LIGHT
Button
Service
LED
35
Operation
Remote Control
Your remote control has been programmed at the factory to operate with your
garage door opener.
Older LiftMaster remote controls are NOTcompatible, see page 41 for compatible
accessories. Programming can be done through the door control or the learn button the
garage door opener. To program additional accessories refer to the instructions provided
with the accessory or visit LiftMaster.com. If your vehicle is equipped with a Homelink
®
,
you may require an external adapter depending on the make, model, and year of your
vehicle. Visit www.homelink.com for additional information.
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN
USING THE DOOR CONTROL - MODEL 883LM
1. Press and hold the LIGHT button and the push button until the push button LED
begins to blink.
2.
Remote Control:
Press the button on the remote control that you wish to operate your garage
door.
Keyless Entry:
Enter a 4-digit personal identification number (PIN) of your choice on the keyless
entry keypad. Then press the ENTER button.
The garage door opener lights will flash (or two clicks will be heard) when the code has
been programmed. Repeat the steps above for programming additional remote controls
or keyless entry devices. If programming is unsuccessful, program the remote using the
learn button.
1
OR
PIN
? ? ? ?
4
GHI
5
JKL
7
PRS
8
TUV
9
WXY
0
QZ
*
#
ENTE
R
0
QZ
*
#
ENTER
6
MNO
2
Push Button
LIGHT Button
36
Operation
Remote Control
Your remote control has been programmed at the factory to operate with your
garage door opener.
Older LiftMaster remote controls are NOTcompatible, see page 41 for compatible
accessories. Programming can be done through the door control or the learn button the
garage door opener. To program additional accessories refer to the instructions provided
with the accessory or visit LiftMaster.com. If your vehicle is equipped with a Homelink
®
,
you may require an external adapter depending on the make, model, and year of your
vehicle. Visit www.homelink.com for additional information.
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN
USING THE DOOR CONTROL
1.
Press the LEARN button on the door control twice. The Command LED will blink.
2.
Remote Control:
Press the button on the remote control that you wish to operate your garage
door.
Keyless Entry:
Enter a 4-digit personal identification number (PIN) of your choice on the keyless
entry keypad. Then press the ENTER button.
The garage door opener lights will flash (or two clicks will be heard) and the Command
LED will stop blinking when the code has been programmed. Repeat the steps above for
programming additional remote controls or keyless entry devices. If programming is
unsuccessful, program the remote using the learn button.
1
OR
PIN
? ? ? ?
4
GHI
5
JKL
7
PRS
8
TUV
9
WXY
0
QZ
*
#
ENTER
0
QZ
*
#
ENTER
6
MNO
2
LEARN button
Command LED
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL USING THE LEARN
BUTTON
1. Press and release the LEARN Button on the garage door opener.
2. Press and hold the button on the remote control that you wish to use. Release
the button when the garage door opener lights blink or two clicks are heard.
LEARN LED
LEARN
Button
“click”
“click”
1
2
To Erase the Memory
ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES
1. Press and hold the LEARN button on garage door opener until the learn LED goes
out (approximately 6 seconds). All remote control and keyless entry codes are
now erased. Reprogram any accessory you wish to use.
ERASE ALL DEVICES (Including MyQ
®
enabled accessories)
1. Press and hold the LEARN button on garage door opener until the learn LED goes
out (approximately 6 seconds).
2. Immediately press and hold the LEARN button again until the learn LED goes out.
All codes are now erased. Reprogram any accessory you wish to use.
37
Operation

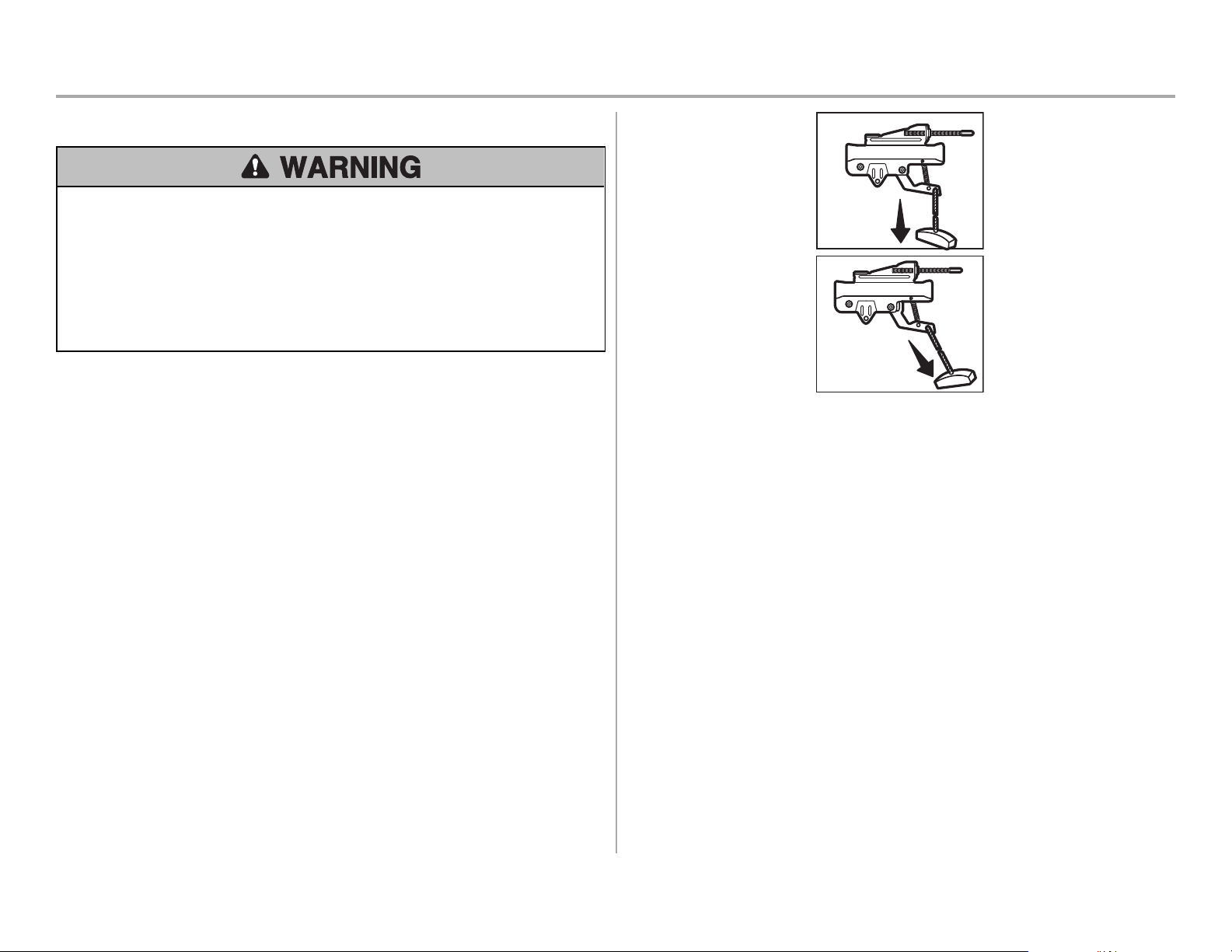

To Open the Door Manually
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when
garage door is CLOSED. Weak or broken springs or unbalanced door could
result in an open door falling rapidly and/or unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of
persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied,
you could fall.
DISCONNECT THE TROLLEY
1. The door should be fully closed if possible.
2. Pull down on the emergency release handle.
RECONNECT THE TROLLEY
The lockout feature prevents the trolley from reconnecting automatically.
1. Pull the emergency release handle down and back (toward the opener). The door
can then be raised and lowered manually as often as necessary.
2. To disengage the lockout feature, pull the handle straight down. The trolley will
reconnect on the next UP or DOWN operation, either manually or by using the
door control or remote control.
NOTICE
NOTICE
38
Maintenance
Maintenance Schedule
EVERY MONTH
l Manually operate door. If it is unbalanced or binding, call a trained door systems
technician.
l Check to be sure door opens and closes fully. Adjust if necessary, see page 28.
l Test the safety reversal system. Adjust if necessary, see page 29.
EVERY YEAR
l Oil door rollers, bearings and hinges. The garage door opener does not require
additional lubrication. Do not grease the door tracks.
EVERY TWO TO THREE YEARS
l Use a rag to wipe away the existing grease from the garage door opener rail.
Reapply a small layer of white lithium grease to the top and underside of the rail
surface where the trolley slides.
The Remote Control Battery
To prevent possible SERIOUS INJURY or DEATH:
l NEVER allow small children near batteries.
l If battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
l Replace ONLY with 3V CR2032 coin batteries.
l DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.
To replace the battery, pry open the
case in the middle, then at each side
with the visor clip. Insert
replacement battery positive side up
(+). Replace the batteries with only
3V CR2032 coin cell batteries.
Dispose of old batteries properly.
891LM 893LM
NOTICE: This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and device.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and Industry
Canada ICES standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
AVIS : Cet appareil est conforme aux dispositions de la partie 15 du règlement de la FCC et de l’exemption de licence IC (Industrie Canada)
RSS. L’utilisation est assujettie aux deux conditions suivantes: (1) ce dispositif ne peut causer d’interférences nuisibles, et (2) ce dispositif
doit accepter toute interférence reçue, y compris toute interférence pouvant causer un fonctionnement non désiré.
Tout changement ou modification non expressément approuvé par la partie responsable de la conformité pourrait annuler l’autorité de
l’utilisateur d’utiliser l’équipement.
Cet appareil doit être installé de manière à laisser une distance d’au moins 20cm (8po) entre celui-ci et l’utilisateur ou toute personne.
Cet appareil a été testé et déclaré conforme aux limites d’un dispositif numérique de Classe B, conformément à la partie15 du règlement de la
FCC et de la norme NMB d’Innovation, Sciences et Développement économique Canada. Ces limites ont pour but de fournir une protection
raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre des
fréquences radio et, s’il n’est pas installé et utilisé conformément aux instructions, peut causer des interférences nuisibles aux
communications radio. Cependant, il n’existe aucune garantie que des interférences ne se produiront pas dans une installation particulière. Si
cet équipement provoque des interférences nuisibles à la réception d’une diffusion sonore ou visuelle, ce qu’on peut déterminer en l’allumant
et en l’éteignant, l’utilisateur est invité à essayer de résoudre ce problème en prenant une ou plusieurs des mesures suivantes:
l Réorienter ou déplacer l’antenne de réception.
l Augmenter la distance entre l’équipement et le récepteur.
l Brancher l’appareil à une prise sur un circuit différent de celui du récepteur.
l Pour obtenir de l’aide, consulter le détaillant ou un radiotechnicien chevronné.
39
Troubleshooting
Diagnostic Chart
Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes.
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow
Flash(es)
Down Arrow
Flash(es)
1 1 The garage door opener will not close
and the light bulbs flash.
Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor
wires for a disconnected or cut wire.
1 2 The garage door opener will not close
and the light bulbs flash.
There is a short or reversed wire for the safety reversing sensors. Inspect safety sensor
wire at all staple and connection points, replace wire or correct as needed.
1 3 The door control will not function. The wires for the door control are shorted or the door control is faulty. Inspect door
control wires at all staple and connection points, replace wire or correct as needed.
1 4 The garage door opener will not close
and the light bulbs flash.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both
sensors to ensure both LEDs are steady and not flickering. Make sure nothing is hanging
or mounted on the door that would interrupt the sensor’s path while closing.
1 5 Door moves 6-8" (15-20 cm) stops or
reverses.
Manually open and close the door. Check for binding or obstructions, such as a broken
spring or door lock, correct as needed. Check wiring connections at travel module and at
the logic board. Replace travel module if necessary.
No movement, only a single click. Manually open and close the door. Check for binding or obstructions, such as a broken
spring or door lock, correct as needed. Replace logic board if necessary.
Opener hums for 1-2 seconds no
movement.
Manually open and close the door. Check for binding or obstructions, such as a broken
spring or door lock, correct as needed. Replace motor if necessary.
1 6 Door coasts after it has come to a
complete stop.
Program travel to coasting position or have door balanced by a trained door systems
technician.
2 1-5 No movement, or sound. Replace logic board.
3 2 Unable to set the travel or retain
position.
Check travel module for proper assembly, replace if necessary.
40
Troubleshooting
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow Flash
(es)
Down Arrow
Flash(es)
4 1-4 Door is moving stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken
spring or door lock, correct as needed. If the door is binding or sticking contact a trained
door systems technician. If door is not binding or sticking attempt to reprogram travel
(refer to page 28).
4 5 Opener runs approximately 6-8" (15-20 cm), stops
and reverses.
Communication error to travel module. Check travel module connections, replace travel
module if necessary.
4 6 The garage door opener will not close and the light
bulbs flash.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both
sensors to ensure both LEDs are steady and not flickering. Make sure nothing is hanging
or mounted on the door that would interrupt the sensor’s path while closing.
The garage door opener can beep for several reasons:
l Garage door opener has been activated through a device or feature such as
Timer-to-Close, garage door monitor or LiftMaster
®
Internet Gateway, see
page31.
My remote control will not activate the garage door:
l Verify the lock feature is not activated on the door control.
l Reprogram the remote control.
l If the remote control will still not activate the door check the diagnostic codes to
ensure the garage door opener is working properly.
My door will not close and the light bulbs blink on my motor unit:
The safety reversing sensor must be connected and aligned correctly before the garage
door opener will move in the down direction.
l Verify the safety reversing sensors are properly installed, aligned and free of any
obstructions.
My garage door opener light(s) will not turn off when the door is open:
The garage door opener is equipped with a feature that turns the light on when the
safety reversing sensors have been obstructed. This feature can be disabled using the
door control, see page 34.
My neighbor’s remote control opens my garage door:
Erase the memory from your garage door opener and reprogram the remote control(s).
My vehicle's Homelink
®
is not programming to my garage door opener:
Depending on the make, model, and year of your vehicle an external adapter may be
required. Visit www.homelink.com for additional information.
41
Accessories
828LM 880LMW829LM
823LM 881LMW
825LM 886LMW
LiftMaster
®
Internet
Gateway:
Internet enabled accessory
which connects to the
computer and allows you to
monitor and control garage
door openers and lighting
accessories enabled by MyQ
®
technology.
Smart Control Panel
®
:
Displays temperature, time
and system diagnostics;
includes a push bar to open
and close the door and a lock
feature for extra security.
Security+ 2.0
®
and Wi-Fi
®
compatible.
Garage and Gate Monitor:
Monitor open/closed status
for up to 4 MyQ
®
compatible
garage door openers or gate
operators and close them
from anywhere in the home.
Remote Light Switch:
Automatically control your
lights using your garage door
opener, a Security+ 2.0
®
remote control or a LiftMaster
®
Internet Gateway. Simply
replaces your current wired
wall switch.
Motion Detecting
Control Panel with
Timer-to-Close Control:
Multi-function door control
with motion sensor that
automatically turns opener
lights on when it detects a
person entering the garage.
Security+ 2.0
®
and Wi-Fi
®
compatible.
Remote Light Control:
Automatically control your
lights using your garage door
opener, a Security+ 2.0
®
remote control or a LiftMaster
®
Internet Gateway. Plugs into
any interior outlet.
Motion Detecting
Control Panel:
Multi-function door control
with motion sensor that
automatically turns opener
lights on when it detects a
person entering the garage.
Security+ 2.0
®
and Wi-Fi
®
compatible.
893MAX 3-Button MAX Remote
Control:
Compatible with LiftMaster
®
garage door openers
manufactured since 1993.
Includes visor clip.
877MAX MAX Wireless Keyless Entry:
For use outside of the home
to enable access to the garage
using a 4-digit PIN. Works
with ALL LiftMaster
®
openers
from 1993-present.
975LM Laser Garage Parking Assist:
Laser enables homeowners to
precisely park vehicles in the
garage.
892LT/
894LT
2 & 4 Button Learning
Remote Controls:
Compatible with LiftMaster
®
garage door openers
manufactured since 1997.
Also compatible with
Encrypted DIP for gate
applications.
374UT Mini Universal Remote
Control:
The Mini Universal Remote
Control can be programmed
to activate up to two
products, such as a garage
door opener, MyQ
®
light
controls, gate operator, or
commercial door operator.
42
Warranty
LIFTMASTER
®
LIMITED WARRANTY
LiftMaster
®
(“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in materials and/or
workmanship for a specific period of time as defined below (the “Warranty Period”). The warranty period commences from the date of purchase.
WARRANTY PERIOD
Parts Motor Accessories
1 year 4 years 1 year
The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly
with those instructions will void this limited warranty in its entirety.
If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. You
will be advised of disassembly and shipping instructions when you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty
repair. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty
repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and
returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option. [You are responsible for any costs incurred in removing and/or
reinstalling the product or any component].
ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED
WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States and Provinces do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE
(INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS
TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL
TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING
TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS
LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL,
INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME
FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.
Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This
limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state and province to province.
43

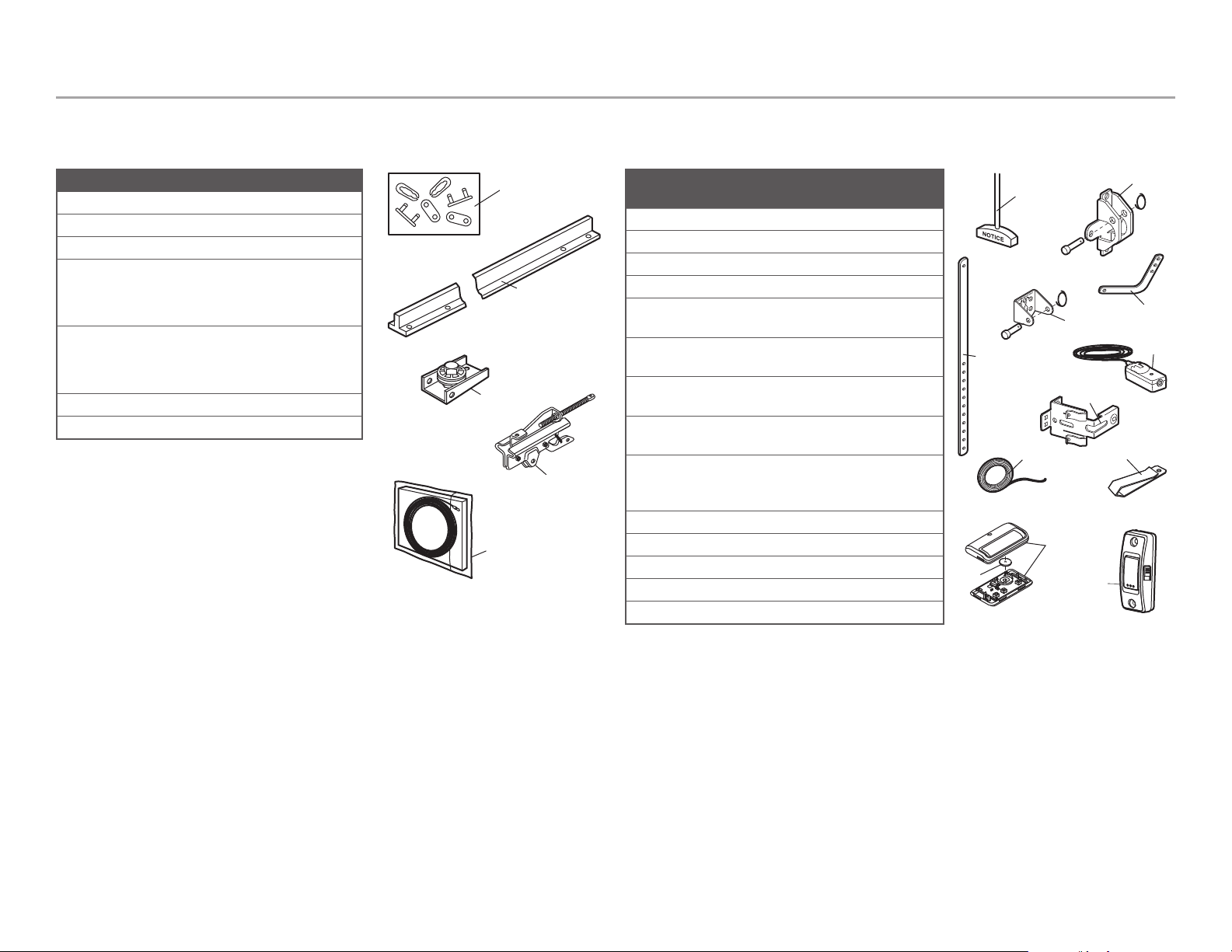

Repair Parts
5
1
4
3
2
Description Part Number
1 Master link kit 4A1008
2 Chain pulley bracket 41A4813
3 Complete trolley assembly 41A3489
4 One-piece rail - 7' (2.1 m) 1707LM
One-piece rail - 8' (2.4 m) 1708LM
One-piece rail - 10' (3 m) 1710LM
5 Full Chain Assembly - 7' (2.1 m) 41D3484
Full Chain Assembly - 8' (2.4 m) 41D3483
Full Chain Assembly - 10' (3 m) 41D3485
Not Shown
Rail Grease 83A11-2
11
5
8
7
4
12
9
10
6
3
2
1
Description Part
Number
1 Push button door control 883LM
2 1-Button remote control 891LM
3 3V CR2032 Lithium battery 10A20
4 Remote control visor clip 29B137
5 Emergency release rope and handle
assembly
41A2828
6 2-Conductor bell wire, white and
white/red
41B4494-1
7 Door bracket with clevis pin and
fastener
41A5047
8 Header bracket with clevis pin and
fastener
41A4353
9 Safety sensor kit (receiving and
sending sensors) with 3' (.9 m)
2-conductor bell wire
41A5034
10 Straight door arm section 178B34
11 Curved door arm section 178B35
12 Safety reversing sensor brackets (2) 41A5266-1
Not Shown
Installation hardware bag 41A2770-6
Rail Assembly Parts
Models 8065 and 8075
Installation Parts
44

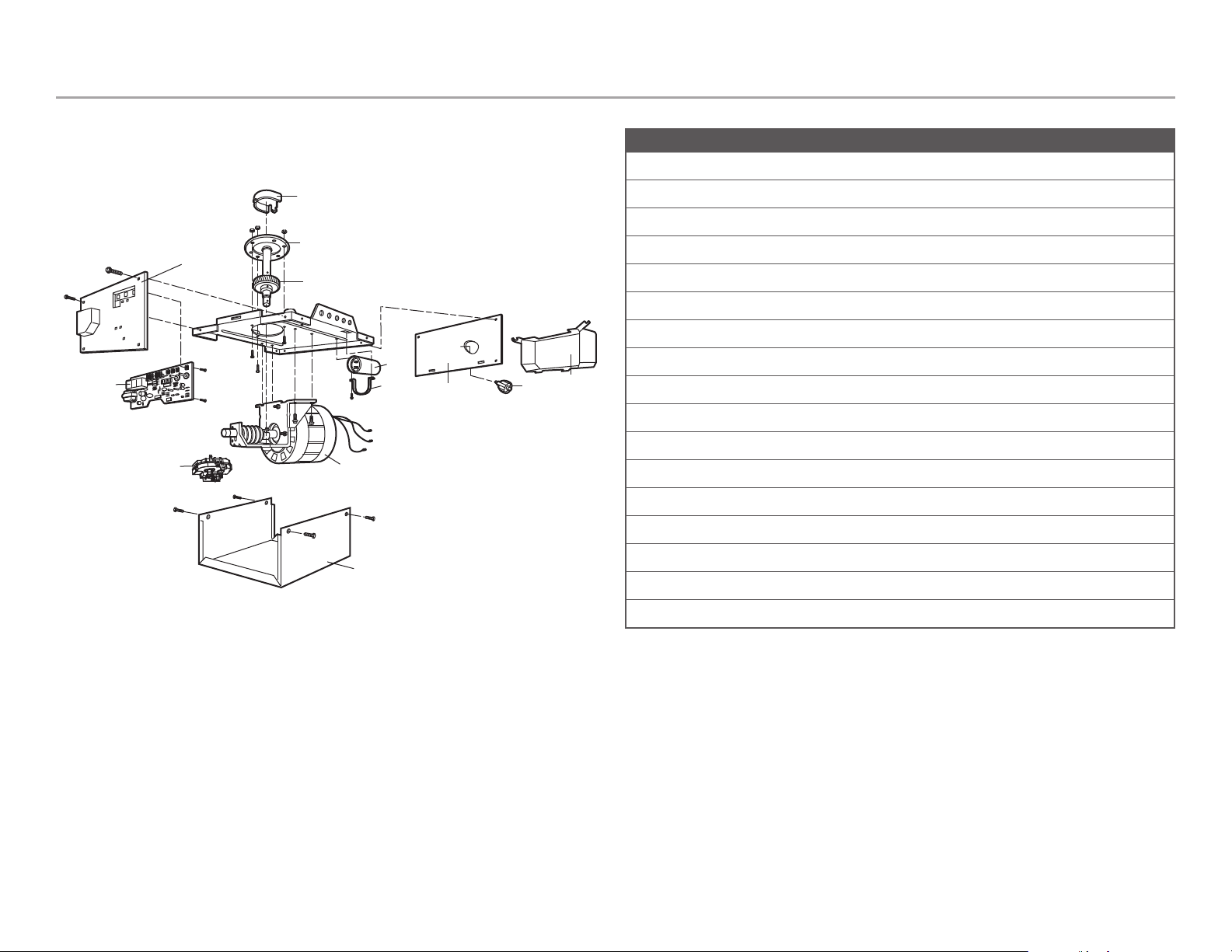

Repair Parts
1
2
3
9
12
13
8
7
6
4
5
11
10
Description Part Number
1 Sprocket cover 31D380
2 Gear and sprocket 41C4220A
3 Drive and Worm Gear 41A2817
4 Front end panel with all labels 143D100
5 Light socket 041C0279
6 Light lens 108D36-2
7 Capacitor 30B532
8 Capacitor bracket 12A373
9 Universal motor 041D7440
10 Travel module 041D7742-7
11 Cover 041D8145
12 Logic board 045ACT
13 Logic board end panel 041D0240
Not Shown
Terminal Block 041A3150
Line Cord 041B4245-1
Wire Harness 041A7946
Garage Door Opener Parts
Model 8065
45
Repair Parts
1
2
3
9
12
13
8
7
6
4
5
11
10
Description Part Number
1 Chain spreader 41A4208-2
2 Gear and sprocket 41C4206
3 Drive and Worm Gear 41A2817
4 Front end panel with all labels 143D100
5 Light socket 041C0279
6 Light lens 108D36-2
7 Capacitor 30B532
8 Capacitor bracket 12A373
9 Universal motor 041D7440
10 Travel module 041D7742-7
11 Cover 041D8145
12 Logic board 045ACT
13 Logic board end panel 041D0240
Not Shown
Terminal Block 041A3150
Line Cord 041B4245-1
Wire Harness 041A7946
Garage Door Opener Parts
Model 8075
46
Repair Parts
Rail Assembly Parts
Models 8160 and 8165
Installation Parts
5
1
4
3
2
Description Part Number
1 Master link kit 4A1008
2 Chain pulley bracket 41A4813
3 Complete trolley assembly 41A3489
4 One-piece rail - 7' (2.1 m) 1707LM
One-piece rail - 8' (2.4 m) 1708LM
One-piece rail - 10' (3 m) 1710LM
5 Full Chain Assembly - 7' (2.1 m) 41D3484
Full Chain Assembly - 8' (2.4 m) 41D3483
Full Chain Assembly - 10' (3 m) 41D3485
Not Shown
Rail Grease 83A11-2
12
6
9
8
5
13
10
11
7
4
2
1
4
3
Description Part
Number
1 Multi-function door control 882LMW
2 1-Button remote control
(Model 8165)
891LM
3 3-Button remote control
(Model 8160)
893LM
4 3V CR2032 Lithium battery 10A20
5 Remote control visor clip 29B137
6 Emergency release rope and handle
assembly
41A2828
7 2-Conductor bell wire, white and
white/red
41B4494-1
8 Door bracket with clevis pin and
fastener
41A5047
9 Header bracket with clevis pin and
fastener
41A4353
10 Safety sensor kit (receiving and
sending sensors) with 3' (.9 m)
2-conductor bell wire
41A5034
11 Straight door arm section 178B34
12 Curved door arm section 178B35
13 Safety reversing sensor brackets (2) 41A5266-1
Not Shown
Installation hardware bag 41A2770-6
47
Repair Parts
1
2
3
8
7
6
4
5
9
Description Part Number
1 Sprocket and sprocket cover 041B5348-2
2 End panel with light socket 041A7756
3 Light lens 041A7562
4 Light socket 041C0279
5 Cover 041D0644-23
6 Motor with travel module 041D1739-1
7 Travel module 041A7114-7
8 Logic board end panel 041D0233-2
9 Receiver logic board 045DCT
Not Shown
Wire Harness 041D8613
Transformer 041A7635-1
Line Cord 041B4245-1
Terminal Block 041A3150
Garage Door Opener Parts
Model 8160

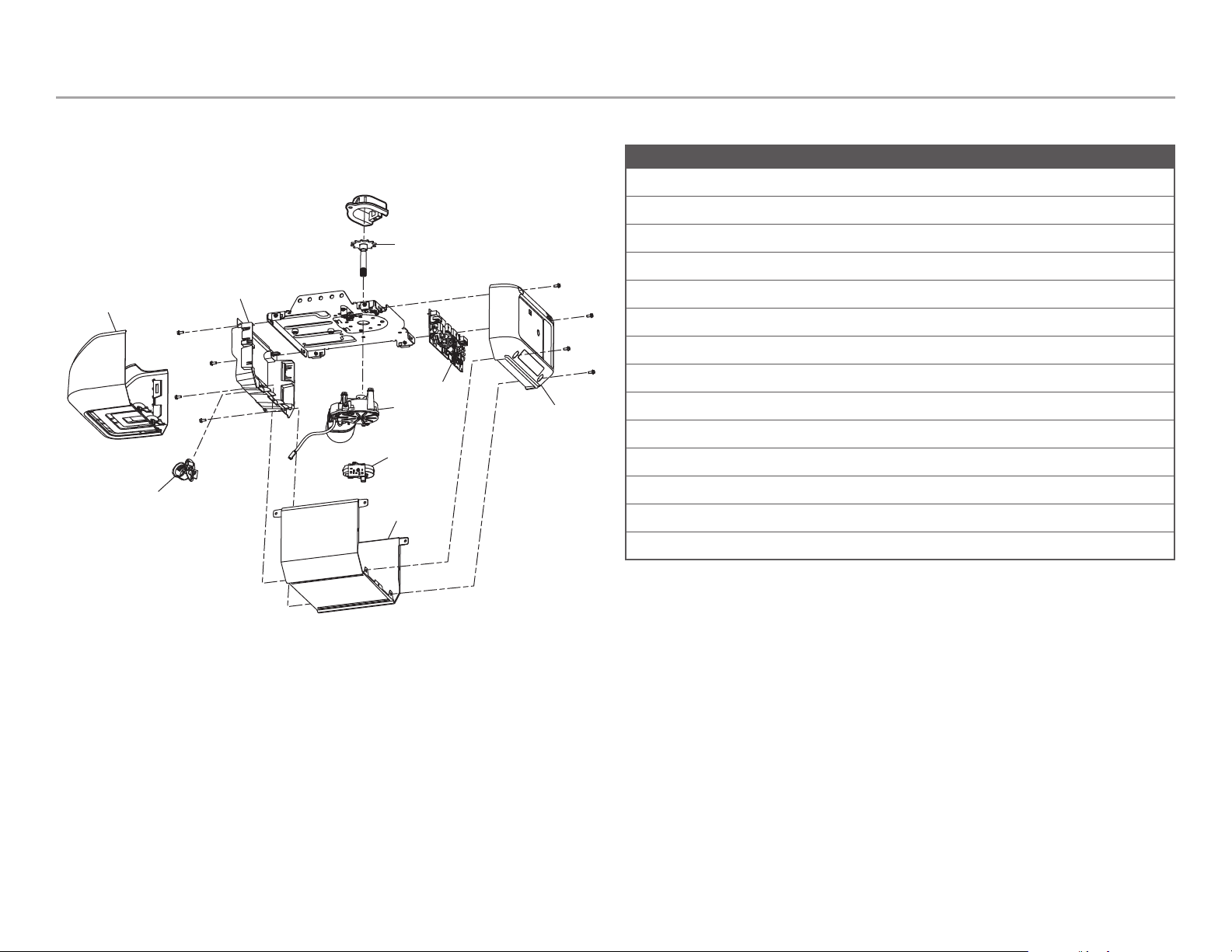

Repair Parts
1
2
3
10
12
13
8
7
6
4
5
11
9
Description Part Number
1 Sprocket cover 31D380
2 Gear and sprocket 41C4220A
3 Drive and Worm Gear 41A2817
4 Front end panel with all labels 41A5484-1
5 Light socket 041C0279
6 Light lens 108D79
7 Capacitor 30B532
8 Capacitor bracket 12A373
9 Universal motor 041D7440
10 Travel module 041D7742-7
11 Cover 041D8140
12 Logic board 045ACT
13 Logic board end panel 041D0239
Not Shown
Line Cord 041B4245-1
Terminal Block 041A3150
Wire Harness 041A7946
Garage Door Opener Parts
Model 8165
Wi-Fi
®
is a registered trademark of Wi-Fi Alliance.
© 2017, LiftMaster
114A4772C All Rights Reserved
Contact Information
Visit us online at:
LiftMaster.com
or
myLiftMaster.com
Or for installation and service information call:
1-800-528-9131
Before calling, please have the model number of the garage door opener. If you are calling
about a troubleshooting issue, it is recommended that you have access to your garage door
opener while calling. If you are ordering a repair part please have the following information:
part number, part name, and model number.
